1. The World Leader in High-Performance Signal Processing Solutions
Clock Fundamentals
Paul Kern
Staff Applications Engineer
January 2012

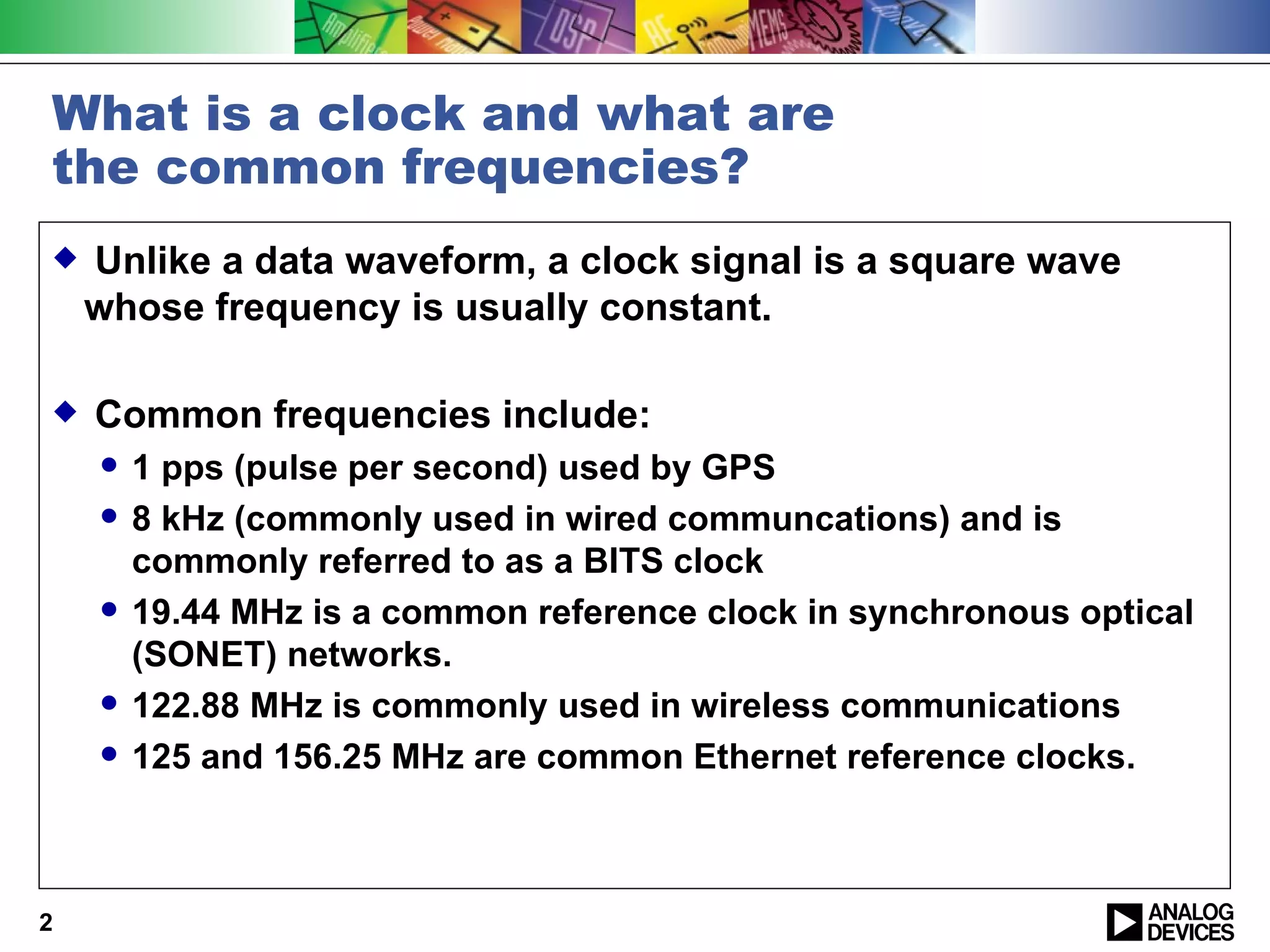

2. What is a clock and what are
the common frequencies?
 Unlike a data waveform, a clock signal is a square wave
whose frequency is usually constant.
 Common frequencies include:
 1 pps (pulse per second) used by GPS
 8 kHz (commonly used in wired communcations) and is
commonly referred to as a BITS clock
 19.44 MHz is a common reference clock in synchronous optical
(SONET) networks.
 122.88 MHz is commonly used in wireless communications
 125 and 156.25 MHz are common Ethernet reference clocks.
2

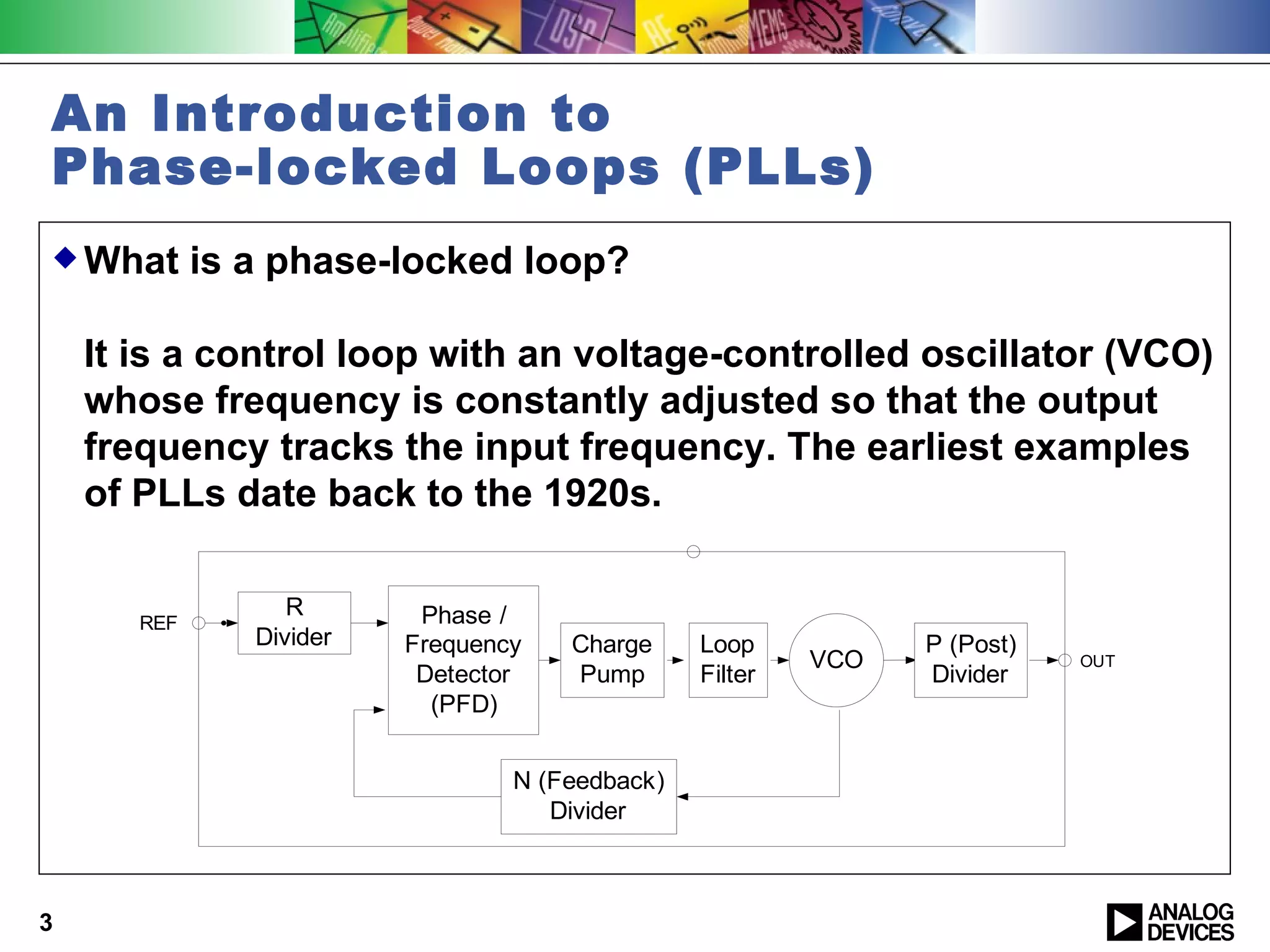

3. An Introduction to
Phase-locked Loops (PLLs)
 What is a phase-locked loop?
It is a control loop with an voltage-controlled oscillator (VCO)
whose frequency is constantly adjusted so that the output
frequency tracks the input frequency. The earliest examples
of PLLs date back to the 1920s.
R Phase /
REF
Divider Frequency Charge Loop P (Post)
VCO OUT
Detector Pump Filter Divider
(PFD)
N (Feedback)
Divider
3

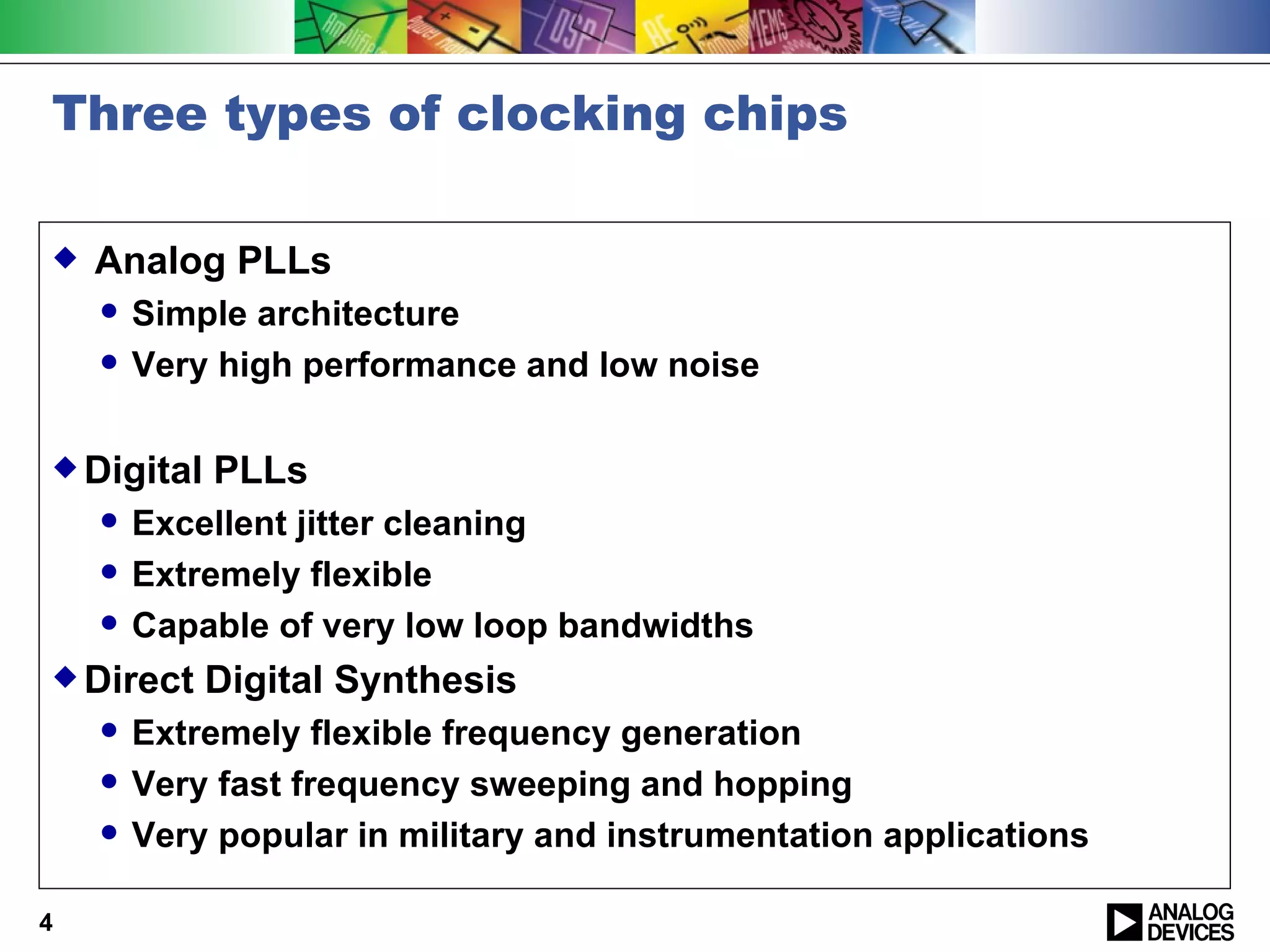

4. Three types of clocking chips
 Analog PLLs
 Simple architecture
 Very high performance and low noise
 Digital PLLs
 Excellent jitter cleaning
 Extremely flexible
 Capable of very low loop bandwidths
 Direct Digital Synthesis
 Extremely flexible frequency generation
 Very fast frequency sweeping and hopping
 Very popular in military and instrumentation applications
4

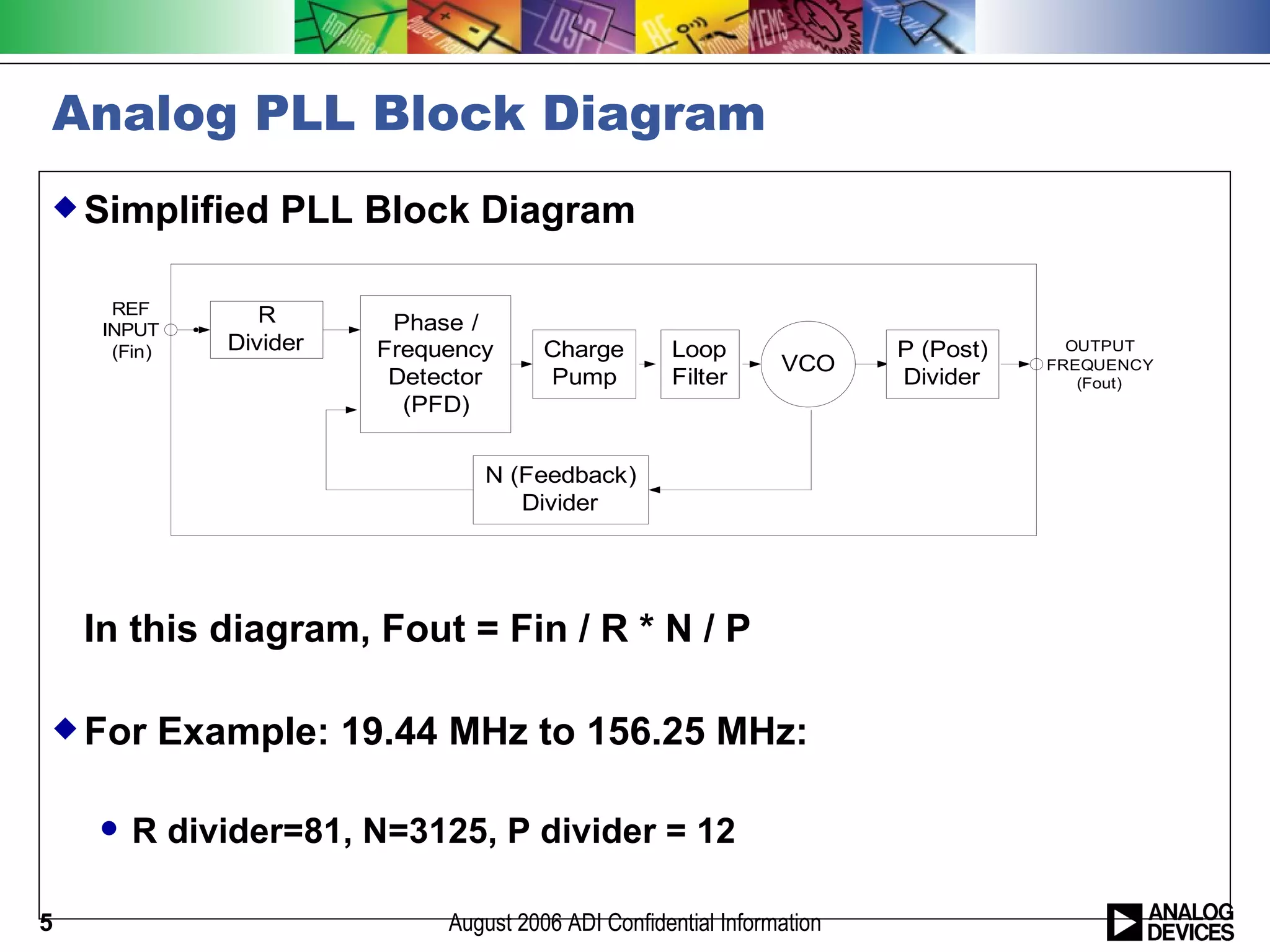

5. Analog PLL Block Diagram
 Simplified PLL Block Diagram
REF R
INPUT Phase /
(Fin) Divider Frequency Charge Loop P (Post) OUTPUT
VCO FREQUENCY
Detector Pump Filter Divider (Fout)
(PFD)
N (Feedback)
Divider
In this diagram, Fout = Fin / R * N / P
 For Example: 19.44 MHz to 156.25 MHz:
 R divider=81, N=3125, P divider = 12
5 August 2006 ADI Confidential Information

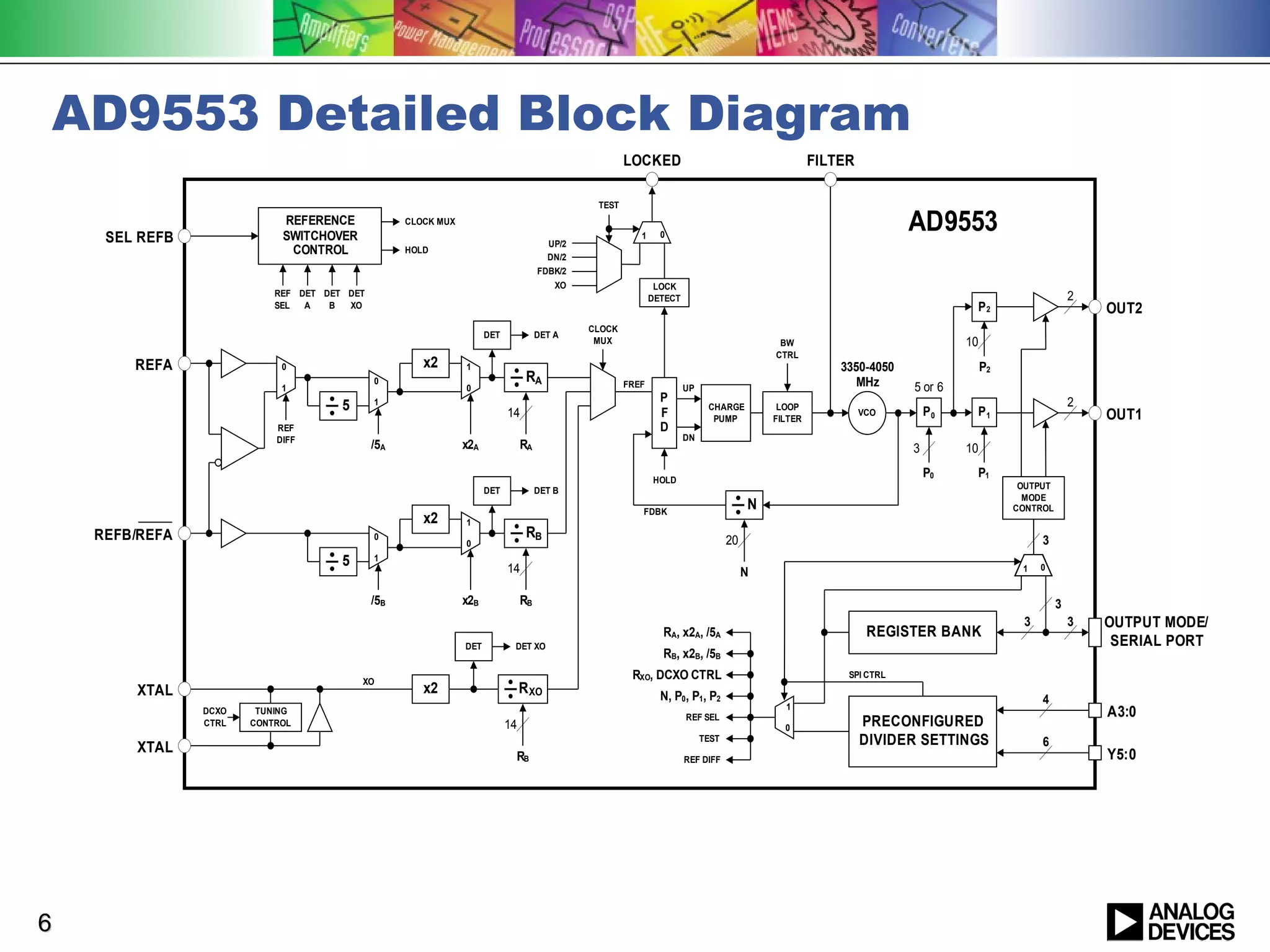

6. AD9553 Detailed Block Diagram
LOCKED FILTER
TEST
SEL REFB
REFERENCE
SWITCHOVER
CLOCK MUX
1 0
AD9553
UP/2
CONTROL HOLD
DN/2
FDBK/2
XO LOCK
REF DET DET DET 2
DETECT
SEL A B XO P2 OUT2
CLOCK
DET DET A
MUX BW 10
CTRL
REFA 0 x2 1 3350-4050 P2
0 RA FREF MHz
1 0 UP 5 or 6
P 2
5 1
14 F
CHARGE LOOP
P0 P1
PUMP FILTER
VCO OUT1
REF D
DIFF DN
/5A x2A RA 3 10
HOLD
P0 P1
OUTPUT
DET DET B
MODE
FDBK
N CONTROL
x2 1
REFB/REFA 0 RB 20 3
0
5 1
14 1 0
N
/5B x2B RB 3
3 3 OUTPUT MODE/
RA, x2A, /5A REGISTER BANK
DET DET XO SERIAL PORT
RB, x2B, /5B
XO
RXO, DCXO CTRL SPI CTRL
XTAL x2 R XO N, P0, P1, P2
1
4
DCXO TUNING
REF SEL A3:0
CTRL CONTROL 14 0
PRECONFIGURED
XTAL
TEST DIVIDER SETTINGS 6
RB REF DIFF Y5:0
6

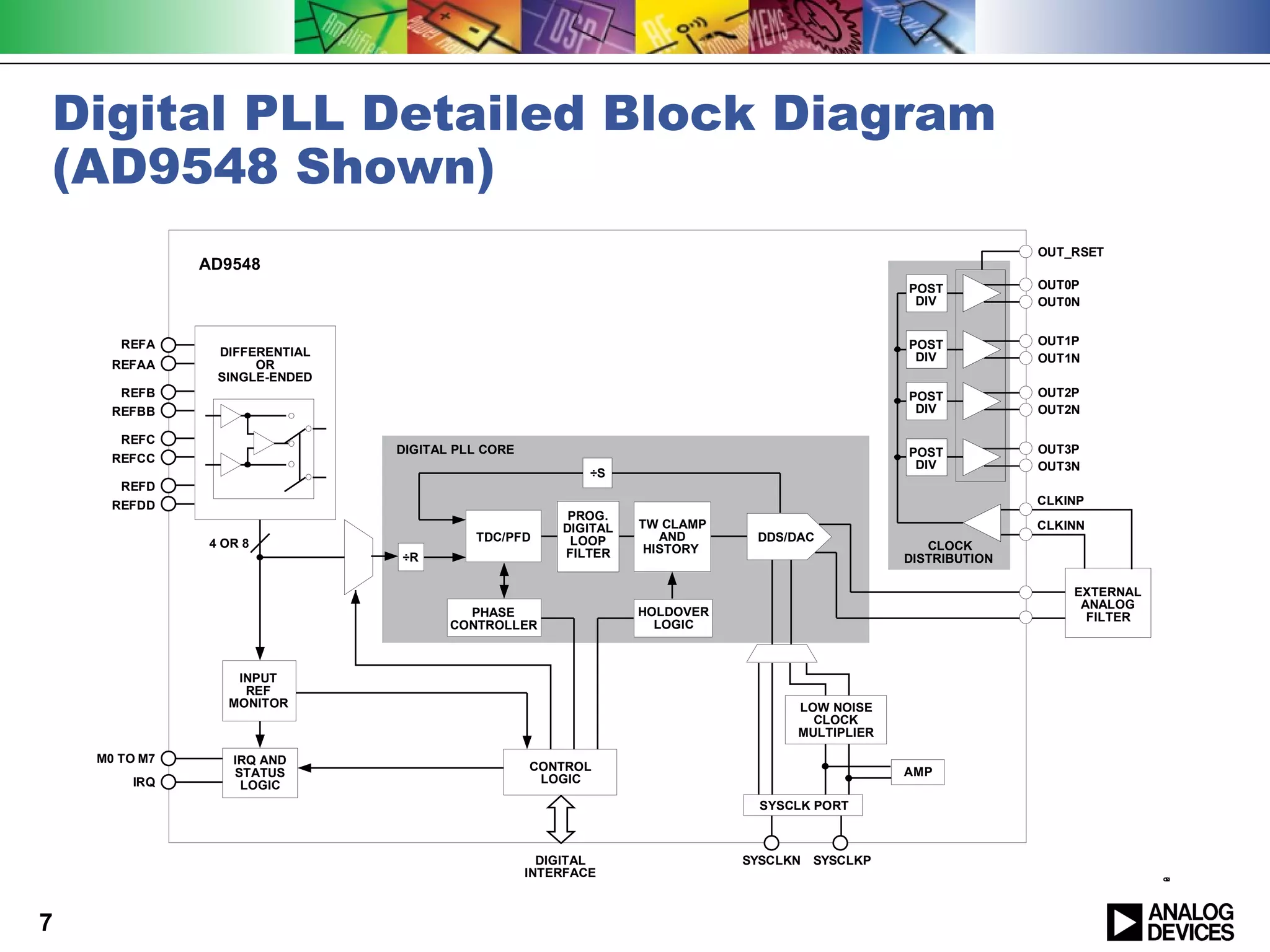

7. Digital PLL Detailed Block Diagram
(AD9548 Shown)
OUT_RSET
AD9548
POST OUT0P
DIV OUT0N
REFA POST OUT1P
DIFFERENTIAL DIV OUT1N
REFAA OR
SINGLE-ENDED
REFB POST OUT2P
REFBB DIV OUT2N
REFC
DIGITAL PLL CORE POST OUT3P
REFCC
DIV OUT3N
÷S
REFD
REFDD CLKINP
PROG.
DIGITAL TW CLAMP CLKINN
TDC/PFD LOOP AND DDS/DAC
4 OR 8 HISTORY CLOCK
÷R FILTER DISTRIBUTION
EXTERNAL
ANALOG
PHASE HOLDOVER FILTER
CONTROLLER LOGIC
INPUT
REF
MONITOR LOW NOISE
CLOCK
MULTIPLIER
M0 TO M7 IRQ AND
STATUS CONTROL AMP
IRQ LOGIC LOGIC
SYSCLK PORT
DIGITAL SYSCLKN SYSCLKP
INTERFACE
9
2
8
0
-
7

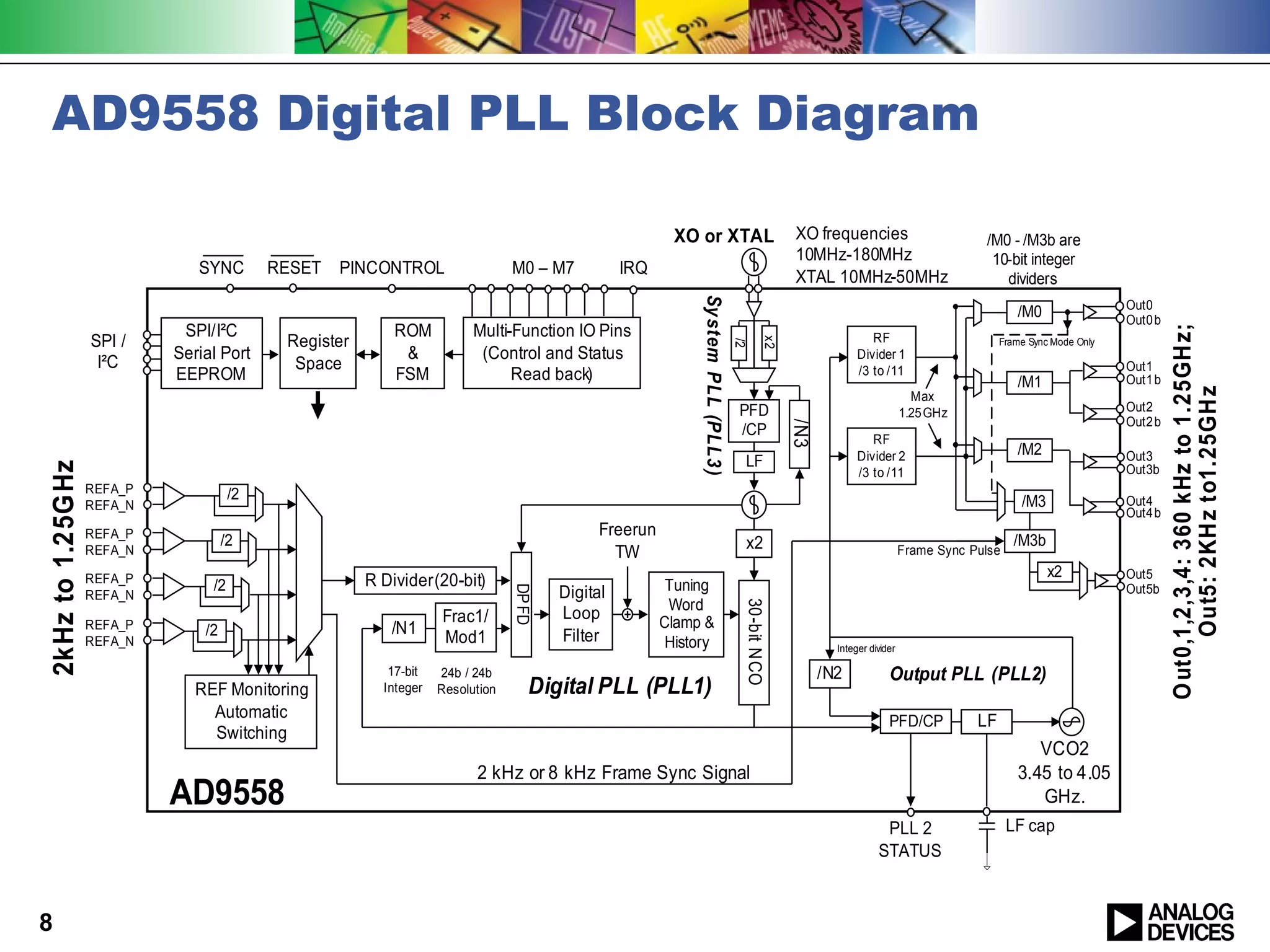

8. AD9558 Digital PLL Block Diagram
XO or XTAL XO frequencies /M0 - /M3b are
10MHz-180MHz 10-bit integer
SYNC RESET PINCONTROL M0 – M7 IRQ XTAL 10MHz-50MHz dividers
Sy stem PLL (PLL3 )
Out0
/M0 Out0 b
SPI/I²C ROM Multi-Function IO Pins
O ut0,1,2,3,4: 360 kHz to 1.25GH z;
SPI / Register RF
x2
Frame Sync Mode Only
/2
I²C Serial Port & (Control and Status Divider 1
Space /3 to /11 Out1
EEPROM FSM Read back) /M1 Out1 b
Out5: 2KH z to1.25GH z
Max
PFD 1.25 GHz Out2
Out2 b
/N3
/CP
RF
Divider 2 /M2 Out3
LF
2kHz to 1.25GHz
/3 to /11 Out3b
REFA_P /2
REFA_N /M3 Out4
Out4 b
REFA_P Freerun
/2 x2 /M3b
REFA_N TW Frame Sync Pulse
x2 Out5
REFA_P
/2 R Divider (20-bit) Tuning Out5b
Digital
DP FD
REFA_N
Word
30-bit NCO
Frac1/ Loop Clamp &
REFA_P /2 /N1
REFA_N Mod1 Filter History Integer divider
17-bit 24b / 24b /N2 Output PLL (PLL2)
REF Monitoring Integer Resolution Digital PLL (PLL1)
Automatic PFD/CP LF
Switching
VCO2
2 kHz or 8 kHz Frame Sync Signal 3.45 to 4.05
AD9558 GHz.
PLL 2 LF cap
STATUS
8

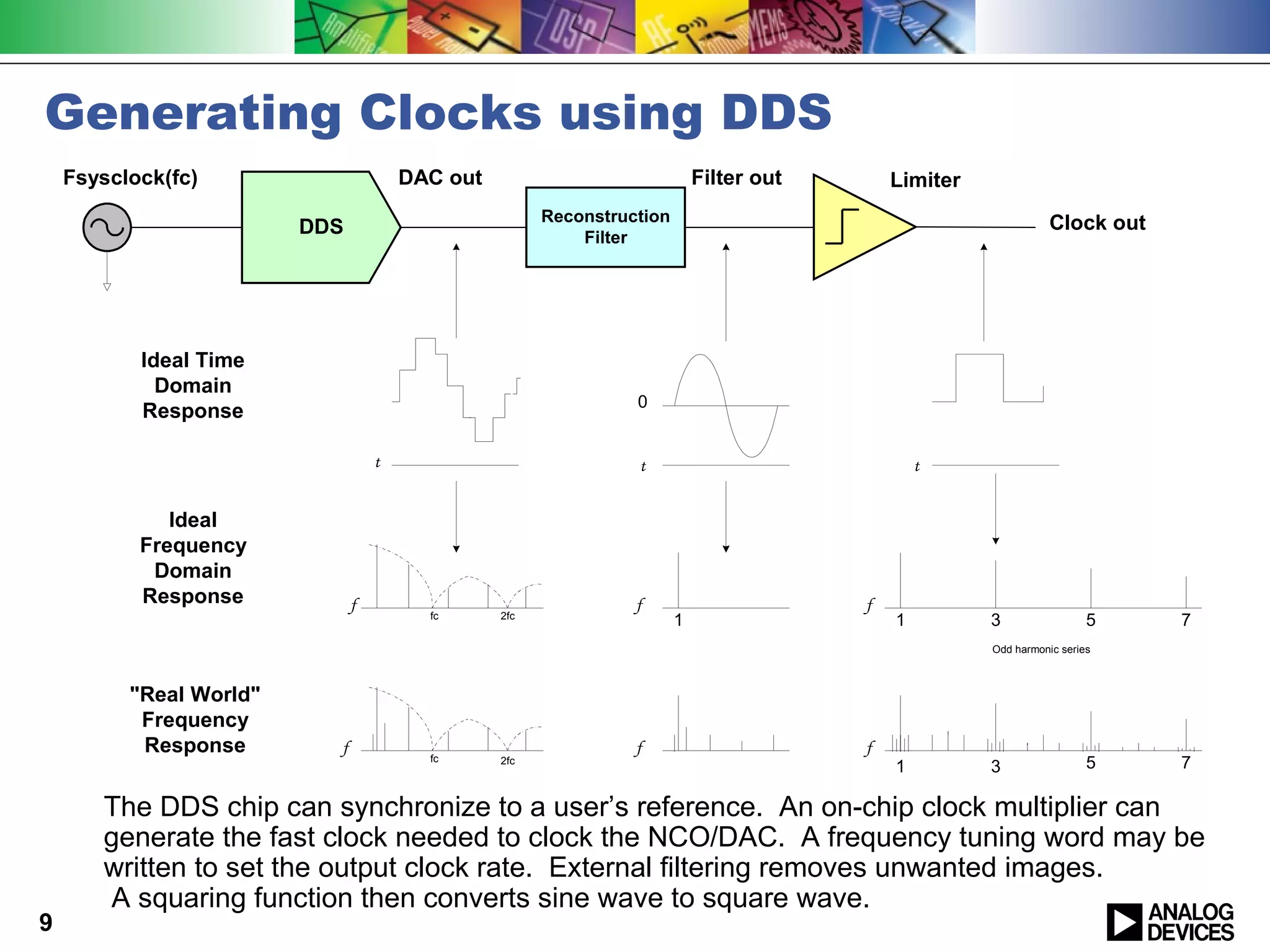

9. Generating Clocks using DDS
Fsysclock(fc) DAC out Filter out Limiter
Reconstruction Clock out
DDS Filter
Ideal Time
Domain
0
Response
t t t
Ideal
Frequency
Domain
Response f f f
fc 2fc
1 1 3 5 7
Odd harmonic series
"Real World"
Frequency
Response f
fc
f f
2fc
1 3 5 7
The DDS chip can synchronize to a user’s reference. An on-chip clock multiplier can
generate the fast clock needed to clock the NCO/DAC. A frequency tuning word may be
written to set the output clock rate. External filtering removes unwanted images.
A squaring function then converts sine wave to square wave.
9

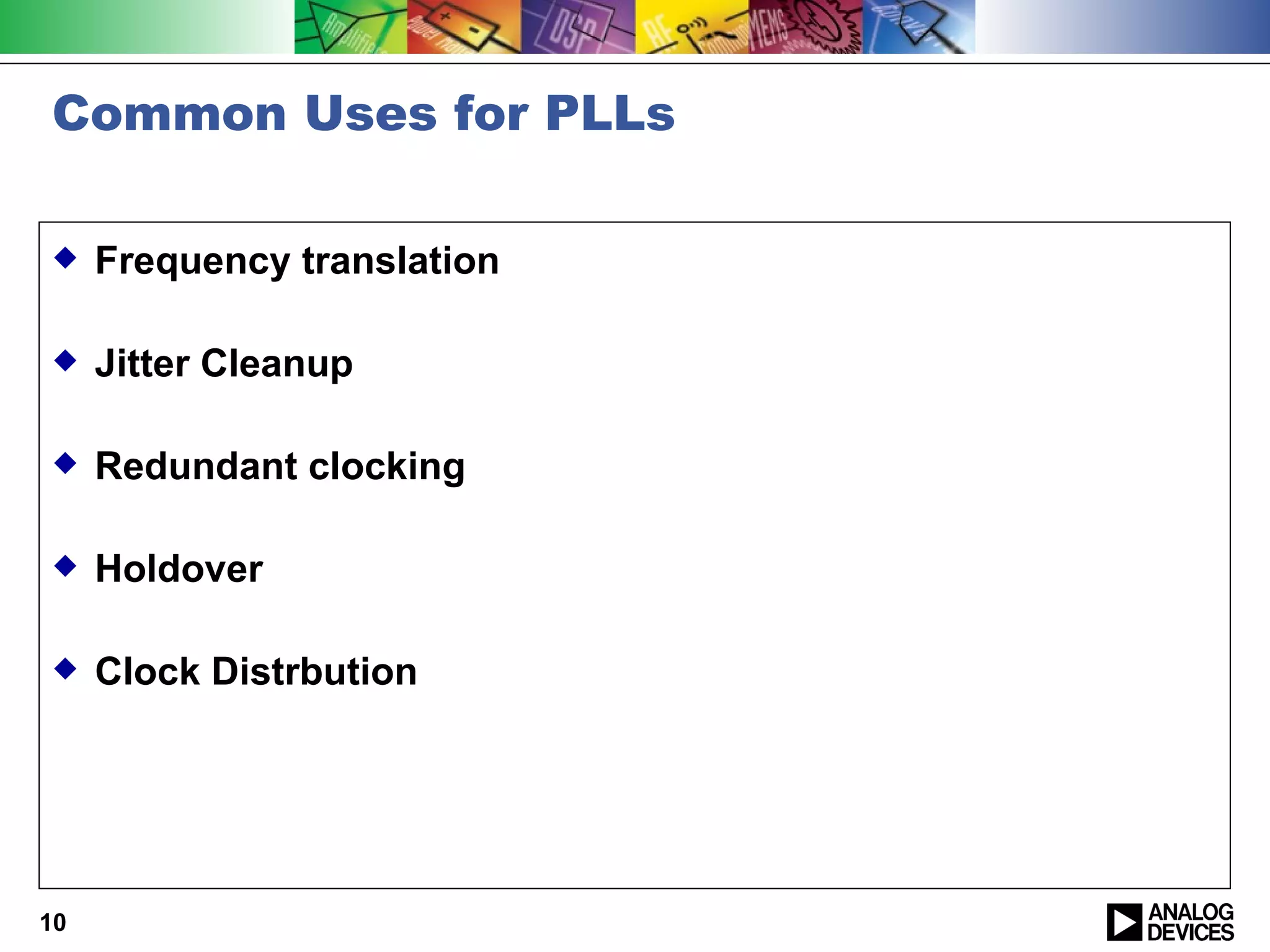

10. Common Uses for PLLs
 Frequency translation
 Jitter Cleanup
 Redundant clocking
 Holdover
 Clock Distrbution
10

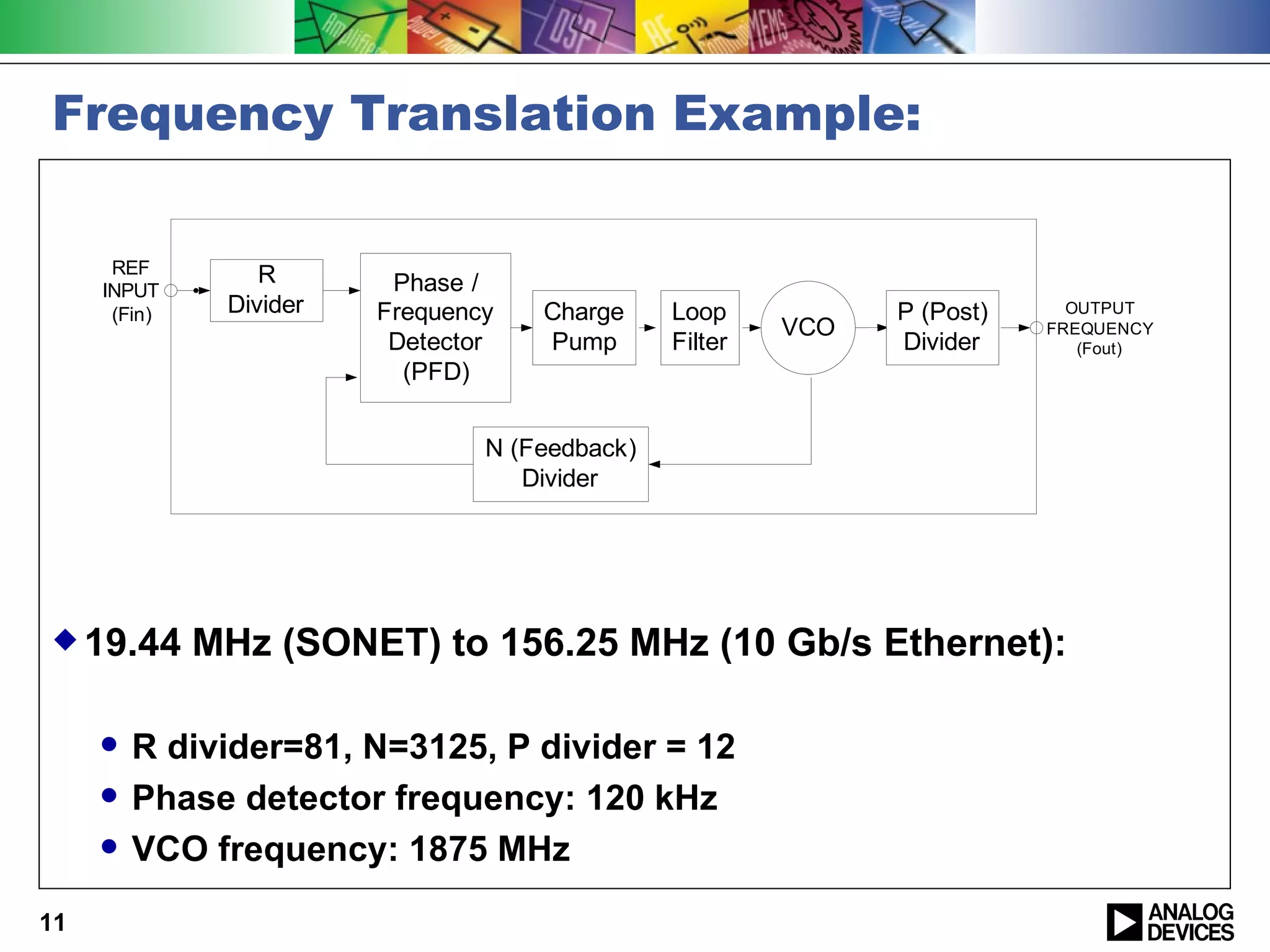

11. Frequency Translation Example:
REF R
INPUT Phase /
(Fin) Divider Frequency Charge Loop P (Post) OUTPUT
VCO FREQUENCY
Detector Pump Filter Divider (Fout)
(PFD)
N (Feedback)
Divider
 19.44 MHz (SONET) to 156.25 MHz (10 Gb/s Ethernet):
 R divider=81, N=3125, P divider = 12
 Phase detector frequency: 120 kHz
 VCO frequency: 1875 MHz
11

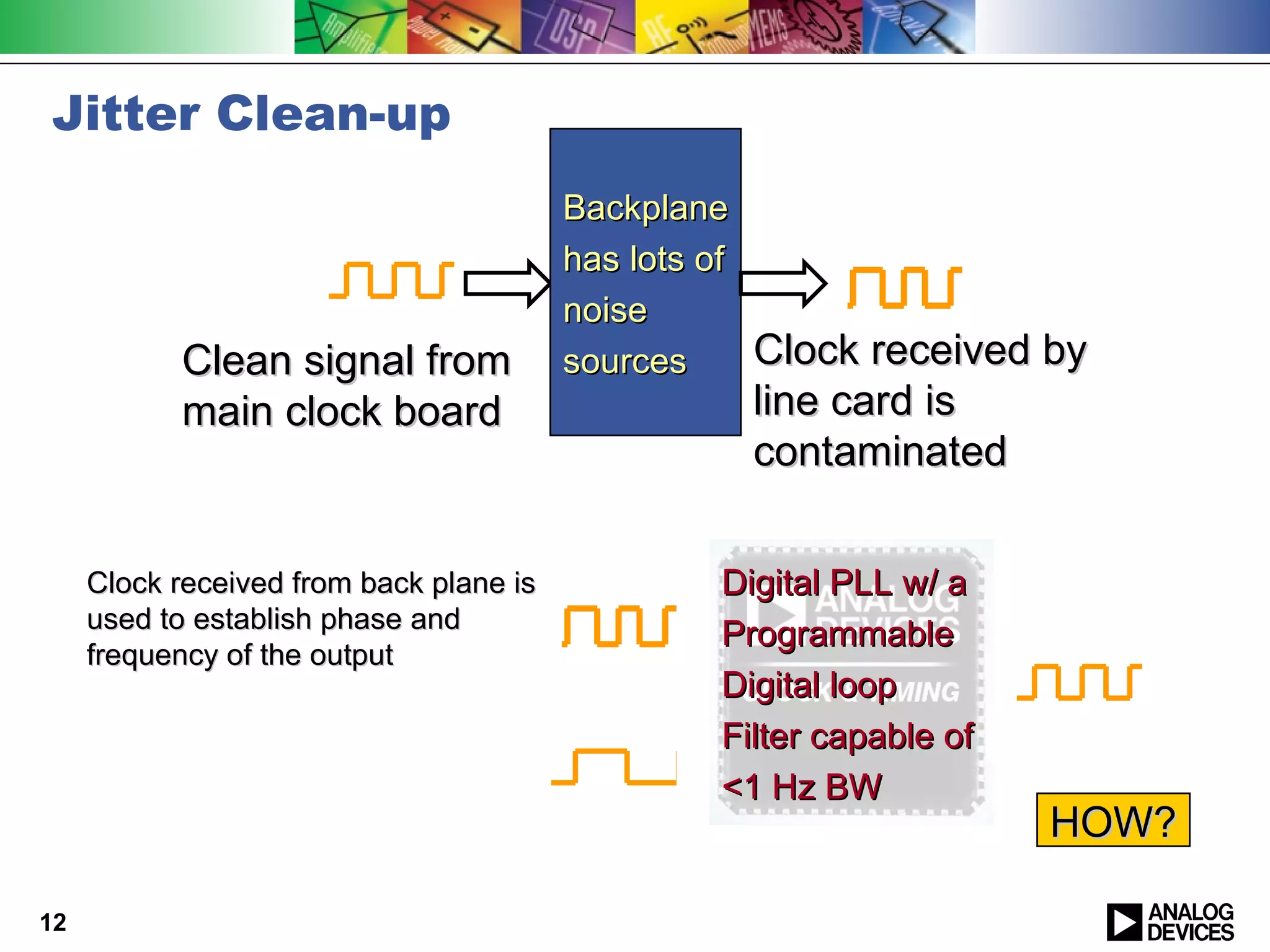

12. Jitter Clean-up
Backplane
has lots of
noise
Clean signal from sources Clock received by
main clock board line card is
contaminated
Clock received from back plane is Digital PLL w/ a
used to establish phase and
Programmable
frequency of the output
Digital loop
Filter capable of
<1 Hz BW
HOW?
12

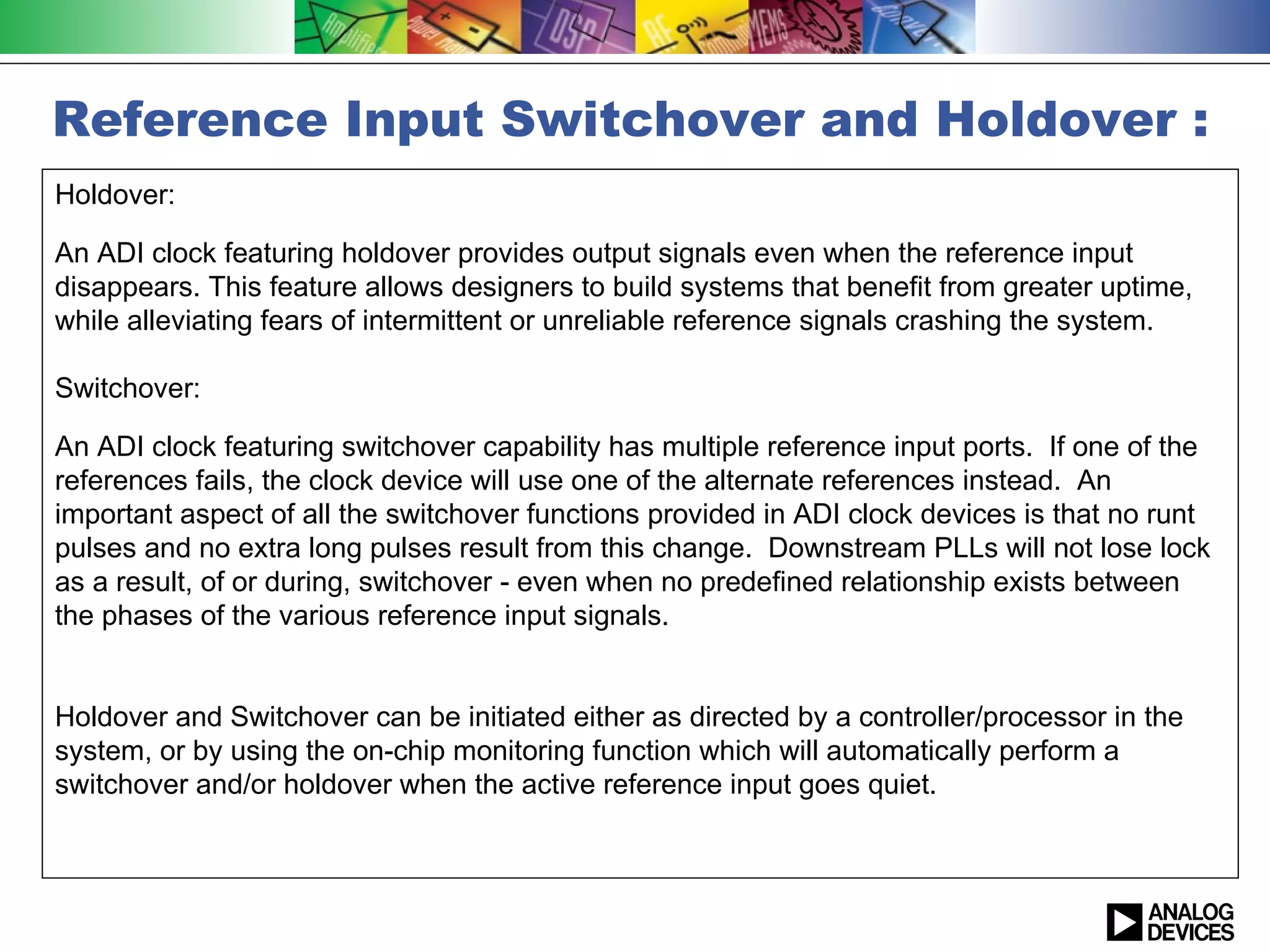

13. Reference Input Switchover and Holdover :
Holdover:
An ADI clock featuring holdover provides output signals even when the reference input
disappears. This feature allows designers to build systems that benefit from greater uptime,
while alleviating fears of intermittent or unreliable reference signals crashing the system.
Switchover:
An ADI clock featuring switchover capability has multiple reference input ports. If one of the
references fails, the clock device will use one of the alternate references instead. An
important aspect of all the switchover functions provided in ADI clock devices is that no runt
pulses and no extra long pulses result from this change. Downstream PLLs will not lose lock
as a result, of or during, switchover - even when no predefined relationship exists between
the phases of the various reference input signals.
Holdover and Switchover can be initiated either as directed by a controller/processor in the
system, or by using the on-chip monitoring function which will automatically perform a
switchover and/or holdover when the active reference input goes quiet.

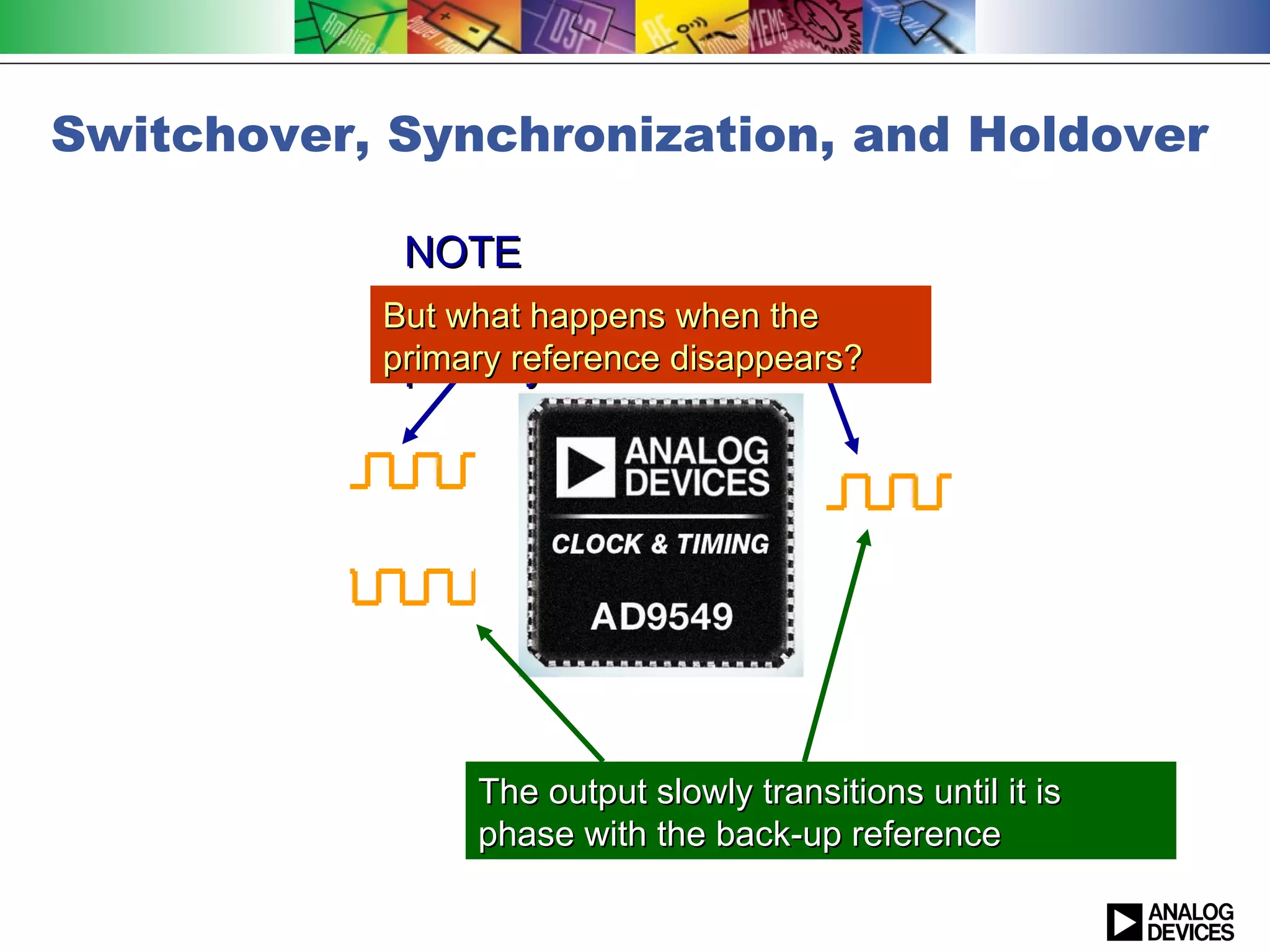

14. Switchover, Synchronization, and Holdover
NOTE
But what happens when the to
output is synchronized
primary reference disappears?
primary reference
The output slowly transitions until it is
phase with the back-up reference

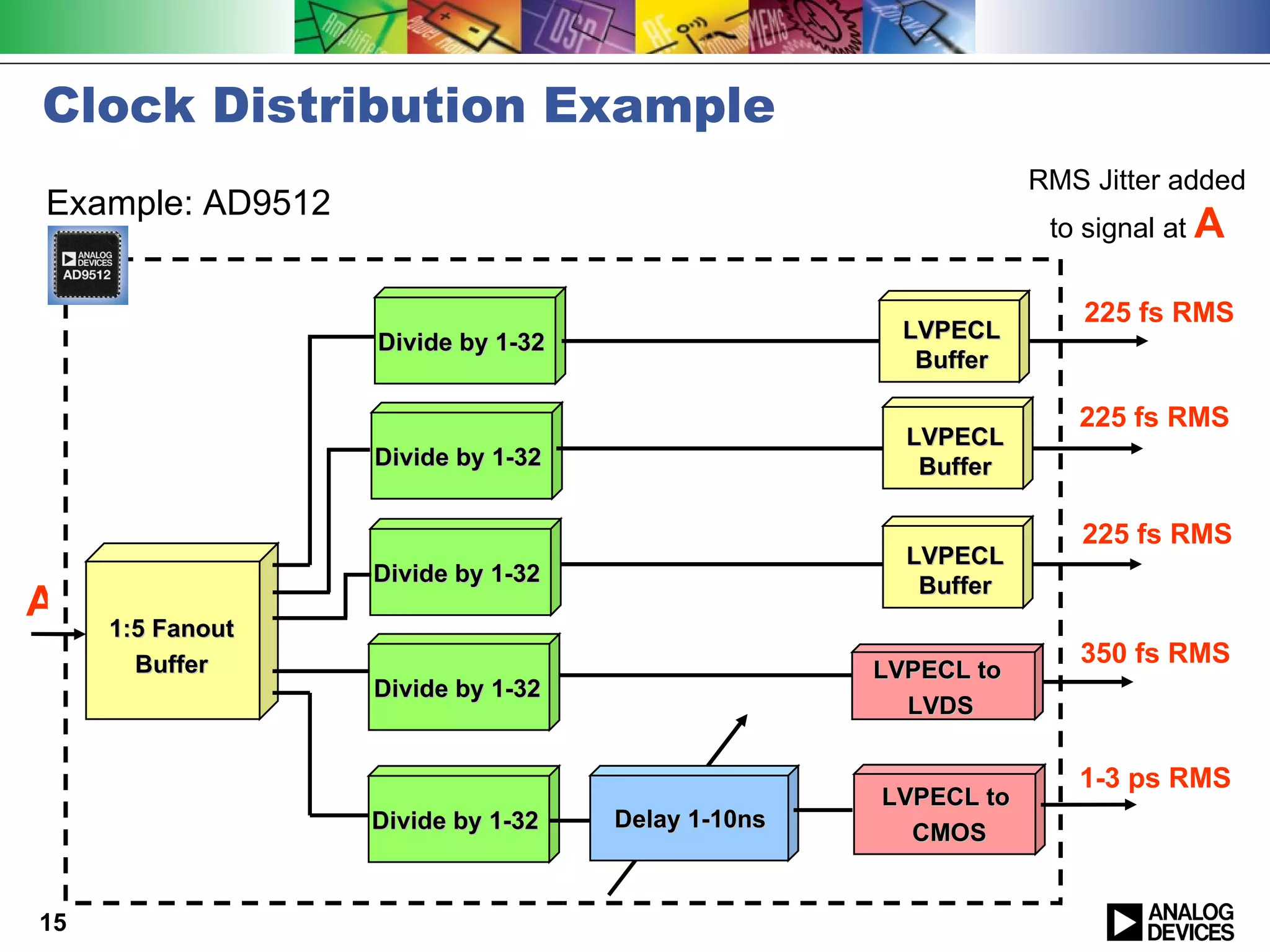

15. Clock Distribution Example
RMS Jitter added
Example: AD9512
to signal at A
225 fs RMS
Divide by 1-32 LVPECL
Buffer
225 fs RMS
LVPECL
Divide by 1-32 Buffer
225 fs RMS
LVPECL
Divide by 1-32 Buffer
A 1:5 Fanout
Buffer 350 fs RMS
LVPECL to
Divide by 1-32
LVDS
1-3 ps RMS
LVPECL to
Divide by 1-32 Delay 1-10ns
CMOS
15

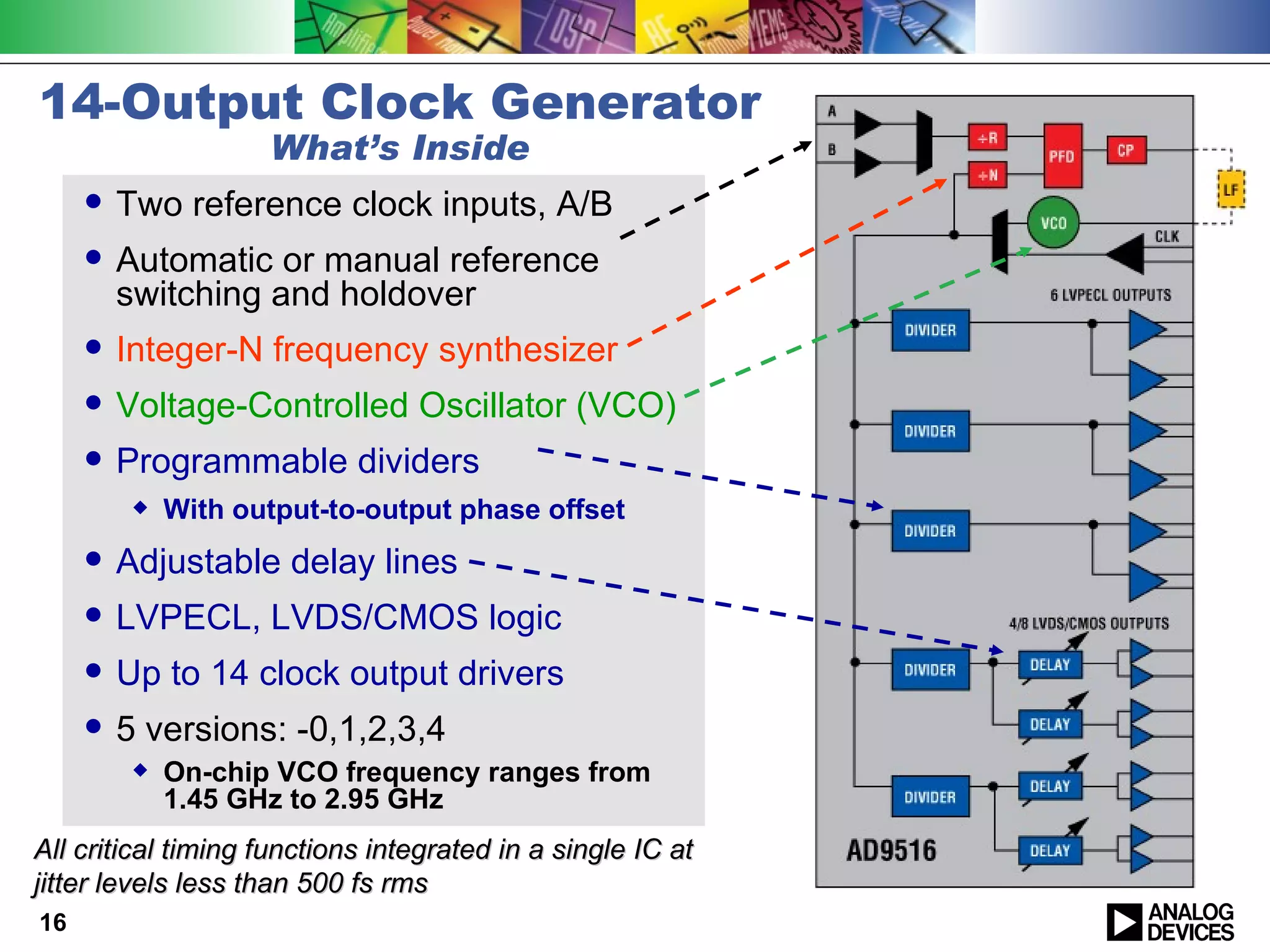

16. 14-Output Clock Generator
What’s Inside
 Two reference clock inputs, A/B
 Automatic or manual reference
switching and holdover
 Integer-N frequency synthesizer
 Voltage-Controlled Oscillator (VCO)
 Programmable dividers
 With output-to-output phase offset
 Adjustable delay lines
 LVPECL, LVDS/CMOS logic
 Up to 14 clock output drivers
 5 versions: -0,1,2,3,4
 On-chip VCO frequency ranges from
1.45 GHz to 2.95 GHz
All critical timing functions integrated in a single IC at
jitter levels less than 500 fs rms
16

17. The World Leader in High-Performance Signal Processing Solutions
Applications for
Phase-locked Loops
(PLLs)

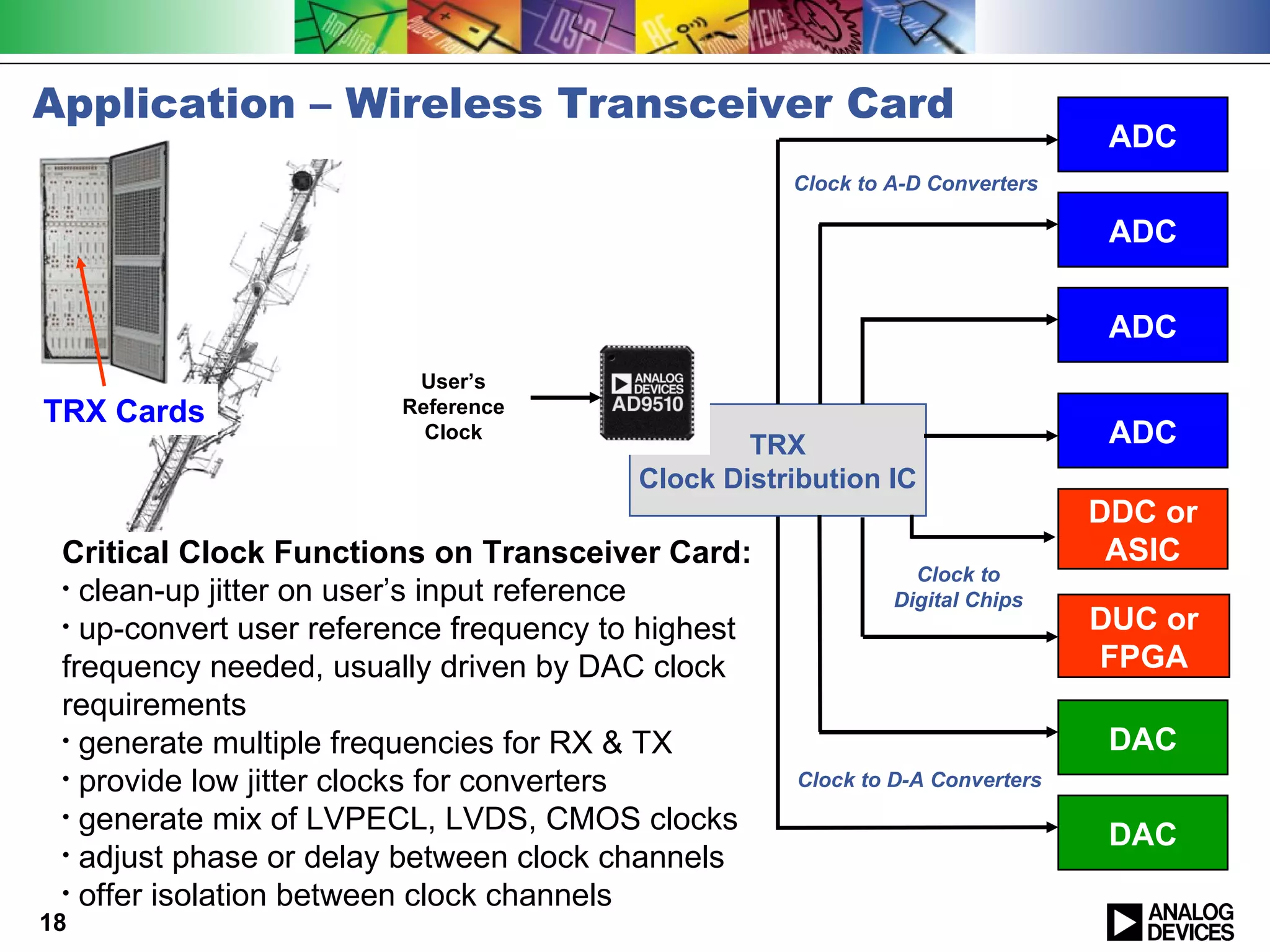

18. Application – Wireless Transceiver Card
ADC
Clock to A-D Converters
ADC
ADC
User’s
TRX Cards Reference
Clock
TRX ADC
Clock Distribution IC
DDC or
Critical Clock Functions on Transceiver Card: ASIC
Clock to
• clean-up jitter on user’s input reference
Digital Chips
• up-convert user reference frequency to highest DUC or
frequency needed, usually driven by DAC clock FPGA
requirements
• generate multiple frequencies for RX & TX DAC
• provide low jitter clocks for converters Clock to D-A Converters
• generate mix of LVPECL, LVDS, CMOS clocks
DAC
• adjust phase or delay between clock channels
• offer isolation between clock channels
18

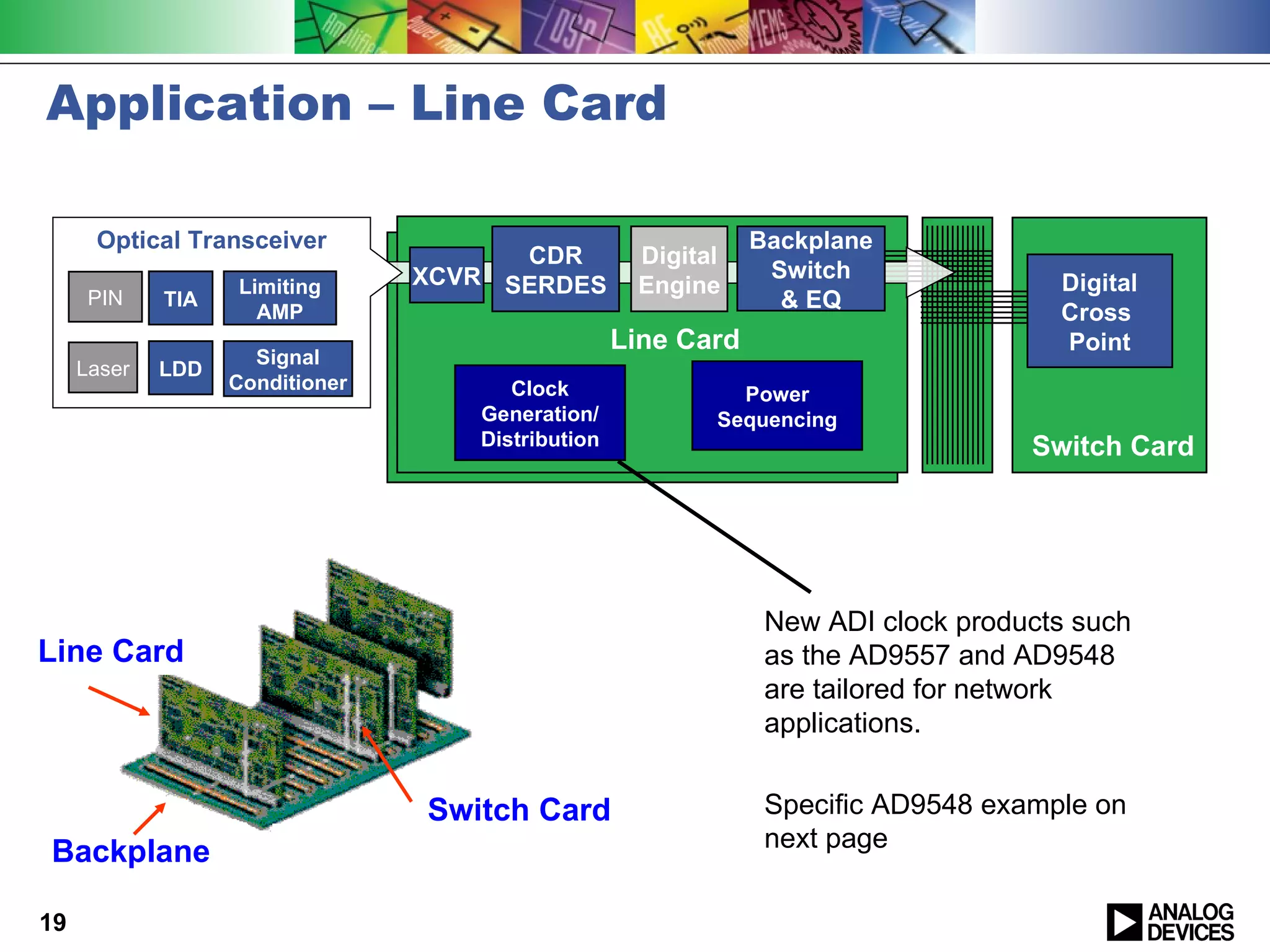

19. Application – Line Card
Optical Transceiver Backplane
CDR Digital
XCVR SERDES Switch
Limiting Engine Digital
PIN TIA & EQ
AMP Cross
Line Card Point
Signal
Laser LDD
Conditioner Clock Power
Generation/ Sequencing
Distribution Switch Card
New ADI clock products such
Line Card as the AD9557 and AD9548
are tailored for network
applications.
Switch Card Specific AD9548 example on
next page
Backplane
19

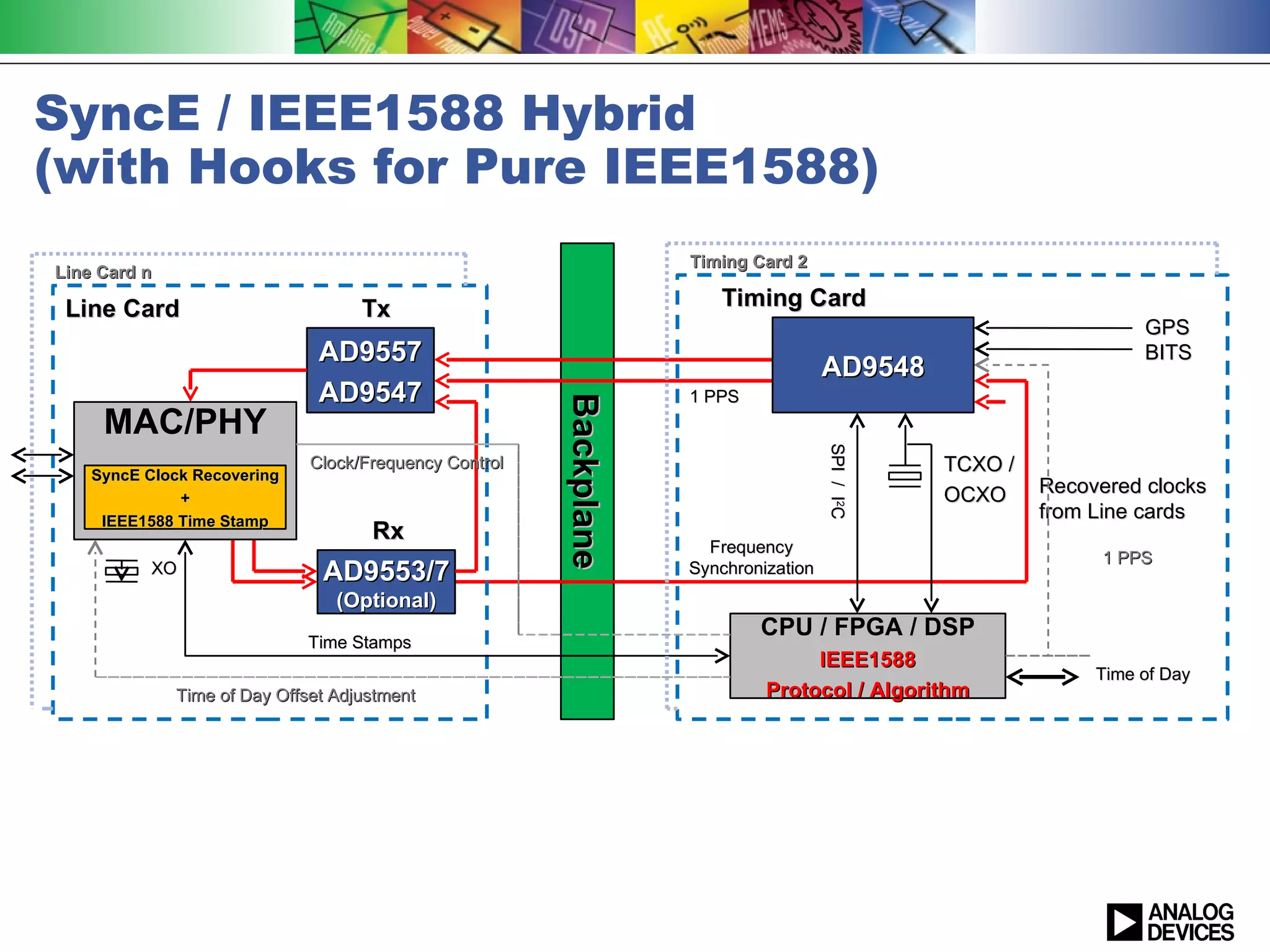

20. SyncE / IEEE1588 Hybrid
(with Hooks for Pure IEEE1588)
Timing Card 2
Line Card n
Line Card Tx Timing Card
GPS
AD9557 BITS
AD9548
AD9547 1 PPS
Backplane
Backplane
MAC/PHY
SPI / I2C
SyncE Clock Recovering
Clock/Frequency Control TCXO /
OCXO Recovered clocks
+
IEEE1588 Time Stamp
from Line cards
Rx
Frequency
1 PPS
XO AD9553/7 Synchronization
(Optional)
CPU / FPGA / DSP
Time Stamps
IEEE1588
Time of Day
Time of Day Offset Adjustment Protocol / Algorithm

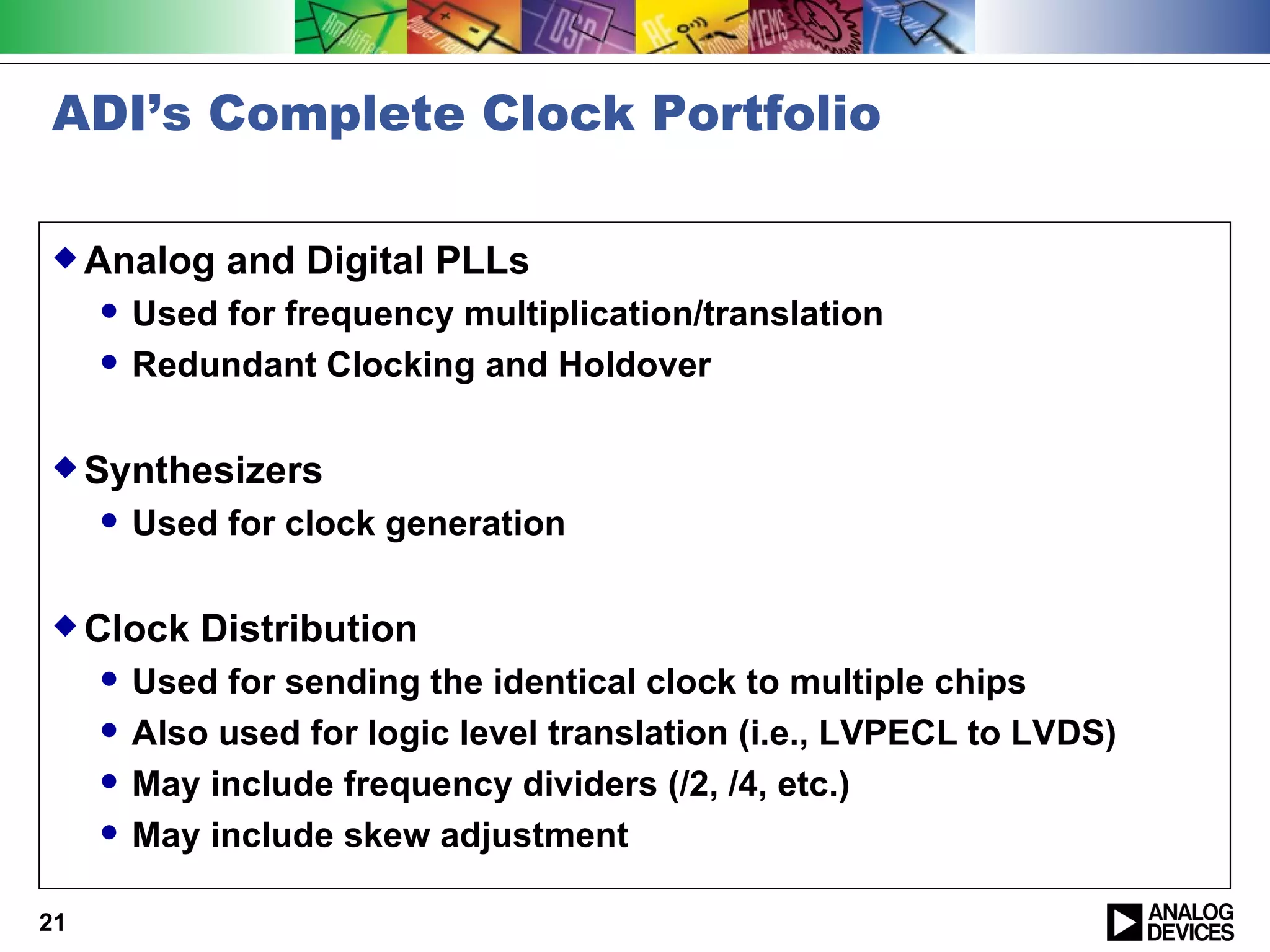

21. ADI’s Complete Clock Portfolio
 Analog and Digital PLLs
 Used for frequency multiplication/translation
 Redundant Clocking and Holdover
 Synthesizers
 Used for clock generation
 Clock Distribution
 Used for sending the identical clock to multiple chips
 Also used for logic level translation (i.e., LVPECL to LVDS)
 May include frequency dividers (/2, /4, etc.)
 May include skew adjustment
21

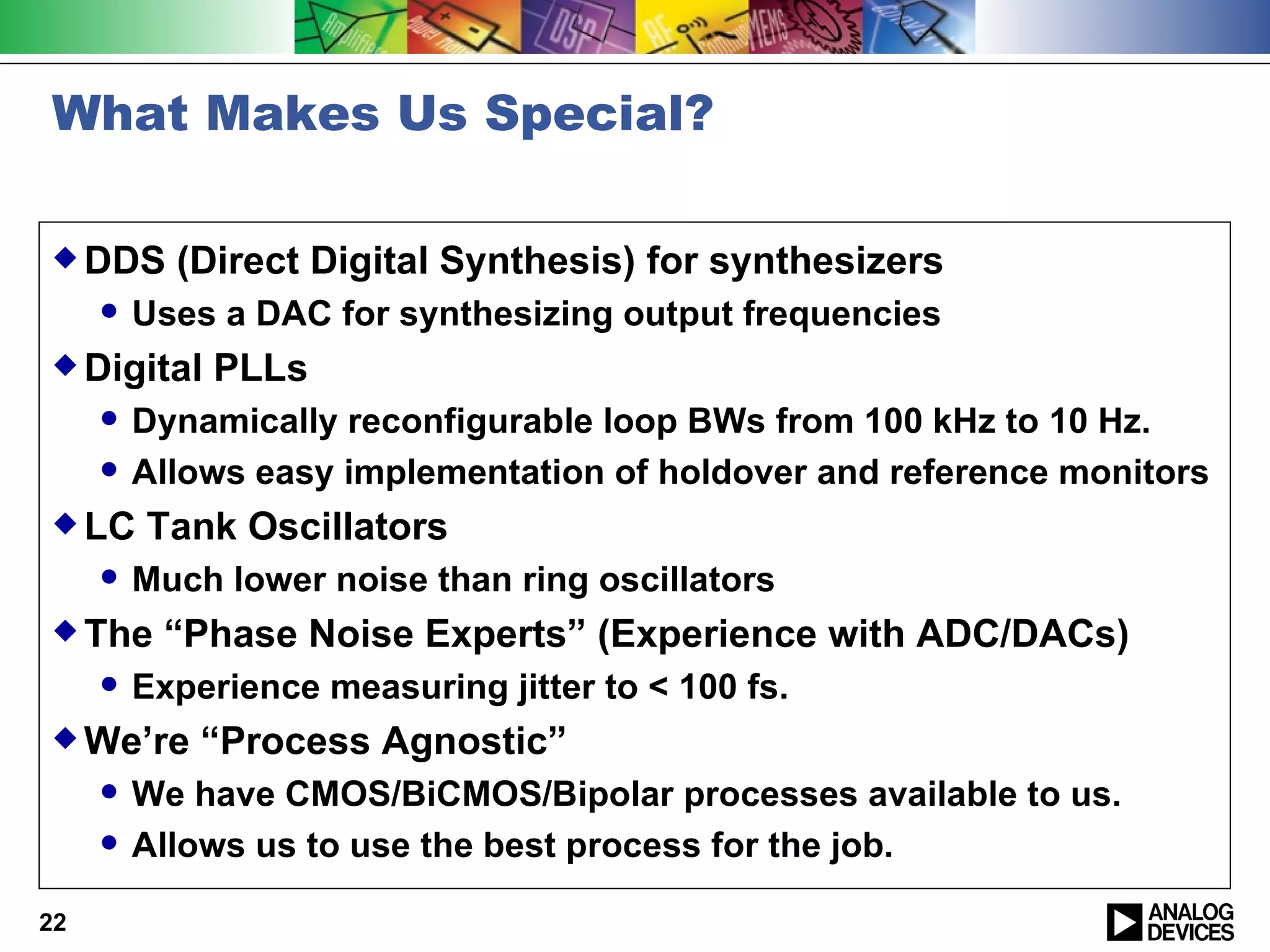

22. What Makes Us Special?
 DDS (Direct Digital Synthesis) for synthesizers
 Uses a DAC for synthesizing output frequencies
 Digital PLLs
 Dynamically reconfigurable loop BWs from 100 kHz to 10 Hz.
 Allows easy implementation of holdover and reference monitors
 LC Tank Oscillators
 Much lower noise than ring oscillators
 The “Phase Noise Experts” (Experience with ADC/DACs)
 Experience measuring jitter to < 100 fs.
 We’re “Process Agnostic”
 We have CMOS/BiCMOS/Bipolar processes available to us.
 Allows us to use the best process for the job.
22

23. Questions from audience
23

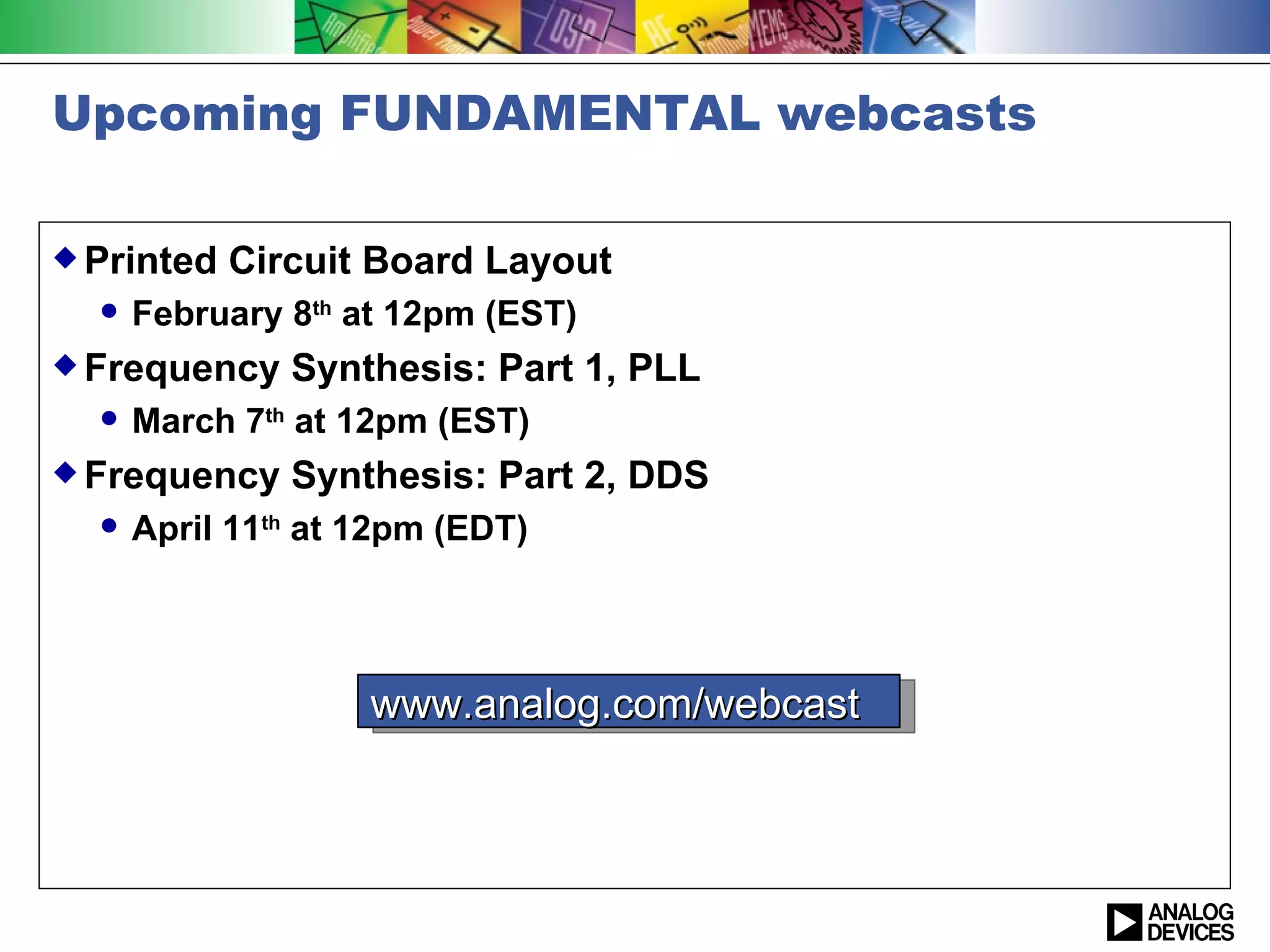

24. Upcoming FUNDAMENTAL webcasts
 Printed Circuit Board Layout
 February 8th at 12pm (EST)
 Frequency Synthesis: Part 1, PLL
 March 7th at 12pm (EST)
 Frequency Synthesis: Part 2, DDS
 April 11th at 12pm (EDT)
www.analog.com/webcast

25. Thank you
Paul Kern
Clock & Signal Synthesis Team
Greensboro, NC
