1. #MDBlocal
Ch-ch-ch-ch-changes
Taking Your Stitch Application to the Next Level
with Stitch Triggers

2. #MDBlocal
Industry Trends – Leading to Stitch
1370 1990

3. #MDBlocal
Industry Trends – Leading to Stitch
19901370 1997

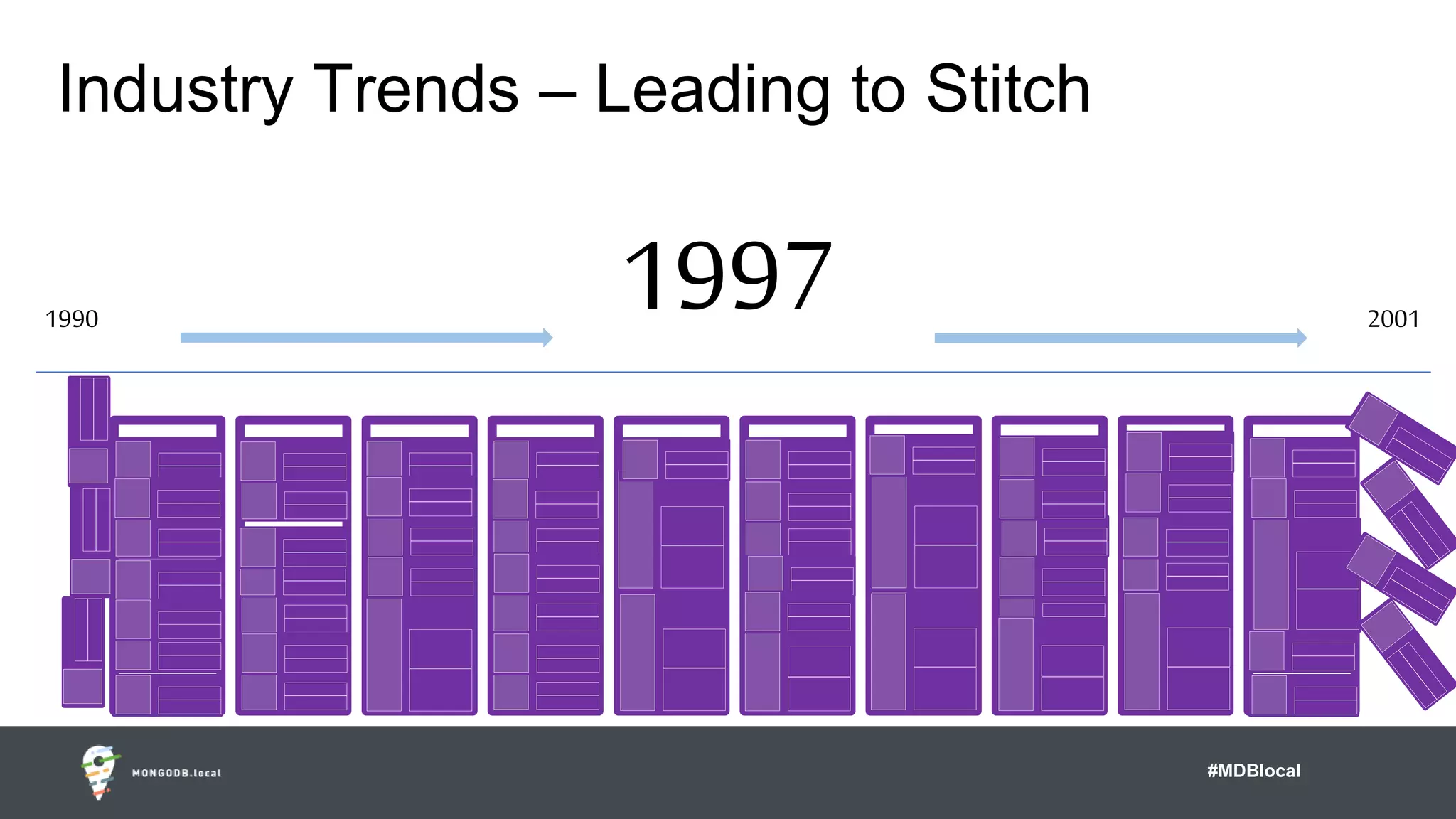

4. #MDBlocal
Industry Trends – Leading to Stitch
19971990 2001

5. #MDBlocal

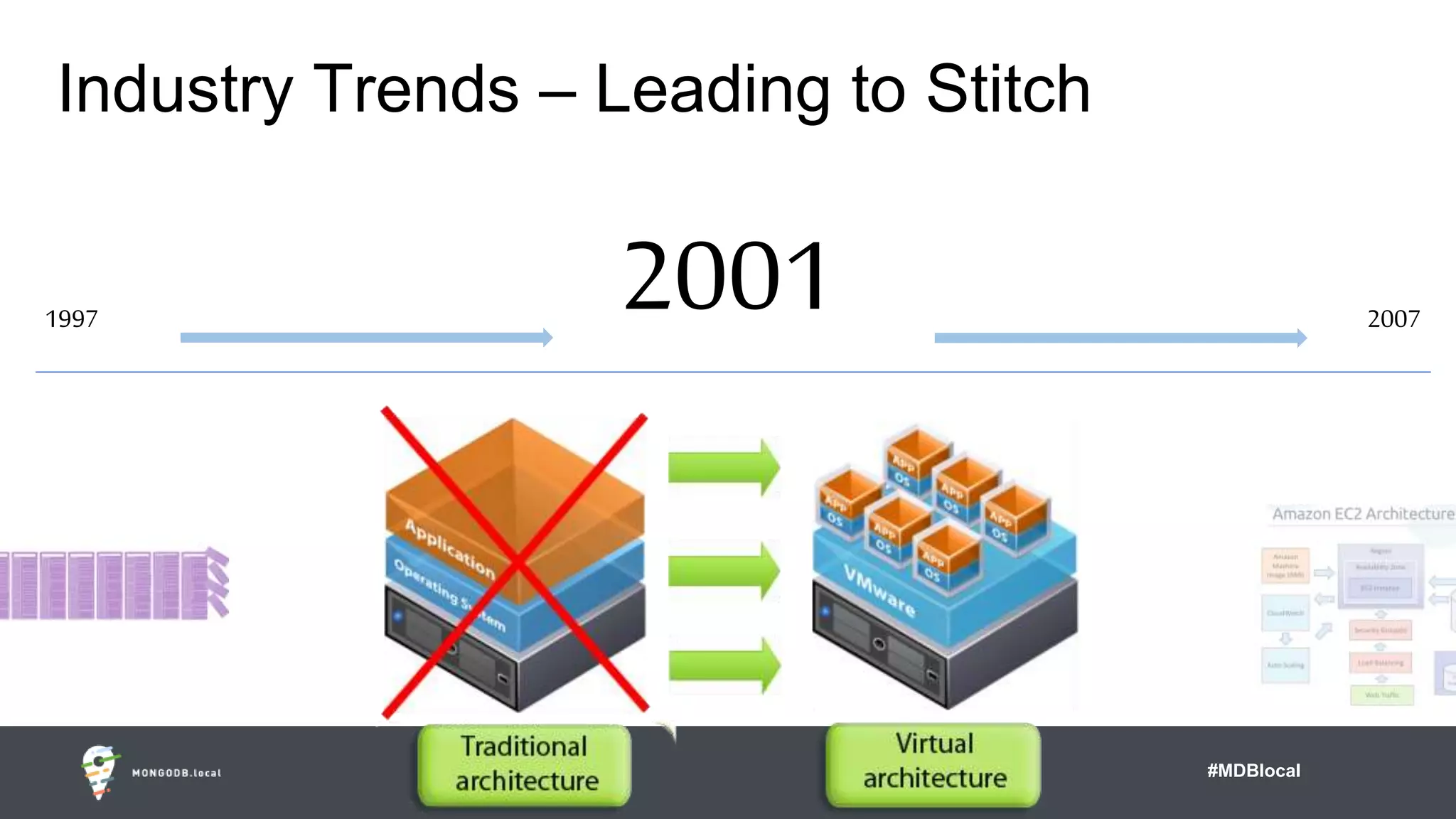

Industry Trends – Leading to Stitch
20011997 2007

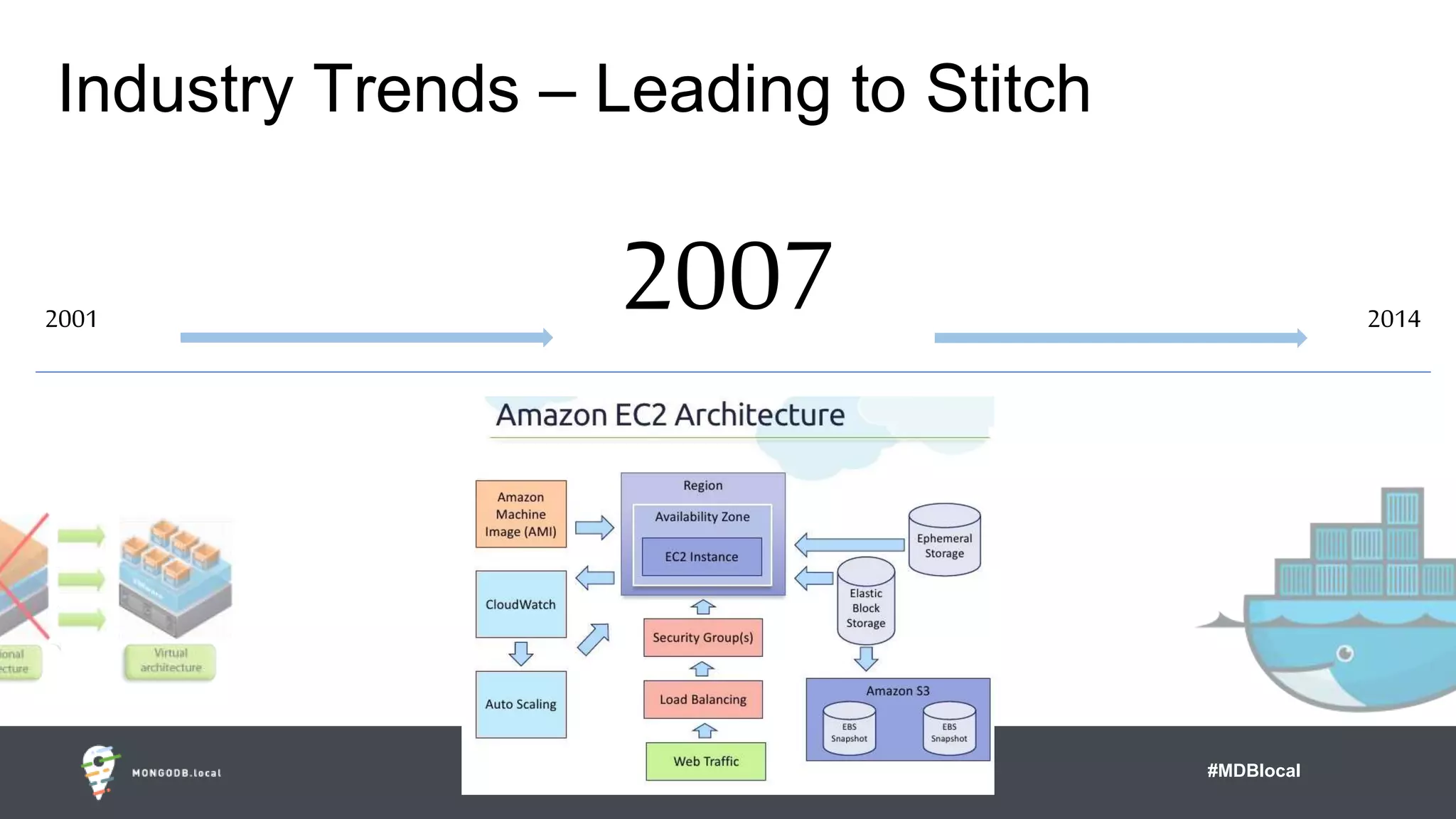

6. #MDBlocal
Industry Trends – Leading to Stitch
20072001 2014

7. #MDBlocal
Industry Trends – Leading to Stitch
20142007 2018

8. #MDBlocal
Industry Trends – Leading to Stitch
20182014

9. #MDBlocal
Intelligent Operational Data Platform
Best way to work
with data
Intelligently put data
where you want it
Freedom to run
anywhere
● MongoDB Stitch
● MongoDB Server 4.0
● MongoDB Compass
● MongoDB Charts
● MongoDB Mobile
● MongoDB Server 4.0
● MongoDB Atlas
● Ops Manager 4.0
● Free Cloud Monitoring

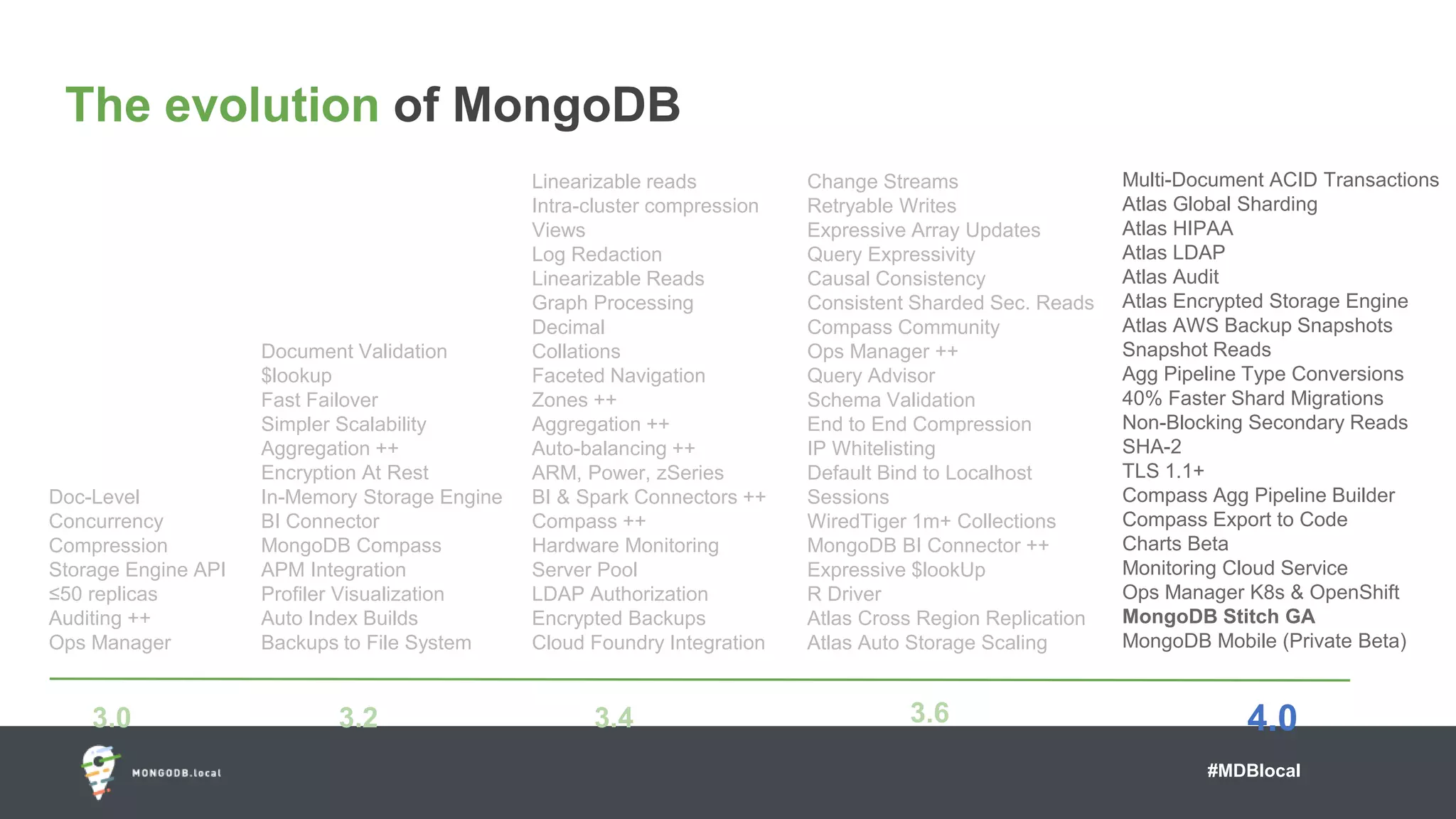

10. #MDBlocal
The evolution of MongoDB
3.0 3.2
Document Validation
$lookup
Fast Failover
Simpler Scalability
Aggregation ++
Encryption At Rest
In-Memory Storage Engine
BI Connector
MongoDB Compass
APM Integration
Profiler Visualization
Auto Index Builds
Backups to File System
Doc-Level
Concurrency
Compression
Storage Engine API
≤50 replicas
Auditing ++
Ops Manager
Linearizable reads
Intra-cluster compression
Views
Log Redaction
Linearizable Reads
Graph Processing
Decimal
Collations
Faceted Navigation
Zones ++
Aggregation ++
Auto-balancing ++
ARM, Power, zSeries
BI & Spark Connectors ++
Compass ++
Hardware Monitoring
Server Pool
LDAP Authorization
Encrypted Backups
Cloud Foundry Integration
3.4 3.6
Change Streams
Retryable Writes
Expressive Array Updates
Query Expressivity
Causal Consistency
Consistent Sharded Sec. Reads
Compass Community
Ops Manager ++
Query Advisor
Schema Validation
End to End Compression
IP Whitelisting
Default Bind to Localhost
Sessions
WiredTiger 1m+ Collections
MongoDB BI Connector ++
Expressive $lookUp
R Driver
Atlas Cross Region Replication
Atlas Auto Storage Scaling
4.0
Multi-Document ACID Transactions
Atlas Global Sharding
Atlas HIPAA
Atlas LDAP
Atlas Audit
Atlas Encrypted Storage Engine
Atlas AWS Backup Snapshots
Snapshot Reads
Agg Pipeline Type Conversions
40% Faster Shard Migrations
Non-Blocking Secondary Reads
SHA-2
TLS 1.1+
Compass Agg Pipeline Builder
Compass Export to Code
Charts Beta
Monitoring Cloud Service
Ops Manager K8s & OpenShift
MongoDB Stitch GA
MongoDB Mobile (Private Beta)

11. #MDBlocal
“We set out to build a database that we would want to use, so that
whenever developers wanted to build an application, they could
focus on the application, not on working around the database.”
- Eliot Horowitz

12. #MDBlocal

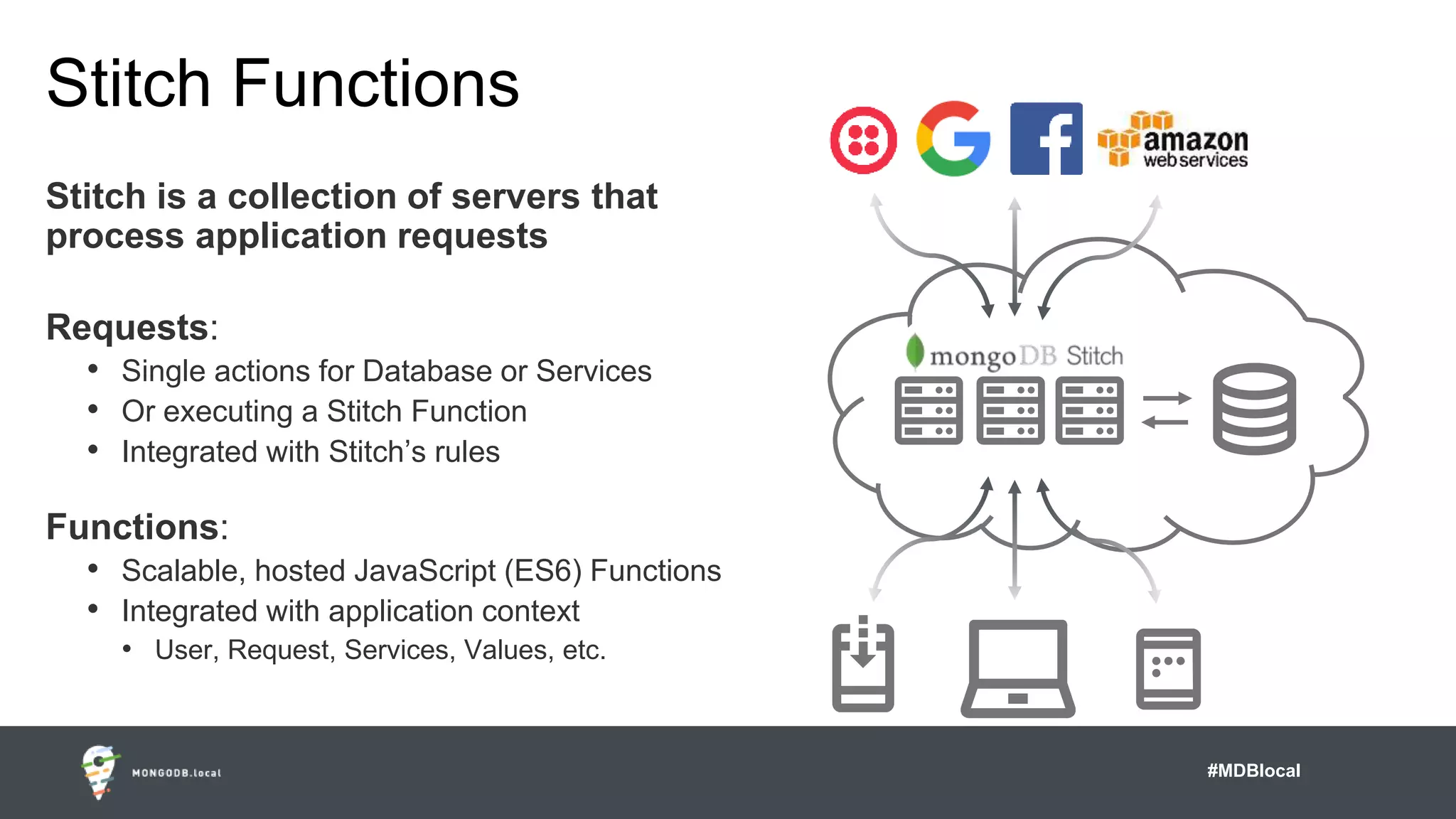

Stitch Functions
Stitch is a collection of servers that
process application requests
Requests:
• Single actions for Database or Services
• Or executing a Stitch Function
• Integrated with Stitch’s rules
Functions:
• Scalable, hosted JavaScript (ES6) Functions
• Integrated with application context
• User, Request, Services, Values, etc.

13. #MDBlocal

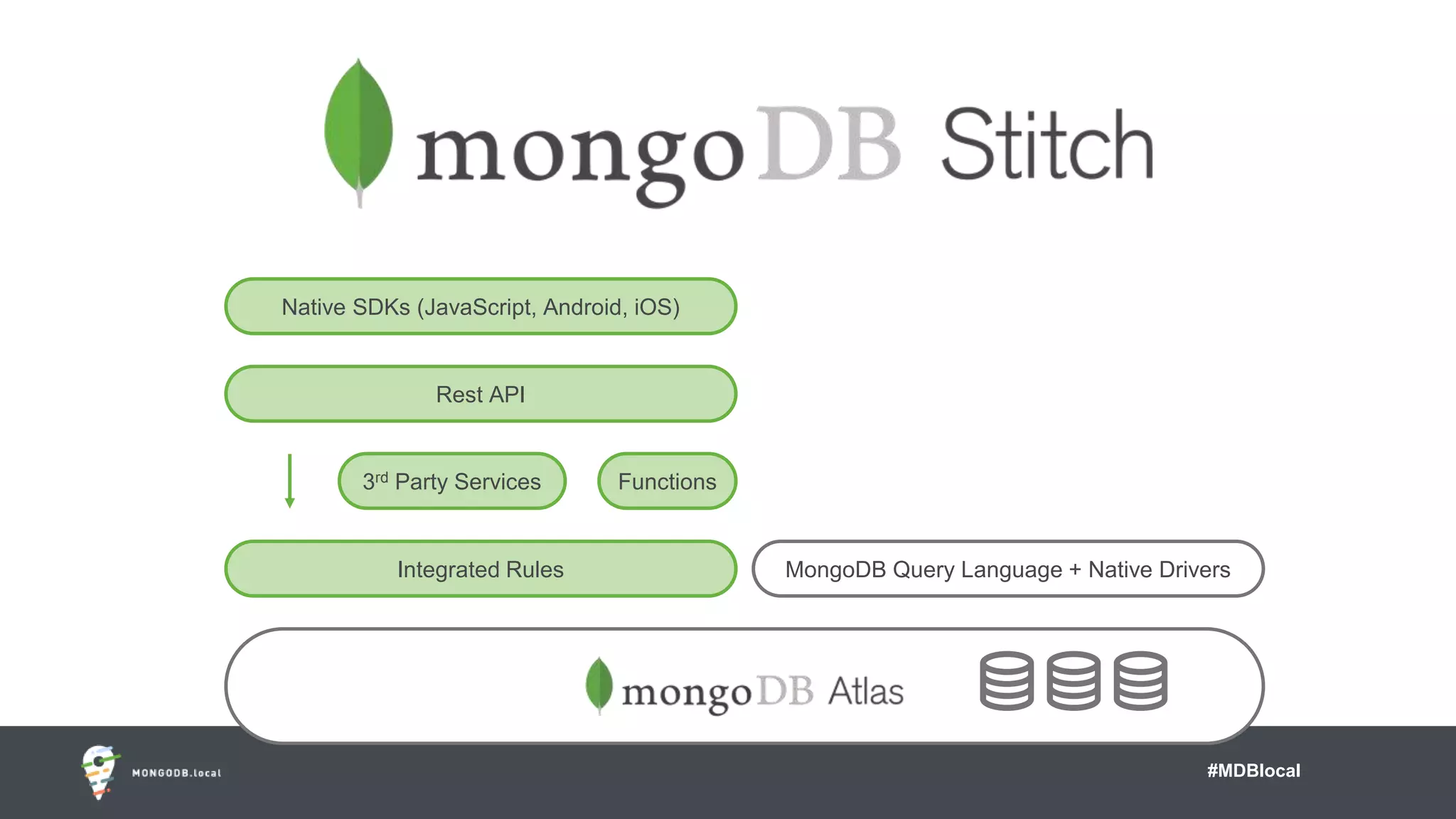

MongoDB Query Language + Native DriversIntegrated Rules
Functions3rd Party Services
Native SDKs (JavaScript, Android, iOS)
Rest API

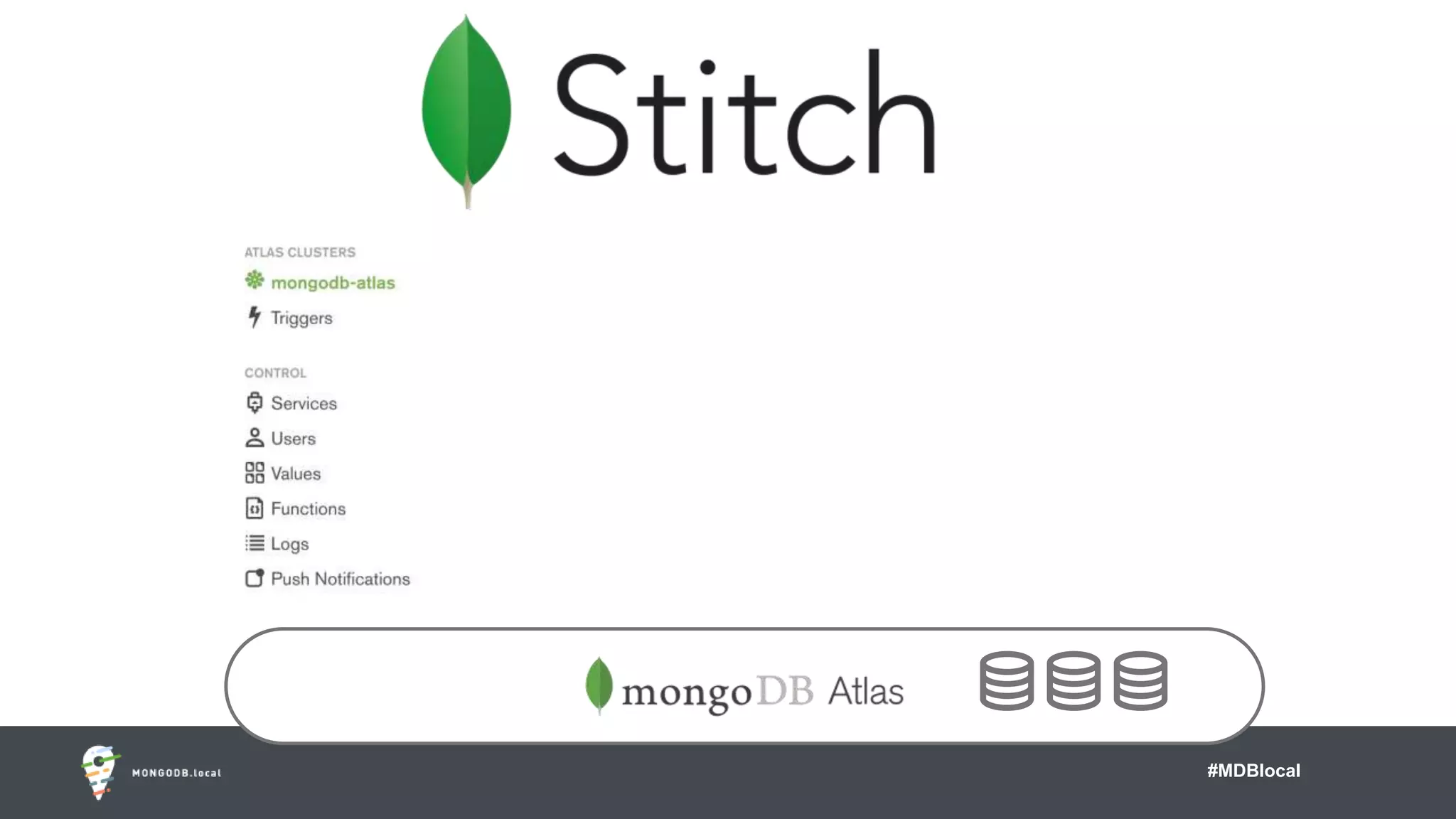

14. #MDBlocal

15. #MDBlocal

16. #MDBlocal

17. #MDBlocal

18. #MDBlocal

19. #MDBlocal

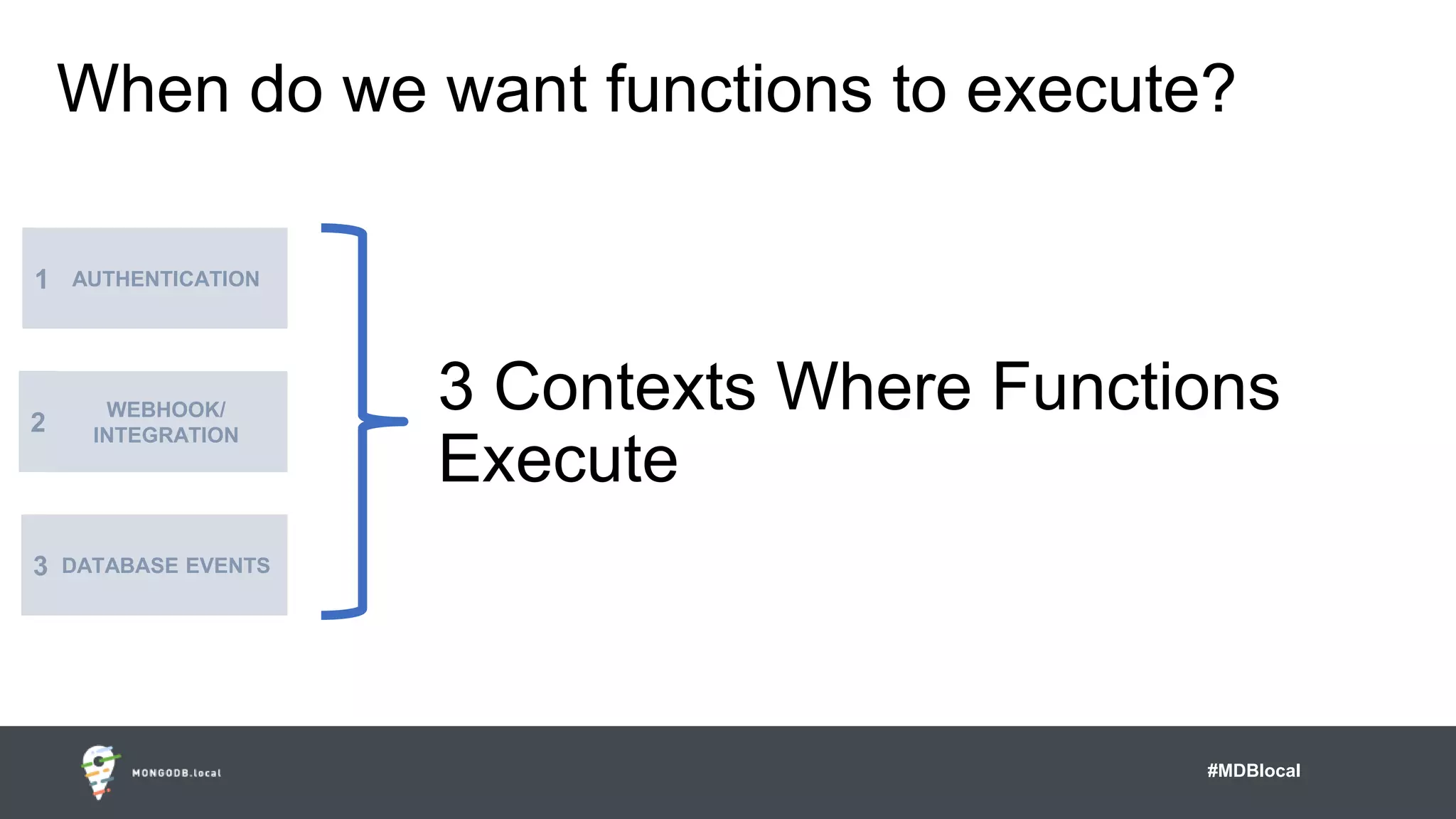

When do we want functions to execute?
AUTHENTICATION
WEBHOOK/
INTEGRATION
DATABASE EVENTS
3 Contexts Where Functions
Execute
1
2
3

20. #MDBlocal

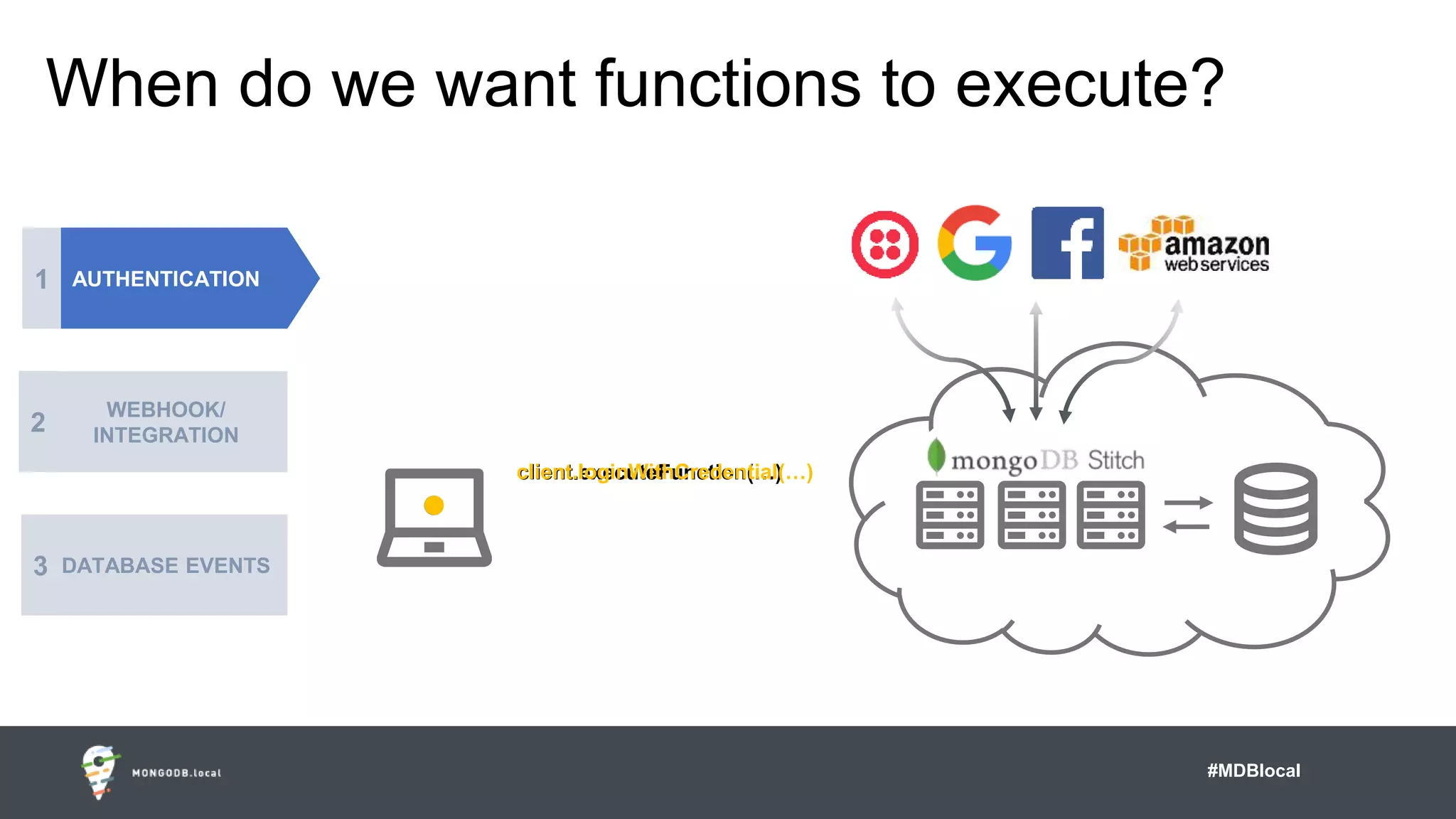

When do we want functions to execute?
client.executeFunction(…)client.loginWithCredential(…)
AUTHENTICATION
WEBHOOK/
INTEGRATION
DATABASE EVENTS
1
2
3

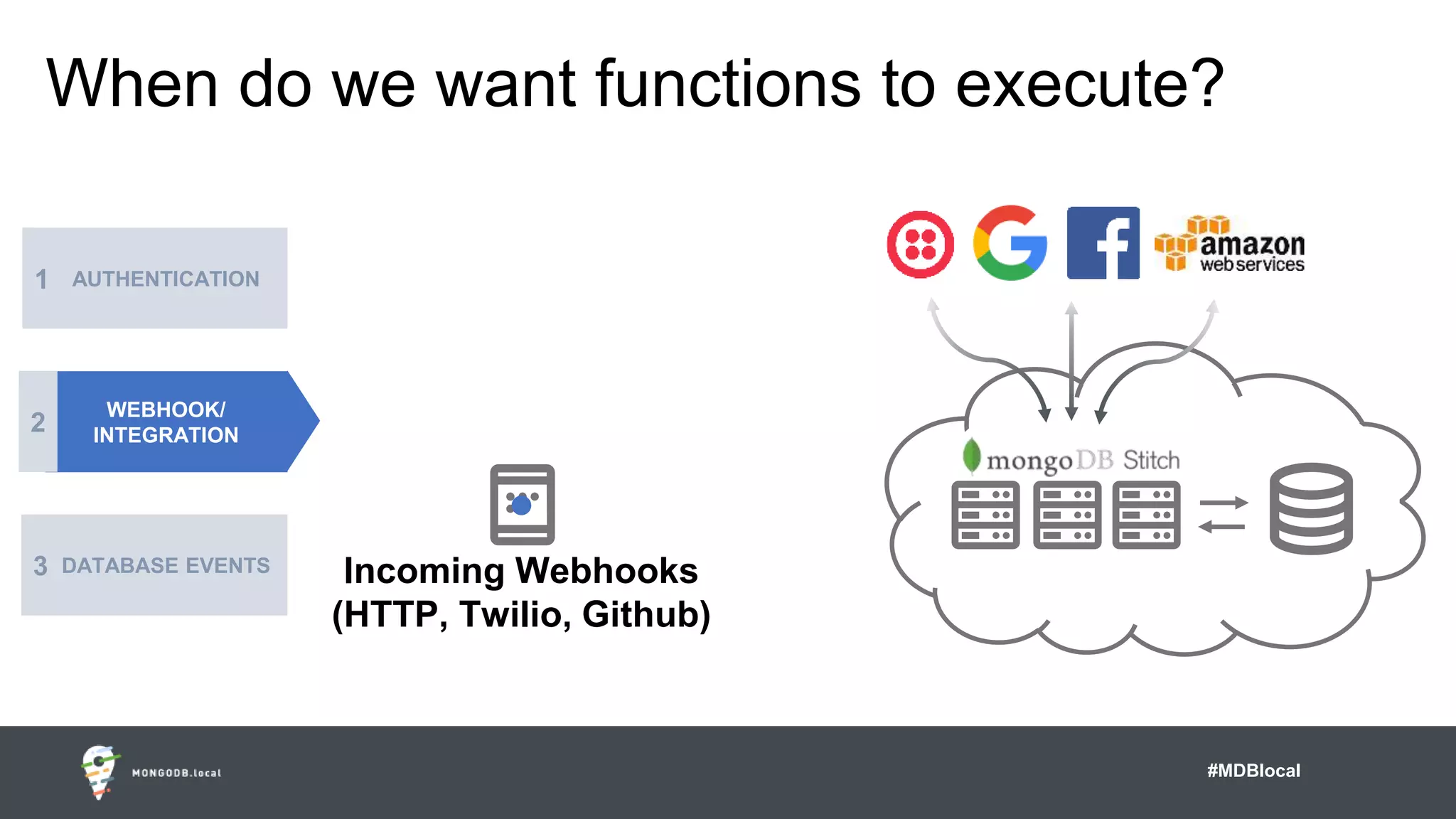

21. #MDBlocal
When do we want functions to execute?
Incoming Webhooks
(HTTP, Twilio, Github)
AUTHENTICATION
WEBHOOK/
INTEGRATION
DATABASE EVENTS
1
2
3

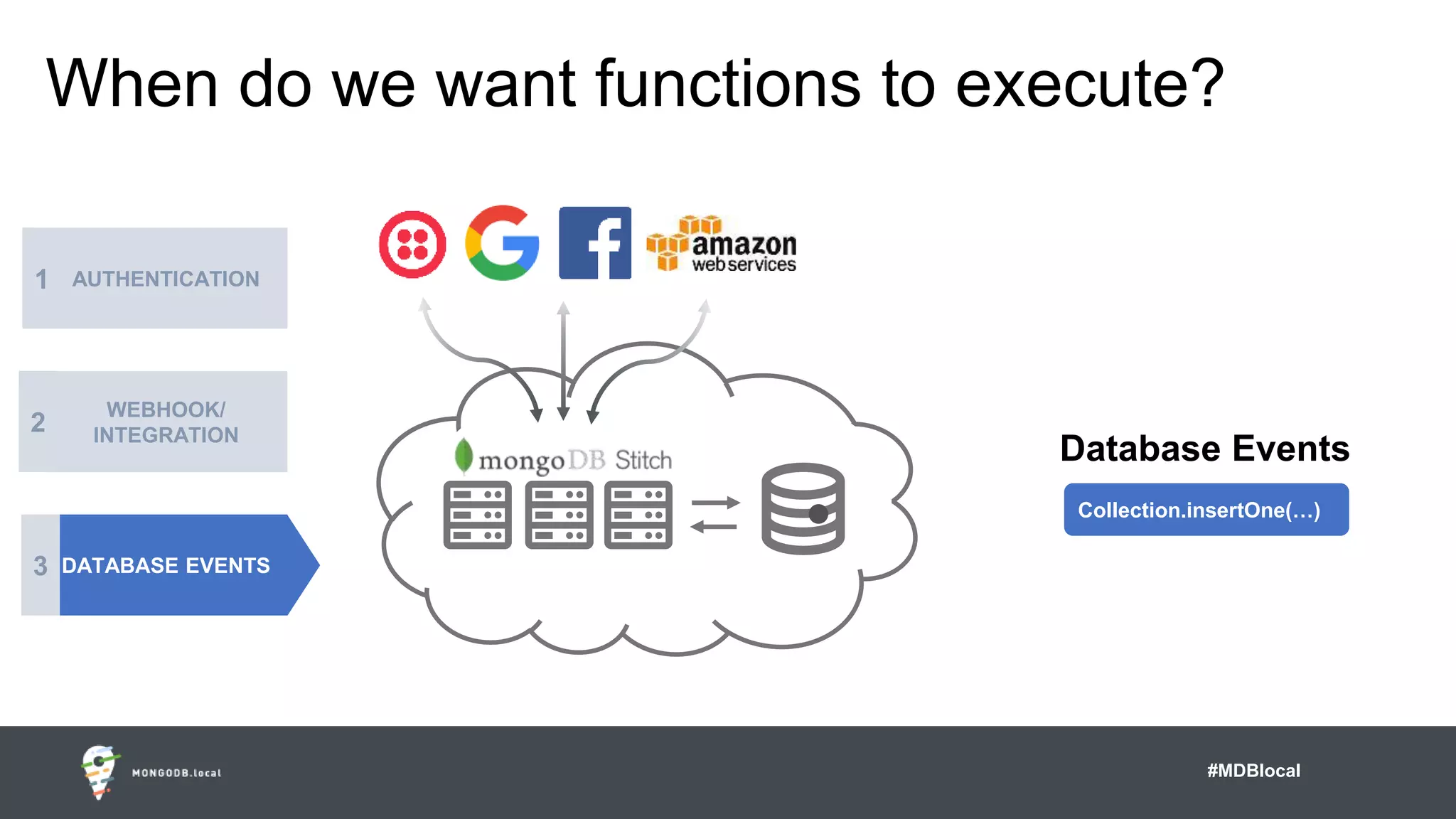

22. #MDBlocal
When do we want functions to execute?
Database Events
Collection.insertOne(…)
AUTHENTICATION
WEBHOOK/
INTEGRATION
DATABASE EVENTS
1
2
3

23. #MDBlocal
Responding to Database Changes in the Past

24. #MDBlocal

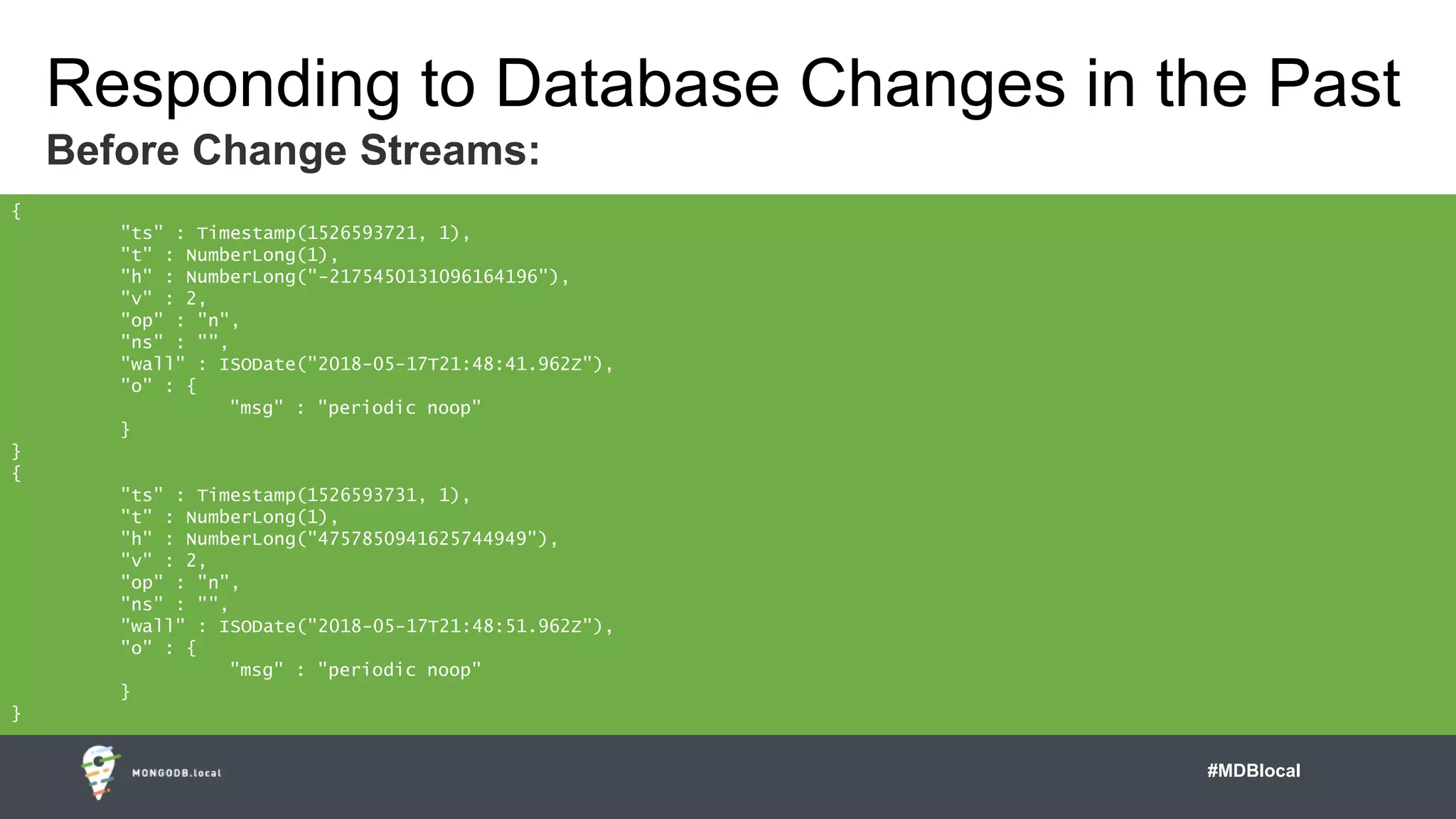

Responding to Database Changes in the Past
Before Change Streams:
{
"ts" : Timestamp(1526593721, 1),
"t" : NumberLong(1),
"h" : NumberLong("-2175450131096164196"),
"v" : 2,
"op" : "n",
"ns" : "",
"wall" : ISODate("2018-05-17T21:48:41.962Z"),
"o" : {
"msg" : "periodic noop"
}
}
{
"ts" : Timestamp(1526593731, 1),
"t" : NumberLong(1),
"h" : NumberLong("4757850941625744949"),
"v" : 2,
"op" : "n",
"ns" : "",
"wall" : ISODate("2018-05-17T21:48:51.962Z"),
"o" : {
"msg" : "periodic noop"
}
}

25. #MDBlocal
OPLOGOPLOG OPLOG
Application
W
db.users.insert({,,,})
PRIMARY SECONDARY SECONDARY
db.users.insert({,,,})
A
C
K
db.users.insert({,,,})
What’s an Oplog?
OUT OF DATE OUT OF DATE

26. #MDBlocal
OPLOGOPLOG OPLOG
Application
W
db.users.insert({,,,})
PRIMARY SECONDARY SECONDARY
db.users.insert({,,,})
A
C
K
db.users.insert({,,,})
W
db.users.update({,,,}) db.users.update({,,,})
A
C
K
db.users.update({,,,})
Monitor
R R
If (insert) {
aws.s3.insertObject(…);
}

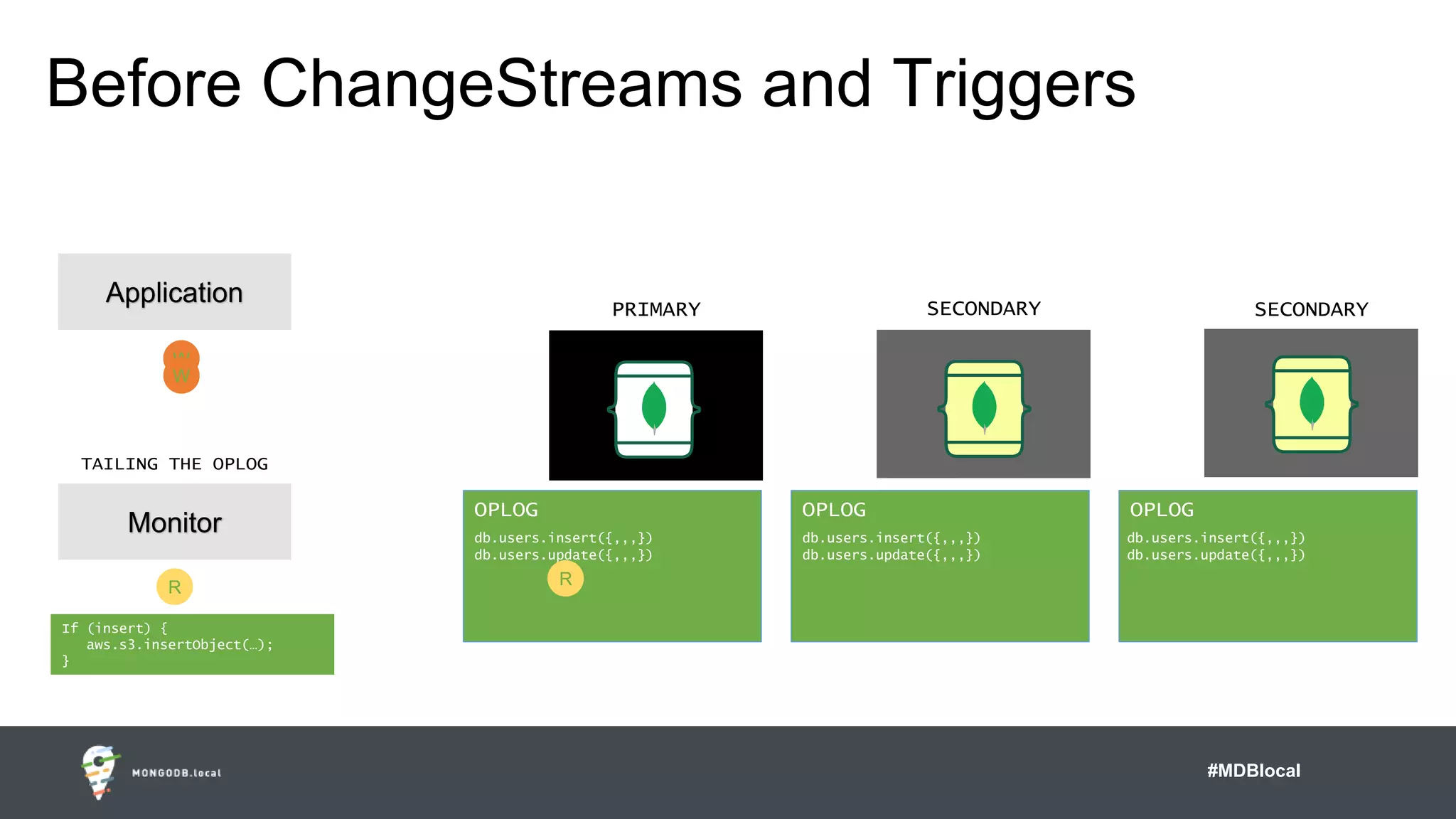

Before ChangeStreams and Triggers
TAILING THE OPLOG

27. #MDBlocal

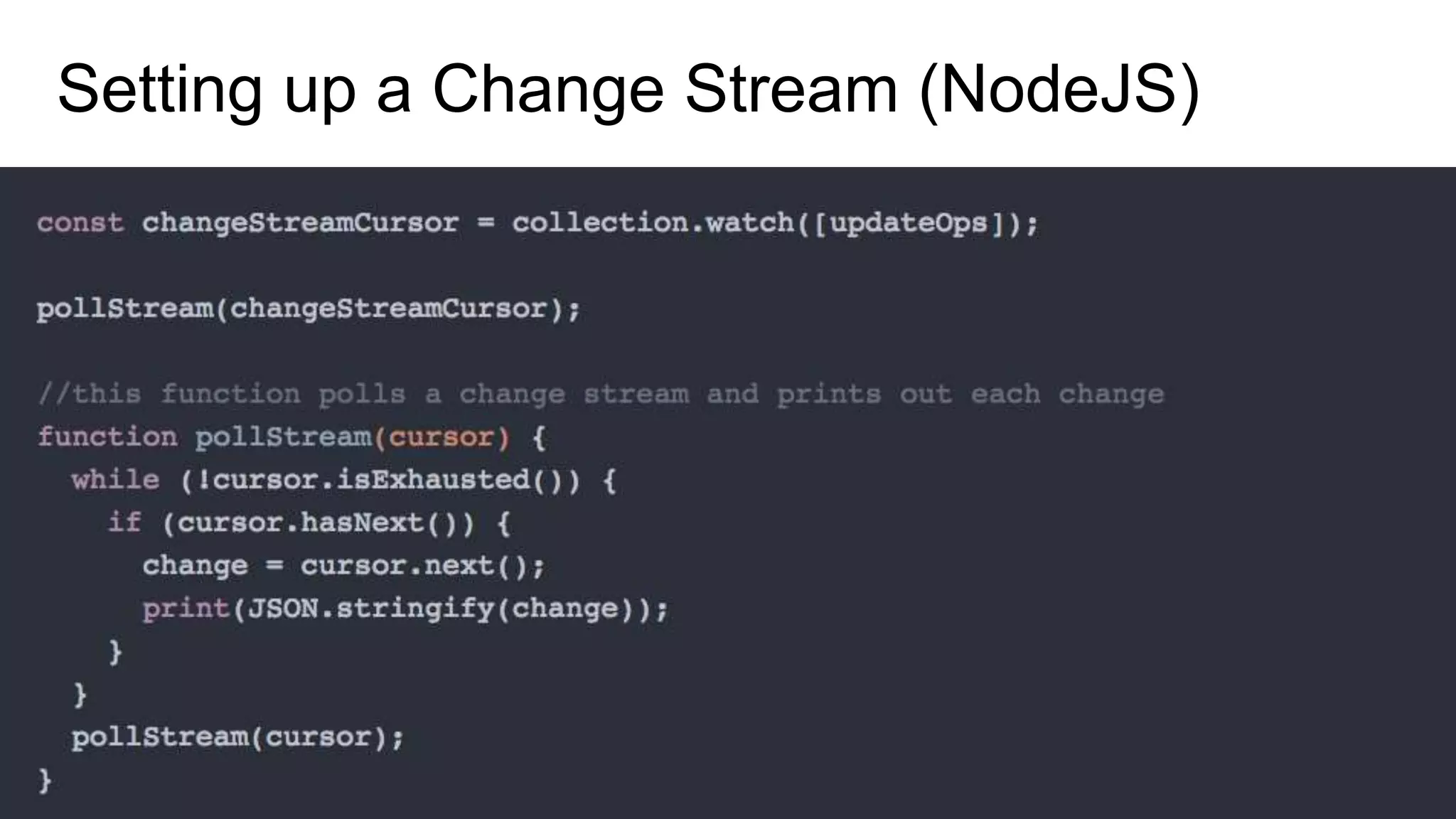

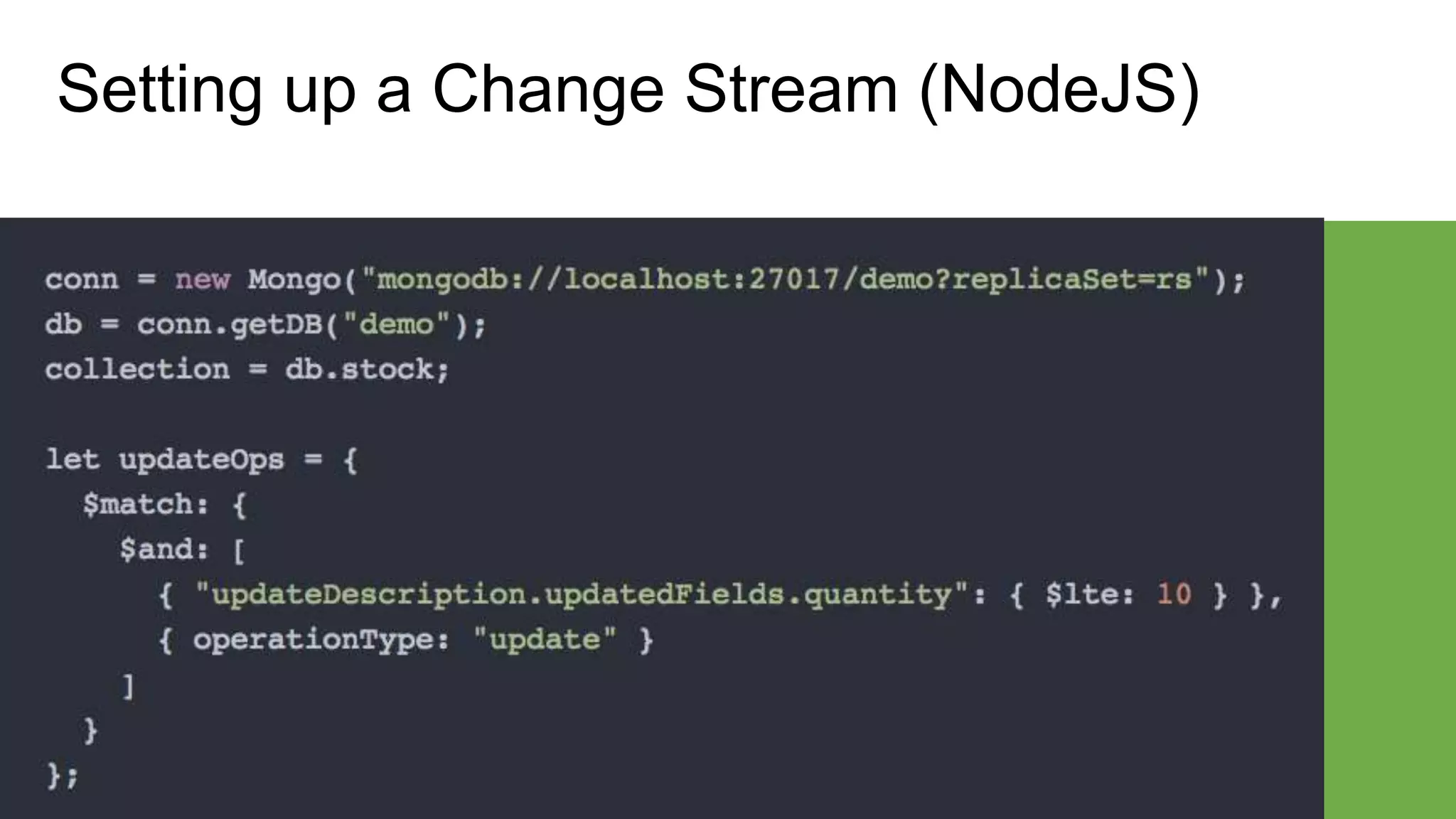

Setting up a Change Stream (NodeJS)

28. #MDBlocal
Setting up a Change Stream (NodeJS)

29. #MDBlocal
Triggers in Stitch

30. #MDBlocal

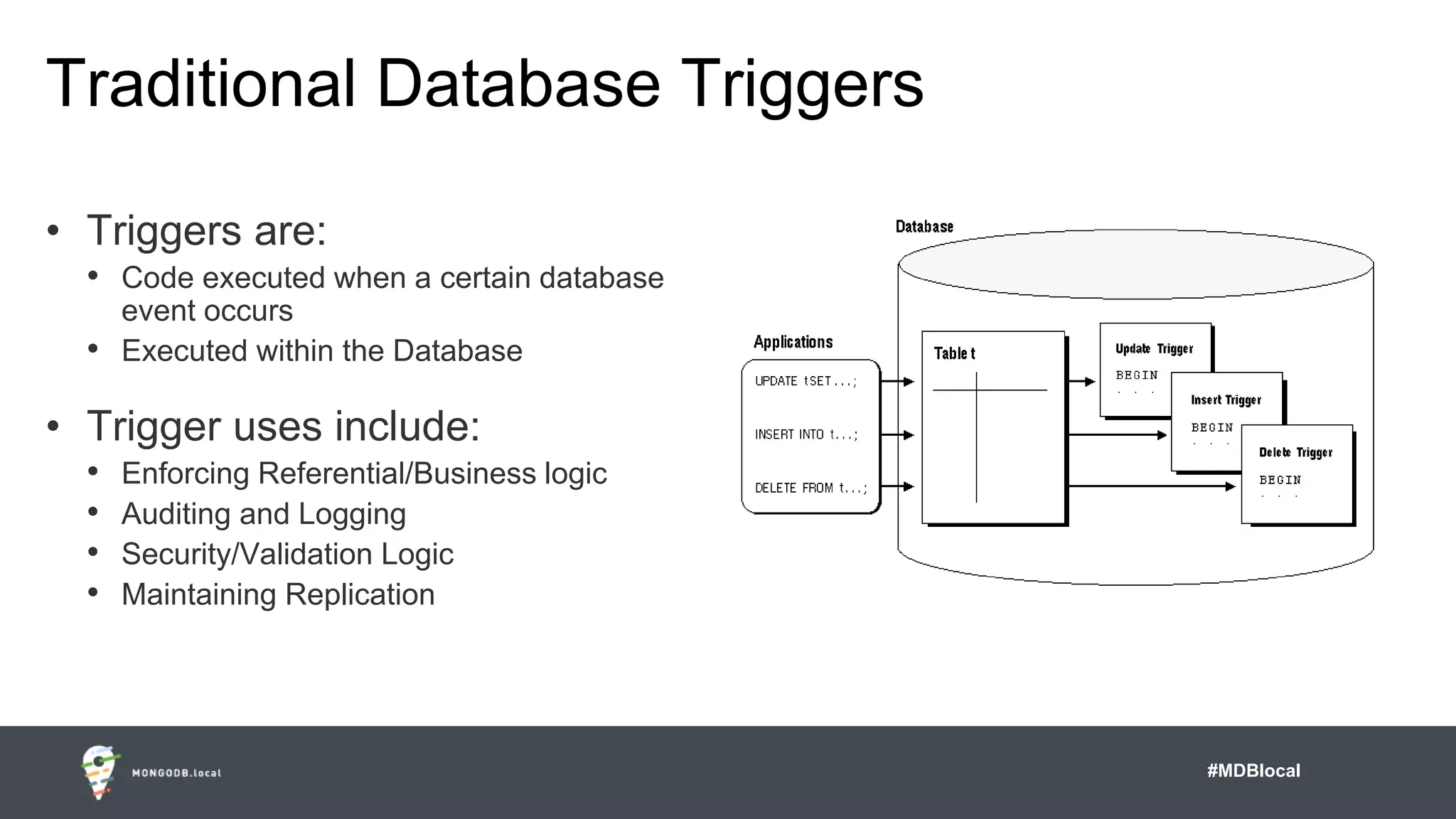

Traditional Database Triggers
• Triggers are:
• Code executed when a certain database
event occurs
• Executed within the Database
• Trigger uses include:
• Enforcing Referential/Business logic
• Auditing and Logging
• Security/Validation Logic
• Maintaining Replication

31. #MDBlocal
Stitch Coordinates Change Streams
1. Sets-up Change Stream
2. Maintains Streams over time
3. Passes Change Events to
Coordinator
Stitch Infrastructure
Stitch Connection
Event Coordinator
CS 1 CS 3
CS 2

32. #MDBlocal

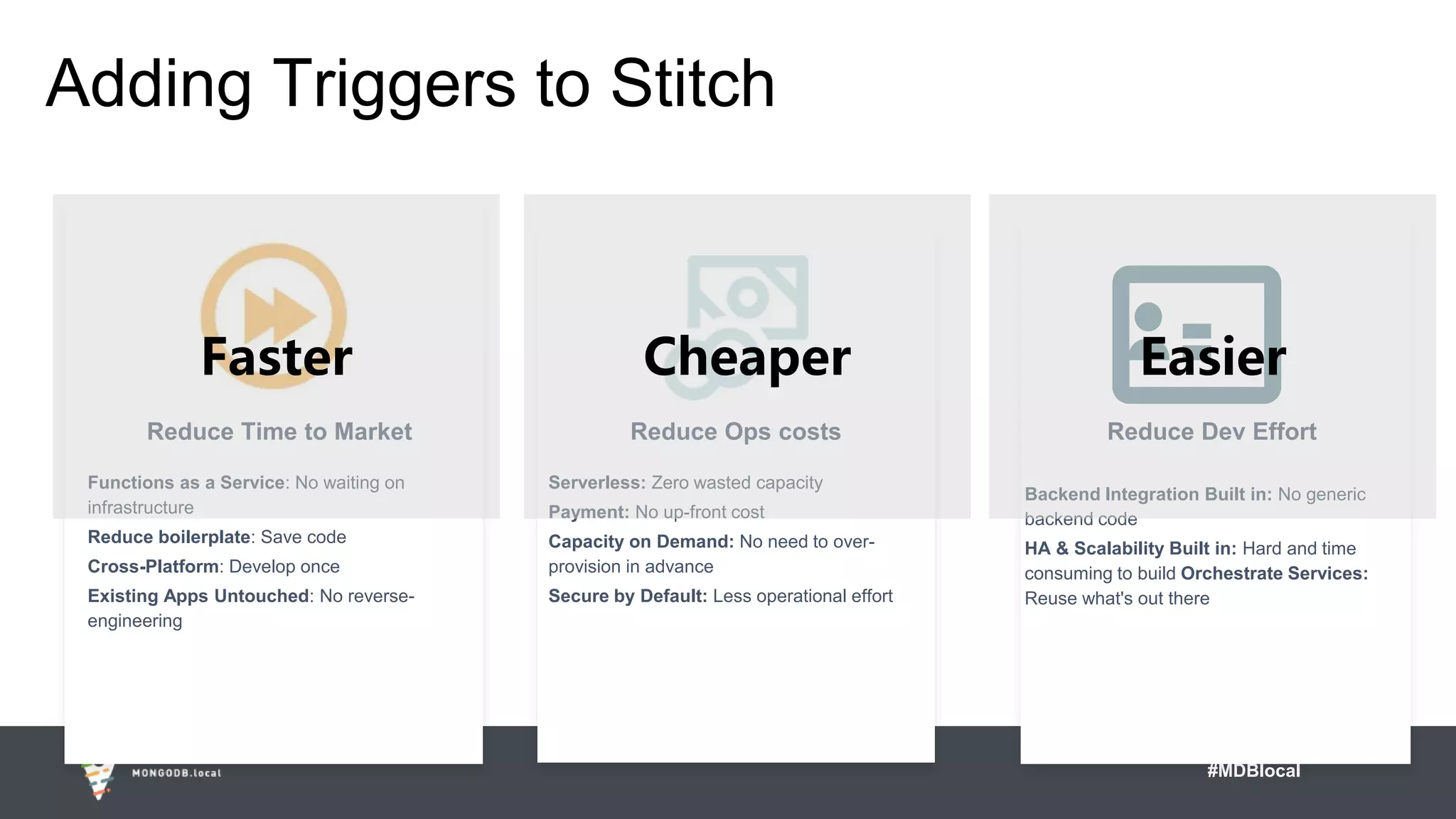

Adding Triggers to Stitch
Reduce Time to Market
Functions as a Service: No waiting on
infrastructure
Reduce boilerplate: Save code
Cross-Platform: Develop once
Existing Apps Untouched: No reverse-
engineering
Reduce Ops costs
Serverless: Zero wasted capacity
Payment: No up-front cost
Capacity on Demand: No need to over-
provision in advance
Secure by Default: Less operational effort
Reduce Dev Effort
Backend Integration Built in: No generic
backend code
HA & Scalability Built in: Hard and time
consuming to build Orchestrate Services:
Reuse what's out there
Faster Cheaper Easier

33. #MDBlocal
Event Driven Life-cycle
Pending SucceededOwned
Failed Dead
Event is …
Waiting for a ConsumerAttempting ExecutionCompletedAwaiting RetriesRe-Attempting ExecutionUnable to Execute
(Trigger Disabled)

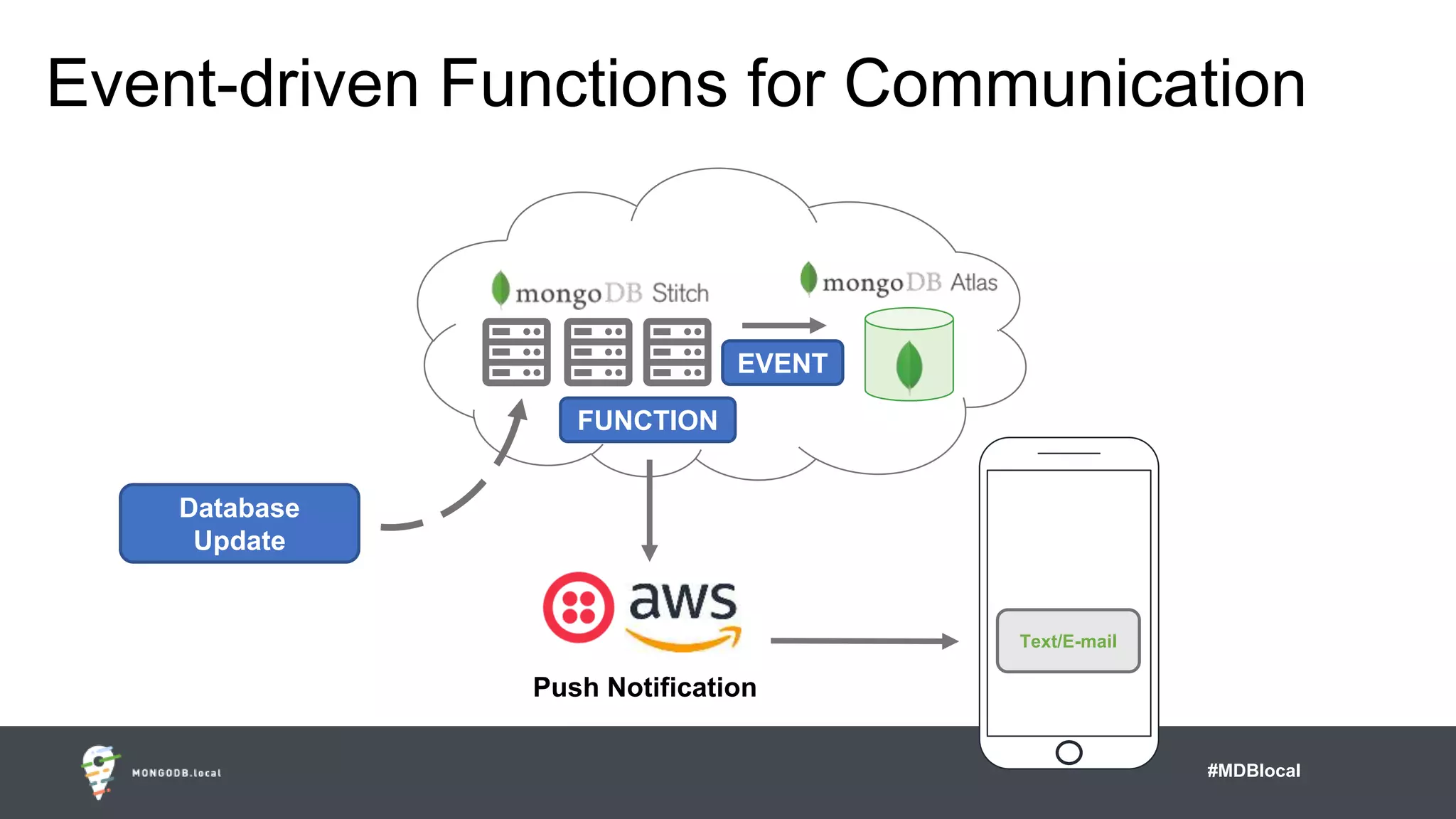

34. #MDBlocal
Event-driven Functions for Communication
FUNCTION
Database
Update
Text/E-mail
EVENT
Push Notification

35. #MDBlocal
Event-driven Functions for Data Propagation
FUNCTION
EVENT
Database
Operation

36. #MDBlocal
Stitch Ensures Correct Execution
Database Events are:
• Generated by matching
operations ({match: { …}})
• Fully Ordered
1. Event is Generated
2. Event added to Job Queue
3. Event waits for blocking Events
to complete
4. Event waits for consumer to
attempt execution

37. #MDBlocal
The MongoDB Swagstore

38. #MDBlocal

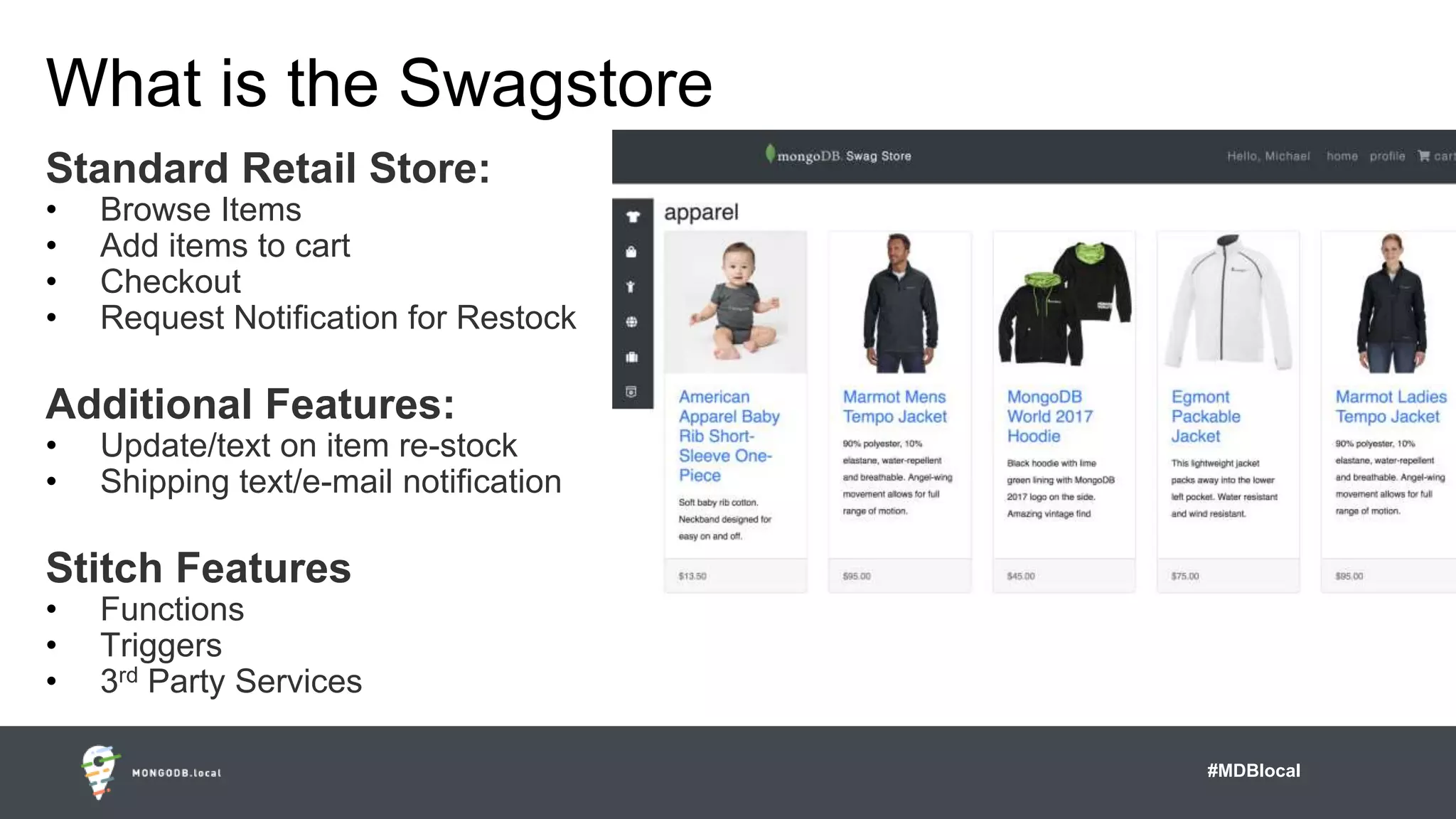

What is the Swagstore
Standard Retail Store:
• Browse Items
• Add items to cart
• Checkout
• Request Notification for Restock
Additional Features:
• Update/text on item re-stock
• Shipping text/e-mail notification
Stitch Features
• Functions
• Triggers
• 3rd Party Services

39. #MDBlocal

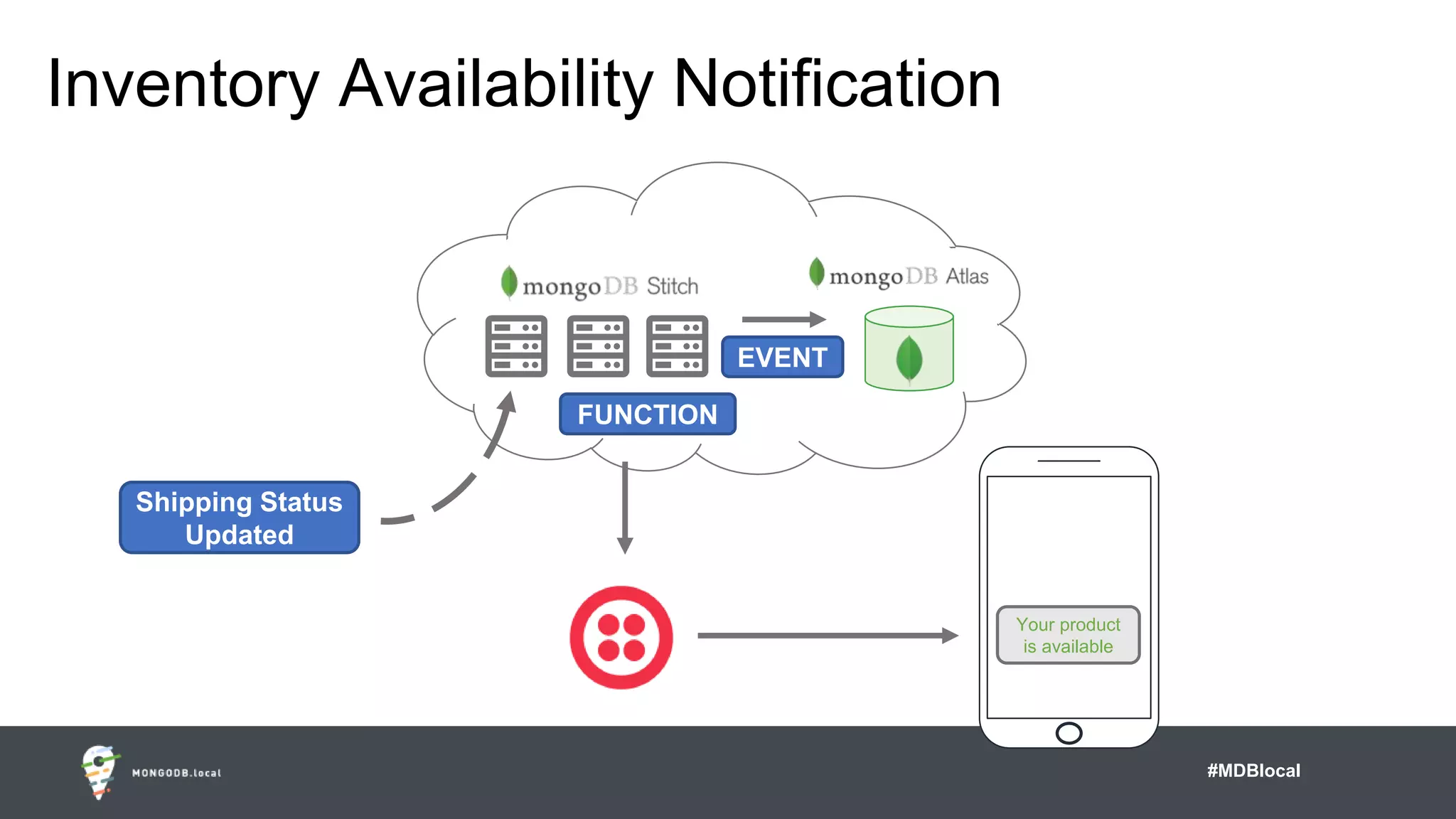

Inventory Availability Notification
FUNCTION
Shipping Status
Updated
Your product
is available
EVENT

40. #MDBlocal

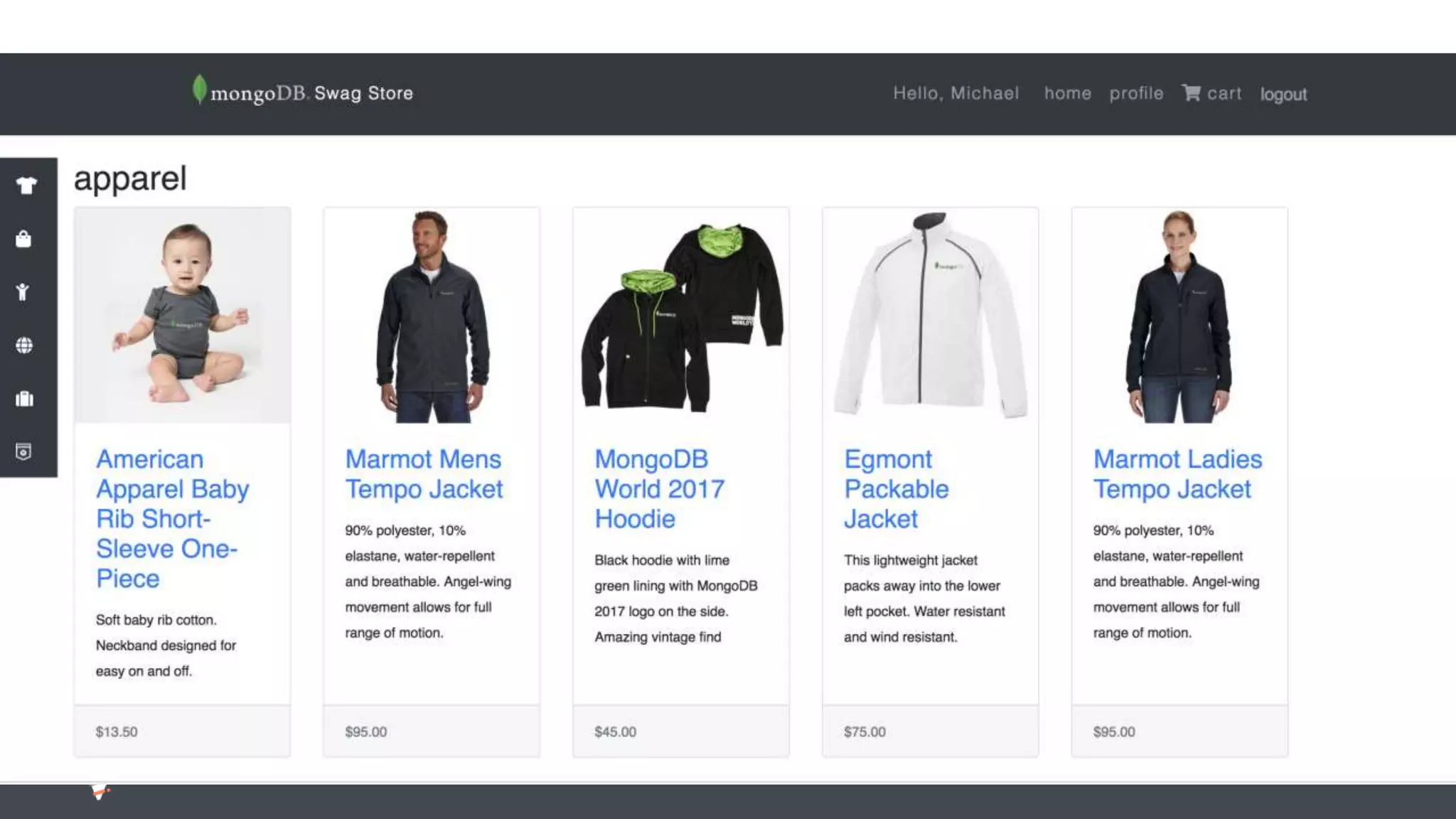

Swagstore in Action

41. #MDBlocal

42. #MDBlocal

43. #MDBlocal
AUTHENTICATION
BROWSE
SELECT ITEM
IN
STOCK?
CART
CHECKOUT
UPDATE NOTIFY

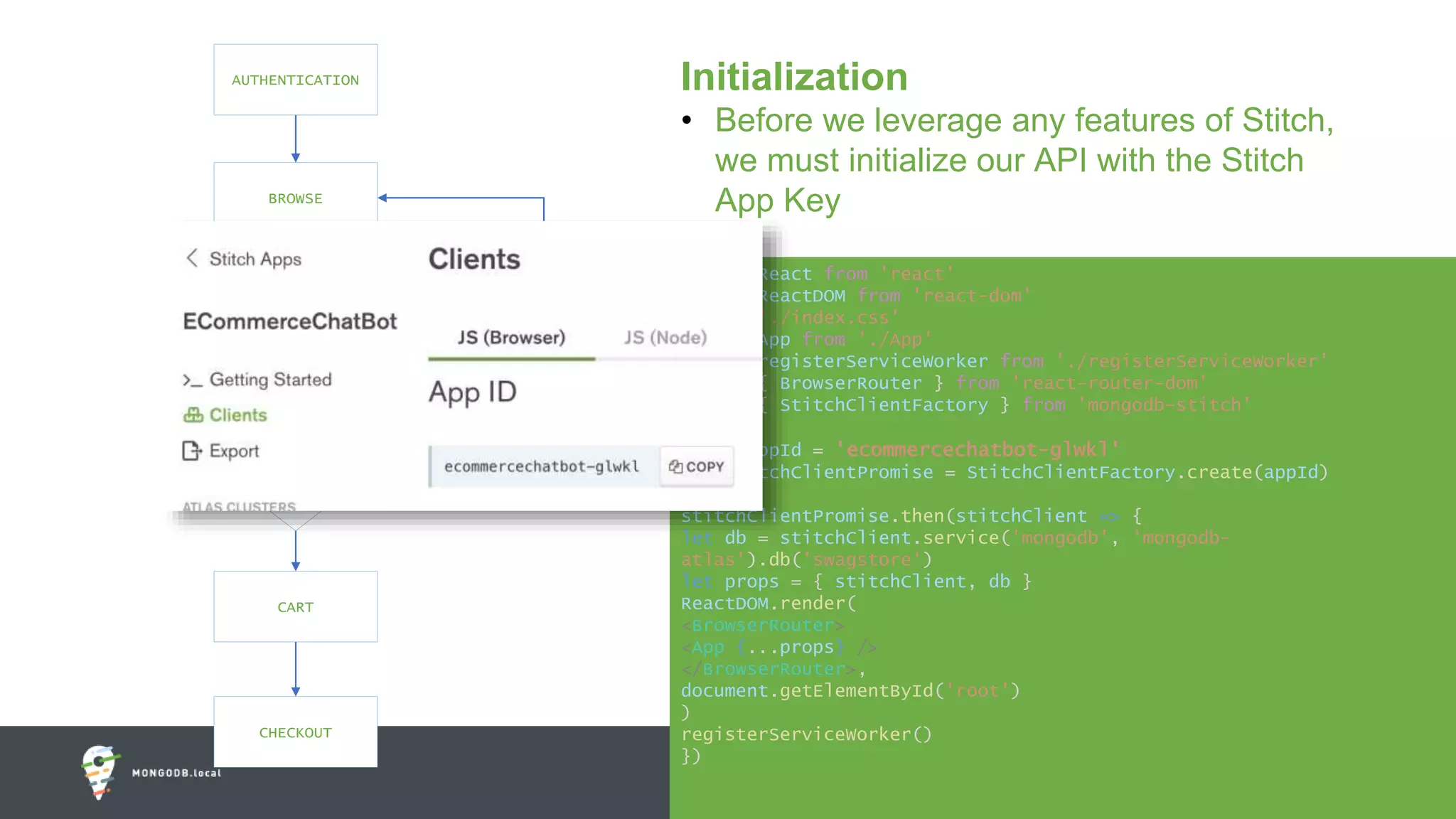

Initialization
• Before we leverage any features of Stitch,
we must initialize our API with the Stitch
App Key
import React from 'react'
import ReactDOM from 'react-dom'
import './index.css'
import App from './App'
import registerServiceWorker from './registerServiceWorker'
import { BrowserRouter } from 'react-router-dom'
import { StitchClientFactory } from 'mongodb-stitch'
const appId = 'ecommercechatbot-glwkl'
let stitchClientPromise = StitchClientFactory.create(appId)
stitchClientPromise.then(stitchClient => {
let db = stitchClient.service('mongodb', 'mongodb-
atlas').db('swagstore')
let props = { stitchClient, db }
ReactDOM.render(
<BrowserRouter>
<App {...props} />
</BrowserRouter>,
document.getElementById('root')
)
registerServiceWorker()
})

44. #MDBlocal
AUTHENTICATION
BROWSE
SELECT ITEM
IN
STOCK?
CART
CHECKOUT
UPDATE NOTIFY
Authentication
• Leverage integration with Google Sign-in
to authenticate the user and set the user’s
profile context.

45. #MDBlocal
AUTHENTICATION
BROWSE
SELECT ITEM
IN
STOCK?
CART
CHECKOUT
UPDATE NOTIFY

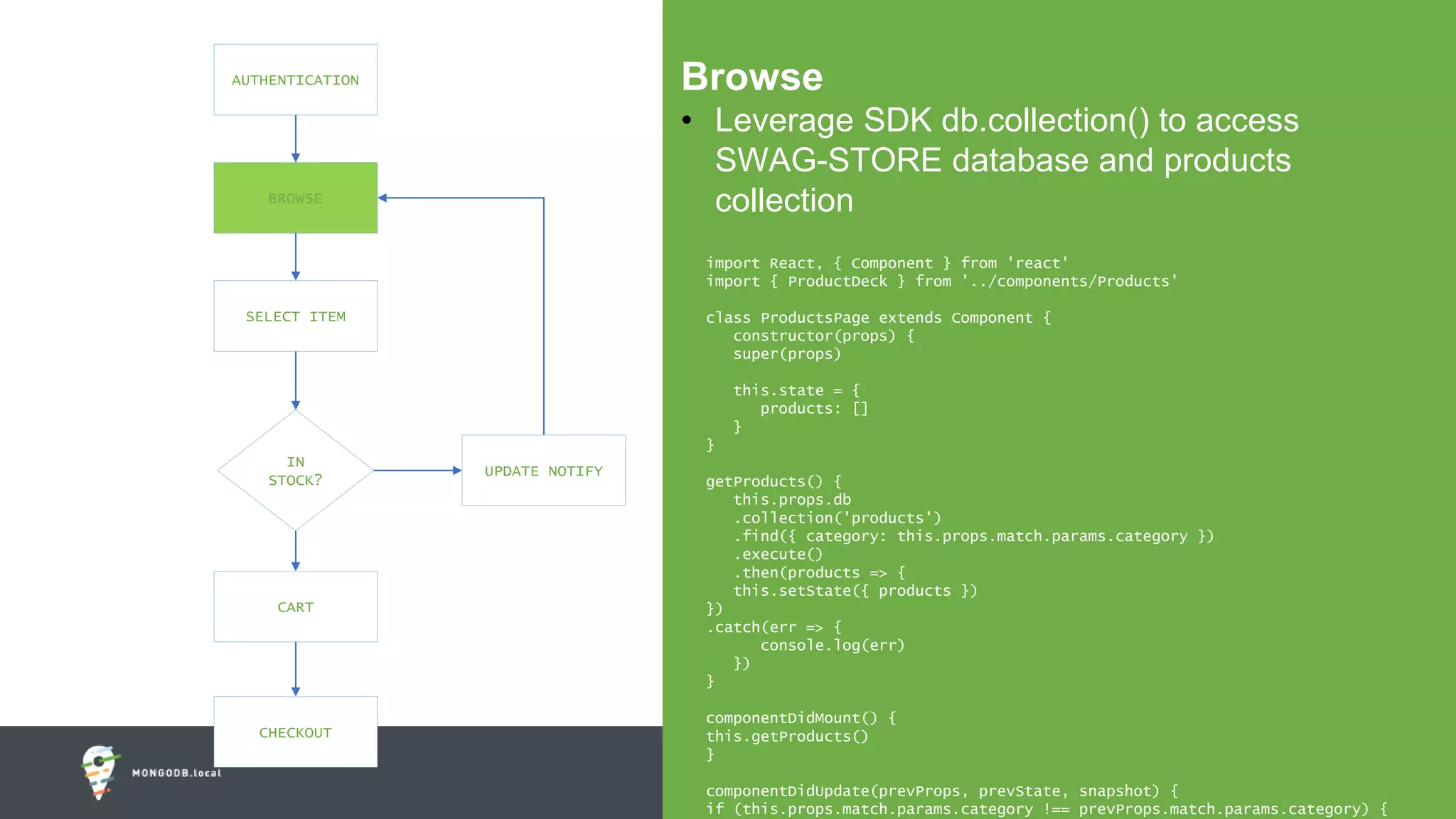

Browse
• Leverage SDK db.collection() to access
SWAG-STORE database and products
collection
import React, { Component } from 'react'
import { ProductDeck } from '../components/Products'
class ProductsPage extends Component {
constructor(props) {
super(props)
this.state = {
products: []
}
}
getProducts() {
this.props.db
.collection('products’)
.find({ category: this.props.match.params.category })
.execute()
.then(products => {
this.setState({ products })
})
.catch(err => {
console.log(err)
})
}
componentDidMount() {
this.getProducts()
}
componentDidUpdate(prevProps, prevState, snapshot) {
if (this.props.match.params.category !== prevProps.match.params.category) {

46. #MDBlocal
AUTHENTICATION
BROWSE
SELECT ITEM
IN
STOCK?
CART
CHECKOUT
UPDATE NOTIFY

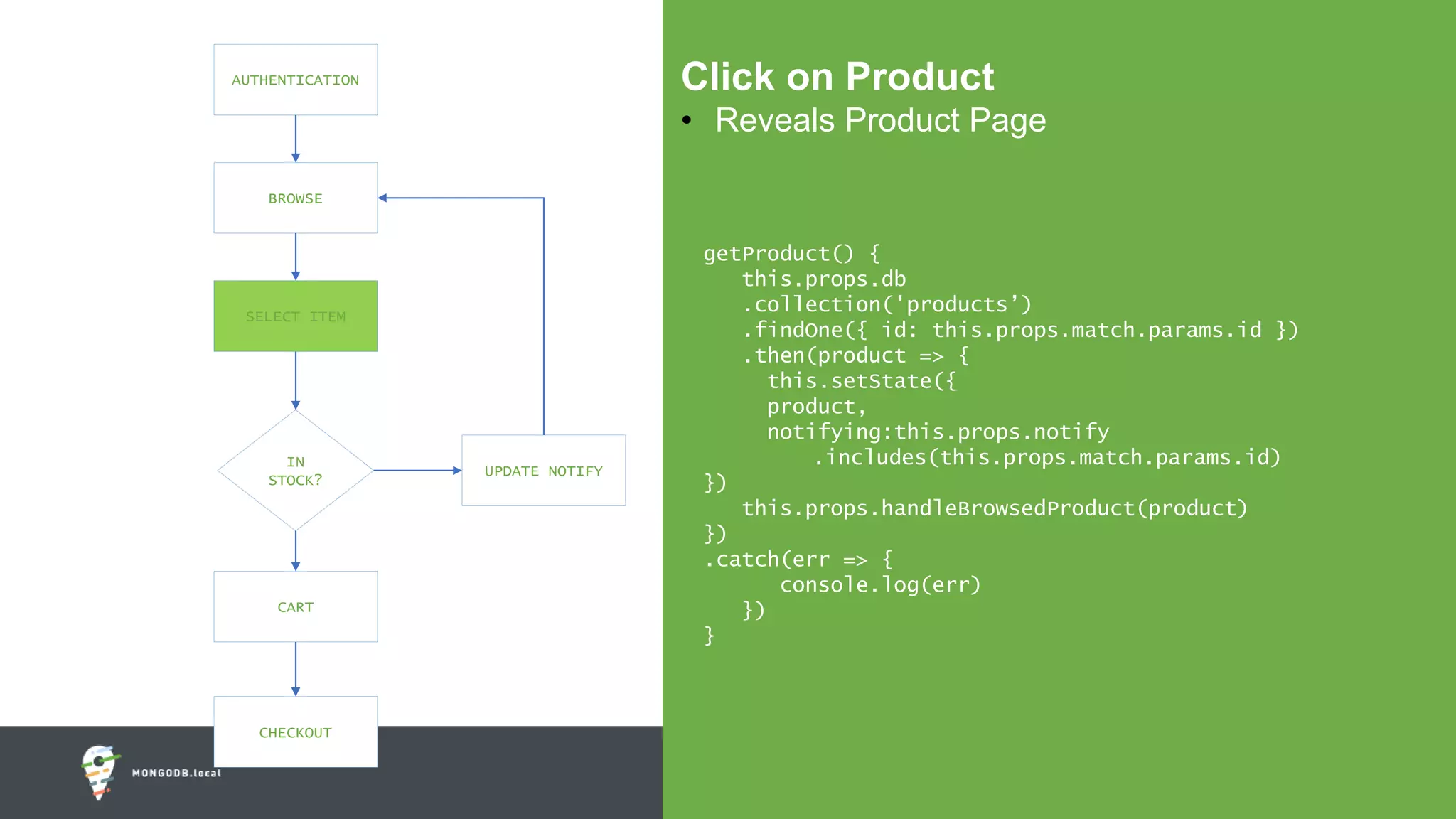

Click on Product
• Reveals Product Page
getProduct() {
this.props.db
.collection('products’)
.findOne({ id: this.props.match.params.id })
.then(product => {
this.setState({
product,
notifying:this.props.notify
.includes(this.props.match.params.id)
})
this.props.handleBrowsedProduct(product)
})
.catch(err => {
console.log(err)
})
}

47. #MDBlocal

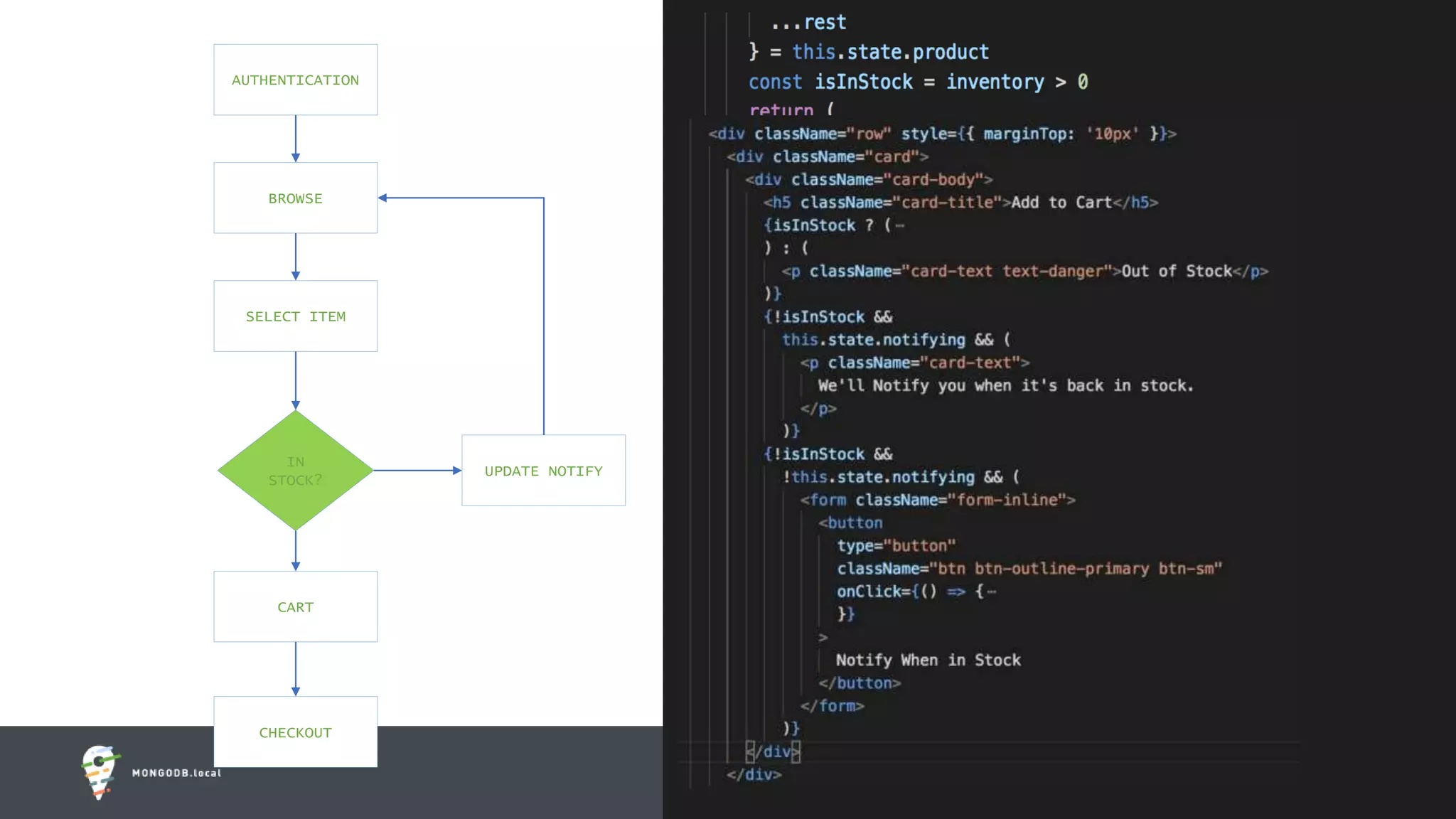

AUTHENTICATION
BROWSE
SELECT ITEM
IN
STOCK?
CART
CHECKOUT
UPDATE NOTIFY

48. #MDBlocal

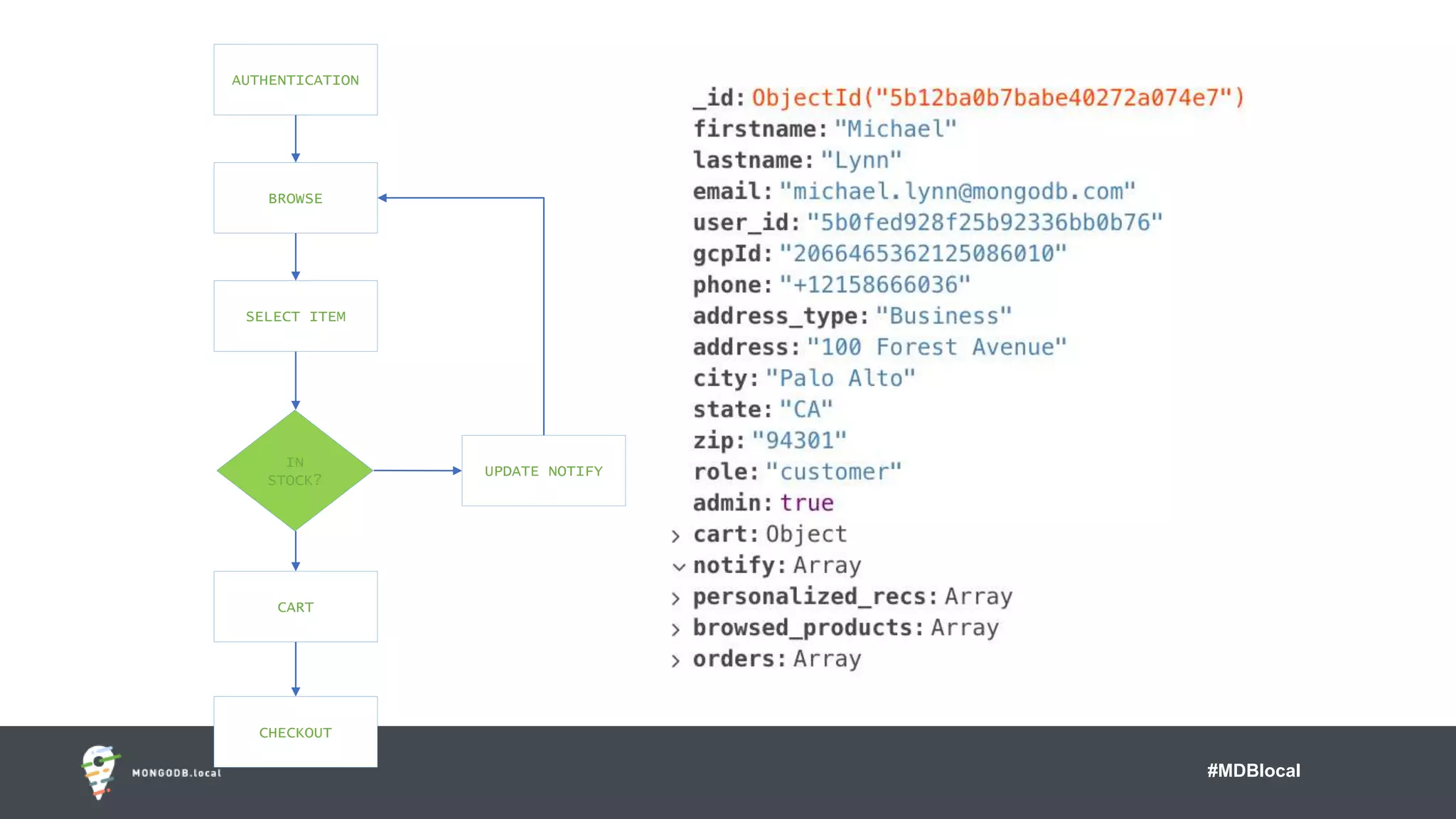

UPDATE NOTIFY
IN
STOCK?
AUTHENTICATION
BROWSE
SELECT ITEM
CART
CHECKOUT

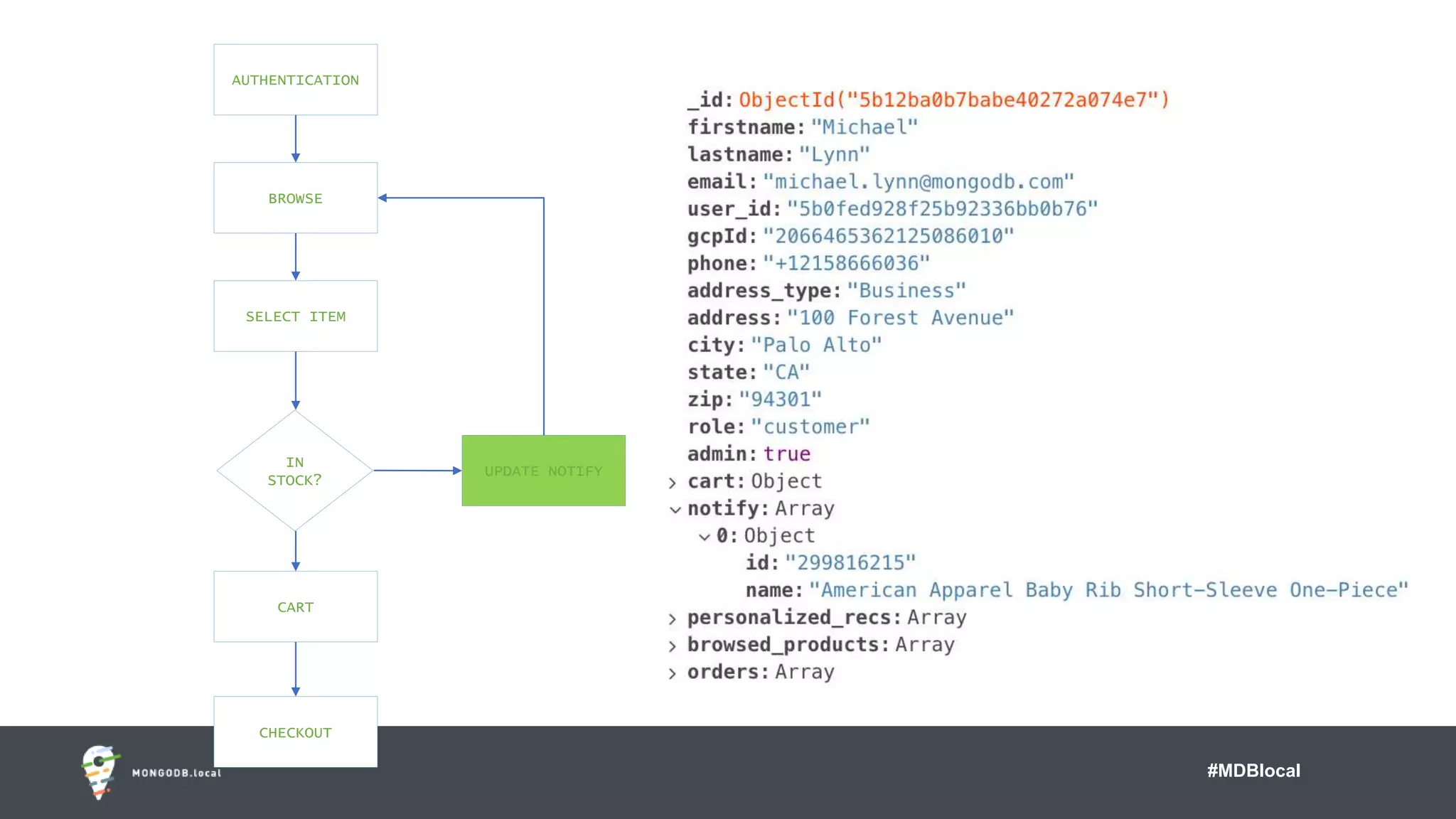

49. #MDBlocal
UPDATE NOTIFY
IN
STOCK?
AUTHENTICATION
BROWSE
SELECT ITEM
CART
CHECKOUT

50. #MDBlocal

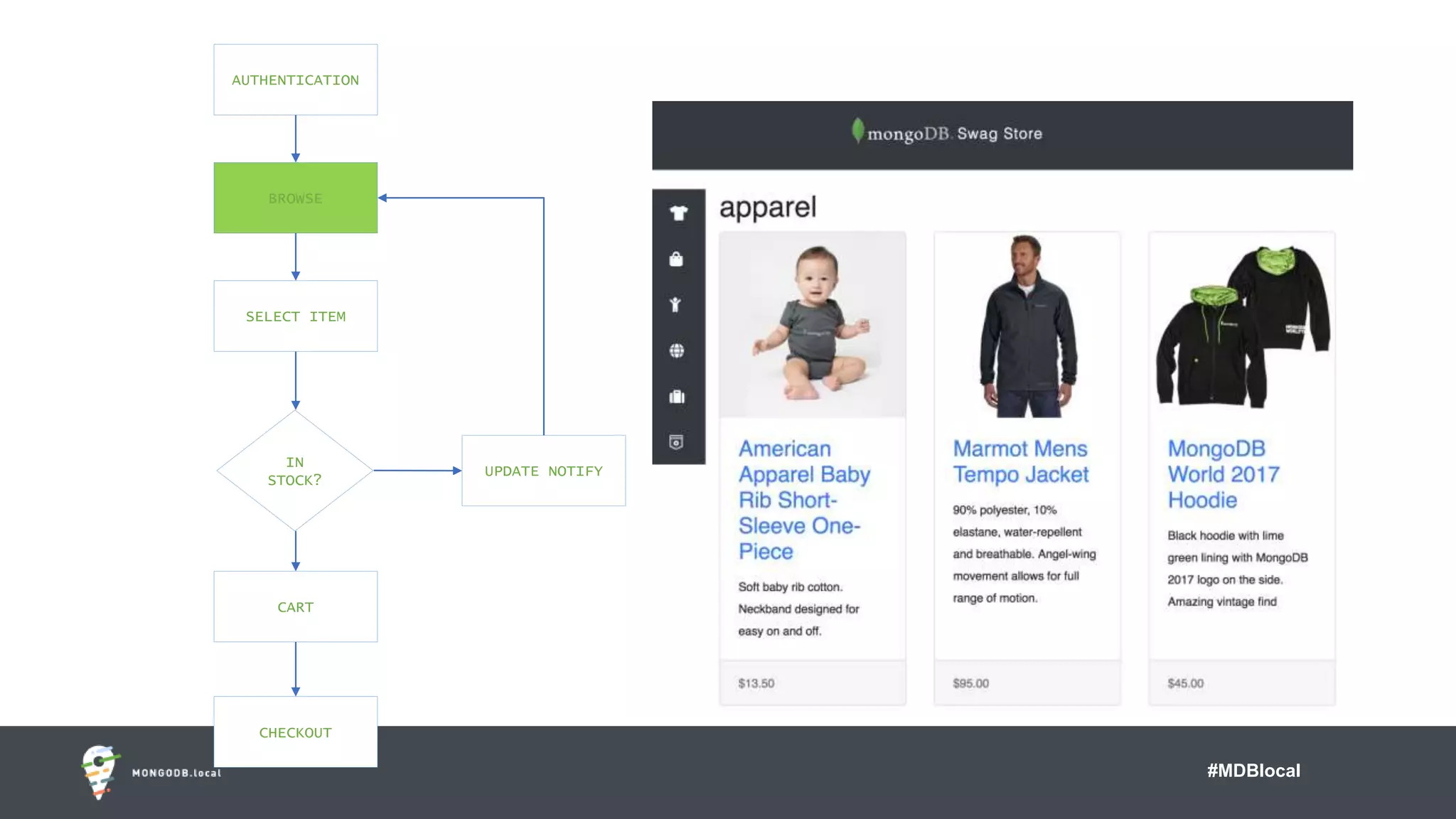

UPDATE NOTIFY
IN
STOCK?
AUTHENTICATION
BROWSE
SELECT ITEM
CART
CHECKOUT

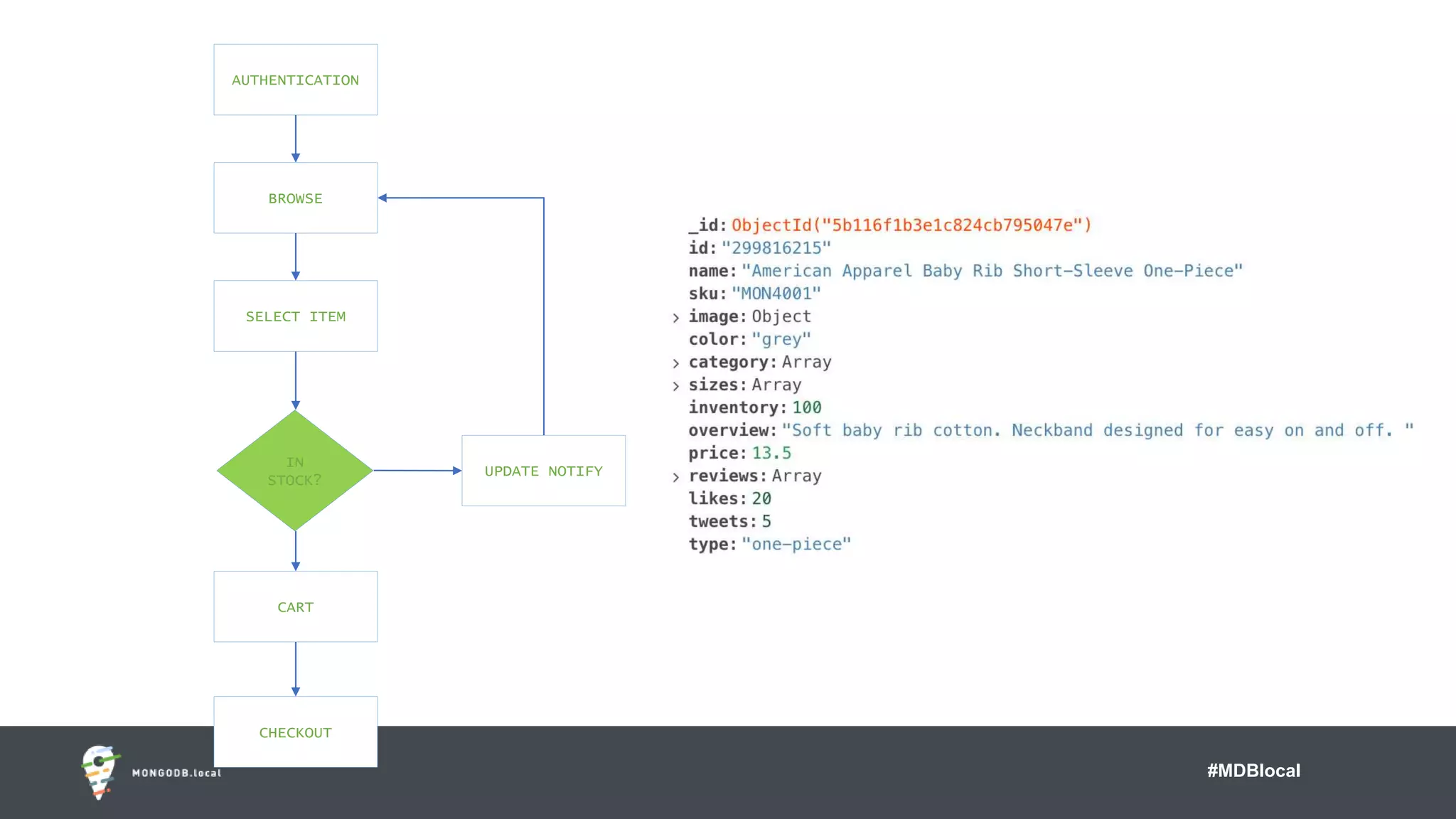

51. #MDBlocal
UPDATE NOTIFY
IN
STOCK?
AUTHENTICATION
BROWSE
SELECT ITEM
CART
CHECKOUT

52. #MDBlocal

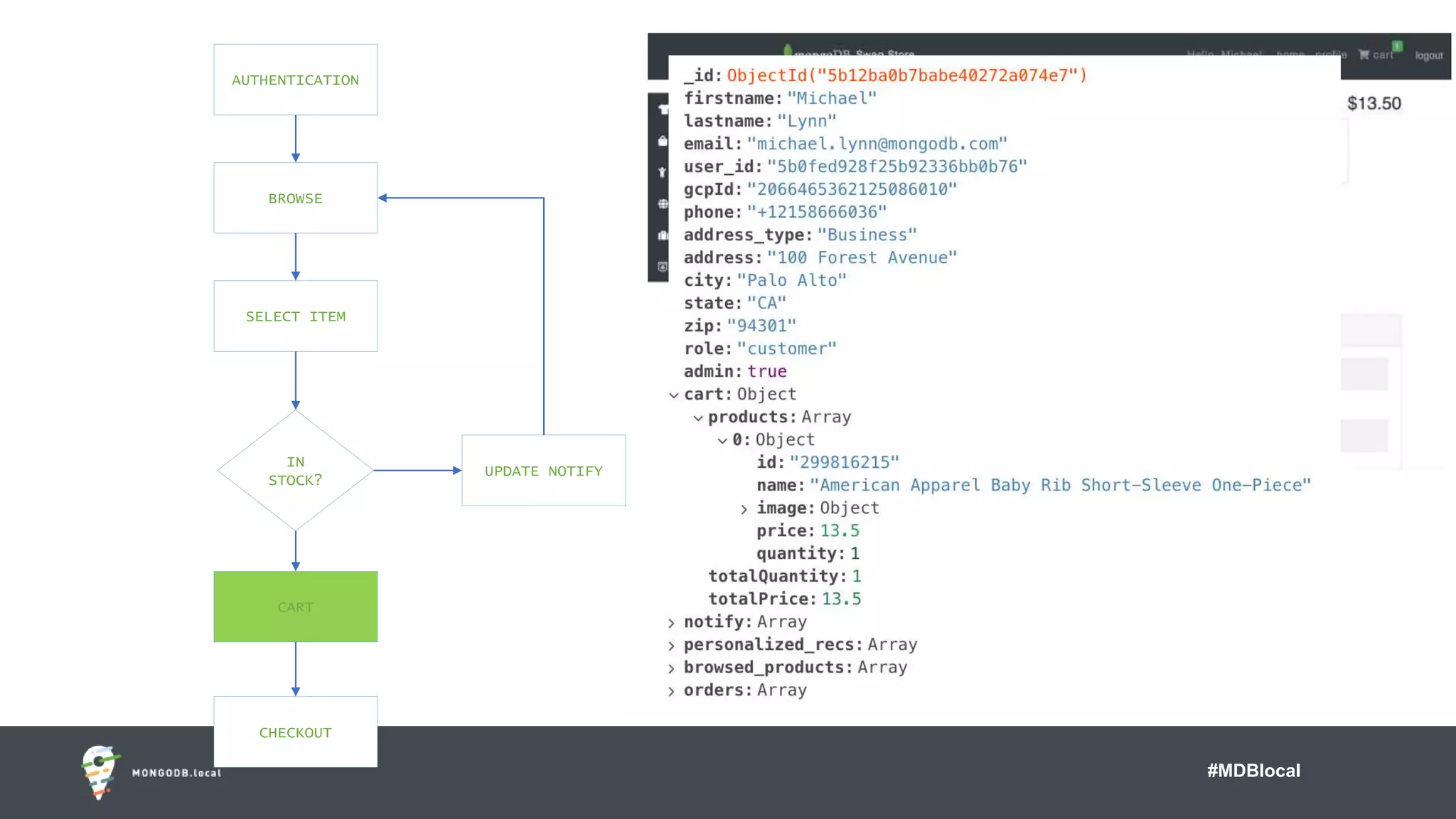

AUTHENTICATION
BROWSE
SELECT ITEM
IN
STOCK?
CART
CHECKOUT
UPDATE NOTIFY

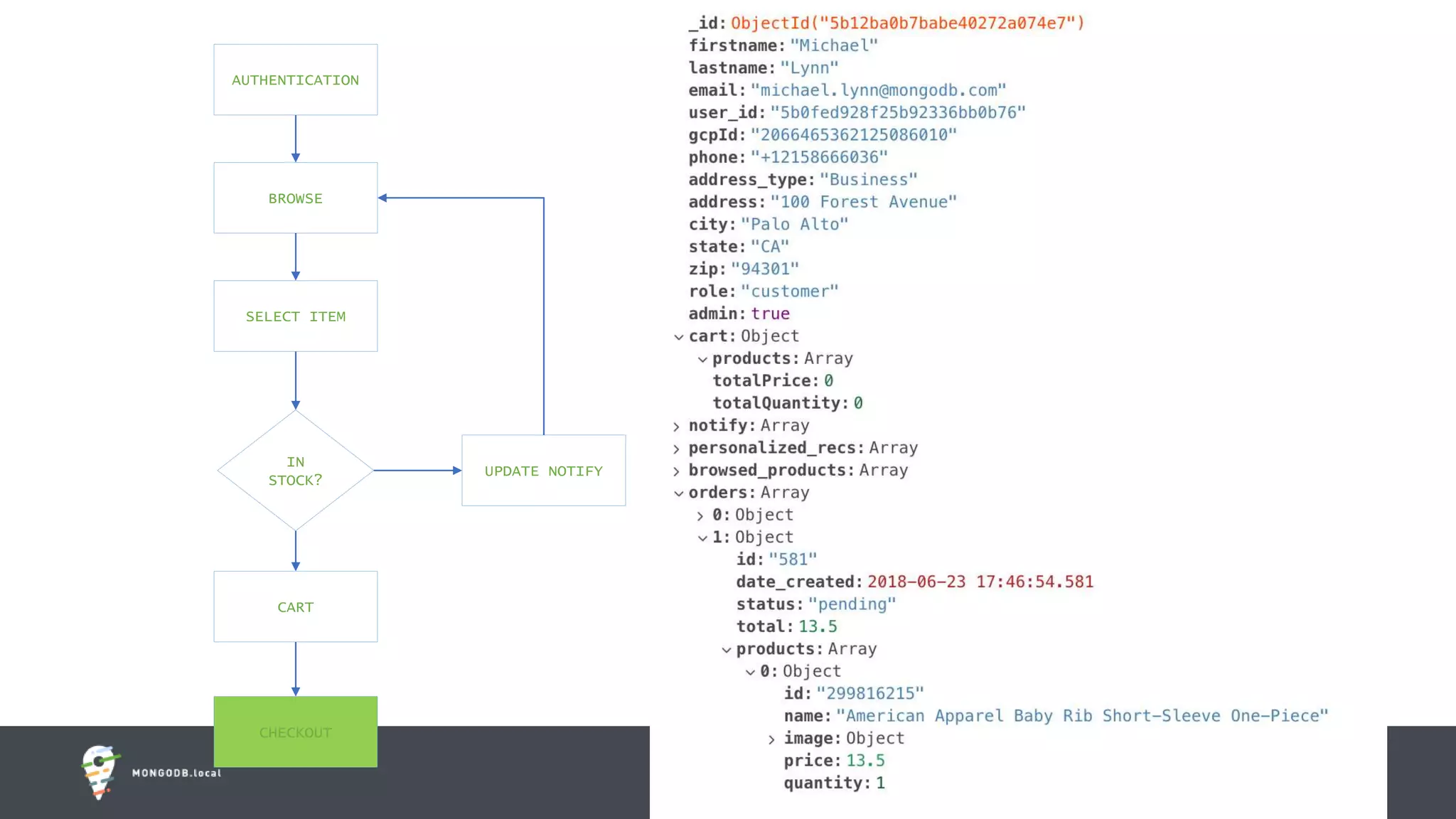

53. #MDBlocal
AUTHENTICATION
BROWSE
SELECT ITEM
IN
STOCK?
CART
CHECKOUT
UPDATE NOTIFY

54. #MDBlocal

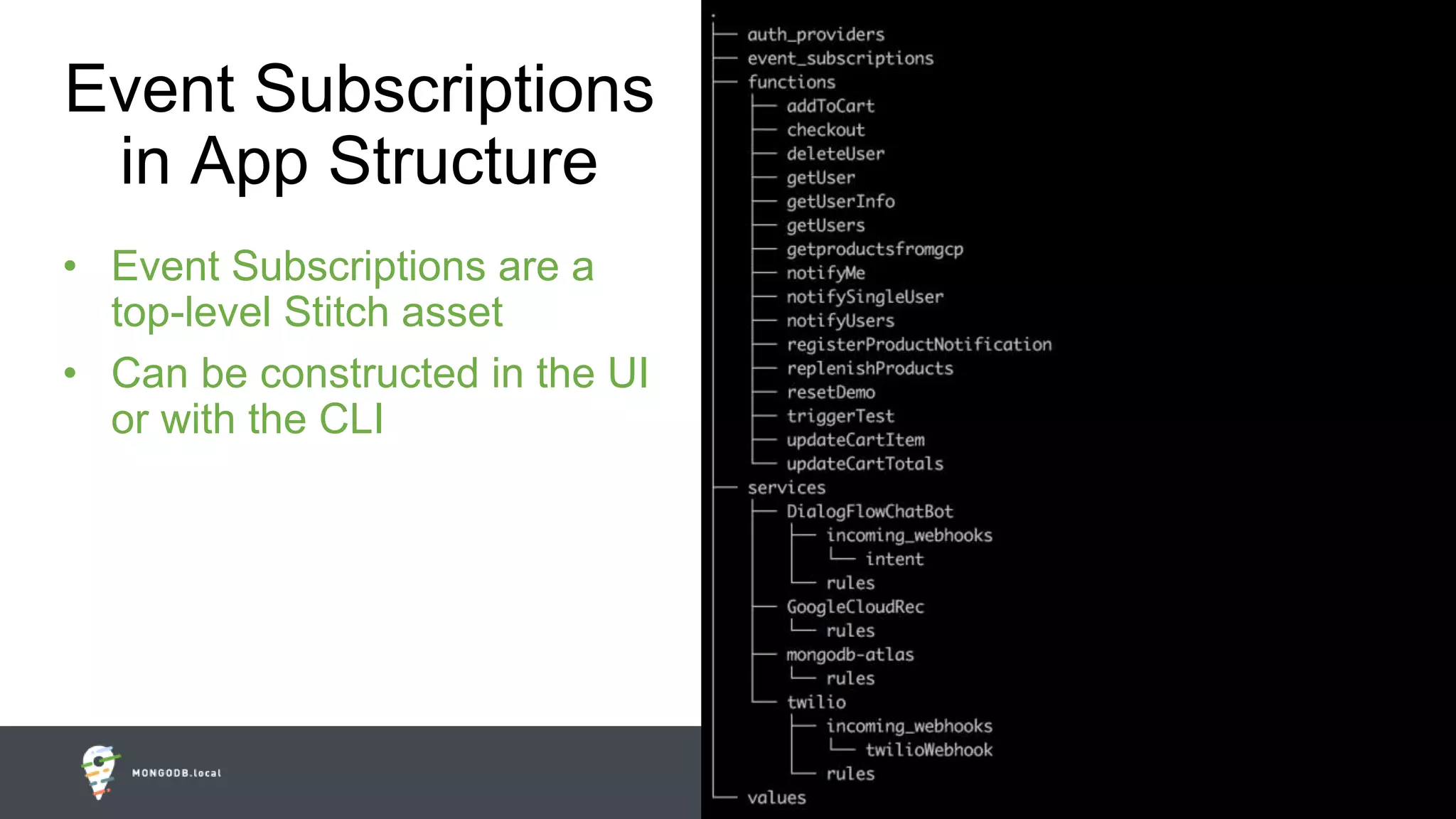

Event Subscriptions
in App Structure
• Event Subscriptions are a
top-level Stitch asset
• Can be constructed in the UI
or with the CLI

55. #MDBlocal
Event Subscriptions
in App Structure
• Event Subscriptions are a
top-level Stitch asset
• Can be constructed in the UI
or with the CLI

56. #MDBlocal

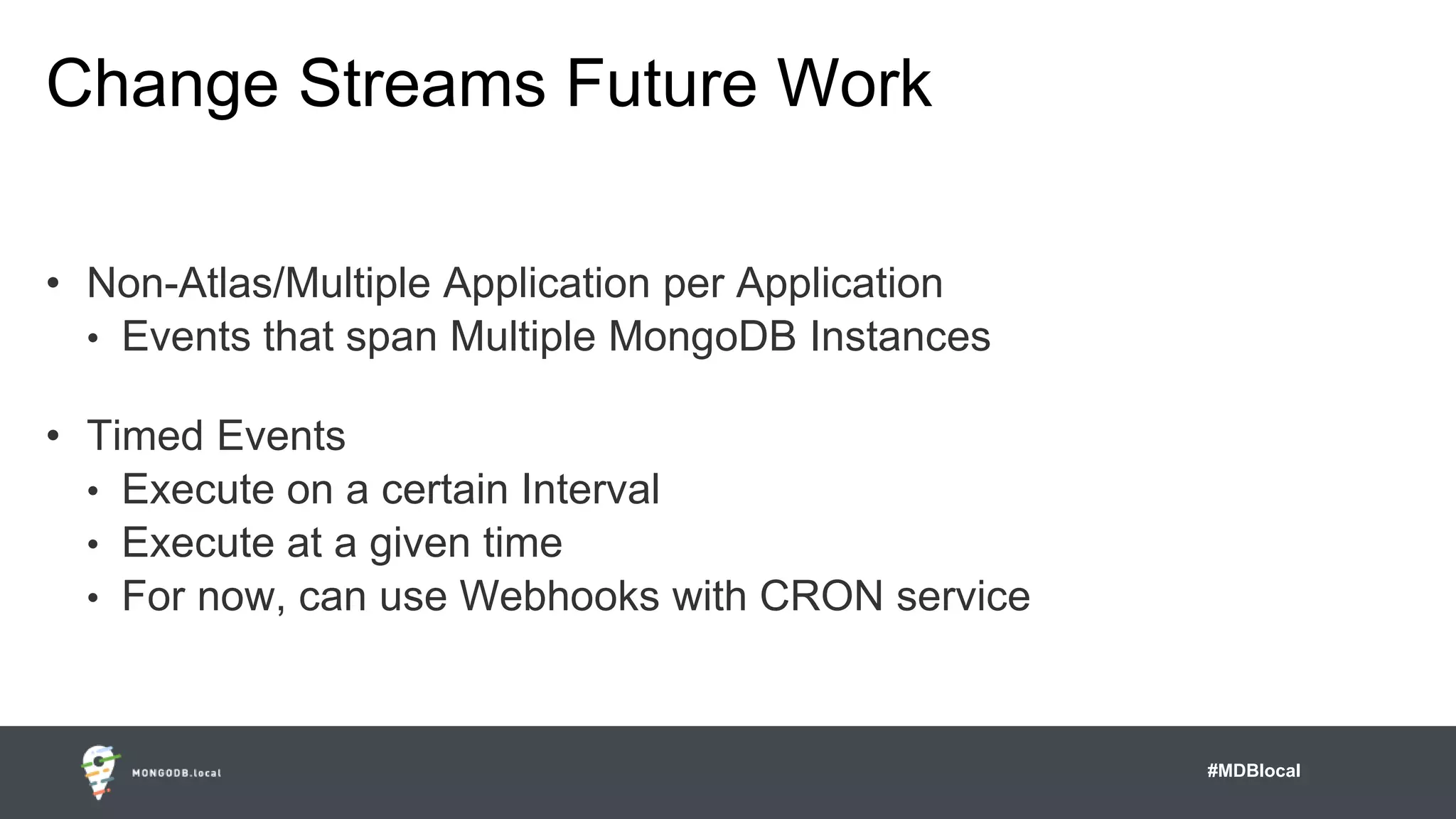

Change Streams Future Work
• Non-Atlas/Multiple Application per Application
• Events that span Multiple MongoDB Instances
• Timed Events
• Execute on a certain Interval
• Execute at a given time
• For now, can use Webhooks with CRON service

57. #MDBlocal

58. #MDBlocal

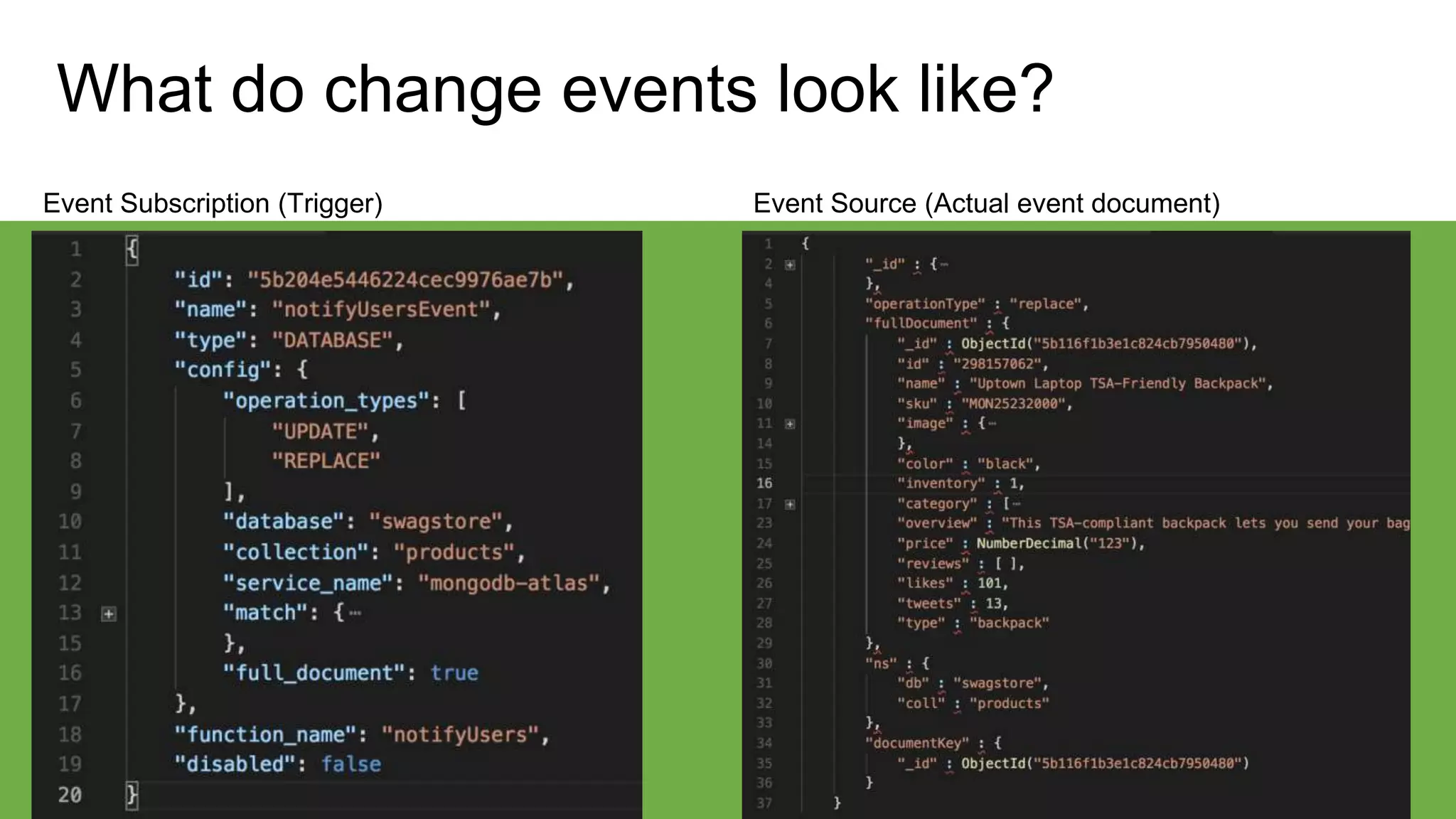

What do change events look like?
Event Subscription (Trigger) Event Source (Actual event document)

59. #MDBlocal

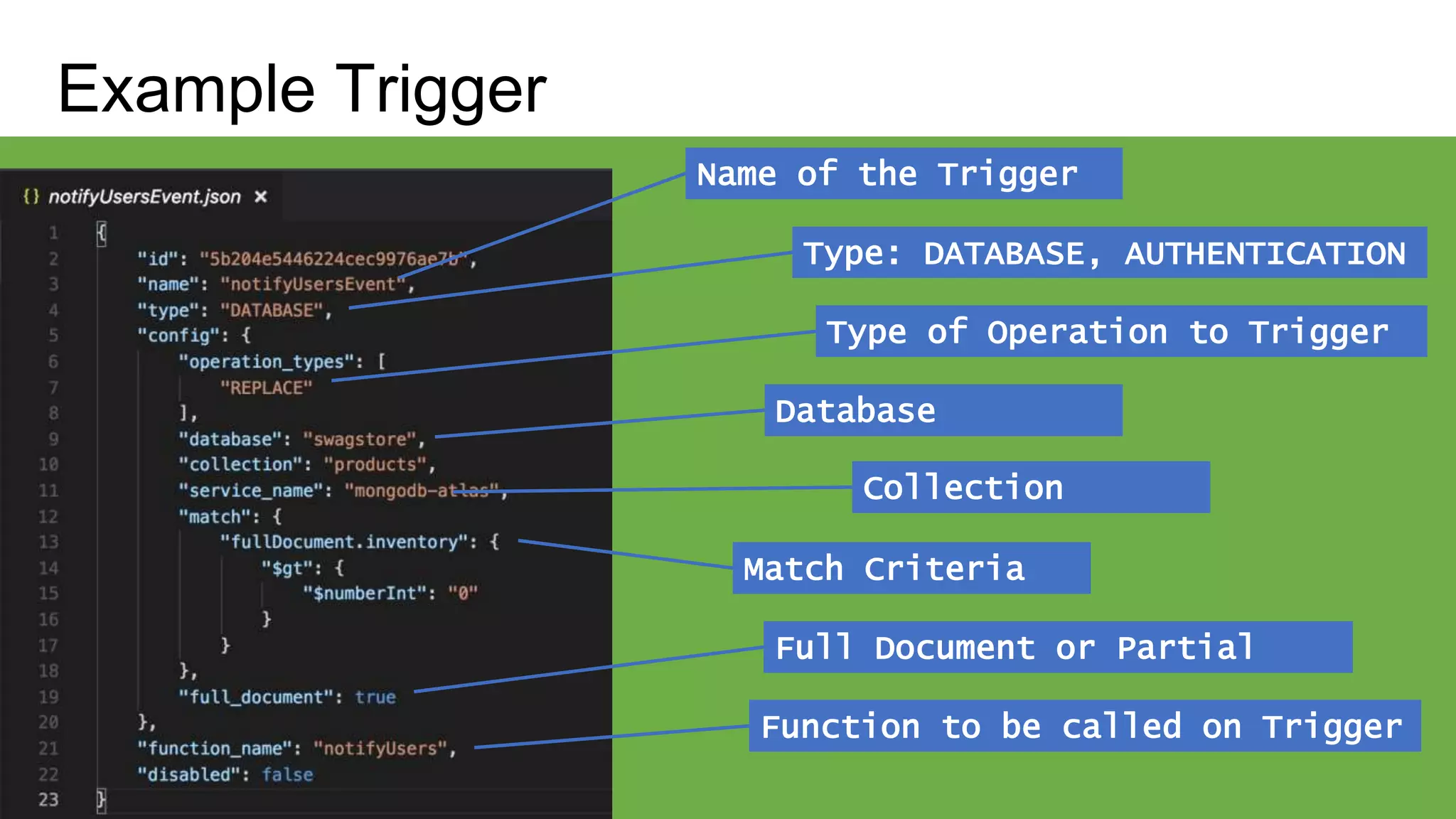

Example Trigger
Name of the Trigger
Type: DATABASE, AUTHENTICATION
Type of Operation to Trigger
Database
Collection
Match Criteria
Full Document or Partial
Function to be called on Trigger

60. #MDBlocal

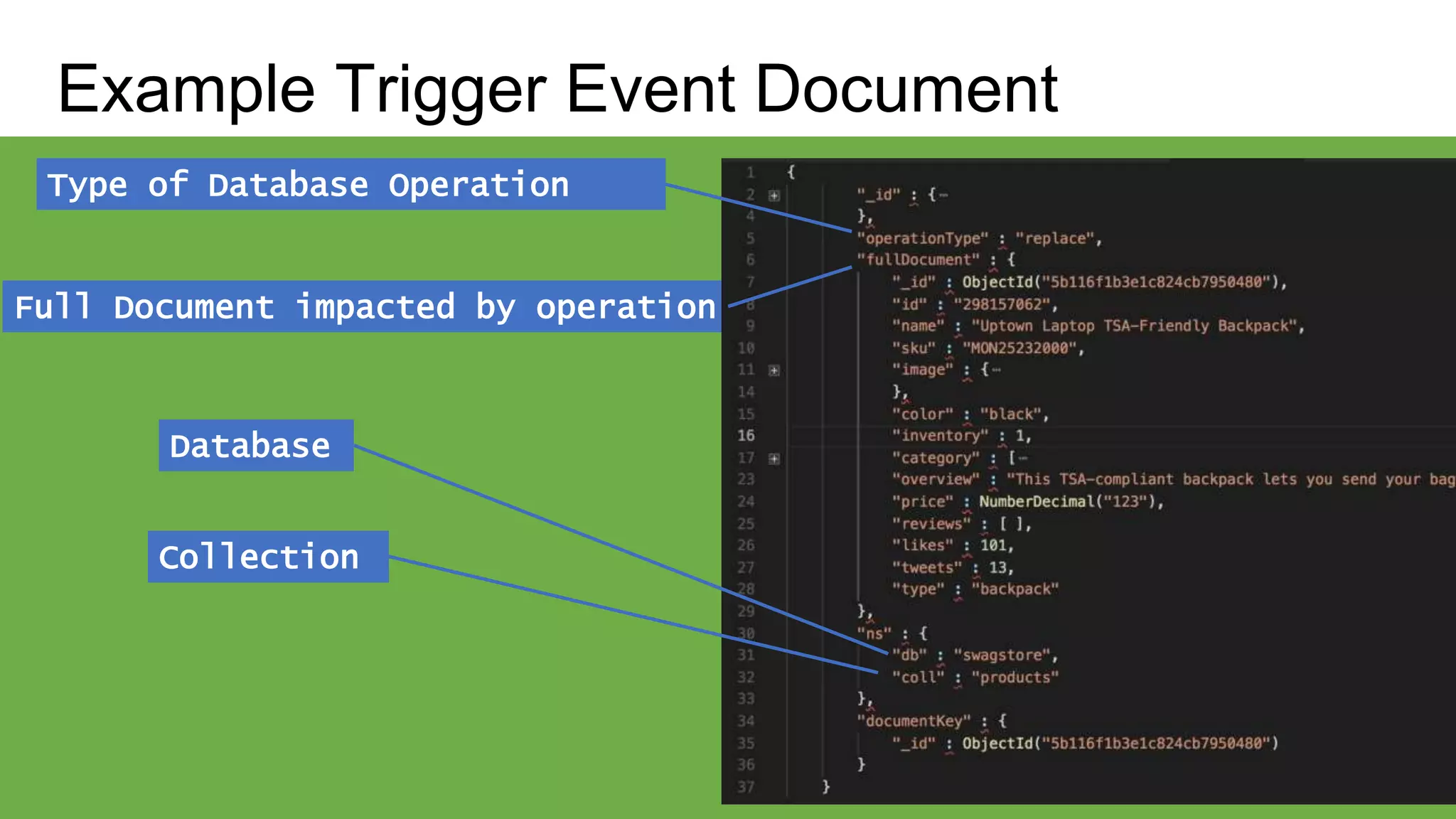

Example Trigger Event Document
Type of Database Operation
Full Document impacted by operation
Database
Collection
