1. Copyright ©2009 by K. Plantenberg
Restricted use only
Chapter 5
Dimensioning in AutoCAD
Topics

2. Copyright ©2009 by K. Plantenberg
Restricted use only

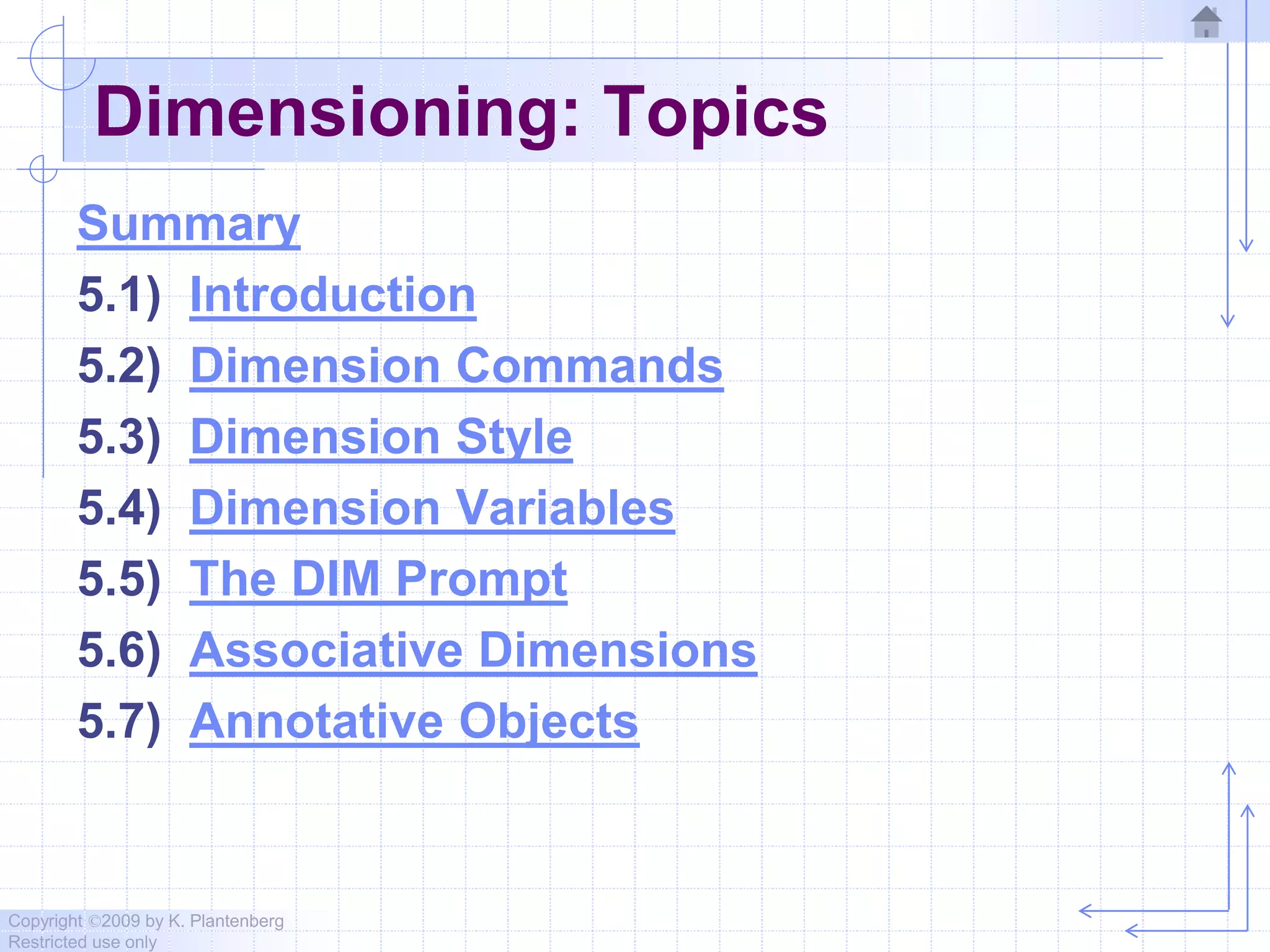

Dimensioning: Topics
Summary
5.1) Introduction
5.2) Dimension Commands
5.3) Dimension Style
5.4) Dimension Variables
5.5) The DIM Prompt
5.6) Associative Dimensions
5.7) Annotative Objects

3. Copyright ©2009 by K. Plantenberg
Restricted use only

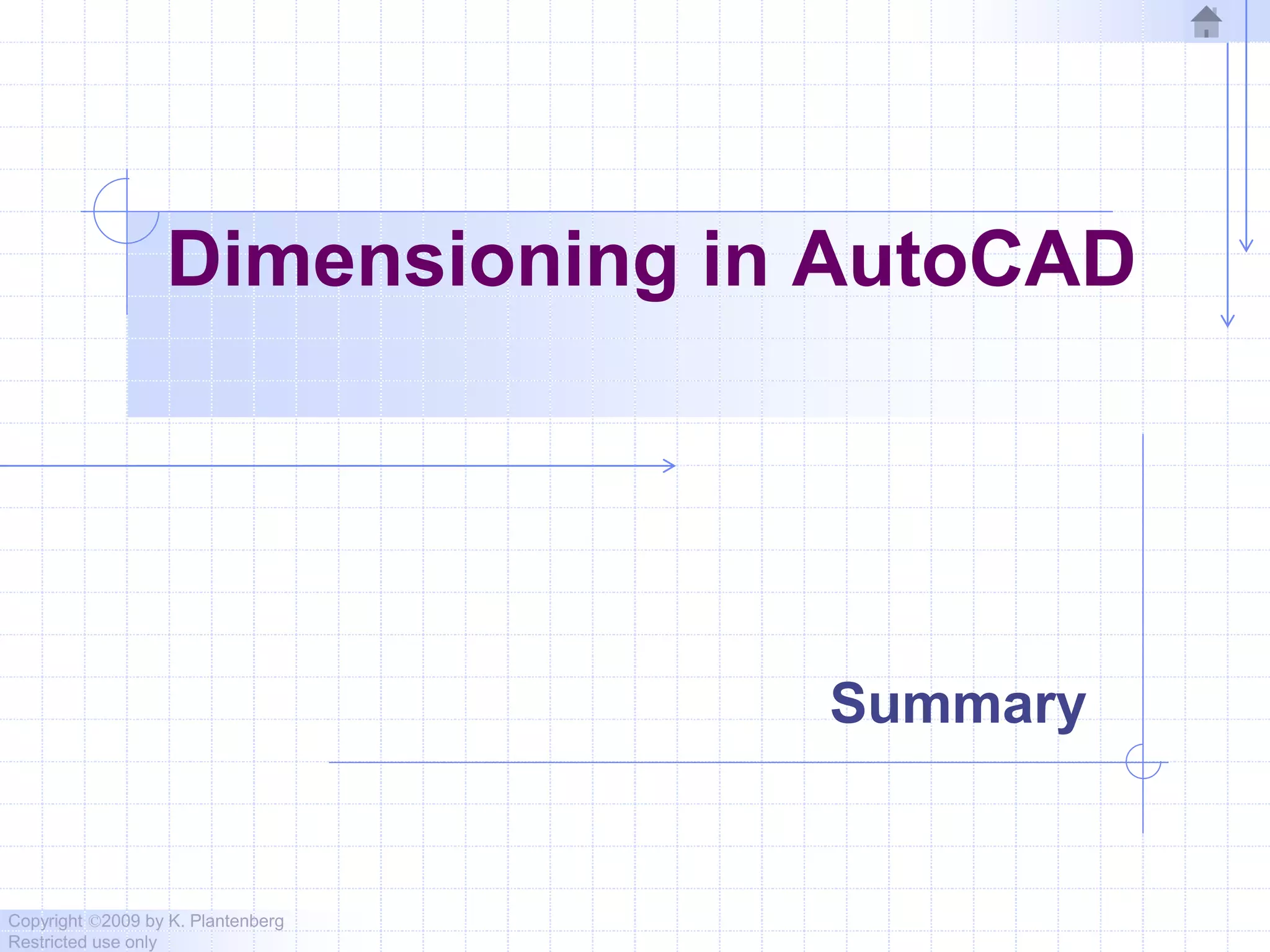

Dimensioning in AutoCAD
Summary

4. Copyright ©2009 by K. Plantenberg
Restricted use only

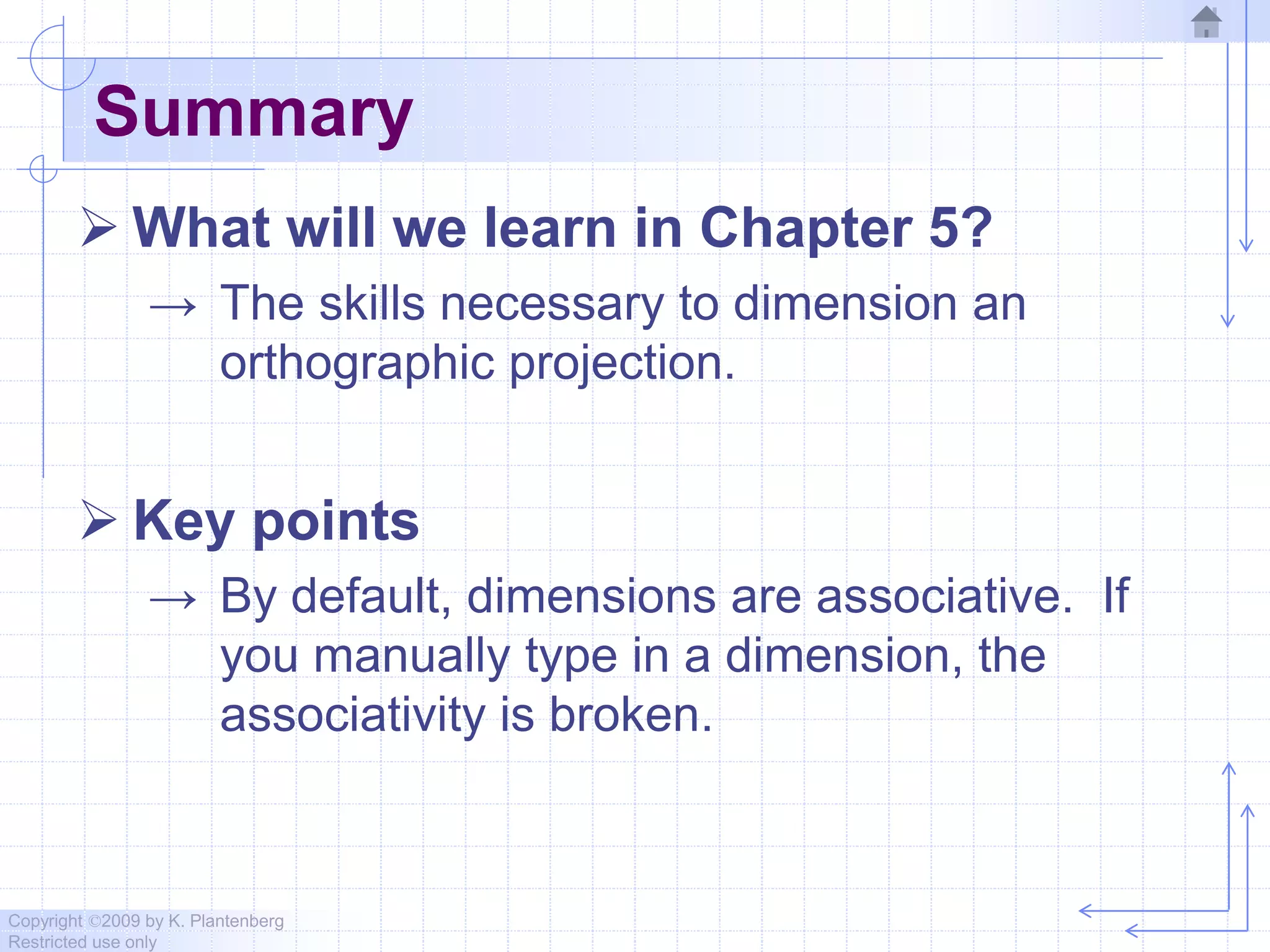

Summary
 What will we learn in Chapter 5?
→ The skills necessary to dimension an
orthographic projection.
 Key points
→ By default, dimensions are associative. If
you manually type in a dimension, the
associativity is broken.

5. Copyright ©2009 by K. Plantenberg
Restricted use only
Dimensioning in AutoCAD
5.1) Introduction

6. Copyright ©2009 by K. Plantenberg
Restricted use only
Introduction
 AutoCAD automatically creates the
dimensions and dimension text once a
feature is selected.
 Dimension appearance and properties
may be adjusted in the Dimension Styles
Manager window.

8. Copyright ©2009 by K. Plantenberg
Restricted use only
Dimensioning in AutoCAD
5.2) Dimension Commands

9. Copyright ©2009 by K. Plantenberg
Restricted use only

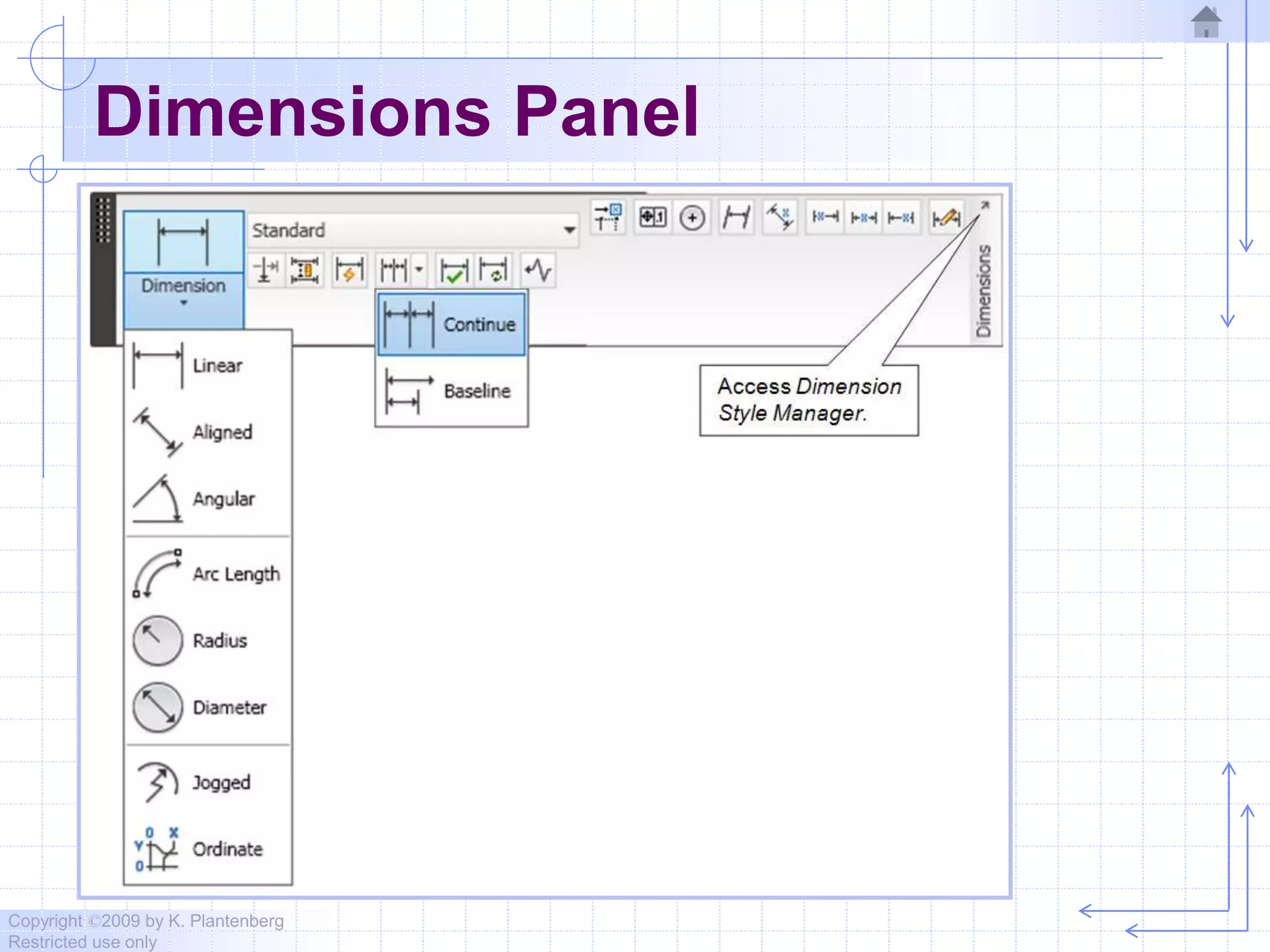

Dimensions Panel

10. Copyright ©2009 by K. Plantenberg
Restricted use only

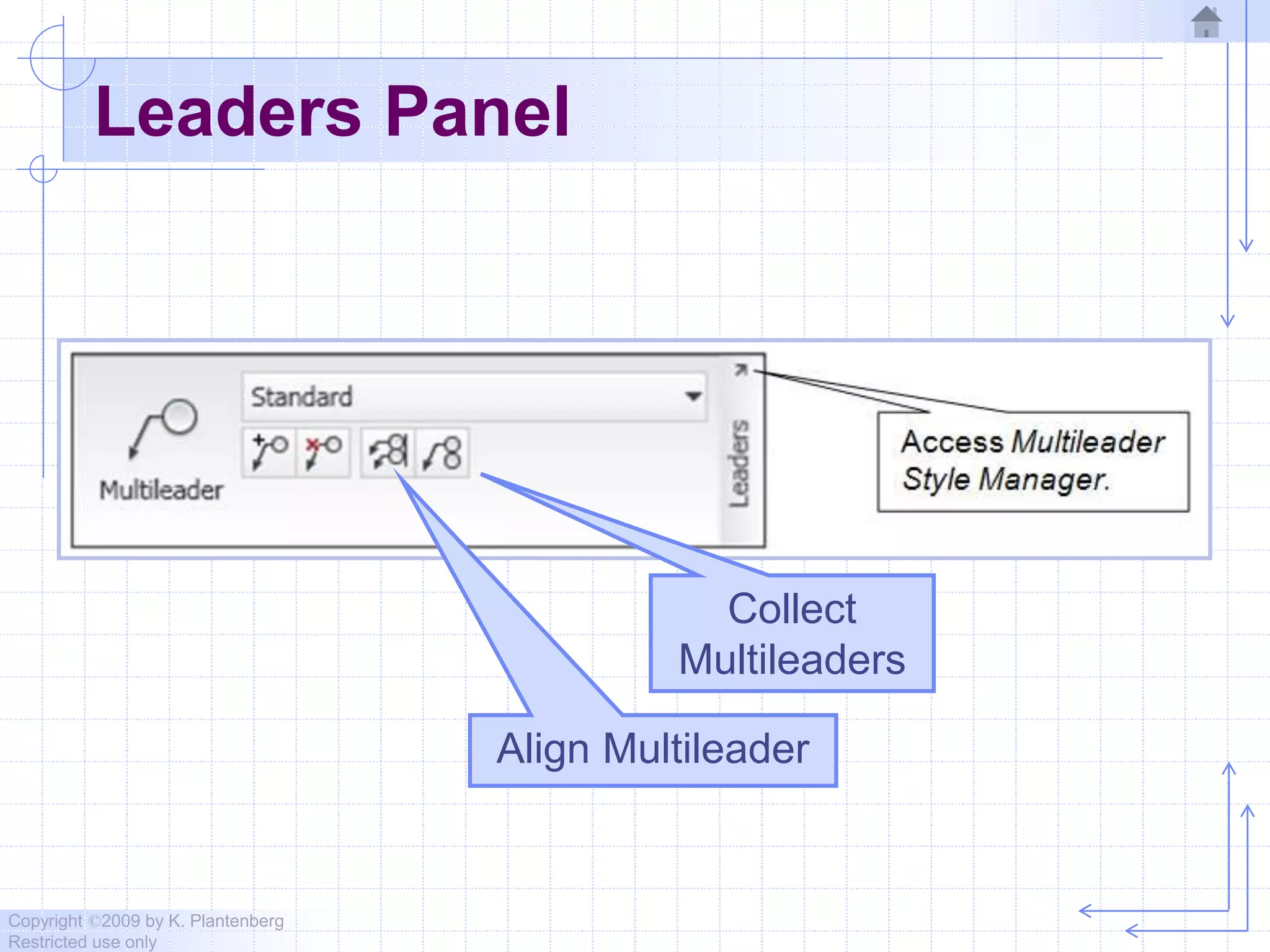

Leaders Panel
Collect
Multileaders
Align Multileader

11. Copyright ©2009 by K. Plantenberg
Restricted use only

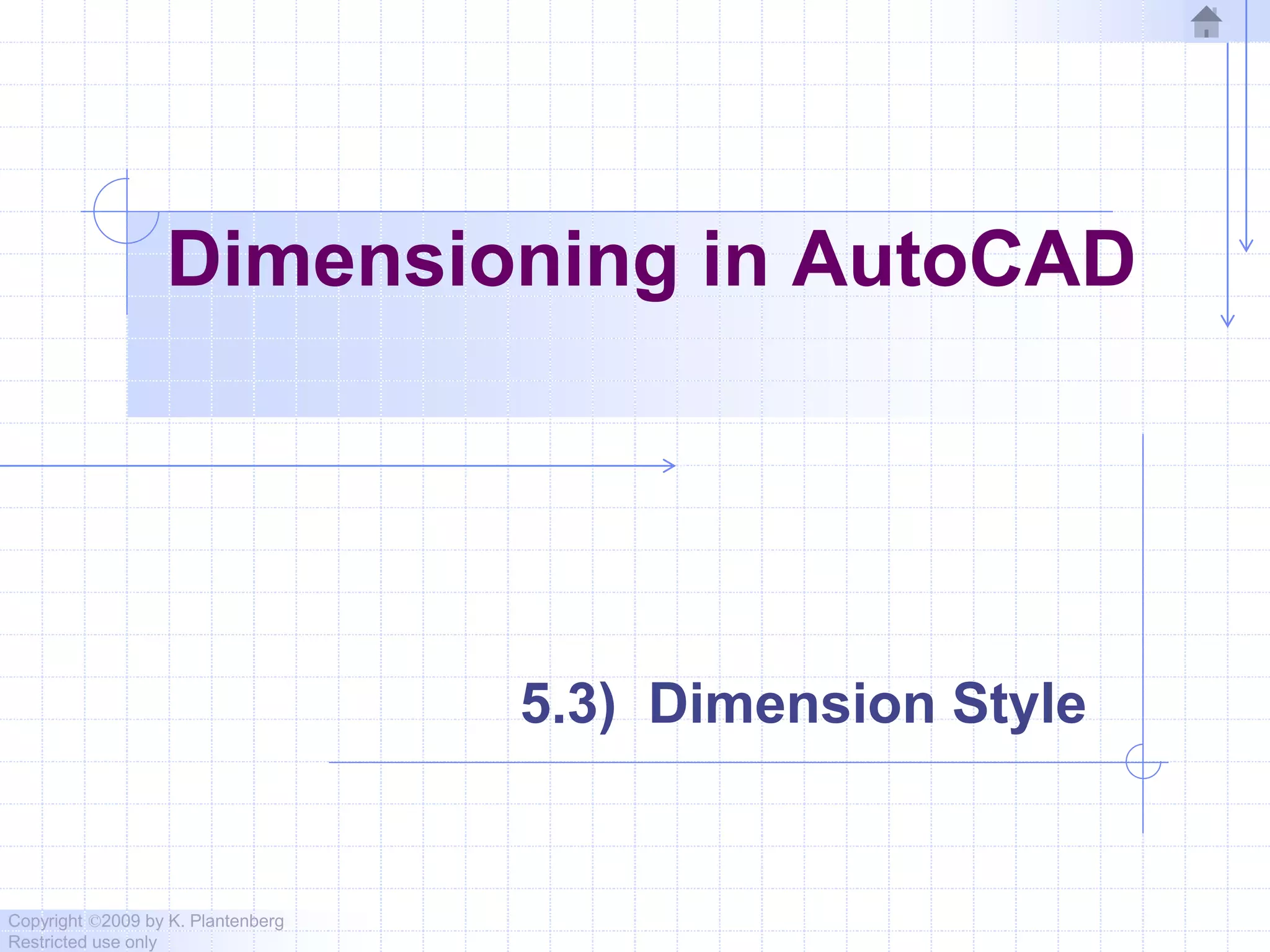

Dimensioning in AutoCAD
5.3) Dimension Style

12. Copyright ©2009 by K. Plantenberg
Restricted use only

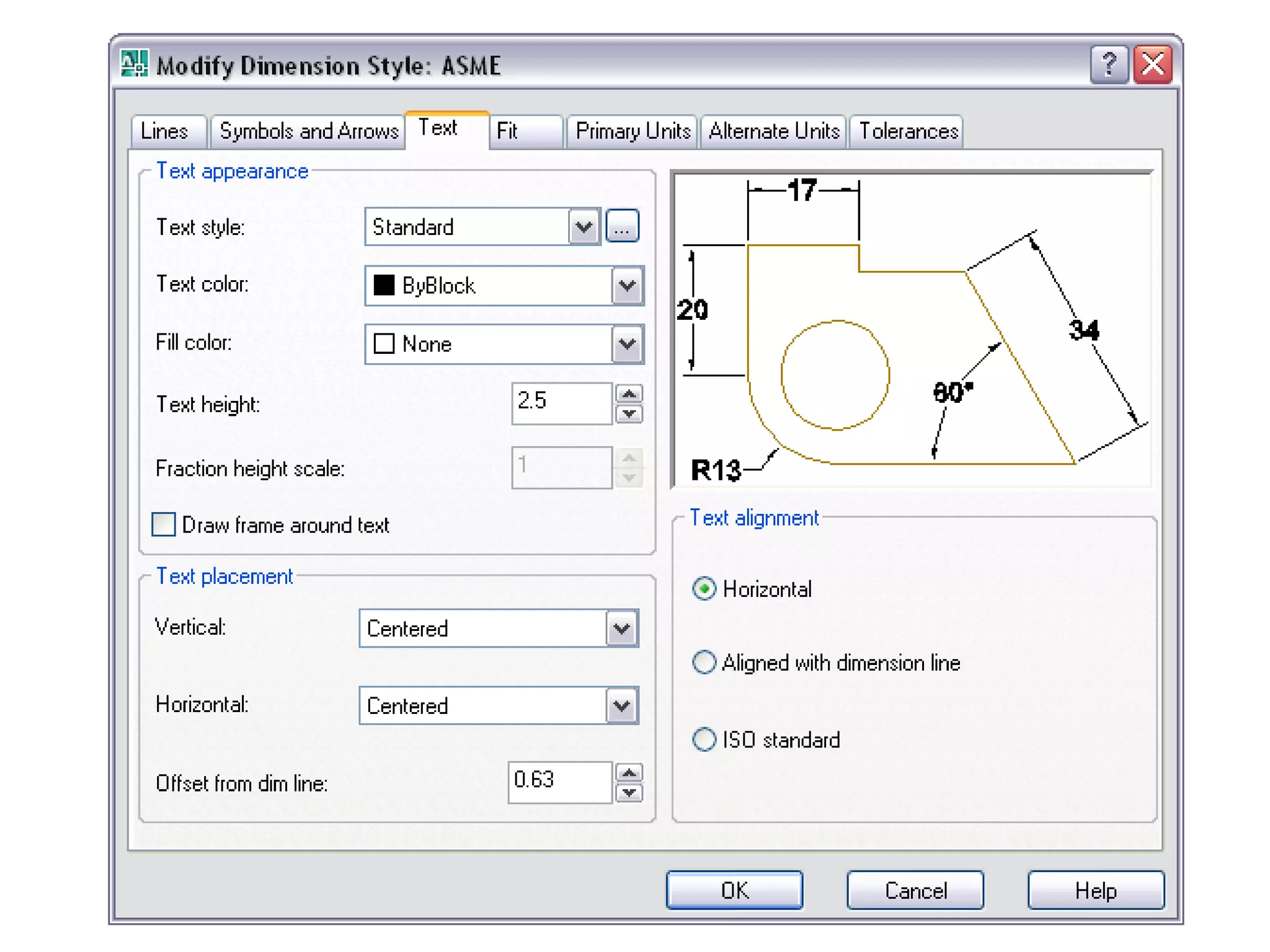

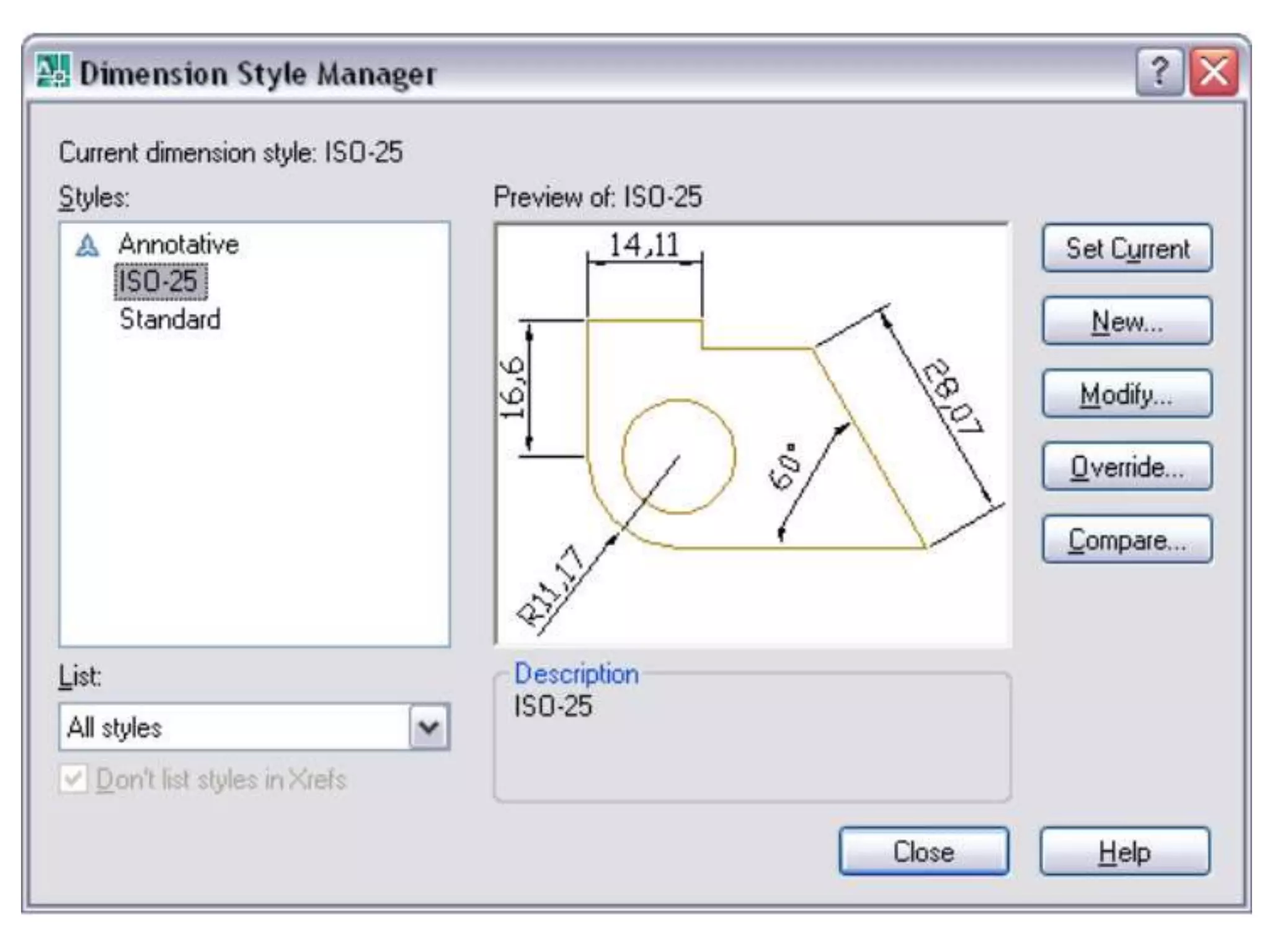

Dimension Style
 The Dimension Style Manager is used to
create:
→ New dimension styles,
→ set the current style,
→ modify styles,
→ set overrides on the current style,
→ and compare styles.
 Access using: DDIM, DIMSTYLE or from
the Dimensions panel

14. Copyright ©2009 by K. Plantenberg
Restricted use only

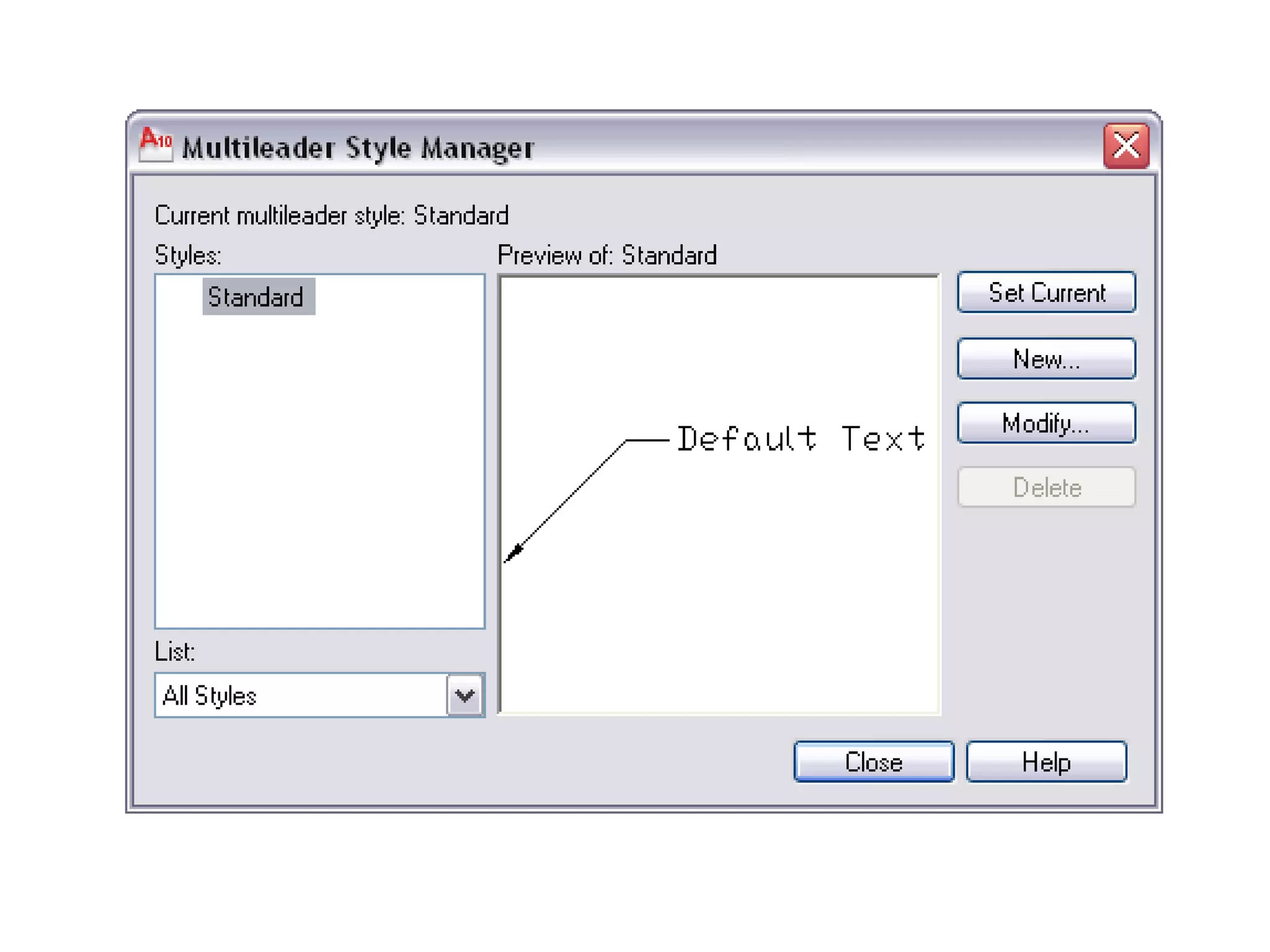

Multileader Style
 The Multileader Style Manager is used
to create:
→ New multileader styles,
→ set the current style,
→ and modify styles,
 Access using: MLEADERSTYLE or from
the Leaders panel.

16. Copyright ©2009 by K. Plantenberg
Restricted use only
Dimensioning in AutoCAD
5.4) Dimension Variables

17. Copyright ©2009 by K. Plantenberg
Restricted use only

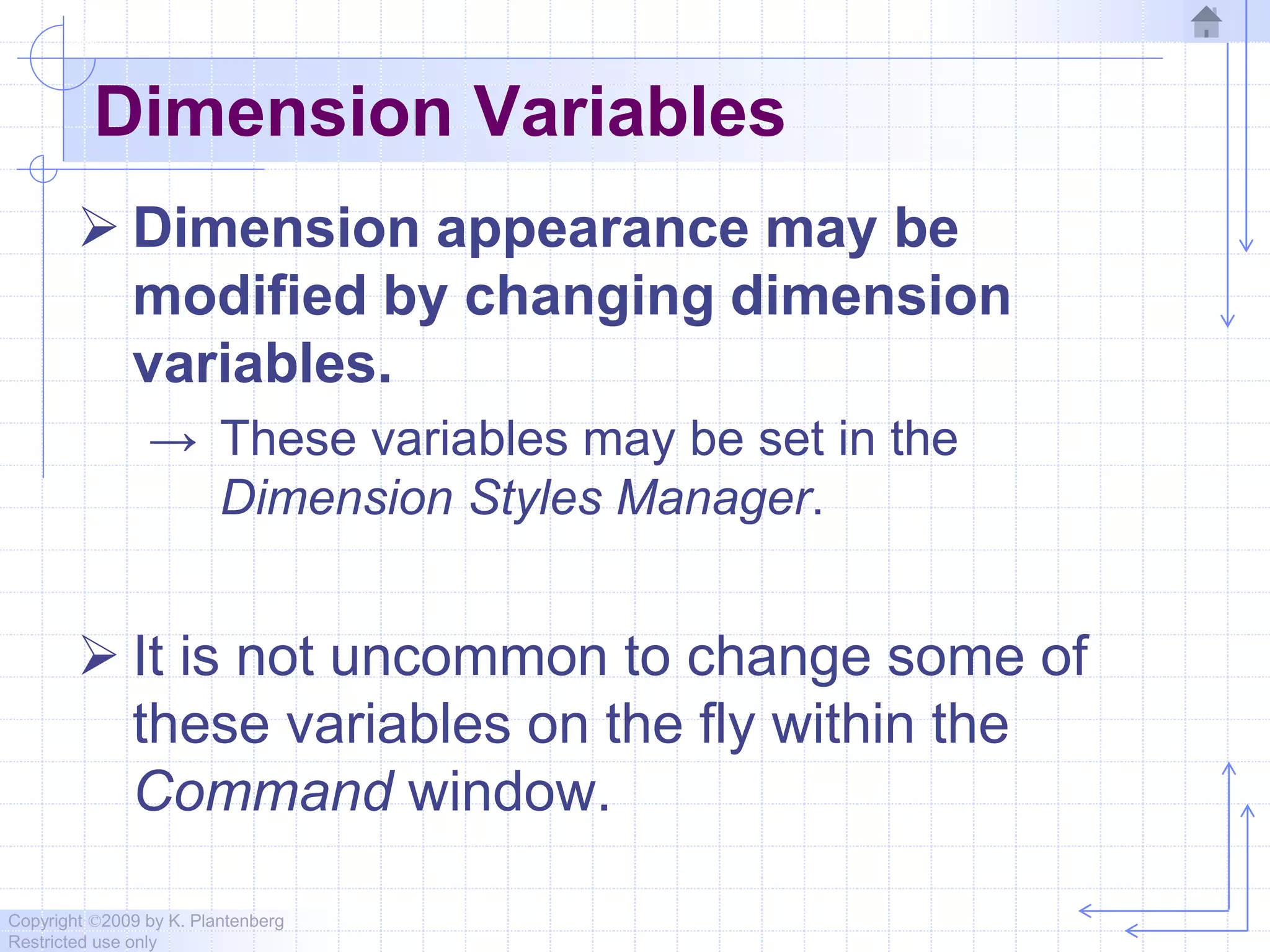

Dimension Variables
 Dimension appearance may be
modified by changing dimension
variables.
→ These variables may be set in the
Dimension Styles Manager.
 It is not uncommon to change some of
these variables on the fly within the
Command window.

18. Copyright ©2009 by K. Plantenberg
Restricted use only

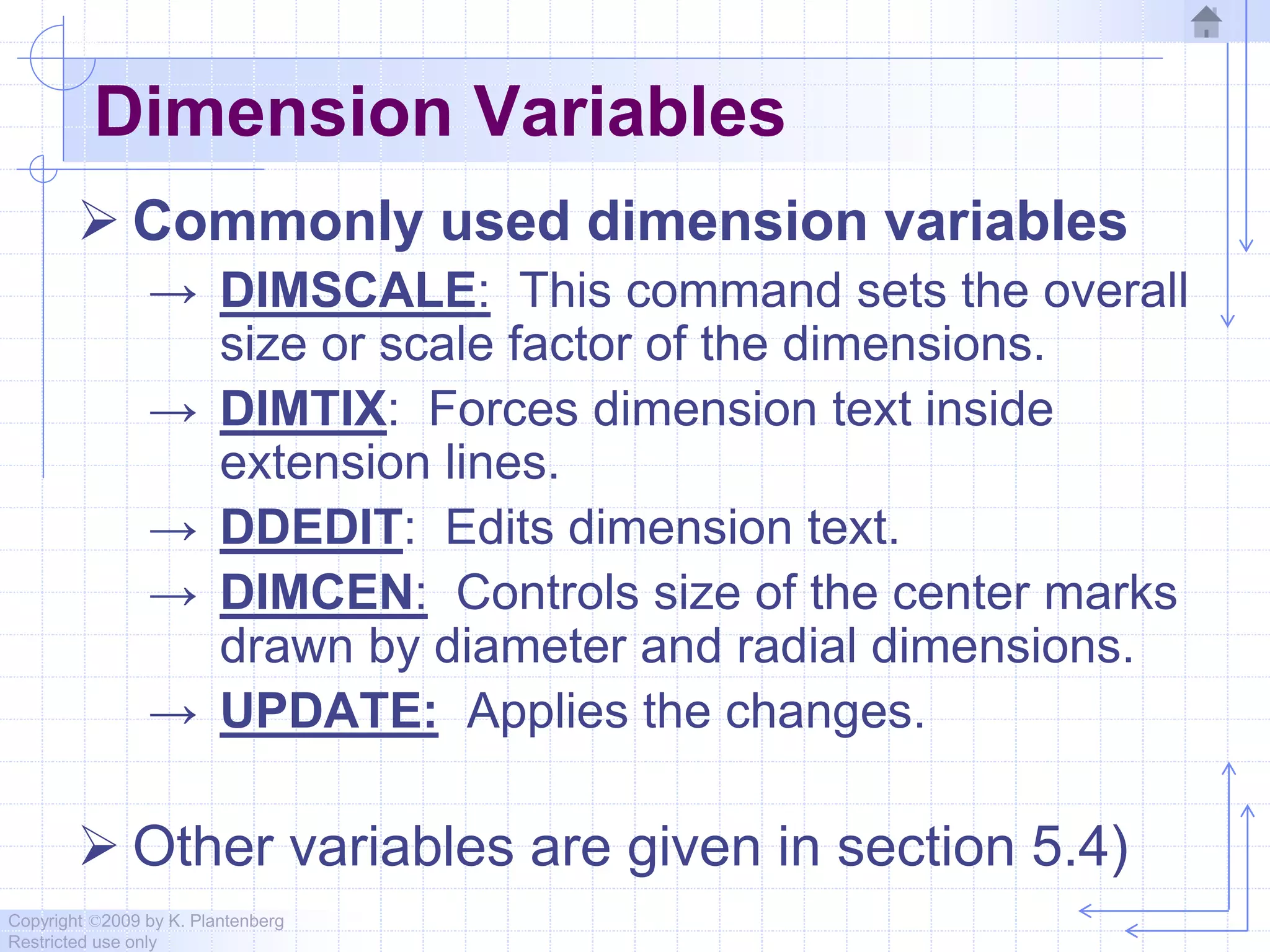

Dimension Variables
 Commonly used dimension variables
→ DIMSCALE: This command sets the overall
size or scale factor of the dimensions.
→ DIMTIX: Forces dimension text inside
extension lines.
→ DDEDIT: Edits dimension text.
→ DIMCEN: Controls size of the center marks
drawn by diameter and radial dimensions.
→ UPDATE: Applies the changes.
 Other variables are given in section 5.4)

19. Copyright ©2009 by K. Plantenberg
Restricted use only

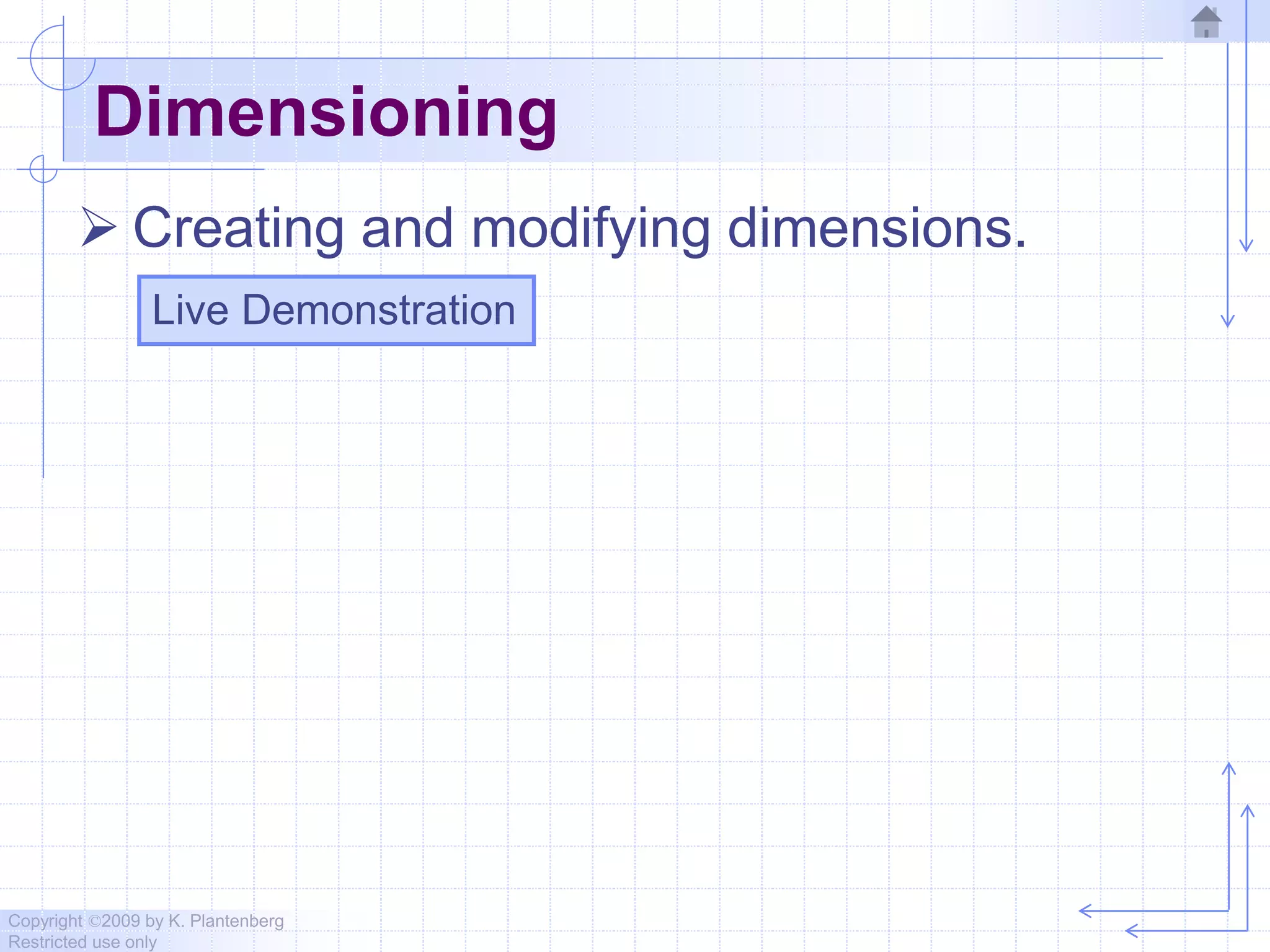

Dimensioning
 Creating and modifying dimensions.
Live Demonstration

20. Copyright ©2009 by K. Plantenberg
Restricted use only
Dimensioning in AutoCAD
5.5) The DIM Prompt

21. Copyright ©2009 by K. Plantenberg
Restricted use only
The DIM Prompt
 Within the Dim prompt (the dimension
mode), you can type in dimensioning
commands that allow you to create and
modify dimensions.
→ DIM: Accessed the DIM prompt.
→ EXIT: Exits the DIM prompt.

22. Copyright ©2009 by K. Plantenberg
Restricted use only
Dimensioning in AutoCAD
5.6) Associative Dimensions

23. Copyright ©2009 by K. Plantenberg
Restricted use only

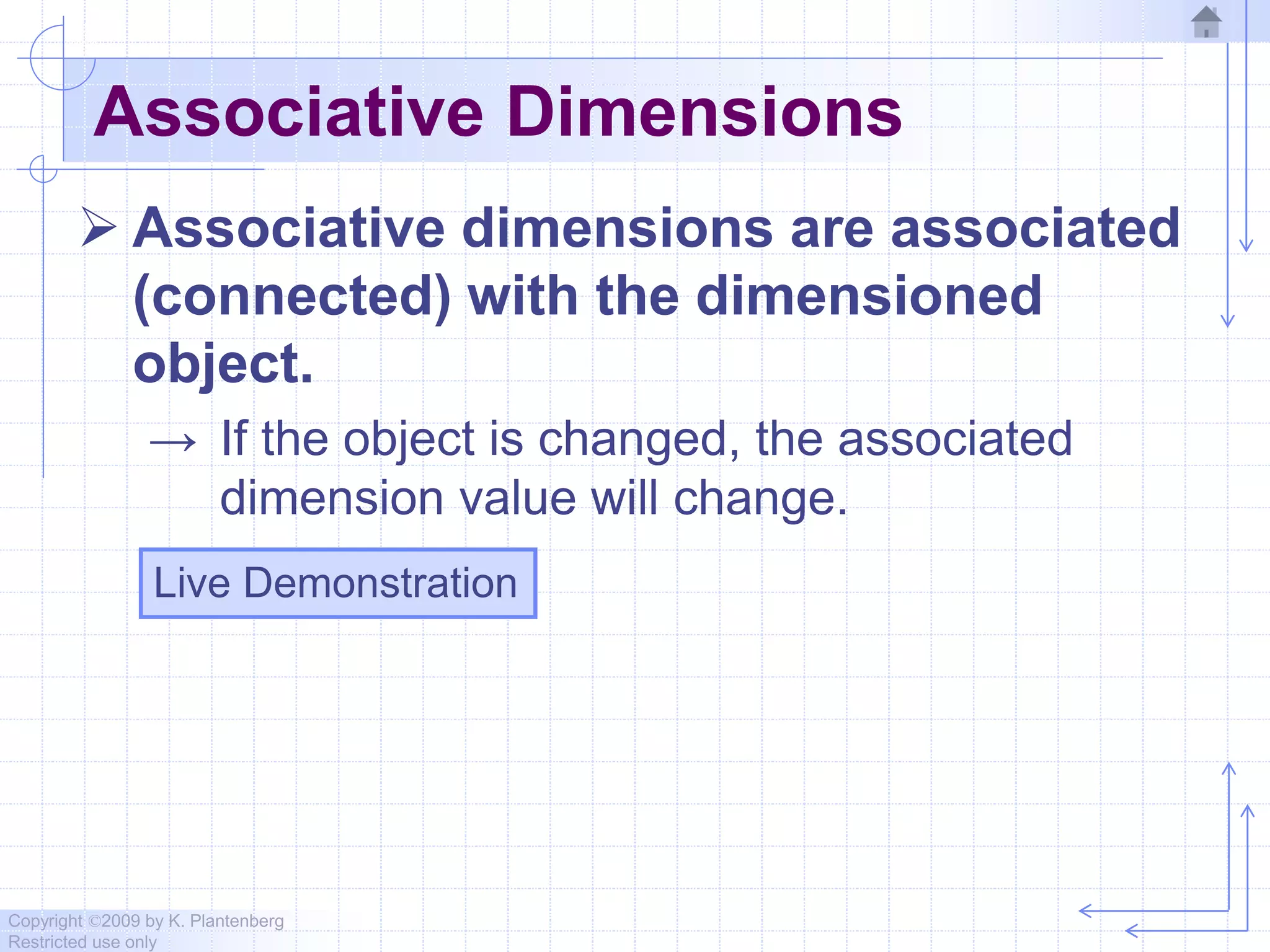

Associative Dimensions
 Associative dimensions are associated
(connected) with the dimensioned
object.
→ If the object is changed, the associated
dimension value will change.
Live Demonstration

24. Copyright ©2009 by K. Plantenberg
Restricted use only
Associative Dimensions
 Associativity is broken if...
→ You manually type in the dimension text
→ replace the dimension text
→ EXPLODE the dimension
 Multileaders are not associative.

25. Copyright ©2009 by K. Plantenberg
Restricted use only
Dimensioning in AutoCAD
5.7) Annotative Objects

26. Copyright ©2009 by K. Plantenberg
Restricted use only
Annotative Objects
 Annotative objects support multiple
viewport scales. (Dimension, text, hatches ...)
1:1 scale
1:2 scale

27. Copyright ©2009 by K. Plantenberg
Restricted use only
Annotative Objects
 Annotative objects support multiple
viewport scales. (Dimension, text, hatches ...)
1:1 scale
2:1 scale

28. Copyright ©2009 by K. Plantenberg
Restricted use only

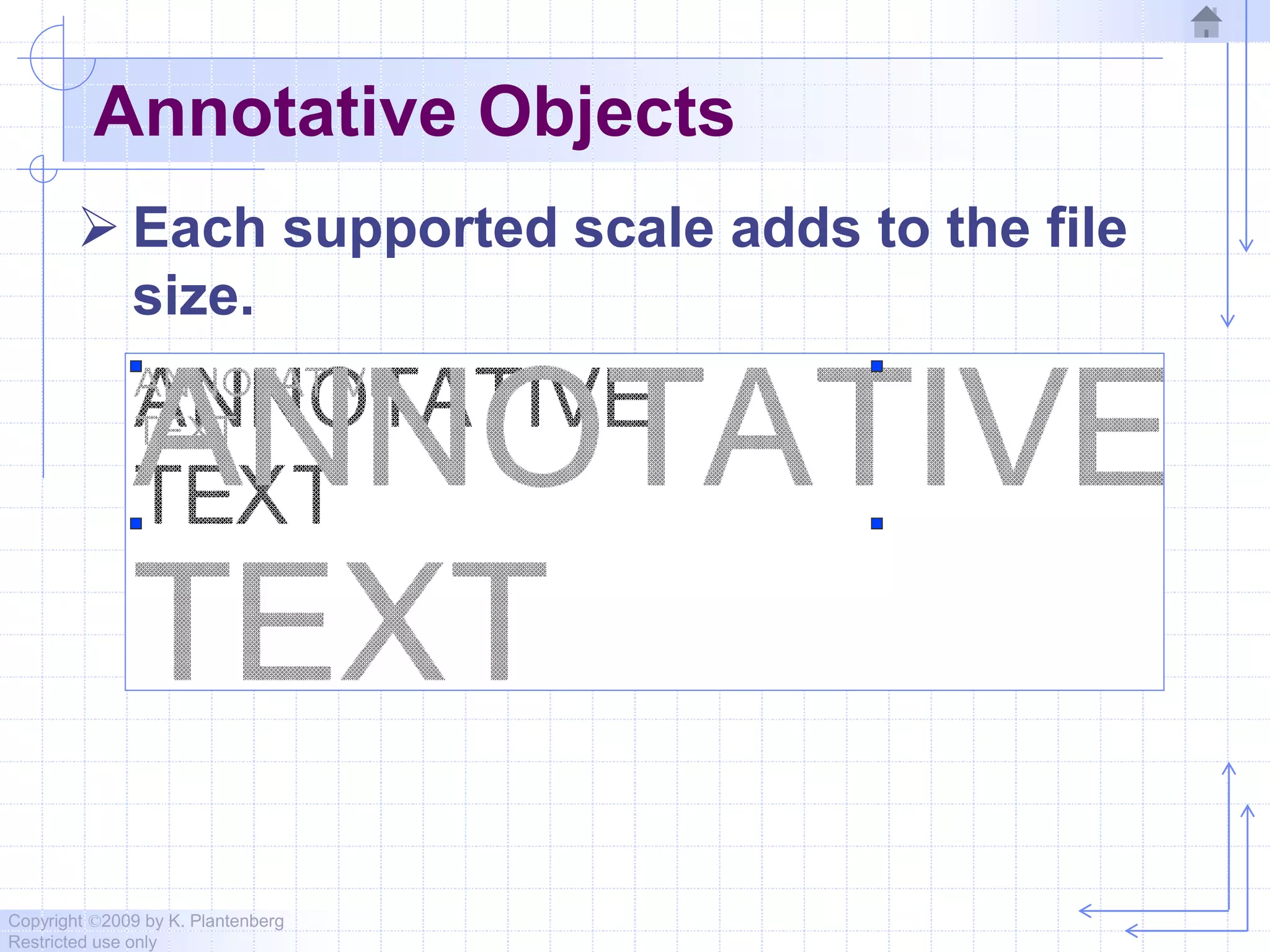

Annotative Objects
 Each supported scale adds to the file
size.

29. Copyright ©2009 by K. Plantenberg
Restricted use only

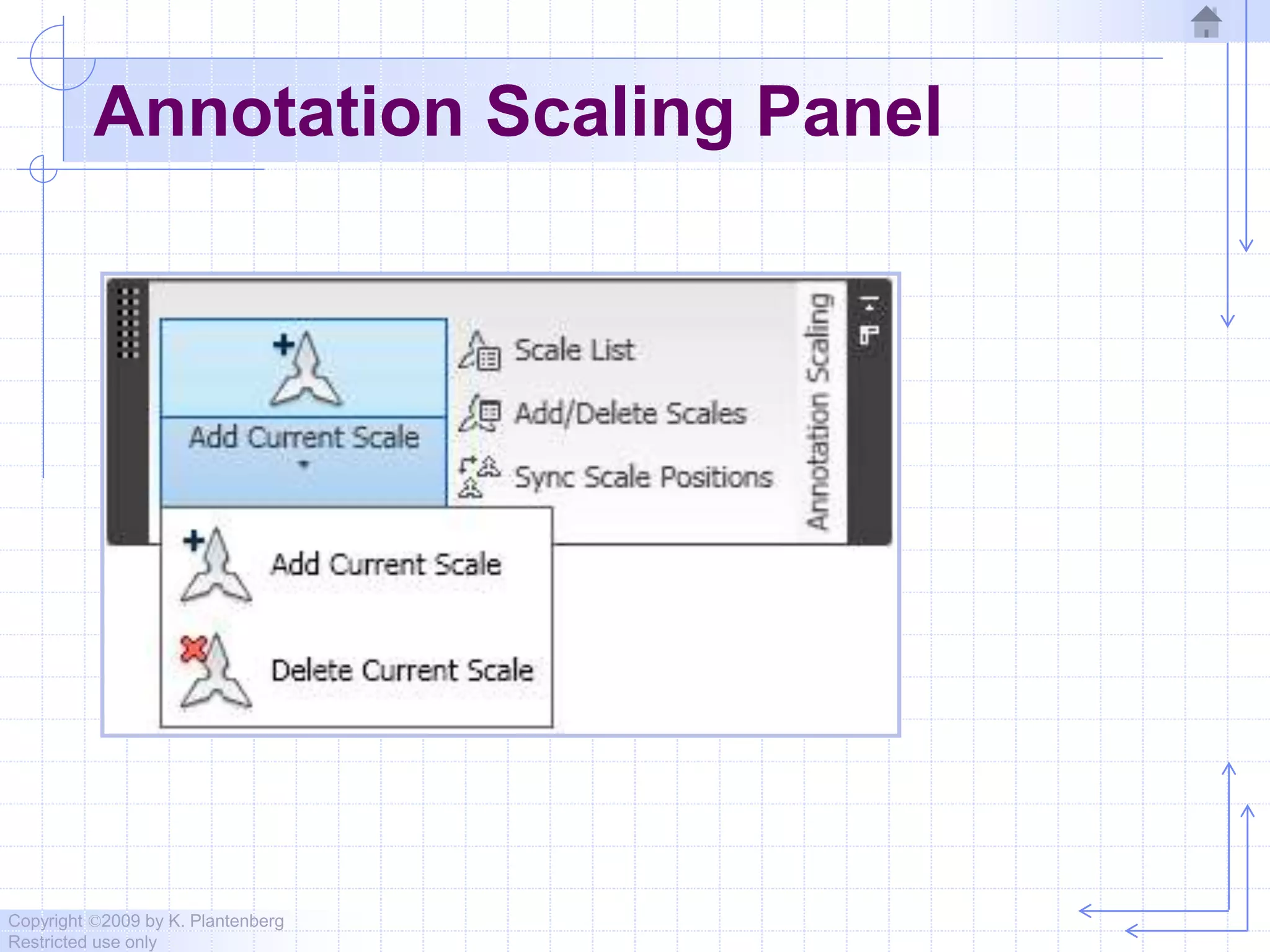

Annotation Scaling Panel

30. Copyright ©2009 by K. Plantenberg
Restricted use only

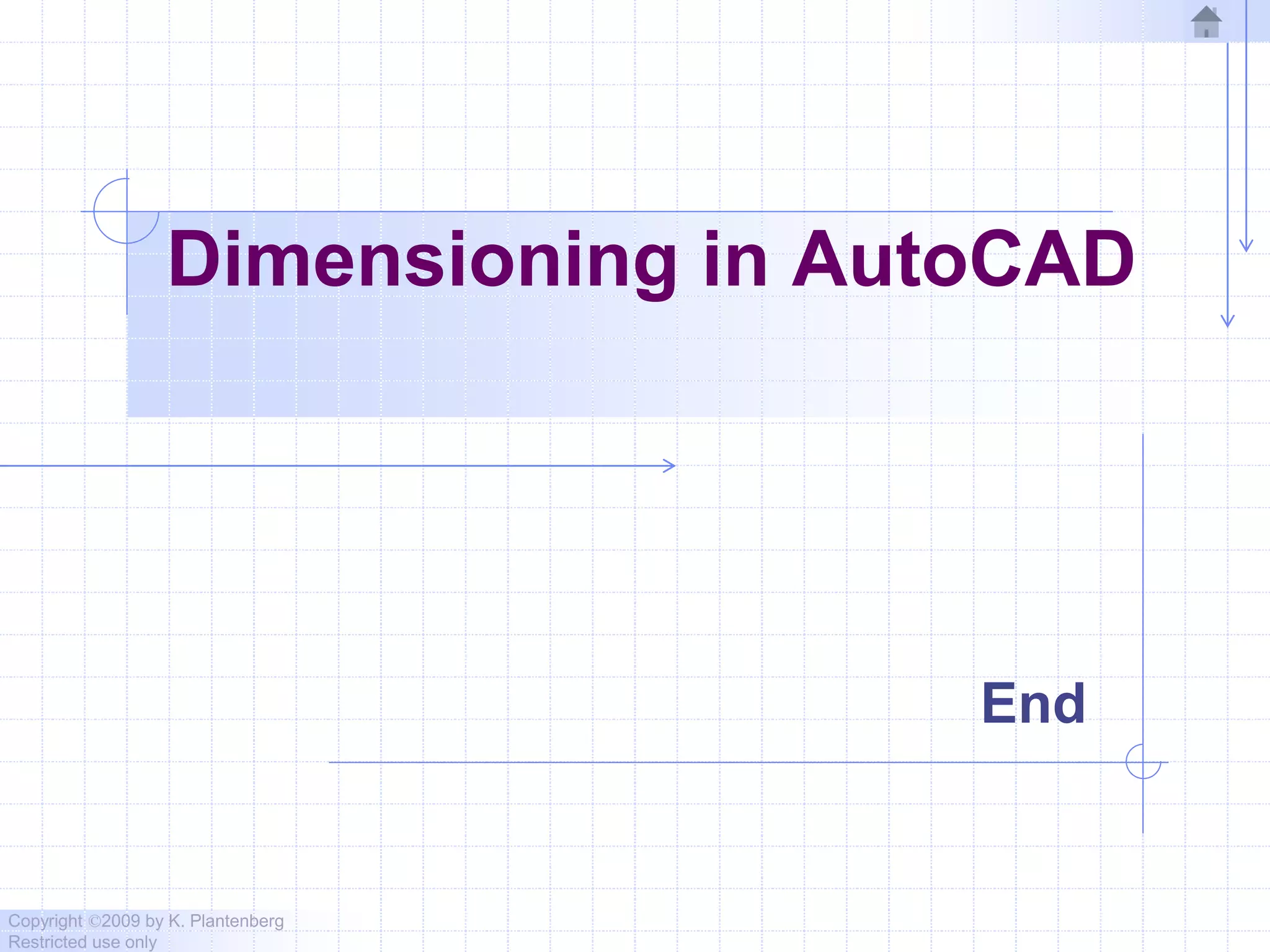

Dimensioning in AutoCAD
End
