Cassandra Summit 2013 Keynote
- 1. CASSANDRASUMMIT2013 Jonathan Ellis |DataStax CTO | Project Chair, Apache Cassandra

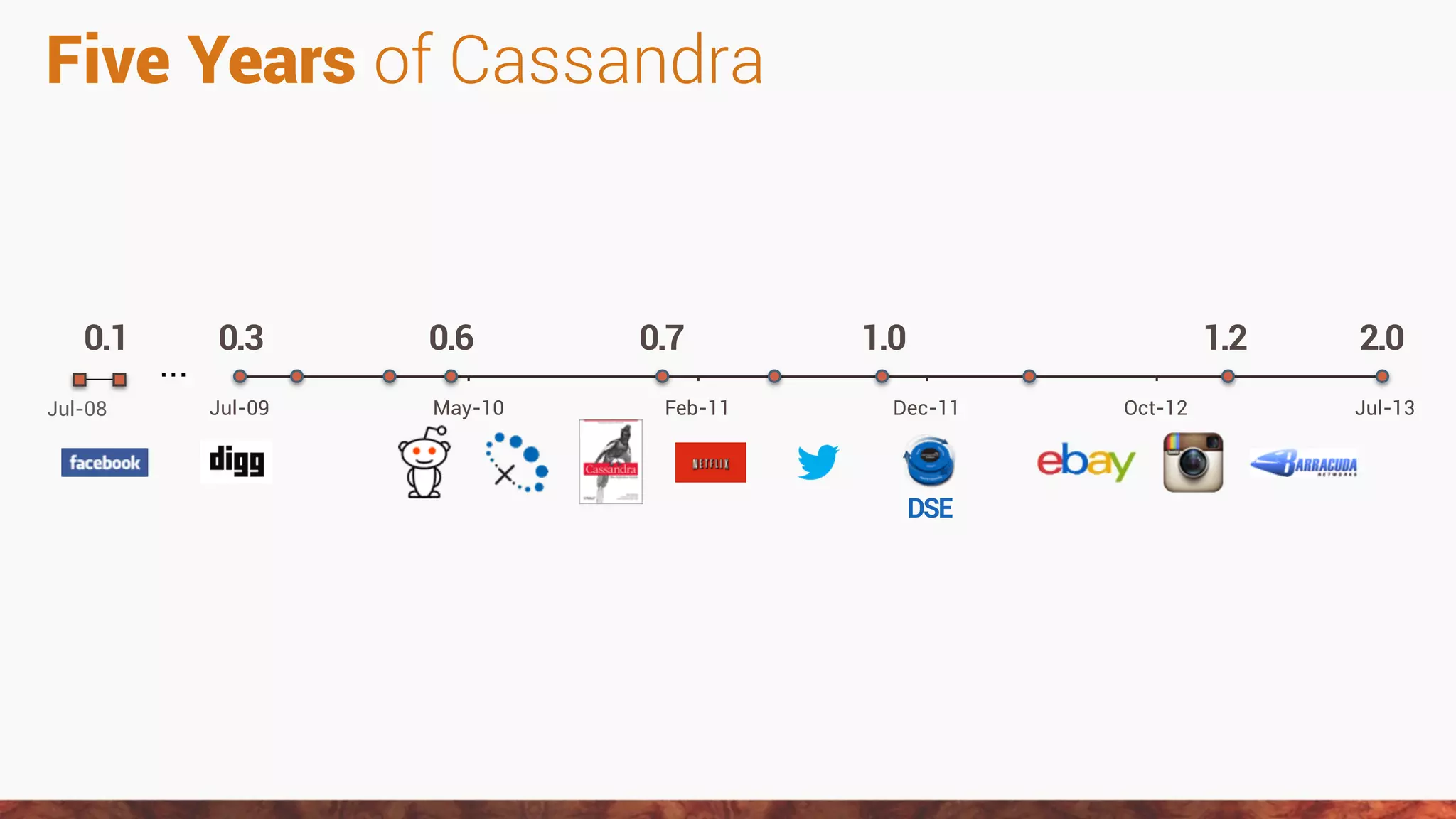

- 2. Jul-09 May-10 Feb-11Dec-11 Oct-12 Jul-13 0.1 0.3 0.6 0.7 1.0 1.2 ... 2.0 DSE Five Years of Cassandra Jul-08

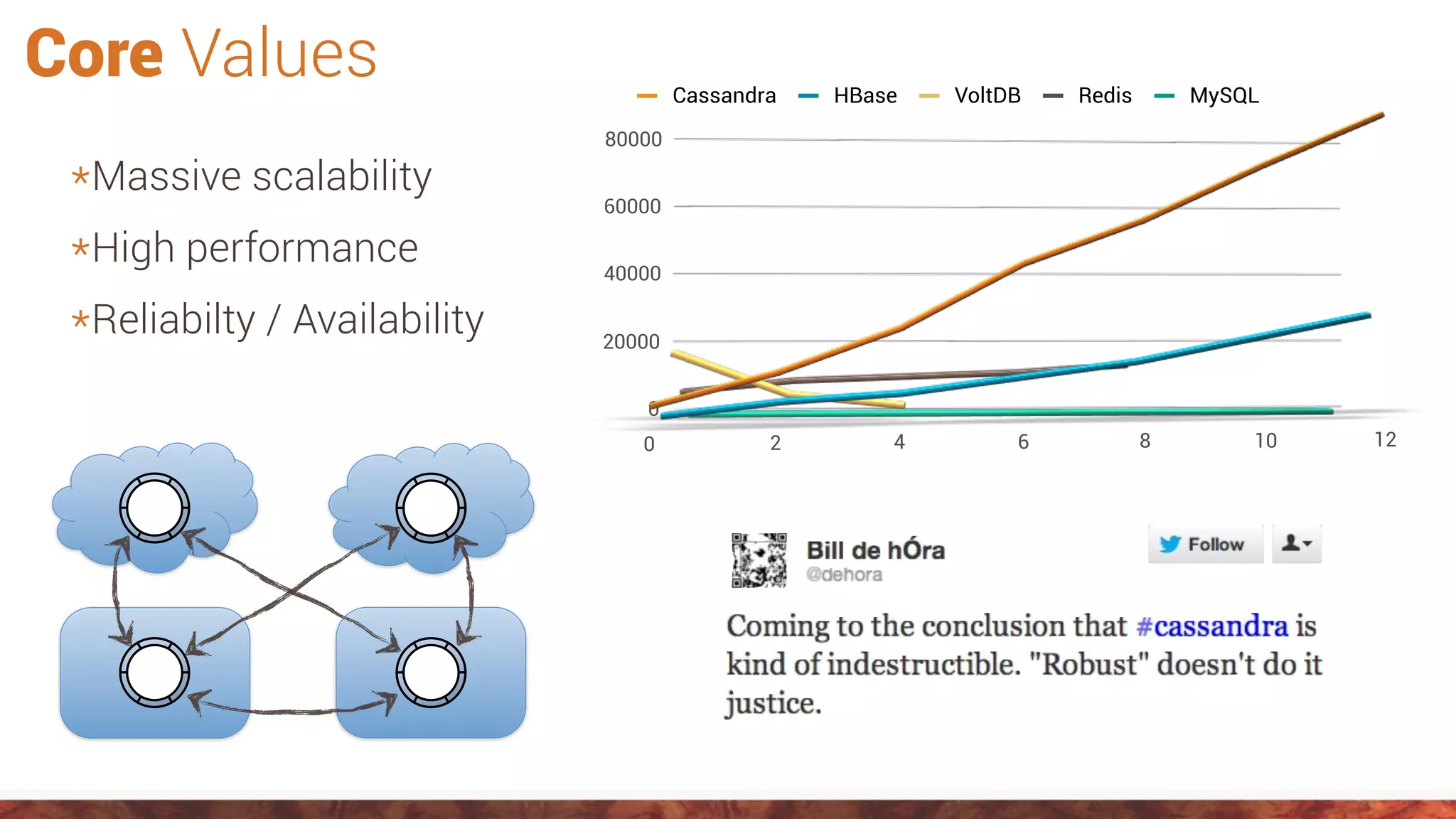

- 3. Core Values 0 20000 40000 60000 80000 0 24 6 8 10 12 Cassandra HBase VoltDB Redis MySQL *Massive scalability *High performance *Reliabilty / Availability

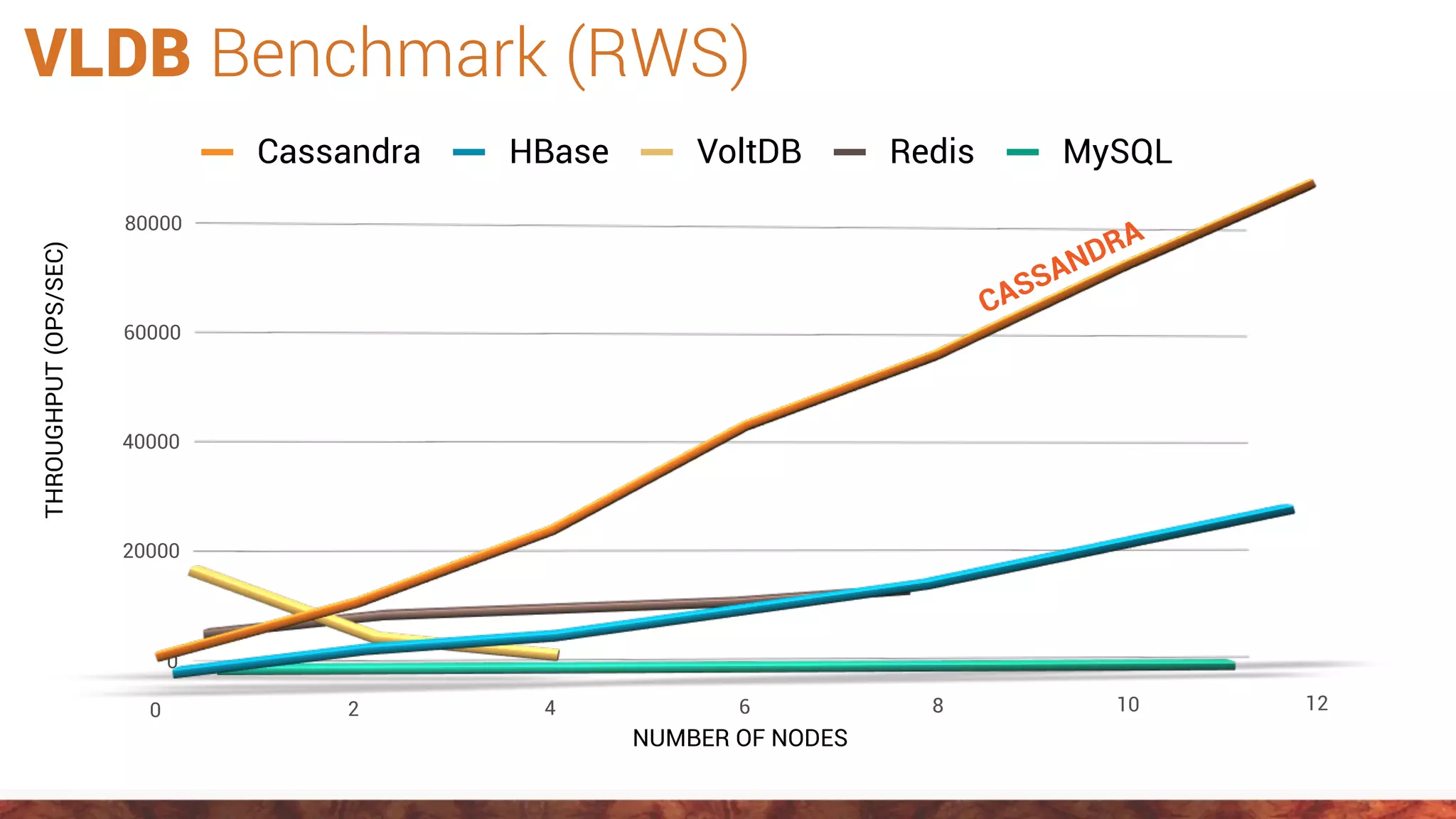

- 4. VLDB Benchmark (RWS) 0 20000 40000 60000 80000 02 4 6 8 10 12 Cassandra HBase VoltDB Redis MySQL NUMBER OF NODES THROUGHPUT(OPS/SEC) CASSANDRA

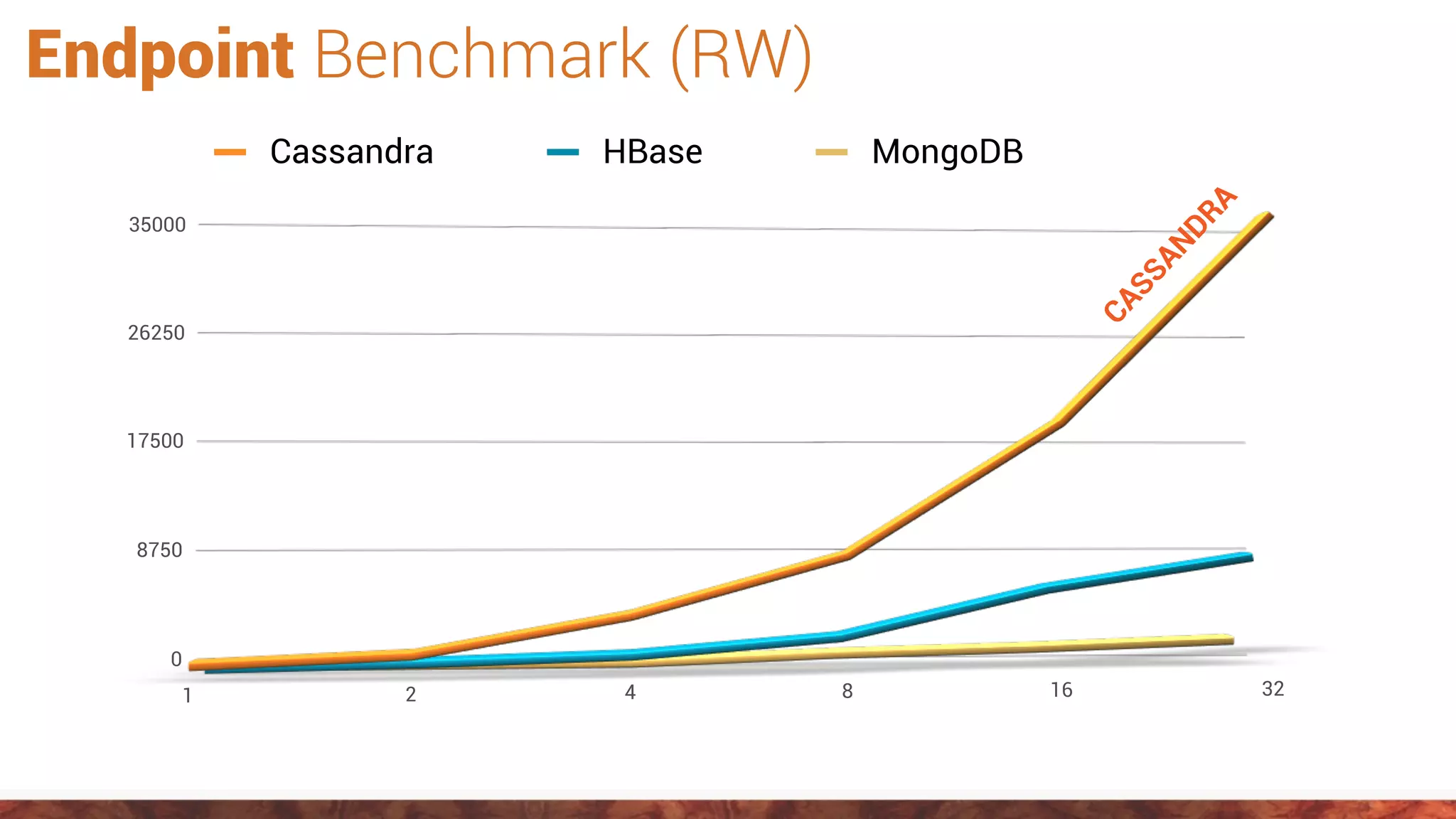

- 5. Endpoint Benchmark (RW) 0 8750 17500 26250 35000 12 4 8 16 32 Cassandra HBase MongoDB CASSANDRA

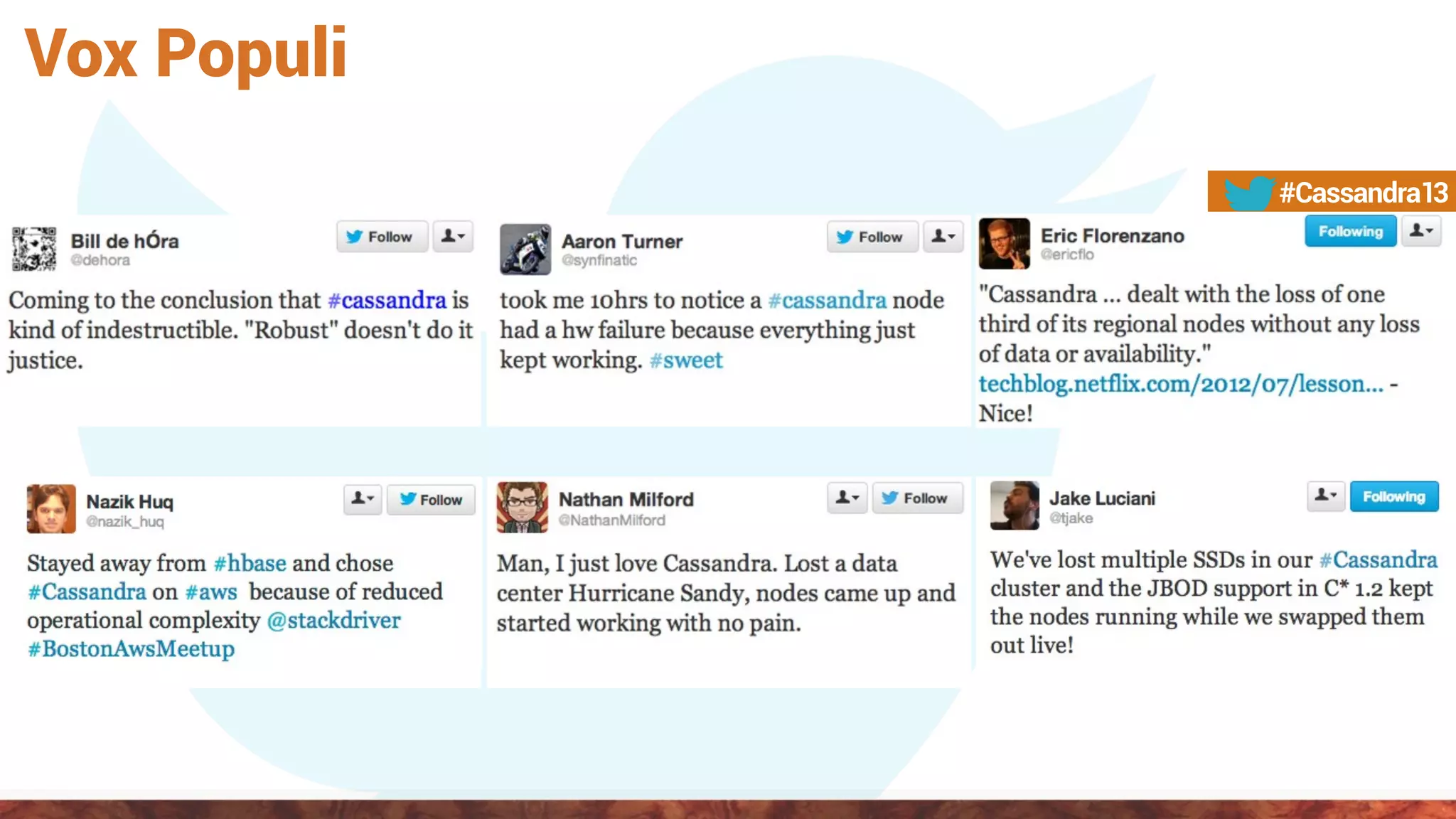

- 6.

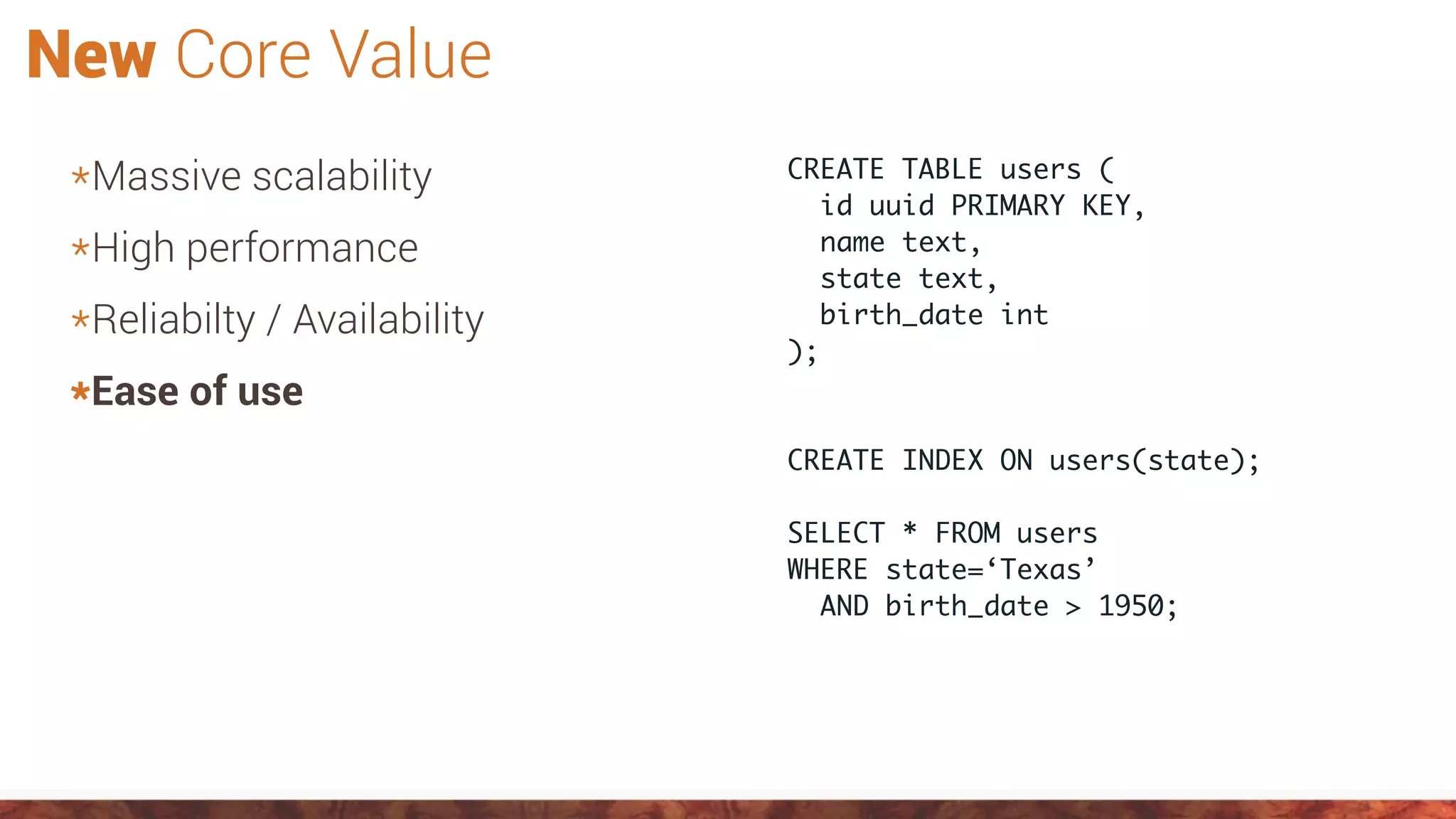

- 7. *Massive scalability *High performance *Reliabilty/ Availability *Ease of use CREATE TABLE users ( id uuid PRIMARY KEY, name text, state text, birth_date int ); CREATE INDEX ON users(state); SELECT * FROM users WHERE state=‘Texas’ AND birth_date > 1950; New Core Value

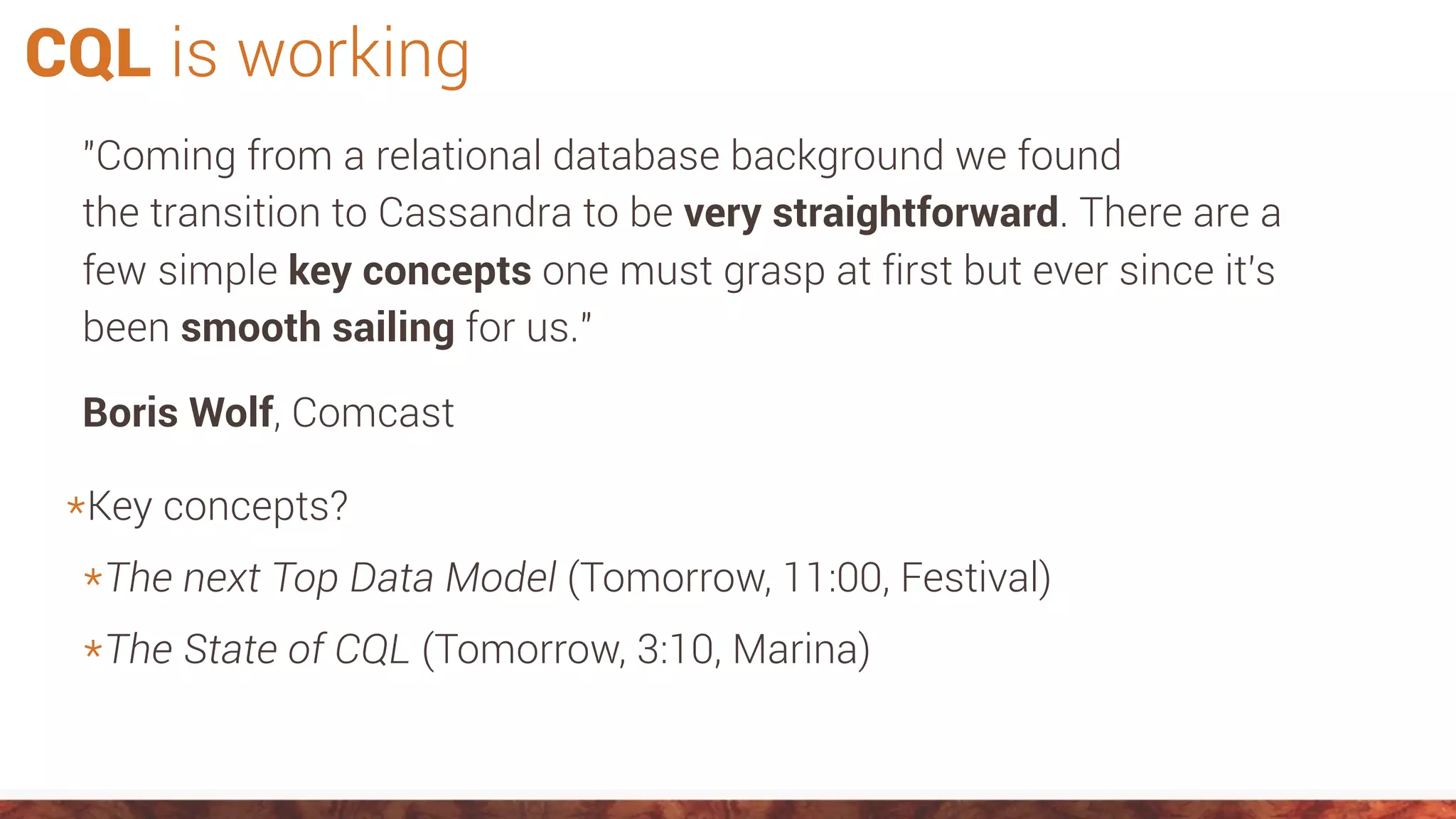

- 8. CQL is working "Comingfrom a relational database background we found the transition to Cassandra to be very straightforward. There are a few simple key concepts one must grasp at first but ever since it's been smooth sailing for us." Boris Wolf, Comcast *Key concepts? *The next Top Data Model (Tomorrow, 11:00, Festival) *The State of CQL (Tomorrow, 3:10, Marina)

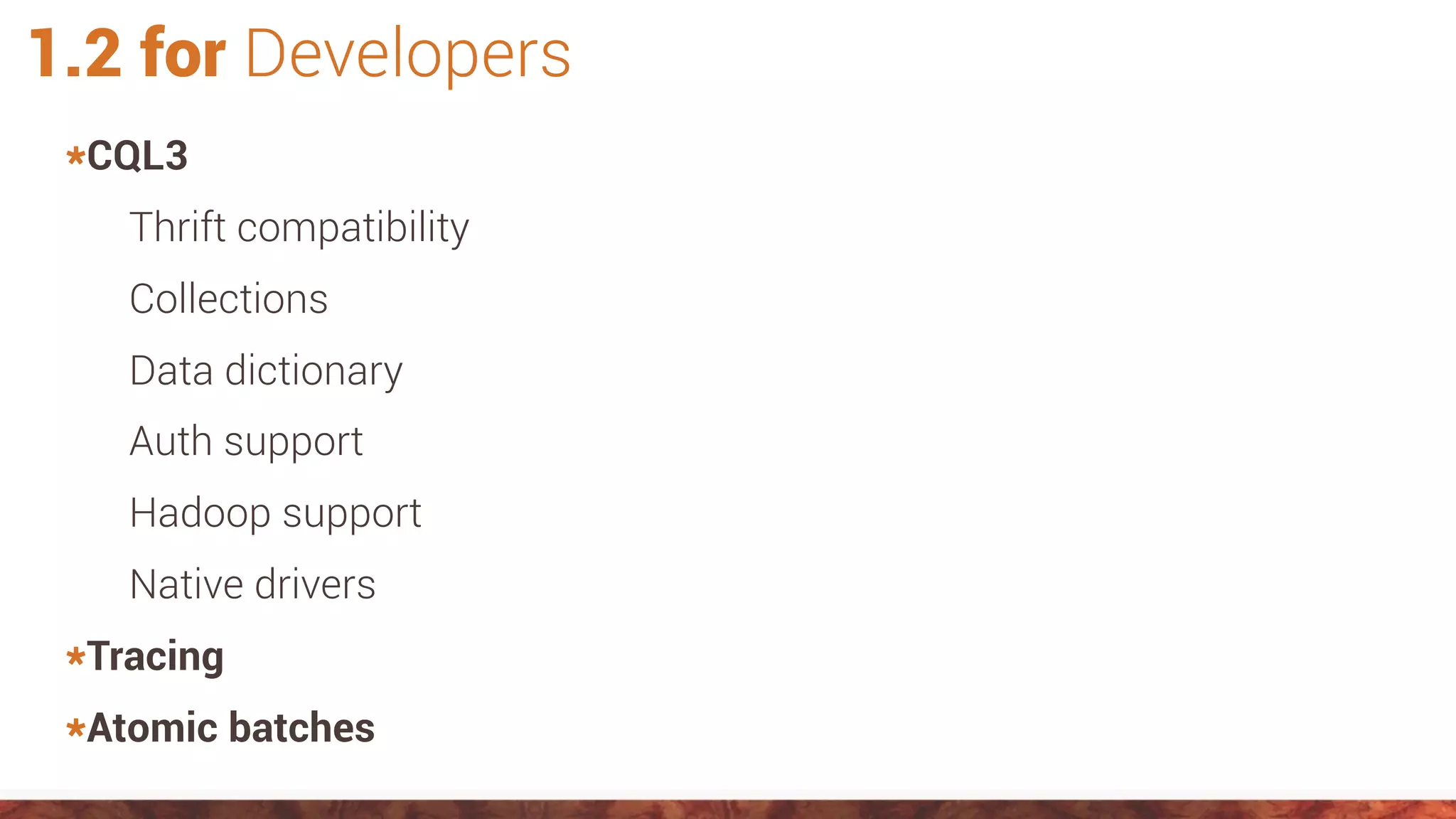

- 9. 1.2 for Developers *CQL3 Thriftcompatibility Collections Data dictionary Auth support Hadoop support Native drivers *Tracing *Atomic batches
- 10.

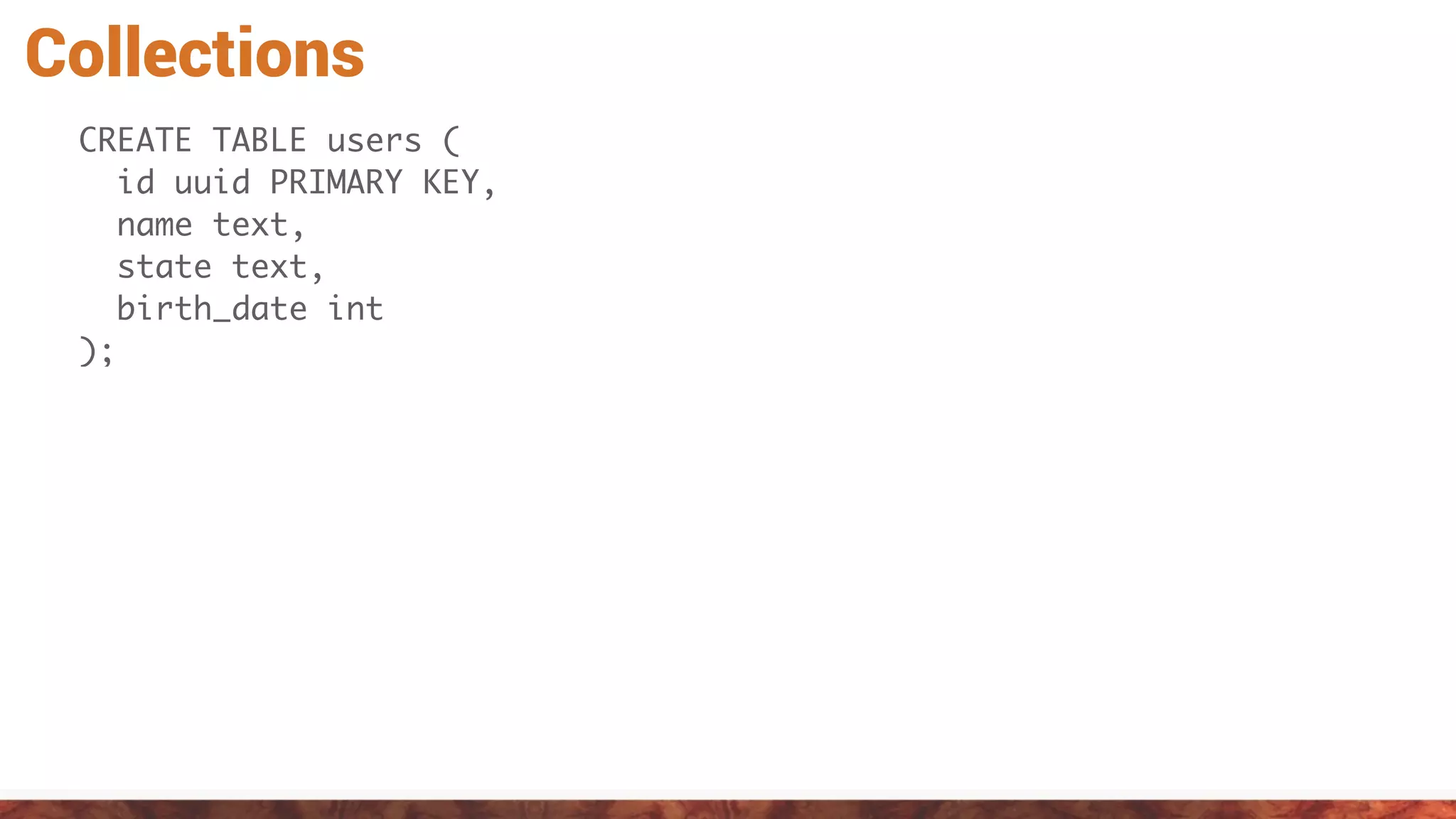

- 11. Collections CREATE TABLE users( id uuid PRIMARY KEY, name text, state text, birth_date int );

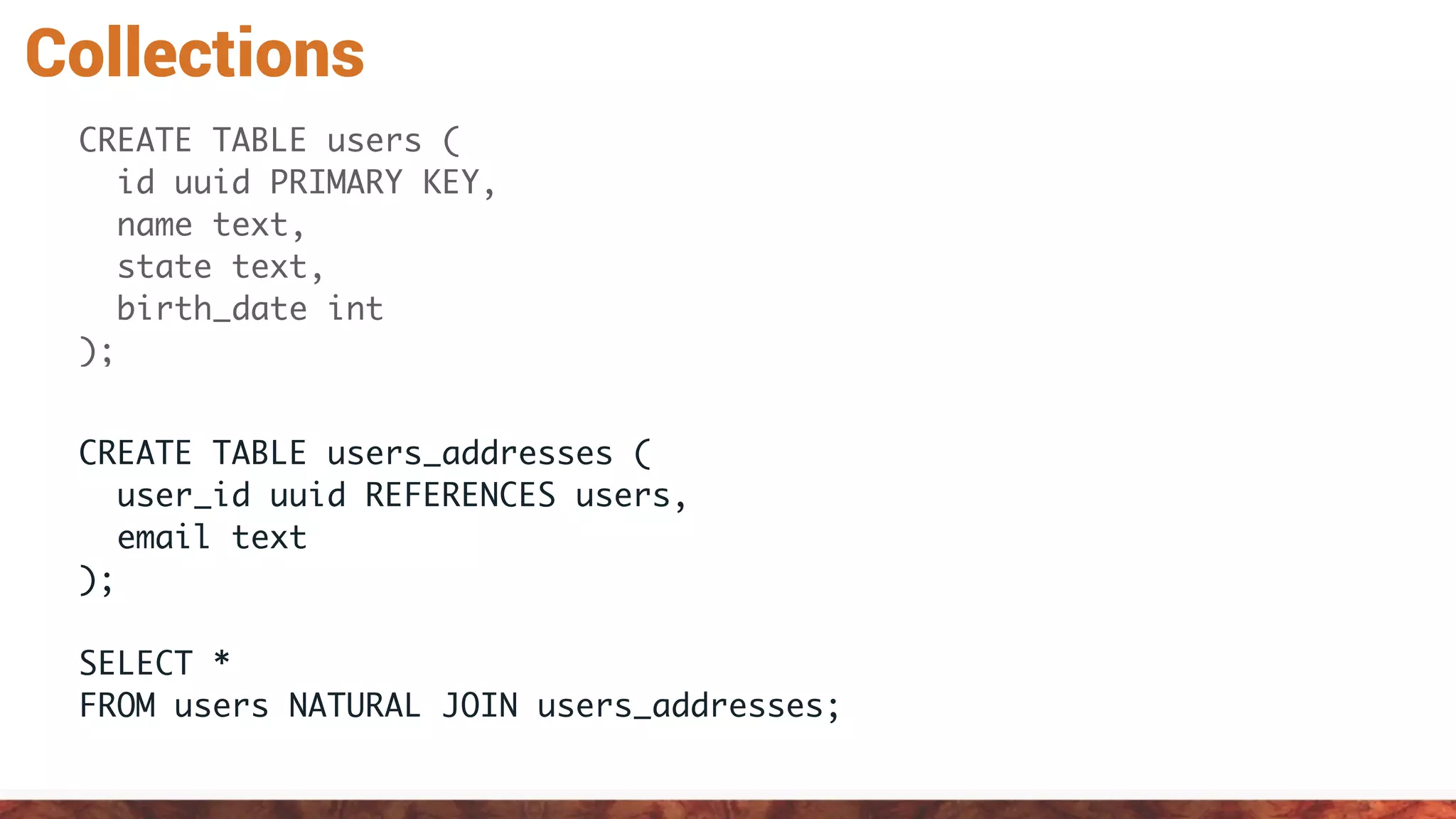

- 12. Collections CREATE TABLE users( id uuid PRIMARY KEY, name text, state text, birth_date int ); CREATE TABLE users_addresses ( user_id uuid REFERENCES users, email text ); SELECT * FROM users NATURAL JOIN users_addresses;

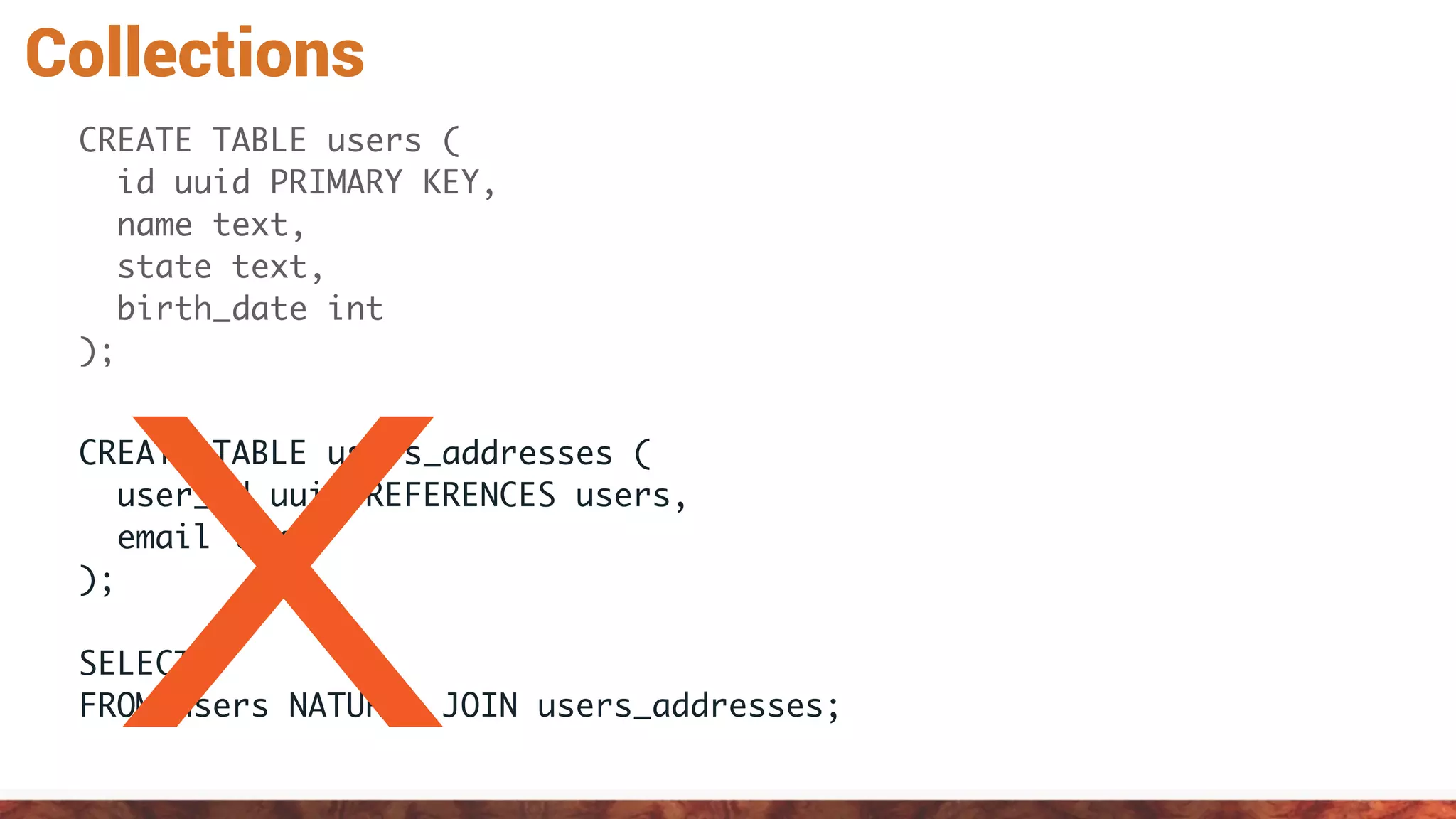

- 13. Collections CREATE TABLE users( id uuid PRIMARY KEY, name text, state text, birth_date int ); CREATE TABLE users_addresses ( user_id uuid REFERENCES users, email text ); SELECT * FROM users NATURAL JOIN users_addresses;X

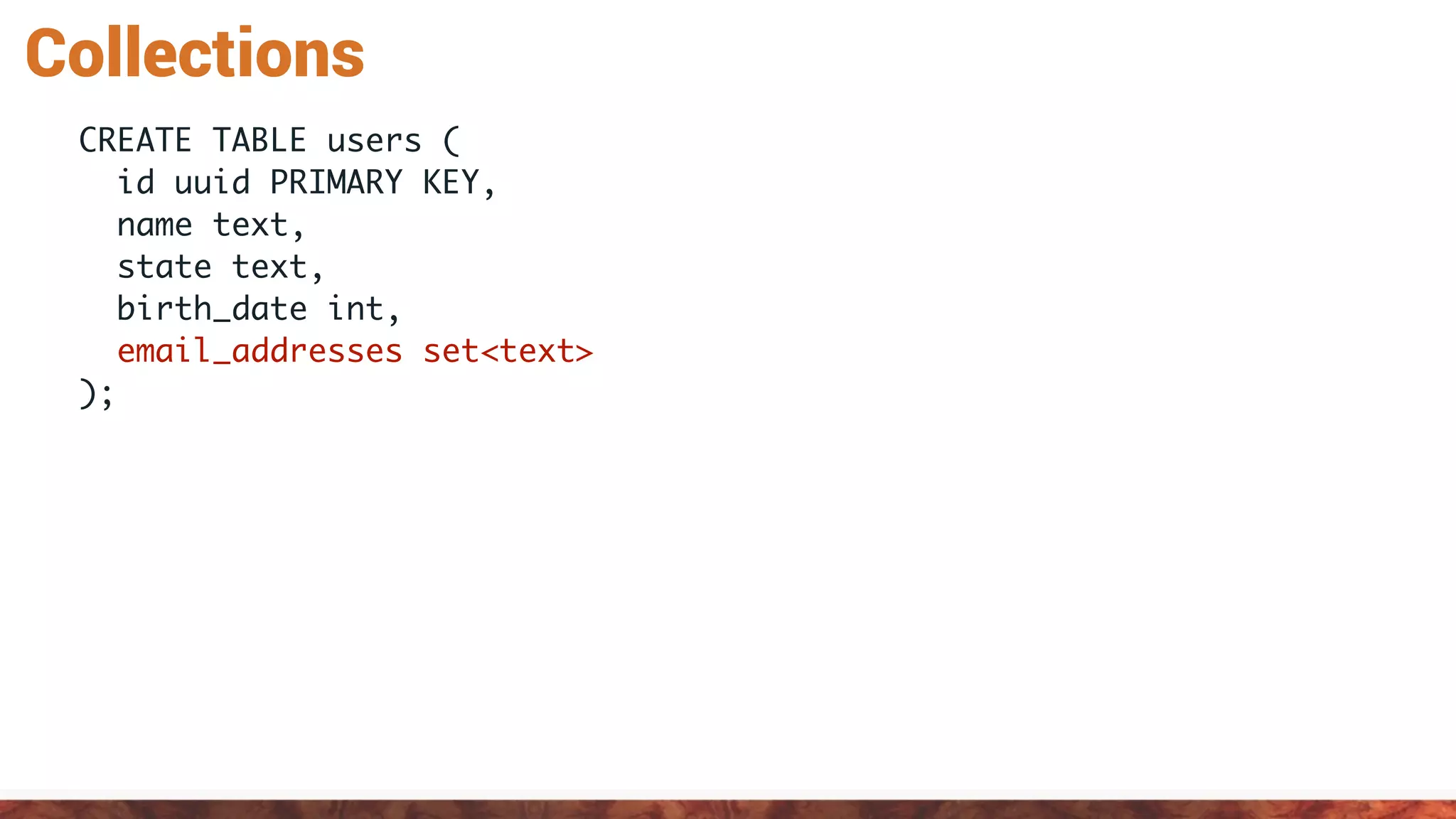

- 14. Collections CREATE TABLE users( id uuid PRIMARY KEY, name text, state text, birth_date int, email_addresses set<text> );

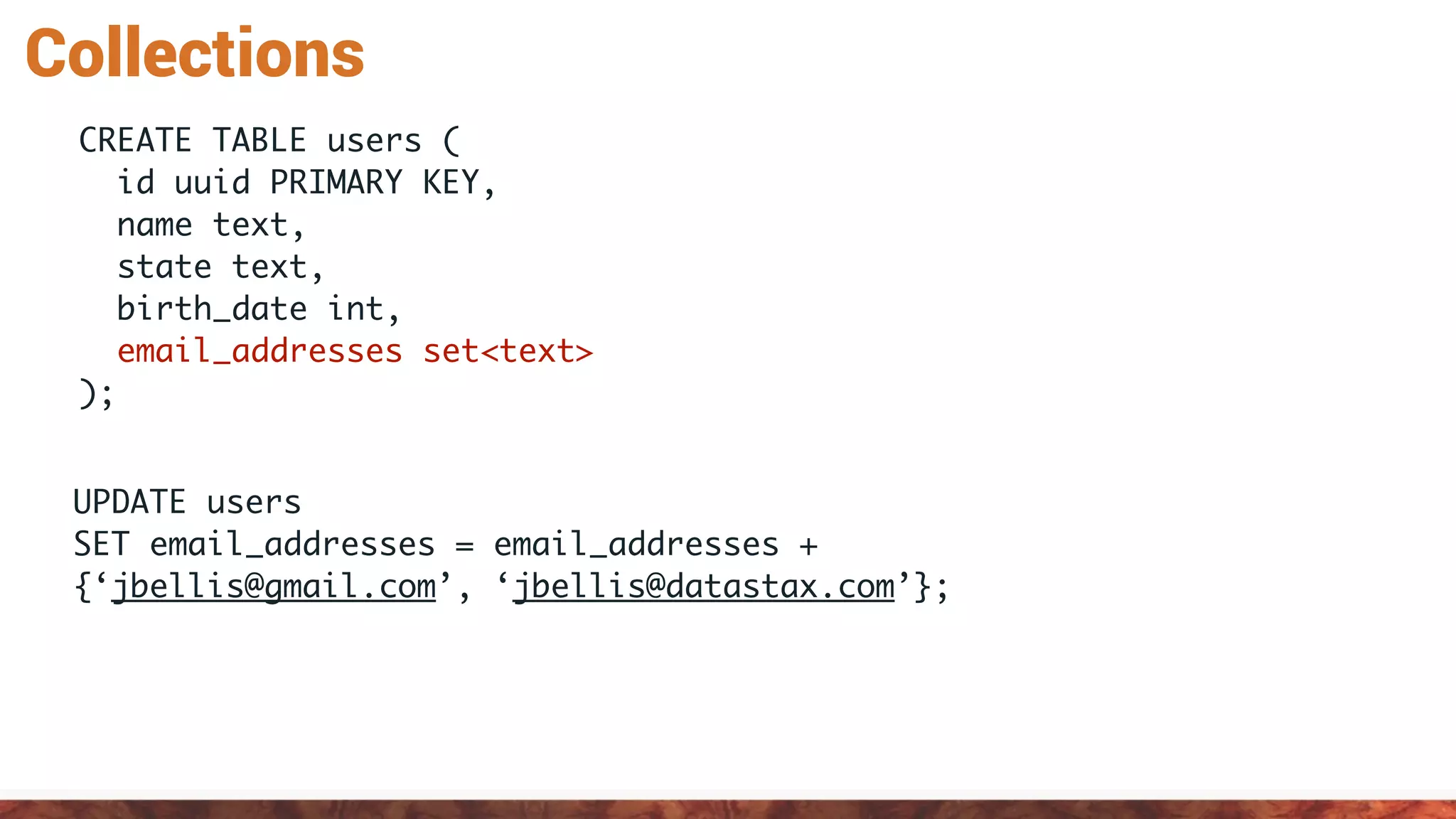

- 15. Collections UPDATE users SET email_addresses= email_addresses + {‘jbellis@gmail.com’, ‘jbellis@datastax.com’}; CREATE TABLE users ( id uuid PRIMARY KEY, name text, state text, birth_date int, email_addresses set<text> );

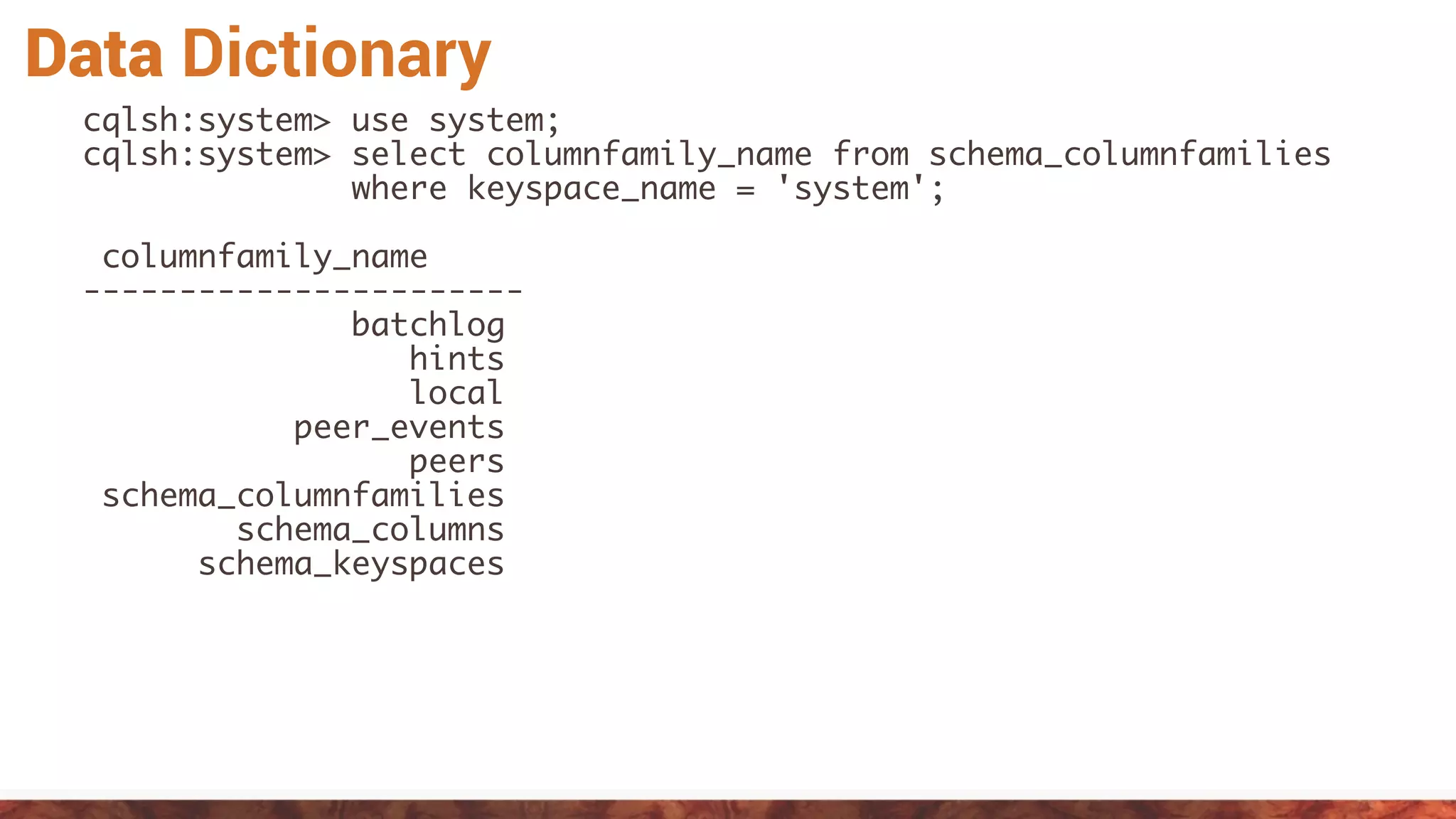

- 16. Data Dictionary cqlsh:system> usesystem; cqlsh:system> select columnfamily_name from schema_columnfamilies where keyspace_name = 'system'; columnfamily_name ----------------------- batchlog hints local peer_events peers schema_columnfamilies schema_columns schema_keyspaces

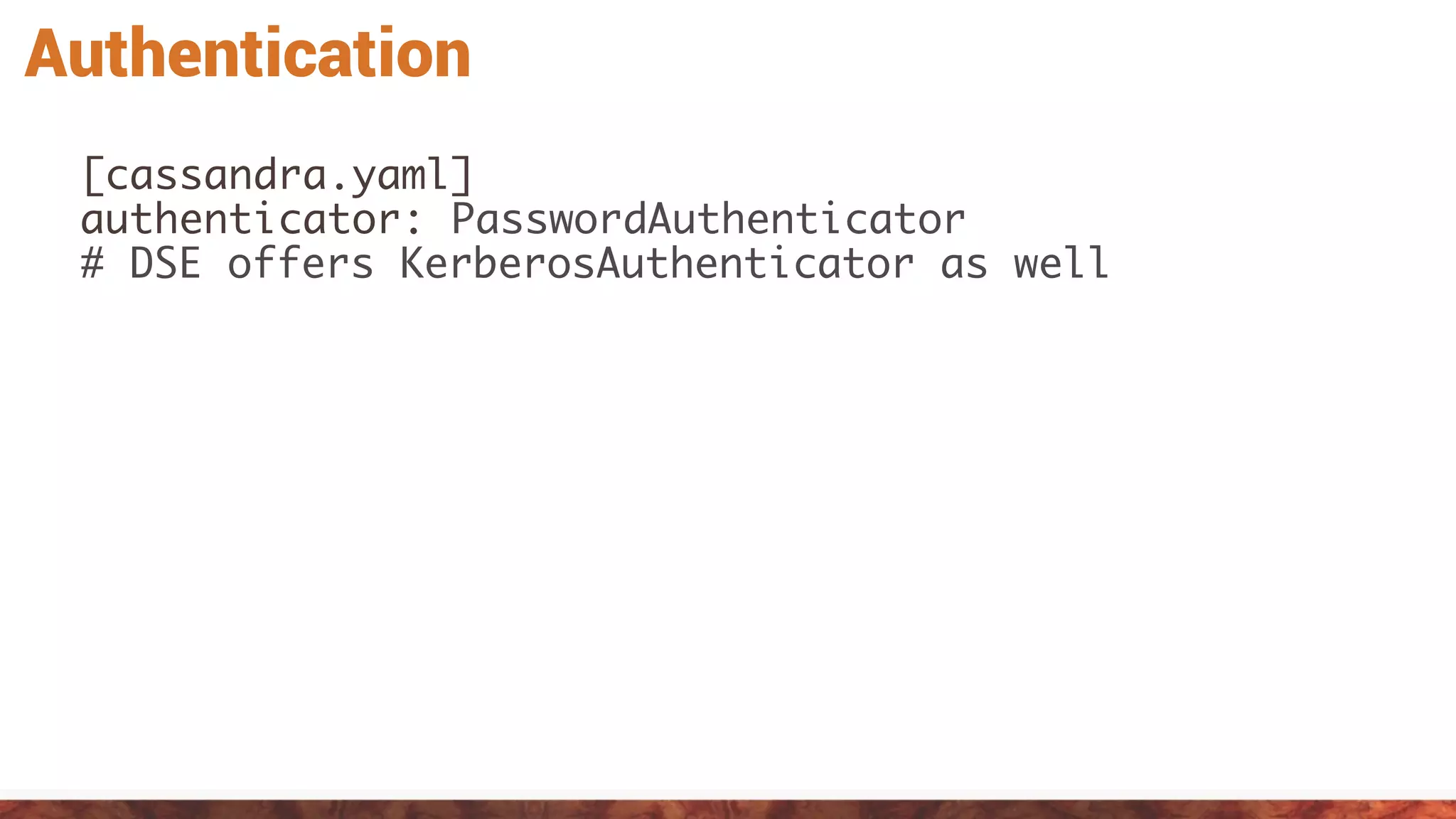

- 17. Authentication [cassandra.yaml] authenticator: PasswordAuthenticator # DSEoffers KerberosAuthenticator as well

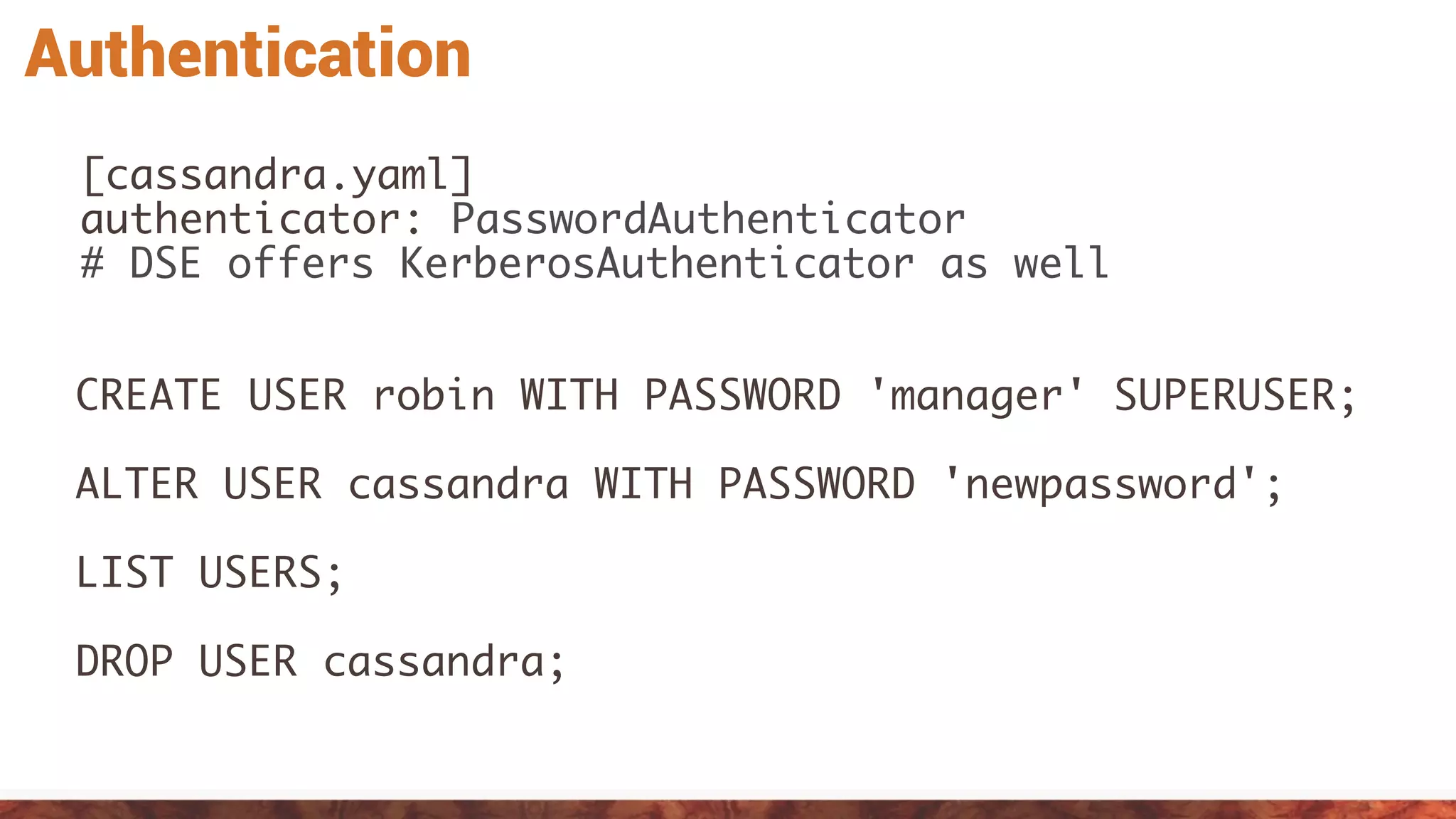

- 18. Authentication [cassandra.yaml] authenticator: PasswordAuthenticator # DSEoffers KerberosAuthenticator as well CREATE USER robin WITH PASSWORD 'manager' SUPERUSER; ALTER USER cassandra WITH PASSWORD 'newpassword'; LIST USERS; DROP USER cassandra;

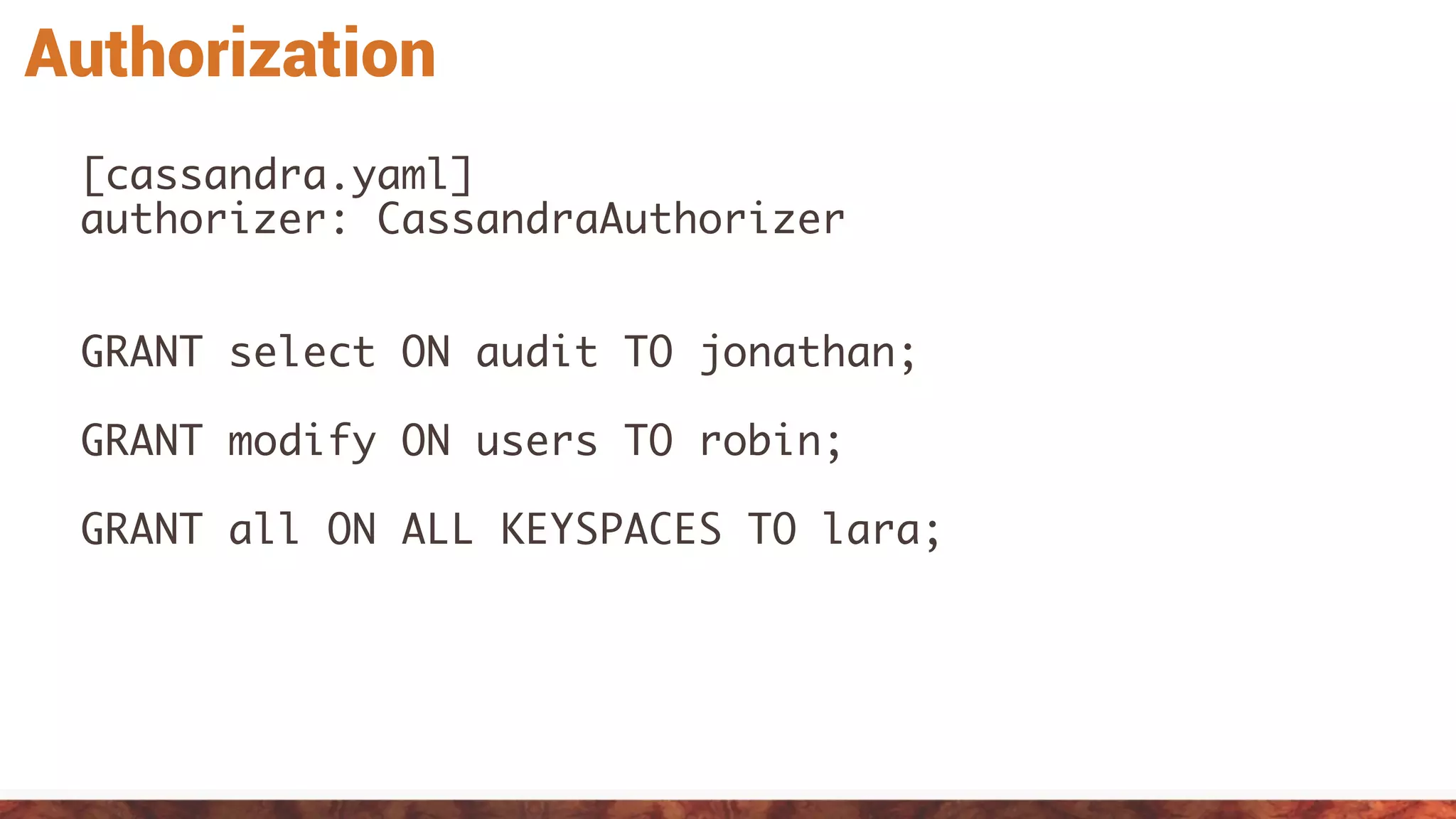

- 19. Authorization [cassandra.yaml] authorizer: CassandraAuthorizer GRANT selectON audit TO jonathan; GRANT modify ON users TO robin; GRANT all ON ALL KEYSPACES TO lara;

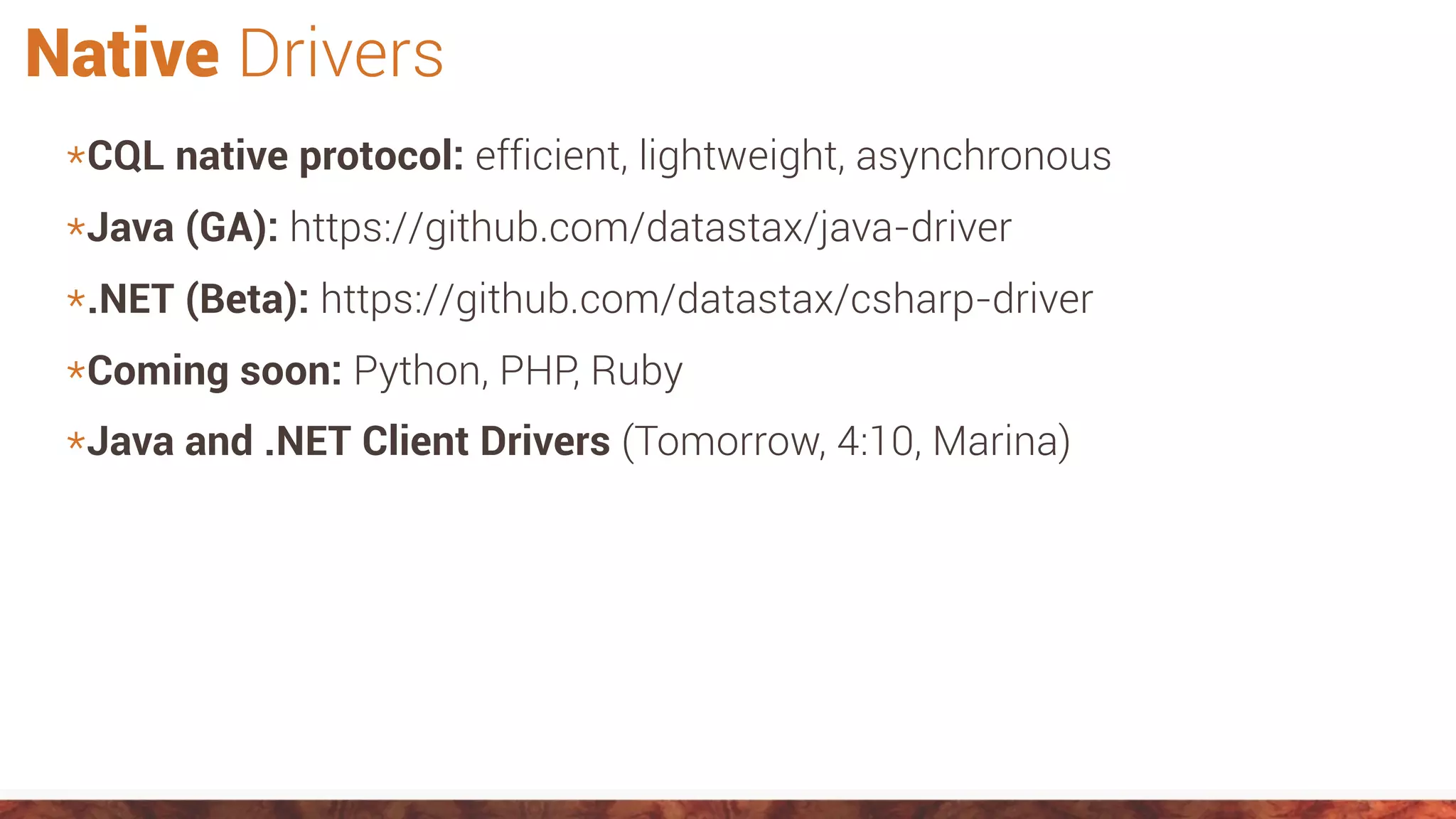

- 20. Native Drivers *CQL nativeprotocol: efficient, lightweight, asynchronous *Java (GA): https://github.com/datastax/java-driver *.NET (Beta): https://github.com/datastax/csharp-driver *Coming soon: Python, PHP, Ruby *Java and .NET Client Drivers (Tomorrow, 4:10, Marina)

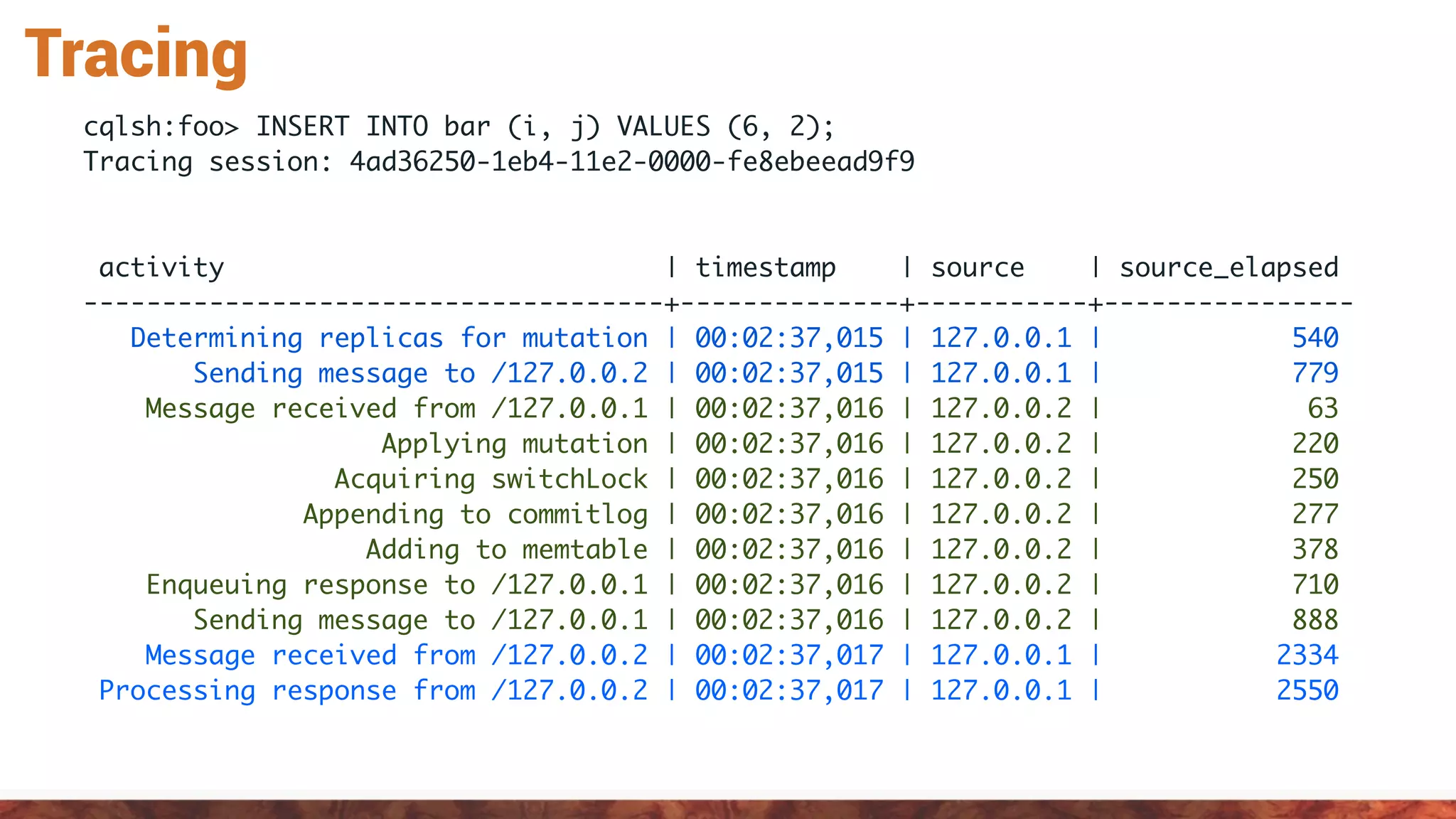

- 21. Tracing cqlsh:foo> INSERT INTObar (i, j) VALUES (6, 2); Tracing session: 4ad36250-1eb4-11e2-0000-fe8ebeead9f9 activity | timestamp | source | source_elapsed -------------------------------------+--------------+-----------+---------------- Determining replicas for mutation | 00:02:37,015 | 127.0.0.1 | 540 Sending message to /127.0.0.2 | 00:02:37,015 | 127.0.0.1 | 779 Message received from /127.0.0.1 | 00:02:37,016 | 127.0.0.2 | 63 Applying mutation | 00:02:37,016 | 127.0.0.2 | 220 Acquiring switchLock | 00:02:37,016 | 127.0.0.2 | 250 Appending to commitlog | 00:02:37,016 | 127.0.0.2 | 277 Adding to memtable | 00:02:37,016 | 127.0.0.2 | 378 Enqueuing response to /127.0.0.1 | 00:02:37,016 | 127.0.0.2 | 710 Sending message to /127.0.0.1 | 00:02:37,016 | 127.0.0.2 | 888 Message received from /127.0.0.2 | 00:02:37,017 | 127.0.0.1 | 2334 Processing response from /127.0.0.2 | 00:02:37,017 | 127.0.0.1 | 2550

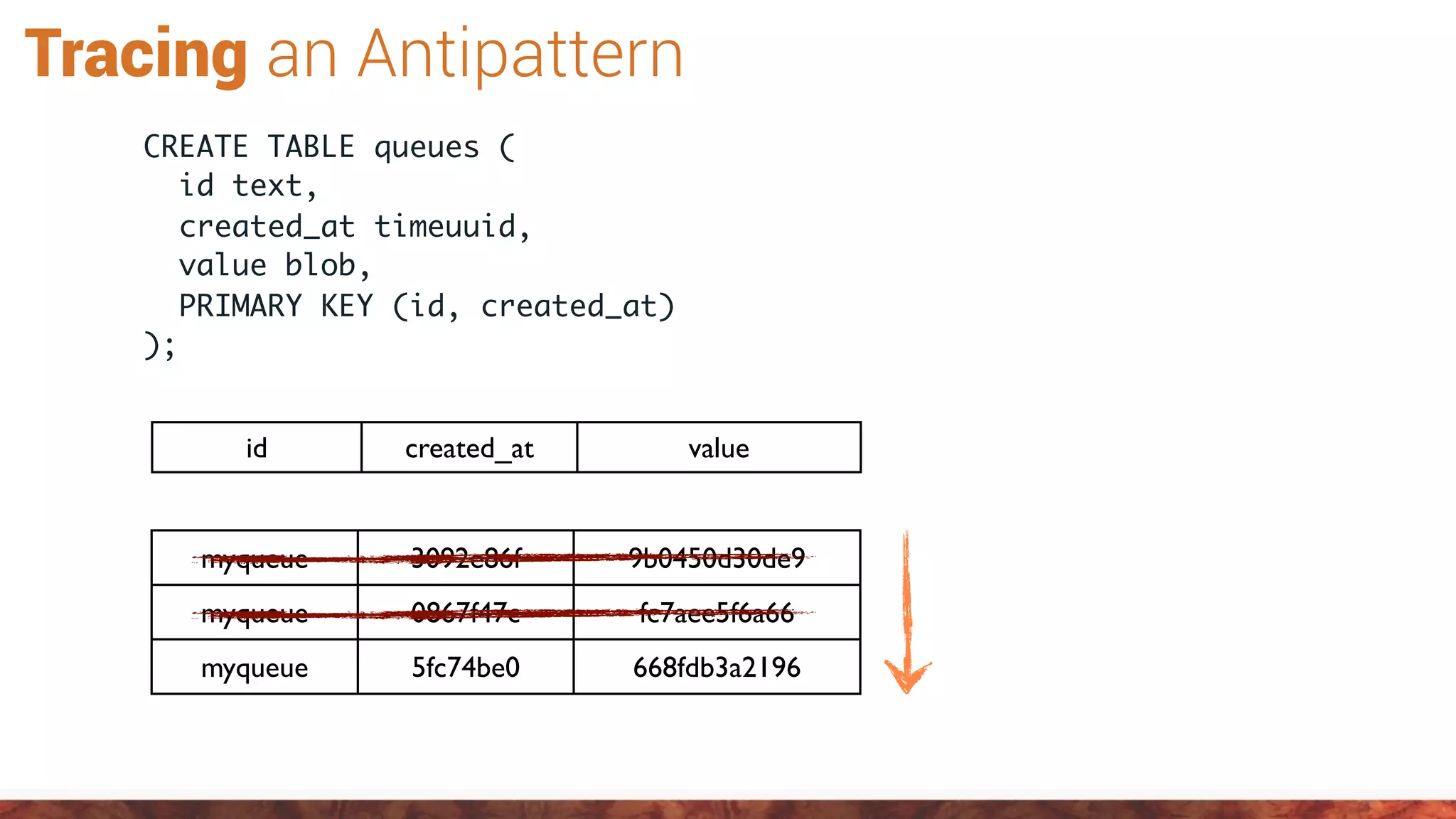

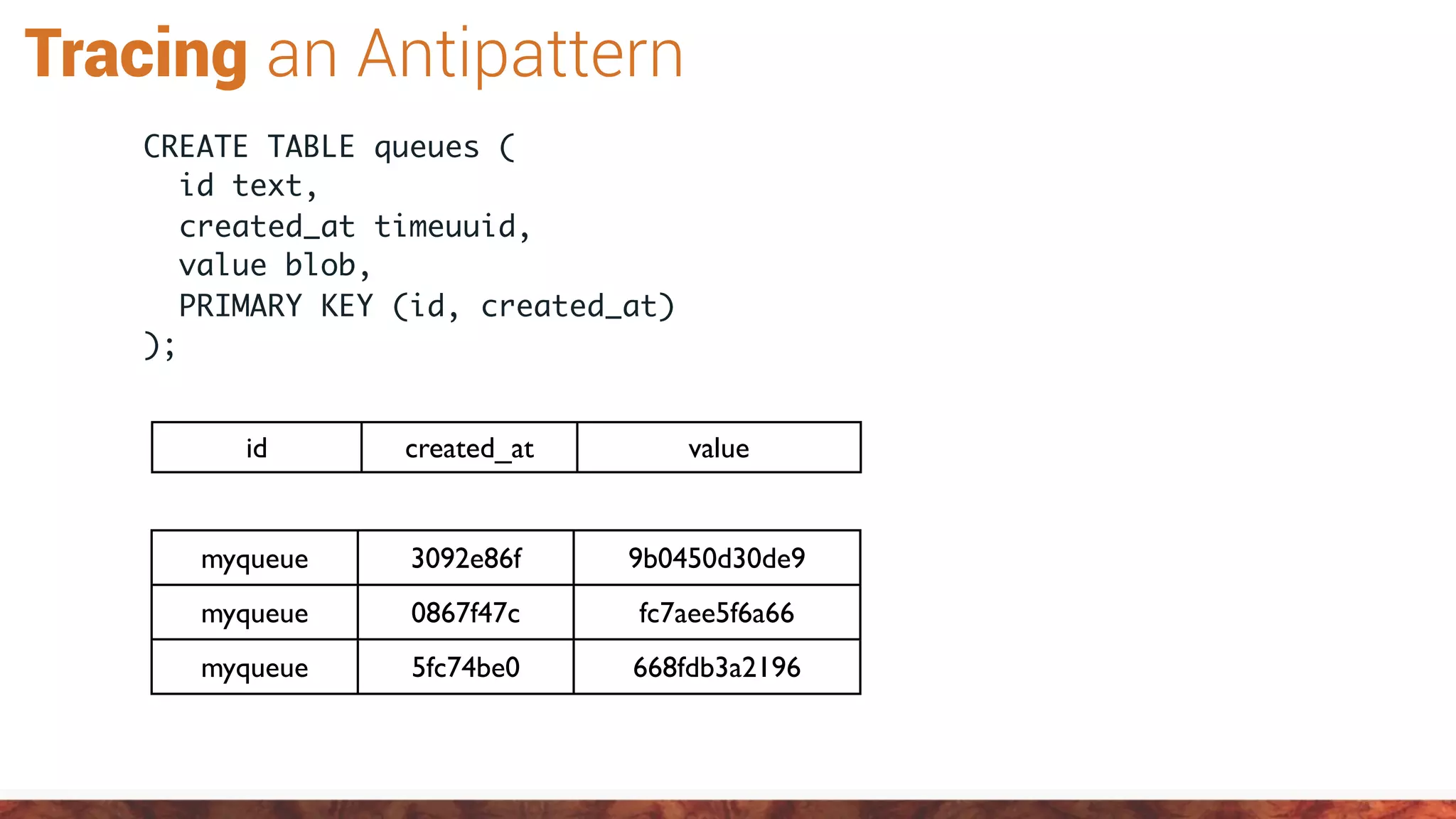

- 22. Tracing an Antipattern CREATETABLE queues ( id text, created_at timeuuid, value blob, PRIMARY KEY (id, created_at) ); id created_at value myqueue 3092e86f 9b0450d30de9 myqueue 0867f47c fc7aee5f6a66 myqueue 5fc74be0 668fdb3a2196
- 23. Tracing an Antipattern CREATETABLE queues ( id text, created_at timeuuid, value blob, PRIMARY KEY (id, created_at) ); id created_at value myqueue 3092e86f 9b0450d30de9 myqueue 0867f47c fc7aee5f6a66 myqueue 5fc74be0 668fdb3a2196
- 24. Tracing an Antipattern CREATETABLE queues ( id text, created_at timeuuid, value blob, PRIMARY KEY (id, created_at) ); id created_at value myqueue 3092e86f 9b0450d30de9 myqueue 0867f47c fc7aee5f6a66 myqueue 5fc74be0 668fdb3a2196

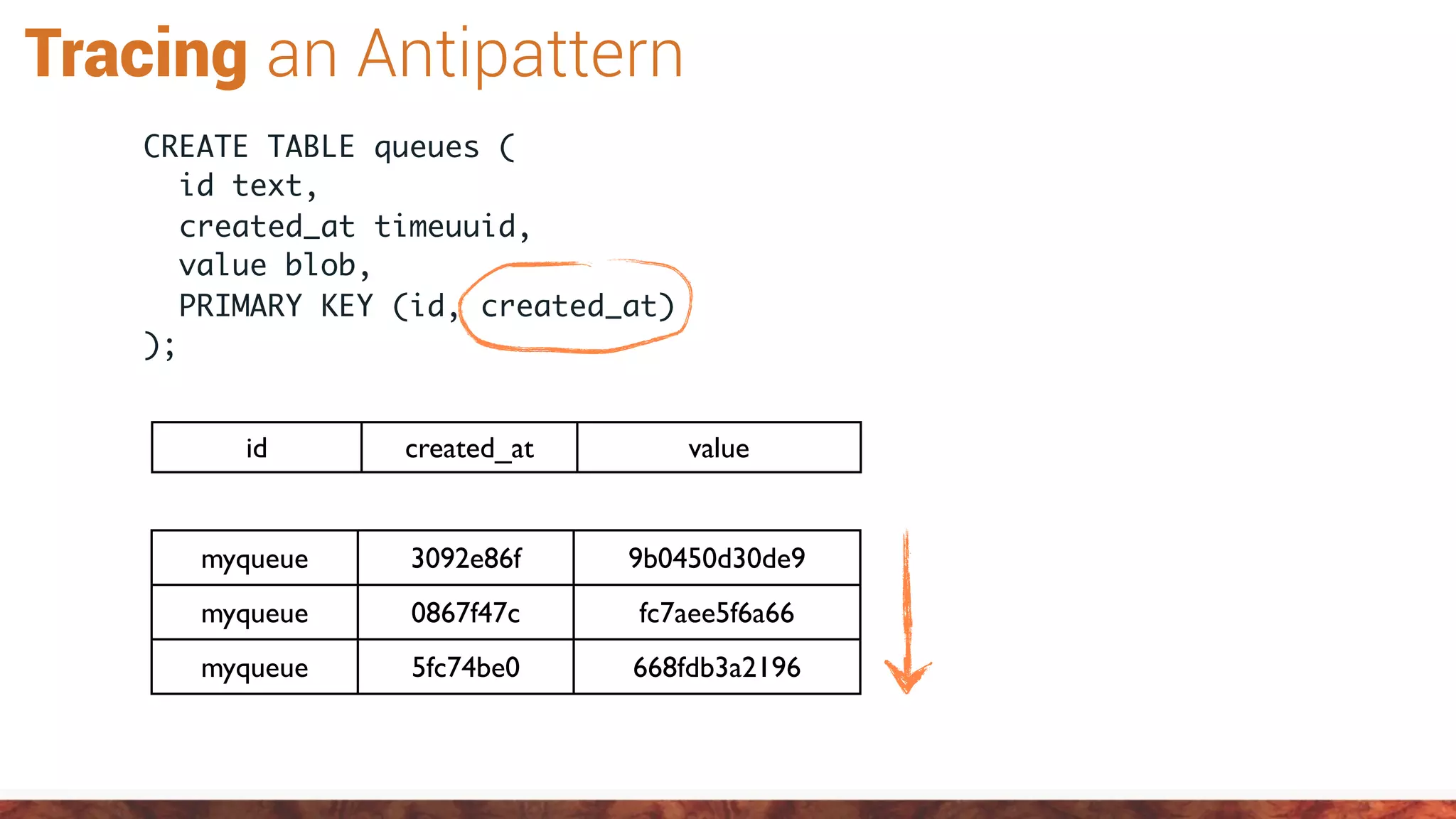

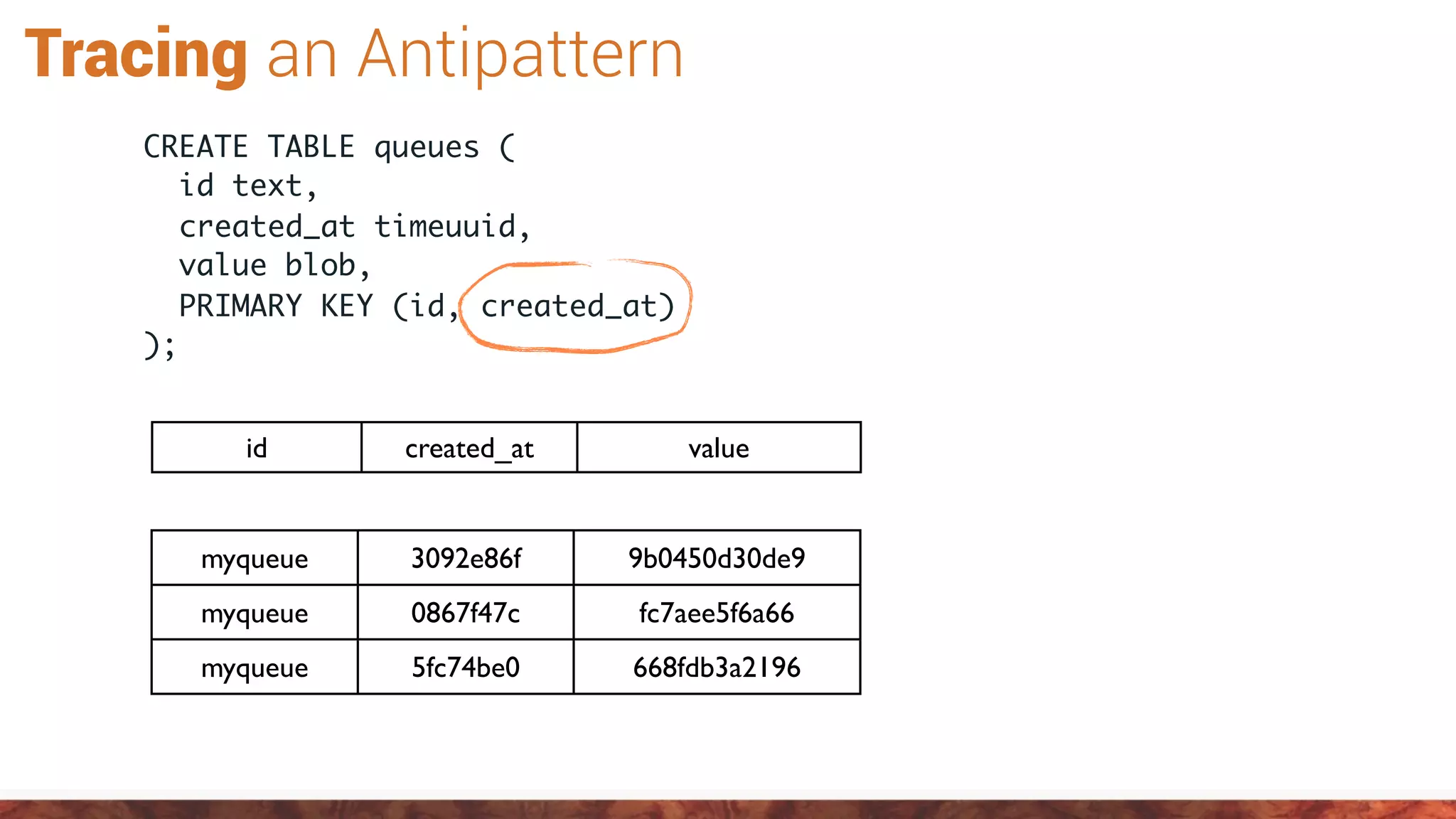

- 25. Tracing an Antipattern CREATETABLE queues ( id text, created_at timeuuid, value blob, PRIMARY KEY (id, created_at) ); id created_at value myqueue 3092e86f 9b0450d30de9 myqueue 0867f47c fc7aee5f6a66 myqueue 5fc74be0 668fdb3a2196

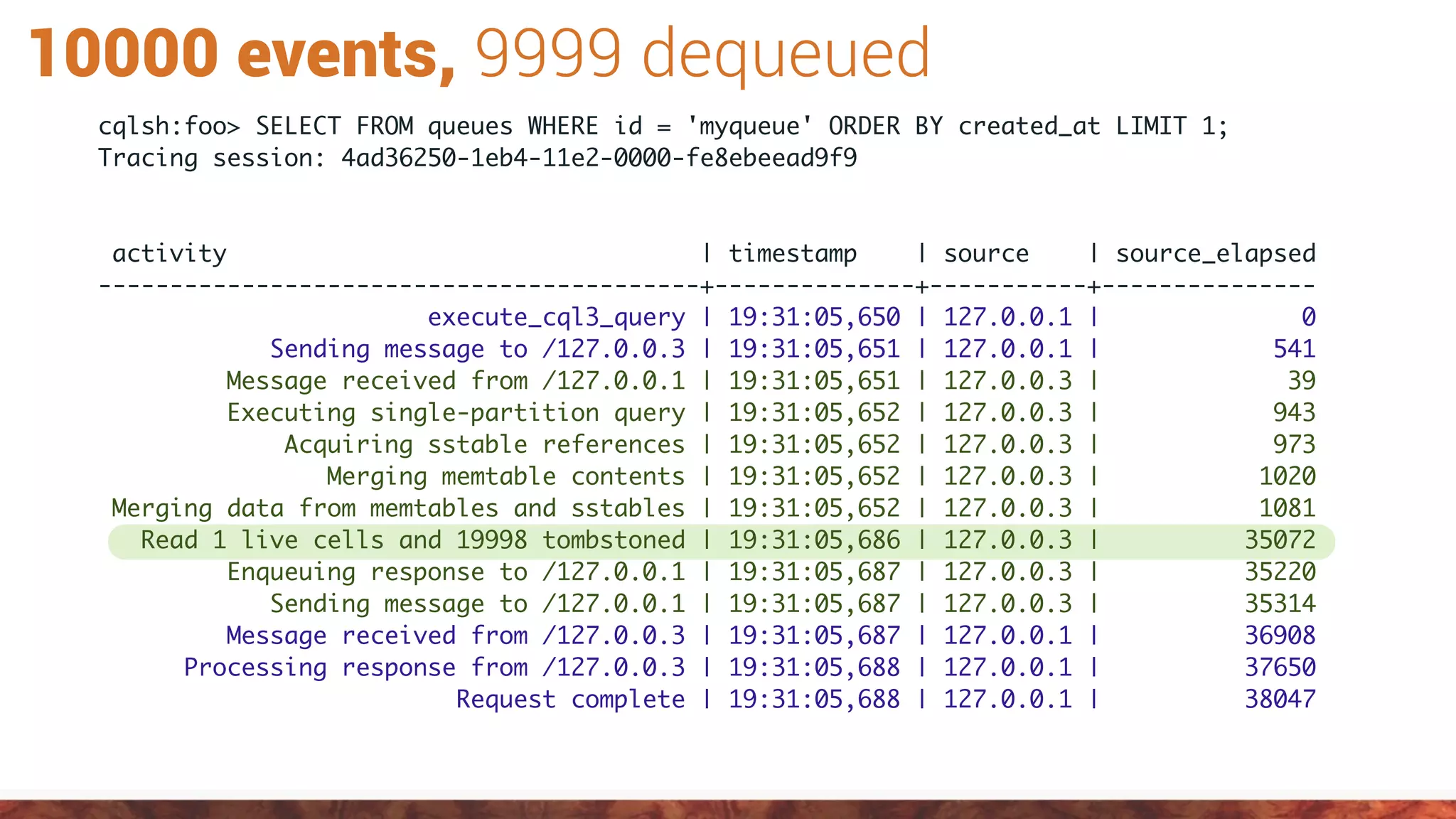

- 26. 10000 events, 9999dequeued cqlsh:foo> SELECT FROM queues WHERE id = 'myqueue' ORDER BY created_at LIMIT 1; Tracing session: 4ad36250-1eb4-11e2-0000-fe8ebeead9f9 activity | timestamp | source | source_elapsed ------------------------------------------+--------------+-----------+--------------- execute_cql3_query | 19:31:05,650 | 127.0.0.1 | 0 Sending message to /127.0.0.3 | 19:31:05,651 | 127.0.0.1 | 541 Message received from /127.0.0.1 | 19:31:05,651 | 127.0.0.3 | 39 Executing single-partition query | 19:31:05,652 | 127.0.0.3 | 943 Acquiring sstable references | 19:31:05,652 | 127.0.0.3 | 973 Merging memtable contents | 19:31:05,652 | 127.0.0.3 | 1020 Merging data from memtables and sstables | 19:31:05,652 | 127.0.0.3 | 1081 Read 1 live cells and 19998 tombstoned | 19:31:05,686 | 127.0.0.3 | 35072 Enqueuing response to /127.0.0.1 | 19:31:05,687 | 127.0.0.3 | 35220 Sending message to /127.0.0.1 | 19:31:05,687 | 127.0.0.3 | 35314 Message received from /127.0.0.3 | 19:31:05,687 | 127.0.0.1 | 36908 Processing response from /127.0.0.3 | 19:31:05,688 | 127.0.0.1 | 37650 Request complete | 19:31:05,688 | 127.0.0.1 | 38047

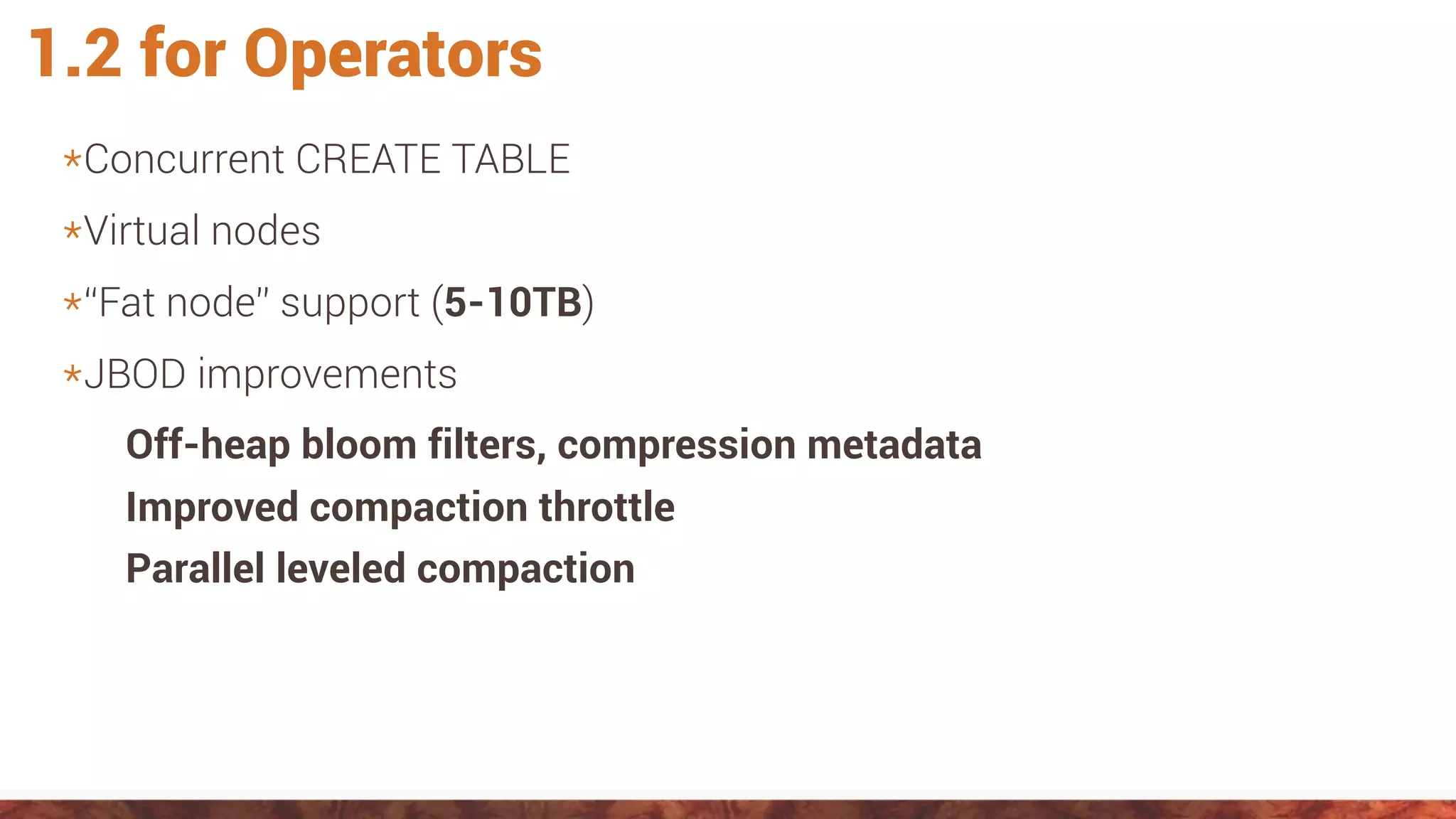

- 27. 1.2 for Operators *ConcurrentCREATE TABLE *Virtual nodes *“Fat node” support (5-10TB) *JBOD improvements Off-heap bloom filters, compression metadata Improved compaction throttle Parallel leveled compaction

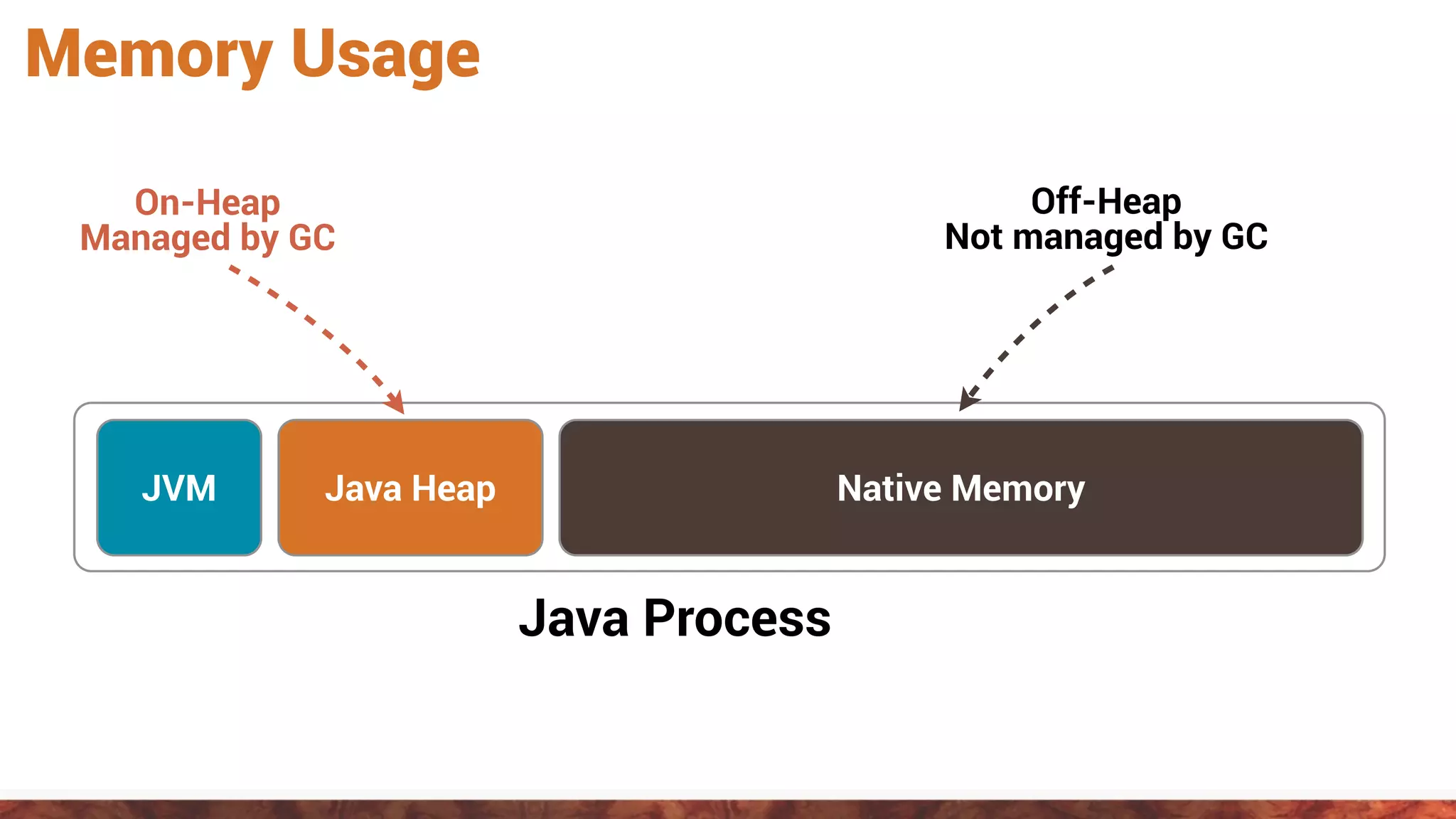

- 28. Memory Usage Java Heap Off-Heap Notmanaged by GC JVM Java Process Native Memory On-Heap Managed by GC

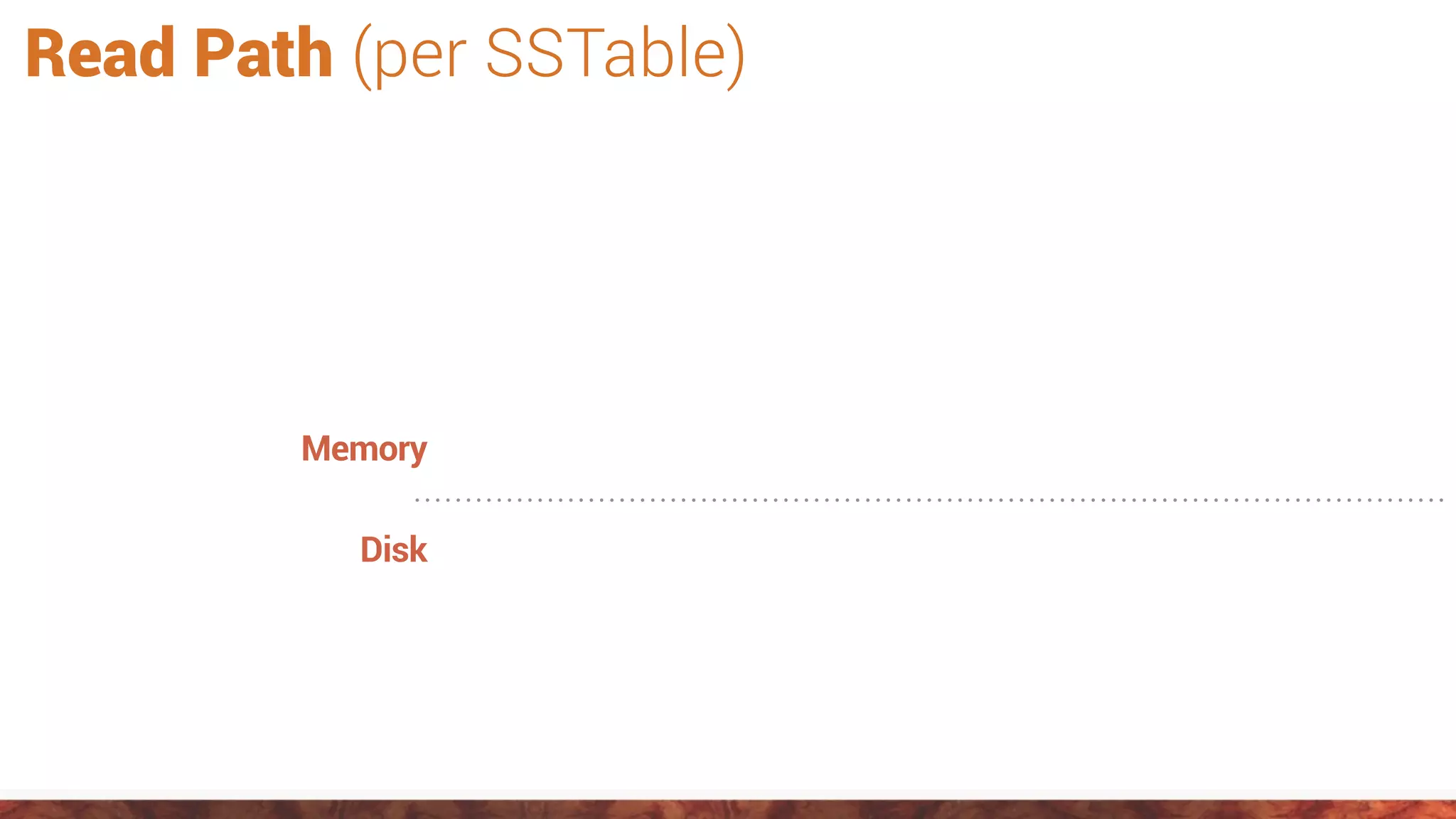

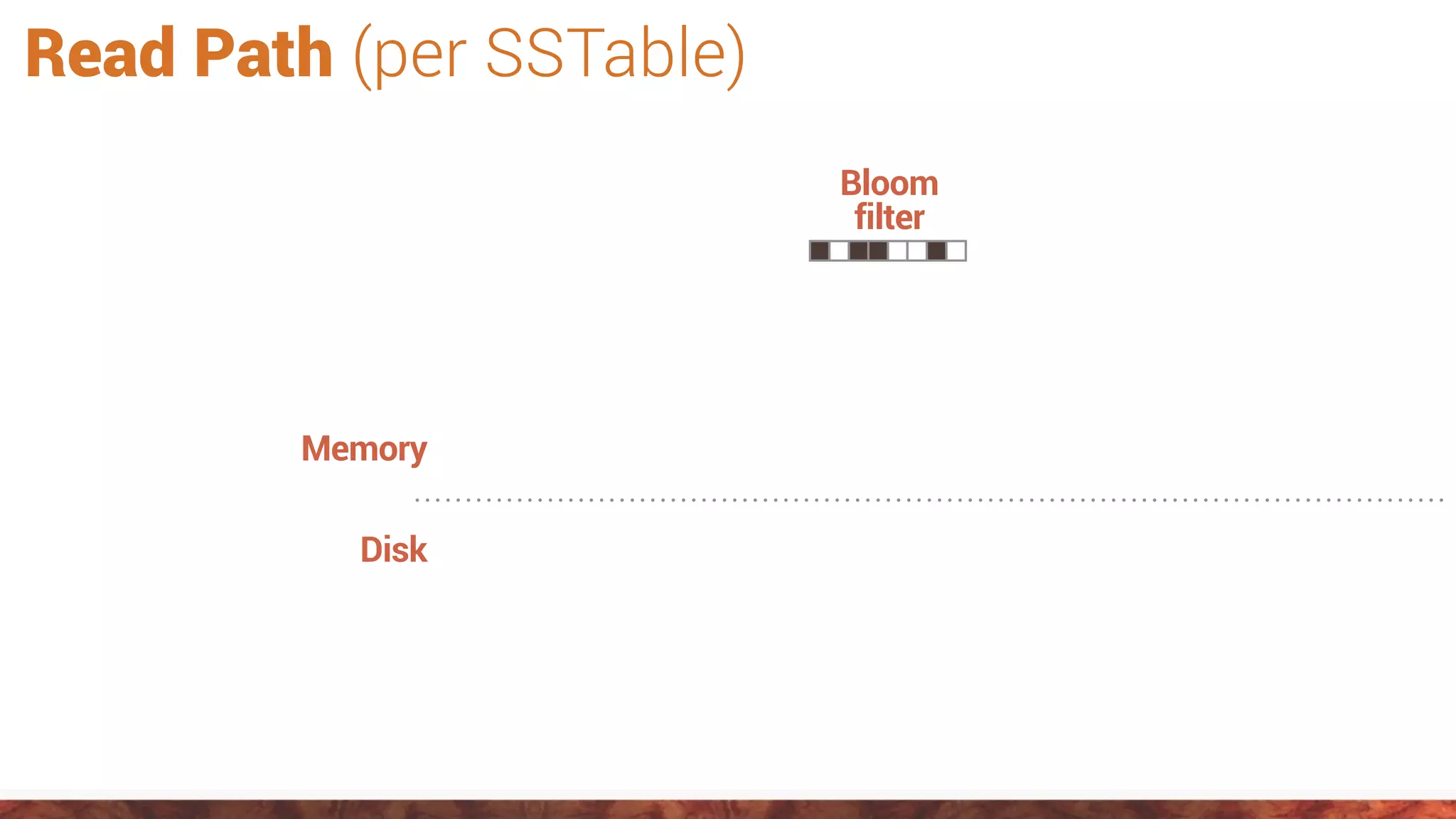

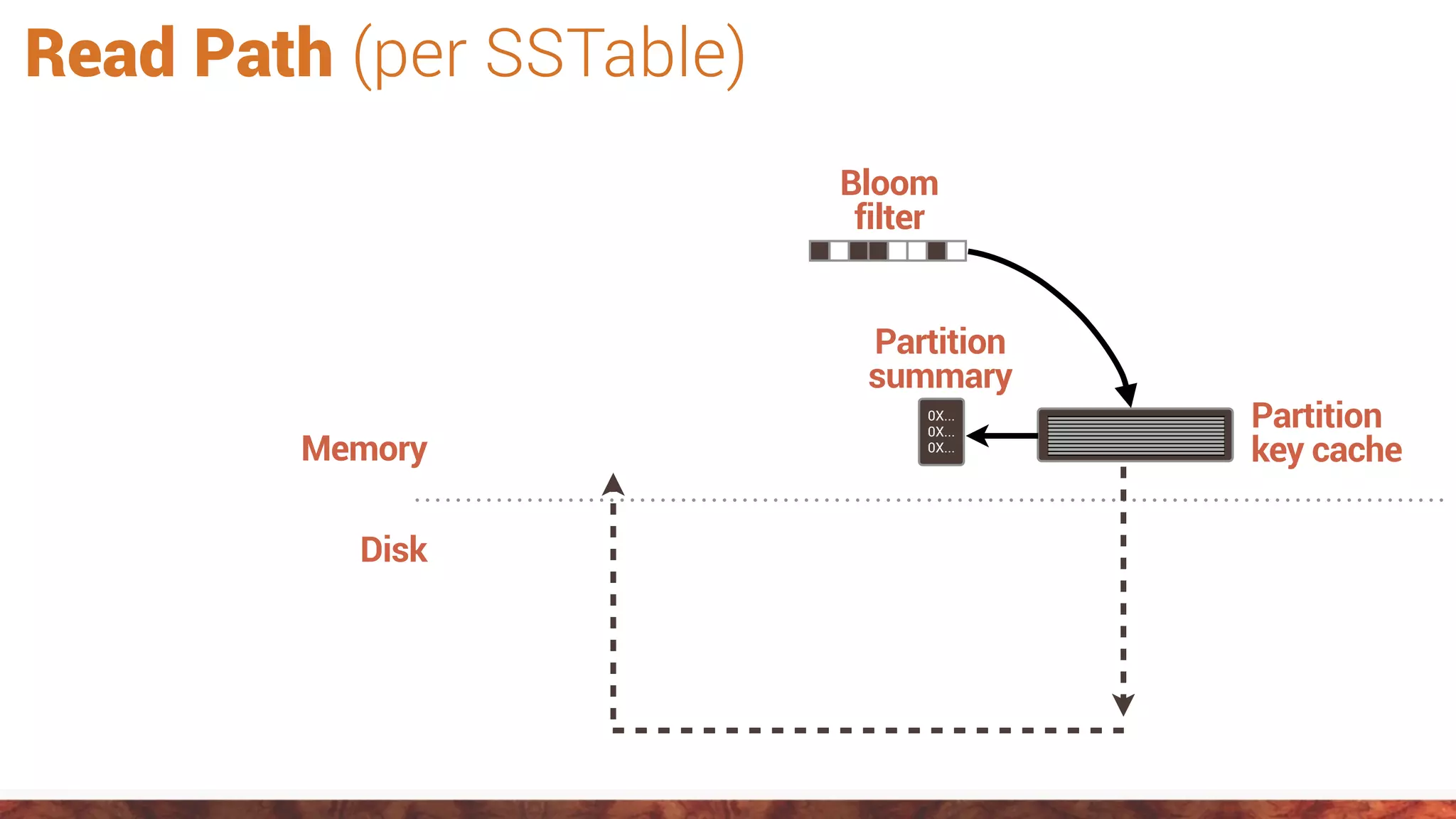

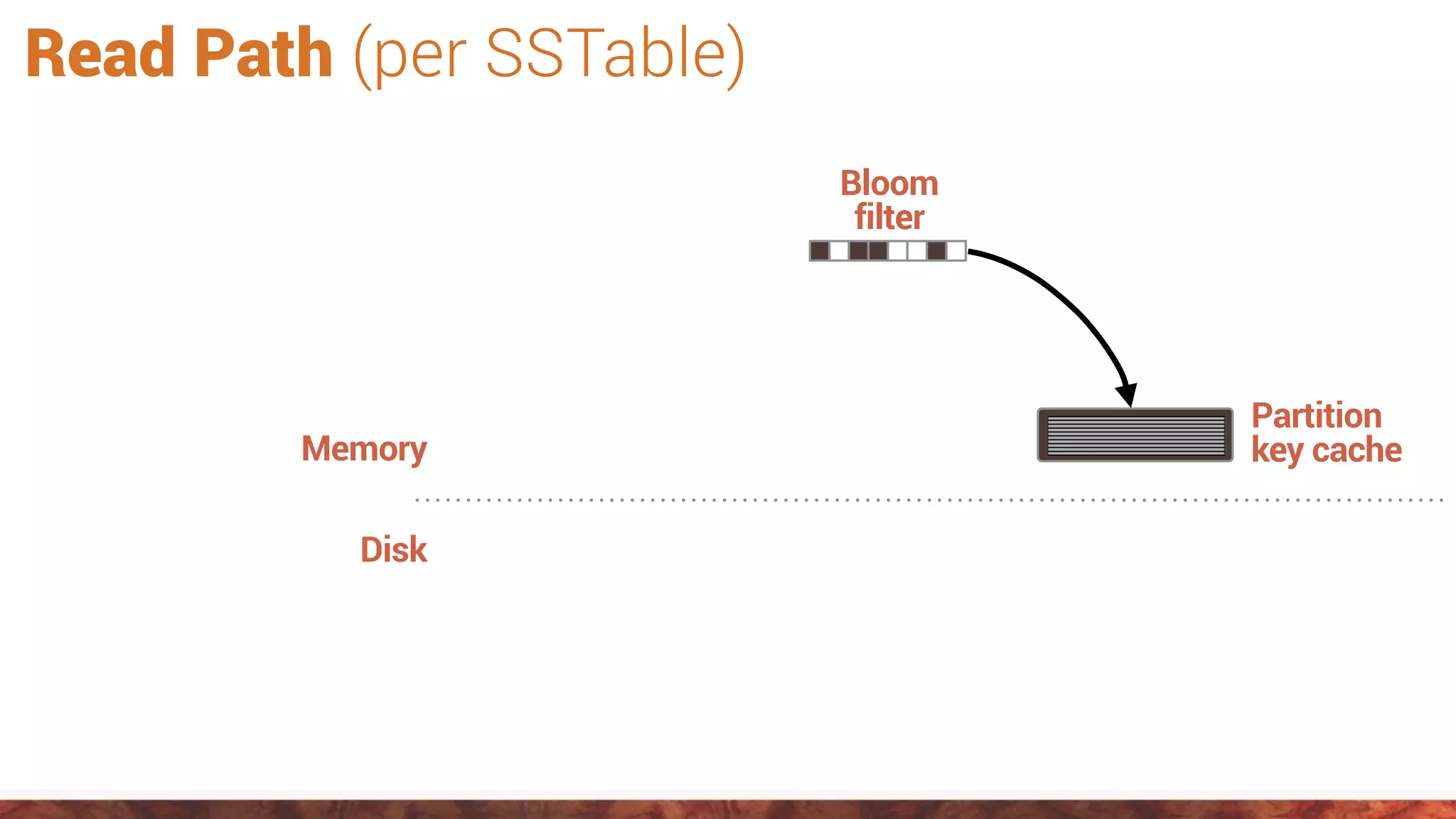

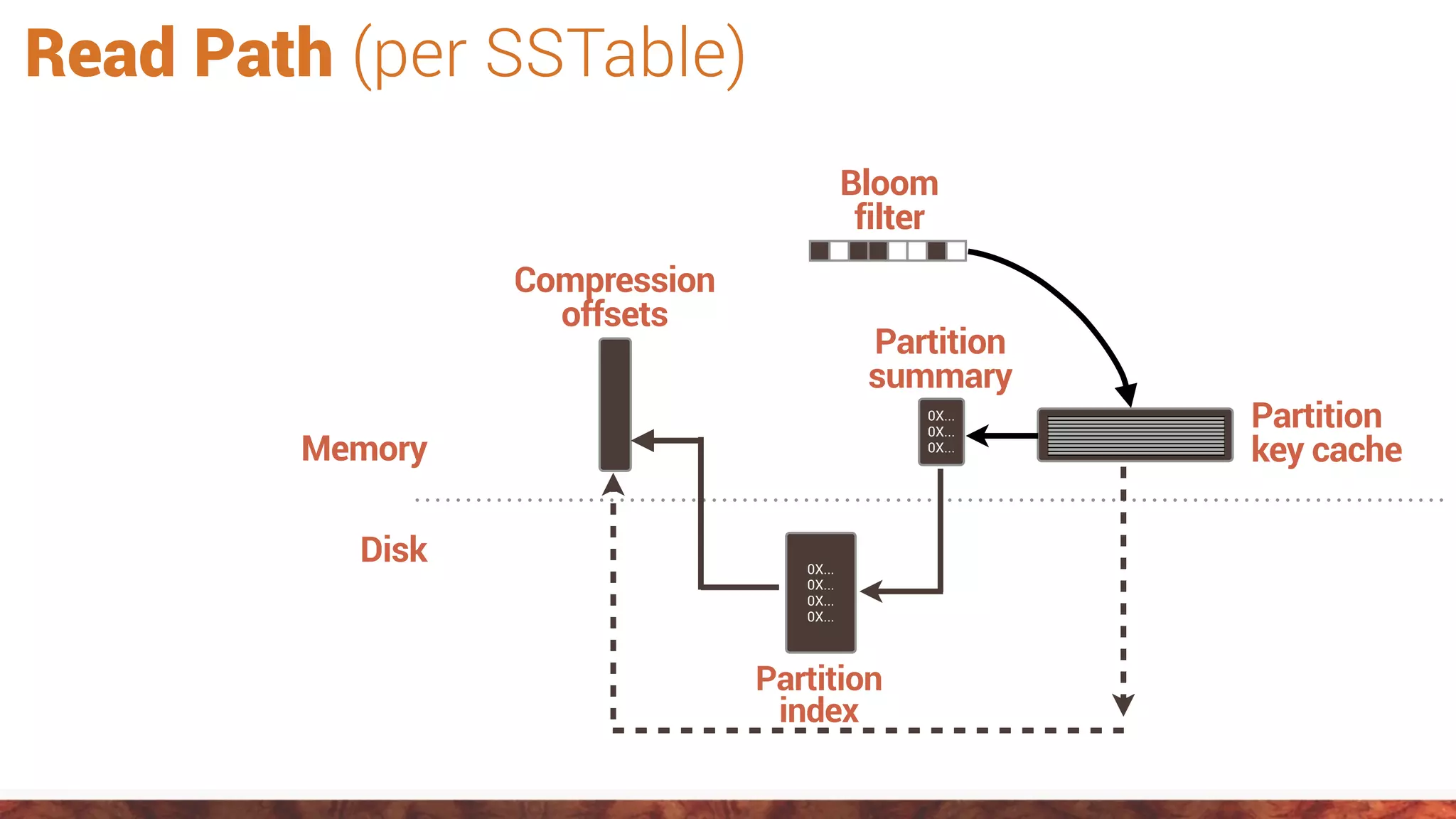

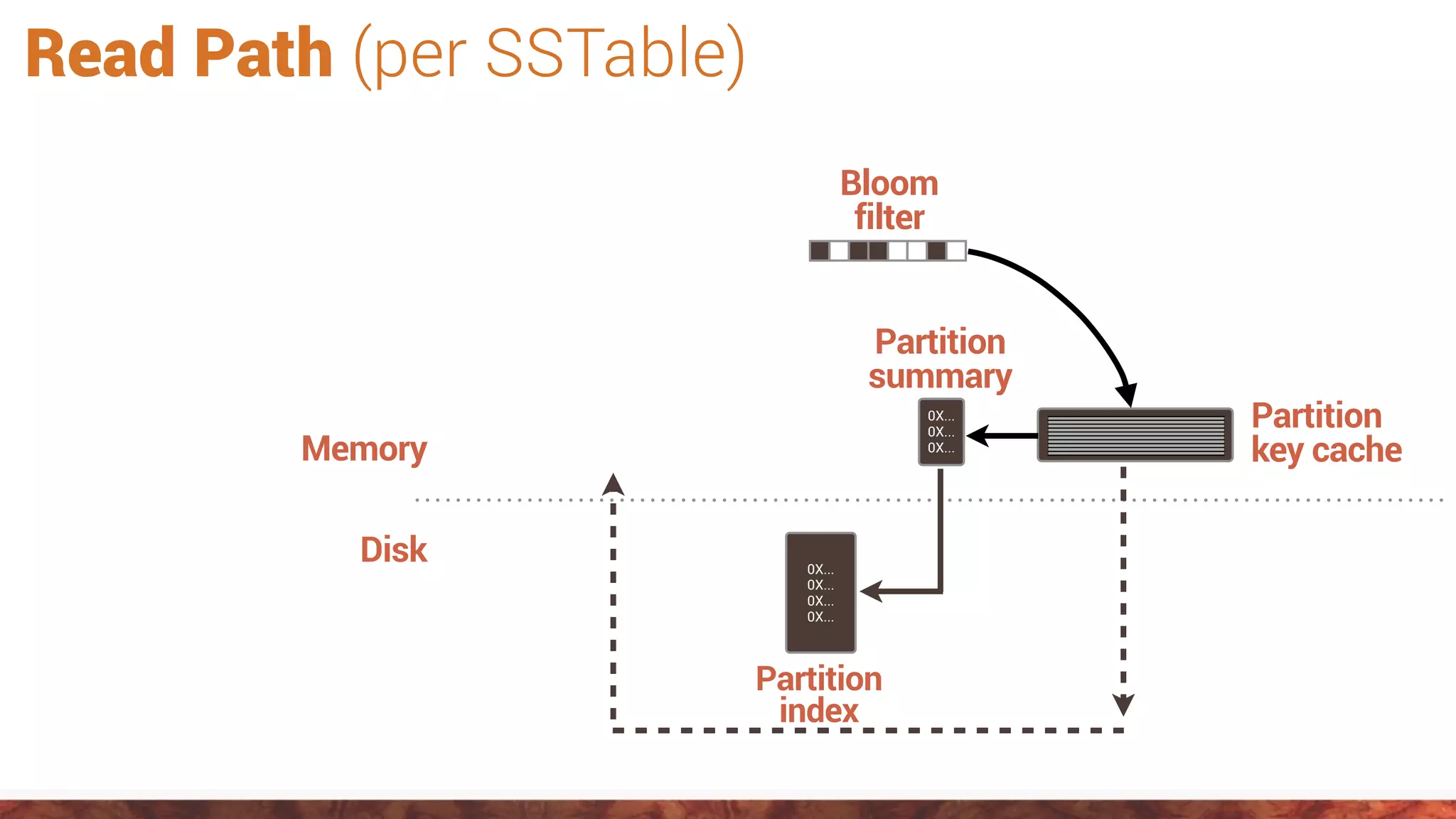

- 29. Memory Disk Read Path (perSSTable)
- 30.
- 31.
- 32.
- 33.
- 34.

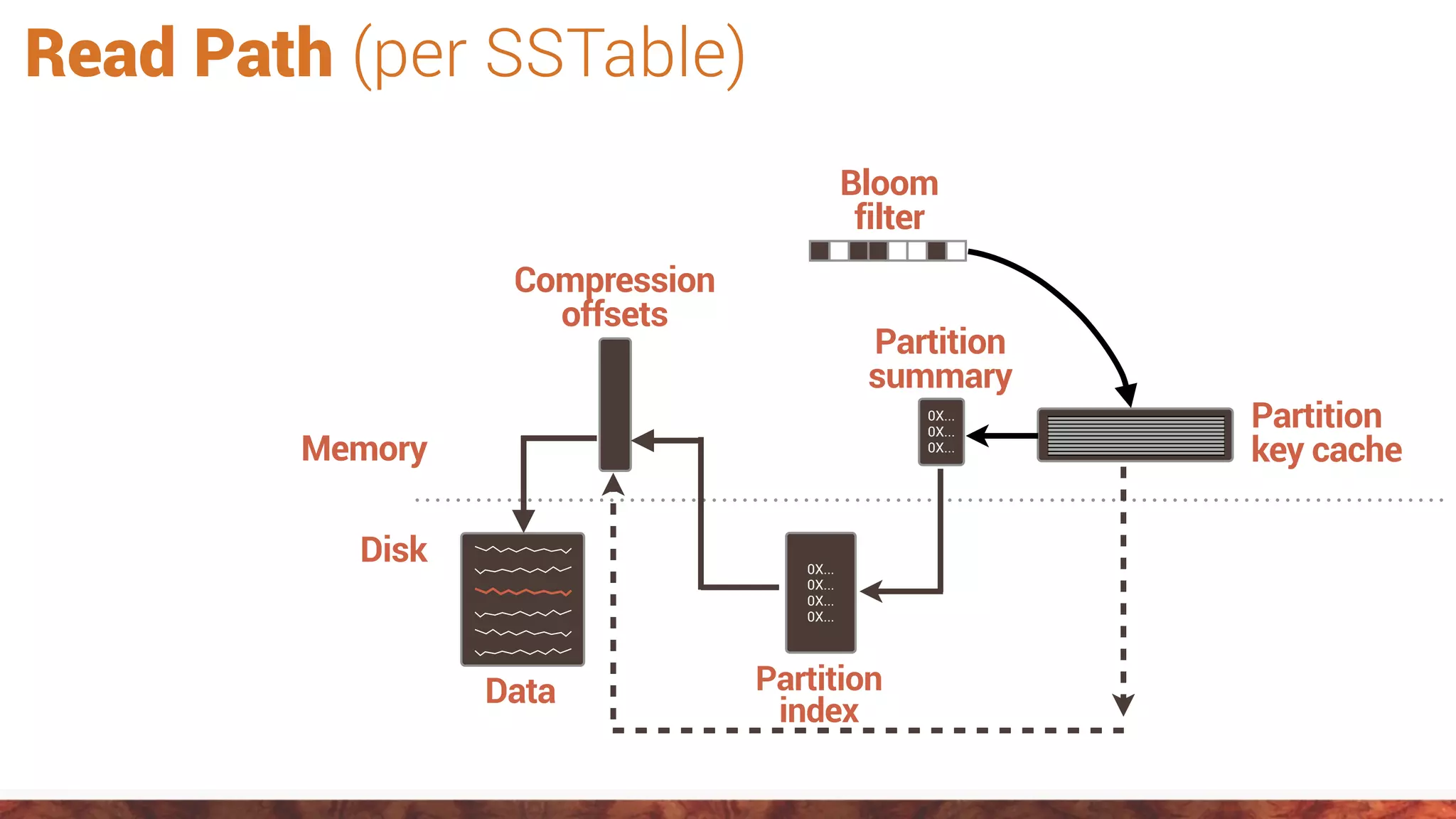

- 35.

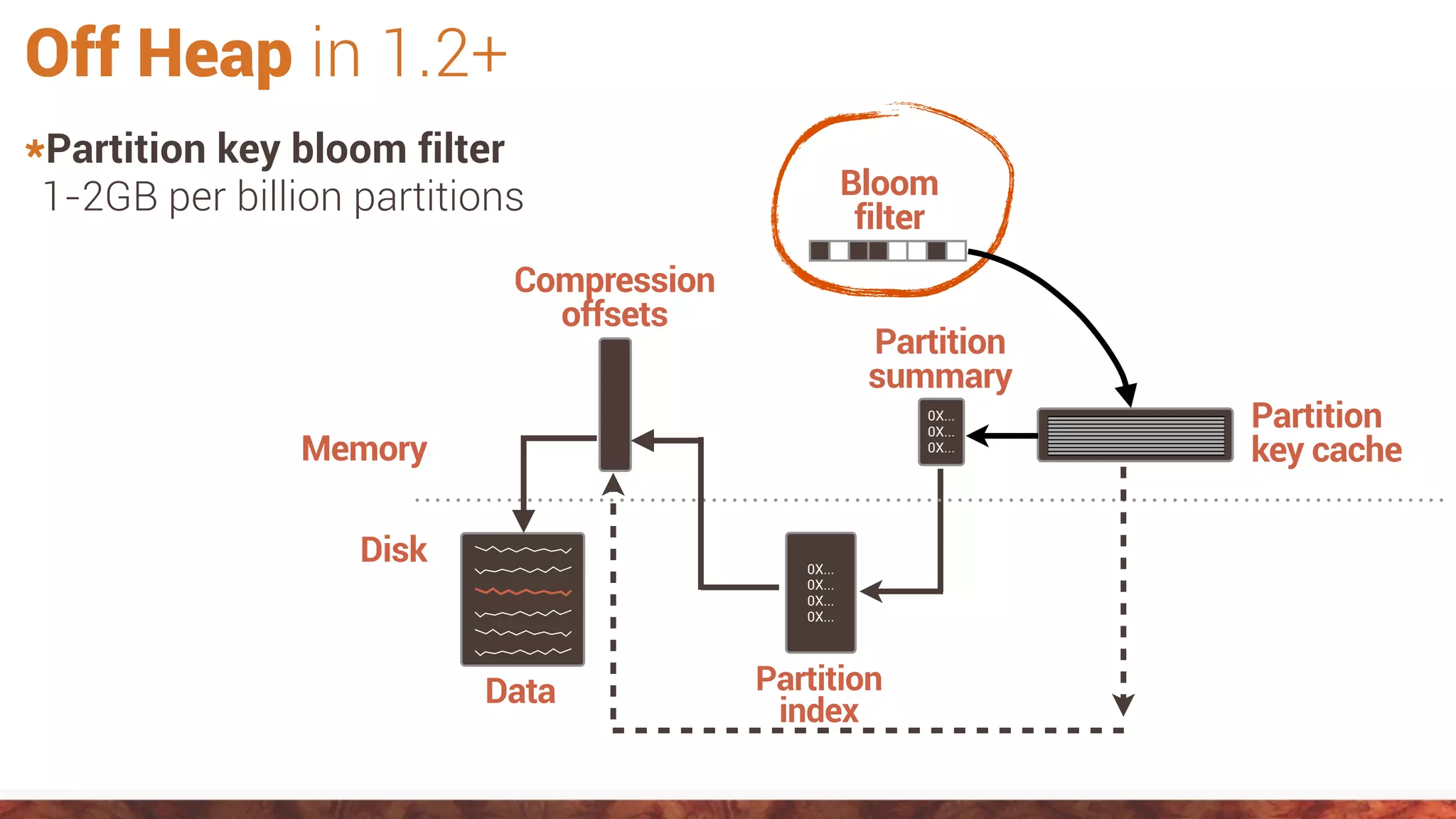

- 36. Off Heap in1.2+ *Partition key bloom filter 1-2GB per billion partitions Data Partition summary 0X... 0X... 0X... Bloom filter 0X... 0X... 0X... 0X... Partition index Compression offsets Partition key cacheMemory Disk

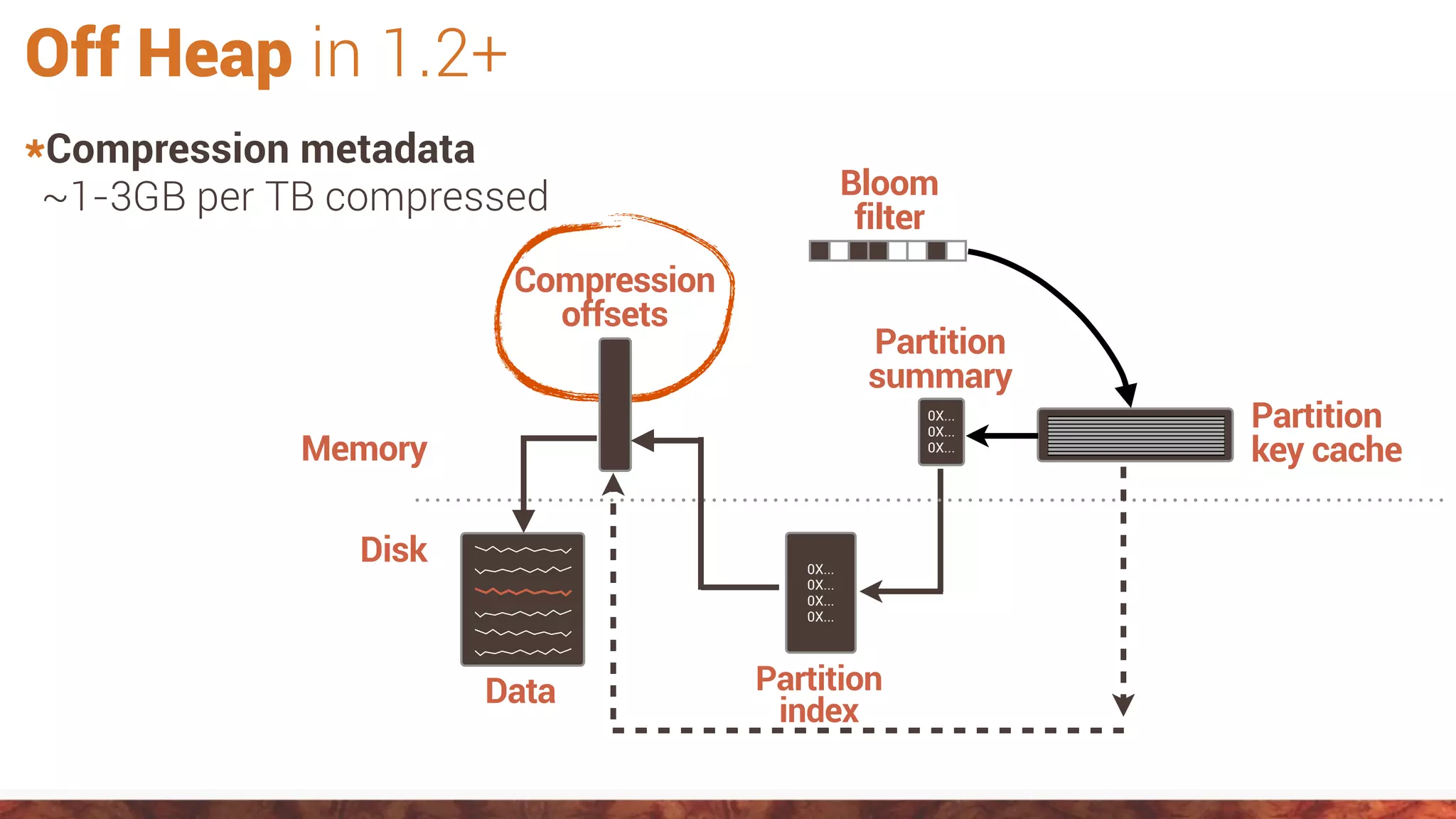

- 37. Off Heap in1.2+ *Compression metadata ~1-3GB per TB compressed Data Partition summary 0X... 0X... 0X... Bloom filter 0X... 0X... 0X... 0X... Partition index Compression offsets Partition key cacheMemory Disk

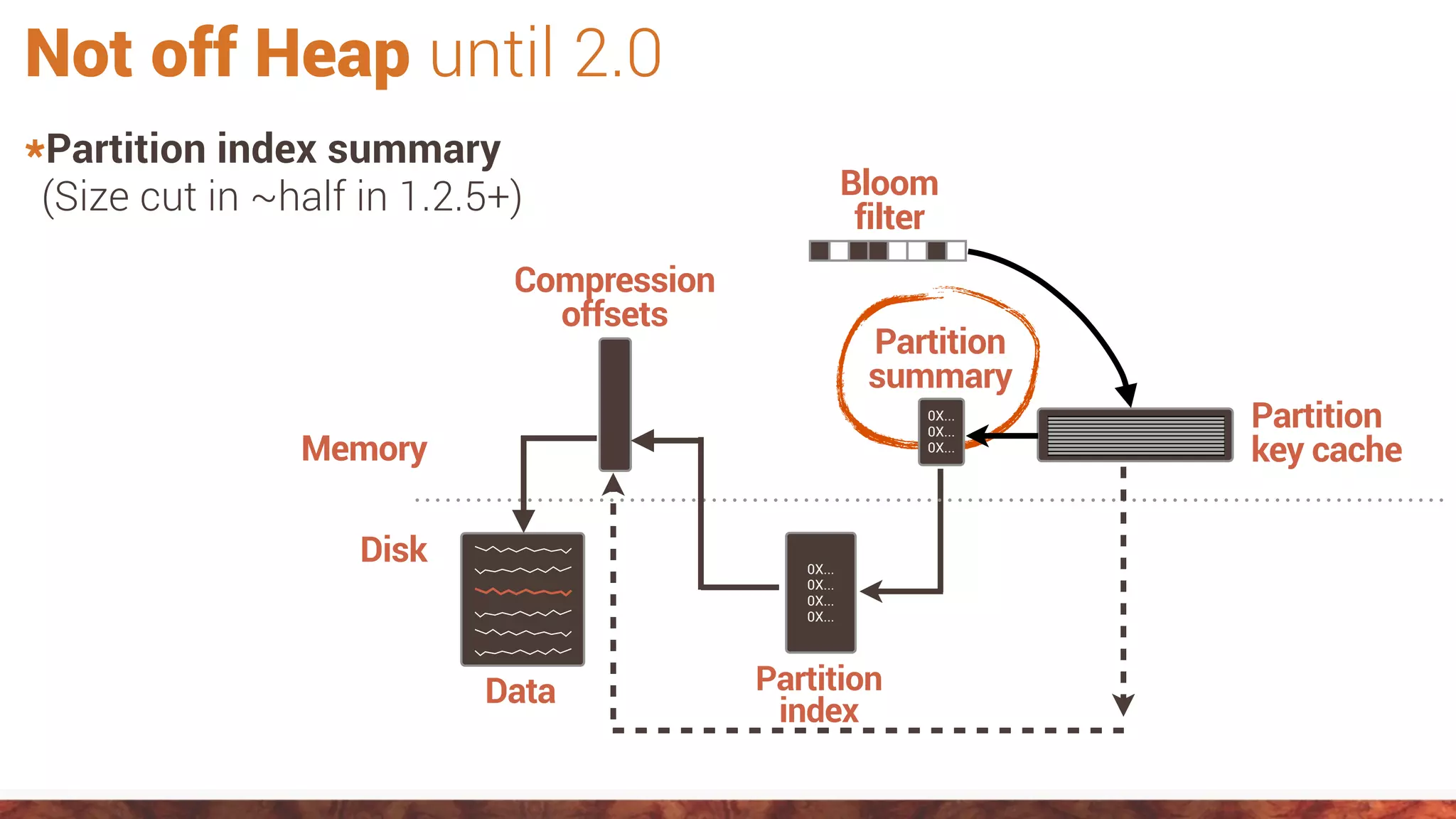

- 38. Not off Heapuntil 2.0 *Partition index summary (Size cut in ~half in 1.2.5+) Data Partition summary 0X... 0X... 0X... Bloom filter 0X... 0X... 0X... 0X... Partition index Compression offsets Partition key cacheMemory Disk

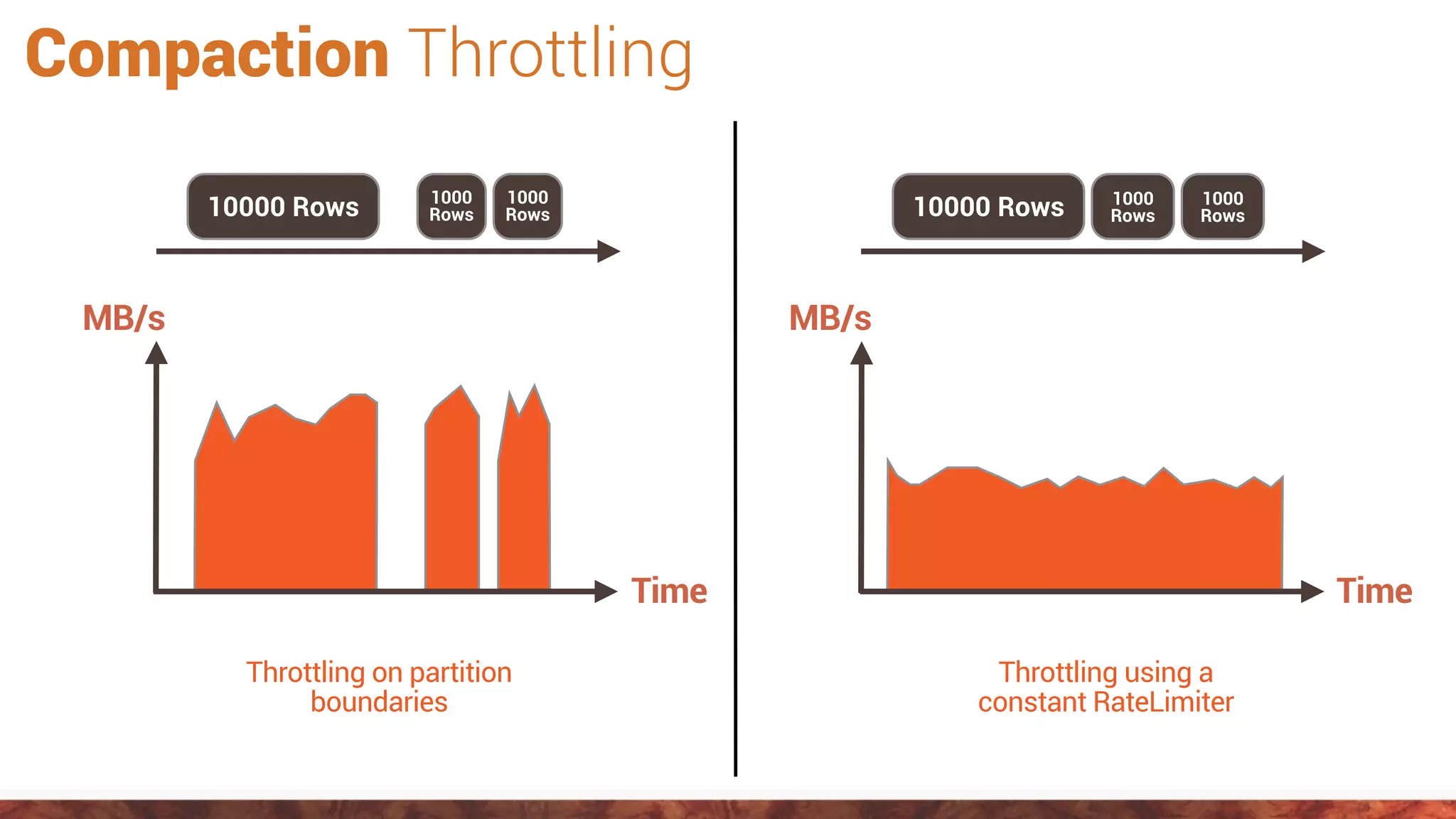

- 39. Throttling on partition boundaries Throttlingusing a constant RateLimiter 10000 Rows Time MB/s 1000 Rows10000 Rows Time MB/s Compaction Throttling 1000 Rows 1000 Rows 1000 Rows

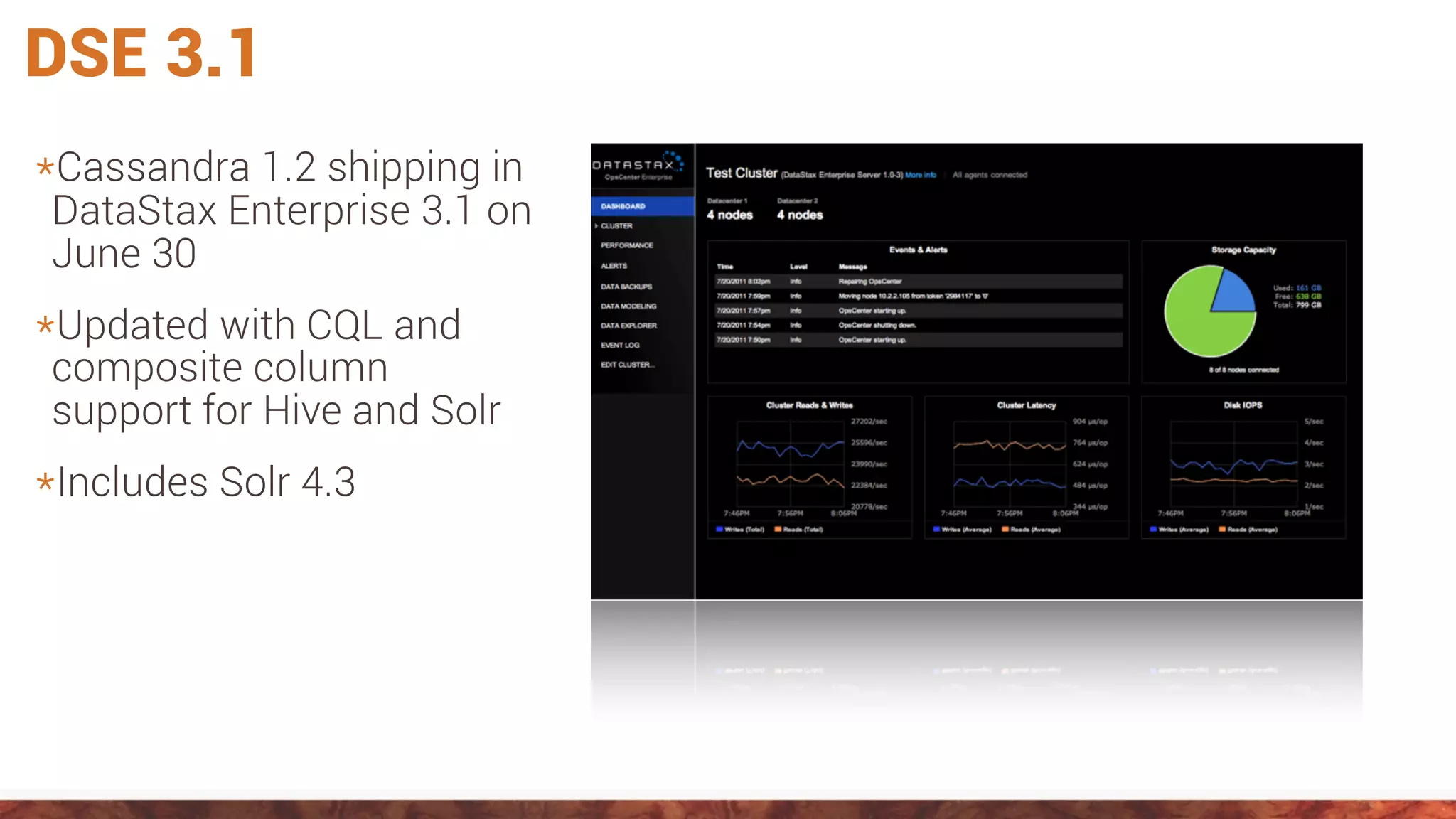

- 40. DSE 3.1 *Cassandra 1.2shipping in DataStax Enterprise 3.1 on June 30 *Updated with CQL and composite column support for Hive and Solr *Includes Solr 4.3
- 41.
- 42.
- 43.
- 44.
- 45.

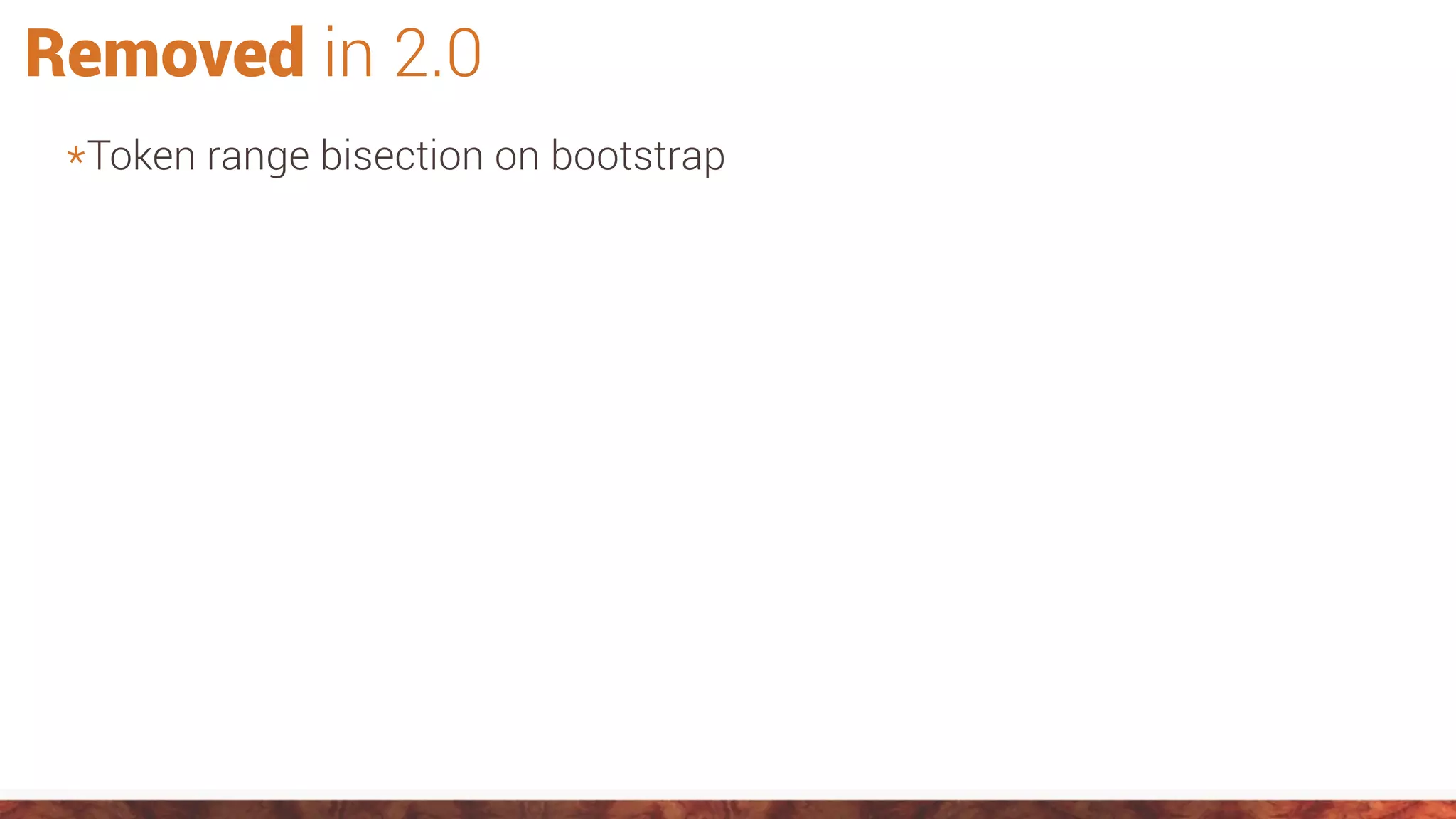

- 46. Removed in 2.0 *Tokenrange bisection on bootstrap

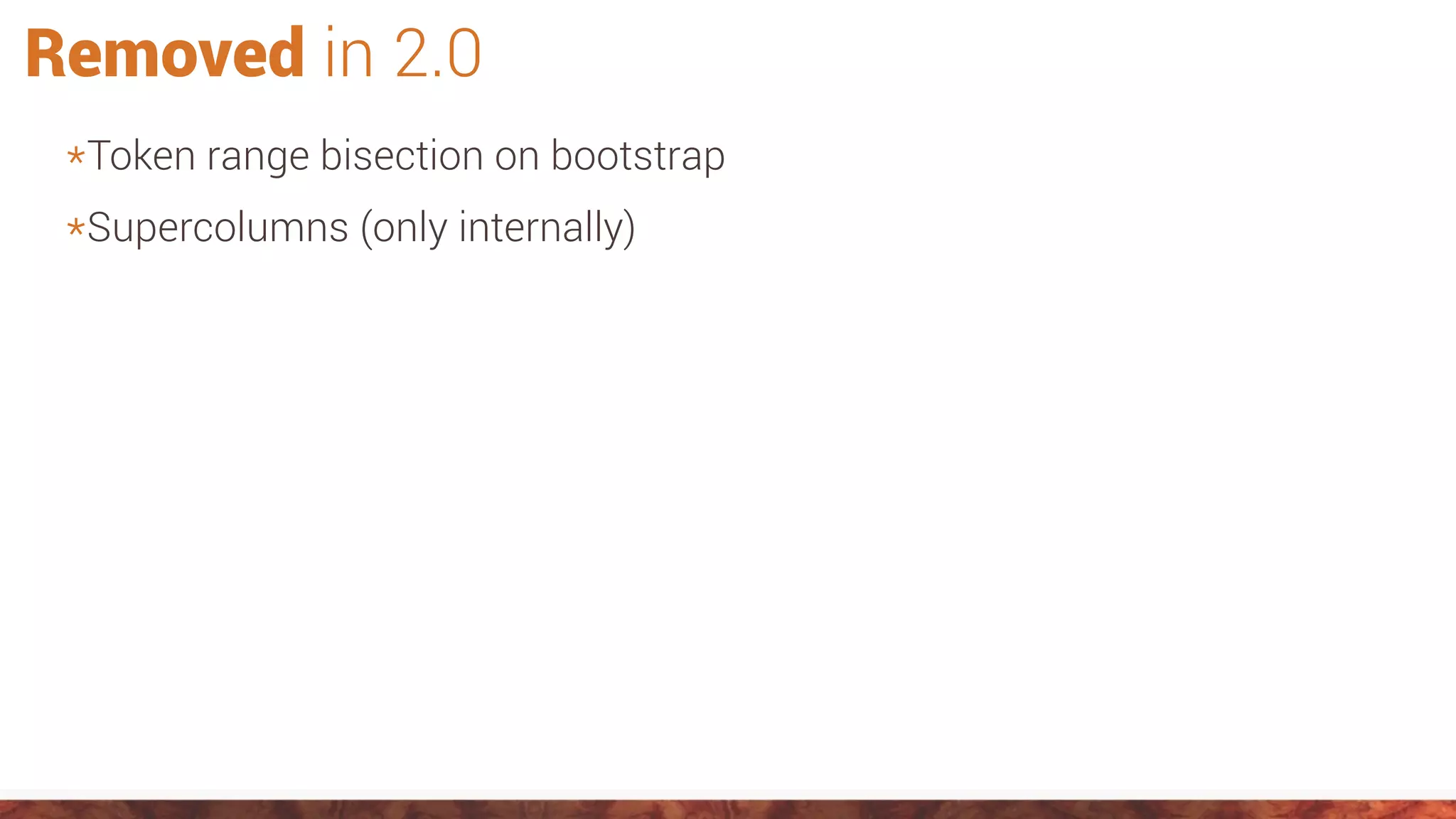

- 47. Removed in 2.0 *Tokenrange bisection on bootstrap *Supercolumns (only internally)

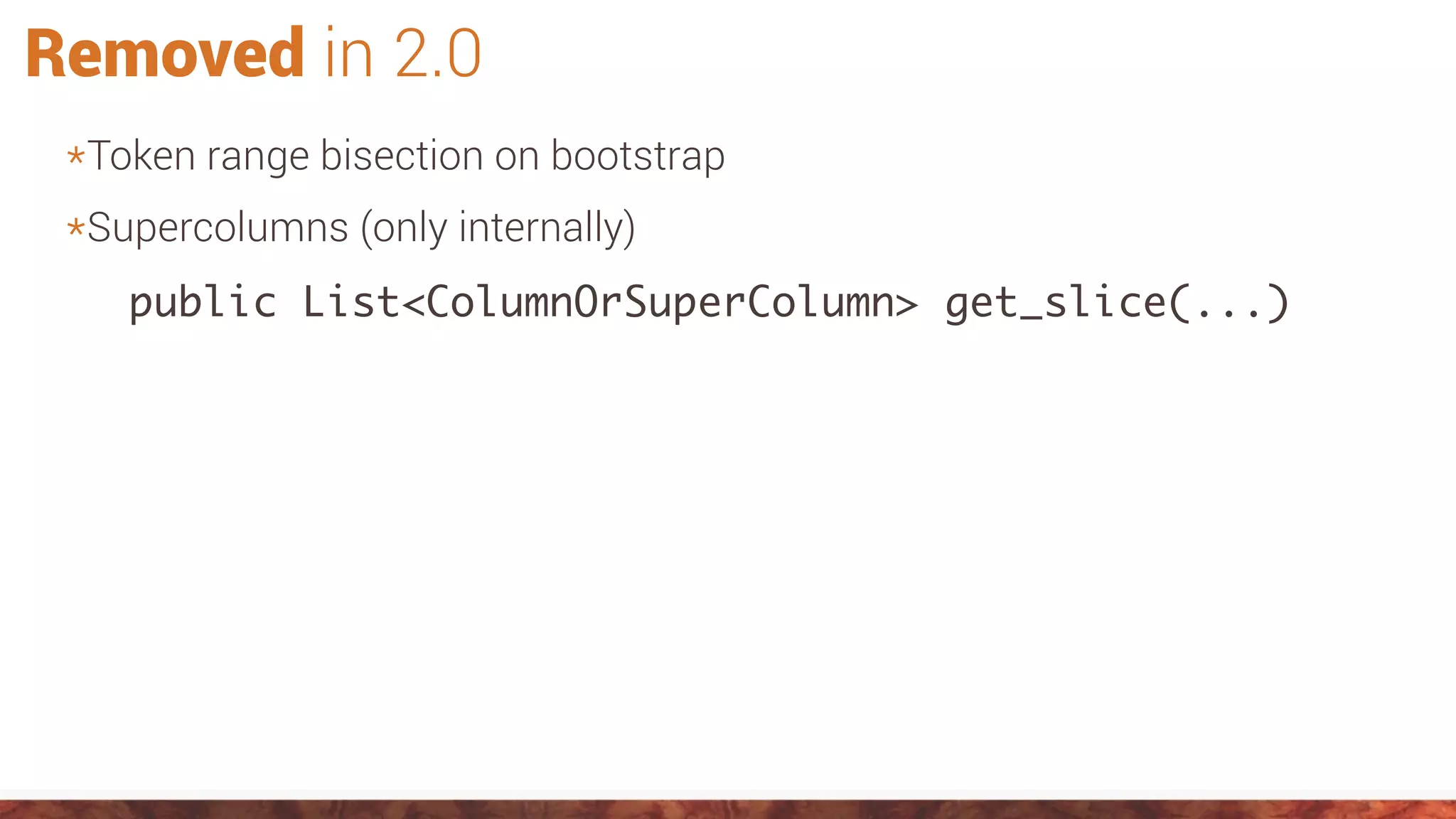

- 48. Removed in 2.0 *Tokenrange bisection on bootstrap *Supercolumns (only internally) public List<ColumnOrSuperColumn> get_slice(...)

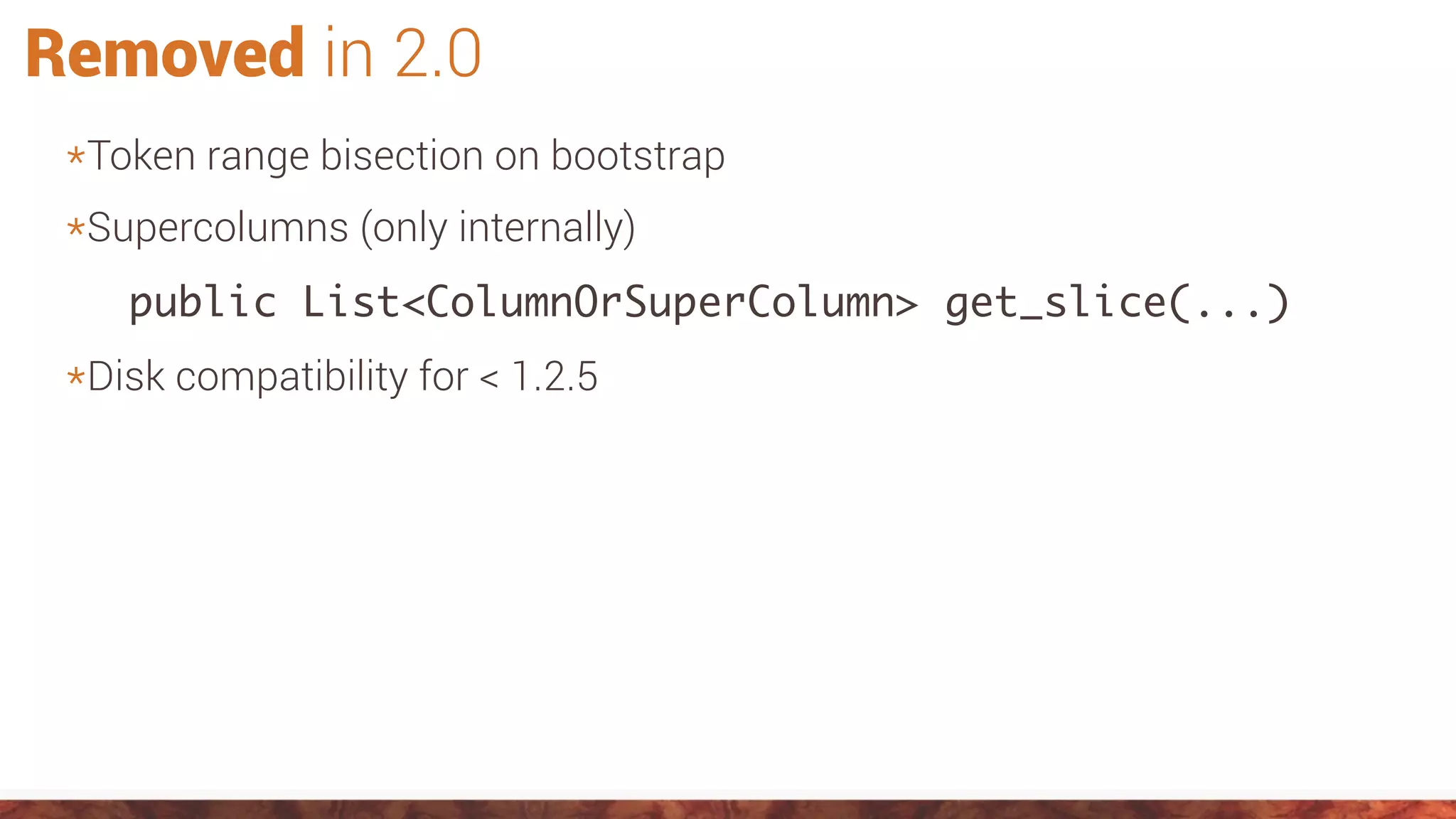

- 49. Removed in 2.0 *Tokenrange bisection on bootstrap *Supercolumns (only internally) public List<ColumnOrSuperColumn> get_slice(...) *Disk compatibility for < 1.2.5

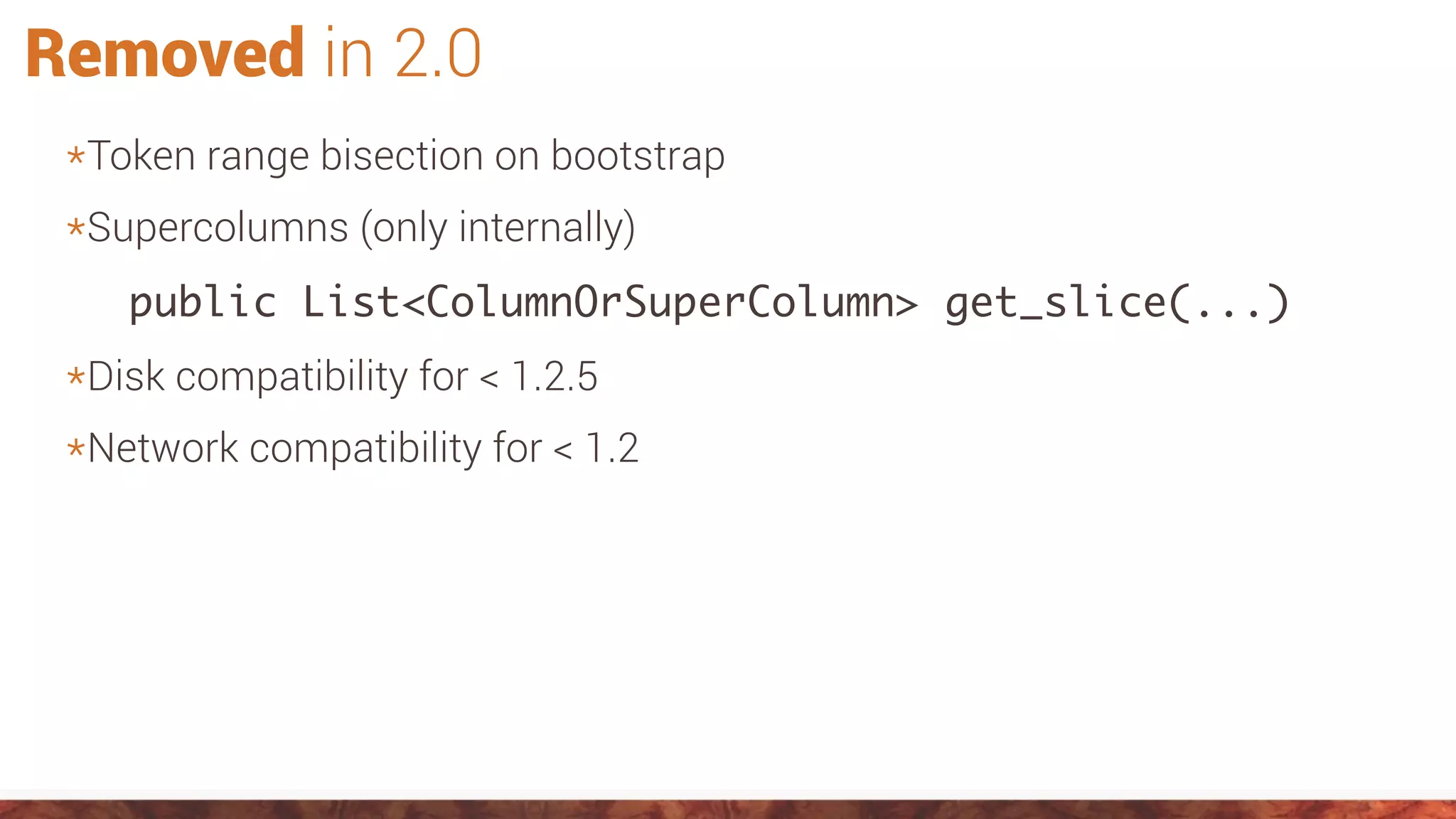

- 50. Removed in 2.0 *Tokenrange bisection on bootstrap *Supercolumns (only internally) public List<ColumnOrSuperColumn> get_slice(...) *Disk compatibility for < 1.2.5 *Network compatibility for < 1.2

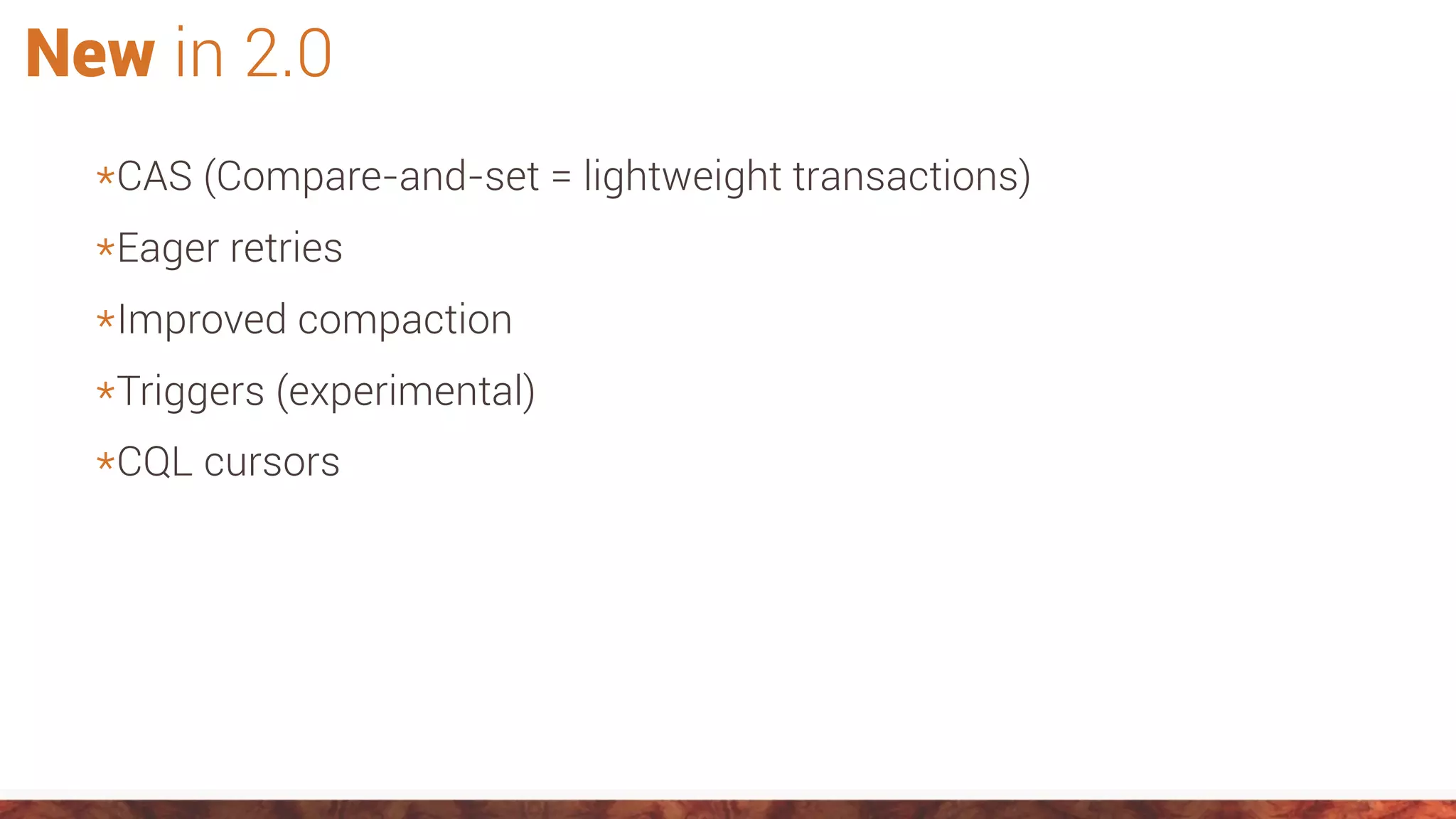

- 51. New in 2.0 *CAS(Compare-and-set = lightweight transactions) *Eager retries *Improved compaction *Triggers (experimental) *CQL cursors

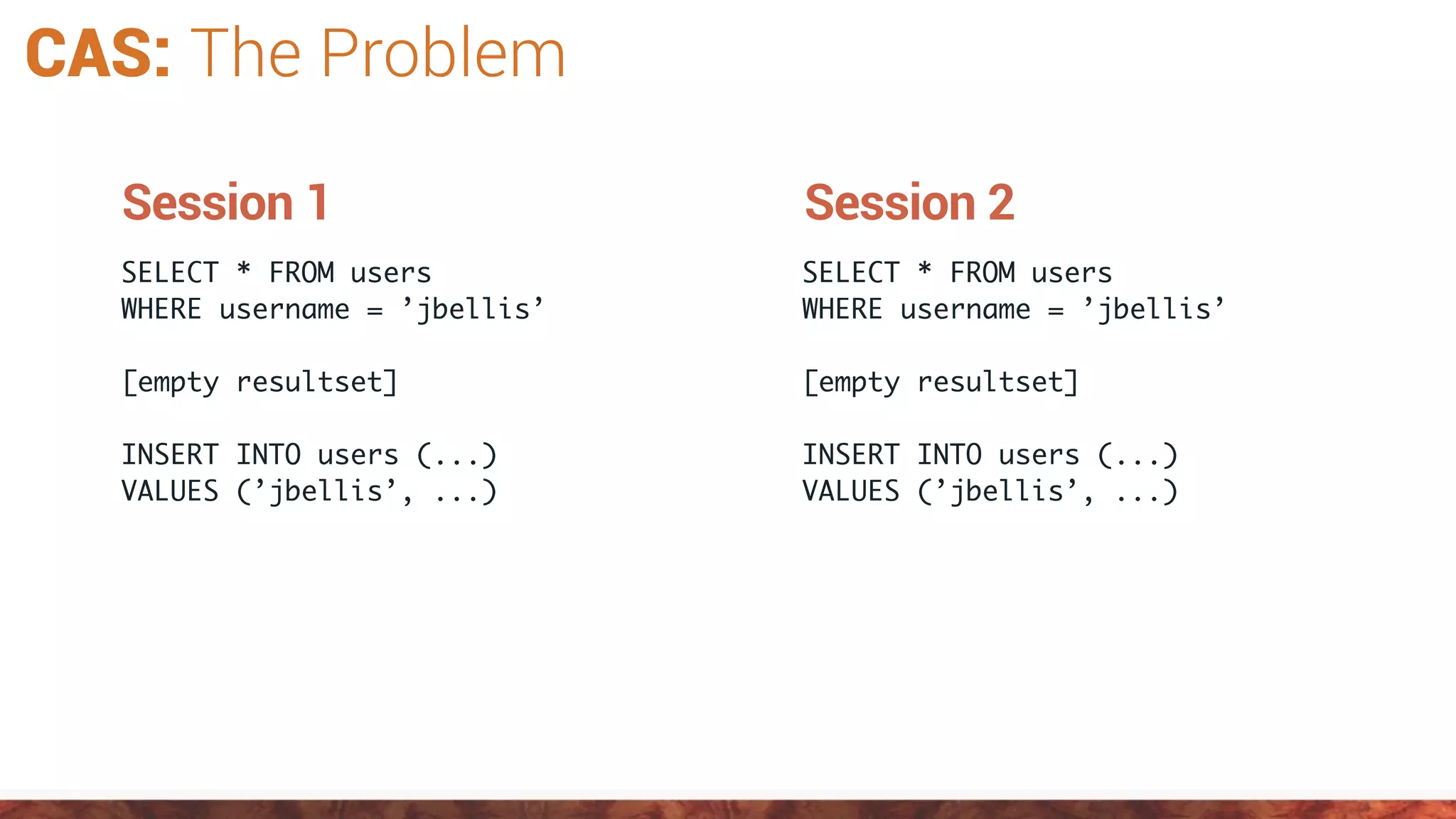

- 52. CAS: The Problem SELECT* FROM users WHERE username = ’jbellis’ [empty resultset] INSERT INTO users (...) VALUES (’jbellis’, ...) Session 1 SELECT * FROM users WHERE username = ’jbellis’ [empty resultset] INSERT INTO users (...) VALUES (’jbellis’, ...) Session 2

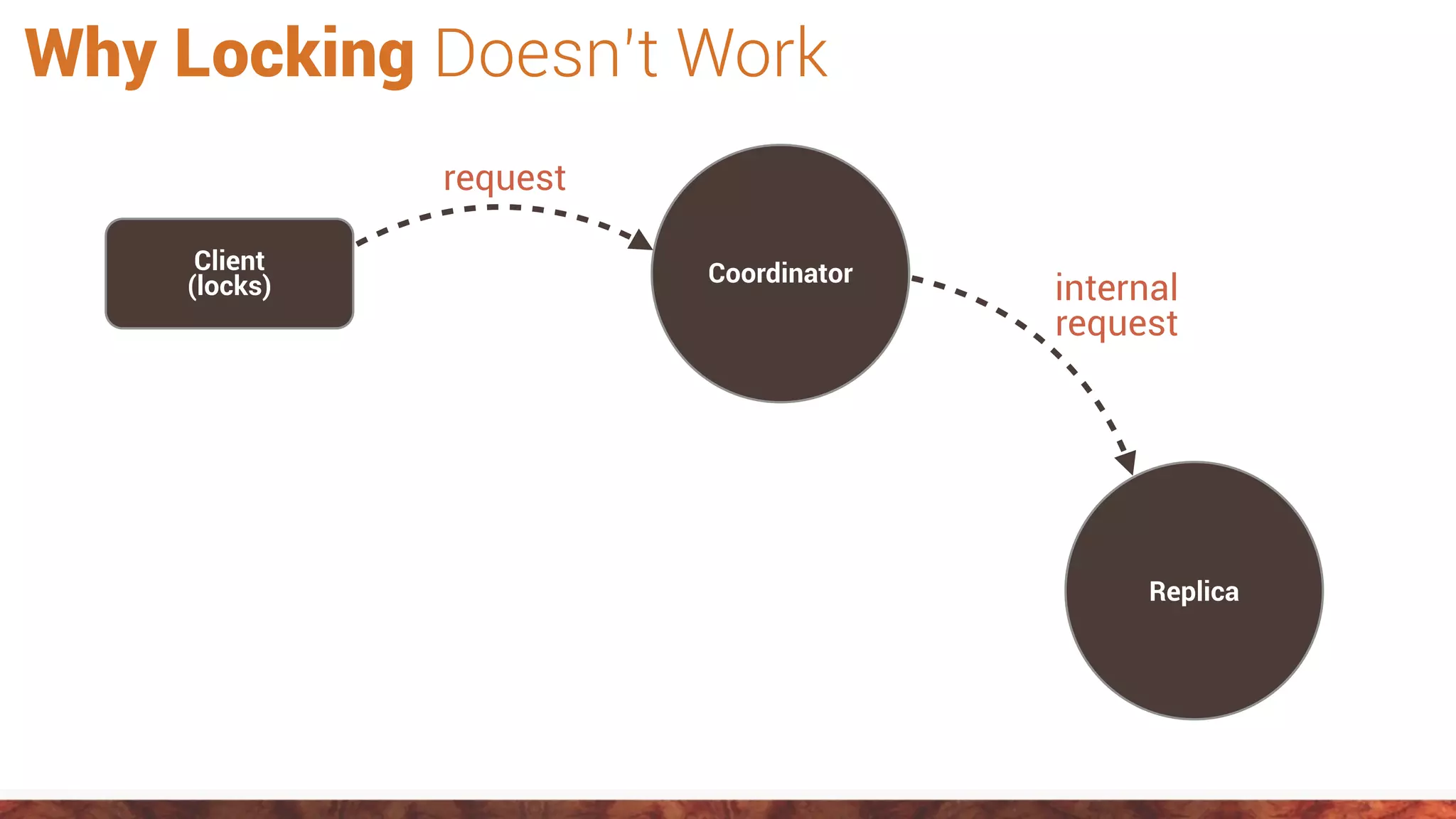

- 53. Why Locking Doesn’tWork Client (locks) Coordinator request Replica internal request

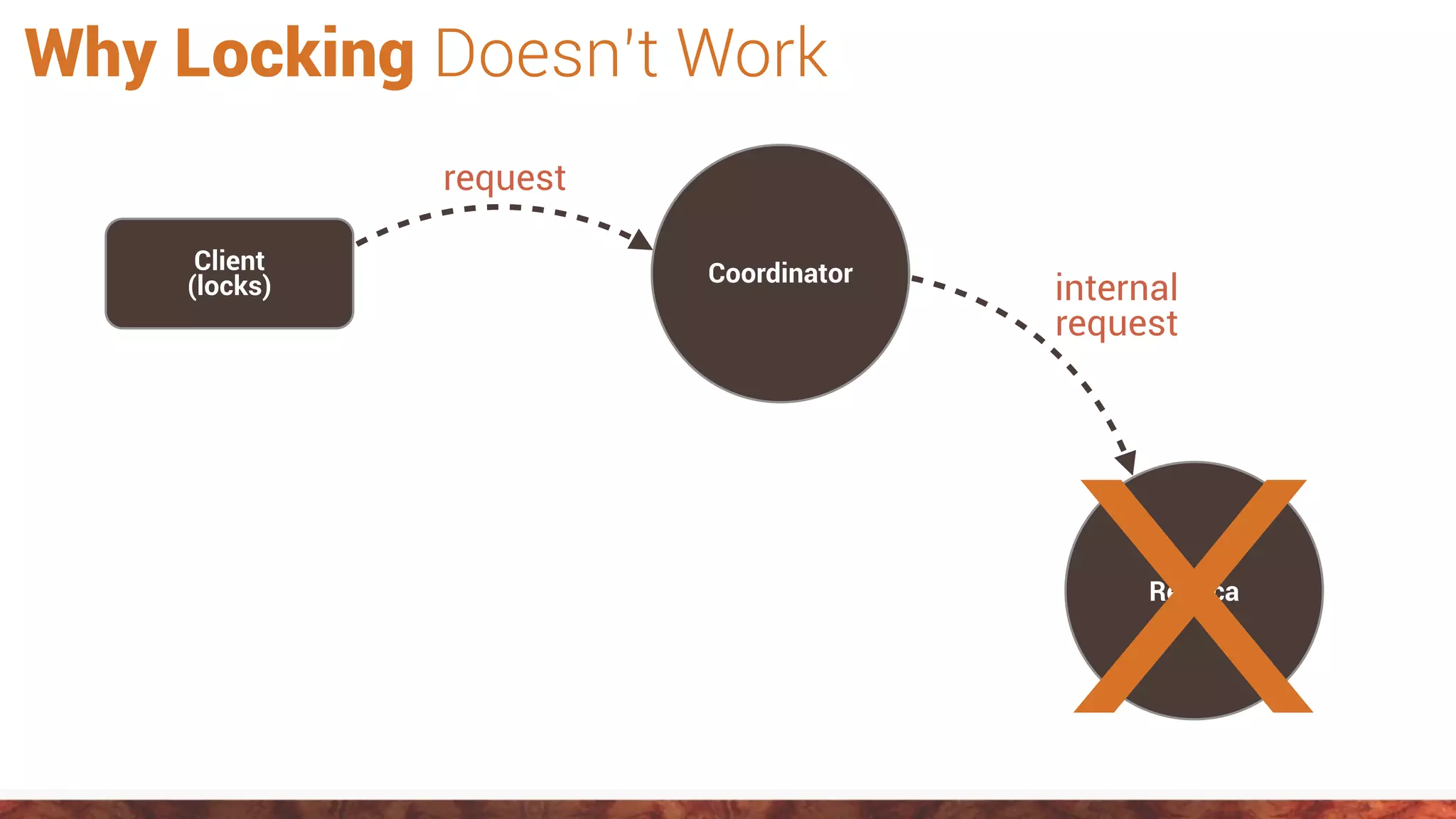

- 54. Why Locking Doesn’tWork Client (locks) Coordinator request Replica internal request X

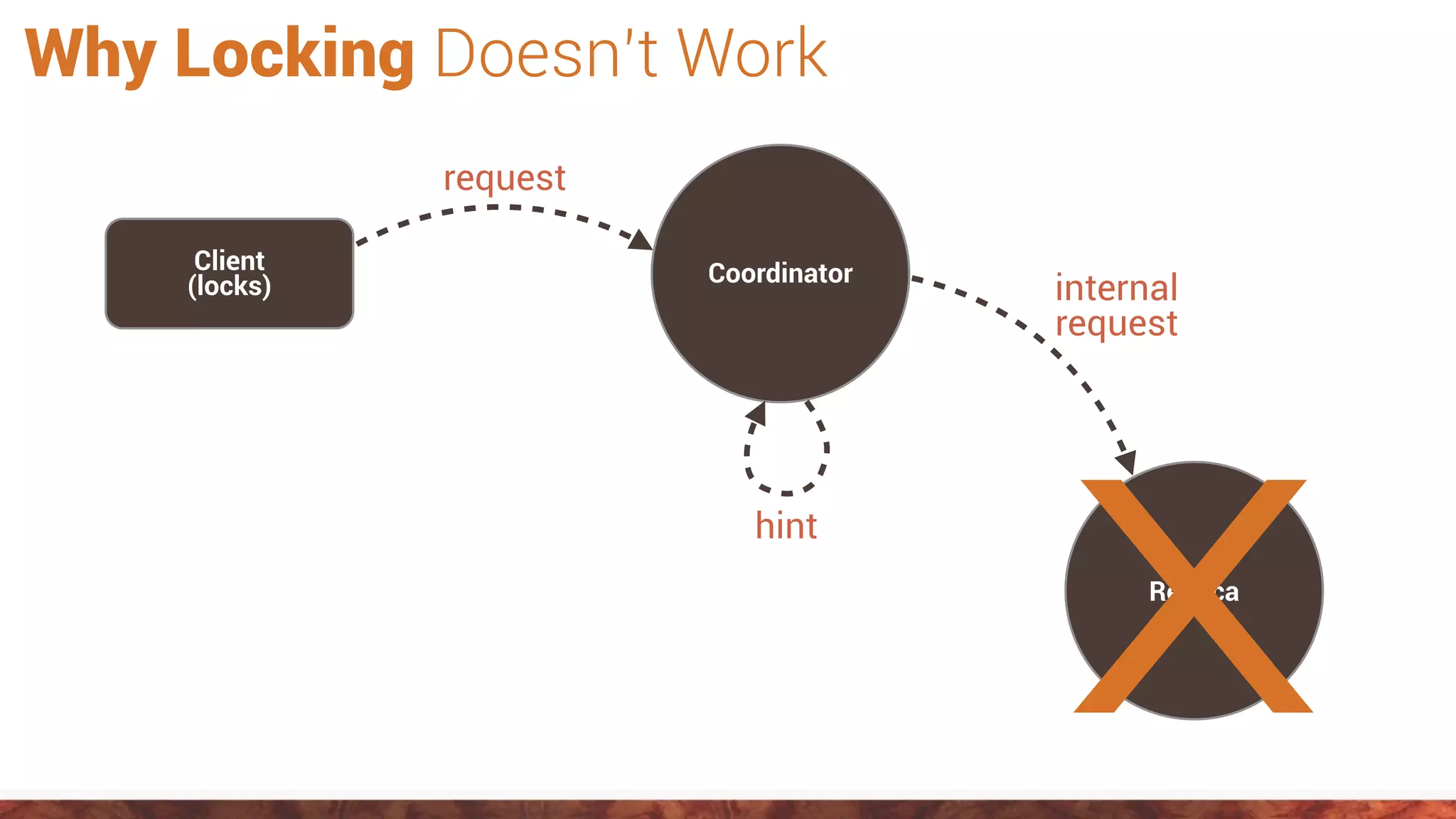

- 55. Why Locking Doesn’tWork Client (locks) Coordinator request Replica internal request hint X

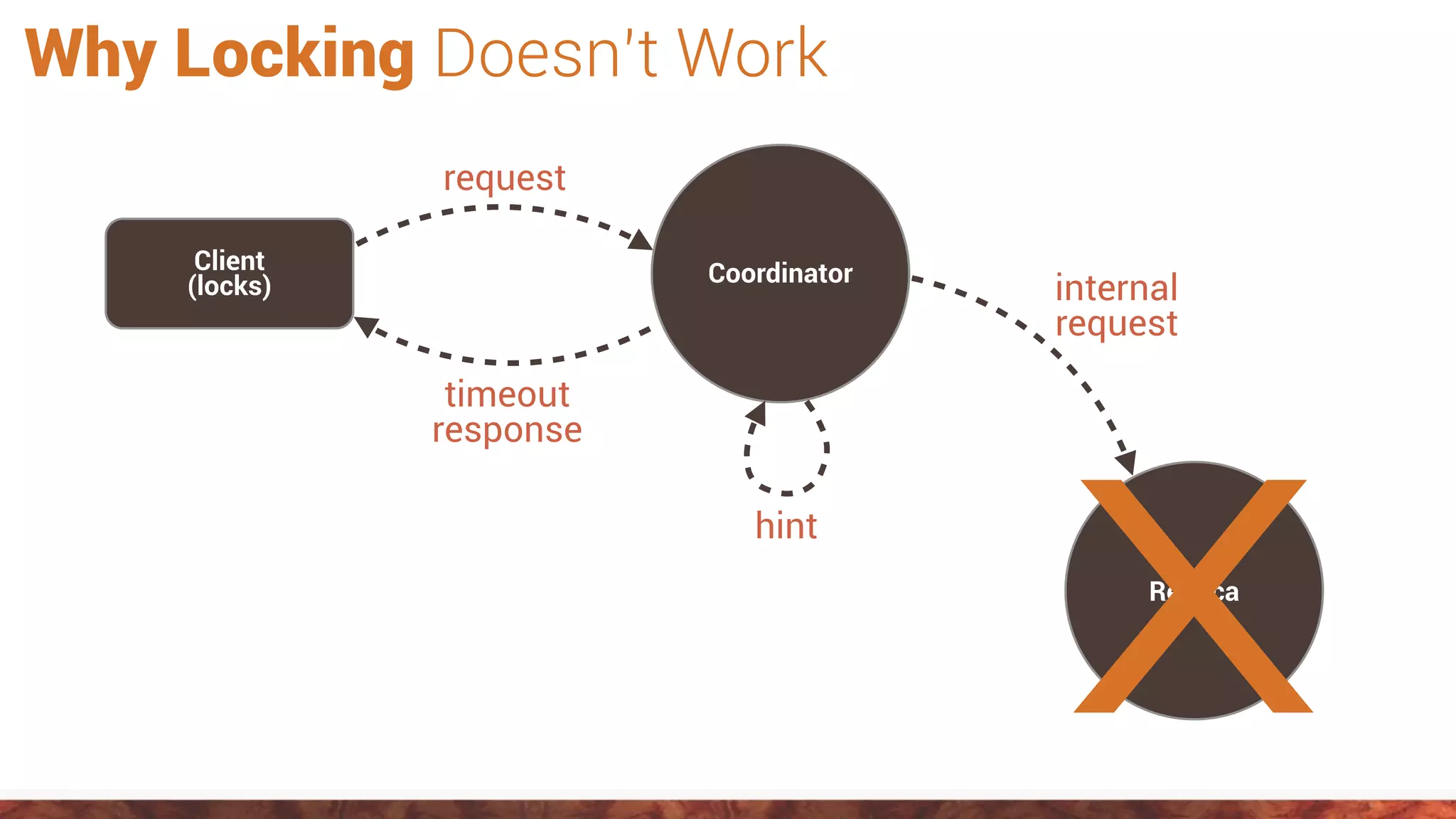

- 56. Why Locking Doesn’tWork Client (locks) Coordinator request Replica internal request hint timeout response X

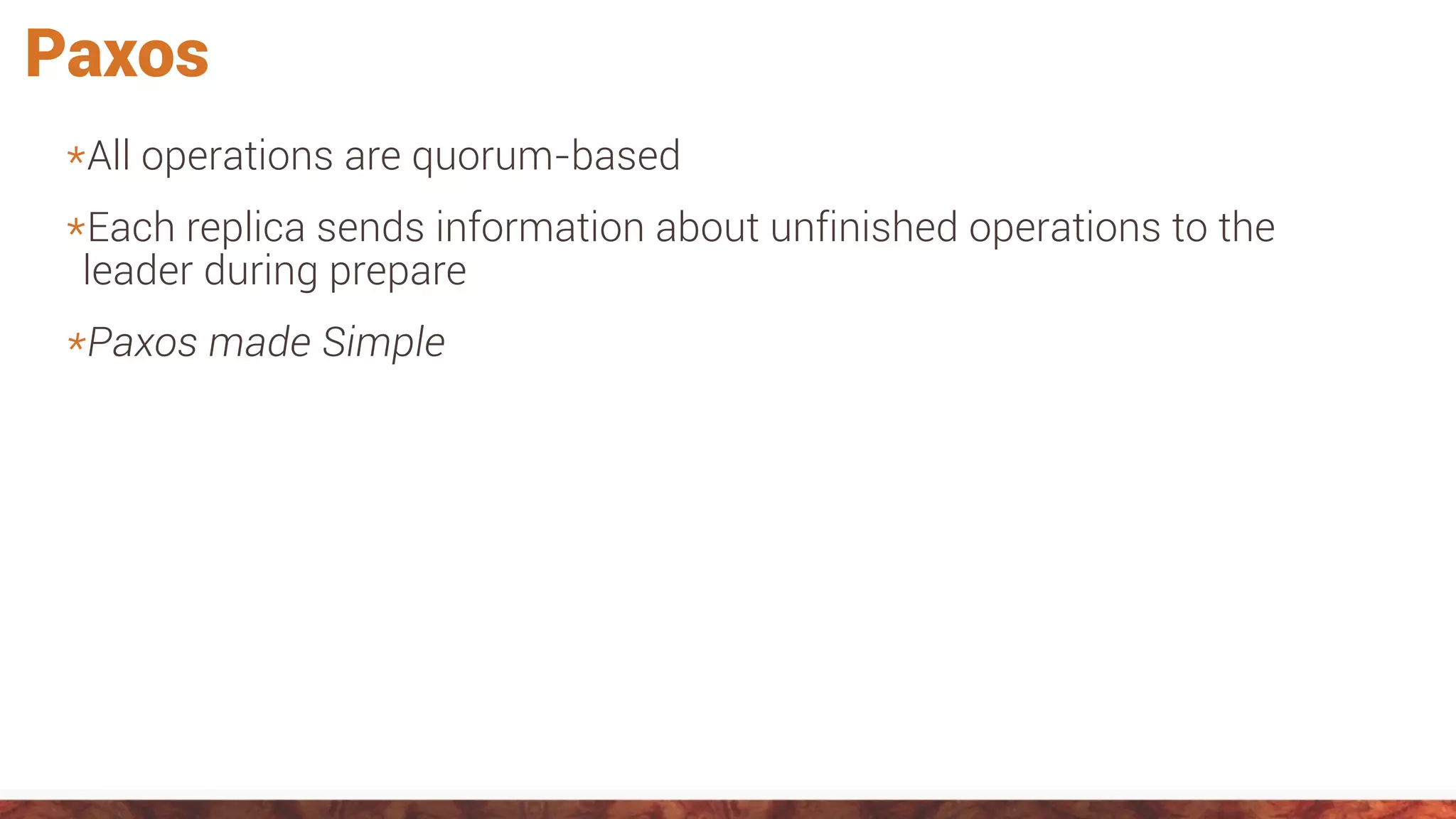

- 57. *All operations arequorum-based *Each replica sends information about unfinished operations to the leader during prepare *Paxos made Simple Paxos

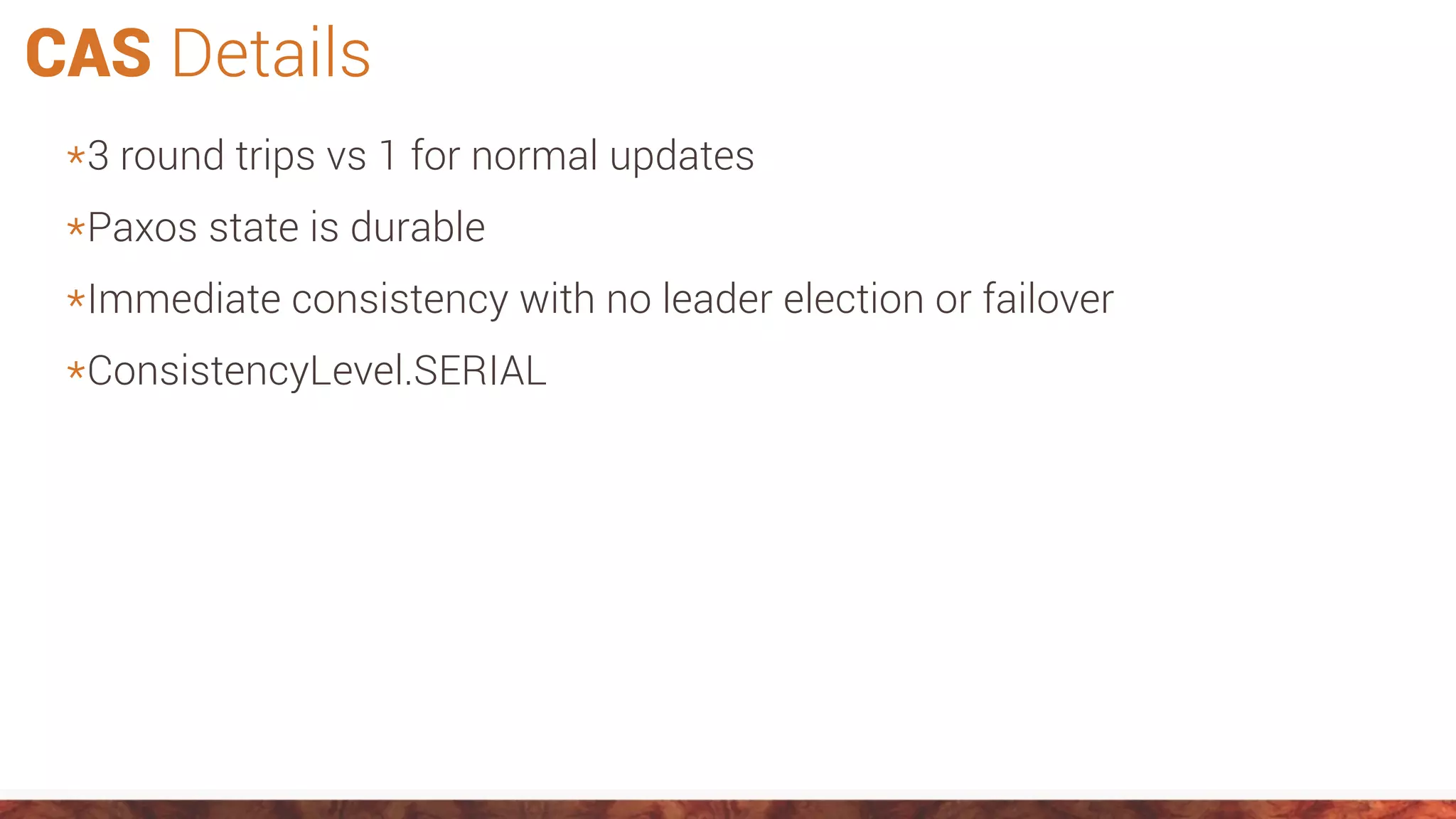

- 58. CAS Details *3 roundtrips vs 1 for normal updates *Paxos state is durable *Immediate consistency with no leader election or failover *ConsistencyLevel.SERIAL

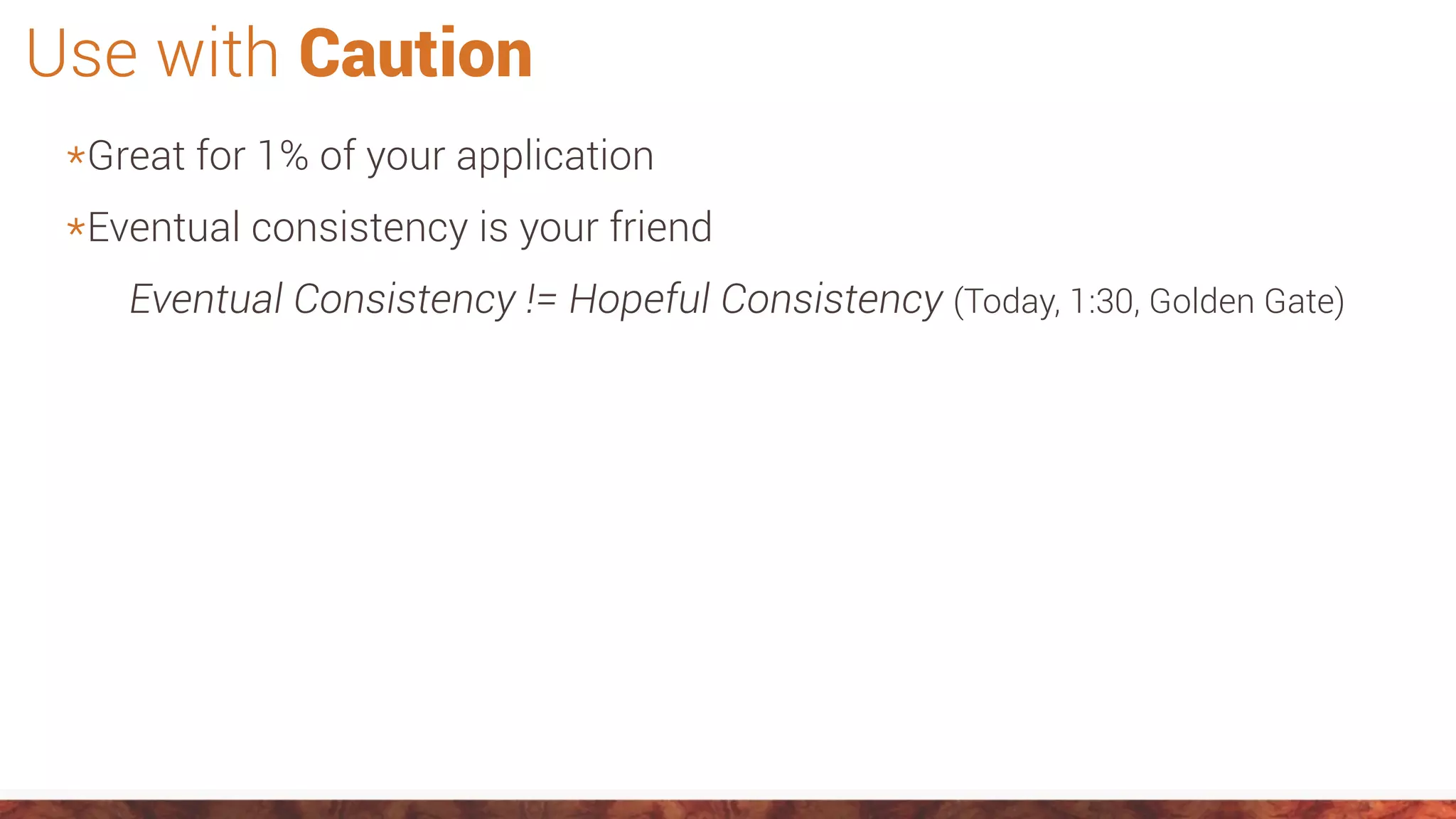

- 59. Use with Caution *Greatfor 1% of your application *Eventual consistency is your friend Eventual Consistency != Hopeful Consistency (Today, 1:30, Golden Gate)

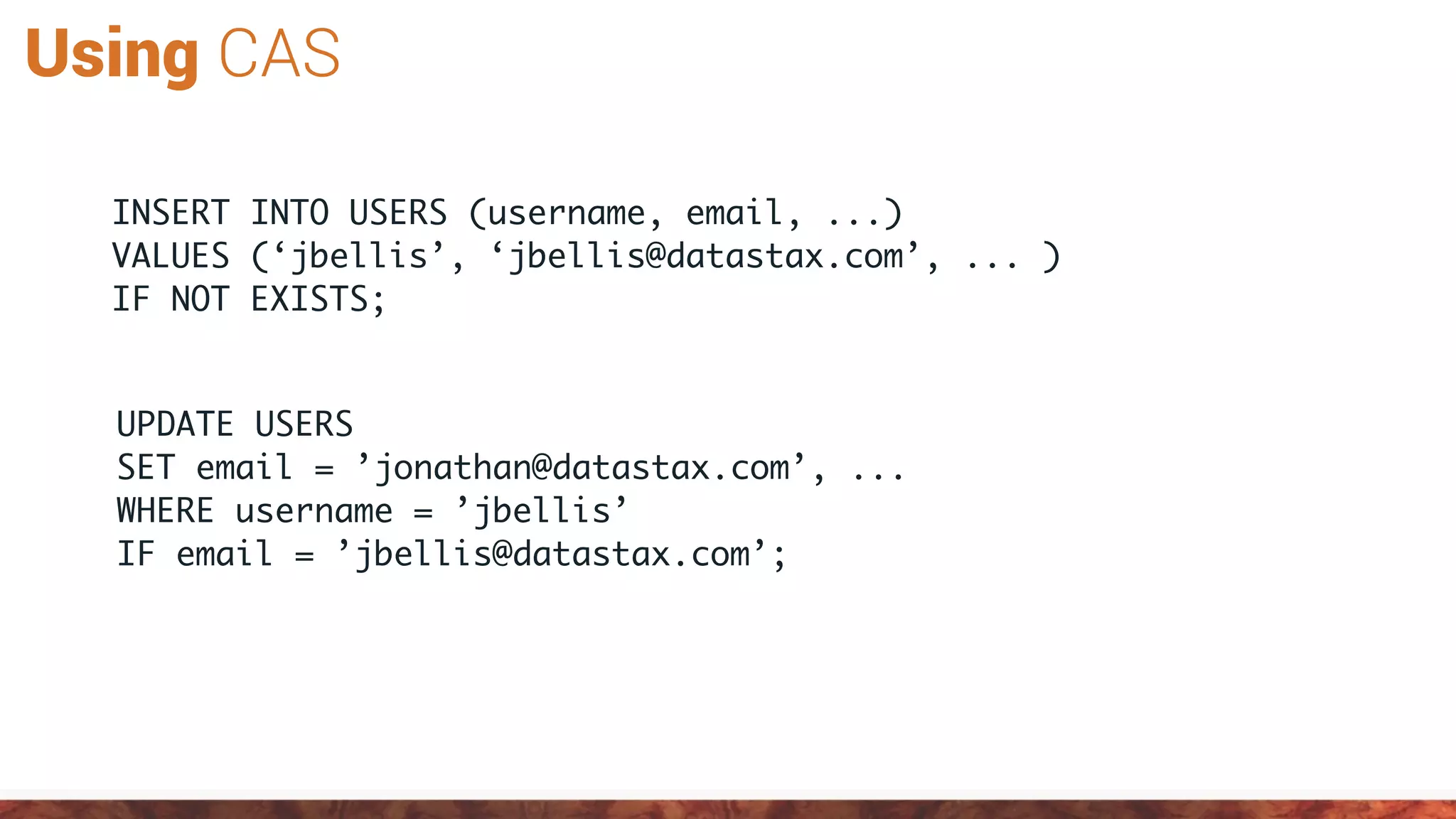

- 60. Using CAS UPDATE USERS SETemail = ’jonathan@datastax.com’, ... WHERE username = ’jbellis’ IF email = ’jbellis@datastax.com’; INSERT INTO USERS (username, email, ...) VALUES (‘jbellis’, ‘jbellis@datastax.com’, ... ) IF NOT EXISTS;

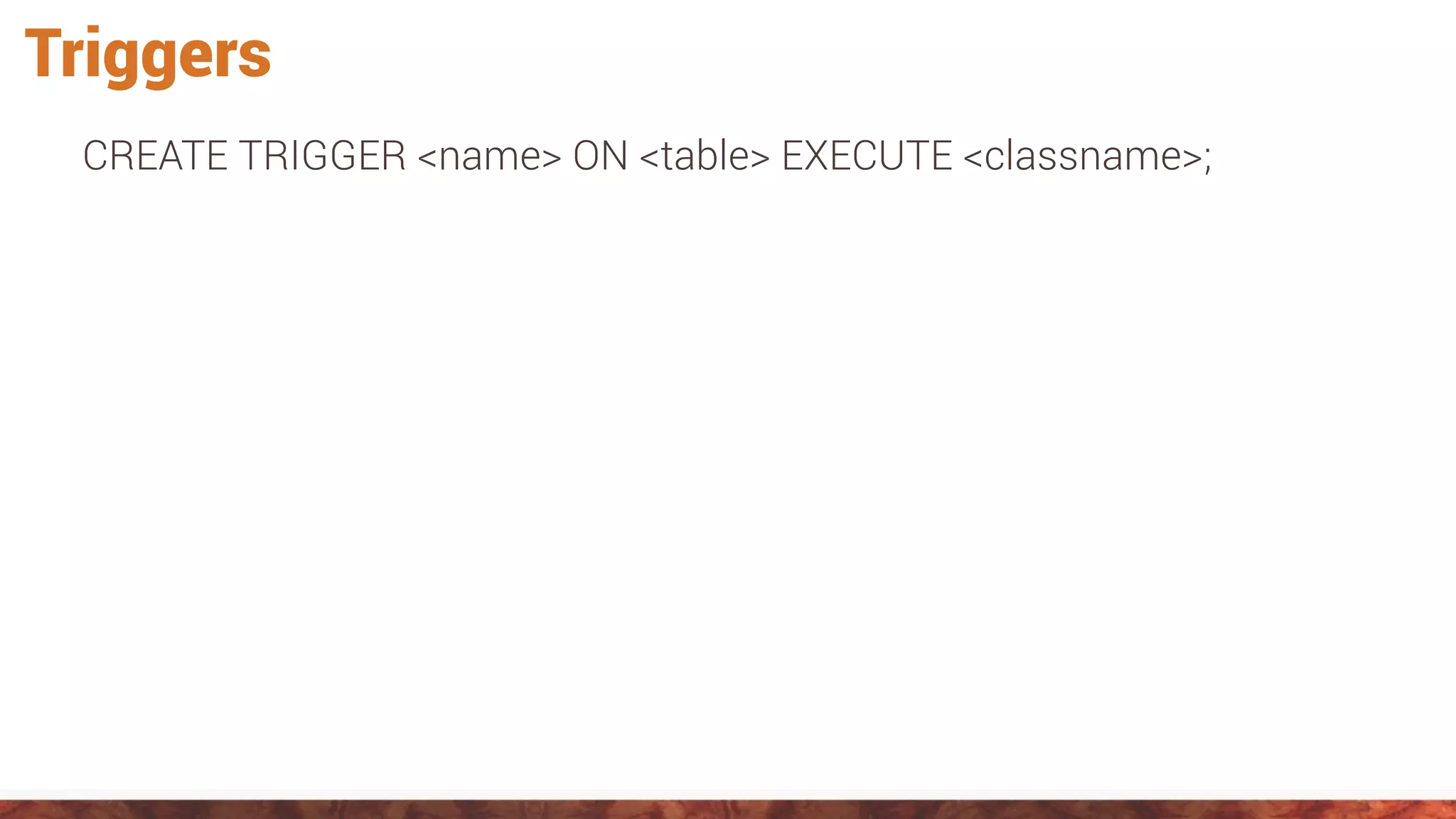

- 61. Triggers CREATE TRIGGER <name>ON <table> EXECUTE <classname>;

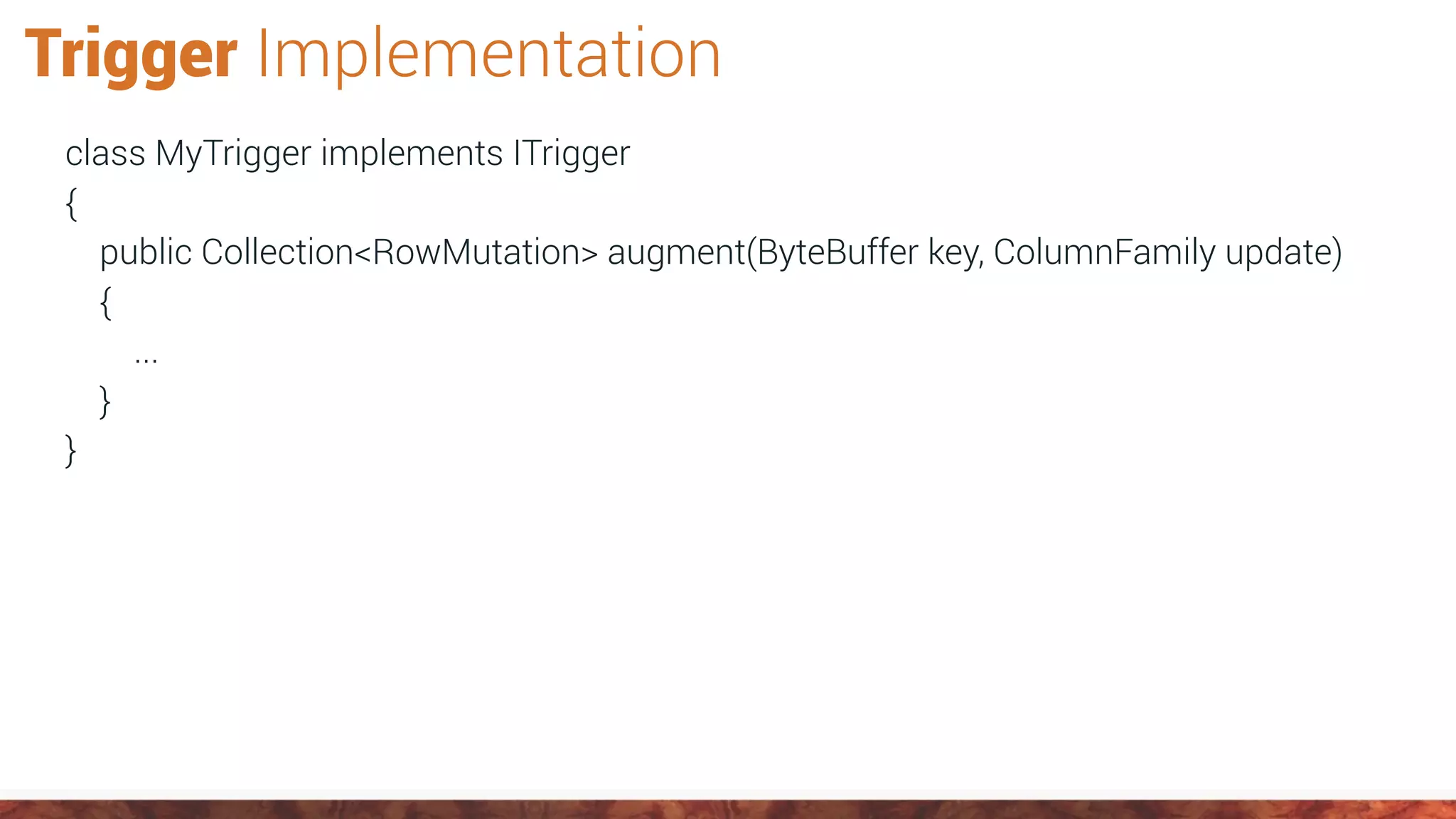

- 62. Trigger Implementation class MyTriggerimplements ITrigger { public Collection<RowMutation> augment(ByteBuffer key, ColumnFamily update) { ... } }

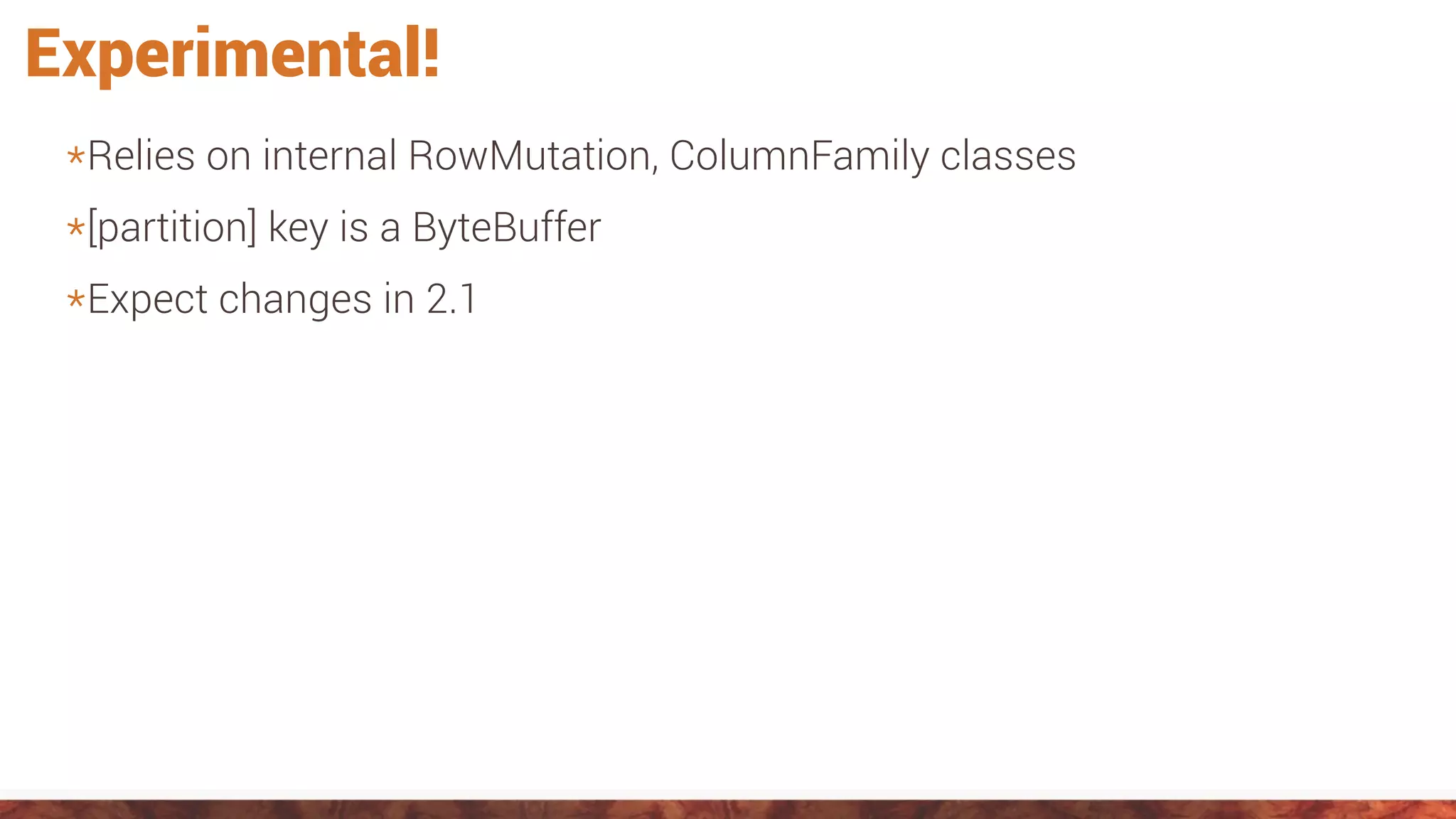

- 63. Experimental! *Relies on internalRowMutation, ColumnFamily classes *[partition] key is a ByteBuffer *Expect changes in 2.1
- 64. #CASSANDRA13 Follow Up Discussion *AfterWhat were they Thinking? (DataStax Lounge) *Meet the Experts (Today, 3:00, C370) *Happy Hour (Tonight, 6:15)
