1. CASSANDRA DAY SILICON VALLEY 2014 – APRIL 7TH – MATT JURIK
SCALING VIDEO PROGRESS TRACKING

2. MATT JURIK
SOFTWARE DEVELOPER

3. WHAT IS HULU?
3

4. Help people find and enjoy
the world’s premium content
when, where and how they want it.
HULU’S MISSION

5. 5
• Service Oriented Architecture
• Follow the Unix Philosophy
• Small services with specialized scopes
• Small teams focusing on specific areas
• Right tool for the job
• Many languages, frameworks, formats
• Cross team development encouraged
• If something you depend on needs fixing, feel free
to fix it

6. VIDEO PROGRESS TRACKING
CODENAME: HUGETOP
6

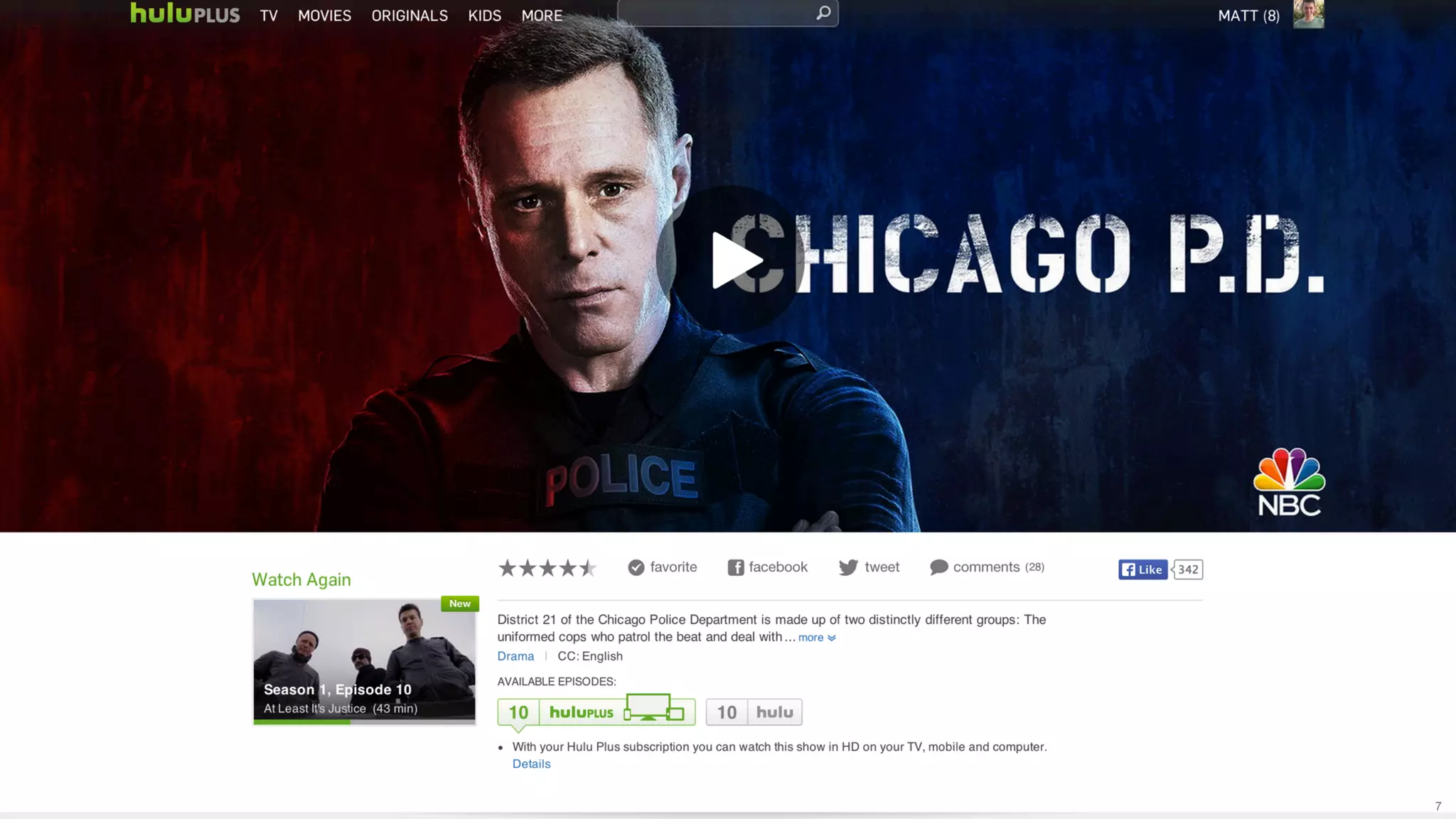

7. 7

8. AGENDA
• Old architecture
• New architecture
• Keyspace design
• Migrating to cassandra
• Operations

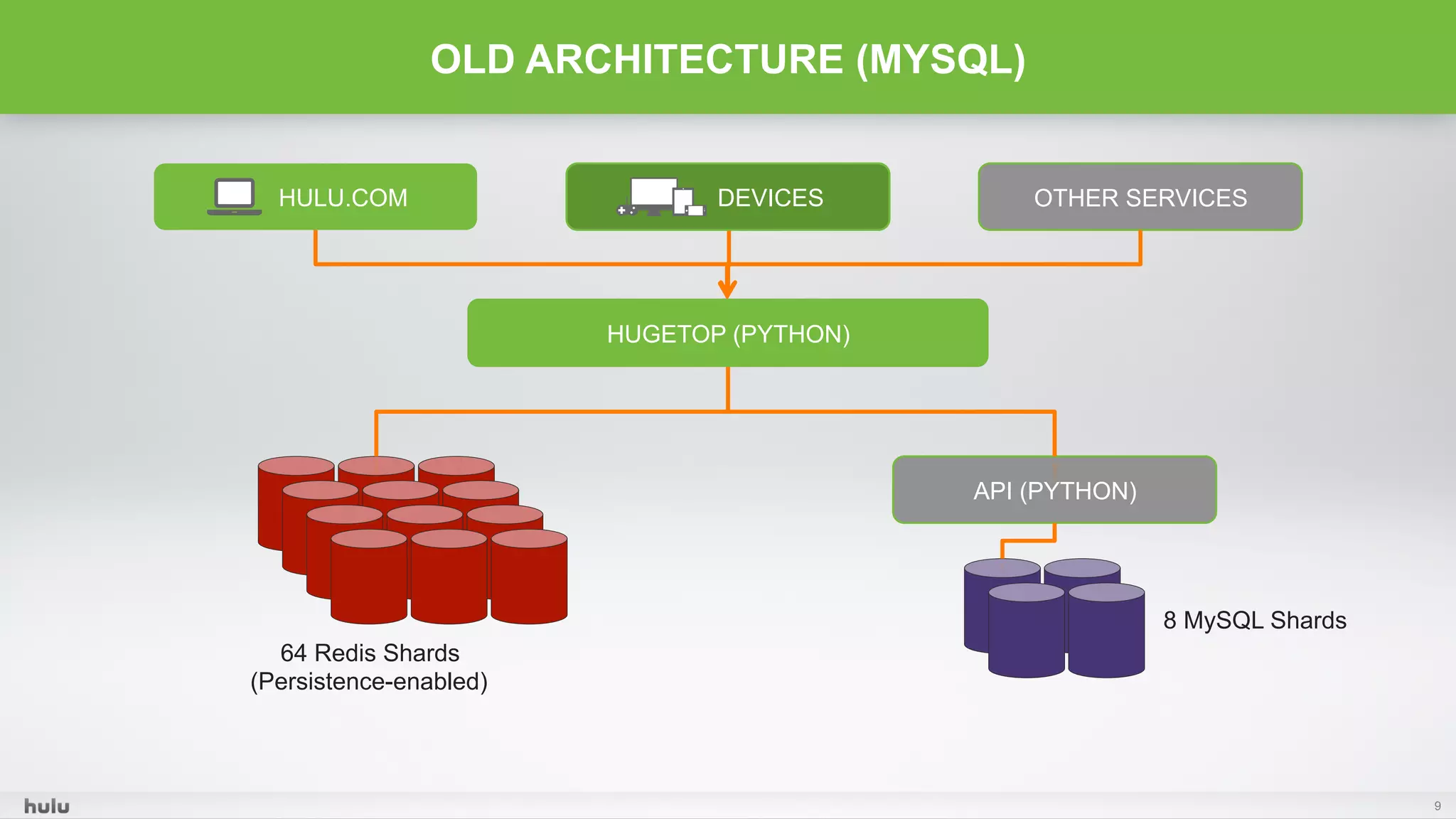

9. 9
OLD ARCHITECTURE (MYSQL)
HUGETOP (PYTHON)
OTHER SERVICESDEVICESHULU.COM
64 Redis Shards
(Persistence-enabled)
API (PYTHON)
8 MySQL Shards

10. 10

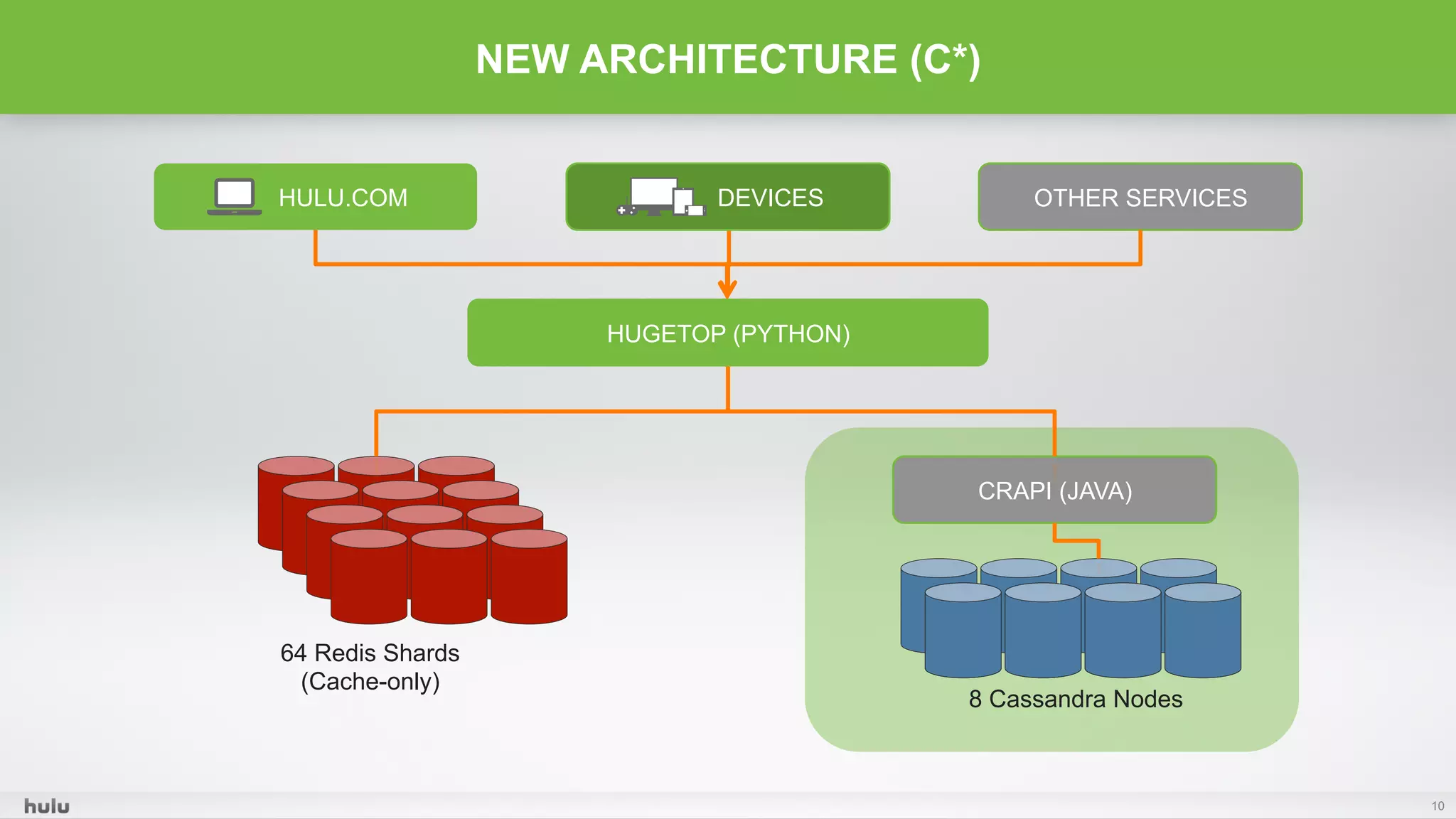

NEW ARCHITECTURE (C*)
HUGETOP (PYTHON)
OTHER SERVICESDEVICESHULU.COM
64 Redis Shards
(Cache-only)
CRAPI (JAVA)
8 Cassandra Nodes

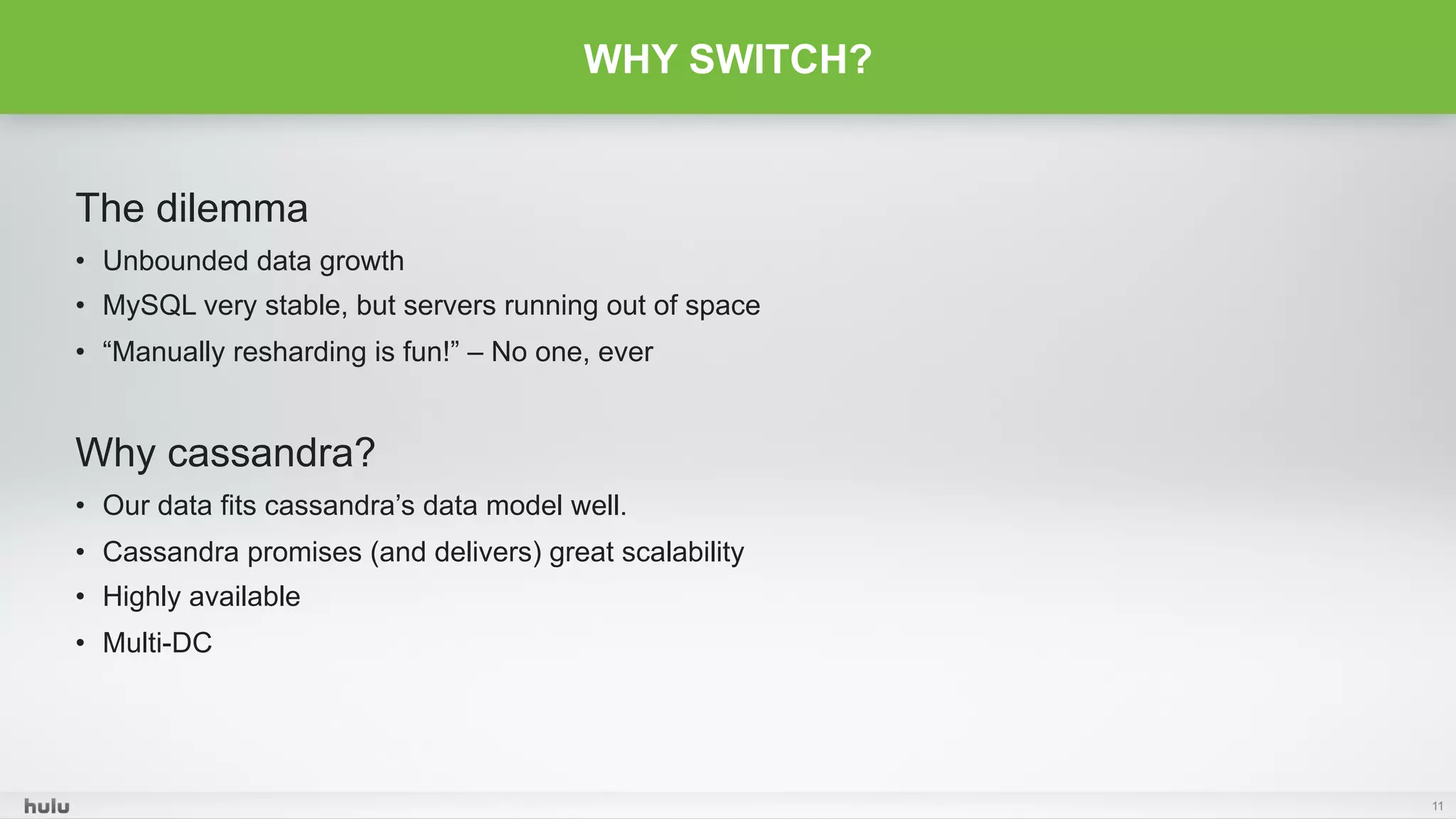

11. The dilemma
• Unbounded data growth
• MySQL very stable, but servers running out of space
• “Manually resharding is fun!” – No one, ever
Why cassandra?
• Our data fits cassandra’s data model well.
• Cassandra promises (and delivers) great scalability
• Highly available
• Multi-DC
11
WHY SWITCH?

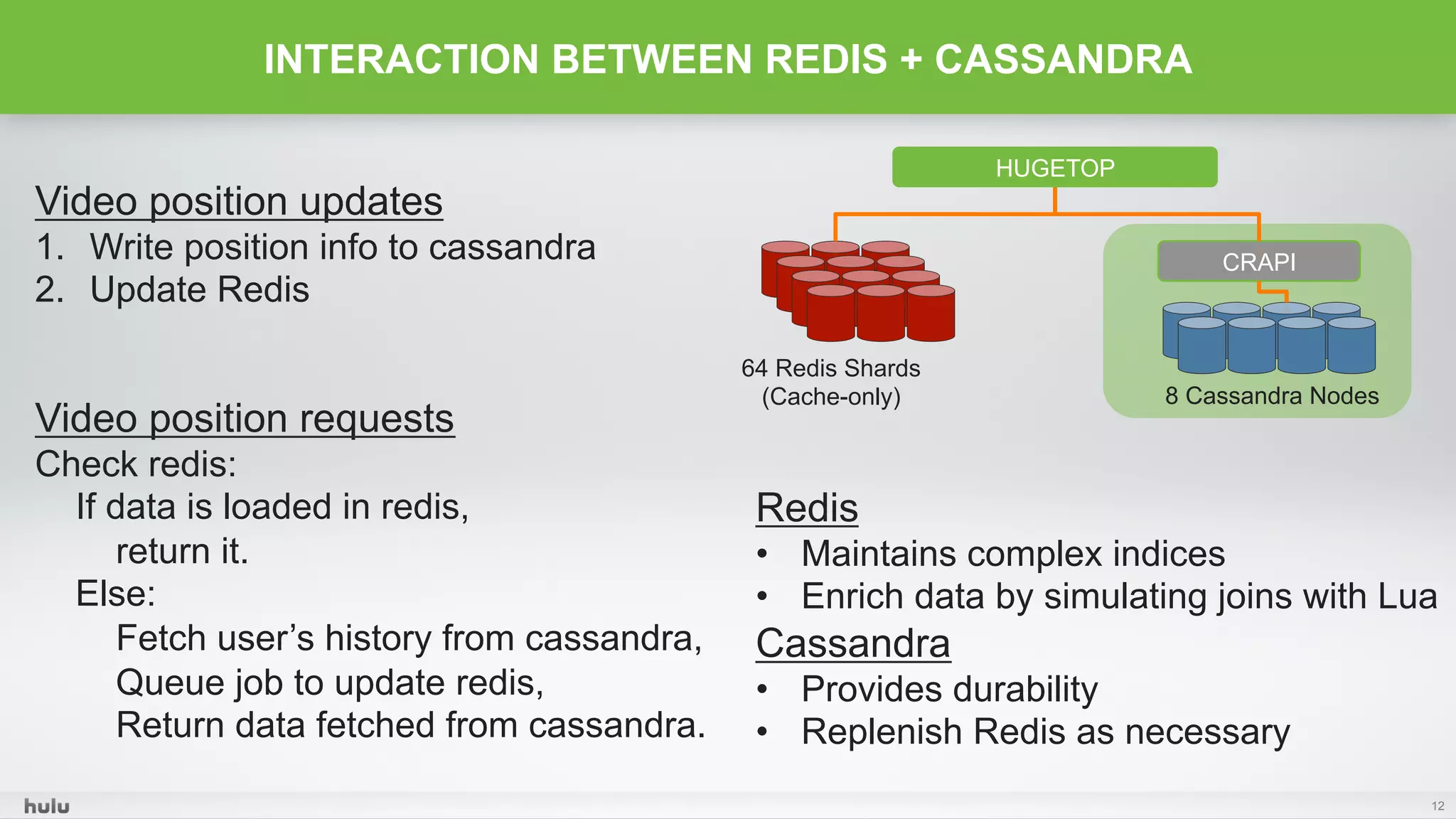

12. 12
INTERACTION BETWEEN REDIS + CASSANDRA
HUGETOP
64 Redis Shards
(Cache-only)
CRAPI
8 Cassandra Nodes
Video position updates
1. Write position info to cassandra
2. Update Redis
Video position requests
Check redis:
If data is loaded in redis,
return it.
Else:
Fetch user’s history from cassandra,
Queue job to update redis,
Return data fetched from cassandra.
Redis
• Maintains complex indices
• Enrich data by simulating joins with Lua
Cassandra
• Provides durability
• Replenish Redis as necessary

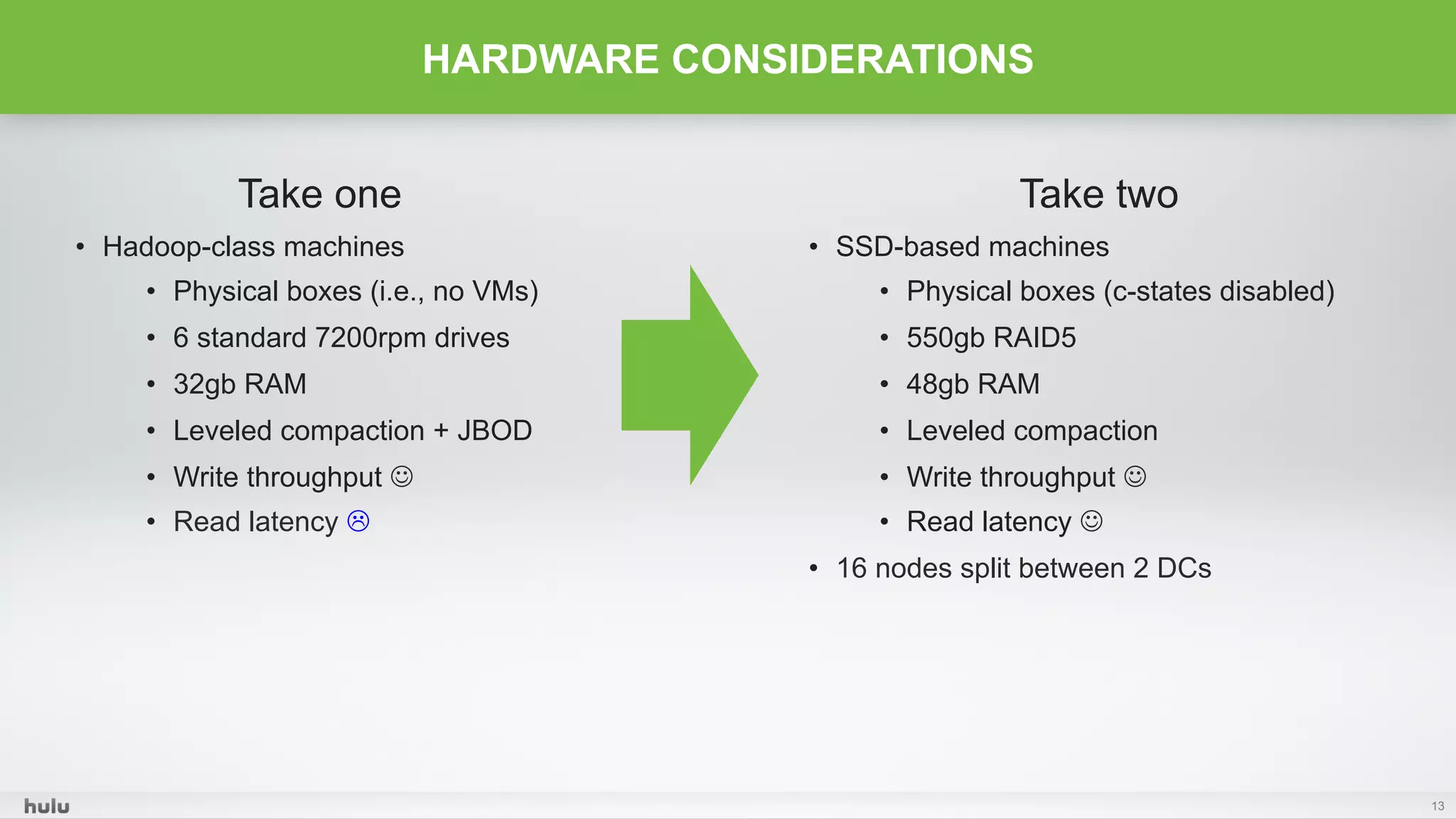

13. Take one
• Hadoop-class machines
• Physical boxes (i.e., no VMs)
• 6 standard 7200rpm drives
• 32gb RAM
• Leveled compaction + JBOD
• Write throughput J
• Read latency L
13
HARDWARE CONSIDERATIONS
Take two
• SSD-based machines
• Physical boxes (c-states disabled)
• 550gb RAID5
• 48gb RAM
• Leveled compaction
• Write throughput J
• Read latency J
• 16 nodes split between 2 DCs

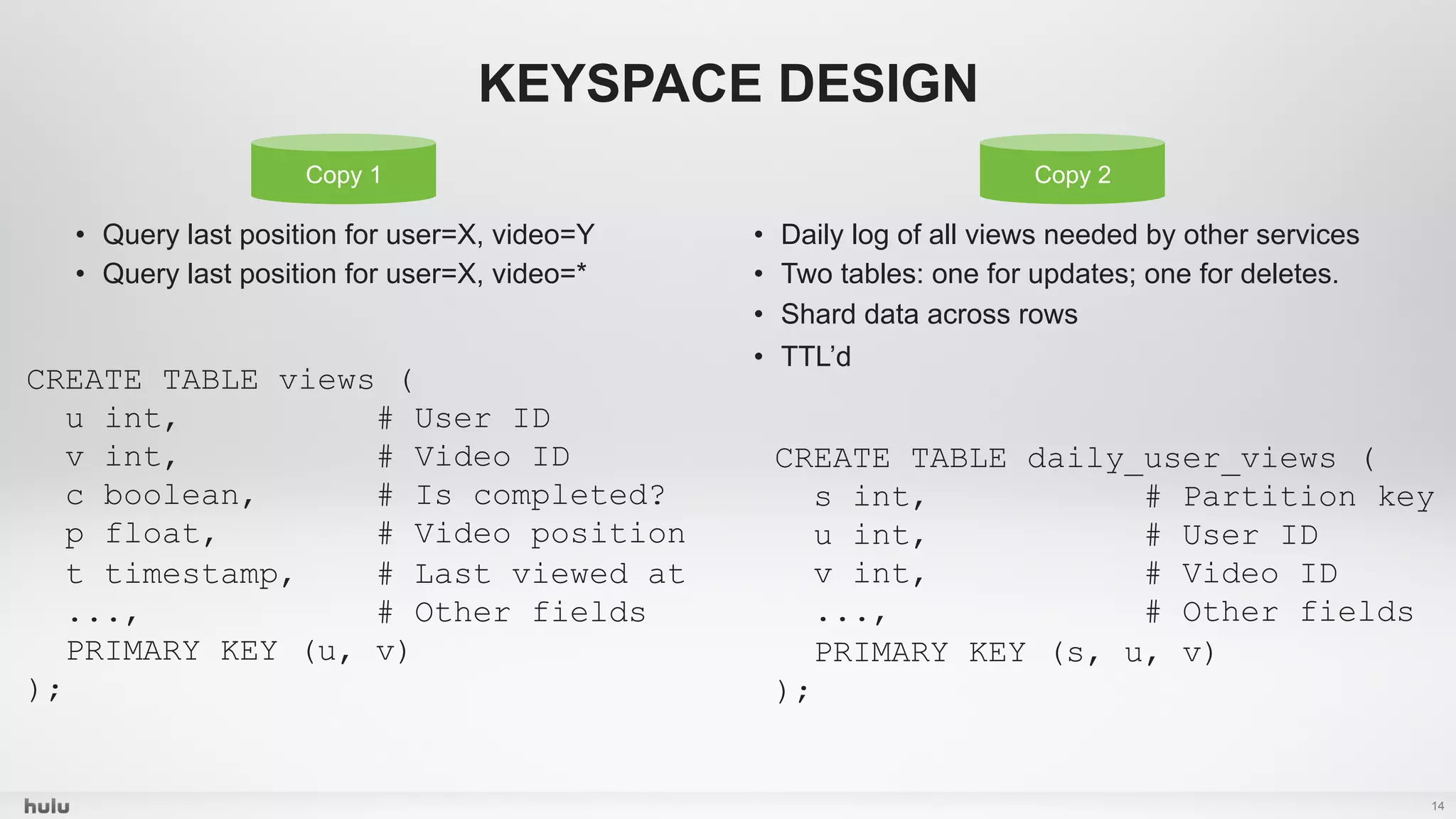

14. 14
• Query last position for user=X, video=Y
• Query last position for user=X, video=*
• Daily log of all views needed by other services
• Two tables: one for updates; one for deletes.
• Shard data across rows
• TTL’d
KEYSPACE DESIGN
Copy 1
CREATE TABLE views (
u int, # User ID
v int, # Video ID
c boolean, # Is completed?
p float, # Video position
t timestamp, # Last viewed at
..., # Other fields
PRIMARY KEY (u, v)
);
CREATE TABLE daily_user_views (
s int, # Partition key
u int, # User ID
v int, # Video ID
..., # Other fields
PRIMARY KEY (s, u, v)
);
Copy 2

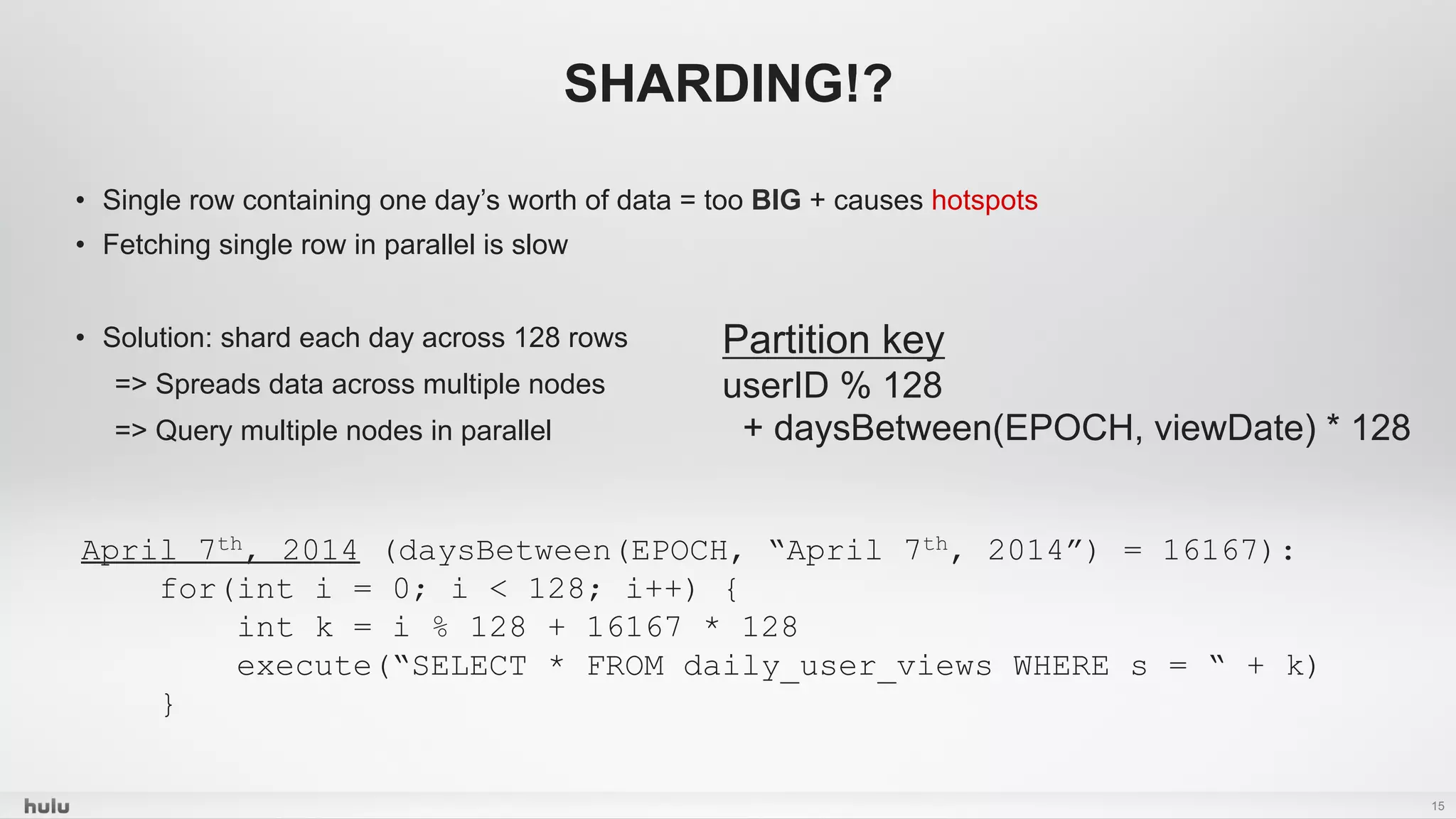

15. • Single row containing one day’s worth of data = too BIG + causes hotspots
• Fetching single row in parallel is slow
• Solution: shard each day across 128 rows
=> Spreads data across multiple nodes
=> Query multiple nodes in parallel
15
SHARDING!?
Partition key
userID % 128
+ daysBetween(EPOCH, viewDate) * 128
April 7th, 2014 (daysBetween(EPOCH, “April 7th, 2014”) = 16167):
for(int i = 0; i < 128; i++) {
int k = i % 128 + 16167 * 128
execute(“SELECT * FROM daily_user_views WHERE s = “ + k)
}

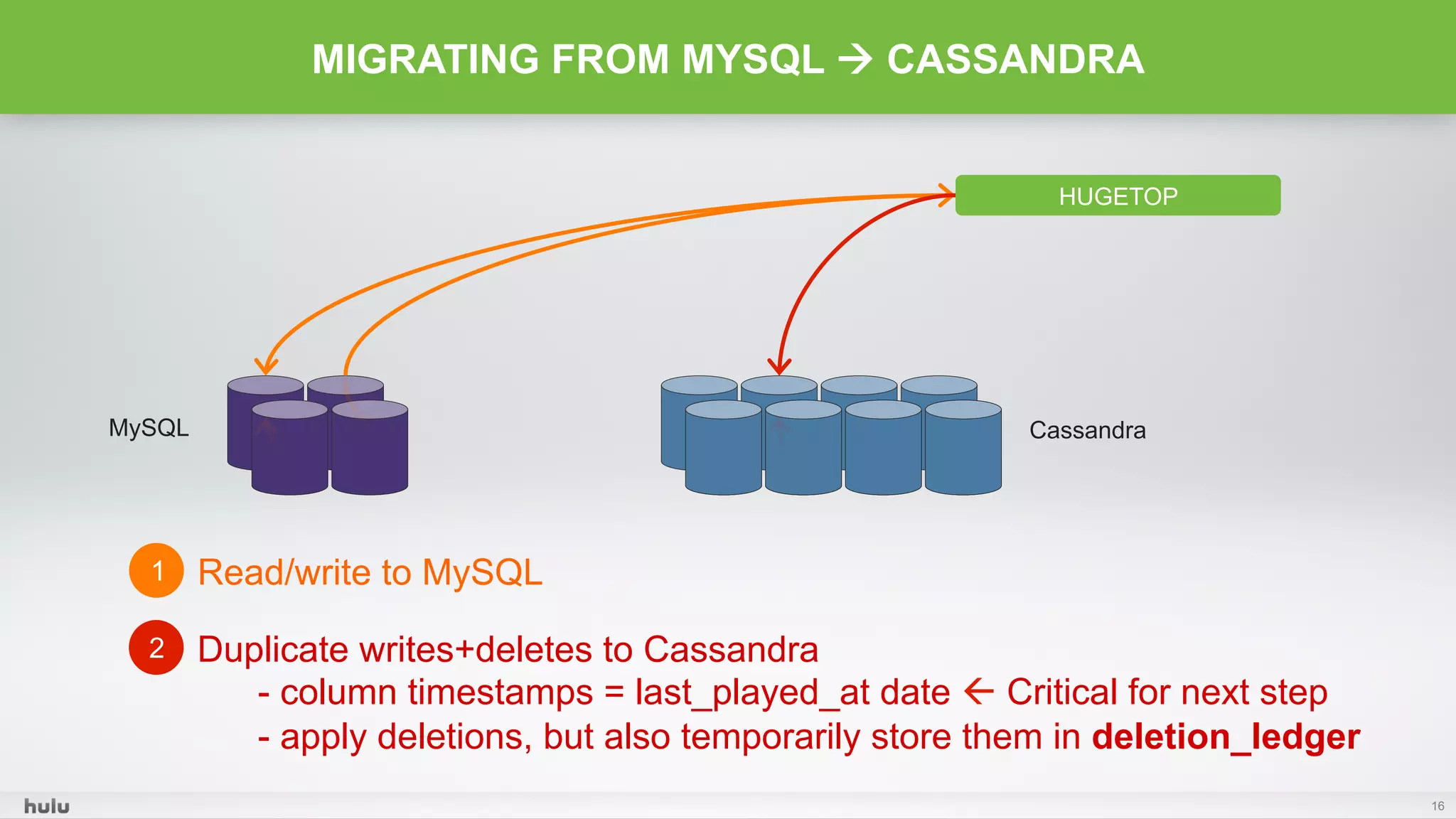

16. 16
MIGRATING FROM MYSQL ! CASSANDRA
HUGETOP
1 Read/write to MySQL
MySQL Cassandra
2 Duplicate writes+deletes to Cassandra
- column timestamps = last_played_at date ß Critical for next step
- apply deletions, but also temporarily store them in deletion_ledger

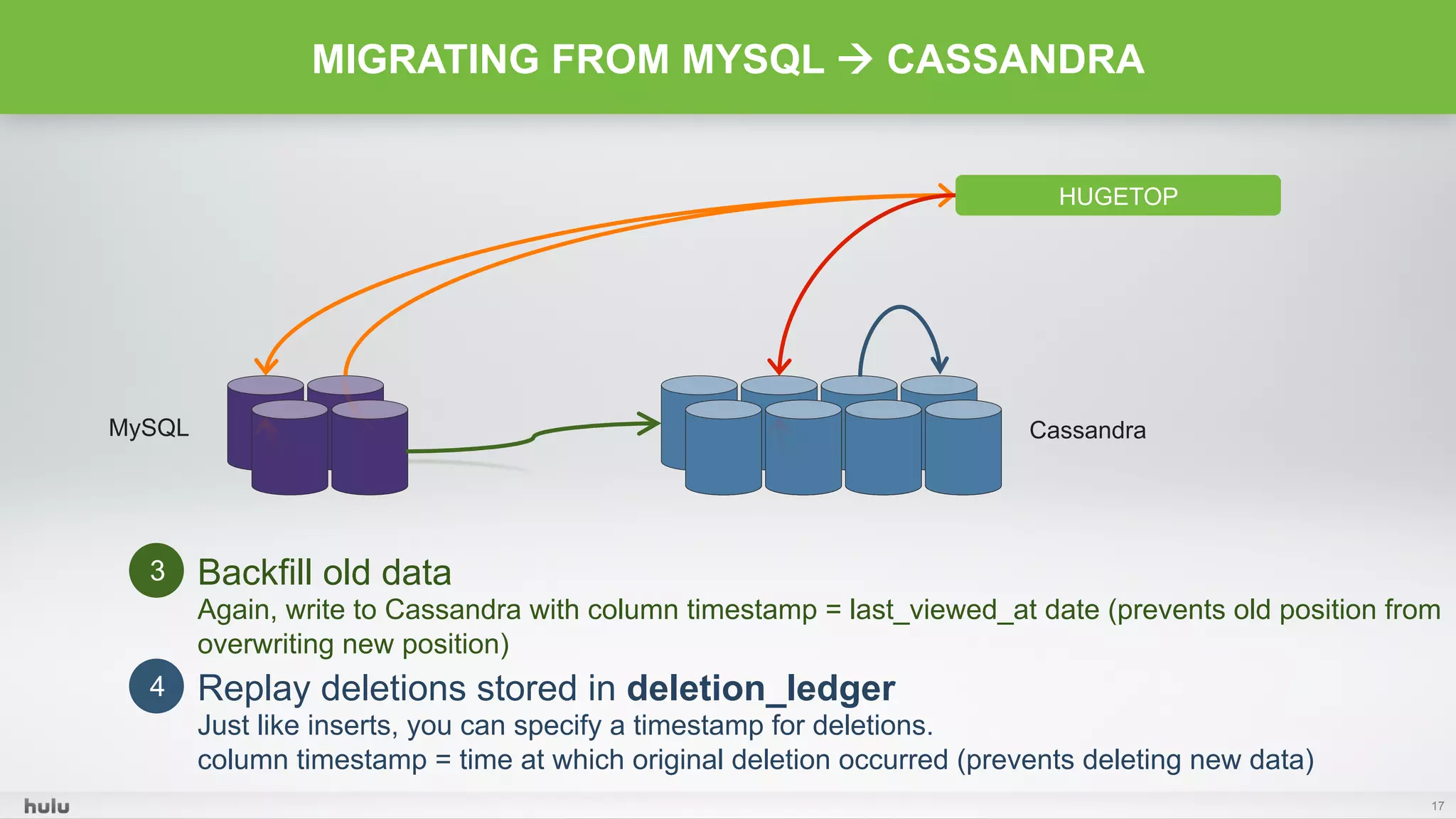

17. 17
MIGRATING FROM MYSQL ! CASSANDRA
HUGETOP
Backfill old data
Again, write to Cassandra with column timestamp = last_viewed_at date (prevents old position from
overwriting new position)
MySQL Cassandra
3
Replay deletions stored in deletion_ledger
Just like inserts, you can specify a timestamp for deletions.
column timestamp = time at which original deletion occurred (prevents deleting new data)
4

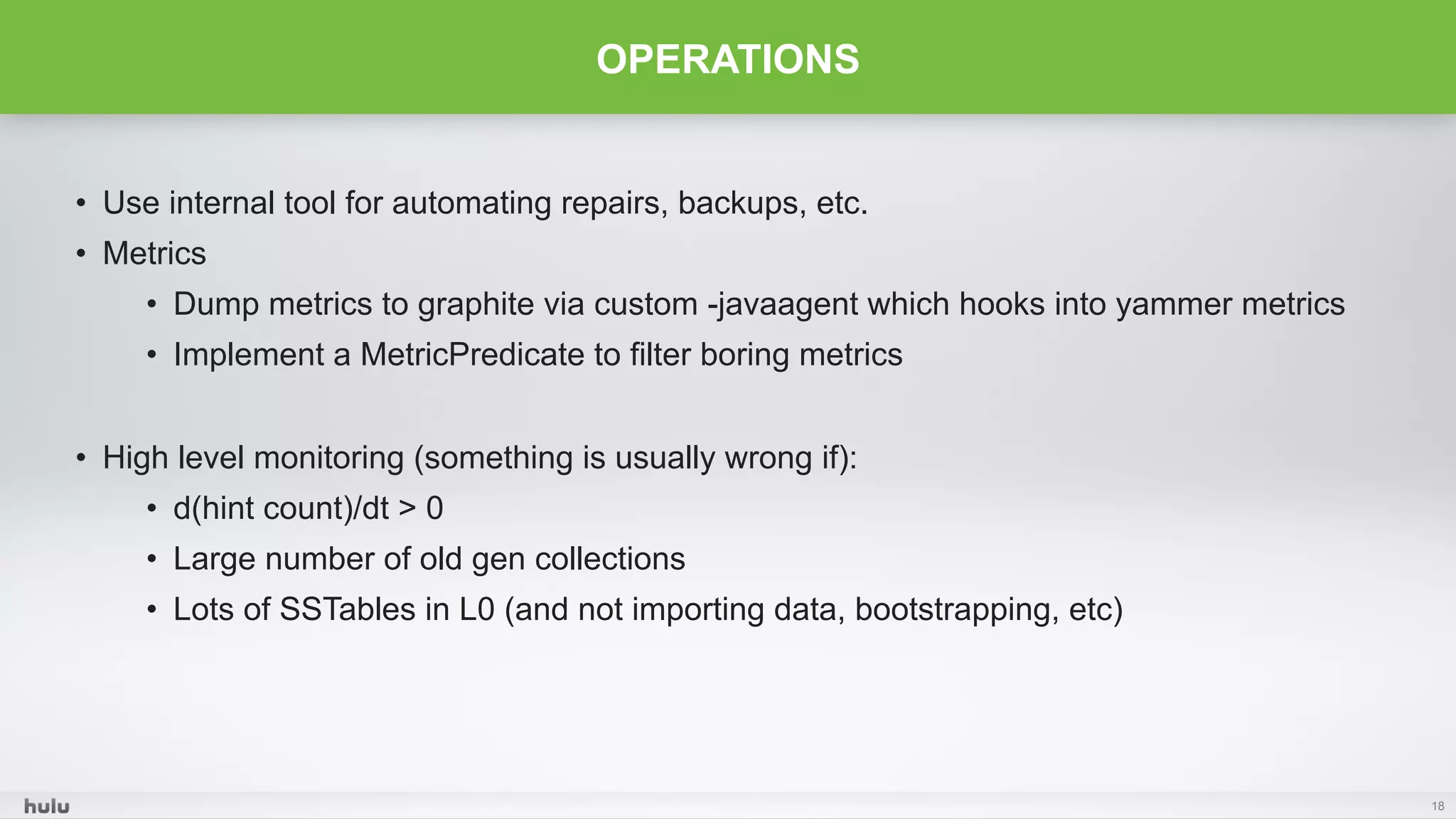

18. • Use internal tool for automating repairs, backups, etc.
• Metrics
• Dump metrics to graphite via custom -javaagent which hooks into yammer metrics
• Implement a MetricPredicate to filter boring metrics
• High level monitoring (something is usually wrong if):
• d(hint count)/dt > 0
• Large number of old gen collections
• Lots of SSTables in L0 (and not importing data, bootstrapping, etc)
18
OPERATIONS

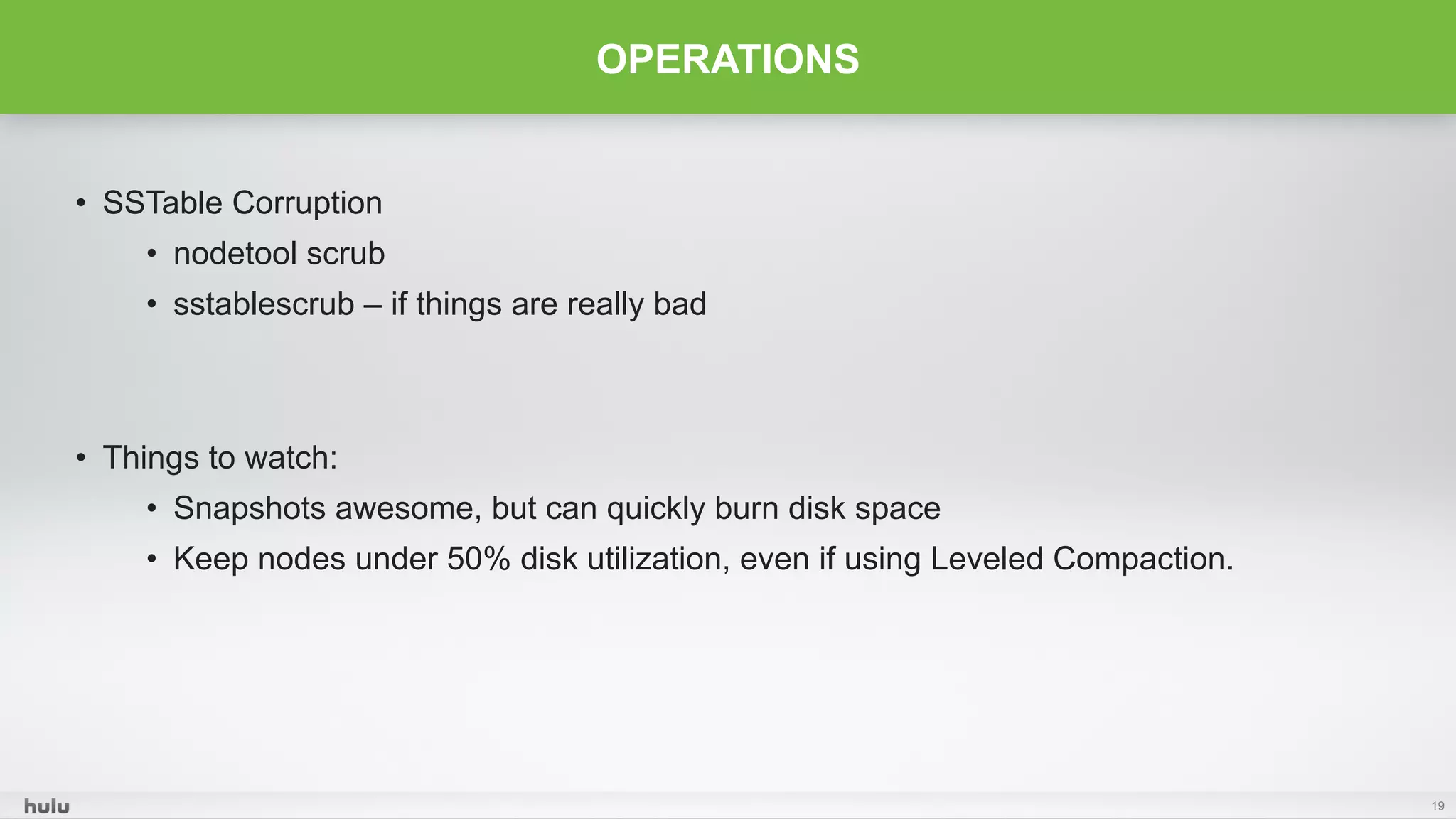

19. • SSTable Corruption
• nodetool scrub
• sstablescrub – if things are really bad
• Things to watch:
• Snapshots awesome, but can quickly burn disk space
• Keep nodes under 50% disk utilization, even if using Leveled Compaction.
19
OPERATIONS

20. 20

21. THANK YOU

22. QUESTIONS?
