Cassandra Basics
              Indexing

     Benjamin Black, b@b3k.us

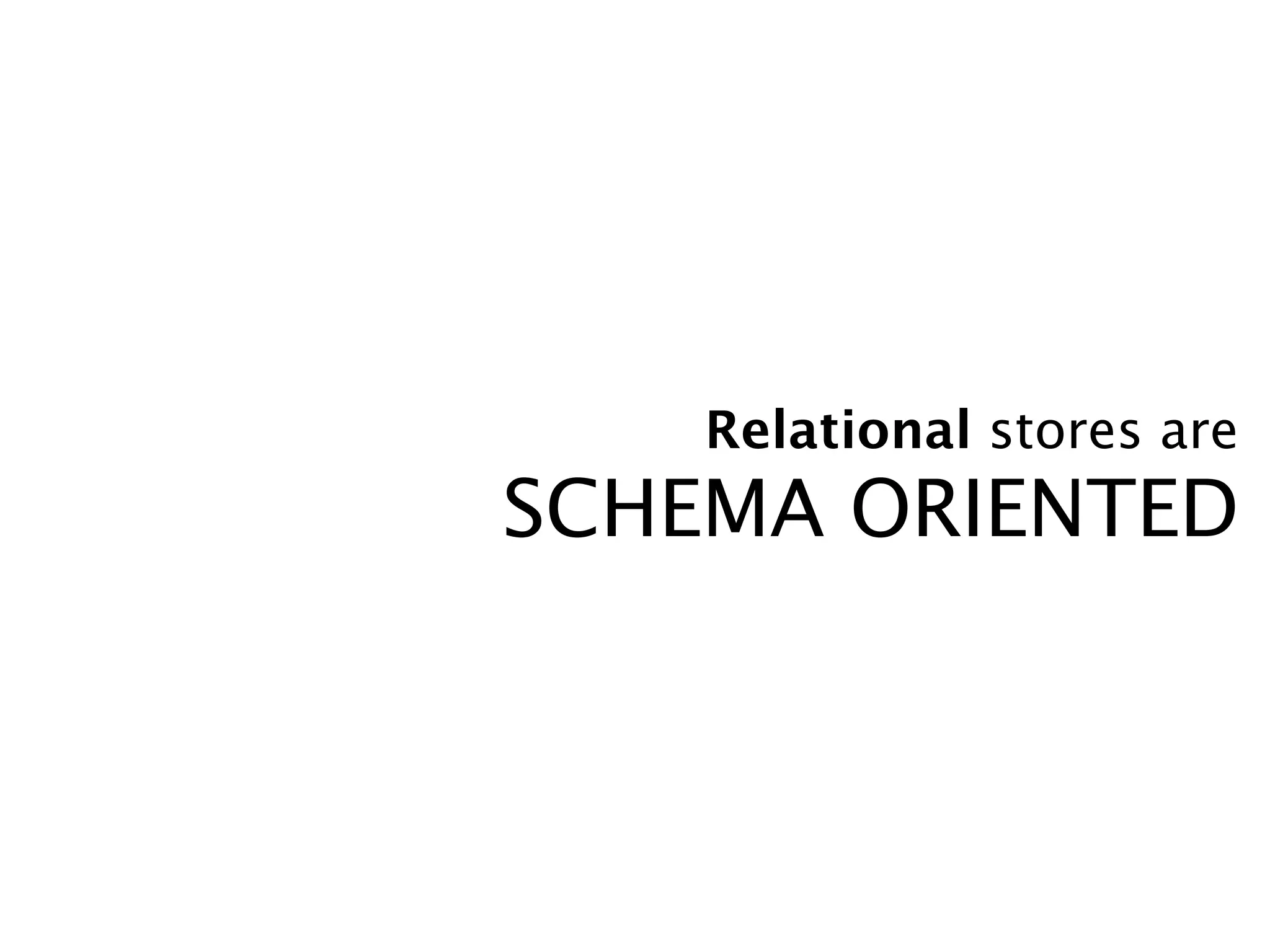

Relational stores are
SCHEMA ORIENTED
Start from your SCHEMA &
WORK FORWARDS
Column stores are
QUERY ORIENTED
Start from your QUERIES &
WORK BACKWARDS
AT SCALE
AT SCALE
           Denormalization is
              THE NORM
AT SCALE
AT SCALE
           Everything depends on
               THE INDICES
Cassandra is an
INDEX CONSTRUCTION KIT
Column Family
Two-level Map

key: {
  column: value,
  column: value,
  ...
 }
Super Column Family
Three-level Map
key: {
   supercolumn: {
       column:value,
      column: value
   },
   supercolumn: {
     ...
   }
 }
column sorting defined by
         CompareWith/
CompareSubcolumnsWith
TimeUUIDType
  UTF8Type
                ASCIIType
LongType

     LexicalUUIDType
row placement determined by
             Partitioner
RandomPartitioner
Place based on MD5 of key




        OrderPreservingPartitioner
               Place based on actual key
Rows are sorted by key on each node
Regardless of partitioner
One example in
TWO ACTS
Prelude
A USER DATABASE
<ColumnFamily Name=”Users”
       CompareWith=”UTF8Type” />
“b”:    {“name”:”Ben”, “street”:”1234 Oak St.”,
        “city”:”Seattle”, “state”:”WA”}
“jason”: {”name”:”Jason”, “street”:”456 First Ave.”,
        “city”:”Bellingham”, “state”:”WA”}
“zack”:     {”name”: “Zack”, “street”: “4321 Pine St.”,
          “city”: “Seattle”, “state”: “WA”}
“jen1982”: {”name”:”Jennifer”, “street”:”1120 Foo Lane”,
         “city”:”San Francisco”, “state”:”CA”}
“albert”: {”name”:”Albert”, “street”:”2364 South St.”,
         “city”:”Boston”, “state”:”MA”}
SELECT name FROM Users
WHERE state=”WA”
SELECT name FROM Users
               WHERE state=”WA”

How is WHERE clause
formed?
Act One
Supercolumn Indexing
<ColumnFamily Name=”LocationUserIndexSCF”
       CompareWith=”UTF8Type”
       CompareSubcolumnsWith=”UTF8Type”
       ColumnType=”Super” />
[state]: {
  [city1]: {[name1]:[user1], [name2]:[user2], ... },
  [city2]: {[name3]:[user3], [name4]:[user4], ... },
  ...
  [cityX]: {[name5]:[user5], [name6]:[user6], ... }
}
“CA”: {

 “San Francisco”: {”Jennifer”: “jen1982”}
}
“MA”: {

 “Boston”: {”Albert”: “albert”}
}
“WA”: {

 “Bellingham”: {”Jason”: “jason”},

 “Seattle”: {”Ben”: “b”, ”Zack”: “zack”}
}
Row Key


“CA”: {

 “San Francisco”: {”Jennifer”: “jen1982”}
}
“MA”: {

 “Boston”: {”Albert”: “albert”}
}
“WA”: {

 “Bellingham”: {”Jason”: “jason”},

 “Seattle”: {”Ben”: “b”, ”Zack”: “zack”}
}
Row Key
                 Super Column

“CA”: {

 “San Francisco”: {”Jennifer”: “jen1982”}
}
“MA”: {

 “Boston”: {”Albert”: “albert”}
}
“WA”: {

 “Bellingham”: {”Jason”: “jason”},

 “Seattle”: {”Ben”: “b”, ”Zack”: “zack”}
}
Row Key
                                     Colum
                 Super Column
                                     n
“CA”: {

 “San Francisco”: {”Jennifer”: “jen1982”}
}
“MA”: {

 “Boston”: {”Albert”: “albert”}
}
“WA”: {

 “Bellingham”: {”Jason”: “jason”},

 “Seattle”: {”Ben”: “b”, ”Zack”: “zack”}
}
Row Key
                                     Colum
                 Super Column                Value
                                     n
“CA”: {

 “San Francisco”: {”Jennifer”: “jen1982”}
}
“MA”: {

 “Boston”: {”Albert”: “albert”}
}
“WA”: {

 “Bellingham”: {”Jason”: “jason”},

 “Seattle”: {”Ben”: “b”, ”Zack”: “zack”}
}
Show me
EVERYONE IN WASHINGTON
get(:LocationUserIndexSCF, ‘WA’)
{

   “Bellingham”: {”Jason”: “jason”},

   “Seattle”: {”Ben”: “b”, ”Zack”: “zack”}
}
Act Two
Composite Key Indexing
Order Preserving Partitioner
                          +
        Range Queries
<ColumnFamily Name=”LocationUserIndexCF”
       CompareWith=”UTF8Type” />
[state1]/[city1]:   {[name1]:[user1], [name2]:[user2], ... }
[state1]/[city2]:   {[name3]:[user3], [name4]:[user4], ... }
[state2]/[city1]:   {[name5]:[user5], [name6]:[user6], ... }
...
[stateX]/[cityY]:   {[name7]:[user7], [name8]:[user8], ... }
“CA/San Francisco”: {”Jennifer”: “jen1982”}
“MA/Boston”: {”Albert”: “albert”}
“WA/Bellingham”: {”Jason”: “jason”}
“WA/Seattle”: {”Ben”: “b”, “Zack”: “zack”}
Show me
EVERYONE IN WASHINGTON
get_range(:LocationUserIndexCF, {:start: 'WA',
                          :finish:'WB'})
{
    ”WA/Bellingham”: {”Jason”: “jason”},
    “WA/Seattle”: {”Ben”: “b”, “Zack”: “zack”}
}
Finale
BUILD SOMETHING AWESOME
(This part is up to you)
Appendix
EXAMPLE KEYSPACE
<Keyspace Name="UserDb">
  <ColumnFamily Name="Users"
          CompareWith="UTF8Type" />

  <ColumnFamily Name="LocationUserIndexSCF"


         CompareWith="UTF8Type"


     CompareSubcolumnsWith="UTF8Type"


         ColumnType="Super" />


  <ColumnFamily Name="LocationUserIndexCF"


         CompareWith="UTF8Type" />


  <ReplicaPlacementStrategy>
      org.apache.cassandra.locator.RackUnawareStrategy
  </ReplicaPlacementStrategy>
  <ReplicationFactor>1</ReplicationFactor>
  <EndPointSnitch>org.apache.cassandra.locator.EndPointSnitch</EndPointSnitch>
</Keyspace>
