This document provides an overview and introduction to using Memcached as a caching solution. It discusses what Memcached is, how it works by storing key-value pairs in RAM, and common operations like get, add, replace, and delete. The document also covers best practices like avoiding cache rushing, using namespaces properly, and suggestions for what types of data are good candidates to cache.

1. Cache is King!
(Or How I Learned To Stop Worrying
and Love the RAM)

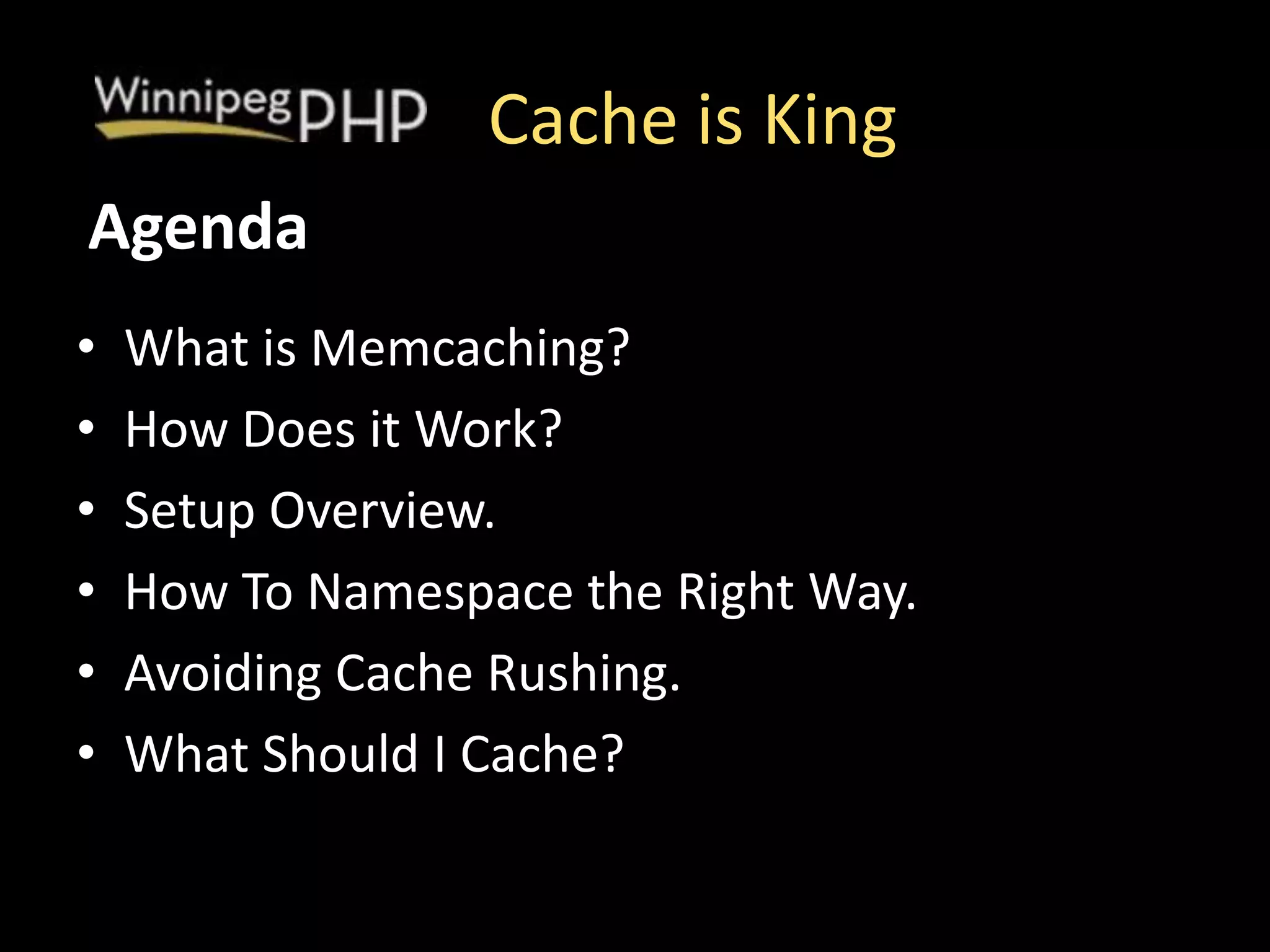

2. Cache is King
• What is Memcaching?
• How Does it Work?
• Setup Overview.
• How To Namespace the Right Way.
• Avoiding Cache Rushing.
• What Should I Cache?
Agenda

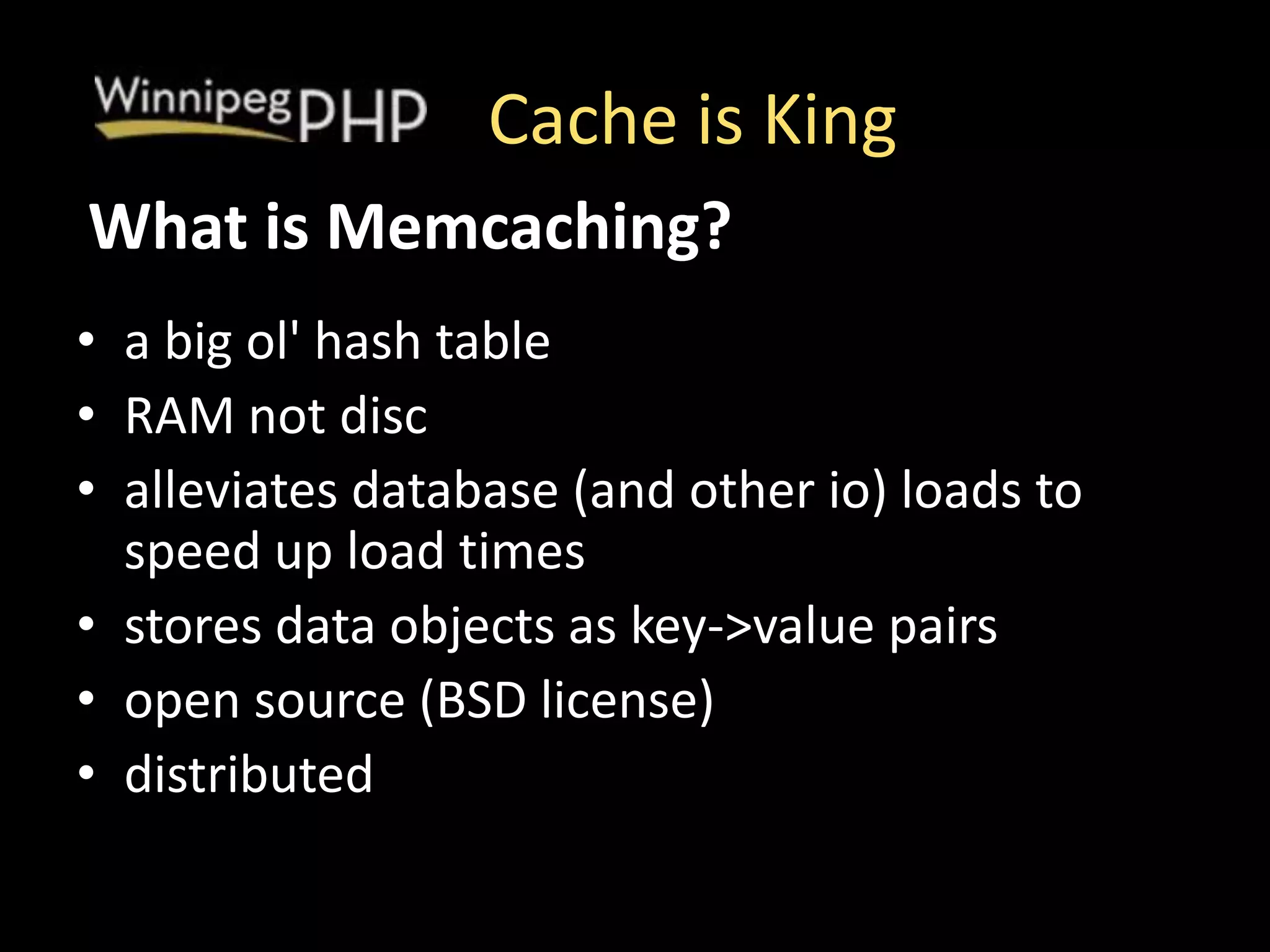

3. Cache is King
• a big ol' hash table
• RAM not disc
• alleviates database (and other io) loads to
speed up load times
• stores data objects as key->value pairs
• open source (BSD license)
• distributed
What is Memcaching?

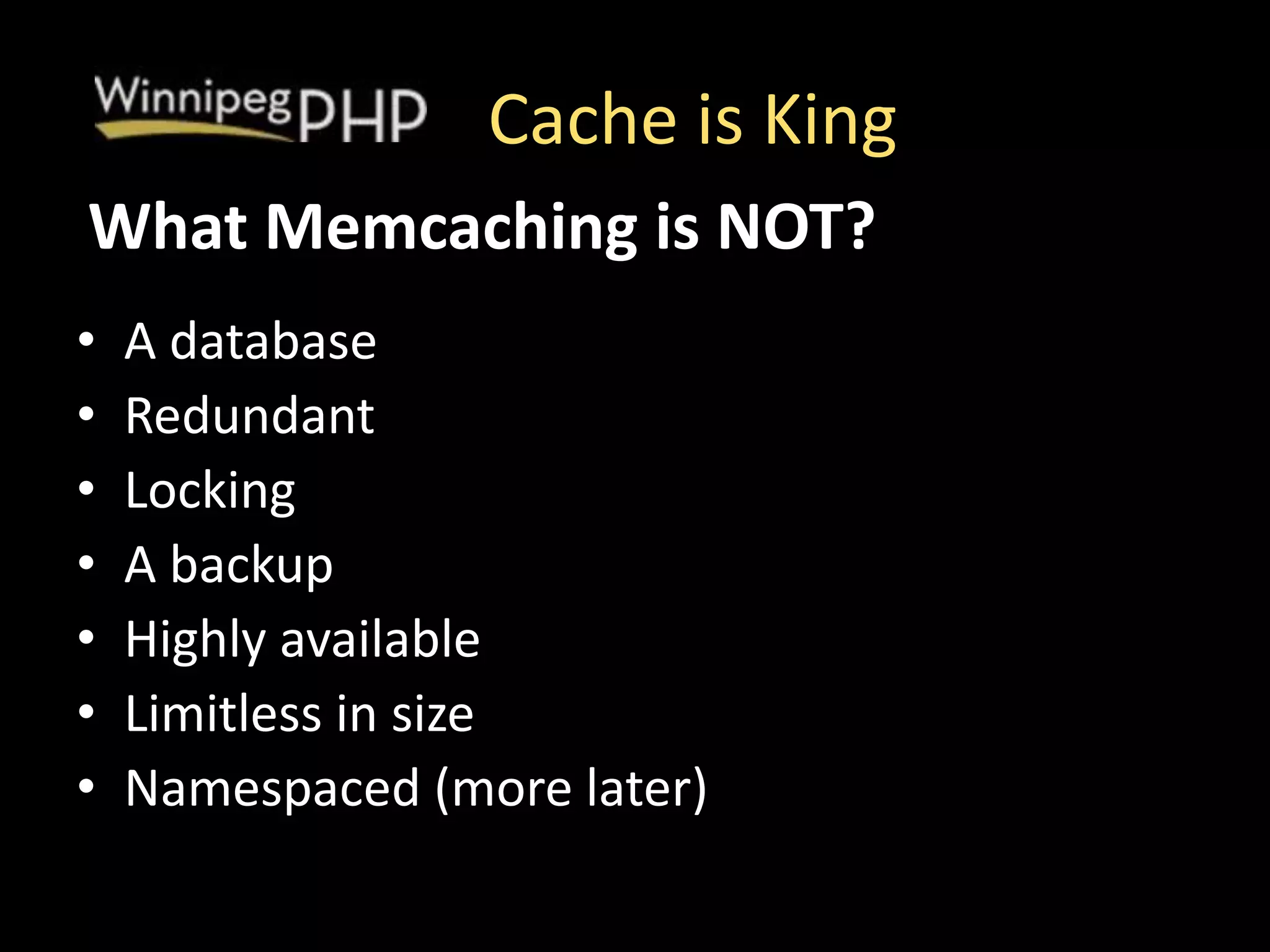

4. Cache is King
• A database
• Redundant
• Locking
• A backup
• Highly available
• Limitless in size
• Namespaced (more later)
What Memcaching is NOT?

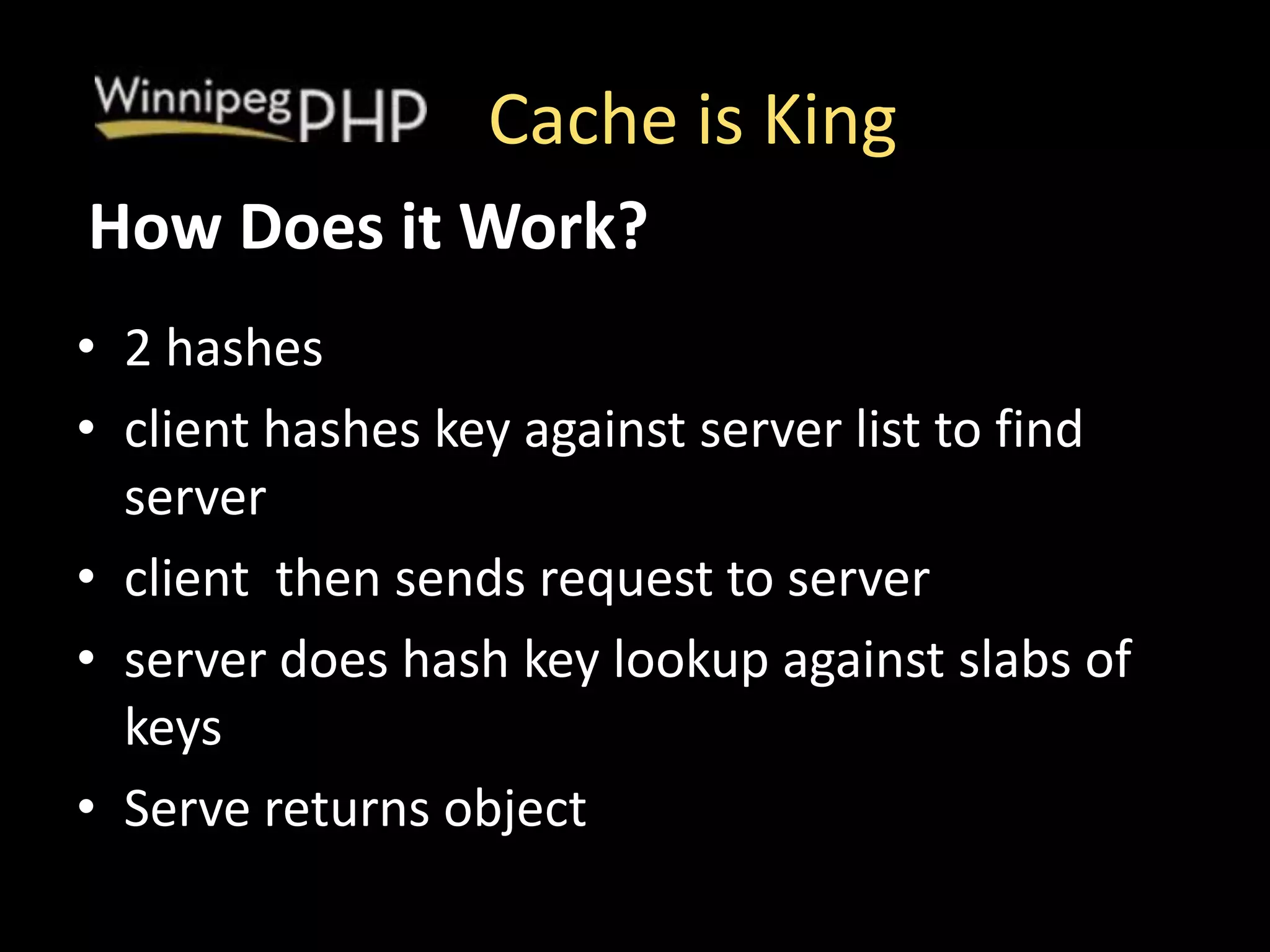

5. Cache is King
• 2 hashes
• client hashes key against server list to find
server
• client then sends request to server
• server does hash key lookup against slabs of
keys
• Serve returns object
How Does it Work?

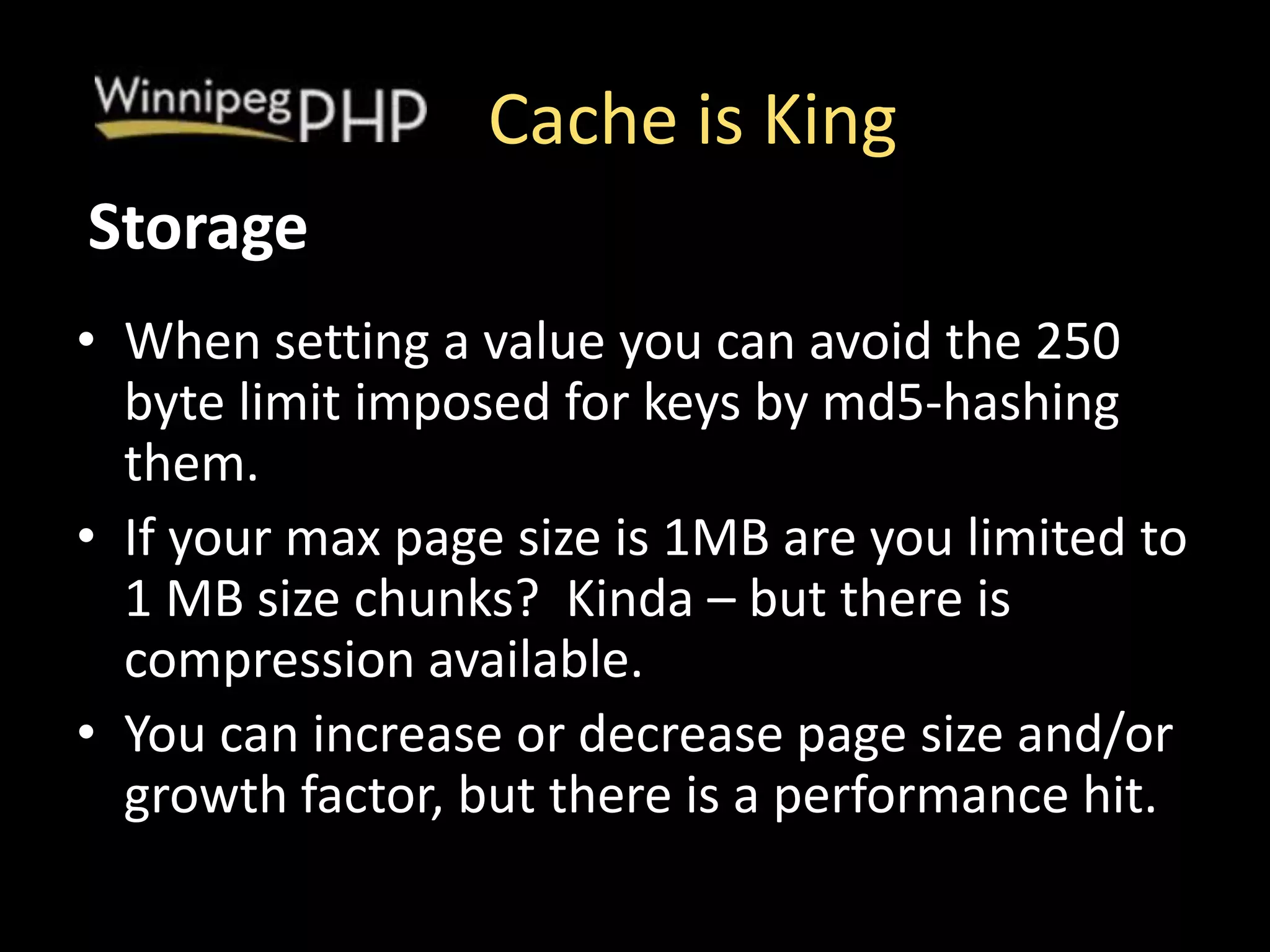

6. Cache is King
• When setting a value you can avoid the 250
byte limit imposed for keys by md5-hashing
them.
• If your max page size is 1MB are you limited to
1 MB size chunks? Kinda – but there is
compression available.
• You can increase or decrease page size and/or
growth factor, but there is a performance hit.
Storage

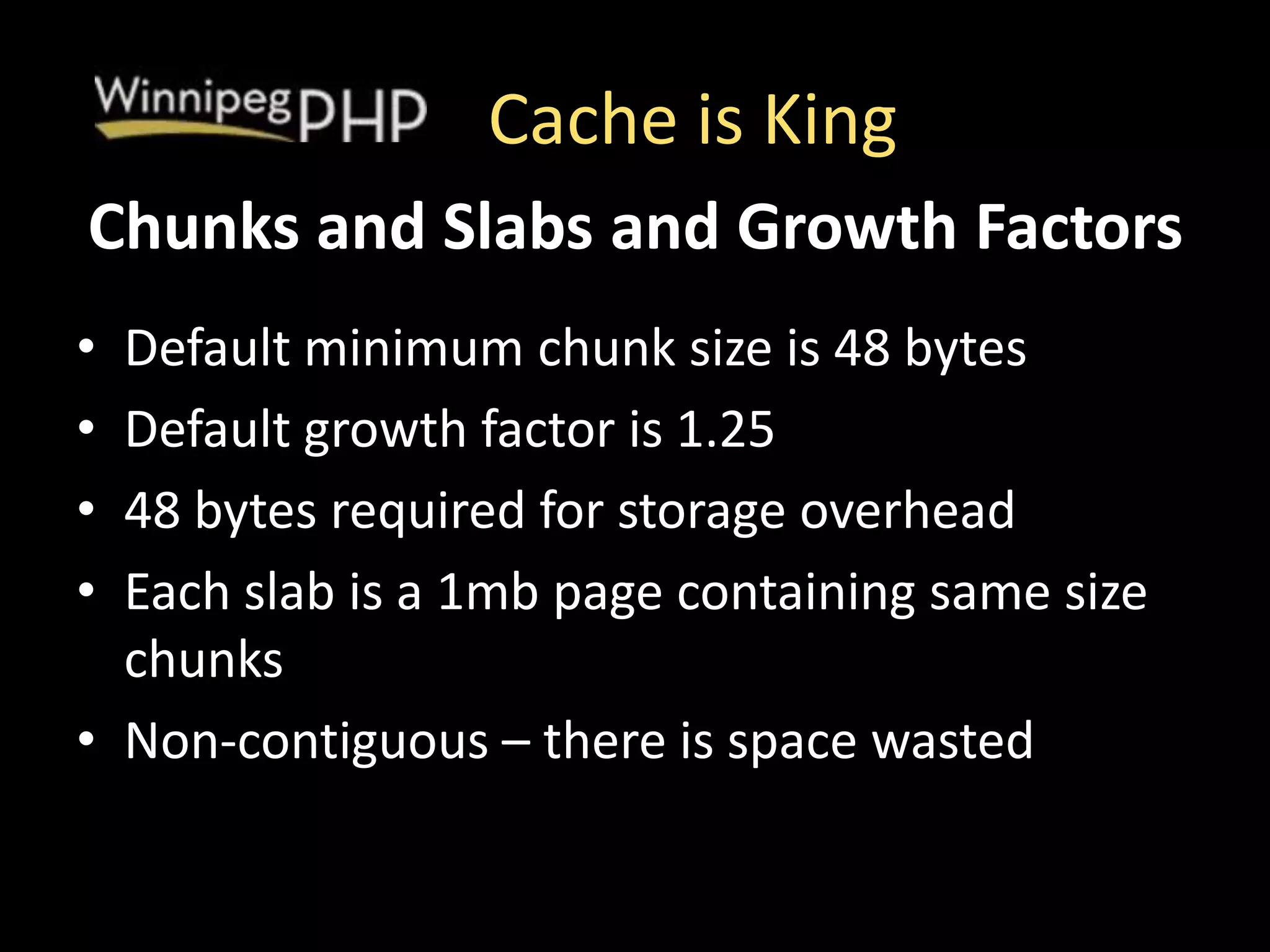

7. Cache is King
• Default minimum chunk size is 48 bytes
• Default growth factor is 1.25
• 48 bytes required for storage overhead
• Each slab is a 1mb page containing same size
chunks
• Non-contiguous – there is space wasted
Chunks and Slabs and Growth Factors

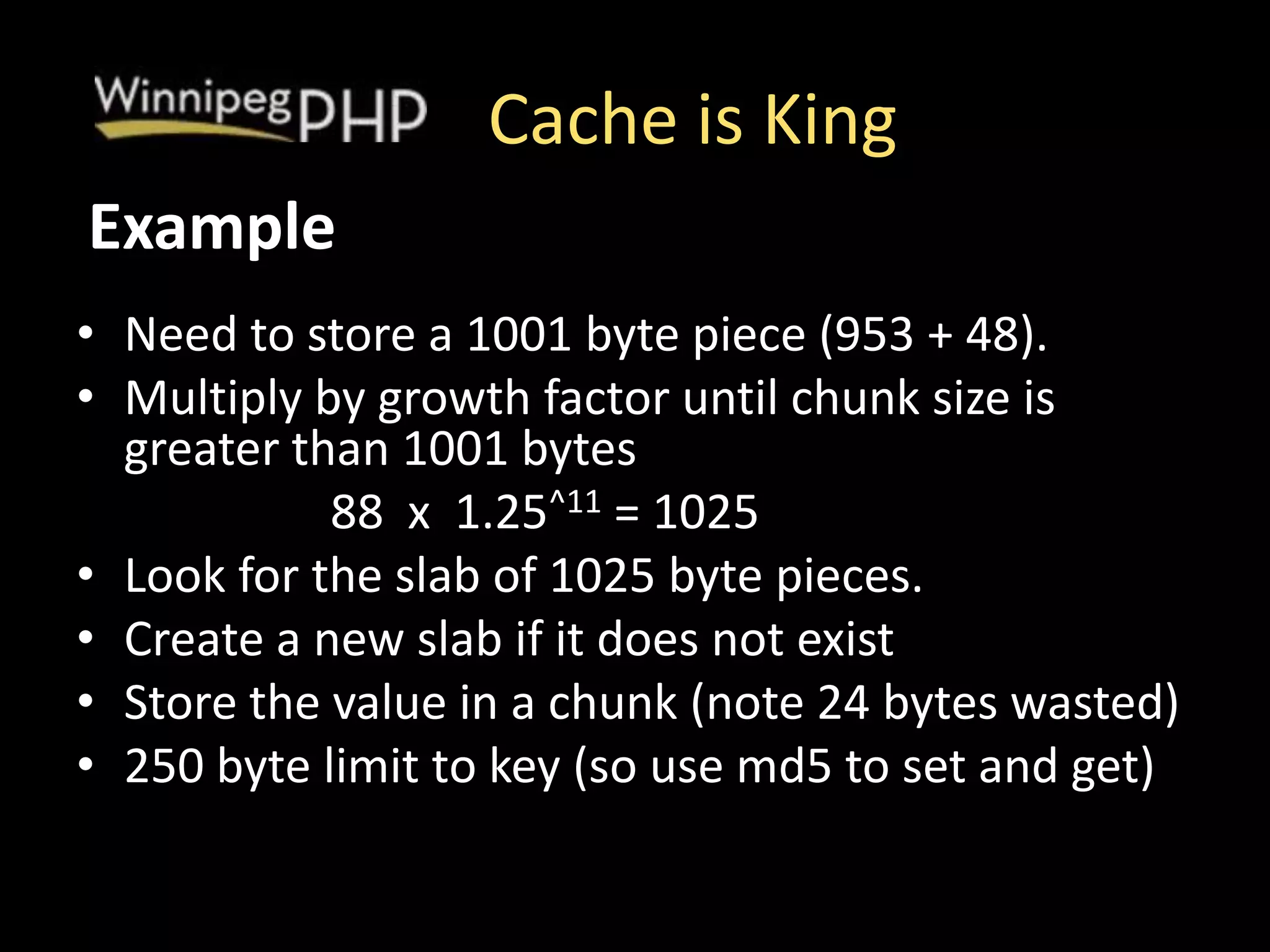

8. Cache is King
• Need to store a 1001 byte piece (953 + 48).
• Multiply by growth factor until chunk size is
greater than 1001 bytes
88 x 1.25^11 = 1025
• Look for the slab of 1025 byte pieces.
• Create a new slab if it does not exist
• Store the value in a chunk (note 24 bytes wasted)
• 250 byte limit to key (so use md5 to set and get)
Example

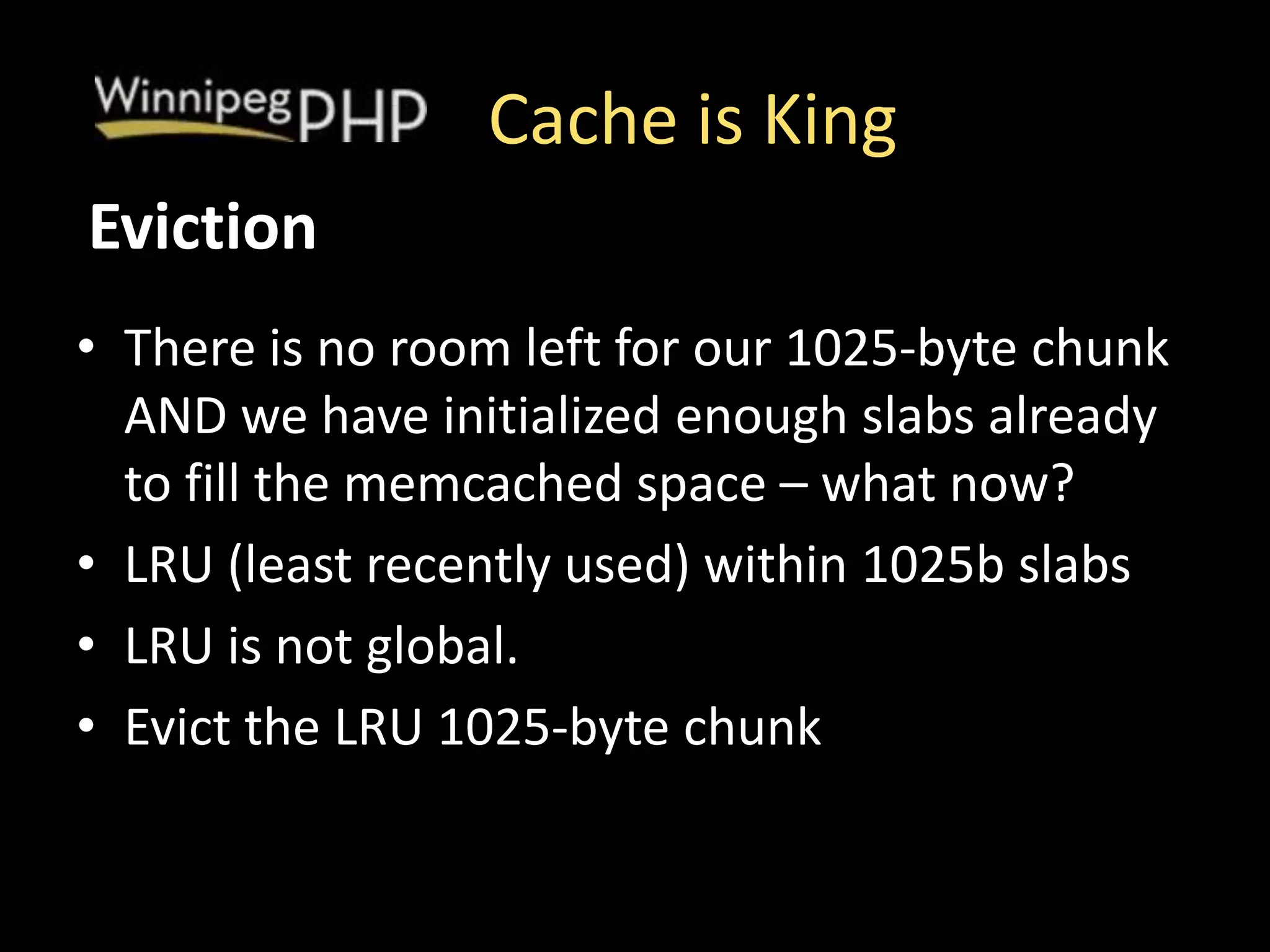

9. Cache is King
• There is no room left for our 1025-byte chunk
AND we have initialized enough slabs already
to fill the memcached space – what now?
• LRU (least recently used) within 1025b slabs
• LRU is not global.
• Evict the LRU 1025-byte chunk
Eviction

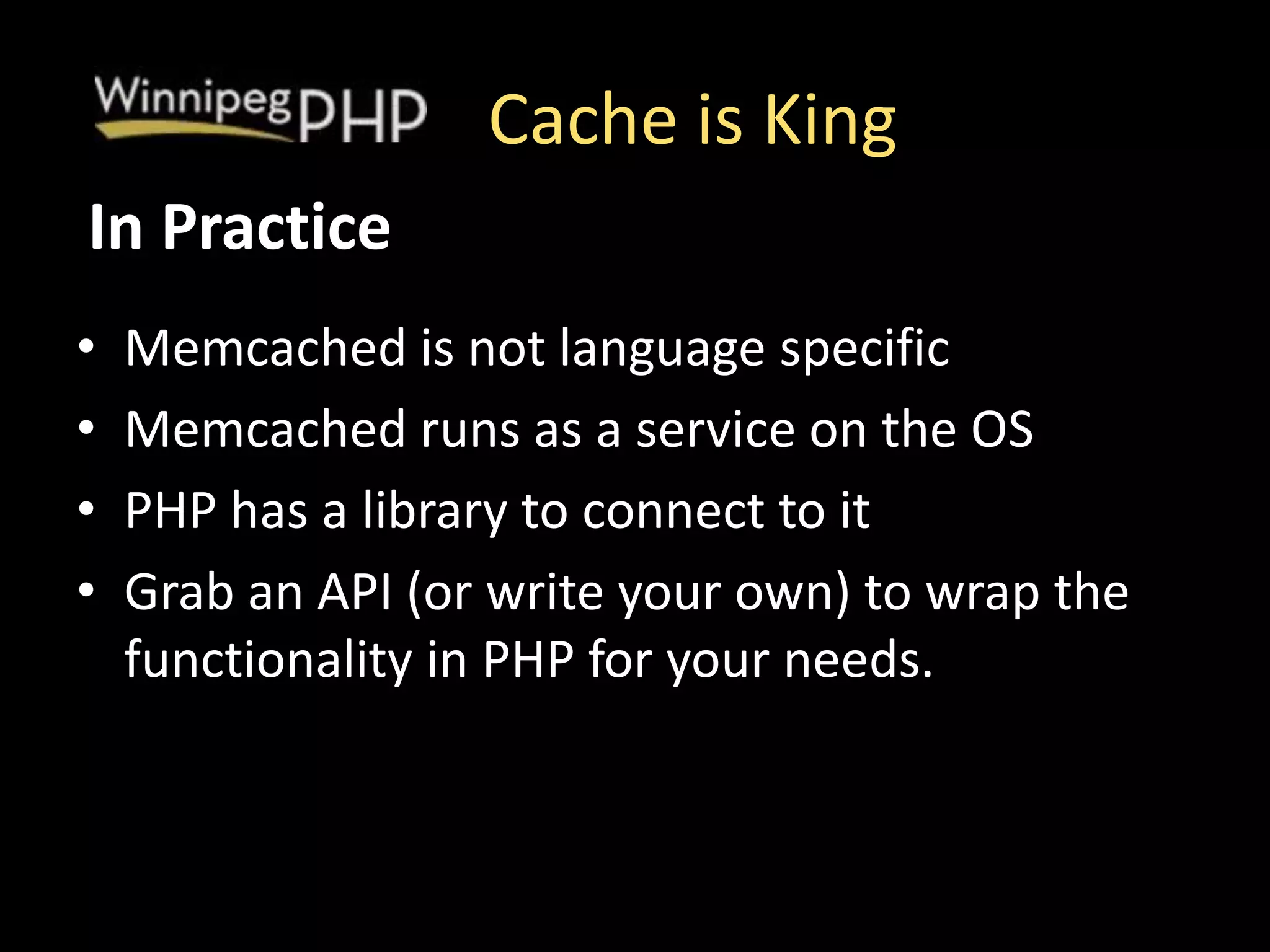

10. Cache is King
• Memcached is not language specific
• Memcached runs as a service on the OS
• PHP has a library to connect to it
• Grab an API (or write your own) to wrap the
functionality in PHP for your needs.
In Practice

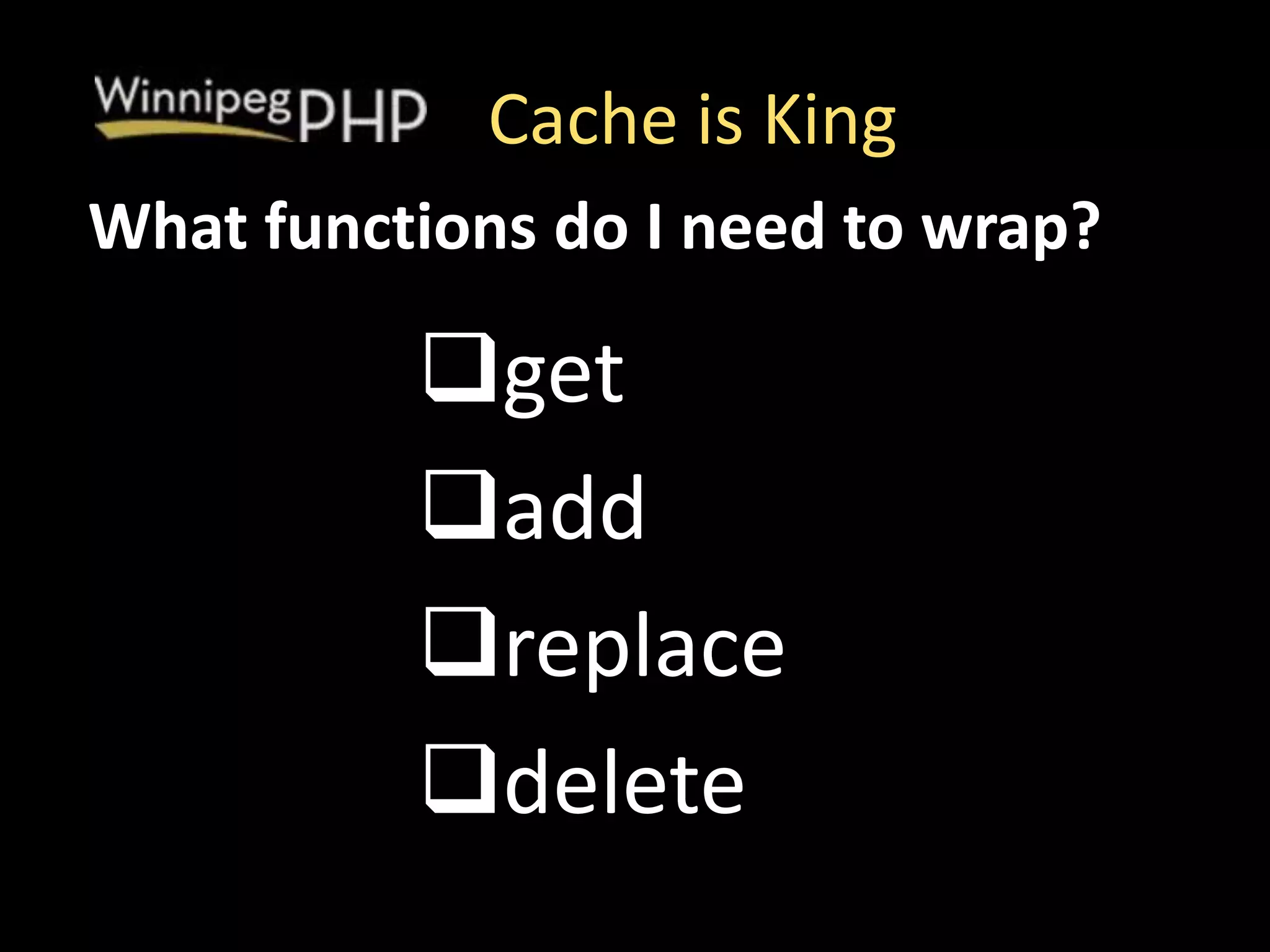

11. Cache is King
get
add
replace
delete
What functions do I need to wrap?

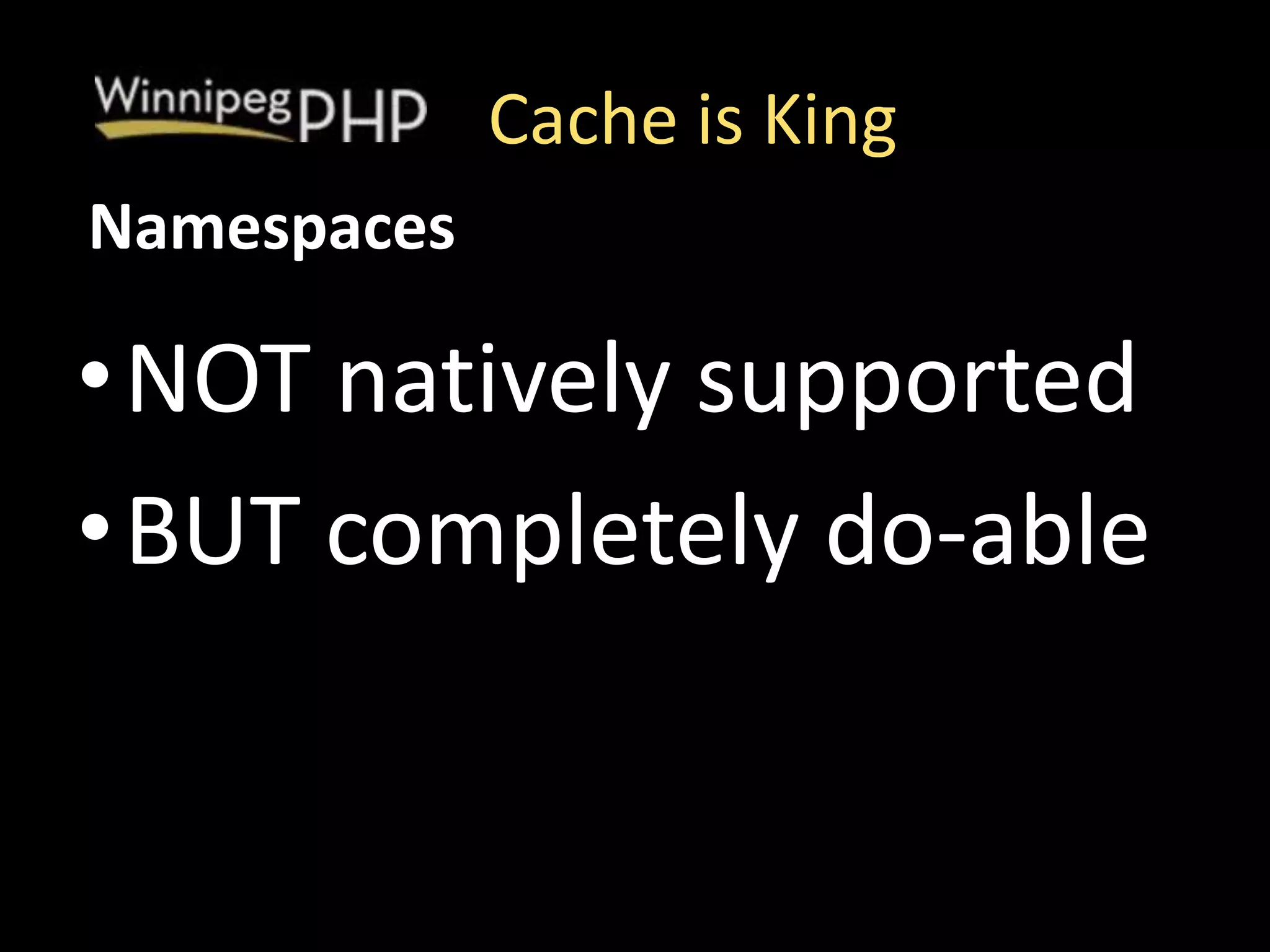

12. Cache is King
•NOT natively supported
•BUT completely do-able
Namespaces

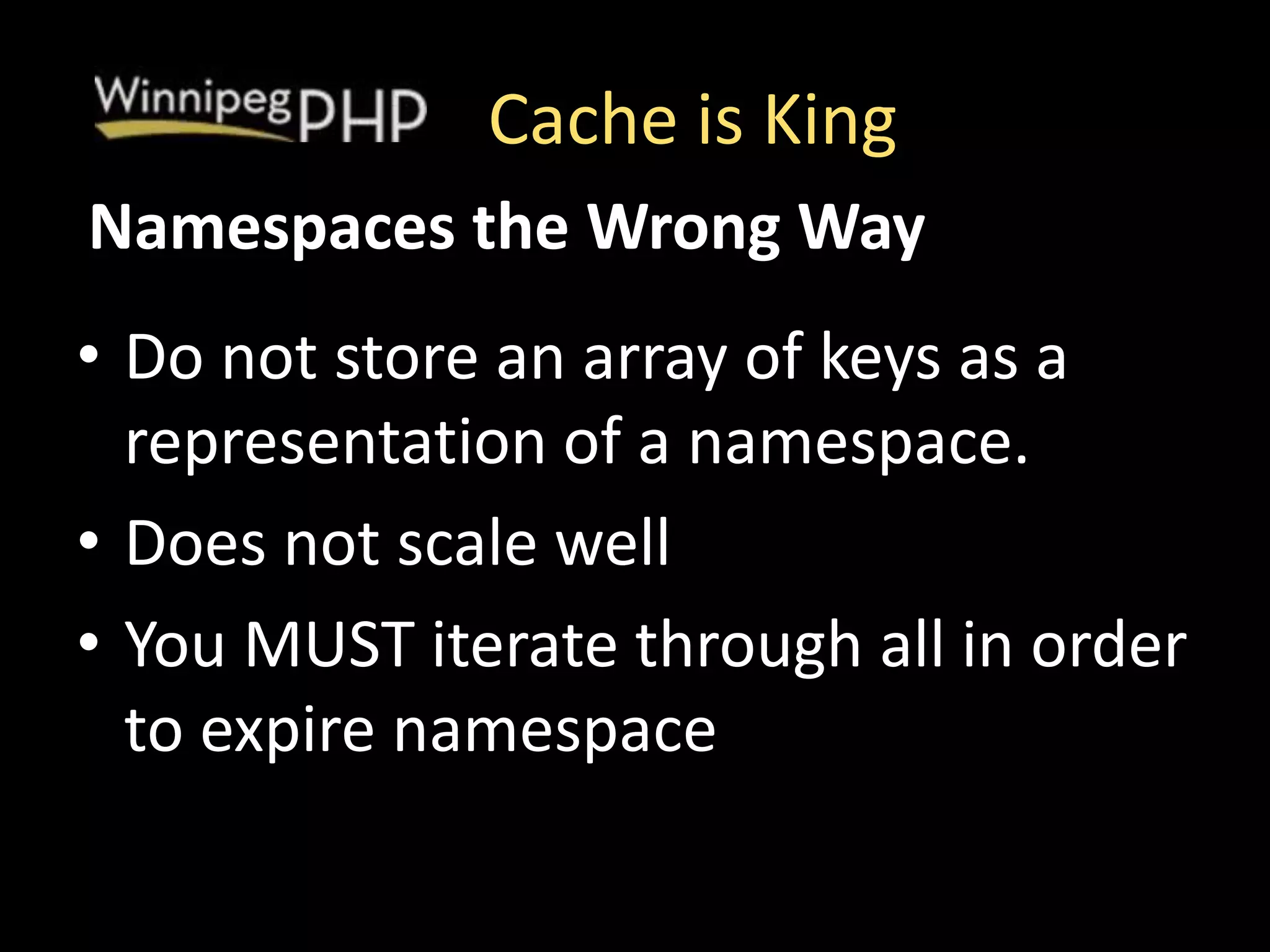

13. Cache is King
• Do not store an array of keys as a
representation of a namespace.
• Does not scale well
• You MUST iterate through all in order
to expire namespace
Namespaces the Wrong Way

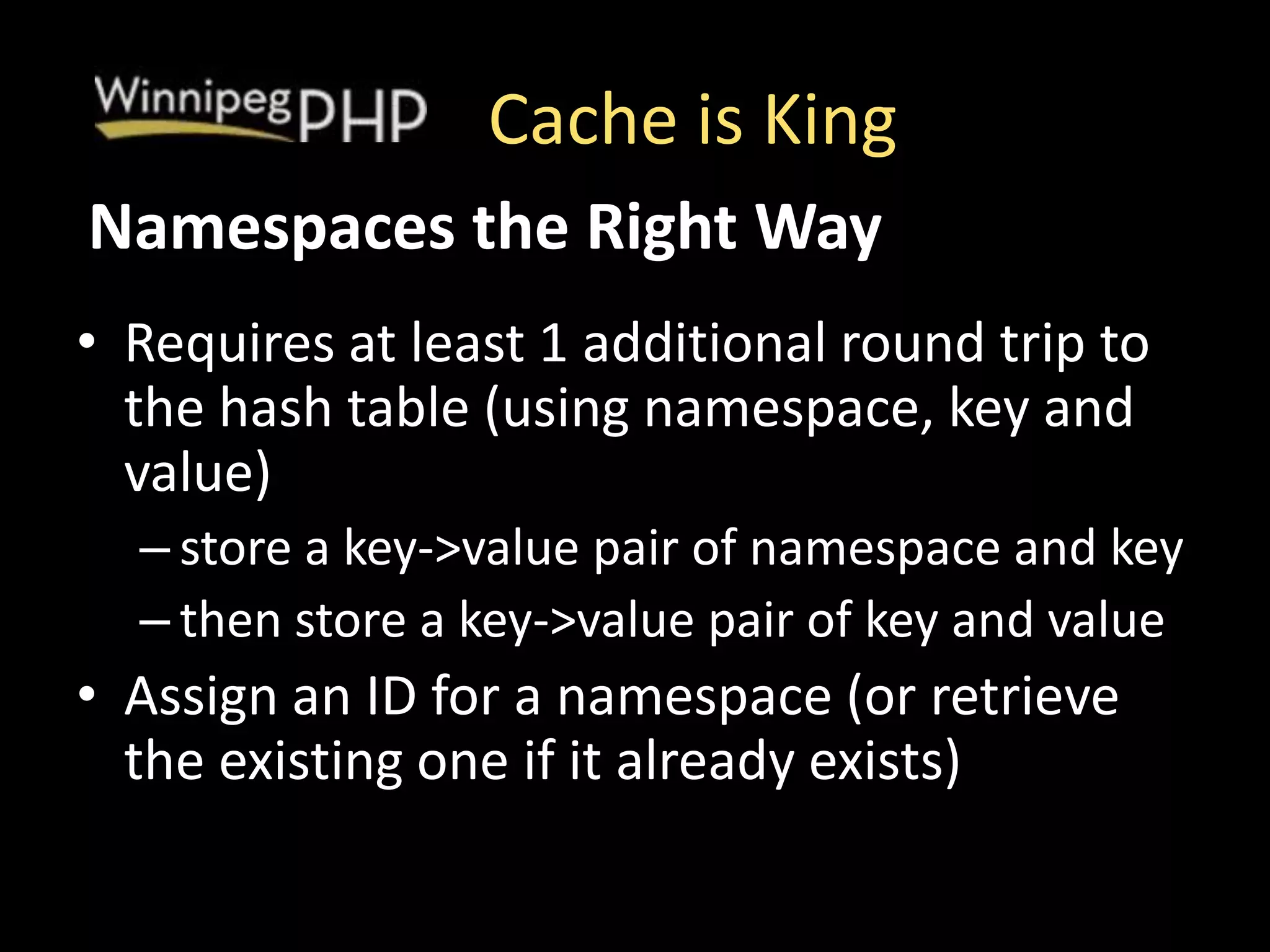

14. Cache is King
• Requires at least 1 additional round trip to
the hash table (using namespace, key and
value)
– store a key->value pair of namespace and key
– then store a key->value pair of key and value
• Assign an ID for a namespace (or retrieve
the existing one if it already exists)
Namespaces the Right Way

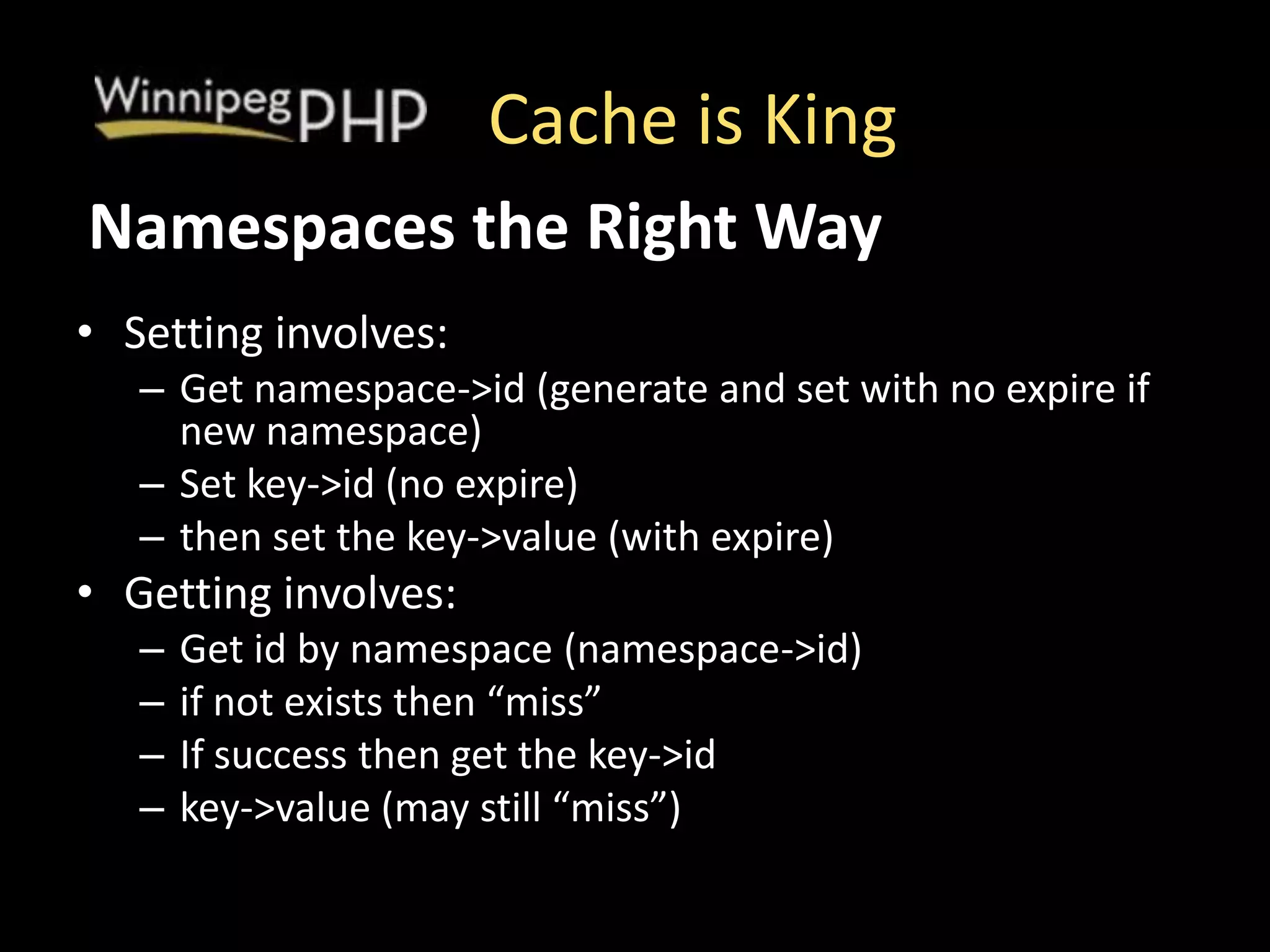

15. Cache is King
• Setting involves:
– Get namespace->id (generate and set with no expire if
new namespace)
– Set key->id (no expire)
– then set the key->value (with expire)
• Getting involves:
– Get id by namespace (namespace->id)
– if not exists then “miss”
– If success then get the key->id
– key->value (may still “miss”)
Namespaces the Right Way

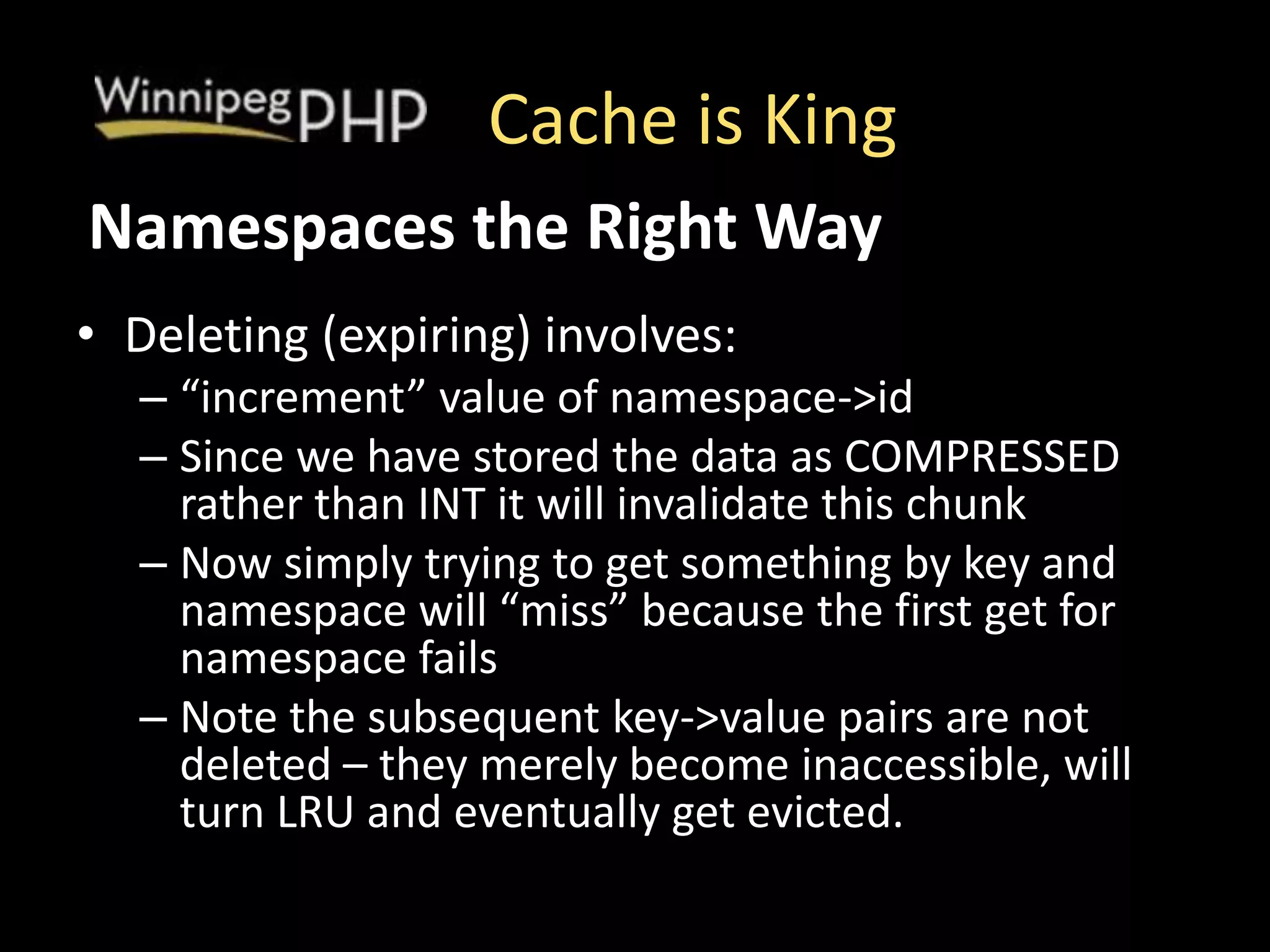

16. Cache is King
• Deleting (expiring) involves:
– “increment” value of namespace->id
– Since we have stored the data as COMPRESSED
rather than INT it will invalidate this chunk
– Now simply trying to get something by key and
namespace will “miss” because the first get for
namespace fails
– Note the subsequent key->value pairs are not
deleted – they merely become inaccessible, will
turn LRU and eventually get evicted.
Namespaces the Right Way

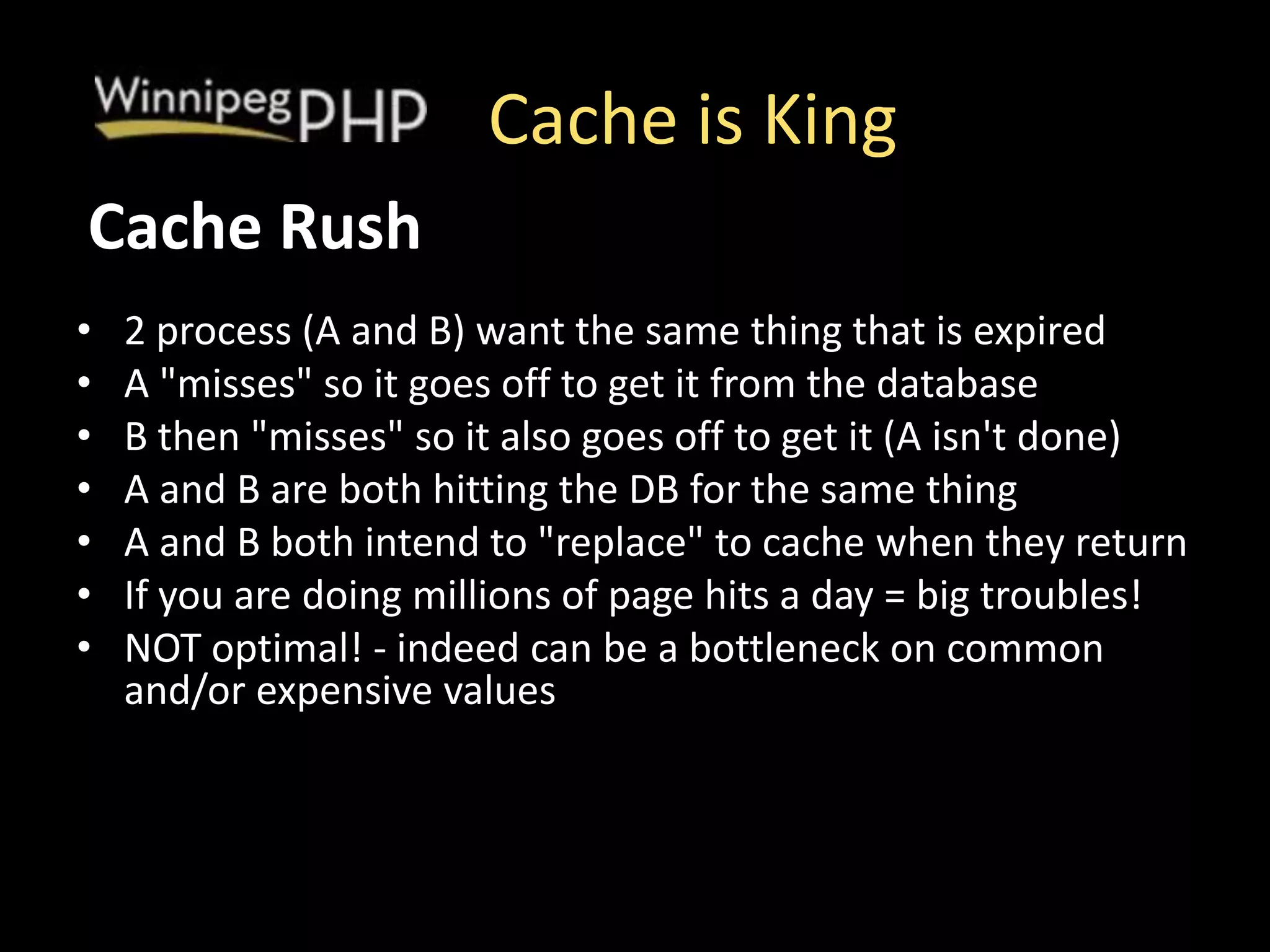

17. Cache is King
• 2 process (A and B) want the same thing that is expired
• A "misses" so it goes off to get it from the database
• B then "misses" so it also goes off to get it (A isn't done)
• A and B are both hitting the DB for the same thing
• A and B both intend to "replace" to cache when they return
• If you are doing millions of page hits a day = big troubles!
• NOT optimal! - indeed can be a bottleneck on common
and/or expensive values
Cache Rush

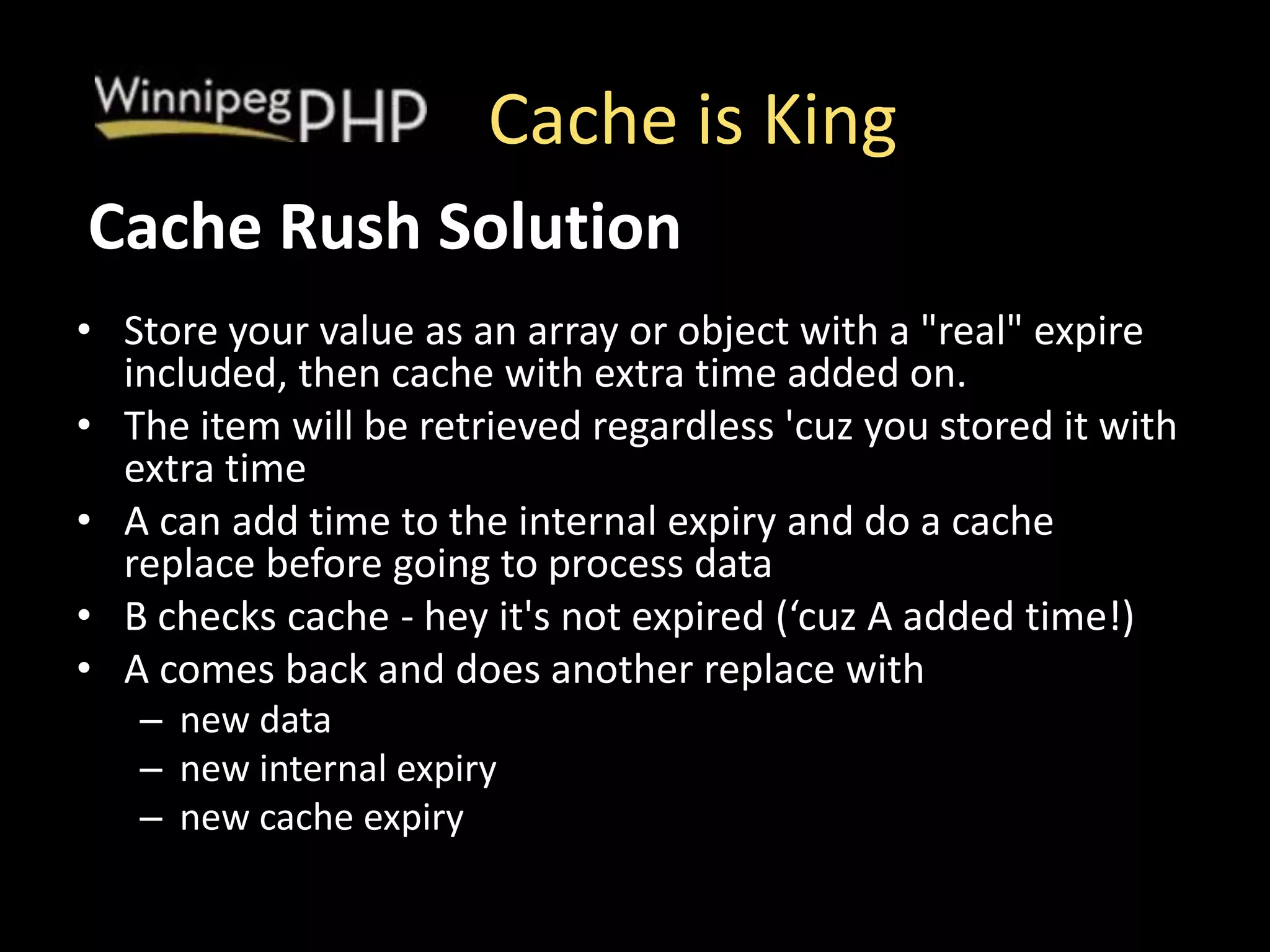

18. Cache is King
• Store your value as an array or object with a "real" expire
included, then cache with extra time added on.
• The item will be retrieved regardless 'cuz you stored it with
extra time
• A can add time to the internal expiry and do a cache
replace before going to process data
• B checks cache - hey it's not expired (‘cuz A added time!)
• A comes back and does another replace with
– new data
– new internal expiry
– new cache expiry
Cache Rush Solution

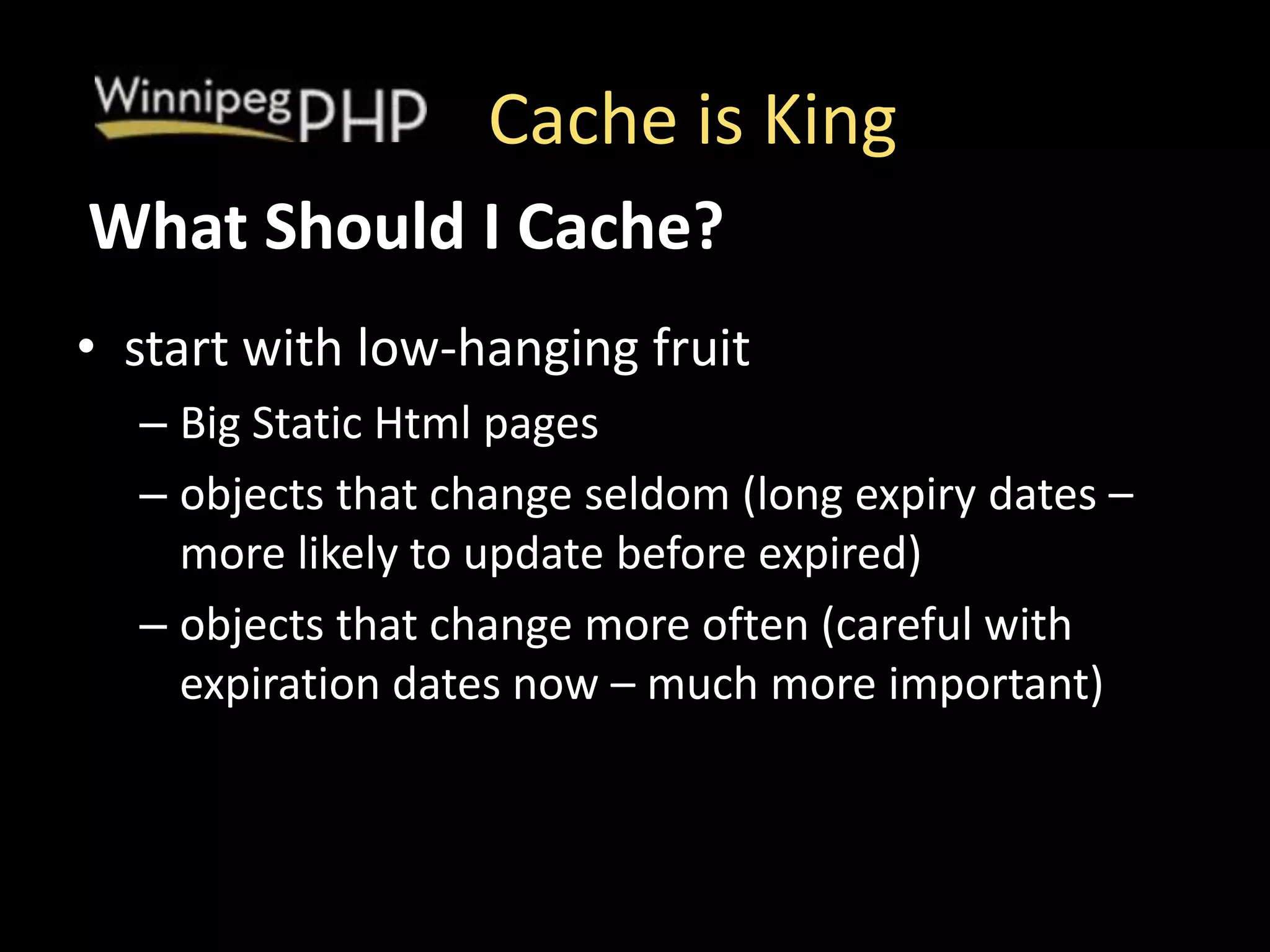

19. Cache is King
• start with low-hanging fruit
– Big Static Html pages
– objects that change seldom (long expiry dates –
more likely to update before expired)
– objects that change more often (careful with
expiration dates now – much more important)
What Should I Cache?

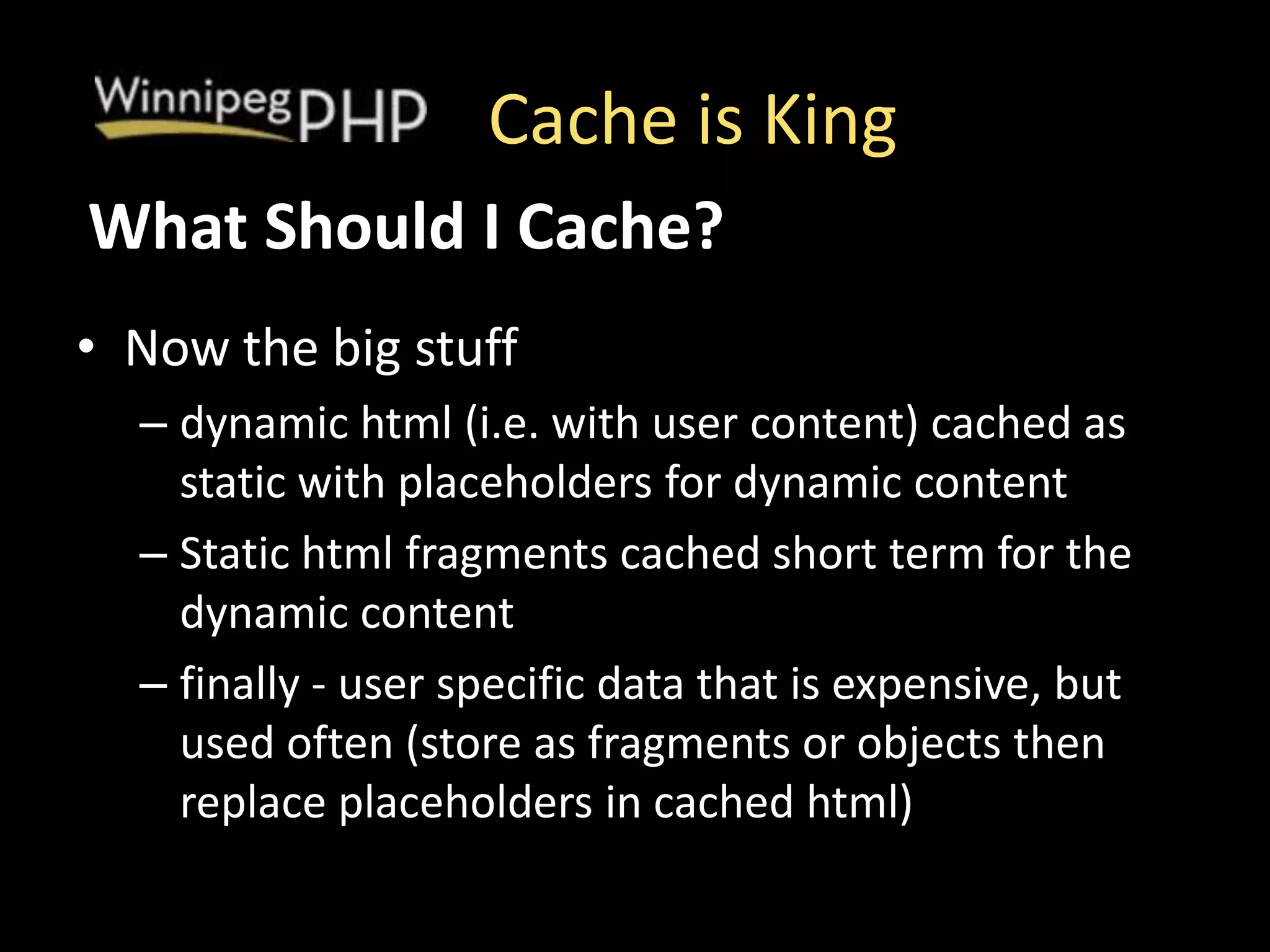

20. Cache is King
• Now the big stuff
– dynamic html (i.e. with user content) cached as
static with placeholders for dynamic content
– Static html fragments cached short term for the
dynamic content
– finally - user specific data that is expensive, but
used often (store as fragments or objects then
replace placeholders in cached html)
What Should I Cache?

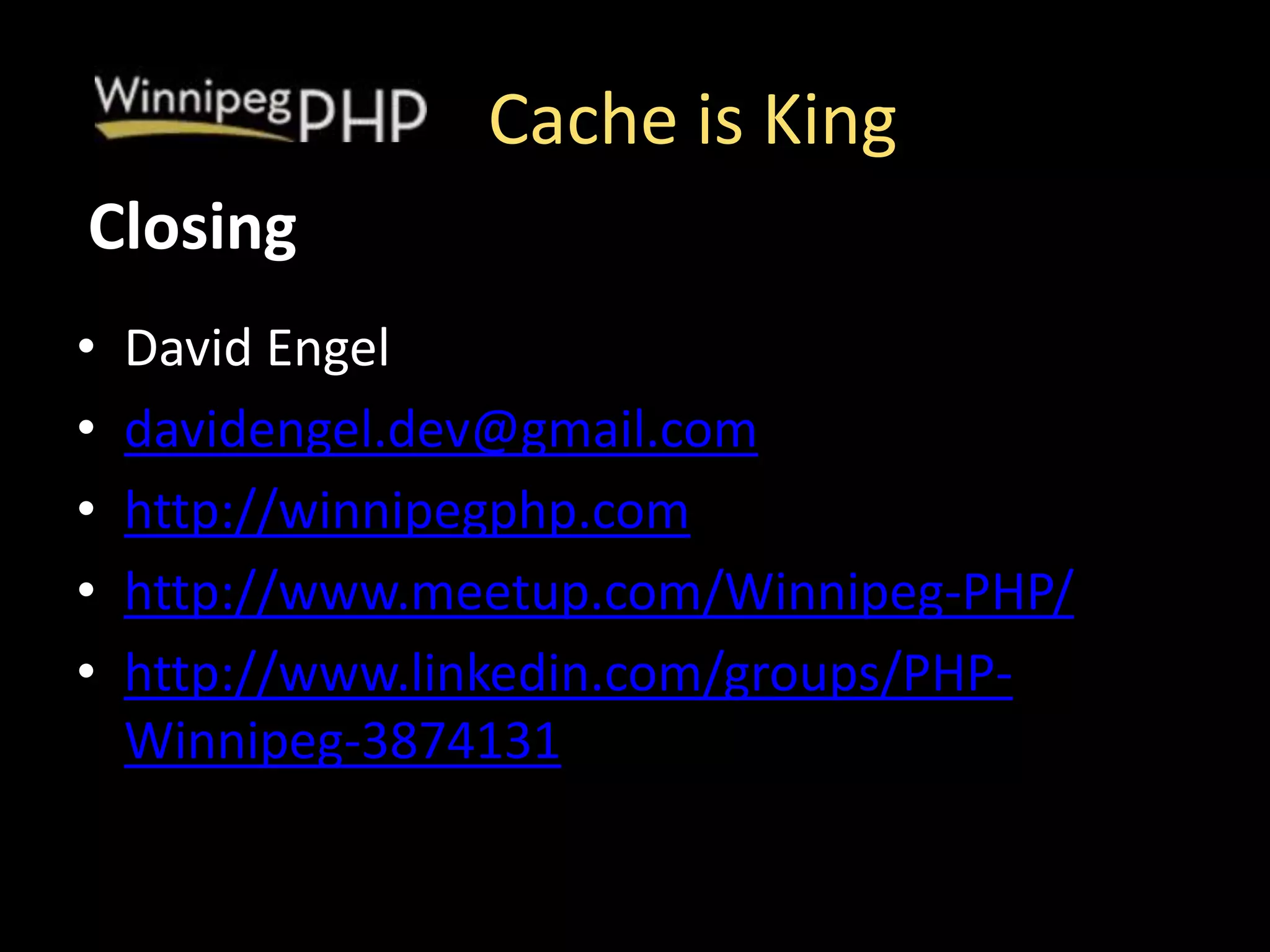

21. Cache is King
• David Engel
• davidengel.dev@gmail.com
• http://winnipegphp.com
• http://www.meetup.com/Winnipeg-PHP/
• http://www.linkedin.com/groups/PHP-
Winnipeg-3874131
Closing

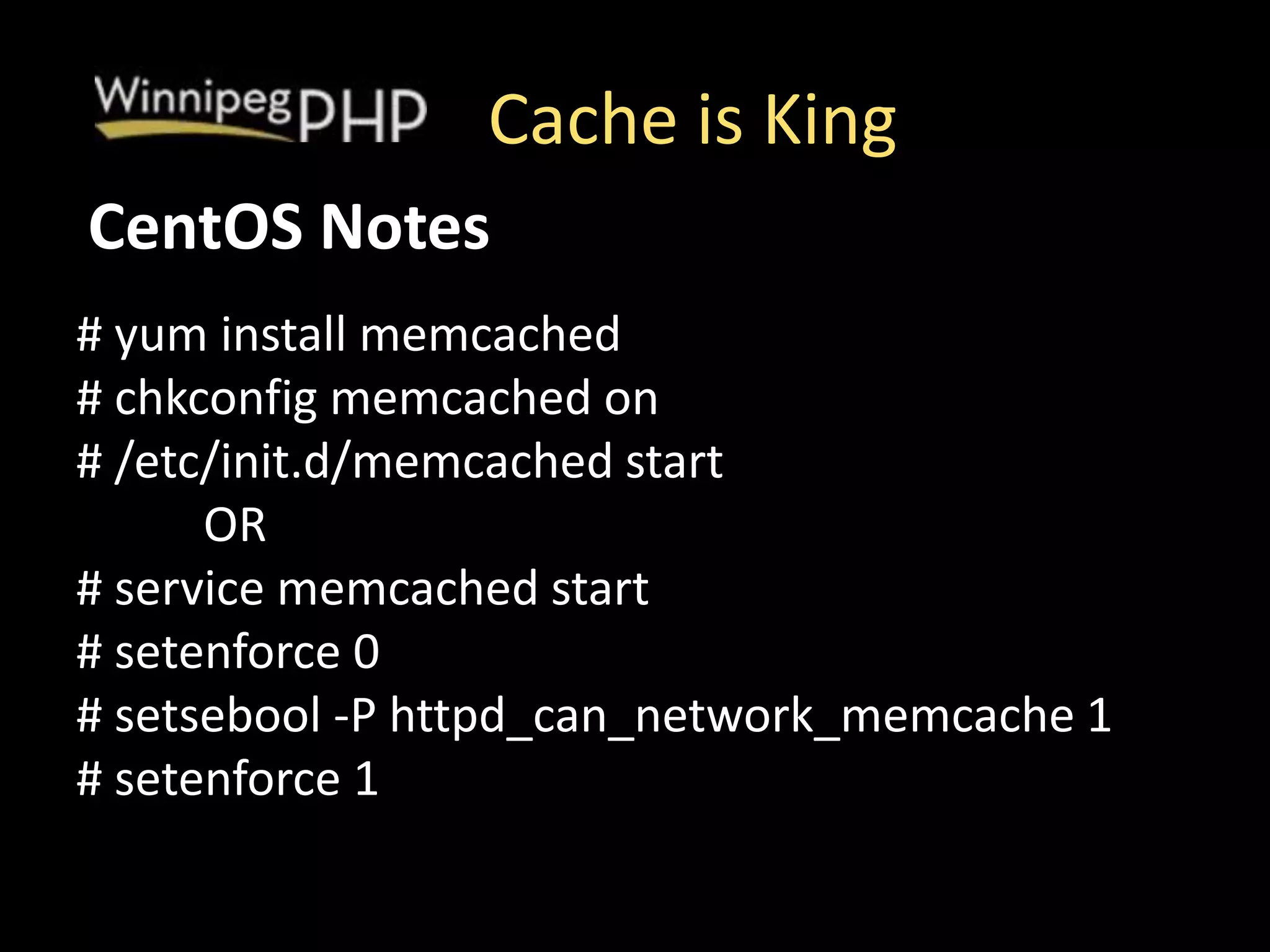

22. Cache is King
# yum install memcached
# chkconfig memcached on
# /etc/init.d/memcached start
OR
# service memcached start
# setenforce 0
# setsebool -P httpd_can_network_memcache 1
# setenforce 1
CentOS Notes

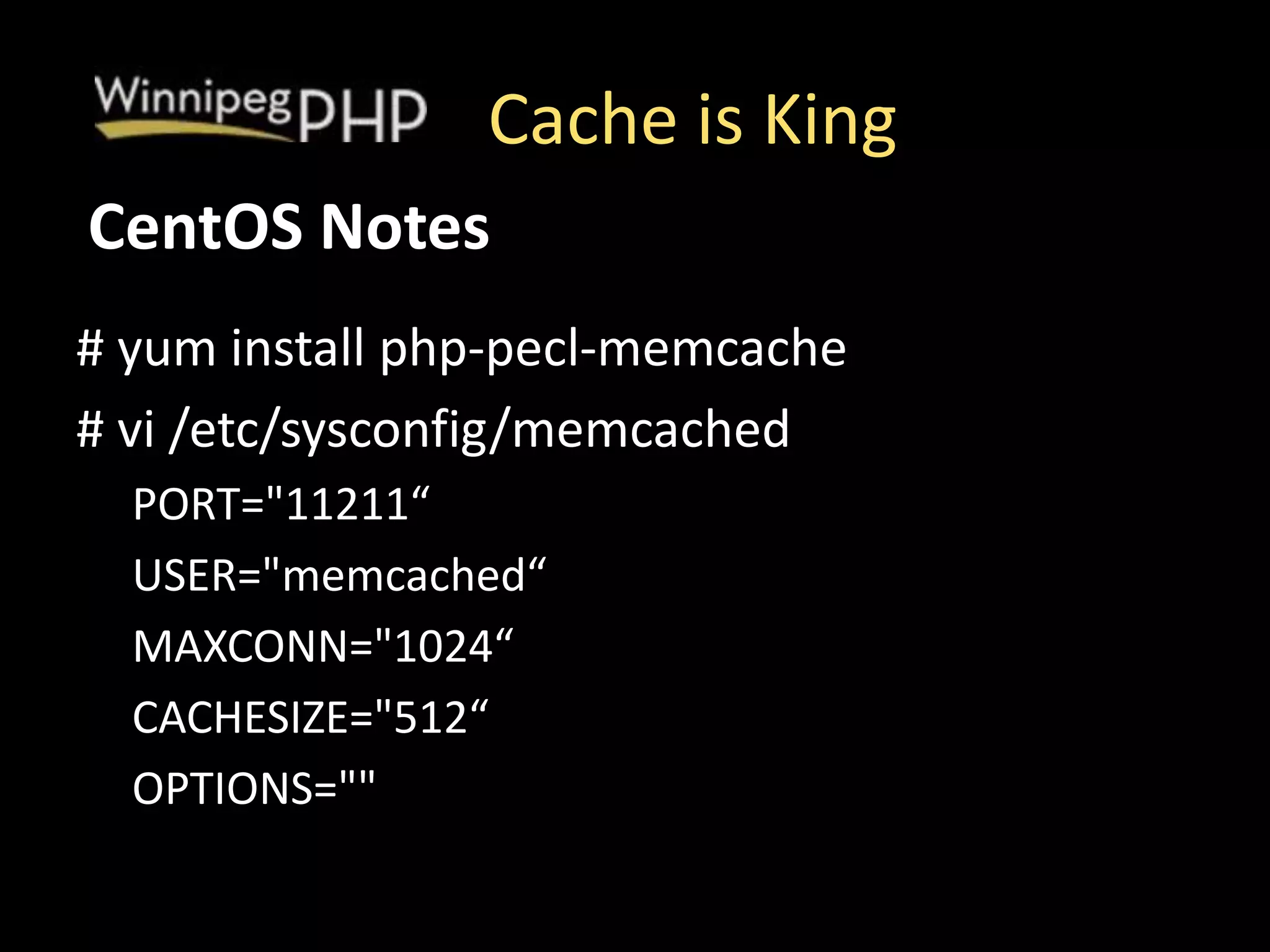

23. Cache is King
# yum install php-pecl-memcache
# vi /etc/sysconfig/memcached
PORT="11211“
USER="memcached“
MAXCONN="1024“
CACHESIZE="512“
OPTIONS=""
CentOS Notes

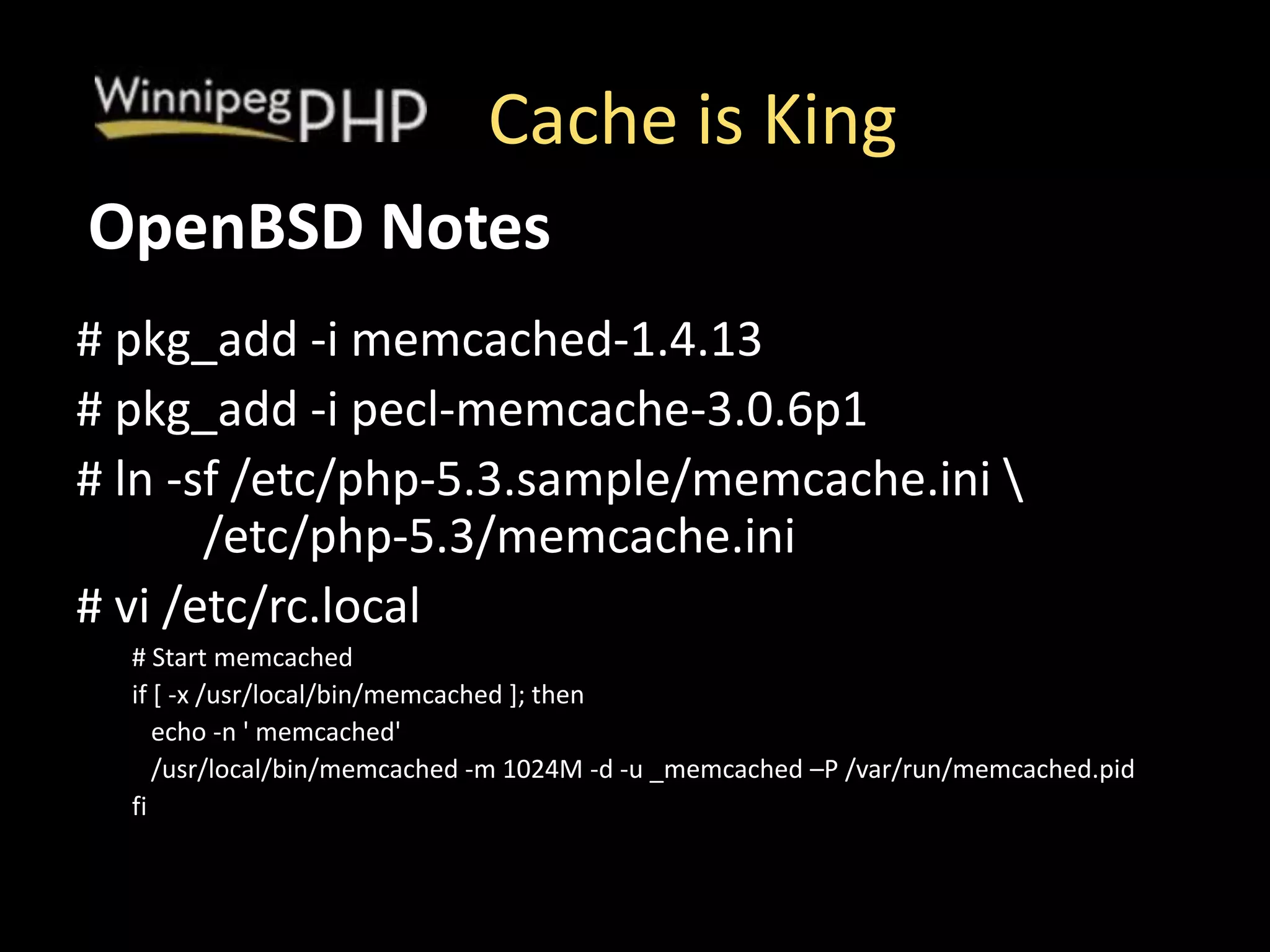

24. Cache is King
# pkg_add -i memcached-1.4.13
# pkg_add -i pecl-memcache-3.0.6p1
# ln -sf /etc/php-5.3.sample/memcache.ini
/etc/php-5.3/memcache.ini
# vi /etc/rc.local
# Start memcached
if [ -x /usr/local/bin/memcached ]; then
echo -n ' memcached'
/usr/local/bin/memcached -m 1024M -d -u _memcached –P /var/run/memcached.pid
fi
OpenBSD Notes
