Building Software Systems at Google and
Lessons Learned
Jeff Dean
jeff@google.com

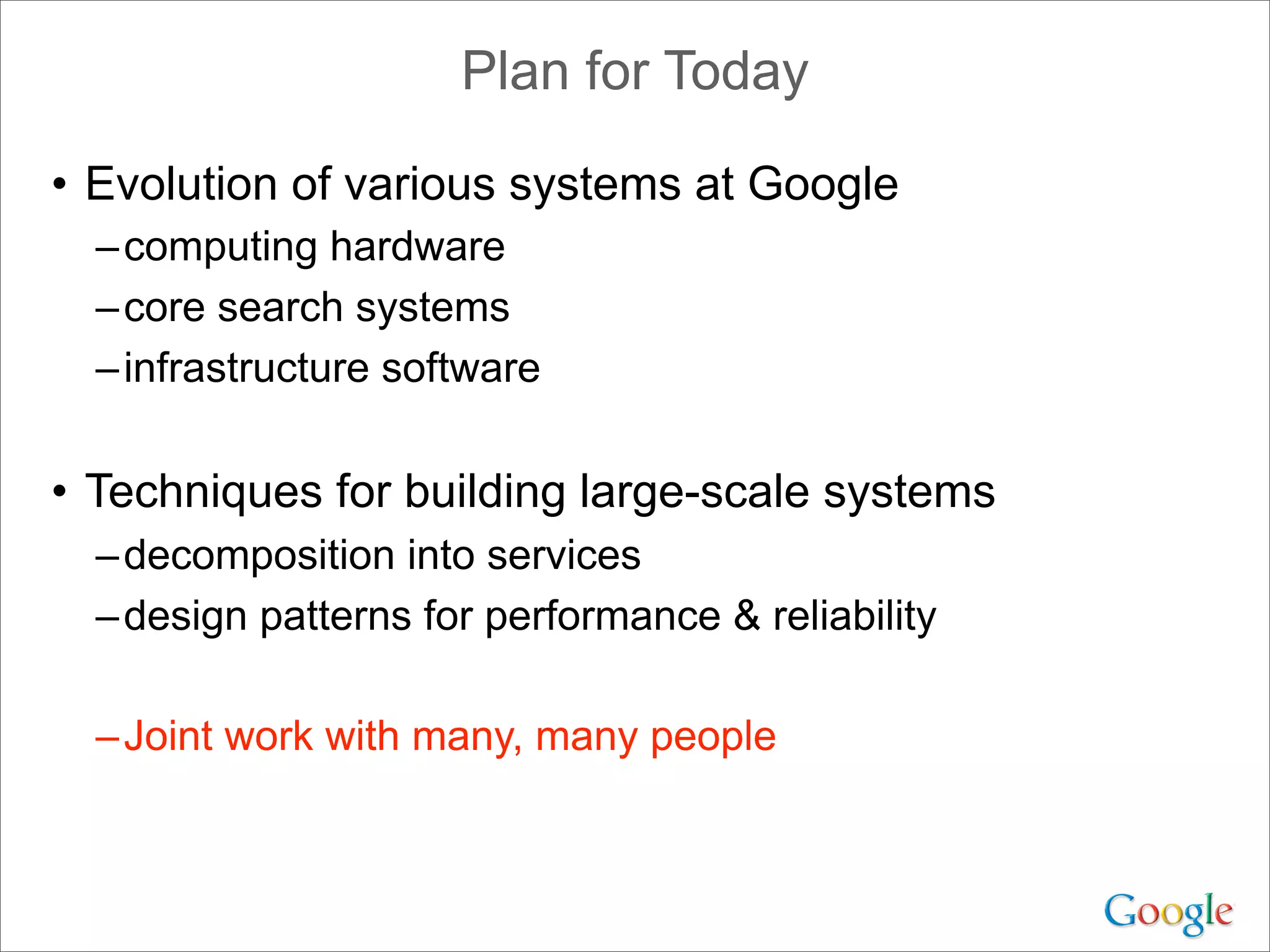

Plan for Today
• Evolution of various systems at Google
–computing hardware
–core search systems
–infrastructure software
• Techniques for building large-scale systems
–decomposition into services
–design patterns for performance & reliability
–Joint work with many, many people

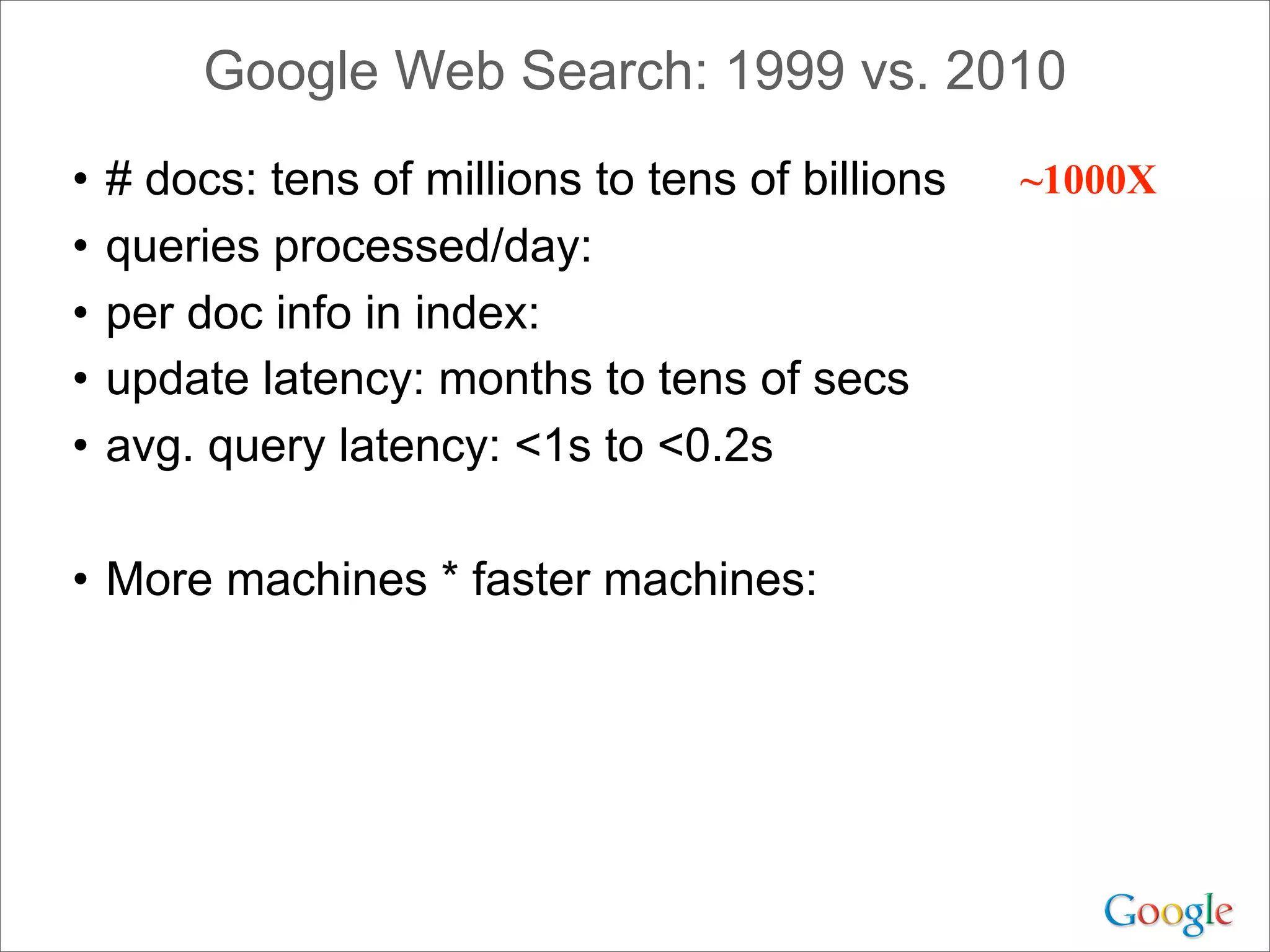

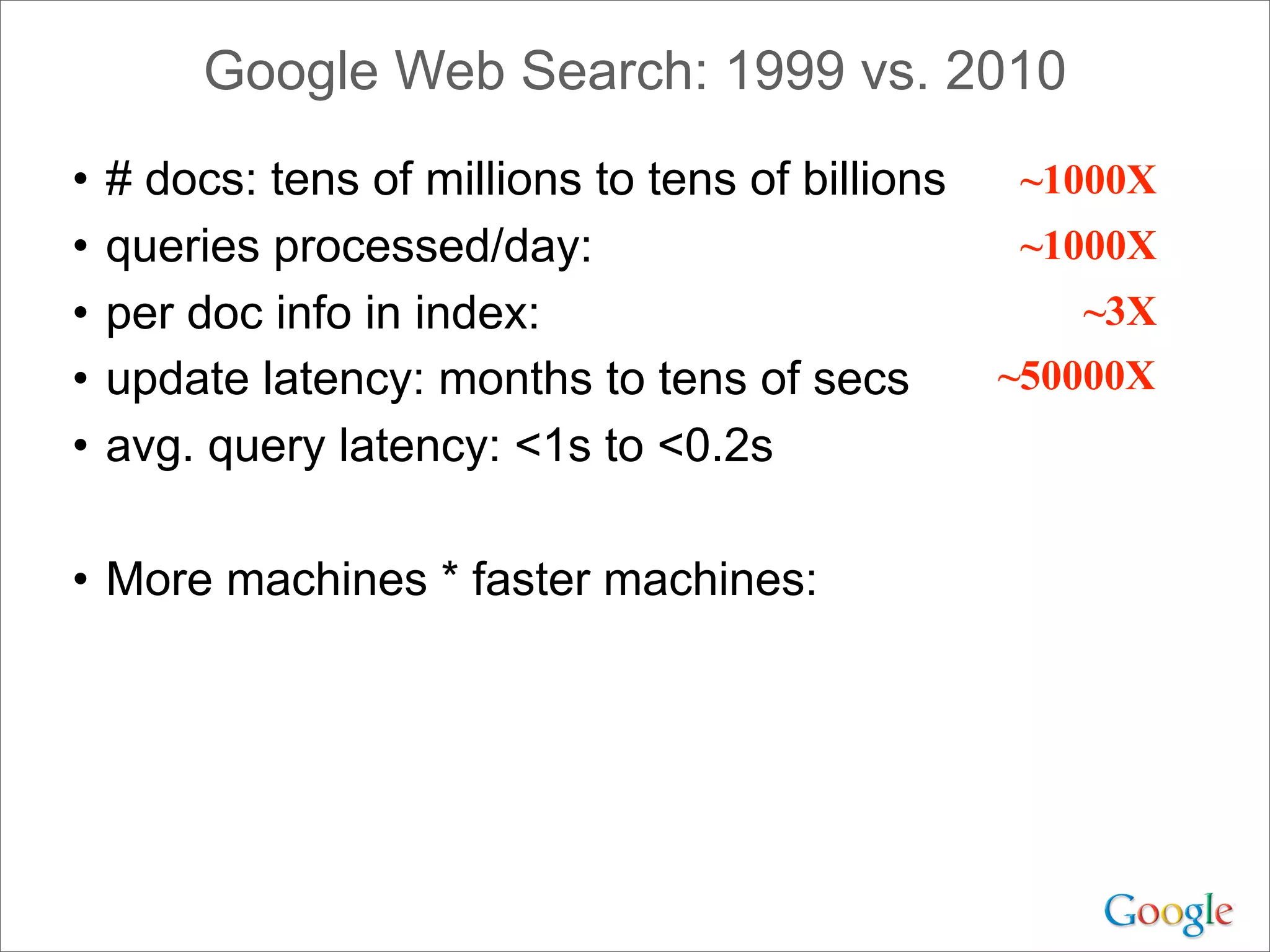

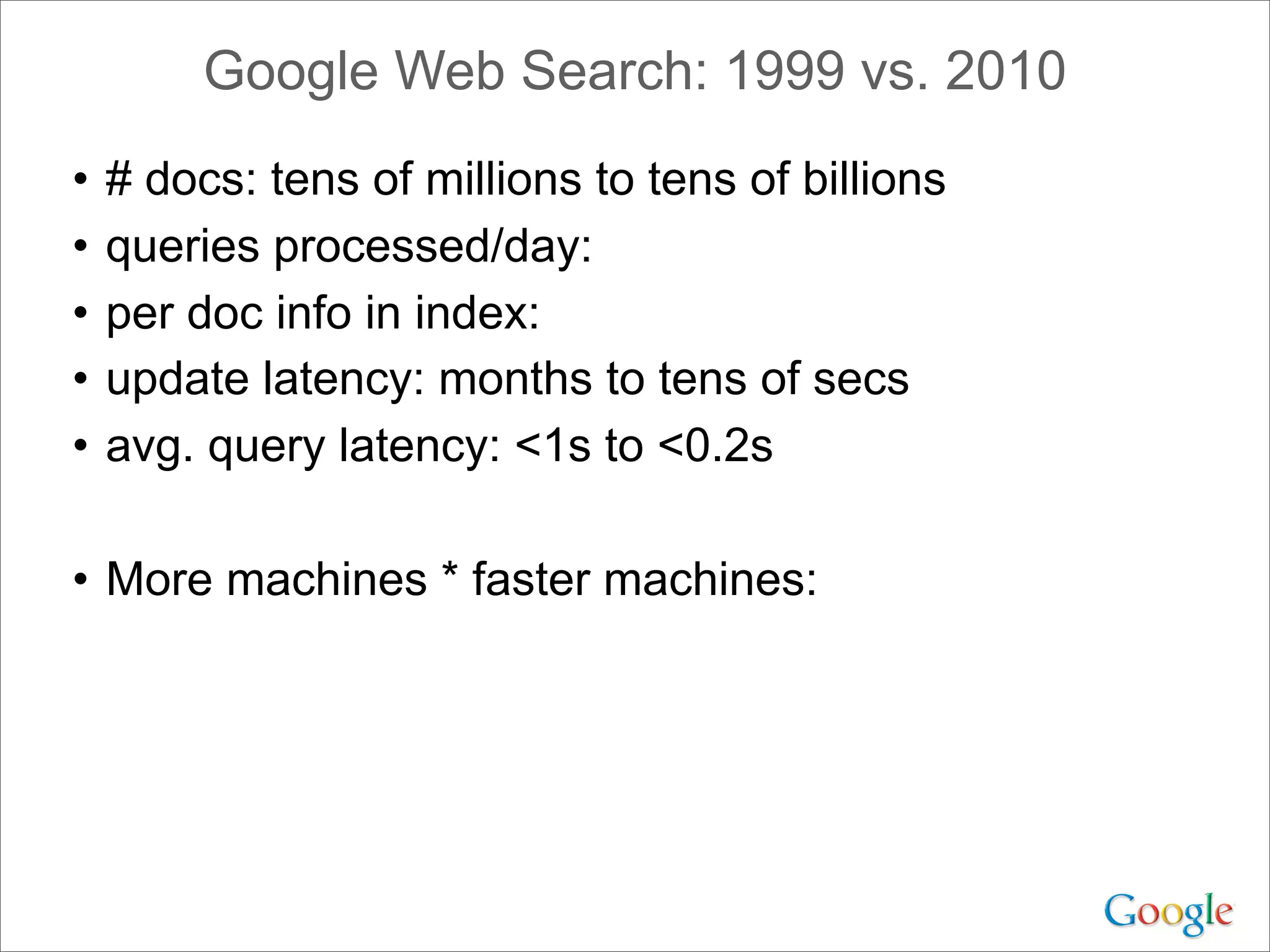

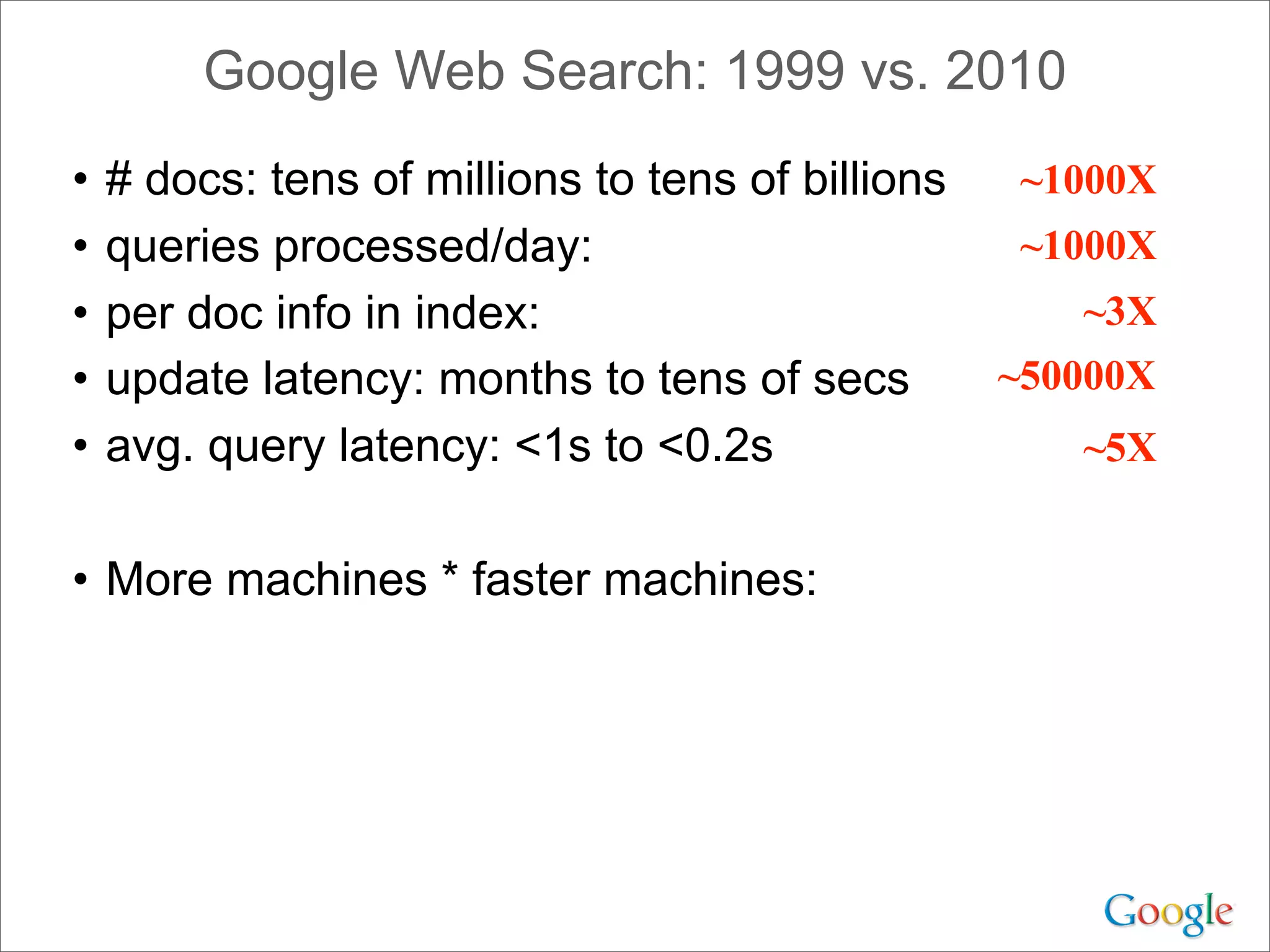

• # docs: tens of millions to tens of billions
• queries processed/day:
• per doc info in index:
• update latency: months to tens of secs
• avg. query latency: <1s to <0.2s
• More machines * faster machines:

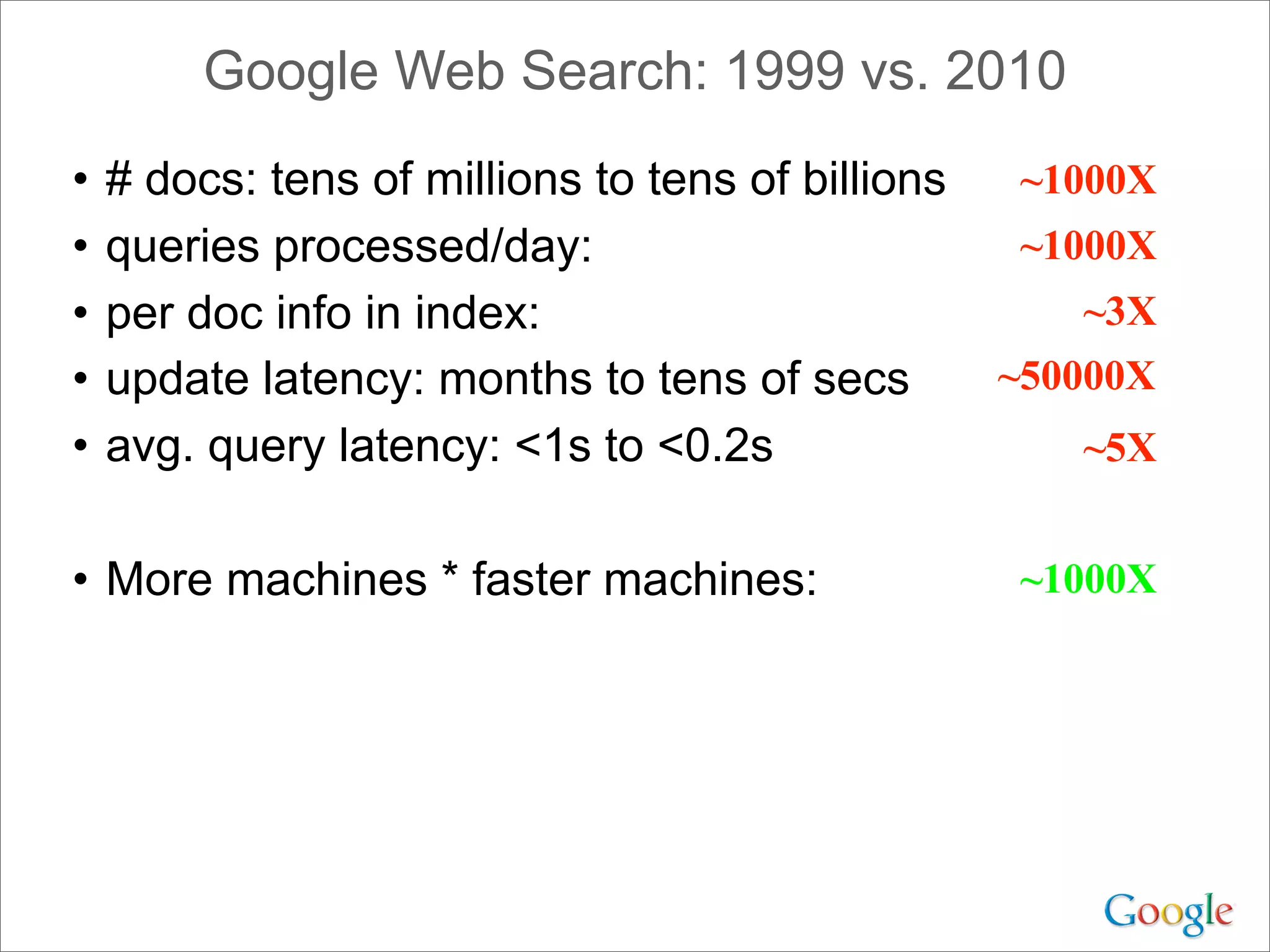

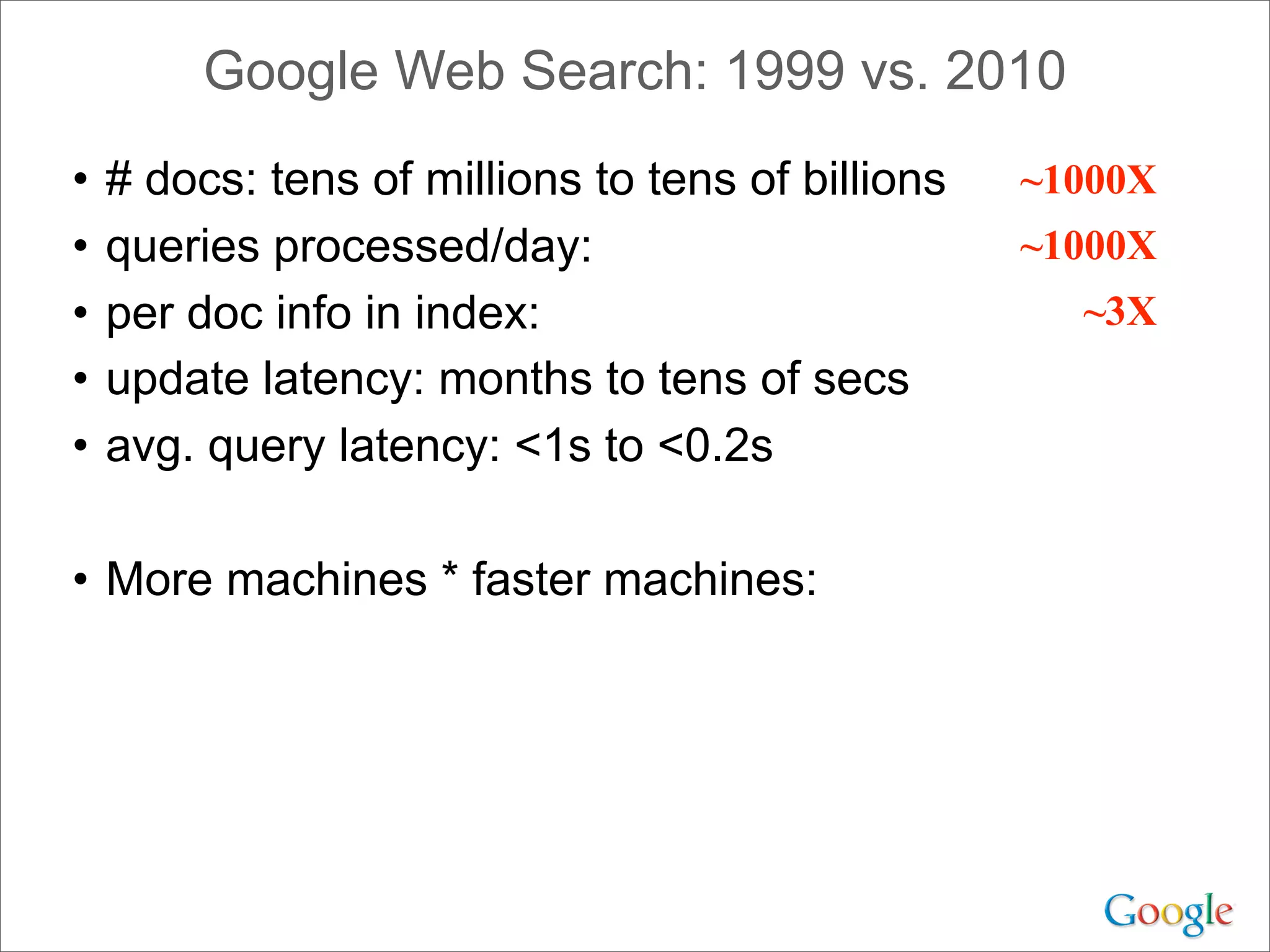

Google Web Search: 1999 vs. 2010
• # docs: tens of millions to tens of billions
• queries processed/day:
• per doc info in index:
• update latency: months to tens of secs
• avg. query latency: <1s to <0.2s
• More machines * faster machines:
Google Web Search: 1999 vs. 2010
~1000X
• # docs: tens of millions to tens of billions
• queries processed/day:
• per doc info in index:
• update latency: months to tens of secs
• avg. query latency: <1s to <0.2s
• More machines * faster machines:
Google Web Search: 1999 vs. 2010
~1000X
~1000X
• # docs: tens of millions to tens of billions
• queries processed/day:
• per doc info in index:
• update latency: months to tens of secs
• avg. query latency: <1s to <0.2s
• More machines * faster machines:
Google Web Search: 1999 vs. 2010
~1000X
~3X
~1000X
• # docs: tens of millions to tens of billions
• queries processed/day:
• per doc info in index:
• update latency: months to tens of secs
• avg. query latency: <1s to <0.2s
• More machines * faster machines:
Google Web Search: 1999 vs. 2010
~1000X
~3X
~1000X
~50000X
• # docs: tens of millions to tens of billions
• queries processed/day:
• per doc info in index:
• update latency: months to tens of secs
• avg. query latency: <1s to <0.2s
• More machines * faster machines:
Google Web Search: 1999 vs. 2010
~1000X
~3X
~1000X
~50000X
~5X
• # docs: tens of millions to tens of billions
• queries processed/day:
• per doc info in index:
• update latency: months to tens of secs
• avg. query latency: <1s to <0.2s
• More machines * faster machines:
Google Web Search: 1999 vs. 2010
~1000X
~3X
~1000X
~50000X
~5X
~1000X

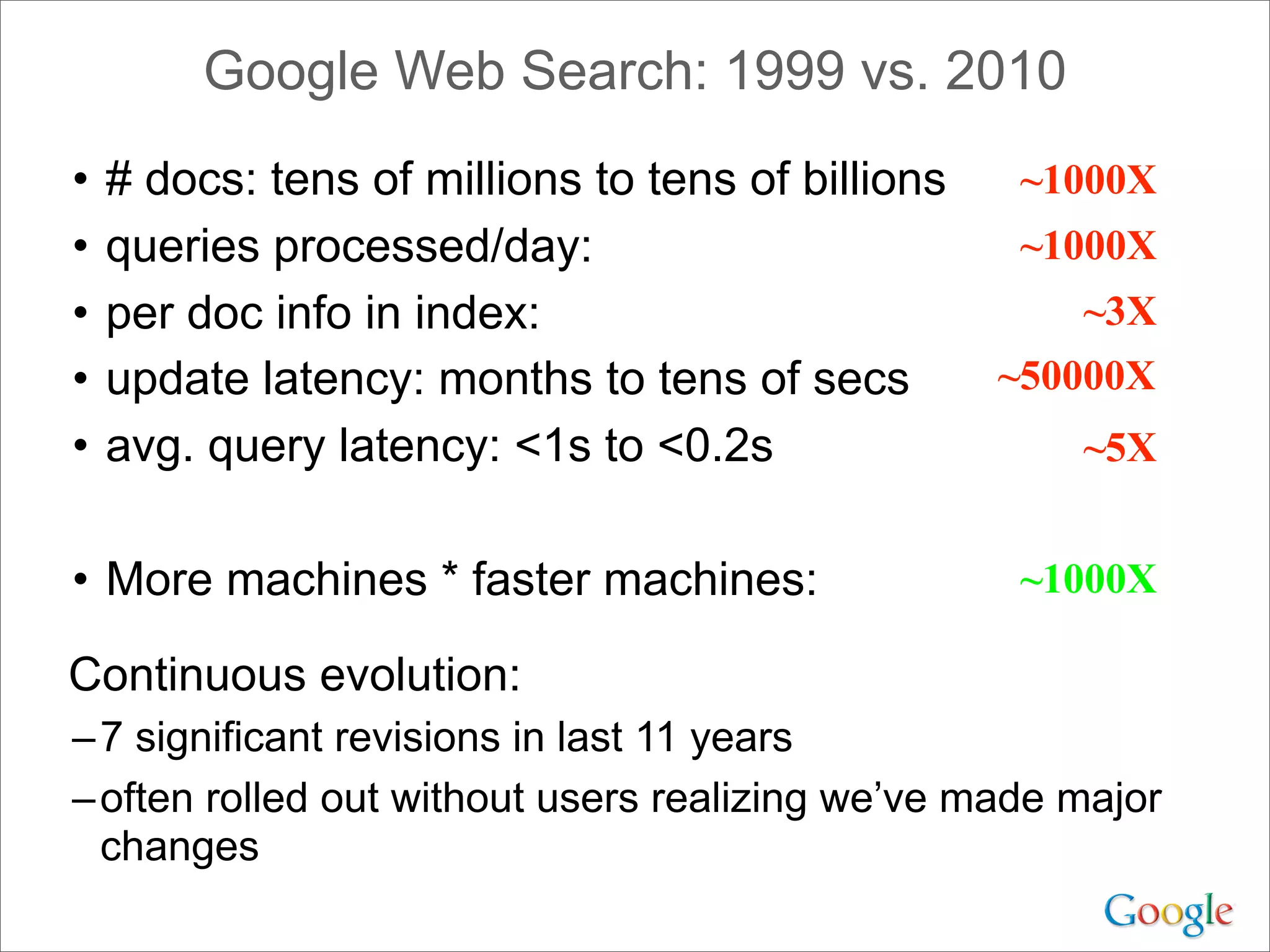

• # docs: tens of millions to tens of billions
• queries processed/day:
• per doc info in index:
• update latency: months to tens of secs
• avg. query latency: <1s to <0.2s
• More machines * faster machines:
Google Web Search: 1999 vs. 2010
~1000X
~3X
~1000X
~50000X
~5X
~1000X
Continuous evolution:
–7 significant revisions in last 11 years
–often rolled out without users realizing we’ve made major
changes

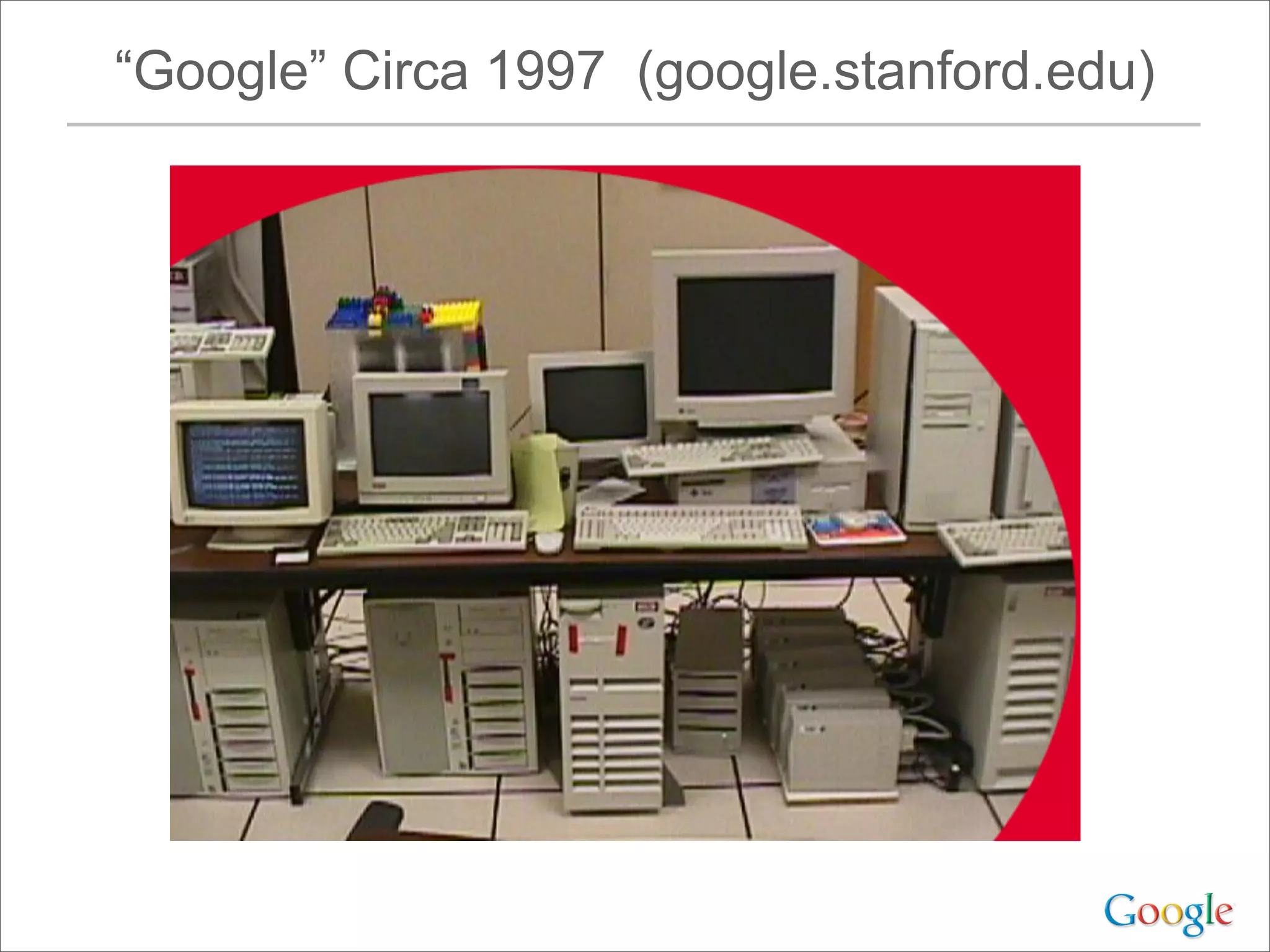

“Google” Circa 1997 (google.stanford.edu)

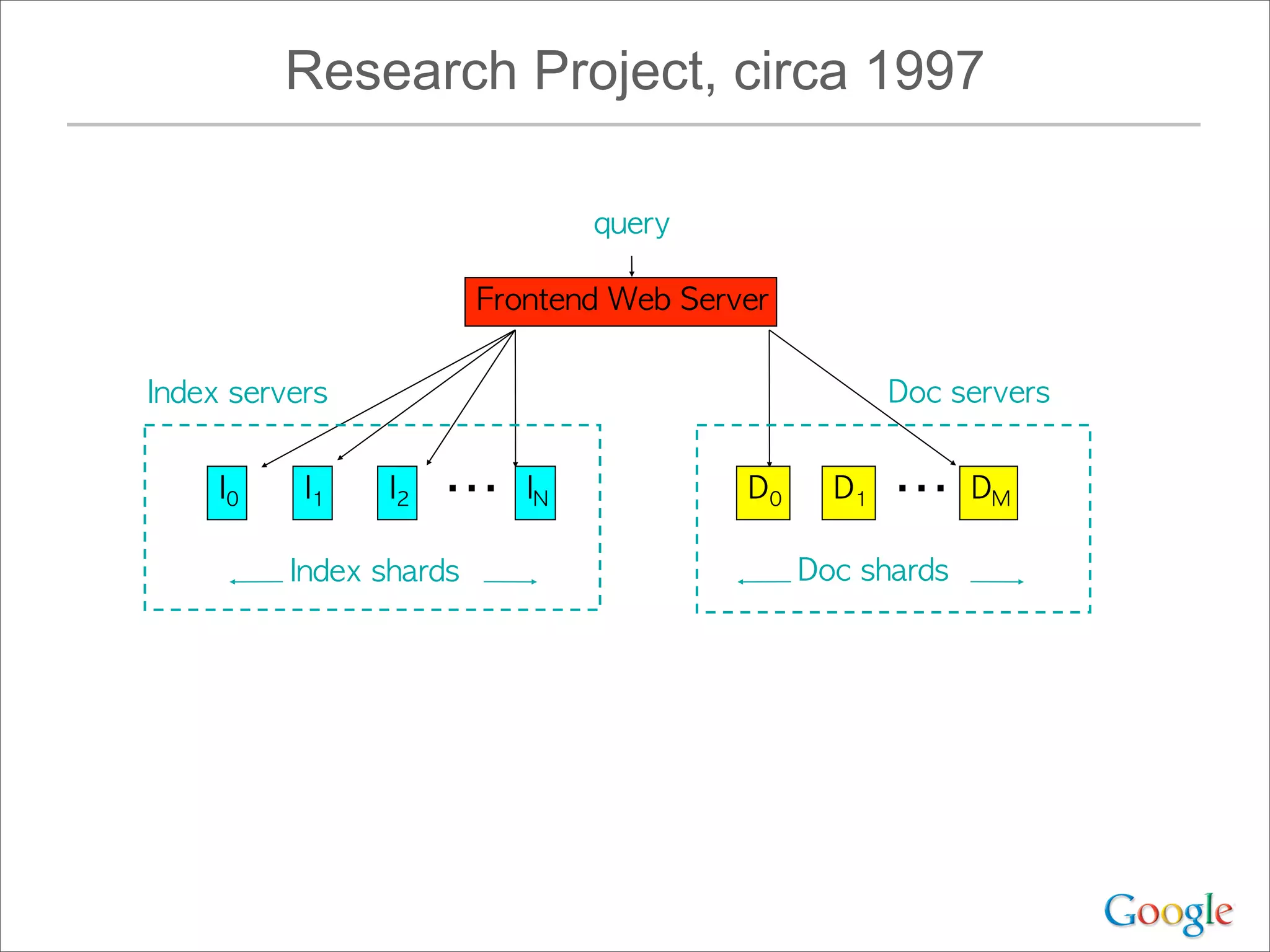

Research Project, circa 1997
Frontend Web Server
I0 I1 I2 IN
Index shards
D0 D1 DM
query
Index servers Doc servers
Doc shards

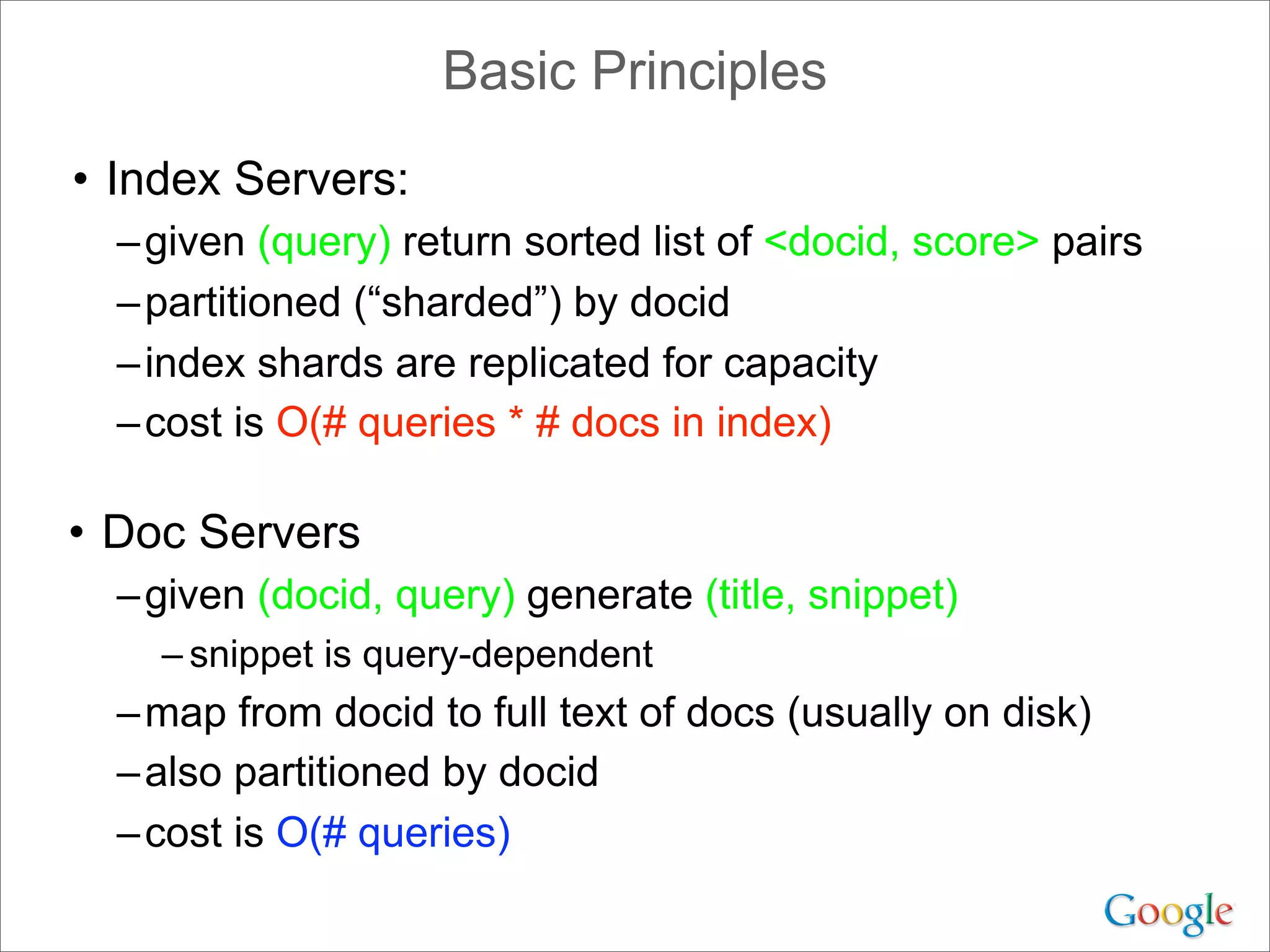

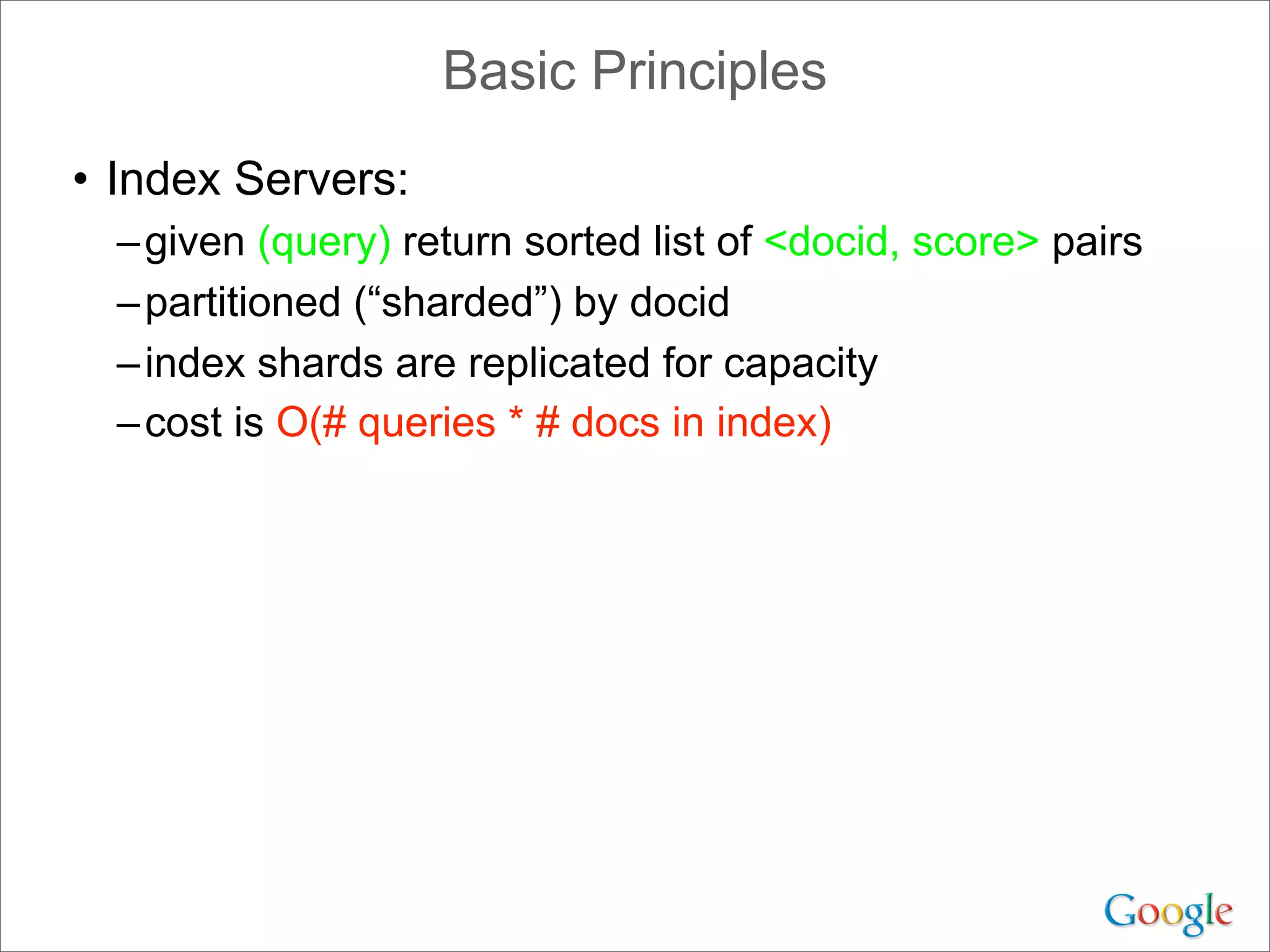

• Index Servers:
–given (query) return sorted list of <docid, score> pairs
–partitioned (“sharded”) by docid
–index shards are replicated for capacity
–cost is O(# queries * # docs in index)
Basic Principles
• Index Servers:
–given (query) return sorted list of <docid, score> pairs
–partitioned (“sharded”) by docid
–index shards are replicated for capacity
–cost is O(# queries * # docs in index)
Basic Principles
• Doc Servers
–given (docid, query) generate (title, snippet)
– snippet is query-dependent
–map from docid to full text of docs (usually on disk)
–also partitioned by docid
–cost is O(# queries)

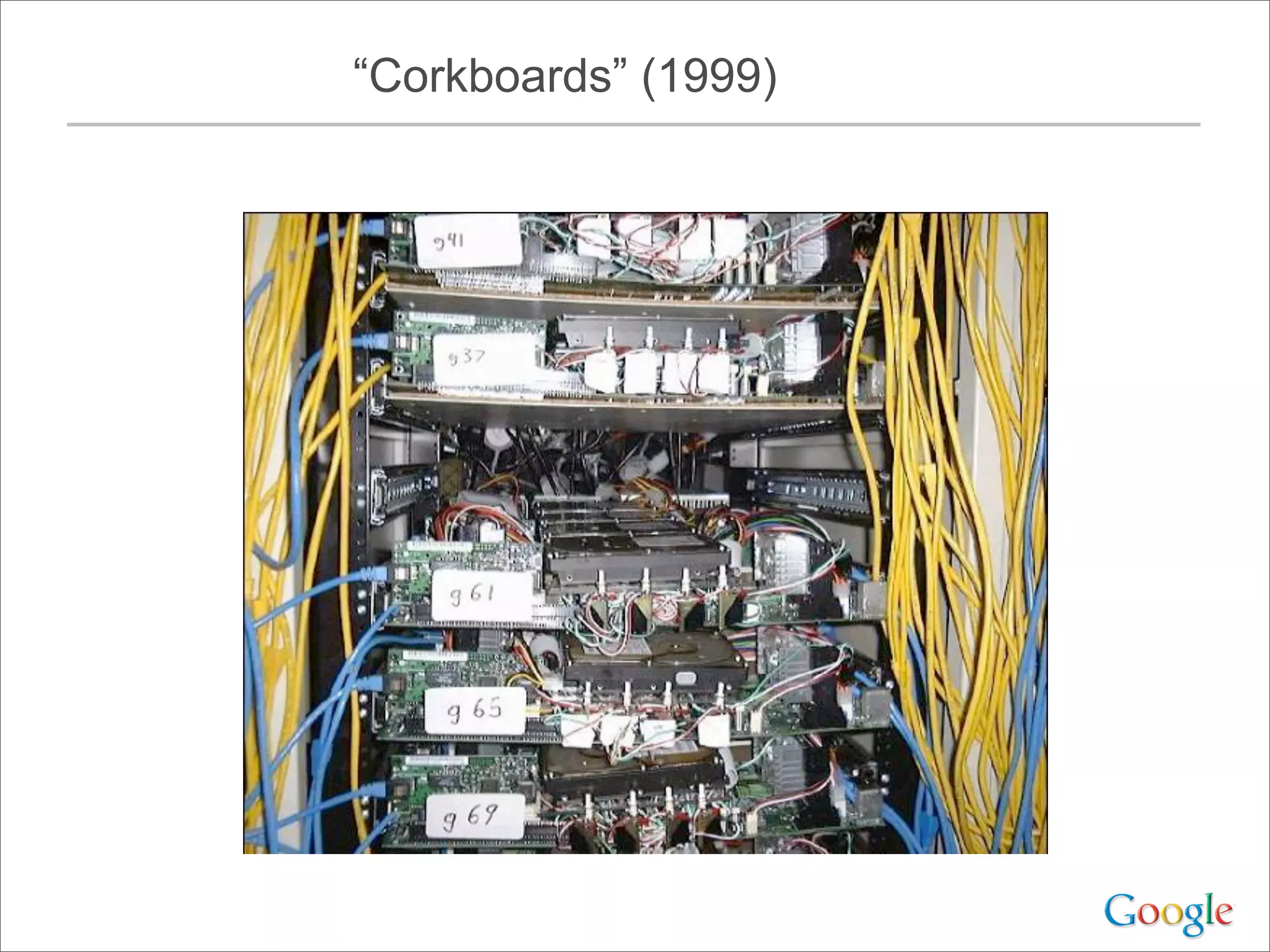

“Corkboards” (1999)

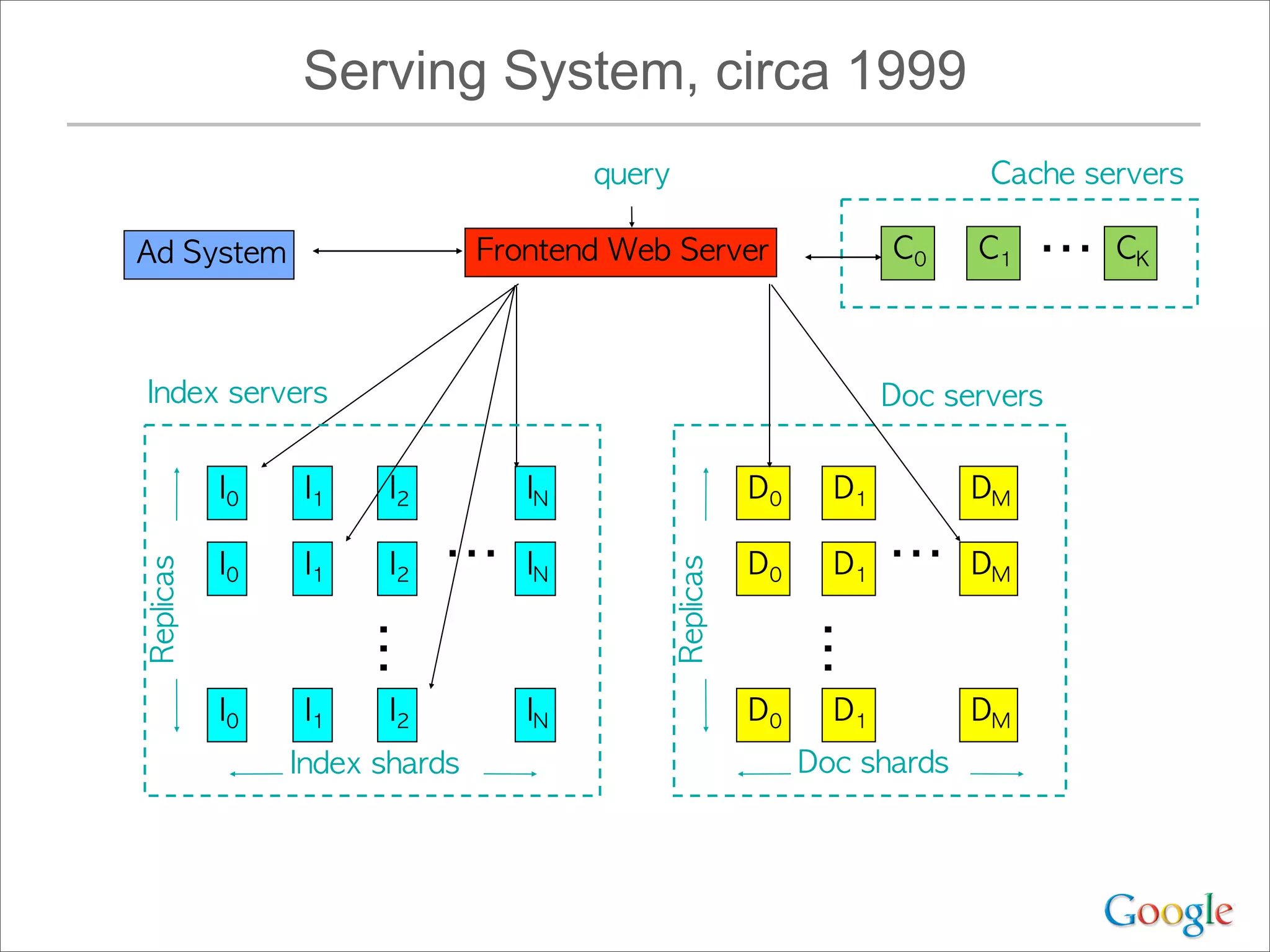

Serving System, circa 1999
Frontend Web Server
I0 I1 I2 IN
I0 I1 I2 IN
I0 I1 I2 IN
Replicas
Index shards
D0 D1 DM
D0 D1 DM
D0 D1 DM
Replicas
Doc shards
query
Index servers
Cache servers
C0 C1 CK
Doc servers
Ad System

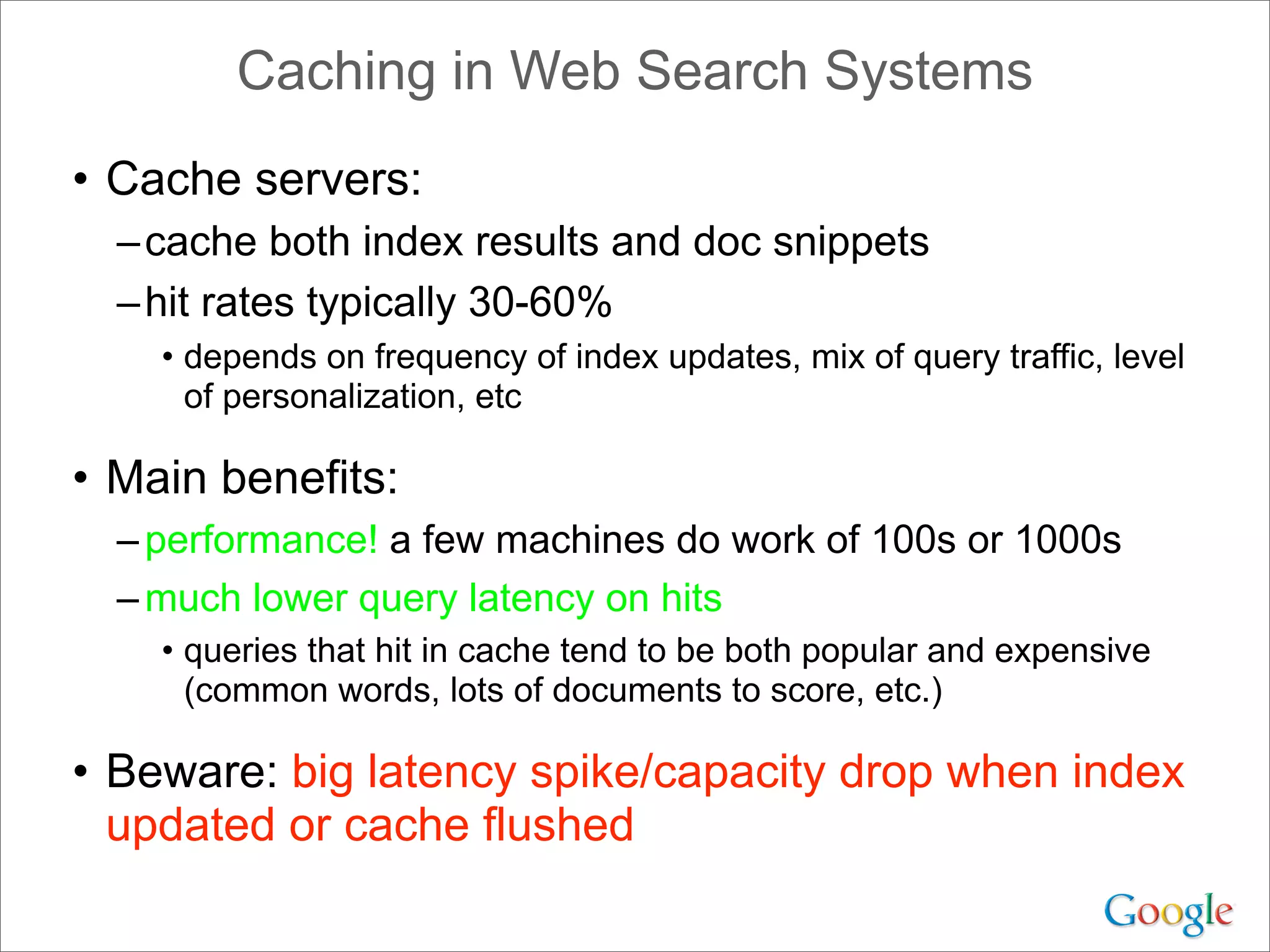

• Cache servers:
–cache both index results and doc snippets
–hit rates typically 30-60%
• depends on frequency of index updates, mix of query traffic, level
of personalization, etc
• Main benefits:
–performance! a few machines do work of 100s or 1000s
–much lower query latency on hits
• queries that hit in cache tend to be both popular and expensive
(common words, lots of documents to score, etc.)
• Beware: big latency spike/capacity drop when index
updated or cache flushed
Caching in Web Search Systems

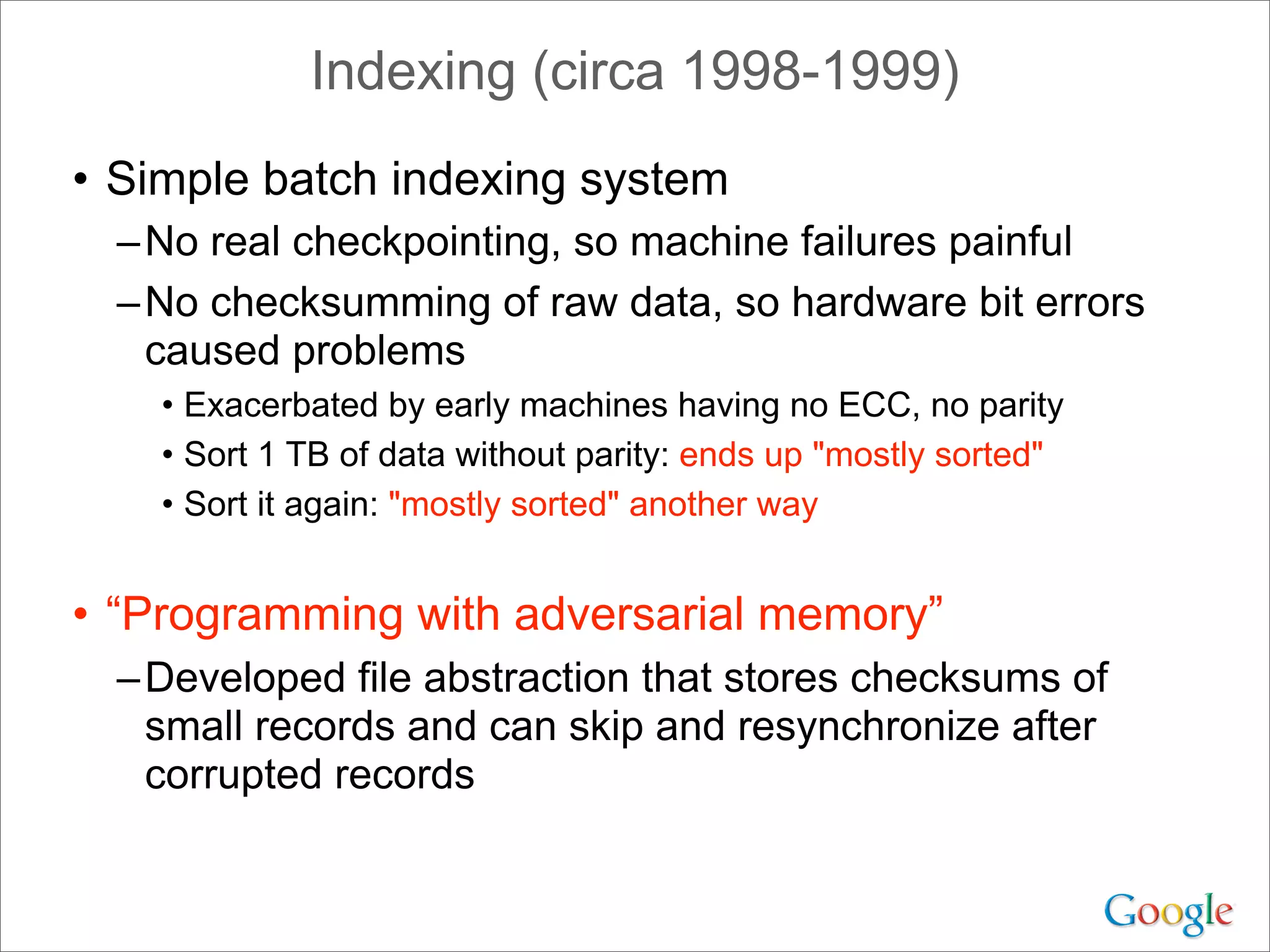

• Simple batch indexing system
–No real checkpointing, so machine failures painful
–No checksumming of raw data, so hardware bit errors
caused problems
• Exacerbated by early machines having no ECC, no parity
• Sort 1 TB of data without parity: ends up "mostly sorted"
• Sort it again: "mostly sorted" another way
• “Programming with adversarial memory”
–Developed file abstraction that stores checksums of
small records and can skip and resynchronize after
corrupted records
Indexing (circa 1998-1999)

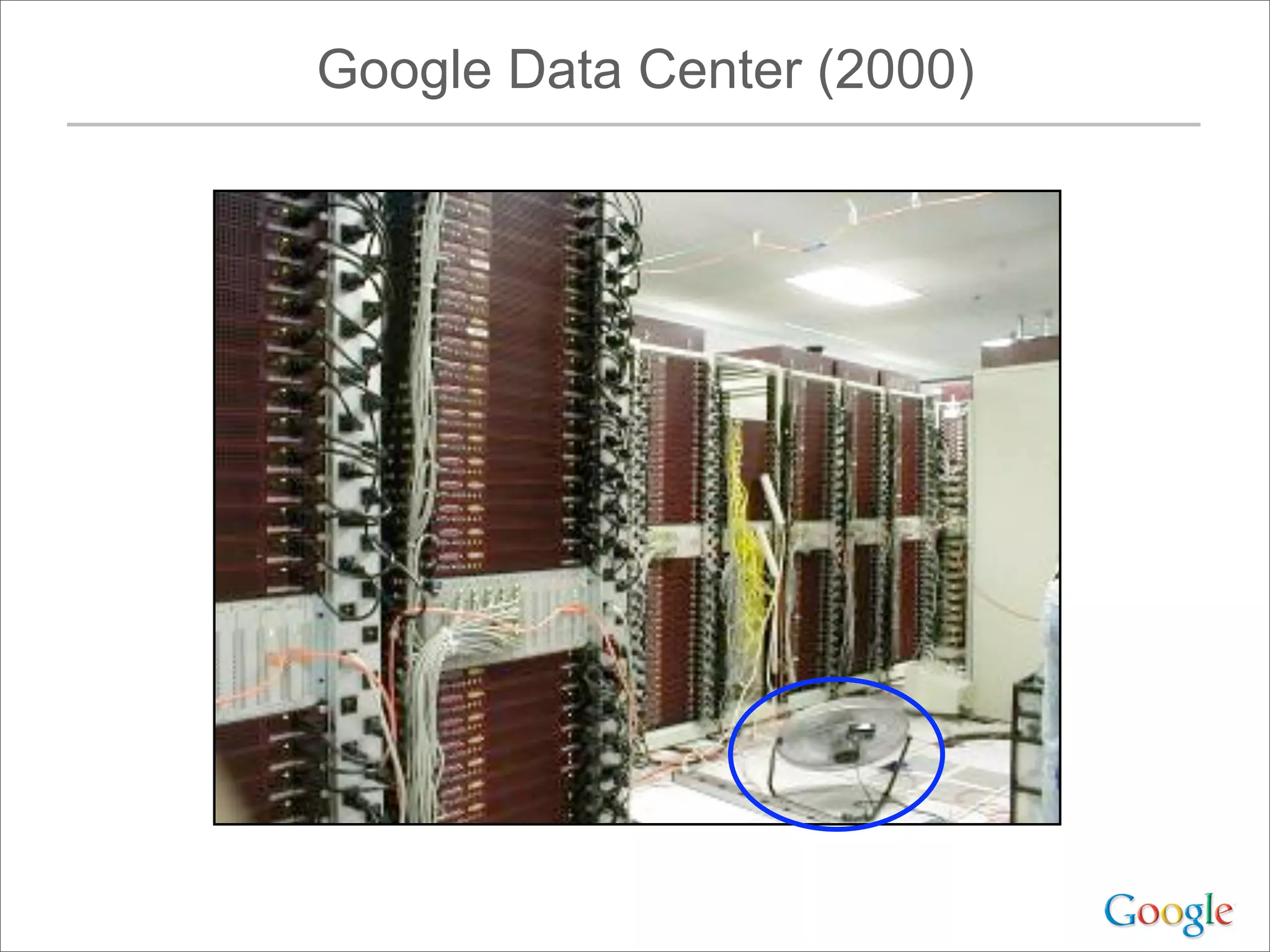

Google Data Center (2000)
Google Data Center (2000)
Google Data Center (2000)

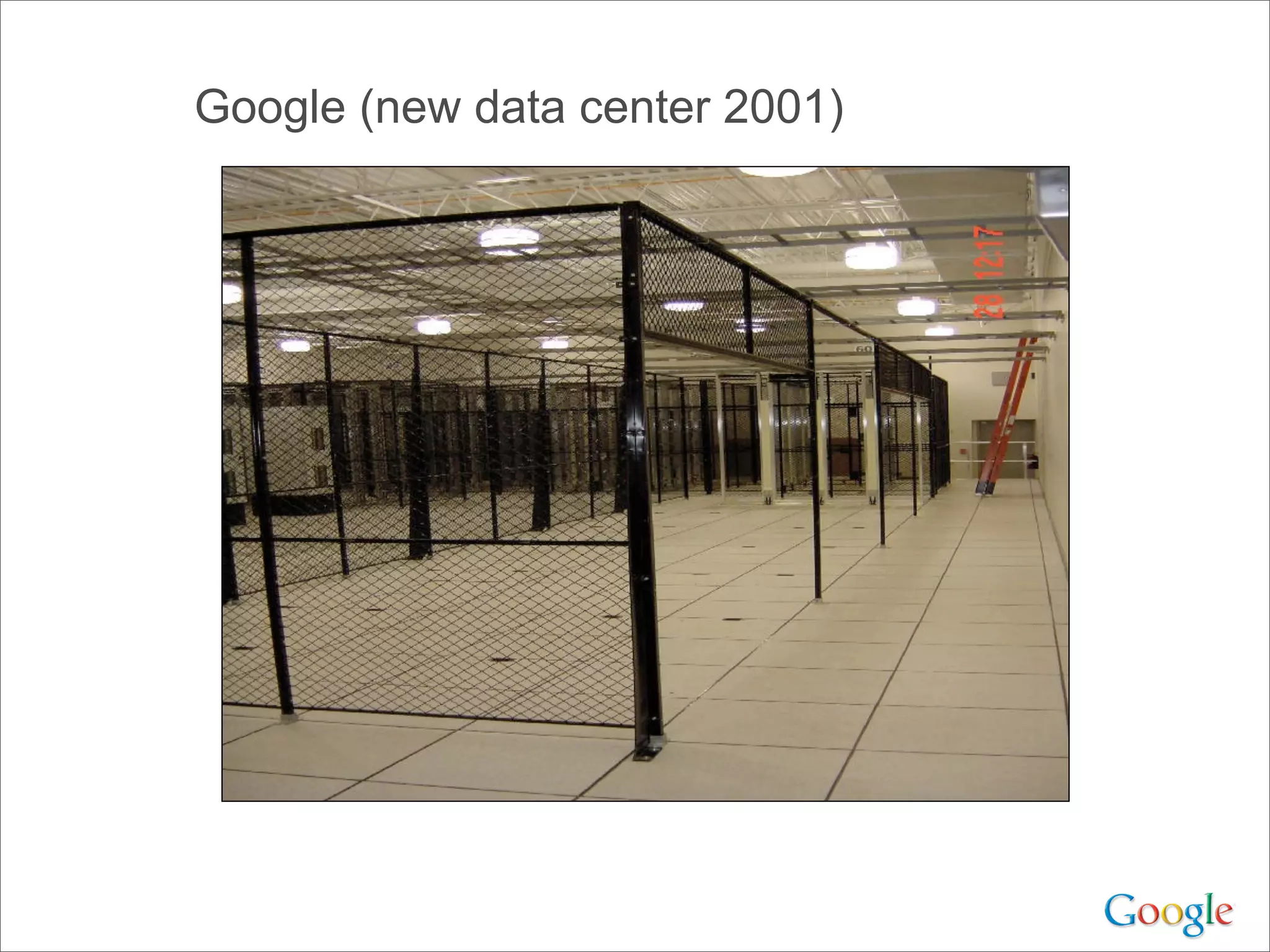

Google (new data center 2001)

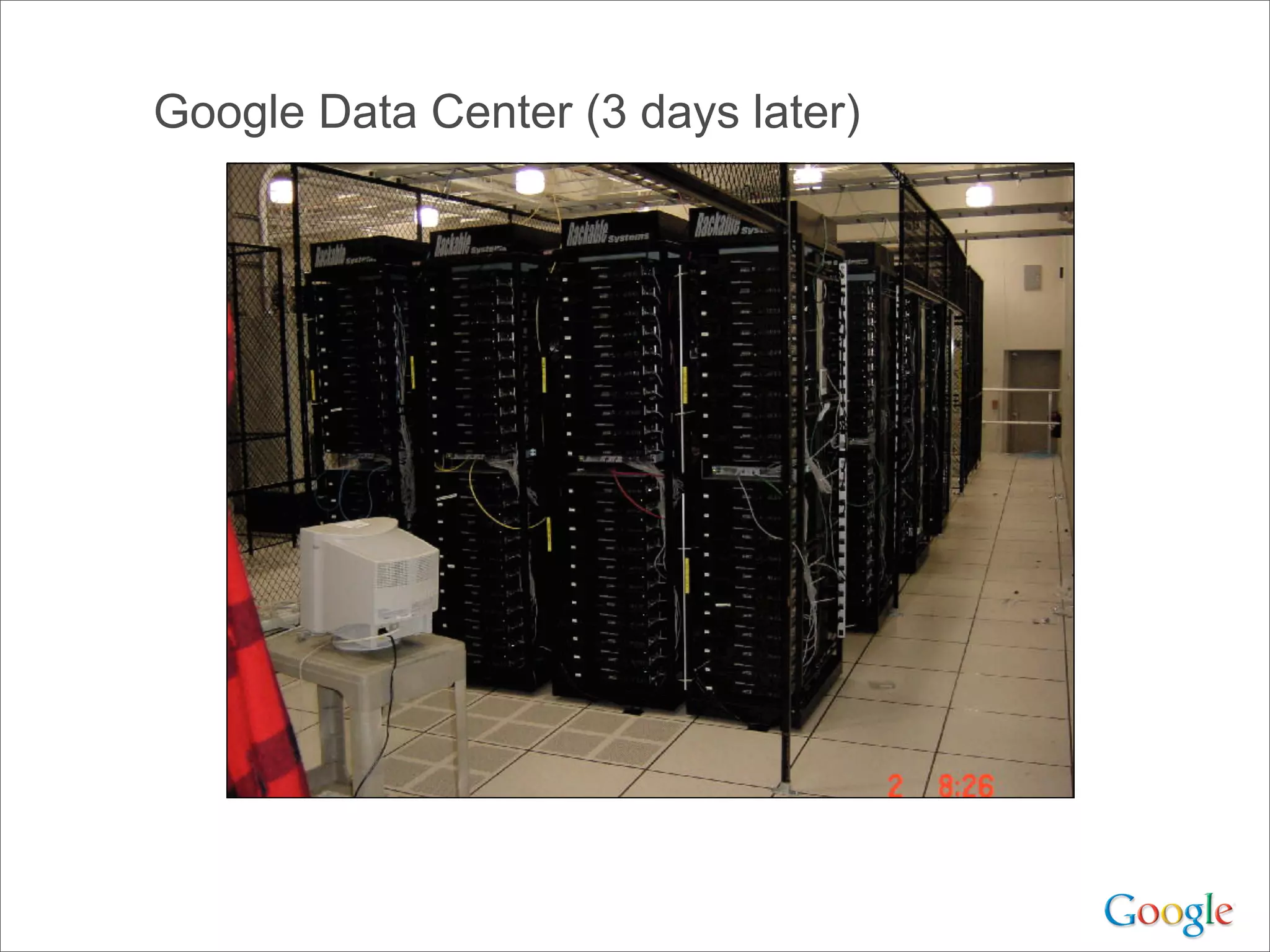

Google Data Center (3 days later)

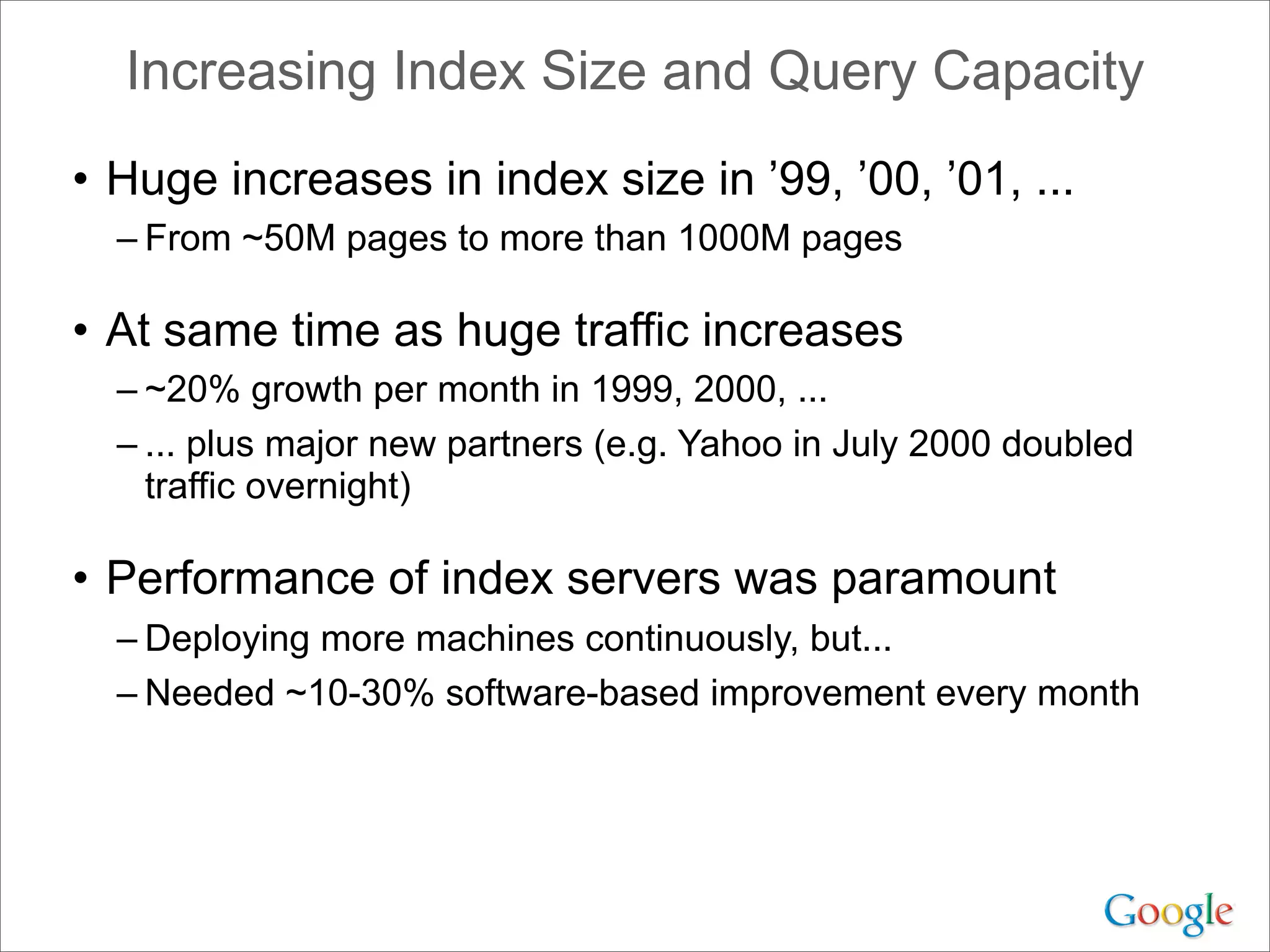

• Huge increases in index size in ’99, ’00, ’01, ...
– From ~50M pages to more than 1000M pages
• At same time as huge traffic increases
– ~20% growth per month in 1999, 2000, ...
– ... plus major new partners (e.g. Yahoo in July 2000 doubled
traffic overnight)
• Performance of index servers was paramount
– Deploying more machines continuously, but...
– Needed ~10-30% software-based improvement every month
Increasing Index Size and Query Capacity

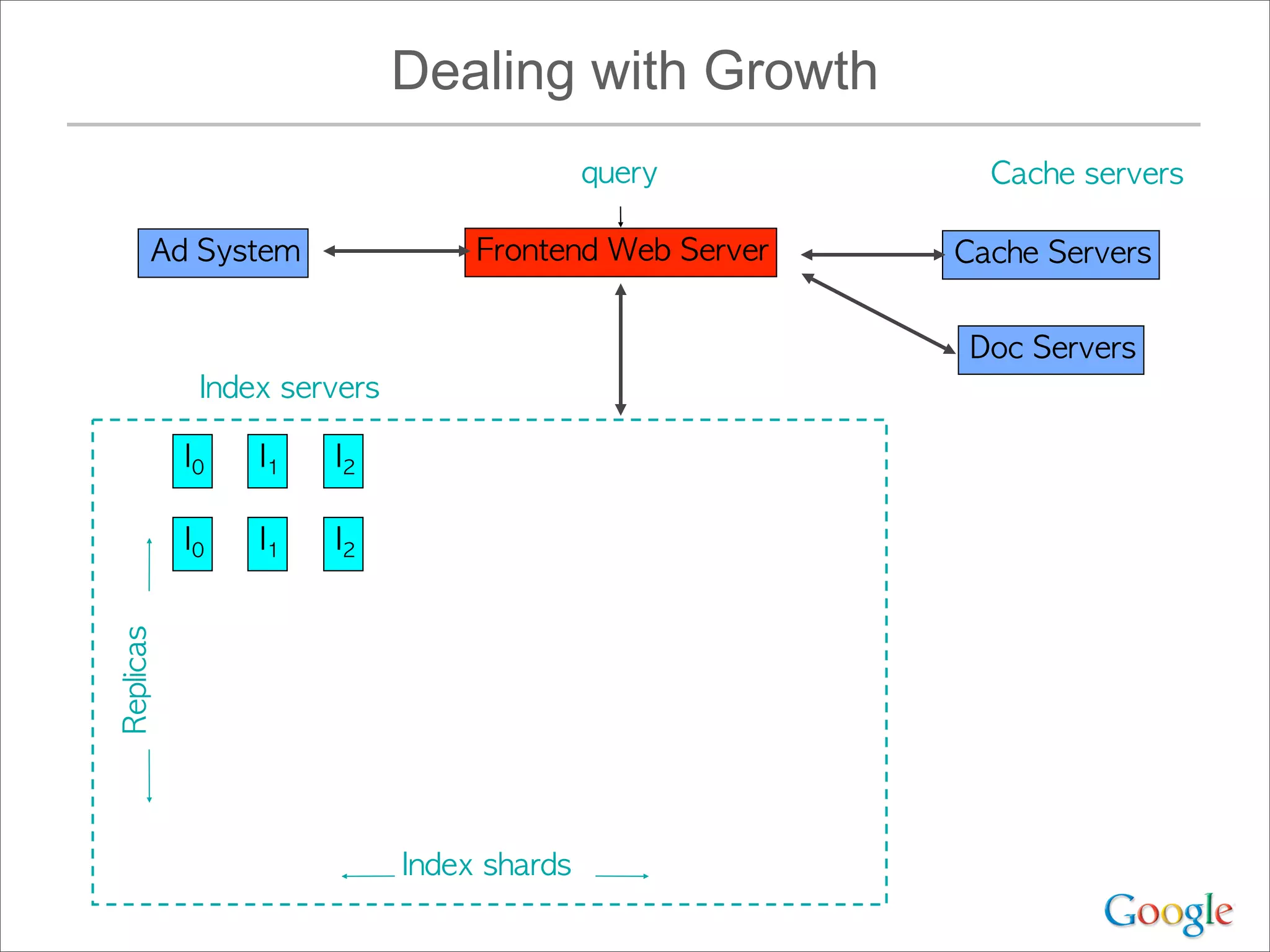

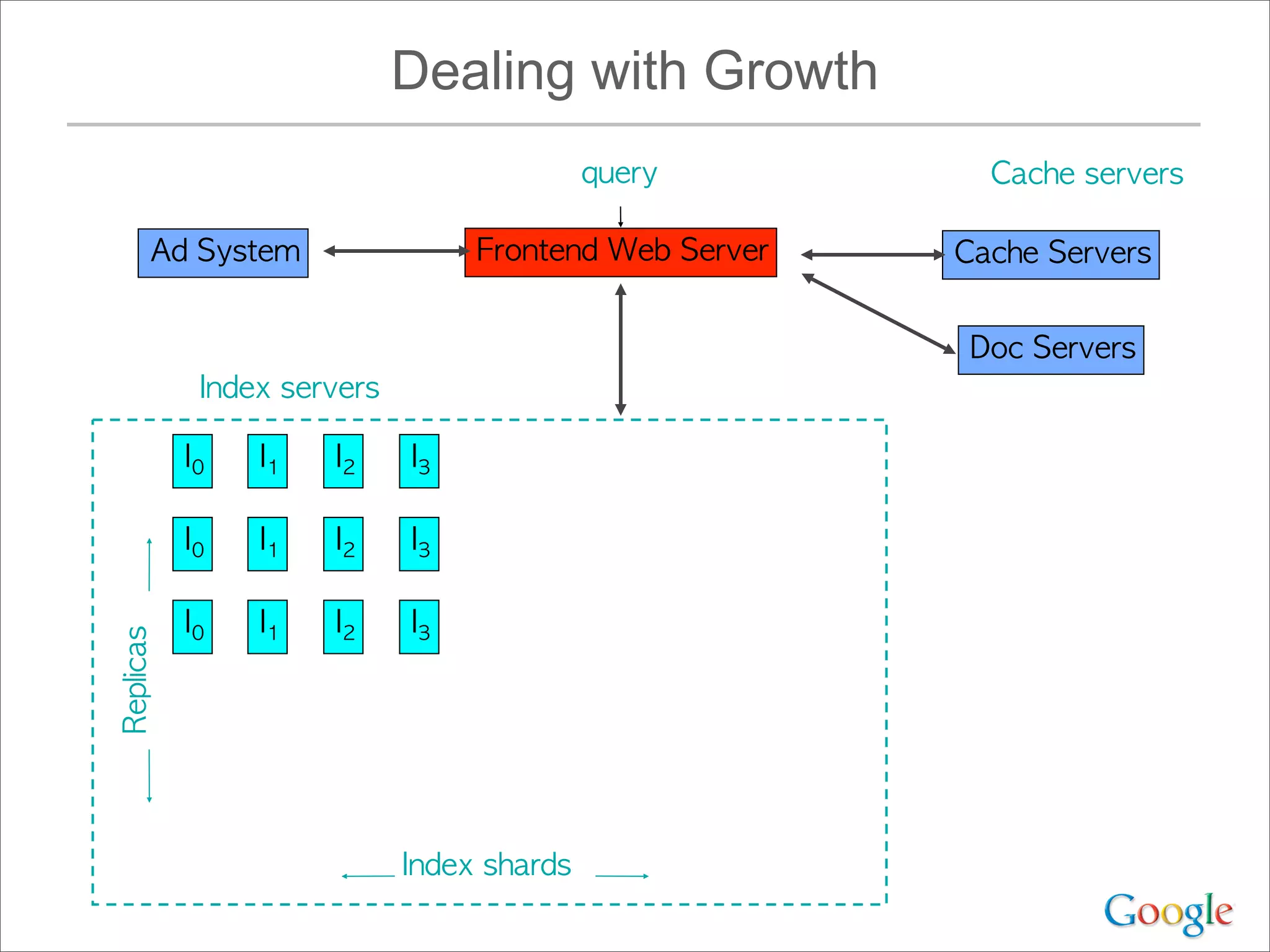

Dealing with Growth
Frontend Web Server
query
Index servers
Cache servers
Ad System
Doc Servers
Cache Servers
Replicas
Index shards
I0 I1 I2
I0 I1 I2

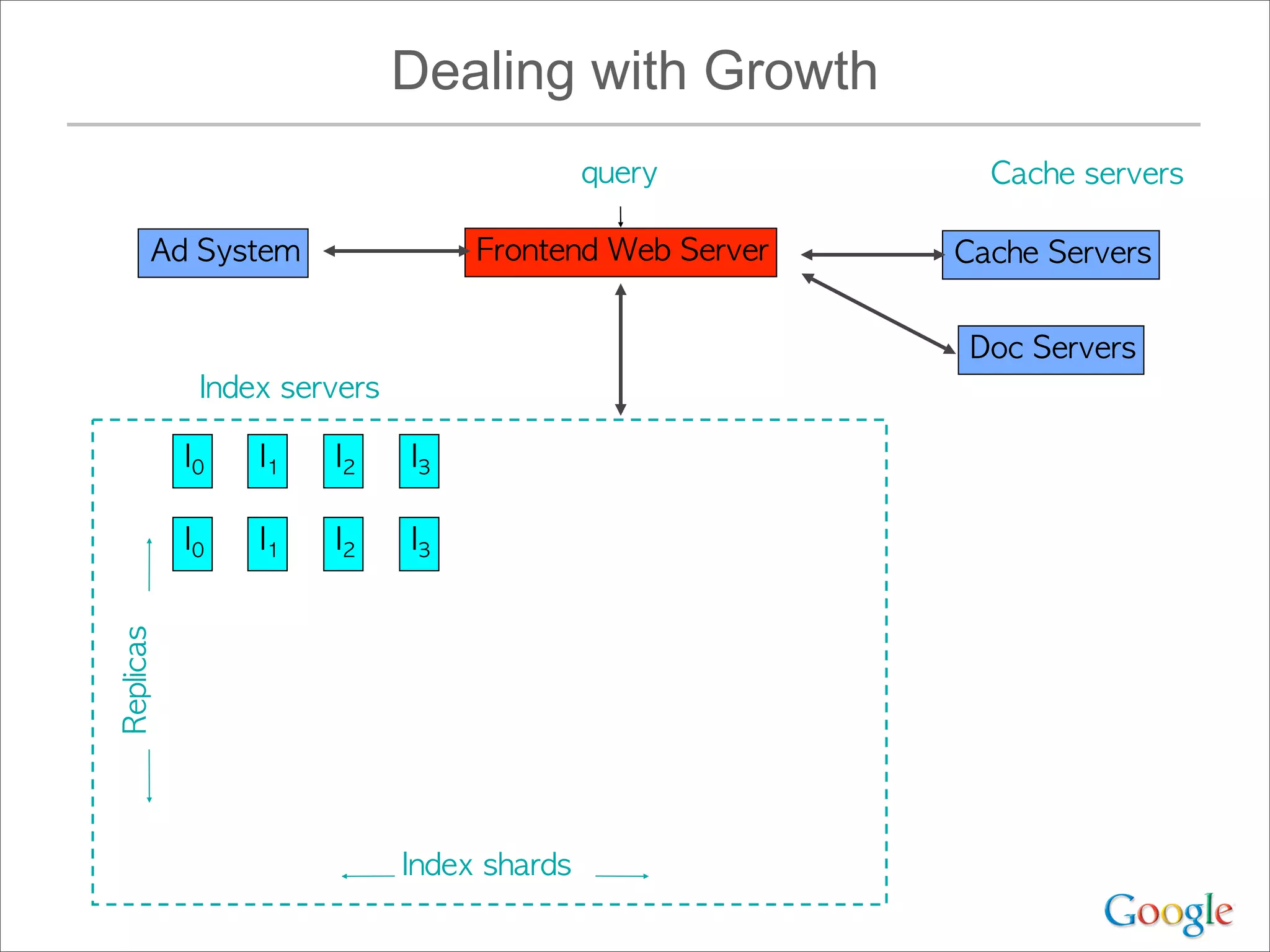

Dealing with Growth
Frontend Web Server
query
Index servers
Cache servers
Ad System
Doc Servers
Cache Servers
Replicas
Index shards
I0 I1 I2
I0 I1 I2
I3
I3
Dealing with Growth
Frontend Web Server
query
Index servers
Cache servers
Ad System
Doc Servers
Cache Servers
Replicas
Index shards
I0 I1 I2
I0 I1 I2
I3
I3
I0 I1 I2 I3

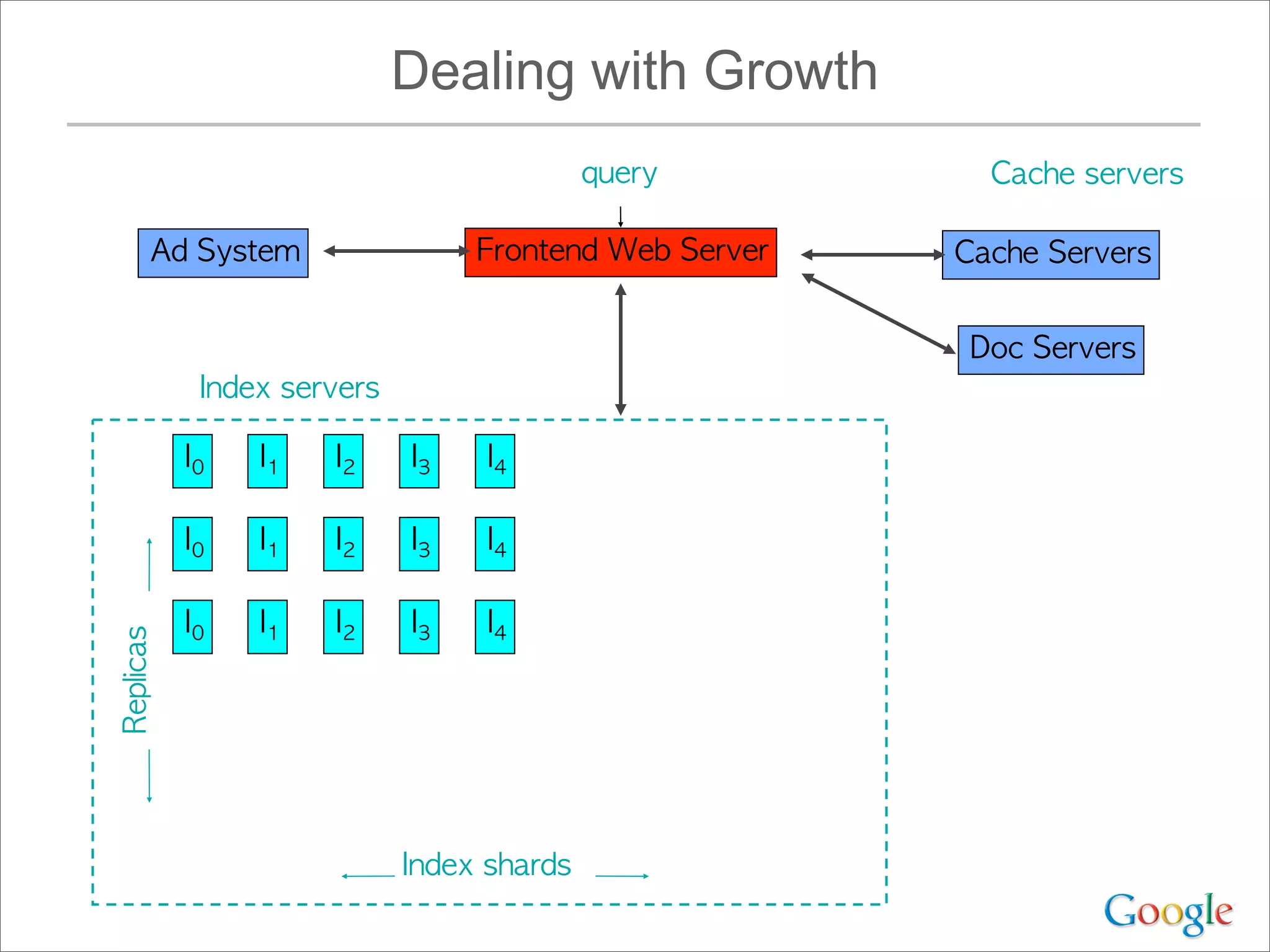

Dealing with Growth
Frontend Web Server
query
Index servers
Cache servers
Ad System
Doc Servers
Cache Servers
Replicas
Index shards
I0 I1 I2
I0 I1 I2
I3
I3
I0 I1 I2 I3
I4
I4
I4

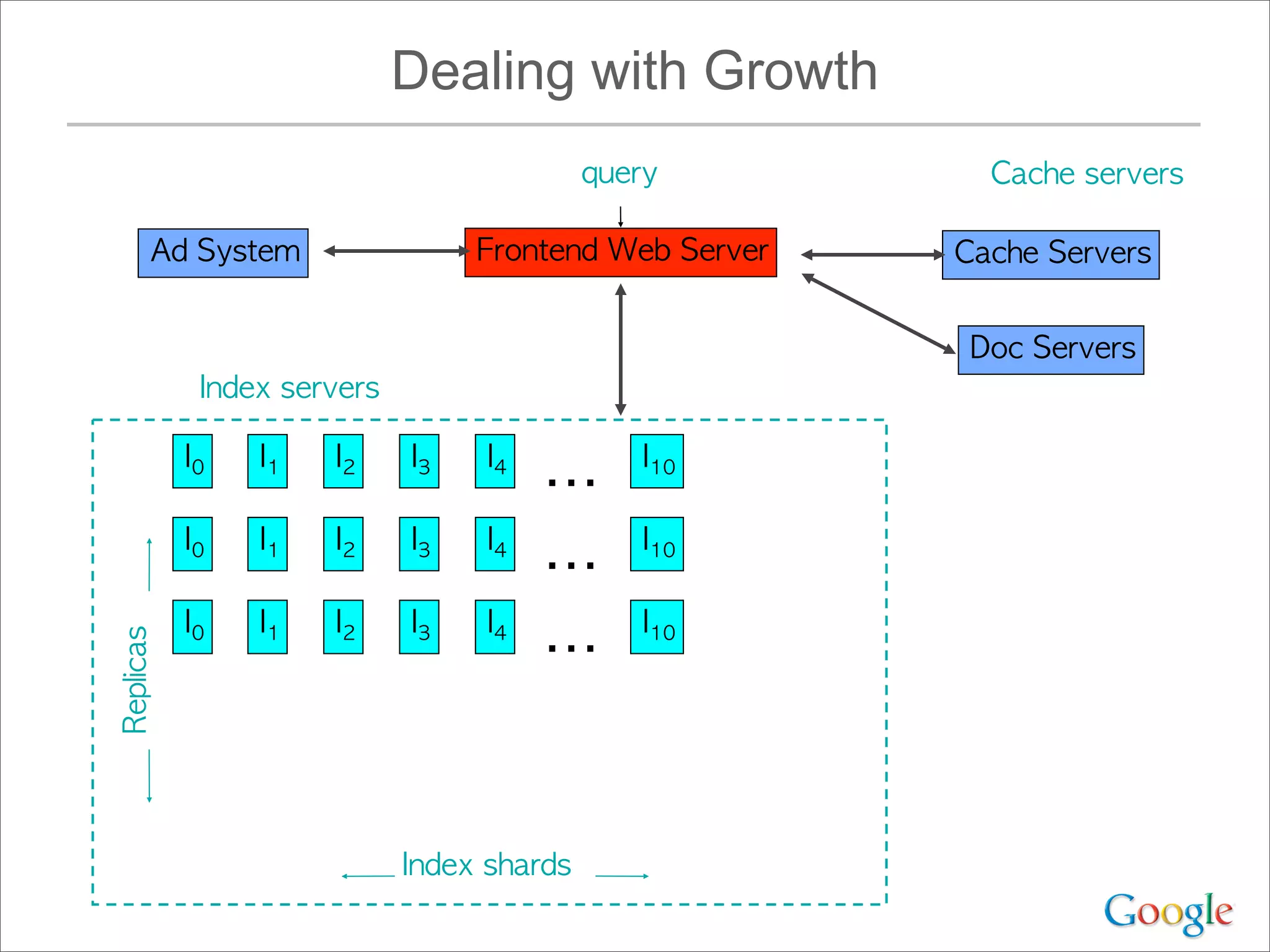

Dealing with Growth
Frontend Web Server
query
Index servers
Cache servers
Ad System
Doc Servers
Cache Servers
Replicas
Index shards
I0 I1 I2
I0 I1 I2
I3
I3
I0 I1 I2 I3
I4
I4
I4
I10
I10
I10

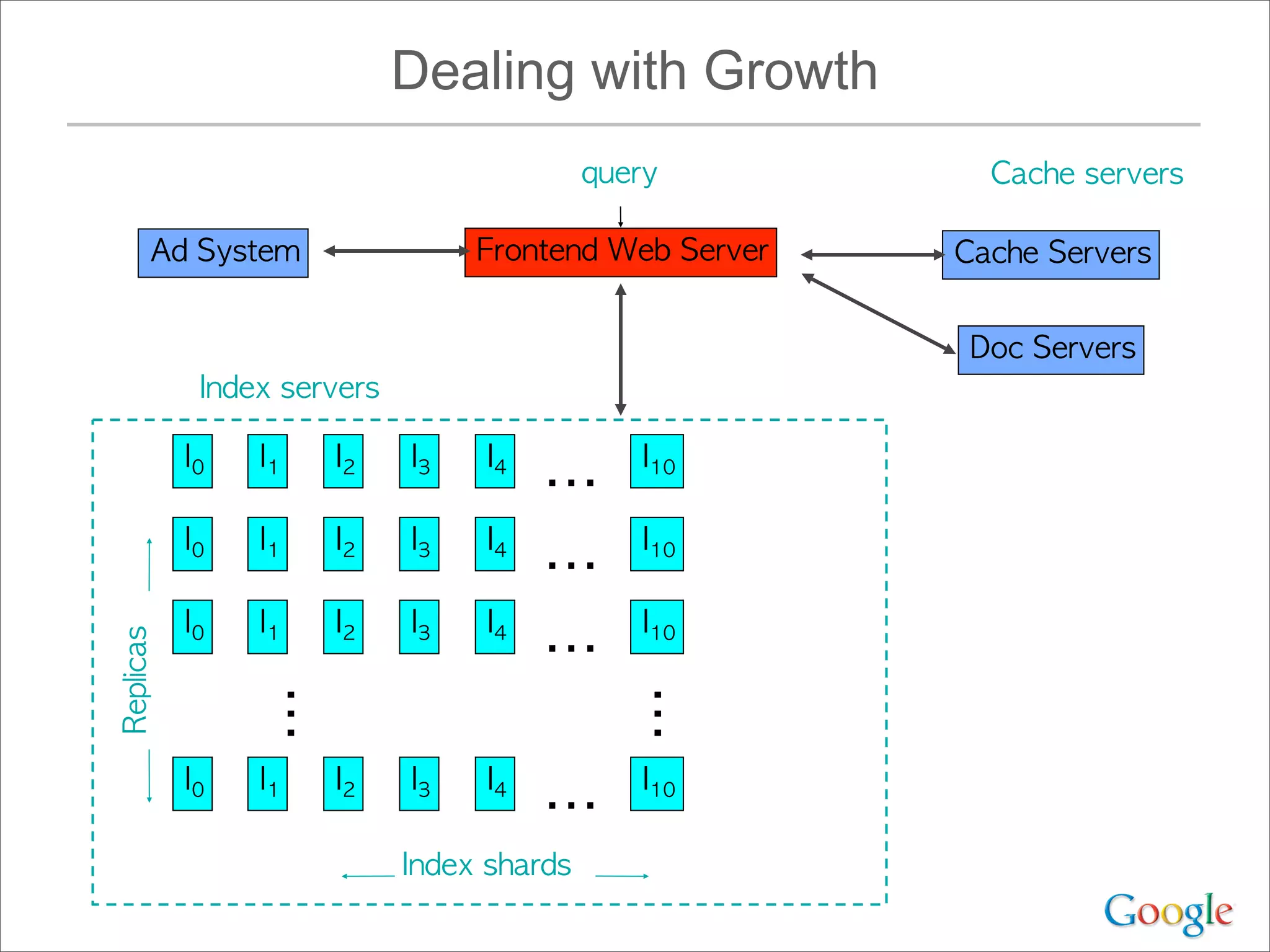

Dealing with Growth
Frontend Web Server
query
Index servers
Cache servers
Ad System
Doc Servers
Cache Servers
Replicas
Index shards
I0 I1 I2
I0 I1 I2
I3
I3
I0 I1 I2 I3
I4
I4
I4
I10
I10
I10
I0 I1 I2 I3 I4 I10

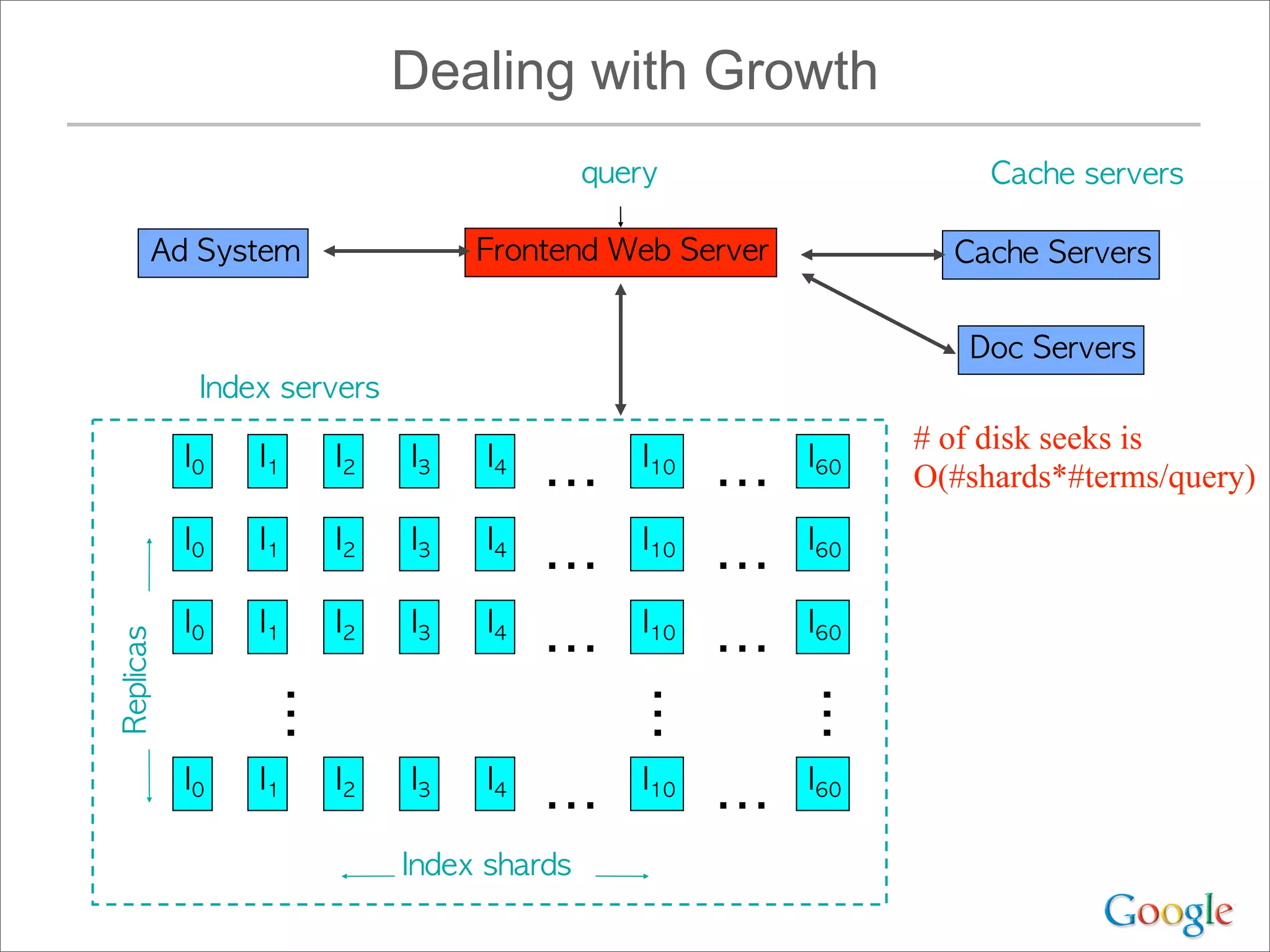

Dealing with Growth
Frontend Web Server
query
Index servers
Cache servers
Ad System
Doc Servers
Cache Servers
Replicas
Index shards
I0 I1 I2
I0 I1 I2
I3
I3
I0 I1 I2 I3
I4
I4
I4
I10
I10
I10
I0 I1 I2 I3 I4 I10
I60
I60
I60
I60
# of disk seeks is
O(#shards*#terms/query)

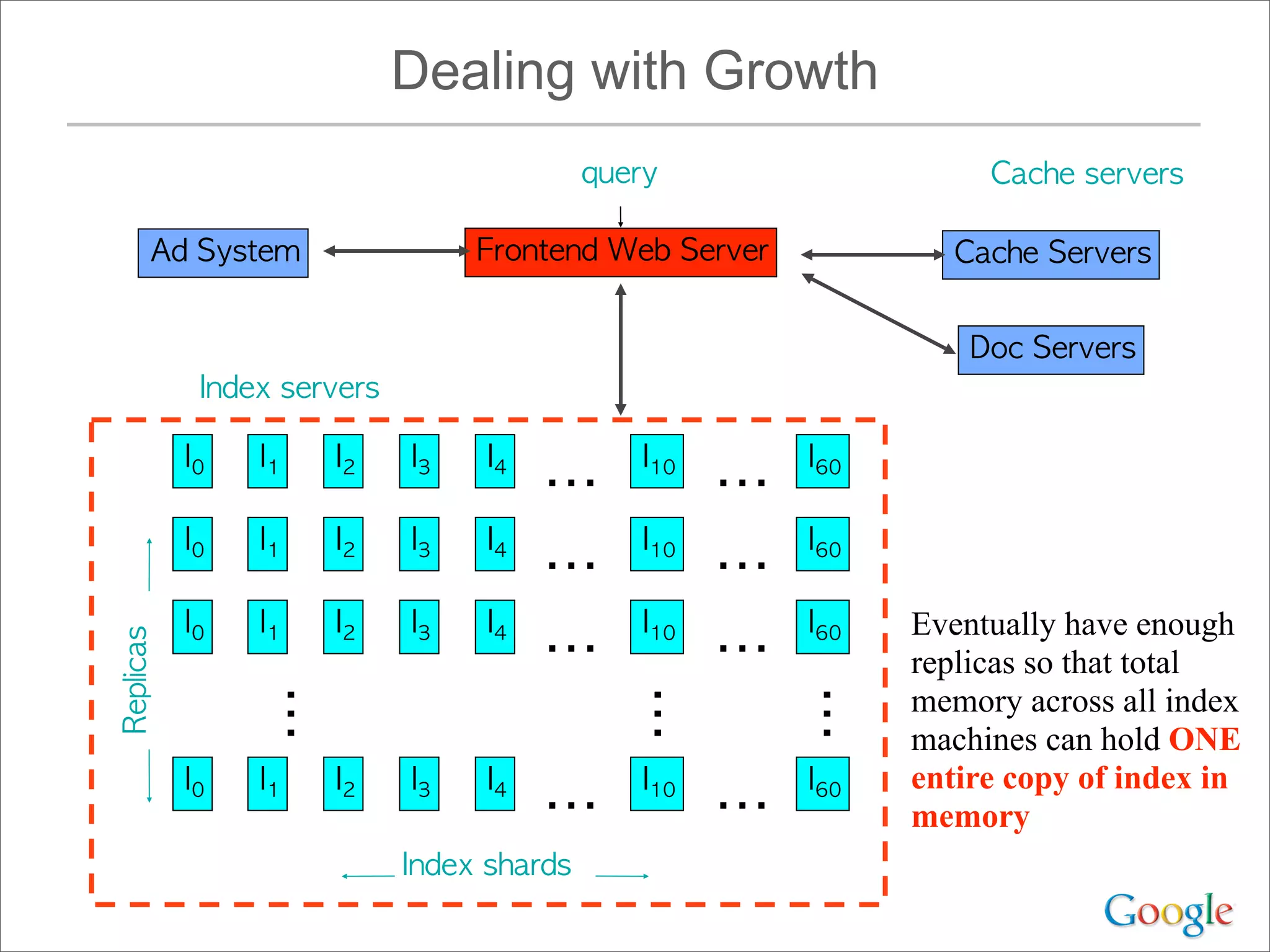

Dealing with Growth
Frontend Web Server
query
Index servers
Cache servers
Ad System
Doc Servers
Cache Servers
Replicas
Index shards
I0 I1 I2
I0 I1 I2
I3
I3
I0 I1 I2 I3
I4
I4
I4
I10
I10
I10
I0 I1 I2 I3 I4 I10
I60
I60
I60
I60
# of disk seeks is
O(#shards*#terms/query)
Eventually have enough
replicas so that total
memory across all index
machines can hold ONE
entire copy of index in
memory

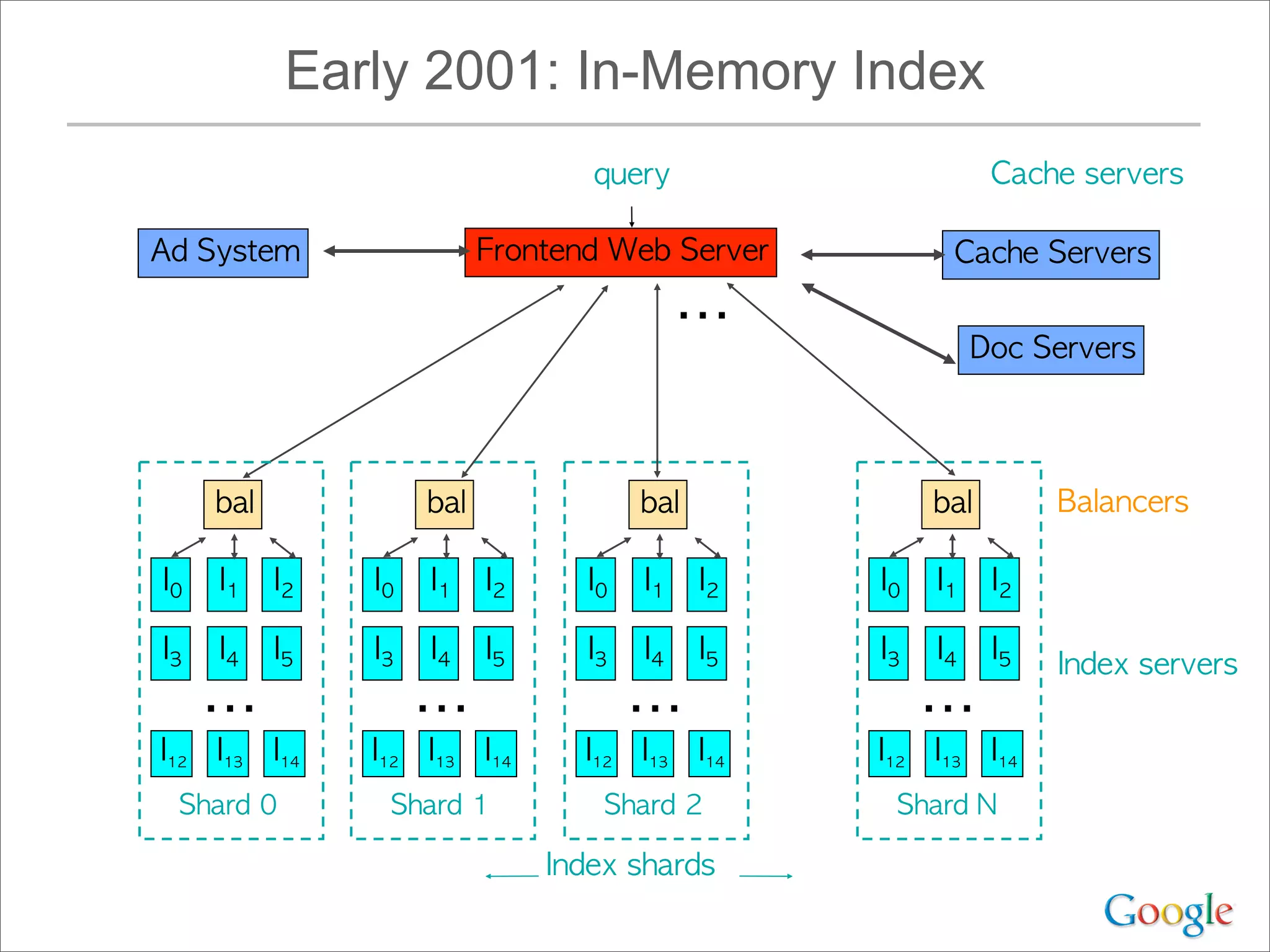

Early 2001: In-Memory Index
Frontend Web Server
query
Index servers
Cache servers
Ad System
Doc Servers
Cache Servers
Index shards
Shard 0
I0 I1 I2
I14
I3
I12
bal
I4 I5
I13
Shard 1
I0 I1 I2
I14
I3
I12
bal
I4 I5
I13
Shard 2
I0 I1 I2
I14
I3
I12
bal
I4 I5
I13
Shard N
I0 I1 I2
I14
I3
I12
bal
I4 I5
I13
Balancers

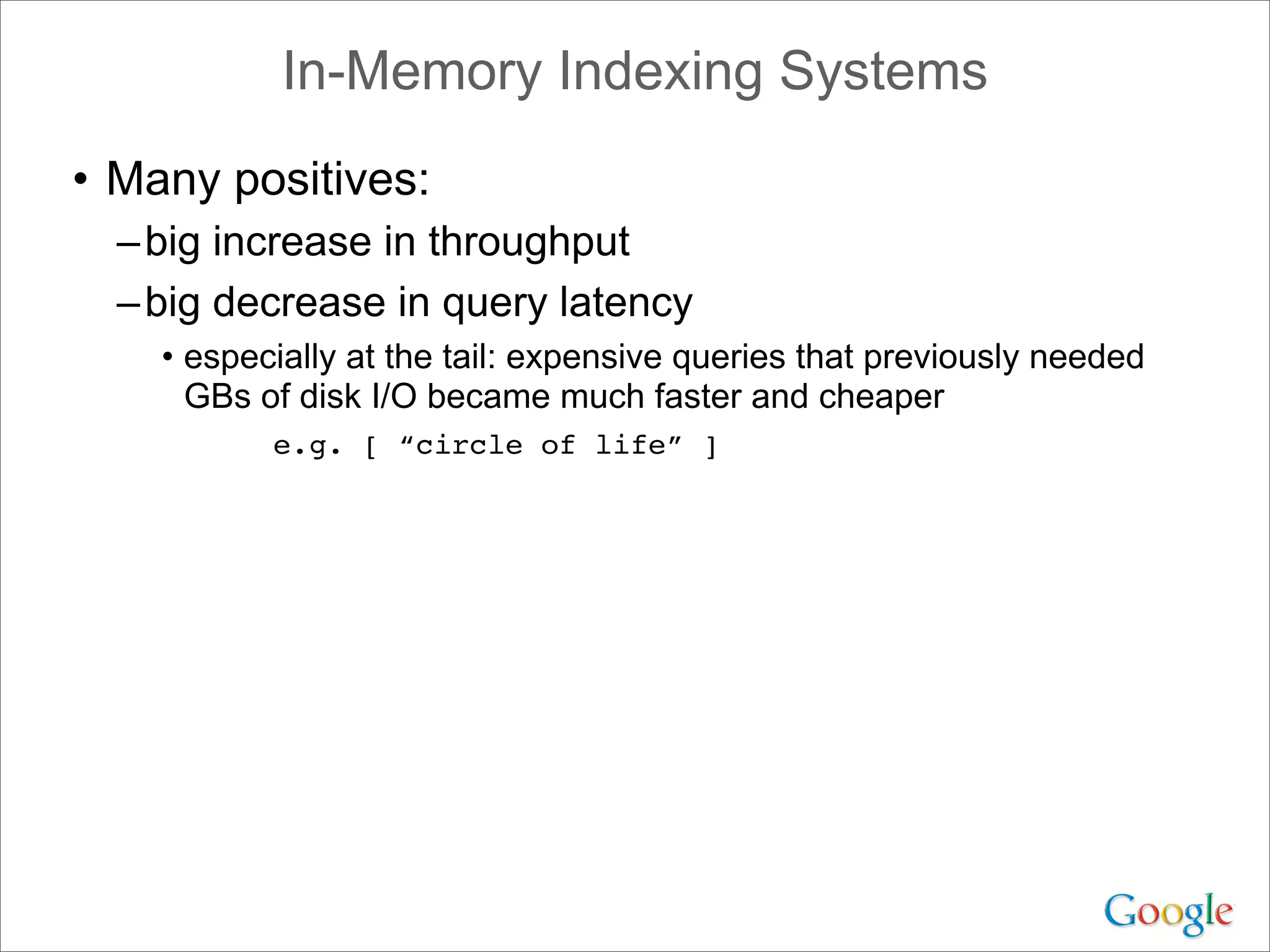

• Many positives:
–big increase in throughput
–big decrease in query latency
• especially at the tail: expensive queries that previously needed
GBs of disk I/O became much faster and cheaper
e.g. [ “circle of life” ]
In-Memory Indexing Systems

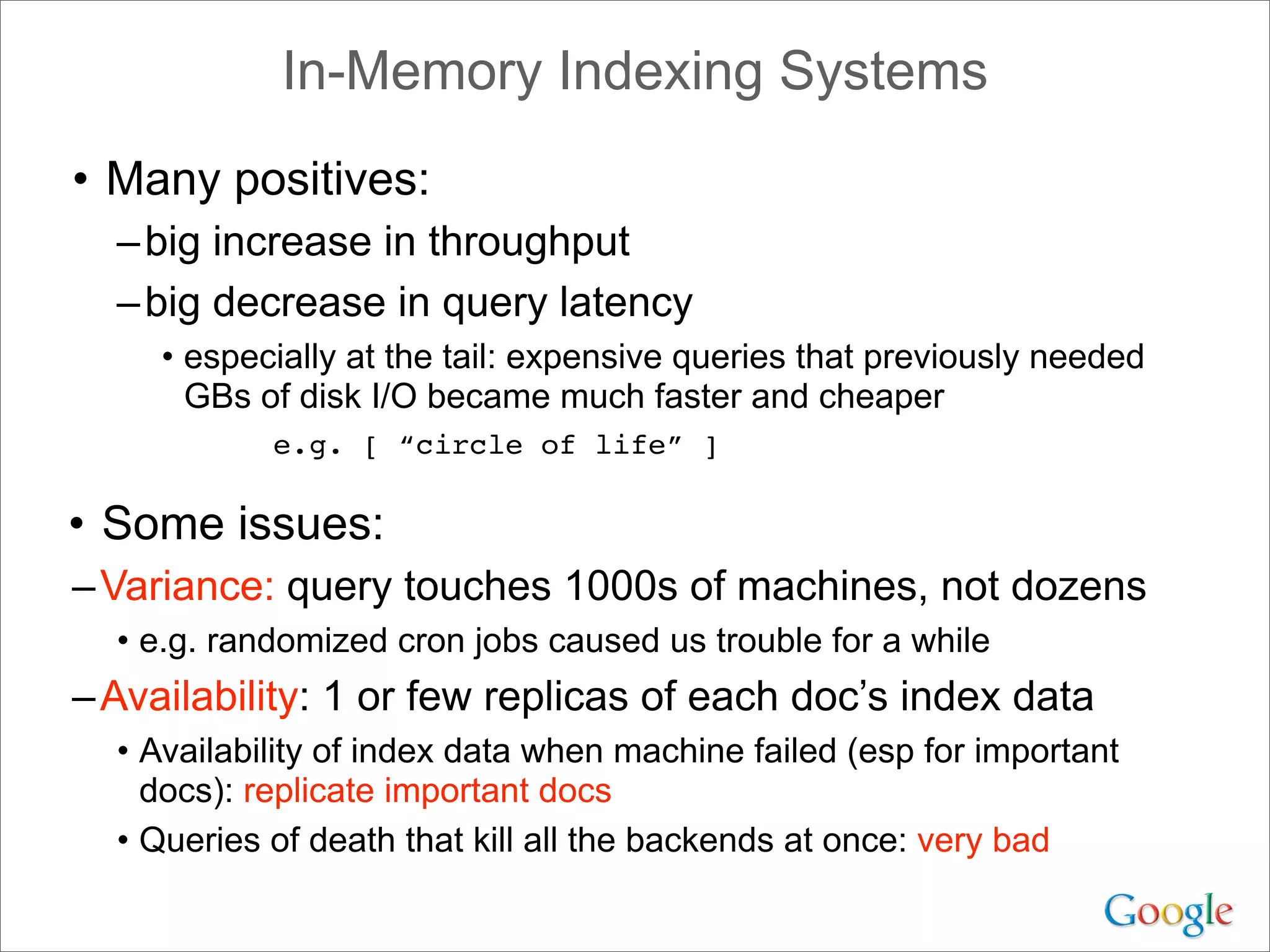

• Many positives:
–big increase in throughput
–big decrease in query latency
• especially at the tail: expensive queries that previously needed
GBs of disk I/O became much faster and cheaper
e.g. [ “circle of life” ]
In-Memory Indexing Systems
• Some issues:
–Variance: query touches 1000s of machines, not dozens
• e.g. randomized cron jobs caused us trouble for a while
–Availability: 1 or few replicas of each doc’s index data
• Availability of index data when machine failed (esp for important
docs): replicate important docs
• Queries of death that kill all the backends at once: very bad

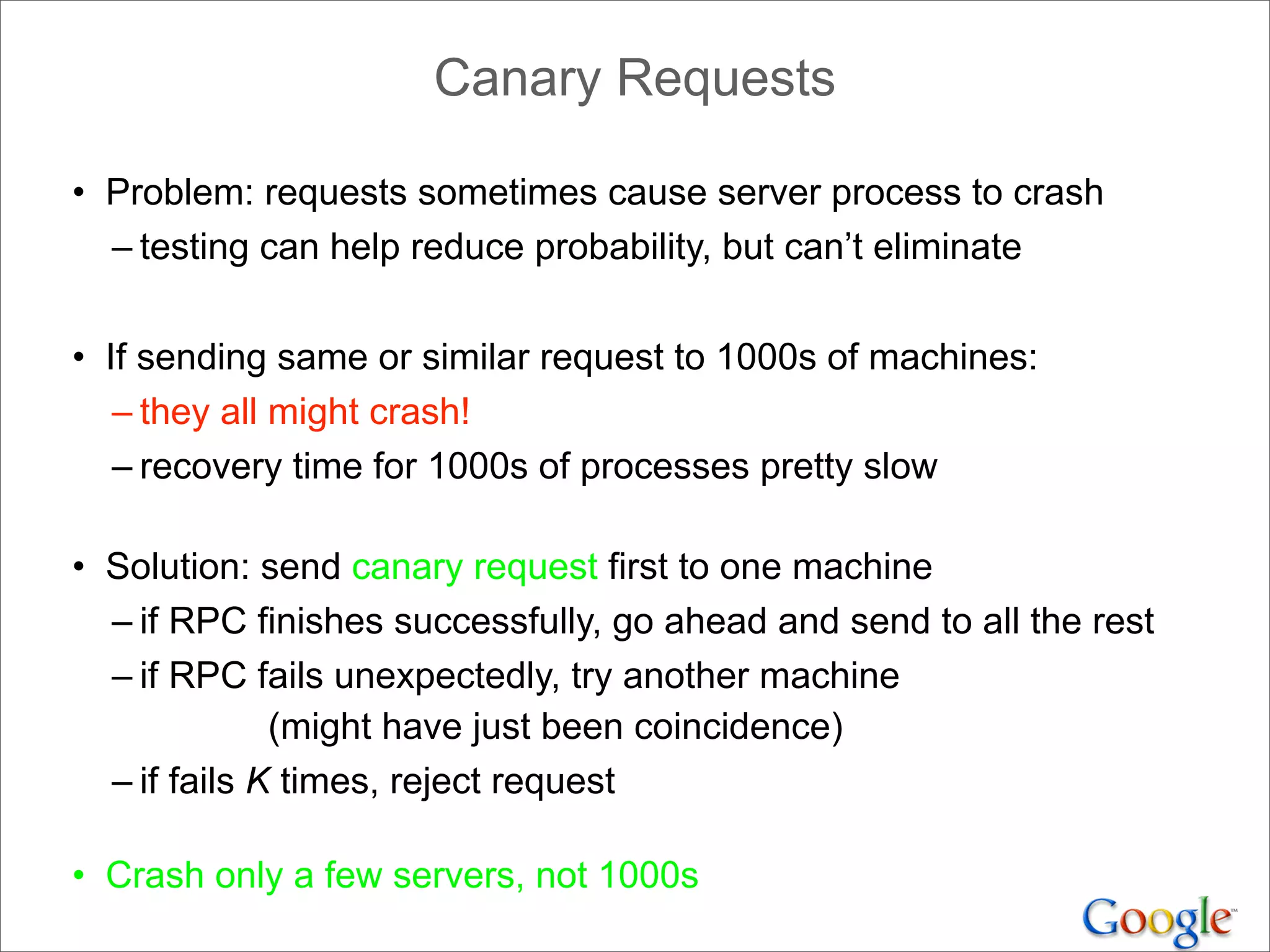

Canary Requests
• Problem: requests sometimes cause server process to crash
– testing can help reduce probability, but can’t eliminate
• If sending same or similar request to 1000s of machines:
– they all might crash!
– recovery time for 1000s of processes pretty slow
• Solution: send canary request first to one machine
– if RPC finishes successfully, go ahead and send to all the rest
– if RPC fails unexpectedly, try another machine
(might have just been coincidence)
– if fails K times, reject request
• Crash only a few servers, not 1000s

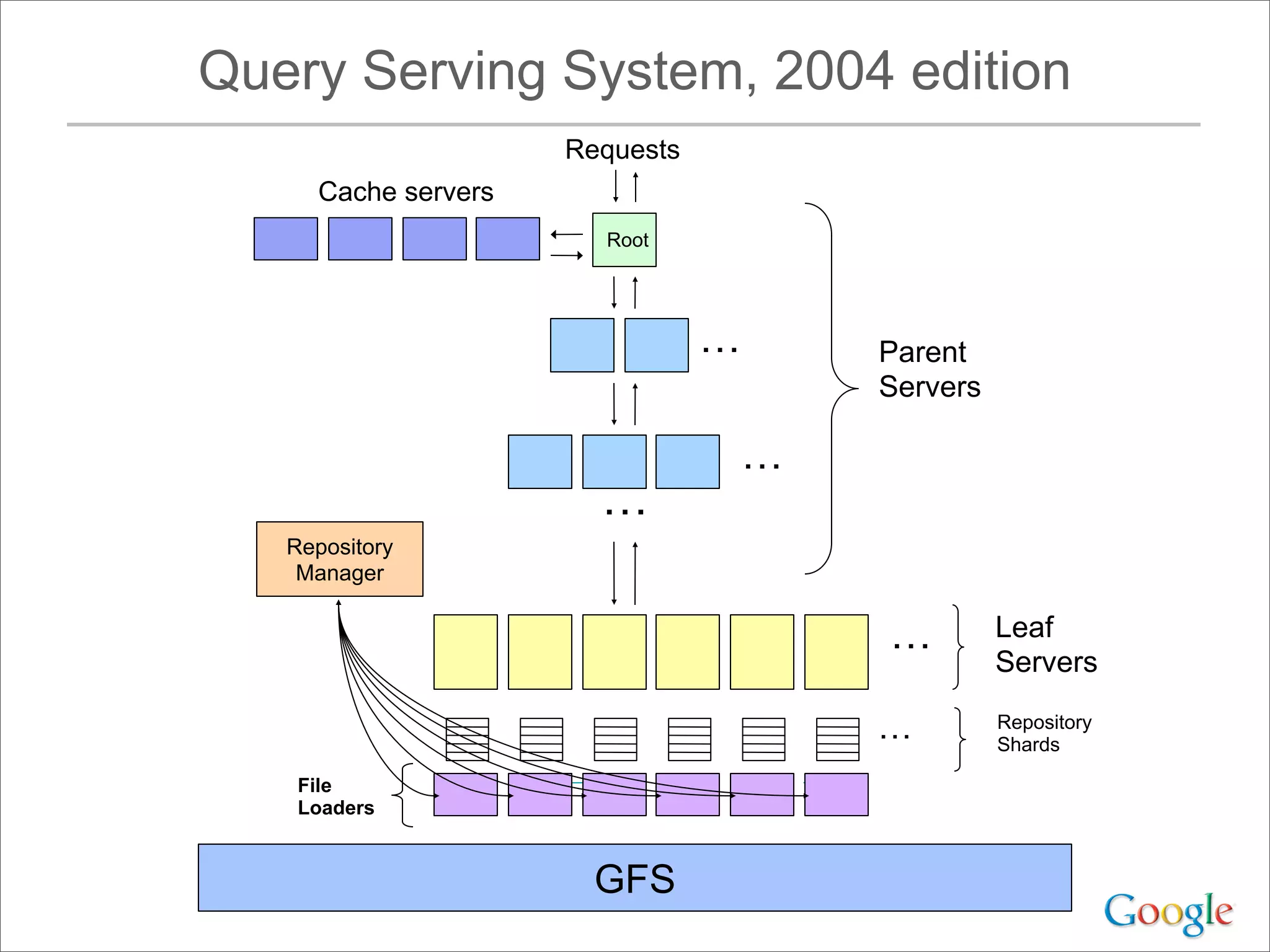

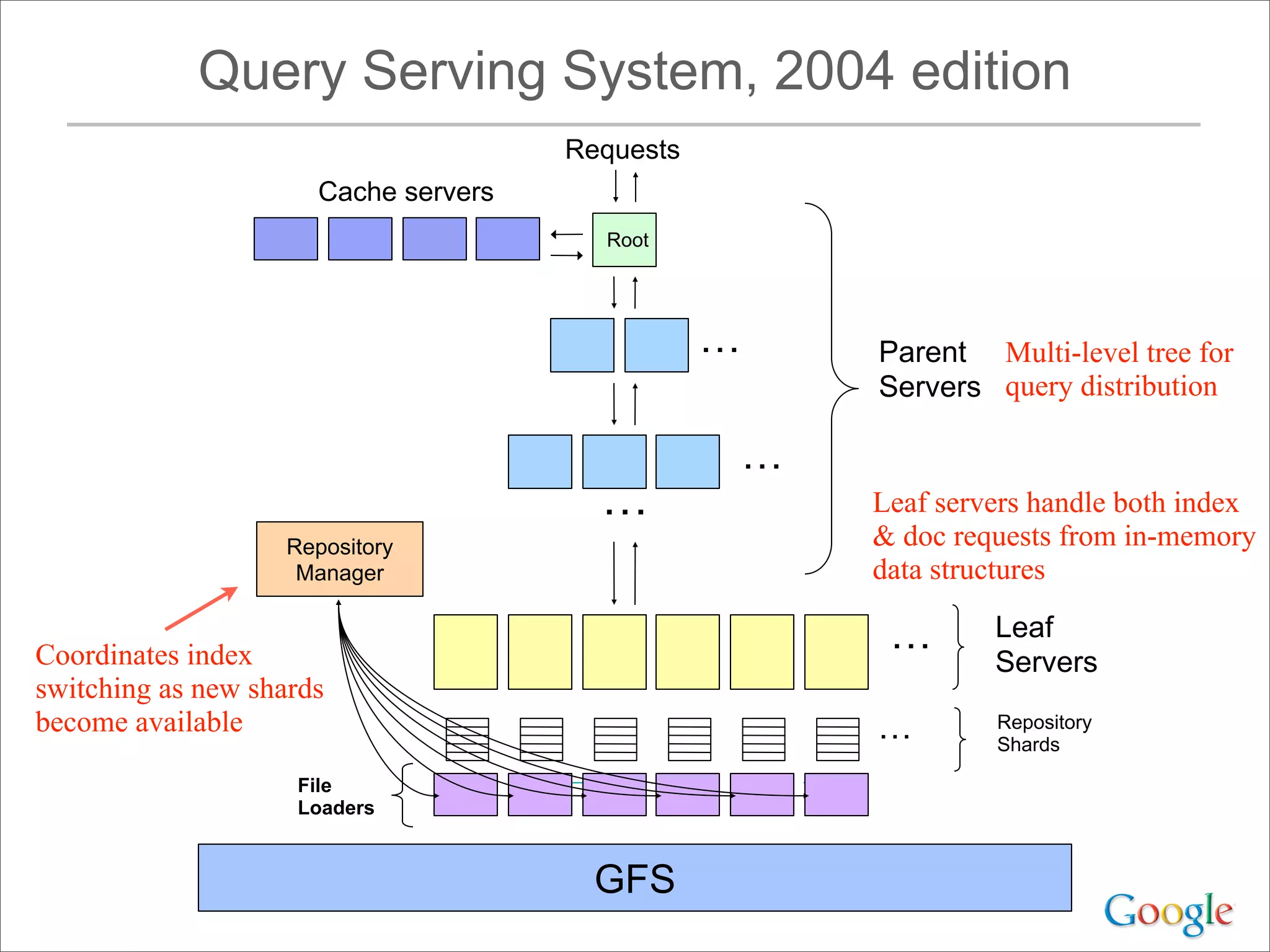

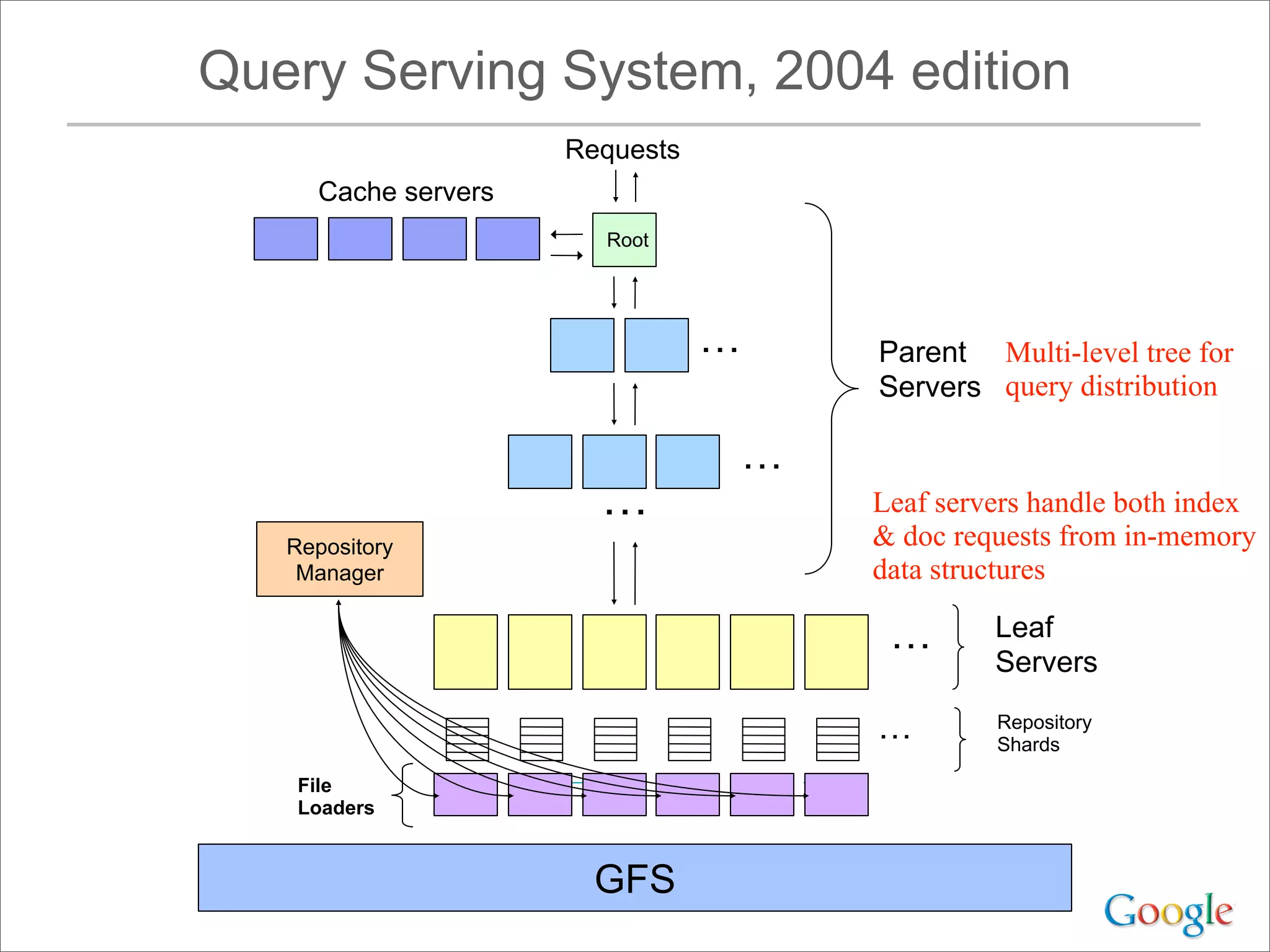

Query Serving System, 2004 edition
Root
…
…
Parent
Servers
…
…
Leaf
Servers
Repository
Shards
…
Repository
Manager
File
Loaders
Cache servers
Requests
GFS

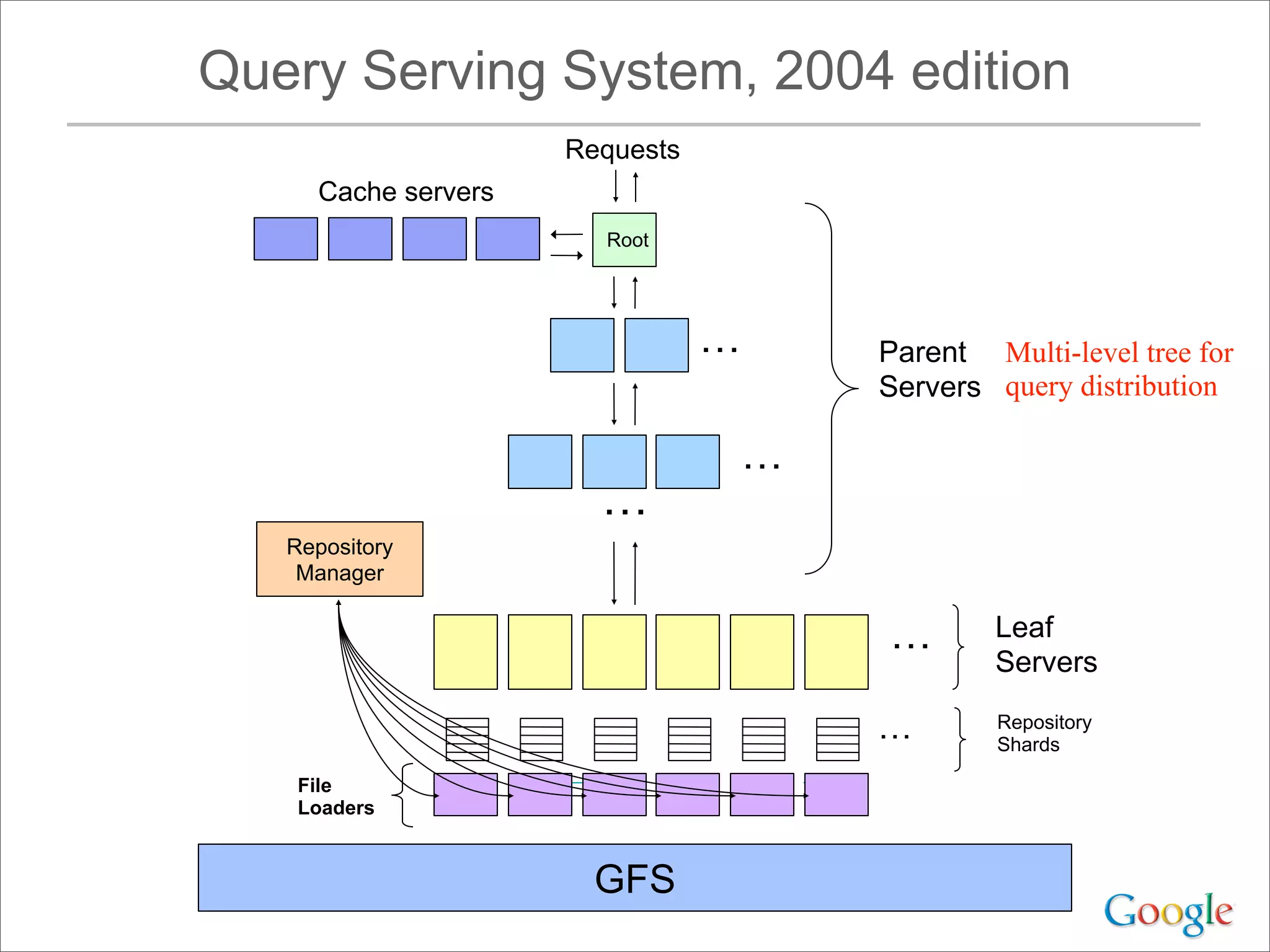

Query Serving System, 2004 edition
Root
…
…
Parent
Servers
…
…
Leaf
Servers
Repository
Shards
…
Repository
Manager
File
Loaders
Cache servers
Requests
GFS
Multi-level tree for
query distribution
Query Serving System, 2004 edition
Root
…
…
Parent
Servers
…
…
Leaf
Servers
Repository
Shards
…
Repository
Manager
File
Loaders
Cache servers
Requests
GFS
Multi-level tree for
query distribution
Leaf servers handle both index
& doc requests from in-memory
data structures
Query Serving System, 2004 edition
Root
…
…
Parent
Servers
…
…
Leaf
Servers
Repository
Shards
…
Repository
Manager
File
Loaders
Cache servers
Requests
GFS
Coordinates index
switching as new shards
become available
Multi-level tree for
query distribution
Leaf servers handle both index
& doc requests from in-memory
data structures

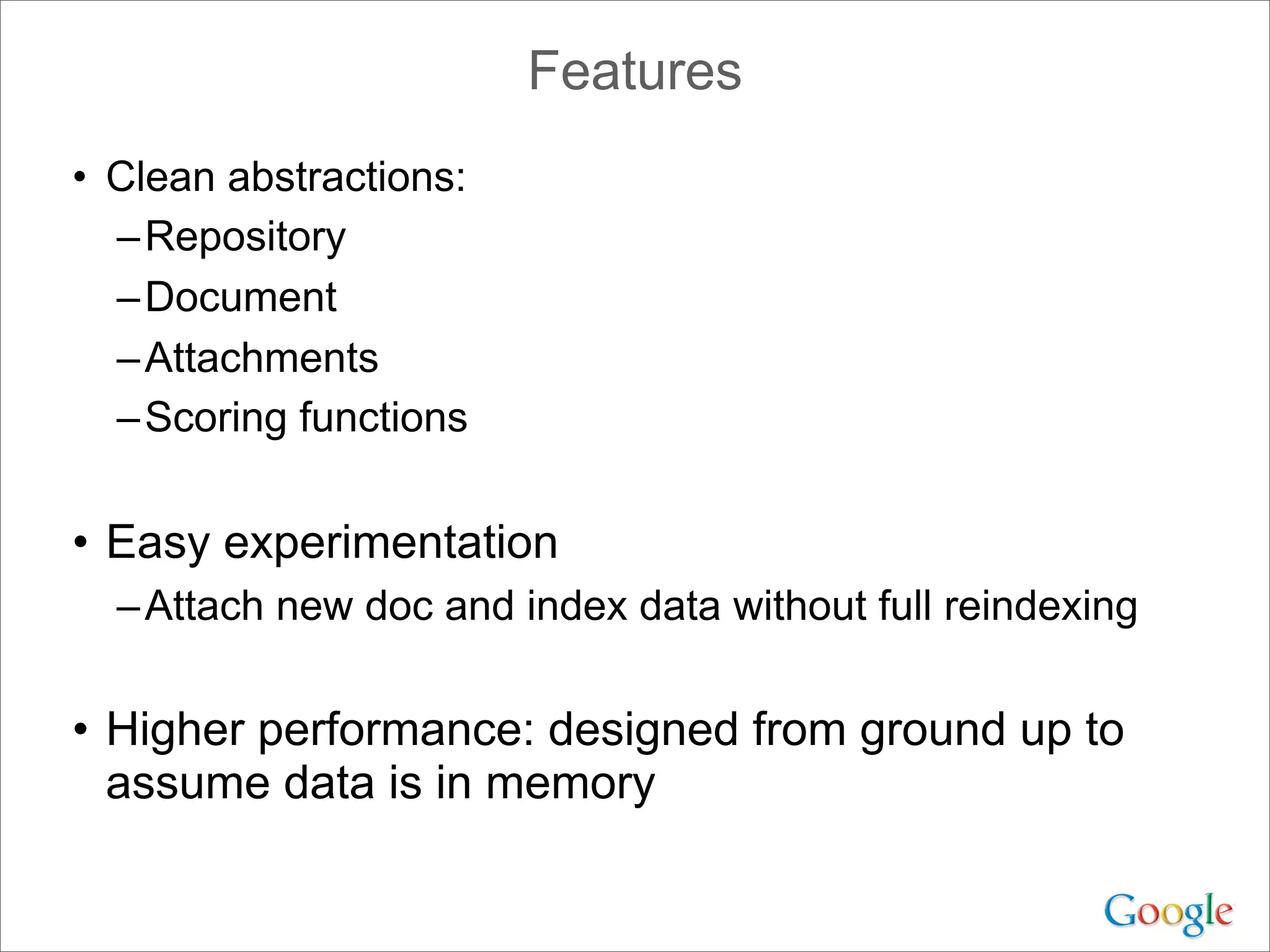

Features
• Clean abstractions:
–Repository
–Document
–Attachments
–Scoring functions
• Easy experimentation
–Attach new doc and index data without full reindexing
• Higher performance: designed from ground up to
assume data is in memory

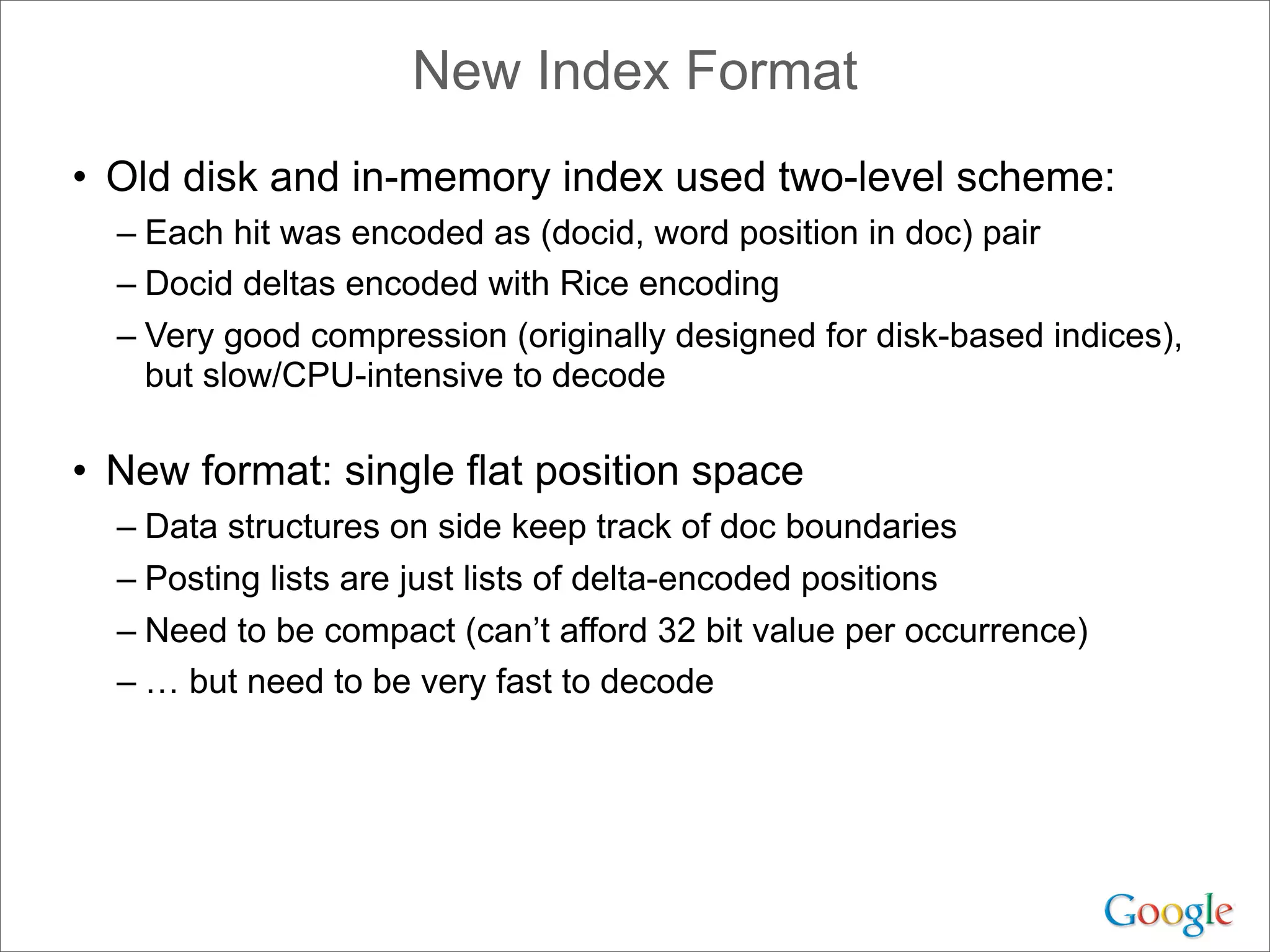

New Index Format
• Old disk and in-memory index used two-level scheme:
– Each hit was encoded as (docid, word position in doc) pair
– Docid deltas encoded with Rice encoding
– Very good compression (originally designed for disk-based indices),
but slow/CPU-intensive to decode
• New format: single flat position space
– Data structures on side keep track of doc boundaries
– Posting lists are just lists of delta-encoded positions
– Need to be compact (can’t afford 32 bit value per occurrence)
– … but need to be very fast to decode
Byte-Aligned Variable-length Encodings
• Varint encoding:
– 7 bits per byte with continuation bit
– Con: Decoding requires lots of branches/shifts/masks
0 00011110 0000001 000000111 1111111 111111111 1111111 0 0000111
1 15 511 131071

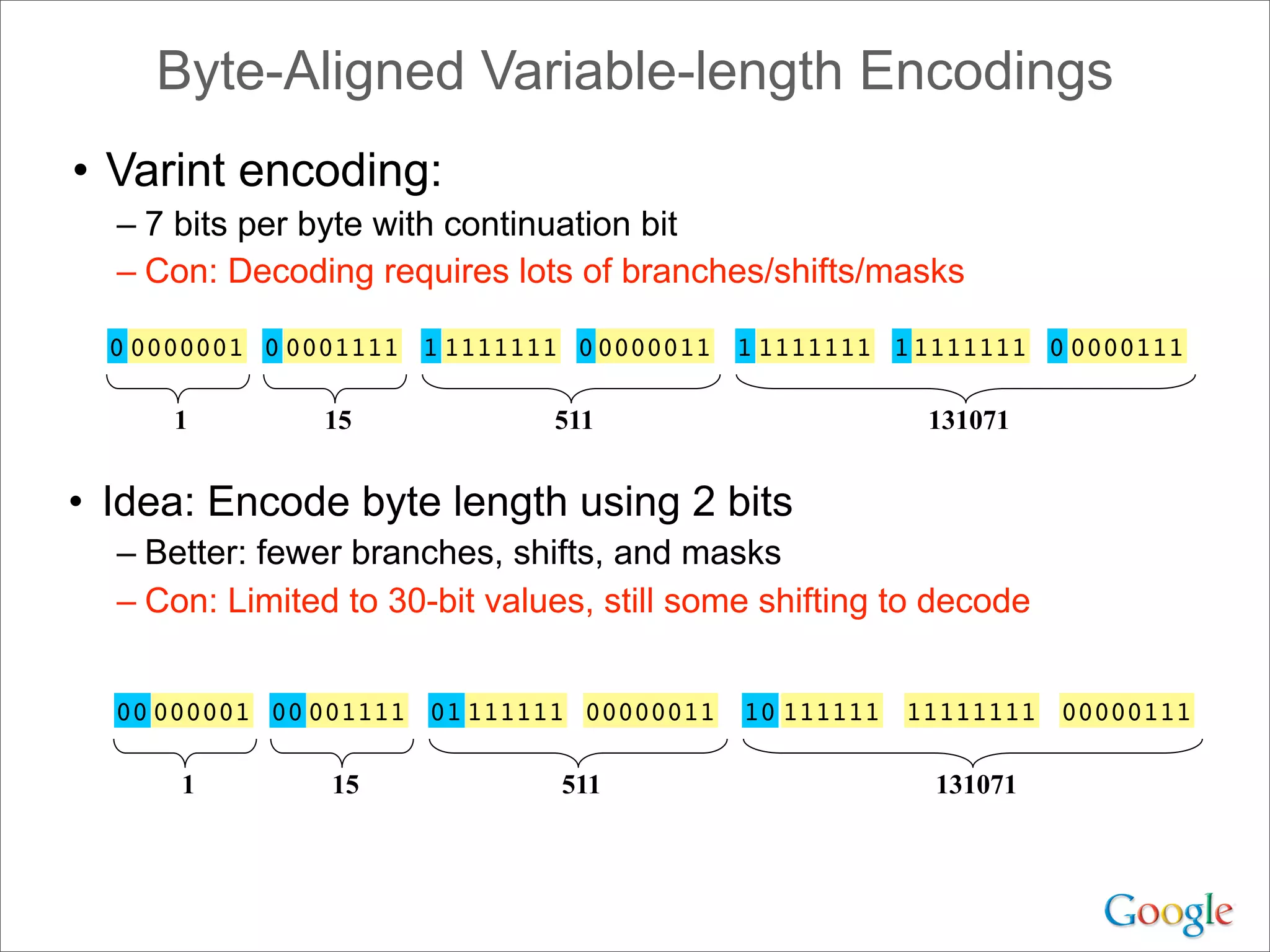

Byte-Aligned Variable-length Encodings
• Varint encoding:
– 7 bits per byte with continuation bit
– Con: Decoding requires lots of branches/shifts/masks
0 00011110 0000001 000000111 1111111 111111111 1111111 0 0000111
1 15 511 131071
• Idea: Encode byte length using 2 bits
– Better: fewer branches, shifts, and masks
– Con: Limited to 30-bit values, still some shifting to decode
00 00111100 000001 0000001101 111111 1111111110 111111 00000111
1 15 511 131071

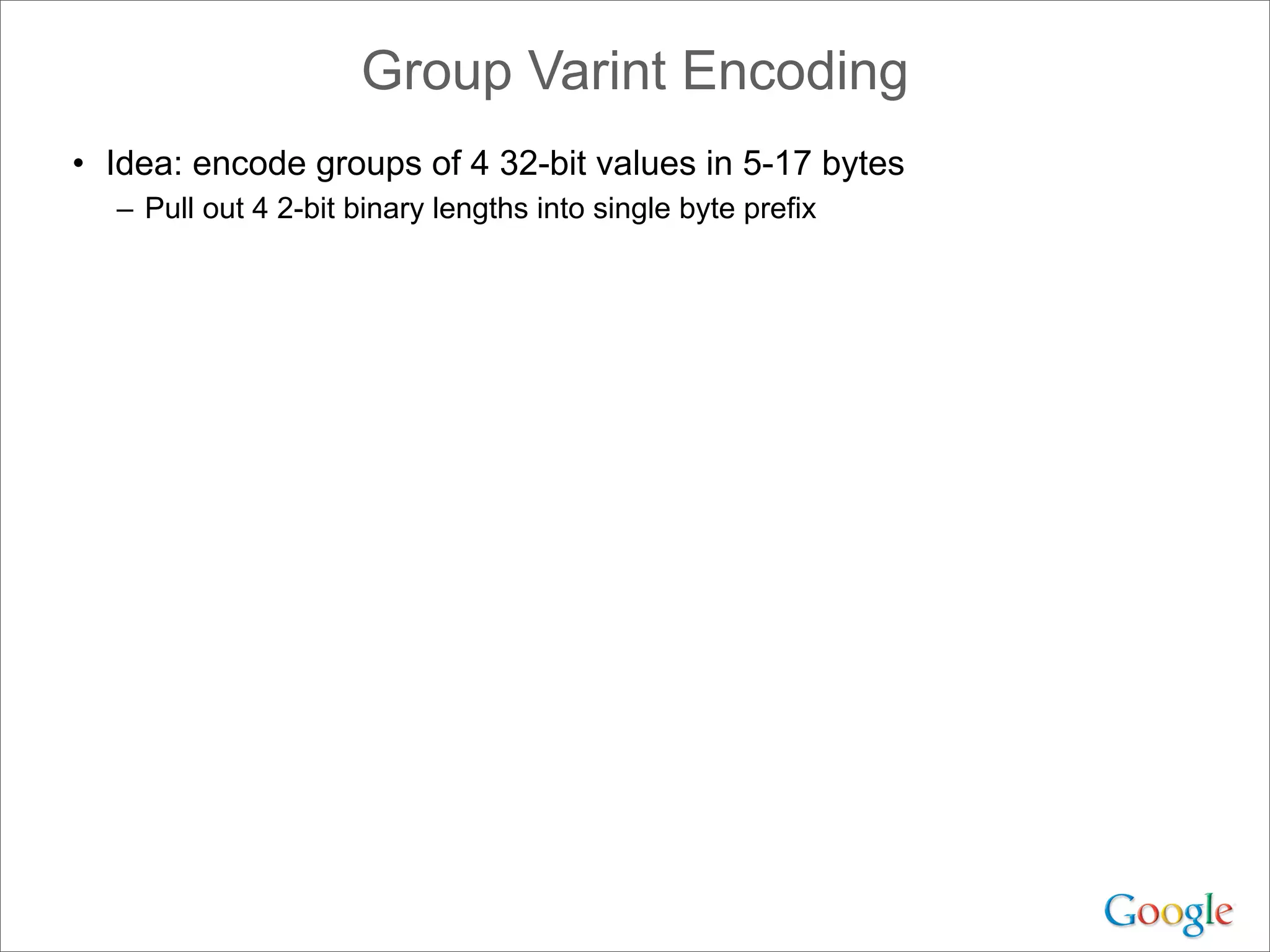

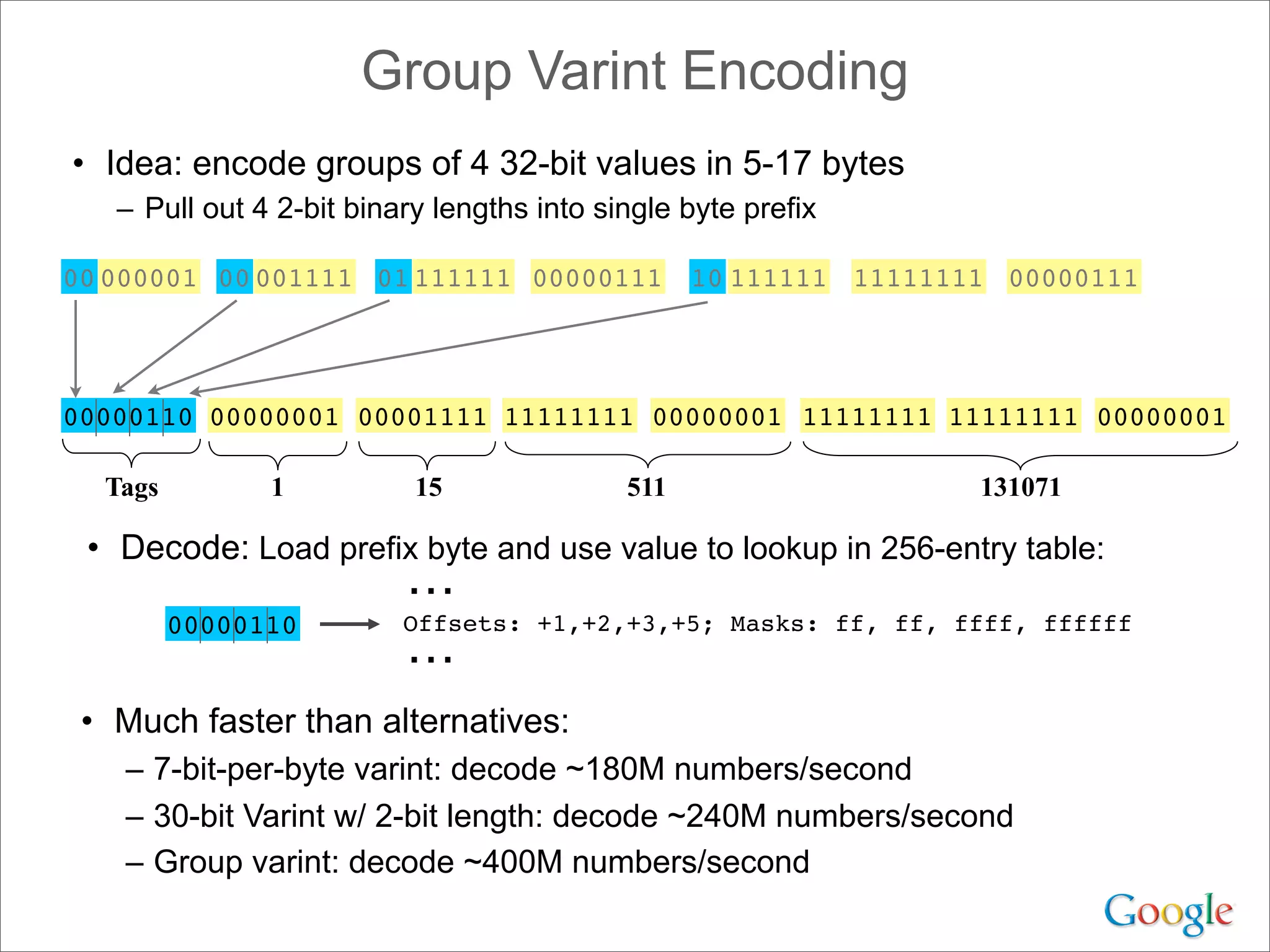

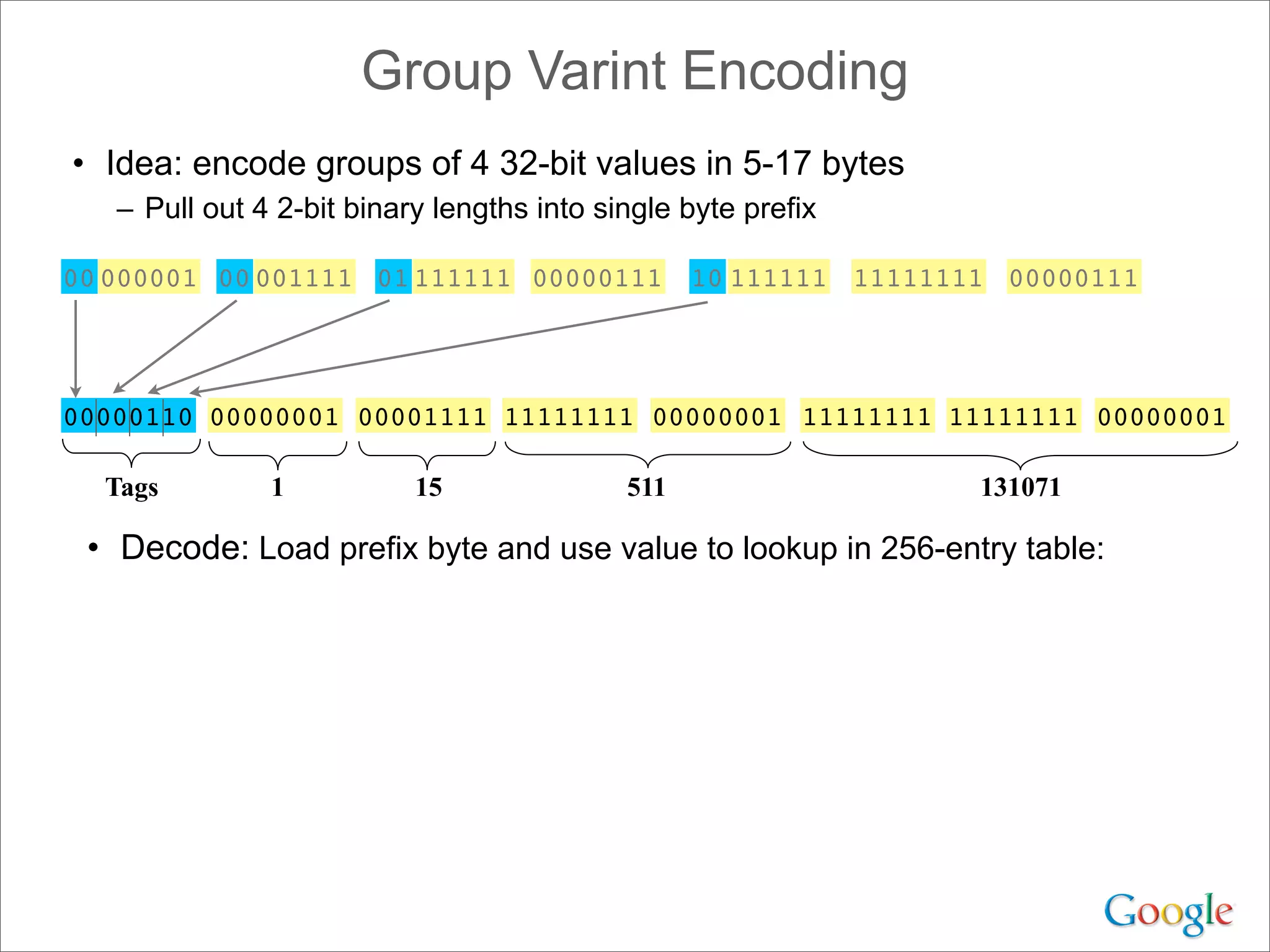

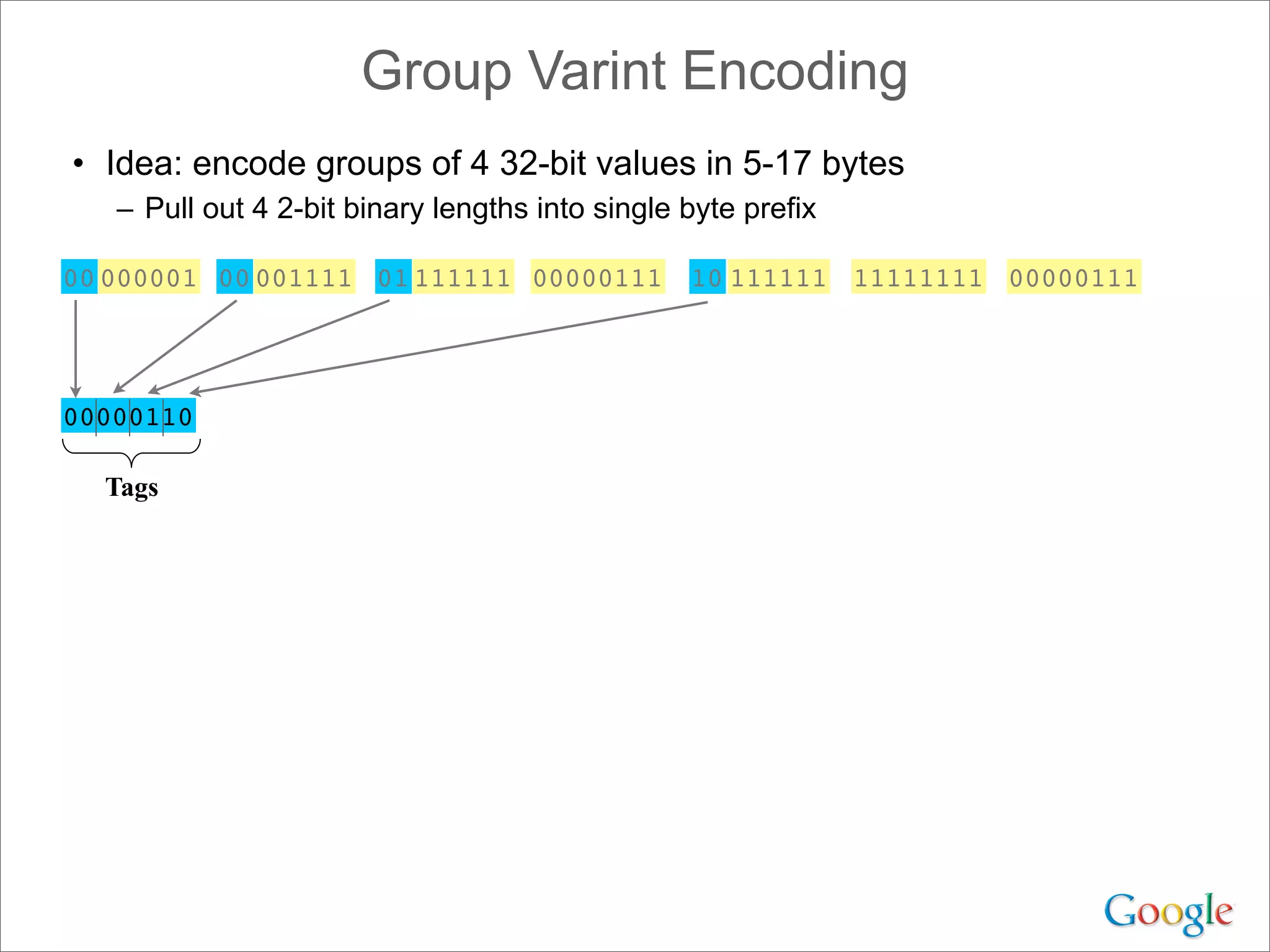

Group Varint Encoding
• Idea: encode groups of 4 32-bit values in 5-17 bytes
– Pull out 4 2-bit binary lengths into single byte prefix
Group Varint Encoding
• Idea: encode groups of 4 32-bit values in 5-17 bytes
– Pull out 4 2-bit binary lengths into single byte prefix
00 00111100 000001 0000011101 111111 1111111110 111111 00000111

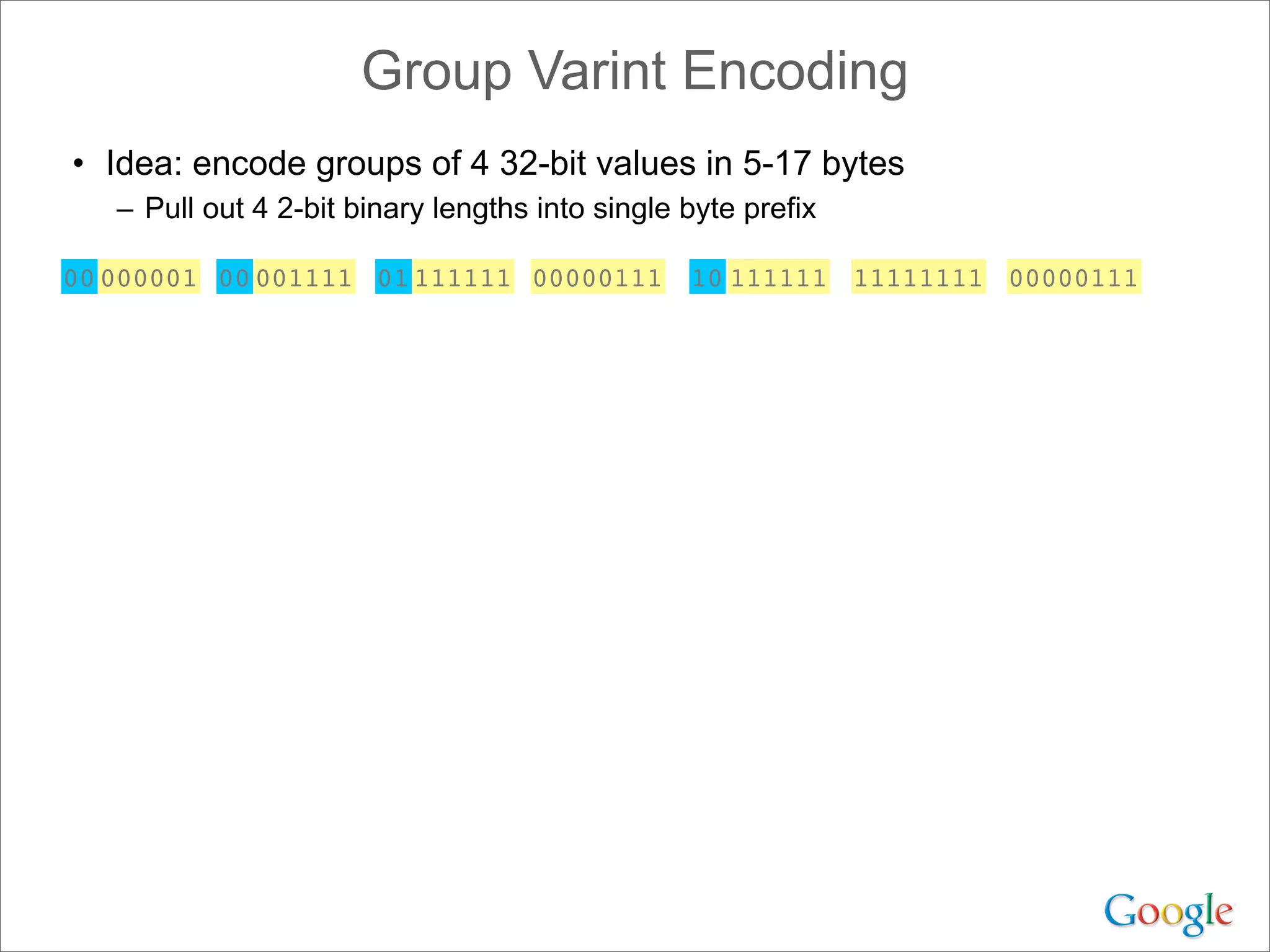

Group Varint Encoding
• Idea: encode groups of 4 32-bit values in 5-17 bytes
– Pull out 4 2-bit binary lengths into single byte prefix
00 00111100 000001 0000011101 111111 1111111110 111111 00000111
00000110
Tags

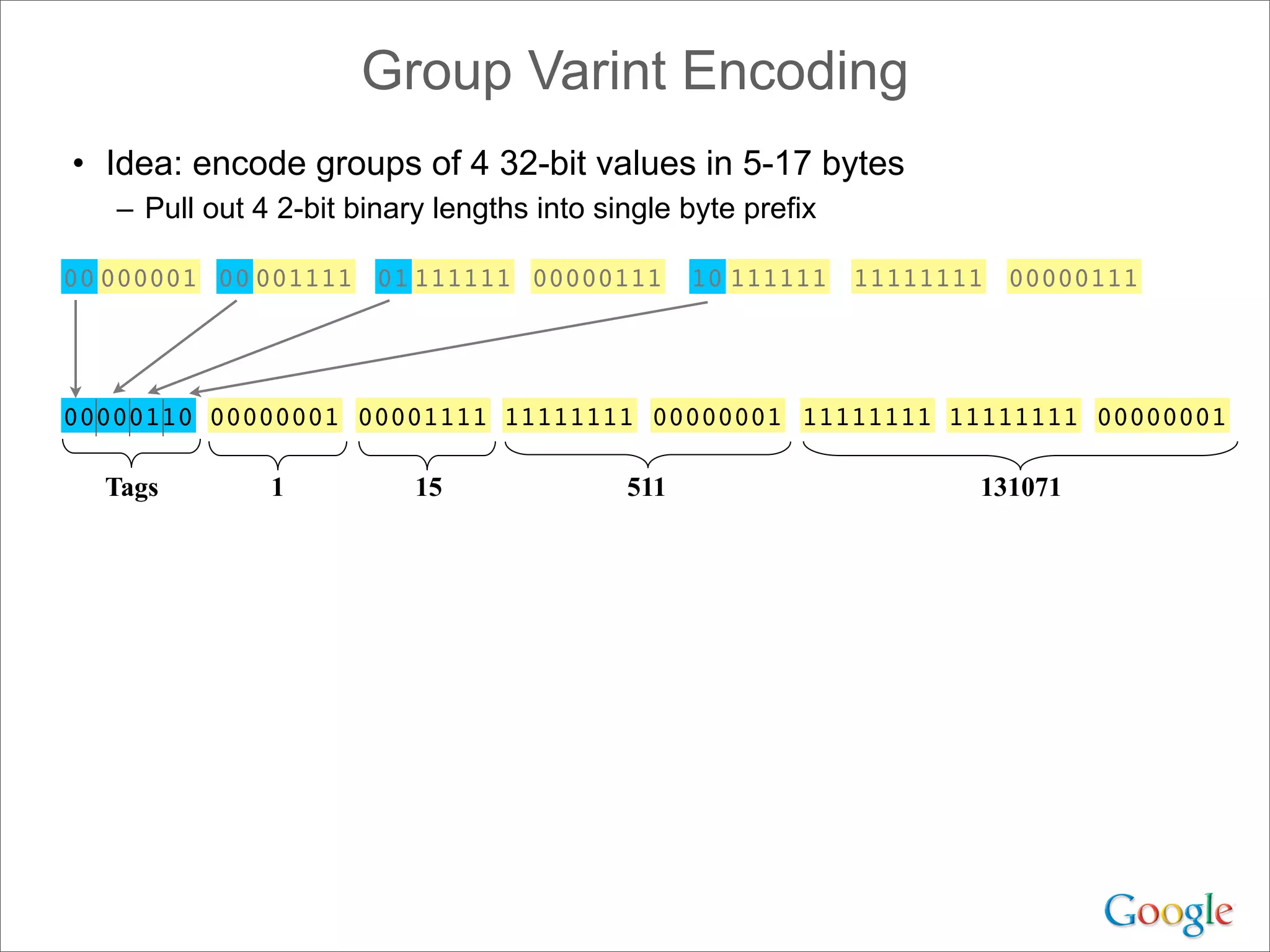

Group Varint Encoding
• Idea: encode groups of 4 32-bit values in 5-17 bytes
– Pull out 4 2-bit binary lengths into single byte prefix
00 00111100 000001 0000011101 111111 1111111110 111111 00000111
0000111100000001 11111111 11111111
1 15 511 131071
00000001 11111111 0000000100000110
Tags
Group Varint Encoding
• Idea: encode groups of 4 32-bit values in 5-17 bytes
– Pull out 4 2-bit binary lengths into single byte prefix
00 00111100 000001 0000011101 111111 1111111110 111111 00000111
0000111100000001 11111111 11111111
1 15 511 131071
00000001 11111111 0000000100000110
Tags
• Decode: Load prefix byte and use value to lookup in 256-entry table:

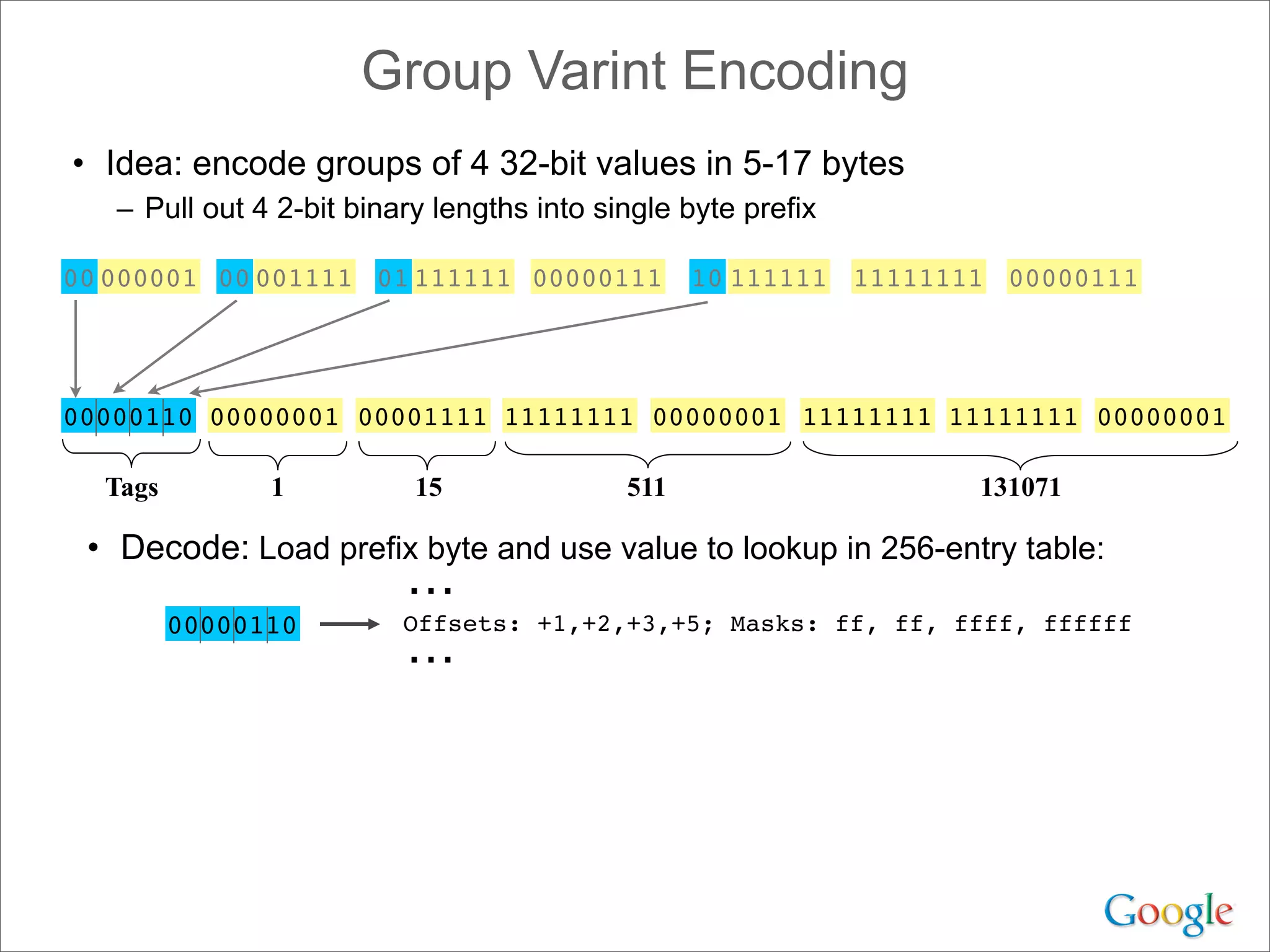

Group Varint Encoding
• Idea: encode groups of 4 32-bit values in 5-17 bytes
– Pull out 4 2-bit binary lengths into single byte prefix
00 00111100 000001 0000011101 111111 1111111110 111111 00000111
0000111100000001 11111111 11111111
1 15 511 131071
00000001 11111111 0000000100000110
Tags
• Decode: Load prefix byte and use value to lookup in 256-entry table:
00000110 Offsets: +1,+2,+3,+5; Masks: ff, ff, ffff, ffffff
Group Varint Encoding
• Idea: encode groups of 4 32-bit values in 5-17 bytes
– Pull out 4 2-bit binary lengths into single byte prefix
00 00111100 000001 0000011101 111111 1111111110 111111 00000111
0000111100000001 11111111 11111111
1 15 511 131071
00000001 11111111 0000000100000110
Tags
• Much faster than alternatives:
– 7-bit-per-byte varint: decode ~180M numbers/second
– 30-bit Varint w/ 2-bit length: decode ~240M numbers/second
– Group varint: decode ~400M numbers/second
• Decode: Load prefix byte and use value to lookup in 256-entry table:
00000110 Offsets: +1,+2,+3,+5; Masks: ff, ff, ffff, ffffff

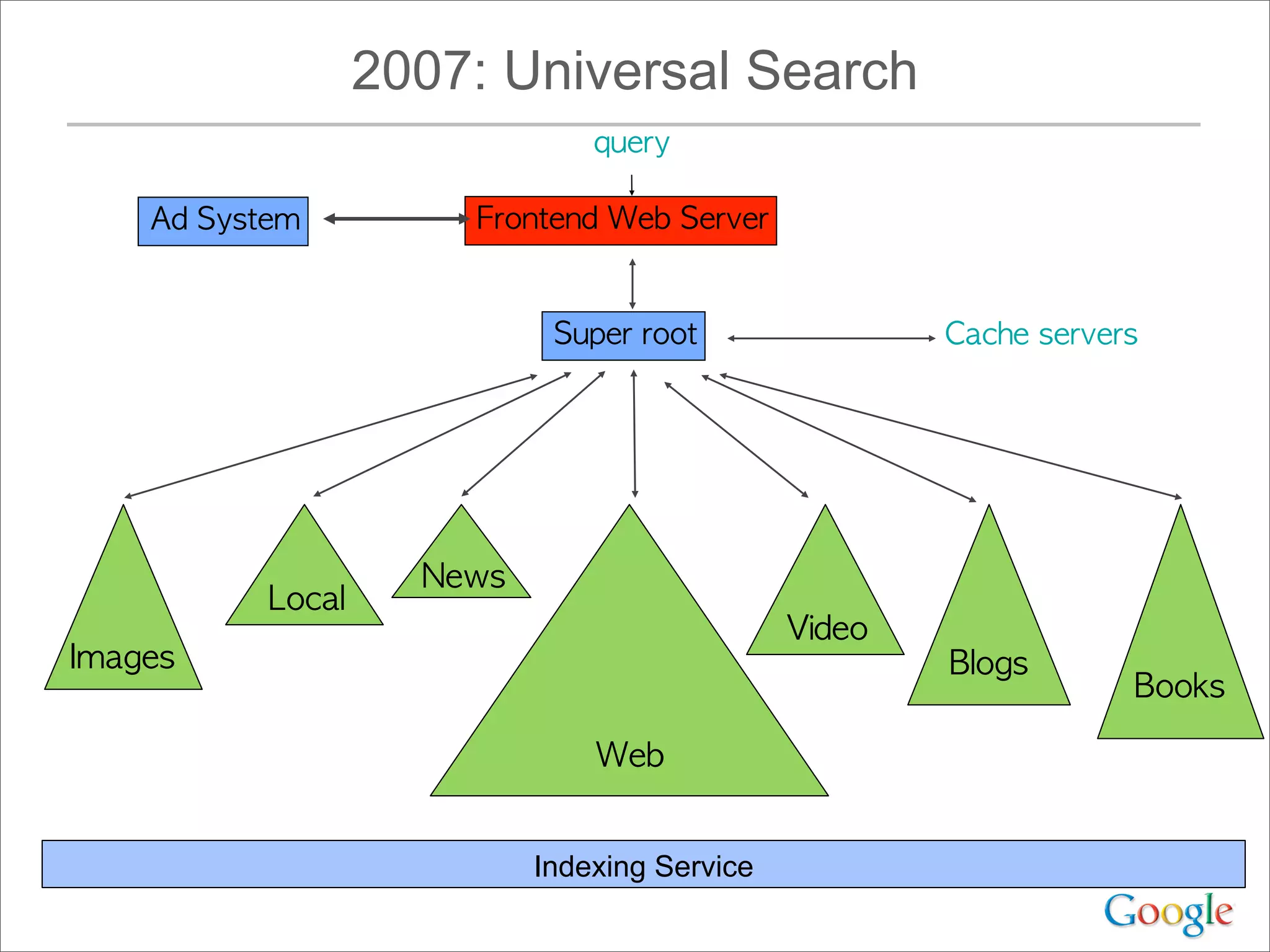

2007: Universal Search
Frontend Web Server
query
Cache servers
Ad System
News
Super root
Images
Web
Blogs
Video
Books
Local
Indexing Service

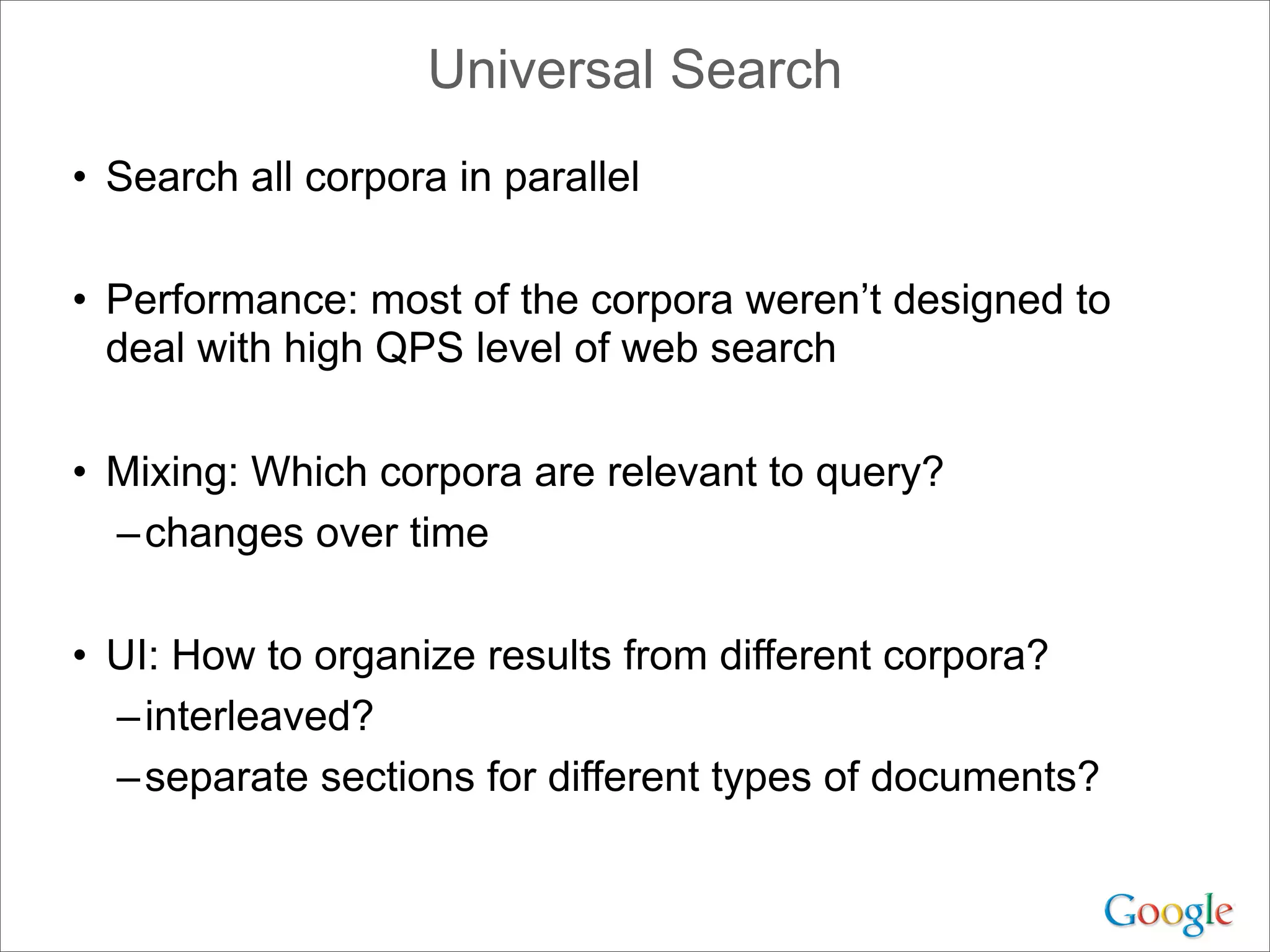

Universal Search
• Search all corpora in parallel
• Performance: most of the corpora weren’t designed to
deal with high QPS level of web search
• Mixing: Which corpora are relevant to query?
–changes over time
• UI: How to organize results from different corpora?
–interleaved?
–separate sections for different types of documents?

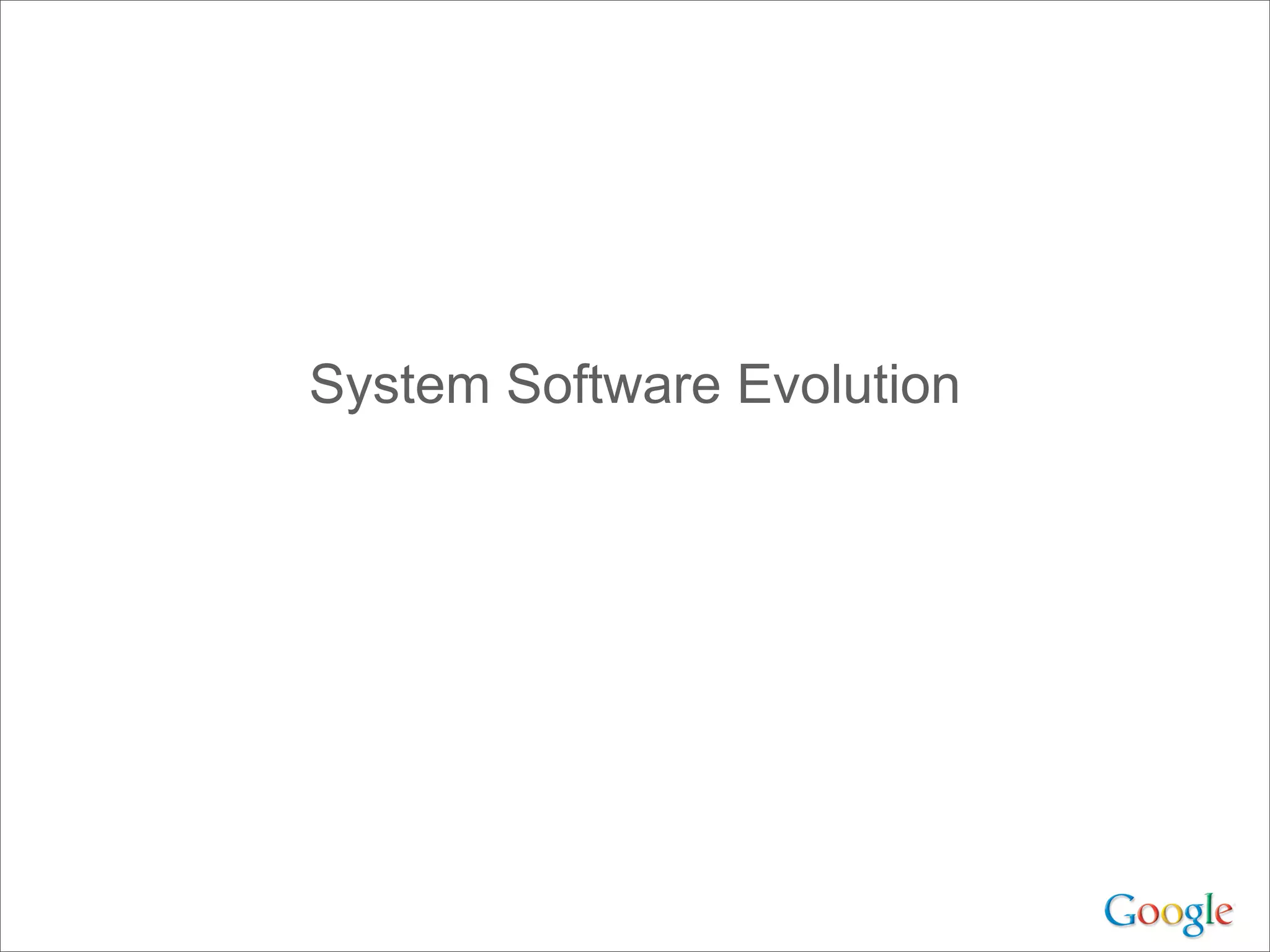

System Software Evolution

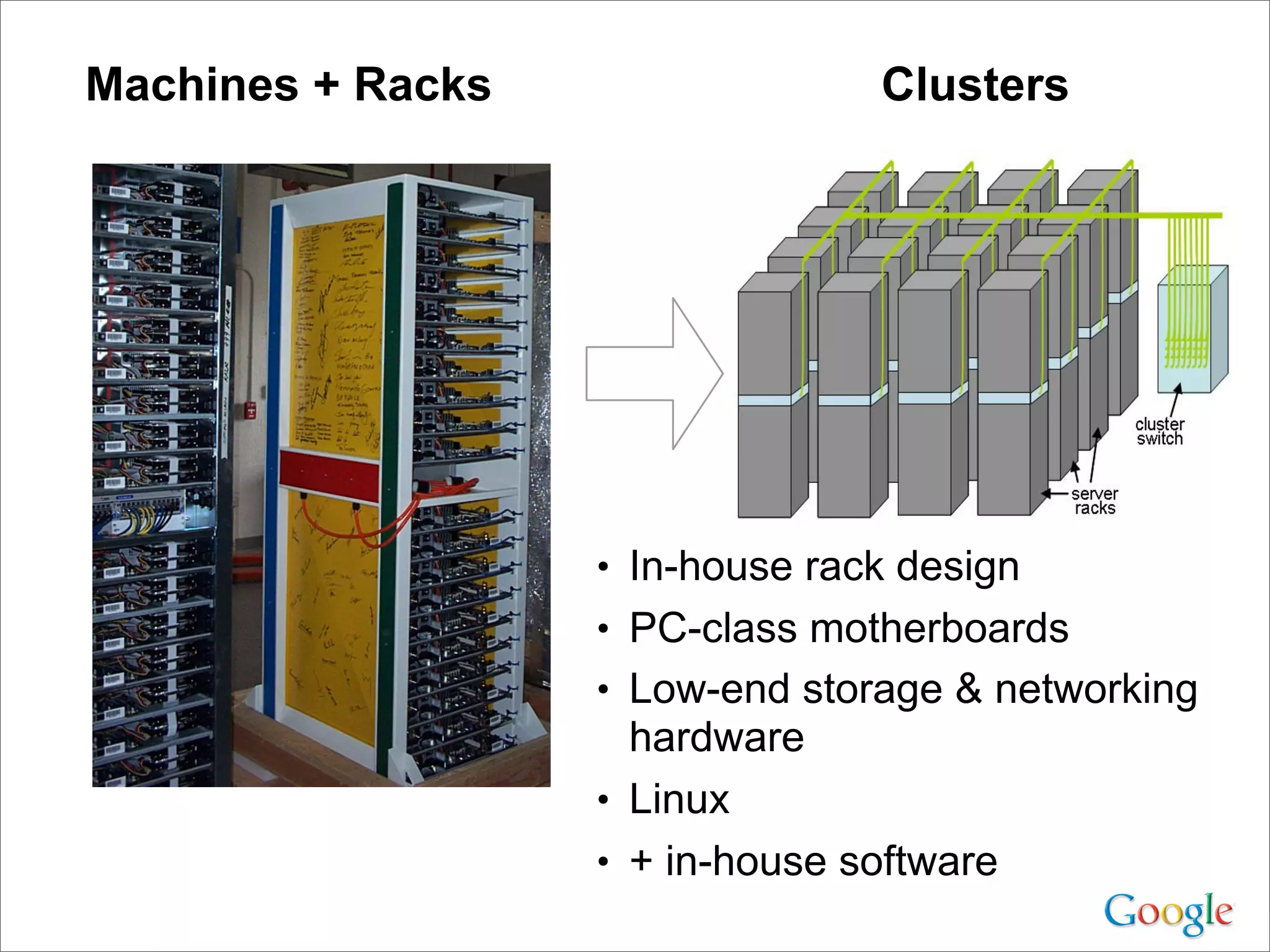

Machines + Racks
• In-house rack design
• PC-class motherboards
• Low-end storage & networking
hardware
• Linux
• + in-house software
Clusters

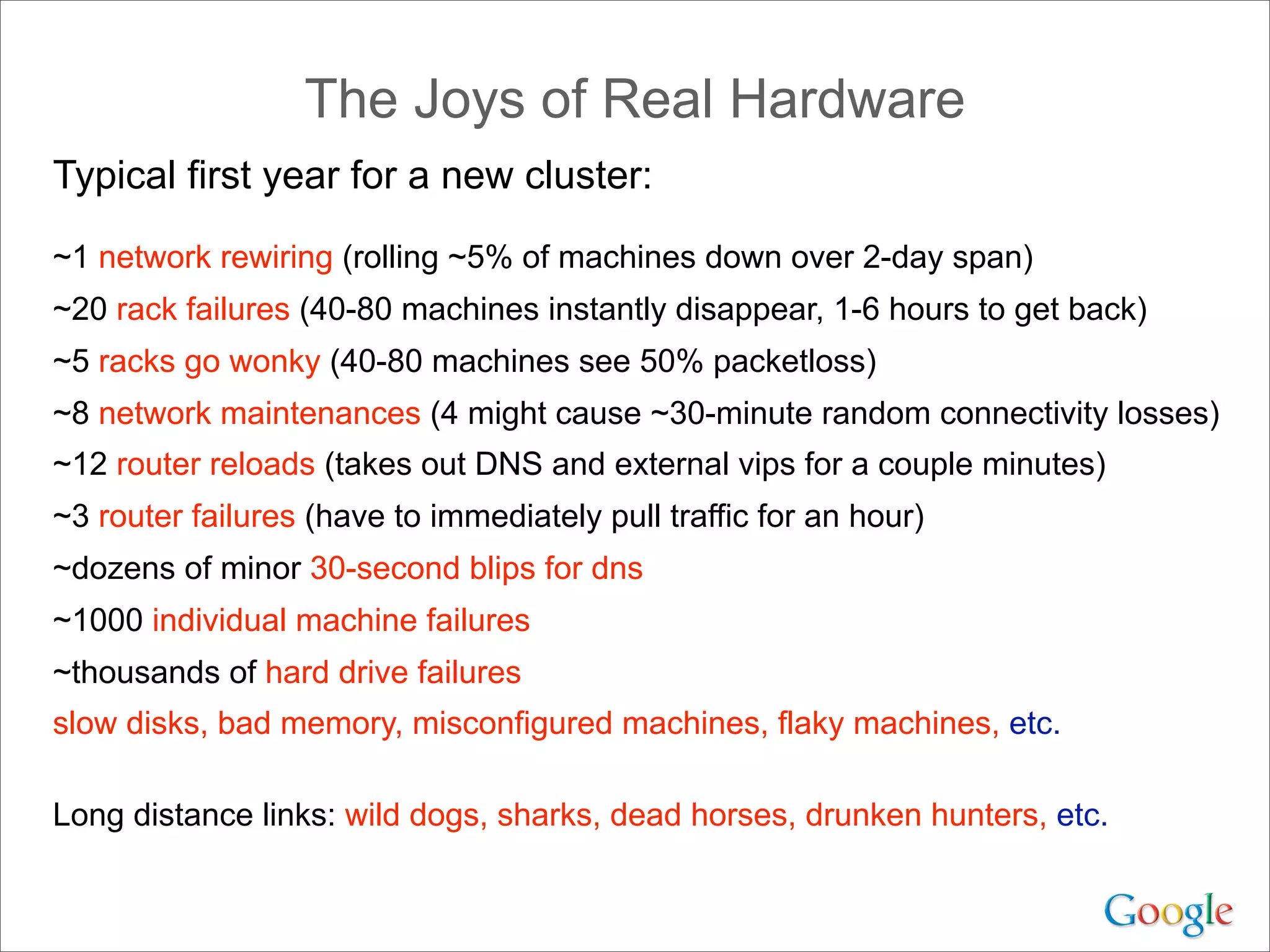

The Joys of Real Hardware
Typical first year for a new cluster:
~1 network rewiring (rolling ~5% of machines down over 2-day span)
~20 rack failures (40-80 machines instantly disappear, 1-6 hours to get back)
~5 racks go wonky (40-80 machines see 50% packetloss)
~8 network maintenances (4 might cause ~30-minute random connectivity losses)
~12 router reloads (takes out DNS and external vips for a couple minutes)
~3 router failures (have to immediately pull traffic for an hour)
~dozens of minor 30-second blips for dns
~1000 individual machine failures
~thousands of hard drive failures
slow disks, bad memory, misconfigured machines, flaky machines, etc.
Long distance links: wild dogs, sharks, dead horses, drunken hunters, etc.

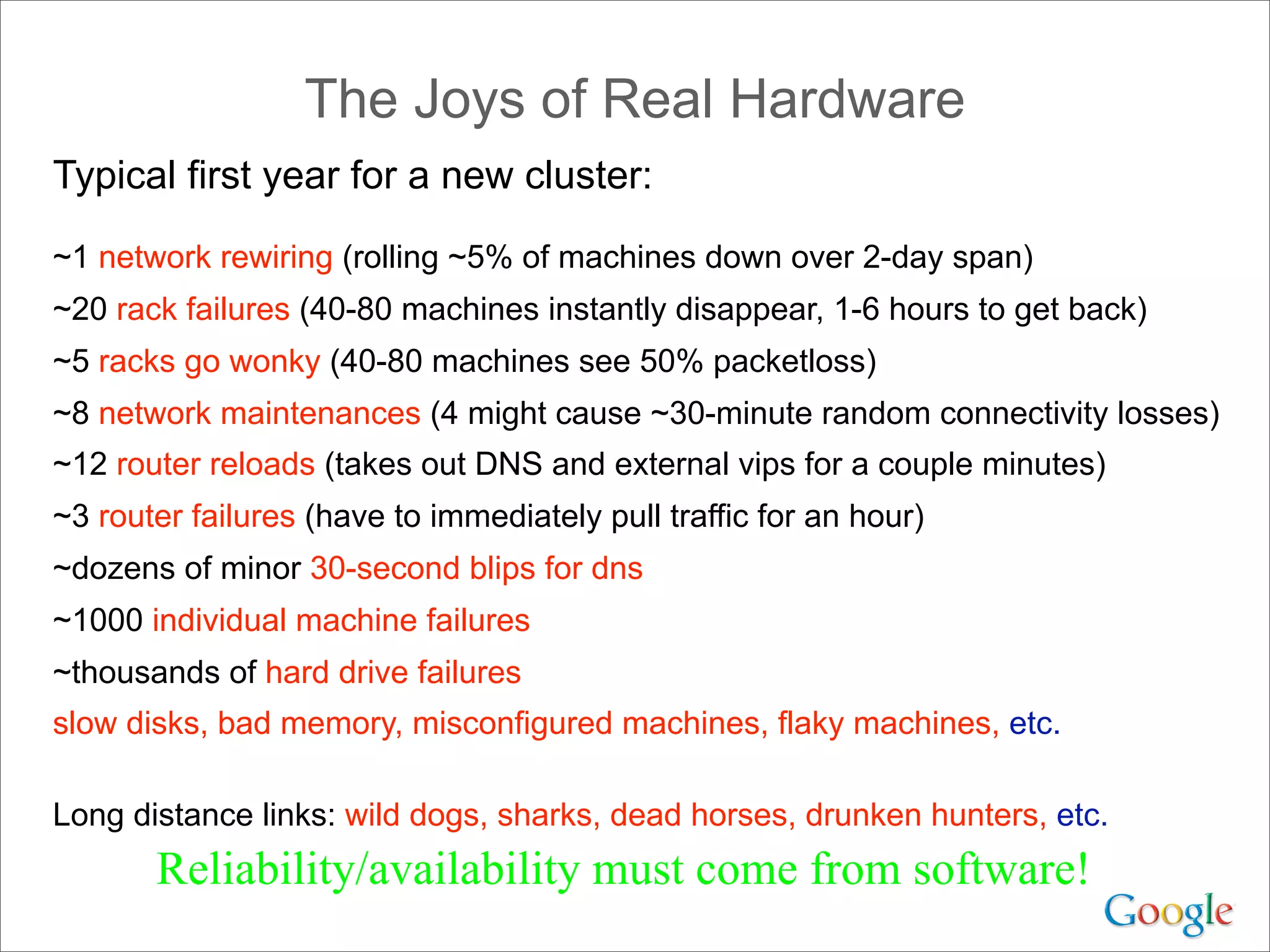

The Joys of Real Hardware
Typical first year for a new cluster:
~1 network rewiring (rolling ~5% of machines down over 2-day span)
~20 rack failures (40-80 machines instantly disappear, 1-6 hours to get back)
~5 racks go wonky (40-80 machines see 50% packetloss)
~8 network maintenances (4 might cause ~30-minute random connectivity losses)
~12 router reloads (takes out DNS and external vips for a couple minutes)
~3 router failures (have to immediately pull traffic for an hour)
~dozens of minor 30-second blips for dns
~1000 individual machine failures
~thousands of hard drive failures
slow disks, bad memory, misconfigured machines, flaky machines, etc.
Long distance links: wild dogs, sharks, dead horses, drunken hunters, etc.
Reliability/availability must come from software!

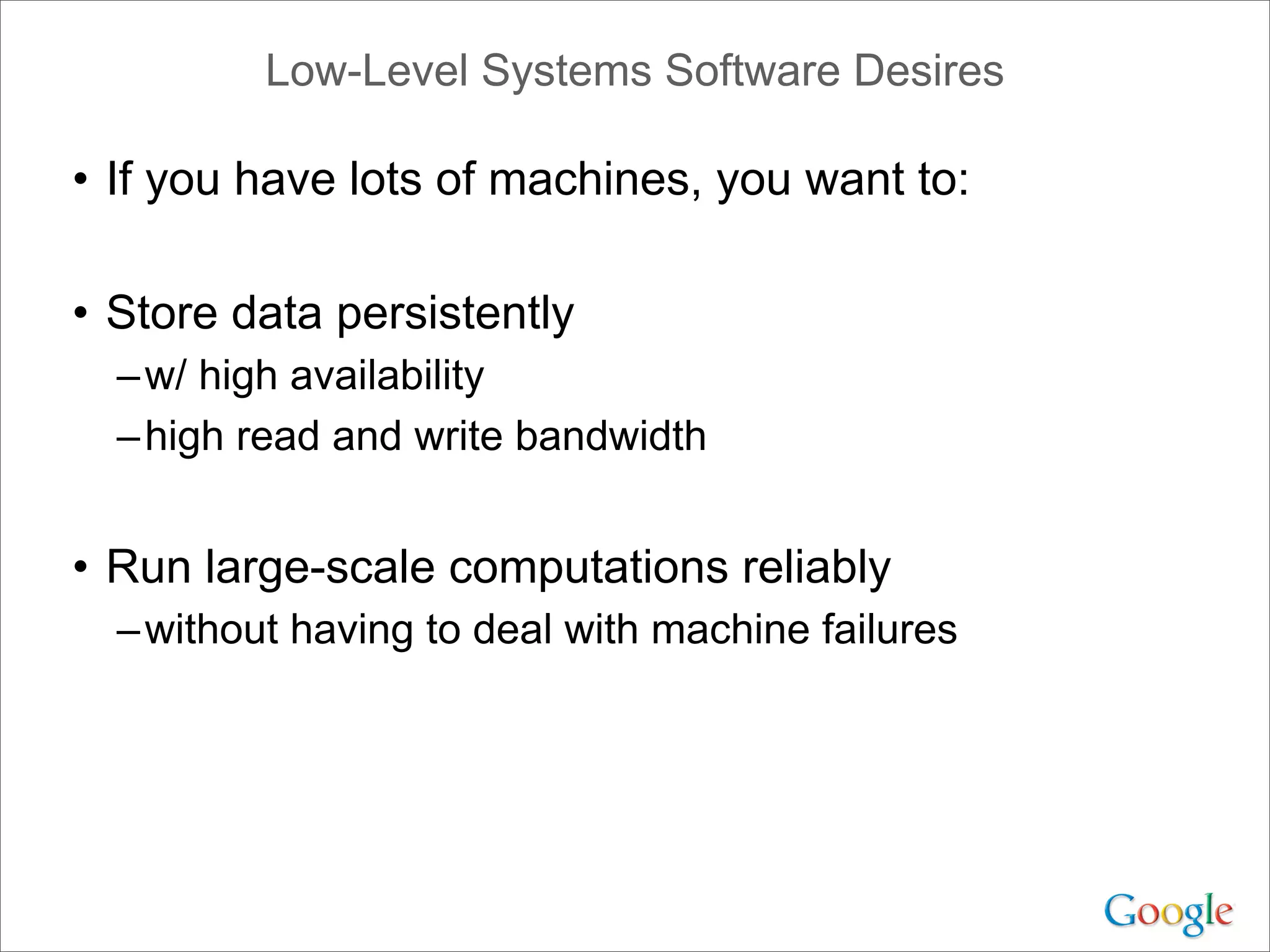

Low-Level Systems Software Desires
• If you have lots of machines, you want to:
• Store data persistently
–w/ high availability
–high read and write bandwidth
• Run large-scale computations reliably
–without having to deal with machine failures

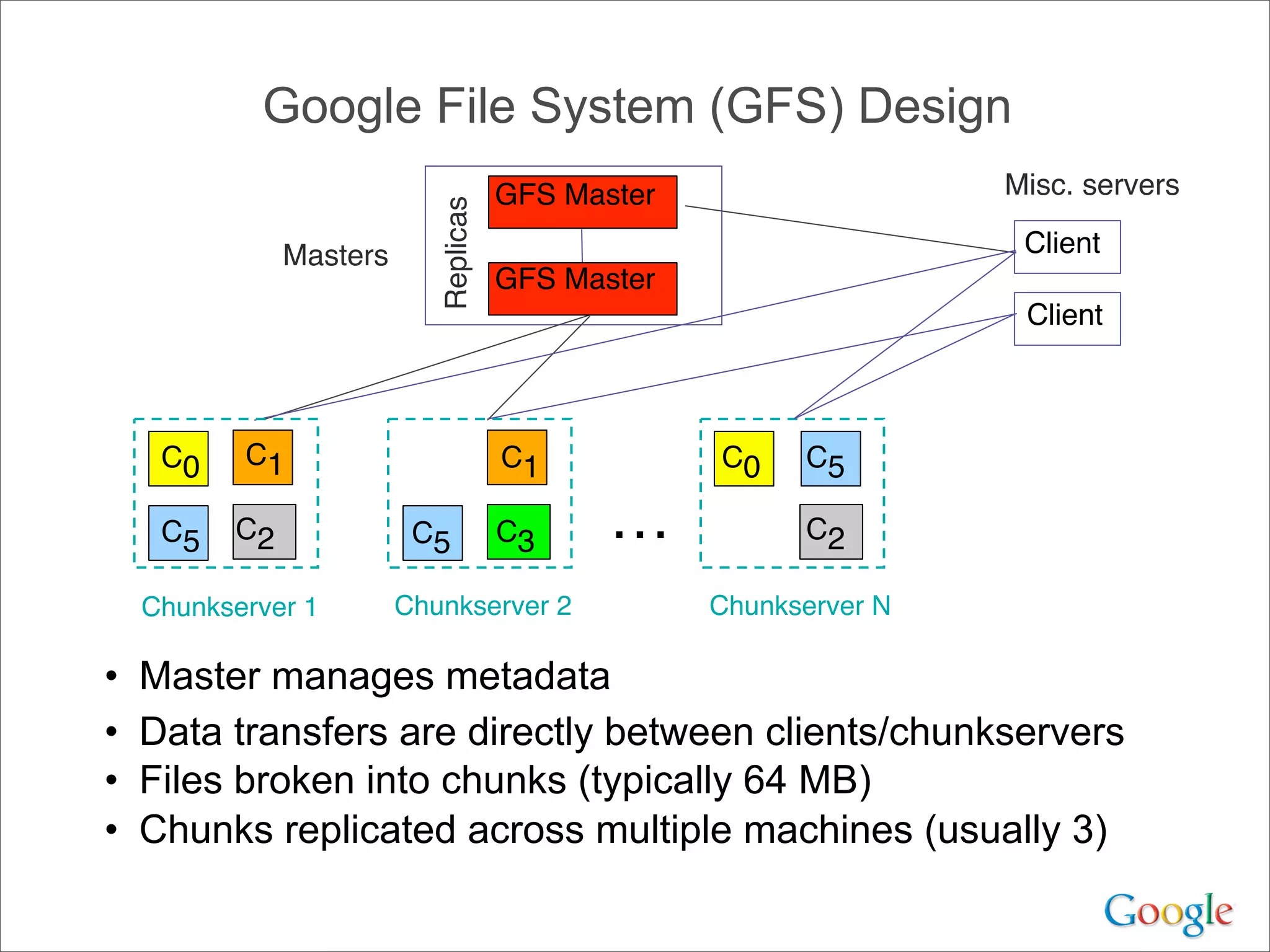

• Master manages metadata
• Data transfers are directly between clients/chunkservers
• Files broken into chunks (typically 64 MB)
• Chunks replicated across multiple machines (usually 3)
Client
Client
Misc. servers
Client
Replicas
Masters
GFS Master
GFS Master
C0 C1
C2C5
Chunkserver 1
C0
C2
C5
Chunkserver N
C1
C3C5
Chunkserver 2
…
Google File System (GFS) Design

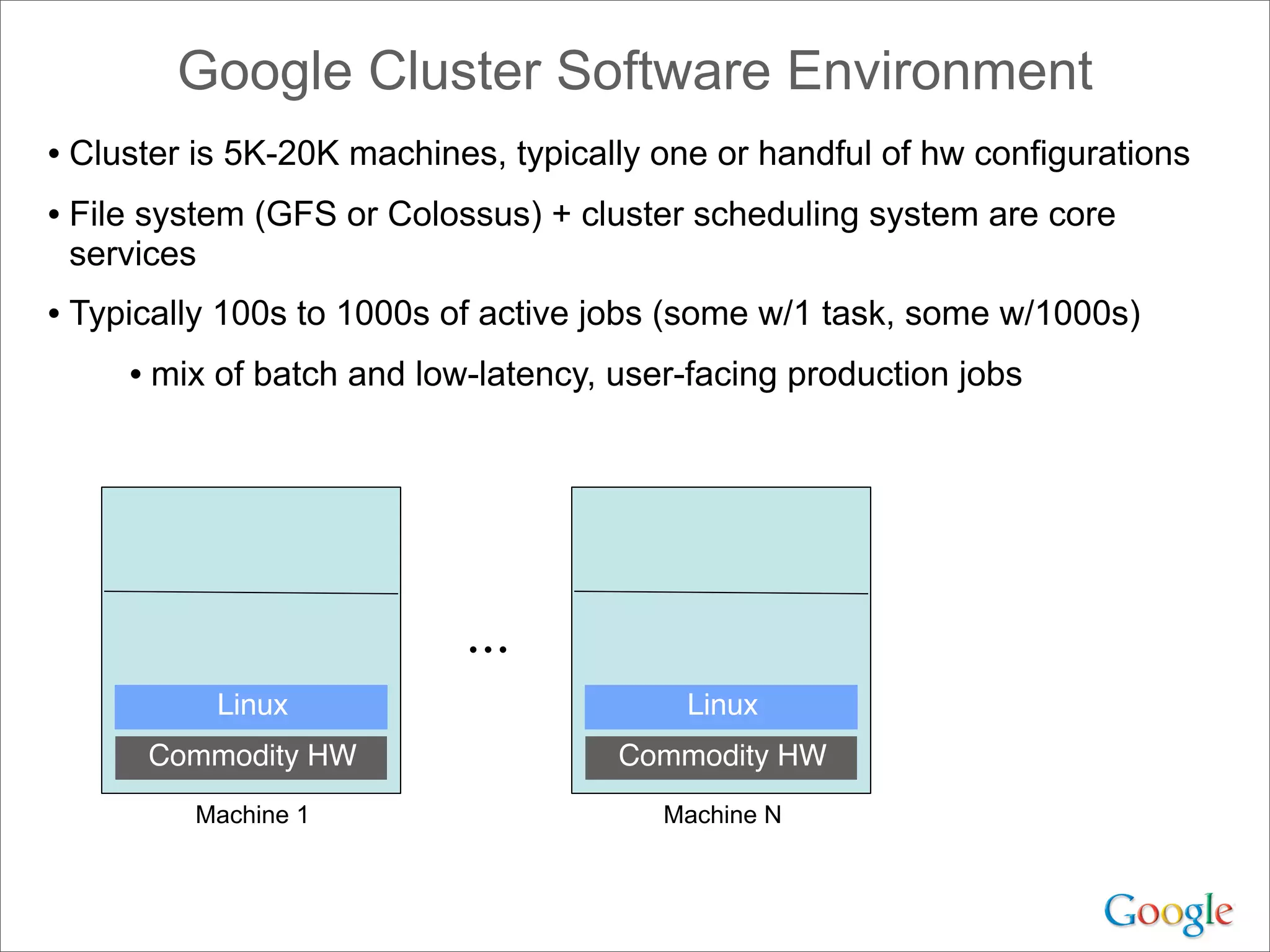

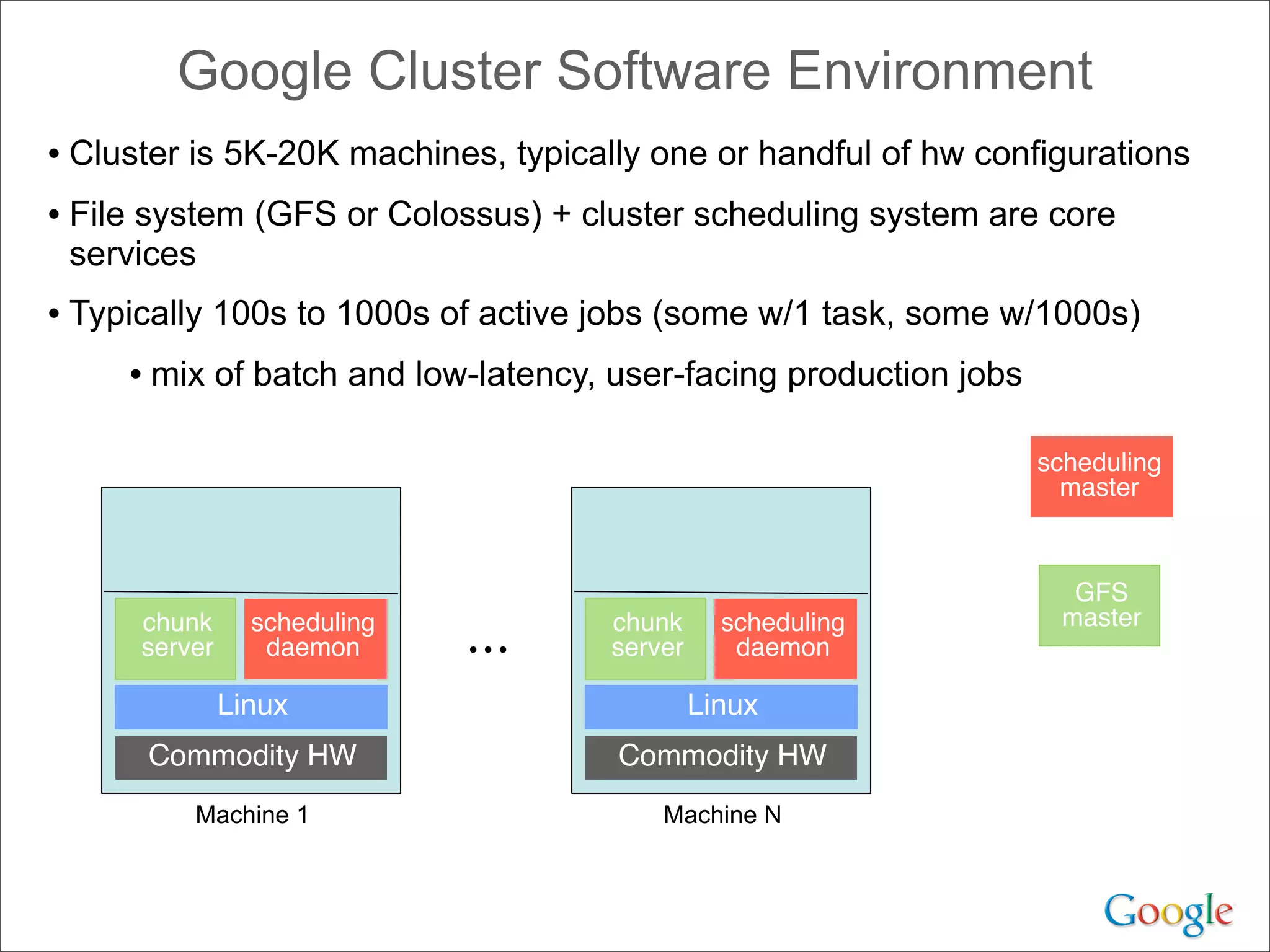

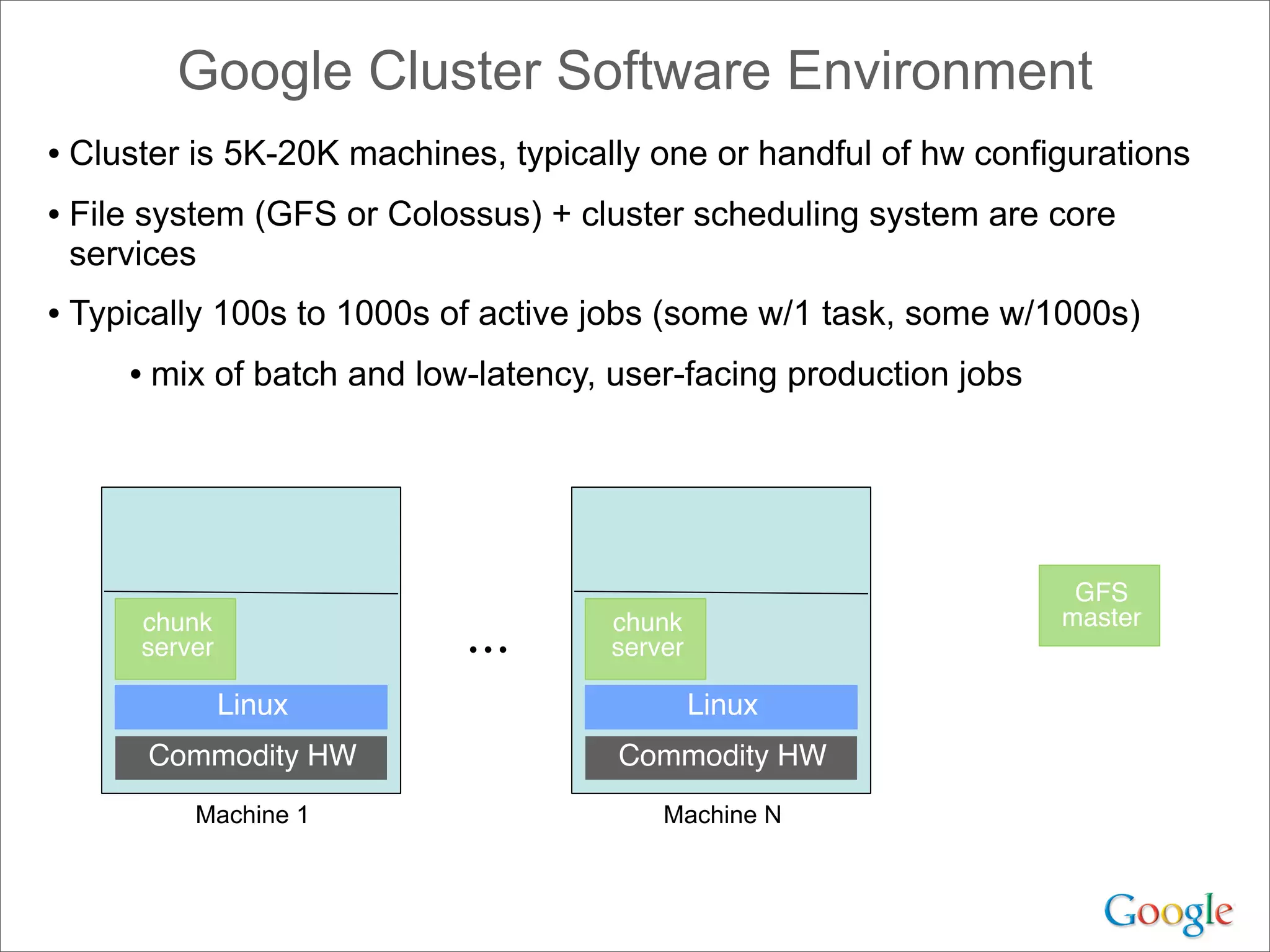

• Cluster is 5K-20K machines, typically one or handful of hw configurations
• File system (GFS or Colossus) + cluster scheduling system are core
services
• Typically 100s to 1000s of active jobs (some w/1 task, some w/1000s)
• mix of batch and low-latency, user-facing production jobs
Google Cluster Software Environment
Linux
Commodity HW
Linux
Commodity HW
Machine 1
...
Machine N
• Cluster is 5K-20K machines, typically one or handful of hw configurations
• File system (GFS or Colossus) + cluster scheduling system are core
services
• Typically 100s to 1000s of active jobs (some w/1 task, some w/1000s)
• mix of batch and low-latency, user-facing production jobs
Google Cluster Software Environment
Linux
Commodity HW
Linux
Commodity HW
Machine 1
...
Machine N
chunk
server
chunk
server
GFS
master
• Cluster is 5K-20K machines, typically one or handful of hw configurations
• File system (GFS or Colossus) + cluster scheduling system are core
services
• Typically 100s to 1000s of active jobs (some w/1 task, some w/1000s)
• mix of batch and low-latency, user-facing production jobs
Google Cluster Software Environment
Linux
Commodity HW
Linux
Commodity HW
Machine 1
...
Machine N
scheduling
daemon
scheduling
daemon
scheduling
master
chunk
server
chunk
server
GFS
master

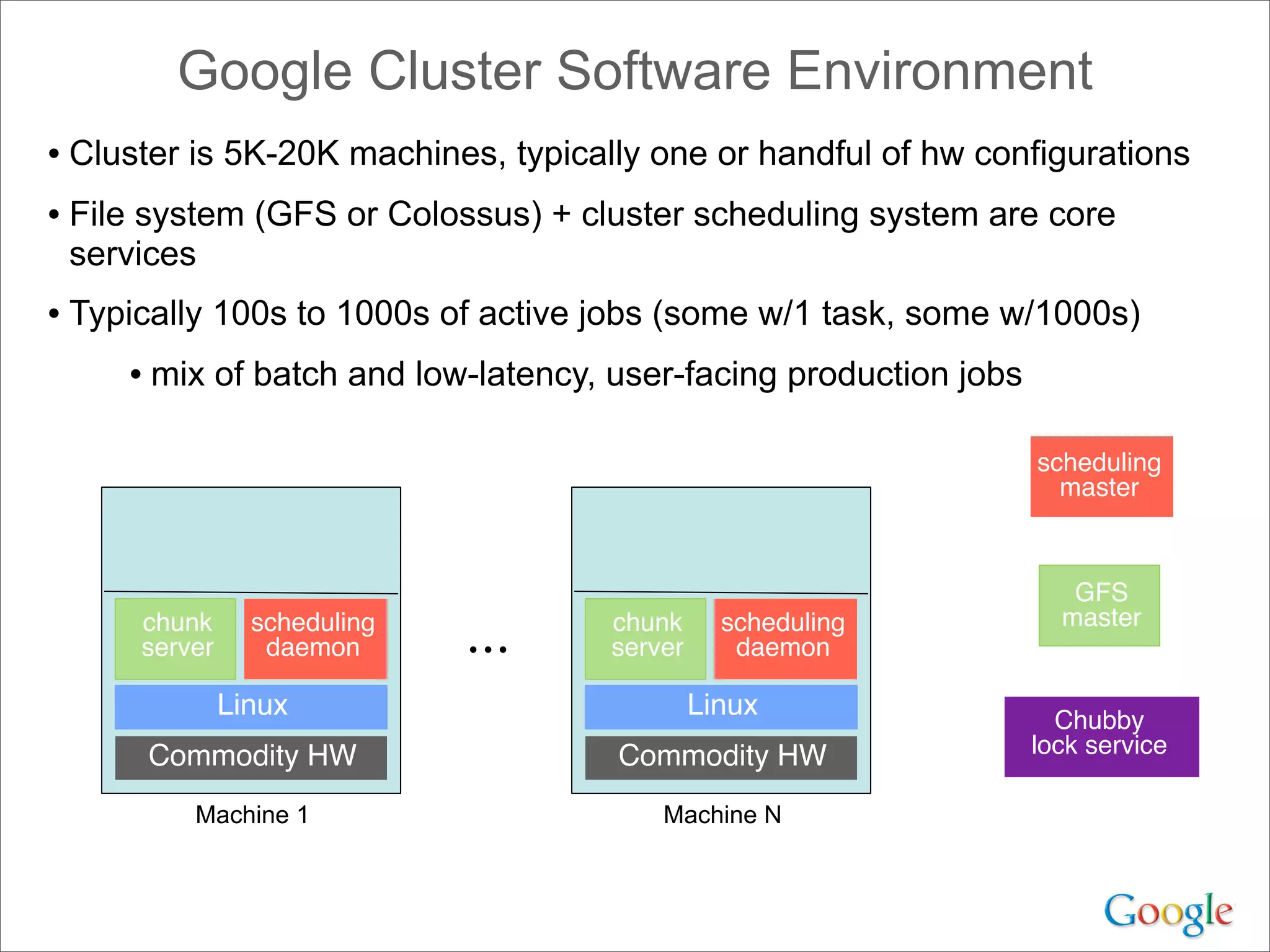

• Cluster is 5K-20K machines, typically one or handful of hw configurations
• File system (GFS or Colossus) + cluster scheduling system are core
services
• Typically 100s to 1000s of active jobs (some w/1 task, some w/1000s)
• mix of batch and low-latency, user-facing production jobs
Google Cluster Software Environment
Linux
Commodity HW
Linux
Commodity HW
Machine 1
...
Machine N
scheduling
daemon
scheduling
daemon
scheduling
master
chunk
server
chunk
server
GFS
master
Chubby
lock service

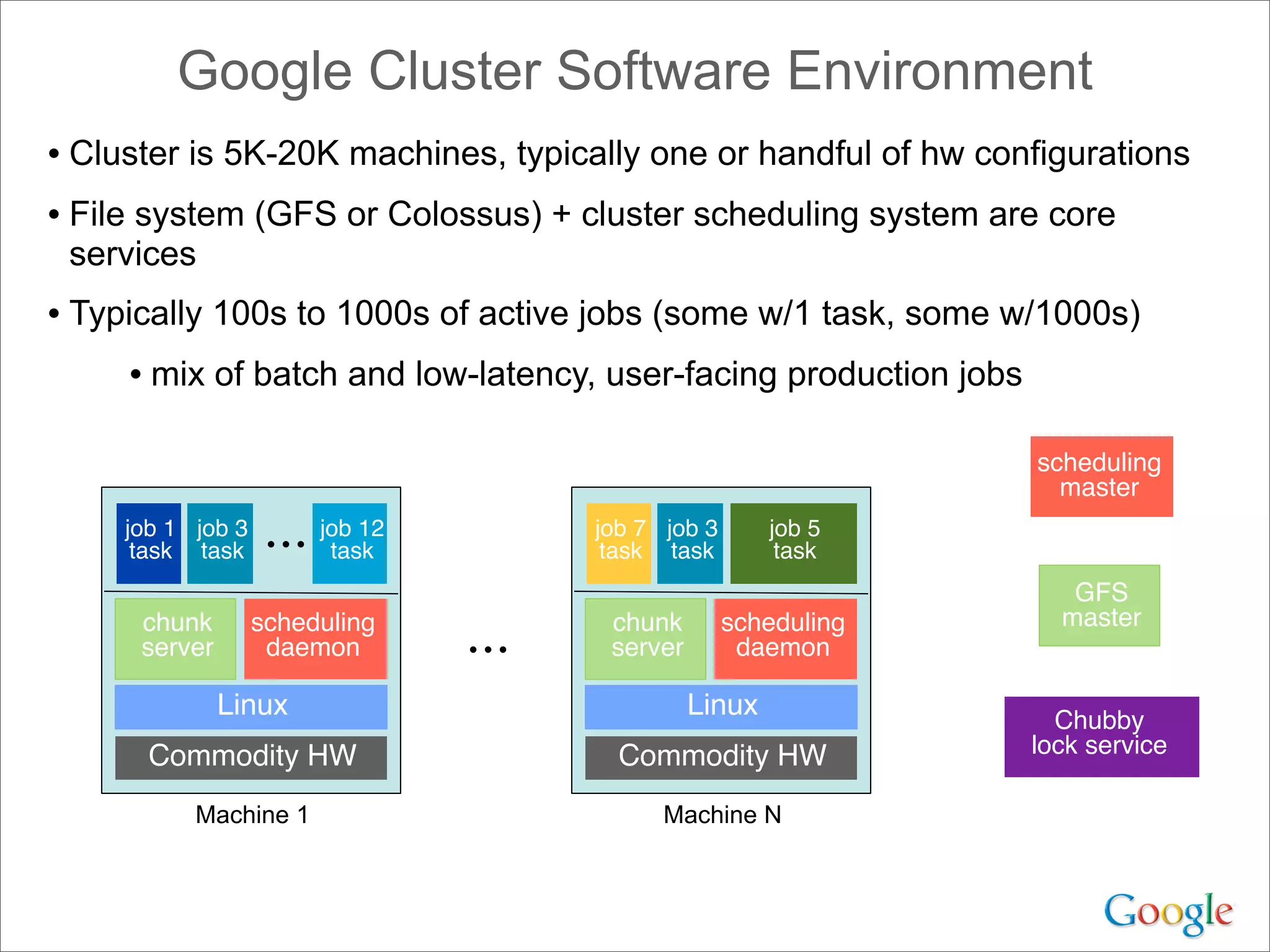

• Cluster is 5K-20K machines, typically one or handful of hw configurations
• File system (GFS or Colossus) + cluster scheduling system are core
services
• Typically 100s to 1000s of active jobs (some w/1 task, some w/1000s)
• mix of batch and low-latency, user-facing production jobs
Google Cluster Software Environment
Linux
Commodity HW
Linux
Commodity HW
...job 1
task
job 3
task
job 12
task
job 7
task
job 3
task
job 5
task
Machine 1
...
Machine N
scheduling
daemon
scheduling
daemon
scheduling
master
chunk
server
chunk
server
GFS
master
Chubby
lock service

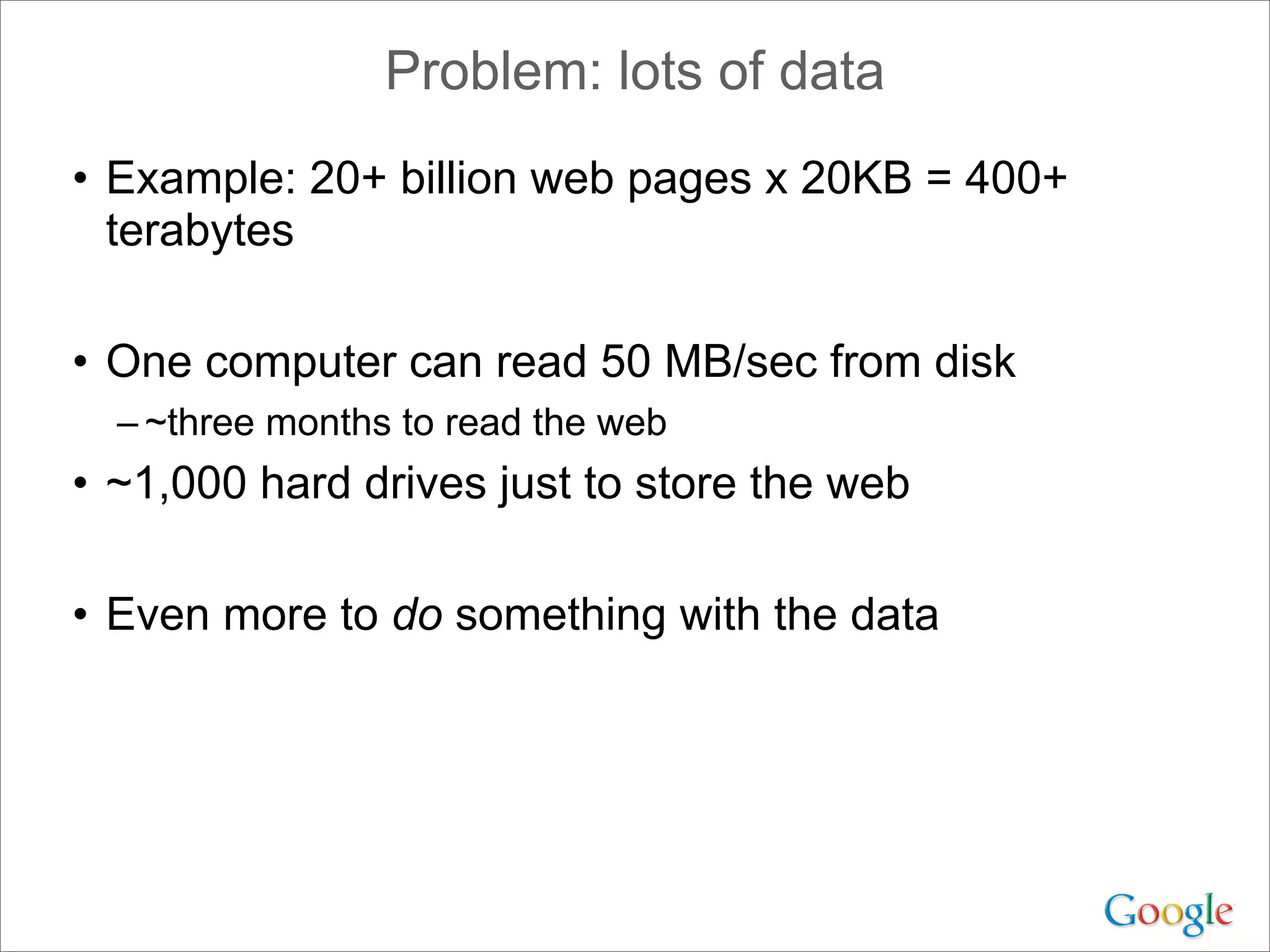

Problem: lots of data
• Example: 20+ billion web pages x 20KB = 400+
terabytes
• One computer can read 50 MB/sec from disk
– ~three months to read the web
• ~1,000 hard drives just to store the web
• Even more to do something with the data

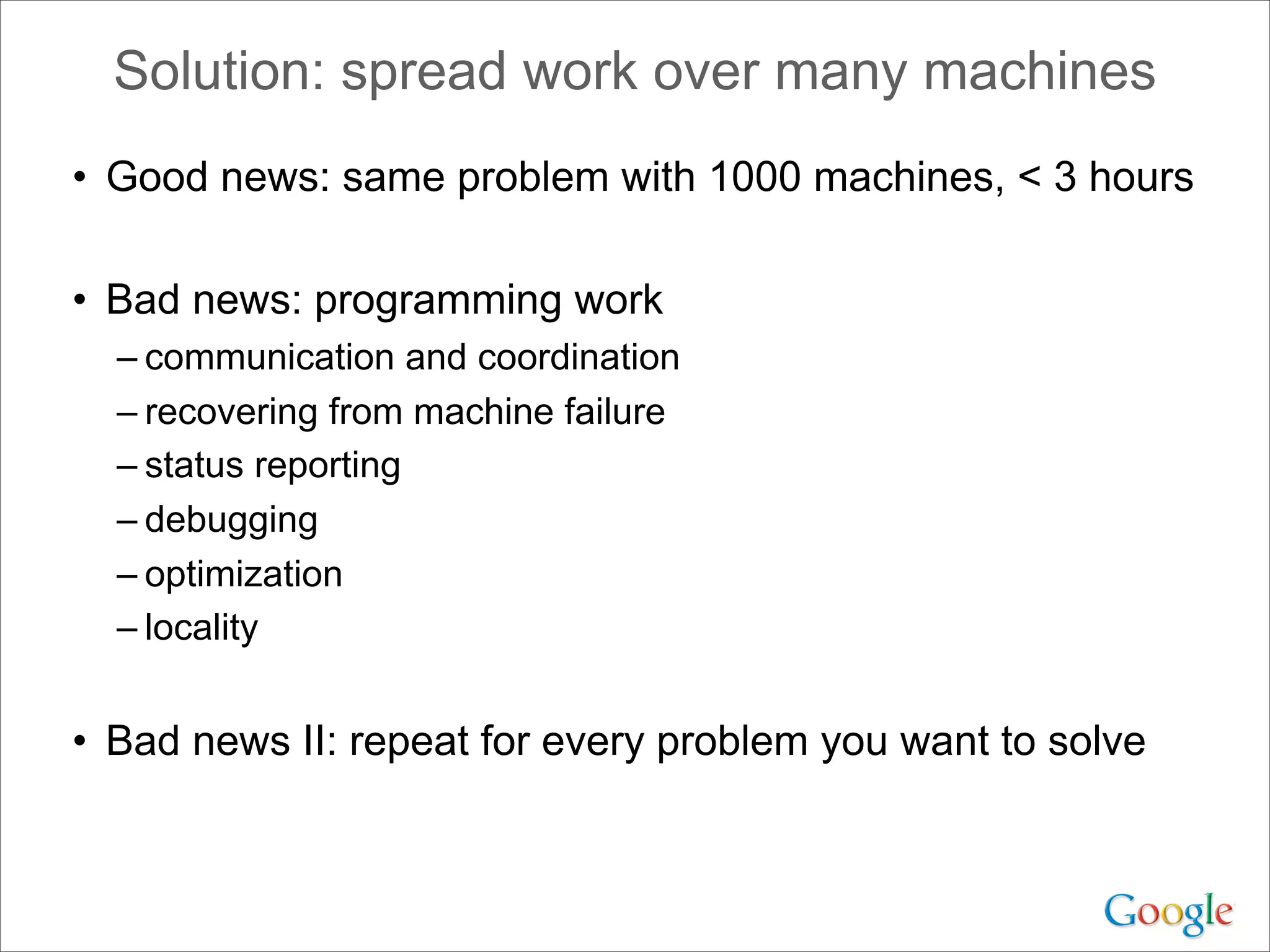

Solution: spread work over many machines
• Good news: same problem with 1000 machines, < 3 hours
• Bad news: programming work
– communication and coordination
– recovering from machine failure
– status reporting
– debugging
– optimization
– locality
• Bad news II: repeat for every problem you want to solve

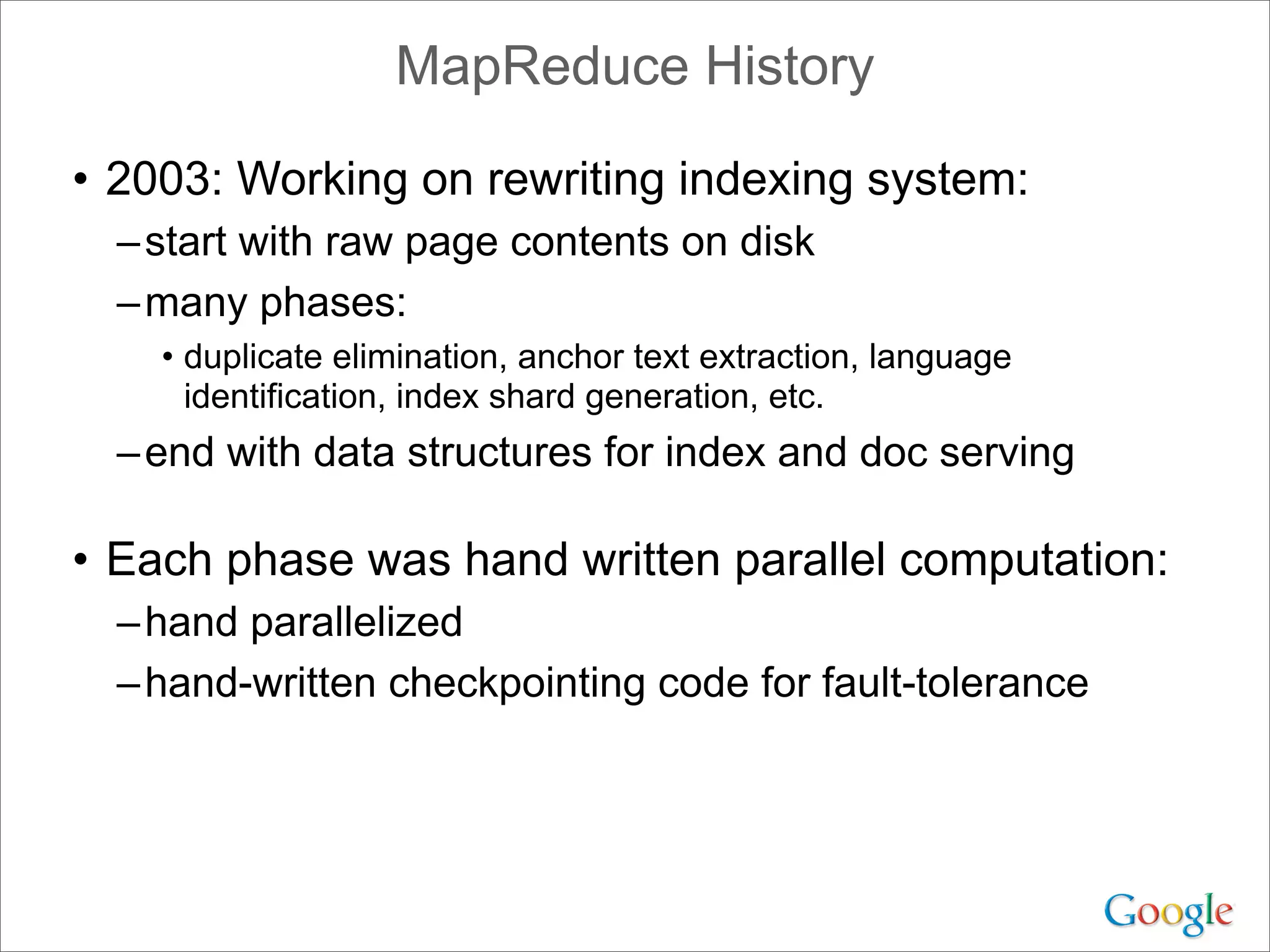

MapReduce History
• 2003: Working on rewriting indexing system:
–start with raw page contents on disk
–many phases:
• duplicate elimination, anchor text extraction, language
identification, index shard generation, etc.
–end with data structures for index and doc serving
• Each phase was hand written parallel computation:
–hand parallelized
–hand-written checkpointing code for fault-tolerance

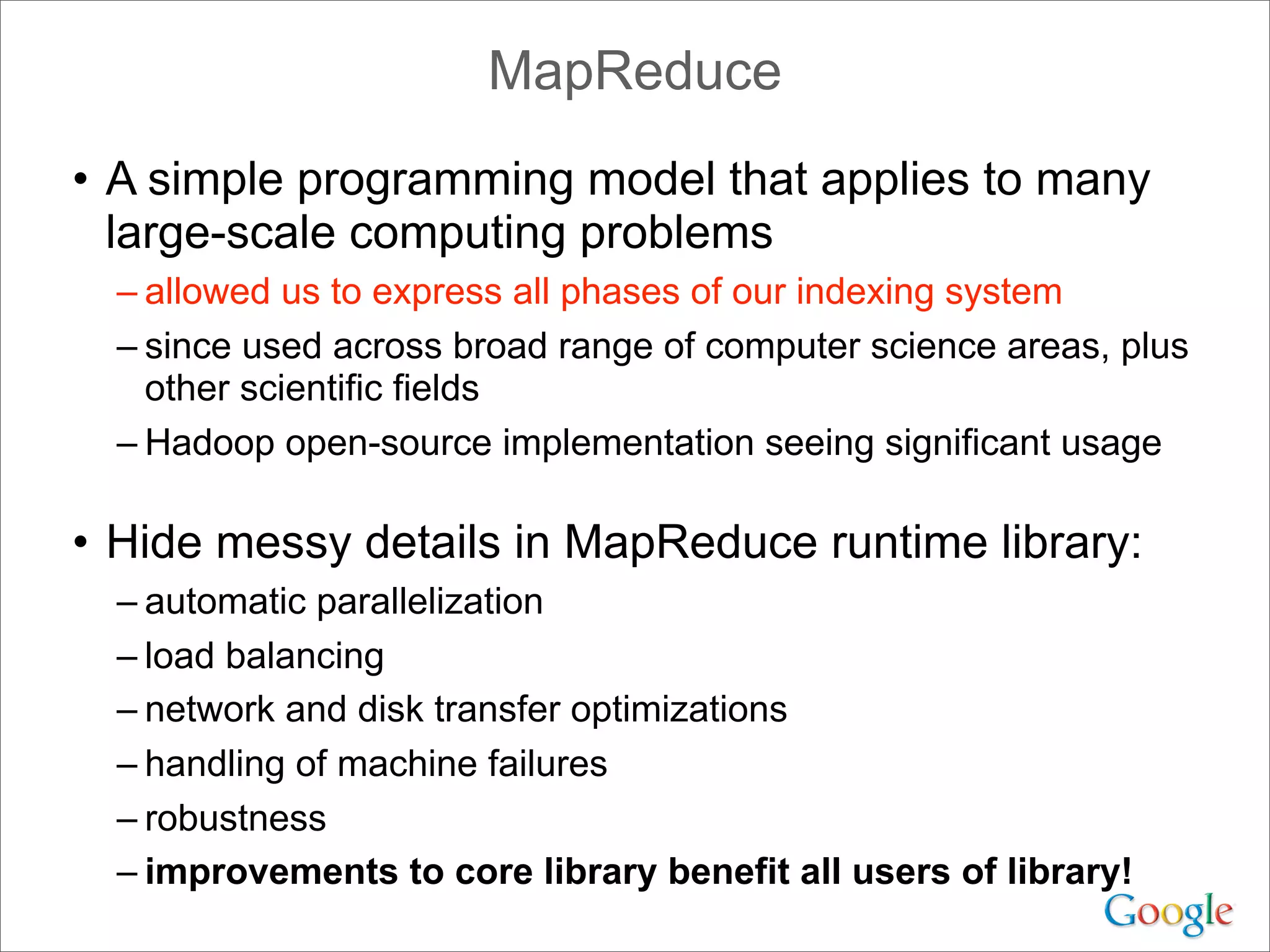

MapReduce
• A simple programming model that applies to many
large-scale computing problems
– allowed us to express all phases of our indexing system
– since used across broad range of computer science areas, plus
other scientific fields
– Hadoop open-source implementation seeing significant usage
• Hide messy details in MapReduce runtime library:
– automatic parallelization
– load balancing
– network and disk transfer optimizations
– handling of machine failures
– robustness
– improvements to core library benefit all users of library!

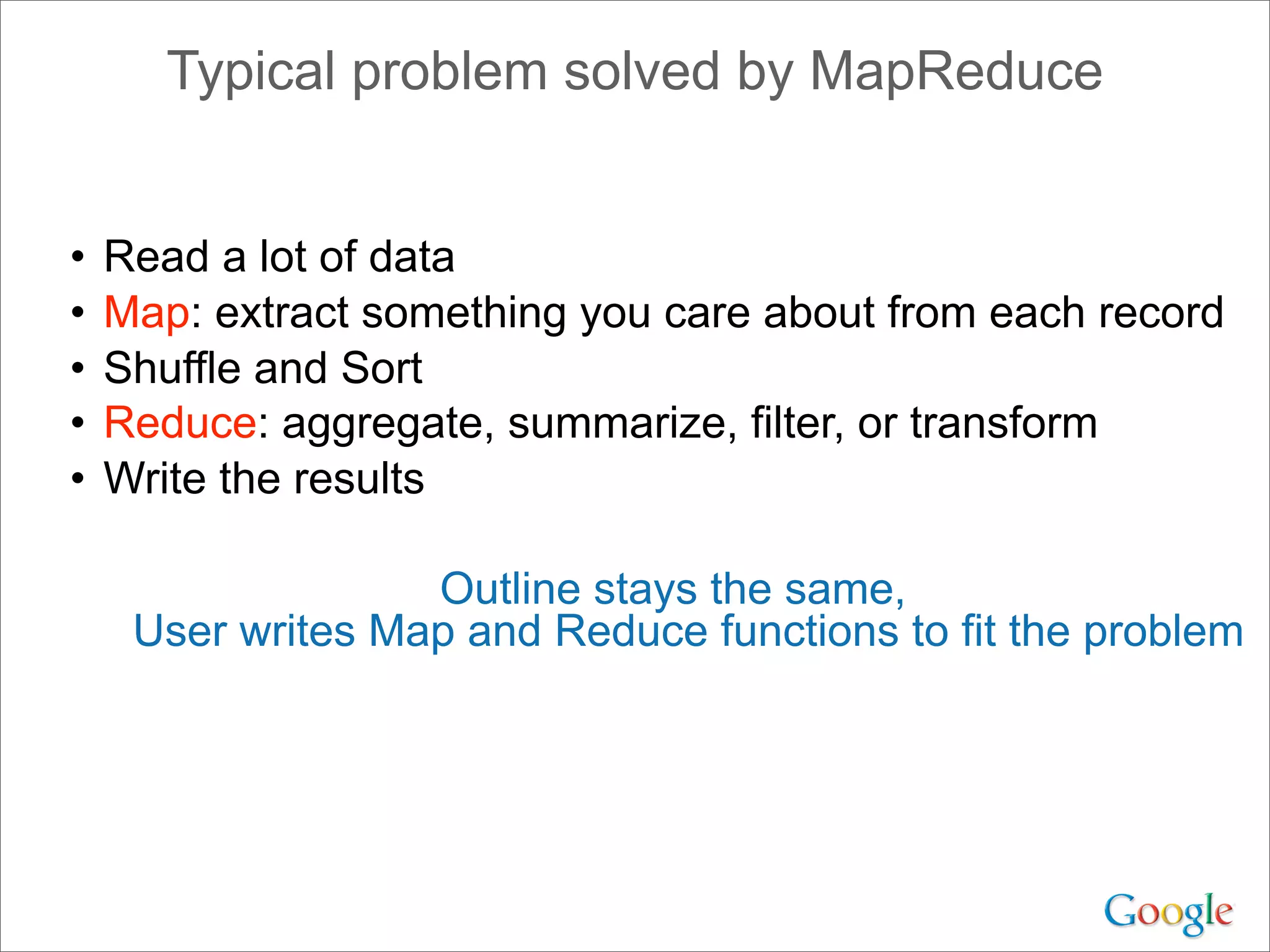

Typical problem solved by MapReduce
• Read a lot of data
• Map: extract something you care about from each record
• Shuffle and Sort
• Reduce: aggregate, summarize, filter, or transform
• Write the results
Outline stays the same,
User writes Map and Reduce functions to fit the problem

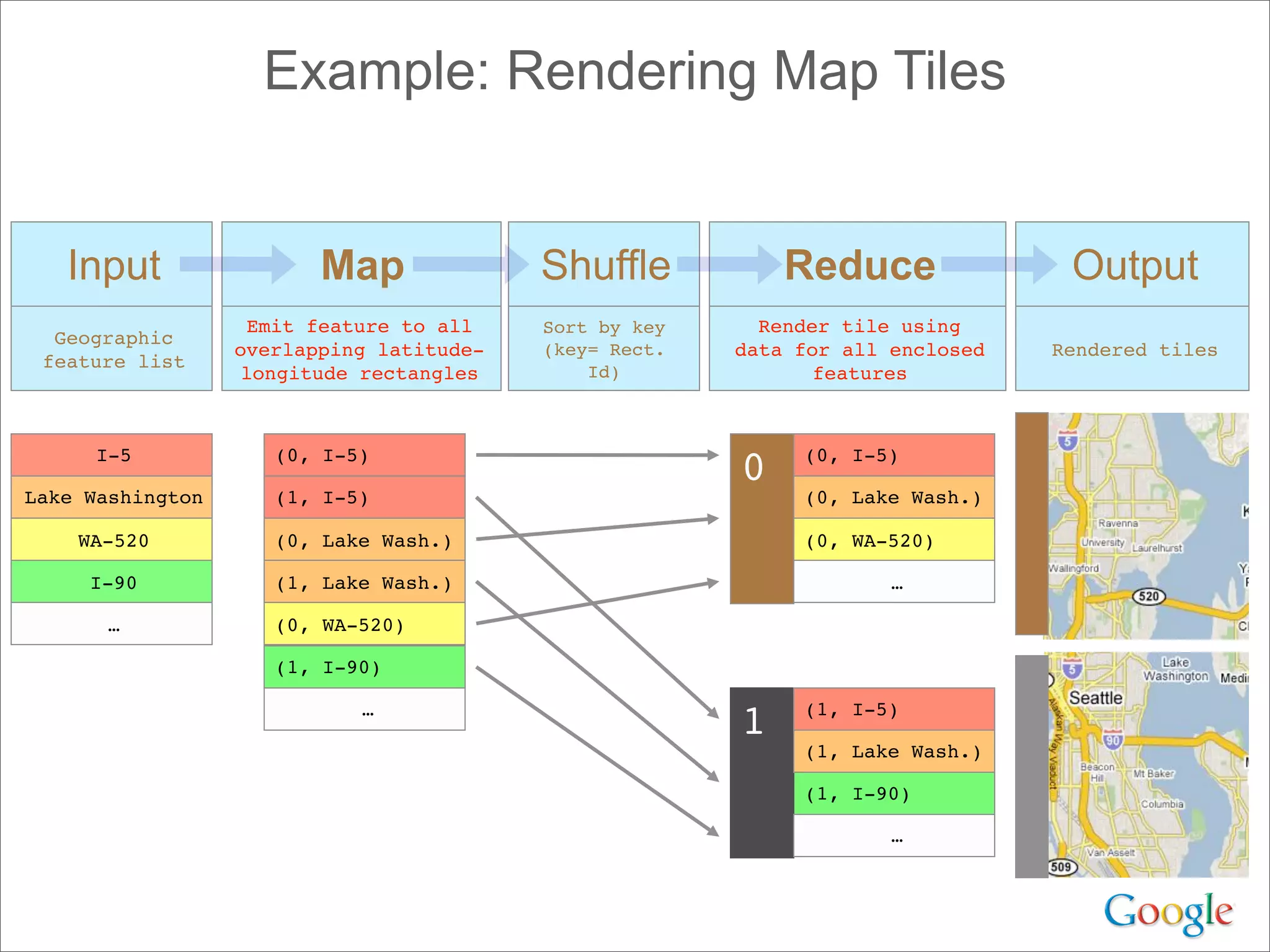

Example: Rendering Map Tiles
Input Map Shuffle Reduce Output
Emit feature to all
overlapping latitude-
longitude rectangles
Sort by key
(key= Rect.
Id)
Render tile using
data for all enclosed
features
Rendered tiles
Geographic
feature list
I-5
Lake Washington
WA-520
I-90
(0, I-5)
(0, Lake Wash.)
(0, WA-520)
(1, I-90)
(1, I-5)
(1, Lake Wash.)
(0, I-5)
(0, Lake Wash.)
(0, WA-520)
(1, I-90)
0
1 (1, I-5)
(1, Lake Wash.)
…
…
…
…

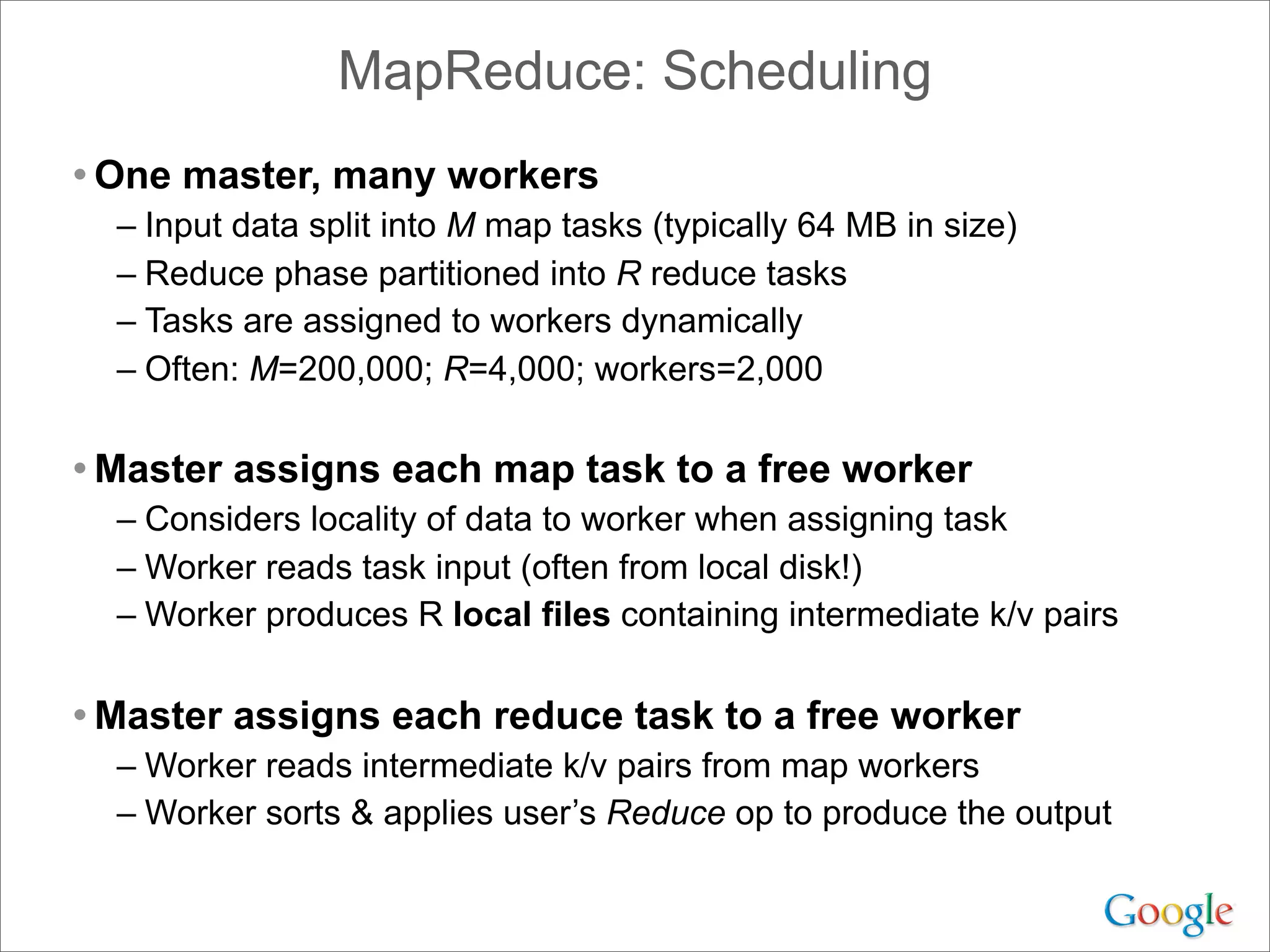

MapReduce: Scheduling
• One master, many workers
– Input data split into M map tasks (typically 64 MB in size)
– Reduce phase partitioned into R reduce tasks
– Tasks are assigned to workers dynamically
– Often: M=200,000; R=4,000; workers=2,000
• Master assigns each map task to a free worker
– Considers locality of data to worker when assigning task
– Worker reads task input (often from local disk!)
– Worker produces R local files containing intermediate k/v pairs
• Master assigns each reduce task to a free worker
– Worker reads intermediate k/v pairs from map workers
– Worker sorts & applies user’s Reduce op to produce the output

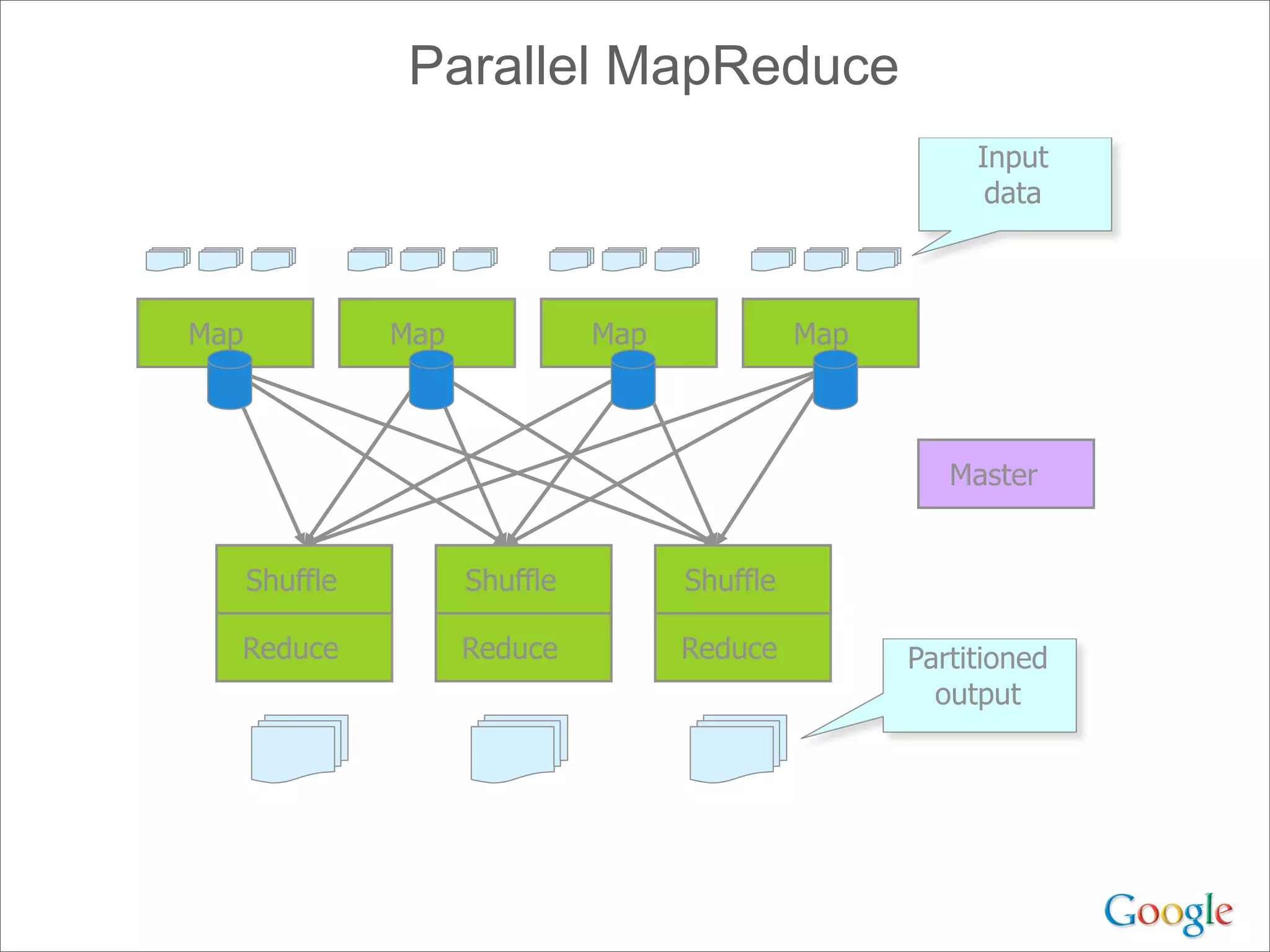

Parallel MapReduce
Map Map Map Map
Input
data
Reduce
Shuffle
Reduce
Shuffle
Reduce
Shuffle
Partitioned
output
Master
Parallel MapReduce
Map Map Map Map
Input
data
Reduce
Shuffle
Reduce
Shuffle
Reduce
Shuffle
Partitioned
output
Master
For large enough problems, it’s more about disk and
network performance than CPU & DRAM

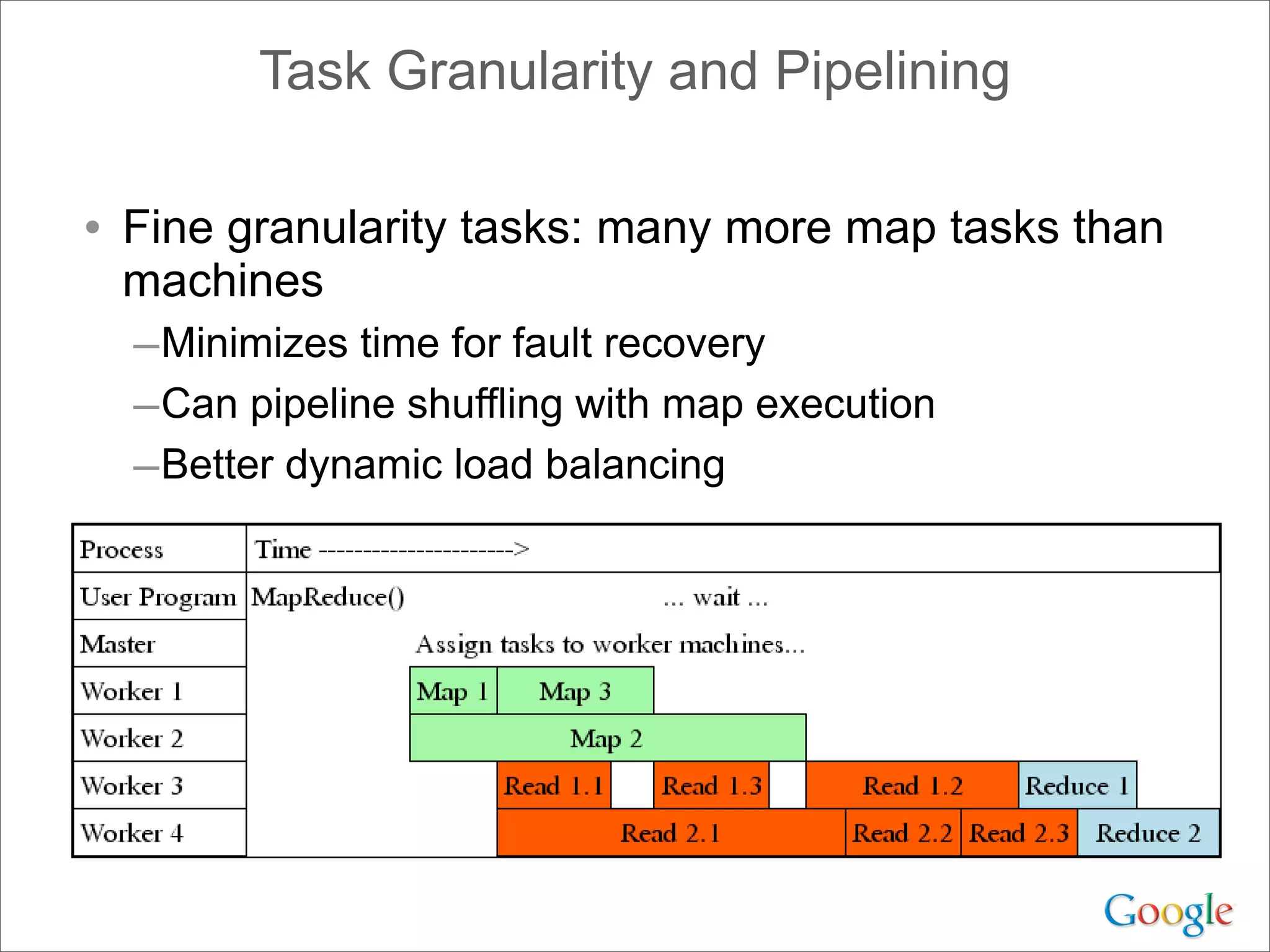

Task Granularity and Pipelining
• Fine granularity tasks: many more map tasks than
machines
–Minimizes time for fault recovery
–Can pipeline shuffling with map execution
–Better dynamic load balancing
• Often use 200,000 map/5000 reduce tasks w/ 2000
machines

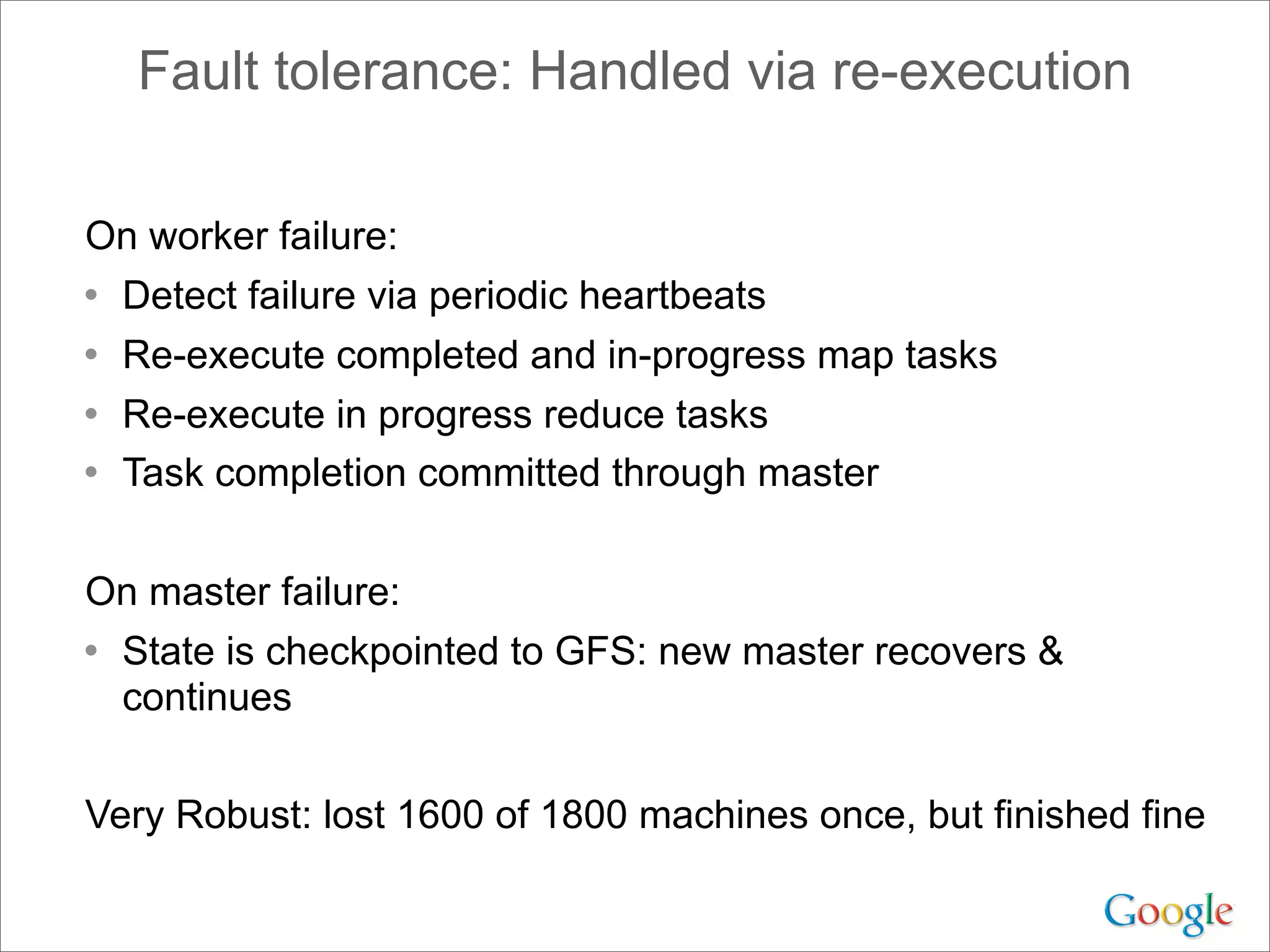

Fault tolerance: Handled via re-execution
On worker failure:
• Detect failure via periodic heartbeats
• Re-execute completed and in-progress map tasks
• Re-execute in progress reduce tasks
• Task completion committed through master
On master failure:
• State is checkpointed to GFS: new master recovers &
continues
Very Robust: lost 1600 of 1800 machines once, but finished fine

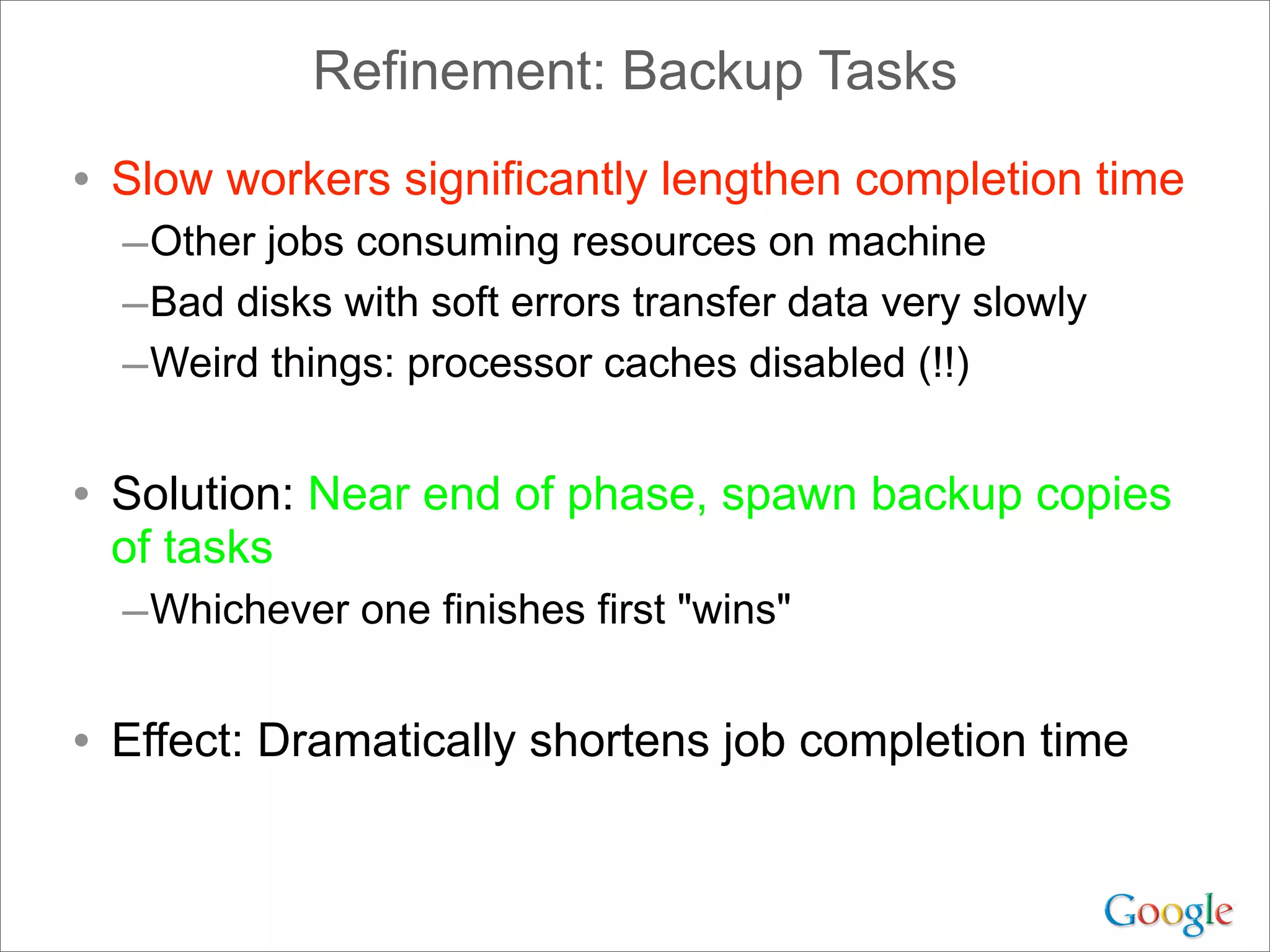

Refinement: Backup Tasks
• Slow workers significantly lengthen completion time
–Other jobs consuming resources on machine
–Bad disks with soft errors transfer data very slowly
–Weird things: processor caches disabled (!!)
• Solution: Near end of phase, spawn backup copies
of tasks
–Whichever one finishes first "wins"
• Effect: Dramatically shortens job completion time

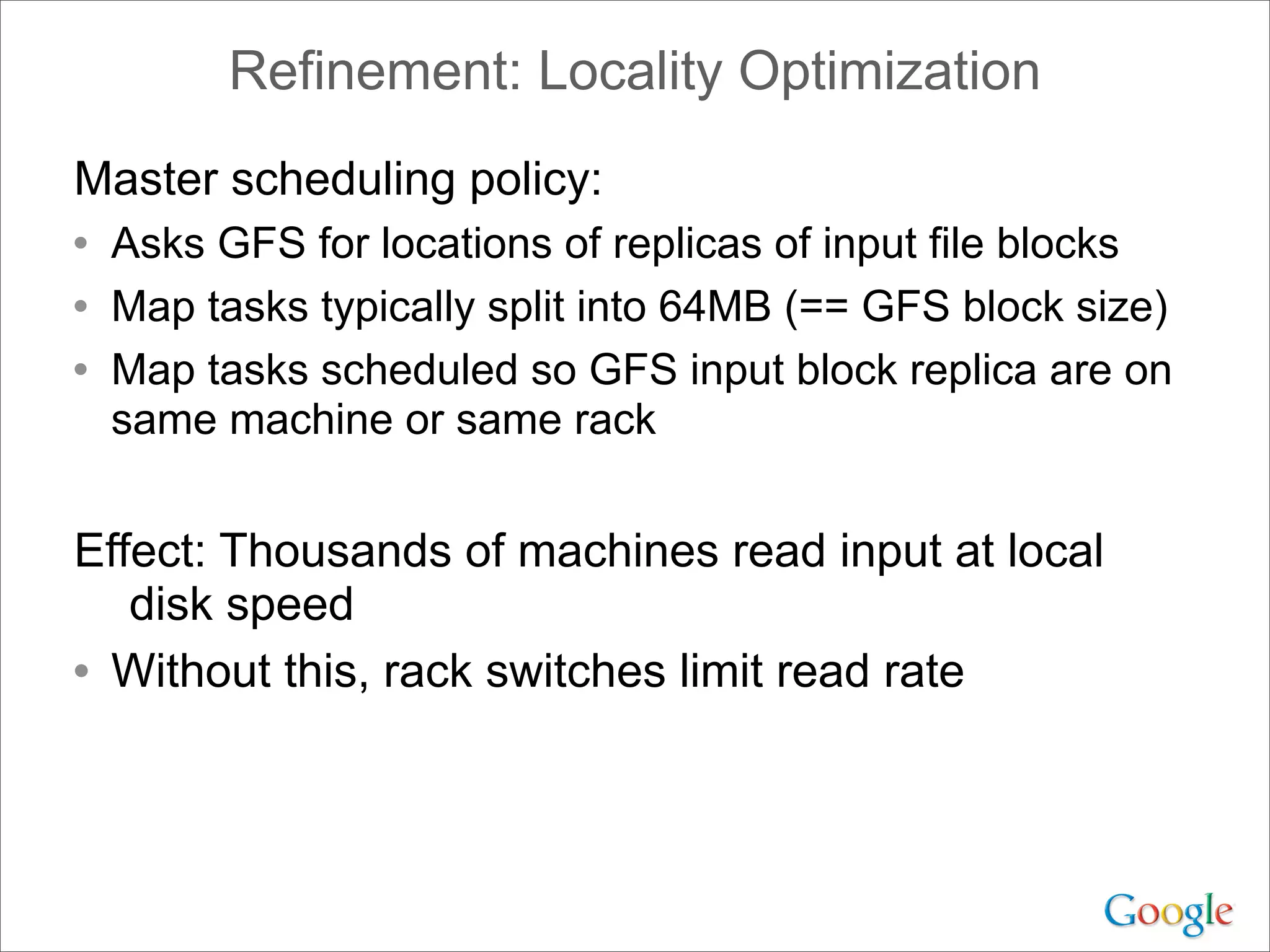

Refinement: Locality Optimization
Master scheduling policy:
• Asks GFS for locations of replicas of input file blocks
• Map tasks typically split into 64MB (== GFS block size)
• Map tasks scheduled so GFS input block replica are on
same machine or same rack
Effect: Thousands of machines read input at local
disk speed
• Without this, rack switches limit read rate

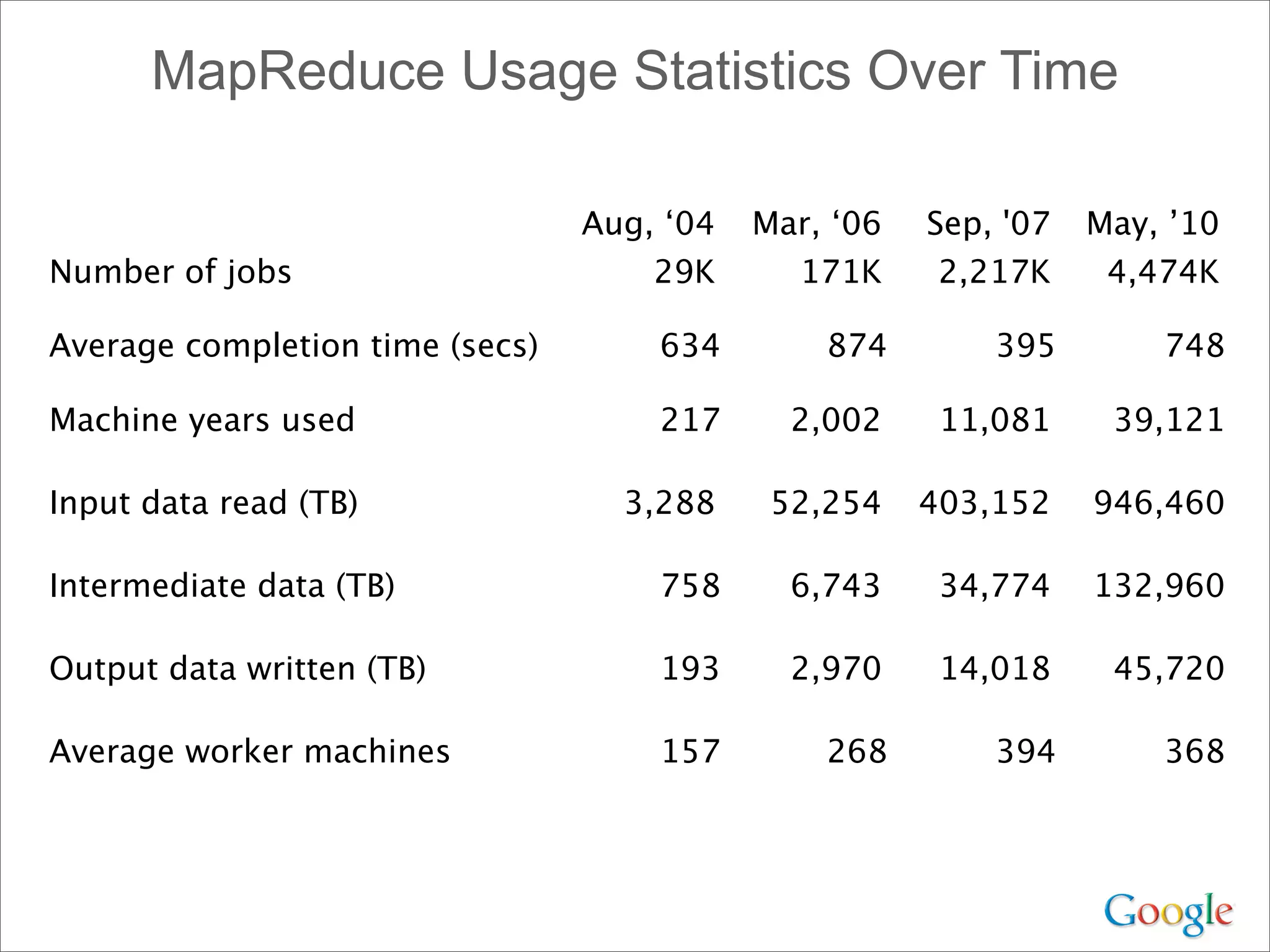

MapReduce Usage Statistics Over Time
Number of jobs
Aug, ‘04
29K
Mar, ‘06
171K
Sep, '07
2,217K
May, ’10
4,474K
Average completion time (secs) 634 874 395 748
Machine years used 217 2,002 11,081 39,121
Input data read (TB) 3,288 52,254 403,152 946,460
Intermediate data (TB) 758 6,743 34,774 132,960
Output data written (TB) 193 2,970 14,018 45,720
Average worker machines 157 268 394 368

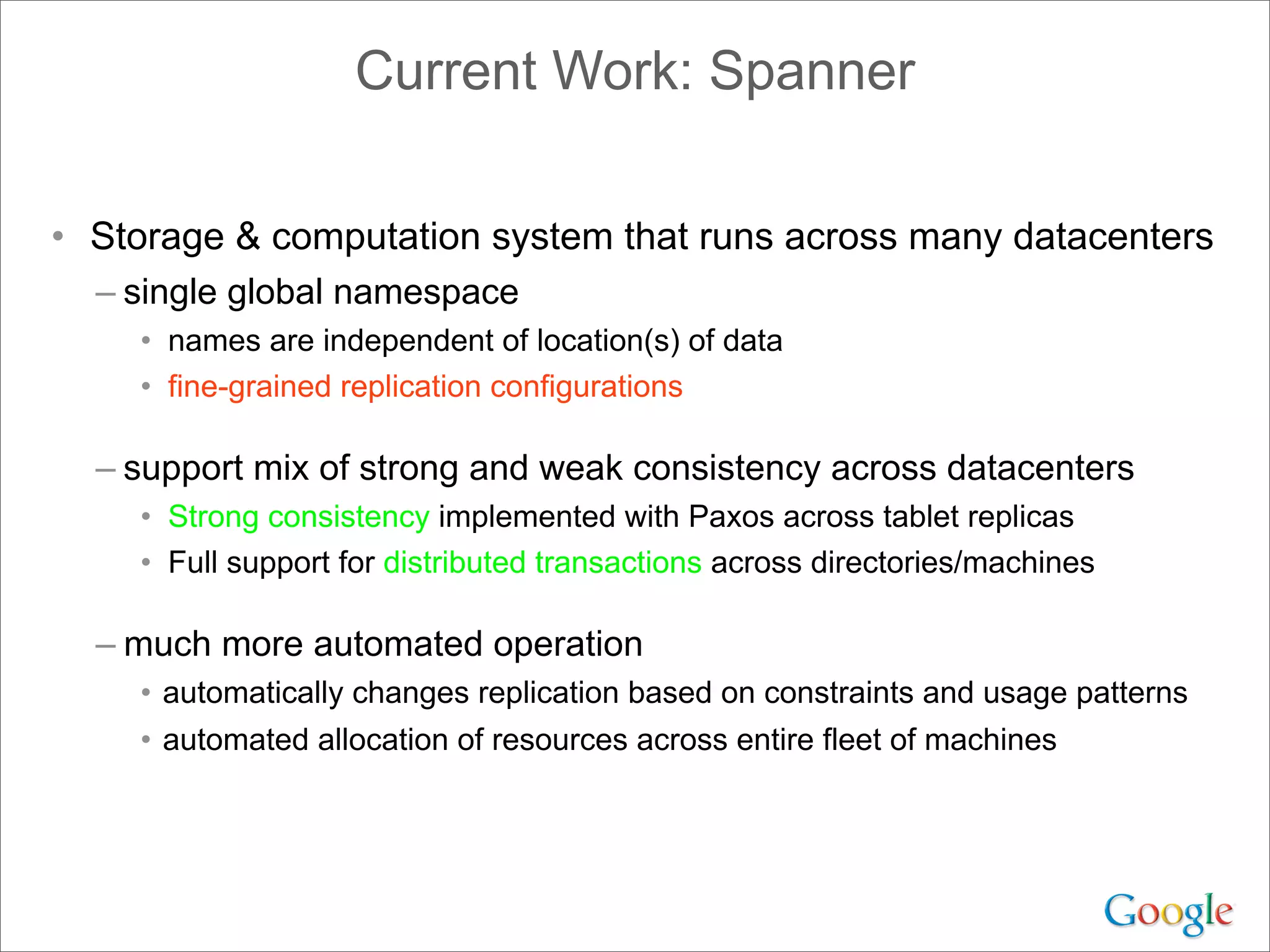

Current Work: Spanner
• Storage & computation system that runs across many datacenters
– single global namespace
• names are independent of location(s) of data
• fine-grained replication configurations
– support mix of strong and weak consistency across datacenters
• Strong consistency implemented with Paxos across tablet replicas
• Full support for distributed transactions across directories/machines
– much more automated operation
• automatically changes replication based on constraints and usage patterns
• automated allocation of resources across entire fleet of machines

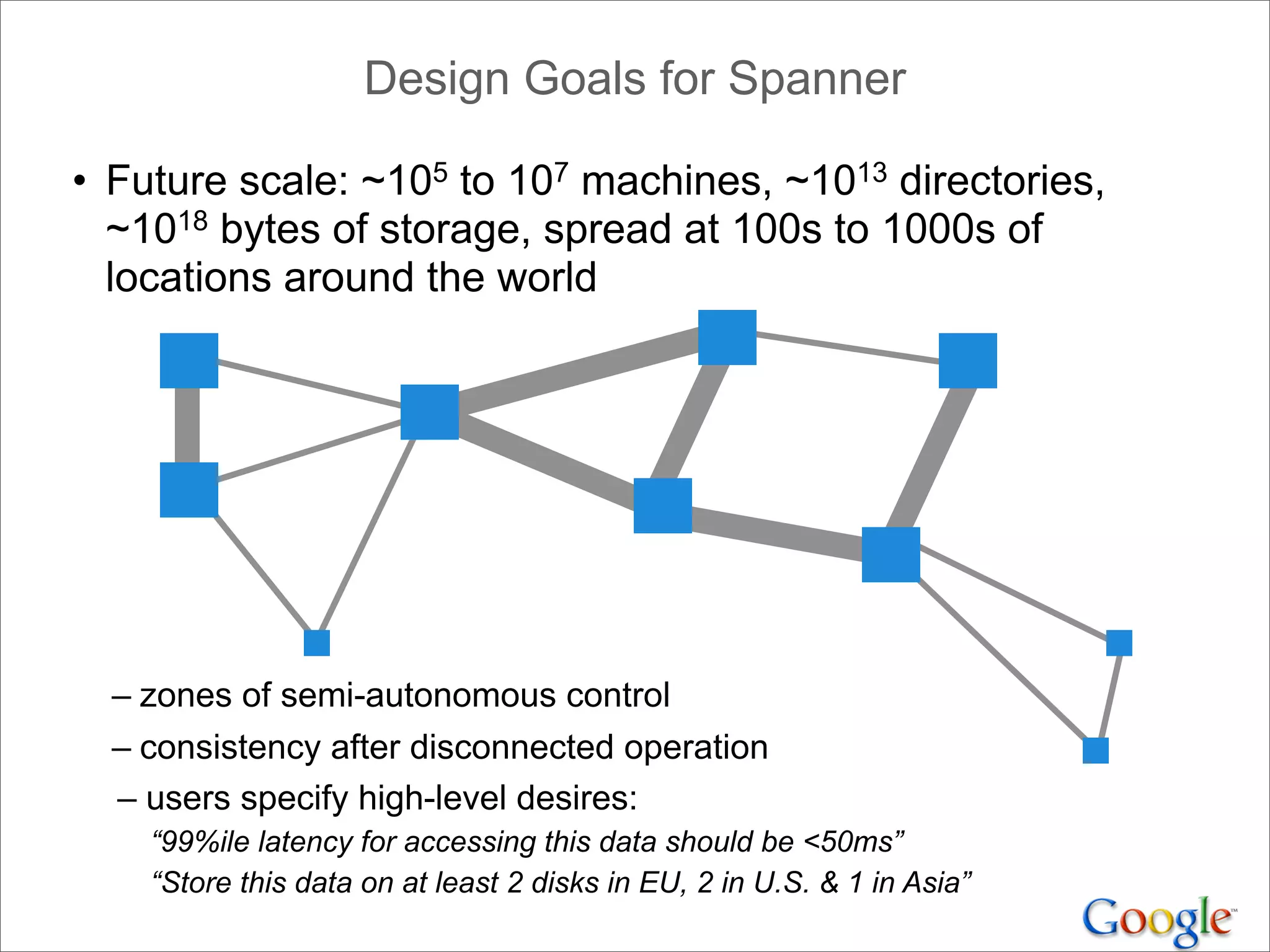

• Future scale: ~105 to 107 machines, ~1013 directories,
~1018 bytes of storage, spread at 100s to 1000s of
locations around the world
– zones of semi-autonomous control
– consistency after disconnected operation
– users specify high-level desires:
“99%ile latency for accessing this data should be <50ms”
“Store this data on at least 2 disks in EU, 2 in U.S. & 1 in Asia”
Design Goals for Spanner

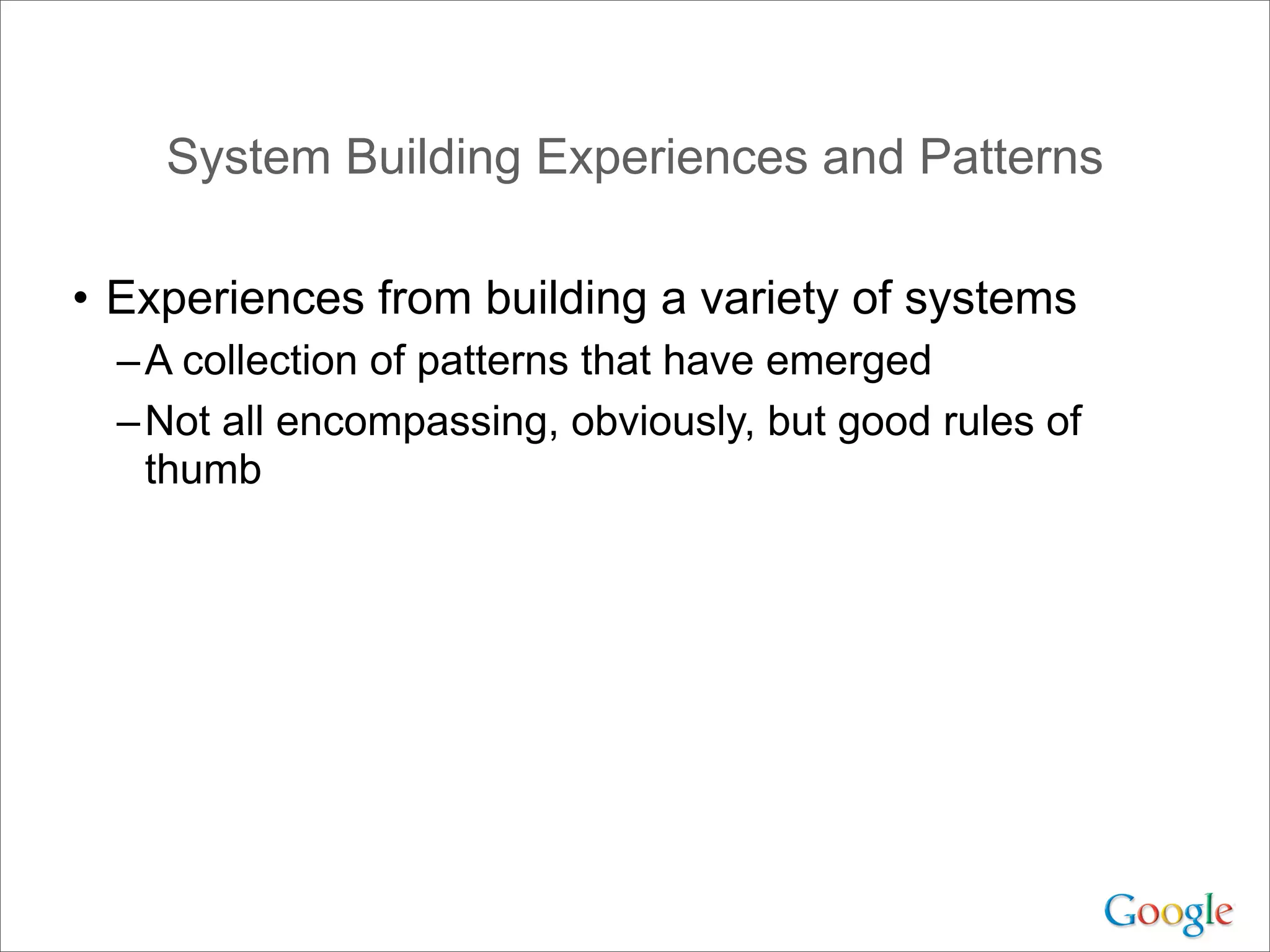

System Building Experiences and Patterns
• Experiences from building a variety of systems
–A collection of patterns that have emerged
–Not all encompassing, obviously, but good rules of
thumb

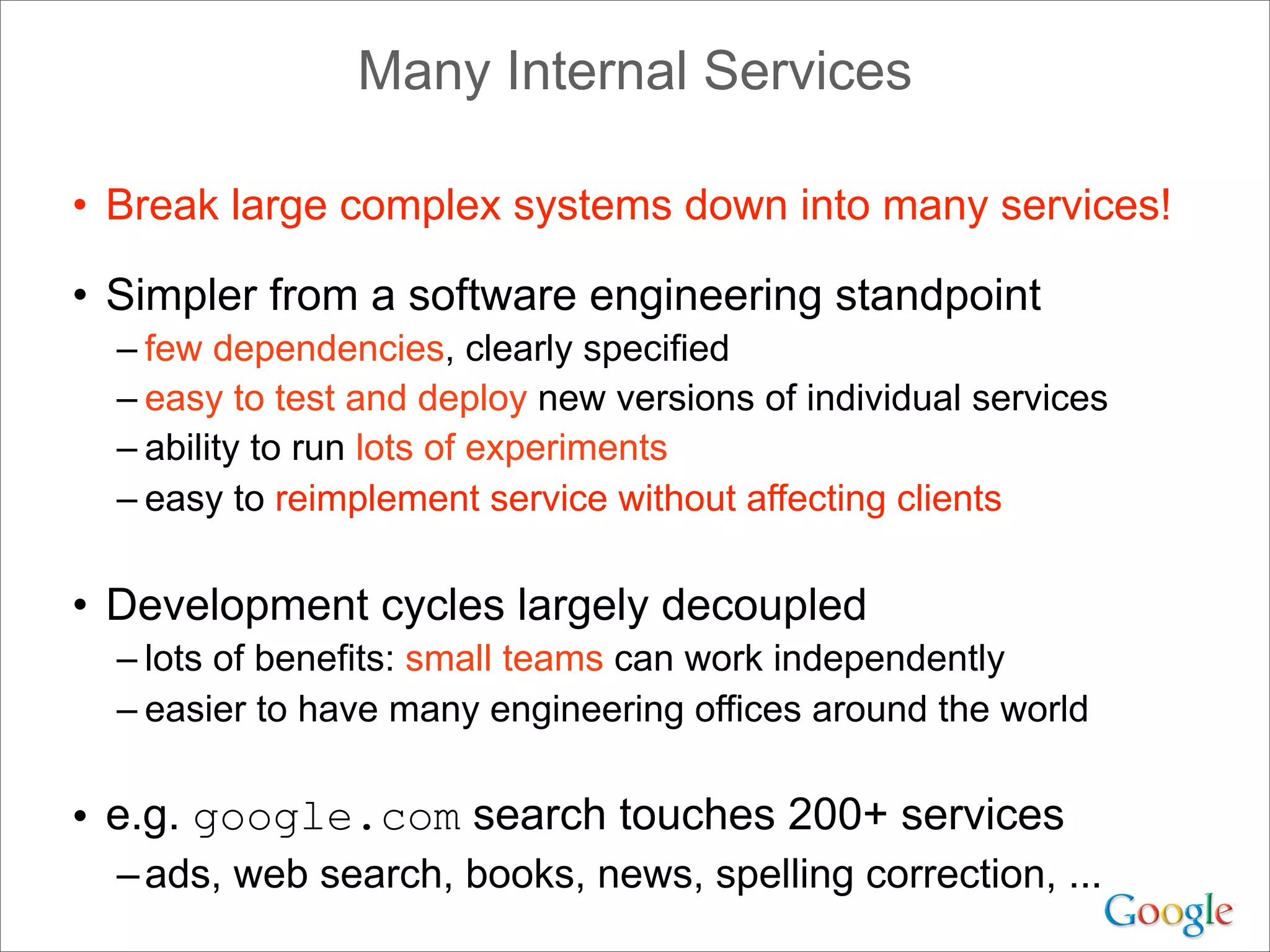

Many Internal Services
• Break large complex systems down into many services!
• Simpler from a software engineering standpoint
– few dependencies, clearly specified
– easy to test and deploy new versions of individual services
– ability to run lots of experiments
– easy to reimplement service without affecting clients
• Development cycles largely decoupled
– lots of benefits: small teams can work independently
– easier to have many engineering offices around the world
• e.g. google.com search touches 200+ services
–ads, web search, books, news, spelling correction, ...

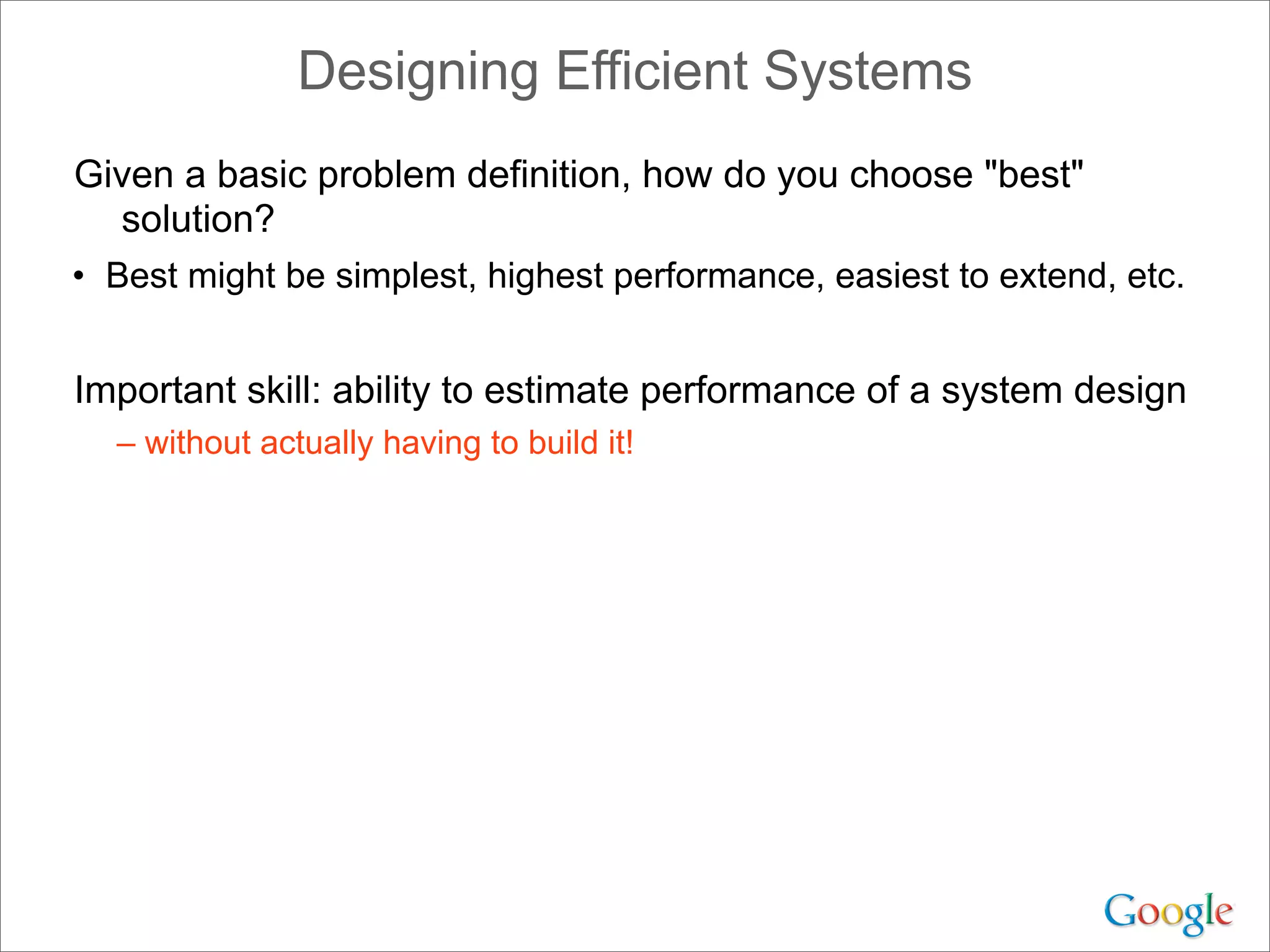

Designing Efficient Systems
Given a basic problem definition, how do you choose "best"
solution?
• Best might be simplest, highest performance, easiest to extend, etc.
Important skill: ability to estimate performance of a system design
– without actually having to build it!

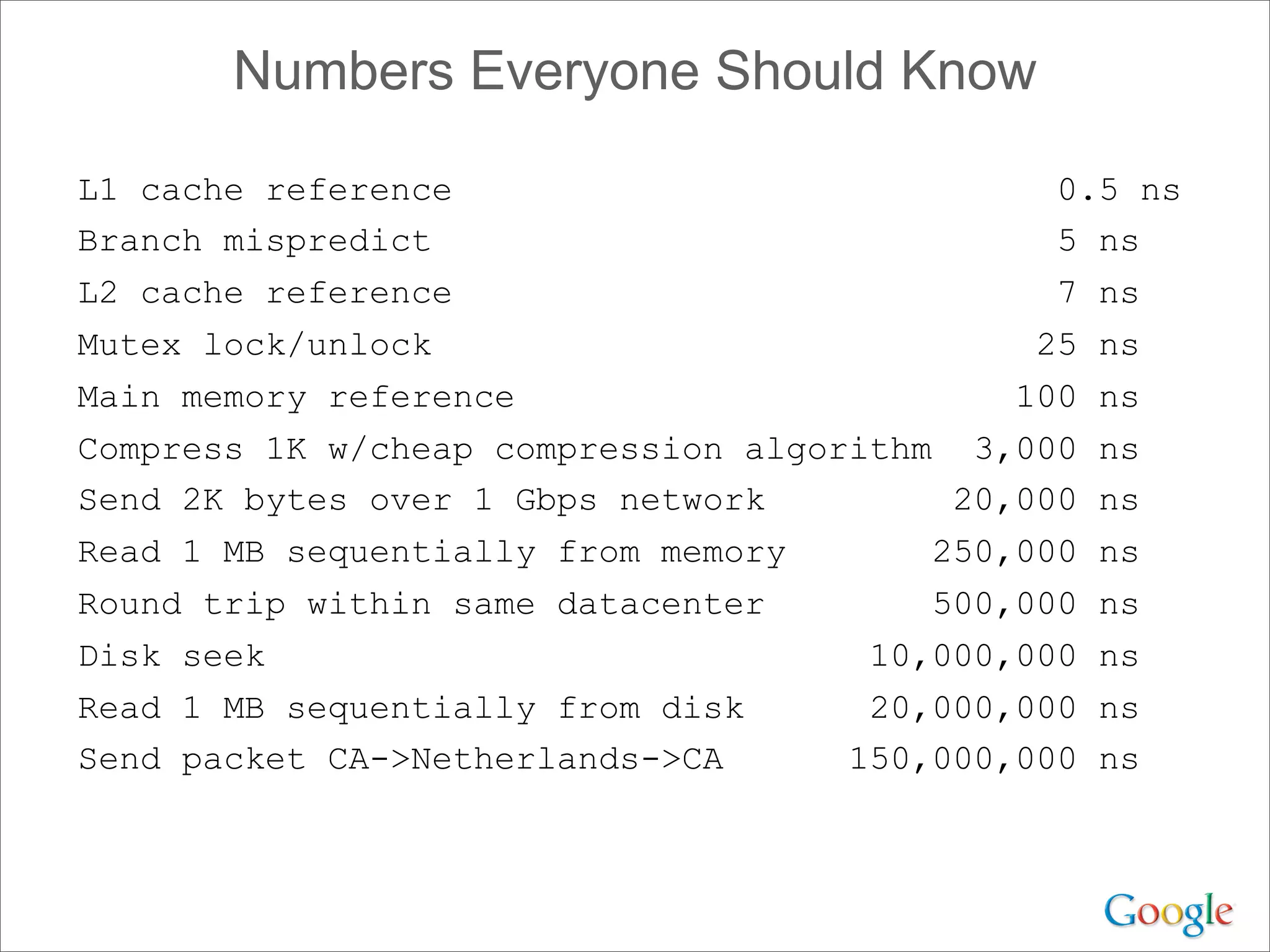

Numbers Everyone Should Know
L1 cache reference 0.5 ns
Branch mispredict 5 ns
L2 cache reference 7 ns
Mutex lock/unlock 25 ns
Main memory reference 100 ns
Compress 1K w/cheap compression algorithm 3,000 ns
Send 2K bytes over 1 Gbps network 20,000 ns
Read 1 MB sequentially from memory 250,000 ns
Round trip within same datacenter 500,000 ns
Disk seek 10,000,000 ns
Read 1 MB sequentially from disk 20,000,000 ns
Send packet CA->Netherlands->CA 150,000,000 ns
Back of the Envelope Calculations
How long to generate image results page (30 thumbnails)?
Design 1: Read serially, thumbnail 256K images on the fly
30 seeks * 10 ms/seek + 30 * 256K / 30 MB/s = 560 ms

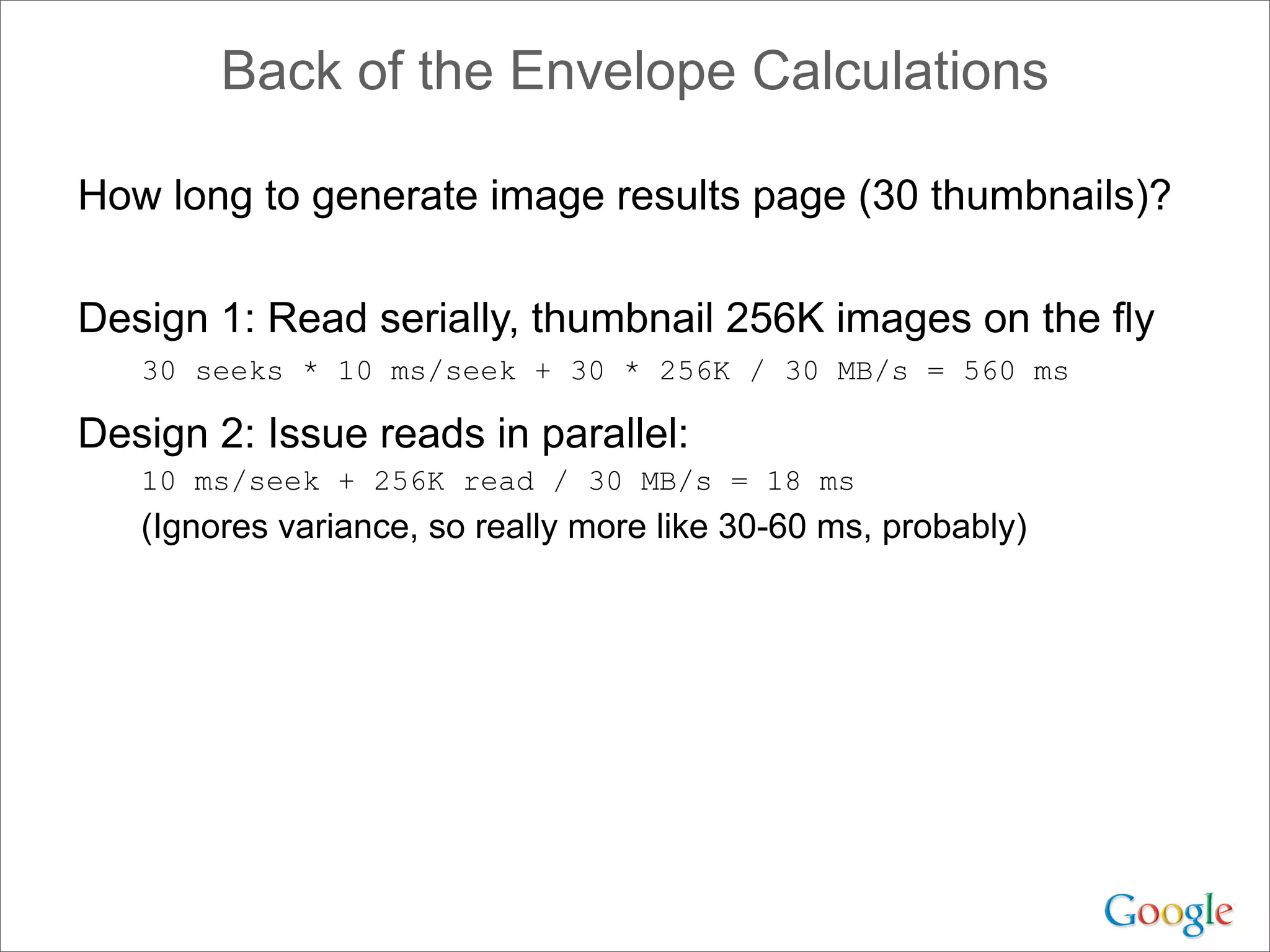

Back of the Envelope Calculations
How long to generate image results page (30 thumbnails)?
Design 1: Read serially, thumbnail 256K images on the fly
30 seeks * 10 ms/seek + 30 * 256K / 30 MB/s = 560 ms
Design 2: Issue reads in parallel:
10 ms/seek + 256K read / 30 MB/s = 18 ms
(Ignores variance, so really more like 30-60 ms, probably)

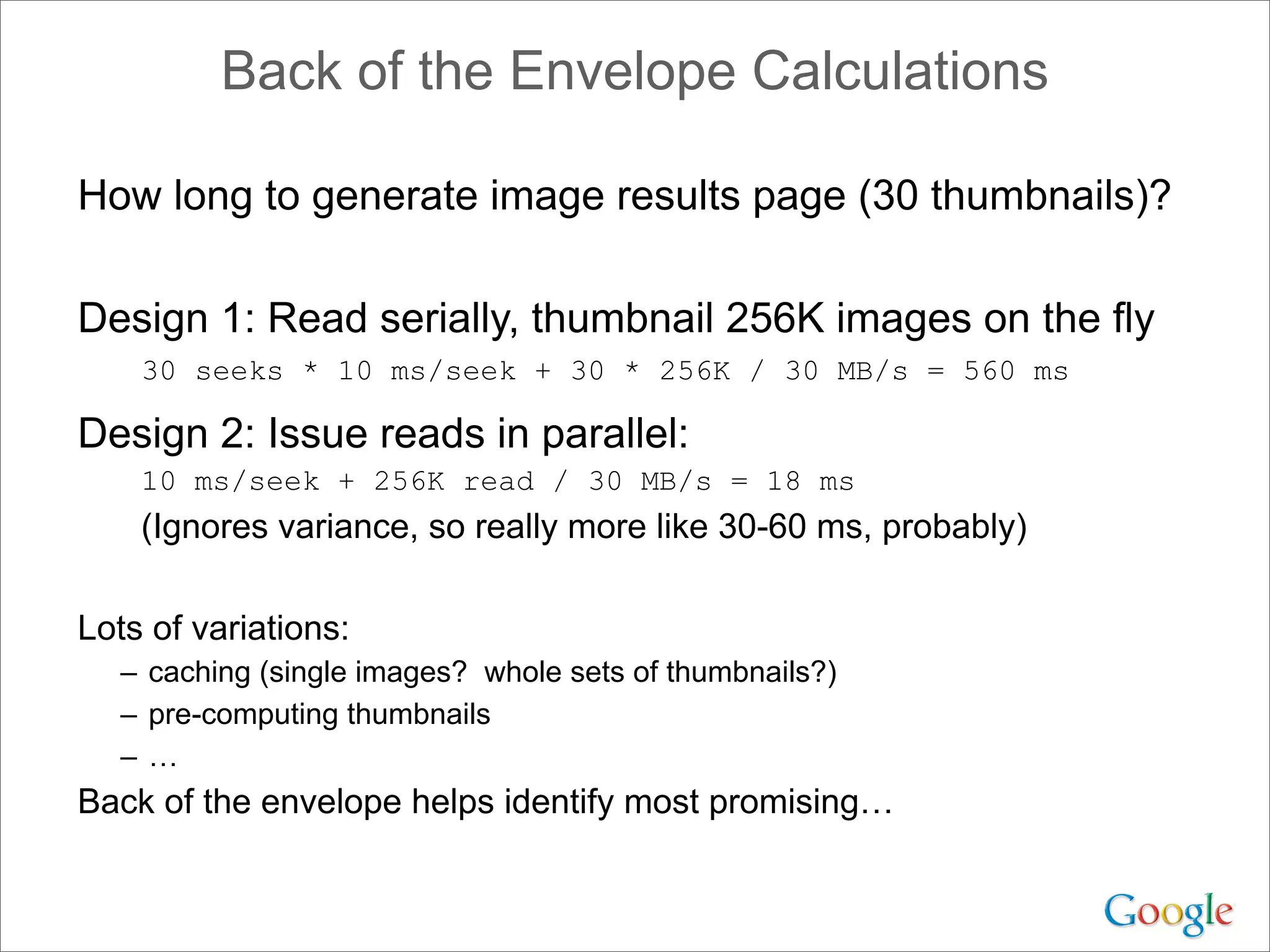

Back of the Envelope Calculations
How long to generate image results page (30 thumbnails)?
Design 1: Read serially, thumbnail 256K images on the fly
30 seeks * 10 ms/seek + 30 * 256K / 30 MB/s = 560 ms
Design 2: Issue reads in parallel:
10 ms/seek + 256K read / 30 MB/s = 18 ms
(Ignores variance, so really more like 30-60 ms, probably)
Lots of variations:
– caching (single images? whole sets of thumbnails?)
– pre-computing thumbnails
– …
Back of the envelope helps identify most promising…

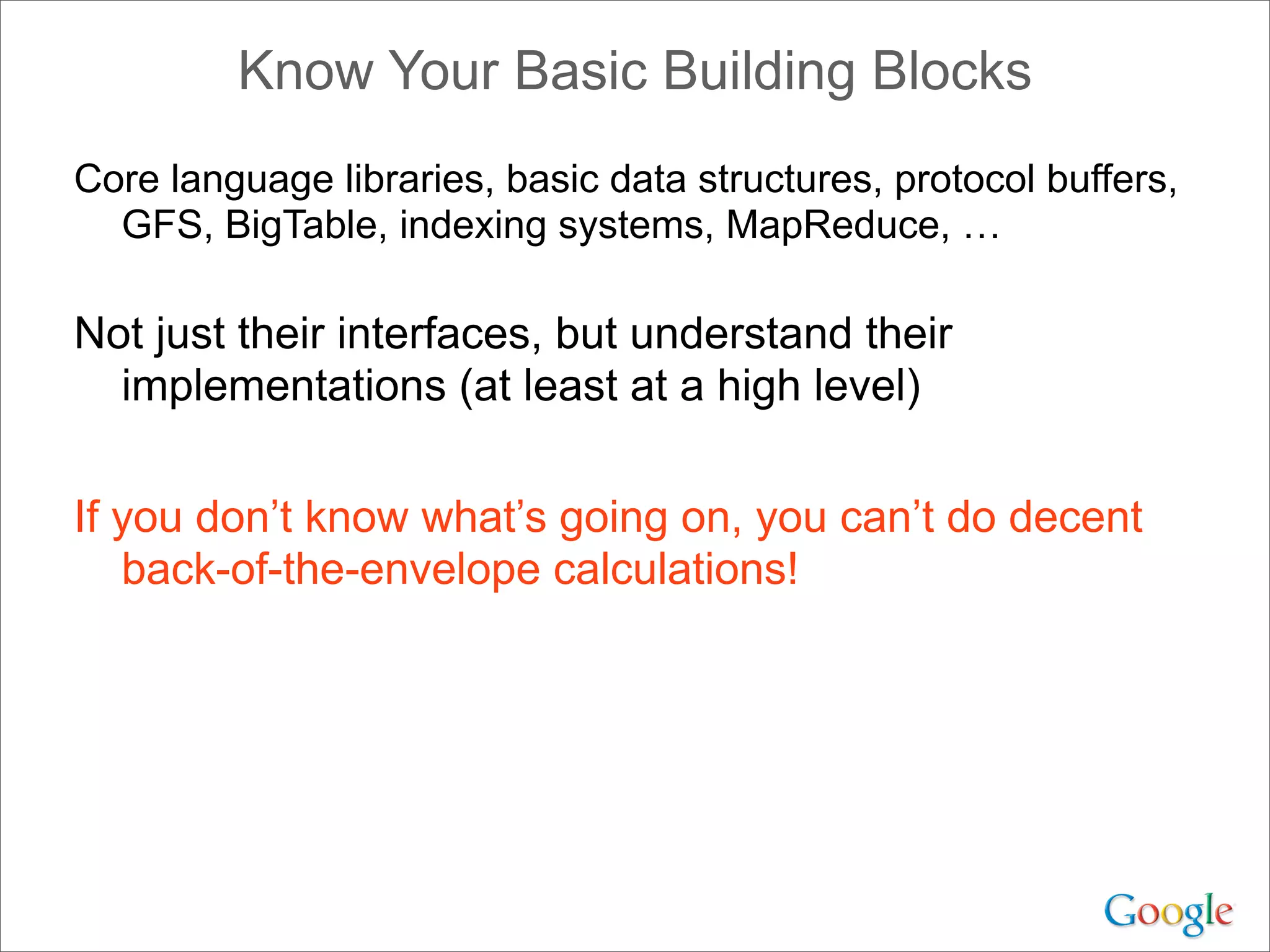

Know Your Basic Building Blocks
Core language libraries, basic data structures, protocol buffers,
GFS, BigTable, indexing systems, MapReduce, …
Not just their interfaces, but understand their
implementations (at least at a high level)
If you don’t know what’s going on, you can’t do decent
back-of-the-envelope calculations!

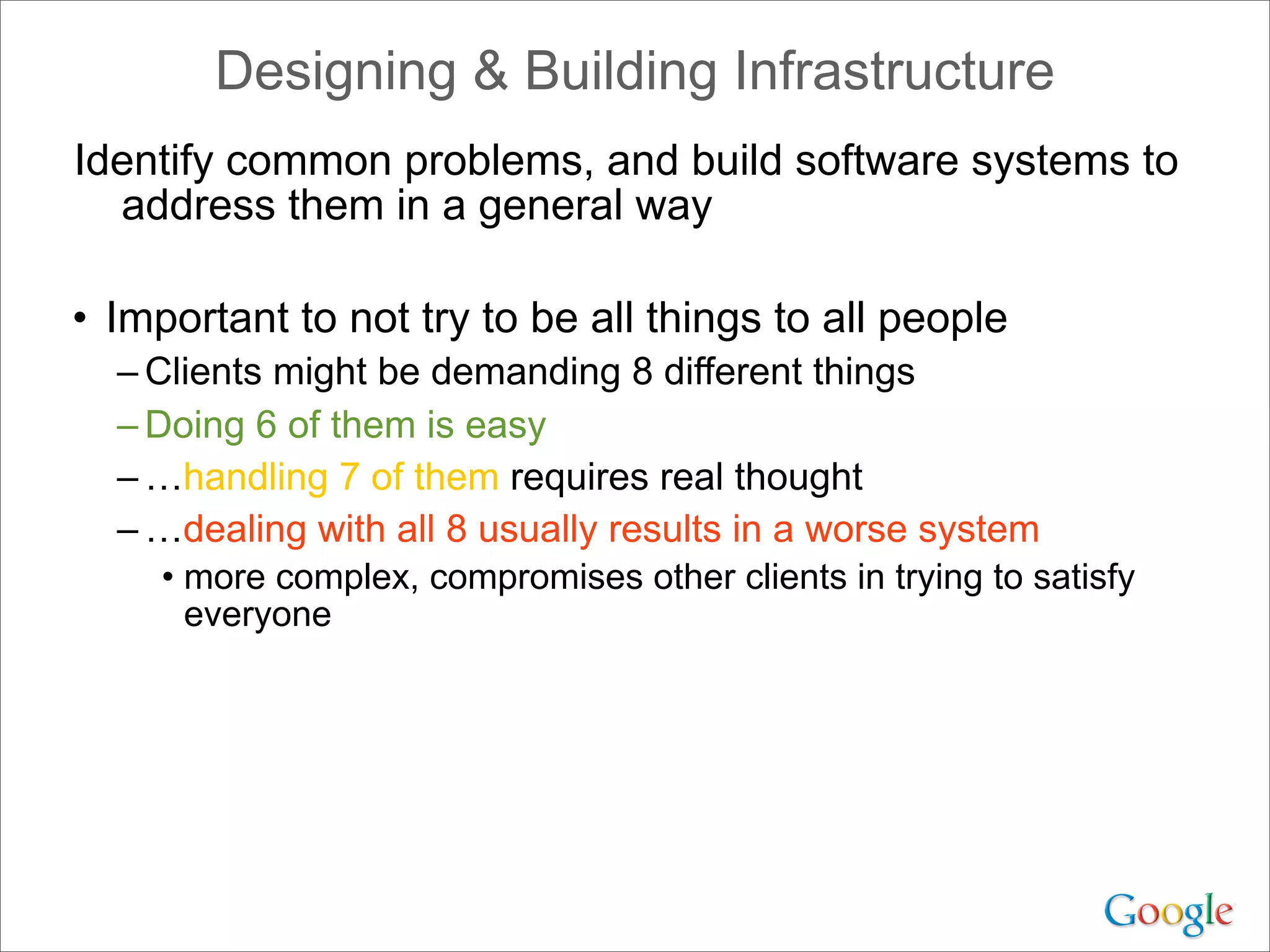

Designing & Building Infrastructure
Identify common problems, and build software systems to
address them in a general way
• Important to not try to be all things to all people
– Clients might be demanding 8 different things
– Doing 6 of them is easy
– …handling 7 of them requires real thought
– …dealing with all 8 usually results in a worse system
• more complex, compromises other clients in trying to satisfy
everyone

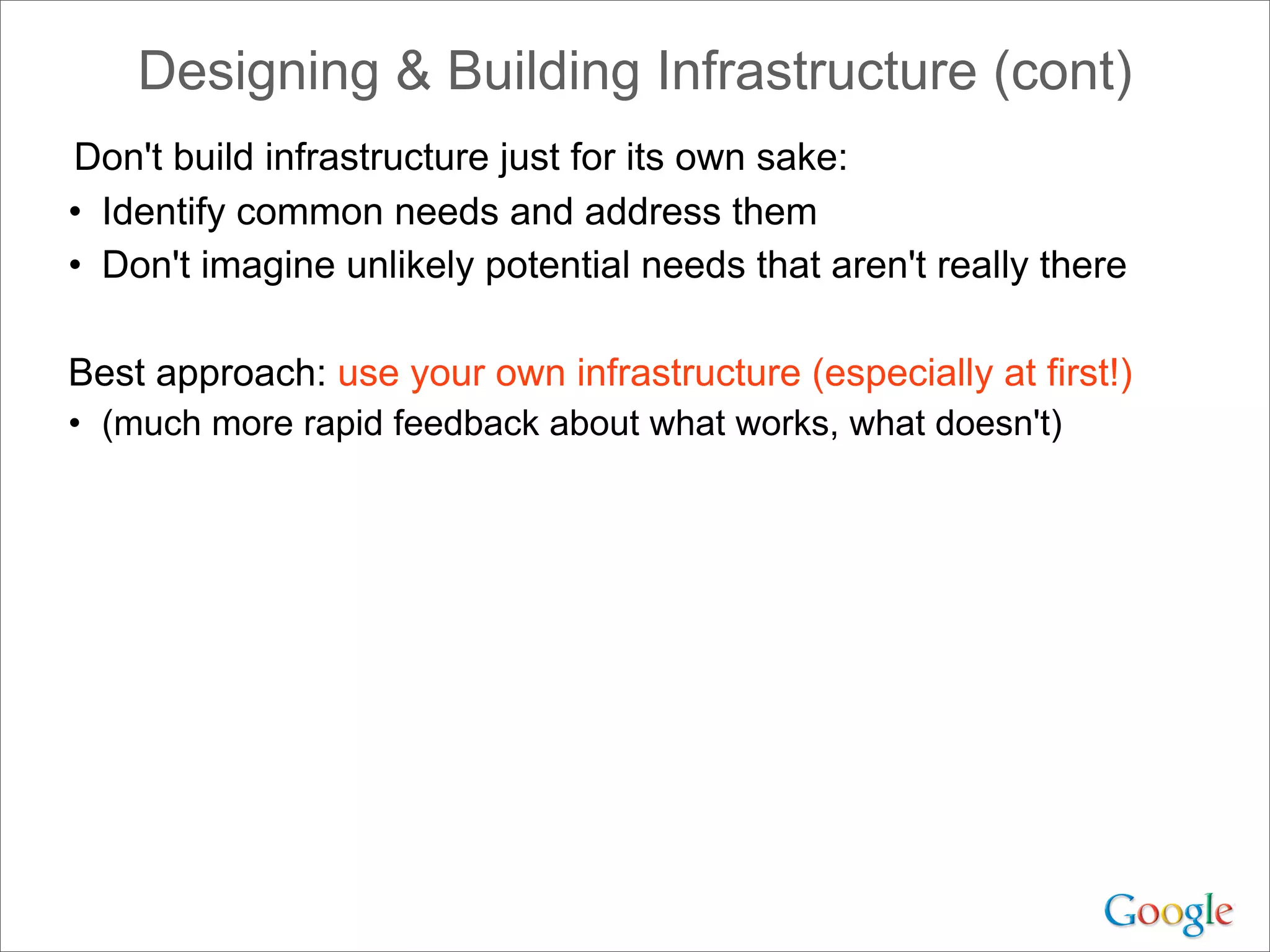

Designing & Building Infrastructure (cont)
Don't build infrastructure just for its own sake:
• Identify common needs and address them
• Don't imagine unlikely potential needs that aren't really there
Best approach: use your own infrastructure (especially at first!)
• (much more rapid feedback about what works, what doesn't)
Design for Growth
Try to anticipate how requirements will evolve
keep likely features in mind as you design base system
Don’t design to scale infinitely:
~5X - 50X growth good to consider
>100X probably requires rethink and rewrite
Pattern: Single Master, 1000s of Workers
• Master orchestrates global operation of system
– load balancing, assignment of work, reassignment when
machines fail, etc.
– ... but client interaction with master is fairly minimal
• Examples:
– GFS, BigTable, MapReduce, file transfer service, cluster
scheduling system, ...
Client
Misc. servers
Replicas
Masters
Master
Master
Client
Worker 1 Worker 2 Worker N
Client

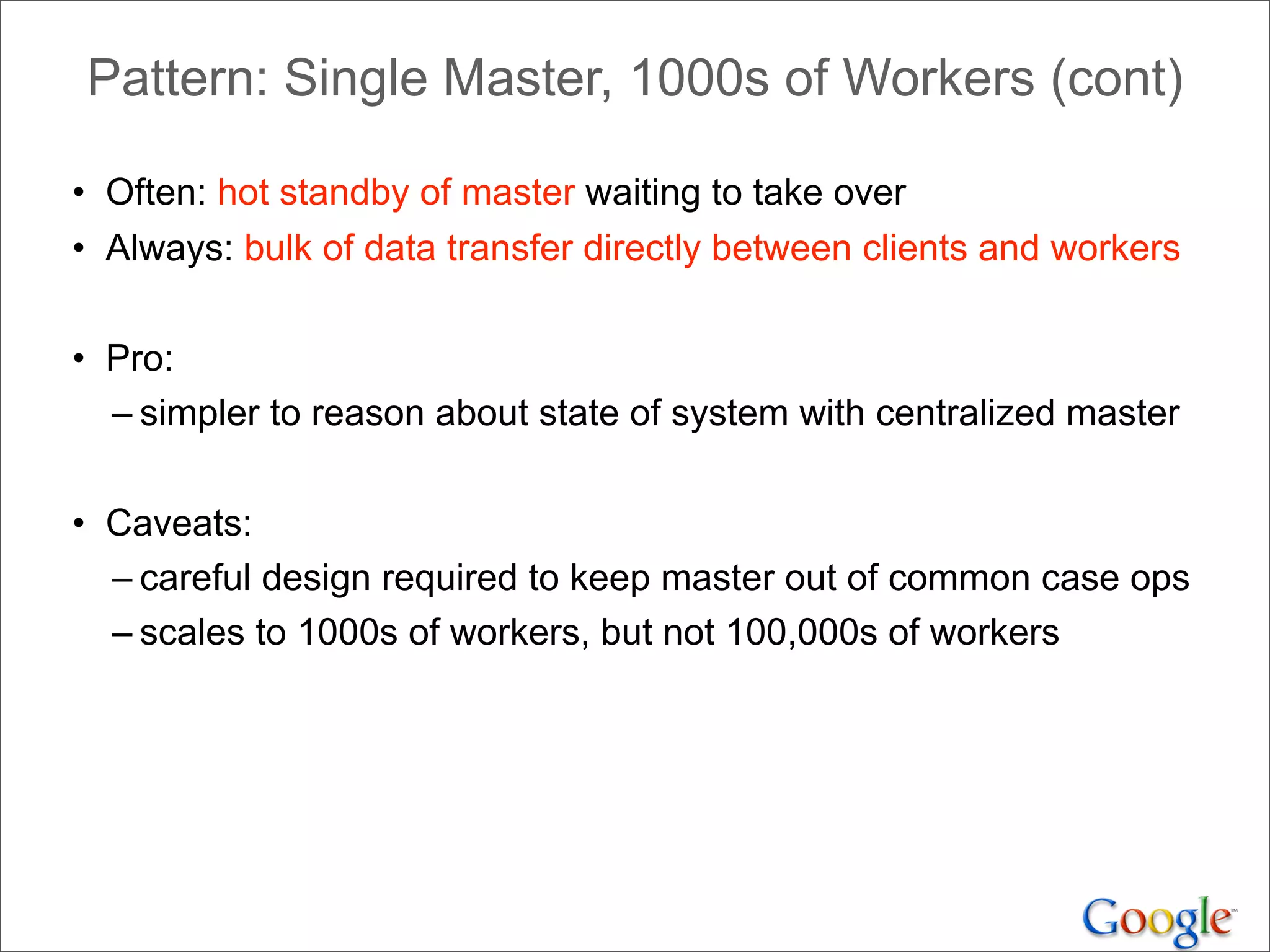

Pattern: Single Master, 1000s of Workers (cont)
• Often: hot standby of master waiting to take over
• Always: bulk of data transfer directly between clients and workers
• Pro:
– simpler to reason about state of system with centralized master
• Caveats:
– careful design required to keep master out of common case ops
– scales to 1000s of workers, but not 100,000s of workers
• Problem: Single machine sending 1000s of RPCs overloads NIC
on machine when handling replies
– wide fan in causes TCP drops/retransmits, significant latency
– CPU becomes bottleneck on single machine

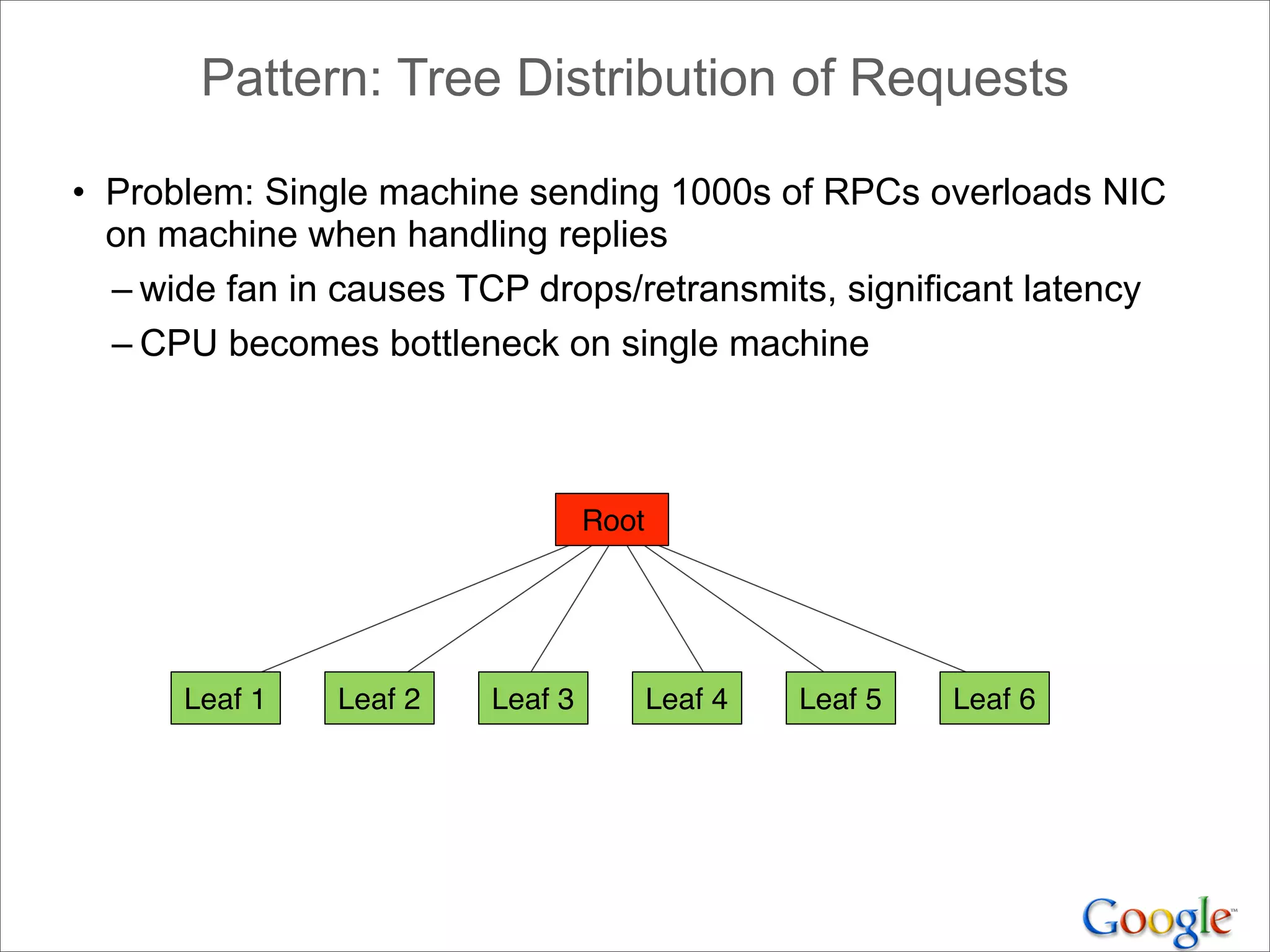

Pattern: Tree Distribution of Requests
Root
Leaf 1 Leaf 2 Leaf 3 Leaf 4 Leaf 5 Leaf 6
• Solution: Use tree distribution of requests/responses
– fan in at root is smaller
– cost of processing leaf responses spread across many parents
• Most effective when parent processing can trim/combine leaf data
– can also co-locate parents on same rack as leaves
Pattern: Tree Distribution of Requests
Root
Leaf 1 Leaf 2 Leaf 3 Leaf 4 Leaf 5 Leaf 6
Parent Parent

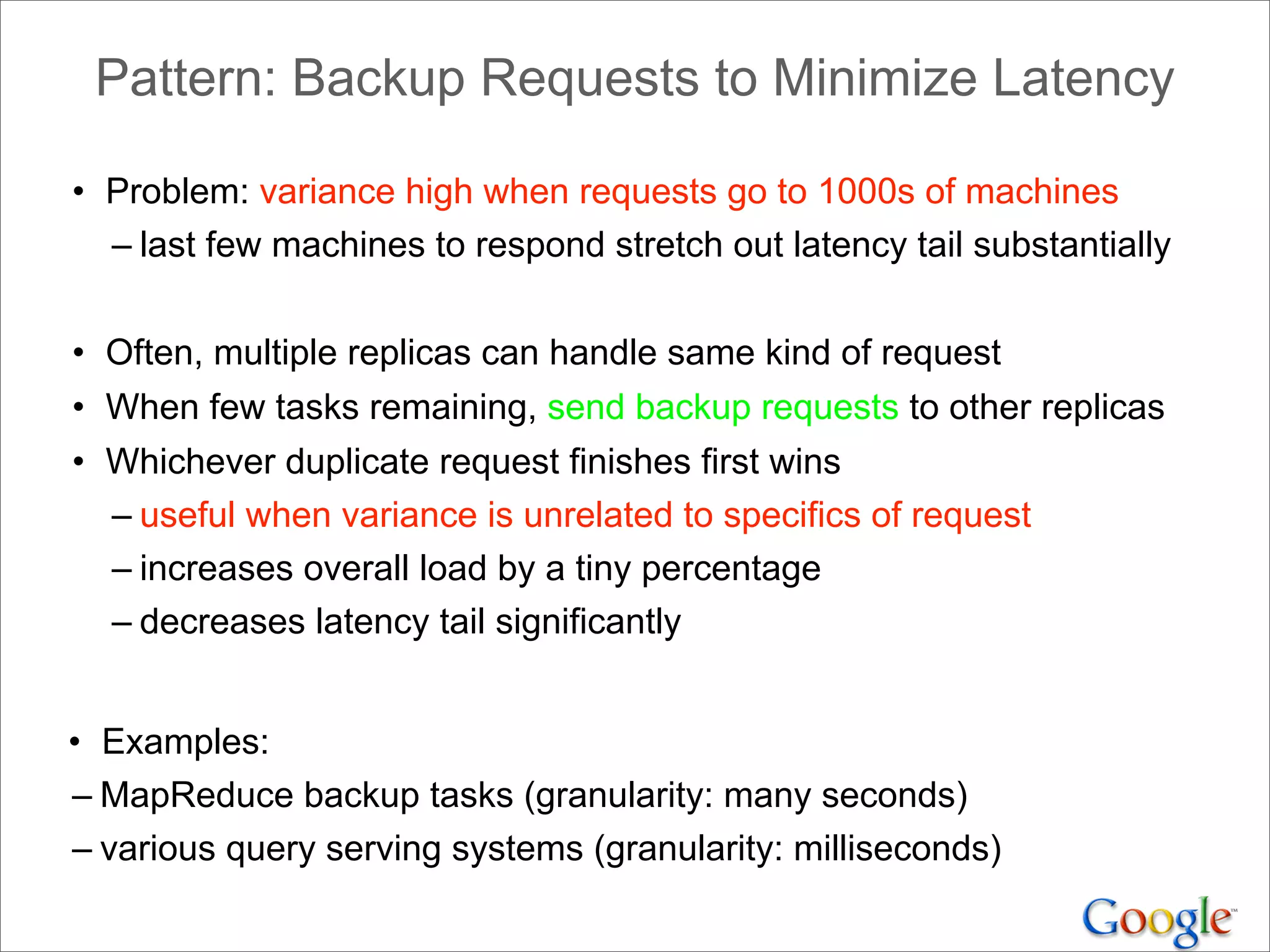

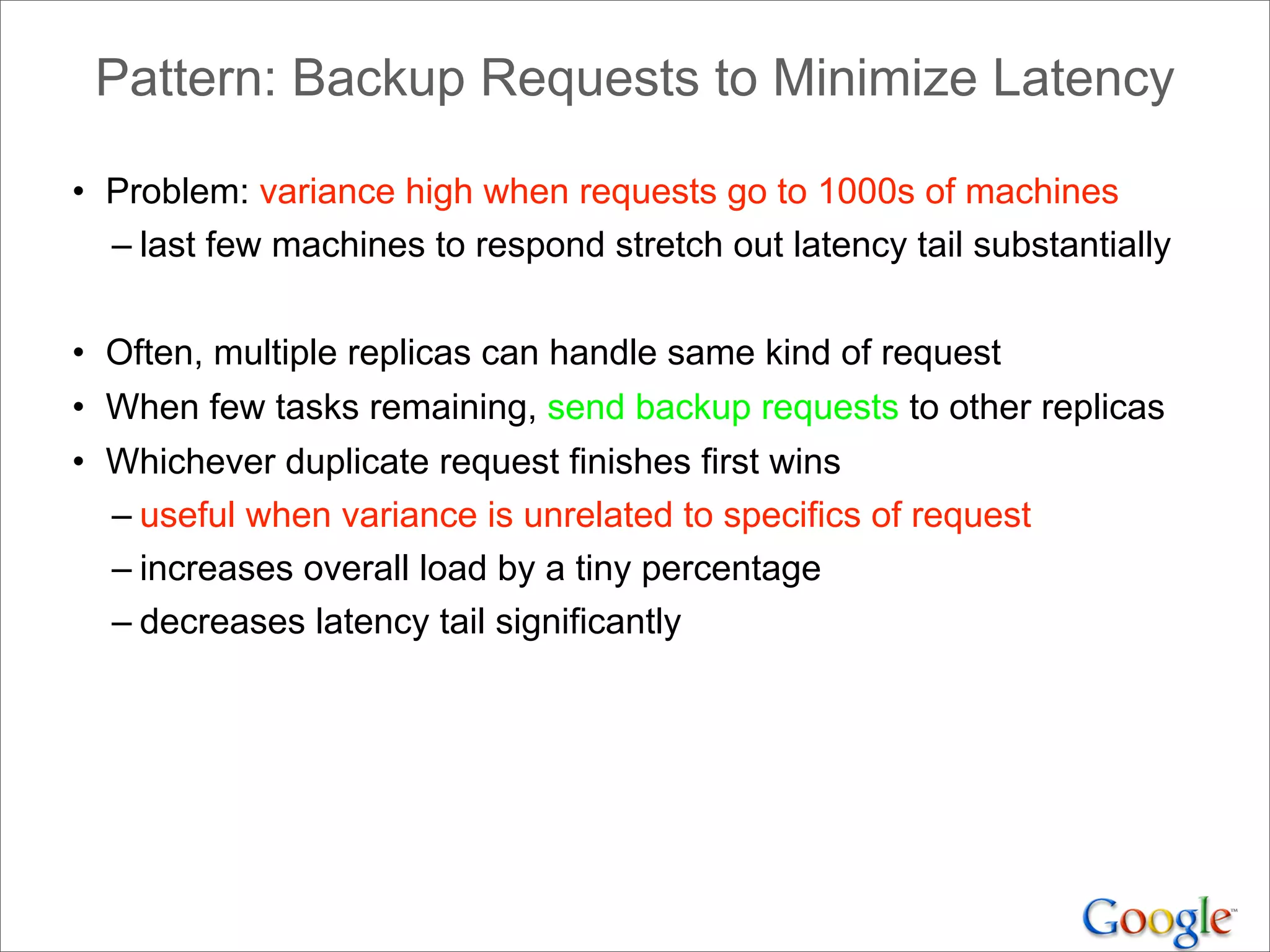

Pattern: Backup Requests to Minimize Latency
• Problem: variance high when requests go to 1000s of machines
– last few machines to respond stretch out latency tail substantially
• Often, multiple replicas can handle same kind of request
• When few tasks remaining, send backup requests to other replicas
• Whichever duplicate request finishes first wins
– useful when variance is unrelated to specifics of request
– increases overall load by a tiny percentage
– decreases latency tail significantly
Pattern: Backup Requests to Minimize Latency
• Problem: variance high when requests go to 1000s of machines
– last few machines to respond stretch out latency tail substantially
• Often, multiple replicas can handle same kind of request
• When few tasks remaining, send backup requests to other replicas
• Whichever duplicate request finishes first wins
– useful when variance is unrelated to specifics of request
– increases overall load by a tiny percentage
– decreases latency tail significantly
• Examples:
– MapReduce backup tasks (granularity: many seconds)
– various query serving systems (granularity: milliseconds)

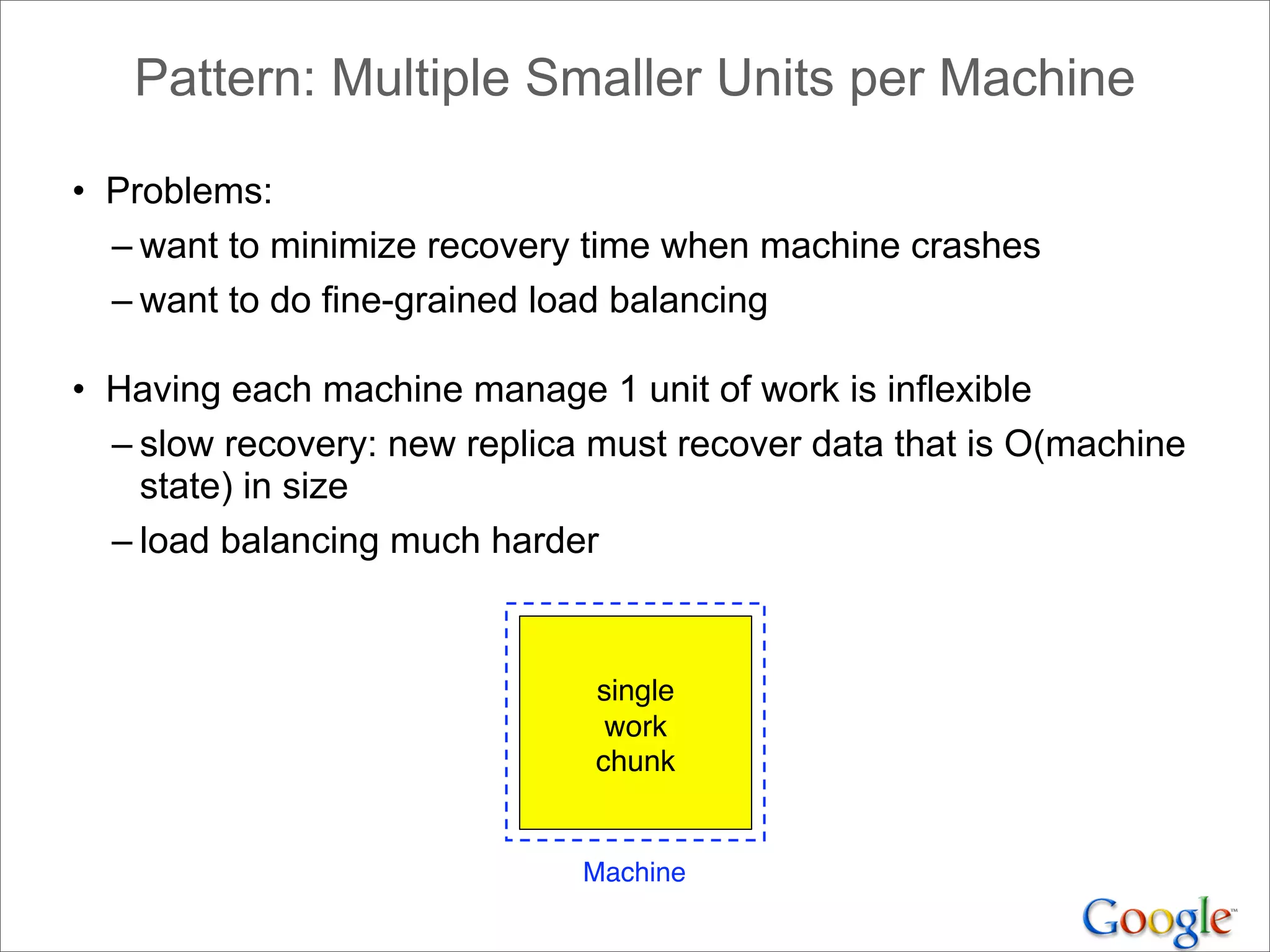

Pattern: Multiple Smaller Units per Machine
• Problems:
– want to minimize recovery time when machine crashes
– want to do fine-grained load balancing
• Having each machine manage 1 unit of work is inflexible
– slow recovery: new replica must recover data that is O(machine
state) in size
– load balancing much harder
single
work
chunk
Machine

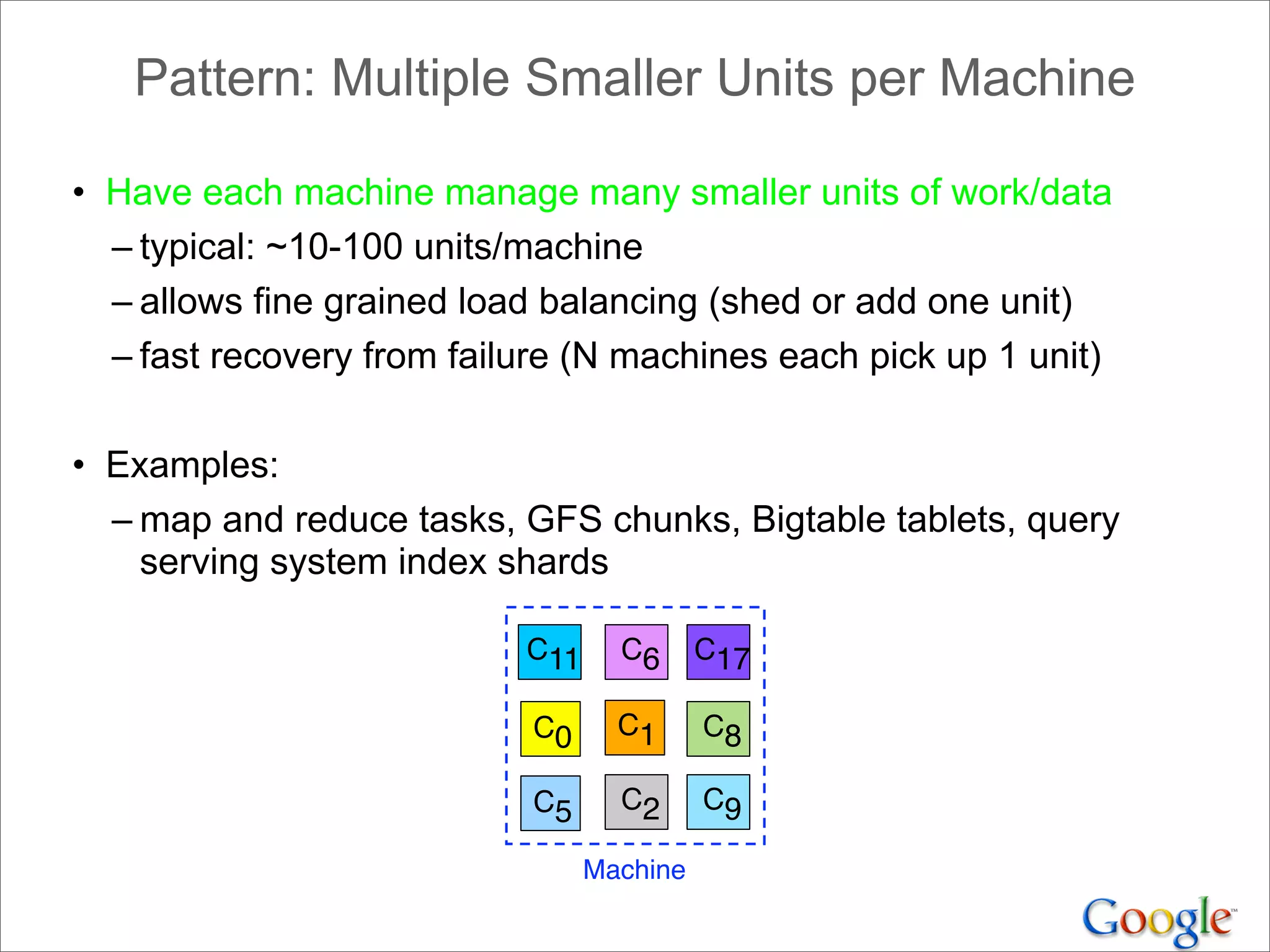

Pattern: Multiple Smaller Units per Machine
• Have each machine manage many smaller units of work/data
– typical: ~10-100 units/machine
– allows fine grained load balancing (shed or add one unit)
– fast recovery from failure (N machines each pick up 1 unit)
• Examples:
– map and reduce tasks, GFS chunks, Bigtable tablets, query
serving system index shards
C0 C1
C2C5
Machine
C9
C8
C17C6C11

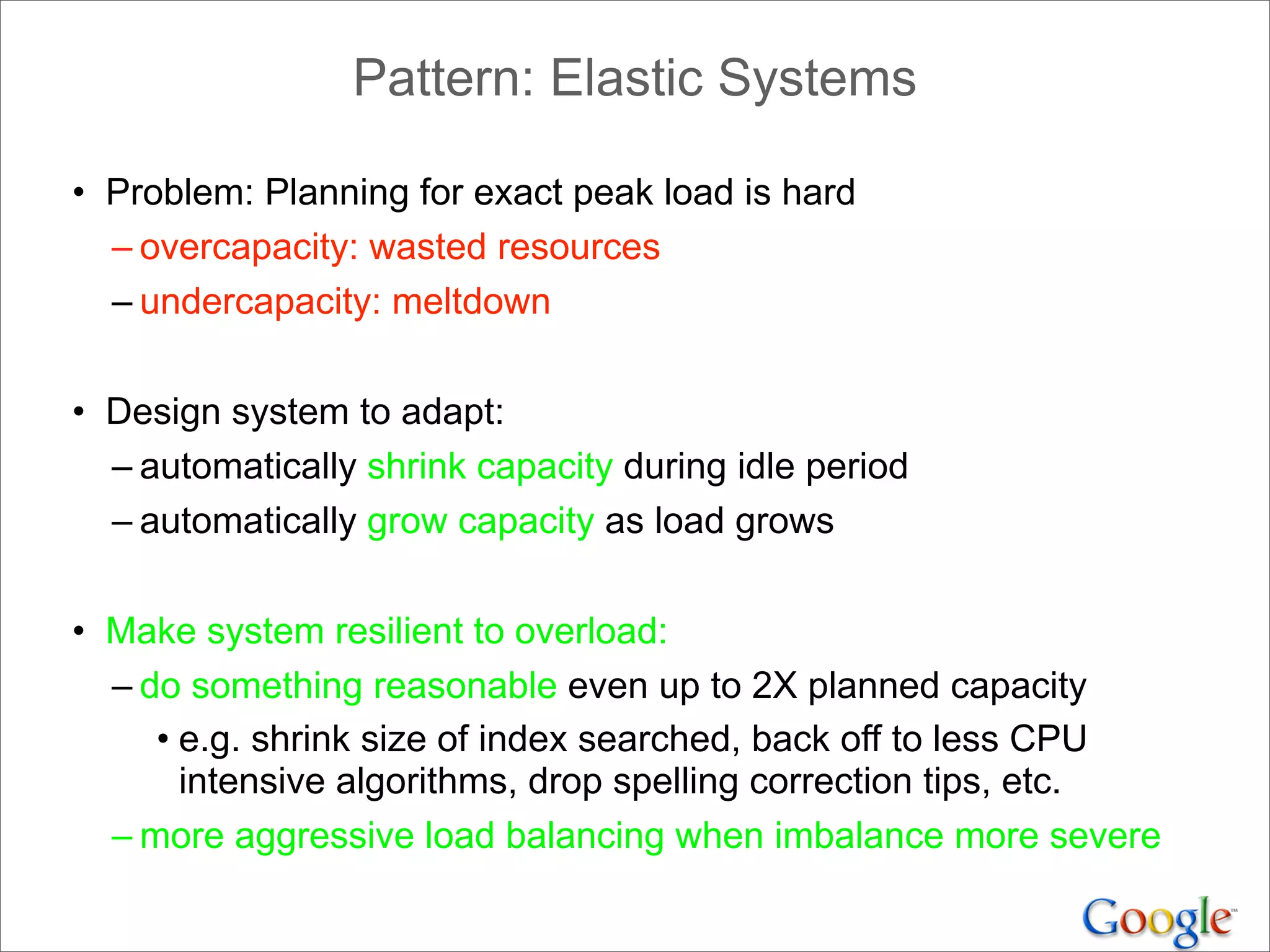

Pattern: Elastic Systems
• Problem: Planning for exact peak load is hard
– overcapacity: wasted resources
– undercapacity: meltdown
• Design system to adapt:
– automatically shrink capacity during idle period
– automatically grow capacity as load grows
• Make system resilient to overload:
– do something reasonable even up to 2X planned capacity
• e.g. shrink size of index searched, back off to less CPU
intensive algorithms, drop spelling correction tips, etc.
– more aggressive load balancing when imbalance more severe

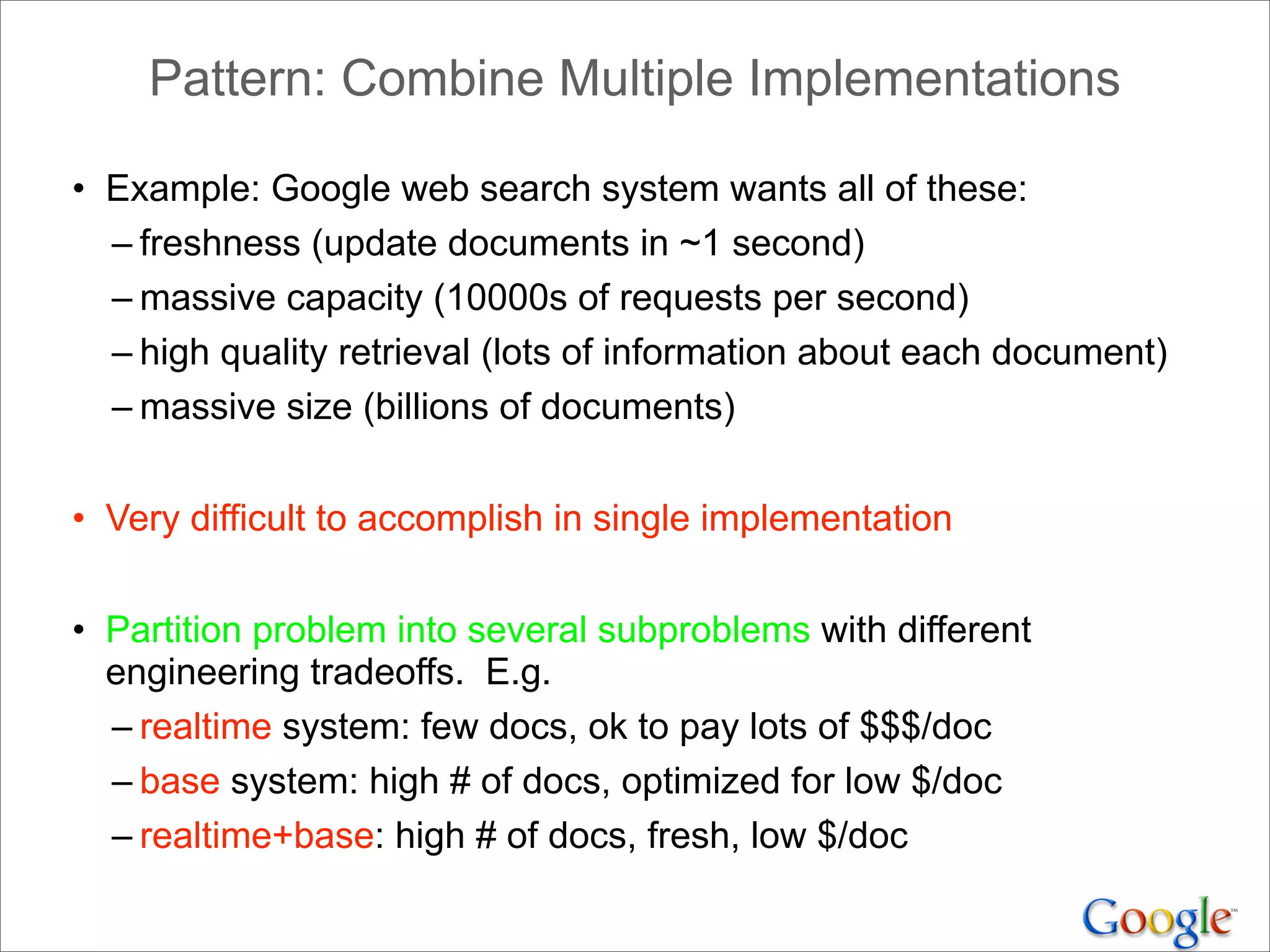

Pattern: Combine Multiple Implementations
• Example: Google web search system wants all of these:
– freshness (update documents in ~1 second)
– massive capacity (10000s of requests per second)
– high quality retrieval (lots of information about each document)
– massive size (billions of documents)
• Very difficult to accomplish in single implementation
• Partition problem into several subproblems with different
engineering tradeoffs. E.g.
– realtime system: few docs, ok to pay lots of $$$/doc
– base system: high # of docs, optimized for low $/doc
– realtime+base: high # of docs, fresh, low $/doc

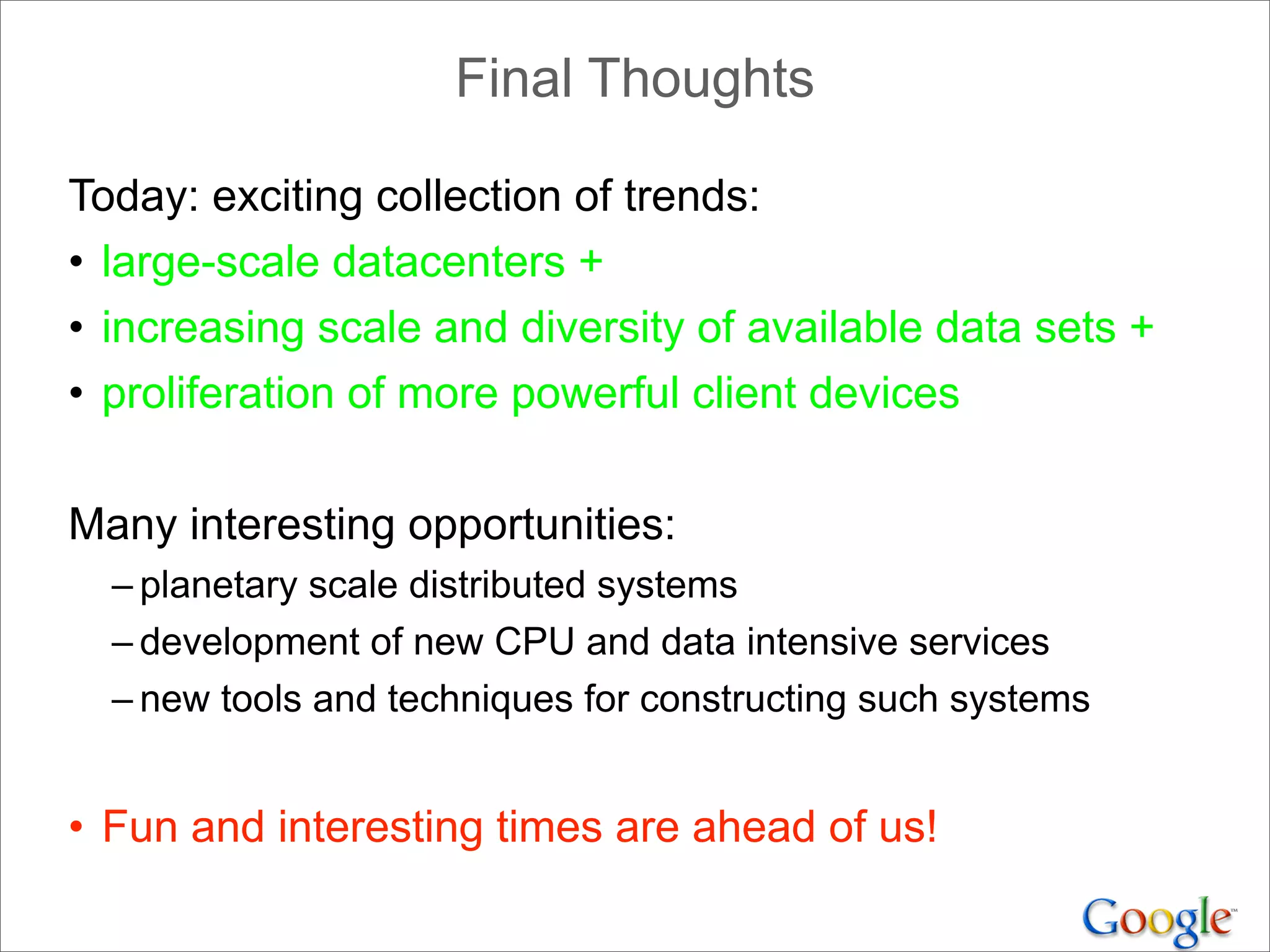

Final Thoughts
Today: exciting collection of trends:
• large-scale datacenters +
• increasing scale and diversity of available data sets +
• proliferation of more powerful client devices
Many interesting opportunities:
– planetary scale distributed systems
– development of new CPU and data intensive services
– new tools and techniques for constructing such systems
• Fun and interesting times are ahead of us!

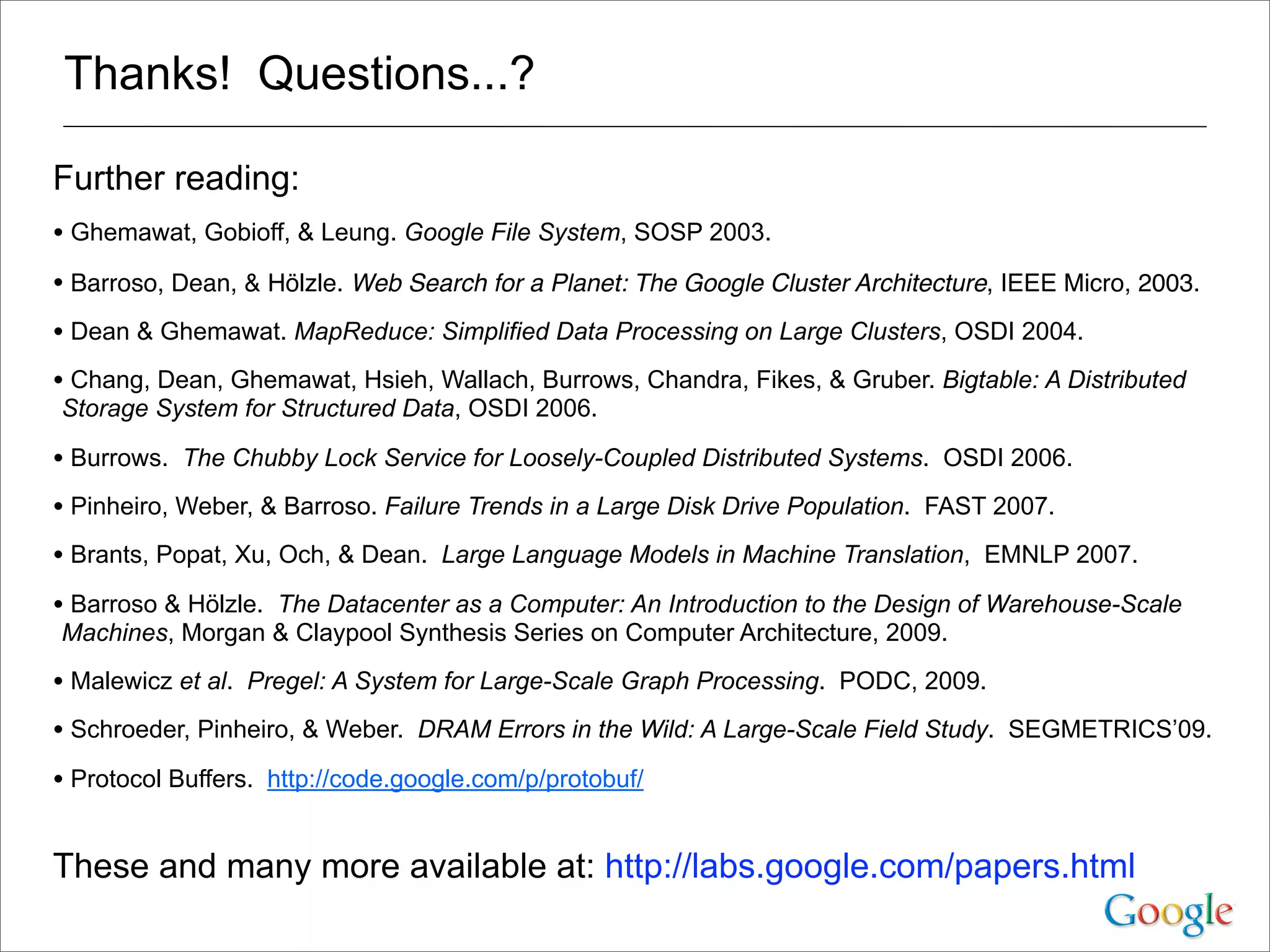

Thanks! Questions...?
Further reading:
• Ghemawat, Gobioff, & Leung. Google File System, SOSP 2003.
• Barroso, Dean, & Hölzle. Web Search for a Planet: The Google Cluster Architecture, IEEE Micro, 2003.
• Dean & Ghemawat. MapReduce: Simplified Data Processing on Large Clusters, OSDI 2004.
• Chang, Dean, Ghemawat, Hsieh, Wallach, Burrows, Chandra, Fikes, & Gruber. Bigtable: A Distributed
Storage System for Structured Data, OSDI 2006.
• Burrows. The Chubby Lock Service for Loosely-Coupled Distributed Systems. OSDI 2006.
• Pinheiro, Weber, & Barroso. Failure Trends in a Large Disk Drive Population. FAST 2007.
• Brants, Popat, Xu, Och, & Dean. Large Language Models in Machine Translation, EMNLP 2007.
• Barroso & Hölzle. The Datacenter as a Computer: An Introduction to the Design of Warehouse-Scale
Machines, Morgan & Claypool Synthesis Series on Computer Architecture, 2009.
• Malewicz et al. Pregel: A System for Large-Scale Graph Processing. PODC, 2009.
• Schroeder, Pinheiro, & Weber. DRAM Errors in the Wild: A Large-Scale Field Study. SEGMETRICS’09.
• Protocol Buffers. http://code.google.com/p/protobuf/
These and many more available at: http://labs.google.com/papers.html

More Related Content

What's hot

Introduction to KSQL: Streaming SQL for Apache Kafka®
Introduction to KSQL: Streaming SQL for Apache Kafka®Introduction to KSQL: Streaming SQL for Apache Kafka®
Introduction to KSQL: Streaming SQL for Apache Kafka®
confluent

Big Query - Utilizing Google Data Warehouse for Media Analytics
Big Query - Utilizing Google Data Warehouse for Media AnalyticsBig Query - Utilizing Google Data Warehouse for Media Analytics
Big Query - Utilizing Google Data Warehouse for Media Analytics
hafeeznazri

Apache Spark Streaming in K8s with ArgoCD & Spark Operator
Apache Spark Streaming in K8s with ArgoCD & Spark OperatorApache Spark Streaming in K8s with ArgoCD & Spark Operator
Apache Spark Streaming in K8s with ArgoCD & Spark Operator
Databricks

Kafka replication apachecon_2013
Kafka replication apachecon_2013Kafka replication apachecon_2013
Kafka replication apachecon_2013
Jun Rao

Parquet overview
Parquet overviewParquet overview
Parquet overview
Julien Le Dem

Near Real-Time Analytics with Apache Spark: Ingestion, ETL, and Interactive Q...
Near Real-Time Analytics with Apache Spark: Ingestion, ETL, and Interactive Q...Near Real-Time Analytics with Apache Spark: Ingestion, ETL, and Interactive Q...
Near Real-Time Analytics with Apache Spark: Ingestion, ETL, and Interactive Q...
Databricks

Performance Analysis of Apache Spark and Presto in Cloud Environments
Performance Analysis of Apache Spark and Presto in Cloud EnvironmentsPerformance Analysis of Apache Spark and Presto in Cloud Environments
Performance Analysis of Apache Spark and Presto in Cloud Environments
Databricks

Scaling Data Quality @ Netflix
Scaling Data Quality @ NetflixScaling Data Quality @ Netflix
Scaling Data Quality @ Netflix
Michelle Ufford

Stream Processing made simple with Kafka
Stream Processing made simple with KafkaStream Processing made simple with Kafka
Stream Processing made simple with Kafka
DataWorks Summit/Hadoop Summit

Improving Kafka at-least-once performance at Uber
Improving Kafka at-least-once performance at UberImproving Kafka at-least-once performance at Uber
Improving Kafka at-least-once performance at Uber
Ying Zheng

CAP Theorem - Theory, Implications and Practices
CAP Theorem - Theory, Implications and PracticesCAP Theorem - Theory, Implications and Practices
CAP Theorem - Theory, Implications and Practices
Yoav Francis

Whoops, The Numbers Are Wrong! Scaling Data Quality @ Netflix
Whoops, The Numbers Are Wrong! Scaling Data Quality @ NetflixWhoops, The Numbers Are Wrong! Scaling Data Quality @ Netflix
Whoops, The Numbers Are Wrong! Scaling Data Quality @ Netflix
DataWorks Summit

Elastic Stack Introduction
Elastic Stack IntroductionElastic Stack Introduction
Elastic Stack Introduction
Vikram Shinde

Iceberg: a fast table format for S3
Iceberg: a fast table format for S3Iceberg: a fast table format for S3
Iceberg: a fast table format for S3
DataWorks Summit

Apache Kafka Streams + Machine Learning / Deep Learning
Apache Kafka Streams + Machine Learning / Deep LearningApache Kafka Streams + Machine Learning / Deep Learning
Apache Kafka Streams + Machine Learning / Deep Learning
Kai Wähner

Modeling Data and Queries for Wide Column NoSQL
Modeling Data and Queries for Wide Column NoSQLModeling Data and Queries for Wide Column NoSQL
Modeling Data and Queries for Wide Column NoSQL
ScyllaDB

Stream processing using Kafka
Stream processing using KafkaStream processing using Kafka
Stream processing using Kafka
Knoldus Inc.

Advanced SQL For Data Scientists
Advanced SQL For Data ScientistsAdvanced SQL For Data Scientists
Advanced SQL For Data Scientists
Databricks

Apache Iceberg - A Table Format for Hige Analytic Datasets
Apache Iceberg - A Table Format for Hige Analytic DatasetsApache Iceberg - A Table Format for Hige Analytic Datasets
Apache Iceberg - A Table Format for Hige Analytic Datasets
Alluxio, Inc.

Apache Spark on K8S Best Practice and Performance in the Cloud
Apache Spark on K8S Best Practice and Performance in the CloudApache Spark on K8S Best Practice and Performance in the Cloud
Apache Spark on K8S Best Practice and Performance in the Cloud
Databricks


What's hot (20)

Introduction to KSQL: Streaming SQL for Apache Kafka®
Introduction to KSQL: Streaming SQL for Apache Kafka®Introduction to KSQL: Streaming SQL for Apache Kafka®
Introduction to KSQL: Streaming SQL for Apache Kafka®

Big Query - Utilizing Google Data Warehouse for Media Analytics
Big Query - Utilizing Google Data Warehouse for Media AnalyticsBig Query - Utilizing Google Data Warehouse for Media Analytics
Big Query - Utilizing Google Data Warehouse for Media Analytics

Apache Spark Streaming in K8s with ArgoCD & Spark Operator
Apache Spark Streaming in K8s with ArgoCD & Spark OperatorApache Spark Streaming in K8s with ArgoCD & Spark Operator
Apache Spark Streaming in K8s with ArgoCD & Spark Operator

Kafka replication apachecon_2013
Kafka replication apachecon_2013Kafka replication apachecon_2013
Kafka replication apachecon_2013

Parquet overview
Parquet overviewParquet overview
Parquet overview

Near Real-Time Analytics with Apache Spark: Ingestion, ETL, and Interactive Q...
Near Real-Time Analytics with Apache Spark: Ingestion, ETL, and Interactive Q...Near Real-Time Analytics with Apache Spark: Ingestion, ETL, and Interactive Q...
Near Real-Time Analytics with Apache Spark: Ingestion, ETL, and Interactive Q...

Performance Analysis of Apache Spark and Presto in Cloud Environments
Performance Analysis of Apache Spark and Presto in Cloud EnvironmentsPerformance Analysis of Apache Spark and Presto in Cloud Environments
Performance Analysis of Apache Spark and Presto in Cloud Environments

Scaling Data Quality @ Netflix
Scaling Data Quality @ NetflixScaling Data Quality @ Netflix
Scaling Data Quality @ Netflix

Stream Processing made simple with Kafka
Stream Processing made simple with KafkaStream Processing made simple with Kafka
Stream Processing made simple with Kafka

Improving Kafka at-least-once performance at Uber
Improving Kafka at-least-once performance at UberImproving Kafka at-least-once performance at Uber
Improving Kafka at-least-once performance at Uber

CAP Theorem - Theory, Implications and Practices
CAP Theorem - Theory, Implications and PracticesCAP Theorem - Theory, Implications and Practices
CAP Theorem - Theory, Implications and Practices

Whoops, The Numbers Are Wrong! Scaling Data Quality @ Netflix
Whoops, The Numbers Are Wrong! Scaling Data Quality @ NetflixWhoops, The Numbers Are Wrong! Scaling Data Quality @ Netflix
Whoops, The Numbers Are Wrong! Scaling Data Quality @ Netflix

Elastic Stack Introduction
Elastic Stack IntroductionElastic Stack Introduction
Elastic Stack Introduction

Iceberg: a fast table format for S3
Iceberg: a fast table format for S3Iceberg: a fast table format for S3
Iceberg: a fast table format for S3

Apache Kafka Streams + Machine Learning / Deep Learning
Apache Kafka Streams + Machine Learning / Deep LearningApache Kafka Streams + Machine Learning / Deep Learning
Apache Kafka Streams + Machine Learning / Deep Learning

Modeling Data and Queries for Wide Column NoSQL
Modeling Data and Queries for Wide Column NoSQLModeling Data and Queries for Wide Column NoSQL
Modeling Data and Queries for Wide Column NoSQL

Stream processing using Kafka
Stream processing using KafkaStream processing using Kafka
Stream processing using Kafka

Advanced SQL For Data Scientists
Advanced SQL For Data ScientistsAdvanced SQL For Data Scientists
Advanced SQL For Data Scientists

Apache Iceberg - A Table Format for Hige Analytic Datasets
Apache Iceberg - A Table Format for Hige Analytic DatasetsApache Iceberg - A Table Format for Hige Analytic Datasets
Apache Iceberg - A Table Format for Hige Analytic Datasets

Apache Spark on K8S Best Practice and Performance in the Cloud
Apache Spark on K8S Best Practice and Performance in the CloudApache Spark on K8S Best Practice and Performance in the Cloud
Apache Spark on K8S Best Practice and Performance in the Cloud


Viewers also liked

Vectorized VByte Decoding
Vectorized VByte DecodingVectorized VByte Decoding
Vectorized VByte Decoding
indeedeng

Adding Source Control to Your Life
Adding Source Control to Your LifeAdding Source Control to Your Life
Adding Source Control to Your Life
Mark Kelnar

Google jeff dean lessons learned while building infrastructure software at go...
Google jeff dean lessons learned while building infrastructure software at go...Google jeff dean lessons learned while building infrastructure software at go...
Google jeff dean lessons learned while building infrastructure software at go...
xu liwei

Gluecon 2013 - Dark Architecture and How to Forklift Upgrade Your System - Dy...
Gluecon 2013 - Dark Architecture and How to Forklift Upgrade Your System - Dy...Gluecon 2013 - Dark Architecture and How to Forklift Upgrade Your System - Dy...
Gluecon 2013 - Dark Architecture and How to Forklift Upgrade Your System - Dy...
Cory von Wallenstein

Google Architecture - Breaking it Open
Google Architecture - Breaking it OpenGoogle Architecture - Breaking it Open
Google Architecture - Breaking it Open
HARMAN Services

Google cluster architecture
Google cluster architecture Google cluster architecture
Google cluster architecture
Abhijeet Desai

Cessna single engine safety initiative
Cessna single engine safety initiativeCessna single engine safety initiative
Cessna single engine safety initiative
Franco villantoy villantoy bados

Impala Unlocks Interactive BI on Hadoop
Impala Unlocks Interactive BI on HadoopImpala Unlocks Interactive BI on Hadoop
Impala Unlocks Interactive BI on Hadoop
Cloudera, Inc.

Cloudera Impala Overview (via Scott Leberknight)
Cloudera Impala Overview (via Scott Leberknight)Cloudera Impala Overview (via Scott Leberknight)
Cloudera Impala Overview (via Scott Leberknight)
Cloudera, Inc.

Apache Tez: Accelerating Hadoop Query Processing
Apache Tez: Accelerating Hadoop Query Processing Apache Tez: Accelerating Hadoop Query Processing
Apache Tez: Accelerating Hadoop Query Processing
DataWorks Summit

Attack-driven defense
Attack-driven defenseAttack-driven defense
Attack-driven defense
Zane Lackey

facebook architecture for 600M users
facebook architecture for 600M usersfacebook architecture for 600M users
facebook architecture for 600M users
Jongyoon Choi

El Lenguaje Fotografico
El Lenguaje FotograficoEl Lenguaje Fotografico
El Lenguaje Fotografico
Rosa Fernández

HTML5, How to rethink your web strategy
HTML5, How to rethink your web strategyHTML5, How to rethink your web strategy
HTML5, How to rethink your web strategy
Fabernovel

Sverve
SverveSverve
Sverve
500 Startups

iOS design: a case study
iOS design: a case studyiOS design: a case study
iOS design: a case study
Johan Ronsse


Viewers also liked (16)

Vectorized VByte Decoding
Vectorized VByte DecodingVectorized VByte Decoding
Vectorized VByte Decoding

Adding Source Control to Your Life
Adding Source Control to Your LifeAdding Source Control to Your Life
Adding Source Control to Your Life

Google jeff dean lessons learned while building infrastructure software at go...
Google jeff dean lessons learned while building infrastructure software at go...Google jeff dean lessons learned while building infrastructure software at go...
Google jeff dean lessons learned while building infrastructure software at go...

Gluecon 2013 - Dark Architecture and How to Forklift Upgrade Your System - Dy...
Gluecon 2013 - Dark Architecture and How to Forklift Upgrade Your System - Dy...Gluecon 2013 - Dark Architecture and How to Forklift Upgrade Your System - Dy...
Gluecon 2013 - Dark Architecture and How to Forklift Upgrade Your System - Dy...

Google Architecture - Breaking it Open
Google Architecture - Breaking it OpenGoogle Architecture - Breaking it Open
Google Architecture - Breaking it Open

Google cluster architecture
Google cluster architecture Google cluster architecture
Google cluster architecture

Cessna single engine safety initiative
Cessna single engine safety initiativeCessna single engine safety initiative
Cessna single engine safety initiative

Impala Unlocks Interactive BI on Hadoop
Impala Unlocks Interactive BI on HadoopImpala Unlocks Interactive BI on Hadoop
Impala Unlocks Interactive BI on Hadoop

Cloudera Impala Overview (via Scott Leberknight)
Cloudera Impala Overview (via Scott Leberknight)Cloudera Impala Overview (via Scott Leberknight)
Cloudera Impala Overview (via Scott Leberknight)

Apache Tez: Accelerating Hadoop Query Processing
Apache Tez: Accelerating Hadoop Query Processing Apache Tez: Accelerating Hadoop Query Processing
Apache Tez: Accelerating Hadoop Query Processing

Attack-driven defense
Attack-driven defenseAttack-driven defense
Attack-driven defense

facebook architecture for 600M users
facebook architecture for 600M usersfacebook architecture for 600M users
facebook architecture for 600M users

El Lenguaje Fotografico
El Lenguaje FotograficoEl Lenguaje Fotografico
El Lenguaje Fotografico

HTML5, How to rethink your web strategy
HTML5, How to rethink your web strategyHTML5, How to rethink your web strategy
HTML5, How to rethink your web strategy

Sverve
SverveSverve
Sverve

iOS design: a case study
iOS design: a case studyiOS design: a case study
iOS design: a case study


Similar to Building Software Systems at Google and Lessons Learned

Jeff Dean: WSDM09 Keynote
Jeff Dean: WSDM09 KeynoteJeff Dean: WSDM09 Keynote
Jeff Dean: WSDM09 Keynote
yarapavan

WSDM09-keynote
WSDM09-keynoteWSDM09-keynote
WSDM09-keynote
Hiroshi Ono

SharePoint Saturday San Antonio: SharePoint 2010 Performance
SharePoint Saturday San Antonio: SharePoint 2010 PerformanceSharePoint Saturday San Antonio: SharePoint 2010 Performance
SharePoint Saturday San Antonio: SharePoint 2010 Performance
Brian Culver

Monitoring and Scaling Redis at DataDog - Ilan Rabinovitch, DataDog
 Monitoring and Scaling Redis at DataDog - Ilan Rabinovitch, DataDog Monitoring and Scaling Redis at DataDog - Ilan Rabinovitch, DataDog
Monitoring and Scaling Redis at DataDog - Ilan Rabinovitch, DataDog
Redis Labs

SenchaCon Roadshow Irvine 2017
SenchaCon Roadshow Irvine 2017SenchaCon Roadshow Irvine 2017
SenchaCon Roadshow Irvine 2017
Speedment, Inc.

SharePoint Saturday The Conference 2011 - SP2010 Performance
SharePoint Saturday The Conference 2011 - SP2010 PerformanceSharePoint Saturday The Conference 2011 - SP2010 Performance
SharePoint Saturday The Conference 2011 - SP2010 Performance
Brian Culver

Cvcc performance tuning
Cvcc performance tuningCvcc performance tuning
Cvcc performance tuning
John McCaffrey

Séminaire Big Data Alter Way - Elasticsearch - octobre 2014
Séminaire Big Data Alter Way - Elasticsearch - octobre 2014Séminaire Big Data Alter Way - Elasticsearch - octobre 2014
Séminaire Big Data Alter Way - Elasticsearch - octobre 2014
ALTER WAY

Boost the Performance of SharePoint Today!
Boost the Performance of SharePoint Today!Boost the Performance of SharePoint Today!
Boost the Performance of SharePoint Today!
Brian Culver

Webinar: Best Practices for Getting Started with MongoDB
Webinar: Best Practices for Getting Started with MongoDBWebinar: Best Practices for Getting Started with MongoDB
Webinar: Best Practices for Getting Started with MongoDB
MongoDB

MongoDB Best Practices
MongoDB Best PracticesMongoDB Best Practices
MongoDB Best Practices
Lewis Lin 🦊

Share point 2013 enterprise search (public)
Share point 2013 enterprise search (public)Share point 2013 enterprise search (public)
Share point 2013 enterprise search (public)
Petter Skodvin-Hvammen

Add Redis to Postgres to Make Your Microservices Go Boom!
Add Redis to Postgres to Make Your Microservices Go Boom!Add Redis to Postgres to Make Your Microservices Go Boom!
Add Redis to Postgres to Make Your Microservices Go Boom!
Dave Nielsen

Machine Learning for Smarter Apps - Jacksonville Meetup
Machine Learning for Smarter Apps - Jacksonville MeetupMachine Learning for Smarter Apps - Jacksonville Meetup
Machine Learning for Smarter Apps - Jacksonville Meetup
Sri Ambati

Social Media, Cloud Computing, Machine Learning, Open Source, and Big Data An...
Social Media, Cloud Computing, Machine Learning, Open Source, and Big Data An...Social Media, Cloud Computing, Machine Learning, Open Source, and Big Data An...
Social Media, Cloud Computing, Machine Learning, Open Source, and Big Data An...
Open Analytics

Open Data Summit Presentation by Joe Olsen
Open Data Summit Presentation by Joe OlsenOpen Data Summit Presentation by Joe Olsen
Open Data Summit Presentation by Joe Olsen
Christopher Whitaker

Solr Under the Hood at S&P Global- Sumit Vadhera, S&P Global
Solr Under the Hood at S&P Global- Sumit Vadhera, S&P Global Solr Under the Hood at S&P Global- Sumit Vadhera, S&P Global
Solr Under the Hood at S&P Global- Sumit Vadhera, S&P Global
Lucidworks

AWS APAC Webinar Week - Real Time Data Processing with Kinesis
AWS APAC Webinar Week - Real Time Data Processing with KinesisAWS APAC Webinar Week - Real Time Data Processing with Kinesis
AWS APAC Webinar Week - Real Time Data Processing with Kinesis
Amazon Web Services

Effective Microservices In a Data-centric World
Effective Microservices In a Data-centric WorldEffective Microservices In a Data-centric World
Effective Microservices In a Data-centric World
Randy Shoup

Introduction to Azure DocumentDB
Introduction to Azure DocumentDBIntroduction to Azure DocumentDB
Introduction to Azure DocumentDB
Denny Lee


Similar to Building Software Systems at Google and Lessons Learned (20)

Jeff Dean: WSDM09 Keynote
Jeff Dean: WSDM09 KeynoteJeff Dean: WSDM09 Keynote
Jeff Dean: WSDM09 Keynote

WSDM09-keynote
WSDM09-keynoteWSDM09-keynote
WSDM09-keynote

SharePoint Saturday San Antonio: SharePoint 2010 Performance
SharePoint Saturday San Antonio: SharePoint 2010 PerformanceSharePoint Saturday San Antonio: SharePoint 2010 Performance
SharePoint Saturday San Antonio: SharePoint 2010 Performance

Monitoring and Scaling Redis at DataDog - Ilan Rabinovitch, DataDog
 Monitoring and Scaling Redis at DataDog - Ilan Rabinovitch, DataDog Monitoring and Scaling Redis at DataDog - Ilan Rabinovitch, DataDog
Monitoring and Scaling Redis at DataDog - Ilan Rabinovitch, DataDog

SenchaCon Roadshow Irvine 2017
SenchaCon Roadshow Irvine 2017SenchaCon Roadshow Irvine 2017
SenchaCon Roadshow Irvine 2017

SharePoint Saturday The Conference 2011 - SP2010 Performance
SharePoint Saturday The Conference 2011 - SP2010 PerformanceSharePoint Saturday The Conference 2011 - SP2010 Performance
SharePoint Saturday The Conference 2011 - SP2010 Performance

Cvcc performance tuning
Cvcc performance tuningCvcc performance tuning
Cvcc performance tuning

Séminaire Big Data Alter Way - Elasticsearch - octobre 2014
Séminaire Big Data Alter Way - Elasticsearch - octobre 2014Séminaire Big Data Alter Way - Elasticsearch - octobre 2014
Séminaire Big Data Alter Way - Elasticsearch - octobre 2014

Boost the Performance of SharePoint Today!
Boost the Performance of SharePoint Today!Boost the Performance of SharePoint Today!
Boost the Performance of SharePoint Today!

Webinar: Best Practices for Getting Started with MongoDB
Webinar: Best Practices for Getting Started with MongoDBWebinar: Best Practices for Getting Started with MongoDB
Webinar: Best Practices for Getting Started with MongoDB

MongoDB Best Practices
MongoDB Best PracticesMongoDB Best Practices
MongoDB Best Practices

Share point 2013 enterprise search (public)
Share point 2013 enterprise search (public)Share point 2013 enterprise search (public)
Share point 2013 enterprise search (public)

Add Redis to Postgres to Make Your Microservices Go Boom!
Add Redis to Postgres to Make Your Microservices Go Boom!Add Redis to Postgres to Make Your Microservices Go Boom!
Add Redis to Postgres to Make Your Microservices Go Boom!

Machine Learning for Smarter Apps - Jacksonville Meetup
Machine Learning for Smarter Apps - Jacksonville MeetupMachine Learning for Smarter Apps - Jacksonville Meetup
Machine Learning for Smarter Apps - Jacksonville Meetup

Social Media, Cloud Computing, Machine Learning, Open Source, and Big Data An...
Social Media, Cloud Computing, Machine Learning, Open Source, and Big Data An...Social Media, Cloud Computing, Machine Learning, Open Source, and Big Data An...
Social Media, Cloud Computing, Machine Learning, Open Source, and Big Data An...

Open Data Summit Presentation by Joe Olsen
Open Data Summit Presentation by Joe OlsenOpen Data Summit Presentation by Joe Olsen
Open Data Summit Presentation by Joe Olsen

Solr Under the Hood at S&P Global- Sumit Vadhera, S&P Global
Solr Under the Hood at S&P Global- Sumit Vadhera, S&P Global Solr Under the Hood at S&P Global- Sumit Vadhera, S&P Global
Solr Under the Hood at S&P Global- Sumit Vadhera, S&P Global

AWS APAC Webinar Week - Real Time Data Processing with Kinesis
AWS APAC Webinar Week - Real Time Data Processing with KinesisAWS APAC Webinar Week - Real Time Data Processing with Kinesis
AWS APAC Webinar Week - Real Time Data Processing with Kinesis

Effective Microservices In a Data-centric World
Effective Microservices In a Data-centric WorldEffective Microservices In a Data-centric World
Effective Microservices In a Data-centric World

Introduction to Azure DocumentDB
Introduction to Azure DocumentDBIntroduction to Azure DocumentDB
Introduction to Azure DocumentDB


More from parallellabs

Hpca2012 facebook keynote
Hpca2012 facebook keynoteHpca2012 facebook keynote
Hpca2012 facebook keynote
parallellabs

Intel's Nehalem Microarchitecture by Glenn Hinton
Intel's Nehalem Microarchitecture by Glenn HintonIntel's Nehalem Microarchitecture by Glenn Hinton
Intel's Nehalem Microarchitecture by Glenn Hinton
parallellabs

Realtime Apache Hadoop at Facebook
Realtime Apache Hadoop at FacebookRealtime Apache Hadoop at Facebook
Realtime Apache Hadoop at Facebook
parallellabs

Isca needle a_0610
Isca needle a_0610Isca needle a_0610
Isca needle a_0610
parallellabs

Dean keynote-ladis2009-jeff-dean
Dean keynote-ladis2009-jeff-deanDean keynote-ladis2009-jeff-dean
Dean keynote-ladis2009-jeff-dean
parallellabs

Chalmers microprocessor sept 2010
Chalmers microprocessor sept 2010Chalmers microprocessor sept 2010
Chalmers microprocessor sept 2010
parallellabs


More from parallellabs (6)

Hpca2012 facebook keynote
Hpca2012 facebook keynoteHpca2012 facebook keynote
Hpca2012 facebook keynote

Intel's Nehalem Microarchitecture by Glenn Hinton
Intel's Nehalem Microarchitecture by Glenn HintonIntel's Nehalem Microarchitecture by Glenn Hinton
Intel's Nehalem Microarchitecture by Glenn Hinton

Realtime Apache Hadoop at Facebook
Realtime Apache Hadoop at FacebookRealtime Apache Hadoop at Facebook
Realtime Apache Hadoop at Facebook

Isca needle a_0610
Isca needle a_0610Isca needle a_0610
Isca needle a_0610

Dean keynote-ladis2009-jeff-dean
Dean keynote-ladis2009-jeff-deanDean keynote-ladis2009-jeff-dean
Dean keynote-ladis2009-jeff-dean

Chalmers microprocessor sept 2010
Chalmers microprocessor sept 2010Chalmers microprocessor sept 2010
Chalmers microprocessor sept 2010


Recently uploaded

(CISOPlatform Summit & SACON 2024) Digital Personal Data Protection Act.pdf
(CISOPlatform Summit & SACON 2024) Digital Personal Data Protection Act.pdf(CISOPlatform Summit & SACON 2024) Digital Personal Data Protection Act.pdf
(CISOPlatform Summit & SACON 2024) Digital Personal Data Protection Act.pdf
Priyanka Aash

Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery
Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery
Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery
sunilverma7884

Premium Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Service ...
Premium Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Service ...Premium Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Service ...
Premium Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Service ...
shanihomely

Vulnerability Management: A Comprehensive Overview
Vulnerability Management: A Comprehensive OverviewVulnerability Management: A Comprehensive Overview
Vulnerability Management: A Comprehensive Overview
Steven Carlson

CiscoIconsLibrary cours de réseau VLAN.ppt
CiscoIconsLibrary cours de réseau VLAN.pptCiscoIconsLibrary cours de réseau VLAN.ppt
CiscoIconsLibrary cours de réseau VLAN.ppt
moinahousna

Recent Advancements in the NIST-JARVIS Infrastructure
Recent Advancements in the NIST-JARVIS InfrastructureRecent Advancements in the NIST-JARVIS Infrastructure
Recent Advancements in the NIST-JARVIS Infrastructure
KAMAL CHOUDHARY

The Rise of AI in Cybersecurity How Machine Learning Will Shape Threat Detect...
The Rise of AI in Cybersecurity How Machine Learning Will Shape Threat Detect...The Rise of AI in Cybersecurity How Machine Learning Will Shape Threat Detect...
The Rise of AI in Cybersecurity How Machine Learning Will Shape Threat Detect...
digitalxplive

Choose our Linux Web Hosting for a seamless and successful online presence
Choose our Linux Web Hosting for a seamless and successful online presenceChoose our Linux Web Hosting for a seamless and successful online presence
Choose our Linux Web Hosting for a seamless and successful online presence
rajancomputerfbd

Amul milk launches in US: Key details of its new products ...
Amul milk launches in US: Key details of its new products ...Amul milk launches in US: Key details of its new products ...
Amul milk launches in US: Key details of its new products ...
chetankumar9855

IPLOOK Remote-Sensing Satellite Solution
IPLOOK Remote-Sensing Satellite SolutionIPLOOK Remote-Sensing Satellite Solution
IPLOOK Remote-Sensing Satellite Solution
IPLOOK Networks

Active Inference is a veryyyyyyyyyyyyyyyyyyyyyyyy
Active Inference is a veryyyyyyyyyyyyyyyyyyyyyyyyActive Inference is a veryyyyyyyyyyyyyyyyyyyyyyyy
Active Inference is a veryyyyyyyyyyyyyyyyyyyyyyyy
RaminGhanbari2

find out more about the role of autonomous vehicles in facing global challenges
find out more about the role of autonomous vehicles in facing global challengesfind out more about the role of autonomous vehicles in facing global challenges
find out more about the role of autonomous vehicles in facing global challenges
huseindihon

Evolution of iPaaS - simplify IT workloads to provide a unified view of data...
Evolution of iPaaS - simplify IT workloads to provide a unified view of  data...Evolution of iPaaS - simplify IT workloads to provide a unified view of  data...
Evolution of iPaaS - simplify IT workloads to provide a unified view of data...
Torry Harris

leewayhertz.com-AI agents for healthcare Applications benefits and implementa...
leewayhertz.com-AI agents for healthcare Applications benefits and implementa...leewayhertz.com-AI agents for healthcare Applications benefits and implementa...
leewayhertz.com-AI agents for healthcare Applications benefits and implementa...
alexjohnson7307

TrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-In
TrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-InTrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-In
TrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-In
TrustArc

Pigging Unit Lubricant Oil Blending Plant
Pigging Unit Lubricant Oil Blending PlantPigging Unit Lubricant Oil Blending Plant
Pigging Unit Lubricant Oil Blending Plant
LINUS PROJECTS (INDIA)

Introduction-to-the-IAM-Platform-Implementation-Plan.pptx
Introduction-to-the-IAM-Platform-Implementation-Plan.pptxIntroduction-to-the-IAM-Platform-Implementation-Plan.pptx
Introduction-to-the-IAM-Platform-Implementation-Plan.pptx
313mohammedarshad

WhatsApp Spy Online Trackers and Monitoring Apps
WhatsApp Spy Online Trackers and Monitoring AppsWhatsApp Spy Online Trackers and Monitoring Apps
WhatsApp Spy Online Trackers and Monitoring Apps
HackersList

Salesforce AI & Einstein Copilot Workshop
Salesforce AI & Einstein Copilot WorkshopSalesforce AI & Einstein Copilot Workshop
Salesforce AI & Einstein Copilot Workshop
CEPTES Software Inc

Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)
Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)
Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)
Muhammad Ali


Recently uploaded (20)

(CISOPlatform Summit & SACON 2024) Digital Personal Data Protection Act.pdf
(CISOPlatform Summit & SACON 2024) Digital Personal Data Protection Act.pdf(CISOPlatform Summit & SACON 2024) Digital Personal Data Protection Act.pdf
(CISOPlatform Summit & SACON 2024) Digital Personal Data Protection Act.pdf

Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery
Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery
Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery

Premium Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Service ...
Premium Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Service ...Premium Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Service ...
Premium Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Service ...

Vulnerability Management: A Comprehensive Overview
Vulnerability Management: A Comprehensive OverviewVulnerability Management: A Comprehensive Overview
Vulnerability Management: A Comprehensive Overview

CiscoIconsLibrary cours de réseau VLAN.ppt
CiscoIconsLibrary cours de réseau VLAN.pptCiscoIconsLibrary cours de réseau VLAN.ppt
CiscoIconsLibrary cours de réseau VLAN.ppt

Recent Advancements in the NIST-JARVIS Infrastructure
Recent Advancements in the NIST-JARVIS InfrastructureRecent Advancements in the NIST-JARVIS Infrastructure
Recent Advancements in the NIST-JARVIS Infrastructure

The Rise of AI in Cybersecurity How Machine Learning Will Shape Threat Detect...
The Rise of AI in Cybersecurity How Machine Learning Will Shape Threat Detect...The Rise of AI in Cybersecurity How Machine Learning Will Shape Threat Detect...
The Rise of AI in Cybersecurity How Machine Learning Will Shape Threat Detect...

Choose our Linux Web Hosting for a seamless and successful online presence
Choose our Linux Web Hosting for a seamless and successful online presenceChoose our Linux Web Hosting for a seamless and successful online presence
Choose our Linux Web Hosting for a seamless and successful online presence

Amul milk launches in US: Key details of its new products ...
Amul milk launches in US: Key details of its new products ...Amul milk launches in US: Key details of its new products ...
Amul milk launches in US: Key details of its new products ...

IPLOOK Remote-Sensing Satellite Solution
IPLOOK Remote-Sensing Satellite SolutionIPLOOK Remote-Sensing Satellite Solution
IPLOOK Remote-Sensing Satellite Solution

Active Inference is a veryyyyyyyyyyyyyyyyyyyyyyyy
Active Inference is a veryyyyyyyyyyyyyyyyyyyyyyyyActive Inference is a veryyyyyyyyyyyyyyyyyyyyyyyy
Active Inference is a veryyyyyyyyyyyyyyyyyyyyyyyy

find out more about the role of autonomous vehicles in facing global challenges
find out more about the role of autonomous vehicles in facing global challengesfind out more about the role of autonomous vehicles in facing global challenges
find out more about the role of autonomous vehicles in facing global challenges

Evolution of iPaaS - simplify IT workloads to provide a unified view of data...
Evolution of iPaaS - simplify IT workloads to provide a unified view of  data...Evolution of iPaaS - simplify IT workloads to provide a unified view of  data...
Evolution of iPaaS - simplify IT workloads to provide a unified view of data...

leewayhertz.com-AI agents for healthcare Applications benefits and implementa...
leewayhertz.com-AI agents for healthcare Applications benefits and implementa...leewayhertz.com-AI agents for healthcare Applications benefits and implementa...
leewayhertz.com-AI agents for healthcare Applications benefits and implementa...

TrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-In
TrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-InTrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-In
TrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-In

Pigging Unit Lubricant Oil Blending Plant
Pigging Unit Lubricant Oil Blending PlantPigging Unit Lubricant Oil Blending Plant
Pigging Unit Lubricant Oil Blending Plant

Introduction-to-the-IAM-Platform-Implementation-Plan.pptx
Introduction-to-the-IAM-Platform-Implementation-Plan.pptxIntroduction-to-the-IAM-Platform-Implementation-Plan.pptx
Introduction-to-the-IAM-Platform-Implementation-Plan.pptx

WhatsApp Spy Online Trackers and Monitoring Apps
WhatsApp Spy Online Trackers and Monitoring AppsWhatsApp Spy Online Trackers and Monitoring Apps
WhatsApp Spy Online Trackers and Monitoring Apps

Salesforce AI & Einstein Copilot Workshop
Salesforce AI & Einstein Copilot WorkshopSalesforce AI & Einstein Copilot Workshop
Salesforce AI & Einstein Copilot Workshop

Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)
Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)
Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)


Building Software Systems at Google and Lessons Learned

  • 1. Building Software Systems at Google and Lessons Learned Jeff Dean jeff@google.com
  • 2. Plan for Today • Evolution of various systems at Google –computing hardware –core search systems –infrastructure software • Techniques for building large-scale systems –decomposition into services –design patterns for performance & reliability –Joint work with many, many people
  • 3. • # docs: tens of millions to tens of billions • queries processed/day: • per doc info in index: • update latency: months to tens of secs • avg. query latency: <1s to <0.2s • More machines * faster machines: Google Web Search: 1999 vs. 2010
  • 4. • # docs: tens of millions to tens of billions • queries processed/day: • per doc info in index: • update latency: months to tens of secs • avg. query latency: <1s to <0.2s • More machines * faster machines: Google Web Search: 1999 vs. 2010 ~1000X
  • 5. • # docs: tens of millions to tens of billions • queries processed/day: • per doc info in index: • update latency: months to tens of secs • avg. query latency: <1s to <0.2s • More machines * faster machines: Google Web Search: 1999 vs. 2010 ~1000X ~1000X
  • 6. • # docs: tens of millions to tens of billions • queries processed/day: • per doc info in index: • update latency: months to tens of secs • avg. query latency: <1s to <0.2s • More machines * faster machines: Google Web Search: 1999 vs. 2010 ~1000X ~3X ~1000X
  • 7. • # docs: tens of millions to tens of billions • queries processed/day: • per doc info in index: • update latency: months to tens of secs • avg. query latency: <1s to <0.2s • More machines * faster machines: Google Web Search: 1999 vs. 2010 ~1000X ~3X ~1000X ~50000X
  • 8. • # docs: tens of millions to tens of billions • queries processed/day: • per doc info in index: • update latency: months to tens of secs • avg. query latency: <1s to <0.2s • More machines * faster machines: Google Web Search: 1999 vs. 2010 ~1000X ~3X ~1000X ~50000X ~5X
  • 9. • # docs: tens of millions to tens of billions • queries processed/day: • per doc info in index: • update latency: months to tens of secs • avg. query latency: <1s to <0.2s • More machines * faster machines: Google Web Search: 1999 vs. 2010 ~1000X ~3X ~1000X ~50000X ~5X ~1000X
  • 10. • # docs: tens of millions to tens of billions • queries processed/day: • per doc info in index: • update latency: months to tens of secs • avg. query latency: <1s to <0.2s • More machines * faster machines: Google Web Search: 1999 vs. 2010 ~1000X ~3X ~1000X ~50000X ~5X ~1000X Continuous evolution: –7 significant revisions in last 11 years –often rolled out without users realizing we’ve made major changes
  • 11. “Google” Circa 1997 (google.stanford.edu)
  • 12. Research Project, circa 1997 Frontend Web Server I0 I1 I2 IN Index shards D0 D1 DM query Index servers Doc servers Doc shards
  • 13. • Index Servers: –given (query) return sorted list of <docid, score> pairs –partitioned (“sharded”) by docid –index shards are replicated for capacity –cost is O(# queries * # docs in index) Basic Principles
  • 14. • Index Servers: –given (query) return sorted list of <docid, score> pairs –partitioned (“sharded”) by docid –index shards are replicated for capacity –cost is O(# queries * # docs in index) Basic Principles • Doc Servers –given (docid, query) generate (title, snippet) – snippet is query-dependent –map from docid to full text of docs (usually on disk) –also partitioned by docid –cost is O(# queries)
  • 16. Serving System, circa 1999 Frontend Web Server I0 I1 I2 IN I0 I1 I2 IN I0 I1 I2 IN Replicas Index shards D0 D1 DM D0 D1 DM D0 D1 DM Replicas Doc shards query Index servers Cache servers C0 C1 CK Doc servers Ad System
  • 17. • Cache servers: –cache both index results and doc snippets –hit rates typically 30-60% • depends on frequency of index updates, mix of query traffic, level of personalization, etc • Main benefits: –performance! a few machines do work of 100s or 1000s –much lower query latency on hits • queries that hit in cache tend to be both popular and expensive (common words, lots of documents to score, etc.) • Beware: big latency spike/capacity drop when index updated or cache flushed Caching in Web Search Systems
  • 18. • Simple batch indexing system –No real checkpointing, so machine failures painful –No checksumming of raw data, so hardware bit errors caused problems • Exacerbated by early machines having no ECC, no parity • Sort 1 TB of data without parity: ends up "mostly sorted" • Sort it again: "mostly sorted" another way • “Programming with adversarial memory” –Developed file abstraction that stores checksums of small records and can skip and resynchronize after corrupted records Indexing (circa 1998-1999)
  • 22. Google (new data center 2001)
  • 23. Google Data Center (3 days later)
  • 24. • Huge increases in index size in ’99, ’00, ’01, ... – From ~50M pages to more than 1000M pages • At same time as huge traffic increases – ~20% growth per month in 1999, 2000, ... – ... plus major new partners (e.g. Yahoo in July 2000 doubled traffic overnight) • Performance of index servers was paramount – Deploying more machines continuously, but... – Needed ~10-30% software-based improvement every month Increasing Index Size and Query Capacity
  • 25. Dealing with Growth Frontend Web Server query Index servers Cache servers Ad System Doc Servers Cache Servers Replicas Index shards I0 I1 I2 I0 I1 I2
  • 26. Dealing with Growth Frontend Web Server query Index servers Cache servers Ad System Doc Servers Cache Servers Replicas Index shards I0 I1 I2 I0 I1 I2 I3 I3
  • 27. Dealing with Growth Frontend Web Server query Index servers Cache servers Ad System Doc Servers Cache Servers Replicas Index shards I0 I1 I2 I0 I1 I2 I3 I3 I0 I1 I2 I3
  • 28. Dealing with Growth Frontend Web Server query Index servers Cache servers Ad System Doc Servers Cache Servers Replicas Index shards I0 I1 I2 I0 I1 I2 I3 I3 I0 I1 I2 I3 I4 I4 I4
  • 29. Dealing with Growth Frontend Web Server query Index servers Cache servers Ad System Doc Servers Cache Servers Replicas Index shards I0 I1 I2 I0 I1 I2 I3 I3 I0 I1 I2 I3 I4 I4 I4 I10 I10 I10
  • 30. Dealing with Growth Frontend Web Server query Index servers Cache servers Ad System Doc Servers Cache Servers Replicas Index shards I0 I1 I2 I0 I1 I2 I3 I3 I0 I1 I2 I3 I4 I4 I4 I10 I10 I10 I0 I1 I2 I3 I4 I10
  • 31. Dealing with Growth Frontend Web Server query Index servers Cache servers Ad System Doc Servers Cache Servers Replicas Index shards I0 I1 I2 I0 I1 I2 I3 I3 I0 I1 I2 I3 I4 I4 I4 I10 I10 I10 I0 I1 I2 I3 I4 I10 I60 I60 I60 I60 # of disk seeks is O(#shards*#terms/query)
  • 32. Dealing with Growth Frontend Web Server query Index servers Cache servers Ad System Doc Servers Cache Servers Replicas Index shards I0 I1 I2 I0 I1 I2 I3 I3 I0 I1 I2 I3 I4 I4 I4 I10 I10 I10 I0 I1 I2 I3 I4 I10 I60 I60 I60 I60 # of disk seeks is O(#shards*#terms/query) Eventually have enough replicas so that total memory across all index machines can hold ONE entire copy of index in memory
  • 33. Early 2001: In-Memory Index Frontend Web Server query Index servers Cache servers Ad System Doc Servers Cache Servers Index shards Shard 0 I0 I1 I2 I14 I3 I12 bal I4 I5 I13 Shard 1 I0 I1 I2 I14 I3 I12 bal I4 I5 I13 Shard 2 I0 I1 I2 I14 I3 I12 bal I4 I5 I13 Shard N I0 I1 I2 I14 I3 I12 bal I4 I5 I13 Balancers
  • 34. • Many positives: –big increase in throughput –big decrease in query latency • especially at the tail: expensive queries that previously needed GBs of disk I/O became much faster and cheaper e.g. [ “circle of life” ] In-Memory Indexing Systems
  • 35. • Many positives: –big increase in throughput –big decrease in query latency • especially at the tail: expensive queries that previously needed GBs of disk I/O became much faster and cheaper e.g. [ “circle of life” ] In-Memory Indexing Systems • Some issues: –Variance: query touches 1000s of machines, not dozens • e.g. randomized cron jobs caused us trouble for a while –Availability: 1 or few replicas of each doc’s index data • Availability of index data when machine failed (esp for important docs): replicate important docs • Queries of death that kill all the backends at once: very bad
  • 36. Canary Requests • Problem: requests sometimes cause server process to crash – testing can help reduce probability, but can’t eliminate • If sending same or similar request to 1000s of machines: – they all might crash! – recovery time for 1000s of processes pretty slow • Solution: send canary request first to one machine – if RPC finishes successfully, go ahead and send to all the rest – if RPC fails unexpectedly, try another machine (might have just been coincidence) – if fails K times, reject request • Crash only a few servers, not 1000s
  • 37. Query Serving System, 2004 edition Root … … Parent Servers … … Leaf Servers Repository Shards … Repository Manager File Loaders Cache servers Requests GFS
  • 38. Query Serving System, 2004 edition Root … … Parent Servers … … Leaf Servers Repository Shards … Repository Manager File Loaders Cache servers Requests GFS Multi-level tree for query distribution
  • 39. Query Serving System, 2004 edition Root … … Parent Servers … … Leaf Servers Repository Shards … Repository Manager File Loaders Cache servers Requests GFS Multi-level tree for query distribution Leaf servers handle both index & doc requests from in-memory data structures
  • 40. Query Serving System, 2004 edition Root … … Parent Servers … … Leaf Servers Repository Shards … Repository Manager File Loaders Cache servers Requests GFS Coordinates index switching as new shards become available Multi-level tree for query distribution Leaf servers handle both index & doc requests from in-memory data structures
  • 41. Features • Clean abstractions: –Repository –Document –Attachments –Scoring functions • Easy experimentation –Attach new doc and index data without full reindexing • Higher performance: designed from ground up to assume data is in memory
  • 42. New Index Format • Old disk and in-memory index used two-level scheme: – Each hit was encoded as (docid, word position in doc) pair – Docid deltas encoded with Rice encoding – Very good compression (originally designed for disk-based indices), but slow/CPU-intensive to decode • New format: single flat position space – Data structures on side keep track of doc boundaries – Posting lists are just lists of delta-encoded positions – Need to be compact (can’t afford 32 bit value per occurrence) – … but need to be very fast to decode
  • 43. Byte-Aligned Variable-length Encodings • Varint encoding: – 7 bits per byte with continuation bit – Con: Decoding requires lots of branches/shifts/masks 0 00011110 0000001 000000111 1111111 111111111 1111111 0 0000111 1 15 511 131071
  • 44. Byte-Aligned Variable-length Encodings • Varint encoding: – 7 bits per byte with continuation bit – Con: Decoding requires lots of branches/shifts/masks 0 00011110 0000001 000000111 1111111 111111111 1111111 0 0000111 1 15 511 131071 • Idea: Encode byte length using 2 bits – Better: fewer branches, shifts, and masks – Con: Limited to 30-bit values, still some shifting to decode 00 00111100 000001 0000001101 111111 1111111110 111111 00000111 1 15 511 131071
  • 45. Group Varint Encoding • Idea: encode groups of 4 32-bit values in 5-17 bytes – Pull out 4 2-bit binary lengths into single byte prefix
  • 46. Group Varint Encoding • Idea: encode groups of 4 32-bit values in 5-17 bytes – Pull out 4 2-bit binary lengths into single byte prefix 00 00111100 000001 0000011101 111111 1111111110 111111 00000111
  • 47. Group Varint Encoding • Idea: encode groups of 4 32-bit values in 5-17 bytes – Pull out 4 2-bit binary lengths into single byte prefix 00 00111100 000001 0000011101 111111 1111111110 111111 00000111 00000110 Tags
  • 48. Group Varint Encoding • Idea: encode groups of 4 32-bit values in 5-17 bytes – Pull out 4 2-bit binary lengths into single byte prefix 00 00111100 000001 0000011101 111111 1111111110 111111 00000111 0000111100000001 11111111 11111111 1 15 511 131071 00000001 11111111 0000000100000110 Tags
  • 49. Group Varint Encoding • Idea: encode groups of 4 32-bit values in 5-17 bytes – Pull out 4 2-bit binary lengths into single byte prefix 00 00111100 000001 0000011101 111111 1111111110 111111 00000111 0000111100000001 11111111 11111111 1 15 511 131071 00000001 11111111 0000000100000110 Tags • Decode: Load prefix byte and use value to lookup in 256-entry table:
  • 50. Group Varint Encoding • Idea: encode groups of 4 32-bit values in 5-17 bytes – Pull out 4 2-bit binary lengths into single byte prefix 00 00111100 000001 0000011101 111111 1111111110 111111 00000111 0000111100000001 11111111 11111111 1 15 511 131071 00000001 11111111 0000000100000110 Tags • Decode: Load prefix byte and use value to lookup in 256-entry table: 00000110 Offsets: +1,+2,+3,+5; Masks: ff, ff, ffff, ffffff
  • 51. Group Varint Encoding • Idea: encode groups of 4 32-bit values in 5-17 bytes – Pull out 4 2-bit binary lengths into single byte prefix 00 00111100 000001 0000011101 111111 1111111110 111111 00000111 0000111100000001 11111111 11111111 1 15 511 131071 00000001 11111111 0000000100000110 Tags • Much faster than alternatives: – 7-bit-per-byte varint: decode ~180M numbers/second – 30-bit Varint w/ 2-bit length: decode ~240M numbers/second – Group varint: decode ~400M numbers/second • Decode: Load prefix byte and use value to lookup in 256-entry table: 00000110 Offsets: +1,+2,+3,+5; Masks: ff, ff, ffff, ffffff
  • 52. 2007: Universal Search Frontend Web Server query Cache servers Ad System News Super root Images Web Blogs Video Books Local Indexing Service
  • 53. Universal Search • Search all corpora in parallel • Performance: most of the corpora weren’t designed to deal with high QPS level of web search • Mixing: Which corpora are relevant to query? –changes over time • UI: How to organize results from different corpora? –interleaved? –separate sections for different types of documents?
  • 55. Machines + Racks • In-house rack design • PC-class motherboards • Low-end storage & networking hardware • Linux • + in-house software Clusters
  • 56. The Joys of Real Hardware Typical first year for a new cluster: ~1 network rewiring (rolling ~5% of machines down over 2-day span) ~20 rack failures (40-80 machines instantly disappear, 1-6 hours to get back) ~5 racks go wonky (40-80 machines see 50% packetloss) ~8 network maintenances (4 might cause ~30-minute random connectivity losses) ~12 router reloads (takes out DNS and external vips for a couple minutes) ~3 router failures (have to immediately pull traffic for an hour) ~dozens of minor 30-second blips for dns ~1000 individual machine failures ~thousands of hard drive failures slow disks, bad memory, misconfigured machines, flaky machines, etc. Long distance links: wild dogs, sharks, dead horses, drunken hunters, etc.
  • 57. The Joys of Real Hardware Typical first year for a new cluster: ~1 network rewiring (rolling ~5% of machines down over 2-day span) ~20 rack failures (40-80 machines instantly disappear, 1-6 hours to get back) ~5 racks go wonky (40-80 machines see 50% packetloss) ~8 network maintenances (4 might cause ~30-minute random connectivity losses) ~12 router reloads (takes out DNS and external vips for a couple minutes) ~3 router failures (have to immediately pull traffic for an hour) ~dozens of minor 30-second blips for dns ~1000 individual machine failures ~thousands of hard drive failures slow disks, bad memory, misconfigured machines, flaky machines, etc. Long distance links: wild dogs, sharks, dead horses, drunken hunters, etc. Reliability/availability must come from software!
  • 58. Low-Level Systems Software Desires • If you have lots of machines, you want to: • Store data persistently –w/ high availability –high read and write bandwidth • Run large-scale computations reliably –without having to deal with machine failures
  • 59. • Master manages metadata • Data transfers are directly between clients/chunkservers • Files broken into chunks (typically 64 MB) • Chunks replicated across multiple machines (usually 3) Client Client Misc. servers Client Replicas Masters GFS Master GFS Master C0 C1 C2C5 Chunkserver 1 C0 C2 C5 Chunkserver N C1 C3C5 Chunkserver 2 … Google File System (GFS) Design
  • 60. • Cluster is 5K-20K machines, typically one or handful of hw configurations • File system (GFS or Colossus) + cluster scheduling system are core services • Typically 100s to 1000s of active jobs (some w/1 task, some w/1000s) • mix of batch and low-latency, user-facing production jobs Google Cluster Software Environment Linux Commodity HW Linux Commodity HW Machine 1 ... Machine N
  • 61. • Cluster is 5K-20K machines, typically one or handful of hw configurations • File system (GFS or Colossus) + cluster scheduling system are core services • Typically 100s to 1000s of active jobs (some w/1 task, some w/1000s) • mix of batch and low-latency, user-facing production jobs Google Cluster Software Environment Linux Commodity HW Linux Commodity HW Machine 1 ... Machine N chunk server chunk server GFS master
  • 62. • Cluster is 5K-20K machines, typically one or handful of hw configurations • File system (GFS or Colossus) + cluster scheduling system are core services • Typically 100s to 1000s of active jobs (some w/1 task, some w/1000s) • mix of batch and low-latency, user-facing production jobs Google Cluster Software Environment Linux Commodity HW Linux Commodity HW Machine 1 ... Machine N scheduling daemon scheduling daemon scheduling master chunk server chunk server GFS master
  • 63. • Cluster is 5K-20K machines, typically one or handful of hw configurations • File system (GFS or Colossus) + cluster scheduling system are core services • Typically 100s to 1000s of active jobs (some w/1 task, some w/1000s) • mix of batch and low-latency, user-facing production jobs Google Cluster Software Environment Linux Commodity HW Linux Commodity HW Machine 1 ... Machine N scheduling daemon scheduling daemon scheduling master chunk server chunk server GFS master Chubby lock service
  • 64. • Cluster is 5K-20K machines, typically one or handful of hw configurations • File system (GFS or Colossus) + cluster scheduling system are core services • Typically 100s to 1000s of active jobs (some w/1 task, some w/1000s) • mix of batch and low-latency, user-facing production jobs Google Cluster Software Environment Linux Commodity HW Linux Commodity HW ...job 1 task job 3 task job 12 task job 7 task job 3 task job 5 task Machine 1 ... Machine N scheduling daemon scheduling daemon scheduling master chunk server chunk server GFS master Chubby lock service
  • 65. Problem: lots of data • Example: 20+ billion web pages x 20KB = 400+ terabytes • One computer can read 50 MB/sec from disk – ~three months to read the web • ~1,000 hard drives just to store the web • Even more to do something with the data
  • 66. Solution: spread work over many machines • Good news: same problem with 1000 machines, < 3 hours • Bad news: programming work – communication and coordination – recovering from machine failure – status reporting – debugging – optimization – locality • Bad news II: repeat for every problem you want to solve
  • 67. MapReduce History • 2003: Working on rewriting indexing system: –start with raw page contents on disk –many phases: • duplicate elimination, anchor text extraction, language identification, index shard generation, etc. –end with data structures for index and doc serving • Each phase was hand written parallel computation: –hand parallelized –hand-written checkpointing code for fault-tolerance
  • 68. MapReduce • A simple programming model that applies to many large-scale computing problems – allowed us to express all phases of our indexing system – since used across broad range of computer science areas, plus other scientific fields – Hadoop open-source implementation seeing significant usage • Hide messy details in MapReduce runtime library: – automatic parallelization – load balancing – network and disk transfer optimizations – handling of machine failures – robustness – improvements to core library benefit all users of library!
  • 69. Typical problem solved by MapReduce • Read a lot of data • Map: extract something you care about from each record • Shuffle and Sort • Reduce: aggregate, summarize, filter, or transform • Write the results Outline stays the same, User writes Map and Reduce functions to fit the problem
  • 70. Example: Rendering Map Tiles Input Map Shuffle Reduce Output Emit feature to all overlapping latitude- longitude rectangles Sort by key (key= Rect. Id) Render tile using data for all enclosed features Rendered tiles Geographic feature list I-5 Lake Washington WA-520 I-90 (0, I-5) (0, Lake Wash.) (0, WA-520) (1, I-90) (1, I-5) (1, Lake Wash.) (0, I-5) (0, Lake Wash.) (0, WA-520) (1, I-90) 0 1 (1, I-5) (1, Lake Wash.) … … … …
  • 71. MapReduce: Scheduling • One master, many workers – Input data split into M map tasks (typically 64 MB in size) – Reduce phase partitioned into R reduce tasks – Tasks are assigned to workers dynamically – Often: M=200,000; R=4,000; workers=2,000 • Master assigns each map task to a free worker – Considers locality of data to worker when assigning task – Worker reads task input (often from local disk!) – Worker produces R local files containing intermediate k/v pairs • Master assigns each reduce task to a free worker – Worker reads intermediate k/v pairs from map workers – Worker sorts & applies user’s Reduce op to produce the output
  • 72. Parallel MapReduce Map Map Map Map Input data Reduce Shuffle Reduce Shuffle Reduce Shuffle Partitioned output Master
  • 73. Parallel MapReduce Map Map Map Map Input data Reduce Shuffle Reduce Shuffle Reduce Shuffle Partitioned output Master For large enough problems, it’s more about disk and network performance than CPU & DRAM
  • 74. Task Granularity and Pipelining • Fine granularity tasks: many more map tasks than machines –Minimizes time for fault recovery –Can pipeline shuffling with map execution –Better dynamic load balancing • Often use 200,000 map/5000 reduce tasks w/ 2000 machines
  • 75. Fault tolerance: Handled via re-execution On worker failure: • Detect failure via periodic heartbeats • Re-execute completed and in-progress map tasks • Re-execute in progress reduce tasks • Task completion committed through master On master failure: • State is checkpointed to GFS: new master recovers & continues Very Robust: lost 1600 of 1800 machines once, but finished fine
  • 76. Refinement: Backup Tasks • Slow workers significantly lengthen completion time –Other jobs consuming resources on machine –Bad disks with soft errors transfer data very slowly –Weird things: processor caches disabled (!!) • Solution: Near end of phase, spawn backup copies of tasks –Whichever one finishes first "wins" • Effect: Dramatically shortens job completion time
  • 77. Refinement: Locality Optimization Master scheduling policy: • Asks GFS for locations of replicas of input file blocks • Map tasks typically split into 64MB (== GFS block size) • Map tasks scheduled so GFS input block replica are on same machine or same rack Effect: Thousands of machines read input at local disk speed • Without this, rack switches limit read rate
  • 78. MapReduce Usage Statistics Over Time Number of jobs Aug, ‘04 29K Mar, ‘06 171K Sep, '07 2,217K May, ’10 4,474K Average completion time (secs) 634 874 395 748 Machine years used 217 2,002 11,081 39,121 Input data read (TB) 3,288 52,254 403,152 946,460 Intermediate data (TB) 758 6,743 34,774 132,960 Output data written (TB) 193 2,970 14,018 45,720 Average worker machines 157 268 394 368
  • 79. Current Work: Spanner • Storage & computation system that runs across many datacenters – single global namespace • names are independent of location(s) of data • fine-grained replication configurations – support mix of strong and weak consistency across datacenters • Strong consistency implemented with Paxos across tablet replicas • Full support for distributed transactions across directories/machines – much more automated operation • automatically changes replication based on constraints and usage patterns • automated allocation of resources across entire fleet of machines
  • 80. • Future scale: ~105 to 107 machines, ~1013 directories, ~1018 bytes of storage, spread at 100s to 1000s of locations around the world – zones of semi-autonomous control – consistency after disconnected operation – users specify high-level desires: “99%ile latency for accessing this data should be <50ms” “Store this data on at least 2 disks in EU, 2 in U.S. & 1 in Asia” Design Goals for Spanner
  • 81. System Building Experiences and Patterns • Experiences from building a variety of systems –A collection of patterns that have emerged –Not all encompassing, obviously, but good rules of thumb
  • 82. Many Internal Services • Break large complex systems down into many services! • Simpler from a software engineering standpoint – few dependencies, clearly specified – easy to test and deploy new versions of individual services – ability to run lots of experiments – easy to reimplement service without affecting clients • Development cycles largely decoupled – lots of benefits: small teams can work independently – easier to have many engineering offices around the world • e.g. google.com search touches 200+ services –ads, web search, books, news, spelling correction, ...
  • 83. Designing Efficient Systems Given a basic problem definition, how do you choose "best" solution? • Best might be simplest, highest performance, easiest to extend, etc. Important skill: ability to estimate performance of a system design – without actually having to build it!
  • 84. Numbers Everyone Should Know L1 cache reference 0.5 ns Branch mispredict 5 ns L2 cache reference 7 ns Mutex lock/unlock 25 ns Main memory reference 100 ns Compress 1K w/cheap compression algorithm 3,000 ns Send 2K bytes over 1 Gbps network 20,000 ns Read 1 MB sequentially from memory 250,000 ns Round trip within same datacenter 500,000 ns Disk seek 10,000,000 ns Read 1 MB sequentially from disk 20,000,000 ns Send packet CA->Netherlands->CA 150,000,000 ns
  • 85. Back of the Envelope Calculations How long to generate image results page (30 thumbnails)? Design 1: Read serially, thumbnail 256K images on the fly 30 seeks * 10 ms/seek + 30 * 256K / 30 MB/s = 560 ms
  • 86. Back of the Envelope Calculations How long to generate image results page (30 thumbnails)? Design 1: Read serially, thumbnail 256K images on the fly 30 seeks * 10 ms/seek + 30 * 256K / 30 MB/s = 560 ms Design 2: Issue reads in parallel: 10 ms/seek + 256K read / 30 MB/s = 18 ms (Ignores variance, so really more like 30-60 ms, probably)
  • 87. Back of the Envelope Calculations How long to generate image results page (30 thumbnails)? Design 1: Read serially, thumbnail 256K images on the fly 30 seeks * 10 ms/seek + 30 * 256K / 30 MB/s = 560 ms Design 2: Issue reads in parallel: 10 ms/seek + 256K read / 30 MB/s = 18 ms (Ignores variance, so really more like 30-60 ms, probably) Lots of variations: – caching (single images? whole sets of thumbnails?) – pre-computing thumbnails – … Back of the envelope helps identify most promising…
  • 88. Know Your Basic Building Blocks Core language libraries, basic data structures, protocol buffers, GFS, BigTable, indexing systems, MapReduce, … Not just their interfaces, but understand their implementations (at least at a high level) If you don’t know what’s going on, you can’t do decent back-of-the-envelope calculations!
  • 89. Designing & Building Infrastructure Identify common problems, and build software systems to address them in a general way • Important to not try to be all things to all people – Clients might be demanding 8 different things – Doing 6 of them is easy – …handling 7 of them requires real thought – …dealing with all 8 usually results in a worse system • more complex, compromises other clients in trying to satisfy everyone
  • 90. Designing & Building Infrastructure (cont) Don't build infrastructure just for its own sake: • Identify common needs and address them • Don't imagine unlikely potential needs that aren't really there Best approach: use your own infrastructure (especially at first!) • (much more rapid feedback about what works, what doesn't)
  • 91. Design for Growth Try to anticipate how requirements will evolve keep likely features in mind as you design base system Don’t design to scale infinitely: ~5X - 50X growth good to consider >100X probably requires rethink and rewrite
  • 92. Pattern: Single Master, 1000s of Workers • Master orchestrates global operation of system – load balancing, assignment of work, reassignment when machines fail, etc. – ... but client interaction with master is fairly minimal • Examples: – GFS, BigTable, MapReduce, file transfer service, cluster scheduling system, ... Client Misc. servers Replicas Masters Master Master Client Worker 1 Worker 2 Worker N Client
  • 93. Pattern: Single Master, 1000s of Workers (cont) • Often: hot standby of master waiting to take over • Always: bulk of data transfer directly between clients and workers • Pro: – simpler to reason about state of system with centralized master • Caveats: – careful design required to keep master out of common case ops – scales to 1000s of workers, but not 100,000s of workers
  • 94. • Problem: Single machine sending 1000s of RPCs overloads NIC on machine when handling replies – wide fan in causes TCP drops/retransmits, significant latency – CPU becomes bottleneck on single machine Pattern: Tree Distribution of Requests Root Leaf 1 Leaf 2 Leaf 3 Leaf 4 Leaf 5 Leaf 6
  • 95. • Solution: Use tree distribution of requests/responses – fan in at root is smaller – cost of processing leaf responses spread across many parents • Most effective when parent processing can trim/combine leaf data – can also co-locate parents on same rack as leaves Pattern: Tree Distribution of Requests Root Leaf 1 Leaf 2 Leaf 3 Leaf 4 Leaf 5 Leaf 6 Parent Parent
  • 96. Pattern: Backup Requests to Minimize Latency • Problem: variance high when requests go to 1000s of machines – last few machines to respond stretch out latency tail substantially • Often, multiple replicas can handle same kind of request • When few tasks remaining, send backup requests to other replicas • Whichever duplicate request finishes first wins – useful when variance is unrelated to specifics of request – increases overall load by a tiny percentage – decreases latency tail significantly
  • 97. Pattern: Backup Requests to Minimize Latency • Problem: variance high when requests go to 1000s of machines – last few machines to respond stretch out latency tail substantially • Often, multiple replicas can handle same kind of request • When few tasks remaining, send backup requests to other replicas • Whichever duplicate request finishes first wins – useful when variance is unrelated to specifics of request – increases overall load by a tiny percentage – decreases latency tail significantly • Examples: – MapReduce backup tasks (granularity: many seconds) – various query serving systems (granularity: milliseconds)
  • 98. Pattern: Multiple Smaller Units per Machine • Problems: – want to minimize recovery time when machine crashes – want to do fine-grained load balancing • Having each machine manage 1 unit of work is inflexible – slow recovery: new replica must recover data that is O(machine state) in size – load balancing much harder single work chunk Machine
  • 99. Pattern: Multiple Smaller Units per Machine • Have each machine manage many smaller units of work/data – typical: ~10-100 units/machine – allows fine grained load balancing (shed or add one unit) – fast recovery from failure (N machines each pick up 1 unit) • Examples: – map and reduce tasks, GFS chunks, Bigtable tablets, query serving system index shards C0 C1 C2C5 Machine C9 C8 C17C6C11
  • 100. Pattern: Elastic Systems • Problem: Planning for exact peak load is hard – overcapacity: wasted resources – undercapacity: meltdown • Design system to adapt: – automatically shrink capacity during idle period – automatically grow capacity as load grows • Make system resilient to overload: – do something reasonable even up to 2X planned capacity • e.g. shrink size of index searched, back off to less CPU intensive algorithms, drop spelling correction tips, etc. – more aggressive load balancing when imbalance more severe
  • 101. Pattern: Combine Multiple Implementations • Example: Google web search system wants all of these: – freshness (update documents in ~1 second) – massive capacity (10000s of requests per second) – high quality retrieval (lots of information about each document) – massive size (billions of documents) • Very difficult to accomplish in single implementation • Partition problem into several subproblems with different engineering tradeoffs. E.g. – realtime system: few docs, ok to pay lots of $$$/doc – base system: high # of docs, optimized for low $/doc – realtime+base: high # of docs, fresh, low $/doc
  • 102. Final Thoughts Today: exciting collection of trends: • large-scale datacenters + • increasing scale and diversity of available data sets + • proliferation of more powerful client devices Many interesting opportunities: – planetary scale distributed systems – development of new CPU and data intensive services – new tools and techniques for constructing such systems • Fun and interesting times are ahead of us!
  • 103. Thanks! Questions...? Further reading: • Ghemawat, Gobioff, & Leung. Google File System, SOSP 2003. • Barroso, Dean, & Hölzle. Web Search for a Planet: The Google Cluster Architecture, IEEE Micro, 2003. • Dean & Ghemawat. MapReduce: Simplified Data Processing on Large Clusters, OSDI 2004. • Chang, Dean, Ghemawat, Hsieh, Wallach, Burrows, Chandra, Fikes, & Gruber. Bigtable: A Distributed Storage System for Structured Data, OSDI 2006. • Burrows. The Chubby Lock Service for Loosely-Coupled Distributed Systems. OSDI 2006. • Pinheiro, Weber, & Barroso. Failure Trends in a Large Disk Drive Population. FAST 2007. • Brants, Popat, Xu, Och, & Dean. Large Language Models in Machine Translation, EMNLP 2007. • Barroso & Hölzle. The Datacenter as a Computer: An Introduction to the Design of Warehouse-Scale Machines, Morgan & Claypool Synthesis Series on Computer Architecture, 2009. • Malewicz et al. Pregel: A System for Large-Scale Graph Processing. PODC, 2009. • Schroeder, Pinheiro, & Weber. DRAM Errors in the Wild: A Large-Scale Field Study. SEGMETRICS’09. • Protocol Buffers. http://code.google.com/p/protobuf/ These and many more available at: http://labs.google.com/papers.html
