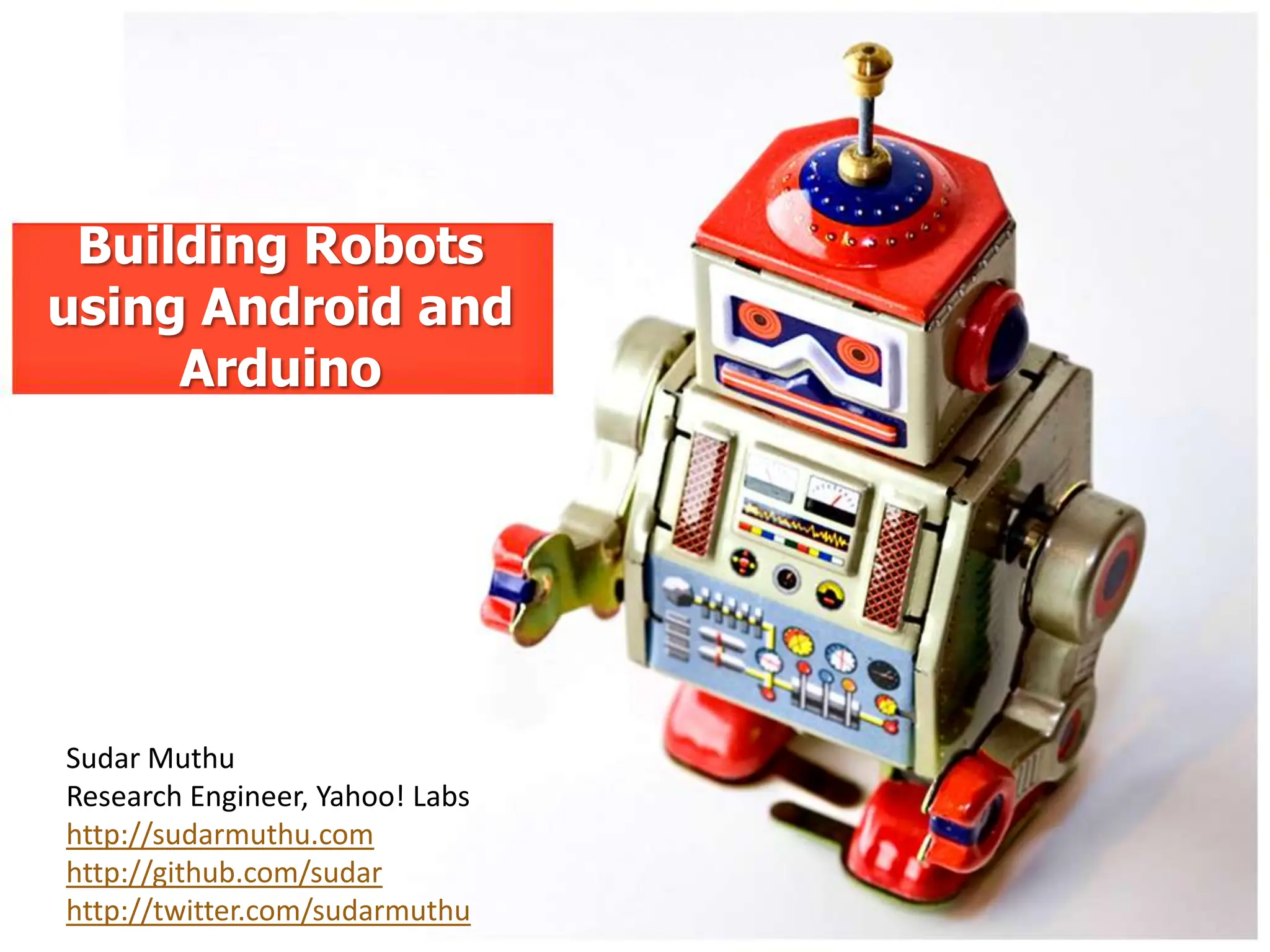

Building Robots
using Android and
     Arduino




Sudar Muthu
Research Engineer, Yahoo! Labs
http://sudarmuthu.com
http://github.com/sudar
http://twitter.com/sudarmuthu

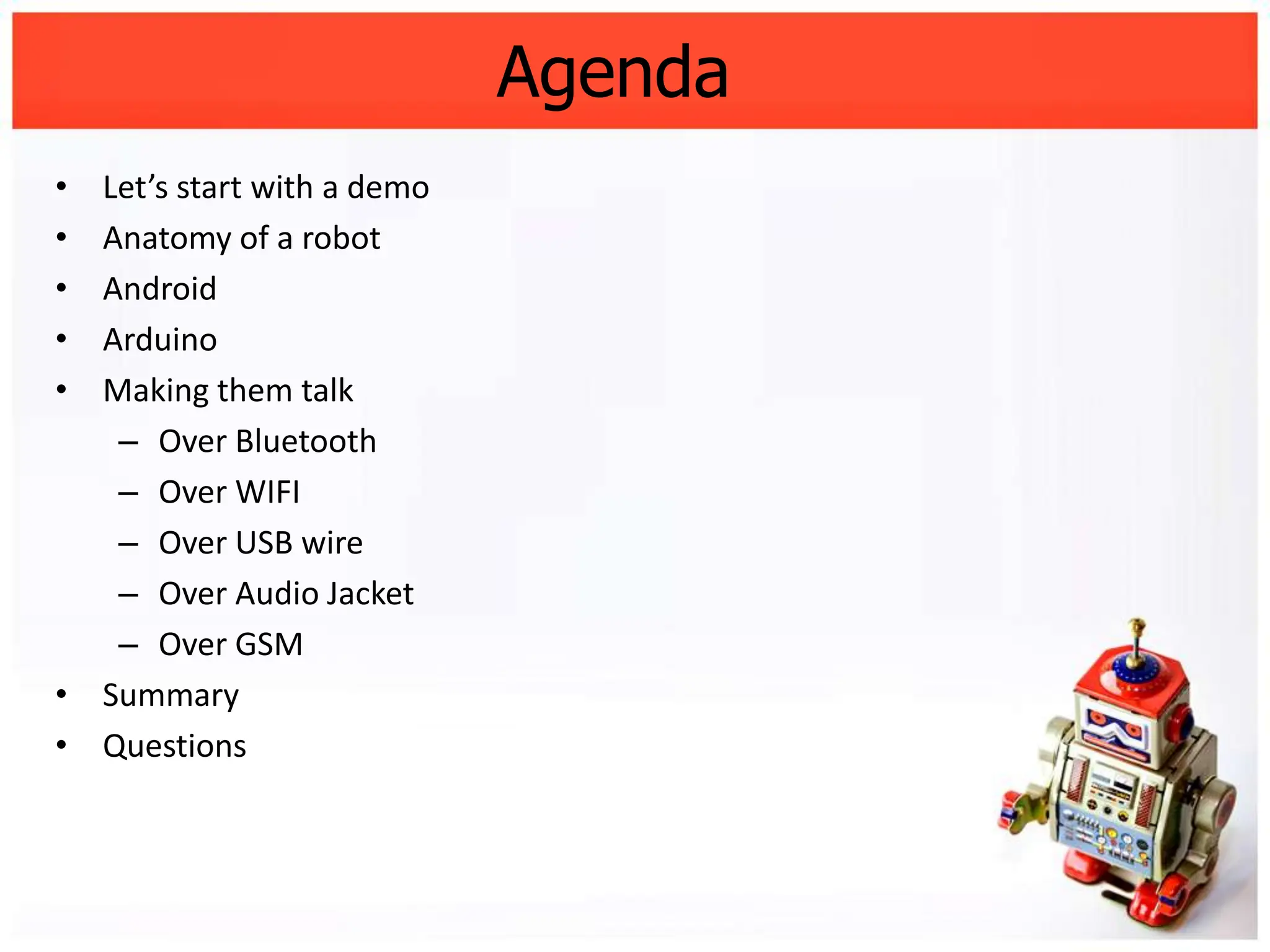

Agenda
• Let’s start with a demo
• Anatomy of a robot
• Android
• Arduino
• Making them talk
   – Over Bluetooth
   – Over WIFI
   – Over USB wire
   – Over Audio Jacket
   – Over GSM
• Summary
• Questions

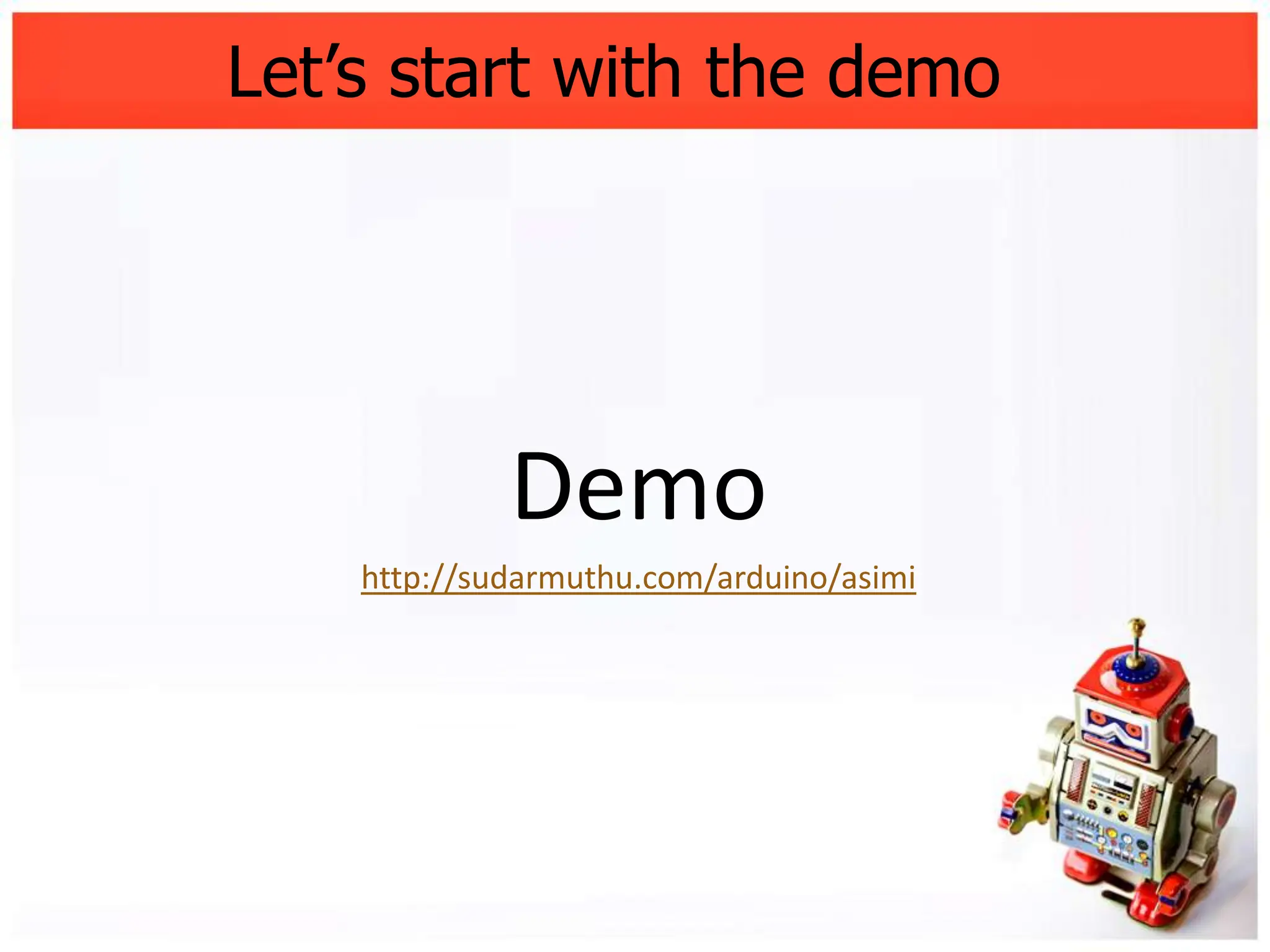

Let’s start with the demo




             Demo
    http://sudarmuthu.com/arduino/asimi

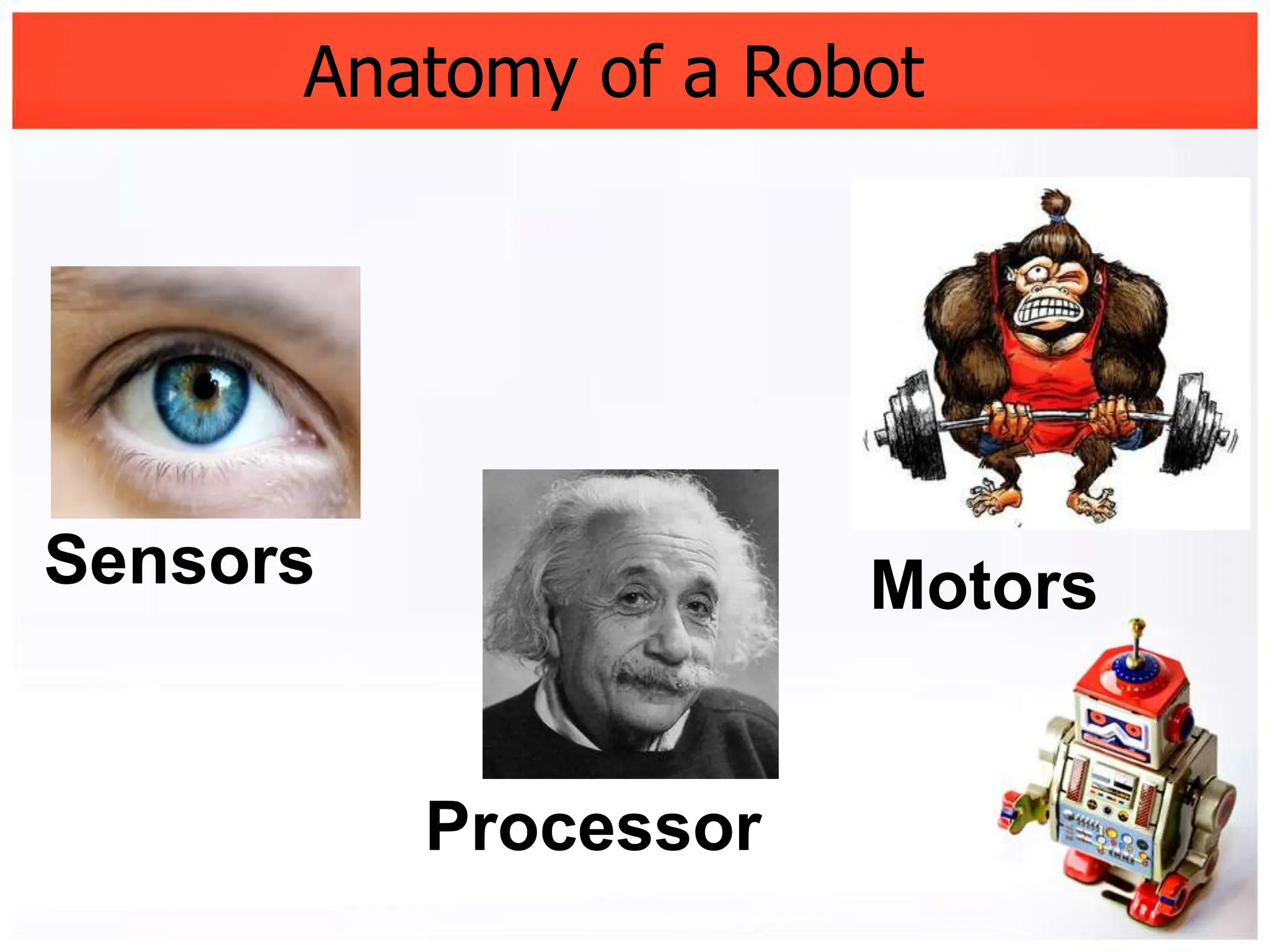

Anatomy of a Robot




Sensors               Motors


          Processor

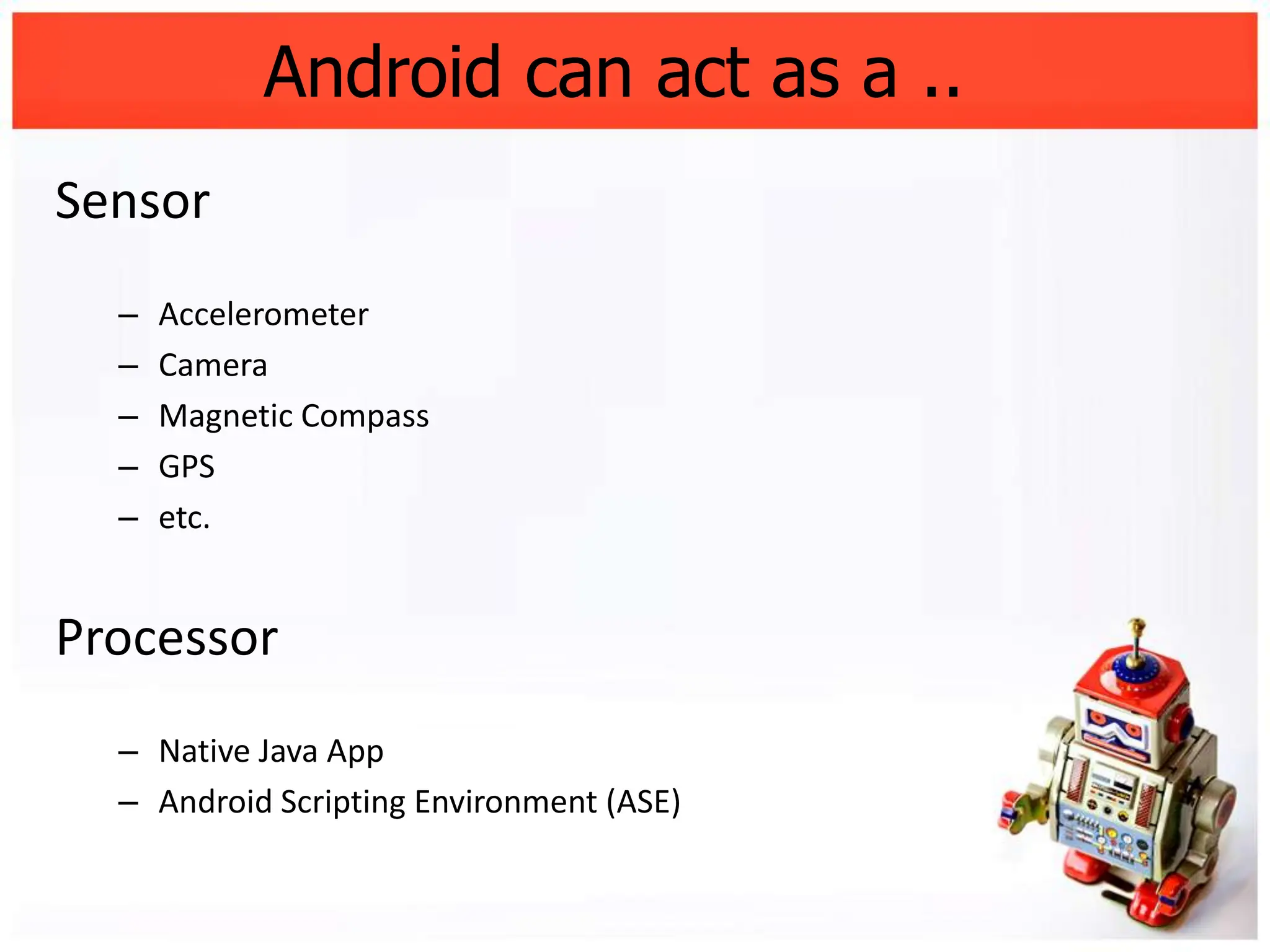

Android can act as a ..
Sensor
  –   Accelerometer
  –   Camera
  –   Magnetic Compass
  –   GPS
  –   etc.


Processor
  – Native Java App
  – Android Scripting Environment (ASE)

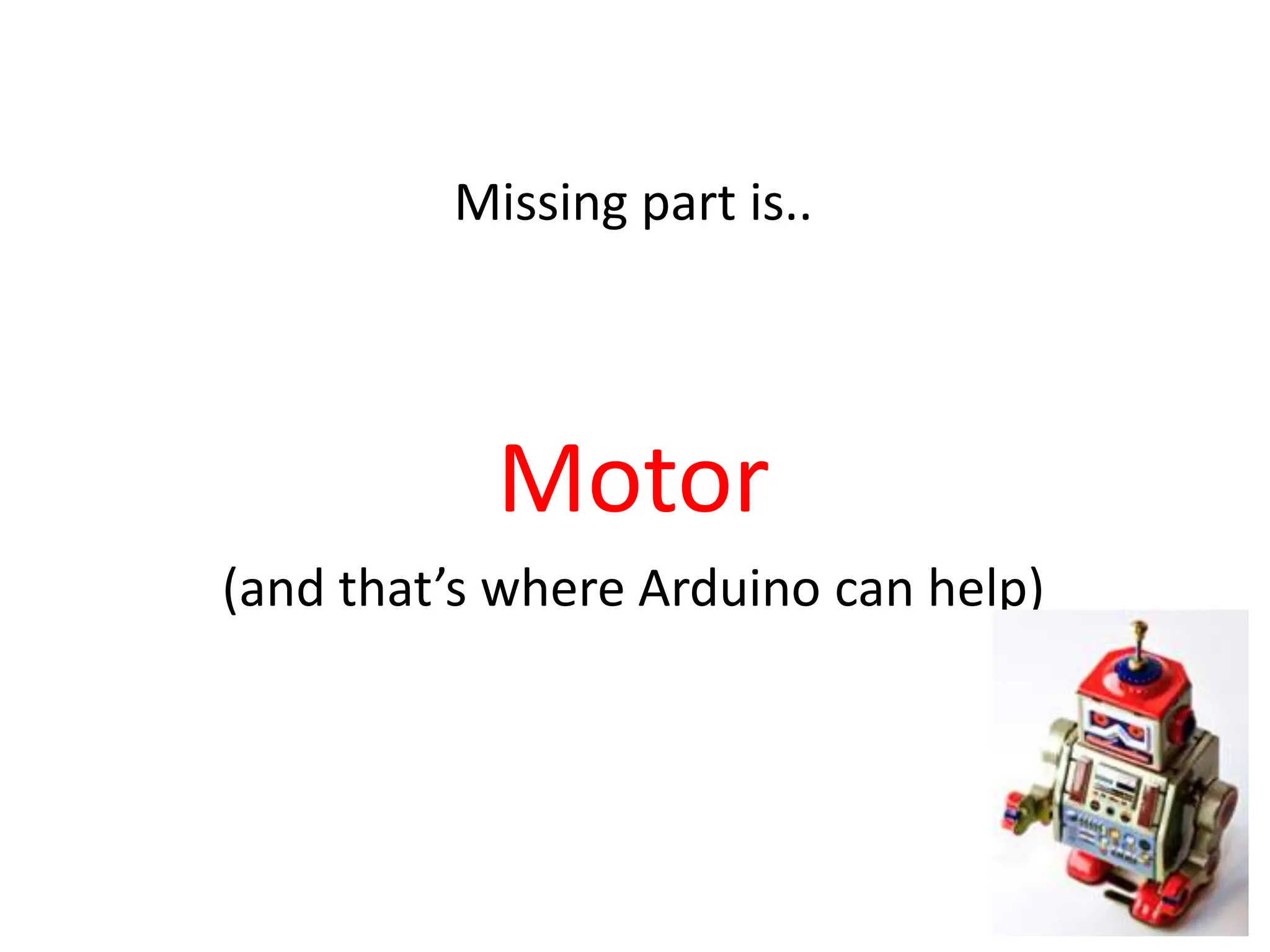

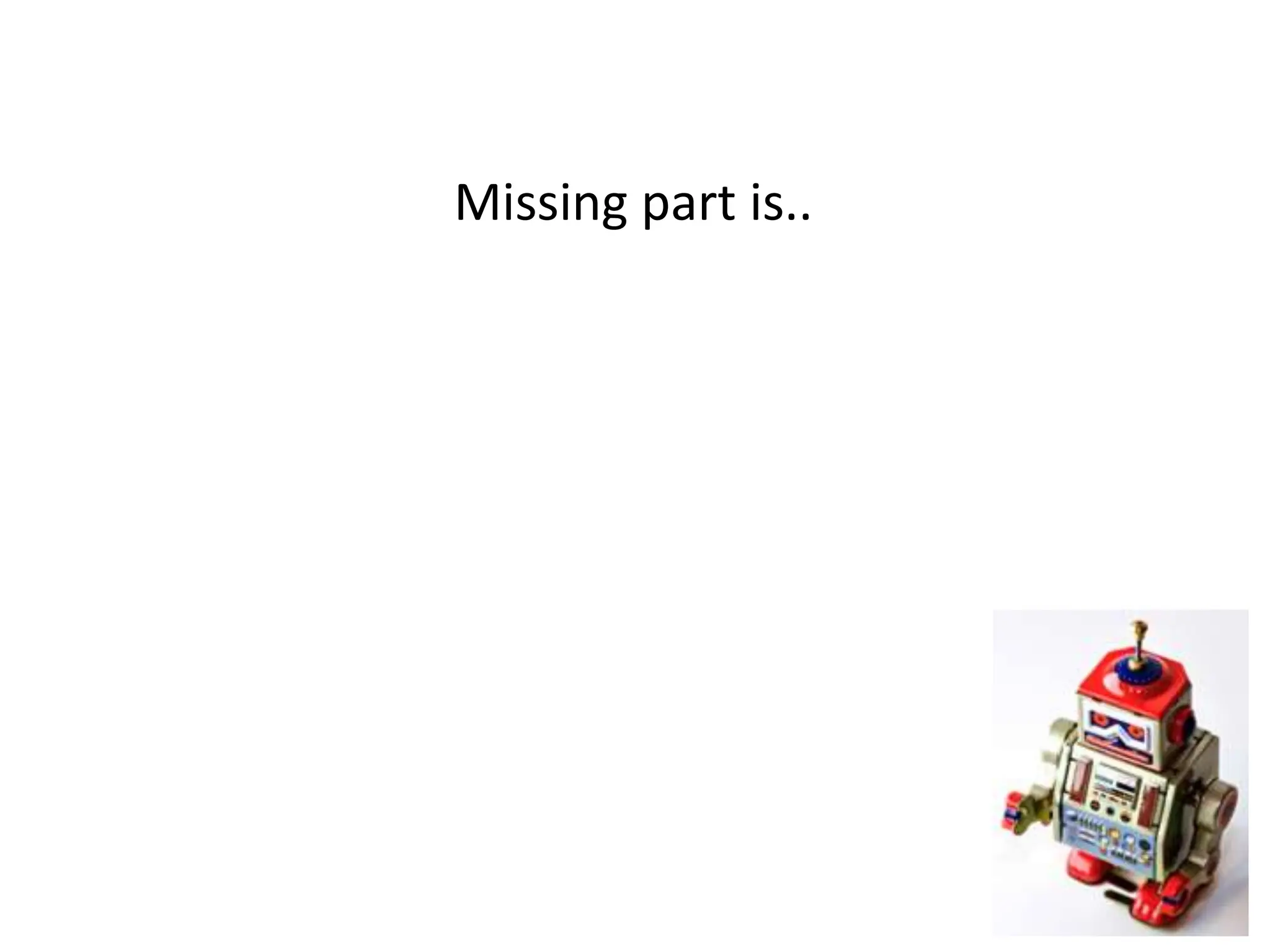

Missing part is..
Missing part is..




           Motor
(and that’s where Arduino can help)

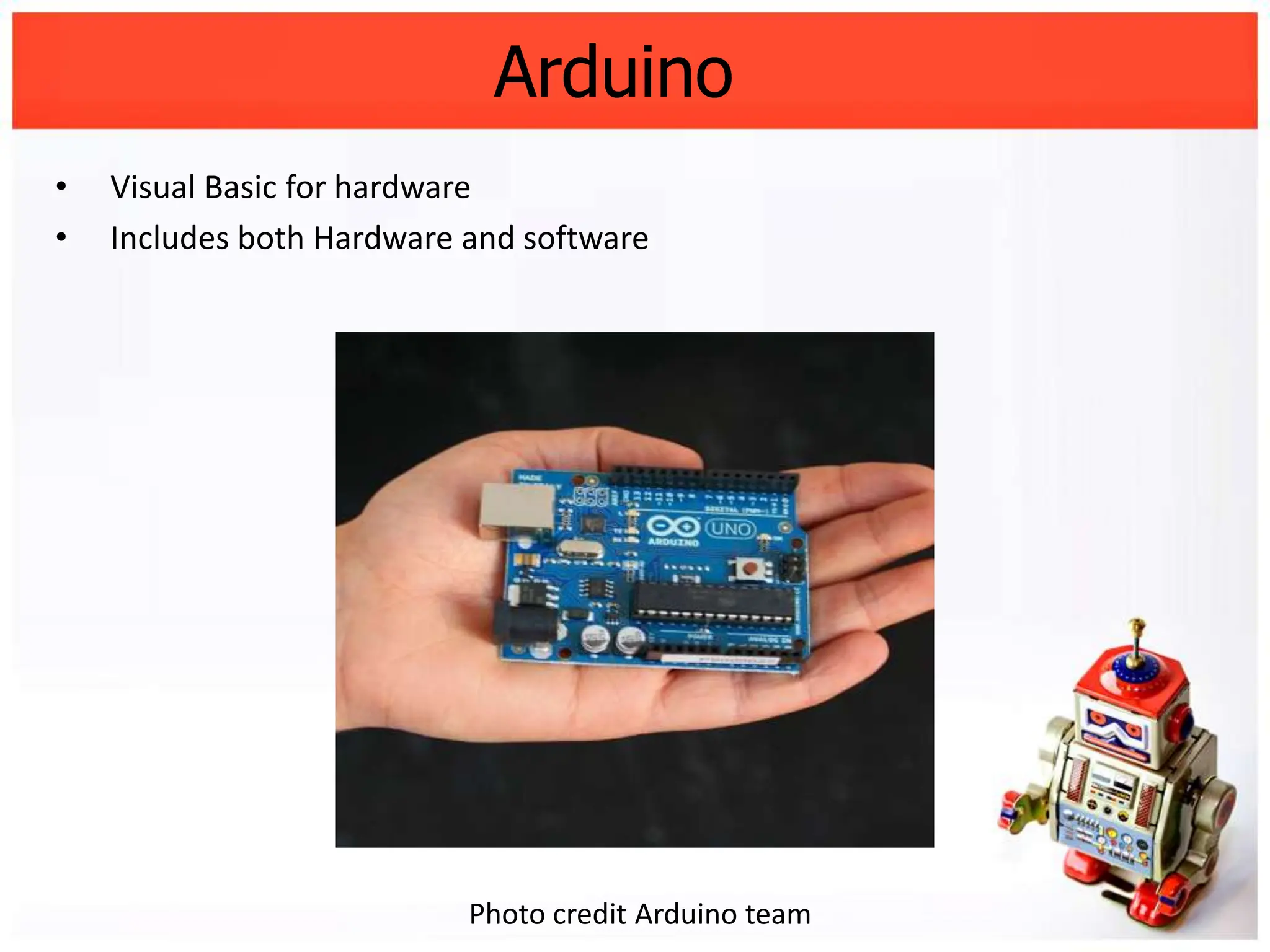

Arduino
•   Visual Basic for hardware
•   Includes both Hardware and software




                           Photo credit Arduino team

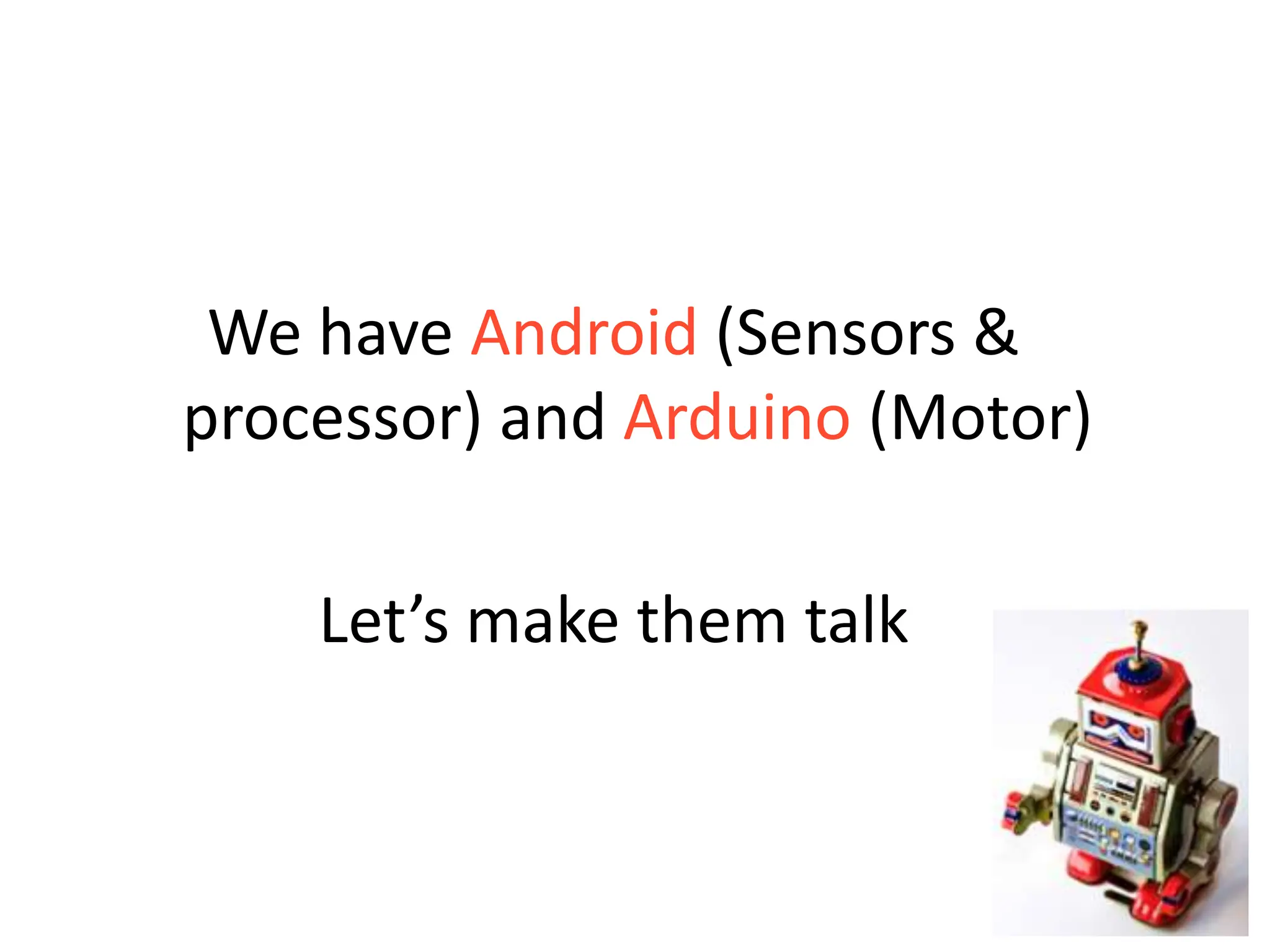

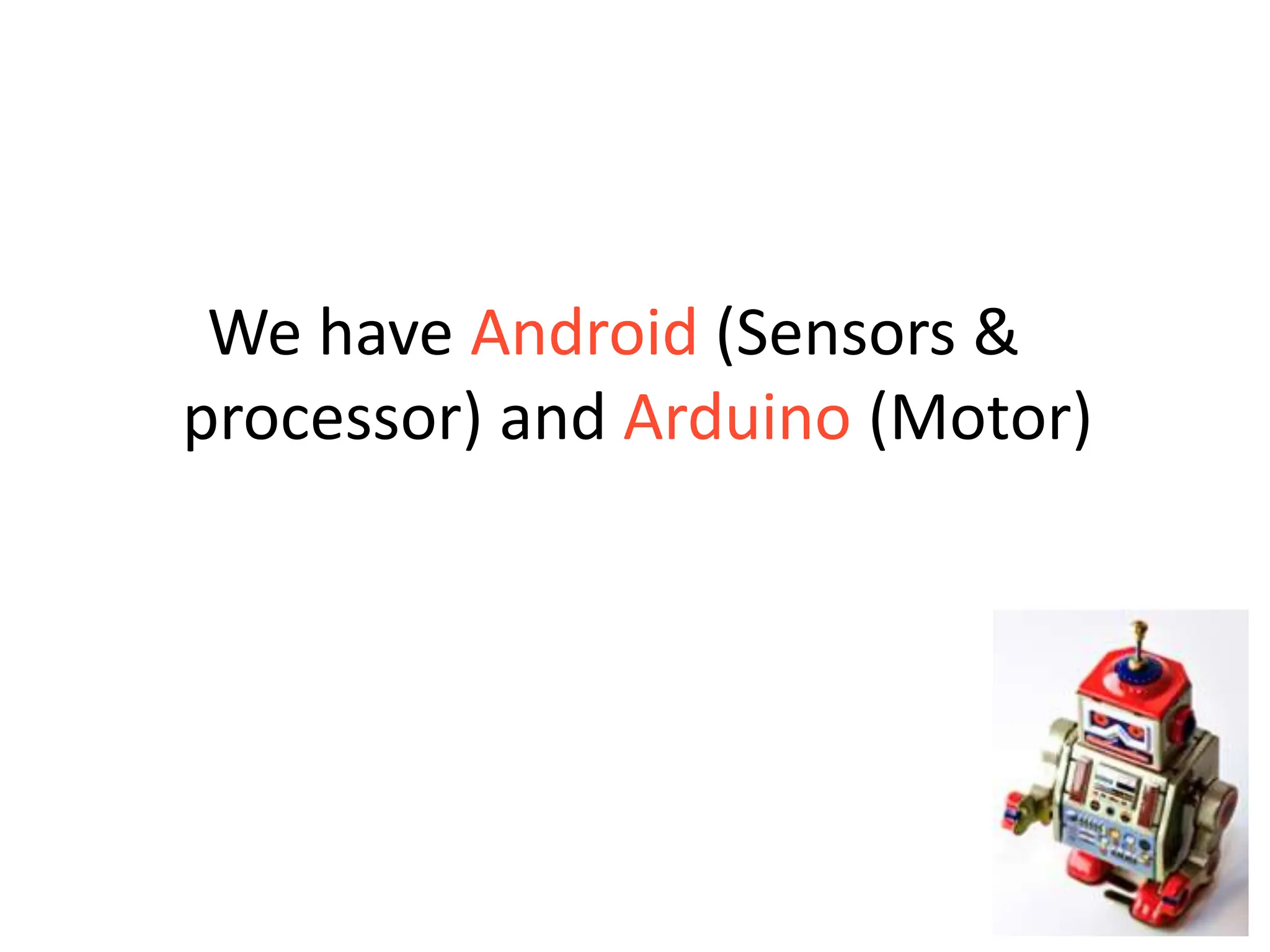

We have Android (Sensors &
processor) and Arduino (Motor)
We have Android (Sensors &
processor) and Arduino (Motor)

    Let’s make them talk

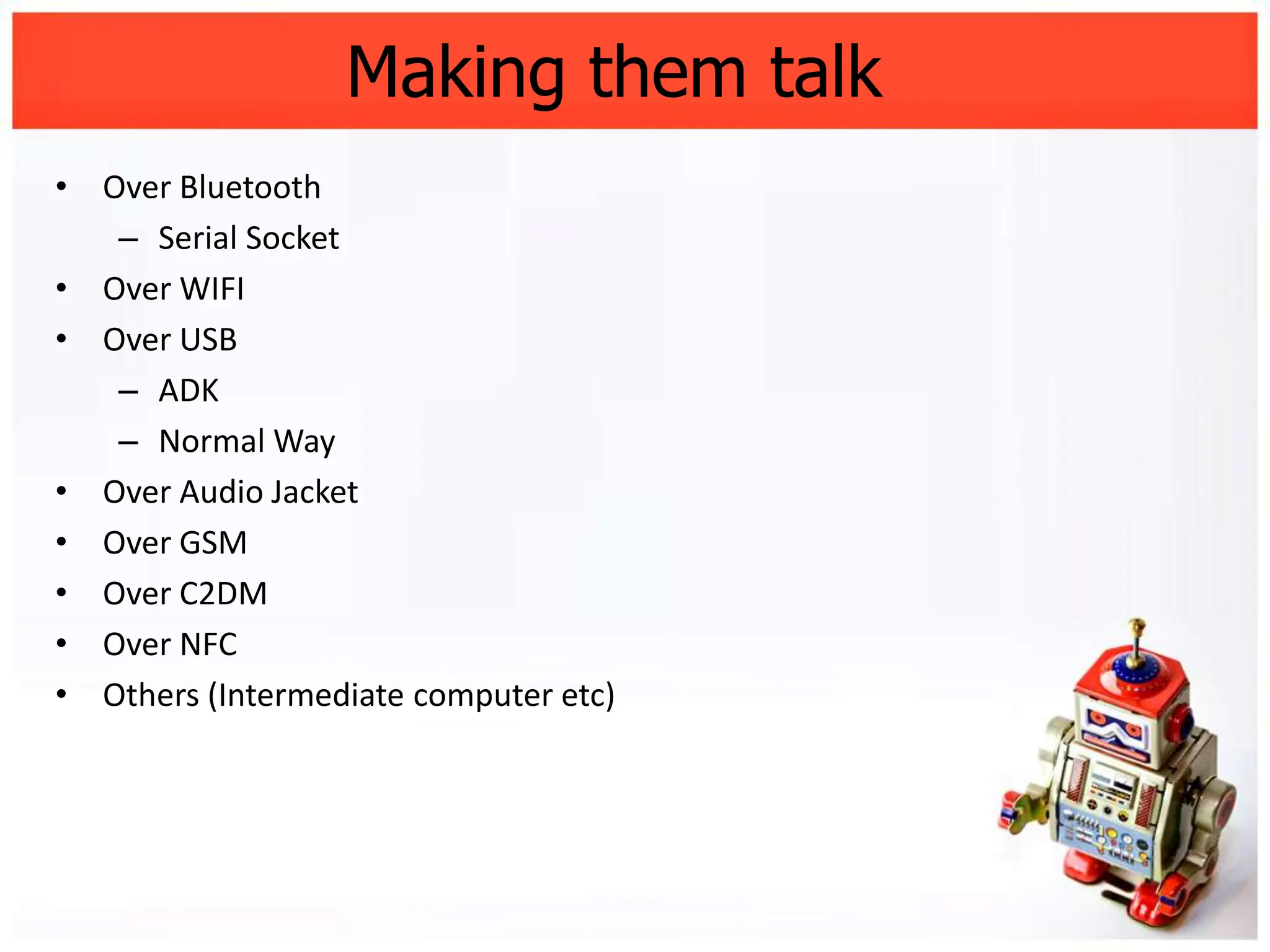

Making them talk
• Over Bluetooth
   – Serial Socket
• Over WIFI
• Over USB
   – ADK
   – Normal Way
• Over Audio Jacket
• Over GSM
• Over C2DM
• Over NFC
• Others (Intermediate computer etc)

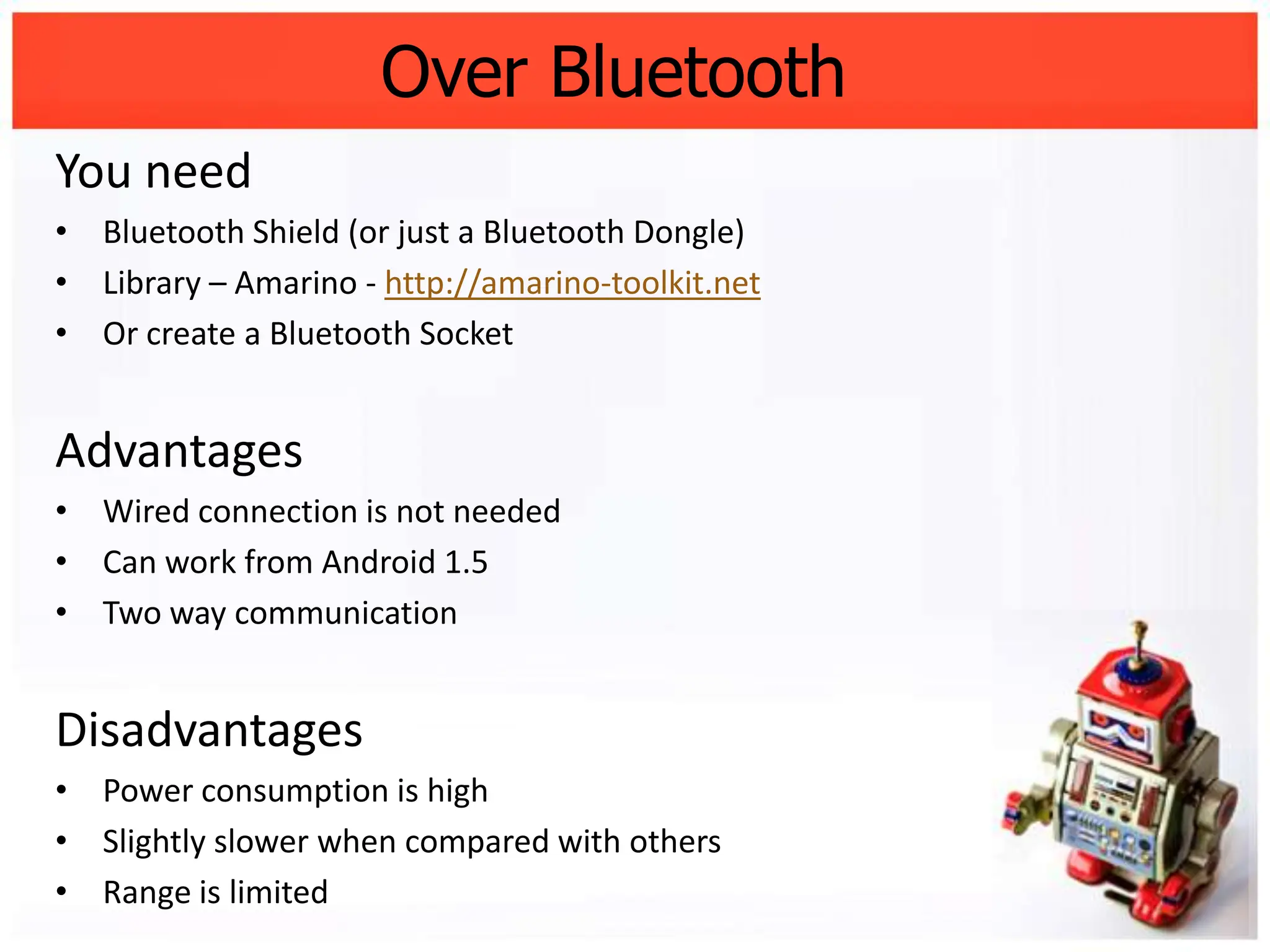

Over Bluetooth
You need
• Bluetooth Shield (or just a Bluetooth Dongle)
• Library – Amarino - http://amarino-toolkit.net
• Or create a Bluetooth Socket


Advantages
• Wired connection is not needed
• Can work from Android 1.5
• Two way communication


Disadvantages
• Power consumption is high
• Slightly slower when compared with others
• Range is limited

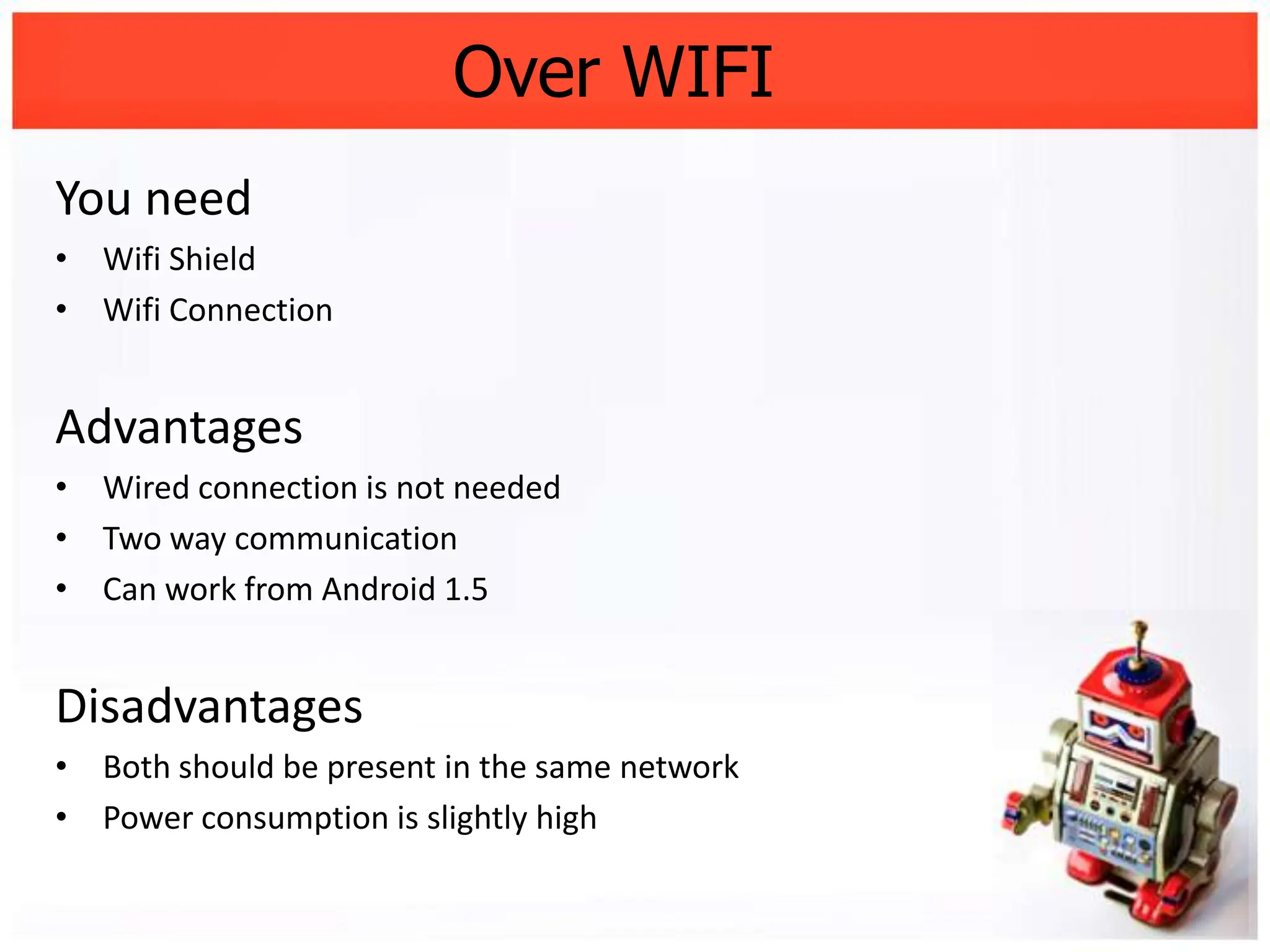

Over WIFI
You need
• Wifi Shield
• Wifi Connection


Advantages
• Wired connection is not needed
• Two way communication
• Can work from Android 1.5


Disadvantages
• Both should be present in the same network
• Power consumption is slightly high

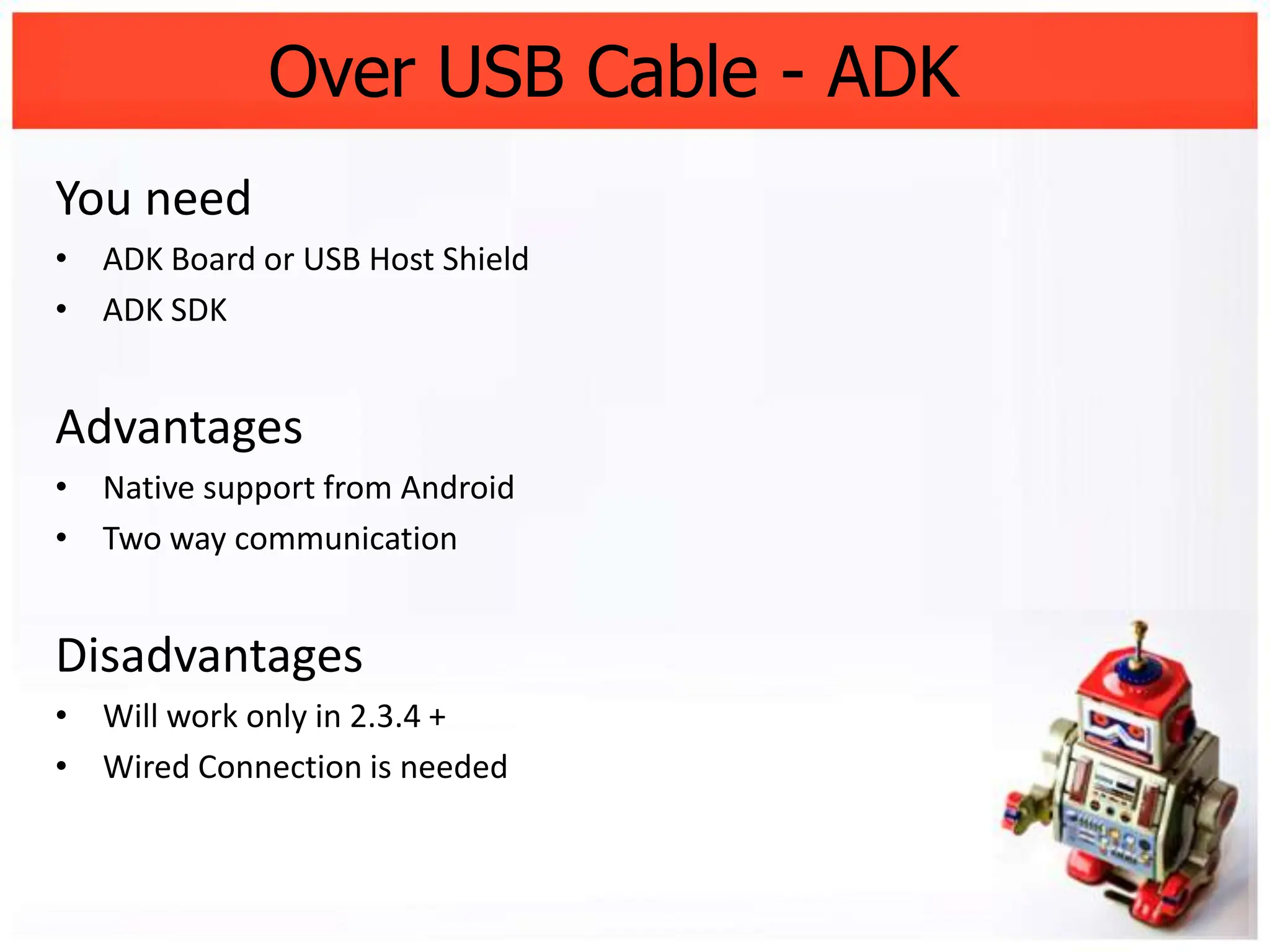

Over USB Cable - ADK
You need
• ADK Board or USB Host Shield
• ADK SDK


Advantages
• Native support from Android
• Two way communication


Disadvantages
• Will work only in 2.3.4 +
• Wired Connection is needed

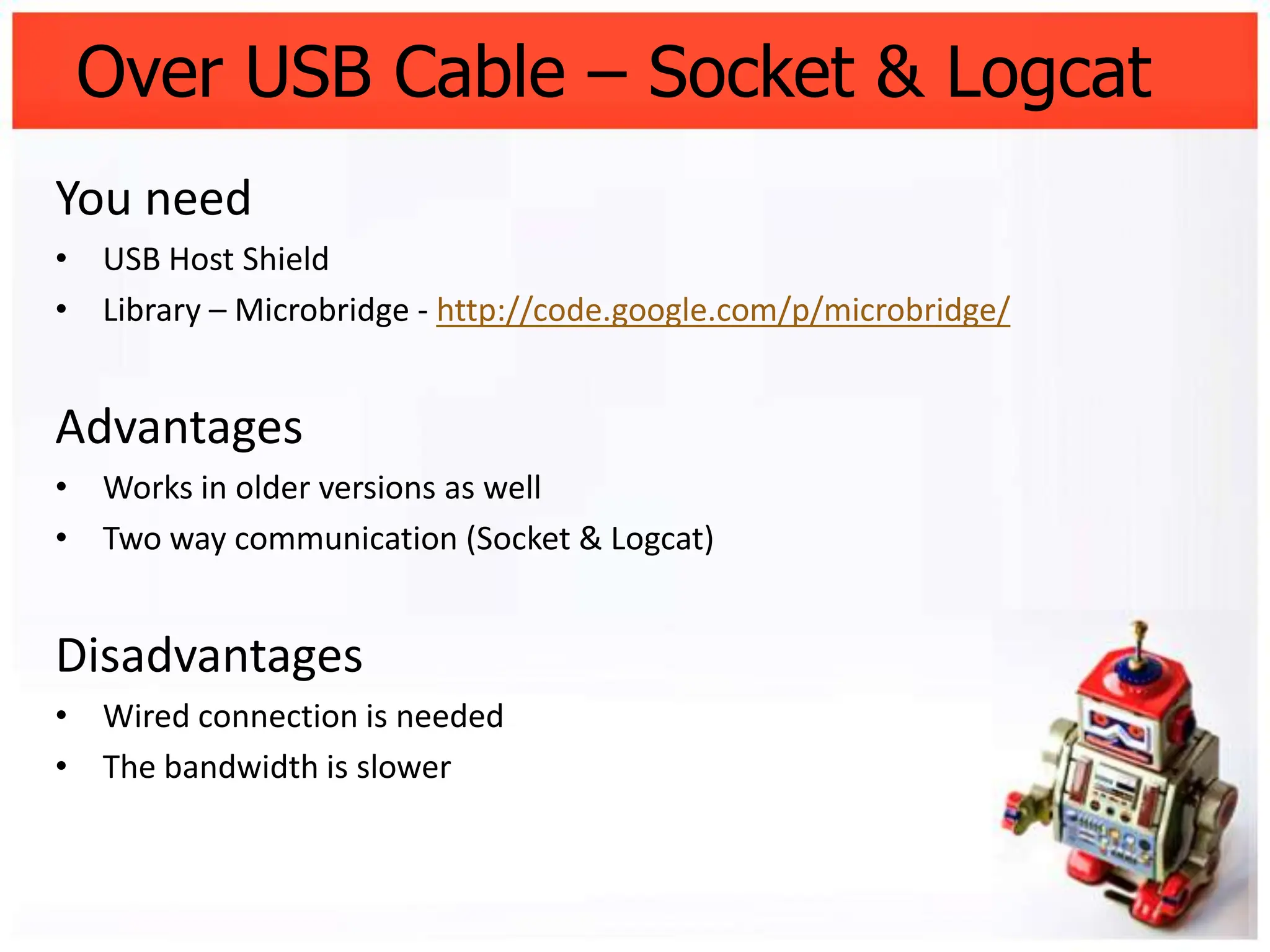

Over USB Cable – Socket & Logcat
You need
• USB Host Shield
• Library – Microbridge - http://code.google.com/p/microbridge/


Advantages
• Works in older versions as well
• Two way communication (Socket & Logcat)


Disadvantages
• Wired connection is needed
• The bandwidth is slower

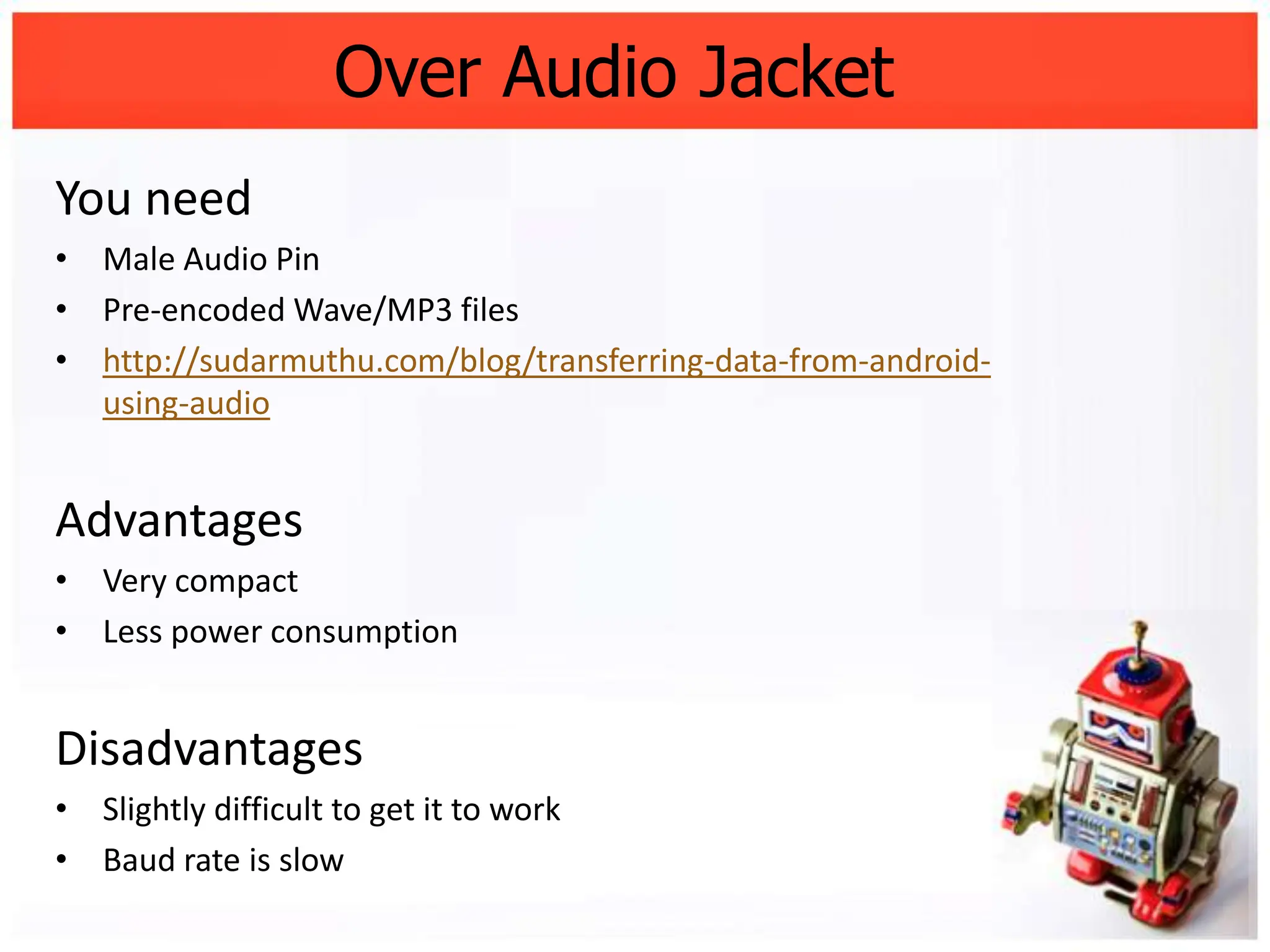

Over Audio Jacket
You need
• Male Audio Pin
• Pre-encoded Wave/MP3 files
• http://sudarmuthu.com/blog/transferring-data-from-android-
  using-audio


Advantages
• Very compact
• Less power consumption


Disadvantages
• Slightly difficult to get it to work
• Baud rate is slow

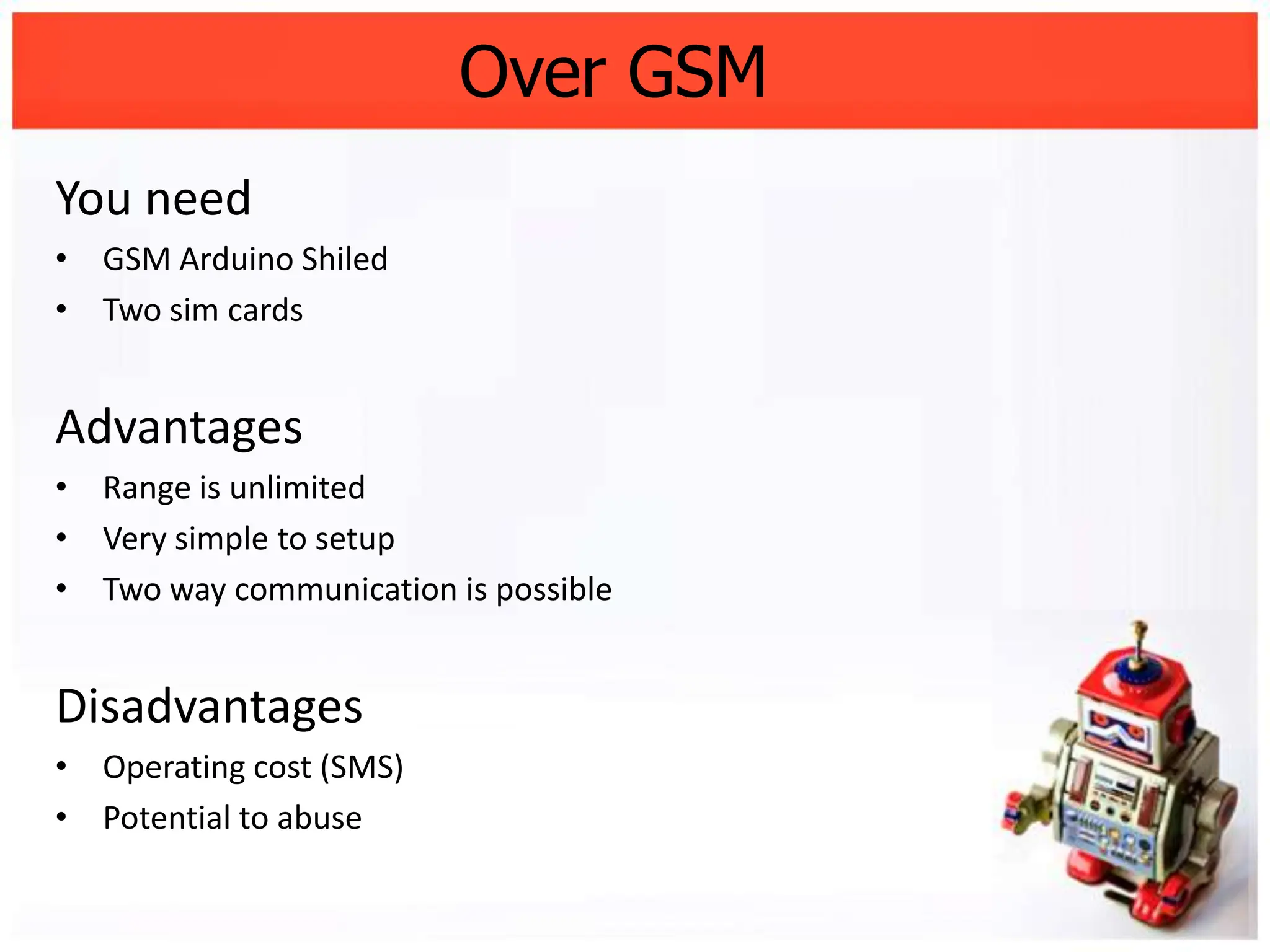

Over GSM
You need
• GSM Arduino Shiled
• Two sim cards


Advantages
• Range is unlimited
• Very simple to setup
• Two way communication is possible


Disadvantages
• Operating cost (SMS)
• Potential to abuse

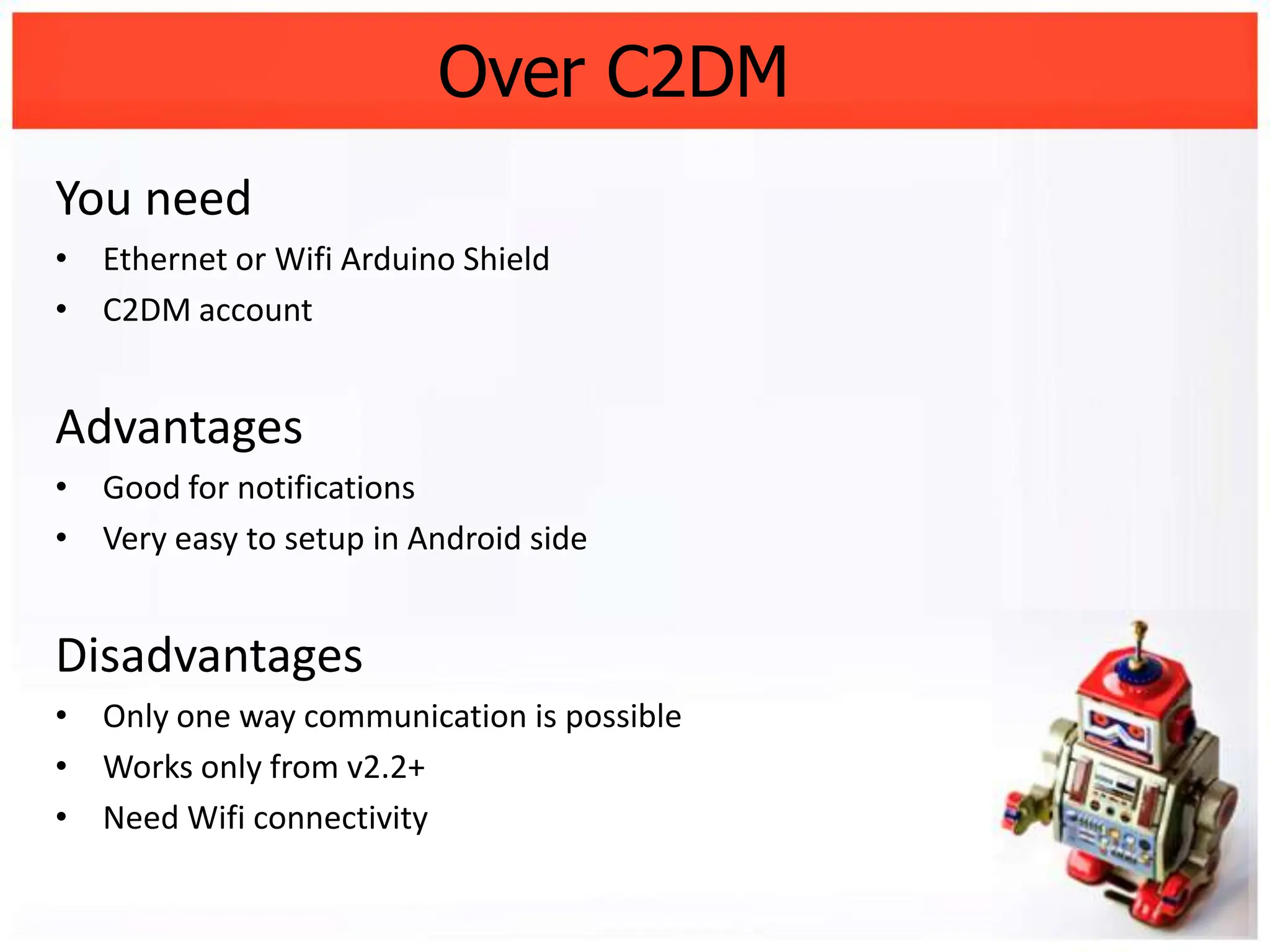

Over C2DM
You need
• Ethernet or Wifi Arduino Shield
• C2DM account


Advantages
• Good for notifications
• Very easy to setup in Android side


Disadvantages
• Only one way communication is possible
• Works only from v2.2+
• Need Wifi connectivity

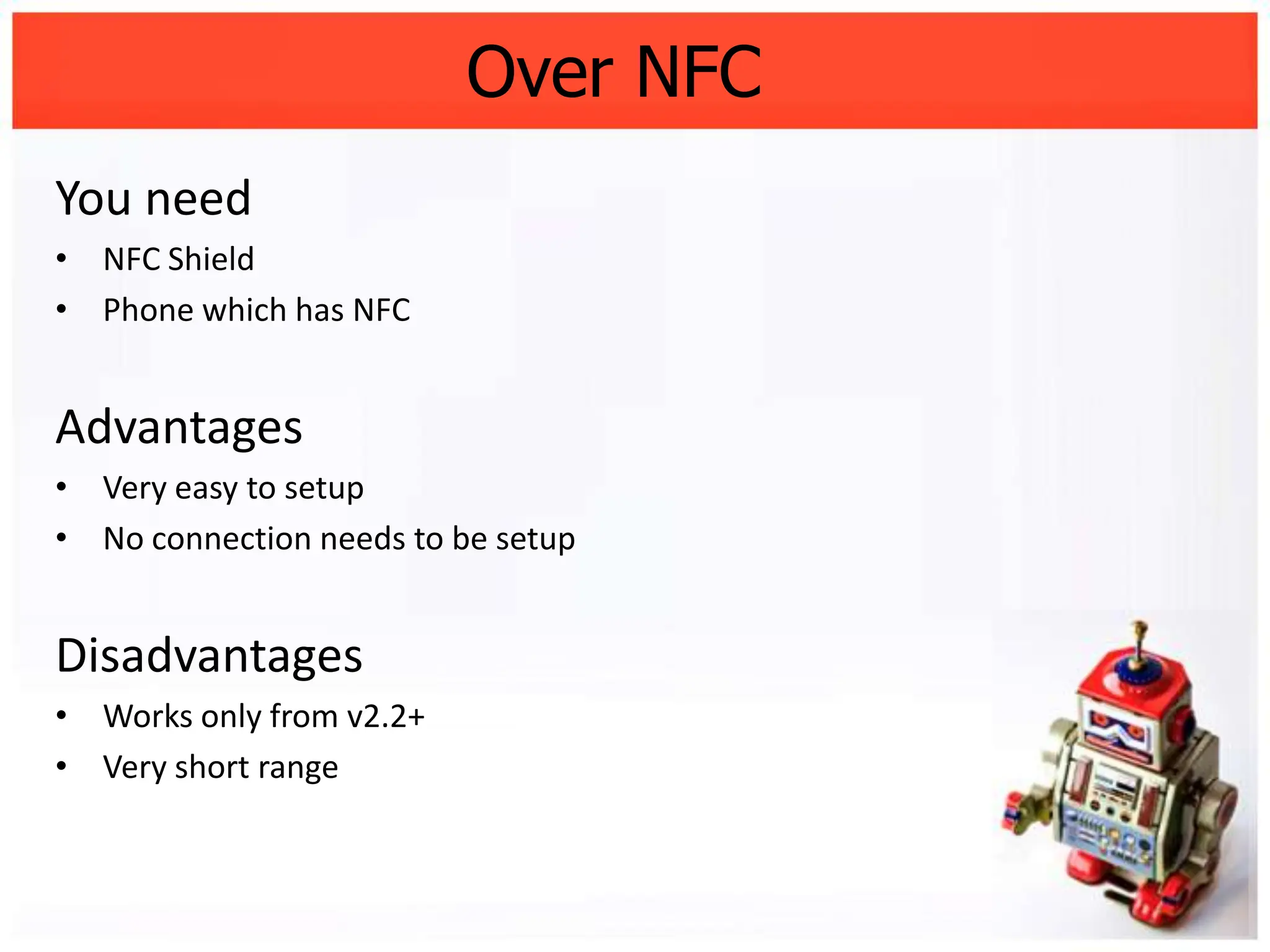

Over NFC
You need
• NFC Shield
• Phone which has NFC


Advantages
• Very easy to setup
• No connection needs to be setup


Disadvantages
• Works only from v2.2+
• Very short range

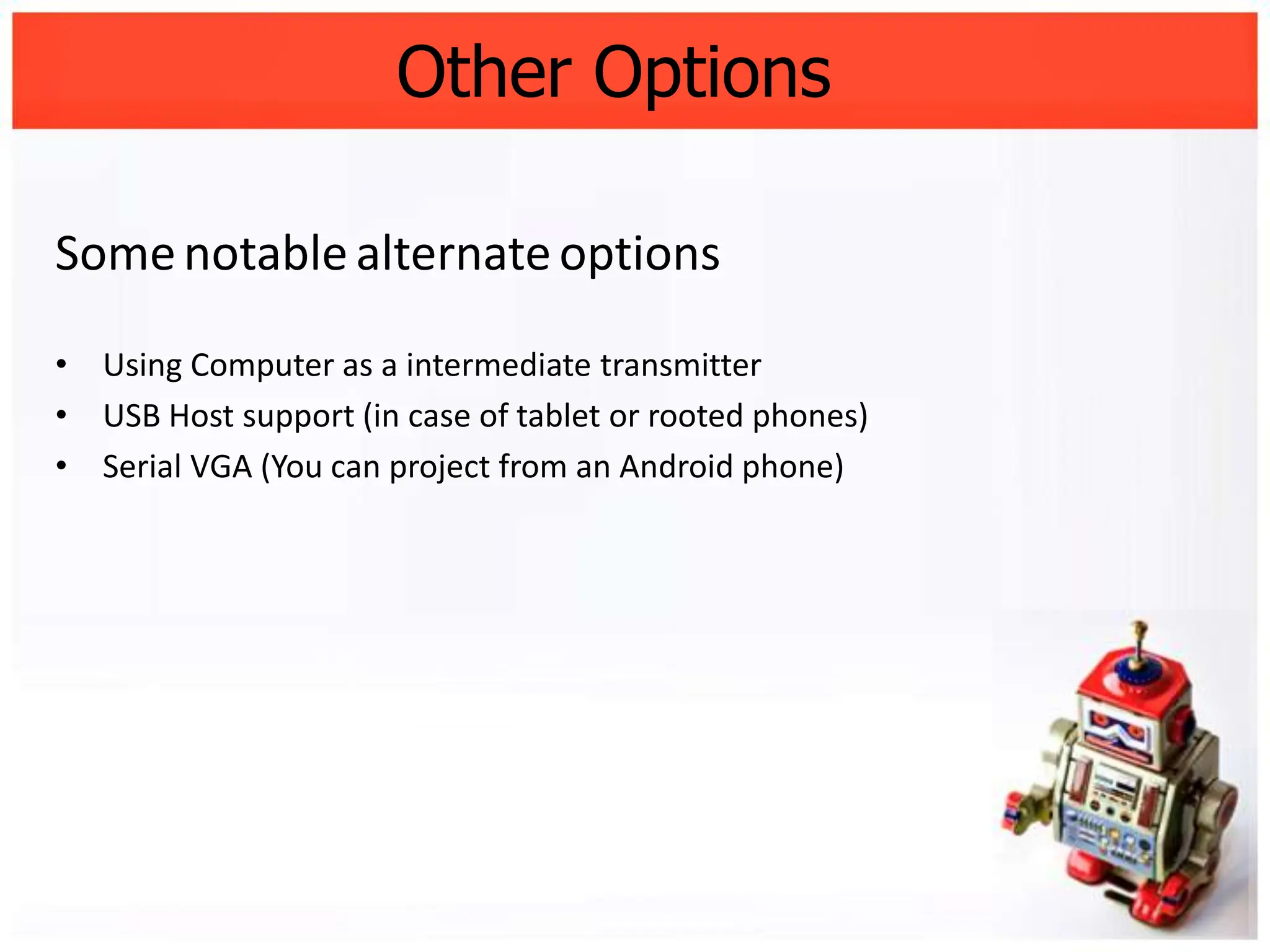

Other Options

Some notable alternate options

• Using Computer as a intermediate transmitter
• USB Host support (in case of tablet or rooted phones)
• Serial VGA (You can project from an Android phone)

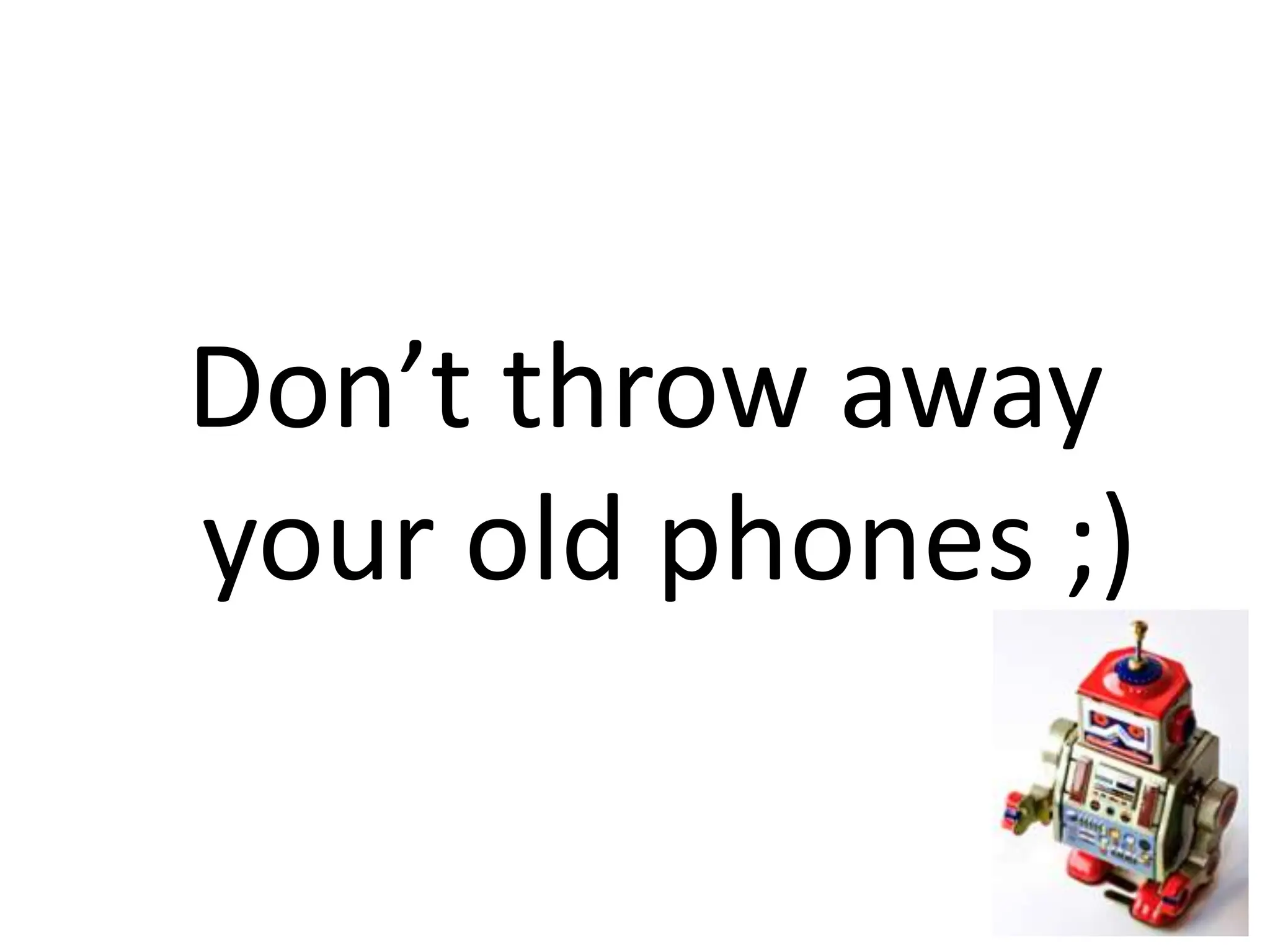

Don’t throw away
your old phones ;)

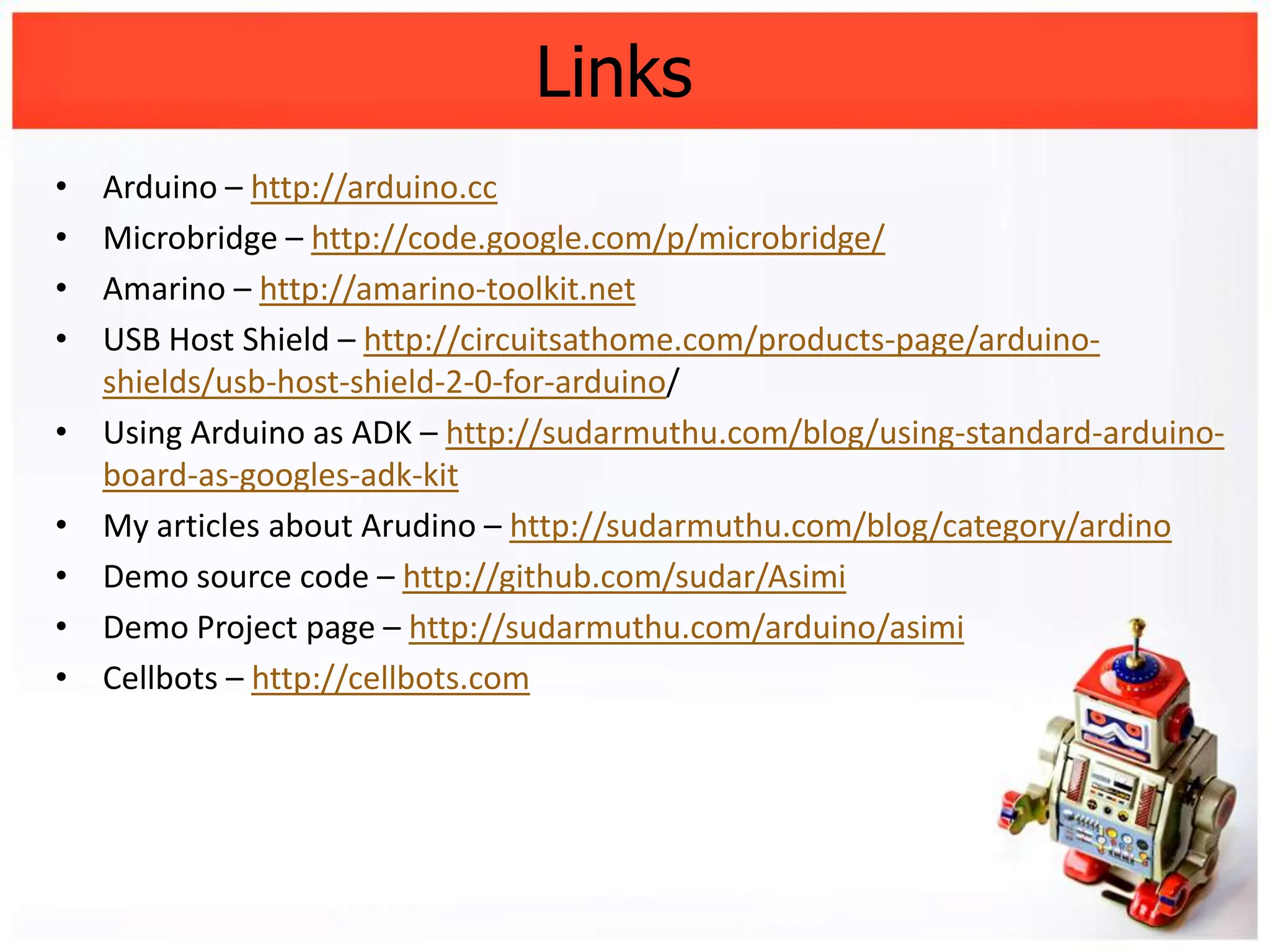

Links
•   Arduino – http://arduino.cc
•   Microbridge – http://code.google.com/p/microbridge/
•   Amarino – http://amarino-toolkit.net
•   USB Host Shield – http://circuitsathome.com/products-page/arduino-
    shields/usb-host-shield-2-0-for-arduino/
•   Using Arduino as ADK – http://sudarmuthu.com/blog/using-standard-arduino-
    board-as-googles-adk-kit
•   My articles about Arudino – http://sudarmuthu.com/blog/category/ardino
•   Demo source code – http://github.com/sudar/Asimi
•   Demo Project page – http://sudarmuthu.com/arduino/asimi
•   Cellbots – http://cellbots.com

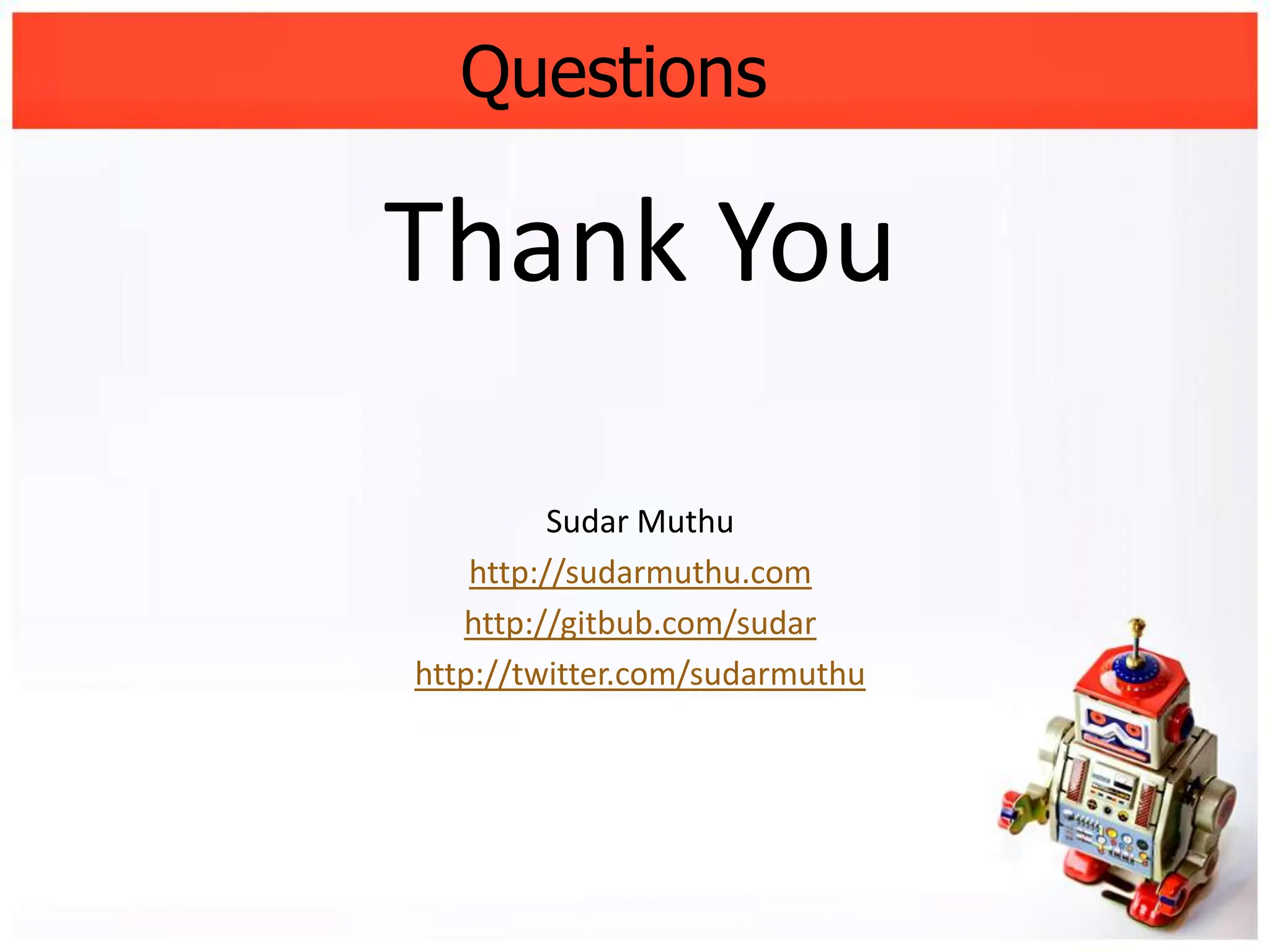

Questions

Thank You

          Sudar Muthu
    http://sudarmuthu.com
   http://gitbub.com/sudar
http://twitter.com/sudarmuthu
