1. BUILDING
CONNECTED IOT
GADGETS WITH
PARTICLE & AZURE
Nick Landry
Senior Technical Evangelist - Microsoft
AgeofMobility.com
github.com/ActiveNick
@ActiveNick

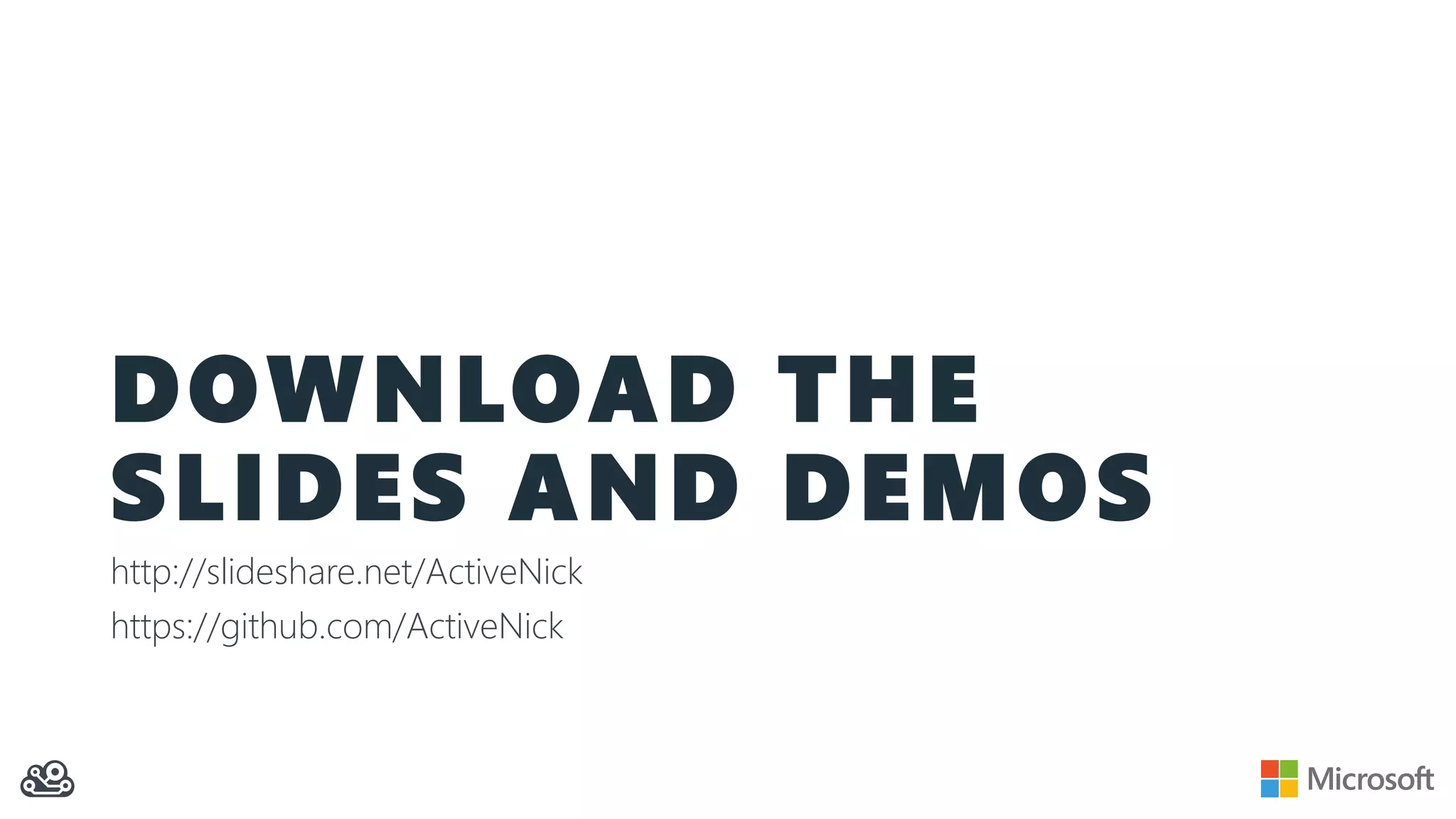

2. DOWNLOAD THE
SLIDES AND DEMOS
http://slideshare.net/ActiveNick
https://github.com/ActiveNick

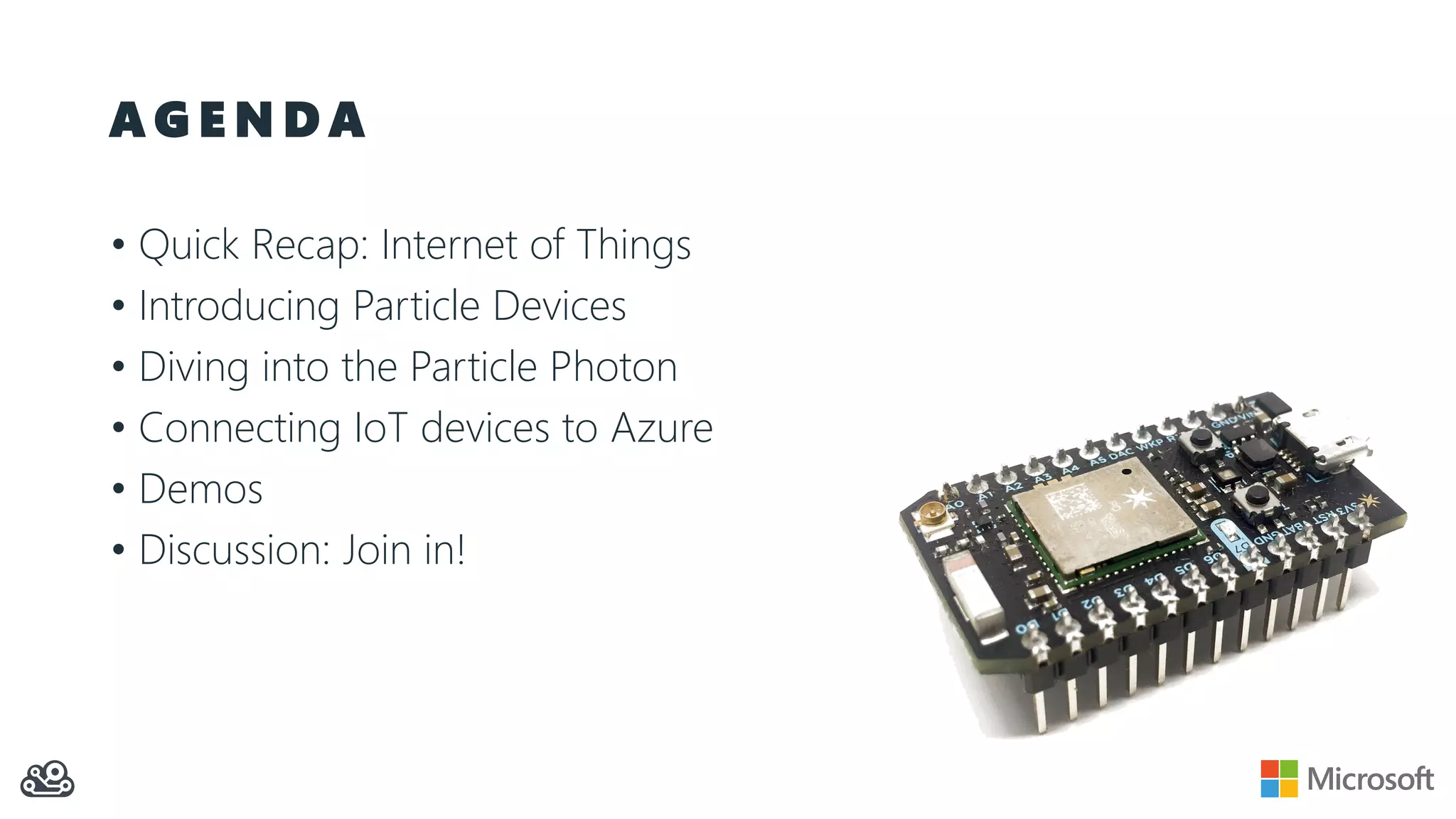

3. A G E N D A
• Quick Recap: Internet of Things
• Introducing Particle Devices
• Diving into the Particle Photon
• Connecting IoT devices to Azure
• Demos
• Discussion: Join in!

4. QUICK RECAP: IOT
Why do we need all these connected gadgets anyways?

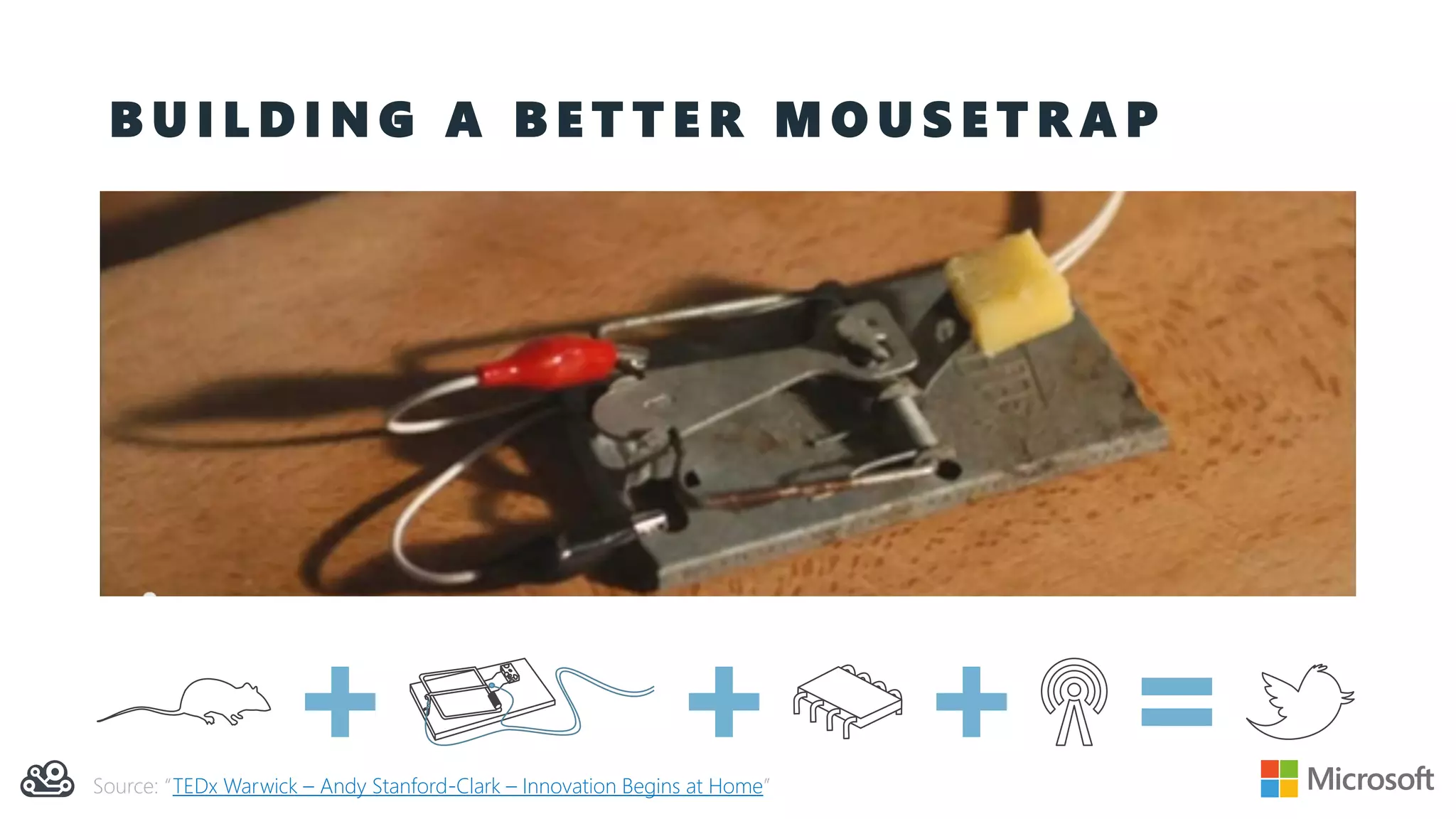

5. B U I L D I N G A B E T T E R M O U S E T R A P
Source: “TEDx Warwick – Andy Stanford-Clark – Innovation Begins at Home”

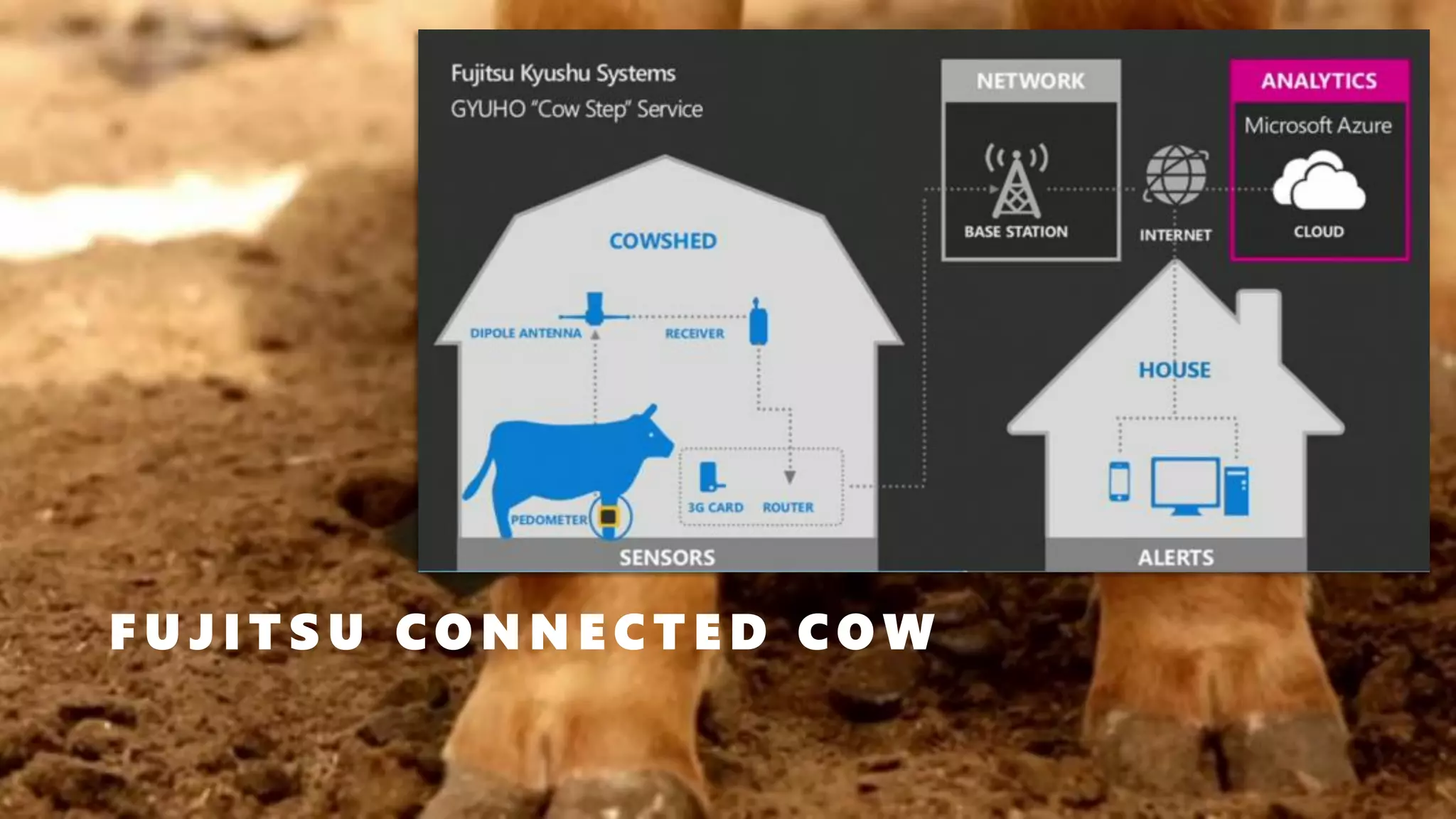

6. F U J I T S U C O N N E C T E D C O W

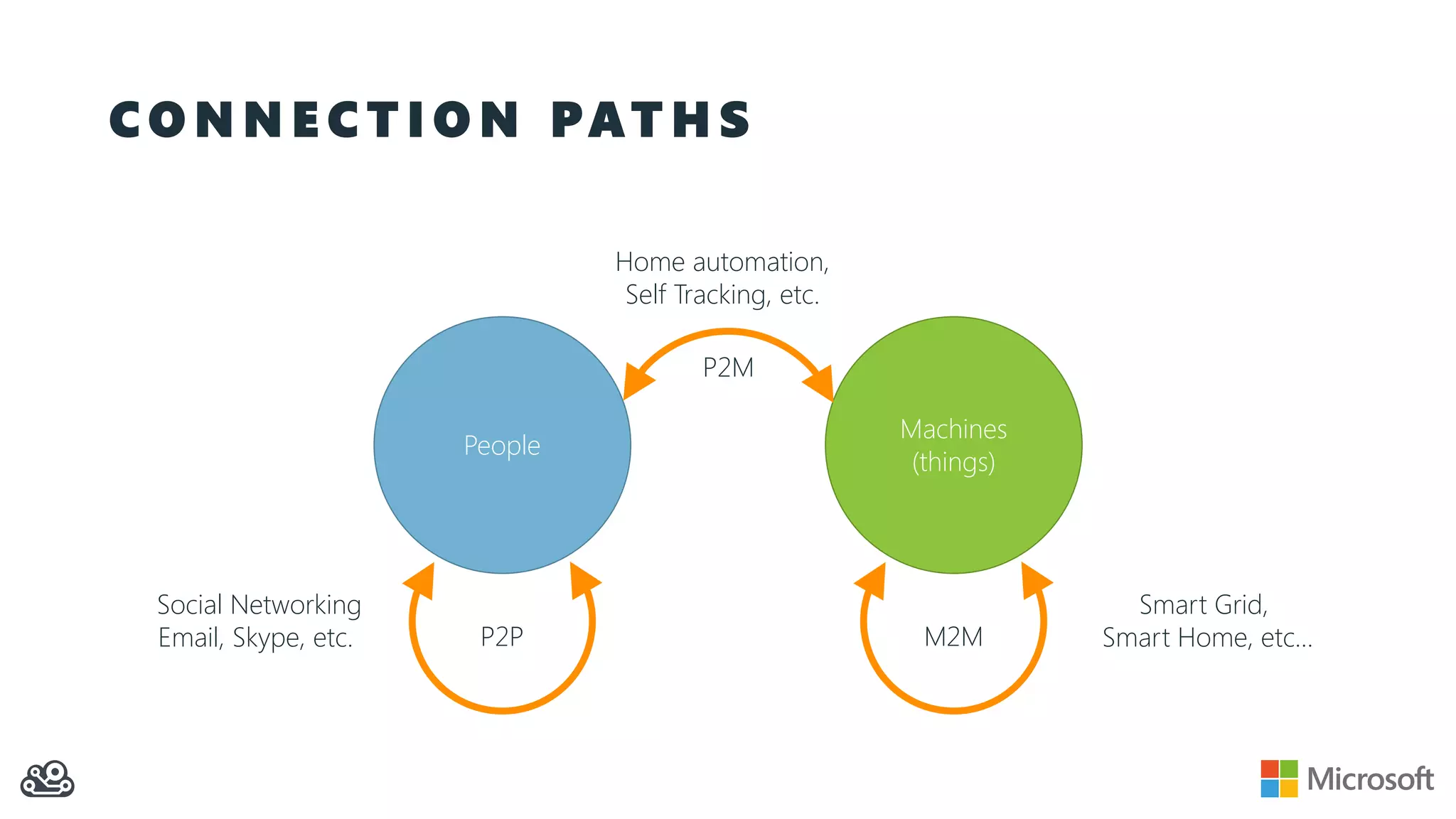

7. C O N N E C T I O N PAT H S
People
Machines
(things)
P2P
Social Networking
Email, Skype, etc.
P2M
Home automation,
Self Tracking, etc.
M2M
Smart Grid,
Smart Home, etc…

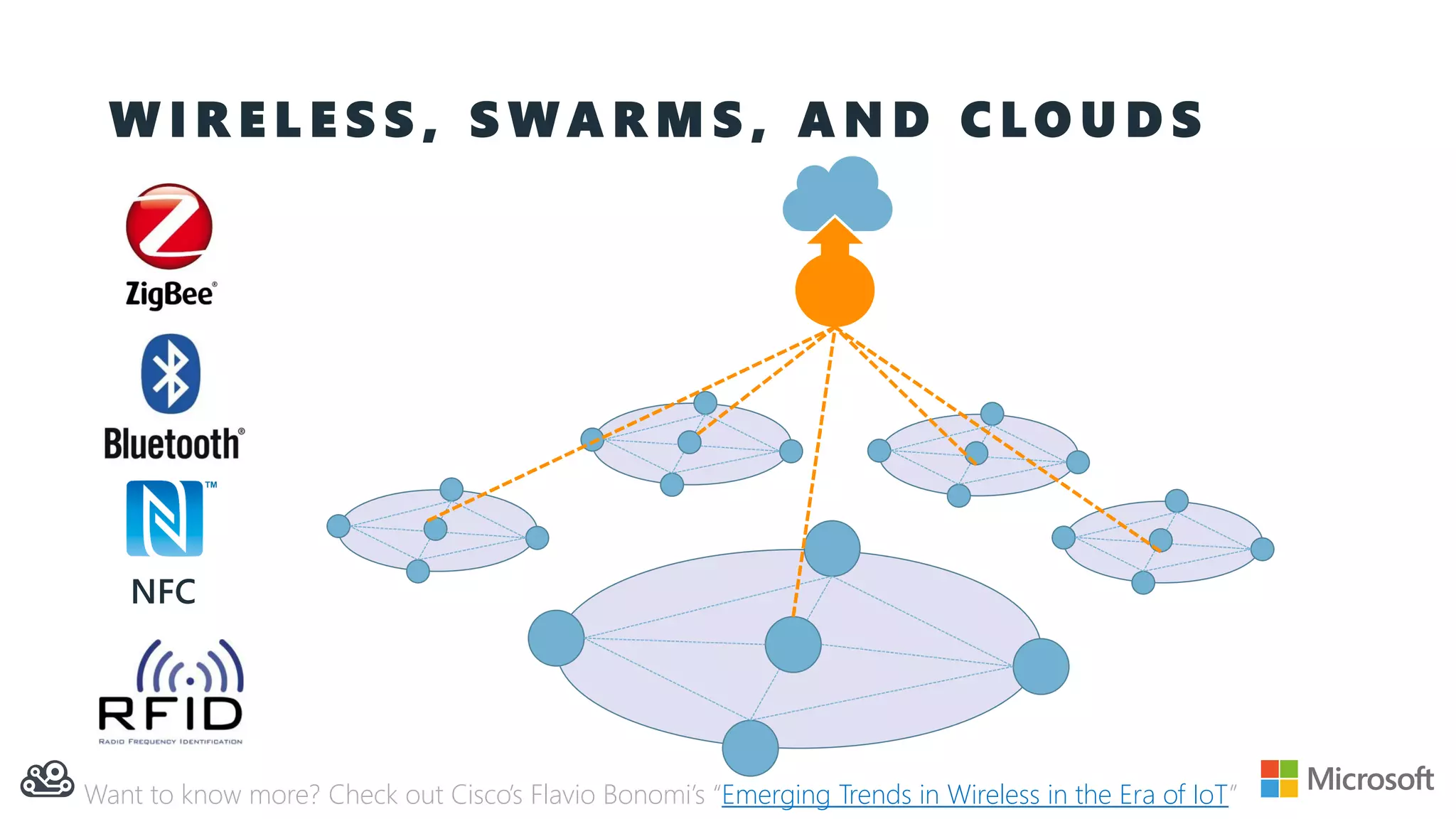

8. W I R E L E S S , S W A R M S , A N D C L O U D S
Want to know more? Check out Cisco’s Flavio Bonomi’s “Emerging Trends in Wireless in the Era of IoT”

9. “ W I T H O U T C O N N E C T I V I T Y, T H E R E ’ S N O
I O T. A L L Y O U H A V E I S J U S T ‘ T H I N G S ’ …”
“ I F T H E R E ’ S N O T A P E , I T ’ S N O T A H A C K .”
– Nick Landry, 2015

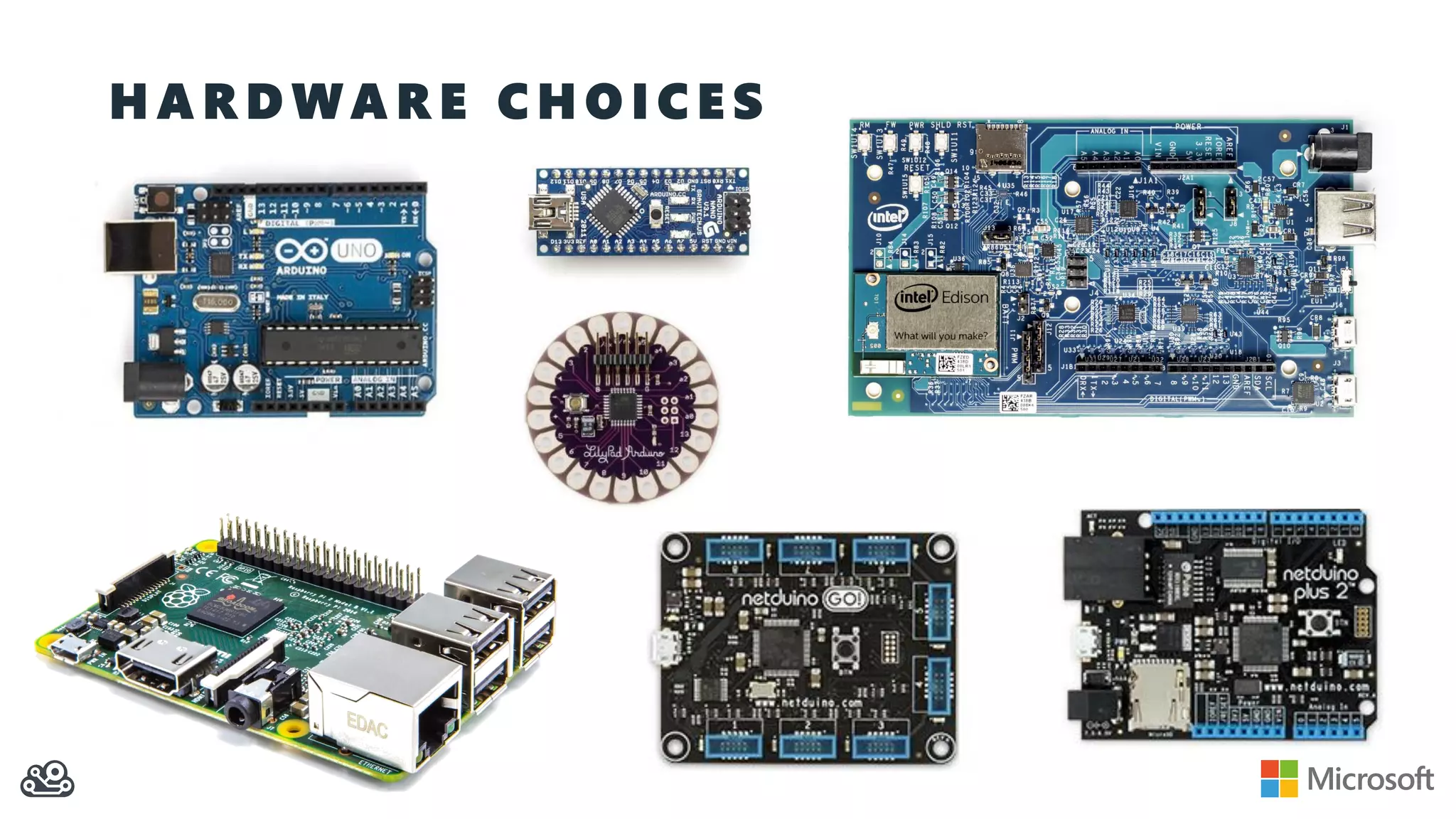

10. H A R D W A R E C H O I C E S

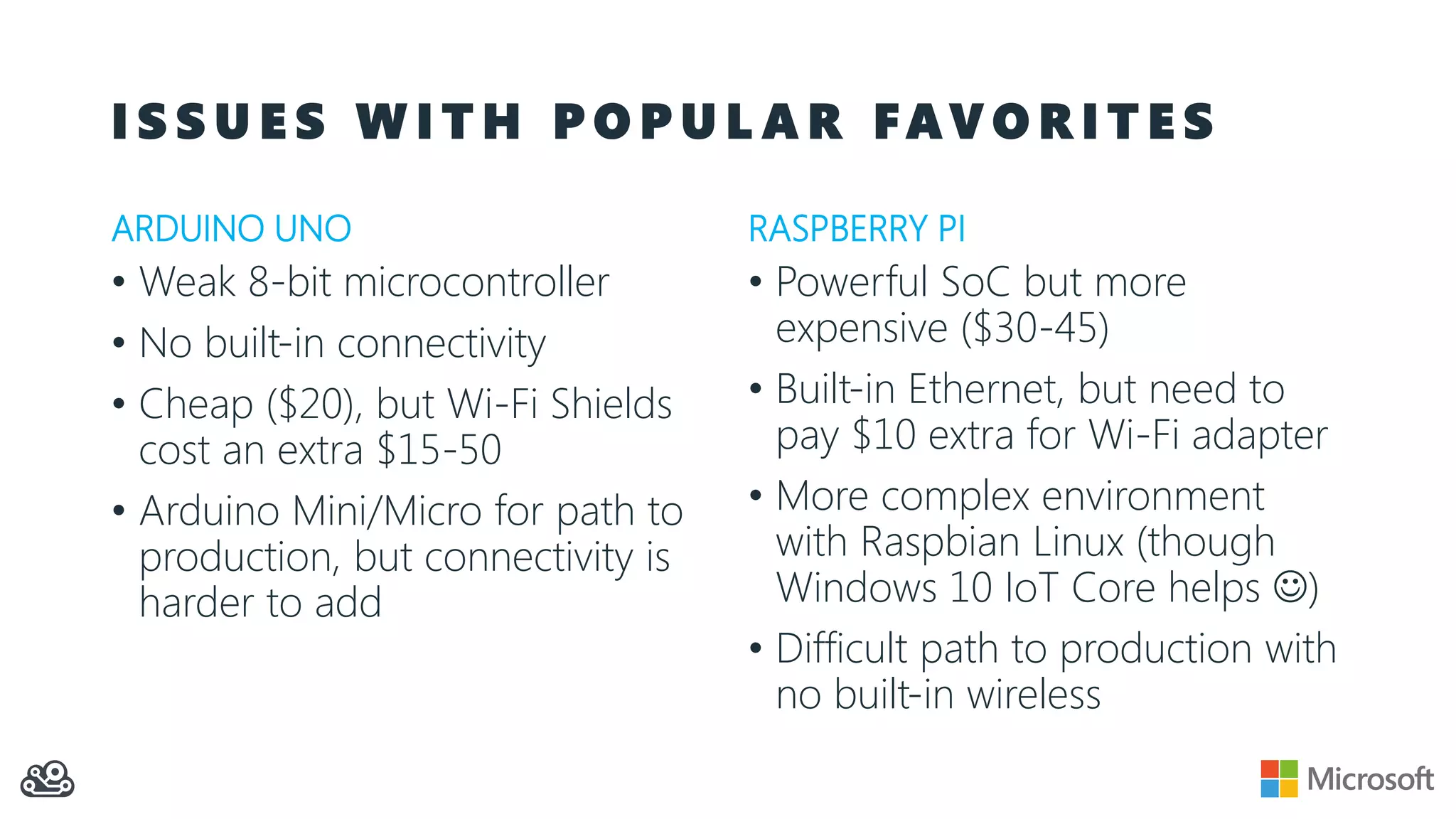

11. I S S U E S W I T H P O P U L A R FAV O R I T E S
ARDUINO UNO
• Weak 8-bit microcontroller
• No built-in connectivity
• Cheap ($20), but Wi-Fi Shields
cost an extra $15-50
• Arduino Mini/Micro for path to
production, but connectivity is
harder to add
RASPBERRY PI
• Powerful SoC but more
expensive ($30-45)
• Built-in Ethernet, but need to
pay $10 extra for Wi-Fi adapter
• More complex environment
with Raspbian Linux (though
Windows 10 IoT Core helps )
• Difficult path to production with
no built-in wireless

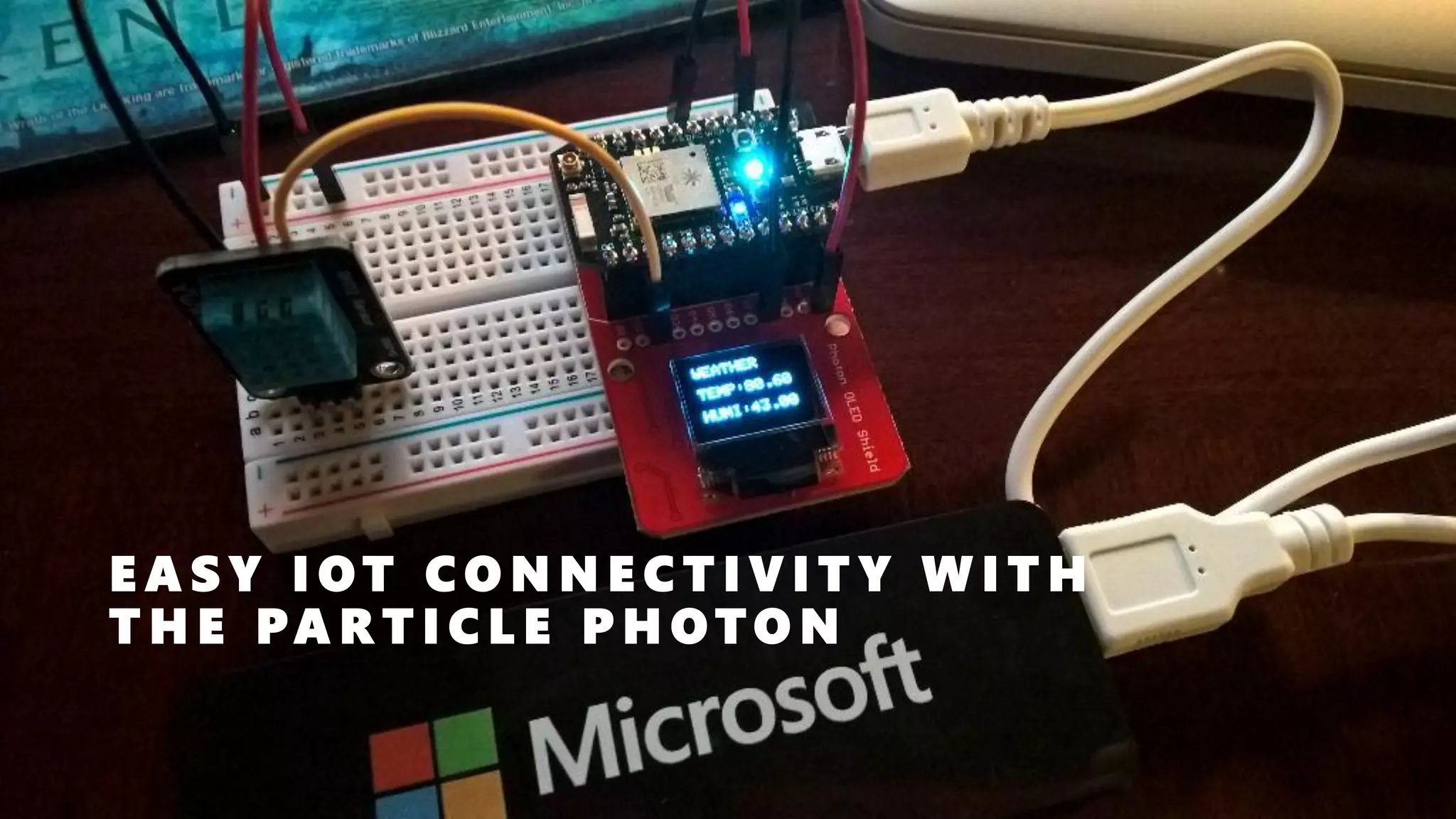

12. E A S Y I O T C O N N E C T I V I T Y W I T H
T H E PA R T I C L E P H O T O N

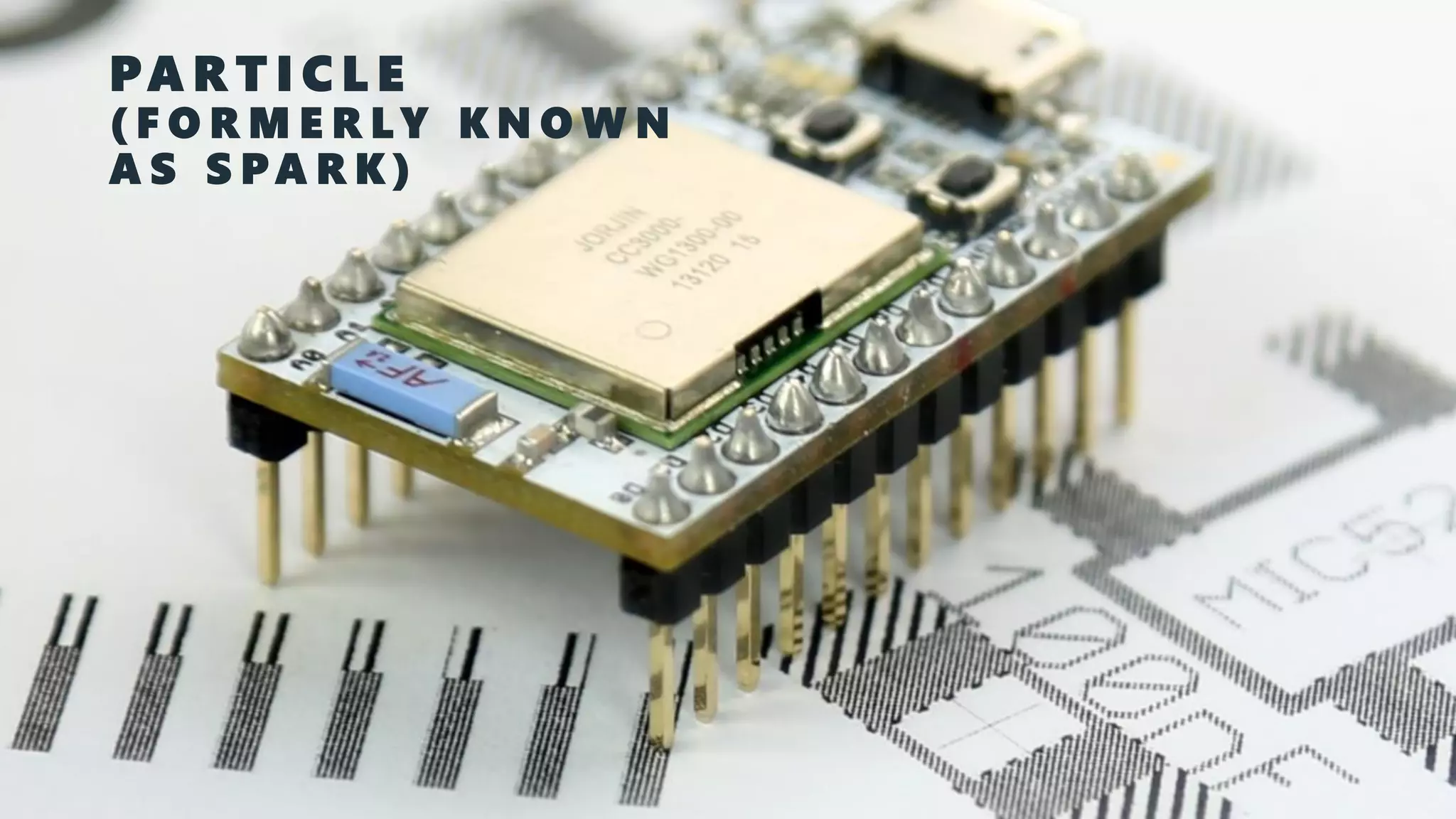

13. PA R T I C L E
( F O R M E R L Y K N O W N
A S S P A R K )

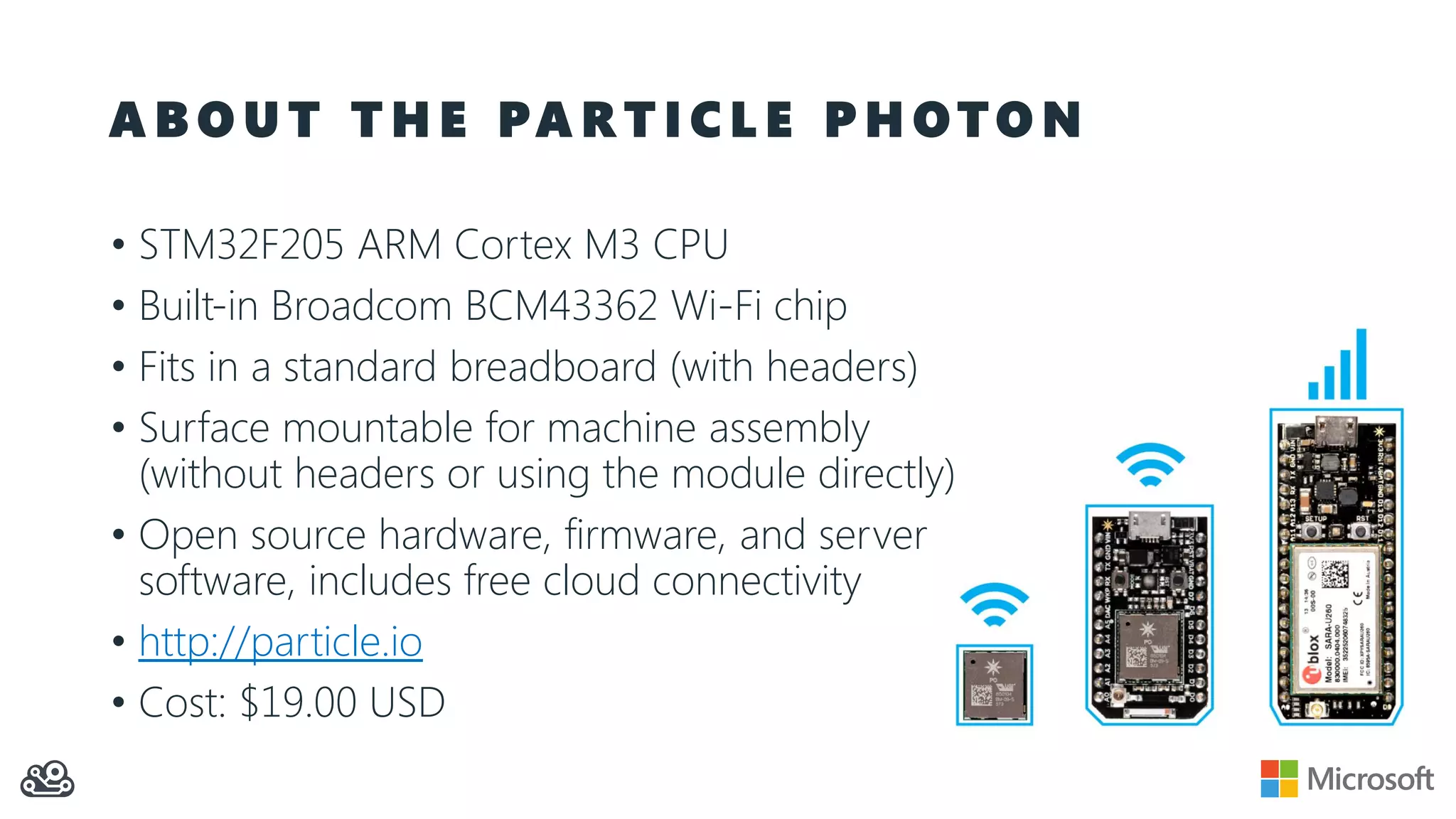

14. A B O U T T H E PA R T I C L E P H O T O N
• STM32F205 ARM Cortex M3 CPU
• Built-in Broadcom BCM43362 Wi-Fi chip
• Fits in a standard breadboard (with headers)
• Surface mountable for machine assembly
(without headers or using the module directly)
• Open source hardware, firmware, and server
software, includes free cloud connectivity
• http://particle.io
• Cost: $19.00 USD

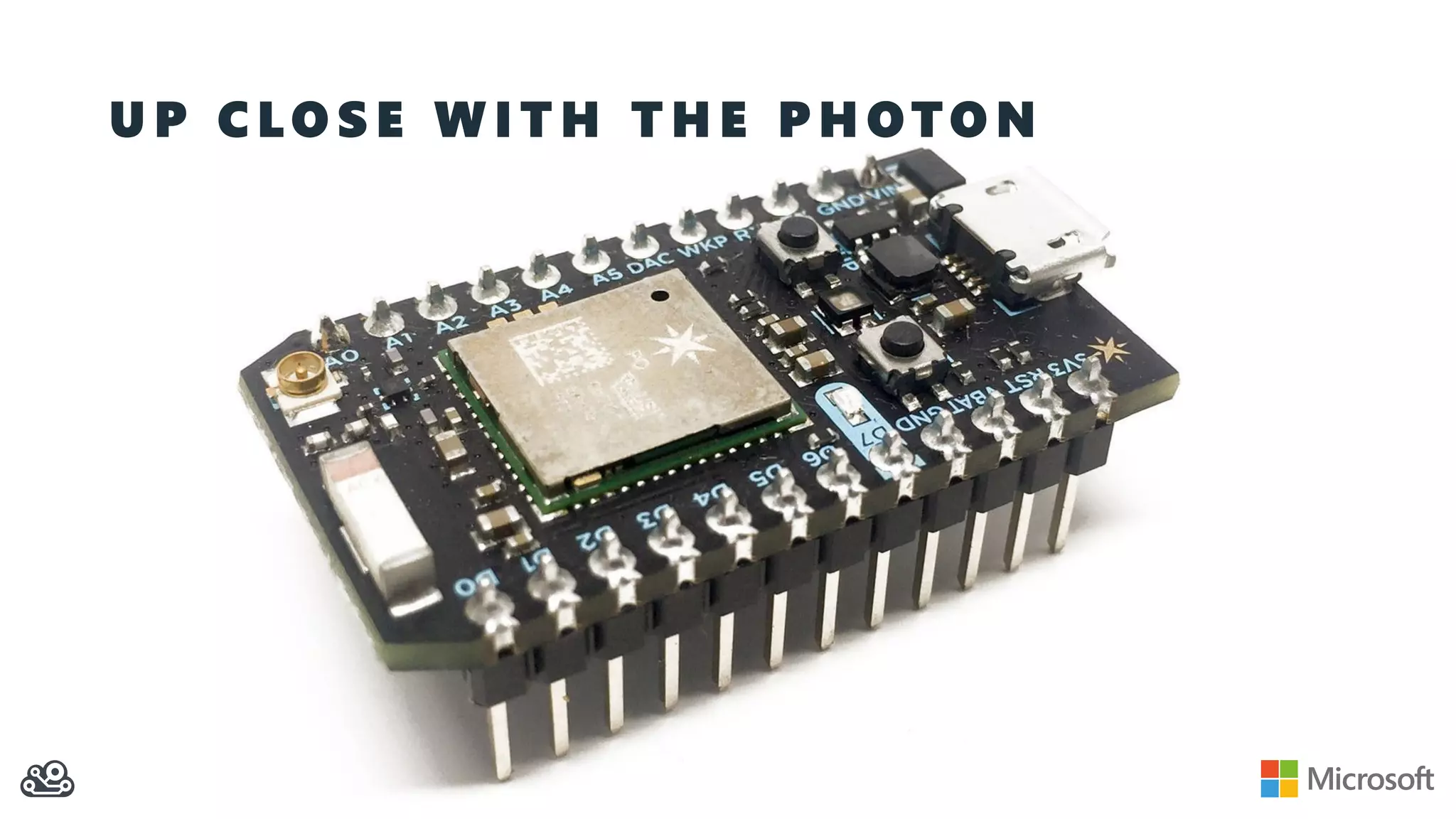

15. U P C L O S E W I T H T H E P H O T O N

16. DEMO Hello World – Particle Photon Edition

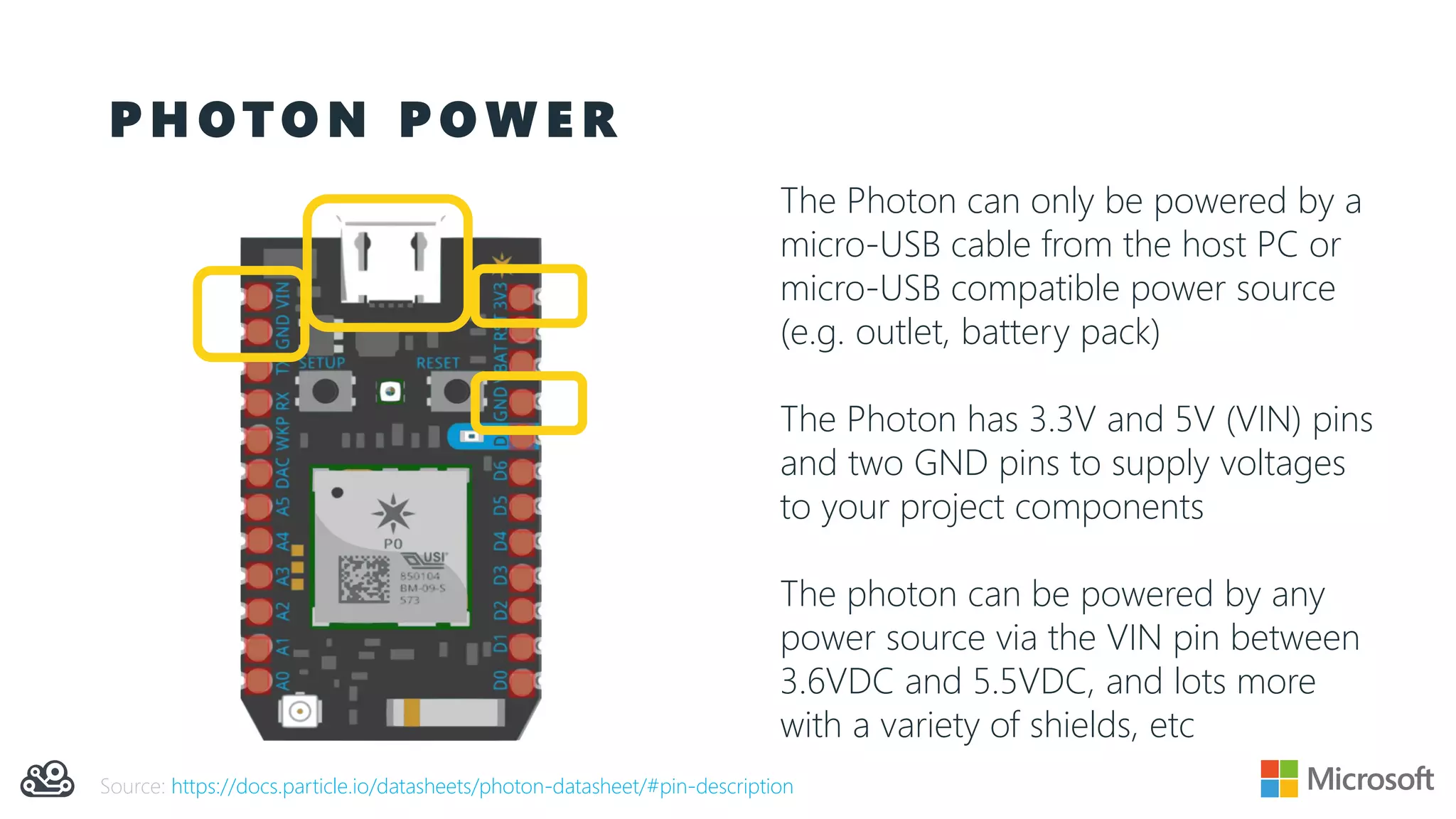

17. P H O T O N P O W E R
The Photon can only be powered by a
micro-USB cable from the host PC or
micro-USB compatible power source
(e.g. outlet, battery pack)
The Photon has 3.3V and 5V (VIN) pins
and two GND pins to supply voltages
to your project components
The photon can be powered by any
power source via the VIN pin between
3.6VDC and 5.5VDC, and lots more
with a variety of shields, etc
Source: https://docs.particle.io/datasheets/photon-datasheet/#pin-description

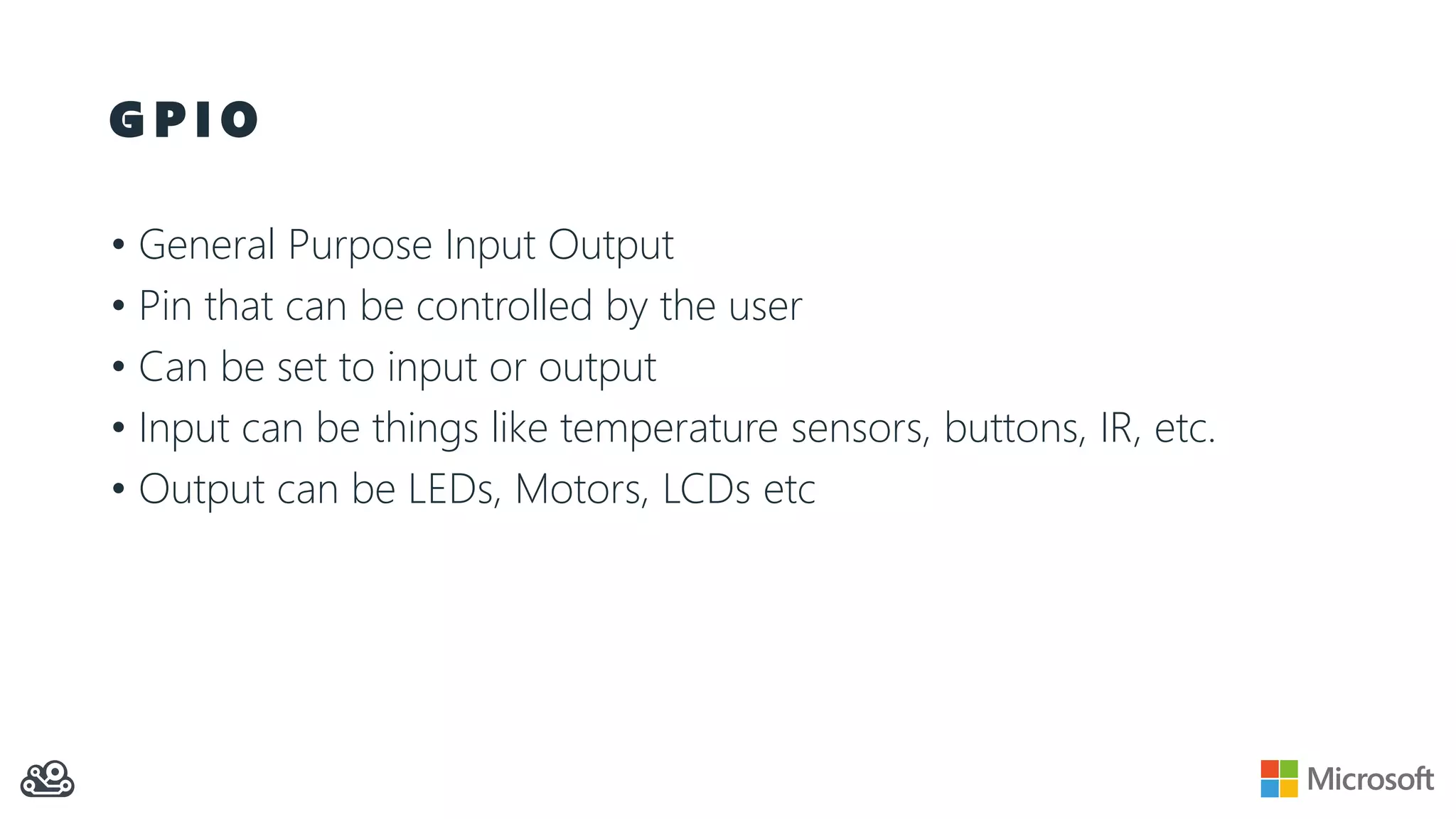

18. G P I O
• General Purpose Input Output
• Pin that can be controlled by the user
• Can be set to input or output
• Input can be things like temperature sensors, buttons, IR, etc.
• Output can be LEDs, Motors, LCDs etc

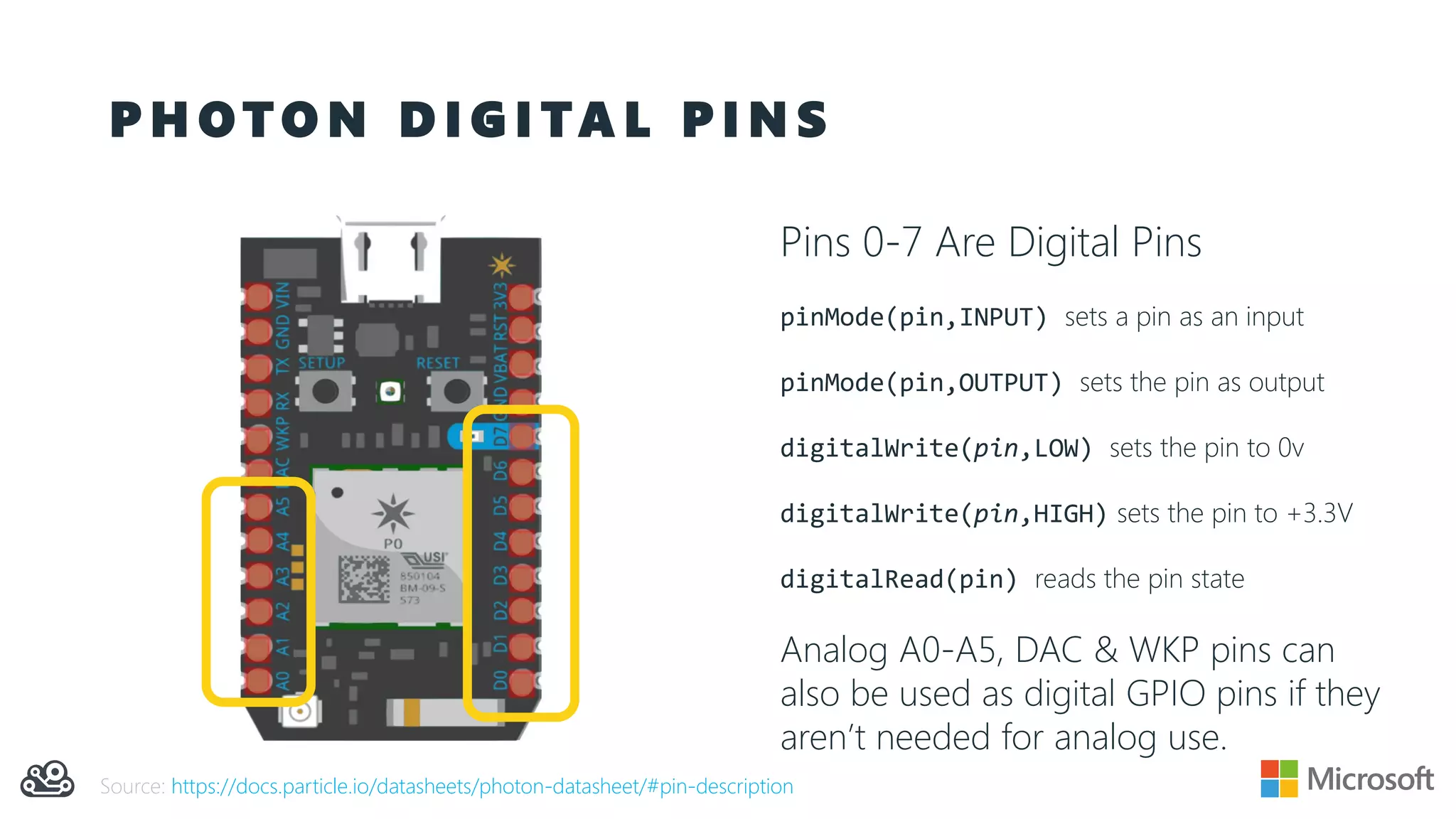

19. P H O T O N D I G I TA L P I N S
Pins 0-7 Are Digital Pins
pinMode(pin,INPUT) sets a pin as an input
pinMode(pin,OUTPUT) sets the pin as output
digitalWrite(pin,LOW) sets the pin to 0v
digitalWrite(pin,HIGH) sets the pin to +3.3V
digitalRead(pin) reads the pin state
Analog A0-A5, DAC & WKP pins can
also be used as digital GPIO pins if they
aren’t needed for analog use.
Source: https://docs.particle.io/datasheets/photon-datasheet/#pin-description

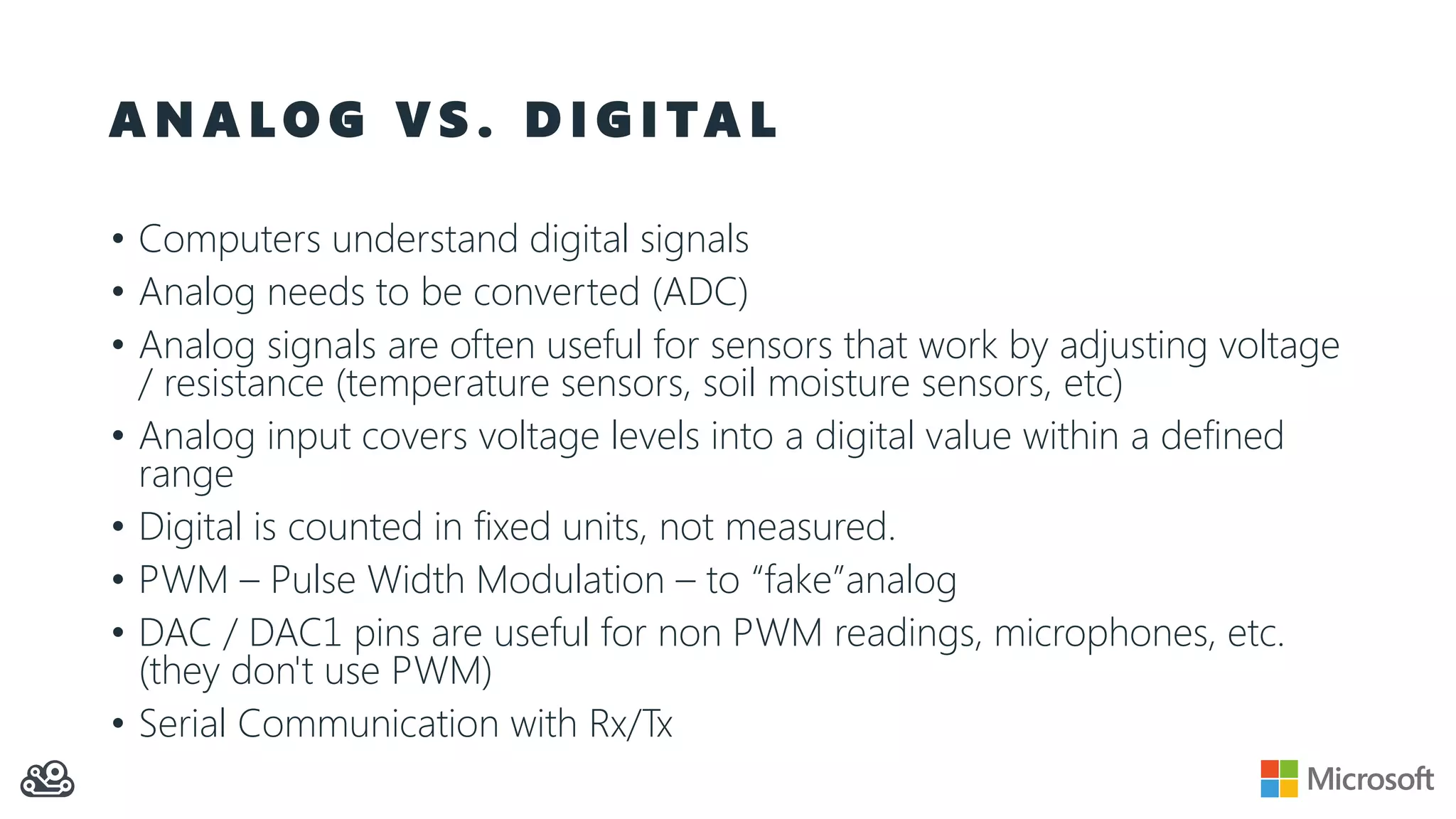

20. A N A L O G V S . D I G I TA L
• Computers understand digital signals
• Analog needs to be converted (ADC)
• Analog signals are often useful for sensors that work by adjusting voltage
/ resistance (temperature sensors, soil moisture sensors, etc)
• Analog input covers voltage levels into a digital value within a defined
range
• Digital is counted in fixed units, not measured.
• PWM – Pulse Width Modulation – to “fake”analog
• DAC / DAC1 pins are useful for non PWM readings, microphones, etc.
(they don't use PWM)
• Serial Communication with Rx/Tx

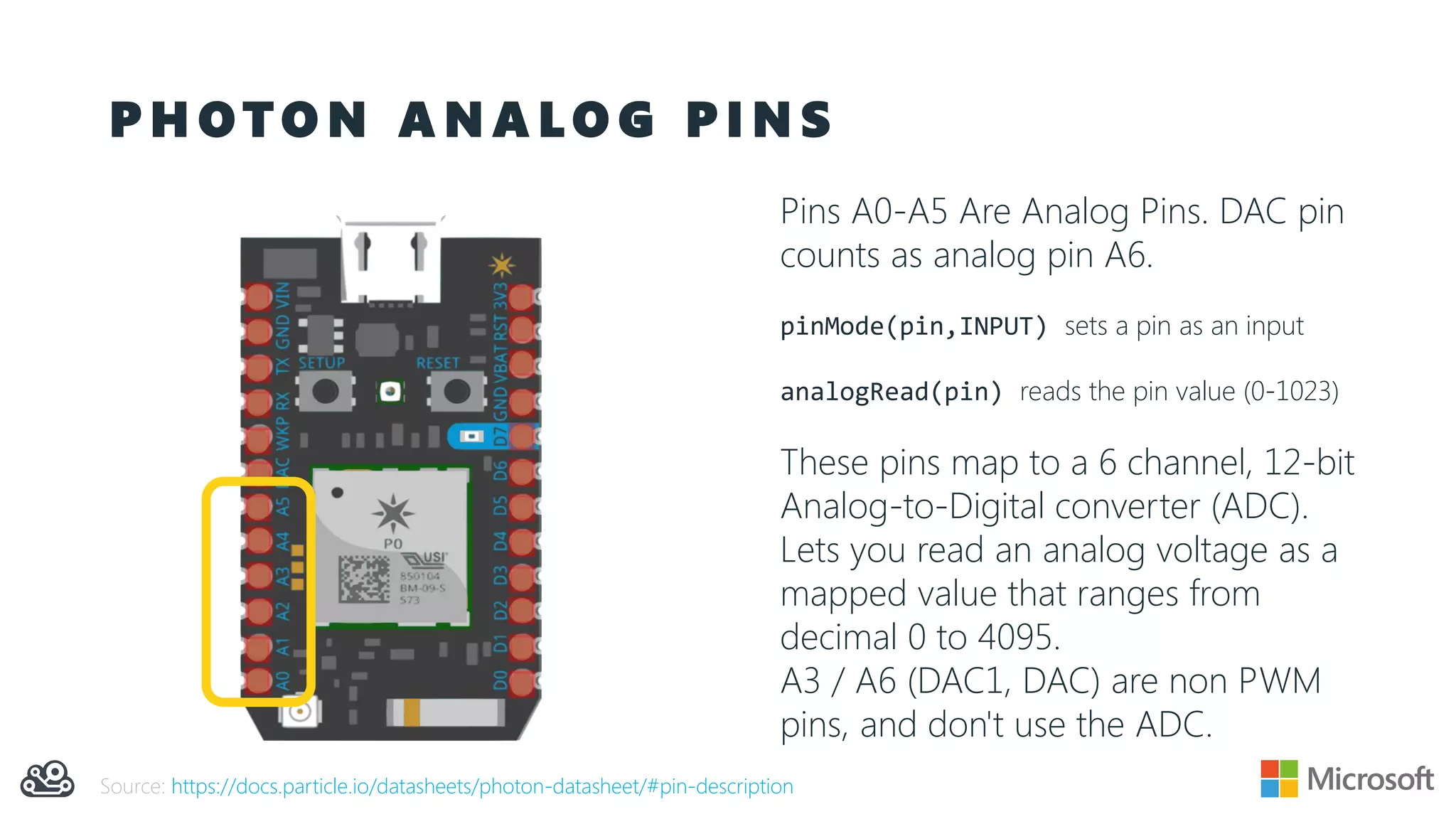

21. P H O T O N A N A L O G P I N S
Pins A0-A5 Are Analog Pins. DAC pin
counts as analog pin A6.
pinMode(pin,INPUT) sets a pin as an input
analogRead(pin) reads the pin value (0-1023)
These pins map to a 6 channel, 12-bit
Analog-to-Digital converter (ADC).
Lets you read an analog voltage as a
mapped value that ranges from
decimal 0 to 4095.
A3 / A6 (DAC1, DAC) are non PWM
pins, and don't use the ADC.
Source: https://docs.particle.io/datasheets/photon-datasheet/#pin-description

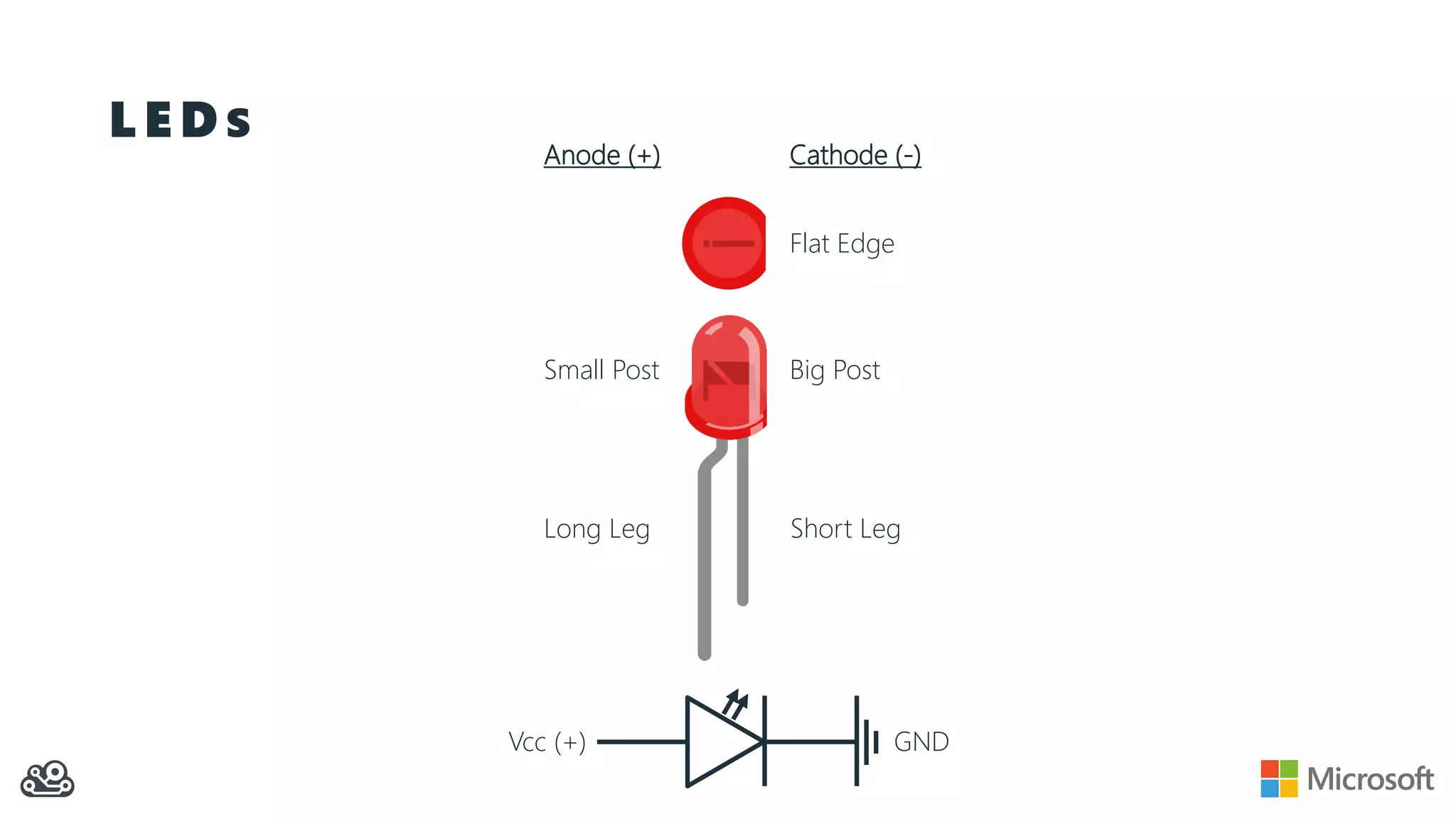

22. L E D S
Long Leg Short Leg
Small Post Big Post
Flat Edge
Vcc (+) GND
Anode (+) Cathode (-)

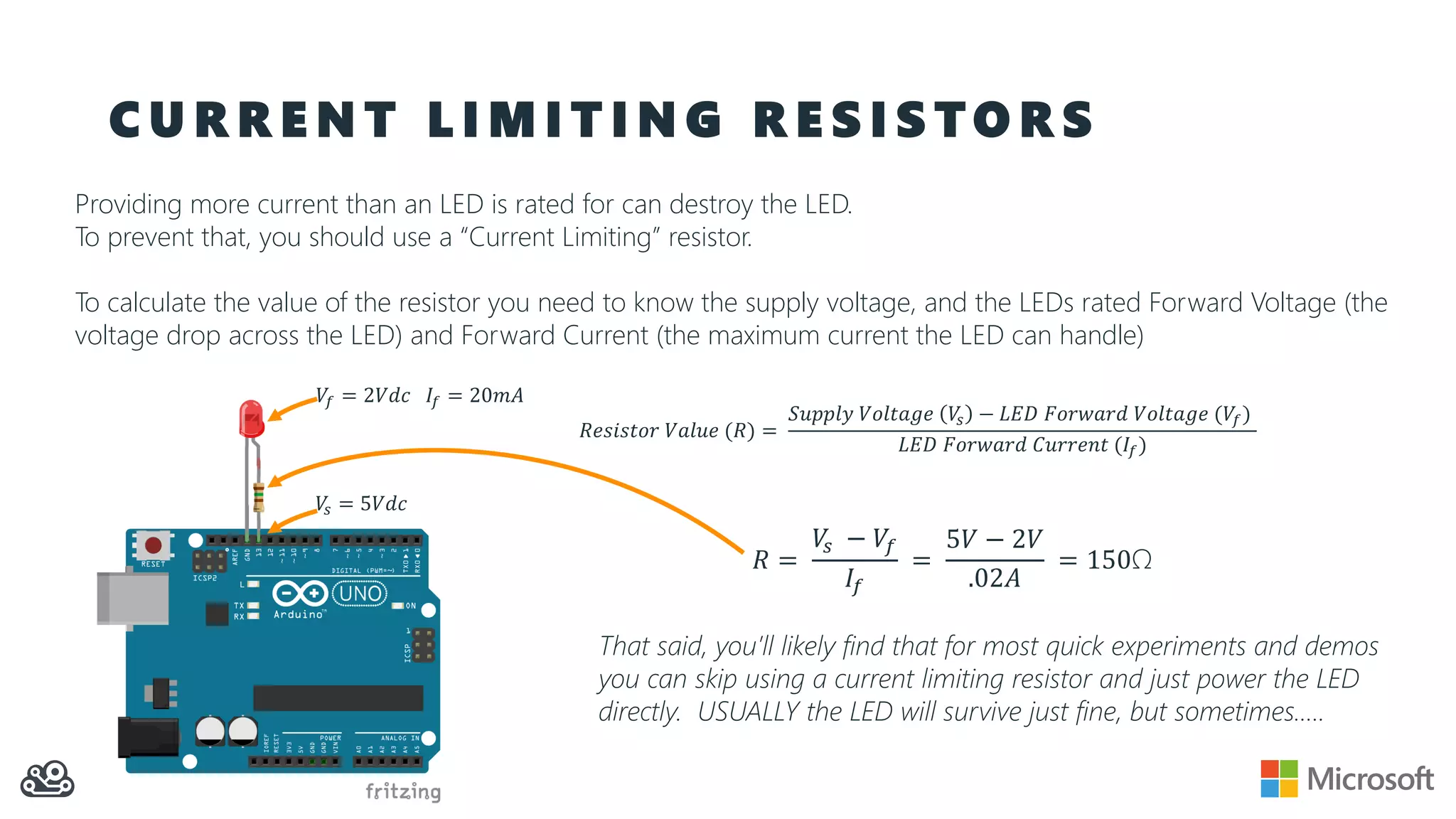

23. Providing more current than an LED is rated for can destroy the LED.
To prevent that, you should use a “Current Limiting” resistor.
To calculate the value of the resistor you need to know the supply voltage, and the LEDs rated Forward Voltage (the
voltage drop across the LED) and Forward Current (the maximum current the LED can handle)
C U R R E N T L I M I T I N G R E S I S T O R S
𝑅𝑒𝑠𝑖𝑠𝑡𝑜𝑟 𝑉𝑎𝑙𝑢𝑒 (𝑅) =
𝑆𝑢𝑝𝑝𝑙𝑦 𝑉𝑜𝑙𝑡𝑎𝑔𝑒 𝑉𝑠 − 𝐿𝐸𝐷 𝐹𝑜𝑟𝑤𝑎𝑟𝑑 𝑉𝑜𝑙𝑡𝑎𝑔𝑒 (𝑉𝑓)
𝐿𝐸𝐷 𝐹𝑜𝑟𝑤𝑎𝑟𝑑 𝐶𝑢𝑟𝑟𝑒𝑛𝑡 (𝐼𝑓)
𝑅 =
𝑉𝑠 − 𝑉𝑓
𝐼𝑓
=
5𝑉 − 2𝑉
.02𝐴
= 150Ω
𝑉𝑓 = 2𝑉𝑑𝑐 𝐼𝑓 = 20𝑚𝐴
𝑉𝑠 = 5𝑉𝑑𝑐
That said, you’ll likely find that for most quick experiments and demos
you can skip using a current limiting resistor and just power the LED
directly. USUALLY the LED will survive just fine, but sometimes…..

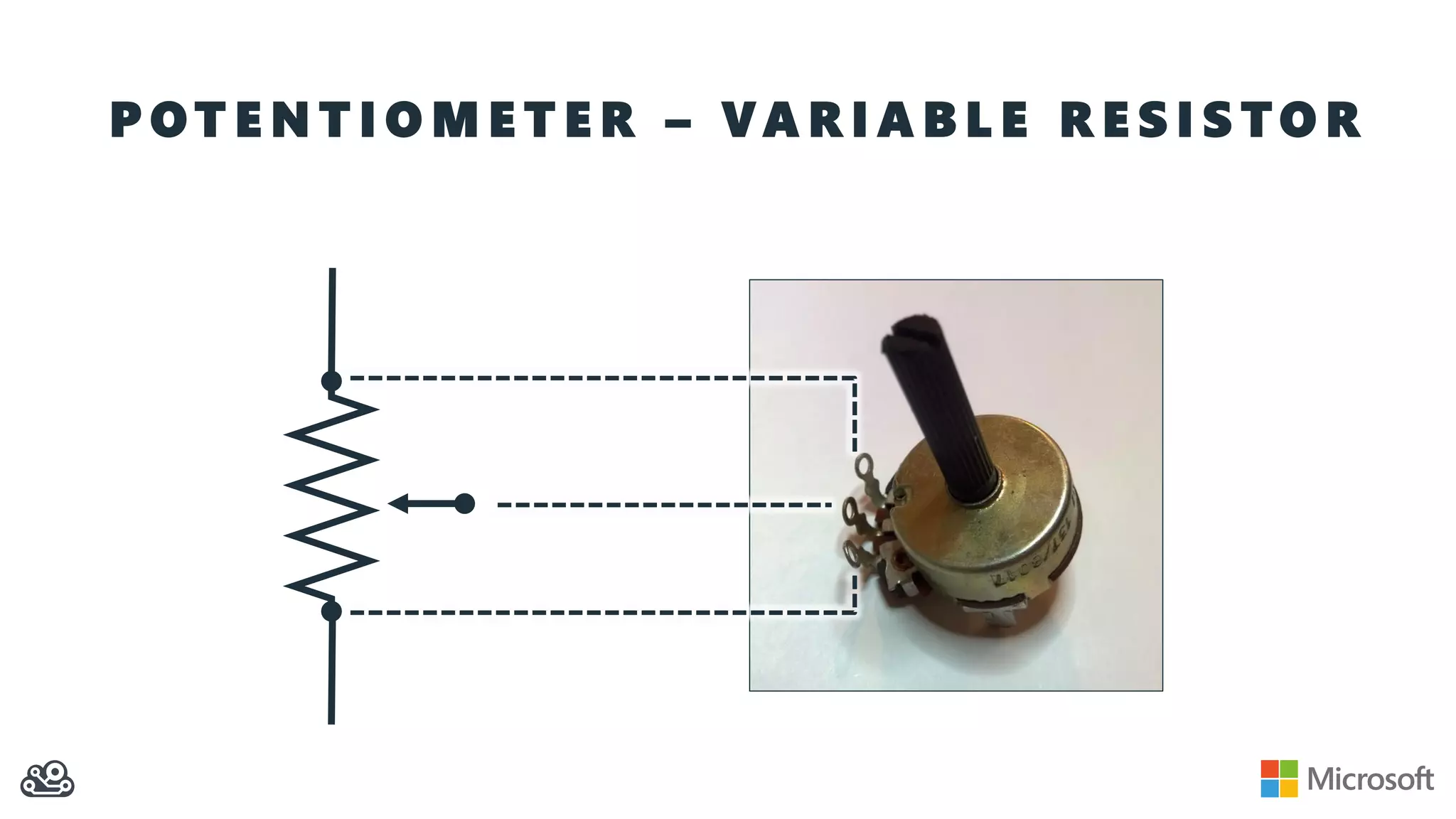

24. P O T E N T I O M E T E R – VA R I A B L E R E S I S T O R

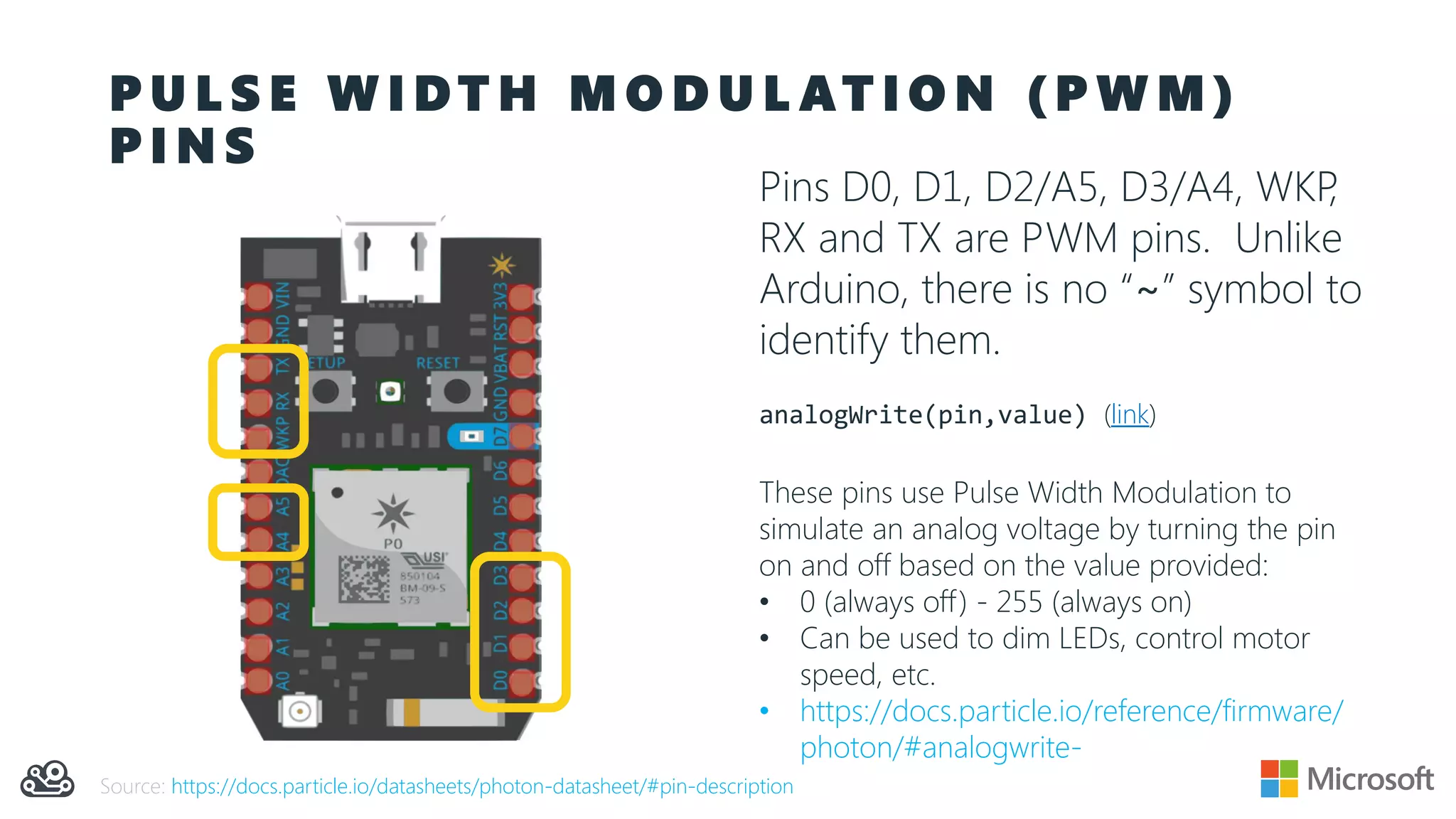

25. P U L S E W I D T H M O D U L AT I O N ( P W M )
P I N S
Pins D0, D1, D2/A5, D3/A4, WKP,
RX and TX are PWM pins. Unlike
Arduino, there is no “~” symbol to
identify them.
analogWrite(pin,value) (link)
These pins use Pulse Width Modulation to
simulate an analog voltage by turning the pin
on and off based on the value provided:
• 0 (always off) - 255 (always on)
• Can be used to dim LEDs, control motor
speed, etc.
• https://docs.particle.io/reference/firmware/
photon/#analogwrite-
Source: https://docs.particle.io/datasheets/photon-datasheet/#pin-description

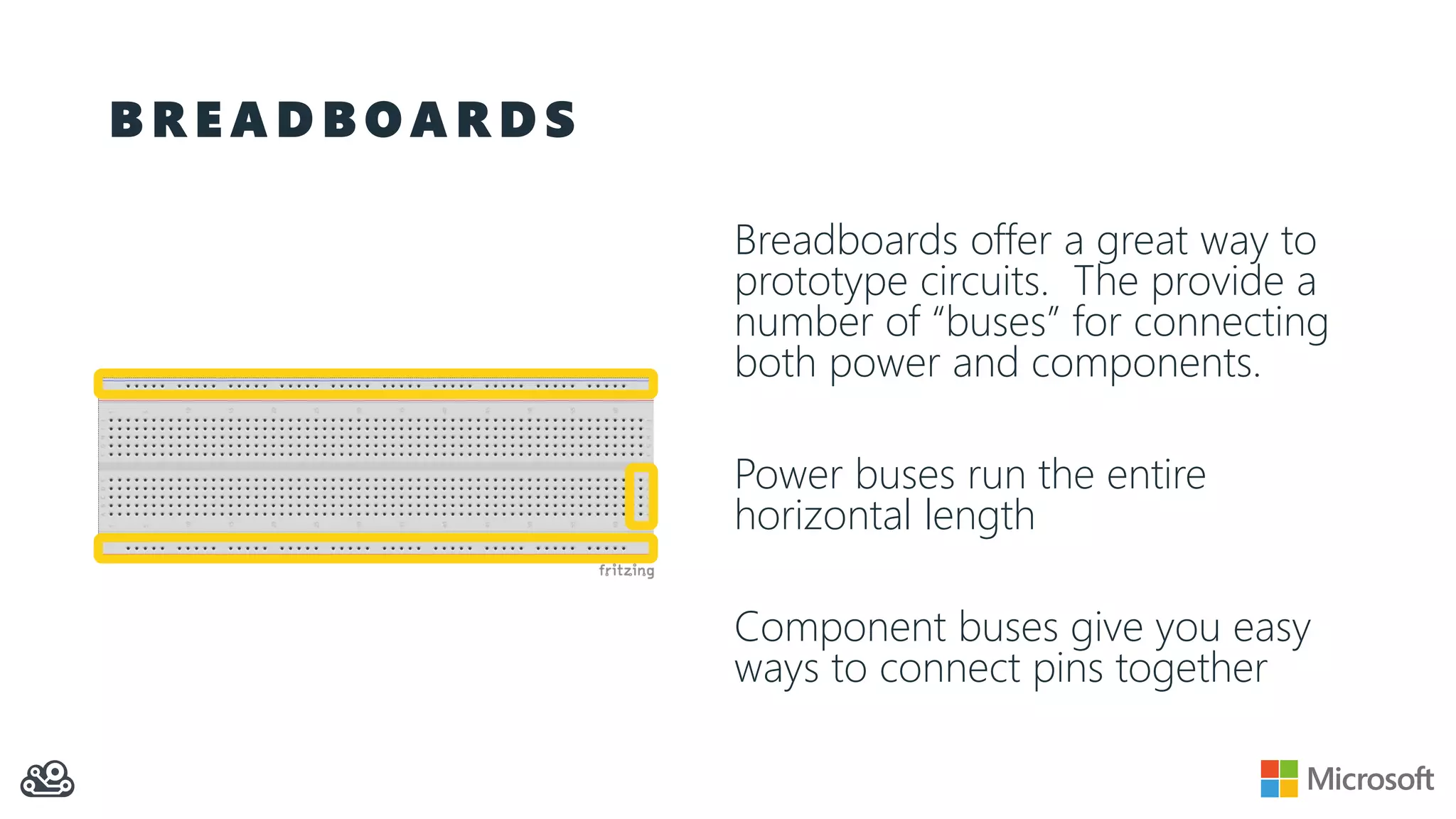

26. B R E A D B O A R D S
Breadboards offer a great way to
prototype circuits. The provide a
number of “buses” for connecting
both power and components.
Power buses run the entire
horizontal length
Component buses give you easy
ways to connect pins together

27. DEMO More Cool Particle Photon Demos

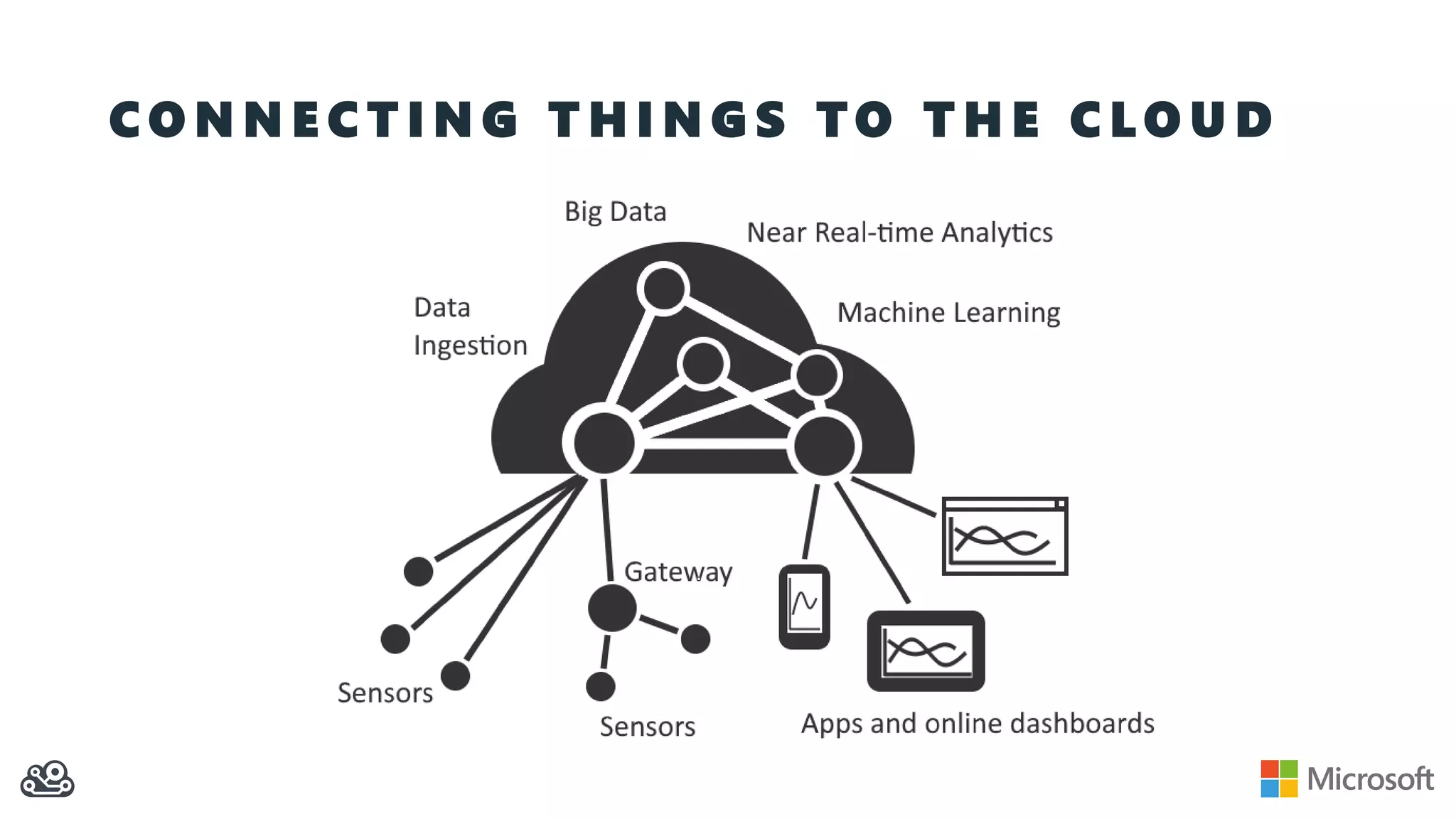

28. C O N N E C T I N G T H I N G S T O T H E C L O U D

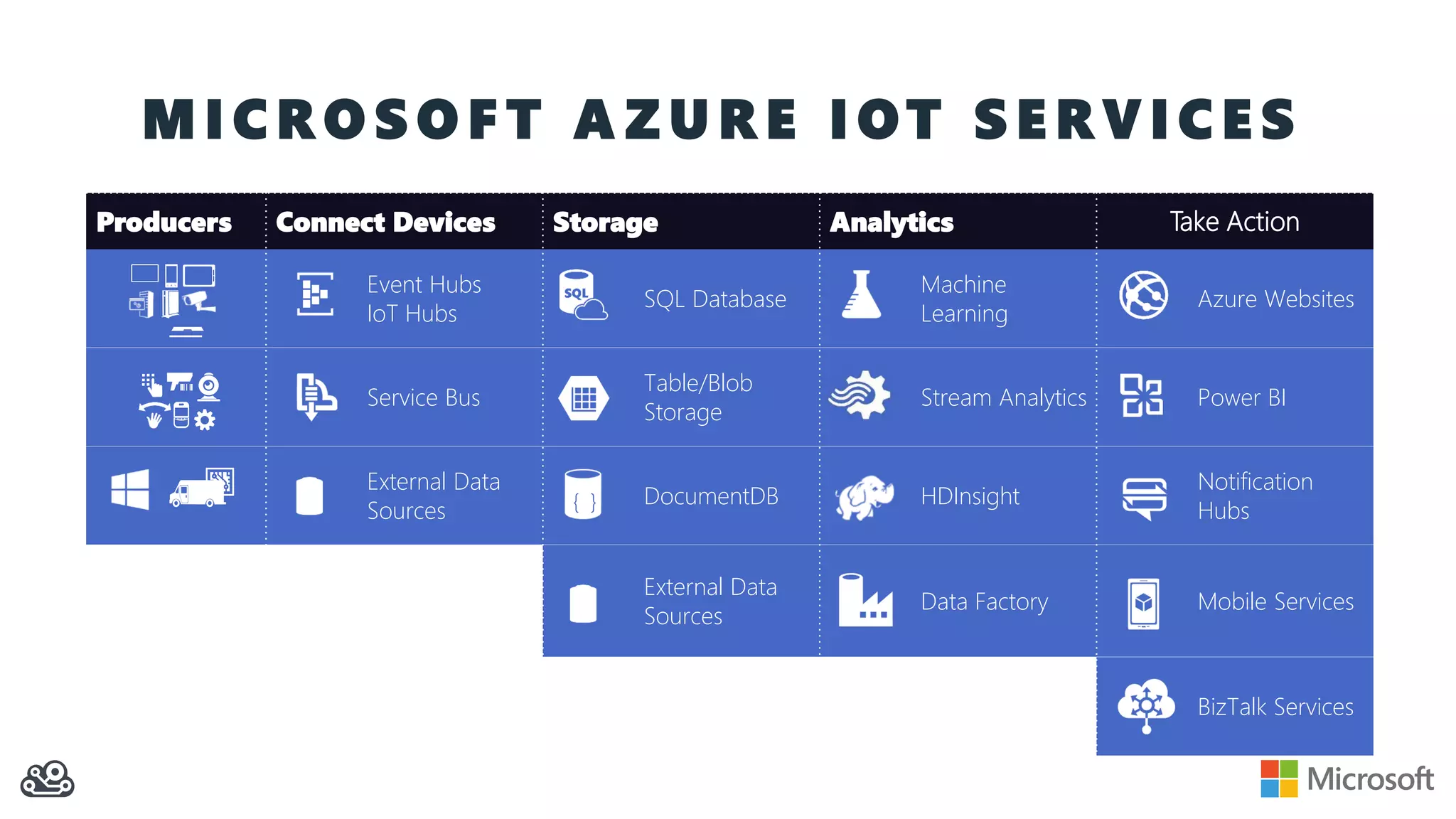

29. M I C R O S O F T A Z U R E I OT S E R V I C E S
Producers Connect Devices Storage Analytics Take Action
Event Hubs
IoT Hubs
SQL Database
Machine
Learning
Azure Websites
Service Bus
Table/Blob
Storage
Stream Analytics Power BI
External Data
Sources
DocumentDB HDInsight
Notification
Hubs
External Data
Sources
Data Factory Mobile Services
BizTalk Services
{ }

30. DEMO
Collecting Weather Data in the Cloud
with Particle Photon & Azure

31. RESOURCES
How do I get started? What should I buy? Any good tutorials out there?

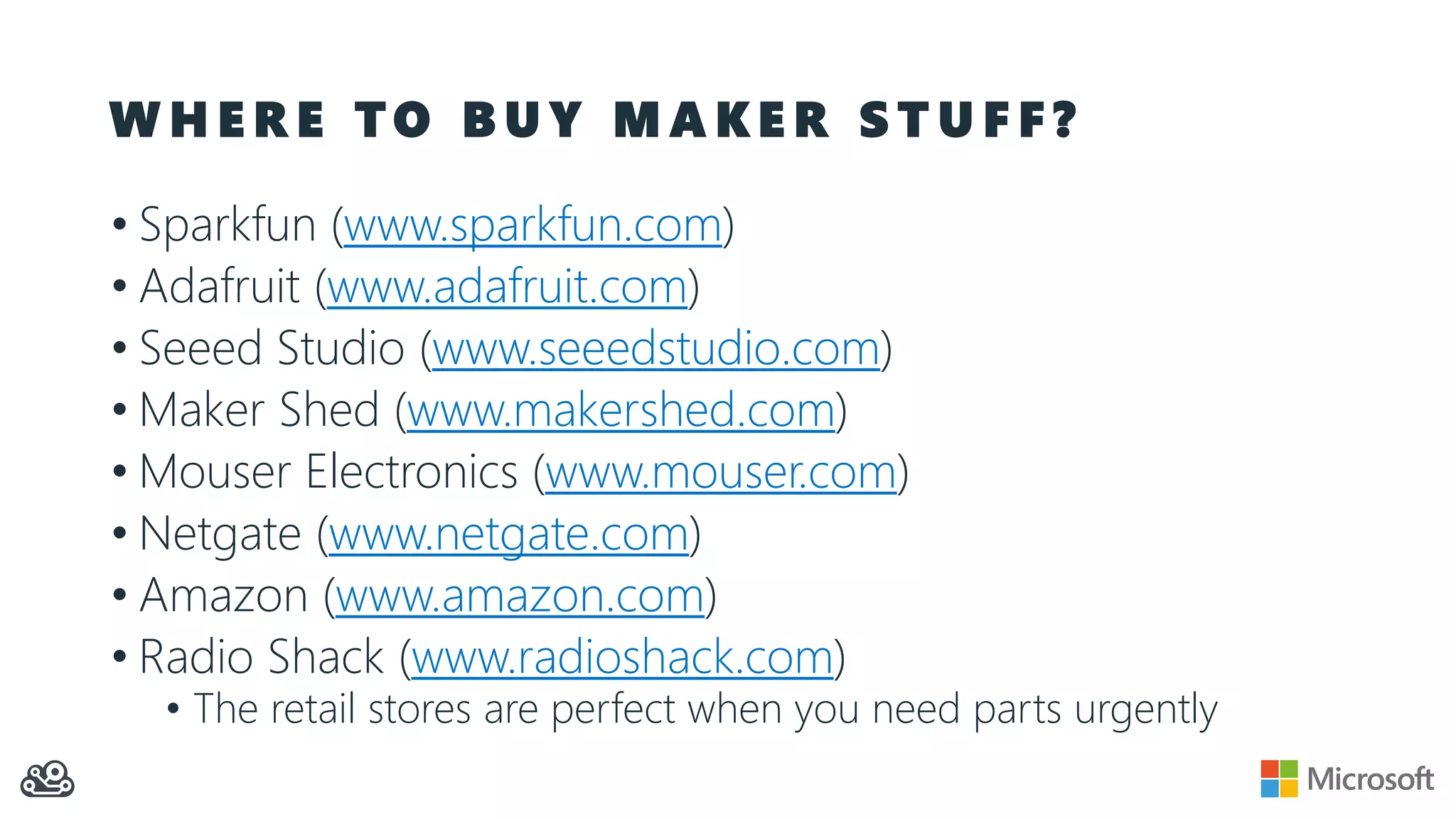

32. W H E R E T O B U Y M A K E R S T U F F ?
• Sparkfun (www.sparkfun.com)
• Adafruit (www.adafruit.com)
• Seeed Studio (www.seeedstudio.com)
• Maker Shed (www.makershed.com)
• Mouser Electronics (www.mouser.com)
• Netgate (www.netgate.com)
• Amazon (www.amazon.com)
• Radio Shack (www.radioshack.com)
• The retail stores are perfect when you need parts urgently

33. M A K E M A G A Z I N E
• Makezine.com
• Print & Digital

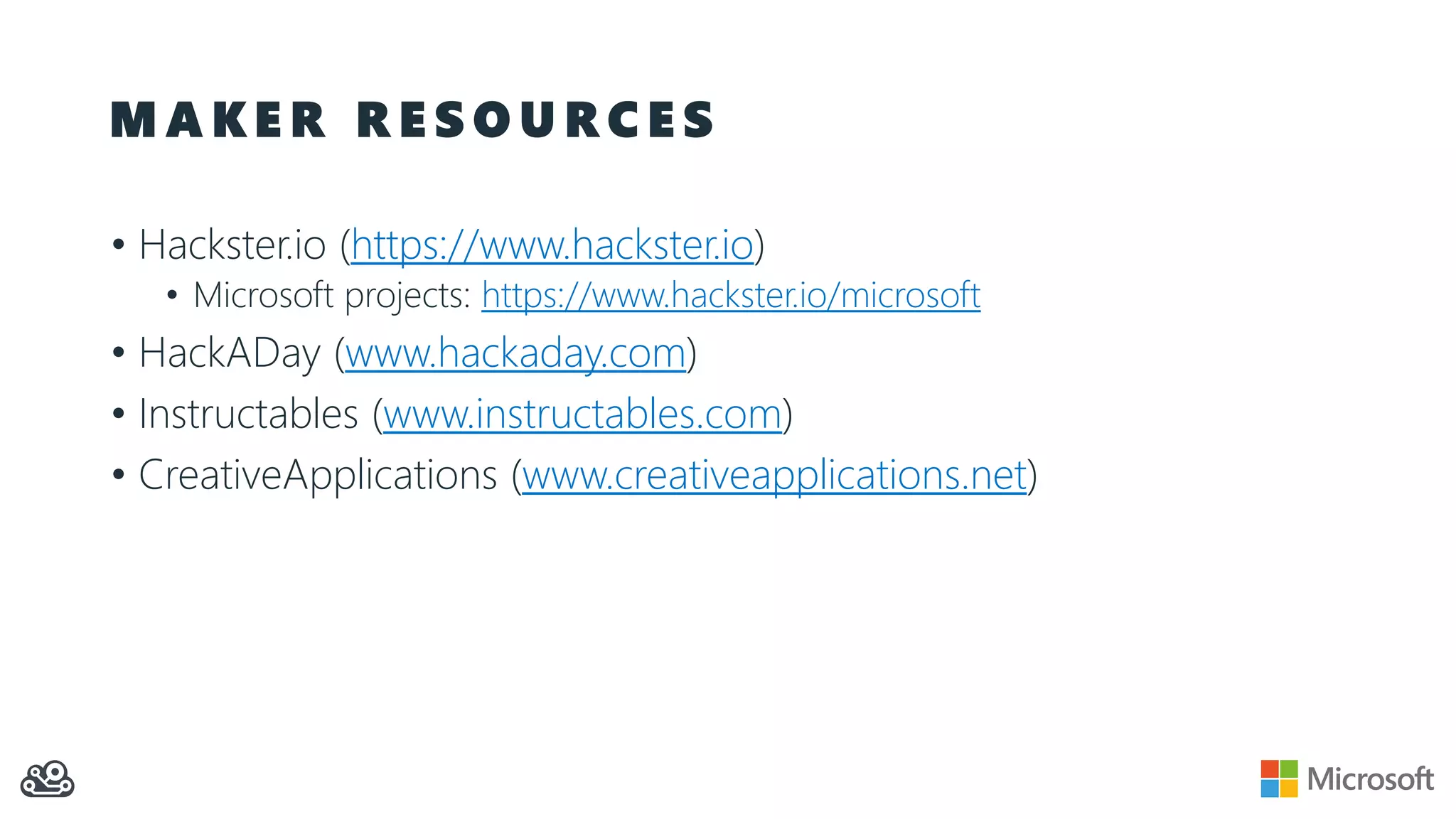

34. M A K E R R E S O U R C E S
• Hackster.io (https://www.hackster.io)
• Microsoft projects: https://www.hackster.io/microsoft
• HackADay (www.hackaday.com)
• Instructables (www.instructables.com)
• CreativeApplications (www.creativeapplications.net)

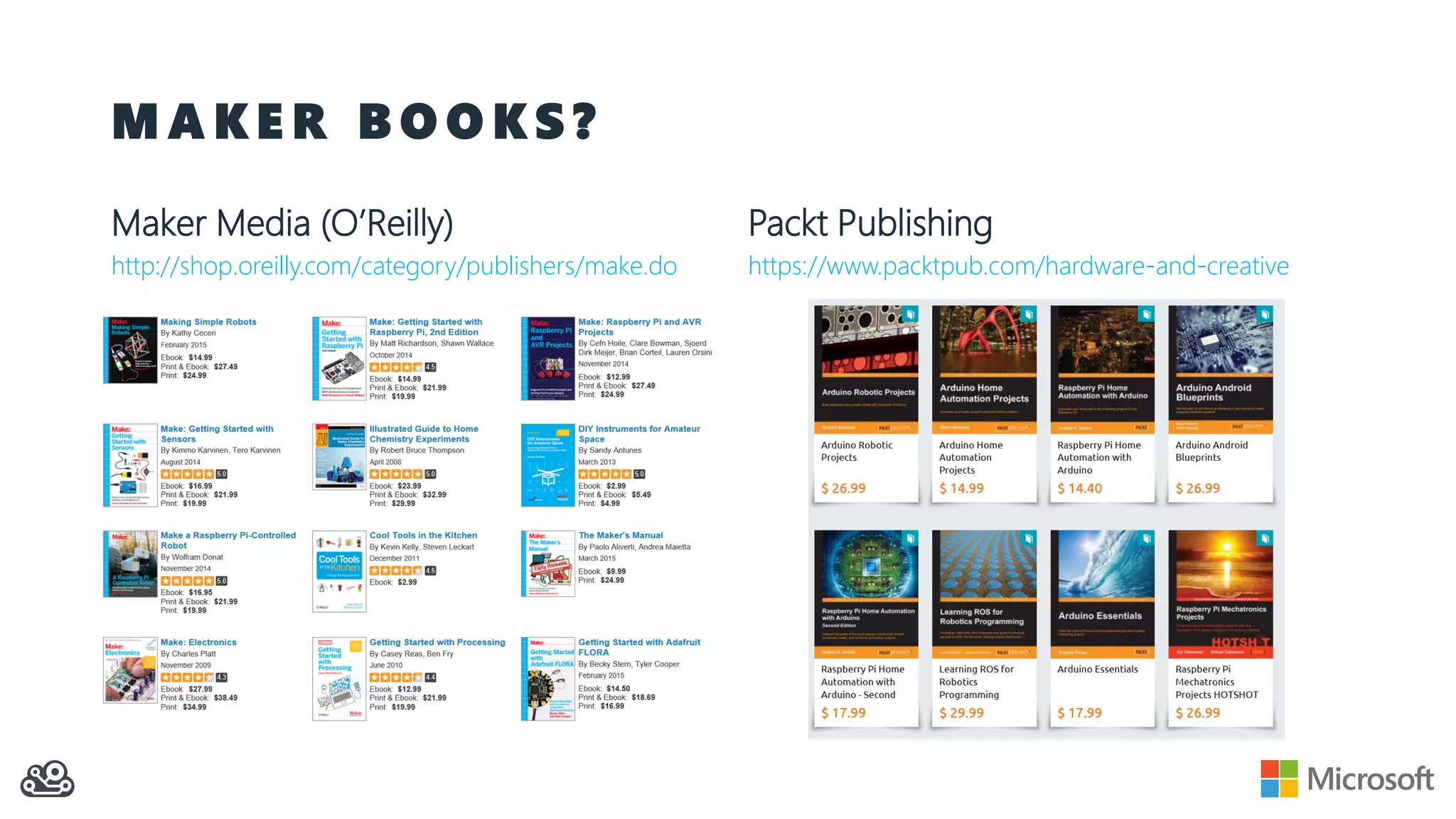

35. M A K E R B O O K S ?
Maker Media (O’Reilly)
http://shop.oreilly.com/category/publishers/make.do
Packt Publishing
https://www.packtpub.com/hardware-and-creative

36. A R D U I N O P R O J E C T H A N D B O O K
• https://arduinohandbook.wordpress.com

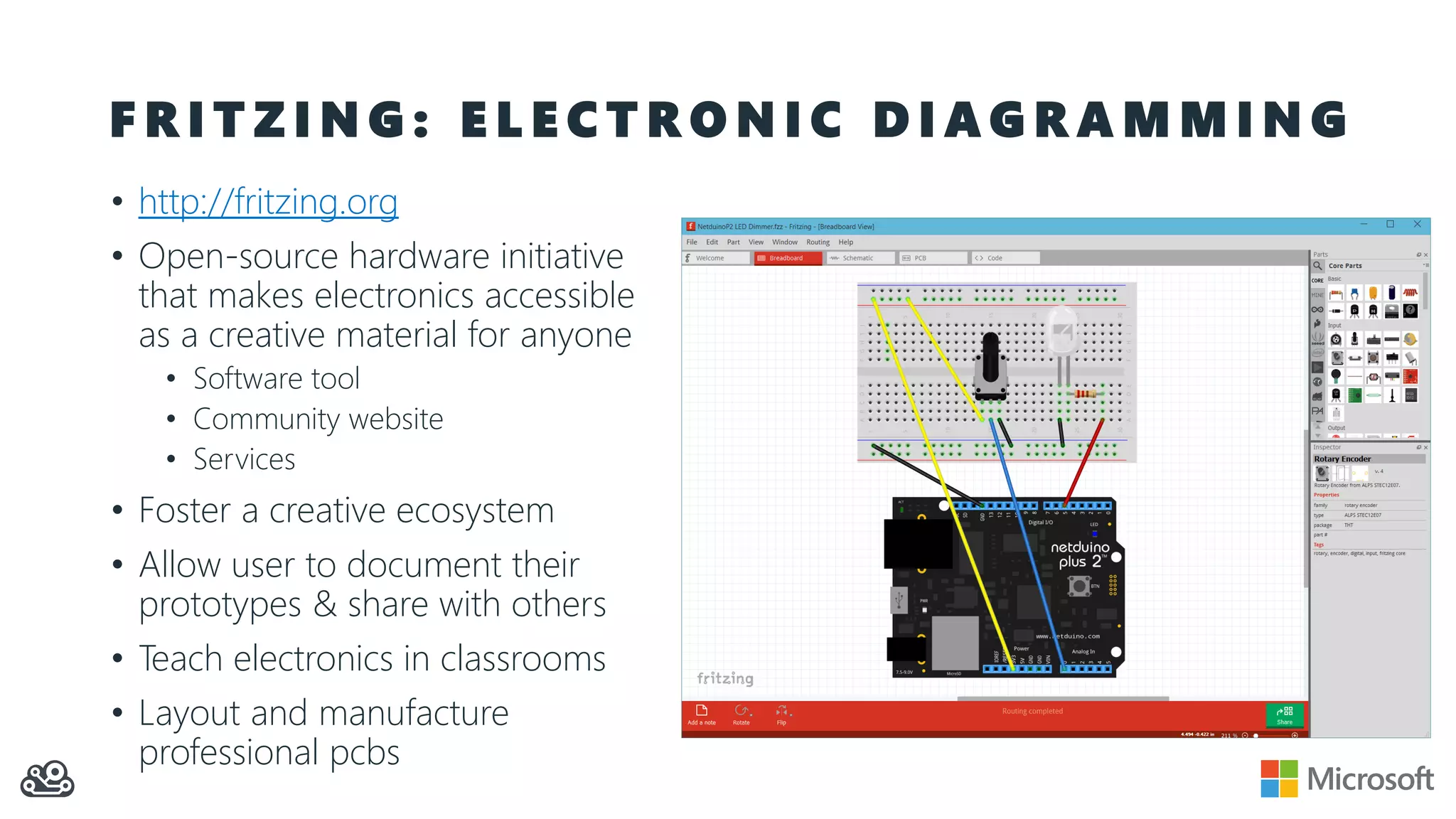

37. F R I T Z I N G : E L E C T R O N I C D I A G R A M M I N G
• http://fritzing.org
• Open-source hardware initiative
that makes electronics accessible
as a creative material for anyone
• Software tool
• Community website
• Services
• Foster a creative ecosystem
• Allow user to document their
prototypes & share with others
• Teach electronics in classrooms
• Layout and manufacture
professional pcbs

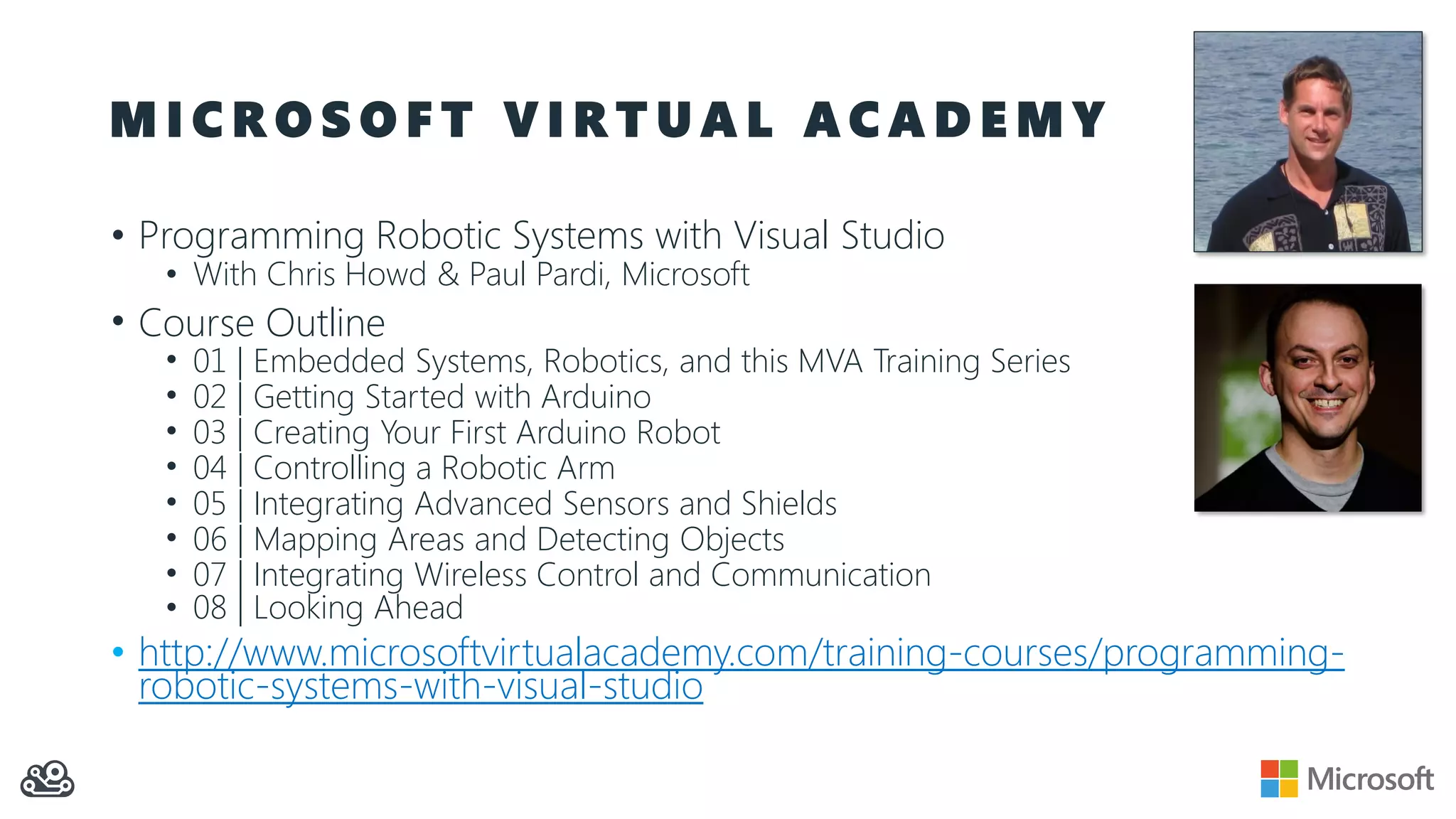

38. M I C R O S O F T V I R T U A L A C A D E M Y
• Programming Robotic Systems with Visual Studio
• With Chris Howd & Paul Pardi, Microsoft
• Course Outline
• 01 | Embedded Systems, Robotics, and this MVA Training Series
• 02 | Getting Started with Arduino
• 03 | Creating Your First Arduino Robot
• 04 | Controlling a Robotic Arm
• 05 | Integrating Advanced Sensors and Shields
• 06 | Mapping Areas and Detecting Objects
• 07 | Integrating Wireless Control and Communication
• 08 | Looking Ahead
• http://www.microsoftvirtualacademy.com/training-courses/programming-
robotic-systems-with-visual-studio

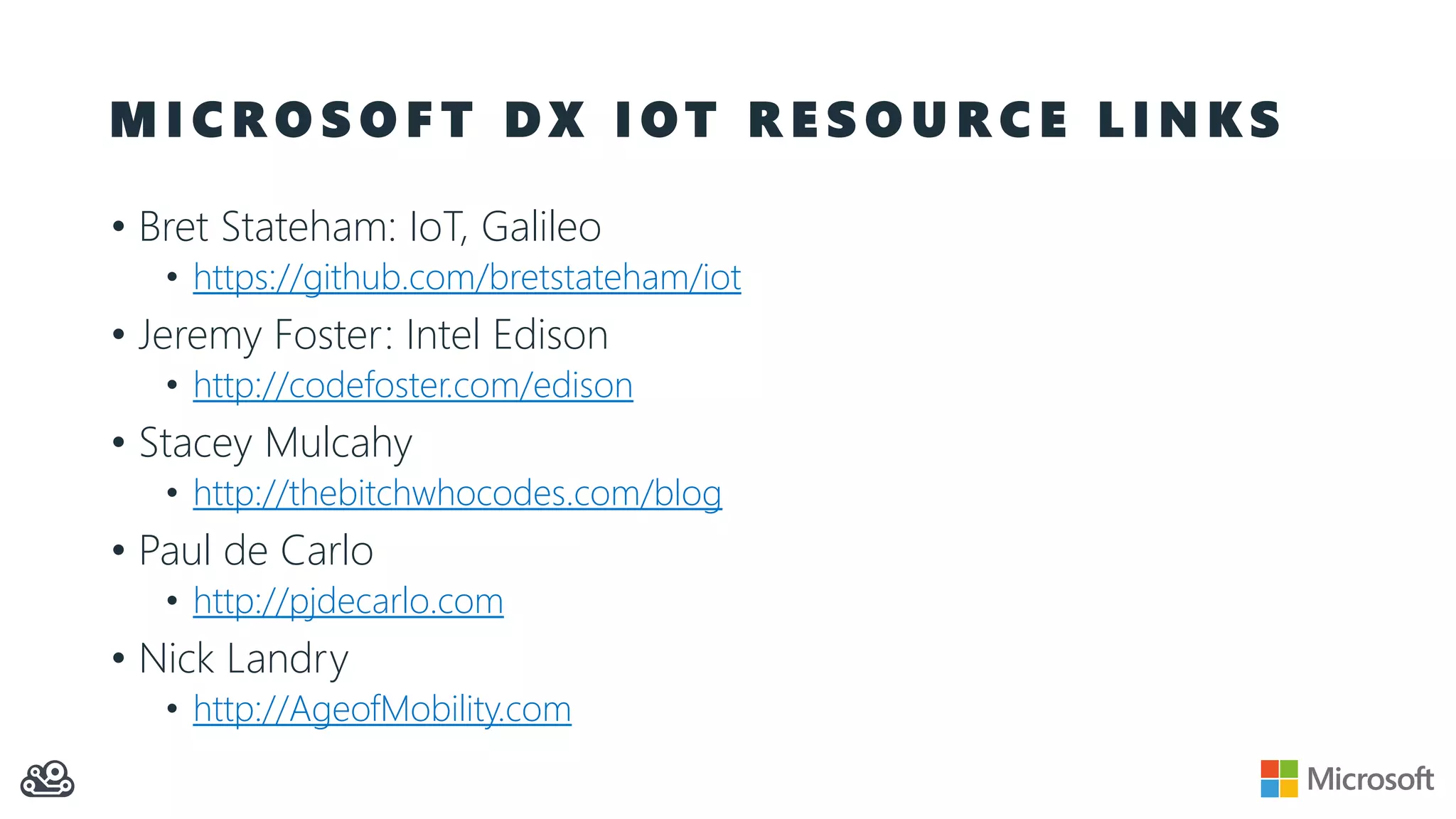

39. M I C R O S O F T D X I O T R E S O U R C E L I N K S
• Bret Stateham: IoT, Galileo
• https://github.com/bretstateham/iot
• Jeremy Foster: Intel Edison
• http://codefoster.com/edison
• Stacey Mulcahy
• http://thebitchwhocodes.com/blog
• Paul de Carlo
• http://pjdecarlo.com
• Nick Landry
• http://AgeofMobility.com

40. I O T PA N E L AT T H I N G S E X P O 2 0 1 4
• Microsoft, IBM, Kaazing, Xively/LogMeIn & Aria
• http://aka.ms/iotpanel2014

41. HAVE FUN!
Go build something…

42. P L E A S E H A C K S A F E LY !

43. T H A N K Y O U !
Slides are posted on Slideshare. Demos are on GitHub.
Please fill out an evaluation. Your feedback is important and appreciated.
Slideshare: www.slideshare.net/ActiveNick
Blog: www.AgeofMobility.com
Twitter: @ActiveNick
Mobile Apps: www.bigbaldapps.com
LinkedIn: www.linkedin.com/in/activenick
GitHub: github.com/ActiveNick
Email: nick.landry@microsoft.com
