This document discusses building cloud native applications with Oracle Autonomous Database. It provides an overview of: 1) The evolution of computing and development from monolithic to cloud native applications. 2) The challenges of managing databases with microservices, and how Oracle Autonomous Database can serve as a single database for all development needs. 3) How to build, deploy, and manage cloud native applications using Oracle Cloud Infrastructure services like the Container Engine for Kubernetes, Functions, and the Autonomous Transaction Processing database.

1. 1
Building Cloud Native Applications
with Oracle Autonomous Database
Manish Kapur
Copyright © 2020 Oracle and/or its affiliates.
/in/mkapur
@kapmani

2. Safe harbor statement
The following is intended to outline our general product direction. It is intended for information
purposes only, and may not be incorporated into any contract. It is not a commitment to deliver
any material, code, or functionality, and should not be relied upon in making purchasing
decisions.
The development, release, timing, and pricing of any features or functionality described for
Oracle’s products may change and remains at the sole discretion of Oracle Corporation.
Copyright © 2020, Oracle and/or its affiliates. All rights reserved.2

3. Evolution of Computing
3

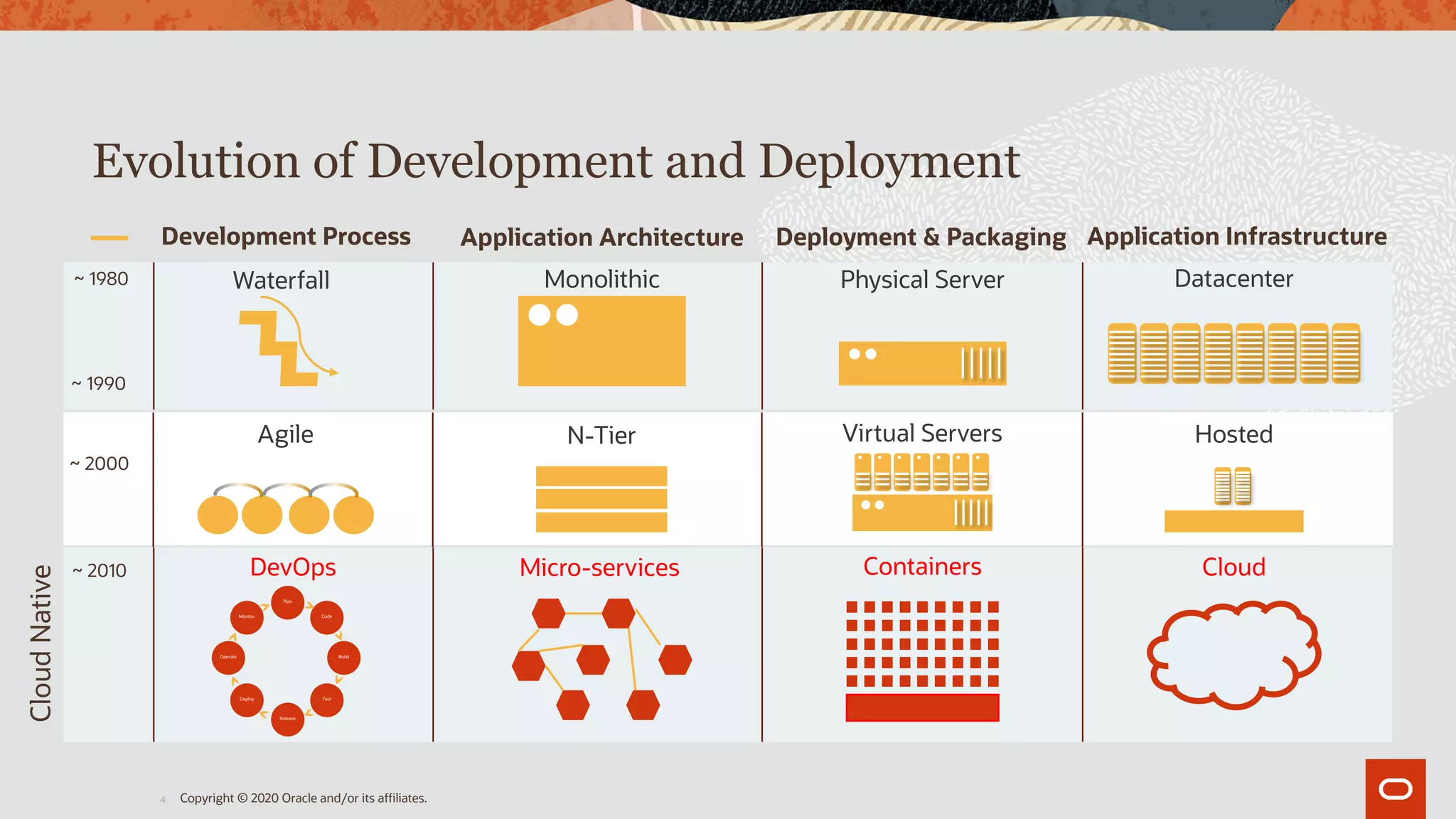

4. Evolution of Development and Deployment
Copyright © 2020 Oracle and/or its affiliates.
Application InfrastructureDeployment & PackagingApplication ArchitectureDevelopment Process
CloudNative
Waterfall Monolithic Physical Server Datacenter~ 1980
~ 1990
HostedVirtual ServersN-TierAgile
~ 2000
Plan
Release
Build
Code
Test
Operate
Monitor
Deploy
DevOps Micro-services Containers Cloud~ 2010
4

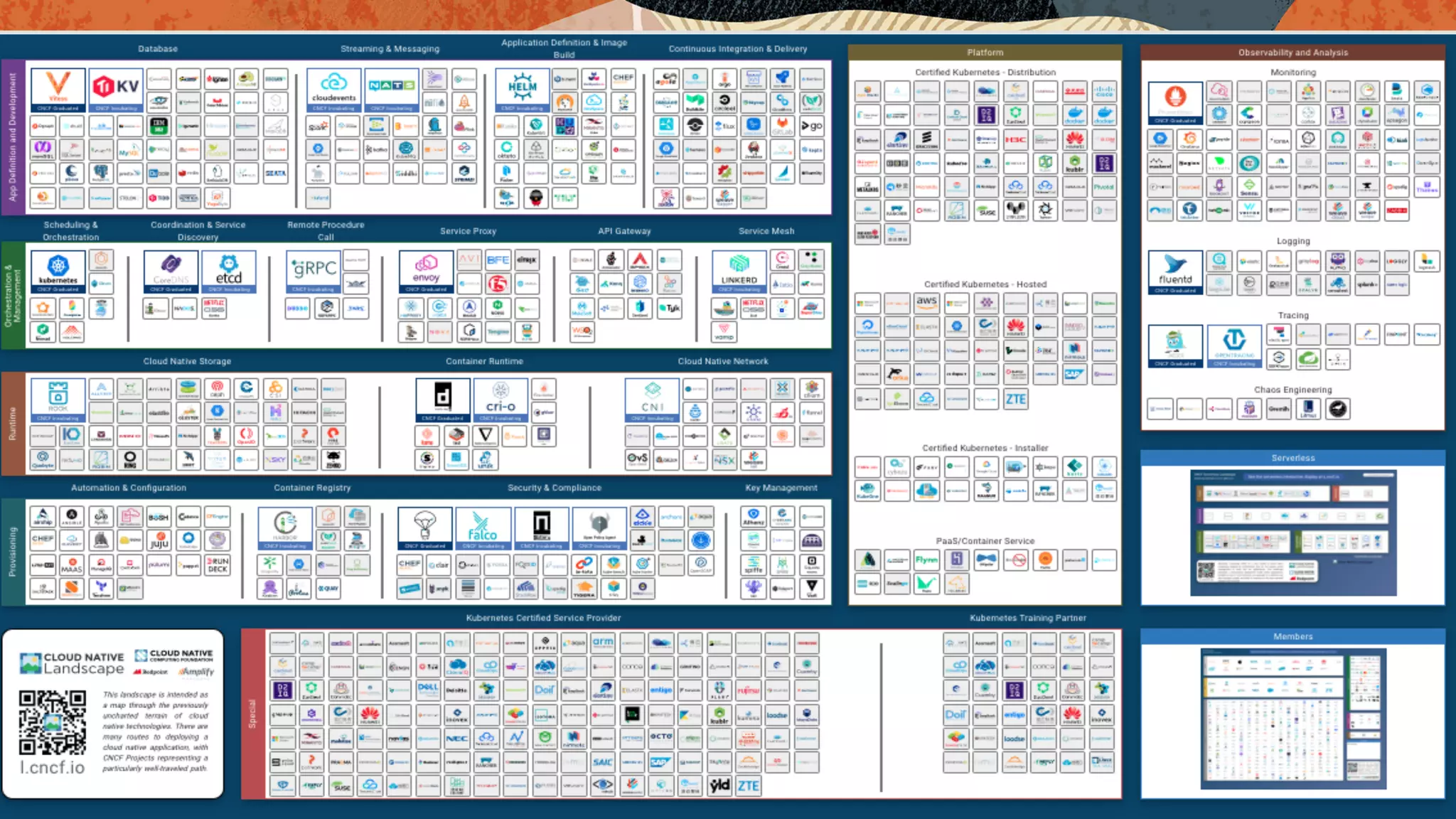

5. Not subject to restriction.

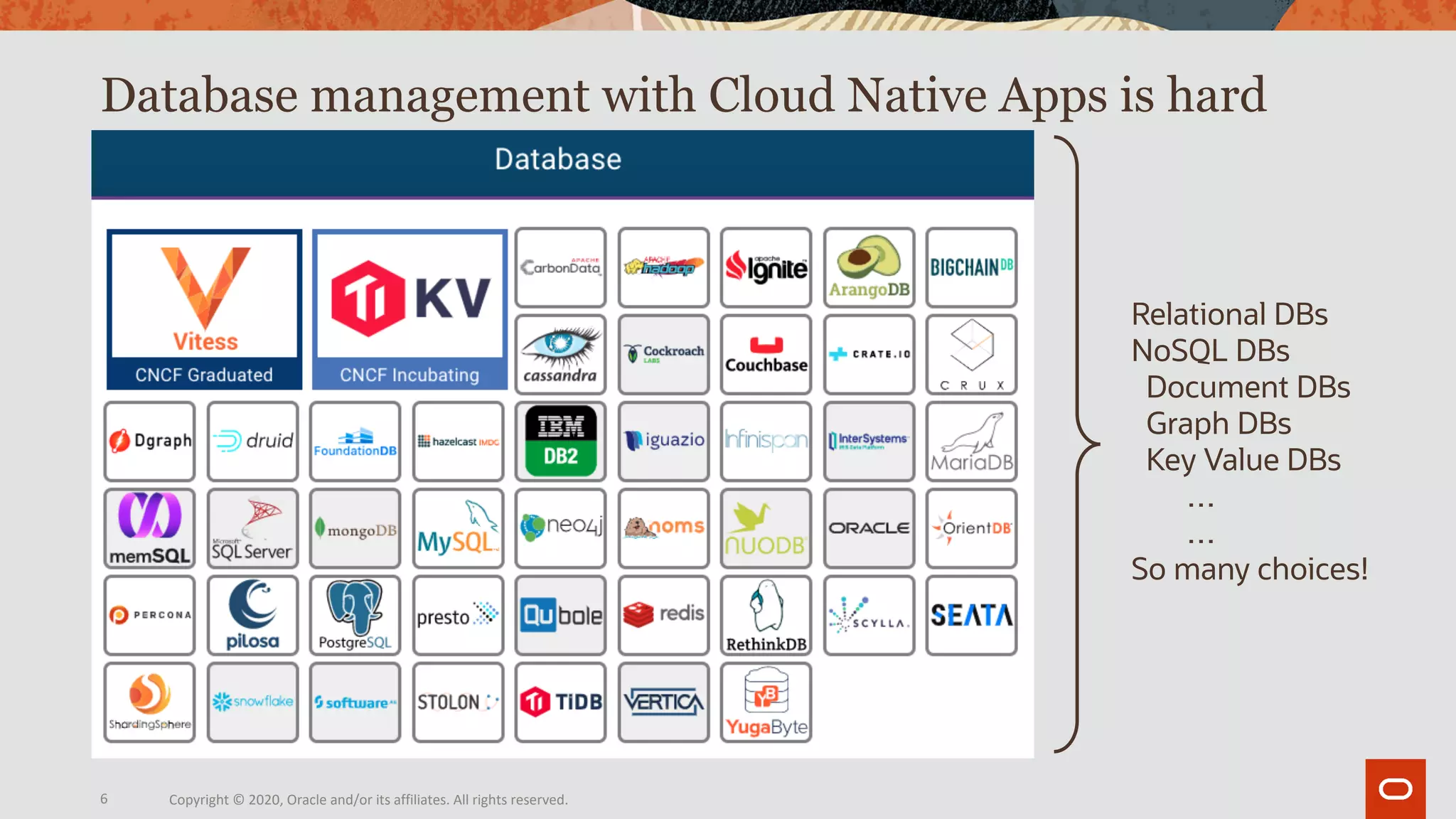

6. Database management with Cloud Native Apps is hard
Copyright © 2020, Oracle and/or its affiliates. All rights reserved.6
Relational DBs
NoSQL DBs
Document DBs
Graph DBs
Key Value DBs
…
…
So many choices!

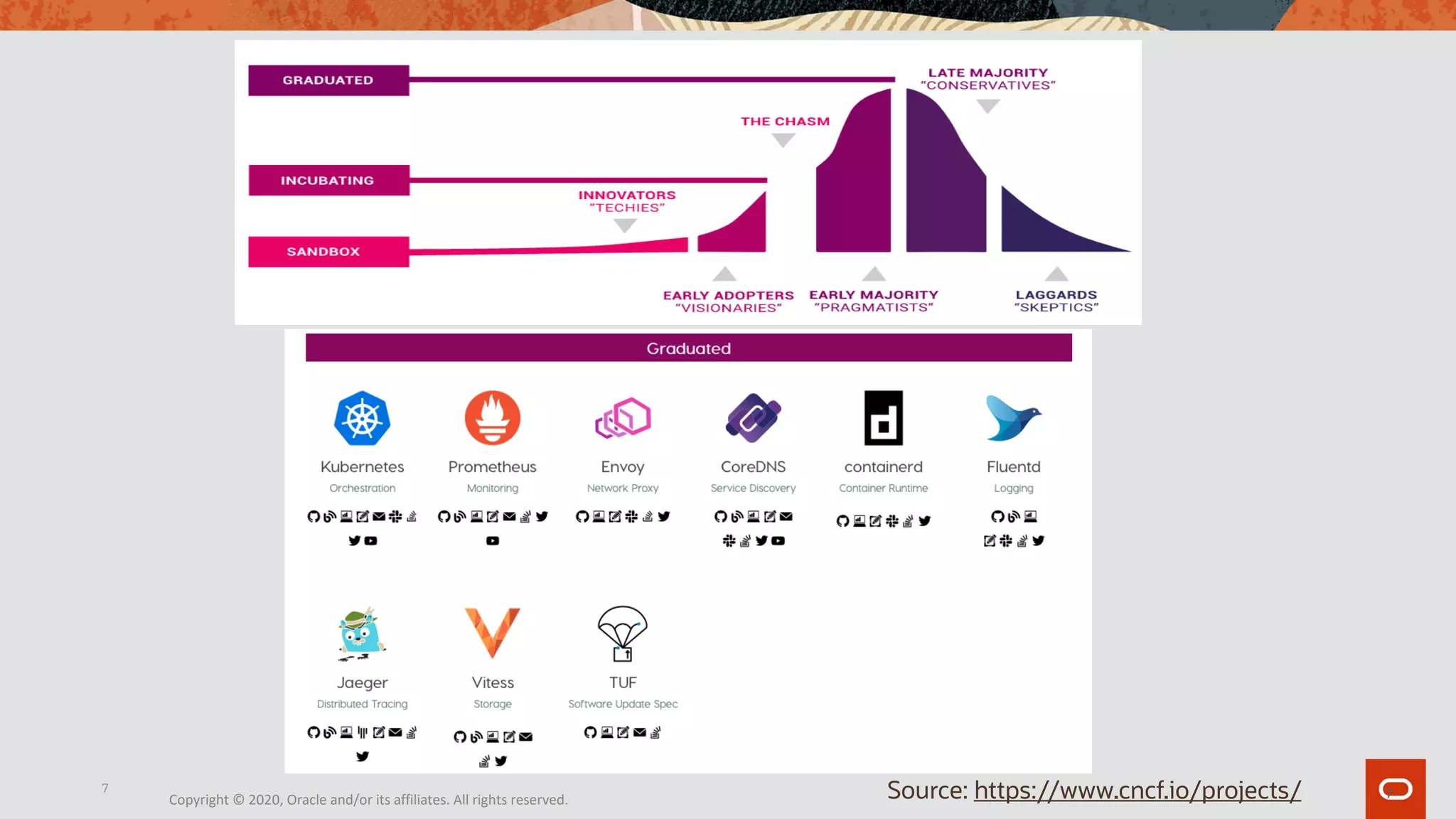

7. 7Source: https://www.cncf.io/projects/Copyright © 2020, Oracle and/or its affiliates. All rights reserved.
7

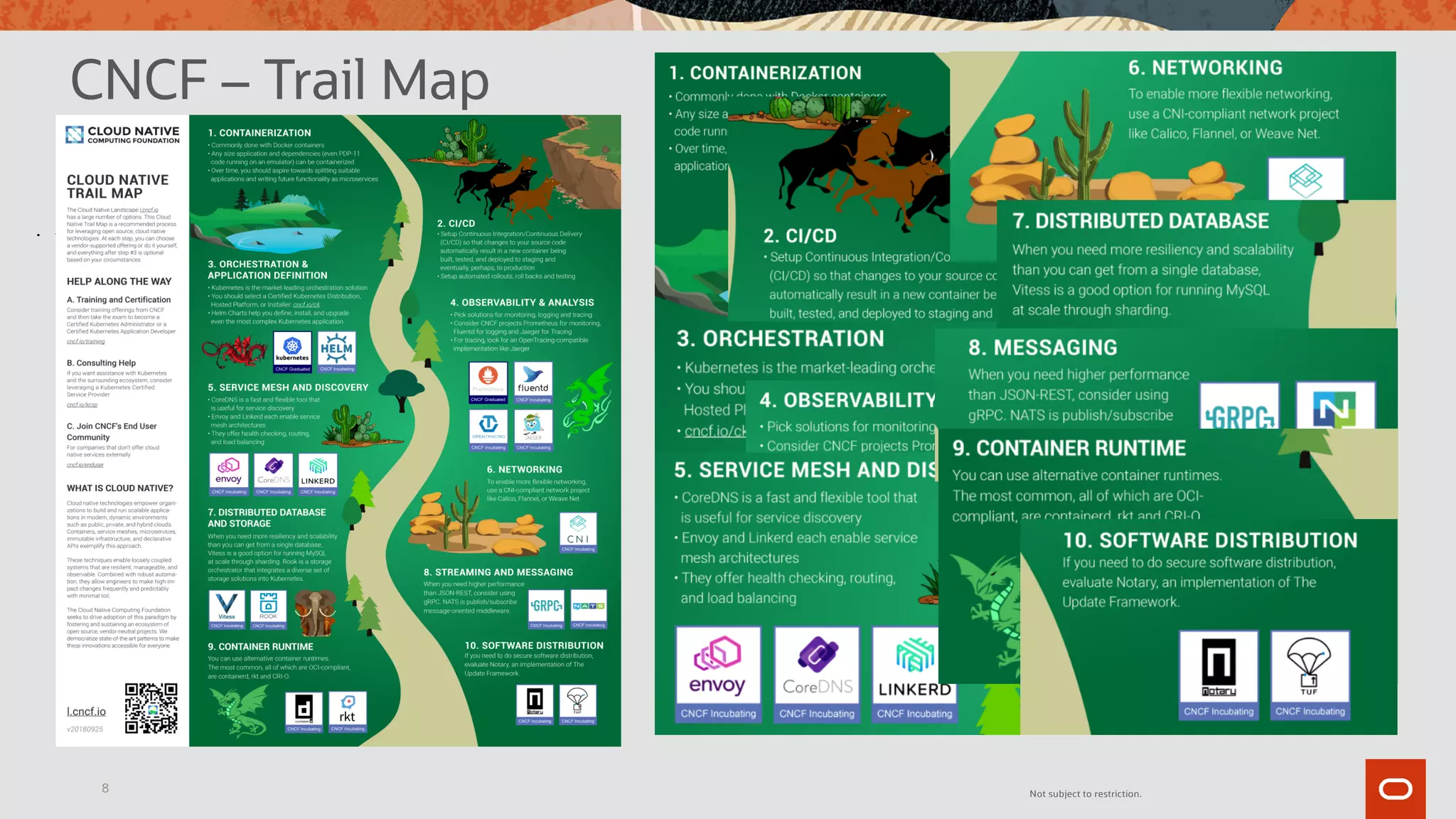

8. CNCF – Trail Map
Not subject to restriction.
8

9. Mobile Hub
Oracle Cloud Infrastructure
Visual Builder
Autonomous
Database
MySQL NoSQL Big Data
APEX Digital Assistant
Resource
Manager
Developer
Cloud
Identity
APM
Containers
Kubernetes
Data
Science
StorageCompute Networking Load Balancer Edge
Low Code
Data ManagementCloud Native
Container
Registry
Functions
Developer
Tools
Any Language, Any Framework Mobile
Log
Management
and Security
Key
Management
Monitoring
API
Management
API
Events API Gateway
AI/ML

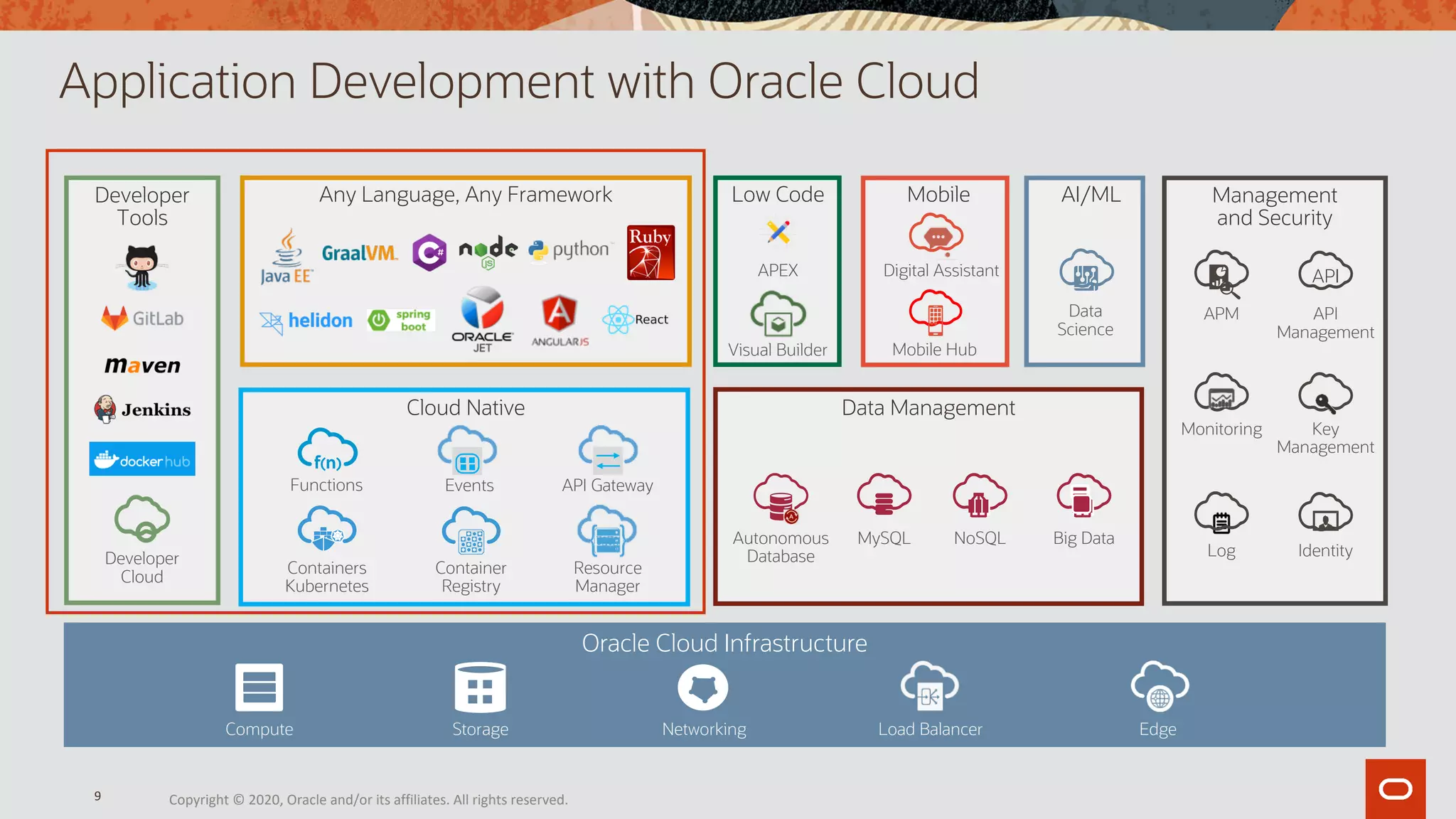

Application Development with Oracle Cloud
Copyright © 2020, Oracle and/or its affiliates. All rights reserved.9

10. Copyright © 2020, Oracle and/or its affiliates. All rights reserved.10

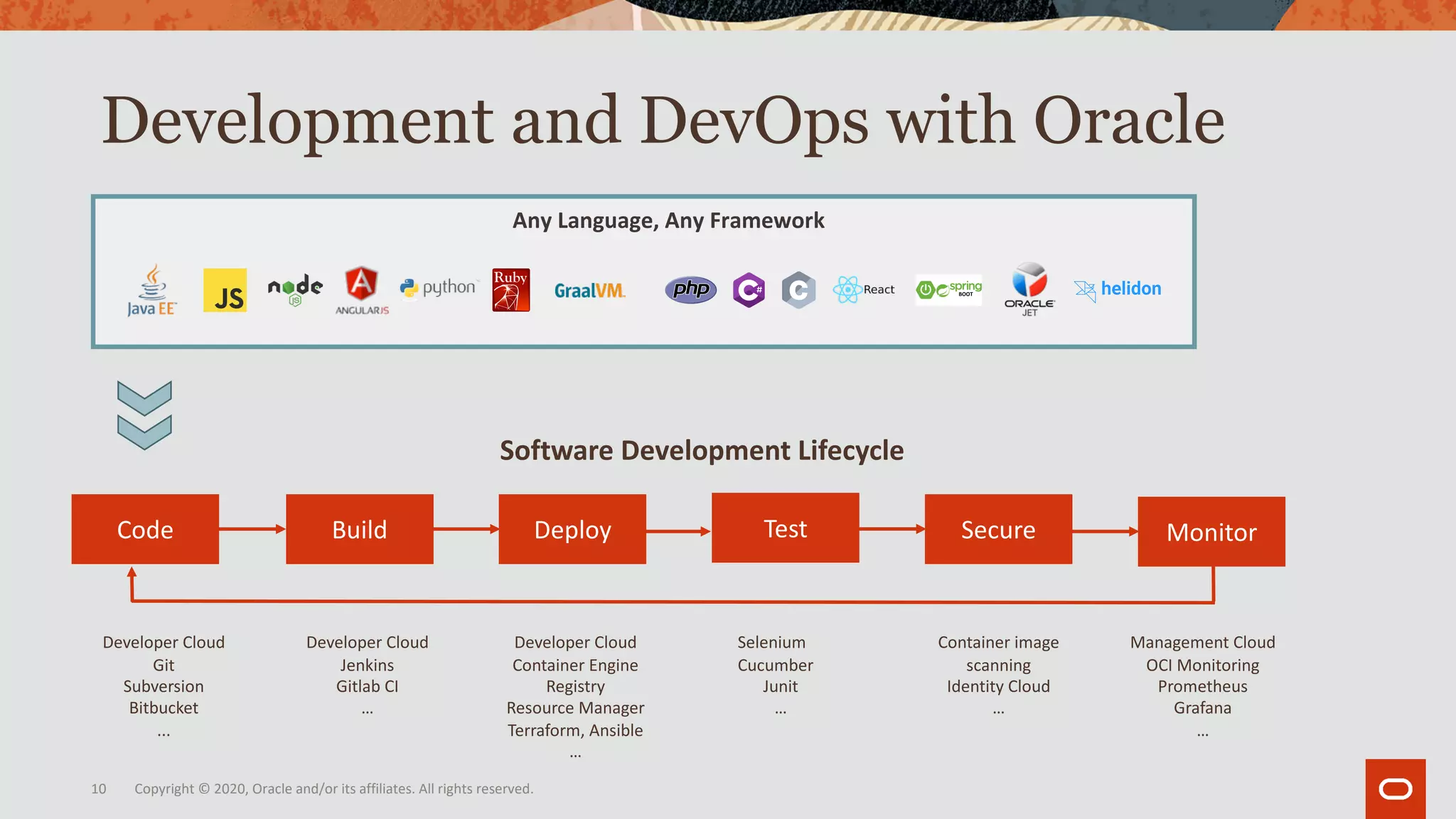

Development and DevOps with Oracle
Any Language, Any Framework
Code Build Deploy Test Secure Monitor
Selenium
Cucumber
Junit
…
Developer Cloud
Git
Subversion
Bitbucket
...
Management Cloud
OCI Monitoring
Prometheus
Grafana
…
Container image
scanning
Identity Cloud
…
Developer Cloud
Jenkins
Gitlab CI
…
Developer Cloud
Container Engine
Registry
Resource Manager
Terraform, Ansible
…
Software Development Lifecycle

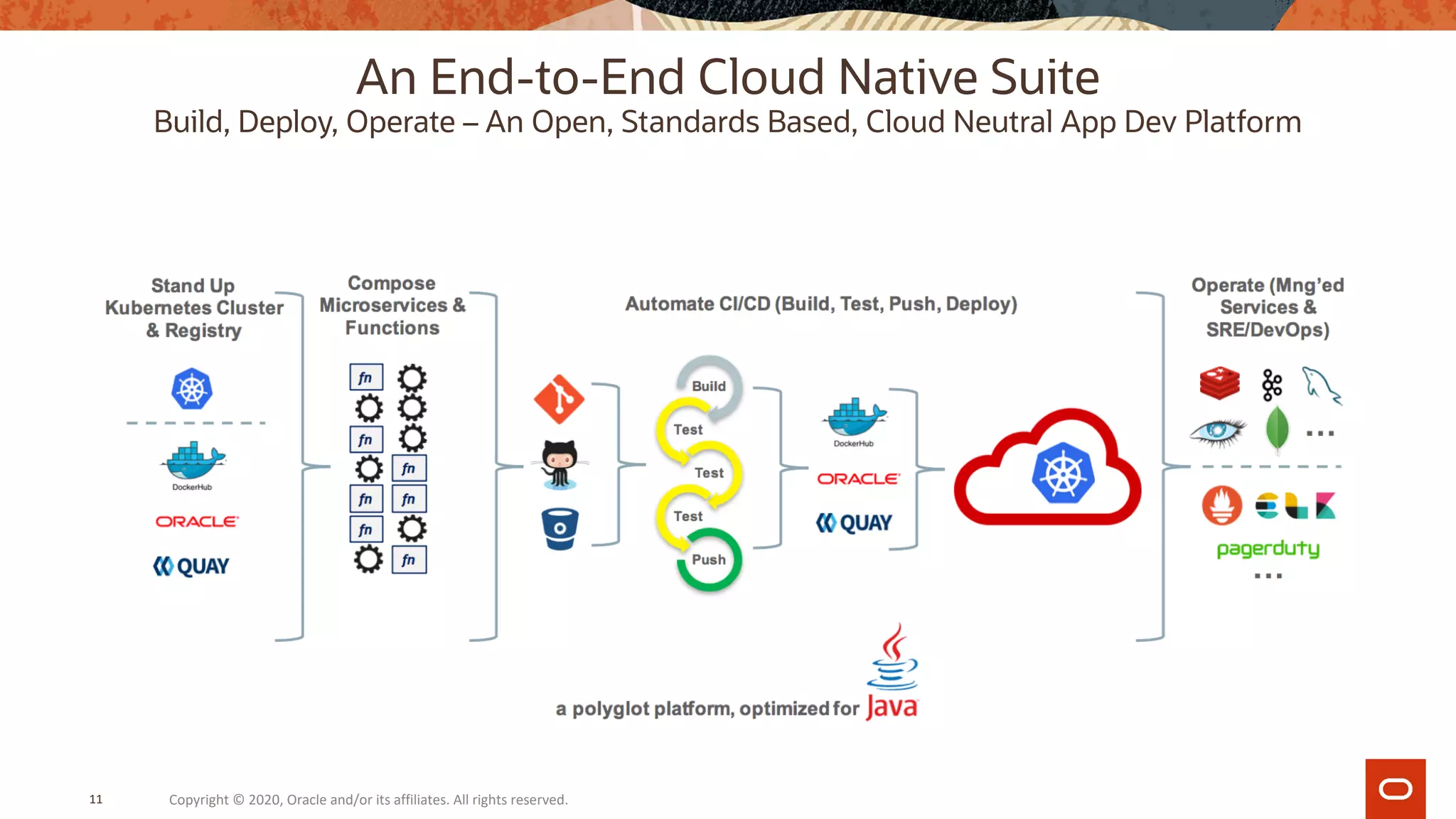

11. An End-to-End Cloud Native Suite
Build, Deploy, Operate – An Open, Standards Based, Cloud Neutral App Dev Platform
Copyright © 2020, Oracle and/or its affiliates. All rights reserved.11

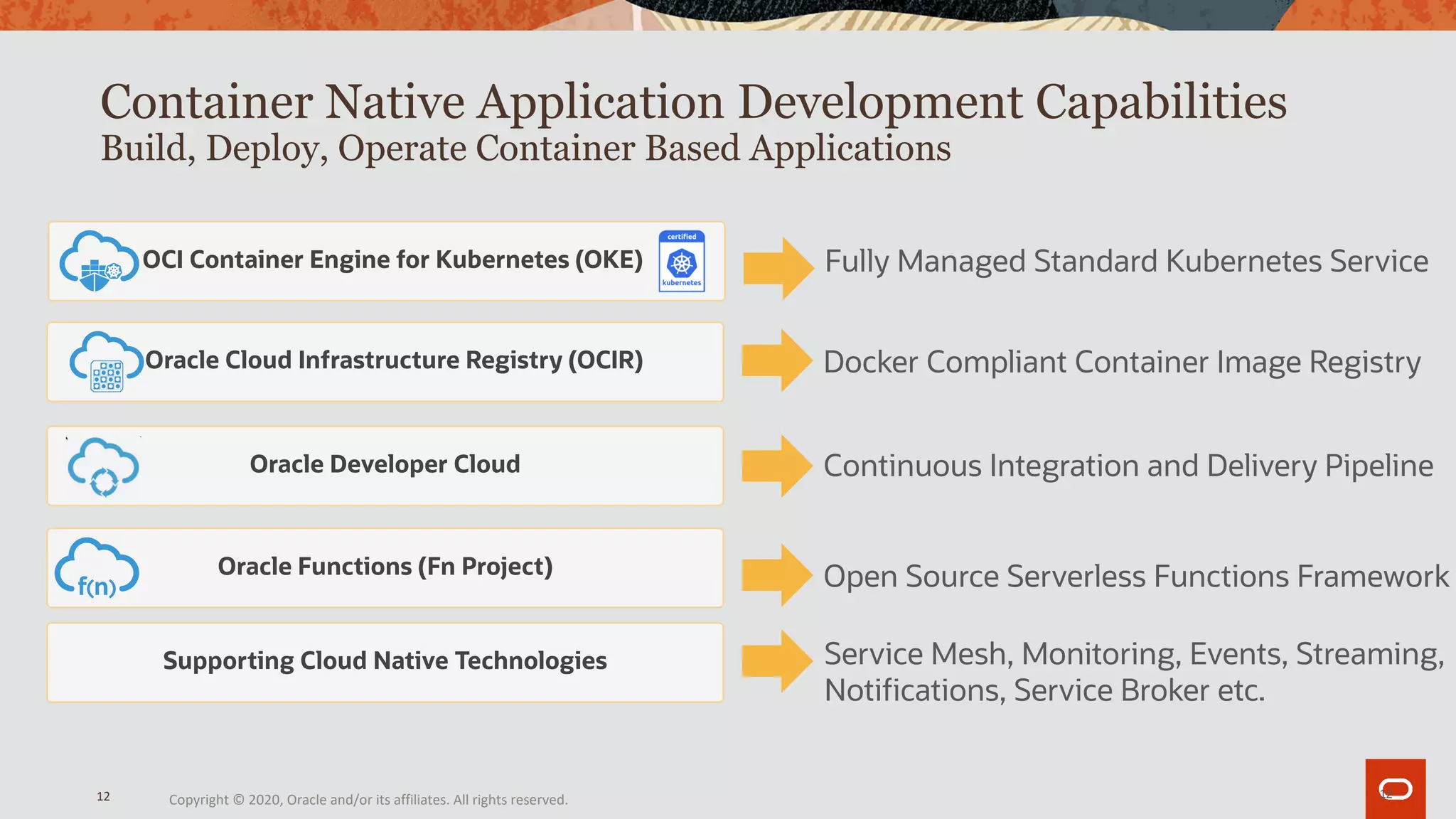

12. Supporting Cloud Native Technologies
Oracle Functions (Fn Project)
OCI Container Engine for Kubernetes (OKE)
Oracle Cloud Infrastructure Registry (OCIR)
12
Container Native Application Development Capabilities
Build, Deploy, Operate Container Based Applications
Continuous Integration and Delivery Pipeline
Docker Compliant Container Image Registry
Fully Managed Standard Kubernetes Service
Open Source Serverless Functions Framework
Service Mesh, Monitoring, Events, Streaming,
Notifications, Service Broker etc.
Oracle Developer Cloud
Copyright © 2020, Oracle and/or its affiliates. All rights reserved.12

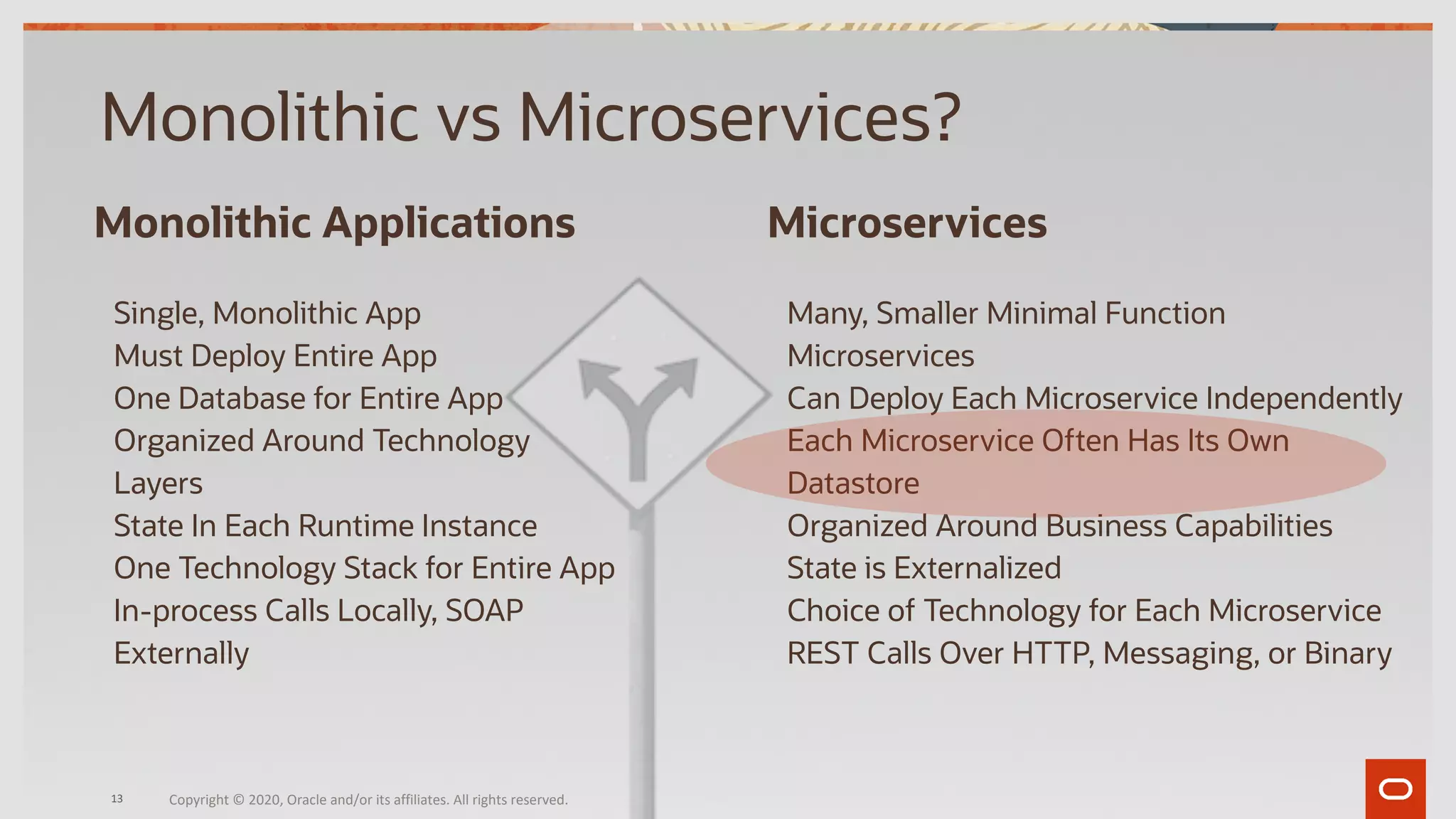

13. 13
Monolithic Applications
Single, Monolithic App
Must Deploy Entire App
One Database for Entire App
Organized Around Technology
Layers
State In Each Runtime Instance
One Technology Stack for Entire App
In-process Calls Locally, SOAP
Externally
Microservices
Many, Smaller Minimal Function
Microservices
Can Deploy Each Microservice Independently
Each Microservice Often Has Its Own
Datastore
Organized Around Business Capabilities
State is Externalized
Choice of Technology for Each Microservice
REST Calls Over HTTP, Messaging, or Binary
Monolithic vs Microservices?
Copyright © 2020, Oracle and/or its affiliates. All rights reserved.

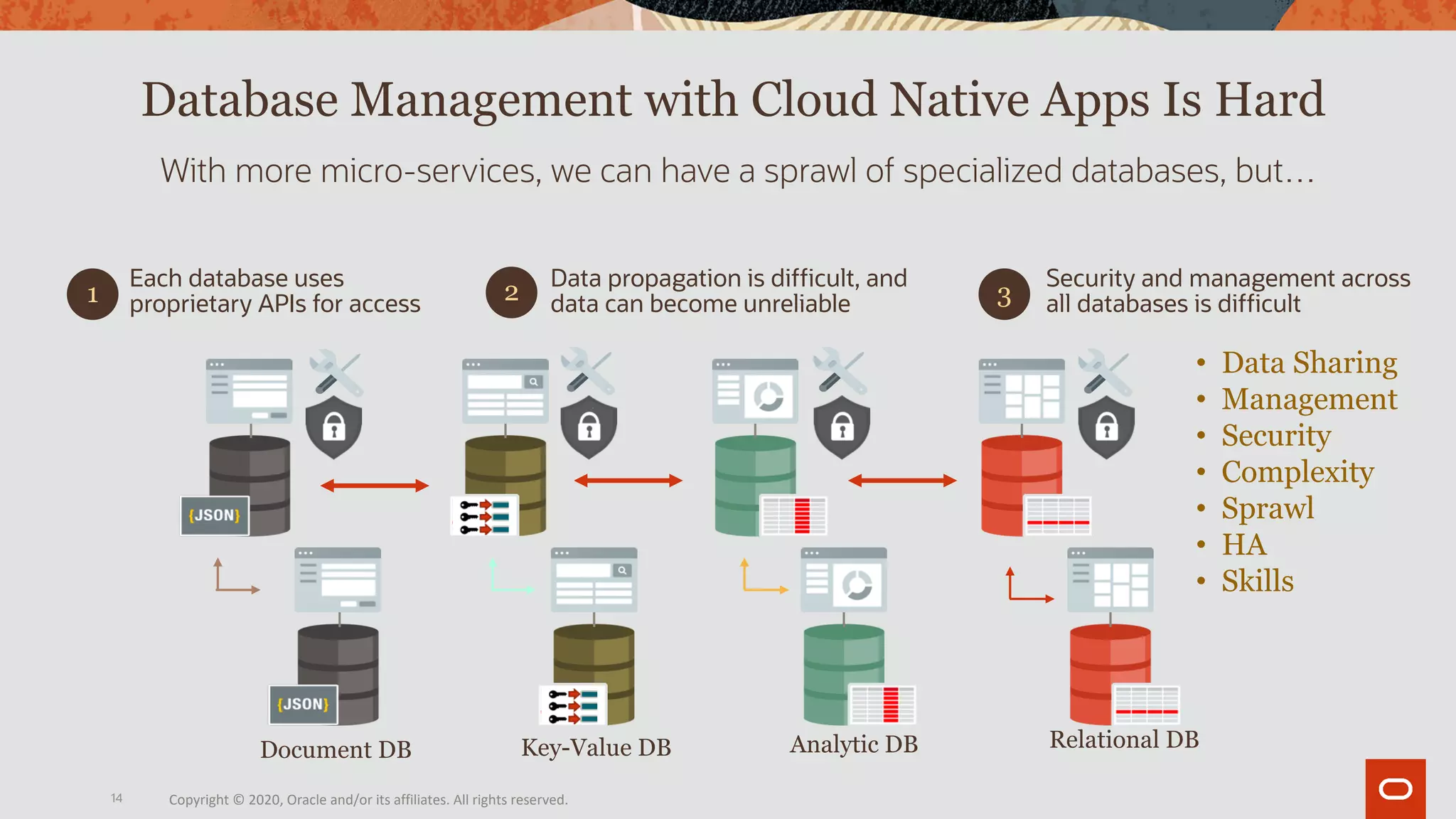

14. 14
Database Management with Cloud Native Apps Is Hard
With more micro-services, we can have a sprawl of specialized databases, but…
Each database uses
proprietary APIs for access
Data propagation is difficult, and
data can become unreliable
Security and management across
all databases is difficult
• Data Sharing
• Management
• Security
• Complexity
• Sprawl
• HA
• Skills
Document DB Key-Value DB Analytic DB Relational DB
1 2 3
Copyright © 2020, Oracle and/or its affiliates. All rights reserved.

15. 15

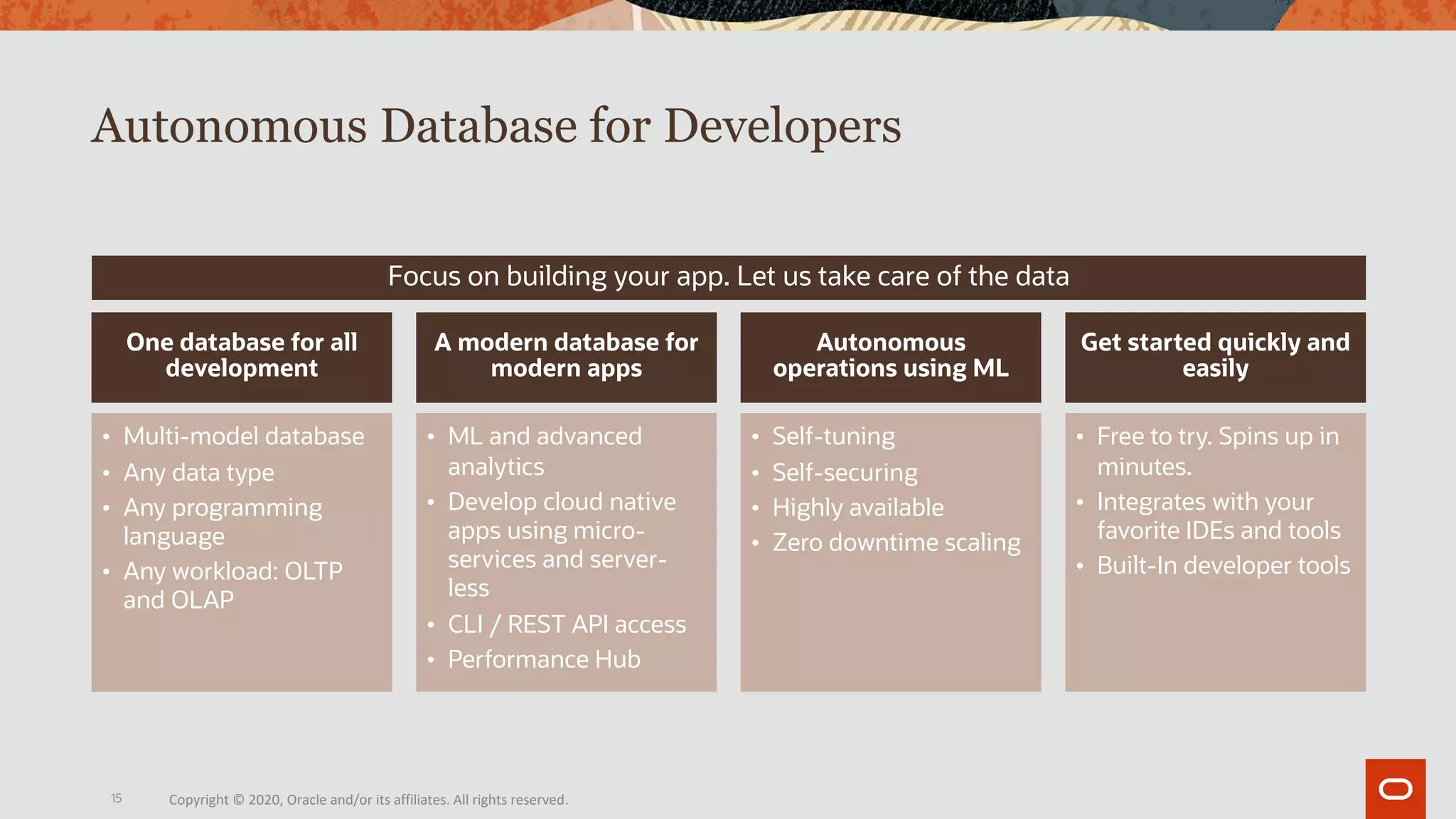

Autonomous Database for Developers
One database for all
development
• Multi-model database
• Any data type
• Any programming
language
• Any workload: OLTP
and OLAP
A modern database for
modern apps
• ML and advanced
analytics
• Develop cloud native
apps using micro-
services and server-
less
• CLI / REST API access
• Performance Hub
Autonomous
operations using ML
• Self-tuning
• Self-securing
• Highly available
• Zero downtime scaling
Get started quickly and
easily
• Free to try. Spins up in
minutes.
• Integrates with your
favorite IDEs and tools
• Built-In developer tools
Focus on building your app. Let us take care of the data
Copyright © 2020, Oracle and/or its affiliates. All rights reserved.

16. 16

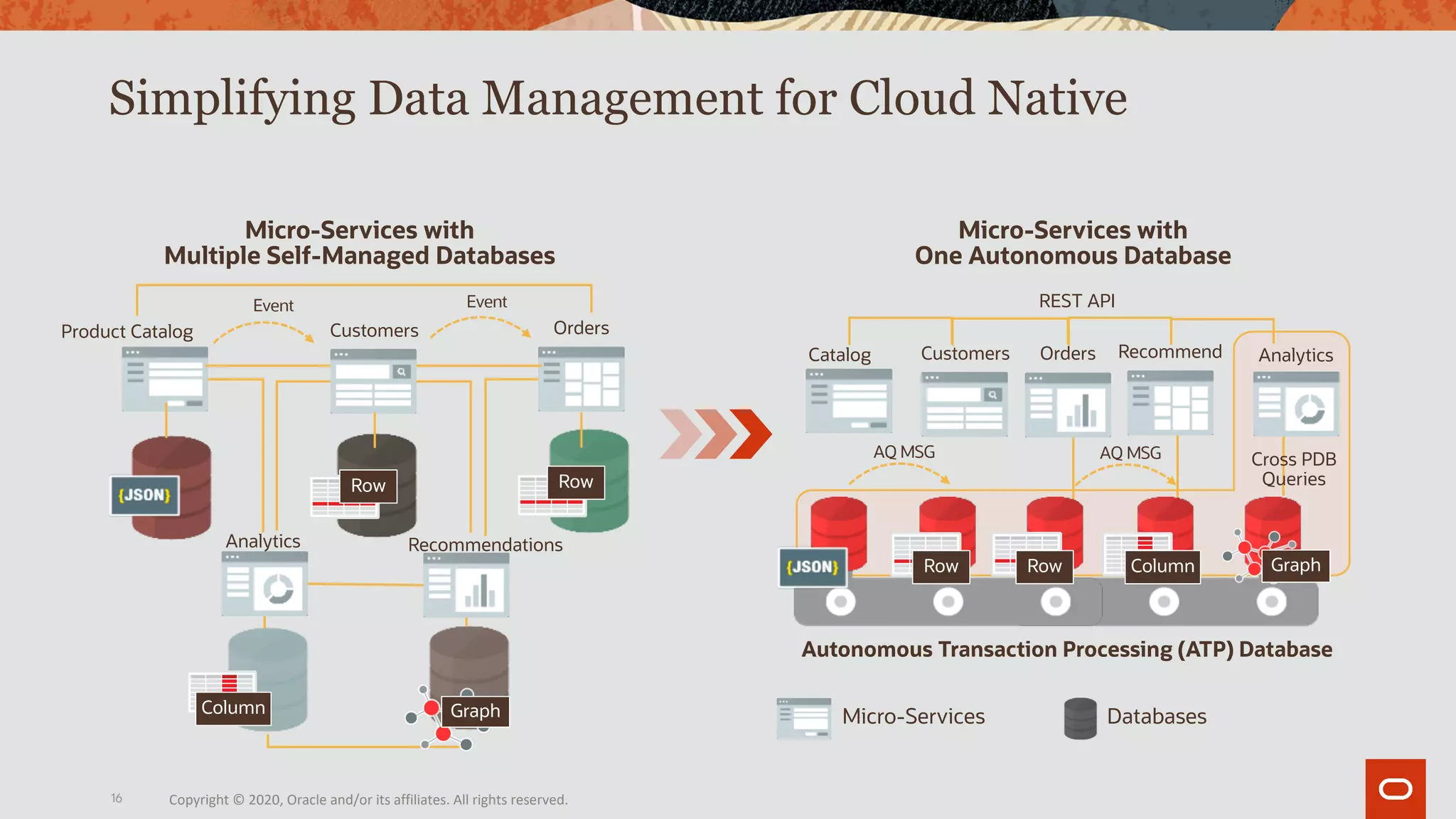

Simplifying Data Management for Cloud Native
AQ MSG AQ MSG
AnalyticsOrdersCatalog Customers Recommend
REST API
Micro-Services with
One Autonomous Database
Micro-Services with
Multiple Self-Managed Databases
Analytics
Event
Product Catalog
Event
Recommendations
Customers Orders
Cross PDB
Queries
Graph
GraphColumn
Row Row
Row Row Column
Micro-Services Databases
Autonomous Transaction Processing (ATP) Database
Copyright © 2020, Oracle and/or its affiliates. All rights reserved.

17. 17

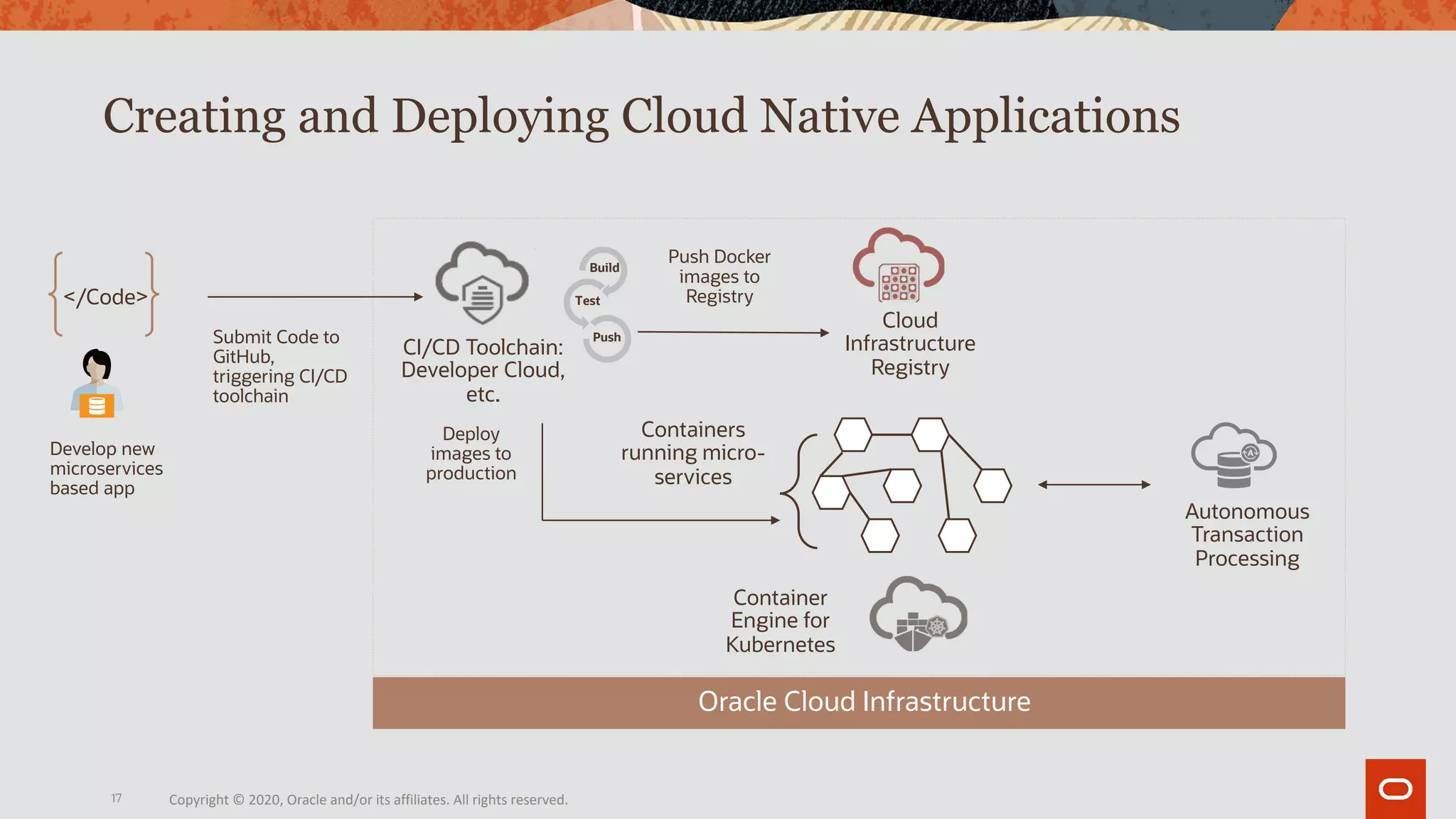

Creating and Deploying Cloud Native Applications
Submit Code to
GitHub,
triggering CI/CD
toolchain
CI/CD Toolchain:
Developer Cloud,
etc.
Build
Test
Push
Push Docker
images to
Registry
Cloud
Infrastructure
Registry
Container
Engine for
Kubernetes
Deploy
images to
production
Containers
running micro-
services
Oracle Cloud Infrastructure
Autonomous
Transaction
Processing
Develop new
microservices
based app
</Code>
Copyright © 2020, Oracle and/or its affiliates. All rights reserved.

18. 18
Demo Time!
Copyright © 2020, Oracle and/or its affiliates. All rights reserved.

19. Oracle Cloud Free Tier
Always Free
Services you can use
for an unlimited time
Free Trial
Free credits for 30 days
+
Learn, explore, and build for free
19
https://www.oracle.com/cloud/free/
Copyright © 2020, Oracle and/or its affiliates. All rights reserved.

20. Thank You!
Manish Kapur
/in/mkapur
@kapmani
