1. Building advanced Chat Bots
Stève SFARTZ
API Evangelist - Cisco DevNet
stsfartz@cisco.com, @SteveSfartz, github://ObjectIsadvantag

2. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public
/Cisco/DevNet/SteveSfartz
• API Evangelist @CiscoDevNet
• Cisco Spark Apps & Tropo APIs
• NodeJS mainly, a bit of #golang
• France and all around Europe
• hosted @PIRL – Paris Innovation
Center & Research Lab
• twitter://@SteveSfartz
• github://ObjectIsAdvantag
“vision without
execution is
hallucination”
-- Thomas Edison
stsfartz@cisco.com
@SteveSfartz

3. 3
 Zero to advanced Bots
 Demoes & code samples with Cisco Spark
 Challenges & lessons learntT
so what’s on the menu

4. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public 4

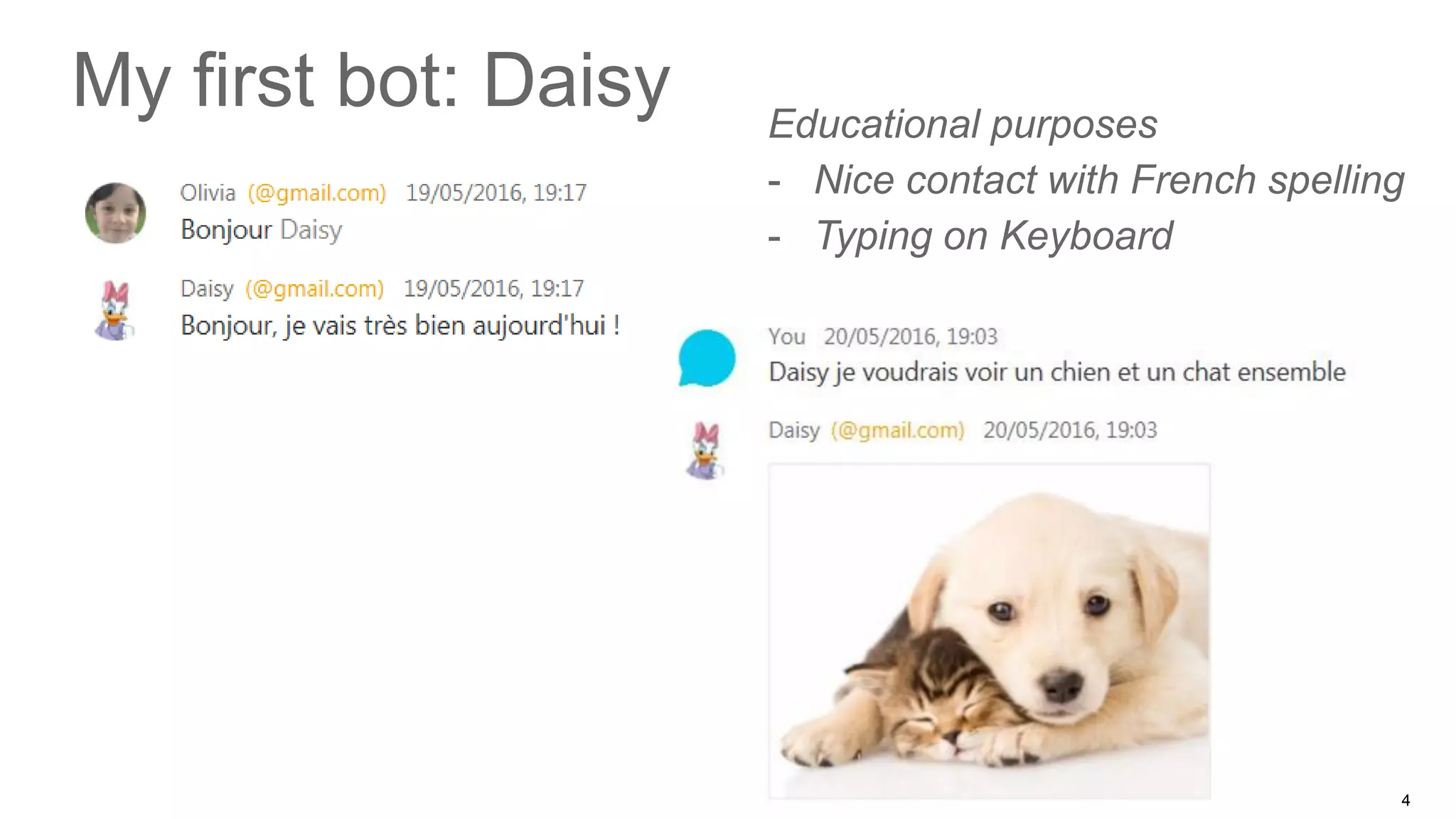

My first bot: Daisy Educational purposes
- Nice contact with French spelling
- Typing on Keyboard

5. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public 5

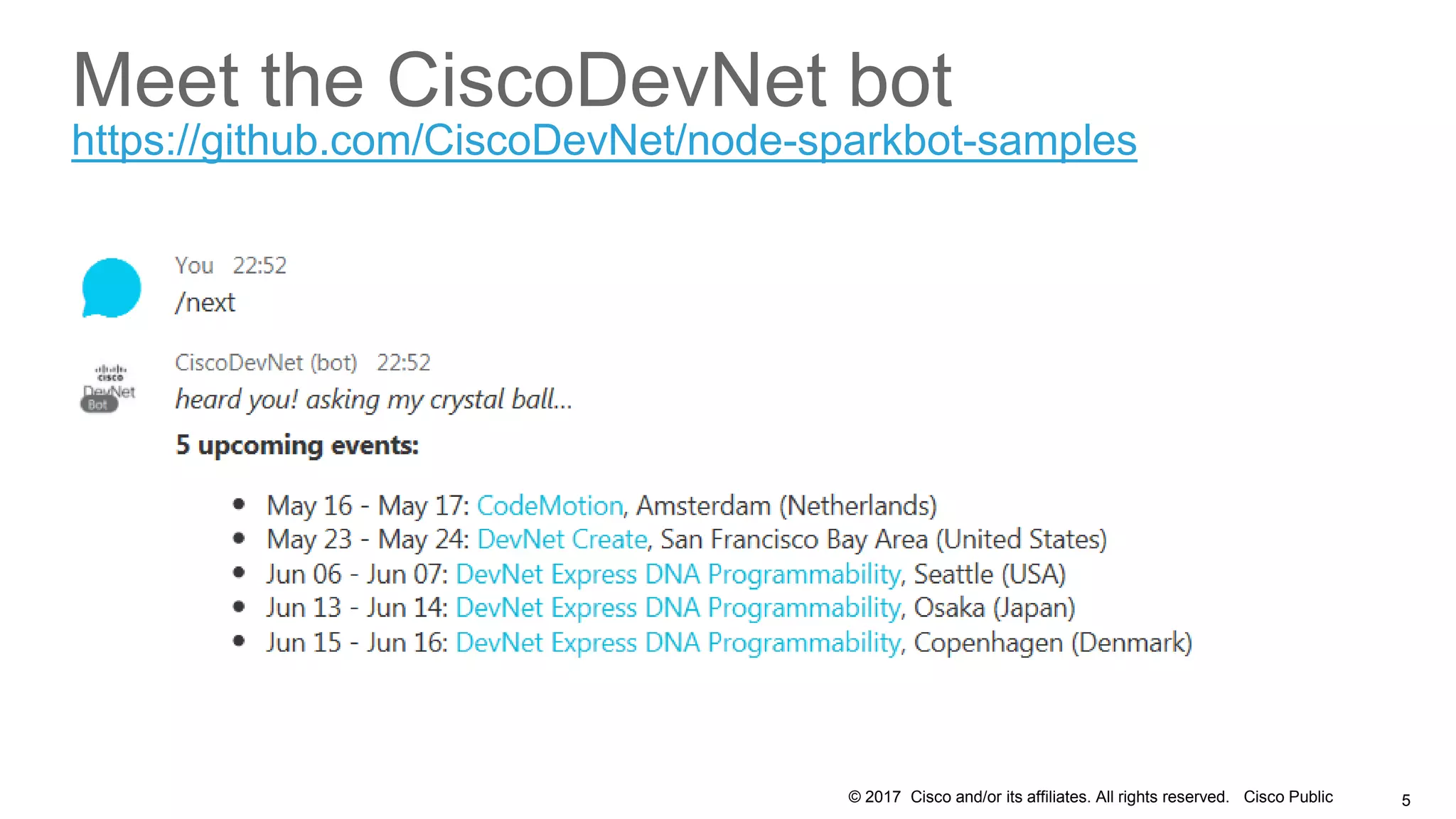

Meet the CiscoDevNet bot
https://github.com/CiscoDevNet/node-sparkbot-samples

6. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public 6

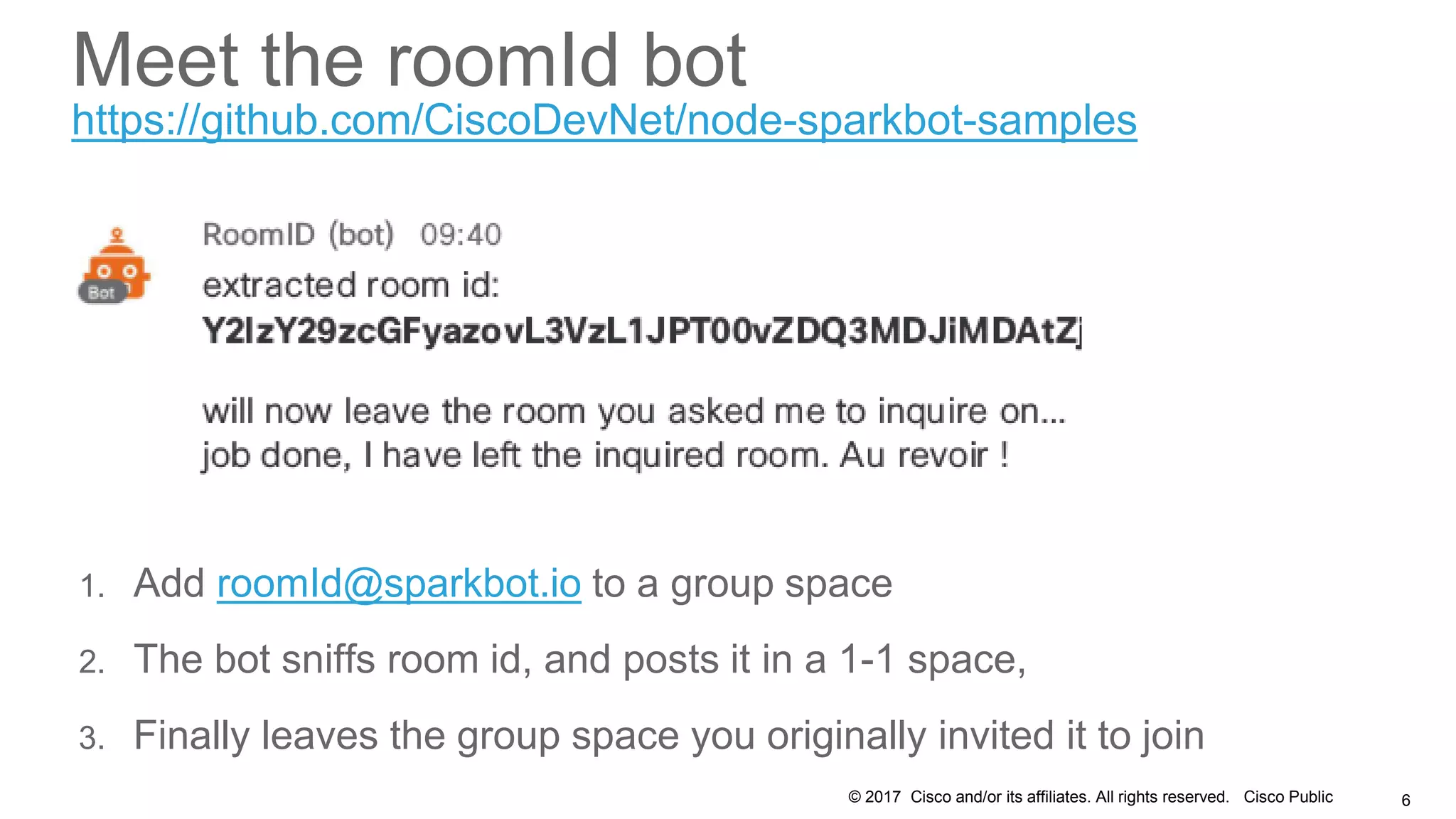

Meet the roomId bot
1. Add roomId@sparkbot.io to a group space
2. The bot sniffs room id, and posts it in a 1-1 space,
3. Finally leaves the group space you originally invited it to join
https://github.com/CiscoDevNet/node-sparkbot-samples

7. What it takes to code a bot ?

8. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public

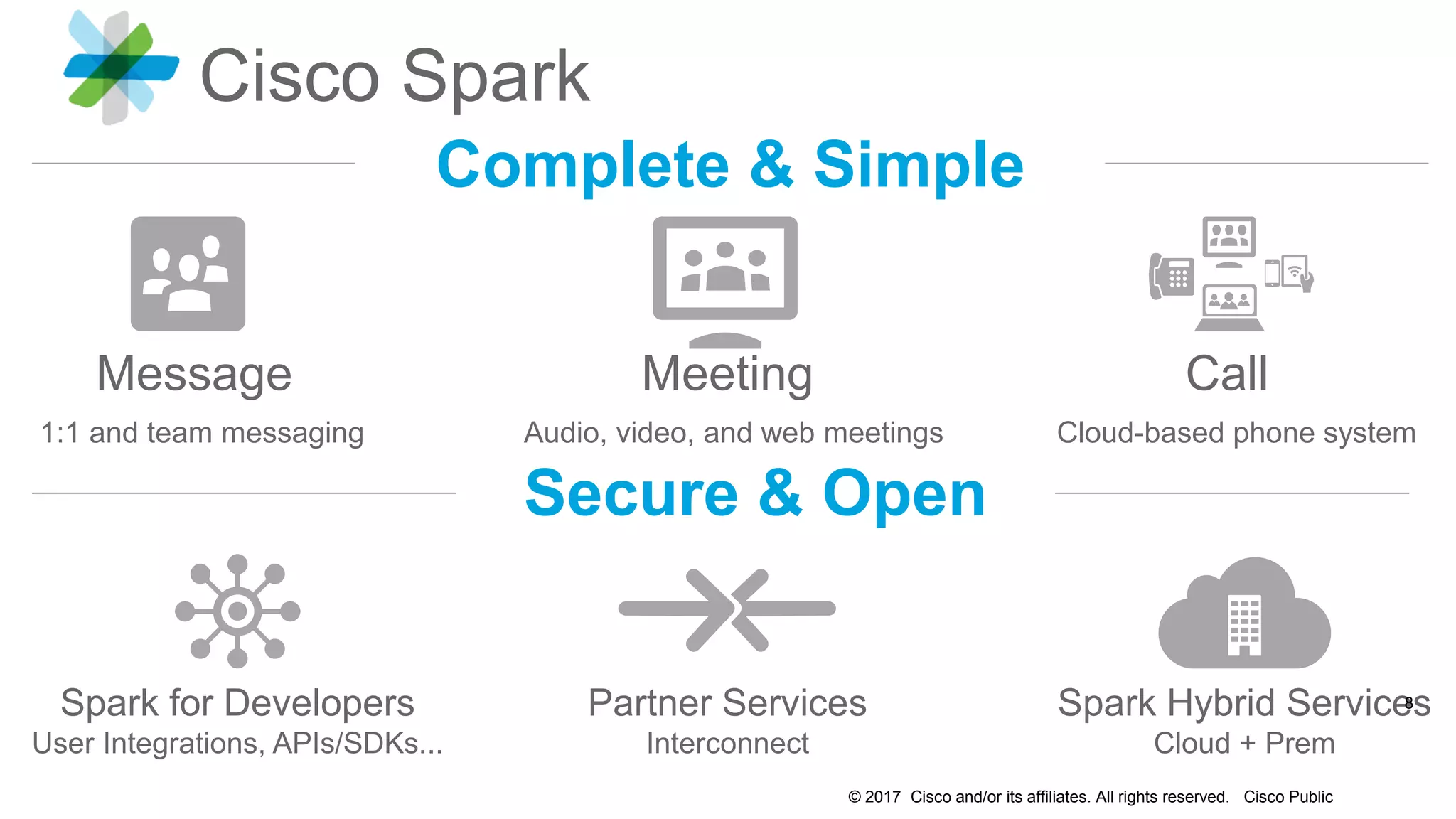

Cisco Spark
Secure & Open
Complete & Simple
Spark for Developers
User Integrations, APIs/SDKs...
Spark Hybrid Services
Cloud + Prem
Partner Services
Interconnect
Message Meeting Call
1:1 and team messaging Cloud-based phone systemAudio, video, and web meetings
8

9. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public
‘Your App’
now with
Cisco Collab!

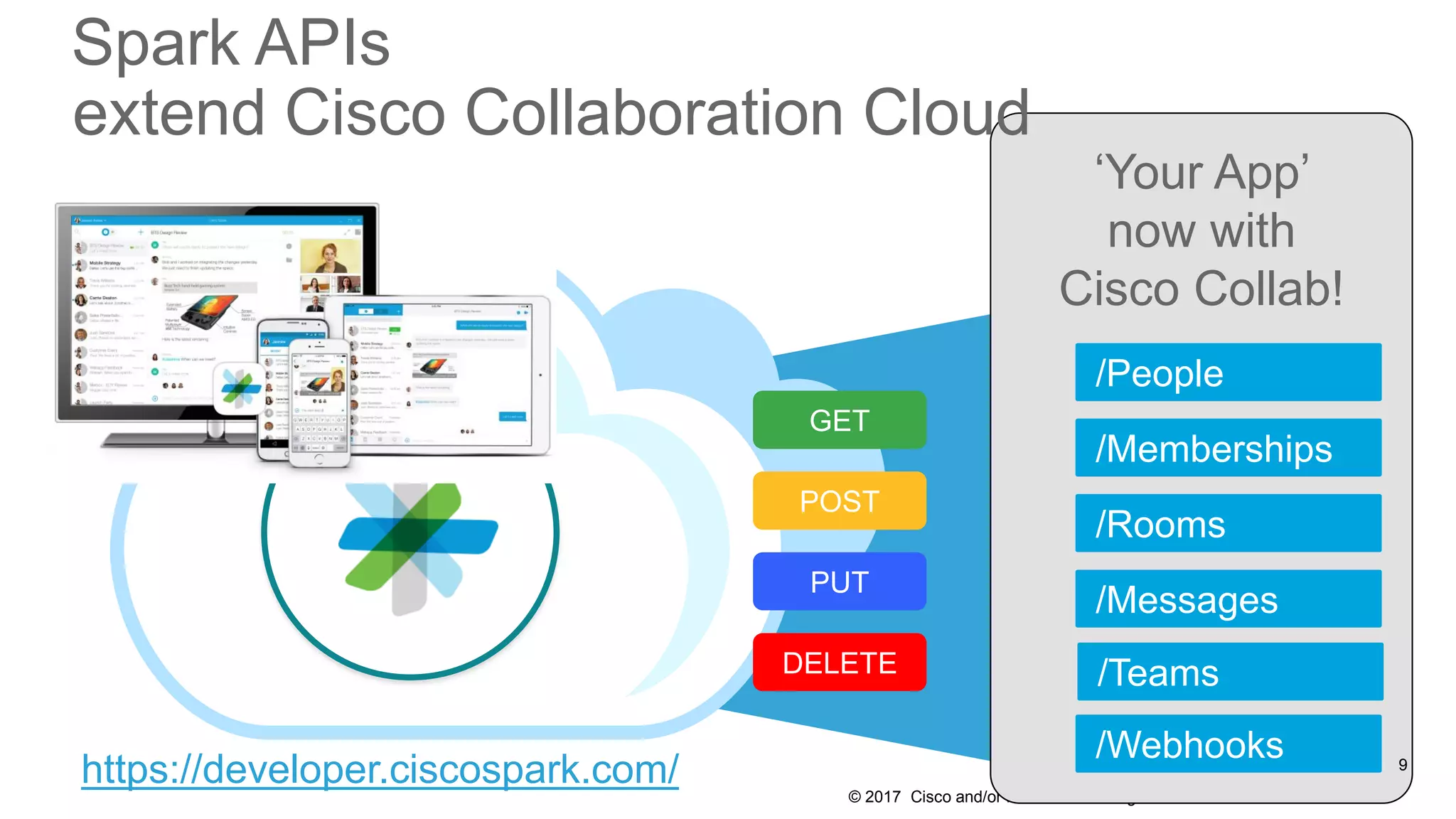

Spark APIs
extend Cisco Collaboration Cloud
GET
POST
DELETE
PUT
/Rooms
/Memberships
/Messages
/Webhooks
/People
9
/Teams
https://developer.ciscospark.com/

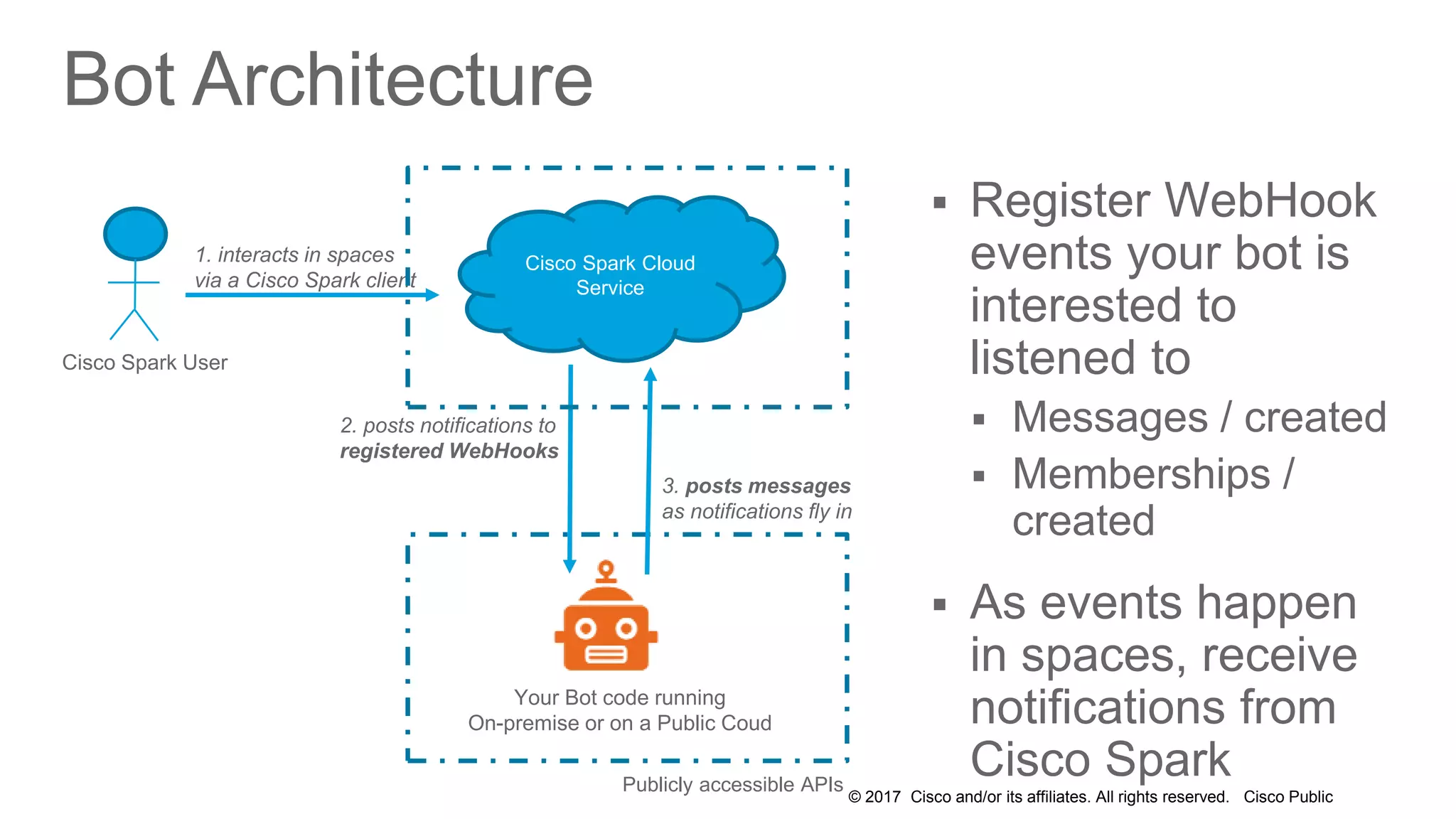

10. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public
Cisco Spark Cloud
Service
1. interacts in spaces
via a Cisco Spark client
Cisco Spark User
Your Bot code running
On-premise or on a Public Coud
2. posts notifications to
registered WebHooks
Publicly accessible APIs
3. posts messages
as notifications fly in
Bot Architecture
 Register WebHook
events your bot is
interested to
listened to
 Messages / created
 Memberships /
created
 As events happen
in spaces, receive
notifications from
Cisco Spark

11. Demo
bot account, requestb.in

12. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public
Cisco Spark Cloud
Service
1. interacts in spaces
via a Cisco Spark client
Cisco Spark User
DMZ
2. posts notifications to
registered WebHooks
Publicly accessible
3. responds to
Webhook events
Your Bot code running
on-premises
Enterprise secured
2b. forwards notifications
Bot Architecture: on-premises

13. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public
Cisco Spark Cloud
Service
1. interacts in Rooms
via the various Spark Clients
Cisco Spark User
Tunneling
infrastructure
Your Bot code running
on your local machine
2. posts notifications to
registered WebHooks
Dev environmentPublicly accessible
2b. forwards
Webhook events
3. responds to
Webhook events

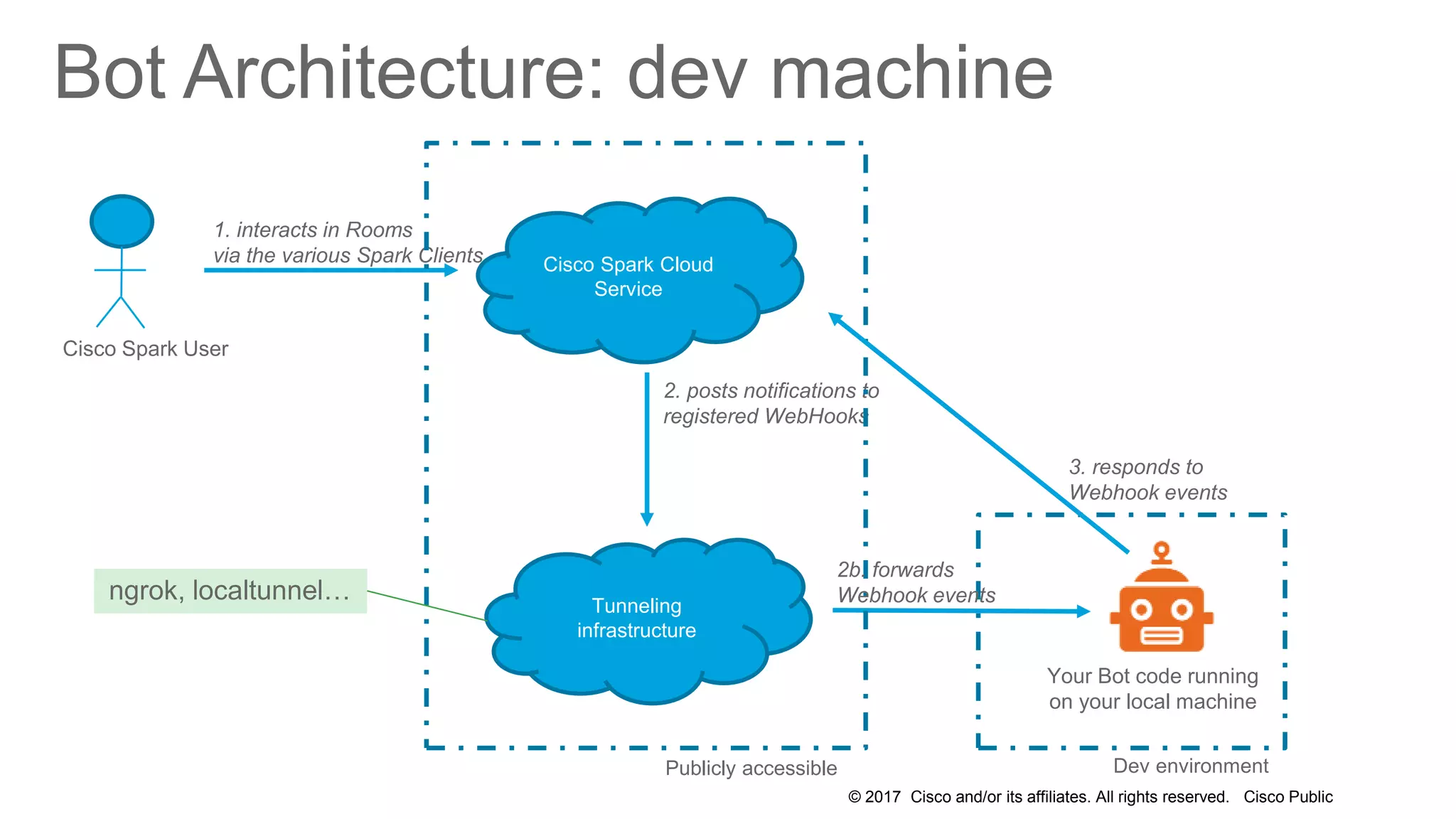

Bot Architecture: dev machine
ngrok, localtunnel…

14. What it takes to code a bot ?
2 lines of code …
… with a bot framework

15. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public

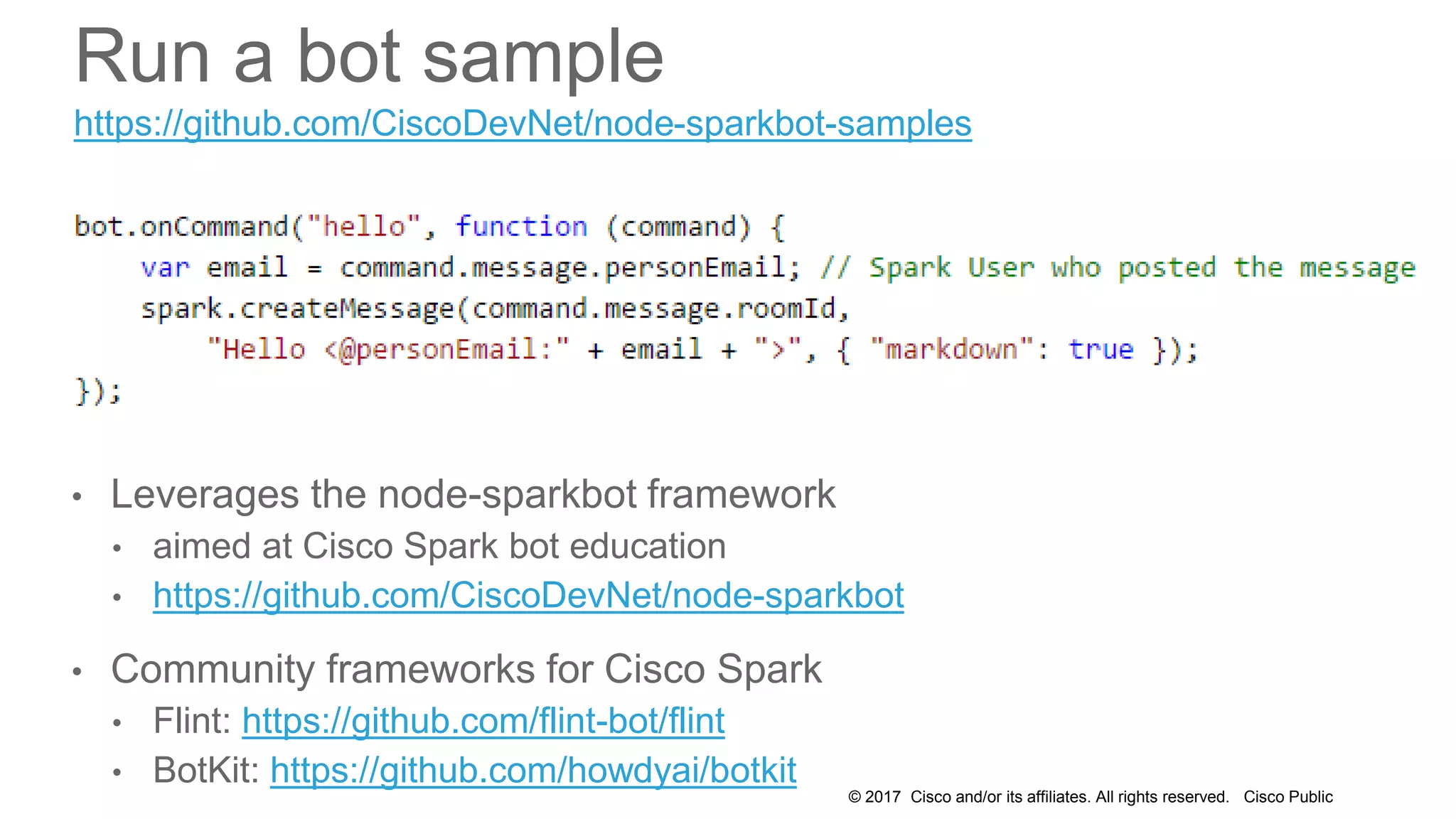

Run a bot sample
• Leverages the node-sparkbot framework
• aimed at Cisco Spark bot education
• https://github.com/CiscoDevNet/node-sparkbot
• Community frameworks for Cisco Spark
• Flint: https://github.com/flint-bot/flint
• BotKit: https://github.com/howdyai/botkit
https://github.com/CiscoDevNet/node-sparkbot-samples

16. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public

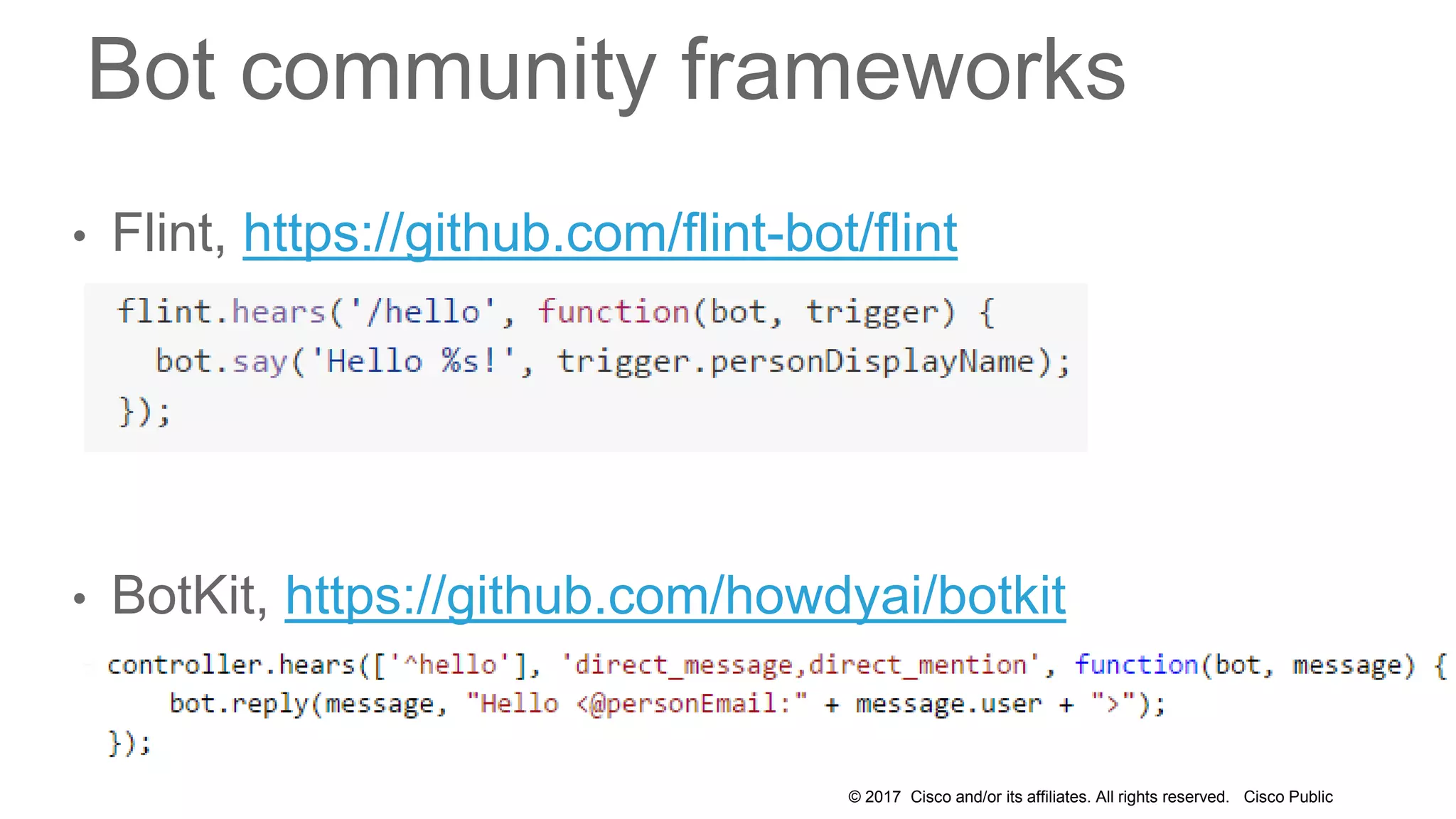

Bot community frameworks
• Flint, https://github.com/flint-bot/flint
• BotKit, https://github.com/howdyai/botkit

17. What it takes to code a bot ?
think User Experience

18. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public

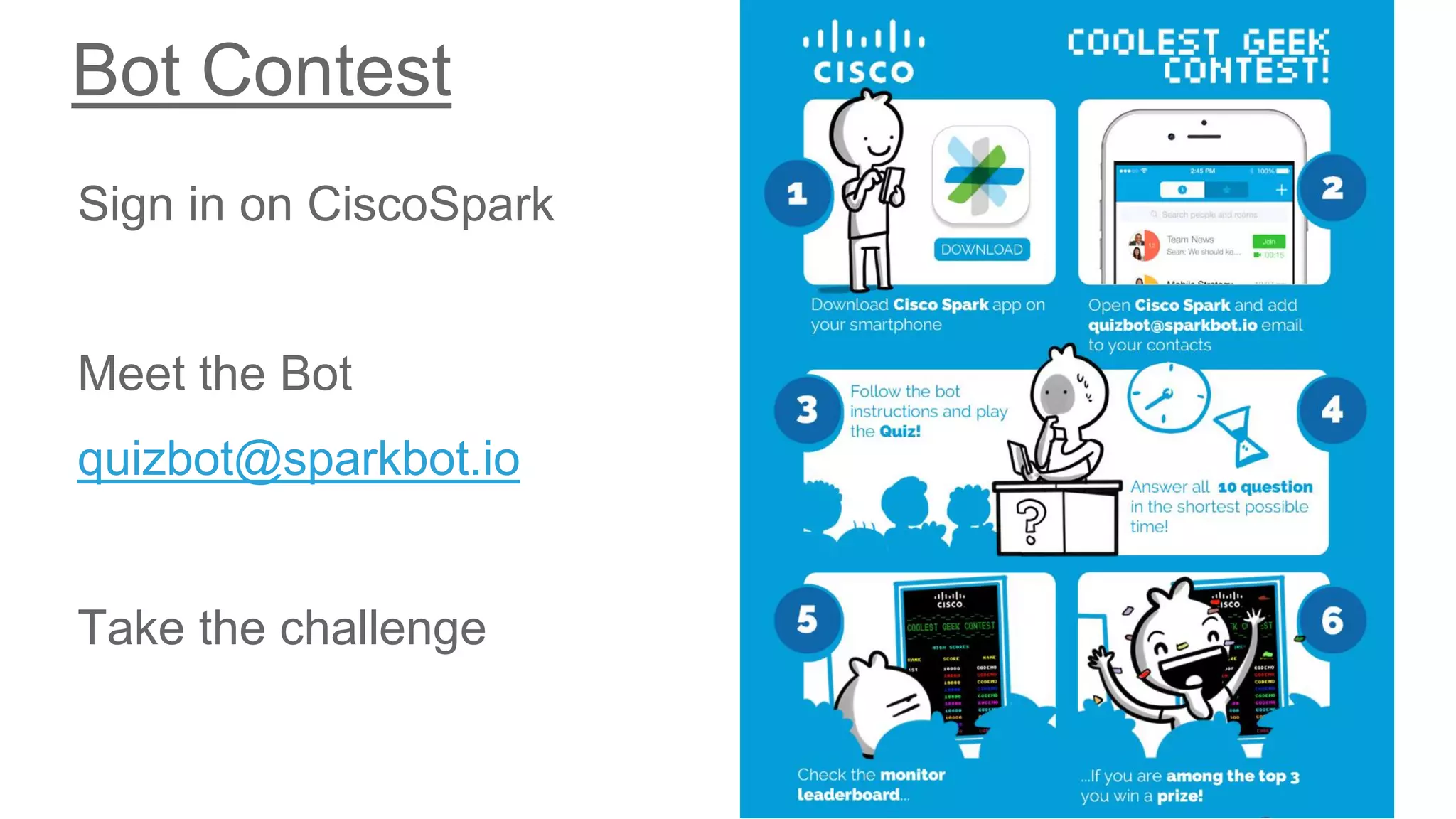

Bot Contest
Sign in on CiscoSpark
Meet the Bot
quizbot@sparkbot.io
Take the challenge

19. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public

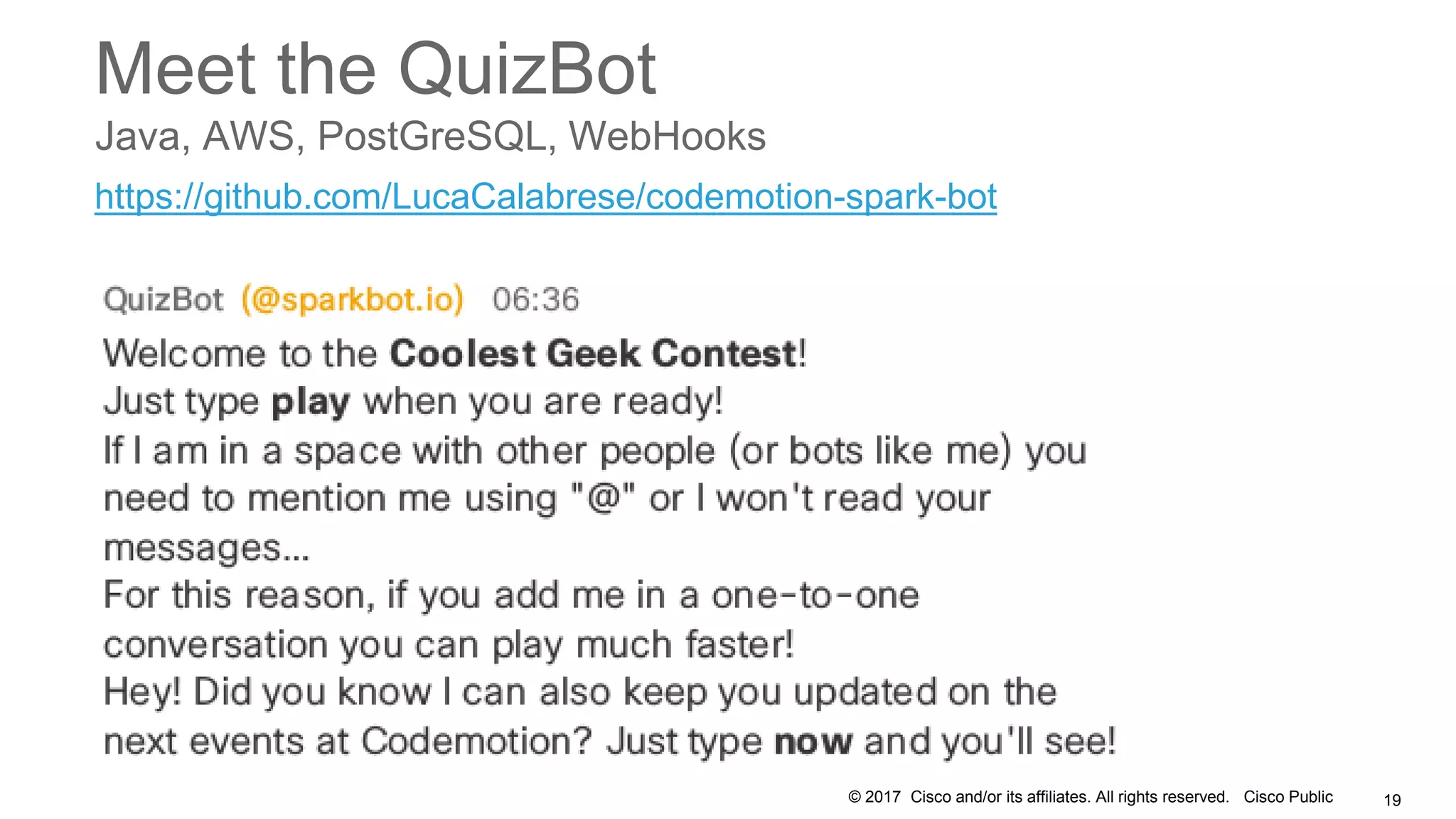

Meet the QuizBot
19
https://github.com/LucaCalabrese/codemotion-spark-bot
Java, AWS, PostGreSQL, WebHooks

20. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public 20

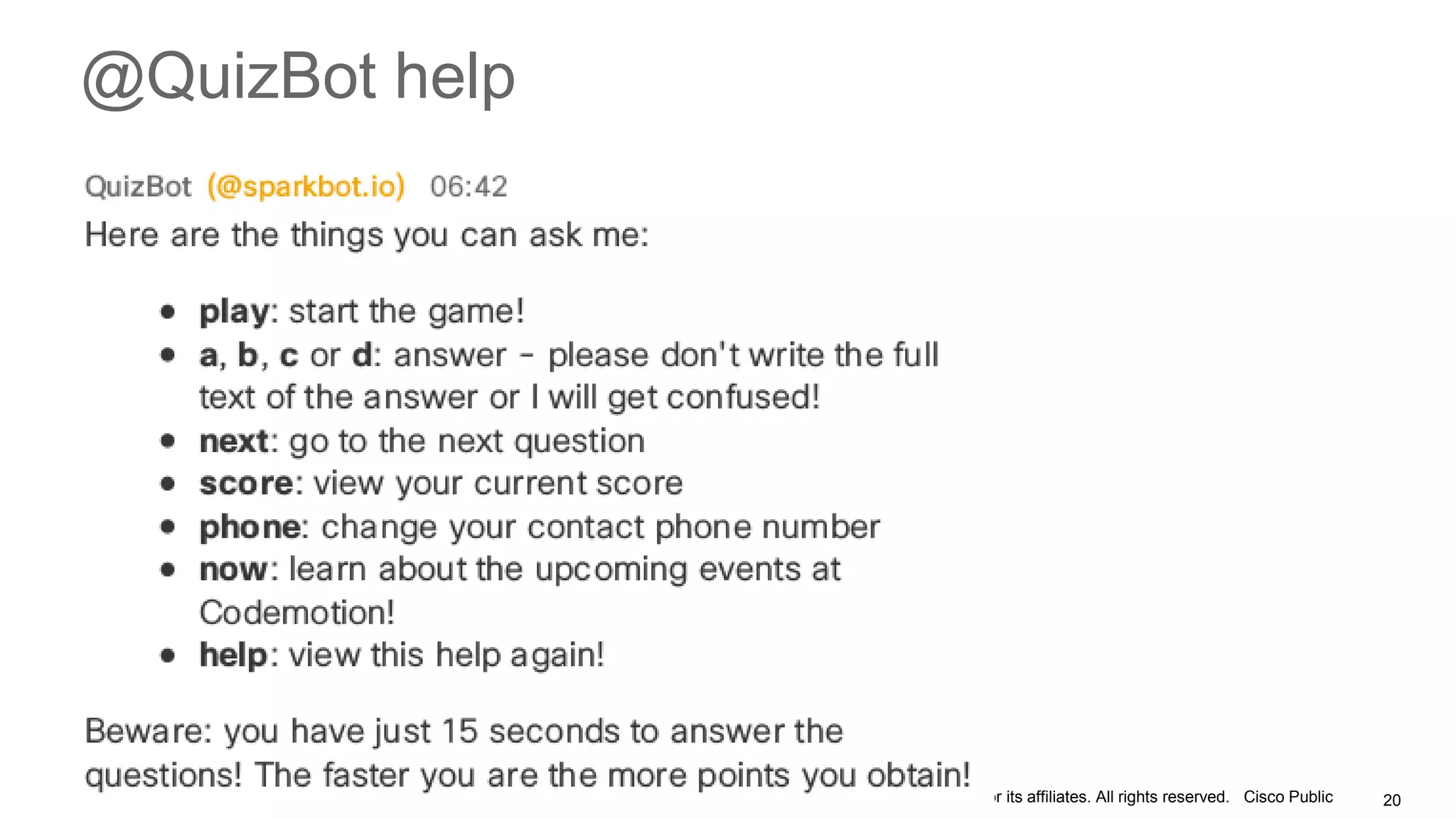

@QuizBot help

21. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public

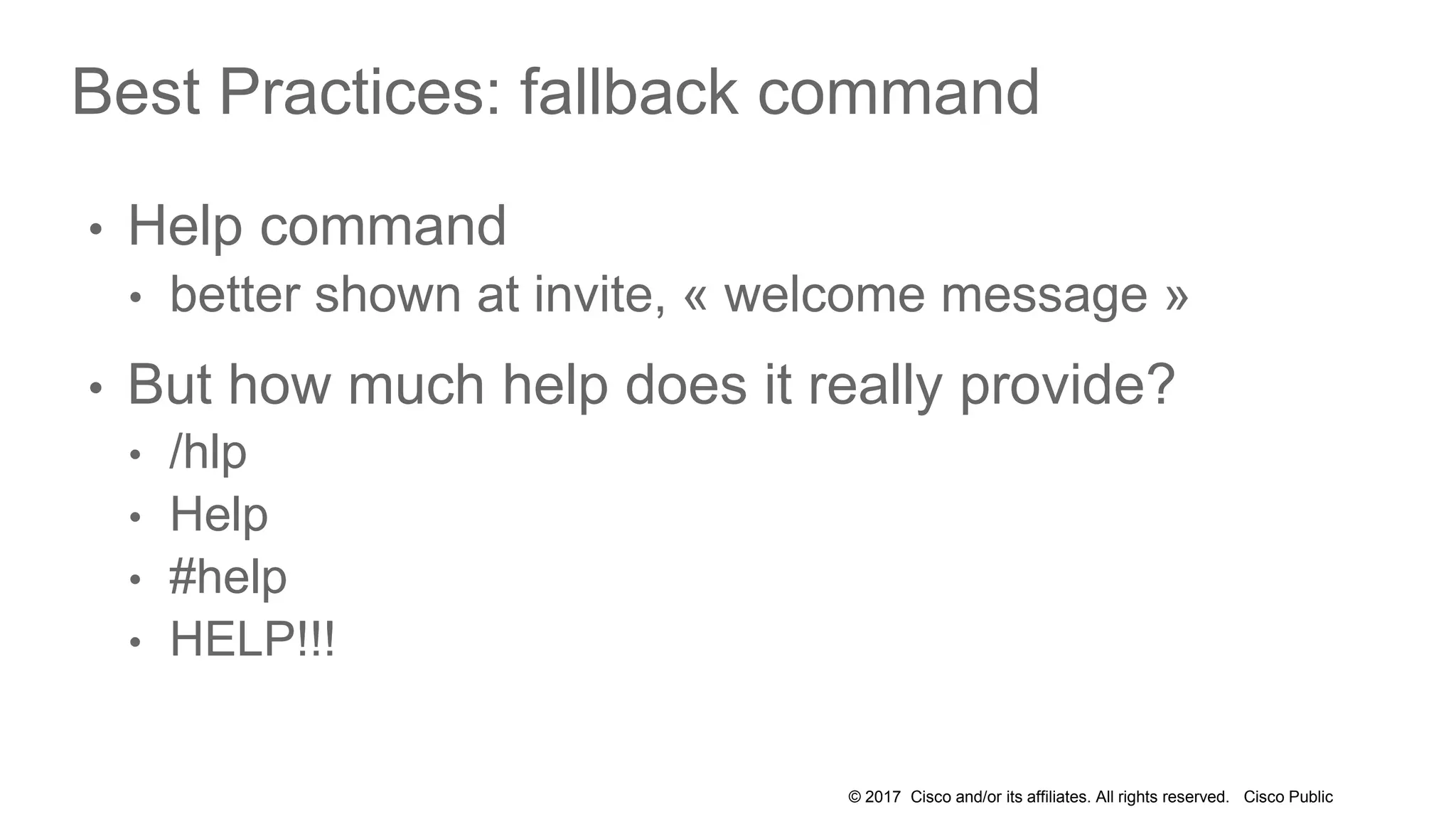

Best Practices: fallback command
• Help command
• better shown at invite, « welcome message »
• But how much help does it really provide?
• /hlp
• Help
• #help
• HELP!!!

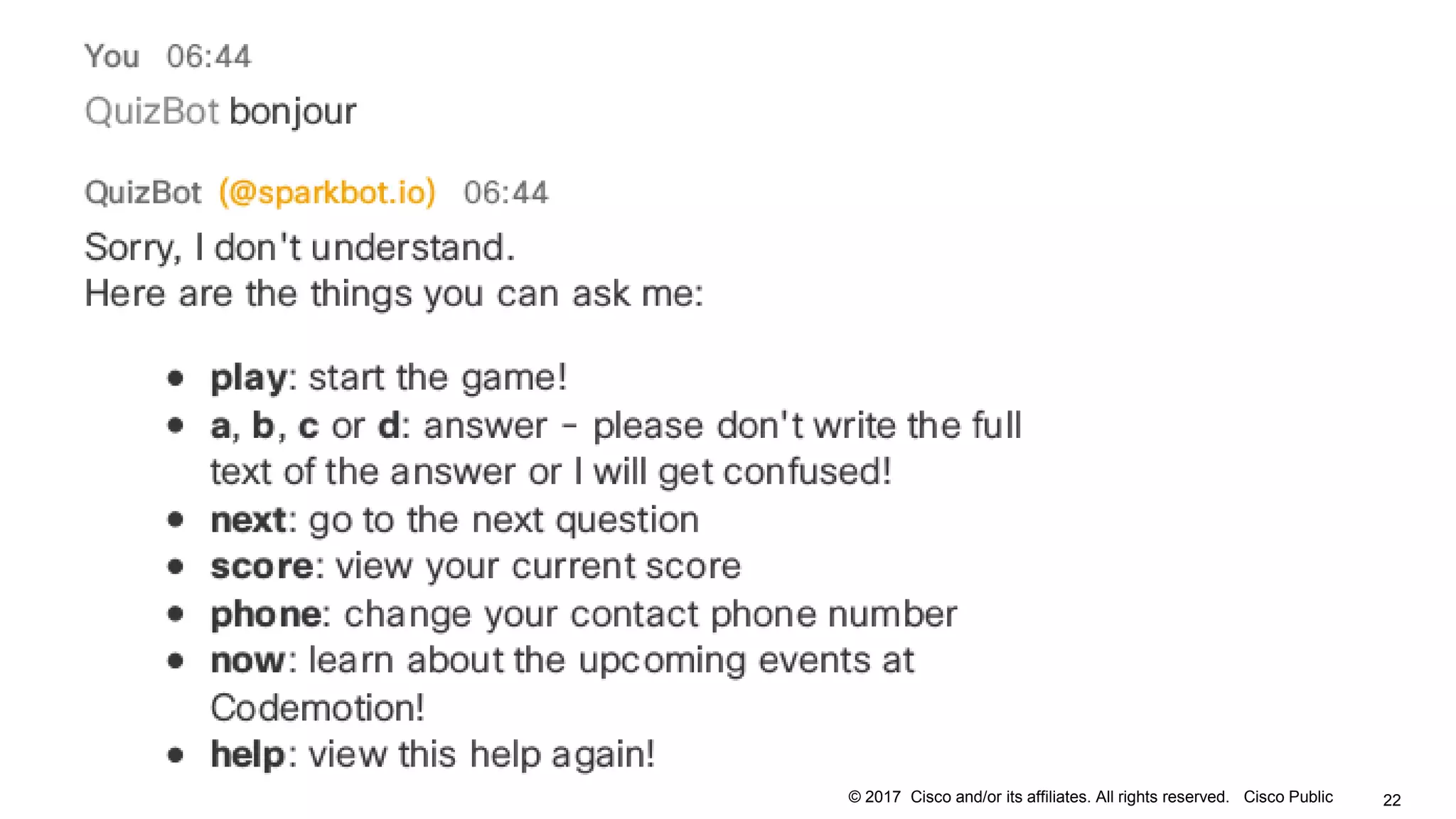

22. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public 22

23. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public

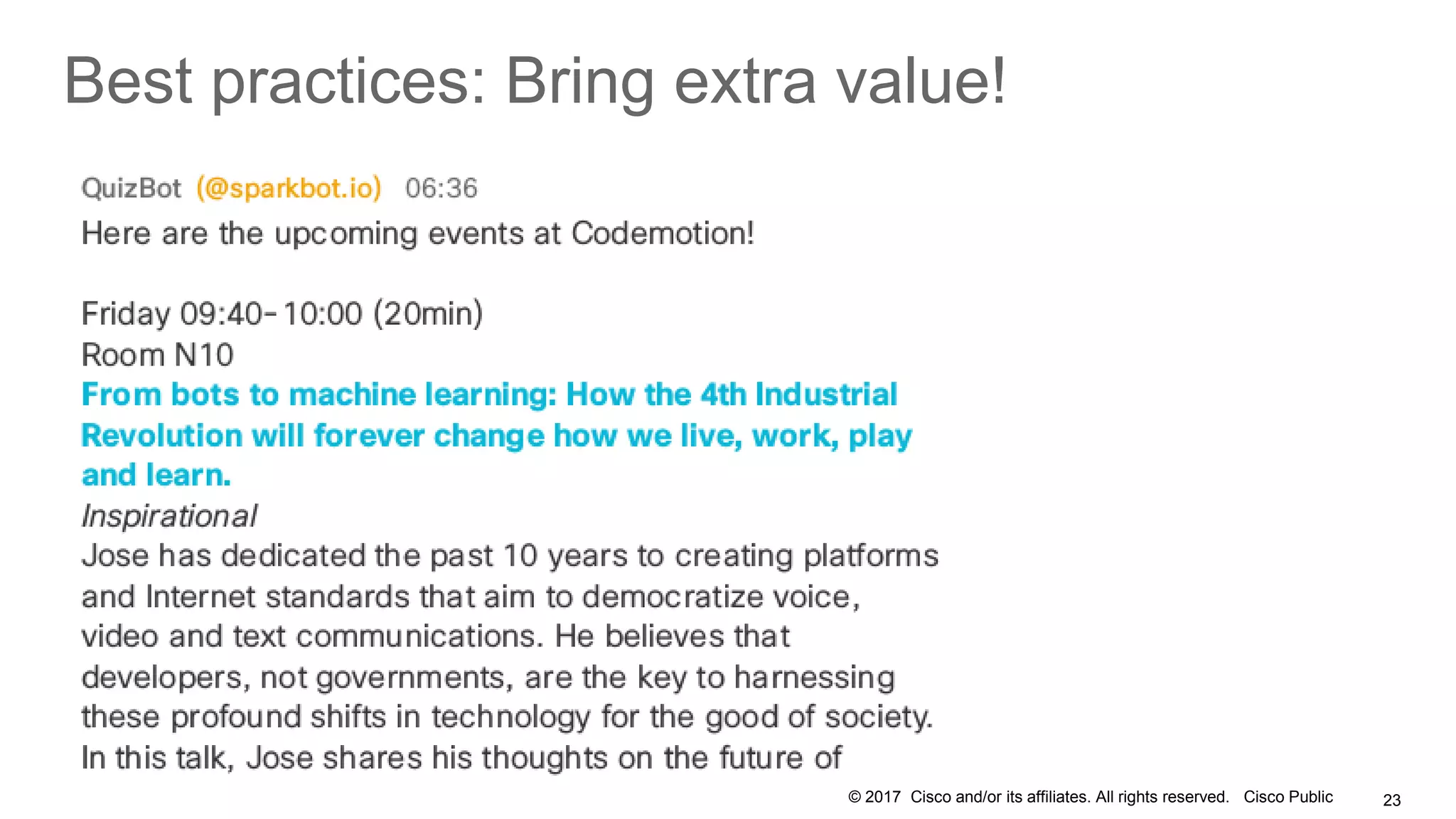

Best practices: Bring extra value!
23

24. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public

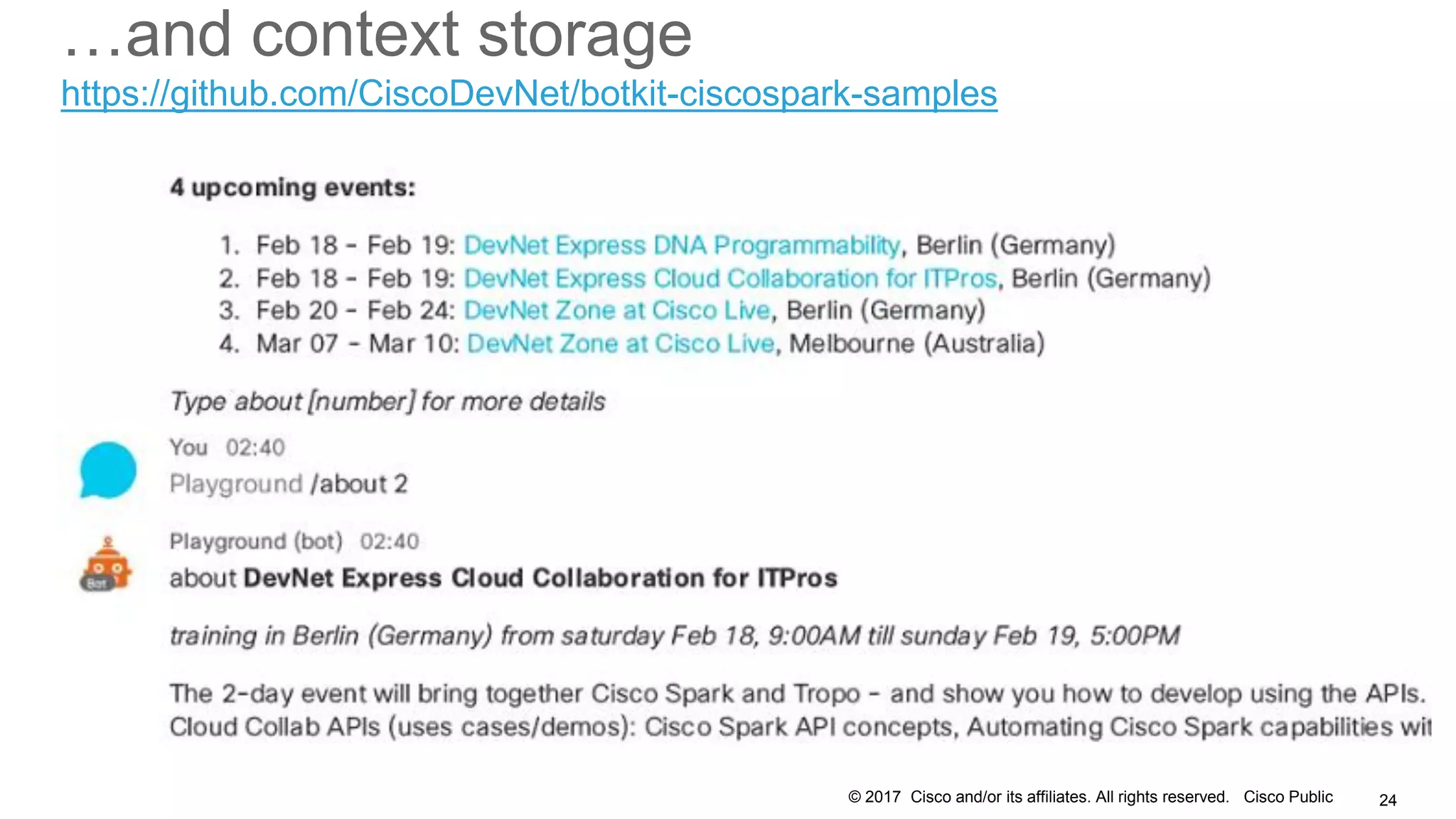

…and context storage
24
https://github.com/CiscoDevNet/botkit-ciscospark-samples

25. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public

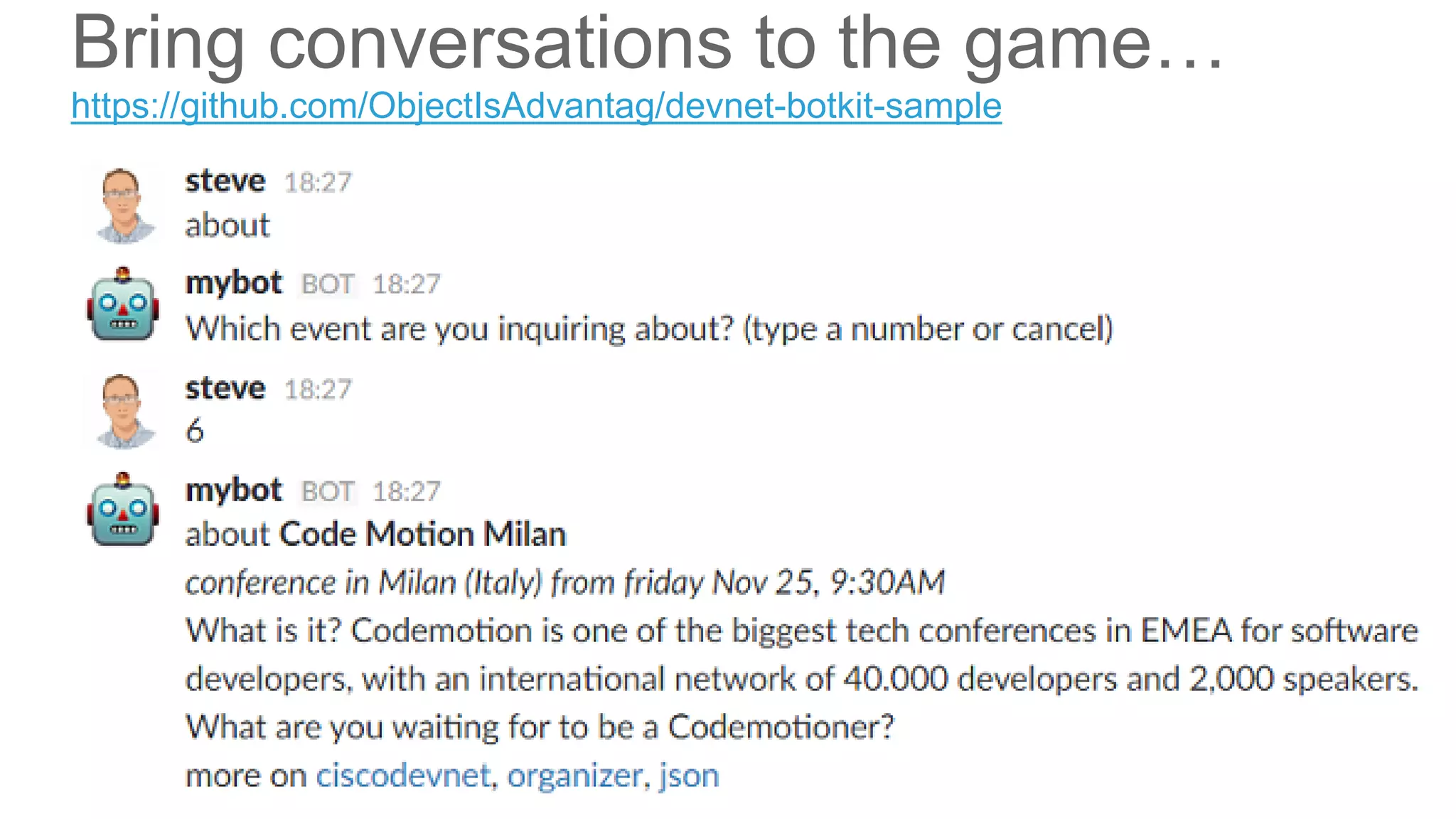

Bring conversations to the game…
25
https://github.com/ObjectIsAdvantag/devnet-botkit-sample

26. Demo
CiscoDevNet bot with BotKit

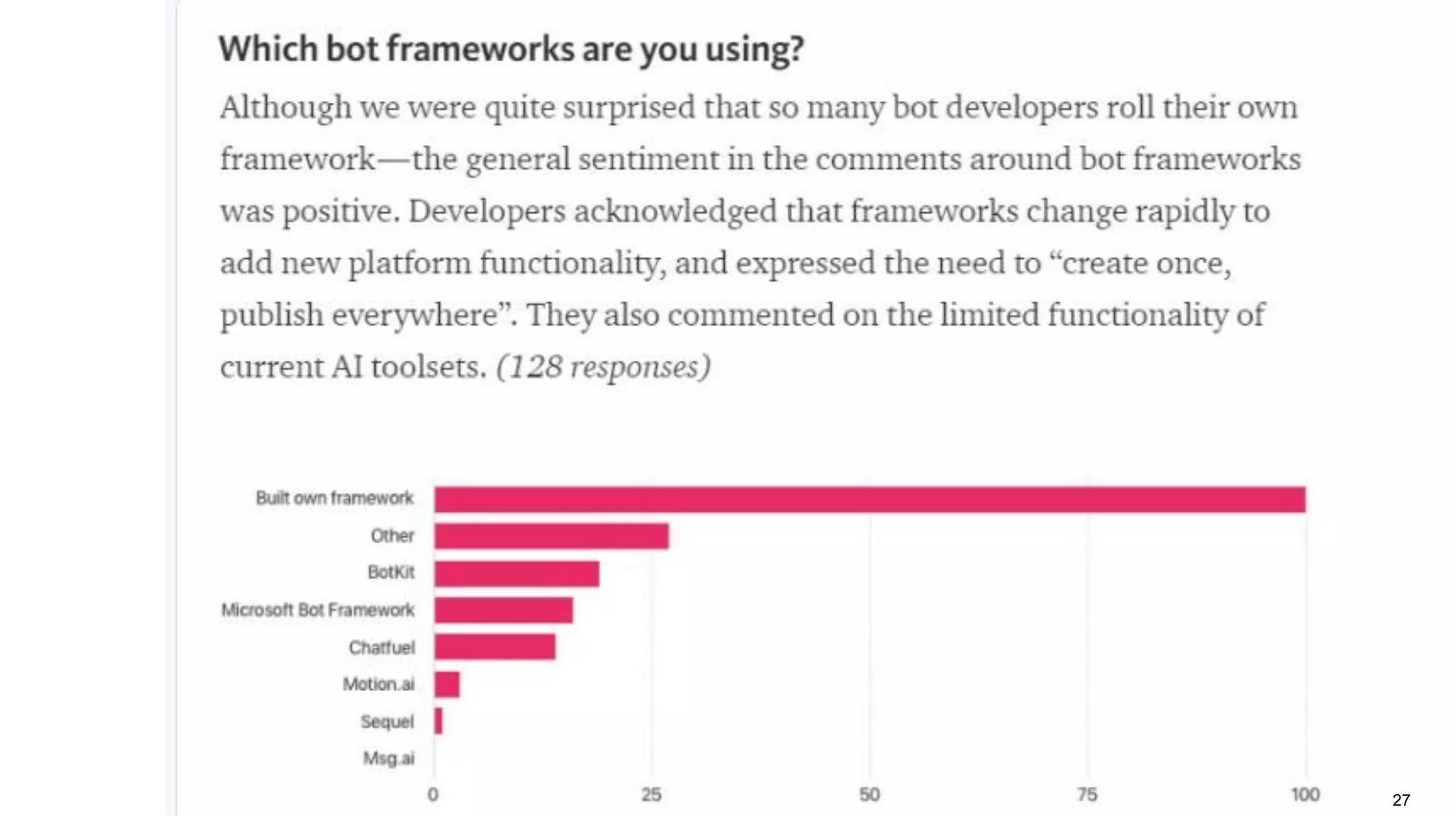

27. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public 27

28. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public

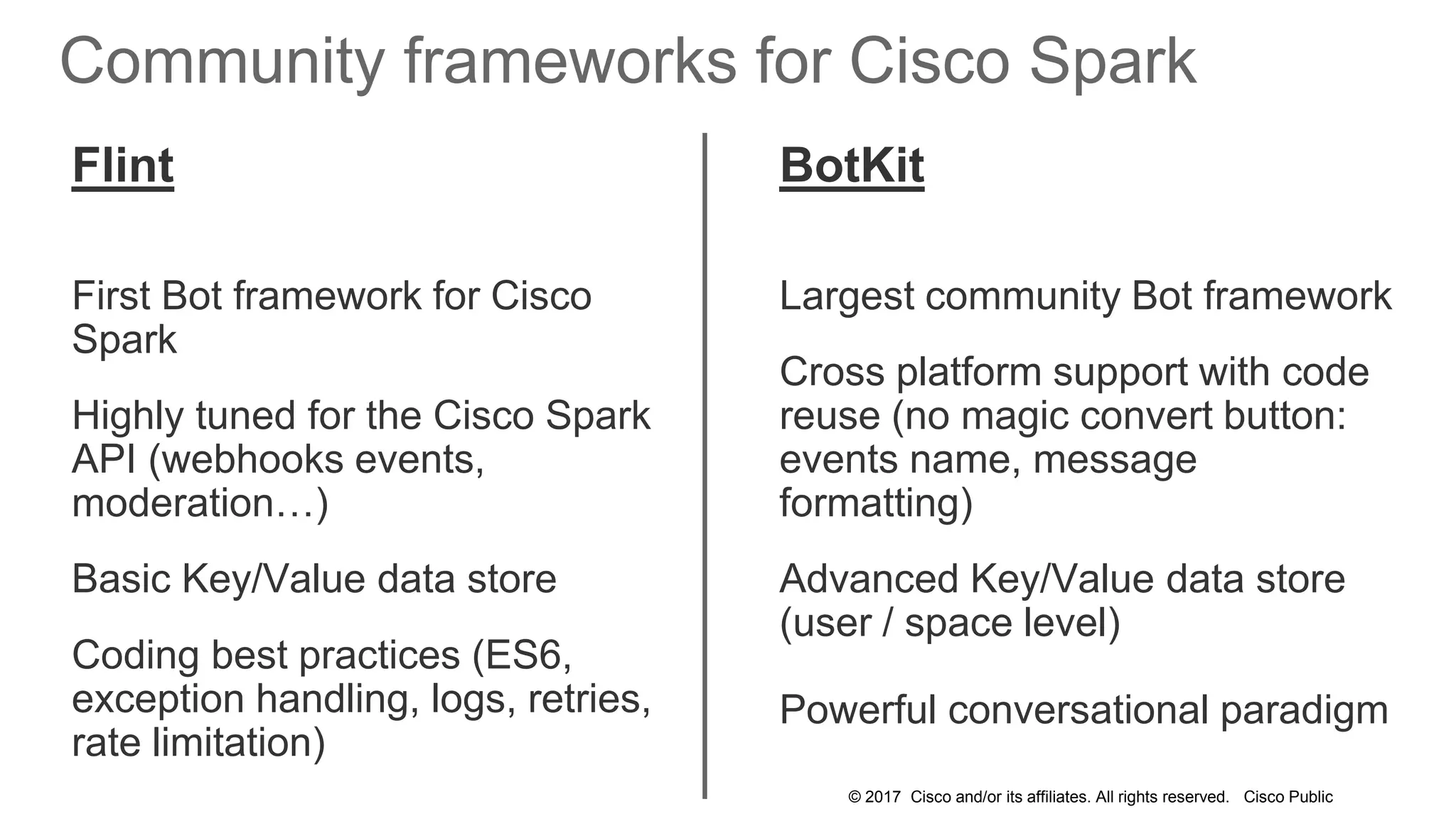

Community frameworks for Cisco Spark
Flint
First Bot framework for Cisco
Spark
Highly tuned for the Cisco Spark
API (webhooks events,
moderation…)
Basic Key/Value data store
Coding best practices (ES6,
exception handling, logs, retries,
rate limitation)
BotKit
Largest community Bot framework
Cross platform support with code
reuse (no magic convert button:
events name, message
formatting)
Advanced Key/Value data store
(user / space level)
Powerful conversational paradigm

29. Taking bots to the next
stage

30. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public
• EMEAR Digital Transformation Team
• Cisco Spark Apps & APIs
• #nodejs #python #django #js
#assembly #visualbasic #pascal
• Loves Home Automation
• twitter://@DJ_F3
• tools.sparkintegration.club
Dirk-Jan Uittenbogaard
“Nothing is impossible,
the word itself says
“I'm possible”!
-- Audry H
duittenb@cisco.com
@DJ_F3

31. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public
Cisco Spark
Secure & Open
Complete & Simple
Spark for Developers
User Integrations, APIs/SDKs...
Spark Hybrid Services
Cloud + Prem
Partner Services
Interconnect
Message Meeting Call
1:1 and team messaging Cloud-based phone systemAudio, video, and web meetings
31

32. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public

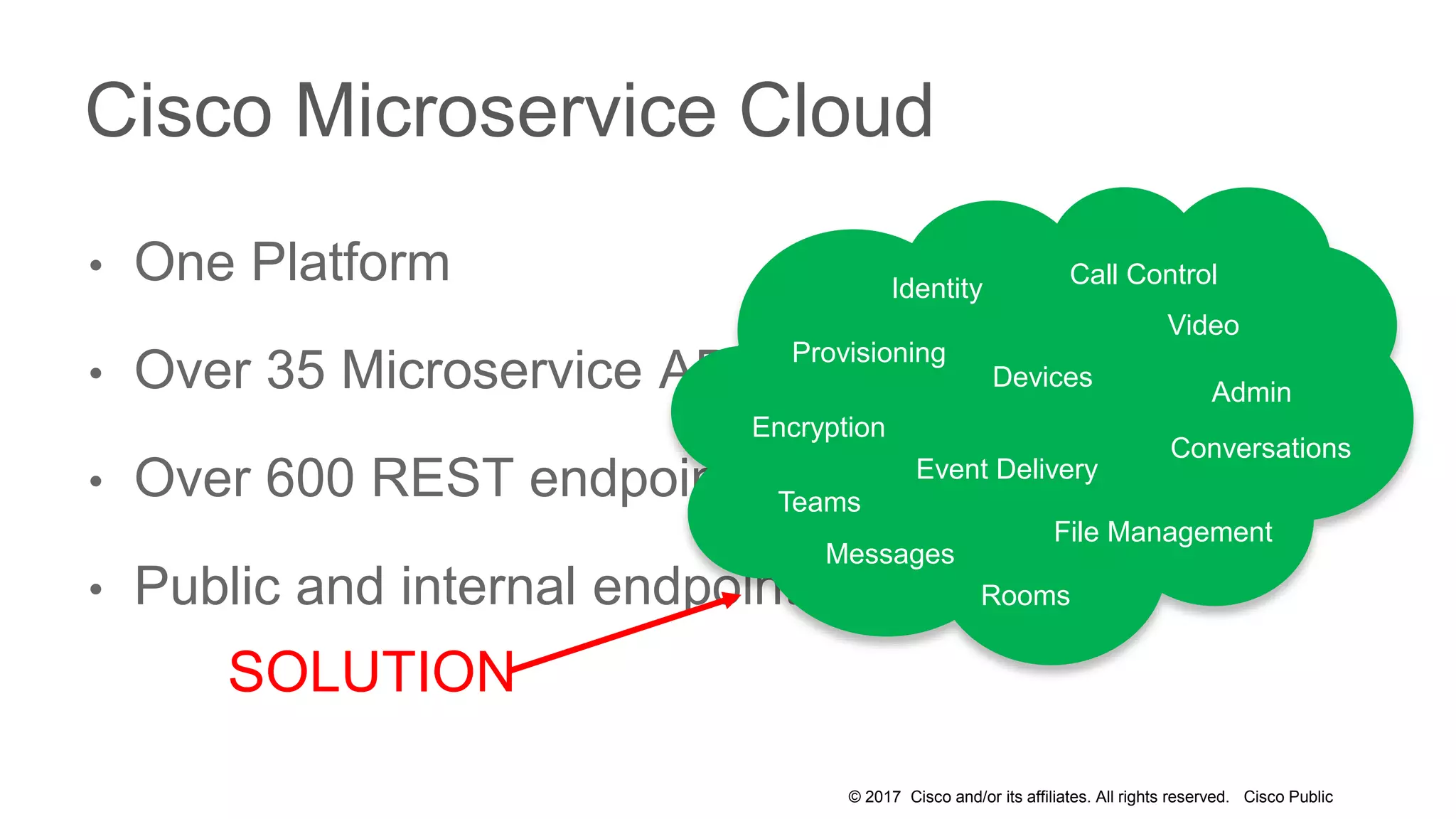

• One Platform
• Over 35 Microservice APIs
• Over 600 REST endpoints
• Public and internal endpoints
Cisco Microservice Cloud
Identity
Video
Encryption
Call Control
Conversations
File Management
Devices
Provisioning
Event Delivery
Rooms
Messages
SOLUTION
Teams
Admin

33. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public

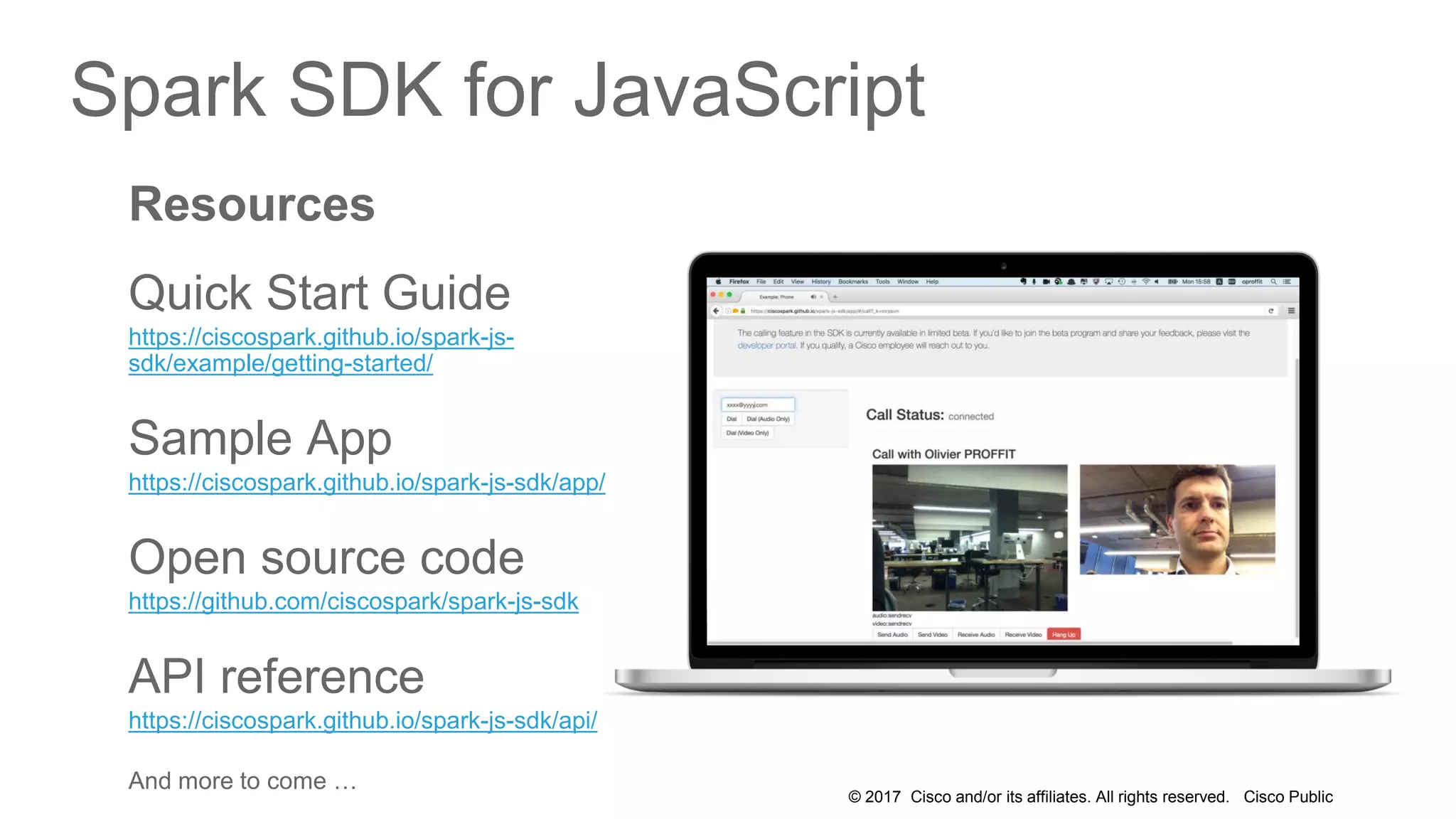

Spark SDK for JavaScript
Resources
Quick Start Guide
https://ciscospark.github.io/spark-js-
sdk/example/getting-started/
Sample App
https://ciscospark.github.io/spark-js-sdk/app/
Open source code
https://github.com/ciscospark/spark-js-sdk
API reference
https://ciscospark.github.io/spark-js-sdk/api/
And more to come …

34. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public

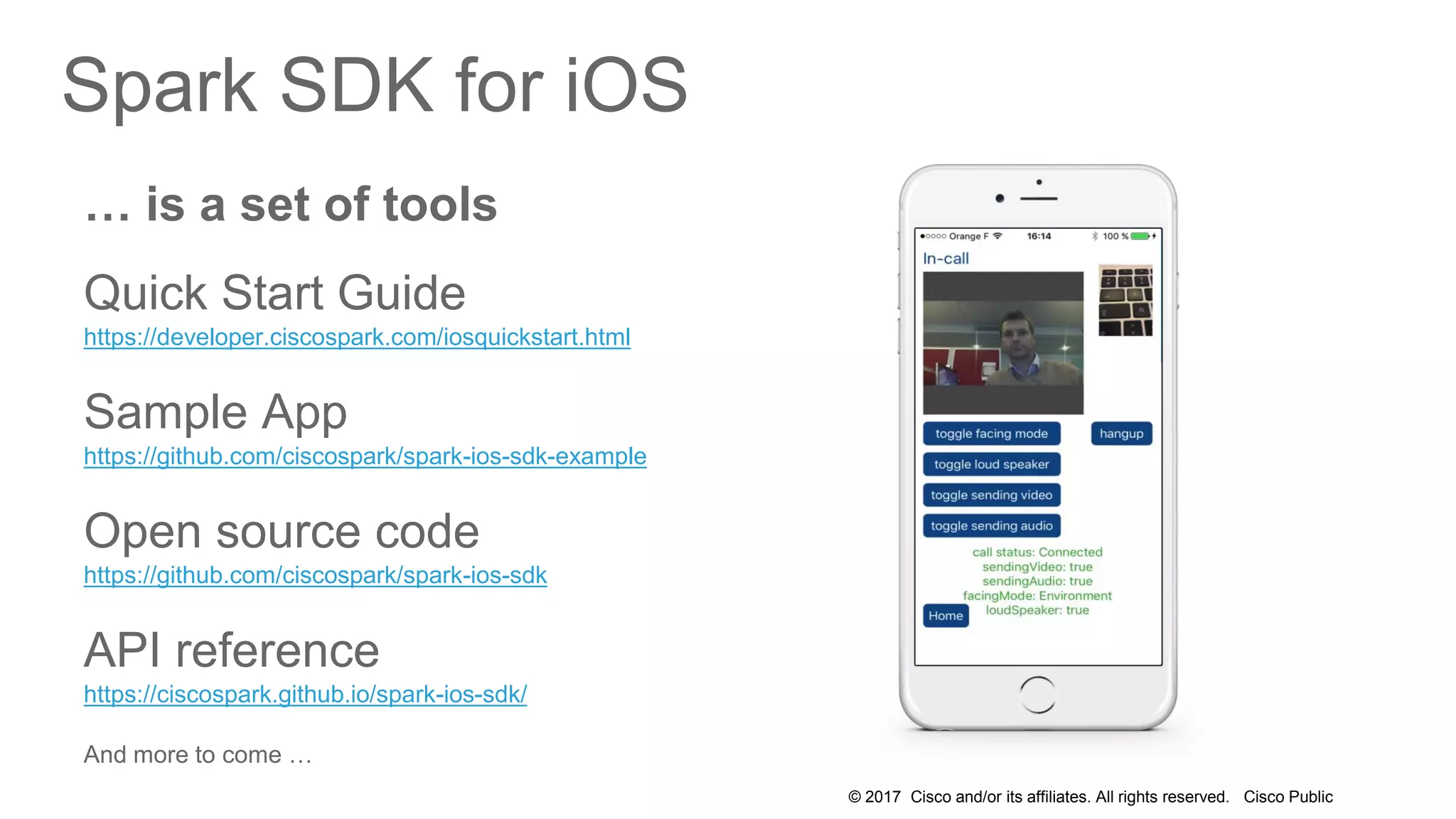

Spark SDK for iOS
… is a set of tools
Quick Start Guide
https://developer.ciscospark.com/iosquickstart.html
Sample App
https://github.com/ciscospark/spark-ios-sdk-example
Open source code
https://github.com/ciscospark/spark-ios-sdk
API reference
https://ciscospark.github.io/spark-ios-sdk/
And more to come …

35. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public
How does the Spark Board recognize me?
Earth beams Sound
Patience Karma

36. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public
How does the Spark Board recognize me?
Earth Beams Sound
Patience Karma
In the Greenhouse,
next to the entrance
Try it yourself !

37. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public

38. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public

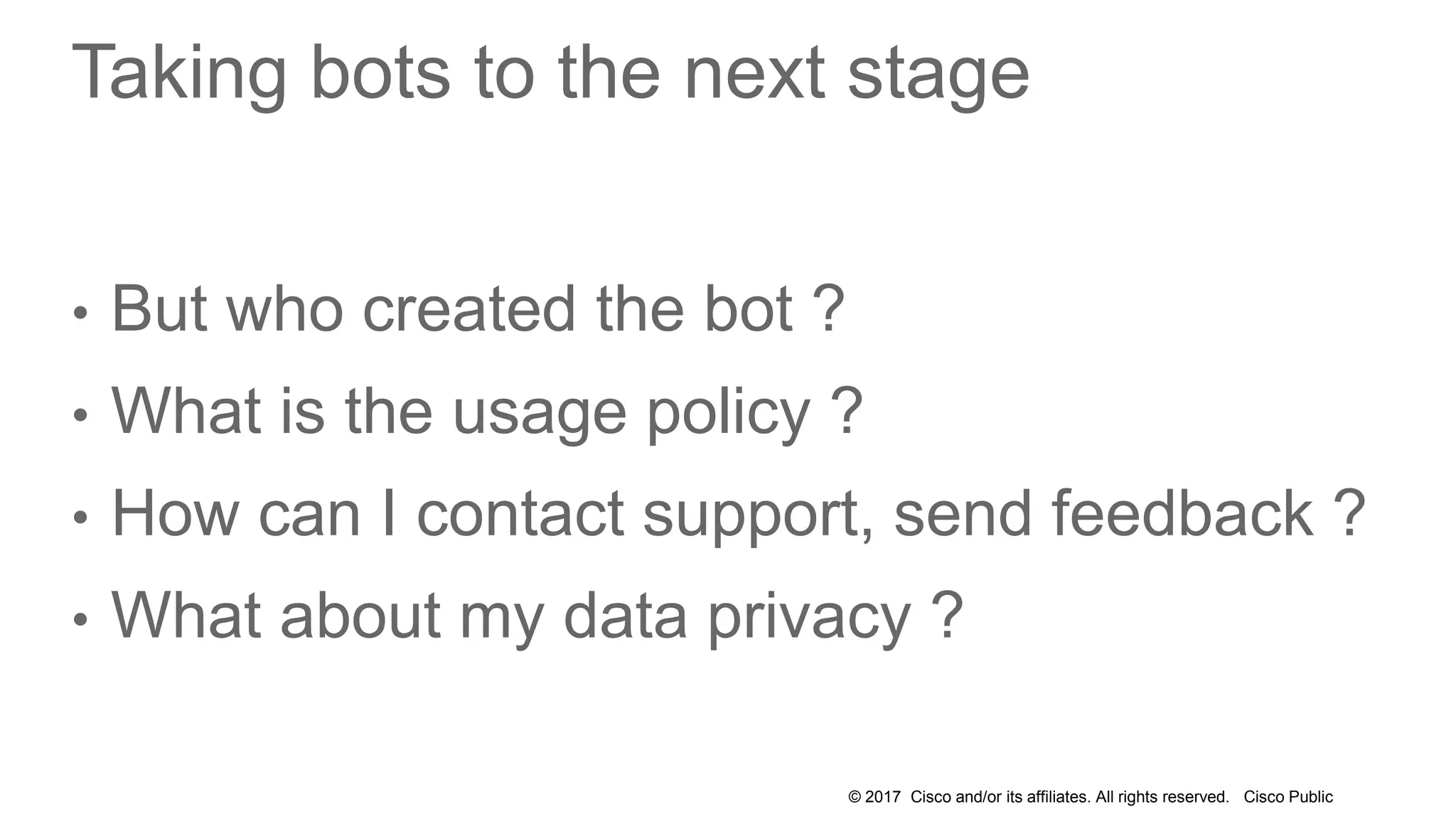

Taking bots to the next stage
• But who created the bot ?
• What is the usage policy ?
• How can I contact support, send feedback ?
• What about my data privacy ?

39. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public

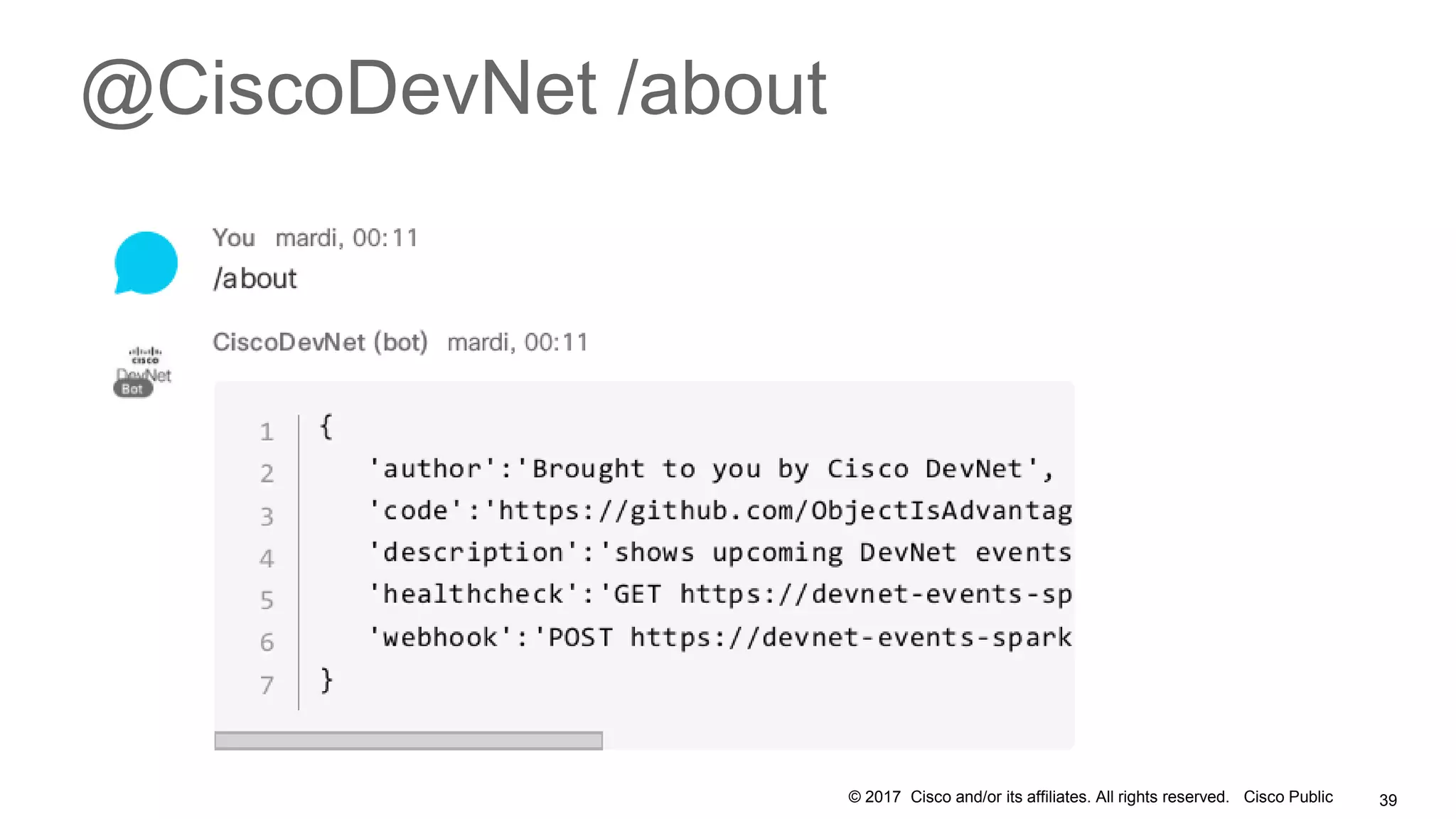

@CiscoDevNet /about
39

40. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public

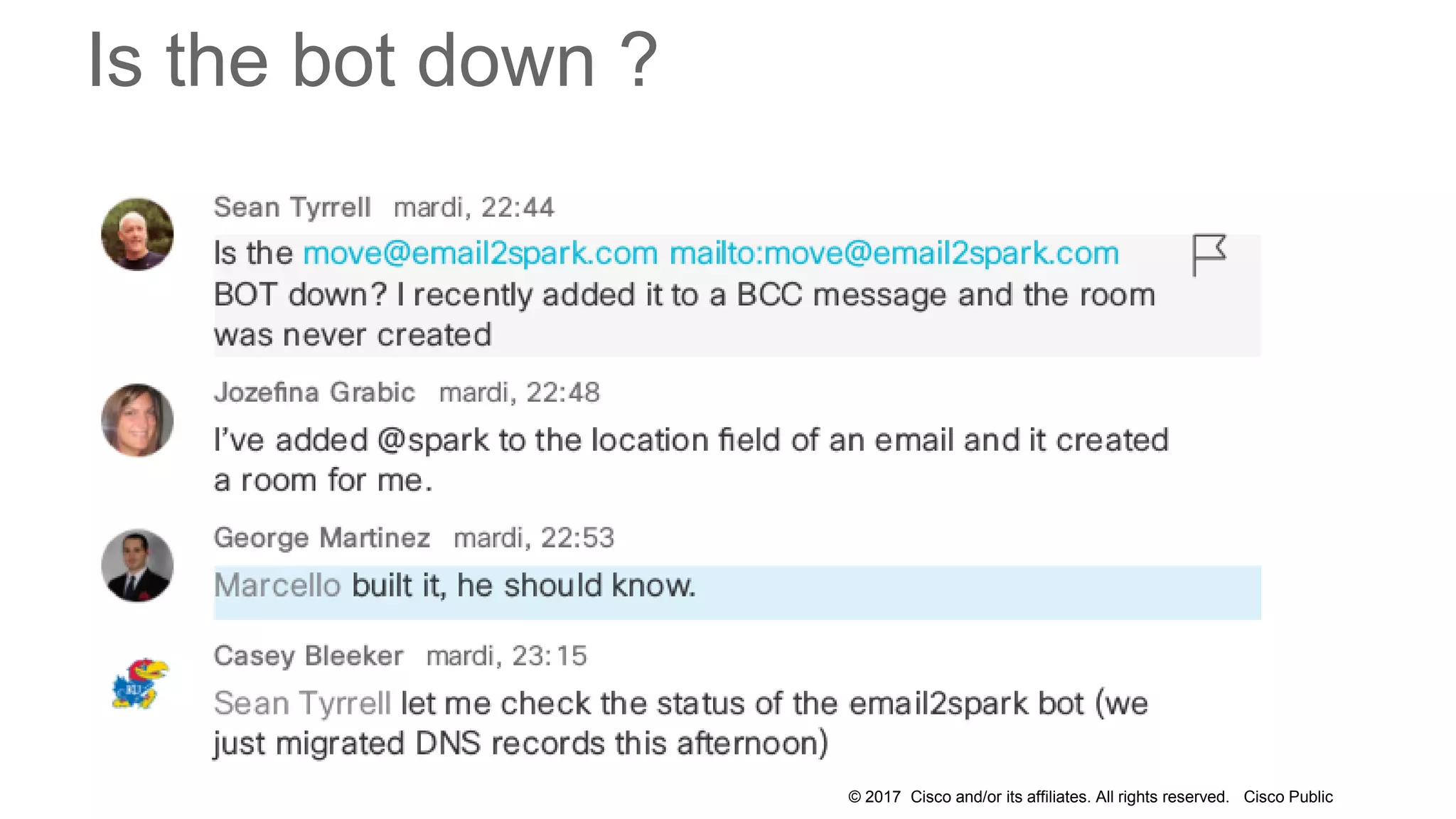

Is the bot down ?

41. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public 41

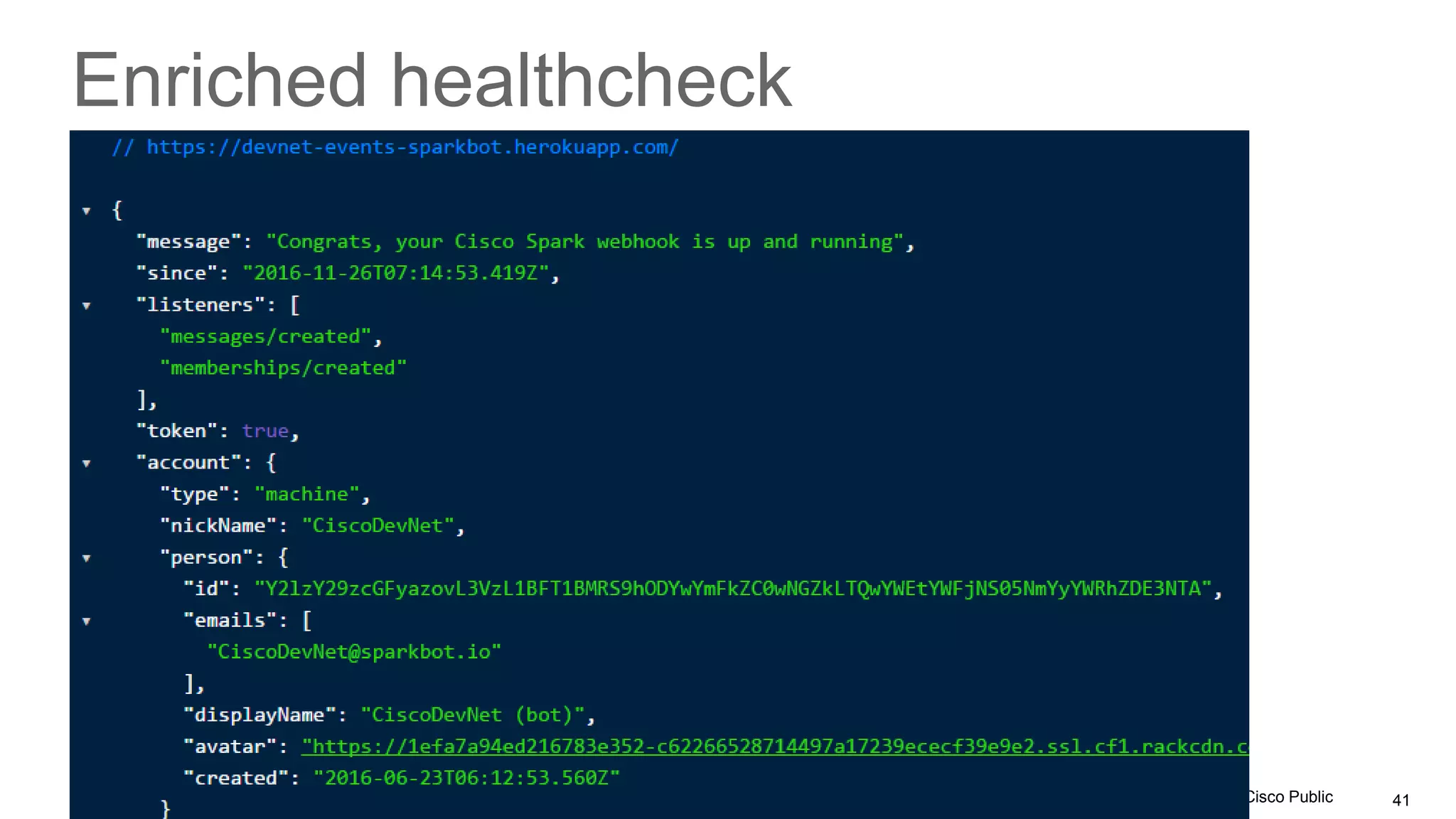

Enriched healthcheck

42. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public

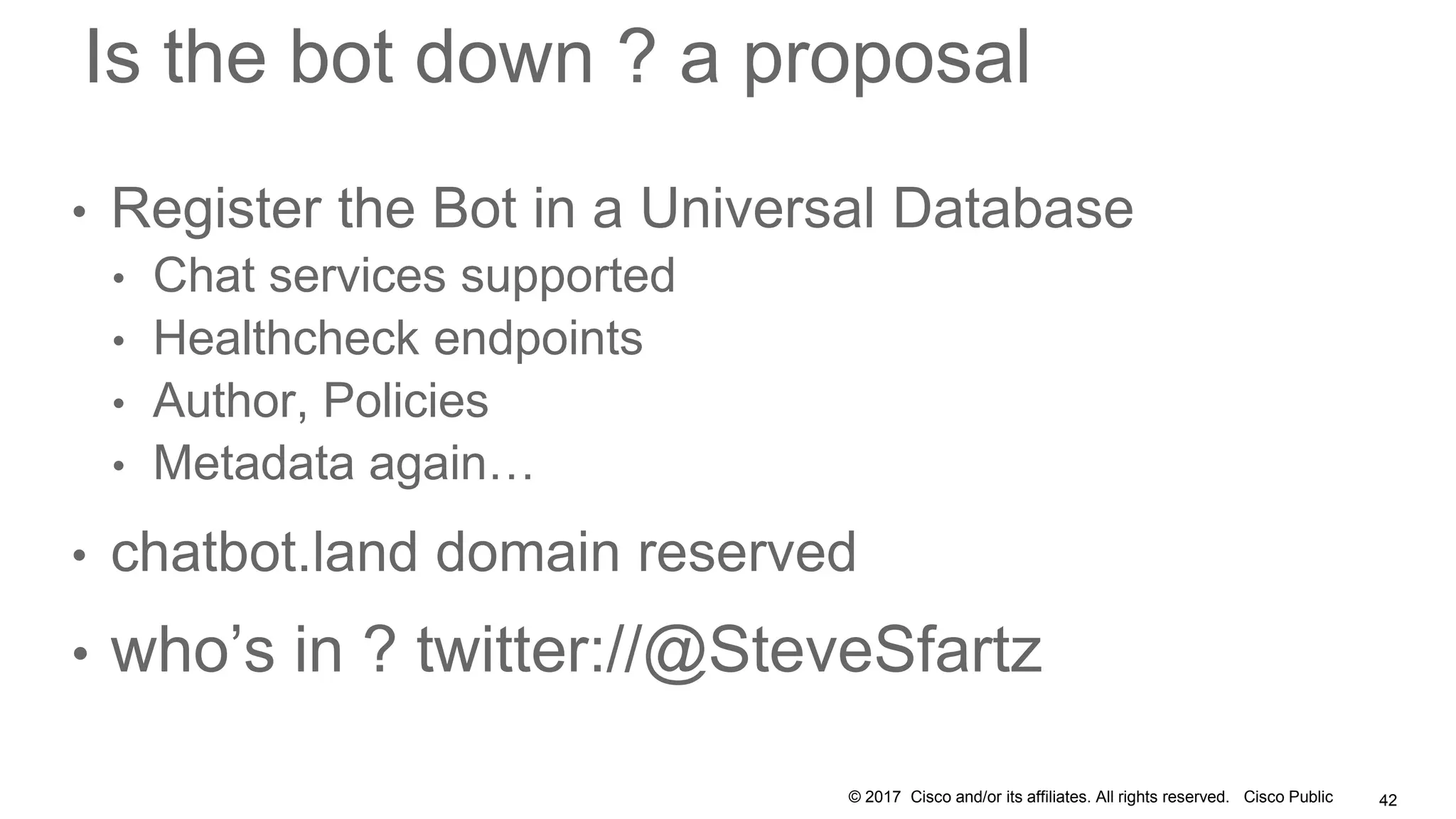

Is the bot down ? a proposal
• Register the Bot in a Universal Database
• Chat services supported
• Healthcheck endpoints
• Author, Policies
• Metadata again…
• chatbot.land domain reserved
• who’s in ? twitter://@SteveSfartz
42

43. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public

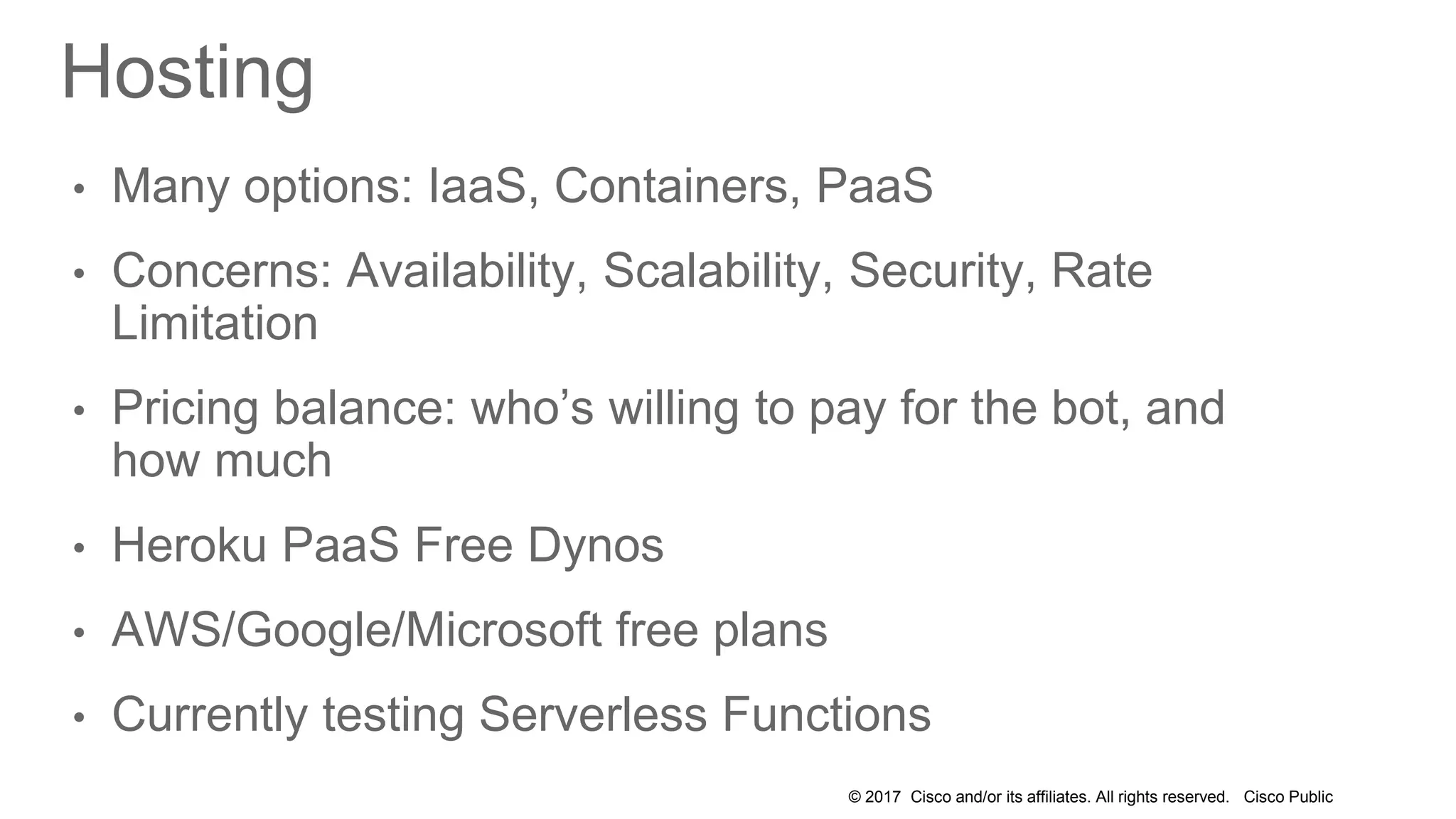

Hosting
• Many options: IaaS, Containers, PaaS
• Concerns: Availability, Scalability, Security, Rate
Limitation
• Pricing balance: who’s willing to pay for the bot, and
how much
• Heroku PaaS Free Dynos
• AWS/Google/Microsoft free plans
• Currently testing Serverless Functions

44. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public

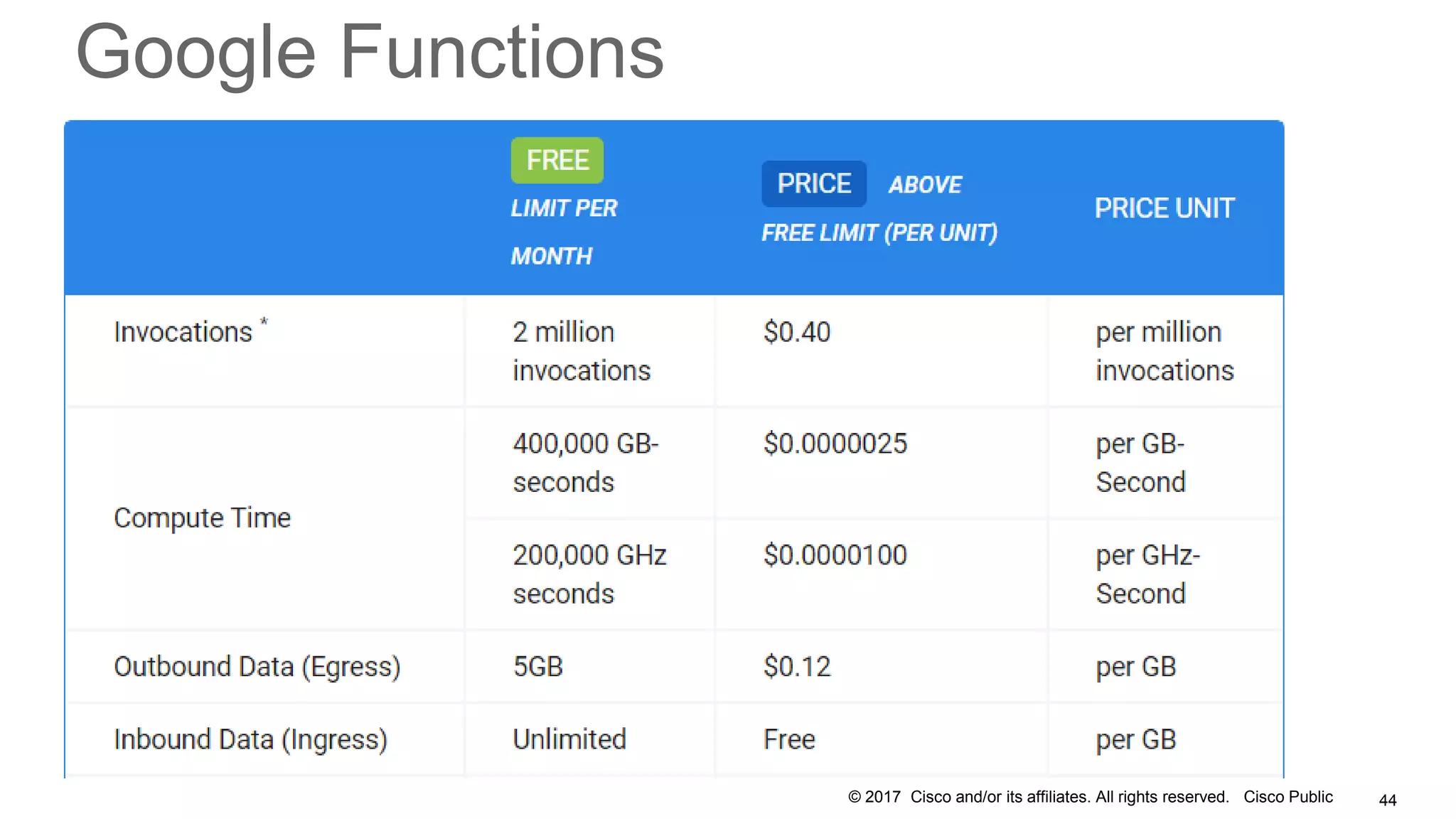

Google Functions
44

45. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public

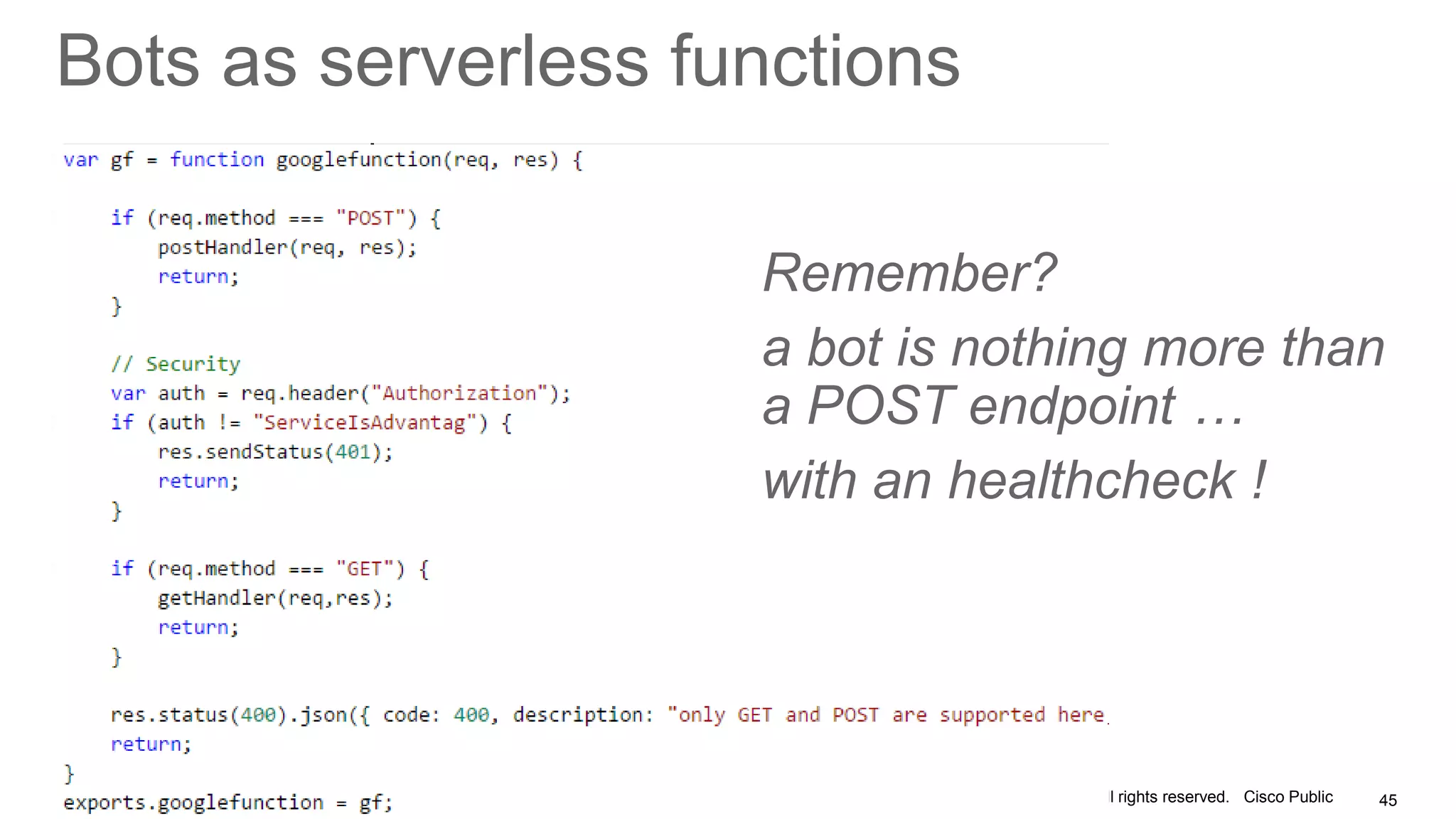

Bots as serverless functions
45
Remember?
a bot is nothing more than
a POST endpoint …
with an healthcheck !

46. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public

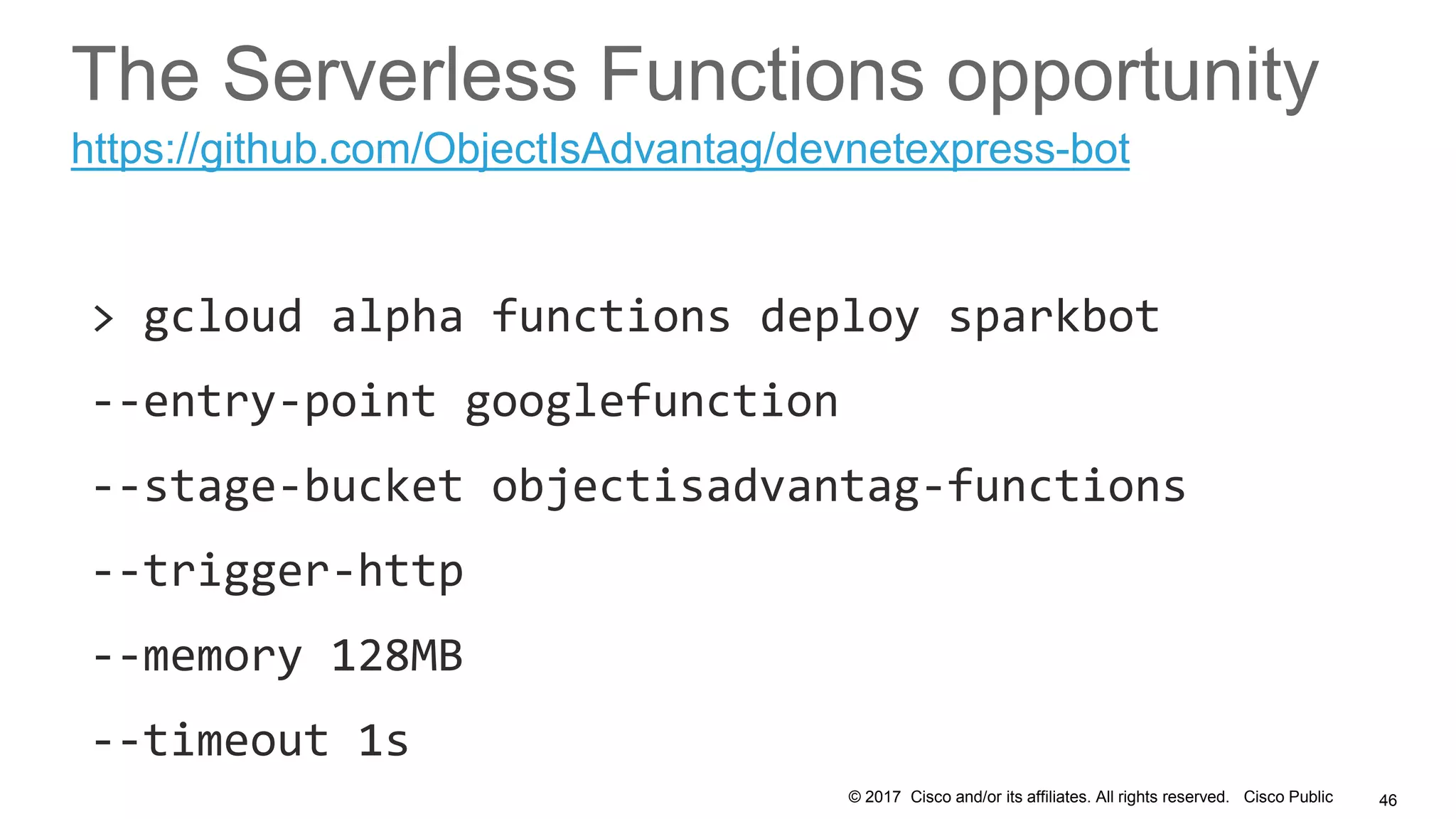

The Serverless Functions opportunity
> gcloud alpha functions deploy sparkbot
--entry-point googlefunction
--stage-bucket objectisadvantag-functions
--trigger-http
--memory 128MB
--timeout 1s
46
https://github.com/ObjectIsAdvantag/devnetexpress-bot

47. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public

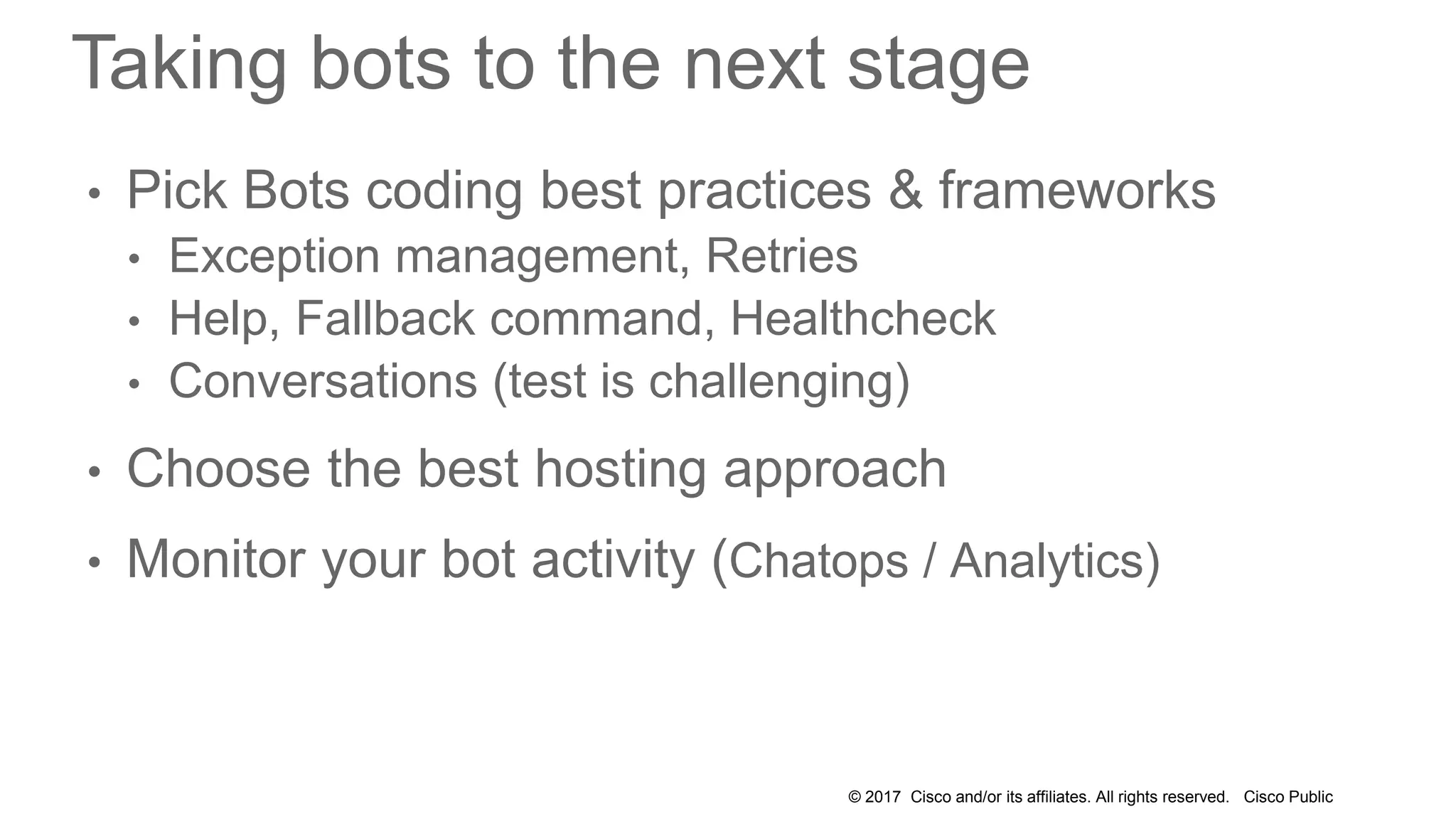

Taking bots to the next stage
• Pick Bots coding best practices & frameworks
• Exception management, Retries
• Help, Fallback command, Healthcheck
• Conversations (test is challenging)
• Choose the best hosting approach
• Monitor your bot activity (Chatops / Analytics)

48. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public

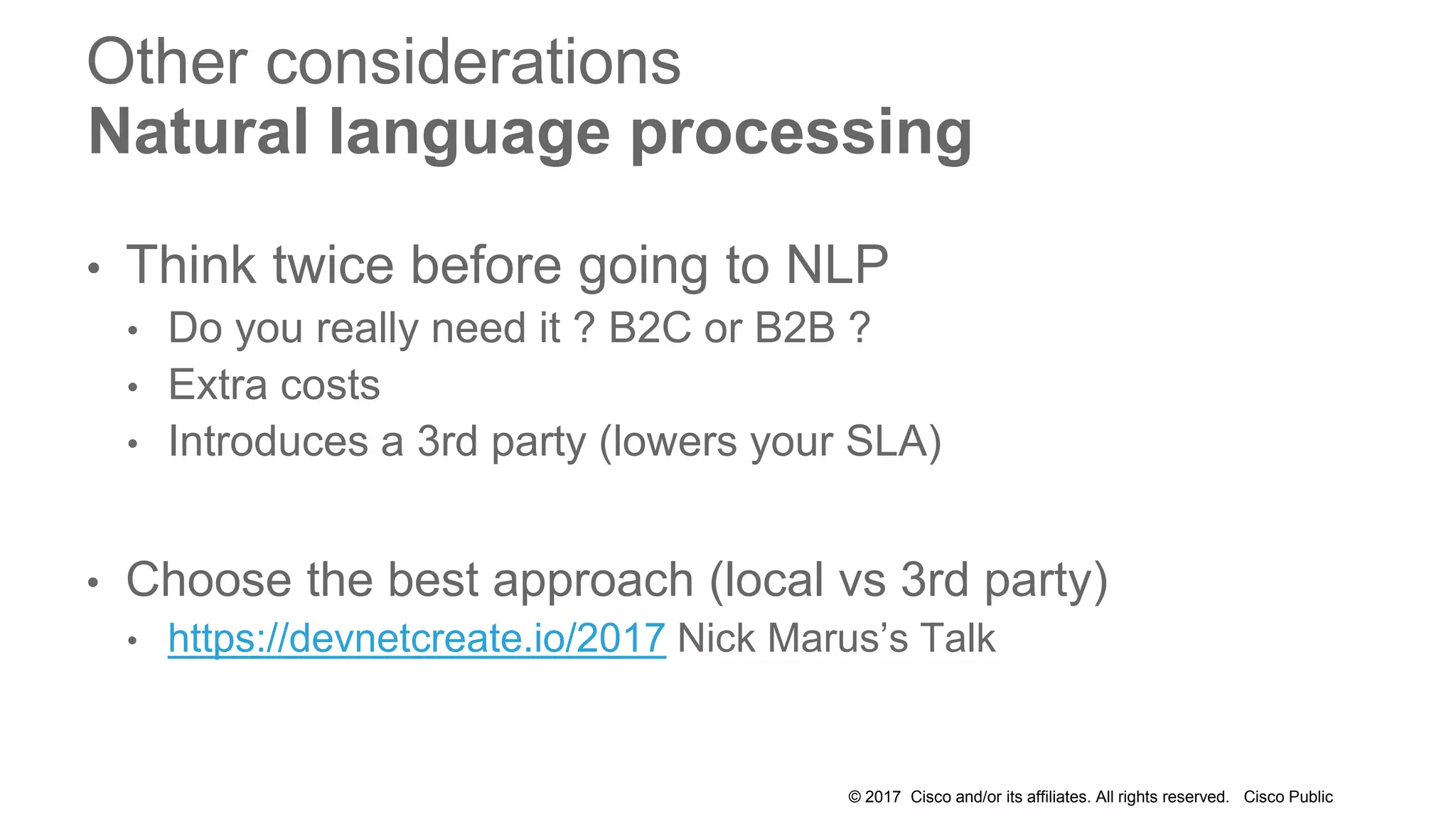

Other considerations
Natural language processing
• Think twice before going to NLP
• Do you really need it ? B2C or B2B ?
• Extra costs
• Introduces a 3rd party (lowers your SLA)
• Choose the best approach (local vs 3rd party)
• https://devnetcreate.io/2017 Nick Marus’s Talk

49. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public

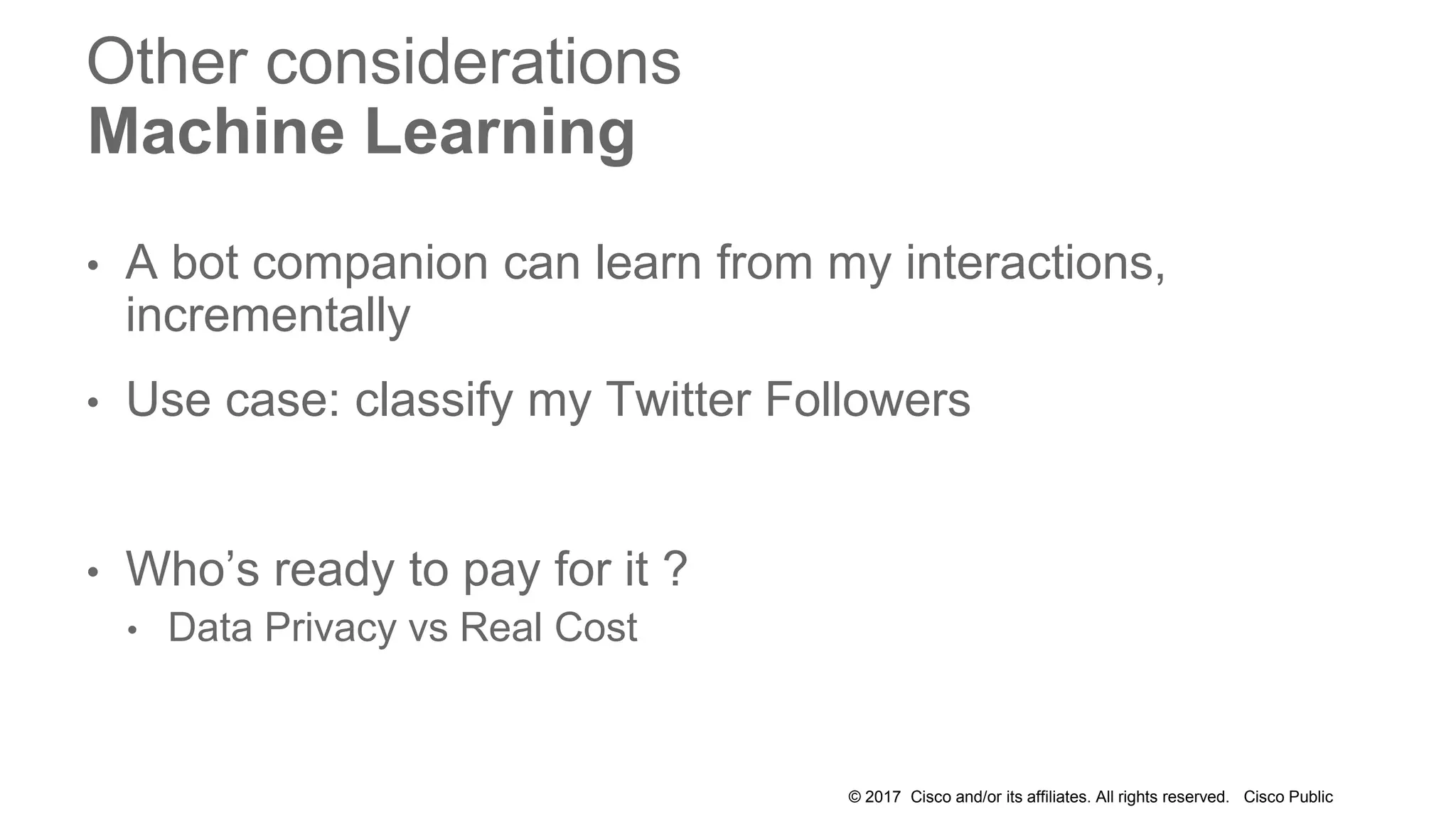

Other considerations
Machine Learning
• A bot companion can learn from my interactions,
incrementally
• Use case: classify my Twitter Followers
• Who’s ready to pay for it ?
• Data Privacy vs Real Cost

50. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public
• Self-service 15’ labs
• Pre-installed laptops
• Proctors to assist
Get hands-on

51. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public
May 16th
9:00 Big Container - The power of Connections
11:30 IoT: Voice and Messages to the resue
12:30 Building advanced ChatBots
All day Learn by taking a code lab with proctors
May 17th
11:30 Microservices and containers networking: Contiv
https://github.com/CiscoDevNet/codemotion-amsterdam-2017
Meet Cisco at CodeMotion

52. Thank you
@CiscoDevNet
@CiscoSparkDev
@SteveSfartz
@DJ_F3
