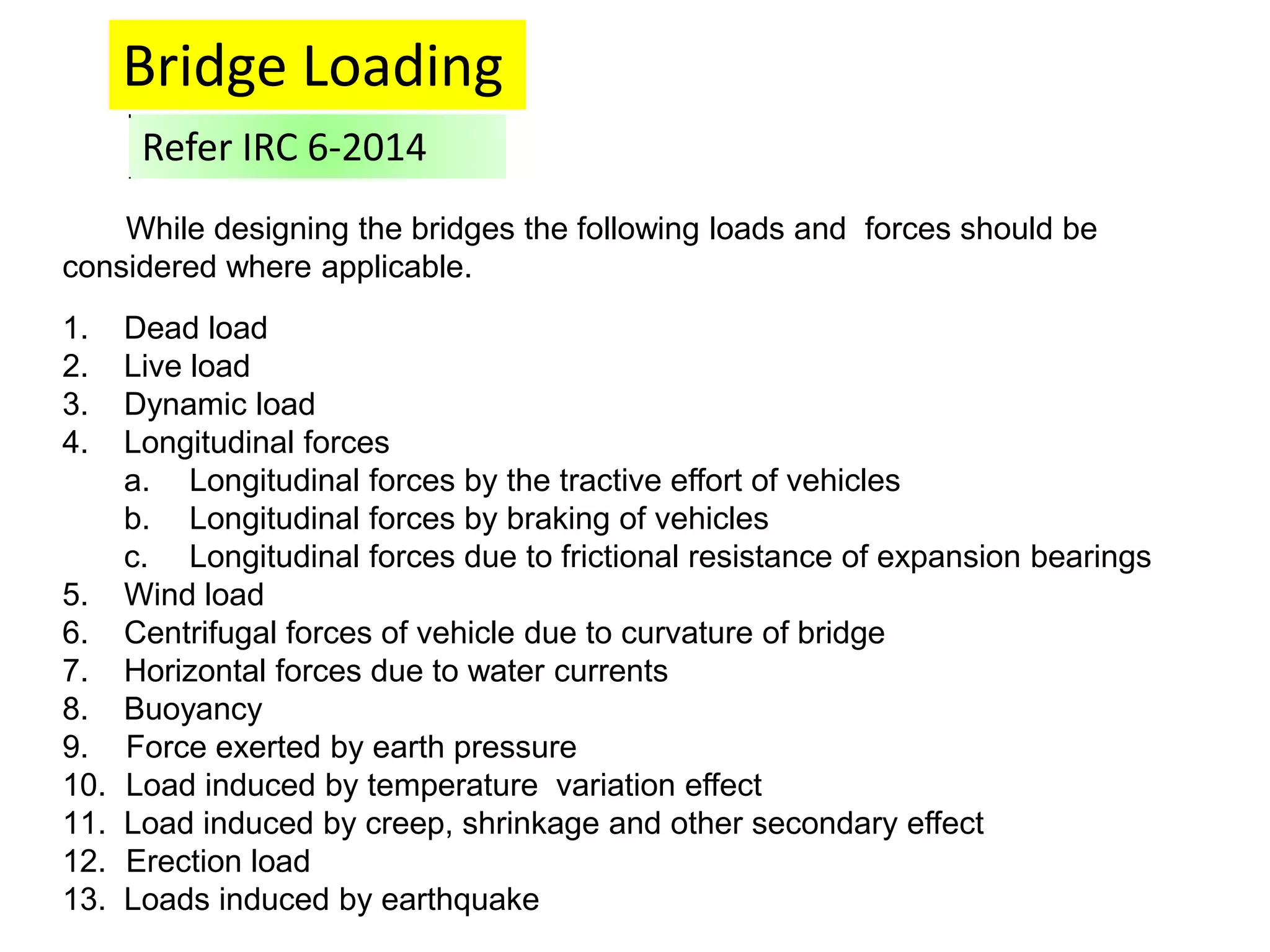

While designing the bridges the following loads and forces should be
considered where applicable.
1. Dead load
2. Live load
3. Dynamic load
4. Longitudinal forces
a. Longitudinal forces by the tractive effort of vehicles
b. Longitudinal forces by braking of vehicles
c. Longitudinal forces due to frictional resistance of expansion bearings
5. Wind load
6. Centrifugal forces of vehicle due to curvature of bridge
7. Horizontal forces due to water currents
8. Buoyancy
9. Force exerted by earth pressure
10. Load induced by temperature variation effect
11. Load induced by creep, shrinkage and other secondary effect
12. Erection load
13. Loads induced by earthquake
Bridge Loading
Refer IRC 6-2014

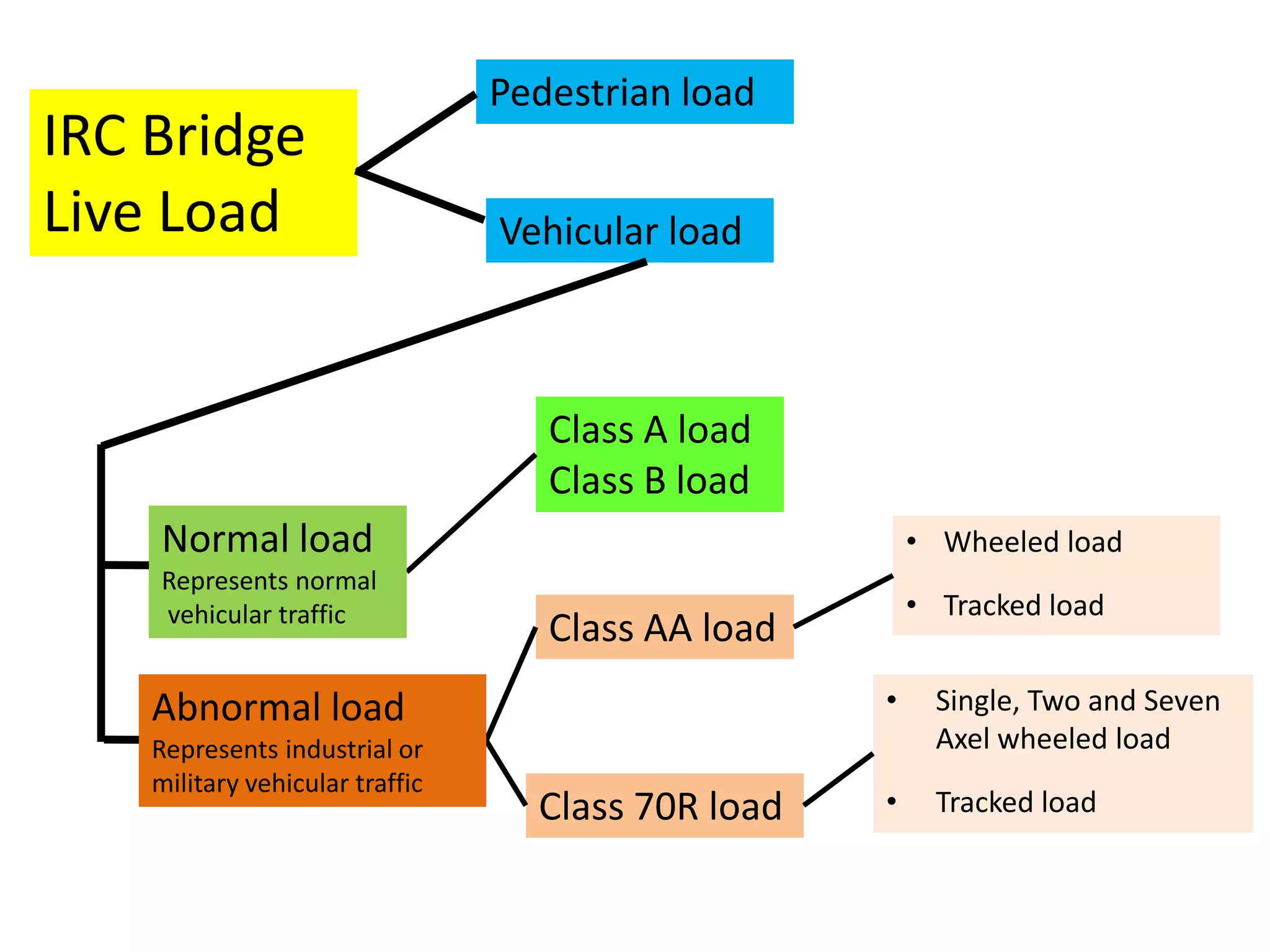

IRC Bridge
Live Load Vehicular load
Pedestrian load
Class A load
Class B load
Class AA load
Class 70R load
• Wheeled load
• Tracked load
• Single, Two and Seven
Axel wheeled load
• Tracked load
Normal load
Represents normal
vehicular traffic
Abnormal load
Represents industrial or
military vehicular traffic
Class A/B Loading
CLASS A LOADING (KN)
Total load = 554 KN
CLASS B LOADING (KN)
68 68 68 68
27 27 114 114
16 16 68 68 41 41 41 41
20 1.1 3.2 1.2 4.3 3 3 3 20 C/C distance of axle (m)
Total length of a train = 18.8m
g
f
Cross section
1.8 m
B
W
1.1m
3.2m
1.2m
Plan
Carriageway
Width
G F
5.3 to 6.1m
Uniformly increasing
from 0.4 to 1.2.m
150 mm
Above 6.1m 1.2 m 150 mm
Class 70R Loading
Class 70R tracked vehicle
Total Weight 700 KN
4.57m
7.92m
90m 90m
Cross-section of Class 70R tracked vehicle
0.84m
C
1.22m
2.06m
0.84m
350KN 350KN
Carriage way
width
(m)
Minimum
value of C
(mm)
≥5.3m 1200
Cross-section of Class 70R two
axel wheeled load 400KN
C
Class 70R Loading
80 120 120 170 170 170 170 KN
70R seven axel wheeled load 1000 KN
1.22m
2.79 m
Plan
 Value of C is same as of 70R
tracked loading
 Min. distance between wheeled
loads of Class70R is 30 m
2.79 m
3.96 1.52 2.13 1.37 3.05 1.37
Plan
Wheel Arrangement of 70R Wheeled Load
‘L’ Type
2.79 m
0.86 m
0.41 m
0.61 m
‘M’ Type
2.79 m
0.41 m
0.61 m
0.38 m
‘N’ Type
2.79 m
0.51 m
0.51 m
0.25 m
0.23 m
Contact area of tyre may be obtained from
the corresponding tyre load, tyre pressure
and tyre tread width. Tyre tread width may
be taken as overall tyre width minus 25 mm
up to tyre 225mm and 50 mm for tyres over
225 mm width.
Maximum tyre pressure = 5.273 Kg/cm2
Minimum Wheel Spacing and Tyre Size of Heaviest Axle
Cross-section of Class AA
wheeled load 400KN
C
37.5 62.5 62.5 37.5 KN
Class AA Loading
[Refer Annex]
Total Weight 700 KN
3.6 m
7.2m
90m
Cross-section of Class AA tracked
vehicle
1.2m
2.05m
0.85m 0.85m
C
350KN
350KN
1.2m
Plan
0.6m 1m 0.6m
0.3m
0.15m
Carriage way
width (m)
Minimum
value of C
(mm)
Multi lane bridge
≥5.3m 1200
• 70R loading is adopted on all roads on which
permanent bridges are constructed. Bridges designed
for 70R loading should be checked for Class A loading.
• Class AA loading is adopted on specified location on
which permanent bridges are constructed. Bridges
designed for Class AA loading should be checked for
Class A loading.
• Class A loading is adopted on all roads on which
permanent bridges are constructed. Bridges designed
for Class A loading should be checked for Class AA/70R
loading.
• Class B loading is adopted on specified location on
which temporary bridges are constructed.
Carriage
Way (m)
No of
lane
Live loads
<5.3 1 Class A loading for 2.3m width and for remaining width 500 Kg/m2
≥5.3
<9.6
2 One lane of Class70R/AA loading or two lanes of Class A loading
≥9.6
<13.1
3
One lane of Class 70R/AA for every two lanes with Class A loading
for remaining lanes or three lanes of Class A loading
≥13.1
<16.6
4
One lane of Class 70R/AA for every two lanes with Class A loading
for remaining lanes or one lane of class A for each lane
≥16.6
<20.1 5
≥20.1
<23.6 6
0.4 m 1.8 m 1.7 m 1.8 m
Class A
Class A
1.8 m
0.4m
5 KN / m2
2.3 m
0.15m 0.5m
Class A
1.2m
Class 70R (W/T)
1.2m
1.8 m
0.4 m
0.15m
0.5m
Class A Class 70R (W/T)
Combination of live loads
For Single Lane Bridge
For Two Lanes Bridge
For Two Lanes Bridge
For Three Lanes Bridge
1.2m
1.8 m
0.4 m
0.15m
0.5m
Class A
1.8 m
0.5m
Class A
1.8 m
0.5m
Class A
1.2m
1.2m
Class 70R (W/T)
1.2m
Class 70R (W/T)
1.2m
1.8 m
0.4 m
0.15m
0.5m
Class A
1.8 m
0.5m
Class A
1.8 m
0.5m
Class A
1.2m
1.8 m
0.5m
Class A
1.2m
1.2m
1.8 m
0.4 m
0.15m
0.5m
Class A Class 70R (W/T)
1.8 m
0.5m
Class A
1.2m
Combination of live loads
For Three Lanes Bridge
For Four Lanes Bridge
For Four Lanes Bridge
For Four Lanes Bridge
Live load information required for
analysis of bridge deck
• Type of load
• Number of axle of vehicle
• Magnitude of load on each axle
• Spacing of axle
• Contact area of wheel /track
• Spacing of vehicle in transverse and longitudinal direction
• Maximum lane load
• Reduction of live load in excess of two lanes
• Arrangement of wheel in case of 70R wheeled and train loading
• Combination of live loads
Pedestrian Load
Length of bridge ≤7.5 m ; Intensity of load = 4 or 5 KN/m2
>7.5m; Intensity of load ≤ 4 KN/m2
P = P’ – (40L – 300)/9 for up to 30 m span
P = (P’ – 260 + 4800/L) × (16.5 – W)/15 for greater than 30 m span
P’ = 4 or 5 KN/m2
P – Intensity of load
W – Width of foot way
L – Span of bridge
For class A and B loading
• Impact factor fraction for RCC bridge = 4.5/(6+L)
• Impact factor fraction for Steel bridge = 9/(13.5+L)
For Class AA and Class 70R loading for span less than 9 m
• For tracked vehicles: 25% for span up to 5m linearly reducing to 10% for spans of 9 m
• For wheeled vehicles: 25%
For tracked vehicles for spans of 9 m or above
• 10% up to a span of 40 m and in accordance with the curve in the code for spans greater than 40
m of RCC Bridge
• 10% for all span of Steel Bridge
For wheeled vehicles for spans of 9 m or above
• 25% for spans up to 12 m and in accordance with the curve in the code for spans greater the
12 m RCC Bridge
• 25% for spans up to 23 m and in accordance with the curve in the code for spans greater the
23 m Steel Bridge
Impact Load Moving live load with its dynamic effect.
Dynamic effect of live load is calculated by the impact factor.
Impact load = static value of live load × Impact factor
5 10 20 25 45
0
0
10
25
50
55
A and B ( Steel bridge )
A and B ( Concrete bridge )
Class AA/70R tracked ( Concrete bridge )
Impact Factor
Span of bridge, m
IF in %
Class AA/70R tracked ( steel bridge )
Class AA/70R wheeled ( Concrete bridge )
1. Externally applied longitudinal forces
• Tractive effort caused through acceleration of driving wheels
• Braking effort due to application of brakes to the wheels
• Frictional resistance offered by free bearings due to change of
temperature, shrinkage and creep
Force due to braking effort
Braking effort is invariably greater than the tractive effort so taken as a design longitudinal
force. It is computed as follows.
• For single or two lane bridge, braking loads taken as 20%of the first
train load and 10% of the loads of succeeding trains.
• For multilane bridge, braking load is taken as in (a) for the first two
lanes and 5% of the loads on the other lanes.
• The force due to braking effort shall be assumed to act 1.2m above
the roadway.
LONGITUDINAL FORCES
Forces due to frictional resistance offered by bearing
Fh/2 or µW
Fh/2 or µW
µW Fh - µW
Fh /2+ sδ Fh /2+ sδ
I. Simply supported deck on
unyielding support
Span without bearing
Span with fixed
and free bearing
Span with
elastomeric bearings
2. Self induced longitudinal forces
Forces induced by Creep, Shrinkage or Effect of Temperature
Variation
II. Simply Supported/ Continuous
deck on flexible support
1 2 3
µW CL Sn + Fh X Sn /∑S CL Sn + Fh X Sn /∑S
Wind load = Wind load on the structure
+ Wind load on the live load
FT = PZ × A × G × CD
FL = 0.25 FT for beam type bridge
= 0.5 FT for truss type bridge
FT - Wind load in transverse direction
FL - Wind load in longitudinal direction of bridge
PZ - Design wind pressure
A - Exposed area of structure / live load to wind
G - Gust factor ; G = 2 for 150 m span
CD - Drag coefficient CD ≥ 1.3 depending upon b/d ratio and type of superstructure
Wind load on live load = Length of live load × 3m × FT
In the case of live load G is taken equal to 1.2m and point of application of wind load is 1.5 m.
Described method of wind load calculation is valid for bridges of
span upto150m and height of pier upto 100m
WIND LOAD
Pressure of water current P = 52 KV2 [kg/m2]
Where K- shape factor of the pier ( k= 0.5 -1.5)
V- velocity of the water current at the point, where
pressure intensity is to be calculated. [m/sec]
Intensity of pressure due to water current depends on
• Direction of current
• Velocity of water current
• Shape factor of the pier
• Maximum scouring depth
200 deviation of river course shall be considered in the calculation of the
pressure due to water current
HORIZONTAL FORCES
DUE TO WATER CURRENT
Horizontal forces due to water current =
Pressure of water current X Area of structure exposed to water
FORCE EXERTED BY EARTH PRESSURE
PA=1/2KAγH2
PP=1/2KPγH2
PP
PA
δ
ì
0.42H
H
Coulomb’s Theory
Seismic Force
Method of computation of Seismic Force
• Elastic Seismic Acceleration Method
In this method static analysis is made and seismic force is obtained for
acceleration corresponding to the fundamental mode of vibration.
• Elastic Response Spectrum Method
In this method dynamic analysis is made to first and higher modes of
vibration and forces are obtained for each mode by using of response
spectrum.
In elastic seismic acceleration method force due to
earthquake is calculated as follows.
Feq = Ah × (Dead load + Partial Live load)
where,
Ah = Z/2 × I/R × Sa/g
Bridges need not be checked for seismic effects
Bridges need special investigation for seismic effects
FORCE EXERTED BY
DYNAMIC EARTH PRESSURE
PA=1/2KAγH2
PP=1/2KPγH2
PP
PA
δ
ì
0.6H
H
Mononobe Okabe Theory
(Modified Coulomb’s Theory)
FORCE EXERTED BY HYDRODYNAMIC PRESSURE
R
Ground
Shaking
Enveloping
cylinder
Pier
R Ground
Shaking
Enveloping
cylinder
Pier
F = C Ah W W- Weight of water bound in enveloping cylinder
W = πR2H × Unit wt. of water
R – Radius of enveloping cylinder
H – Submerged height of pier
Ah- Horizontal acceleration coefficient
C – Hydrodynamic coefficient
H/R C
1 0.39
2 0.58
3 0.68
4 0.73
Load Combinations
in the Design of Bridge [WSDM]
Combination
of loads
I
II A
II B
III A
III B
IV
V
VI
VII
VIII
IX
Increase in
permissible stress
according to load
combination
0 - 50 %
Load Combination [WSDM]
IRC 6 define four cases separately i.e. foundation, stability, limit state of
strength and limit state of serviceability to be considered in Limit State
Design Method. In each cases, there are further three combinations of loads
to be considered.
 Three combinations of limit state of strength and stability are
• Basic combination
• Seismic combination
• Accidental combination
 These combinations are given separately for serviceability check and
foundation design.
 Partial safety factors for loads for different combinations and for different
works are not similar. They are chosen as specified in code
 Refer IRC 6 – 2010, Table 3.1, 3.2, 3.3 and 3.4 for combination of loads
Load Combinations
in the Design of Bridge [LSDM]
• HS loading
It consists of truck with semi-trailer or the corresponding lane
loading. Lane load consists of a uniform load per unit length of
traffic lane combined with a concentrated load (one concentrate
load for simply supported span and two concentrated load in case of
continuous span).
HS loading may be HS 20-44 and HS 15-44.
It consists of a two-axle truck or the corresponding lane load. Lane
load consists of a uniform load per unit length of traffic lane
combined with a single concentrated load (two concentrated load in
case of continuous span).
H loading may be H 20-44 and H 15-44.
Lane Loading
H 20-44
HS 20-44
HS 15-44
H 15-44
18000 lbs for bending moment
26000 lbs for shear force
13500 lbs for bending moment
19500 lbs for shear force
640 lbs/ft
480 lbs/ft
8000 lbs
6000 lbs
32000 lbs
24000 lbs
H 20-44
H 15-44
8000 lbs
6000 lbs
32000 lbs
24000 lbs
32000 lbs
24000 lbs
HS 20-44
HS 15-44
Truck Loading
6'
14'
6'
14'-30’
14'
AASHTO
Live Loading
Maximum bending moment (KN-m)
Span
(M)
IRC loading
AASHTO BS
(HS20-44) HA HB
One lane Two lane One lane Two lane One lane Two lane
One
lane
Two
lane
5 687 687 231 462 243 488 756 838
10 1548 1548 573 1146 694 1388 1863 2095
15 2725 2725 1073 2146 1336 2672 3331 3776
20 4198 4198 1552 3104 2175 4350 5654 6379
25 5680 5680 2022 4044 3156 6312 7862 8914
30 7058 7058 2481 4962 4151 8302 10085 11468
35 8412 8412 2935 5870 5184 10368 12315 14043
40 9739 9739 3379 6758 6340 12680 14550 16663
45 11059 11059 3863 7726 7501 15002 16788 19288
50 12496 12496 4597 9194 8656 17312 19029 21914
Responses of bridge in different codal standard
Maximum Live Load Shear Force
for Two Lane Simply Supported Bridge (KN-M)
596
716 738 750
1020
1509
1619
1694
0
200
400
600
800
1000
1200
1400
1600
1800
10m 20m 25m 30
IRC
AASHTO
BS
Maximum Live Load Bending Moment
for Two Lane Simply Supported Bridge (KN-M)
1146
3104
4044
4962
2095
6379
8914
11468
0
2000
4000
6000
8000
10000
12000
14000
10m 20m 25m 30
IRC
AASHTO
BS

More Related Content

What's hot

Design and Detailing of RC Deep beams as per IS 456-2000
Design and Detailing of RC Deep beams as per IS 456-2000Design and Detailing of RC Deep beams as per IS 456-2000
Design and Detailing of RC Deep beams as per IS 456-2000
VVIETCIVIL

SEMINAR PRESENTATION ON BOX CULVERTS
SEMINAR PRESENTATION ON  BOX CULVERTSSEMINAR PRESENTATION ON  BOX CULVERTS
SEMINAR PRESENTATION ON BOX CULVERTS
srinivas cnu

Structural analysis 1
Structural analysis   1Structural analysis   1
Structural analysis 1
R VIJAYAKUMAR

BALANCED CANTILEVER BRIDGE
BALANCED CANTILEVER BRIDGEBALANCED CANTILEVER BRIDGE
BALANCED CANTILEVER BRIDGE
srinivas cnu

52436966 lecture-13-plate-girders
52436966 lecture-13-plate-girders52436966 lecture-13-plate-girders
52436966 lecture-13-plate-girders
Saleem Malik

Watertank
WatertankWatertank
Watertank
Shawon Aziz

Lecture 8 raft foundation
Lecture 8 raft foundationLecture 8 raft foundation
Lecture 8 raft foundation
Dr.Abdulmannan Orabi

Geotechnical Engineering-II [Lec #23: Rankine Earth Pressure Theory]
Geotechnical Engineering-II [Lec #23: Rankine Earth Pressure Theory]Geotechnical Engineering-II [Lec #23: Rankine Earth Pressure Theory]
Geotechnical Engineering-II [Lec #23: Rankine Earth Pressure Theory]
Muhammad Irfan

Intze tank design
Intze tank designIntze tank design
Intze tank design
Koppolu Abishek

Box culvert
Box culvertBox culvert
Lec09 Shear in RC Beams (Reinforced Concrete Design I & Prof. Abdelhamid Charif)
Lec09 Shear in RC Beams (Reinforced Concrete Design I & Prof. Abdelhamid Charif)Lec09 Shear in RC Beams (Reinforced Concrete Design I & Prof. Abdelhamid Charif)
Lec09 Shear in RC Beams (Reinforced Concrete Design I & Prof. Abdelhamid Charif)
Hossam Shafiq II

Types of joints in rigid pavement
Types of joints in rigid pavementTypes of joints in rigid pavement
Types of joints in rigid pavement
Bhavya Jaiswal

Loads and forces
Loads and forcesLoads and forces
Loads and forces
Dheerendra Prasad

Design of steel structure as per is 800(2007)
Design of steel structure as per is 800(2007)Design of steel structure as per is 800(2007)
Design of steel structure as per is 800(2007)
ahsanrabbani

Foundation Engineering
Foundation EngineeringFoundation Engineering
Foundation Engineering
Sachin Kulkarni

Structural analysis 2
Structural analysis   2Structural analysis   2
Structural analysis 2
R VIJAYAKUMAR

Design of R.C.C Beam
Design of R.C.C BeamDesign of R.C.C Beam
Design of R.C.C Beam
Ar. Aakansha

DESIGN AND ANALYSIS OF G+3 RESIDENTIAL BUILDING BY S.MAHAMMAD FROM RAJIV GAND...
DESIGN AND ANALYSIS OF G+3 RESIDENTIAL BUILDING BY S.MAHAMMAD FROM RAJIV GAND...DESIGN AND ANALYSIS OF G+3 RESIDENTIAL BUILDING BY S.MAHAMMAD FROM RAJIV GAND...
DESIGN AND ANALYSIS OF G+3 RESIDENTIAL BUILDING BY S.MAHAMMAD FROM RAJIV GAND...
Mahammad2251

Calulation of deflection and crack width according to is 456 2000
Calulation of deflection and crack width according to is 456 2000Calulation of deflection and crack width according to is 456 2000
Calulation of deflection and crack width according to is 456 2000
Vikas Mehta

Bridge
Bridge Bridge
Bridge
illpa


What's hot (20)

Design and Detailing of RC Deep beams as per IS 456-2000
Design and Detailing of RC Deep beams as per IS 456-2000Design and Detailing of RC Deep beams as per IS 456-2000
Design and Detailing of RC Deep beams as per IS 456-2000

SEMINAR PRESENTATION ON BOX CULVERTS
SEMINAR PRESENTATION ON  BOX CULVERTSSEMINAR PRESENTATION ON  BOX CULVERTS
SEMINAR PRESENTATION ON BOX CULVERTS

Structural analysis 1
Structural analysis   1Structural analysis   1
Structural analysis 1

BALANCED CANTILEVER BRIDGE
BALANCED CANTILEVER BRIDGEBALANCED CANTILEVER BRIDGE
BALANCED CANTILEVER BRIDGE

52436966 lecture-13-plate-girders
52436966 lecture-13-plate-girders52436966 lecture-13-plate-girders
52436966 lecture-13-plate-girders

Watertank
WatertankWatertank
Watertank

Lecture 8 raft foundation
Lecture 8 raft foundationLecture 8 raft foundation
Lecture 8 raft foundation

Geotechnical Engineering-II [Lec #23: Rankine Earth Pressure Theory]
Geotechnical Engineering-II [Lec #23: Rankine Earth Pressure Theory]Geotechnical Engineering-II [Lec #23: Rankine Earth Pressure Theory]
Geotechnical Engineering-II [Lec #23: Rankine Earth Pressure Theory]

Intze tank design
Intze tank designIntze tank design
Intze tank design

Box culvert
Box culvertBox culvert
Box culvert

Lec09 Shear in RC Beams (Reinforced Concrete Design I & Prof. Abdelhamid Charif)
Lec09 Shear in RC Beams (Reinforced Concrete Design I & Prof. Abdelhamid Charif)Lec09 Shear in RC Beams (Reinforced Concrete Design I & Prof. Abdelhamid Charif)
Lec09 Shear in RC Beams (Reinforced Concrete Design I & Prof. Abdelhamid Charif)

Types of joints in rigid pavement
Types of joints in rigid pavementTypes of joints in rigid pavement
Types of joints in rigid pavement

Loads and forces
Loads and forcesLoads and forces
Loads and forces

Design of steel structure as per is 800(2007)
Design of steel structure as per is 800(2007)Design of steel structure as per is 800(2007)
Design of steel structure as per is 800(2007)

Foundation Engineering
Foundation EngineeringFoundation Engineering
Foundation Engineering

Structural analysis 2
Structural analysis   2Structural analysis   2
Structural analysis 2

Design of R.C.C Beam
Design of R.C.C BeamDesign of R.C.C Beam
Design of R.C.C Beam

DESIGN AND ANALYSIS OF G+3 RESIDENTIAL BUILDING BY S.MAHAMMAD FROM RAJIV GAND...
DESIGN AND ANALYSIS OF G+3 RESIDENTIAL BUILDING BY S.MAHAMMAD FROM RAJIV GAND...DESIGN AND ANALYSIS OF G+3 RESIDENTIAL BUILDING BY S.MAHAMMAD FROM RAJIV GAND...
DESIGN AND ANALYSIS OF G+3 RESIDENTIAL BUILDING BY S.MAHAMMAD FROM RAJIV GAND...

Calulation of deflection and crack width according to is 456 2000
Calulation of deflection and crack width according to is 456 2000Calulation of deflection and crack width according to is 456 2000
Calulation of deflection and crack width according to is 456 2000

Bridge
Bridge Bridge
Bridge


Similar to Bridge loading

Design of Gantry Girders (1).pptx
Design of Gantry Girders (1).pptxDesign of Gantry Girders (1).pptx
Design of Gantry Girders (1).pptx
NachiketKadlag1

4 Barrier Design 2008
4   Barrier Design 20084   Barrier Design 2008
4 Barrier Design 2008
JonKin Enterprises

CE 320 Steel Structures Design Sessional slides
CE 320 Steel Structures Design Sessional slidesCE 320 Steel Structures Design Sessional slides
CE 320 Steel Structures Design Sessional slides
nazifa tabassum

1Bridges.ppt
1Bridges.ppt1Bridges.ppt
1Bridges.ppt
ssuser95bbb81

transmission line
transmission line transmission line
transmission line
singh1515

Transmission Line presentation______.ppt
Transmission Line presentation______.pptTransmission Line presentation______.ppt
Transmission Line presentation______.ppt
ssuserc3b807

Performance Evaluation of Elastomeric Pads as Bridge Bearings under Earthquak...
Performance Evaluation of Elastomeric Pads as Bridge Bearings under Earthquak...Performance Evaluation of Elastomeric Pads as Bridge Bearings under Earthquak...
Performance Evaluation of Elastomeric Pads as Bridge Bearings under Earthquak...
IRJET Journal

ANALYTICAL STUDY OF STEEL ARCH BRIDGE
ANALYTICAL STUDY OF STEEL ARCH BRIDGEANALYTICAL STUDY OF STEEL ARCH BRIDGE
ANALYTICAL STUDY OF STEEL ARCH BRIDGE
IRJET Journal

Bridge Rule
Bridge RuleBridge Rule
Bridge Rule
Mohammad Furqan

IRJET - Analysis of Skew Bridge using Computational Method
IRJET - Analysis of Skew Bridge using Computational MethodIRJET - Analysis of Skew Bridge using Computational Method
IRJET - Analysis of Skew Bridge using Computational Method
IRJET Journal

23320 1632955207
23320  163295520723320  1632955207
23320 1632955207
KevinZavaletaGarcia1

IRJET- Seismic Analysis of Curve Cable-Stayed Bridge
IRJET- Seismic Analysis of Curve Cable-Stayed BridgeIRJET- Seismic Analysis of Curve Cable-Stayed Bridge
IRJET- Seismic Analysis of Curve Cable-Stayed Bridge
IRJET Journal

AS4100 Steel Design Webinar Worked Examples
AS4100 Steel Design Webinar Worked ExamplesAS4100 Steel Design Webinar Worked Examples
AS4100 Steel Design Webinar Worked Examples
ClearCalcs

ICDE2006, Singapore
ICDE2006, SingaporeICDE2006, Singapore
ICDE2006, Singapore
Tong Seng Chua

INDUSTRIAL BUILDING GANTRY GIRDER
INDUSTRIAL BUILDING  GANTRY GIRDERINDUSTRIAL BUILDING  GANTRY GIRDER
INDUSTRIAL BUILDING GANTRY GIRDER
Harsh Shani

IRJET- Parametric Study on Behaviour of RCC Box Culvert for Dynamic Loading
IRJET- Parametric Study on Behaviour of RCC Box Culvert for Dynamic LoadingIRJET- Parametric Study on Behaviour of RCC Box Culvert for Dynamic Loading
IRJET- Parametric Study on Behaviour of RCC Box Culvert for Dynamic Loading
IRJET Journal

Rail bridge and composite girder bridge analysis
Rail bridge and composite girder bridge analysisRail bridge and composite girder bridge analysis
Rail bridge and composite girder bridge analysis
MIDAS Information Technology

Bridge
BridgeBridge
Bridge
Arpit Mathur

Lecture 6 s.s.iii Design of Steel Structures - Faculty of Civil Engineering Iaşi
Lecture 6 s.s.iii Design of Steel Structures - Faculty of Civil Engineering IaşiLecture 6 s.s.iii Design of Steel Structures - Faculty of Civil Engineering Iaşi
Lecture 6 s.s.iii Design of Steel Structures - Faculty of Civil Engineering Iaşi
Ursachi Răzvan

03 Train Resistance and Tractive Power (Railway Engineering Lectures هندسة ال...
03 Train Resistance and Tractive Power (Railway Engineering Lectures هندسة ال...03 Train Resistance and Tractive Power (Railway Engineering Lectures هندسة ال...
03 Train Resistance and Tractive Power (Railway Engineering Lectures هندسة ال...
Hossam Shafiq I


Similar to Bridge loading (20)

Design of Gantry Girders (1).pptx
Design of Gantry Girders (1).pptxDesign of Gantry Girders (1).pptx
Design of Gantry Girders (1).pptx

4 Barrier Design 2008
4   Barrier Design 20084   Barrier Design 2008
4 Barrier Design 2008

CE 320 Steel Structures Design Sessional slides
CE 320 Steel Structures Design Sessional slidesCE 320 Steel Structures Design Sessional slides
CE 320 Steel Structures Design Sessional slides

1Bridges.ppt
1Bridges.ppt1Bridges.ppt
1Bridges.ppt

transmission line
transmission line transmission line
transmission line

Transmission Line presentation______.ppt
Transmission Line presentation______.pptTransmission Line presentation______.ppt
Transmission Line presentation______.ppt

Performance Evaluation of Elastomeric Pads as Bridge Bearings under Earthquak...
Performance Evaluation of Elastomeric Pads as Bridge Bearings under Earthquak...Performance Evaluation of Elastomeric Pads as Bridge Bearings under Earthquak...
Performance Evaluation of Elastomeric Pads as Bridge Bearings under Earthquak...

ANALYTICAL STUDY OF STEEL ARCH BRIDGE
ANALYTICAL STUDY OF STEEL ARCH BRIDGEANALYTICAL STUDY OF STEEL ARCH BRIDGE
ANALYTICAL STUDY OF STEEL ARCH BRIDGE

Bridge Rule
Bridge RuleBridge Rule
Bridge Rule

IRJET - Analysis of Skew Bridge using Computational Method
IRJET - Analysis of Skew Bridge using Computational MethodIRJET - Analysis of Skew Bridge using Computational Method
IRJET - Analysis of Skew Bridge using Computational Method

23320 1632955207
23320  163295520723320  1632955207
23320 1632955207

IRJET- Seismic Analysis of Curve Cable-Stayed Bridge
IRJET- Seismic Analysis of Curve Cable-Stayed BridgeIRJET- Seismic Analysis of Curve Cable-Stayed Bridge
IRJET- Seismic Analysis of Curve Cable-Stayed Bridge

AS4100 Steel Design Webinar Worked Examples
AS4100 Steel Design Webinar Worked ExamplesAS4100 Steel Design Webinar Worked Examples
AS4100 Steel Design Webinar Worked Examples

ICDE2006, Singapore
ICDE2006, SingaporeICDE2006, Singapore
ICDE2006, Singapore

INDUSTRIAL BUILDING GANTRY GIRDER
INDUSTRIAL BUILDING  GANTRY GIRDERINDUSTRIAL BUILDING  GANTRY GIRDER
INDUSTRIAL BUILDING GANTRY GIRDER

IRJET- Parametric Study on Behaviour of RCC Box Culvert for Dynamic Loading
IRJET- Parametric Study on Behaviour of RCC Box Culvert for Dynamic LoadingIRJET- Parametric Study on Behaviour of RCC Box Culvert for Dynamic Loading
IRJET- Parametric Study on Behaviour of RCC Box Culvert for Dynamic Loading

Rail bridge and composite girder bridge analysis
Rail bridge and composite girder bridge analysisRail bridge and composite girder bridge analysis
Rail bridge and composite girder bridge analysis

Bridge
BridgeBridge
Bridge

Lecture 6 s.s.iii Design of Steel Structures - Faculty of Civil Engineering Iaşi
Lecture 6 s.s.iii Design of Steel Structures - Faculty of Civil Engineering IaşiLecture 6 s.s.iii Design of Steel Structures - Faculty of Civil Engineering Iaşi
Lecture 6 s.s.iii Design of Steel Structures - Faculty of Civil Engineering Iaşi

03 Train Resistance and Tractive Power (Railway Engineering Lectures هندسة ال...
03 Train Resistance and Tractive Power (Railway Engineering Lectures هندسة ال...03 Train Resistance and Tractive Power (Railway Engineering Lectures هندسة ال...
03 Train Resistance and Tractive Power (Railway Engineering Lectures هندسة ال...


Recently uploaded

IE-469-Lecture-Notes-3IE-469-Lecture-Notes-3.pptx
IE-469-Lecture-Notes-3IE-469-Lecture-Notes-3.pptxIE-469-Lecture-Notes-3IE-469-Lecture-Notes-3.pptx
IE-469-Lecture-Notes-3IE-469-Lecture-Notes-3.pptx
BehairyAhmed2

Best Practices of Clothing Businesses in Talavera, Nueva Ecija, A Foundation ...
Best Practices of Clothing Businesses in Talavera, Nueva Ecija, A Foundation ...Best Practices of Clothing Businesses in Talavera, Nueva Ecija, A Foundation ...
Best Practices of Clothing Businesses in Talavera, Nueva Ecija, A Foundation ...
IJAEMSJORNAL

Presentation python programming vtu 6th sem
Presentation python programming vtu 6th semPresentation python programming vtu 6th sem
Presentation python programming vtu 6th sem
ssuser8f6b1d1

1239_2.pdf IS CODE FOR GI PIPE FOR PROCUREMENT
1239_2.pdf IS CODE FOR GI PIPE FOR PROCUREMENT1239_2.pdf IS CODE FOR GI PIPE FOR PROCUREMENT
1239_2.pdf IS CODE FOR GI PIPE FOR PROCUREMENT
Mani Krishna Sarkar

Natural Is The Best: Model-Agnostic Code Simplification for Pre-trained Large...
Natural Is The Best: Model-Agnostic Code Simplification for Pre-trained Large...Natural Is The Best: Model-Agnostic Code Simplification for Pre-trained Large...
Natural Is The Best: Model-Agnostic Code Simplification for Pre-trained Large...
YanKing2

Jet Propulsion and its working principle.pdf
Jet Propulsion and its working principle.pdfJet Propulsion and its working principle.pdf
Jet Propulsion and its working principle.pdf
KIET Group of Institutions

Online toll plaza booking system project report.doc.pdf
Online toll plaza booking system project report.doc.pdfOnline toll plaza booking system project report.doc.pdf
Online toll plaza booking system project report.doc.pdf
Kamal Acharya

Vernier Caliper and How to use Vernier Caliper.ppsx
Vernier Caliper and How to use Vernier Caliper.ppsxVernier Caliper and How to use Vernier Caliper.ppsx
Vernier Caliper and How to use Vernier Caliper.ppsx
Tool and Die Tech

21EC63_Module1B.pptx VLSI design 21ec63 MOS TRANSISTOR THEORY
21EC63_Module1B.pptx VLSI design 21ec63 MOS TRANSISTOR THEORY21EC63_Module1B.pptx VLSI design 21ec63 MOS TRANSISTOR THEORY
21EC63_Module1B.pptx VLSI design 21ec63 MOS TRANSISTOR THEORY
PradeepKumarSK3

readers writers Problem in operating system
readers writers Problem in operating systemreaders writers Problem in operating system
readers writers Problem in operating system
VADAPALLYPRAVEENKUMA1

Evento anual Splunk .conf24 Highlights recap
Evento anual Splunk .conf24 Highlights recapEvento anual Splunk .conf24 Highlights recap
Evento anual Splunk .conf24 Highlights recap
Rafael Santos

lecture10-efficient-scoring.ppmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmt
lecture10-efficient-scoring.ppmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmtlecture10-efficient-scoring.ppmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmt
lecture10-efficient-scoring.ppmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmt
RAtna29

Girls Call Chennai 000XX00000 Provide Best And Top Girl Service And No1 in City
Girls Call Chennai 000XX00000 Provide Best And Top Girl Service And No1 in CityGirls Call Chennai 000XX00000 Provide Best And Top Girl Service And No1 in City
Girls Call Chennai 000XX00000 Provide Best And Top Girl Service And No1 in City
sunnuchadda

Rockets and missiles notes engineering ppt
Rockets and missiles notes engineering pptRockets and missiles notes engineering ppt
Rockets and missiles notes engineering ppt
archithaero

Introduction to IP address concept - Computer Networking
Introduction to IP address concept - Computer NetworkingIntroduction to IP address concept - Computer Networking
Introduction to IP address concept - Computer Networking
Md.Shohel Rana ( M.Sc in CSE Khulna University of Engineering & Technology (KUET))

Conservation of Natural Resources Biodiversity.pptx
Conservation of Natural Resources Biodiversity.pptxConservation of Natural Resources Biodiversity.pptx
Conservation of Natural Resources Biodiversity.pptx
AdarshaMR1

Stiffness Method for structure analysis - Truss
Stiffness Method  for structure analysis - TrussStiffness Method  for structure analysis - Truss
Stiffness Method for structure analysis - Truss
adninhaerul

Quadcopter Dynamics, Stability and Control
Quadcopter Dynamics, Stability and ControlQuadcopter Dynamics, Stability and Control
Quadcopter Dynamics, Stability and Control
Blesson Easo Varghese

Adv. Digital Signal Processing LAB MANUAL.pdf
Adv. Digital Signal Processing LAB MANUAL.pdfAdv. Digital Signal Processing LAB MANUAL.pdf
Adv. Digital Signal Processing LAB MANUAL.pdf
T.D. Shashikala

RECENT DEVELOPMENTS IN RING SPINNING.pptx
RECENT DEVELOPMENTS IN RING SPINNING.pptxRECENT DEVELOPMENTS IN RING SPINNING.pptx
RECENT DEVELOPMENTS IN RING SPINNING.pptx
peacesoul123


Recently uploaded (20)

IE-469-Lecture-Notes-3IE-469-Lecture-Notes-3.pptx
IE-469-Lecture-Notes-3IE-469-Lecture-Notes-3.pptxIE-469-Lecture-Notes-3IE-469-Lecture-Notes-3.pptx
IE-469-Lecture-Notes-3IE-469-Lecture-Notes-3.pptx

Best Practices of Clothing Businesses in Talavera, Nueva Ecija, A Foundation ...
Best Practices of Clothing Businesses in Talavera, Nueva Ecija, A Foundation ...Best Practices of Clothing Businesses in Talavera, Nueva Ecija, A Foundation ...
Best Practices of Clothing Businesses in Talavera, Nueva Ecija, A Foundation ...

Presentation python programming vtu 6th sem
Presentation python programming vtu 6th semPresentation python programming vtu 6th sem
Presentation python programming vtu 6th sem

1239_2.pdf IS CODE FOR GI PIPE FOR PROCUREMENT
1239_2.pdf IS CODE FOR GI PIPE FOR PROCUREMENT1239_2.pdf IS CODE FOR GI PIPE FOR PROCUREMENT
1239_2.pdf IS CODE FOR GI PIPE FOR PROCUREMENT

Natural Is The Best: Model-Agnostic Code Simplification for Pre-trained Large...
Natural Is The Best: Model-Agnostic Code Simplification for Pre-trained Large...Natural Is The Best: Model-Agnostic Code Simplification for Pre-trained Large...
Natural Is The Best: Model-Agnostic Code Simplification for Pre-trained Large...

Jet Propulsion and its working principle.pdf
Jet Propulsion and its working principle.pdfJet Propulsion and its working principle.pdf
Jet Propulsion and its working principle.pdf

Online toll plaza booking system project report.doc.pdf
Online toll plaza booking system project report.doc.pdfOnline toll plaza booking system project report.doc.pdf
Online toll plaza booking system project report.doc.pdf

Vernier Caliper and How to use Vernier Caliper.ppsx
Vernier Caliper and How to use Vernier Caliper.ppsxVernier Caliper and How to use Vernier Caliper.ppsx
Vernier Caliper and How to use Vernier Caliper.ppsx

21EC63_Module1B.pptx VLSI design 21ec63 MOS TRANSISTOR THEORY
21EC63_Module1B.pptx VLSI design 21ec63 MOS TRANSISTOR THEORY21EC63_Module1B.pptx VLSI design 21ec63 MOS TRANSISTOR THEORY
21EC63_Module1B.pptx VLSI design 21ec63 MOS TRANSISTOR THEORY

readers writers Problem in operating system
readers writers Problem in operating systemreaders writers Problem in operating system
readers writers Problem in operating system

Evento anual Splunk .conf24 Highlights recap
Evento anual Splunk .conf24 Highlights recapEvento anual Splunk .conf24 Highlights recap
Evento anual Splunk .conf24 Highlights recap

lecture10-efficient-scoring.ppmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmt
lecture10-efficient-scoring.ppmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmtlecture10-efficient-scoring.ppmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmt
lecture10-efficient-scoring.ppmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmt

Girls Call Chennai 000XX00000 Provide Best And Top Girl Service And No1 in City
Girls Call Chennai 000XX00000 Provide Best And Top Girl Service And No1 in CityGirls Call Chennai 000XX00000 Provide Best And Top Girl Service And No1 in City
Girls Call Chennai 000XX00000 Provide Best And Top Girl Service And No1 in City

Rockets and missiles notes engineering ppt
Rockets and missiles notes engineering pptRockets and missiles notes engineering ppt
Rockets and missiles notes engineering ppt

Introduction to IP address concept - Computer Networking
Introduction to IP address concept - Computer NetworkingIntroduction to IP address concept - Computer Networking
Introduction to IP address concept - Computer Networking

Conservation of Natural Resources Biodiversity.pptx
Conservation of Natural Resources Biodiversity.pptxConservation of Natural Resources Biodiversity.pptx
Conservation of Natural Resources Biodiversity.pptx

Stiffness Method for structure analysis - Truss
Stiffness Method  for structure analysis - TrussStiffness Method  for structure analysis - Truss
Stiffness Method for structure analysis - Truss

Quadcopter Dynamics, Stability and Control
Quadcopter Dynamics, Stability and ControlQuadcopter Dynamics, Stability and Control
Quadcopter Dynamics, Stability and Control

Adv. Digital Signal Processing LAB MANUAL.pdf
Adv. Digital Signal Processing LAB MANUAL.pdfAdv. Digital Signal Processing LAB MANUAL.pdf
Adv. Digital Signal Processing LAB MANUAL.pdf

RECENT DEVELOPMENTS IN RING SPINNING.pptx
RECENT DEVELOPMENTS IN RING SPINNING.pptxRECENT DEVELOPMENTS IN RING SPINNING.pptx
RECENT DEVELOPMENTS IN RING SPINNING.pptx


Bridge loading

  • 1. While designing the bridges the following loads and forces should be considered where applicable. 1. Dead load 2. Live load 3. Dynamic load 4. Longitudinal forces a. Longitudinal forces by the tractive effort of vehicles b. Longitudinal forces by braking of vehicles c. Longitudinal forces due to frictional resistance of expansion bearings 5. Wind load 6. Centrifugal forces of vehicle due to curvature of bridge 7. Horizontal forces due to water currents 8. Buoyancy 9. Force exerted by earth pressure 10. Load induced by temperature variation effect 11. Load induced by creep, shrinkage and other secondary effect 12. Erection load 13. Loads induced by earthquake Bridge Loading Refer IRC 6-2014
  • 2. IRC Bridge Live Load Vehicular load Pedestrian load Class A load Class B load Class AA load Class 70R load • Wheeled load • Tracked load • Single, Two and Seven Axel wheeled load • Tracked load Normal load Represents normal vehicular traffic Abnormal load Represents industrial or military vehicular traffic
  • 3. Class A/B Loading CLASS A LOADING (KN) Total load = 554 KN CLASS B LOADING (KN) 68 68 68 68 27 27 114 114 16 16 68 68 41 41 41 41 20 1.1 3.2 1.2 4.3 3 3 3 20 C/C distance of axle (m) Total length of a train = 18.8m g f Cross section 1.8 m B W 1.1m 3.2m 1.2m Plan Carriageway Width G F 5.3 to 6.1m Uniformly increasing from 0.4 to 1.2.m 150 mm Above 6.1m 1.2 m 150 mm
  • 4. Class 70R Loading Class 70R tracked vehicle Total Weight 700 KN 4.57m 7.92m 90m 90m Cross-section of Class 70R tracked vehicle 0.84m C 1.22m 2.06m 0.84m 350KN 350KN Carriage way width (m) Minimum value of C (mm) ≥5.3m 1200
  • 5. Cross-section of Class 70R two axel wheeled load 400KN C Class 70R Loading 80 120 120 170 170 170 170 KN 70R seven axel wheeled load 1000 KN 1.22m 2.79 m Plan  Value of C is same as of 70R tracked loading  Min. distance between wheeled loads of Class70R is 30 m 2.79 m 3.96 1.52 2.13 1.37 3.05 1.37 Plan
  • 6. Wheel Arrangement of 70R Wheeled Load ‘L’ Type 2.79 m 0.86 m 0.41 m 0.61 m ‘M’ Type 2.79 m 0.41 m 0.61 m 0.38 m ‘N’ Type 2.79 m 0.51 m 0.51 m 0.25 m 0.23 m Contact area of tyre may be obtained from the corresponding tyre load, tyre pressure and tyre tread width. Tyre tread width may be taken as overall tyre width minus 25 mm up to tyre 225mm and 50 mm for tyres over 225 mm width. Maximum tyre pressure = 5.273 Kg/cm2 Minimum Wheel Spacing and Tyre Size of Heaviest Axle
  • 7. Cross-section of Class AA wheeled load 400KN C 37.5 62.5 62.5 37.5 KN Class AA Loading [Refer Annex] Total Weight 700 KN 3.6 m 7.2m 90m Cross-section of Class AA tracked vehicle 1.2m 2.05m 0.85m 0.85m C 350KN 350KN 1.2m Plan 0.6m 1m 0.6m 0.3m 0.15m Carriage way width (m) Minimum value of C (mm) Multi lane bridge ≥5.3m 1200
  • 8. • 70R loading is adopted on all roads on which permanent bridges are constructed. Bridges designed for 70R loading should be checked for Class A loading. • Class AA loading is adopted on specified location on which permanent bridges are constructed. Bridges designed for Class AA loading should be checked for Class A loading. • Class A loading is adopted on all roads on which permanent bridges are constructed. Bridges designed for Class A loading should be checked for Class AA/70R loading. • Class B loading is adopted on specified location on which temporary bridges are constructed.
  • 9. Carriage Way (m) No of lane Live loads <5.3 1 Class A loading for 2.3m width and for remaining width 500 Kg/m2 ≥5.3 <9.6 2 One lane of Class70R/AA loading or two lanes of Class A loading ≥9.6 <13.1 3 One lane of Class 70R/AA for every two lanes with Class A loading for remaining lanes or three lanes of Class A loading ≥13.1 <16.6 4 One lane of Class 70R/AA for every two lanes with Class A loading for remaining lanes or one lane of class A for each lane ≥16.6 <20.1 5 ≥20.1 <23.6 6
  • 10. 0.4 m 1.8 m 1.7 m 1.8 m Class A Class A 1.8 m 0.4m 5 KN / m2 2.3 m 0.15m 0.5m Class A 1.2m Class 70R (W/T) 1.2m 1.8 m 0.4 m 0.15m 0.5m Class A Class 70R (W/T) Combination of live loads For Single Lane Bridge For Two Lanes Bridge For Two Lanes Bridge For Three Lanes Bridge
  • 11. 1.2m 1.8 m 0.4 m 0.15m 0.5m Class A 1.8 m 0.5m Class A 1.8 m 0.5m Class A 1.2m 1.2m Class 70R (W/T) 1.2m Class 70R (W/T) 1.2m 1.8 m 0.4 m 0.15m 0.5m Class A 1.8 m 0.5m Class A 1.8 m 0.5m Class A 1.2m 1.8 m 0.5m Class A 1.2m 1.2m 1.8 m 0.4 m 0.15m 0.5m Class A Class 70R (W/T) 1.8 m 0.5m Class A 1.2m Combination of live loads For Three Lanes Bridge For Four Lanes Bridge For Four Lanes Bridge For Four Lanes Bridge
  • 12. Live load information required for analysis of bridge deck • Type of load • Number of axle of vehicle • Magnitude of load on each axle • Spacing of axle • Contact area of wheel /track • Spacing of vehicle in transverse and longitudinal direction • Maximum lane load • Reduction of live load in excess of two lanes • Arrangement of wheel in case of 70R wheeled and train loading • Combination of live loads Pedestrian Load Length of bridge ≤7.5 m ; Intensity of load = 4 or 5 KN/m2 >7.5m; Intensity of load ≤ 4 KN/m2 P = P’ – (40L – 300)/9 for up to 30 m span P = (P’ – 260 + 4800/L) × (16.5 – W)/15 for greater than 30 m span P’ = 4 or 5 KN/m2 P – Intensity of load W – Width of foot way L – Span of bridge
  • 13. For class A and B loading • Impact factor fraction for RCC bridge = 4.5/(6+L) • Impact factor fraction for Steel bridge = 9/(13.5+L) For Class AA and Class 70R loading for span less than 9 m • For tracked vehicles: 25% for span up to 5m linearly reducing to 10% for spans of 9 m • For wheeled vehicles: 25% For tracked vehicles for spans of 9 m or above • 10% up to a span of 40 m and in accordance with the curve in the code for spans greater than 40 m of RCC Bridge • 10% for all span of Steel Bridge For wheeled vehicles for spans of 9 m or above • 25% for spans up to 12 m and in accordance with the curve in the code for spans greater the 12 m RCC Bridge • 25% for spans up to 23 m and in accordance with the curve in the code for spans greater the 23 m Steel Bridge Impact Load Moving live load with its dynamic effect. Dynamic effect of live load is calculated by the impact factor. Impact load = static value of live load × Impact factor
  • 14. 5 10 20 25 45 0 0 10 25 50 55 A and B ( Steel bridge ) A and B ( Concrete bridge ) Class AA/70R tracked ( Concrete bridge ) Impact Factor Span of bridge, m IF in % Class AA/70R tracked ( steel bridge ) Class AA/70R wheeled ( Concrete bridge )
  • 15. 1. Externally applied longitudinal forces • Tractive effort caused through acceleration of driving wheels • Braking effort due to application of brakes to the wheels • Frictional resistance offered by free bearings due to change of temperature, shrinkage and creep Force due to braking effort Braking effort is invariably greater than the tractive effort so taken as a design longitudinal force. It is computed as follows. • For single or two lane bridge, braking loads taken as 20%of the first train load and 10% of the loads of succeeding trains. • For multilane bridge, braking load is taken as in (a) for the first two lanes and 5% of the loads on the other lanes. • The force due to braking effort shall be assumed to act 1.2m above the roadway. LONGITUDINAL FORCES
  • 16. Forces due to frictional resistance offered by bearing Fh/2 or µW Fh/2 or µW µW Fh - µW Fh /2+ sδ Fh /2+ sδ I. Simply supported deck on unyielding support Span without bearing Span with fixed and free bearing Span with elastomeric bearings
  • 17. 2. Self induced longitudinal forces Forces induced by Creep, Shrinkage or Effect of Temperature Variation II. Simply Supported/ Continuous deck on flexible support 1 2 3 µW CL Sn + Fh X Sn /∑S CL Sn + Fh X Sn /∑S
  • 18. Wind load = Wind load on the structure + Wind load on the live load FT = PZ × A × G × CD FL = 0.25 FT for beam type bridge = 0.5 FT for truss type bridge FT - Wind load in transverse direction FL - Wind load in longitudinal direction of bridge PZ - Design wind pressure A - Exposed area of structure / live load to wind G - Gust factor ; G = 2 for 150 m span CD - Drag coefficient CD ≥ 1.3 depending upon b/d ratio and type of superstructure Wind load on live load = Length of live load × 3m × FT In the case of live load G is taken equal to 1.2m and point of application of wind load is 1.5 m. Described method of wind load calculation is valid for bridges of span upto150m and height of pier upto 100m WIND LOAD
  • 19. Pressure of water current P = 52 KV2 [kg/m2] Where K- shape factor of the pier ( k= 0.5 -1.5) V- velocity of the water current at the point, where pressure intensity is to be calculated. [m/sec] Intensity of pressure due to water current depends on • Direction of current • Velocity of water current • Shape factor of the pier • Maximum scouring depth 200 deviation of river course shall be considered in the calculation of the pressure due to water current HORIZONTAL FORCES DUE TO WATER CURRENT Horizontal forces due to water current = Pressure of water current X Area of structure exposed to water
  • 20. FORCE EXERTED BY EARTH PRESSURE PA=1/2KAγH2 PP=1/2KPγH2 PP PA δ ì 0.42H H Coulomb’s Theory
  • 21. Seismic Force Method of computation of Seismic Force • Elastic Seismic Acceleration Method In this method static analysis is made and seismic force is obtained for acceleration corresponding to the fundamental mode of vibration. • Elastic Response Spectrum Method In this method dynamic analysis is made to first and higher modes of vibration and forces are obtained for each mode by using of response spectrum. In elastic seismic acceleration method force due to earthquake is calculated as follows. Feq = Ah × (Dead load + Partial Live load) where, Ah = Z/2 × I/R × Sa/g
  • 22. Bridges need not be checked for seismic effects Bridges need special investigation for seismic effects
  • 23. FORCE EXERTED BY DYNAMIC EARTH PRESSURE PA=1/2KAγH2 PP=1/2KPγH2 PP PA δ ì 0.6H H Mononobe Okabe Theory (Modified Coulomb’s Theory)
  • 24. FORCE EXERTED BY HYDRODYNAMIC PRESSURE R Ground Shaking Enveloping cylinder Pier R Ground Shaking Enveloping cylinder Pier F = C Ah W W- Weight of water bound in enveloping cylinder W = πR2H × Unit wt. of water R – Radius of enveloping cylinder H – Submerged height of pier Ah- Horizontal acceleration coefficient C – Hydrodynamic coefficient H/R C 1 0.39 2 0.58 3 0.68 4 0.73
  • 25. Load Combinations in the Design of Bridge [WSDM] Combination of loads I II A II B III A III B IV V VI VII VIII IX Increase in permissible stress according to load combination 0 - 50 %
  • 27. IRC 6 define four cases separately i.e. foundation, stability, limit state of strength and limit state of serviceability to be considered in Limit State Design Method. In each cases, there are further three combinations of loads to be considered.  Three combinations of limit state of strength and stability are • Basic combination • Seismic combination • Accidental combination  These combinations are given separately for serviceability check and foundation design.  Partial safety factors for loads for different combinations and for different works are not similar. They are chosen as specified in code  Refer IRC 6 – 2010, Table 3.1, 3.2, 3.3 and 3.4 for combination of loads Load Combinations in the Design of Bridge [LSDM]
  • 28. • HS loading It consists of truck with semi-trailer or the corresponding lane loading. Lane load consists of a uniform load per unit length of traffic lane combined with a concentrated load (one concentrate load for simply supported span and two concentrated load in case of continuous span). HS loading may be HS 20-44 and HS 15-44. It consists of a two-axle truck or the corresponding lane load. Lane load consists of a uniform load per unit length of traffic lane combined with a single concentrated load (two concentrated load in case of continuous span). H loading may be H 20-44 and H 15-44.
  • 29. Lane Loading H 20-44 HS 20-44 HS 15-44 H 15-44 18000 lbs for bending moment 26000 lbs for shear force 13500 lbs for bending moment 19500 lbs for shear force 640 lbs/ft 480 lbs/ft 8000 lbs 6000 lbs 32000 lbs 24000 lbs H 20-44 H 15-44 8000 lbs 6000 lbs 32000 lbs 24000 lbs 32000 lbs 24000 lbs HS 20-44 HS 15-44 Truck Loading 6' 14' 6' 14'-30’ 14' AASHTO Live Loading
  • 30. Maximum bending moment (KN-m) Span (M) IRC loading AASHTO BS (HS20-44) HA HB One lane Two lane One lane Two lane One lane Two lane One lane Two lane 5 687 687 231 462 243 488 756 838 10 1548 1548 573 1146 694 1388 1863 2095 15 2725 2725 1073 2146 1336 2672 3331 3776 20 4198 4198 1552 3104 2175 4350 5654 6379 25 5680 5680 2022 4044 3156 6312 7862 8914 30 7058 7058 2481 4962 4151 8302 10085 11468 35 8412 8412 2935 5870 5184 10368 12315 14043 40 9739 9739 3379 6758 6340 12680 14550 16663 45 11059 11059 3863 7726 7501 15002 16788 19288 50 12496 12496 4597 9194 8656 17312 19029 21914 Responses of bridge in different codal standard
  • 31. Maximum Live Load Shear Force for Two Lane Simply Supported Bridge (KN-M) 596 716 738 750 1020 1509 1619 1694 0 200 400 600 800 1000 1200 1400 1600 1800 10m 20m 25m 30 IRC AASHTO BS
  • 32. Maximum Live Load Bending Moment for Two Lane Simply Supported Bridge (KN-M) 1146 3104 4044 4962 2095 6379 8914 11468 0 2000 4000 6000 8000 10000 12000 14000 10m 20m 25m 30 IRC AASHTO BS
