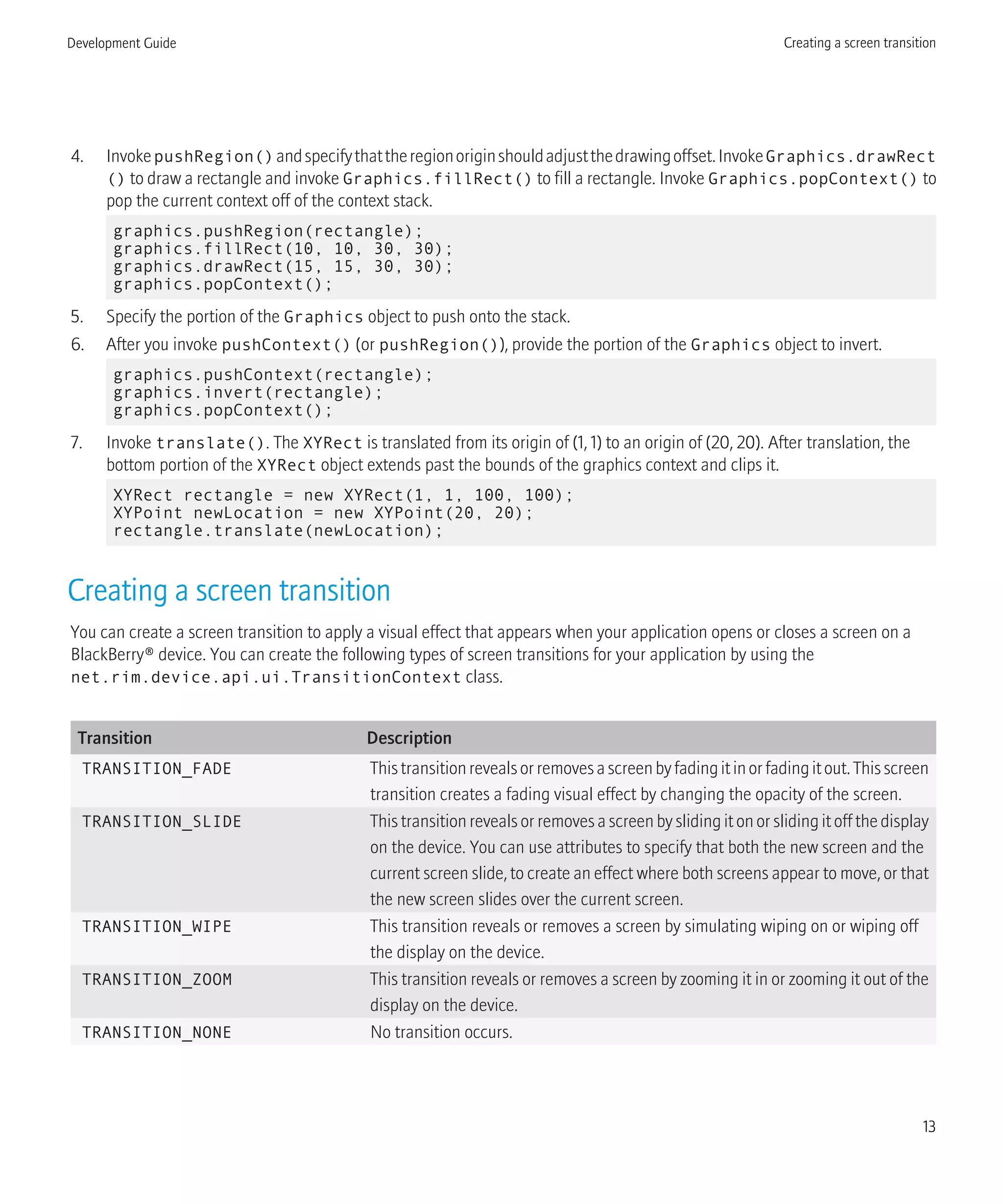

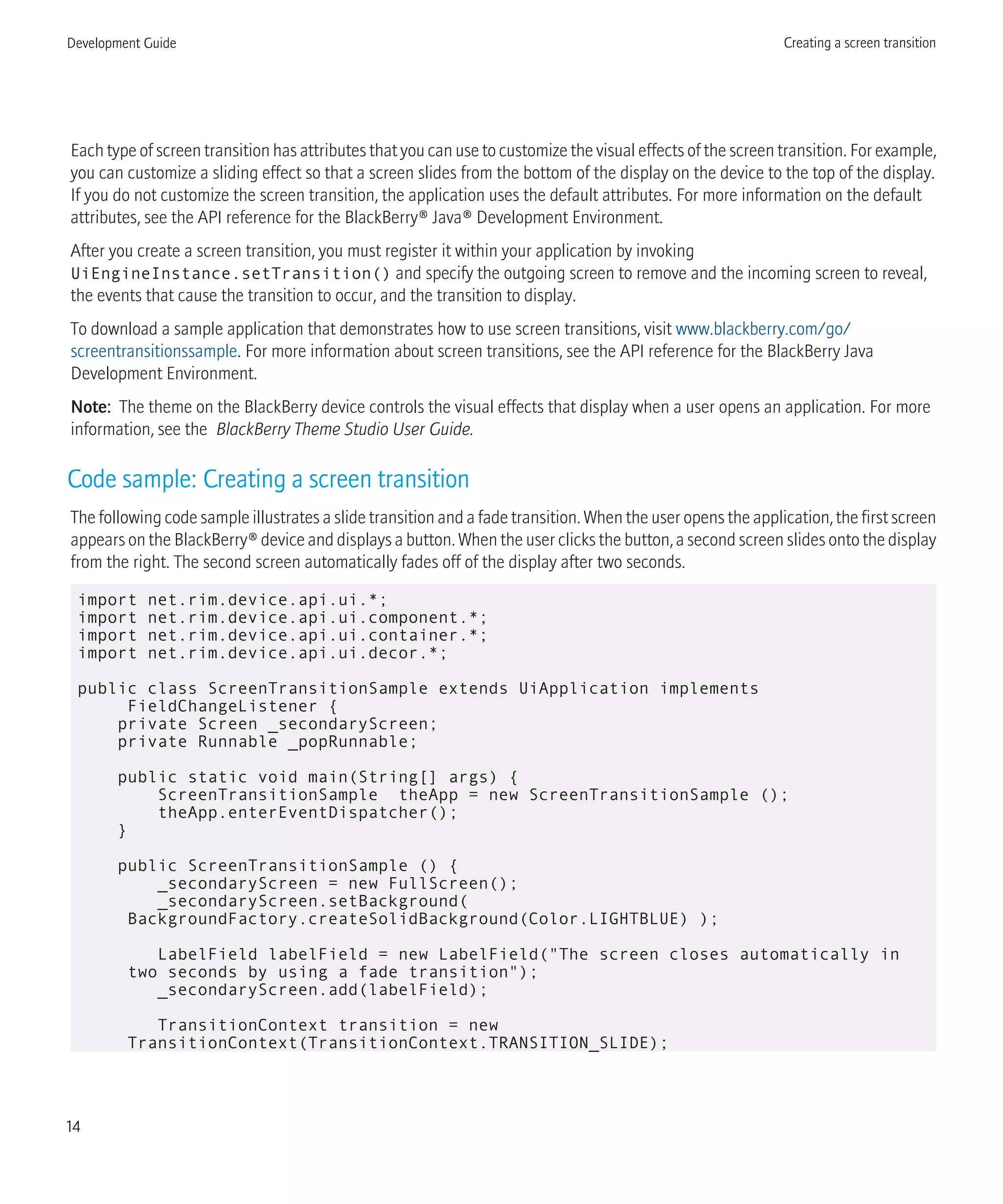

![Each type of screen transition has attributes that you can use to customize the visual effects of the screen transition. For example,
you can customize a sliding effect so that a screen slides from the bottom of the display on the device to the top of the display.
If you do not customize the screen transition, the application uses the default attributes. For more information on the default
attributes, see the API reference for the BlackBerry® Java® Development Environment.
After you create a screen transition, you must register it within your application by invoking
UiEngineInstance.setTransition() and specify the outgoing screen to remove and the incoming screen to reveal,
the events that cause the transition to occur, and the transition to display.
To download a sample application that demonstrates how to use screen transitions, visit www.blackberry.com/go/
screentransitionssample. For more information about screen transitions, see the API reference for the BlackBerry Java
Development Environment.
Note: The theme on the BlackBerry device controls the visual effects that display when a user opens an application. For more
information, see the BlackBerry Theme Studio User Guide.

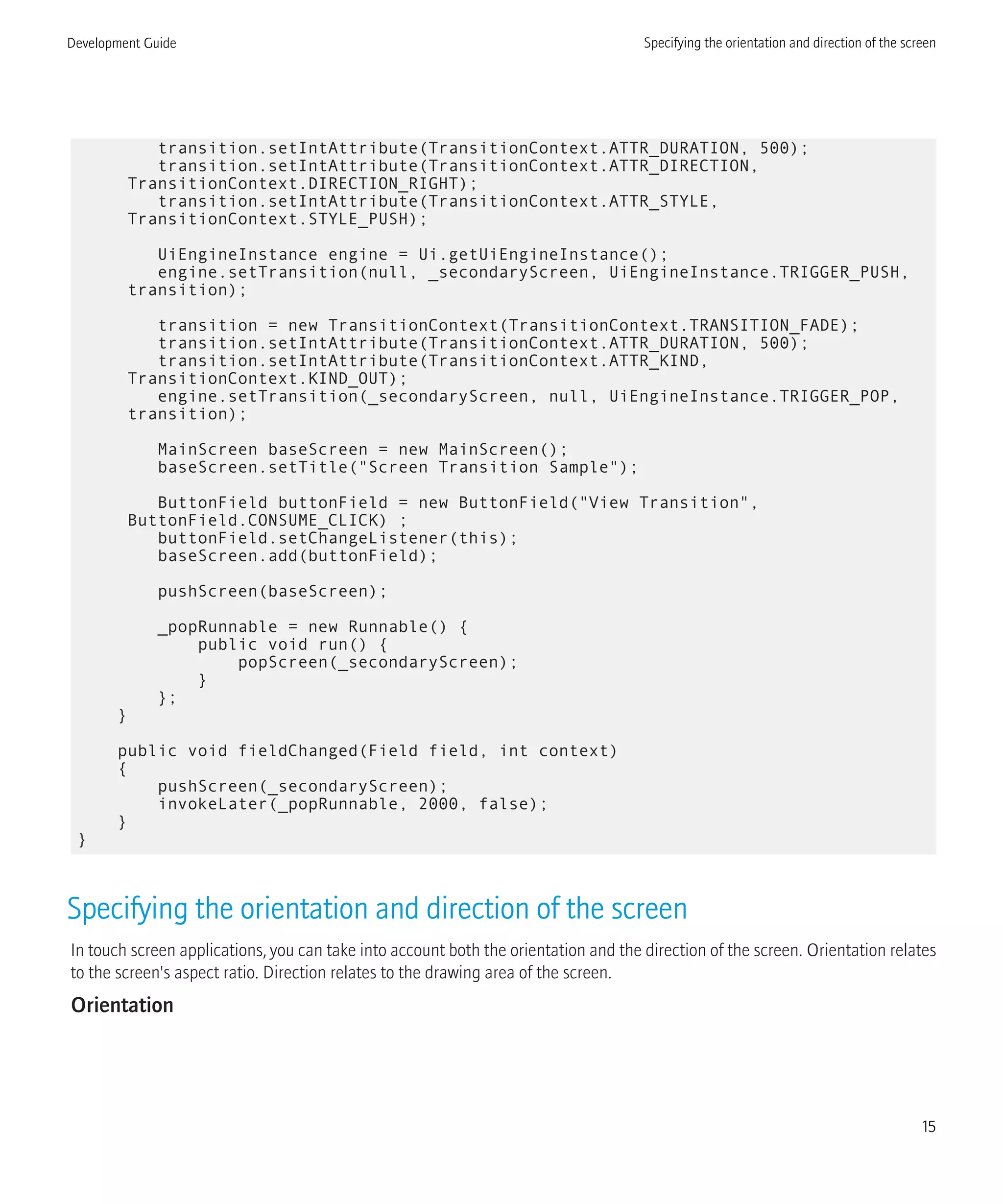

Code sample: Creating a screen transition
The following code sample illustrates a slide transition and a fade transition. When the user opens the application, the first screen
appears on the BlackBerry® device and displays a button. When the user clicks the button, a second screen slides onto the display
from the right. The second screen automatically fades off of the display after two seconds.
import net.rim.device.api.ui.*;
import net.rim.device.api.ui.component.*;
import net.rim.device.api.ui.container.*;
import net.rim.device.api.ui.decor.*;
public class ScreenTransitionSample extends UiApplication implements
FieldChangeListener {
private Screen _secondaryScreen;
private Runnable _popRunnable;
public static void main(String[] args) {
ScreenTransitionSample theApp = new ScreenTransitionSample ();
theApp.enterEventDispatcher();
}
public ScreenTransitionSample () {
_secondaryScreen = new FullScreen();
_secondaryScreen.setBackground(
BackgroundFactory.createSolidBackground(Color.LIGHTBLUE) );
LabelField labelField = new LabelField("The screen closes automatically in
two seconds by using a fade transition");
_secondaryScreen.add(labelField);
TransitionContext transition = new
TransitionContext(TransitionContext.TRANSITION_SLIDE);
Development Guide Creating a screen transition
14](https://image.slidesharecdn.com/blackberryjavasdk-developmentguide-1239696-0730090812-001-6-0-us-130530002957-phpapp01/75/Black-berry-java_sdk-development_guide-1239696-0730090812-001-6-0-us-16-2048.jpg)

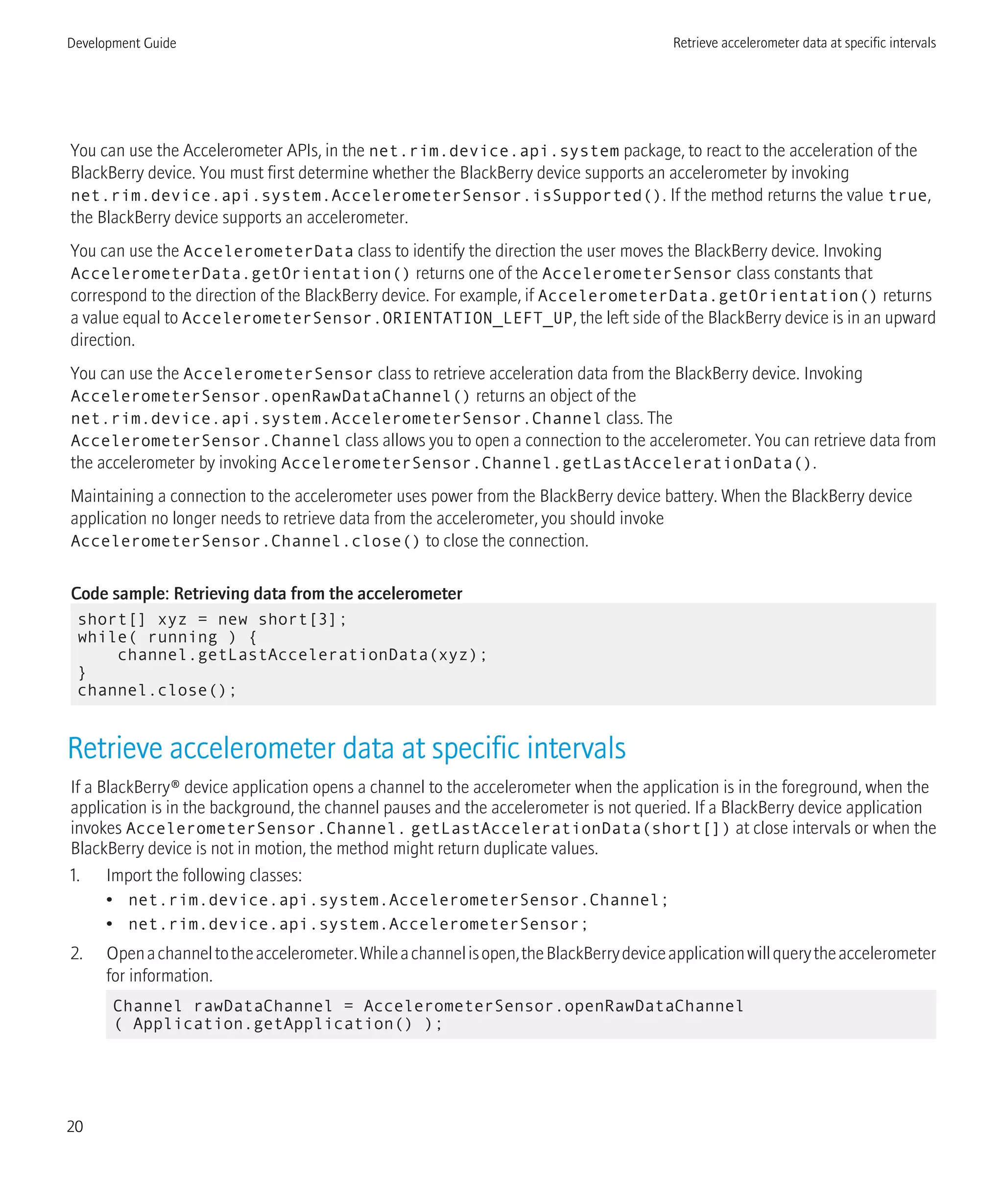

![You can use the Accelerometer APIs, in the net.rim.device.api.system package, to react to the acceleration of the
BlackBerry device. You must first determine whether the BlackBerry device supports an accelerometer by invoking
net.rim.device.api.system.AccelerometerSensor.isSupported(). If the method returns the value true,
the BlackBerry device supports an accelerometer.
You can use the AccelerometerData class to identify the direction the user moves the BlackBerry device. Invoking
AccelerometerData.getOrientation() returns one of the AccelerometerSensor class constants that
correspond to the direction of the BlackBerry device. For example, if AccelerometerData.getOrientation() returns
a value equal to AccelerometerSensor.ORIENTATION_LEFT_UP, the left side of the BlackBerry device is in an upward
direction.
You can use the AccelerometerSensor class to retrieve acceleration data from the BlackBerry device. Invoking
AccelerometerSensor.openRawDataChannel() returns an object of the
net.rim.device.api.system.AccelerometerSensor.Channel class. The
AccelerometerSensor.Channel class allows you to open a connection to the accelerometer. You can retrieve data from
the accelerometer by invoking AccelerometerSensor.Channel.getLastAccelerationData().
Maintaining a connection to the accelerometer uses power from the BlackBerry device battery. When the BlackBerry device
application no longer needs to retrieve data from the accelerometer, you should invoke
AccelerometerSensor.Channel.close() to close the connection.
Code sample: Retrieving data from the accelerometer
short[] xyz = new short[3];
while( running ) {
channel.getLastAccelerationData(xyz);
}
channel.close();
Retrieve accelerometer data at specific intervals
If a BlackBerry® device application opens a channel to the accelerometer when the application is in the foreground, when the
application is in the background, the channel pauses and the accelerometer is not queried. If a BlackBerry device application
invokes AccelerometerSensor.Channel. getLastAccelerationData(short[]) at close intervals or when the
BlackBerry device is not in motion, the method might return duplicate values.
1. Import the following classes:
• net.rim.device.api.system.AccelerometerSensor.Channel;
• net.rim.device.api.system.AccelerometerSensor;
2. Openachanneltotheaccelerometer.Whileachannelisopen,theBlackBerrydeviceapplicationwillquerytheaccelerometer
for information.
Channel rawDataChannel = AccelerometerSensor.openRawDataChannel
( Application.getApplication() );
Development Guide Retrieve accelerometer data at specific intervals
20](https://image.slidesharecdn.com/blackberryjavasdk-developmentguide-1239696-0730090812-001-6-0-us-130530002957-phpapp01/75/Black-berry-java_sdk-development_guide-1239696-0730090812-001-6-0-us-22-2048.jpg)

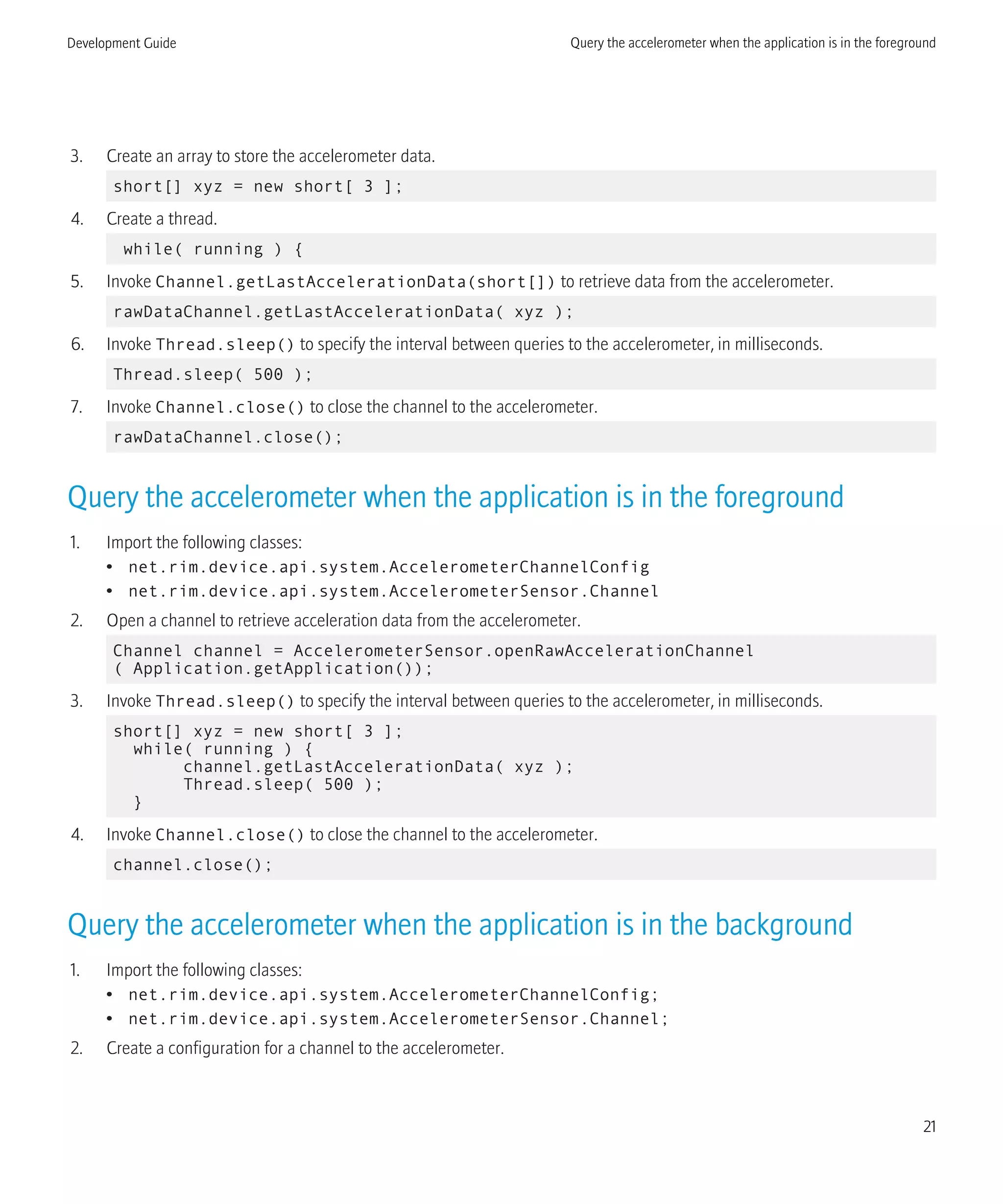

![3. Create an array to store the accelerometer data.
short[] xyz = new short[ 3 ];
4. Create a thread.
while( running ) {
5. Invoke Channel.getLastAccelerationData(short[]) to retrieve data from the accelerometer.
rawDataChannel.getLastAccelerationData( xyz );
6. Invoke Thread.sleep() to specify the interval between queries to the accelerometer, in milliseconds.
Thread.sleep( 500 );
7. Invoke Channel.close() to close the channel to the accelerometer.
rawDataChannel.close();
Query the accelerometer when the application is in the foreground
1. Import the following classes:
• net.rim.device.api.system.AccelerometerChannelConfig
• net.rim.device.api.system.AccelerometerSensor.Channel
2. Open a channel to retrieve acceleration data from the accelerometer.
Channel channel = AccelerometerSensor.openRawAccelerationChannel
( Application.getApplication());
3. Invoke Thread.sleep() to specify the interval between queries to the accelerometer, in milliseconds.
short[] xyz = new short[ 3 ];
while( running ) {
channel.getLastAccelerationData( xyz );
Thread.sleep( 500 );
}
4. Invoke Channel.close() to close the channel to the accelerometer.
channel.close();
Query the accelerometer when the application is in the background
1. Import the following classes:
• net.rim.device.api.system.AccelerometerChannelConfig;
• net.rim.device.api.system.AccelerometerSensor.Channel;
2. Create a configuration for a channel to the accelerometer.
Development Guide Query the accelerometer when the application is in the foreground
21](https://image.slidesharecdn.com/blackberryjavasdk-developmentguide-1239696-0730090812-001-6-0-us-130530002957-phpapp01/75/Black-berry-java_sdk-development_guide-1239696-0730090812-001-6-0-us-23-2048.jpg)

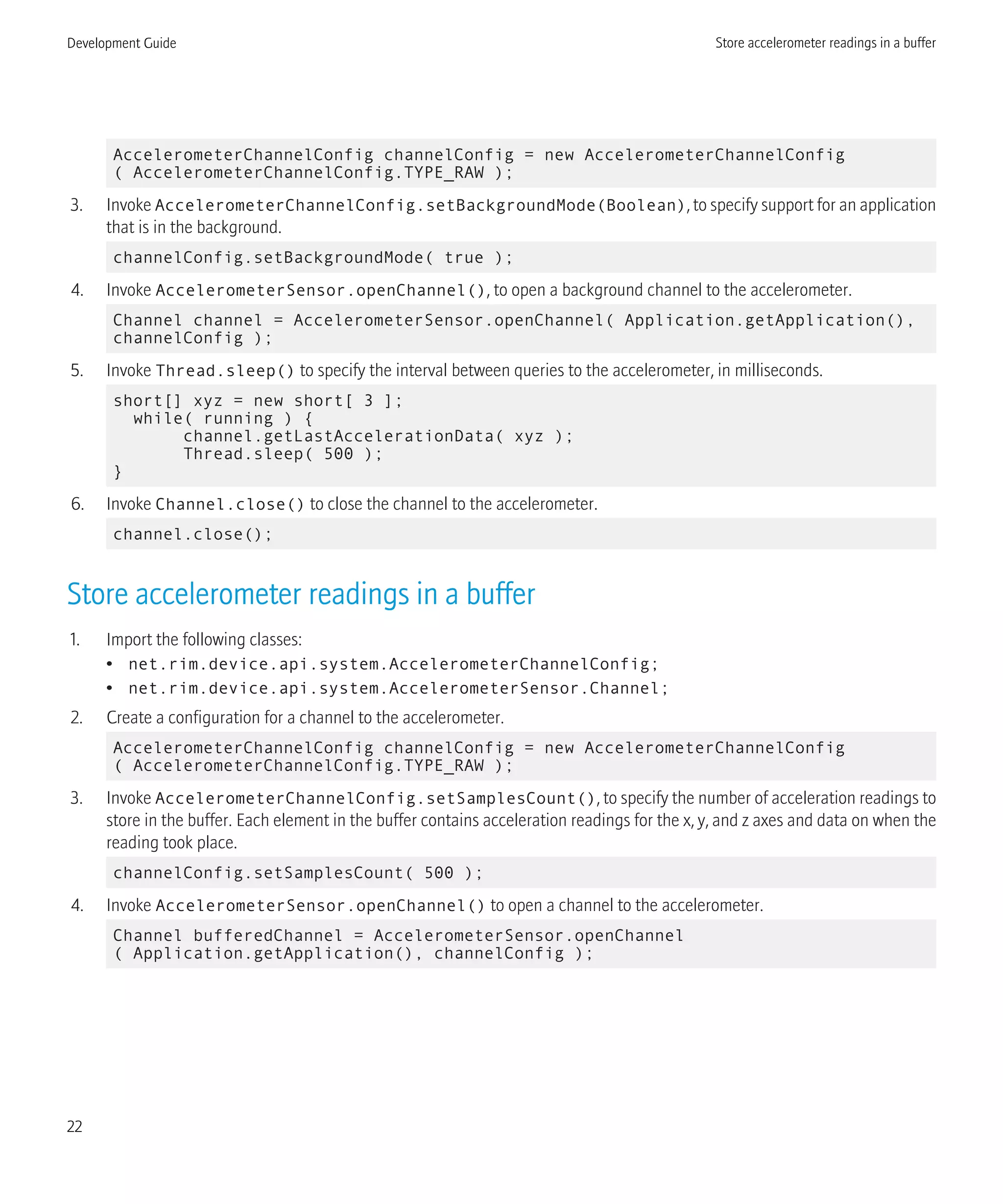

![AccelerometerChannelConfig channelConfig = new AccelerometerChannelConfig
( AccelerometerChannelConfig.TYPE_RAW );
3. Invoke AccelerometerChannelConfig.setBackgroundMode(Boolean), to specify support for an application
that is in the background.
channelConfig.setBackgroundMode( true );
4. Invoke AccelerometerSensor.openChannel(), to open a background channel to the accelerometer.
Channel channel = AccelerometerSensor.openChannel( Application.getApplication(),
channelConfig );
5. Invoke Thread.sleep() to specify the interval between queries to the accelerometer, in milliseconds.
short[] xyz = new short[ 3 ];
while( running ) {
channel.getLastAccelerationData( xyz );
Thread.sleep( 500 );
}
6. Invoke Channel.close() to close the channel to the accelerometer.
channel.close();
Store accelerometer readings in a buffer
1. Import the following classes:
• net.rim.device.api.system.AccelerometerChannelConfig;
• net.rim.device.api.system.AccelerometerSensor.Channel;
2. Create a configuration for a channel to the accelerometer.
AccelerometerChannelConfig channelConfig = new AccelerometerChannelConfig
( AccelerometerChannelConfig.TYPE_RAW );
3. Invoke AccelerometerChannelConfig.setSamplesCount(), to specify the number of acceleration readings to
store in the buffer. Each element in the buffer contains acceleration readings for the x, y, and z axes and data on when the
reading took place.
channelConfig.setSamplesCount( 500 );
4. Invoke AccelerometerSensor.openChannel() to open a channel to the accelerometer.
Channel bufferedChannel = AccelerometerSensor.openChannel
( Application.getApplication(), channelConfig );
Development Guide Store accelerometer readings in a buffer
22](https://image.slidesharecdn.com/blackberryjavasdk-developmentguide-1239696-0730090812-001-6-0-us-130530002957-phpapp01/75/Black-berry-java_sdk-development_guide-1239696-0730090812-001-6-0-us-24-2048.jpg)

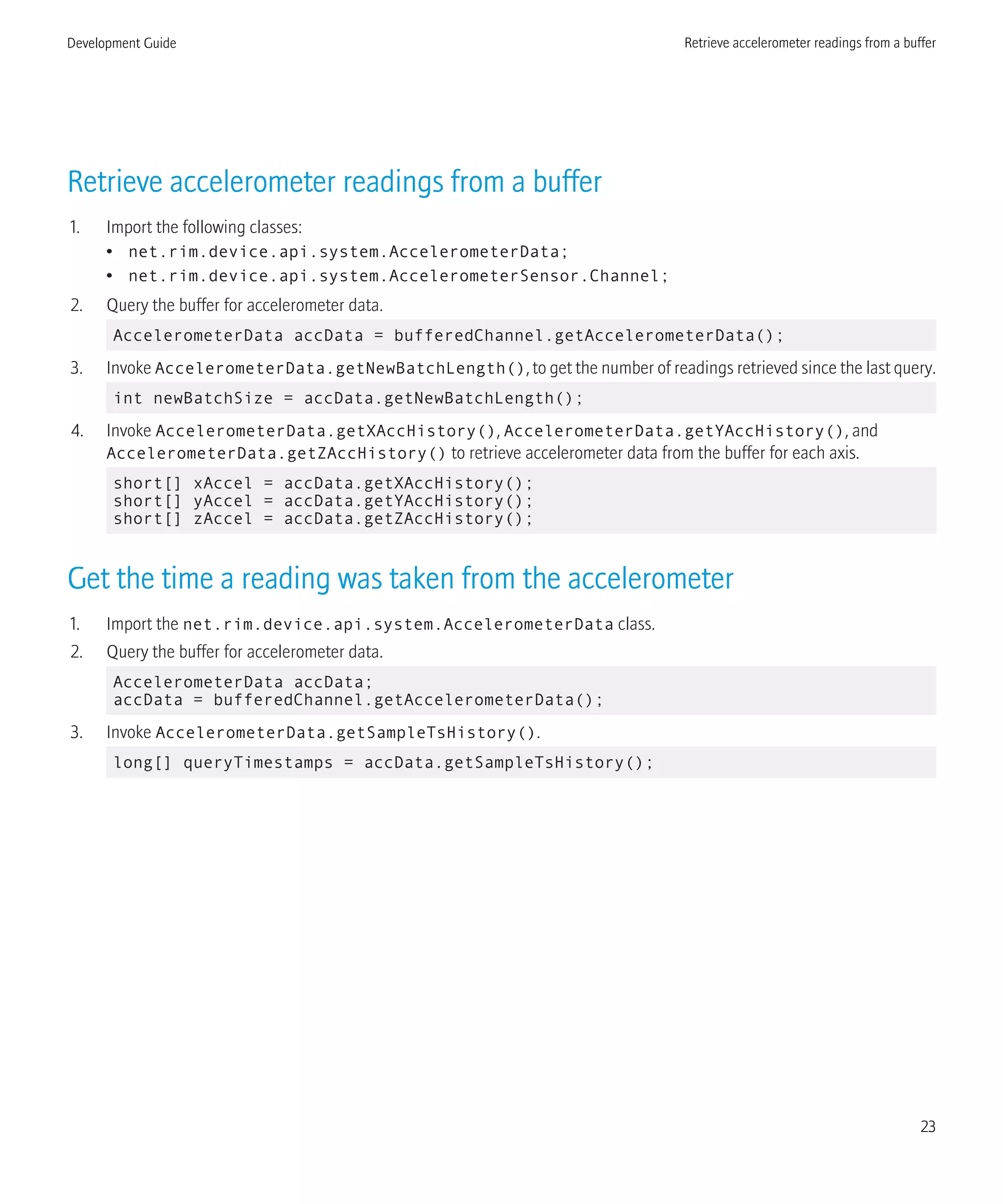

![Retrieve accelerometer readings from a buffer
1. Import the following classes:
• net.rim.device.api.system.AccelerometerData;
• net.rim.device.api.system.AccelerometerSensor.Channel;
2. Query the buffer for accelerometer data.
AccelerometerData accData = bufferedChannel.getAccelerometerData();
3. Invoke AccelerometerData.getNewBatchLength(), to get the number of readings retrieved since the last query.
int newBatchSize = accData.getNewBatchLength();
4. Invoke AccelerometerData.getXAccHistory(), AccelerometerData.getYAccHistory(), and
AccelerometerData.getZAccHistory() to retrieve accelerometer data from the buffer for each axis.
short[] xAccel = accData.getXAccHistory();
short[] yAccel = accData.getYAccHistory();
short[] zAccel = accData.getZAccHistory();
Get the time a reading was taken from the accelerometer
1. Import the net.rim.device.api.system.AccelerometerData class.
2. Query the buffer for accelerometer data.
AccelerometerData accData;
accData = bufferedChannel.getAccelerometerData();
3. Invoke AccelerometerData.getSampleTsHistory().
long[] queryTimestamps = accData.getSampleTsHistory();
Development Guide Retrieve accelerometer readings from a buffer
23](https://image.slidesharecdn.com/blackberryjavasdk-developmentguide-1239696-0730090812-001-6-0-us-130530002957-phpapp01/75/Black-berry-java_sdk-development_guide-1239696-0730090812-001-6-0-us-25-2048.jpg)
![metadata.setClassname(ViewContactCommand.class.getName());
Note: Applications can create instances of third-party commands dynamically only if the commands are stored in the local
registry.
5. Optionally, define command categories and context categories for the command. Applications that use the command use
the categories to find commands in a registry and to determine whether a command is executable.
Category type Description
Command Specifies a type of categorization you want for your command. Applications that use commands
can query a registry for commands in specified categories.
Context Specifies the contexts that are appropriate for your command to execute within. You can use
this category to tell applications that use the command what kinds of context objects can be
passed to CommandHandler.Execute().
String[] myCommandCategories = {"app.contacts", "action.view"};
metadata.setCommandCategories(new CategoryCollection(myCommandCategories));
String[] myContextCategories = {emailaddr};
metadata.setContextCategories(new CategoryCollection(myContextCategories));
6. Register the command.
a. If you want your command to be available only in your application, use a
LocalCommandRegistrarConnection object. The local registry is available only in the current process.
LocalCommandRegistrarConnection connection =
new LocalCommandRegistrarConnection();
connection.registerCommand(new ViewContactCommand(), metadata);
Note: For applications to create instances of the command dynamically, you must register the command only with
the metadata by invoking registerCommand(CommandMetadata)). Otherwise, the registered
CommandHandler is used.
b. If you want your command to be available in any application, use a RemoteCommandRegistrarConnection
object. The global registry is available to all processes that are running on the device.
RemoteCommandRegistrarConnection connection =
new RemoteCommandRegistrarConnection();
connection.registerCommand(new ViewContactCommand(), metadata);
7. From another location in your application (for local commands) or from any application on the device (for global commands),
retrieve and use the command.
a. Create a CommandRequest object and populate it with information about the command that you want to retrieve
from the registry.
Development Guide Use a command in one or more applications
41](https://image.slidesharecdn.com/blackberryjavasdk-developmentguide-1239696-0730090812-001-6-0-us-130530002957-phpapp01/75/Black-berry-java_sdk-development_guide-1239696-0730090812-001-6-0-us-43-2048.jpg)

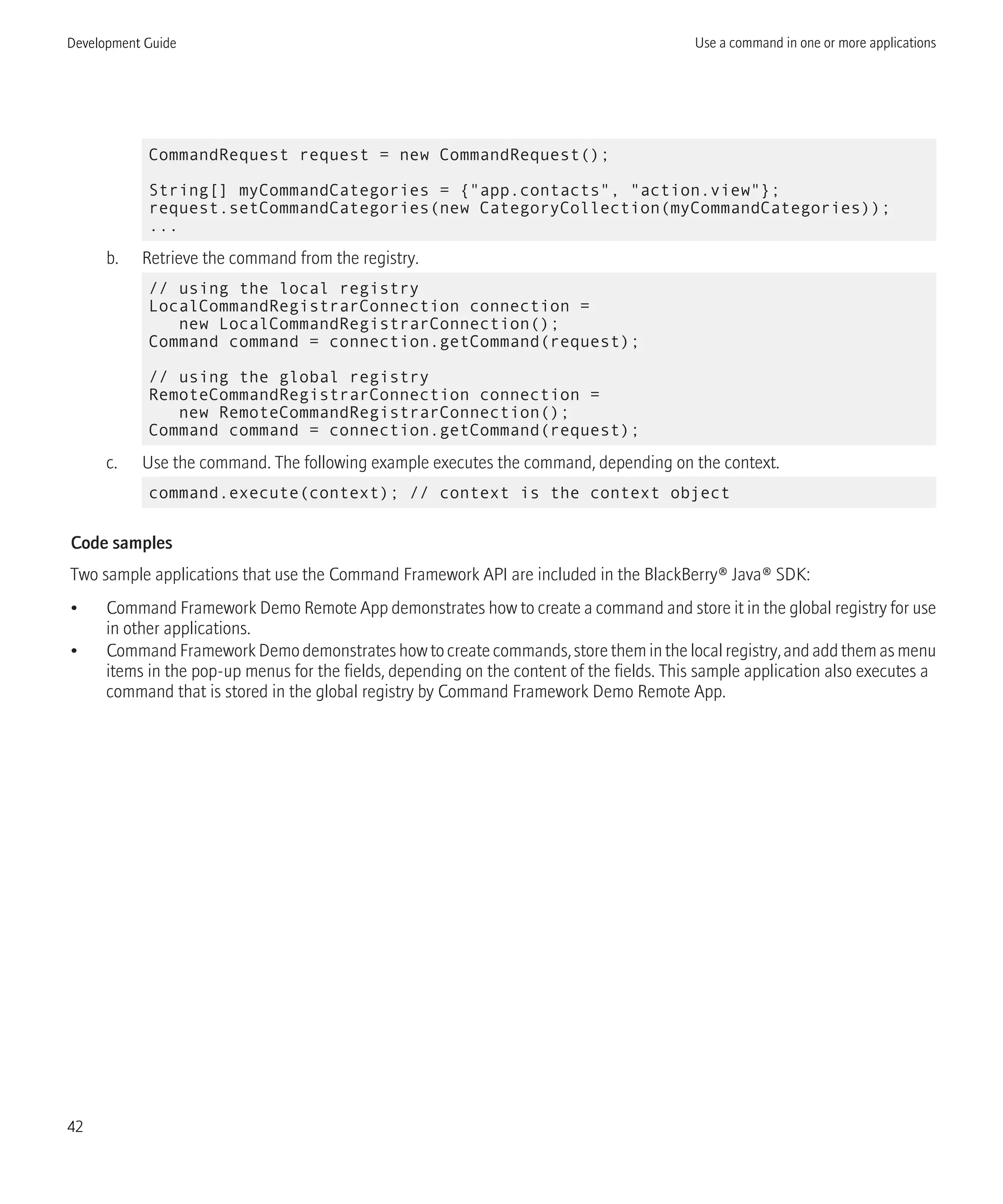

![CommandRequest request = new CommandRequest();
String[] myCommandCategories = {"app.contacts", "action.view"};
request.setCommandCategories(new CategoryCollection(myCommandCategories));
...
b. Retrieve the command from the registry.
// using the local registry
LocalCommandRegistrarConnection connection =
new LocalCommandRegistrarConnection();
Command command = connection.getCommand(request);
// using the global registry
RemoteCommandRegistrarConnection connection =
new RemoteCommandRegistrarConnection();
Command command = connection.getCommand(request);
c. Use the command. The following example executes the command, depending on the context.
command.execute(context); // context is the context object
Code samples
Two sample applications that use the Command Framework API are included in the BlackBerry® Java® SDK:
• Command Framework Demo Remote App demonstrates how to create a command and store it in the global registry for use
in other applications.
• Command Framework Demo demonstrates how to create commands, store them in the local registry, and add them as menu
items in the pop-up menus for the fields, depending on the content of the fields. This sample application also executes a
command that is stored in the global registry by Command Framework Demo Remote App.
Development Guide Use a command in one or more applications
42](https://image.slidesharecdn.com/blackberryjavasdk-developmentguide-1239696-0730090812-001-6-0-us-130530002957-phpapp01/75/Black-berry-java_sdk-development_guide-1239696-0730090812-001-6-0-us-44-2048.jpg)
![Create a grid layout
1. Import the required classes and interfaces.
import net.rim.device.api.ui.*;
import net.rim.device.api.ui.component.*;
import net.rim.device.api.ui.container.*;
2. Create the application framework by extending the UiApplication class. In main(), create an instance of the new
class and invoke enterEventDispatcher() to enable the application to receive events. In the application constructor,
invoke pushScreen() to display the custom screen for the application. In the sample, the GridScreen class, described
in step 3, represents the custom screen.
class GridFieldManagerDemo extends UiApplication
{
public static void main(String[] args)
{
GridFieldManagerDemo theApp = new GridFieldManagerDemo();
theApp.enterEventDispatcher();
}
GridFieldManagerDemo()
{
pushScreen(new GridScreen());
}
}
3. Create the framework for the custom screen by extending the MainScreen class.
class GridScreen extends MainScreen
{
public GridScreen()
{
}
}
4. In the screen constructor, invoke setTitle() to set the text that you want to appear in the title section of the screen.
setTitle("GridFieldManager Demo");
5. In the screen constructor, create an instance of the GridFieldManager class. Specify the number of rows, the number
of columns, and the style of the grid (using a style inherited from net.rim.device.api.ui.Manager). Specify 0 for
the style to use the default style.
GridFieldManager grid;
grid = new GridFieldManager(2,3,0);
6. In the screen constructor, invoke GridFieldManager.add() to add fields to the grid.
Development Guide Creating a grid layout
46](https://image.slidesharecdn.com/blackberryjavasdk-developmentguide-1239696-0730090812-001-6-0-us-130530002957-phpapp01/75/Black-berry-java_sdk-development_guide-1239696-0730090812-001-6-0-us-48-2048.jpg)
![grid.add(new LabelField("one"));
grid.add(new LabelField("two"));
grid.add(new LabelField("three"));
grid.add(new LabelField("four"));
grid.add(new LabelField("five"));
7. In the screen constructor, invoke the GridFieldManagerset() methods to specify the properties of the grid.
grid.setColumnPadding(20);
grid.setRowPadding(20);
8. In the screen constructor, invoke Screen.add() to add the grid to the screen.
add(grid);
After you finish:
You can change the grid after you create it. For example, you can add fields, delete fields, or change the grid's properties.
Code sample: Creating a grid layout
/*
* GridFieldManagerDemo.java
*
* Research In Motion Limited proprietary and confidential
* Copyright Research In Motion Limited, 2009
*/
import net.rim.device.api.ui.*;
import net.rim.device.api.ui.component.*;
import net.rim.device.api.ui.container.*;
public class GridFieldManagerDemo extends UiApplication
{
public static void main(String[] args)
{
GridFieldManagerDemo theApp = new GridFieldManagerDemo();
theApp.enterEventDispatcher();
}
GridFieldManagerDemo()
{
pushScreen(new GridScreen());
}
}
class GridScreen extends MainScreen
{
public GridScreen()
{
setTitle("GridFieldManager Demo");
Development Guide Creating a grid layout
47](https://image.slidesharecdn.com/blackberryjavasdk-developmentguide-1239696-0730090812-001-6-0-us-130530002957-phpapp01/75/Black-berry-java_sdk-development_guide-1239696-0730090812-001-6-0-us-49-2048.jpg)

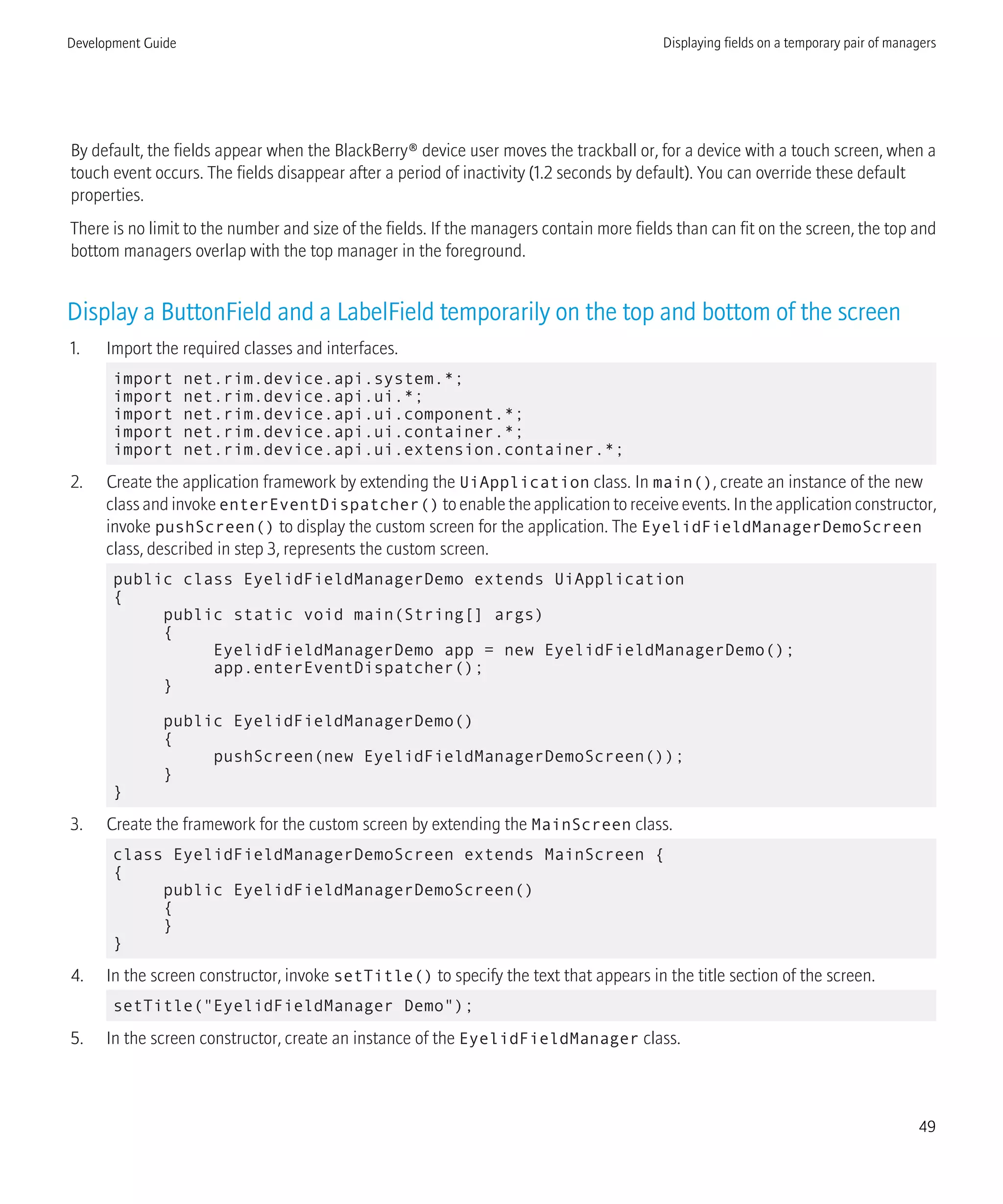

![By default, the fields appear when the BlackBerry® device user moves the trackball or, for a device with a touch screen, when a
touch event occurs. The fields disappear after a period of inactivity (1.2 seconds by default). You can override these default
properties.
There is no limit to the number and size of the fields. If the managers contain more fields than can fit on the screen, the top and
bottom managers overlap with the top manager in the foreground.
Display a ButtonField and a LabelField temporarily on the top and bottom of the screen
1. Import the required classes and interfaces.
import net.rim.device.api.system.*;
import net.rim.device.api.ui.*;
import net.rim.device.api.ui.component.*;
import net.rim.device.api.ui.container.*;
import net.rim.device.api.ui.extension.container.*;
2. Create the application framework by extending the UiApplication class. In main(), create an instance of the new
class and invoke enterEventDispatcher() to enable the application to receive events. In the application constructor,
invoke pushScreen() to display the custom screen for the application. The EyelidFieldManagerDemoScreen
class, described in step 3, represents the custom screen.
public class EyelidFieldManagerDemo extends UiApplication
{
public static void main(String[] args)
{
EyelidFieldManagerDemo app = new EyelidFieldManagerDemo();
app.enterEventDispatcher();
}
public EyelidFieldManagerDemo()
{
pushScreen(new EyelidFieldManagerDemoScreen());
}
}
3. Create the framework for the custom screen by extending the MainScreen class.
class EyelidFieldManagerDemoScreen extends MainScreen {
{
public EyelidFieldManagerDemoScreen()
{
}
}
4. In the screen constructor, invoke setTitle() to specify the text that appears in the title section of the screen.
setTitle("EyelidFieldManager Demo");
5. In the screen constructor, create an instance of the EyelidFieldManager class.
Development Guide Displaying fields on a temporary pair of managers
49](https://image.slidesharecdn.com/blackberryjavasdk-developmentguide-1239696-0730090812-001-6-0-us-130530002957-phpapp01/75/Black-berry-java_sdk-development_guide-1239696-0730090812-001-6-0-us-51-2048.jpg)

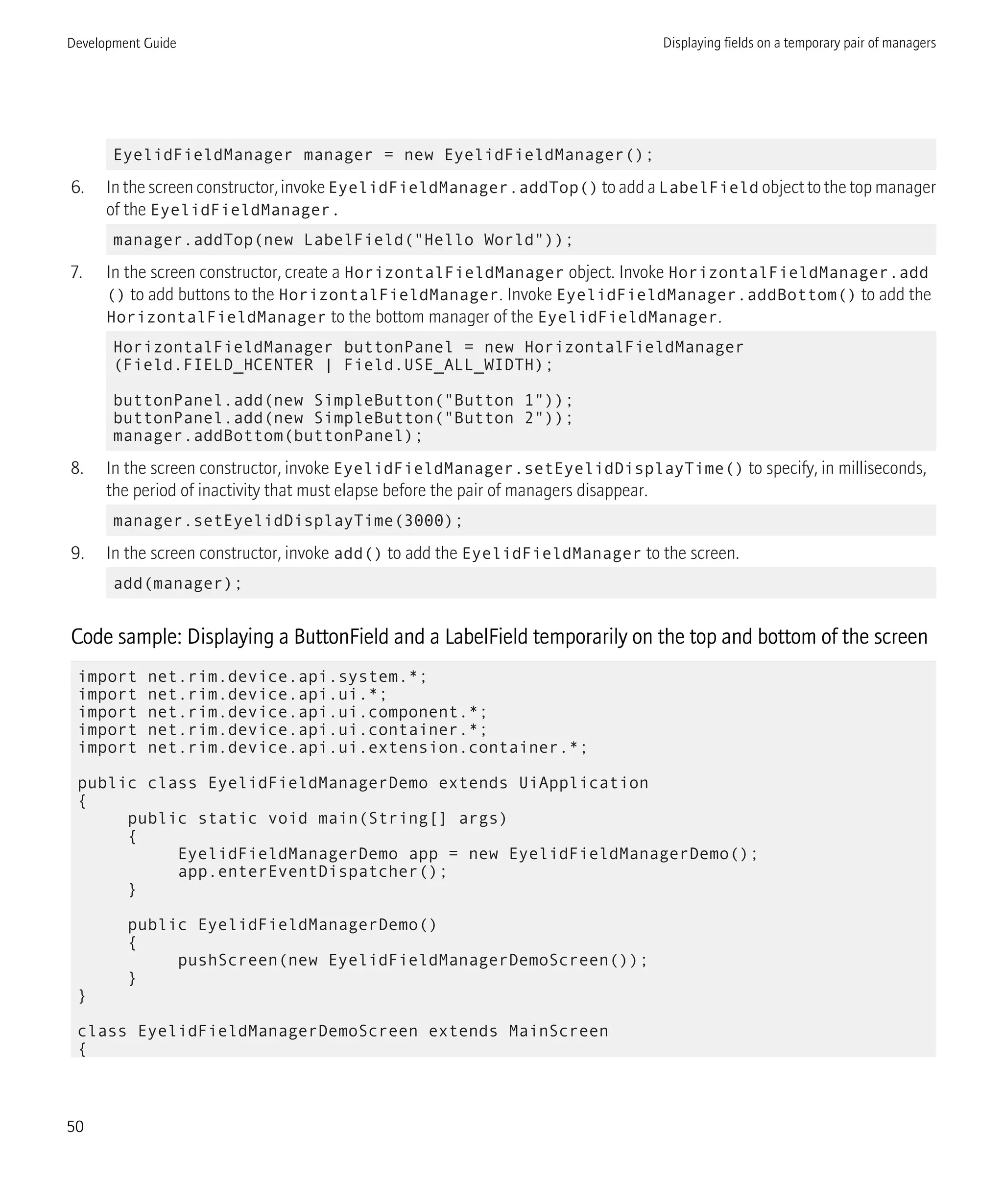

![EyelidFieldManager manager = new EyelidFieldManager();
6. In the screen constructor, invoke EyelidFieldManager.addTop() to add a LabelField object to the top manager
of the EyelidFieldManager.
manager.addTop(new LabelField("Hello World"));
7. In the screen constructor, create a HorizontalFieldManager object. Invoke HorizontalFieldManager.add
() to add buttons to the HorizontalFieldManager. Invoke EyelidFieldManager.addBottom() to add the
HorizontalFieldManager to the bottom manager of the EyelidFieldManager.
HorizontalFieldManager buttonPanel = new HorizontalFieldManager
(Field.FIELD_HCENTER | Field.USE_ALL_WIDTH);
buttonPanel.add(new SimpleButton("Button 1"));
buttonPanel.add(new SimpleButton("Button 2"));
manager.addBottom(buttonPanel);
8. In the screen constructor, invoke EyelidFieldManager.setEyelidDisplayTime() to specify, in milliseconds,
the period of inactivity that must elapse before the pair of managers disappear.
manager.setEyelidDisplayTime(3000);
9. In the screen constructor, invoke add() to add the EyelidFieldManager to the screen.
add(manager);
Code sample: Displaying a ButtonField and a LabelField temporarily on the top and bottom of the screen
import net.rim.device.api.system.*;
import net.rim.device.api.ui.*;
import net.rim.device.api.ui.component.*;
import net.rim.device.api.ui.container.*;
import net.rim.device.api.ui.extension.container.*;
public class EyelidFieldManagerDemo extends UiApplication
{
public static void main(String[] args)
{
EyelidFieldManagerDemo app = new EyelidFieldManagerDemo();
app.enterEventDispatcher();
}
public EyelidFieldManagerDemo()
{
pushScreen(new EyelidFieldManagerDemoScreen());
}
}
class EyelidFieldManagerDemoScreen extends MainScreen
{
Development Guide Displaying fields on a temporary pair of managers
50](https://image.slidesharecdn.com/blackberryjavasdk-developmentguide-1239696-0730090812-001-6-0-us-130530002957-phpapp01/75/Black-berry-java_sdk-development_guide-1239696-0730090812-001-6-0-us-52-2048.jpg)

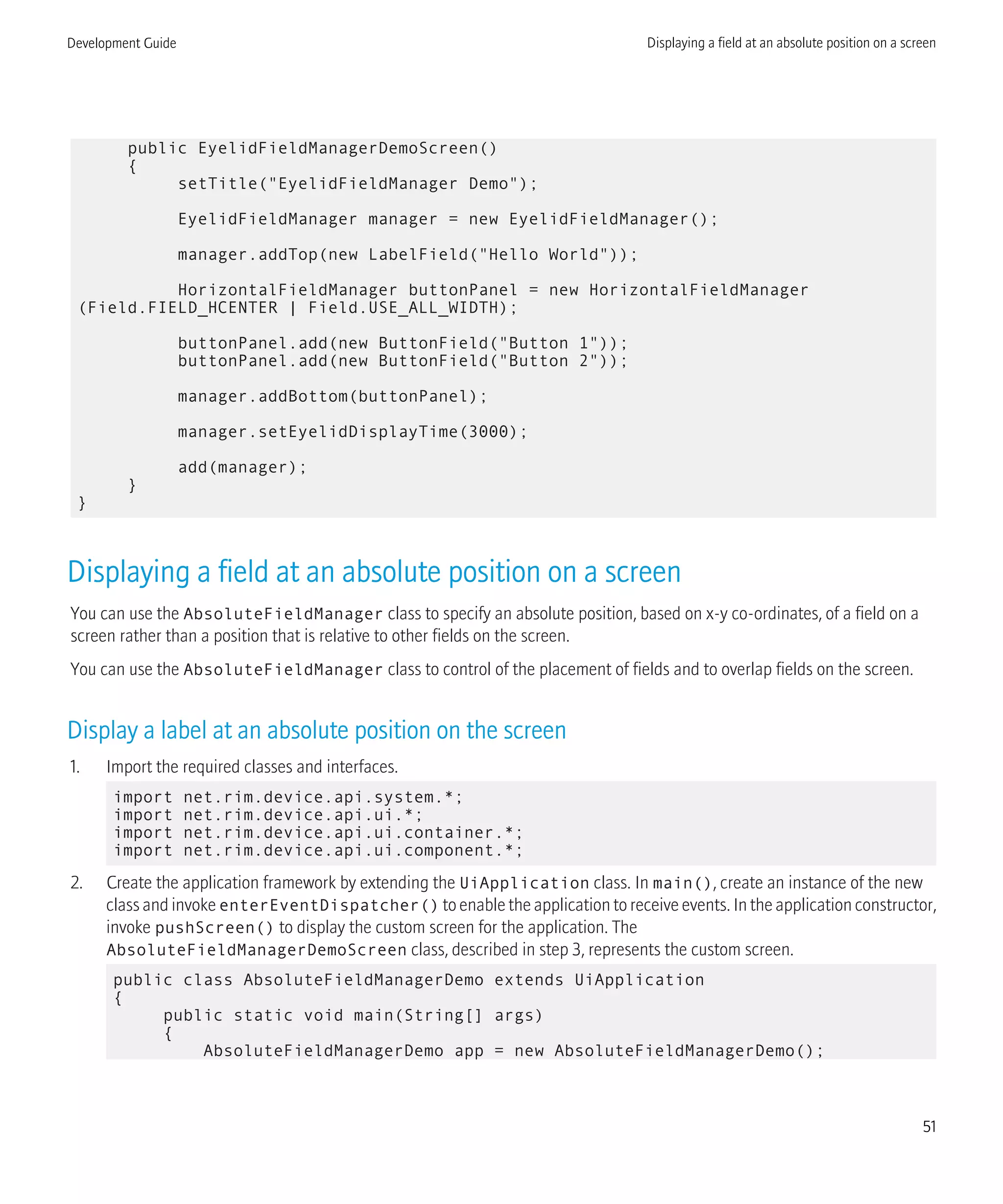

![public EyelidFieldManagerDemoScreen()
{
setTitle("EyelidFieldManager Demo");
EyelidFieldManager manager = new EyelidFieldManager();
manager.addTop(new LabelField("Hello World"));
HorizontalFieldManager buttonPanel = new HorizontalFieldManager
(Field.FIELD_HCENTER | Field.USE_ALL_WIDTH);
buttonPanel.add(new ButtonField("Button 1"));
buttonPanel.add(new ButtonField("Button 2"));
manager.addBottom(buttonPanel);
manager.setEyelidDisplayTime(3000);
add(manager);
}
}
Displaying a field at an absolute position on a screen
You can use the AbsoluteFieldManager class to specify an absolute position, based on x-y co-ordinates, of a field on a
screen rather than a position that is relative to other fields on the screen.
You can use the AbsoluteFieldManager class to control of the placement of fields and to overlap fields on the screen.
Display a label at an absolute position on the screen
1. Import the required classes and interfaces.
import net.rim.device.api.system.*;
import net.rim.device.api.ui.*;
import net.rim.device.api.ui.container.*;
import net.rim.device.api.ui.component.*;
2. Create the application framework by extending the UiApplication class. In main(), create an instance of the new
class and invoke enterEventDispatcher() to enable the application to receive events. In the application constructor,
invoke pushScreen() to display the custom screen for the application. The
AbsoluteFieldManagerDemoScreen class, described in step 3, represents the custom screen.
public class AbsoluteFieldManagerDemo extends UiApplication
{
public static void main(String[] args)
{
AbsoluteFieldManagerDemo app = new AbsoluteFieldManagerDemo();
Development Guide Displaying a field at an absolute position on a screen
51](https://image.slidesharecdn.com/blackberryjavasdk-developmentguide-1239696-0730090812-001-6-0-us-130530002957-phpapp01/75/Black-berry-java_sdk-development_guide-1239696-0730090812-001-6-0-us-53-2048.jpg)

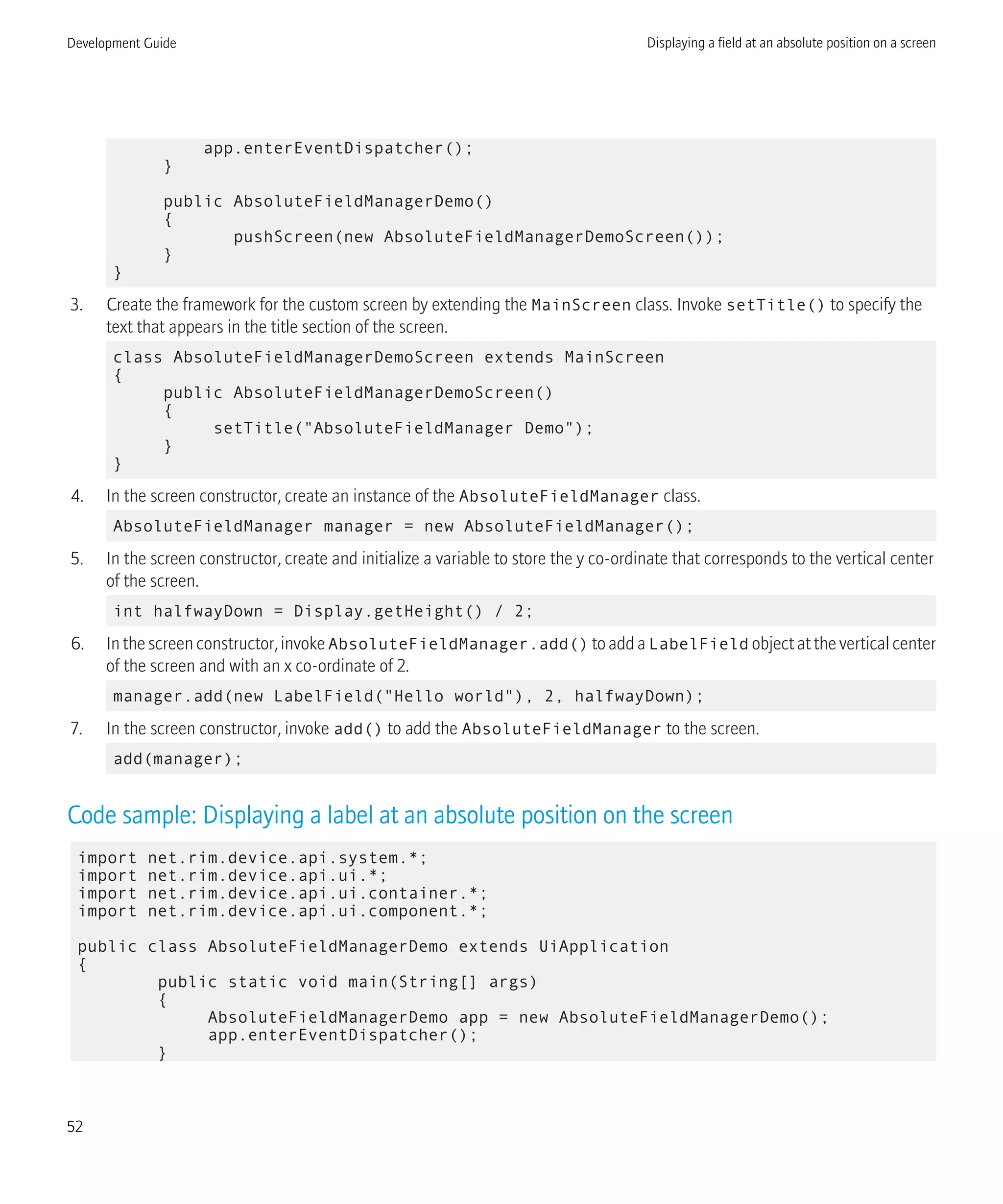

![app.enterEventDispatcher();
}
public AbsoluteFieldManagerDemo()
{
pushScreen(new AbsoluteFieldManagerDemoScreen());
}
}
3. Create the framework for the custom screen by extending the MainScreen class. Invoke setTitle() to specify the
text that appears in the title section of the screen.
class AbsoluteFieldManagerDemoScreen extends MainScreen
{
public AbsoluteFieldManagerDemoScreen()
{
setTitle("AbsoluteFieldManager Demo");
}
}
4. In the screen constructor, create an instance of the AbsoluteFieldManager class.
AbsoluteFieldManager manager = new AbsoluteFieldManager();
5. In the screen constructor, create and initialize a variable to store the y co-ordinate that corresponds to the vertical center
of the screen.
int halfwayDown = Display.getHeight() / 2;
6. In the screen constructor, invoke AbsoluteFieldManager.add() to add a LabelField object at the vertical center
of the screen and with an x co-ordinate of 2.
manager.add(new LabelField("Hello world"), 2, halfwayDown);
7. In the screen constructor, invoke add() to add the AbsoluteFieldManager to the screen.
add(manager);
Code sample: Displaying a label at an absolute position on the screen
import net.rim.device.api.system.*;
import net.rim.device.api.ui.*;
import net.rim.device.api.ui.container.*;
import net.rim.device.api.ui.component.*;
public class AbsoluteFieldManagerDemo extends UiApplication
{
public static void main(String[] args)
{
AbsoluteFieldManagerDemo app = new AbsoluteFieldManagerDemo();
app.enterEventDispatcher();
}
Development Guide Displaying a field at an absolute position on a screen
52](https://image.slidesharecdn.com/blackberryjavasdk-developmentguide-1239696-0730090812-001-6-0-us-130530002957-phpapp01/75/Black-berry-java_sdk-development_guide-1239696-0730090812-001-6-0-us-54-2048.jpg)

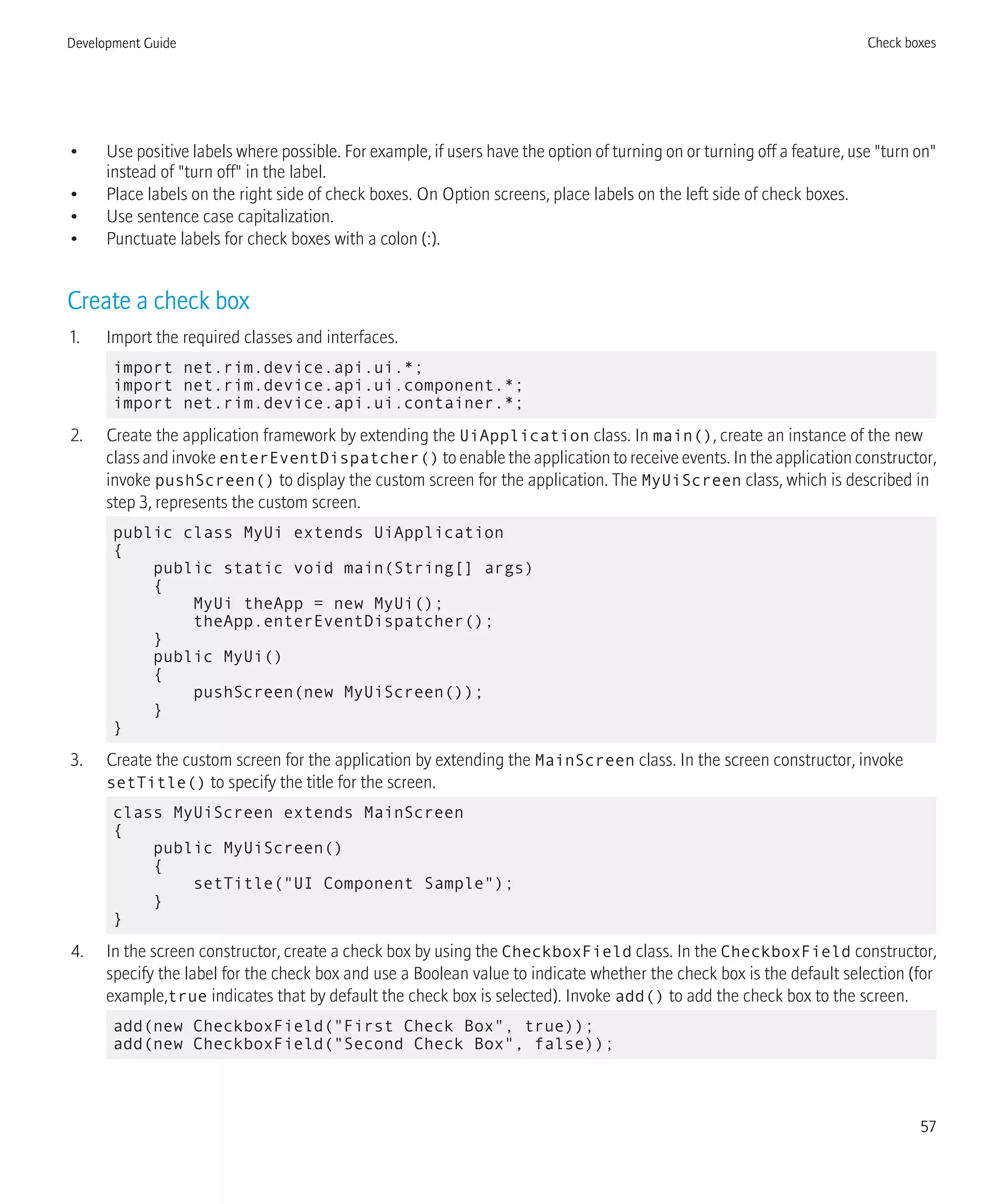

![• Use positive labels where possible. For example, if users have the option of turning on or turning off a feature, use "turn on"
instead of "turn off" in the label.
• Place labels on the right side of check boxes. On Option screens, place labels on the left side of check boxes.
• Use sentence case capitalization.
• Punctuate labels for check boxes with a colon (:).
Create a check box
1. Import the required classes and interfaces.
import net.rim.device.api.ui.*;
import net.rim.device.api.ui.component.*;
import net.rim.device.api.ui.container.*;
2. Create the application framework by extending the UiApplication class. In main(), create an instance of the new
class and invoke enterEventDispatcher() to enable the application to receive events. In the application constructor,
invoke pushScreen() to display the custom screen for the application. The MyUiScreen class, which is described in
step 3, represents the custom screen.
public class MyUi extends UiApplication
{
public static void main(String[] args)
{
MyUi theApp = new MyUi();
theApp.enterEventDispatcher();
}
public MyUi()
{
pushScreen(new MyUiScreen());
}
}
3. Create the custom screen for the application by extending the MainScreen class. In the screen constructor, invoke
setTitle() to specify the title for the screen.
class MyUiScreen extends MainScreen
{
public MyUiScreen()
{
setTitle("UI Component Sample");
}
}
4. In the screen constructor, create a check box by using the CheckboxField class. In the CheckboxField constructor,
specify the label for the check box and use a Boolean value to indicate whether the check box is the default selection (for
example,true indicates that by default the check box is selected). Invoke add() to add the check box to the screen.
add(new CheckboxField("First Check Box", true));
add(new CheckboxField("Second Check Box", false));
Development Guide Check boxes
57](https://image.slidesharecdn.com/blackberryjavasdk-developmentguide-1239696-0730090812-001-6-0-us-130530002957-phpapp01/75/Black-berry-java_sdk-development_guide-1239696-0730090812-001-6-0-us-59-2048.jpg)

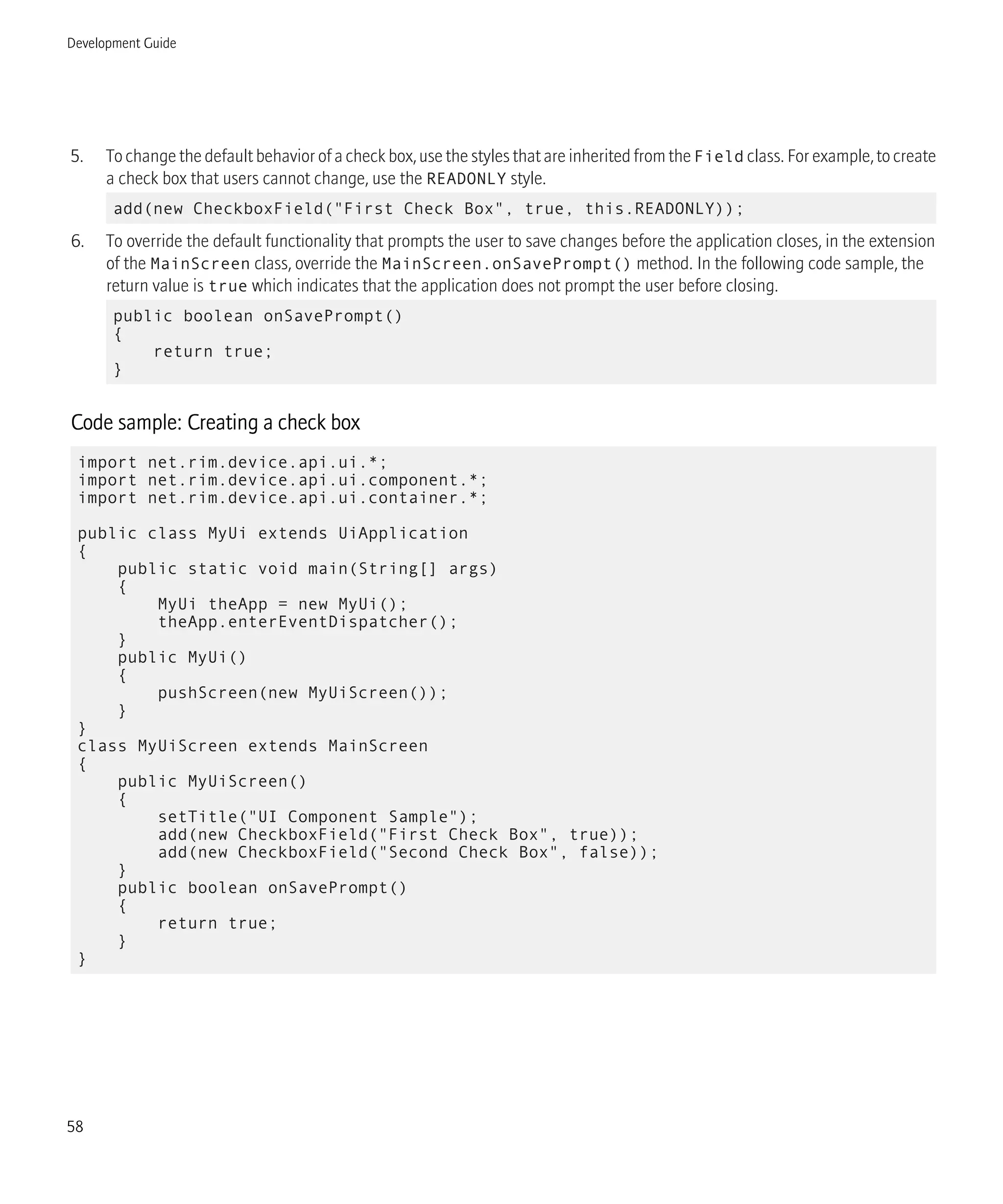

![5. To change the default behavior of a check box, use the styles that are inherited from the Field class. For example, to create
a check box that users cannot change, use the READONLY style.
add(new CheckboxField("First Check Box", true, this.READONLY));
6. To override the default functionality that prompts the user to save changes before the application closes, in the extension
of the MainScreen class, override the MainScreen.onSavePrompt() method. In the following code sample, the
return value is true which indicates that the application does not prompt the user before closing.
public boolean onSavePrompt()
{
return true;
}
Code sample: Creating a check box
import net.rim.device.api.ui.*;
import net.rim.device.api.ui.component.*;
import net.rim.device.api.ui.container.*;
public class MyUi extends UiApplication
{
public static void main(String[] args)
{
MyUi theApp = new MyUi();
theApp.enterEventDispatcher();
}
public MyUi()
{
pushScreen(new MyUiScreen());
}
}
class MyUiScreen extends MainScreen
{
public MyUiScreen()
{
setTitle("UI Component Sample");
add(new CheckboxField("First Check Box", true));
add(new CheckboxField("Second Check Box", false));
}
public boolean onSavePrompt()
{
return true;
}
}
Development Guide
58](https://image.slidesharecdn.com/blackberryjavasdk-developmentguide-1239696-0730090812-001-6-0-us-130530002957-phpapp01/75/Black-berry-java_sdk-development_guide-1239696-0730090812-001-6-0-us-60-2048.jpg)

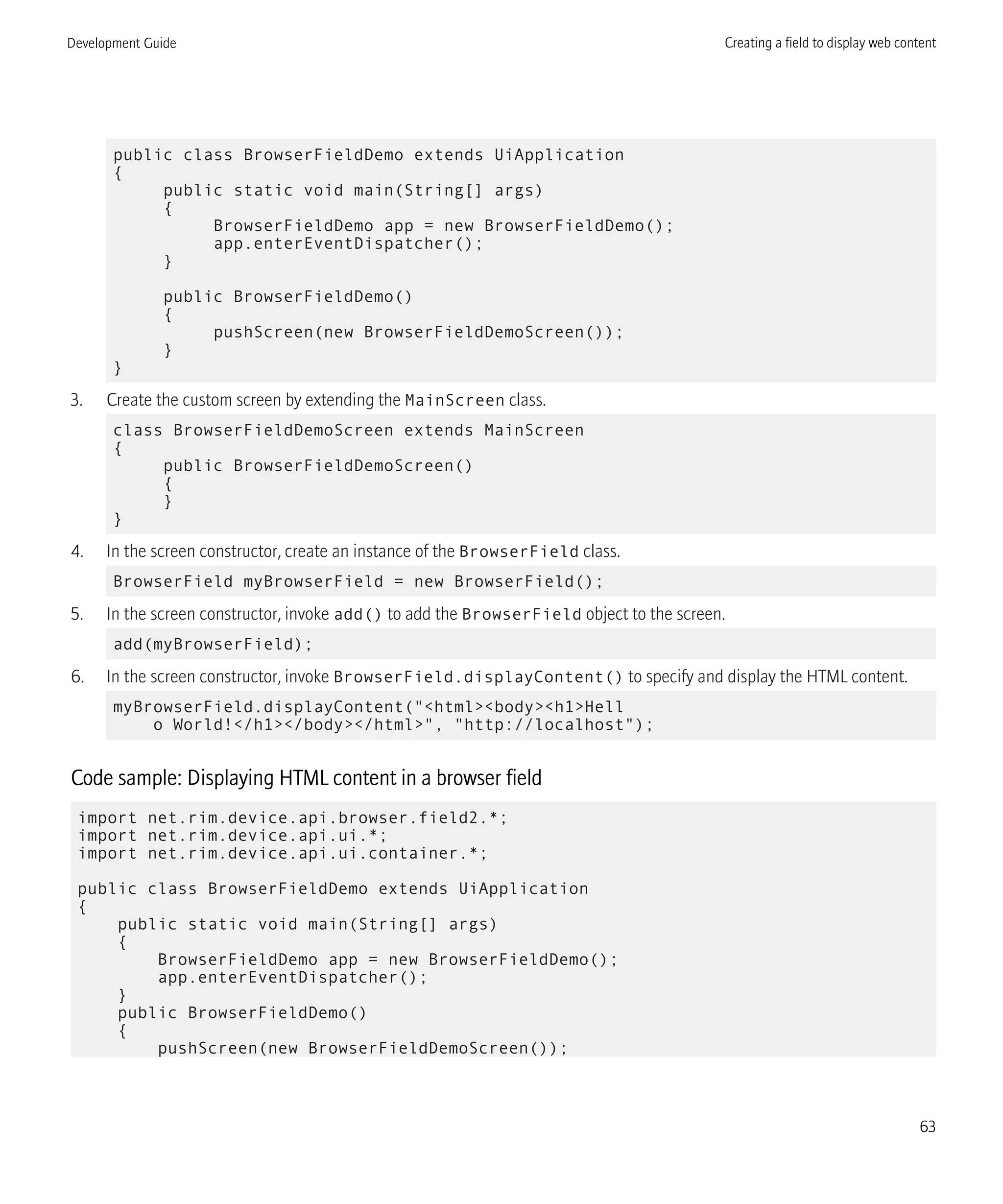

![public class BrowserFieldDemo extends UiApplication
{
public static void main(String[] args)
{
BrowserFieldDemo app = new BrowserFieldDemo();
app.enterEventDispatcher();
}
public BrowserFieldDemo()
{
pushScreen(new BrowserFieldDemoScreen());
}
}
3. Create the custom screen by extending the MainScreen class.
class BrowserFieldDemoScreen extends MainScreen
{
public BrowserFieldDemoScreen()
{
}
}
4. In the screen constructor, create an instance of the BrowserField class.
BrowserField myBrowserField = new BrowserField();
5. In the screen constructor, invoke add() to add the BrowserField object to the screen.
add(myBrowserField);
6. In the screen constructor, invoke BrowserField.displayContent() to specify and display the HTML content.
myBrowserField.displayContent("<html><body><h1>Hell
o World!</h1></body></html>", "http://localhost");
Code sample: Displaying HTML content in a browser field
import net.rim.device.api.browser.field2.*;
import net.rim.device.api.ui.*;
import net.rim.device.api.ui.container.*;
public class BrowserFieldDemo extends UiApplication
{
public static void main(String[] args)
{
BrowserFieldDemo app = new BrowserFieldDemo();
app.enterEventDispatcher();
}
public BrowserFieldDemo()
{
pushScreen(new BrowserFieldDemoScreen());
Development Guide Creating a field to display web content
63](https://image.slidesharecdn.com/blackberryjavasdk-developmentguide-1239696-0730090812-001-6-0-us-130530002957-phpapp01/75/Black-berry-java_sdk-development_guide-1239696-0730090812-001-6-0-us-65-2048.jpg)
![}
}

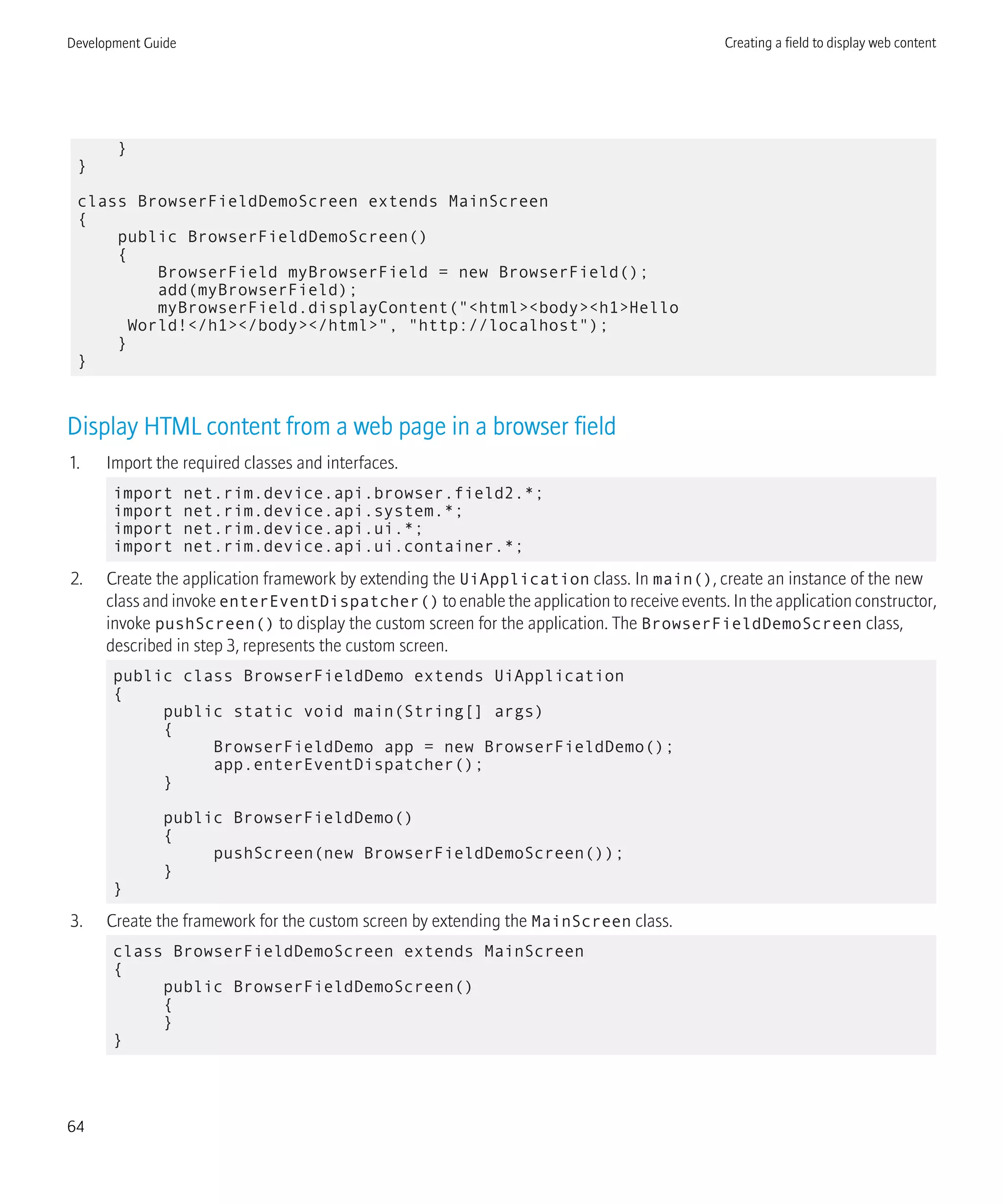

class BrowserFieldDemoScreen extends MainScreen
{
public BrowserFieldDemoScreen()
{
BrowserField myBrowserField = new BrowserField();
add(myBrowserField);
myBrowserField.displayContent("<html><body><h1>Hello
World!</h1></body></html>", "http://localhost");
}
}
Display HTML content from a web page in a browser field
1. Import the required classes and interfaces.
import net.rim.device.api.browser.field2.*;
import net.rim.device.api.system.*;
import net.rim.device.api.ui.*;
import net.rim.device.api.ui.container.*;
2. Create the application framework by extending the UiApplication class. In main(), create an instance of the new
class and invoke enterEventDispatcher() to enable the application to receive events. In the application constructor,
invoke pushScreen() to display the custom screen for the application. The BrowserFieldDemoScreen class,
described in step 3, represents the custom screen.
public class BrowserFieldDemo extends UiApplication
{
public static void main(String[] args)
{
BrowserFieldDemo app = new BrowserFieldDemo();
app.enterEventDispatcher();
}
public BrowserFieldDemo()
{
pushScreen(new BrowserFieldDemoScreen());
}
}
3. Create the framework for the custom screen by extending the MainScreen class.
class BrowserFieldDemoScreen extends MainScreen
{
public BrowserFieldDemoScreen()
{
}
}
Development Guide Creating a field to display web content
64](https://image.slidesharecdn.com/blackberryjavasdk-developmentguide-1239696-0730090812-001-6-0-us-130530002957-phpapp01/75/Black-berry-java_sdk-development_guide-1239696-0730090812-001-6-0-us-66-2048.jpg)
![4. In the screen constructor, create an instance of the BrowserField class.
BrowserField myBrowserField = new BrowserField();
5. In the screen constructor, invoke add() to add the BrowserField object to the screen.
add(myBrowserField);
6. In the screen constructor, invoke BrowserField.requestContent() to specify the location of the HTML content
and display it.
myBrowserField.requestContent("http://www.blackberry.com");
Code sample: Displaying HTML content from a web page in a browser field
import net.rim.device.api.browser.field2.*;
import net.rim.device.api.system.*;
import net.rim.device.api.ui.*;
import net.rim.device.api.ui.container.*;
public class BrowserFieldDemo extends UiApplication
{
public static void main(String[] args)
{
BrowserFieldDemo app = new BrowserFieldDemo();
app.enterEventDispatcher();
}
public BrowserFieldDemo()
{
pushScreen(new BrowserFieldDemoScreen());
}
}
class BrowserFieldDemoScreen extends MainScreen
{
public BrowserFieldDemoScreen()
{
BrowserField myBrowserField = new BrowserField();
add(myBrowserField);
myBrowserField.requestContent("http://www.blackberry.com");
}
}
Display HTML content from a resource in your application
1. Import the required classes and interfaces.
Development Guide Creating a field to display web content
65](https://image.slidesharecdn.com/blackberryjavasdk-developmentguide-1239696-0730090812-001-6-0-us-130530002957-phpapp01/75/Black-berry-java_sdk-development_guide-1239696-0730090812-001-6-0-us-67-2048.jpg)
![import net.rim.device.api.browser.field2.*;
import net.rim.device.api.system.*;
import net.rim.device.api.ui.*;
import net.rim.device.api.ui.container.*;
2. Create the application framework by extending the UiApplication class. In main(), create an instance of the new
class and invoke enterEventDispatcher() to enable the application to receive events. In the application constructor,
invoke pushScreen() to display the custom screen for the application. The BrowserFieldDemoScreen class,
described in step 3, represents the custom screen.
public class BrowserFieldDemo extends UiApplication
{
public static void main(String[] args)
{
BrowserFieldDemo app = new BrowserFieldDemo();
app.enterEventDispatcher();
}
public BrowserFieldDemo()
{
pushScreen(new BrowserFieldDemoScreen());
}
}
3. Create the custom screen by extending the MainScreen class.
class BrowserFieldDemoScreen extends MainScreen
{
public BrowserFieldDemoScreen()
{
}
}
4. In the screen constructor, create an instance of the BrowserField class.
BrowserField myBrowserField = new BrowserField();
5. In the screen constructor, invoke add() to add the BrowserField object to the screen.
add(myBrowserField);
6. In the screen constructor, invoke BrowserField.requestContent() to specify the location of the resource in your
application and display the HTML content.
myBrowserField.requestContent("local:///test.html");
Note: The BrowserField class does not access resources using a folder structure. The BrowserField class displays the
first resource found that matches the specifed file name.
Development Guide Creating a field to display web content
66](https://image.slidesharecdn.com/blackberryjavasdk-developmentguide-1239696-0730090812-001-6-0-us-130530002957-phpapp01/75/Black-berry-java_sdk-development_guide-1239696-0730090812-001-6-0-us-68-2048.jpg)

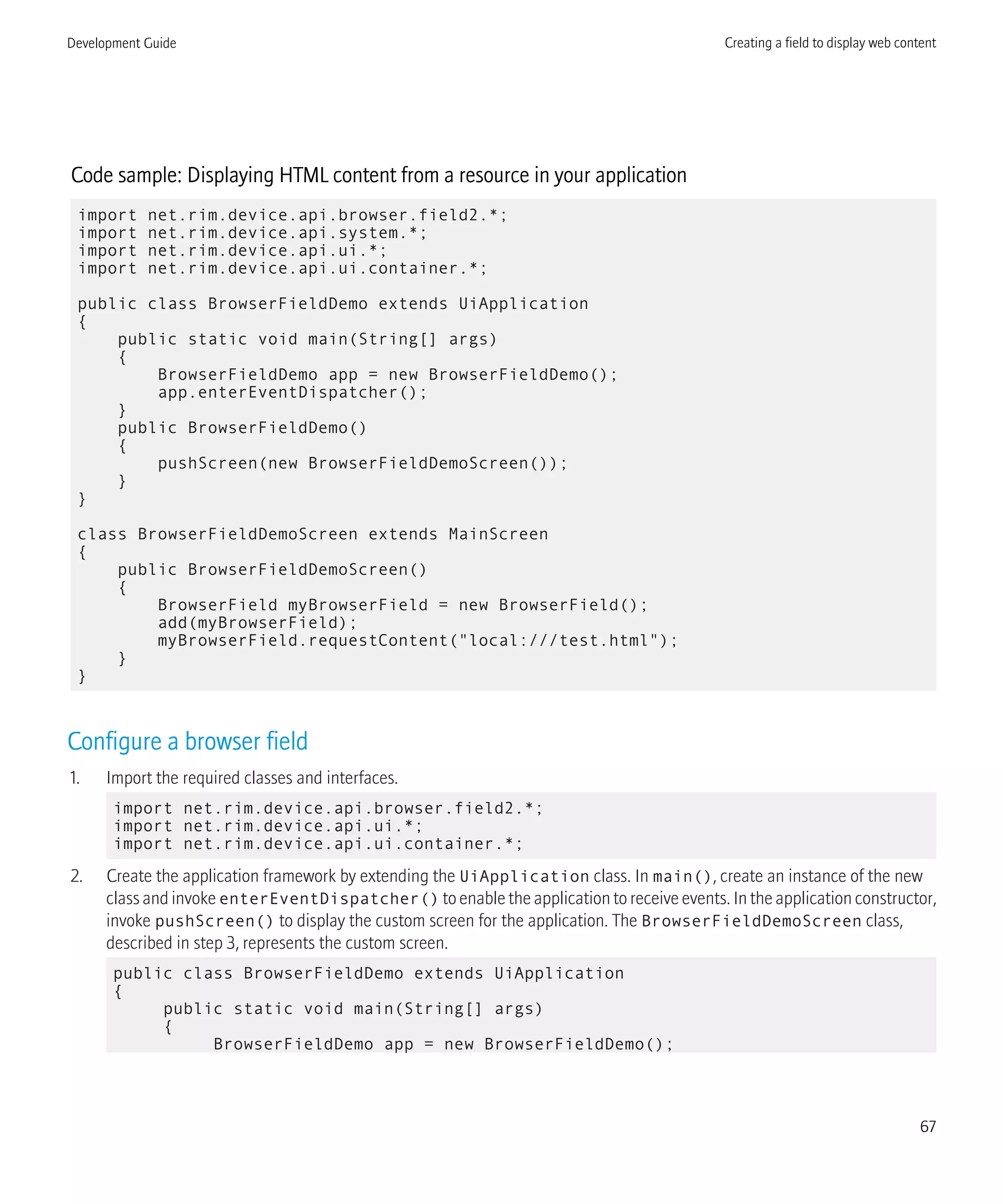

![Code sample: Displaying HTML content from a resource in your application
import net.rim.device.api.browser.field2.*;
import net.rim.device.api.system.*;
import net.rim.device.api.ui.*;
import net.rim.device.api.ui.container.*;
public class BrowserFieldDemo extends UiApplication
{
public static void main(String[] args)
{
BrowserFieldDemo app = new BrowserFieldDemo();
app.enterEventDispatcher();
}
public BrowserFieldDemo()
{
pushScreen(new BrowserFieldDemoScreen());
}
}
class BrowserFieldDemoScreen extends MainScreen
{
public BrowserFieldDemoScreen()
{
BrowserField myBrowserField = new BrowserField();
add(myBrowserField);
myBrowserField.requestContent("local:///test.html");
}
}
Configure a browser field
1. Import the required classes and interfaces.
import net.rim.device.api.browser.field2.*;
import net.rim.device.api.ui.*;
import net.rim.device.api.ui.container.*;
2. Create the application framework by extending the UiApplication class. In main(), create an instance of the new
class and invoke enterEventDispatcher() to enable the application to receive events. In the application constructor,
invoke pushScreen() to display the custom screen for the application. The BrowserFieldDemoScreen class,
described in step 3, represents the custom screen.
public class BrowserFieldDemo extends UiApplication
{
public static void main(String[] args)
{
BrowserFieldDemo app = new BrowserFieldDemo();
Development Guide Creating a field to display web content
67](https://image.slidesharecdn.com/blackberryjavasdk-developmentguide-1239696-0730090812-001-6-0-us-130530002957-phpapp01/75/Black-berry-java_sdk-development_guide-1239696-0730090812-001-6-0-us-69-2048.jpg)

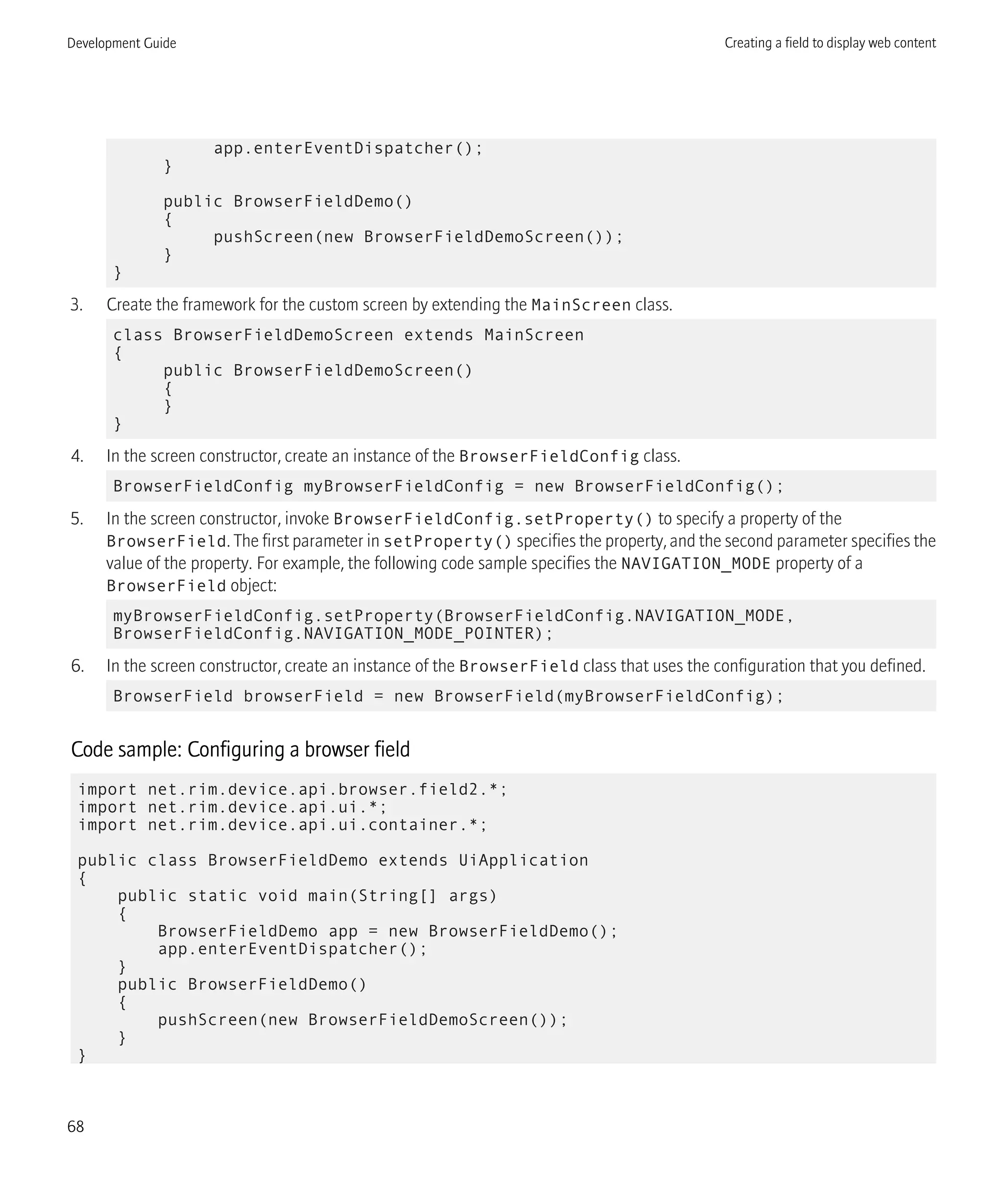

![app.enterEventDispatcher();
}
public BrowserFieldDemo()
{
pushScreen(new BrowserFieldDemoScreen());
}
}
3. Create the framework for the custom screen by extending the MainScreen class.
class BrowserFieldDemoScreen extends MainScreen
{
public BrowserFieldDemoScreen()
{
}
}
4. In the screen constructor, create an instance of the BrowserFieldConfig class.
BrowserFieldConfig myBrowserFieldConfig = new BrowserFieldConfig();
5. In the screen constructor, invoke BrowserFieldConfig.setProperty() to specify a property of the
BrowserField. The first parameter in setProperty() specifies the property, and the second parameter specifies the
value of the property. For example, the following code sample specifies the NAVIGATION_MODE property of a
BrowserField object:
myBrowserFieldConfig.setProperty(BrowserFieldConfig.NAVIGATION_MODE,
BrowserFieldConfig.NAVIGATION_MODE_POINTER);
6. In the screen constructor, create an instance of the BrowserField class that uses the configuration that you defined.
BrowserField browserField = new BrowserField(myBrowserFieldConfig);
Code sample: Configuring a browser field
import net.rim.device.api.browser.field2.*;
import net.rim.device.api.ui.*;
import net.rim.device.api.ui.container.*;
public class BrowserFieldDemo extends UiApplication
{
public static void main(String[] args)
{
BrowserFieldDemo app = new BrowserFieldDemo();
app.enterEventDispatcher();
}
public BrowserFieldDemo()
{
pushScreen(new BrowserFieldDemoScreen());
}
}
Development Guide Creating a field to display web content
68](https://image.slidesharecdn.com/blackberryjavasdk-developmentguide-1239696-0730090812-001-6-0-us-130530002957-phpapp01/75/Black-berry-java_sdk-development_guide-1239696-0730090812-001-6-0-us-70-2048.jpg)

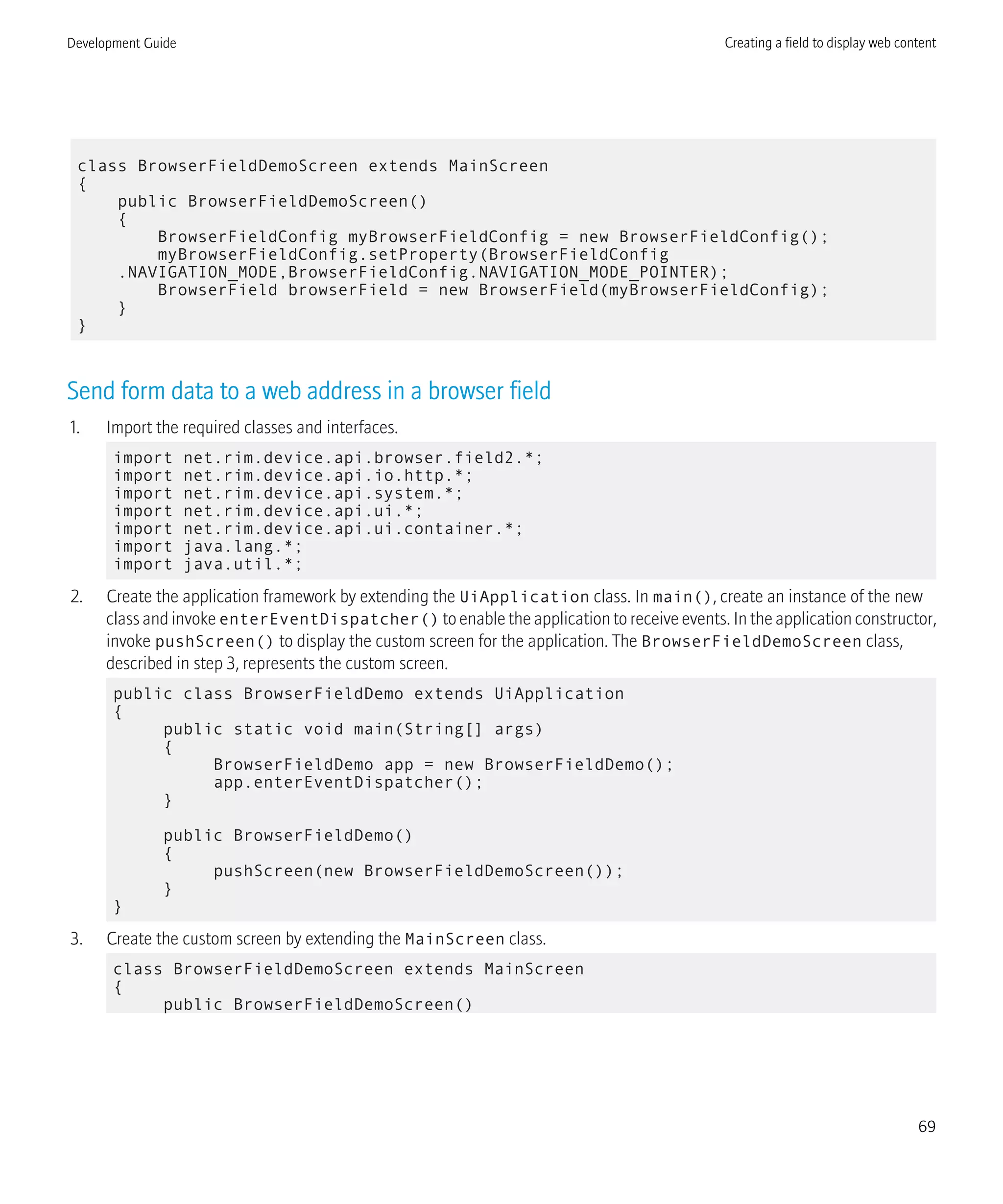

![class BrowserFieldDemoScreen extends MainScreen
{
public BrowserFieldDemoScreen()
{
BrowserFieldConfig myBrowserFieldConfig = new BrowserFieldConfig();
myBrowserFieldConfig.setProperty(BrowserFieldConfig
.NAVIGATION_MODE,BrowserFieldConfig.NAVIGATION_MODE_POINTER);
BrowserField browserField = new BrowserField(myBrowserFieldConfig);
}
}
Send form data to a web address in a browser field
1. Import the required classes and interfaces.
import net.rim.device.api.browser.field2.*;
import net.rim.device.api.io.http.*;
import net.rim.device.api.system.*;
import net.rim.device.api.ui.*;
import net.rim.device.api.ui.container.*;
import java.lang.*;
import java.util.*;
2. Create the application framework by extending the UiApplication class. In main(), create an instance of the new
class and invoke enterEventDispatcher() to enable the application to receive events. In the application constructor,
invoke pushScreen() to display the custom screen for the application. The BrowserFieldDemoScreen class,
described in step 3, represents the custom screen.
public class BrowserFieldDemo extends UiApplication
{
public static void main(String[] args)
{
BrowserFieldDemo app = new BrowserFieldDemo();
app.enterEventDispatcher();
}
public BrowserFieldDemo()
{
pushScreen(new BrowserFieldDemoScreen());
}
}
3. Create the custom screen by extending the MainScreen class.
class BrowserFieldDemoScreen extends MainScreen
{
public BrowserFieldDemoScreen()
Development Guide Creating a field to display web content
69](https://image.slidesharecdn.com/blackberryjavasdk-developmentguide-1239696-0730090812-001-6-0-us-130530002957-phpapp01/75/Black-berry-java_sdk-development_guide-1239696-0730090812-001-6-0-us-71-2048.jpg)
![{
}
}

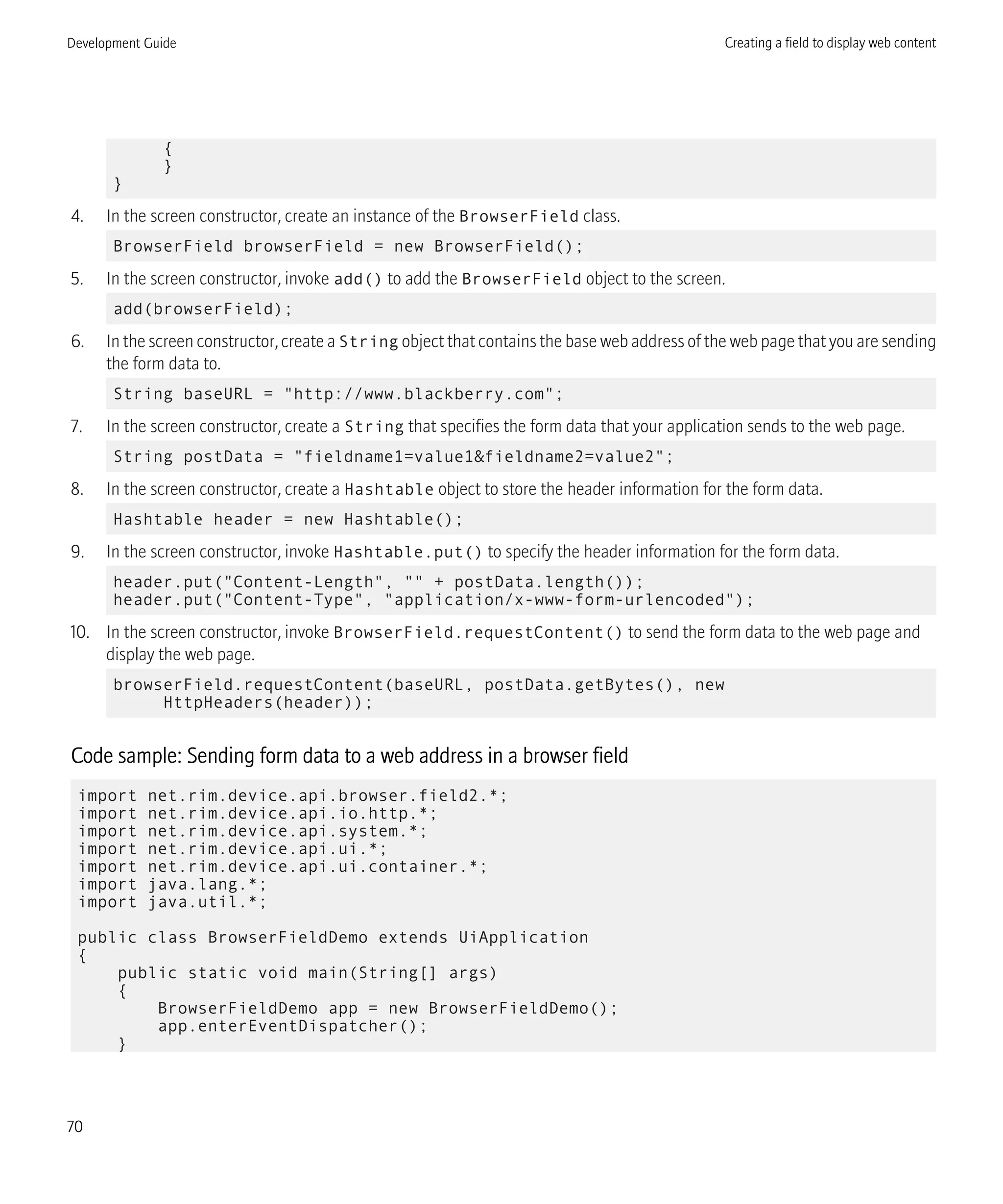

4. In the screen constructor, create an instance of the BrowserField class.
BrowserField browserField = new BrowserField();
5. In the screen constructor, invoke add() to add the BrowserField object to the screen.
add(browserField);
6. In the screen constructor, create a String object that contains the base web address of the web page that you are sending
the form data to.
String baseURL = "http://www.blackberry.com";
7. In the screen constructor, create a String that specifies the form data that your application sends to the web page.
String postData = "fieldname1=value1&fieldname2=value2";
8. In the screen constructor, create a Hashtable object to store the header information for the form data.
Hashtable header = new Hashtable();
9. In the screen constructor, invoke Hashtable.put() to specify the header information for the form data.
header.put("Content-Length", "" + postData.length());
header.put("Content-Type", "application/x-www-form-urlencoded");
10. In the screen constructor, invoke BrowserField.requestContent() to send the form data to the web page and
display the web page.
browserField.requestContent(baseURL, postData.getBytes(), new
HttpHeaders(header));
Code sample: Sending form data to a web address in a browser field
import net.rim.device.api.browser.field2.*;
import net.rim.device.api.io.http.*;
import net.rim.device.api.system.*;
import net.rim.device.api.ui.*;
import net.rim.device.api.ui.container.*;
import java.lang.*;
import java.util.*;
public class BrowserFieldDemo extends UiApplication
{
public static void main(String[] args)
{
BrowserFieldDemo app = new BrowserFieldDemo();
app.enterEventDispatcher();
}
Development Guide Creating a field to display web content
70](https://image.slidesharecdn.com/blackberryjavasdk-developmentguide-1239696-0730090812-001-6-0-us-130530002957-phpapp01/75/Black-berry-java_sdk-development_guide-1239696-0730090812-001-6-0-us-72-2048.jpg)

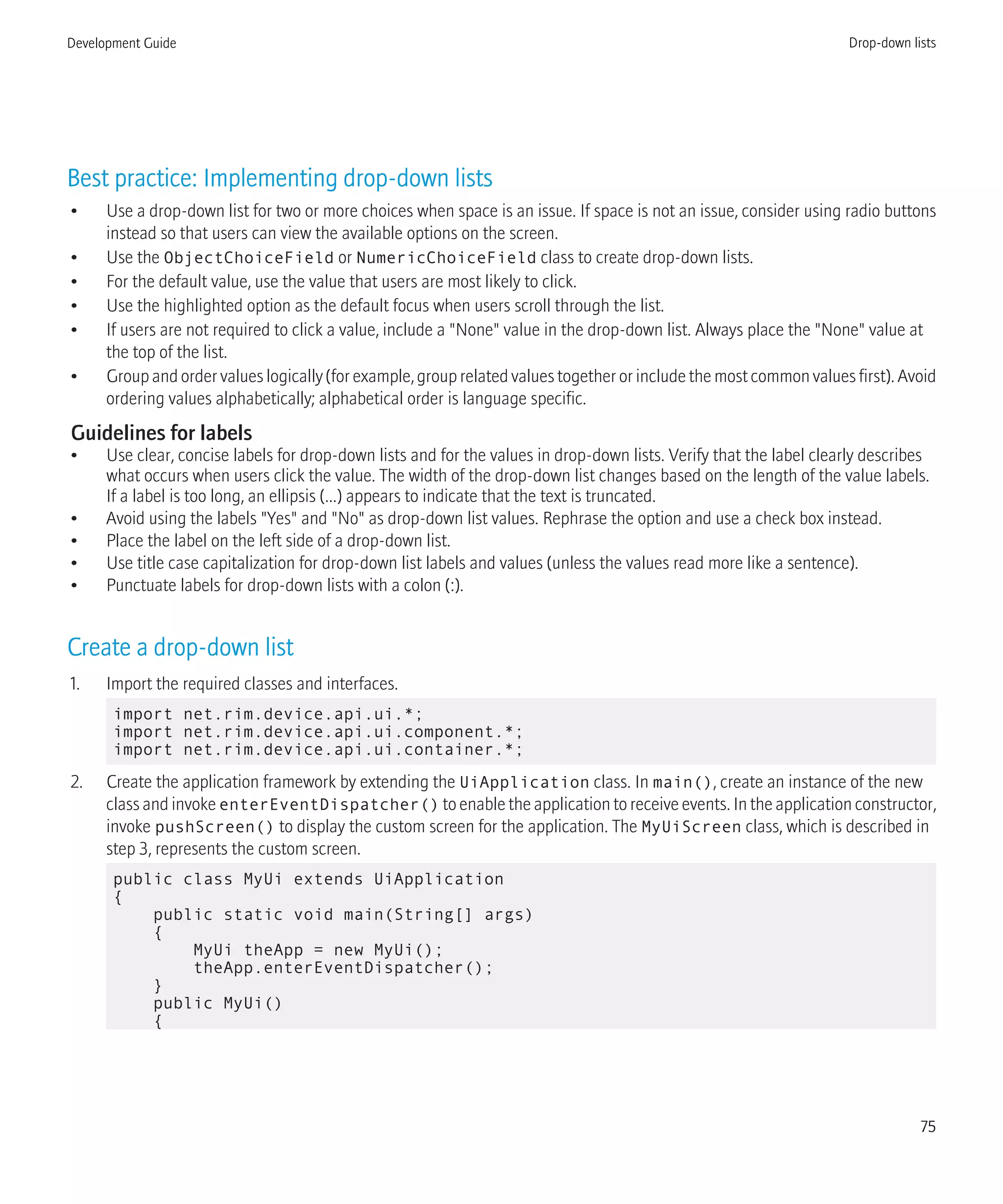

![Best practice: Implementing drop-down lists
• Use a drop-down list for two or more choices when space is an issue. If space is not an issue, consider using radio buttons
instead so that users can view the available options on the screen.
• Use the ObjectChoiceField or NumericChoiceField class to create drop-down lists.
• For the default value, use the value that users are most likely to click.
• Use the highlighted option as the default focus when users scroll through the list.
• If users are not required to click a value, include a "None" value in the drop-down list. Always place the "None" value at
the top of the list.
• Group and order values logically (for example, group related values together or include the most common values first). Avoid
ordering values alphabetically; alphabetical order is language specific.
Guidelines for labels
• Use clear, concise labels for drop-down lists and for the values in drop-down lists. Verify that the label clearly describes
what occurs when users click the value. The width of the drop-down list changes based on the length of the value labels.
If a label is too long, an ellipsis (...) appears to indicate that the text is truncated.
• Avoid using the labels "Yes" and "No" as drop-down list values. Rephrase the option and use a check box instead.
• Place the label on the left side of a drop-down list.
• Use title case capitalization for drop-down list labels and values (unless the values read more like a sentence).
• Punctuate labels for drop-down lists with a colon (:).
Create a drop-down list
1. Import the required classes and interfaces.
import net.rim.device.api.ui.*;
import net.rim.device.api.ui.component.*;
import net.rim.device.api.ui.container.*;
2. Create the application framework by extending the UiApplication class. In main(), create an instance of the new
class and invoke enterEventDispatcher() to enable the application to receive events. In the application constructor,
invoke pushScreen() to display the custom screen for the application. The MyUiScreen class, which is described in
step 3, represents the custom screen.
public class MyUi extends UiApplication
{
public static void main(String[] args)
{
MyUi theApp = new MyUi();
theApp.enterEventDispatcher();
}
public MyUi()
{
Development Guide Drop-down lists
75](https://image.slidesharecdn.com/blackberryjavasdk-developmentguide-1239696-0730090812-001-6-0-us-130530002957-phpapp01/75/Black-berry-java_sdk-development_guide-1239696-0730090812-001-6-0-us-77-2048.jpg)
![pushScreen(new MyUiScreen());
}
}

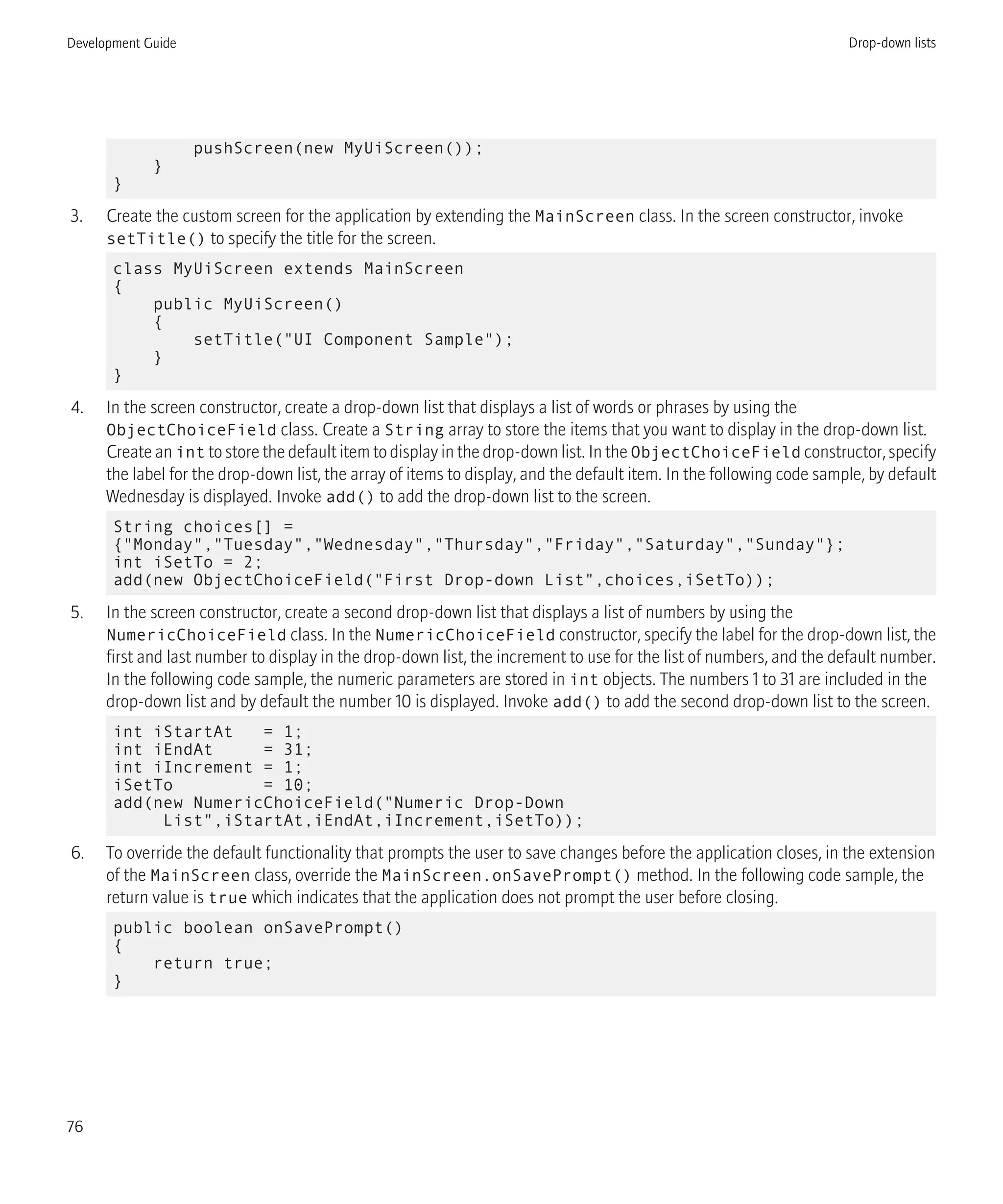

3. Create the custom screen for the application by extending the MainScreen class. In the screen constructor, invoke
setTitle() to specify the title for the screen.
class MyUiScreen extends MainScreen
{
public MyUiScreen()
{
setTitle("UI Component Sample");
}
}
4. In the screen constructor, create a drop-down list that displays a list of words or phrases by using the
ObjectChoiceField class. Create a String array to store the items that you want to display in the drop-down list.
Create an int to store the default item to display in the drop-down list. In the ObjectChoiceField constructor, specify
the label for the drop-down list, the array of items to display, and the default item. In the following code sample, by default
Wednesday is displayed. Invoke add() to add the drop-down list to the screen.
String choices[] =
{"Monday","Tuesday","Wednesday","Thursday","Friday","Saturday","Sunday"};
int iSetTo = 2;
add(new ObjectChoiceField("First Drop-down List",choices,iSetTo));
5. In the screen constructor, create a second drop-down list that displays a list of numbers by using the
NumericChoiceField class. In the NumericChoiceField constructor, specify the label for the drop-down list, the
first and last number to display in the drop-down list, the increment to use for the list of numbers, and the default number.
In the following code sample, the numeric parameters are stored in int objects. The numbers 1 to 31 are included in the
drop-down list and by default the number 10 is displayed. Invoke add() to add the second drop-down list to the screen.
int iStartAt = 1;
int iEndAt = 31;
int iIncrement = 1;
iSetTo = 10;
add(new NumericChoiceField("Numeric Drop-Down
List",iStartAt,iEndAt,iIncrement,iSetTo));
6. To override the default functionality that prompts the user to save changes before the application closes, in the extension
of the MainScreen class, override the MainScreen.onSavePrompt() method. In the following code sample, the
return value is true which indicates that the application does not prompt the user before closing.
public boolean onSavePrompt()
{
return true;
}
Development Guide Drop-down lists
76](https://image.slidesharecdn.com/blackberryjavasdk-developmentguide-1239696-0730090812-001-6-0-us-130530002957-phpapp01/75/Black-berry-java_sdk-development_guide-1239696-0730090812-001-6-0-us-78-2048.jpg)

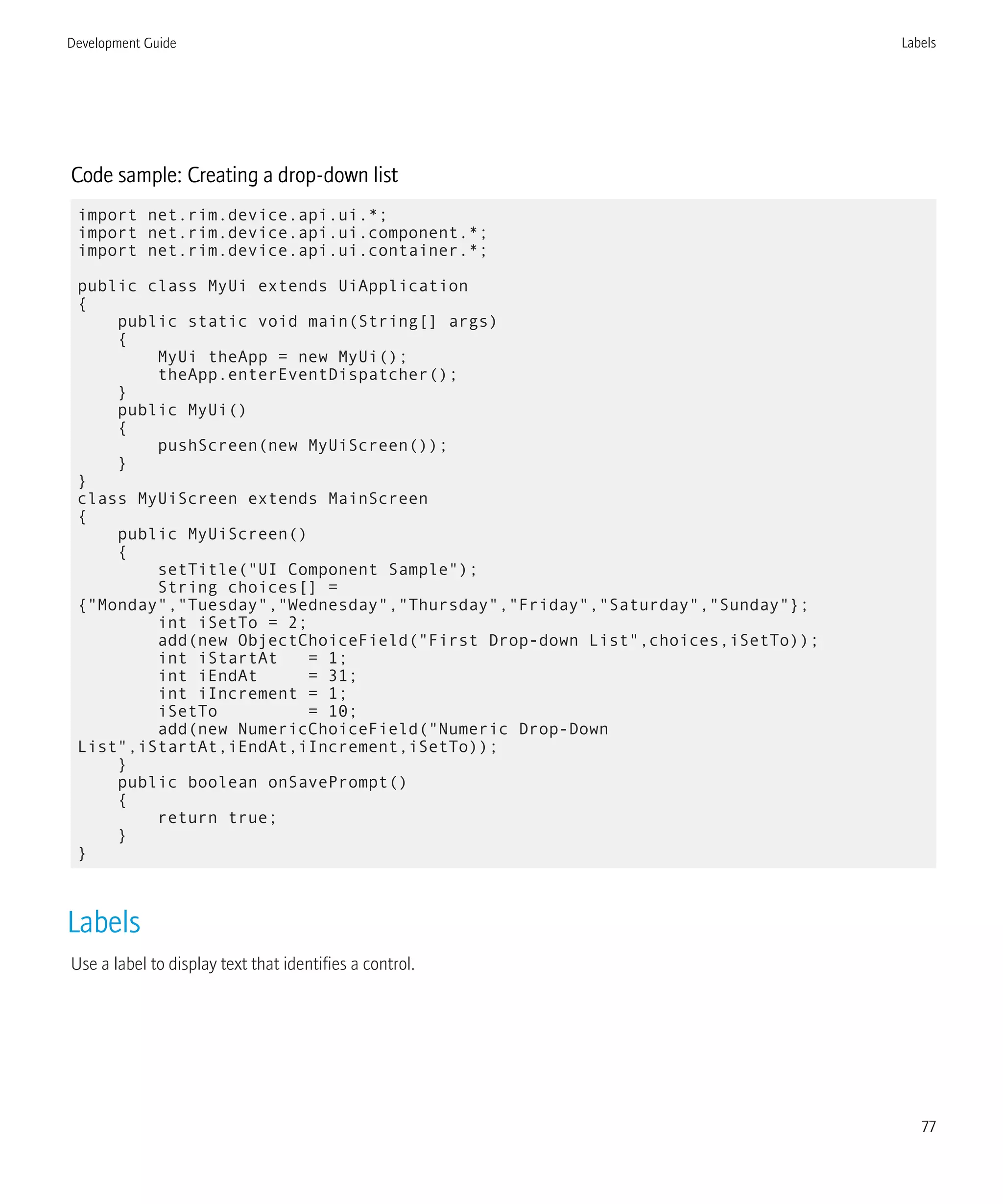

![Code sample: Creating a drop-down list
import net.rim.device.api.ui.*;
import net.rim.device.api.ui.component.*;
import net.rim.device.api.ui.container.*;
public class MyUi extends UiApplication
{
public static void main(String[] args)
{
MyUi theApp = new MyUi();
theApp.enterEventDispatcher();
}
public MyUi()
{
pushScreen(new MyUiScreen());
}
}
class MyUiScreen extends MainScreen
{
public MyUiScreen()
{
setTitle("UI Component Sample");
String choices[] =
{"Monday","Tuesday","Wednesday","Thursday","Friday","Saturday","Sunday"};
int iSetTo = 2;
add(new ObjectChoiceField("First Drop-down List",choices,iSetTo));
int iStartAt = 1;
int iEndAt = 31;
int iIncrement = 1;
iSetTo = 10;
add(new NumericChoiceField("Numeric Drop-Down
List",iStartAt,iEndAt,iIncrement,iSetTo));
}
public boolean onSavePrompt()
{
return true;
}
}
Labels
Use a label to display text that identifies a control.
Development Guide Labels
77](https://image.slidesharecdn.com/blackberryjavasdk-developmentguide-1239696-0730090812-001-6-0-us-130530002957-phpapp01/75/Black-berry-java_sdk-development_guide-1239696-0730090812-001-6-0-us-79-2048.jpg)

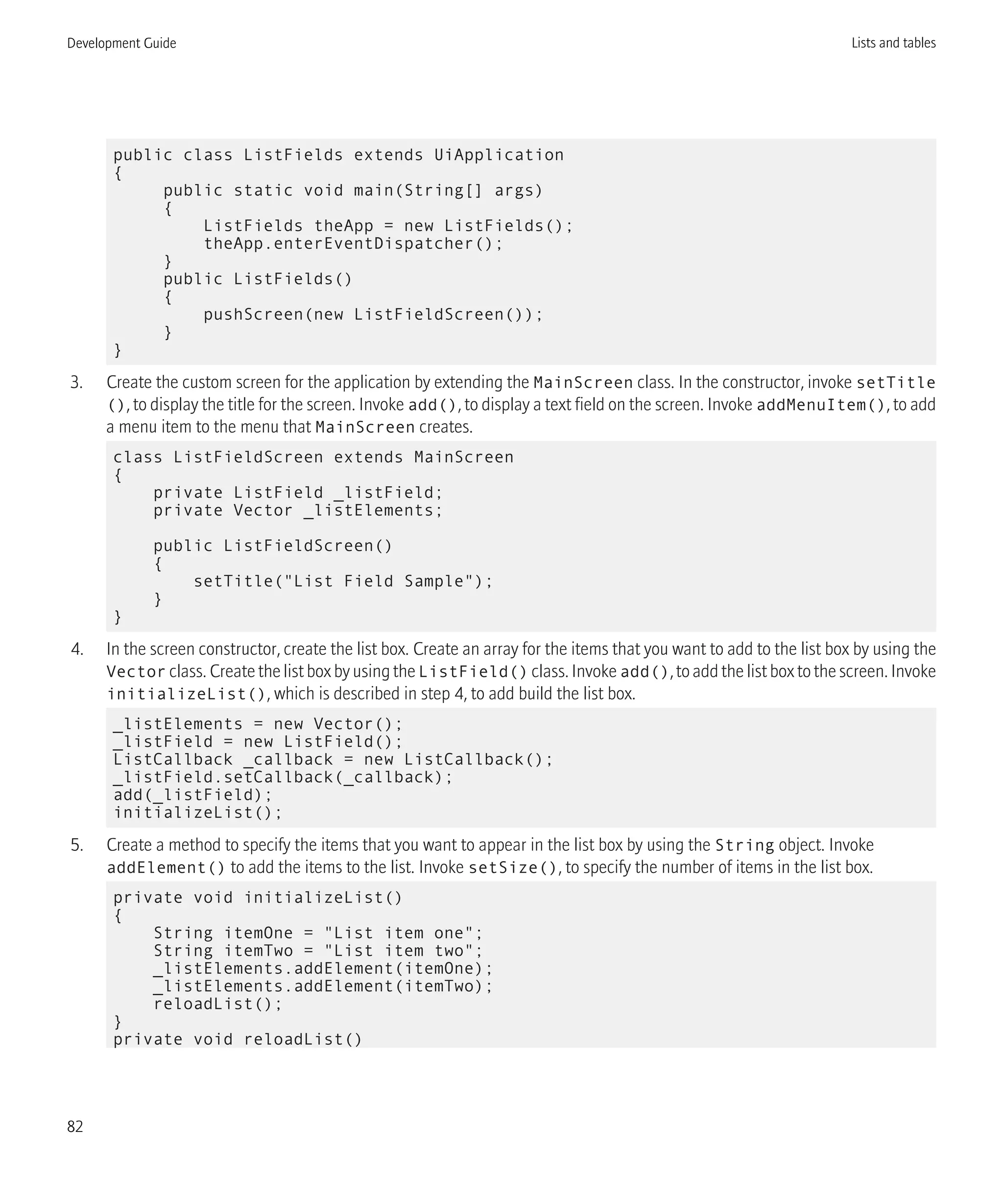

![public class ListFields extends UiApplication
{
public static void main(String[] args)
{
ListFields theApp = new ListFields();
theApp.enterEventDispatcher();
}
public ListFields()
{
pushScreen(new ListFieldScreen());
}
}
3. Create the custom screen for the application by extending the MainScreen class. In the constructor, invoke setTitle
(), to display the title for the screen. Invoke add(), to display a text field on the screen. Invoke addMenuItem(), to add
a menu item to the menu that MainScreen creates.
class ListFieldScreen extends MainScreen
{
private ListField _listField;
private Vector _listElements;
public ListFieldScreen()
{
setTitle("List Field Sample");
}
}
4. In the screen constructor, create the list box. Create an array for the items that you want to add to the list box by using the
Vector class. Create the list box by using the ListField() class. Invoke add(), to add the list box to the screen. Invoke
initializeList(), which is described in step 4, to add build the list box.
_listElements = new Vector();
_listField = new ListField();
ListCallback _callback = new ListCallback();
_listField.setCallback(_callback);
add(_listField);
initializeList();
5. Create a method to specify the items that you want to appear in the list box by using the String object. Invoke
addElement() to add the items to the list. Invoke setSize(), to specify the number of items in the list box.
private void initializeList()
{
String itemOne = "List item one";
String itemTwo = "List item two";
_listElements.addElement(itemOne);
_listElements.addElement(itemTwo);
reloadList();
}
private void reloadList()
Development Guide Lists and tables
82](https://image.slidesharecdn.com/blackberryjavasdk-developmentguide-1239696-0730090812-001-6-0-us-130530002957-phpapp01/75/Black-berry-java_sdk-development_guide-1239696-0730090812-001-6-0-us-84-2048.jpg)

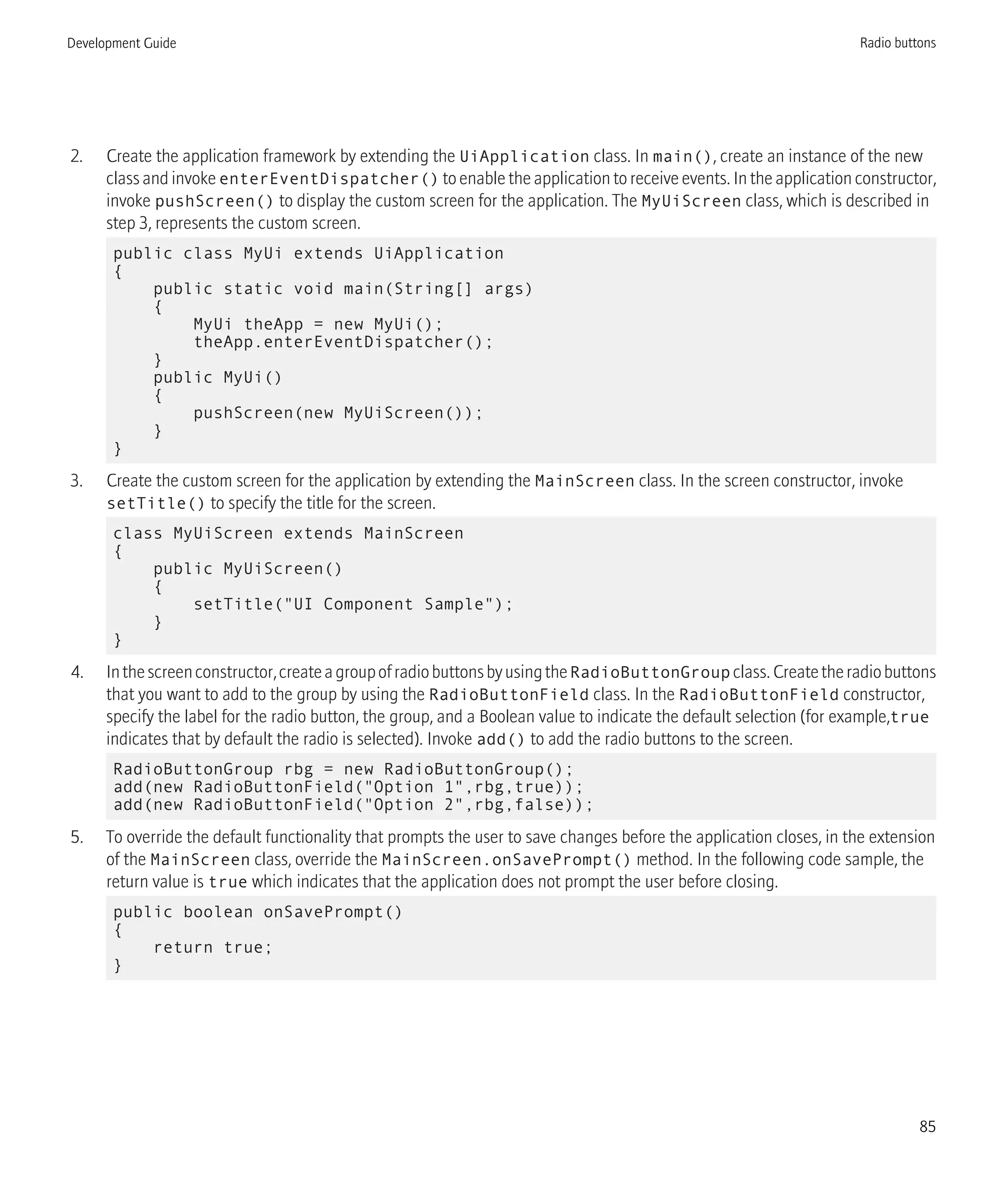

![2. Create the application framework by extending the UiApplication class. In main(), create an instance of the new
class and invoke enterEventDispatcher() to enable the application to receive events. In the application constructor,
invoke pushScreen() to display the custom screen for the application. The MyUiScreen class, which is described in
step 3, represents the custom screen.
public class MyUi extends UiApplication
{
public static void main(String[] args)
{
MyUi theApp = new MyUi();
theApp.enterEventDispatcher();
}
public MyUi()
{
pushScreen(new MyUiScreen());
}
}
3. Create the custom screen for the application by extending the MainScreen class. In the screen constructor, invoke
setTitle() to specify the title for the screen.
class MyUiScreen extends MainScreen
{
public MyUiScreen()
{
setTitle("UI Component Sample");
}
}
4. Inthescreenconstructor,createagroupofradiobuttonsbyusingtheRadioButtonGroup class.Createtheradiobuttons
that you want to add to the group by using the RadioButtonField class. In the RadioButtonField constructor,
specify the label for the radio button, the group, and a Boolean value to indicate the default selection (for example,true
indicates that by default the radio is selected). Invoke add() to add the radio buttons to the screen.
RadioButtonGroup rbg = new RadioButtonGroup();
add(new RadioButtonField("Option 1",rbg,true));
add(new RadioButtonField("Option 2",rbg,false));
5. To override the default functionality that prompts the user to save changes before the application closes, in the extension
of the MainScreen class, override the MainScreen.onSavePrompt() method. In the following code sample, the
return value is true which indicates that the application does not prompt the user before closing.
public boolean onSavePrompt()
{
return true;
}
Development Guide Radio buttons
85](https://image.slidesharecdn.com/blackberryjavasdk-developmentguide-1239696-0730090812-001-6-0-us-130530002957-phpapp01/75/Black-berry-java_sdk-development_guide-1239696-0730090812-001-6-0-us-87-2048.jpg)
![Code sample: Creating a radio button
import net.rim.device.api.ui.*;
import net.rim.device.api.ui.component.*;
import net.rim.device.api.ui.container.*;
public class MyUi extends UiApplication
{
public static void main(String[] args)
{
MyUi theApp = new MyUi();
theApp.enterEventDispatcher();
}
public MyUi()
{
pushScreen(new MyUiScreen());
}
}
class MyUiScreen extends MainScreen
{
public MyUiScreen()
{
setTitle("UI Component Sample");
RadioButtonGroup rbg = new RadioButtonGroup();
add(new RadioButtonField("Option 1",rbg,true));
add(new RadioButtonField("Option 2",rbg,false));
}
public boolean onSavePrompt()
{
return true;
}
}

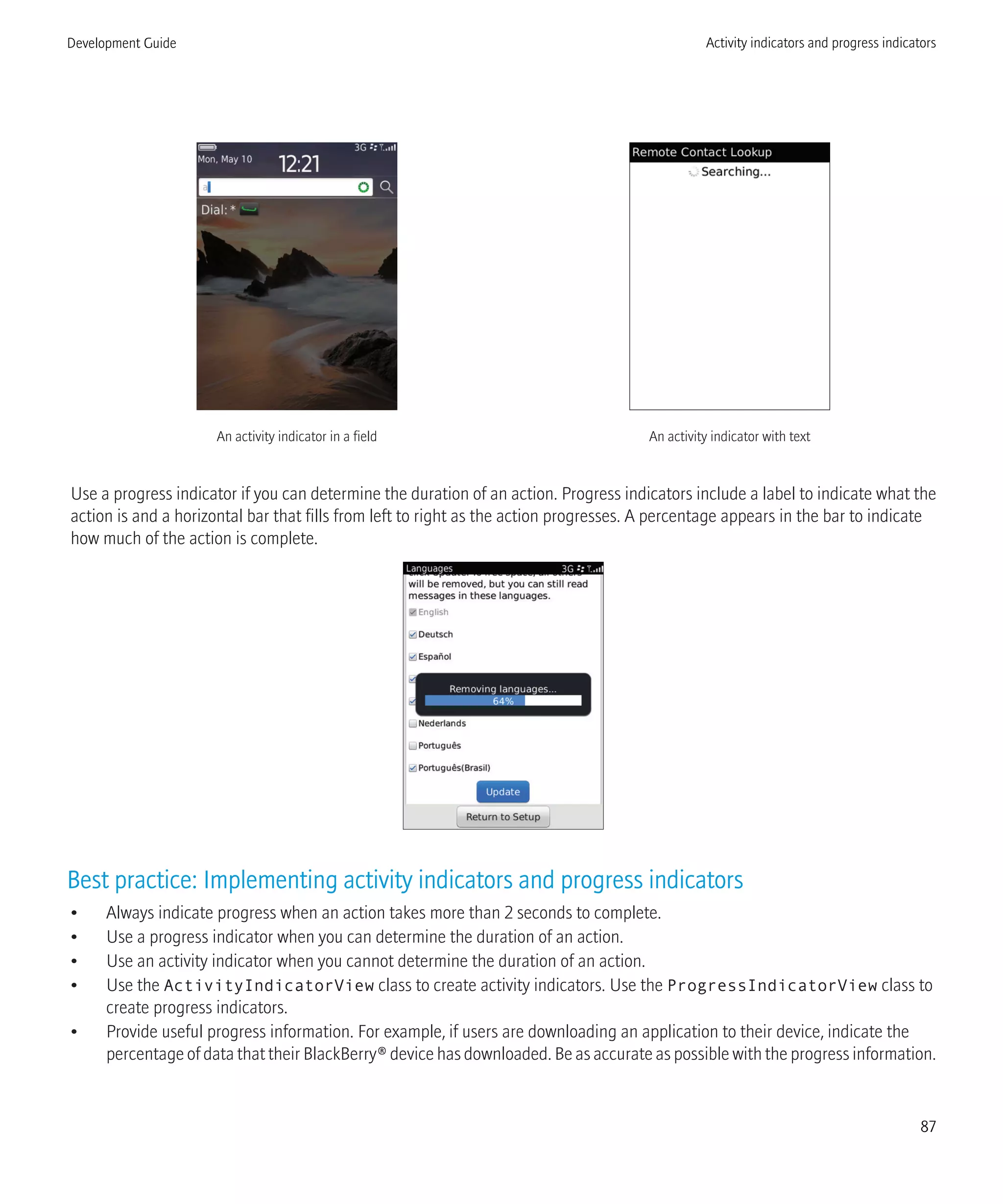

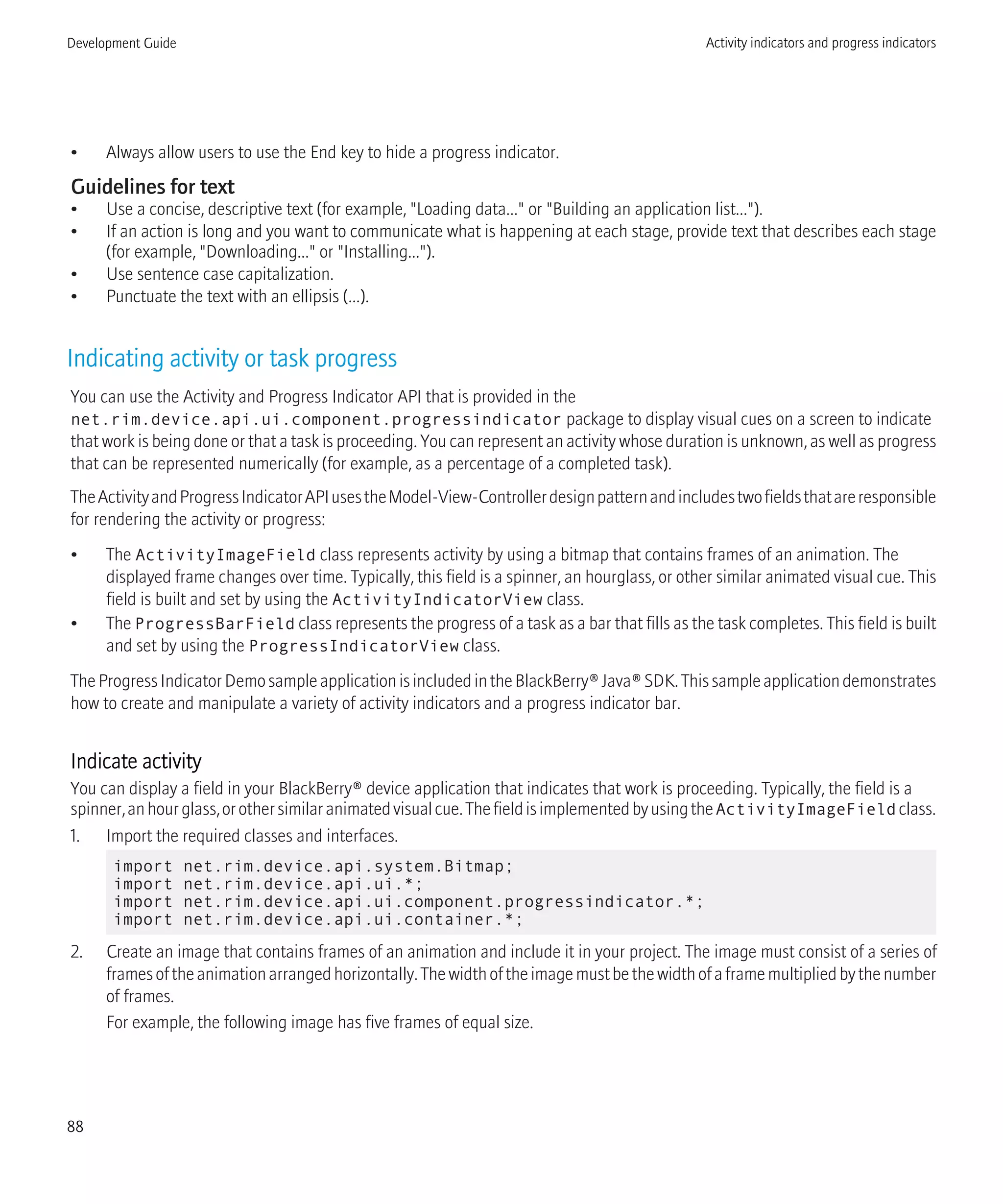

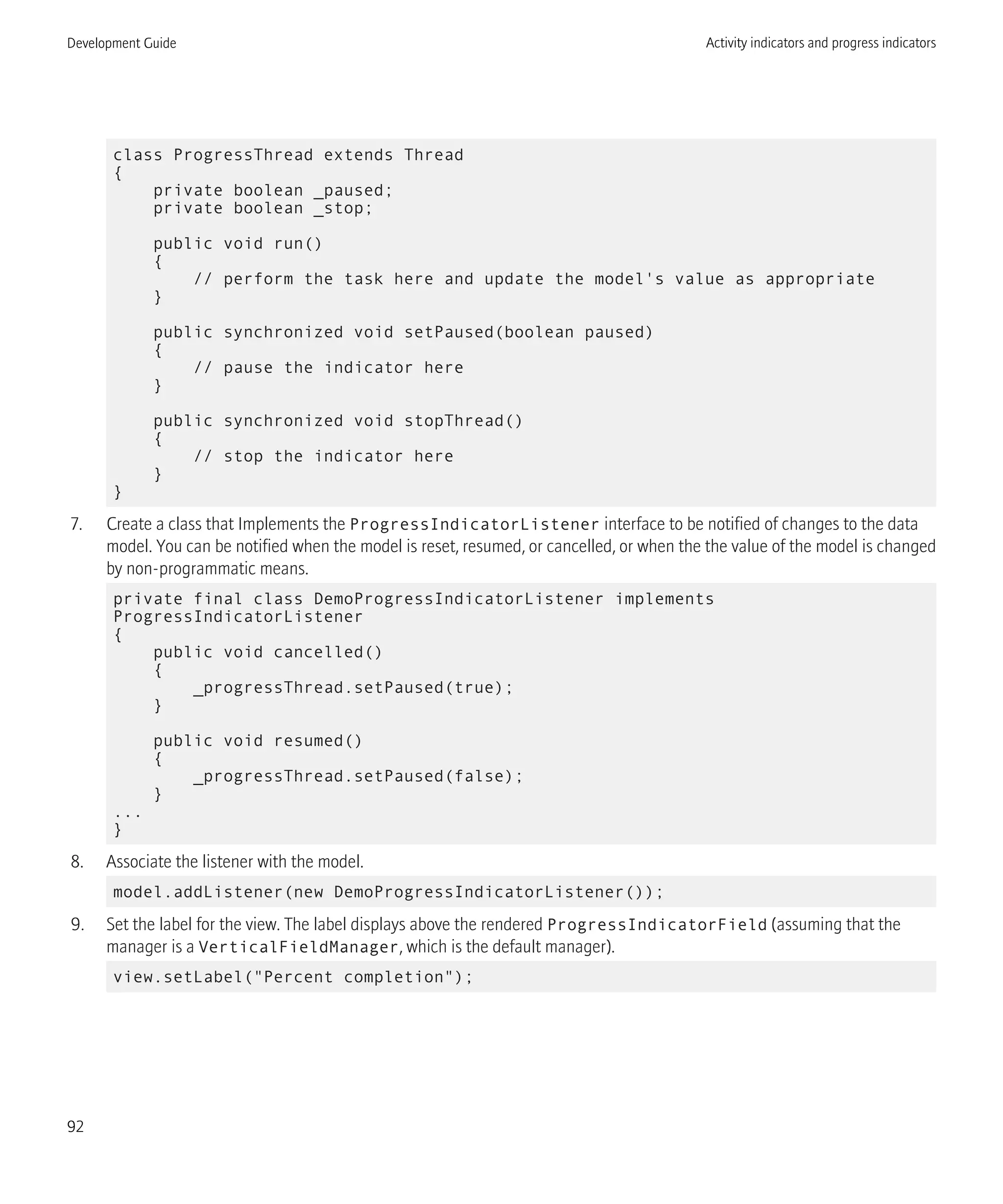

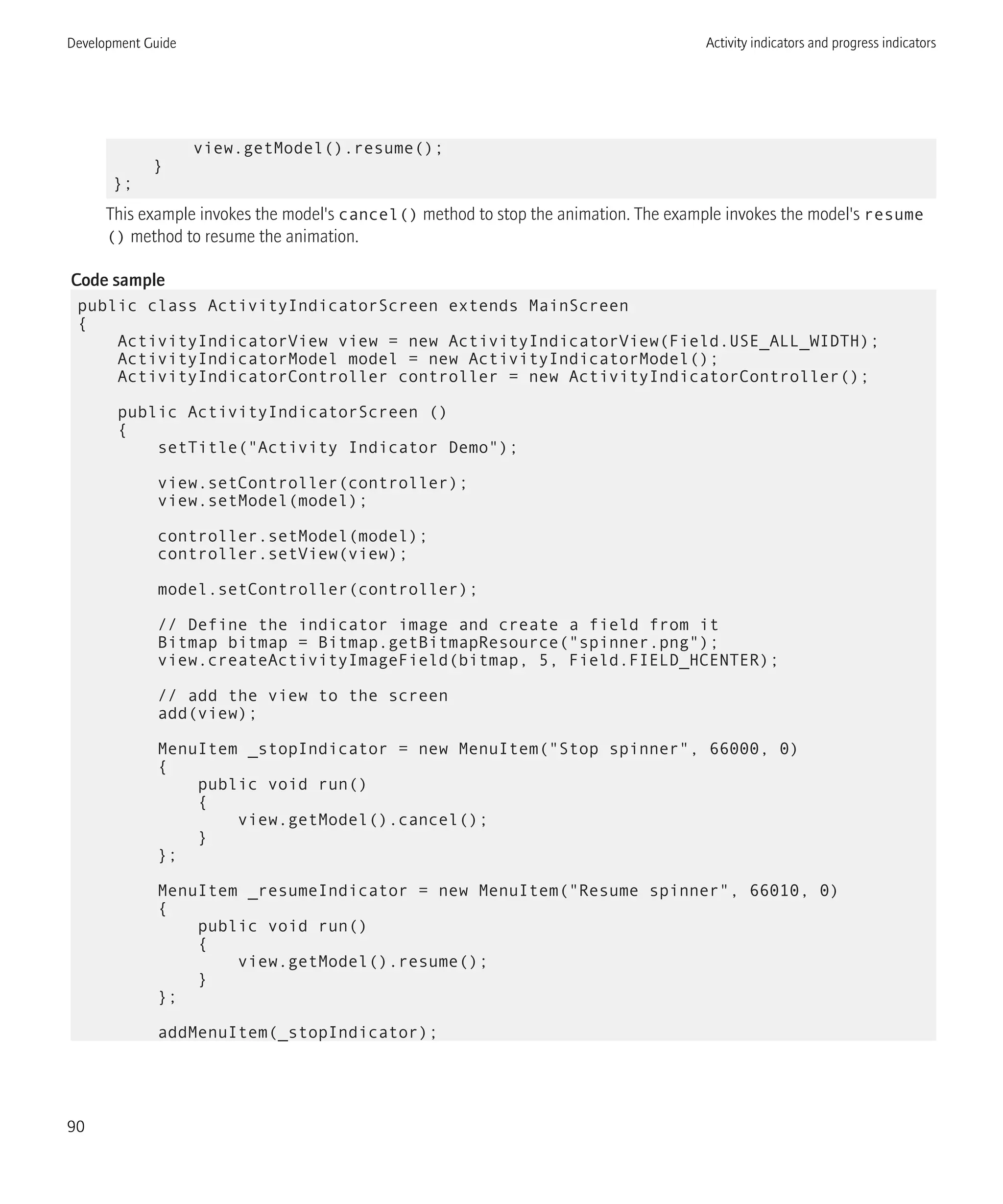

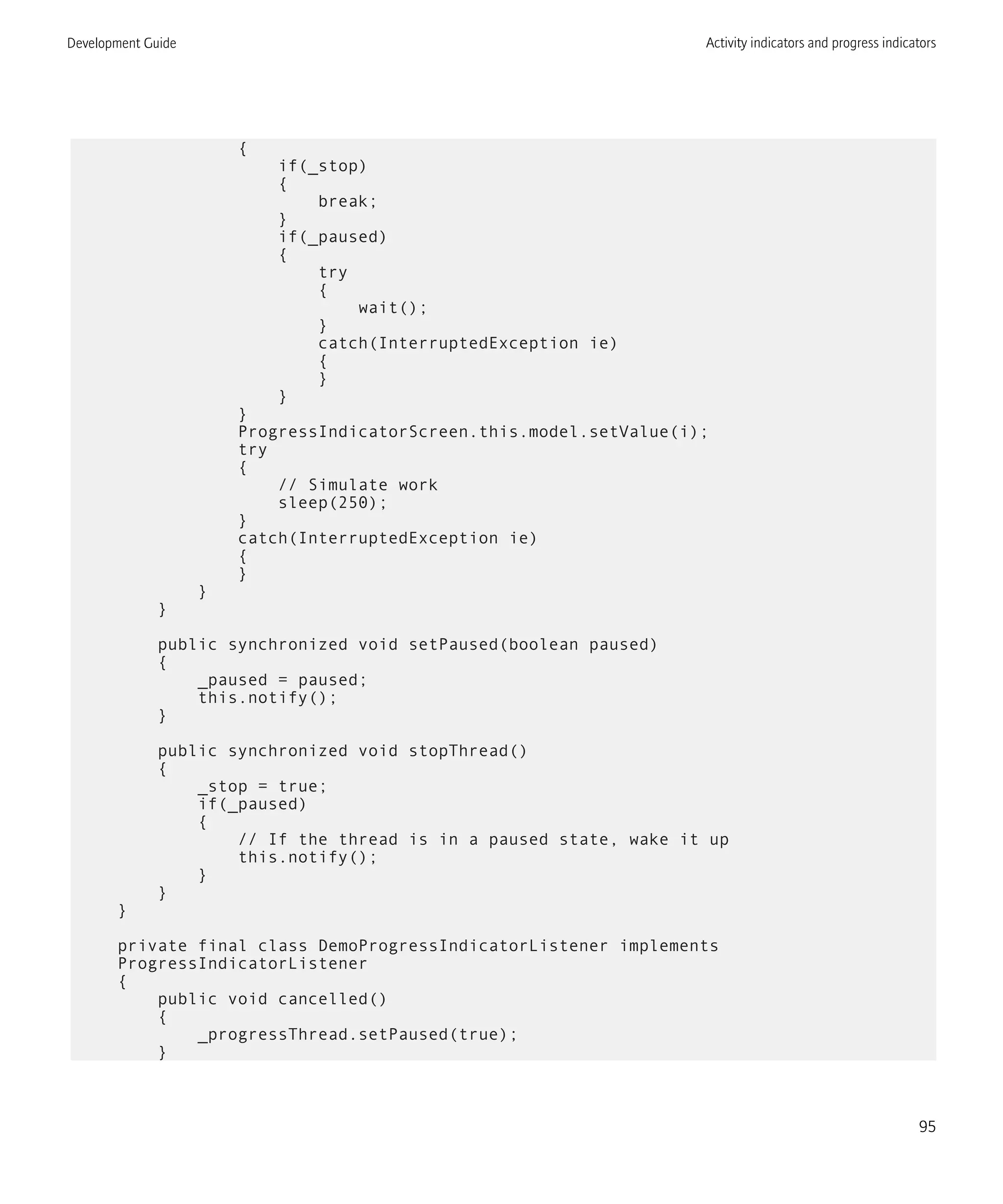

Activity indicators and progress indicators
Activity indicators and progress indicators show users that their BlackBerry® devices are performing an action, such as searching
for items or removing languages.
Use an activity indicator if you want to show that the BlackBerry® device is working and you cannot determine the duration of
the action. You can add an activity indicator to any component, such as a screen, text field, or list item. You can also add text to
an activity indicator to describe the action.
Development Guide Activity indicators and progress indicators
86](https://image.slidesharecdn.com/blackberryjavasdk-developmentguide-1239696-0730090812-001-6-0-us-130530002957-phpapp01/75/Black-berry-java_sdk-development_guide-1239696-0730090812-001-6-0-us-88-2048.jpg)

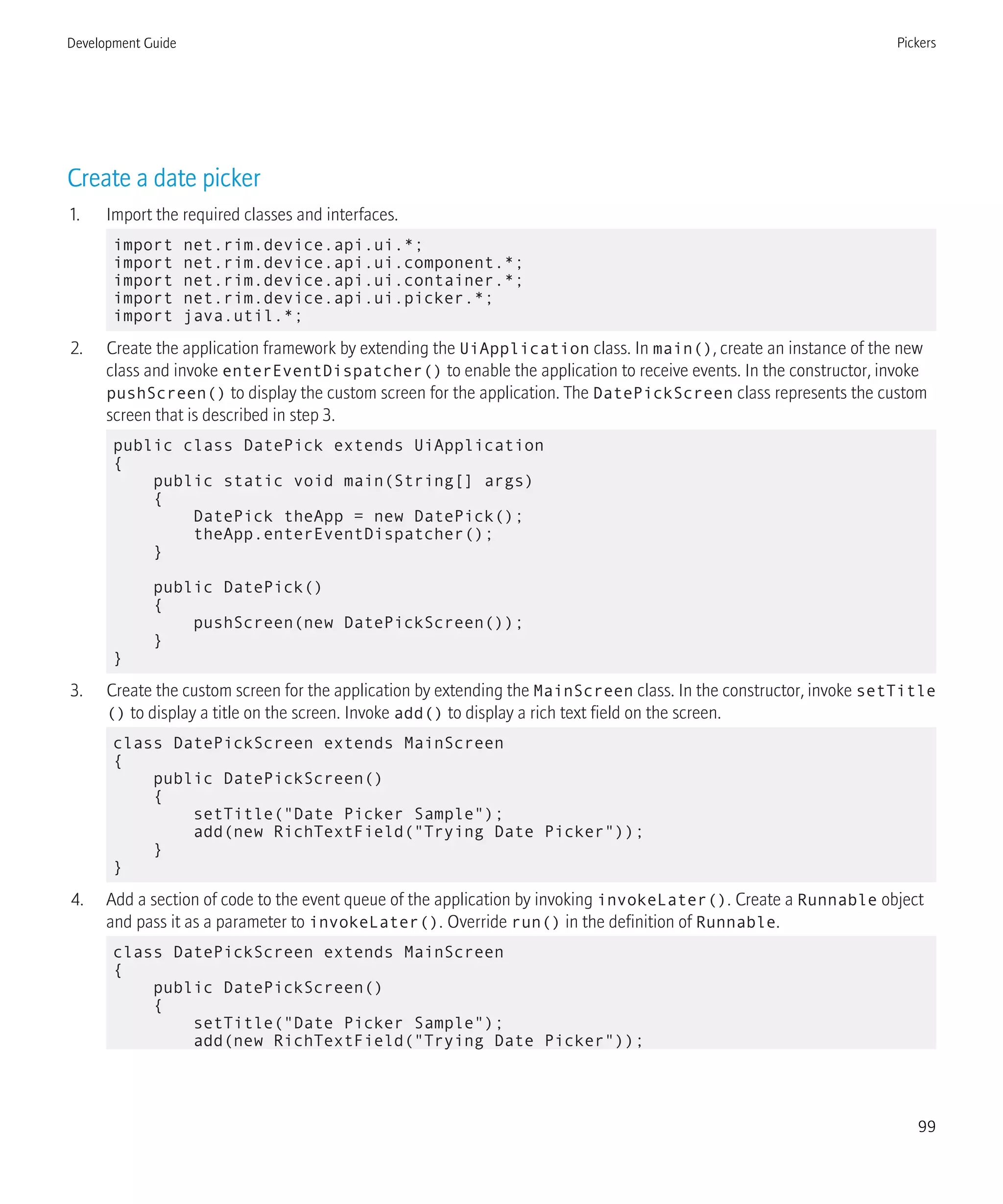

![Create a date picker
1. Import the required classes and interfaces.
import net.rim.device.api.ui.*;
import net.rim.device.api.ui.component.*;
import net.rim.device.api.ui.container.*;
import net.rim.device.api.ui.picker.*;
import java.util.*;
2. Create the application framework by extending the UiApplication class. In main(), create an instance of the new
class and invoke enterEventDispatcher() to enable the application to receive events. In the constructor, invoke
pushScreen() to display the custom screen for the application. The DatePickScreen class represents the custom
screen that is described in step 3.
public class DatePick extends UiApplication
{
public static void main(String[] args)
{
DatePick theApp = new DatePick();
theApp.enterEventDispatcher();
}
public DatePick()
{
pushScreen(new DatePickScreen());
}
}
3. Create the custom screen for the application by extending the MainScreen class. In the constructor, invoke setTitle
() to display a title on the screen. Invoke add() to display a rich text field on the screen.
class DatePickScreen extends MainScreen
{
public DatePickScreen()
{
setTitle("Date Picker Sample");
add(new RichTextField("Trying Date Picker"));
}
}
4. Add a section of code to the event queue of the application by invoking invokeLater(). Create a Runnable object
and pass it as a parameter to invokeLater(). Override run() in the definition of Runnable.
class DatePickScreen extends MainScreen
{
public DatePickScreen()
{
setTitle("Date Picker Sample");
add(new RichTextField("Trying Date Picker"));
Development Guide Pickers
99](https://image.slidesharecdn.com/blackberryjavasdk-developmentguide-1239696-0730090812-001-6-0-us-130530002957-phpapp01/75/Black-berry-java_sdk-development_guide-1239696-0730090812-001-6-0-us-101-2048.jpg)

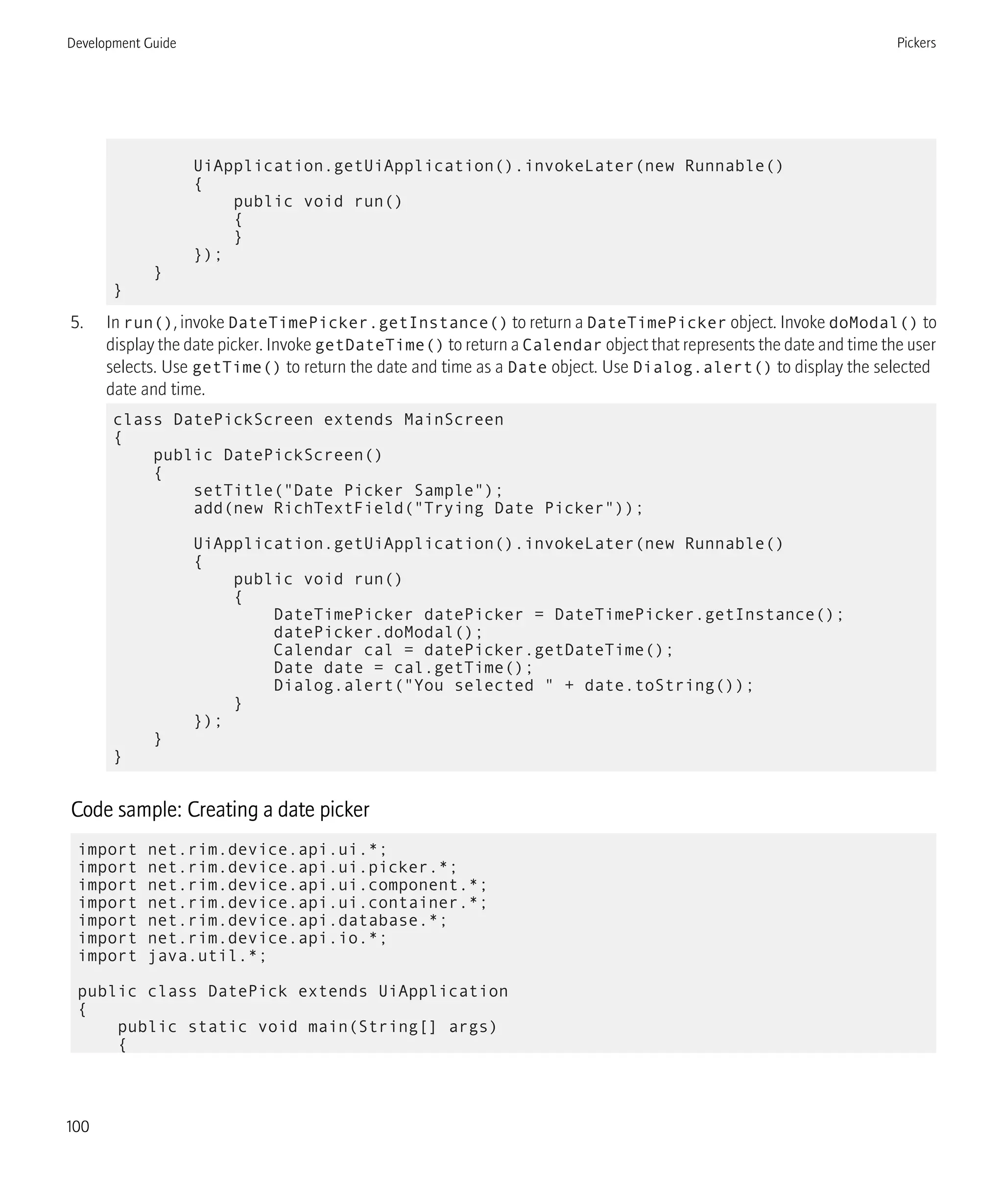

![UiApplication.getUiApplication().invokeLater(new Runnable()
{
public void run()
{
}
});
}
}
5. In run(), invoke DateTimePicker.getInstance() to return a DateTimePicker object. Invoke doModal() to
display the date picker. Invoke getDateTime() to return a Calendar object that represents the date and time the user
selects. Use getTime() to return the date and time as a Date object. Use Dialog.alert() to display the selected
date and time.
class DatePickScreen extends MainScreen
{
public DatePickScreen()
{
setTitle("Date Picker Sample");
add(new RichTextField("Trying Date Picker"));
UiApplication.getUiApplication().invokeLater(new Runnable()
{
public void run()
{
DateTimePicker datePicker = DateTimePicker.getInstance();
datePicker.doModal();
Calendar cal = datePicker.getDateTime();
Date date = cal.getTime();
Dialog.alert("You selected " + date.toString());
}
});
}
}
Code sample: Creating a date picker
import net.rim.device.api.ui.*;
import net.rim.device.api.ui.picker.*;
import net.rim.device.api.ui.component.*;
import net.rim.device.api.ui.container.*;
import net.rim.device.api.database.*;
import net.rim.device.api.io.*;
import java.util.*;
public class DatePick extends UiApplication
{
public static void main(String[] args)
{
Development Guide Pickers
100](https://image.slidesharecdn.com/blackberryjavasdk-developmentguide-1239696-0730090812-001-6-0-us-130530002957-phpapp01/75/Black-berry-java_sdk-development_guide-1239696-0730090812-001-6-0-us-102-2048.jpg)
![DatePick theApp = new DatePick();
theApp.enterEventDispatcher();
}
public DatePick()
{
pushScreen(new DatePickScreen());
}
}
class DatePickScreen extends MainScreen
{
public DatePickScreen()
{
setTitle("Date Picker Sample");
add(new RichTextField("Trying Date Picker"));
UiApplication.getUiApplication().invokeLater(new Runnable()
{
public void run()
{
DateTimePicker datePicker = DateTimePicker.getInstance();
datePicker.doModal();
Calendar cal = datePicker.getDateTime();
Date date = cal.getTime();
Dialog.alert("You selected " + date.toString());
}
});
}
}
Create a file picker
1. Import the required classes and interfaces.
import net.rim.device.api.ui.*;
import net.rim.device.api.ui.picker.*;
import net.rim.device.api.ui.component.*;
import net.rim.device.api.ui.container.*;
import java.util.*;
2. Create the application framework by extending the UiApplication class. In main(), create an instance of the new
class and invoke enterEventDispatcher() to enable the application to receive events. In the application constructor,
invoke pushScreen() to display the custom screen for the application. The FilePickScreen class represents the
custom screen that is described in step 3.
public class FilePick extends UiApplication
{
public static void main(String[] args)
{
Development Guide Pickers
101](https://image.slidesharecdn.com/blackberryjavasdk-developmentguide-1239696-0730090812-001-6-0-us-130530002957-phpapp01/75/Black-berry-java_sdk-development_guide-1239696-0730090812-001-6-0-us-103-2048.jpg)
![UiApplication.getUiApplication().invokeLater(new Runnable()
{
public void run()
{
FilePicker fp = FilePicker.getInstance();
FilePickListener fileListener = new FilePickListener();
fp.setListener(fileListener);
fp.show();
}
});
}
}
6. Invoke Dialog.alert to create a dialog box with a message that displays which file was selected. Invoke
Dialog.alert in a class that implements the FilePicker.Listener interface by overriding selectionDone
(). The application calls selectionDone() when the user selects a file using the file picker.
class FilePickListener implements FilePicker.Listener
{
public void selectionDone(String str)
{
Dialog.alert("You selected " + str);
}
}
Code sample: Creating a file picker
import net.rim.device.api.ui.*;
import net.rim.device.api.ui.picker.*;
import net.rim.device.api.ui.component.*;
import net.rim.device.api.ui.container.*;
import net.rim.device.api.io.*;
public class FilePick extends UiApplication
{
public static void main(String[] args)
{
FilePick theApp = new FilePick();
theApp.enterEventDispatcher();
}
public FilePick()
{
pushScreen(new FilePickScreen());
}
}
class FilePickScreen extends MainScreen
{
public FilePickScreen()
Development Guide Pickers
103](https://image.slidesharecdn.com/blackberryjavasdk-developmentguide-1239696-0730090812-001-6-0-us-130530002957-phpapp01/75/Black-berry-java_sdk-development_guide-1239696-0730090812-001-6-0-us-105-2048.jpg)
![Create an autocomplete text field from a data set
1. Import the required classes and interfaces.
import net.rim.device.api.ui.UiApplication;
import net.rim.device.api.ui.container.MainScreen;
import net.rim.device.api.ui.component.AutoCompleteField;
import net.rim.device.api.collection.util.*;
2. Create the application framework by extending the UiApplication class. In main(), create an instance of the new
class and invoke enterEventDispatcher() to enable the application to receive events. In the constructor, invoke
pushScreen() to display the custom screen for the application. The HomeScreen class, described in step 3, represents
the custom screen.
public class AutoCompleteFieldApp extends UiApplication
{
public static void main(String[] args)
{
AutoCompleteFieldApp app = new AutoCompleteFieldApp();
app.enterEventDispatcher();
}
AutoCompleteFieldApp()
{
pushScreen(new HomeScreen());
}
}
3. Create the custom screen by extending the MainScreen class.
class HomeScreen extends MainScreen
{
public HomeScreen()
{
}
}
4. In the constructor, create a BasicFilteredList object. Create a String array and store the strings that you want to
match against in the array. In this example, the strings are days of the week. Invoke addDataSet() to bind the data in
the array to the BasicFilteredList.
BasicFilteredList filterList = new BasicFilteredList();
String[] days =
{"Monday","Tuesday","Wednesday","Thursday","Friday","Saturday","Sund
ay"};
filterList.addDataSet(1,days,"days",BasicFilteredList.COMPARISON_IGNORE_CASE);
5. In the constructor, create an AutoCompleteField object. Pass an instance of the BasicFilteredList to the
AutoCompleteField constructor to bind the BasicFilteredList to the autocomplete text field. Invoke add() to
add the field to the screen.
Development Guide Search
109](https://image.slidesharecdn.com/blackberryjavasdk-developmentguide-1239696-0730090812-001-6-0-us-130530002957-phpapp01/75/Black-berry-java_sdk-development_guide-1239696-0730090812-001-6-0-us-111-2048.jpg)
![AutoCompleteField autoCompleteField = new
AutoCompleteField(filterList);
add(autoCompleteField);
Code sample: Creating an autocomplete field from a data set
import net.rim.device.api.ui.UiApplication;
import net.rim.device.api.ui.container.MainScreen;
import net.rim.device.api.ui.component.AutoCompleteField;
import net.rim.device.api.collection.util.*;
public class AutoCompleteFieldApp extends UiApplication
{
public static void main(String[] args)
{
AutoCompleteFieldApp app = new AutoCompleteFieldApp();
app.enterEventDispatcher();
}
AutoCompleteFieldApp()
{
HomeScreen scr = new HomeScreen();
this.pushScreen(scr);
}
}
class HomeScreen extends MainScreen
{
public HomeScreen()
{
BasicFilteredList filterList = new BasicFilteredList();
String[] days = {"Monday","Tuesday","Wednesday",
"Thursday","Friday","Saturday","Sunday"};
filterList.addDataSet(1,days,"days",BasicFilteredList
.COMPARISON_IGNORE_CASE);
AutoCompleteField autoCompleteField = new AutoCompleteField(filterList);
add(autoCompleteField);
}
}
Create an autocomplete text field from a data source
1. Import the required classes and interfaces.
import net.rim.device.api.ui.UiApplication;
import net.rim.device.api.ui.container.MainScreen;
import net.rim.device.api.ui.component.AutoCompleteField;
import net.rim.device.api.collection.util.*;
Development Guide Search
110](https://image.slidesharecdn.com/blackberryjavasdk-developmentguide-1239696-0730090812-001-6-0-us-130530002957-phpapp01/75/Black-berry-java_sdk-development_guide-1239696-0730090812-001-6-0-us-112-2048.jpg)
![2. Create the application framework by extending the UiApplication class. In main(), create an instance of the new
class and invoke enterEventDispatcher() to enable the application to receive events. In the application constructor,
invoke pushScreen() to display the custom screen for the application. The HomeScreen class represents the custom
screen that is described in step 3.
public class AutoCompleteFieldApp extends UiApplication
{
public static void main(String[] args)
{
AutoCompleteFieldApp app = new AutoCompleteFieldApp();
app.enterEventDispatcher();
}
public AutoCompleteFieldApp()
{
pushScreen(new HomeScreen());
}
}
3. Create the custom screen for the application by extending the MainScreen class.
class HomeScreen extends MainScreen
{
public HomeScreen()
{
}
}
4. In the screen constructor, create a BasicFilteredList object. Invoke addDataSource() to bind a data source to
the BasicFilteredList. In this example, the data is contact information and the data source is the contact list. The
first argument that you pass to addDataSource() is a unique ID. The second argument binds the
BasicFilteredList object to a data source. The third argument specifies the set of data source fields to compare with.
The fourth argument specifies the set of data source fields to make available when a match is found. In this example, the
fields to compare with are the same as the fields to make available when a match is found. The fifth argument specifies the
primary display field. The sixth argument specifies the secondary display field and is set to -1 if you do not want to use it.
The final argument specifies a name for the BasicFilteredList; its value is generated automatically if you specify
null.
BasicFilteredList filterList = new BasicFilteredList();
filterList.addDataSource(
1,
BasicFilteredList.DATA_SOURCE_CONTACTS,
BasicFilteredList.DATA_FIELD_CONTACTS_NAME_FULL |
BasicFilteredList.DATA_FIELD_CONTACTS_COMPANY |
BasicFilteredList.DATA_FIELD_CONTACTS_EMAIL,
BasicFilteredList.DATA_FIELD_CONTACTS_NAME_FULL |
BasicFilteredList.DATA_FIELD_CONTACTS_COMPANY |
BasicFilteredList.DATA_FIELD_CONTACTS_EMAIL,
Development Guide Search
111](https://image.slidesharecdn.com/blackberryjavasdk-developmentguide-1239696-0730090812-001-6-0-us-130530002957-phpapp01/75/Black-berry-java_sdk-development_guide-1239696-0730090812-001-6-0-us-113-2048.jpg)
![BasicFilteredList.DATA_FIELD_CONTACTS_NAME_FULL,
-1,
null);
5. In the screen constructor, create an AutoCompleteField object. Pass the BasicFilteredList object that you
created in step 4 to the AutoCompleteField constructor to bind the BasicFilteredList to the autocomplete text
field. Invoke add() to add the field to the screen.
AutoCompleteField autoCompleteField = new
AutoCompleteField(filterList);
add(autoCompleteField);
Code sample: Creating an autocomplete field from a data source
import net.rim.device.api.ui.UiApplication;
import net.rim.device.api.ui.container.MainScreen;
import net.rim.device.api.ui.component.AutoCompleteField;
import net.rim.device.api.collection.util.*;
public class AutoCompleteFieldApp extends UiApplication
{
public static void main(String[] args)
{
AutoCompleteFieldApp app = new AutoCompleteFieldApp();
app.enterEventDispatcher();
}
AutoCompleteFieldApp()
{
HomeScreen scr = new HomeScreen();
this.pushScreen(scr);
}
}
class HomeScreen extends MainScreen
{
public HomeScreen()
{
BasicFilteredList filterList = new BasicFilteredList();
filterList.addDataSource(1,
BasicFilteredList.DATA_SOURCE_CONTACTS,
BasicFilteredList.DATA_FIELD_CONTACTS_NAME_FULL |
BasicFilteredList.DATA_FIELD_CONTACTS_COMPANY |
BasicFilteredList.DATA_FIELD_CONTACTS_EMAIL,
BasicFilteredList.DATA_FIELD_CONTACTS_NAME_FULL |
BasicFilteredList.DATA_FIELD_CONTACTS_COMPANY |
BasicFilteredList.DATA_FIELD_CONTACTS_EMAIL,
BasicFilteredList.DATA_FIELD_CONTACTS_NAME_FULL,
BasicFilteredList.DATA_FIELD_CONTACTS_NAME_FULL,
null);
Development Guide Search
112](https://image.slidesharecdn.com/blackberryjavasdk-developmentguide-1239696-0730090812-001-6-0-us-130530002957-phpapp01/75/Black-berry-java_sdk-development_guide-1239696-0730090812-001-6-0-us-114-2048.jpg)
![public class SpinBoxApp extends UiApplication
{
public static void main(String[] args)
{
SpinBoxApp app = new SpinBoxApp();
app.enterEventDispatcher();
}
public SpinBoxApp()
{
pushScreen(new HomeScreen());
}
}
3. Create the custom screen for the application by extending the MainScreen class. Declare a variable for each field in the
spin box and declare a variable for the spin box field manager.
class HomeScreen extends MainScreen
{
TextSpinBoxField spinBoxDays;
TextSpinBoxField spinBoxMonths;
SpinBoxFieldManager spinBoxMgr;
public HomeScreen()
{
}
}
4. In the screen constructor, create an array of String objects for each of the spin box fields.
final String[] DAYS =
{"Monday","Tuesday","Wednesday","Thursday","Friday","Saturday","Sunday"};
final String[] MONTHS =
{"January","February","March","April","May","June","July","A
ugust","September","October","November","December"};
5. Inthescreenconstructor,createnewinstancesofthespinboxfieldmanagerandthetwospinboxfields.Passtheappropriate
array of strings as arguments to each of the spin box field constructors.
spinBoxMgr = new SpinBoxFieldManager();
spinBoxDays = new TextSpinBoxField(DAYS);
spinBoxMonths = new TextSpinBoxField(MONTHS);
6. In the screen constructor, add the spin box fields to the spin box field manager. Invoke add() to add the manager, and
the fields that it contains, to the screen.
spinBoxMgr.add(spinBoxDays);
spinBoxMgr.add(spinBoxMonths);
add(spinBoxMgr);
Development Guide Spin boxes
116](https://image.slidesharecdn.com/blackberryjavasdk-developmentguide-1239696-0730090812-001-6-0-us-130530002957-phpapp01/75/Black-berry-java_sdk-development_guide-1239696-0730090812-001-6-0-us-118-2048.jpg)
![Code sample: Creating a spin box
import net.rim.device.api.ui.UiApplication;
import net.rim.device.api.ui.container.MainScreen;
import net.rim.device.api.ui.container.SpinBoxFieldManager;
import net.rim.device.api.ui.component.Dialog;
import net.rim.device.api.ui.component.TextSpinBoxField;
public class SpinBoxApp extends UiApplication
{
public static void main(String[] args)
{
SpinBoxApp app = new SpinBoxApp();
app.enterEventDispatcher();
}
public SpinBoxApp()
{
HomeScreen homeScreen = new HomeScreen();
pushScreen(homeScreen);
}
}
class HomeScreen extends MainScreen
{
TextSpinBoxField spinBoxDays;
TextSpinBoxField spinBoxMonths;
SpinBoxFieldManager spinBoxMgr;
public HomeScreen()
{
final String[] DAYS =
{"Monday","Tuesday","Wednesday","Thursday","Friday","Saturday","Sunday"};
final String[] MONTHS =
{"January","February","March","April","May","June","July","August","Sep
tember","October","November","December"};
spinBoxMgr = new SpinBoxFieldManager();
spinBoxDays = new TextSpinBoxField(DAYS);
spinBoxMonths = new TextSpinBoxField(MONTHS);
spinBoxMgr.add(spinBoxDays);
spinBoxMgr.add(spinBoxMonths);
add(spinBoxMgr);
}
public void close()
{
Development Guide Spin boxes
117](https://image.slidesharecdn.com/blackberryjavasdk-developmentguide-1239696-0730090812-001-6-0-us-130530002957-phpapp01/75/Black-berry-java_sdk-development_guide-1239696-0730090812-001-6-0-us-119-2048.jpg)
![• net.rim.device.api.ui.component.BasicEditField
2. Create an instance of an AutoTextEditField.
AutoTextEditField autoT = new AutoTextEditField("AutoTextEditField: ", "");
Create a date field
1. Import the required classes and interfaces.
import net.rim.device.api.ui.*;
import net.rim.device.api.ui.component.*;
import net.rim.device.api.ui.container.*;
import java.lang.*;
2. Create the application framework by extending the UiApplication class. In main(), create an instance of the new
class and invoke enterEventDispatcher() to enable the application to receive events. In the application constructor,
invoke pushScreen() to display the custom screen for the application. The MyUiScreen class, which is described in
step 3, represents the custom screen.
public class MyUi extends UiApplication
{
public static void main(String[] args)
{
MyUi theApp = new MyUi();
theApp.enterEventDispatcher();
}
public MyUi()
{
pushScreen(new MyUiScreen());
}
}
3. Create the custom screen for the application by extending the MainScreen class. In the screen constructor, invoke
setTitle() to specify the title for the screen.
class MyUiScreen extends MainScreen
{
public MyUiScreen()
{
setTitle("UI Component Sample");
}
}
4. In the screen constructor, create a date field by using the DateField class. Provide System.currentTimeMillis
() as a parameter to return the current time. Use the DateField.DATE_TIME style to display both the date and the
time. You can use other styles to display only the date or only the time.
add(new DateField("Date: ", System.currentTimeMillis(),
DateField.DATE_TIME));
Development Guide Text fields
121](https://image.slidesharecdn.com/blackberryjavasdk-developmentguide-1239696-0730090812-001-6-0-us-130530002957-phpapp01/75/Black-berry-java_sdk-development_guide-1239696-0730090812-001-6-0-us-123-2048.jpg)
![Images 9
Using encoded images
Access an encoded image through an input stream
1. Import the required classes.
import java.io.InputStream;
2. Save the image to the project folder or sub-folder.
3. AddtheimagetotheprojectintheBlackBerry®Java®Plug-inEclipse®ortheBlackBerry®Java®DevelopmentEnvironment.
4. Invoke getClass().getResourceAsStream() to retrieve the image as an input stream of bytes.
private InputStream input;
...
Class _class = this.getClass();
input = _class.getResourceAsStream("/images/example.png");
Encode an image
1. Import the required classes.
import net.rim.device.api.system.EncodedImage;
2. Invoke EncodedImage.createEncodedImage(). This method uses the unprocessed image data in the byte array
to create an instance of EncodedImage.
3. Check for an IllegalArgumentException, which EncodedImage.createEncodedImage() throws if the byte
array that you provide as a parameter does not contain a recognized image format.
// Store the contents of the image file.
private byte[] data = new byte[2430];
try {
// Read the image data into the byte array
input.read(data);
} catch (IOException e) {
// Handle exception.
}
try {
EncodedImage image = EncodedImage.createEncodedImage(data, 0, data.length);
} catch (IllegalArgumentException iae) {
System.out.println("Image format not recognized.");
}
Development Guide Images
125](https://image.slidesharecdn.com/blackberryjavasdk-developmentguide-1239696-0730090812-001-6-0-us-130530002957-phpapp01/75/Black-berry-java_sdk-development_guide-1239696-0730090812-001-6-0-us-127-2048.jpg)
![On BlackBerry devices with a touch screen, users can define the region of the image to zoom. The user can touch two points on
the image to define the diagonally opposite corners of the region. When the region is selected, teh user can move one finger
around the image to move the zoom region. To zoom in on the defined region, the user clicks the screen. To zoom out, the user
presses the Escape key.
Code sample: Displaying an image for zooming and panning
import net.rim.device.api.system.*;
import net.rim.device.api.ui.*;
import net.rim.device.api.ui.component.*;
import net.rim.device.api.ui.extension.container.*;
public class ZoomableImageApp extends UiApplication
{
public static void main(String[] args)
{
ZoomableImageApp theApp = new ZoomableImageApp();
theApp.enterEventDispatcher();
}
public ZoomableImageApp()
{
EncodedImage myImg = EncodedImage.getEncodedImageResource("myImg.jpg");
ZoomScreen zoomableImg = new ZoomScreen(myImg);
pushScreen(zoomableImg);
}
}
Display an image for zooming and panning
1. Import the required classes and interfaces:
import net.rim.device.api.system.*;
import net.rim.device.api.ui.*;
import net.rim.device.api.ui.component.*;
import net.rim.device.api.ui.extension.container.*;
2. Create the application framework by extending the UiApplication class. In main(), create an instance of the new
class and invoke enterEventDispatcher() to enable the application to receive events. In the constructor, create an
EncodedImage using a resource in your project, create a ZoomScreen with the EncodedImage, and invoke
pushScreen() to display the image for zooming and panning.
public class ZoomableImageApp extends UiApplication
{
public static void main(String[] args)
{
ZoomableImageApp theApp = new ZoomableImageApp();
Development Guide Displaying an image for zooming and panning
127](https://image.slidesharecdn.com/blackberryjavasdk-developmentguide-1239696-0730090812-001-6-0-us-130530002957-phpapp01/75/Black-berry-java_sdk-development_guide-1239696-0730090812-001-6-0-us-129-2048.jpg)
![theApp.enterEventDispatcher();
}
public ZoomableImageApp()
{
EncodedImage myImg = EncodedImage.getEncodedImageResource("myImg.jpg");
ZoomScreen zoomableImg = new ZoomScreen(myImg);
pushScreen(zoomableImg);
}
}
Displaying a row of images for scrolling
You can use the PictureScrollField class to render a horizontal row of images that the user can scroll through by using
the trackball or touch gestures.
The PictureScrollField allows you to define the highlighting style of the selected image, the background style of the
PictureScrollField, the text displayed below the selected image, the tooltip text that appears when an image is initially
selected, and the height and width of the images.
Code sample: Displaying a row of images for scrolling
import net.rim.device.api.system.*;
import net.rim.device.api.ui.*;
import net.rim.device.api.ui.component.*;
import net.rim.device.api.ui.container.*;
import net.rim.device.api.ui.decor.*;
import net.rim.device.api.ui.extension.component.*;
public class PictureScrollFieldDemo extends UiApplication
{
public static void main(String[] args)
{
PictureScrollFieldDemo app = new PictureScrollFieldDemo();
app.enterEventDispatcher();
}
public PictureScrollFieldDemo()
{
pushScreen(new PictureScrollFieldDemoScreen());
}
}
class PictureScrollFieldDemoScreen extends MainScreen
{
public PictureScrollFieldDemoScreen()
{
setTitle("PictureScrollField Demo");
Development Guide Displaying a row of images for scrolling
128](https://image.slidesharecdn.com/blackberryjavasdk-developmentguide-1239696-0730090812-001-6-0-us-130530002957-phpapp01/75/Black-berry-java_sdk-development_guide-1239696-0730090812-001-6-0-us-130-2048.jpg)
![Bitmap[] images = new Bitmap[3];
String[] labels = new String[3];
String[] tooltips = new String[3];
images[0] = Bitmap.getBitmapResource("img1.jpg");
labels[0] = "Label for image 1";
tooltips[0] = "Tooltip for image 1";
images[1] = Bitmap.getBitmapResource("img2.jpg");
labels[1] = "Label for image 2";
tooltips[1] = "Tooltip for image 2";
images[2] = Bitmap.getBitmapResource("img3.jpg");
labels[2] = "Label for image 3";
tooltips[2] = "Tooltip for image 3";
ScrollEntry[] entries = ScrollEntry[3];
for (int i = 0; i < entries.length; i++)
{
entries[i] = new ScrollEntry(images[i], labels[i],tooltips[i]);
}
PictureScrollField pictureScrollField = new PictureScrollField(150, 100);
pictureScrollField.setData(entries, 0);
pictureScrollField.setHighlightStyle(HighlightStyle.ILLUMINATE);
pictureScrollField.setHighlightBorderColor(Color.BLUE);
pictureScrollField.setBackground
(BackgroundFactory.createSolidTransparentBackground(Color.RED, 150));
pictureScrollField.setLabelsVisible(true);
add(pictureScrollField);
}
}
Display a row of images for scrolling
1. Import the required classes and interfaces.
import net.rim.device.api.system.*;
import net.rim.device.api.ui.*;
import net.rim.device.api.ui.component.*;
import net.rim.device.api.ui.container.*;
import net.rim.device.api.ui.decor.*;
import net.rim.device.api.ui.extension.component.*;
Development Guide Displaying a row of images for scrolling
129](https://image.slidesharecdn.com/blackberryjavasdk-developmentguide-1239696-0730090812-001-6-0-us-130530002957-phpapp01/75/Black-berry-java_sdk-development_guide-1239696-0730090812-001-6-0-us-131-2048.jpg)
![2. Create the application framework by extending the UiApplication class. In main(), create an instance of the new
class and invoke enterEventDispatcher() to enable the application to receive events. In the constructor, invoke
pushScreen() to display the custom screen for the application. The PictureScrollFieldDemoScreen class,
described in step 3, represents the custom screen.
public class PictureScrollFieldDemo extends UiApplication
{
public static void main(String[] args)
{
PictureScrollFieldDemo app = new PictureScrollFieldDemo();
app.enterEventDispatcher();
}
public PictureScrollFieldDemo()
{
pushScreen(new PictureScrollFieldDemoScreen());
}
}
3. Create the framework for the custom screen by extending the MainScreen class.
class PictureScrollFieldDemoScreen extends MainScreen
{
public PictureScrollFieldDemoScreen()
{
}
}
4. In the constructor, invoke setTitle() to set the text that appears in the title section of the screen.
setTitle("PictureScrollField Demo");
5. In the constructor, create and initialize three arrays to store the images to display in the PictureScrollField and the
labels and tooltip text that appear when each image is selected. In this example, the PictureScrollField contains
three images.
Bitmap[] images = new Bitmap[3];
String[] labels = new String[3];
String[] tooltips = new String[3];
images[0] = Bitmap.getBitmapResource("img1.jpg");
labels[0] = "Label for image 1";
tooltips[0] = "Tooltip for image 1";
images[1] = Bitmap.getBitmapResource("img2.jpg");
labels[1] = "Label for image 2";
tooltips[1] = "Tooltip for image 2";
images[2] = Bitmap.getBitmapResource("img3.jpg");
labels[2] = "Label for image 3";
tooltips[2] = "Tooltip for image 3";
Development Guide Displaying a row of images for scrolling
130](https://image.slidesharecdn.com/blackberryjavasdk-developmentguide-1239696-0730090812-001-6-0-us-130530002957-phpapp01/75/Black-berry-java_sdk-development_guide-1239696-0730090812-001-6-0-us-132-2048.jpg)
![6. In the constructor, create and initialize an array of ScrollEntry objects. A ScrollEntry represents each item in the
PictureScrollField.
ScrollEntry[] entries = ScrollEntry[3];
for (int i = 0; i < entries.length; i++)
{
entries[i] = new ScrollEntry(images[i], labels[i], tooltips[i]);
}
7. In the constructor, create and initialize the PictureScrollField with each image 150 pixels wide and 100 pixels high.
Invoke setData() to set the entries in the PictureScrollField. The second paramater in setData() specifies
which image position is selected by default.
PictureScrollField pictureScrollField = new PictureScrollField(150,
100);
pictureScrollField.setData(entries, 0);
8. In the constructor, set the style of the PictureScrollField. Invoke setHighlightStyle() to specify how the
selected image is highlighted. Invoke setHighlightBorderColor() to specify the selected image's border color.
Invoke setBackground() to specify the background of the PictureScrollField. Invoke setLabelVisible
() to specify whether the PictureScrollField displays the selected image's label.
pictureScrollField.setHighlightStyle(HighlightStyle.ILLUMINATE);
pictureScrollField.setHighlightBorderColor(Color.BLUE);
pictureScrollField.setBackground(BackgroundFactory
.createSolidTransparentBackground(Color.RED, 150));
pictureScrollField.setLabelsVisible(true);
9. In the constructor, invoke add() to display the PictureScrollField.
add(pictureScrollField);
Development Guide Displaying a row of images for scrolling
131](https://image.slidesharecdn.com/blackberryjavasdk-developmentguide-1239696-0730090812-001-6-0-us-130530002957-phpapp01/75/Black-berry-java_sdk-development_guide-1239696-0730090812-001-6-0-us-133-2048.jpg)
![Menu items 10
Create a menu
The MainScreen class provides standard components of a BlackBerry® device application. It includes a default menu.
1. Import the required classes and interfaces.
import net.rim.device.api.ui.*;
import net.rim.device.api.ui.component.*;
import net.rim.device.api.ui.container.*;
2. Create the application framework by extending the UiApplication class. In main(), create an instance of the new
class and invoke enterEventDispatcher() to enable the application to receive events. In the application constructor,
invoke pushScreen() to display the custom screen for the application. The CreateMenuScreen class, which is
described in step 3, represents the custom screen.
public class CreateMenu extends UiApplication
{
public static void main(String[] args)
{
CreateMenu theApp = new CreateMenu();
theApp.enterEventDispatcher();
}
public CreateMenu()
{
pushScreen(new CreateMenuScreen());
}
}
3. Create the custom screen for the application by extending the MainScreen class. In the screen constructor, invoke
setTitle() to specify the title for the screen. Invoke add() to add a text field to the screen. Invoke addMenuItem
() to add a menu item to the menu that MainScreen creates.
class CreateMenuScreen extends MainScreen
{
public CreateMenuScreen()
{
setTitle("Create Menu Sample");
add(new RichTextField("Create a menu"));
addMenuItem(_viewItem);
}
}
4. Create the menu item by using the MenuItem class. Override run() to specify the action that occurs when the user clicks
the menu item. When the user clicks the menu item, the application invokes Menu.run().
Development Guide Menu items
132](https://image.slidesharecdn.com/blackberryjavasdk-developmentguide-1239696-0730090812-001-6-0-us-130530002957-phpapp01/75/Black-berry-java_sdk-development_guide-1239696-0730090812-001-6-0-us-134-2048.jpg)
![private MenuItem _viewItem = new MenuItem("More Info", 110, 10)
{
public void run()
{
Dialog.inform("Display more information");
}
};
5. Override close() to display a dialog box when the user clicks the Close menu item. By default, the Close menu item is
included in the menu that MainScreen creates. Invoke super.close() to close the application. When the user closes
the dialog box, the application invokes MainScreen.close() to close the application.
public void close()
{
Dialog.alert("Goodbye!");
super.close();
}
Code sample: Creating a menu
import net.rim.device.api.ui.*;
import net.rim.device.api.ui.component.*;
import net.rim.device.api.ui.container.*;
public class CreateMenu extends UiApplication
{
public static void main(String[] args)
{
CreateMenu theApp = new CreateMenu();
theApp.enterEventDispatcher();
}
public CreateMenu()
{
pushScreen(new CreateMenuScreen());
}
}
class CreateMenuScreen extends MainScreen
{
public CreateMenuScreen()
{
setTitle("Create Menu Sample");
add(new RichTextField("Create a menu"));
addMenuItem(_viewItem);
}
private MenuItem _viewItem = new MenuItem("More Info", 110, 10)
{
public void run()
{
Dialog.inform("Display more information");
}
Development Guide Create a menu
133](https://image.slidesharecdn.com/blackberryjavasdk-developmentguide-1239696-0730090812-001-6-0-us-130530002957-phpapp01/75/Black-berry-java_sdk-development_guide-1239696-0730090812-001-6-0-us-135-2048.jpg)
![• Avoid using the term "More" in the full menu unless the location of the menu item clearly indicates what "more" refers to.
For example, if "Inbox," "Outbox," and "More" appear between separators in the full menu, group additional options
associated with a mailbox in a submenu.
Create a submenu
You can create a submenu for your BlackBerry® device application. A submenu appears when a user selects a menu item that
has a submenu associated with it.
1. Import the required classes and interfaces.
import net.rim.device.api.ui.*;
import net.rim.device.api.ui.component.*;
import net.rim.device.api.ui.container.*;
2. Create the application framework by extending the UiApplication class. In main(), create an instance of the new
class and invoke enterEventDispatcher() to enable the application to receive events. In the application constructor,
invoke pushScreen() to display the custom screen for the application. The CreateSubmenuScreen class, which is
described in step 3, represents the custom screen.
public class CreateSubmenu extends UiApplication
{
public static void main(String[] args)
{
CreateSubmenu theApp = new CreateSubmenu();
theApp.enterEventDispatcher();
}
public CreateSubmenu()
{
pushScreen(new CreateSubmenuScreen());
}
}
3. Create the custom screen for the application by extending the MainScreen class. In the screen constructor, invoke
setTitle() to specify the title for the screen. Invoke add() to add a text field to the screen.
class CreateSubmenuScreen extends MainScreen
{
public CreateSubmenuScreen()
{
setTitle("Create Submenu Sample");
add(new RichTextField("Create a submenu"));
}
}
4. Create the submenu items by using the MenuItem class. For each submenu item, override run() to specify the action
that occurs when the user clicks the menu item. When the user clicks the menu item, the application invokes Menu.run().
private MenuItem _status1 = new MenuItem("Available", 100, 1)
{
public void run()
Development Guide Submenus
137](https://image.slidesharecdn.com/blackberryjavasdk-developmentguide-1239696-0730090812-001-6-0-us-130530002957-phpapp01/75/Black-berry-java_sdk-development_guide-1239696-0730090812-001-6-0-us-139-2048.jpg)
![{
Dialog.inform("I'm available");
}
};
private MenuItem _status2 = new MenuItem("Unavailable", 200, 2)
{
public void run()
{
Dialog.inform("I'm unavailable");
}
};
5. Override makeMenu() to create the menu for the application. Create the submenu by using the SubMenu class. Invoke
add() to add the submenu items to the submenu. Invoke super.makeMenu() to create the menu.
protected void makeMenu( Menu menu, int instance )
{
SubMenu statusSubMenu = new SubMenu(null,"My Status",300,3);
statusSubMenu.add(_status1);
statusSubMenu.add(_status2);
menu.add(statusSubMenu);
super.makeMenu(menu, instance);
};
Code sample: Creating a submenu
import net.rim.device.api.ui.*;
import net.rim.device.api.ui.component.*;
import net.rim.device.api.ui.container.*;
public class CreateSubmenu extends UiApplication
{
public static void main(String[] args)
{
CreateSubmenu theApp = new CreateSubmenu();
theApp.enterEventDispatcher();
}
public CreateSubmenu()
{
pushScreen(new CreateSubmenuScreen());
}
}
class CreateSubmenuScreen extends MainScreen
{
public CreateSubmenuScreen()
{
setTitle("Create Submenu Sample");
add(new RichTextField("Create a submenu"));
}
private MenuItem _status1 = new MenuItem("Available", 100, 1)
Development Guide Submenus
138](https://image.slidesharecdn.com/blackberryjavasdk-developmentguide-1239696-0730090812-001-6-0-us-130530002957-phpapp01/75/Black-berry-java_sdk-development_guide-1239696-0730090812-001-6-0-us-140-2048.jpg)
![Component Description
could provide command items to add or view a contact based on whether the
selected email address appears in the user's contact list. The command handler
would contain the code to add or view the contact.
For more information on commands and command handlers, see Command
Framework API. The Command Framework sample application that is provided in
the BlackBerry® Java® SDK demonstrates commands and command handlers.
If you use a legacy context menu, BlackBerry® Device Software 6.0 converts the context menu items to command items and
provides them to the command item provider. For more information, see Support for legacy context menus.
Create a pop-up menu
1. Import the required classes and interfaces.
import net.rim.device.api.command.*;
import net.rim.device.api.system.*;
import net.rim.device.api.ui.*;
import net.rim.device.api.ui.component.*;
import net.rim.device.api.ui.container.*;
import net.rim.device.api.ui.menu.*;
import net.rim.device.api.ui.image.*;
import net.rim.device.api.util.*;
import java.util.*;
2. Create the application framework by extending the UiApplication class. In main(), create an instance of the new
class and invoke enterEventDispatcher() to enable the application to receive events. In the application constructor,
invoke pushScreen() to display the custom screen for the application. The MyPopUpMenuScreen class, which is
described in step 3, represents the custom screen.
public class MyPopUpMenuApp extends UiApplication
{
public static void main(String[] args)
{
Mypop-upMenuApp theApp = new Mypop-upMenuApp();
theApp.enterEventDispatcher();
}
public Mypop-upMenuApp()
{
pushScreen(new Mypop-upMenuScreen());
}
}
3. Create the custom screen for the application by extending the MainScreen class. In the screen constructor, invoke
setTitle() to specify the title for the screen.
Development Guide Pop-up menus
143](https://image.slidesharecdn.com/blackberryjavasdk-developmentguide-1239696-0730090812-001-6-0-us-130530002957-phpapp01/75/Black-berry-java_sdk-development_guide-1239696-0730090812-001-6-0-us-145-2048.jpg)
![CommandItem defaultCmd;
Image myIcon = ImageFactory.createImage(Bitmap.getBitmapResource("my_logo.png"));
if(field.equals(emailAddress)){
defaultCmd = new CommandItem(new StringProvider("Email Address"), myIcon, new
Command(new DialogCommandHandler()));
}
else {
defaultCmd = new CommandItem(new StringProvider("Label Field"), myIcon, new
Command(new DialogCommandHandler()));
}
items.addElement(defaultCmd);
return items;
9. In the custom screen, create a command handler by creating a class that extends the abstract CommandHandler class.
In execute(), define the functionality that you want to associate with the pop-up menu items. This command handler
couldbeusedbyanyUIcomponentonyourscreen(forexample,fullmenuitems,buttons,andsoon).BecausecanExecute
() is not implemented, this command is always executable. In the following code sample, a dialog box appears when the
user clicks a pop-up menu item.
class DialogCommandHandler extends CommandHandler
{
public void execute(ReadOnlyCommandMetadata metadata, Object context)
{
Dialog.alert("Executing command for " + context.toString());
}
}
Code sample: Creating a pop-up menu
import net.rim.device.api.command.*;
import net.rim.device.api.system.*;
import net.rim.device.api.ui.*;
import net.rim.device.api.ui.component.*;
import net.rim.device.api.ui.container.*;
import net.rim.device.api.ui.menu.*;
import net.rim.device.api.ui.image.*;
import net.rim.device.api.util.*;
import java.util.*;
public class MyPopUpMenuApp extends UiApplication
{
public static void main(String[] args)
{
MyPopUpMenuApp theApp = new MyPopUpMenuApp();
theApp.enterEventDispatcher();
}
Development Guide Pop-up menus
145](https://image.slidesharecdn.com/blackberryjavasdk-developmentguide-1239696-0730090812-001-6-0-us-130530002957-phpapp01/75/Black-berry-java_sdk-development_guide-1239696-0730090812-001-6-0-us-147-2048.jpg)
![Dialog.alert("Viewing an email message in the email view");
return null;
}
Changing the appearance of a menu
You can change the background, border, and font of a menu by using the Menu class in the
net.rim.device.api.ui.component package. For example, you can change the appearance of the menu so that it has
a look and feel that is similar to the rest of your BlackBerry® device application. When you change the appearance of a menu,
your BlackBerry device application overrides the theme that is set on the BlackBerry device.
Change the appearance of a menu
1. Import the required classes and interfaces.
import net.rim.device.api.ui.*;
import net.rim.device.api.ui.component.*;
import net.rim.device.api.ui.container.*;
import net.rim.device.api.ui.decor.*;
import net.rim.device.api.system.*;
2. Create the application framework by extending the UiApplication class. In main(), create an instance of the new
class and invoke enterEventDispatcher() to enable the application to receive events. In the application constructor,
invoke pushScreen() to display the custom screen for the application. The CreateCustomMenuScreen class , which
is described in step 3, represents the custom screen.
public class CreateCustomMenu extends UiApplication
{
public static void main(String[] args)
{
CreateCustomMenu theApp = new CreateCustomMenu();
theApp.enterEventDispatcher();
}
public CreateCustomMenu()
{
pushScreen(new CreateCustomMenuScreen());
}
}
3. Create the custom screen for the application by extending the MainScreen class. In the screen constructor, invoke
setTitle() to specify the title for the screen. Invoke add() to add a text field on the screen.
class CreateCustomMenuScreen extends MainScreen
{
Background _menuBackground;
Border _menuBorder;
Font _menuFont;
CreateCustomMenuScreen()
Development Guide Changing the appearance of a menu
149](https://image.slidesharecdn.com/blackberryjavasdk-developmentguide-1239696-0730090812-001-6-0-us-130530002957-phpapp01/75/Black-berry-java_sdk-development_guide-1239696-0730090812-001-6-0-us-151-2048.jpg)
![import net.rim.device.api.ui.decor.*;
import net.rim.device.api.system.*;
public class CreateCustomMenu extends UiApplication
{
public static void main(String[] args)
{
CreateCustomMenu theApp = new CreateCustomMenu();
theApp.enterEventDispatcher();
}
public CreateCustomMenu()
{
pushScreen(new CreateCustomMenuScreen());
}
}
class CreateCustomMenuScreen extends MainScreen
{
Border _menuBorder;
Background _menuBackground;
Font _menuFont;
CreateCustomMenuScreen()
{
setTitle("Custom Menu Sample");
add(new RichTextField("Creating a custom menu"));
XYEdges thickPadding = new XYEdges(10, 10, 10, 10);
_menuBorder = BorderFactory.createRoundedBorder(thickPadding,
Border.STYLE_DOTTED);
_menuBackground = BackgroundFactory.createSolidTransparentBackground(Color
.LIGHTSTEELBLUE, 50);
try
{
FontFamily family = FontFamily.forName("BBCasual");
_menuFont = family.getFont(Font.PLAIN, 30, Ui.UNITS_px);
}
catch(final ClassNotFoundException cnfe)
{
UiApplication.getUiApplication().invokeLater(new Runnable()
{
public void run()
{
Dialog.alert("FontFamily.forName() threw " + cnfe.toString());
}
});
}
}
protected void makeMenu(Menu menu, int context)
{
menu.setBorder(_menuBorder);
menu.setBackground(_menuBackground);
menu.setFont(_menuFont);
Development Guide Changing the appearance of a menu
151](https://image.slidesharecdn.com/blackberryjavasdk-developmentguide-1239696-0730090812-001-6-0-us-130530002957-phpapp01/75/Black-berry-java_sdk-development_guide-1239696-0730090812-001-6-0-us-153-2048.jpg)
![Custom fonts 11
The FontManager class in the net.rim.device.api.ui package provides constants and methods that you can use to
install and uninstall a TrueType font on a BlackBerry® device. The maximum size allowed for the TrueType font file is 60 KB. You
can specify whether the font is available to the application that installs the font or to all applications on the BlackBerry device.
The FontManager class also provides methods to set the default font for the BlackBerry device or application.
Install and use a custom font in a BlackBerry Java application
1. Import the required classes and interfaces.
import net.rim.device.api.system.*;
import net.rim.device.api.ui.*;
import net.rim.device.api.ui.container.*;
import net.rim.device.api.ui.component.*;
import java.util.*;
2. Create the application framework by extending the UiApplication class. In main(), create an instance of the new
class and invoke enterEventDispatcher() to enable the application to receive events. In the application constructor,
invoke pushScreen() to display the custom screen for the application. The FontLoadingDemoScreen class,
described in step 3, represents the custom screen.
public class FontLoadingDemo extends UiApplication
{
public static void main(String[] args)
{
FontLoadingDemo app = new FontLoadingDemo();
app.enterEventDispatcher();
}
public FontLoadingDemo()
{
pushScreen(new FontLoadingDemoScreen());
}
}
3. Create the custom screen by extending the MainScreen class. Invoke setTitle() to set the text that appears in the
title section of the screen. Create a new LabelField object. You will apply the custom font to this object.
class FontLoadingDemoScreen extends MainScreen
{
public FontLoadingDemoScreen()
{
setTitle("Font Loading Demo");
LabelField helloWorld = new LabelField("Hello World");
Development Guide Custom fonts
153](https://image.slidesharecdn.com/blackberryjavasdk-developmentguide-1239696-0730090812-001-6-0-us-130530002957-phpapp01/75/Black-berry-java_sdk-development_guide-1239696-0730090812-001-6-0-us-155-2048.jpg)
![}
}
4. In the screen constructor, invoke the FontManager.getInstance() method to get a reference to the
FontManager object, then invoke the load() method to install the font. Wrap the load() invocation in an IF statement
to check if the installation was successful. The load() method returns a flag specifying if font is successfully installed.
The following code specifies that the font that can be used only by the application.
if (FontManager.getInstance().load("Myfont.ttf", "MyFont",
FontManager.APPLICATION_FONT) == FontManager.SUCCESS)
{
}
5. In the screen constructor, in a try/catch block in the IF statement you created in step 5, create a Font object for the font
you just installed. Invoke the setFont() method to apply the font to the LabelField you created in step 5.
try
{
FontFamily family = FontFamily.forName("MyFont");
Font myFont = family.getFont(Font.PLAIN, 50);
helloWorld.setFont(myFont);
}
catch (ClassNotFoundException e)
{
System.out.println(e.getMessage());
}
6. In the screen constructor, invoke add() to add the LabelField to the screen.
add(helloWorld);
Code sample: Installing and using a custom font in a BlackBerry Java
application
import net.rim.device.api.system.*;
import net.rim.device.api.ui.*;
import net.rim.device.api.ui.container.*;
import net.rim.device.api.ui.component.*;
import java.util.*;
public class FontLoadingDemo extends UiApplication
{
public static void main(String[] args)
{
FontLoadingDemo app = new FontLoadingDemo();
app.enterEventDispatcher();
}
Development Guide Code sample: Installing and using a custom font in a BlackBerry Java application
154](https://image.slidesharecdn.com/blackberryjavasdk-developmentguide-1239696-0730090812-001-6-0-us-130530002957-phpapp01/75/Black-berry-java_sdk-development_guide-1239696-0730090812-001-6-0-us-156-2048.jpg)
Uploaded byReliance Jio USA, Inc.
Black berry java_sdk-development_guide--1239696-0730090812-001-6.0-us
This document provides guidance on creating user interfaces for BlackBerry Java applications that are consistent with standard BlackBerry designs and behaviors. It covers topics like screens, navigation methods, user input types, UI components, menus, images and more. Developers can use the APIs and development practices described to build intuitive apps with familiar layouts and interactions for BlackBerry users.
More Related Content
Similar to Black berry java_sdk-development_guide--1239696-0730090812-001-6.0-us
![[DevFest Strasbourg 2025] - NodeJs Can do that !!](https://cdn.slidesharecdn.com/ss_thumbnails/devfeststrasbourg2025-nodejscandothat-251127142731-da65b6fd-thumbnail.jpg?width=640&height=640&fit=bounds)
![[BDD 2025 - Mobile Development] Mobile Engineer and Software Engineer: Are we...](https://cdn.slidesharecdn.com/ss_thumbnails/md-mobileengineerandsoftwareengineerarewestillrelevantsidiqpermana-251127010650-55224ef1-thumbnail.jpg?width=640&height=640&fit=bounds)
![[BDD 2025 - Full-Stack Development] Digital Accessibility: Why Developers nee...](https://cdn.slidesharecdn.com/ss_thumbnails/fs-digitalaccessibilitywhydevelopersneedtoknowandcarein2025-251127011019-0674441d-thumbnail.jpg?width=640&height=640&fit=bounds)
![[BDD 2025 - Mobile Development] Exploring Apple’s On-Device FoundationModels](https://cdn.slidesharecdn.com/ss_thumbnails/md-exploringappleson-devicefoundationmodels-251124030840-d690542c-thumbnail.jpg?width=640&height=640&fit=bounds)
![[BDD 2025 - Full-Stack Development] The Modern Stack: Building Web & AI Appli...](https://cdn.slidesharecdn.com/ss_thumbnails/fs-themodernstackbuildingwebaiapplicationswithserverless-251124030844-388cf04f-thumbnail.jpg?width=640&height=640&fit=bounds)
Black berry java_sdk-development_guide--1239696-0730090812-001-6.0-us
- 1. BlackBerry Java SDK UIand Navigation Version: 6.0 Development Guide
- 2.
- 3. Contents 1 Creating aUI that is consistent with standard BlackBerry UIs........................................................................................... 6 2 BlackBerry device user input and navigation.......................................................................................................................... 7 Touch screen.................................................................................................................................................................................... 7 Trackball or trackpad...................................................................................................................................................................... 9 Trackball sensitivity................................................................................................................................................................ 9 Trackball movement............................................................................................................................................................... 9 Trackwheel....................................................................................................................................................................................... 9 Keyboard.......................................................................................................................................................................................... 10 Interaction methods on BlackBerry devices................................................................................................................................ 10 3 Screens.......................................................................................................................................................................................... 11 Screen classes................................................................................................................................................................................. 11 Manage a drawing area................................................................................................................................................................. 12 Creating a screen transition.......................................................................................................................................................... 13 Code sample: Creating a screen transition......................................................................................................................... 14 Specifying the orientation and direction of the screen.............................................................................................................. 15 Retrieve the orientation of the touch screen...................................................................................................................... 17 Restrict the touch screen direction...................................................................................................................................... 17 Receive notification when the size of the drawable area of the touch screen changes................................................ 17 4 Accelerometer.............................................................................................................................................................................. 19 Types of accelerometer data.......................................................................................................................................................... 19 Retrieving accelerometer data...................................................................................................................................................... 19 Retrieve accelerometer data at specific intervals....................................................................................................................... 20 Query the accelerometer when the application is in the foreground...................................................................................... 21 Query the accelerometer when the application is in the background..................................................................................... 21 Store accelerometer readings in a buffer..................................................................................................................................... 22 Retrieve accelerometer readings from a buffer........................................................................................................................... 23 Get the time a reading was taken from the accelerometer....................................................................................................... 23 5 Events............................................................................................................................................................................................ 24 Respond to navigation events....................................................................................................................................................... 24 Determine the type of input method............................................................................................................................................ 24 Touch screen interaction models.................................................................................................................................................. 25
- 4. Responding to touchscreen events.............................................................................................................................................. 26 Respond to system events while the user touches the screen.......................................................................................... 27 Respond to a user sliding a finger up quickly on the screen............................................................................................. 27 Respond to a user sliding a finger down quickly on the screen........................................................................................ 28 Respond to a user sliding a finger to the left quickly on the screen................................................................................ 29 Respond to a user sliding a finger to the right quickly on the screen............................................................................. 29 Respond to a user clicking the screen................................................................................................................................. 30 Respond to a user touching the screen twice quickly........................................................................................................ 31 Respond to a user touching and dragging an item on the screen................................................................................... 31 Respond to a user touching the screen lightly................................................................................................................... 32 Respond to a scroll action..................................................................................................................................................... 32 Respond to a user touching the screen in two locations at the same time..................................................................... 33 Pinch gestures................................................................................................................................................................................. 34 Enable pinch gestures............................................................................................................................................................ 34 Swipe gestures with trackpads...................................................................................................................................................... 35 Enable swipe gestures that users make on the trackpad.................................................................................................. 36 Event injection................................................................................................................................................................................. 37 6 Command Framework API.......................................................................................................................................................... 38 Use a command with one UI component.................................................................................................................................... 39 Use a command in one or more applications.............................................................................................................................. 40 7 Arranging UI components.......................................................................................................................................................... 43 Arrange UI components................................................................................................................................................................. 44 Creating a grid layout..................................................................................................................................................................... 44 Create a grid layout................................................................................................................................................................ 46 Displaying fields on a temporary pair of managers.................................................................................................................... 48 Display a ButtonField and a LabelField temporarily on the top and bottom of the screen........................................... 49 Displaying a field at an absolute position on a screen............................................................................................................... 51 Display a label at an absolute position on the screen....................................................................................................... 51 Code sample: Displaying a label at an absolute position on the screen......................................................................... 52 8 UI components............................................................................................................................................................................. 54 Add a UI component to a screen.................................................................................................................................................. 54 Aligning a field to a line of text..................................................................................................................................................... 54 Buttons............................................................................................................................................................................................. 54
- 5. Best practice: Implementingbuttons................................................................................................................................... 55 Create a button....................................................................................................................................................................... 55 Check boxes..................................................................................................................................................................................... 56 Best practice: Implementing check boxes........................................................................................................................... 56 Create a check box................................................................................................................................................................. 57 Create a bitmap............................................................................................................................................................................... 59 Create a custom field...................................................................................................................................................................... 59 Creating a field to display web content....................................................................................................................................... 62 Display HTML content in a browser field............................................................................................................................ 62 Display HTML content from a web page in a browser field.............................................................................................. 64 Display HTML content from a resource in your application.............................................................................................. 65 Configure a browser field...................................................................................................................................................... 67 Send form data to a web address in a browser field.......................................................................................................... 69 Dialog boxes.................................................................................................................................................................................... 71 Best practice: Implementing dialog boxes.......................................................................................................................... 72 Create a dialog box................................................................................................................................................................ 74 Drop-down lists............................................................................................................................................................................... 74 Best practice: Implementing drop-down lists..................................................................................................................... 75 Create a drop-down list......................................................................................................................................................... 75 Labels................................................................................................................................................................................................ 77 Best practice: Implementing labels...................................................................................................................................... 78 Create a text label.................................................................................................................................................................. 78 Lists and tables................................................................................................................................................................................ 78 Best practice: Implementing lists and tables...................................................................................................................... 81 Create a list box...................................................................................................................................................................... 81 Radio buttons.................................................................................................................................................................................. 83 Best practice: Implementing radio buttons......................................................................................................................... 84 Create a radio button............................................................................................................................................................. 84 Activity indicators and progress indicators.................................................................................................................................. 86 Best practice: Implementing activity indicators and progress indicators....................................................................... 87 Indicating activity or task progress...................................................................................................................................... 88 Pickers.............................................................................................................................................................................................. 96 Best practice: Implementing pickers.................................................................................................................................... 98 Create a date picker............................................................................................................................................................... 99 Create a file picker................................................................................................................................................................. 101
- 6. Search............................................................................................................................................................................................... 104 Best practice:Implementing search.................................................................................................................................... 105 Create a search field.............................................................................................................................................................. 106 Autocomplete text field......................................................................................................................................................... 108 Spin boxes........................................................................................................................................................................................ 114 Create a spin box.................................................................................................................................................................... 115 Best practice: Implementing spin boxes.............................................................................................................................. 118 Text fields......................................................................................................................................................................................... 118 Best practice: Implementing text fields............................................................................................................................... 119 Creating a text field................................................................................................................................................................ 120 Create a date field.................................................................................................................................................................. 121 Create a password field......................................................................................................................................................... 122 Tree views......................................................................................................................................................................................... 122 Best practice: Implementing tree views.............................................................................................................................. 123 Create a field to display a tree view..................................................................................................................................... 123 9 Images........................................................................................................................................................................................... 125 Using encoded images................................................................................................................................................................... 125 Access an encoded image through an input stream.......................................................................................................... 125 Encode an image.................................................................................................................................................................... 125 Display an encoded image.................................................................................................................................................... 126 Specify the display size of an encoded image.................................................................................................................... 126 Specify the decoding mode for an image............................................................................................................................ 126 Displaying an image for zooming and panning.......................................................................................................................... 126 Code sample: Displaying an image for zooming and panning......................................................................................... 127 Display an image for zooming and panning....................................................................................................................... 127 Displaying a row of images for scrolling...................................................................................................................................... 128 Code sample: Displaying a row of images for scrolling..................................................................................................... 128 Display a row of images for scrolling................................................................................................................................... 129 10 Menu items................................................................................................................................................................................... 132 Create a menu................................................................................................................................................................................. 132 Code sample: Creating a menu............................................................................................................................................ 133 Best practice: Implementing menus............................................................................................................................................. 134 Submenus........................................................................................................................................................................................ 134 Best practice: Implementing submenus.............................................................................................................................. 136
- 7. Create a submenu..................................................................................................................................................................137 Code sample: Creating a submenu...................................................................................................................................... 138 Pop-up menus................................................................................................................................................................................. 139 Best practice: Implementing pop-up menus....................................................................................................................... 140 About placing items in the pop-up menus.......................................................................................................................... 141 Support for legacy context menus........................................................................................................................................ 141 Creating a pop-up menu....................................................................................................................................................... 142 Adding a menu item to a BlackBerry Device Software application.......................................................................................... 147 Add a menu item to a BlackBerry Device Software application....................................................................................... 147 Changing the appearance of a menu........................................................................................................................................... 149 Change the appearance of a menu...................................................................................................................................... 149 Code sample: Changing the appearance of a menu.......................................................................................................... 150 11 Custom fonts................................................................................................................................................................................ 153 Install and use a custom font in a BlackBerry Java application................................................................................................ 153 Code sample: Installing and using a custom font in a BlackBerry Java application............................................................... 154 12 Spelling checker.......................................................................................................................................................................... 156 Add spell check functionality......................................................................................................................................................... 156 Listen for a spell check event........................................................................................................................................................ 157 13 Related resources........................................................................................................................................................................ 158 14 Glossary......................................................................................................................................................................................... 159 15 Provide feedback......................................................................................................................................................................... 160 16 Document revision history......................................................................................................................................................... 161 17 Legal notice.................................................................................................................................................................................. 164
- 8. Creating a UIthat is consistent with standard BlackBerry UIs 1 You can use the standard MIDP APIs and the BlackBerry® UI APIs to create a BlackBerry® Java® Application UI. The UI components in the BlackBerry UI APIs are designed to provide layouts and behaviors that are consistent with BlackBerry® Device Software applications. Using these APIs not only allows you to use components that BlackBerry users are familiar with, but it also saves you time since you don't have to create those components yourself. • Screen components can provide a standard screen layout, a default menu, and standard behavior when a BlackBerry device user presses the Escape key, clicks the trackpad, or touches the touch screen. • Field components can provide the standard UI elements for date selection, option button, check box, list, text field, label, and progress bar controls. • Layout managers can provide an application with the ability to arrange the components on a BlackBerry device screen in standard ways, such as horizontally, vertically, or in a left-to-right flow. You can use the BlackBerry UI APIs to create a UI that includes tables, grids, and other specialized features. You can use a standard Java event model to receive and respond to specific types of events. A BlackBerry device application can receive and respond to user events, such as when the user clicks the trackpad or types on the keyboard, and to system events, such as global alerts, clock changes, and USB port connections. Development Guide Creating a UI that is consistent with standard BlackBerry UIs 6
- 9. BlackBerry device userinput and navigation 2 BlackBerry® devices include a keyboard, a trackwheel, trackball, or trackpad, and an Escape key, for input and navigation. On BlackBerry devices with a SurePress™ touch screen, clicking the screen is equivalent to clicking the trackball or trackwheel. A BlackBerry® Java® Application should use the following input and navigation model as closely as possible. • Clicking the trackwheel, trackball, trackpad, or touch screen typically invokes a menu. • Pressing the Escape key cancels actions or returns to the previous screen. Pressing the Escape key repeatedly returns users to the Home screen. Holding the Escape key closes the browser or media application. By default, the BlackBerry screen objects provide this functionality without customization; however, you must add menu items and additional UI and navigation logic. Touch screen On BlackBerry® devices with a SurePress™ touch screen, users use a finger to interact with the applications on the device. Users type text and navigate screens by performing various actions on the touch screen. Users can also perform actions by clicking icons on the shortcut bar or by pressing the Menu key. On BlackBerry devices with a touch screen, users can perform the following actions: Action Result touch the screen lightly This action highlights an item. In a text field, if users touch the screen near the cursor, an outlined box displays around the cursor. This box helps users reposition the cursor more easily. tap the screen In applications that support a full-screen view, such as BlackBerry® Maps and the BlackBerry® Browser, this action hides and shows the shortcut bar. tap the screen twice On a web page, map, picture, or presentation attachment, this action zooms in to the web page, map, picture, or presentation attachment. hold a finger on an item On the shortcut bar, this action displays a tooltip that describes the action that the icon represents. In a message list, if users hold a finger on the sender or subject of a message, the BlackBerry device searches for the sender or subject. Development Guide BlackBerry device user input and navigation 7
- 10. Action Result touch anddrag an item on the screen This action moves the content on the screen in the corresponding direction. For example, when users touch and drag a menu item, the list of menu items moves in the same direction. Inatextfield,thisactionmovestheoutlinedboxandthecursorinthesamedirection. touch the screen in two locations at the same time This action highlights the text or the list of items, such as messages, between the twolocations.Toaddorremovehighlightedtextoritems,userscantouchthescreen at another location. click (press) the screen This action initiates an action. For example, when users click an item in a list, the screen that is associated with the item appears. This action is equivalent to clicking the trackwheel, trackball or trackpad. On a map, picture, or presentation attachment, this action zooms in to the map, picture, or presentation attachment. On a web page, this action zooms in to the web page or follows a link. In a text field, this action positions the cursor. If the field contains text, an outlined box appears around the cursor. slide a finger up or down quickly on the screen Quickly sliding a finger up displays the next screen. Quickly sliding a finger down displays the previous screen. When the keyboard appears, quickly sliding a finger down hides the keyboard and displays the shortcut bar. slide a finger to the left or right quickly on the screen This action displays the next or previous picture or message, or the next or previous day, week, or month in a calendar. slide a finger up or down on the screen In the camera, sliding a finger up zooms in to a subject. Sliding a finger down zooms out from a subject. slide a finger in any direction This action pans a map or web page. If users zoom in to a picture, this action also pans a picture. press the Escape key This action removes the highlight from text or a list of items. On a web page, map, or picture, this action zooms out one level. Users can press the Escape key twice to zoom back to the original view. Development Guide Touch screen 8
- 11. Trackball or trackpad OnBlackBerry® devices with a trackball or trackpad, the trackball or trackpad is the primary control for user navigation. Users can perform the following actions: • Roll the trackball or slide a finger on the trackpad to move the cursor. • Click the trackball or trackpad to perform default actions or open a context menu. • Click the trackball or trackpad while pressing the Shift key to highlight text or highlight messages in a message list. BlackBerry devices with a trackball or trackpad also include a Menu key that is located to the left of the trackball or trackpad. Users can press the Menu key to open a full menu of available actions. Trackball sensitivity Trackballsensitivityreferstotheamountoftrackballmovementthatthesystemrequirestoidentifythemovementasanavigation event, and to send a navigation event to the software layer. The BlackBerry® device hardware measures physical trackball movementbyusingunitscalledticks.WhenthenumberofticksalonganaxissurpassesthethresholdofthesystemoraBlackBerry device application, a navigation event is sent to the software layer, and the system resets the tick count to zero. Tick counts are also reset to zero after a certain amount of idle time passes. You can use the Trackball API to set the trackball sensitivity. High trackball sensitivity equates to a smaller tick threshold (a small amount of trackball movement generates a navigation event). Low trackball sensitivity equates to a larger tick threshold (a larger amount of trackball movement is required to generate a navigation event). Trackball movement You can use the Trackball API to filter the trackball movement data that the BlackBerry® device hardware sends to the software layer. The Trackball API can filter out movement "noise" or unwanted movements. YoucanalsousetheTrackballAPItochangesettingssuchastrackballmovementacceleration.Increasingthetrackballmovement acceleration setting can result in the software layer identifying trackball movements as moving at a faster rate than the rate detectedbytheBlackBerrydevicehardware,aslongastheusercontinuallyrollsthetrackball.Thetrackballsensitivitytemporarily increases as the user rolls the trackball without pausing. Trackwheel BlackBerry®devicesthatprecedetheBlackBerry®Pearl™8100Seriesuseatrackwheelastheprimarycontrolforusernavigation. The trackwheel is located on the right side of the BlackBerry® device. Users can perform the following actions: Development Guide Trackball or trackpad 9
- 12. • roll thetrackwheel to move the cursor vertically • roll the trackwheel while pressing the Alt key to move the cursor horizontally • click the trackwheel to initiate an action or open the menu Keyboard Users use the keyboard primarily to type text. Character keys send a character to the BlackBerry® device. A modifier key alters the functionality of character keys. Modifier keys include the Shift key and the Alt key. When users press a modifier key, a typing mode indicator appears in the upper-right corner of the screen. On BlackBerry devices without a touch screen, users can also use the keyboard to move around a screen (for example, to move around a map). However, navigation using the keyboard should always be an alternative to navigation using the trackwheel, trackball, or trackpad. BlackBerry devices have either a full keyboard or a reduced keyboard. On BlackBerry devices with a SurePress™ touch screen, in most cases, the full keyboard appears in landscape view and the reduced keyboard appears in portrait view. Interaction methods on BlackBerry devices BlackBerry device model Interaction method BlackBerry® 7100 Series trackwheel BlackBerry® 8700 Series trackwheel BlackBerry® 8800 Series trackball BlackBerry® Bold™ 9000 smartphone trackball BlackBerry® Bold™ 9650 smartphone BlackBerry® Bold™ 9700 smartphone trackpad BlackBerry® Curve™ 8300 Series trackball BlackBerry® Curve™ 8500 Series trackpad BlackBerry® Curve™ 8900 smartphone trackball BlackBerry® Pearl™ 8100 Series trackball BlackBerry® Pearl™ Flip 8200 Series trackball BlackBerry® Storm™ 9500 Series touch screen BlackBerry® Tour™ 9630 smartphone trackball Development Guide Keyboard 10
- 13. Screens 3 The maincomponent of a BlackBerry® device UI is the Screen object. A BlackBerry device can have multiple screens open at the same time, but only one screen can be displayed at a time. The BlackBerry® Java® Virtual Machine maintains an ordered set of Screen objects in a display stack. The screen on the top of the stack is the active screen that the BlackBerry device user sees. When a BlackBerry device application displays a screen, it pushes the screen on the top of the stack. When a BlackBerry device application closes a screen, it pushes the screen off the top of the stack and displays the next screen on the stack, redrawing the screen as necessary. Each screen can appear only once on the display stack. The BlackBerry JVM throws a runtime exception if a screen that the BlackBerry device application pushes on the stack already exists. A BlackBerry device application must push a screen off the display stack when the user finishes interacting with the screen so that the BlackBerry device application can use memory efficiently. You should use only a few modal screens at one time, because each screen uses a separate thread. The UI APIs initialize simple Screen objects. After you create a screen, you can add fields and a menu, and display the screen totheuserbypushingitonthedisplaystack.YoucanchangetheBlackBerrydeviceUIandimplementnewfieldtypes,asrequired. You can also add custom navigation. The Screen class does not implement disambiguation, which is required for complex input methods, such as international keyboards. For the integration of the different input methods, you can extend the Field class or one of its subclasses. You should not use Screen objects for typing text. Screen classes Class Description Screen You can use the Screen class to create a screen and use a layout manager to lay out the UI components on the screen. You can define a specific type of screen by using the styles that the constants in the Field superclass define. FullScreen You can use the FullScreen class to create an empty screen to which you can add UI components in a standard vertical layout. If you want to use another layout style, such as horizontal or diagonal, you can use the Screen class instead and add a layout manager to it. MainScreen You can use the MainScreen class to create a screen with the following standard UI components: • default screen title, with a SeparatorField after the title • main scrollable section contained in a VerticalFieldManager Development Guide Screens 11
- 14. Class Description • defaultmenu with a Close menu item • default close action that closes the screen when the BlackBerry® device user clicks the Close menu item or presses the Escape key You should consider using a MainScreen object for the first screen of your BlackBerry device application to maintain consistency with other BlackBerry device applications. Manage a drawing area The Graphics object represents the entire drawing surface that is available to the BlackBerry® device application. To limit this area, divide it into XYRect objects. Each XYPoint represents a point on the screen, which is composed of an X co-ordinate and a Y co-ordinate. 1. Import the following classes: • net.rim.device.api.ui.Graphics • net.rim.device.api.ui.XYRect • net.rim.device.api.ui.XYPoint 2. Create XYPoint objects, to represent the top left and bottom right points of a rectangle. Create an XYRect object using the XYPoint objects, to create a rectangular clipping region. XYPoint bottomRight = new XYPoint(50, 50); XYPoint topLeft = new XYPoint(10, 10); XYRect rectangle = new XYRect(topLeft, bottomRight); 3. Invoke Graphics.pushContext() to make drawing calls that specify that the region origin should not adjust the drawing offset. Invoke Graphics.pushContext() to push the rectangular clipping region to the context stack. Invoke Graphics.drawRect() to draw a rectangle, and invoke Graphics.fillRect() to fill the rectangle. Invoke Graphics.popContext() to pop the current context off of the context stack. graphics.pushContext(rectangle, 0, 0); graphics.fillRect(10, 10, 30, 30); graphics.drawRect(15, 15, 30, 30); graphics.popContext(); graphics.drawRect(15, 15, 30, 30); graphics.pushContext(rectangle, 0, 0); graphics.fillRect(10, 10, 30, 30); graphics.drawRect(15, 15, 30, 30); graphics.popContext(); graphics.drawRect(15, 15, 30, 30); Development Guide Manage a drawing area 12
- 15. 4. InvokepushRegion()andspecifythattheregionoriginshouldadjustthedrawingoffset.InvokeGraphics.drawRect () todraw a rectangle and invoke Graphics.fillRect() to fill a rectangle. Invoke Graphics.popContext() to pop the current context off of the context stack. graphics.pushRegion(rectangle); graphics.fillRect(10, 10, 30, 30); graphics.drawRect(15, 15, 30, 30); graphics.popContext(); 5. Specify the portion of the Graphics object to push onto the stack. 6. After you invoke pushContext() (or pushRegion()), provide the portion of the Graphics object to invert. graphics.pushContext(rectangle); graphics.invert(rectangle); graphics.popContext(); 7. Invoke translate(). The XYRect is translated from its origin of (1, 1) to an origin of (20, 20). After translation, the bottom portion of the XYRect object extends past the bounds of the graphics context and clips it. XYRect rectangle = new XYRect(1, 1, 100, 100); XYPoint newLocation = new XYPoint(20, 20); rectangle.translate(newLocation); Creating a screen transition You can create a screen transition to apply a visual effect that appears when your application opens or closes a screen on a BlackBerry® device. You can create the following types of screen transitions for your application by using the net.rim.device.api.ui.TransitionContext class. Transition Description TRANSITION_FADE Thistransitionrevealsorremovesascreenbyfadingitinorfadingitout.Thisscreen transition creates a fading visual effect by changing the opacity of the screen. TRANSITION_SLIDE This transition reveals or removes a screen by sliding it on or sliding it off the display on the device. You can use attributes to specify that both the new screen and the current screen slide, to create an effect where both screens appear to move, or that the new screen slides over the current screen. TRANSITION_WIPE This transition reveals or removes a screen by simulating wiping on or wiping off the display on the device. TRANSITION_ZOOM This transition reveals or removes a screen by zooming it in or zooming it out of the display on the device. TRANSITION_NONE No transition occurs. Development Guide Creating a screen transition 13
- 16. Each type ofscreen transition has attributes that you can use to customize the visual effects of the screen transition. For example, you can customize a sliding effect so that a screen slides from the bottom of the display on the device to the top of the display. If you do not customize the screen transition, the application uses the default attributes. For more information on the default attributes, see the API reference for the BlackBerry® Java® Development Environment. After you create a screen transition, you must register it within your application by invoking UiEngineInstance.setTransition() and specify the outgoing screen to remove and the incoming screen to reveal, the events that cause the transition to occur, and the transition to display. To download a sample application that demonstrates how to use screen transitions, visit www.blackberry.com/go/ screentransitionssample. For more information about screen transitions, see the API reference for the BlackBerry Java Development Environment. Note: The theme on the BlackBerry device controls the visual effects that display when a user opens an application. For more information, see the BlackBerry Theme Studio User Guide. Code sample: Creating a screen transition The following code sample illustrates a slide transition and a fade transition. When the user opens the application, the first screen appears on the BlackBerry® device and displays a button. When the user clicks the button, a second screen slides onto the display from the right. The second screen automatically fades off of the display after two seconds. import net.rim.device.api.ui.*; import net.rim.device.api.ui.component.*; import net.rim.device.api.ui.container.*; import net.rim.device.api.ui.decor.*; public class ScreenTransitionSample extends UiApplication implements FieldChangeListener { private Screen _secondaryScreen; private Runnable _popRunnable; public static void main(String[] args) { ScreenTransitionSample theApp = new ScreenTransitionSample (); theApp.enterEventDispatcher(); } public ScreenTransitionSample () { _secondaryScreen = new FullScreen(); _secondaryScreen.setBackground( BackgroundFactory.createSolidBackground(Color.LIGHTBLUE) ); LabelField labelField = new LabelField("The screen closes automatically in two seconds by using a fade transition"); _secondaryScreen.add(labelField); TransitionContext transition = new TransitionContext(TransitionContext.TRANSITION_SLIDE); Development Guide Creating a screen transition 14
- 17. transition.setIntAttribute(TransitionContext.ATTR_DURATION, 500); transition.setIntAttribute(TransitionContext.ATTR_DIRECTION, TransitionContext.DIRECTION_RIGHT); transition.setIntAttribute(TransitionContext.ATTR_STYLE, TransitionContext.STYLE_PUSH); UiEngineInstance engine= Ui.getUiEngineInstance(); engine.setTransition(null, _secondaryScreen, UiEngineInstance.TRIGGER_PUSH, transition); transition = new TransitionContext(TransitionContext.TRANSITION_FADE); transition.setIntAttribute(TransitionContext.ATTR_DURATION, 500); transition.setIntAttribute(TransitionContext.ATTR_KIND, TransitionContext.KIND_OUT); engine.setTransition(_secondaryScreen, null, UiEngineInstance.TRIGGER_POP, transition); MainScreen baseScreen = new MainScreen(); baseScreen.setTitle("Screen Transition Sample"); ButtonField buttonField = new ButtonField("View Transition", ButtonField.CONSUME_CLICK) ; buttonField.setChangeListener(this); baseScreen.add(buttonField); pushScreen(baseScreen); _popRunnable = new Runnable() { public void run() { popScreen(_secondaryScreen); } }; } public void fieldChanged(Field field, int context) { pushScreen(_secondaryScreen); invokeLater(_popRunnable, 2000, false); } } Specifying the orientation and direction of the screen In touch screen applications, you can take into account both the orientation and the direction of the screen. Orientation relates to the screen's aspect ratio. Direction relates to the drawing area of the screen. Orientation Development Guide Specifying the orientation and direction of the screen 15
- 18. The user ofa BlackBerry® device with a touch screen can change the orientation of the screen by rotating the device. If a user holds the BlackBerry device with the BlackBerry logo at the top, the screen is in portrait orientation. If the user rotates the device 90 degrees to the left or right, the screen is in landscape orientation. You can use the net.rim.device.api.system.Display class to retrieve the orientation of the screen. The Display classcontainstheconstantsthatcorrespondtotheorientationsthatthedevicewithatouchscreencanusetodisplayinformation. For example, the portrait, landscape, and square orientations correspond to the Display.ORIENTATION_PORTRAIT, Display.ORIENTATION_LANDSCAPE, and Display.ORIENTATION_SQUARE constants. To retrieve the orientation of the screen, you can invoke the Display.getOrientation() method. This method returns an integer that corresponds to one of the orientations that the BlackBerry device can use. To detect orientation changes, you can override Screen.sublayout(). In that method, invoke super.sublayout() and watch for changes in the width and height values. Direction A BlackBerry device with a touch screen can display information on the screen in different directions. Direction refers to the top of the drawing area of the screen, which is relative to the location of the BlackBerry logo. The direction is north when the top of the drawable area is the screen side closest to the BlackBerry logo; the direction is west when the top of the drawable area is to the left of the BlackBerry logo; the direction is east when the top of the drawable area is to the right of the BlackBerry logo. You can use the net.rim.device.api.system.Display class, the net.rim.device.api.ui.Ui class, and the net.rim.device.api.ui.UiEngineInstance class to control the direction that the BlackBerry device uses to display information on the screen. The Display class contains constants that correspond to the directions that the device can use to display information. For example, the north, west, and east directions correspond to the Display.DIRECTION_NORTH, Display.DIRECTION_WEST, and Display.DIRECTION_EAST constants. You can create an object of the net.rim.device.api.ui.Ui class and invoke Ui.getUiEngineInstance() to retrieve an object of the UiEngineInstance class. Invoking UiEngineInstance.setAcceptableDirections() with one of the constants that correspond to directions from the Display class sets the direction that the BlackBerry device can use to display information. Code sample: Retrieving screen orientation switch(Display.getOrientation()) { case Display.ORIENTATION_LANDSCAPE: Dialog.alert("Screen orientation is landscape"); break; case Display.ORIENTATION_PORTRAIT: Dialog.alert("Screen orientation is portrait"); break; case Display.ORIENTATION_SQUARE: Dialog.alert("Screen orientation is square"); break; default: Dialog.alert("Screen orientation is not known"); break; } Code sample: Forcing portrait view in a BlackBerry API application Development Guide Specifying the orientation and direction of the screen 16
- 19. // Use codelike this before invoking UiApplication.pushScreen() int direction = Display.DIRECTION_NORTH; Ui.getUiEngineInstance().setAcceptableDirections(direction); Code sample: Forcing landscape view in a MIDlet application // Use code like this before invoking Display.setCurrent() in the MIDlet constructor DirectionControl dc = (DirectionControl) ((Controllable) Display.getDisplay(this)). getControl("net.rim.device.api.lcdui.control.DirectionControl"); int directions = DirectionControl.DIRECTION_EAST | DirectionControl.DIRECTION_WEST; dc.setAcceptableScreenDirections(directions); Retrieve the orientation of the touch screen 1. Import the net.rim.device.api.system.Display class. 2. Invoke net.rim.device.api.system.Display.getOrientation(). int orientation = Display.getOrientation(); Restrict the touch screen direction 1. Import the following classes: • net.rim.device.api.ui.Ui • net.rim.device.api.ui.UiEngineInstance 2. Invoke net.rim.device.api.ui.Ui.getUiEngineInstance(). UiEngineInstance _ue; _ue = Ui.getUiEngineInstance(); 3. Invoke net.rim.device.api.ui.UiEngineInstance.setAcceptableDirections(byte flags) and pass the argument for the direction of the Screen. _ue.setAcceptableDirections(Display.DIRECTION_WEST); Receive notification when the size of the drawable area of the touch screen changes 1. Import the following classes: • javax.microedition.lcdui.Canvas • net.rim.device.api.ui.component.Dialog 2. Extend javax.microedition.lcdui.Canvas. 3. Override Canvas.sizeChanged(int,int). Development Guide Specifying the orientation and direction of the screen 17
- 20. protected void sizeChanged(intw, int h) { Dialog.alert("The size of the Canvas has changed"); } Development Guide Specifying the orientation and direction of the screen 18
- 21. Accelerometer 4 A BlackBerry®device with a touch screen includes an accelerometer, which is designed to sense the orientation and acceleration oftheBlackBerrydevice.WhenaBlackBerrydeviceusermovestheBlackBerrydevice,theaccelerometercansensethemovement in 3-D space along the x, y, and z axis. A device user can change the orientation of the device which can change the display direction of a screen for a BlackBerry device application between portrait and landscape. You can use the Accelerometer APIs in the net.rim.device.api.system package to respond to the orientation and acceleration of a BlackBerry device. For example, you can manipulate a game application to change the direction and speed of a moving object on the screen as a user moves and rotates the BlackBerry device at different speeds. To download a sample application that demonstrates how to use the accelerometer, visit www.blackberry.com/go/ accelerometersample. For more information about the sample application, visit www.blackberry.com/go/devguides to read the Accelerometer Sample Application Overview. Types of accelerometer data A BlackBerry® device application can retrieve data from the accelerometer. Data type Description orientation The orientation of the BlackBerry device with respect to the ground. acceleration The acceleration of the rotation of the BlackBerry device. For more information about types of data from the accelerometer, see the API reference for the BlackBerry® Java® Development Environment. Retrieving accelerometer data The accelerometer is designed to track the direction and speed of the movement along an x, y, and z axis when a BlackBerry® device user moves the BlackBerry device. The x axis is parallel to the width of the BlackBerry device. The y axis is parallel to the length of the BlackBerry device. The z axis is parallel to the depth (front to back) of the BlackBerry device. For more information about the x, y, and z axes of the accelerometer, see the net.rim.device.api.system.AccelerometerSensor class in the API reference for the BlackBerry® Java® Development Environment. YoucanenableaBlackBerrydeviceapplicationtoreacttotheaccelerationoftheBlackBerrydevicethatincludesanaccelerometer. For example, a BlackBerry device user could move the BlackBerry device to control the direction and speed of an object that moves through a maze in a game application. Development Guide Accelerometer 19
- 22. You can usethe Accelerometer APIs, in the net.rim.device.api.system package, to react to the acceleration of the BlackBerry device. You must first determine whether the BlackBerry device supports an accelerometer by invoking net.rim.device.api.system.AccelerometerSensor.isSupported(). If the method returns the value true, the BlackBerry device supports an accelerometer. You can use the AccelerometerData class to identify the direction the user moves the BlackBerry device. Invoking AccelerometerData.getOrientation() returns one of the AccelerometerSensor class constants that correspond to the direction of the BlackBerry device. For example, if AccelerometerData.getOrientation() returns a value equal to AccelerometerSensor.ORIENTATION_LEFT_UP, the left side of the BlackBerry device is in an upward direction. You can use the AccelerometerSensor class to retrieve acceleration data from the BlackBerry device. Invoking AccelerometerSensor.openRawDataChannel() returns an object of the net.rim.device.api.system.AccelerometerSensor.Channel class. The AccelerometerSensor.Channel class allows you to open a connection to the accelerometer. You can retrieve data from the accelerometer by invoking AccelerometerSensor.Channel.getLastAccelerationData(). Maintaining a connection to the accelerometer uses power from the BlackBerry device battery. When the BlackBerry device application no longer needs to retrieve data from the accelerometer, you should invoke AccelerometerSensor.Channel.close() to close the connection. Code sample: Retrieving data from the accelerometer short[] xyz = new short[3]; while( running ) { channel.getLastAccelerationData(xyz); } channel.close(); Retrieve accelerometer data at specific intervals If a BlackBerry® device application opens a channel to the accelerometer when the application is in the foreground, when the application is in the background, the channel pauses and the accelerometer is not queried. If a BlackBerry device application invokes AccelerometerSensor.Channel. getLastAccelerationData(short[]) at close intervals or when the BlackBerry device is not in motion, the method might return duplicate values. 1. Import the following classes: • net.rim.device.api.system.AccelerometerSensor.Channel; • net.rim.device.api.system.AccelerometerSensor; 2. Openachanneltotheaccelerometer.Whileachannelisopen,theBlackBerrydeviceapplicationwillquerytheaccelerometer for information. Channel rawDataChannel = AccelerometerSensor.openRawDataChannel ( Application.getApplication() ); Development Guide Retrieve accelerometer data at specific intervals 20
- 23. 3. Create anarray to store the accelerometer data. short[] xyz = new short[ 3 ]; 4. Create a thread. while( running ) { 5. Invoke Channel.getLastAccelerationData(short[]) to retrieve data from the accelerometer. rawDataChannel.getLastAccelerationData( xyz ); 6. Invoke Thread.sleep() to specify the interval between queries to the accelerometer, in milliseconds. Thread.sleep( 500 ); 7. Invoke Channel.close() to close the channel to the accelerometer. rawDataChannel.close(); Query the accelerometer when the application is in the foreground 1. Import the following classes: • net.rim.device.api.system.AccelerometerChannelConfig • net.rim.device.api.system.AccelerometerSensor.Channel 2. Open a channel to retrieve acceleration data from the accelerometer. Channel channel = AccelerometerSensor.openRawAccelerationChannel ( Application.getApplication()); 3. Invoke Thread.sleep() to specify the interval between queries to the accelerometer, in milliseconds. short[] xyz = new short[ 3 ]; while( running ) { channel.getLastAccelerationData( xyz ); Thread.sleep( 500 ); } 4. Invoke Channel.close() to close the channel to the accelerometer. channel.close(); Query the accelerometer when the application is in the background 1. Import the following classes: • net.rim.device.api.system.AccelerometerChannelConfig; • net.rim.device.api.system.AccelerometerSensor.Channel; 2. Create a configuration for a channel to the accelerometer. Development Guide Query the accelerometer when the application is in the foreground 21
- 24. AccelerometerChannelConfig channelConfig =new AccelerometerChannelConfig ( AccelerometerChannelConfig.TYPE_RAW ); 3. Invoke AccelerometerChannelConfig.setBackgroundMode(Boolean), to specify support for an application that is in the background. channelConfig.setBackgroundMode( true ); 4. Invoke AccelerometerSensor.openChannel(), to open a background channel to the accelerometer. Channel channel = AccelerometerSensor.openChannel( Application.getApplication(), channelConfig ); 5. Invoke Thread.sleep() to specify the interval between queries to the accelerometer, in milliseconds. short[] xyz = new short[ 3 ]; while( running ) { channel.getLastAccelerationData( xyz ); Thread.sleep( 500 ); } 6. Invoke Channel.close() to close the channel to the accelerometer. channel.close(); Store accelerometer readings in a buffer 1. Import the following classes: • net.rim.device.api.system.AccelerometerChannelConfig; • net.rim.device.api.system.AccelerometerSensor.Channel; 2. Create a configuration for a channel to the accelerometer. AccelerometerChannelConfig channelConfig = new AccelerometerChannelConfig ( AccelerometerChannelConfig.TYPE_RAW ); 3. Invoke AccelerometerChannelConfig.setSamplesCount(), to specify the number of acceleration readings to store in the buffer. Each element in the buffer contains acceleration readings for the x, y, and z axes and data on when the reading took place. channelConfig.setSamplesCount( 500 ); 4. Invoke AccelerometerSensor.openChannel() to open a channel to the accelerometer. Channel bufferedChannel = AccelerometerSensor.openChannel ( Application.getApplication(), channelConfig ); Development Guide Store accelerometer readings in a buffer 22
- 25. Retrieve accelerometer readingsfrom a buffer 1. Import the following classes: • net.rim.device.api.system.AccelerometerData; • net.rim.device.api.system.AccelerometerSensor.Channel; 2. Query the buffer for accelerometer data. AccelerometerData accData = bufferedChannel.getAccelerometerData(); 3. Invoke AccelerometerData.getNewBatchLength(), to get the number of readings retrieved since the last query. int newBatchSize = accData.getNewBatchLength(); 4. Invoke AccelerometerData.getXAccHistory(), AccelerometerData.getYAccHistory(), and AccelerometerData.getZAccHistory() to retrieve accelerometer data from the buffer for each axis. short[] xAccel = accData.getXAccHistory(); short[] yAccel = accData.getYAccHistory(); short[] zAccel = accData.getZAccHistory(); Get the time a reading was taken from the accelerometer 1. Import the net.rim.device.api.system.AccelerometerData class. 2. Query the buffer for accelerometer data. AccelerometerData accData; accData = bufferedChannel.getAccelerometerData(); 3. Invoke AccelerometerData.getSampleTsHistory(). long[] queryTimestamps = accData.getSampleTsHistory(); Development Guide Retrieve accelerometer readings from a buffer 23
- 26. Events 5 Respond tonavigation events You can use the Screen navigation methods to create a BlackBerry® device application. If your existing BlackBerry device application implements the TrackwheelListener interface, update your BlackBerry device application to use the Screen navigation methods. 1. Import the net.rim.device.api.ui.Screen class. 2. Manage navigation events by extending the net.rim.device.api.ui.Screen class (or one of its subclasses) and overriding the following navigation methods: navigationClick(int status, int time) navigationUnclick(int status, int time) navigationMovement(int dx, int dy, int status, int time) Determine the type of input method 1. Import one or more of the following classes: • net.rim.device.api.ui.Screen • net.rim.device.api.ui.Field 2. Import the net.rim.device.api.system.KeypadListener interface. 3. Implement the net.rim.device.api.system.KeypadListener interface. 4. Extend the Screen class, the Field class, or both. 5. In your implementation of one of the navigationClick, navigationUnclick, or navigationMovement methods,performabitwiseANDoperationonthestatus parametertoyieldmoreinformationabouttheevent.Implement the navigationClick(intstatus,inttime) method to determine if the trackwheel or a four way navigation input device (for example, a trackball) triggers an event. public boolean navigationClick(int status, int time) { if ((status & KeypadListener.STATUS_TRACKWHEEL) == KeypadListener.STATUS_TRACKWHEEL) { //Input came from the trackwheel } else if ((status & KeypadListener.STATUS_FOUR_WAY) == KeypadListener.STATUS_FOUR_WAY) { //Input came from a four way navigation input device } return super.navigationClick(status, time); } For more information about status modifiers for the net.rim.device.api.system.KeypadListener class, see the API reference for the BlackBerry® Java® Development Environment. Development Guide Events 24
- 27. Touch screen interactionmodels BlackBerry® devices with a touch screen and a trackpad use a forceless click interaction model, where a BlackBerry device user taps the screen or uses the trackpad to perform an action. This model differs from BlackBerry devices with a SurePress™ touch screen, where the user clicks (or presses) the screen to perform an action. On both types of devices, when the user touches the screen, a TouchEvent.DOWN event occurs. On devices with a SurePress touch screen, when the user applies pressure and clicks the screen, a TouchEvent.CLICK event occurs. When the pressure is lessened, a TouchEvent.UNCLICK event occurs. Typically, actions (such as invoking an action based on a button) occur on the TouchEvent.UNCLICK event. When the user releases the screen completely, a TouchEvent.UP event occurs. On devices with a touch screen that supports forceless clicks, there is no physical clicking and unclicking. Instead, actions are expected to occur when the user taps the screen. A tap is a TouchEvent.DOWN event followed quickly by a TouchEvent.UP event. This combination of touch events is referred to as a gesture, and therefore a TouchGesture occurs. In the case of a tap, a TouchGesture.TAP event occurs (along with the TouchEvent.DOWN and TouchEvent.UP event). For greater compatibility between the two types of touch screen interaction models, on devices that support forceless clicks, the TouchEvent.CLICK event and TouchEvent.UNCLICK event occur after the TouchGesture.TAP event, so you can invoke an action on the TouchEvent.UNCLICK event on all touch screen devices, whether the device has a SurePress touch screen or not. User action Devices that support a forceless click Devices with a SurePress touch screen Touch the screen. TouchEvent.DOWN TouchEvent.DOWN Touch and hold a finger on an item. TouchGesture.HOVER TouchGesture.HOVER Click the screen. — TouchEvent.CLICK Click and hold the screen. — TouchEvent.CLICK_REPEAT Release the screen. — TouchEvent.UNCLICK Remove a finger from the screen. TouchEvent.UP TouchEvent.UP Tap the screen. TouchEvent.DOWN TouchGesture.TAP TouchEvent.CLICK TouchEvent.UNCLICK TouchEvent.DOWN TouchGesture.TAP TouchEvent.UP Development Guide Touch screen interaction models 25
- 28. User action Devicesthat support a forceless click Devices with a SurePress touch screen TouchEvent.UP You can determine whether a device with a touch screen supports forceless clicks by invoking DeviceCapability.isTouchClickSupported(). If the device supports forceless clicks, the method returns false. If the device has a SurePress touch screen, the method returns true. Responding to touch screen events BlackBerry® device users can perform the same actions on a device with a touch screen as they can on a BlackBerry device with a trackball. For example, BlackBerry device users can use the touch screen to open a menu, scroll through a list of options, and select an option. If you use a version of the BlackBerry® Java® Development Environment earlier than version 4.7 to create a BlackBerry device application, you can alter the .jad file of the application to enable the application to respond when a BlackBerry device user touches the touch screen. In the .jad file, you would set the RIM-TouchCompatibilityMode option to false. If you use BlackBerry JDE version 4.7 or later to create a BlackBerry device application, you can enable the application to identify the action the BlackBerry device user performs on the touch screen by extending the net.rim.device.api.ui.Screen class, the net.rim.device.api.ui.Field class, or one of the subclasses of the Field class and overriding the touchEvent() method. Within the touchEvent() method, compare the value that TouchEvent.getEvent() returns to the constants from the net.rim.device.api.ui.TouchEvent class and the net.rim.device.api.ui.TouchGesture class. The TouchEvent class contains the constants that represent the different actions that a user can perform on the touch screen. For example, the click, touch, and move actions correspond to the TouchEvent.CLICK, TouchEvent.DOWN, and TouchEvent.MOVE constants. The TouchGesture class contains the constants that represent the different gestures that a user can perform on a touch screen. For example, the tap and swipe gestures correspond to the TouchGesture.TAP and TouchGesture.SWIPE constants. Code sample: Identifying the action a user performs on the touch screen The following code sample uses a switch statement to identify the action. protected boolean touchEvent(TouchEvent message) { switch(message.getEvent()) { case TouchEvent.CLICK: Dialog.alert("A click action occurred"); return true; case TouchEvent.DOWN: Dialog.alert("A down action occurred"); Development Guide Responding to touch screen events 26
- 29. return true; case TouchEvent.MOVE: Dialog.alert("Amove action occurred"); return true; } return false; } Respond to system events while the user touches the screen 1. Import the following classes: • net.rim.device.api.ui.TouchEvent • net.rim.device.api.ui.Field • net.rim.device.api.ui.Manager • net.rim.device.api.ui.Screen • net.rim.device.api.ui.component.Dialog 2. Create a class that extends the Manager class, the Screen class, the Field class, or one of the Field subclasses. public class newButtonField extends ButtonField { 3. In your implementation of the touchEvent(TouchEventmessage) method, invoke TouchEvent.getEvent(). 4. Check if the value that TouchEvent.getEvent() returns is equal to TouchEvent.CANCEL. protected boolean touchEvent(TouchEvent message) { switch(message.getEvent()) { case TouchEvent.CANCEL: Dialog.alert("System event occurred while processing touch events"); return true; } return false; } Respond to a user sliding a finger up quickly on the screen 1. Import the following classes: • net.rim.device.api.ui.TouchEvent • net.rim.device.api.ui.TouchGesture • net.rim.device.api.ui.Field • net.rim.device.api.ui.Manager • net.rim.device.api.ui.Screen • net.rim.device.api.ui.component.Dialog 2. Create a class that extends the Manager class, the Screen class, the Field class, or one of the Field subclasses. Development Guide Responding to touch screen events 27
- 30. public class newButtonFieldextends ButtonField { 3. In your implementation of the touchEvent(TouchEventmessage) method, invoke TouchEvent.getEvent(). 4. Check if the value that TouchGesture.getSwipeDirection() returns is equal to TouchGesture.SWIPE_NORTH. protected boolean touchEvent(TouchEvent message) { switch(message.getEvent()) { case TouchEvent.GESTURE: TouchGesture gesture = message.getGesture(); switch(gesture.getEvent()) { case TouchGesture.SWIPE: if(gesture.getSwipeDirection() == TouchGesture.SWIPE_NORTH) { Dialog.alert("Upward swipe occurred"); return true; } } return false; } } Respond to a user sliding a finger down quickly on the screen 1. Import the following classes: • net.rim.device.api.ui.TouchEvent • net.rim.device.api.ui.TouchGesture • net.rim.device.api.ui.Field • net.rim.device.api.ui.Manager • net.rim.device.api.ui.Screen • net.rim.device.api.ui.component.Dialog 2. Create a class that extends the Manager class, the Screen class, the Field class, or one of the Field subclasses. public class newButtonField extends ButtonField { 3. In your implementation of the touchEvent(TouchEventmessage) method, invoke TouchEvent.getEvent(). 4. Check if the value that TouchGesture.getSwipeDirection() returns is equal to TouchGesture.SWIPE_SOUTH. protected boolean touchEvent(TouchEvent message) { switch(message.getEvent()) { case TouchEvent.GESTURE: TouchGesture gesture = message.getGesture(); switch(gesture.getEvent()) { case TouchGesture.SWIPE: if(gesture.getSwipeDirection() == TouchGesture.SWIPE_SOUTH) { Dialog.alert("Downward swipe occurred"); return true; Development Guide Responding to touch screen events 28
- 31. } } return false; } } Respond toa user sliding a finger to the left quickly on the screen 1. Import the following classes: • net.rim.device.api.ui.TouchEvent • net.rim.device.api.ui.TouchGesture • net.rim.device.api.ui.Field • net.rim.device.api.ui.Manager • net.rim.device.api.ui.Screen • net.rim.device.api.ui.component.Dialog 2. Create a class that extends the Manager class, the Screen class, the Field class, or one of the Field subclasses. public class newButtonField extends ButtonField { 3. In your implementation of the touchEvent(TouchEventmessage) method, invoke TouchEvent.getEvent(). 4. CheckifthevaluethatTouchGesture.getSwipeDirection()returnsisequaltoTouchGesture.SWIPE_EAST. protected boolean touchEvent(TouchEvent message) { switch(message.getEvent()) { case TouchEvent.GESTURE: TouchGesture gesture = message.getGesture(); switch(gesture.getEvent()) { case TouchGesture.SWIPE: if(gesture.getSwipeDirection() == TouchGesture.SWIPE_EAST) { Dialog.alert("Eastward swipe occurred"); return true; } } return false; } } Respond to a user sliding a finger to the right quickly on the screen 1. Import the following classes: • net.rim.device.api.ui.TouchEvent • net.rim.device.api.ui.TouchGesture • net.rim.device.api.ui.Field • net.rim.device.api.ui.Manager • net.rim.device.api.ui.Screen Development Guide Responding to touch screen events 29
- 32. • net.rim.device.api.ui.component.Dialog 2. Createa class that extends the Manager class, the Screen class, the Field class, or one of the Field subclasses. public class newButtonField extends ButtonField { 3. In your implementation of the touchEvent(TouchEventmessage) method, invoke TouchEvent.getEvent(). 4. CheckifthevaluethatTouchGesture.getSwipeDirection()returnsisequaltoTouchGesture.SWIPE_WEST. protected boolean touchEvent(TouchEvent message) { switch(message.getEvent()) { case TouchEvent.GESTURE: TouchGesture gesture = message.getGesture(); switch(gesture.getEvent()) { case TouchGesture.SWIPE: if(gesture.getSwipeDirection() == TouchGesture.SWIPE_WEST) { Dialog.alert("Westward swipe occurred"); return true; } } return false; } } Respond to a user clicking the screen 1. Import the following classes: • net.rim.device.api.ui.TouchEvent • net.rim.device.api.ui.Field • net.rim.device.api.ui.Manager • net.rim.device.api.ui.Screen • net.rim.device.api.ui.component.Dialog 2. Create a class that extends the Manager class, the Screen class, the Field class, or one of the Field subclasses. public class newButtonField extends ButtonField { 3. In your implementation of the touchEvent(TouchEventmessage) method, invoke TouchEvent.getEvent(). 4. Check if the value that TouchEvent.getEvent() returns is equal to TouchEvent.CLICK. protected boolean touchEvent(TouchEvent message) { switch(message.getEvent()) { case TouchEvent.CLICK: Dialog.alert("CLICK occurred"); return true; } return false; } Development Guide Responding to touch screen events 30
- 33. Respond to auser touching the screen twice quickly 1. Import the following classes: • net.rim.device.api.ui.TouchEvent • net.rim.device.api.ui.TouchGesture • net.rim.device.api.ui.Field • net.rim.device.api.ui.Manager • net.rim.device.api.ui.Screen • net.rim.device.api.ui.component.Dialog 2. Create a class that extends the Manager class, the Screen class, the Field class, or one of the Field subclasses. public class newButtonField extends ButtonField { 3. In your implementation of the touchEvent(TouchEventmessage) method, check for the occurrence of a TouchGesture.TAP event and that TouchGesture.getTapCount returns 2. protected boolean touchEvent(TouchEvent message) { switch(message.getEvent()) { case TouchEvent.GESTURE: TouchGesture gesture = message.getGesture(); switch(gesture.getEvent()) { case TouchGesture.TAP: if(gesture.getTapCount() == 2) { Dialog.alert("Double tap occurred"); return true; } } } return false; } Respond to a user touching and dragging an item on the screen 1. Import the following classes: • net.rim.device.api.ui.TouchEvent • net.rim.device.api.ui.Field • net.rim.device.api.ui.Manager • net.rim.device.api.ui.Screen • net.rim.device.api.ui.component.Dialog 2. Create a class that extends the Manager class, the Screen class, the Field class, or one of the Field subclasses. public class newButtonField extends ButtonField { 3. In your implementation of the touchEvent(TouchEventmessage) method, invoke TouchEvent.getEvent(). Development Guide Responding to touch screen events 31
- 34. 4. Check ifthe value that TouchEvent.getEvent() returns is equal to TouchEvent.MOVE. protected boolean touchEvent(TouchEvent message) { switch(message.getEvent()) { case TouchEvent.MOVE: Dialog.alert("Move event occurred"); return true; } return false; } Respond to a user touching the screen lightly 1. Import the following classes: • net.rim.device.api.ui.TouchEvent • net.rim.device.api.ui.TouchGesture • net.rim.device.api.ui.Field • net.rim.device.api.ui.Manager • net.rim.device.api.ui.Screen • net.rim.device.api.ui.component.Dialog 2. Create a class that extends the Manager class, the Screen class, the Field class, or one of the Field subclasses. public class newButtonField extends ButtonField { 3. In your implementation of the touchEvent(TouchEventmessage) method, invoke TouchEvent.getEvent(). 4. Check if the value that TouchEvent.getEvent() returns is equal to TouchEvent.DOWN. protected boolean touchEvent(TouchEvent message) { switch(message.getEvent()) { case TouchEvent.DOWN: Dialog.alert("Touch occurred"); return true; } return false; } Respond to a scroll action 1. Import the following classes: • net.rim.device.api.ui.TouchEvent • net.rim.device.api.ui.TouchGesture • net.rim.device.api.ui.Field • net.rim.device.api.ui.Manager • net.rim.device.api.ui.Screen Development Guide Responding to touch screen events 32
- 35. 2. Create aclass that extends the Manager class. public class newManager extends Manager { 3. In your implementation of the touchEvent(TouchEventmessage) method, check if the value TouchEvent.getEvent() returns is equal to TouchEvent.MOVE. protected boolean touchEvent(TouchEvent message) { switch(message.getEvent()) { case TouchEvent.MOVE: return true; } return false; } Respond to a user touching the screen in two locations at the same time 1. Import the following classes: • net.rim.device.api.ui.TouchEvent • net.rim.device.api.ui.Field • net.rim.device.api.ui.Manager • net.rim.device.api.ui.Screen • net.rim.device.api.ui.component.Dialog 2. Create a class that extends the Manager class, the Screen class, the Field class, or one of the Field subclasses. public class newButtonField extends ButtonField { 3. InyourimplementationofthetouchEvent(TouchEventmessage)method,checkifthefollowingmethodinvocations return values greater than zero: TouchEvent.getX(1), TouchEvent.getY(1), TouchEvent.getX(2), TouchEvent.getY(2). protected boolean touchEvent(TouchEvent message) { switch(message.getEvent()) { case TouchEvent.MOVE: if(message.getX(1) > 0 && message.getY(1) > 0) { Dialog.alert("First finger touched/moved"); } if(message.getX(2) > 0 && message.getY(2) > 0) { Dialog.alert("Second finger touched/moved"); } return true; } return false; } Development Guide 33
- 36. Pinch gestures BlackBerry® deviceswith a touch screen support pinch gestures. Pinch gestures typically zoom in and out of an object on the screen. A pinch begins when two touch points are detected on the touch screen. A pinch’s focal point is defined as the midpoint between the two initial touch points. • When two touch points are detected, a TouchGesture.PINCH_BEGIN event occurs. The coordinate points of the focal pointofthepinchgesturearestoredasTouchEvent.getX(1) andTouchEvent.getY(1).Youcanaccesstheinitial zoom value by invoking TouchGesture.getPinchMagnitude(). • As the user moves one or both touch points, a series of TouchGesture.PINCH_UPDATE events occur. You can access the zoom values during the pinch by invoking TouchGesture.getPinchMagnitude(). • When the user completes the gesture, a TouchGesture.PINCH_END event occurs. You can access the final zoom value by invoking TouchGesture.getPinchMagnitude(). Code sample: Retrieving information about a pinch gesture This sample demonstrates how to handle a pinch gesture in a screen's touchEvent() method. protected boolean touchEvent(TouchEvent message) { switch(message.getEvent()) { case TouchEvent.GESTURE: TouchGesture gesture = message.getGesture(); switch(gesture.getEvent()) { case TouchGesture.PINCH_END: Dialog.alert("Focal point: " + message.getX(1) + ", " + message.getY(1) + "nFinal zoom value: " + gesture.getPinchMagnitude()); return true; } } return false; } Enable pinch gestures By default, pinch gestures are not enabled on a screen in a BlackBerry® device application. You must set a screen property to enable the generation of pinch gestures on a screen. 1. Import the required classes and interfaces. Development Guide Pinch gestures 34
- 37. import net.rim.device.api.ui.*; import net.rim.device.api.ui.container.*; importnet.rim.device.api.ui.input.*; 2. In your screen object, create an InputSettings object to populate with touch screen properties. InputSettings ts = TouchscreenSettings.createEmptySet(); 3. Set the TouchscreenSettings.DETECT_PINCH property to 1. ts.set(TouchscreenSettings.DETECT_PINCH, 1); 4. Invoke Screen.addInputSettings() to add the input settings to the screen. addInputSettings(ts); You can change the value of the TouchscreenSettings.DETECT_PINCH property at any time, not just when you create the screen. Code sample This sample demonstrates how to enable pinch gestures in a screen's constructor. public MyScreen() { setTitle("Sample Screen"); InputSettings ts = TouchscreenSettings.createEmptySet(); ts.set(TouchscreenSettings.DETECT_PINCH, 1); addInputSettings(ts); ... } Swipe gestures with trackpads Similar to BlackBerry® devices with a touch screen, devices with a trackpad support swipe gestures that BlackBerry device users make on the trackpad. A TouchEvent object with the event type TouchGesture.NAVIGATION_SWIPE is generated when the user swipes across the trackpad. You can retrieve information about the trackpad swipe by using the following methods: • TouchGesture.getSwipeAngle() • TouchGesture.getSwipeDirection() • TouchGesture.getSwipeContentAngle() • TouchGesture.getSwipeContentDirection() • TouchGesture.getSwipeMagnitude() Development Guide Swipe gestures with trackpads 35
- 38. Code sample: Retrievinginformation about a trackpad swipe This sample demonstrates how to handle a trackpad swipe in a screen's touchEvent() method. protected boolean touchEvent(TouchEvent message) { switch(message.getEvent()) { case TouchEvent.GESTURE: TouchGesture gesture = message.getGesture(); switch(gesture.getEvent()) { case TouchGesture.NAVIGATION_SWIPE: Dialog.alert("Swipe direction: " + gesture.getSwipeDirection() + ", " + "nMagnitude: " + gesture.getSwipeMagnitude()); return true; } } return false; } Enable swipe gestures that users make on the trackpad By default, swipe gestures that BlackBerry® device users make on the trackpad are not enabled on a screen. You must set a navigation property to enable the generation of trackpad swipe gestures on a screen. 1. Import the required classes and interfaces. import net.rim.device.api.ui.*; import net.rim.device.api.ui.container.*; import net.rim.device.api.ui.input.*; 2. In your screen object, create an InputSettings object to populate with navigation properties. InputSettings nd = NavigationDeviceSettings.createEmptySet(); 3. Set the NavigationDeviceSettings.DETECT_SWIPE property to 1. nd.set(NavigationDeviceSettings.DETECT_SWIPE, 1); 4. Invoke Screen.addInputSettings() to add the input settings to the screen. addInputSettings(nd); You can change the value of the NavigationDeviceSettings.DETECT_SWIPE property at any time, not just when you create the screen. Code sample Development Guide Swipe gestures with trackpads 36
- 39. This sample demonstrateshow to enable trackpad swipe gestures in a screen's constructor. public MyScreen() { setTitle("Sample Screen"); InputSettings nd = NavigationDeviceSettings.createEmptySet(); nd.set(NavigationDeviceSettings.DETECT_SWIPE, 1); addInputSettings(nd); ... } Event injection YoucangenerateUIeventsprogrammaticallybyusingtheEventInjector classanditsinnerclasses.OnBlackBerry®devices that run BlackBerry® Device Software version 5.0 or later and have touch screens, you can inject touch events such as swipes and taps. You can use one of the EventInjector inner classes to model an event and you can use the invokeEvent() method to inject the event. The event is sent to the application that is currently selected and ready to accept input. You can use event injection to automate testing. You can also use event injection to provide a way for peripherals to interact withaBlackBerrydevice.Youcanalsouseitinaccessibleapplicationssuchasspeech-to-textconverters.Forasampleapplication that demonstrates event injection, visit www.blackberry.com/go/toucheventinjectorsampleapp to download the Touch Event Injector sample application. For more information about the sample application, visit www.blackberry.com/go/docs/ developers to read the Touch Event Injector Sample Application Overview. Development Guide Event injection 37
- 40. Command Framework API6 You can use the Command Framework API in the net.rim.device.api.command package to define functionality that you can use in different locations in your application or in other applications on the BlackBerry® device. The Command Framework API contains command handlers, command metadata, and commands. Component Description Command handler You use the CommandHandler class to define functionality that you want to make available in your application or in other applications on the device. You create a class that extends the abstract CommandHandler class and define the functionality in the class's execute() method. That functionality is called a command. Command metadata You use the CommandMetadata class to define metadata that describes a command. Each command's metadata is encapsulated in a CommandMetadata object. The only required piece of metadata for a command is the command's ID, which is provided when the CommandMetadata object is constructed and is stored in the object's COMMAND_ID field. CommandMetadata provides other fields for you to use to describe the command, such as RESOURCE_BUNDLE_NAME, to which you can assign the name of the resource bundle that is used by the command. You can also define metadata items that are specific to a particular command. Command You use the Command class to execute a command. You can think of a Command instance as a proxy to an instance of a class that extends CommandHandler. When Command.execute() is invoked, the call is delegated to the associated CommandHandler instance, passing the current context and transparently passing a read-only version of the associated command metadata for execution. The Command Framework API provides two registries that you can use to store your commands: • You can use the local registry to store commands for use in your application by using the LocalCommandRegistrarConnection class. • You can use the global registry to store commands for use in other applications on the device by using the RemoteCommandRegistrarConnection class. The Command Framework Demo and Command Framework Demo Remote App sample applications are included in the BlackBerry® Java® SDK. These sample applications demonstrate how to define and use commands in a single application and how to define commands in one application and use them in other applications. Development Guide Command Framework API 38
- 41. Use a commandwith one UI component You can define a command for use with one UI component in your BlackBerry® device application. Using this approach, you don't need to define metadata for the command. The core UI components for BlackBerry device applications that support commands include menu items, buttons, pop-up menu items, and toolbars. 1. Import the required classes and interfaces. import net.rim.device.api.command.*; import net.rim.device.api.ui.*; import net.rim.device.api.ui.container.*; 2. Create a command handler by creating a class that extends the abstract CommandHandler class. In execute(), define the functionality that you want to associate with the UI component. To specify whether a command is executable for a given context object, you can implement a canExecute() method in your command handler. If you don't implement canExecute(), your command is always executable. // this command is always executable class DialogCommandHandler extends CommandHandler { public void execute(ReadOnlyCommandMetadata metadata, Object context) { Dialog.alert("Executing command for " + context.toString()); } } 3. Create the UI component. MenuItem myItem = new MenuItem(new StringProvider("My Menu Item"), 0x230000, 0); 4. For a menu item or button, you can optionally set the context for the command using the UI component's setCommandContext() method. For some commands, a context might be needed to determine what the command should do. If you don't set a context, the menu item object or button object is the context. myItem.setCommandContext(new Object() { public String toString() { return "My MenuItem Object"; } }); 5. Invoke setCommand() to specify the command for the UI component and provide the command handler as the method's argument. myItem.setCommand(new Command(new DialogCommandHandler())); 6. Add the component to your screen. Development Guide Use a command with one UI component 39
- 42. addMenuItem(myItem); The command isexecuted when a BlackBerry device user performs an action on the UI component (for example, when the user clicks a menu item). Code samples For examples of this approach to defining and using commands, see the API reference for MenuItem and ButtonField. Use a command in one or more applications You can store a command in a local registry for use in your application or store a command in a global registry for use in any application on the BlackBerry® device. 1. Import the required classes and interfaces. import net.rim.device.api.command.*; import net.rim.device.api.command.registrar.*; import net.rim.device.api.ui.*; import net.rim.device.api.ui.container.*; 2. Create a command handler by creating a class that extends the abstract CommandHandler class. In execute(), define the functionality that you want to make available. To specify whether a command is executable for a given context object, you can optionally implement canExecute() in your command handler. If you don't implement canExecute(), your command is always executable. private static class ViewContactCommand extends CommandHandler { public void execute(ReadOnlyCommandMetadata metadata, Object context) { // Invoke the Contacts application to view a contact here } public boolean canExecute(ReadOnlyCommandMetadata metadata, Object context) { // Return true if the command can be executed // with the passed-in context object. } } 3. Define the command's metadata. String id = "com.example.contacts.view.emailaddr"; CommandMetadata metadata = new CommandMeta(id); 4. If applications that use the command must create instances of the command, store the command's class name in the metadata. Development Guide Use a command in one or more applications 40
- 43. metadata.setClassname(ViewContactCommand.class.getName()); Note: Applications cancreate instances of third-party commands dynamically only if the commands are stored in the local registry. 5. Optionally, define command categories and context categories for the command. Applications that use the command use the categories to find commands in a registry and to determine whether a command is executable. Category type Description Command Specifies a type of categorization you want for your command. Applications that use commands can query a registry for commands in specified categories. Context Specifies the contexts that are appropriate for your command to execute within. You can use this category to tell applications that use the command what kinds of context objects can be passed to CommandHandler.Execute(). String[] myCommandCategories = {"app.contacts", "action.view"}; metadata.setCommandCategories(new CategoryCollection(myCommandCategories)); String[] myContextCategories = {emailaddr}; metadata.setContextCategories(new CategoryCollection(myContextCategories)); 6. Register the command. a. If you want your command to be available only in your application, use a LocalCommandRegistrarConnection object. The local registry is available only in the current process. LocalCommandRegistrarConnection connection = new LocalCommandRegistrarConnection(); connection.registerCommand(new ViewContactCommand(), metadata); Note: For applications to create instances of the command dynamically, you must register the command only with the metadata by invoking registerCommand(CommandMetadata)). Otherwise, the registered CommandHandler is used. b. If you want your command to be available in any application, use a RemoteCommandRegistrarConnection object. The global registry is available to all processes that are running on the device. RemoteCommandRegistrarConnection connection = new RemoteCommandRegistrarConnection(); connection.registerCommand(new ViewContactCommand(), metadata); 7. From another location in your application (for local commands) or from any application on the device (for global commands), retrieve and use the command. a. Create a CommandRequest object and populate it with information about the command that you want to retrieve from the registry. Development Guide Use a command in one or more applications 41
- 44. CommandRequest request =new CommandRequest(); String[] myCommandCategories = {"app.contacts", "action.view"}; request.setCommandCategories(new CategoryCollection(myCommandCategories)); ... b. Retrieve the command from the registry. // using the local registry LocalCommandRegistrarConnection connection = new LocalCommandRegistrarConnection(); Command command = connection.getCommand(request); // using the global registry RemoteCommandRegistrarConnection connection = new RemoteCommandRegistrarConnection(); Command command = connection.getCommand(request); c. Use the command. The following example executes the command, depending on the context. command.execute(context); // context is the context object Code samples Two sample applications that use the Command Framework API are included in the BlackBerry® Java® SDK: • Command Framework Demo Remote App demonstrates how to create a command and store it in the global registry for use in other applications. • Command Framework Demo demonstrates how to create commands, store them in the local registry, and add them as menu items in the pop-up menus for the fields, depending on the content of the fields. This sample application also executes a command that is stored in the global registry by Command Framework Demo Remote App. Development Guide Use a command in one or more applications 42
- 45. Arranging UI components7 You can arrange the UI components on an application screen by using BlackBerry® API layout managers. The following classes extend the Manager class that is provided in the net.rim.device.apu.ui package and provide predefined layouts for the UI components on your application's screen. Layout manager Description FlowFieldManager This layout manager arranges UI components vertically and then horizontally depending on the size of the screen. The first UI component is positioned in the upper-leftcornerofthescreenandsubsequentcomponentsareplacedhorizontally to the right of the first component until the width of the screen is reached. Once UI components can no longer fit on the first row, the next UI component is placed below the first row of components on a row that has a height that is equal to the tallest component of the row above it. You can apply vertical style bits (for example, Field.FIELD_TOP, Field.FIELD_BOTTOM, or Field.FIELD_VCENTER) to align UI components vertically within their row. HorizontalFieldManager This layout manager arranges UI components in a single horizontal row starting at the left side of the screen and ending at the right side of the screen. Because this layout manager arranges UI components horizontally, you cannot apply horizontal style bits to UI components (for example, Field.FIELD_LEFT, Field.FIELD_HCENTER, or Field.FIELD_RIGHT). You can apply vertical style bits (for example, Field.FIELD_TOP, Field.FIELD_BOTTOM, or Field.FIELD_VCENTER). If the UI components do not fit the available width of the screen, you should use the Manager.HORIZONTAL_SCROLL style bit to enable horizontal scrolling. Otherwise, the screen displays as many UI components as possible within the available screen width, and the rest are not shown. The UI components exist but are not visible. This situation can create unexpected scrolling behavior for your users. VerticalFieldManager This layout manager arranges UI components in a single vertical column starting at the top of the screen and ending at the bottom of the screen. Because this layout manager is designed to arrange items vertically, you cannot apply vertical style bits to UI components (for example, Field.FIELD_TOP, Development Guide Arranging UI components 43
- 46. Layout manager Description Field.FIELD_BOTTOM,or Field.FIELD_VCENTER). You can apply horizontal style bits (for example, Field.FIELD_LEFT, Field.FIELD_HCENTER, or Field.FIELD_RIGHT). You can use additional layout managers to arrange UI components in your application. For example, you can use the GridFieldManager layout manager to position UI components in rows and columns on a screen to create a grid. You can use the EyelidFieldManager layout manager to display UI components on a pair of managers that appear at the top and bottom of the screen temporarily. Arrange UI components 1. Import the required classes and interfaces. net.rim.device.api.ui.container.HorizontalFieldManager; net.rim.device.api.ui.component.ButtonField; 2. Create an instance of a HorizontalFieldManager. HorizontalFieldManager _fieldManagerBottom = new HorizontalFieldManager(); 3. Invoke add() to add the HorizontalFieldManager to a screen. myScreen.add(_fieldManagerBottom); 4. Create an instance of a ButtonField. ButtonField mySubmitButton = new ButtonField("Submit"); 5. Add the ButtonField to the HorizontalFieldManager. _fieldManagerBottom.add(mySubmitButton); Creating a grid layout Note: For information on creating a grid layout in the BlackBerry® Java® Development Environment before version 5.0, visit http://www.blackberry.com/knowledgecenterpublic to read DB-00783. You can position fields in rows and columns on a screen to create a grid by using the GridFieldManager class. When you create a grid, you can specify the number of rows and columns. After you create a grid, you cannot change the number of rows and columns that it contains. Grids are zero-indexed, so the first cell is located at row 0, column 0. In a locale with a left-to-right text direction, the first cell is in the upper-left corner of the grid. Development Guide Arrange UI components 44
- 47. In a localewith a right-to-left text direction, the first cell is in the upper-right corner of the grid. You can add fields to a grid sequentially (left-to right, top-to-bottom in locales with a left-to-right text direction; right-to-left, top-to-bottom in locales with a right-to-left text direction) or by specifying a row and column in the grid. You can delete fields, insert fields, specify the spacing between columns and rows, and retrieve a grid's properties. Grids do not have defined heading rows or heading columns. You can emulate the appearance of headings by changing the appearance of the fields in the grid's first row or first column. Grids can scroll horizontally or vertically if the grid's width or height exceeds the screen's visible area. You can specify column width by invoking GridFieldManager.setColumnProperty(), and you can specify row height by invoking GridFieldManager.setRowProperty(). When you invoke these methods, you must specify a GridFieldManager property. Property Description FIXED_SIZE width or height is a fixed size in pixels PREFERRED_SIZE width or height is a preferred size based on the maximum preferred size of the fields in the column or row (PREFERRED_SIZE is the default property) PREFERRED_SIZE_WITH_MAXIMUM width or height is a preferred size up to a maximum size AUTO_SIZE width or height is based on available screen space Development Guide Creating a grid layout 45
- 48. Create a gridlayout 1. Import the required classes and interfaces. import net.rim.device.api.ui.*; import net.rim.device.api.ui.component.*; import net.rim.device.api.ui.container.*; 2. Create the application framework by extending the UiApplication class. In main(), create an instance of the new class and invoke enterEventDispatcher() to enable the application to receive events. In the application constructor, invoke pushScreen() to display the custom screen for the application. In the sample, the GridScreen class, described in step 3, represents the custom screen. class GridFieldManagerDemo extends UiApplication { public static void main(String[] args) { GridFieldManagerDemo theApp = new GridFieldManagerDemo(); theApp.enterEventDispatcher(); } GridFieldManagerDemo() { pushScreen(new GridScreen()); } } 3. Create the framework for the custom screen by extending the MainScreen class. class GridScreen extends MainScreen { public GridScreen() { } } 4. In the screen constructor, invoke setTitle() to set the text that you want to appear in the title section of the screen. setTitle("GridFieldManager Demo"); 5. In the screen constructor, create an instance of the GridFieldManager class. Specify the number of rows, the number of columns, and the style of the grid (using a style inherited from net.rim.device.api.ui.Manager). Specify 0 for the style to use the default style. GridFieldManager grid; grid = new GridFieldManager(2,3,0); 6. In the screen constructor, invoke GridFieldManager.add() to add fields to the grid. Development Guide Creating a grid layout 46
- 49. grid.add(new LabelField("one")); grid.add(new LabelField("two")); grid.add(newLabelField("three")); grid.add(new LabelField("four")); grid.add(new LabelField("five")); 7. In the screen constructor, invoke the GridFieldManagerset() methods to specify the properties of the grid. grid.setColumnPadding(20); grid.setRowPadding(20); 8. In the screen constructor, invoke Screen.add() to add the grid to the screen. add(grid); After you finish: You can change the grid after you create it. For example, you can add fields, delete fields, or change the grid's properties. Code sample: Creating a grid layout /* * GridFieldManagerDemo.java * * Research In Motion Limited proprietary and confidential * Copyright Research In Motion Limited, 2009 */ import net.rim.device.api.ui.*; import net.rim.device.api.ui.component.*; import net.rim.device.api.ui.container.*; public class GridFieldManagerDemo extends UiApplication { public static void main(String[] args) { GridFieldManagerDemo theApp = new GridFieldManagerDemo(); theApp.enterEventDispatcher(); } GridFieldManagerDemo() { pushScreen(new GridScreen()); } } class GridScreen extends MainScreen { public GridScreen() { setTitle("GridFieldManager Demo"); Development Guide Creating a grid layout 47
- 50. GridFieldManager grid =new GridFieldManager(2,3,0); grid.add(new LabelField("one")); grid.add(new LabelField("two")); grid.add(new LabelField("three")); grid.add(new LabelField("four")); grid.add(new LabelField("five")); grid.setColumnPadding(20); grid.setRowPadding(20); add(grid); // The grid looks like this: // | one | two | three // | four | five | // insert a cell first row, second column grid.insert(new LabelField("insert"), 0, 1); // The grid now looks like this: // | one | insert | two // | three | four | five // delete a cell second row, second column grid.delete(1,1); // The grid now looks like this: // | one | insert | two // | three | | five // Add field to first unoccupied cell grid.add(new LabelField("new")); // The grid now looks like this: // | one | insert | two // | three | new | five } } Displaying fields on a temporary pair of managers You can use the EyelidFieldManager class to display fields on a pair of managers that appear on the top and bottom of the screen temporarily. Development Guide Displaying fields on a temporary pair of managers 48
- 51. By default, thefields appear when the BlackBerry® device user moves the trackball or, for a device with a touch screen, when a touch event occurs. The fields disappear after a period of inactivity (1.2 seconds by default). You can override these default properties. There is no limit to the number and size of the fields. If the managers contain more fields than can fit on the screen, the top and bottom managers overlap with the top manager in the foreground. Display a ButtonField and a LabelField temporarily on the top and bottom of the screen 1. Import the required classes and interfaces. import net.rim.device.api.system.*; import net.rim.device.api.ui.*; import net.rim.device.api.ui.component.*; import net.rim.device.api.ui.container.*; import net.rim.device.api.ui.extension.container.*; 2. Create the application framework by extending the UiApplication class. In main(), create an instance of the new class and invoke enterEventDispatcher() to enable the application to receive events. In the application constructor, invoke pushScreen() to display the custom screen for the application. The EyelidFieldManagerDemoScreen class, described in step 3, represents the custom screen. public class EyelidFieldManagerDemo extends UiApplication { public static void main(String[] args) { EyelidFieldManagerDemo app = new EyelidFieldManagerDemo(); app.enterEventDispatcher(); } public EyelidFieldManagerDemo() { pushScreen(new EyelidFieldManagerDemoScreen()); } } 3. Create the framework for the custom screen by extending the MainScreen class. class EyelidFieldManagerDemoScreen extends MainScreen { { public EyelidFieldManagerDemoScreen() { } } 4. In the screen constructor, invoke setTitle() to specify the text that appears in the title section of the screen. setTitle("EyelidFieldManager Demo"); 5. In the screen constructor, create an instance of the EyelidFieldManager class. Development Guide Displaying fields on a temporary pair of managers 49
- 52. EyelidFieldManager manager =new EyelidFieldManager(); 6. In the screen constructor, invoke EyelidFieldManager.addTop() to add a LabelField object to the top manager of the EyelidFieldManager. manager.addTop(new LabelField("Hello World")); 7. In the screen constructor, create a HorizontalFieldManager object. Invoke HorizontalFieldManager.add () to add buttons to the HorizontalFieldManager. Invoke EyelidFieldManager.addBottom() to add the HorizontalFieldManager to the bottom manager of the EyelidFieldManager. HorizontalFieldManager buttonPanel = new HorizontalFieldManager (Field.FIELD_HCENTER | Field.USE_ALL_WIDTH); buttonPanel.add(new SimpleButton("Button 1")); buttonPanel.add(new SimpleButton("Button 2")); manager.addBottom(buttonPanel); 8. In the screen constructor, invoke EyelidFieldManager.setEyelidDisplayTime() to specify, in milliseconds, the period of inactivity that must elapse before the pair of managers disappear. manager.setEyelidDisplayTime(3000); 9. In the screen constructor, invoke add() to add the EyelidFieldManager to the screen. add(manager); Code sample: Displaying a ButtonField and a LabelField temporarily on the top and bottom of the screen import net.rim.device.api.system.*; import net.rim.device.api.ui.*; import net.rim.device.api.ui.component.*; import net.rim.device.api.ui.container.*; import net.rim.device.api.ui.extension.container.*; public class EyelidFieldManagerDemo extends UiApplication { public static void main(String[] args) { EyelidFieldManagerDemo app = new EyelidFieldManagerDemo(); app.enterEventDispatcher(); } public EyelidFieldManagerDemo() { pushScreen(new EyelidFieldManagerDemoScreen()); } } class EyelidFieldManagerDemoScreen extends MainScreen { Development Guide Displaying fields on a temporary pair of managers 50
- 53. public EyelidFieldManagerDemoScreen() { setTitle("EyelidFieldManager Demo"); EyelidFieldManagermanager = new EyelidFieldManager(); manager.addTop(new LabelField("Hello World")); HorizontalFieldManager buttonPanel = new HorizontalFieldManager (Field.FIELD_HCENTER | Field.USE_ALL_WIDTH); buttonPanel.add(new ButtonField("Button 1")); buttonPanel.add(new ButtonField("Button 2")); manager.addBottom(buttonPanel); manager.setEyelidDisplayTime(3000); add(manager); } } Displaying a field at an absolute position on a screen You can use the AbsoluteFieldManager class to specify an absolute position, based on x-y co-ordinates, of a field on a screen rather than a position that is relative to other fields on the screen. You can use the AbsoluteFieldManager class to control of the placement of fields and to overlap fields on the screen. Display a label at an absolute position on the screen 1. Import the required classes and interfaces. import net.rim.device.api.system.*; import net.rim.device.api.ui.*; import net.rim.device.api.ui.container.*; import net.rim.device.api.ui.component.*; 2. Create the application framework by extending the UiApplication class. In main(), create an instance of the new class and invoke enterEventDispatcher() to enable the application to receive events. In the application constructor, invoke pushScreen() to display the custom screen for the application. The AbsoluteFieldManagerDemoScreen class, described in step 3, represents the custom screen. public class AbsoluteFieldManagerDemo extends UiApplication { public static void main(String[] args) { AbsoluteFieldManagerDemo app = new AbsoluteFieldManagerDemo(); Development Guide Displaying a field at an absolute position on a screen 51
- 54. app.enterEventDispatcher(); } public AbsoluteFieldManagerDemo() { pushScreen(new AbsoluteFieldManagerDemoScreen()); } } 3.Create the framework for the custom screen by extending the MainScreen class. Invoke setTitle() to specify the text that appears in the title section of the screen. class AbsoluteFieldManagerDemoScreen extends MainScreen { public AbsoluteFieldManagerDemoScreen() { setTitle("AbsoluteFieldManager Demo"); } } 4. In the screen constructor, create an instance of the AbsoluteFieldManager class. AbsoluteFieldManager manager = new AbsoluteFieldManager(); 5. In the screen constructor, create and initialize a variable to store the y co-ordinate that corresponds to the vertical center of the screen. int halfwayDown = Display.getHeight() / 2; 6. In the screen constructor, invoke AbsoluteFieldManager.add() to add a LabelField object at the vertical center of the screen and with an x co-ordinate of 2. manager.add(new LabelField("Hello world"), 2, halfwayDown); 7. In the screen constructor, invoke add() to add the AbsoluteFieldManager to the screen. add(manager); Code sample: Displaying a label at an absolute position on the screen import net.rim.device.api.system.*; import net.rim.device.api.ui.*; import net.rim.device.api.ui.container.*; import net.rim.device.api.ui.component.*; public class AbsoluteFieldManagerDemo extends UiApplication { public static void main(String[] args) { AbsoluteFieldManagerDemo app = new AbsoluteFieldManagerDemo(); app.enterEventDispatcher(); } Development Guide Displaying a field at an absolute position on a screen 52
- 55. public AbsoluteFieldManagerDemo() { pushScreen(new AbsoluteFieldManagerDemoScreen()); } } classAbsoluteFieldManagerDemoScreen extends MainScreen { public AbsoluteFieldManagerDemoScreen() { setTitle("AbsoluteFieldManager Demo"); AbsoluteFieldManager manager = new AbsoluteFieldManager(); int halfwayDown = Display.getHeight() / 2; manager.add(new LabelField("Hello world"), 2, halfwayDown); add(manager); } } Development Guide Displaying a field at an absolute position on a screen 53
- 56. UI components 8 Adda UI component to a screen 1. Import the following classes: • net.rim.device.api.ui.component.CheckboxField • net.rim.device.api.ui.container.MainScreen 2. Create an instance of a UI component. CheckboxField myCheckbox = new CheckboxField("First checkbox", true); 3. Add the UI component to your extension of a Screen class. mainScreen.add(myCheckbox); Aligning a field to a line of text You can create an application that can align a Field object to the natural beginning of a line of text by using the flag Field.FIELD_LEADING. For example, if you create a Field with the alignment flag Field.FIELD_LEADING, and add the Field to a VerticalFieldManager, if the application starts using either English or Chinese locales for example, the Field aligns to the left side of the screen. If the application starts using either Arabic or Hebrew locales, the Field aligns to the right side of the screen. Buttons Usebuttonstoallowuserstoperformanactionfromadialogbox.Menustypicallyincludeactionsthatareassociatedwithascreen. Users can perform the following actions with a button: Action BlackBerry devices with a trackpad only BlackBerry devices with a touch screen and a trackpad Highlight a button. Move a finger on the trackpad. • Touch the button lightly. • Move a finger on the trackpad. Perform an action. Click the trackpad or press the Enter key. • Tap the item. • Click the trackpad. • Press the Enter key. Development Guide UI components 54
- 57. Best practice: Implementingbuttons • Avoid using buttons on an application screen. To provide actions that are associated with a screen, use the application menu instead. On BlackBerry® devices with a trackpad, the menu is available to users immediately, regardless of the position of the cursor on the screen. Buttons are static and require users to highlight a button to perform the associated action. If you use buttons, include menu items for the actions in the application menu as well. On BlackBerry devices with a touch screen, you can use buttons for critical actions. • Use check boxes for options such as turning on or turning off a feature. • Use the ButtonField class to create buttons. • For the default button, use the button that users are most likely to click. Avoid using a button that is associated with a destructive action as the default button. Guidelines for labels • Use clear, concise labels. • Use one-word labels where possible. The size of a button changes depending on the length of the label. If a label is too long, an ellipsis (...) indicates that the text is truncated. • Use verbs for labels that describe the associated action (for example, "Cancel," "Delete," "Discard," or "Save"). If necessary, include more descriptive text elsewhere on the screen (for example, in an application message). • Avoid using the labels "Yes" and "No." • Avoid using punctuation in a label. Use an ellipsis in a button label to indicate that users must perform another action after they click the button. Create a button 1. Import the net.rim.device.api.ui.component.ButtonField class. 2. Create an instance of a ButtonField using a style parameter. ButtonField mySubmitButton = new ButtonField("Submit"); Development Guide Buttons 55
- 58. Check boxes Use checkboxes for binary options that users can understand easily. For example, use a check box for an option that can be turned on and off. Users can perform the following action with a check box: Action BlackBerry devices with a trackpad only BlackBerry devices with a touch screen and a trackpad Select a check box. Press the Space key or click the trackpad. • Tap the item. • Press the Space key. • Click the trackpad. Best practice: Implementing check boxes • Use check boxes when users can select multiple options. • Use the CheckboxField class to create check boxes. • Do not start an action when users select a check box. For example, do not open a new screen. • Align check boxes vertically. • Group and order check boxes logically (for example, group related options together or include the most common options first). Avoid ordering check boxes alphabetically; alphabetical order is language specific. Guidelines for labels • Use clear, concise labels. Verify that the label clearly describes what occurs when users select the check box. Development Guide Check boxes 56
- 59. • Use positivelabels where possible. For example, if users have the option of turning on or turning off a feature, use "turn on" instead of "turn off" in the label. • Place labels on the right side of check boxes. On Option screens, place labels on the left side of check boxes. • Use sentence case capitalization. • Punctuate labels for check boxes with a colon (:). Create a check box 1. Import the required classes and interfaces. import net.rim.device.api.ui.*; import net.rim.device.api.ui.component.*; import net.rim.device.api.ui.container.*; 2. Create the application framework by extending the UiApplication class. In main(), create an instance of the new class and invoke enterEventDispatcher() to enable the application to receive events. In the application constructor, invoke pushScreen() to display the custom screen for the application. The MyUiScreen class, which is described in step 3, represents the custom screen. public class MyUi extends UiApplication { public static void main(String[] args) { MyUi theApp = new MyUi(); theApp.enterEventDispatcher(); } public MyUi() { pushScreen(new MyUiScreen()); } } 3. Create the custom screen for the application by extending the MainScreen class. In the screen constructor, invoke setTitle() to specify the title for the screen. class MyUiScreen extends MainScreen { public MyUiScreen() { setTitle("UI Component Sample"); } } 4. In the screen constructor, create a check box by using the CheckboxField class. In the CheckboxField constructor, specify the label for the check box and use a Boolean value to indicate whether the check box is the default selection (for example,true indicates that by default the check box is selected). Invoke add() to add the check box to the screen. add(new CheckboxField("First Check Box", true)); add(new CheckboxField("Second Check Box", false)); Development Guide Check boxes 57
- 60. 5. To changethe default behavior of a check box, use the styles that are inherited from the Field class. For example, to create a check box that users cannot change, use the READONLY style. add(new CheckboxField("First Check Box", true, this.READONLY)); 6. To override the default functionality that prompts the user to save changes before the application closes, in the extension of the MainScreen class, override the MainScreen.onSavePrompt() method. In the following code sample, the return value is true which indicates that the application does not prompt the user before closing. public boolean onSavePrompt() { return true; } Code sample: Creating a check box import net.rim.device.api.ui.*; import net.rim.device.api.ui.component.*; import net.rim.device.api.ui.container.*; public class MyUi extends UiApplication { public static void main(String[] args) { MyUi theApp = new MyUi(); theApp.enterEventDispatcher(); } public MyUi() { pushScreen(new MyUiScreen()); } } class MyUiScreen extends MainScreen { public MyUiScreen() { setTitle("UI Component Sample"); add(new CheckboxField("First Check Box", true)); add(new CheckboxField("Second Check Box", false)); } public boolean onSavePrompt() { return true; } } Development Guide 58
- 61. Create a bitmap 1.Import the net.rim.device.api.ui.component.BitmapField class. 2. Create an instance of a BitmapField. BitmapField myBitmapField = new BitmapField(); Create a custom field You can only add custom context menu items and custom layouts to a custom field. 1. Import the following classes: • net.rim.device.api.ui.Field • java.lang.String • net.rim.device.api.ui.Font • java.lang.Math • net.rim.device.api.ui.Graphics 2. Import the net.rim.device.api.ui.DrawStyle interface. 3. Extend the Field class, or one of its subclasses, implementing the DrawStyle interface to specify the characteristics of the custom field and turn on drawing styles. public class CustomButtonField extends Field implements DrawStyle { public static final int RECTANGLE = 1; public static final int TRIANGLE = 2; public static final int OCTAGON = 3; private String _label; private int _shape; private Font _font; private int _labelHeight; private int _labelWidth; } 4. Implement constructors to define a label, shape, and style of the custom button. public CustomButtonField(String label) { this(label, RECTANGLE, 0); } public CustomButtonField(String label, int shape) { this(label, shape, 0); } public CustomButtonField(String label, long style) { this(label, RECTANGLE, style); } public CustomButtonField(String label, int shape, long style) { super(style); Development Guide Create a bitmap 59
- 62. _label = label; _shape= shape; _font = getFont(); _labelHeight = _font.getHeight(); _labelWidth = _font.getAdvance(_label); } 5. Implement layout() to specify the arrangement of field data. Perform the most complex calculations in layout() instead of in paint(). The manager of the field invokes layout() to determine how the field arranges its contents in the available space. Invoke Math.min() to return the smaller of the specified width and height, and the preferred width and height of the field. Invoke Field.setExtent(int,int) to set the required dimensions for the field. protected void layout(int width, int height) { _font = getFont(); _labelHeight = _font.getHeight(); _labelWidth = _font.getAdvance(_label); width = Math.min( width, getPreferredWidth() ); height = Math.min( height, getPreferredHeight() ); setExtent( width, height ); } 6. Implement getPreferredWidth(), using the relative dimensions of the field label to make sure that the label does not exceed the dimensions of the component. Use a switch block to determine the preferred width based on the shape of the custom field. For each type of shape, use an if statement to compare dimensions and determine the preferred width for the custom field. public int getPreferredWidth() { switch(_shape) { case TRIANGLE: if (_labelWidth < _labelHeight) { return _labelHeight << 2; } else { return _labelWidth << 1; } case OCTAGON: if (_labelWidth < _labelHeight) { return _labelHeight + 4; } else { return _labelWidth + 8; } case RECTANGLE: default: return _labelWidth + 8; } } 7. Implement getPreferredHeight(), using the relative dimensions of the field label to determine the preferred height. Use a switch block to determine the preferred height based on the shape of the custom field. For each type of shape, use an if statement to compare dimensions and determine the preferred height for the custom field. Development Guide Create a custom field 60
- 63. public int getPreferredHeight(){ switch(_shape) { case TRIANGLE: if (_labelWidth < _labelHeight) { return _labelHeight << 1; } else { return _labelWidth; } case RECTANGLE: return _labelHeight + 4; case OCTAGON: return getPreferredWidth(); } return 0; } 8. Implement paint(). The manager of a field invokes paint() to redraw the field when an area of the field is marked as invalid. Use a switch block to repaint a custom field based on the shape of the custom field. For a field that has a triangle or octagon shape, use the width of the field to calculate the horizontal and vertical position of a lines start point and end point. Invoke graphics.drawLine() and use the start and end points to draw the lines that define the custom field. For a field that has a rectangular shape, invoke graphics.drawRect() and use the width and height of the field to draw the custom field. Invoke graphics.drawText() and use the width of the field to draw a string of text to an area of the field protected void paint(Graphics graphics) { int textX, textY, textWidth; int w = getWidth(); switch(_shape) { case TRIANGLE: int h = (w>>1); int m = (w>>1)-1; graphics.drawLine(0, h-1, m, 0); graphics.drawLine(m, 0, w-1, h-1); graphics.drawLine(0, h-1, w-1, h-1); textWidth = Math.min(_labelWidth,h); textX = (w - textWidth) >> 1; textY = h >> 1; break; case OCTAGON: int x = 5*w/17; int x2 = w-x-1; int x3 = w-1; graphics.drawLine(0, x, 0, x2); graphics.drawLine(x3, x, x3, x2); graphics.drawLine(x, 0, x2, 0); graphics.drawLine(x, x3, x2, x3); graphics.drawLine(0, x, x, 0); graphics.drawLine(0, x2, x, x3); graphics.drawLine(x2, 0, x3, x); graphics.drawLine(x2, x3, x3, x2); Development Guide Create a custom field 61
- 64. textWidth = Math.min(_labelWidth,w - 6); textX = (w-textWidth) >> 1; textY = (w-_labelHeight) >> 1; break; case RECTANGLE: default: graphics.drawRect(0, 0, w, getHeight()); textX = 4; textY = 2; textWidth = w - 6; break; } graphics.drawText(_label, textX, textY, (int)( getStyle() & DrawStyle.ELLIPSIS | DrawStyle.HALIGN_MASK ), textWidth ); } 9. Implement the Fieldset() and get() methods. Implement the Field.getLabel(), Field.getShape(), Field.setLabel(Stringlabel), and Field.setShape(intshape) methods to return the instance variables of the custom field. public String getLabel() { return _label; } public int getShape() { return _shape; } public void setLabel(String label) { _label = label; _labelWidth = _font.getAdvance(_label); updateLayout(); } public void setShape(int shape) { _shape = shape; } Creating a field to display web content Display HTML content in a browser field 1. Import the required classes and interfaces. import net.rim.device.api.browser.field2.*; import net.rim.device.api.ui.*; import net.rim.device.api.ui.container.*; 2. Create the application framework by extending the UiApplication class. In main(), create an instance of the new class and invoke enterEventDispatcher() to enable the application to receive events. In the application constructor, invoke pushScreen() to display the custom screen for the application. The BrowserFieldDemoScreen class, described in step 3, represents the custom screen. Development Guide Creating a field to display web content 62
- 65. public class BrowserFieldDemoextends UiApplication { public static void main(String[] args) { BrowserFieldDemo app = new BrowserFieldDemo(); app.enterEventDispatcher(); } public BrowserFieldDemo() { pushScreen(new BrowserFieldDemoScreen()); } } 3. Create the custom screen by extending the MainScreen class. class BrowserFieldDemoScreen extends MainScreen { public BrowserFieldDemoScreen() { } } 4. In the screen constructor, create an instance of the BrowserField class. BrowserField myBrowserField = new BrowserField(); 5. In the screen constructor, invoke add() to add the BrowserField object to the screen. add(myBrowserField); 6. In the screen constructor, invoke BrowserField.displayContent() to specify and display the HTML content. myBrowserField.displayContent("<html><body><h1>Hell o World!</h1></body></html>", "http://localhost"); Code sample: Displaying HTML content in a browser field import net.rim.device.api.browser.field2.*; import net.rim.device.api.ui.*; import net.rim.device.api.ui.container.*; public class BrowserFieldDemo extends UiApplication { public static void main(String[] args) { BrowserFieldDemo app = new BrowserFieldDemo(); app.enterEventDispatcher(); } public BrowserFieldDemo() { pushScreen(new BrowserFieldDemoScreen()); Development Guide Creating a field to display web content 63
- 66. } } class BrowserFieldDemoScreen extendsMainScreen { public BrowserFieldDemoScreen() { BrowserField myBrowserField = new BrowserField(); add(myBrowserField); myBrowserField.displayContent("<html><body><h1>Hello World!</h1></body></html>", "http://localhost"); } } Display HTML content from a web page in a browser field 1. Import the required classes and interfaces. import net.rim.device.api.browser.field2.*; import net.rim.device.api.system.*; import net.rim.device.api.ui.*; import net.rim.device.api.ui.container.*; 2. Create the application framework by extending the UiApplication class. In main(), create an instance of the new class and invoke enterEventDispatcher() to enable the application to receive events. In the application constructor, invoke pushScreen() to display the custom screen for the application. The BrowserFieldDemoScreen class, described in step 3, represents the custom screen. public class BrowserFieldDemo extends UiApplication { public static void main(String[] args) { BrowserFieldDemo app = new BrowserFieldDemo(); app.enterEventDispatcher(); } public BrowserFieldDemo() { pushScreen(new BrowserFieldDemoScreen()); } } 3. Create the framework for the custom screen by extending the MainScreen class. class BrowserFieldDemoScreen extends MainScreen { public BrowserFieldDemoScreen() { } } Development Guide Creating a field to display web content 64
- 67. 4. In thescreen constructor, create an instance of the BrowserField class. BrowserField myBrowserField = new BrowserField(); 5. In the screen constructor, invoke add() to add the BrowserField object to the screen. add(myBrowserField); 6. In the screen constructor, invoke BrowserField.requestContent() to specify the location of the HTML content and display it. myBrowserField.requestContent("http://www.blackberry.com"); Code sample: Displaying HTML content from a web page in a browser field import net.rim.device.api.browser.field2.*; import net.rim.device.api.system.*; import net.rim.device.api.ui.*; import net.rim.device.api.ui.container.*; public class BrowserFieldDemo extends UiApplication { public static void main(String[] args) { BrowserFieldDemo app = new BrowserFieldDemo(); app.enterEventDispatcher(); } public BrowserFieldDemo() { pushScreen(new BrowserFieldDemoScreen()); } } class BrowserFieldDemoScreen extends MainScreen { public BrowserFieldDemoScreen() { BrowserField myBrowserField = new BrowserField(); add(myBrowserField); myBrowserField.requestContent("http://www.blackberry.com"); } } Display HTML content from a resource in your application 1. Import the required classes and interfaces. Development Guide Creating a field to display web content 65
- 68. import net.rim.device.api.browser.field2.*; import net.rim.device.api.system.*; importnet.rim.device.api.ui.*; import net.rim.device.api.ui.container.*; 2. Create the application framework by extending the UiApplication class. In main(), create an instance of the new class and invoke enterEventDispatcher() to enable the application to receive events. In the application constructor, invoke pushScreen() to display the custom screen for the application. The BrowserFieldDemoScreen class, described in step 3, represents the custom screen. public class BrowserFieldDemo extends UiApplication { public static void main(String[] args) { BrowserFieldDemo app = new BrowserFieldDemo(); app.enterEventDispatcher(); } public BrowserFieldDemo() { pushScreen(new BrowserFieldDemoScreen()); } } 3. Create the custom screen by extending the MainScreen class. class BrowserFieldDemoScreen extends MainScreen { public BrowserFieldDemoScreen() { } } 4. In the screen constructor, create an instance of the BrowserField class. BrowserField myBrowserField = new BrowserField(); 5. In the screen constructor, invoke add() to add the BrowserField object to the screen. add(myBrowserField); 6. In the screen constructor, invoke BrowserField.requestContent() to specify the location of the resource in your application and display the HTML content. myBrowserField.requestContent("local:///test.html"); Note: The BrowserField class does not access resources using a folder structure. The BrowserField class displays the first resource found that matches the specifed file name. Development Guide Creating a field to display web content 66
- 69. Code sample: DisplayingHTML content from a resource in your application import net.rim.device.api.browser.field2.*; import net.rim.device.api.system.*; import net.rim.device.api.ui.*; import net.rim.device.api.ui.container.*; public class BrowserFieldDemo extends UiApplication { public static void main(String[] args) { BrowserFieldDemo app = new BrowserFieldDemo(); app.enterEventDispatcher(); } public BrowserFieldDemo() { pushScreen(new BrowserFieldDemoScreen()); } } class BrowserFieldDemoScreen extends MainScreen { public BrowserFieldDemoScreen() { BrowserField myBrowserField = new BrowserField(); add(myBrowserField); myBrowserField.requestContent("local:///test.html"); } } Configure a browser field 1. Import the required classes and interfaces. import net.rim.device.api.browser.field2.*; import net.rim.device.api.ui.*; import net.rim.device.api.ui.container.*; 2. Create the application framework by extending the UiApplication class. In main(), create an instance of the new class and invoke enterEventDispatcher() to enable the application to receive events. In the application constructor, invoke pushScreen() to display the custom screen for the application. The BrowserFieldDemoScreen class, described in step 3, represents the custom screen. public class BrowserFieldDemo extends UiApplication { public static void main(String[] args) { BrowserFieldDemo app = new BrowserFieldDemo(); Development Guide Creating a field to display web content 67
- 70. app.enterEventDispatcher(); } public BrowserFieldDemo() { pushScreen(new BrowserFieldDemoScreen()); } } 3.Create the framework for the custom screen by extending the MainScreen class. class BrowserFieldDemoScreen extends MainScreen { public BrowserFieldDemoScreen() { } } 4. In the screen constructor, create an instance of the BrowserFieldConfig class. BrowserFieldConfig myBrowserFieldConfig = new BrowserFieldConfig(); 5. In the screen constructor, invoke BrowserFieldConfig.setProperty() to specify a property of the BrowserField. The first parameter in setProperty() specifies the property, and the second parameter specifies the value of the property. For example, the following code sample specifies the NAVIGATION_MODE property of a BrowserField object: myBrowserFieldConfig.setProperty(BrowserFieldConfig.NAVIGATION_MODE, BrowserFieldConfig.NAVIGATION_MODE_POINTER); 6. In the screen constructor, create an instance of the BrowserField class that uses the configuration that you defined. BrowserField browserField = new BrowserField(myBrowserFieldConfig); Code sample: Configuring a browser field import net.rim.device.api.browser.field2.*; import net.rim.device.api.ui.*; import net.rim.device.api.ui.container.*; public class BrowserFieldDemo extends UiApplication { public static void main(String[] args) { BrowserFieldDemo app = new BrowserFieldDemo(); app.enterEventDispatcher(); } public BrowserFieldDemo() { pushScreen(new BrowserFieldDemoScreen()); } } Development Guide Creating a field to display web content 68
- 71. class BrowserFieldDemoScreen extendsMainScreen { public BrowserFieldDemoScreen() { BrowserFieldConfig myBrowserFieldConfig = new BrowserFieldConfig(); myBrowserFieldConfig.setProperty(BrowserFieldConfig .NAVIGATION_MODE,BrowserFieldConfig.NAVIGATION_MODE_POINTER); BrowserField browserField = new BrowserField(myBrowserFieldConfig); } } Send form data to a web address in a browser field 1. Import the required classes and interfaces. import net.rim.device.api.browser.field2.*; import net.rim.device.api.io.http.*; import net.rim.device.api.system.*; import net.rim.device.api.ui.*; import net.rim.device.api.ui.container.*; import java.lang.*; import java.util.*; 2. Create the application framework by extending the UiApplication class. In main(), create an instance of the new class and invoke enterEventDispatcher() to enable the application to receive events. In the application constructor, invoke pushScreen() to display the custom screen for the application. The BrowserFieldDemoScreen class, described in step 3, represents the custom screen. public class BrowserFieldDemo extends UiApplication { public static void main(String[] args) { BrowserFieldDemo app = new BrowserFieldDemo(); app.enterEventDispatcher(); } public BrowserFieldDemo() { pushScreen(new BrowserFieldDemoScreen()); } } 3. Create the custom screen by extending the MainScreen class. class BrowserFieldDemoScreen extends MainScreen { public BrowserFieldDemoScreen() Development Guide Creating a field to display web content 69
- 72. { } } 4. In thescreen constructor, create an instance of the BrowserField class. BrowserField browserField = new BrowserField(); 5. In the screen constructor, invoke add() to add the BrowserField object to the screen. add(browserField); 6. In the screen constructor, create a String object that contains the base web address of the web page that you are sending the form data to. String baseURL = "http://www.blackberry.com"; 7. In the screen constructor, create a String that specifies the form data that your application sends to the web page. String postData = "fieldname1=value1&fieldname2=value2"; 8. In the screen constructor, create a Hashtable object to store the header information for the form data. Hashtable header = new Hashtable(); 9. In the screen constructor, invoke Hashtable.put() to specify the header information for the form data. header.put("Content-Length", "" + postData.length()); header.put("Content-Type", "application/x-www-form-urlencoded"); 10. In the screen constructor, invoke BrowserField.requestContent() to send the form data to the web page and display the web page. browserField.requestContent(baseURL, postData.getBytes(), new HttpHeaders(header)); Code sample: Sending form data to a web address in a browser field import net.rim.device.api.browser.field2.*; import net.rim.device.api.io.http.*; import net.rim.device.api.system.*; import net.rim.device.api.ui.*; import net.rim.device.api.ui.container.*; import java.lang.*; import java.util.*; public class BrowserFieldDemo extends UiApplication { public static void main(String[] args) { BrowserFieldDemo app = new BrowserFieldDemo(); app.enterEventDispatcher(); } Development Guide Creating a field to display web content 70
- 73. public BrowserFieldDemo() { pushScreen(new BrowserFieldDemoScreen()); } } classBrowserFieldDemoScreen extends MainScreen { public BrowserFieldDemoScreen() { BrowserField browserField = new BrowserField();} add(browserField); String baseURL = "http://www.blackberry.com"; String postData = "fieldname1=value1&fieldname2=value2"; Hashtable header = new Hashtable(); header.put("Content-Length", "" + postData.length()); header.put("Content-Type", "application/x-www-form-urlencoded"); browserField.requestContent(baseURL, postData.getBytes(), new HttpHeaders(header)); } } Dialog boxes Use dialog boxes to perform the following actions: • Prompt users for information that is required to complete a user-initiated task. • Inform users of urgent information or the status of important actions. • Warn users of unexpected or potentially destructive conditions or situations. Dialog boxes are modal; they interrupt the normal operation of the BlackBerry® device and are pushed to the top of the stack. A dialog box includes a message, buttons that allow users to perform an action, and an indicator that indicates the type of dialog box.ThesizeofthedialogboxdependsonthesizeoftheBlackBerrydevicescreen.ThethemethatusersselectontheirBlackBerry device determines the visual style of the dialog box. Development Guide Dialog boxes 71
- 74. Best practice: Implementingdialog boxes • Use buttons to confirm or cancel actions in dialog boxes. Avoid using links or other components. • Use a standard indicator that is appropriate for the type of dialog box. Avoid using multiple indicators in a dialog box. • Try to avoid making users scroll in a dialog box. Include scroll arrows if your dialog box message or buttons cannot be displayed fully on the dialog box. If you use standard components, scroll arrows appear automatically if necessary. • Always allow users to use the Escape key to close a dialog box. Avoid implementing another action when users press the Escape key to close a dialog box. For example, if a dialog box allows users to change a setting, do not implement any changes when users press the Escape key. If necessary, display the dialog box at a later time. • IfuserspresstheEnd/Powerkeywhenadialogboxappearsonanapplicationscreen,displaytheHomescreenorapplication list. If users return to the application, display the dialog box again. Guidelines for layout • Center the dialog box on the screen. If you use standard components, the BlackBerry® device automatically centers the dialog box. • Create dialog boxes that are up to, but not greater than, 90% of the width and height of the screen. If you use standard components, the BlackBerry device automatically calculates the appropriate size for dialog boxes. • Center the dialog box indicator vertically with the dialog box message. • Display messages to the right of the indicator and above any buttons for most languages. • Place buttons for confirmation actions first. For example, place "Save" before "Discard" or "Cancel." • Center buttons horizontally in dialog boxes. • Place buttons vertically in the dialog box. The vertical layout allows buttons to expand to accommodate localized button labels. • If you include a check box, match the alignment of the check box with the alignment of the dialog box message. Place the check box above the buttons. The check box should be checked by default, unless the dialog box displays a message with critical information for users. Development Guide Dialog boxes 72
- 75. Guidelines for messages •Be specific. If possible, use one short sentence to clearly state the reason for displaying the dialog box and the actions that can dismiss it. • Use complete sentences for messages where possible. • Use vocabulary that users understand. For example, use "The file could not be saved because the media card is full" instead of "Error writing file to disk." • Use positive language where possible and avoid blaming the user. Never write messages that blame users for errors or unexpected conditions. Instead, focus on the actions that users can take to resolve the issue. • Use the second person (you, your) to refer to users. • Use sentence case capitalization. • Avoid using exclamation points (!) in messages. • Avoid using an ellipsis (...) in messages unless you are indicating progress (for example, "Please wait..."). Guidelines for buttons • For the default button, use the button that users are most likely to click. Avoid using a button that is associated with a destructive action as the default button. Exceptions to this rule are those cases where users initiate a minor destructive action (such as deleting a single item) and the most common user action is to continue with the action. • Avoid using more than three buttons in a dialog box. If there are more than three, consider using an application screen instead with radio buttons. • On BlackBerry devices with a physical keyboard, provide shortcut keys for buttons. Typically, the shortcut key is the first letter of the button label. • Use clear, concise labels. • Use one-word labels where possible. The size of a button changes depending on the length of the label. If a label is too long, an ellipsis (...) indicates that the text is truncated. • Avoid using the labels "Yes" and "No." Use verbs that describe the associated action (for example, "Cancel," "Delete," "Discard," or "Save"). This approach helps users quickly and easily understand what happens when they click the button. If necessary, include more descriptive text elsewhere on the screen (for example, in an application message). • Avoid using symbols or graphics in labels. Development Guide Dialog boxes 73
- 76. • Avoid usingpunctuation in labels. Use an ellipsis in a button label to indicate that additional information is required before the associated action can be performed. Create a dialog box Use alert dialog boxes to notify users of a critical action such as turning off the BlackBerry® device or an error such as typing information that is not valid. An exclamation point (!) indicator appears in an alert dialog box. To close an alert dialog box, users can click OK or press the Escape key. For more information on other types of dialog boxes, see the API reference for BlackBerry® Java® Development Environment. 1. Import the net.rim.device.api.ui.component.Dialog class. 2. Create an alert dialog box specifying the alert text that you want to display. Dialog.alert("Specify the alert text that you want to display.") Drop-down lists Use drop-down lists to provide a set of mutually exclusive values. Users can perform the following action with a drop-down list: Action BlackBerry devices with a trackpad only BlackBerry devices with a touch screen and a trackpad Click a value from a drop-down list. Press the Enter key or click the trackpad. • Tap the item. • Press the Enter key. • Click the trackpad. Development Guide Drop-down lists 74
- 77. Best practice: Implementingdrop-down lists • Use a drop-down list for two or more choices when space is an issue. If space is not an issue, consider using radio buttons instead so that users can view the available options on the screen. • Use the ObjectChoiceField or NumericChoiceField class to create drop-down lists. • For the default value, use the value that users are most likely to click. • Use the highlighted option as the default focus when users scroll through the list. • If users are not required to click a value, include a "None" value in the drop-down list. Always place the "None" value at the top of the list. • Group and order values logically (for example, group related values together or include the most common values first). Avoid ordering values alphabetically; alphabetical order is language specific. Guidelines for labels • Use clear, concise labels for drop-down lists and for the values in drop-down lists. Verify that the label clearly describes what occurs when users click the value. The width of the drop-down list changes based on the length of the value labels. If a label is too long, an ellipsis (...) appears to indicate that the text is truncated. • Avoid using the labels "Yes" and "No" as drop-down list values. Rephrase the option and use a check box instead. • Place the label on the left side of a drop-down list. • Use title case capitalization for drop-down list labels and values (unless the values read more like a sentence). • Punctuate labels for drop-down lists with a colon (:). Create a drop-down list 1. Import the required classes and interfaces. import net.rim.device.api.ui.*; import net.rim.device.api.ui.component.*; import net.rim.device.api.ui.container.*; 2. Create the application framework by extending the UiApplication class. In main(), create an instance of the new class and invoke enterEventDispatcher() to enable the application to receive events. In the application constructor, invoke pushScreen() to display the custom screen for the application. The MyUiScreen class, which is described in step 3, represents the custom screen. public class MyUi extends UiApplication { public static void main(String[] args) { MyUi theApp = new MyUi(); theApp.enterEventDispatcher(); } public MyUi() { Development Guide Drop-down lists 75
- 78. pushScreen(new MyUiScreen()); } } 3. Createthe custom screen for the application by extending the MainScreen class. In the screen constructor, invoke setTitle() to specify the title for the screen. class MyUiScreen extends MainScreen { public MyUiScreen() { setTitle("UI Component Sample"); } } 4. In the screen constructor, create a drop-down list that displays a list of words or phrases by using the ObjectChoiceField class. Create a String array to store the items that you want to display in the drop-down list. Create an int to store the default item to display in the drop-down list. In the ObjectChoiceField constructor, specify the label for the drop-down list, the array of items to display, and the default item. In the following code sample, by default Wednesday is displayed. Invoke add() to add the drop-down list to the screen. String choices[] = {"Monday","Tuesday","Wednesday","Thursday","Friday","Saturday","Sunday"}; int iSetTo = 2; add(new ObjectChoiceField("First Drop-down List",choices,iSetTo)); 5. In the screen constructor, create a second drop-down list that displays a list of numbers by using the NumericChoiceField class. In the NumericChoiceField constructor, specify the label for the drop-down list, the first and last number to display in the drop-down list, the increment to use for the list of numbers, and the default number. In the following code sample, the numeric parameters are stored in int objects. The numbers 1 to 31 are included in the drop-down list and by default the number 10 is displayed. Invoke add() to add the second drop-down list to the screen. int iStartAt = 1; int iEndAt = 31; int iIncrement = 1; iSetTo = 10; add(new NumericChoiceField("Numeric Drop-Down List",iStartAt,iEndAt,iIncrement,iSetTo)); 6. To override the default functionality that prompts the user to save changes before the application closes, in the extension of the MainScreen class, override the MainScreen.onSavePrompt() method. In the following code sample, the return value is true which indicates that the application does not prompt the user before closing. public boolean onSavePrompt() { return true; } Development Guide Drop-down lists 76
- 79. Code sample: Creatinga drop-down list import net.rim.device.api.ui.*; import net.rim.device.api.ui.component.*; import net.rim.device.api.ui.container.*; public class MyUi extends UiApplication { public static void main(String[] args) { MyUi theApp = new MyUi(); theApp.enterEventDispatcher(); } public MyUi() { pushScreen(new MyUiScreen()); } } class MyUiScreen extends MainScreen { public MyUiScreen() { setTitle("UI Component Sample"); String choices[] = {"Monday","Tuesday","Wednesday","Thursday","Friday","Saturday","Sunday"}; int iSetTo = 2; add(new ObjectChoiceField("First Drop-down List",choices,iSetTo)); int iStartAt = 1; int iEndAt = 31; int iIncrement = 1; iSetTo = 10; add(new NumericChoiceField("Numeric Drop-Down List",iStartAt,iEndAt,iIncrement,iSetTo)); } public boolean onSavePrompt() { return true; } } Labels Use a label to display text that identifies a control. Development Guide Labels 77
- 80. Best practice: Implementinglabels • Use the LabelField class to create labels. • Use clear, concise labels. • Group and order labels logically (for example, group related items together or include the most common items first). Avoid ordering values alphabetically; alphabetical order is language specific. • Punctuate the label with a colon (:). Create a text label 1. Import the net.rim.device.api.ui.component.LabelField class. 2. Create an instance of a LabelField to add a text label to a screen. LabelField title = new LabelField("UI Component Sample", LabelField.ELLIPSIS); Lists and tables Use lists and tables to display items that users can highlight and open. If the list is long, items are fetched and displayed in batches. When users reach the last item in the list, the next batch of items displays at the end of the list. Use a simple list to easily display text in rows. Development Guide Lists and tables 78
- 81. Use a richlist to easily display rows of text and icons. Currently, rich lists only display information and are not interactive. If you want to present items in columns and rows, use a table. Development Guide Lists and tables 79
- 82. You can groupitems under headers to help users navigate through long lists. For example, you can create headers that collapse, making it easier for users to find items in the list. You can also group items under headers that always appear at the top of the list. For example, you can add a date as a header and group messages received on that date under the header. Users can highlight a header to perform an action on the group of items or they can use shortcut keys to move through the list. Users can perform the following actions in lists and tables: Action BlackBerry devices with a trackpad only BlackBerry devices with a touch screen and a trackpad Scroll through items in the list. Move a finger vertically on the trackpad. • Drag a finger vertically on the screen. • Swipe up or down on the screen. Development Guide Lists and tables 80
- 83. Action BlackBerry deviceswith a trackpad only BlackBerry devices with a touch screen and a trackpad • Move a finger vertically on the trackpad. Highlight an item in the list. Move a finger vertically on the trackpad. • Touch the item lightly. • Move a finger vertically on the trackpad. Open an item in the list. • Click the trackpad. • Press the Enter key. • Tap the item. • Click the trackpad. • Press the Enter key. Best practice: Implementing lists and tables • Use the SimpleList class to create a list with text. Use the RichList class to create a display-only list with text and icons. Use the TableView class to create an interactive rich list with text and icons. • Use the TableView class to create a table with rows and columns. You can use the GridFieldManager if the number of rows and columns in the table are fixed. • If the list is long and you want to display the items on separate screens, include Next and Previous buttons at the bottom of the screen. Alternatively, if the list is very long (for example, thousands of items), provide screen numbers instead. • If you expect users to move through the items in the list (for example, in a message list or a feed), assign shortcut keys for moving to the next or previous item in the list. Where possible, in English, allow users to press "N" to move to the next item in the list and "P" to move to the previous item in the list. Create a list box Use a list box to display a list from which users can select one or more values. 1. Import the following classes: import net.rim.device.api.system.*; import net.rim.device.api.ui.*; import net.rim.device.api.ui.component.*; import net.rim.device.api.ui.container.*; import java.util.Vector; 2. Create the application framework by extending the UiApplication class. In main(), create an instance of the new class and invoke enterEventDispatcher(), to enable the application to receive events. In the constructor, invoke pushScreen, to display the custom screen for the application. The CreateMenuScreen class represents the custom screen which is described in step 3. Development Guide Lists and tables 81
- 84. public class ListFieldsextends UiApplication { public static void main(String[] args) { ListFields theApp = new ListFields(); theApp.enterEventDispatcher(); } public ListFields() { pushScreen(new ListFieldScreen()); } } 3. Create the custom screen for the application by extending the MainScreen class. In the constructor, invoke setTitle (), to display the title for the screen. Invoke add(), to display a text field on the screen. Invoke addMenuItem(), to add a menu item to the menu that MainScreen creates. class ListFieldScreen extends MainScreen { private ListField _listField; private Vector _listElements; public ListFieldScreen() { setTitle("List Field Sample"); } } 4. In the screen constructor, create the list box. Create an array for the items that you want to add to the list box by using the Vector class. Create the list box by using the ListField() class. Invoke add(), to add the list box to the screen. Invoke initializeList(), which is described in step 4, to add build the list box. _listElements = new Vector(); _listField = new ListField(); ListCallback _callback = new ListCallback(); _listField.setCallback(_callback); add(_listField); initializeList(); 5. Create a method to specify the items that you want to appear in the list box by using the String object. Invoke addElement() to add the items to the list. Invoke setSize(), to specify the number of items in the list box. private void initializeList() { String itemOne = "List item one"; String itemTwo = "List item two"; _listElements.addElement(itemOne); _listElements.addElement(itemTwo); reloadList(); } private void reloadList() Development Guide Lists and tables 82
- 85. { _listField.setSize(_listElements.size()); } 6. Create aclass that implements the ListFieldCallback interface. Implement drawListRow(), to add the list box items to the screen. Implement get(), to return the list box item at the specified index. Implement indexOfList(), to return the first occurrence of a given string. Implement getPreferredWidth(), to retrieve the width of the list box. private class ListCallback implements ListFieldCallback { public void drawListRow(ListField list, Graphics g, int index, int y, int w) { String text = (String)_listElements.elementAt(index); g.drawText(text, 0, y, 0, w); } public Object get(ListField list, int index) { return _listElements.elementAt(index); } public int indexOfList(ListField list, String prefix, int string) { return _listElements.indexOf(prefix, string); } public int getPreferredWidth(ListField list) { return Display.getWidth(); } } Radio buttons Use radio buttons to indicate a set of mutually exclusive but related choices. Users can perform the following action with radio buttons: Action BlackBerry devices with a trackpad only BlackBerry devices with a touch screen and a trackpad Select a radio button. Press the Space key or click the trackpad. • Tap the item. • Press the Space key. • Click the trackpad. Development Guide Radio buttons 83
- 86. Best practice: Implementingradio buttons • Use radio buttons for two or more choices when space is not an issue. If space is an issue, consider using a drop-down list instead. • Use the RadioButtonField class to create radio buttons. • Verify that the content for radio buttons remains static. Content for radio buttons should not change depending on the context. • Do not start an action when users select a radio button. For example, do not open a new screen. • Align radio buttons vertically. • Group and order values logically (for example, group related radio buttons together or include the most common values first). Avoid ordering radio buttons alphabetically; alphabetical order is language specific. Guidelines for labels • Use clear, concise labels. Verify that the label clearly describes what occurs when users select the radio button. If the labels are too long, they wrap. • Place labels on the right side of radio buttons. • Use sentence case capitalization. • Do not use end punctuation. Create a radio button You can create a group of radio buttons by using the RadioButtonGroup class. A user can select only one option from a group of radio buttons. 1. Import the required classes and interfaces. import net.rim.device.api.ui.*; import net.rim.device.api.ui.component.*; import net.rim.device.api.ui.container.*; Development Guide Radio buttons 84
- 87. 2. Create theapplication framework by extending the UiApplication class. In main(), create an instance of the new class and invoke enterEventDispatcher() to enable the application to receive events. In the application constructor, invoke pushScreen() to display the custom screen for the application. The MyUiScreen class, which is described in step 3, represents the custom screen. public class MyUi extends UiApplication { public static void main(String[] args) { MyUi theApp = new MyUi(); theApp.enterEventDispatcher(); } public MyUi() { pushScreen(new MyUiScreen()); } } 3. Create the custom screen for the application by extending the MainScreen class. In the screen constructor, invoke setTitle() to specify the title for the screen. class MyUiScreen extends MainScreen { public MyUiScreen() { setTitle("UI Component Sample"); } } 4. Inthescreenconstructor,createagroupofradiobuttonsbyusingtheRadioButtonGroup class.Createtheradiobuttons that you want to add to the group by using the RadioButtonField class. In the RadioButtonField constructor, specify the label for the radio button, the group, and a Boolean value to indicate the default selection (for example,true indicates that by default the radio is selected). Invoke add() to add the radio buttons to the screen. RadioButtonGroup rbg = new RadioButtonGroup(); add(new RadioButtonField("Option 1",rbg,true)); add(new RadioButtonField("Option 2",rbg,false)); 5. To override the default functionality that prompts the user to save changes before the application closes, in the extension of the MainScreen class, override the MainScreen.onSavePrompt() method. In the following code sample, the return value is true which indicates that the application does not prompt the user before closing. public boolean onSavePrompt() { return true; } Development Guide Radio buttons 85
- 88. Code sample: Creatinga radio button import net.rim.device.api.ui.*; import net.rim.device.api.ui.component.*; import net.rim.device.api.ui.container.*; public class MyUi extends UiApplication { public static void main(String[] args) { MyUi theApp = new MyUi(); theApp.enterEventDispatcher(); } public MyUi() { pushScreen(new MyUiScreen()); } } class MyUiScreen extends MainScreen { public MyUiScreen() { setTitle("UI Component Sample"); RadioButtonGroup rbg = new RadioButtonGroup(); add(new RadioButtonField("Option 1",rbg,true)); add(new RadioButtonField("Option 2",rbg,false)); } public boolean onSavePrompt() { return true; } } Activity indicators and progress indicators Activity indicators and progress indicators show users that their BlackBerry® devices are performing an action, such as searching for items or removing languages. Use an activity indicator if you want to show that the BlackBerry® device is working and you cannot determine the duration of the action. You can add an activity indicator to any component, such as a screen, text field, or list item. You can also add text to an activity indicator to describe the action. Development Guide Activity indicators and progress indicators 86
- 89. An activity indicatorin a field An activity indicator with text Use a progress indicator if you can determine the duration of an action. Progress indicators include a label to indicate what the action is and a horizontal bar that fills from left to right as the action progresses. A percentage appears in the bar to indicate how much of the action is complete. Best practice: Implementing activity indicators and progress indicators • Always indicate progress when an action takes more than 2 seconds to complete. • Use a progress indicator when you can determine the duration of an action. • Use an activity indicator when you cannot determine the duration of an action. • Use the ActivityIndicatorView class to create activity indicators. Use the ProgressIndicatorView class to create progress indicators. • Provide useful progress information. For example, if users are downloading an application to their device, indicate the percentage of data that their BlackBerry® device has downloaded. Be as accurate as possible with the progress information. Development Guide Activity indicators and progress indicators 87
- 90. • Always allowusers to use the End key to hide a progress indicator. Guidelines for text • Use a concise, descriptive text (for example, "Loading data..." or "Building an application list..."). • If an action is long and you want to communicate what is happening at each stage, provide text that describes each stage (for example, "Downloading..." or "Installing..."). • Use sentence case capitalization. • Punctuate the text with an ellipsis (...). Indicating activity or task progress You can use the Activity and Progress Indicator API that is provided in the net.rim.device.api.ui.component.progressindicator package to display visual cues on a screen to indicate that work is being done or that a task is proceeding. You can represent an activity whose duration is unknown, as well as progress that can be represented numerically (for example, as a percentage of a completed task). TheActivityandProgressIndicatorAPIusestheModel-View-Controllerdesignpatternandincludestwofieldsthatareresponsible for rendering the activity or progress: • The ActivityImageField class represents activity by using a bitmap that contains frames of an animation. The displayed frame changes over time. Typically, this field is a spinner, an hourglass, or other similar animated visual cue. This field is built and set by using the ActivityIndicatorView class. • The ProgressBarField class represents the progress of a task as a bar that fills as the task completes. This field is built and set by using the ProgressIndicatorView class. TheProgressIndicatorDemosampleapplicationisincludedintheBlackBerry®Java®SDK.Thissampleapplicationdemonstrates how to create and manipulate a variety of activity indicators and a progress indicator bar. Indicate activity You can display a field in your BlackBerry® device application that indicates that work is proceeding. Typically, the field is a spinner,anhourglass,orothersimilaranimatedvisualcue.ThefieldisimplementedbyusingtheActivityImageField class. 1. Import the required classes and interfaces. import net.rim.device.api.system.Bitmap; import net.rim.device.api.ui.*; import net.rim.device.api.ui.component.progressindicator.*; import net.rim.device.api.ui.container.*; 2. Create an image that contains frames of an animation and include it in your project. The image must consist of a series of framesoftheanimationarrangedhorizontally.Thewidthoftheimagemustbethewidthofaframemultipliedbythenumber of frames. For example, the following image has five frames of equal size. Development Guide Activity indicators and progress indicators 88
- 91. 3. Create abitmap from the image. Bitmap bitmap = Bitmap.getBitmapResource("spinner.png"); 4. Create an ActivityIndicatorView object. You can specify a style for the view in the constructor. ActivityIndicatorView view = new ActivityIndicatorView(Field.USE_ALL_WIDTH); To specify a manager to use for layout and focus, provide a second argument when you create the ActivityIndicatorView. If you do not specify a manager, a VerticalFieldManager object is used. 5. Create a model and a controller. ActivityIndicatorModel model = new ActivityIndicatorModel(); ActivityIndicatorController controller = new ActivityIndicatorController(); 6. Connect the view, model, and controller. view.setController(controller); view.setModel(model); controller.setModel(model); controller.setView(view); model.setController(controller); 7. Create the field that renders the activity from the bitmap. view.createActivityImageField(bitmap, 5, Field.FIELD_HCENTER); In this example, the bitmap consists of five frames and is displayed centered in the view's manager. 8. Add the view to your screen. add(view); 9. Control the activity indication by controlling the view's model, as needed. MenuItem _stopIndicator = new MenuItem("Stop spinner", 66000, 0) { public void run() { view.getModel().cancel(); } }; MenuItem _resumeIndicator = new MenuItem("Resume spinner", 66010, 0) { public void run() { Development Guide Activity indicators and progress indicators 89
- 92. view.getModel().resume(); } }; This example invokesthe model's cancel() method to stop the animation. The example invokes the model's resume () method to resume the animation. Code sample public class ActivityIndicatorScreen extends MainScreen { ActivityIndicatorView view = new ActivityIndicatorView(Field.USE_ALL_WIDTH); ActivityIndicatorModel model = new ActivityIndicatorModel(); ActivityIndicatorController controller = new ActivityIndicatorController(); public ActivityIndicatorScreen () { setTitle("Activity Indicator Demo"); view.setController(controller); view.setModel(model); controller.setModel(model); controller.setView(view); model.setController(controller); // Define the indicator image and create a field from it Bitmap bitmap = Bitmap.getBitmapResource("spinner.png"); view.createActivityImageField(bitmap, 5, Field.FIELD_HCENTER); // add the view to the screen add(view); MenuItem _stopIndicator = new MenuItem("Stop spinner", 66000, 0) { public void run() { view.getModel().cancel(); } }; MenuItem _resumeIndicator = new MenuItem("Resume spinner", 66010, 0) { public void run() { view.getModel().resume(); } }; addMenuItem(_stopIndicator); Development Guide Activity indicators and progress indicators 90
- 93. addMenuItem(_resumeIndicator); } } The Progress IndicatorDemo sample application that is included in the BlackBerry® Java® SDK creates and manipulates a variey of activity indicators, including the spinner that is shown above. Indicate progress You can display a field in your BlackBerry® device application that indicates that a task is proceeding. Progress is represented by a bar that fills as the task completes. 1. Import the required classes and interfaces. import net.rim.device.api.ui.*; import net.rim.device.api.ui.container.*; import net.rim.device.api.ui.component.progressindicator.*; 2. Create a ProgressIndicatorView object. You can specify a style for the view in the constructor. In the following example, no style is specified. ProgressIndicatorView view = new ProgressIndicatorView(0); To specify a manager to use for layout and focus, provide a second argument when you create the ProgressIndicatorView. If you do not specify a manager, a VerticalFieldManager object is used. 3. Create a ProgressIndicatorController object. ProgressIndicatorController controller = new ProgressIndicatorController(); 4. CreateaProgressIndicatorModel object.Thisobjectrepresentstheprogressofthetask.Whenyoucreatetheobject, you can specify the model's initial value, its maximum value, and its minimum value. ProgressIndicatorModel uses an Adjustment object to allow for threaded access to the data model and to allow the task to be represented by integer values. ProgressIndicatorModel model = new ProgressIndicatorModel(0, 100, 0); In this example, the task starts with the value 0 and can reach 100. These values model the completion of a task as a percentage. 5. Connect the controller, model, and view. model.setController(controller); view.setModel(model); view.setController(controller); controller.setModel(model); controller.setView(view); 6. Create a thread to process the task. Typically, tasks that require progress indicators are performed by using a thread. As the task proceeds, update the value of the model to reflect the task's progress. Development Guide Activity indicators and progress indicators 91
- 94. class ProgressThread extendsThread { private boolean _paused; private boolean _stop; public void run() { // perform the task here and update the model's value as appropriate } public synchronized void setPaused(boolean paused) { // pause the indicator here } public synchronized void stopThread() { // stop the indicator here } } 7. Create a class that Implements the ProgressIndicatorListener interface to be notified of changes to the data model. You can be notified when the model is reset, resumed, or cancelled, or when the the value of the model is changed by non-programmatic means. private final class DemoProgressIndicatorListener implements ProgressIndicatorListener { public void cancelled() { _progressThread.setPaused(true); } public void resumed() { _progressThread.setPaused(false); } ... } 8. Associate the listener with the model. model.addListener(new DemoProgressIndicatorListener()); 9. Set the label for the view. The label displays above the rendered ProgressIndicatorField (assuming that the manager is a VerticalFieldManager, which is the default manager). view.setLabel("Percent completion"); Development Guide Activity indicators and progress indicators 92
- 95. 10. Create thefield that renders the progress. You can provide styles that are defined in ProgressBarField to specify whether text is displayed on the bar and how it is displayed. By default, the model's value is displayed in the center of the space occupied by the bar. view.createProgressBar(Field.FIELD_HCENTER); In this example, the progress bar uses the default text style and is displayed centered in the view's manager. 11. Add the view to your screen. add(view); 12. Control the progress indication by controlling the view's model, as needed. MenuItem _pauseIndicator = new MenuItem("Pause indicator", 66010, 0) { public void run() { view.getModel().cancel(); } }; MenuItem _resumeIndicator = new MenuItem("Resume indicator", 66020, 0) { public void run() { view.getModel().resume(); } }; This example invokes the model's cancel() method to stop the progress indication. The example invokes the model's resume() method to resume progress indication. Code sample public class ProgressIndicatorScreen extends MainScreen { ProgressIndicatorView view = new ProgressIndicatorView(0); ProgressIndicatorModel model = new ProgressIndicatorModel(0, 100, 0); ProgressIndicatorController controller = new ProgressIndicatorController(); ProgressThread _progressThread; public ProgressIndicatorScreen() { setTitle("Progress Indicator Screen"); model.setController(controller); model.addListener(new DemoProgressIndicatorListener()); view.setModel(model); view.setController(controller); controller.setModel(model); controller.setView(view); Development Guide Activity indicators and progress indicators 93
- 96. view.setLabel("Percent completion"); view.createProgressBar(Field.FIELD_HCENTER); add(view); MenuItem _startIndicator= new MenuItem("Start indicator", 66000, 0) { public void run() { if(_progressThread != null) { _progressThread.stopThread(); } _progressThread = new ProgressThread(); _progressThread.start(); } }; MenuItem _pauseIndicator = new MenuItem("Pause indicator", 66010, 0) { public void run() { view.getModel().cancel(); } }; MenuItem _resumeIndicator = new MenuItem("Resume indicator", 66020, 0) { public void run() { view.getModel().resume(); } }; addMenuItem(_startIndicator); addMenuItem(_pauseIndicator); addMenuItem(_resumeIndicator); } class ProgressThread extends Thread { private boolean _paused; private boolean _stop; public void run() { // Run dummy operations to simulate the processing of // a collection of data. for(int i = 0; i <= 100; ++i) { synchronized(this) Development Guide Activity indicators and progress indicators 94
- 97. { if(_stop) { break; } if(_paused) { try { wait(); } catch(InterruptedException ie) { } } } ProgressIndicatorScreen.this.model.setValue(i); try { // Simulatework sleep(250); } catch(InterruptedException ie) { } } } public synchronized void setPaused(boolean paused) { _paused = paused; this.notify(); } public synchronized void stopThread() { _stop = true; if(_paused) { // If the thread is in a paused state, wake it up this.notify(); } } } private final class DemoProgressIndicatorListener implements ProgressIndicatorListener { public void cancelled() { _progressThread.setPaused(true); } Development Guide Activity indicators and progress indicators 95
- 98. public void resumed() { _progressThread.setPaused(false); } publicvoid reset() { // Not implemented } public void setNonProgrammaticValue(int value) { // Not implemented } public void configurationChanged(Adjustment source) { // Not implemented } public void valueChanged(Adjustment source) { // Not implemented } } } The Progress Indicator Demo sample application that is included in the BlackBerry® Java® SDK creates and manipulates a progress bar. Pickers You can use pickers to help users choose an item from a list easily. Type of picker Description File This picker allows users to browse for files on their BlackBerry® devices. Development Guide Pickers 96
- 99. Type of pickerDescription Location This picker allows users to choose a location from a list that you define. For example, you can allow users to choose their GPS location or a previously selected location. Date This picker allows users to choose a specific day, month, or year. For example, you can allow users to choose a month and year to specify when their credit card expires. Development Guide Pickers 97
- 100. Type of pickerDescription Time This picker allows users to choose a specific hour, minute, or second. Best practice: Implementing pickers Use the FilePicker, LocationPicker, and DateTimePicker classes to create pickers. Guidelines for file pickers • Specify a specific view to display the types of files that match the user's goal. For example, if a user is browsing pictures, display pictures in the file picker. • Allow users to start browsing from an appropriate default folder if possible. Development Guide Pickers 98
- 101. Create a datepicker 1. Import the required classes and interfaces. import net.rim.device.api.ui.*; import net.rim.device.api.ui.component.*; import net.rim.device.api.ui.container.*; import net.rim.device.api.ui.picker.*; import java.util.*; 2. Create the application framework by extending the UiApplication class. In main(), create an instance of the new class and invoke enterEventDispatcher() to enable the application to receive events. In the constructor, invoke pushScreen() to display the custom screen for the application. The DatePickScreen class represents the custom screen that is described in step 3. public class DatePick extends UiApplication { public static void main(String[] args) { DatePick theApp = new DatePick(); theApp.enterEventDispatcher(); } public DatePick() { pushScreen(new DatePickScreen()); } } 3. Create the custom screen for the application by extending the MainScreen class. In the constructor, invoke setTitle () to display a title on the screen. Invoke add() to display a rich text field on the screen. class DatePickScreen extends MainScreen { public DatePickScreen() { setTitle("Date Picker Sample"); add(new RichTextField("Trying Date Picker")); } } 4. Add a section of code to the event queue of the application by invoking invokeLater(). Create a Runnable object and pass it as a parameter to invokeLater(). Override run() in the definition of Runnable. class DatePickScreen extends MainScreen { public DatePickScreen() { setTitle("Date Picker Sample"); add(new RichTextField("Trying Date Picker")); Development Guide Pickers 99
- 102. UiApplication.getUiApplication().invokeLater(new Runnable() { public voidrun() { } }); } } 5. In run(), invoke DateTimePicker.getInstance() to return a DateTimePicker object. Invoke doModal() to display the date picker. Invoke getDateTime() to return a Calendar object that represents the date and time the user selects. Use getTime() to return the date and time as a Date object. Use Dialog.alert() to display the selected date and time. class DatePickScreen extends MainScreen { public DatePickScreen() { setTitle("Date Picker Sample"); add(new RichTextField("Trying Date Picker")); UiApplication.getUiApplication().invokeLater(new Runnable() { public void run() { DateTimePicker datePicker = DateTimePicker.getInstance(); datePicker.doModal(); Calendar cal = datePicker.getDateTime(); Date date = cal.getTime(); Dialog.alert("You selected " + date.toString()); } }); } } Code sample: Creating a date picker import net.rim.device.api.ui.*; import net.rim.device.api.ui.picker.*; import net.rim.device.api.ui.component.*; import net.rim.device.api.ui.container.*; import net.rim.device.api.database.*; import net.rim.device.api.io.*; import java.util.*; public class DatePick extends UiApplication { public static void main(String[] args) { Development Guide Pickers 100
- 103. DatePick theApp =new DatePick(); theApp.enterEventDispatcher(); } public DatePick() { pushScreen(new DatePickScreen()); } } class DatePickScreen extends MainScreen { public DatePickScreen() { setTitle("Date Picker Sample"); add(new RichTextField("Trying Date Picker")); UiApplication.getUiApplication().invokeLater(new Runnable() { public void run() { DateTimePicker datePicker = DateTimePicker.getInstance(); datePicker.doModal(); Calendar cal = datePicker.getDateTime(); Date date = cal.getTime(); Dialog.alert("You selected " + date.toString()); } }); } } Create a file picker 1. Import the required classes and interfaces. import net.rim.device.api.ui.*; import net.rim.device.api.ui.picker.*; import net.rim.device.api.ui.component.*; import net.rim.device.api.ui.container.*; import java.util.*; 2. Create the application framework by extending the UiApplication class. In main(), create an instance of the new class and invoke enterEventDispatcher() to enable the application to receive events. In the application constructor, invoke pushScreen() to display the custom screen for the application. The FilePickScreen class represents the custom screen that is described in step 3. public class FilePick extends UiApplication { public static void main(String[] args) { Development Guide Pickers 101
- 104. FilePick theApp =new FilePick(); theApp.enterEventDispatcher(); } public FilePick() { pushScreen(new FilePickScreen()); } } 3. Create the custom screen for the application by extending the MainScreen class. In the screen constructor, invoke setTitle() to specify a title for the screen. Invoke add() to add a label field to the screen. class FilePickScreen extends MainScreen { public FilePickScreen() { setTitle("File Picker Sample"); add(new LabelField("Trying File Picker")); } } 4. In the screen constructor, invoke invokeLater() to add a section of code to the event queue of the application. Create a Runnable object and pass it as a parameter to invokeLater(). class FilePickScreen extends MainScreen { public FilePickScreen() { setTitle("File Picker Sample"); add(new LabelField("Trying File Picker")); UiApplication.getUiApplication().invokeLater(new Runnable() { public void run() { } }); } } 5. Override run() in the definition of Runnable. In run(), invoke FilePicker.getInstance() to return a FilePicker object. Create a FilePickListener object, which is described in step 6. Invoke setListener() to register the listener for the file picker. Invoke show() to display the file picker on the screen. class FilePickScreen extends MainScreen { public FilePickScreen() { setTitle("File Picker Sample"); add(new LabelField("Trying File Picker")); Development Guide Pickers 102
- 105. UiApplication.getUiApplication().invokeLater(new Runnable() { public voidrun() { FilePicker fp = FilePicker.getInstance(); FilePickListener fileListener = new FilePickListener(); fp.setListener(fileListener); fp.show(); } }); } } 6. Invoke Dialog.alert to create a dialog box with a message that displays which file was selected. Invoke Dialog.alert in a class that implements the FilePicker.Listener interface by overriding selectionDone (). The application calls selectionDone() when the user selects a file using the file picker. class FilePickListener implements FilePicker.Listener { public void selectionDone(String str) { Dialog.alert("You selected " + str); } } Code sample: Creating a file picker import net.rim.device.api.ui.*; import net.rim.device.api.ui.picker.*; import net.rim.device.api.ui.component.*; import net.rim.device.api.ui.container.*; import net.rim.device.api.io.*; public class FilePick extends UiApplication { public static void main(String[] args) { FilePick theApp = new FilePick(); theApp.enterEventDispatcher(); } public FilePick() { pushScreen(new FilePickScreen()); } } class FilePickScreen extends MainScreen { public FilePickScreen() Development Guide Pickers 103
- 106. { setTitle("File Picker Sample"); add(newLabelField("Trying File Picker")); UiApplication.getUiApplication().invokeLater(new Runnable() { public void run() { FilePicker fp = FilePicker.getInstance(); FilePickListener fileListener = new FilePickListener(); fp.setListener(fileListener); fp.show(); } }); } } class FilePickListener implements FilePicker.Listener { public void selectionDone(String str) { Dialog.alert("You selected " + str); } } Search Users can use the search field on the Home screen to search for items in any application on the device, including third-party applications.Thesearchcanalsoincludecontentthatisnotstoredonthedevice,suchasanorganization'sdatabaseorawebsite. Users can also use a search field in an application to search for items in that application. For example, users can search for an email message in a message list, a song in the Media application, or a contact in the contact list. In some cases, you might want to display search results from other applications. Development Guide Search 104
- 107. In some applications,the search field appears on the screen. In other cases, search is available from the full menu, the pop-up menu, or the toolbar. As users type text in a search field, display the search results. If a large number of search results is returned, you can allow users to narrow their search to a field or a group of fields. For example, if users search the message list, they can usethedrop-downlisttotherightofthesearchfieldtonarrowtheirsearchtotheTofieldortheSubjectfield.Formoreinformation about adding a search field to your application, see the BlackBerry Java Application Integration Development Guide. Users can perform the following actions in a search field: Action BlackBerry devices with a trackpad only BlackBerry devices with a touch screen and a trackpad Open a highlighted item in the search results. • Press the Enter key. • Click the trackpad. • Tap the screen. • Press the Enter key. • Click the trackpad. Display a pop-up menu with actions for a search result (for example, call a contact) Click and hold the trackpad. • Touch and hold a search result on the screen. • Click and hold the trackpad. You can register content in your application so that it can be included in search results. You can also register your application as a way for users to extend a search. For example, if users search for a song in the Media application and do not find the song, you can allow users to search your application as an alternative source of search results. For more information about registering content or an application, see the BlackBerry Java Application Integration Development Guide. Best practice: Implementing search • Use the net.rim.device.api.unifiedsearch package to implement search capabilities. Development Guide Search 105
- 108. • Beselectivewiththecontentthatyouregistertobeincludedinsearchresults.Onlyregistercontentthatprovidesmeaningful search resultsfor users. • Try to present the most relevant items at the beginning of the list of search results. For example, if users are looking for a restaurant that has several different locations, display the restaurant that is closest to the user's location at the beginning of the list of search results. • In the search results, bold the text that matches the text that users type. This approach helps users see why each item appears in the list of search results. • If users need to search for a word on a screen (for example, in a message or on a web page), use the term "Find" in the Menu. Implementing search fields • Set the default focus to the search field. When the search results appear, set the default focus to the first item in the list of search results. • Use the term "Search" as hint text in the search field. • Do not make search fields case sensitive. • Place the search field below the title bar on an application screen. • Do not assign shortcut keys for a screen that includes a search field. If you want to use shortcut keys, provide alternative search functionality. For example, allow users to search for messages in a message list using the menu. Create a search field You can create an application that uses the KeywordFilterField class, included in the net.rim.device.api.ui.component package, to provide a UI field that consists of a single text input field and a list of selectable elements. As users type text in a search field, the application filters the elements in the list that begin with the search text. For more information about using the KeywordFilterField class, see the Keyword Filter Field sample application, included with the BlackBerry® Java® Development Environment version 4.3.1 or later. 1. Import the required classes and interfaces. import net.rim.device.api.collection.util.SortedReadableList; import net.rim.device.api.io.LineReader; import net.rim.device.api.ui.component.KeywordFilterField; import net.rim.device.api.ui.component.KeywordProvider; import java.io.InputStream; import java.lang.String; import java.util.Vector; 2. Create variables. In the following code sample, CountryList extends the SortedReadableList class and implements the KeywordProvider interface. private KeywordFilterField _keywordField; private CountryList _CountryList; private Vector _countries; 3. To create a list of selectable text items, populate a vector with data from a text file. _countries = getDataFromFile(); 4. Create an instance of a class that extends the SortedReadableList class. Development Guide Search 106
- 109. _CountryList = new CountryList(StringComparator.getInstance(true),_countries); 5.To specify the elements of the list, create a new instance of a KeywordFilterField object. _keywordField = new KeywordFilterField(); 6. Invoke KeywordFilterField.setList(). _keywordField.setList(_CountryList, _CountryList); 7. Set a label for the input field of the KeywordFilterFIeld. _keywordField.setLabel("Search: "); 8. Create the main screen of the application and add a KeywordFilterField to the main screen. KeywordFilterDemoScreen screen = new KeywordFilterDemoScreen(this,_keywordField); screen.add(_keywordField.getKeywordField()); screen.add(_keywordField); pushScreen(screen); 9. To create a method that populates and returns a vector of Country objects containing data from text file, in the method signature, specify Vector as the return type. public Vector getDataFromFile() 10. Create and store a reference to a new Vector object. Vector countries = new Vector(); 11. Create an input stream to the text file. InputStream stream = getClass().getResourceAsStream("/Data/CountryData.txt"); 12. Read CRLF delimited lines from the input stream. LineReader lineReader = new LineReader(stream); 13. Read data from the input stream one line at a time until you reach the end of file flag. Each line is parsed to extract data that is used to construct Country objects. for(;;){ //Obtain a line of text from the text file String line = new String(lineReader.readLine()); //If we are not at the end of the file, parse the line of text if(!line.equals("EOF")) { int space1 = line.indexOf(" "); String country = line.substring(0,space1); int space2 = line.indexOf(" ",space1+1); String population = line.substring(space1+1,space2); String capital = line.substring(space2+1,line.length()); Development Guide Search 107
- 110. // Create anew Country object countries.addElement(new Country(country,population,capital)); } else { break; } } // end the for loop return countries; 14. To add a keyword to the list of selectable text items, invoke SortedReadableList.doAdd(element). SortedReadableList.doAdd(((Country)countries.elementAt(i)) .getCountryName()) ; 15. To update the list of selectable text items, invoke KeywordFilterField.updateList(). _keywordField.updateList(); 16. To obtain the key word that a BlackBerry device user typed into the KeywordFilterField, invoke KeywordFilterField.getKeyword(). String userTypedWord = _keywordField.getKeyword(); Autocomplete text field You can use an autocomplete text field to predict what a BlackBerry® device user wants to type, and display a word or phrase before the user types it completely. When you create an AutoCompleteField object, you must associate a BasicFilteredList object with it. The BasicFilteredList maintains references to data objects that are compared with to produce the list of words and phrases. You can configure which fields in the data objects are compared with and which fields are displayed when a match is found. For example, you can compare the text that the user types with the value of the DATA_FIELD_CONTACTS_BIRTHDAY field in the DATA_SOURCE_CONTACTS data source, and return the value of the corresponding DATA_FIELD_CONTACTS_NAME_FULL field. There are four types of data that you can bind to a BasicFilteredList to use with an AutoCompleteField. You can specify the set of strings to compare with in one of the following ways: • an array of literal strings • an array of objects that support toString() • data sources on a BlackBerry device, such as contacts, memos, tasks, and various types of media files • an array of objects and an array of strings with corresponding indexes By default, the autocomplete text field displays the set of strings that is returned by the comparison process in a drop-down list. You can configure the appearance of this list by specifying style flags when you create the autocomplete text field. You can change how the list appears and how users can interact with the list. Development Guide Search 108
- 111. Create an autocompletetext field from a data set 1. Import the required classes and interfaces. import net.rim.device.api.ui.UiApplication; import net.rim.device.api.ui.container.MainScreen; import net.rim.device.api.ui.component.AutoCompleteField; import net.rim.device.api.collection.util.*; 2. Create the application framework by extending the UiApplication class. In main(), create an instance of the new class and invoke enterEventDispatcher() to enable the application to receive events. In the constructor, invoke pushScreen() to display the custom screen for the application. The HomeScreen class, described in step 3, represents the custom screen. public class AutoCompleteFieldApp extends UiApplication { public static void main(String[] args) { AutoCompleteFieldApp app = new AutoCompleteFieldApp(); app.enterEventDispatcher(); } AutoCompleteFieldApp() { pushScreen(new HomeScreen()); } } 3. Create the custom screen by extending the MainScreen class. class HomeScreen extends MainScreen { public HomeScreen() { } } 4. In the constructor, create a BasicFilteredList object. Create a String array and store the strings that you want to match against in the array. In this example, the strings are days of the week. Invoke addDataSet() to bind the data in the array to the BasicFilteredList. BasicFilteredList filterList = new BasicFilteredList(); String[] days = {"Monday","Tuesday","Wednesday","Thursday","Friday","Saturday","Sund ay"}; filterList.addDataSet(1,days,"days",BasicFilteredList.COMPARISON_IGNORE_CASE); 5. In the constructor, create an AutoCompleteField object. Pass an instance of the BasicFilteredList to the AutoCompleteField constructor to bind the BasicFilteredList to the autocomplete text field. Invoke add() to add the field to the screen. Development Guide Search 109
- 112. AutoCompleteField autoCompleteField =new AutoCompleteField(filterList); add(autoCompleteField); Code sample: Creating an autocomplete field from a data set import net.rim.device.api.ui.UiApplication; import net.rim.device.api.ui.container.MainScreen; import net.rim.device.api.ui.component.AutoCompleteField; import net.rim.device.api.collection.util.*; public class AutoCompleteFieldApp extends UiApplication { public static void main(String[] args) { AutoCompleteFieldApp app = new AutoCompleteFieldApp(); app.enterEventDispatcher(); } AutoCompleteFieldApp() { HomeScreen scr = new HomeScreen(); this.pushScreen(scr); } } class HomeScreen extends MainScreen { public HomeScreen() { BasicFilteredList filterList = new BasicFilteredList(); String[] days = {"Monday","Tuesday","Wednesday", "Thursday","Friday","Saturday","Sunday"}; filterList.addDataSet(1,days,"days",BasicFilteredList .COMPARISON_IGNORE_CASE); AutoCompleteField autoCompleteField = new AutoCompleteField(filterList); add(autoCompleteField); } } Create an autocomplete text field from a data source 1. Import the required classes and interfaces. import net.rim.device.api.ui.UiApplication; import net.rim.device.api.ui.container.MainScreen; import net.rim.device.api.ui.component.AutoCompleteField; import net.rim.device.api.collection.util.*; Development Guide Search 110
- 113. 2. Create theapplication framework by extending the UiApplication class. In main(), create an instance of the new class and invoke enterEventDispatcher() to enable the application to receive events. In the application constructor, invoke pushScreen() to display the custom screen for the application. The HomeScreen class represents the custom screen that is described in step 3. public class AutoCompleteFieldApp extends UiApplication { public static void main(String[] args) { AutoCompleteFieldApp app = new AutoCompleteFieldApp(); app.enterEventDispatcher(); } public AutoCompleteFieldApp() { pushScreen(new HomeScreen()); } } 3. Create the custom screen for the application by extending the MainScreen class. class HomeScreen extends MainScreen { public HomeScreen() { } } 4. In the screen constructor, create a BasicFilteredList object. Invoke addDataSource() to bind a data source to the BasicFilteredList. In this example, the data is contact information and the data source is the contact list. The first argument that you pass to addDataSource() is a unique ID. The second argument binds the BasicFilteredList object to a data source. The third argument specifies the set of data source fields to compare with. The fourth argument specifies the set of data source fields to make available when a match is found. In this example, the fields to compare with are the same as the fields to make available when a match is found. The fifth argument specifies the primary display field. The sixth argument specifies the secondary display field and is set to -1 if you do not want to use it. The final argument specifies a name for the BasicFilteredList; its value is generated automatically if you specify null. BasicFilteredList filterList = new BasicFilteredList(); filterList.addDataSource( 1, BasicFilteredList.DATA_SOURCE_CONTACTS, BasicFilteredList.DATA_FIELD_CONTACTS_NAME_FULL | BasicFilteredList.DATA_FIELD_CONTACTS_COMPANY | BasicFilteredList.DATA_FIELD_CONTACTS_EMAIL, BasicFilteredList.DATA_FIELD_CONTACTS_NAME_FULL | BasicFilteredList.DATA_FIELD_CONTACTS_COMPANY | BasicFilteredList.DATA_FIELD_CONTACTS_EMAIL, Development Guide Search 111
- 114. BasicFilteredList.DATA_FIELD_CONTACTS_NAME_FULL, -1, null); 5. In thescreen constructor, create an AutoCompleteField object. Pass the BasicFilteredList object that you created in step 4 to the AutoCompleteField constructor to bind the BasicFilteredList to the autocomplete text field. Invoke add() to add the field to the screen. AutoCompleteField autoCompleteField = new AutoCompleteField(filterList); add(autoCompleteField); Code sample: Creating an autocomplete field from a data source import net.rim.device.api.ui.UiApplication; import net.rim.device.api.ui.container.MainScreen; import net.rim.device.api.ui.component.AutoCompleteField; import net.rim.device.api.collection.util.*; public class AutoCompleteFieldApp extends UiApplication { public static void main(String[] args) { AutoCompleteFieldApp app = new AutoCompleteFieldApp(); app.enterEventDispatcher(); } AutoCompleteFieldApp() { HomeScreen scr = new HomeScreen(); this.pushScreen(scr); } } class HomeScreen extends MainScreen { public HomeScreen() { BasicFilteredList filterList = new BasicFilteredList(); filterList.addDataSource(1, BasicFilteredList.DATA_SOURCE_CONTACTS, BasicFilteredList.DATA_FIELD_CONTACTS_NAME_FULL | BasicFilteredList.DATA_FIELD_CONTACTS_COMPANY | BasicFilteredList.DATA_FIELD_CONTACTS_EMAIL, BasicFilteredList.DATA_FIELD_CONTACTS_NAME_FULL | BasicFilteredList.DATA_FIELD_CONTACTS_COMPANY | BasicFilteredList.DATA_FIELD_CONTACTS_EMAIL, BasicFilteredList.DATA_FIELD_CONTACTS_NAME_FULL, BasicFilteredList.DATA_FIELD_CONTACTS_NAME_FULL, null); Development Guide Search 112
- 115. AutoCompleteField autoCompleteField =new AutoCompleteField(filterList); add(autoCompleteField); } } Using data sources and fields with an autocomplete text field You can use the AutoCompleteField class and the BasicFilteredList class to compare the text that a user types in an autocomplete text field with the values of fields in a specified data source. You specify the fields to use and their data sources by using a BasicFilteredList object that you pass as an argument to the constructor of the AutoCompleteField class. Data source Fields DATA_SOURCE_APPOINTMENTS • DATA_FIELD_APPOINTMENTS_ALL • DATA_FIELD_APPOINTMENTS_ATTENDEES • DATA_FIELD_APPOINTMENTS_ORGANIZER • DATA_FIELD_APPOINTMENTS_SUBJECT DATA_SOURCE_CONTACTS • DATA_FIELD_CONTACTS_ADDRESS_ALL • DATA_FIELD_CONTACTS_ADDRESS_HOME • DATA_FIELD_CONTACTS_ADDRESS_WORK • DATA_FIELD_CONTACTS_ANNIVERSARY • DATA_FIELD_CONTACTS_BIRTHDAY • DATA_FIELD_CONTACTS_CATEGORIES • DATA_FIELD_CONTACTS_COMPANY • DATA_FIELD_CONTACTS_EMAIL • DATA_FIELD_CONTACTS_FAX • DATA_FIELD_CONTACTS_JOB_TITLE • DATA_FIELD_CONTACTS_NAME_FULL • DATA_FIELD_CONTACTS_NAME_FIRST • DATA_FIELD_CONTACTS_NAME_LAST • DATA_FIELD_CONTACTS_NOTES • DATA_FIELD_CONTACTS_PAGER • DATA_FIELD_CONTACTS_PHONE_ALL • DATA_FIELD_CONTACTS_PHONE_HOME • DATA_FIELD_CONTACTS_PHONE_HOME2 • DATA_FIELD_CONTACTS_PHONE_MOBILE Development Guide Search 113
- 116. Data source Fields •DATA_FIELD_CONTACTS_PHONE_OTHER • DATA_FIELD_CONTACTS_PHONE_WORK • DATA_FIELD_CONTACTS_PHONE_WORK2 • DATA_FIELD_CONTACTS_PIN DATA_SOURCE_MEMOS • DATA_FIELD_MEMOS_TITLE DATA_SOURCE_MESSAGES • DATA_FIELD_MESSAGES_ALL • DATA_FIELD_MESSAGES_RECIPIENT • DATA_FIELD_MESSAGES_SENDER • DATA_FIELD_MESSAGES_SUBJECT DATA_SOURCE_MUSIC • DATA_FIELD_MUSIC_ALL • DATA_FIELD_MUSIC_ALBUM • DATA_FIELD_MUSIC_ARTIST • DATA_FIELD_MUSIC_GENRE • DATA_FIELD_MUSIC_PLAYLIST • DATA_FIELD_MUSIC_SONG DATA_SOURCE_PICTURES • DATA_FIELD_PICTURES_TITLE DATA_SOURCE_RINGTONES • DATA_FIELD_RINGTONES_TITLE DATA_SOURCE_TASKS • DATA_FIELD_TASKS_TITLE DATA_SOURCE_VIDEOS • DATA_FIELD_VIDEOS_TITLE DATA_SOURCE_VOICENOTES • DATA_FIELD_VOICENOTES_TITLE Spin boxes Use a spin box to allow users to choose an item from an ordered list easily. For example, use spin boxes to allow users to find a number or to change the day of the week. Action BlackBerry devices with a trackpad only BlackBerry devices with a touch screen and a trackpad Find an item in the list. Move a finger vertically on the trackpad. • Drag a finger vertically on the screen. • Swipe up or down on the screen. Development Guide Spin boxes 114
- 117. Action BlackBerry deviceswith a trackpad only BlackBerry devices with a touch screen and a trackpad • Move a finger vertically on the trackpad. Move a finger up or down on the screen or the trackpad. Choose an item from the list. Click the trackpad. • Lift a finger from the screen. • Click the trackpad. Move to another spin box. Move a finger vertically on the trackpad. • Drag a finger vertically on the screen. • Move a finger vertically on the trackpad. Create a spin box 1. Import the required classes and interfaces. import net.rim.device.api.ui.UiApplication; import net.rim.device.api.ui.component.Dialog; import net.rim.device.api.ui.component.TextSpinBoxField; import net.rim.device.api.ui.container.MainScreen; import net.rim.device.api.ui.container.SpinBoxFieldManager; 2. Create the application framework by extending the UiApplication class. In main(), create an instance of the new class and invoke enterEventDispatcher() to enable the application to receive events. In the application constructor, invoke pushScreen() to display the custom screen for the application. The HomeScreen class represents the custom screen that is described in step 3. Development Guide Spin boxes 115
- 118. public class SpinBoxAppextends UiApplication { public static void main(String[] args) { SpinBoxApp app = new SpinBoxApp(); app.enterEventDispatcher(); } public SpinBoxApp() { pushScreen(new HomeScreen()); } } 3. Create the custom screen for the application by extending the MainScreen class. Declare a variable for each field in the spin box and declare a variable for the spin box field manager. class HomeScreen extends MainScreen { TextSpinBoxField spinBoxDays; TextSpinBoxField spinBoxMonths; SpinBoxFieldManager spinBoxMgr; public HomeScreen() { } } 4. In the screen constructor, create an array of String objects for each of the spin box fields. final String[] DAYS = {"Monday","Tuesday","Wednesday","Thursday","Friday","Saturday","Sunday"}; final String[] MONTHS = {"January","February","March","April","May","June","July","A ugust","September","October","November","December"}; 5. Inthescreenconstructor,createnewinstancesofthespinboxfieldmanagerandthetwospinboxfields.Passtheappropriate array of strings as arguments to each of the spin box field constructors. spinBoxMgr = new SpinBoxFieldManager(); spinBoxDays = new TextSpinBoxField(DAYS); spinBoxMonths = new TextSpinBoxField(MONTHS); 6. In the screen constructor, add the spin box fields to the spin box field manager. Invoke add() to add the manager, and the fields that it contains, to the screen. spinBoxMgr.add(spinBoxDays); spinBoxMgr.add(spinBoxMonths); add(spinBoxMgr); Development Guide Spin boxes 116
- 119. Code sample: Creatinga spin box import net.rim.device.api.ui.UiApplication; import net.rim.device.api.ui.container.MainScreen; import net.rim.device.api.ui.container.SpinBoxFieldManager; import net.rim.device.api.ui.component.Dialog; import net.rim.device.api.ui.component.TextSpinBoxField; public class SpinBoxApp extends UiApplication { public static void main(String[] args) { SpinBoxApp app = new SpinBoxApp(); app.enterEventDispatcher(); } public SpinBoxApp() { HomeScreen homeScreen = new HomeScreen(); pushScreen(homeScreen); } } class HomeScreen extends MainScreen { TextSpinBoxField spinBoxDays; TextSpinBoxField spinBoxMonths; SpinBoxFieldManager spinBoxMgr; public HomeScreen() { final String[] DAYS = {"Monday","Tuesday","Wednesday","Thursday","Friday","Saturday","Sunday"}; final String[] MONTHS = {"January","February","March","April","May","June","July","August","Sep tember","October","November","December"}; spinBoxMgr = new SpinBoxFieldManager(); spinBoxDays = new TextSpinBoxField(DAYS); spinBoxMonths = new TextSpinBoxField(MONTHS); spinBoxMgr.add(spinBoxDays); spinBoxMgr.add(spinBoxMonths); add(spinBoxMgr); } public void close() { Development Guide Spin boxes 117
- 120. Dialog.alert("You selected "+ (String)spinBoxDays.get(spinBoxDays.getSelectedIndex()) + " and " + (String)spinBoxMonths.get(spinBoxMonths.getSelectedIndex())); super.close(); } } Best practice: Implementing spin boxes • Use spin boxes for a list of sequential items. • Use drop-down lists for non-sequential items or items with irregular intervals. For a short list of non-sequential items, you can use a spin box to provide a more interactive experience for users. • Avoid using a spin box if several other components appear on the screen. • Use the SpinBoxField class and the SpinBoxFieldManager class to create spin boxes. • Add spin boxes to dialog boxes instead of screens where possible. • When users highlight a spin box, display three to five items vertically. • Use an identifiable pattern for the sequence of items (for example, 5, 10, 15) so that users can estimate how much they need to scroll to find the target item. • Avoid making users scroll horizontally to view multiple spin boxes. If necessary, separate spin boxes into multiple fields. • If the text in a spin box is too long, use an ellipsis (...). Text fields Users can use a text field to type text. Type of text field Description email Users can insert an at sign (@) or a period (.) in an email address field by pressing the Space key. date and time Users can change the date or time on BlackBerry® devices with a trackpad using the keyboard or by moving a finger vertically on the trackpad. Users can change the date or time on BlackBerry devices with a touch screen by swiping up or down on the screen. number When users need to type in a number field on a physical keyboard, the BlackBerry device switches to number lock mode so that users do not need to press the Alt key to type numbers. When users need to type in a number field on a virtual keyboard, the number keyboard appears. password When users type in a password field, asterisks (*) appear instead of text. Users cannot cut, copy, or paste text or use AutoText in password fields. Development Guide Text fields 118
- 121. Type of textfield Description On BlackBerry devices with SureType® technology, multi-tap is the default typing input method in password fields. phone number When users type in a phone number field on a physical keyboard, the BlackBerry device switches to number lock mode so that users do not need to press the Alt key to type numbers. You can also allow users to perform the following actions in phone number fields: • Type the plus sign (+) for international phone numbers. • Type formatting characters such as the minus sign (-), period (.), parentheses (()), and spaces. • Type a number sign (#) or an asterisk (*). • Indicate a pause by typing a comma (,) or indicate a wait by typing an exclamation point (!). • Indicate an extension by pressing the Alt key and pressing E, X, or T. Whenusersneedtotypeinaphonenumberfieldonavirtualkeyboard,thenumberkeyboardappears. You can also allow users to perform the following actions in phone number fields: • Type a number sign (#) or an asterisk (*). • Indicate a pause or an extension by holding the asterisk (*) key. • Indicate a wait or an extension by holding the number sign (#) key. text In text fields, users type text. Users can cut, copy, and paste text in text fields. When the cursor reaches the end of a line of text, the text wraps to the next line. In text fields, BlackBerry devices can also turn telephone numbers, web pages, and email addresses into links automatically. web address Users can insert a period (.) in an address field by pressing the Space key. Best practice: Implementing text fields • Use the TextField class to create text fields. • Choose a type of text field based on what you expect users to type. Using the most appropriate text field is important so that the appropriate typing indicator appears on the screen when users type text. For example, when users type text in a phone number field, the number lock indicator appears in the upper-right corner of the screen. The field that you choose also affects the default typing input method for the field on BlackBerry devices with SureType® technology. • Use or extend existing fields instead of creating custom fields where possible so that fields inherit the appropriate default behavior. Development Guide Text fields 119
- 122. • If necessary,include hint text to provide guidance to users. Use hint text if space on a screen is limited and you cannot include a label or instructional text. Hint text appears in the field and disappears when users type. Guidelines for labels • Use concise, descriptive labels. Avoid labels that wrap. • Use title case capitalization. • Punctuate labels for fields with a colon (:). • If you use hint text, keep it concise. Use sentence case capitalization. Creating a text field Create a read-only text field that allows formatting 1. Import the net.rim.device.api.ui.component.RichTextField class. 2. Create an instance of a RichTextField. RichTextFieldrich=newRichTextField("RichTextField"); Create an editable text field that has no formatting and accepts filters 1. Import the following classes: • net.rim.device.api.ui.component.BasicEditField • net.rim.device.api.ui.component.EditField 2. Create an instance of a BasicEditField. BasicEditFieldbf=newBasicEditField("BasicEditField:","",10, EditField.FILTER_UPPERCASE); Create an editable text field that allows special characters 1. Import the net.rim.device.api.ui.component.EditField class. 2. Create an instance of an EditField. EditField edit = new EditField("EditField: ", "", 10, EditField.FILTER_DEFAULT); Create a text field for AutoText If a text field supports AutoText, when users press the Space key twice, the BlackBerry® device inserts a period, capitalizes the next letter after a period, and replaces words as defined in the AutoText application. 1. Import the following classes: • net.rim.device.api.ui.component.AutoTextEditField • net.rim.device.api.ui.autotext.AutoText Development Guide Text fields 120
- 123. • net.rim.device.api.ui.component.BasicEditField 2. Createan instance of an AutoTextEditField. AutoTextEditField autoT = new AutoTextEditField("AutoTextEditField: ", ""); Create a date field 1. Import the required classes and interfaces. import net.rim.device.api.ui.*; import net.rim.device.api.ui.component.*; import net.rim.device.api.ui.container.*; import java.lang.*; 2. Create the application framework by extending the UiApplication class. In main(), create an instance of the new class and invoke enterEventDispatcher() to enable the application to receive events. In the application constructor, invoke pushScreen() to display the custom screen for the application. The MyUiScreen class, which is described in step 3, represents the custom screen. public class MyUi extends UiApplication { public static void main(String[] args) { MyUi theApp = new MyUi(); theApp.enterEventDispatcher(); } public MyUi() { pushScreen(new MyUiScreen()); } } 3. Create the custom screen for the application by extending the MainScreen class. In the screen constructor, invoke setTitle() to specify the title for the screen. class MyUiScreen extends MainScreen { public MyUiScreen() { setTitle("UI Component Sample"); } } 4. In the screen constructor, create a date field by using the DateField class. Provide System.currentTimeMillis () as a parameter to return the current time. Use the DateField.DATE_TIME style to display both the date and the time. You can use other styles to display only the date or only the time. add(new DateField("Date: ", System.currentTimeMillis(), DateField.DATE_TIME)); Development Guide Text fields 121
- 124. Create a passwordfield 1. Import the net.rim.device.api.ui.component.PasswordEditField class. 2. Create an instance of a PasswordEditField. For example, the following instance uses a constructor that lets you provide a default initial value for the PasswordEditField: PasswordEditField pwd = new PasswordEditField("PasswordEditField: ", ""); Tree views Use a tree view to display objects, such as folders, in a hierarchical manner. Objects in the tree view are nodes. The highest node is the root node. A node in the tree can have child nodes under it. A node that has a child is a parent node. Users can perform the following action in a tree view: Action BlackBerry devices with a trackpad only BlackBerry devices with a touch screen and a trackpad Expand or collapse an object withaplussign(+)orminussign (-) in a hierarchy. Press the Space key or click the trackpad. • Tap the object. • Press the Space key. • Click the trackpad. Development Guide Tree views 122
- 125. Best practice: Implementingtree views • Use the TreeField class to create tree views. • Provide a pop-up menu if users can perform multiple actions when they click a parent node. • Include a root node only if users need the ability to perform actions on the entire tree. Otherwise, exclude the root node. Create a field to display a tree view Use a tree view to display objects, such as a folder structure, in a hierarchical manner. ATreeField contains nodes. The highest node is the root node. A node in the tree can have child nodes under it. A node that has a child is a parent node. 1. Import the required classes and interfaces. import net.rim.device.api.ui.component.TreeField; import net.rim.device.api.ui.component.TreeFieldCallback; import net.rim.device.api.ui.container.MainScreen; import java.lang.String; 2. Implement the TreeFieldCallback interface. 3. Invoke TreeField.setExpanded() on the TreeField object to specify whether a folder is collapsible. Create a TreeField object and multiple child nodes to the TreeField object. Invoke TreeField.setExpanded() using node4 as a parameter to collapse the folder. String fieldOne = new String("Main folder"); ... TreeCallback myCallback = new TreeCallback(); TreeField myTree = new TreeField(myCallback, Field.FOCUSABLE); int node1 = myTree.addChildNode(0, fieldOne); int node2 = myTree.addChildNode(0, fieldTwo); int node3 = myTree.addChildNode(node2, fieldThree); int node4 = myTree.addChildNode(node3, fieldFour); ... int node10 = myTree.addChildNode(node1, fieldTen); myTree.setExpanded(node4, false); ... mainScreen.add(myTree); 4. To repaint a TreeField when a node changes, create a class that implements the TreeFieldCallback interface and implement the TreeFieldCallback.drawTreeItem method. The TreeFieldCallback.drawTreeItem method uses the cookie for a tree node to draw a String in the location of a node. The TreeFieldCallback.drawTreeItem method invokes Graphics.drawText() to draw the String. private class TreeCallback implements TreeFieldCallback { public void drawTreeItem(TreeField _tree, Graphics g, int node, int y, int width, int indent) { String text = (String)_tree.getCookie(node); Development Guide Tree views 123
- 126. g.drawText(text, indent, y); } } DevelopmentGuide Tree views 124
- 127. Images 9 Using encodedimages Access an encoded image through an input stream 1. Import the required classes. import java.io.InputStream; 2. Save the image to the project folder or sub-folder. 3. AddtheimagetotheprojectintheBlackBerry®Java®Plug-inEclipse®ortheBlackBerry®Java®DevelopmentEnvironment. 4. Invoke getClass().getResourceAsStream() to retrieve the image as an input stream of bytes. private InputStream input; ... Class _class = this.getClass(); input = _class.getResourceAsStream("/images/example.png"); Encode an image 1. Import the required classes. import net.rim.device.api.system.EncodedImage; 2. Invoke EncodedImage.createEncodedImage(). This method uses the unprocessed image data in the byte array to create an instance of EncodedImage. 3. Check for an IllegalArgumentException, which EncodedImage.createEncodedImage() throws if the byte array that you provide as a parameter does not contain a recognized image format. // Store the contents of the image file. private byte[] data = new byte[2430]; try { // Read the image data into the byte array input.read(data); } catch (IOException e) { // Handle exception. } try { EncodedImage image = EncodedImage.createEncodedImage(data, 0, data.length); } catch (IllegalArgumentException iae) { System.out.println("Image format not recognized."); } Development Guide Images 125
- 128. Display an encodedimage 1. Import the required class. import net.rim.device.api.ui.component.BitmapField; 2. Invoke BitmapField.setImage() to assign the encoded image to a BitmapField. 3. Invoke add() to add the BitmapField to the screen. BitmapField field = new BitmapField(); field.setImage(image); add(field); Specify the display size of an encoded image 1. Import the required class. import net.rim.device.api.system.EncodedImage; 2. Invoke EncodedImage.scaleImage32(intscaleX,intscaleY). The passed scale value parameters must be net.rim.device.api.math.Fixed32 numbers (0 < scale < 1 for upscaling, and scale > 1 for downscaling). scaleImage32() creates a new EncodedImage instead of modifying the current one. Specify the decoding mode for an image 1. Import the required class. import net.rim.device.api.system.EncodedImage; 2. Invoke EncodedImage.setDecodeMode() using one of the following modes as a parameter: • Use DECODE_ALPHA to decode an alpha channel, if one exists (this is the default mode). • UseDECODE_NATIVE toforcedecodingofthebitmapimagetothenativebitmapimagetypeoftheBlackBerry®Device Software. • Use DECODE_READONLY to mark the decoded bitmap image as read-only. Displaying an image for zooming and panning The ZoomScreen class allows you to provide zoom and pan the functionality to an image. When a BlackBerry® device user clicks the trackball or touch screen, the screen displays the center region of the image zoomed in. When the image is zoomed in, the screen also displays an overlay highlighting the zoomed region. Scrolling the trackball or sliding a finger around the screen pans around the image. When the user stops panning and zooming the overlay disappears from the screen. Development Guide Displaying an image for zooming and panning 126
- 129. On BlackBerry deviceswith a touch screen, users can define the region of the image to zoom. The user can touch two points on the image to define the diagonally opposite corners of the region. When the region is selected, teh user can move one finger around the image to move the zoom region. To zoom in on the defined region, the user clicks the screen. To zoom out, the user presses the Escape key. Code sample: Displaying an image for zooming and panning import net.rim.device.api.system.*; import net.rim.device.api.ui.*; import net.rim.device.api.ui.component.*; import net.rim.device.api.ui.extension.container.*; public class ZoomableImageApp extends UiApplication { public static void main(String[] args) { ZoomableImageApp theApp = new ZoomableImageApp(); theApp.enterEventDispatcher(); } public ZoomableImageApp() { EncodedImage myImg = EncodedImage.getEncodedImageResource("myImg.jpg"); ZoomScreen zoomableImg = new ZoomScreen(myImg); pushScreen(zoomableImg); } } Display an image for zooming and panning 1. Import the required classes and interfaces: import net.rim.device.api.system.*; import net.rim.device.api.ui.*; import net.rim.device.api.ui.component.*; import net.rim.device.api.ui.extension.container.*; 2. Create the application framework by extending the UiApplication class. In main(), create an instance of the new class and invoke enterEventDispatcher() to enable the application to receive events. In the constructor, create an EncodedImage using a resource in your project, create a ZoomScreen with the EncodedImage, and invoke pushScreen() to display the image for zooming and panning. public class ZoomableImageApp extends UiApplication { public static void main(String[] args) { ZoomableImageApp theApp = new ZoomableImageApp(); Development Guide Displaying an image for zooming and panning 127
- 130. theApp.enterEventDispatcher(); } public ZoomableImageApp() { EncodedImage myImg= EncodedImage.getEncodedImageResource("myImg.jpg"); ZoomScreen zoomableImg = new ZoomScreen(myImg); pushScreen(zoomableImg); } } Displaying a row of images for scrolling You can use the PictureScrollField class to render a horizontal row of images that the user can scroll through by using the trackball or touch gestures. The PictureScrollField allows you to define the highlighting style of the selected image, the background style of the PictureScrollField, the text displayed below the selected image, the tooltip text that appears when an image is initially selected, and the height and width of the images. Code sample: Displaying a row of images for scrolling import net.rim.device.api.system.*; import net.rim.device.api.ui.*; import net.rim.device.api.ui.component.*; import net.rim.device.api.ui.container.*; import net.rim.device.api.ui.decor.*; import net.rim.device.api.ui.extension.component.*; public class PictureScrollFieldDemo extends UiApplication { public static void main(String[] args) { PictureScrollFieldDemo app = new PictureScrollFieldDemo(); app.enterEventDispatcher(); } public PictureScrollFieldDemo() { pushScreen(new PictureScrollFieldDemoScreen()); } } class PictureScrollFieldDemoScreen extends MainScreen { public PictureScrollFieldDemoScreen() { setTitle("PictureScrollField Demo"); Development Guide Displaying a row of images for scrolling 128
- 131. Bitmap[] images =new Bitmap[3]; String[] labels = new String[3]; String[] tooltips = new String[3]; images[0] = Bitmap.getBitmapResource("img1.jpg"); labels[0] = "Label for image 1"; tooltips[0] = "Tooltip for image 1"; images[1] = Bitmap.getBitmapResource("img2.jpg"); labels[1] = "Label for image 2"; tooltips[1] = "Tooltip for image 2"; images[2] = Bitmap.getBitmapResource("img3.jpg"); labels[2] = "Label for image 3"; tooltips[2] = "Tooltip for image 3"; ScrollEntry[] entries = ScrollEntry[3]; for (int i = 0; i < entries.length; i++) { entries[i] = new ScrollEntry(images[i], labels[i],tooltips[i]); } PictureScrollField pictureScrollField = new PictureScrollField(150, 100); pictureScrollField.setData(entries, 0); pictureScrollField.setHighlightStyle(HighlightStyle.ILLUMINATE); pictureScrollField.setHighlightBorderColor(Color.BLUE); pictureScrollField.setBackground (BackgroundFactory.createSolidTransparentBackground(Color.RED, 150)); pictureScrollField.setLabelsVisible(true); add(pictureScrollField); } } Display a row of images for scrolling 1. Import the required classes and interfaces. import net.rim.device.api.system.*; import net.rim.device.api.ui.*; import net.rim.device.api.ui.component.*; import net.rim.device.api.ui.container.*; import net.rim.device.api.ui.decor.*; import net.rim.device.api.ui.extension.component.*; Development Guide Displaying a row of images for scrolling 129
- 132. 2. Create theapplication framework by extending the UiApplication class. In main(), create an instance of the new class and invoke enterEventDispatcher() to enable the application to receive events. In the constructor, invoke pushScreen() to display the custom screen for the application. The PictureScrollFieldDemoScreen class, described in step 3, represents the custom screen. public class PictureScrollFieldDemo extends UiApplication { public static void main(String[] args) { PictureScrollFieldDemo app = new PictureScrollFieldDemo(); app.enterEventDispatcher(); } public PictureScrollFieldDemo() { pushScreen(new PictureScrollFieldDemoScreen()); } } 3. Create the framework for the custom screen by extending the MainScreen class. class PictureScrollFieldDemoScreen extends MainScreen { public PictureScrollFieldDemoScreen() { } } 4. In the constructor, invoke setTitle() to set the text that appears in the title section of the screen. setTitle("PictureScrollField Demo"); 5. In the constructor, create and initialize three arrays to store the images to display in the PictureScrollField and the labels and tooltip text that appear when each image is selected. In this example, the PictureScrollField contains three images. Bitmap[] images = new Bitmap[3]; String[] labels = new String[3]; String[] tooltips = new String[3]; images[0] = Bitmap.getBitmapResource("img1.jpg"); labels[0] = "Label for image 1"; tooltips[0] = "Tooltip for image 1"; images[1] = Bitmap.getBitmapResource("img2.jpg"); labels[1] = "Label for image 2"; tooltips[1] = "Tooltip for image 2"; images[2] = Bitmap.getBitmapResource("img3.jpg"); labels[2] = "Label for image 3"; tooltips[2] = "Tooltip for image 3"; Development Guide Displaying a row of images for scrolling 130
- 133. 6. In theconstructor, create and initialize an array of ScrollEntry objects. A ScrollEntry represents each item in the PictureScrollField. ScrollEntry[] entries = ScrollEntry[3]; for (int i = 0; i < entries.length; i++) { entries[i] = new ScrollEntry(images[i], labels[i], tooltips[i]); } 7. In the constructor, create and initialize the PictureScrollField with each image 150 pixels wide and 100 pixels high. Invoke setData() to set the entries in the PictureScrollField. The second paramater in setData() specifies which image position is selected by default. PictureScrollField pictureScrollField = new PictureScrollField(150, 100); pictureScrollField.setData(entries, 0); 8. In the constructor, set the style of the PictureScrollField. Invoke setHighlightStyle() to specify how the selected image is highlighted. Invoke setHighlightBorderColor() to specify the selected image's border color. Invoke setBackground() to specify the background of the PictureScrollField. Invoke setLabelVisible () to specify whether the PictureScrollField displays the selected image's label. pictureScrollField.setHighlightStyle(HighlightStyle.ILLUMINATE); pictureScrollField.setHighlightBorderColor(Color.BLUE); pictureScrollField.setBackground(BackgroundFactory .createSolidTransparentBackground(Color.RED, 150)); pictureScrollField.setLabelsVisible(true); 9. In the constructor, invoke add() to display the PictureScrollField. add(pictureScrollField); Development Guide Displaying a row of images for scrolling 131
- 134. Menu items 10 Createa menu The MainScreen class provides standard components of a BlackBerry® device application. It includes a default menu. 1. Import the required classes and interfaces. import net.rim.device.api.ui.*; import net.rim.device.api.ui.component.*; import net.rim.device.api.ui.container.*; 2. Create the application framework by extending the UiApplication class. In main(), create an instance of the new class and invoke enterEventDispatcher() to enable the application to receive events. In the application constructor, invoke pushScreen() to display the custom screen for the application. The CreateMenuScreen class, which is described in step 3, represents the custom screen. public class CreateMenu extends UiApplication { public static void main(String[] args) { CreateMenu theApp = new CreateMenu(); theApp.enterEventDispatcher(); } public CreateMenu() { pushScreen(new CreateMenuScreen()); } } 3. Create the custom screen for the application by extending the MainScreen class. In the screen constructor, invoke setTitle() to specify the title for the screen. Invoke add() to add a text field to the screen. Invoke addMenuItem () to add a menu item to the menu that MainScreen creates. class CreateMenuScreen extends MainScreen { public CreateMenuScreen() { setTitle("Create Menu Sample"); add(new RichTextField("Create a menu")); addMenuItem(_viewItem); } } 4. Create the menu item by using the MenuItem class. Override run() to specify the action that occurs when the user clicks the menu item. When the user clicks the menu item, the application invokes Menu.run(). Development Guide Menu items 132
- 135. private MenuItem _viewItem= new MenuItem("More Info", 110, 10) { public void run() { Dialog.inform("Display more information"); } }; 5. Override close() to display a dialog box when the user clicks the Close menu item. By default, the Close menu item is included in the menu that MainScreen creates. Invoke super.close() to close the application. When the user closes the dialog box, the application invokes MainScreen.close() to close the application. public void close() { Dialog.alert("Goodbye!"); super.close(); } Code sample: Creating a menu import net.rim.device.api.ui.*; import net.rim.device.api.ui.component.*; import net.rim.device.api.ui.container.*; public class CreateMenu extends UiApplication { public static void main(String[] args) { CreateMenu theApp = new CreateMenu(); theApp.enterEventDispatcher(); } public CreateMenu() { pushScreen(new CreateMenuScreen()); } } class CreateMenuScreen extends MainScreen { public CreateMenuScreen() { setTitle("Create Menu Sample"); add(new RichTextField("Create a menu")); addMenuItem(_viewItem); } private MenuItem _viewItem = new MenuItem("More Info", 110, 10) { public void run() { Dialog.inform("Display more information"); } Development Guide Create a menu 133
- 136. }; public void close() { Dialog.alert("Goodbye!"); super.close(); } } Bestpractice: Implementing menus • Always provide a full menu. • MakesurethatuserscanpresstheMenukeytoopenthefullmenuandtoinitiateanactionwhenamenuitemishighlighted. Make sure that users can also hold the Menu key to open the dialog box for switching applications. • For the default menu item, use the menu item that users are most likely to select. • Place the default menu item and other common menu items in the middle of the menu. • Verify that the order of menu items is consistent with the order of menu items in other BlackBerry® device applications. • Groupmenuitemsaccordingtocommonusageorcommonfunctionality,andwherepossible,testyourgroupingswithusers. • Insert separators between menu item groupings. • Do not place menu items for conflicting actions close together. For example, do not place a "Delete" menu item beside an "Open" menu item. • Always include the "Switch application" and "Close" menu items. Place these menu items at the end of the menu. If you use standard components, these menu items are included automatically. Guidelines for labels • Use concise, descriptive labels that are no longer than 12 characters. If a label is too long, an ellipsis (...) appears to indicate that the text is truncated. • Use verbs for labels. • Use title case capitalization for labels. • Use an ellipsis in a menu item label to indicate that users must perform another action after they click the menu item. For example, if users click the Go To Date... menu item in the calendar, they must specify a date on the screen that appears. • Avoid using symbols such as an asterisk (*) in labels. Submenus A submenu is a group of related menu items that appears as a subset of a menu item in the full menu. By including items in a submenu, users can find frequently used items or important items more easily in the full menu. Submenus typically include the following types of actions: • sending items in multiple ways (for example, sending a picture in an email message, an MMS message, or as an audio postcard) • sorting, searching for, finding, and filtering items in different ways (for example, filtering messages by sender or subject) Development Guide Best practice: Implementing menus 134
- 137. • changing views(for example, day, week, or agenda view in a calendar) Action BlackBerry devices with a trackpad only BlackBerry devices with a touch screen and a trackpad When a menu item is highlighted in a full menu, display a submenu. • Click the trackpad. • Move a finger to the right on the trackpad. • Press the Menu key. • Press the Enter key. • Tap the menu item. • Click the trackpad. • Move a finger to the right on the trackpad. • Press the Menu key. • Press the Enter key. Choose a menu item from a submenu. • Click the trackpad. • Press the Menu key. • Press the Enter key. • Tap the menu item. • Click the trackpad. • Press the Menu key. • Press the Enter key. Close a submenu. • Move a finger to the left on the trackpad. • Press the Escape key. • Tap outside the submenu. • Move a finger to the left on the trackpad. • Press the Escape key. Close a submenu and a full menu. Press the Escape key twice. • Tap outside the full menu and the submenu twice. • Press the Escape key twice. • Open or close the slider. An arrow appears when submenu items are available for an item in the full menu. Development Guide Submenus 135
- 138. A full menuitem with an arrow A full menu and a submenu Best practice: Implementing submenus • Use the Submenu subclass to create submenus. • Use submenus to reduce the number of menu items in the full menu. For example, if users have to scroll to see all the items in a full menu, group some of the menu items in a submenu. • Group related items in a submenu. For example, if "Sort By" appears in the full menu, group "Date," "Name," and "Subject" in a submenu. • Consider grouping advanced features in a submenu. For example, use "Additional Options" in the full menu and group the options in the submenu. • Avoid using submenus for only one or two menu items. • If a submenu includes more than six items, consider grouping the items into two sections in the submenu. Place the menu itemsthatarefrequentlyusedatthetopofthesubmenu,insertaseparator,andthenordertherestoftheitemsalphabetically. • If a menu item requires users to do more than click the item (for example, if a user has to specify a date), open a dialog box. • Avoid including frequently used menu items or important menu items in submenus. • Avoid implementing a submenu from a submenu. Guidelines for labels • In the full menu, use concise, descriptive labels that clearly define the action. Users should not have to open the submenu to understand the meaning of the item in the full menu. • In the full menu, use verbs for labels. Use nouns only if the meaning is clear. For example, if "Email Accounts" appears in the full menu, group each email account in a submenu. • Avoid repeating verbs in submenus. For example, avoid using "Sort By" in the full menu and "Sort By Date" and "Sort By Name" in the submenu. • Use title case capitalization for labels. Capitalize the first word in the submenu even if it is a preposition. For example, use "Send" > "As Email" instead of "as Email"). Development Guide Submenus 136
- 139. • Avoid usingthe term "More" in the full menu unless the location of the menu item clearly indicates what "more" refers to. For example, if "Inbox," "Outbox," and "More" appear between separators in the full menu, group additional options associated with a mailbox in a submenu. Create a submenu You can create a submenu for your BlackBerry® device application. A submenu appears when a user selects a menu item that has a submenu associated with it. 1. Import the required classes and interfaces. import net.rim.device.api.ui.*; import net.rim.device.api.ui.component.*; import net.rim.device.api.ui.container.*; 2. Create the application framework by extending the UiApplication class. In main(), create an instance of the new class and invoke enterEventDispatcher() to enable the application to receive events. In the application constructor, invoke pushScreen() to display the custom screen for the application. The CreateSubmenuScreen class, which is described in step 3, represents the custom screen. public class CreateSubmenu extends UiApplication { public static void main(String[] args) { CreateSubmenu theApp = new CreateSubmenu(); theApp.enterEventDispatcher(); } public CreateSubmenu() { pushScreen(new CreateSubmenuScreen()); } } 3. Create the custom screen for the application by extending the MainScreen class. In the screen constructor, invoke setTitle() to specify the title for the screen. Invoke add() to add a text field to the screen. class CreateSubmenuScreen extends MainScreen { public CreateSubmenuScreen() { setTitle("Create Submenu Sample"); add(new RichTextField("Create a submenu")); } } 4. Create the submenu items by using the MenuItem class. For each submenu item, override run() to specify the action that occurs when the user clicks the menu item. When the user clicks the menu item, the application invokes Menu.run(). private MenuItem _status1 = new MenuItem("Available", 100, 1) { public void run() Development Guide Submenus 137
- 140. { Dialog.inform("I'm available"); } }; private MenuItem_status2 = new MenuItem("Unavailable", 200, 2) { public void run() { Dialog.inform("I'm unavailable"); } }; 5. Override makeMenu() to create the menu for the application. Create the submenu by using the SubMenu class. Invoke add() to add the submenu items to the submenu. Invoke super.makeMenu() to create the menu. protected void makeMenu( Menu menu, int instance ) { SubMenu statusSubMenu = new SubMenu(null,"My Status",300,3); statusSubMenu.add(_status1); statusSubMenu.add(_status2); menu.add(statusSubMenu); super.makeMenu(menu, instance); }; Code sample: Creating a submenu import net.rim.device.api.ui.*; import net.rim.device.api.ui.component.*; import net.rim.device.api.ui.container.*; public class CreateSubmenu extends UiApplication { public static void main(String[] args) { CreateSubmenu theApp = new CreateSubmenu(); theApp.enterEventDispatcher(); } public CreateSubmenu() { pushScreen(new CreateSubmenuScreen()); } } class CreateSubmenuScreen extends MainScreen { public CreateSubmenuScreen() { setTitle("Create Submenu Sample"); add(new RichTextField("Create a submenu")); } private MenuItem _status1 = new MenuItem("Available", 100, 1) Development Guide Submenus 138
- 141. { public void run() { Dialog.inform("I'mavailable"); } }; private MenuItem _status2 = new MenuItem("Unavailable", 200, 2) { public void run() { Dialog.inform("I'm unavailable"); } }; protected void makeMenu( Menu menu, int instance ) { SubMenu statusSubMenu = new SubMenu(null,"My Status",300,3); statusSubMenu.add(_status1); statusSubMenu.add(_status2); menu.add(statusSubMenu); super.makeMenu(menu, instance); }; } Pop-up menus A pop-up menu provides users with a quick way to access the most common actions for a highlighted item. You can also use a pop-up menu if a highlighted item has multiple actions associated with it or if a highlighted item does not have any primary actions associated with it. You can create a pop-up menu that contains nine actions, six actions, or three actions. Action BlackBerry devices with a trackpad only BlackBerry devices with a touch screen and a trackpad Open a pop-up menu. • Click the trackpad. • If a primary action has already been assigned to an item (for example, open a message), users can click and hold the trackpad to open a pop-up menu. • Tap the item. • Click the trackpad. • If a primary action has already been assigned to an item (for example, open amessage),userscanclickandholdthe trackpad or touch and hold a finger on the touch screen to open a pop-up menu. Choose an item from a pop-up menu. • Click the trackpad. • Press the Enter key. • Tap the item. • Click the trackpad. Development Guide Pop-up menus 139
- 142. Action BlackBerry deviceswith a trackpad only BlackBerry devices with a touch screen and a trackpad • Press the Enter key. Close a pop-up menu. Press the Escape key. • Tap outside the pop-up menu. • Press the Escape key. • Open or close the slider. Pop-up menus replace context menus, or short menus. Any existing context menus are automatically converted into pop-up menus. Best practice: Implementing pop-up menus • Use pop-up menus instead of context menus (short menus). Make sure that the pop-up menu provides value to users. • Set the menu item that users are most likely to choose as the default menu item. The default item in the pop-up menu should be the same as the default item in the full menu. • Only include the most common actions for a highlighted item in a pop-up menu. • Include an icon and a label for each item in the pop-up menu. Create icons with an average size of 33-by-33 pixels. These icons appear on a 60-by-40 pixel canvas and should have some negative space. Guidelines for placing items in pop-up menus • Place the default menu item in the center of the pop-up menu. • Order the rest of the items from most common to least common according to the numbered positions below. Try to leverage users' muscle memory by making the order of actions consistent with the order of actions in other BlackBerry® device applications. Development Guide Pop-up menus 140
- 143. • If thepositions are filled dynamically, do not display menu items that are unavailable. Allow the available menu items to shift position. • If there are not enough actions to fill the menu, use a smaller menu. If one or two positions need to be filled, include useful actions such as Copy or Search. If you do not fill a position, "Switch Application" or "Home" appears. About placing items in the pop-up menus Pop-up menus display menu items in a 3-by-3, 3-by-2, or 3-by-1 grid depending on the number of items. By default, the pop-up menu always includes an item to open the full menu. You can provide up to eight additional items. If you provide more than eight items, the additional items are not displayed. You can add additional items to the full menu instead. The first item that you add to the vector of CommandItem elements is the default item in the pop-up menu. The default item appears highlighted in the center of the grid when the BlackBerry® device user opens the pop-up menu. The other items are positioned in the pop-up menu based on the order that you add them. If the number of items that you add to the pop-up menu leaves empty cells in the grid, filler items are added to the menu. The first filler item is an option to switch applications. The second filler item is an option to return to the Home screen. Support for legacy context menus Since BlackBerry® Java® SDK 6.0, an application's context menu or short menu is converted to a pop-up menu. Whether you added menu items to a context menu or used the items that were added to the context menu by default, you do not have to change your code to have these items appear in the pop-up menu instead. However, BlackBerry Java SDK 6.0 includes classes and interfaces that you can use to build a pop-up menu, and allows you to use the Command Framework API and make your Development Guide Pop-up menus 141
- 144. code more modular.For example, if your application has a UI component and a menu item that performs the same function, by using the Command Framework API, you can write the code for that function once and use it throughout your application, as well as make it available for other applications to use. A context menu item included an ordinal number which determined the placement of the item in the menu. The lower the ordinal number, the higher the position of the item in the menu. When a context menu is converted to a pop-up menu, the menu item that has the lowest ordinal number becomes the default pop-up menu item. The remaining items are added to the pop-up menu from the lowest ordinal number to the highest. If an icon was associated with a menu item in your legacy context menu, it is used for the item in the pop-up menu. Otherwise, a default icon is used. Similar to other pop-up menus, only the first eight context menu items are displayed in the pop-up menu. If the context menu has more than eight menu items, make sure that you use the ordinal numbers for the menu items appropriately so that the most important and useful items appear in the pop-up menu. For more information about creating context menus, visit the BlackBerry Developer Resource Center at www.blackberry.com/ developer to read Distinguish between a full menu and a primary actions menu. Creating a pop-up menu You can create a pop-up menu by using classes that are available in the net.rim.device.api.ui.menu package, and you can define the functionality of the pop-up menu items by using the Command Framework API. A pop-up menu consists of a context menu provider, a command item provider, and command items. Component Description Context menu provider You use the DefaultContextMenuProvider class to create and display a screen's pop-up menu. When a BlackBerry® device user opens a pop-up menu, the context menu provider looks for fields on the screen that are command item providers. DefaultContextMenuProvider is the default implementation of ContextMenuProvider. If you do not provide a screen with a context menu provider, the legacy context menu is converted and displayed as a pop-up menu. Command item provider You use the CommandItemProvider class to configure a field on your UI screen sothatthefieldcanprovidecontextandcommanditemstothepop-upmenubased on the current context. For example, you could configure an email address as a command item provider and provide the user with different actions based on whether the email address is in the user's contact list. Command items You use the CommandItem class to specify the text, icon, and behavior of a pop- up menu item. You define the behavior of the pop-up menu by using a command. The command acts as a proxy to an instance of a command handler, which defines the functionality of the pop-up menu item. For example, for an email address, you Development Guide Pop-up menus 142
- 145. Component Description could providecommand items to add or view a contact based on whether the selected email address appears in the user's contact list. The command handler would contain the code to add or view the contact. For more information on commands and command handlers, see Command Framework API. The Command Framework sample application that is provided in the BlackBerry® Java® SDK demonstrates commands and command handlers. If you use a legacy context menu, BlackBerry® Device Software 6.0 converts the context menu items to command items and provides them to the command item provider. For more information, see Support for legacy context menus. Create a pop-up menu 1. Import the required classes and interfaces. import net.rim.device.api.command.*; import net.rim.device.api.system.*; import net.rim.device.api.ui.*; import net.rim.device.api.ui.component.*; import net.rim.device.api.ui.container.*; import net.rim.device.api.ui.menu.*; import net.rim.device.api.ui.image.*; import net.rim.device.api.util.*; import java.util.*; 2. Create the application framework by extending the UiApplication class. In main(), create an instance of the new class and invoke enterEventDispatcher() to enable the application to receive events. In the application constructor, invoke pushScreen() to display the custom screen for the application. The MyPopUpMenuScreen class, which is described in step 3, represents the custom screen. public class MyPopUpMenuApp extends UiApplication { public static void main(String[] args) { Mypop-upMenuApp theApp = new Mypop-upMenuApp(); theApp.enterEventDispatcher(); } public Mypop-upMenuApp() { pushScreen(new Mypop-upMenuScreen()); } } 3. Create the custom screen for the application by extending the MainScreen class. In the screen constructor, invoke setTitle() to specify the title for the screen. Development Guide Pop-up menus 143
- 146. class MyPopUpMenuScreen extendsMainScreen { EmailAddressEditField emailAddress; public Mypop-upMenuScreen() { setTitle("Pop-Up Menu Demo"); } } 4. In the screen constructor, specify a context menu provider. Pass a DefaultContextMenuProvider object to Screen.setContextMenuProvider() to enable your screen to display a pop-up menu. setContextMenuProvider(new DefaultContextMenuProvider()); 5. In the screen constructor, create UI components that can invoke the pop-up menu. In the following code sample, the label uses the Field.FOCUSABLE property to allow users to highlight the field. LabelField labelField = new LabelField("Click to invoke pop-up menu", Field.FOCUSABLE); emailAddress = new EmailAddressEditField("Email address: ", "name@blackberry.com", 40); 6. In the screen constructor, configure the UI components as command item providers. The DefaultContextMenuProvider object looks for fields that are configured as command item providers, and uses them to create and display a pop-up menu. For each component, invoke Field.setCommandItemProvider() to configure the field as a command item provider. The ItemProvider class is described in step 7. ItemProvider itemProvider = new ItemProvider(); labelField.setCommandItemProvider(itemProvider); emailAddress.setCommandItemProvider(itemProvider); 7. In the custom screen, implement the CommandItemProvider interface. In getContext(), return the field that is configured as a command item provider. In getItems(), create a Vector object to add the pop-up menu items to. class ItemProvider implements CommandItemProvider { public Object getContext(Field field) { return field; } public Vector getItems(Field field) { } } 8. In getItems(), provide the pop-up menu items by creating instances of the CommandItem class. For each command item, specify the pop-up menu text, icon, and command. In the following code sample, an if-then-else statement is used to check which component invoked the pop-up menu before creating the CommandItem. The command is a proxy to an instance of a class that extends the abstract CommandHandler class, which is described in step 9. Invoke Vector.addElement() to add the pop-up menu items to the Vector. Return the Vector. Development Guide Pop-up menus 144
- 147. CommandItem defaultCmd; Image myIcon= ImageFactory.createImage(Bitmap.getBitmapResource("my_logo.png")); if(field.equals(emailAddress)){ defaultCmd = new CommandItem(new StringProvider("Email Address"), myIcon, new Command(new DialogCommandHandler())); } else { defaultCmd = new CommandItem(new StringProvider("Label Field"), myIcon, new Command(new DialogCommandHandler())); } items.addElement(defaultCmd); return items; 9. In the custom screen, create a command handler by creating a class that extends the abstract CommandHandler class. In execute(), define the functionality that you want to associate with the pop-up menu items. This command handler couldbeusedbyanyUIcomponentonyourscreen(forexample,fullmenuitems,buttons,andsoon).BecausecanExecute () is not implemented, this command is always executable. In the following code sample, a dialog box appears when the user clicks a pop-up menu item. class DialogCommandHandler extends CommandHandler { public void execute(ReadOnlyCommandMetadata metadata, Object context) { Dialog.alert("Executing command for " + context.toString()); } } Code sample: Creating a pop-up menu import net.rim.device.api.command.*; import net.rim.device.api.system.*; import net.rim.device.api.ui.*; import net.rim.device.api.ui.component.*; import net.rim.device.api.ui.container.*; import net.rim.device.api.ui.menu.*; import net.rim.device.api.ui.image.*; import net.rim.device.api.util.*; import java.util.*; public class MyPopUpMenuApp extends UiApplication { public static void main(String[] args) { MyPopUpMenuApp theApp = new MyPopUpMenuApp(); theApp.enterEventDispatcher(); } Development Guide Pop-up menus 145
- 148. public MyPopUpMenuApp() { pushScreen(new MyPopUpMenuScreen()); } } classMyPopUpMenuScreen extends MainScreen { EmailAddressEditField emailAddress; public MyPopUpMenuScreen() { setTitle("Pop-Up Menu Demo"); setContextMenuProvider(new DefaultContextMenuProvider()); LabelField labelField = new LabelField("Click to invoke pop-up menu", Field.FOCUSABLE); emailAddress = new EmailAddressEditField("Email address: ", "name@blackberry.com", 40); ItemProvider itemProvider = new ItemProvider(); labelField.setCommandItemProvider(itemProvider); emailAddress.setCommandItemProvider(itemProvider); add(labelField); add(emailAddress); } /* To override the default functionality that prompts the user to save changes before the application closes, * override the MainScreen.onSavePrompt() method. In the following code sample, the return value is true which * indicates that the application does not prompt the user before closing. */ protected boolean onSavePrompt() { return true; } class ItemProvider implements CommandItemProvider { public Object getContext(Field field) { return field; } public Vector getItems(Field field) { Vector items = new Vector(); CommandItem defaultCmd; Image myIcon = ImageFactory.createImage(Bitmap Development Guide Pop-up menus 146
- 149. .getBitmapResource("my_logo.png")); if(field.equals(emailAddress)){ defaultCmd = newCommandItem(new StringProvider("Email Address"), myIcon, new Command(new DialogCommandHandler())); } else{ defaultCmd = new CommandItem(new StringProvider("Label Field"), myIcon, new Command(new DialogCommandHandler())); } items.addElement(defaultCmd); return items; } } class DialogCommandHandler extends CommandHandler { public void execute(ReadOnlyCommandMetadata metadata, Object context) { Dialog.alert("Executing command for " + context.toString()); } } } Adding a menu item to a BlackBerry Device Software application You can add a menu item to a BlackBerry® Device Software application by using the Menu Item API in the net.rim.blackberry.api.menuitem package. For example, you can add a menu item called View Sales Order to the contacts application on a BlackBerry device so that when a user clicks the menu item, a CRM application opens and displays a list of sales orders for that contact. The ApplicationMenuItemRepository class provides the constants that specify the BlackBerry Device Software application that your menu item should appear in. For example, the MENUITEM_MESSAGE_LIST constant specifies that the menu item should appear in the messages application. Add a menu item to a BlackBerry Device Software application 1. Import the required classes and interfaces. import net.rim.blackberry.api.menuitem.*; import net.rim.blackberry.api.pdap.*; import net.rim.device.api.ui.*; import net.rim.device.api.ui.component.*; Development Guide Adding a menu item to a BlackBerry Device Software application 147
- 150. 2. Extend theabstract ApplicationMenuItem class to create a menu item. Override the ApplicationMenuItem() constructor with an integer to specify the position of the menu item in the menu. A higher number positions the menu item lower in the menu. public class SampleMenuItem extends ApplicationMenuItem { SampleMenuItem() { super(20); } } 3. Implement toString() to specify the menu item text. public String toString() { return "Open the Contacts Demo application"; } 4. Invoke getInstance() to retrieve the application repository. ApplicationMenuItemRepository repository = ApplicationMenuItemRepository.getInstance(); 5. Create an instance of a class to extend the MenuItem class. ContactsDemoMenuItem contactsDemoMenuItem = new ContactsDemoMenuItem(); 6. Invoke ApplicationMenuItemRepository.addMenuItem() to add the menu item to the relevant BlackBerry® device application repository. repository.addMenuItem(ApplicationMenuItemRepository .MENUITEM_ADDRESSCARD_VIEW, contactsDemoMenuItem); 7. Implement run() to specify the behavior of the menu item. In the following code sample, when a user clicks the new menu item and a Contact object exists, the ContactsDemo application receives the event and invokes ContactsDemo.enterEventDispatcher(). public Object run(Object context) { BlackBerryContact c = (BlackBerryContact)context; if ( c != null ) { new ContactsDemo().enterEventDispatcher(); } else { throw new IllegalStateException( "Context is null, expected a Contact instance"); } Development Guide Adding a menu item to a BlackBerry Device Software application 148
- 151. Dialog.alert("Viewing an emailmessage in the email view"); return null; } Changing the appearance of a menu You can change the background, border, and font of a menu by using the Menu class in the net.rim.device.api.ui.component package. For example, you can change the appearance of the menu so that it has a look and feel that is similar to the rest of your BlackBerry® device application. When you change the appearance of a menu, your BlackBerry device application overrides the theme that is set on the BlackBerry device. Change the appearance of a menu 1. Import the required classes and interfaces. import net.rim.device.api.ui.*; import net.rim.device.api.ui.component.*; import net.rim.device.api.ui.container.*; import net.rim.device.api.ui.decor.*; import net.rim.device.api.system.*; 2. Create the application framework by extending the UiApplication class. In main(), create an instance of the new class and invoke enterEventDispatcher() to enable the application to receive events. In the application constructor, invoke pushScreen() to display the custom screen for the application. The CreateCustomMenuScreen class , which is described in step 3, represents the custom screen. public class CreateCustomMenu extends UiApplication { public static void main(String[] args) { CreateCustomMenu theApp = new CreateCustomMenu(); theApp.enterEventDispatcher(); } public CreateCustomMenu() { pushScreen(new CreateCustomMenuScreen()); } } 3. Create the custom screen for the application by extending the MainScreen class. In the screen constructor, invoke setTitle() to specify the title for the screen. Invoke add() to add a text field on the screen. class CreateCustomMenuScreen extends MainScreen { Background _menuBackground; Border _menuBorder; Font _menuFont; CreateCustomMenuScreen() Development Guide Changing the appearance of a menu 149
- 152. { setTitle("Custom Menu Sample"); add(newRichTextField("Creating a custom menu")); } } 4. In the screen constructor, specify the appearance of the menu. Create the spacing for the border around the menu by creating an XYEdges object. Invoke createRoundedBorder() to create a border with rounded corners. Invoke createSolidTransparentBackground() to create a transparent background color for the menu. XYEdges thickPadding = new XYEdges(10, 10, 10, 10); _menuBorder = BorderFactory.createRoundedBorder(thickPadding, Border.STYLE_DOTTED); _menuBackground = BackgroundFactory.createSolidTransparentBackground(Color .LIGHTSTEELBLUE, 50); 5. In the screen constructor, specify the font for the menu by using a FontFamily object. Invoke forName() to retrieve a font from on the BlackBerry® device. Invoke getFont() to specify the style and size of the font. try { FontFamily family = FontFamily.forName("BBCasual"); _menuFont = family.getFont(Font.PLAIN, 30, Ui.UNITS_px); } catch(final ClassNotFoundException cnfe) { UiApplication.getUiApplication().invokeLater(new Runnable() { public void run() { Dialog.alert("FontFamily.forName() threw " + cnfe.toString()); } }); } 6. Inthescreenclass,overridemakeMenu()toapplytheappearanceofthemenu.InvokesetBackground(),setBorder (), and setFont() to apply the appearance the menu that you specified in steps 4 and 5. protected void makeMenu(Menu menu, int context) { menu.setBorder(_menuBorder); menu.setBackground(_menuBackground); menu.setFont(_menuFont); super.makeMenu(menu, context); } Code sample: Changing the appearance of a menu import net.rim.device.api.ui.*; import net.rim.device.api.ui.component.*; import net.rim.device.api.ui.container.*; Development Guide Changing the appearance of a menu 150
- 153. import net.rim.device.api.ui.decor.*; import net.rim.device.api.system.*; publicclass CreateCustomMenu extends UiApplication { public static void main(String[] args) { CreateCustomMenu theApp = new CreateCustomMenu(); theApp.enterEventDispatcher(); } public CreateCustomMenu() { pushScreen(new CreateCustomMenuScreen()); } } class CreateCustomMenuScreen extends MainScreen { Border _menuBorder; Background _menuBackground; Font _menuFont; CreateCustomMenuScreen() { setTitle("Custom Menu Sample"); add(new RichTextField("Creating a custom menu")); XYEdges thickPadding = new XYEdges(10, 10, 10, 10); _menuBorder = BorderFactory.createRoundedBorder(thickPadding, Border.STYLE_DOTTED); _menuBackground = BackgroundFactory.createSolidTransparentBackground(Color .LIGHTSTEELBLUE, 50); try { FontFamily family = FontFamily.forName("BBCasual"); _menuFont = family.getFont(Font.PLAIN, 30, Ui.UNITS_px); } catch(final ClassNotFoundException cnfe) { UiApplication.getUiApplication().invokeLater(new Runnable() { public void run() { Dialog.alert("FontFamily.forName() threw " + cnfe.toString()); } }); } } protected void makeMenu(Menu menu, int context) { menu.setBorder(_menuBorder); menu.setBackground(_menuBackground); menu.setFont(_menuFont); Development Guide Changing the appearance of a menu 151
- 154. super.makeMenu(menu, context); } } Development GuideChanging the appearance of a menu 152
- 155. Custom fonts 11 TheFontManager class in the net.rim.device.api.ui package provides constants and methods that you can use to install and uninstall a TrueType font on a BlackBerry® device. The maximum size allowed for the TrueType font file is 60 KB. You can specify whether the font is available to the application that installs the font or to all applications on the BlackBerry device. The FontManager class also provides methods to set the default font for the BlackBerry device or application. Install and use a custom font in a BlackBerry Java application 1. Import the required classes and interfaces. import net.rim.device.api.system.*; import net.rim.device.api.ui.*; import net.rim.device.api.ui.container.*; import net.rim.device.api.ui.component.*; import java.util.*; 2. Create the application framework by extending the UiApplication class. In main(), create an instance of the new class and invoke enterEventDispatcher() to enable the application to receive events. In the application constructor, invoke pushScreen() to display the custom screen for the application. The FontLoadingDemoScreen class, described in step 3, represents the custom screen. public class FontLoadingDemo extends UiApplication { public static void main(String[] args) { FontLoadingDemo app = new FontLoadingDemo(); app.enterEventDispatcher(); } public FontLoadingDemo() { pushScreen(new FontLoadingDemoScreen()); } } 3. Create the custom screen by extending the MainScreen class. Invoke setTitle() to set the text that appears in the title section of the screen. Create a new LabelField object. You will apply the custom font to this object. class FontLoadingDemoScreen extends MainScreen { public FontLoadingDemoScreen() { setTitle("Font Loading Demo"); LabelField helloWorld = new LabelField("Hello World"); Development Guide Custom fonts 153
- 156. } } 4. In thescreen constructor, invoke the FontManager.getInstance() method to get a reference to the FontManager object, then invoke the load() method to install the font. Wrap the load() invocation in an IF statement to check if the installation was successful. The load() method returns a flag specifying if font is successfully installed. The following code specifies that the font that can be used only by the application. if (FontManager.getInstance().load("Myfont.ttf", "MyFont", FontManager.APPLICATION_FONT) == FontManager.SUCCESS) { } 5. In the screen constructor, in a try/catch block in the IF statement you created in step 5, create a Font object for the font you just installed. Invoke the setFont() method to apply the font to the LabelField you created in step 5. try { FontFamily family = FontFamily.forName("MyFont"); Font myFont = family.getFont(Font.PLAIN, 50); helloWorld.setFont(myFont); } catch (ClassNotFoundException e) { System.out.println(e.getMessage()); } 6. In the screen constructor, invoke add() to add the LabelField to the screen. add(helloWorld); Code sample: Installing and using a custom font in a BlackBerry Java application import net.rim.device.api.system.*; import net.rim.device.api.ui.*; import net.rim.device.api.ui.container.*; import net.rim.device.api.ui.component.*; import java.util.*; public class FontLoadingDemo extends UiApplication { public static void main(String[] args) { FontLoadingDemo app = new FontLoadingDemo(); app.enterEventDispatcher(); } Development Guide Code sample: Installing and using a custom font in a BlackBerry Java application 154
- 157. public FontLoadingDemo() { pushScreen(new FontLoadingDemoScreen()); } } classFontLoadingDemoScreen extends MainScreen { public FontLoadingDemoScreen() { setTitle("Font Loading Demo"); LabelField helloWorld = new LabelField("Hello World"); if (FontManager.getInstance().load("Myfont.ttf", "MyFont", FontManager.APPLICATION_FONT) == FontManager.SUCCESS) { try { FontFamily typeface = FontFamily.forName("MyFont"); Font myFont = typeface.getFont(Font.PLAIN, 50); helloWorld.setFont(myFont); } catch (ClassNotFoundException e) { System.out.println(e.getMessage()); } } add(helloWorld); } } Development Guide Code sample: Installing and using a custom font in a BlackBerry Java application 155
- 158. Spelling checker 12 Youcan use the items in the net.rim.blackberry.api.spellcheck package to add spelling checker functionality to an application. The SpellCheckEngine interface enables an application to check the spelling of a UI field value and provide a BlackBerry® device user with options for spelling corrections. The SpellCheckUI interface enables an application to provide a UI that allows a BlackBerry device user to resolve a spelling issue- by interacting with the SpellCheckEngine implementation. FormoreinformationaboutusingtheSpellCheckAPI,seetheSpellChecksampleapplication,whichisprovidedwithBlackBerry® Java® Development Environment 4.3.1 or later, and with the BlackBerry® Java® Plug-in for Eclipse®. Add spell check functionality 1. Import the following classes: • net.rim.blackberry.api.spellcheck.SpellCheckEngineFactory • java.lang.StringBuffer 2. Import the following interfaces: • net.rim.blackberry.api.spellcheck.SpellCheckEngine • net.rim.blackberry.api.spellcheck.SpellCheckUI • net.rim.blackberry.api.spellcheck.SpellCheckUIListener 3. Create variables for spell check objects. SpellCheckEngine _spellCheckEngine; SpellCheckUI _spellCheckUI; 4. Invoke createSpellCheckUI(). _spellCheckUI = SpellCheckEngineFactory.createSpellCheckUI(); 5. To notifiy an application when a spell check event occurs, invoke addSpellCheckUIListener() with a SpellCheckUIListener object as a parameter. _spellCheckUI.addSpellCheckUIListener(new SpellCheckUIListener()); 6. To let an application spell check UI fields and suggest spelling corrections to a BlackBerry device user, obtain a SpellCheckEngine object, invoke getSpellCheckEngine(). _spellCheckEngine = _spellCheckUI.getSpellCheckEngine(); 7. To use a correction for a misspelled word, invoke SpellCheckEngine.learnCorrection(). Use the parameters newStringBuffer(text), newStringBuffer(correction), where text represents the misspelled word, and correction represents the correct word. Development Guide Spelling checker 156
- 159. _spellCheckEngine.learnCorrection(new StringBuffer(text), newStringBuffer (correction)); 8. To perform spell check operations on a field, invoke SpellCheckUI.spellCheck(), with a field as a parameter. _spellCheckUI.spellCheck(field); 9. To accept a misspelled word as correctly spelled, invoke SpellCheckEngine.learnWord(), with the word to learn as a parameter. _spellCheckEngine.learnWord(new StringBuffer(word)); Listen for a spell check event 1. Import the following classes: • java.lang.StringBuffer • net.rim.device.api.ui.UiApplication • net.rim.device.api.ui.Field 2. Import the following interfaces: • net.rim.blackberry.api.spellcheck.SpellCheckUIListener • net.rim.blackberry.api.spellcheck.SpellCheckEngine 3. Create a method that returns the SpellCheckUIListener.LEARNING_ACCEPT constant when the SpellCheckEngine learns a new word. public int wordLearned(SpellCheckUI ui, StringBuffer word) { UiApplication.getUiApplication().invokeLater(new popUpRunner("Word learned")); return SpellCheckUIListener.LEARNING_ACCEPT; } 4. Create a method that returns the SpellCheckUIListener.LEARNING_ACCEPT constant when the SpellCheckEngine learns a correction for a word. public int wordCorrectionLearned(SpellCheckUI ui, StringBuffer word, StringBuffer correction){ UiApplication.getUiApplication().invokeLater(new popUpRunner("Correction learned")); return SpellCheckUIListener.LEARNING_ACCEPT; } 5. Create a method that returns the SpellCheckUIListener.ACTION_OPEN_UI constant when the SpellCheckEngine finds a misspelled word. public int misspelledWordFound(SpellCheckUI ui, Field field, int offset, int len){ UiApplication.getUiApplication().invokeLater(new popUpRunner("Misspelled word found")); return SpellCheckUIListener.ACTION_OPEN_UI; } Development Guide Listen for a spell check event 157
- 160. Related resources 13 •www.blackberry.com/go/apiref: View the latest version of the API reference for the BlackBerry® Java® SDK. • www.blackberry.com/go/devguides: Find development guides, release notes, and sample application overviews for the BlackBerry Java SDK. • www.blackberry.com/developers: Visit the BlackBerry® Developer Zone for resources on developing BlackBerry device applications. • www.blackberry.com/go/developerkb: View knowledge base articles on the BlackBerry Development Knowledge Base. • www.blackberry.com/developers/downloads: Find the latest development tools and downloads for developing BlackBerry device applications. Development Guide Related resources 158
- 161. Glossary 14 3-D three-dimensional API application programminginterface JVM Java® Virtual Machine MIDP Mobile Information Device Profile Development Guide Glossary 159
- 162. Provide feedback 15 Toprovide feedback on this deliverable, visit www.blackberry.com/docsfeedback. Development Guide Provide feedback 160
- 163. Document revision history16 Date Description 16 August 2010 Removed the following topic: • Create a progress indicator 3 August 2010 Added the following topics: • Access an encoded image through an input stream • About placing items in the pop-up menus • Best practice: Implementing pop-up menus • Best practice: Implementing submenus • Command Framework API • Creating a pop-up menu • Create a pop-up menu • Create a submenu • Display a label at an absolute position on the screen • Display an encoded image • Display an image for zooming and panning • Display a row of images for scrolling • Displaying a field at an absolute position on a screen • Displaying an image for zooming and panning • Displaying a row of images for scrolling • Enable pinch gestures • Enable swipe gestures that users make on the trackpad • Encode an image • Images • Indicate activity • Indicate progress • Indicating activity or task progress • Pinch gestures • Pop-up menus • Specify the decoding mode for an image Development Guide Document revision history 161
- 164. Date Description • Specifythe display size of an encoded image • Submenus • Support for legacy context menus • Swipe gestures with trackpads • Touch screen interaction models • Use a command in one or more applications • Use a command with one UI component • Using encoded images Added the following code samples: • Code sample: Creating a pop-up menu • Code sample: Creating a submenu • Code sample: Displaying a row of images for scrolling • Code sample: Displaying a label at an absolute position on the screen • Code sample: Displaying an image for zooming and panning Changed the following topics: • Activity indicators and progress indicators • Buttons • Creating a UI that is consistent with standard BlackBerry UIs • Dialog boxes • Drop-down lists • Lists and tables • Pickers • Radio buttons • Search • Spin boxes • Text fields • Tree views Removed the following topics: • Adding an icon to a menu item Development Guide Document revision history 162
- 165. Date Description • Addan icon to a menu item • Code sample: Adding an icon to a menu item Development Guide Document revision history 163
- 166. Legal notice 17 ©2010Research In Motion Limited. All rights reserved. BlackBerry®, RIM®, Research In Motion®, and related trademarks, names, and logos are the property of Research In Motion Limited and are registered and/or used in the U.S. and countries around the world. Eclipse is a trademark of Eclipse Foundation, Inc. Java is a trademark of Oracle America, Inc. TrueType is a trademark of Apple Inc. All other trademarks are the property of their respective owners. This documentation including all documentation incorporated by reference herein such as documentation provided or made available at www.blackberry.com/go/docs is provided or made accessible "AS IS" and "AS AVAILABLE" and without condition, endorsement, guarantee, representation, or warranty of any kind by Research In Motion Limited and its affiliated companies ("RIM") and RIM assumes no responsibility for any typographical, technical, or other inaccuracies, errors, or omissions in this documentation. In order to protect RIM proprietary and confidential information and/or trade secrets, this documentation may describe some aspects of RIM technology in generalized terms. RIM reserves the right to periodically change information that is contained in this documentation; however, RIM makes no commitment to provide any such changes, updates, enhancements, or other additions to this documentation to you in a timely manner or at all. This documentation might contain references to third-party sources of information, hardware or software, products or services including components and content such as content protected by copyright and/or third-party web sites (collectively the "Third Party Products and Services"). RIM does not control, and is not responsible for, any Third Party Products and Services including, without limitation the content, accuracy, copyright compliance, compatibility, performance, trustworthiness, legality, decency, links, or any other aspect of Third Party Products and Services. The inclusion of a reference to Third Party Products and Services in this documentation does not imply endorsement by RIM of the Third Party Products and Services or the third party in any way. EXCEPT TO THE EXTENT SPECIFICALLY PROHIBITED BY APPLICABLE LAW IN YOUR JURISDICTION, ALL CONDITIONS, ENDORSEMENTS, GUARANTEES, REPRESENTATIONS, OR WARRANTIES OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, ANY CONDITIONS, ENDORSEMENTS, GUARANTEES, REPRESENTATIONS OR WARRANTIES OF DURABILITY, FITNESS FOR A PARTICULAR PURPOSE OR USE, MERCHANTABILITY, MERCHANTABLE QUALITY, NON- INFRINGEMENT,SATISFACTORYQUALITY,ORTITLE,ORARISINGFROMASTATUTEORCUSTOMORACOURSEOFDEALING OR USAGE OF TRADE, OR RELATED TO THE DOCUMENTATION OR ITS USE, OR PERFORMANCE OR NON-PERFORMANCE OF ANY SOFTWARE, HARDWARE, SERVICE, OR ANY THIRD PARTY PRODUCTS AND SERVICES REFERENCED HEREIN, ARE HEREBY EXCLUDED. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY BY STATE OR PROVINCE. SOME JURISDICTIONS MAY NOT ALLOW THE EXCLUSION OR LIMITATION OF IMPLIED WARRANTIES AND CONDITIONS. TO THE EXTENT PERMITTED BY LAW, ANY IMPLIED WARRANTIES OR CONDITIONS RELATING TO THE DOCUMENTATION TO THE EXTENT THEY CANNOT BE EXCLUDED AS SET OUT ABOVE, BUT CAN BE LIMITED, ARE HEREBY LIMITED TO NINETY (90) DAYS FROM THE DATE YOU FIRST ACQUIRED THE DOCUMENTATION OR THE ITEM THAT IS THE SUBJECT OF THE CLAIM. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW IN YOUR JURISDICTION, IN NO EVENT SHALL RIM BE LIABLE FOR ANY TYPE OF DAMAGES RELATED TO THIS DOCUMENTATION OR ITS USE, OR PERFORMANCE OR NON- PERFORMANCE OF ANY SOFTWARE, HARDWARE, SERVICE, OR ANY THIRD PARTY PRODUCTS AND SERVICES REFERENCED HEREIN INCLUDING WITHOUT LIMITATION ANY OF THE FOLLOWING DAMAGES: DIRECT, CONSEQUENTIAL, EXEMPLARY, INCIDENTAL,INDIRECT,SPECIAL,PUNITIVE,ORAGGRAVATEDDAMAGES,DAMAGESFORLOSSOFPROFITSORREVENUES, FAILURE TO REALIZE ANY EXPECTED SAVINGS, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, LOSS OF Development Guide Legal notice 164
- 167. BUSINESSOPPORTUNITY,ORCORRUPTIONORLOSSOFDATA,FAILURESTOTRANSMITORRECEIVEANYDATA,PROBLEMS ASSOCIATED WITH ANYAPPLICATIONS USED IN CONJUNCTION WITH RIM PRODUCTS OR SERVICES, DOWNTIME COSTS, LOSS OF THE USE OF RIM PRODUCTS OR SERVICES OR ANY PORTION THEREOF OR OF ANY AIRTIME SERVICES, COST OF SUBSTITUTE GOODS, COSTS OF COVER, FACILITIES OR SERVICES, COST OF CAPITAL, OR OTHER SIMILAR PECUNIARY LOSSES, WHETHER OR NOT SUCH DAMAGES WERE FORESEEN OR UNFORESEEN, AND EVEN IF RIM HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW IN YOUR JURISDICTION, RIM SHALL HAVE NO OTHER OBLIGATION, DUTY, OR LIABILITY WHATSOEVER IN CONTRACT, TORT, OR OTHERWISE TO YOU INCLUDING ANY LIABILITY FOR NEGLIGENCE OR STRICT LIABILITY. THE LIMITATIONS, EXCLUSIONS, AND DISCLAIMERS HEREIN SHALL APPLY: (A) IRRESPECTIVE OF THE NATURE OF THE CAUSEOFACTION,DEMAND,ORACTIONBYYOUINCLUDINGBUTNOTLIMITEDTOBREACHOFCONTRACT,NEGLIGENCE, TORT, STRICT LIABILITY OR ANY OTHER LEGAL THEORY AND SHALL SURVIVE A FUNDAMENTAL BREACH OR BREACHES OR THE FAILURE OF THE ESSENTIAL PURPOSE OF THIS AGREEMENT OR OF ANY REMEDY CONTAINED HEREIN; AND (B) TO RIM AND ITS AFFILIATED COMPANIES, THEIR SUCCESSORS, ASSIGNS, AGENTS, SUPPLIERS (INCLUDING AIRTIME SERVICE PROVIDERS), AUTHORIZED RIM DISTRIBUTORS (ALSO INCLUDING AIRTIME SERVICE PROVIDERS) AND THEIR RESPECTIVE DIRECTORS, EMPLOYEES, AND INDEPENDENT CONTRACTORS. IN ADDITION TO THE LIMITATIONS AND EXCLUSIONS SET OUT ABOVE, IN NO EVENT SHALL ANY DIRECTOR, EMPLOYEE, AGENT, DISTRIBUTOR, SUPPLIER, INDEPENDENT CONTRACTOR OF RIM OR ANY AFFILIATES OF RIM HAVE ANY LIABILITY ARISING FROM OR RELATED TO THE DOCUMENTATION. Prior to subscribing for, installing, or using any Third Party Products and Services, it is your responsibility to ensure that your airtimeserviceproviderhasagreedtosupportalloftheirfeatures.SomeairtimeserviceprovidersmightnotofferInternetbrowsing functionality with a subscription to the BlackBerry® Internet Service. Check with your service provider for availability, roaming arrangements,serviceplansandfeatures.InstallationoruseofThirdPartyProductsandServiceswithRIM'sproductsandservices may require one or more patent, trademark, copyright, or other licenses in order to avoid infringement or violation of third party rights. You are solely responsible for determining whether to use Third Party Products and Services and if any third party licenses are required to do so. If required you are responsible for acquiring them. You should not install or use Third Party Products and Services until all necessary licenses have been acquired. Any Third Party Products and Services that are provided with RIM's products and services are provided as a convenience to you and are provided "AS IS" with no express or implied conditions, endorsements, guarantees, representations, or warranties of any kind by RIM and RIM assumes no liability whatsoever, in relation thereto. Your use of Third Party Products and Services shall be governed by and subject to you agreeing to the terms of separate licenses and other agreements applicable thereto with third parties, except to the extent expressly covered by a license or other agreement with RIM. CertainfeaturesoutlinedinthisdocumentationrequireaminimumversionofBlackBerry®EnterpriseServer,BlackBerry®Desktop Software, and/or BlackBerry® Device Software. The terms of use of any RIM product or service are set out in a separate license or other agreement with RIM applicable thereto. NOTHINGINTHISDOCUMENTATIONISINTENDEDTOSUPERSEDEANYEXPRESSWRITTENAGREEMENTSORWARRANTIES PROVIDED BY RIM FOR PORTIONS OF ANY RIM PRODUCT OR SERVICE OTHER THAN THIS DOCUMENTATION. Research In Motion Limited 295 Phillip Street Development Guide Legal notice 165
- 168. Waterloo, ON N2L3W8 Canada Research In Motion UK Limited Centrum House 36 Station Road Egham, Surrey TW20 9LF United Kingdom Published in Canada Development Guide Legal notice 166
