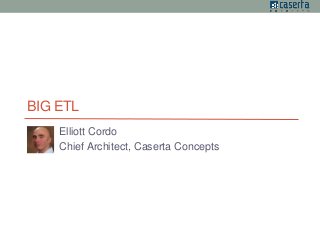

BIG ETL Elliott Cordo Chief Architect, Caserta Concepts

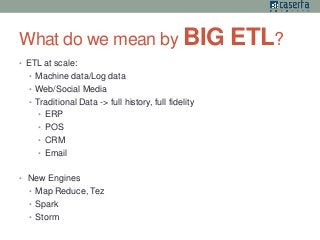

What do we mean by BIG ETL? • ETL at scale: • Machine data/Log data • Web/Social Media • Traditional Data -> full history, full fidelity • ERP • POS • CRM • Email • New Engines • Map Reduce, Tez • Spark • Storm

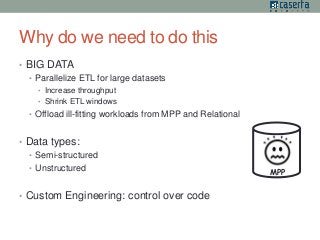

Why do we need to do this • BIG DATA • Parallelize ETL for large datasets • Increase throughput • Shrink ETL windows • Offload ill-fitting workloads from MPP and Relational • Data types: • Semi-structured • Unstructured • Custom Engineering: control over code MPP
Traditional ETL Tools • GUI Based ETL tools have their place • Not all ETL needs to be BIG ETL • Many have integrated Data Quality and MDM  Great for master data • Can be productive, many are easy to learn. • Many are “upgrading” to big data volumes • MR or Spark push down (Java code generators are well positioned for that) • Yarn

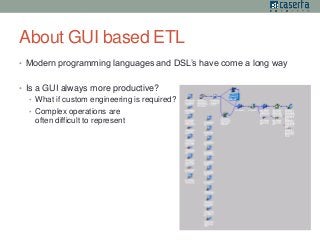

About GUI based ETL • Modern programming languages and DSL’s have come a long way • Is a GUI always more productive? • What if custom engineering is required? • Complex operations are often difficult to represent

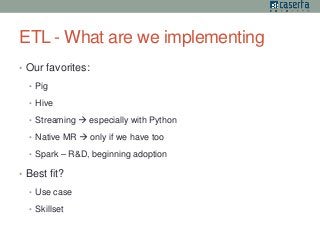

ETL -What are we implementing • Our favorites: • Pig • Hive • Streaming  especially with Python • Native MR  only if we have too • Spark – R&D, beginning adoption • Best fit? • Use case • Skillset

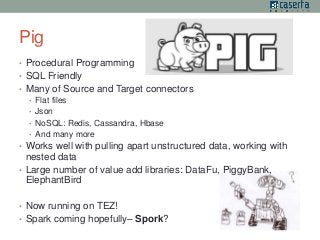

Pig • Procedural Programming • SQL Friendly • Many of Source and Target connectors • Flat files • Json • NoSQL: Redis, Cassandra, Hbase • And many more • Works well with pulling apart unstructured data, working with nested data • Large number of value add libraries: DataFu, PiggyBank, ElephantBird • Now running on TEZ! • Spark coming hopefully– Spork?

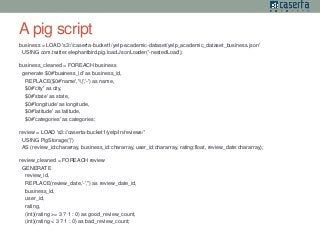

A pig script business = LOAD 's3://caserta-bucket1/yelp-academic-dataset/yelp_academic_dataset_business.json' USING com.twitter.elephantbird.pig.load.JsonLoader('-nestedLoad'); business_cleaned = FOREACH business generate $0#'business_id' as business_id, REPLACE($0#'name','|','-') as name, $0#'city' as city, $0#'state' as state, $0#'longitude' as longitude, $0#'latitude' as latitude, $0#'categories' as categories; review = LOAD 's3://caserta-bucket1/yelp/in/reviews/' USING PigStorage('|') AS (review_id:chararray, business_id:chararray, user_id:chararray, rating:float, review_date:chararray); review_cleaned = FOREACH review GENERATE review_id, REPLACE(review_date,'-','') as review_date_id, business_id, user_id, rating, (int)(rating >= 3 ? 1 : 0) as good_review_count, (int)(rating < 3 ? 1 : 0) as bad_review_count;
..continued joined = JOIN review_cleaned by business_id, business_cleaned by business_id parallel 10; grouped = GROUP joined BY name; results = FOREACH grouped GENERATE group, SUM(joined.review_cleaned::good_review_count), SUM(joined.review_cleaned::bad_review_count), COUNT(joined); STORE results into 's3://caserta-bucket1/yelp/out/joined/' USING PigStorage('|');

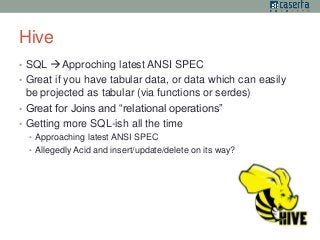

Hive • SQL  Approching latest ANSI SPEC • Great if you have tabular data, or data which can easily be projected as tabular (via functions or serdes) • Great for Joins and “relational operations” • Getting more SQL-ish all the time • Approaching latest ANSI SPEC • Allegedly Acid and insert/update/delete on its way?

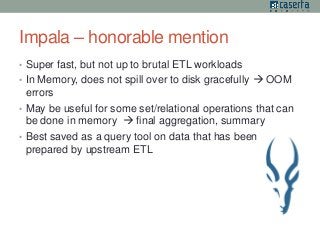

Impala – honorable mention • Super fast, but not up to brutal ETL workloads • In Memory, does not spill over to disk gracefully  OOM errors • May be useful for some set/relational operations that can be done in memory  final aggregation, summary • Best saved as a query tool on data that has been prepared by upstream ETL

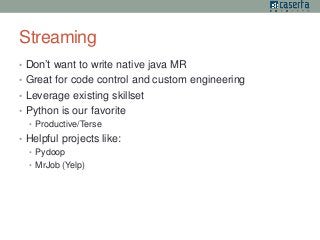

Streaming • Don’t want to write native java MR • Great for code control and custom engineering • Leverage existing skillset • Python is our favorite • Productive/Terse • Helpful projects like: • Pydoop • MrJob (Yelp)
Spark • A swiss army knife! • Streaming, batch, interactive, SQL, Graph • RDD – Redundant Distributed Datastore • API’s for Java, Scala, Python • PySpark –turns Python into a true Data DSL • Best of both worlds – use SQL and Python together • Use SQL when it makes sense, Python when it doesn’t

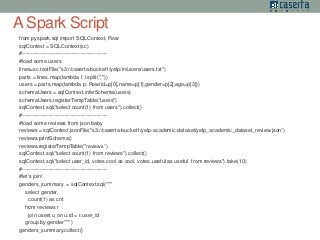

A Spark Script from pyspark.sql import SQLContext, Row sqlContext = SQLContext(sc) #------------------------------------------------ #load some users lines=sc.textFile("s3://caserta-bucket1/yelp/in/users/users.txt") parts = lines.map(lambda l: l.split(",")) users = parts.map(lambda p: Row(id=p[0],name=p[1],gender=p[2],age=p[3])) schemaUsers = sqlContext.inferSchema(users) schemaUsers.registerTempTable("users") sqlContext.sql("select count(1) from users").collect() #------------------------------------------------ #load some reviews from json baby reviews = sqlContext.jsonFile("s3://caserta-bucket1/yelp-academic-dataset/yelp_academic_dataset_review.json”) reviews.printSchema() reviews.registerTempTable("reviews”) sqlContext.sql("select count(1) from reviews").collect() sqlContext.sql("select user_id, votes.cool as cool, votes.useful as useful from reviews").take(10) #------------------------------------------------ #let's join! genders_summary = sqlContext.sql(""" select gender, count(1) as cnt from reviews r join users u on u.id = r.user_id group by gender""" ) genders_summary.collect()
Tip - Avoid low level coding: Start by evaluating DSL’s Structured/t abular Core or Extended Libraries Will a Custom UDF help? Hive Pig Use Streaming or Native MR yes yes No No yes Practical to express in SQL yes No No Spark

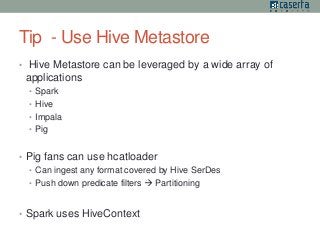

Tip - Use Hive Metastore • Hive Metastore can be leveraged by a wide array of applications • Spark • Hive • Impala • Pig • Pig fans can use hcatloader • Can ingest any format covered by Hive SerDes • Push down predicate filters  Partitioning • Spark uses HiveContext

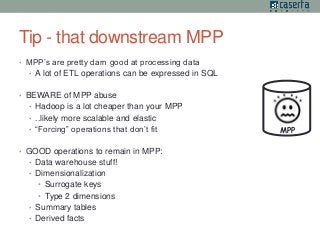

Tip - that downstream MPP • MPP’s are pretty darn good at processing data • A lot of ETL operations can be expressed in SQL • BEWARE of MPP abuse • Hadoop is a lot cheaper than your MPP • ..likely more scalable and elastic • “Forcing” operations that don’t fit • GOOD operations to remain in MPP: • Data warehouse stuff! • Dimensionalization • Surrogate keys • Type 2 dimensions • Summary tables • Derived facts MPP

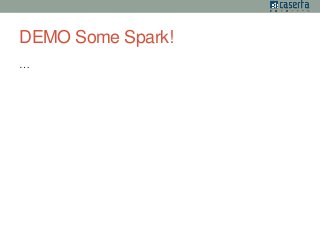

DEMO Some Spark! …

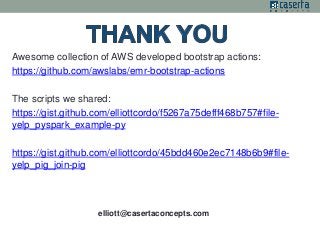

Awesome collection of AWS developed bootstrap actions: https://github.com/awslabs/emr-bootstrap-actions The scripts we shared: https://gist.github.com/elliottcordo/f5267a75defff468b757#file-yelp_ pyspark_example-py https://gist.github.com/elliottcordo/45bdd460e2ec7148b6b9#file-yelp_ pig_join-pig elliott@casertaconcepts.com
