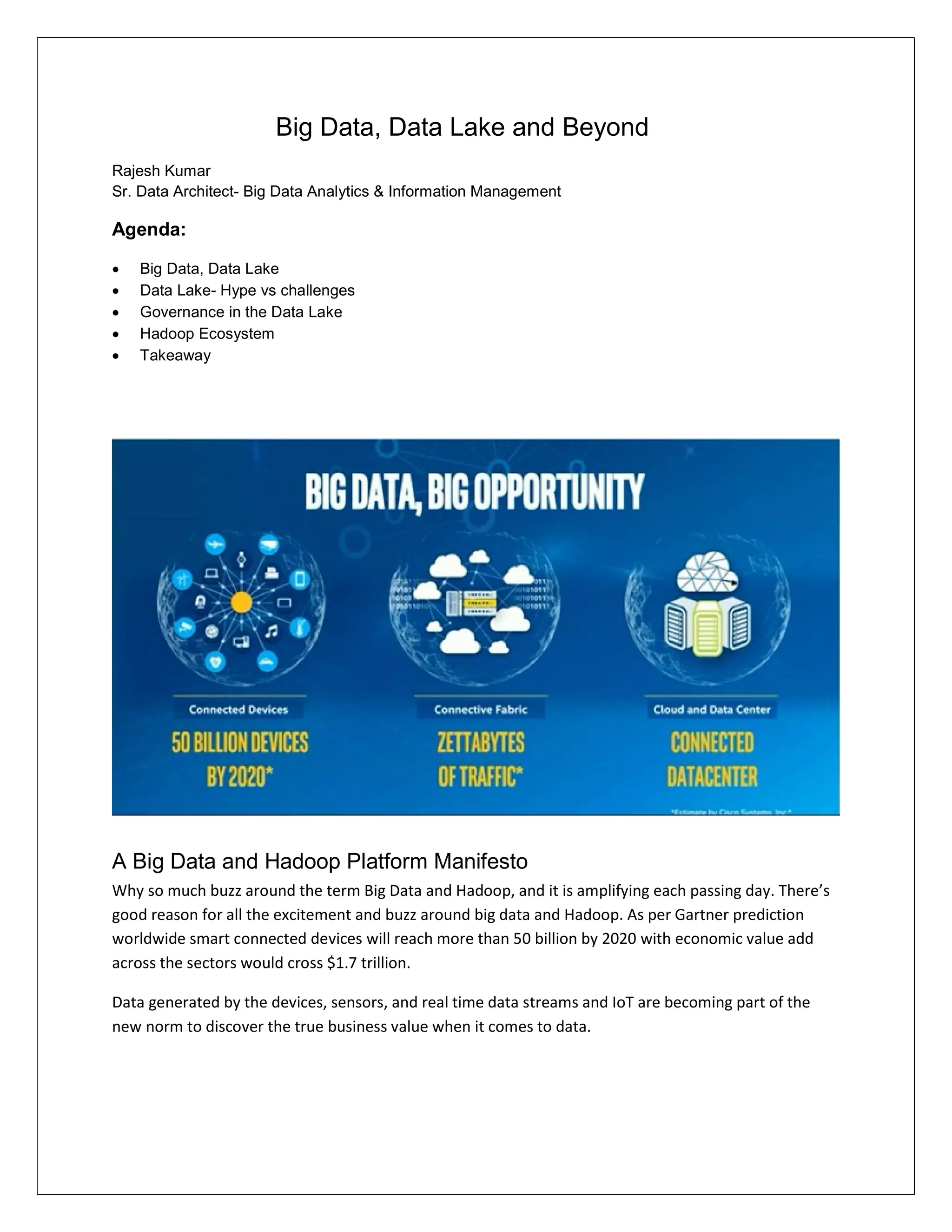

Big data data lake and beyond

Big Data, Data Lake and Beyond
Rajesh Kumar
Sr. Data Architect- Big Data Analytics & Information Management
Agenda:
 Big Data, Data Lake
 Data Lake- Hype vs challenges
 Governance in the Data Lake
 Hadoop Ecosystem
 Takeaway
A Big Data and Hadoop Platform Manifesto
Why so much buzz around the term Big Data and Hadoop, and it is amplifying each passing day. There’s
good reason for all the excitement and buzz around big data and Hadoop. As per Gartner prediction
worldwide smart connected devices will reach more than 50 billion by 2020 with economic value add
across the sectors would cross $1.7 trillion.
Data generated by the devices, sensors, and real time data streams and IoT are becoming part of the
new norm to discover the true business value when it comes to data.

We know that the trusted platforms of yesterday and, in some cases, today have limitations.
infrastructure and data warehouse system is not purpose built for Big Data workload and all types of
data found on different domain today
In the world of Big Data, Organization
the adoption of Hadoop &Big Data analytics
to the complex data challenges and
So Big Data and analytics platform have evolved out of the
challenges where traditional application and architecture have limitations to do that
What is causing technology disrup
data potential beyond the hype.

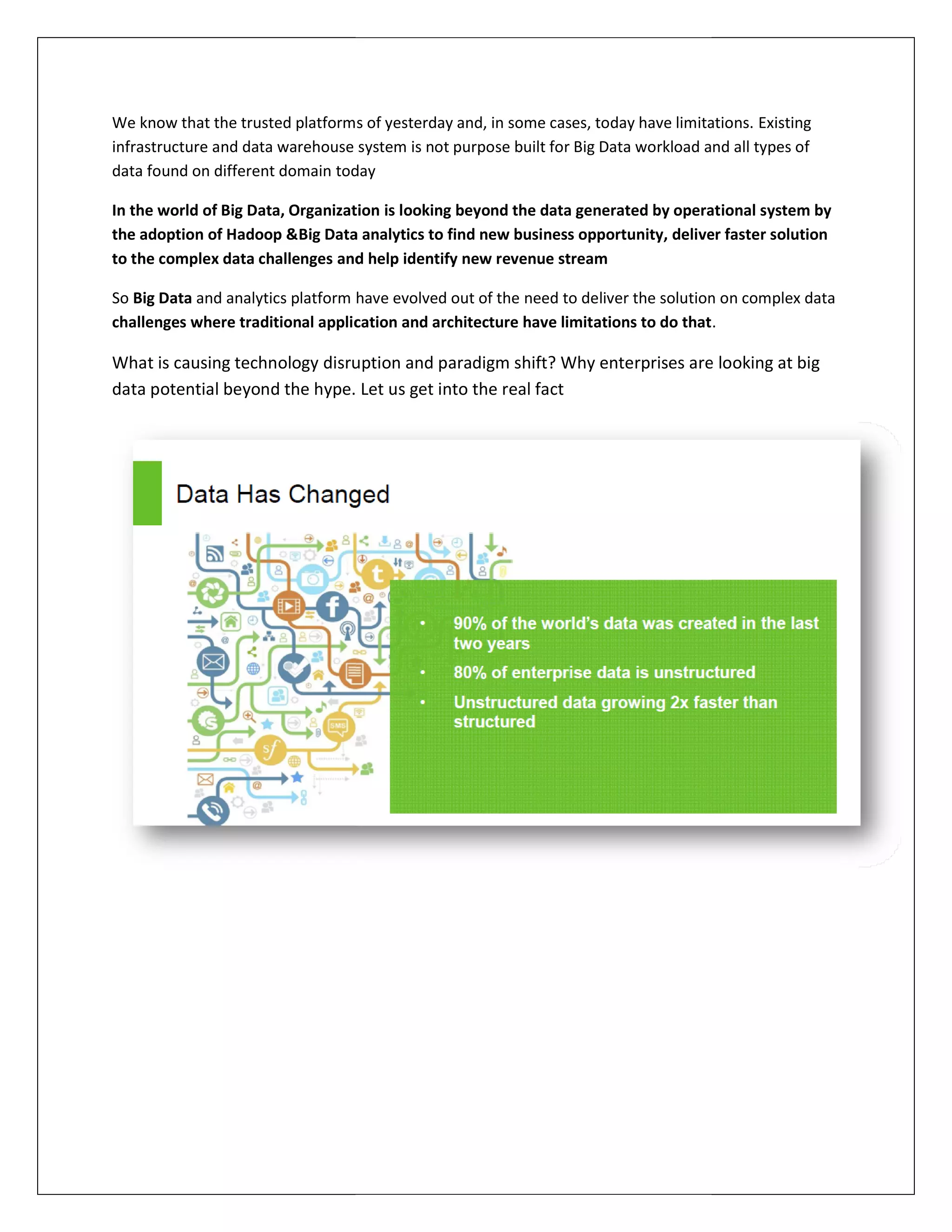

We know that the trusted platforms of yesterday and, in some cases, today have limitations.
today
In the world of Big Data, Organization is looking beyond the data generated by operat
Big Data analytics to find new business opportunity, deliver faster
and help identify new revenue stream
have evolved out of the need to deliver the solution on complex data
challenges where traditional application and architecture have limitations to do that
disruption and paradigm shift? Why enterprises are
data potential beyond the hype. Let us get into the real fact
We know that the trusted platforms of yesterday and, in some cases, today have limitations. Existing
beyond the data generated by operational system by
deliver faster solution
tion on complex data
challenges where traditional application and architecture have limitations to do that.
gm shift? Why enterprises are looking at big

Data volumes and new types of data
New types of Data trends driving Big Data
Big Data:
In past data came primarily from operational systems, in
sensor ,smart phones, social media,
video, audio, texts data, internet customer interaction
generated in massive amounts (often
structured and un-structured (document,
and so on ). This data is characterized by high
define as Big Data.(There no as such any one universal definition)
Let us try to understand four specific attributes that
We always keep hearing “4Vs of Big Data
Volume-Volume is the most obvious
Question about It. Social-mobile-cloud
data explosion.
Velocity-one of the least understood characteristics of Big Data is velocity
at which data arrives at the enterprise and the time that it takes the enterprise to process and
and new types of data are on rise:
trends driving Big Data:
past data came primarily from operational systems, in today’s world Data is coming from everywhere
smart phones, social media, Internet click stream, web logs, embedded machines, document,
data, internet customer interaction and many other sources. These data are
amounts (often terabytes per day).Data is very complex because most of it is semi
structured (document, streaming data, videos, images, tweets, log feeds, sensor data
data is characterized by high volume, variety, velocity and veracity, and
.(There no as such any one universal definition)
four specific attributes that define big data.
4Vs of Big Data”. What is Four Vs in big data context?
obvious and important Big Data attribute. Data Volumes are on the r
cloud and the Internet of Things (IoT) are some of the main reason
ne of the least understood characteristics of Big Data is velocity. Velocity is defined as the rate
coming from everywhere:
web logs, embedded machines, document,
These data are
very complex because most of it is semi
videos, images, tweets, log feeds, sensor data
and In general it is
Data Volumes are on the rise, No
are some of the main reason for
is defined as the rate

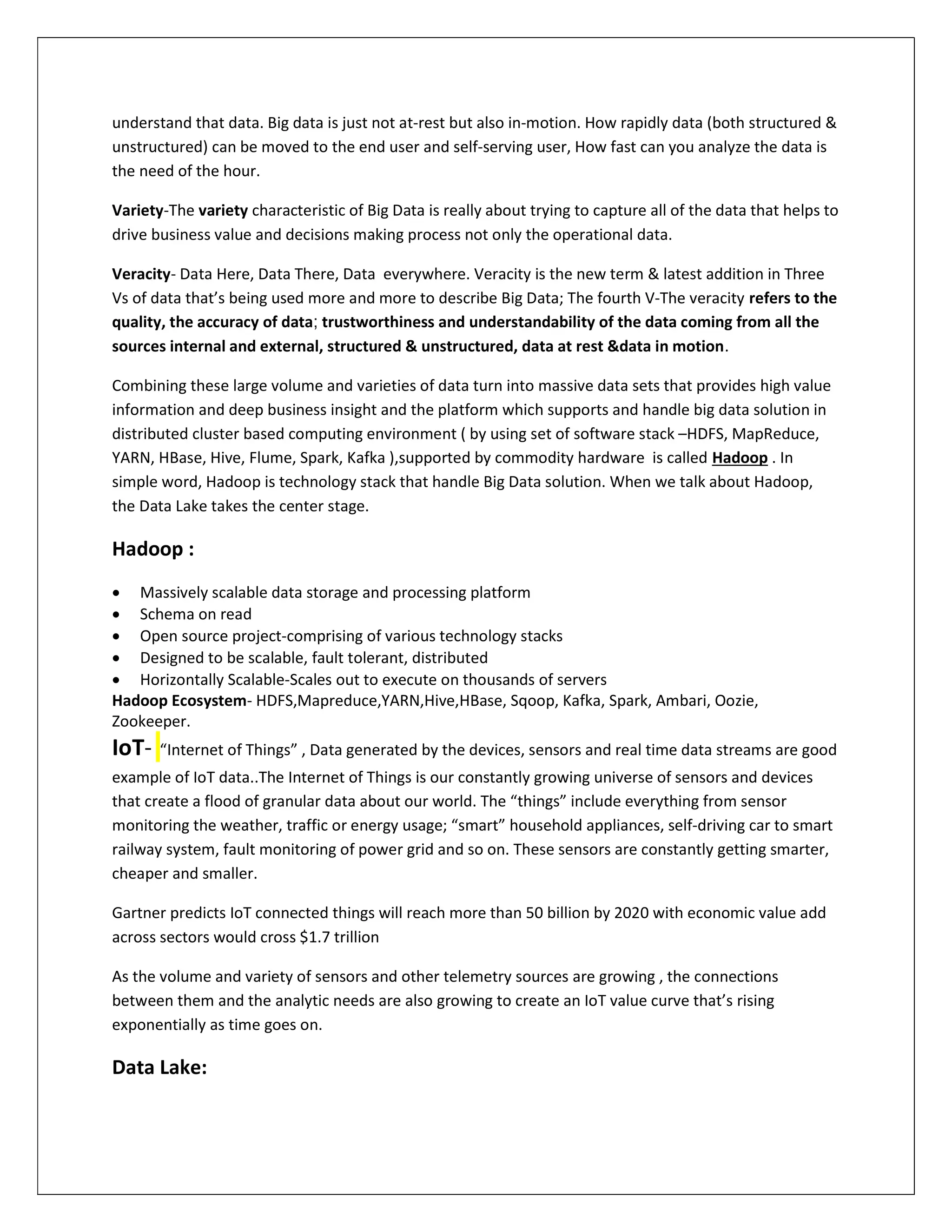

understand that data. Big data is just not at-rest but also in-motion. How rapidly data (both structured &
unstructured) can be moved to the end user and self-serving user, How fast can you analyze the data is
the need of the hour.
Variety-The variety characteristic of Big Data is really about trying to capture all of the data that helps to
drive business value and decisions making process not only the operational data.
Veracity- Data Here, Data There, Data everywhere. Veracity is the new term & latest addition in Three
Vs of data that’s being used more and more to describe Big Data; The fourth V-The veracity refers to the
quality, the accuracy of data; trustworthiness and understandability of the data coming from all the
sources internal and external, structured & unstructured, data at rest &data in motion.
Combining these large volume and varieties of data turn into massive data sets that provides high value
information and deep business insight and the platform which supports and handle big data solution in
distributed cluster based computing environment ( by using set of software stack –HDFS, MapReduce,
YARN, HBase, Hive, Flume, Spark, Kafka ),supported by commodity hardware is called Hadoop . In
simple word, Hadoop is technology stack that handle Big Data solution. When we talk about Hadoop,
the Data Lake takes the center stage.
Hadoop :
 Massively scalable data storage and processing platform
 Schema on read
 Open source project-comprising of various technology stacks
 Designed to be scalable, fault tolerant, distributed
 Horizontally Scalable-Scales out to execute on thousands of servers
Hadoop Ecosystem- HDFS,Mapreduce,YARN,Hive,HBase, Sqoop, Kafka, Spark, Ambari, Oozie,
Zookeeper.
IoT- “Internet of Things” , Data generated by the devices, sensors and real time data streams are good
example of IoT data..The Internet of Things is our constantly growing universe of sensors and devices
that create a flood of granular data about our world. The “things” include everything from sensor
monitoring the weather, traffic or energy usage; “smart” household appliances, self-driving car to smart
railway system, fault monitoring of power grid and so on. These sensors are constantly getting smarter,
cheaper and smaller.
Gartner predicts IoT connected things will reach more than 50 billion by 2020 with economic value add
across sectors would cross $1.7 trillion
As the volume and variety of sensors and other telemetry sources are growing , the connections
between them and the analytic needs are also growing to create an IoT value curve that’s rising
exponentially as time goes on.
Data Lake:

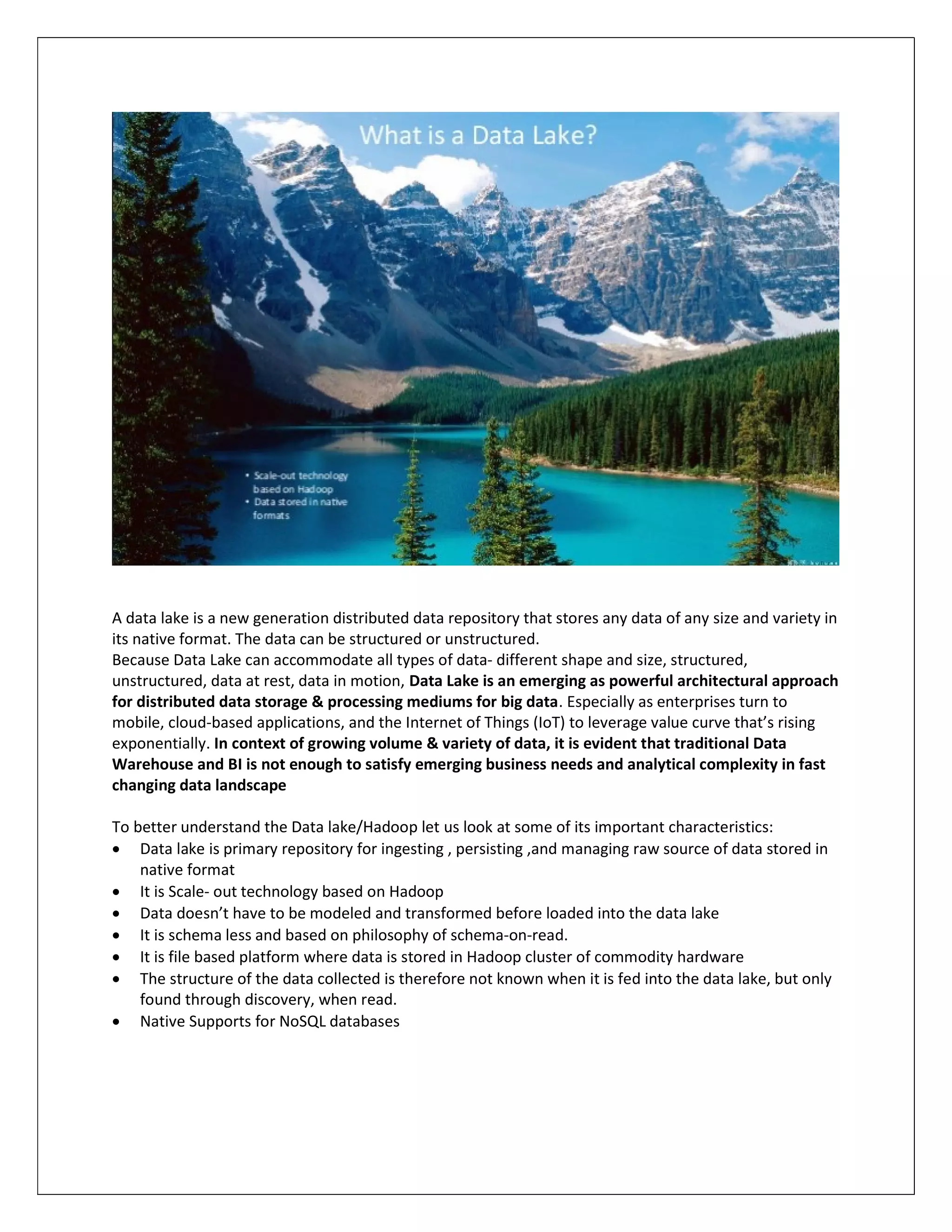

A data lake is a new generation distributed data repository that stores any data of any size and variety in
its native format. The data can be structured or unstructured.
Because Data Lake can accommodate all types of data- different shape and size, structured,
unstructured, data at rest, data in motion, Data Lake is an emerging as powerful architectural approach
for distributed data storage & processing mediums for big data. Especially as enterprises turn to
mobile, cloud-based applications, and the Internet of Things (IoT) to leverage value curve that’s rising
exponentially. In context of growing volume & variety of data, it is evident that traditional Data
Warehouse and BI is not enough to satisfy emerging business needs and analytical complexity in fast
changing data landscape
To better understand the Data lake/Hadoop let us look at some of its important characteristics:
 Data lake is primary repository for ingesting , persisting ,and managing raw source of data stored in
native format
 It is Scale- out technology based on Hadoop
 Data doesn’t have to be modeled and transformed before loaded into the data lake
 It is schema less and based on philosophy of schema-on-read.
 It is file based platform where data is stored in Hadoop cluster of commodity hardware
 The structure of the data collected is therefore not known when it is fed into the data lake, but only
found through discovery, when read.
 Native Supports for NoSQL databases

Some of the biggest advantage of Data Lake includes:
 You can store all types of structured and unstructured data in adata lake–hence value that can be
derived is unlimited
 The biggest advantage of data lake is flexibility and fast movement of data to the end user & self-
service user
 It can be 10 to 50 times less expensive to deploy than traditional data warehouse technologies
 Scales out to execute on thousands of servers
 Allows business consumers to bring their tools to the data rather than spreading data to different
applications

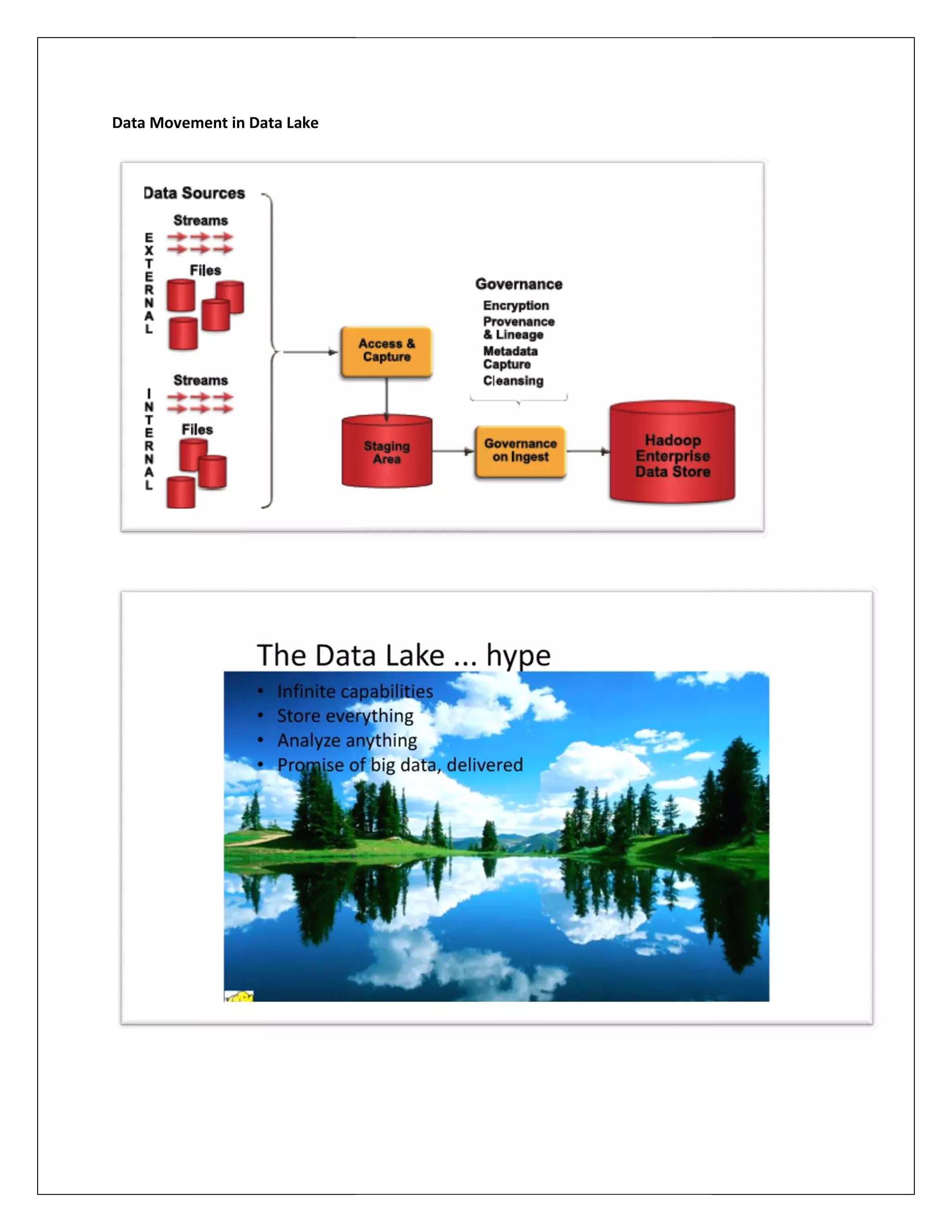

Data Lake reference architecture diagram

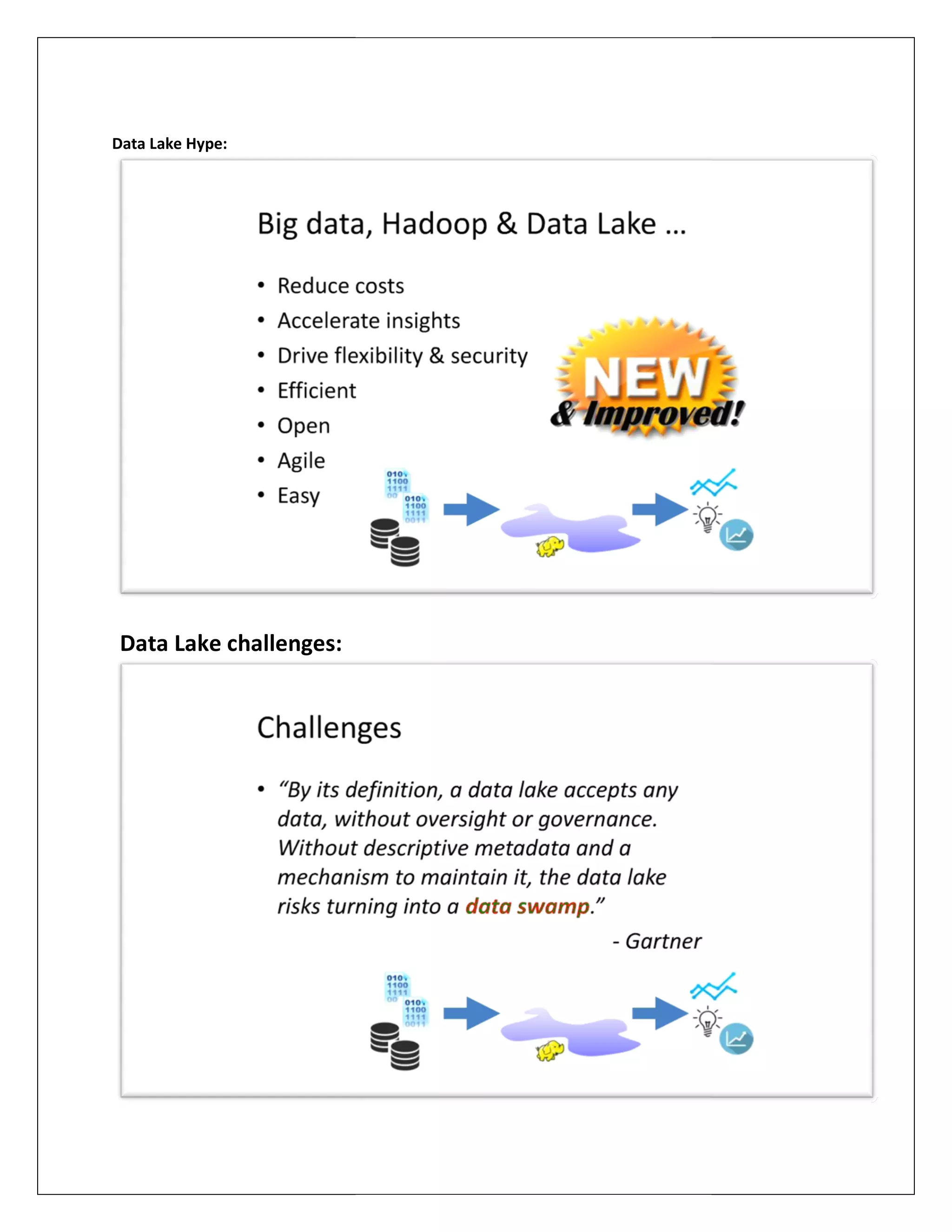

Data Lake Hype:

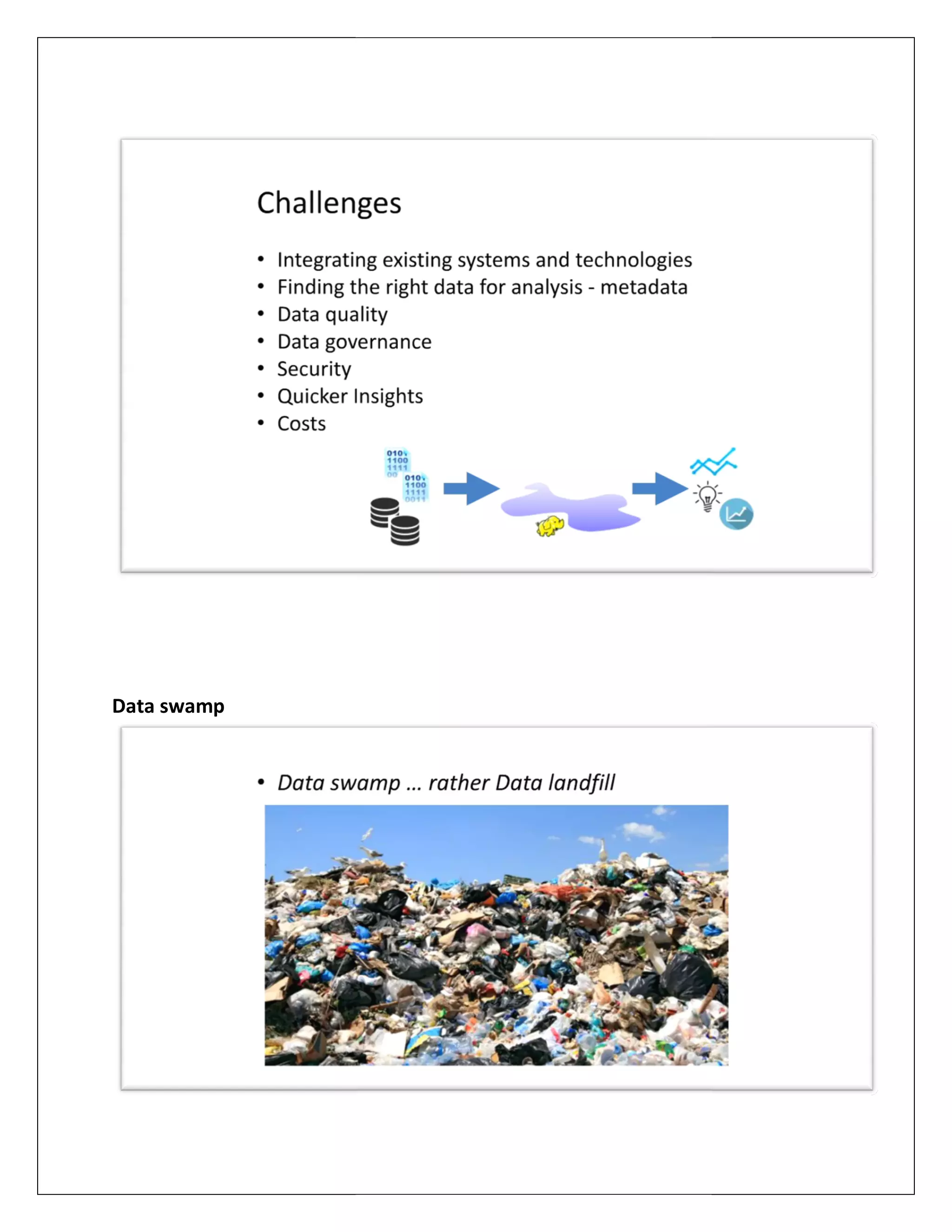

Data Lake challenges:

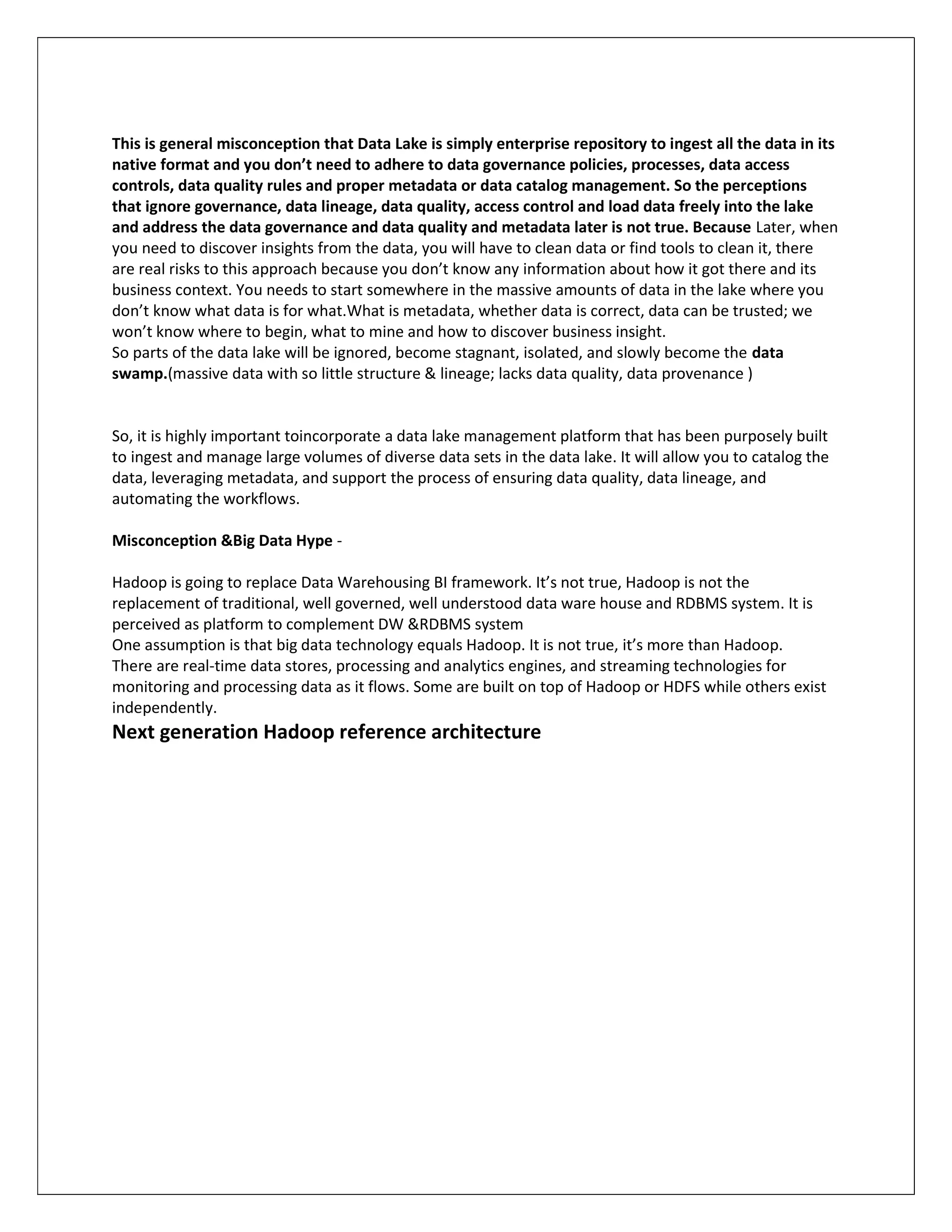

This is general misconception that Data Lake is simply enterprise repository to ingest all the data in its
native format and you don’t need to adhere to data governance policies, processes, data access
controls, data quality rules and proper metadata or data catalog management. So the perceptions
that ignore governance, data lineage, data quality, access control and load data freely into the lake
and address the data governance and data quality and metadata later is not true. Because Later, when
you need to discover insights from the data, you will have to clean data or find tools to clean it, there
are real risks to this approach because you don’t know any information about how it got there and its
business context. You needs to start somewhere in the massive amounts of data in the lake where you
don’t know what data is for what.What is metadata, whether data is correct, data can be trusted; we
won’t know where to begin, what to mine and how to discover business insight.
So parts of the data lake will be ignored, become stagnant, isolated, and slowly become the data
swamp.(massive data with so little structure & lineage; lacks data quality, data provenance )
So, it is highly important toincorporate a data lake management platform that has been purposely built
to ingest and manage large volumes of diverse data sets in the data lake. It will allow you to catalog the
data, leveraging metadata, and support the process of ensuring data quality, data lineage, and
automating the workflows.
Misconception &Big Data Hype -
Hadoop is going to replace Data Warehousing BI framework. It’s not true, Hadoop is not the
replacement of traditional, well governed, well understood data ware house and RDBMS system. It is
perceived as platform to complement DW &RDBMS system
One assumption is that big data technology equals Hadoop. It is not true, it’s more than Hadoop.
There are real-time data stores, processing and analytics engines, and streaming technologies for
monitoring and processing data as it flows. Some are built on top of Hadoop or HDFS while others exist
independently.

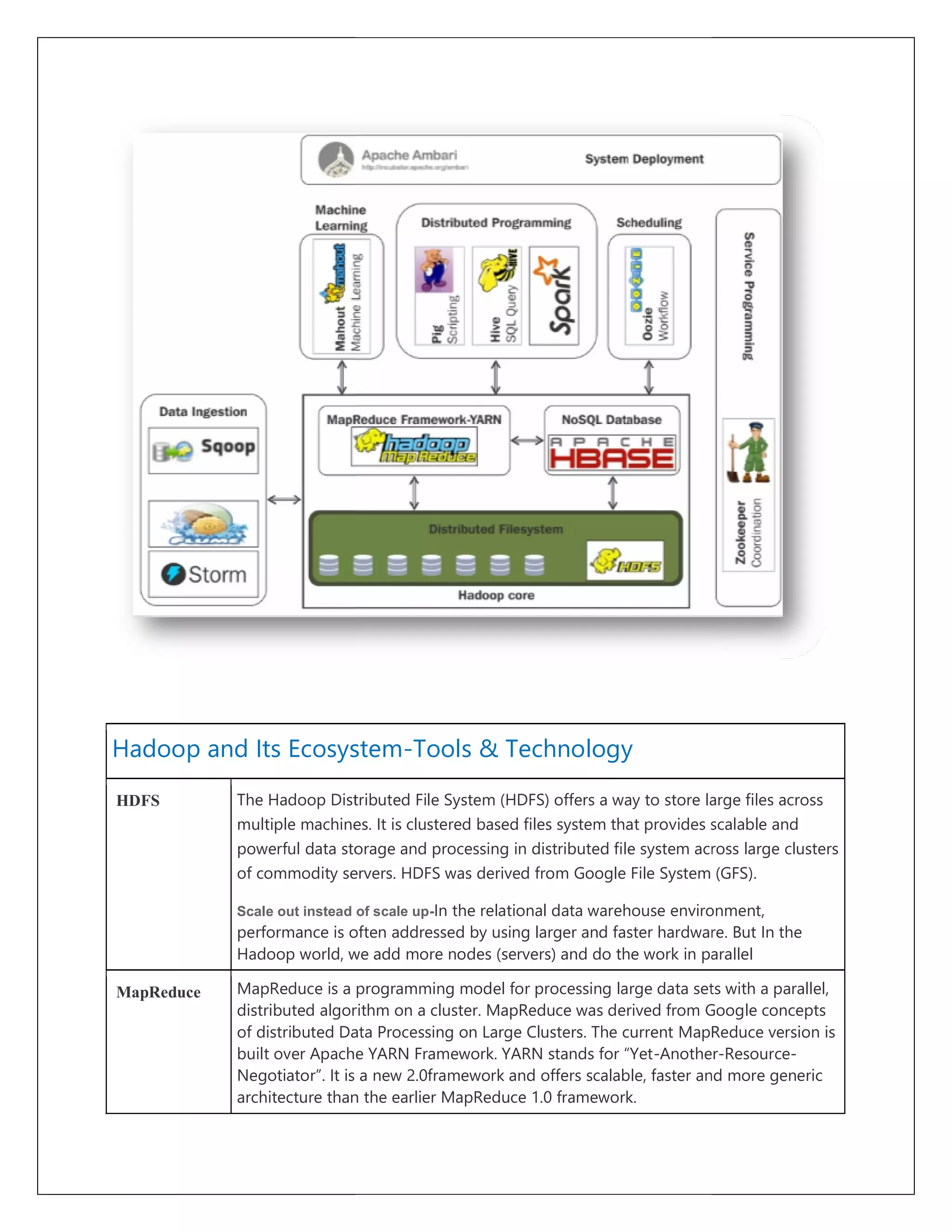

Next generation Hadoop reference architecture

Hadoop and Its Ecosystem
HDFS The Hadoop Distributed File System (HDFS) offers a way to store large files across
multiple machines.
powerful data storage
of commodity servers.
Scale out instead of scale up
performance is often addressed by using larger and faster hardware. But In the
Hadoop world, we add more nodes
MapReduce MapReduce is a programming model for processing large data sets with a parallel,
distributed algorithm on a cluster.
of distributed Data Pr
built over Apache YARN Framework. YARN stands for “Yet
Negotiator”. It is a
architecture than the earlier
Hadoop and Its Ecosystem-Tools & Technology
The Hadoop Distributed File System (HDFS) offers a way to store large files across
multiple machines. It is clustered based files system that provides scalable and
storage and processing in distributed file system across
odity servers. HDFS was derived from Google File System (GFS)
Scale out instead of scale up-In the relational data warehouse environment,
is often addressed by using larger and faster hardware. But In the
Hadoop world, we add more nodes (servers) and do the work in parallel
MapReduce is a programming model for processing large data sets with a parallel,
algorithm on a cluster. MapReduce was derived from Google concepts
Data Processing on Large Clusters. The current MapReduce version is
built over Apache YARN Framework. YARN stands for “Yet-Another
Negotiator”. It is a new 2.0framework and offers scalable, faster and
than the earlier MapReduce 1.0 framework.
The Hadoop Distributed File System (HDFS) offers a way to store large files across
ides scalable and
in distributed file system across large clusters
m Google File System (GFS).
ehouse environment,
is often addressed by using larger and faster hardware. But In the
(servers) and do the work in parallel
MapReduce is a programming model for processing large data sets with a parallel,
s derived from Google concepts
MapReduce version is
Another-Resource-
and more generic

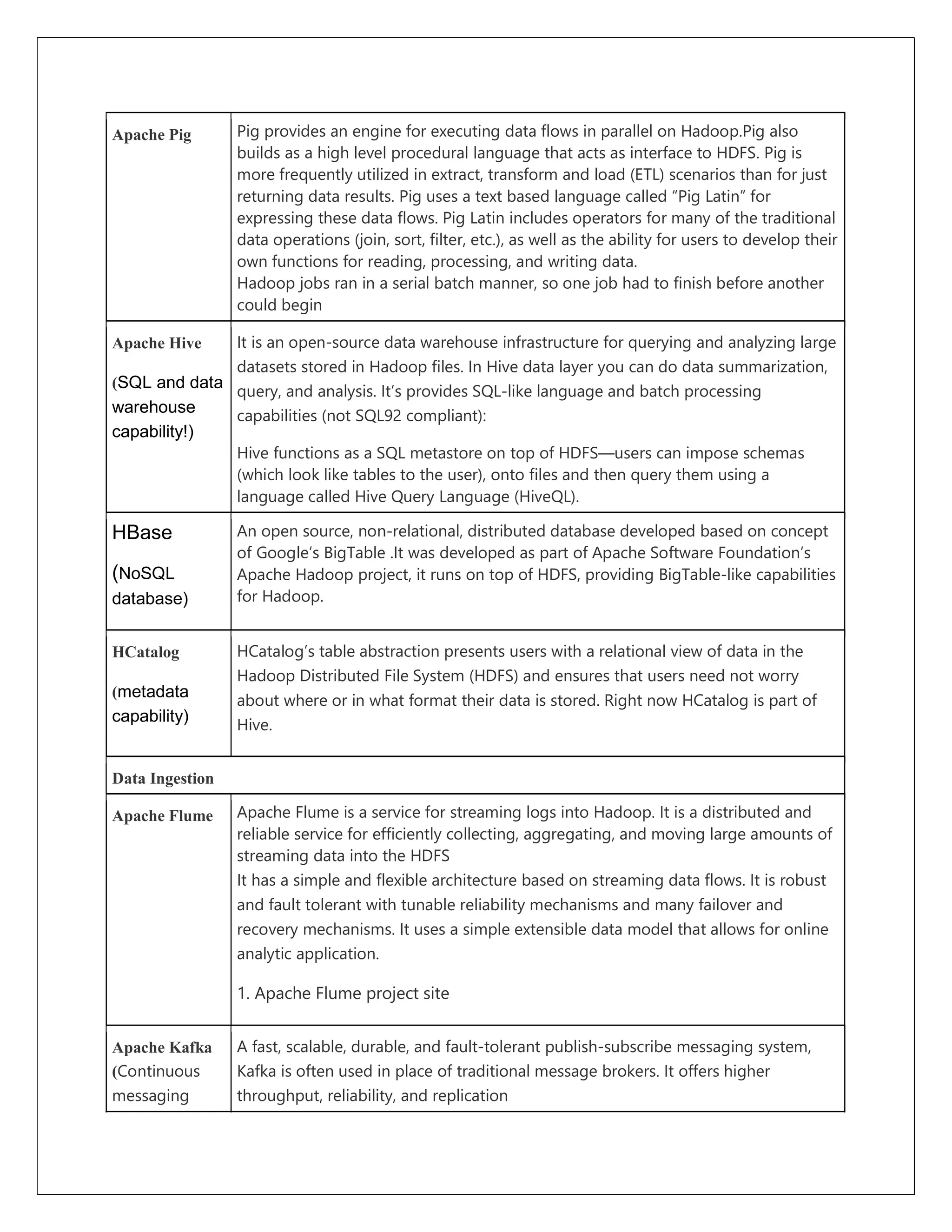

Apache Pig Pig provides an engine for executing data flows in parallel on Hadoop.Pig also
builds as a high level procedural language that acts as interface to HDFS. Pig is
more frequently utilized in extract, transform and load (ETL) scenarios than for just
returning data results. Pig uses a text based language called “Pig Latin” for
expressing these data flows. Pig Latin includes operators for many of the traditional
data operations (join, sort, filter, etc.), as well as the ability for users to develop their
own functions for reading, processing, and writing data.
Hadoop jobs ran in a serial batch manner, so one job had to finish before another
could begin
Apache Hive
(SQL and data
warehouse
capability!)
It is an open-source data warehouse infrastructure for querying and analyzing large
datasets stored in Hadoop files. In Hive data layer you can do data summarization,
query, and analysis. It’s provides SQL-like language and batch processing
capabilities (not SQL92 compliant):
Hive functions as a SQL metastore on top of HDFS—users can impose schemas
(which look like tables to the user), onto files and then query them using a
language called Hive Query Language (HiveQL).
HBase
(NoSQL
database)
An open source, non-relational, distributed database developed based on concept
of Google’s BigTable .It was developed as part of Apache Software Foundation’s
Apache Hadoop project, it runs on top of HDFS, providing BigTable-like capabilities
for Hadoop.
HCatalog
(metadata
capability)
HCatalog’s table abstraction presents users with a relational view of data in the
Hadoop Distributed File System (HDFS) and ensures that users need not worry
about where or in what format their data is stored. Right now HCatalog is part of
Hive.
Data Ingestion
Apache Flume Apache Flume is a service for streaming logs into Hadoop. It is a distributed and
reliable service for efficiently collecting, aggregating, and moving large amounts of
streaming data into the HDFS
It has a simple and flexible architecture based on streaming data flows. It is robust
and fault tolerant with tunable reliability mechanisms and many failover and
recovery mechanisms. It uses a simple extensible data model that allows for online
analytic application.
1. Apache Flume project site
Apache Kafka
(Continuous
messaging
A fast, scalable, durable, and fault-tolerant publish-subscribe messaging system,
Kafka is often used in place of traditional message brokers. It offers higher
throughput, reliability, and replication

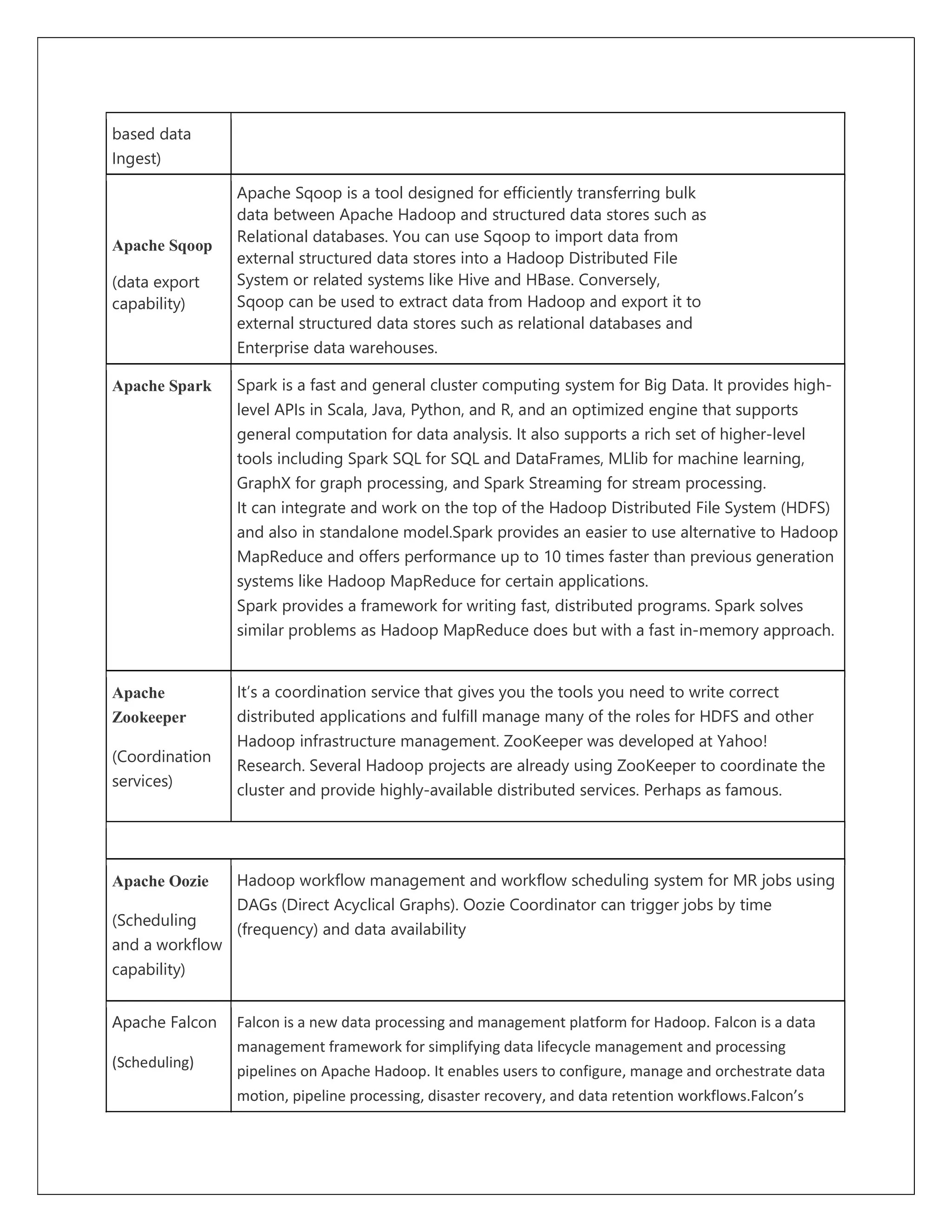

based data
Ingest)
Apache Sqoop
(data export
capability)
Apache Sqoop is a tool designed for efficiently transferring bulk
data between Apache Hadoop and structured data stores such as
Relational databases. You can use Sqoop to import data from
external structured data stores into a Hadoop Distributed File
System or related systems like Hive and HBase. Conversely,
Sqoop can be used to extract data from Hadoop and export it to
external structured data stores such as relational databases and
Enterprise data warehouses.
Apache Spark Spark is a fast and general cluster computing system for Big Data. It provides high-
level APIs in Scala, Java, Python, and R, and an optimized engine that supports
general computation for data analysis. It also supports a rich set of higher-level
tools including Spark SQL for SQL and DataFrames, MLlib for machine learning,
GraphX for graph processing, and Spark Streaming for stream processing.
It can integrate and work on the top of the Hadoop Distributed File System (HDFS)
and also in standalone model.Spark provides an easier to use alternative to Hadoop
MapReduce and offers performance up to 10 times faster than previous generation
systems like Hadoop MapReduce for certain applications.
Spark provides a framework for writing fast, distributed programs. Spark solves
similar problems as Hadoop MapReduce does but with a fast in-memory approach.
Apache
Zookeeper
(Coordination
services)
It’s a coordination service that gives you the tools you need to write correct
distributed applications and fulfill manage many of the roles for HDFS and other
Hadoop infrastructure management. ZooKeeper was developed at Yahoo!
Research. Several Hadoop projects are already using ZooKeeper to coordinate the
cluster and provide highly-available distributed services. Perhaps as famous.
Apache Oozie
(Scheduling
and a workflow
capability)
Hadoop workflow management and workflow scheduling system for MR jobs using
DAGs (Direct Acyclical Graphs). Oozie Coordinator can trigger jobs by time
(frequency) and data availability
Apache Falcon
(Scheduling)
Falcon is a new data processing and management platform for Hadoop. Falcon is a data
management framework for simplifying data lifecycle management and processing
pipelines on Apache Hadoop. It enables users to configure, manage and orchestrate data
motion, pipeline processing, disaster recovery, and data retention workflows.Falcon’s

simplification of data management is quite useful to anyone building apps on Hadoop.
Data Management on Hadoop encompasses data motion, process orchestration, lifecycle
management, data discovery, etc. among other concerns that are beyond ETL.
Apache Mahout Machine learning library and math library, on top of MapReduce
Conclusion:
 New data types and analytical complexity has meant that traditional data ware house and BI is
not enough to satisfy all types of data complexity and analytical needs.
 Hadoop and Big data analytics does not replace Data warehouse and Data marts application but
to strengthens existing analytical environment
 Big data/Hadoop platform is now good to have and fast placing itself as must to have technology
 Advance analytics /Data science has emerged as analytical process that needs to be applied to
all type of data not just operational data
 Data governance, metadata management, data quality framework, security and access control
are still to evolve and showcase the maturity.
Thank You…

Big data data lake and beyond

More Related Content

What's hot

Similar to Big data data lake and beyond

Recently uploaded

Big data data lake and beyond
