OPTOM FASLU MUHAMMED

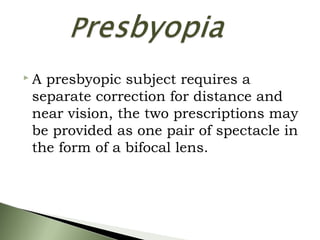

 A presbyopic subject requires a
separate correction for distance and
near vision, the two prescriptions may
be provided as one pair of spectacle in
the form of a bifocal lens.

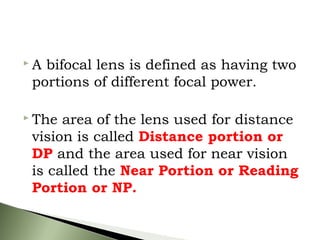

 A bifocal lens is defined as having two
portions of different focal power.
 The area of the lens used for distance
vision is called Distance portion or
DP and the area used for near vision
is called the Near Portion or Reading
Portion or NP.

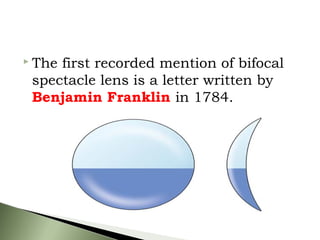

 The first recorded mention of bifocal
spectacle lens is a letter written by
Benjamin Franklin in 1784.
 Bifocal lenses can be obtained in four
basic constructional types:
1. Fused bifocals
2. Solid bifocal
3. Cemented bifocal
4. Split bifocal

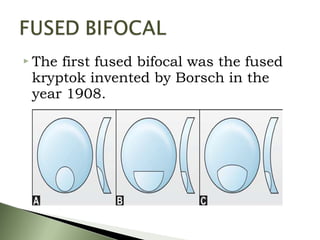

 The first fused bifocal was the fused
kryptok invented by Borsch in the
year 1908.
Composite buttons for different bifocal shapes
(A) D – Segment flat top bifocal. (B) B – Segment

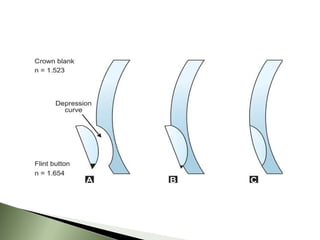

 The fused bifocal is produced by
fusing a higher index flint to the main
crown glass.
 Solid bifocal can be considered as one
piece bifocal, made from single piece
of material.
 A segment is glued onto the surface of
a single vision lens.

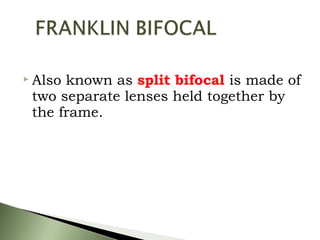

 Also known as split bifocal is made of
two separate lenses held together by
the frame.
 Round segment bifocal have a
segment with a dividing line that is a
single circular arc which is least
visible compared to the other bifocals.
 Segments vary from tiny “B segment”
to “E-style” in which the whole bottom
half of the lens is used for near
portion.
 D segment bifocals are available in solid
plastics and fused glass forms
(A) Straight top D bifocal. (B) Curve top bifocal. (C) B
segment bifocal. The dot indicates the geometric centre of
the segment
 E- Style Bifocal is one piece bifocal
lens with two different curves ground
usually on the front surface.
 IMAGE JUMP

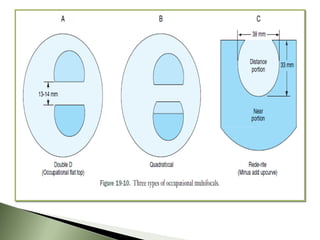

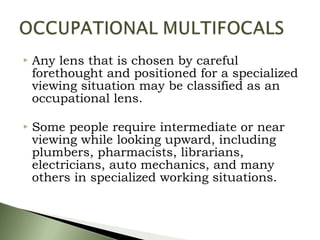

 Any lens that is chosen by careful
forethought and positioned for a specialized
viewing situation may be classified as an
occupational lens.
 Some people require intermediate or near
viewing while looking upward, including
plumbers, pharmacists, librarians,
electricians, auto mechanics, and many
others in specialized working situations.
Bifocal segments must be positioned so
that the distance and near positions of the
lens provide adequate fields of view for
distance and near vision respectively.

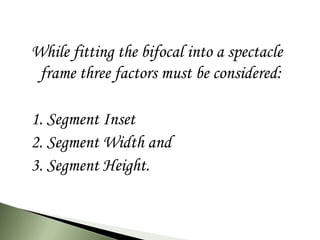

While fitting the bifocal into a spectacle
frame three factors must be considered:
1. Segment Inset
2. Segment Width and
3. Segment Height.

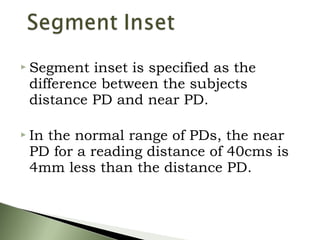

 Segment inset is specified as the
difference between the subjects
distance PD and near PD.
 In the normal range of PDs, the near
PD for a reading distance of 40cms is
4mm less than the distance PD.
 Segment inset, therefore is usually
specified as 2mm for each lens.
 There are two reasons for insetting bifocal
segment –
1. To ensure that the subject’s line of
sight will go through the segment at
its optical centre
2.To ensure that the reading fields
for the two segments will coincide
with one another.

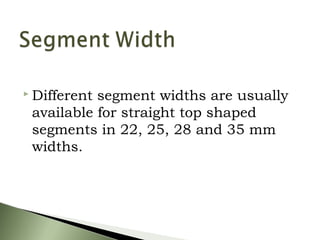

 Different segment widths are usually
available for straight top shaped
segments in 22, 25, 28 and 35 mm
widths.

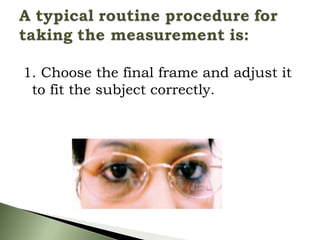

1. Choose the final frame and adjust it
to fit the subject correctly.

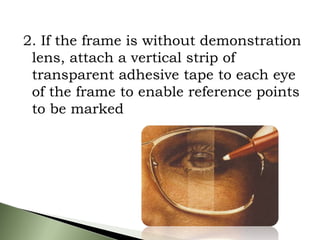

2. If the frame is without demonstration
lens, attach a vertical strip of
transparent adhesive tape to each eye
of the frame to enable reference points
to be marked
 Replace the frame on the subjects face
and direct the subject to look straight
into your eyes.
 your eyes are on exactly the same
level as those of the subject
 Remove the frame and put the frame
face down with dots coinciding with a
straight line. Draw a straight line
from one dot to another
7. The position of the segment top is
usually specified in millimeter from the
marked straight line to the lower eye
wire of the frame.
 Put back the frame on the face and
verify.
Thank u……..

More Related Content

What's hot

What's hot (20)

Optical prism decentration
Optical prism decentrationOptical prism decentration
Optical prism decentration

Synoptophore and its parts
Synoptophore and its partsSynoptophore and its parts
Synoptophore and its parts

Aspheric lenses
Aspheric lensesAspheric lenses
Aspheric lenses

Lenticular lenses
Lenticular lensesLenticular lenses
Lenticular lenses

Polarized lenses
Polarized  lensesPolarized  lenses
Polarized lenses

High index
High indexHigh index
High index

Measuring interpupillary distance
Measuring interpupillary distanceMeasuring interpupillary distance
Measuring interpupillary distance

Vertex distance and power
Vertex distance and powerVertex distance and power
Vertex distance and power

Examination protocol for binocular vision
Examination protocol for binocular visionExamination protocol for binocular vision
Examination protocol for binocular vision

Synoptophore
SynoptophoreSynoptophore
Synoptophore

Cruch glasses
Cruch glassesCruch glasses
Cruch glasses

Lens surface coating
Lens surface coatingLens surface coating
Lens surface coating

Absorptive lenses
Absorptive lensesAbsorptive lenses
Absorptive lenses

Objective retinoscopy
Objective retinoscopyObjective retinoscopy
Objective retinoscopy

Synaptophore
SynaptophoreSynaptophore
Synaptophore

Lens power measurement
Lens power measurementLens power measurement
Lens power measurement

Hand Neutralization.pptx
Hand Neutralization.pptxHand Neutralization.pptx
Hand Neutralization.pptx

Frame selection
Frame selectionFrame selection
Frame selection

spectacle refraction versus ocular refraction
spectacle refraction versus ocular refractionspectacle refraction versus ocular refraction
spectacle refraction versus ocular refraction

Aniseikonia
AniseikoniaAniseikonia
Aniseikonia


Viewers also liked

Bifocal Spectacles..
Bifocal Spectacles..Bifocal Spectacles..
Bifocal Spectacles..
Vishakh Nair

Multi focal lens design, history and optical principles
Multi focal lens design, history and optical principlesMulti focal lens design, history and optical principles
Multi focal lens design, history and optical principles
GauriSShrestha

Progressive addition lens1
Progressive addition lens1Progressive addition lens1
Progressive addition lens1
GauriSShrestha

Multi focal lens performance 2
Multi focal lens performance 2Multi focal lens performance 2
Multi focal lens performance 2
GauriSShrestha

Frame measurement & marking
Frame measurement & markingFrame measurement & marking
Frame measurement & marking
vivek parmar

Lens material and its propertes
Lens material and its propertesLens material and its propertes
Lens material and its propertes
Swati Panara


Viewers also liked (20)

Bifocal Spectacles..
Bifocal Spectacles..Bifocal Spectacles..
Bifocal Spectacles..

Dispensing bifocal 3
Dispensing bifocal 3Dispensing bifocal 3
Dispensing bifocal 3

Segment architecture
Segment architectureSegment architecture
Segment architecture

Bifocals_optometry india_eyenirvaan
Bifocals_optometry india_eyenirvaanBifocals_optometry india_eyenirvaan
Bifocals_optometry india_eyenirvaan

Multi focal lens design, history and optical principles
Multi focal lens design, history and optical principlesMulti focal lens design, history and optical principles
Multi focal lens design, history and optical principles

Progressive addition lens1
Progressive addition lens1Progressive addition lens1
Progressive addition lens1

Multi focal lens performance 2
Multi focal lens performance 2Multi focal lens performance 2
Multi focal lens performance 2

Frame measurement & marking
Frame measurement & markingFrame measurement & marking
Frame measurement & marking

Progressive addition lenses presentation at www.eyenirvaan.com
Progressive addition lenses presentation at www.eyenirvaan.comProgressive addition lenses presentation at www.eyenirvaan.com
Progressive addition lenses presentation at www.eyenirvaan.com

Progressive addition lenses
Progressive addition lensesProgressive addition lenses
Progressive addition lenses

Lens material and its propertes
Lens material and its propertesLens material and its propertes
Lens material and its propertes

ophthalmic lenses
 ophthalmic lenses ophthalmic lenses
ophthalmic lenses

Best form spectacle lenses
Best form spectacle lenses Best form spectacle lenses
Best form spectacle lenses

Different types and design of spectacle frames
Different types and design of spectacle framesDifferent types and design of spectacle frames
Different types and design of spectacle frames

Ophthalmic lens material and design
Ophthalmic lens  material and design Ophthalmic lens  material and design
Ophthalmic lens material and design

Frames
FramesFrames
Frames

Frames and frame measurements__optometry_india_eyenirvaan.com
Frames and frame measurements__optometry_india_eyenirvaan.comFrames and frame measurements__optometry_india_eyenirvaan.com
Frames and frame measurements__optometry_india_eyenirvaan.com

Multifocal contact lens
Multifocal contact lensMultifocal contact lens
Multifocal contact lens

Lensometers
LensometersLensometers
Lensometers

Lensometry (Focimeter)
 Lensometry (Focimeter) Lensometry (Focimeter)
Lensometry (Focimeter)


Similar to Bifocal lenses

BIFOCALS.pptx
BIFOCALS.pptxBIFOCALS.pptx
BIFOCALS.pptx
Indrani Sirivella

Bifocal lenses: types and principles
Bifocal lenses: types and principlesBifocal lenses: types and principles
Bifocal lenses: types and principles
Garima Poudel

Optics and design of soft contact lens.pptx
Optics and design of soft contact lens.pptxOptics and design of soft contact lens.pptx
Optics and design of soft contact lens.pptx
Ashi Lakher


Similar to Bifocal lenses (20)

Segmented Multifocal Lenses.pptx
Segmented Multifocal Lenses.pptxSegmented Multifocal Lenses.pptx
Segmented Multifocal Lenses.pptx

Bifocal Lenses on contact lenses ma.pptx
Bifocal Lenses on contact lenses ma.pptxBifocal Lenses on contact lenses ma.pptx
Bifocal Lenses on contact lenses ma.pptx

bifocals-210520085134.pdf
bifocals-210520085134.pdfbifocals-210520085134.pdf
bifocals-210520085134.pdf

BIFOCALS.pptx
BIFOCALS.pptxBIFOCALS.pptx
BIFOCALS.pptx

Bifocal lenses: types and principles
Bifocal lenses: types and principlesBifocal lenses: types and principles
Bifocal lenses: types and principles

refraction of light at curved surfaces
refraction of light at curved surfacesrefraction of light at curved surfaces
refraction of light at curved surfaces

Physics Investagatory Project
Physics Investagatory ProjectPhysics Investagatory Project
Physics Investagatory Project

01 & 02 Introduction & history of Contact Lenses.pptx
01 & 02  Introduction  & history of Contact Lenses.pptx01 & 02  Introduction  & history of Contact Lenses.pptx
01 & 02 Introduction & history of Contact Lenses.pptx

Chapter Light: Grade 10 Physics
Chapter Light: Grade 10 PhysicsChapter Light: Grade 10 Physics
Chapter Light: Grade 10 Physics

SID 2012
SID 2012SID 2012
SID 2012

Module No. 38
Module No. 38Module No. 38
Module No. 38

Lenses and and the parts
Lenses and  and the partsLenses and  and the parts
Lenses and and the parts

Dispensing BSc (1).pptx
Dispensing BSc (1).pptxDispensing BSc (1).pptx
Dispensing BSc (1).pptx

contact lens terminology some basic definitions
contact lens terminology some basic definitionscontact lens terminology some basic definitions
contact lens terminology some basic definitions

Optics and design of soft contact lens.pptx
Optics and design of soft contact lens.pptxOptics and design of soft contact lens.pptx
Optics and design of soft contact lens.pptx

Compound microscope
Compound microscopeCompound microscope
Compound microscope

CONTACT LENS PARAMETERS.pptx
CONTACT             LENS PARAMETERS.pptxCONTACT             LENS PARAMETERS.pptx
CONTACT LENS PARAMETERS.pptx

08 CONTACT LENS PARAMETERS .pptx
08 CONTACT LENS PARAMETERS                .pptx08 CONTACT LENS PARAMETERS                .pptx
08 CONTACT LENS PARAMETERS .pptx

Ch-14-Thin Lenses.pptx
Ch-14-Thin Lenses.pptxCh-14-Thin Lenses.pptx
Ch-14-Thin Lenses.pptx

Review of geometric optics
Review of geometric opticsReview of geometric optics
Review of geometric optics


More from OPTOM FASLU MUHAMMED

More from OPTOM FASLU MUHAMMED (20)

binocular balancing by optom faslu muhammed
binocular balancing by optom faslu muhammedbinocular balancing by optom faslu muhammed
binocular balancing by optom faslu muhammed

paediatric spectacle prescription by optom faslu muhammed
paediatric spectacle prescription by optom faslu muhammedpaediatric spectacle prescription by optom faslu muhammed
paediatric spectacle prescription by optom faslu muhammed

accommodative-convergence by jubairiya firoz
accommodative-convergence by jubairiya firozaccommodative-convergence by jubairiya firoz
accommodative-convergence by jubairiya firoz

assessment of vision in infants by optom faslu muhammed
assessment of vision in infants by optom faslu muhammedassessment of vision in infants by optom faslu muhammed
assessment of vision in infants by optom faslu muhammed

alchohol and eye by optom faslu muhammed
alchohol and eye by optom faslu muhammedalchohol and eye by optom faslu muhammed
alchohol and eye by optom faslu muhammed

blue light by optom faslu muhammed
 blue light by optom faslu muhammed blue light by optom faslu muhammed
blue light by optom faslu muhammed

smoking and eye problems by optom faslu muhammed
smoking and eye problems by optom faslu muhammedsmoking and eye problems by optom faslu muhammed
smoking and eye problems by optom faslu muhammed

multifocal contact lenses buy faslu muhammed
multifocal contact lenses buy faslu muhammedmultifocal contact lenses buy faslu muhammed
multifocal contact lenses buy faslu muhammed

eye bank by optom faslu muhammed
eye bank by optom faslu muhammedeye bank by optom faslu muhammed
eye bank by optom faslu muhammed

empty space myopia
empty space myopiaempty space myopia
empty space myopia

all about glaucoma
all about glaucomaall about glaucoma
all about glaucoma

Eye bank
Eye bankEye bank
Eye bank

Blue light
Blue lightBlue light
Blue light

Pregnancy and eye problems
Pregnancy and eye problemsPregnancy and eye problems
Pregnancy and eye problems

Jackson cross cylinder
Jackson cross cylinderJackson cross cylinder
Jackson cross cylinder

Arc ppt
Arc pptArc ppt
Arc ppt

Log mar chart
Log mar chartLog mar chart
Log mar chart

Dispensing of ortho k lenses
Dispensing of ortho k lensesDispensing of ortho k lenses
Dispensing of ortho k lenses

Visual acuity
Visual acuityVisual acuity
Visual acuity

Vision standards for various occupation
Vision standards for various occupationVision standards for various occupation
Vision standards for various occupation


Recently uploaded

Spauldings classification ppt by Dr C P PRINCE
Spauldings classification ppt by Dr C P PRINCESpauldings classification ppt by Dr C P PRINCE
Spauldings classification ppt by Dr C P PRINCE
DR.PRINCE C P

TIME FOR ACTION: MAY 2024 Securing A Strong Nursing Workforce for North Carolina
TIME FOR ACTION: MAY 2024 Securing A Strong Nursing Workforce for North CarolinaTIME FOR ACTION: MAY 2024 Securing A Strong Nursing Workforce for North Carolina
TIME FOR ACTION: MAY 2024 Securing A Strong Nursing Workforce for North Carolina
Mebane Rash

Lion's Mane Mushroom: Benefits for Athletes and Active Individuals
Lion's Mane Mushroom: Benefits for Athletes and Active IndividualsLion's Mane Mushroom: Benefits for Athletes and Active Individuals
Lion's Mane Mushroom: Benefits for Athletes and Active Individuals
MyCo Planet

obat aborsi jogja wa 081313339699 jual obat aborsi cytotec asli di jogja
obat aborsi jogja wa 081313339699 jual obat aborsi cytotec asli di jogjaobat aborsi jogja wa 081313339699 jual obat aborsi cytotec asli di jogja
obat aborsi jogja wa 081313339699 jual obat aborsi cytotec asli di jogja
nitatalita796

obat aborsi bali wa 081313339699 jual obat aborsi cytotec asli di bali
obat aborsi bali wa 081313339699 jual obat aborsi cytotec asli di baliobat aborsi bali wa 081313339699 jual obat aborsi cytotec asli di bali
obat aborsi bali wa 081313339699 jual obat aborsi cytotec asli di bali
nitatalita796

Top 20 Famous Indian Female Pornstars Name List 2024
Top 20 Famous Indian Female Pornstars Name List 2024Top 20 Famous Indian Female Pornstars Name List 2024
Top 20 Famous Indian Female Pornstars Name List 2024
minkseocompany


Recently uploaded (20)

Lack of sleep actually hinders your mental health.pptx
Lack of sleep actually hinders your mental health.pptxLack of sleep actually hinders your mental health.pptx
Lack of sleep actually hinders your mental health.pptx

Coach Dan Quinn Commanders Feather T Shirts
Coach Dan Quinn Commanders Feather T ShirtsCoach Dan Quinn Commanders Feather T Shirts
Coach Dan Quinn Commanders Feather T Shirts

The 2024 Outlook for Older Adults: Healthcare Consumer Survey
The 2024 Outlook for Older Adults: Healthcare Consumer SurveyThe 2024 Outlook for Older Adults: Healthcare Consumer Survey
The 2024 Outlook for Older Adults: Healthcare Consumer Survey

Spauldings classification ppt by Dr C P PRINCE
Spauldings classification ppt by Dr C P PRINCESpauldings classification ppt by Dr C P PRINCE
Spauldings classification ppt by Dr C P PRINCE

Unlock the Secrets to Optimizing Ambulatory Operations Efficiency and Change ...
Unlock the Secrets to Optimizing Ambulatory Operations Efficiency and Change ...Unlock the Secrets to Optimizing Ambulatory Operations Efficiency and Change ...
Unlock the Secrets to Optimizing Ambulatory Operations Efficiency and Change ...

TIME FOR ACTION: MAY 2024 Securing A Strong Nursing Workforce for North Carolina
TIME FOR ACTION: MAY 2024 Securing A Strong Nursing Workforce for North CarolinaTIME FOR ACTION: MAY 2024 Securing A Strong Nursing Workforce for North Carolina
TIME FOR ACTION: MAY 2024 Securing A Strong Nursing Workforce for North Carolina

TEST BANK For Robbins & Kumar Basic Pathology, 11th Edition by Vinay Kumar, A...
TEST BANK For Robbins & Kumar Basic Pathology, 11th Edition by Vinay Kumar, A...TEST BANK For Robbins & Kumar Basic Pathology, 11th Edition by Vinay Kumar, A...
TEST BANK For Robbins & Kumar Basic Pathology, 11th Edition by Vinay Kumar, A...

Nursing Care Plan for Surgery (Risk for Infection)
Nursing Care Plan for Surgery (Risk for Infection)Nursing Care Plan for Surgery (Risk for Infection)
Nursing Care Plan for Surgery (Risk for Infection)

Session-1-MBFHI-A-part-of-the-Global-Strategy.ppt
Session-1-MBFHI-A-part-of-the-Global-Strategy.pptSession-1-MBFHI-A-part-of-the-Global-Strategy.ppt
Session-1-MBFHI-A-part-of-the-Global-Strategy.ppt

Making change happen: learning from "positive deviancts"
Making change happen: learning from "positive deviancts"Making change happen: learning from "positive deviancts"
Making change happen: learning from "positive deviancts"

Lion's Mane Mushroom: Benefits for Athletes and Active Individuals
Lion's Mane Mushroom: Benefits for Athletes and Active IndividualsLion's Mane Mushroom: Benefits for Athletes and Active Individuals
Lion's Mane Mushroom: Benefits for Athletes and Active Individuals

ISO 15189 2022 standards for laboratory quality and competence
ISO 15189 2022 standards for laboratory quality and competenceISO 15189 2022 standards for laboratory quality and competence
ISO 15189 2022 standards for laboratory quality and competence

obat aborsi jogja wa 081313339699 jual obat aborsi cytotec asli di jogja
obat aborsi jogja wa 081313339699 jual obat aborsi cytotec asli di jogjaobat aborsi jogja wa 081313339699 jual obat aborsi cytotec asli di jogja
obat aborsi jogja wa 081313339699 jual obat aborsi cytotec asli di jogja

End of Response issues - Code and Rapid Response Workshop
End of Response issues - Code and Rapid Response WorkshopEnd of Response issues - Code and Rapid Response Workshop
End of Response issues - Code and Rapid Response Workshop

Technology transfer documentation and strategies
Technology transfer documentation and strategiesTechnology transfer documentation and strategies
Technology transfer documentation and strategies

obat aborsi bali wa 081313339699 jual obat aborsi cytotec asli di bali
obat aborsi bali wa 081313339699 jual obat aborsi cytotec asli di baliobat aborsi bali wa 081313339699 jual obat aborsi cytotec asli di bali
obat aborsi bali wa 081313339699 jual obat aborsi cytotec asli di bali

Personnel and Equipment - Code and Rapid Response Workshop
Personnel and Equipment - Code and Rapid Response WorkshopPersonnel and Equipment - Code and Rapid Response Workshop
Personnel and Equipment - Code and Rapid Response Workshop

clostridiumbotulinum- BY Muzammil Ahmed Siddiqui.pptx
clostridiumbotulinum- BY Muzammil Ahmed Siddiqui.pptxclostridiumbotulinum- BY Muzammil Ahmed Siddiqui.pptx
clostridiumbotulinum- BY Muzammil Ahmed Siddiqui.pptx

An overview of Muir Wood Adolescent and Family Services teen treatment programs.
An overview of Muir Wood Adolescent and Family Services teen treatment programs.An overview of Muir Wood Adolescent and Family Services teen treatment programs.
An overview of Muir Wood Adolescent and Family Services teen treatment programs.

Top 20 Famous Indian Female Pornstars Name List 2024
Top 20 Famous Indian Female Pornstars Name List 2024Top 20 Famous Indian Female Pornstars Name List 2024
Top 20 Famous Indian Female Pornstars Name List 2024


Bifocal lenses

  • 2.  A presbyopic subject requires a separate correction for distance and near vision, the two prescriptions may be provided as one pair of spectacle in the form of a bifocal lens.
  • 3.  A bifocal lens is defined as having two portions of different focal power.  The area of the lens used for distance vision is called Distance portion or DP and the area used for near vision is called the Near Portion or Reading Portion or NP.
  • 4.  The first recorded mention of bifocal spectacle lens is a letter written by Benjamin Franklin in 1784.
  • 5.  Bifocal lenses can be obtained in four basic constructional types: 1. Fused bifocals 2. Solid bifocal 3. Cemented bifocal 4. Split bifocal
  • 6.  The first fused bifocal was the fused kryptok invented by Borsch in the year 1908.
  • 7.
  • 8. Composite buttons for different bifocal shapes (A) D – Segment flat top bifocal. (B) B – Segment
  • 9.  The fused bifocal is produced by fusing a higher index flint to the main crown glass.
  • 10.  Solid bifocal can be considered as one piece bifocal, made from single piece of material.
  • 11.  A segment is glued onto the surface of a single vision lens.
  • 12.  Also known as split bifocal is made of two separate lenses held together by the frame.
  • 13.  Round segment bifocal have a segment with a dividing line that is a single circular arc which is least visible compared to the other bifocals.
  • 14.  Segments vary from tiny “B segment” to “E-style” in which the whole bottom half of the lens is used for near portion.
  • 15.  D segment bifocals are available in solid plastics and fused glass forms (A) Straight top D bifocal. (B) Curve top bifocal. (C) B segment bifocal. The dot indicates the geometric centre of the segment
  • 16.  E- Style Bifocal is one piece bifocal lens with two different curves ground usually on the front surface.
  • 18.

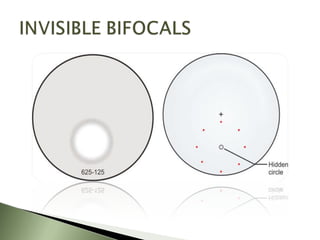

  • 19.
  • 20.  Any lens that is chosen by careful forethought and positioned for a specialized viewing situation may be classified as an occupational lens.  Some people require intermediate or near viewing while looking upward, including plumbers, pharmacists, librarians, electricians, auto mechanics, and many others in specialized working situations.
  • 21.
  • 22. Bifocal segments must be positioned so that the distance and near positions of the lens provide adequate fields of view for distance and near vision respectively.
  • 23. While fitting the bifocal into a spectacle frame three factors must be considered: 1. Segment Inset 2. Segment Width and 3. Segment Height.
  • 24.  Segment inset is specified as the difference between the subjects distance PD and near PD.  In the normal range of PDs, the near PD for a reading distance of 40cms is 4mm less than the distance PD.
  • 25.  Segment inset, therefore is usually specified as 2mm for each lens.  There are two reasons for insetting bifocal segment – 1. To ensure that the subject’s line of sight will go through the segment at its optical centre 2.To ensure that the reading fields for the two segments will coincide with one another.
  • 26.  Different segment widths are usually available for straight top shaped segments in 22, 25, 28 and 35 mm widths.

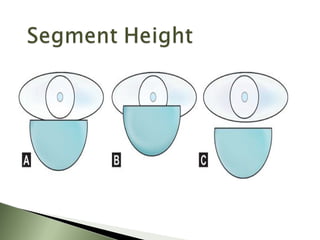

  • 27.
  • 28. 1. Choose the final frame and adjust it to fit the subject correctly.
  • 29. 2. If the frame is without demonstration lens, attach a vertical strip of transparent adhesive tape to each eye of the frame to enable reference points to be marked
  • 30.  Replace the frame on the subjects face and direct the subject to look straight into your eyes.  your eyes are on exactly the same level as those of the subject
  • 31.
  • 32.  Remove the frame and put the frame face down with dots coinciding with a straight line. Draw a straight line from one dot to another
  • 33. 7. The position of the segment top is usually specified in millimeter from the marked straight line to the lower eye wire of the frame.
  • 34.  Put back the frame on the face and verify.
  • 35.
