Better, Faster, Stronger! Migration to 3.0
- 1. Better, Faster, Stronger! Migrationto 3.0 ©2015AmadeusITGroupSA Upgrade MongoDB in the enterprise environment Attila Tozser, Amadeus Data Processing GmbH, MongoDB Days Germany, 20/10/2015
- 2.
- 3. Amadeus is atechnology company dedicated to the global travel industry. We are present in 195 countries with a worldwide team of more than 13,200 people. Our solutions help improve the business performance of travel agencies, corporations, airlines, airports, hotels, railways and more. _ Introduction1Amadeus in a few words ©2015AmadeusITGroupSA
- 4. Our solutions facilitatejourneys and enrich the travel experience for hundreds of millions of people every year. to shape the future of travel _ Introduction1 We are working together with our customers and partners We have a clear purpose ©2015AmadeusITGroupSA

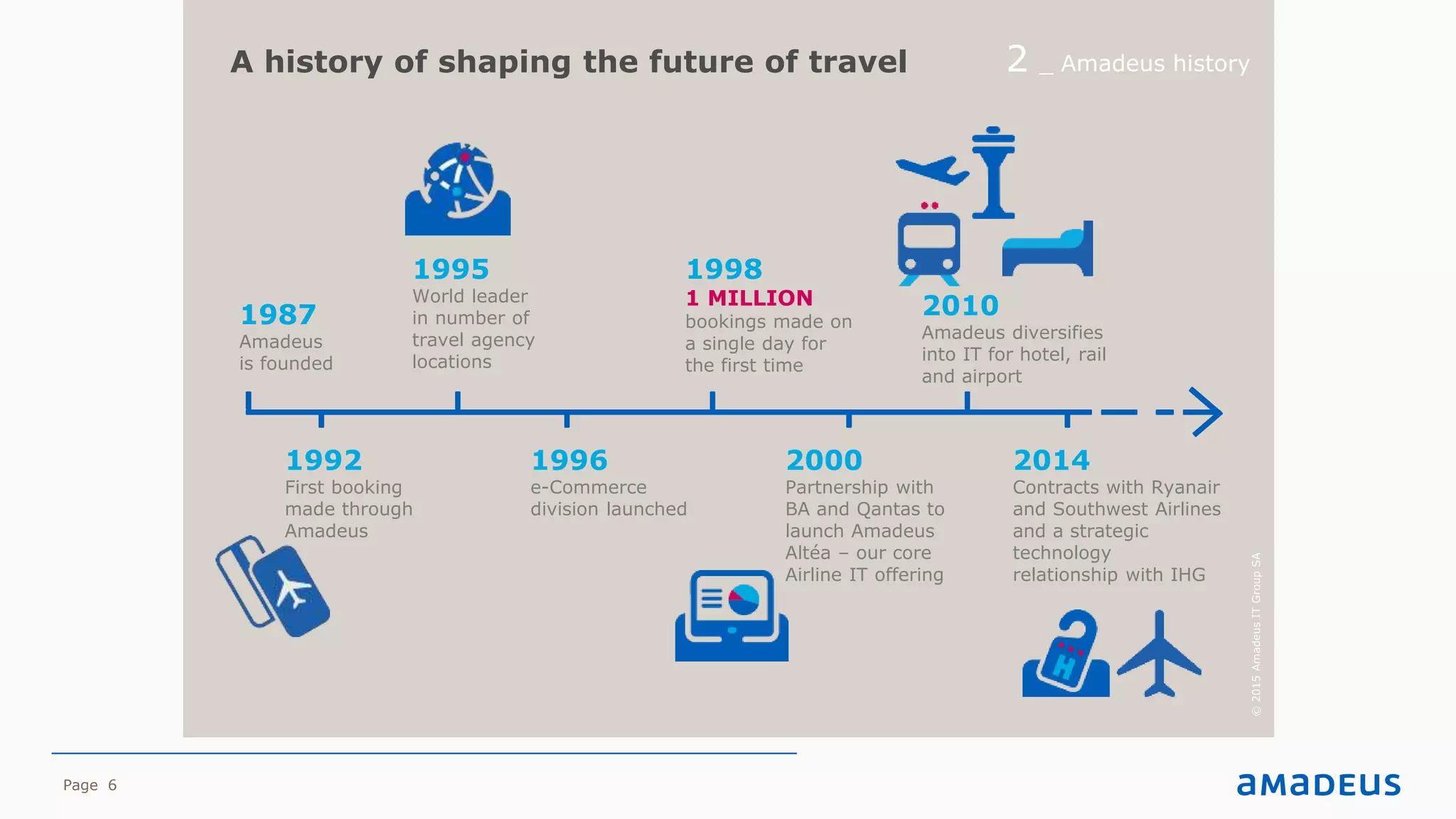

- 5. Page 6 A historyof shaping the future of travel _ Amadeus history2 1987 Amadeus is founded 1995 World leader in number of travel agency locations 1998 1 MILLION bookings made on a single day for the first time 2010 Amadeus diversifies into IT for hotel, rail and airport 1992 First booking made through Amadeus 1996 e-Commerce division launched 2000 Partnership with BA and Qantas to launch Amadeus Altéa – our core Airline IT offering 2014 Contracts with Ryanair and Southwest Airlines and a strategic technology relationship with IHG ©2015AmadeusITGroupSA
- 6. Page 7 _ Amadeustoday3Robust global operations ©2015AmadeusITGroupSA 1.6+ billion data requests processed per day 526 million travel agency bookings processed in 2014 695 million Passengers Boarded (PBs) in 2014 95% of the world’s scheduled network airline seats
- 7. Page 8 Close toour customers ©2015AmadeusITGroupSA
- 8. Page 9 A globalteam of 13,200+ professionals _ 118 nationalities _ Cultural diversity _ Clear focus on recruiting and developing talent _ Values based culture
- 9.

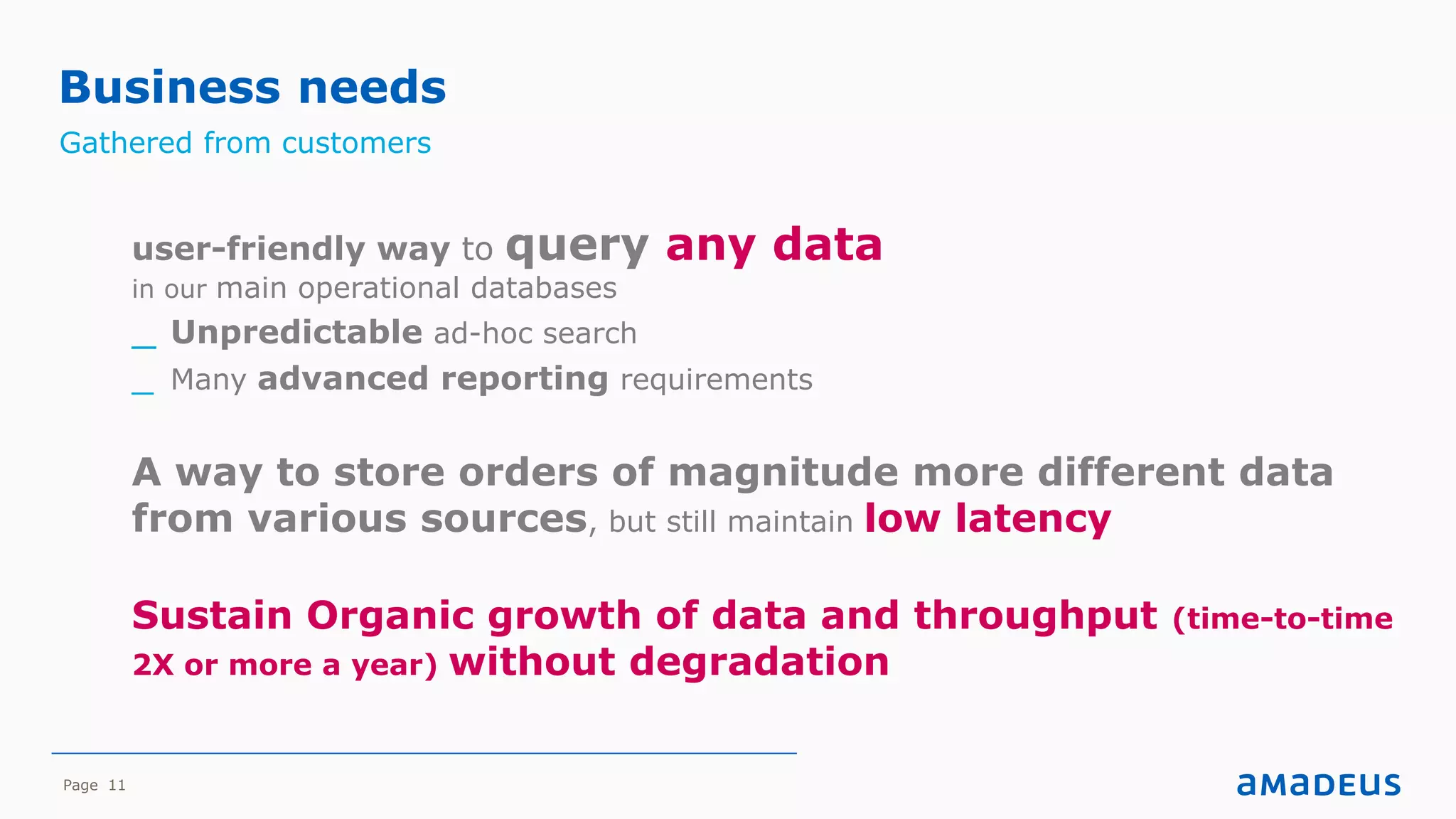

- 10. Page 11 Business needs Gatheredfrom customers user-friendly way to query any data in our main operational databases _ Unpredictable ad-hoc search _ Many advanced reporting requirements A way to store orders of magnitude more different data from various sources, but still maintain low latency Sustain Organic growth of data and throughput (time-to-time 2X or more a year) without degradation
- 11. Page 12 Runs onstandard x86 architecture C++, Python & Java drivers Enterprise-grade security _ SSL encryption _ Kerberos authentication _ Data-at-rest encryption MongoDB is perfect match to our needs Integration In the Amadeus standards
- 12. New features inMongoDB 3.0 2 ©2015AmadeusITGroupSA

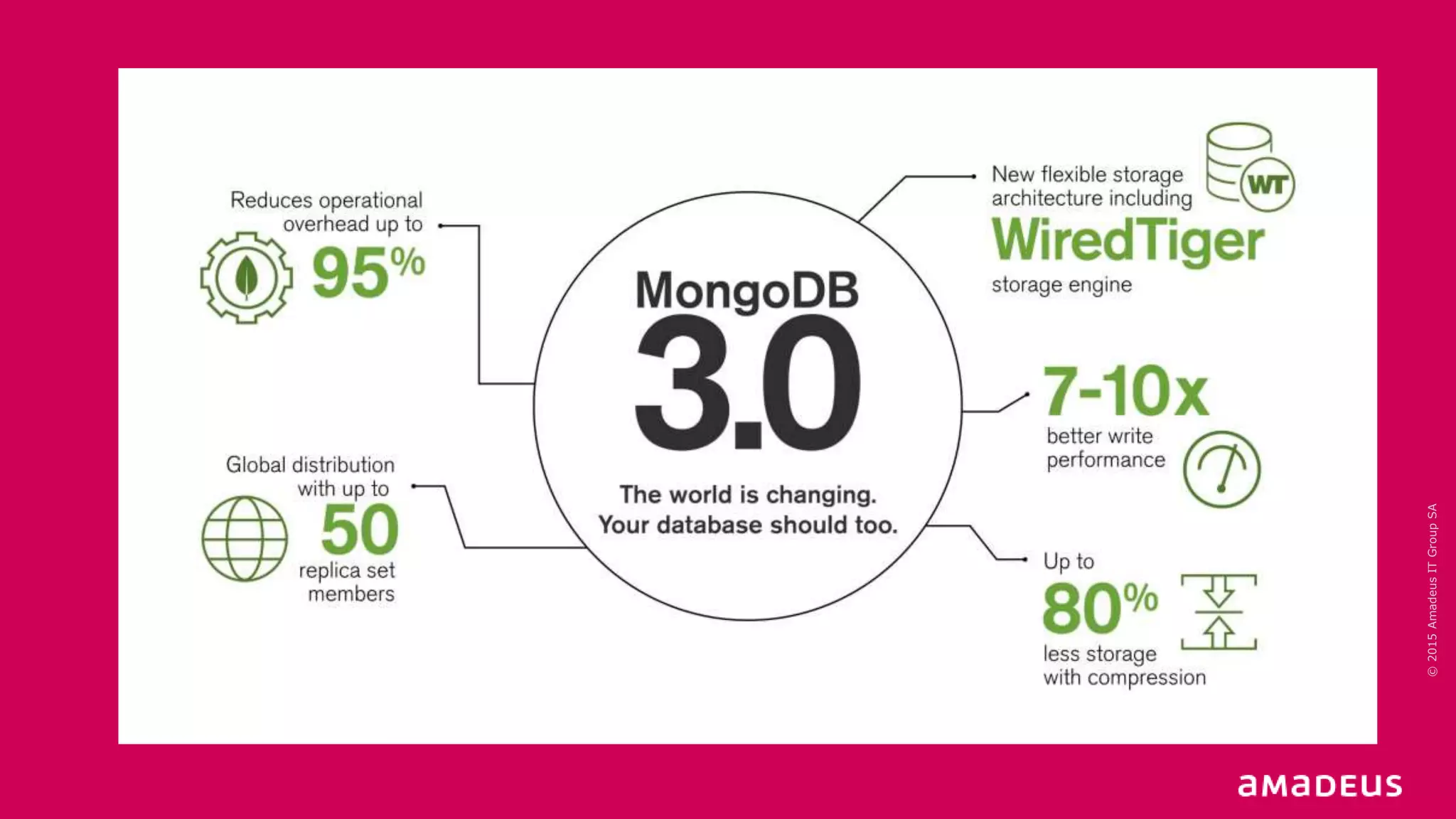

- 13.
- 14. ©2015AmadeusITGroupSA WiredTiger our observations •Compression ratio 3x-10x • IO characteristic tunable • Better latency • Enhanced security In-memory our observations • On OOM instant crash • Sustained 150K/4KB IOPS On a single box • 1-6ms latency
- 15. Upgrade MongoDB inthe enterprise environment 2 ©2015AmadeusITGroupSA AmadeusClients
- 16.
- 17.

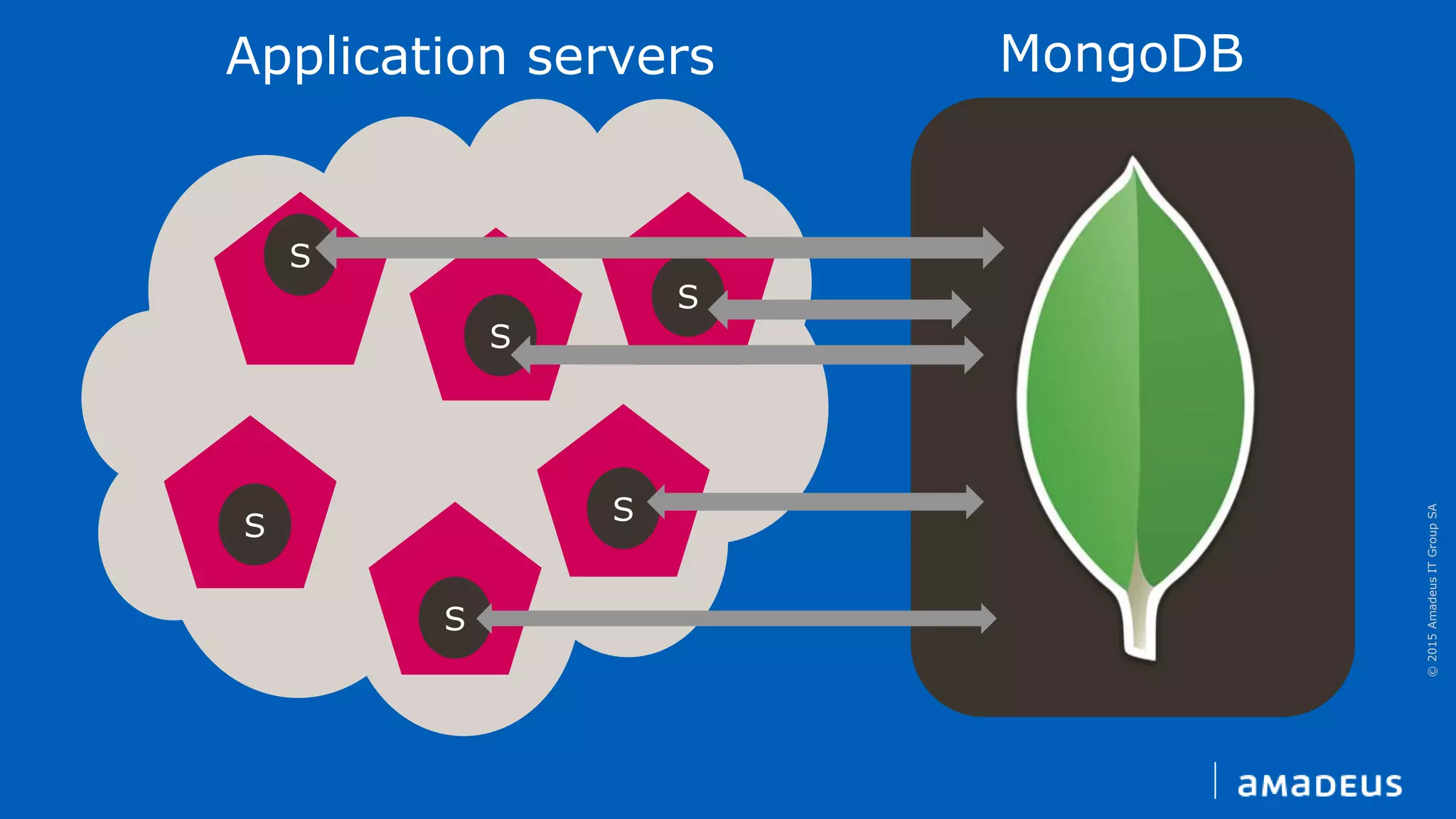

- 18. ©2015AmadeusITGroupSA S S S S S S This appserver consistof • Operating System • Application code • MongoDB driver • Mongos binary Database sever: Operating System MongoDB binaries Misc. processes: Ops manager agents Monitoring code Automation code
- 19. ©2015AmadeusITGroupSA MongoDB Cluster MMS/Ops Manager _Always Sharded and replicated _Over10 test levels _Monitoring _Backup _(automation) Mongodb 3.0 needs Ops Manager > 1.6.0
- 20. Upgrading MMS3 ©2015AmadeusITGroupSA MMS application database Backup Database Backup Database Backup Database MMS AppServer MMS App Server MMS App Server Backup Daemon Backup Daemon Backup Daemon Backup agents Monitoring agents Automation agents Upgrade separately as any other MongoDB cluster 3.0 only from MMS 1.6 The server processes contain the new versions Should be on the same version: Upgrade together
- 21. Upgrading MMS3 ©2015AmadeusITGroupSA MMS AppServer REST API Corporate Monitoring API calls Metrics Corporate Automation API calls Config options

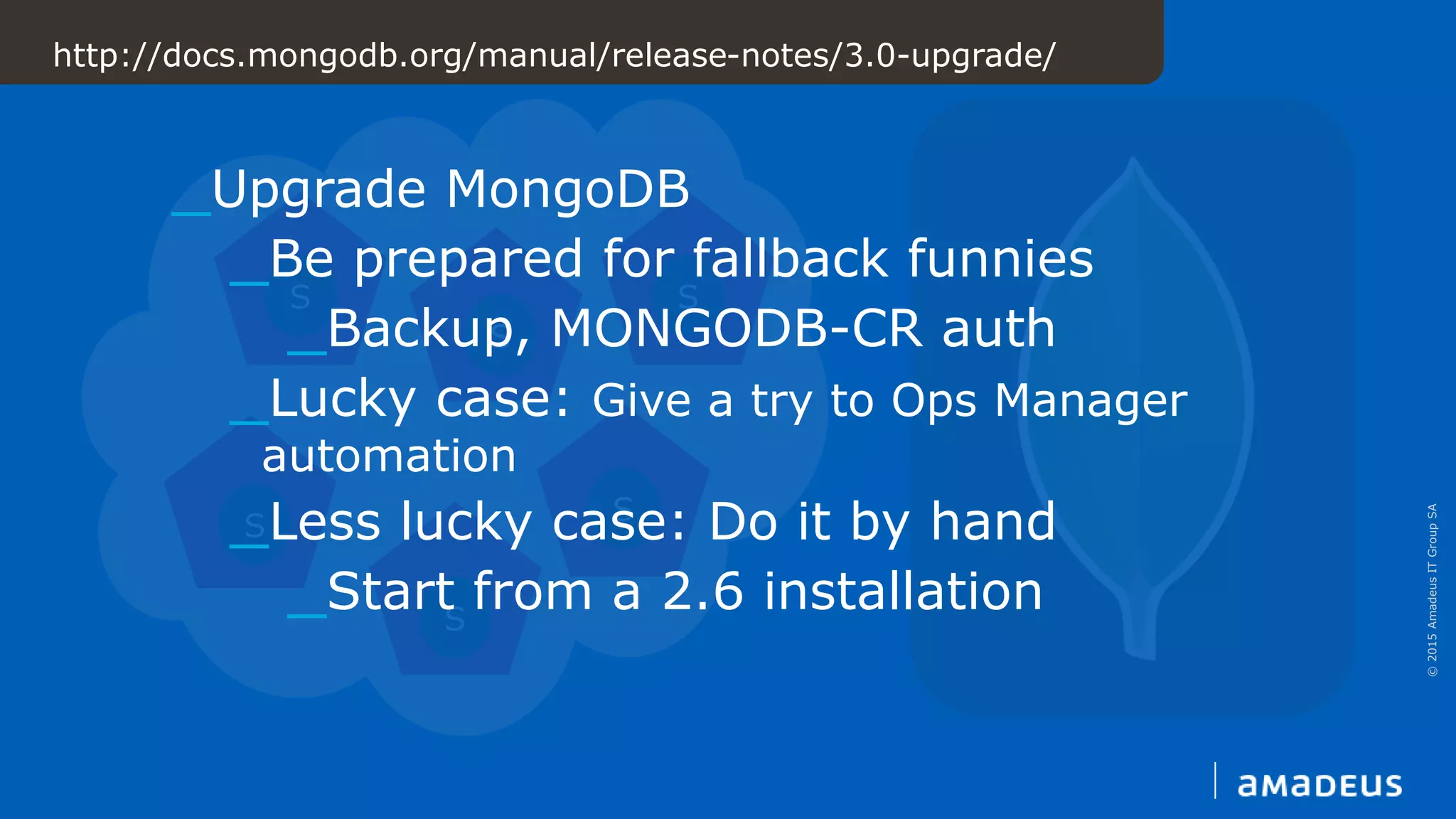

- 22. ©2015AmadeusITGroupSA S S S S S S http://docs.mongodb.org/manual/release-notes/3.0-upgrade/ _Upgrade MongoDB _Be preparedfor fallback funnies _Backup, MONGODB-CR auth _Lucky case: Give a try to Ops Manager automation _Less lucky case: Do it by hand _Start from a 2.6 installation

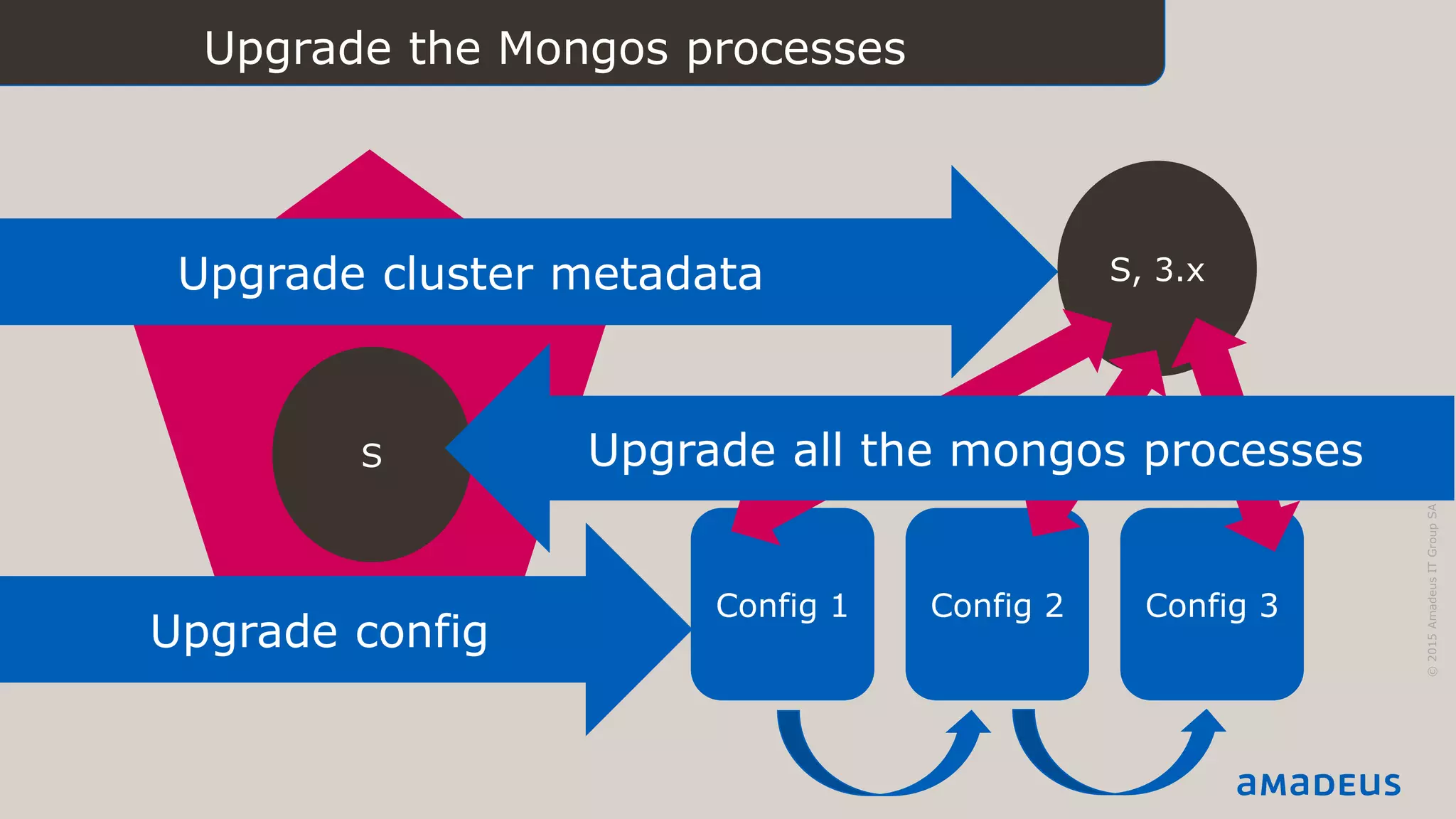

- 23. Upgrading MMS3 ©2015AmadeusITGroupSA S Upgrade theMongos processes Config 1 Config 2 Config 3 S, 3.xUpgrade cluster metadata Upgrade all the mongos processes Upgrade config

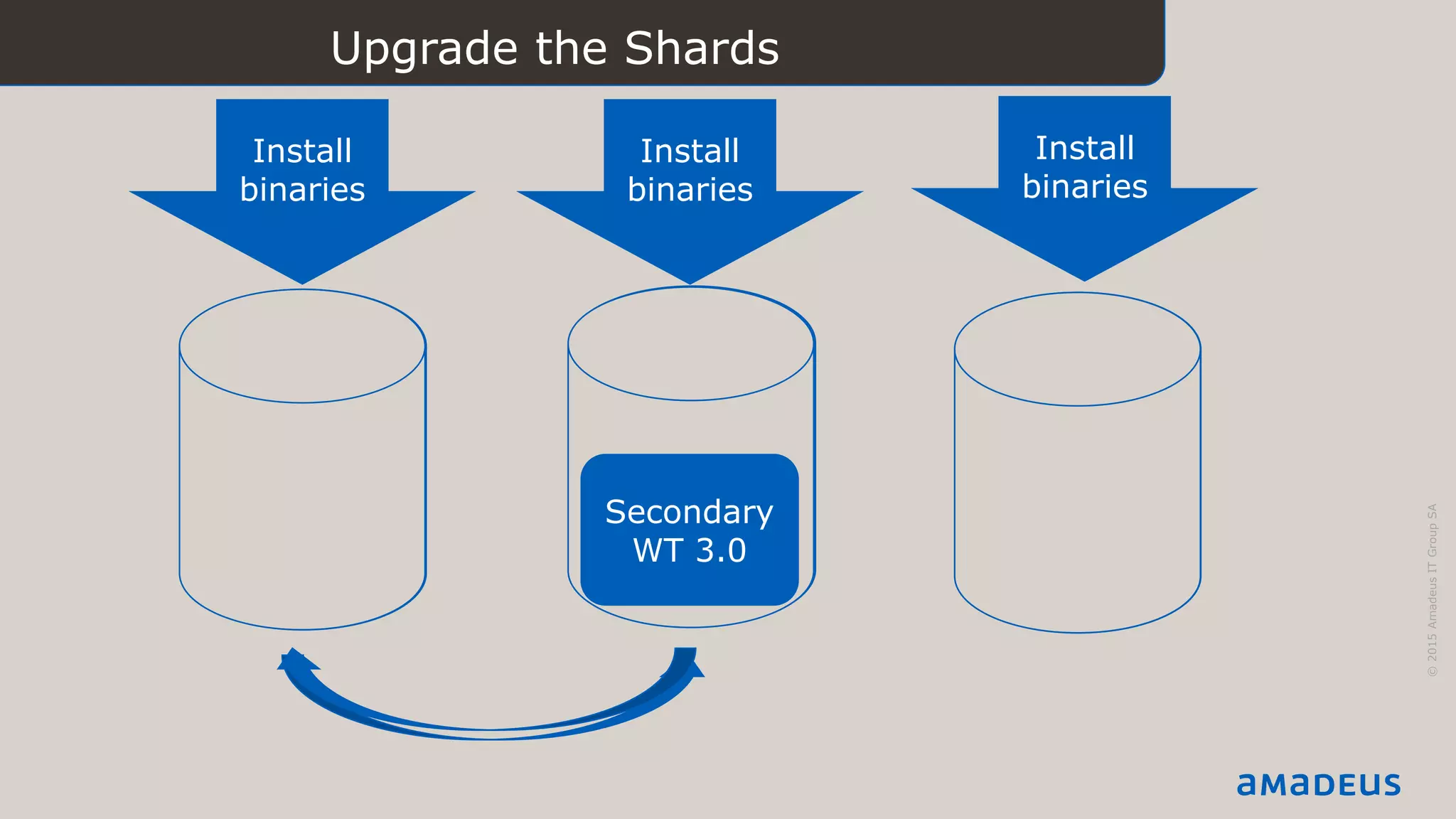

- 24. 3 ©2015AmadeusITGroupSA Primary MMAP v1 2.6 Secondary MMAP v1 2.6 Secondary MMAPv1 2.6 Upgrade the Shards Secondary WT 3.0 Install binaries Install binaries Install binaries Primary WT 3.0 Secondary WT 3.0 Secondary MMAPv1 2.6 Secondary WT 3.0 Primary WT 3.0 Secondary WT 3.0
- 25. Look into thefuture 3 ©2015AmadeusITGroupSA MY MongoDB wishlist _ Cross cluster replication _ Filtered / delayed / batched _ Multimaster (AP operation) _ Multithreaded queries _ Transactions _ On multi update
- 26. Divider title here 1 ©2015AmadeusITGroupSA Thankyou! Questions?
