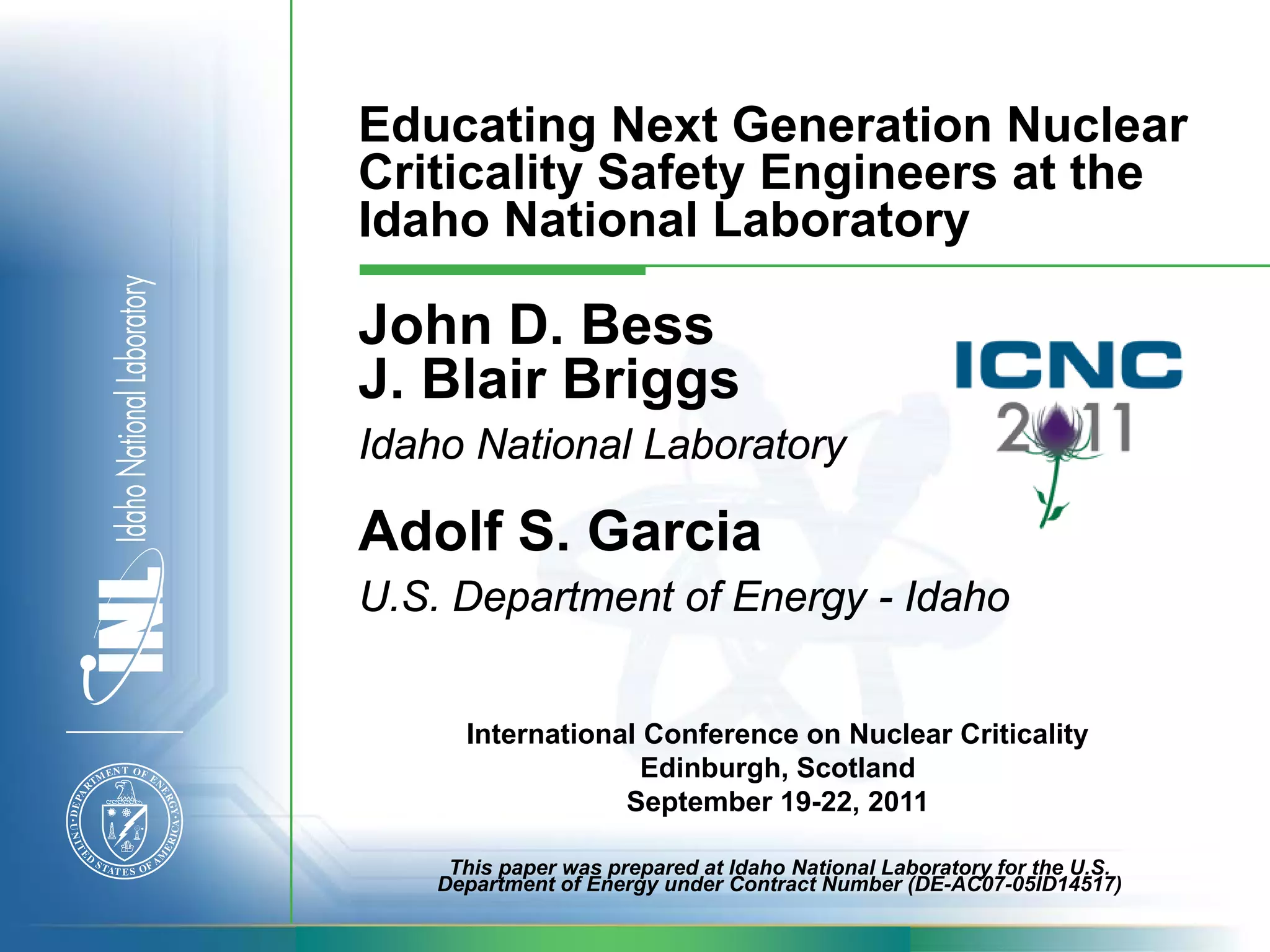

Educating Next Generation Nuclear
Criticality Safety Engineers at the
Idaho National Laboratory

John D. Bess
J. Blair Briggs
Idaho National Laboratory

Adolf S. Garcia
U.S. Department of Energy - Idaho


      International Conference on Nuclear Criticality
                    Edinburgh, Scotland
                  September 19-22, 2011

     This paper was prepared at Idaho National Laboratory for the U.S.
    Department of Energy under Contract Number (DE-AC07-05ID14517)
Educating the Next Generation of Nuclear
Criticality and Reactor Safety Professionals
• Challenge of a New Nuclear Safety Workforce:
  – Provide assessment of nuclear systems and establish
    safety guidelines without significant experience or
    hands-on training prior to graduation

• Benchmark Analysis Participation in the
  ICSBEP/IRPhEP:
  – ICSBEP – International Criticality Safety Benchmark
    Evaluation Project
  – IRPhEP – International Reactor Physics Experiment
    Evaluation Project
  – Provide students and young professionals with the
    opportunity to gain experience and enhance critical
    engineering skills.




                                                          2
Why Do We Have Nuclear Benchmarks?
• Criticality Safety      • Research and
   – Plant Operations       Development
   – Transportation          – New Reactor Designs
   – Waste Disposal          – Design Validation
   – Experimentation      • Computational Methods
   – Accident Analysis       – Cross-Section Data
   – Standards               – Code Verification
     Development          • Fundamental Physics
• Materials                  – Model Validation
   – Testing              • Fun
   – Physics Validation
   – Interrogation



                                                     3
How Does Benchmark Design Apply to You?




                                          4
International Criticality Safety Benchmark
Evaluation Project (ICSBEP)
• Purpose:
   – Identify and verify comprehensive sets of critical
     benchmark data by reviewing documentation and
     talking with experimenters
   – Evaluate the data and quantify the overall uncertainty
     via sensitivity analyses
   – Compile the data into a standardized format
   – Perform calculations of each experiment with
     standard criticality safety codes
   – Formally document work into a single source
• http://icsbep.inl.gov
• icsbep@inl.gov



                                                              5
International Handbook of Evaluated Criticality
Safety Benchmark Experiments
September 2011 Edition
• 20 Contributing Countries
• Spans approximately 58,000
  Pages
• Evaluation of 533
  Experimental Series
• 4,551 Critical or Subcritical
  Configurations
• 24 Criticality-Alarm/Shielding
  Benchmark Configurations –
  numerous dose points each
• 155 fission rate and
  transmission measurements
  and reaction rate ratios for
  45 different materials


                                                  6
International Reactor Physics Experiment
Evaluation Project (IRPhEP)
• Similar to the ICSBEP
• Focus to collect data regarding the numerous
  experiments in support of nuclear energy and
  technology performed at research laboratories
• Experiments represent significant investments of
  time, infrastructure, expertise, and cost that might
  not have received adequate documentation
• Measurements also include data regarding reactivity
  measurements, reaction rates, buckling, burnup,
  etc., that are of significant worth for current and
  future research and development efforts
• http://irphep.inl.gov/
• irphep@inl.gov



                                                         7
International Handbook of Evaluated Reactor
Physics Benchmark Experiments
March 2011 Edition
• 16 Contributing Countries
• Data from 53 Experimental
  Series performed at 31
  Reactor Facilities
• Data from 48 are published as
  approved benchmarks
• Data from 5 are published in
  DRAFT form
• Handbook available to OECD
  member countries, all
  contributing countries, and to
  others on a case-by-case
  basis



                                              8
Measurement Types Included as IRPhEP
Benchmarks
• The IRPhEP benchmark report follows the same general
  guidelines as for the ICSBEP Handbook, but includes
  additional material:
   – Critical/Subcritical        – Kinetics
   – Buckling/Extrapolation        Measurements Data
     Length                      – Reaction-Rate
   – Spectral                      Distributions
     Characteristics             – Power Distribution
   – Reactivity Effects            Data
   – Reactivity Coefficient      – Isotopic Measurements
     Data                        – Miscellaneous

                             If it is worth measuring, then
                                   it is worth evaluating.


                                                              9
The Evaluation Process




                         10
Student Investigation Breeds Comprehension
• Benchmark procedures require investigation
  into
   – History and background
      • Purpose of experiment?
   – Experimental design and methods
   – Analytical capabilities and procedures
   – Experimental results
• Often experiments were performed with the
  intent to provide data for criticality safety
  assessments
   – Many are utilized to
     develop criticality
     safety standards



                                                  11
Culturing Good Engineering Judgment
• Often experimental information is incomplete
  or misleading
  – Contact original experimenters (if available)
  – Interact with professionals from the
    ICSBEP/IRPhEP community
  – Establish a personal network for the young
    professional engineer
   “Do, or do not.
       There is no ‘try’”
            - Jedi Master Yoda



                                                    12
Developing an Analytical Skill and Tool Set
• Evaluators develop analytical and computational
  capabilities throughout the evaluation process
  – Utility of conventional computational codes and
    neutron cross section data libraries
     • Monte Carlo or Diffusion methods
     • MCNP and KENO are the most common in the US
  – Application of perturbation theory and statistical
    analyses
     • Uncertainty evaluation
     • Bias assessment
  – Technical report writing
  – Understanding acceptability of results



                                                         13
Extensive International Review Process
•    ICSBEP and IRPhEP benchmarks are subject to extensive review.
      – Evaluator(s) – primary assessment of the benchmark.
      – Internal Reviewer(s) – in-house verification of the analysis
        and adherence to procedure.
      – Independent Reviewer(s) – external (often foreign) verification
        of the analysis.
      – Technical Workgroup Meeting – annual international effort to
        review all benchmarks prior to inclusion in the handbook.
          • Sometimes a subgroup is assigned to assess any final
            workgroup comments and revisions prior to publication.
      – Benchmarks are determined to be acceptable or unacceptable
        for use depending on availability of data, which translates
        into uncertainty in results.
          • All approved benchmarks are retained in the handbook.
          • Unacceptable data are published for documentation
            purposes, but benchmark specifications are not provided


                                                                          14
Opportunities for Involvement – I
• Internships               • Augmented
  – Traditional approach      Education
  – 10-weeks                  – Rigorous structure
                                for Master’s Thesis
  – Benchmark review
    process completed         – Mentor and peer-
    on “free-time” during       review network
    university studies        – Undergraduate thesis
  – Encouraged to             – Undergraduate team
    publish                     projects
                              – Encouraged to
                                publish



                                                       15
Opportunities for Involvement – II
• Center for Space Nuclear Research (CSNR)
  – Next Degree Program
     • Work as a part- or full-time subcontractor while
       completing a graduate degree
  – Via local or remote university participation
  – Opportunity for interaction with students
    participating in space nuclear activities
     • Other Next Degree students
     • Summer fellow students (interns)
  – Collaboration opportunities on other projects




                                                          16
Opportunities for Involvement – III
• Nuclear and Criticality Safety Engineers
  – Pilot program collaboration
       • Battelle Energy Alliance (BEA)
       • U.S. Department of Energy – Idaho (DOE-ID)
  –   Idaho State University and University of Idaho
  –   Graduate Nuclear Engineering Curriculum
  –   Part-time employment (full-time summer)
  –   Hands-on training, benchmarking, ANS meetings,
      thesis/dissertation work, shadow mentors, DOE
      and ANS standard development, etc.




                                                       17
Past and Present Student Involvement
• Since 1995, ~30
  students have
  participated in the
  ICSBEP and/or IRPhEP
  – 14 directly at INL
• Students have authored
  or coauthored over 50
  benchmark evaluations
  – 23 + 5 in progress at INL
• They have also
  submitted technical
  papers to various
  conferences and
  journals




                                       18
Current Student Benchmark Activities
•   ICSBEP                      •   IRPhEP
     – Slabs of Enriched             – Neutron Radiography
       Uranium Oxyfluoride             (NRAD) Reactor
     – Concrete-Reflected            – Small Compact Critical
       Enriched Uranium Metal          Assembly (SCCA)
       Cylinders                        •   UO2
     – Polyethylene-Reflected           •   2 × Graphite-Reflected
       Array of HEU Separated           •   1 × Beryllium-Reflected
       by Vermiculite                   •   Space Reactor
     – Arrays of Bottles with       – ISU AGN-201 Reactor
       Plutonium Nitrate            – Spherical Gas Core
       Solution                       Reactor Critical
     – Triangular Lattices of         Experiment
       2.49-cm-Diameter LEU             • UF6
       (5%) Rods in Water               • Space Reactor




                                                                      19
Conclusion
• Benchmarks represent an important means for
  developing and assessing a collection of
  nuclear experimental data
  – Application to criticality and reactor safety
  – Validation of nuclear activities
• Participation in the benchmark evaluation
  process can be of significant benefit to young
  professionals and their ultimate location of
  employment
• There exist many ongoing benchmarking
  activities through the ICSBEP and IRPhEP
• ICSBEP/IRPhEP Technical Review Group Chair
  – J. Blair Briggs, J.Briggs@inl.gov


                                                    20
¿Questions?




              21

More Related Content

Similar to Benchmark Education

ICSBEP - YPC2009
ICSBEP - YPC2009ICSBEP - YPC2009
ICSBEP - YPC2009
jdbess

Benchmark Tutorial -- IV - Participation
Benchmark Tutorial -- IV - ParticipationBenchmark Tutorial -- IV - Participation
Benchmark Tutorial -- IV - Participation
jdbess

Benchmark Tutorial -- I - Introduction
Benchmark Tutorial -- I - IntroductionBenchmark Tutorial -- I - Introduction
Benchmark Tutorial -- I - Introduction
jdbess

Benchmarking with Monte Carlo
Benchmarking with Monte CarloBenchmarking with Monte Carlo
Benchmarking with Monte Carlo
jdbess

Data Management Planning presentation at JISC workshop
Data Management Planning presentation at JISC workshopData Management Planning presentation at JISC workshop
Data Management Planning presentation at JISC workshop
Research Data Leeds

Aug2014 giab intro slides
Aug2014 giab intro slidesAug2014 giab intro slides
Aug2014 giab intro slides
GenomeInABottle

Uk Research Infrastructure Workshop E-infrastructure Juan Bicarregui
Uk Research Infrastructure Workshop E-infrastructure Juan BicarreguiUk Research Infrastructure Workshop E-infrastructure Juan Bicarregui
Uk Research Infrastructure Workshop E-infrastructure Juan Bicarregui
Innovate UK

Aug2013 NIST program slides
Aug2013 NIST program slidesAug2013 NIST program slides
Aug2013 NIST program slides
GenomeInABottle

researchprocess-saileegurav-140125230247-phpapp02.pptx
researchprocess-saileegurav-140125230247-phpapp02.pptxresearchprocess-saileegurav-140125230247-phpapp02.pptx
researchprocess-saileegurav-140125230247-phpapp02.pptx
Praveen Kumar

Empirical se 2013-01-17
Empirical se 2013-01-17Empirical se 2013-01-17
Empirical se 2013-01-17
Ivica Crnkovic

Research process
Research process Research process
Research process
Sailee Gurav

Reproducibility in human cognitive neuroimaging: a community-­driven data sha...
Reproducibility in human cognitive neuroimaging: a community-­driven data sha...Reproducibility in human cognitive neuroimaging: a community-­driven data sha...
Reproducibility in human cognitive neuroimaging: a community-­driven data sha...
Nolan Nichols

Introduction to Usability Testing for Survey Research
Introduction to Usability Testing for Survey ResearchIntroduction to Usability Testing for Survey Research
Introduction to Usability Testing for Survey Research
Caroline Jarrett

Learning analytics the good the bad & the ugly
Learning analytics the good the bad & the uglyLearning analytics the good the bad & the ugly
Learning analytics the good the bad & the ugly
Eduworks Network

Supporting the development of a national Research Data Discovery Service - A ...
Supporting the development of a national Research Data Discovery Service - A ...Supporting the development of a national Research Data Discovery Service - A ...
Supporting the development of a national Research Data Discovery Service - A ...
Historic Environment Scotland

Clement, A measured approach to supporting research productivity
Clement, A measured approach to supporting research productivityClement, A measured approach to supporting research productivity
Clement, A measured approach to supporting research productivity
National Information Standards Organization (NISO)

Lab Connect Overview.2011 03 29
Lab Connect Overview.2011 03 29Lab Connect Overview.2011 03 29
Lab Connect Overview.2011 03 29
Jeff Mayhew

Supporting the development of a national Research Data Discovery Service – a ...
Supporting the development of a national Research Data Discovery Service – a ...Supporting the development of a national Research Data Discovery Service – a ...
Supporting the development of a national Research Data Discovery Service – a ...
EDINA, University of Edinburgh

Research skills methodology, steps for research
Research skills methodology, steps for researchResearch skills methodology, steps for research
Research skills methodology, steps for research
arunts23

CIS375 Interaction Designs Chapter14
CIS375 Interaction Designs Chapter14CIS375 Interaction Designs Chapter14
CIS375 Interaction Designs Chapter14
Dr. Ahmed Al Zaidy


Similar to Benchmark Education (20)

ICSBEP - YPC2009
ICSBEP - YPC2009ICSBEP - YPC2009
ICSBEP - YPC2009

Benchmark Tutorial -- IV - Participation
Benchmark Tutorial -- IV - ParticipationBenchmark Tutorial -- IV - Participation
Benchmark Tutorial -- IV - Participation

Benchmark Tutorial -- I - Introduction
Benchmark Tutorial -- I - IntroductionBenchmark Tutorial -- I - Introduction
Benchmark Tutorial -- I - Introduction

Benchmarking with Monte Carlo
Benchmarking with Monte CarloBenchmarking with Monte Carlo
Benchmarking with Monte Carlo

Data Management Planning presentation at JISC workshop
Data Management Planning presentation at JISC workshopData Management Planning presentation at JISC workshop
Data Management Planning presentation at JISC workshop

Aug2014 giab intro slides
Aug2014 giab intro slidesAug2014 giab intro slides
Aug2014 giab intro slides

Uk Research Infrastructure Workshop E-infrastructure Juan Bicarregui
Uk Research Infrastructure Workshop E-infrastructure Juan BicarreguiUk Research Infrastructure Workshop E-infrastructure Juan Bicarregui
Uk Research Infrastructure Workshop E-infrastructure Juan Bicarregui

Aug2013 NIST program slides
Aug2013 NIST program slidesAug2013 NIST program slides
Aug2013 NIST program slides

researchprocess-saileegurav-140125230247-phpapp02.pptx
researchprocess-saileegurav-140125230247-phpapp02.pptxresearchprocess-saileegurav-140125230247-phpapp02.pptx
researchprocess-saileegurav-140125230247-phpapp02.pptx

Empirical se 2013-01-17
Empirical se 2013-01-17Empirical se 2013-01-17
Empirical se 2013-01-17

Research process
Research process Research process
Research process

Reproducibility in human cognitive neuroimaging: a community-­driven data sha...
Reproducibility in human cognitive neuroimaging: a community-­driven data sha...Reproducibility in human cognitive neuroimaging: a community-­driven data sha...
Reproducibility in human cognitive neuroimaging: a community-­driven data sha...

Introduction to Usability Testing for Survey Research
Introduction to Usability Testing for Survey ResearchIntroduction to Usability Testing for Survey Research
Introduction to Usability Testing for Survey Research

Learning analytics the good the bad & the ugly
Learning analytics the good the bad & the uglyLearning analytics the good the bad & the ugly
Learning analytics the good the bad & the ugly

Supporting the development of a national Research Data Discovery Service - A ...
Supporting the development of a national Research Data Discovery Service - A ...Supporting the development of a national Research Data Discovery Service - A ...
Supporting the development of a national Research Data Discovery Service - A ...

Clement, A measured approach to supporting research productivity
Clement, A measured approach to supporting research productivityClement, A measured approach to supporting research productivity
Clement, A measured approach to supporting research productivity

Lab Connect Overview.2011 03 29
Lab Connect Overview.2011 03 29Lab Connect Overview.2011 03 29
Lab Connect Overview.2011 03 29

Supporting the development of a national Research Data Discovery Service – a ...
Supporting the development of a national Research Data Discovery Service – a ...Supporting the development of a national Research Data Discovery Service – a ...
Supporting the development of a national Research Data Discovery Service – a ...

Research skills methodology, steps for research
Research skills methodology, steps for researchResearch skills methodology, steps for research
Research skills methodology, steps for research

CIS375 Interaction Designs Chapter14
CIS375 Interaction Designs Chapter14CIS375 Interaction Designs Chapter14
CIS375 Interaction Designs Chapter14


More from jdbess

Benchmark Tutorial -- III - Report
Benchmark Tutorial -- III - ReportBenchmark Tutorial -- III - Report
Benchmark Tutorial -- III - Report
jdbess

Benchmark Tutorial -- II - Availability
Benchmark Tutorial -- II - AvailabilityBenchmark Tutorial -- II - Availability
Benchmark Tutorial -- II - Availability
jdbess

NRAD - ANS 2012
NRAD - ANS 2012NRAD - ANS 2012
NRAD - ANS 2012
jdbess

GROTESQUE - ANS 2012
GROTESQUE - ANS 2012GROTESQUE - ANS 2012
GROTESQUE - ANS 2012
jdbess

MIRTE 2010
MIRTE 2010MIRTE 2010
MIRTE 2010
jdbess

IRPhEP 2011
IRPhEP 2011IRPhEP 2011
IRPhEP 2011
jdbess

ICSBEP 2010
ICSBEP 2010ICSBEP 2010
ICSBEP 2010
jdbess

Development Of An ICSBEP Benchmark 2011
Development Of An ICSBEP Benchmark 2011Development Of An ICSBEP Benchmark 2011
Development Of An ICSBEP Benchmark 2011
jdbess

FSP-Be - NETS2011
FSP-Be - NETS2011FSP-Be - NETS2011
FSP-Be - NETS2011
jdbess

IRPhEP - ICAPP2010
IRPhEP - ICAPP2010IRPhEP - ICAPP2010
IRPhEP - ICAPP2010
jdbess

HTTR - PHYSOR2010
HTTR - PHYSOR2010HTTR - PHYSOR2010
HTTR - PHYSOR2010
jdbess

HTTR - ANSWM 2009
HTTR - ANSWM 2009HTTR - ANSWM 2009
HTTR - ANSWM 2009
jdbess

UO2F2 - ANSWM 2009
UO2F2 - ANSWM 2009UO2F2 - ANSWM 2009
UO2F2 - ANSWM 2009
jdbess

CSNR - YPC 2009
CSNR - YPC 2009CSNR - YPC 2009
CSNR - YPC 2009
jdbess

TANKS - ANS 2009
TANKS - ANS 2009TANKS - ANS 2009
TANKS - ANS 2009
jdbess

FSP - NETS 2009
FSP - NETS 2009FSP - NETS 2009
FSP - NETS 2009
jdbess

NTR - NETS 2009
NTR -  NETS 2009NTR -  NETS 2009
NTR - NETS 2009
jdbess

CSNR - STAIF 2008
CSNR - STAIF 2008CSNR - STAIF 2008
CSNR - STAIF 2008
jdbess

LEGO Reactor - ICAPP 2008
LEGO Reactor - ICAPP 2008LEGO Reactor - ICAPP 2008
LEGO Reactor - ICAPP 2008
jdbess


More from jdbess (19)

Benchmark Tutorial -- III - Report
Benchmark Tutorial -- III - ReportBenchmark Tutorial -- III - Report
Benchmark Tutorial -- III - Report

Benchmark Tutorial -- II - Availability
Benchmark Tutorial -- II - AvailabilityBenchmark Tutorial -- II - Availability
Benchmark Tutorial -- II - Availability

NRAD - ANS 2012
NRAD - ANS 2012NRAD - ANS 2012
NRAD - ANS 2012

GROTESQUE - ANS 2012
GROTESQUE - ANS 2012GROTESQUE - ANS 2012
GROTESQUE - ANS 2012

MIRTE 2010
MIRTE 2010MIRTE 2010
MIRTE 2010

IRPhEP 2011
IRPhEP 2011IRPhEP 2011
IRPhEP 2011

ICSBEP 2010
ICSBEP 2010ICSBEP 2010
ICSBEP 2010

Development Of An ICSBEP Benchmark 2011
Development Of An ICSBEP Benchmark 2011Development Of An ICSBEP Benchmark 2011
Development Of An ICSBEP Benchmark 2011

FSP-Be - NETS2011
FSP-Be - NETS2011FSP-Be - NETS2011
FSP-Be - NETS2011

IRPhEP - ICAPP2010
IRPhEP - ICAPP2010IRPhEP - ICAPP2010
IRPhEP - ICAPP2010

HTTR - PHYSOR2010
HTTR - PHYSOR2010HTTR - PHYSOR2010
HTTR - PHYSOR2010

HTTR - ANSWM 2009
HTTR - ANSWM 2009HTTR - ANSWM 2009
HTTR - ANSWM 2009

UO2F2 - ANSWM 2009
UO2F2 - ANSWM 2009UO2F2 - ANSWM 2009
UO2F2 - ANSWM 2009

CSNR - YPC 2009
CSNR - YPC 2009CSNR - YPC 2009
CSNR - YPC 2009

TANKS - ANS 2009
TANKS - ANS 2009TANKS - ANS 2009
TANKS - ANS 2009

FSP - NETS 2009
FSP - NETS 2009FSP - NETS 2009
FSP - NETS 2009

NTR - NETS 2009
NTR -  NETS 2009NTR -  NETS 2009
NTR - NETS 2009

CSNR - STAIF 2008
CSNR - STAIF 2008CSNR - STAIF 2008
CSNR - STAIF 2008

LEGO Reactor - ICAPP 2008
LEGO Reactor - ICAPP 2008LEGO Reactor - ICAPP 2008
LEGO Reactor - ICAPP 2008


Benchmark Education

  • 1. Educating Next Generation Nuclear Criticality Safety Engineers at the Idaho National Laboratory John D. Bess J. Blair Briggs Idaho National Laboratory Adolf S. Garcia U.S. Department of Energy - Idaho International Conference on Nuclear Criticality Edinburgh, Scotland September 19-22, 2011 This paper was prepared at Idaho National Laboratory for the U.S. Department of Energy under Contract Number (DE-AC07-05ID14517)
  • 2. Educating the Next Generation of Nuclear Criticality and Reactor Safety Professionals • Challenge of a New Nuclear Safety Workforce: – Provide assessment of nuclear systems and establish safety guidelines without significant experience or hands-on training prior to graduation • Benchmark Analysis Participation in the ICSBEP/IRPhEP: – ICSBEP – International Criticality Safety Benchmark Evaluation Project – IRPhEP – International Reactor Physics Experiment Evaluation Project – Provide students and young professionals with the opportunity to gain experience and enhance critical engineering skills. 2
  • 3. Why Do We Have Nuclear Benchmarks? • Criticality Safety • Research and – Plant Operations Development – Transportation – New Reactor Designs – Waste Disposal – Design Validation – Experimentation • Computational Methods – Accident Analysis – Cross-Section Data – Standards – Code Verification Development • Fundamental Physics • Materials – Model Validation – Testing • Fun – Physics Validation – Interrogation 3
  • 4. How Does Benchmark Design Apply to You? 4
  • 5. International Criticality Safety Benchmark Evaluation Project (ICSBEP) • Purpose: – Identify and verify comprehensive sets of critical benchmark data by reviewing documentation and talking with experimenters – Evaluate the data and quantify the overall uncertainty via sensitivity analyses – Compile the data into a standardized format – Perform calculations of each experiment with standard criticality safety codes – Formally document work into a single source • http://icsbep.inl.gov • icsbep@inl.gov 5
  • 6. International Handbook of Evaluated Criticality Safety Benchmark Experiments September 2011 Edition • 20 Contributing Countries • Spans approximately 58,000 Pages • Evaluation of 533 Experimental Series • 4,551 Critical or Subcritical Configurations • 24 Criticality-Alarm/Shielding Benchmark Configurations – numerous dose points each • 155 fission rate and transmission measurements and reaction rate ratios for 45 different materials 6
  • 7. International Reactor Physics Experiment Evaluation Project (IRPhEP) • Similar to the ICSBEP • Focus to collect data regarding the numerous experiments in support of nuclear energy and technology performed at research laboratories • Experiments represent significant investments of time, infrastructure, expertise, and cost that might not have received adequate documentation • Measurements also include data regarding reactivity measurements, reaction rates, buckling, burnup, etc., that are of significant worth for current and future research and development efforts • http://irphep.inl.gov/ • irphep@inl.gov 7
  • 8. International Handbook of Evaluated Reactor Physics Benchmark Experiments March 2011 Edition • 16 Contributing Countries • Data from 53 Experimental Series performed at 31 Reactor Facilities • Data from 48 are published as approved benchmarks • Data from 5 are published in DRAFT form • Handbook available to OECD member countries, all contributing countries, and to others on a case-by-case basis 8
  • 9. Measurement Types Included as IRPhEP Benchmarks • The IRPhEP benchmark report follows the same general guidelines as for the ICSBEP Handbook, but includes additional material: – Critical/Subcritical – Kinetics – Buckling/Extrapolation Measurements Data Length – Reaction-Rate – Spectral Distributions Characteristics – Power Distribution – Reactivity Effects Data – Reactivity Coefficient – Isotopic Measurements Data – Miscellaneous If it is worth measuring, then it is worth evaluating. 9
  • 11. Student Investigation Breeds Comprehension • Benchmark procedures require investigation into – History and background • Purpose of experiment? – Experimental design and methods – Analytical capabilities and procedures – Experimental results • Often experiments were performed with the intent to provide data for criticality safety assessments – Many are utilized to develop criticality safety standards 11
  • 12. Culturing Good Engineering Judgment • Often experimental information is incomplete or misleading – Contact original experimenters (if available) – Interact with professionals from the ICSBEP/IRPhEP community – Establish a personal network for the young professional engineer “Do, or do not. There is no ‘try’” - Jedi Master Yoda 12
  • 13. Developing an Analytical Skill and Tool Set • Evaluators develop analytical and computational capabilities throughout the evaluation process – Utility of conventional computational codes and neutron cross section data libraries • Monte Carlo or Diffusion methods • MCNP and KENO are the most common in the US – Application of perturbation theory and statistical analyses • Uncertainty evaluation • Bias assessment – Technical report writing – Understanding acceptability of results 13
  • 14. Extensive International Review Process • ICSBEP and IRPhEP benchmarks are subject to extensive review. – Evaluator(s) – primary assessment of the benchmark. – Internal Reviewer(s) – in-house verification of the analysis and adherence to procedure. – Independent Reviewer(s) – external (often foreign) verification of the analysis. – Technical Workgroup Meeting – annual international effort to review all benchmarks prior to inclusion in the handbook. • Sometimes a subgroup is assigned to assess any final workgroup comments and revisions prior to publication. – Benchmarks are determined to be acceptable or unacceptable for use depending on availability of data, which translates into uncertainty in results. • All approved benchmarks are retained in the handbook. • Unacceptable data are published for documentation purposes, but benchmark specifications are not provided 14
  • 15. Opportunities for Involvement – I • Internships • Augmented – Traditional approach Education – 10-weeks – Rigorous structure for Master’s Thesis – Benchmark review process completed – Mentor and peer- on “free-time” during review network university studies – Undergraduate thesis – Encouraged to – Undergraduate team publish projects – Encouraged to publish 15
  • 16. Opportunities for Involvement – II • Center for Space Nuclear Research (CSNR) – Next Degree Program • Work as a part- or full-time subcontractor while completing a graduate degree – Via local or remote university participation – Opportunity for interaction with students participating in space nuclear activities • Other Next Degree students • Summer fellow students (interns) – Collaboration opportunities on other projects 16
  • 17. Opportunities for Involvement – III • Nuclear and Criticality Safety Engineers – Pilot program collaboration • Battelle Energy Alliance (BEA) • U.S. Department of Energy – Idaho (DOE-ID) – Idaho State University and University of Idaho – Graduate Nuclear Engineering Curriculum – Part-time employment (full-time summer) – Hands-on training, benchmarking, ANS meetings, thesis/dissertation work, shadow mentors, DOE and ANS standard development, etc. 17
  • 18. Past and Present Student Involvement • Since 1995, ~30 students have participated in the ICSBEP and/or IRPhEP – 14 directly at INL • Students have authored or coauthored over 50 benchmark evaluations – 23 + 5 in progress at INL • They have also submitted technical papers to various conferences and journals 18
  • 19. Current Student Benchmark Activities • ICSBEP • IRPhEP – Slabs of Enriched – Neutron Radiography Uranium Oxyfluoride (NRAD) Reactor – Concrete-Reflected – Small Compact Critical Enriched Uranium Metal Assembly (SCCA) Cylinders • UO2 – Polyethylene-Reflected • 2 × Graphite-Reflected Array of HEU Separated • 1 × Beryllium-Reflected by Vermiculite • Space Reactor – Arrays of Bottles with – ISU AGN-201 Reactor Plutonium Nitrate – Spherical Gas Core Solution Reactor Critical – Triangular Lattices of Experiment 2.49-cm-Diameter LEU • UF6 (5%) Rods in Water • Space Reactor 19
  • 20. Conclusion • Benchmarks represent an important means for developing and assessing a collection of nuclear experimental data – Application to criticality and reactor safety – Validation of nuclear activities • Participation in the benchmark evaluation process can be of significant benefit to young professionals and their ultimate location of employment • There exist many ongoing benchmarking activities through the ICSBEP and IRPhEP • ICSBEP/IRPhEP Technical Review Group Chair – J. Blair Briggs, J.Briggs@inl.gov 20
