BEM it!
Introduction to BEM Methodology
by Max Shirshin
Frontend Team Lead, Deltamethod
Consultant, Yandex

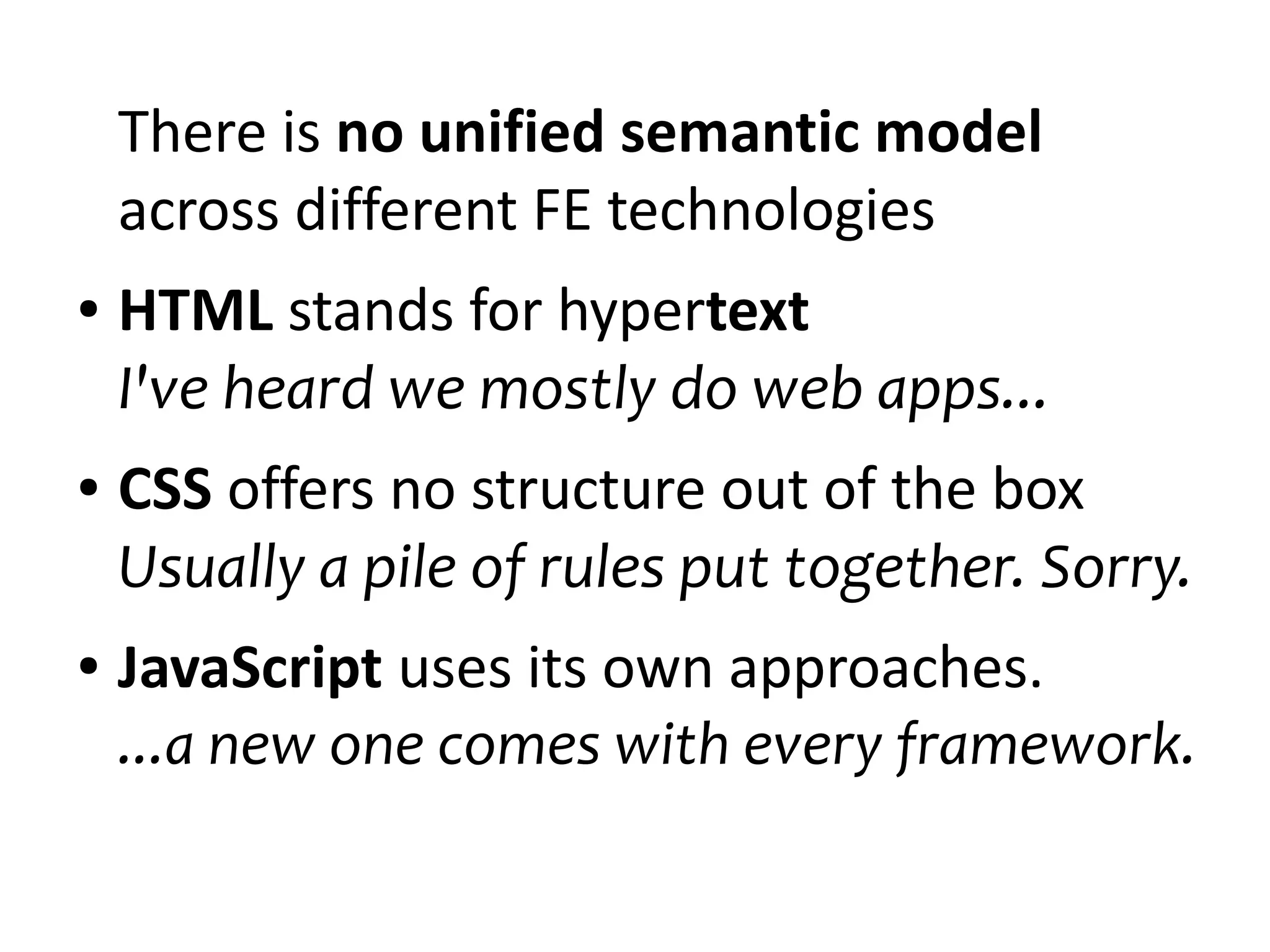

There is no unified semantic model
across different FE technologies
● HTML stands for hypertext
I've heard we mostly do web apps...
● CSS offers no structure out of the box
Usually a pile of rules put together. Sorry.
● JavaScript uses its own approaches.
...a new one comes with every framework.

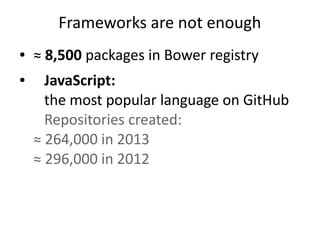

Frameworks are not enough
● ≈ 8,500 packages in Bower registry
● JavaScript:
the most popular language on GitHub
Repositories created:
≈ 264,000 in 2013
≈ 296,000 in 2012

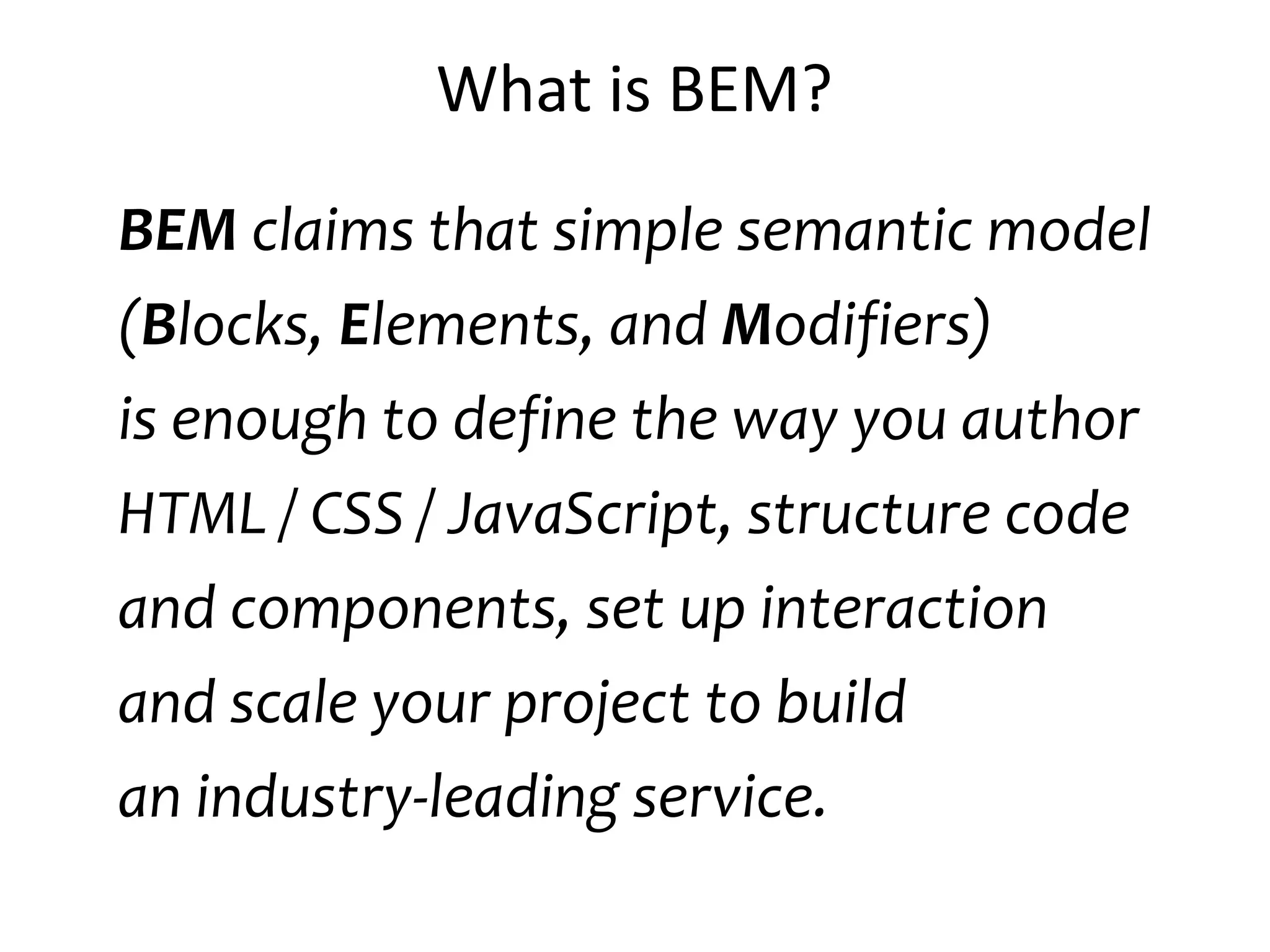

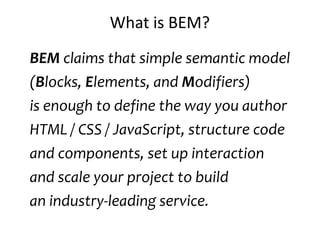

What is BEM?
BEM claims that simple semantic model
(Blocks, Elements, and Modifiers)
is enough to define the way you author
HTML / CSS / JavaScript, structure code
and components, set up interaction
and scale your project to build
an industry-leading service.

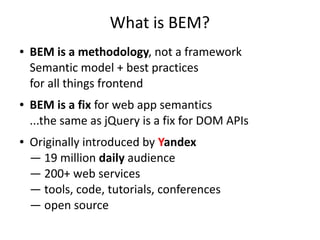

What is BEM?
● BEM is a methodology, not a framework
Semantic model + best practices
for all things frontend
● BEM is a fix for web app semantics
...the same as jQuery is a fix for DOM APIs
● Originally introduced by Yandex
— 19 million daily audience
— 200+ web services
— tools, code, tutorials, conferences
— open source

What is BEM?
BLOCK
– Standalone part of an interface:
● button
● text field
● flyout
● heading
● menu

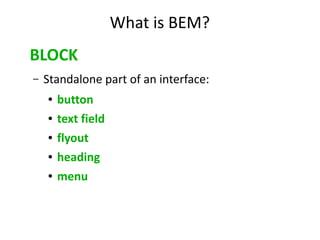

What is BEM?
BLOCK
– Standalone part of an interface:
● button
● text field
● flyout
● heading
● menu
– Re-usable in different contexts
– Self-sufficient

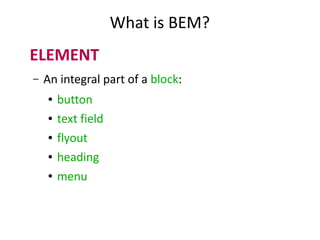

What is BEM?
ELEMENT
– An integral part of a block:
● button
● text field
● flyout
● heading
● menu

What is BEM?
ELEMENT
● button — contains no elements
● text field label
● flyout title
● heading logo
● menu item

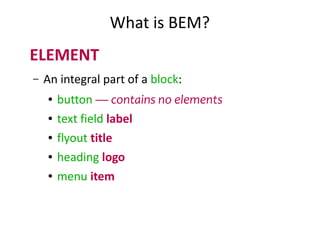

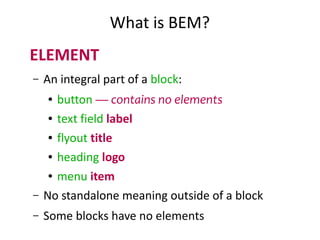

What is BEM?
ELEMENT
● button — contains no elements
● text field label
● flyout title
● heading logo
● menu item
– No standalone meaning outside of a block
– Some blocks have no elements

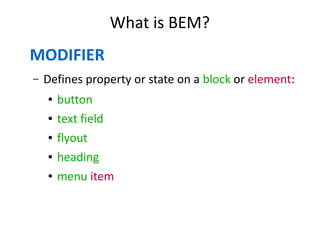

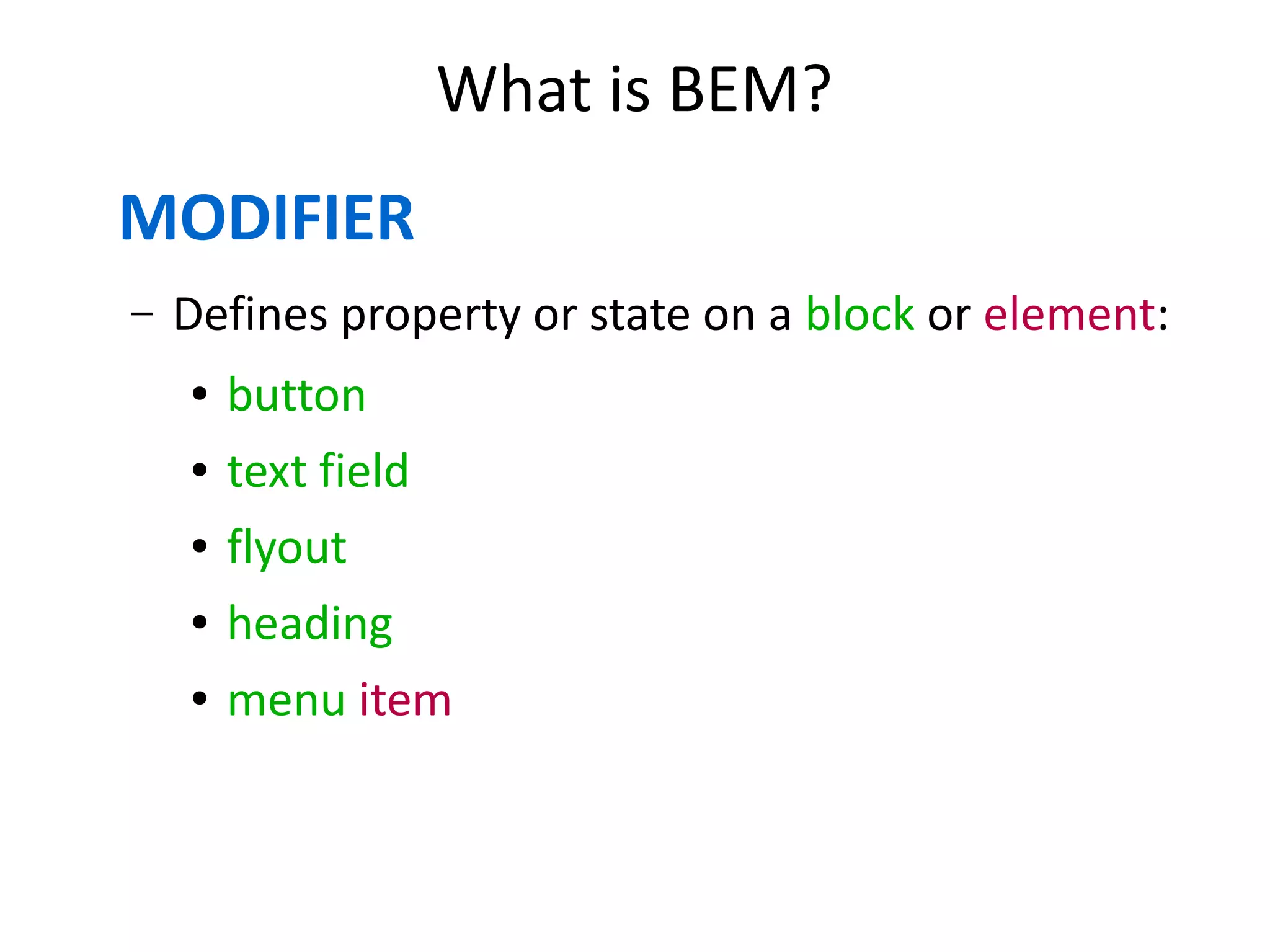

What is BEM?
MODIFIER
– Defines property or state on a block or element:
● button
● text field
● flyout
● heading
● menu item

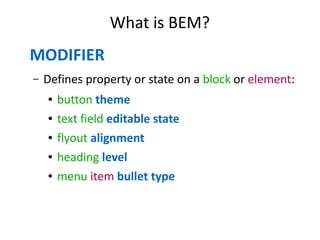

What is BEM?
MODIFIER
● button theme
● text field editable state
● flyout alignment
● heading level
● menu item bullet type

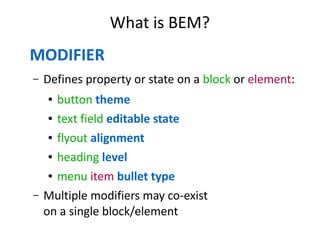

What is BEM?
MODIFIER
● button theme
● text field editable state
● flyout alignment
● heading level
● menu item bullet type
– Multiple modifiers may co-exist
on a single block/element

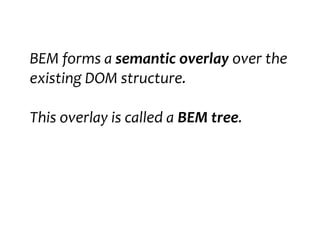

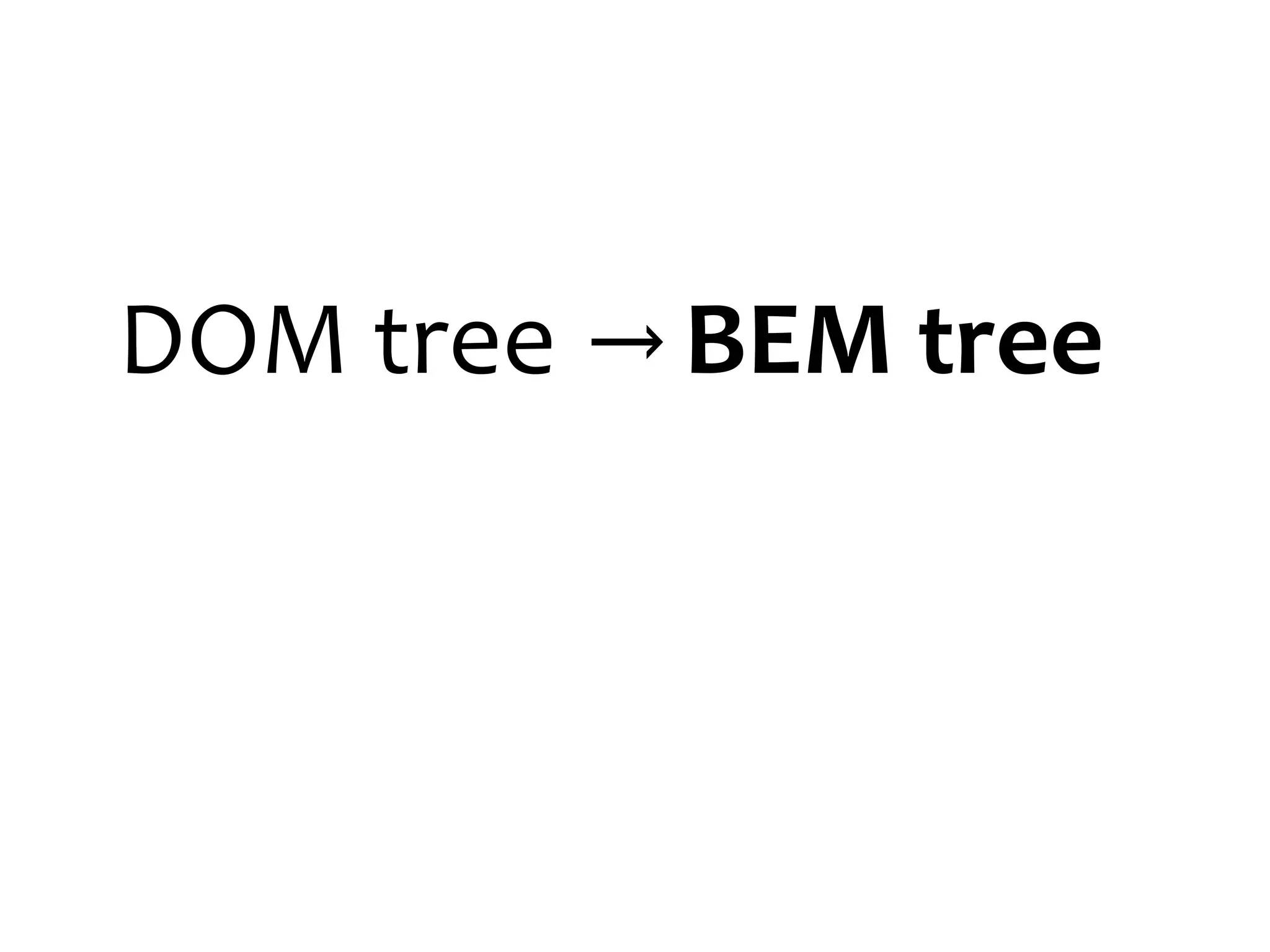

BEM forms a semantic overlay over the
existing DOM structure.
This overlay is called a BEM tree.

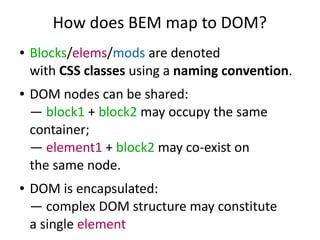

How does BEM map to DOM?
● Blocks/elems/mods are denoted
with CSS classes using a naming convention.
● DOM nodes can be shared:
— block1 + block2 may occupy the same
container;
— element1 + block2 may co-exist on
the same node.
● DOM is encapsulated:
— complex DOM structure may constitute
a single element

BEM HOWTO
for your beloved project
with benefits explained

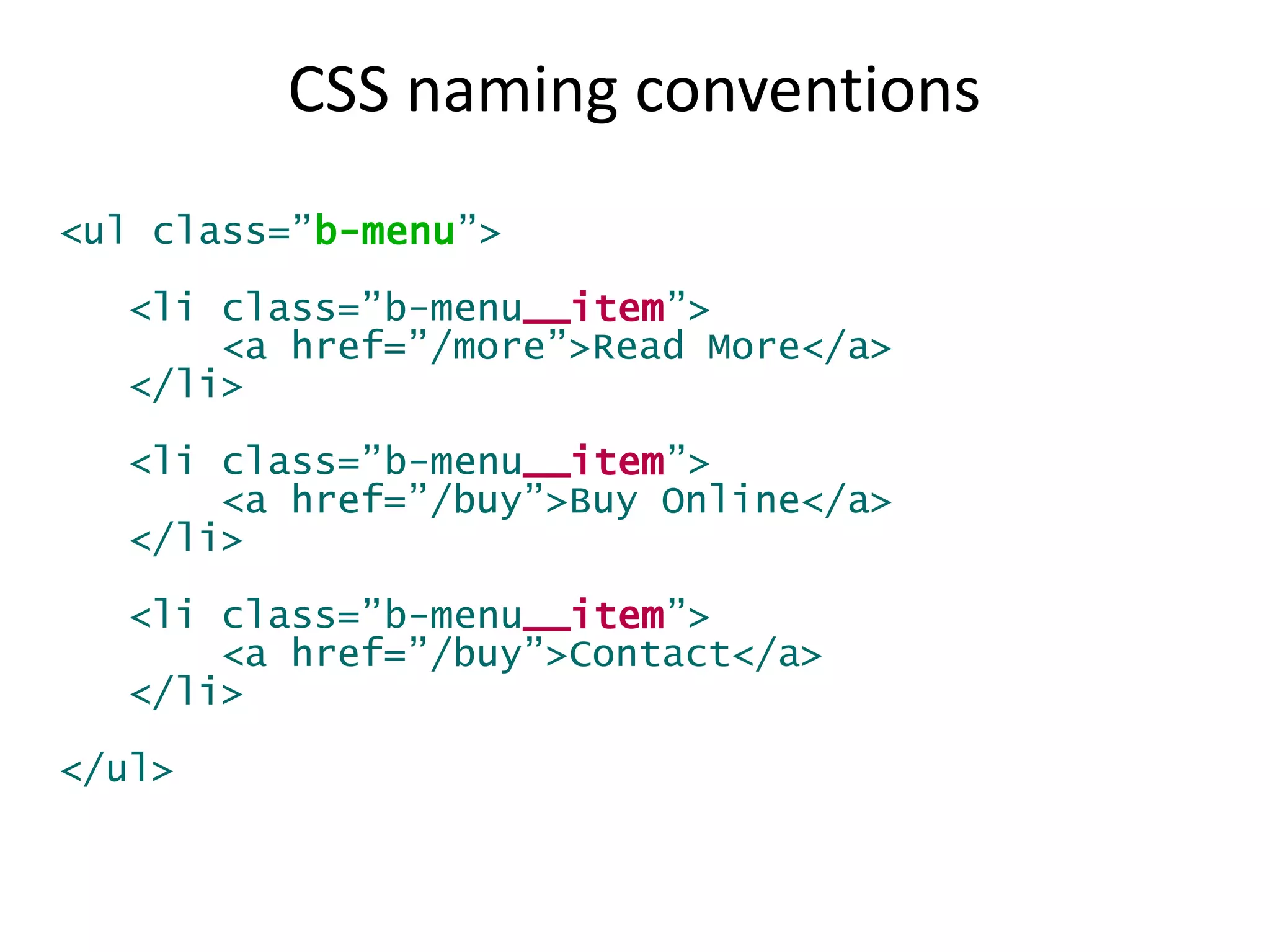

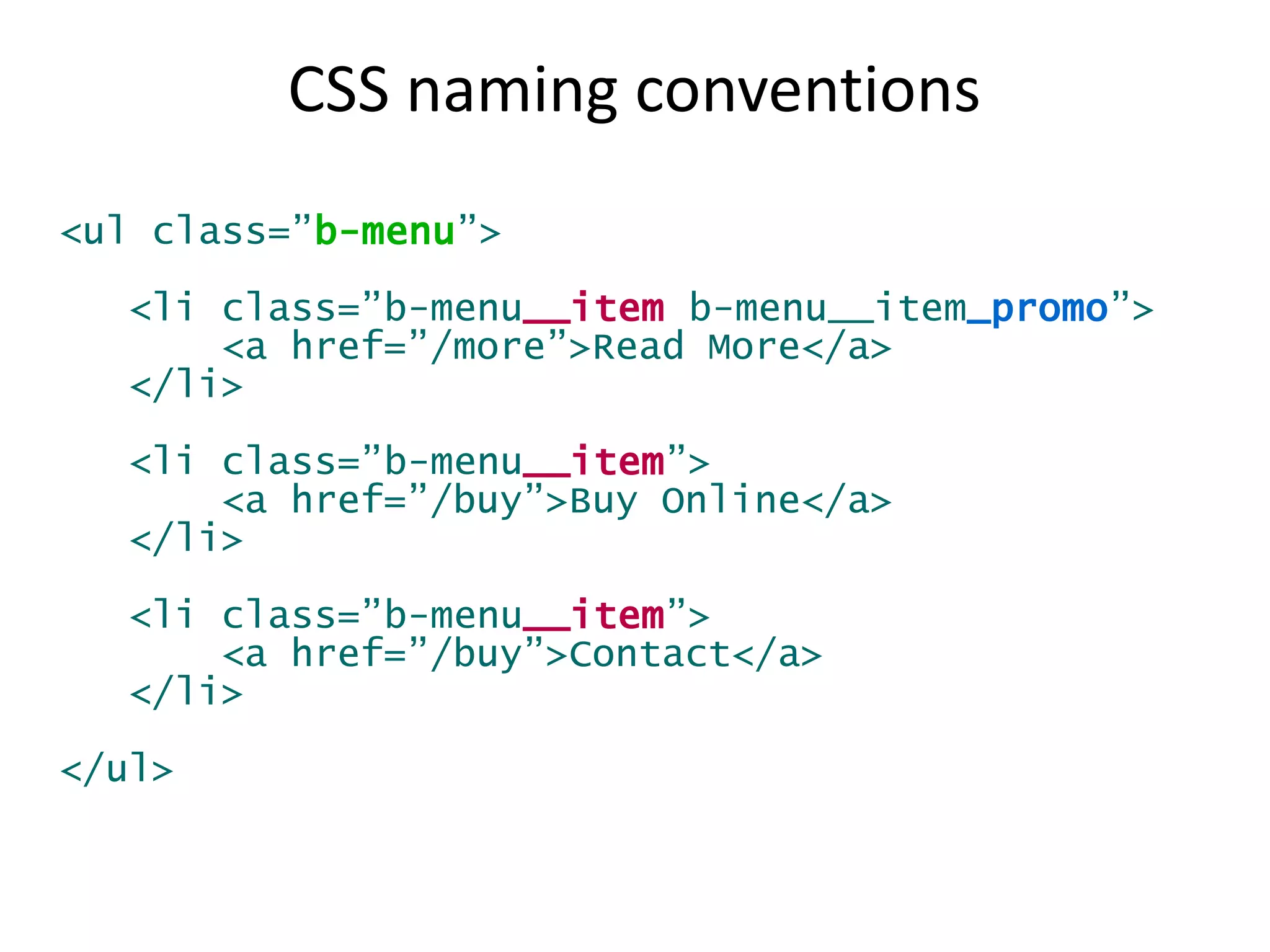

CSS naming conventions
“BEM uses CSS class names to denote
blocks, elements and modifiers.”

BLOCK
.b-button
.b-text-field
.b-flyout
.b-heading
.b-menu

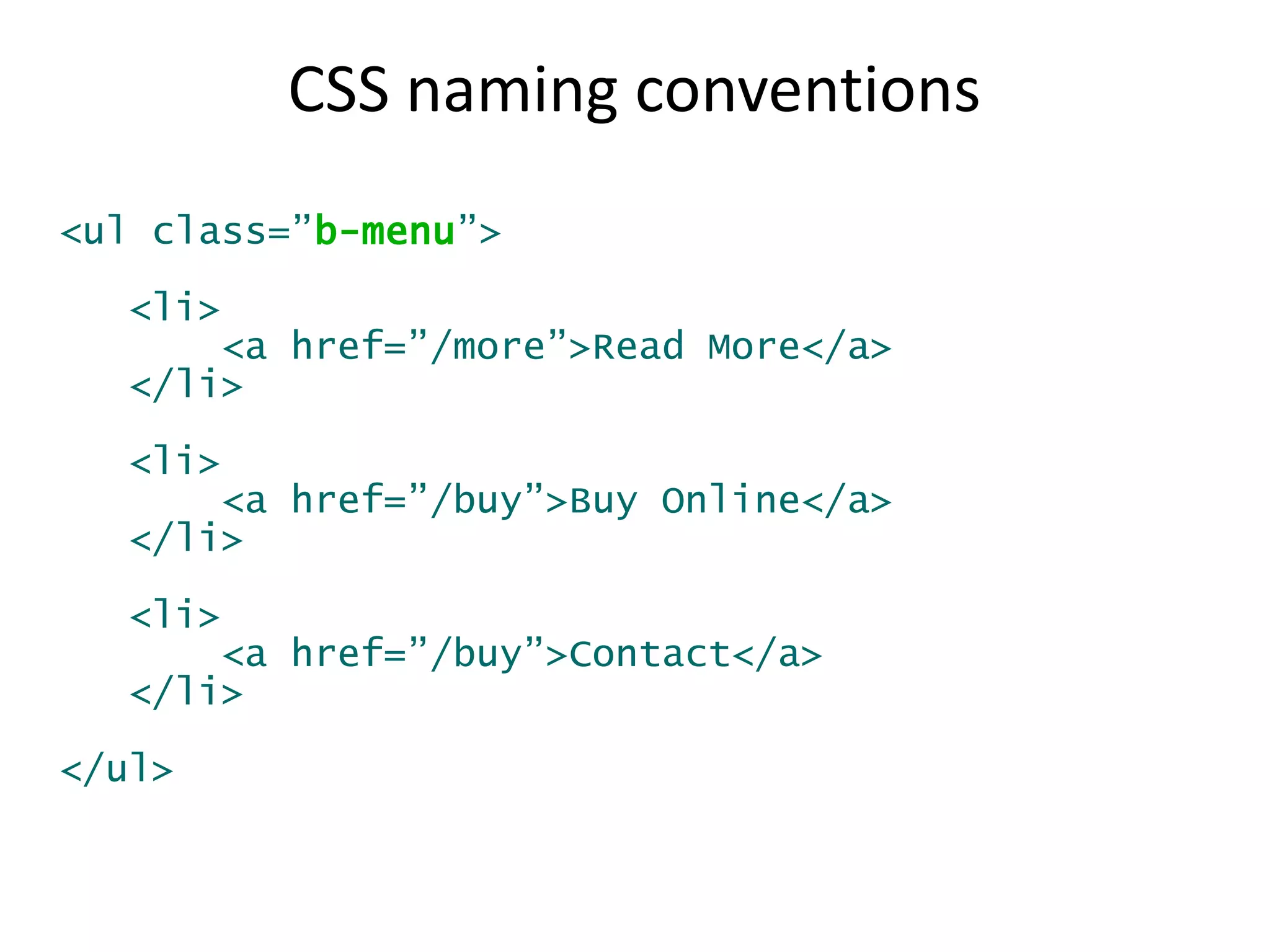

<ul class=”b-menu”>
<li>
<a href=”/more”>Read More</a>
</li>
<li>
<a href=”/buy”>Buy Online</a>
</li>
<li>
<a href=”/buy”>Contact</a>
</li>
</ul>

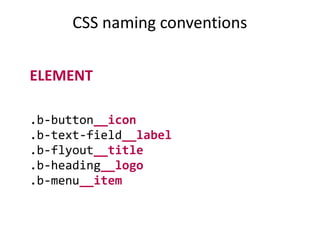

ELEMENT
.b-button__icon
.b-text-field__label
.b-flyout__title
.b-heading__logo
.b-menu__item

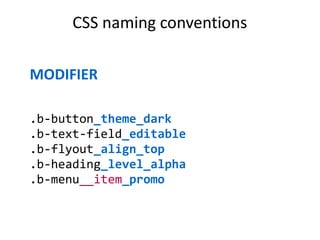

MODIFIER
.b-button_theme_dark
.b-text-field_editable
.b-flyout_align_top
.b-heading_level_alpha
.b-menu__item_promo

so structure
much much semantics
wow
very code
such frontend

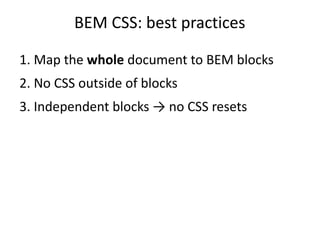

BEM CSS: best practices
1. Map the whole document to BEM blocks
2. No CSS outside of blocks
3. Independent blocks → no CSS resets

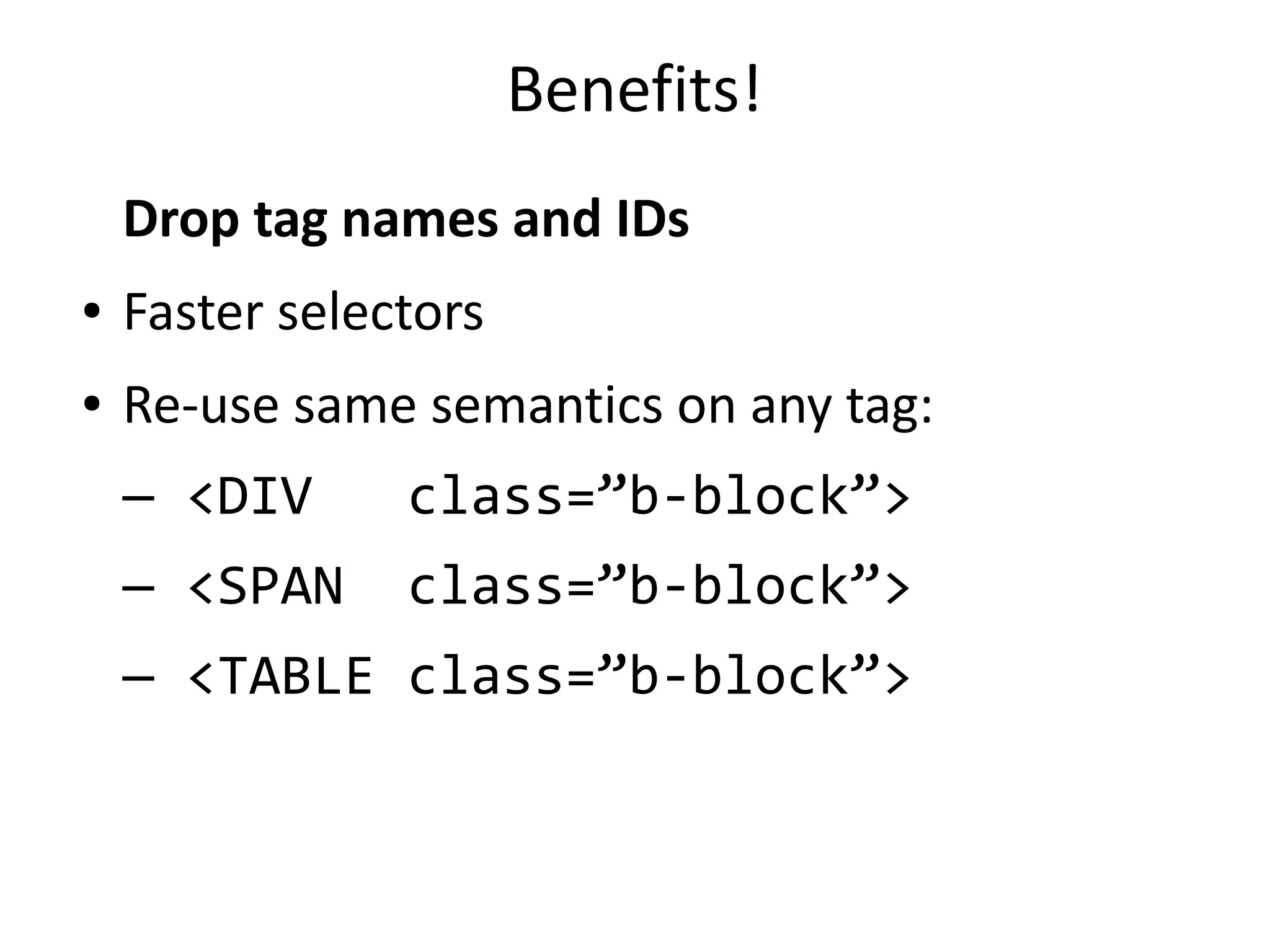

Benefits!
Drop tag names and IDs
● Faster selectors
● Re-use same semantics on any tag:
— <DIV class=”b-block”>
— <SPAN class=”b-block”>
— <TABLE class=”b-block”>

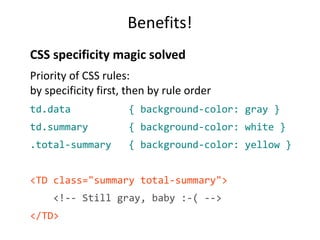

Benefits!
CSS specificity magic solved
Priority of CSS rules:
by specificity first, then by rule order
td.data { background-color: gray }
td.summary { background-color: white }
.total-summary { background-color: yellow }
<TD class="summary total-summary">

</TD>

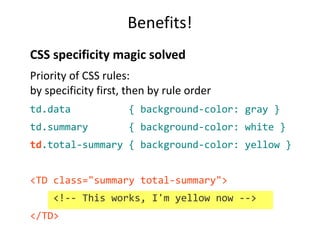

Benefits!
CSS specificity magic solved
Priority of CSS rules:
by specificity first, then by rule order
td.data { background-color: gray }
td.summary { background-color: white }
td.total-summary { background-color: yellow }
<TD class="summary total-summary">

</TD>

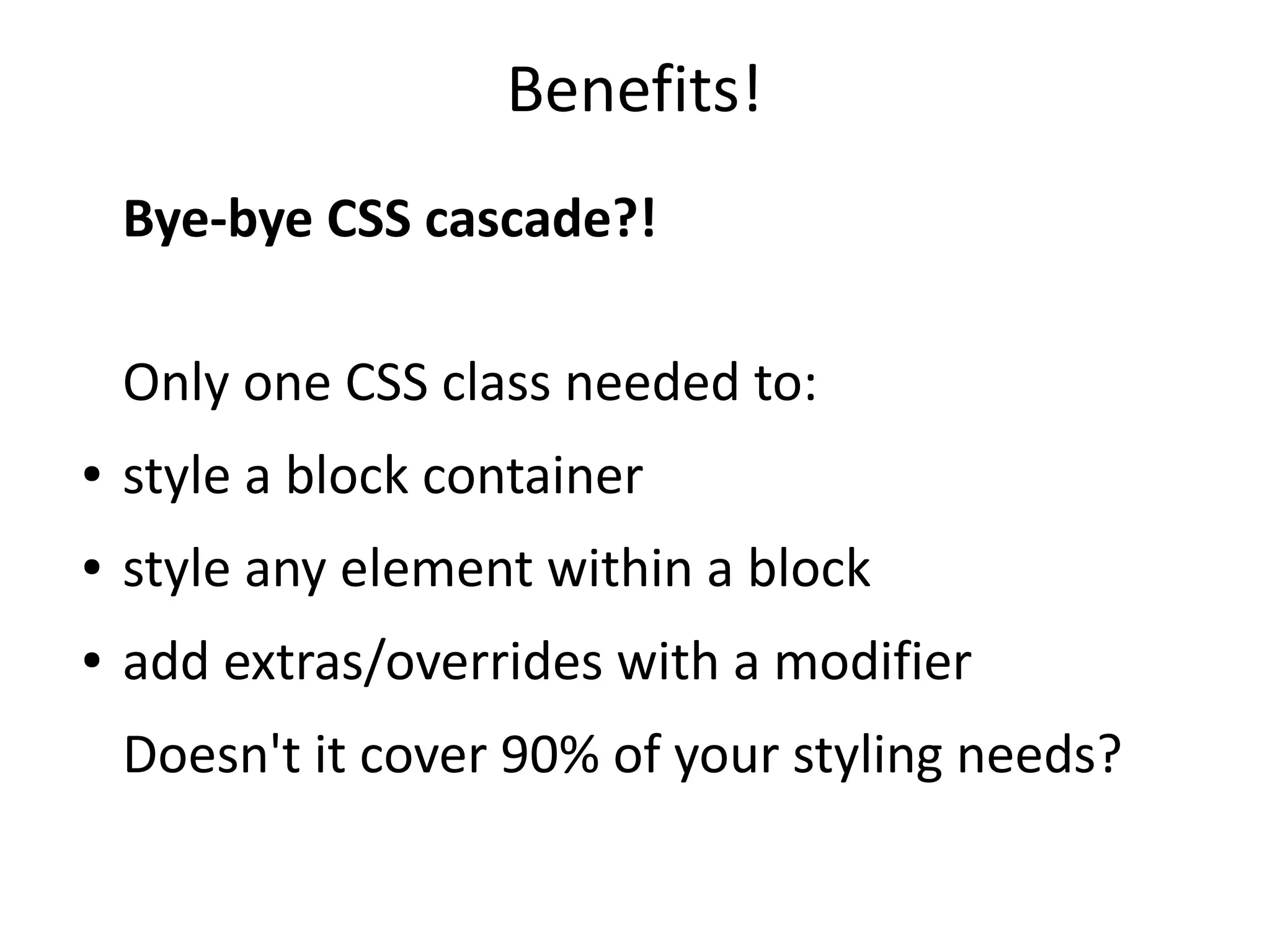

Benefits!
Bye-bye CSS cascade?!
Only one CSS class needed to:
● style a block container
● style any element within a block
● add extras/overrides with a modifier
Doesn't it cover 90% of your styling needs?

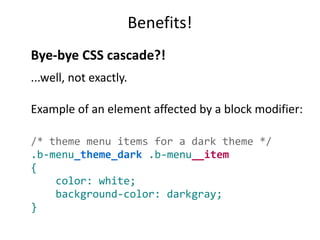

Benefits!
Bye-bye CSS cascade?!
...well, not exactly.
Example of an element affected by a block modifier:
/* theme menu items for a dark theme */
.b-menu_theme_dark .b-menu__item
{
color: white;
background-color: darkgray;
}

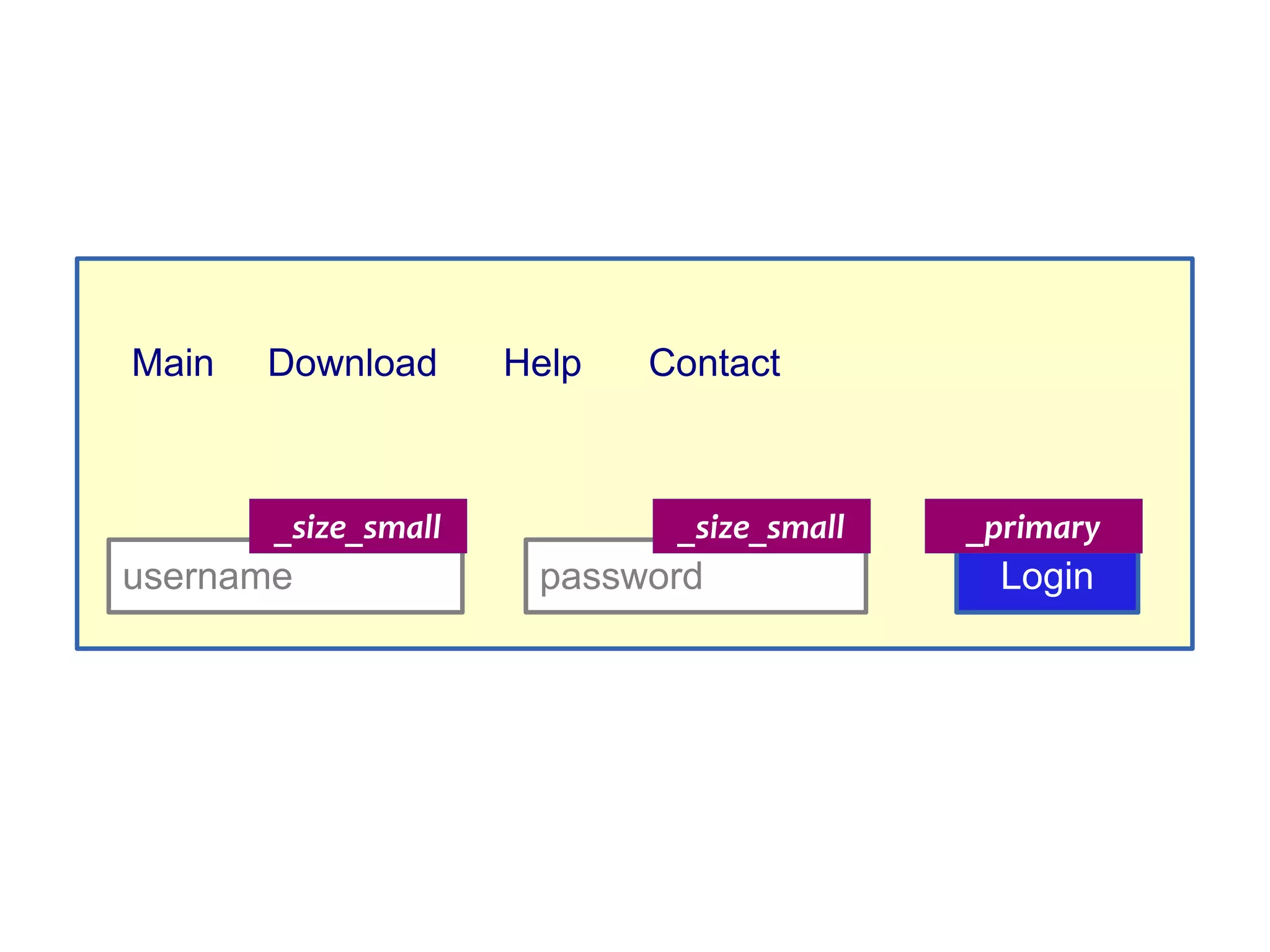

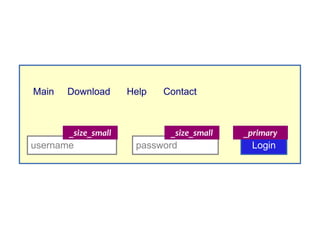

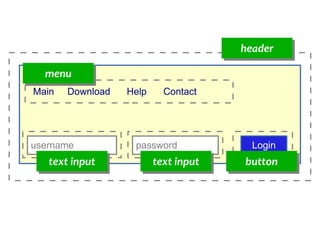

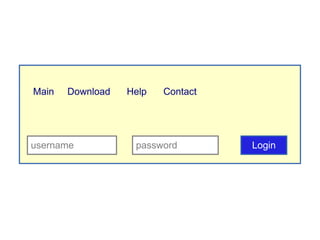

Download Help Contact
password LLooggiinn
Main
username

mmeennuu
password LLooggiinn
Main
username
hheeaaddeerr
tteexxtt iinnppuutt tteexxtt iinnppuutt bbuuttttoonn

_size_small _size_small _primary
password LLooggiinn
Main
username

password LLooggiinn
Main
username

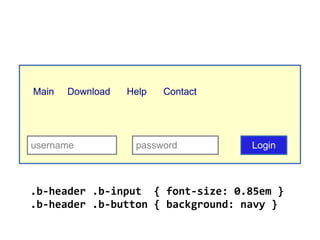

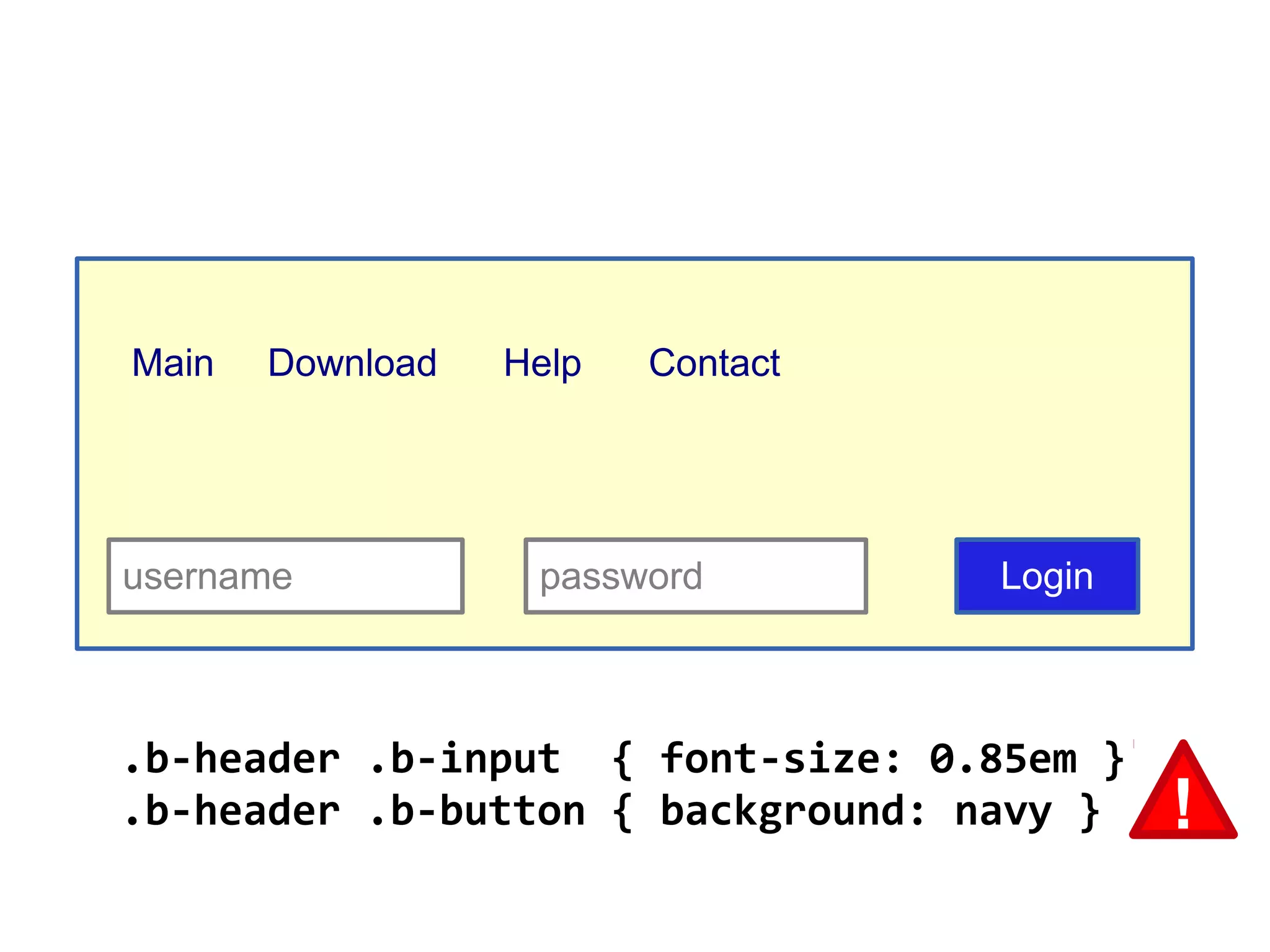

.b-header .b-input { font-size: 0.85em }
.b-header .b-button { background: navy }

password LLooggiinn
Main
username
.b-header .b-input { font-size: 0.85em }
.b-header .b-button { background: navy } !

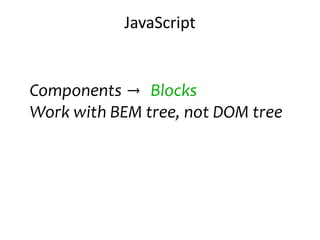

JavaScript
Components → Blocks
Work with BEM tree, not DOM tree

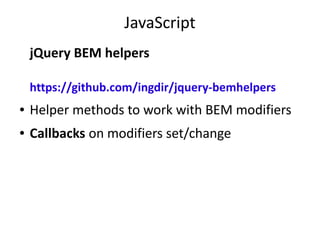

JavaScript
jQuery BEM helpers
https://github.com/ingdir/jquery-bemhelpers
● Helper methods to work with BEM modifiers
● Callbacks on modifiers set/change

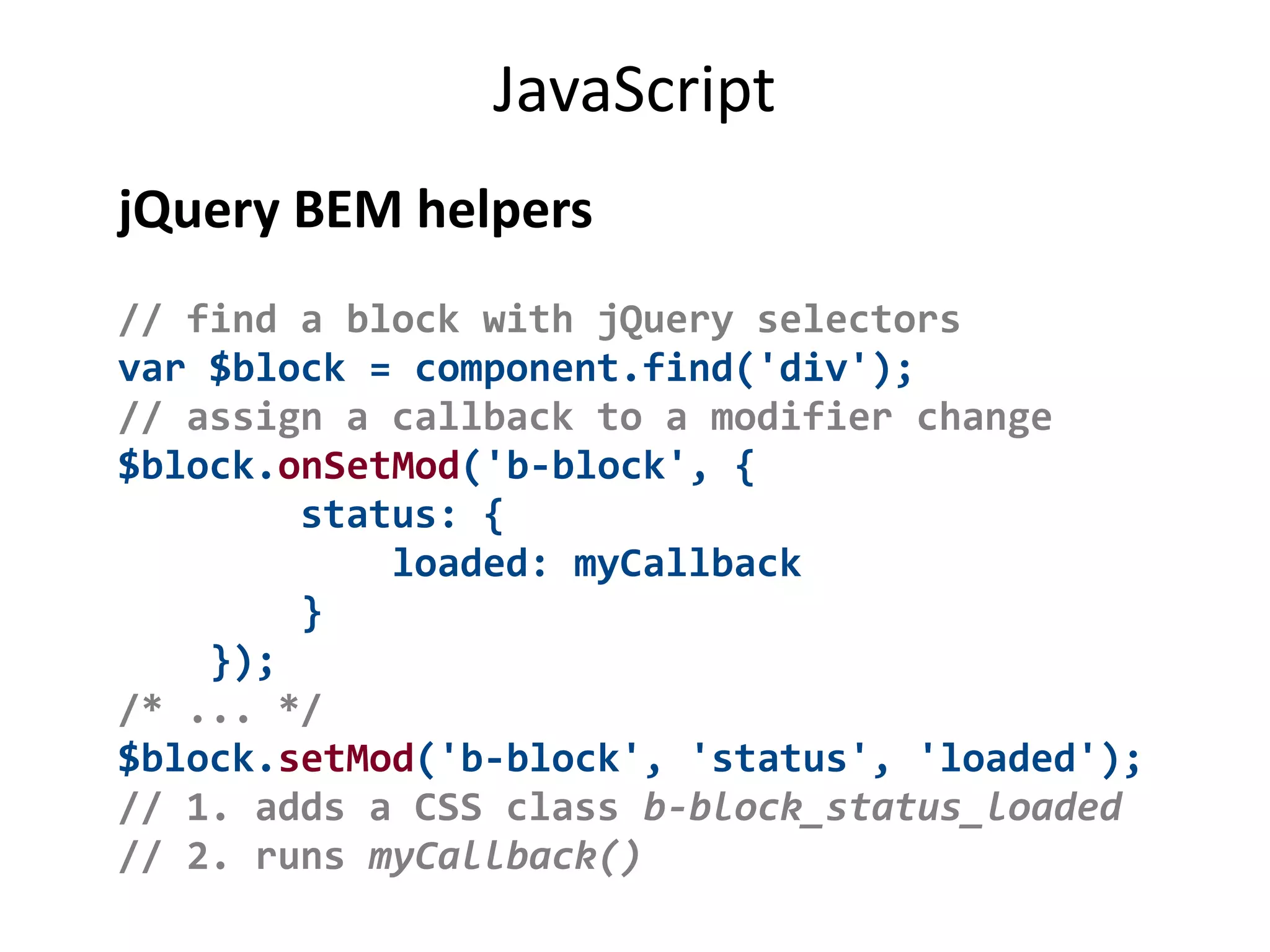

JavaScript
jQuery BEM helpers
// find a block with jQuery selectors
var $block = component.find('div');
// assign a callback to a modifier change
$block.onSetMod('b-block', {
status: {
loaded: myCallback
}
});
/* ... */
$block.setMod('b-block', 'status', 'loaded');
// 1. adds a CSS class b-block_status_loaded
// 2. runs myCallback()

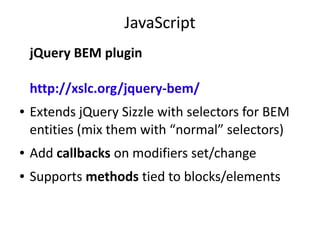

JavaScript
jQuery BEM plugin
http://xslc.org/jquery-bem/
● Extends jQuery Sizzle with selectors for BEM
entities (mix them with “normal” selectors)
● Add callbacks on modifiers set/change
● Supports methods tied to blocks/elements

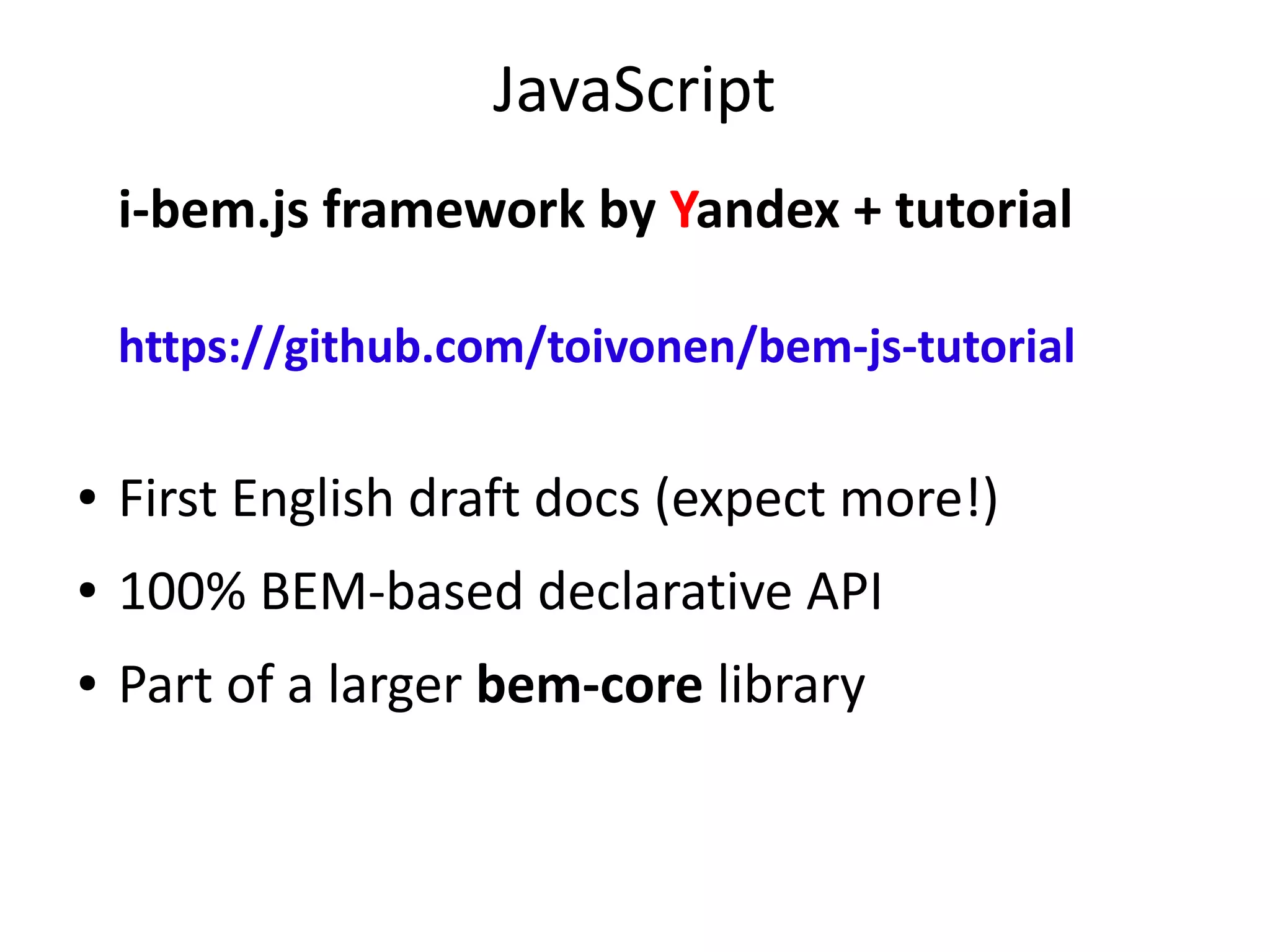

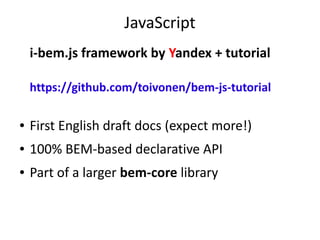

JavaScript
i-bem.js framework by Yandex + tutorial
https://github.com/toivonen/bem-js-tutorial
● First English draft docs (expect more!)
● 100% BEM-based declarative API
● Part of a larger bem-core library

HTML is no longer semantic.
JavaScript is.

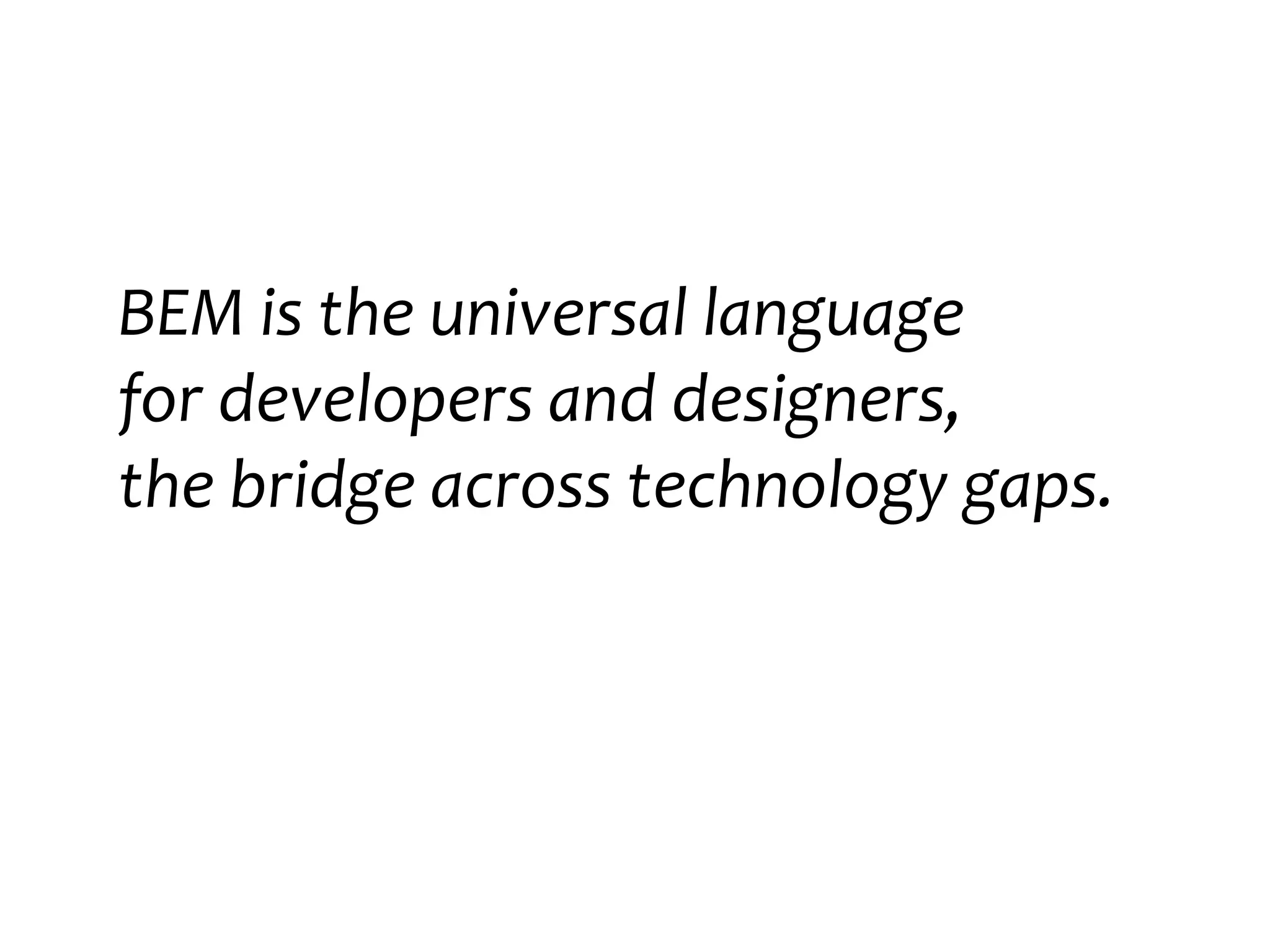

BEM is the universal language
for developers and designers,
the bridge across technology gaps.

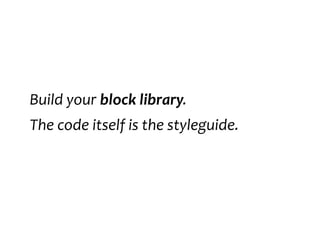

Build your block library.
The code itself is the styleguide.

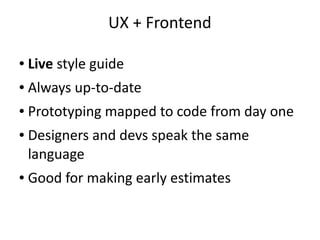

UX + Frontend
● Live style guide
● Always up-to-date
● Prototyping mapped to code from day one
● Designers and devs speak the same
language
● Good for making early estimates

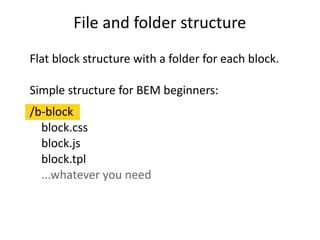

File and folder structure
Flat block structure with a folder for each block.
Simple structure for BEM beginners:
/b-block
block.css
block.js
block.tpl
...whatever you need

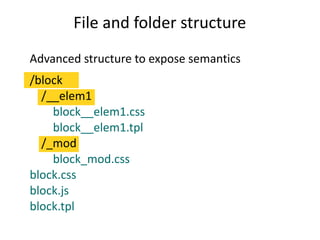

File and folder structure
Advanced structure to expose semantics
/block
/__elem1
block__elem1.css
block__elem1.tpl
/_mod
block_mod.css
block.css
block.js
block.tpl

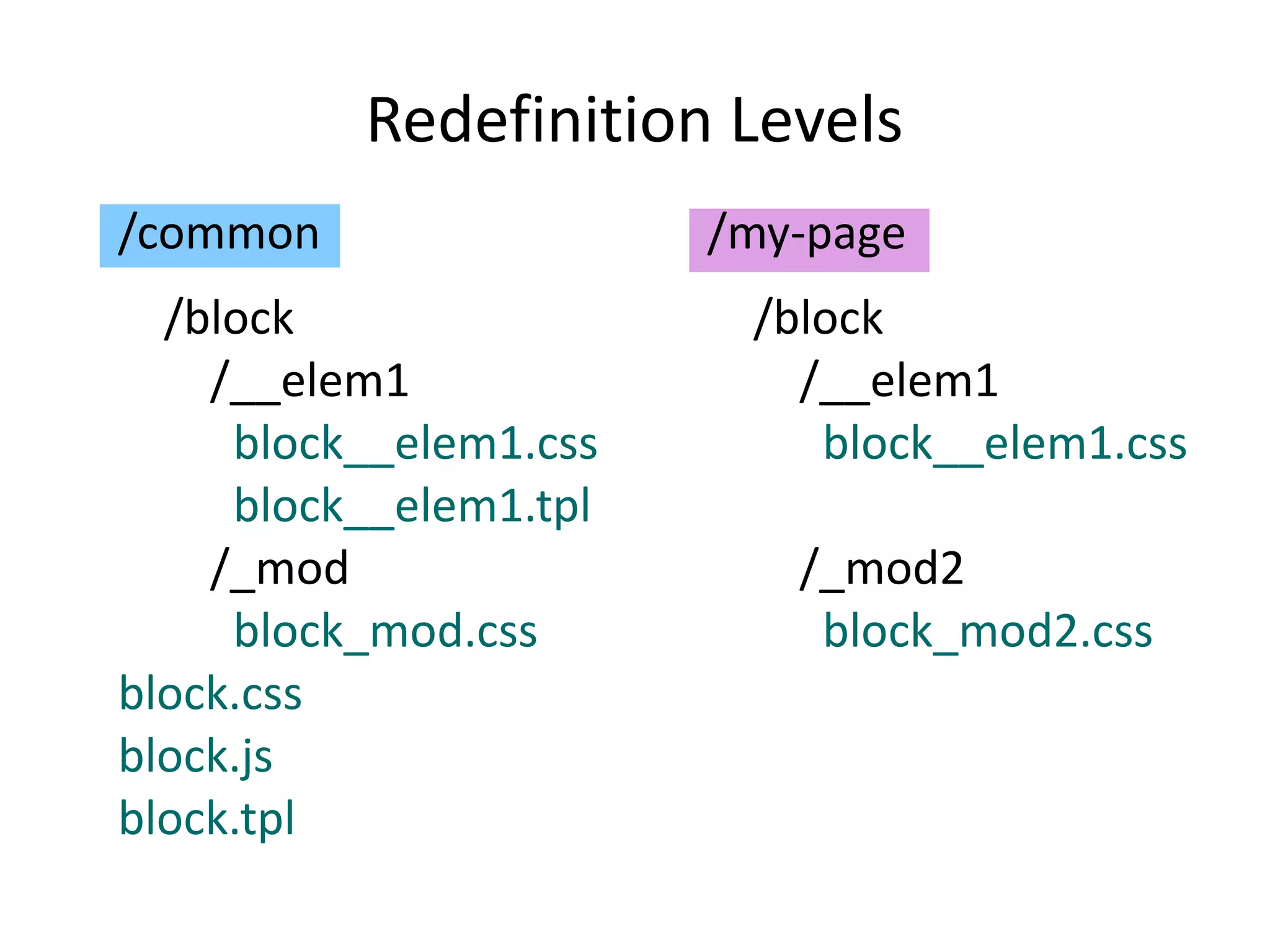

Redefinition Levels
/common
/block
/__elem1
block__elem1.css
block__elem1.tpl
/_mod
block_mod.css
block.css
block.js
block.tpl
/my-page
/block
/__elem1
block__elem1.css
/_mod2
block_mod2.css

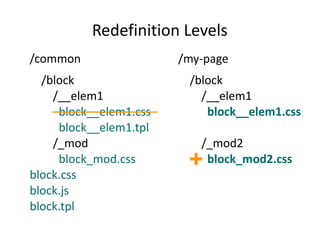

Redefinition Levels
/common
/block
/__elem1
block__elem1.css
block__elem1.tpl
/_mod
block_mod.css
block.css
block.js
block.tpl
/my-page
/block
/__elem1
block__elem1.css
/_mod2
block_+ mod2.css

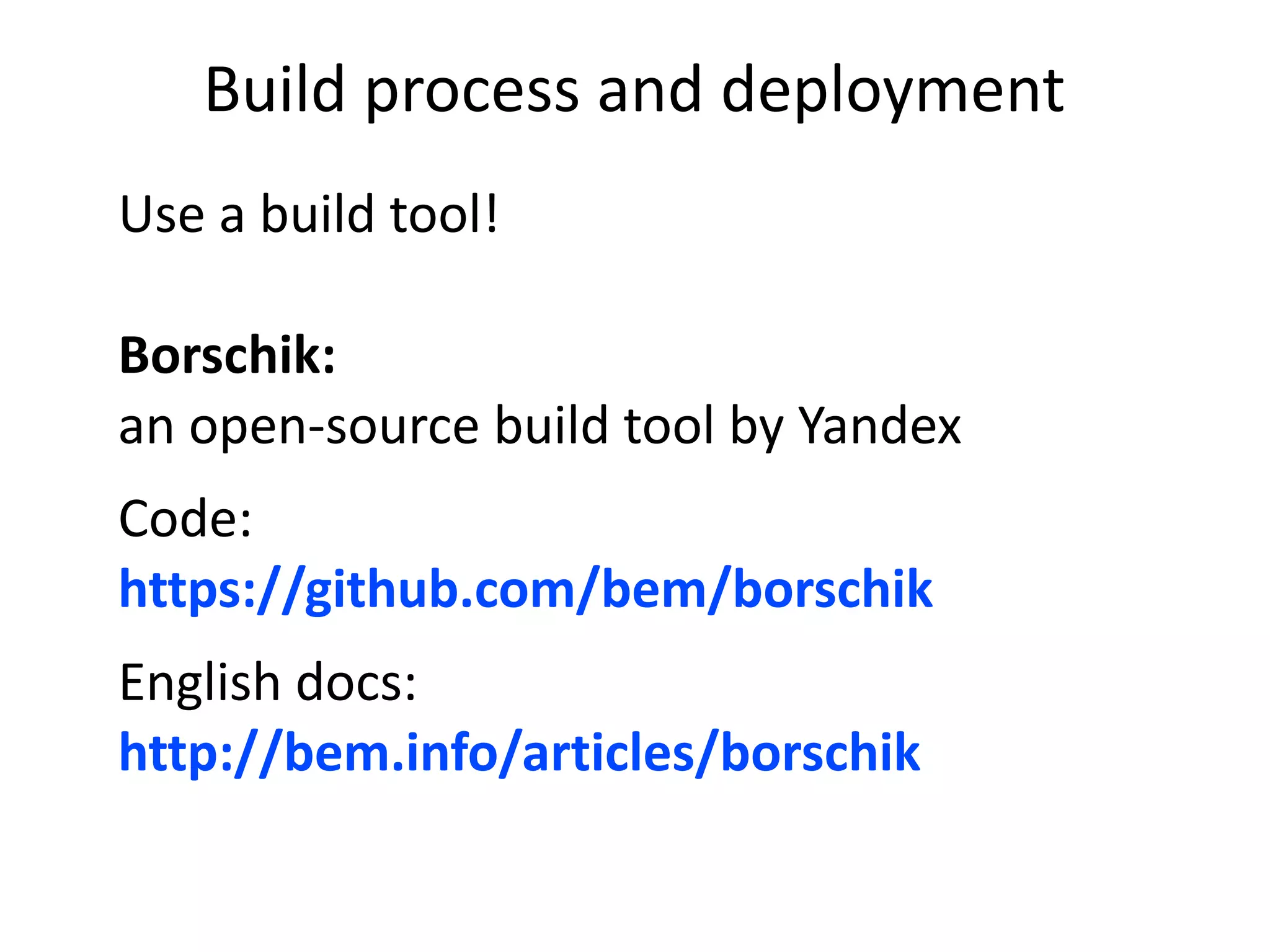

Build process and deployment
Use a build tool!
Borschik:
an open-source build tool by Yandex
Code:
https://github.com/bem/borschik
English docs:
http://bem.info/articles/borschik

Thank you Brandwatch!
max.shirshin@gmail.com google.com/+MaxShirshin
@ingdir maxshirshin
