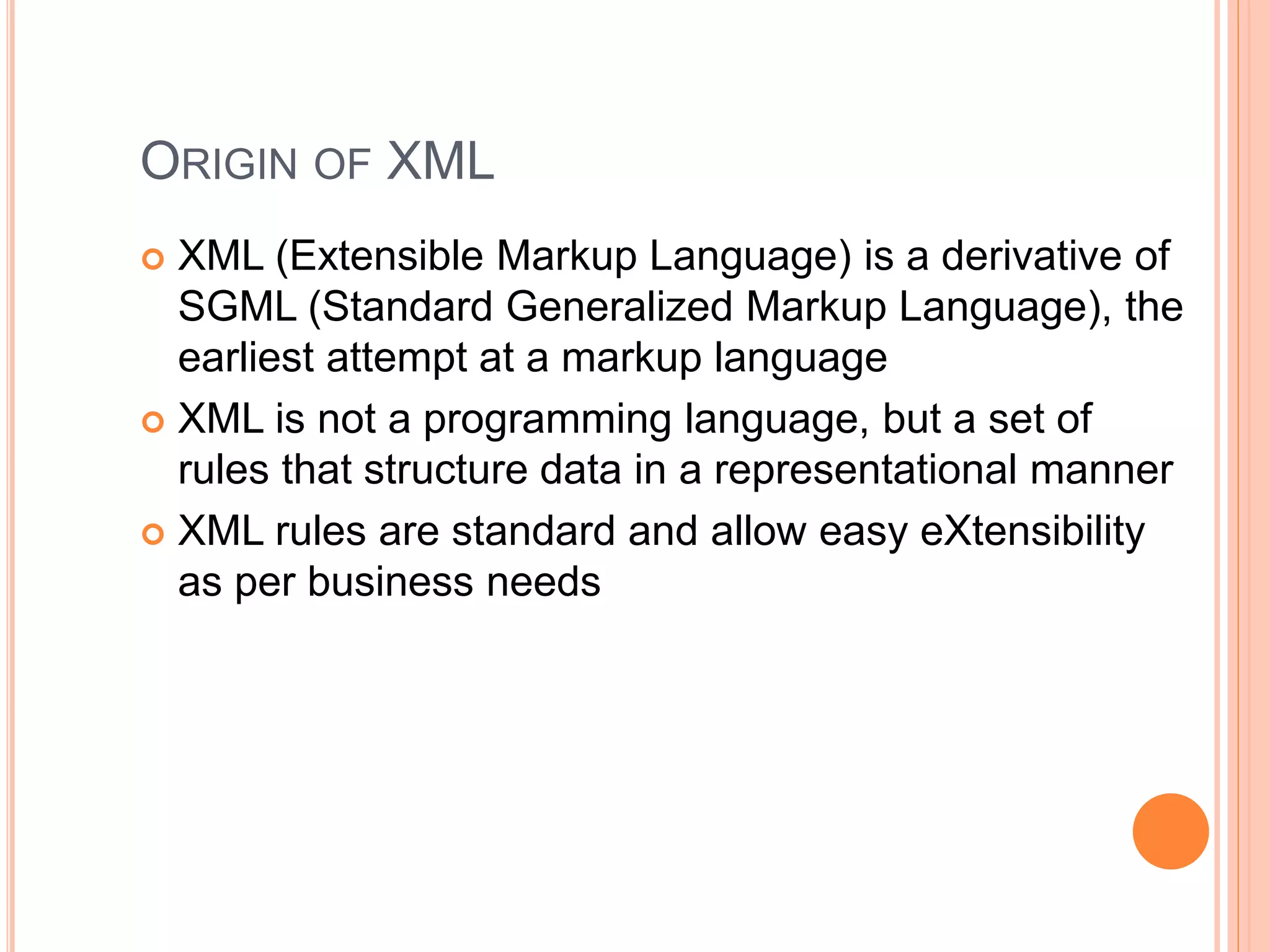

ORIGIN OF XML
 XML (Extensible Markup Language) is a derivative of
SGML (Standard Generalized Markup Language), the
earliest attempt at a markup language
 XML is not a programming language, but a set of
rules that structure data in a representational manner
 XML rules are standard and allow easy eXtensibility
as per business needs

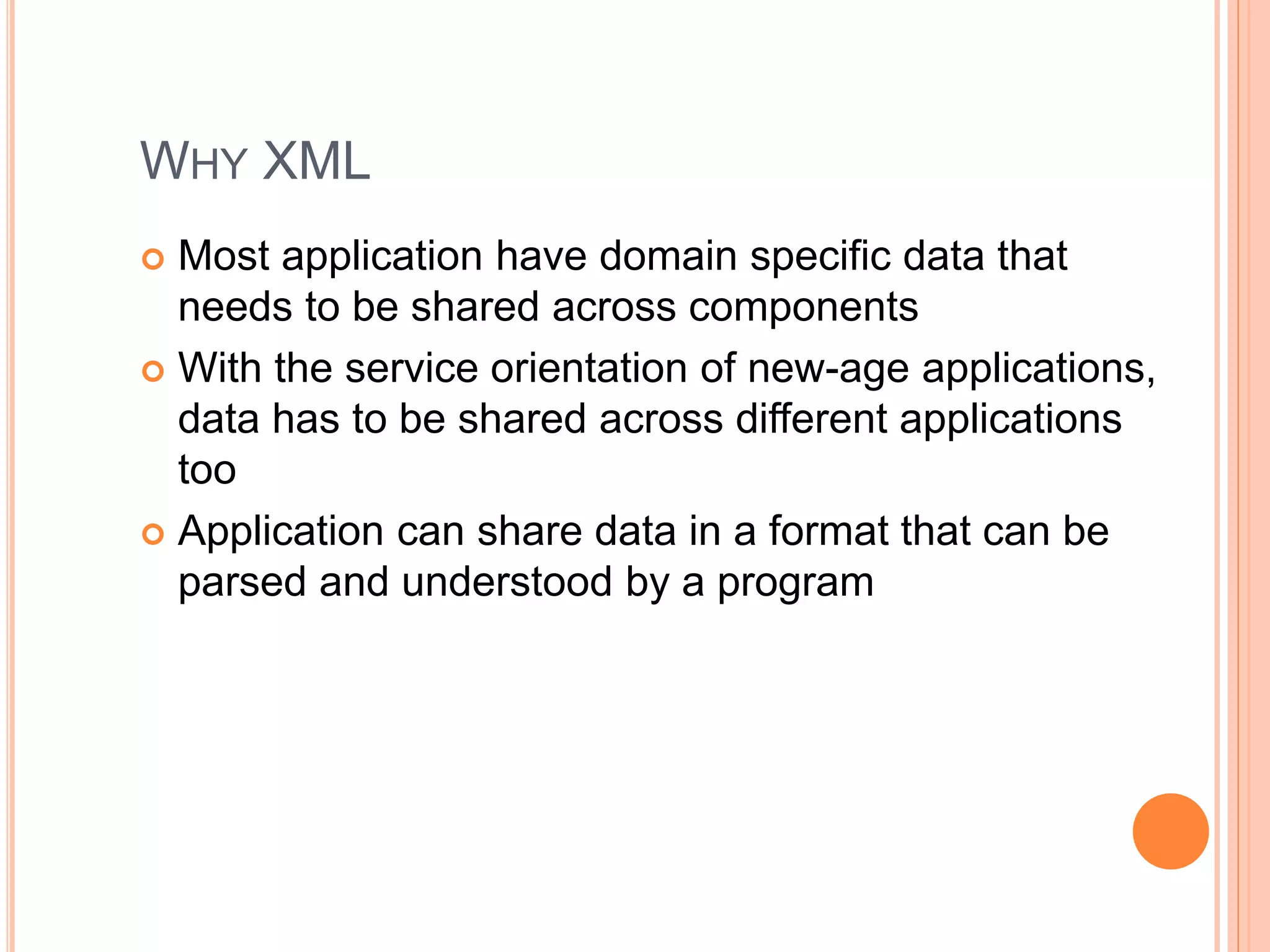

WHY XML
 Most application have domain specific data that
needs to be shared across components
 With the service orientation of new-age applications,
data has to be shared across different applications
too
 Application can share data in a format that can be
parsed and understood by a program

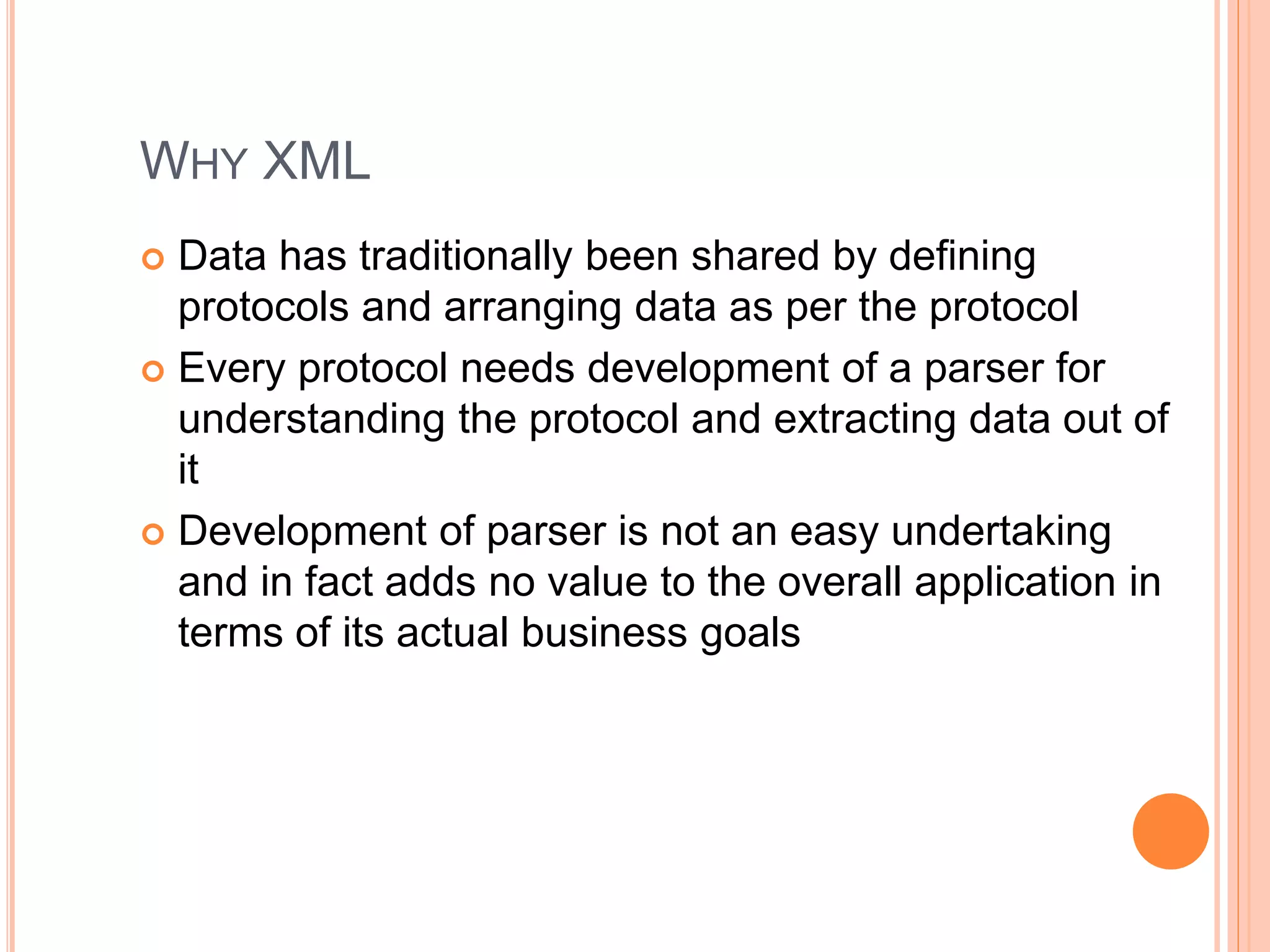

WHY XML
 Data has traditionally been shared by defining
protocols and arranging data as per the protocol
 Every protocol needs development of a parser for
understanding the protocol and extracting data out of
it
 Development of parser is not an easy undertaking
and in fact adds no value to the overall application in
terms of its actual business goals

WHY XML

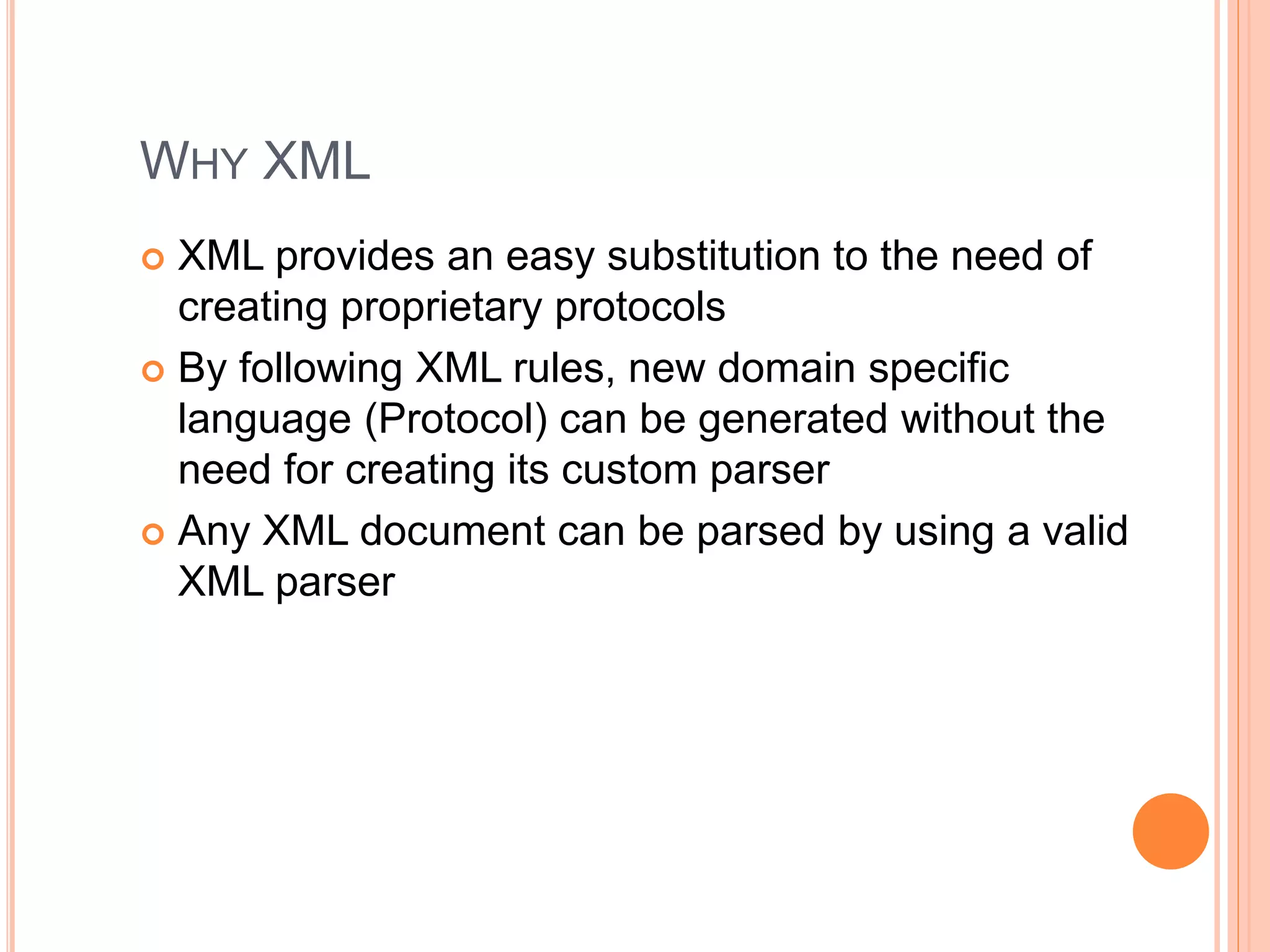

 XML provides an easy substitution to the need of
creating proprietary protocols
 By following XML rules, new domain specific
language (Protocol) can be generated without the
need for creating its custom parser
 Any XML document can be parsed by using a valid
XML parser

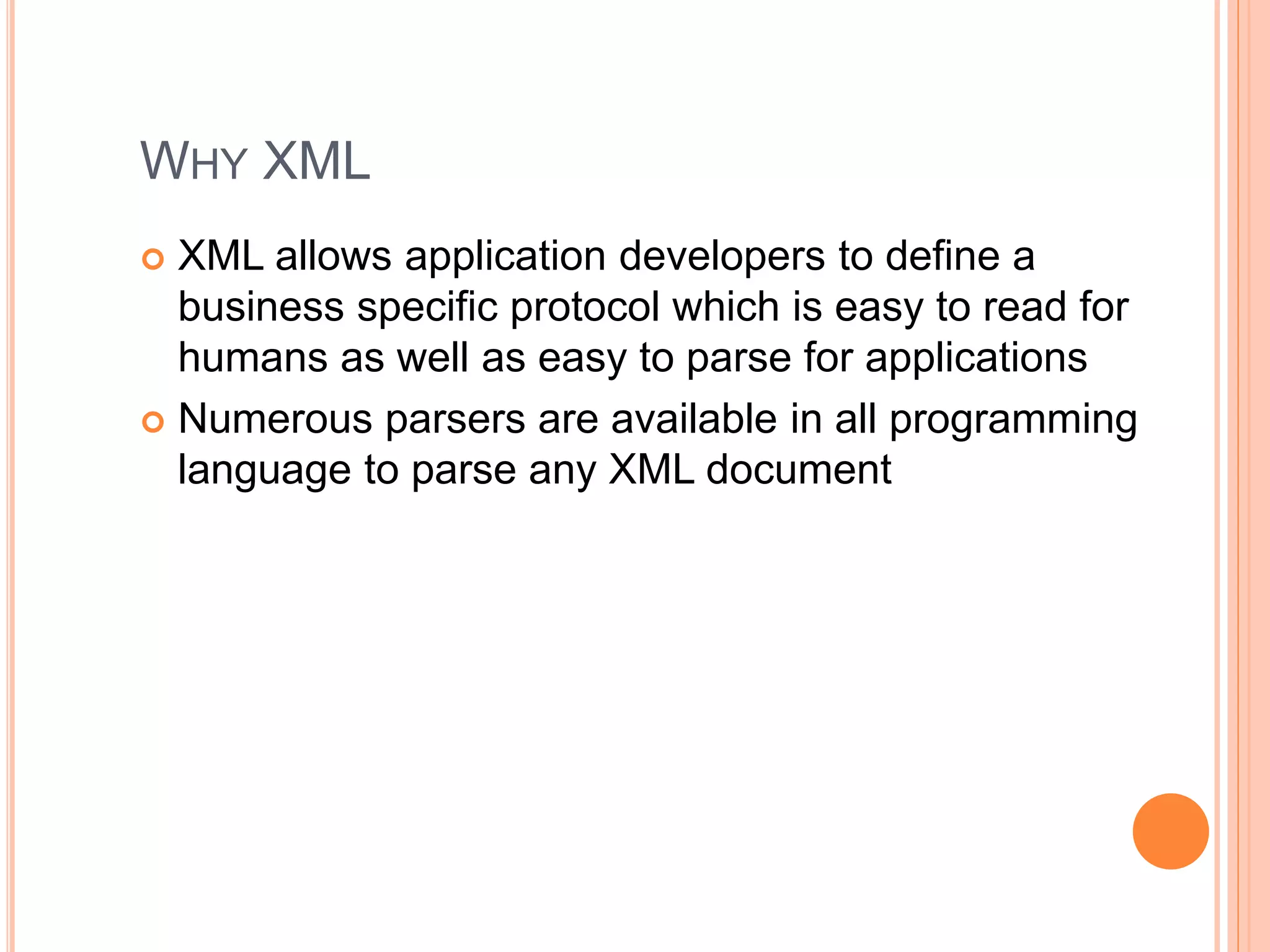

WHY XML
 XML allows application developers to define a
business specific protocol which is easy to read for
humans as well as easy to parse for applications
 Numerous parsers are available in all programming
language to parse any XML document

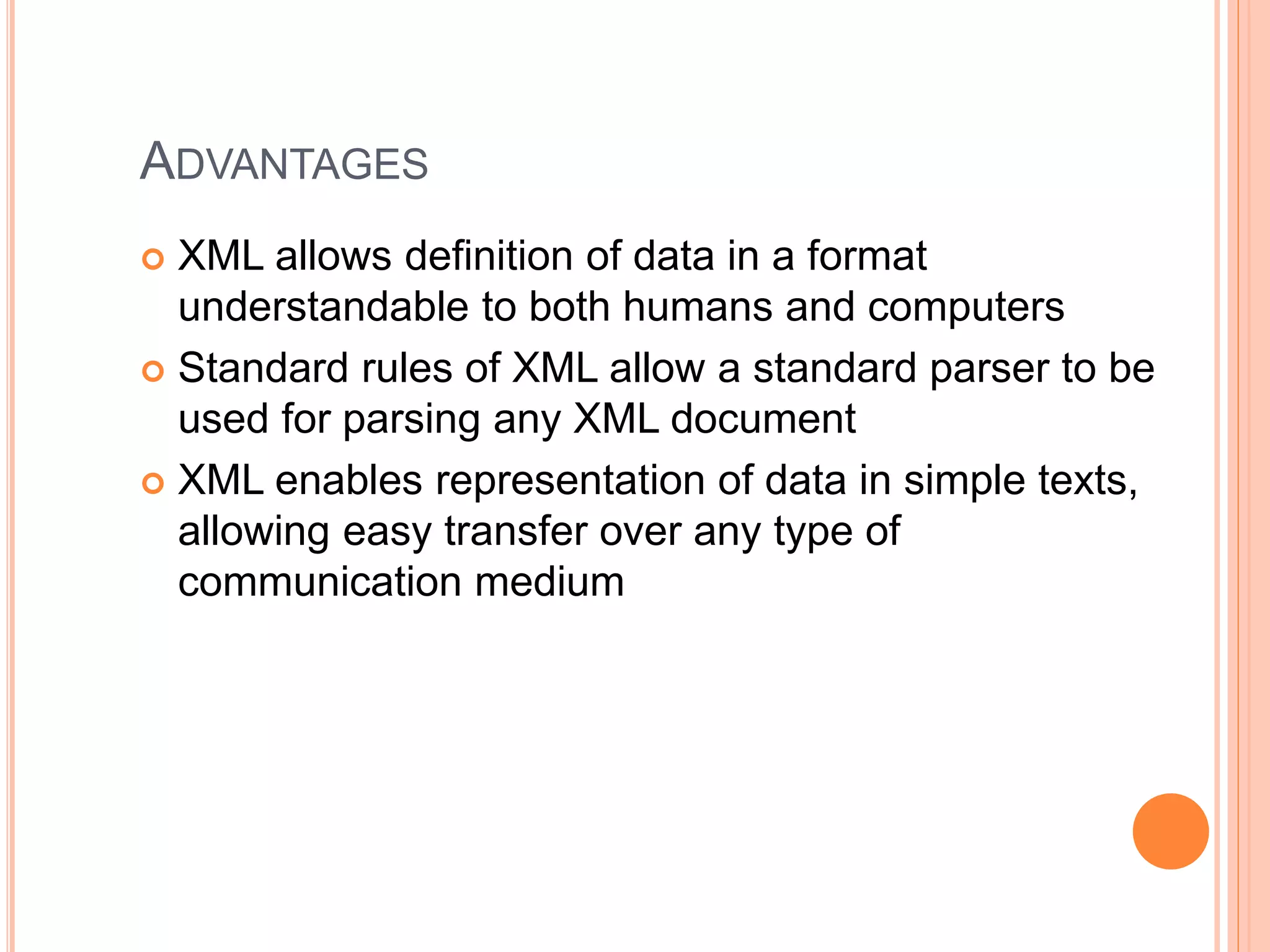

ADVANTAGES
 XML allows definition of data in a format
understandable to both humans and computers
 Standard rules of XML allow a standard parser to be
used for parsing any XML document
 XML enables representation of data in simple texts,
allowing easy transfer over any type of
communication medium

XML DOCUMENT

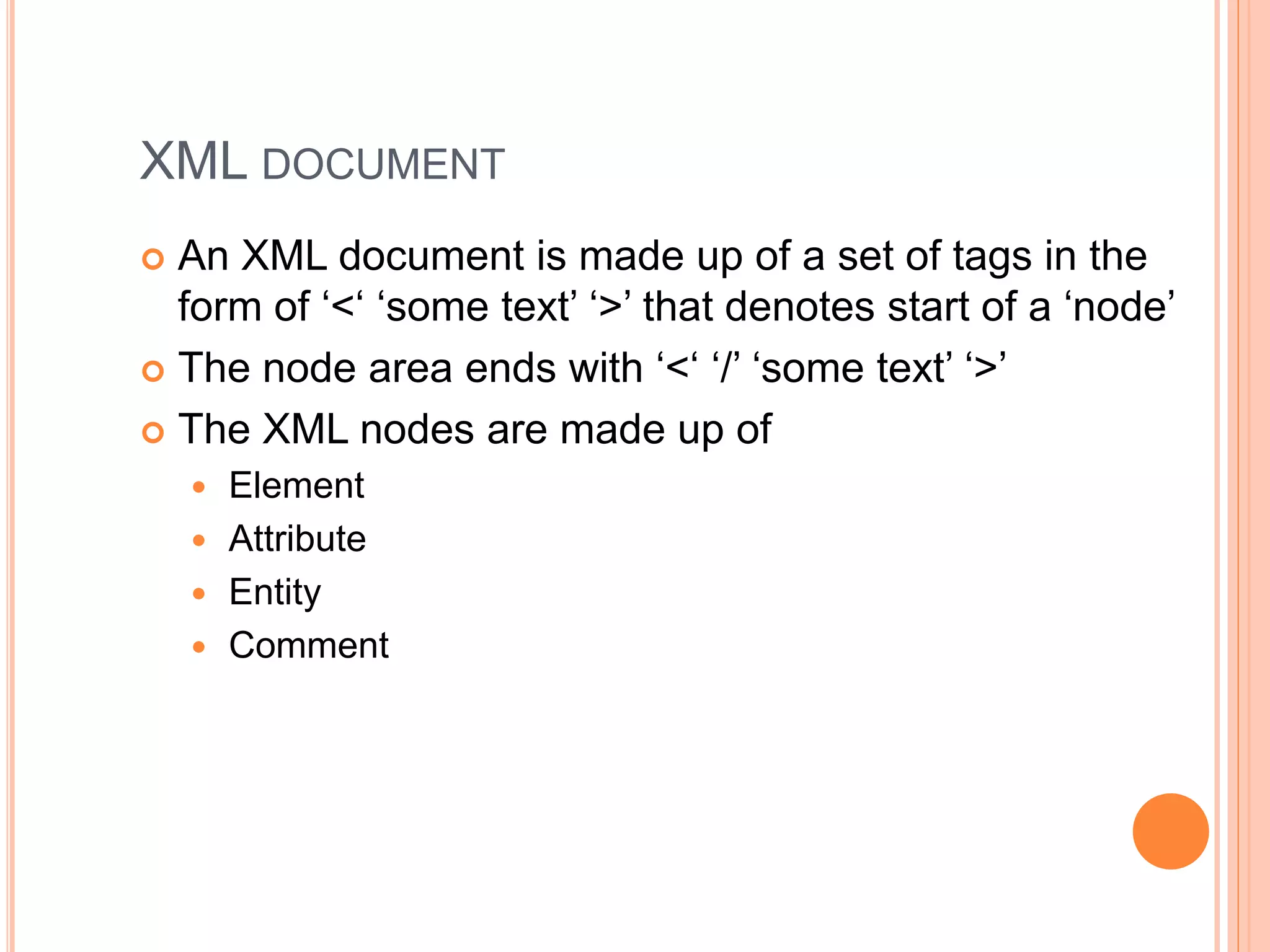

 An XML document is made up of a set of tags in the
form of ‘<‘ ‘some text’ ‘>’ that denotes start of a ‘node’
 The node area ends with ‘<‘ ‘/’ ‘some text’ ‘>’
 The XML nodes are made up of
 Element
 Attribute
 Entity
 Comment

XML USAGE PROBLEM
DEFINITION

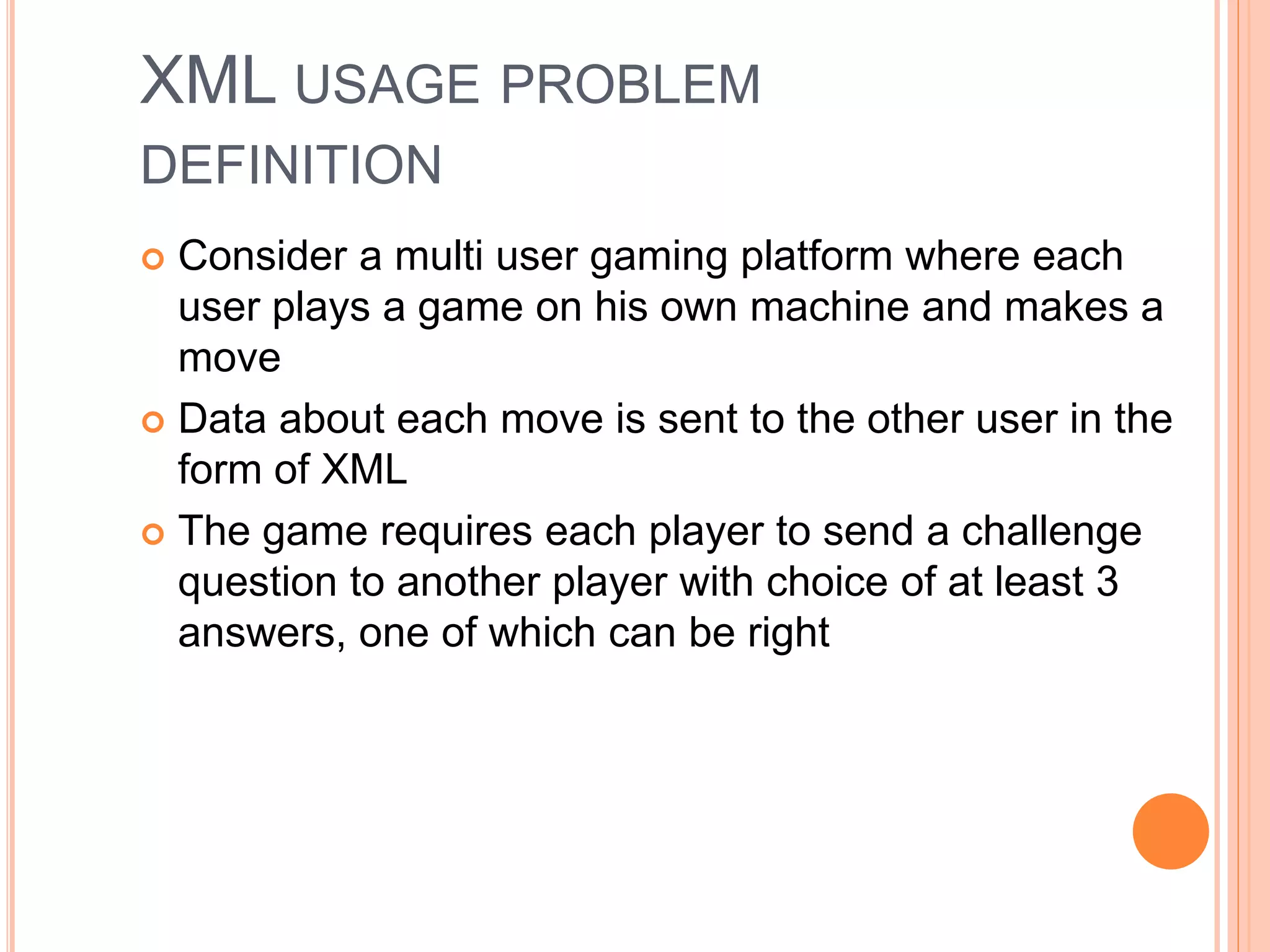

 Consider a multi user gaming platform where each
user plays a game on his own machine and makes a
move
 Data about each move is sent to the other user in the
form of XML
 The game requires each player to send a challenge
question to another player with choice of at least 3
answers, one of which can be right

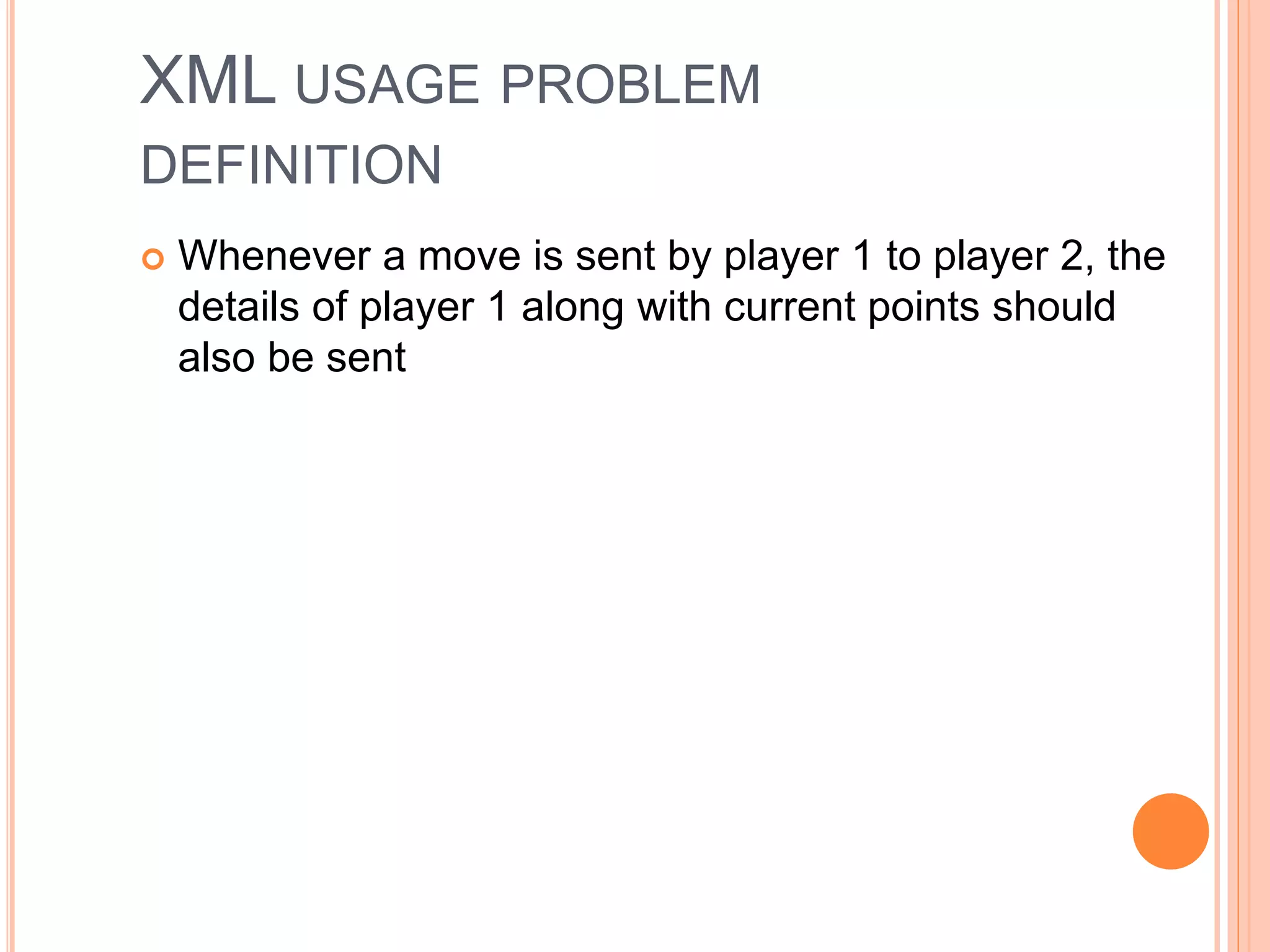

XML USAGE PROBLEM
DEFINITION
 Whenever a move is sent by player 1 to player 2, the
details of player 1 along with current points should
also be sent

XML DEFINITION

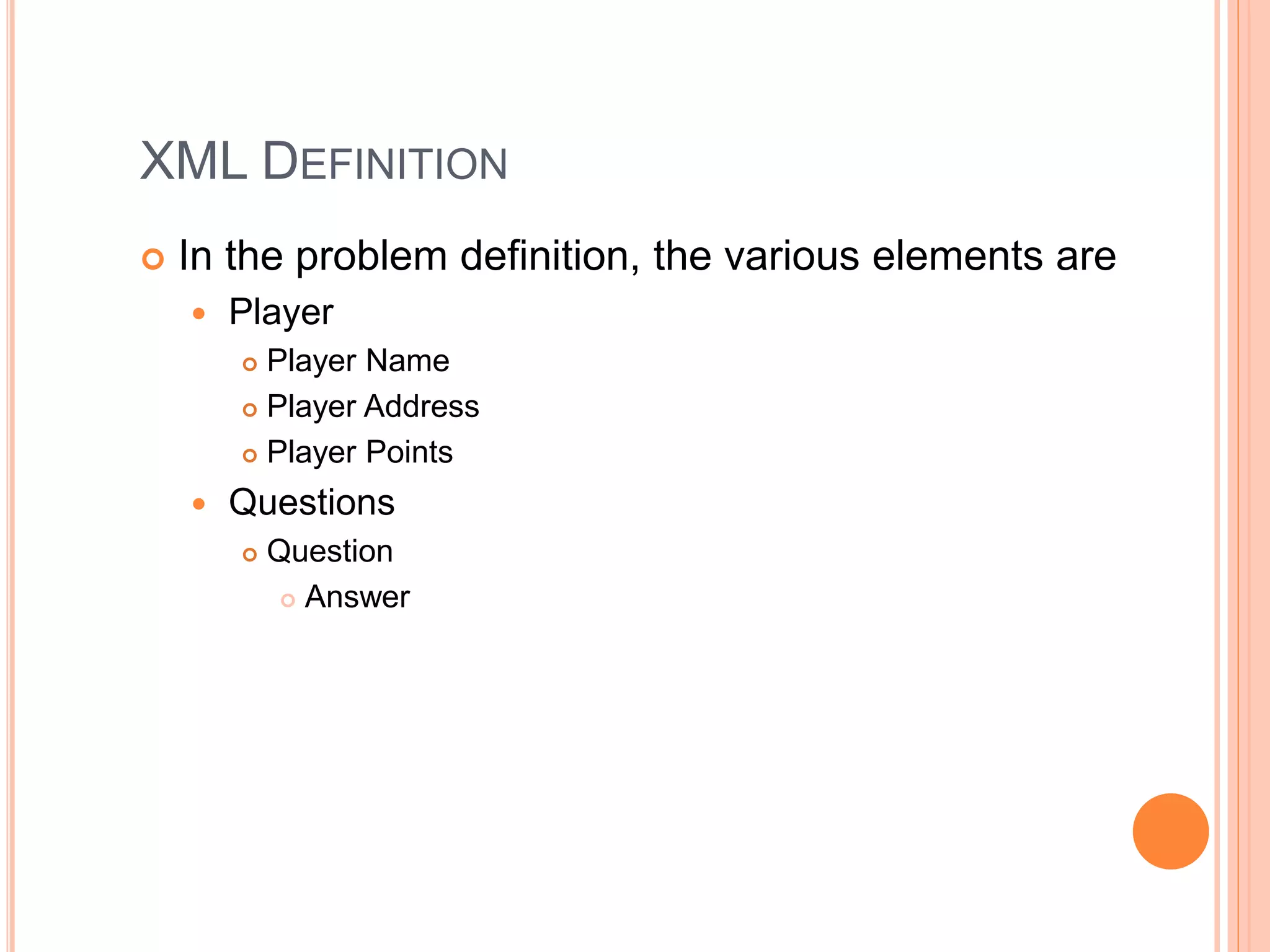

 In the problem definition, the various elements are
 Player
 Player Name
 Player Address
 Player Points
 Questions
 Question
 Answer

XML DEFINITION

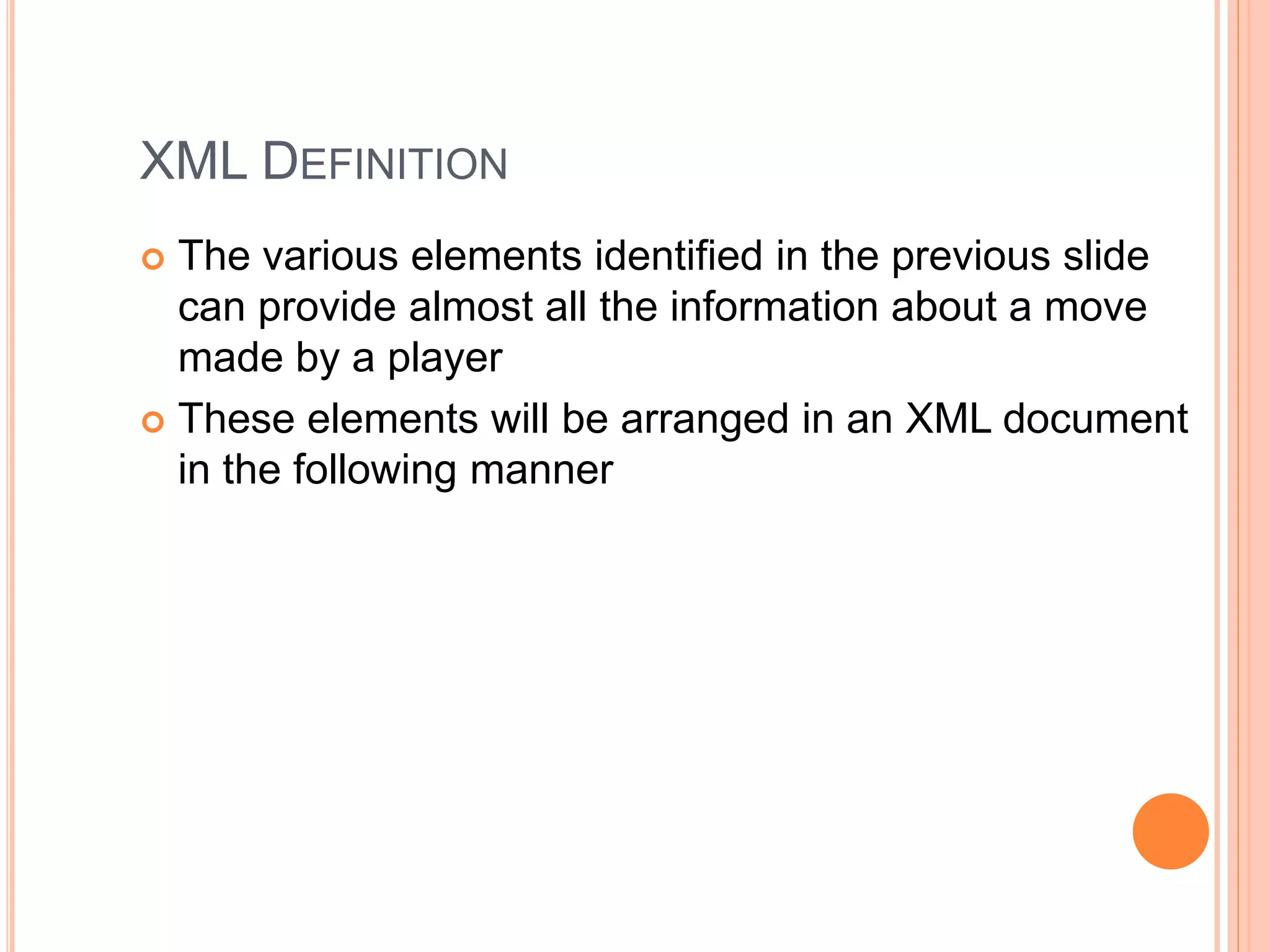

 The various elements identified in the previous slide
can provide almost all the information about a move
made by a player
 These elements will be arranged in an XML document
in the following manner

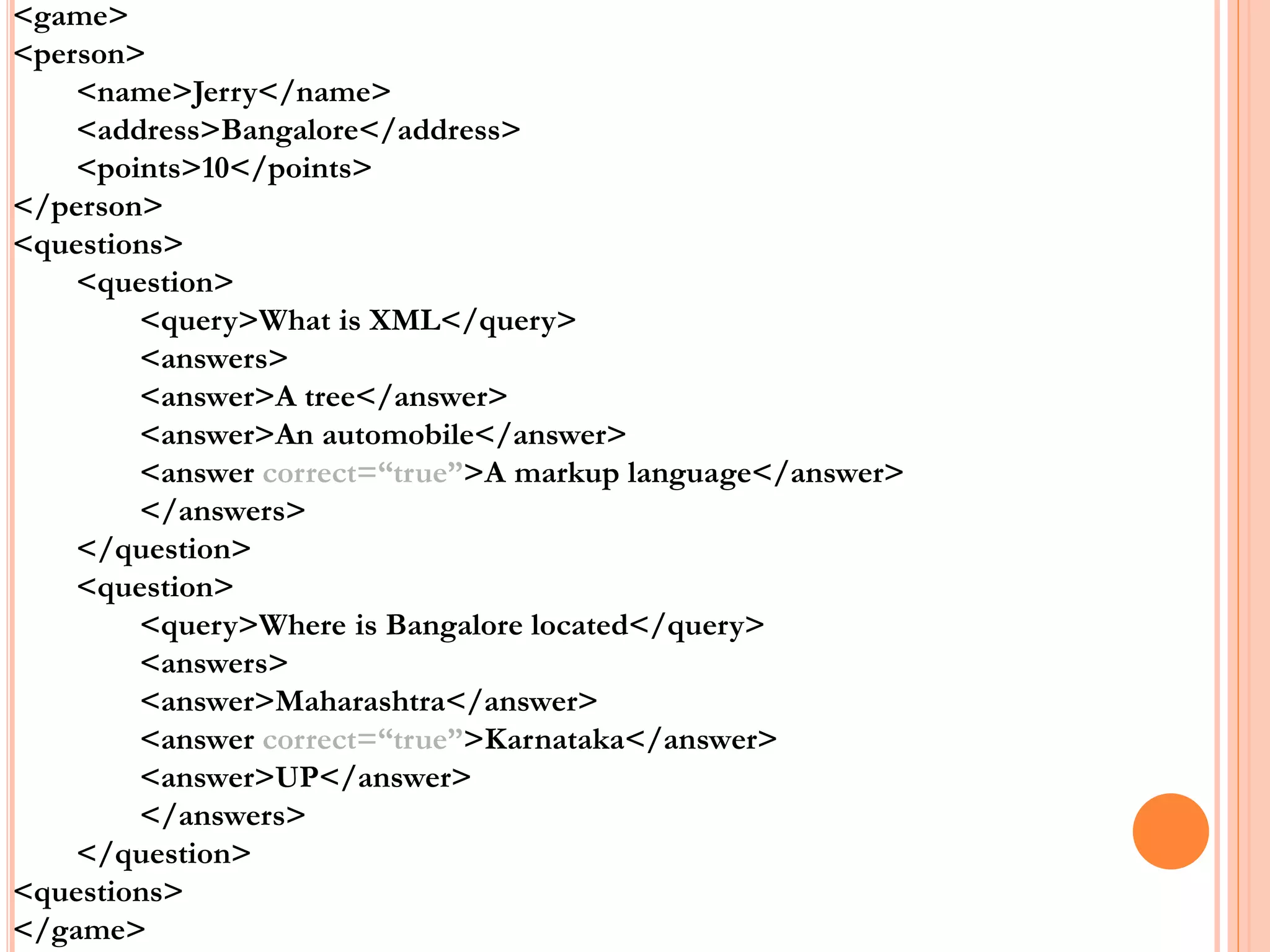

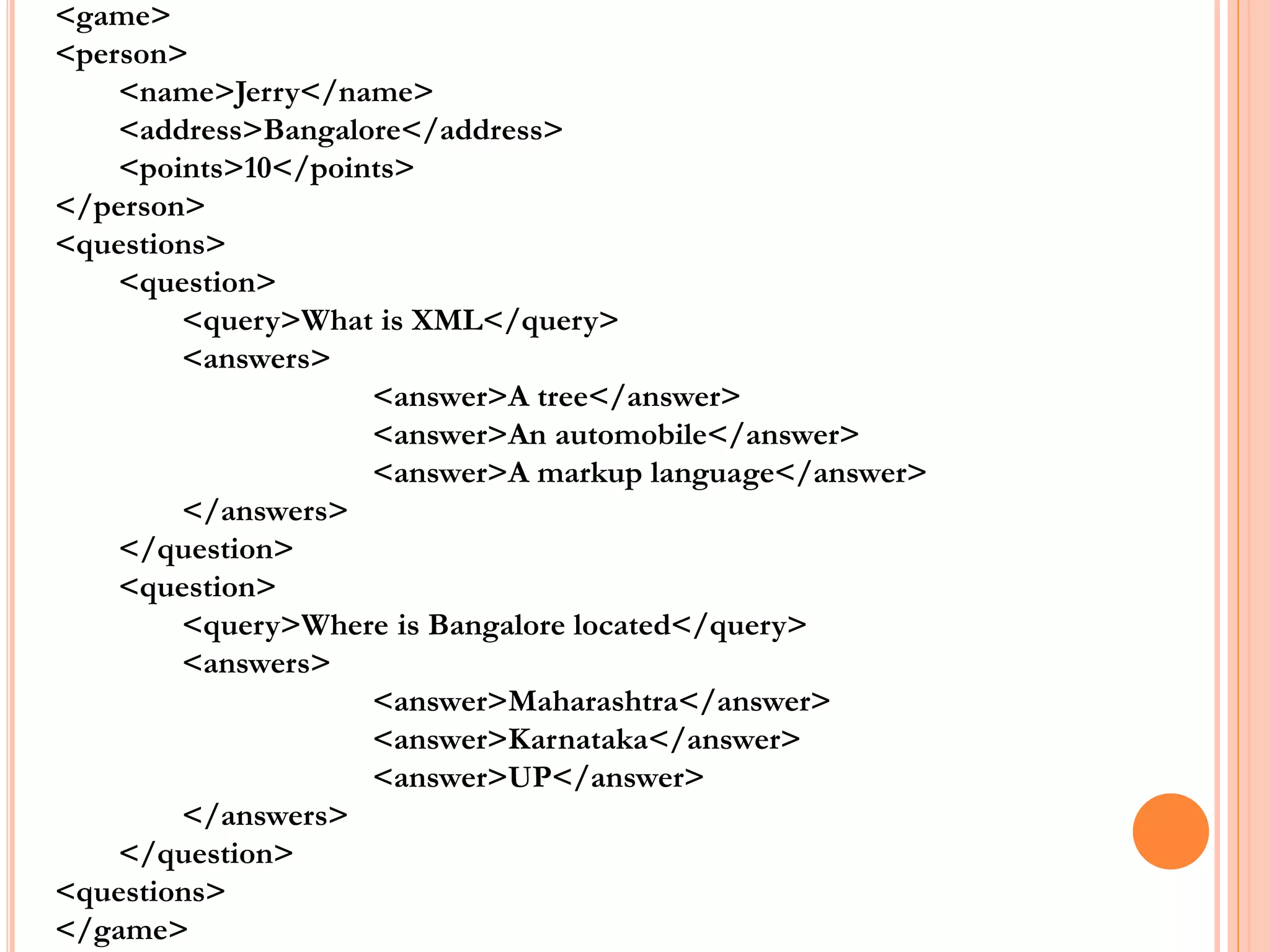

<game>
<person>
<name>Jerry</name>
<address>Bangalore</address>
<points>10</points>
</person>
<questions>
<question>
<query>What is XML</query>
<answers>
<answer>A tree</answer>
<answer>An automobile</answer>
<answer>A markup language</answer>
</answers>
</question>
<question>
<query>Where is Bangalore located</query>
<answers>
<answer>Maharashtra</answer>
<answer>Karnataka</answer>
<answer>UP</answer>
</answers>
</question>
<questions>
</game>

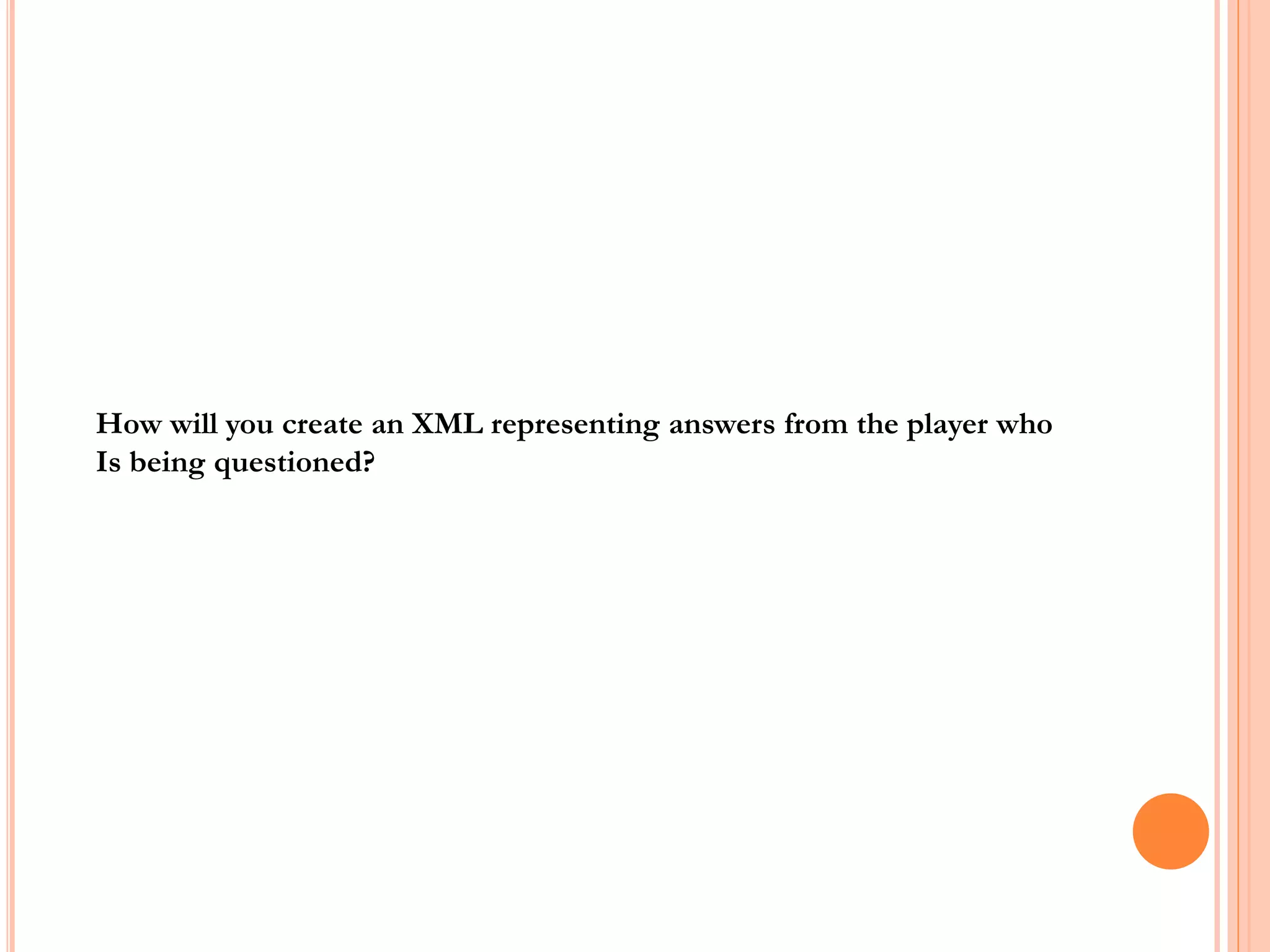

How will you create an XML representing answers from the player who
Is being questioned?

<game>
<person>
<name>Hari</name>
<points>50</points>
</person>
<questions>
<question>
<answer>A markup language</answer>
</question>
<question>
<answer>Karnataka</answer>
</question>
<questions>
</game>

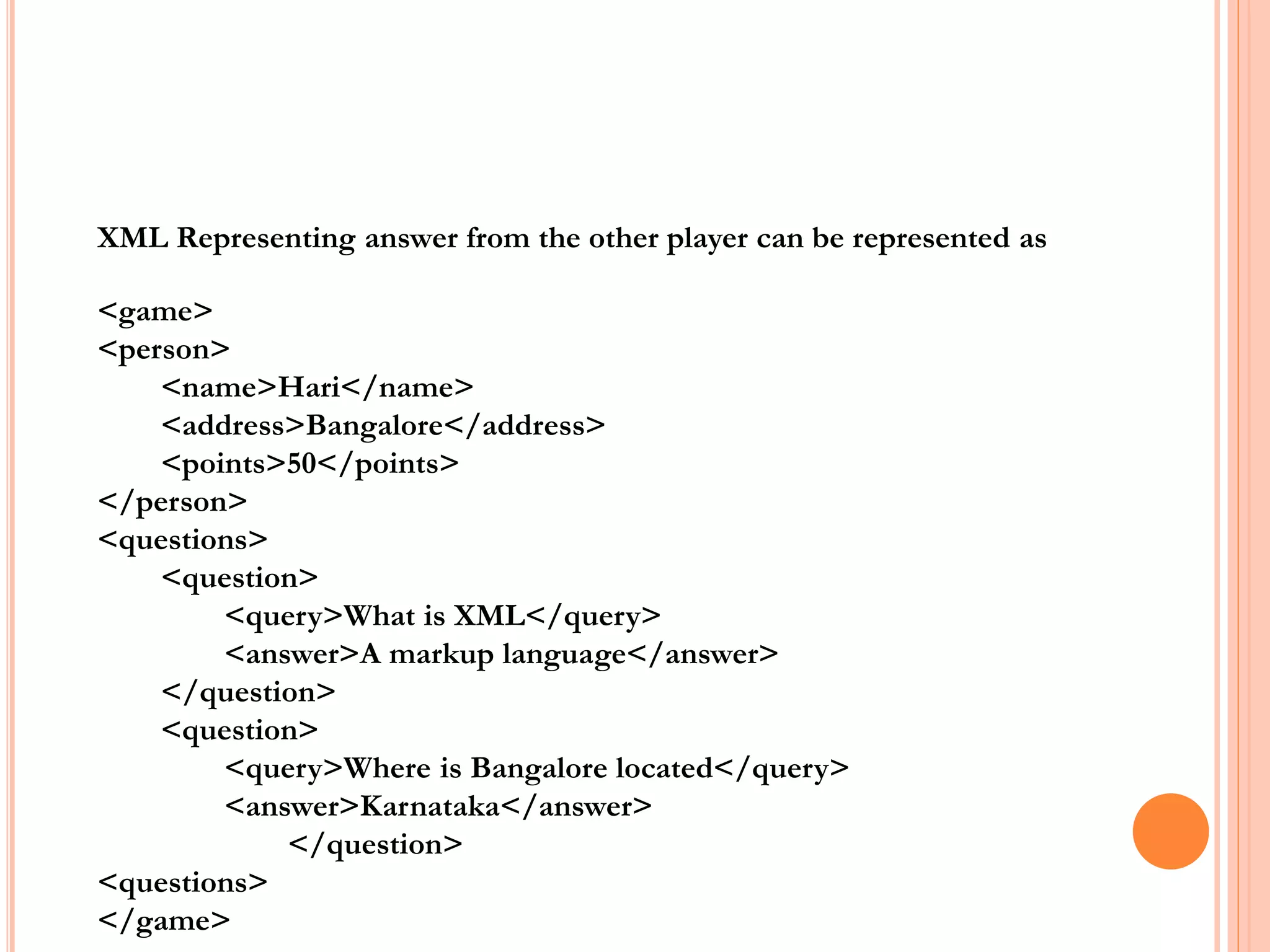

XML Representing answer from the other player can be represented as

ELEMENT

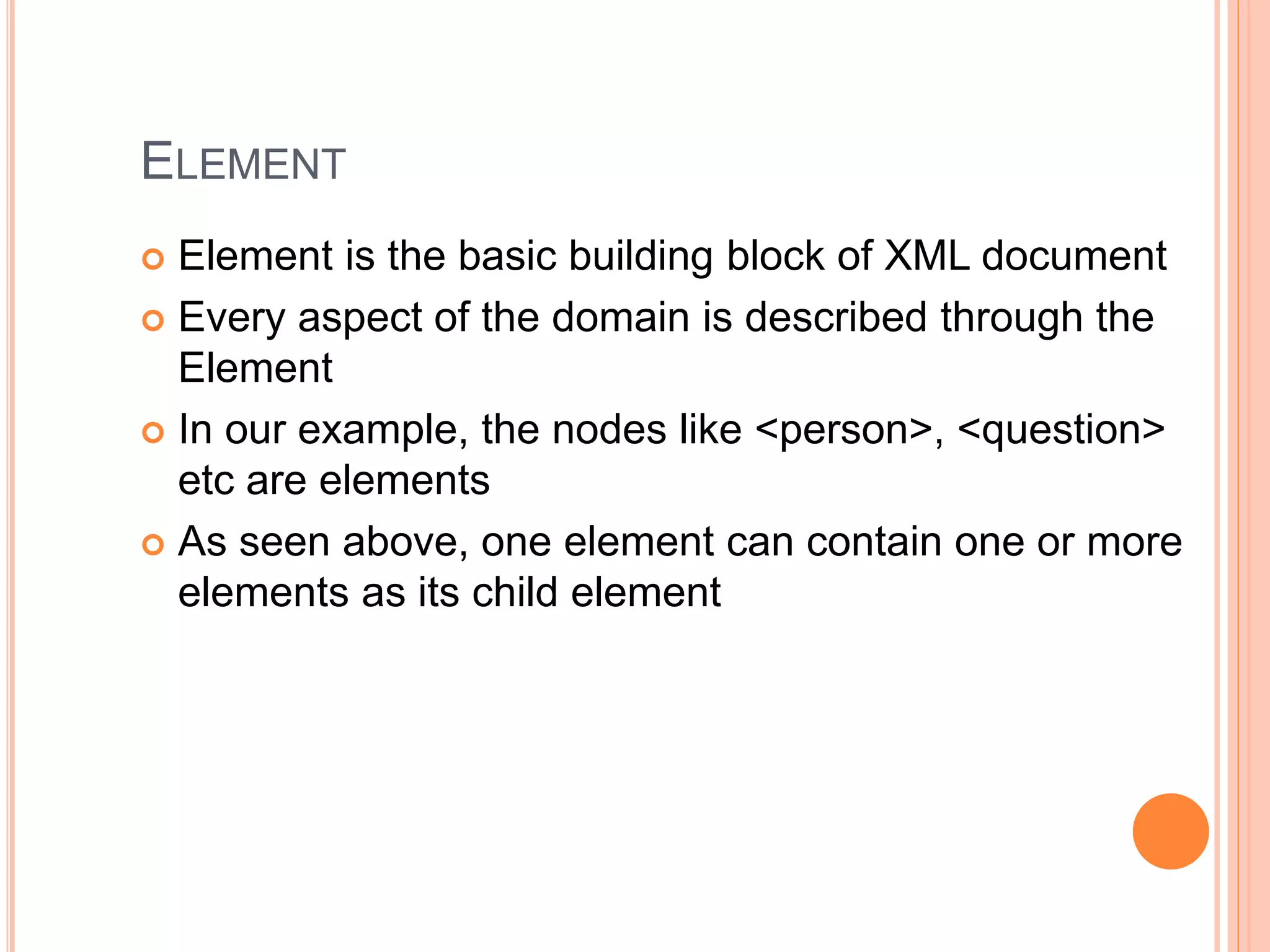

 Element is the basic building block of XML document
 Every aspect of the domain is described through the
Element
 In our example, the nodes like <person>, <question>
etc are elements
 As seen above, one element can contain one or more
elements as its child element

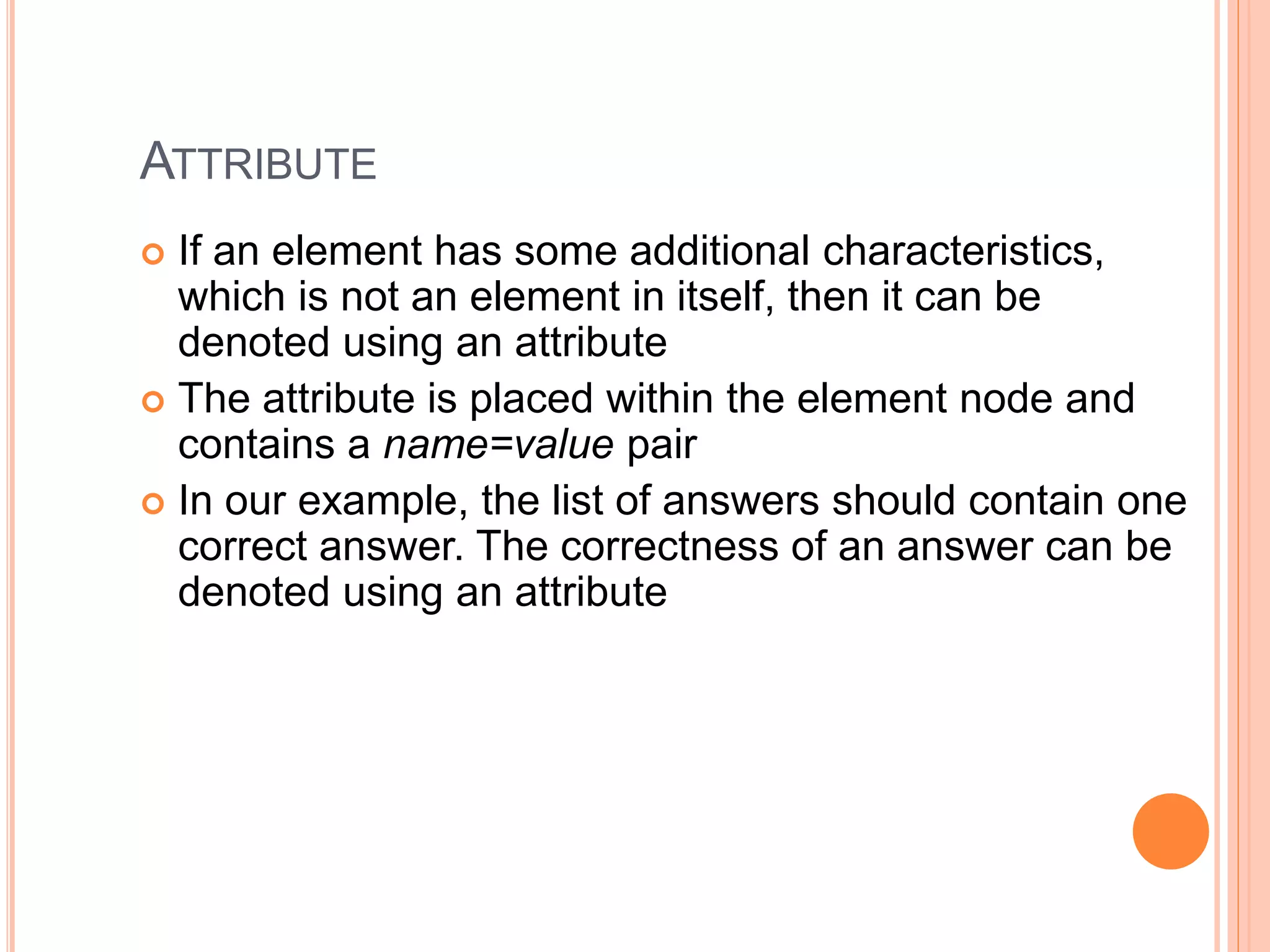

ATTRIBUTE
 If an element has some additional characteristics,
which is not an element in itself, then it can be
denoted using an attribute
 The attribute is placed within the element node and
contains a name=value pair
 In our example, the list of answers should contain one
correct answer. The correctness of an answer can be
denoted using an attribute

<game>
<person>
<name>Jerry</name>
<points>10</points>
</person>
<questions>
<question>
<answers>
<answer>A tree</answer>
<answer>An automobile</answer>
<answer correct=“true”>A markup language</answer>
</answers>
</question>
<question>
<answers>
<answer>Maharashtra</answer>
<answer correct=“true”>Karnataka</answer>
<answer>UP</answer>
</answers>
</question>
<questions>
</game>

ROOT ELEMENT
 The XML elements can be represented in the form of
a tree
 The top most element of the XML document is the
Root element and each of its child is a root to its own
children
 In our case, the <game> element is the root element
of the document.

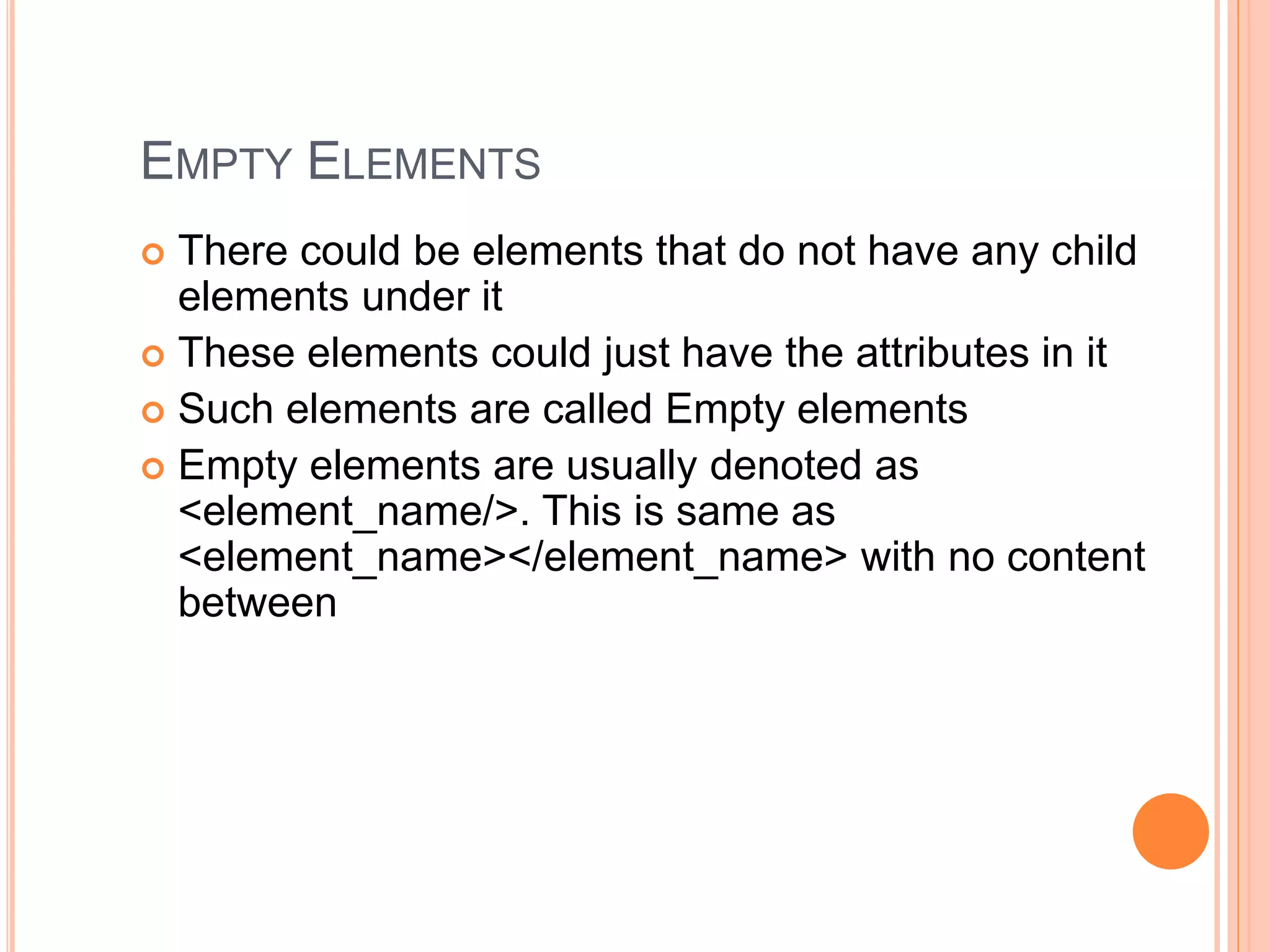

EMPTY ELEMENTS
 There could be elements that do not have any child
elements under it
 These elements could just have the attributes in it
 Such elements are called Empty elements
 Empty elements are usually denoted as
<element_name/>. This is same as
<element_name></element_name> with no content
between

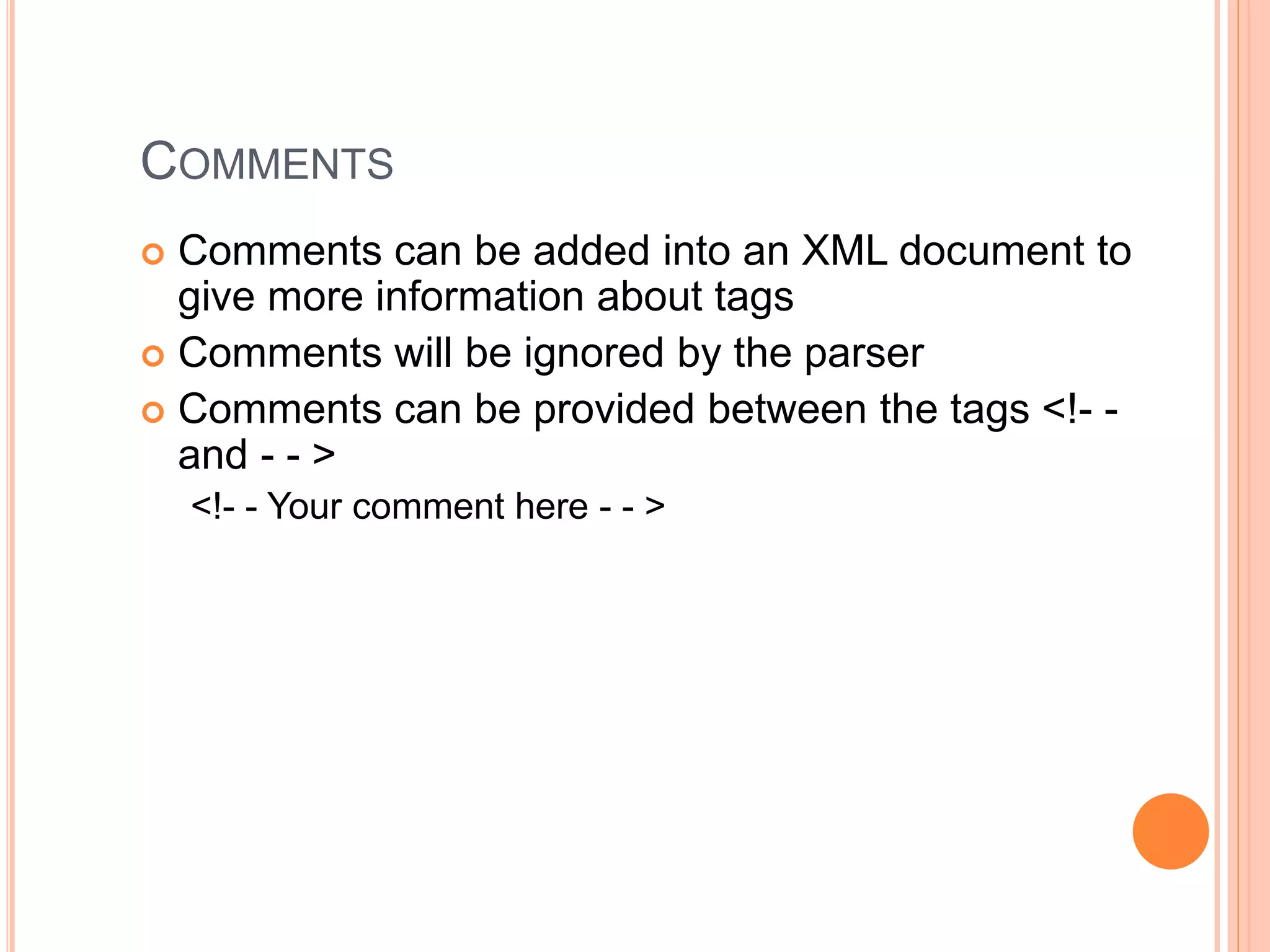

COMMENTS
 Comments can be added into an XML document to
give more information about tags
 Comments will be ignored by the parser
 Comments can be provided between the tags <!- -
and - - >
<!- - Your comment here - - >

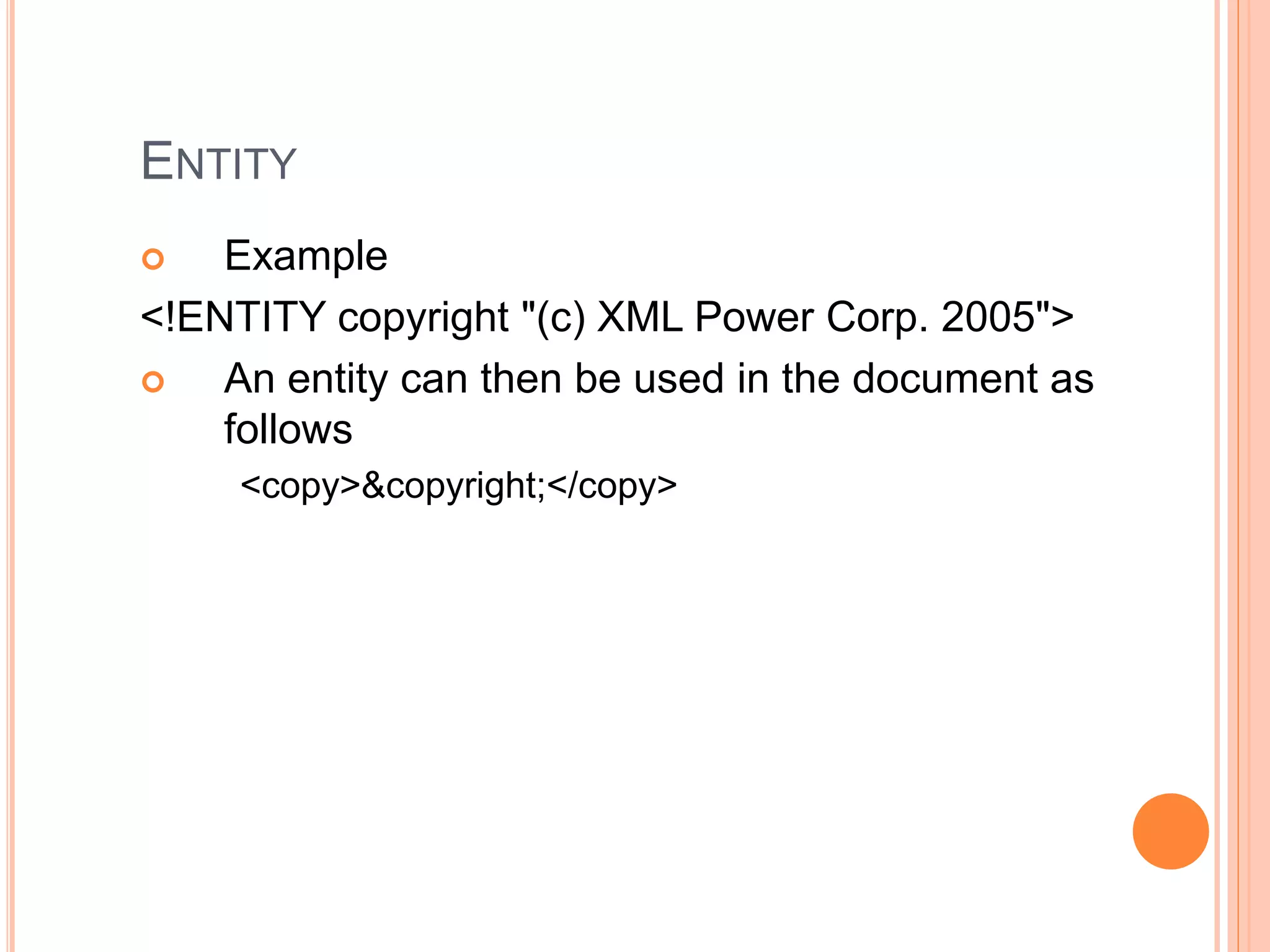

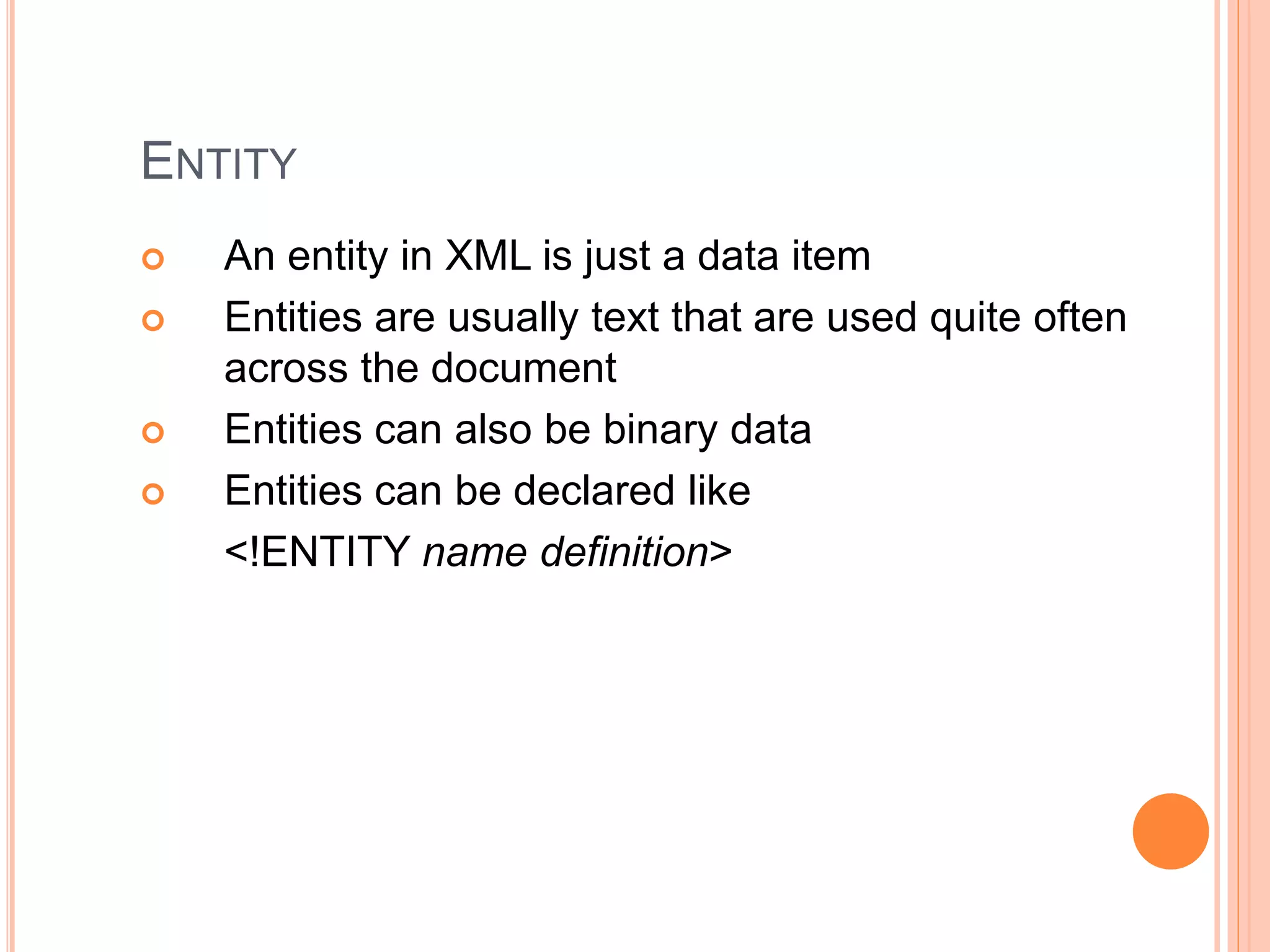

ENTITY
 Entities can be used to substitute a value for a data
item
 Entities behave like macros where they are place
holders for something else
 Entities start with & and end with ;
 Predefined entity like " will be replaced by a ‘
when parsed

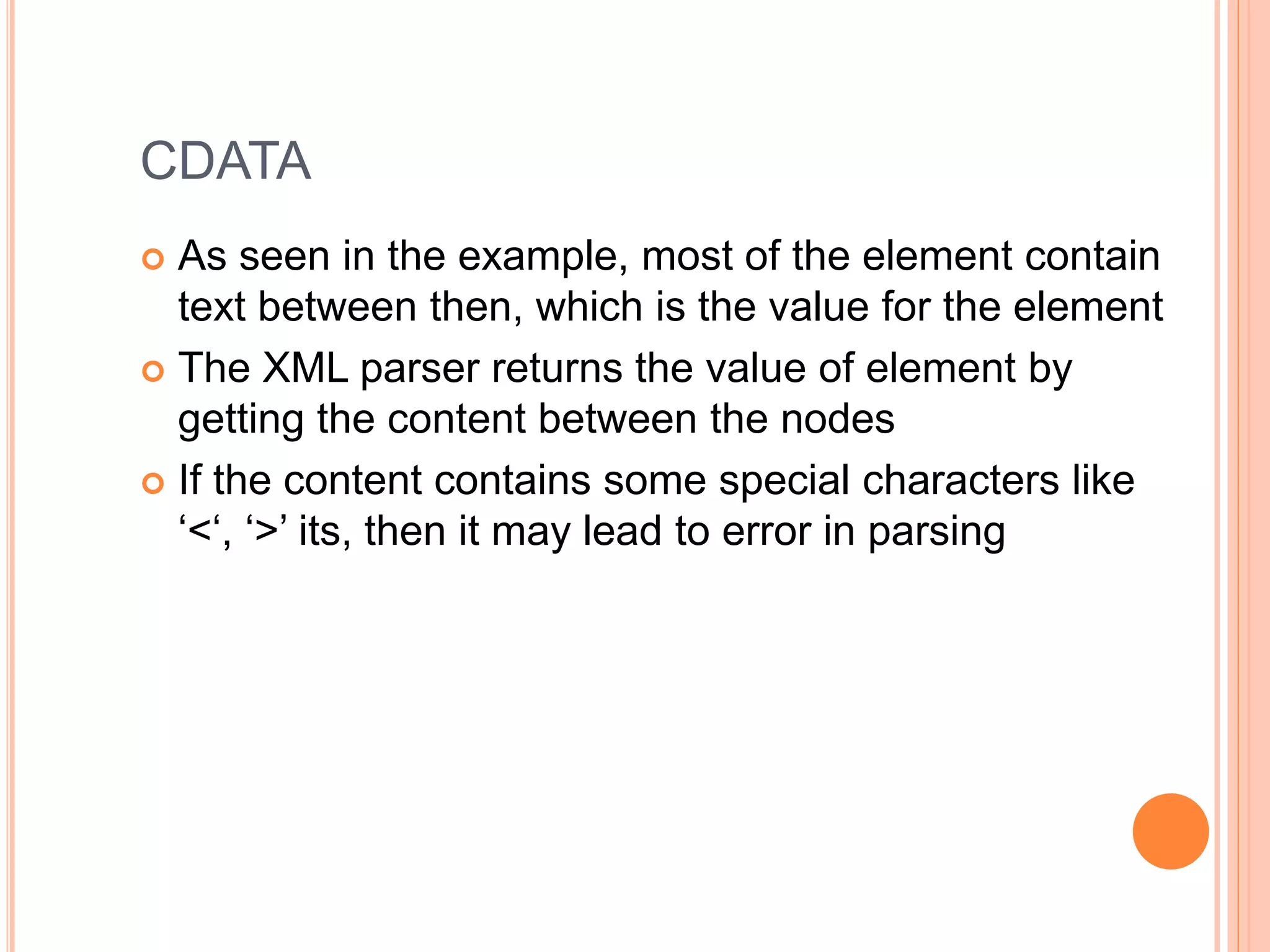

CDATA
 As seen in the example, most of the element contain
text between then, which is the value for the element
 The XML parser returns the value of element by
getting the content between the nodes
 If the content contains some special characters like
‘<‘, ‘>’ its, then it may lead to error in parsing

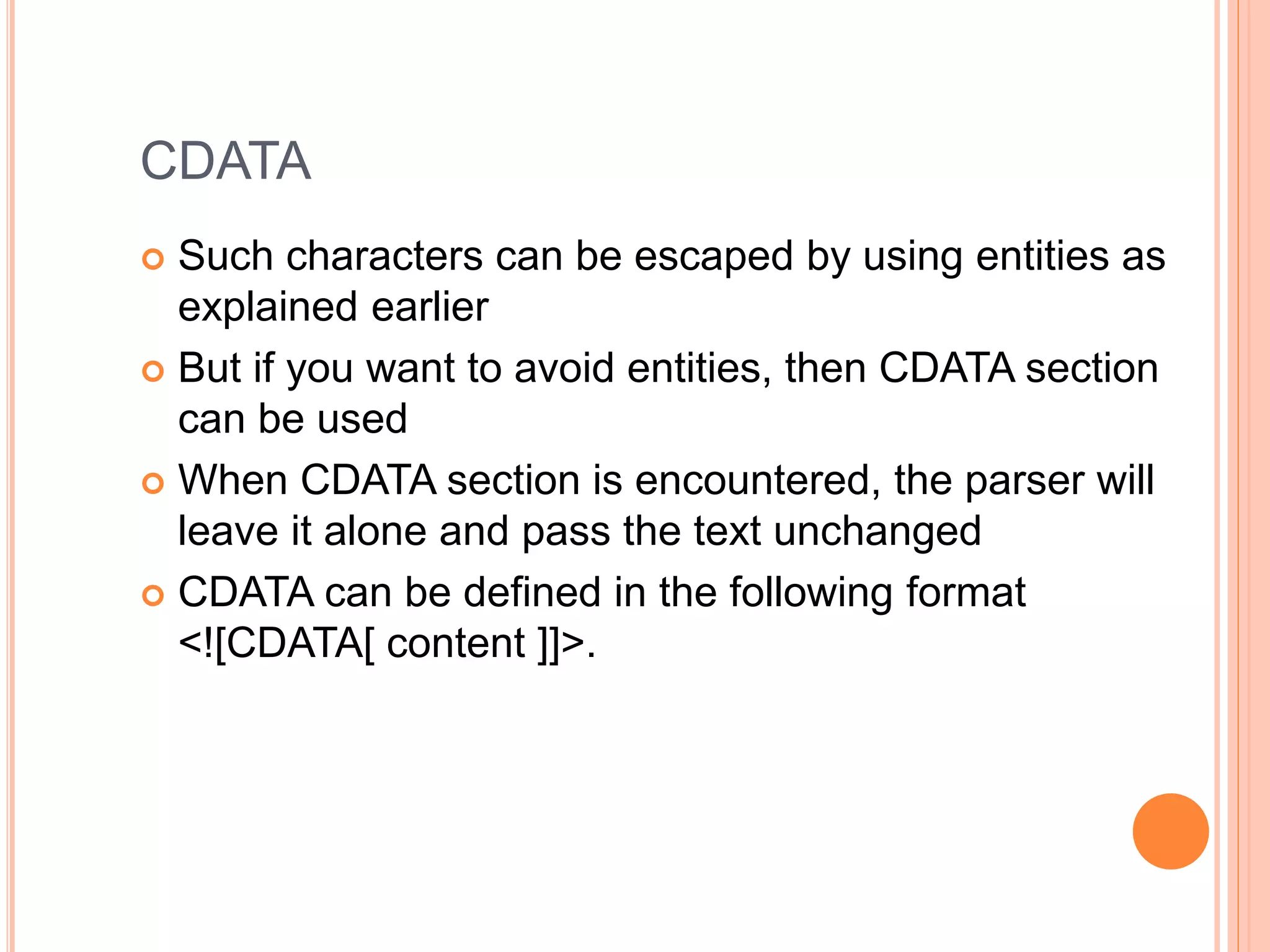

CDATA
 Such characters can be escaped by using entities as
explained earlier
 But if you want to avoid entities, then CDATA section
can be used
 When CDATA section is encountered, the parser will
leave it alone and pass the text unchanged
 CDATA can be defined in the following format
<![CDATA[ content ]]>.

CDATA
 Example

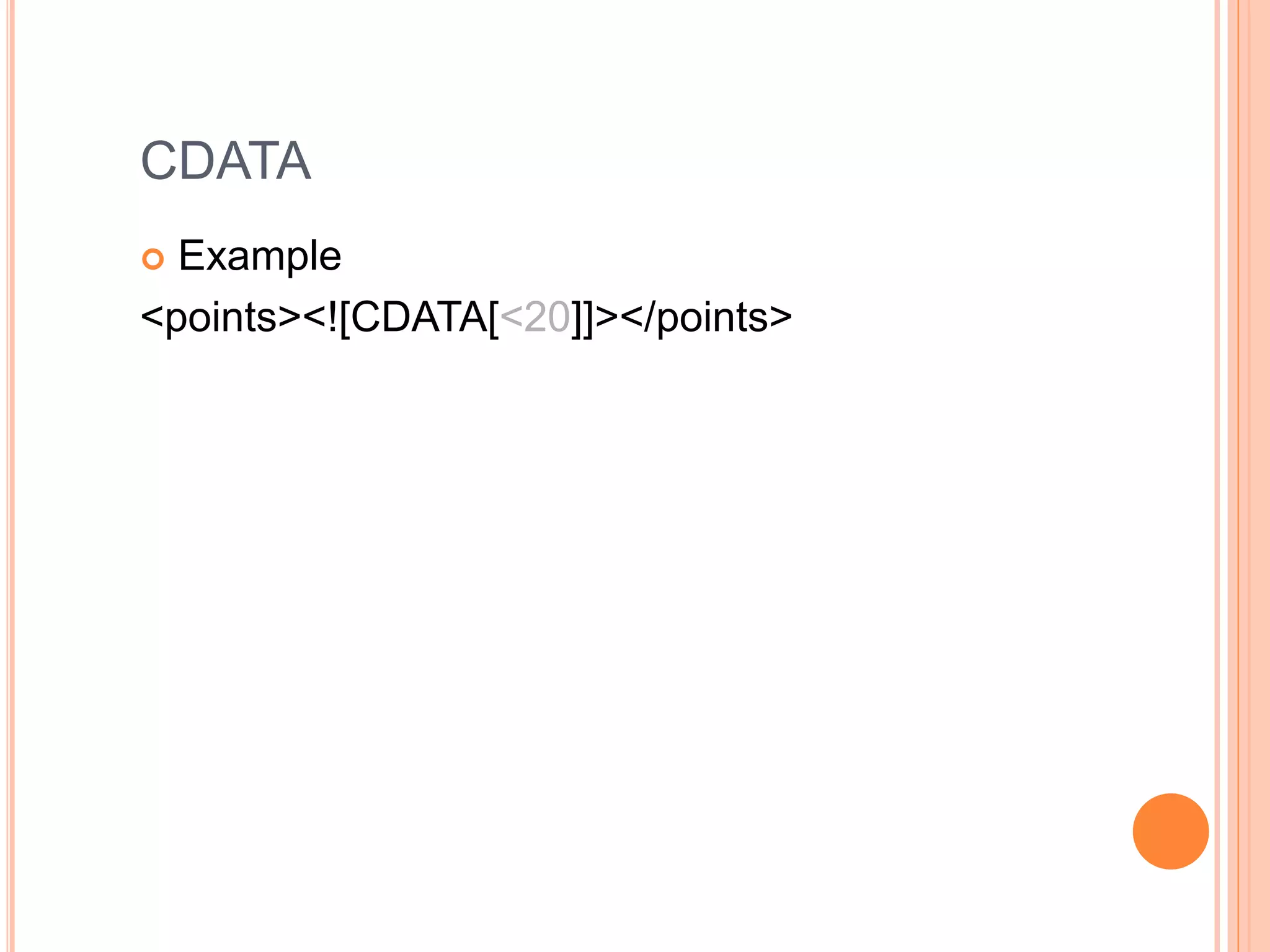

<points><![CDATA[<20]]></points>

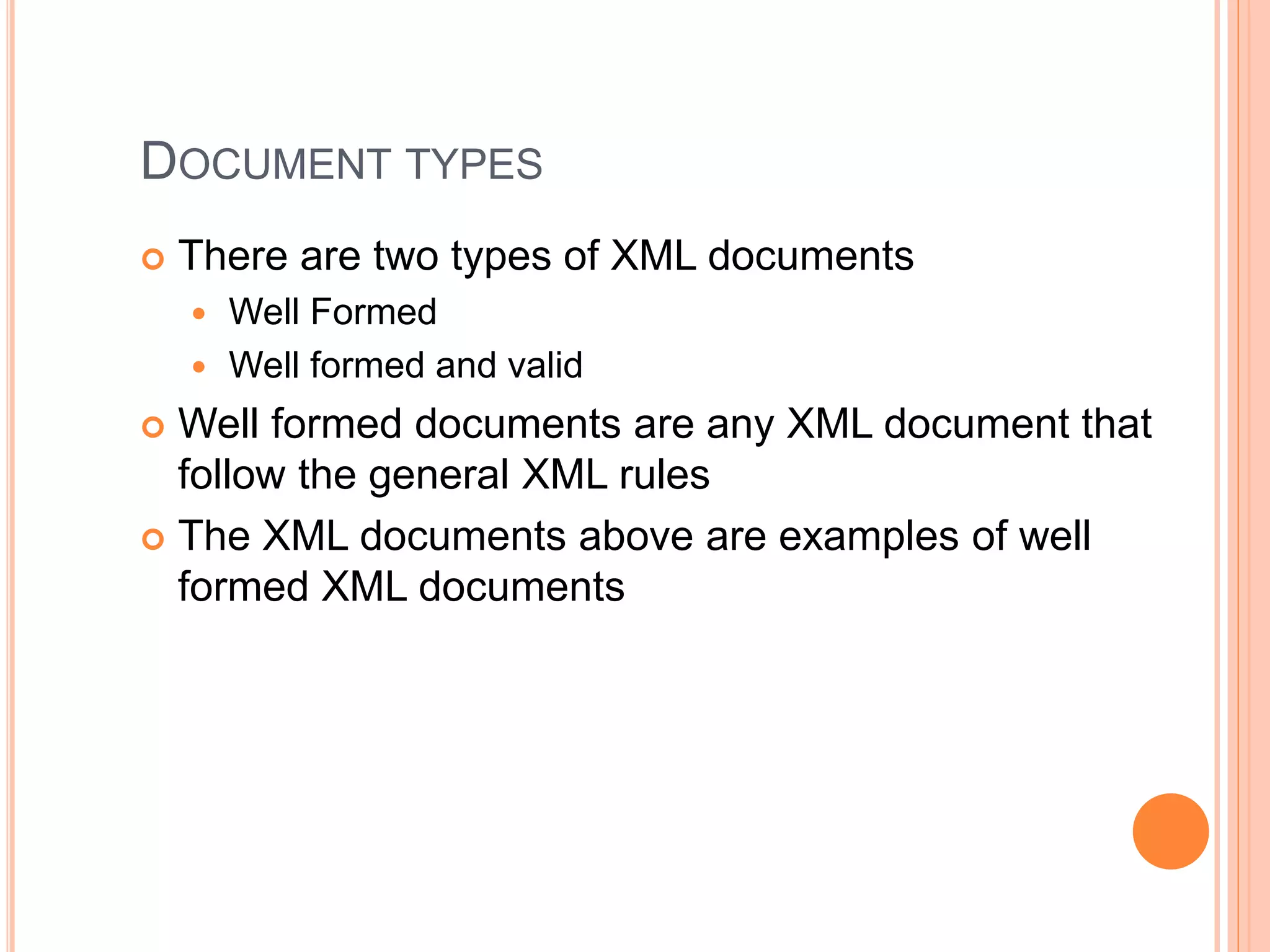

DOCUMENT TYPES
 There are two types of XML documents
 Well Formed
 Well formed and valid
 Well formed documents are any XML document that
follow the general XML rules
 The XML documents above are examples of well
formed XML documents

DOCUMENT TYPES
 Well formed and valid XML documents are ones that
not only follow general XML rules, but also conform to
certain domain specific grammar
 The domain specific grammar is denoted using DTD
(Document type definition)
 DTDs define rules for a domain specific XML
document

DTD
 DTD is made of tags that define the various nodes
allowed in an XML document
 The DTD can be used to define the various aspects of
XML document like
 Element
 Attribute
 Entities

DTD

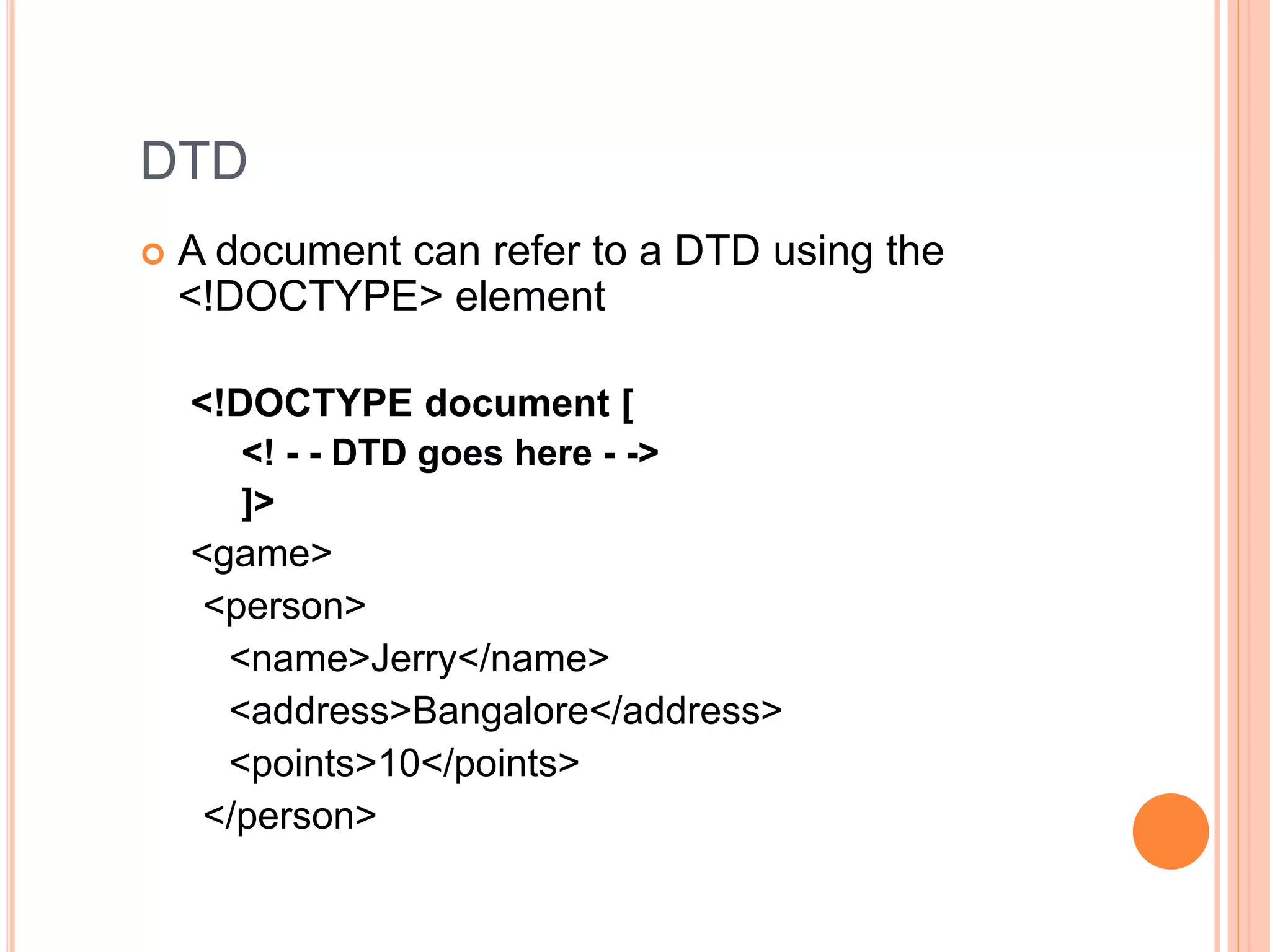

 A document can refer to a DTD using the
<!DOCTYPE> element
<!DOCTYPE document [
<! - - DTD goes here - ->
]>
<game>
<person>
<name>Jerry</name>
<points>10</points>
</person>

DTD

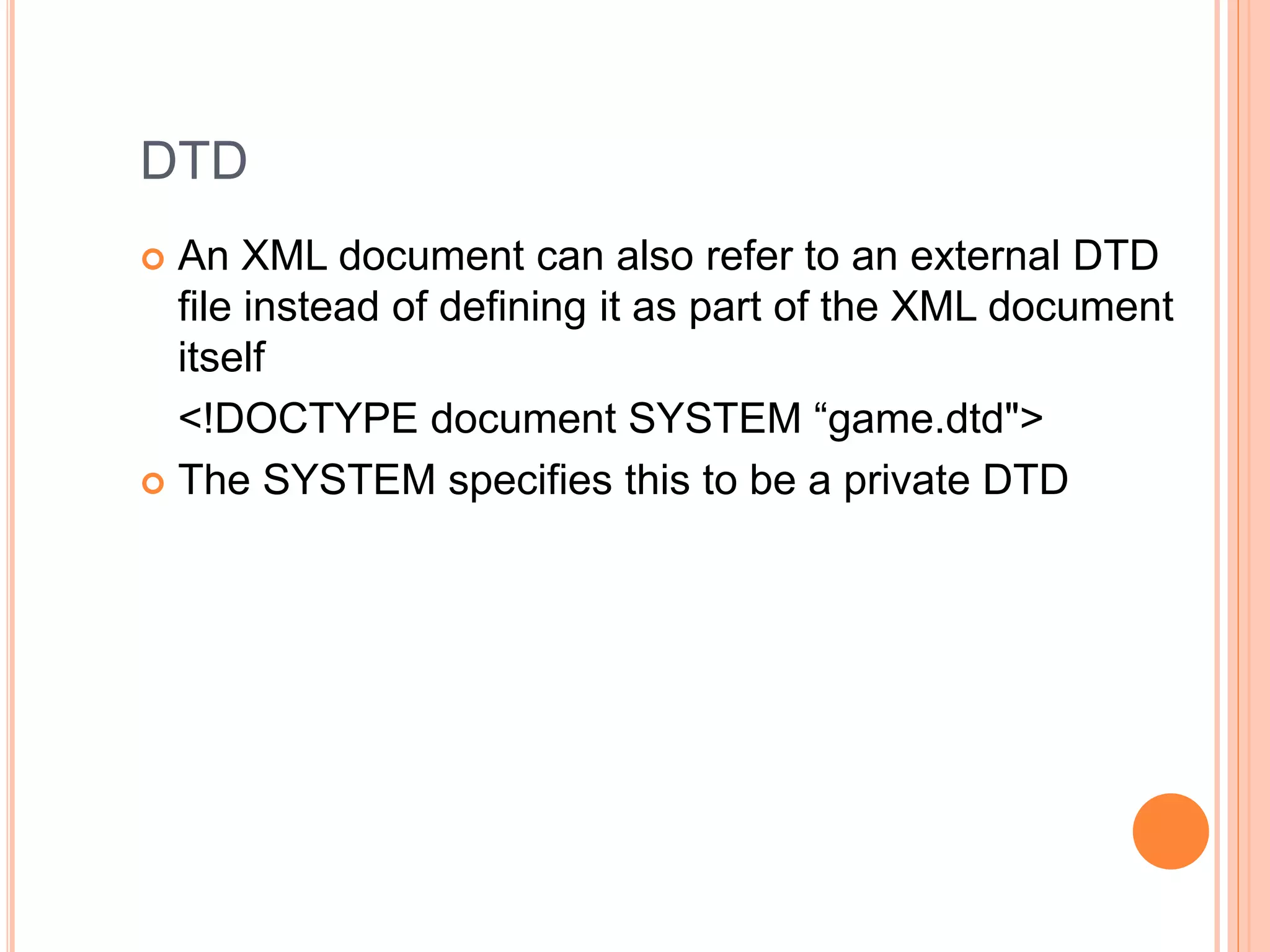

 An XML document can also refer to an external DTD
file instead of defining it as part of the XML document
itself
<!DOCTYPE document SYSTEM “game.dtd">
 The SYSTEM specifies this to be a private DTD

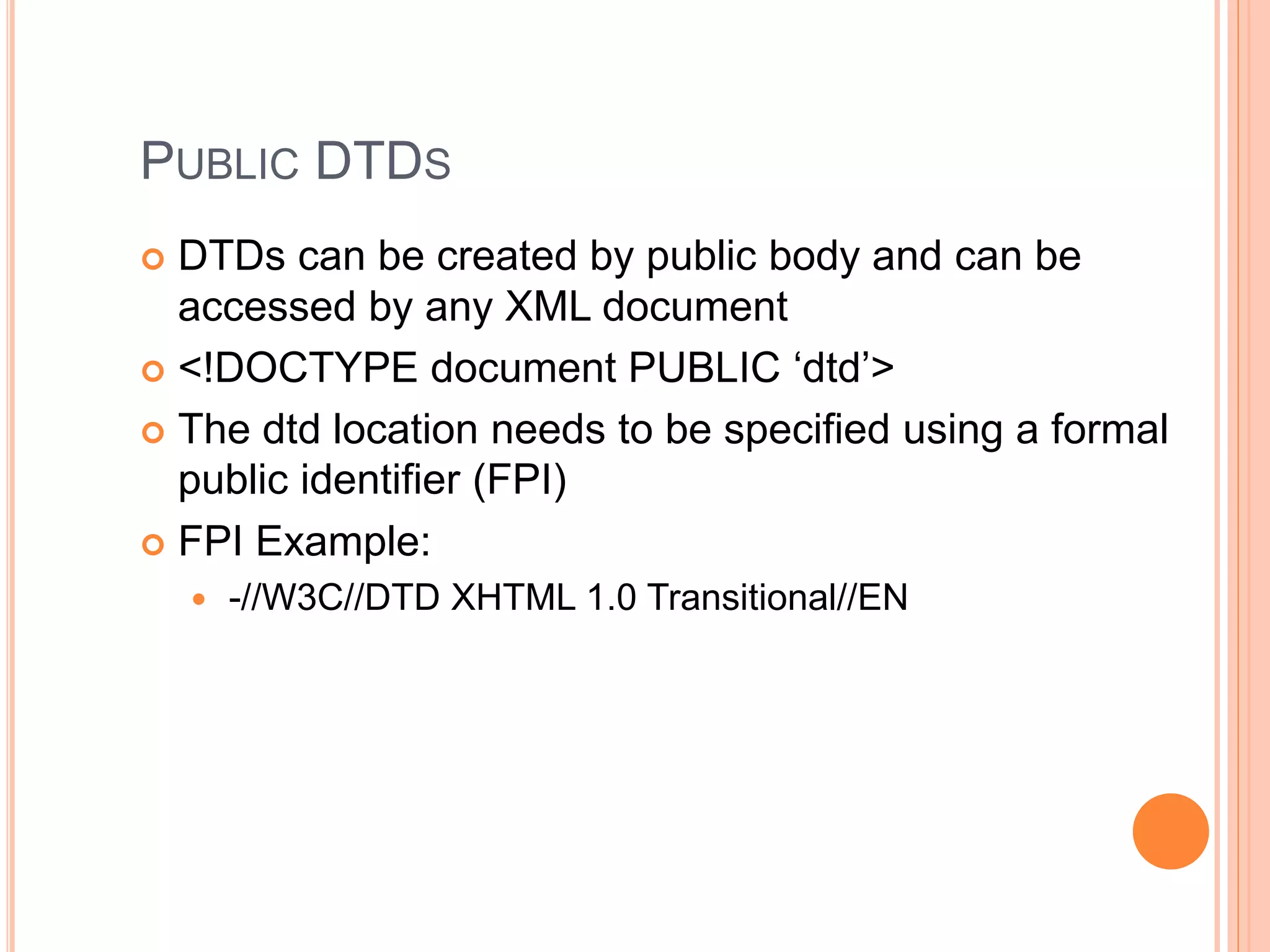

PUBLIC DTDS
 DTDs can be created by public body and can be
accessed by any XML document
 <!DOCTYPE document PUBLIC ‘dtd’>
 The dtd location needs to be specified using a formal
public identifier (FPI)
 FPI Example:
 -//W3C//DTD XHTML 1.0 Transitional//EN

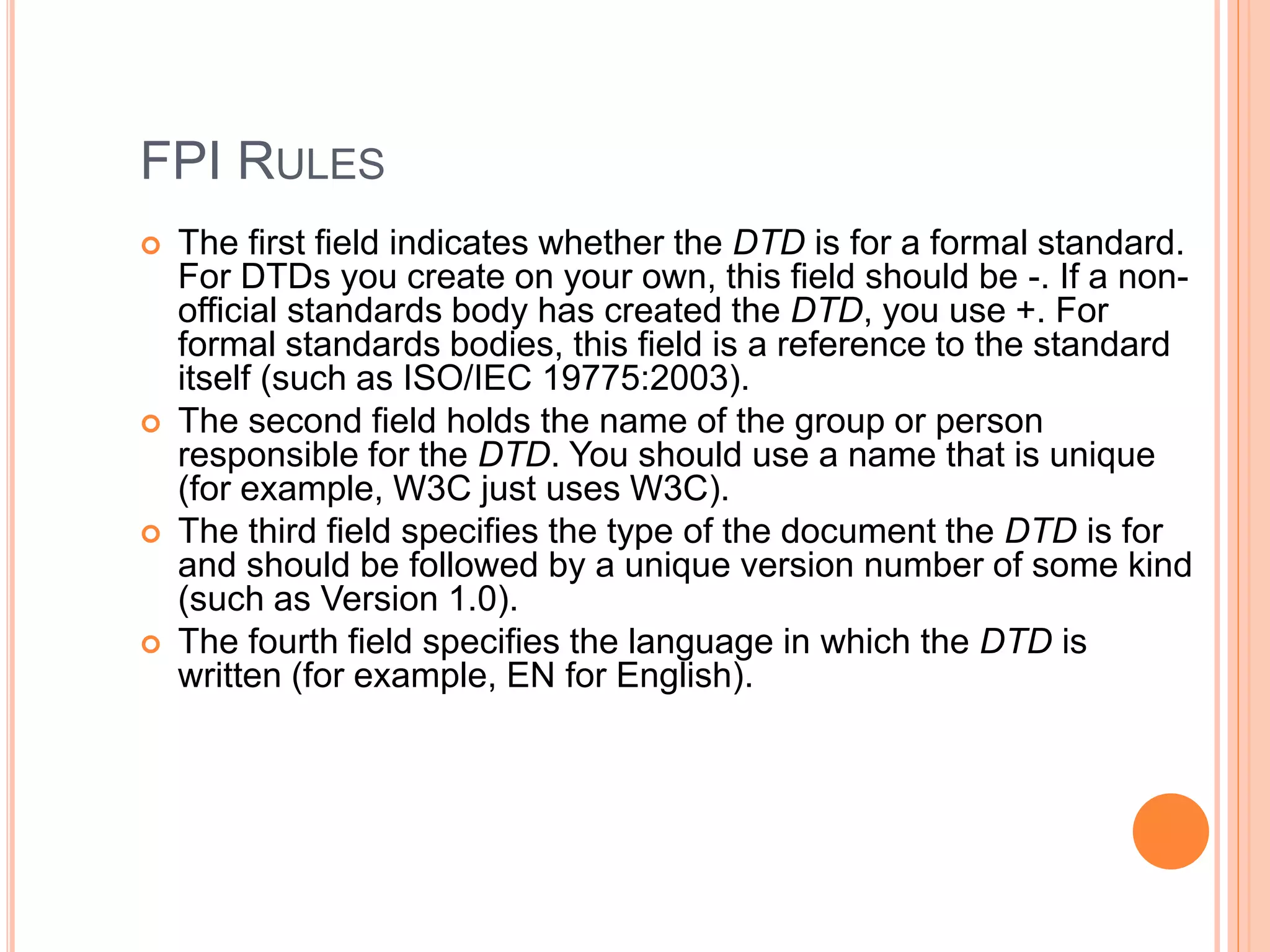

FPI RULES
 The first field indicates whether the DTD is for a formal standard.
For DTDs you create on your own, this field should be -. If a non-
official standards body has created the DTD, you use +. For
formal standards bodies, this field is a reference to the standard
itself (such as ISO/IEC 19775:2003).
 The second field holds the name of the group or person
responsible for the DTD. You should use a name that is unique
(for example, W3C just uses W3C).
 The third field specifies the type of the document the DTD is for
and should be followed by a unique version number of some kind
(such as Version 1.0).
 The fourth field specifies the language in which the DTD is
written (for example, EN for English).

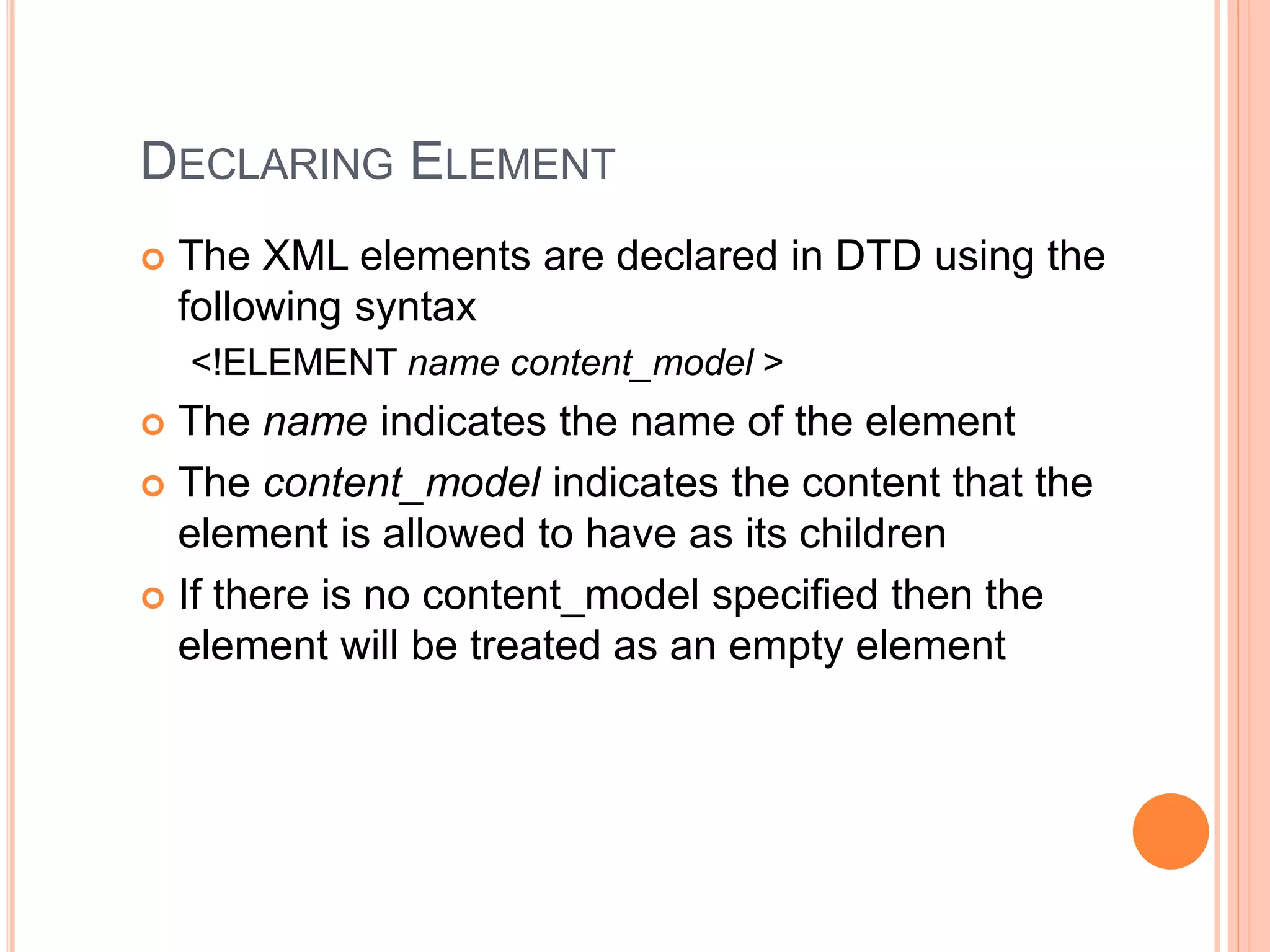

DECLARING ELEMENT
 The XML elements are declared in DTD using the
following syntax
<!ELEMENT name content_model >
 The name indicates the name of the element
 The content_model indicates the content that the
element is allowed to have as its children
 If there is no content_model specified then the
element will be treated as an empty element

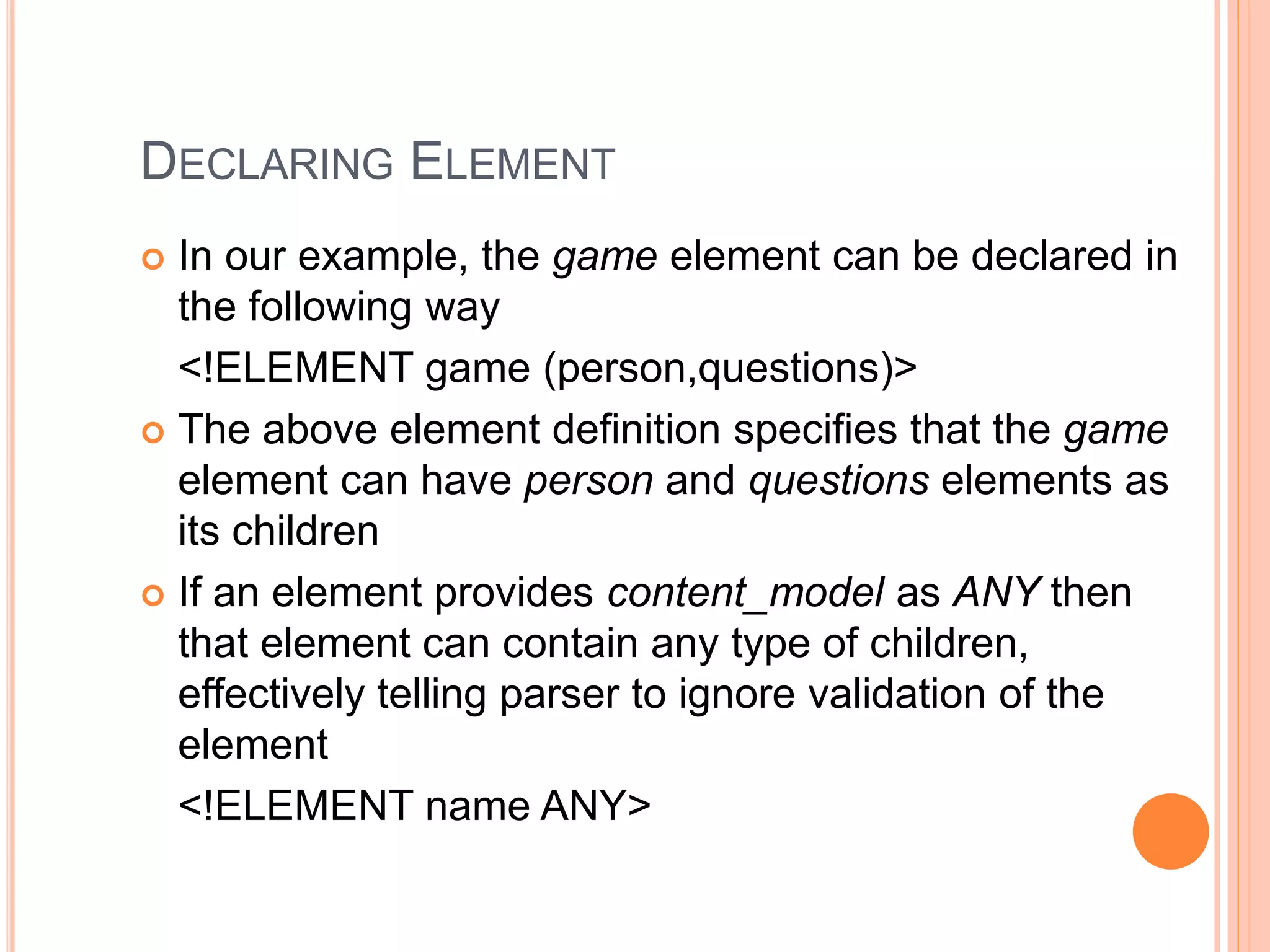

DECLARING ELEMENT
 In our example, the game element can be declared in
the following way
<!ELEMENT game (person,questions)>
 The above element definition specifies that the game
element can have person and questions elements as
its children
 If an element provides content_model as ANY then
that element can contain any type of children,
effectively telling parser to ignore validation of the
element
<!ELEMENT name ANY>

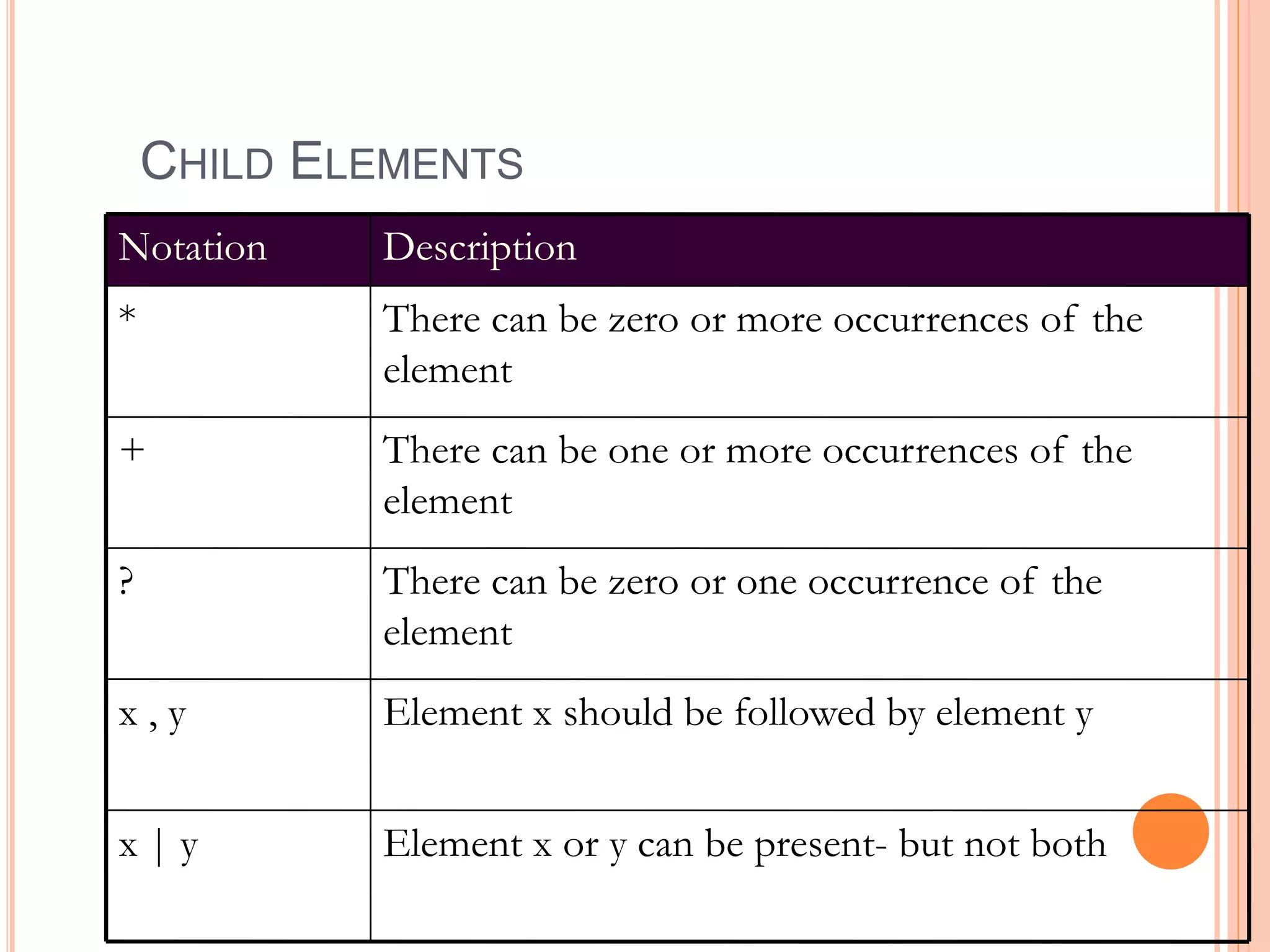

CHILD ELEMENTS

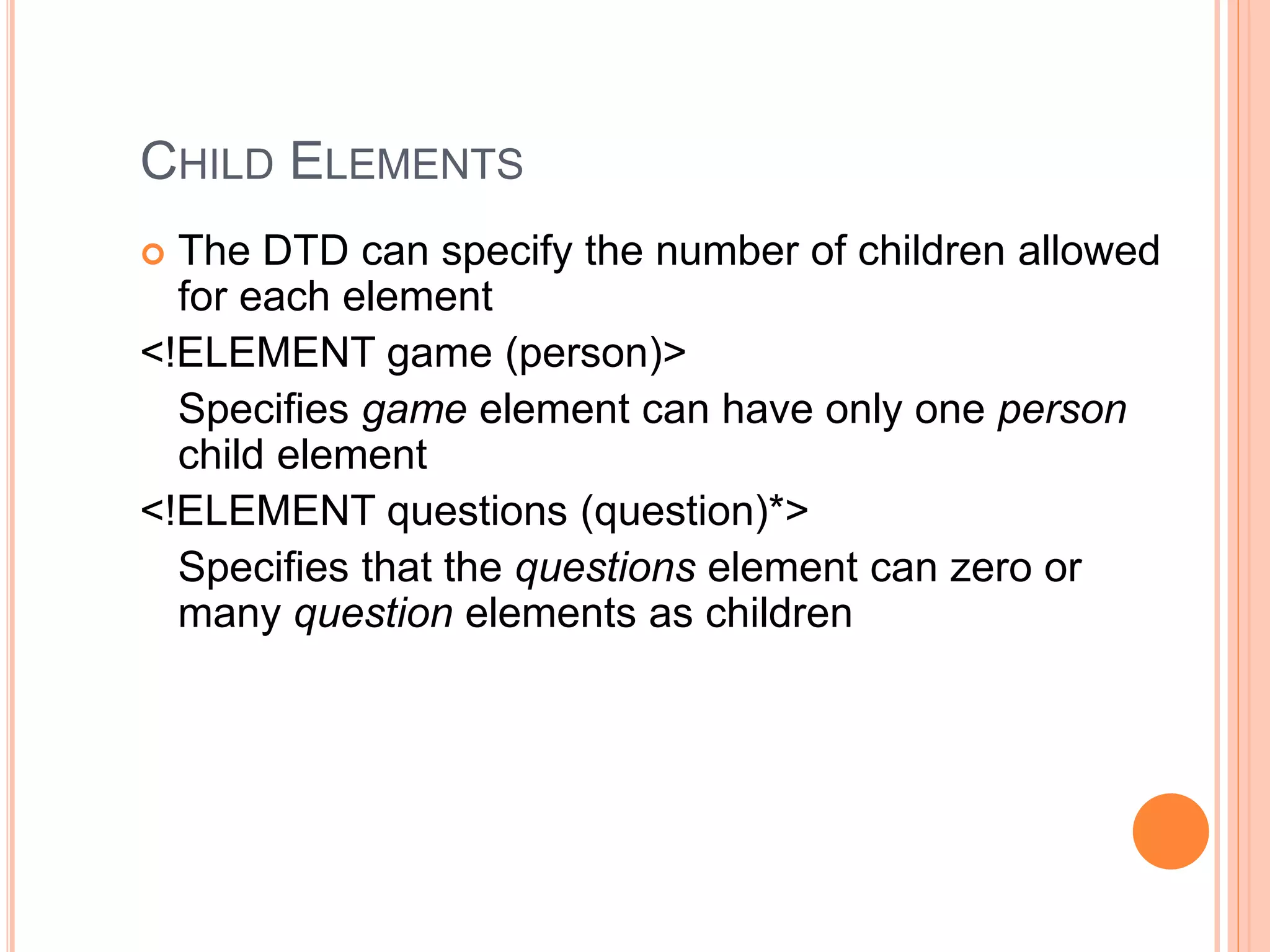

 The DTD can specify the number of children allowed
for each element
<!ELEMENT game (person)>
Specifies game element can have only one person
child element
<!ELEMENT questions (question)*>
Specifies that the questions element can zero or
many question elements as children

CHILD ELEMENTS
Element x or y can be present- but not bothx | y
Element x should be followed by element yx , y
There can be zero or one occurrence of the
element
?
There can be one or more occurrences of the
element
+
There can be zero or more occurrences of the
element
*

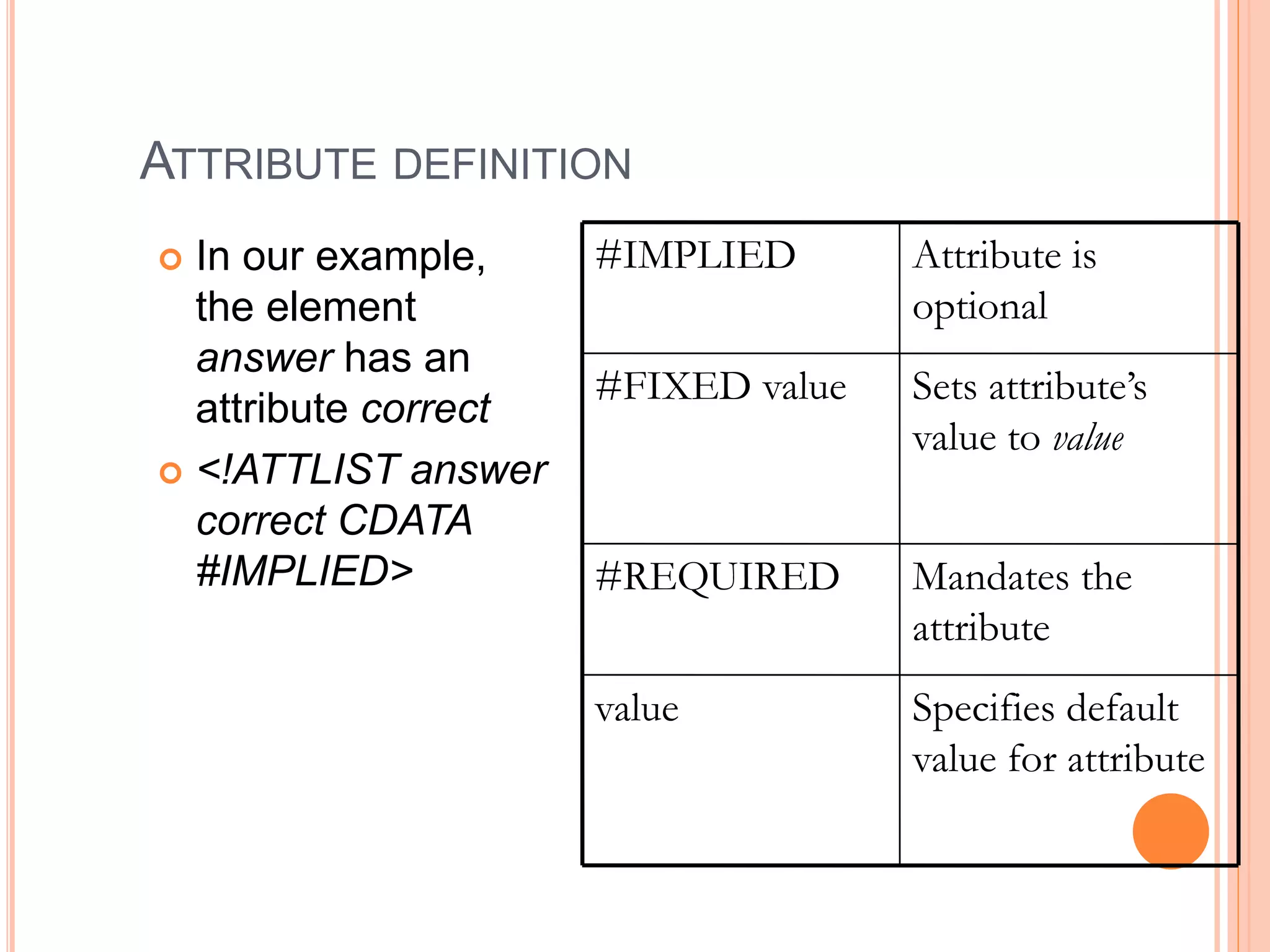

DescriptionNotation

ATTRIBUTE
 Attributes provide additional details for an element
 Attributes can be defined in a DTD using the following
notation
<!ATTLIST element_name attribute_name type
default_value

ATTRIBUTE DEFINITION
 In our example,
the element
answer has an
attribute correct
 <!ATTLIST answer
correct CDATA
#IMPLIED>
Specifies default
value for attribute
value
Mandates the
attribute
#REQUIRED
Sets attribute’s
value to value
#FIXED value
Attribute is
optional
#IMPLIED

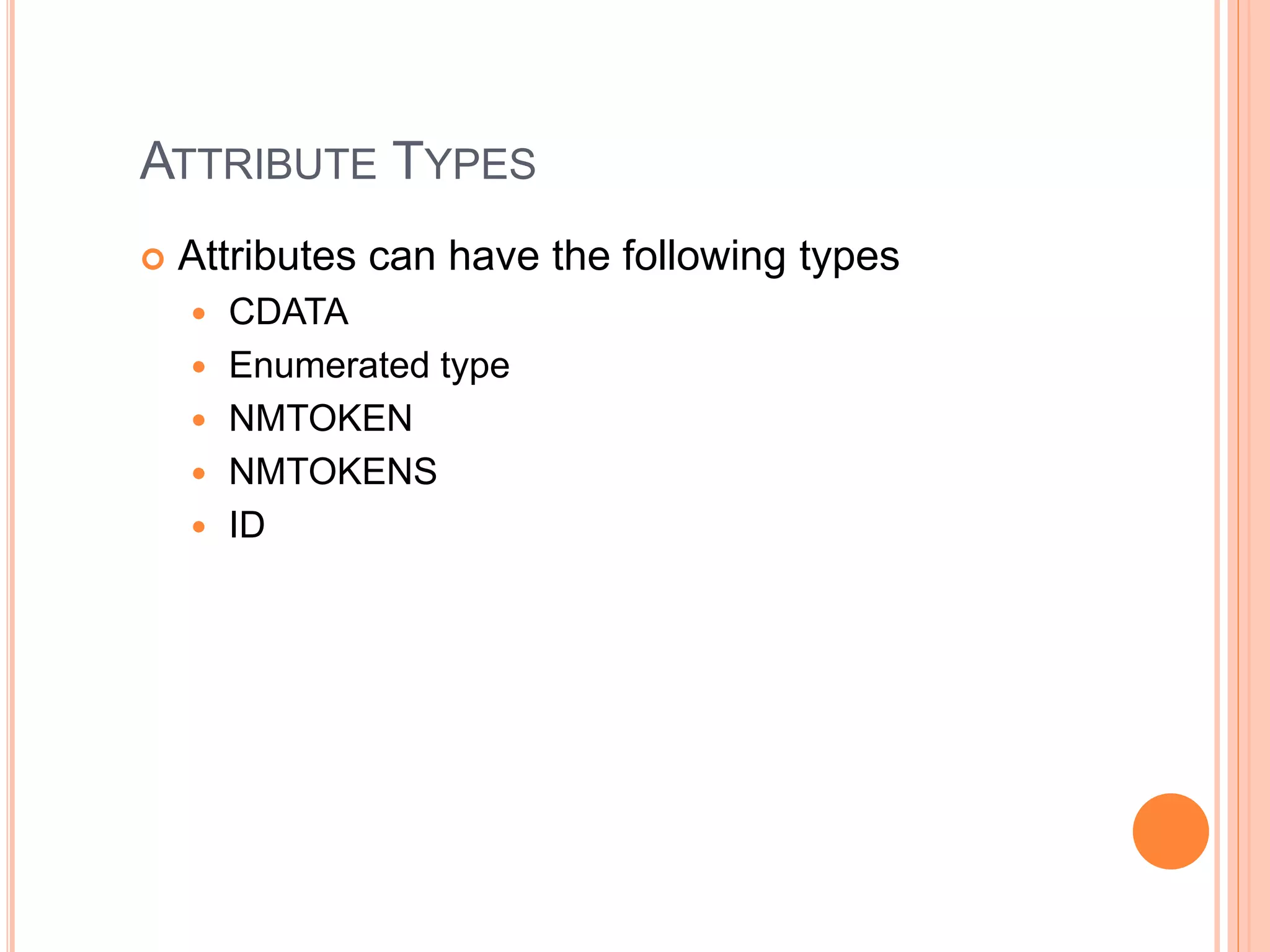

ATTRIBUTE TYPES
 Attributes can have the following types
 CDATA
 Enumerated type
 NMTOKEN
 NMTOKENS
 ID

ATTRIBUTE TYPES
 CDATA- allows character data that should not contain
special characters
 Enumerated types provides a comma separated list of
options.
 <!ATTLIST answer correct (true | false) #REQUIRED>
]>
 NMTOKEN are any name token that confirm to XML
standards
 NMTOKENS are a set of NMTOKENS seperated by
white space

ENTITY
 An entity in XML is just a data item
 Entities are usually text that are used quite often
across the document
 Entities can also be binary data
 Entities can be declared like
<!ENTITY name definition>

ENTITY
 Example
<!ENTITY copyright "(c) XML Power Corp. 2005">
 An entity can then be used in the document as
follows
<copy>&copyright;</copy>

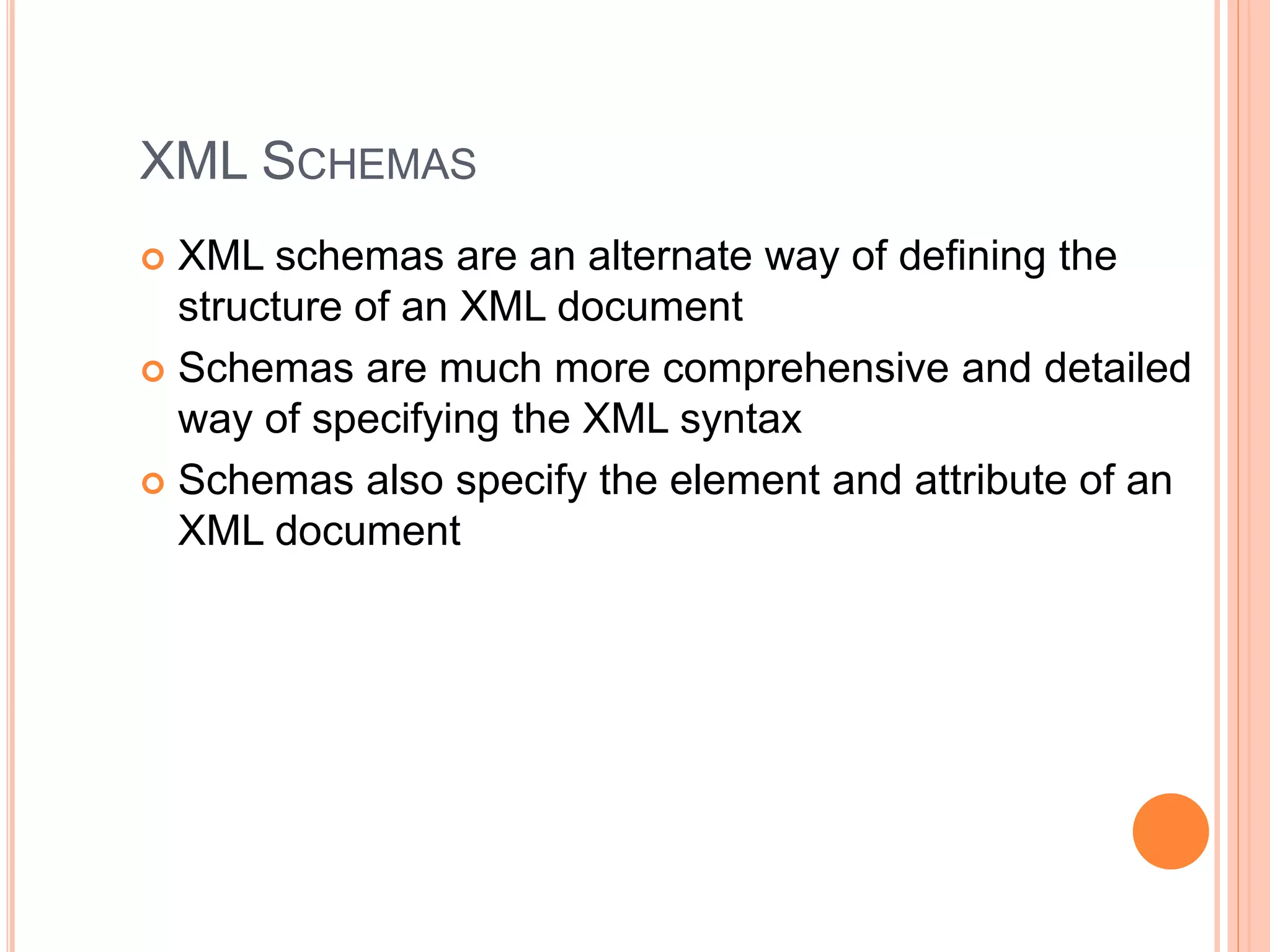

XML SCHEMAS
 XML schemas are an alternate way of defining the
structure of an XML document
 Schemas are much more comprehensive and detailed
way of specifying the XML syntax
 Schemas also specify the element and attribute of an
XML document

SCHEMA EXAMPLE
 The game XML document can be defined as
<?xml version="1.0" encoding="UTF-8"?>
<xsd:schema xmlns:xsd="http://www.w3.org/2001/XMLSchema">
<xsd:element name="game" type="gameType"/>
<xsd:complexType name="gameType">
<xsd:sequence>
<xsd:element name="person" minOccurs="1"/>
<xsd:element name="questions" type="questionType" minOccurs="1"/>
</xsd:sequence>
</xsd:complexType>
<xsd:complexType name="questionType">
<xsd:sequence>
<xsd:element ref="query"/>
<xsd:element name="answers" type="answersType"/>
</xsd:sequence>
</xsd:complexType>
<xsd:element name="query" type="xsd:string"/>
<xsd:complexType name="answersType">
<xsd:sequence>
<xsd:element name="answer" type="answerType"/>
</xsd:sequence>
</xsd:complexType>
<xsd:complexType name="answerType">
<xsd:attribute name="correct" type="xsd:string" use="optional"/>
</xsd:complexType>
</xsd:schema>

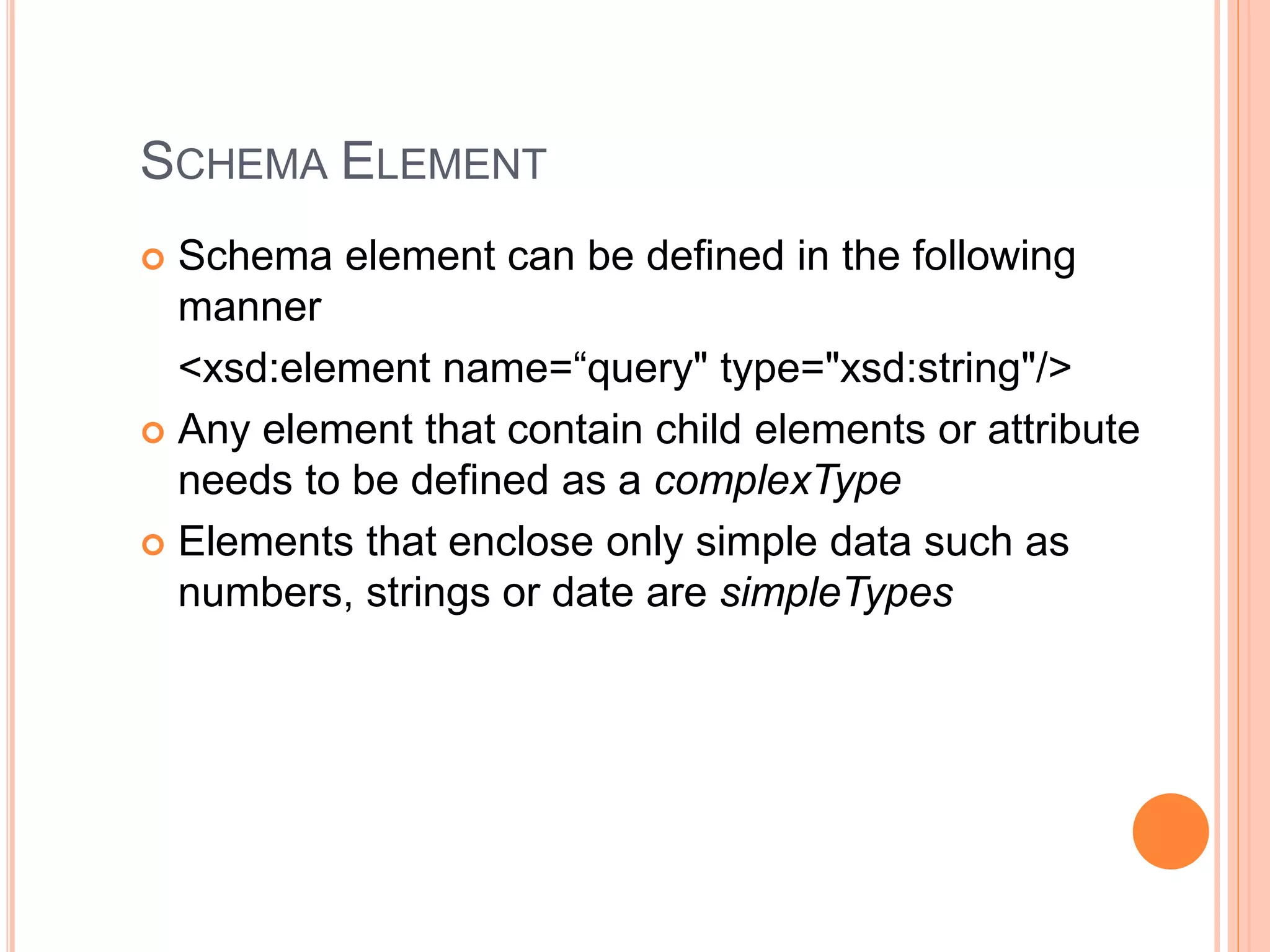

SCHEMA ELEMENT
 Schema element can be defined in the following
manner
<xsd:element name=“query" type="xsd:string"/>
 Any element that contain child elements or attribute
needs to be defined as a complexType
 Elements that enclose only simple data such as
numbers, strings or date are simpleTypes

SCHEMA ELEMENT
 There are some built-in simple schema types like
 String
 anyURI
 Boolean
 Date
 dateTime
 <xsd:sequence> element specifies the sequence of
the elements

NUMBER OF ELEMENTS
 The person element has a minOccurs attribute to
specify that it will occur at least once
 To make an element option, minOccurs should be 0
 To make it appear from 0 to 10 times, then we can
use minOccurs=“0” and maxOccurs=“10”
 To specify unlimited number of occurances, set
maxOccurs=“unbounded”

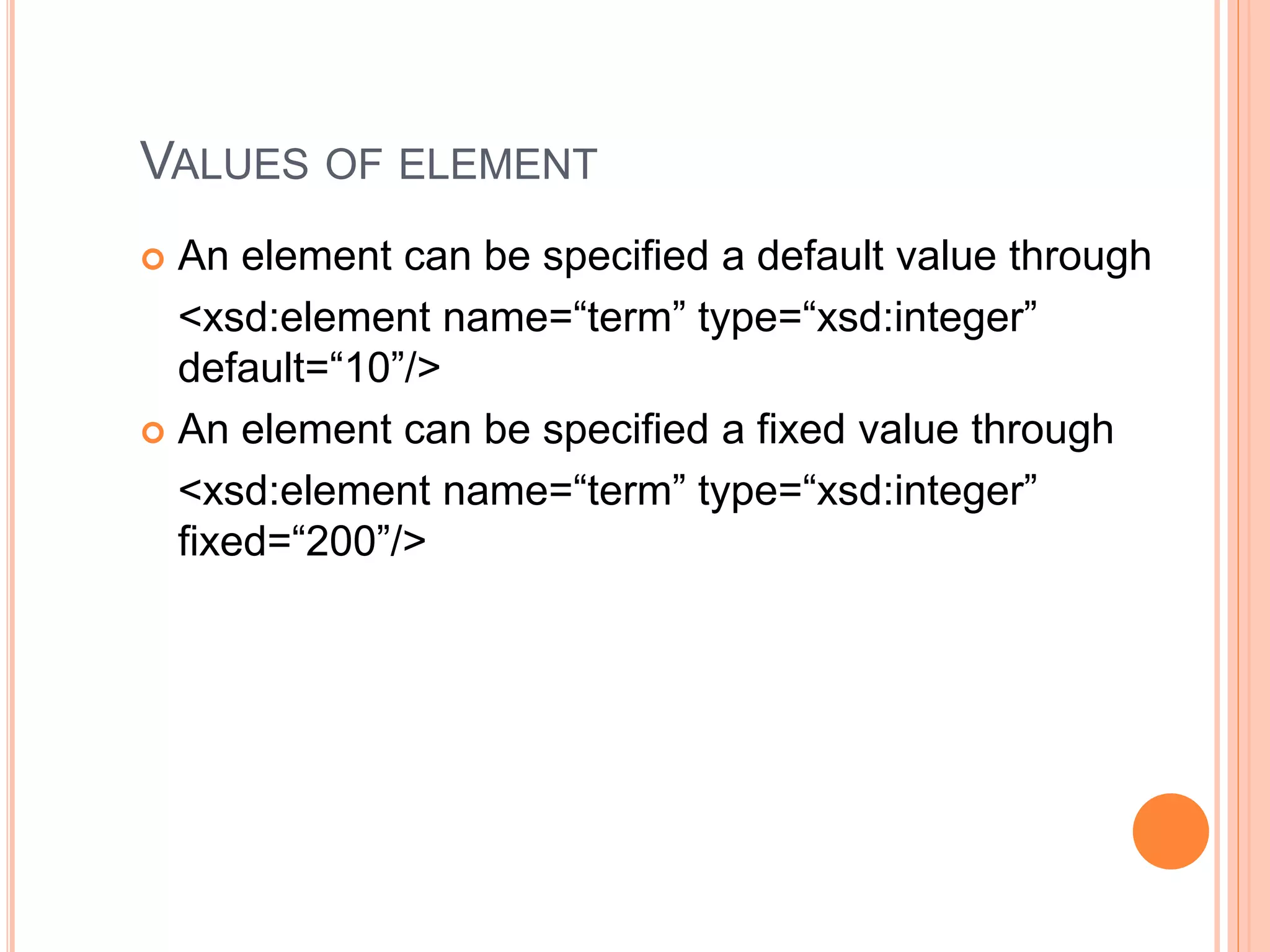

VALUES OF ELEMENT
 An element can be specified a default value through
<xsd:element name=“term” type=“xsd:integer”
default=“10”/>
 An element can be specified a fixed value through
<xsd:element name=“term” type=“xsd:integer”
fixed=“200”/>

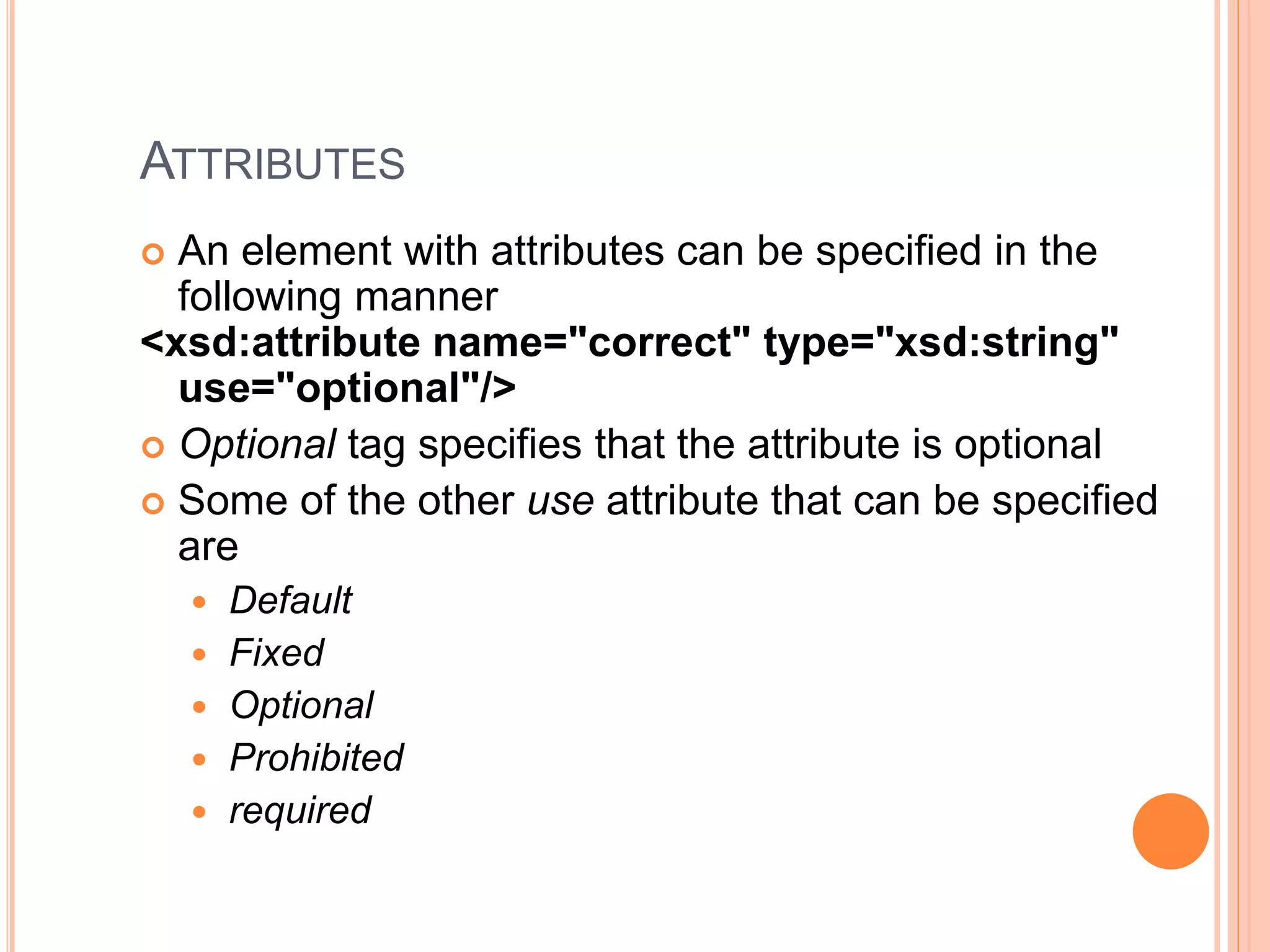

ATTRIBUTES
 An element with attributes can be specified in the
following manner
<xsd:attribute name="correct" type="xsd:string"
use="optional"/>
 Optional tag specifies that the attribute is optional
 Some of the other use attribute that can be specified
are
 Default
 Fixed
 Optional
 Prohibited
 required

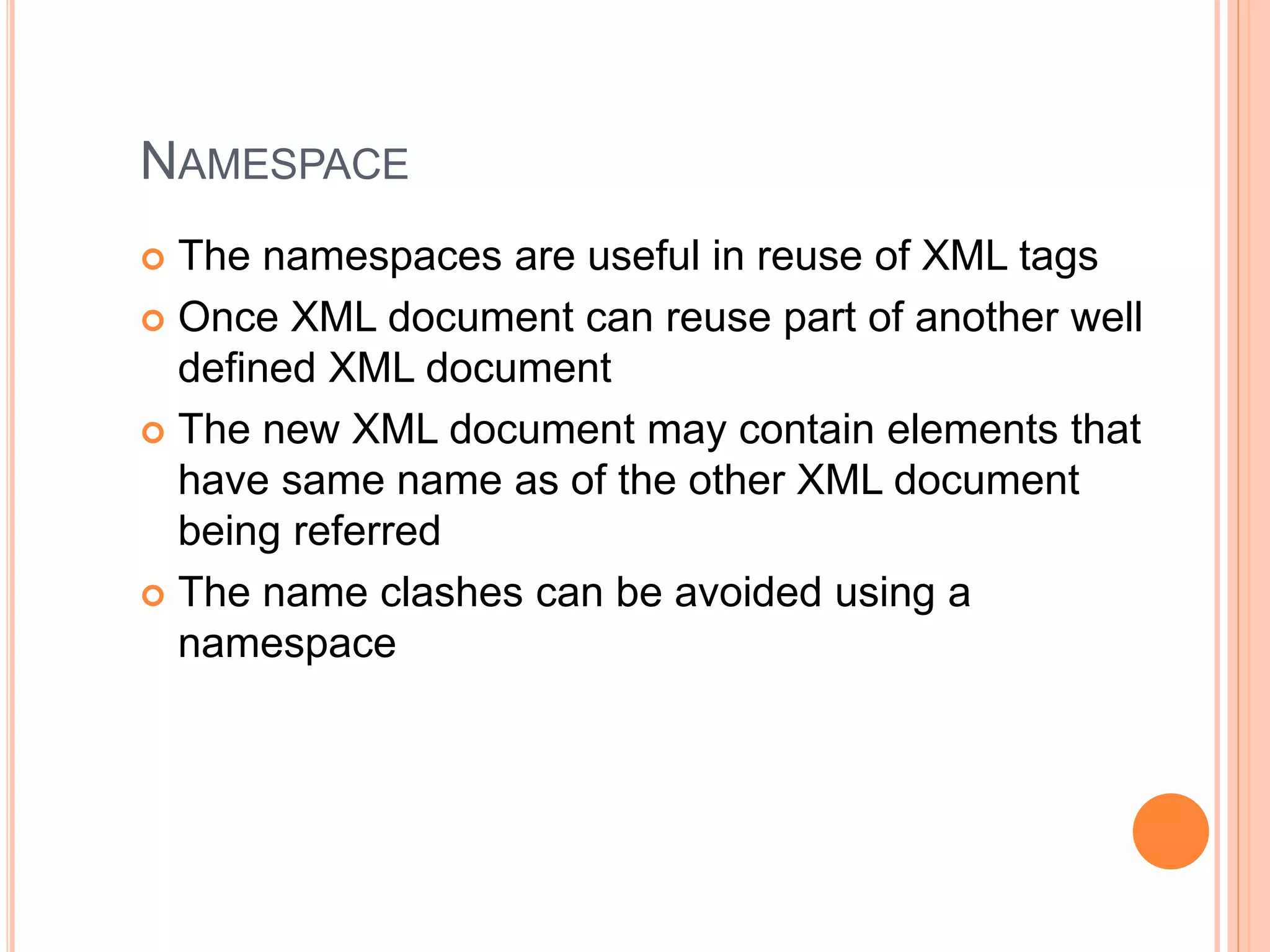

NAMESPACE
 The namespaces are useful in reuse of XML tags
 Once XML document can reuse part of another well
defined XML document
 The new XML document may contain elements that
have same name as of the other XML document
being referred
 The name clashes can be avoided using a
namespace

NAMESPACE
 The namespace for an XML document can be defined
using the targetNamespace attribute of the schema
element
<xsd:schema targetNamespace="http://xmlpowercorp"
xmlns="http://xmlpowercorp"
xmlns:xsd="http://www.w3.org/2001/XMLSchema"
attributeFormDefault="qualified" elementFormDefault

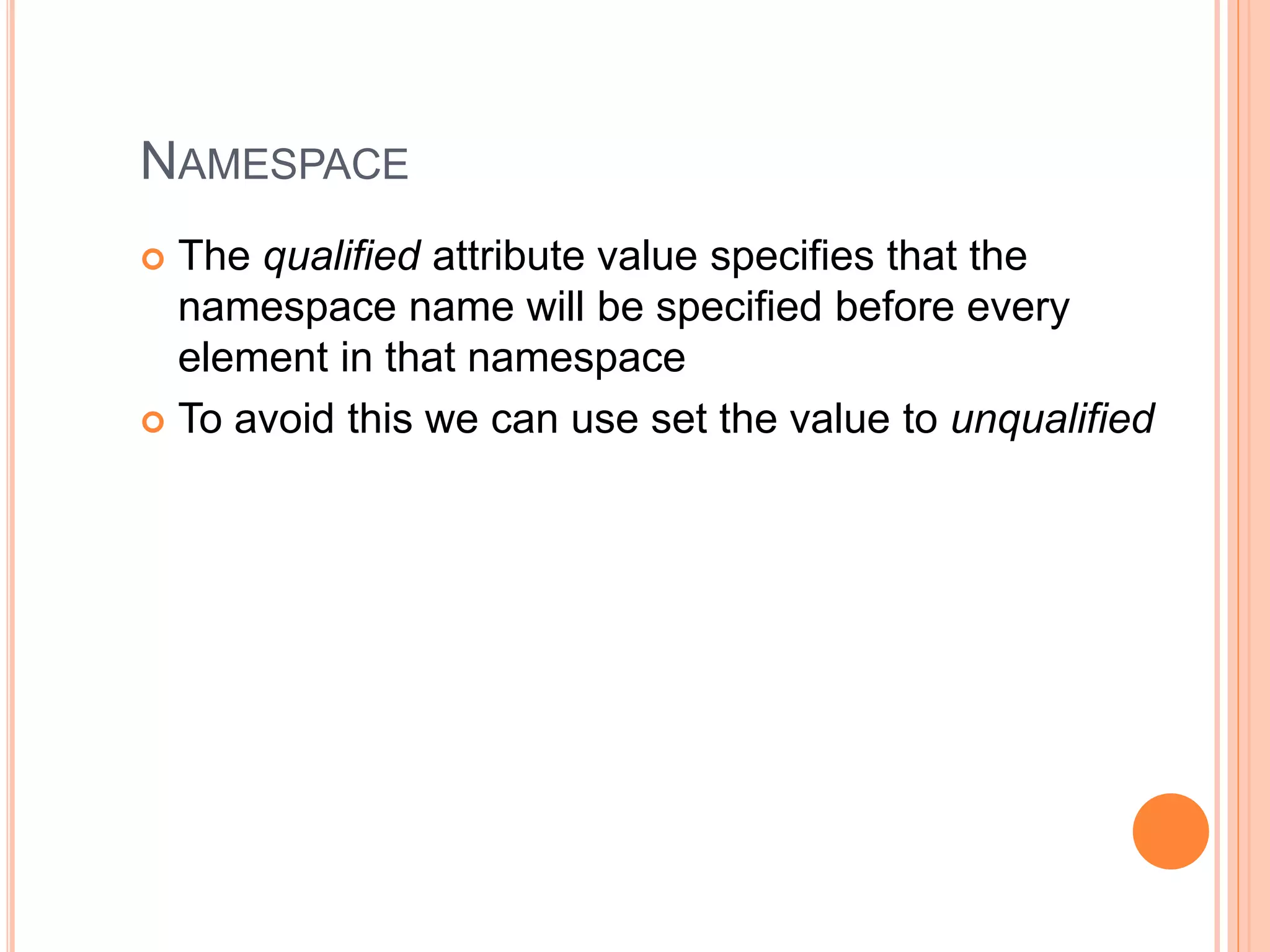

NAMESPACE
 The qualified attribute value specifies that the
namespace name will be specified before every
element in that namespace
 To avoid this we can use set the value to unqualified

UNQUALIFIED NAMESPACE
<xsd:schema xmlns:xsd="http://www.w3.org/2001/XMLSchema"
targetNamespace="http://xmlpowercorp"
elementFormDefault="unqualified"
attributeFormDefault="unqualified>
<xsd:element name="game" type="gameType"/>
<xsd:sequence>
<xsd:element name="questions" type="questionType"
minOccurs="1"/>
</xsd:sequence>
<xsd:attribute name="documentDate" type="xsd:date"/>
</xsd:complexType>
In this case, the parser will assume that all elements are to be found in the default
namespace, which will create problem in this case for questionType

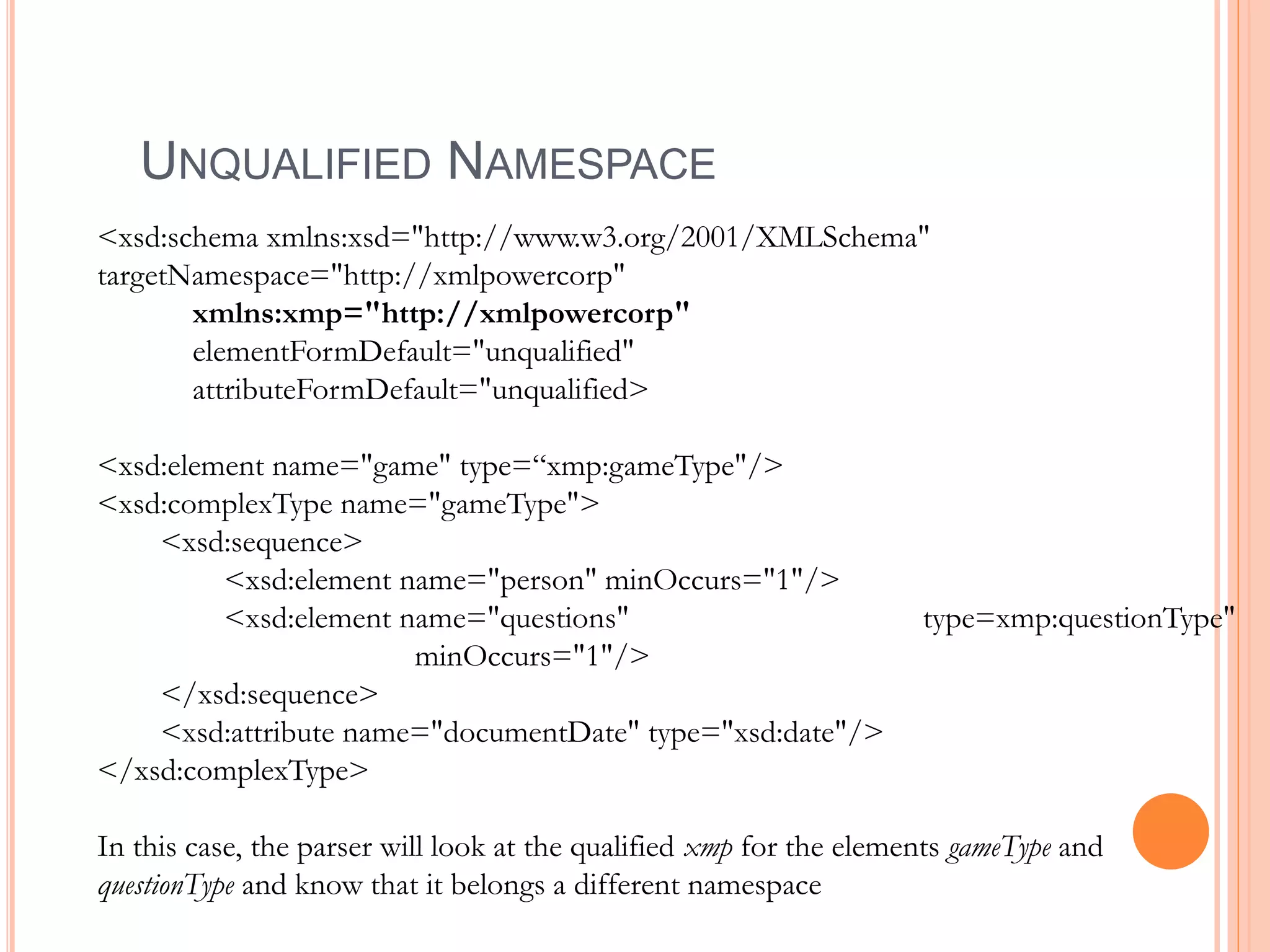

UNQUALIFIED NAMESPACE
<xsd:schema xmlns:xsd="http://www.w3.org/2001/XMLSchema"
targetNamespace="http://xmlpowercorp"
xmlns:xmp="http://xmlpowercorp"
elementFormDefault="unqualified"
attributeFormDefault="unqualified>
<xsd:element name="game" type=“xmp:gameType"/>
<xsd:sequence>
<xsd:element name="questions" type=xmp:questionType"
minOccurs="1"/>
</xsd:sequence>
<xsd:attribute name="documentDate" type="xsd:date"/>
</xsd:complexType>
In this case, the parser will look at the qualified xmp for the elements gameType and
questionType and know that it belongs a different namespace

Basics of Xml

More Related Content

What's hot

Similar to Basics of Xml

Recently uploaded

Basics of Xml
