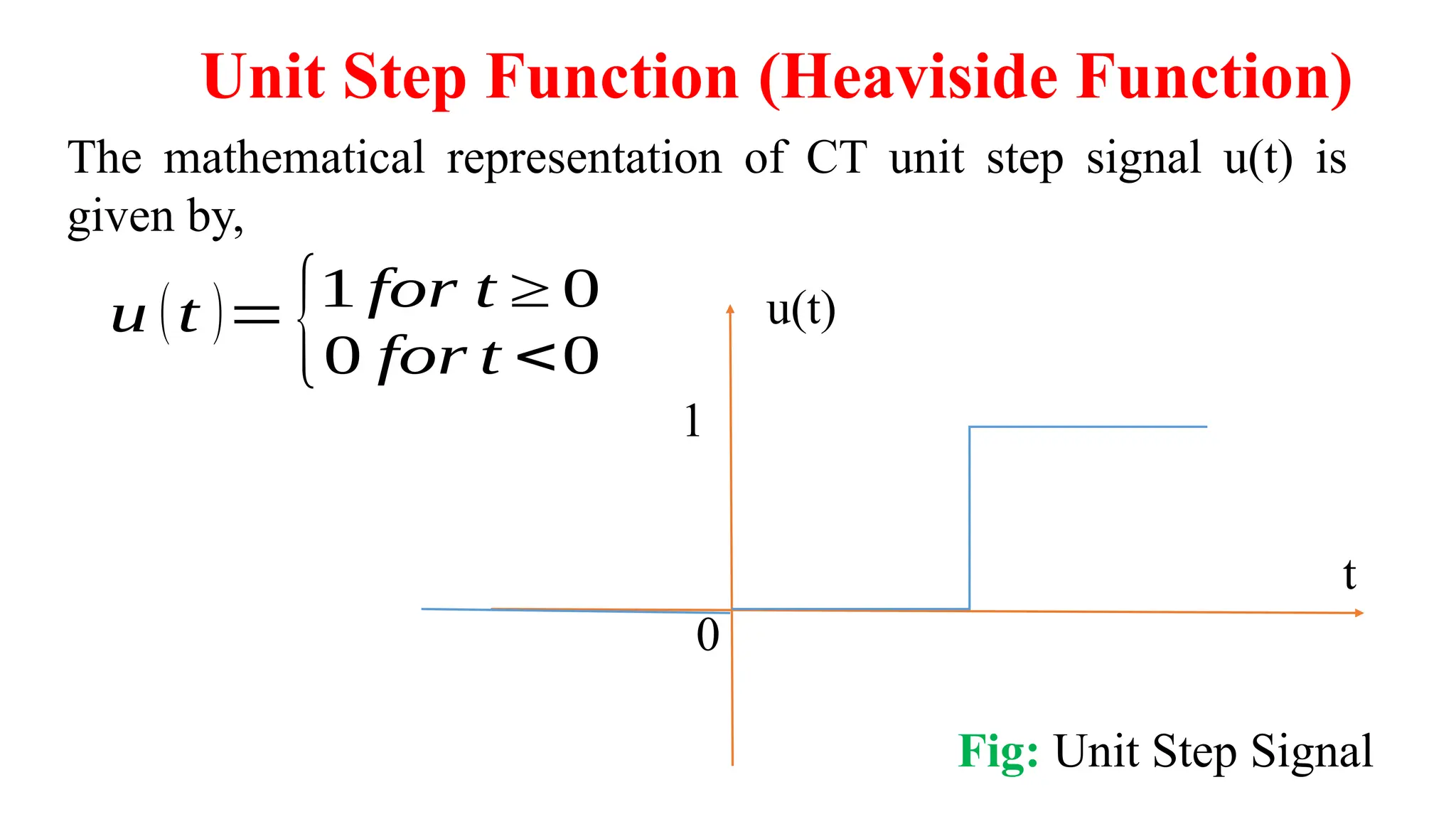

1. t
u(t)
0
1
Fig: Unit Step Signal
The mathematical representation of CT unit step signal u(t) is
given by,
u (t )=
{1 for t ≥ 0
0 for t <0
Unit Step Function (Heaviside Function)

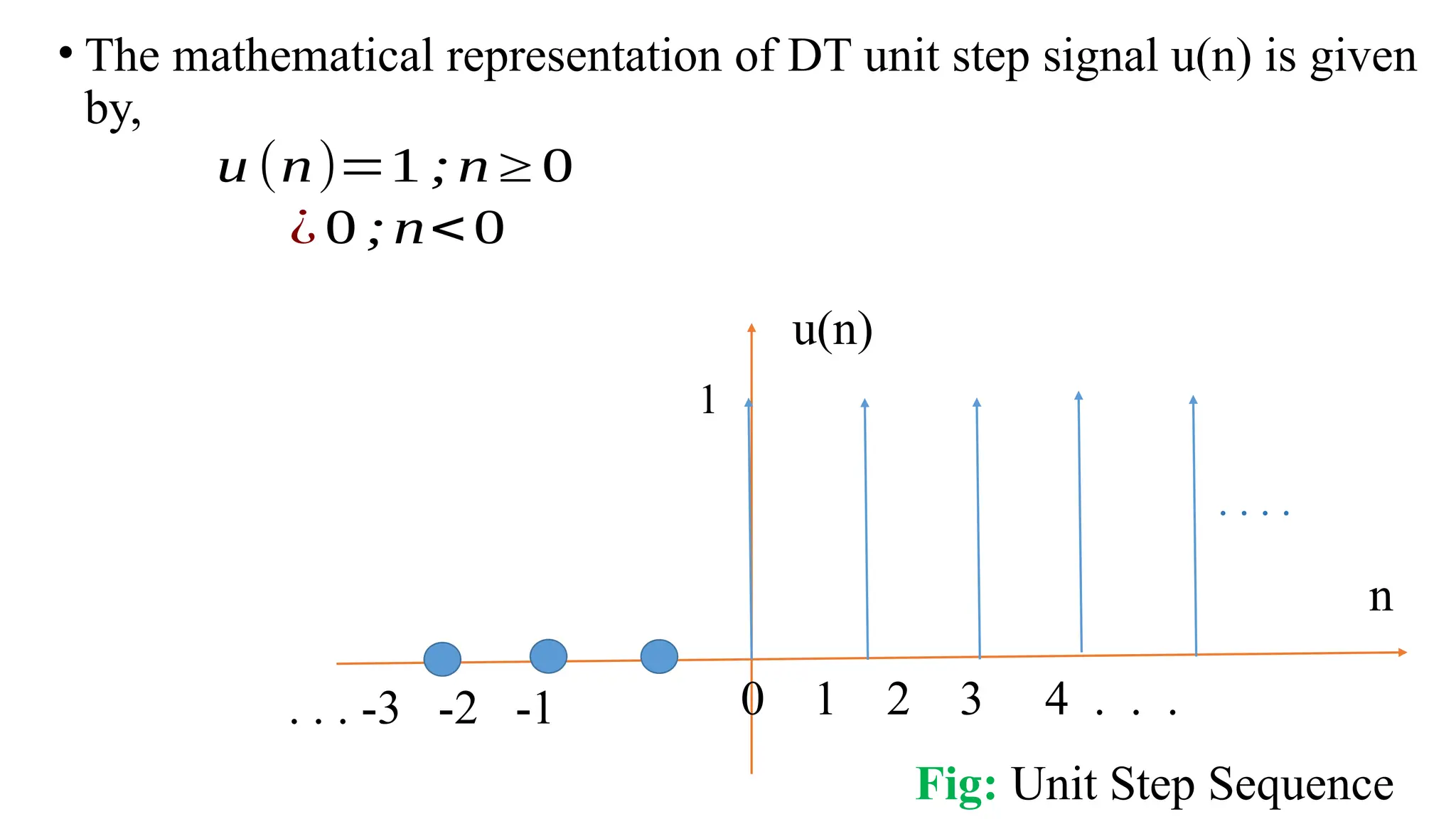

2. • The mathematical representation of DT unit step signal u(n) is given
by,
u (n)=1 ;n ≥ 0
¿ 0 ;n<0
n
u(n)
0 1 2 3 4 . . .
. . . .
1
. . . -3 -2 -1
Fig: Unit Step Sequence

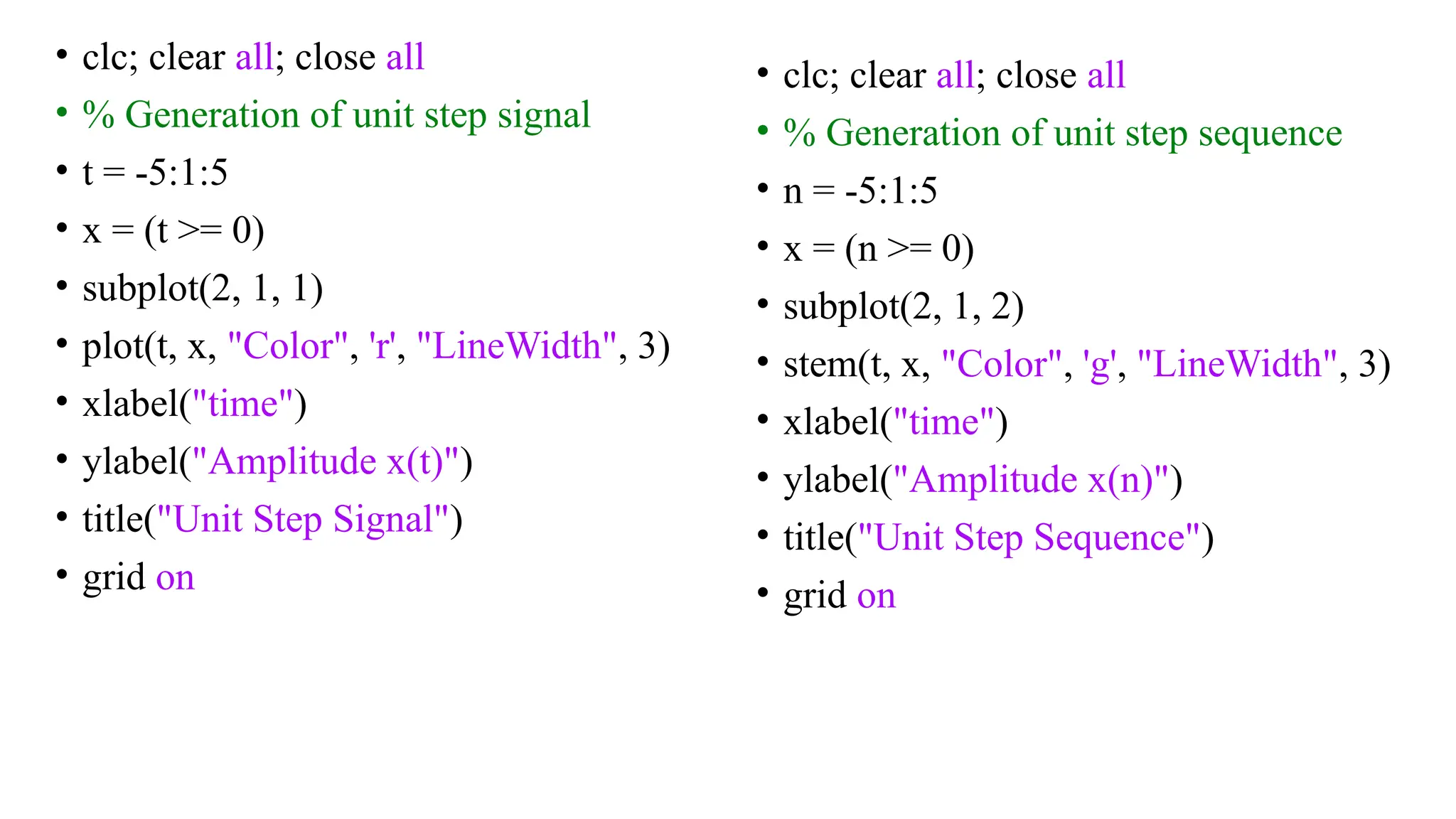

3. • clc; clear all; close all
• % Generation of unit step signal
• t = -5:1:5
• x = (t >= 0)
• subplot(2, 1, 1)
• plot(t, x, "Color", 'r', "LineWidth", 3)
• xlabel("time")
• ylabel("Amplitude x(t)")
• title("Unit Step Signal")
• grid on
• clc; clear all; close all
• % Generation of unit step sequence
• n = -5:1:5
• x = (n >= 0)
• subplot(2, 1, 2)
• stem(t, x, "Color", 'g', "LineWidth", 3)
• xlabel("time")
• ylabel("Amplitude x(n)")
• title("Unit Step Sequence")
• grid on

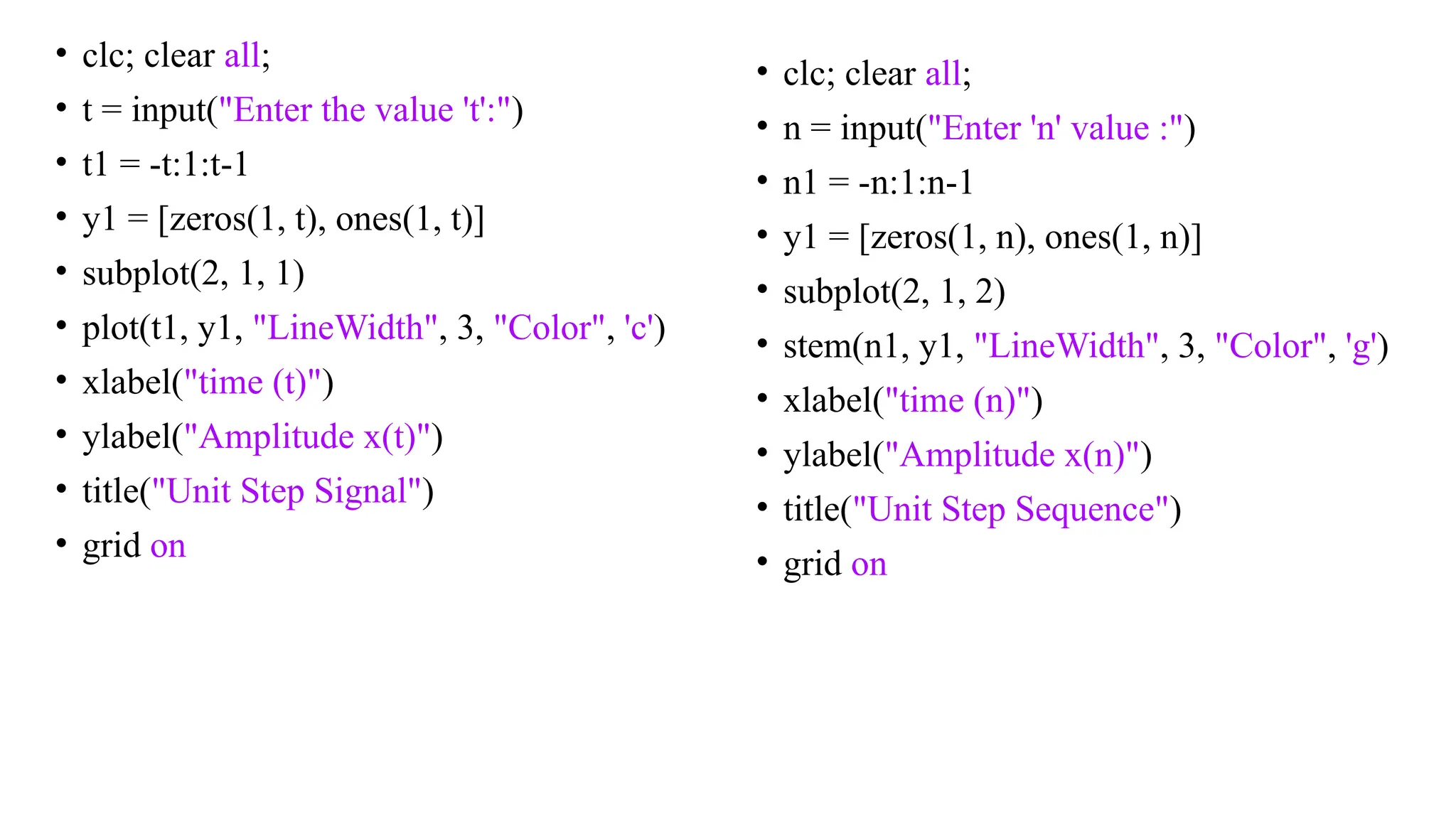

4. • clc; clear all;
• t = input("Enter the value 't':")
• t1 = -t:1:t-1
• y1 = [zeros(1, t), ones(1, t)]
• subplot(2, 1, 1)
• plot(t1, y1, "LineWidth", 3, "Color", 'c')
• xlabel("time (t)")
• ylabel("Amplitude x(t)")
• title("Unit Step Signal")
• grid on
• clc; clear all;
• n = input("Enter 'n' value :")
• n1 = -n:1:n-1
• y1 = [zeros(1, n), ones(1, n)]
• subplot(2, 1, 2)
• stem(n1, y1, "LineWidth", 3, "Color", 'g')
• xlabel("time (n)")
• ylabel("Amplitude x(n)")
• title("Unit Step Sequence")
• grid on

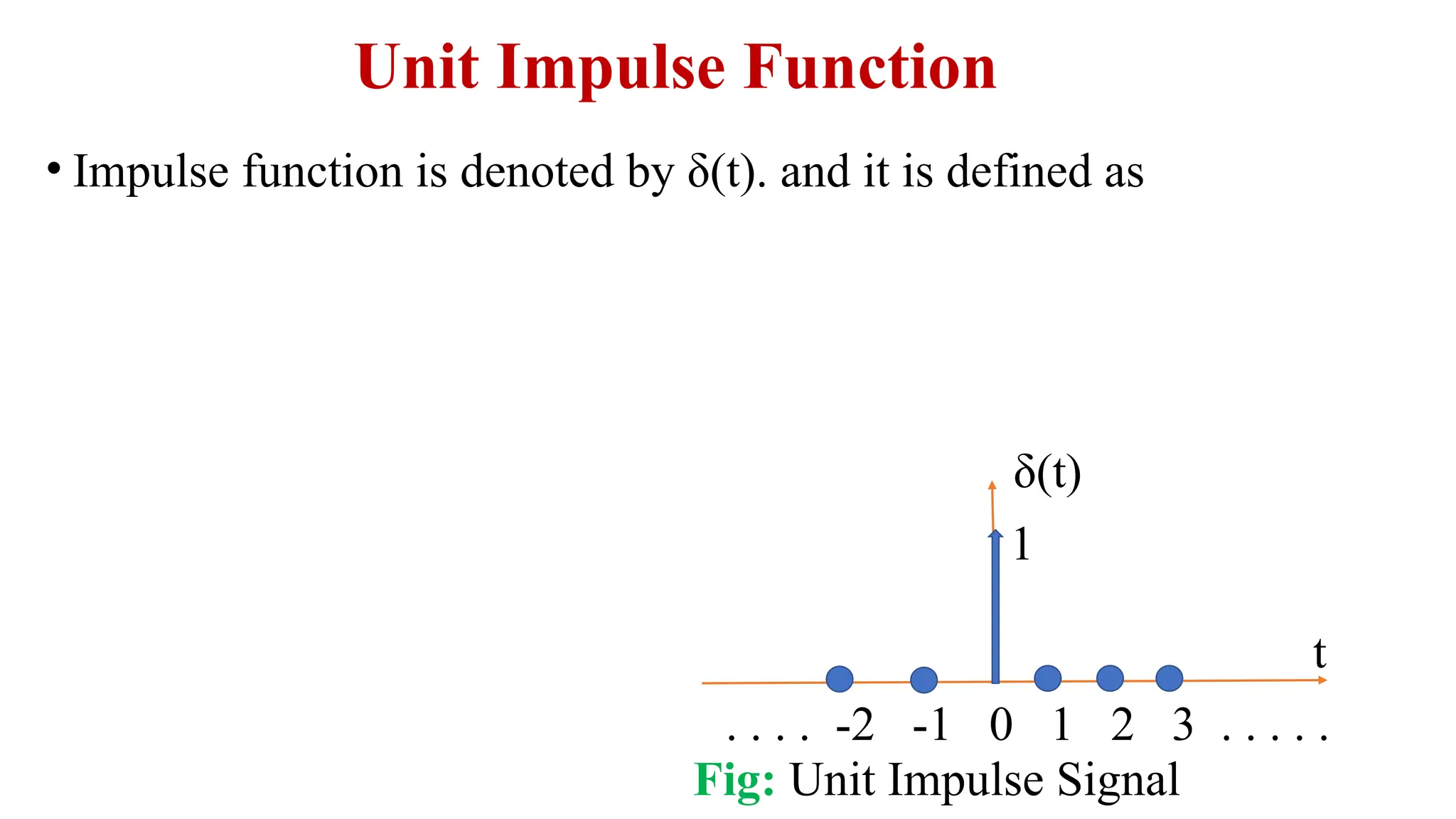

5. Unit Impulse Function
• Impulse function is denoted by δ(t). and it is defined as
t
δ(t)
1
. . . . -2 -1 0 1 2 3 . . . . .
Fig: Unit Impulse Signal

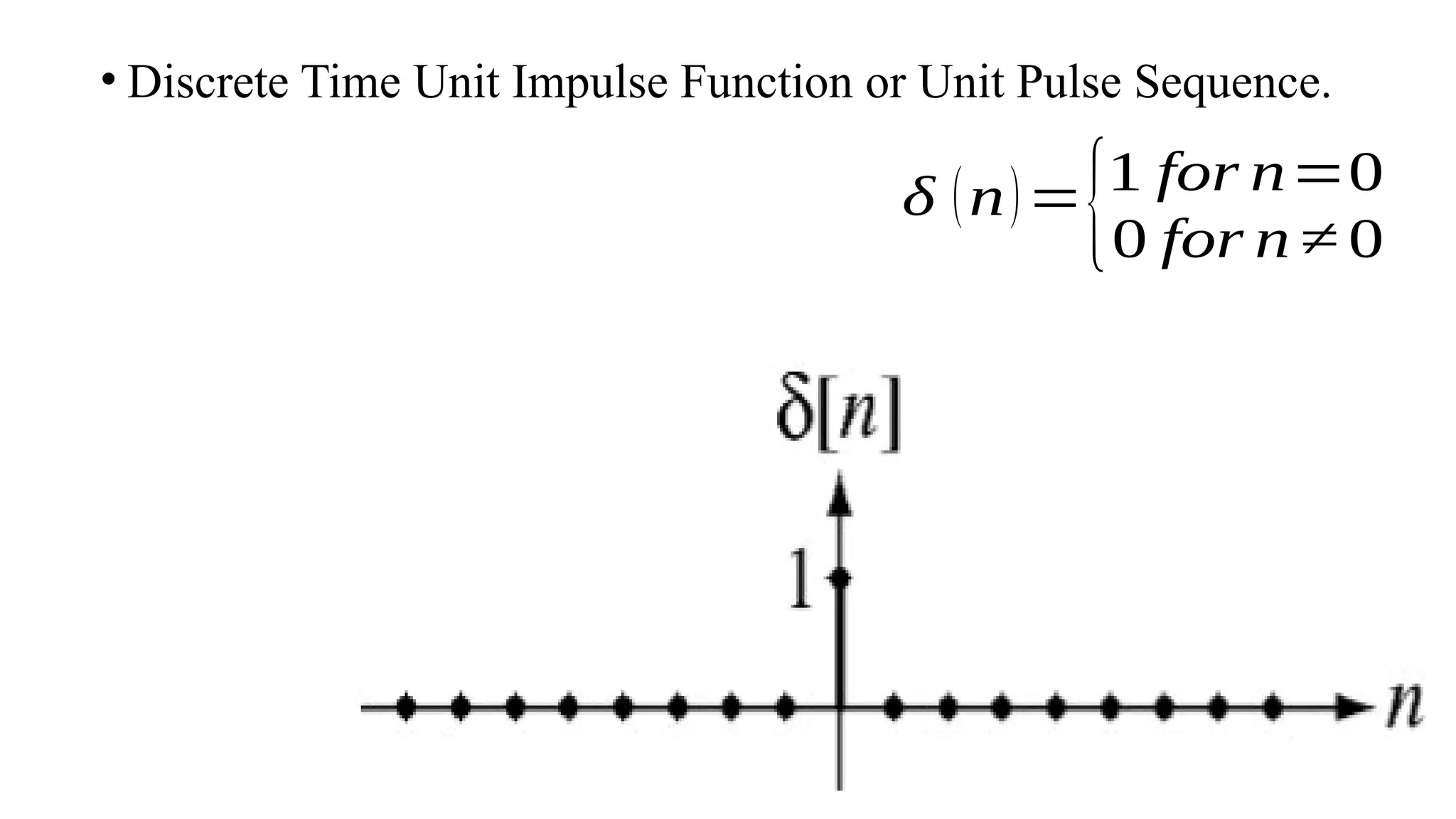

6. • Discrete Time Unit Impulse Function or Unit Pulse Sequence.
δ (n)=
{1 for n=0
0 for n ≠ 0

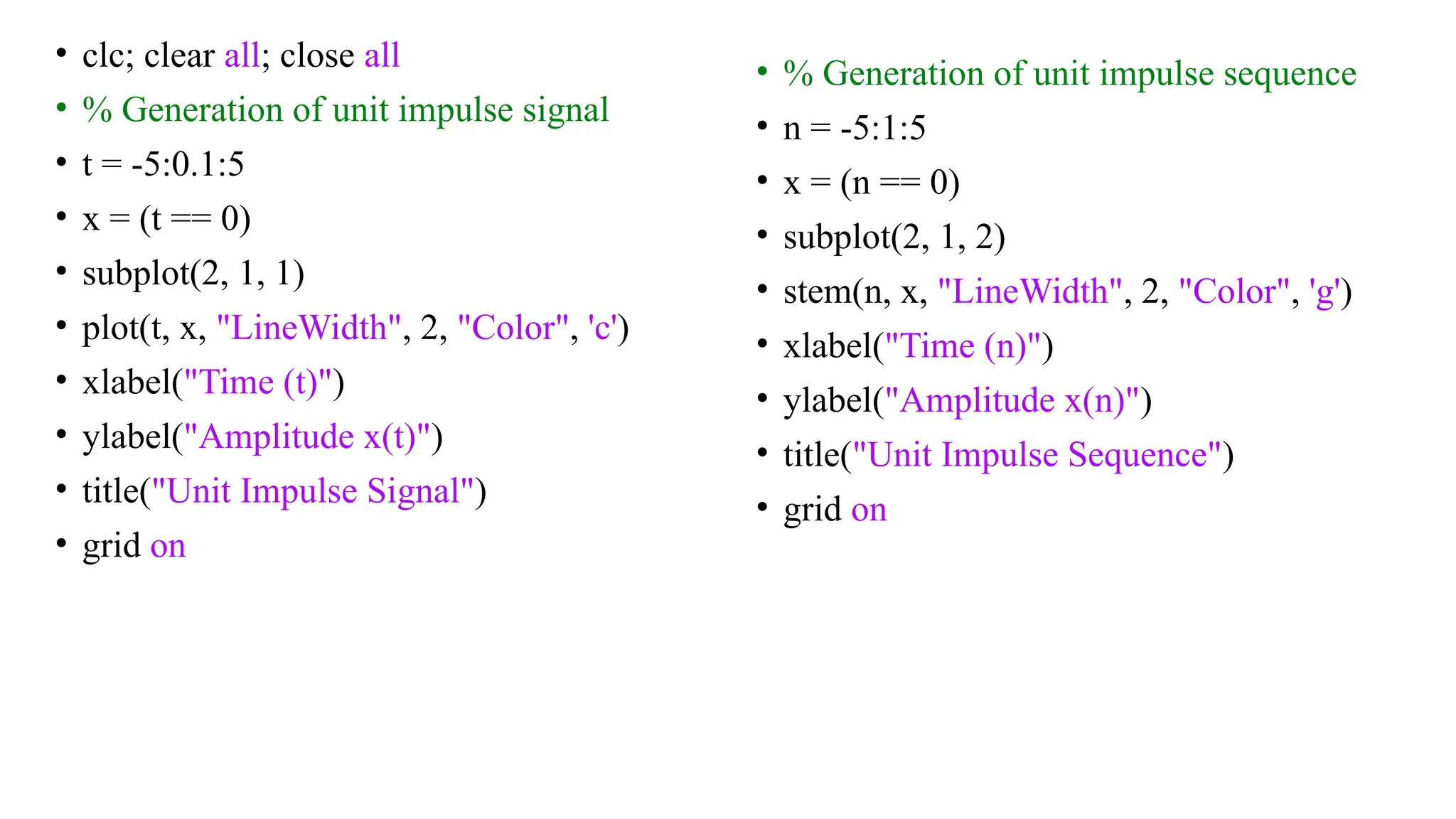

7. • clc; clear all; close all
• % Generation of unit impulse signal
• t = -5:0.1:5
• x = (t == 0)
• subplot(2, 1, 1)
• plot(t, x, "LineWidth", 2, "Color", 'c')
• xlabel("Time (t)")
• ylabel("Amplitude x(t)")
• title("Unit Impulse Signal")
• grid on
• % Generation of unit impulse sequence
• n = -5:1:5
• x = (n == 0)
• subplot(2, 1, 2)
• stem(n, x, "LineWidth", 2, "Color", 'g')
• xlabel("Time (n)")
• ylabel("Amplitude x(n)")
• title("Unit Impulse Sequence")
• grid on

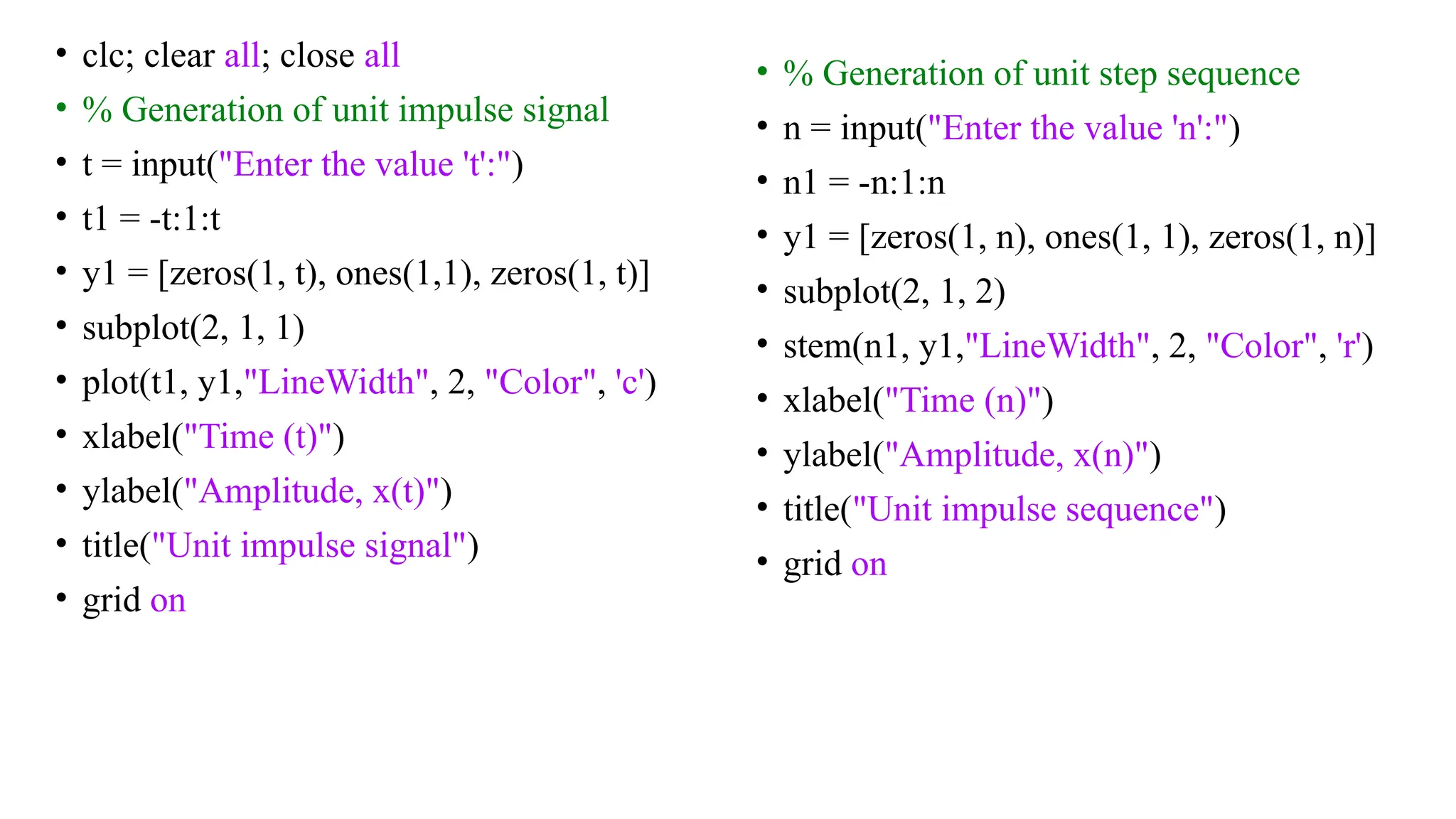

8. • clc; clear all; close all
• % Generation of unit impulse signal
• t = input("Enter the value 't':")
• t1 = -t:1:t
• y1 = [zeros(1, t), ones(1,1), zeros(1, t)]
• subplot(2, 1, 1)
• plot(t1, y1,"LineWidth", 2, "Color", 'c')
• xlabel("Time (t)")
• ylabel("Amplitude, x(t)")
• title("Unit impulse signal")
• grid on
• % Generation of unit step sequence
• n = input("Enter the value 'n':")
• n1 = -n:1:n
• y1 = [zeros(1, n), ones(1, 1), zeros(1, n)]
• subplot(2, 1, 2)
• stem(n1, y1,"LineWidth", 2, "Color", 'r')
• xlabel("Time (n)")
• ylabel("Amplitude, x(n)")
• title("Unit impulse sequence")
• grid on

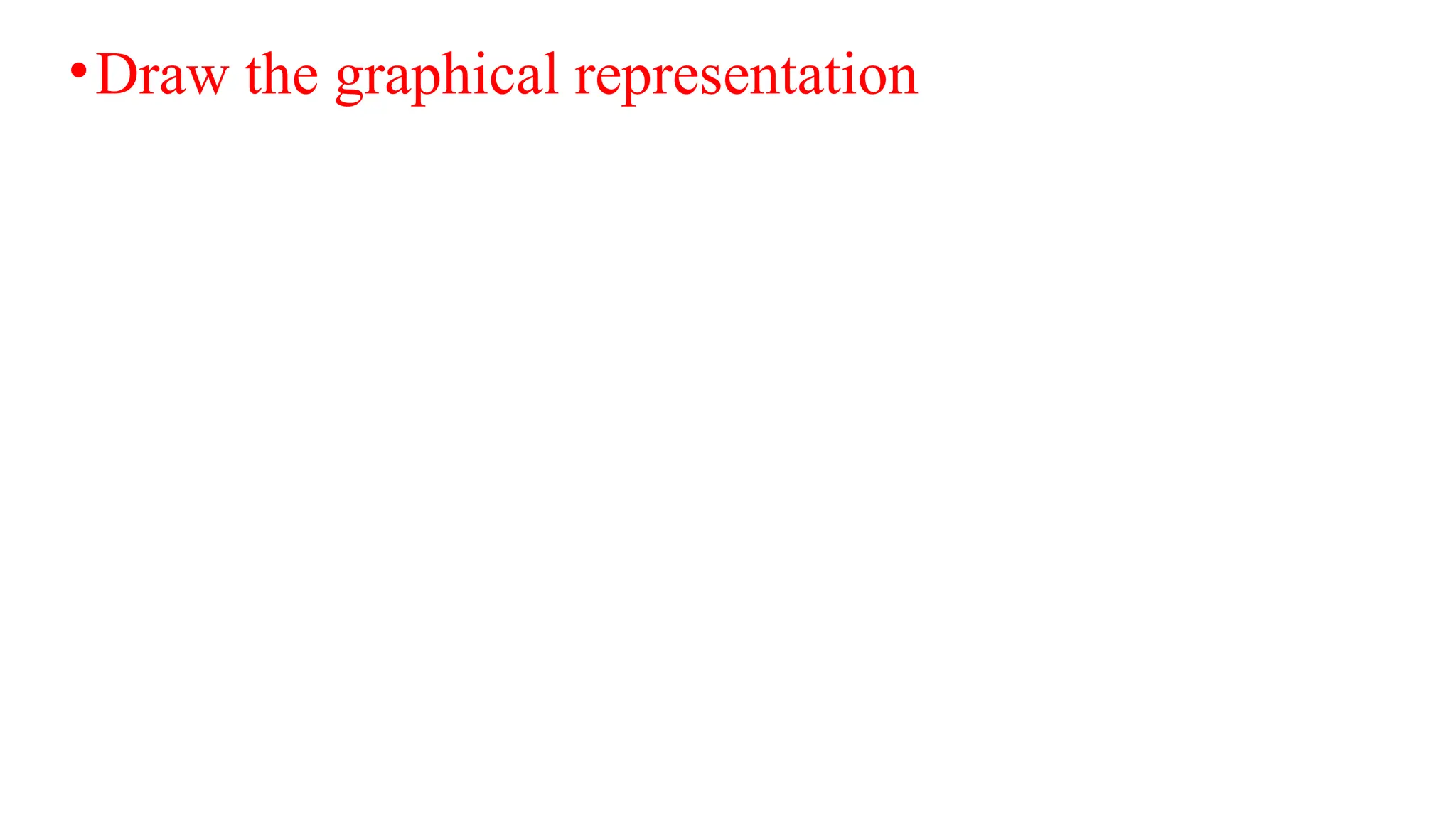

10. •Draw the graphical representation

11. t
u(t)
0
1
Fig: Unit Step Signal
u (t )=
{1 for t ≥ 0
0 for t <0
a ¿ u ( t )

12. t
u(-t)
0
1
Fig: Unit Step Signal
u (− t)=1 for − t ≥ 0=⇒ t ≤ 0
b ¿ u (− t )
𝐮 (𝐭)={𝟏𝐟𝐨𝐫 𝐭 ≥𝟎
𝟎𝐟𝐨𝐫 𝐭<𝟎

13. c ¿ − u ( t )

14. t
0
d ¿ − u (− t )
t
0

15. t
0
e ¿ u ( t + 2 )

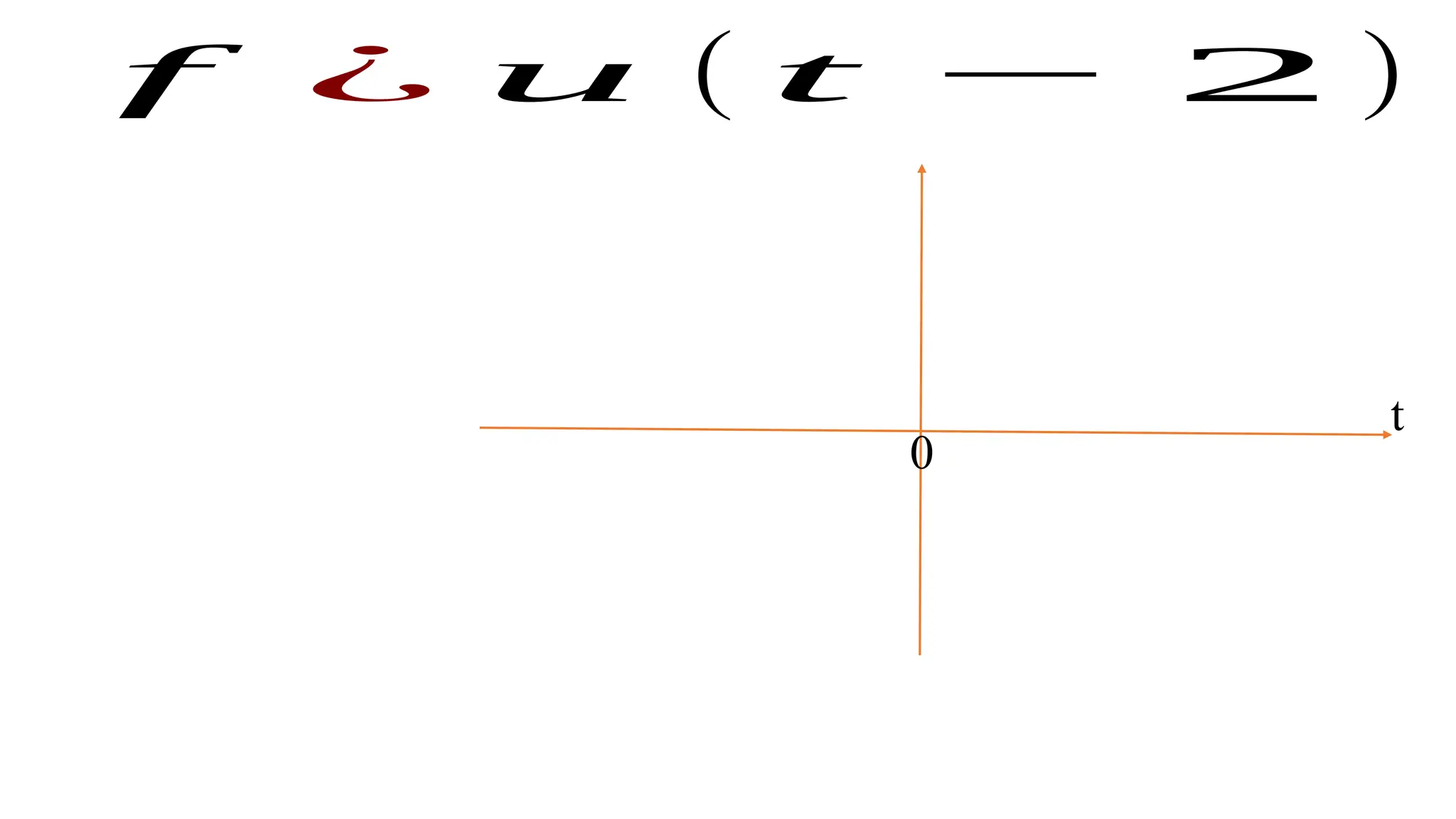

16. t
0
f ¿ u ( t − 2 )

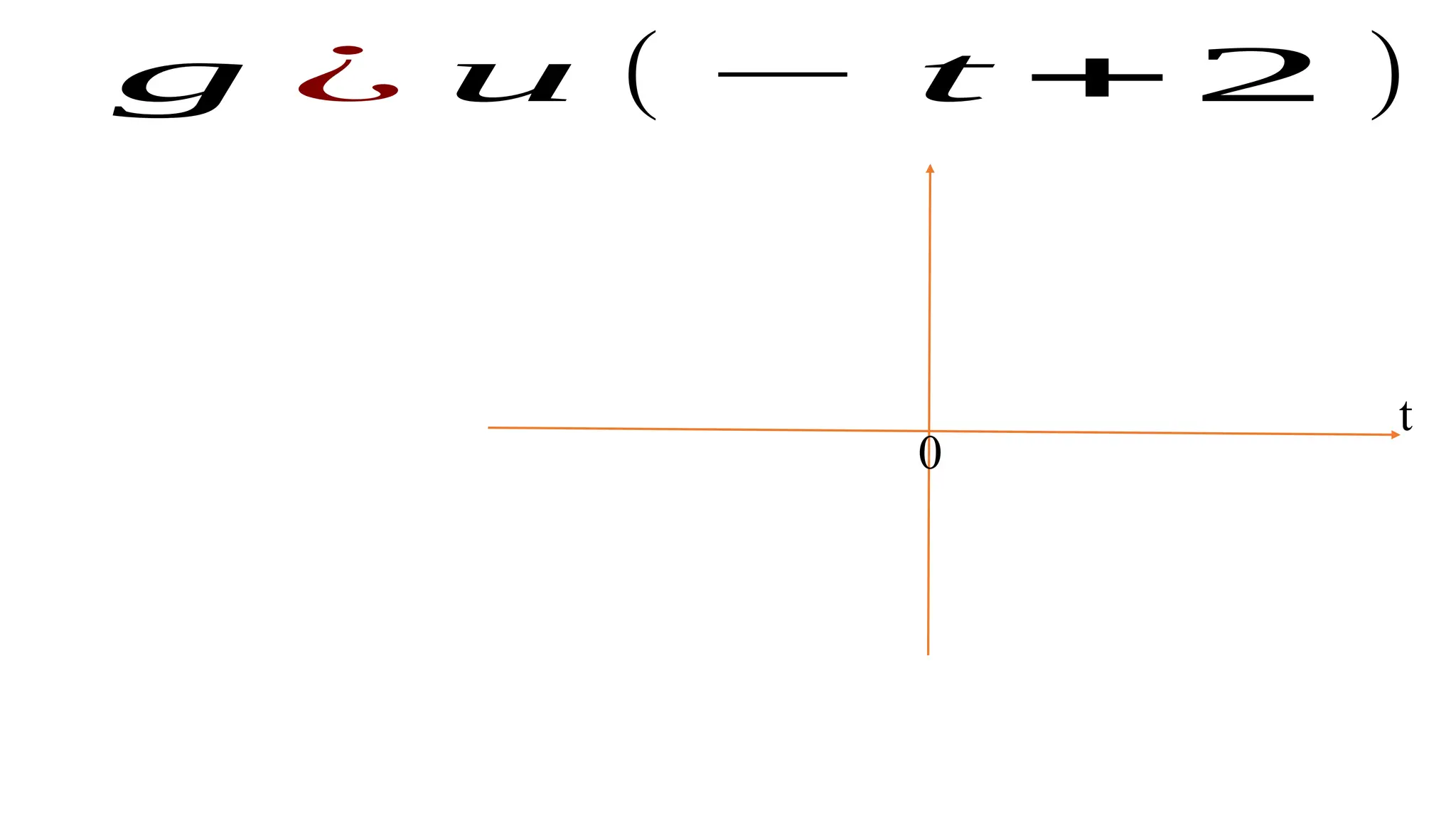

17. t
0
g ¿ u ( − t + 2 )

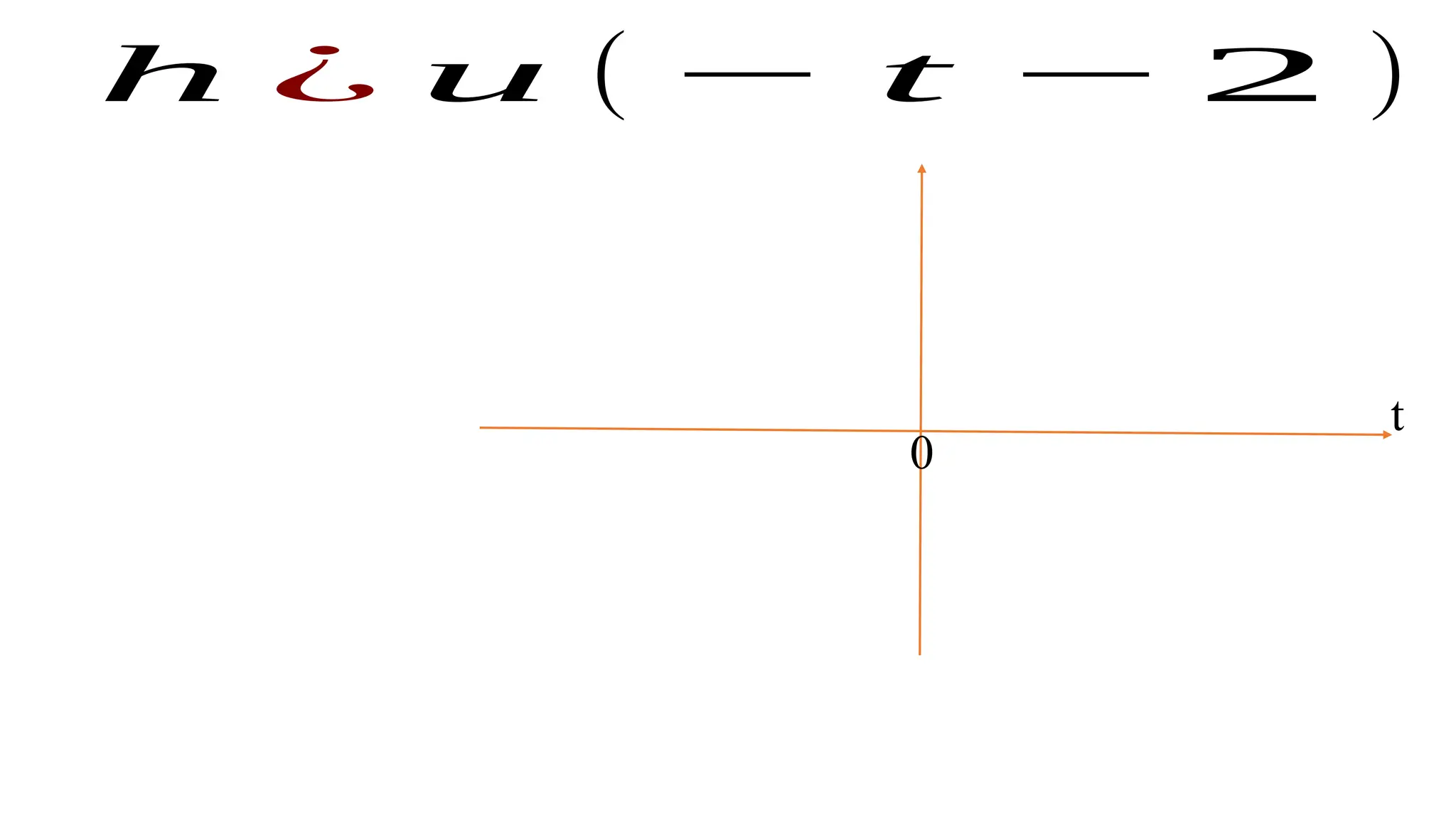

18. t
0
h ¿ u ( − t − 2 )

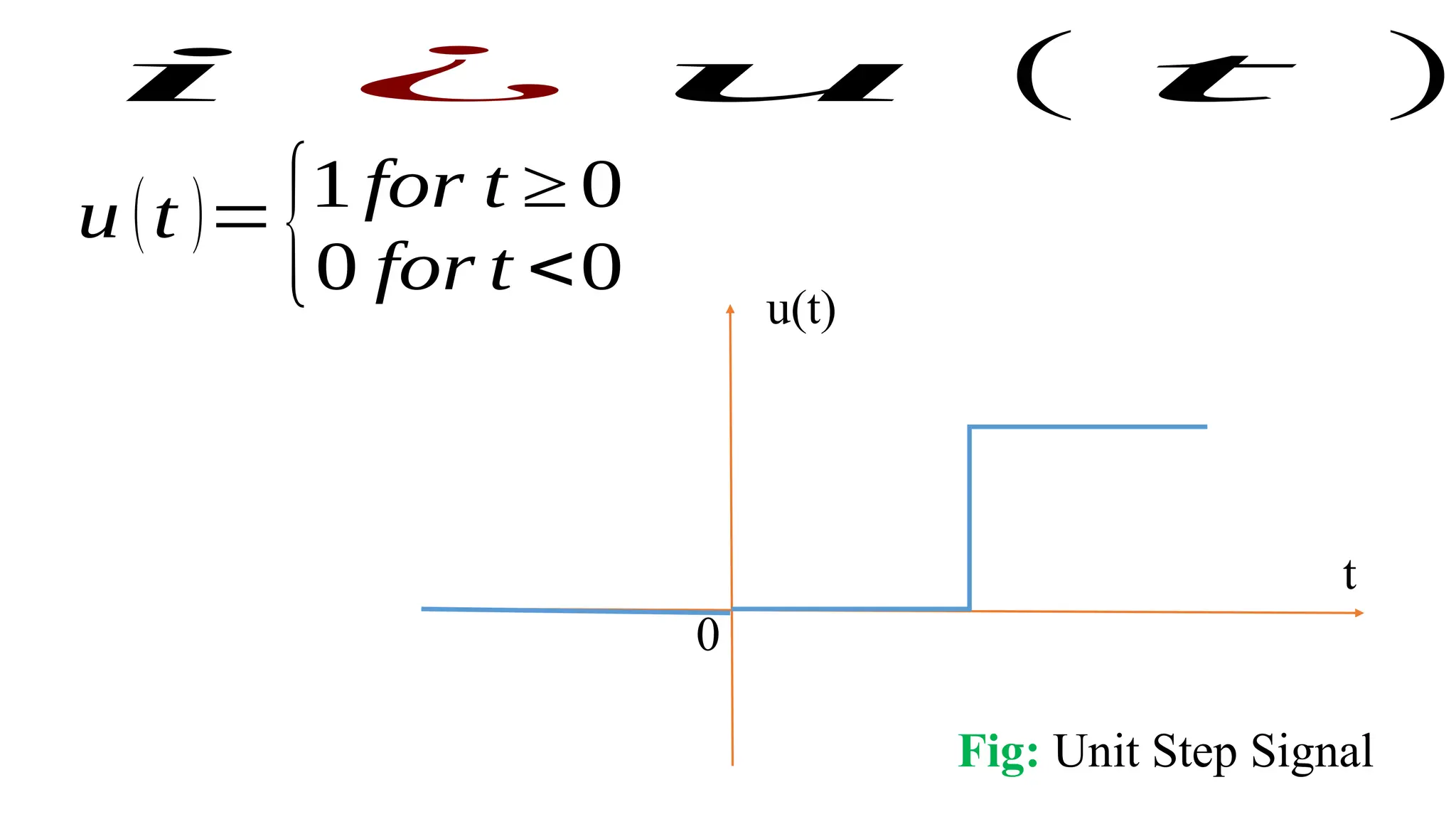

19. t
u(t)
0
Fig: Unit Step Signal
u (t )=
{1 for t ≥ 0
0 for t <0
i ¿ u ( t )

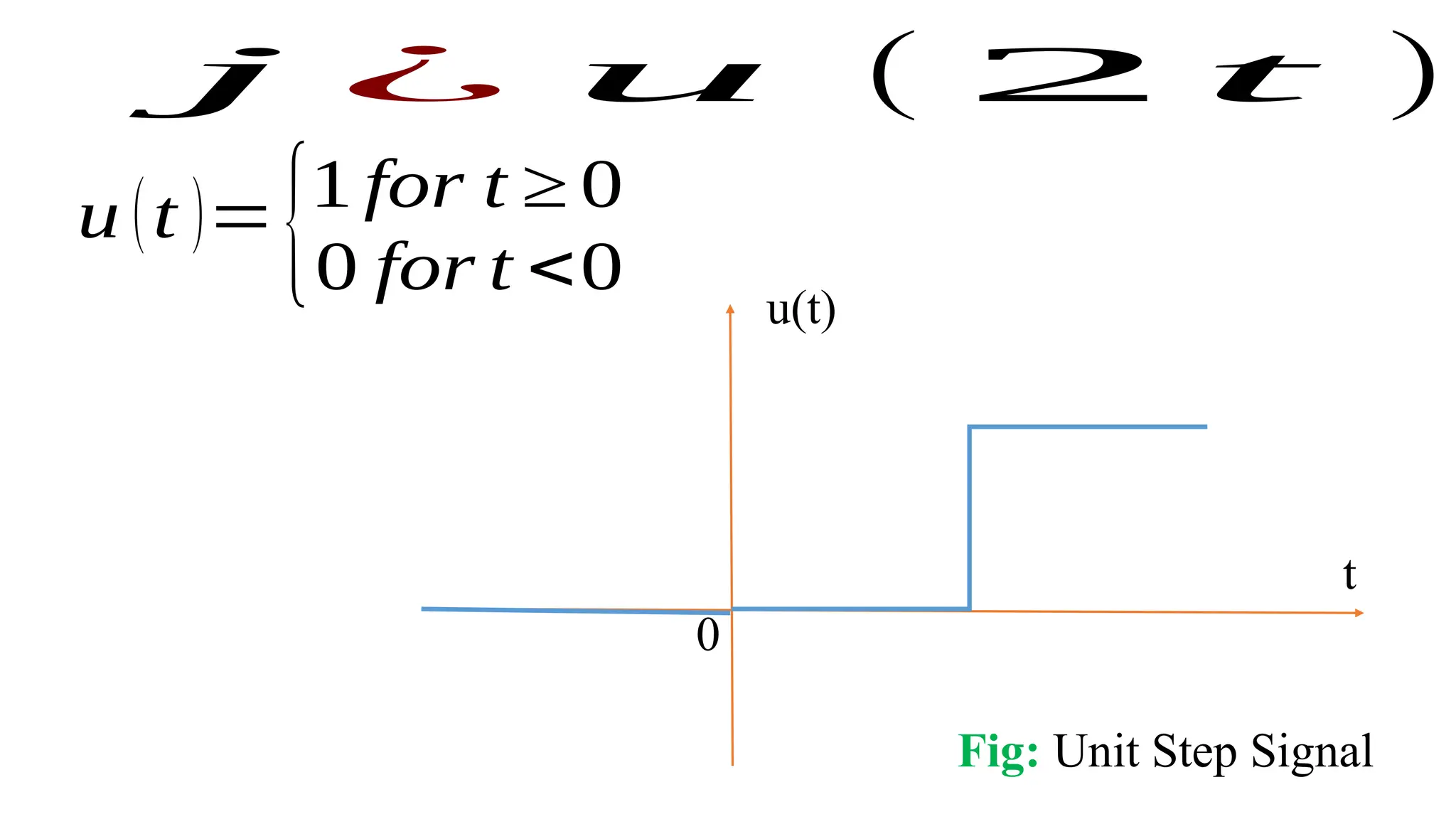

20. t
u(t)
0
Fig: Unit Step Signal
u (t )=
{1 for t ≥ 0
0 for t <0
j ¿ u ( 2 t )

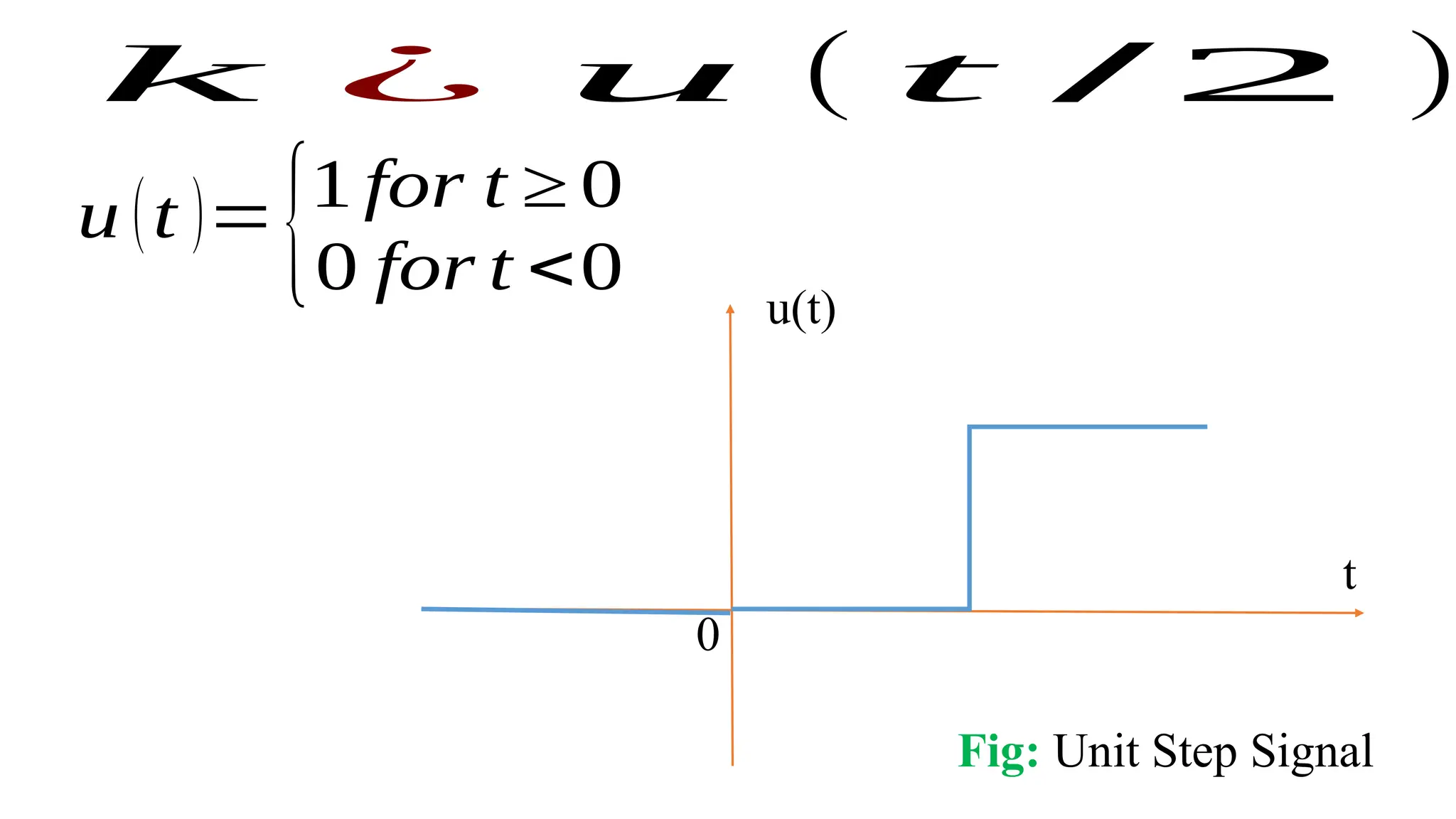

21. t
u(t)
0
Fig: Unit Step Signal
u (t )=
{1 for t ≥ 0
0 for t <0
k ¿ u ( t / 2 )

22. t
u(t)
0
1
u (t )=
{1 for t ≥ 0
0 for t <0
l ¿ ¿ ¿ ¿ 2

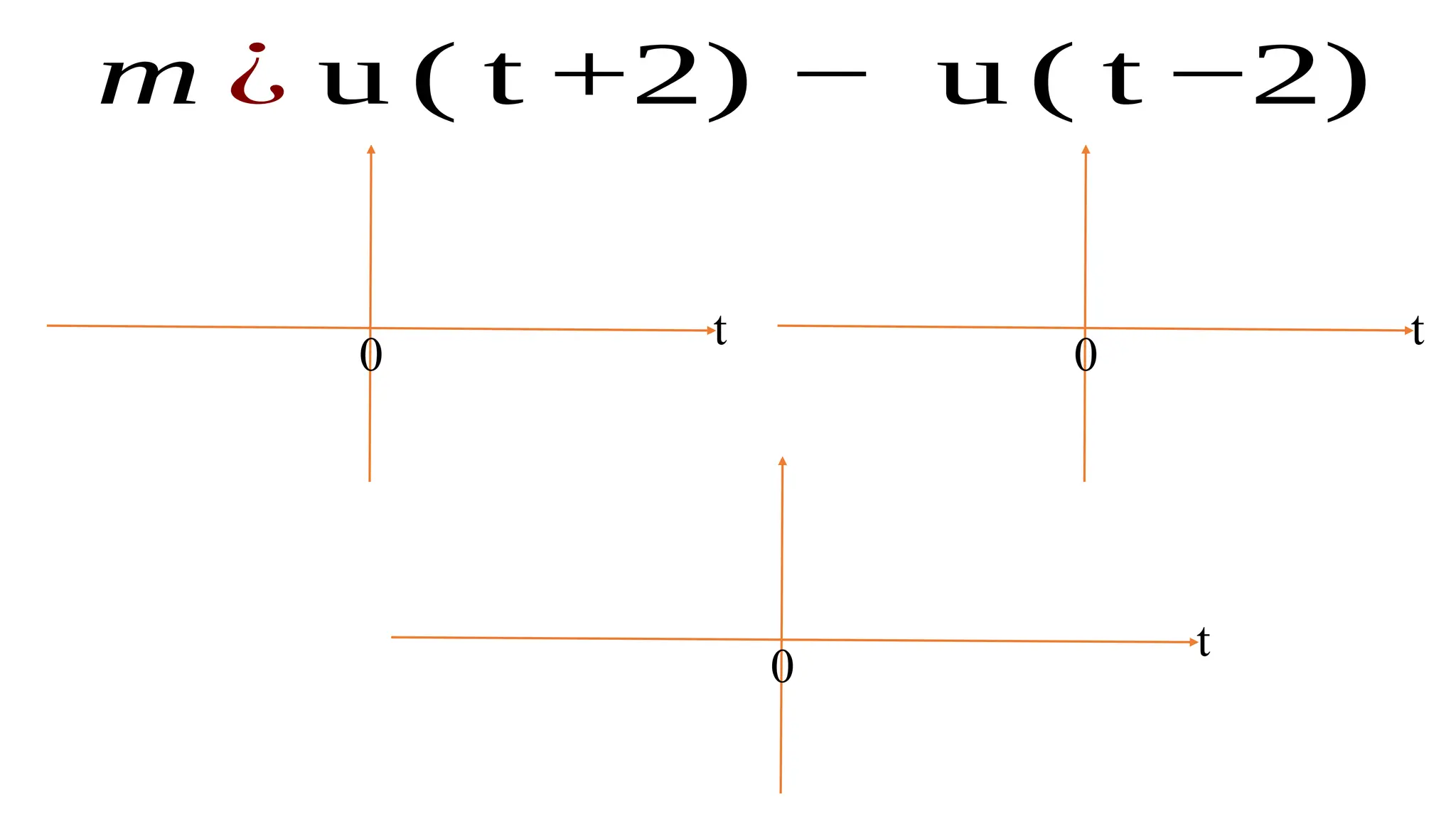

23. t
0
m ¿ u ( t +2) − u ( t −2)
t
0
t
0

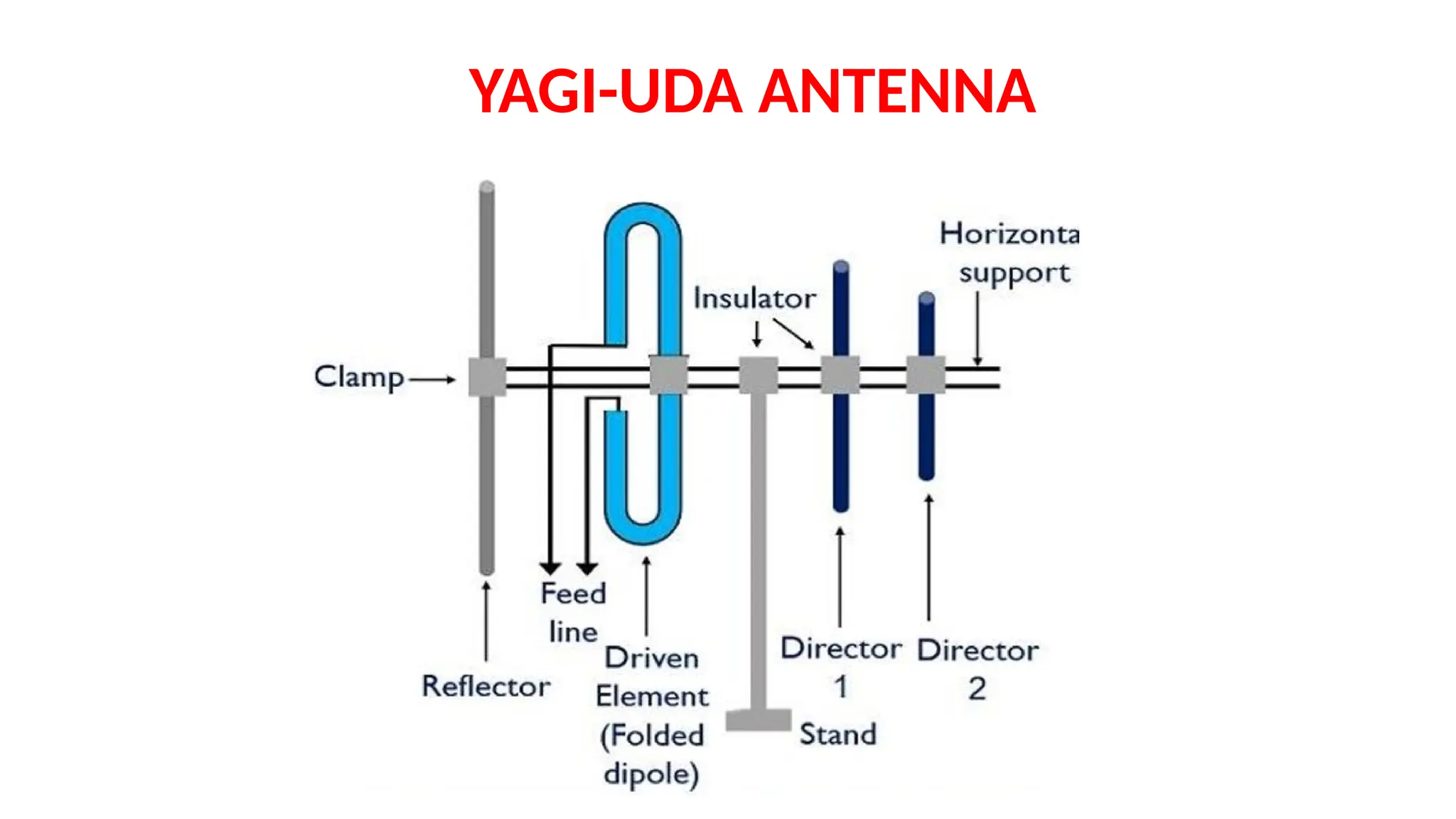

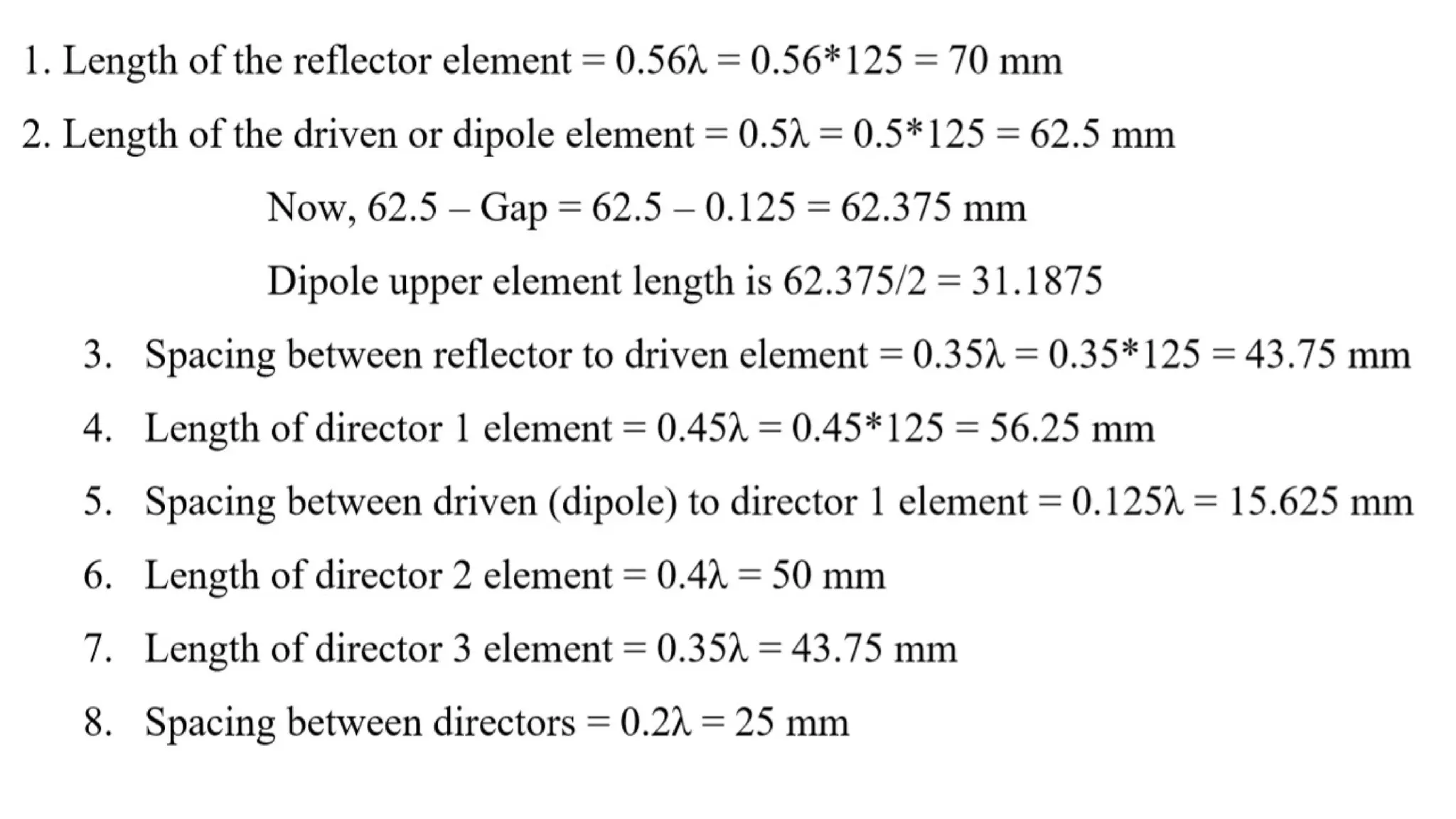

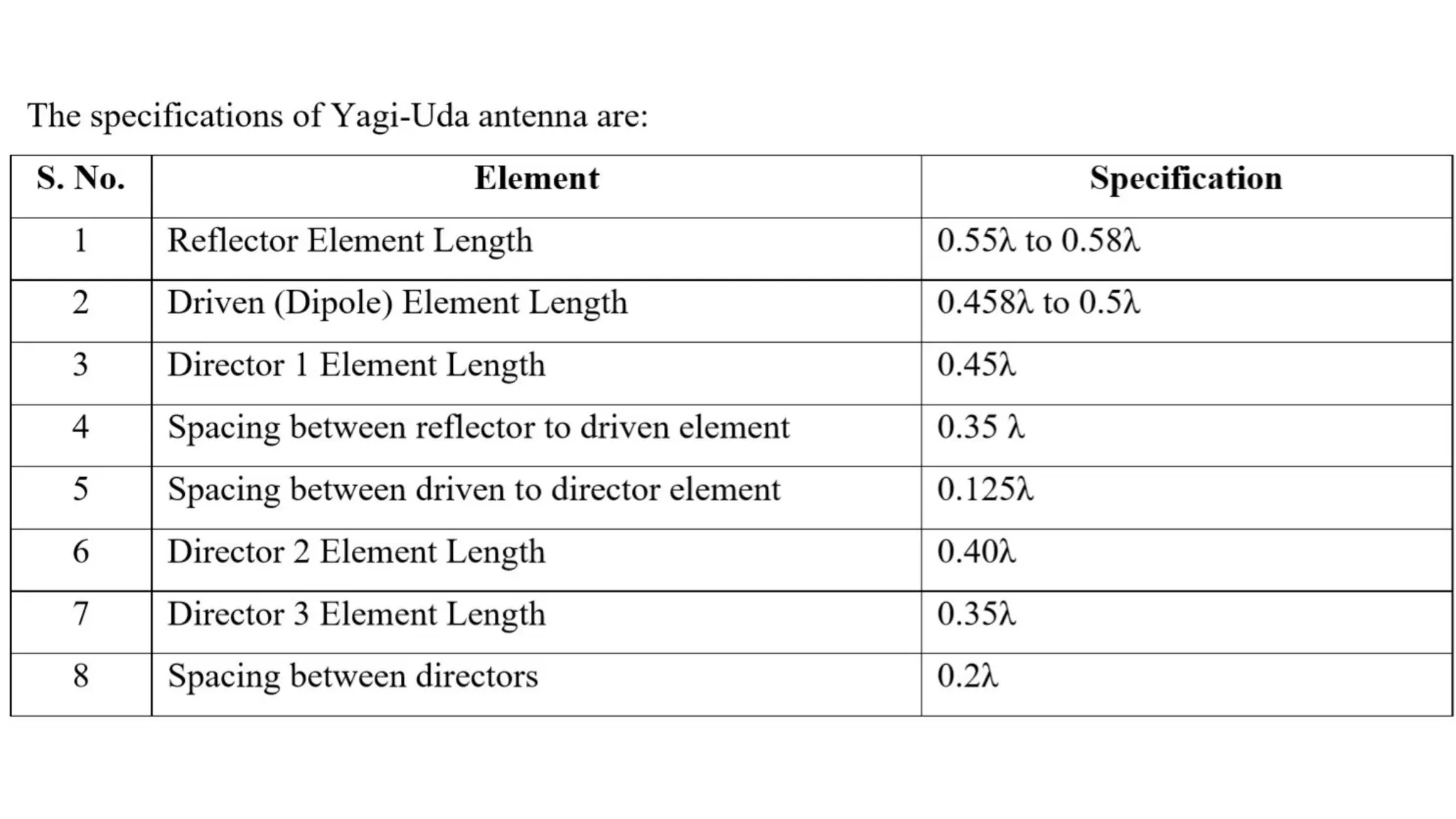

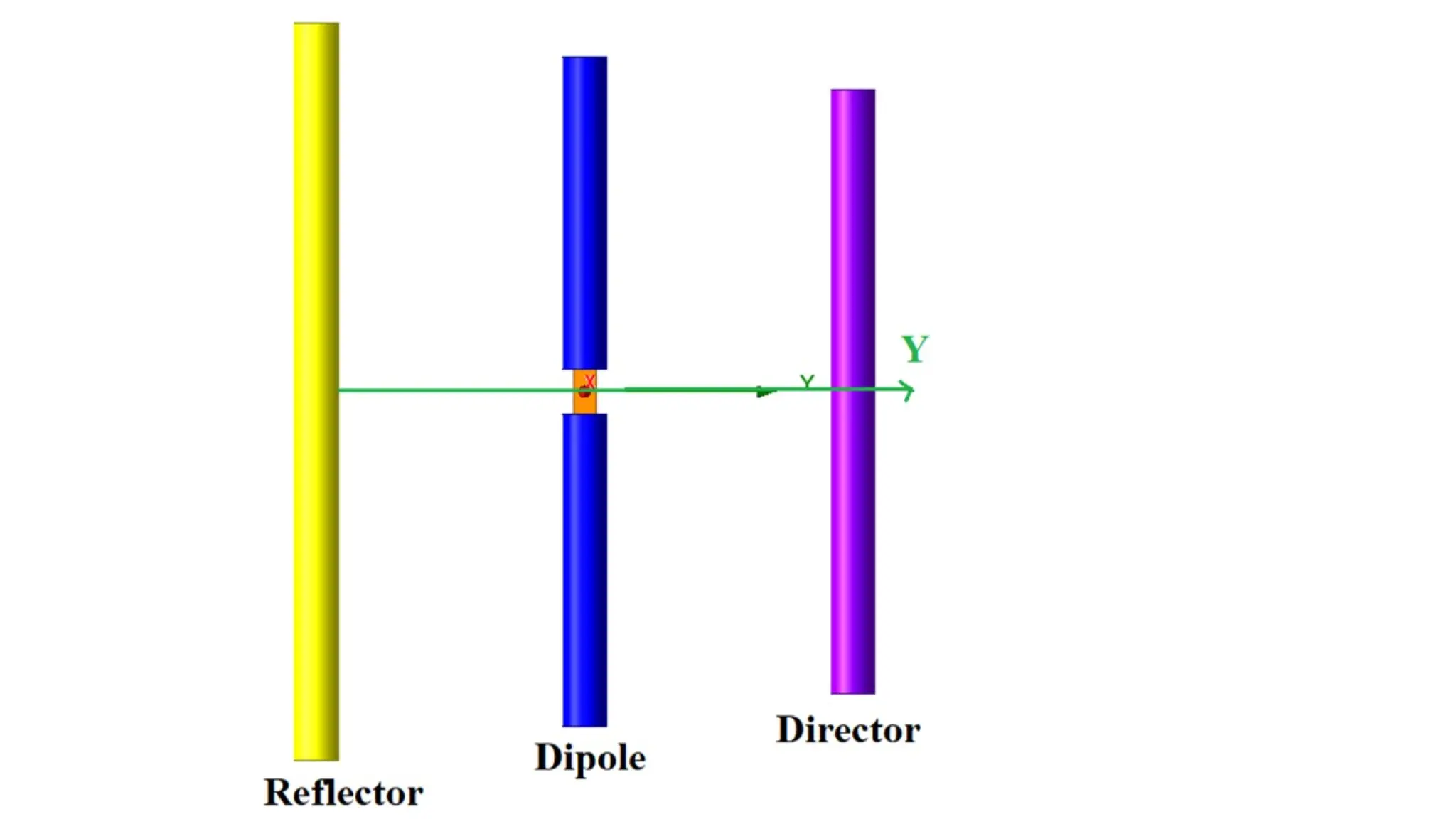

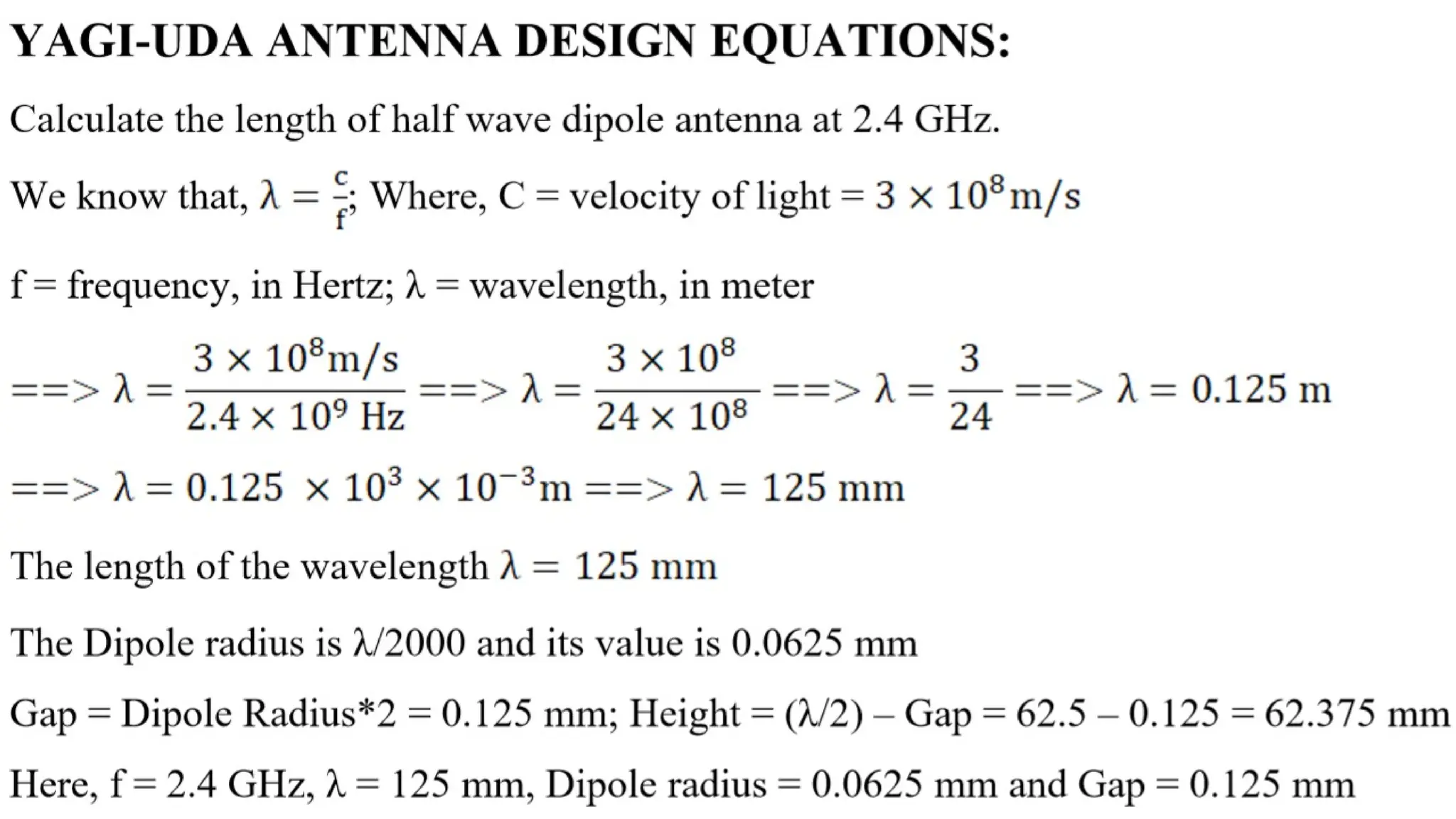

26. YAGI-UDA ANTENNA
