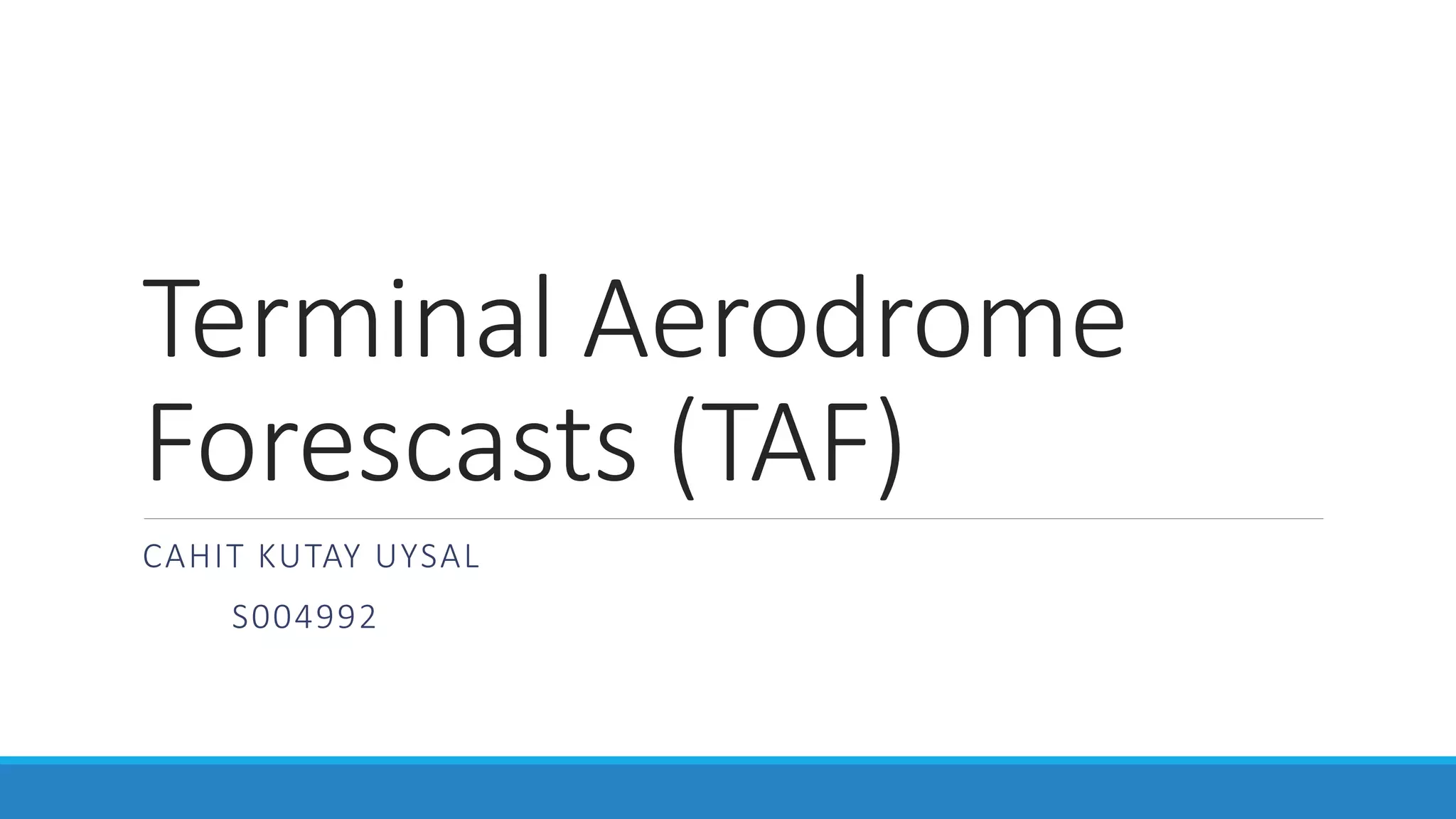

1. Terminal Aerodrome
Forescasts (TAF)
CAHIT KUTAY UYSAL
S004992

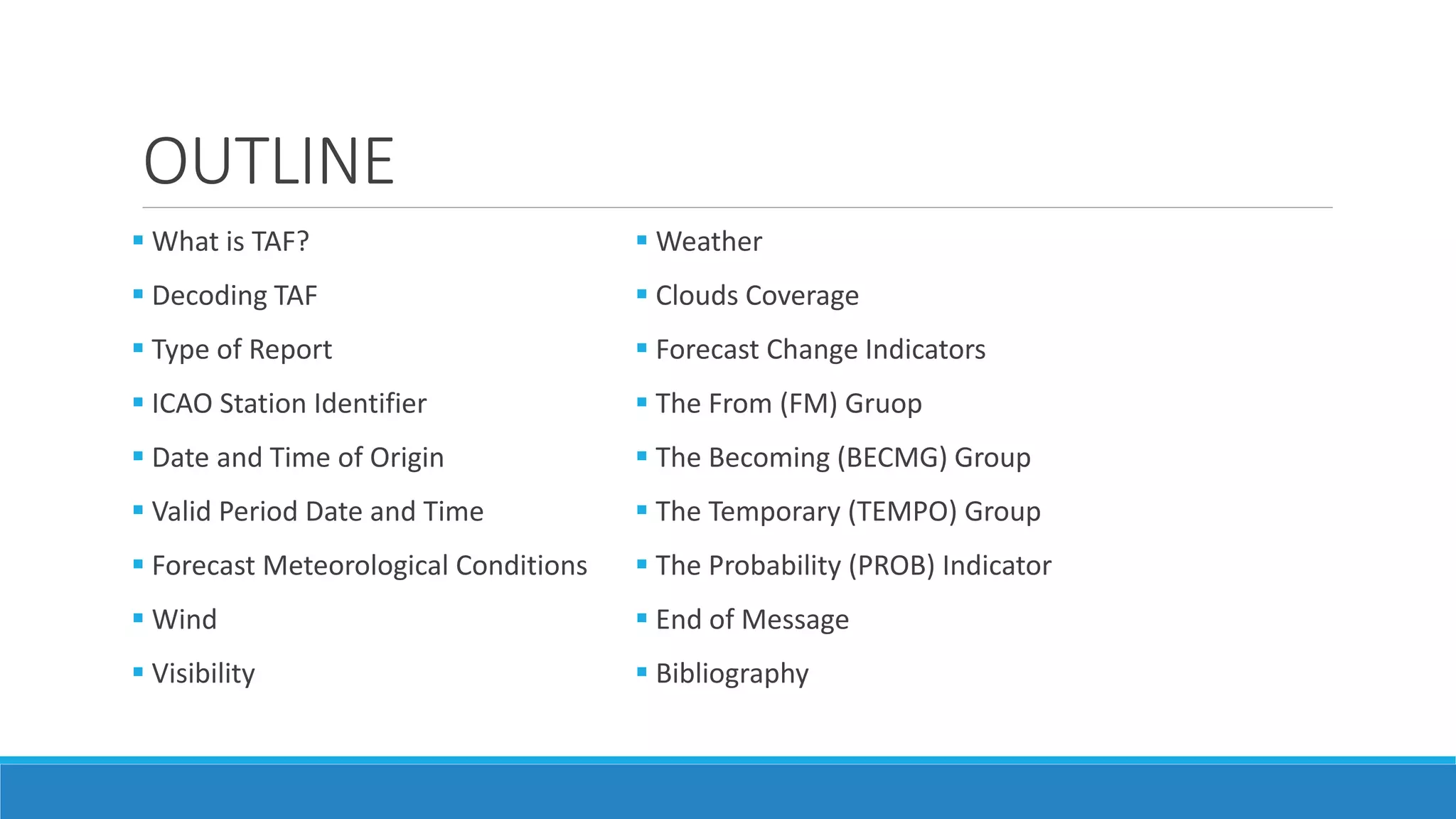

2. OUTLINE
 What is TAF?
 Decoding TAF
 Type of Report
 ICAO Station Identifier
 Date and Time of Origin
 Valid Period Date and Time
 Forecast Meteorological Conditions
 Wind
 Visibility
 Weather
 Clouds Coverage
 Forecast Change Indicators
 The From (FM) Gruop
 The Becoming (BECMG) Group
 The Temporary (TEMPO) Group
 The Probability (PROB) Indicator
 End of Message
 Bibliography

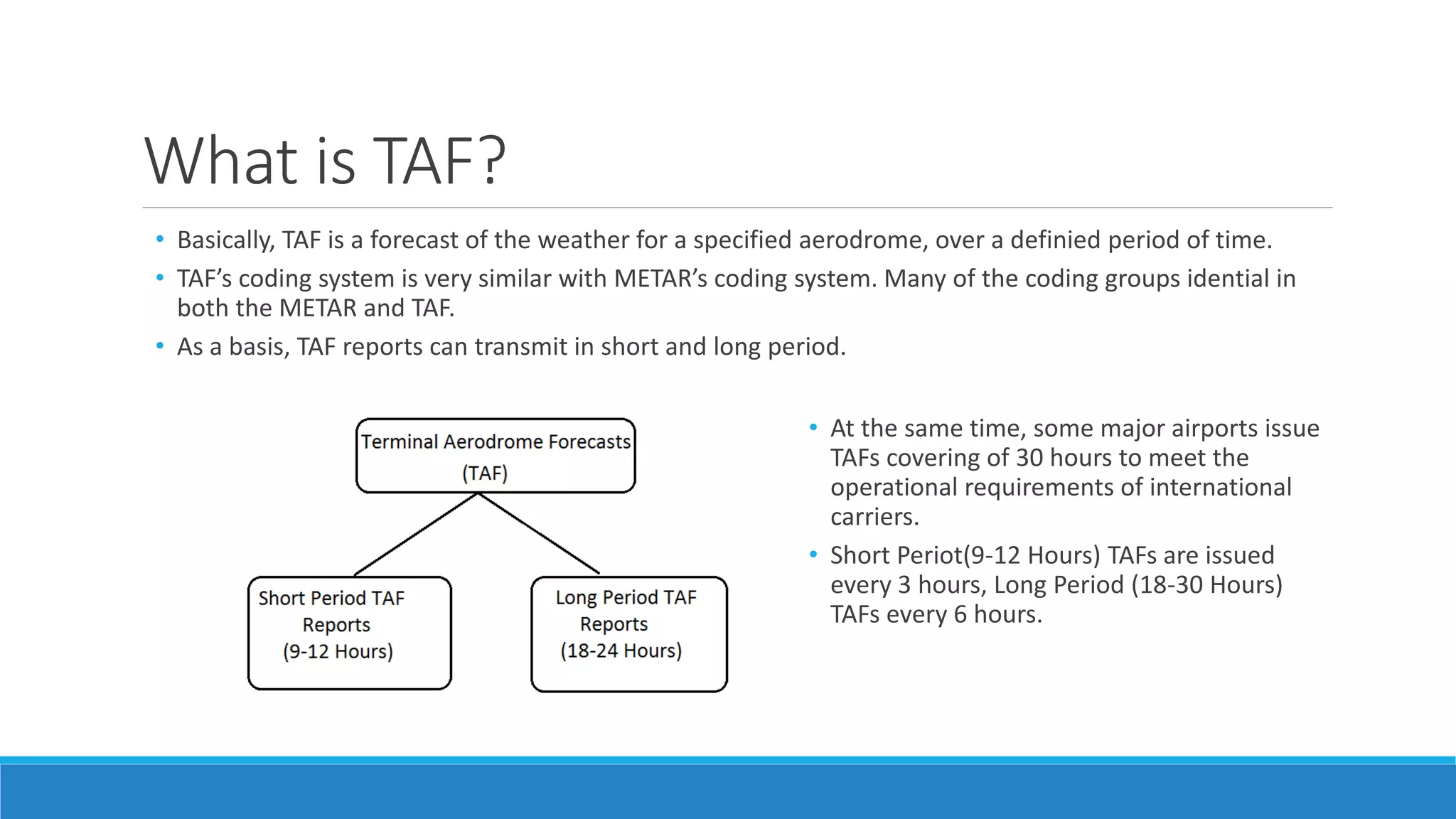

3. What is TAF?
• Basically, TAF is a forecast of the weather for a specified aerodrome, over a definied period of time.
• TAF’s coding system is very similar with METAR’s coding system. Many of the coding groups idential in
both the METAR and TAF.
• As a basis, TAF reports can transmit in short and long period.
• At the same time, some major airports issue
TAFs covering of 30 hours to meet the
operational requirements of international
carriers.
• Short Periot(9-12 Hours) TAFs are issued
every 3 hours, Long Period (18-30 Hours)
TAFs every 6 hours.

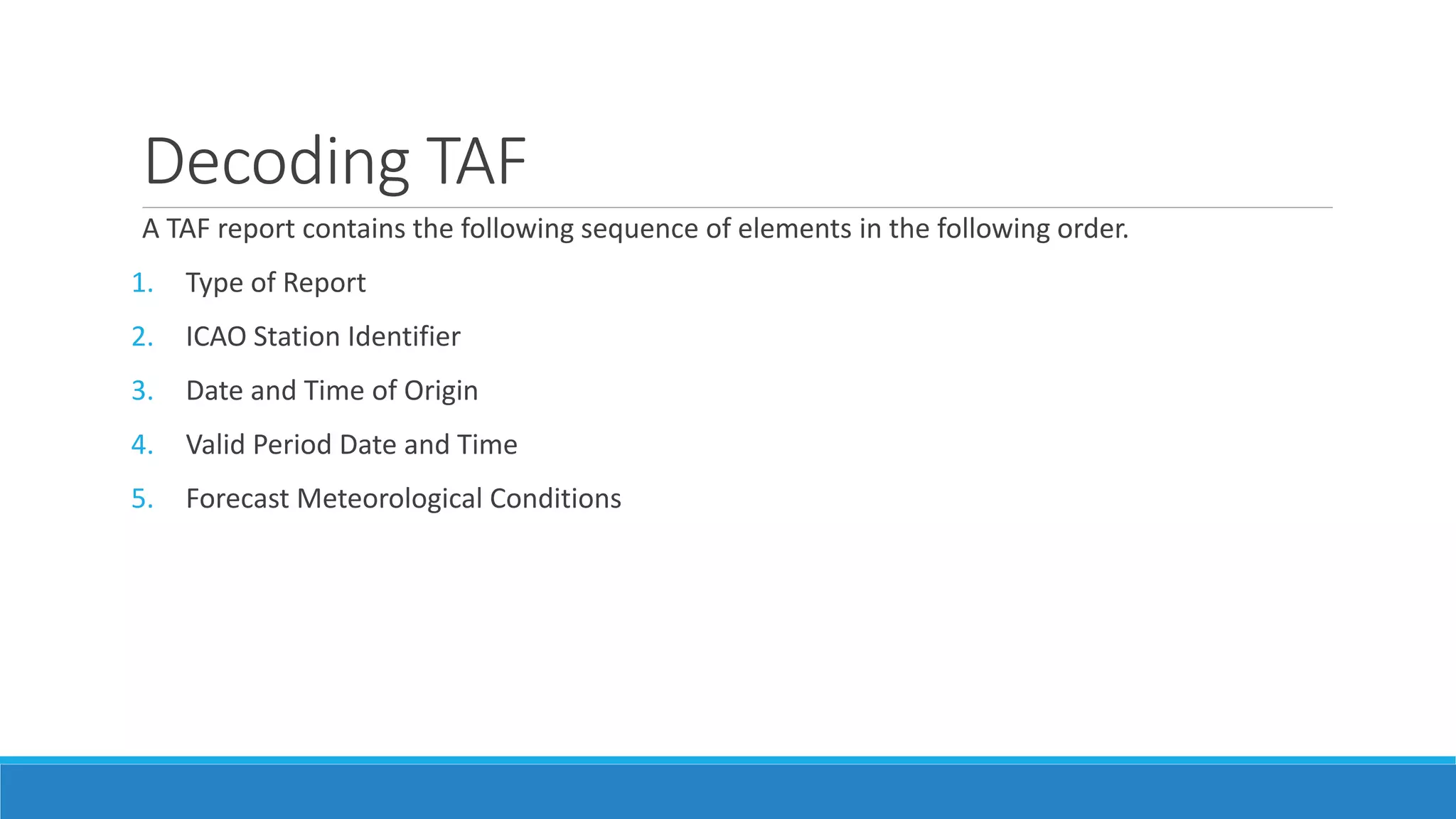

4. Decoding TAF
A TAF report contains the following sequence of elements in the following order.
1. Type of Report
2. ICAO Station Identifier
3. Date and Time of Origin
4. Valid Period Date and Time
5. Forecast Meteorological Conditions

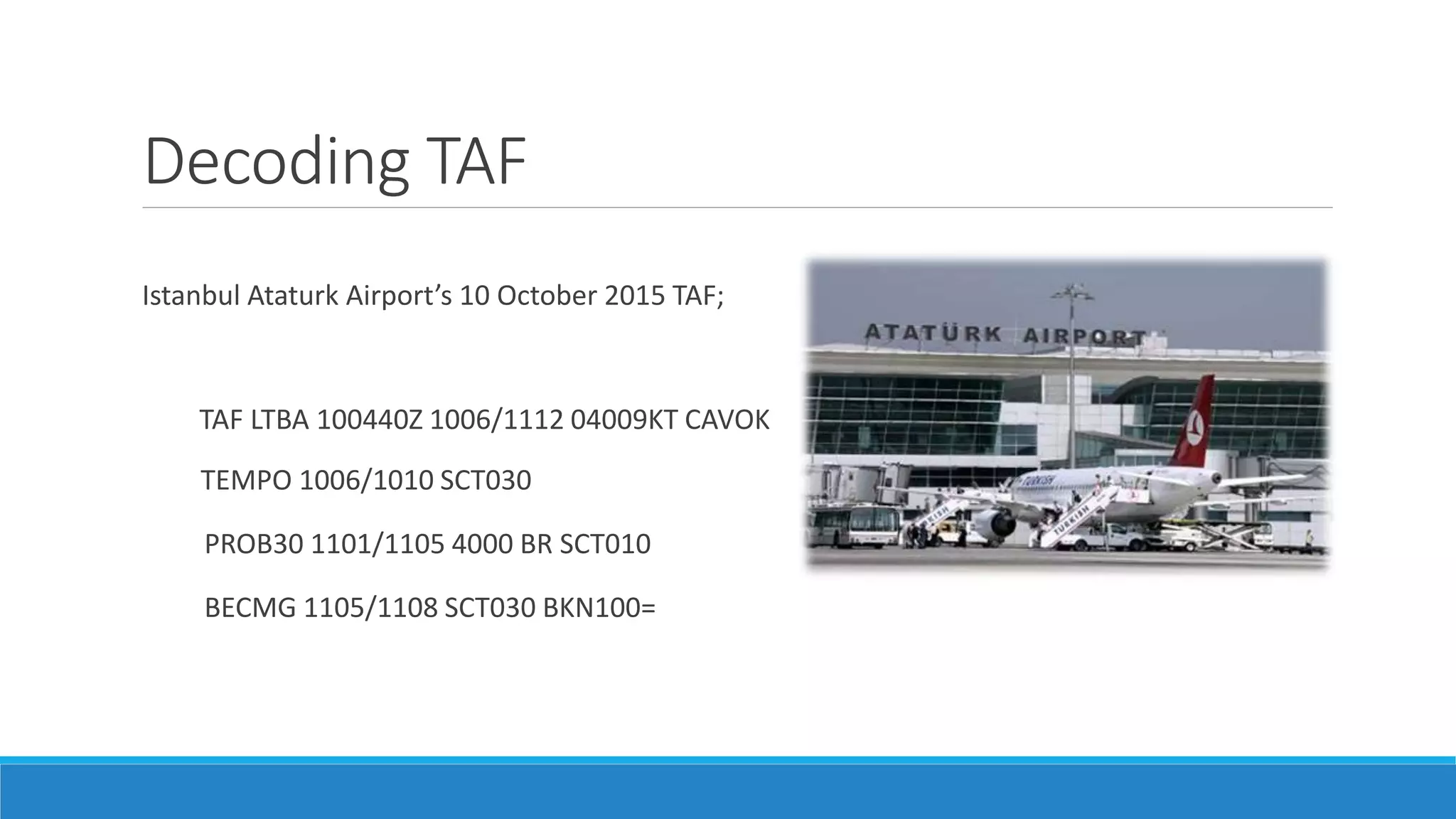

5. Decoding TAF
Istanbul Ataturk Airport’s 10 October 2015 TAF;
TAF LTBA 100440Z 1006/1112 04009KT CAVOK
TEMPO 1006/1010 SCT030
PROB30 1101/1105 4000 BR SCT010
BECMG 1105/1108 SCT030 BKN100=

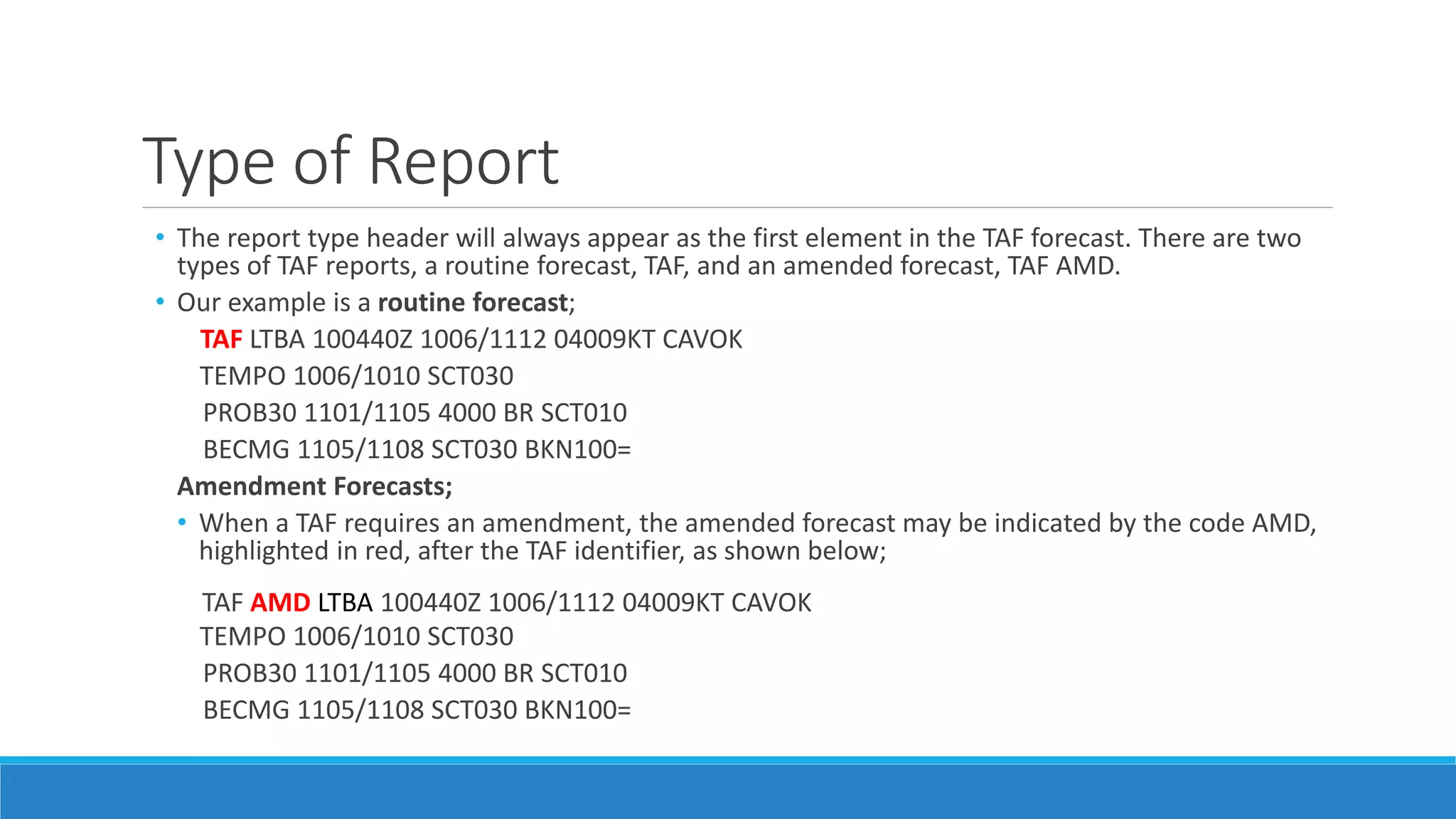

6. Type of Report
• The report type header will always appear as the first element in the TAF forecast. There are two
types of TAF reports, a routine forecast, TAF, and an amended forecast, TAF AMD.
• Our example is a routine forecast;
TAF LTBA 100440Z 1006/1112 04009KT CAVOK
TEMPO 1006/1010 SCT030
PROB30 1101/1105 4000 BR SCT010
BECMG 1105/1108 SCT030 BKN100=
Amendment Forecasts;
• When a TAF requires an amendment, the amended forecast may be indicated by the code AMD,
highlighted in red, after the TAF identifier, as shown below;
TAF AMD LTBA 100440Z 1006/1112 04009KT CAVOK
TEMPO 1006/1010 SCT030
PROB30 1101/1105 4000 BR SCT010
BECMG 1105/1108 SCT030 BKN100=

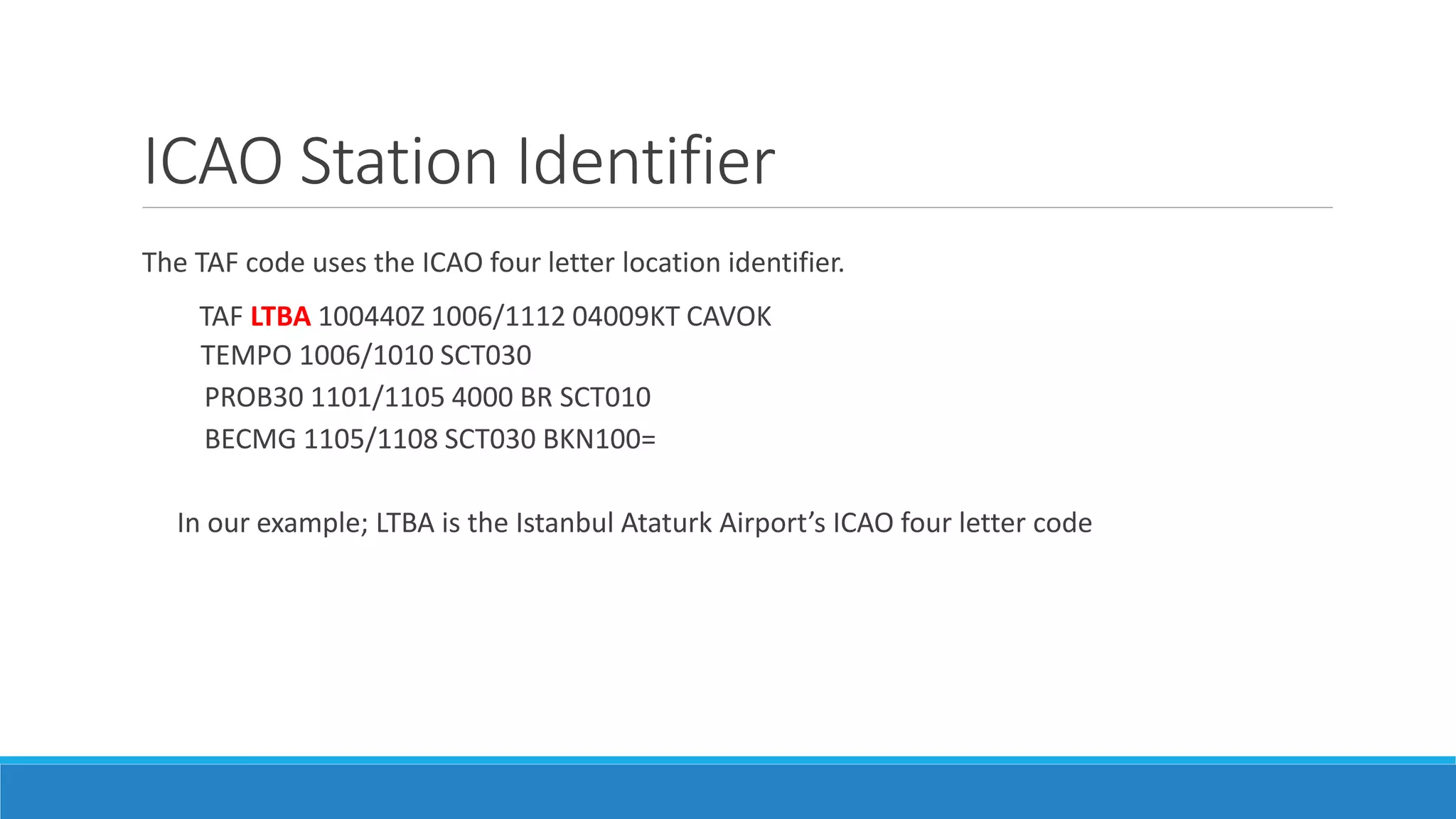

7. ICAO Station Identifier
The TAF code uses the ICAO four letter location identifier.
TAF LTBA 100440Z 1006/1112 04009KT CAVOK
TEMPO 1006/1010 SCT030
PROB30 1101/1105 4000 BR SCT010
BECMG 1105/1108 SCT030 BKN100=
In our example; LTBA is the Istanbul Ataturk Airport’s ICAO four letter code

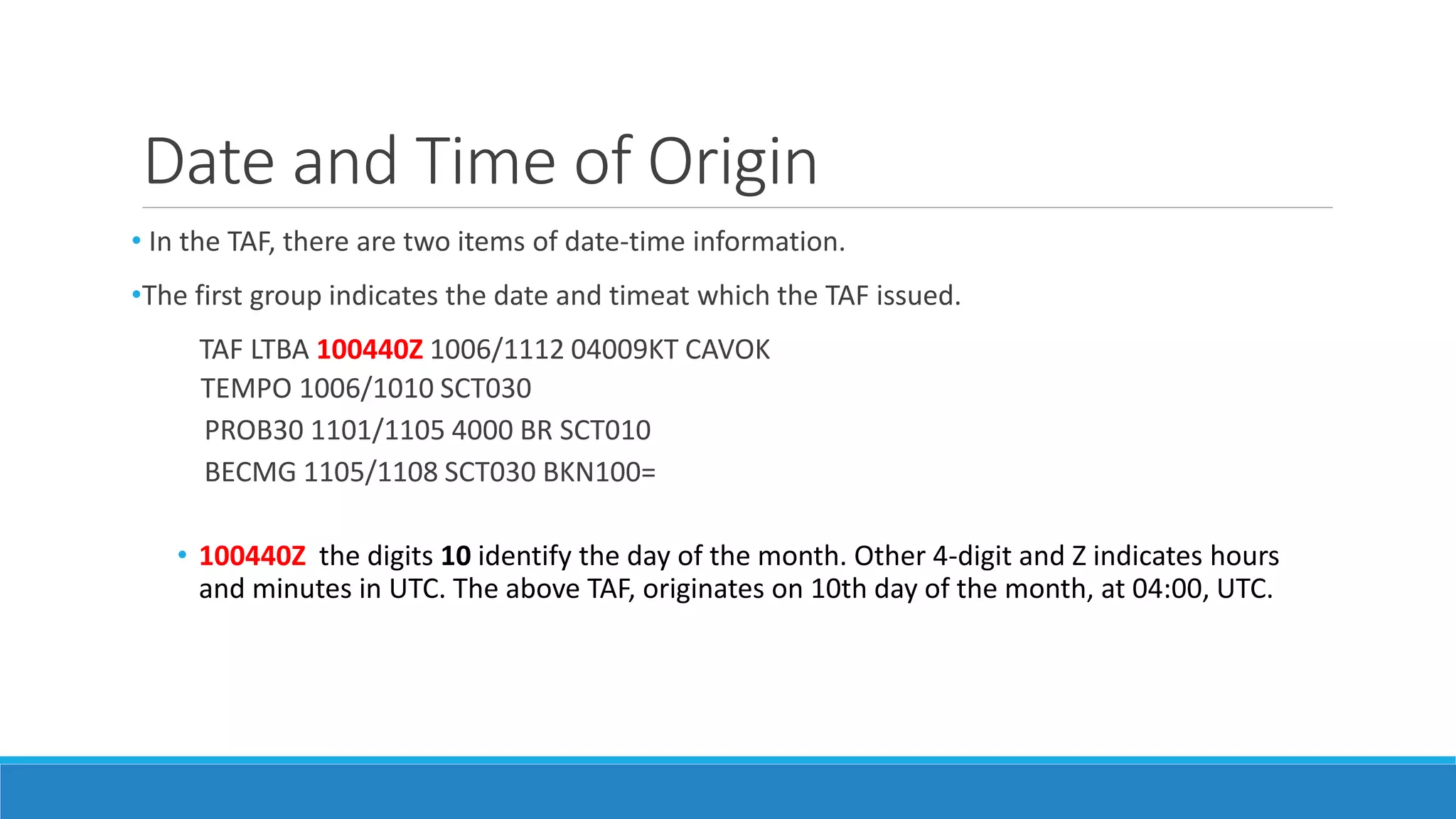

8. Date and Time of Origin
• In the TAF, there are two items of date-time information.
•The first group indicates the date and timeat which the TAF issued.
TAF LTBA 100440Z 1006/1112 04009KT CAVOK
TEMPO 1006/1010 SCT030
PROB30 1101/1105 4000 BR SCT010
BECMG 1105/1108 SCT030 BKN100=
• 100440Z the digits 10 identify the day of the month. Other 4-digit and Z indicates hours
and minutes in UTC. The above TAF, originates on 10th day of the month, at 04:00, UTC.

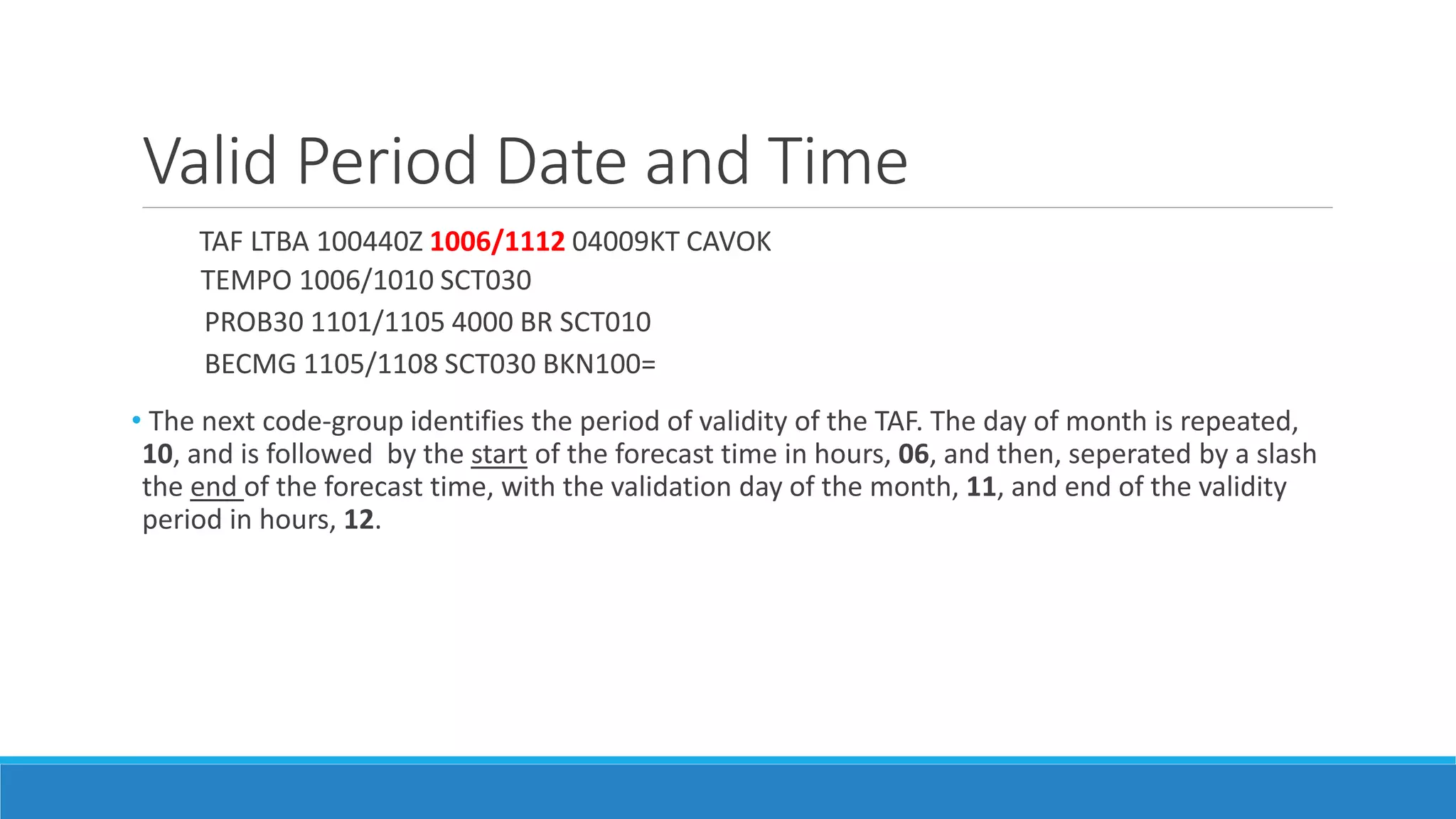

9. Valid Period Date and Time
TAF LTBA 100440Z 1006/1112 04009KT CAVOK
TEMPO 1006/1010 SCT030
PROB30 1101/1105 4000 BR SCT010
BECMG 1105/1108 SCT030 BKN100=
• The next code-group identifies the period of validity of the TAF. The day of month is repeated,
10, and is followed by the start of the forecast time in hours, 06, and then, seperated by a slash
the end of the forecast time, with the validation day of the month, 11, and end of the validity
period in hours, 12.

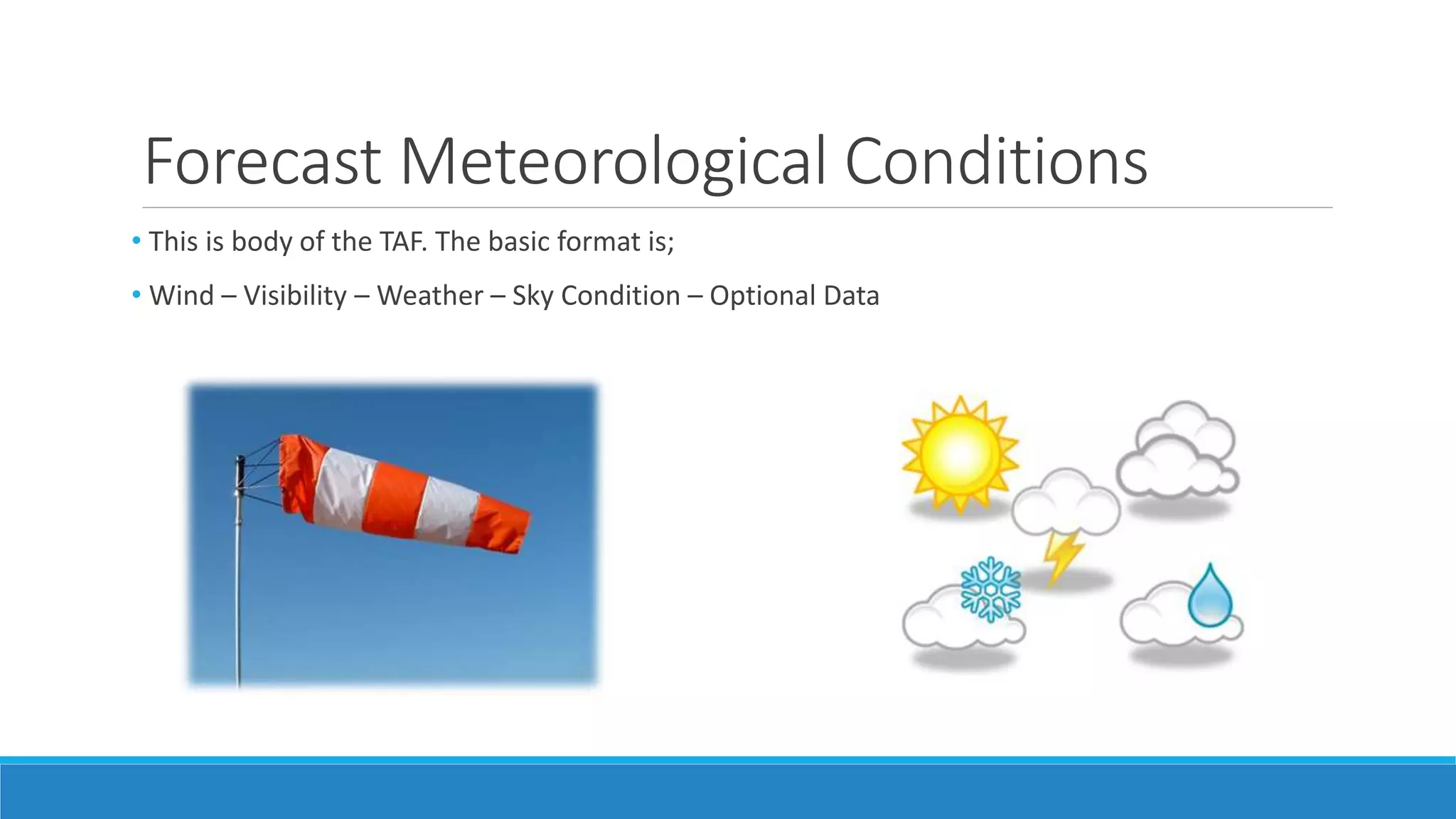

10. Forecast Meteorological Conditions
• This is body of the TAF. The basic format is;
• Wind – Visibility – Weather – Sky Condition – Optional Data

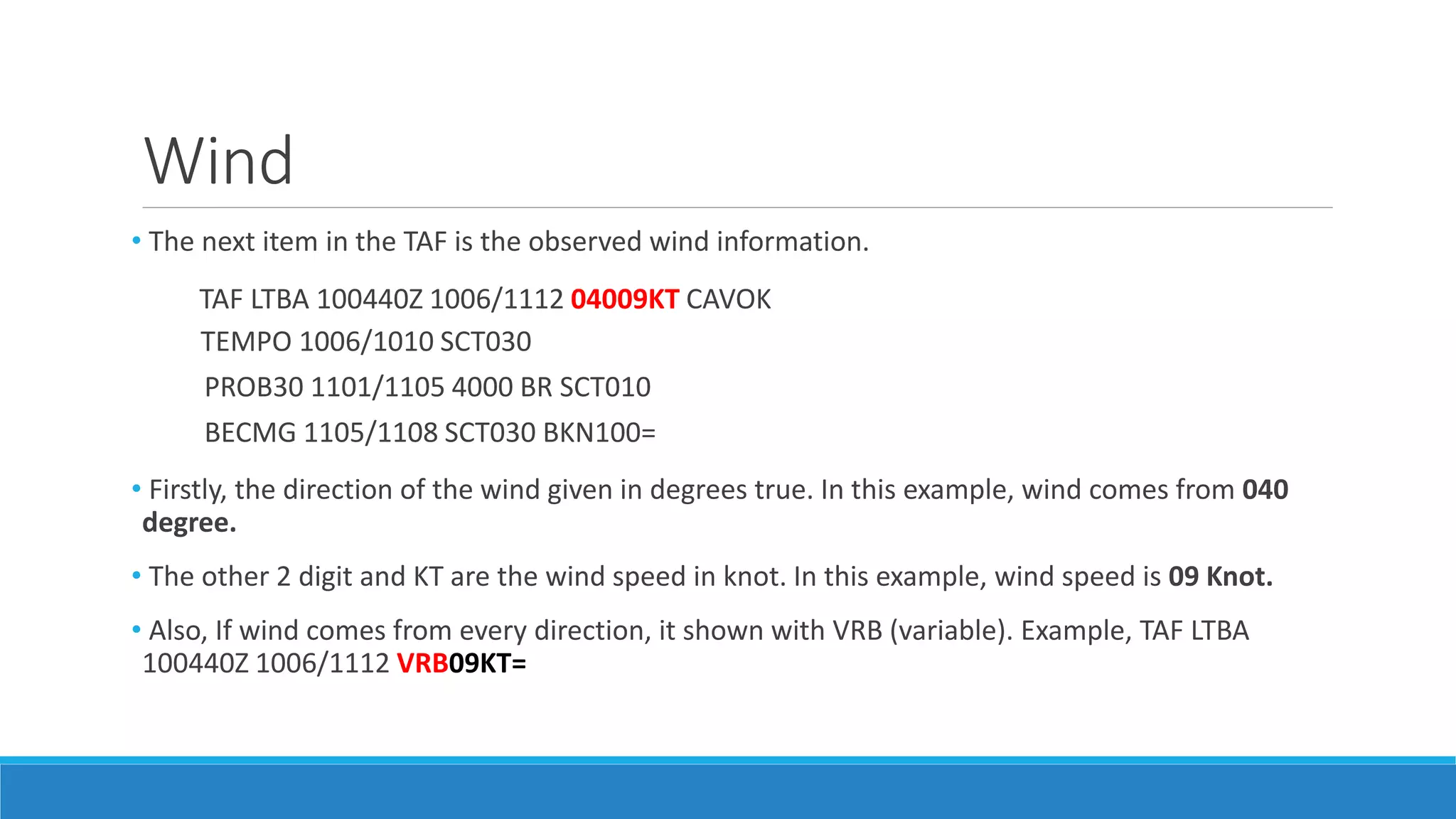

11. Wind
• The next item in the TAF is the observed wind information.
TAF LTBA 100440Z 1006/1112 04009KT CAVOK
TEMPO 1006/1010 SCT030
PROB30 1101/1105 4000 BR SCT010
BECMG 1105/1108 SCT030 BKN100=
• Firstly, the direction of the wind given in degrees true. In this example, wind comes from 040
degree.
• The other 2 digit and KT are the wind speed in knot. In this example, wind speed is 09 Knot.
• Also, If wind comes from every direction, it shown with VRB (variable). Example, TAF LTBA
100440Z 1006/1112 VRB09KT=

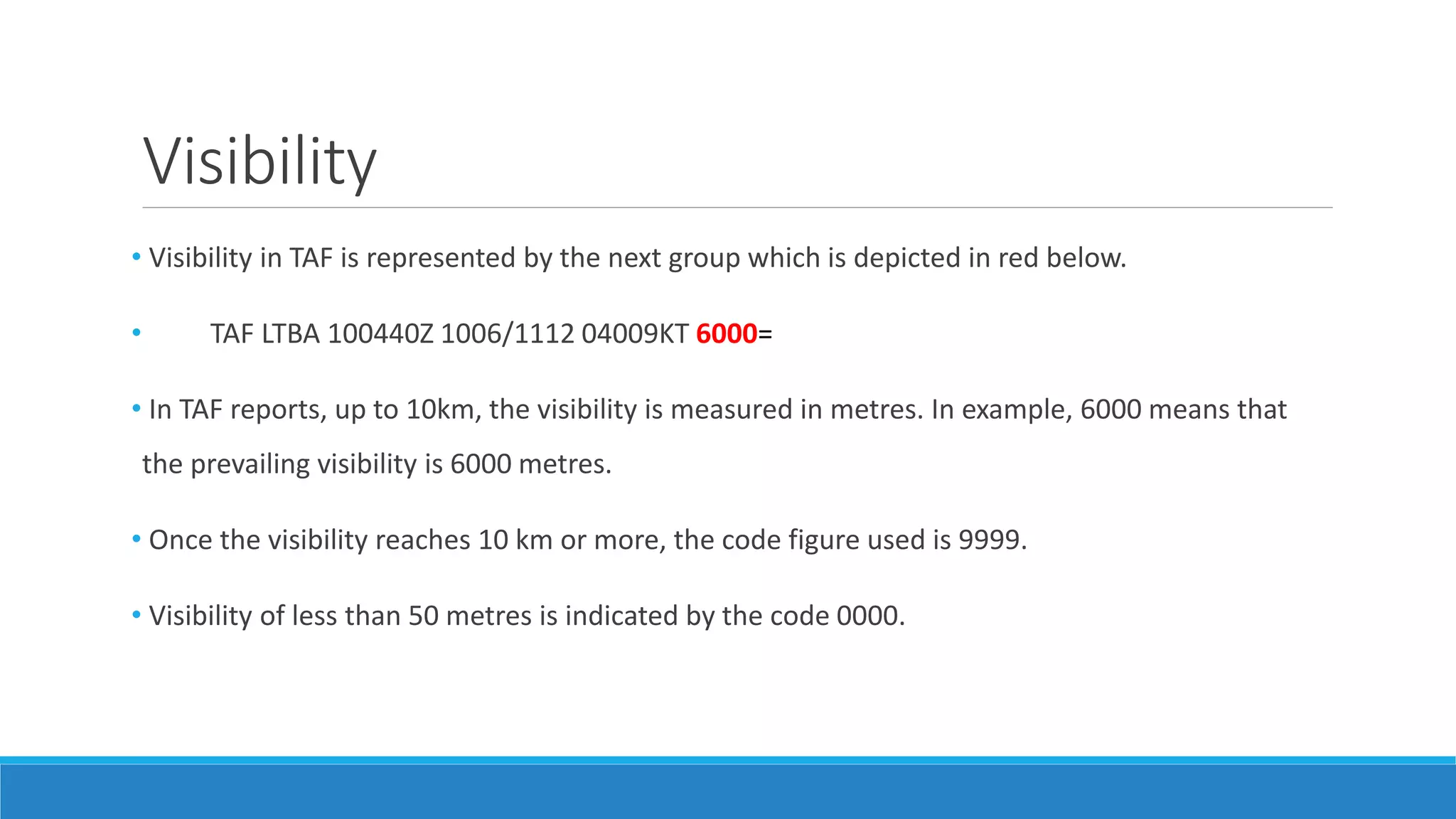

12. Visibility
• Visibility in TAF is represented by the next group which is depicted in red below.
• TAF LTBA 100440Z 1006/1112 04009KT 6000=
• In TAF reports, up to 10km, the visibility is measured in metres. In example, 6000 means that
the prevailing visibility is 6000 metres.
• Once the visibility reaches 10 km or more, the code figure used is 9999.
• Visibility of less than 50 metres is indicated by the code 0000.

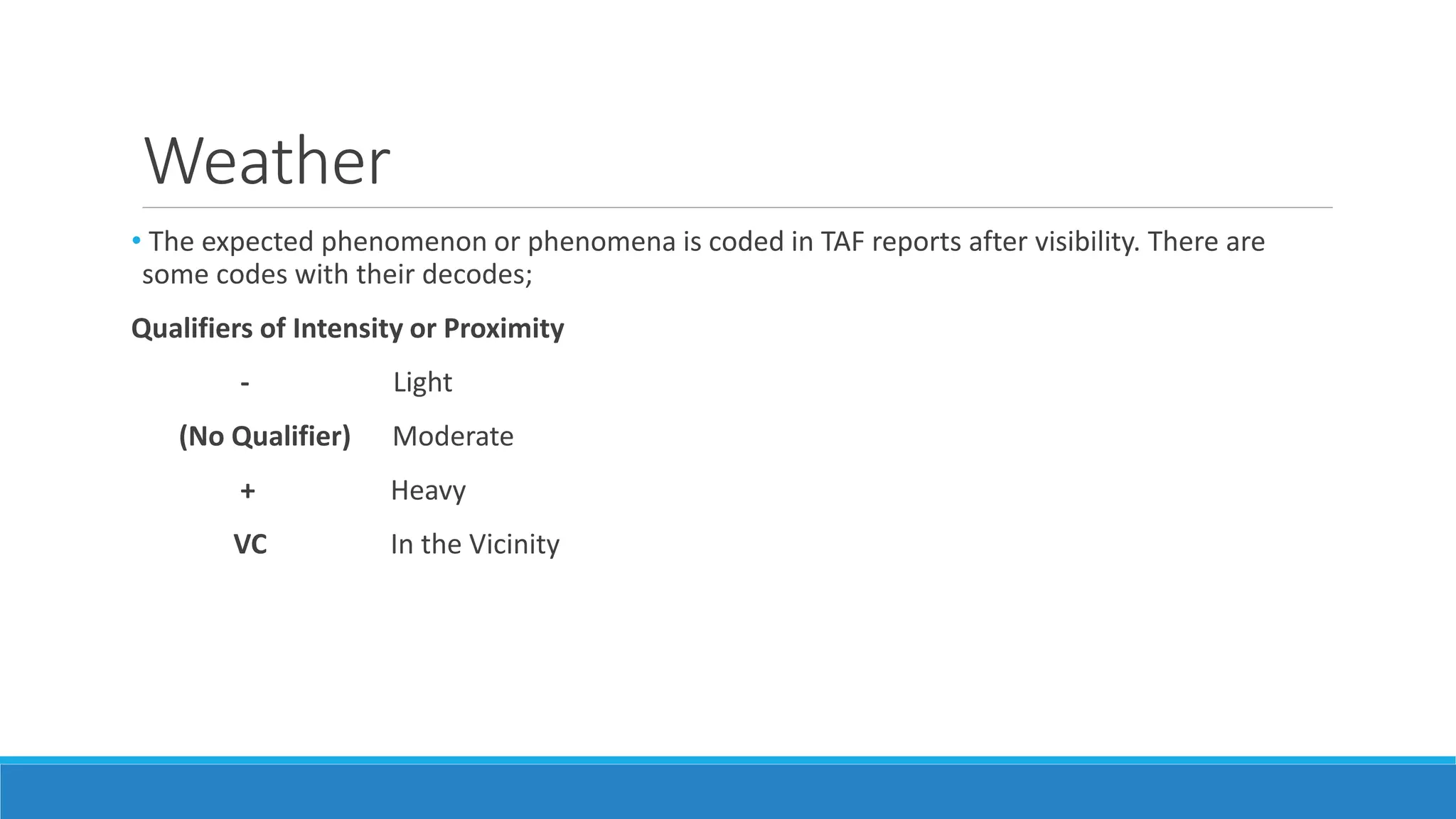

13. Weather
• The expected phenomenon or phenomena is coded in TAF reports after visibility. There are
some codes with their decodes;
Qualifiers of Intensity or Proximity
- Light
(No Qualifier) Moderate
+ Heavy
VC In the Vicinity

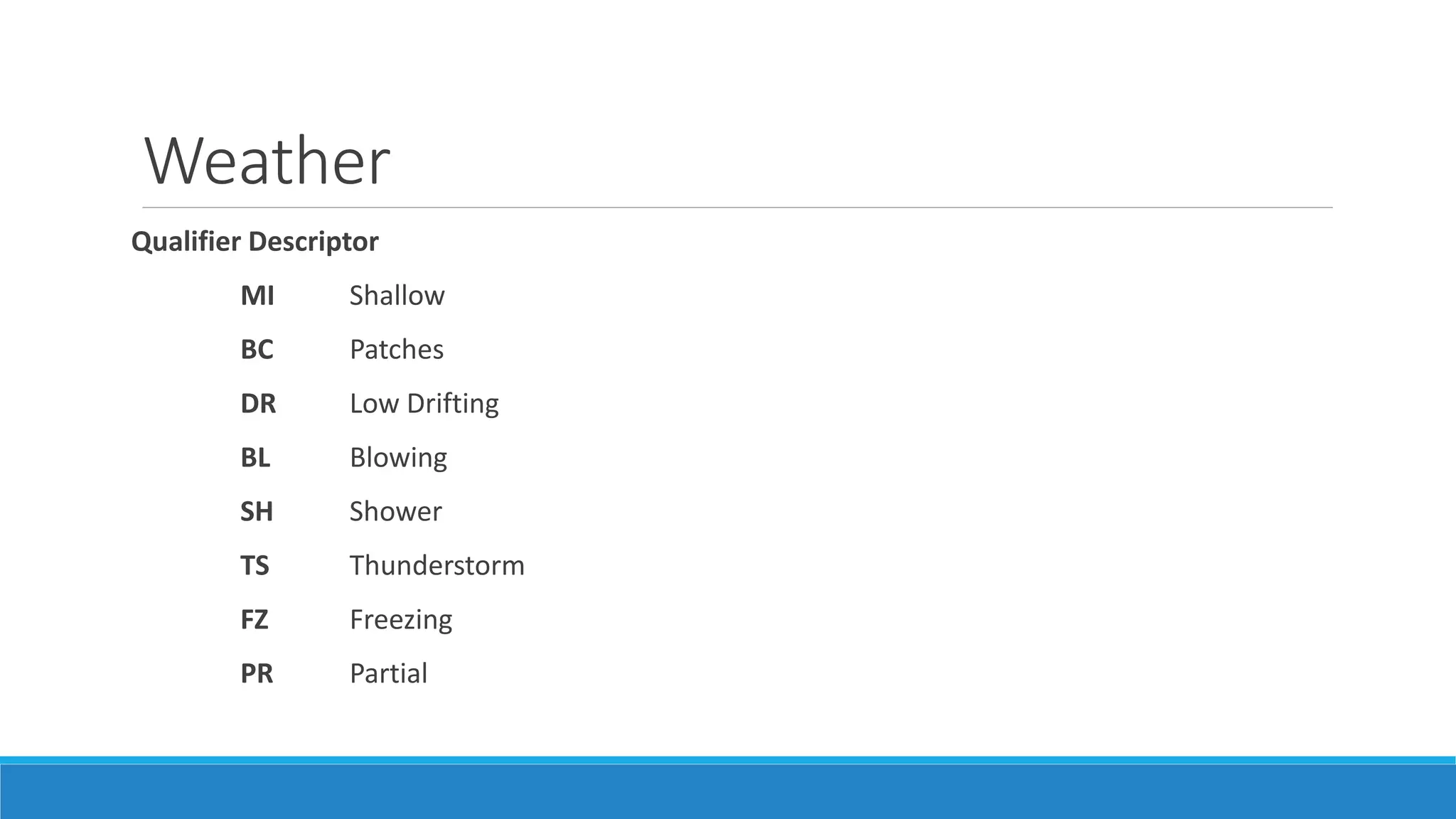

14. Weather
Qualifier Descriptor
MI Shallow
BC Patches
DR Low Drifting
BL Blowing
SH Shower
TS Thunderstorm
FZ Freezing
PR Partial

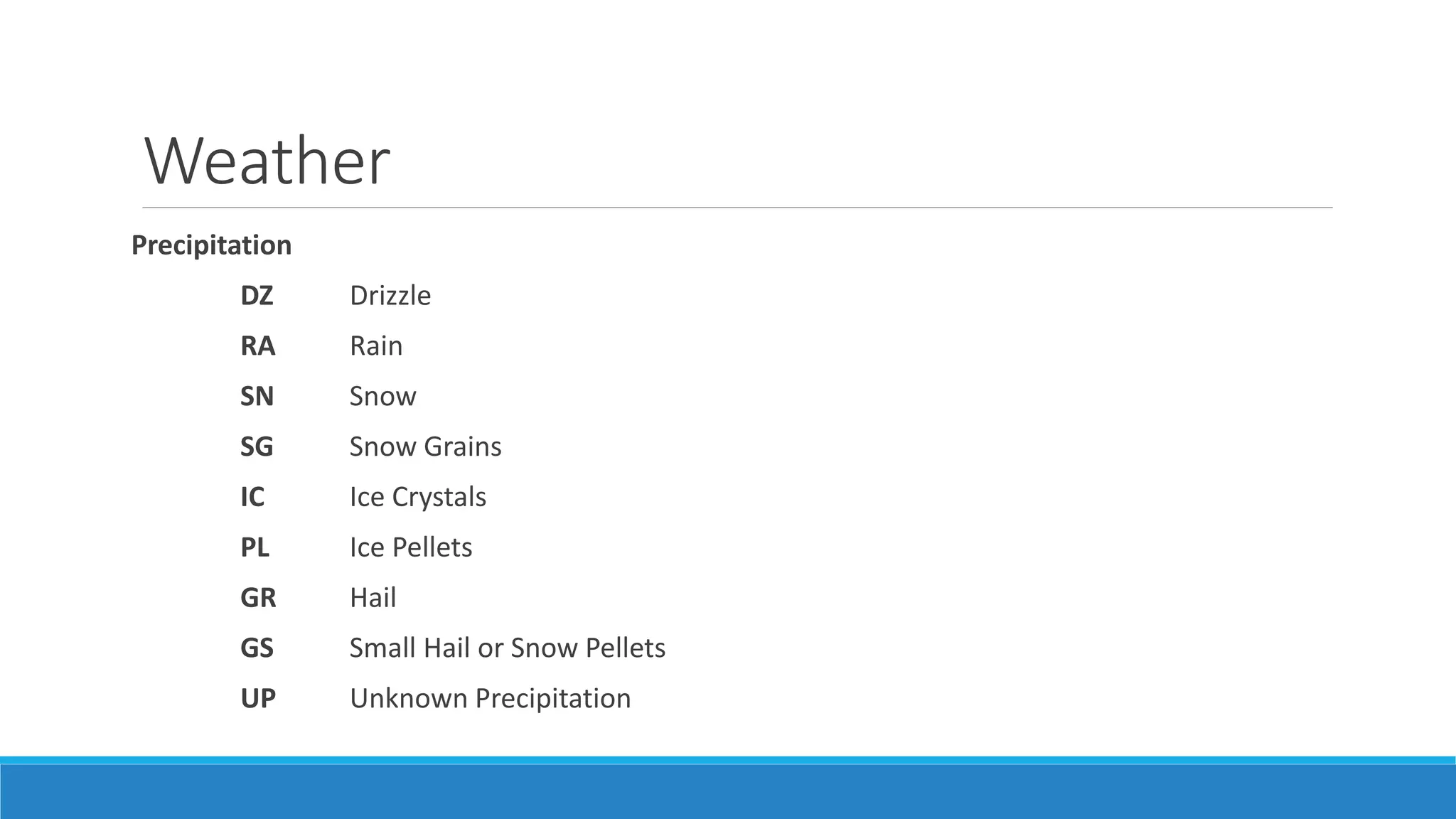

15. Weather
Precipitation
DZ Drizzle
RA Rain
SN Snow
SG Snow Grains
IC Ice Crystals
PL Ice Pellets
GR Hail
GS Small Hail or Snow Pellets
UP Unknown Precipitation

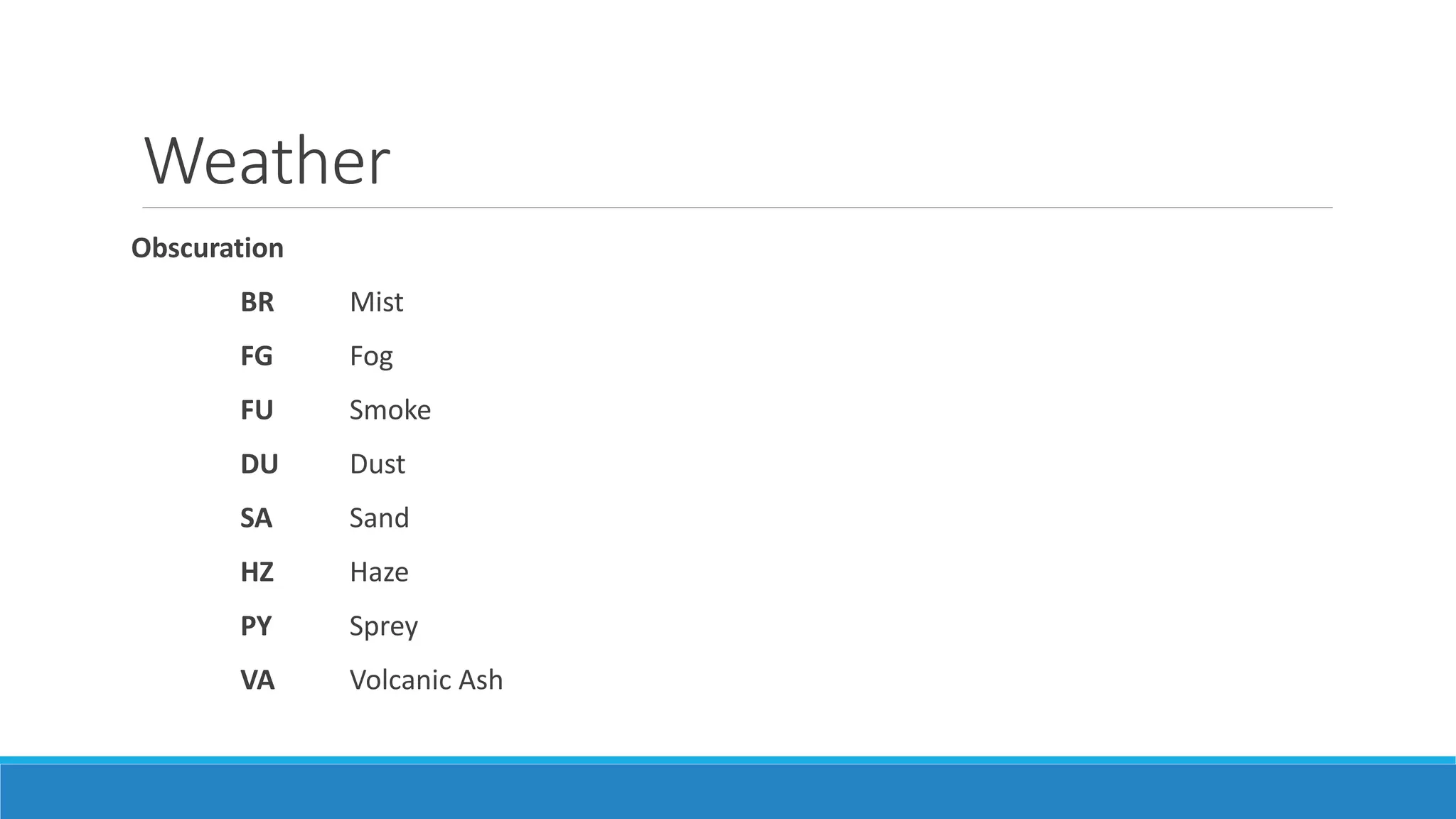

16. Weather
Obscuration
BR Mist
FG Fog
FU Smoke
DU Dust
SA Sand
HZ Haze
PY Sprey
VA Volcanic Ash

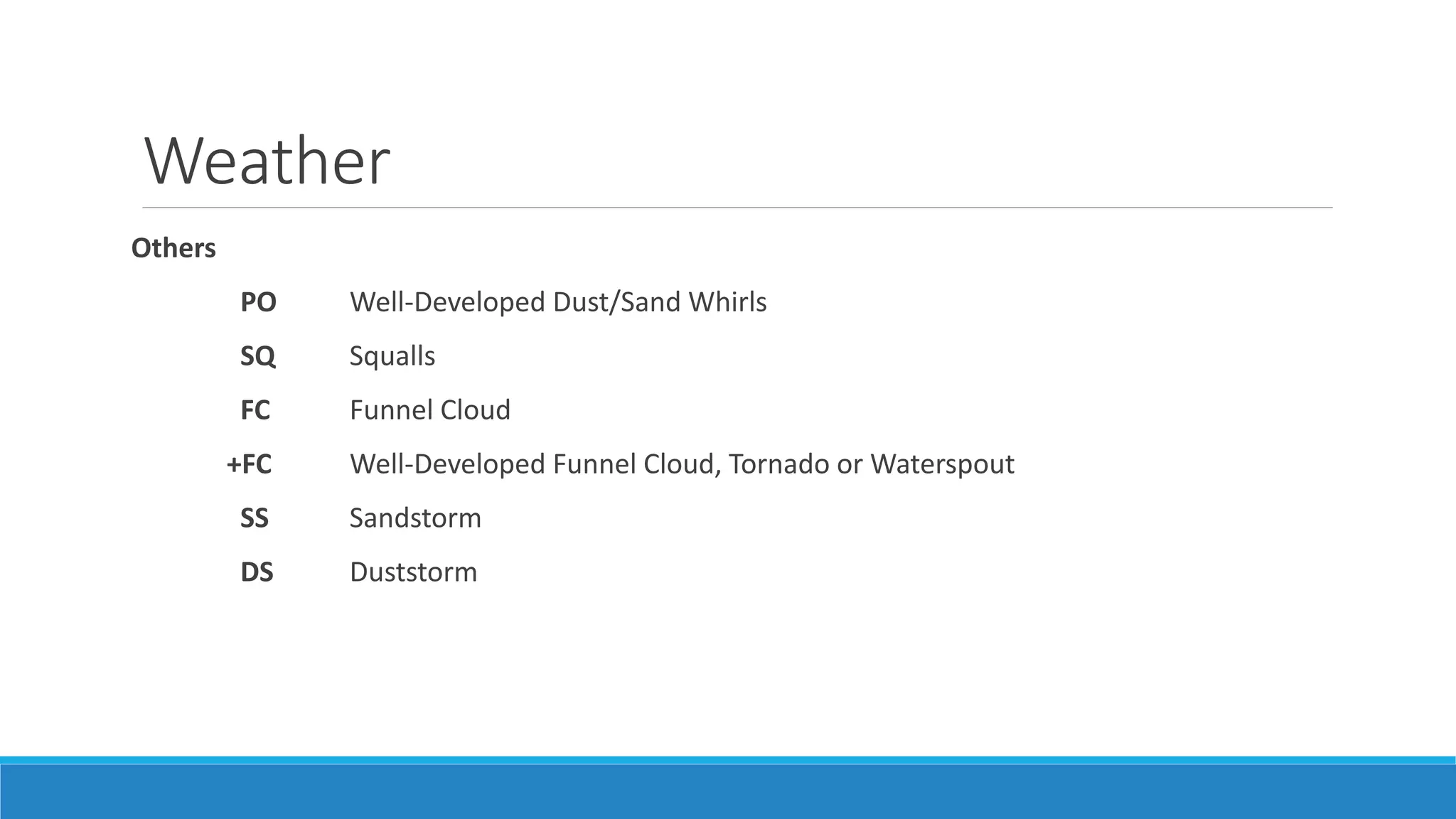

17. Weather
Others
PO Well-Developed Dust/Sand Whirls
SQ Squalls
FC Funnel Cloud
+FC Well-Developed Funnel Cloud, Tornado or Waterspout
SS Sandstorm
DS Duststorm

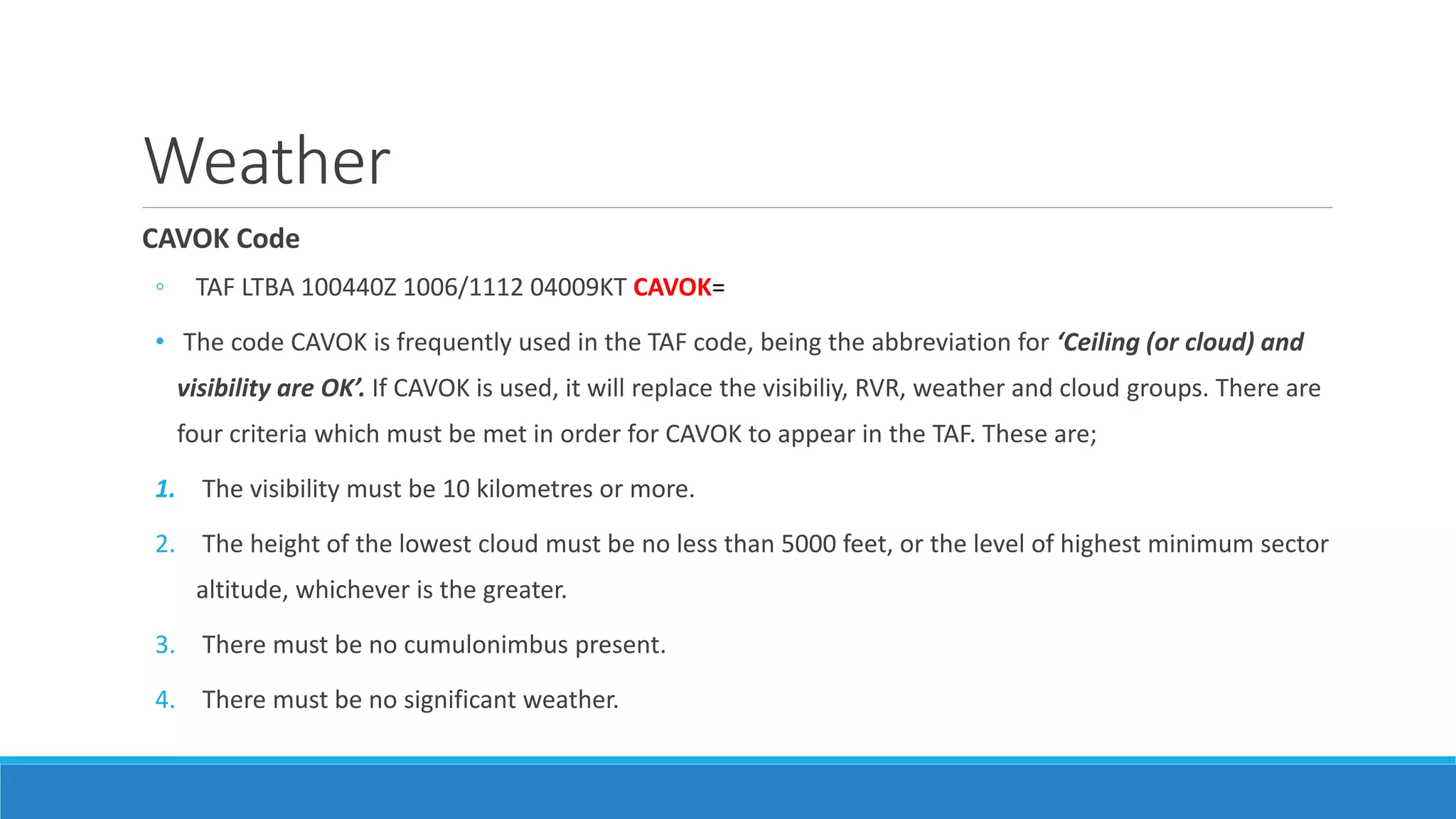

18. Weather
CAVOK Code
◦ TAF LTBA 100440Z 1006/1112 04009KT CAVOK=
• The code CAVOK is frequently used in the TAF code, being the abbreviation for ‘Ceiling (or cloud) and
visibility are OK’. If CAVOK is used, it will replace the visibiliy, RVR, weather and cloud groups. There are
four criteria which must be met in order for CAVOK to appear in the TAF. These are;
1. The visibility must be 10 kilometres or more.
2. The height of the lowest cloud must be no less than 5000 feet, or the level of highest minimum sector
altitude, whichever is the greater.
3. There must be no cumulonimbus present.
4. There must be no significant weather.

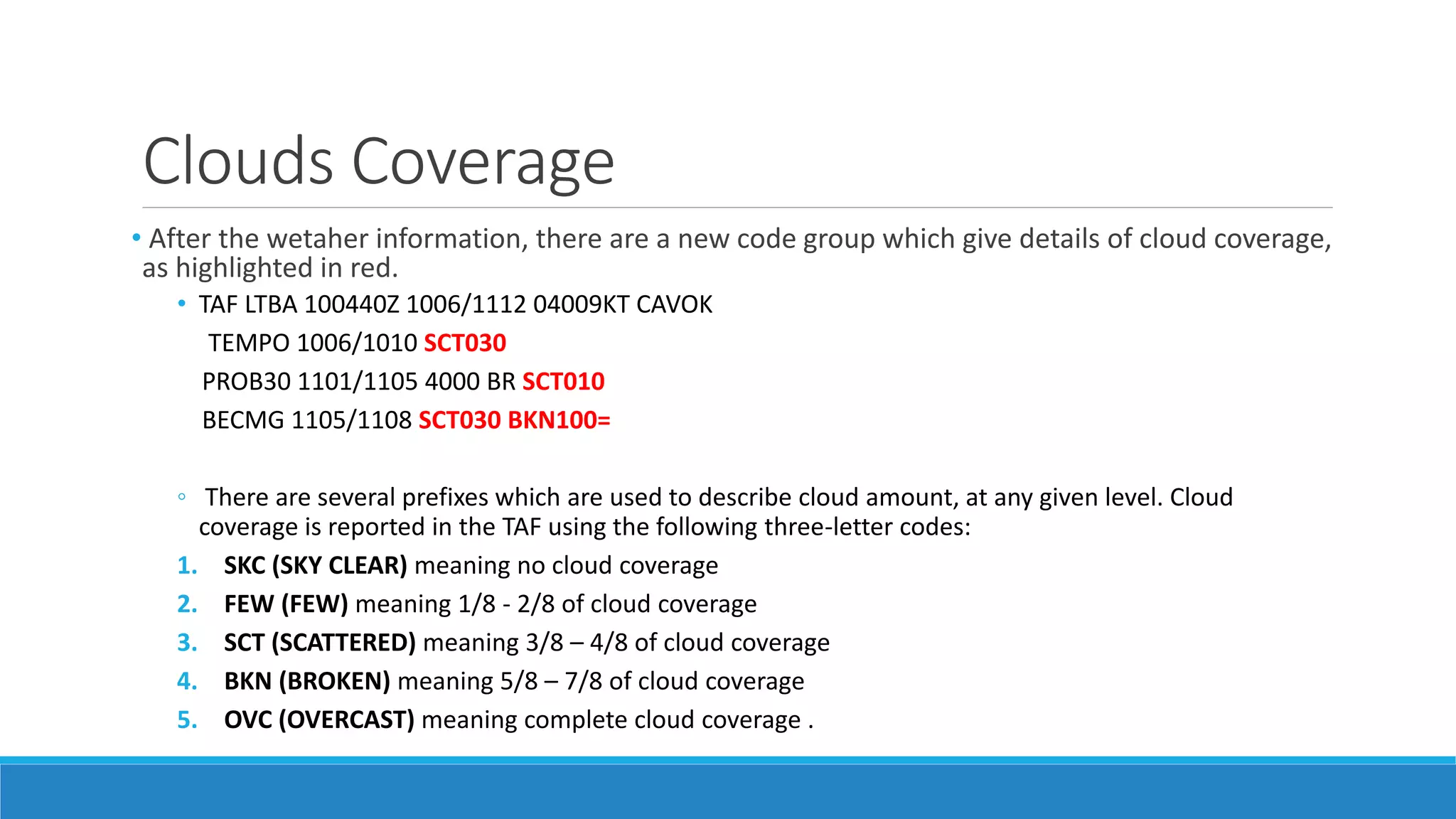

19. Clouds Coverage
• After the wetaher information, there are a new code group which give details of cloud coverage,
as highlighted in red.
• TAF LTBA 100440Z 1006/1112 04009KT CAVOK
TEMPO 1006/1010 SCT030
PROB30 1101/1105 4000 BR SCT010
BECMG 1105/1108 SCT030 BKN100=
◦ There are several prefixes which are used to describe cloud amount, at any given level. Cloud
coverage is reported in the TAF using the following three-letter codes:
1. SKC (SKY CLEAR) meaning no cloud coverage
2. FEW (FEW) meaning 1/8 - 2/8 of cloud coverage
3. SCT (SCATTERED) meaning 3/8 – 4/8 of cloud coverage
4. BKN (BROKEN) meaning 5/8 – 7/8 of cloud coverage
5. OVC (OVERCAST) meaning complete cloud coverage .

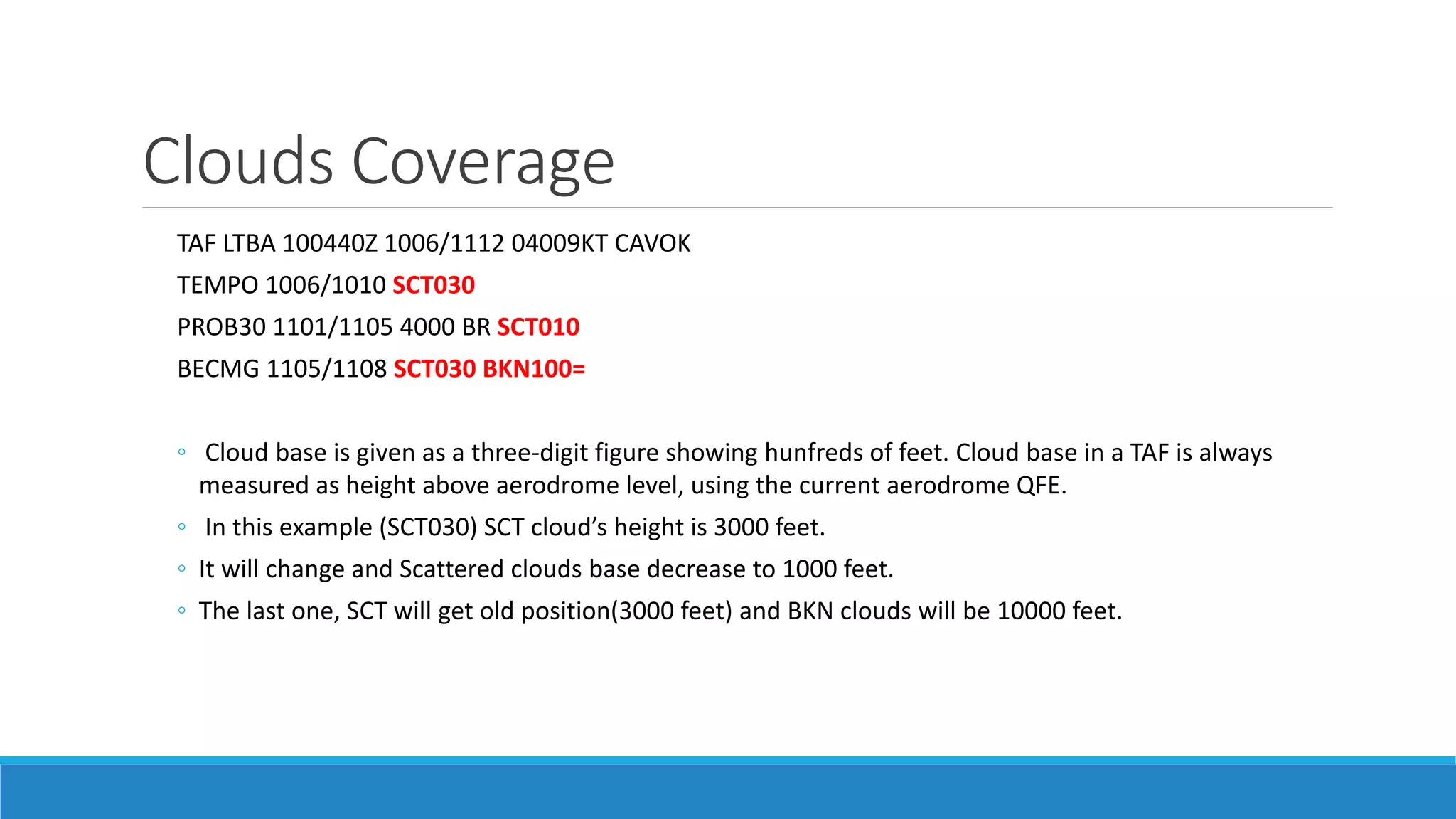

20. Clouds Coverage
TAF LTBA 100440Z 1006/1112 04009KT CAVOK
TEMPO 1006/1010 SCT030
PROB30 1101/1105 4000 BR SCT010
BECMG 1105/1108 SCT030 BKN100=
◦ Cloud base is given as a three-digit figure showing hunfreds of feet. Cloud base in a TAF is always
measured as height above aerodrome level, using the current aerodrome QFE.
◦ In this example (SCT030) SCT cloud’s height is 3000 feet.
◦ It will change and Scattered clouds base decrease to 1000 feet.
◦ The last one, SCT will get old position(3000 feet) and BKN clouds will be 10000 feet.

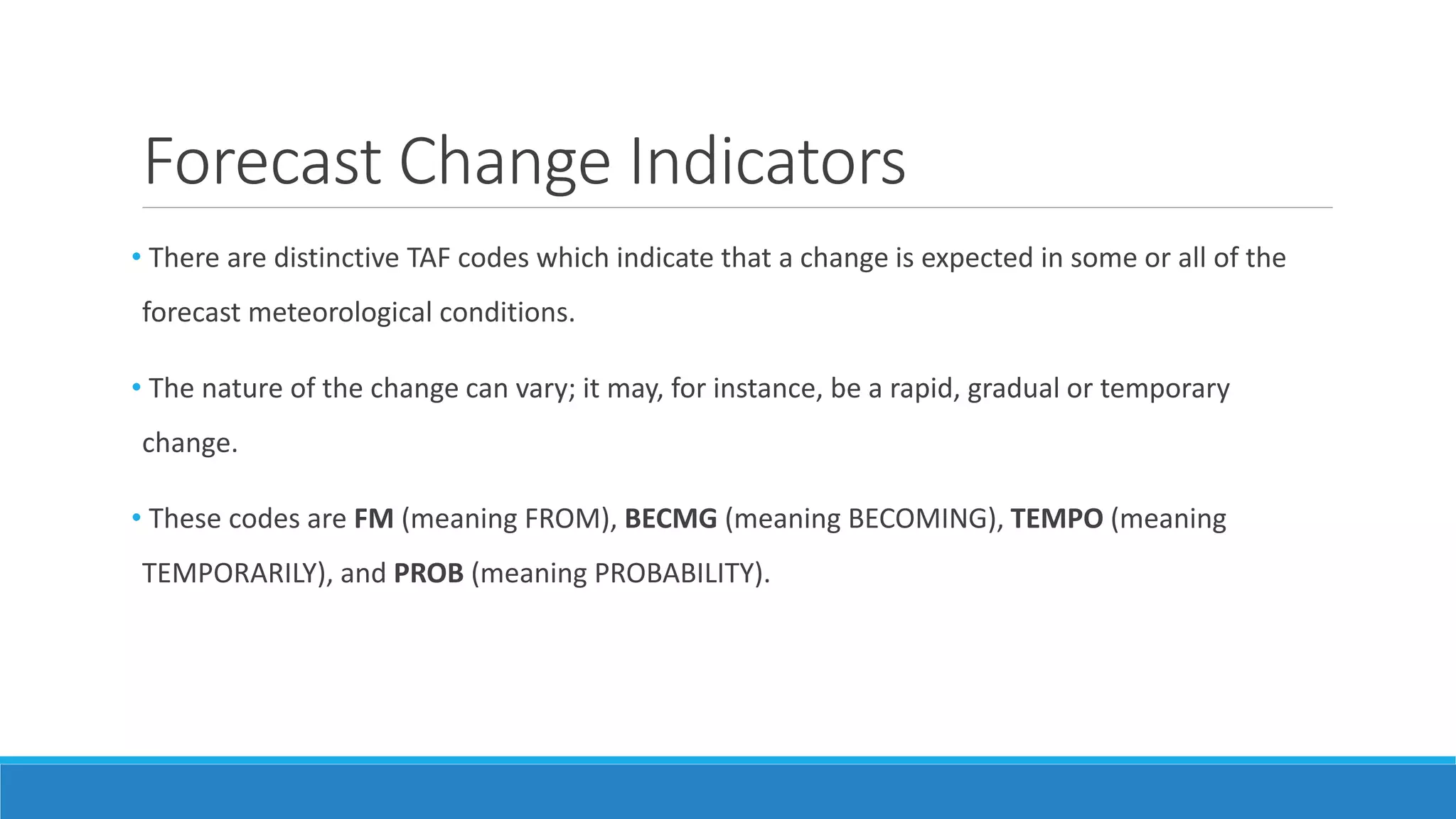

21. Forecast Change Indicators
• There are distinctive TAF codes which indicate that a change is expected in some or all of the
forecast meteorological conditions.
• The nature of the change can vary; it may, for instance, be a rapid, gradual or temporary
change.
• These codes are FM (meaning FROM), BECMG (meaning BECOMING), TEMPO (meaning
TEMPORARILY), and PROB (meaning PROBABILITY).

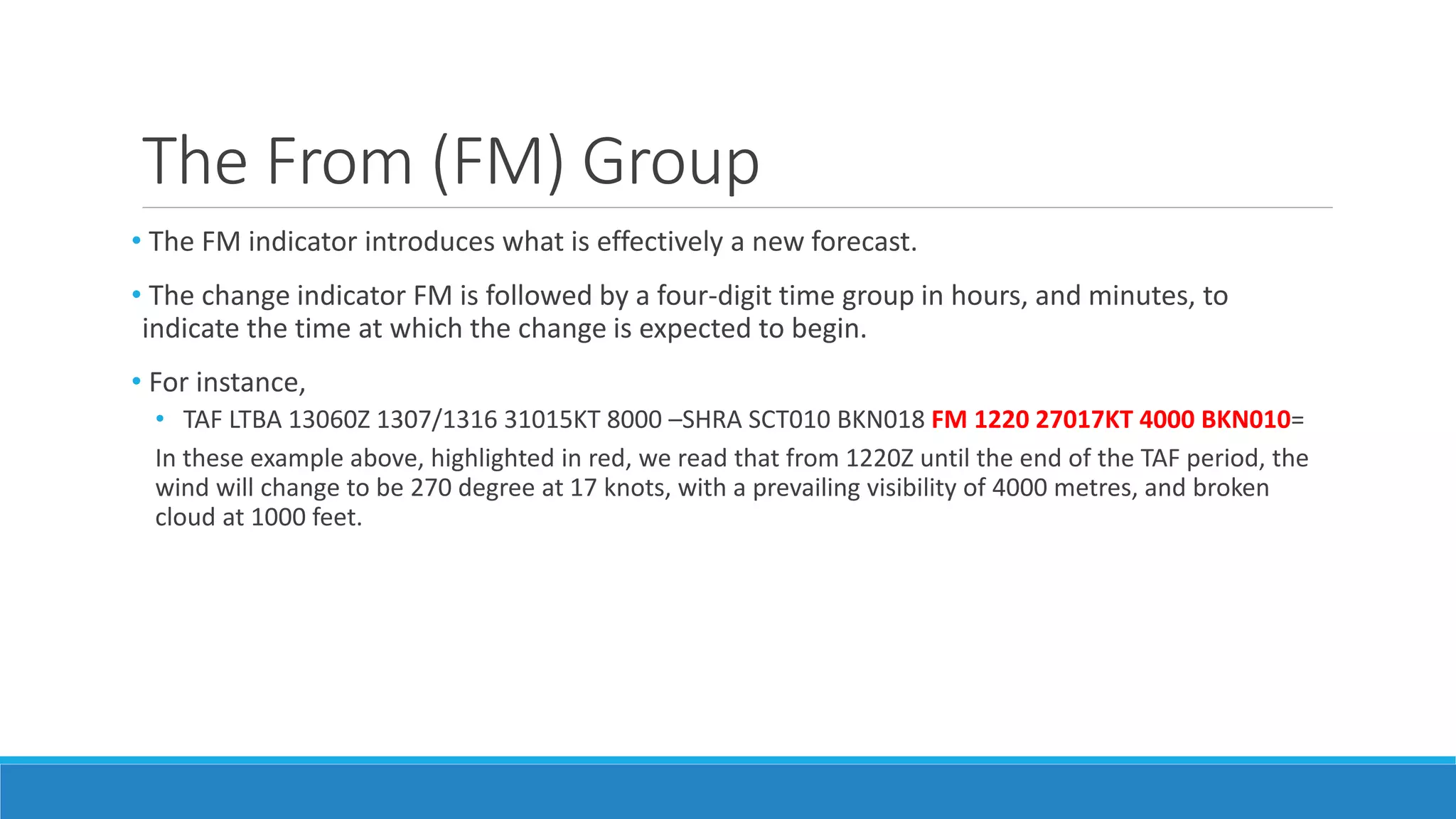

22. The From (FM) Group
• The FM indicator introduces what is effectively a new forecast.
• The change indicator FM is followed by a four-digit time group in hours, and minutes, to
indicate the time at which the change is expected to begin.
• For instance,
• TAF LTBA 13060Z 1307/1316 31015KT 8000 –SHRA SCT010 BKN018 FM 1220 27017KT 4000 BKN010=
In these example above, highlighted in red, we read that from 1220Z until the end of the TAF period, the
wind will change to be 270 degree at 17 knots, with a prevailing visibility of 4000 metres, and broken
cloud at 1000 feet.

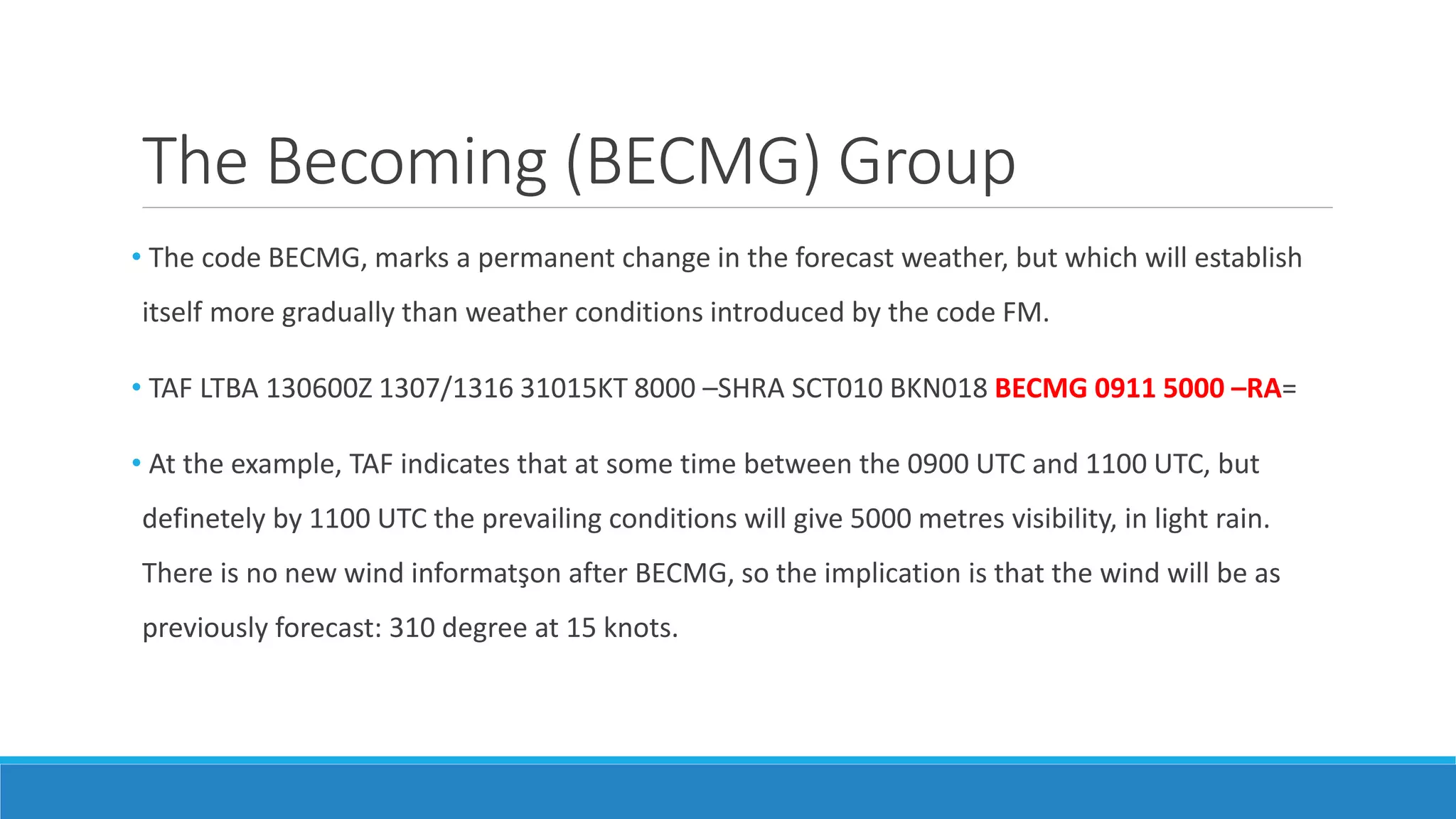

23. The Becoming (BECMG) Group
• The code BECMG, marks a permanent change in the forecast weather, but which will establish
itself more gradually than weather conditions introduced by the code FM.
• TAF LTBA 130600Z 1307/1316 31015KT 8000 –SHRA SCT010 BKN018 BECMG 0911 5000 –RA=
• At the example, TAF indicates that at some time between the 0900 UTC and 1100 UTC, but
definetely by 1100 UTC the prevailing conditions will give 5000 metres visibility, in light rain.
There is no new wind informatşon after BECMG, so the implication is that the wind will be as
previously forecast: 310 degree at 15 knots.

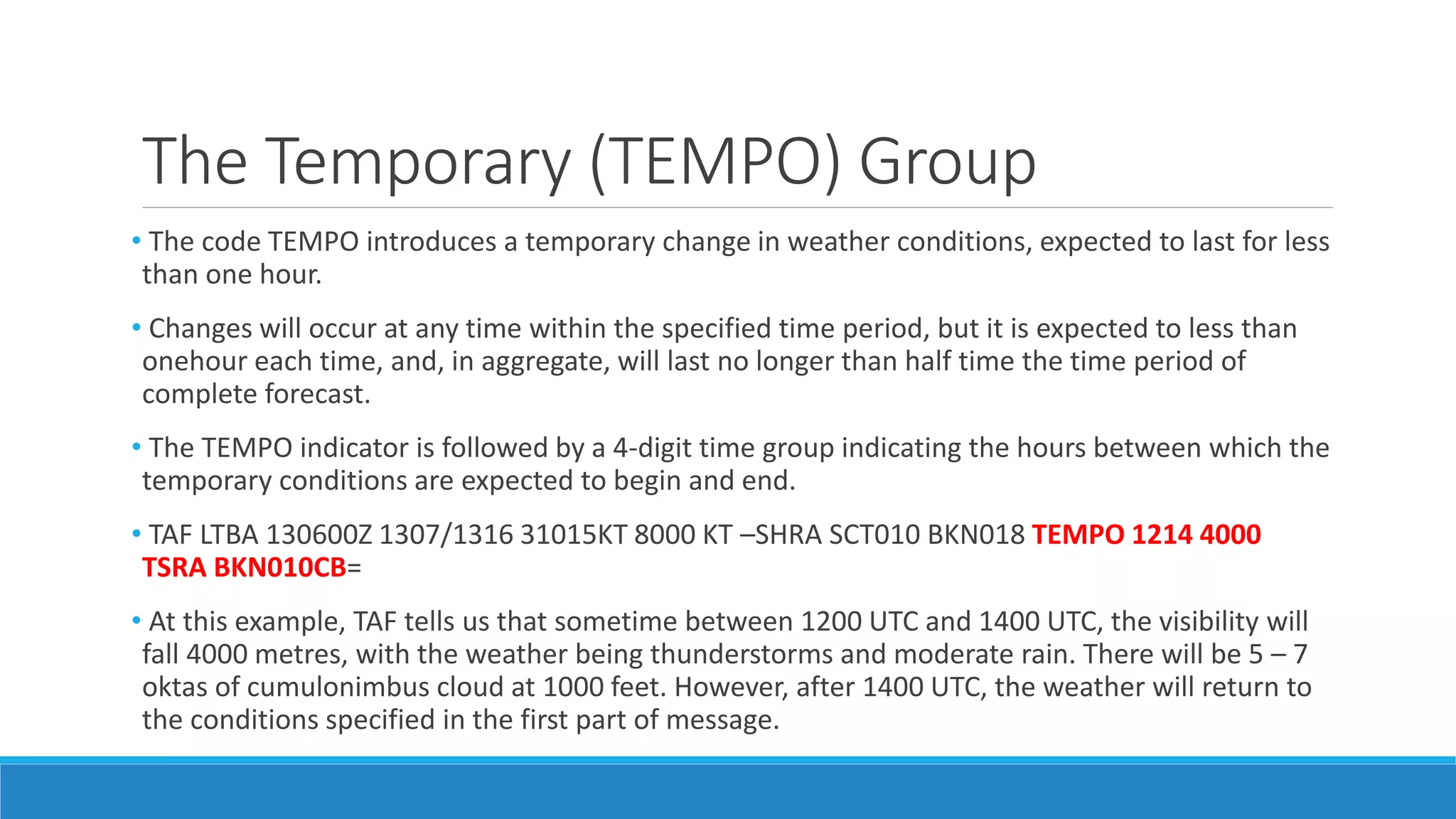

24. The Temporary (TEMPO) Group
• The code TEMPO introduces a temporary change in weather conditions, expected to last for less
than one hour.
• Changes will occur at any time within the specified time period, but it is expected to less than
onehour each time, and, in aggregate, will last no longer than half time the time period of
complete forecast.
• The TEMPO indicator is followed by a 4-digit time group indicating the hours between which the
temporary conditions are expected to begin and end.
• TAF LTBA 130600Z 1307/1316 31015KT 8000 KT –SHRA SCT010 BKN018 TEMPO 1214 4000
TSRA BKN010CB=
• At this example, TAF tells us that sometime between 1200 UTC and 1400 UTC, the visibility will
fall 4000 metres, with the weather being thunderstorms and moderate rain. There will be 5 – 7
oktas of cumulonimbus cloud at 1000 feet. However, after 1400 UTC, the weather will return to
the conditions specified in the first part of message.

25. The Probability (PROB) Indicator
• The code PROB in a TAF indicates the probability of the occurence of specified weather
phenomena.
• There is a two type of PROB;
1. PROB30 indicates a low probability of a change occurring.
2. PROB40 indicates a high probability of a change occurring.
• The code PROB can be followed by a time group of its own, and/or by an indicator, such as BECMG or
TEMPO.
• The example of TAF below tells us that there is a high probability that, between 1000 UTC and 1400
UTC, there will be thunderstorms with heavy rain and hail, and from 3 to 4 oktas of cumulonimbus
clouds at 500 feet.
TAF LTBA 130600Z 1307/1316 31015KT 8000 –SHRA SCT010 BKN018 PROB40 TEMPO 1014 +TSRAGR
SCT005CB=

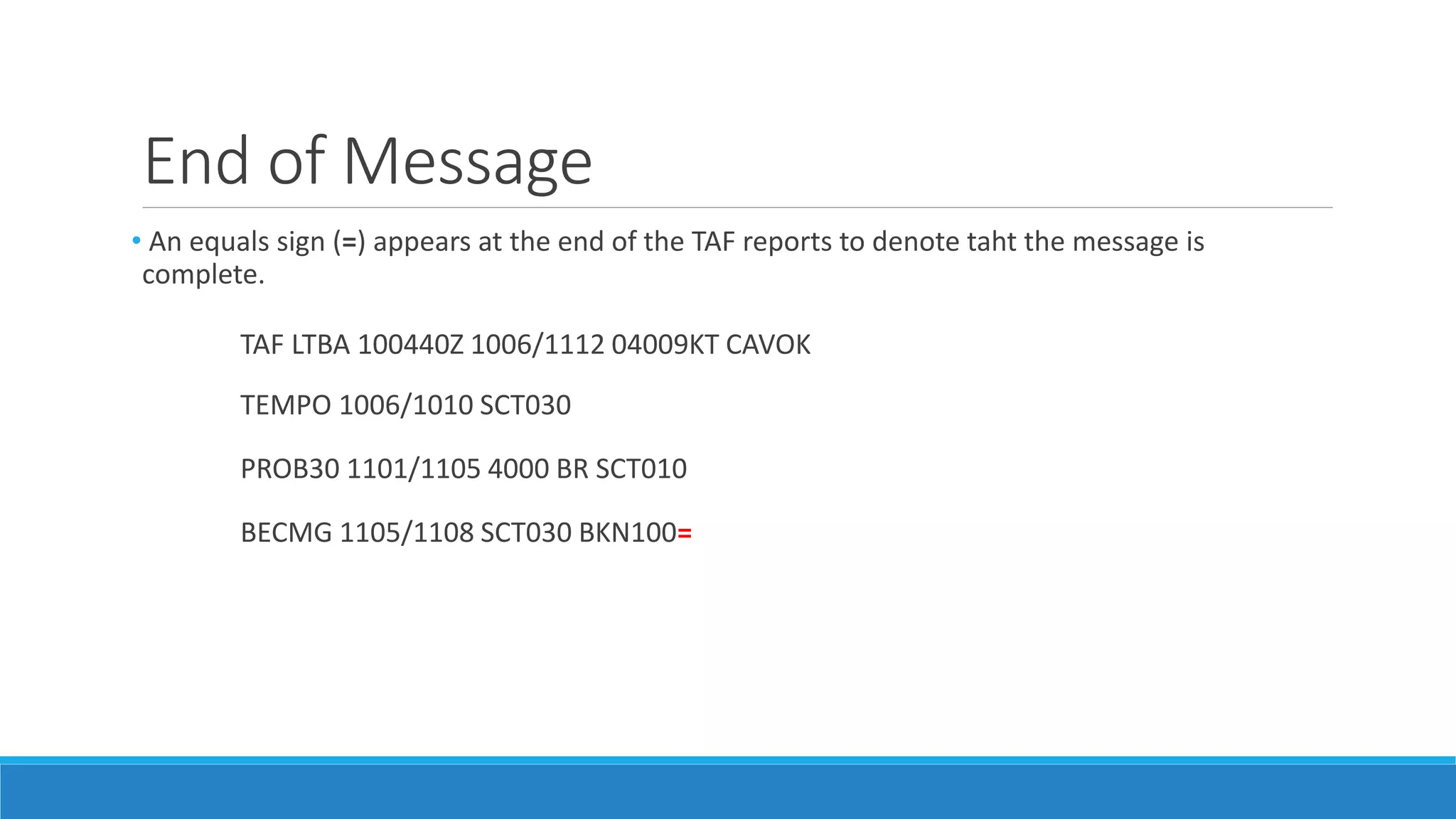

26. End of Message
• An equals sign (=) appears at the end of the TAF reports to denote taht the message is
complete.
TAF LTBA 100440Z 1006/1112 04009KT CAVOK
TEMPO 1006/1010 SCT030
PROB30 1101/1105 4000 BR SCT010
BECMG 1105/1108 SCT030 BKN100=

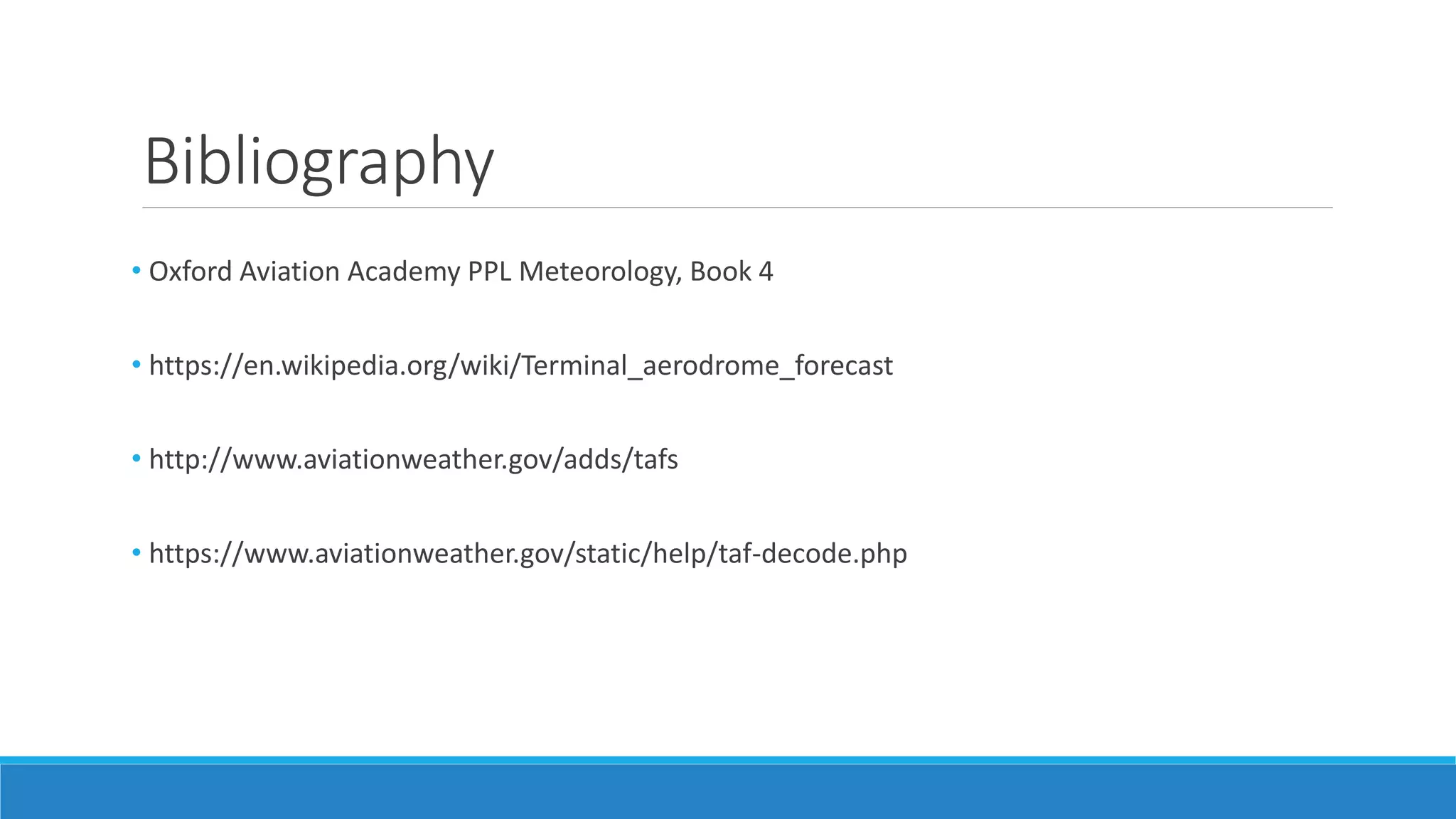

27. Bibliography
• Oxford Aviation Academy PPL Meteorology, Book 4
• https://en.wikipedia.org/wiki/Terminal_aerodrome_forecast
• http://www.aviationweather.gov/adds/tafs
• https://www.aviationweather.gov/static/help/taf-decode.php
