1. i
AUTOMATION TESTING OF SHADOW DOM
ELEMENTS WITH KATALON STUDIO

2. What is Shadow DOM?
Shadow DOM is a technique to help web developers to better
encapsulate their code.
Shadow DOM works by allowing DOM elements to contain child
node and CSS. Shadow DOM also keeps child node and CSS separate
from the DOM of the main document.
DOM subtree has a root node (Shadow Root) which is unaffected by
any modification made to other elements.

3. What is Shadow DOM?
Although Shadow DOM is a useful solution for Web developers, it
becomes a challenge for automation testing because those
elements inside a shadow root technically do not exist in the
main document DOM.
Therefore, test automation frameworks that use the DOM query
function would not work properly.

4. What is Shadow DOM?
Via this tutorial, we will take a look at how Katalon Studio solves
the problem and let you test shadow DOM elements in a
straightforward way.
Chrome will be the main browser for testing this feature as
Chrome version 53 or later fully supports shadow DOM.

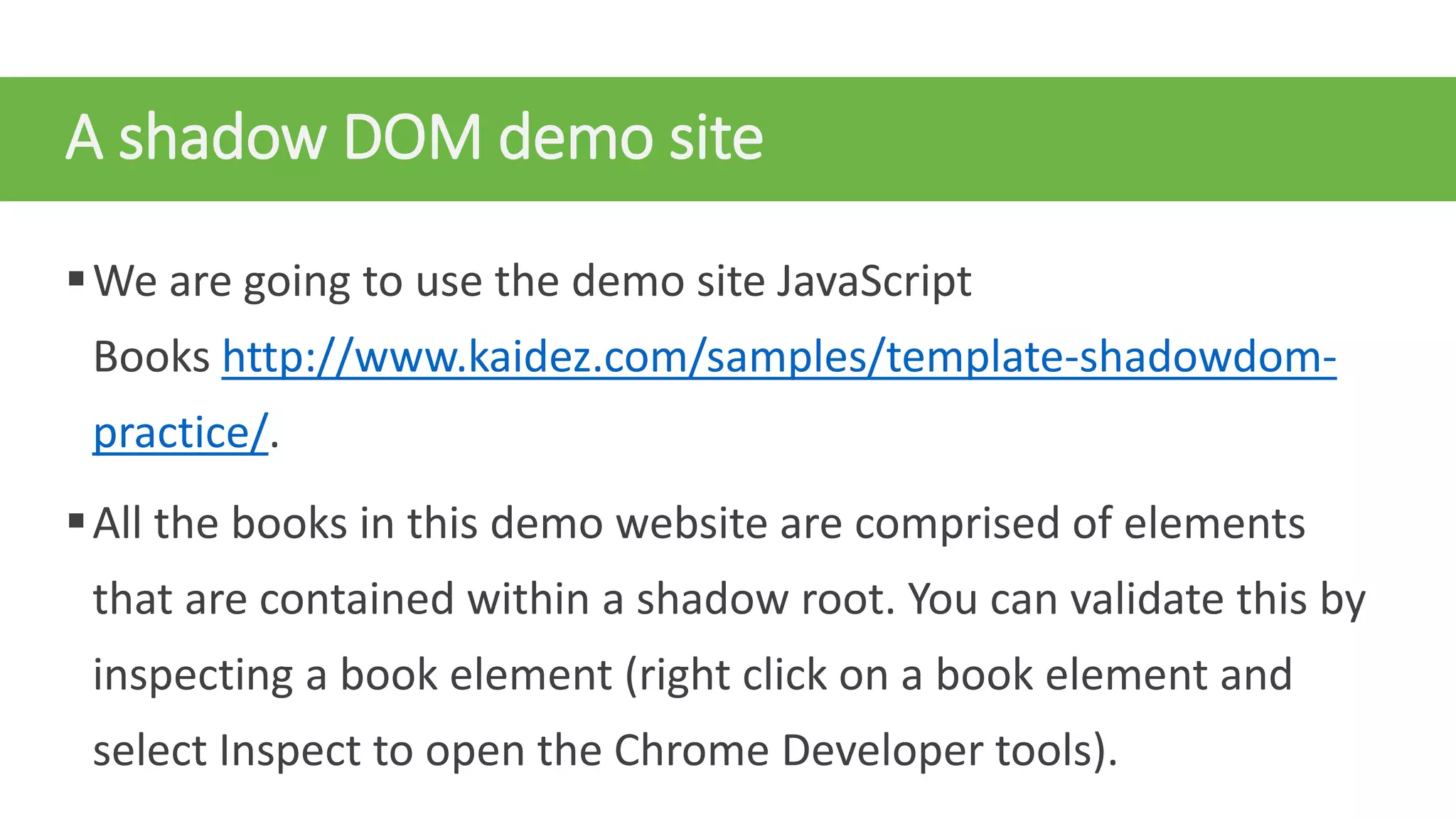

5. A shadow DOM demo site
We are going to use the demo site JavaScript
Books http://www.kaidez.com/samples/template-shadowdom-
practice/.
All the books in this demo website are comprised of elements
that are contained within a shadow root. You can validate this by
inspecting a book element (right click on a book element and
select Inspect to open the Chrome Developer tools).

6. A shadow DOM demo site

7. A shadow DOM demo site
The inspected shadow root element is shown as below:
Notice: The #shadow-
root element as it is the
representation of a shadow
root. All elements inside this
shadow root are considered
separate from the current
DOM document.

8. Automate Testing Shadow DOM with Katalon Studio

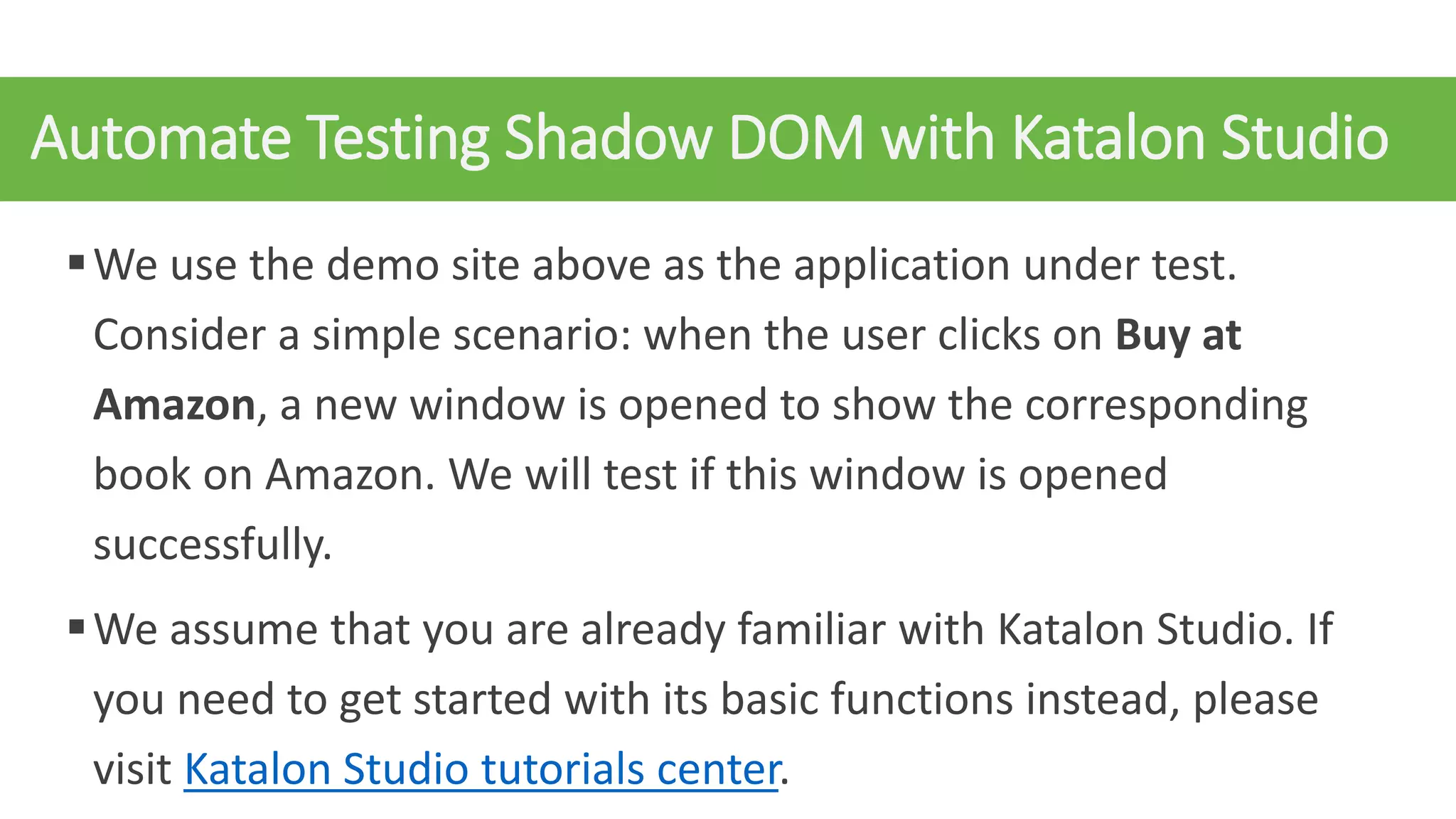

We use the demo site above as the application under test.
Consider a simple scenario: when the user clicks on Buy at
Amazon, a new window is opened to show the corresponding
book on Amazon. We will test if this window is opened
successfully.
We assume that you are already familiar with Katalon Studio. If
you need to get started with its basic functions instead, please
visit Katalon Studio tutorials center.

9. Automate Testing Shadow DOM with Katalon Studio
1. First, create a new Katalon Studio project, and let’s name it
as Shadow DOM Testing.

10. Automate Testing Shadow DOM with Katalon Studio

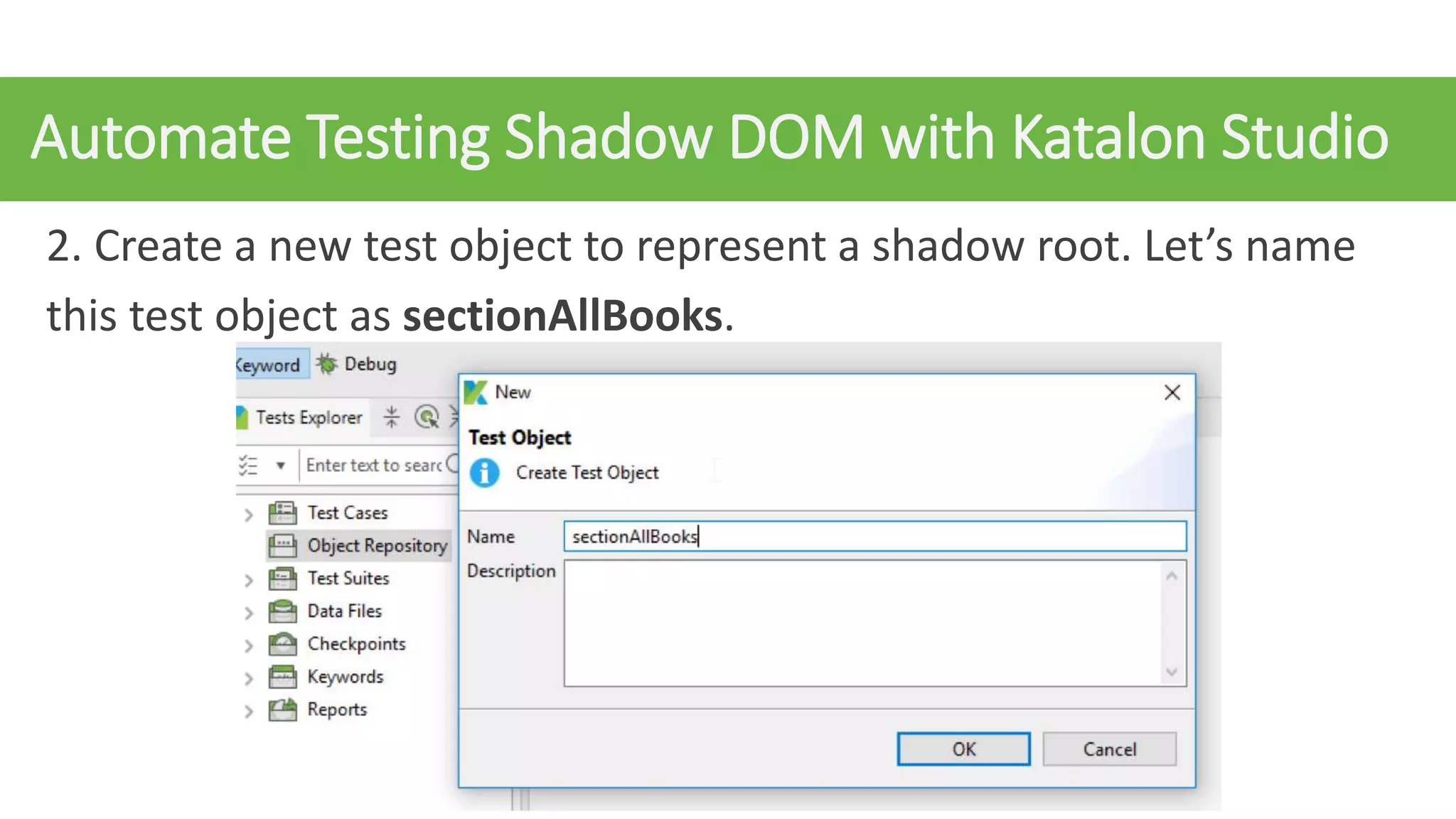

2. Create a new test object to represent a shadow root. Let’s name
this test object as sectionAllBooks.

11. Automate Testing Shadow DOM with Katalon Studio
3. Add a property with the name id and the value allBooks for
the sectionAllBooks object.

12. Automate Testing Shadow DOM with Katalon Studio
4. Next, create a new test object to represent an in HTML DOM.
Let’s name this object as aStoreLink.
5. Create a property for this object, aStoreLink. This property has
the name
as href and value as http://www.amazon.com/gp/product/18496931
29/ref=as_li_qf_sp_asin_il_tl?ie=UTF8&camp=1789&creative=9325
&creativeASIN=1849693129&linkCode=as2&tag=kaidez-
20&linkId=CK7X5SMYEHL3BMEQ

13. Automate Testing Shadow DOM with Katalon Studio

14. Automate Testing Shadow DOM with Katalon Studio

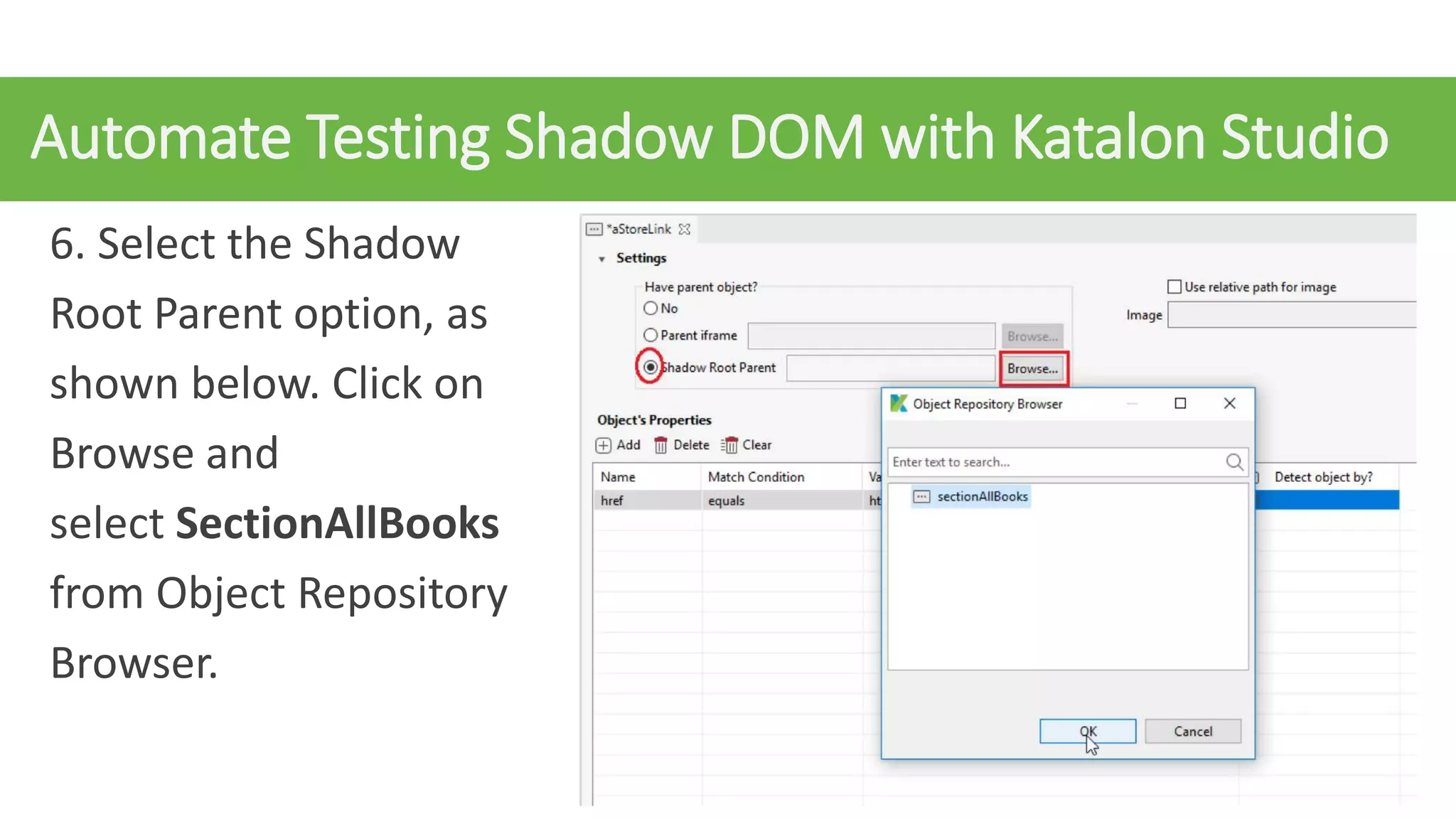

6. Select the Shadow
Root Parent option, as
shown below. Click on
Browse and
select SectionAllBooks
from Object Repository
Browser.

15. Automate Testing Shadow DOM with Katalon Studio

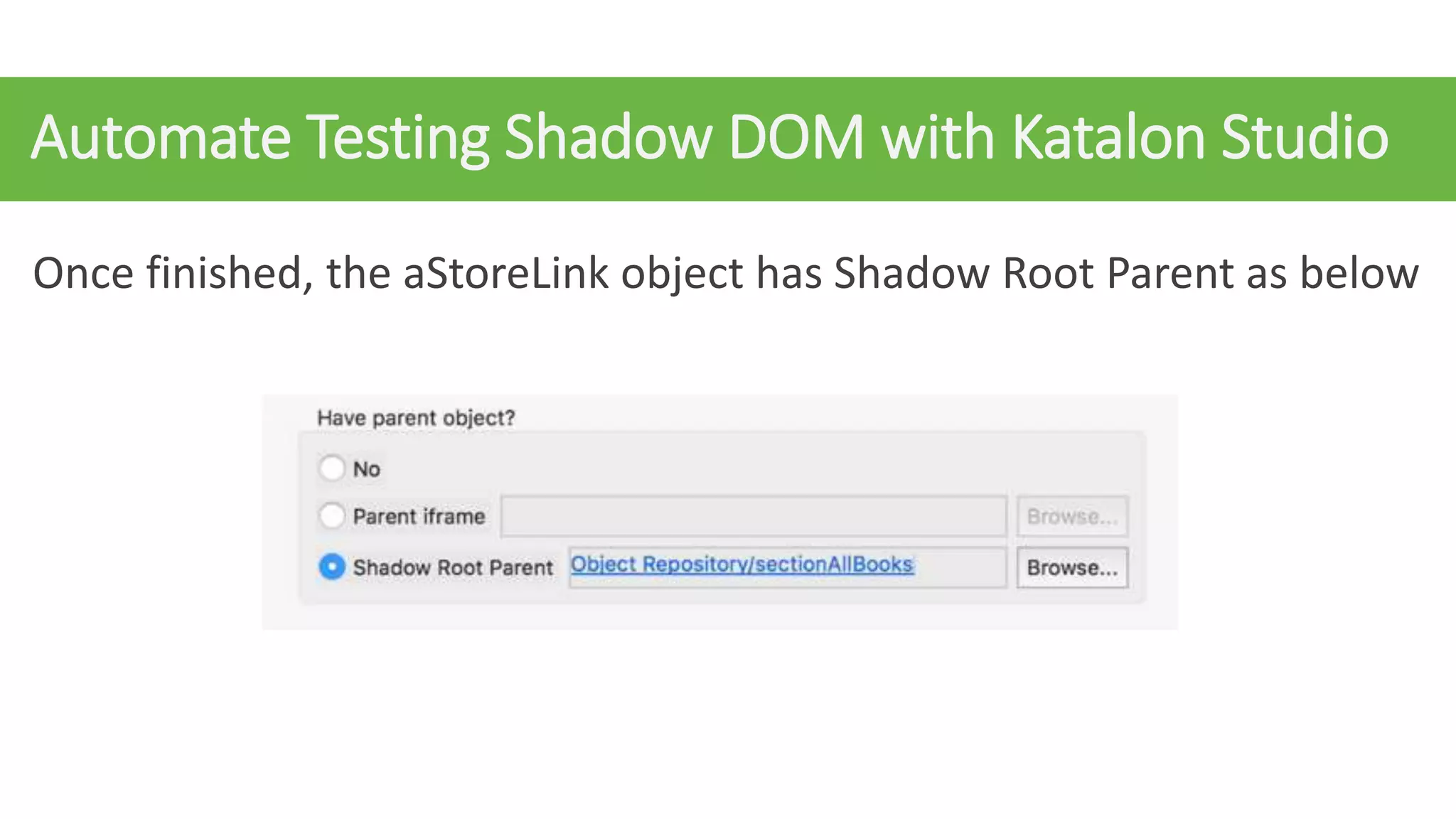

Once finished, the aStoreLink object has Shadow Root Parent as below

16. Automate Testing Shadow DOM with Katalon Studio

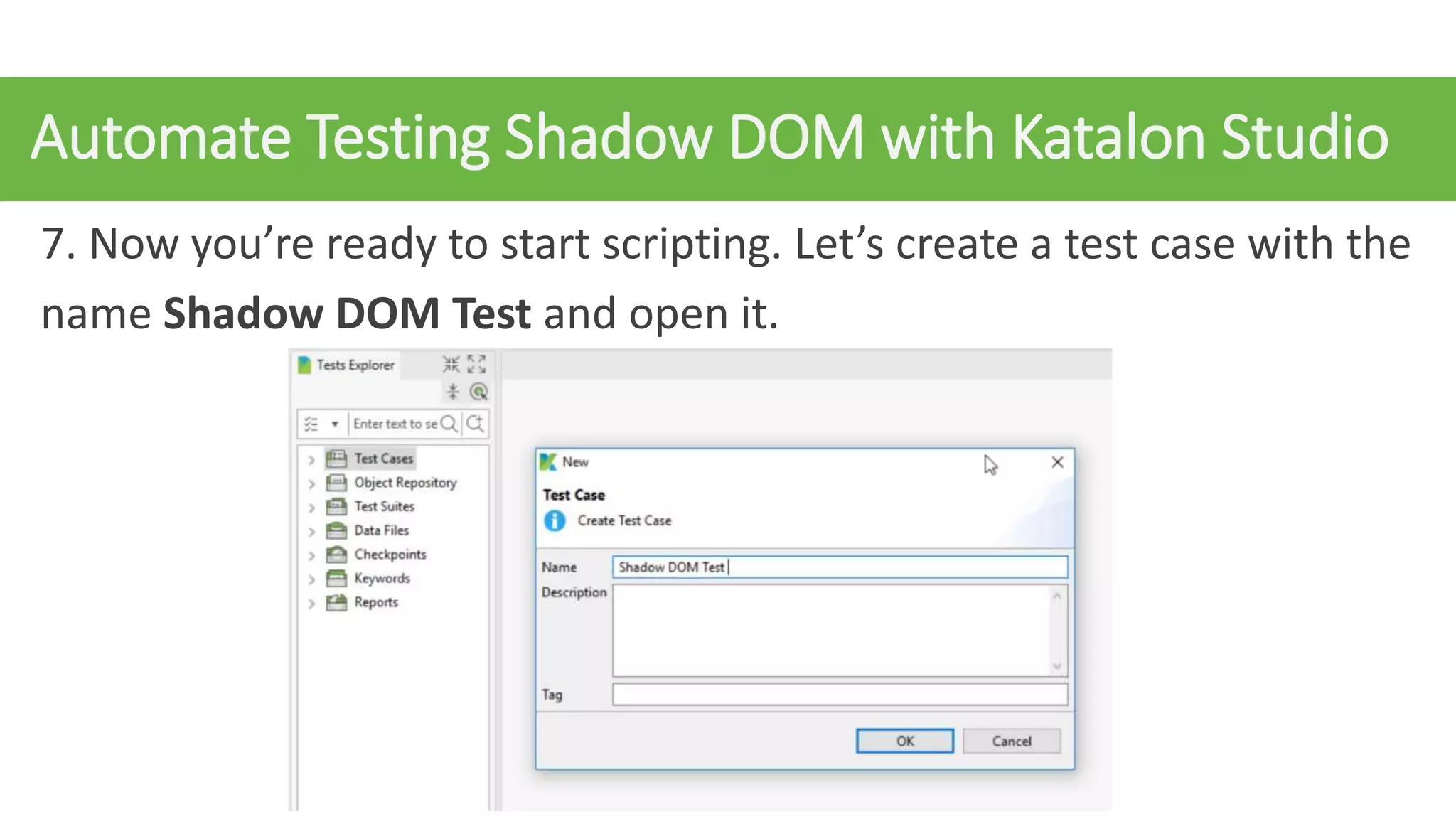

7. Now you’re ready to start scripting. Let’s create a test case with the
name Shadow DOM Test and open it.

17. Automate Testing Shadow DOM with Katalon Studio

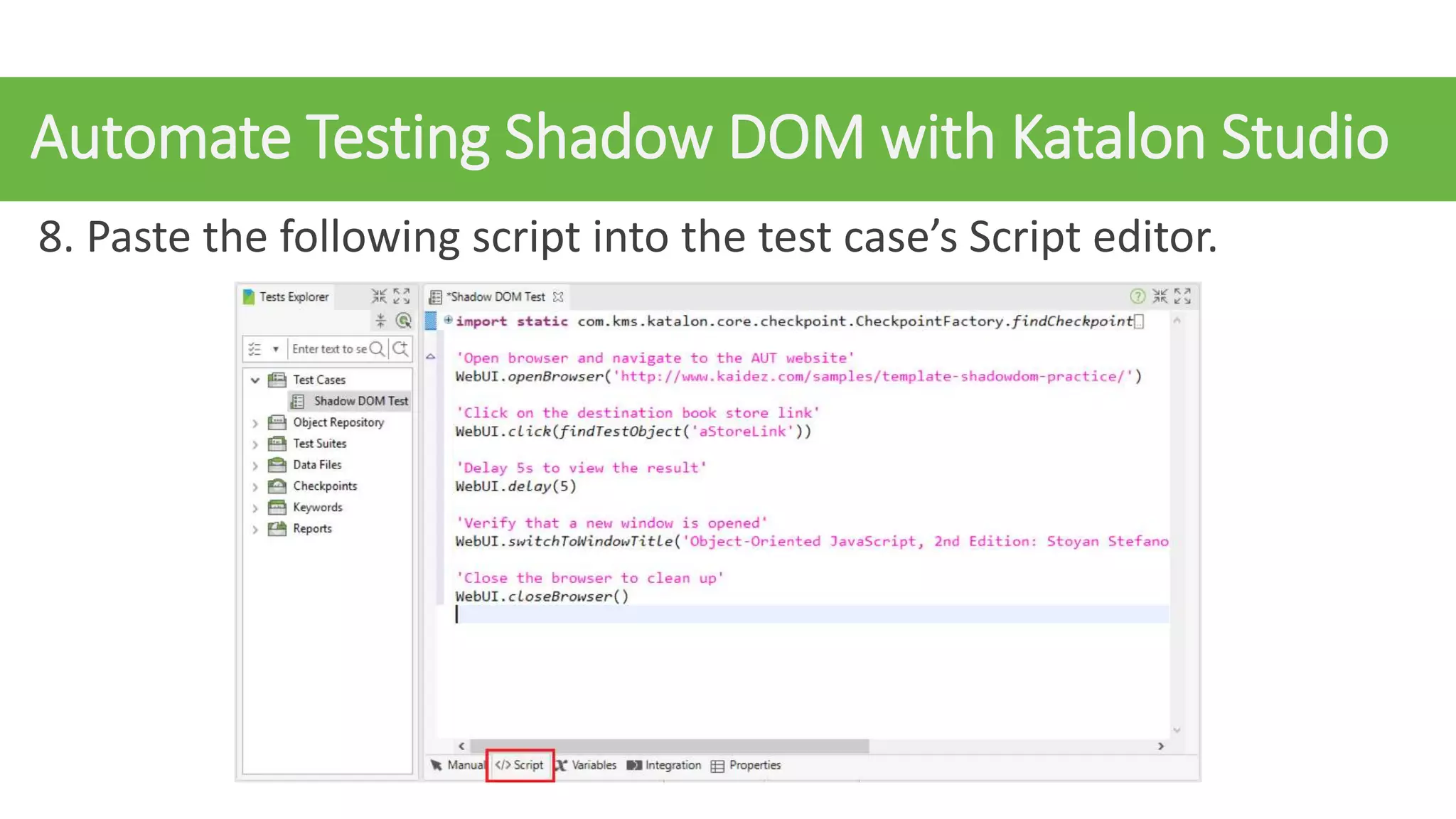

8. Paste the following script into the test case’s Script editor.

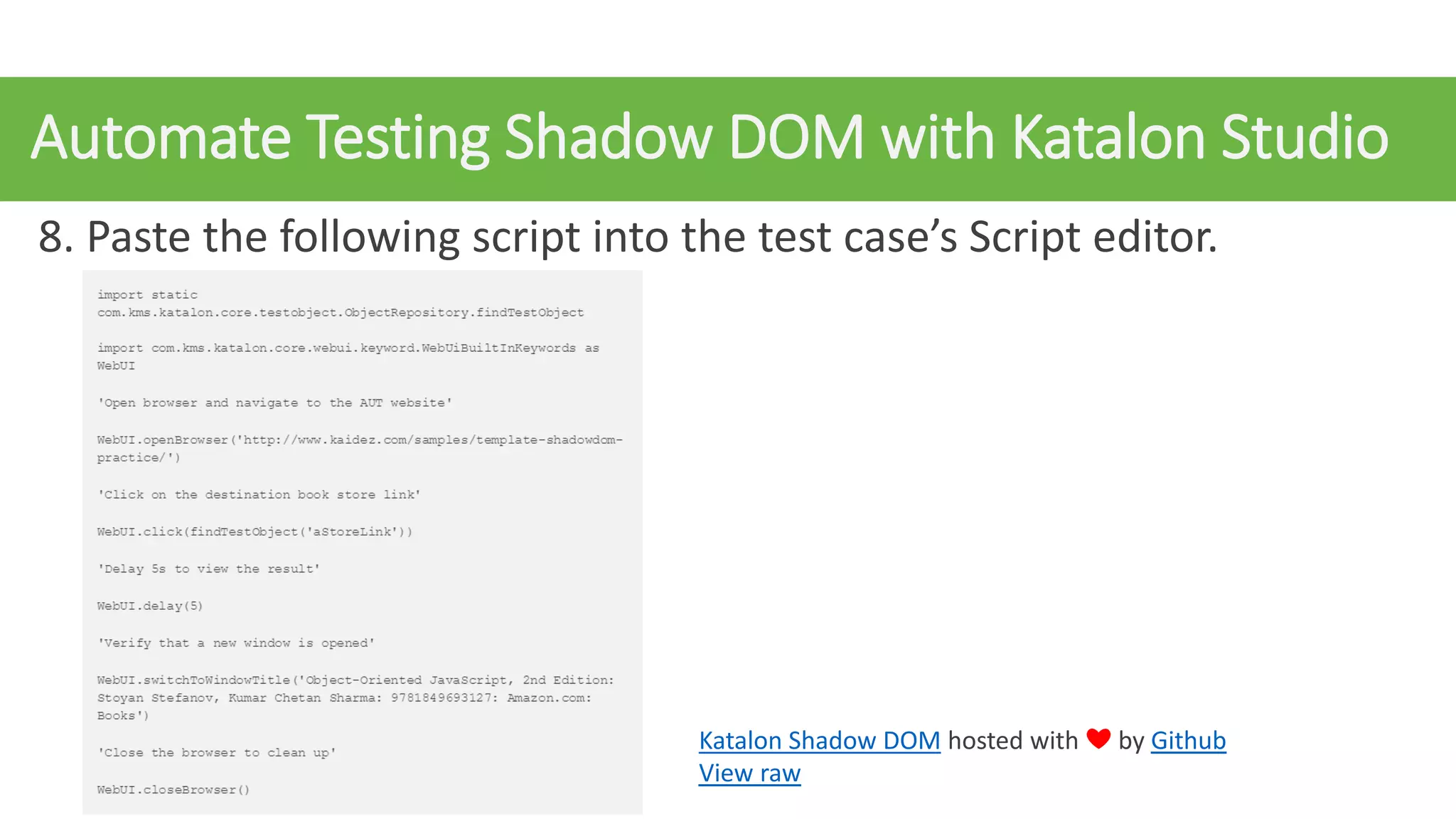

18. Automate Testing Shadow DOM with Katalon Studio
8. Paste the following script into the test case’s Script editor.
Katalon Shadow DOM hosted with ❤ by Github
View raw

19. Automate Testing Shadow DOM with Katalon Studio

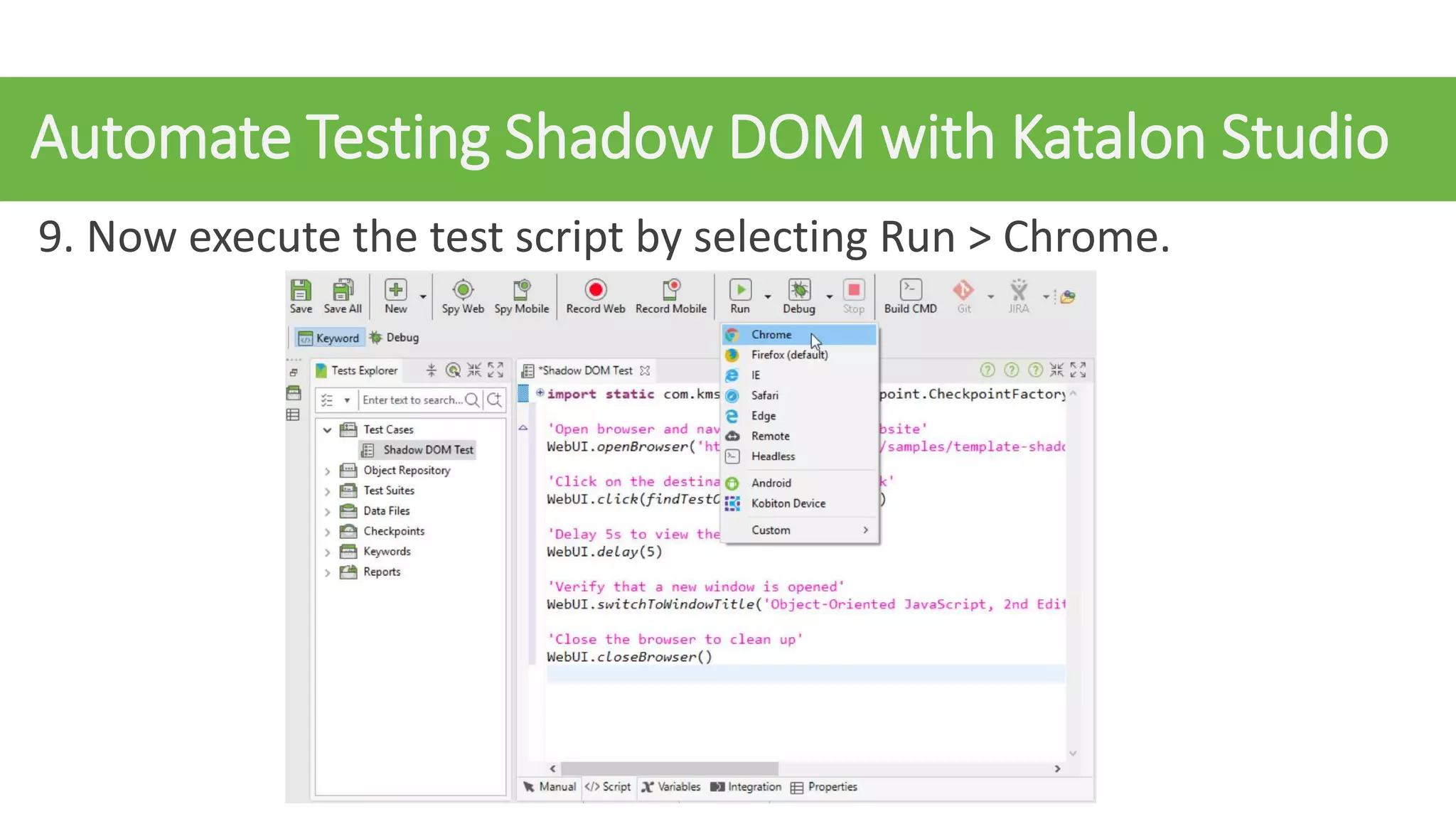

9. Now execute the test script by selecting Run > Chrome.

20. Automate Testing Shadow DOM with Katalon Studio

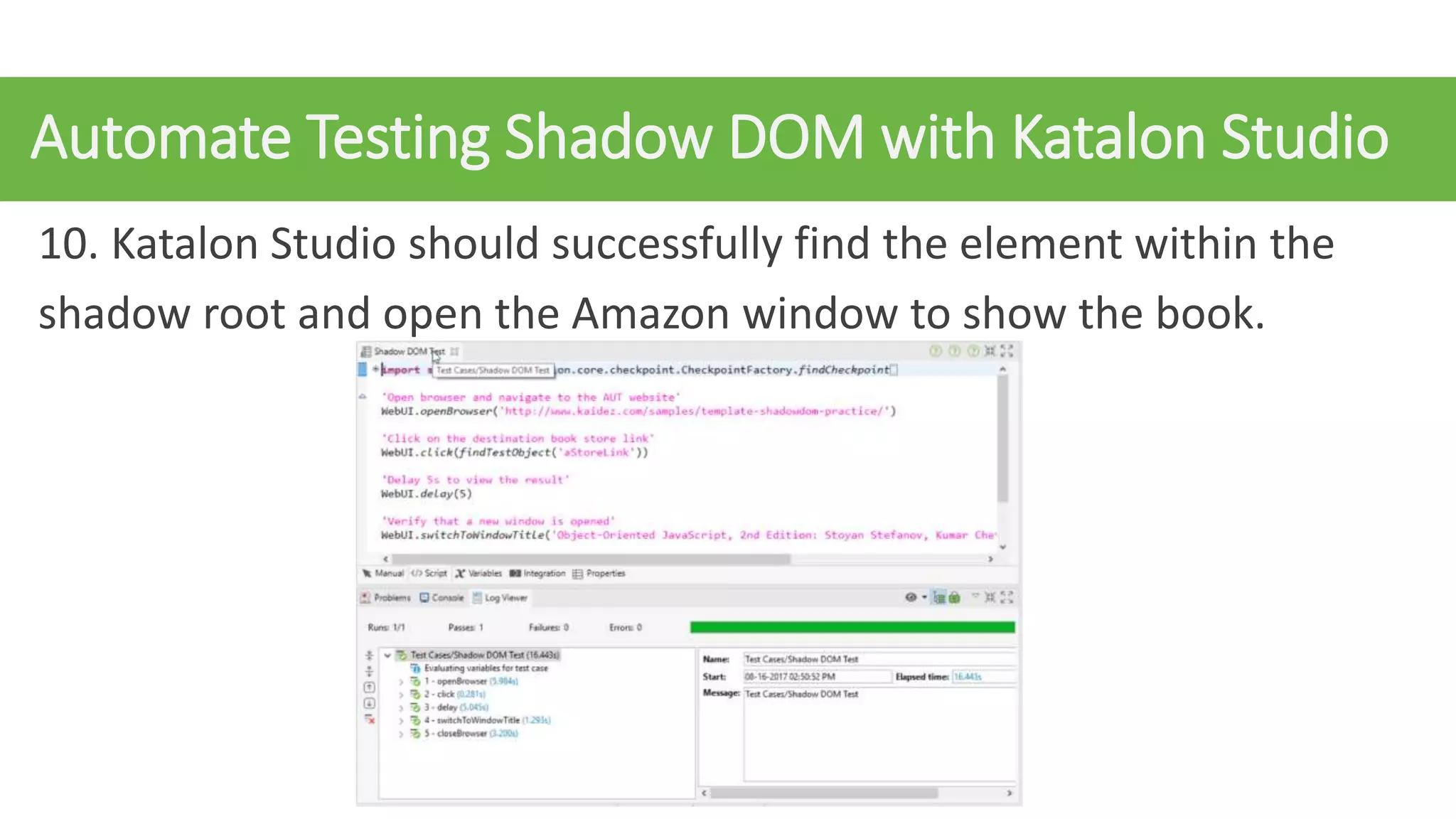

10. Katalon Studio should successfully find the element within the
shadow root and open the Amazon window to show the book.

21. Automate Testing Shadow DOM with Katalon Studio

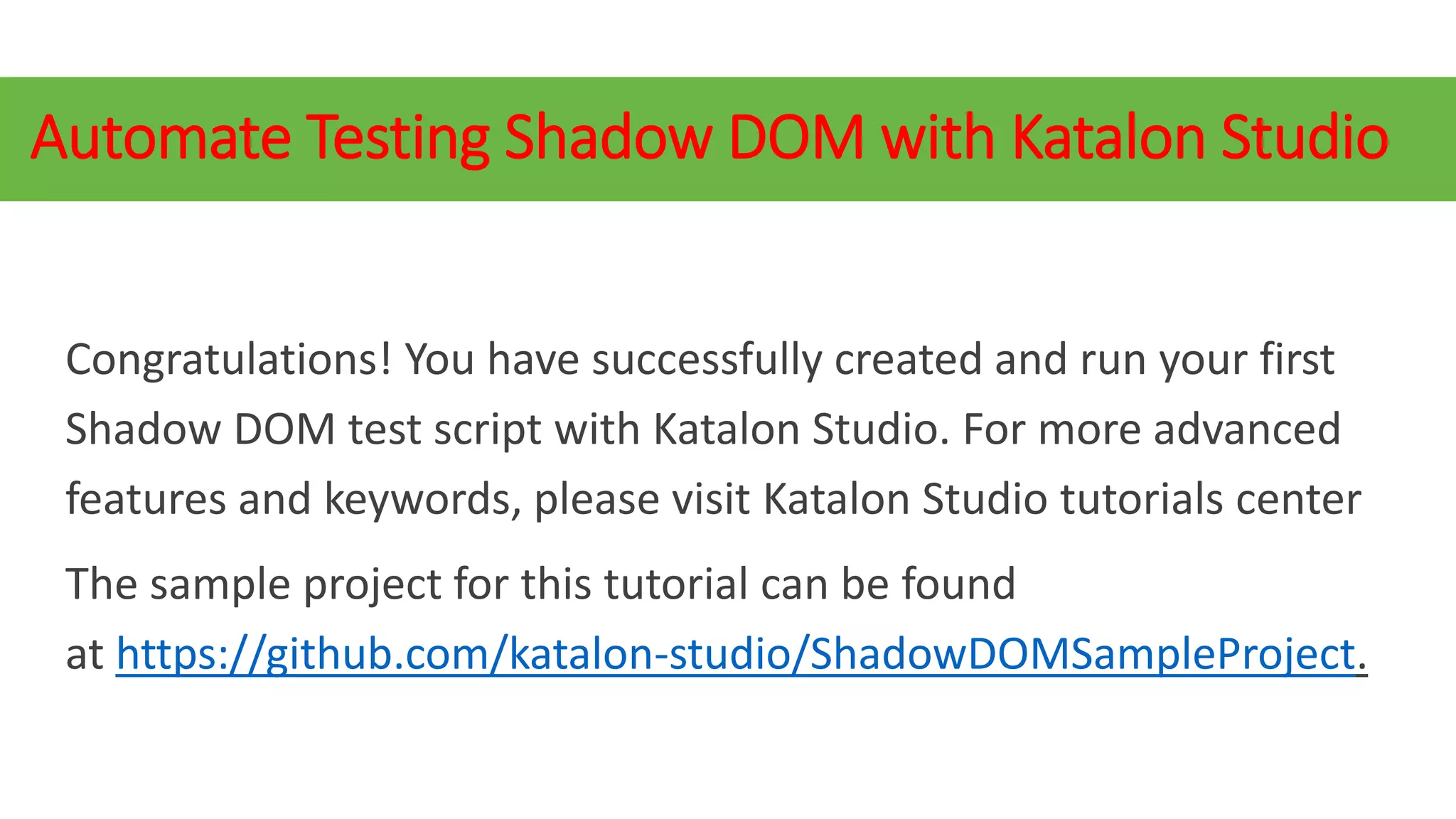

Congratulations! You have successfully created and run your first
Shadow DOM test script with Katalon Studio. For more advanced
features and keywords, please visit Katalon Studio tutorials center
The sample project for this tutorial can be found
at https://github.com/katalon-studio/ShadowDOMSampleProject.
