Automatic Light Sensor System Submitted By : Submitted To : Shubham Tiwari (2011ecs35) Manish Singh (2011ecs34) Rajesh Pathak (2011ecs42) Ahmed Raza (2011ecs35) Dr. Ajay Kaul
Why This Project ????? Save Electricity

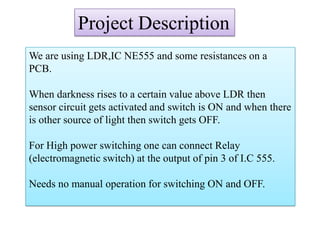

Project Description We are using LDR,IC NE555 and some resistances on a PCB. When darkness rises to a certain value above LDR then sensor circuit gets activated and switch is ON and when there is other source of light then switch gets OFF. For High power switching one can connect Relay (electromagnetic switch) at the output of pin 3 of I.C 555. Needs no manual operation for switching ON and OFF.

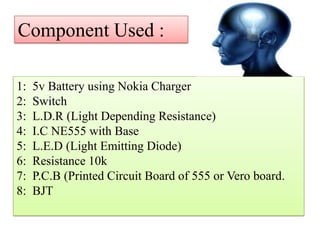

Component Used : 1: 2: 3: 4: 5: 6: 7: 8: 5v Battery using Nokia Charger Switch L.D.R (Light Depending Resistance) I.C NE555 with Base L.E.D (Light Emitting Diode) Resistance 10k P.C.B (Printed Circuit Board of 555 or Vero board. BJT

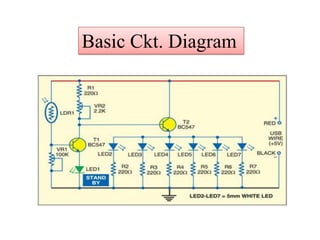

Basic Ckt. Diagram

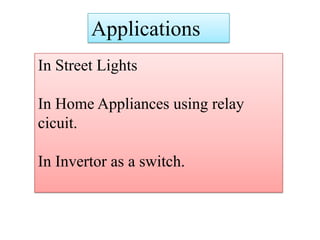

Applications In Street Lights In Home Appliances using relay cicuit. In Invertor as a switch.
