Arduino、Web 到 IoT
林信良
caterpillar@openhome.cc
http://openhome.cc 1

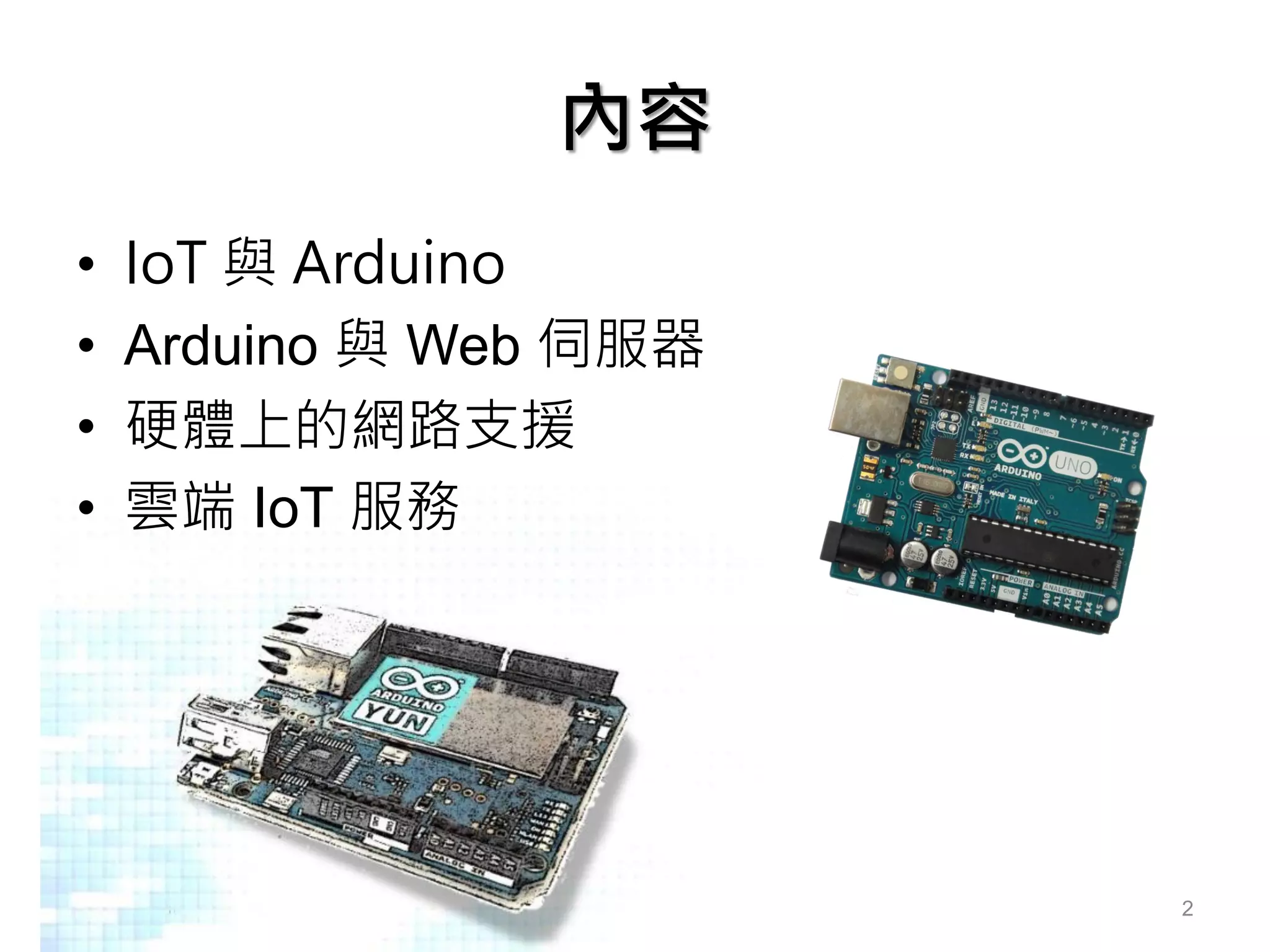

內容
• IoT 與 Arduino
• Arduino 與 Web 伺服器
• 硬體上的網路支援
• 雲端 IoT 服務
2

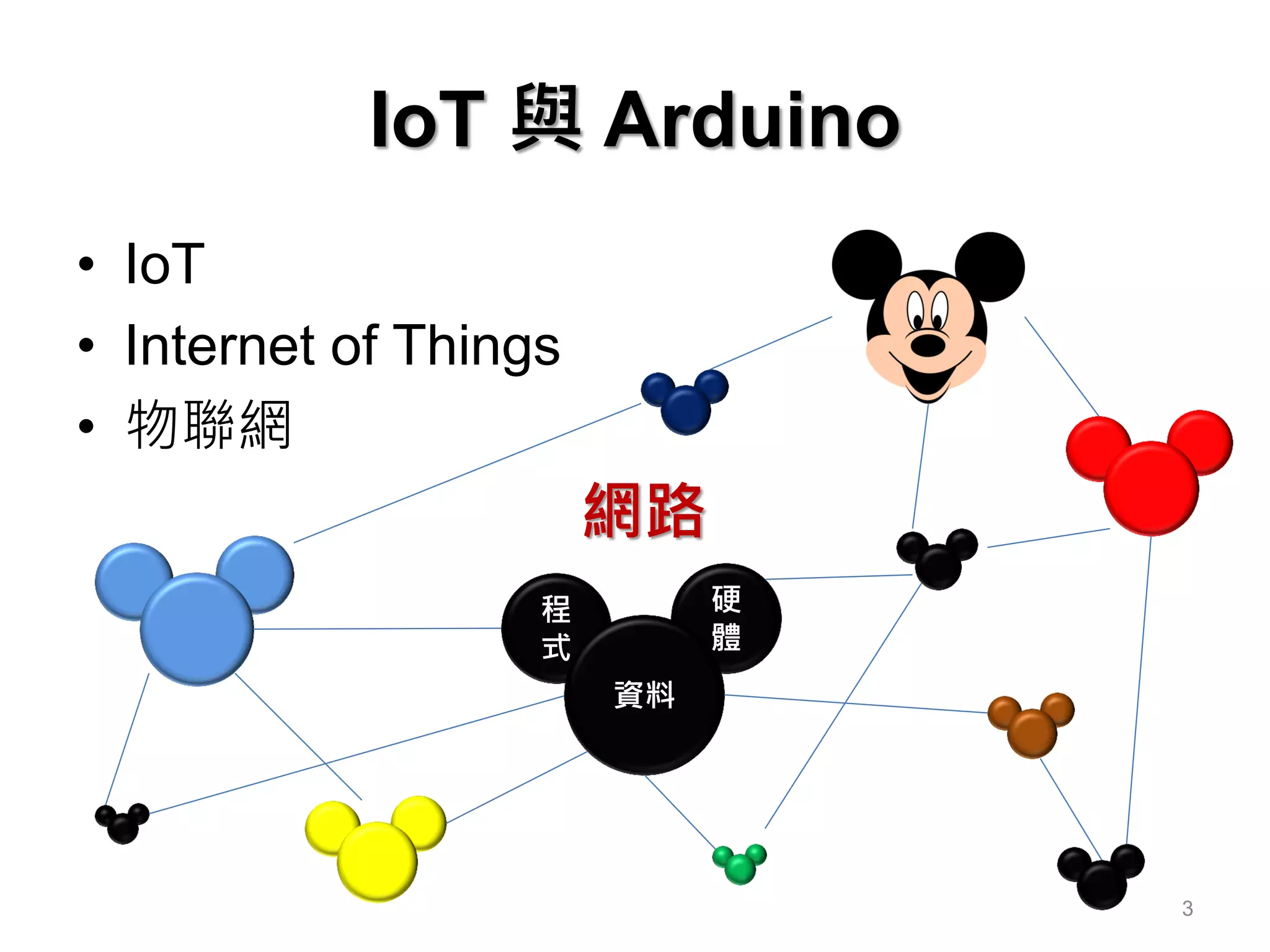

IoT 與 Arduino
• IoT
• Internet of Things
• 物聯網
程
式
硬
體
資料
網路
3
硬體裝置
通訊協定
資料倉儲
商務邏輯
IoT 組成
4

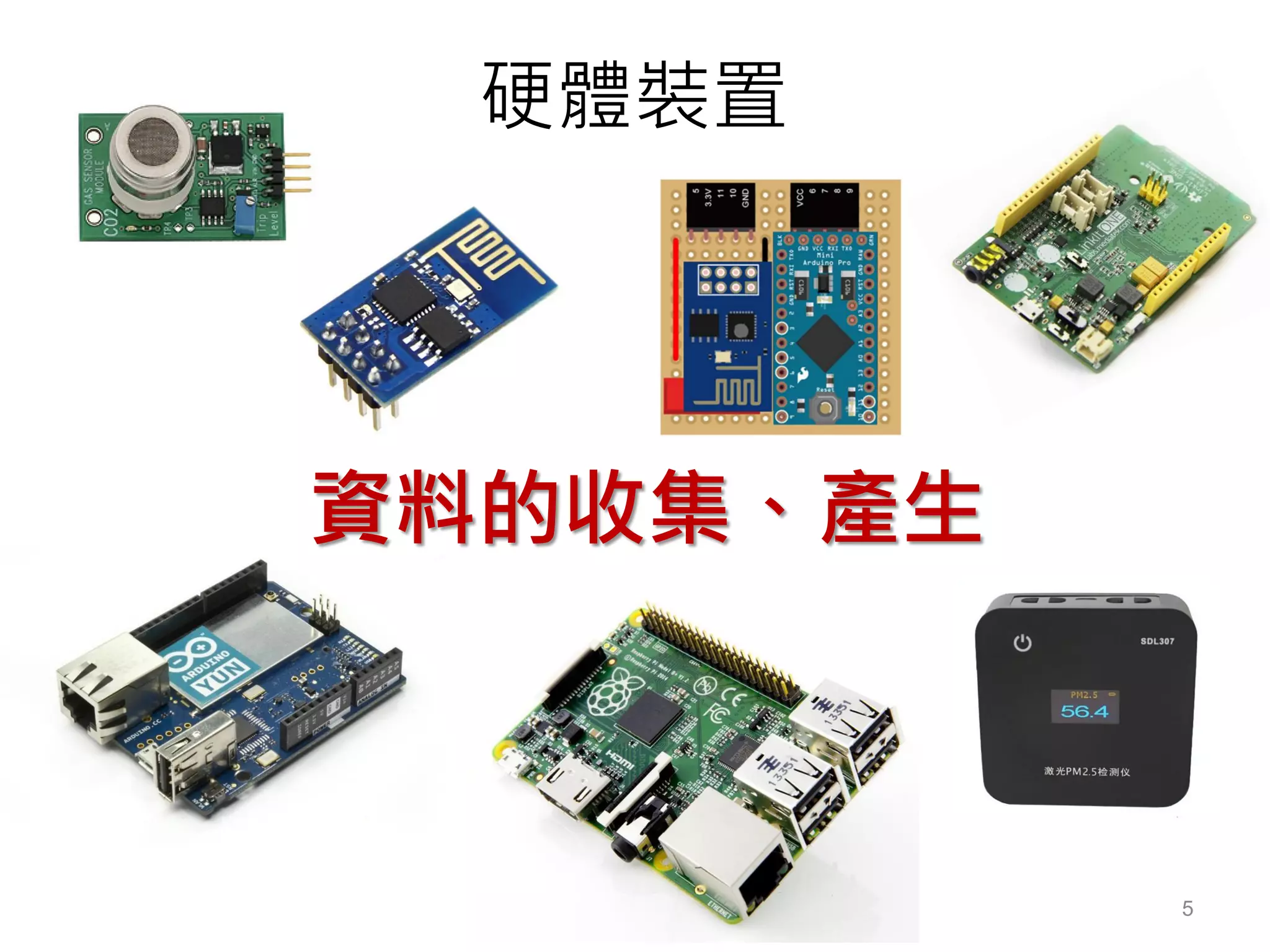

硬體裝置
資料的收集、產生
5
6

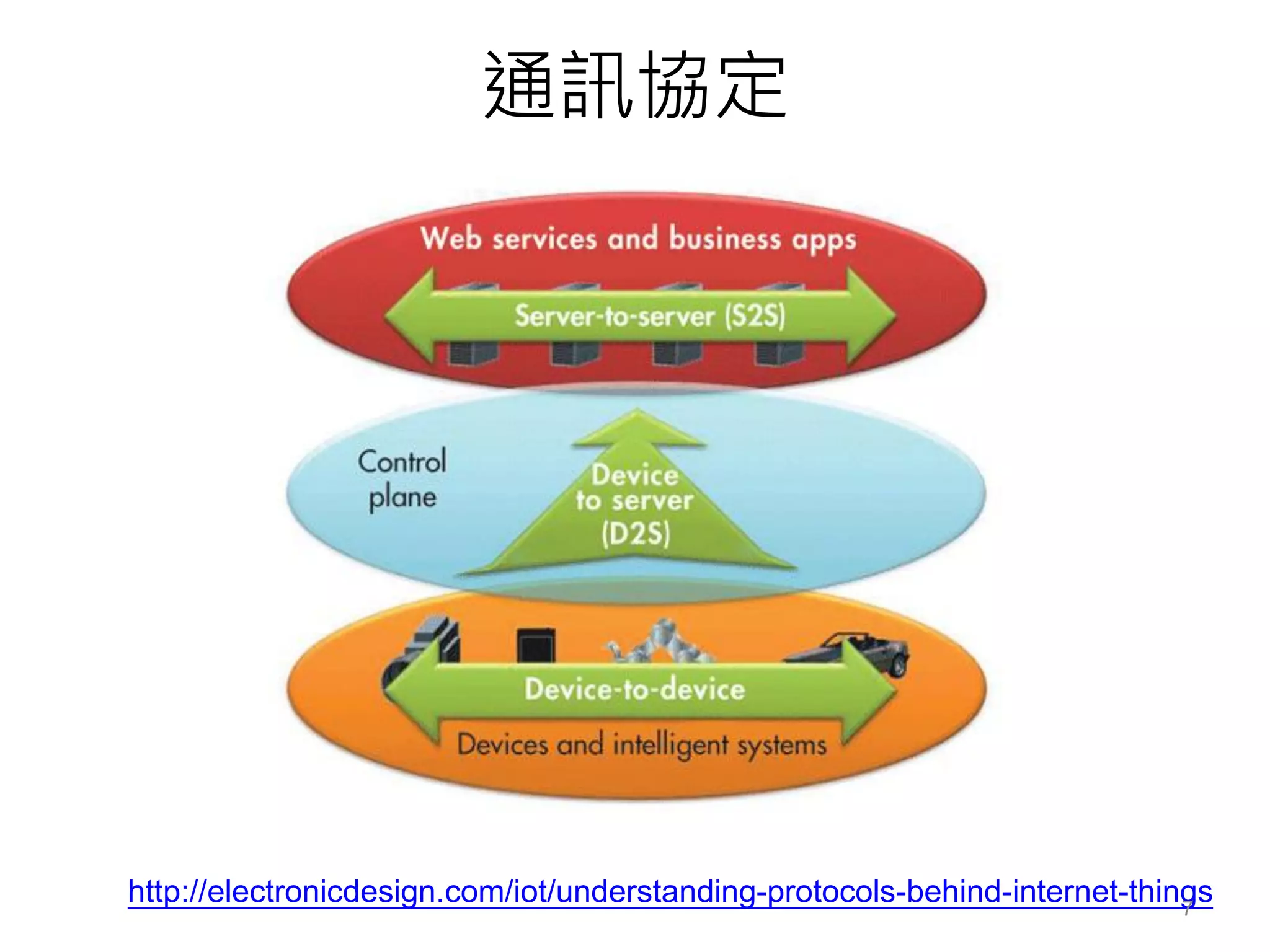

通訊協定
http://electronicdesign.com/iot/understanding-protocols-behind-internet-things7

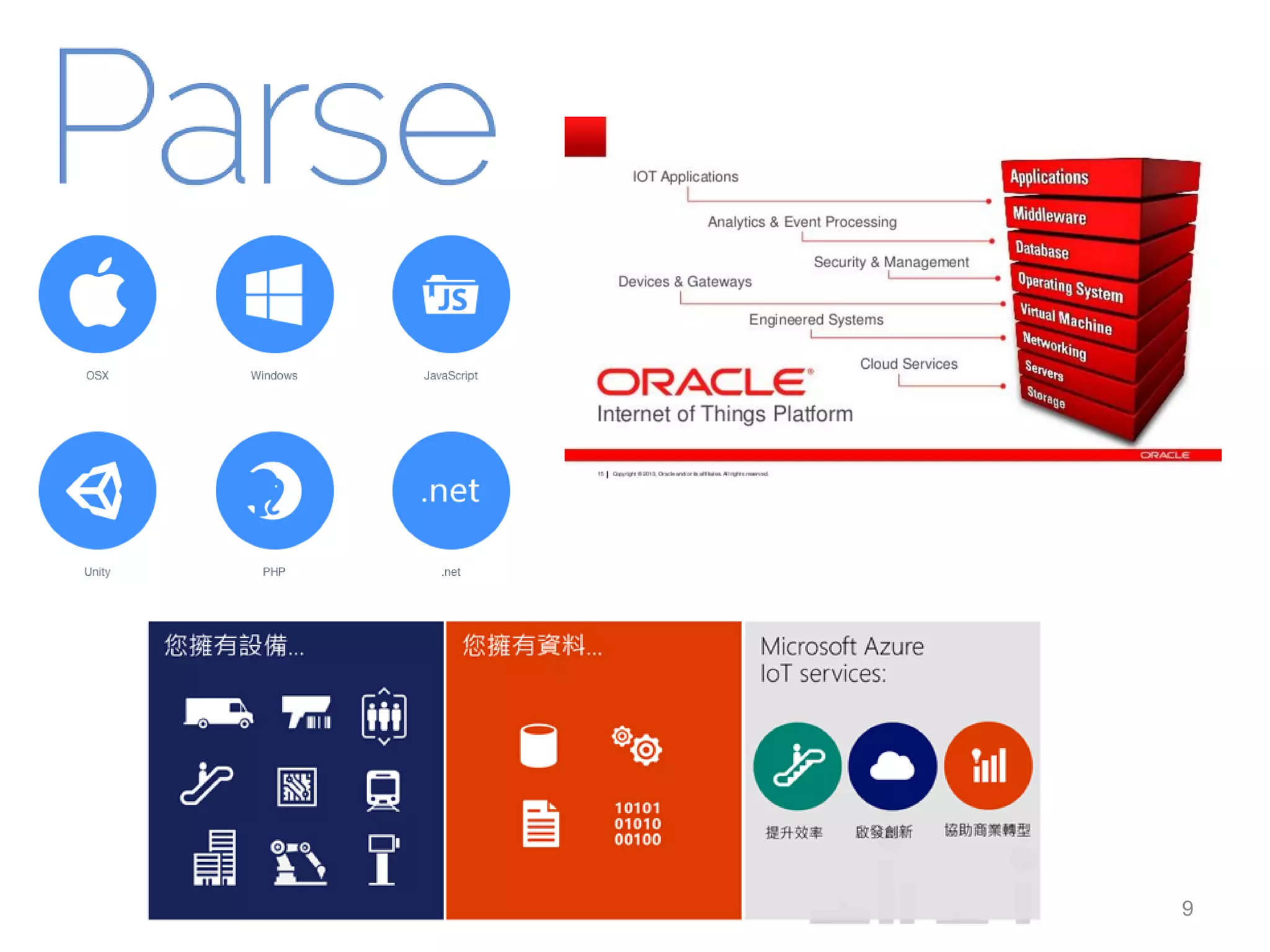

資料倉儲
資料儲存、分析工具與系統
8
9
商務邏輯
Domain knowledge? 10
Arduino
最初是針對不會寫程式,也不懂電子學,沒有任何技術背景的學生而設計,他們是
義大利北部伊夫雷亞(Ivrea)互動設計學院(Interaction Design Institute Ivrea)
的學生,身為Arduino計劃共同開發者之一的Massimo Banzi,曾在〈超越兆赫的
人們〉中提到「我們給了這些學生2到4星期的時間,讓他們製作物理運算的物品,
當時,市售的工具幾乎都是以工程師為對象,所以不管是配件或是跳線、接頭的數
量都很多。這對學生來說,似乎太過複雜,使得學生不知道該如何處置。」為了解
決這些問題,於2005年誕生的就是Arduino!
11

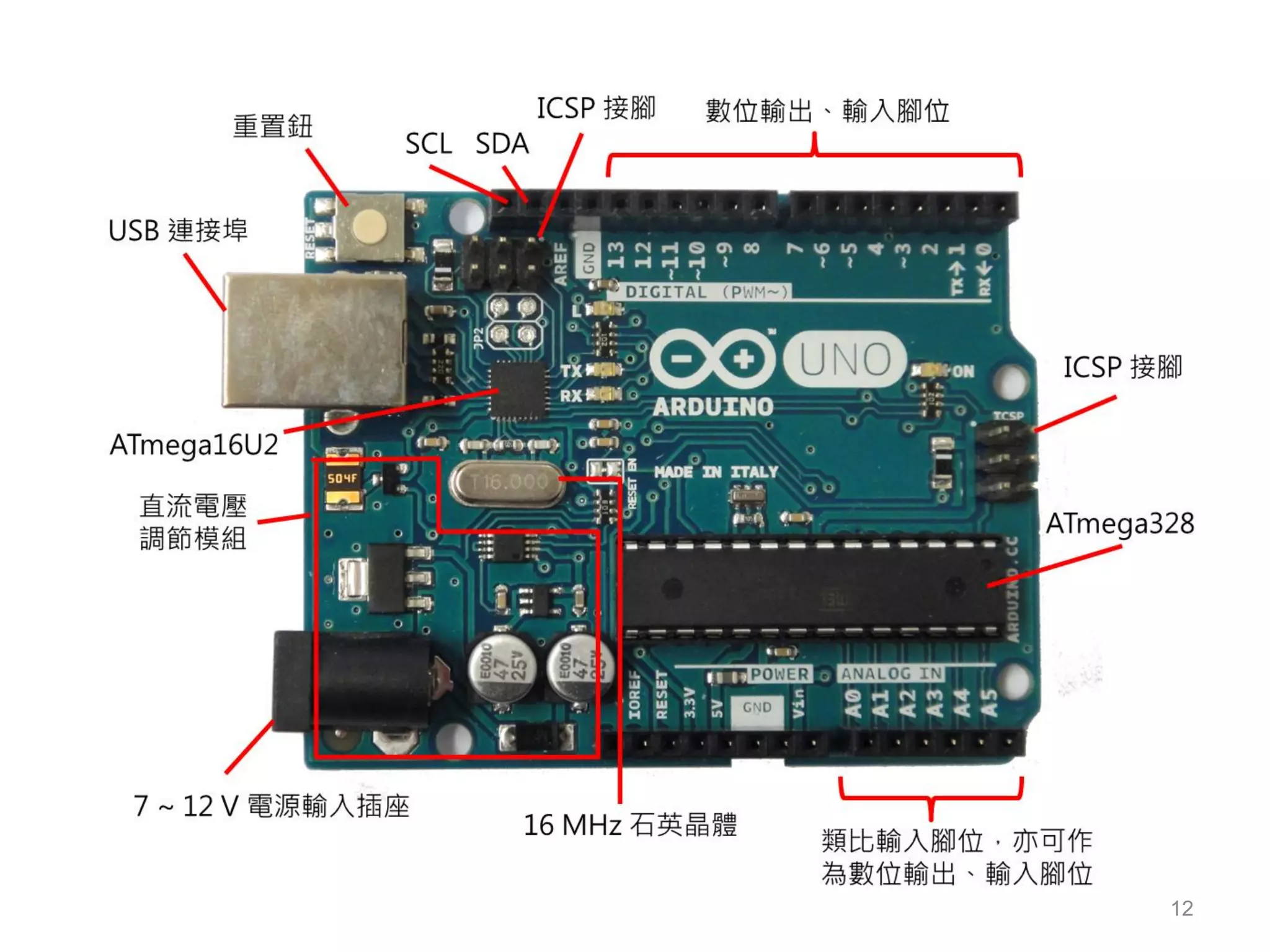

12

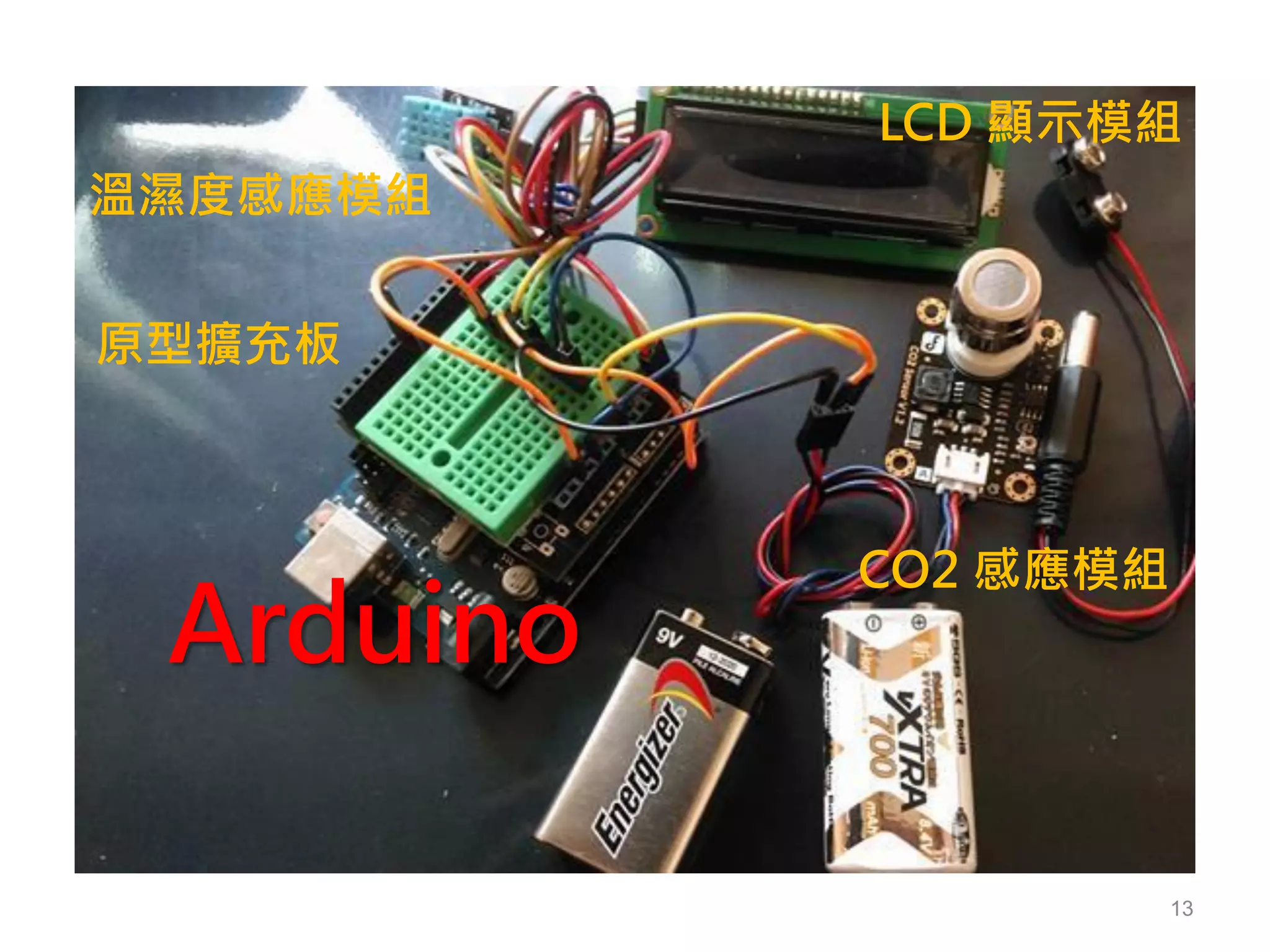

CO2 感應模組
LCD 顯示模組
原型擴充板
Arduino
溫濕度感應模組
13

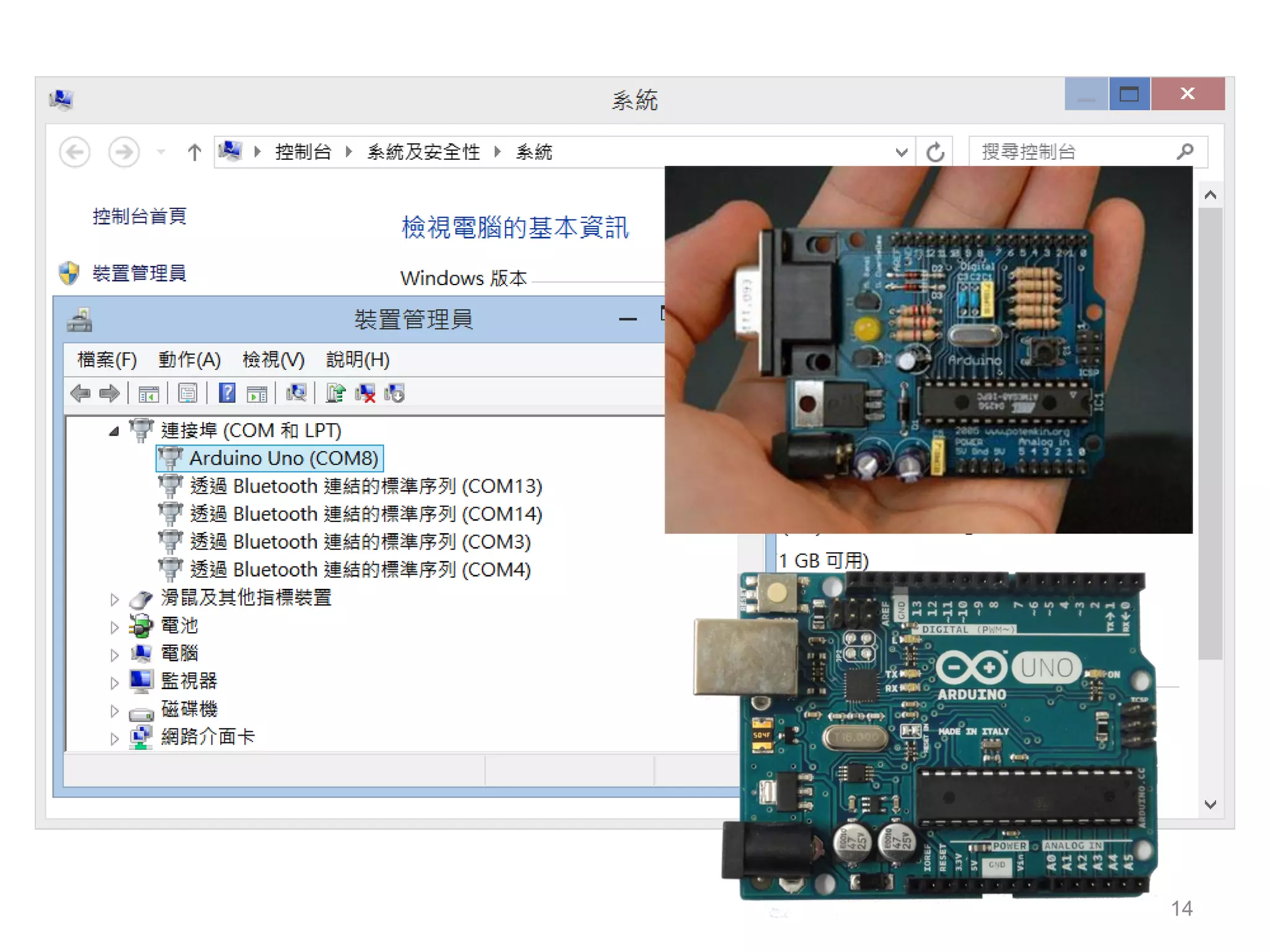

14

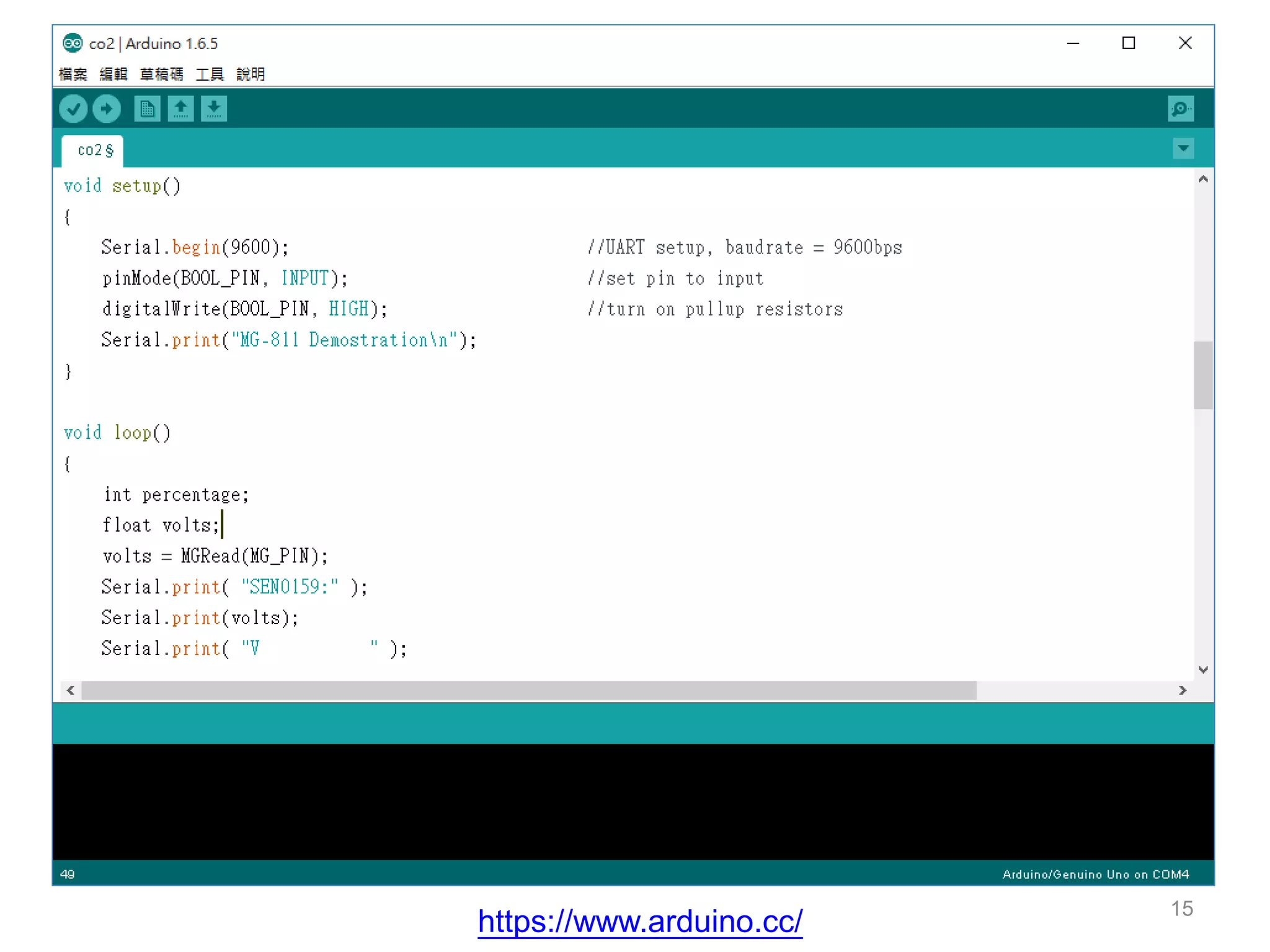

https://www.arduino.cc/
15

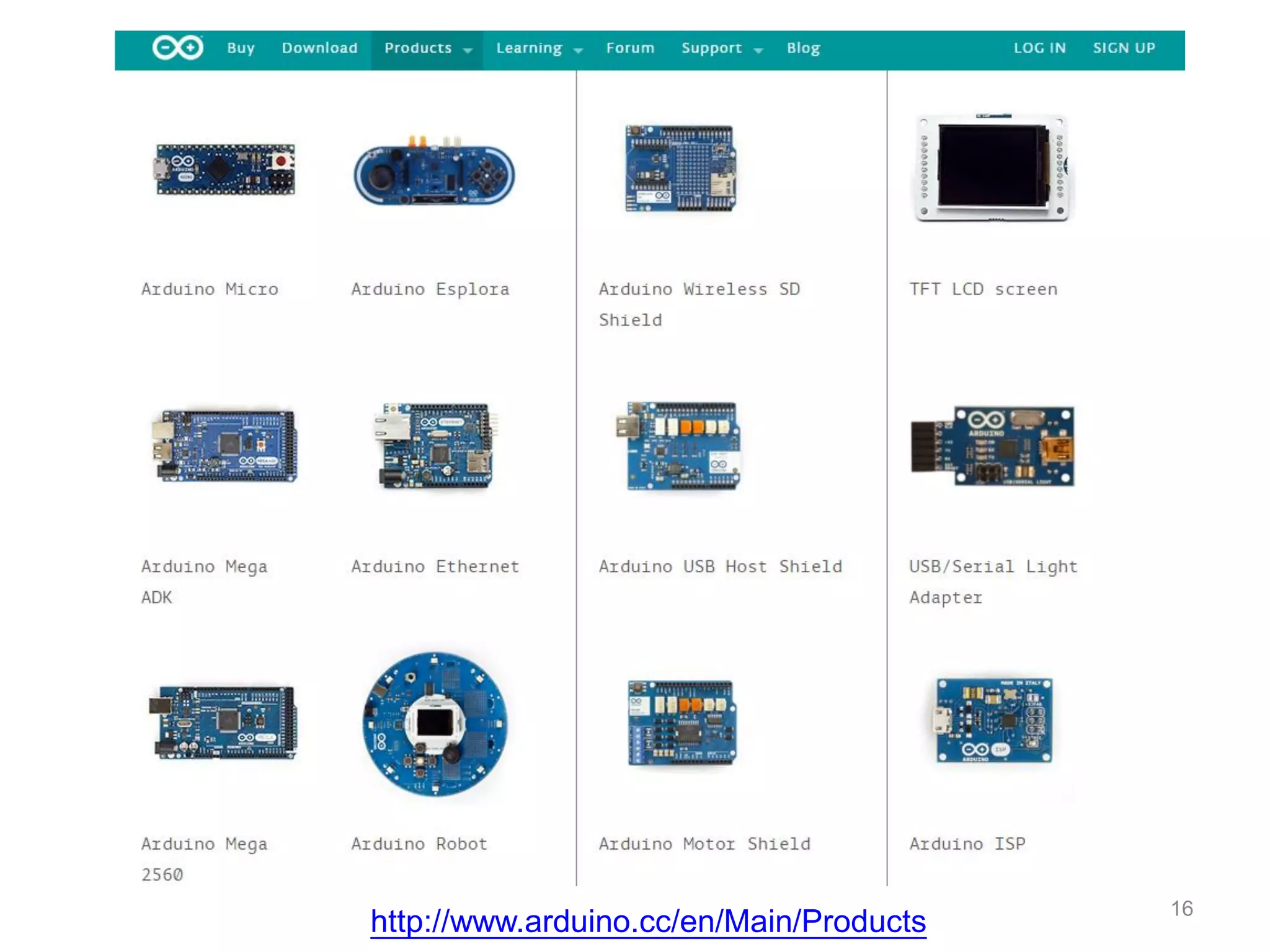

http://www.arduino.cc/en/Main/Products
16

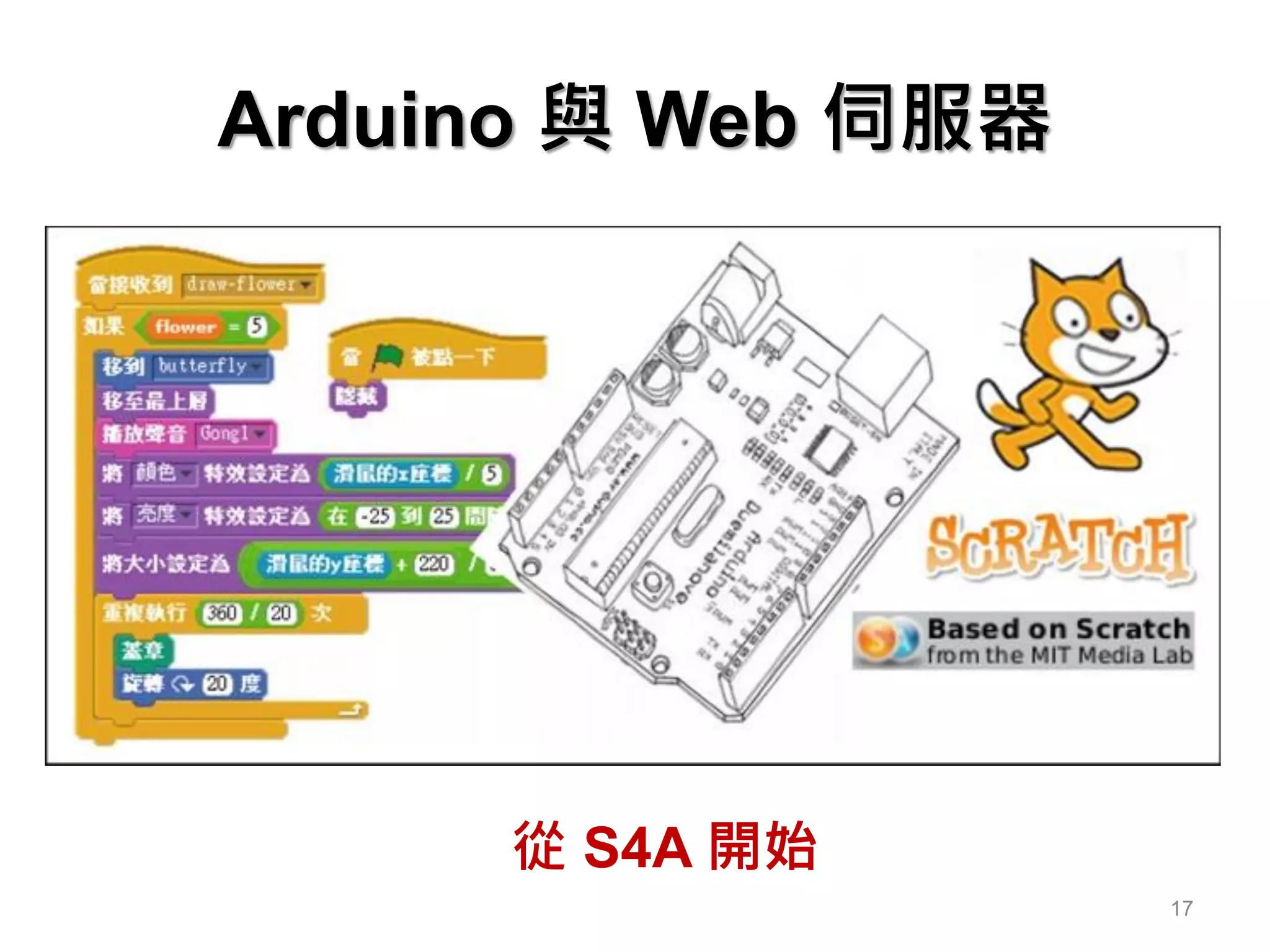

Arduino 與 Web 伺服器

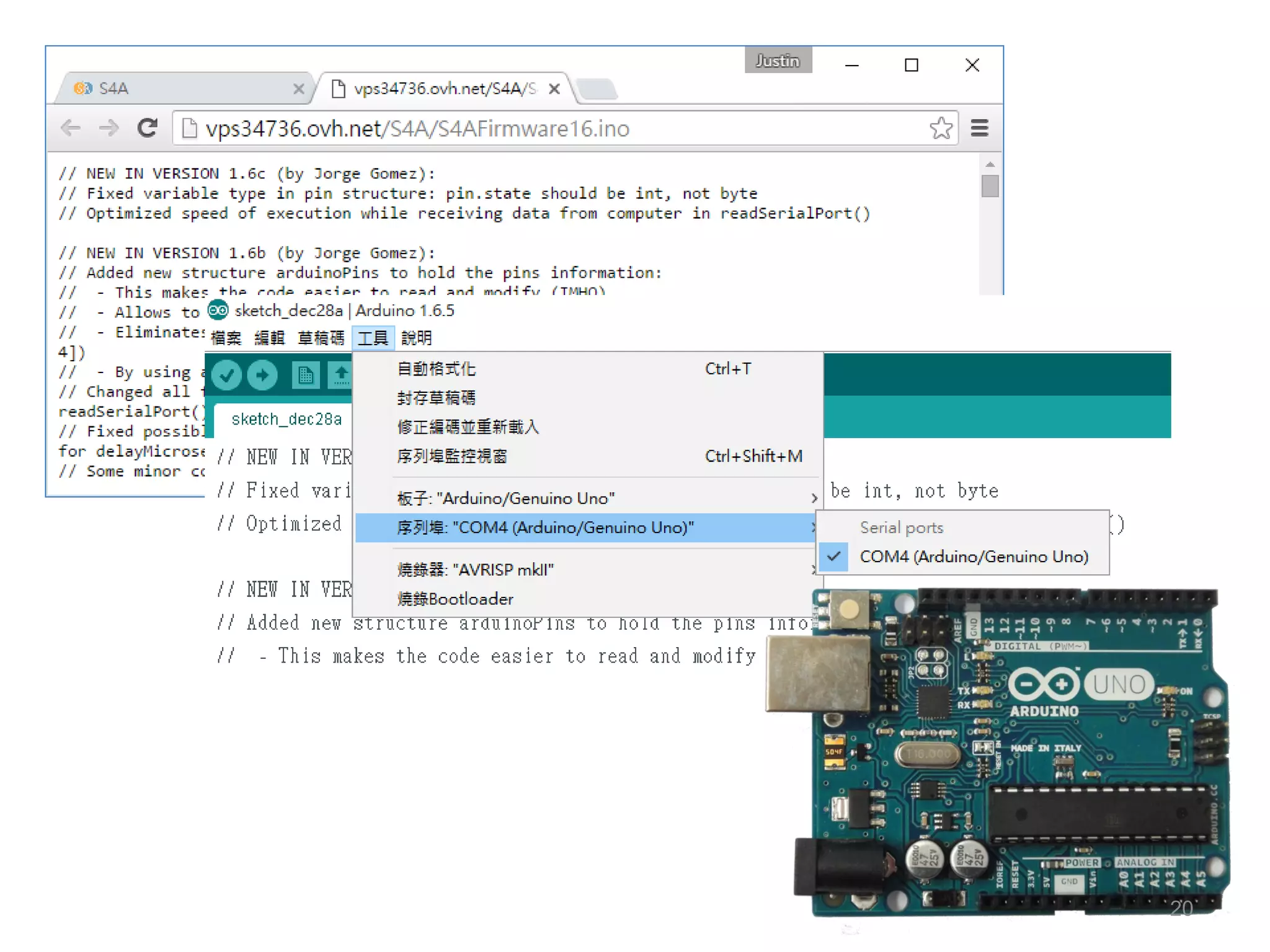

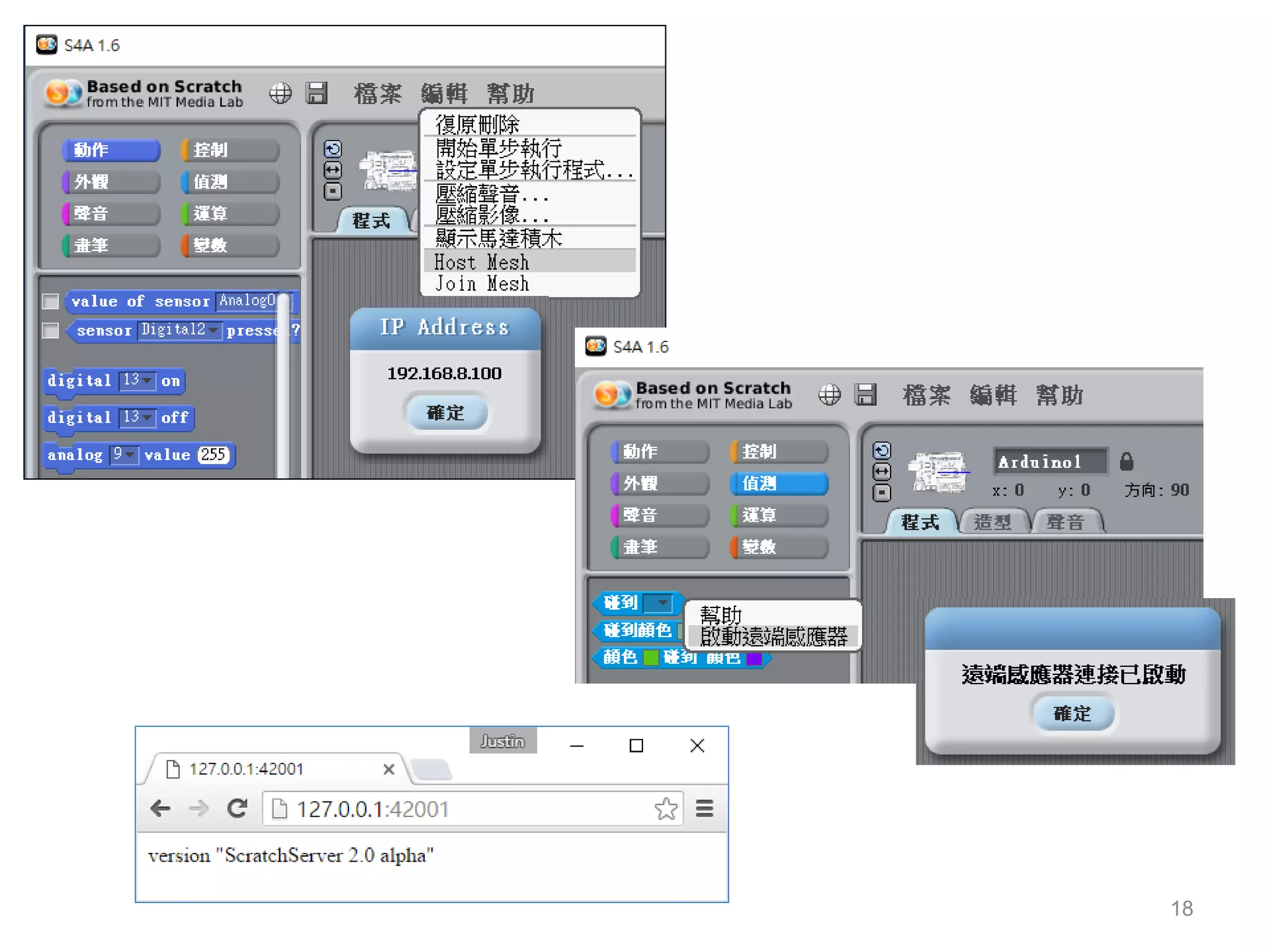

從 S4A 開始
17
18

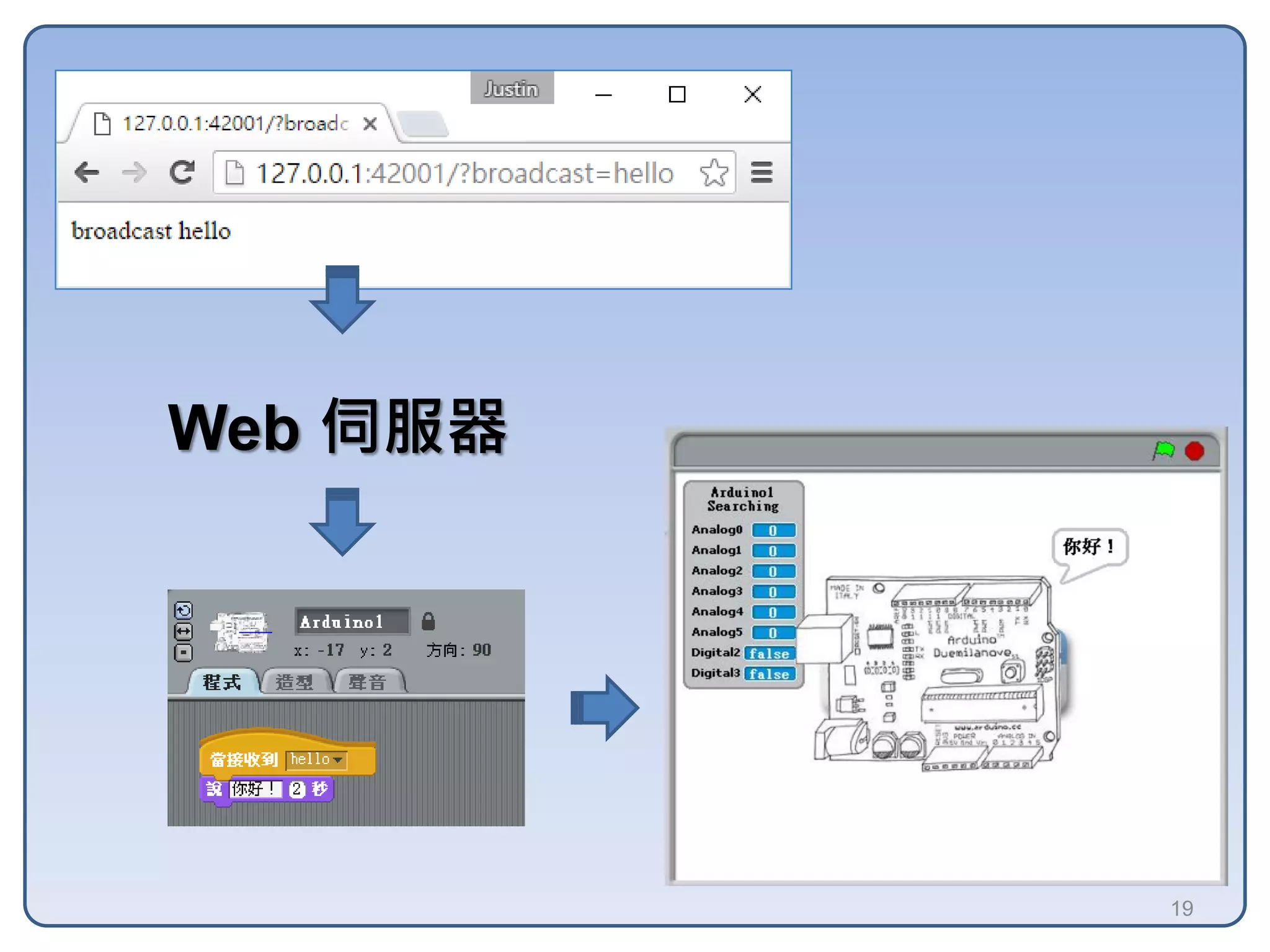

Web 伺服器
19
20

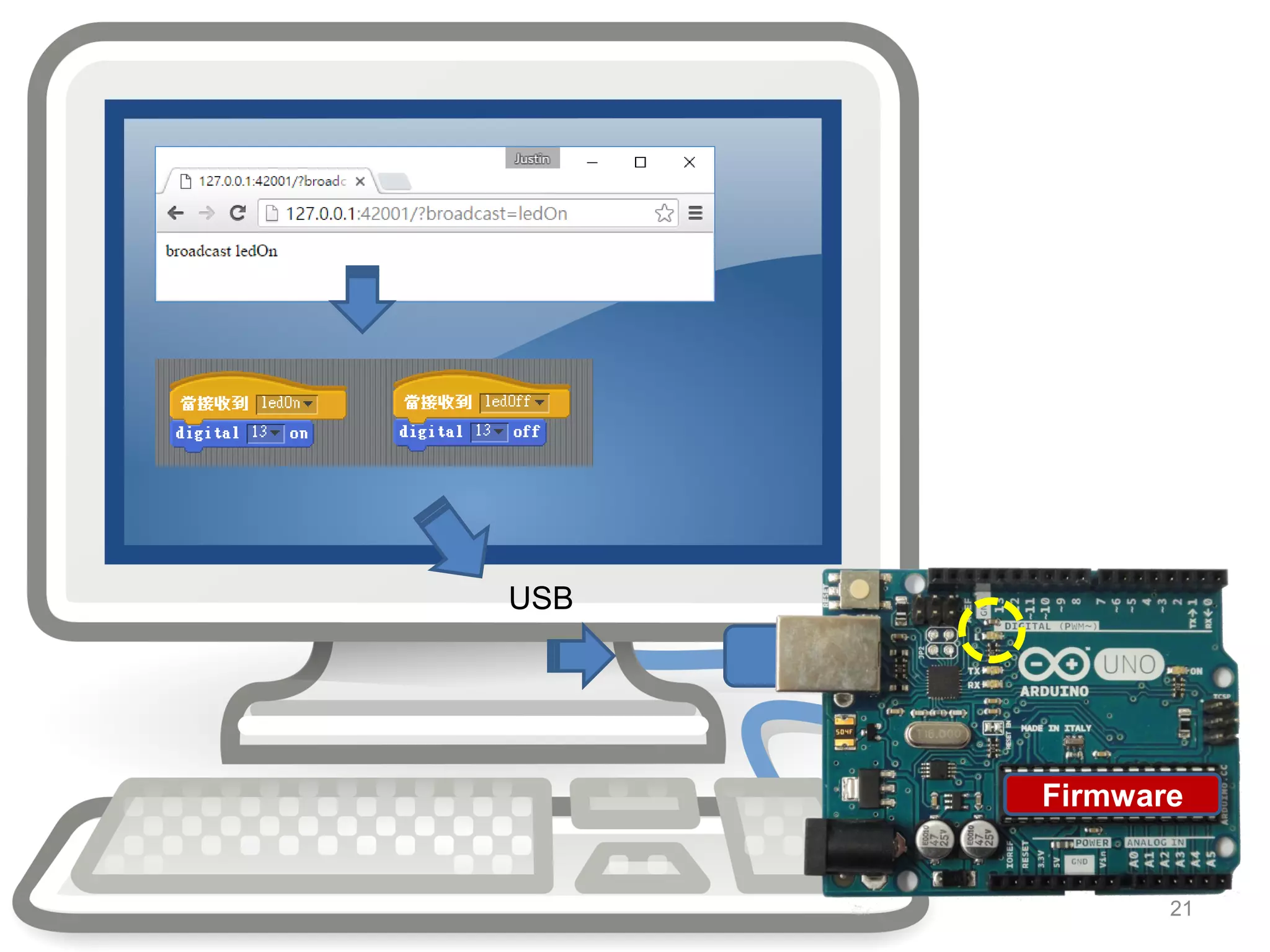

Firmware
USB
21

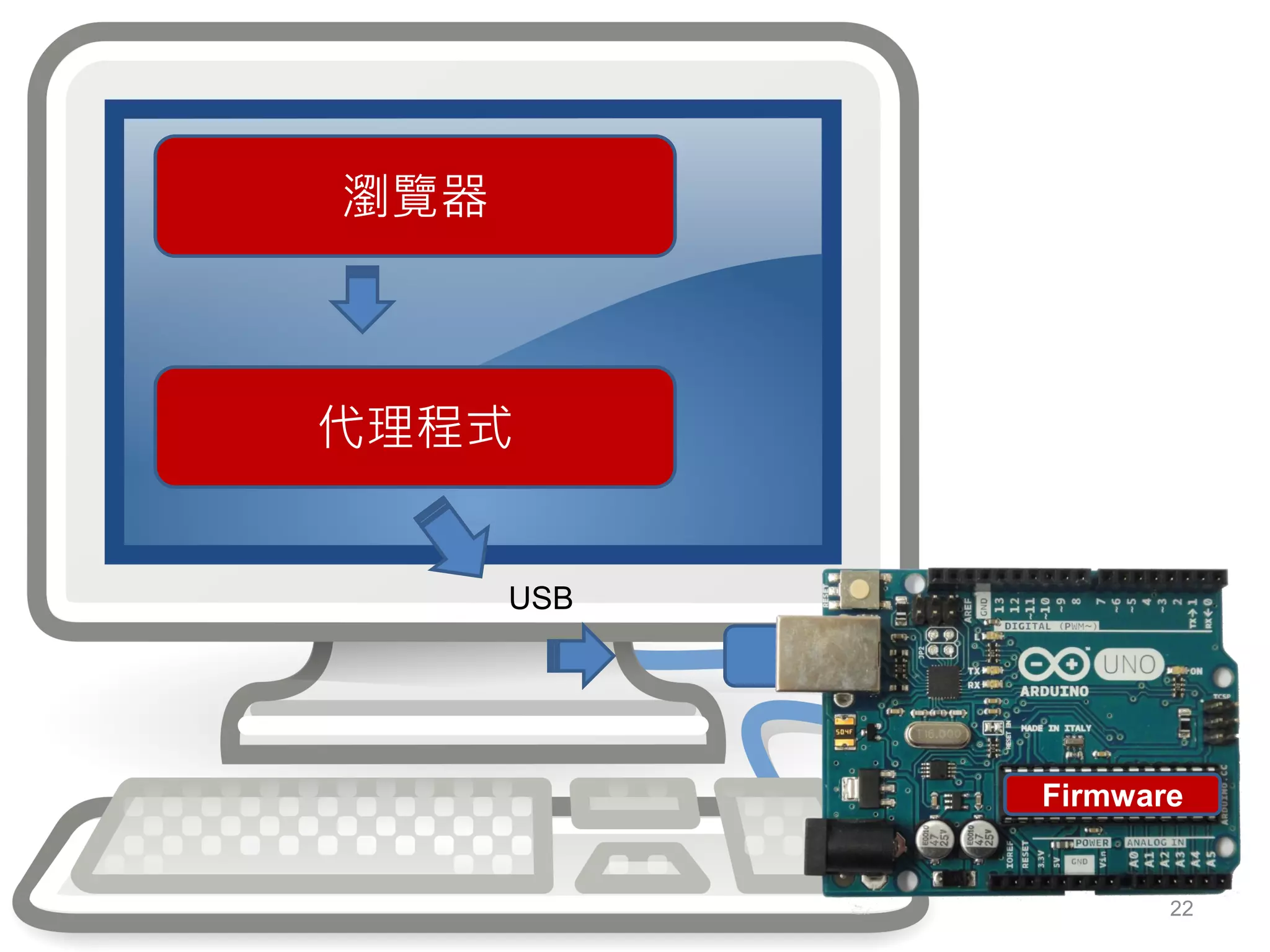

Firmware
USB
瀏覽器
代理程式
22
瀏覽器
網路
23

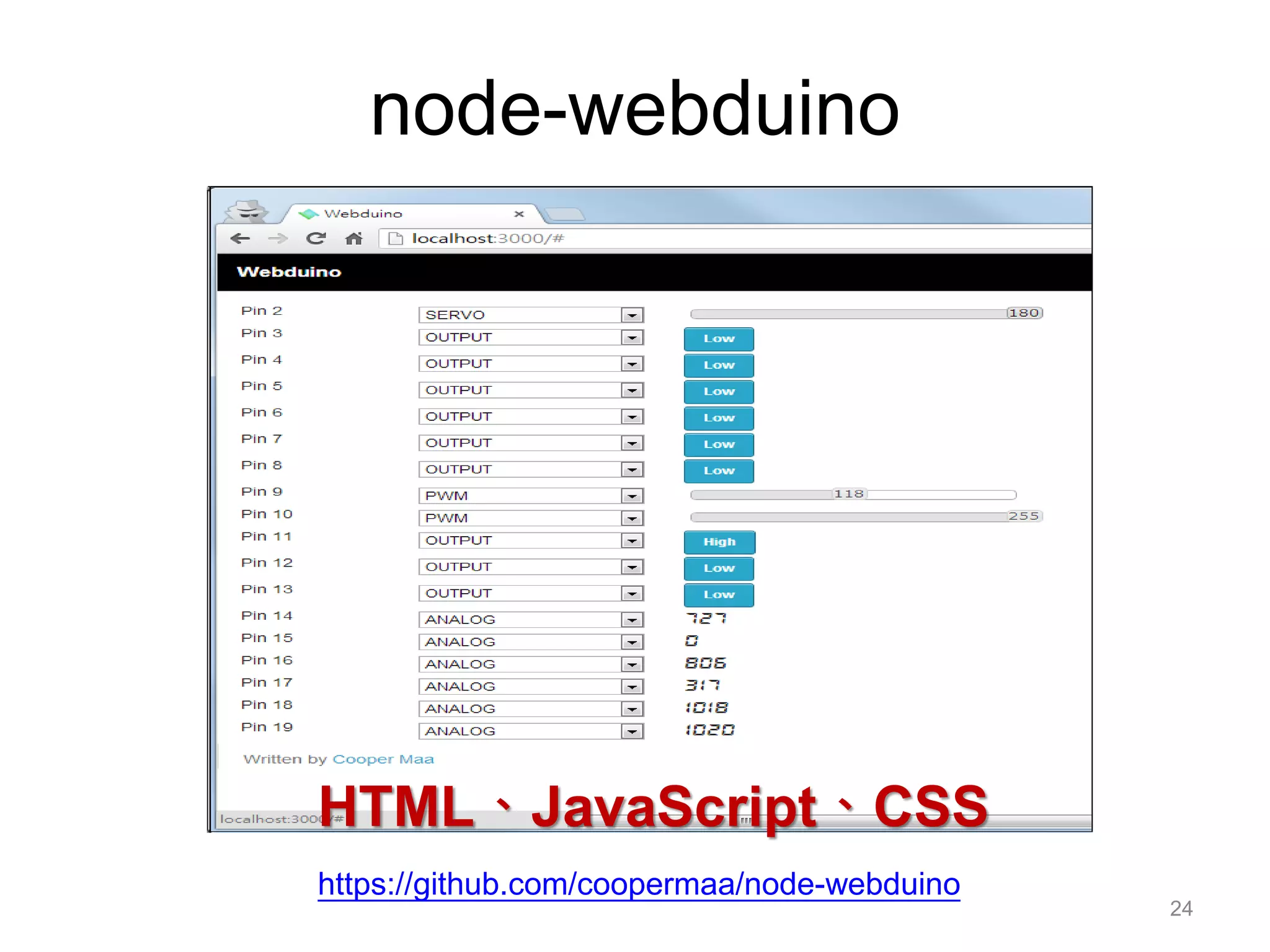

node-webduino
https://github.com/coopermaa/node-webduino
HTML、JavaScript、CSS
24

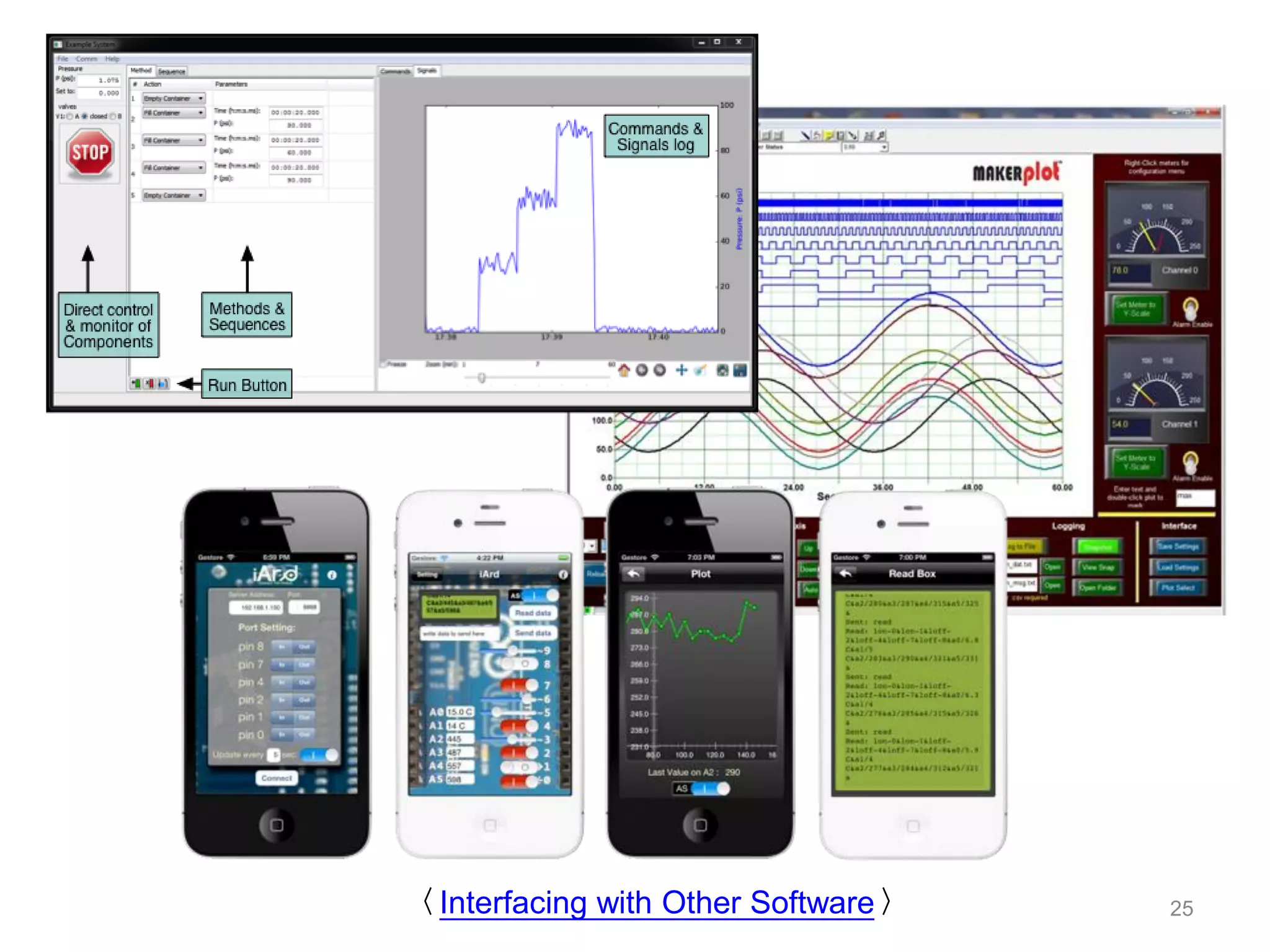

〈Interfacing with Other Software〉 25

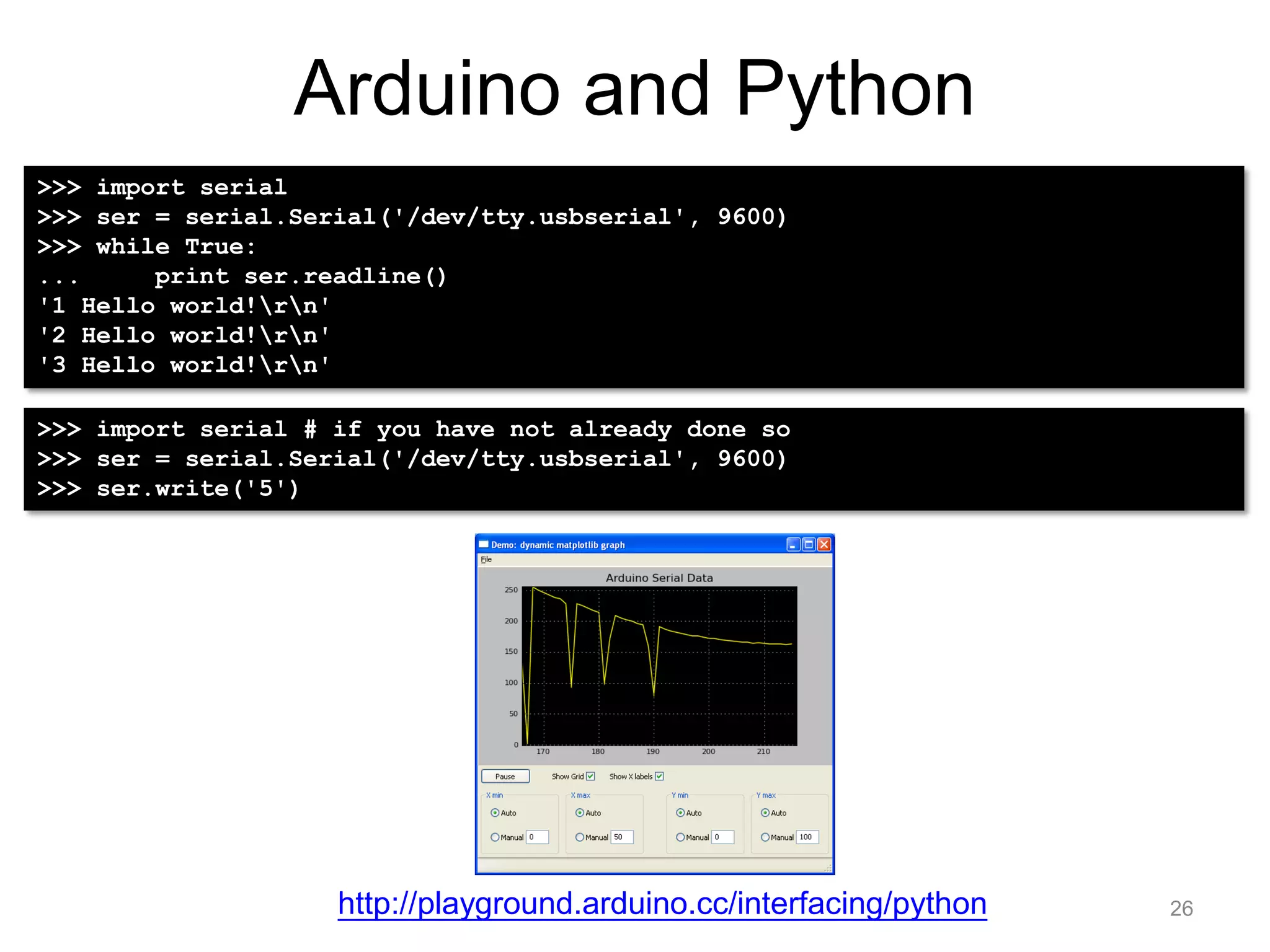

Arduino and Python
>>> import serial
>>> ser = serial.Serial('/dev/tty.usbserial', 9600)
>>> while True:
... print ser.readline()
'1 Hello world!rn'
'2 Hello world!rn'
'3 Hello world!rn'
>>> import serial # if you have not already done so
>>> ser = serial.Serial('/dev/tty.usbserial', 9600)
>>> ser.write('5')
http://playground.arduino.cc/interfacing/python 26

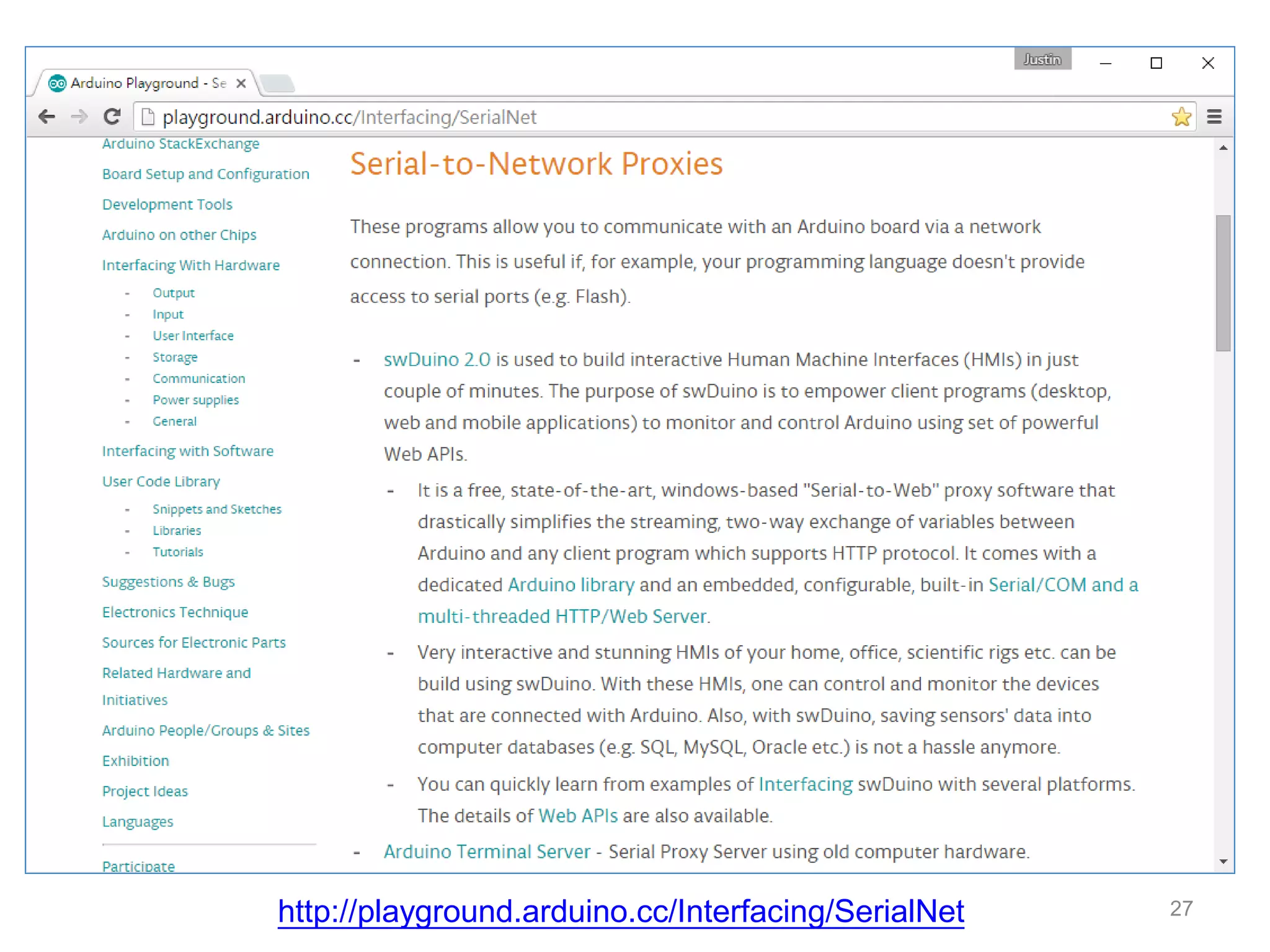

http://playground.arduino.cc/Interfacing/SerialNet 27

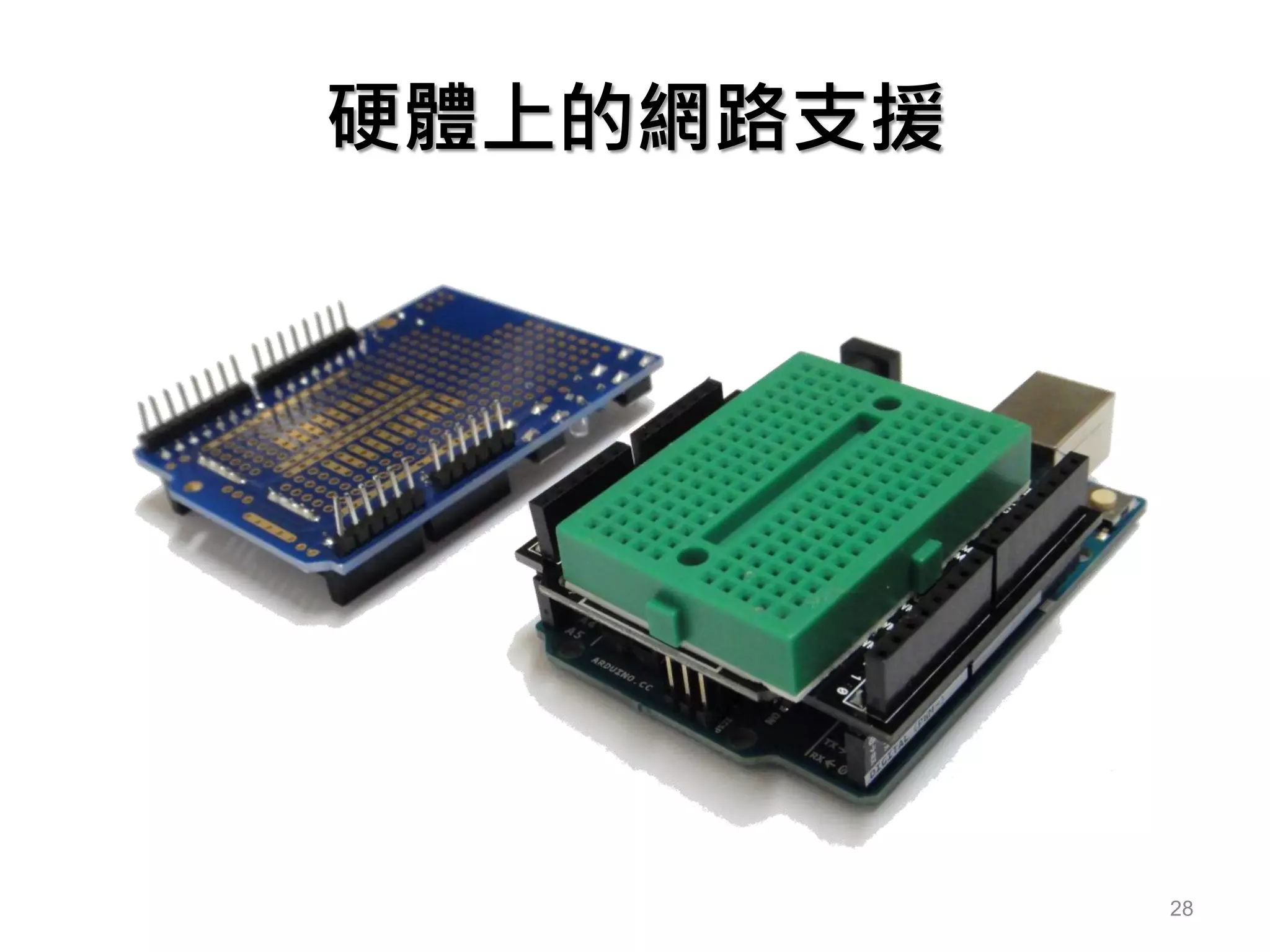

硬體上的網路支援
28

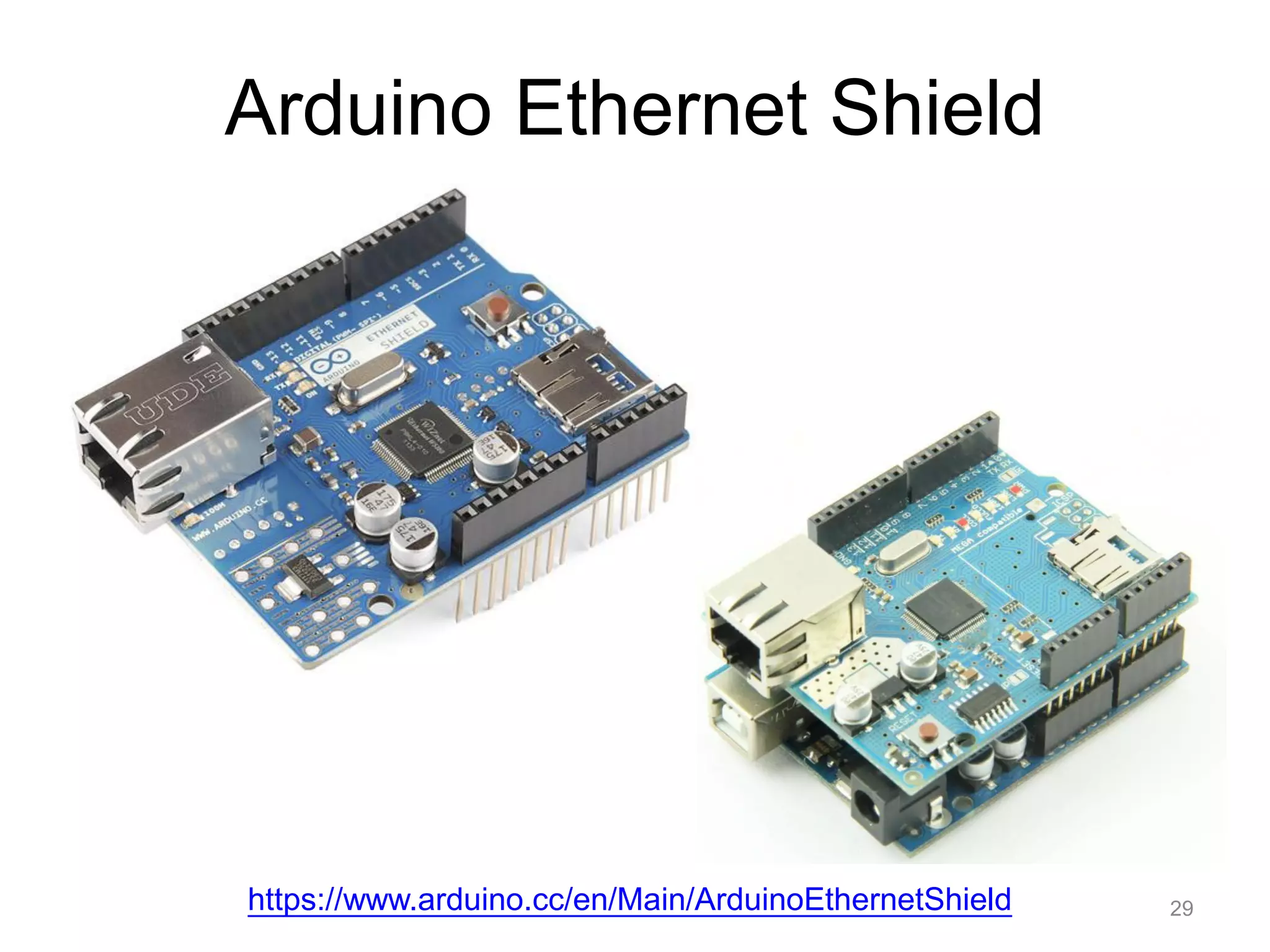

Arduino Ethernet Shield
https://www.arduino.cc/en/Main/ArduinoEthernetShield 29

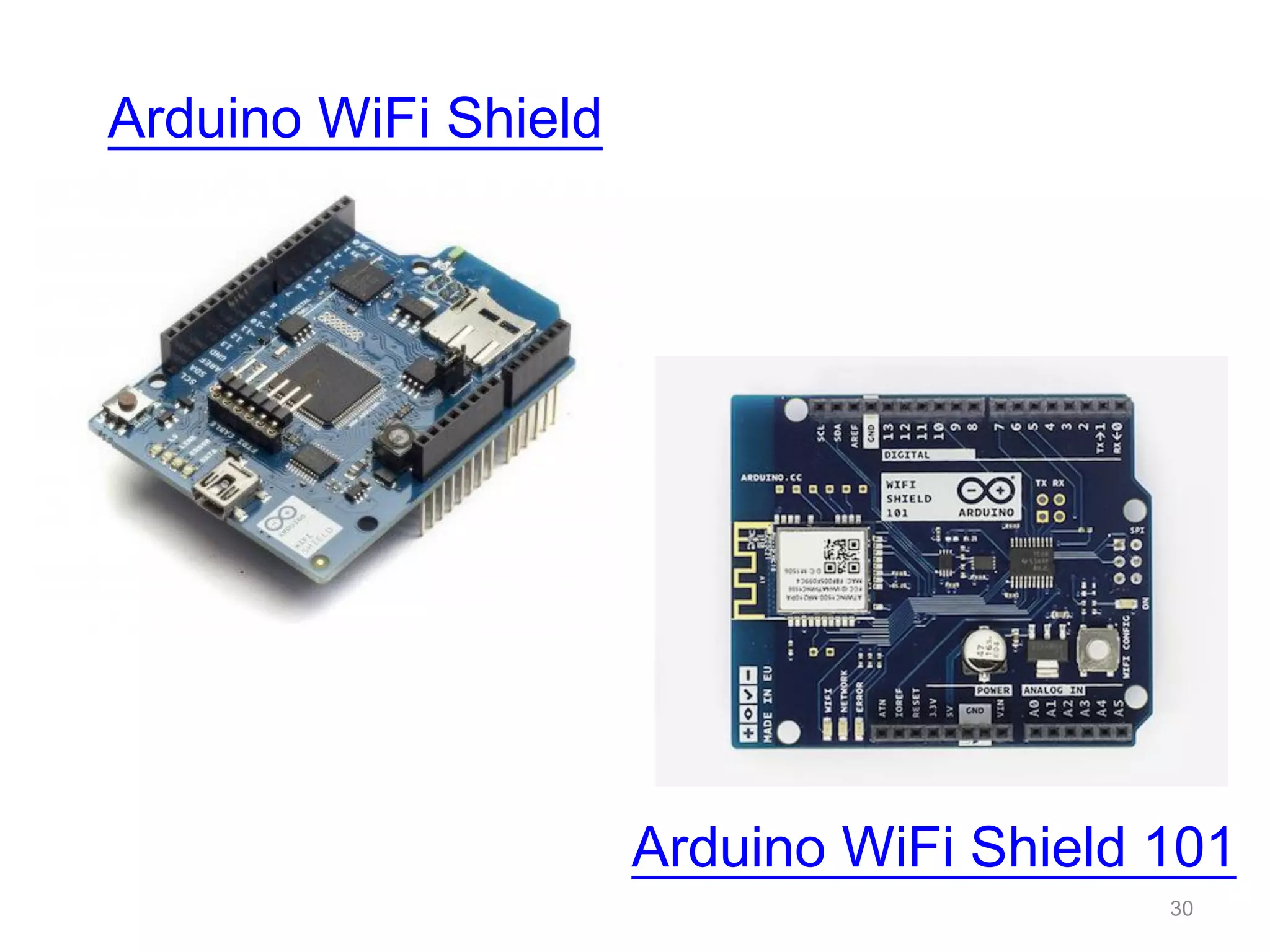

Arduino WiFi Shield
Arduino WiFi Shield 101
30

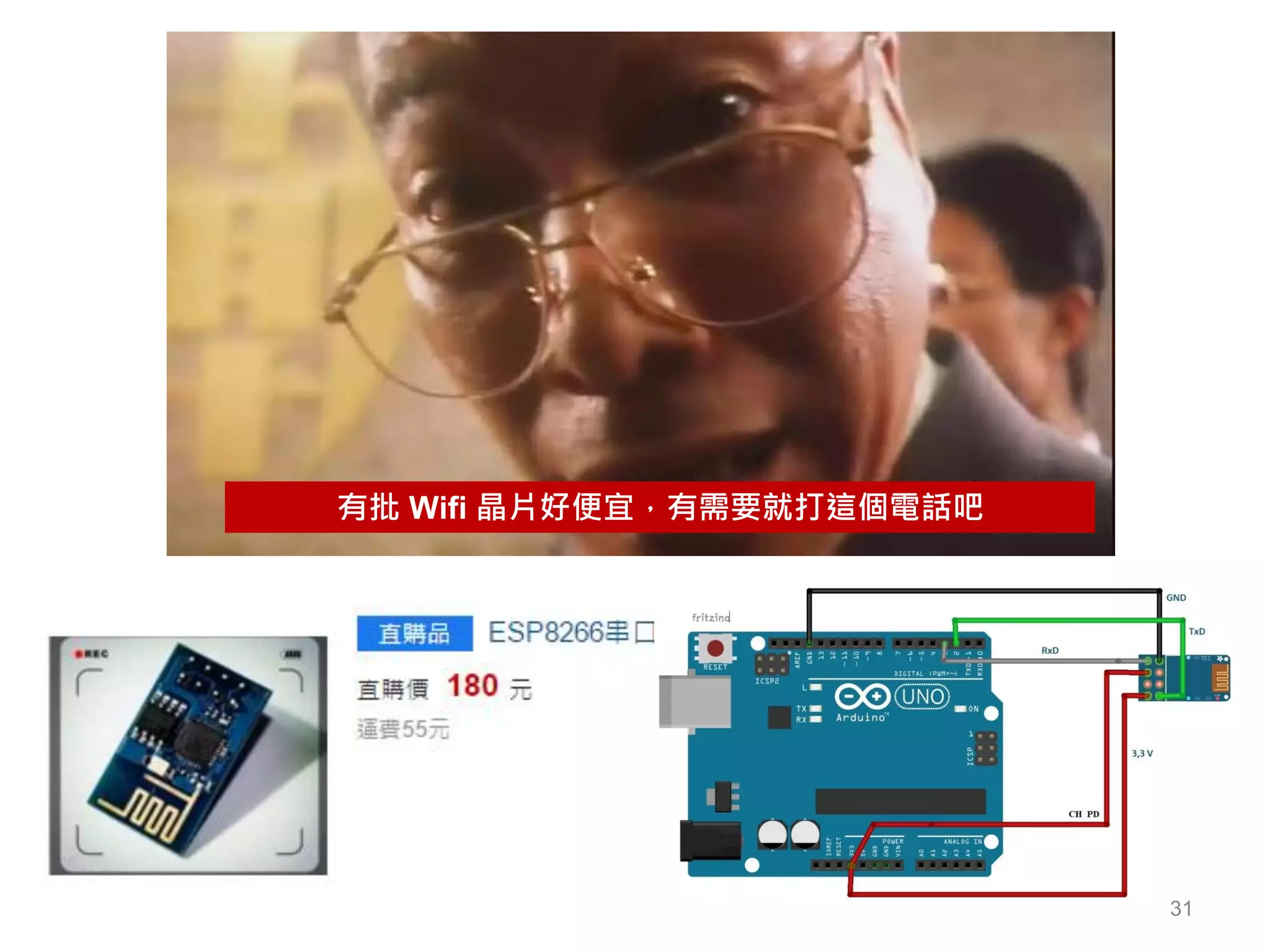

有批 Wifi 晶片好便宜,有需要就打這個電話吧
31

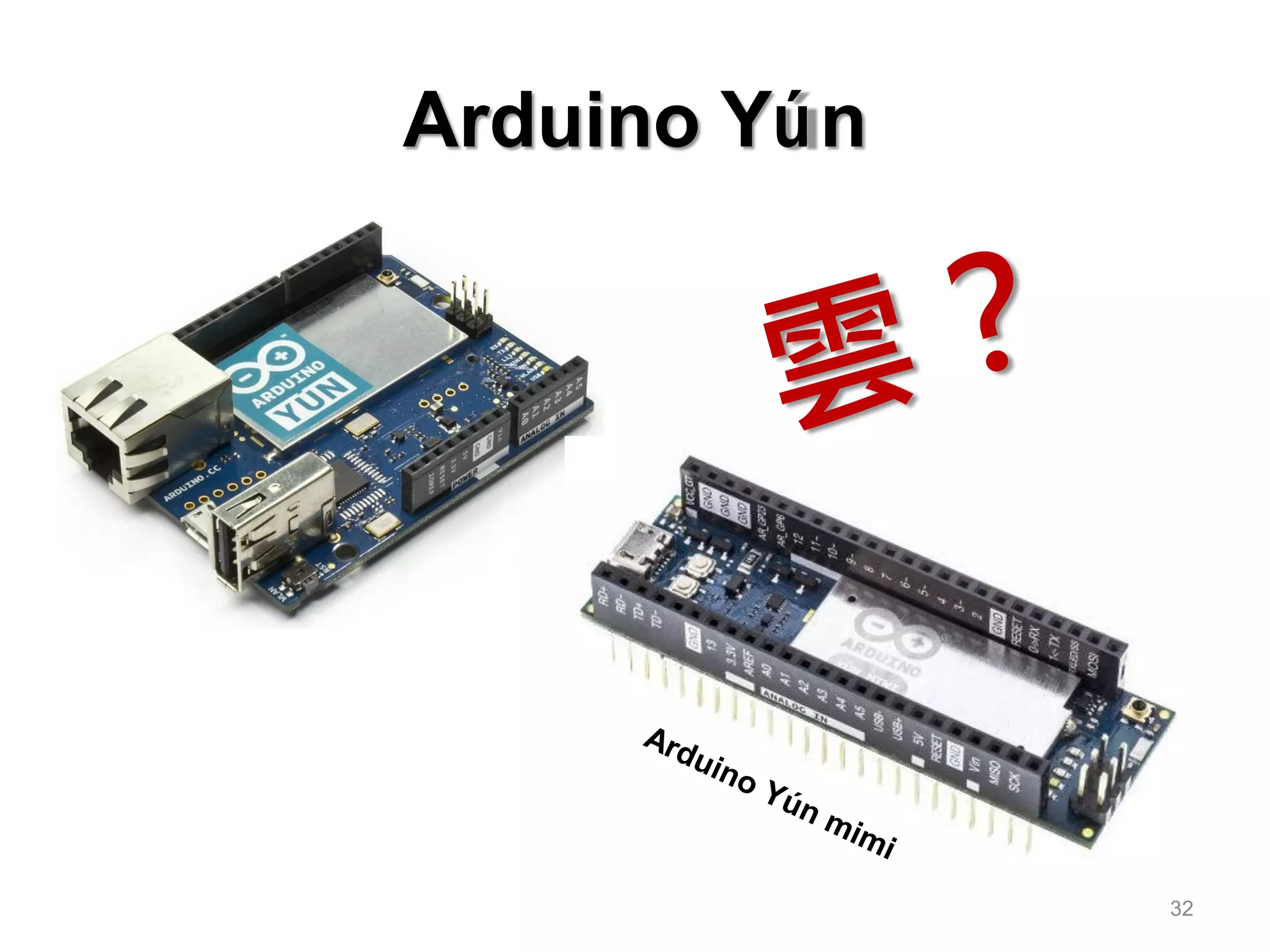

Arduino Yún
32

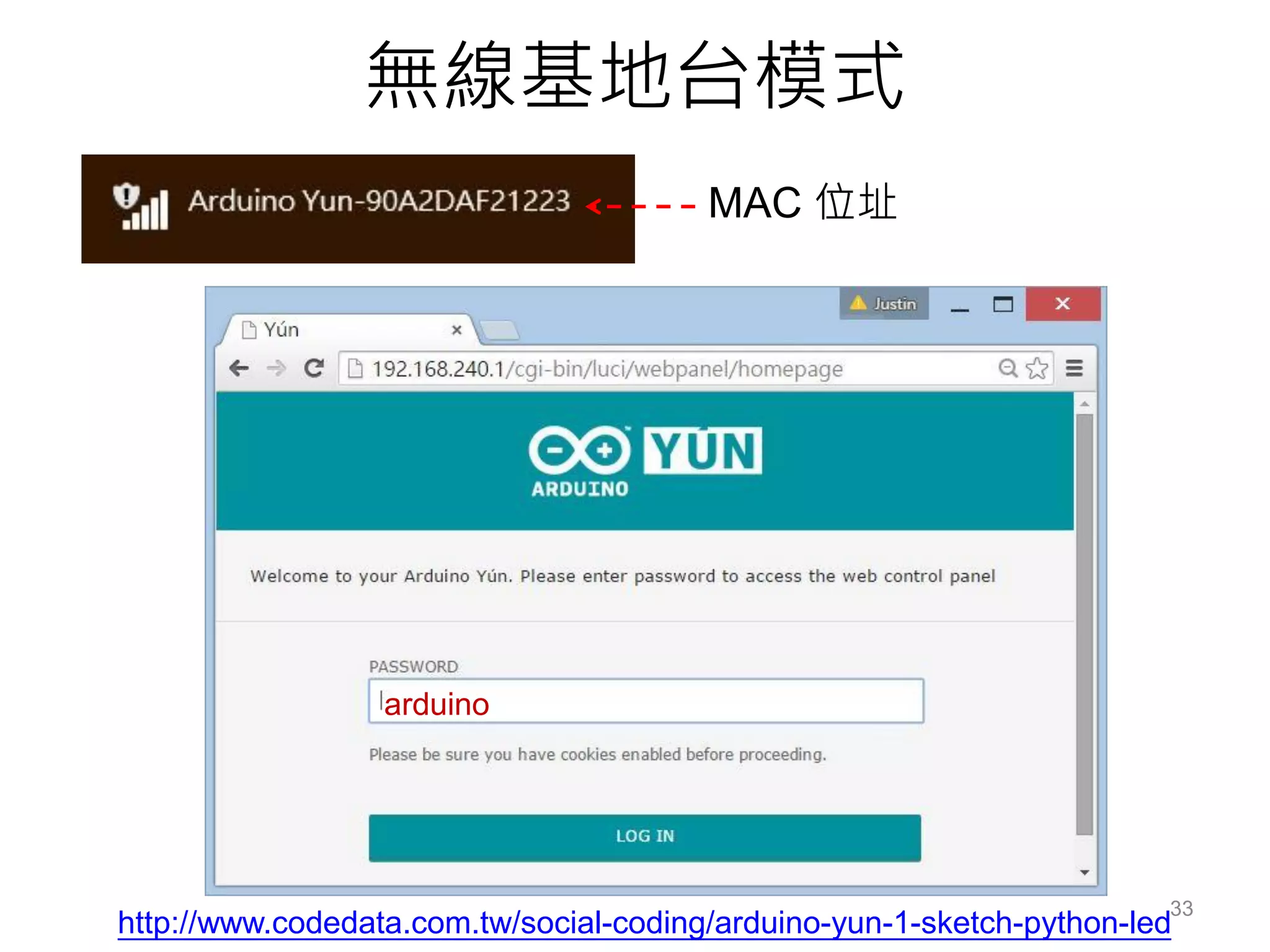

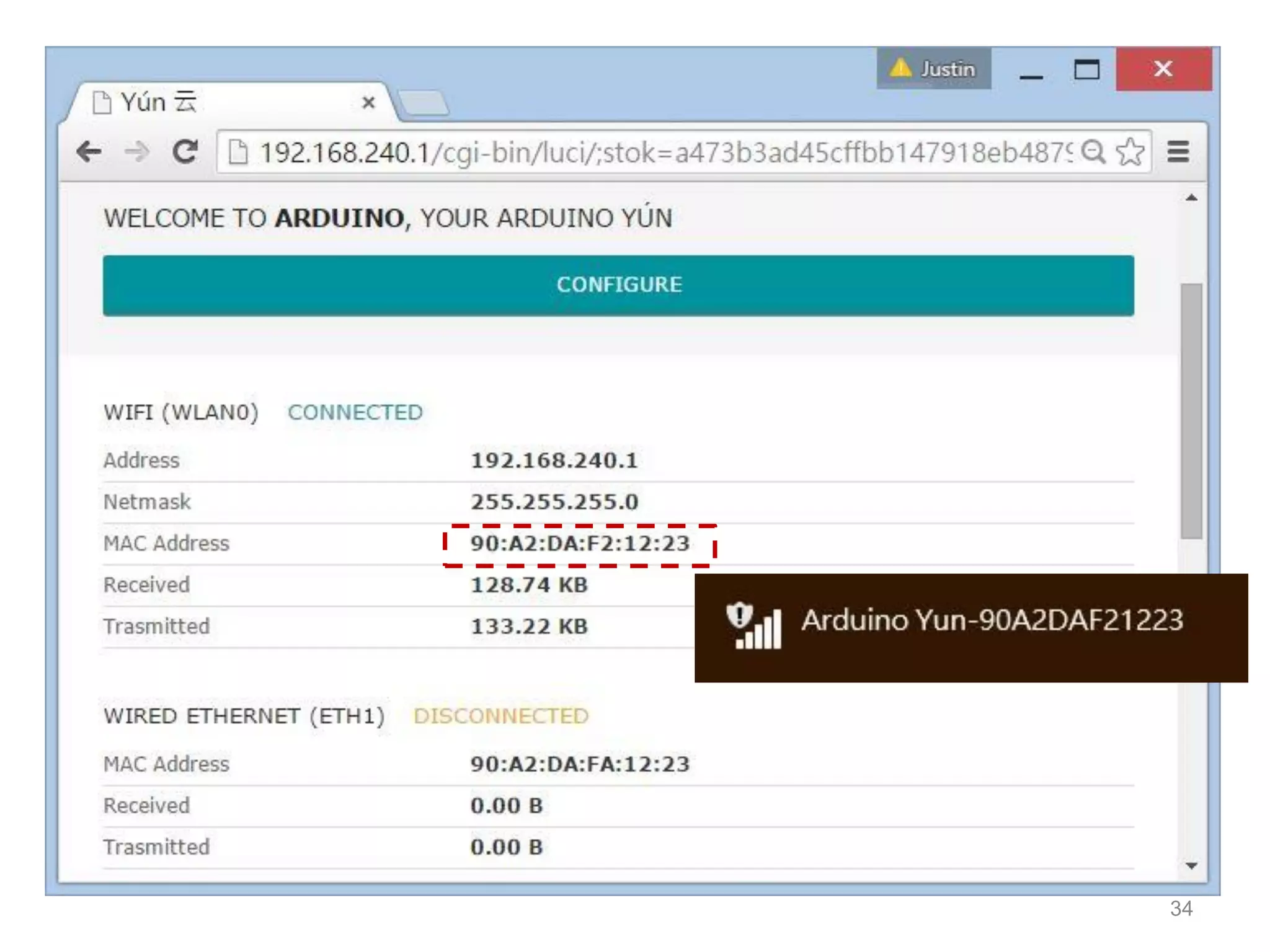

MAC 位址
無線基地台模式
arduino
http://www.codedata.com.tw/social-coding/arduino-yun-1-sketch-python-led
33
34

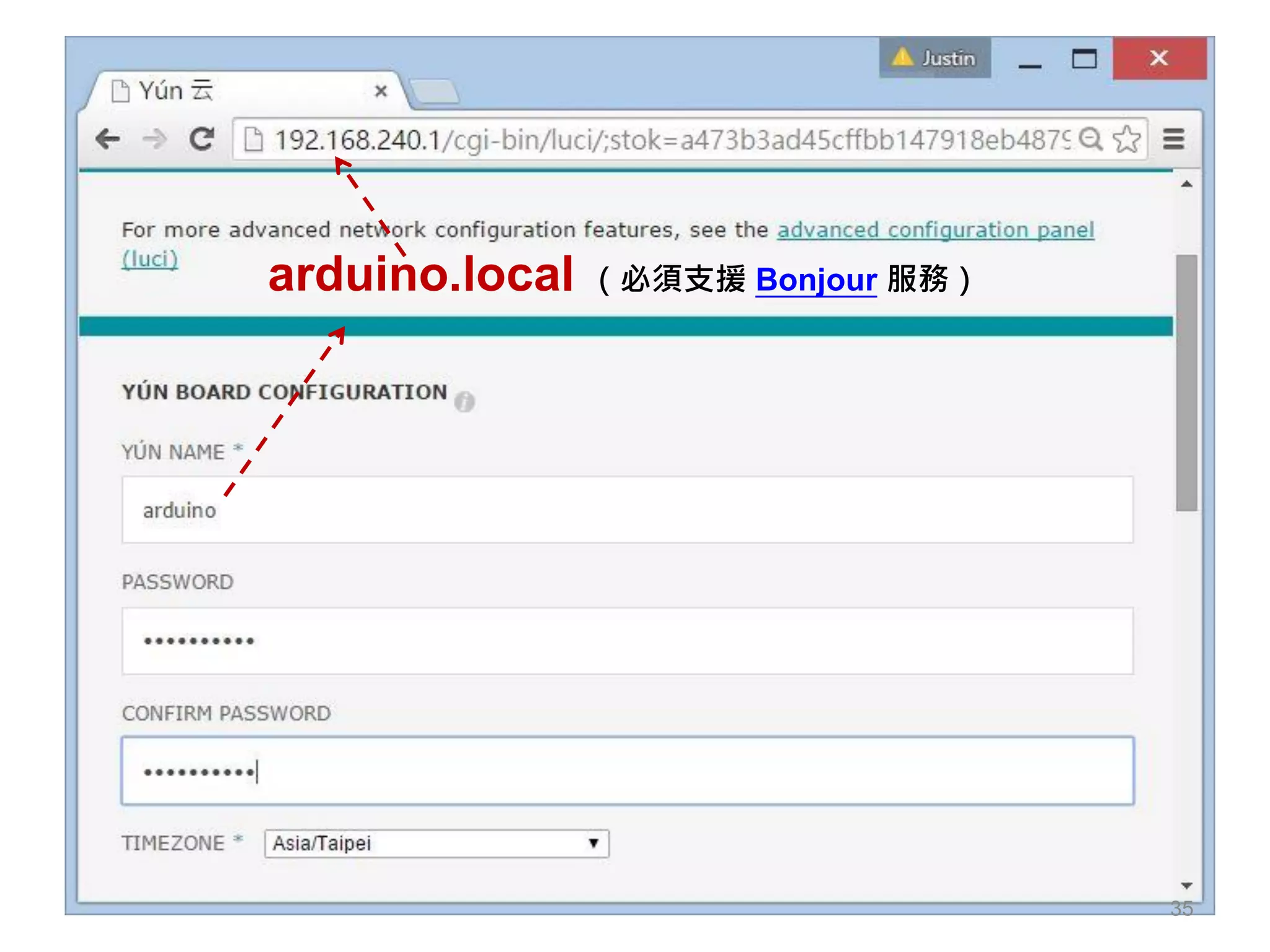

arduino.local (必須支援 Bonjour 服務)
35
36

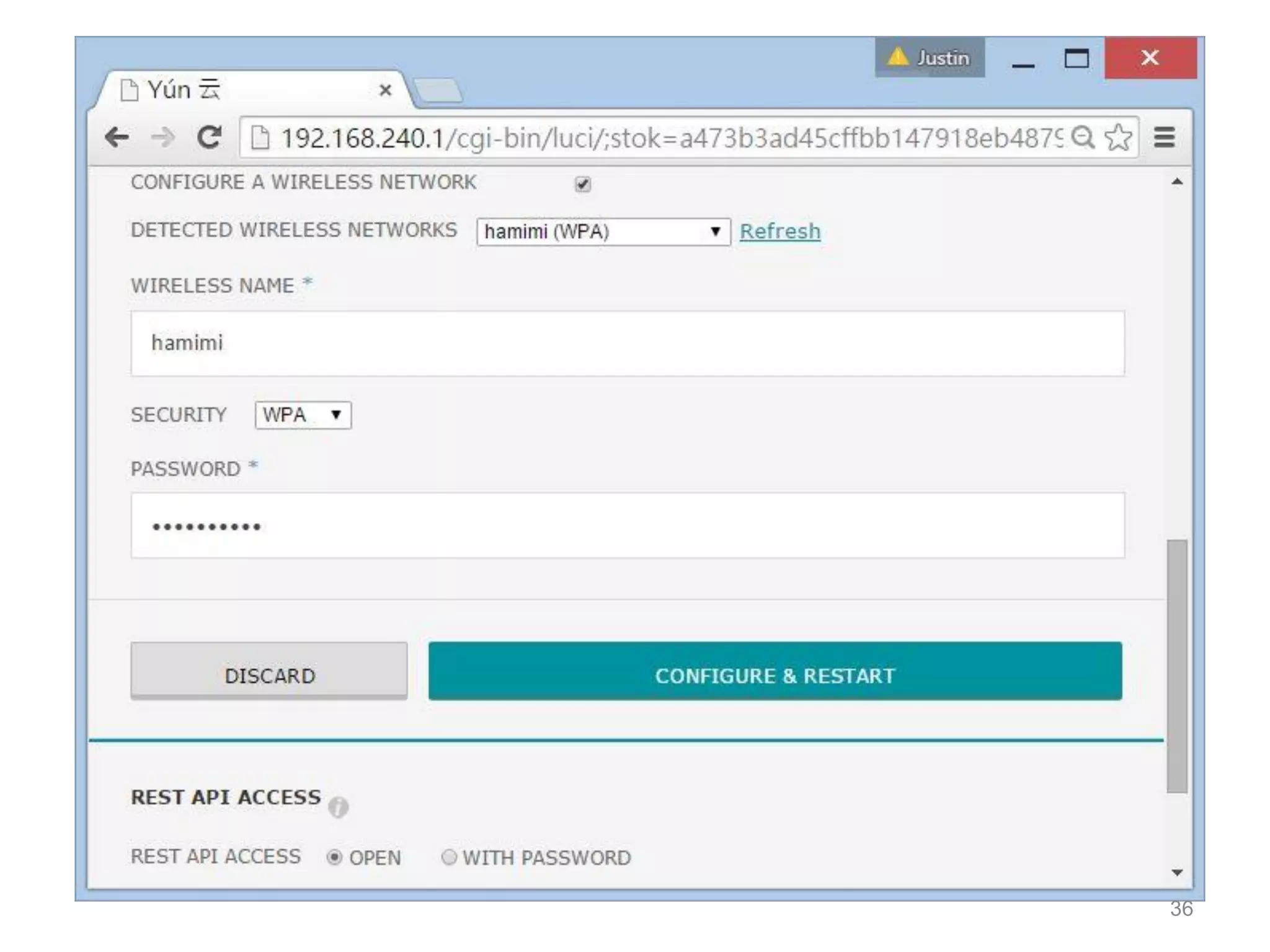

無線網卡模式
37

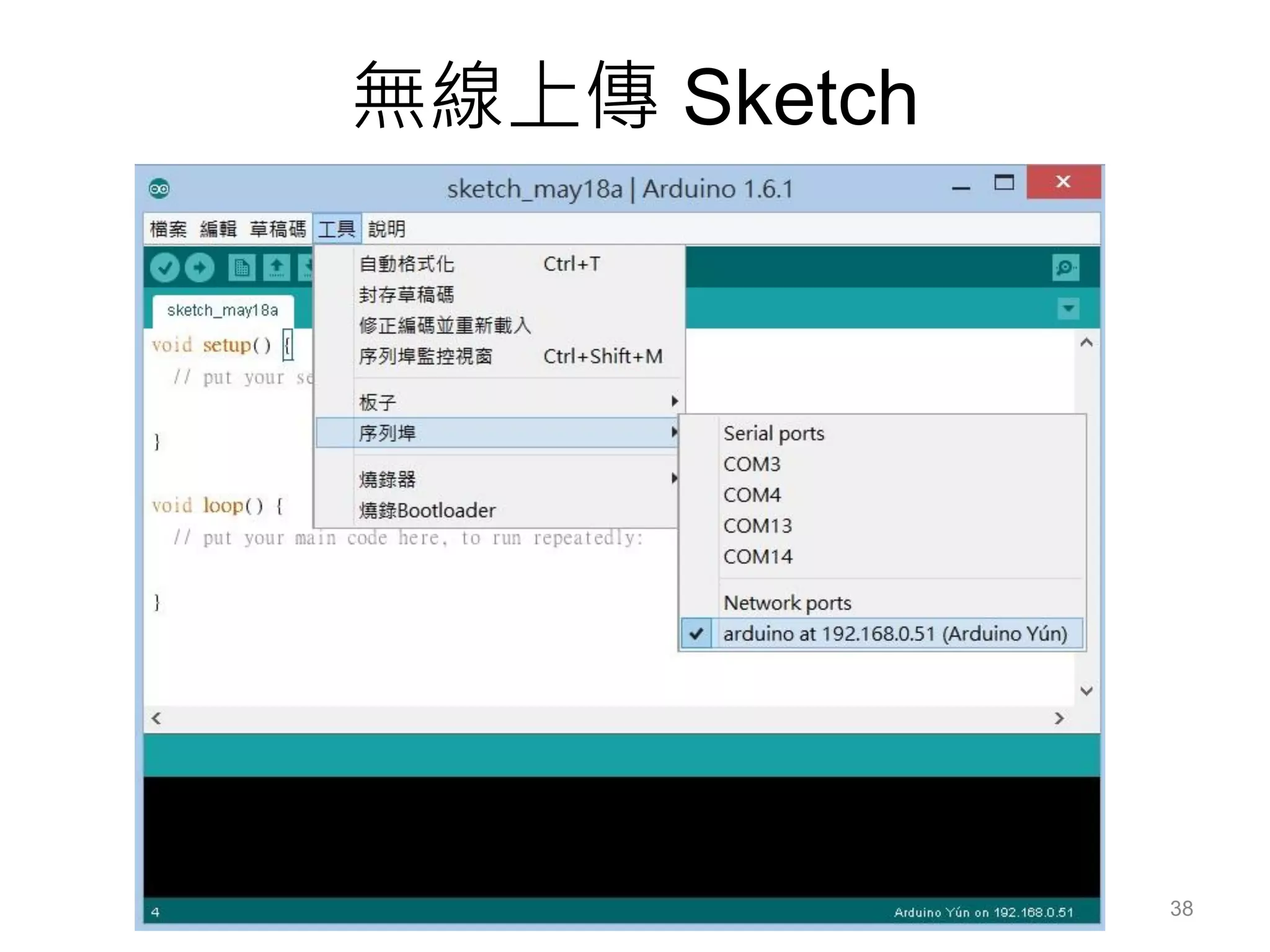

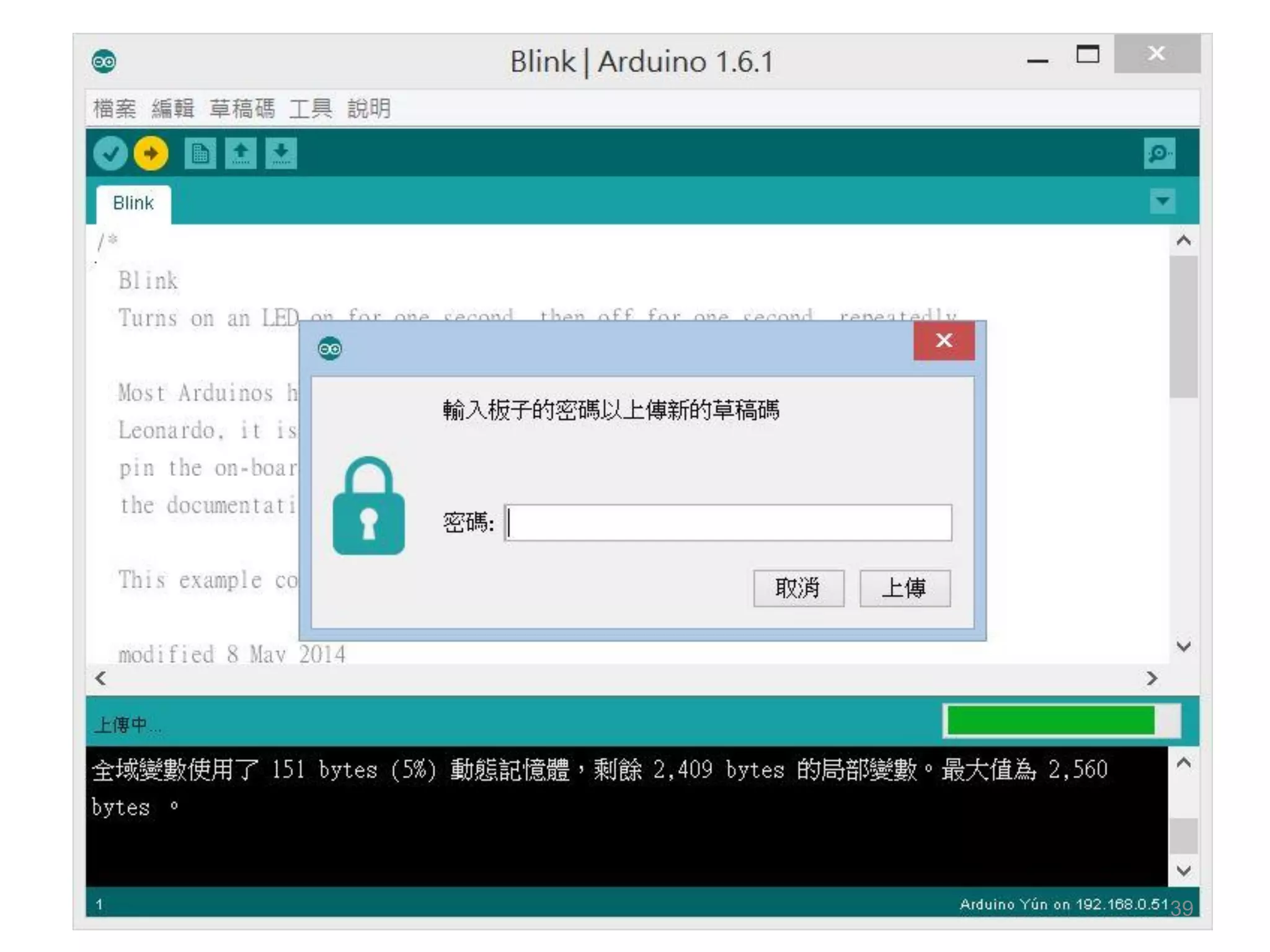

無線上傳 Sketch
38
39

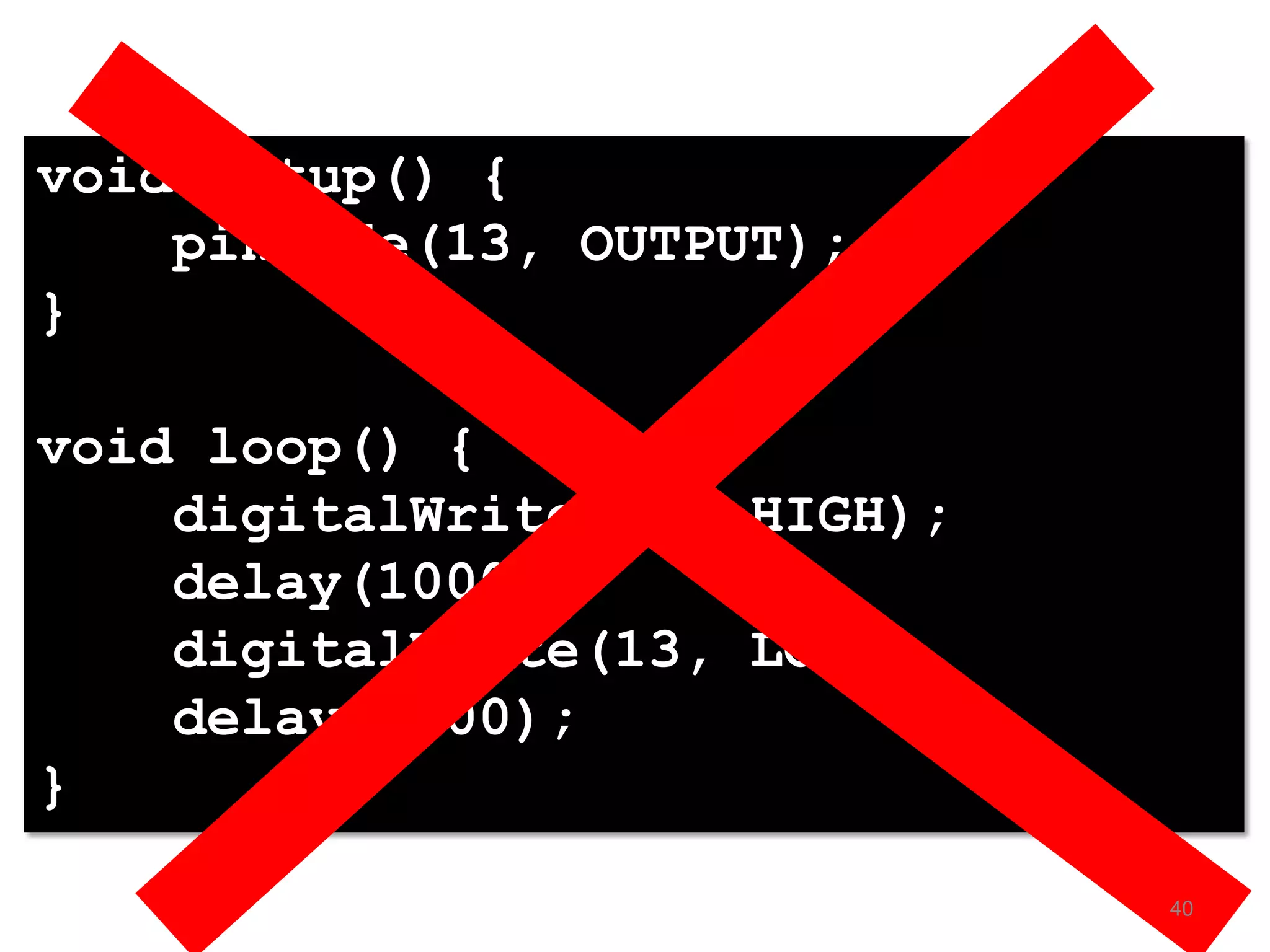

void setup() {
pinMode(13, OUTPUT);
}
void loop() {
digitalWrite(13, HIGH);
delay(1000);
digitalWrite(13, LOW);
delay(1000);
}

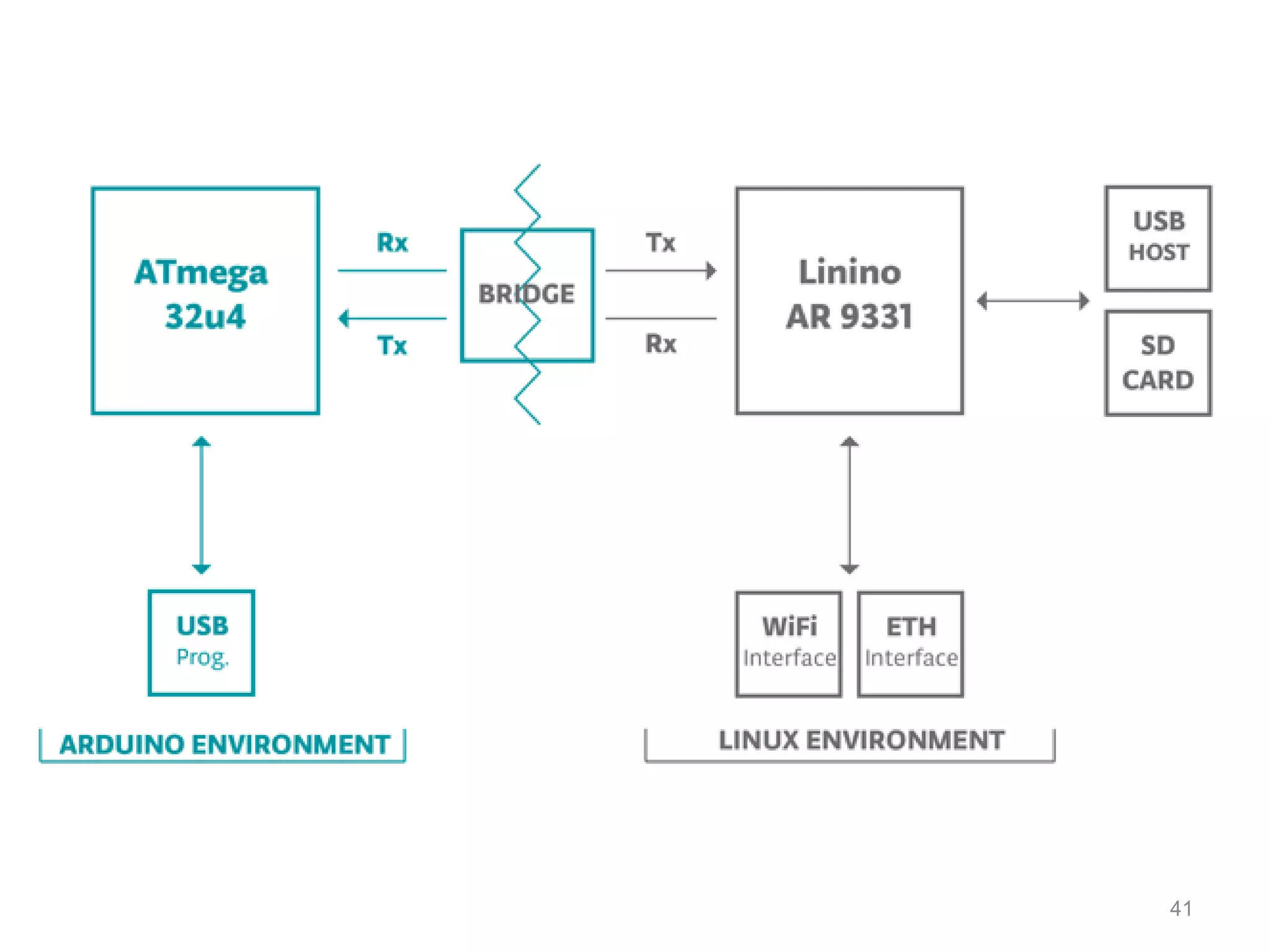

40
41

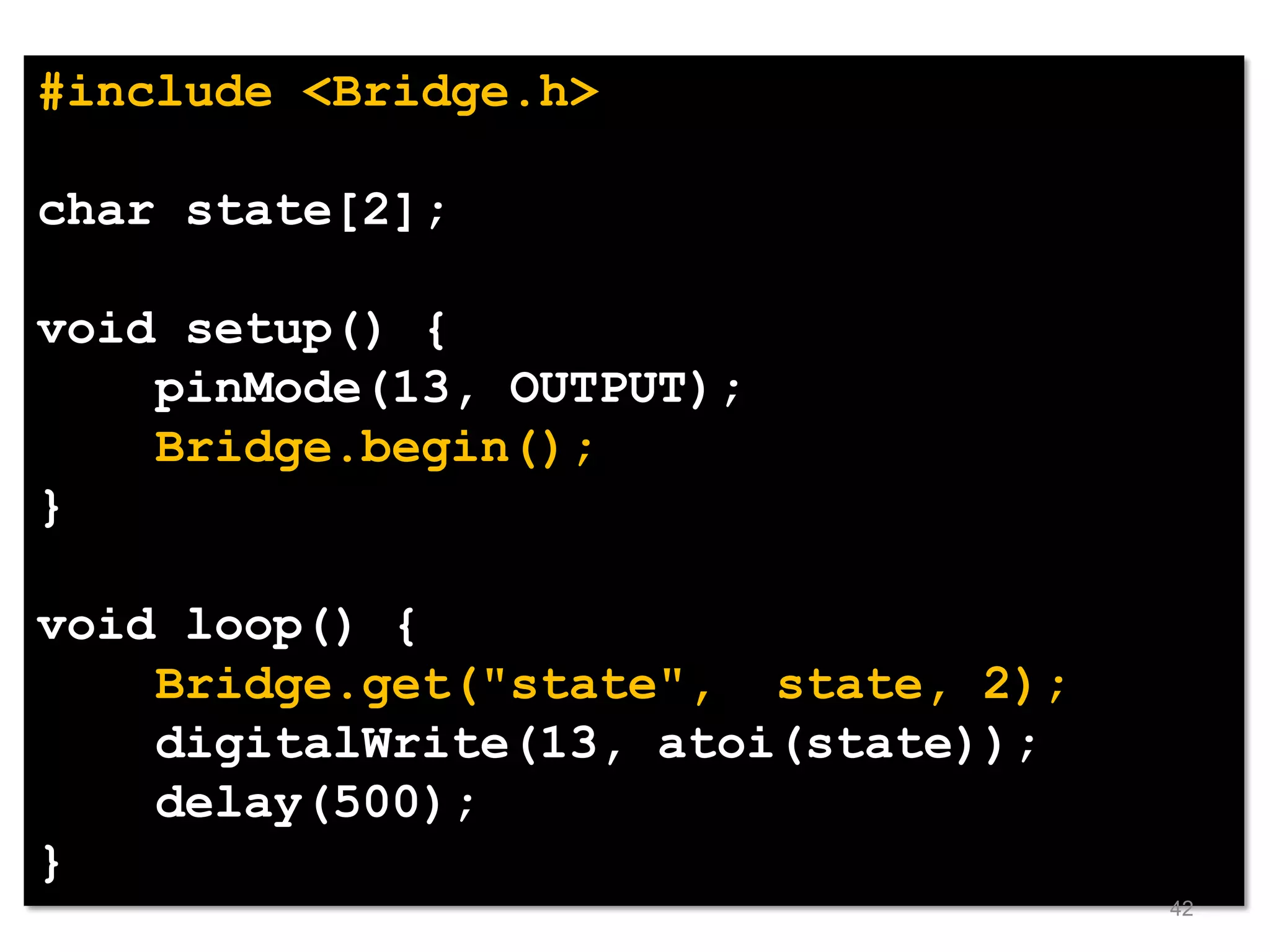

#include <Bridge.h>
char state[2];
void setup() {
pinMode(13, OUTPUT);
Bridge.begin();
}
void loop() {
Bridge.get("state", state, 2);
digitalWrite(13, atoi(state));
delay(500);
}
42

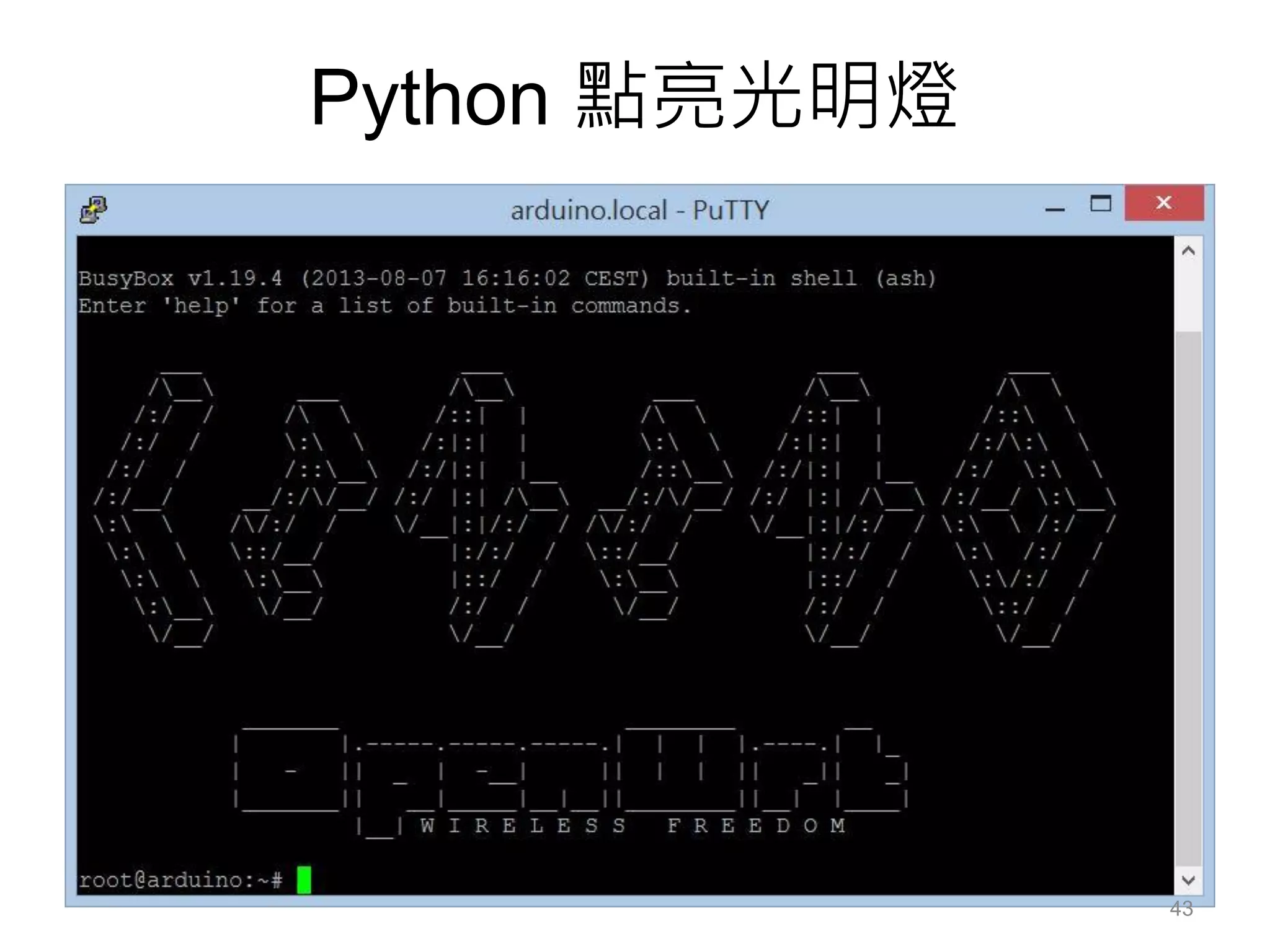

Python 點亮光明燈
43
44

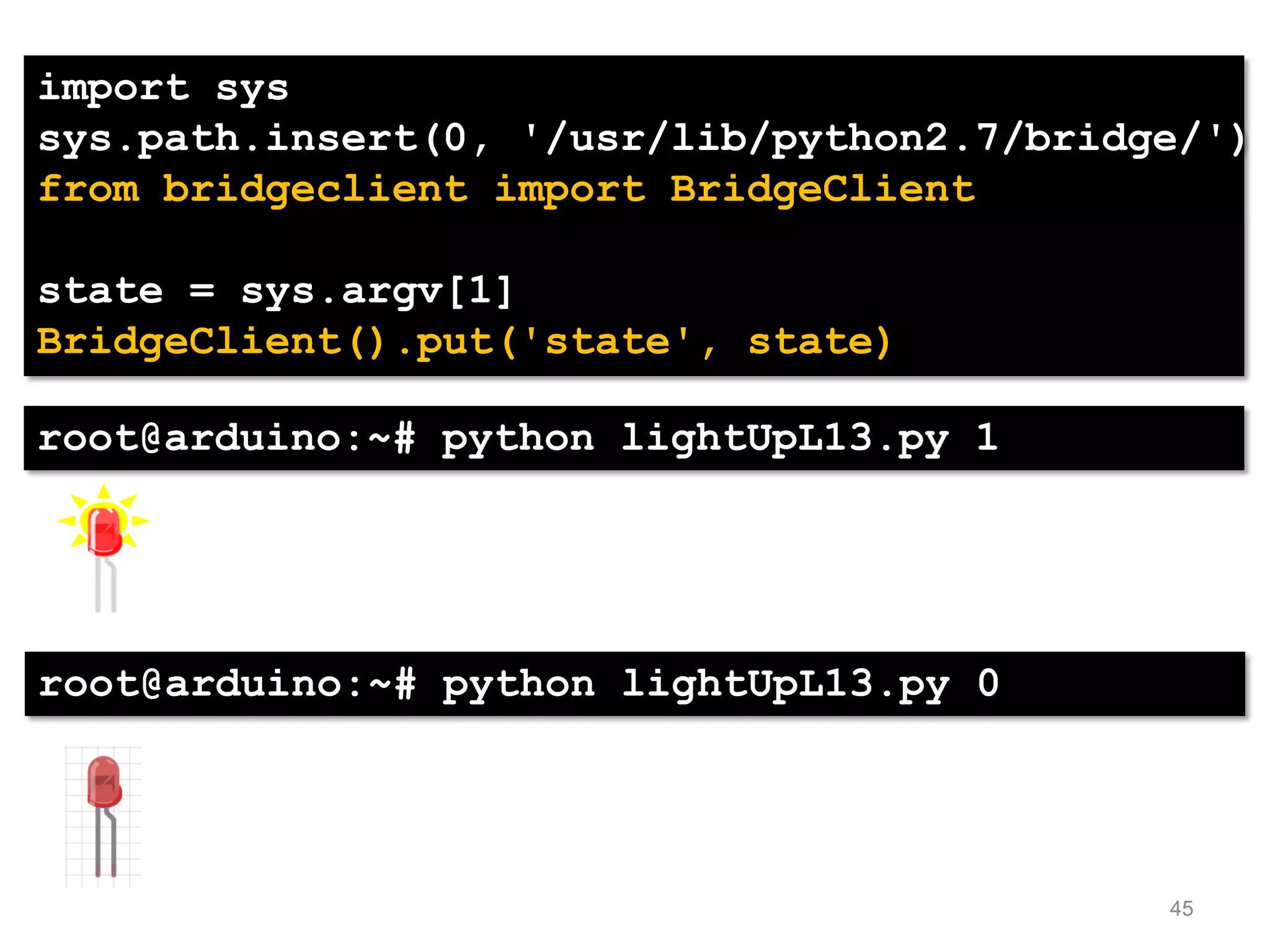

import sys
sys.path.insert(0, '/usr/lib/python2.7/bridge/')
from bridgeclient import BridgeClient
state = sys.argv[1]
BridgeClient().put('state', state)
root@arduino:~# python lightUpL13.py 1
root@arduino:~# python lightUpL13.py 0
45

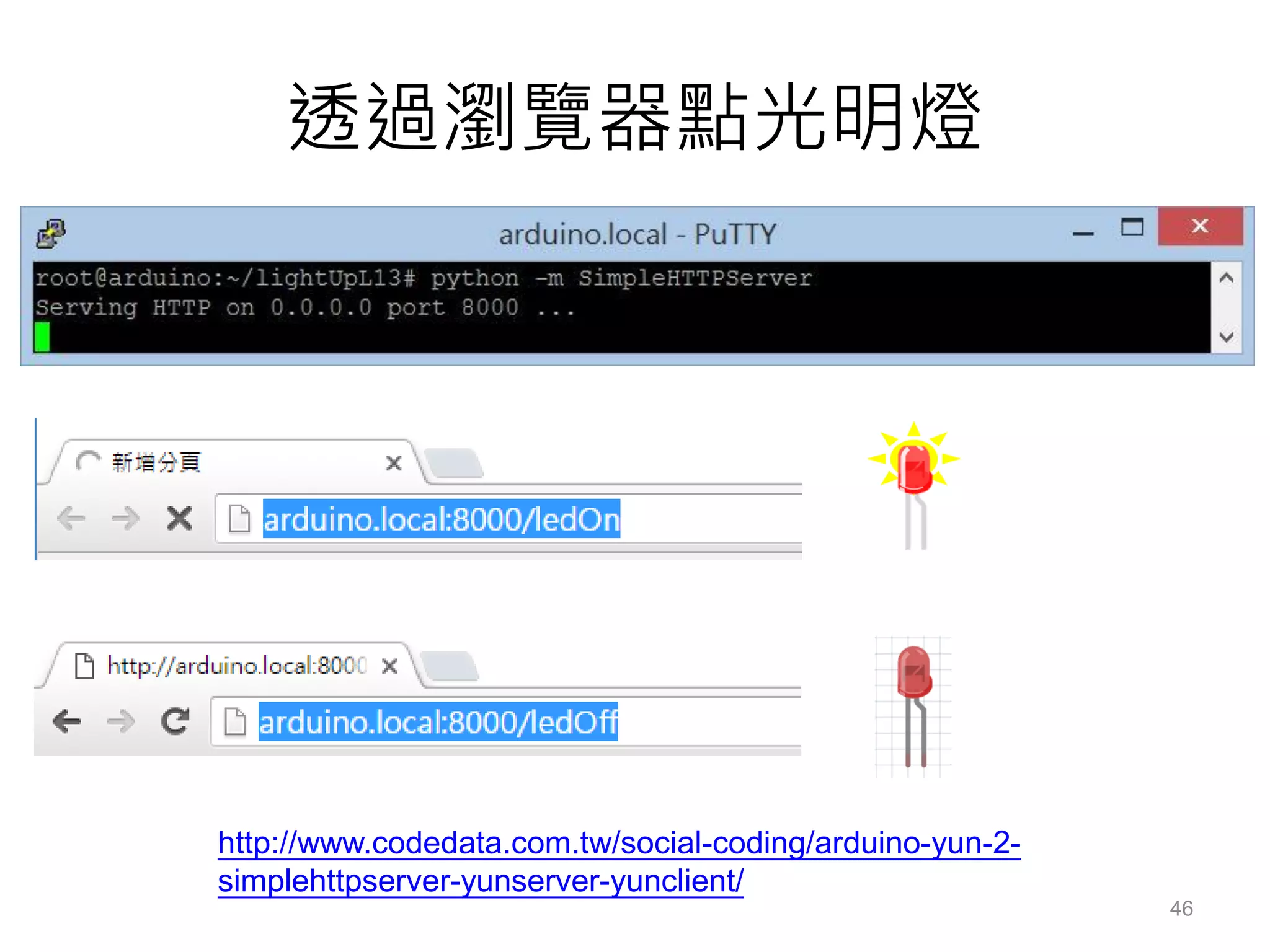

透過瀏覽器點光明燈
http://www.codedata.com.tw/social-coding/arduino-yun-2-
simplehttpserver-yunserver-yunclient/
46

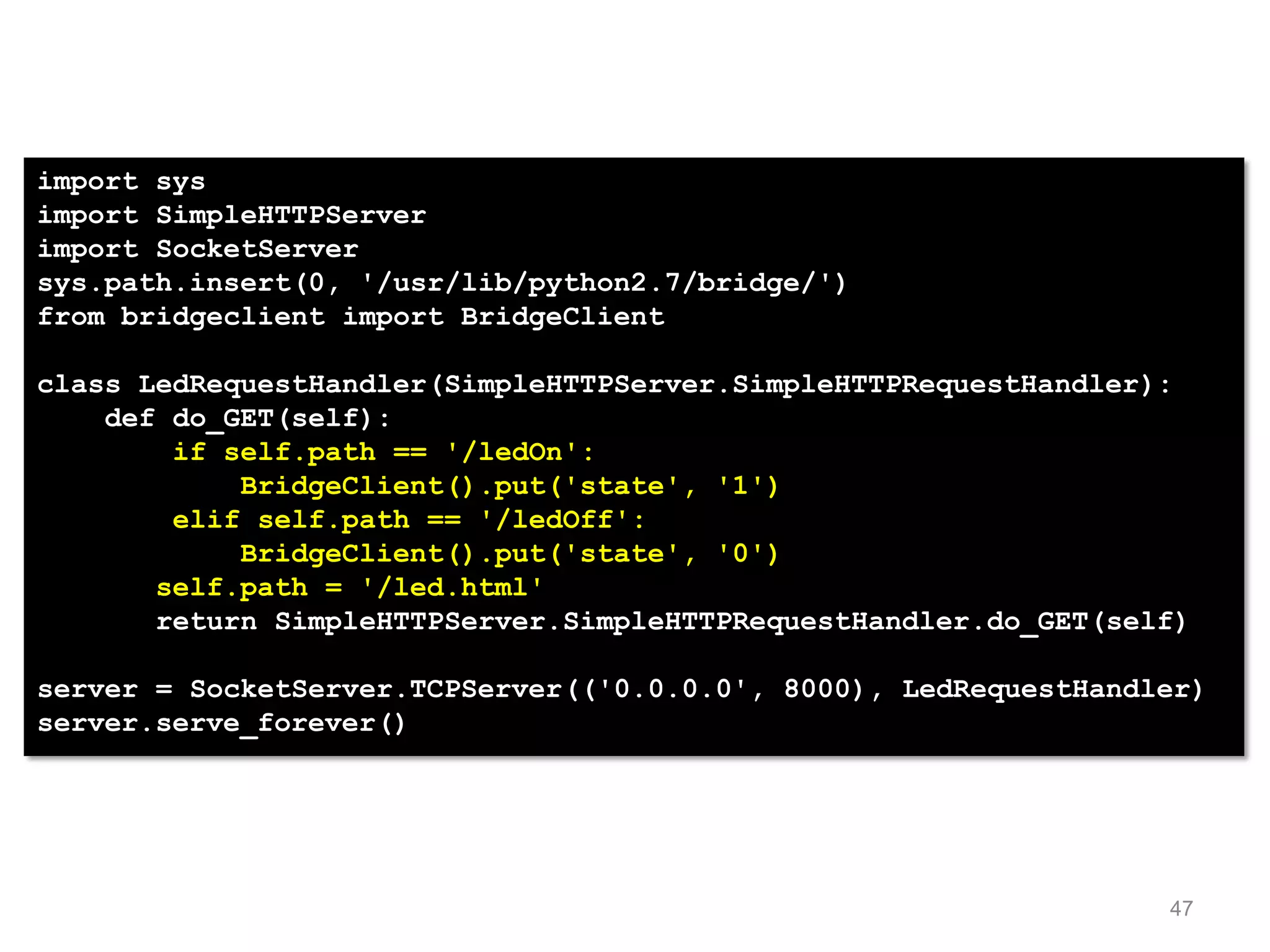

import sys
import SimpleHTTPServer
import SocketServer
sys.path.insert(0, '/usr/lib/python2.7/bridge/')
from bridgeclient import BridgeClient
class LedRequestHandler(SimpleHTTPServer.SimpleHTTPRequestHandler):
def do_GET(self):
if self.path == '/ledOn':
BridgeClient().put('state', '1')
elif self.path == '/ledOff':
BridgeClient().put('state', '0')
self.path = '/led.html'
return SimpleHTTPServer.SimpleHTTPRequestHandler.do_GET(self)
server = SocketServer.TCPServer(('0.0.0.0', 8000), LedRequestHandler)
server.serve_forever()
47
led.html
<html>
<head>
<meta content="text/html; charset=UTF-8" http-equiv="content-
type">
<title></title>
</head>
<body>
<p><a href="ledOn">On</a>&nbsp; <a href="ledOff">Off</a></p>
</body>
</html>
48

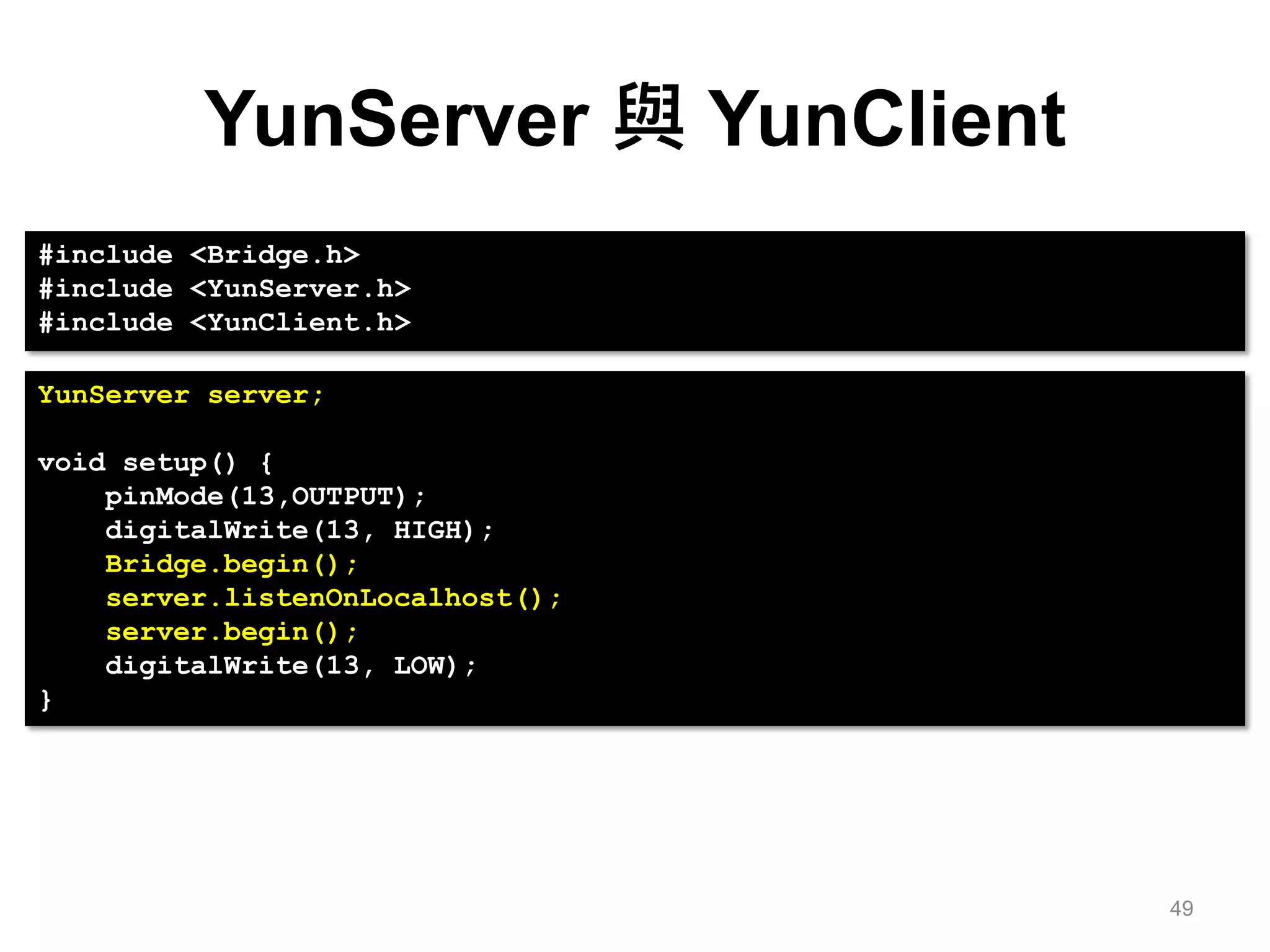

YunServer 與 YunClient
#include <Bridge.h>
#include <YunServer.h>
#include <YunClient.h>
YunServer server;
void setup() {
pinMode(13,OUTPUT);
digitalWrite(13, HIGH);
Bridge.begin();
server.listenOnLocalhost();
server.begin();
digitalWrite(13, LOW);
}
49

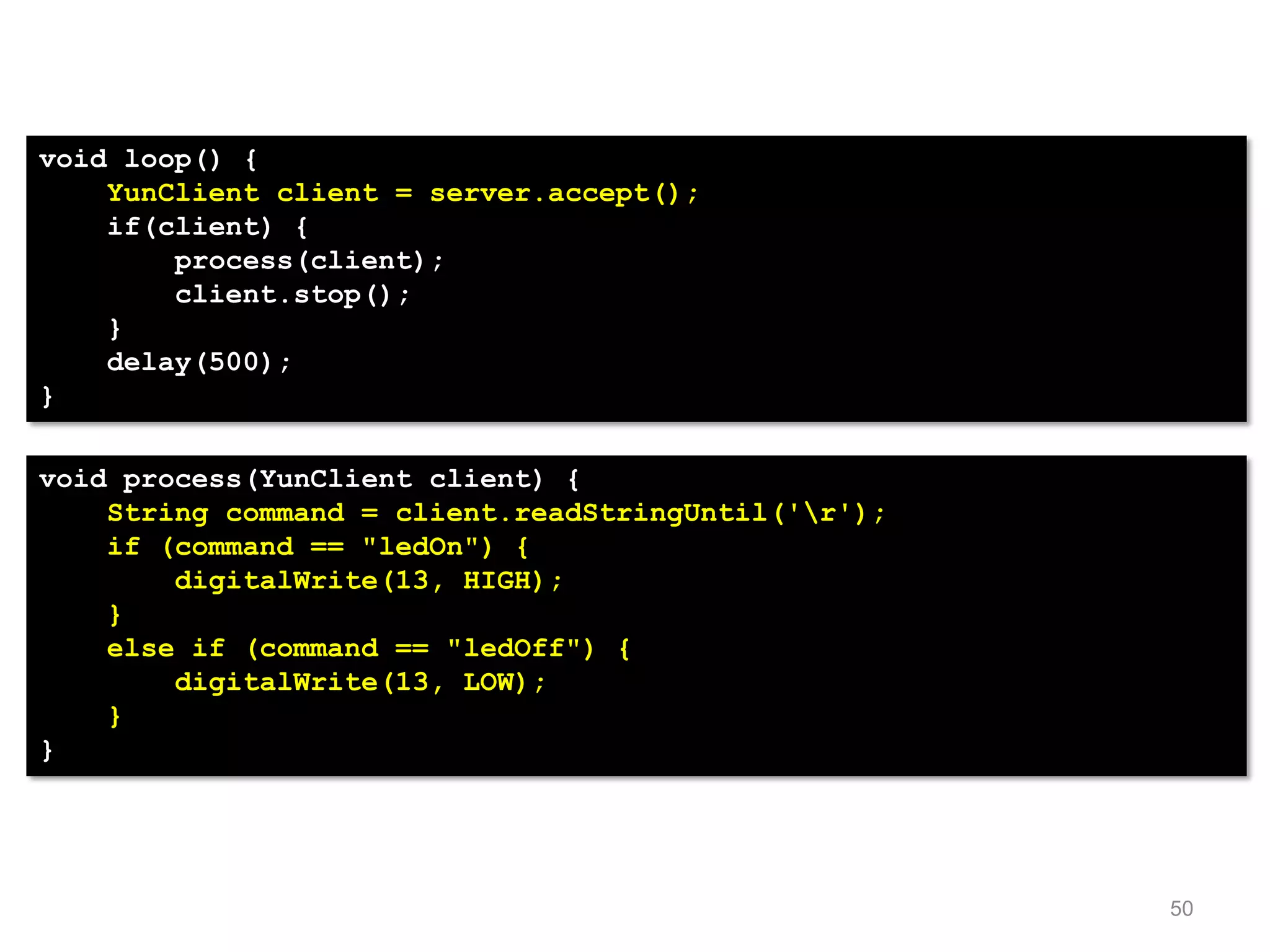

void loop() {
YunClient client = server.accept();
if(client) {
process(client);
client.stop();
}
delay(500);
}
void process(YunClient client) {
String command = client.readStringUntil('r');
if (command == "ledOn") {
digitalWrite(13, HIGH);
}
else if (command == "ledOff") {
digitalWrite(13, LOW);
}
}
50

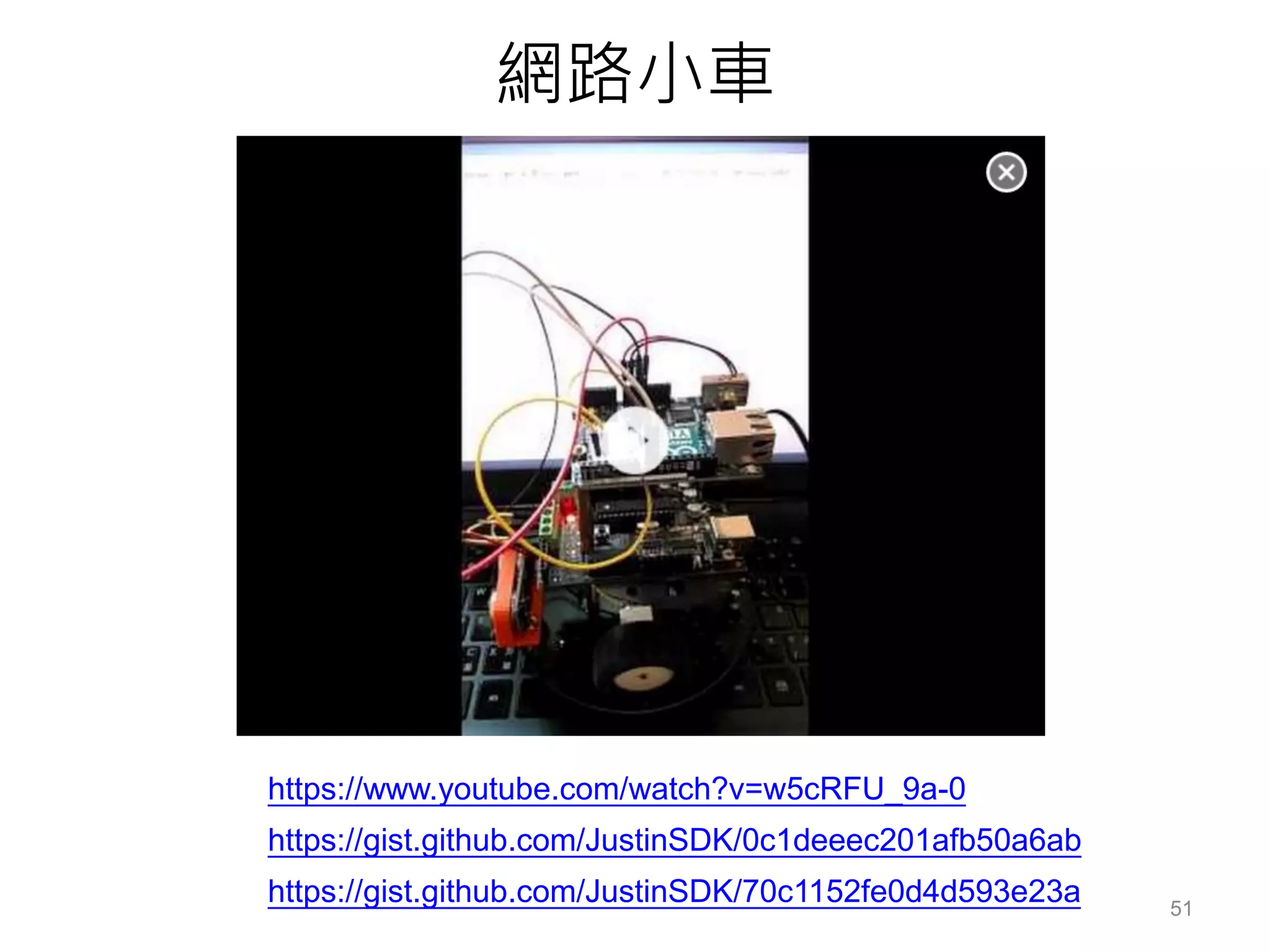

網路小車
https://www.youtube.com/watch?v=w5cRFU_9a-0
https://gist.github.com/JustinSDK/0c1deeec201afb50a6ab
https://gist.github.com/JustinSDK/70c1152fe0d4d593e23a 51

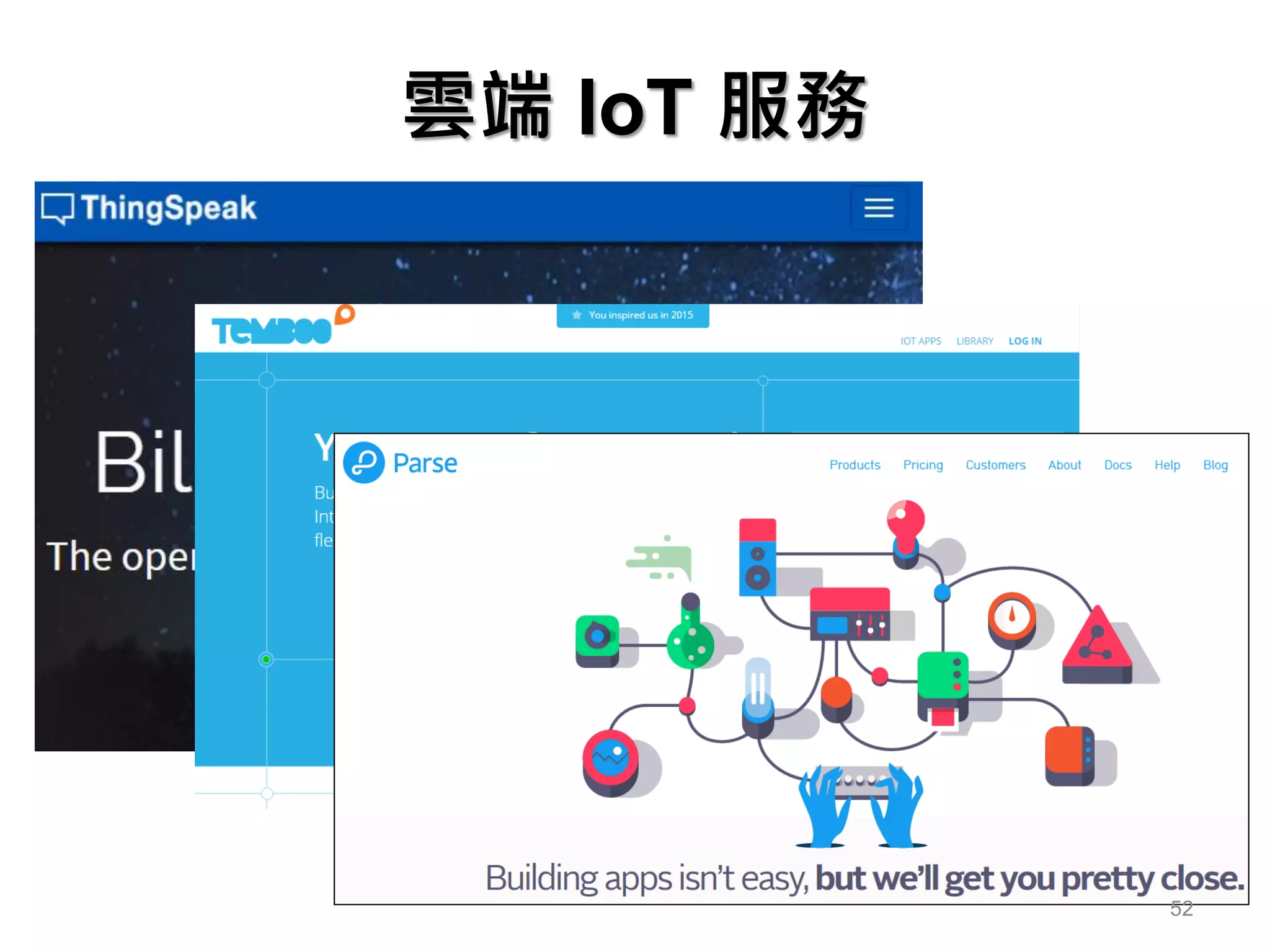

雲端 IoT 服務
52

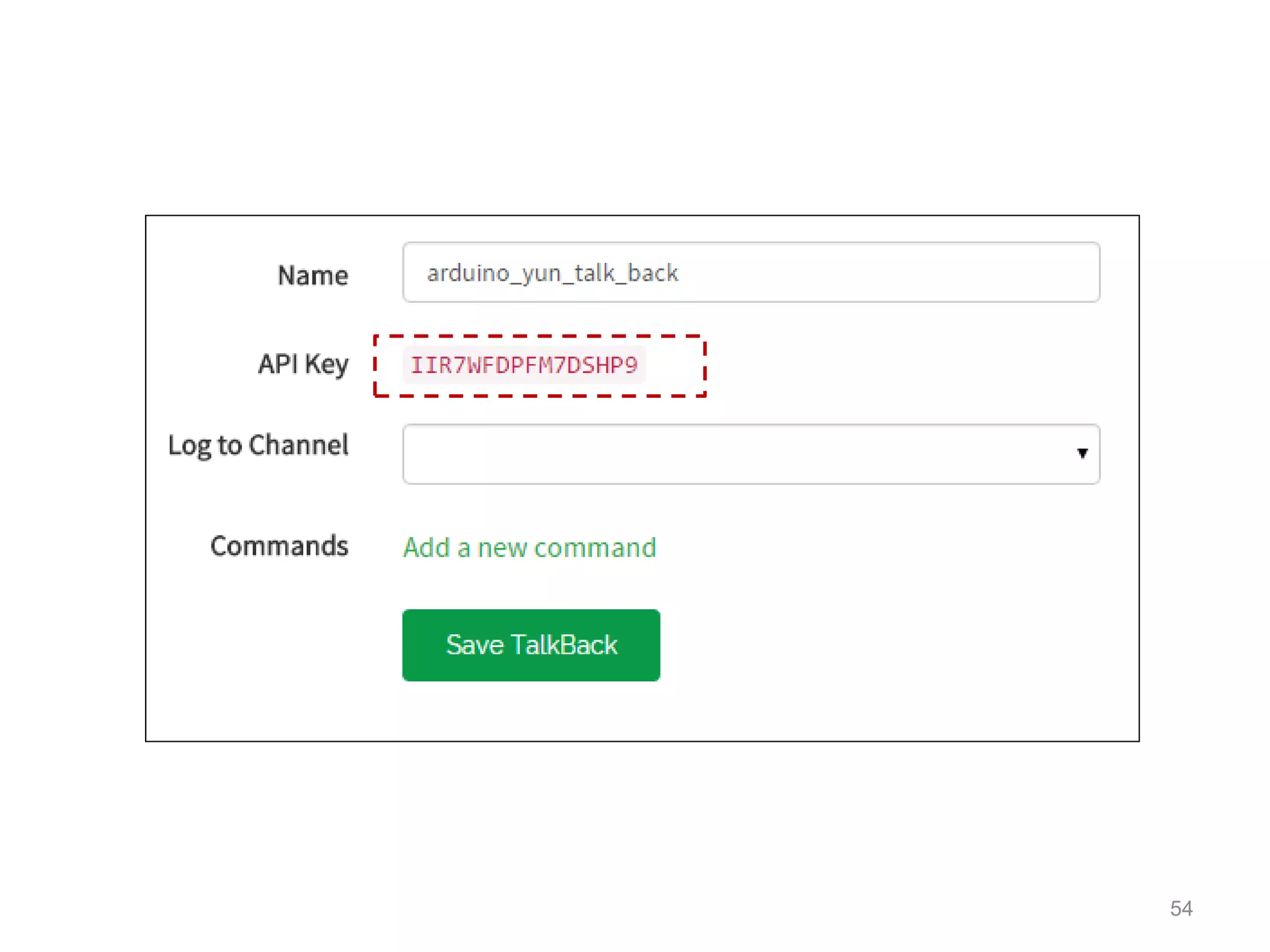

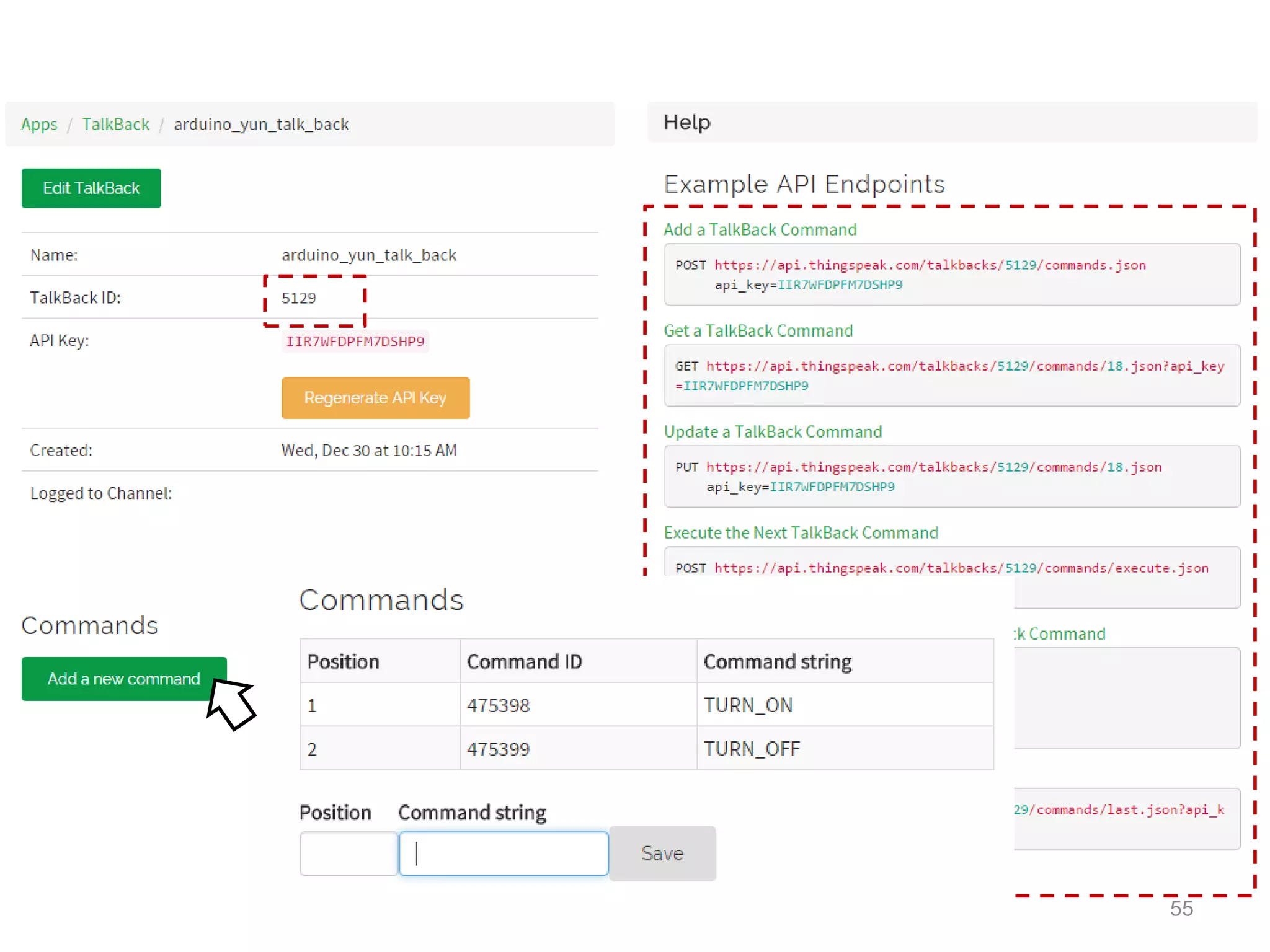

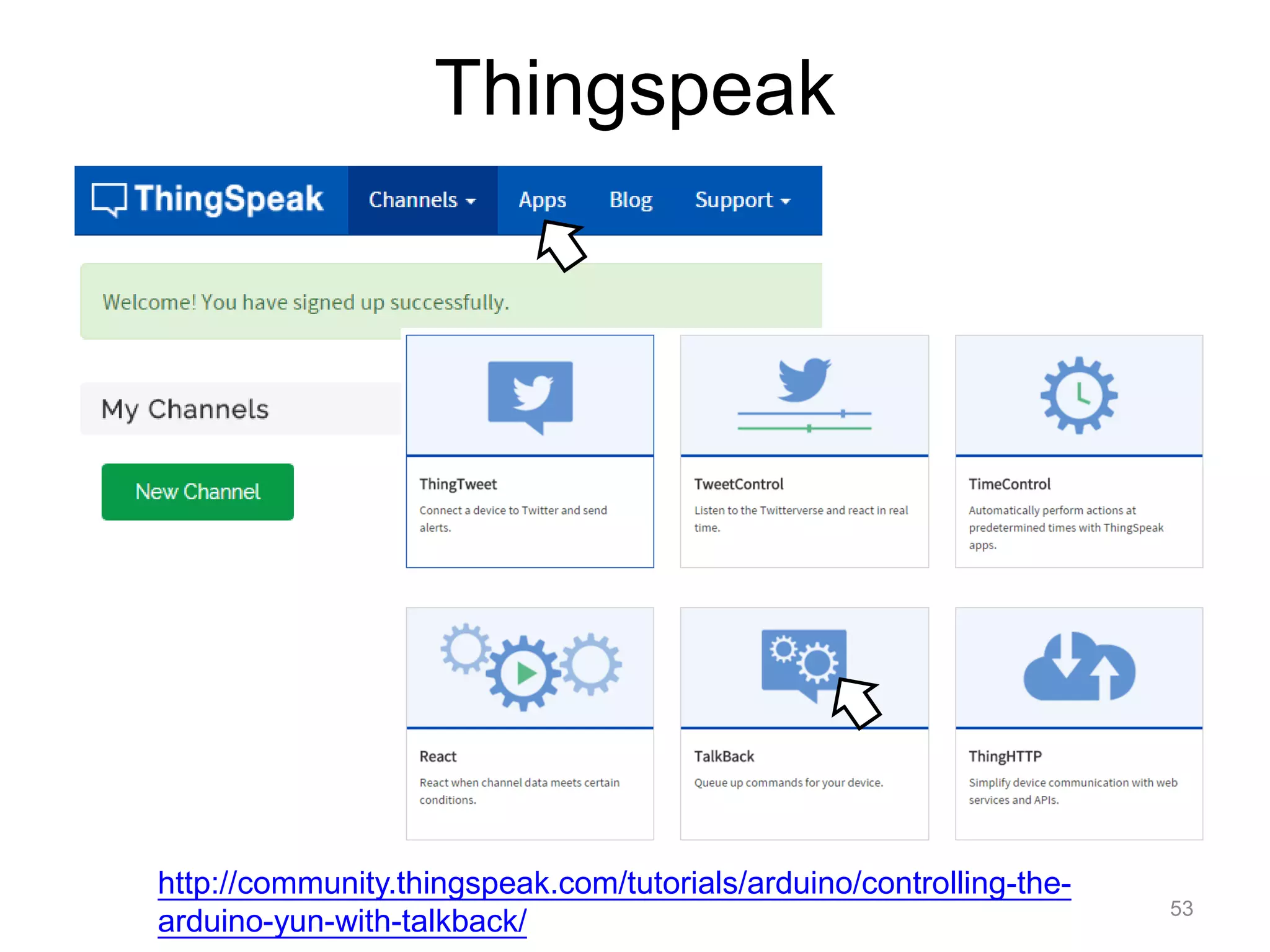

Thingspeak
http://community.thingspeak.com/tutorials/arduino/controlling-the-
arduino-yun-with-talkback/
53
54
55

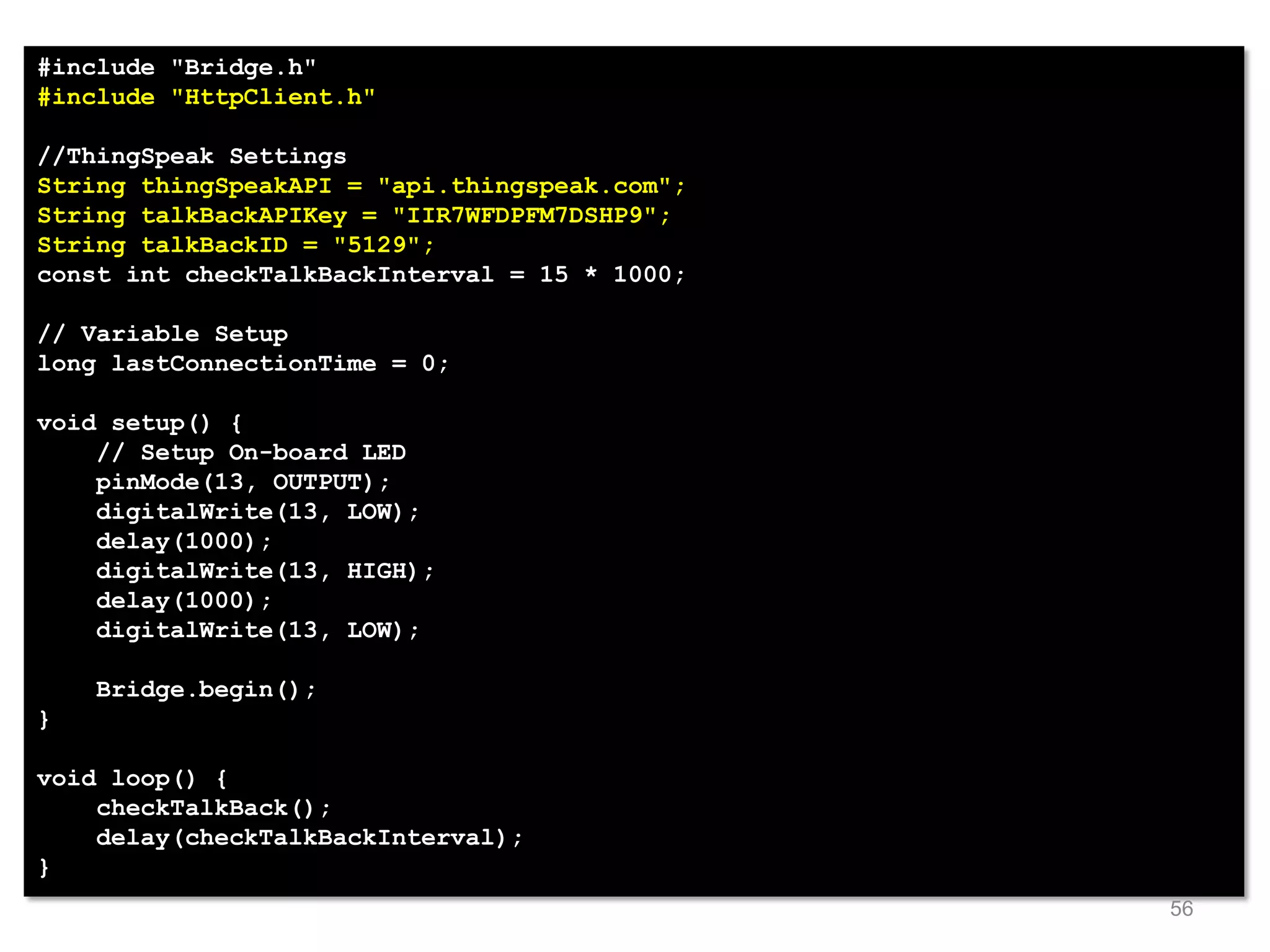

#include "Bridge.h"
#include "HttpClient.h"
//ThingSpeak Settings
String thingSpeakAPI = "api.thingspeak.com";
String talkBackAPIKey = "IIR7WFDPFM7DSHP9";
String talkBackID = "5129";
const int checkTalkBackInterval = 15 * 1000;
// Variable Setup
long lastConnectionTime = 0;
void setup() {
// Setup On-board LED
pinMode(13, OUTPUT);
digitalWrite(13, LOW);
delay(1000);
digitalWrite(13, HIGH);
delay(1000);
digitalWrite(13, LOW);
Bridge.begin();
}
void loop() {
checkTalkBack();
delay(checkTalkBackInterval);
}
56

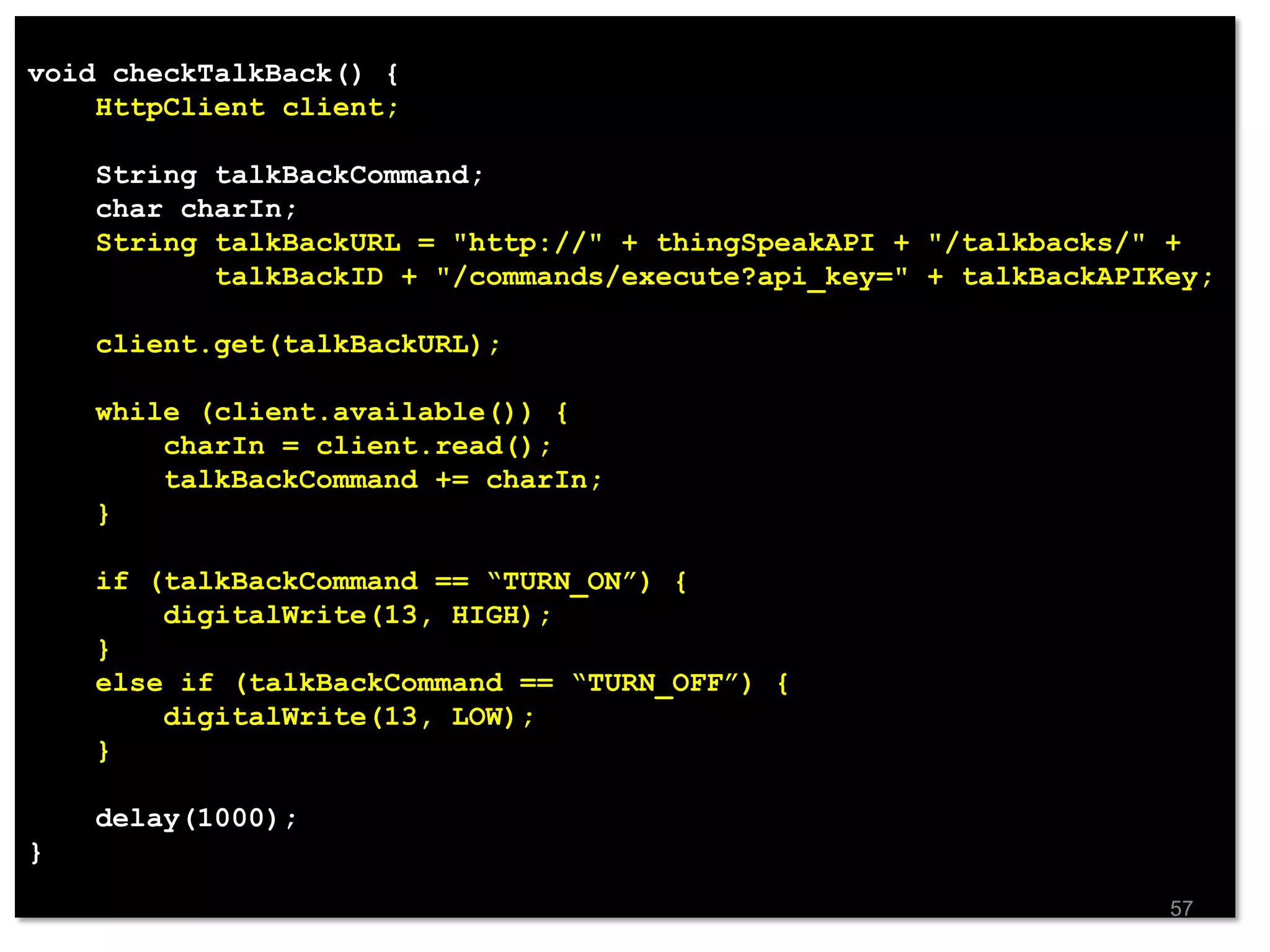

void checkTalkBack() {
HttpClient client;
String talkBackCommand;
char charIn;
String talkBackURL = "http://" + thingSpeakAPI + "/talkbacks/" +
talkBackID + "/commands/execute?api_key=" + talkBackAPIKey;
client.get(talkBackURL);
while (client.available()) {
charIn = client.read();
talkBackCommand += charIn;
}
if (talkBackCommand == “TURN_ON”) {
digitalWrite(13, HIGH);
}
else if (talkBackCommand == “TURN_OFF”) {
digitalWrite(13, LOW);
}
delay(1000);
}
57

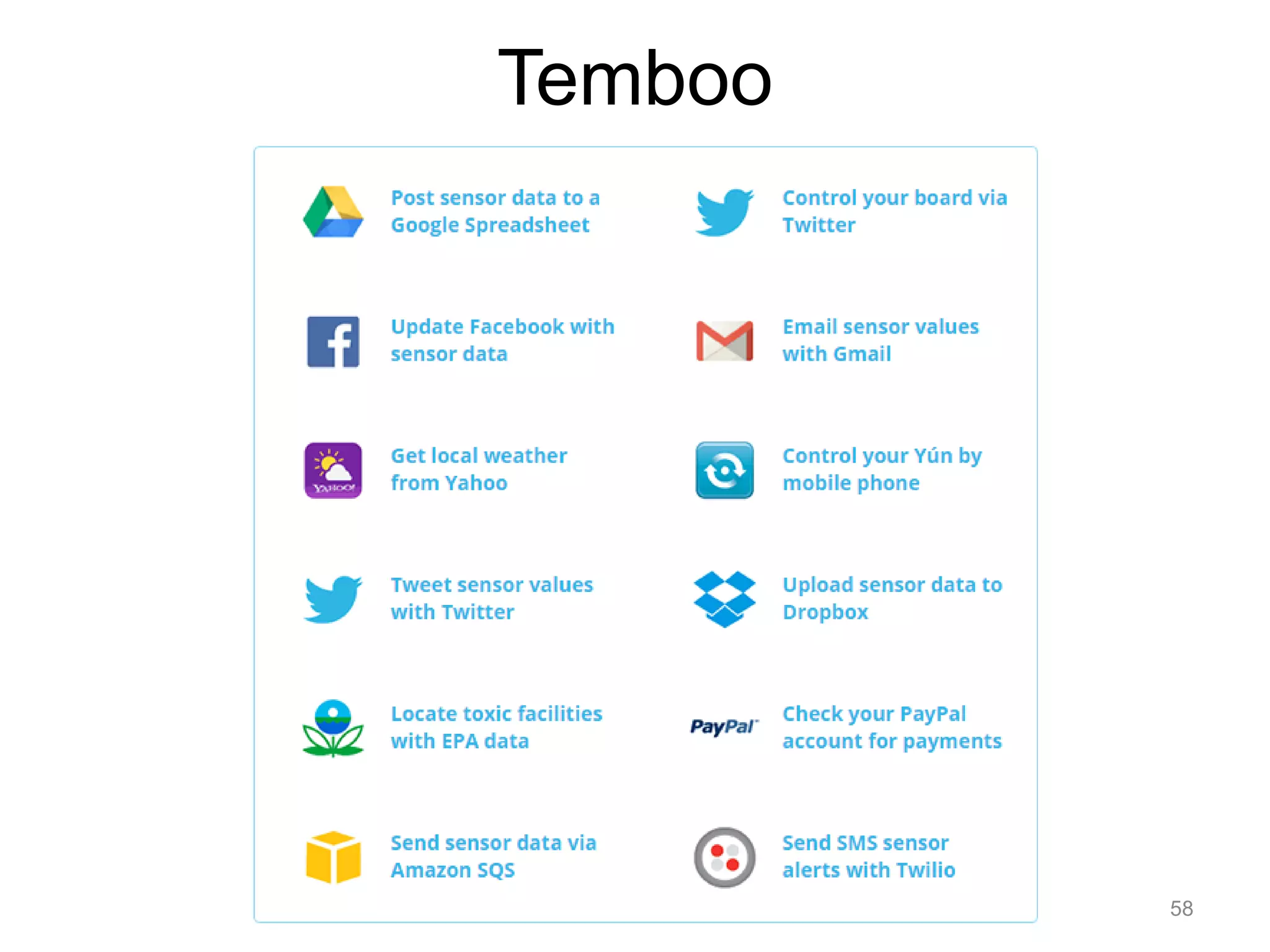

Temboo
58

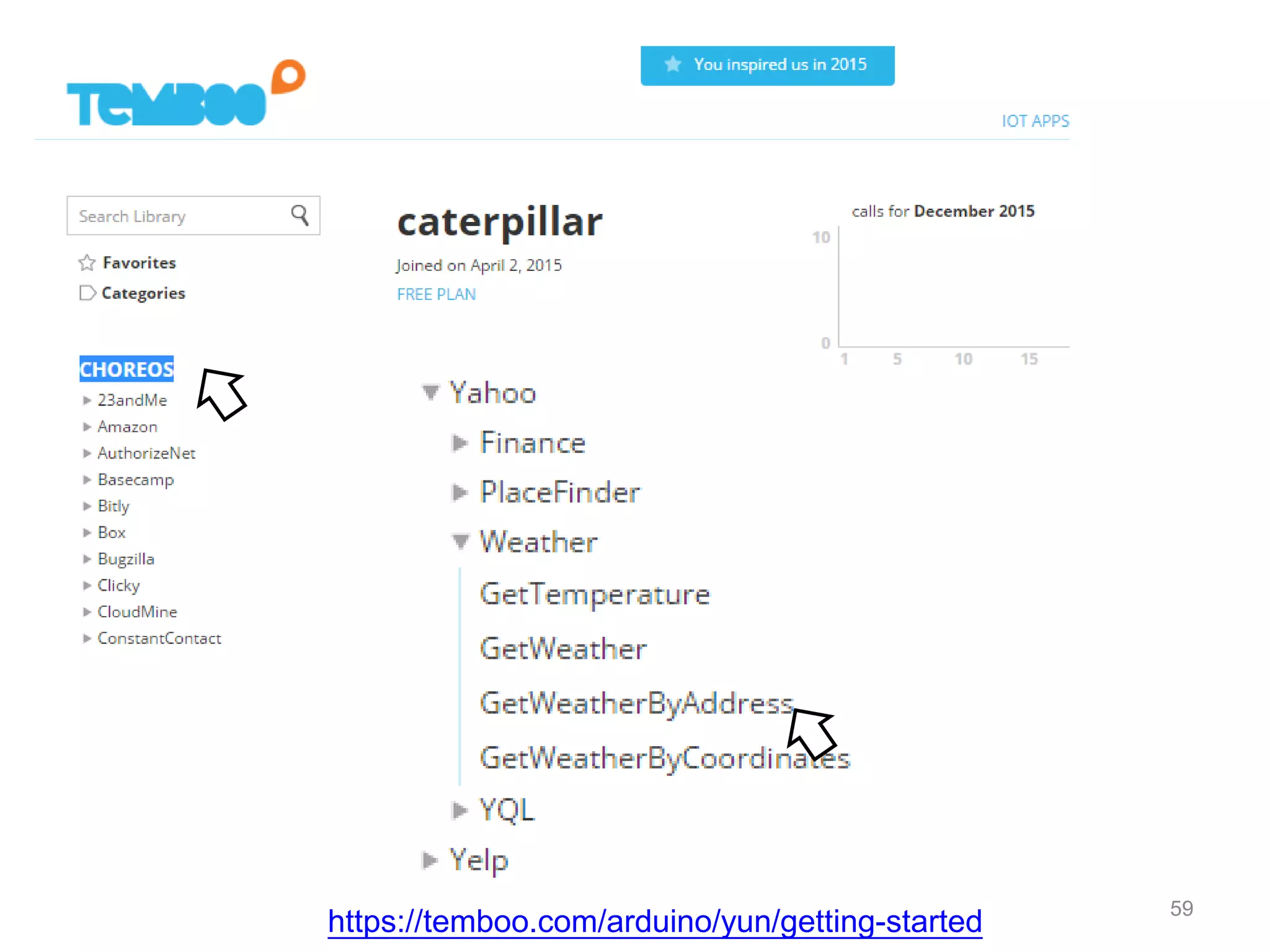

https://temboo.com/arduino/yun/getting-started
59

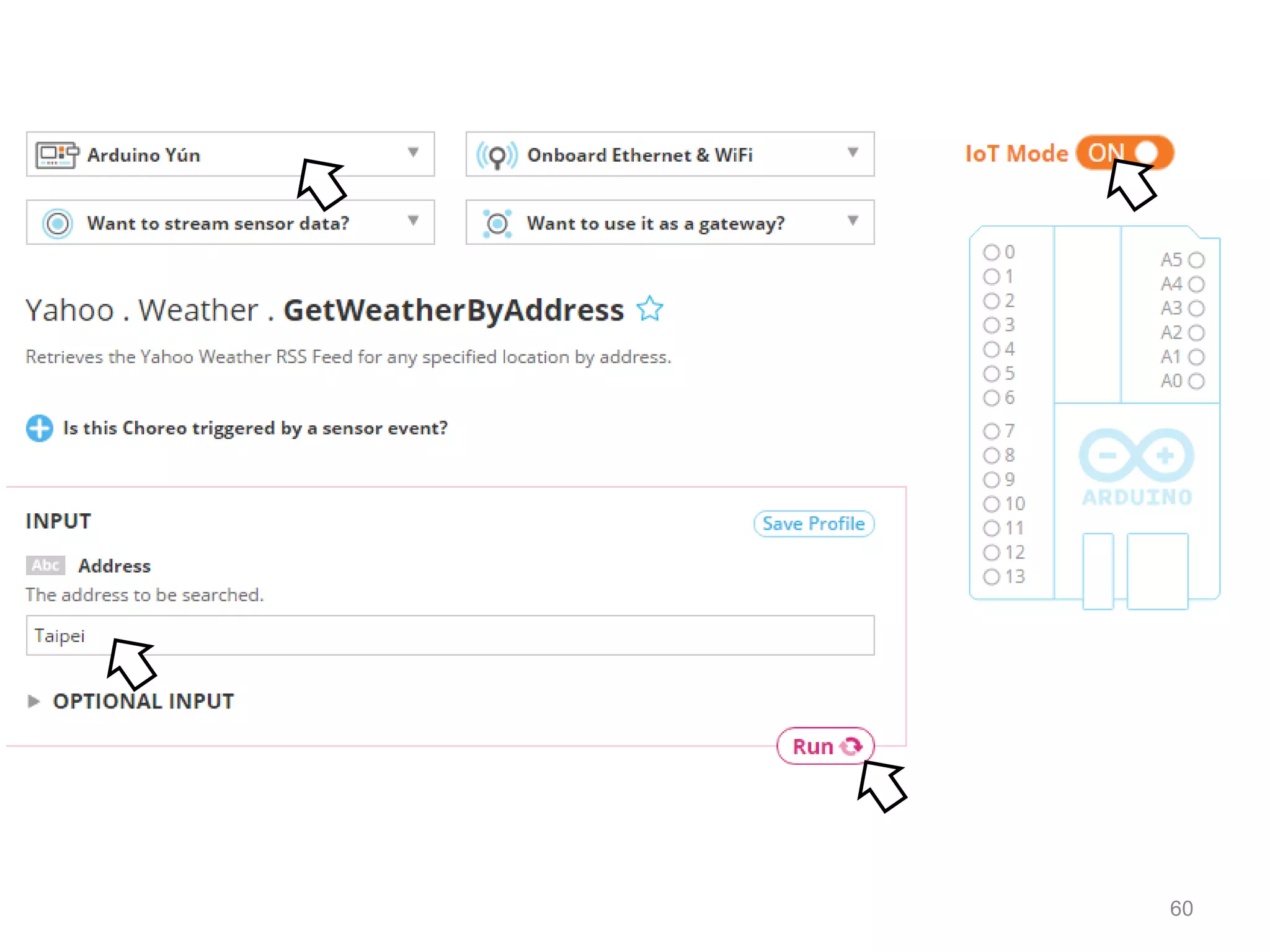

60
61
/*

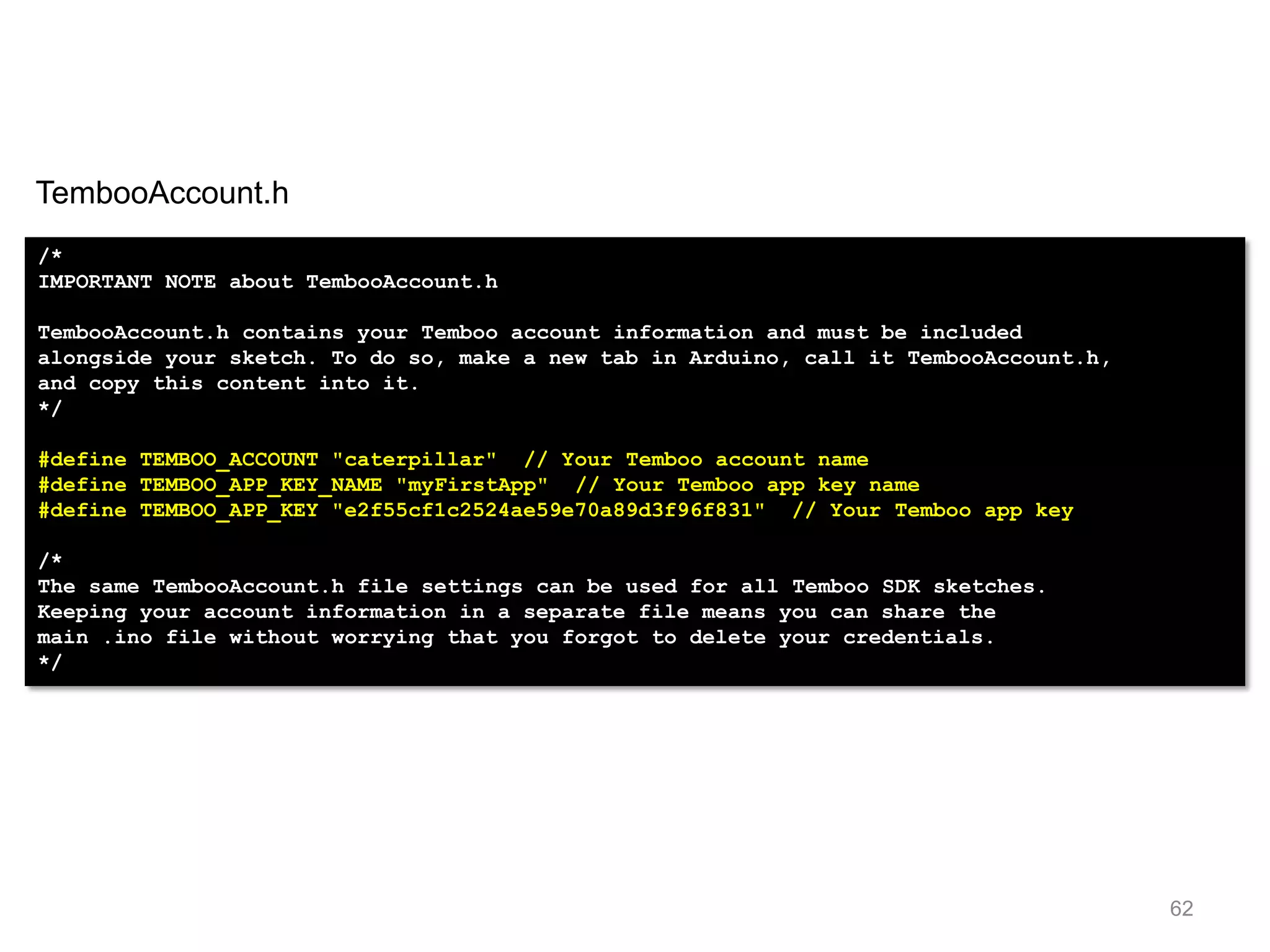

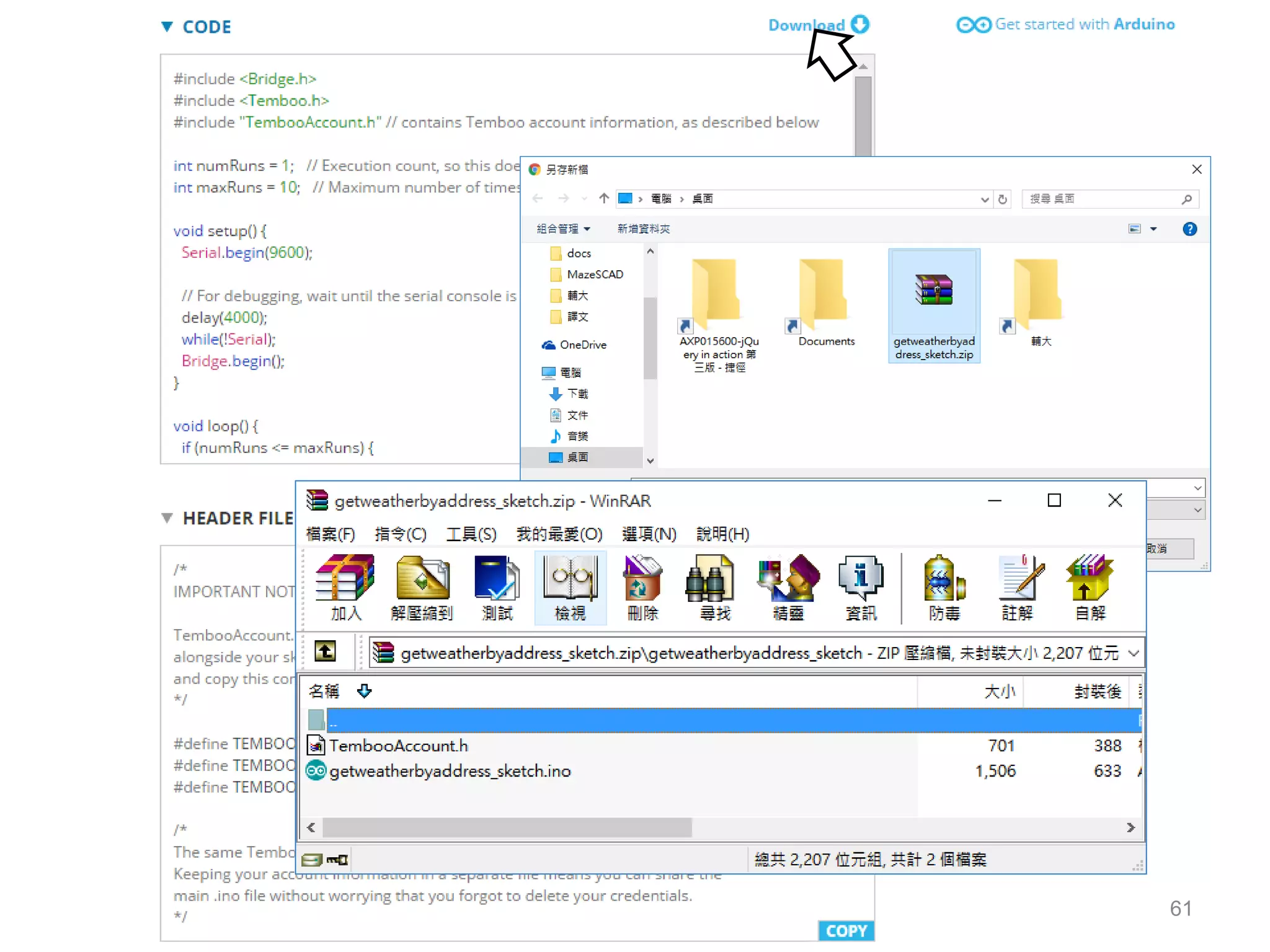

IMPORTANT NOTE about TembooAccount.h
TembooAccount.h contains your Temboo account information and must be included
alongside your sketch. To do so, make a new tab in Arduino, call it TembooAccount.h,
and copy this content into it.
*/
#define TEMBOO_ACCOUNT "caterpillar" // Your Temboo account name
#define TEMBOO_APP_KEY_NAME "myFirstApp" // Your Temboo app key name
#define TEMBOO_APP_KEY "e2f55cf1c2524ae59e70a89d3f96f831" // Your Temboo app key
/*
The same TembooAccount.h file settings can be used for all Temboo SDK sketches.
Keeping your account information in a separate file means you can share the
main .ino file without worrying that you forgot to delete your credentials.
*/
TembooAccount.h
62
#include <Bridge.h>
#include <Temboo.h>
#include "TembooAccount.h" // contains Temboo account information, as described below
int numRuns = 1; // Execution count, so this doesn't run forever
int maxRuns = 10; // Maximum number of times the Choreo should be executed
void setup() {
Serial.begin(9600);
// For debugging, wait until the serial console is connected
delay(4000);
while(!Serial);
Bridge.begin();
}
void loop() {
if (numRuns <= maxRuns) {
Serial.println("Running GetWeatherByAddress - Run #" + String(numRuns++));
TembooChoreo GetWeatherByAddressChoreo;
// Invoke the Temboo client
GetWeatherByAddressChoreo.begin();
// Set Temboo account credentials
GetWeatherByAddressChoreo.setAccountName(TEMBOO_ACCOUNT);
GetWeatherByAddressChoreo.setAppKeyName(TEMBOO_APP_KEY_NAME);
GetWeatherByAddressChoreo.setAppKey(TEMBOO_APP_KEY);
// Set Choreo inputs
GetWeatherByAddressChoreo.addInput("Address", "Taipei");
// Identify the Choreo to run
GetWeatherByAddressChoreo.setChoreo("/Library/Yahoo/Weather/GetWeatherByAddress");
// Run the Choreo; when results are available, print them to serial
GetWeatherByAddressChoreo.run();
while(GetWeatherByAddressChoreo.available()) {
char c = GetWeatherByAddressChoreo.read();
Serial.print(c);
}
GetWeatherByAddressChoreo.close();
}
Serial.println("Waiting...");
delay(30000); // wait 30 seconds between GetWeatherByAddress calls
}

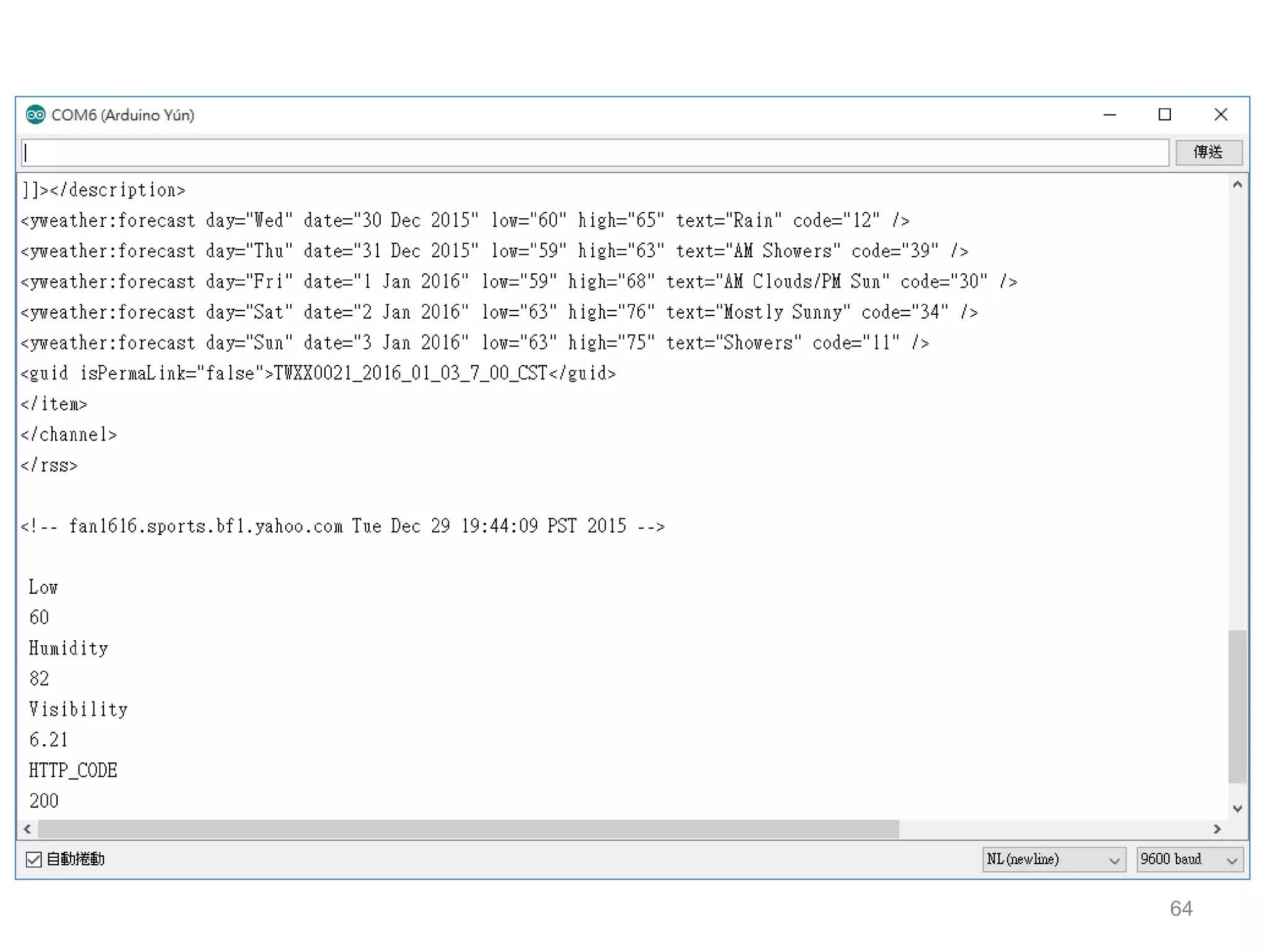

透過 USB 連接
TembooAccount.ino
63
64
Parse for IoT
65

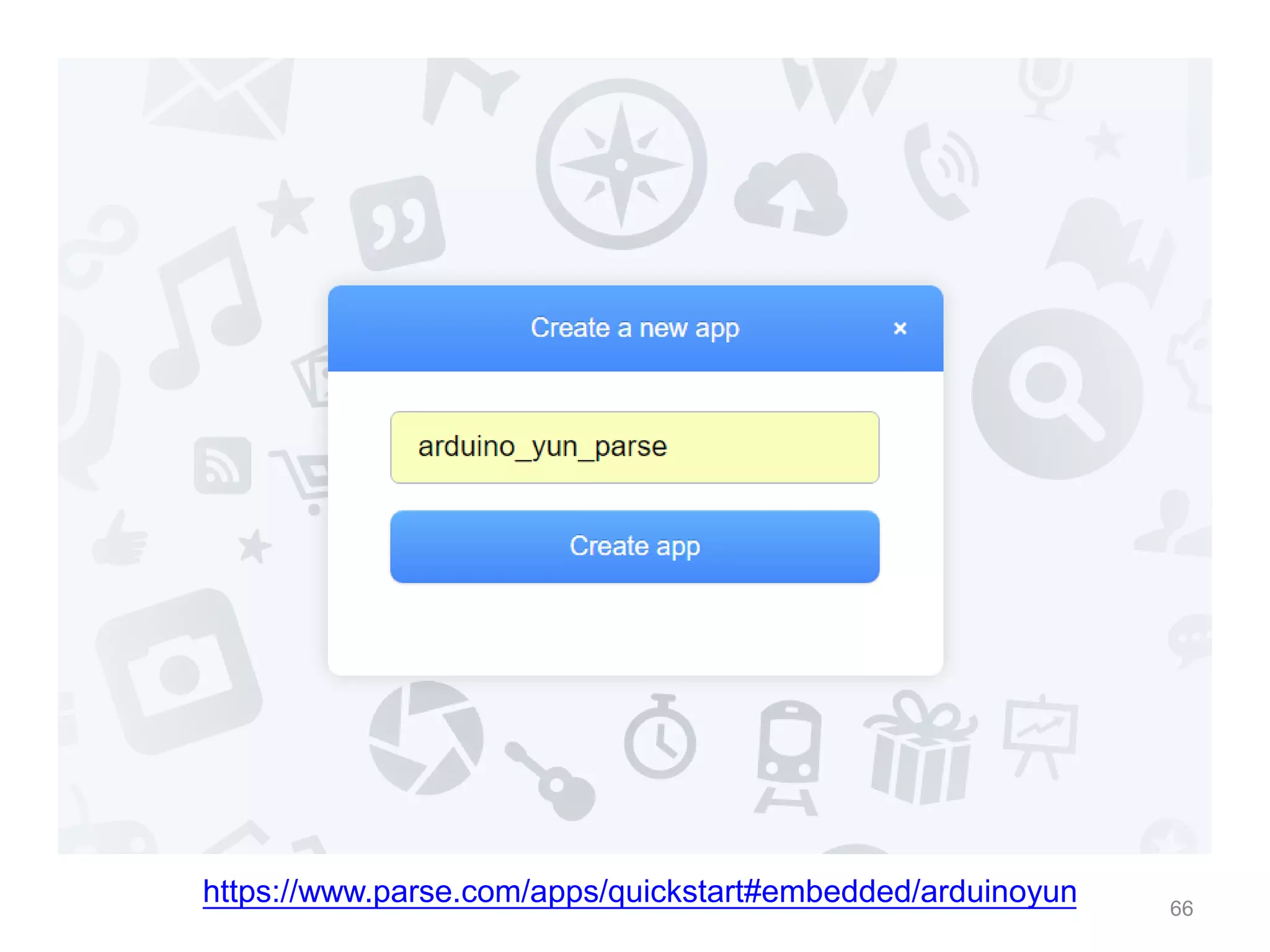

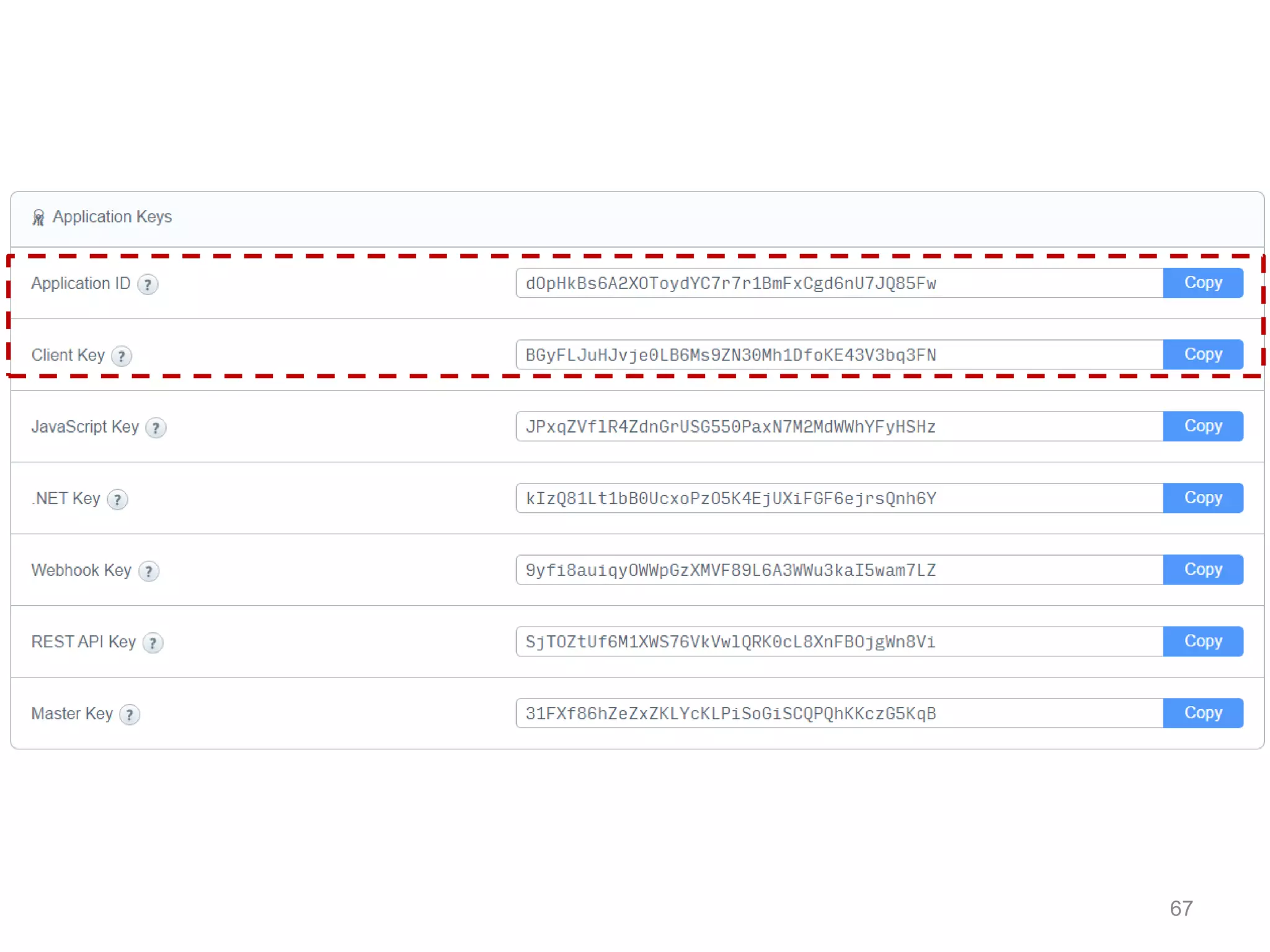

https://www.parse.com/apps/quickstart#embedded/arduinoyun 66
67

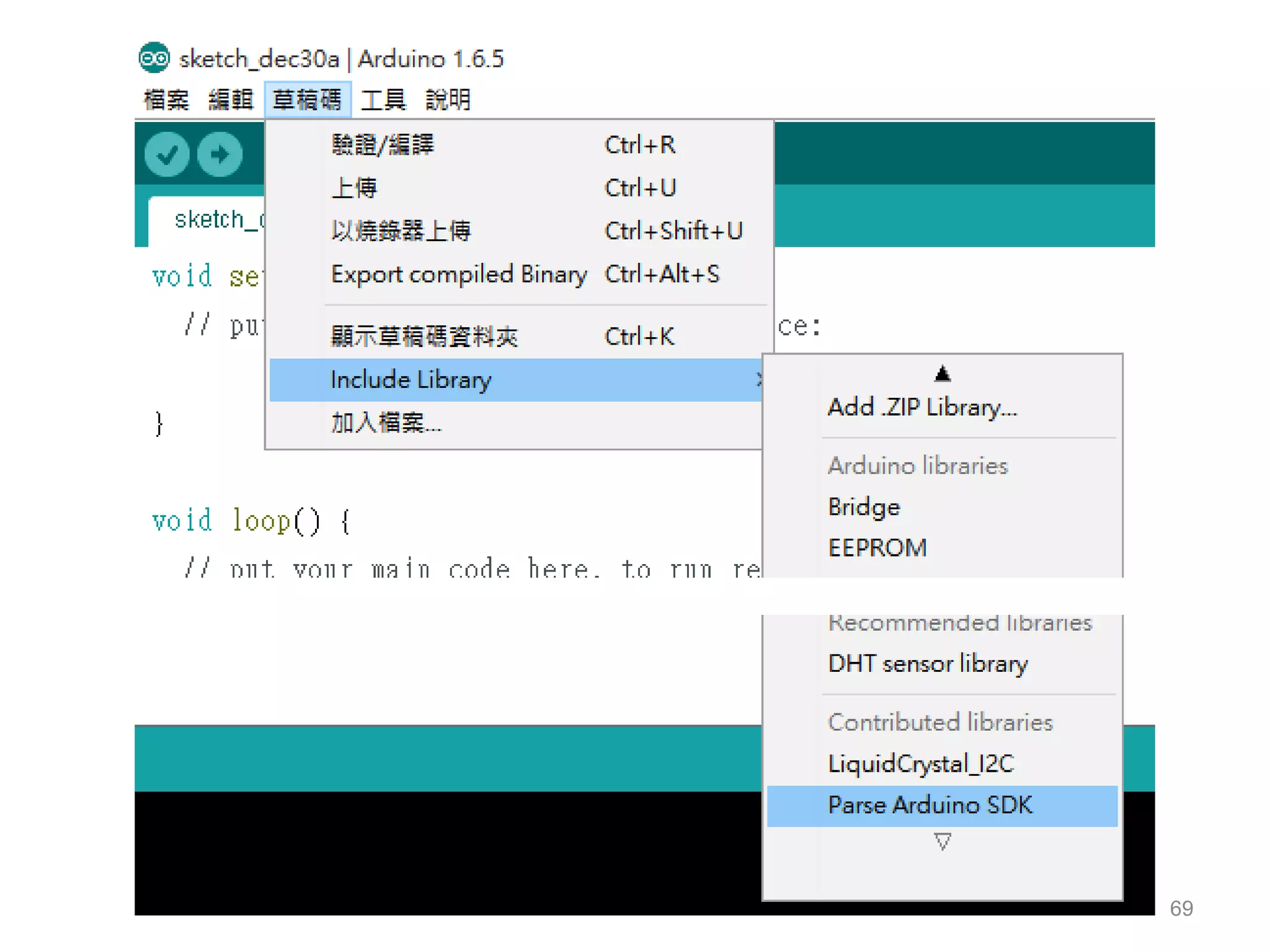

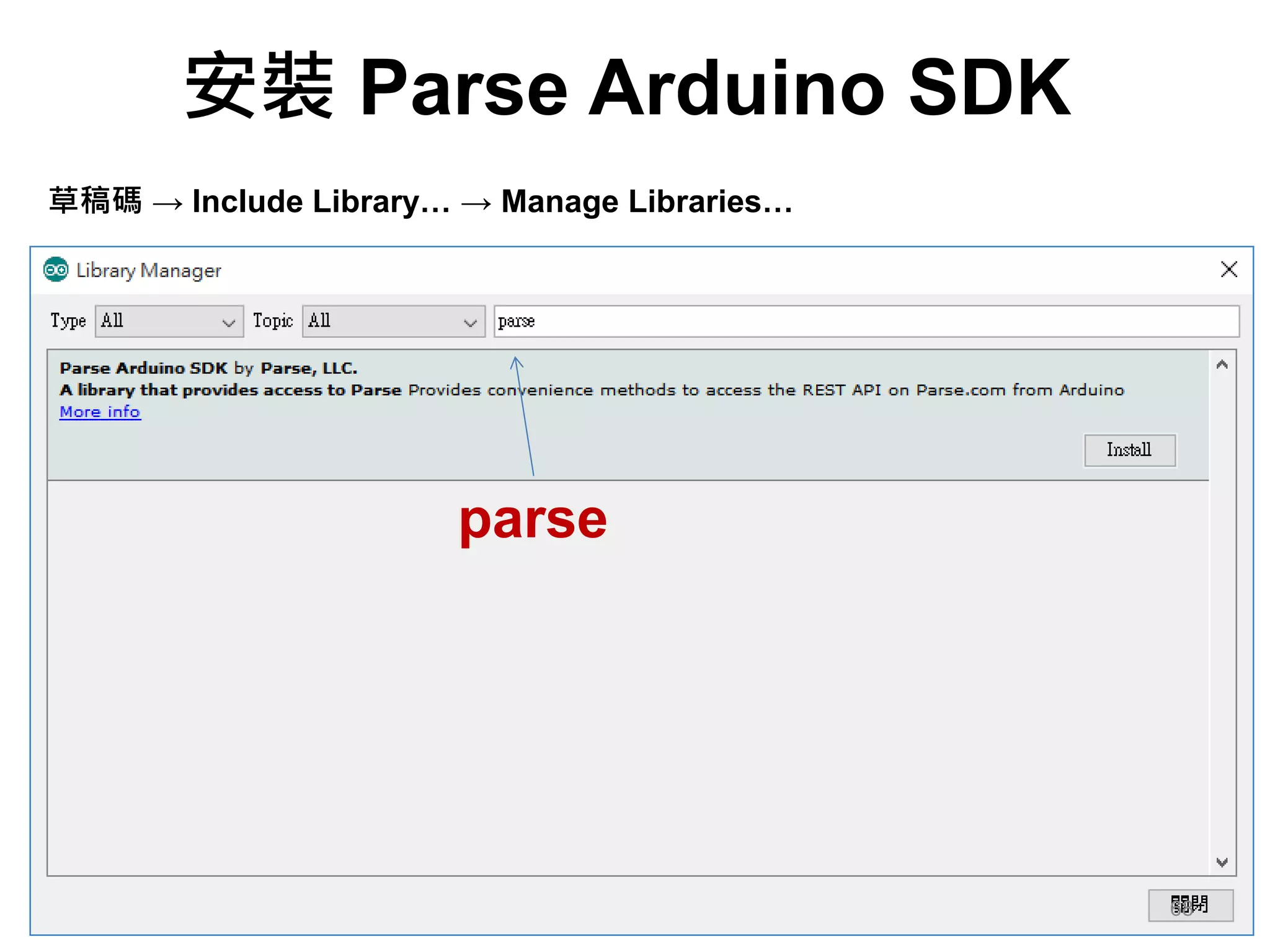

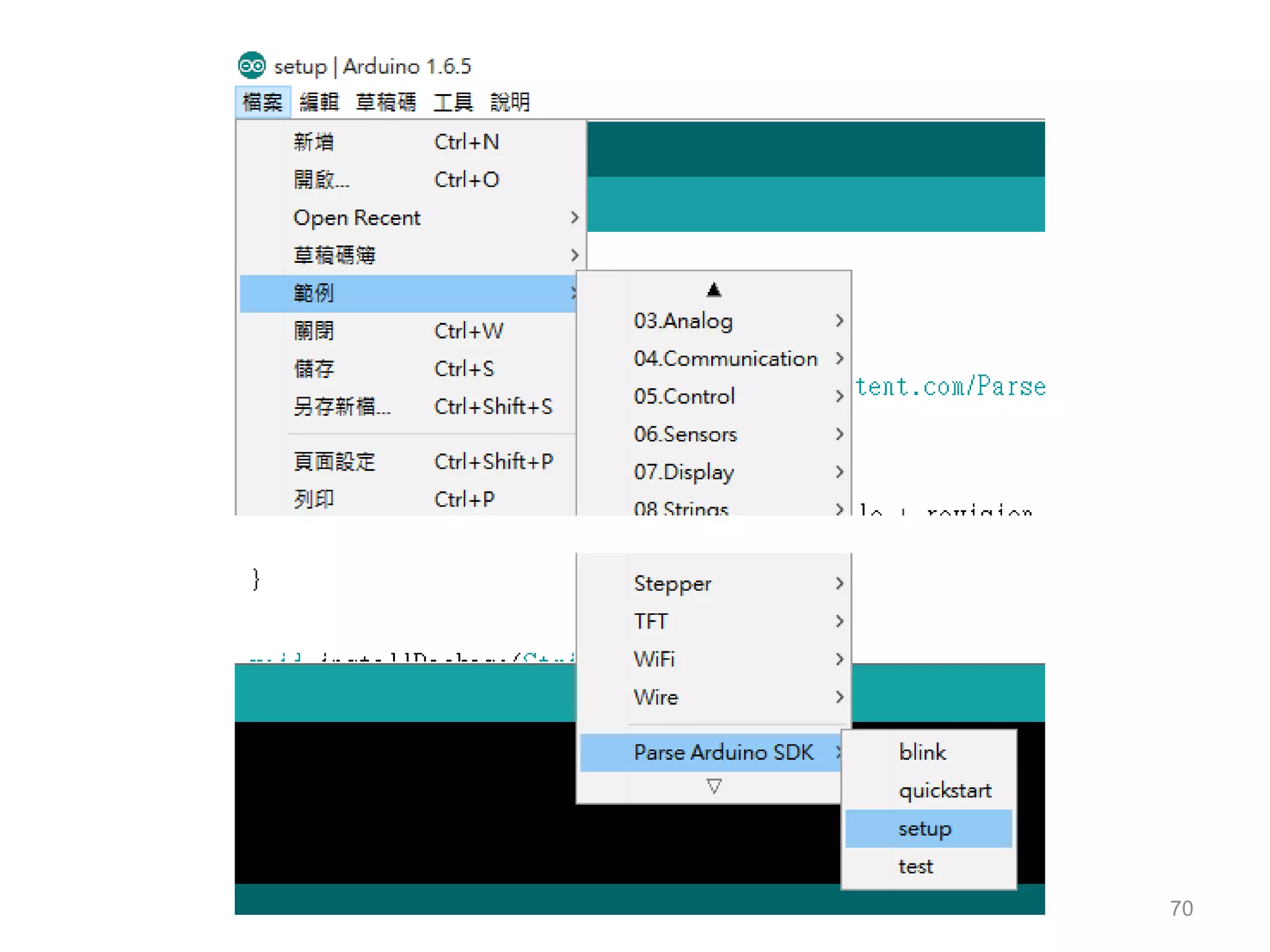

草稿碼 → Include Library… → Manage Libraries…
parse
安裝 Parse Arduino SDK
68
69
70

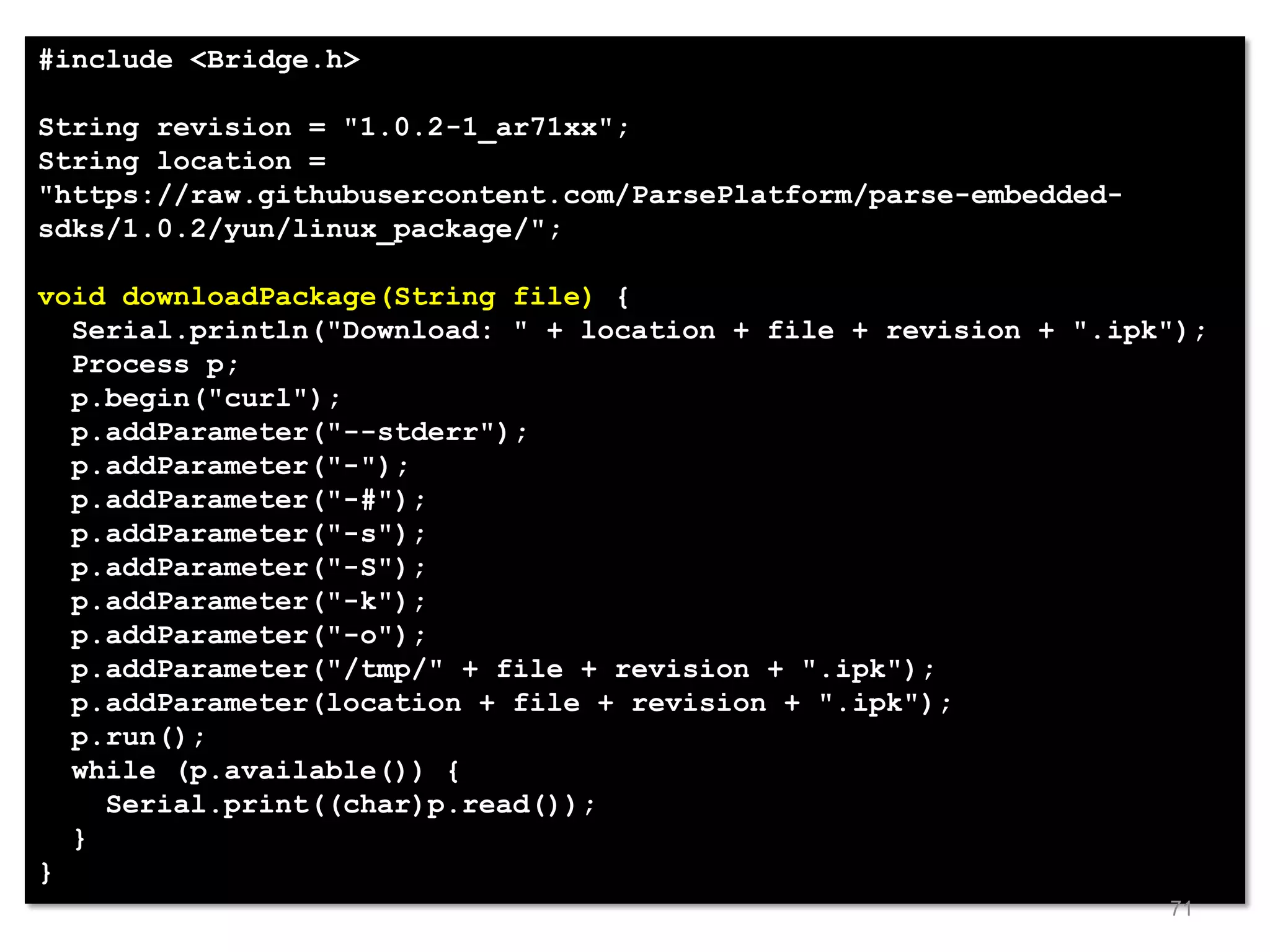

#include <Bridge.h>
String revision = "1.0.2-1_ar71xx";
String location =
"https://raw.githubusercontent.com/ParsePlatform/parse-embedded-
sdks/1.0.2/yun/linux_package/";
void downloadPackage(String file) {
Serial.println("Download: " + location + file + revision + ".ipk");
Process p;
p.begin("curl");
p.addParameter("--stderr");
p.addParameter("-");
p.addParameter("-#");
p.addParameter("-s");
p.addParameter("-S");
p.addParameter("-k");
p.addParameter("-o");
p.addParameter("/tmp/" + file + revision + ".ipk");
p.addParameter(location + file + revision + ".ipk");
p.run();
while (p.available()) {
Serial.print((char)p.read());
}
}
71

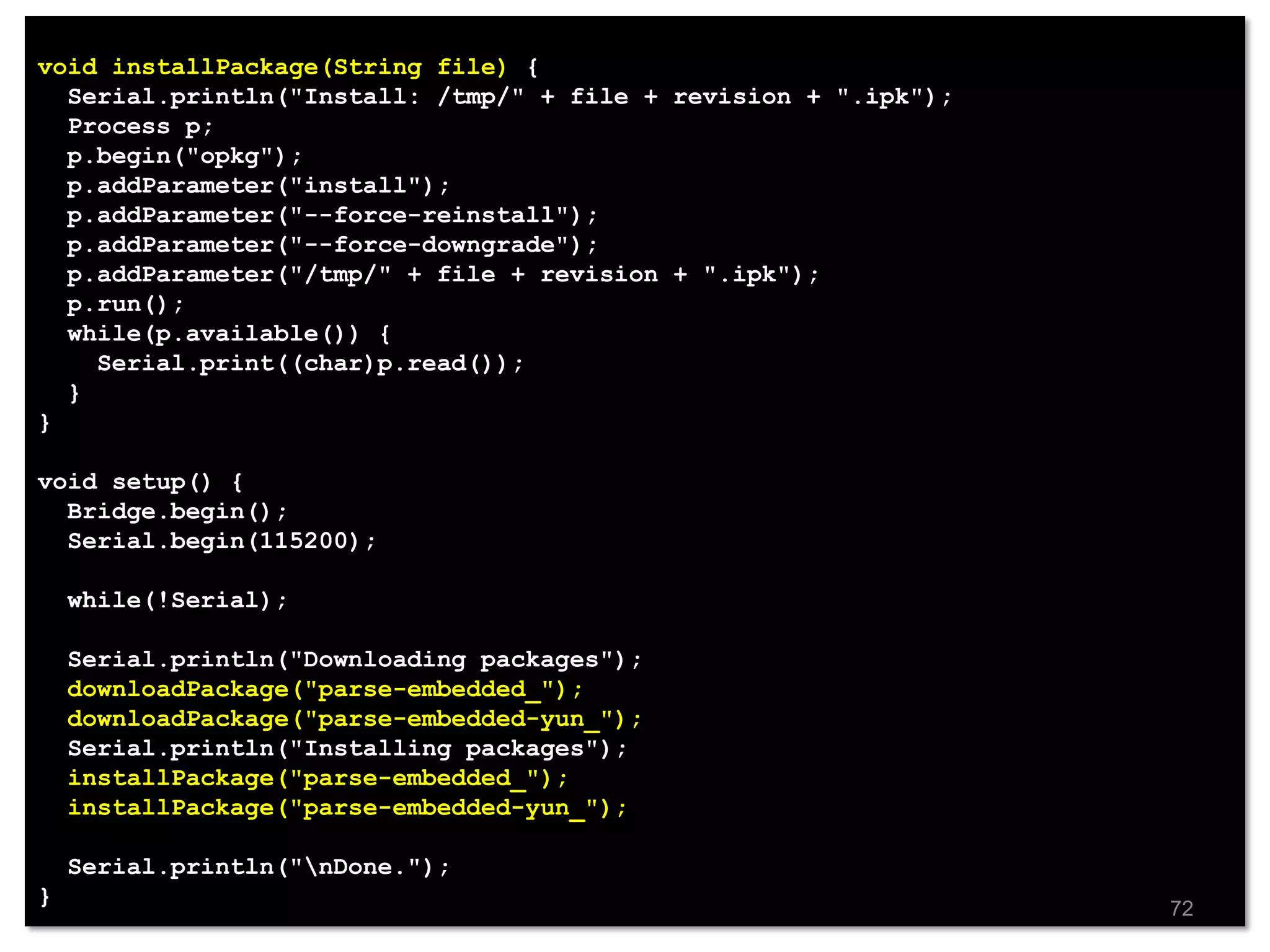

void installPackage(String file) {
Serial.println("Install: /tmp/" + file + revision + ".ipk");
Process p;
p.begin("opkg");
p.addParameter("install");
p.addParameter("--force-reinstall");
p.addParameter("--force-downgrade");
p.addParameter("/tmp/" + file + revision + ".ipk");
p.run();
while(p.available()) {
Serial.print((char)p.read());
}
}
void setup() {
Bridge.begin();
Serial.begin(115200);
while(!Serial);
Serial.println("Downloading packages");
downloadPackage("parse-embedded_");
downloadPackage("parse-embedded-yun_");
Serial.println("Installing packages");
installPackage("parse-embedded_");
installPackage("parse-embedded-yun_");
Serial.println("nDone.");
} 72
73

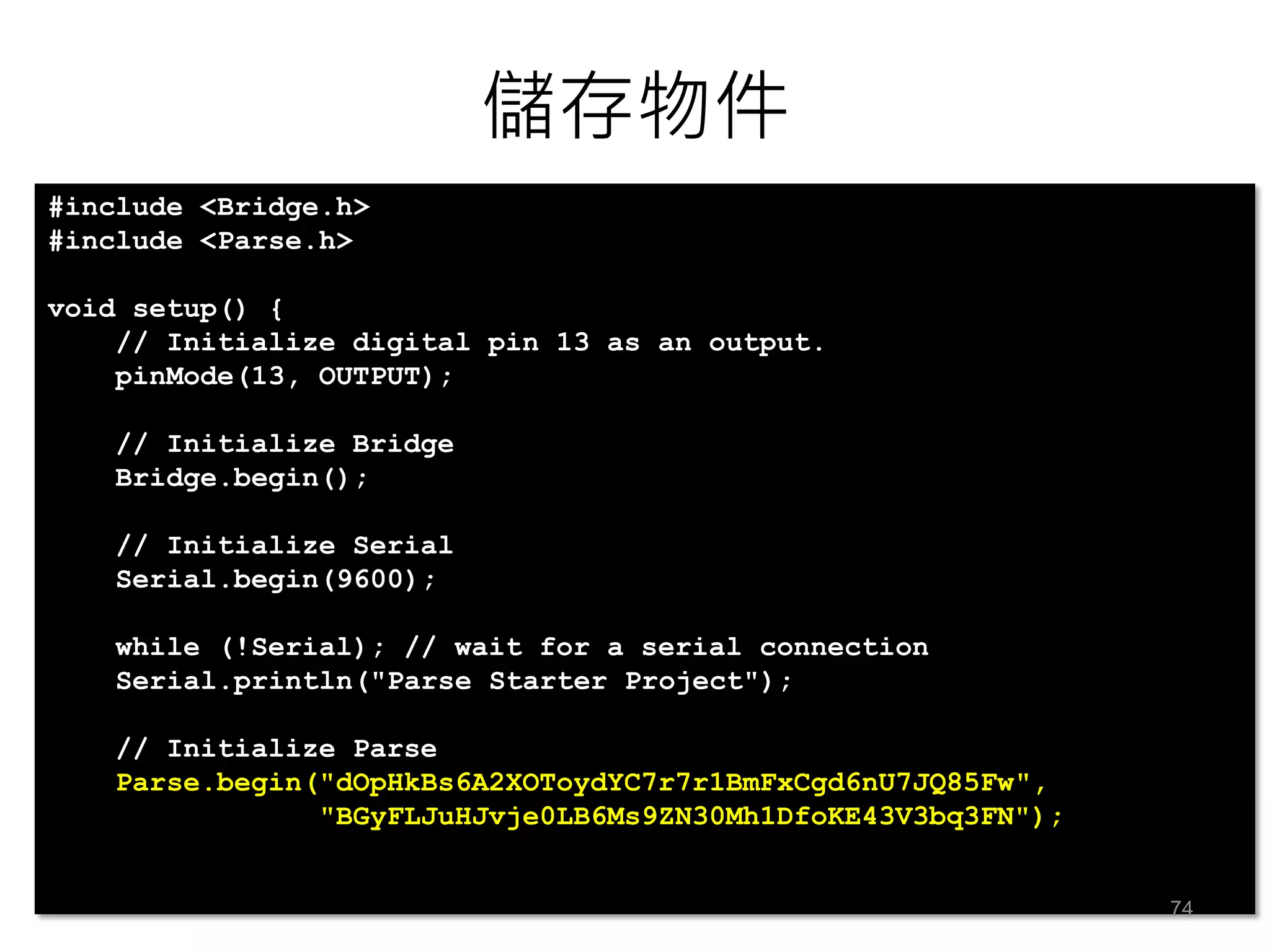

儲存物件
#include <Bridge.h>
#include <Parse.h>
void setup() {
// Initialize digital pin 13 as an output.
pinMode(13, OUTPUT);
// Initialize Bridge
Bridge.begin();
// Initialize Serial
Serial.begin(9600);
while (!Serial); // wait for a serial connection
Serial.println("Parse Starter Project");
// Initialize Parse
Parse.begin("dOpHkBs6A2XOToydYC7r7r1BmFxCgd6nU7JQ85Fw",
"BGyFLJuHJvje0LB6Ms9ZN30Mh1DfoKE43V3bq3FN");
74

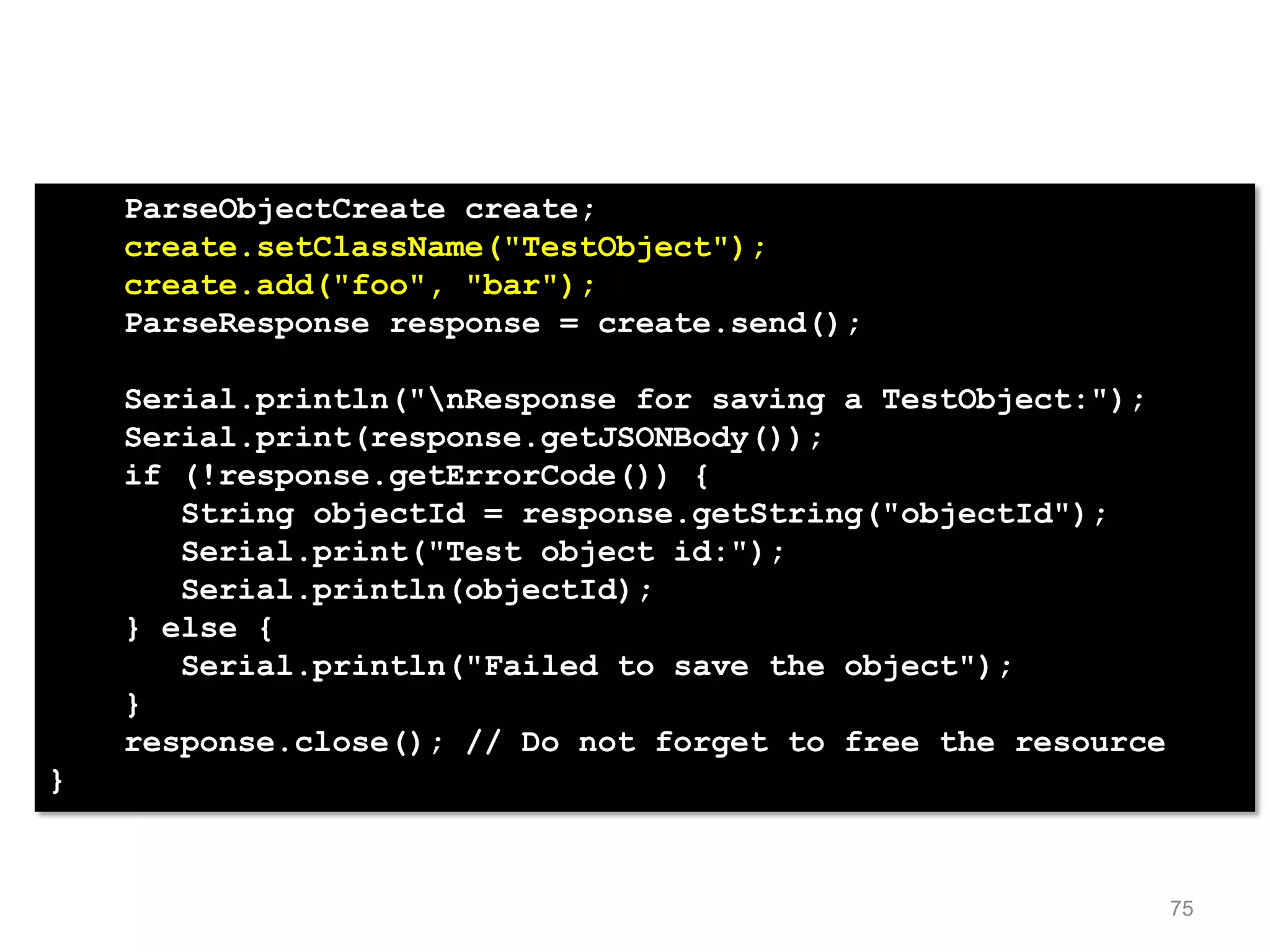

ParseObjectCreate create;
create.setClassName("TestObject");
create.add("foo", "bar");
ParseResponse response = create.send();
Serial.println("nResponse for saving a TestObject:");
Serial.print(response.getJSONBody());
if (!response.getErrorCode()) {
String objectId = response.getString("objectId");
Serial.print("Test object id:");
Serial.println(objectId);
} else {
Serial.println("Failed to save the object");
}
response.close(); // Do not forget to free the resource
}
75
76

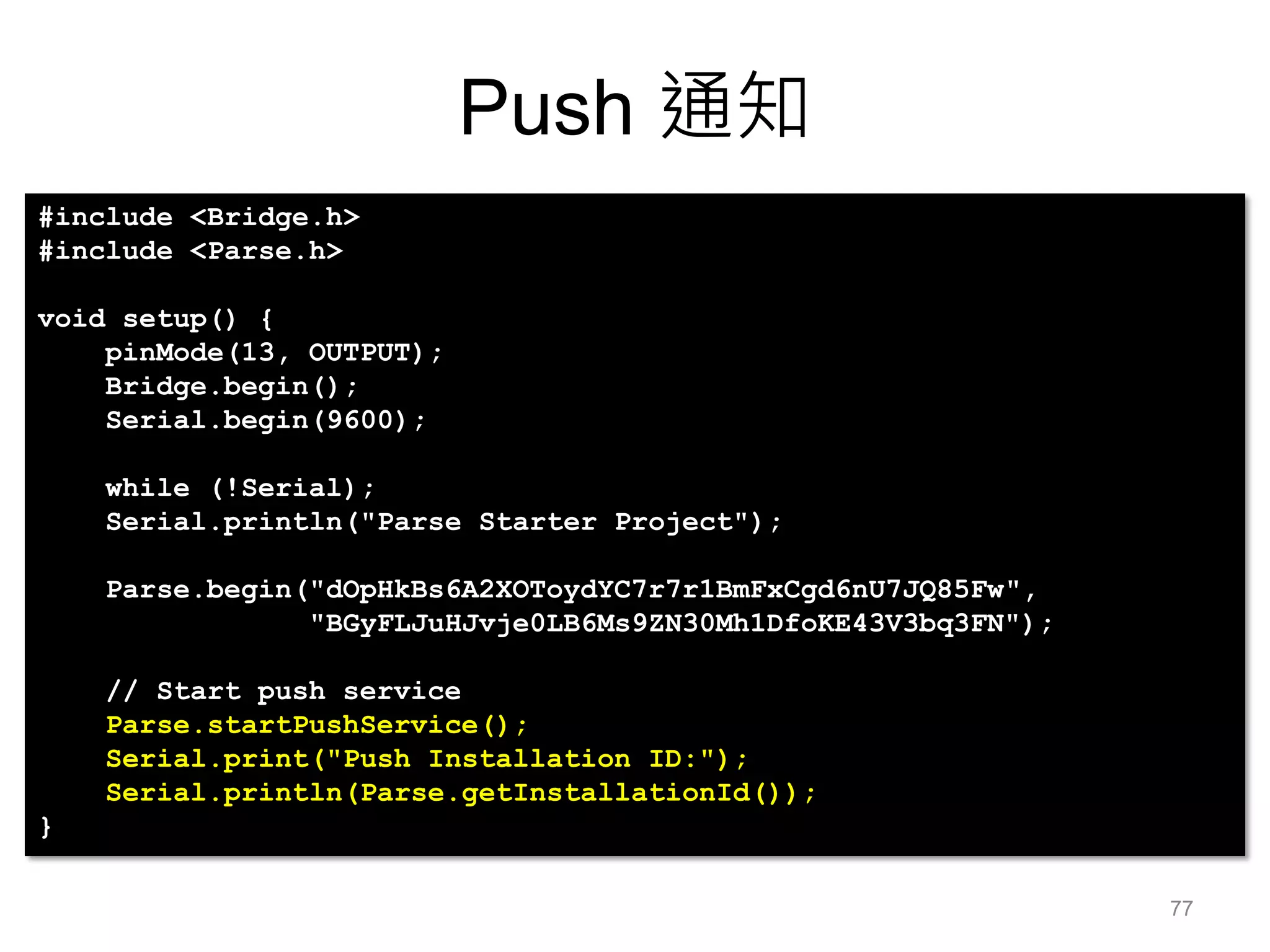

Push 通知
#include <Bridge.h>
#include <Parse.h>
void setup() {
pinMode(13, OUTPUT);
Bridge.begin();
Serial.begin(9600);
while (!Serial);
Serial.println("Parse Starter Project");
Parse.begin("dOpHkBs6A2XOToydYC7r7r1BmFxCgd6nU7JQ85Fw",
"BGyFLJuHJvje0LB6Ms9ZN30Mh1DfoKE43V3bq3FN");
// Start push service
Parse.startPushService();
Serial.print("Push Installation ID:");
Serial.println(Parse.getInstallationId());
}
77

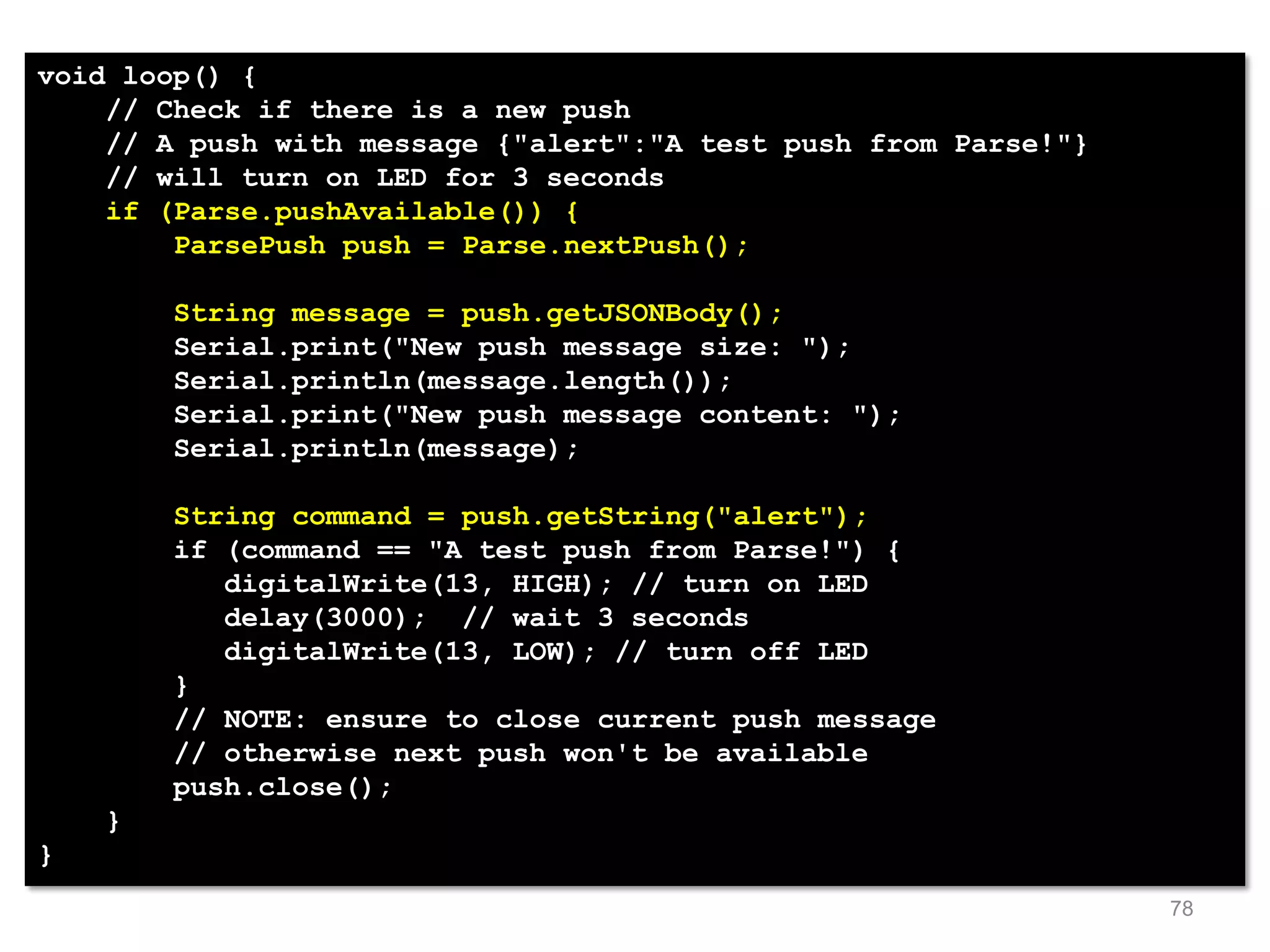

void loop() {
// Check if there is a new push
// A push with message {"alert":"A test push from Parse!"}
// will turn on LED for 3 seconds
if (Parse.pushAvailable()) {
ParsePush push = Parse.nextPush();
String message = push.getJSONBody();
Serial.print("New push message size: ");
Serial.println(message.length());
Serial.print("New push message content: ");
Serial.println(message);
String command = push.getString("alert");
if (command == "A test push from Parse!") {
digitalWrite(13, HIGH); // turn on LED
delay(3000); // wait 3 seconds
digitalWrite(13, LOW); // turn off LED
}
// NOTE: ensure to close current push message
// otherwise next push won't be available
push.close();
}
}
78
79
80

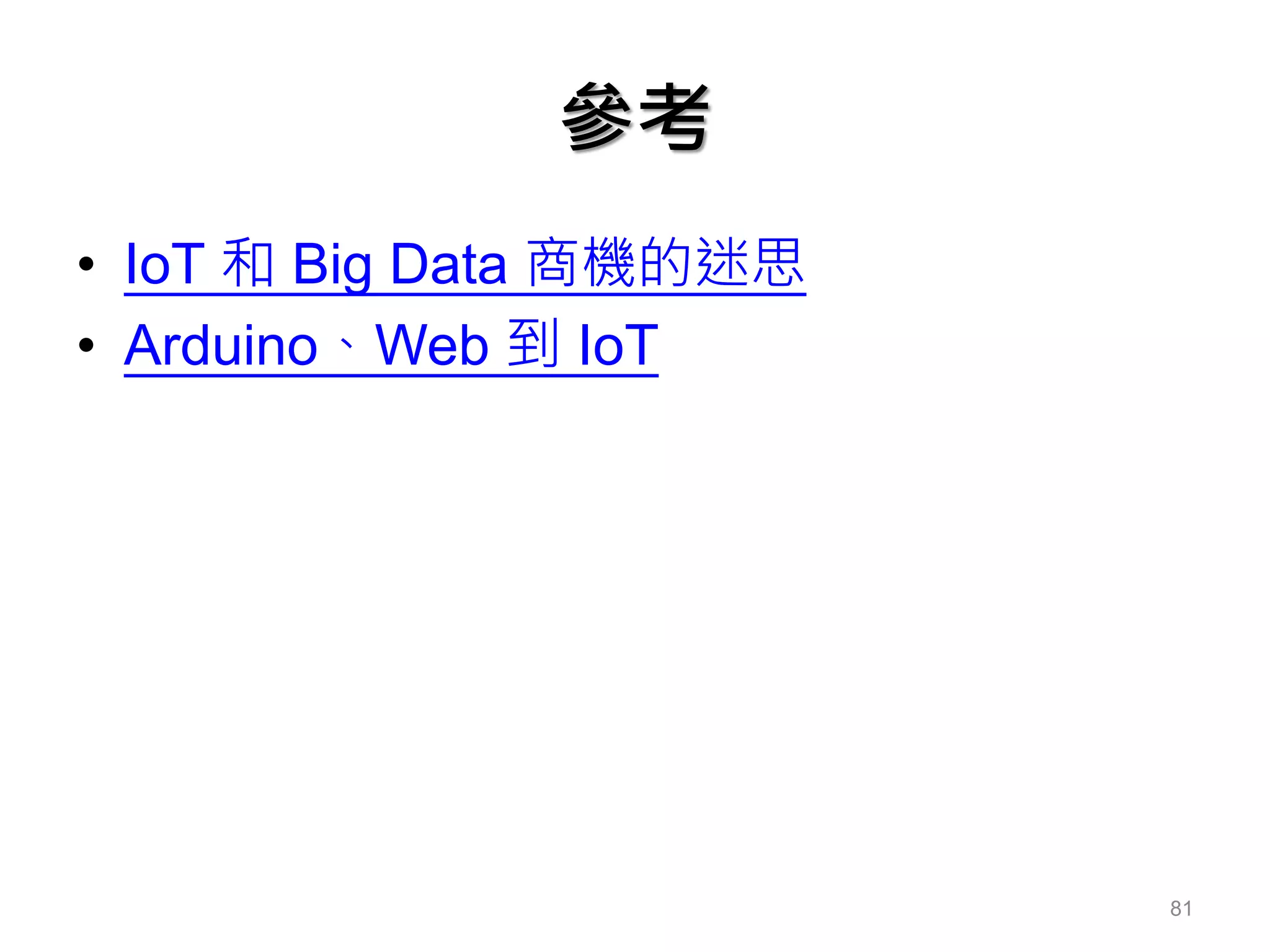

參考
• IoT 和 Big Data 商機的迷思
• Arduino、Web 到 IoT
81
Orz
林信良
caterpillar@openhome.cc
http://openhome.cc 82

More Related Content

What's hot

iOS Automation Primitives
iOS Automation PrimitivesiOS Automation Primitives
iOS Automation Primitives
Synack

Generating cross platform .NET based azure IoTdevice
Generating cross platform .NET based azure IoTdeviceGenerating cross platform .NET based azure IoTdevice
Generating cross platform .NET based azure IoTdevice
Alon Fliess

Network security Lab manual
Network security Lab manual Network security Lab manual
Network security Lab manual
Vivek Kumar Sinha

IT6712 lab manual
IT6712 lab manualIT6712 lab manual
IT6712 lab manual
Madhu Amarnath

Synack at ShmooCon 2015
Synack at ShmooCon 2015Synack at ShmooCon 2015
Synack at ShmooCon 2015
Synack

Network security mannual (2)
Network security mannual (2)Network security mannual (2)
Network security mannual (2)
Vivek Kumar Sinha

Performance #1: Memory
Performance #1: MemoryPerformance #1: Memory
Performance #1: Memory
Yonatan Levin

DEF CON 23: Stick That In Your (root)Pipe & Smoke It
DEF CON 23: Stick That In Your (root)Pipe & Smoke ItDEF CON 23: Stick That In Your (root)Pipe & Smoke It
DEF CON 23: Stick That In Your (root)Pipe & Smoke It
Synack

Architecture for Massively Parallel HDL Simulations
Architecture for Massively Parallel HDL Simulations Architecture for Massively Parallel HDL Simulations
Architecture for Massively Parallel HDL Simulations
DVClub

201410 2 fiware-orion-contextbroker
201410 2 fiware-orion-contextbroker201410 2 fiware-orion-contextbroker
201410 2 fiware-orion-contextbroker
FIWARE

Synack at AppSec California 2015 - Geolocation Vulnerabilities
Synack at AppSec California 2015 - Geolocation VulnerabilitiesSynack at AppSec California 2015 - Geolocation Vulnerabilities
Synack at AppSec California 2015 - Geolocation Vulnerabilities
Synack

Arduino and the real time web
Arduino and the real time webArduino and the real time web
Arduino and the real time web
Andrew Fisher

Greach 2019 - Creating Micronaut Configurations
Greach 2019 - Creating Micronaut ConfigurationsGreach 2019 - Creating Micronaut Configurations
Greach 2019 - Creating Micronaut Configurations
Iván López Martín

Virus Bulletin 2015: Exposing Gatekeeper
Virus Bulletin 2015: Exposing GatekeeperVirus Bulletin 2015: Exposing Gatekeeper
Virus Bulletin 2015: Exposing Gatekeeper
Synack

Programming IoT Gateways in JavaScript with macchina.io
Programming IoT Gateways in JavaScript with macchina.ioProgramming IoT Gateways in JavaScript with macchina.io
Programming IoT Gateways in JavaScript with macchina.io
Günter Obiltschnig

Marrow: A Meta-Framework for Python 2.6+ and 3.1+
Marrow: A Meta-Framework for Python 2.6+ and 3.1+Marrow: A Meta-Framework for Python 2.6+ and 3.1+
Marrow: A Meta-Framework for Python 2.6+ and 3.1+
ConFoo

Networking and Data Access with Eqela
Networking and Data Access with EqelaNetworking and Data Access with Eqela
Networking and Data Access with Eqela
jobandesther

Security 202 - Are you sure your site is secure?
Security 202 - Are you sure your site is secure?Security 202 - Are you sure your site is secure?
Security 202 - Are you sure your site is secure?
ConFoo

Kinect de-theremin
Kinect de-thereminKinect de-theremin
Kinect de-theremin
Kazuyuki Honda

Angular js security
Angular js securityAngular js security
Angular js security
Jose Manuel Ortega Candel


What's hot (20)

iOS Automation Primitives
iOS Automation PrimitivesiOS Automation Primitives
iOS Automation Primitives

Generating cross platform .NET based azure IoTdevice
Generating cross platform .NET based azure IoTdeviceGenerating cross platform .NET based azure IoTdevice
Generating cross platform .NET based azure IoTdevice

Network security Lab manual
Network security Lab manual Network security Lab manual
Network security Lab manual

IT6712 lab manual
IT6712 lab manualIT6712 lab manual
IT6712 lab manual

Synack at ShmooCon 2015
Synack at ShmooCon 2015Synack at ShmooCon 2015
Synack at ShmooCon 2015

Network security mannual (2)
Network security mannual (2)Network security mannual (2)
Network security mannual (2)

Performance #1: Memory
Performance #1: MemoryPerformance #1: Memory
Performance #1: Memory

DEF CON 23: Stick That In Your (root)Pipe & Smoke It
DEF CON 23: Stick That In Your (root)Pipe & Smoke ItDEF CON 23: Stick That In Your (root)Pipe & Smoke It
DEF CON 23: Stick That In Your (root)Pipe & Smoke It

Architecture for Massively Parallel HDL Simulations
Architecture for Massively Parallel HDL Simulations Architecture for Massively Parallel HDL Simulations
Architecture for Massively Parallel HDL Simulations

201410 2 fiware-orion-contextbroker
201410 2 fiware-orion-contextbroker201410 2 fiware-orion-contextbroker
201410 2 fiware-orion-contextbroker

Synack at AppSec California 2015 - Geolocation Vulnerabilities
Synack at AppSec California 2015 - Geolocation VulnerabilitiesSynack at AppSec California 2015 - Geolocation Vulnerabilities
Synack at AppSec California 2015 - Geolocation Vulnerabilities

Arduino and the real time web
Arduino and the real time webArduino and the real time web
Arduino and the real time web

Greach 2019 - Creating Micronaut Configurations
Greach 2019 - Creating Micronaut ConfigurationsGreach 2019 - Creating Micronaut Configurations
Greach 2019 - Creating Micronaut Configurations

Virus Bulletin 2015: Exposing Gatekeeper
Virus Bulletin 2015: Exposing GatekeeperVirus Bulletin 2015: Exposing Gatekeeper
Virus Bulletin 2015: Exposing Gatekeeper

Programming IoT Gateways in JavaScript with macchina.io
Programming IoT Gateways in JavaScript with macchina.ioProgramming IoT Gateways in JavaScript with macchina.io
Programming IoT Gateways in JavaScript with macchina.io

Marrow: A Meta-Framework for Python 2.6+ and 3.1+
Marrow: A Meta-Framework for Python 2.6+ and 3.1+Marrow: A Meta-Framework for Python 2.6+ and 3.1+
Marrow: A Meta-Framework for Python 2.6+ and 3.1+

Networking and Data Access with Eqela
Networking and Data Access with EqelaNetworking and Data Access with Eqela
Networking and Data Access with Eqela

Security 202 - Are you sure your site is secure?
Security 202 - Are you sure your site is secure?Security 202 - Are you sure your site is secure?
Security 202 - Are you sure your site is secure?

Kinect de-theremin
Kinect de-thereminKinect de-theremin
Kinect de-theremin

Angular js security
Angular js securityAngular js security
Angular js security


Viewers also liked

行政院簡報 國發會 亞洲矽谷推動方案
行政院簡報 國發會 亞洲矽谷推動方案行政院簡報 國發會 亞洲矽谷推動方案
行政院簡報 國發會 亞洲矽谷推動方案
releaseey

Java 8 與 retrolambda
Java 8 與 retrolambdaJava 8 與 retrolambda
Java 8 與 retrolambda
Justin Lin

讓程式展現樂趣 玩出實驗精神與創造力
讓程式展現樂趣 玩出實驗精神與創造力讓程式展現樂趣 玩出實驗精神與創造力
讓程式展現樂趣 玩出實驗精神與創造力
Justin Lin

深入淺出 Web 容器 - Tomcat 原始碼分析
深入淺出 Web 容器  - Tomcat 原始碼分析深入淺出 Web 容器  - Tomcat 原始碼分析
深入淺出 Web 容器 - Tomcat 原始碼分析
Justin Lin

OpenSCAD Workshop
OpenSCAD WorkshopOpenSCAD Workshop
OpenSCAD Workshop
Justin Lin

物聯網應用全貌以及微軟全球案例
物聯網應用全貌以及微軟全球案例物聯網應用全貌以及微軟全球案例
物聯網應用全貌以及微軟全球案例
Herman Wu

智慧應用與物聯網發展趨勢 (A Development Trend of Smart Applications and IoT)
智慧應用與物聯網發展趨勢 (A Development Trend of Smart Applications and IoT)智慧應用與物聯網發展趨勢 (A Development Trend of Smart Applications and IoT)
智慧應用與物聯網發展趨勢 (A Development Trend of Smart Applications and IoT)
William Liang

3D 之邏輯與美感交會 - OpenSCAD
3D 之邏輯與美感交會 - OpenSCAD3D 之邏輯與美感交會 - OpenSCAD
3D 之邏輯與美感交會 - OpenSCAD
Justin Lin

網站系統安全及資料保護設計認知
網站系統安全及資料保護設計認知網站系統安全及資料保護設計認知
網站系統安全及資料保護設計認知
Justin Lin

Building IoT Backends
Building IoT BackendsBuilding IoT Backends
Building IoT Backends
Amazon Web Services


Viewers also liked (10)

行政院簡報 國發會 亞洲矽谷推動方案
行政院簡報 國發會 亞洲矽谷推動方案行政院簡報 國發會 亞洲矽谷推動方案
行政院簡報 國發會 亞洲矽谷推動方案

Java 8 與 retrolambda
Java 8 與 retrolambdaJava 8 與 retrolambda
Java 8 與 retrolambda

讓程式展現樂趣 玩出實驗精神與創造力
讓程式展現樂趣 玩出實驗精神與創造力讓程式展現樂趣 玩出實驗精神與創造力
讓程式展現樂趣 玩出實驗精神與創造力

深入淺出 Web 容器 - Tomcat 原始碼分析
深入淺出 Web 容器  - Tomcat 原始碼分析深入淺出 Web 容器  - Tomcat 原始碼分析
深入淺出 Web 容器 - Tomcat 原始碼分析

OpenSCAD Workshop
OpenSCAD WorkshopOpenSCAD Workshop
OpenSCAD Workshop

物聯網應用全貌以及微軟全球案例
物聯網應用全貌以及微軟全球案例物聯網應用全貌以及微軟全球案例
物聯網應用全貌以及微軟全球案例

智慧應用與物聯網發展趨勢 (A Development Trend of Smart Applications and IoT)
智慧應用與物聯網發展趨勢 (A Development Trend of Smart Applications and IoT)智慧應用與物聯網發展趨勢 (A Development Trend of Smart Applications and IoT)
智慧應用與物聯網發展趨勢 (A Development Trend of Smart Applications and IoT)

3D 之邏輯與美感交會 - OpenSCAD
3D 之邏輯與美感交會 - OpenSCAD3D 之邏輯與美感交會 - OpenSCAD
3D 之邏輯與美感交會 - OpenSCAD

網站系統安全及資料保護設計認知
網站系統安全及資料保護設計認知網站系統安全及資料保護設計認知
網站系統安全及資料保護設計認知

Building IoT Backends
Building IoT BackendsBuilding IoT Backends
Building IoT Backends


Similar to Arduino、Web 到 IoT

Arduino práctico ethernet
Arduino práctico   ethernetArduino práctico   ethernet
Arduino práctico ethernet
Jose Antonio Vacas

Introduction to Things board (An Open Source IoT Cloud Platform)
Introduction to Things board (An Open Source IoT Cloud Platform)Introduction to Things board (An Open Source IoT Cloud Platform)
Introduction to Things board (An Open Source IoT Cloud Platform)
Amarjeetsingh Thakur

Athens IoT meetup #7 - Create the Internet of your Things - Laurent Ellerbach...
Athens IoT meetup #7 - Create the Internet of your Things - Laurent Ellerbach...Athens IoT meetup #7 - Create the Internet of your Things - Laurent Ellerbach...
Athens IoT meetup #7 - Create the Internet of your Things - Laurent Ellerbach...
Athens IoT Meetup

Webshield internet of things
Webshield internet of thingsWebshield internet of things
Webshield internet of things
Raghav Shetty

Node worshop Realtime - Socket.io
Node worshop Realtime - Socket.ioNode worshop Realtime - Socket.io
Node worshop Realtime - Socket.io
Caesar Chi

WebRTC 101 - How to get started building your first WebRTC application
WebRTC 101 - How to get started building your first WebRTC applicationWebRTC 101 - How to get started building your first WebRTC application
WebRTC 101 - How to get started building your first WebRTC application
Dan Jenkins

node.js - Eventful JavaScript on the Server
node.js - Eventful JavaScript on the Servernode.js - Eventful JavaScript on the Server
node.js - Eventful JavaScript on the Server
David Ruiz

Socket Programming it-slideshares.blogspot.com
Socket  Programming it-slideshares.blogspot.comSocket  Programming it-slideshares.blogspot.com
Socket Programming it-slideshares.blogspot.com
phanleson

Formatul Portable Executable
Formatul Portable Executable Formatul Portable Executable
Formatul Portable Executable
DefCamp

Socket Programming
Socket ProgrammingSocket Programming
Socket Programming
Sivadon Chaisiri

Internet of things the salesforce lego machine cloud
Internet of things   the salesforce lego machine cloudInternet of things   the salesforce lego machine cloud
Internet of things the salesforce lego machine cloud
andyinthecloud

Ports and Adapters Architecture - solid
Ports and Adapters Architecture - solidPorts and Adapters Architecture - solid
Ports and Adapters Architecture - solid
ofir attal

Kamailio World 2014 - Kamailio - The Platform for Interoperable WebRTC
Kamailio World 2014 - Kamailio - The Platform for Interoperable WebRTCKamailio World 2014 - Kamailio - The Platform for Interoperable WebRTC
Kamailio World 2014 - Kamailio - The Platform for Interoperable WebRTC
Crocodile WebRTC SDK and Cloud Signalling Network

Micro app-framework - NodeLive Boston
Micro app-framework - NodeLive BostonMicro app-framework - NodeLive Boston
Micro app-framework - NodeLive Boston
Michael Dawson

Micro app-framework
Micro app-frameworkMicro app-framework
Micro app-framework
Michael Dawson

[4] 아두이노와 인터넷
[4] 아두이노와 인터넷[4] 아두이노와 인터넷
[4] 아두이노와 인터넷
Chiwon Song

A.java
A.javaA.java
IoT on Raspberry Pi
IoT on Raspberry PiIoT on Raspberry Pi
IoT on Raspberry Pi
John Staveley

Arp
ArpArp
Tamir Dresher - What’s new in ASP.NET Core 6
Tamir Dresher - What’s new in ASP.NET Core 6Tamir Dresher - What’s new in ASP.NET Core 6
Tamir Dresher - What’s new in ASP.NET Core 6
Tamir Dresher


Similar to Arduino、Web 到 IoT (20)

Arduino práctico ethernet
Arduino práctico   ethernetArduino práctico   ethernet
Arduino práctico ethernet

Introduction to Things board (An Open Source IoT Cloud Platform)
Introduction to Things board (An Open Source IoT Cloud Platform)Introduction to Things board (An Open Source IoT Cloud Platform)
Introduction to Things board (An Open Source IoT Cloud Platform)

Athens IoT meetup #7 - Create the Internet of your Things - Laurent Ellerbach...
Athens IoT meetup #7 - Create the Internet of your Things - Laurent Ellerbach...Athens IoT meetup #7 - Create the Internet of your Things - Laurent Ellerbach...
Athens IoT meetup #7 - Create the Internet of your Things - Laurent Ellerbach...

Webshield internet of things
Webshield internet of thingsWebshield internet of things
Webshield internet of things

Node worshop Realtime - Socket.io
Node worshop Realtime - Socket.ioNode worshop Realtime - Socket.io
Node worshop Realtime - Socket.io

WebRTC 101 - How to get started building your first WebRTC application
WebRTC 101 - How to get started building your first WebRTC applicationWebRTC 101 - How to get started building your first WebRTC application
WebRTC 101 - How to get started building your first WebRTC application

node.js - Eventful JavaScript on the Server
node.js - Eventful JavaScript on the Servernode.js - Eventful JavaScript on the Server
node.js - Eventful JavaScript on the Server

Socket Programming it-slideshares.blogspot.com
Socket  Programming it-slideshares.blogspot.comSocket  Programming it-slideshares.blogspot.com
Socket Programming it-slideshares.blogspot.com

Formatul Portable Executable
Formatul Portable Executable Formatul Portable Executable
Formatul Portable Executable

Socket Programming
Socket ProgrammingSocket Programming
Socket Programming

Internet of things the salesforce lego machine cloud
Internet of things   the salesforce lego machine cloudInternet of things   the salesforce lego machine cloud
Internet of things the salesforce lego machine cloud

Ports and Adapters Architecture - solid
Ports and Adapters Architecture - solidPorts and Adapters Architecture - solid
Ports and Adapters Architecture - solid

Kamailio World 2014 - Kamailio - The Platform for Interoperable WebRTC
Kamailio World 2014 - Kamailio - The Platform for Interoperable WebRTCKamailio World 2014 - Kamailio - The Platform for Interoperable WebRTC
Kamailio World 2014 - Kamailio - The Platform for Interoperable WebRTC

Micro app-framework - NodeLive Boston
Micro app-framework - NodeLive BostonMicro app-framework - NodeLive Boston
Micro app-framework - NodeLive Boston

Micro app-framework
Micro app-frameworkMicro app-framework
Micro app-framework

[4] 아두이노와 인터넷
[4] 아두이노와 인터넷[4] 아두이노와 인터넷
[4] 아두이노와 인터넷

A.java
A.javaA.java
A.java

IoT on Raspberry Pi
IoT on Raspberry PiIoT on Raspberry Pi
IoT on Raspberry Pi

Arp
ArpArp
Arp

Tamir Dresher - What’s new in ASP.NET Core 6
Tamir Dresher - What’s new in ASP.NET Core 6Tamir Dresher - What’s new in ASP.NET Core 6
Tamir Dresher - What’s new in ASP.NET Core 6


More from Justin Lin

Ch14 簡介 Spring Boot
Ch14 簡介 Spring BootCh14 簡介 Spring Boot
Ch14 簡介 Spring Boot
Justin Lin

Ch13 整合 Spring MVC/Security
Ch13 整合 Spring MVC/SecurityCh13 整合 Spring MVC/Security
Ch13 整合 Spring MVC/Security
Justin Lin

Ch12 Spring 起步走
Ch12 Spring 起步走Ch12 Spring 起步走
Ch12 Spring 起步走
Justin Lin

Ch11 簡介 JavaMail
Ch11 簡介 JavaMailCh11 簡介 JavaMail
Ch11 簡介 JavaMail
Justin Lin

Ch10 Web 容器安全管理
Ch10 Web 容器安全管理Ch10 Web 容器安全管理
Ch10 Web 容器安全管理
Justin Lin

Ch09 整合資料庫
Ch09 整合資料庫Ch09 整合資料庫
Ch09 整合資料庫
Justin Lin

Ch08 自訂標籤
Ch08 自訂標籤Ch08 自訂標籤
Ch08 自訂標籤
Justin Lin

Ch07 使用 JSTL
Ch07 使用 JSTLCh07 使用 JSTL
Ch07 使用 JSTL
Justin Lin

Ch06 使用 JSP
Ch06 使用 JSPCh06 使用 JSP
Ch06 使用 JSP
Justin Lin

Ch05 Servlet 進階 API、過濾器與傾聽器
Ch05 Servlet 進階 API、過濾器與傾聽器Ch05 Servlet 進階 API、過濾器與傾聽器
Ch05 Servlet 進階 API、過濾器與傾聽器
Justin Lin

Ch04 會話管理
Ch04 會話管理Ch04 會話管理
Ch04 會話管理
Justin Lin

Ch03 請求與回應
Ch03 請求與回應Ch03 請求與回應
Ch03 請求與回應
Justin Lin

Ch02 撰寫與設定 Servlet
Ch02 撰寫與設定 ServletCh02 撰寫與設定 Servlet
Ch02 撰寫與設定 Servlet
Justin Lin

CH1. 簡介 Web 應用程式
CH1. 簡介 Web 應用程式CH1. 簡介 Web 應用程式
CH1. 簡介 Web 應用程式
Justin Lin

14. 進階主題
14. 進階主題14. 進階主題
14. 進階主題
Justin Lin

13.並行、平行與非同步
13.並行、平行與非同步13.並行、平行與非同步
13.並行、平行與非同步
Justin Lin

12. 除錯、測試與效能
12. 除錯、測試與效能12. 除錯、測試與效能
12. 除錯、測試與效能
Justin Lin

11. 常用內建模組
11. 常用內建模組11. 常用內建模組
11. 常用內建模組
Justin Lin

10. 資料永續與交換
10. 資料永續與交換10. 資料永續與交換
10. 資料永續與交換
Justin Lin

9. 資料結構
9. 資料結構9. 資料結構
9. 資料結構
Justin Lin


More from Justin Lin (20)

Ch14 簡介 Spring Boot
Ch14 簡介 Spring BootCh14 簡介 Spring Boot
Ch14 簡介 Spring Boot

Ch13 整合 Spring MVC/Security
Ch13 整合 Spring MVC/SecurityCh13 整合 Spring MVC/Security
Ch13 整合 Spring MVC/Security

Ch12 Spring 起步走
Ch12 Spring 起步走Ch12 Spring 起步走
Ch12 Spring 起步走

Ch11 簡介 JavaMail
Ch11 簡介 JavaMailCh11 簡介 JavaMail
Ch11 簡介 JavaMail

Ch10 Web 容器安全管理
Ch10 Web 容器安全管理Ch10 Web 容器安全管理
Ch10 Web 容器安全管理

Ch09 整合資料庫
Ch09 整合資料庫Ch09 整合資料庫
Ch09 整合資料庫

Ch08 自訂標籤
Ch08 自訂標籤Ch08 自訂標籤
Ch08 自訂標籤

Ch07 使用 JSTL
Ch07 使用 JSTLCh07 使用 JSTL
Ch07 使用 JSTL

Ch06 使用 JSP
Ch06 使用 JSPCh06 使用 JSP
Ch06 使用 JSP

Ch05 Servlet 進階 API、過濾器與傾聽器
Ch05 Servlet 進階 API、過濾器與傾聽器Ch05 Servlet 進階 API、過濾器與傾聽器
Ch05 Servlet 進階 API、過濾器與傾聽器

Ch04 會話管理
Ch04 會話管理Ch04 會話管理
Ch04 會話管理

Ch03 請求與回應
Ch03 請求與回應Ch03 請求與回應
Ch03 請求與回應

Ch02 撰寫與設定 Servlet
Ch02 撰寫與設定 ServletCh02 撰寫與設定 Servlet
Ch02 撰寫與設定 Servlet

CH1. 簡介 Web 應用程式
CH1. 簡介 Web 應用程式CH1. 簡介 Web 應用程式
CH1. 簡介 Web 應用程式

14. 進階主題
14. 進階主題14. 進階主題
14. 進階主題

13.並行、平行與非同步
13.並行、平行與非同步13.並行、平行與非同步
13.並行、平行與非同步

12. 除錯、測試與效能
12. 除錯、測試與效能12. 除錯、測試與效能
12. 除錯、測試與效能

11. 常用內建模組
11. 常用內建模組11. 常用內建模組
11. 常用內建模組

10. 資料永續與交換
10. 資料永續與交換10. 資料永續與交換
10. 資料永續與交換

9. 資料結構
9. 資料結構9. 資料結構
9. 資料結構


Recently uploaded

IPLOOK Remote-Sensing Satellite Solution
IPLOOK Remote-Sensing Satellite SolutionIPLOOK Remote-Sensing Satellite Solution
IPLOOK Remote-Sensing Satellite Solution
IPLOOK Networks

Gen-AI in Telcos: Strategies, Challenges & Impact
Gen-AI in Telcos: Strategies, Challenges & ImpactGen-AI in Telcos: Strategies, Challenges & Impact
Gen-AI in Telcos: Strategies, Challenges & Impact
aejazahamed4

Data Integration Basics: Merging & Joining Data
Data Integration Basics: Merging & Joining DataData Integration Basics: Merging & Joining Data
Data Integration Basics: Merging & Joining Data
Safe Software

WPRiders Company Presentation Slide Deck
WPRiders Company Presentation Slide DeckWPRiders Company Presentation Slide Deck
WPRiders Company Presentation Slide Deck
Lidia A.

Empowering Businesses in the Digital Age
Empowering Businesses in the Digital AgeEmpowering Businesses in the Digital Age
Empowering Businesses in the Digital Age
Bert Blevins

Salesforce AI & Einstein Copilot Workshop
Salesforce AI & Einstein Copilot WorkshopSalesforce AI & Einstein Copilot Workshop
Salesforce AI & Einstein Copilot Workshop
CEPTES Software Inc

[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf
[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf
[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf
Kief Morris

Coordinate Systems in FME 101 - Webinar Slides
Coordinate Systems in FME 101 - Webinar SlidesCoordinate Systems in FME 101 - Webinar Slides
Coordinate Systems in FME 101 - Webinar Slides
Safe Software

Choose our Linux Web Hosting for a seamless and successful online presence
Choose our Linux Web Hosting for a seamless and successful online presenceChoose our Linux Web Hosting for a seamless and successful online presence
Choose our Linux Web Hosting for a seamless and successful online presence
rajancomputerfbd

Implementations of Fused Deposition Modeling in real world
Implementations of Fused Deposition Modeling  in real worldImplementations of Fused Deposition Modeling  in real world
Implementations of Fused Deposition Modeling in real world
Emerging Tech

Advanced Techniques for Cyber Security Analysis and Anomaly Detection
Advanced Techniques for Cyber Security Analysis and Anomaly DetectionAdvanced Techniques for Cyber Security Analysis and Anomaly Detection
Advanced Techniques for Cyber Security Analysis and Anomaly Detection
Bert Blevins

ScrumGathering New Orleans 2024 Catherine Louis.pdf
ScrumGathering New Orleans 2024  Catherine Louis.pdfScrumGathering New Orleans 2024  Catherine Louis.pdf
ScrumGathering New Orleans 2024 Catherine Louis.pdf
Global Agile Consulting- CLL-Group, LLC

Observability For You and Me with OpenTelemetry
Observability For You and Me with OpenTelemetryObservability For You and Me with OpenTelemetry
Observability For You and Me with OpenTelemetry
Eric D. Schabell

How Social Media Hackers Help You to See Your Wife's Message.pdf
How Social Media Hackers Help You to See Your Wife's Message.pdfHow Social Media Hackers Help You to See Your Wife's Message.pdf
How Social Media Hackers Help You to See Your Wife's Message.pdf
HackersList

(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...
(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...
(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...
Priyanka Aash

Gen-AI in Telcos: Strategies, Challenges & Impact | Torry Harris Integration ...
Gen-AI in Telcos: Strategies, Challenges & Impact | Torry Harris Integration ...Gen-AI in Telcos: Strategies, Challenges & Impact | Torry Harris Integration ...
Gen-AI in Telcos: Strategies, Challenges & Impact | Torry Harris Integration ...
Torry Harris

Password Rotation in 2024 is still Relevant
Password Rotation in 2024 is still RelevantPassword Rotation in 2024 is still Relevant
Password Rotation in 2024 is still Relevant
Bert Blevins

Amul milk launches in US: Key details of its new products ...
Amul milk launches in US: Key details of its new products ...Amul milk launches in US: Key details of its new products ...
Amul milk launches in US: Key details of its new products ...
chetankumar9855

“Deploying Large Language Models on a Raspberry Pi,” a Presentation from Usef...
“Deploying Large Language Models on a Raspberry Pi,” a Presentation from Usef...“Deploying Large Language Models on a Raspberry Pi,” a Presentation from Usef...
“Deploying Large Language Models on a Raspberry Pi,” a Presentation from Usef...
Edge AI and Vision Alliance

Recent Advancements in the NIST-JARVIS Infrastructure
Recent Advancements in the NIST-JARVIS InfrastructureRecent Advancements in the NIST-JARVIS Infrastructure
Recent Advancements in the NIST-JARVIS Infrastructure
KAMAL CHOUDHARY


Recently uploaded (20)

IPLOOK Remote-Sensing Satellite Solution
IPLOOK Remote-Sensing Satellite SolutionIPLOOK Remote-Sensing Satellite Solution
IPLOOK Remote-Sensing Satellite Solution

Gen-AI in Telcos: Strategies, Challenges & Impact
Gen-AI in Telcos: Strategies, Challenges & ImpactGen-AI in Telcos: Strategies, Challenges & Impact
Gen-AI in Telcos: Strategies, Challenges & Impact

Data Integration Basics: Merging & Joining Data
Data Integration Basics: Merging & Joining DataData Integration Basics: Merging & Joining Data
Data Integration Basics: Merging & Joining Data

WPRiders Company Presentation Slide Deck
WPRiders Company Presentation Slide DeckWPRiders Company Presentation Slide Deck
WPRiders Company Presentation Slide Deck

Empowering Businesses in the Digital Age
Empowering Businesses in the Digital AgeEmpowering Businesses in the Digital Age
Empowering Businesses in the Digital Age

Salesforce AI & Einstein Copilot Workshop
Salesforce AI & Einstein Copilot WorkshopSalesforce AI & Einstein Copilot Workshop
Salesforce AI & Einstein Copilot Workshop

[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf
[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf
[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf

Coordinate Systems in FME 101 - Webinar Slides
Coordinate Systems in FME 101 - Webinar SlidesCoordinate Systems in FME 101 - Webinar Slides
Coordinate Systems in FME 101 - Webinar Slides

Choose our Linux Web Hosting for a seamless and successful online presence
Choose our Linux Web Hosting for a seamless and successful online presenceChoose our Linux Web Hosting for a seamless and successful online presence
Choose our Linux Web Hosting for a seamless and successful online presence

Implementations of Fused Deposition Modeling in real world
Implementations of Fused Deposition Modeling  in real worldImplementations of Fused Deposition Modeling  in real world
Implementations of Fused Deposition Modeling in real world

Advanced Techniques for Cyber Security Analysis and Anomaly Detection
Advanced Techniques for Cyber Security Analysis and Anomaly DetectionAdvanced Techniques for Cyber Security Analysis and Anomaly Detection
Advanced Techniques for Cyber Security Analysis and Anomaly Detection

ScrumGathering New Orleans 2024 Catherine Louis.pdf
ScrumGathering New Orleans 2024  Catherine Louis.pdfScrumGathering New Orleans 2024  Catherine Louis.pdf
ScrumGathering New Orleans 2024 Catherine Louis.pdf

Observability For You and Me with OpenTelemetry
Observability For You and Me with OpenTelemetryObservability For You and Me with OpenTelemetry
Observability For You and Me with OpenTelemetry

How Social Media Hackers Help You to See Your Wife's Message.pdf
How Social Media Hackers Help You to See Your Wife's Message.pdfHow Social Media Hackers Help You to See Your Wife's Message.pdf
How Social Media Hackers Help You to See Your Wife's Message.pdf

(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...
(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...
(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...

Gen-AI in Telcos: Strategies, Challenges & Impact | Torry Harris Integration ...
Gen-AI in Telcos: Strategies, Challenges & Impact | Torry Harris Integration ...Gen-AI in Telcos: Strategies, Challenges & Impact | Torry Harris Integration ...
Gen-AI in Telcos: Strategies, Challenges & Impact | Torry Harris Integration ...

Password Rotation in 2024 is still Relevant
Password Rotation in 2024 is still RelevantPassword Rotation in 2024 is still Relevant
Password Rotation in 2024 is still Relevant

Amul milk launches in US: Key details of its new products ...
Amul milk launches in US: Key details of its new products ...Amul milk launches in US: Key details of its new products ...
Amul milk launches in US: Key details of its new products ...

“Deploying Large Language Models on a Raspberry Pi,” a Presentation from Usef...
“Deploying Large Language Models on a Raspberry Pi,” a Presentation from Usef...“Deploying Large Language Models on a Raspberry Pi,” a Presentation from Usef...
“Deploying Large Language Models on a Raspberry Pi,” a Presentation from Usef...

Recent Advancements in the NIST-JARVIS Infrastructure
Recent Advancements in the NIST-JARVIS InfrastructureRecent Advancements in the NIST-JARVIS Infrastructure
Recent Advancements in the NIST-JARVIS Infrastructure


Arduino、Web 到 IoT
