1. The Arduino life
Workshop on Arduino Embedded Development Board
1

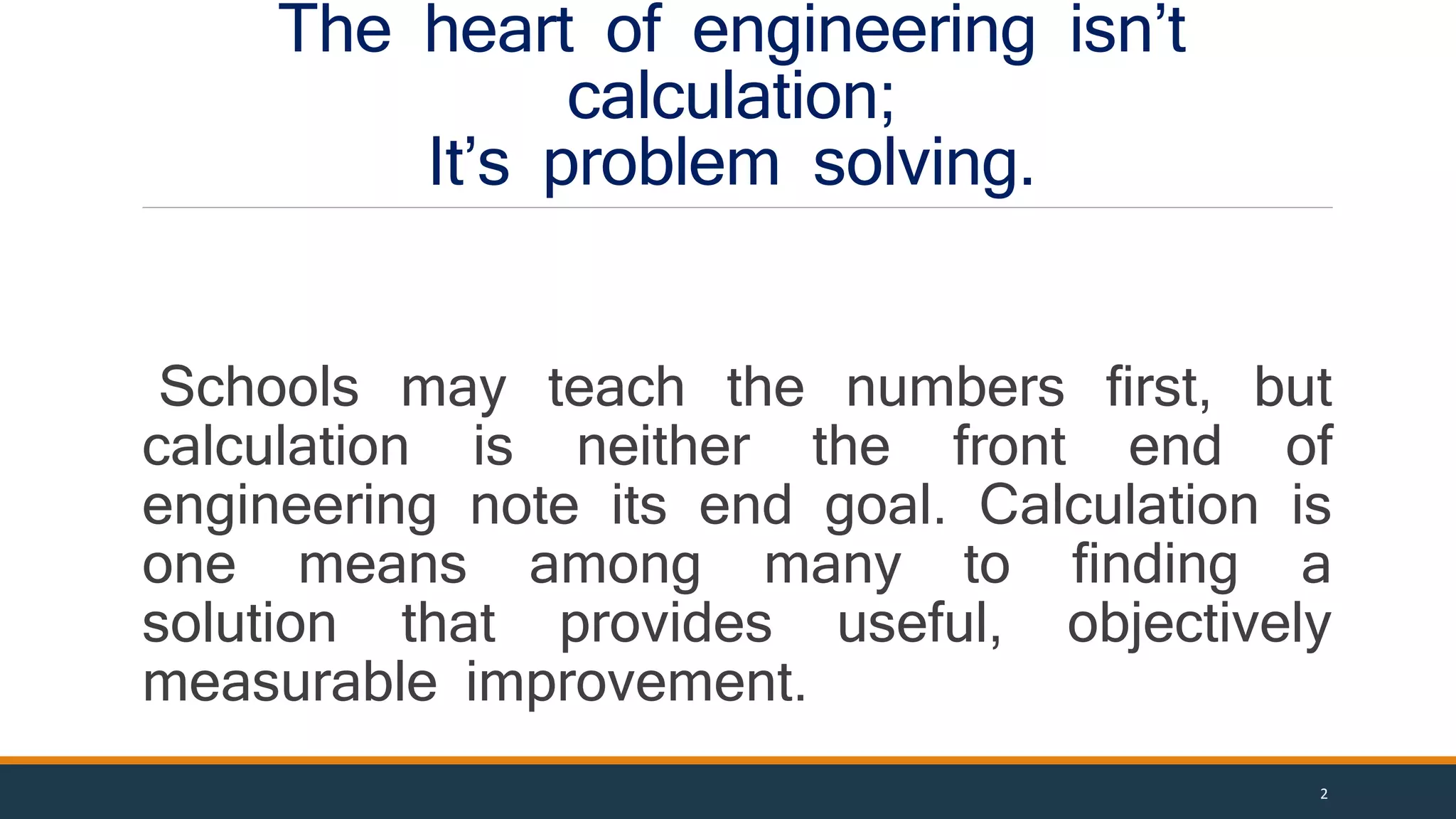

2. The heart of engineering isn’t
calculation;
It’s problem solving.
Schools may teach the numbers first, but
calculation is neither the front end of
engineering note its end goal. Calculation is
one means among many to finding a
solution that provides useful, objectively
measurable improvement.
2

3. Embedded Systems
Arduino Basics
Arduino Architecture
Arduino board layout. What are the resources available
Arduino IDE
Programming fundamentals
Learn by Doing – Sense, Control & Actuate
Project 1: LED Blinking
Project 2: RGB LED Interfacing & PWM Control
Project 3: Interfacing Sensors (Light, Temperature, etc.,)
Project 4: Interfacing Actuators (Motor Speed Control using PWM)
Introduction
3

4. Industry / Robot /
System
Industry /
System
4

5. System &
Control
System / Plant: “A system may be a piece of equipment, perhaps just a set of machine
parts functioning together, the purpose of which is to perform a particular operation”.
Control System: “A control system is an interconnection of components forming a system
configuration that provide a desired system performance”
5

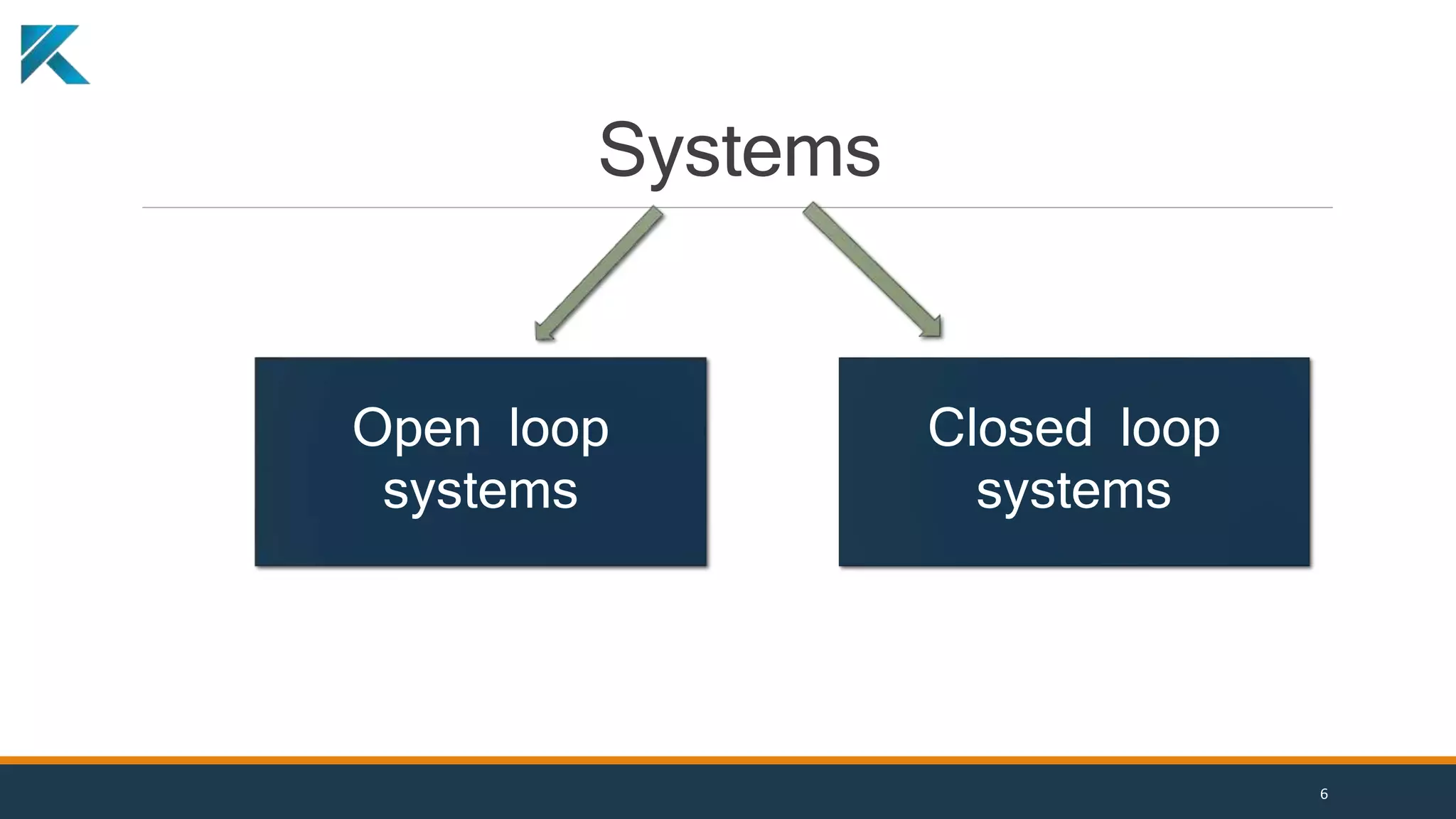

6. Systems
Open loop
systems
Closed loop
systems
6

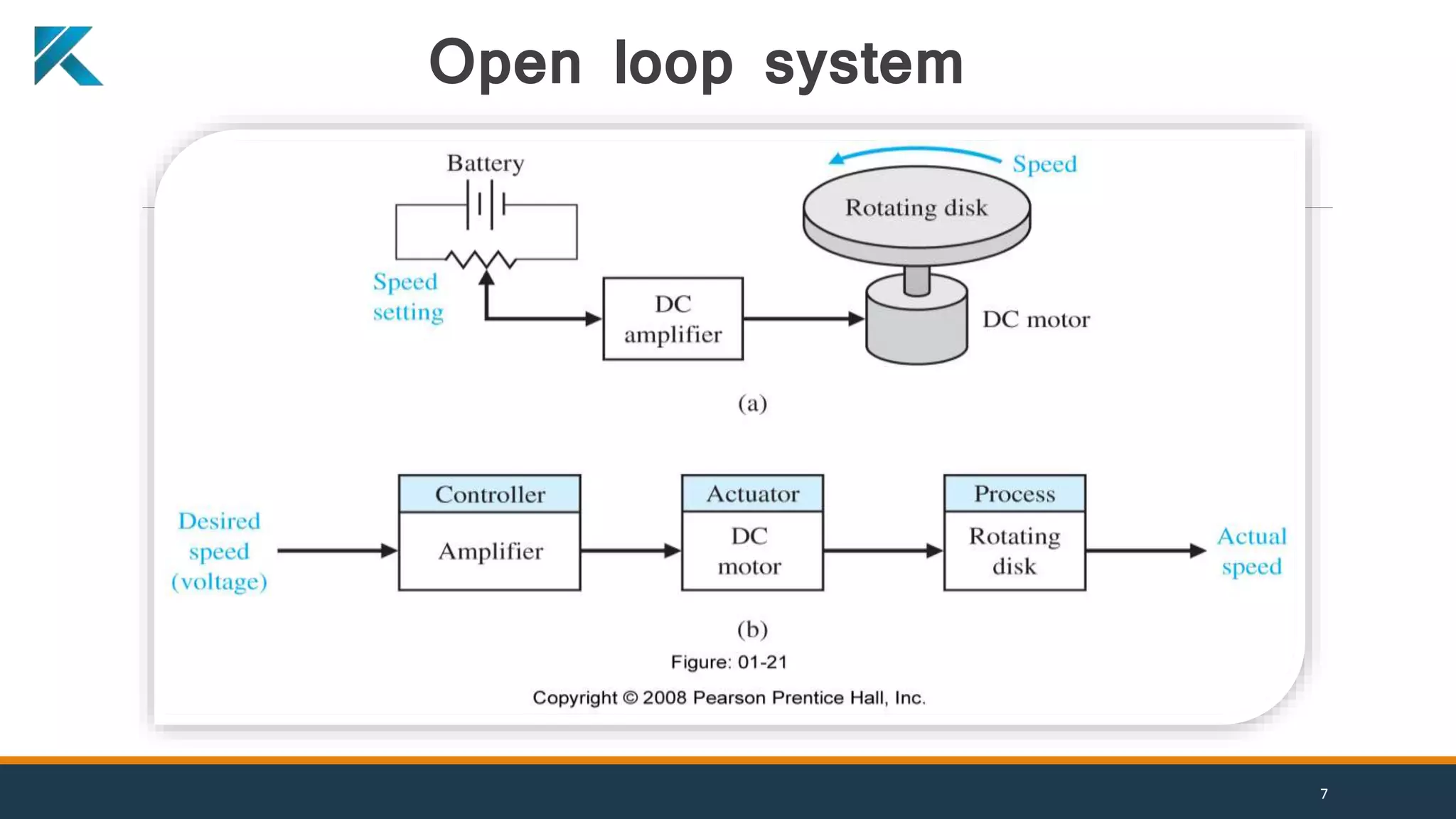

7. Open loop system
7

8. Closed loop
system
8

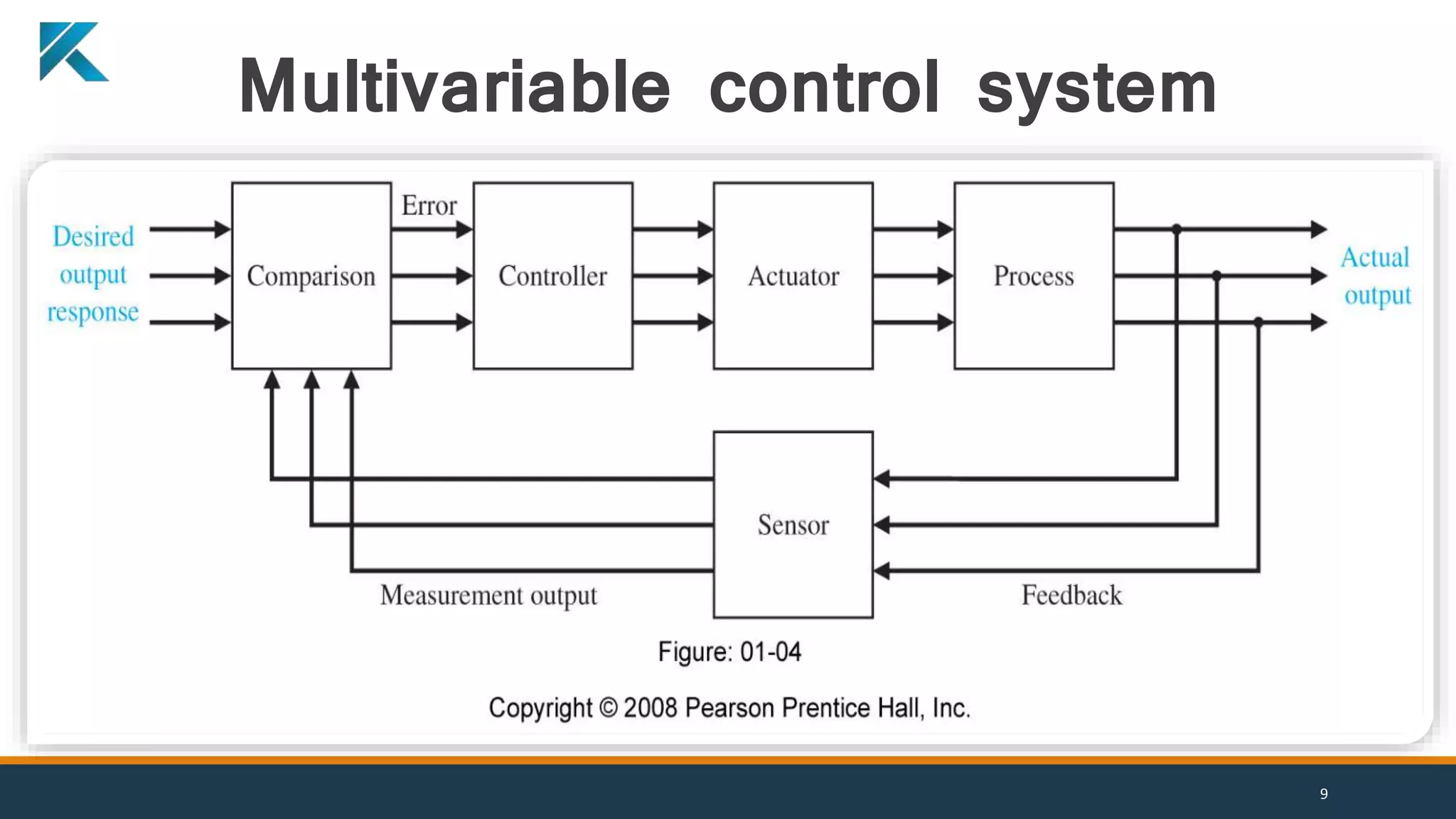

9. Multivariable control system
9

10. Embedded Systems
"It is a combination of hardware and software to perform a specific task"
“An embedded system is a computer system with a dedicated function
within a larger mechanical or electrical system, often with real-time
computing constraints. It is embedded as part of a complete device often
including hardware and mechanical parts. Embedded systems control
many devices in common use today.”
10

11. Components of Embedded Systems
Power Supply Processor Memory Timers & Counters
Communication
Ports
Input & Output
Application Specific
Circuits
Software
Components
Stable & Smooth Output
Proper Output Current to Drive the Load
Perfect Power Efficiency
Stable in Different Temperature Range
Proper Noise Filtering
Proper Decoupling
Line Regulation changes
Load Regulation – Fluctuation in output voltage when
load current changes
Efficiency
Input/Output Ripple Voltage
Transient Response
Allowable Dissipation
• Speed
• Unit Price
• Packaging
• Performance
• Peripheral Set
• Timer on the Chip
• Operating Voltage
• Number of I/O Pins
• Power Consumption
• Amount of RAM and ROM
• Specialized Processing Units
• Architecture 8-bit, 16-bit, or 32-bit
• Read-Only memory(RAM)
• Random Access Memory(ROM)
• Electrically Erasable Programmable Read-Only
Memory (EEPROM)
• UART
• CAN
• SPI
• I2C
• USB
• Ethernet
• RS-232
• RS-423
• RS-485
• UART
• I2C
• SPI
• Power Supply
• Processor
• Display Device
• Buzzer for Alert
• Device Drivers
• MEMS devices
• Assembler
• Emulator
• Debugger
• Compiler
11

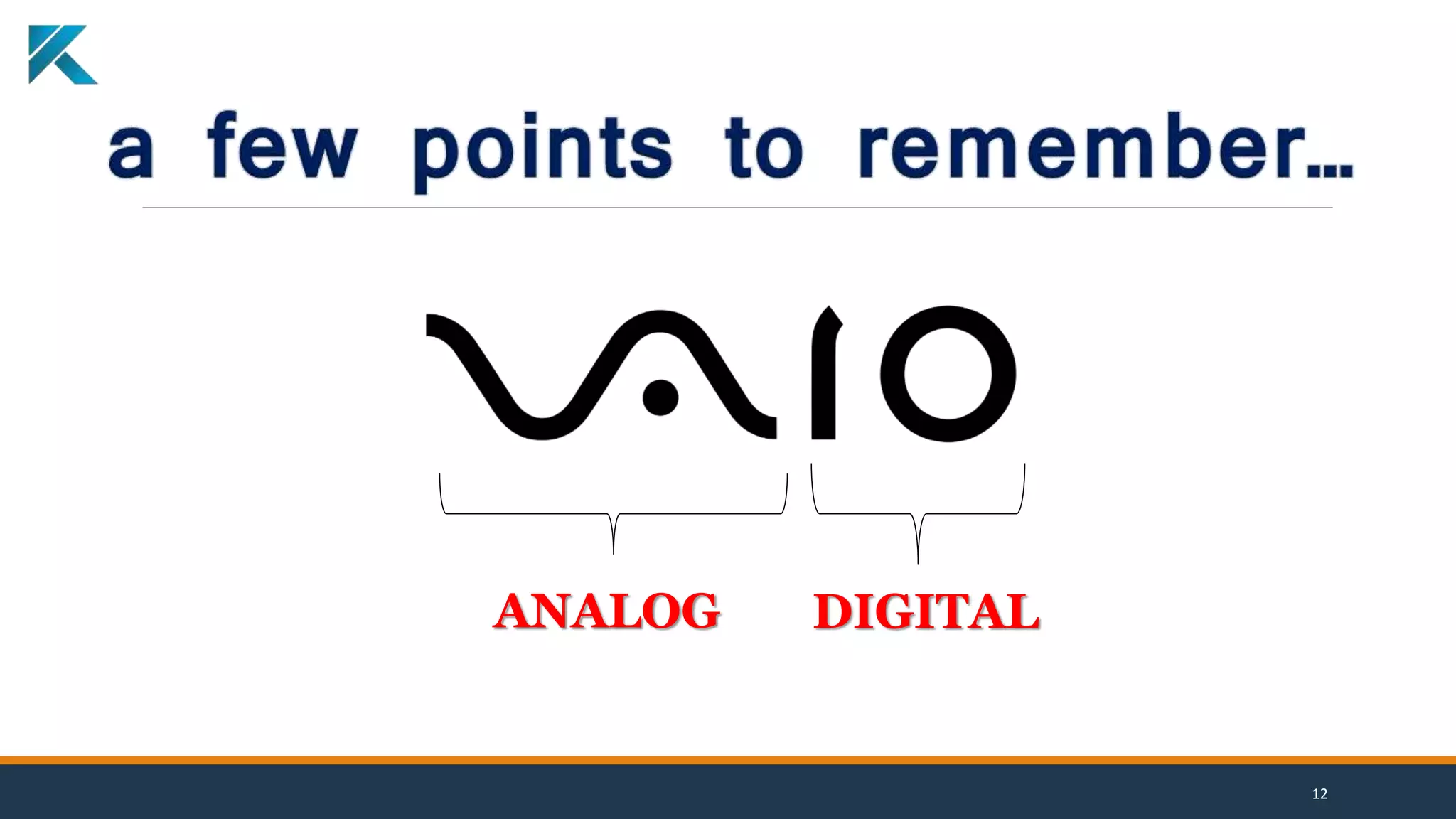

12. ANALOG DIGITAL
12

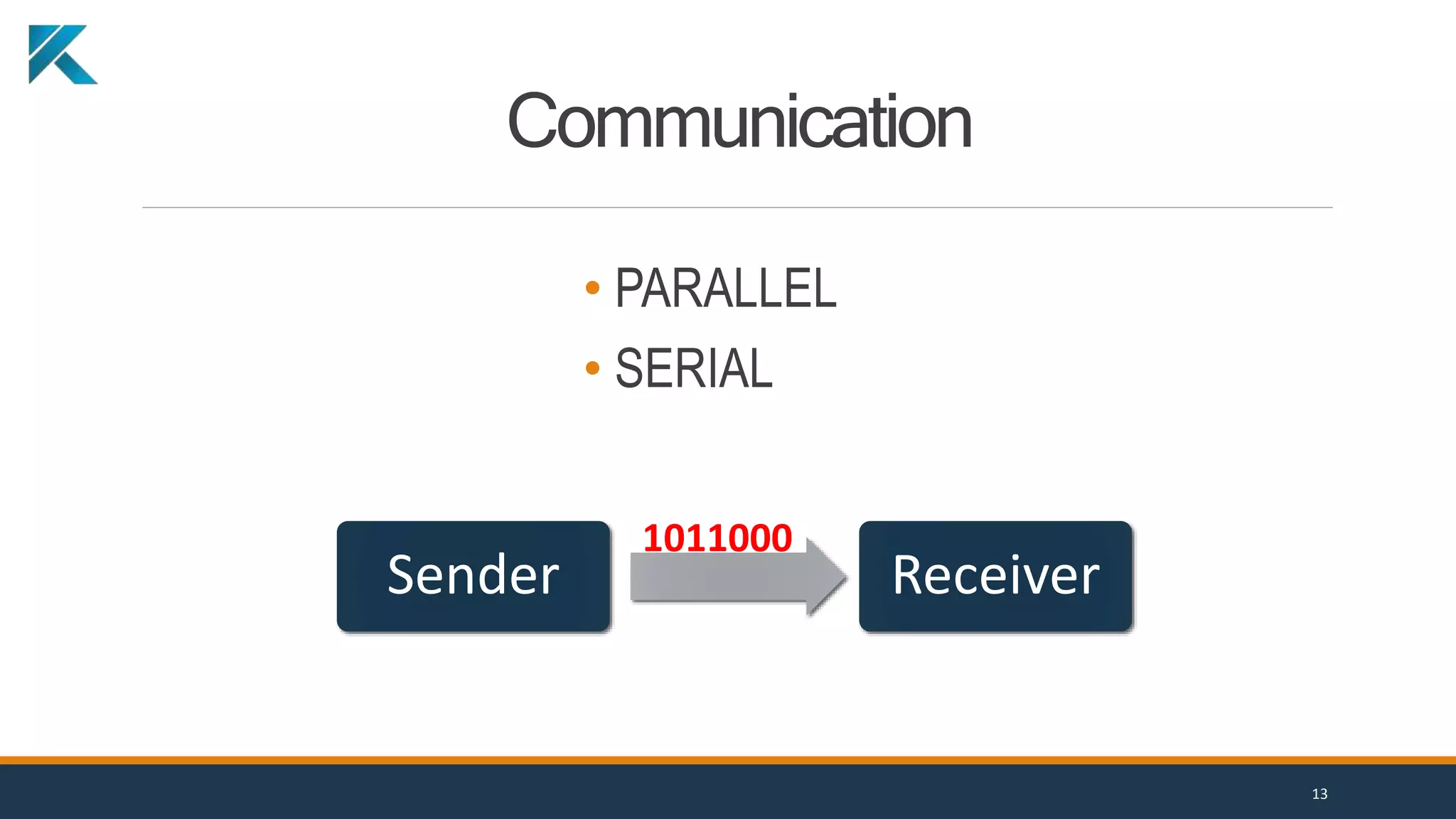

13. Communication
• PARALLEL
• SERIAL
Sender Receiver
1011000
13

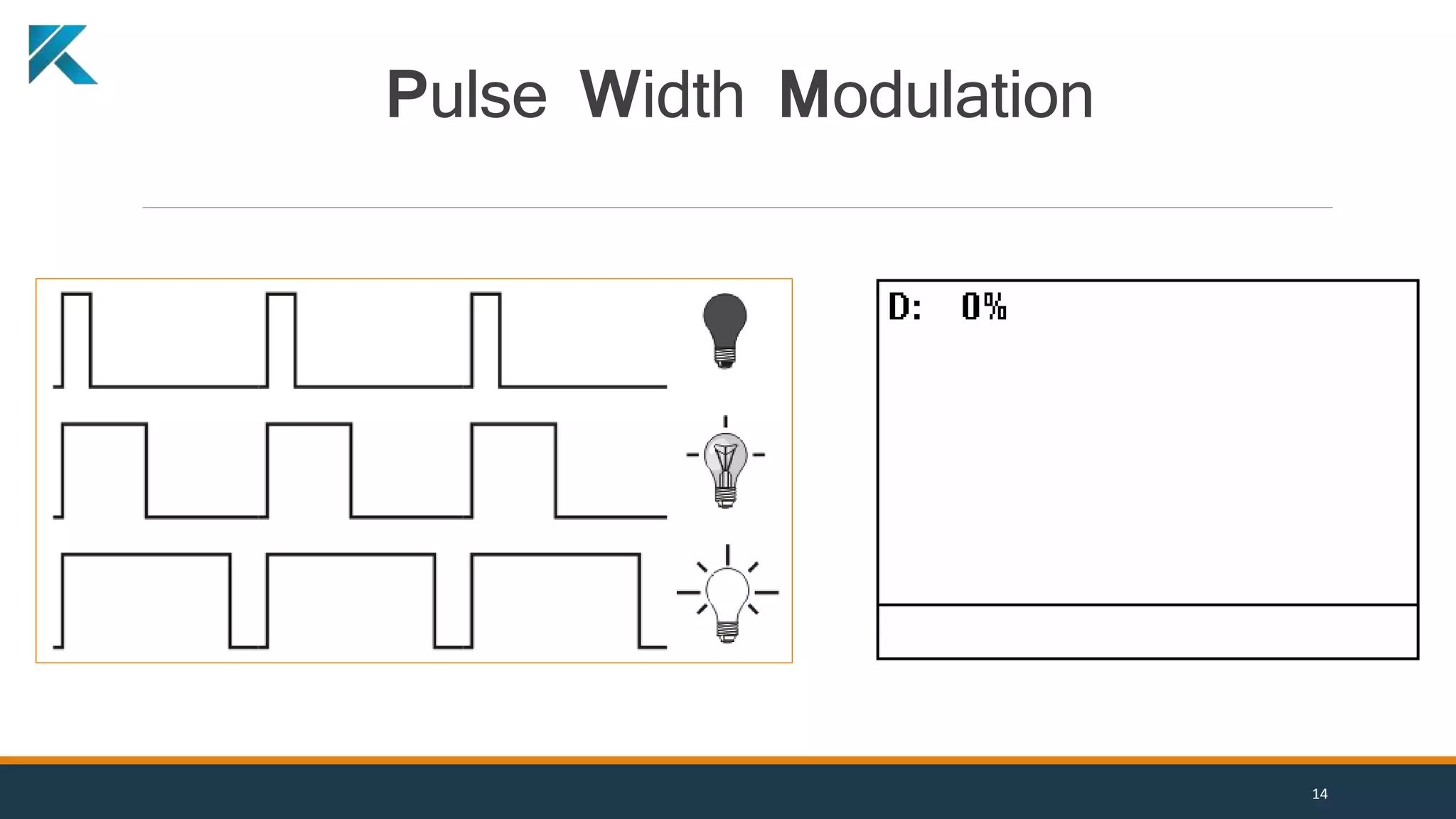

14. Pulse Width Modulation
14

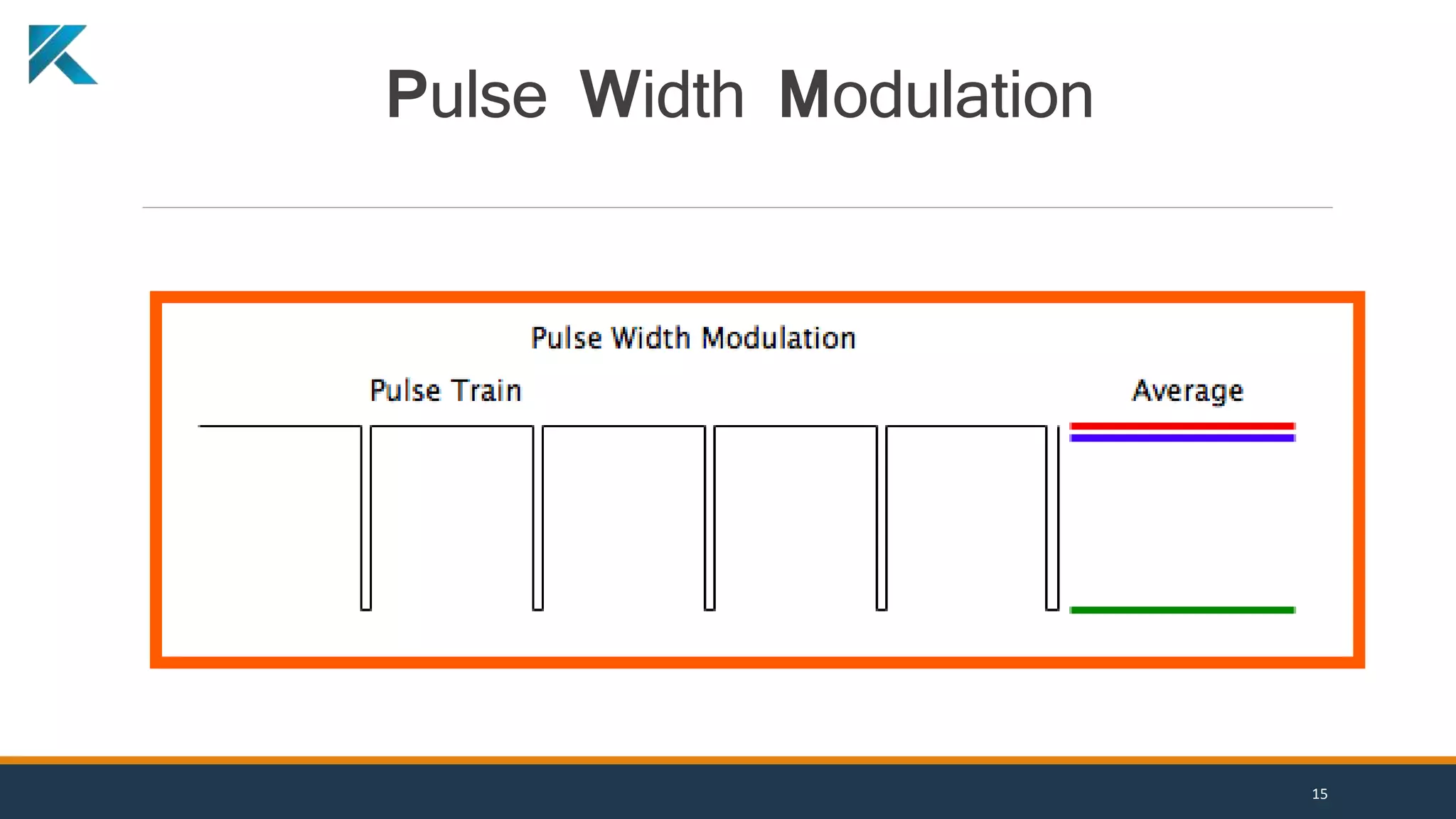

15. Pulse Width Modulation
15

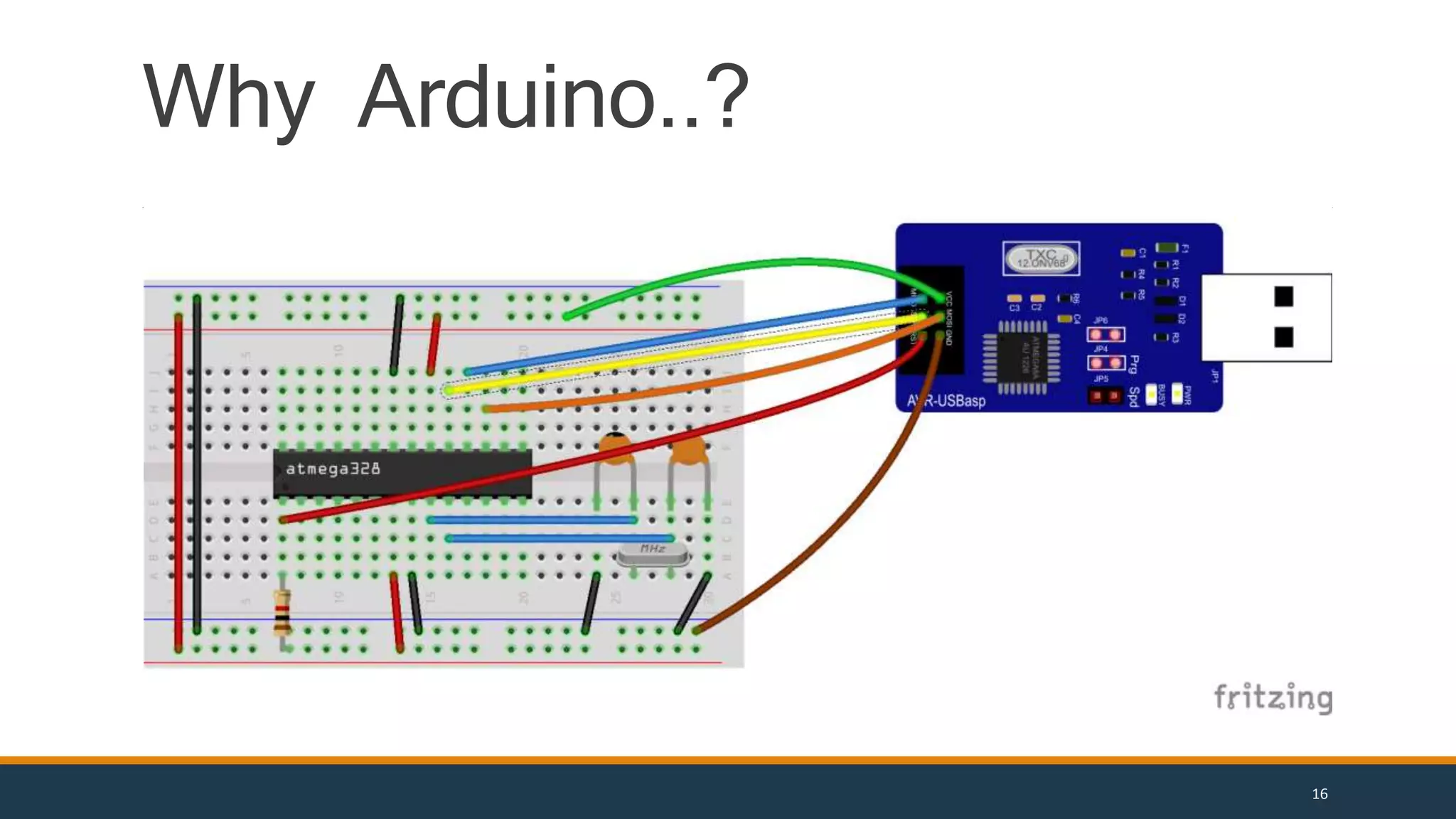

16. Why Arduino..?
16

17. Lets Start
Arduino…!
17

18. arduino ( arrr-dween-oh )
(n.) It's an open-source physical computing platform based
on a simple microcontroller board, and a development
environment for writing software for the board.
Arduino Basics
18

19. Arduino Nano
Arduino Mega
Arduino LilyPad
Arduino Mini Arduino Leonardo
Arduino Uno
Types of Arduino Boards
19

20. Arduino Uno
Digital pins:
14 digital IO pins
6 are PWM pins (3, 5, 6, 9, 10, and 11).
Analog pins:
6 analog pins(A0, A1, A2, A3, A4, and A5)
Takes analog values as an input
20

21. 21

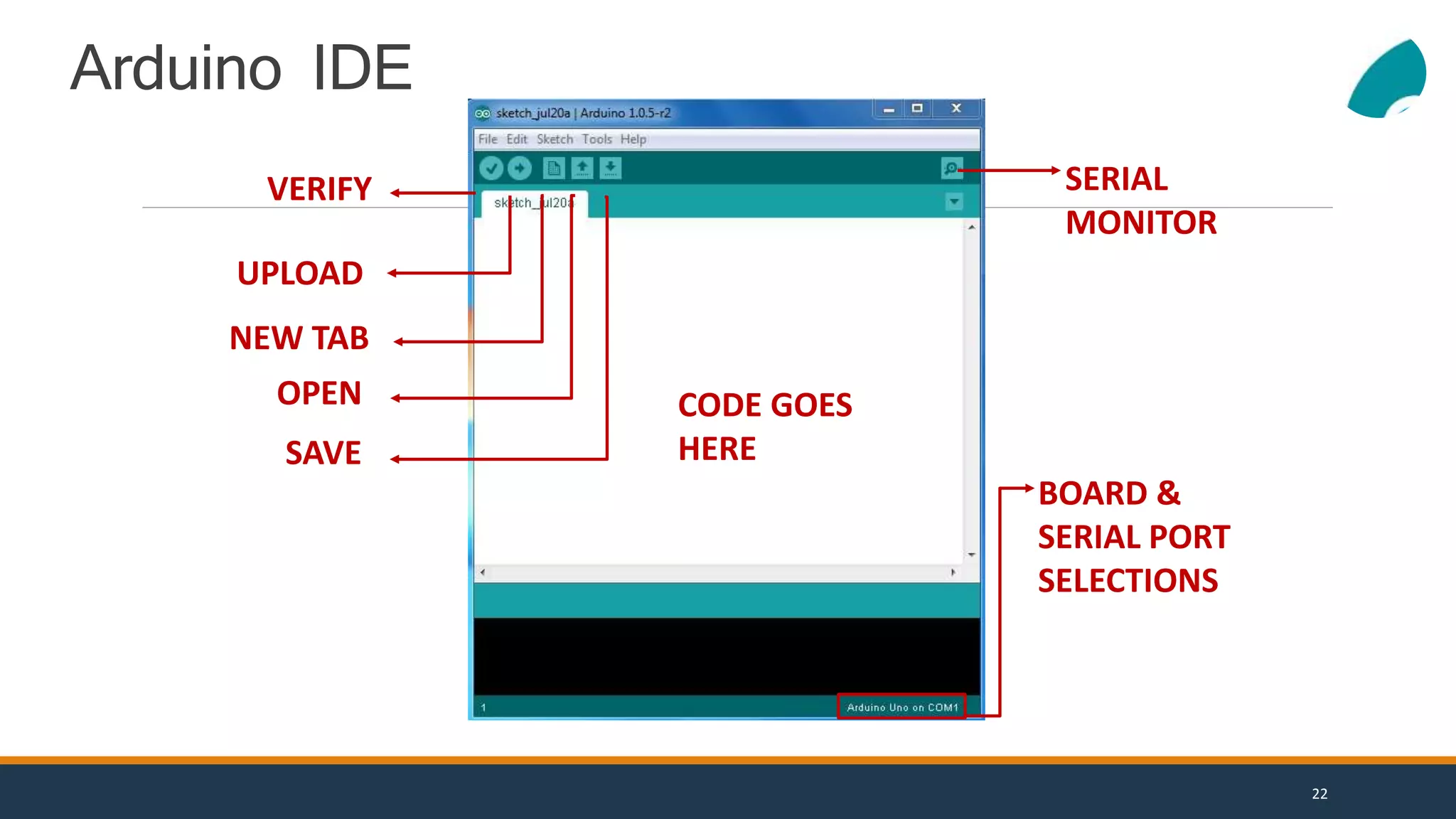

22. VERIFY
UPLOAD
NEW TAB
OPEN
SAVE
SERIAL
MONITOR
BOARD &
SERIAL PORT
SELECTIONS
CODE GOES
HERE
Arduino IDE
22

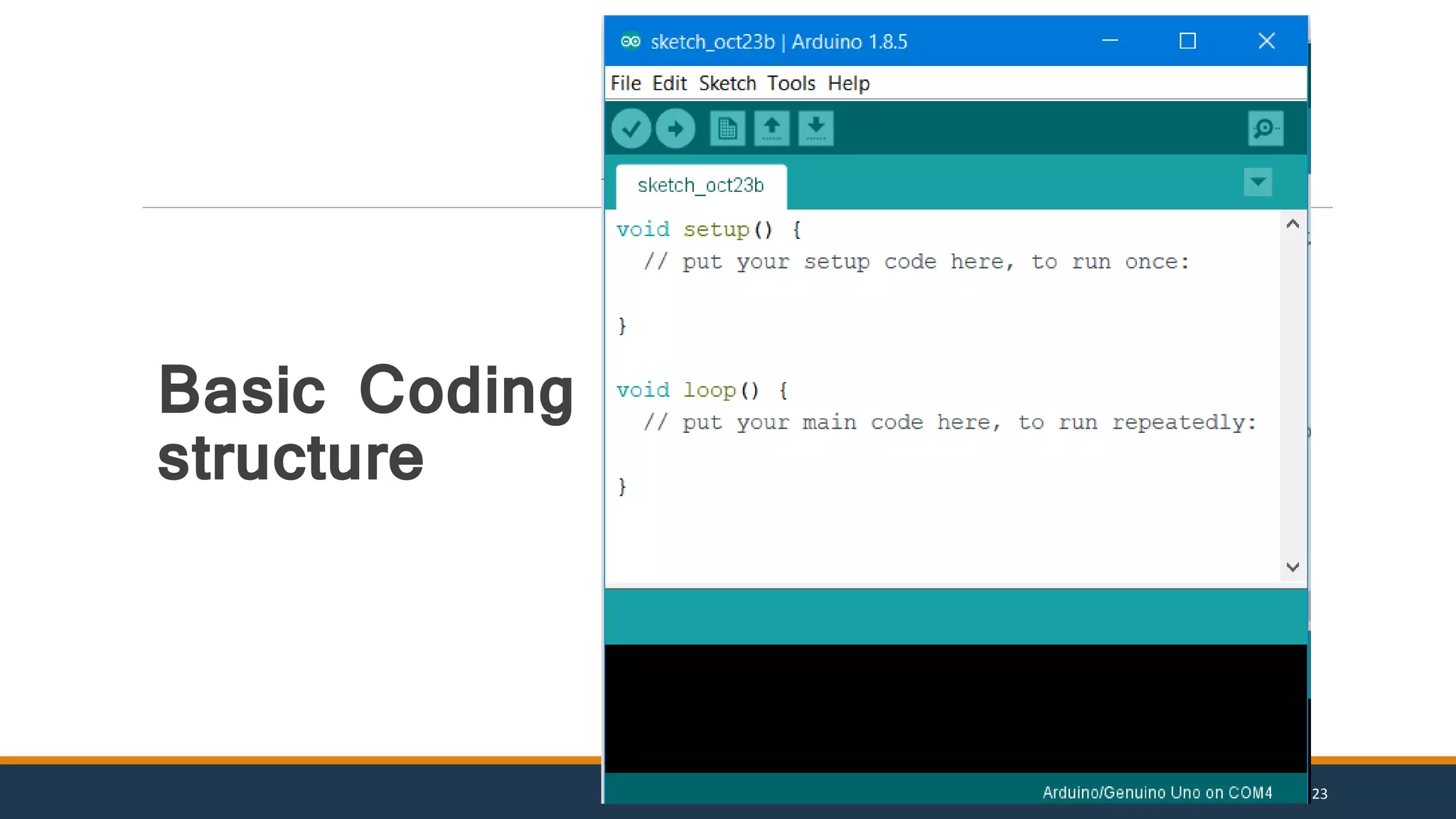

23. Basic Coding
structure
23

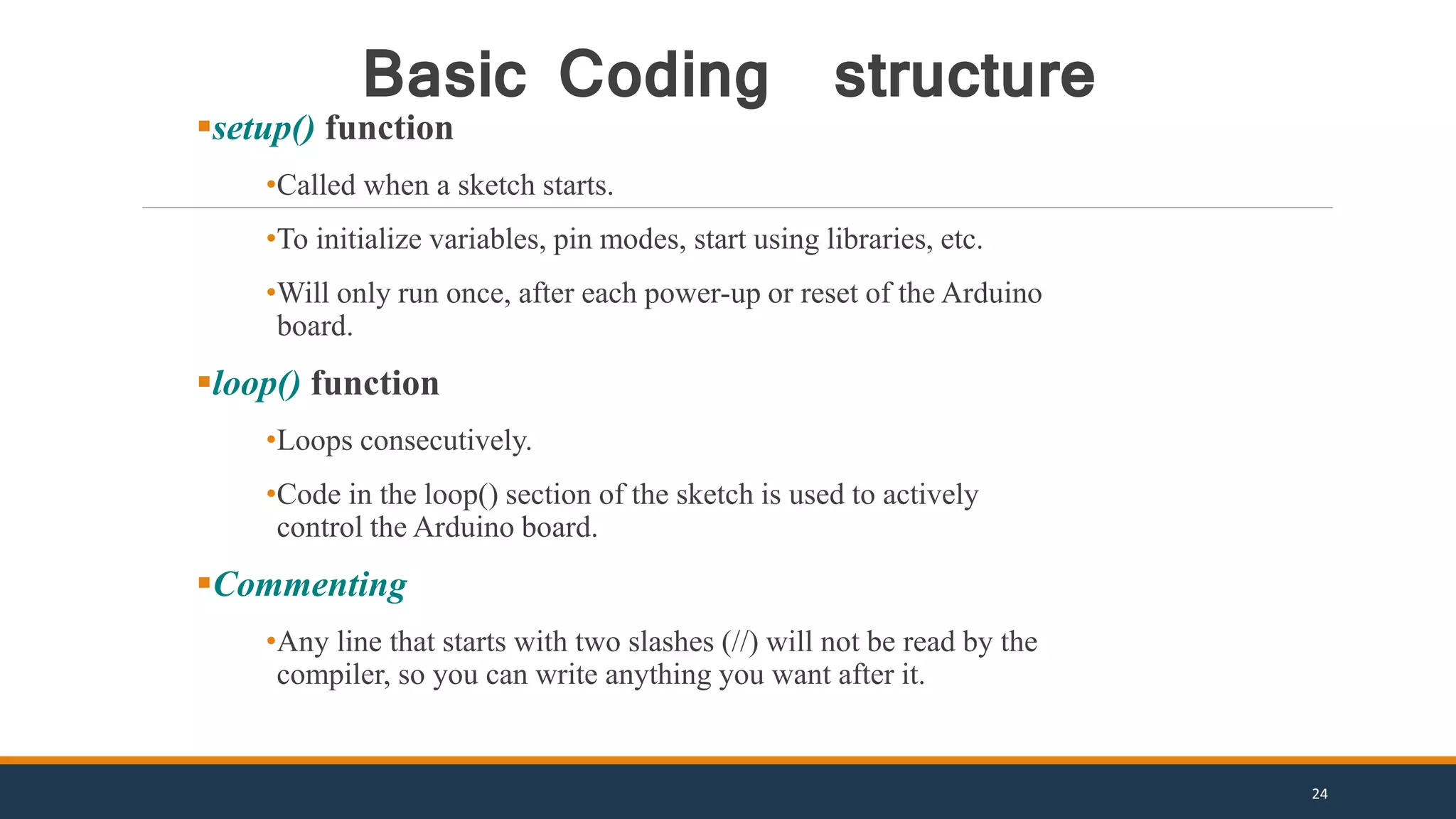

24. setup() function
•Called when a sketch starts.
•To initialize variables, pin modes, start using libraries, etc.
•Will only run once, after each power-up or reset of the Arduino
board.
loop() function
•Loops consecutively.
•Code in the loop() section of the sketch is used to actively
control the Arduino board.
Commenting
•Any line that starts with two slashes (//) will not be read by the
compiler, so you can write anything you want after it.
Basic Coding structure
24

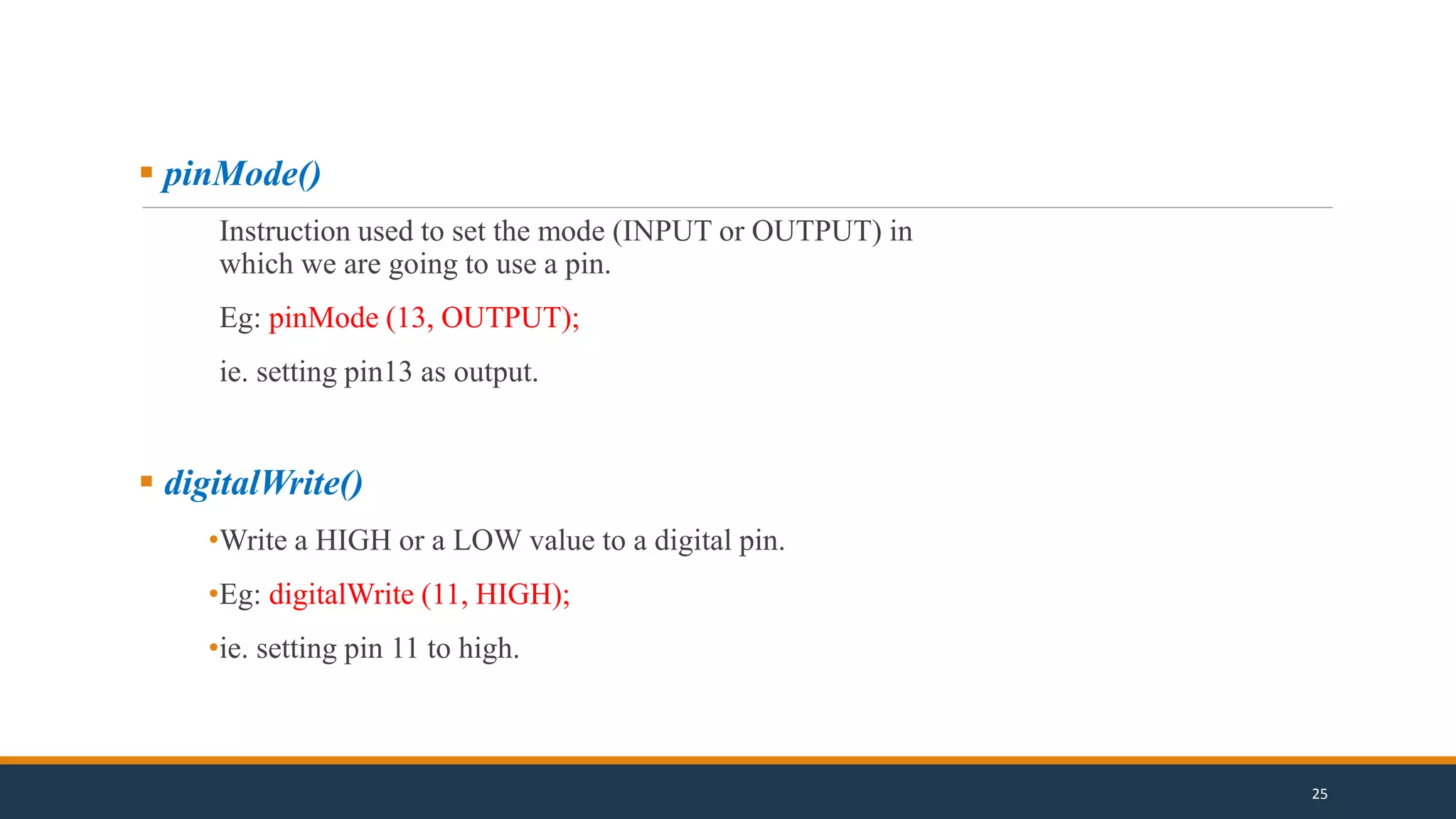

25.  pinMode()
Instruction used to set the mode (INPUT or OUTPUT) in
which we are going to use a pin.
Eg: pinMode (13, OUTPUT);
ie. setting pin13 as output.
 digitalWrite()
•Write a HIGH or a LOW value to a digital pin.
•Eg: digitalWrite (11, HIGH);
•ie. setting pin 11 to high.
25

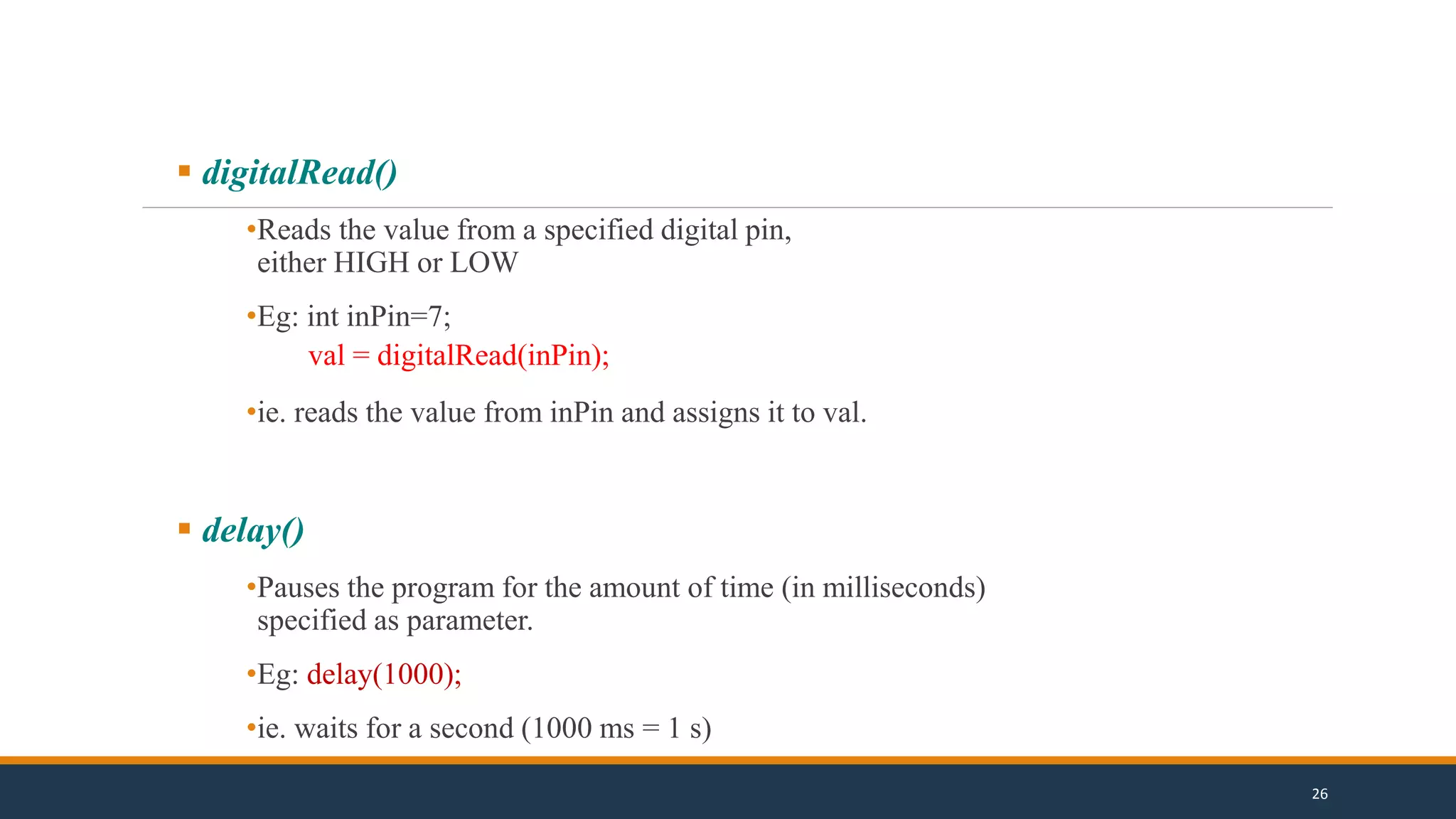

26.  digitalRead()
•Reads the value from a specified digital pin,
either HIGH or LOW
•Eg: int inPin=7;
val = digitalRead(inPin);
•ie. reads the value from inPin and assigns it to val.
 delay()
•Pauses the program for the amount of time (in milliseconds)
specified as parameter.
•Eg: delay(1000);
•ie. waits for a second (1000 ms = 1 s)
26

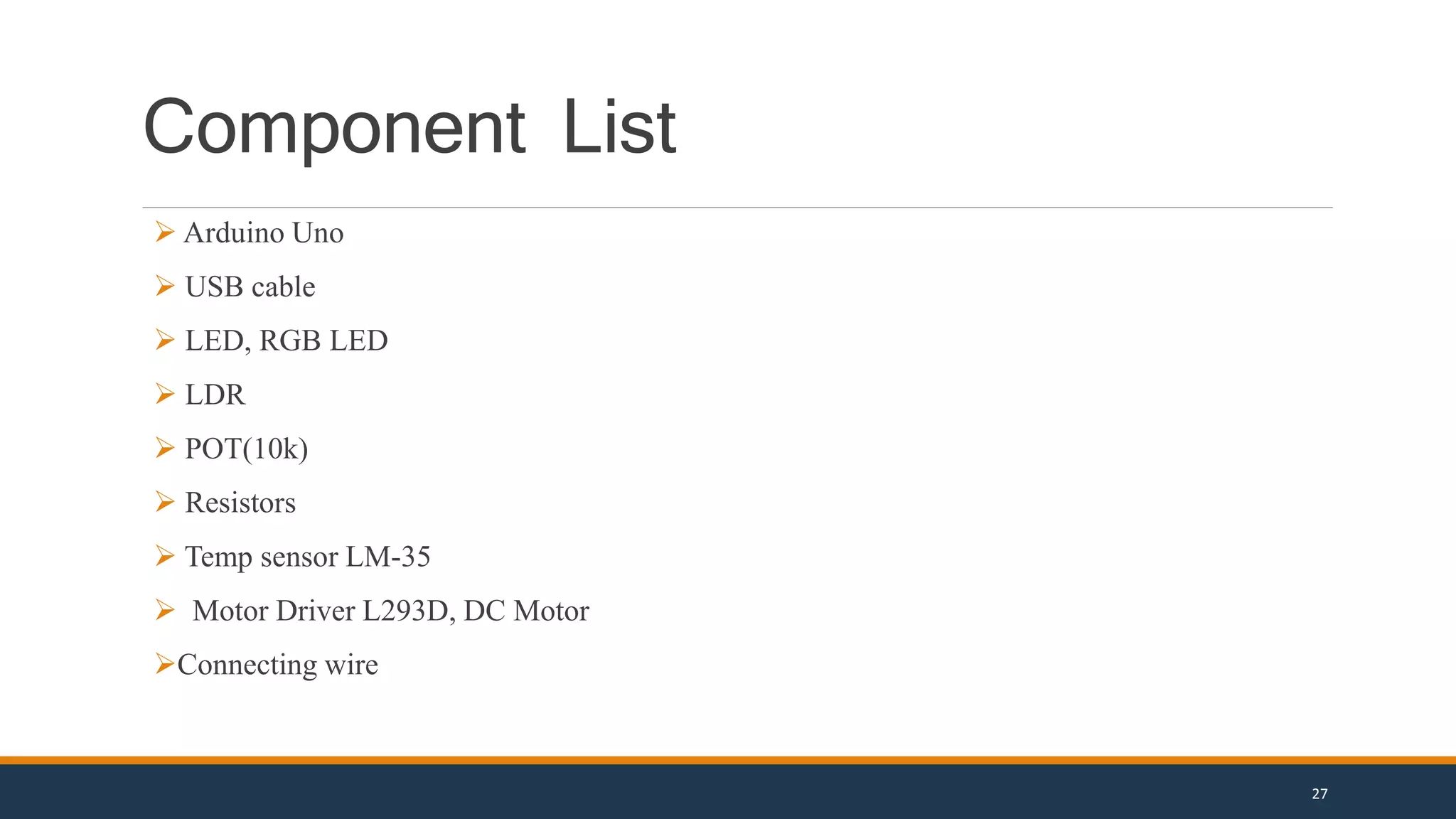

27. Component List
 Arduino Uno
 USB cable
 LED, RGB LED
 LDR
 POT(10k)
 Resistors
 Temp sensor LM-35
 Motor Driver L293D, DC Motor
Connecting wire
27

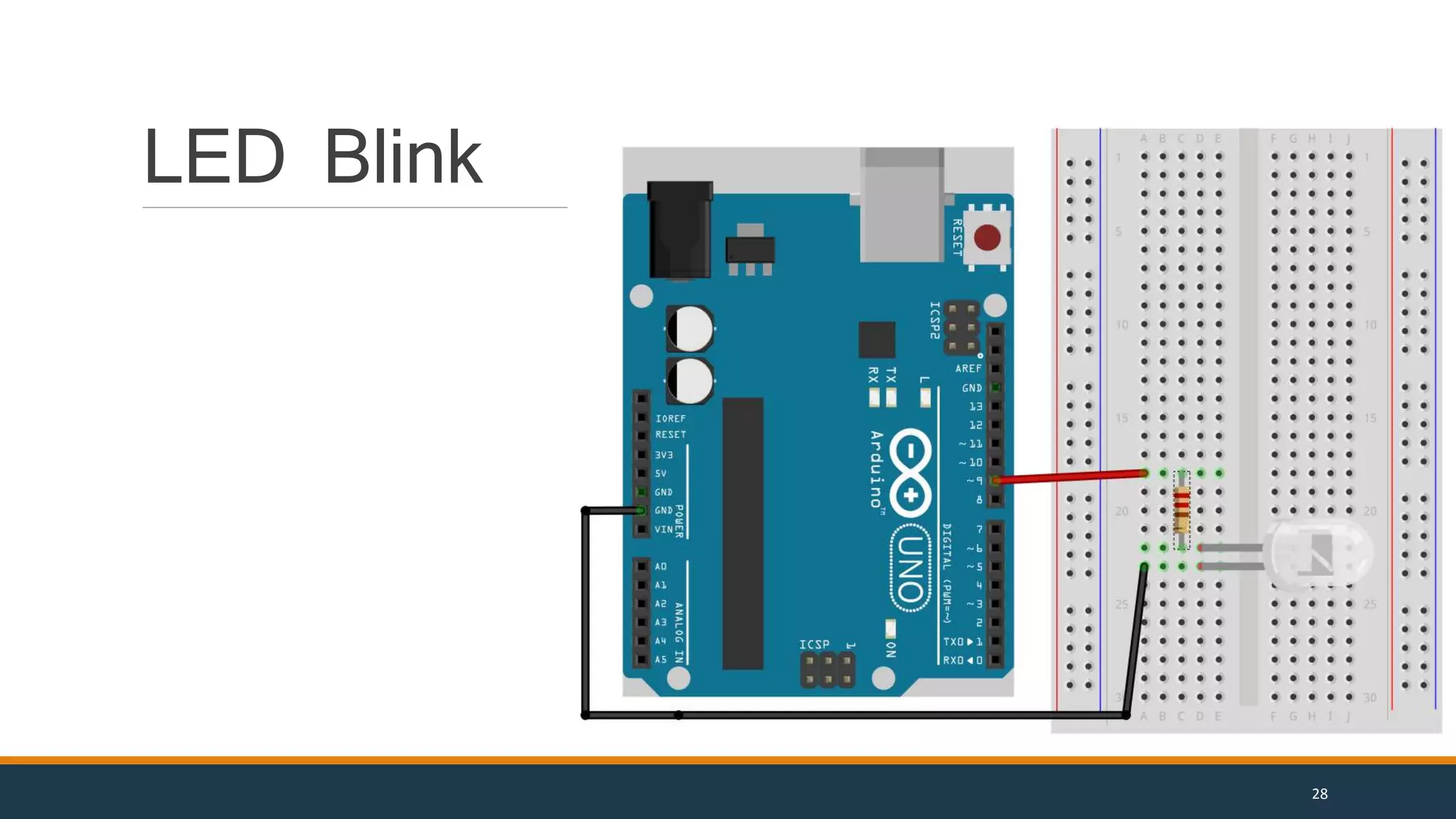

28. LED Blink
28

29. Digital Read
29

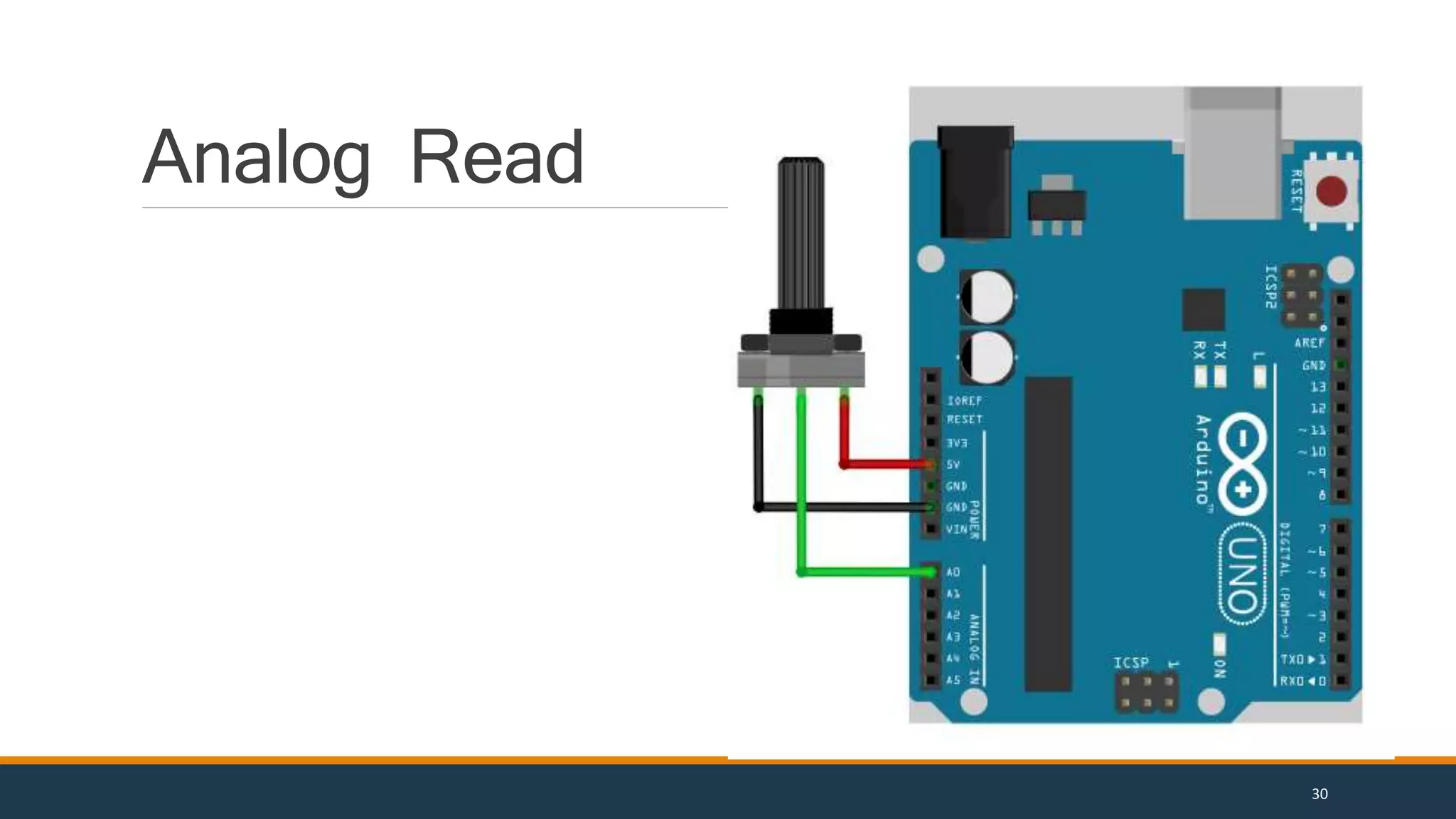

30. Analog Read
30

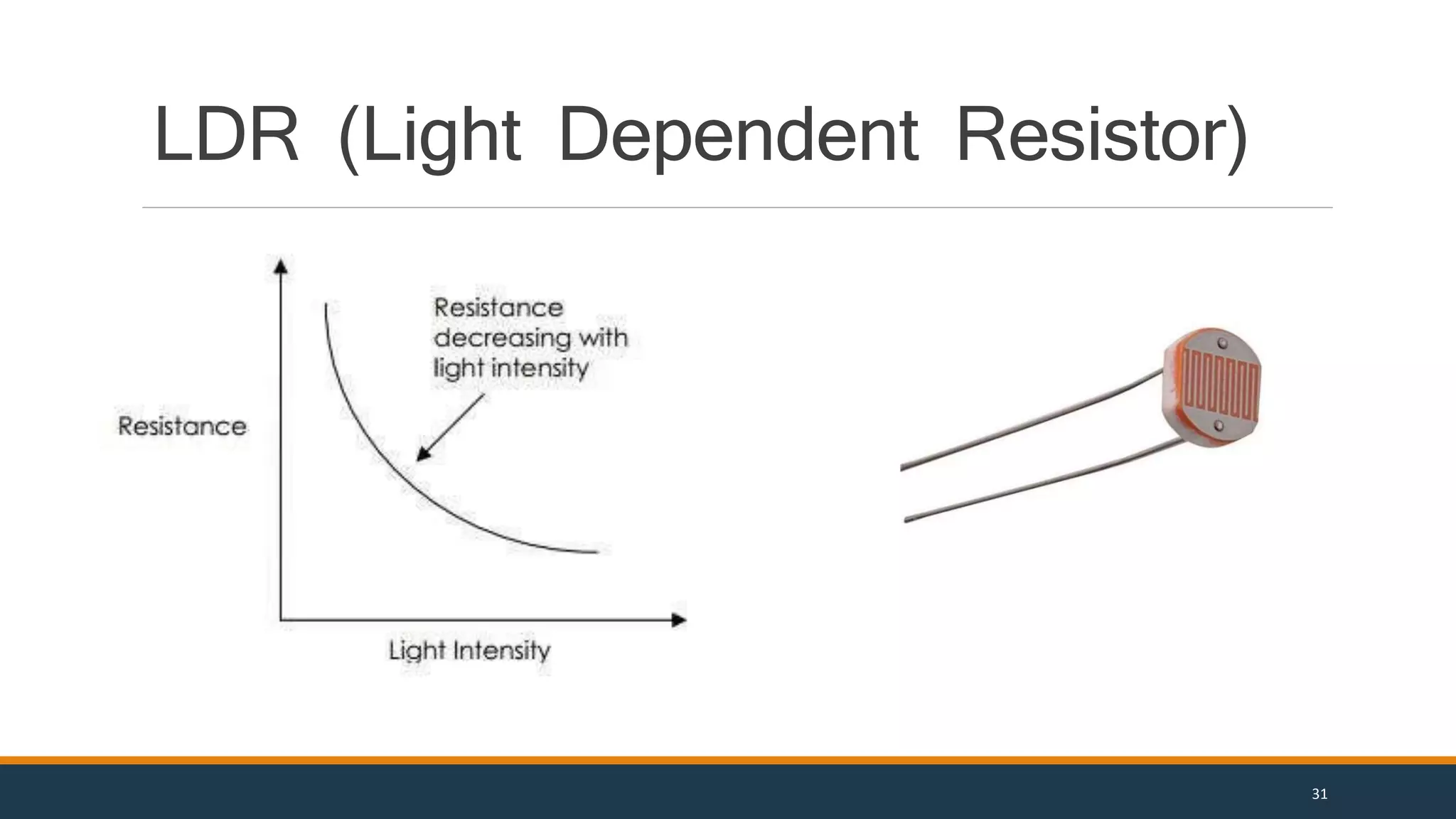

31. LDR (Light Dependent Resistor)
31

32. LDR - Wiring
32

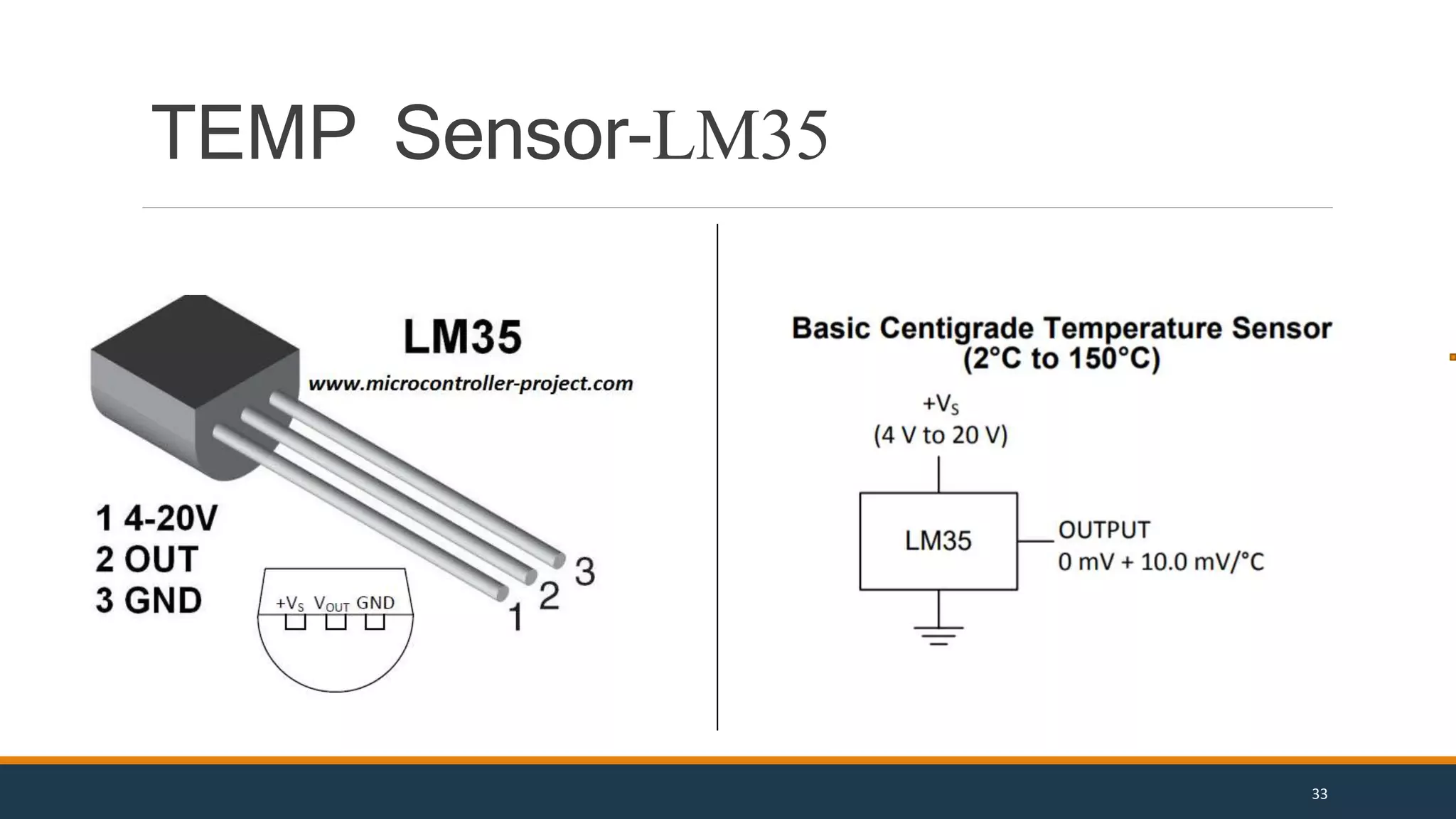

33. TEMP Sensor-LM35
33

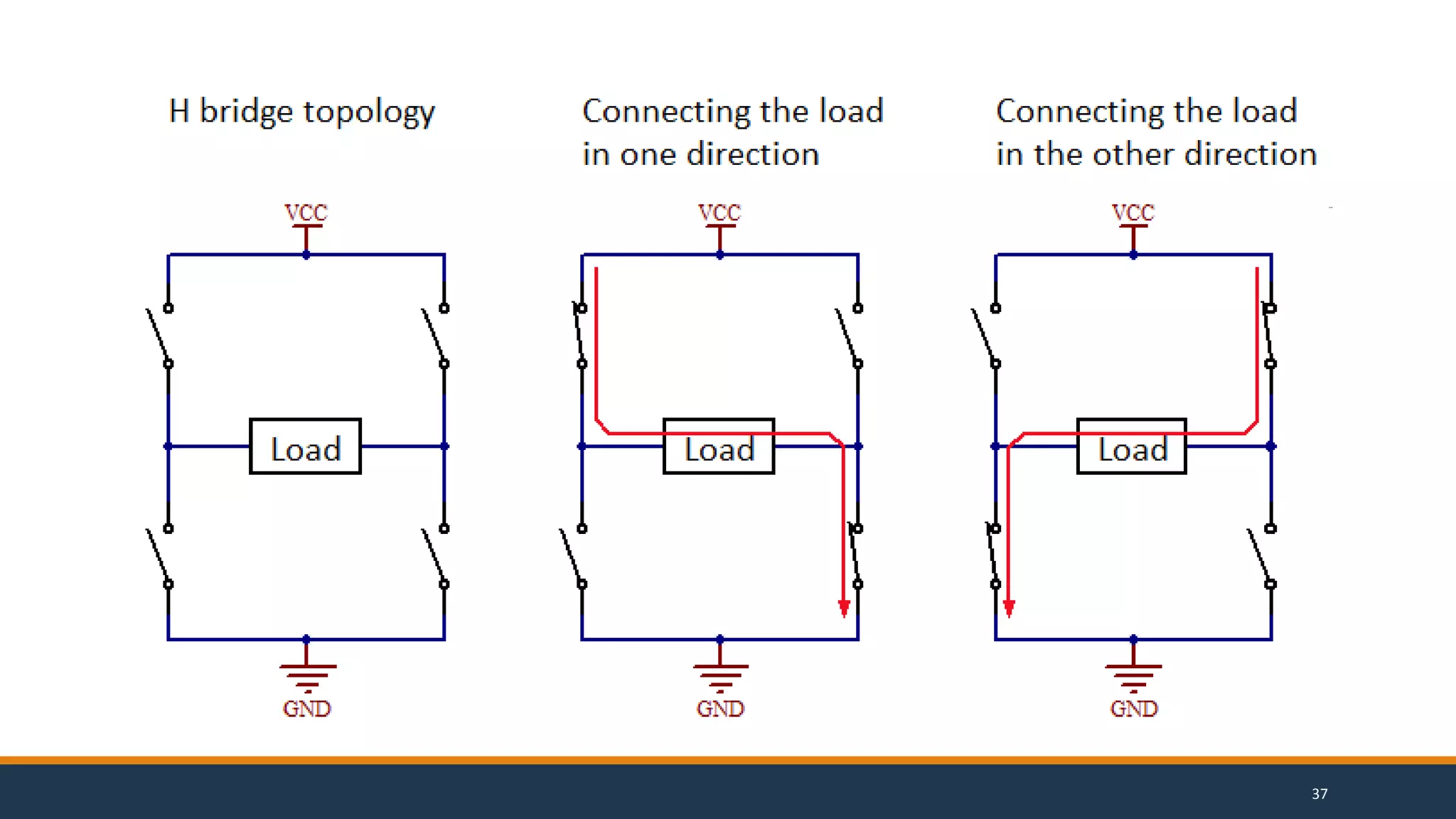

34. 34

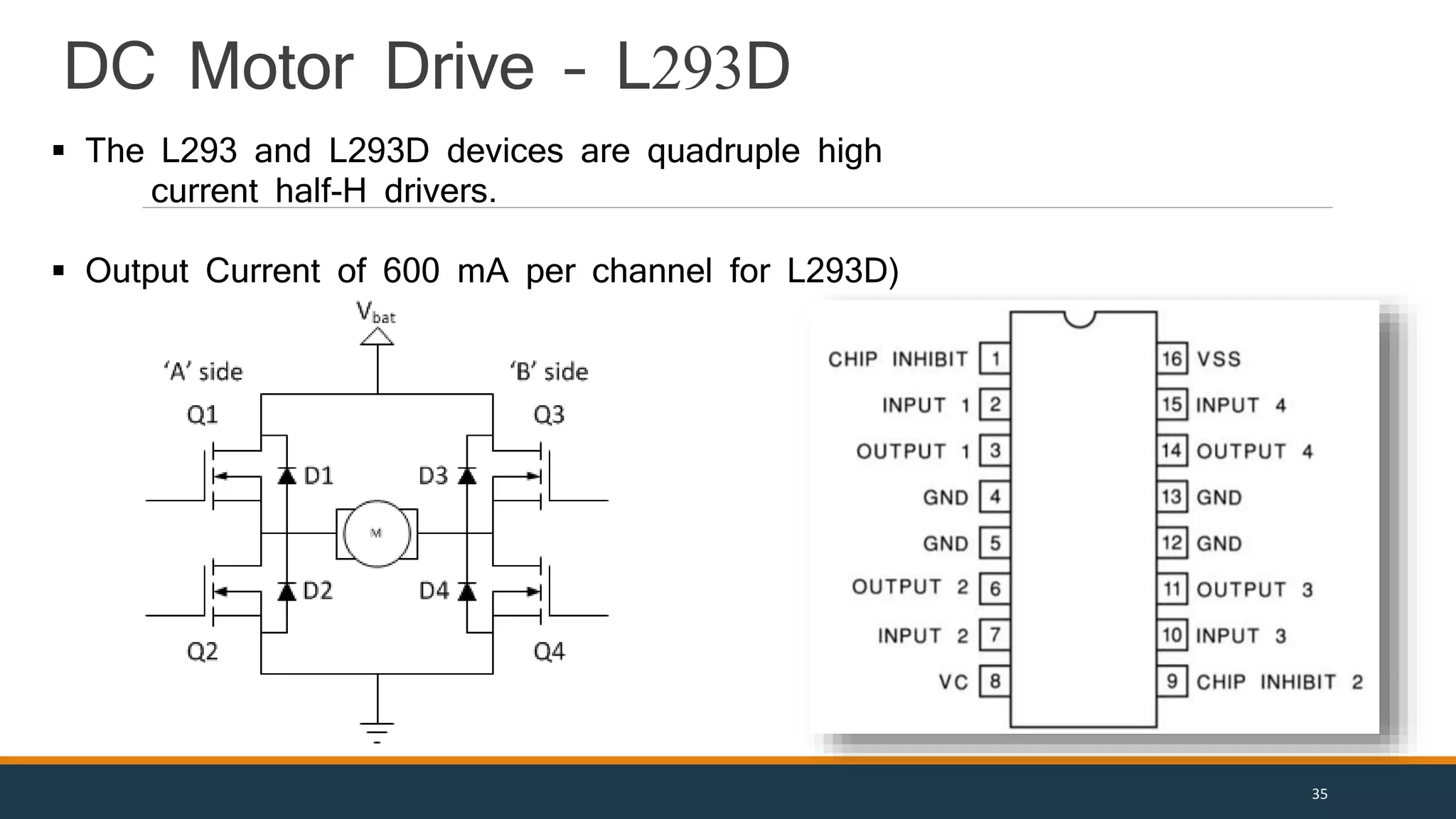

35. Motor Driver Circuit (L293D)
 The L293 and L293D devices are quadruple high
current half-H drivers.
 Output Current of 600 mA per channel for L293D)
DC Motor Drive – L293D
35

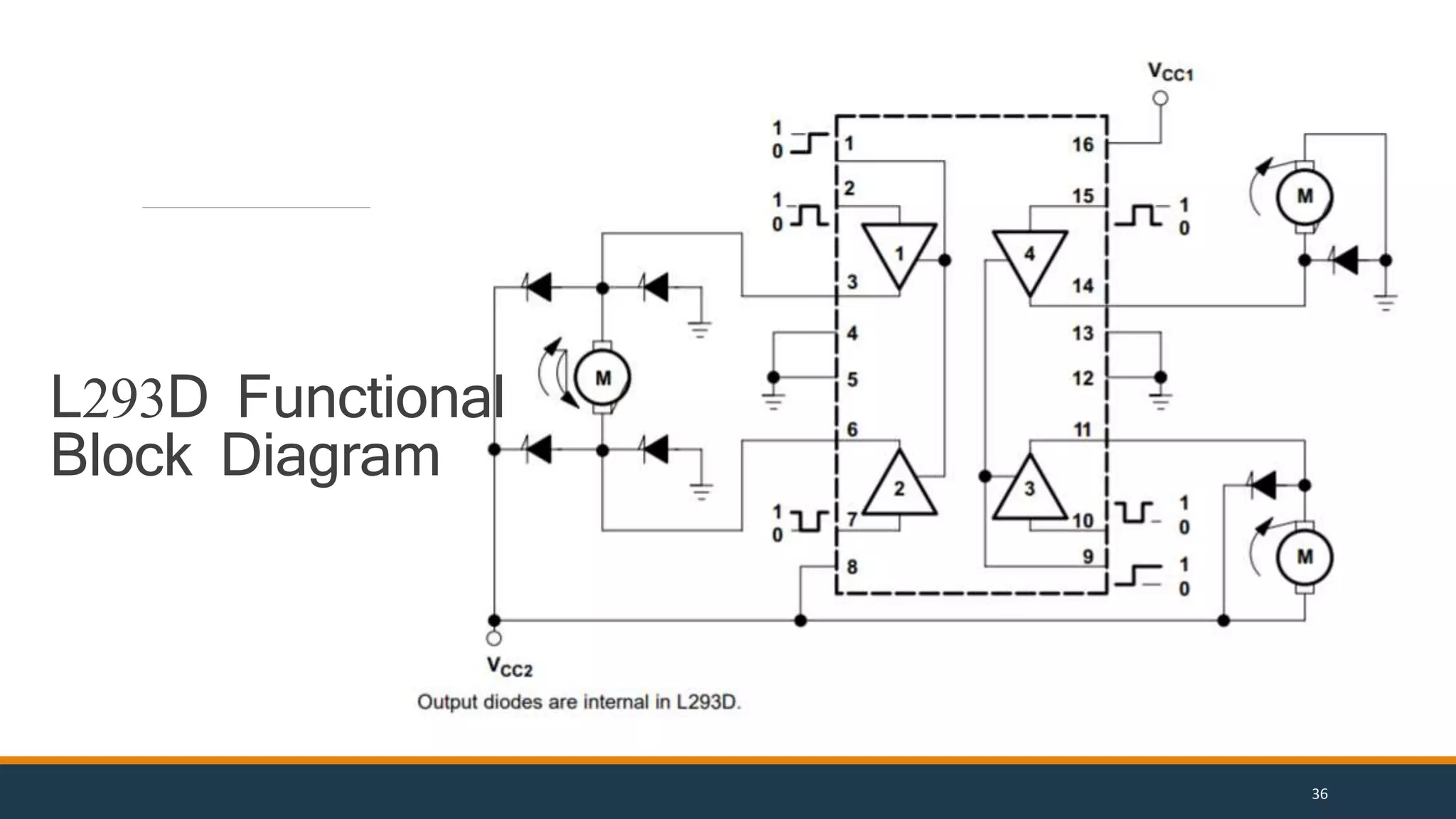

36. L293D Functional
Block Diagram
36

37. 37

38. DC Motor Control
using L293D
38

39. RGB LED
Vcc
Green
Blue
Red
39

40. “How much more Arduino can
do is only left to your
imagination”
40

41. Thank you
41
