1. Denis Danov @DreamixDenis Danov @Dreamix

2. About Denis
Oracle and Java Developer @Dreamix

3. What is an Arduino?

4. How to get the Arduino?
 Buy an original $ 50 Arduino
http://store.arduino.cc
http://www.robotev.com (for Bulgaria)
 Arduino compatible motherboard for 4.50$
additional driver "CH341SER"
aliexpress.com
 Download IDE drivers from
http://arduino.cc/en/Guide/Windows

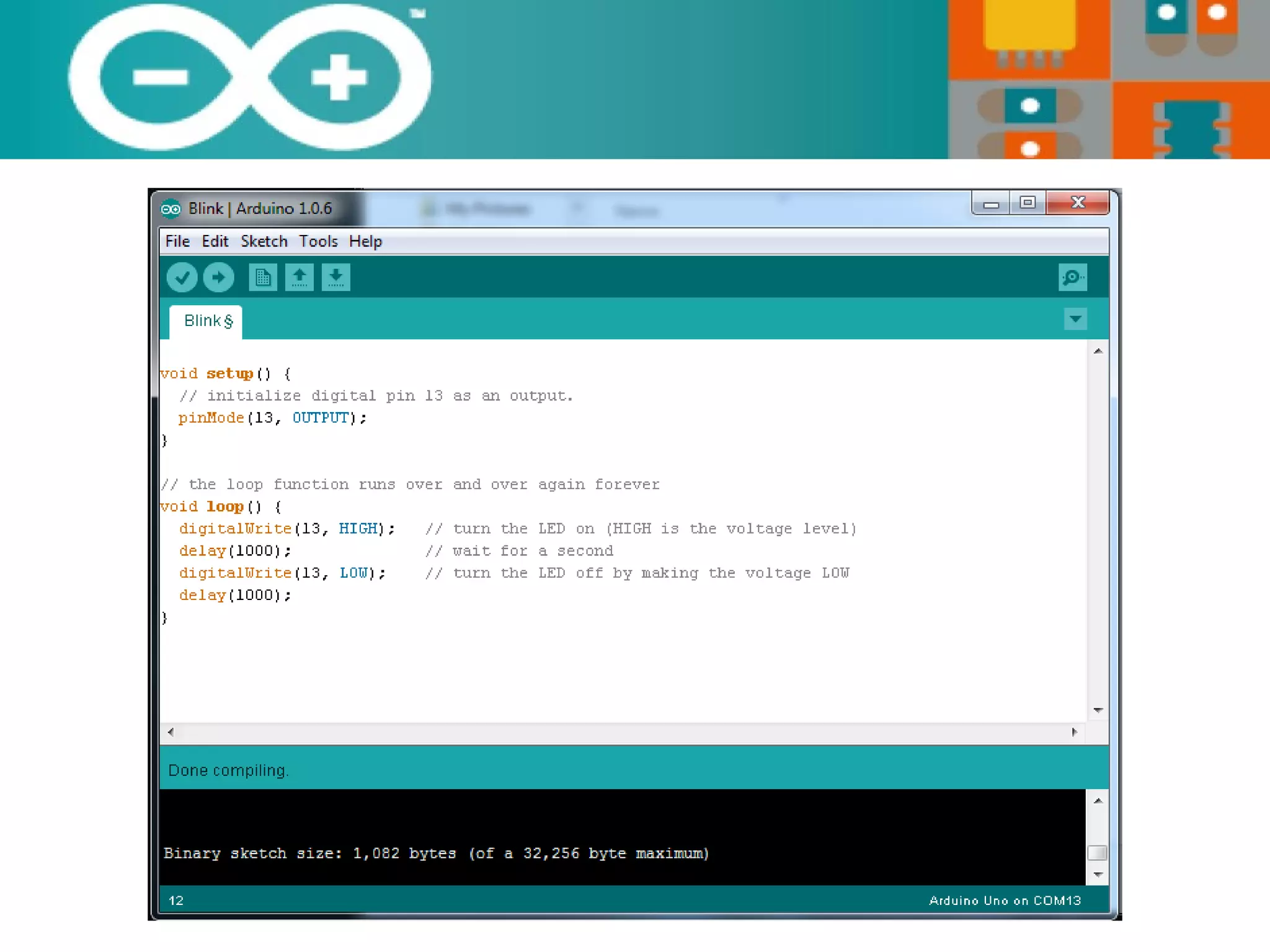

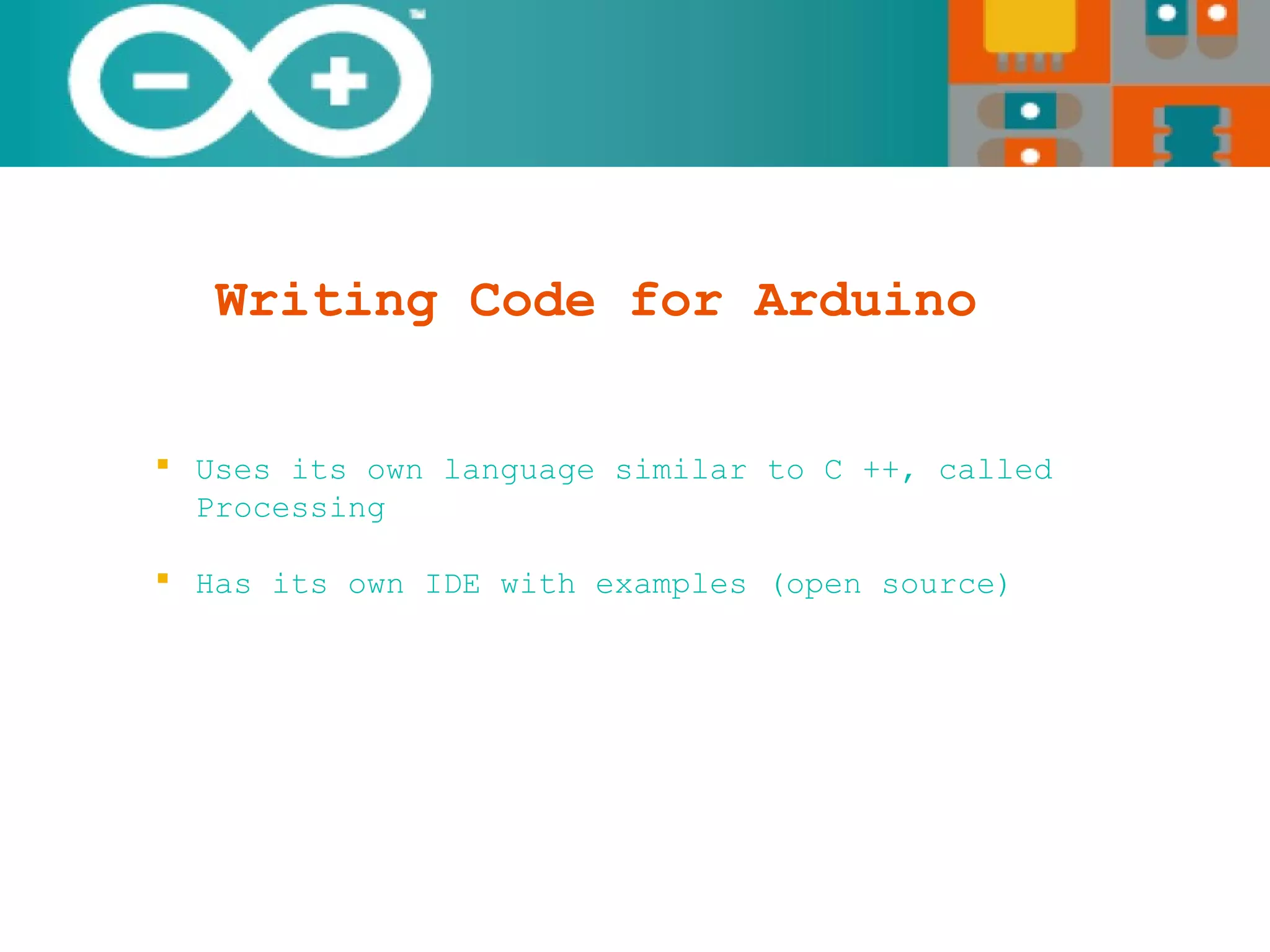

5. Writing Code for Arduino
 Uses its own language similar to C ++, called
Processing
 Has its own IDE with examples (open source)

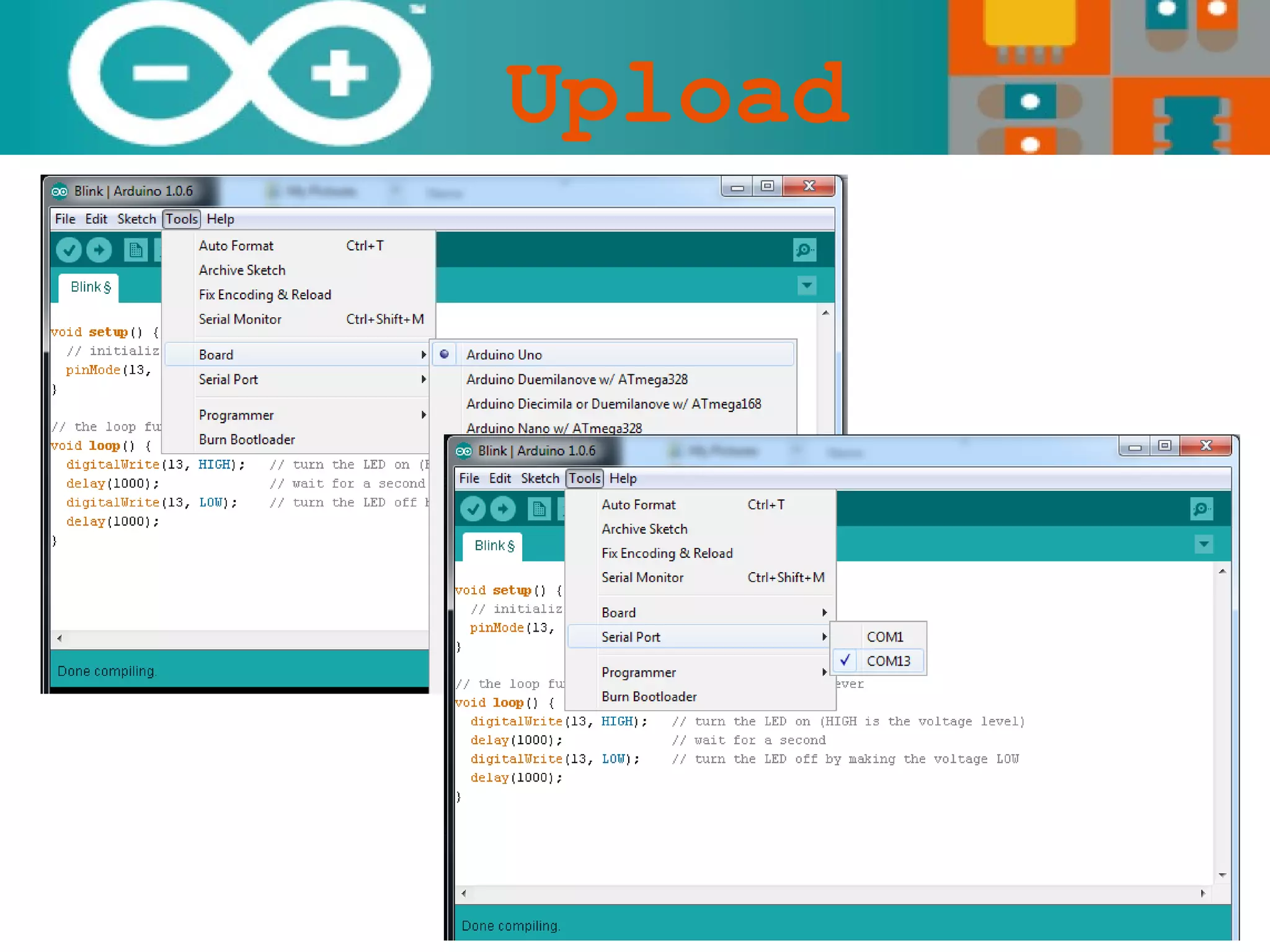

7. Upload

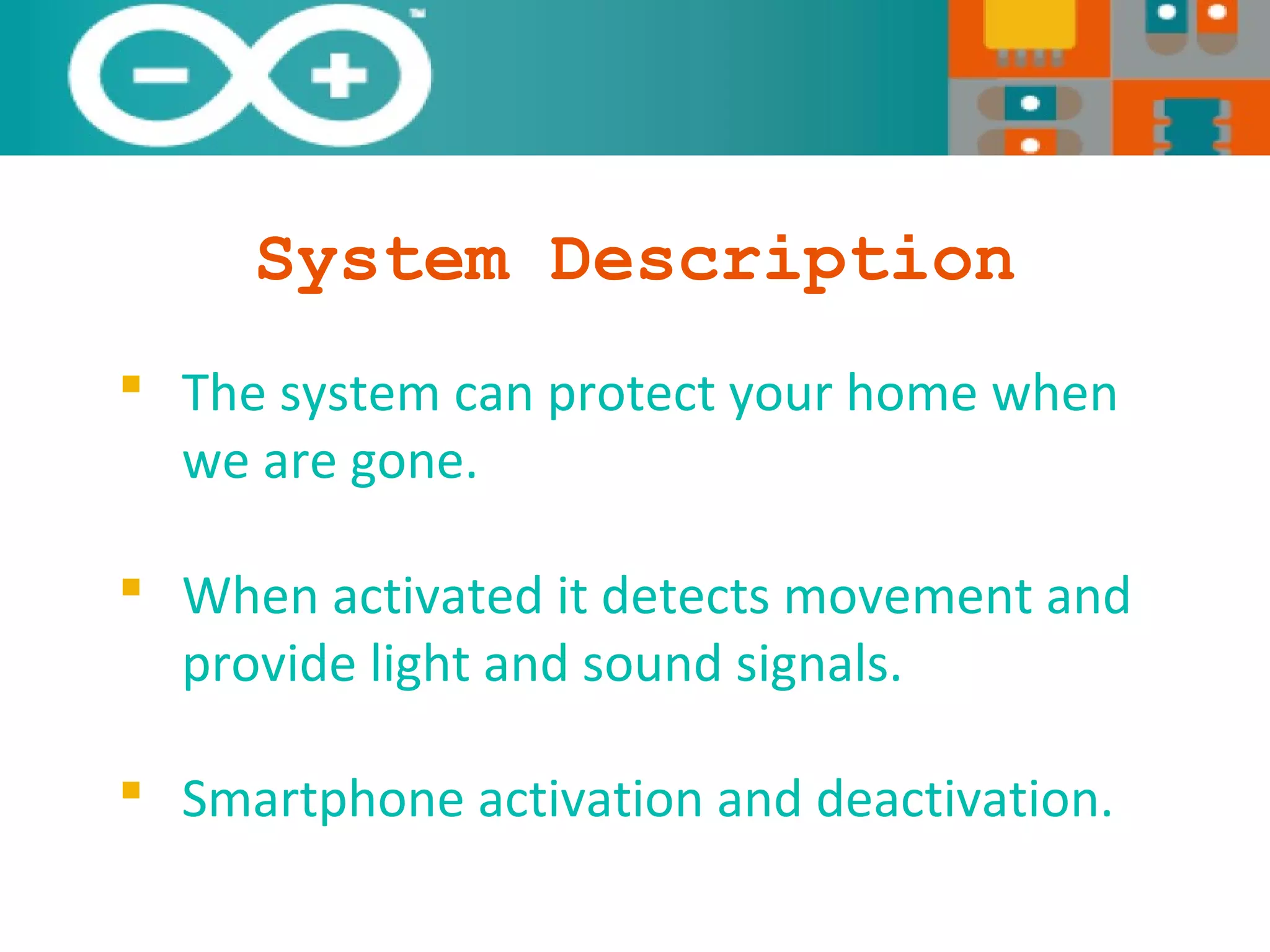

8. System Description
 The system can protect your home when
we are gone.
 When activated it detects movement and
provide light and sound signals.
 Smartphone activation and deactivation.

9. Components
 Arduino Uno board
 Piezo Crystal speaker
 Bluetooth module HC-06
 Motion sensor - PIR

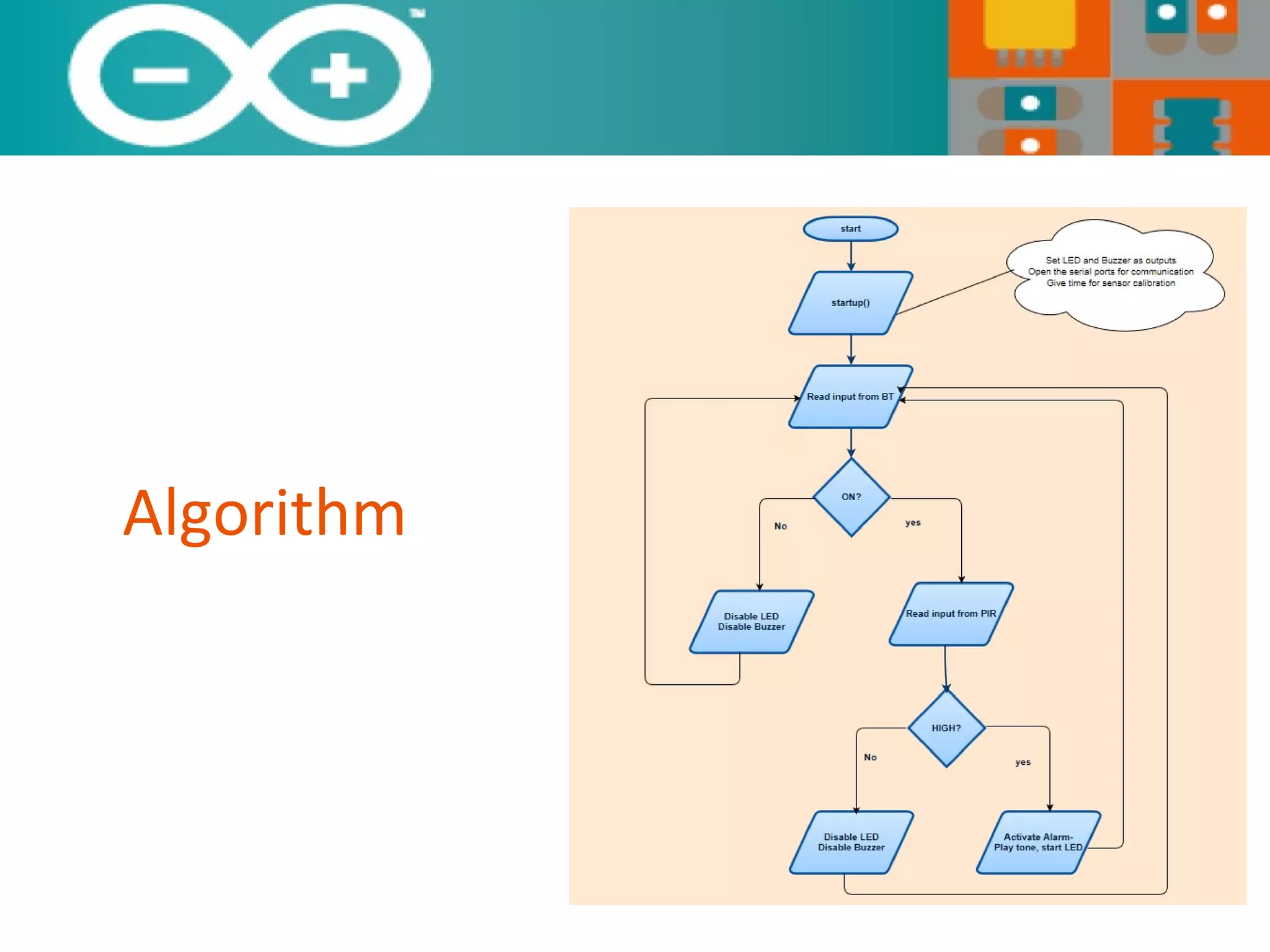

10. Algorithm

11. DEMO
