ANTI ANGINAL
AGENTS
BY
KENCHA SWATHI

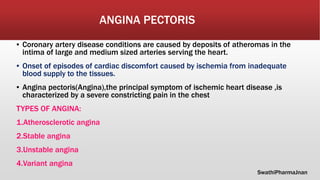

ANGINA PECTORIS
▪ Coronary artery disease conditions are caused by deposits of atheromas in the
intima of large and medium sized arteries serving the heart.
▪ Onset of episodes of cardiac discomfort caused by ischemia from inadequate
blood supply to the tissues.
▪ Angina pectoris(Angina),the principal symptom of ischemic heart disease ,is
characterized by a severe constricting pain in the chest
TYPES OF ANGINA:
1.Atherosclerotic angina
2.Stable angina
3.Unstable angina
4.Variant angina
SwathiPharmaJnan

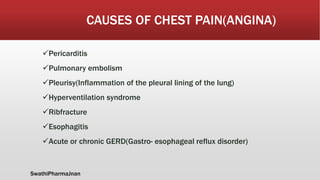

CAUSES OF CHEST PAIN(ANGINA)
Pericarditis
Pulmonary embolism
Pleurisy(Inflammation of the pleural lining of the lung)
Hyperventilation syndrome
Ribfracture
Esophagitis
Acute or chronic GERD(Gastro- esophageal reflux disorder)
SwathiPharmaJnan

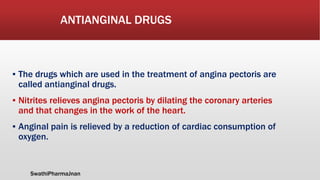

ANTIANGINAL DRUGS
▪ The drugs which are used in the treatment of angina pectoris are
called antianginal drugs.
▪ Nitrites relieves angina pectoris by dilating the coronary arteries
and that changes in the work of the heart.
▪ Anginal pain is relieved by a reduction of cardiac consumption of
oxygen.
SwathiPharmaJnan
Classification of antianginal agents
▪ Nitrates (Nitrovasodilators)– Amyl nitrite, Nitroglycerine,
Pentaerythritol tetranitrate,Isosorbide dinitrate
▪ β -blockers –Propranolol,Metoprolol,Atenolol
▪ Calcium channel blockers –Verapamil,Diltiazem,Nifedipine
▪ Potassium channel openers –Nicorandil
▪ Miscellaneous –Dipyridamole
SwathiPharmaJnan

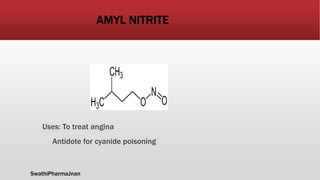

AMYL NITRITE
Uses: To treat angina
Antidote for cyanide poisoning
SwathiPharmaJnan

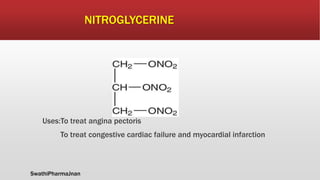

NITROGLYCERINE
Uses:To treat angina pectoris
To treat congestive cardiac failure and myocardial infarction
SwathiPharmaJnan

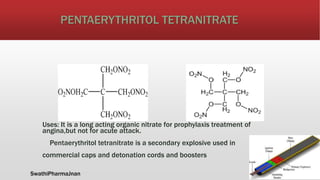

PENTAERYTHRITOL TETRANITRATE
Uses: It is a long acting organic nitrate for prophylaxis treatment of
angina,but not for acute attack.
Pentaerythritol tetranitrate is a secondary explosive used in
commercial caps and detonation cords and boosters
SwathiPharmaJnan

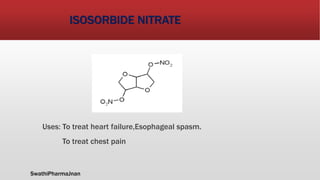

ISOSORBIDE NITRATE
Uses: To treat heart failure,Esophageal spasm.
To treat chest pain
SwathiPharmaJnan

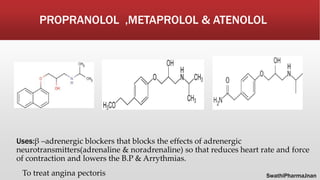

PROPRANOLOL ,METAPROLOL & ATENOLOL
Uses:β –adrenergic blockers that blocks the effects of adrenergic
neurotransmitters(adrenaline & noradrenaline) so that reduces heart rate and force
of contraction and lowers the B.P & Arrythmias.
To treat angina pectoris SwathiPharmaJnan

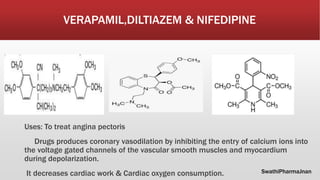

VERAPAMIL,DILTIAZEM & NIFEDIPINE
Uses: To treat angina pectoris
Drugs produces coronary vasodilation by inhibiting the entry of calcium ions into
the voltage gated channels of the vascular smooth muscles and myocardium
during depolarization.
It decreases cardiac work & Cardiac oxygen consumption. SwathiPharmaJnan

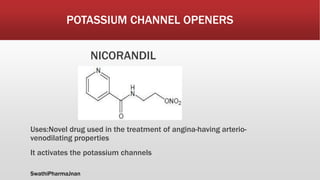

POTASSIUM CHANNEL OPENERS
NICORANDIL
Uses:Novel drug used in the treatment of angina-having arterio-
venodilating properties
It activates the potassium channels
SwathiPharmaJnan

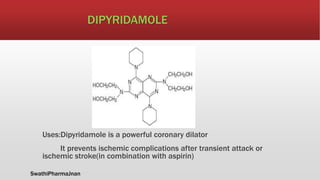

DIPYRIDAMOLE
Uses:Dipyridamole is a powerful coronary dilator
It prevents ischemic complications after transient attack or
ischemic stroke(in combination with aspirin)
SwathiPharmaJnan

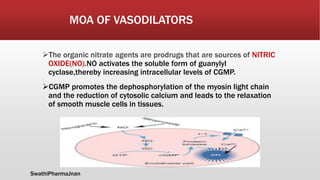

MOA OF VASODILATORS
The organic nitrate agents are prodrugs that are sources of NITRIC
OXIDE(NO).NO activates the soluble form of guanylyl
cyclase,thereby increasing intracellular levels of CGMP.
CGMP promotes the dephosphorylation of the myosin light chain
and the reduction of cytosolic calcium and leads to the relaxation
of smooth muscle cells in tissues.
SwathiPharmaJnan

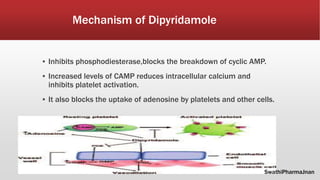

Mechanism of Dipyridamole
▪ Inhibits phosphodiesterase,blocks the breakdown of cyclic AMP.
▪ Increased levels of CAMP reduces intracellular calcium and
inhibits platelet activation.
▪ It also blocks the uptake of adenosine by platelets and other cells.
SwathiPharmaJnan
SYNTHESIS OF ISOSORBIDE DINITRATE
Isosorbide dinitrate
SwathiPharmaJnan

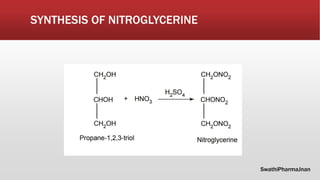

SYNTHESIS OF NITROGLYCERINE
SwathiPharmaJnan
