Ant is a Java-based build tool that is platform independent like Make but without its limitations. It uses XML configuration files and tasks run by Java objects to define projects and targets. Projects contain attributes and targets which contain tasks. Common tasks include compiling code and copying files. Properties are used to reference variables within the XML file. Ant is easy to use, extensible, standardized, and open source.

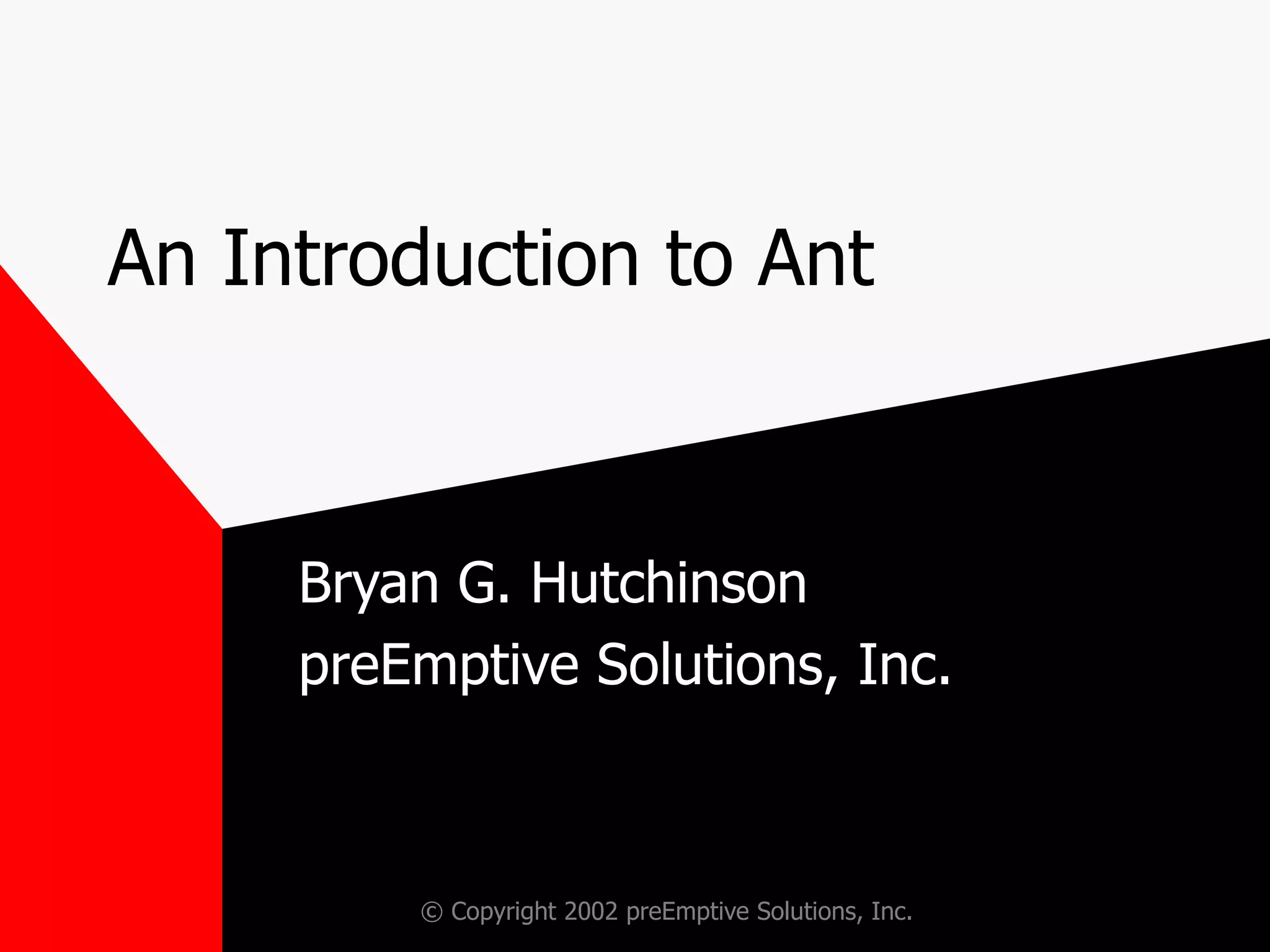

1. An Introduction to Ant Bryan G. Hutchinson preEmptive Solutions, Inc.

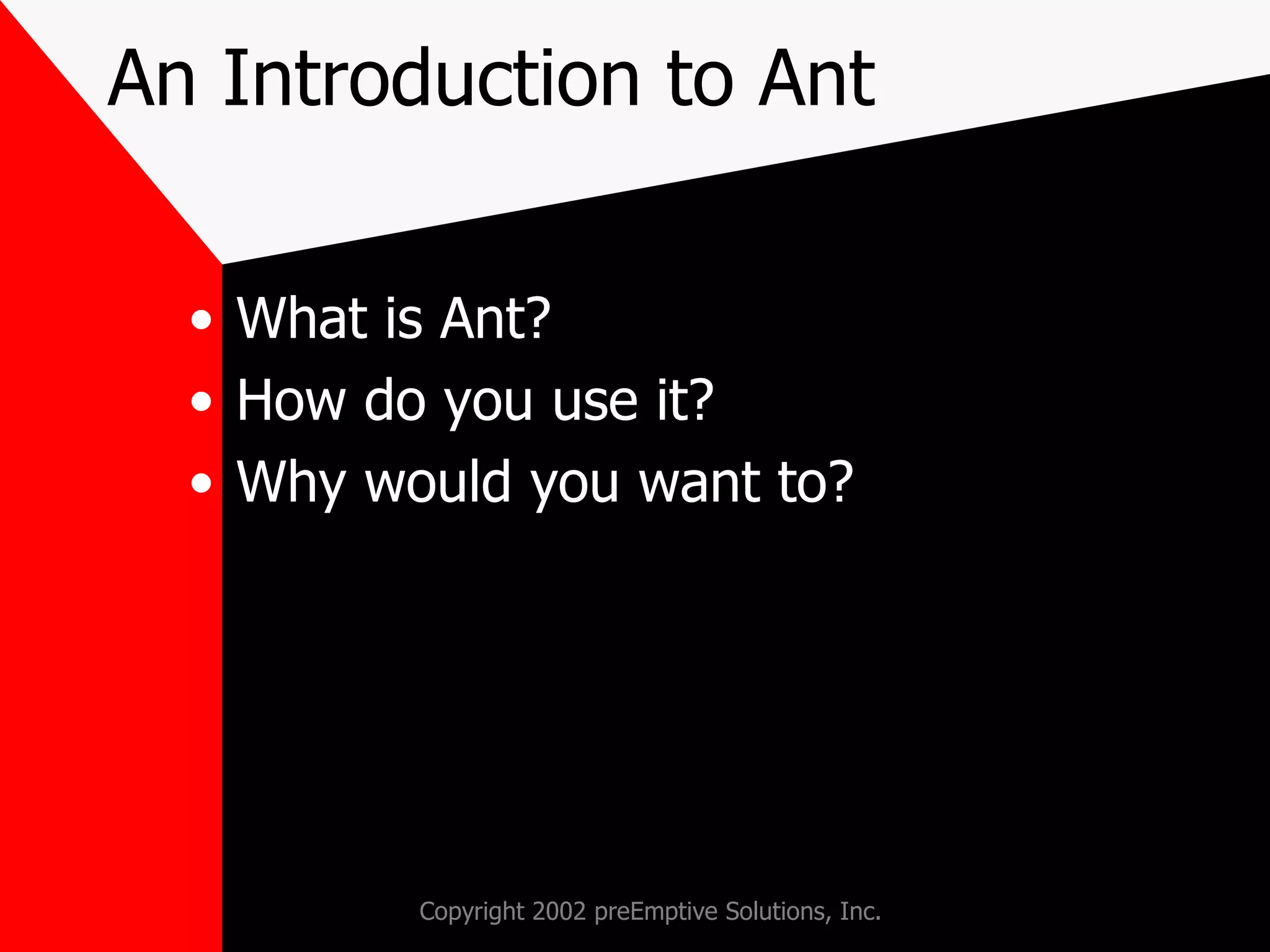

2. An Introduction to Ant What is Ant? How do you use it? Why would you want to?

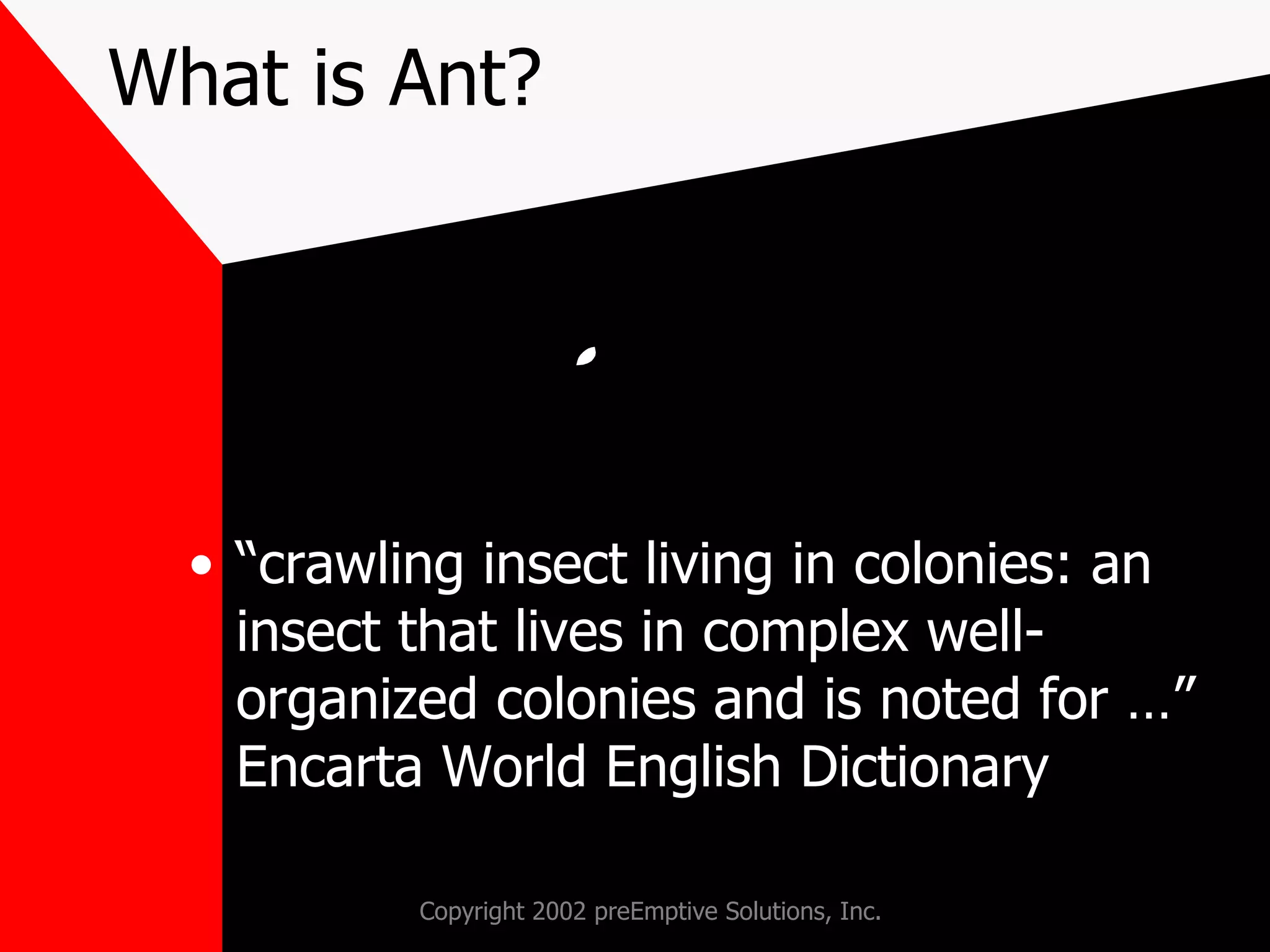

3. What is Ant? “crawling insect living in colonies: an insect that lives in complex well-organized colonies and is noted for …” Encarta World English Dictionary

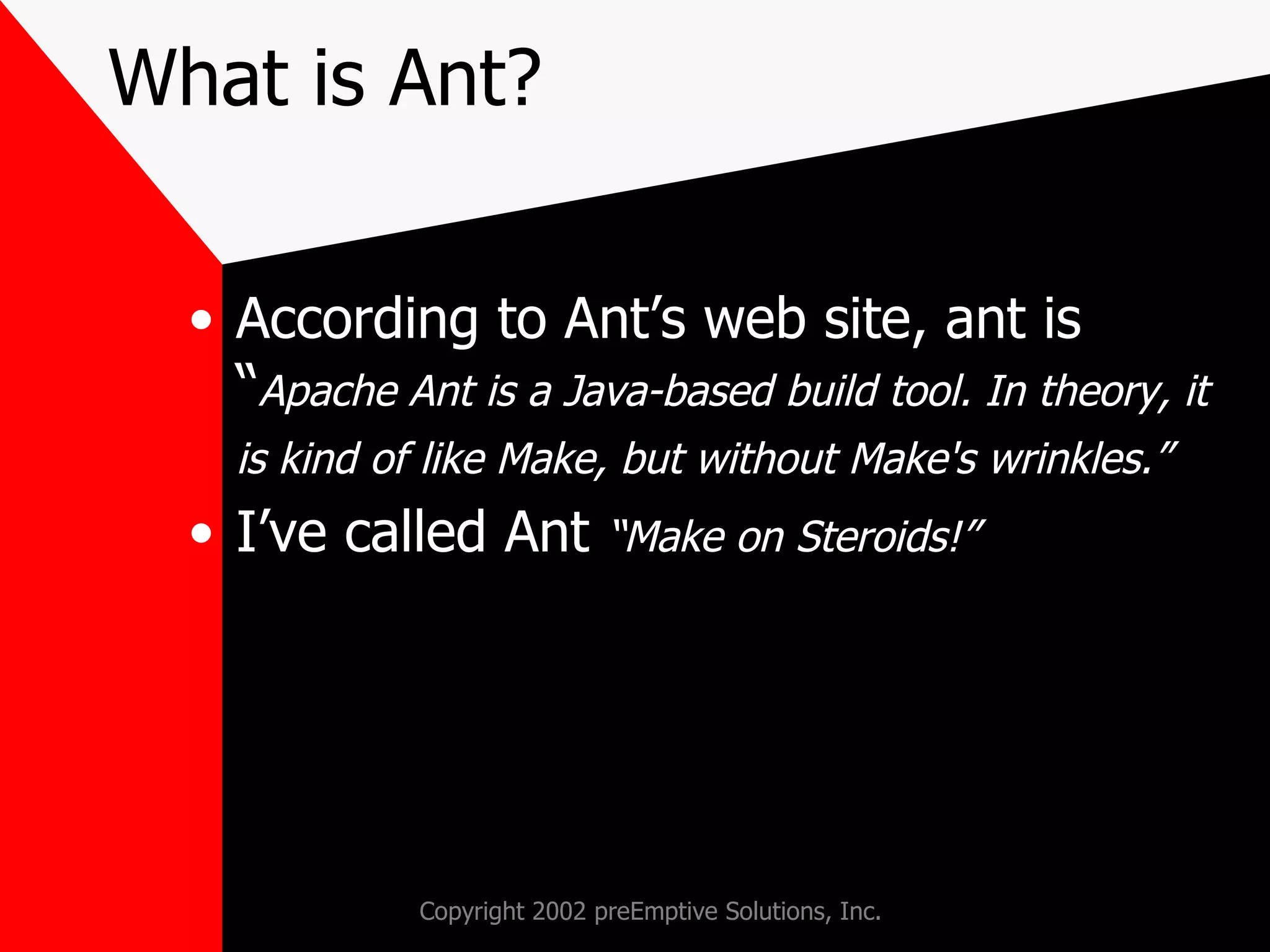

4. What is Ant? According to Ant’s web site, ant is “ Apache Ant is a Java-based build tool. In theory, it is kind of like Make, but without Make's wrinkles.” I’ve called Ant “Make on Steroids!”

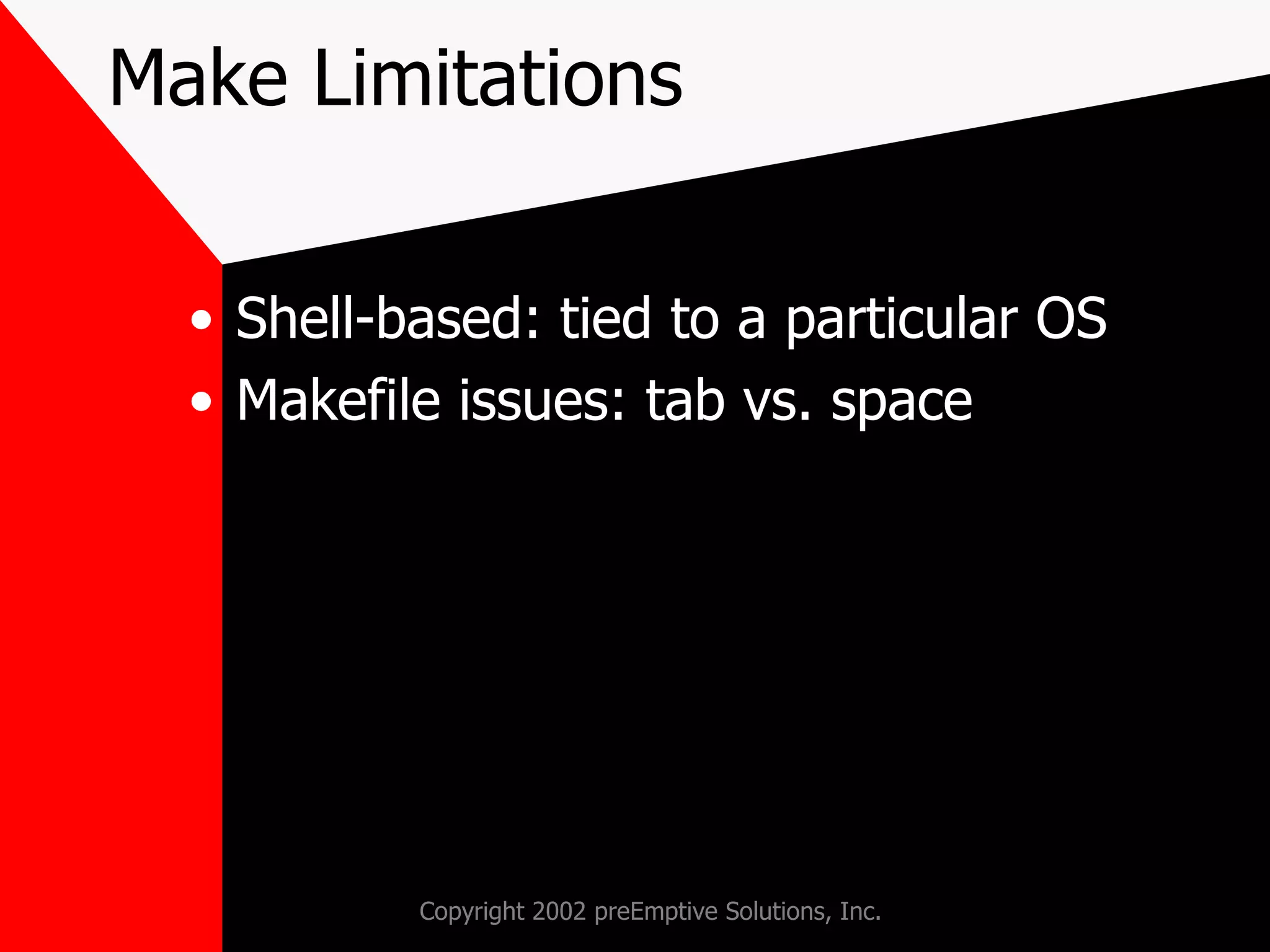

5. Make Limitations Shell-based: tied to a particular OS Makefile issues: tab vs. space

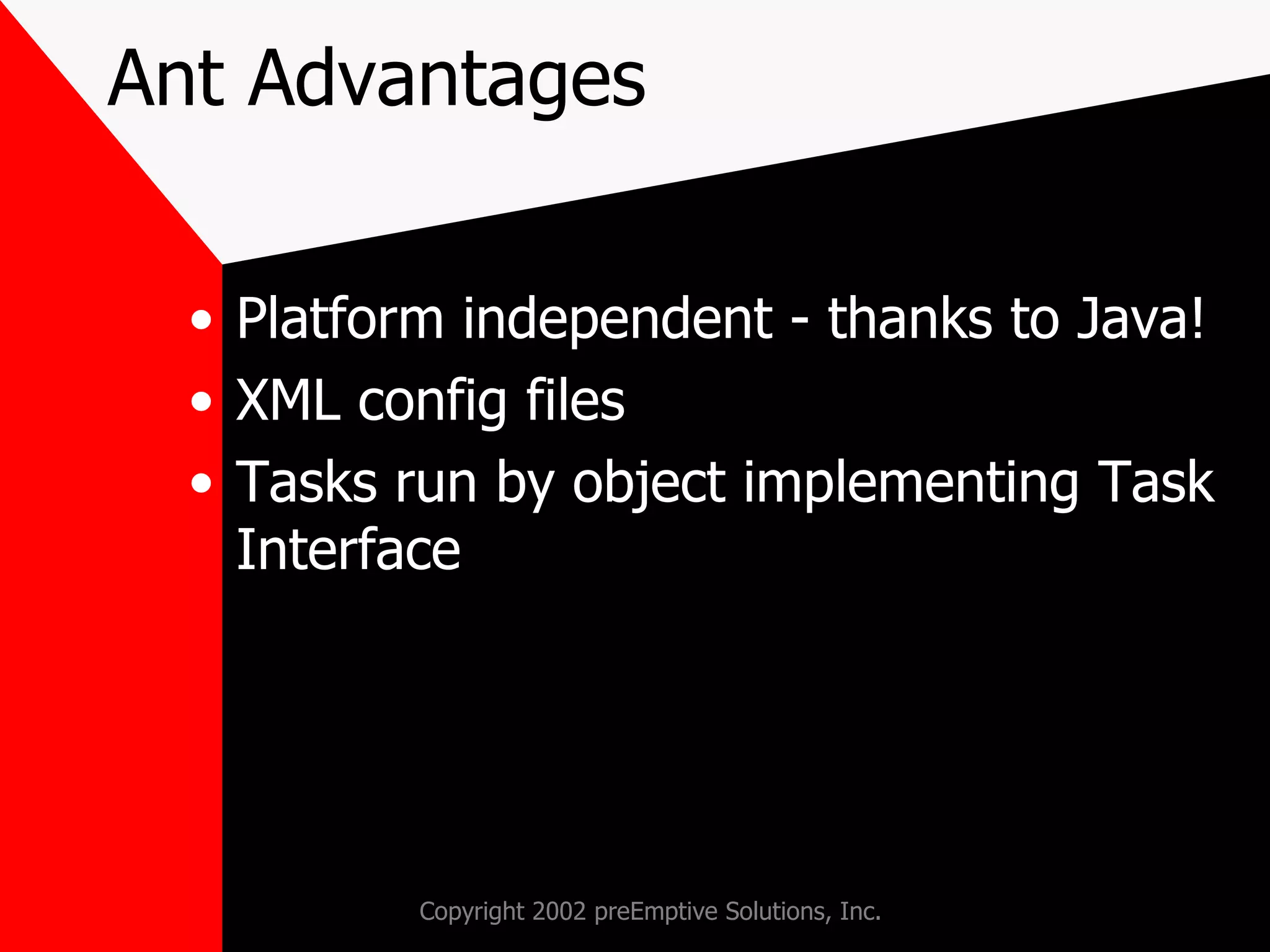

6. Ant Advantages Platform independent - thanks to Java! XML config files Tasks run by object implementing Task Interface

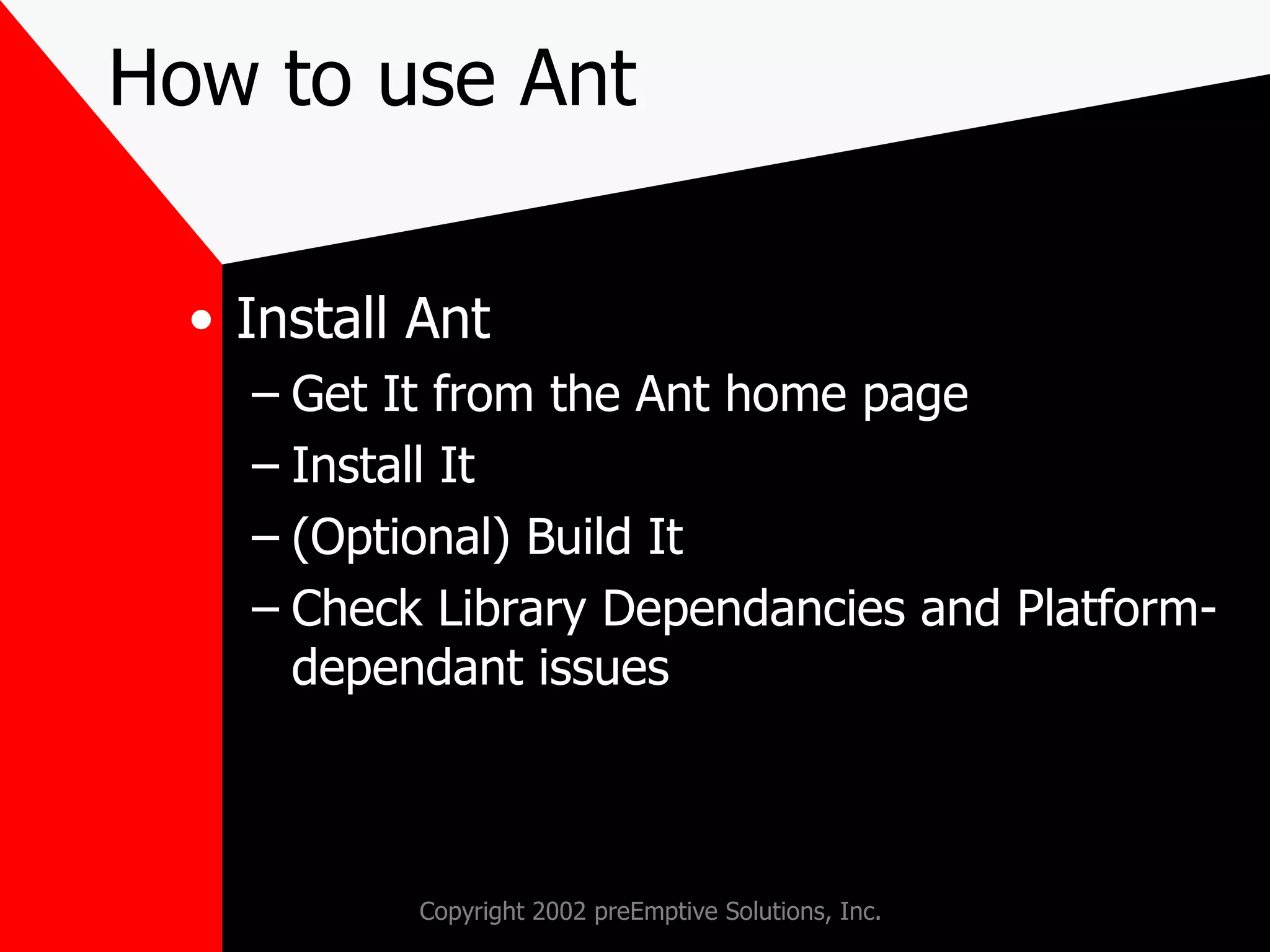

7. How to use Ant Install Ant Get It from the Ant home page Install It (Optional) Build It Check Library Dependancies and Platform-dependant issues

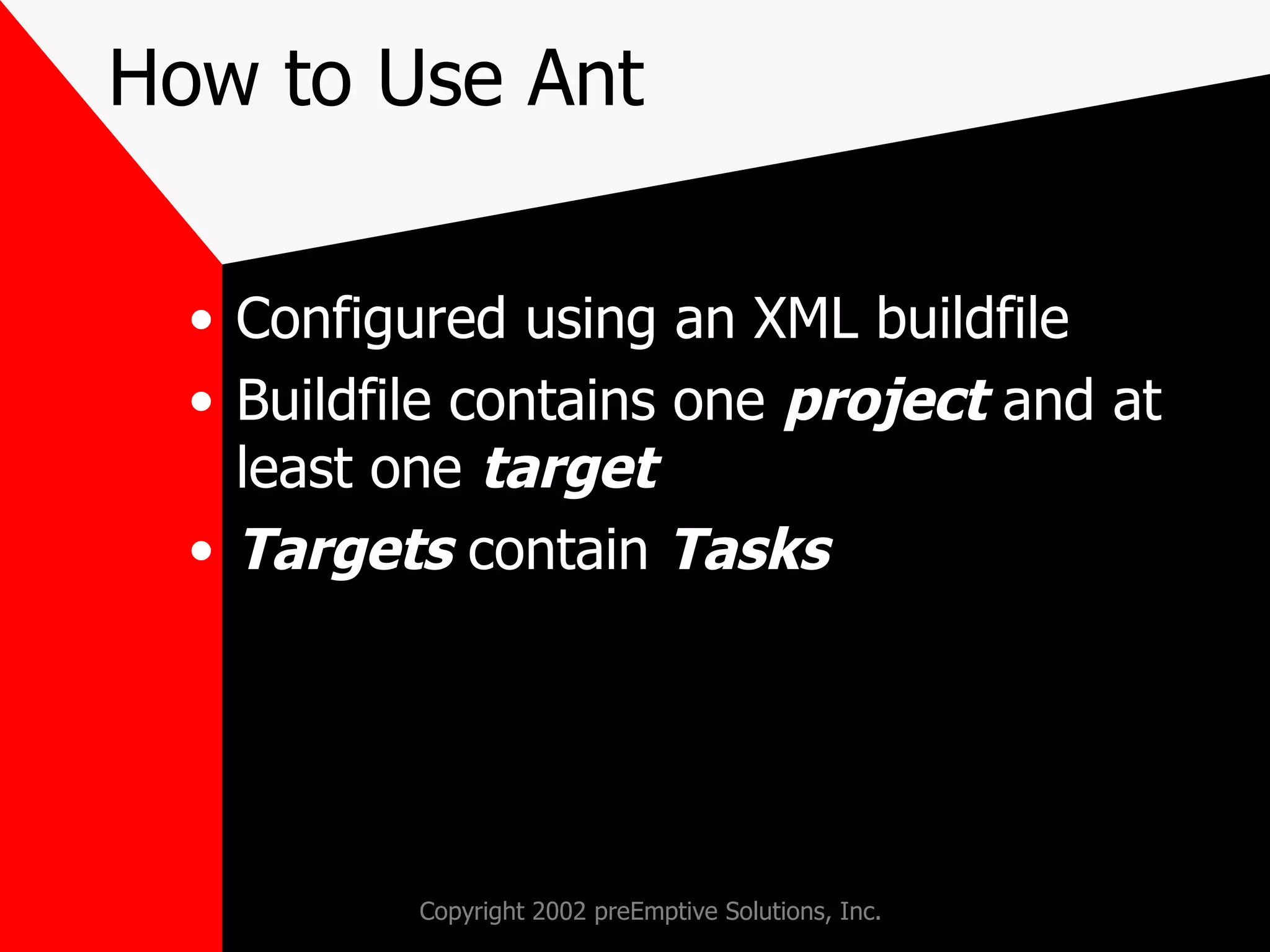

8. How to Use Ant Configured using an XML buildfile Buildfile contains one project and at least one target Targets contain Tasks

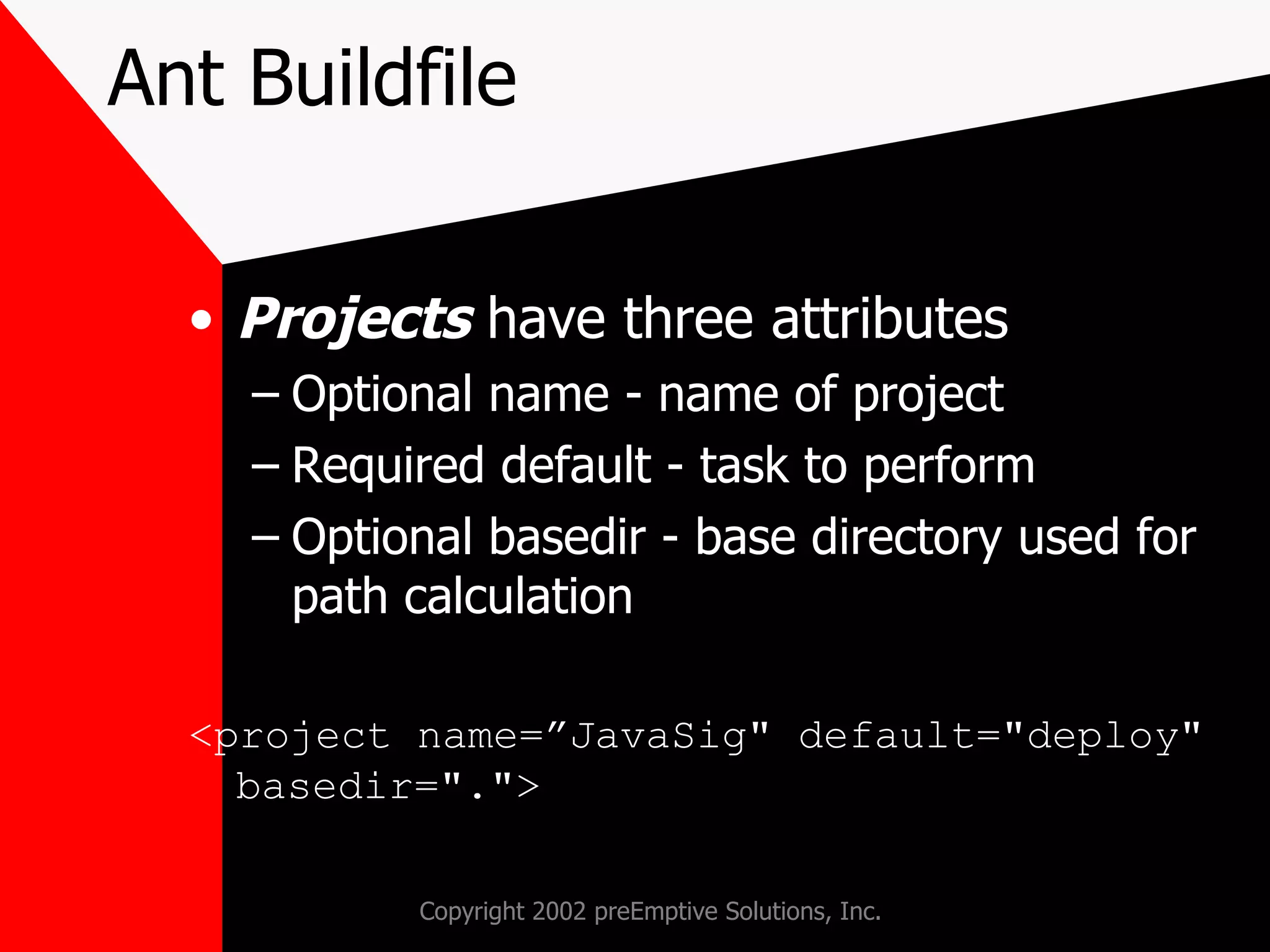

9. Ant Buildfile Projects have three attributes Optional name - name of project Required default - task to perform Optional basedir - base directory used for path calculation <project name=”JavaSig&quot; default=&quot;deploy&quot; basedir=&quot;.&quot;>

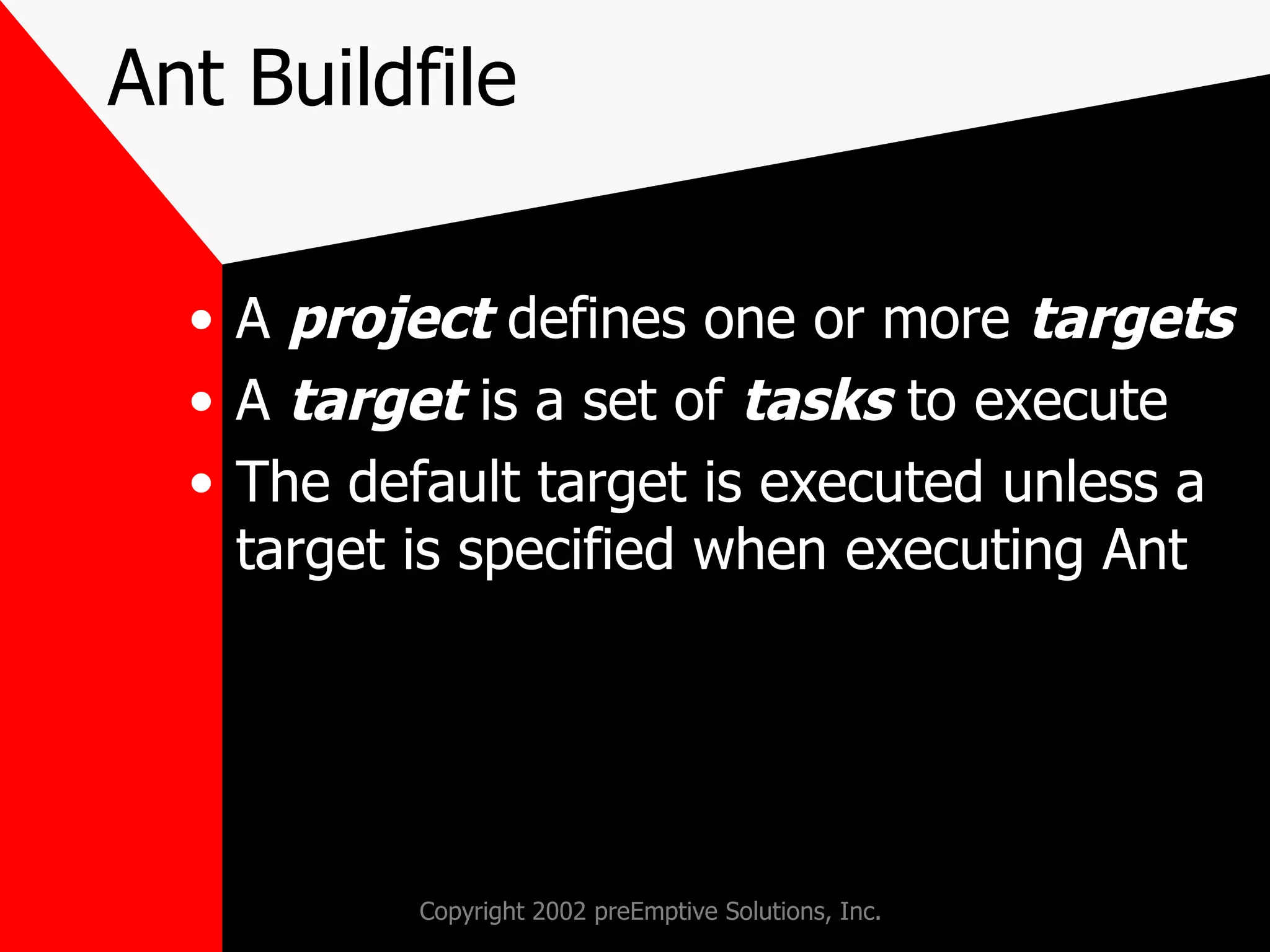

10. Ant Buildfile A project defines one or more targets A target is a set of tasks to execute The default target is executed unless a target is specified when executing Ant

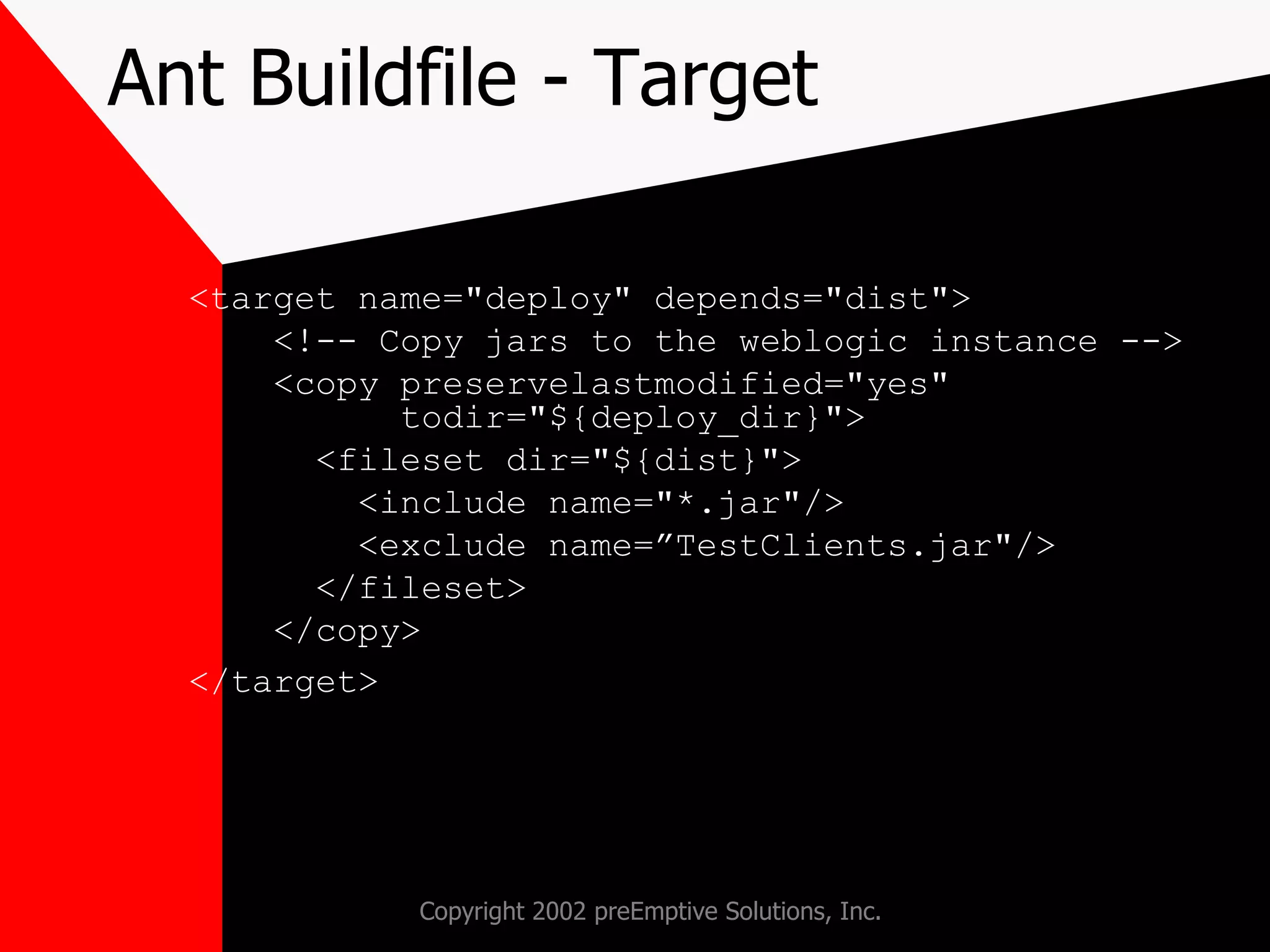

11. Ant Buildfile - Target <target name=&quot;deploy&quot; depends=&quot;dist&quot;> <!-- Copy jars to the weblogic instance --> <copy preservelastmodified=&quot;yes&quot; todir=&quot;${deploy_dir}&quot;> <fileset dir=&quot;${dist}&quot;> <include name=&quot;*.jar&quot;/> <exclude name=”TestClients.jar&quot;/> </fileset> </copy> </target>

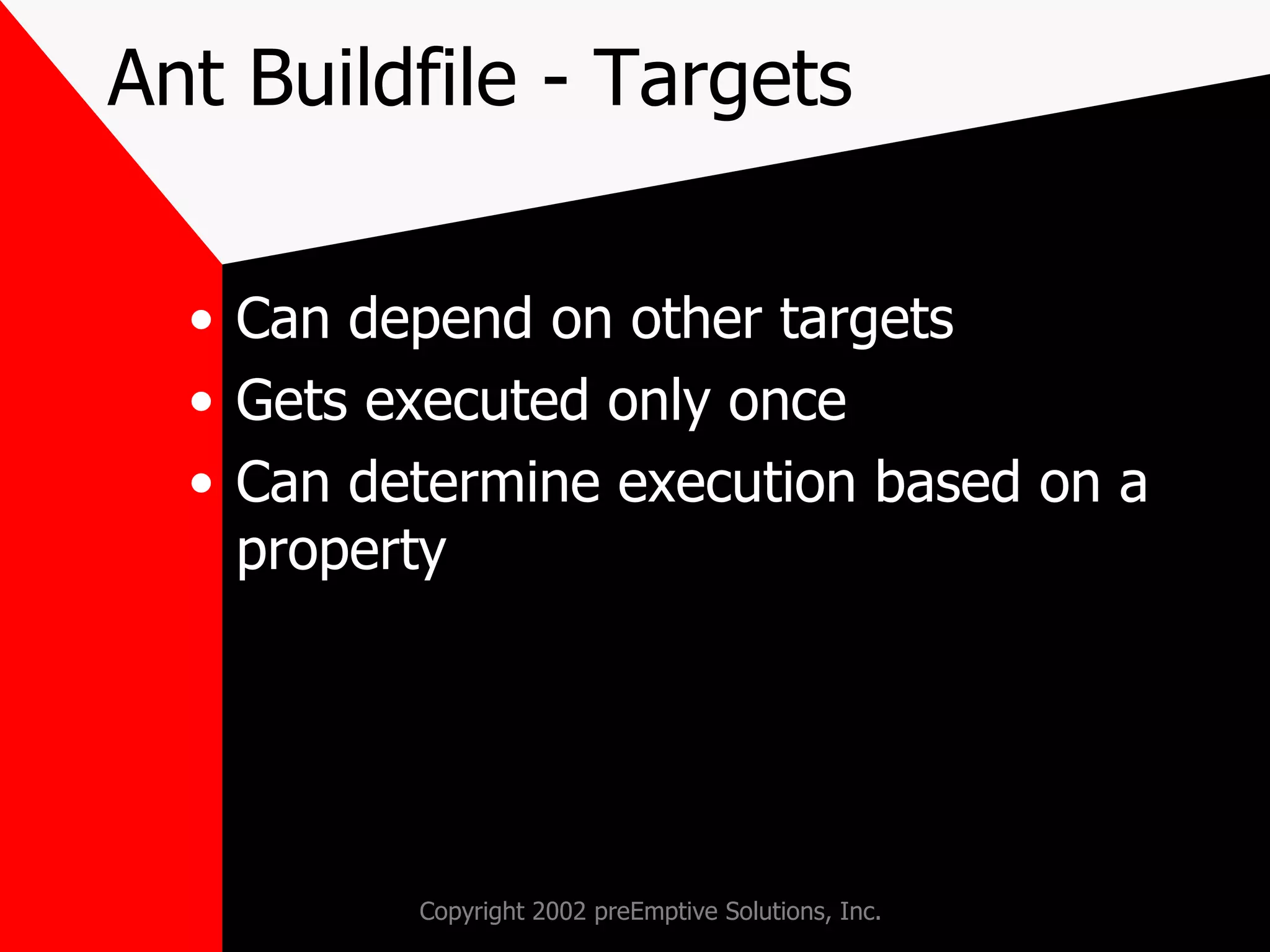

12. Ant Buildfile - Targets Can depend on other targets Gets executed only once Can determine execution based on a property

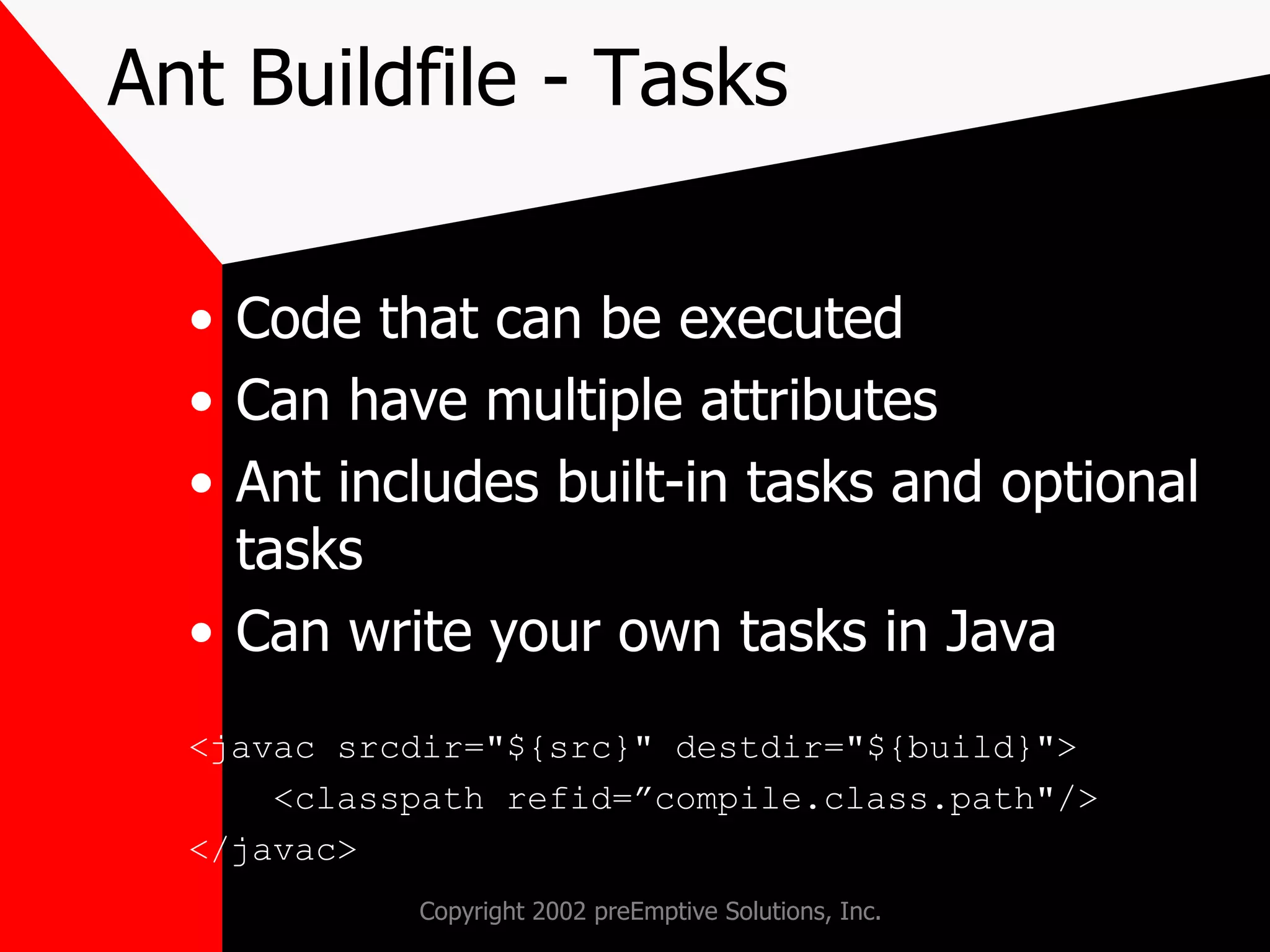

13. Ant Buildfile - Tasks Code that can be executed Can have multiple attributes Ant includes built-in tasks and optional tasks Can write your own tasks in Java <javac srcdir=&quot;${src}&quot; destdir=&quot;${build}&quot;> <classpath refid=”compile.class.path&quot;/> </javac>

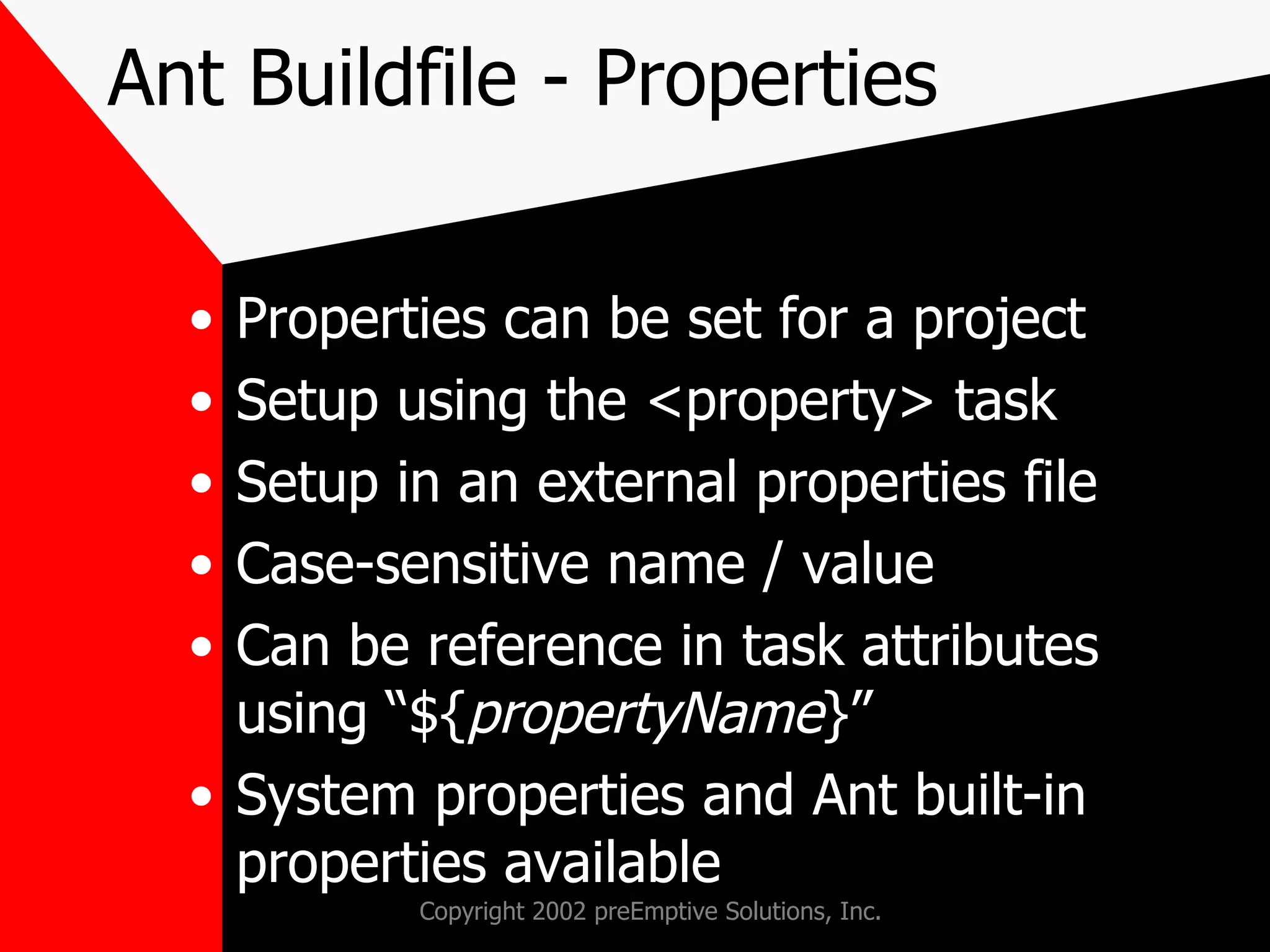

14. Ant Buildfile - Properties Properties can be set for a project Setup using the <property> task Setup in an external properties file Case-sensitive name / value Can be reference in task attributes using “${ propertyName }” System properties and Ant built-in properties available

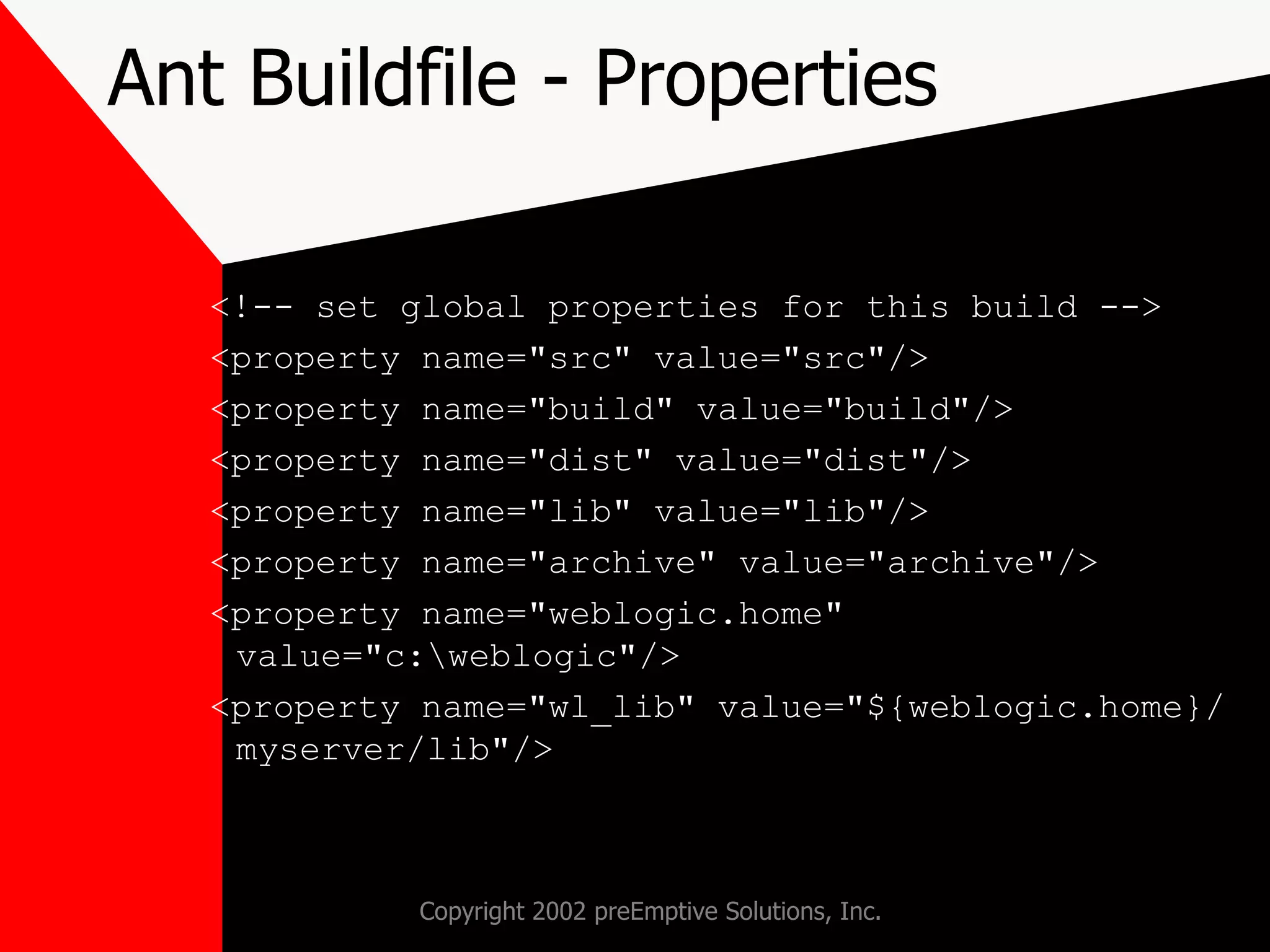

15. Ant Buildfile - Properties <!-- set global properties for this build --> <property name=&quot;src&quot; value=&quot;src&quot;/> <property name=&quot;build&quot; value=&quot;build&quot;/> <property name=&quot;dist&quot; value=&quot;dist&quot;/> <property name=&quot;lib&quot; value=&quot;lib&quot;/> <property name=&quot;archive&quot; value=&quot;archive&quot;/> <property name=&quot;weblogic.home&quot; value=&quot;c:\weblogic&quot;/> <property name=&quot;wl_lib&quot; value=&quot;${weblogic.home}/myserver/lib&quot;/>

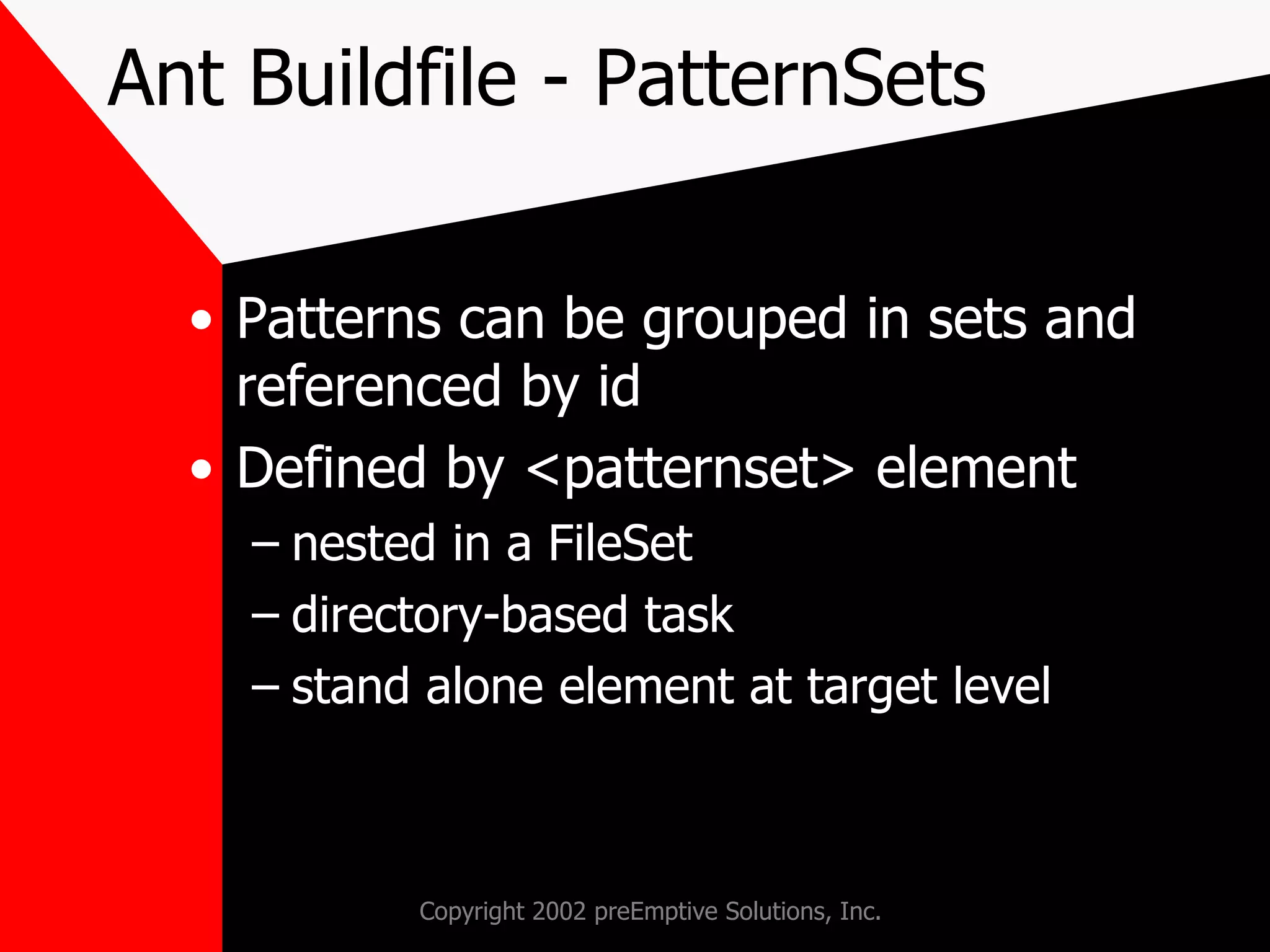

16. Ant Buildfile - PatternSets Patterns can be grouped in sets and referenced by id Defined by <patternset> element nested in a FileSet directory-based task stand alone element at target level

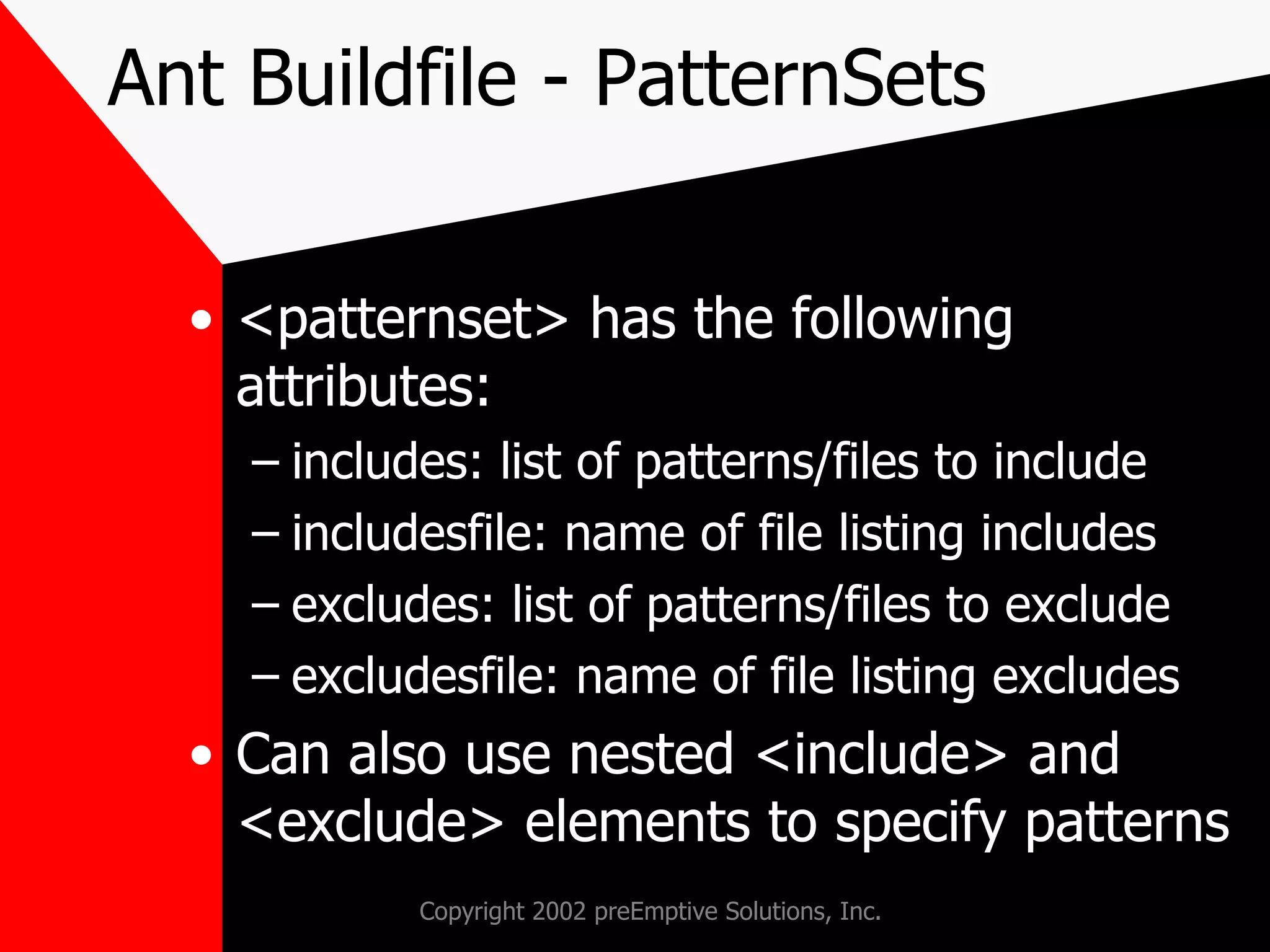

17. Ant Buildfile - PatternSets <patternset> has the following attributes: includes: list of patterns/files to include includesfile: name of file listing includes excludes: list of patterns/files to exclude excludesfile: name of file listing excludes Can also use nested <include> and <exclude> elements to specify patterns

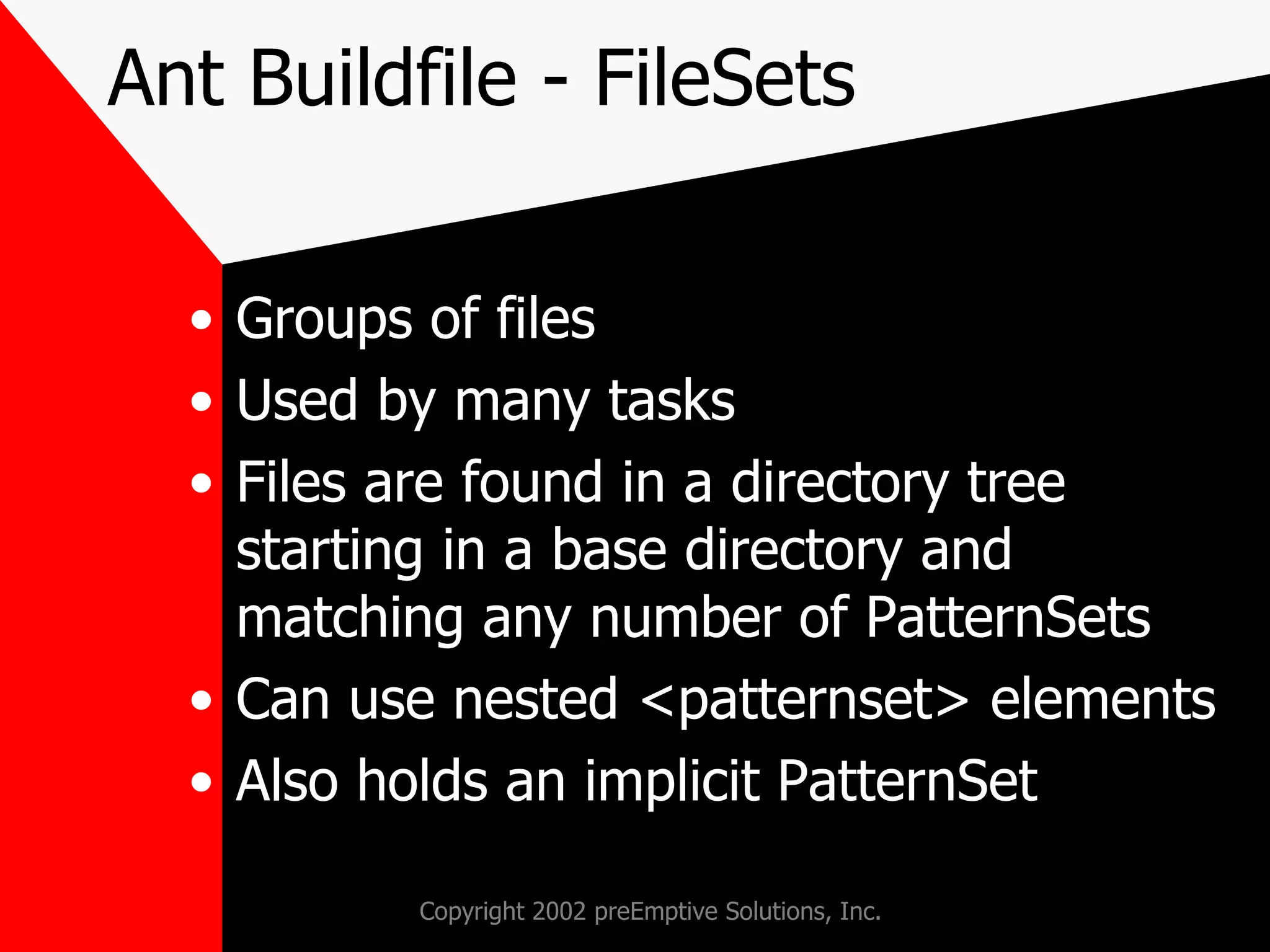

18. Ant Buildfile - FileSets Groups of files Used by many tasks Files are found in a directory tree starting in a base directory and matching any number of PatternSets Can use nested <patternset> elements Also holds an implicit PatternSet

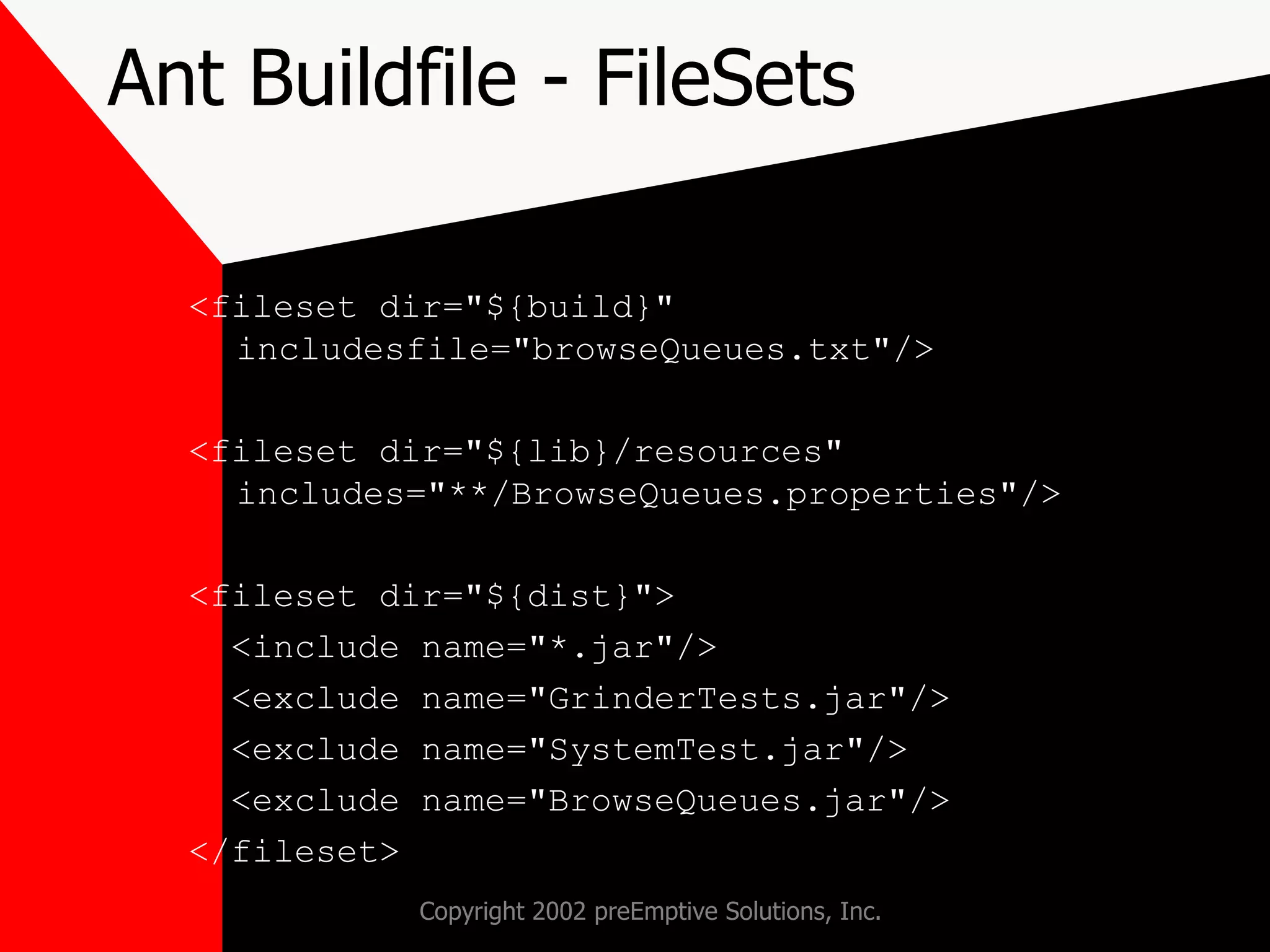

19. Ant Buildfile - FileSets <fileset dir=&quot;${build}&quot; includesfile=&quot;browseQueues.txt&quot;/> <fileset dir=&quot;${lib}/resources&quot; includes=&quot;**/BrowseQueues.properties&quot;/> <fileset dir=&quot;${dist}&quot;> <include name=&quot;*.jar&quot;/> <exclude name=&quot;GrinderTests.jar&quot;/> <exclude name=&quot;SystemTest.jar&quot;/> <exclude name=&quot;BrowseQueues.jar&quot;/> </fileset>

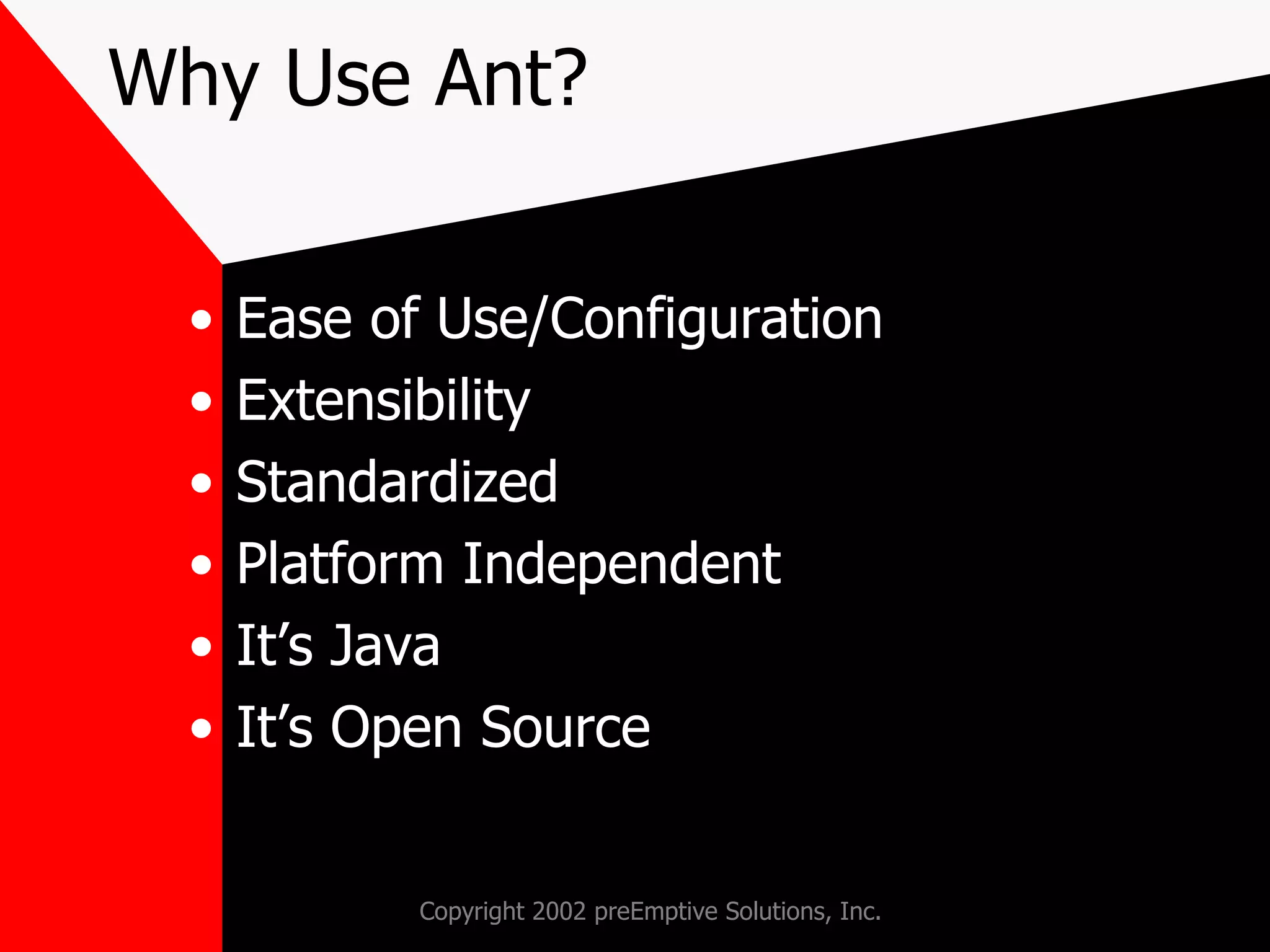

20. Why Use Ant? Ease of Use/Configuration Extensibility Standardized Platform Independent It’s Java It’s Open Source

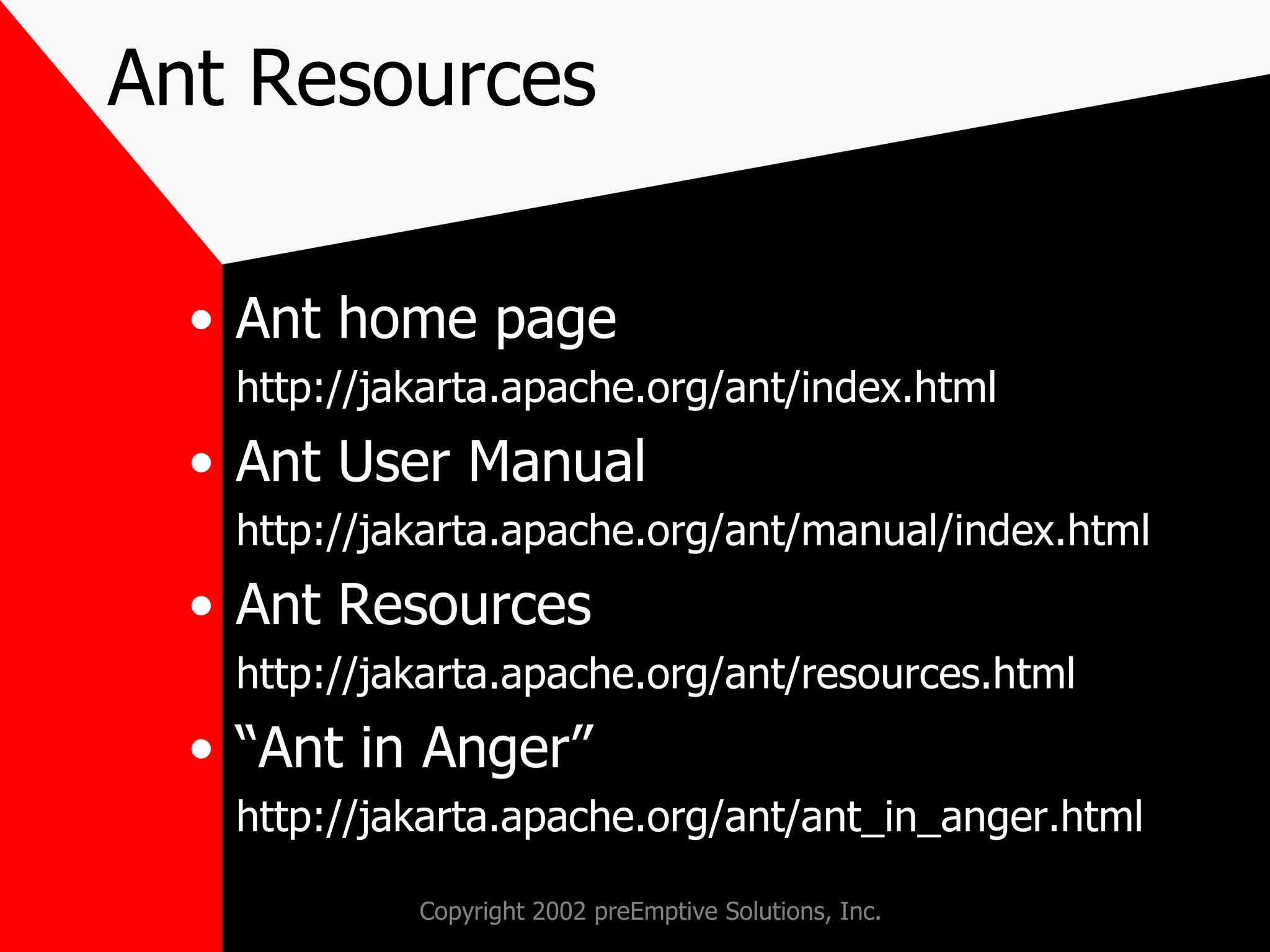

21. Ant Resources Ant home page http://jakarta.apache.org/ant/index.html Ant User Manual http://jakarta.apache.org/ant/manual/index.html Ant Resources http://jakarta.apache.org/ant/resources.html “ Ant in Anger” http://jakarta.apache.org/ant/ant_in_anger.html
