1. Android Jetpack
Room Persistence Library
Huỳnh Quang Thảo
Trusting Social
Google Developer Expert on Android

2. When start new android app …
- Database:
- Native SQLite
- ORM wrapper on SQLite: DBFlow
- Different database engines: Realm.

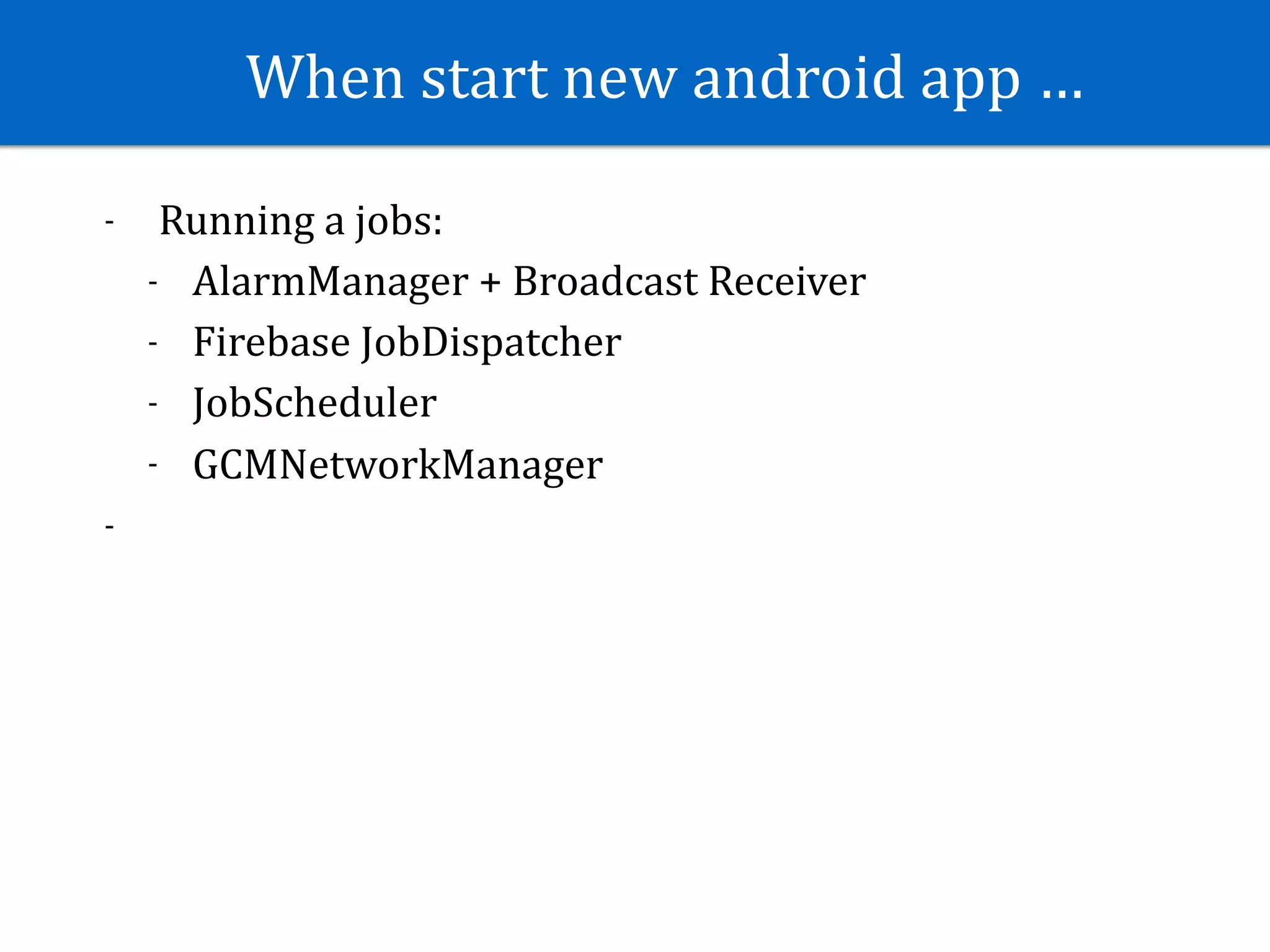

3. When start new android app …
- Running a jobs:
- AlarmManager + Broadcast Receiver
- Firebase JobDispatcher
- JobScheduler
- GCMNetworkManager
-

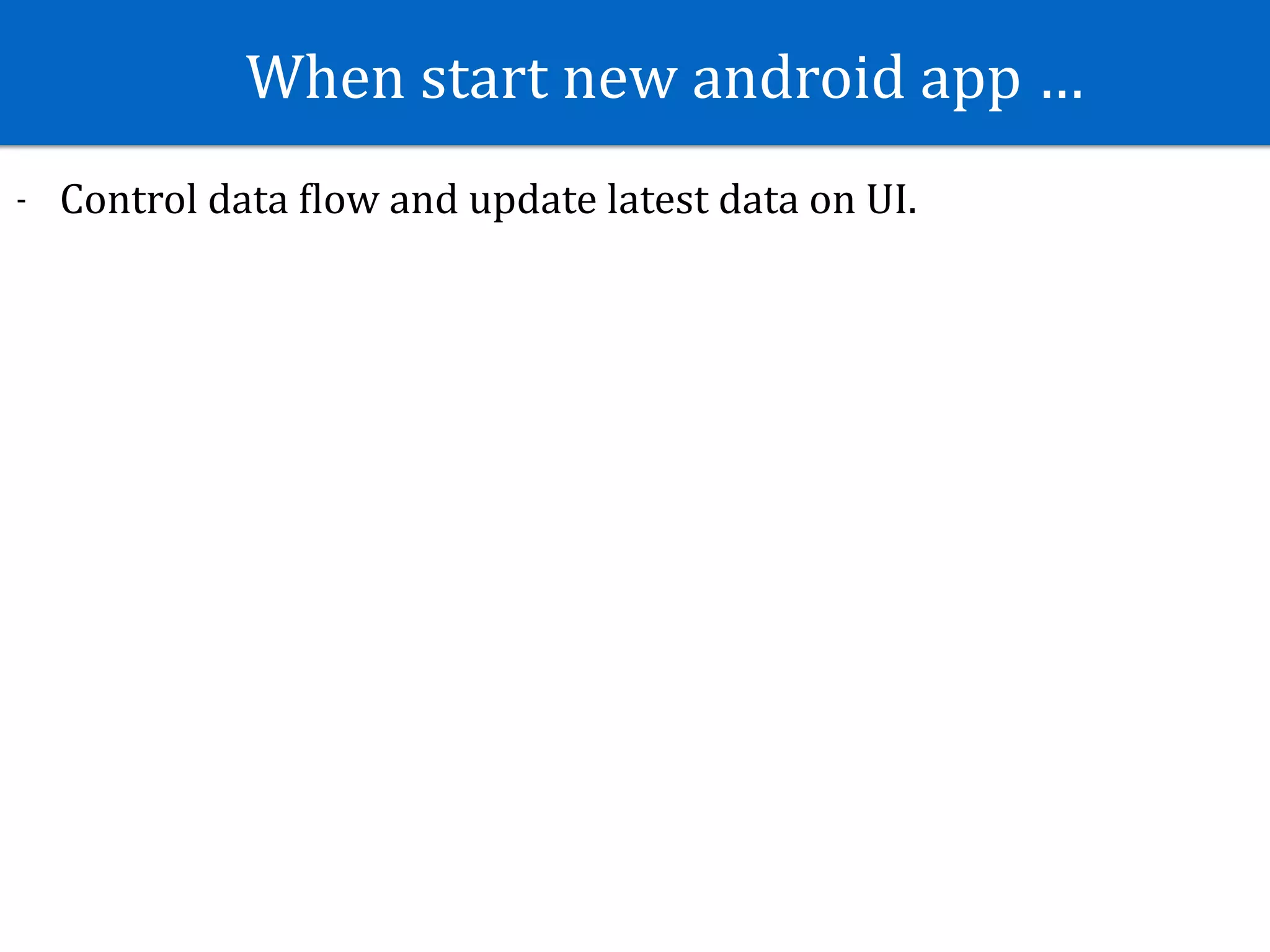

4. When start new android app …
- Control data Slow and update latest data on UI.

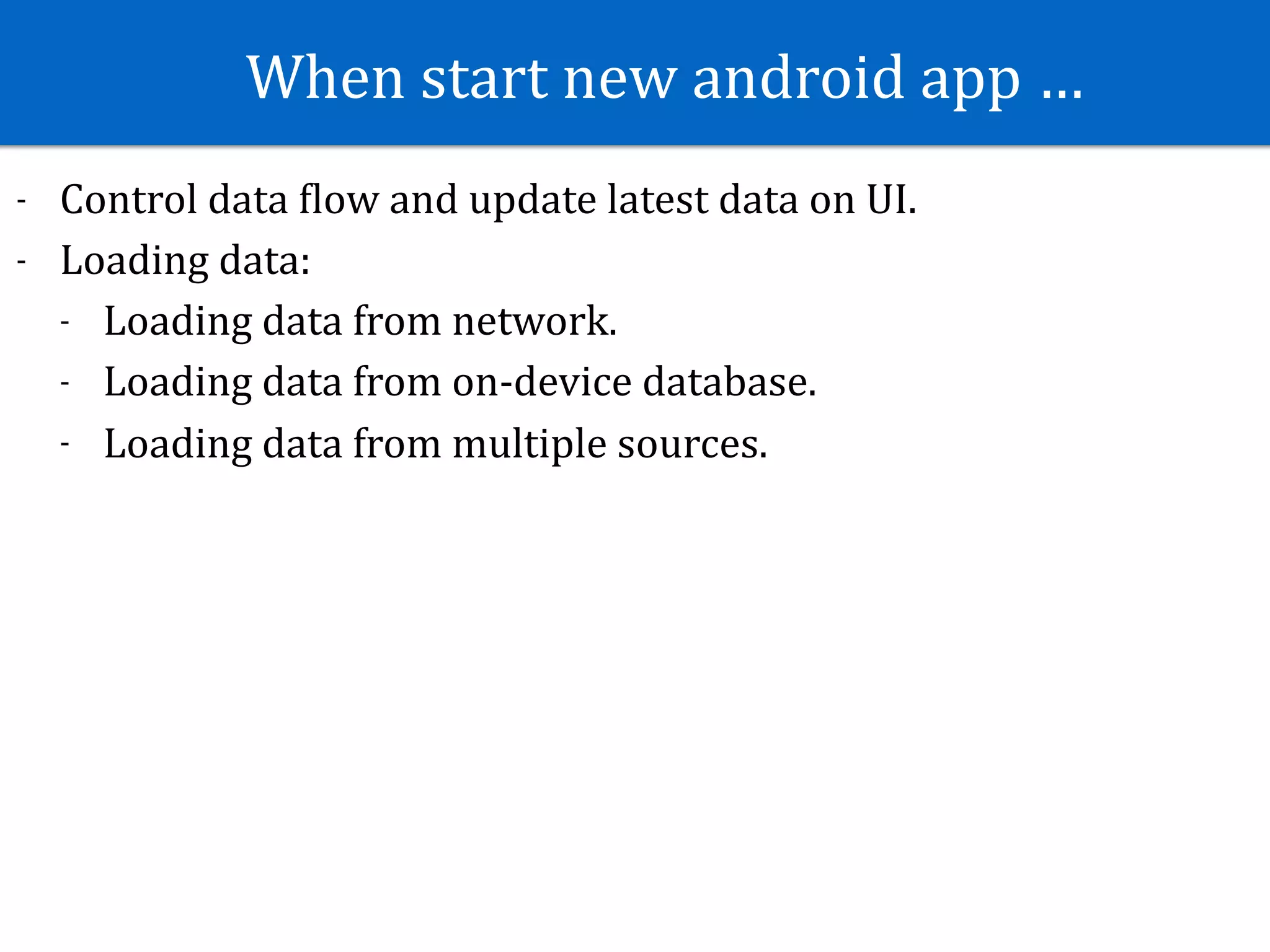

5. When start new android app …
- Control data Slow and update latest data on UI.
- Loading data:
- Loading data from network.
- Loading data from on-device database.
- Loading data from multiple sources.

8. Android Architecture Components

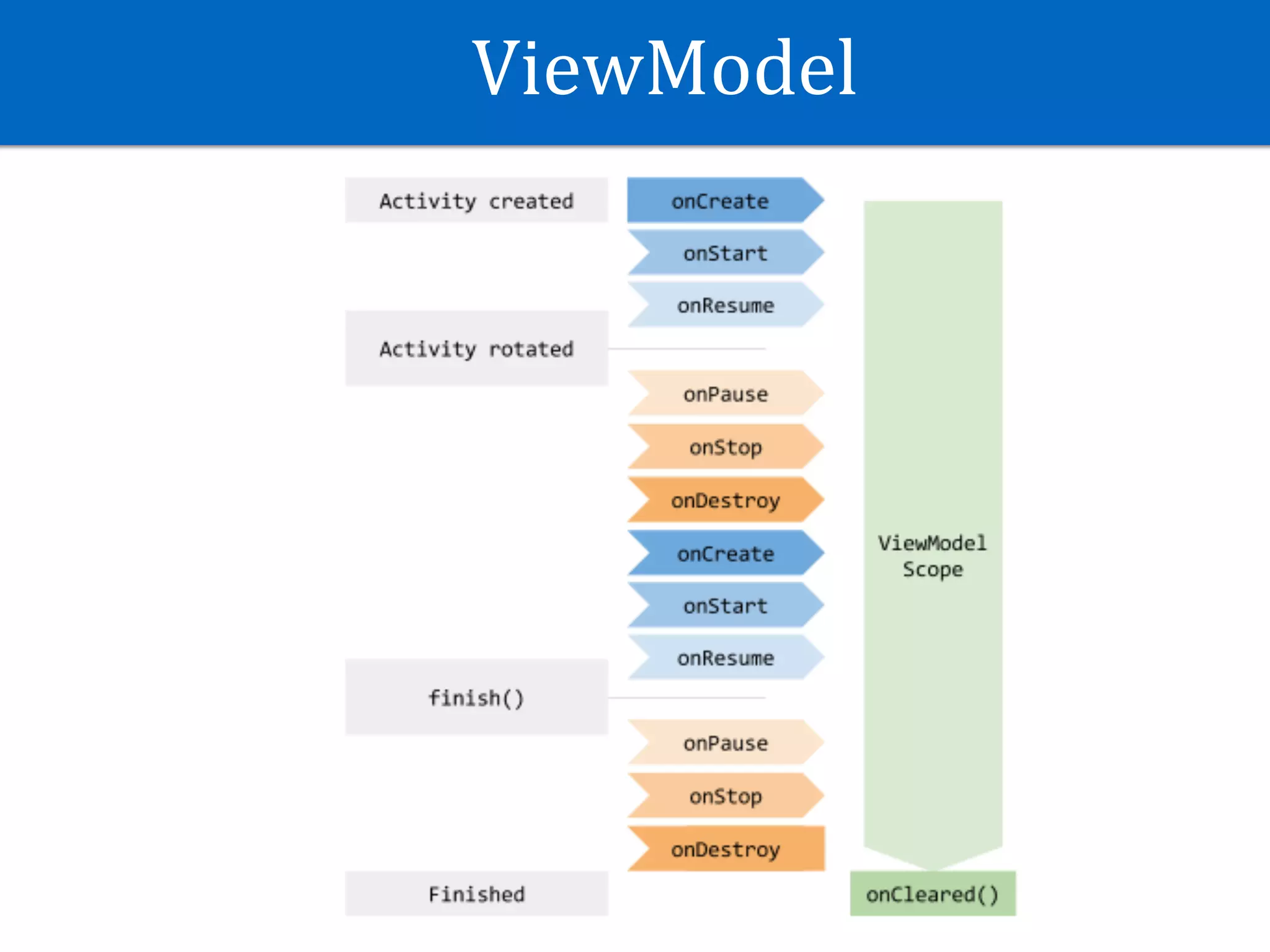

9. ViewModel

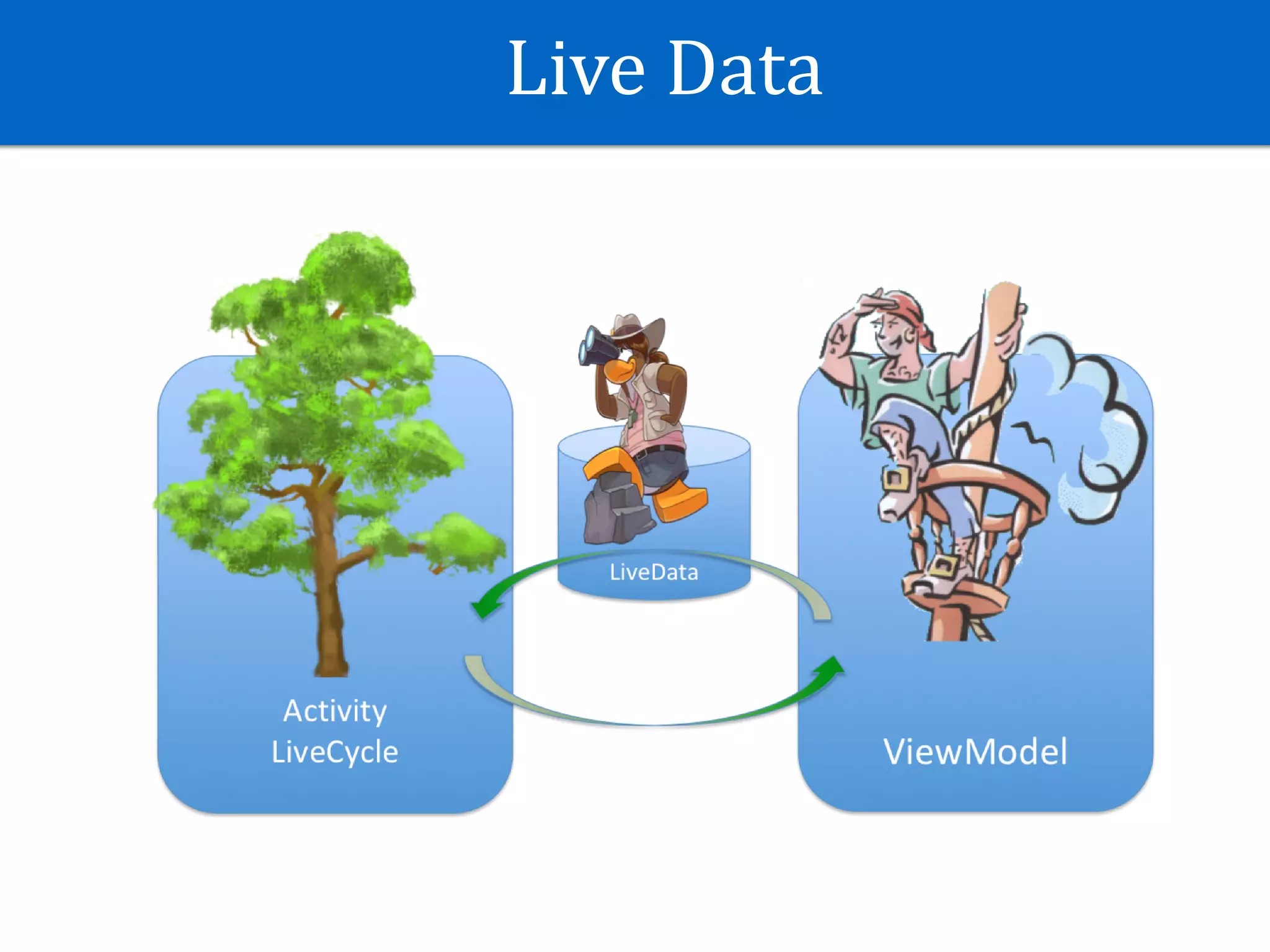

10. Live Data

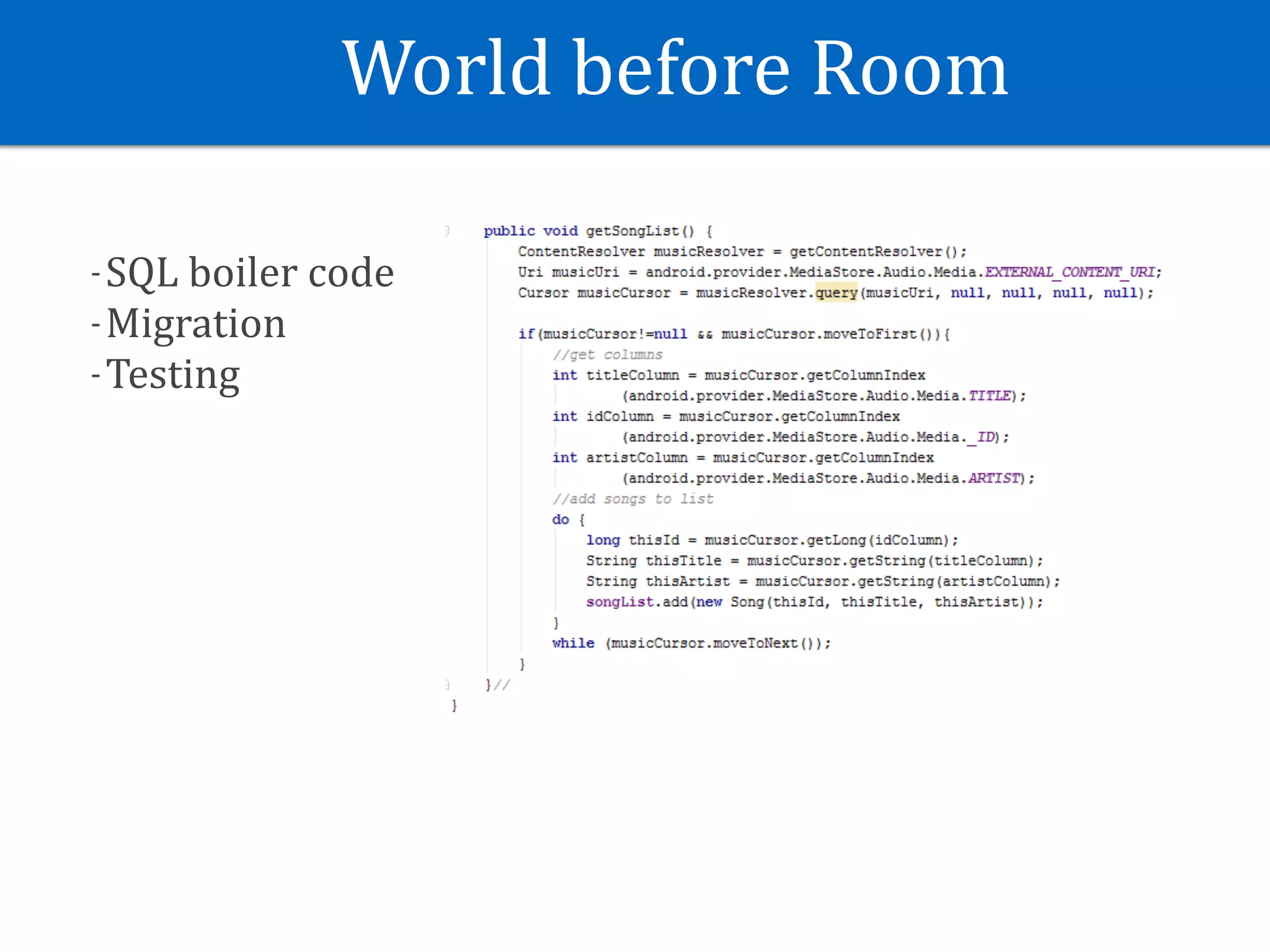

11. World before Room
-SQL boiler code
-Migration
-Testing

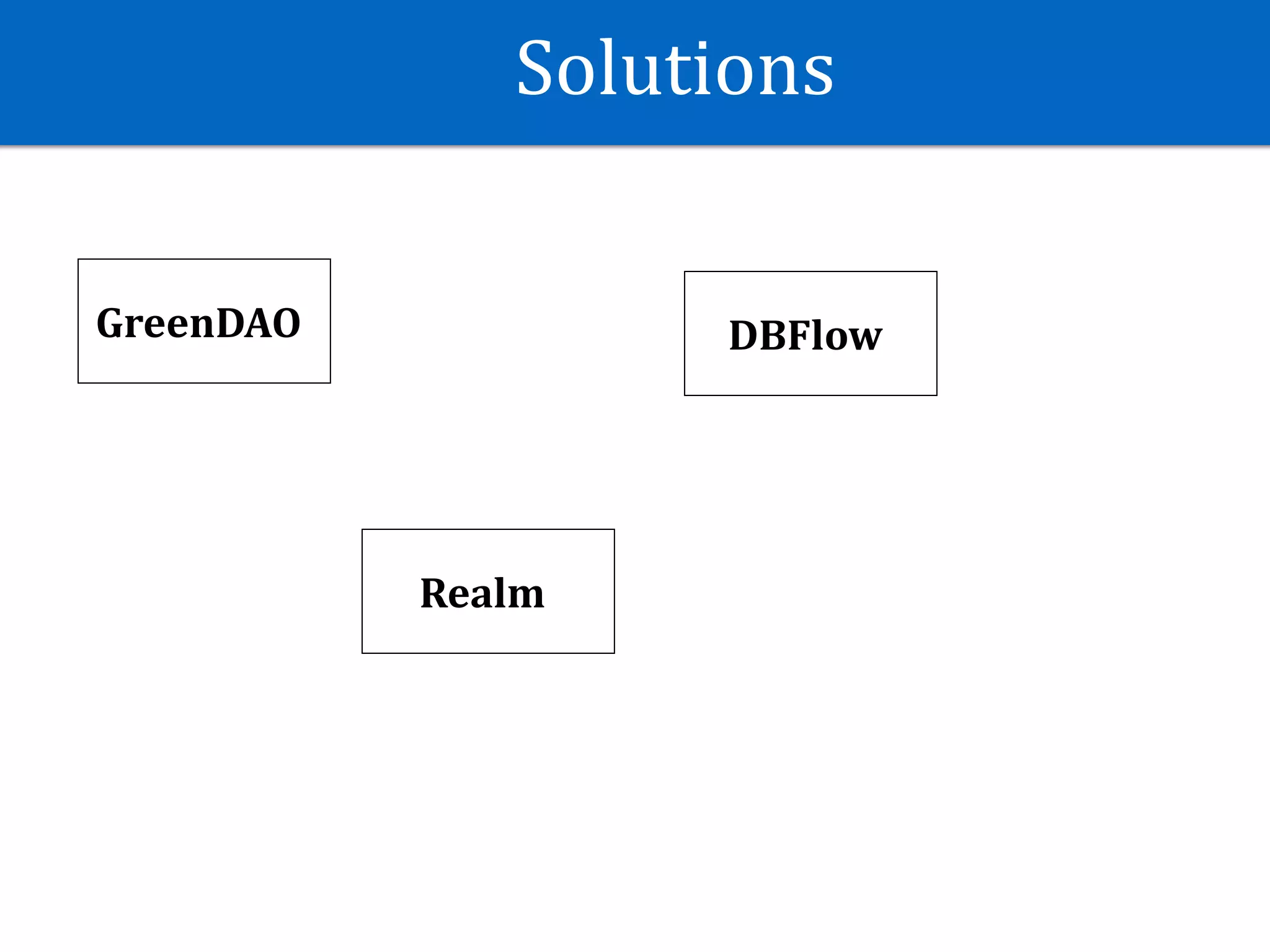

12. Solutions
GreenDAO
Realm
DBFlow

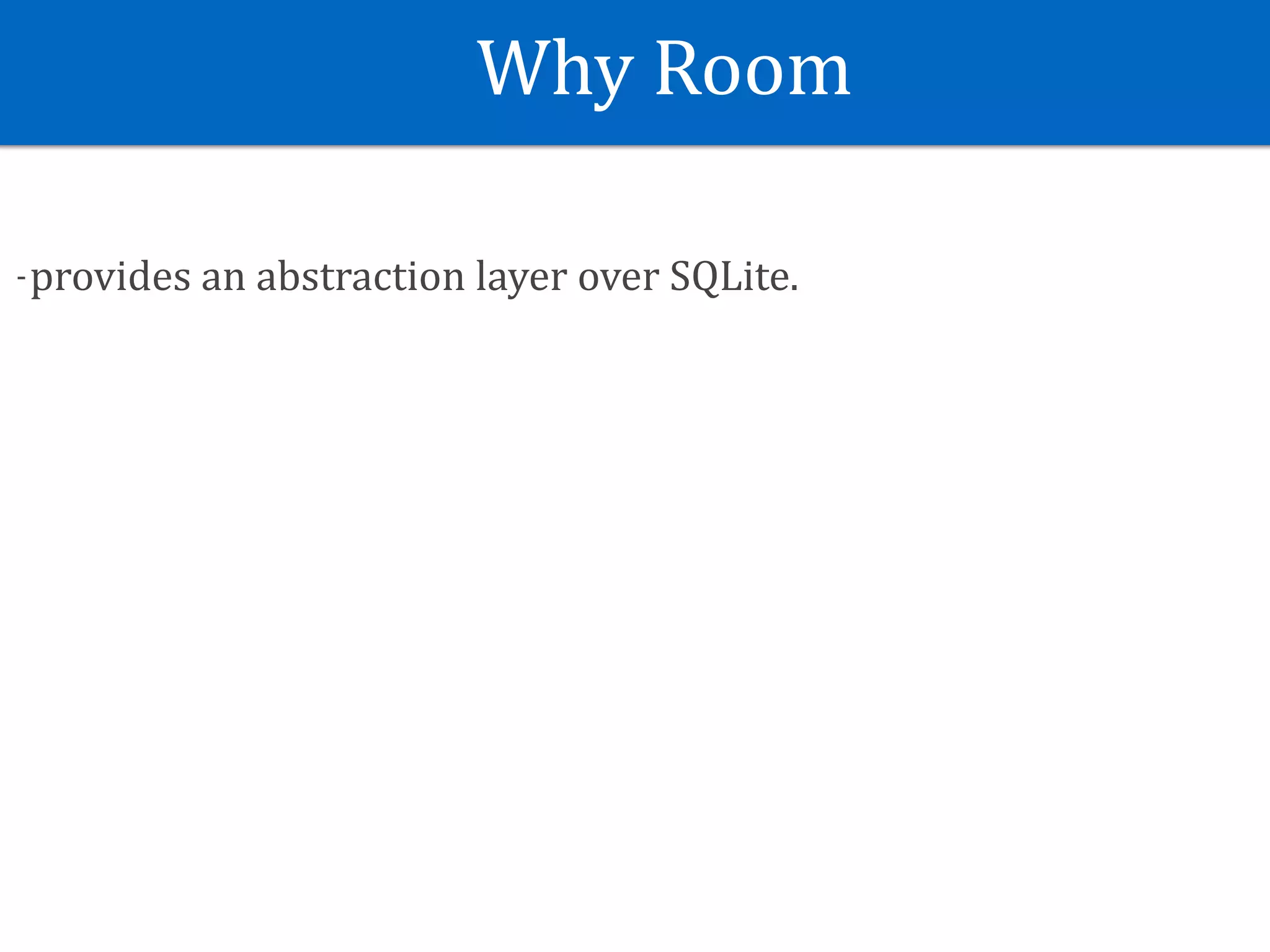

13. Why Room
-provides an abstraction layer over SQLite.

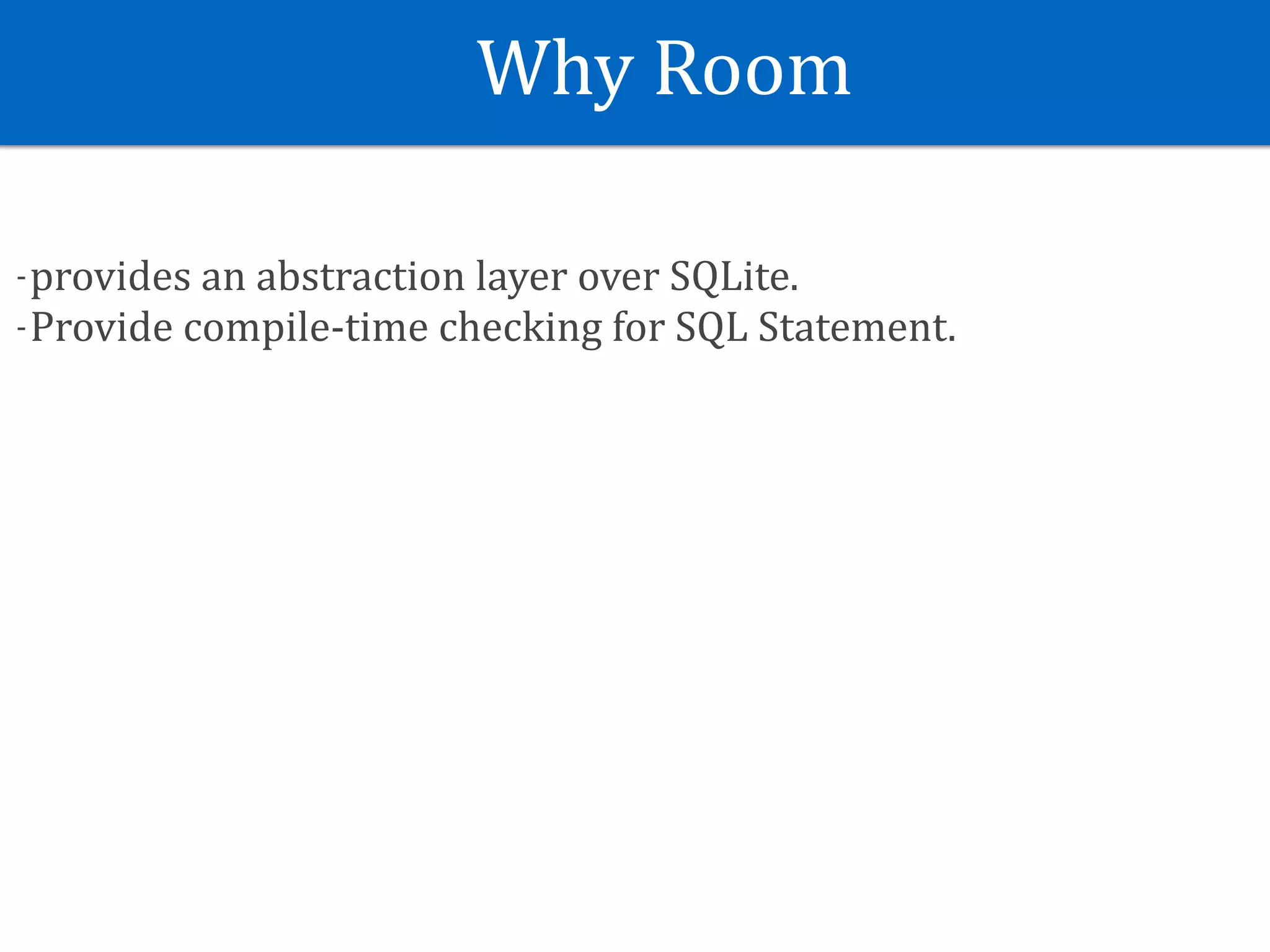

14. Why Room
-provides an abstraction layer over SQLite.
-Provide compile-time checking for SQL Statement.

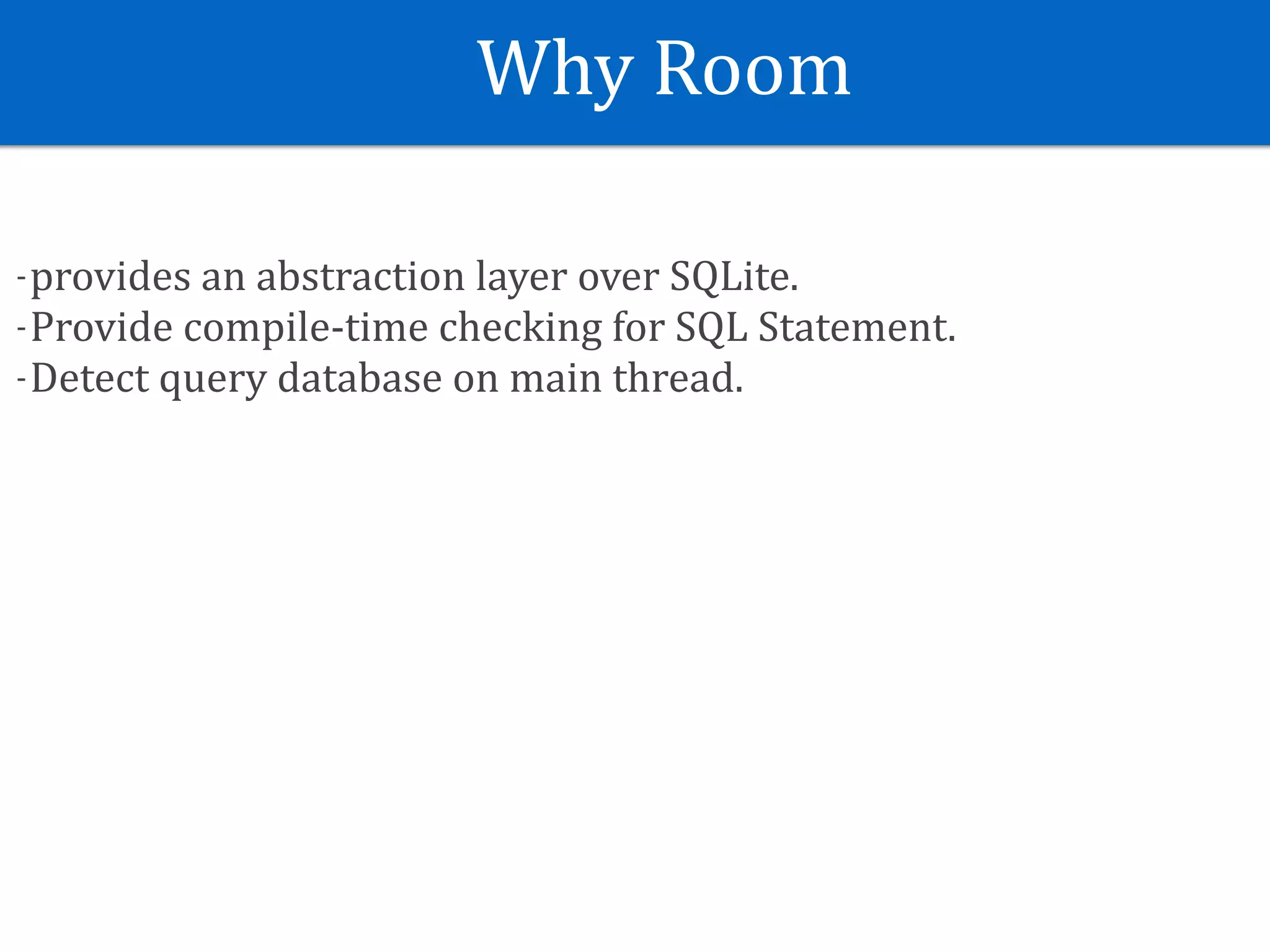

15. Why Room
-provides an abstraction layer over SQLite.
-Provide compile-time checking for SQL Statement.
-Detect query database on main thread.

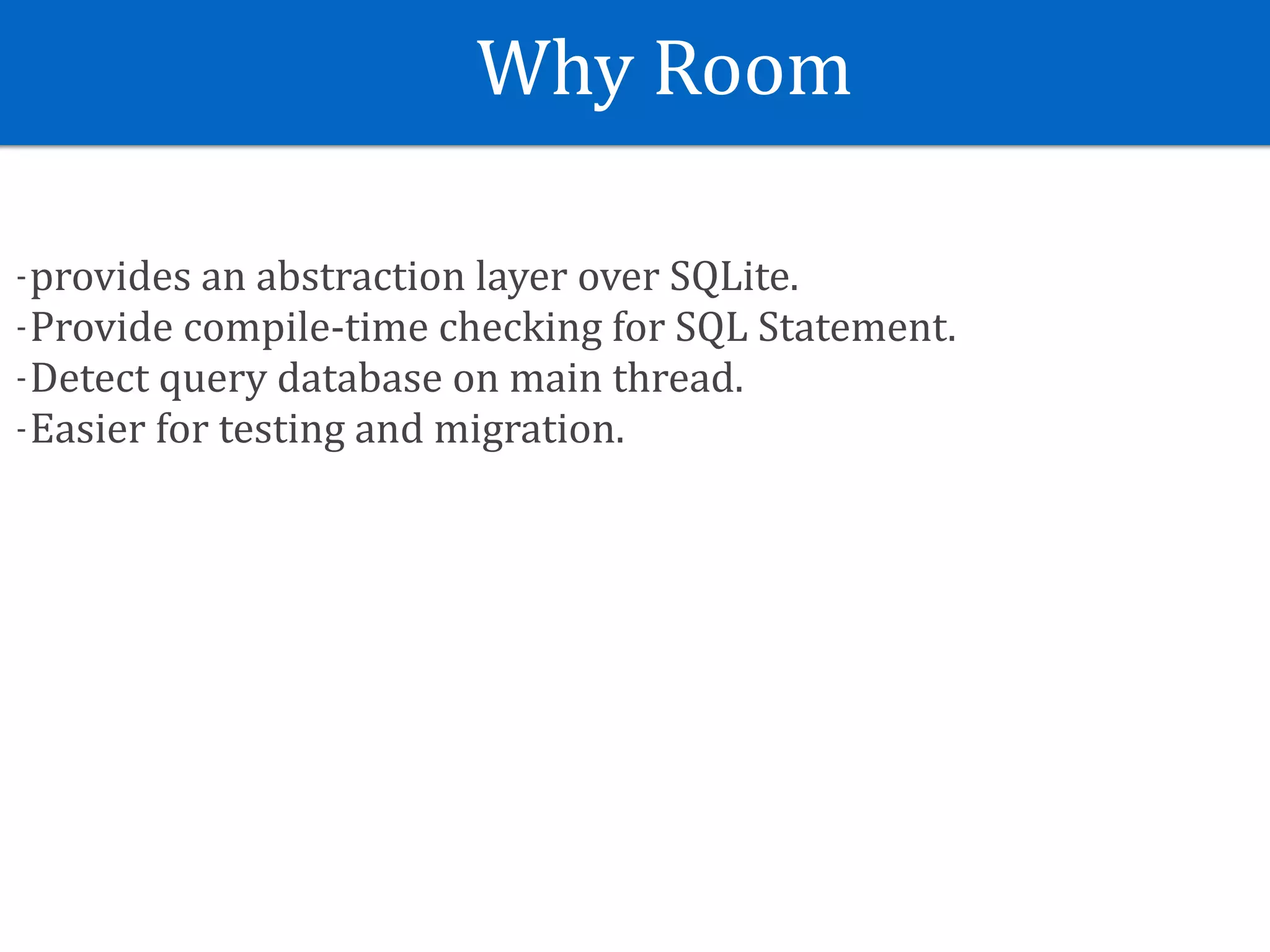

16. Why Room
-provides an abstraction layer over SQLite.
-Provide compile-time checking for SQL Statement.
-Detect query database on main thread.
-Easier for testing and migration.

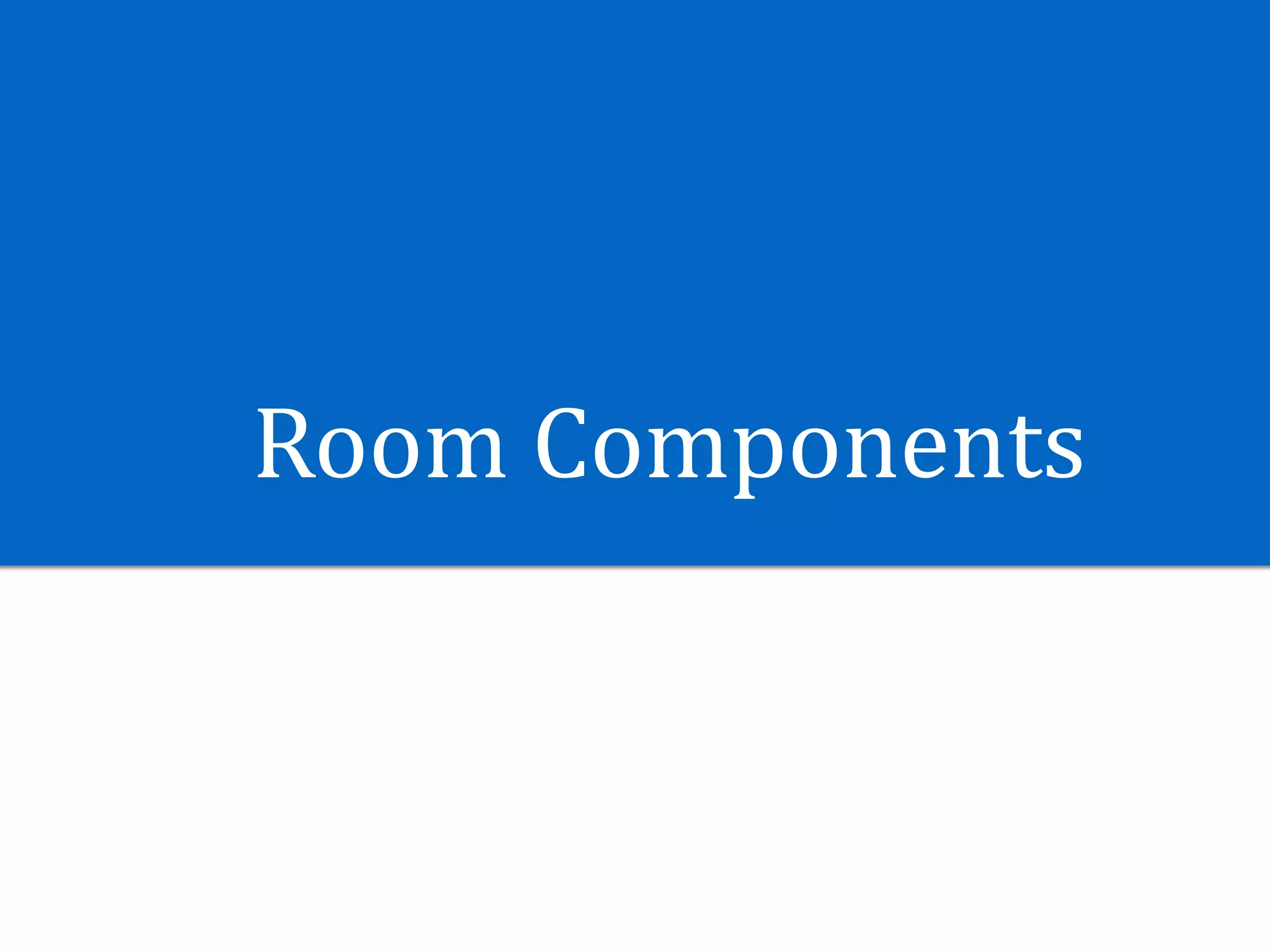

17. Room Components

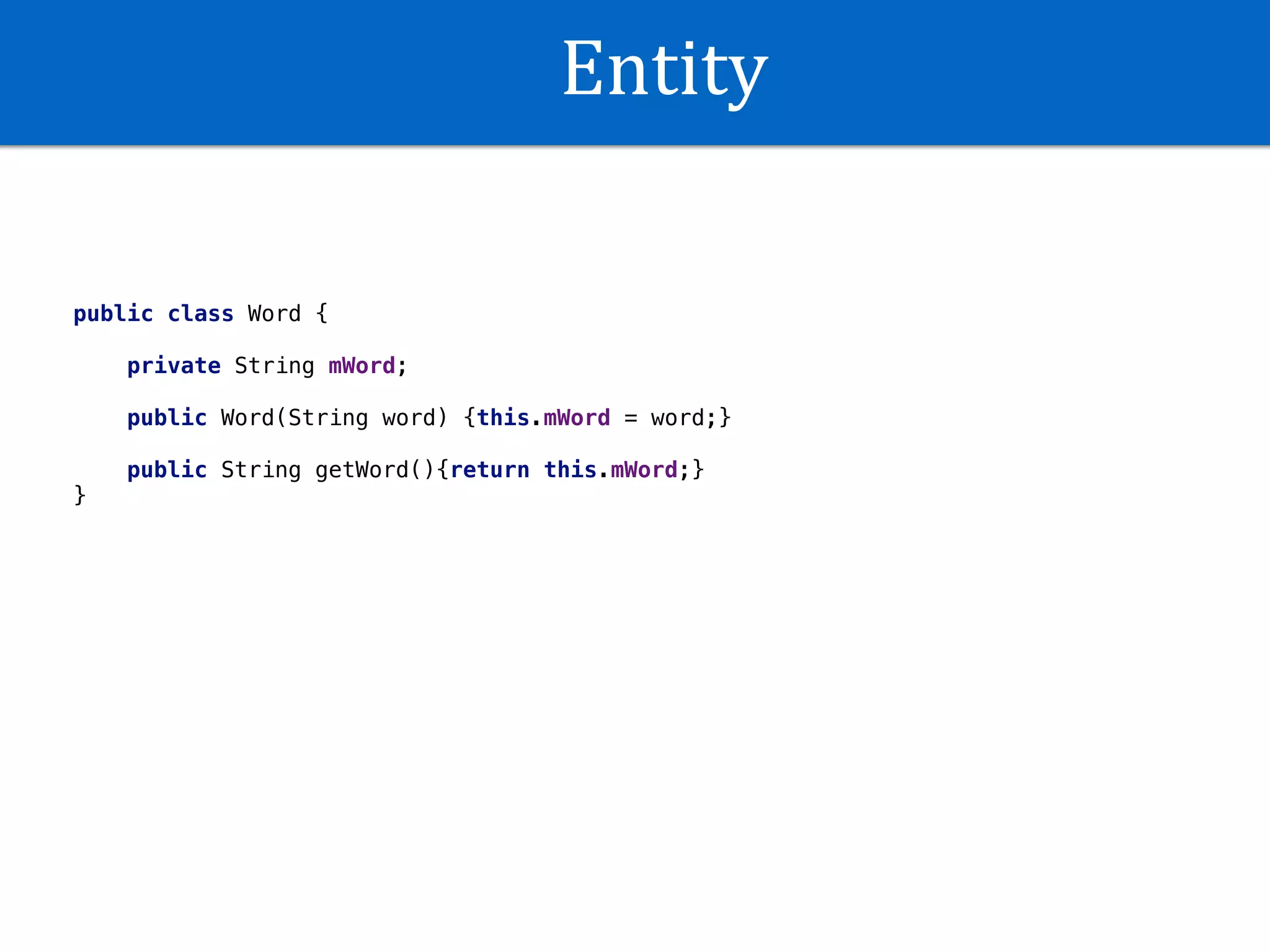

18. Entity
public class Word {
private String mWord;
public Word(String word) {this.mWord = word;}
public String getWord(){return this.mWord;}
}

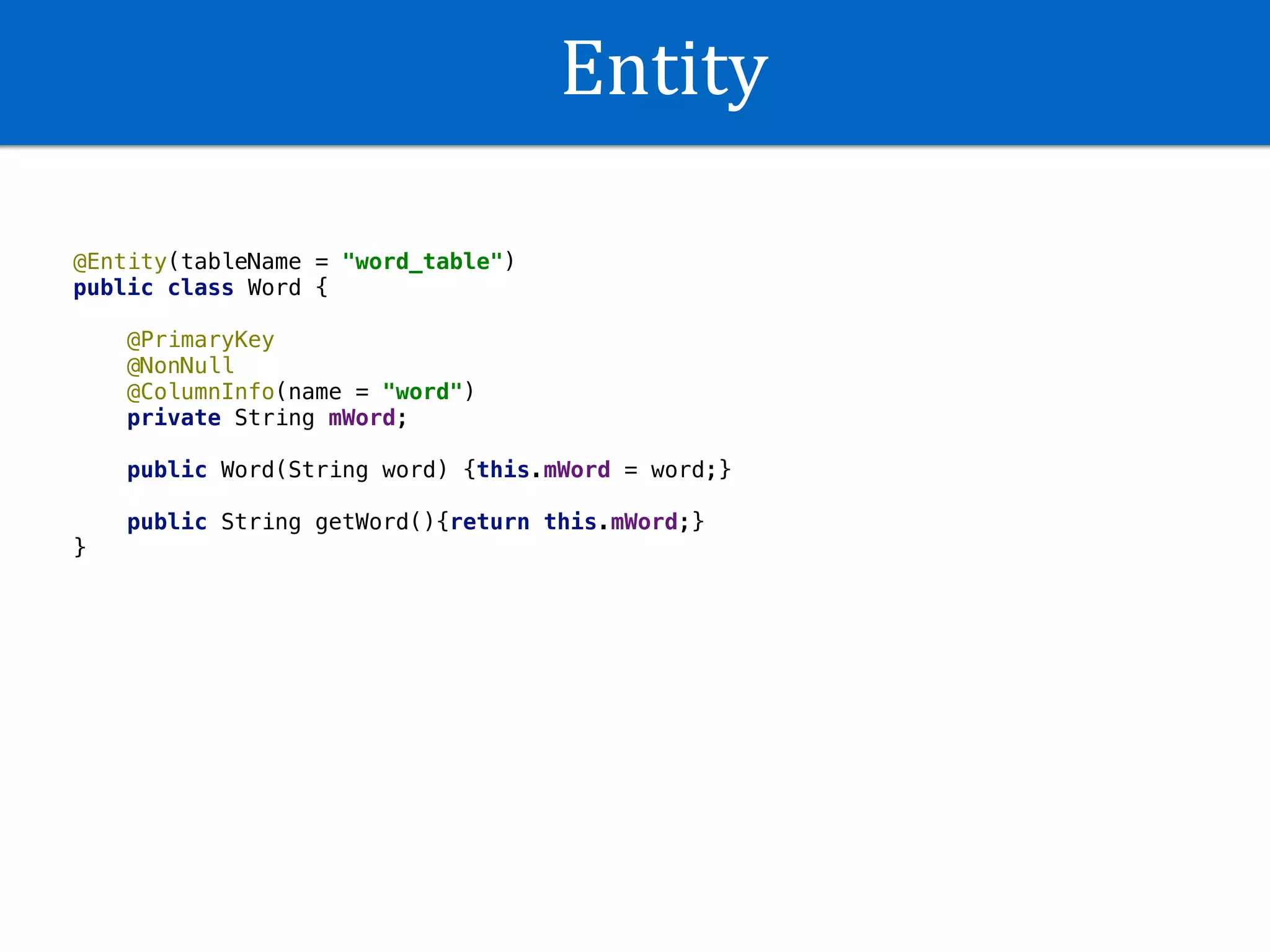

19. Entity
@Entity(tableName = "word_table")
public class Word {
@PrimaryKey
@NonNull
@ColumnInfo(name = "word")
private String mWord;
public Word(String word) {this.mWord = word;}
public String getWord(){return this.mWord;}
}

20. Entity
-Support database constraints. (unique key, primary keys …)

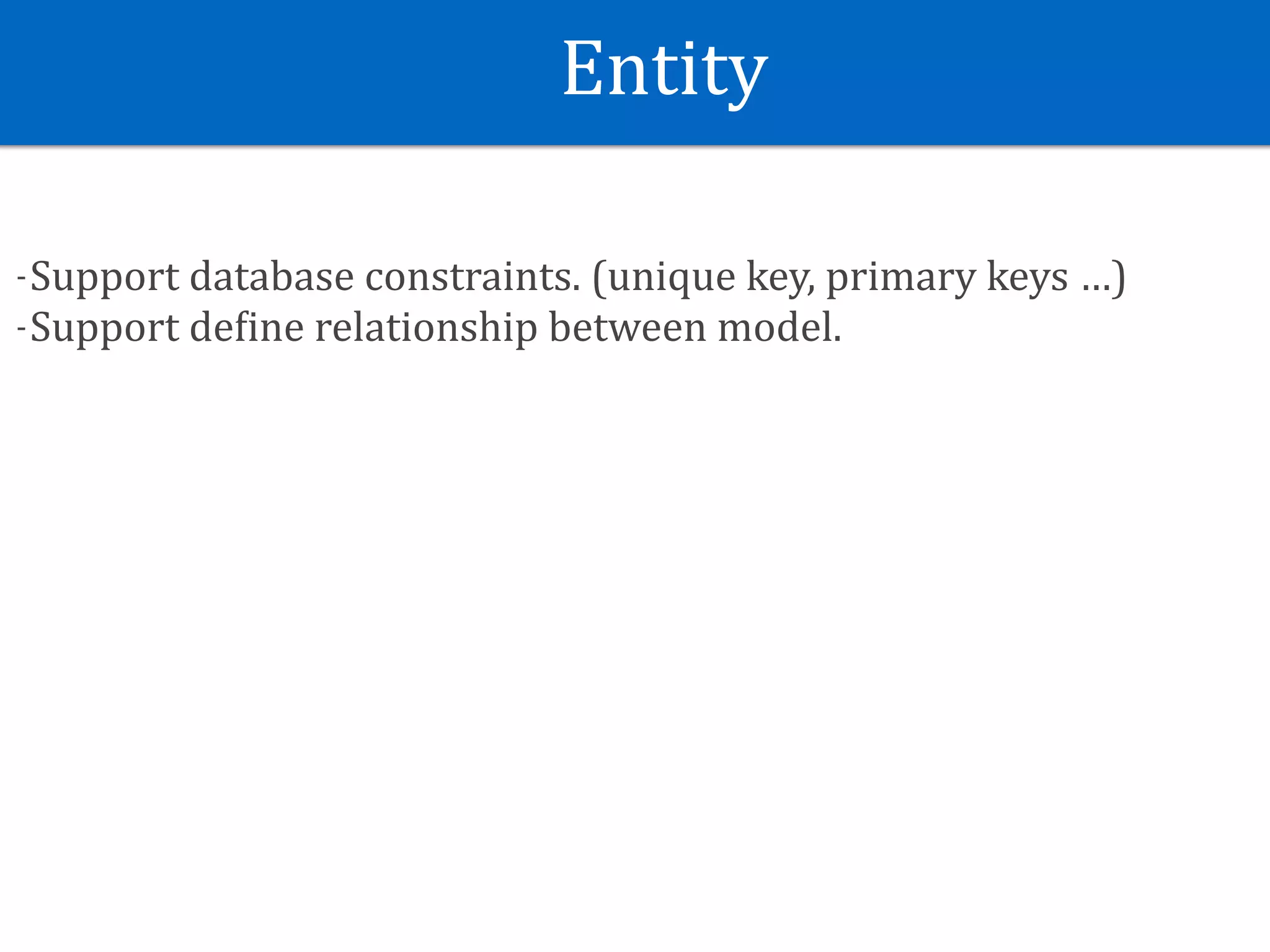

21. Entity
-Support database constraints. (unique key, primary keys …)
-Support deSine relationship between model.

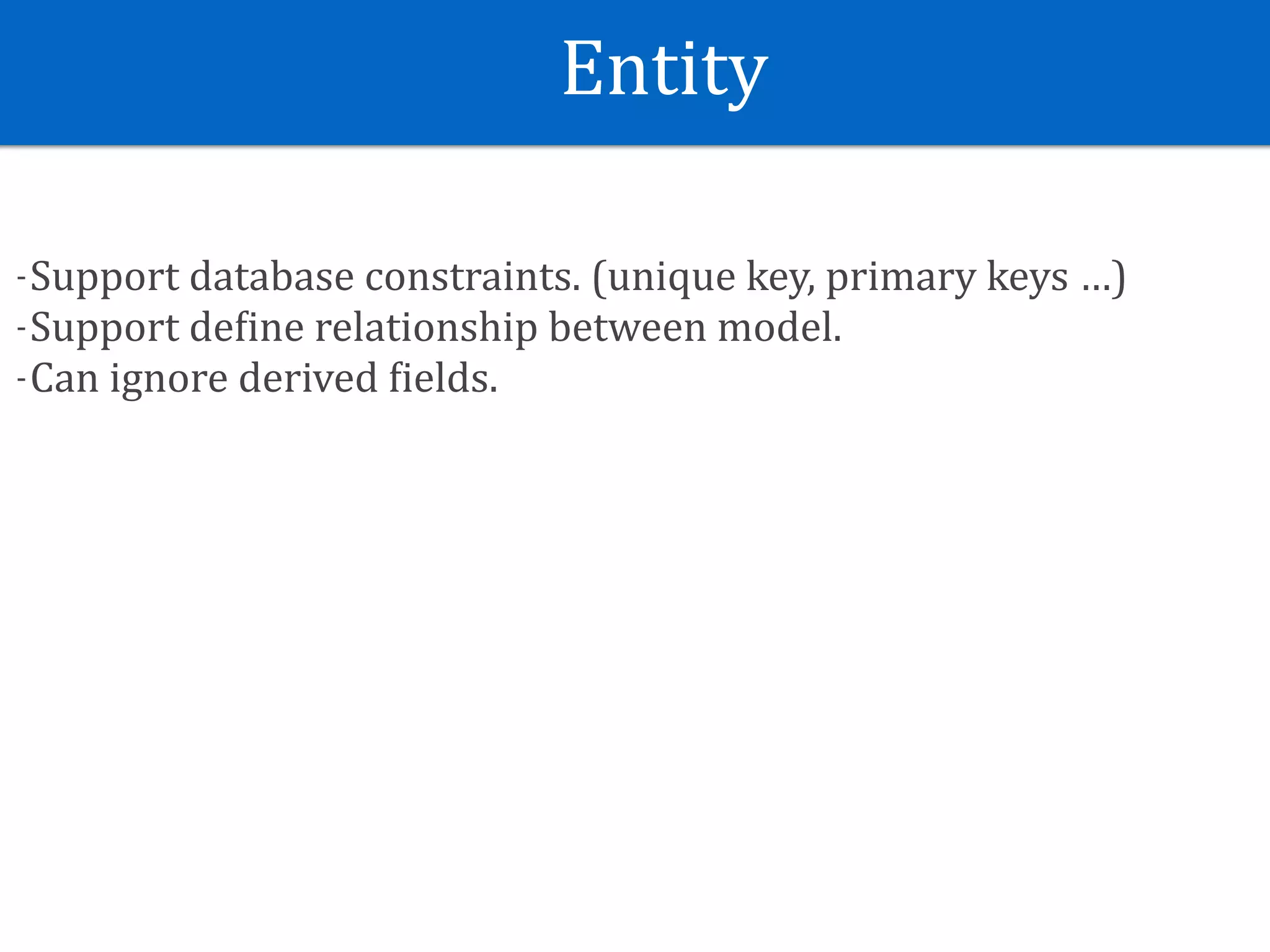

22. Entity
-Support database constraints. (unique key, primary keys …)
-Support deSine relationship between model.
-Can ignore derived Sields.

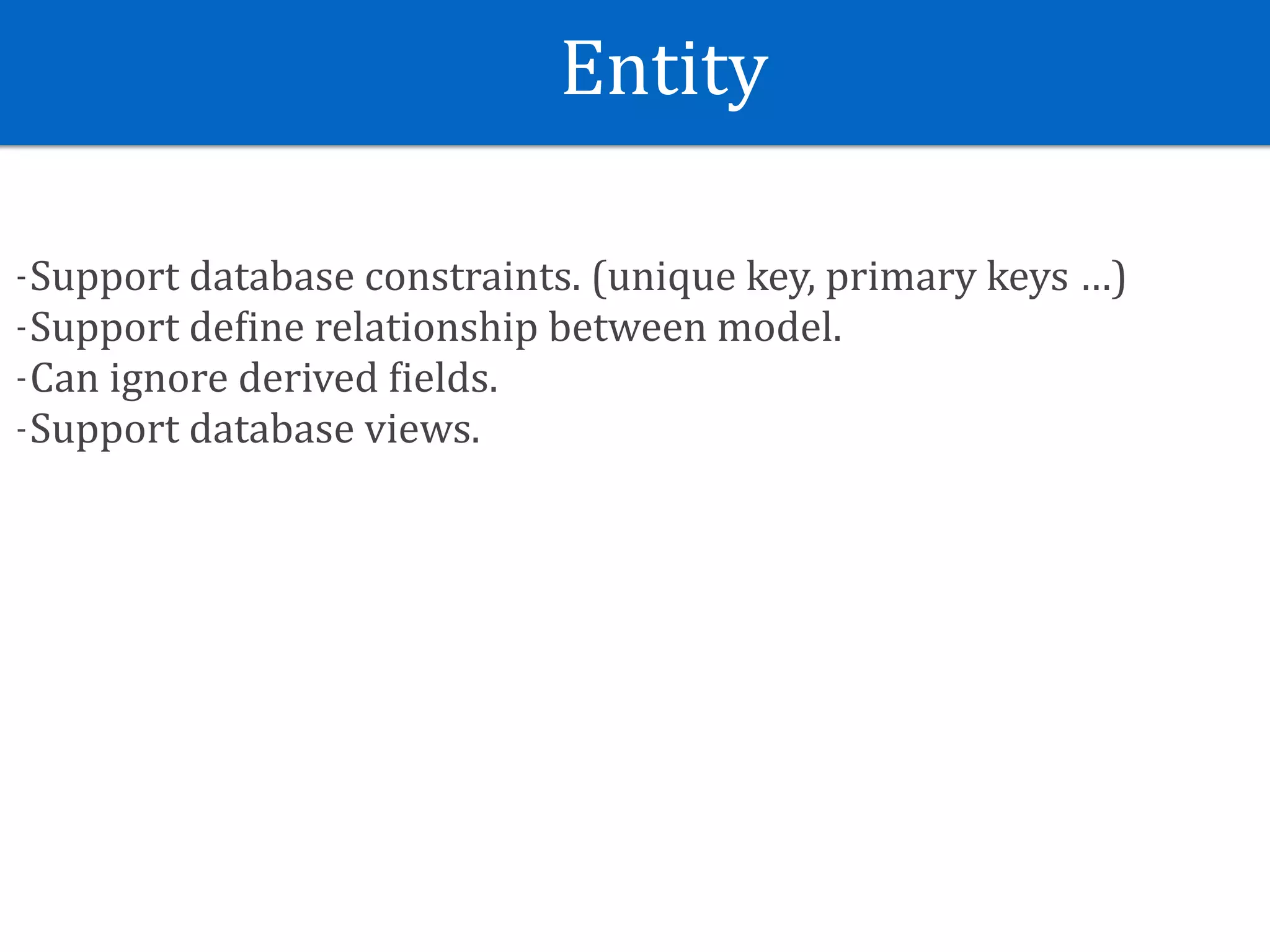

23. Entity
-Support database constraints. (unique key, primary keys …)
-Support deSine relationship between model.
-Can ignore derived Sields.
-Support database views.

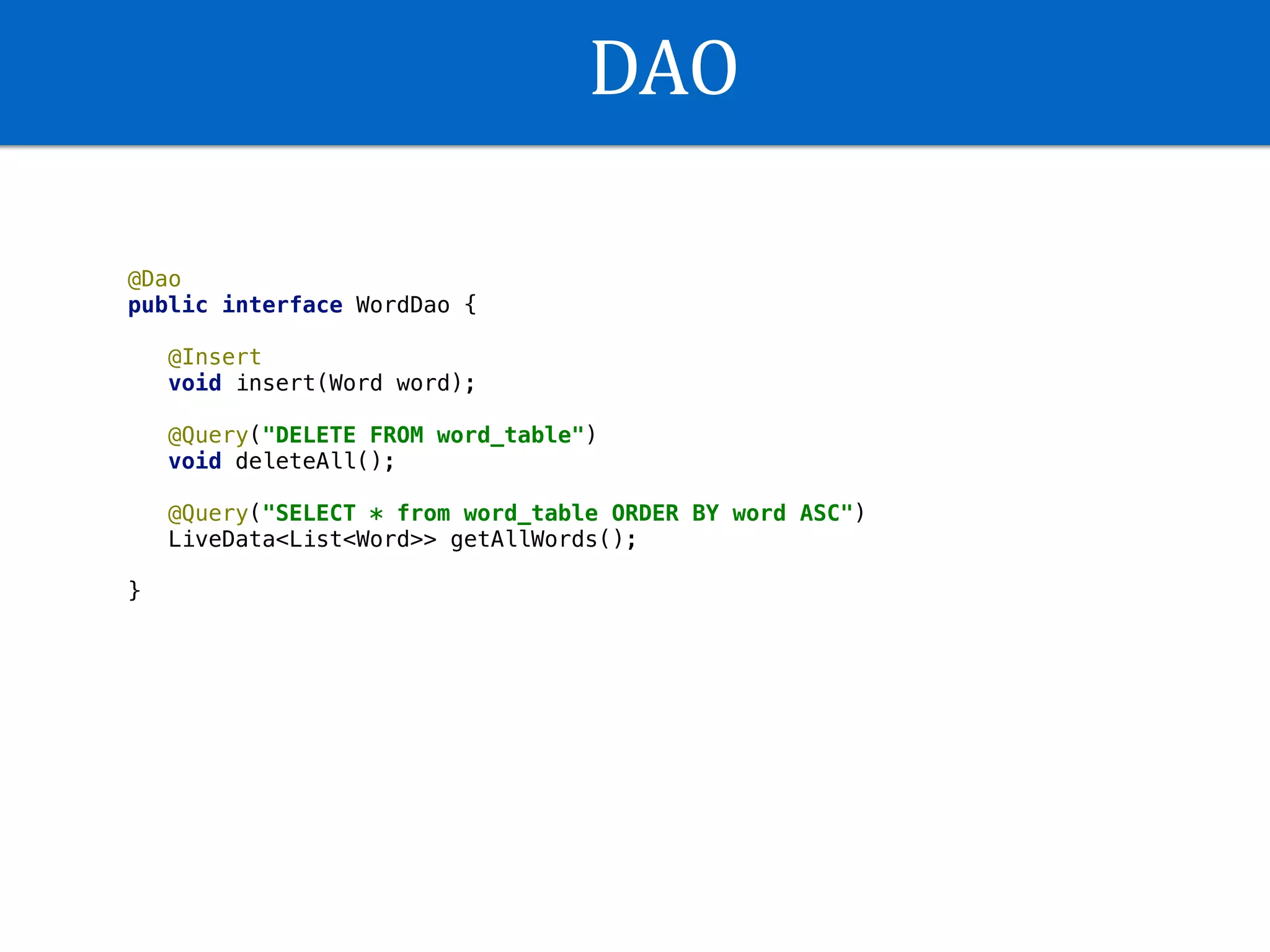

24. DAO
@Dao
public interface WordDao {
@Insert
void insert(Word word);
@Query("DELETE FROM word_table")
void deleteAll();
@Query("SELECT * from word_table ORDER BY word ASC")
LiveData<List<Word>> getAllWords();
}

25. DAO
-Use annotation for simple actions such as insert/delete/update
@Dao
public interface WordDao {
@Insert
void insert(Word word);
}

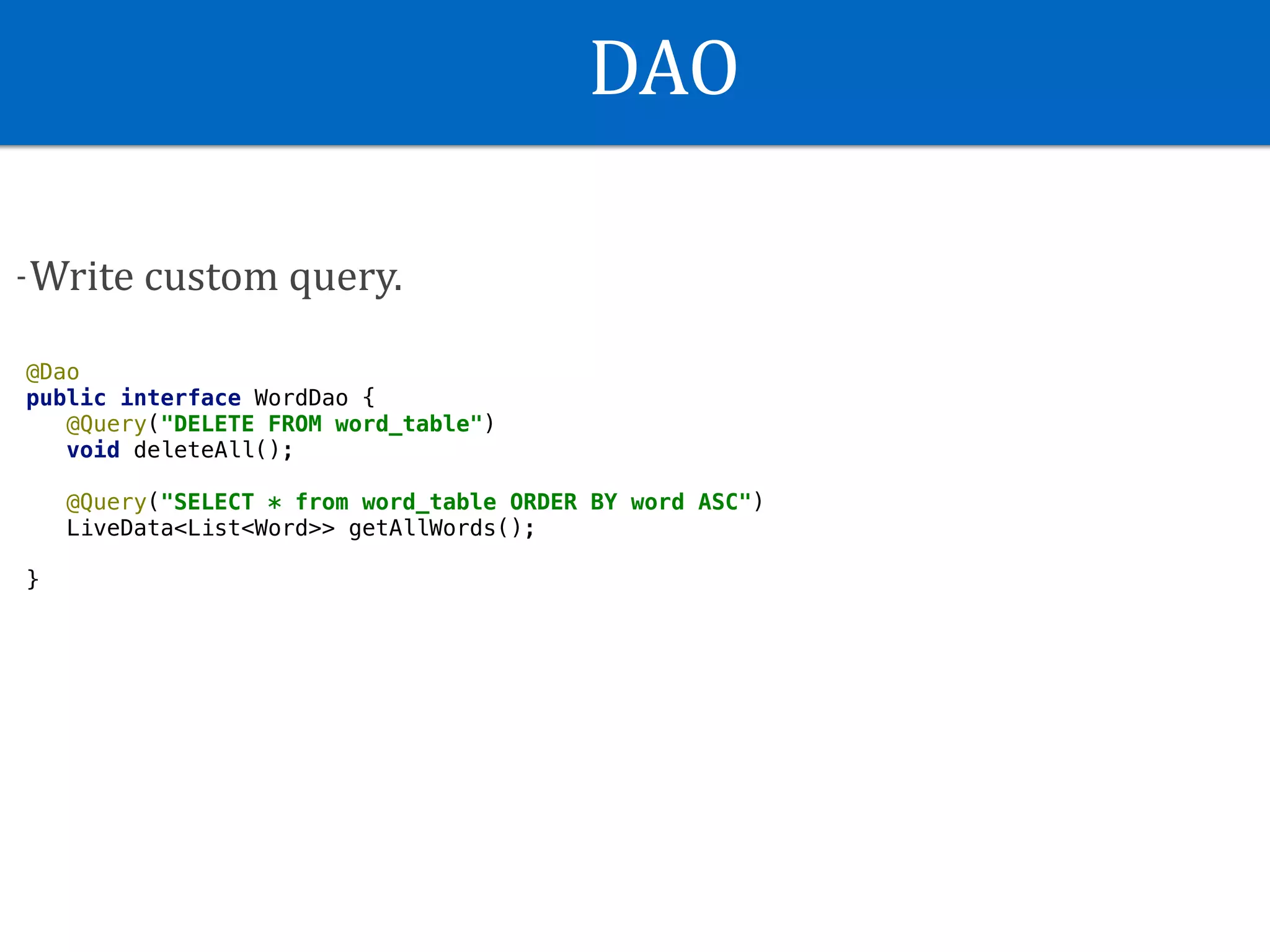

26. DAO
-Write custom query.
@Dao
public interface WordDao {
@Query("DELETE FROM word_table")
void deleteAll();
@Query("SELECT * from word_table ORDER BY word ASC")
LiveData<List<Word>> getAllWords();
}

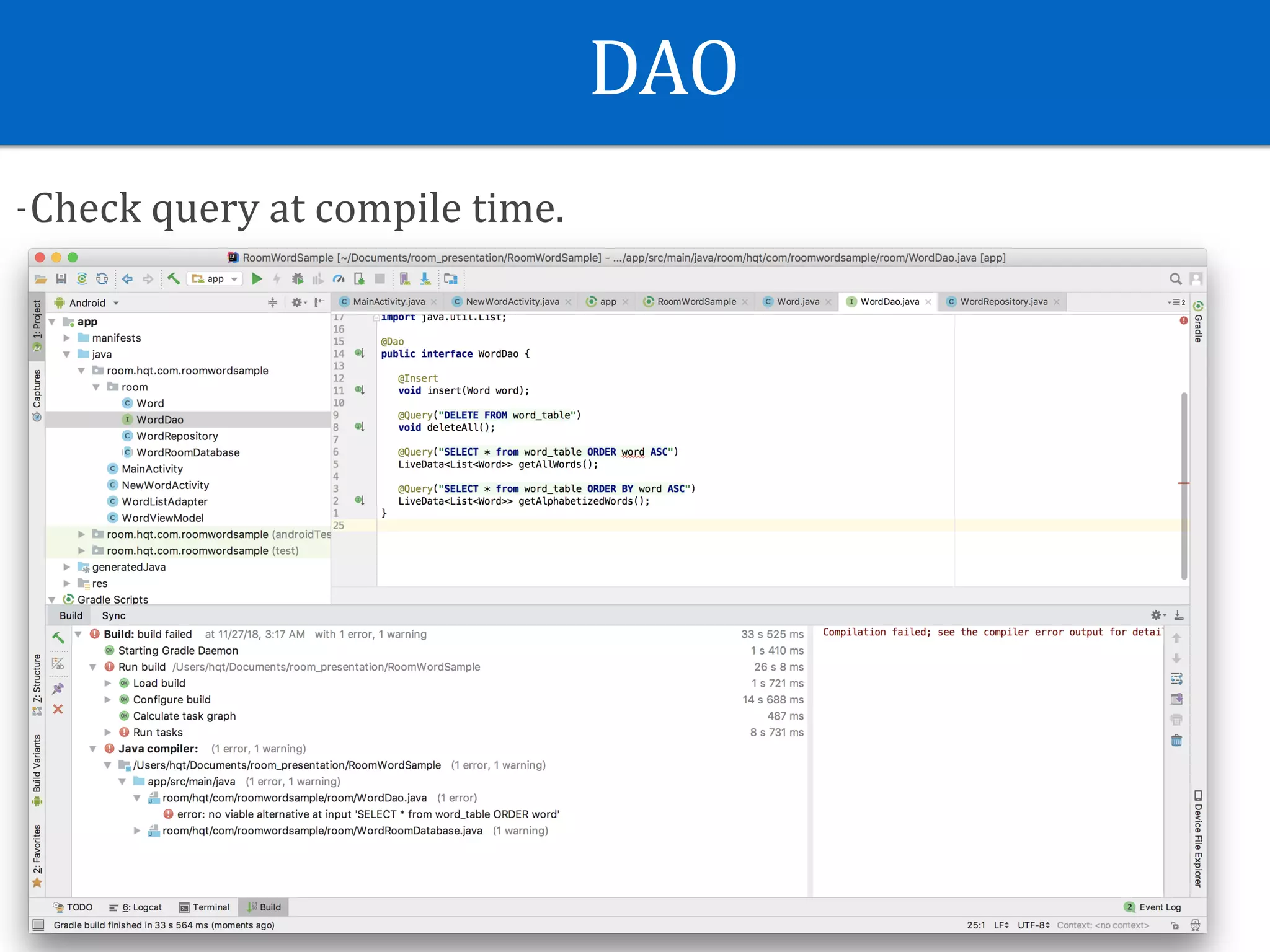

27. DAO
-Check query at compile time.

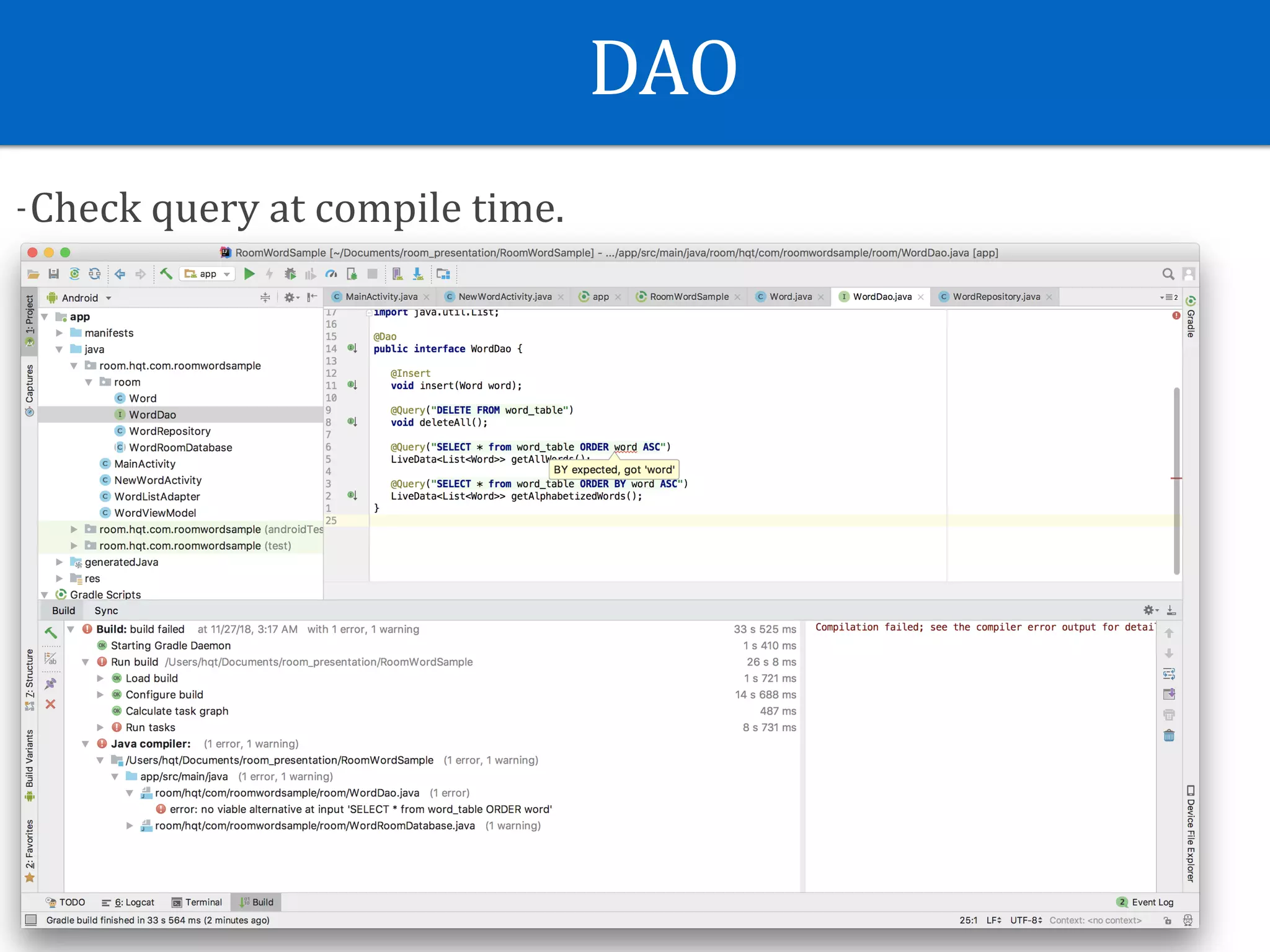

28. DAO
-Check query at compile time.

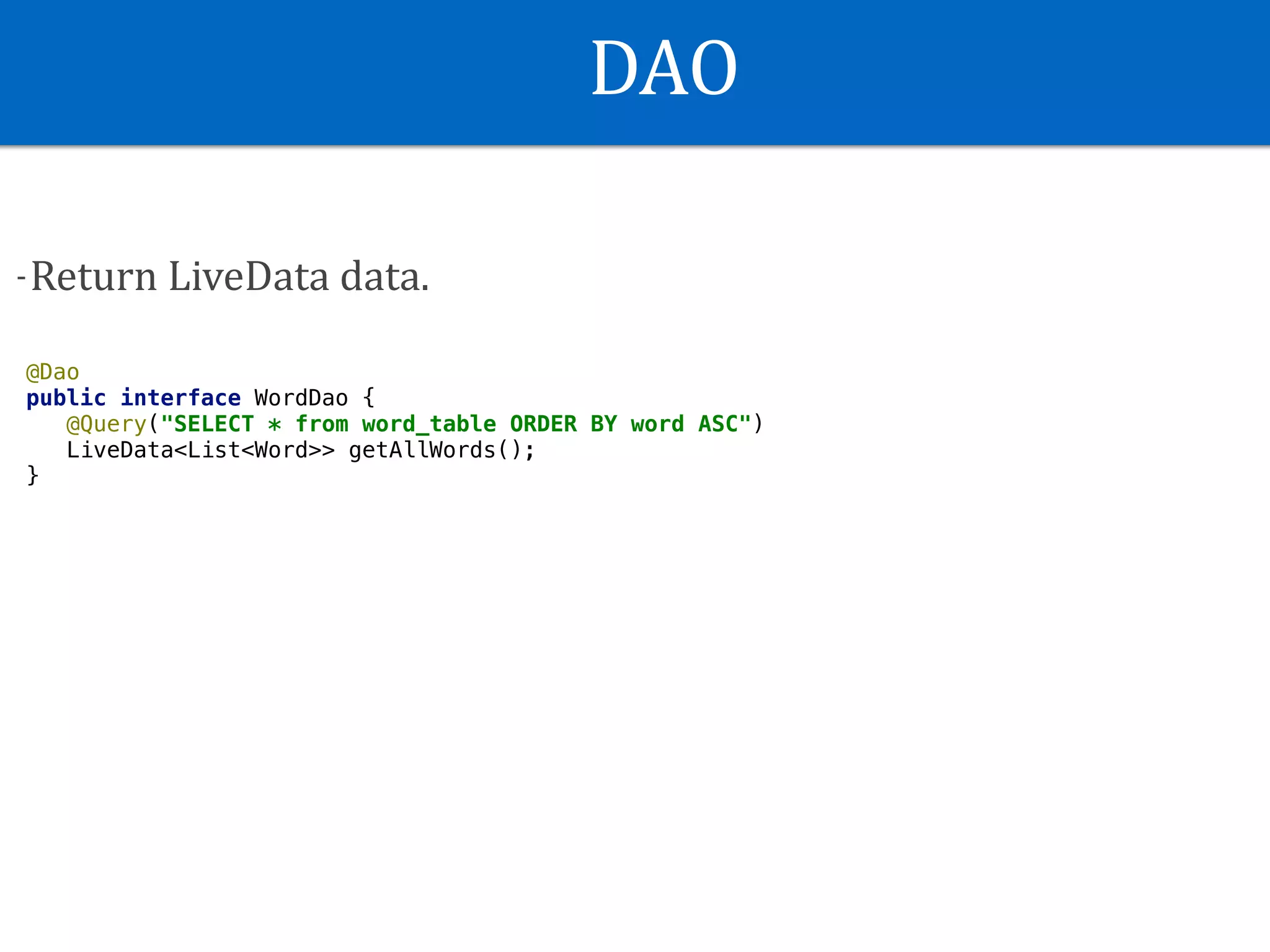

29. DAO
-Return LiveData data.
@Dao
public interface WordDao {
@Query("SELECT * from word_table ORDER BY word ASC")
LiveData<List<Word>> getAllWords();
}

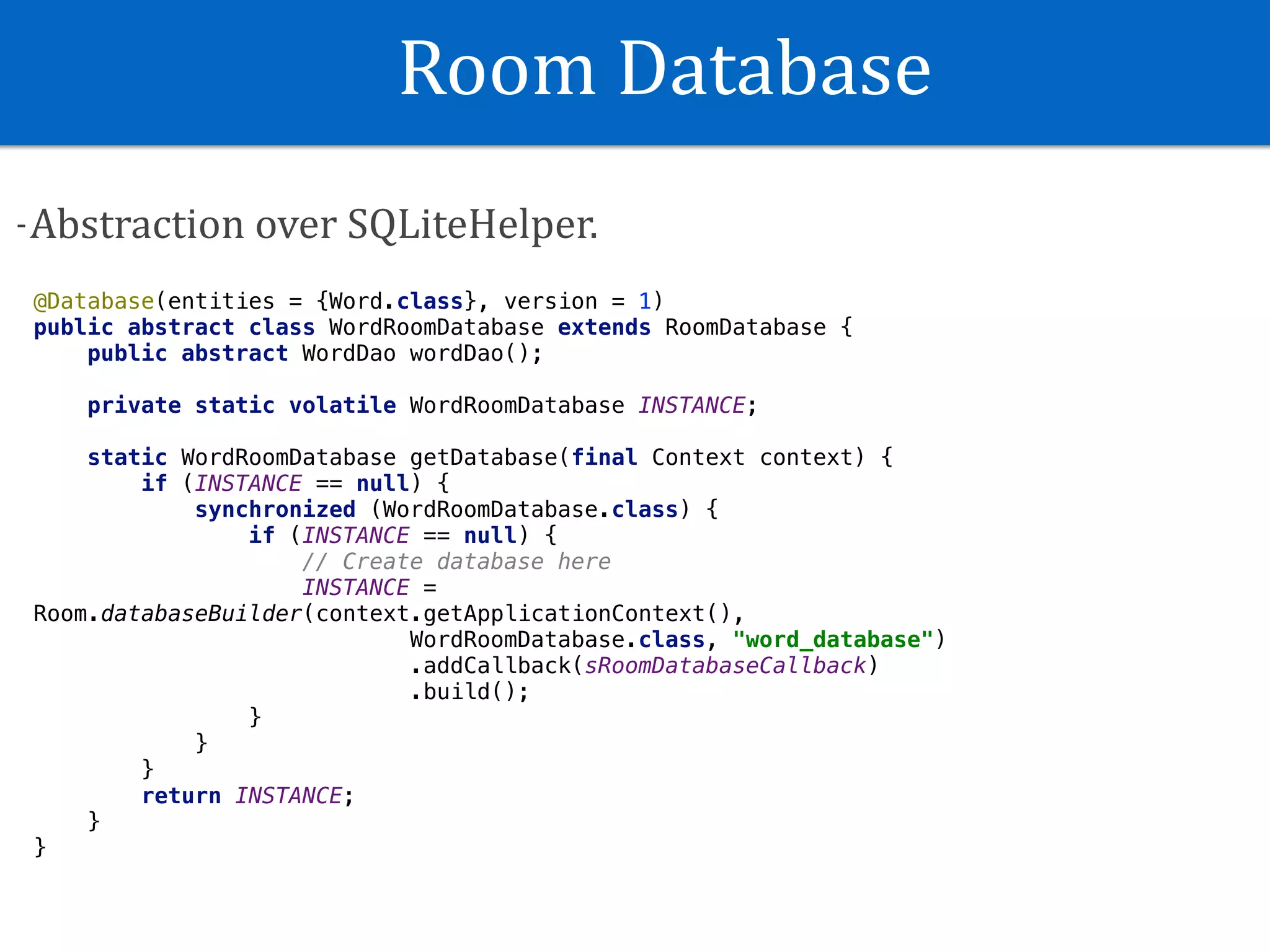

30. Room Database
-Abstraction over SQLiteHelper.
@Database(entities = {Word.class}, version = 1)
public abstract class WordRoomDatabase extends RoomDatabase {
public abstract WordDao wordDao();
private static volatile WordRoomDatabase INSTANCE;
static WordRoomDatabase getDatabase(final Context context) {
if (INSTANCE == null) {
synchronized (WordRoomDatabase.class) {
if (INSTANCE == null) {
// Create database here
INSTANCE =
Room.databaseBuilder(context.getApplicationContext(),
WordRoomDatabase.class, "word_database")
.addCallback(sRoomDatabaseCallback)
.build();
}
}
}
return INSTANCE;
}
}

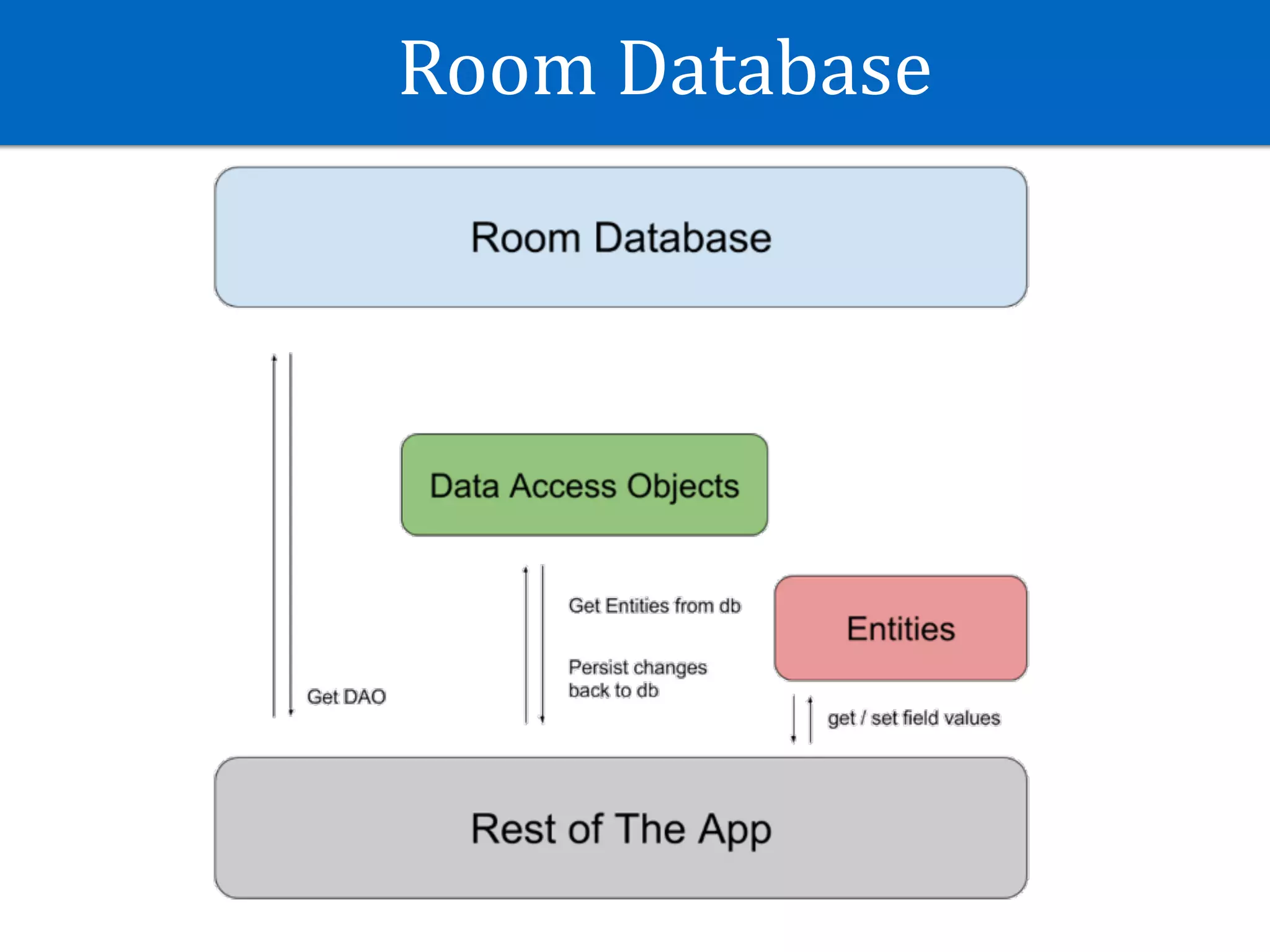

31. Room Database

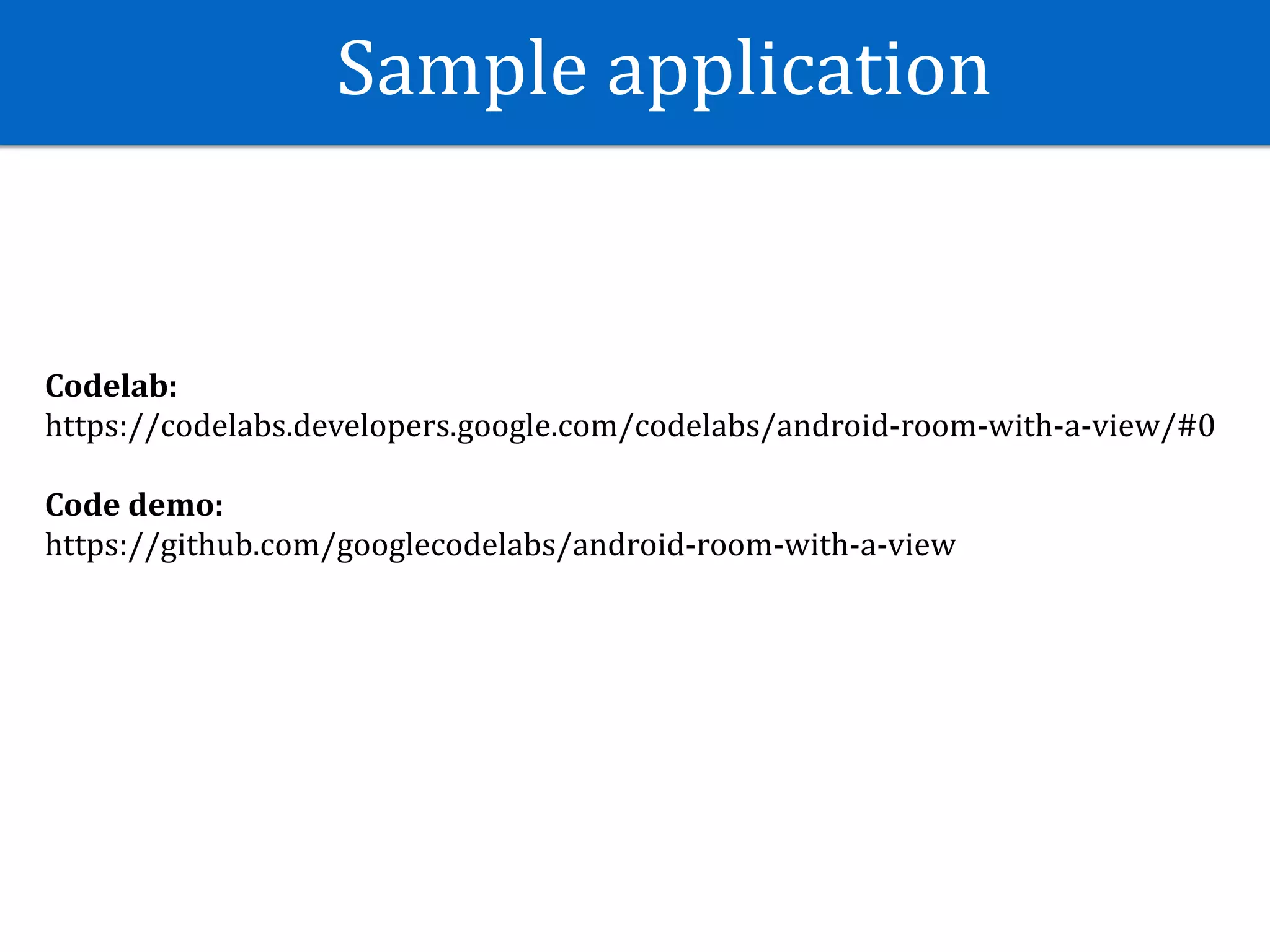

32. Sample application
Codelab:
https://codelabs.developers.google.com/codelabs/android-room-with-a-view/#0
Code demo:
https://github.com/googlecodelabs/android-room-with-a-view

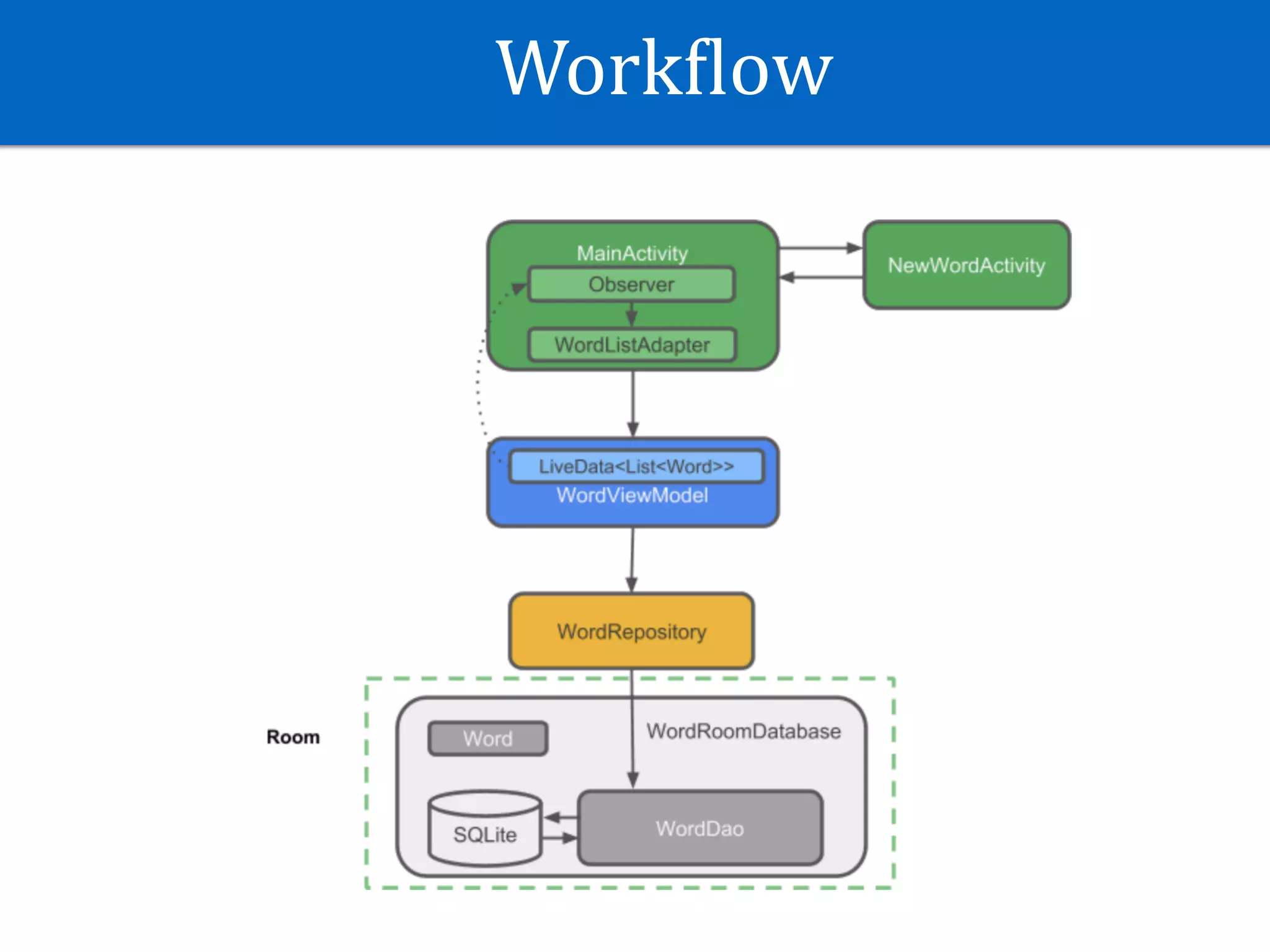

34. WorkSlow

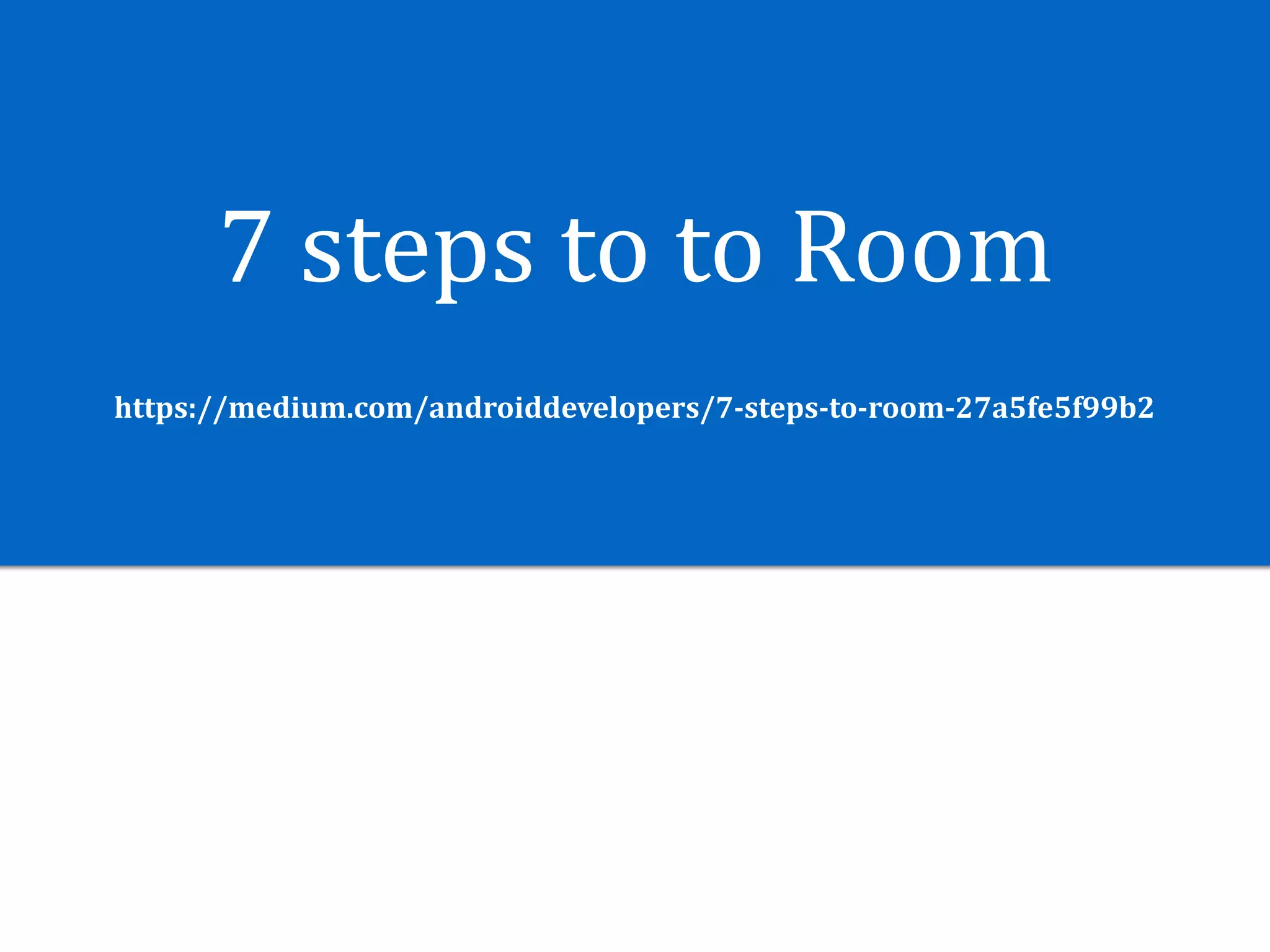

35. 7 steps to to Room
https://medium.com/androiddevelopers/7-steps-to-room-27a5fe5f99b2

36. Step 1: Add dependencies
dependencies {
// Room components
implementation "android.arch.persistence.room:runtime:$rootProject.roomVersion"
annotationProcessor "android.arch.persistence.room:compiler:$rootProject.roomVersion"
androidTestImplementation "android.arch.persistence.room:testing:$rootProject.roomVersion"
// Lifecycle components
implementation "android.arch.lifecycle:extensions:$rootProject.archLifecycleVersion"
annotationProcessor "android.arch.lifecycle:compiler:$rootProject.archLifecycleVersion"
}
build.gradle (module app)

37. Step 2: Update model to entity
@Entity(tableName = "word_table")
public class Word {
@PrimaryKey
@NonNull
@ColumnInfo(name = "word")
private String mWord;
public Word(String word) {this.mWord = word;}
public String getWord(){return this.mWord;}
}

38. Step 3: Create DAO
@Dao
public interface WordDao {
@Insert
void insert(Word word);
}

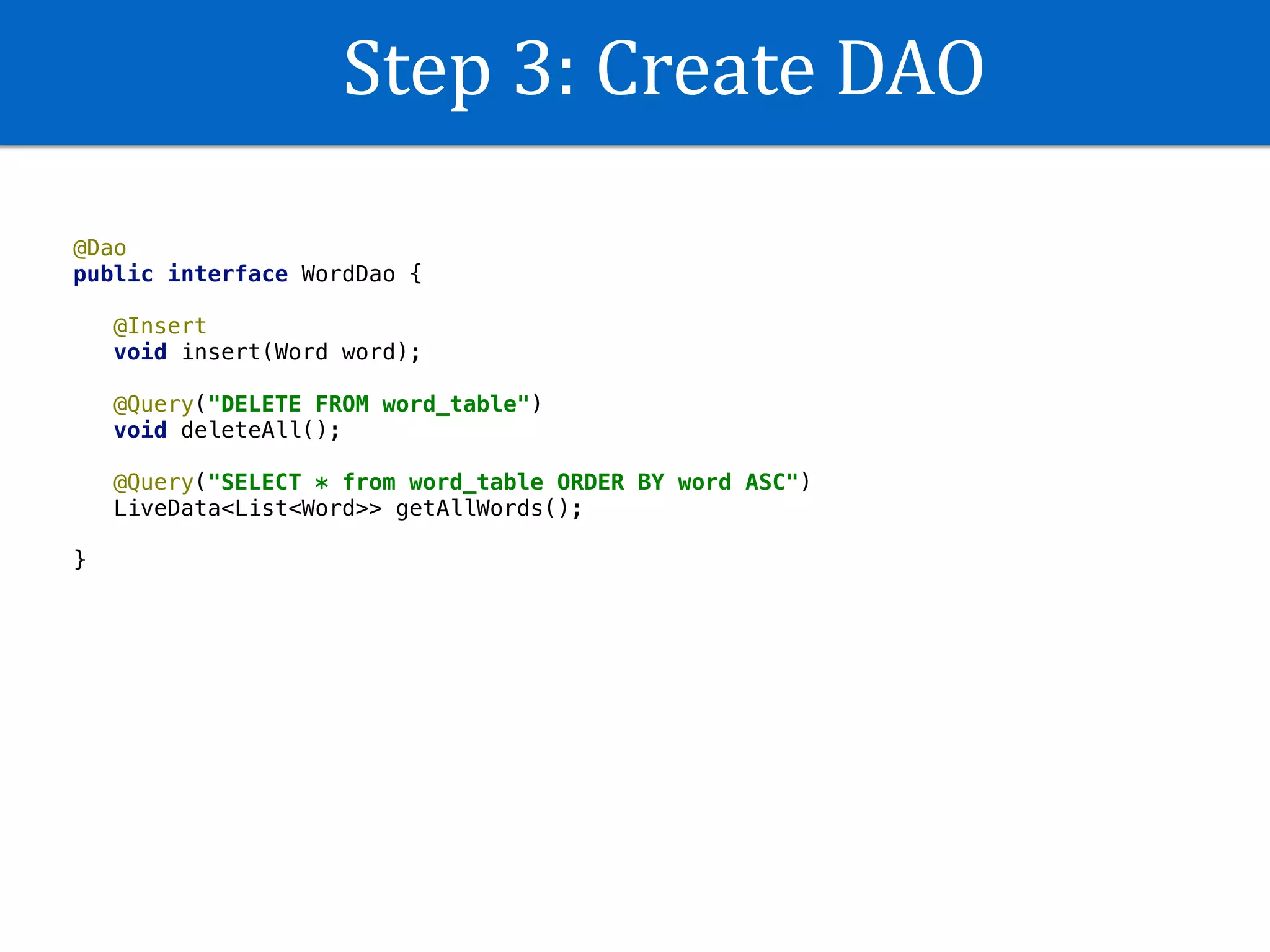

39. Step 3: Create DAO
@Dao
public interface WordDao {
@Insert
void insert(Word word);
@Query("DELETE FROM word_table")
void deleteAll();
@Query("SELECT * from word_table ORDER BY word ASC")
LiveData<List<Word>> getAllWords();
}

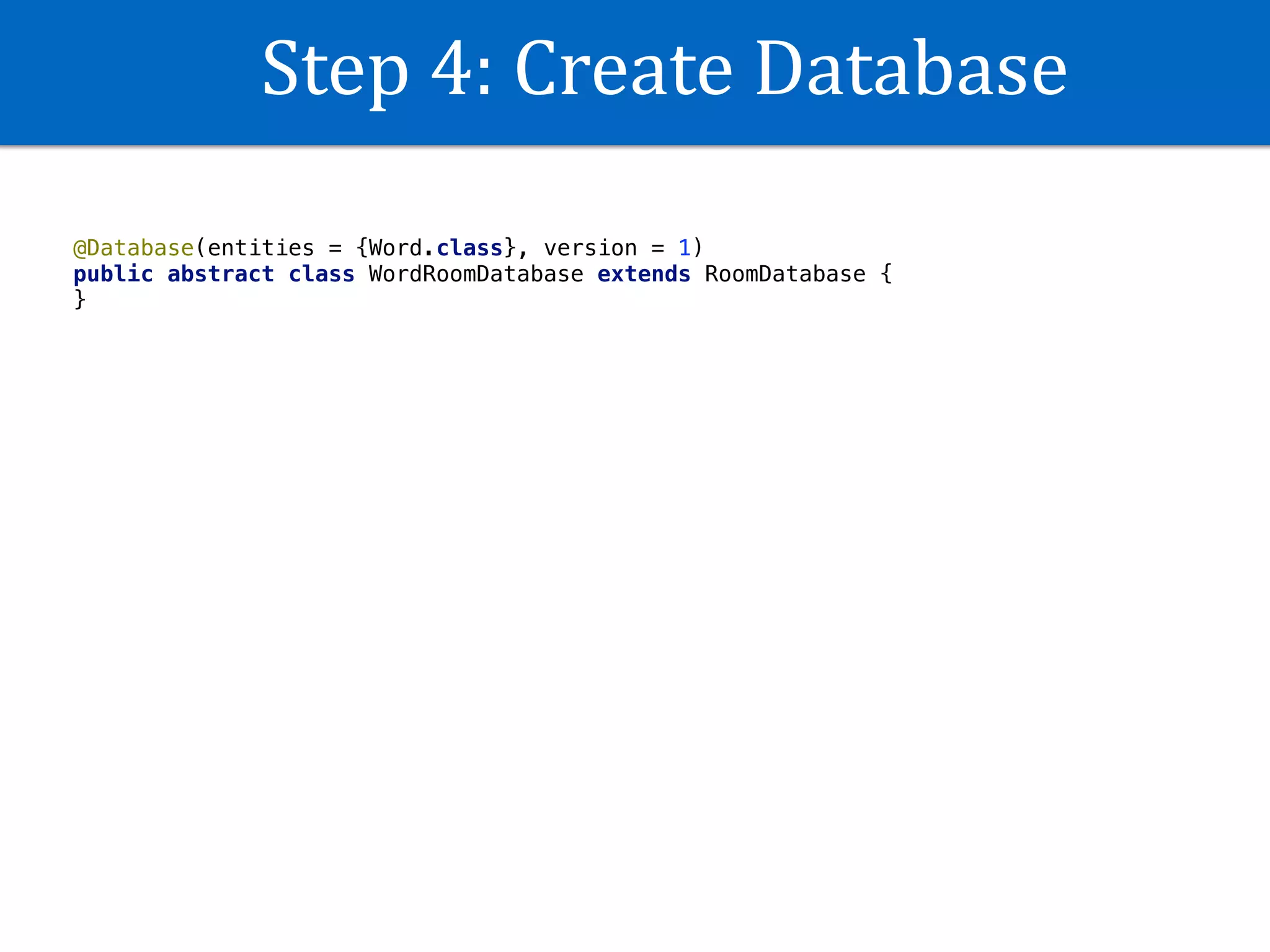

40. Step 4: Create Database
@Database(entities = {Word.class}, version = 1)
public abstract class WordRoomDatabase extends RoomDatabase {
}

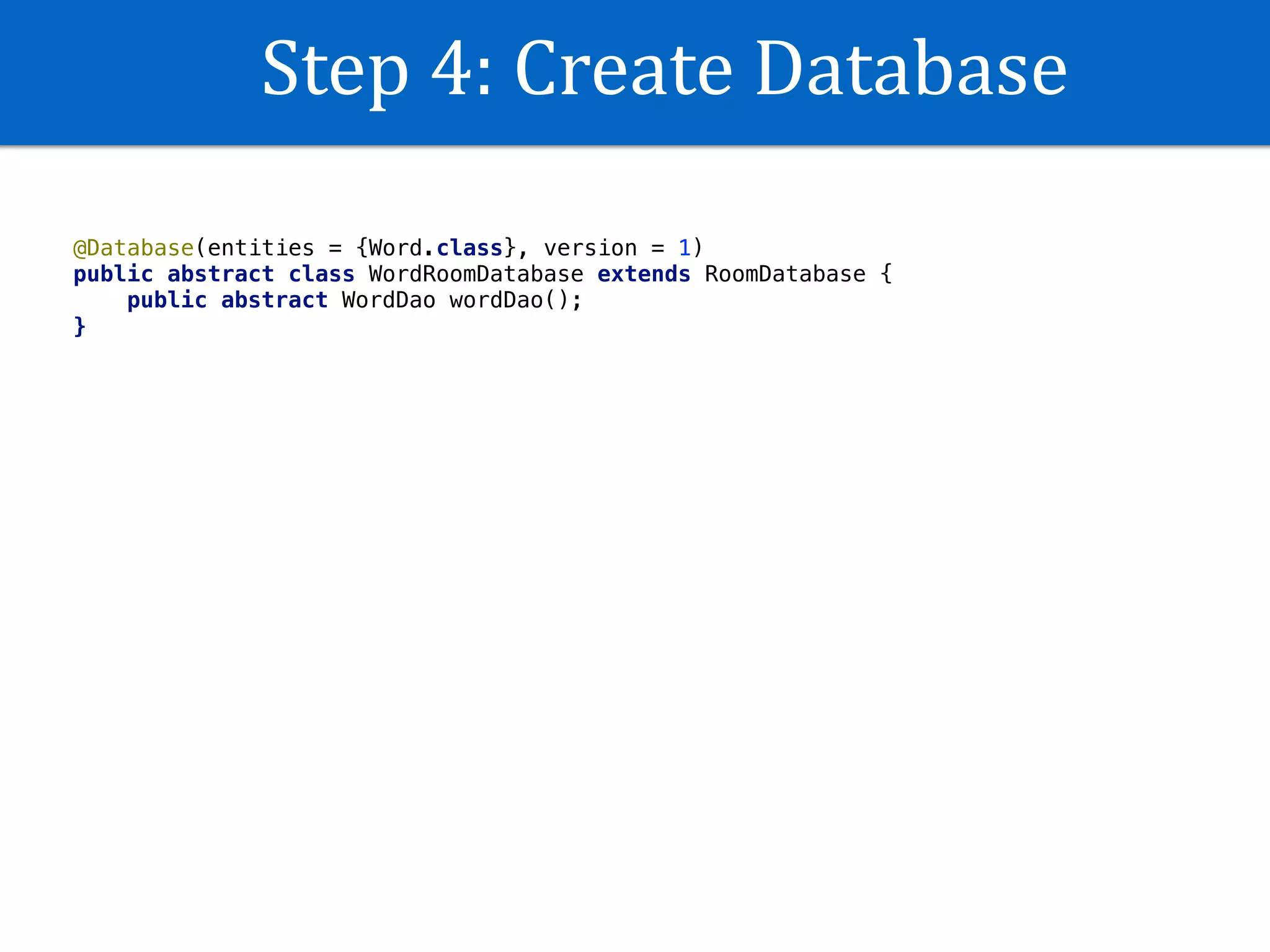

41. Step 4: Create Database
@Database(entities = {Word.class}, version = 1)
public abstract class WordRoomDatabase extends RoomDatabase {
public abstract WordDao wordDao();
}

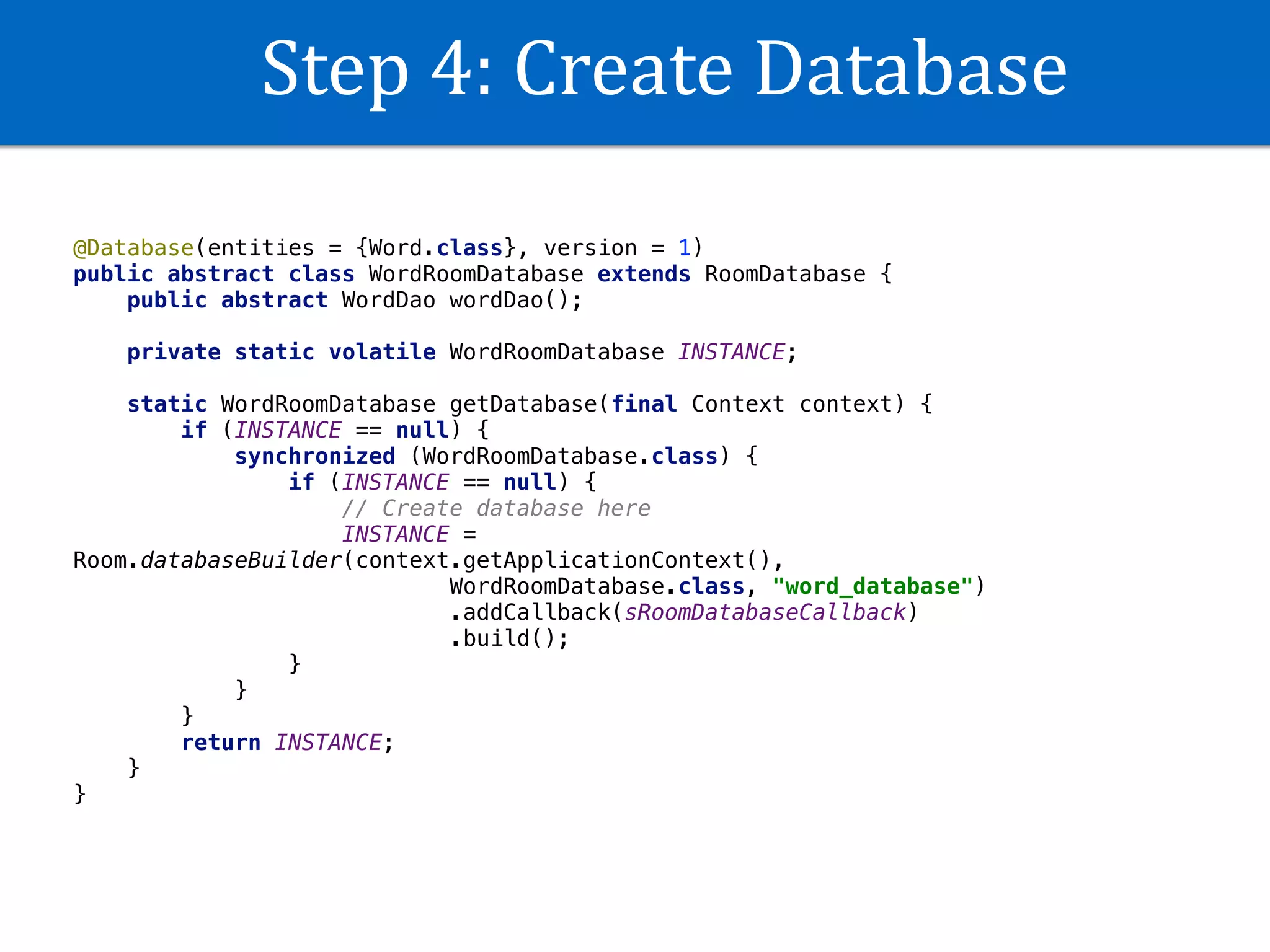

42. Step 4: Create Database
@Database(entities = {Word.class}, version = 1)
public abstract class WordRoomDatabase extends RoomDatabase {
public abstract WordDao wordDao();
private static volatile WordRoomDatabase INSTANCE;
static WordRoomDatabase getDatabase(final Context context) {
if (INSTANCE == null) {
synchronized (WordRoomDatabase.class) {
if (INSTANCE == null) {
// Create database here
INSTANCE =
Room.databaseBuilder(context.getApplicationContext(),
WordRoomDatabase.class, "word_database")
.addCallback(sRoomDatabaseCallback)
.build();
}
}
}
return INSTANCE;
}
}

43. Step 5: Update Repository
public class WordRepository {
private WordDao mWordDao;
private LiveData<List<Word>> mAllWords;
}

44. Step 5: Update Repository
public class WordRepository {
private WordDao mWordDao;
private LiveData<List<Word>> mAllWords;
public WordRepository(Application application) {
WordRoomDatabase db = WordRoomDatabase.getDatabase(application);
mWordDao = db.wordDao();
mAllWords = mWordDao.getAllWords();
}
public LiveData<List<Word>> getAllWords() {
return mAllWords;
}
public void insert(Word word) {
new insertAsyncTask(mWordDao).execute(word);
}
}

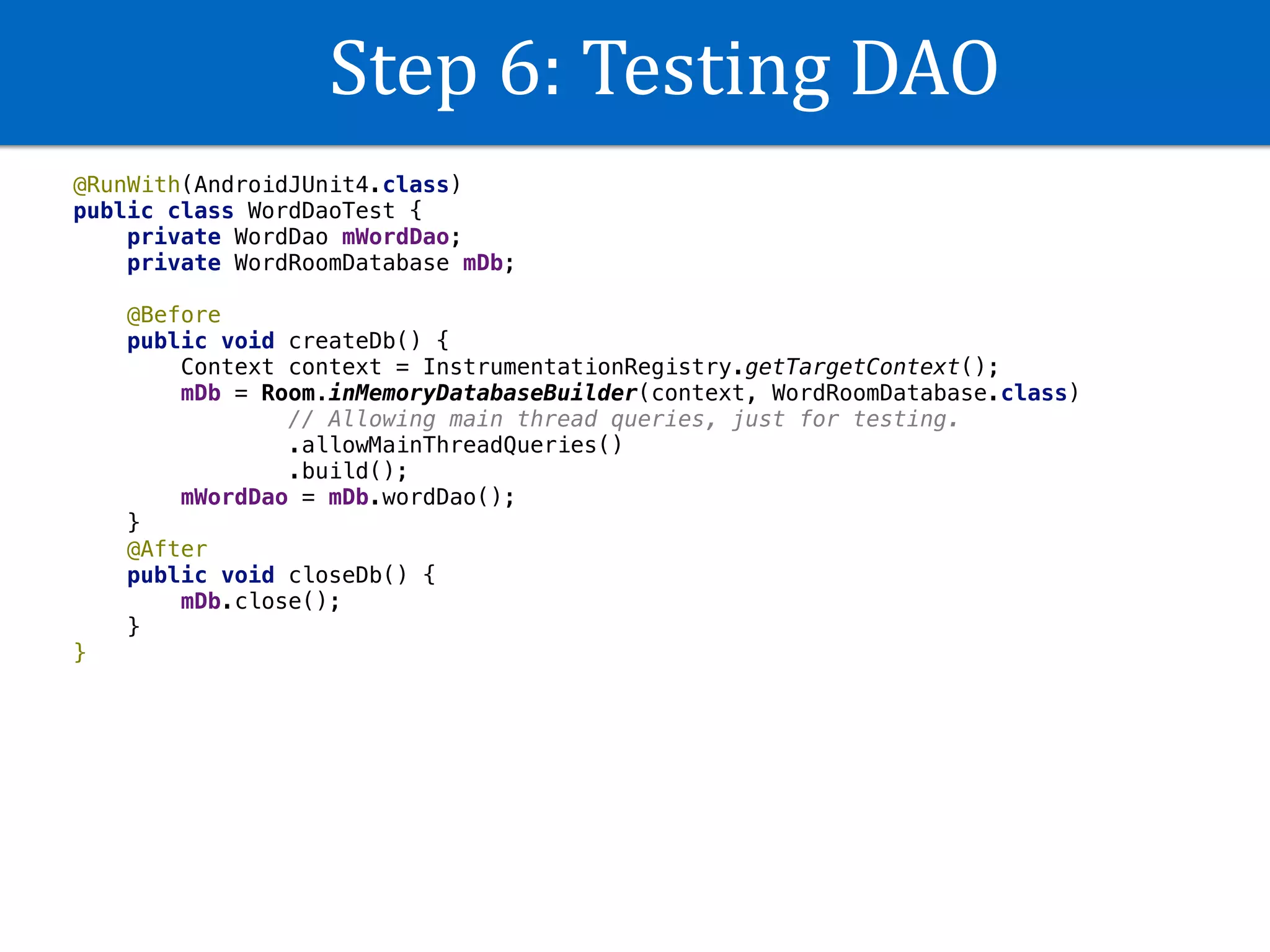

45. Step 6: Testing DAO
@RunWith(AndroidJUnit4.class)
public class WordDaoTest {
private WordDao mWordDao;
private WordRoomDatabase mDb;
@Before
public void createDb() {
Context context = InstrumentationRegistry.getTargetContext();
mDb = Room.inMemoryDatabaseBuilder(context, WordRoomDatabase.class)
// Allowing main thread queries, just for testing.
.allowMainThreadQueries()
.build();
mWordDao = mDb.wordDao();
}
@After
public void closeDb() {
mDb.close();
}
}

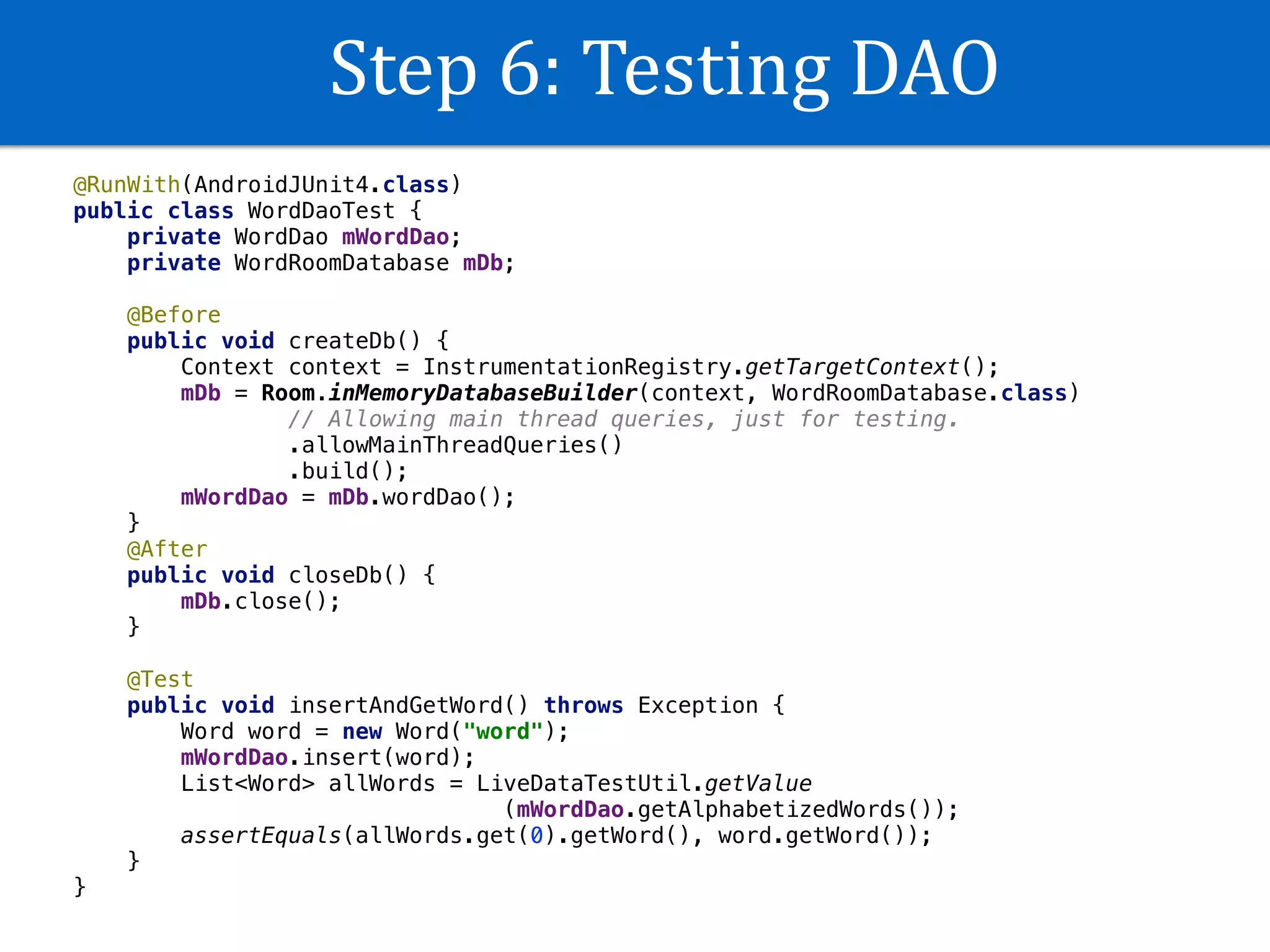

46. Step 6: Testing DAO
@RunWith(AndroidJUnit4.class)
public class WordDaoTest {
private WordDao mWordDao;
private WordRoomDatabase mDb;
@Before
public void createDb() {
Context context = InstrumentationRegistry.getTargetContext();
mDb = Room.inMemoryDatabaseBuilder(context, WordRoomDatabase.class)
// Allowing main thread queries, just for testing.
.allowMainThreadQueries()
.build();
mWordDao = mDb.wordDao();
}
@After
public void closeDb() {
mDb.close();
}
@Test
public void insertAndGetWord() throws Exception {
Word word = new Word("word");
mWordDao.insert(word);
List<Word> allWords = LiveDataTestUtil.getValue
(mWordDao.getAlphabetizedWords());
assertEquals(allWords.get(0).getWord(), word.getWord());
}
}

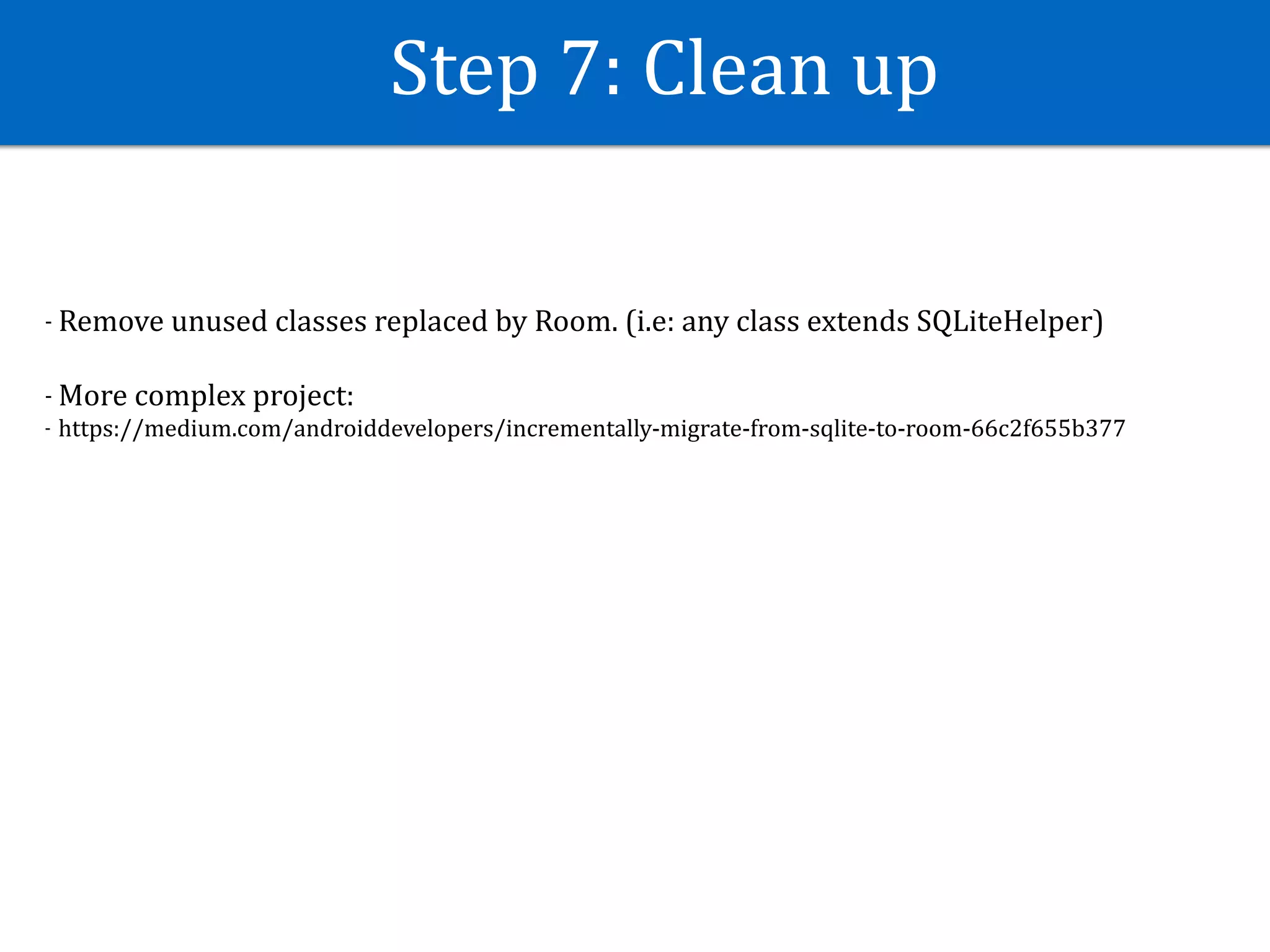

47. Step 7: Clean up
- Remove unused classes replaced by Room. (i.e: any class extends SQLiteHelper)
- More complex project:
- https://medium.com/androiddevelopers/incrementally-migrate-from-sqlite-to-room-66c2f655b377

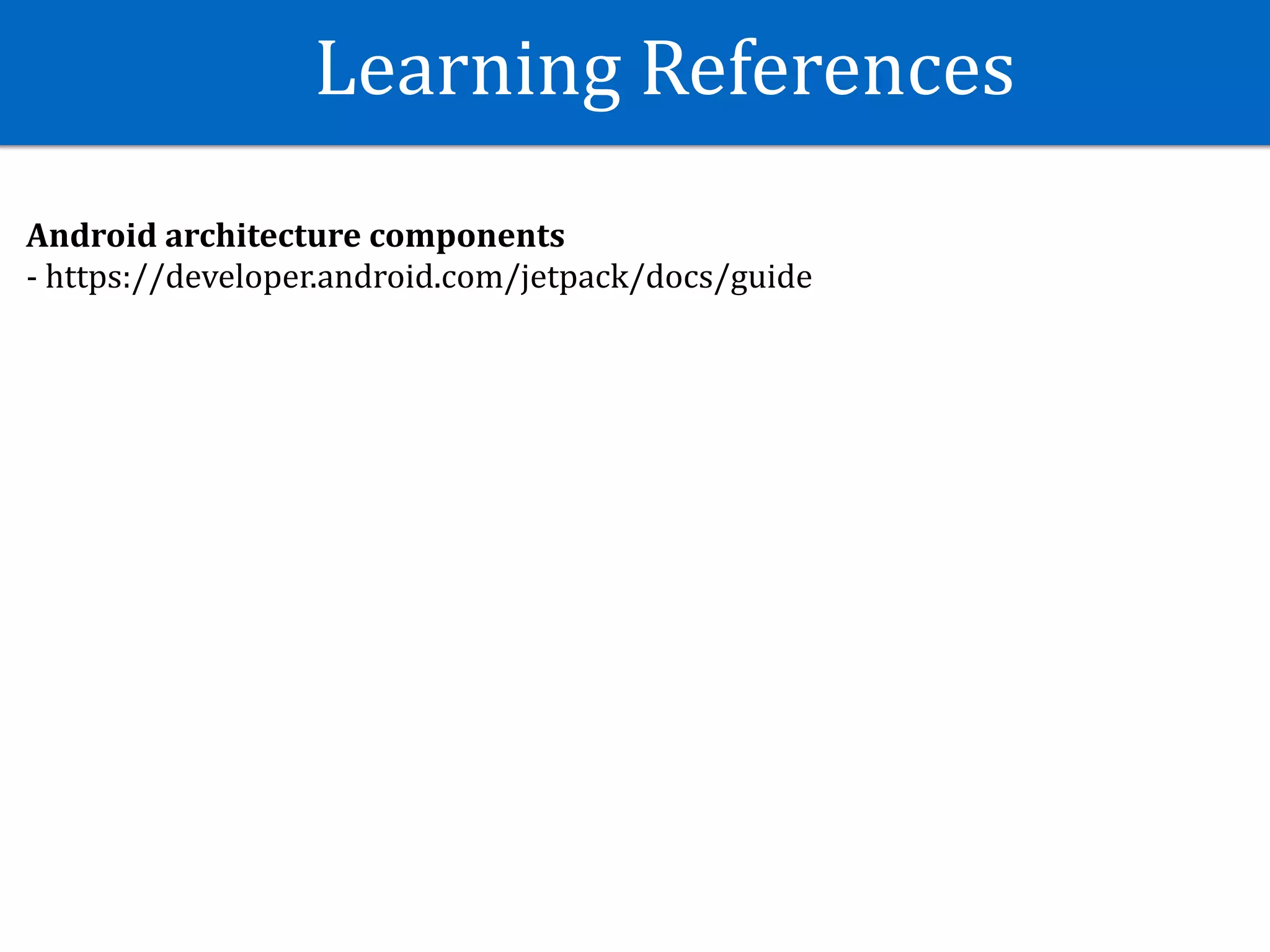

48. Learning References
Android architecture components
- https://developer.android.com/jetpack/docs/guide

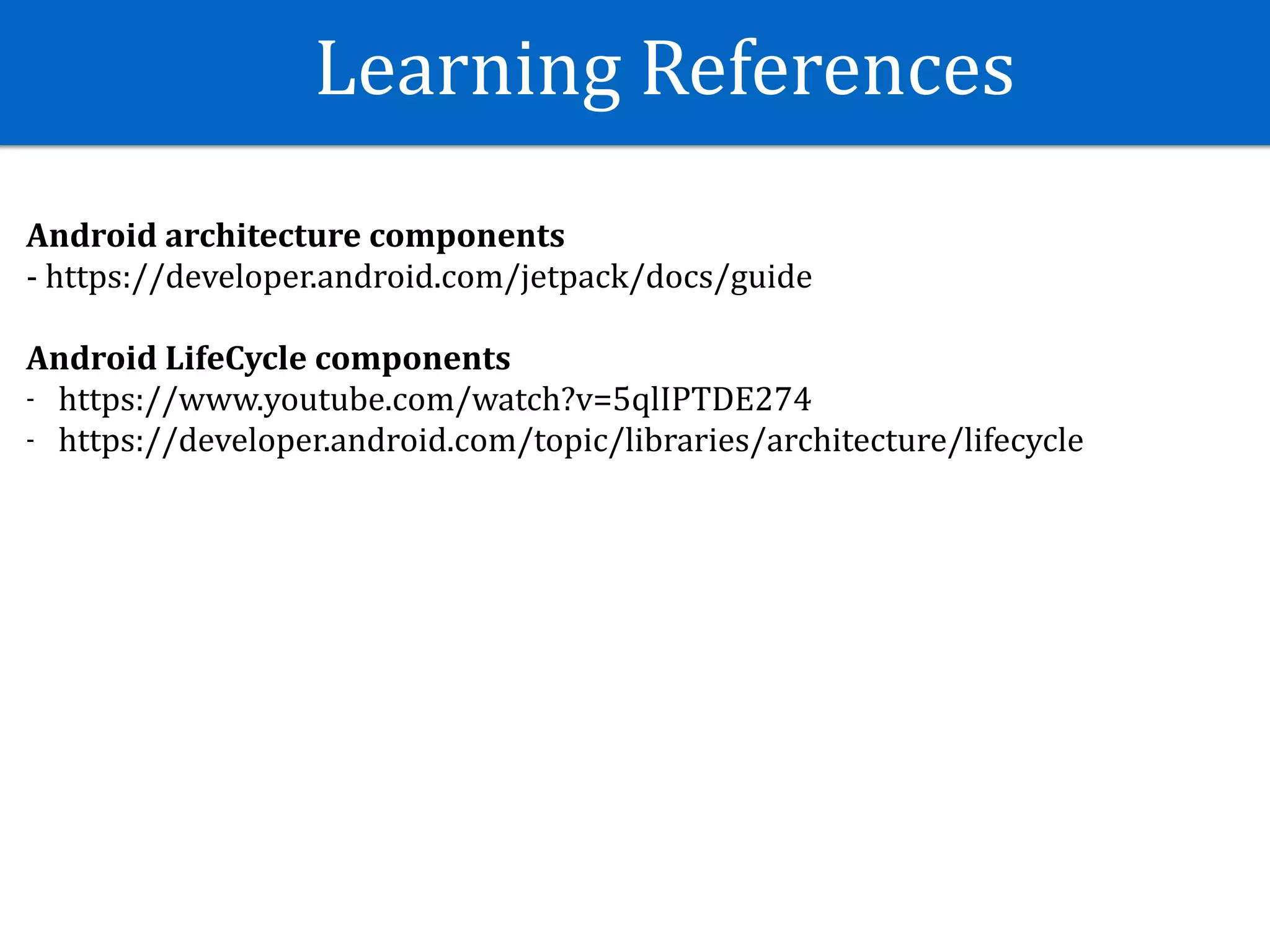

49. Learning References
Android architecture components
- https://developer.android.com/jetpack/docs/guide
Android LifeCycle components
- https://www.youtube.com/watch?v=5qlIPTDE274
- https://developer.android.com/topic/libraries/architecture/lifecycle

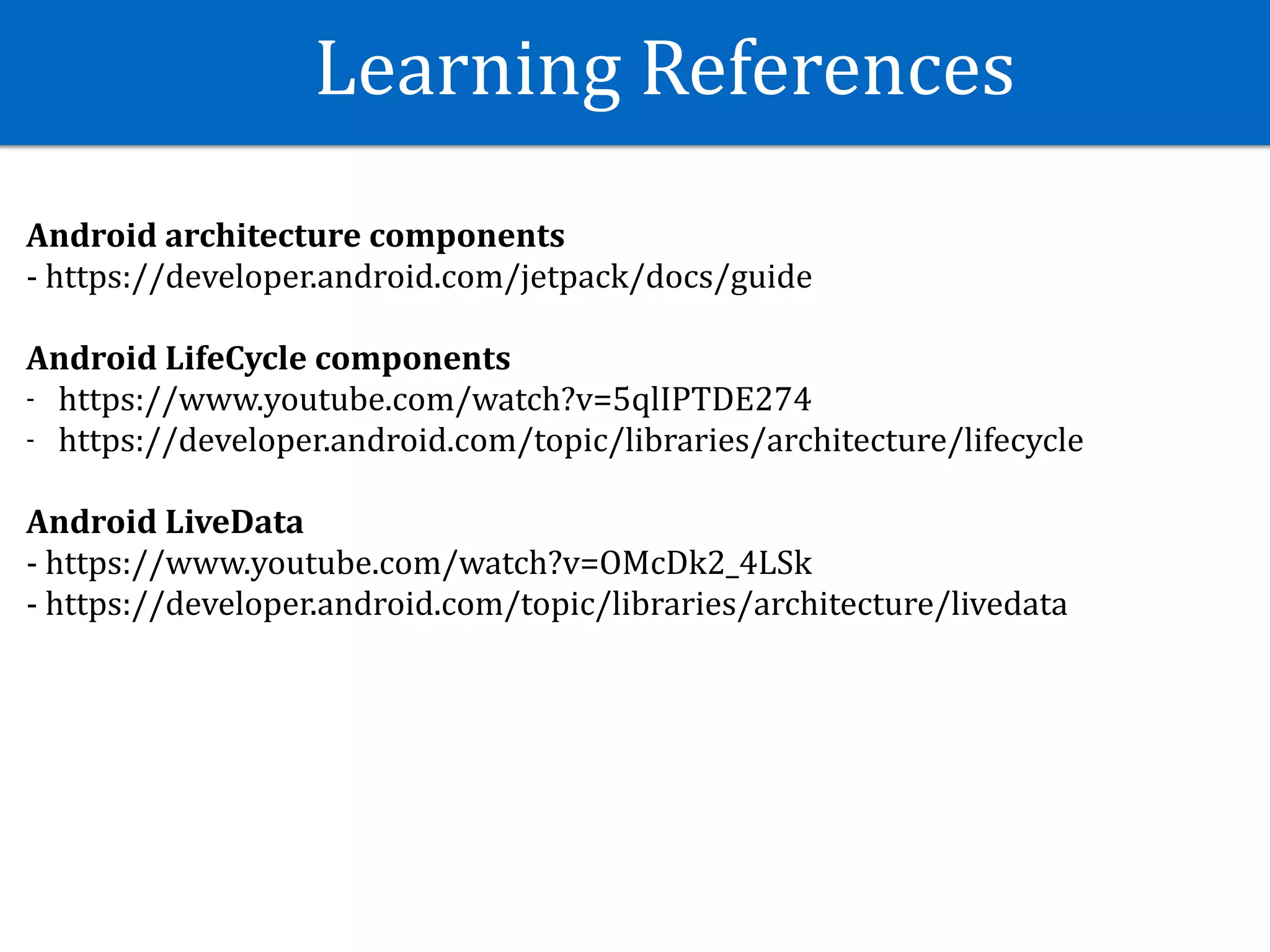

50. Learning References
Android architecture components
- https://developer.android.com/jetpack/docs/guide
Android LifeCycle components
- https://www.youtube.com/watch?v=5qlIPTDE274
- https://developer.android.com/topic/libraries/architecture/lifecycle
Android LiveData
- https://www.youtube.com/watch?v=OMcDk2_4LSk
- https://developer.android.com/topic/libraries/architecture/livedata

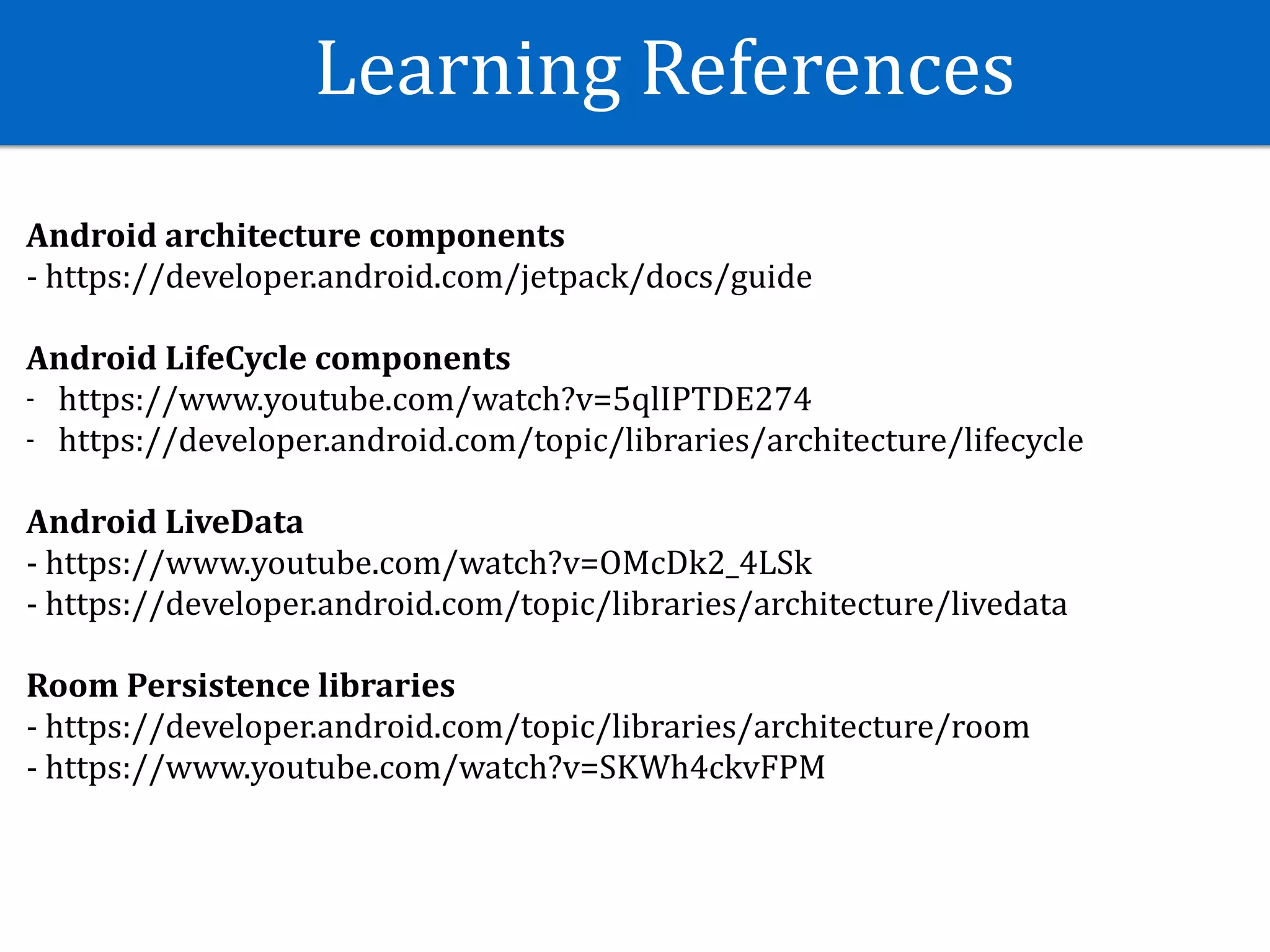

51. Learning References
Android architecture components
- https://developer.android.com/jetpack/docs/guide
Android LifeCycle components
- https://www.youtube.com/watch?v=5qlIPTDE274
- https://developer.android.com/topic/libraries/architecture/lifecycle
Android LiveData
- https://www.youtube.com/watch?v=OMcDk2_4LSk
- https://developer.android.com/topic/libraries/architecture/livedata
Room Persistence libraries
- https://developer.android.com/topic/libraries/architecture/room
- https://www.youtube.com/watch?v=SKWh4ckvFPM

52. Learning References
Android architecture components
- https://developer.android.com/jetpack/docs/guide
Android LifeCycle components
- https://www.youtube.com/watch?v=5qlIPTDE274
- https://developer.android.com/topic/libraries/architecture/lifecycle
Android LiveData
- https://www.youtube.com/watch?v=OMcDk2_4LSk
- https://developer.android.com/topic/libraries/architecture/livedata
Room Persistence libraries
- https://developer.android.com/topic/libraries/architecture/room
- https://www.youtube.com/watch?v=SKWh4ckvFPM
Paging
- https://developer.android.com/topic/libraries/architecture/paging/

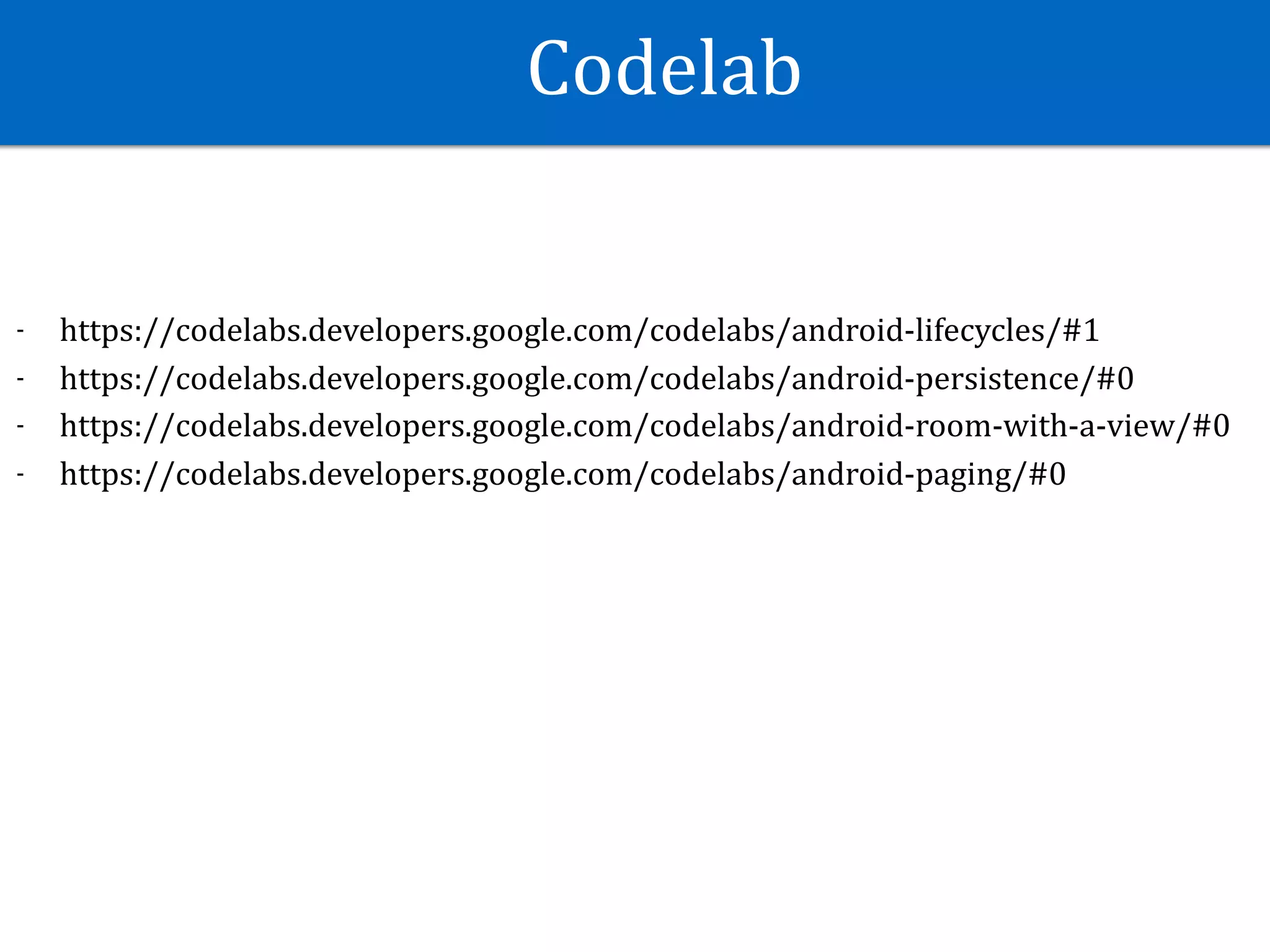

53. Codelab
- https://codelabs.developers.google.com/codelabs/android-lifecycles/#1
- https://codelabs.developers.google.com/codelabs/android-persistence/#0
- https://codelabs.developers.google.com/codelabs/android-room-with-a-view/#0
- https://codelabs.developers.google.com/codelabs/android-paging/#0

54. Q&A
