The document presents a large-scale evaluation of automatic static analysis tools (ASATs) in open source software, revealing that 59% of 122 popular projects use ASATs, but only 23% enforce them. It discusses the configuration and usage of ASATs, highlighting that most configurations deviate from defaults and that ASATs generally perform poorly at detecting functional defects. Open questions remain regarding the evolving nature of ASAT configurations and their usage in continuous integration environments.

1. Analyzing the State of Static Analysis:
A Large-Scale Evaluation
in Open Source Software

2. Analyzing the State of Static Analysis:
A Large-Scale Evaluation
in Open Source Software
Moritz Beller
@Inventitech

3. Analyzing the State of Static Analysis:
A Large-Scale Evaluation
in Open Source Software

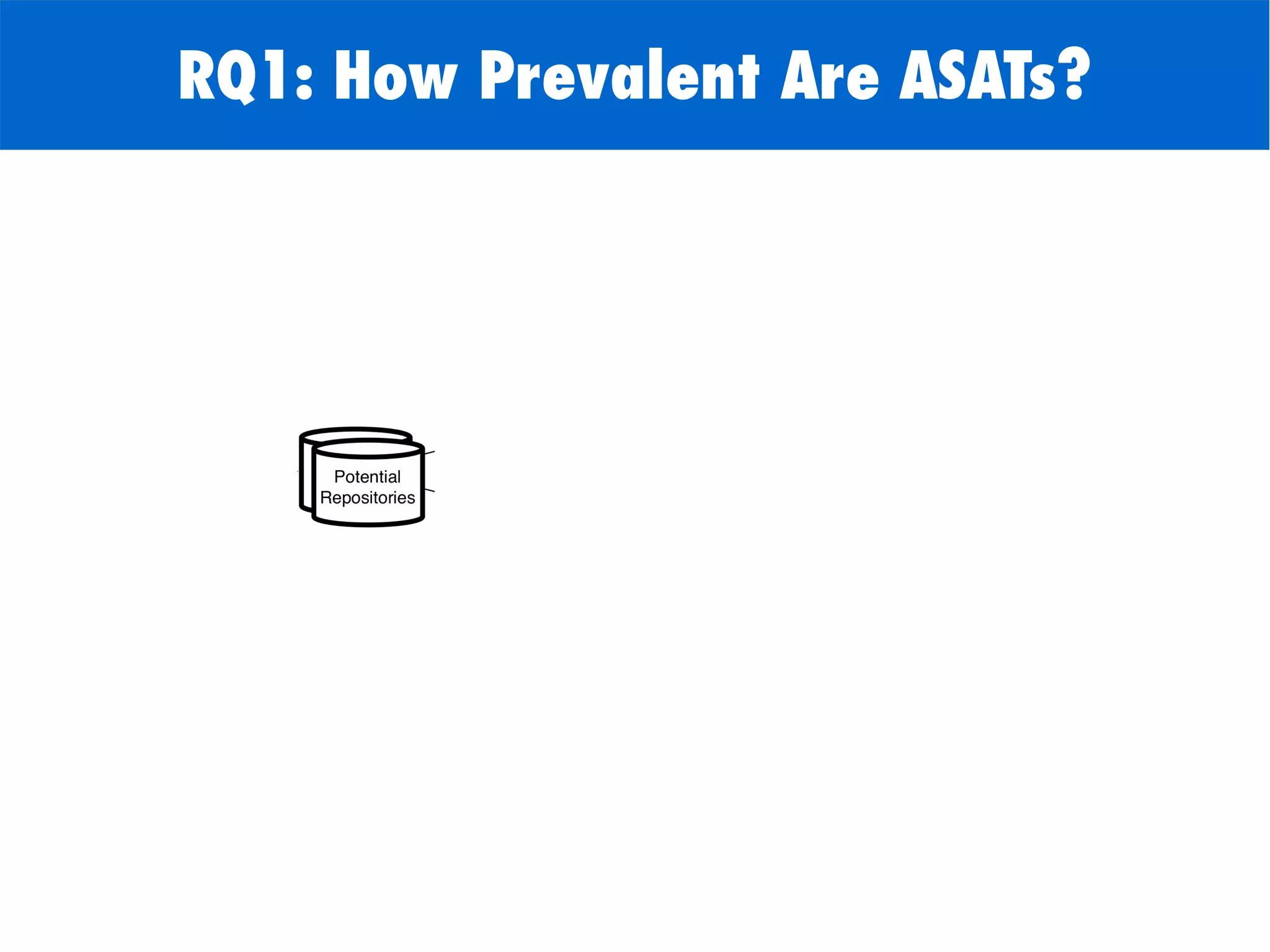

Moritz Beller
@Inventitech

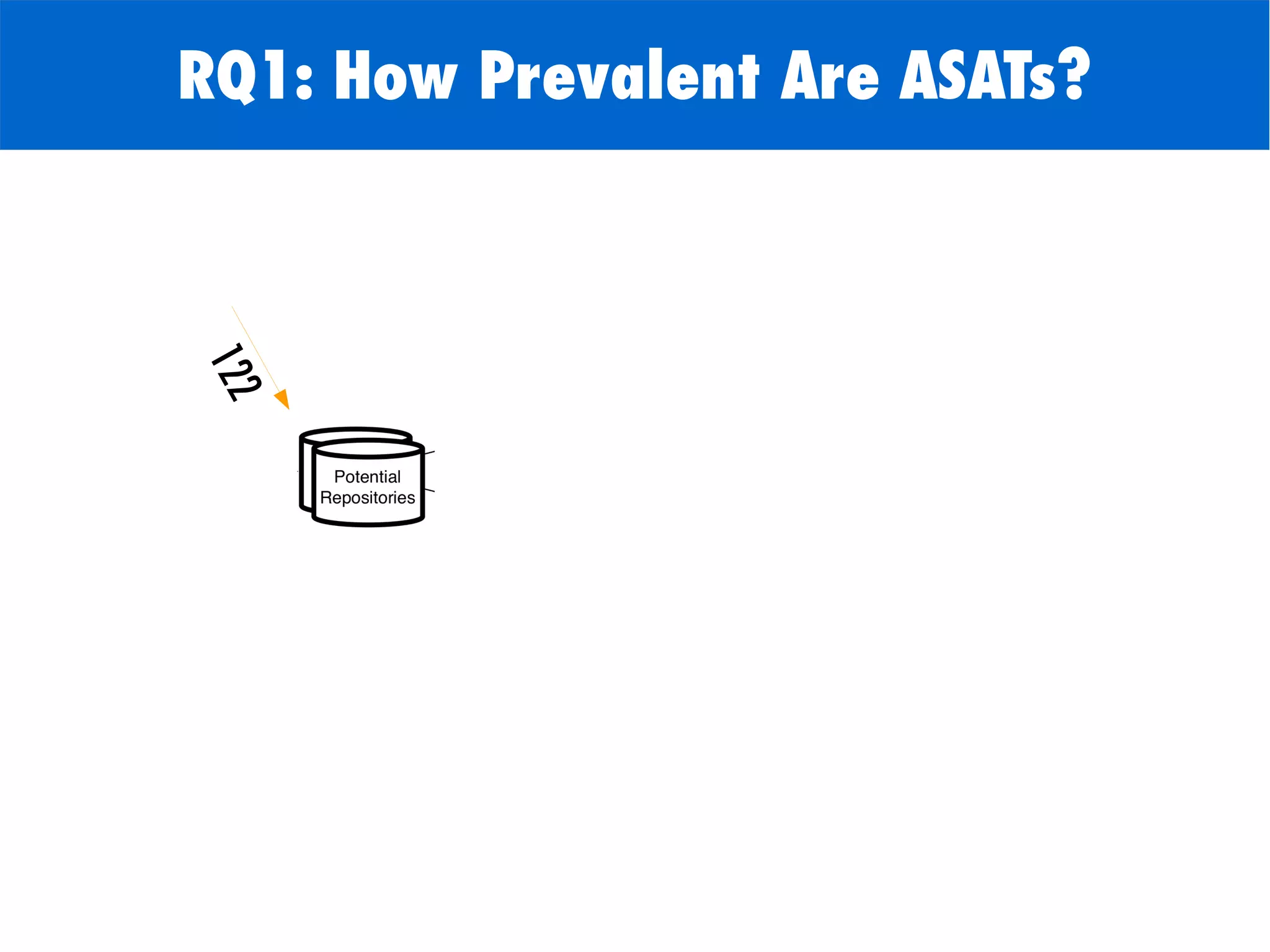

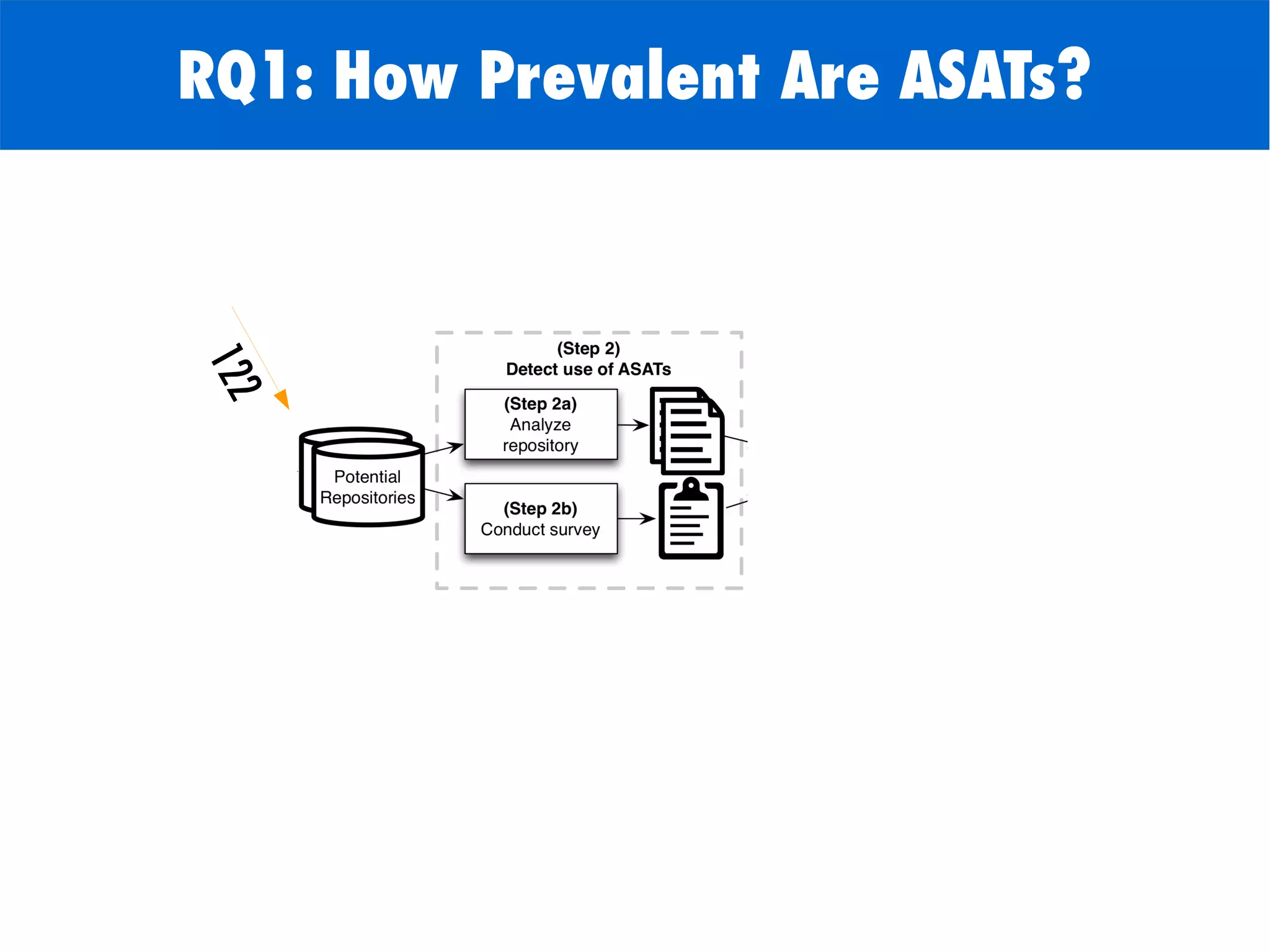

Radjino Bholanath, Andy Zaidman

4. Analyzing the State of Static Analysis:
A Large-Scale Evaluation
in Open Source Software

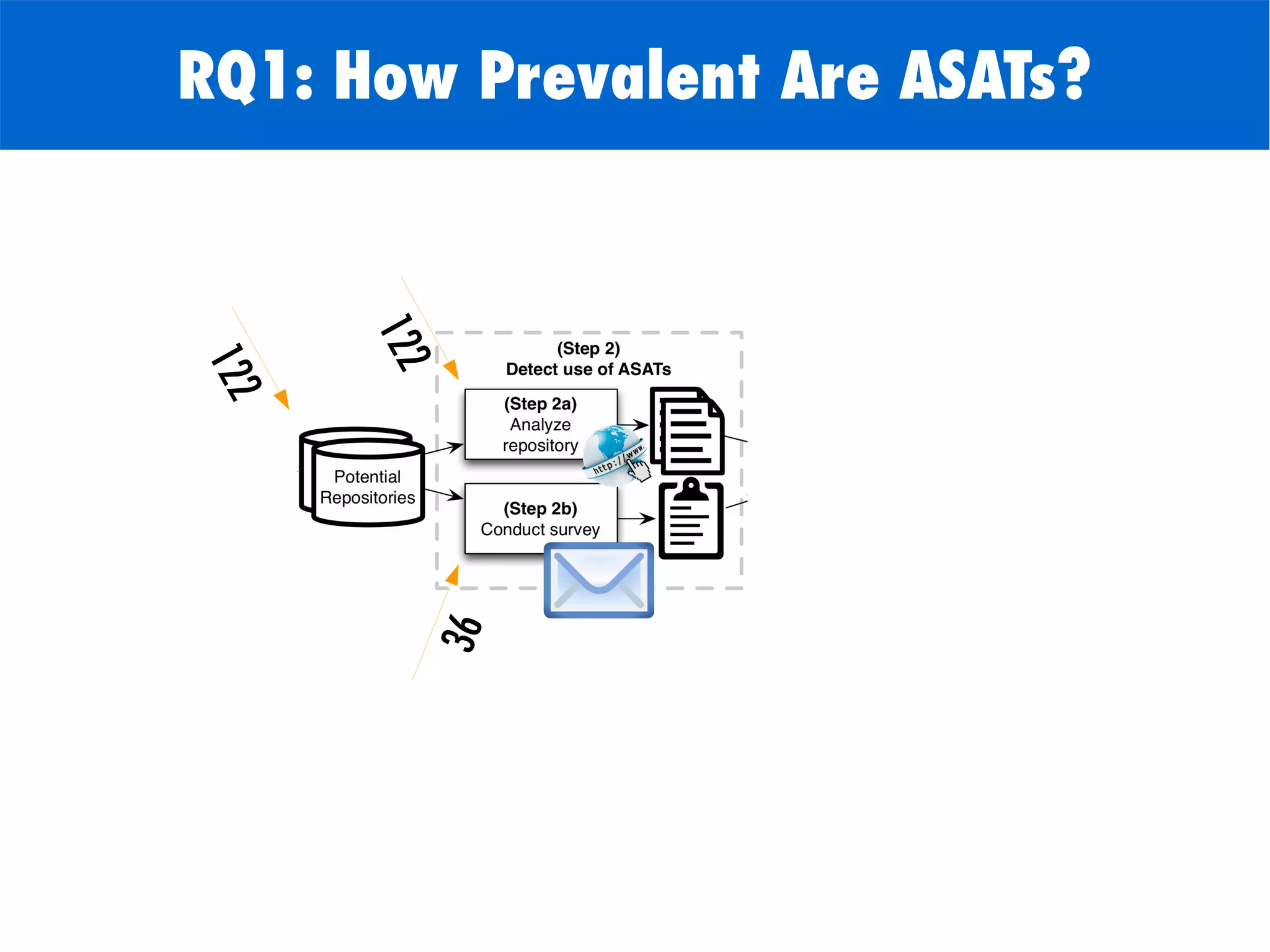

Moritz Beller
@Inventitech
Radjino Bholanath, Andy Zaidman
Shane McIntosh

5. Automatic Static Analysis Tools (ASATs)
Image: https://pixabay.com/static/uploads/photo/2015/06/12/18/31/cute-807306_960_720.png

6. Automatic Static Analysis Tools (ASATs)
Image: https://pixabay.com/static/uploads/photo/2015/06/12/18/31/cute-807306_960_720.png

7. Automatic Static Analysis Tools (ASATs)
Image: https://pixabay.com/static/uploads/photo/2015/06/12/18/31/cute-807306_960_720.png

8. Automatic Static Analysis Tools (ASATs)
Image: https://pixabay.com/static/uploads/photo/2015/06/12/18/31/cute-807306_960_720.png

9. Automatic Static Analysis Tools (ASATs)
Image: https://pixabay.com/static/uploads/photo/2015/06/12/18/31/cute-807306_960_720.png

10. Automatic Static Analysis Tools (ASATs)
Image: https://pixabay.com/static/uploads/photo/2015/06/12/18/31/cute-807306_960_720.png

11. RQ1: How Prevalent Are ASATs?
Image: http://www.valueinvestasia.com/wp-content/uploads/2015/03/odd-one-out.jpg

12. 122 popular OSS projects

13. RQ1: How Prevalent Are ASATs?

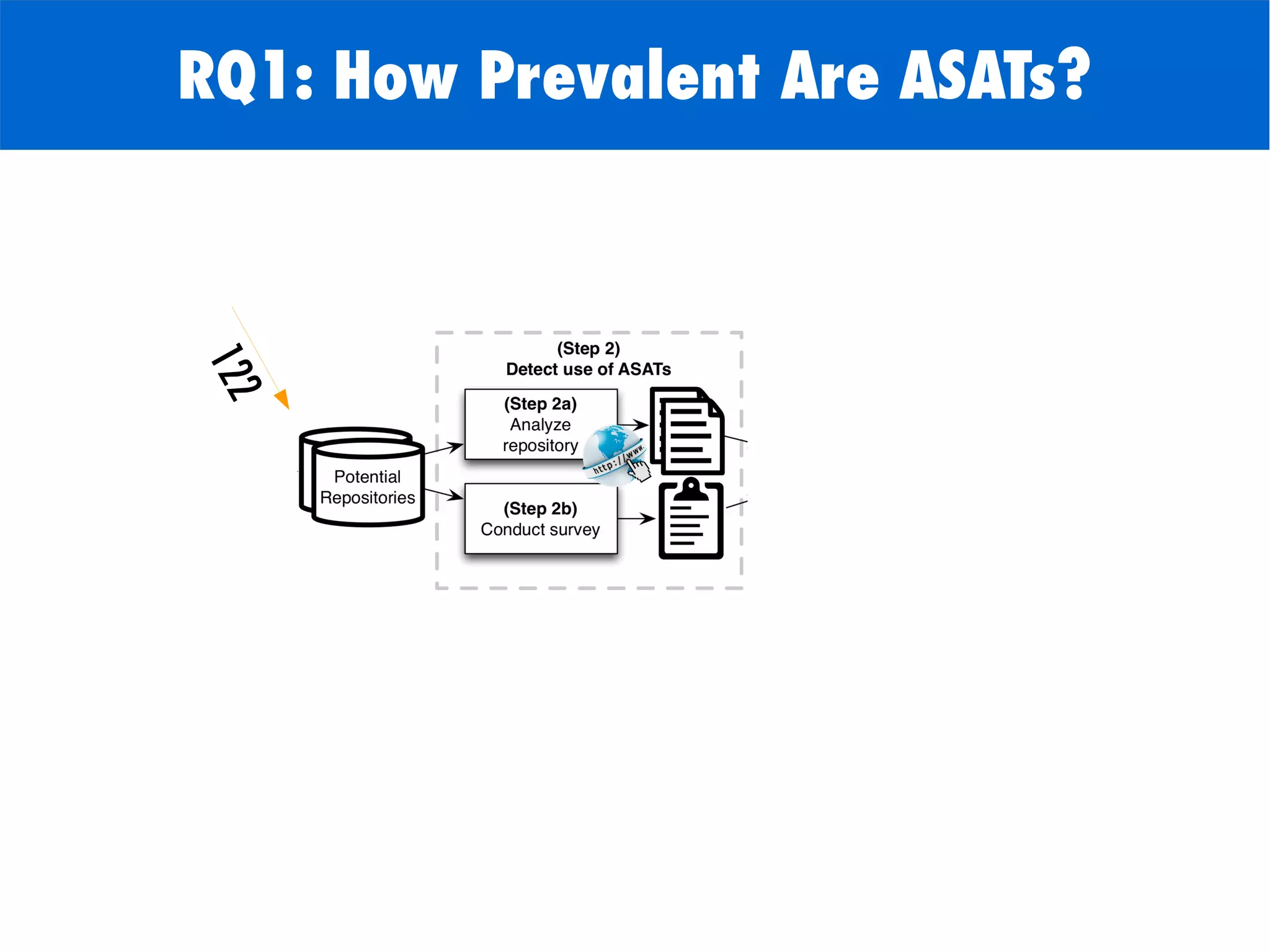

14. RQ1: How Prevalent Are ASATs?
122

15. RQ1: How Prevalent Are ASATs?
122

16. RQ1: How Prevalent Are ASATs?
122

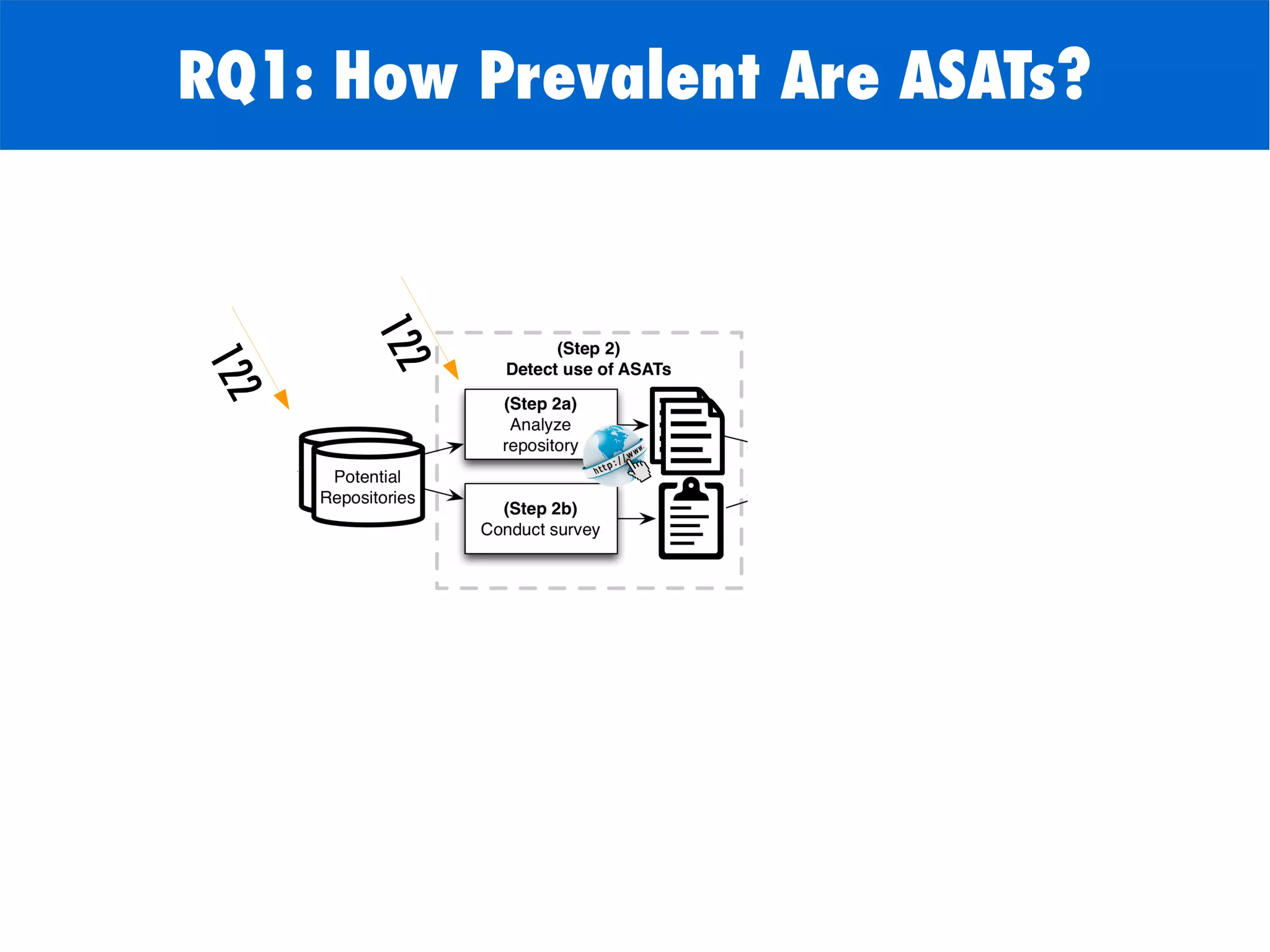

17. RQ1: How Prevalent Are ASATs?
122
122

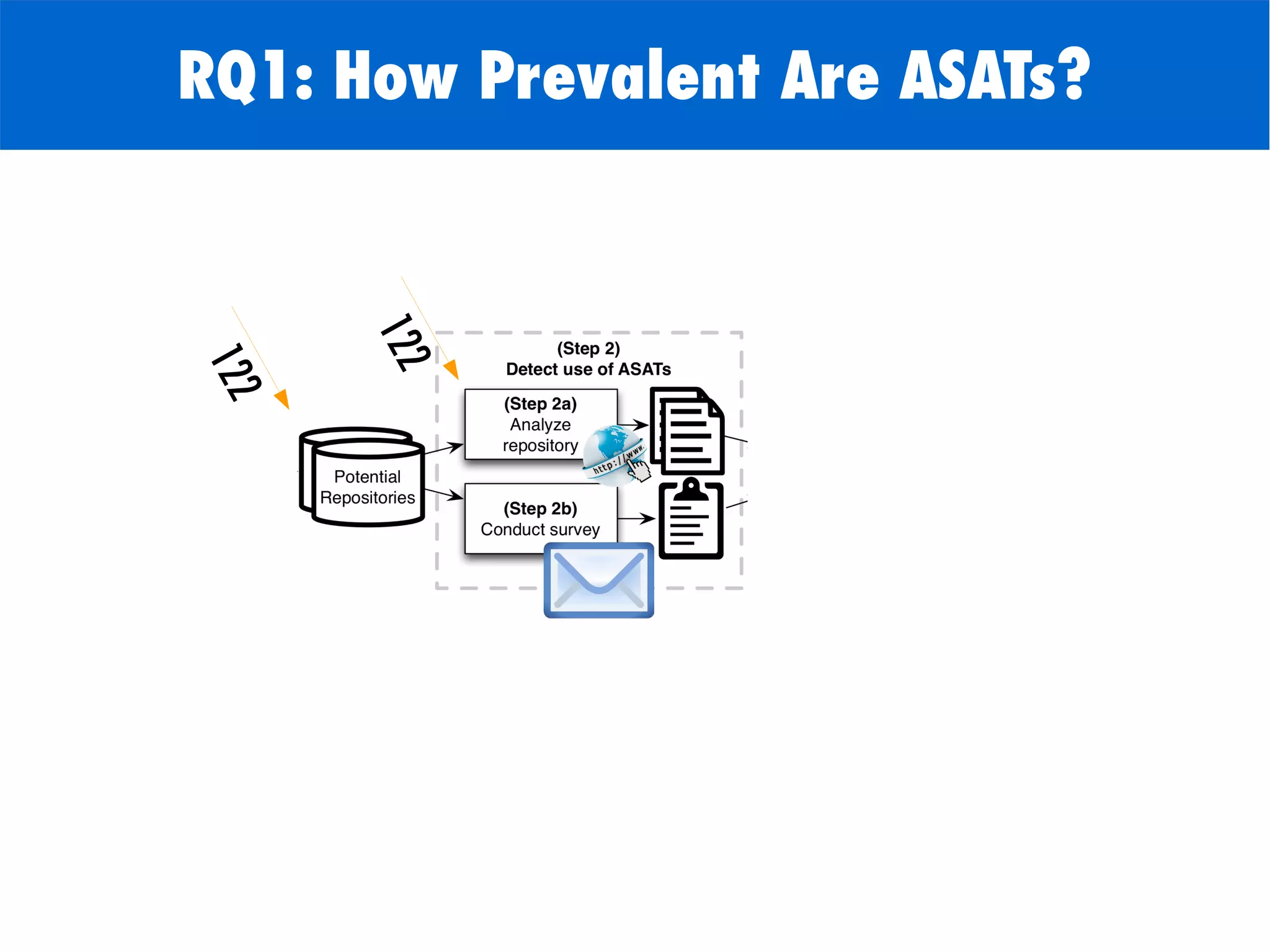

18. RQ1: How Prevalent Are ASATs?
122
122

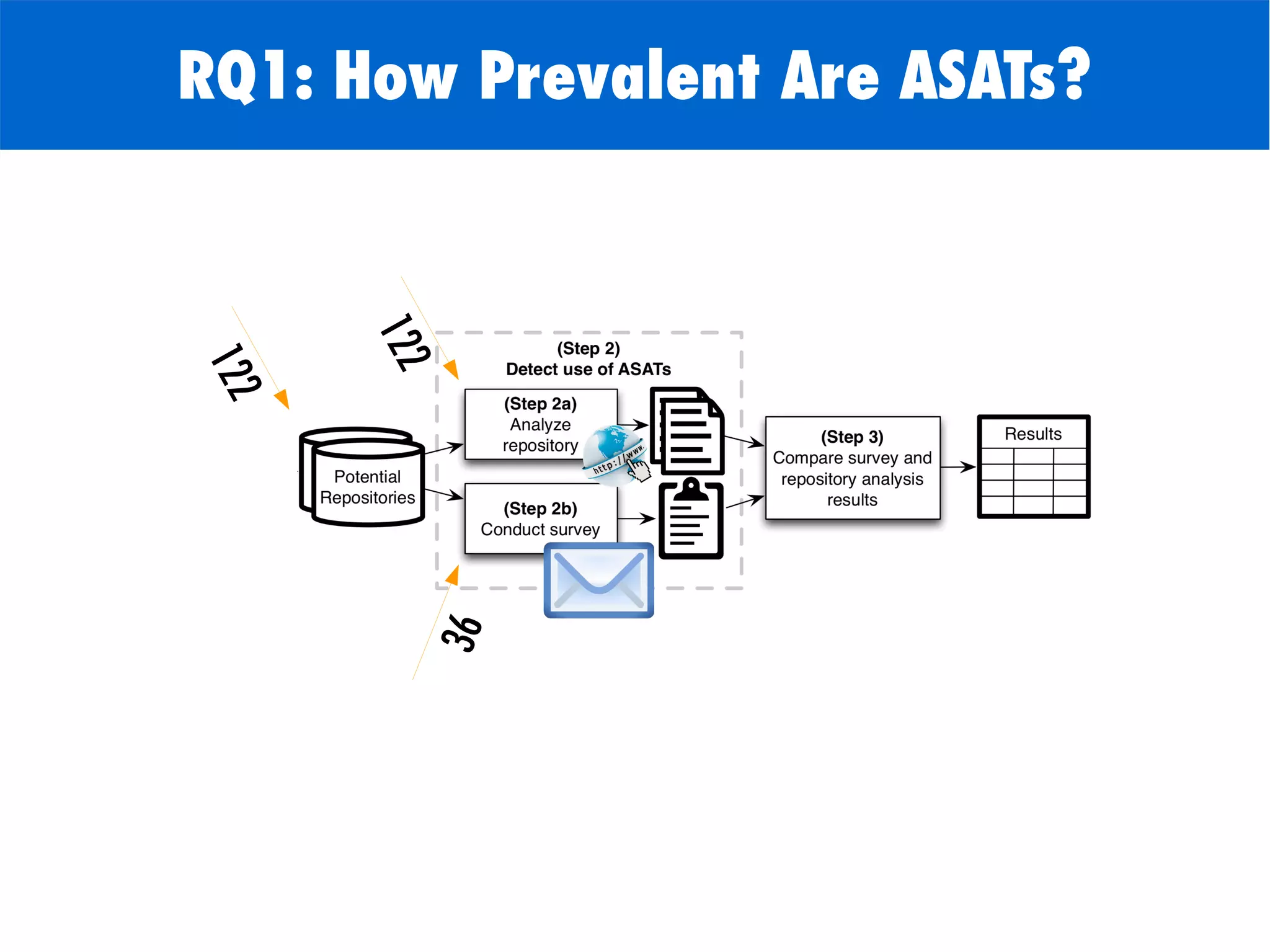

19. RQ1: How Prevalent Are ASATs?
122
36
122

20. RQ1: How Prevalent Are ASATs?
122
36
122

21. RQ1: How Prevalent Are ASATs?
122
36
122

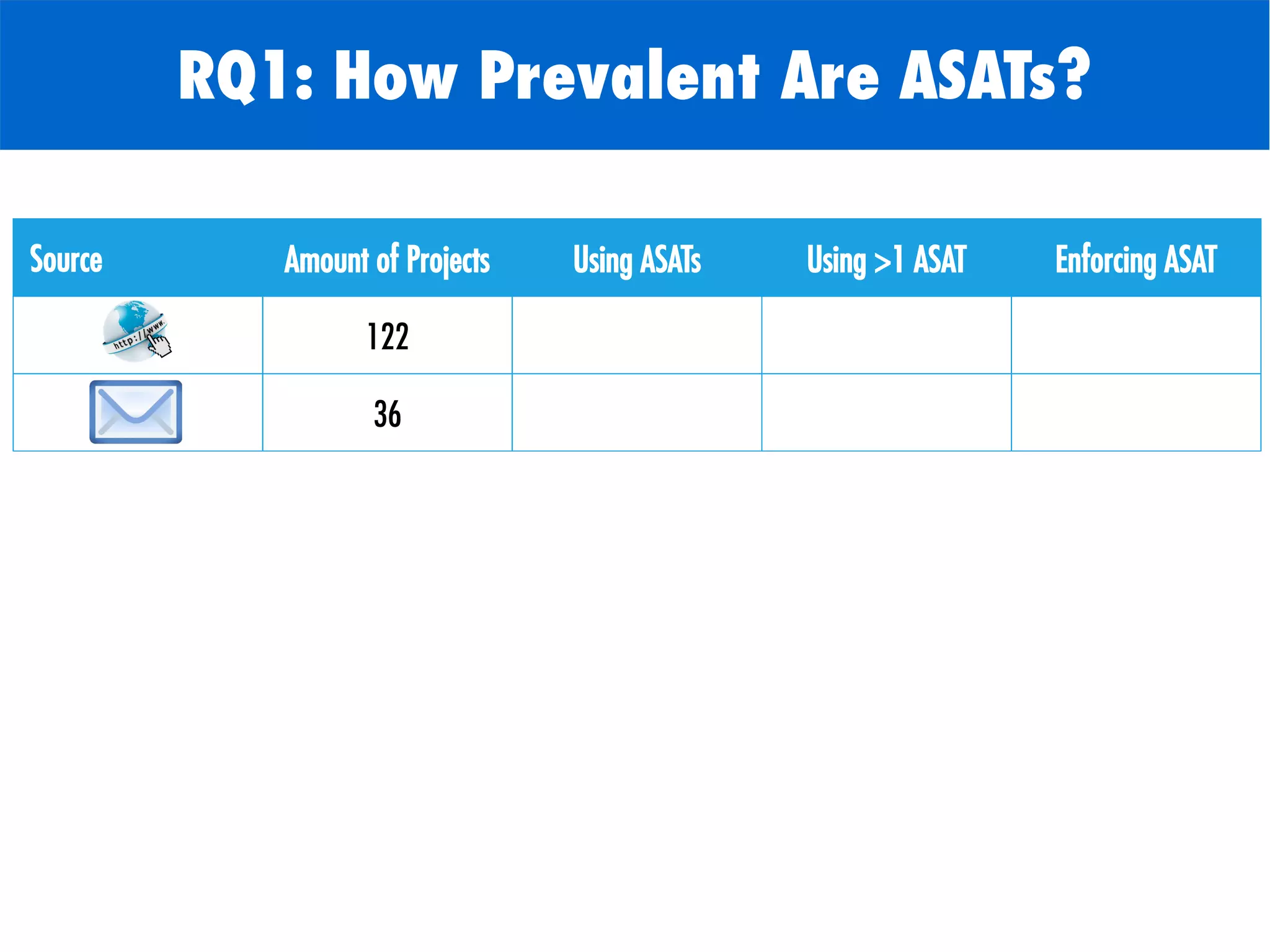

22. RQ1: How Prevalent Are ASATs?

23. Source Amount of Projects Using ASATs Using >1 ASAT Enforcing ASAT
122 59% 23% -
36 77% 36% 36%
RQ1: How Prevalent Are ASATs?

24. Source Amount of Projects Using ASATs Using >1 ASAT Enforcing ASAT
122 59% 23% -
36 77% 36% 36%
RQ1: How Prevalent Are ASATs?

25. Source Amount of Projects Using ASATs Using >1 ASAT Enforcing ASAT
122 59% 23% -
36 77% 36% 36%
RQ1: How Prevalent Are ASATs?

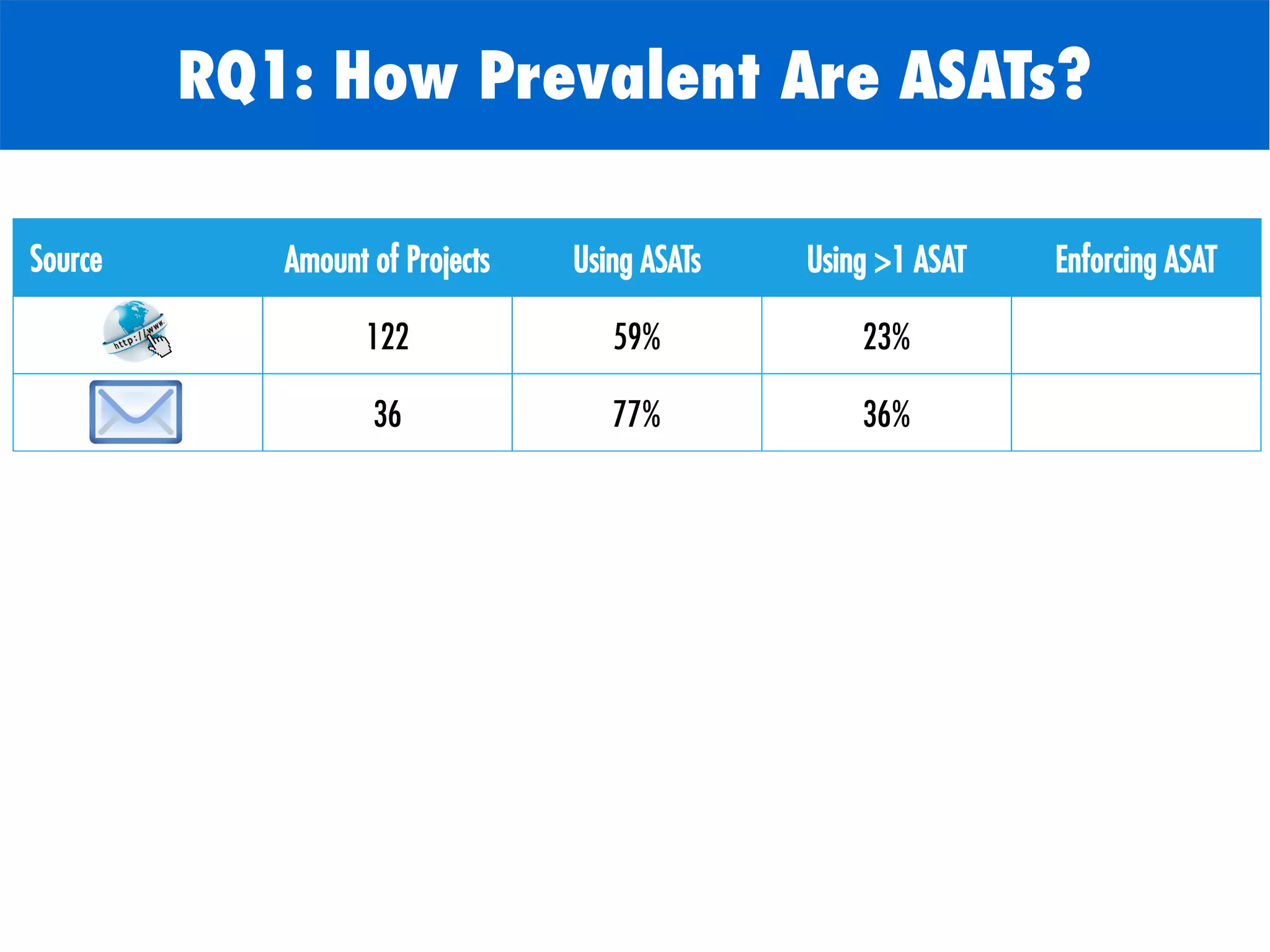

26. Source Amount of Projects Using ASATs Using >1 ASAT Enforcing ASAT
122 59% 23% -
36 77% 36% 36%
RQ1: How Prevalent Are ASATs?

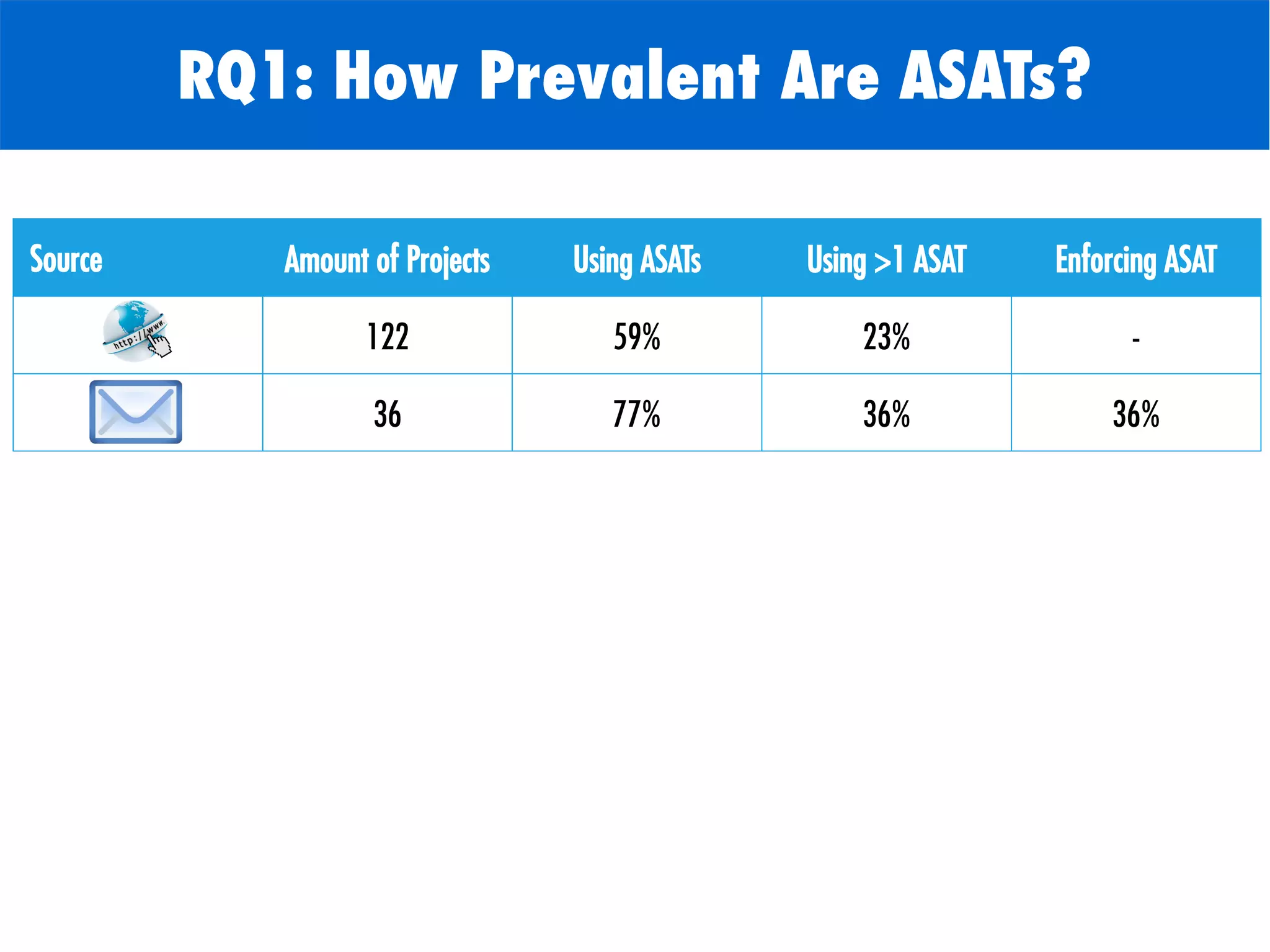

27. Source Amount of Projects Using ASATs Using >1 ASAT Enforcing ASAT
122 59% 23% -
36 77% 36% 36%
RQ1: How Prevalent Are ASATs?

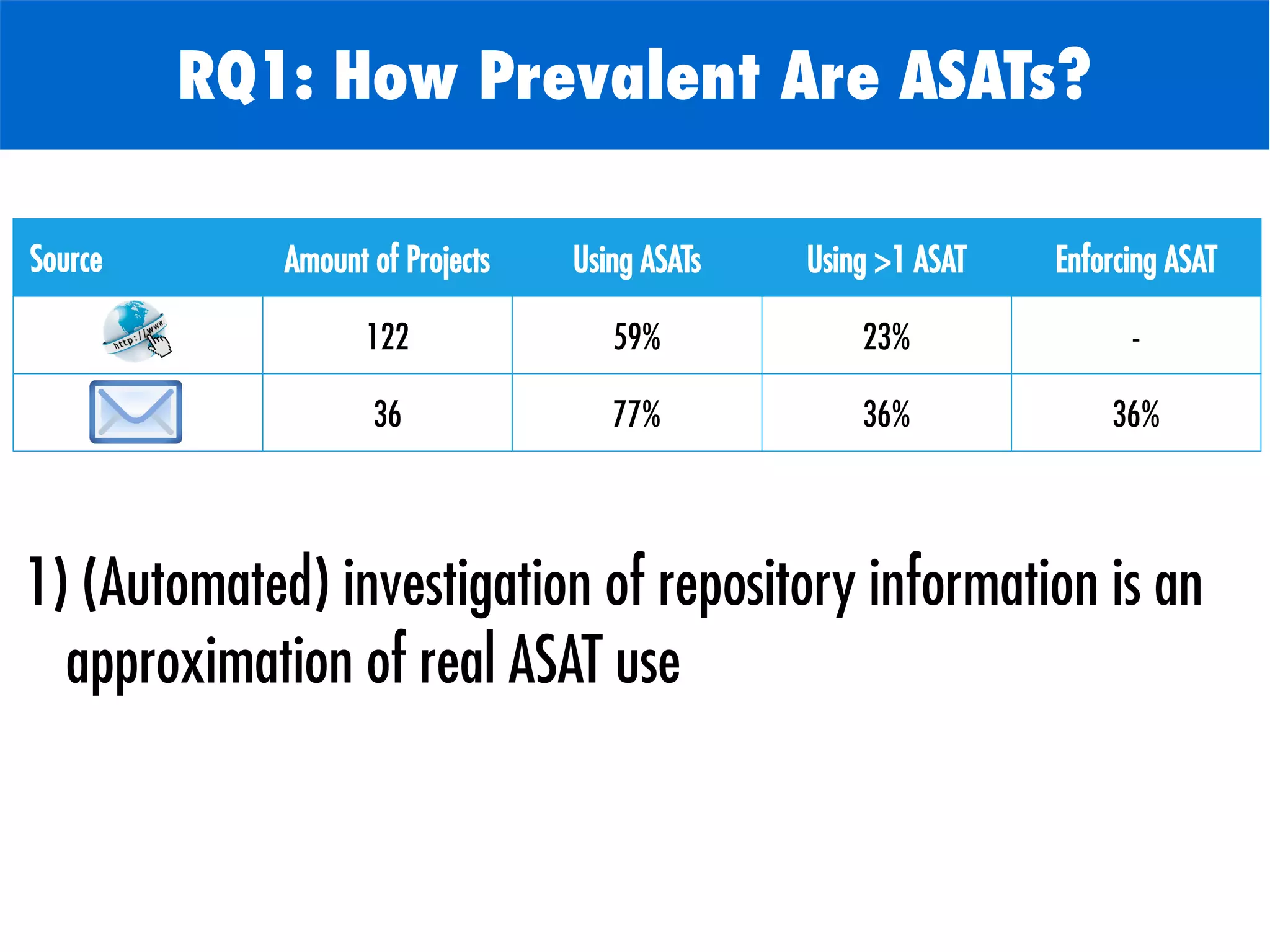

28. Source Amount of Projects Using ASATs Using >1 ASAT Enforcing ASAT
122 59% 23% -
36 77% 36% 36%
1) (Automated) investigation of repository information is an
approximation of real ASAT use
RQ1: How Prevalent Are ASATs?

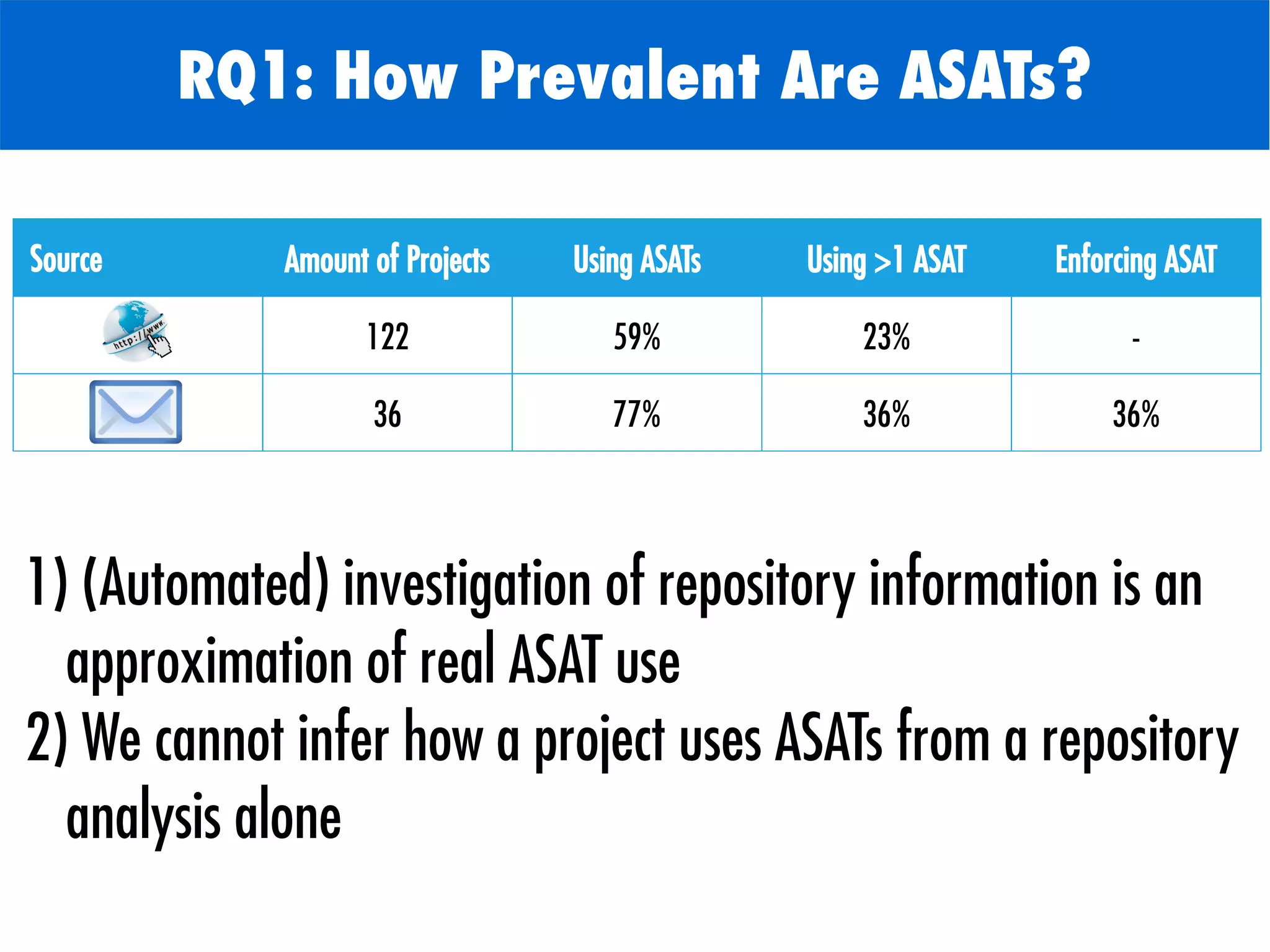

29. Source Amount of Projects Using ASATs Using >1 ASAT Enforcing ASAT
122 59% 23% -
36 77% 36% 36%
1) (Automated) investigation of repository information is an
approximation of real ASAT use
2) We cannot infer how a project uses ASATs from a repository
analysis alone
RQ1: How Prevalent Are ASATs?

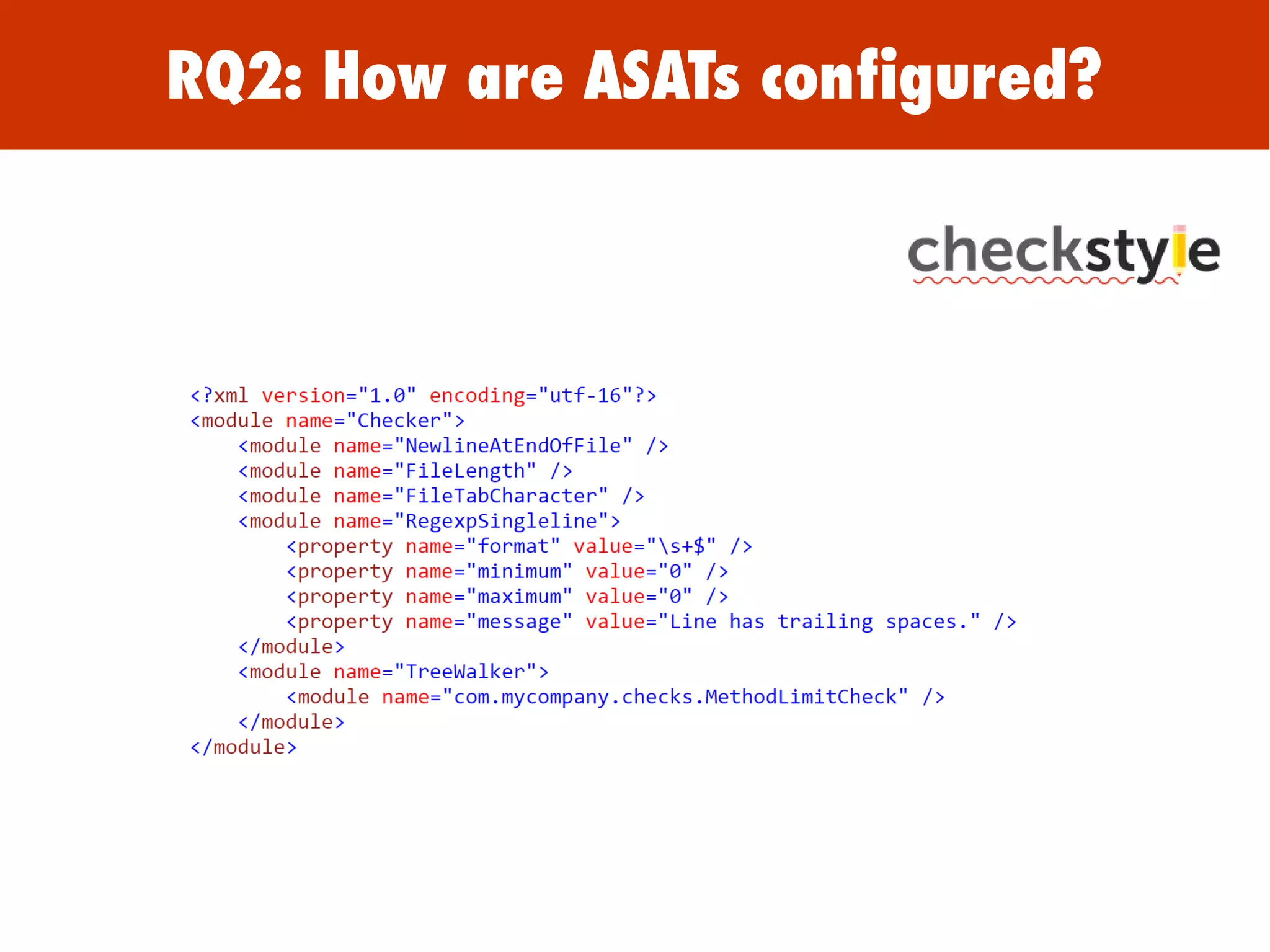

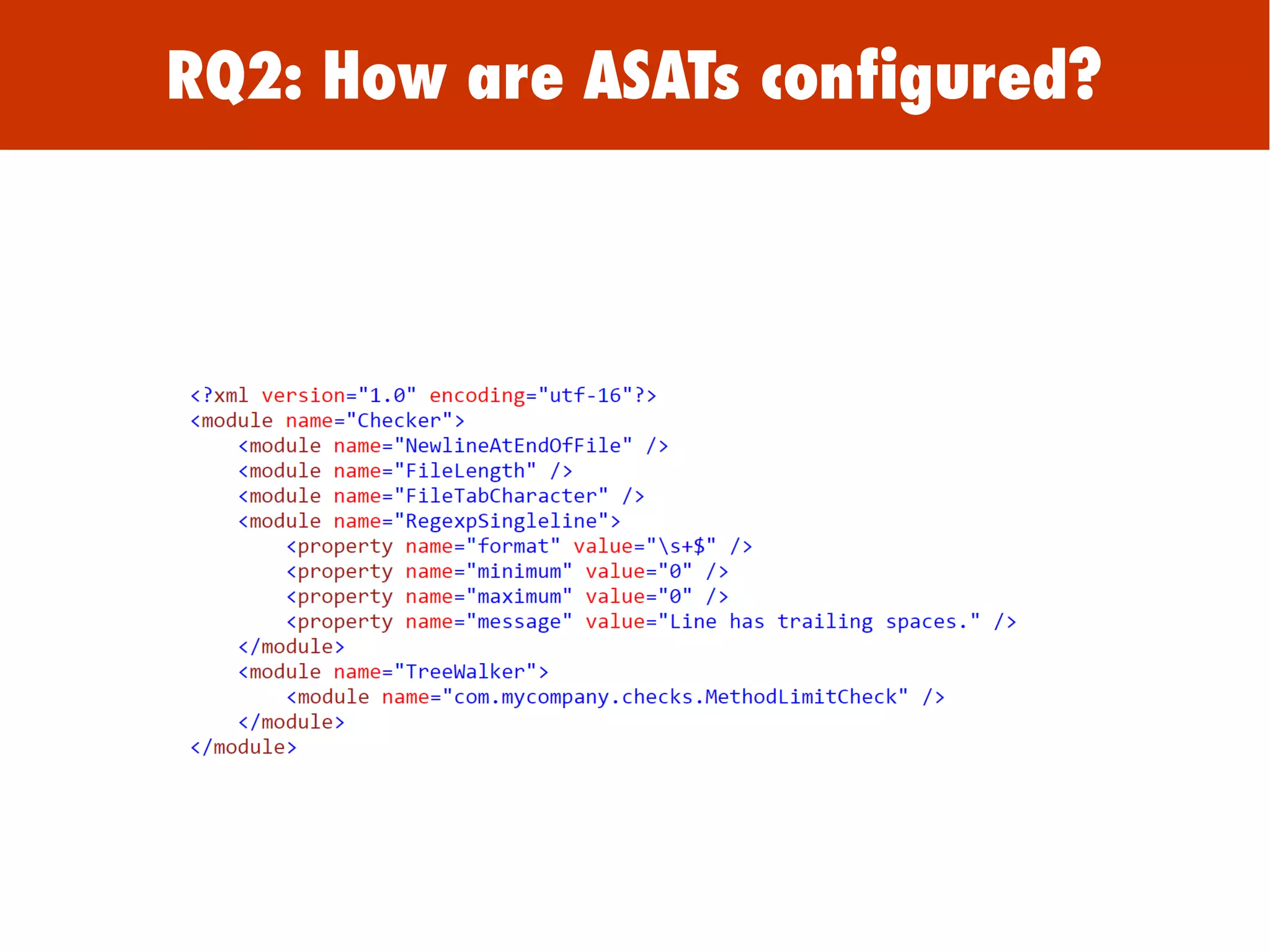

30. RQ2: How are ASATs configured?

31. RQ2: How are ASATs configured?

32. RQ2: How are ASATs configured?
checkstyle.xml

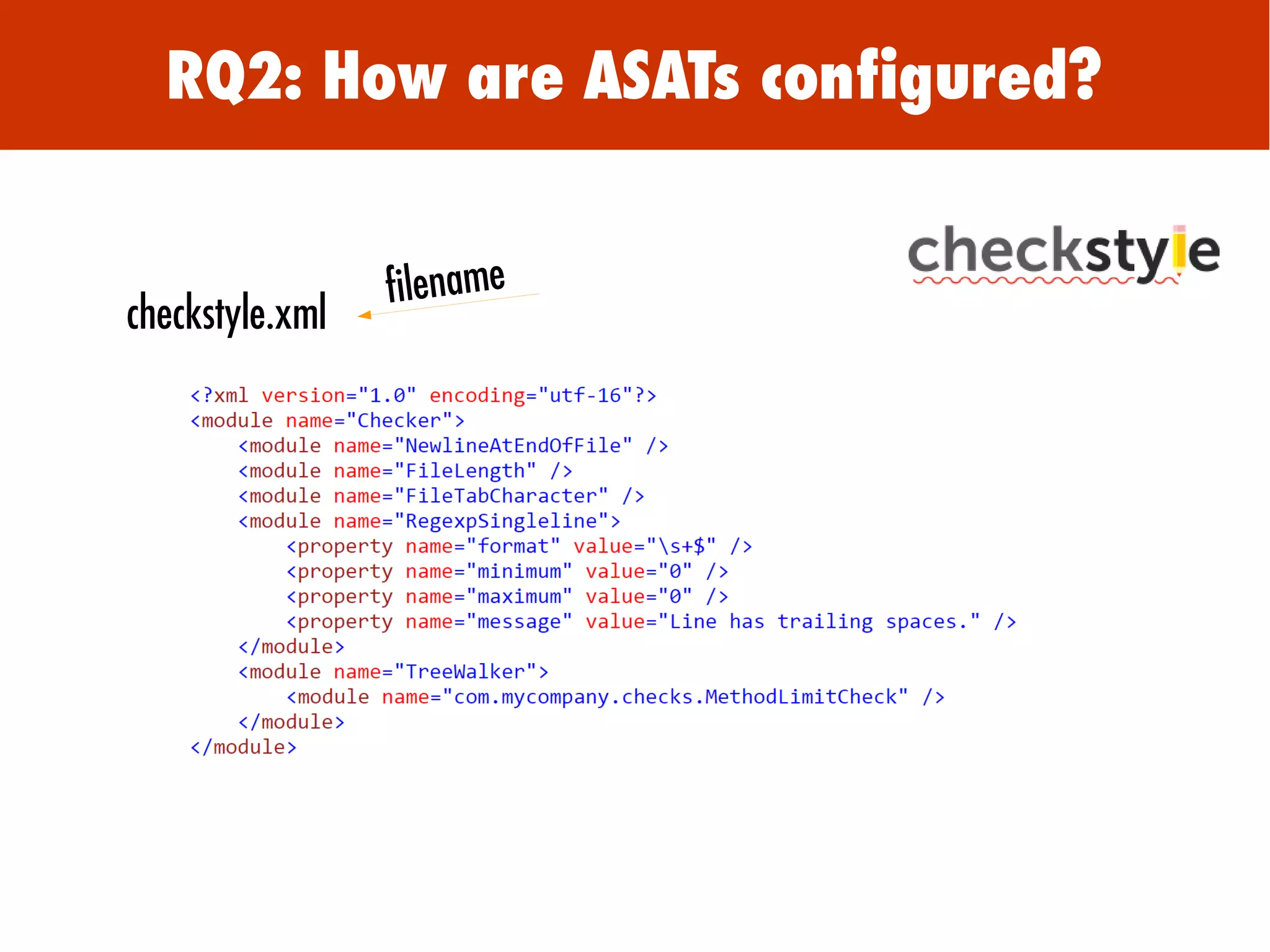

33. RQ2: How are ASATs configured?
filename
checkstyle.xml

34. RQ2: How are ASATs configured?
filename
checkstyle.xml

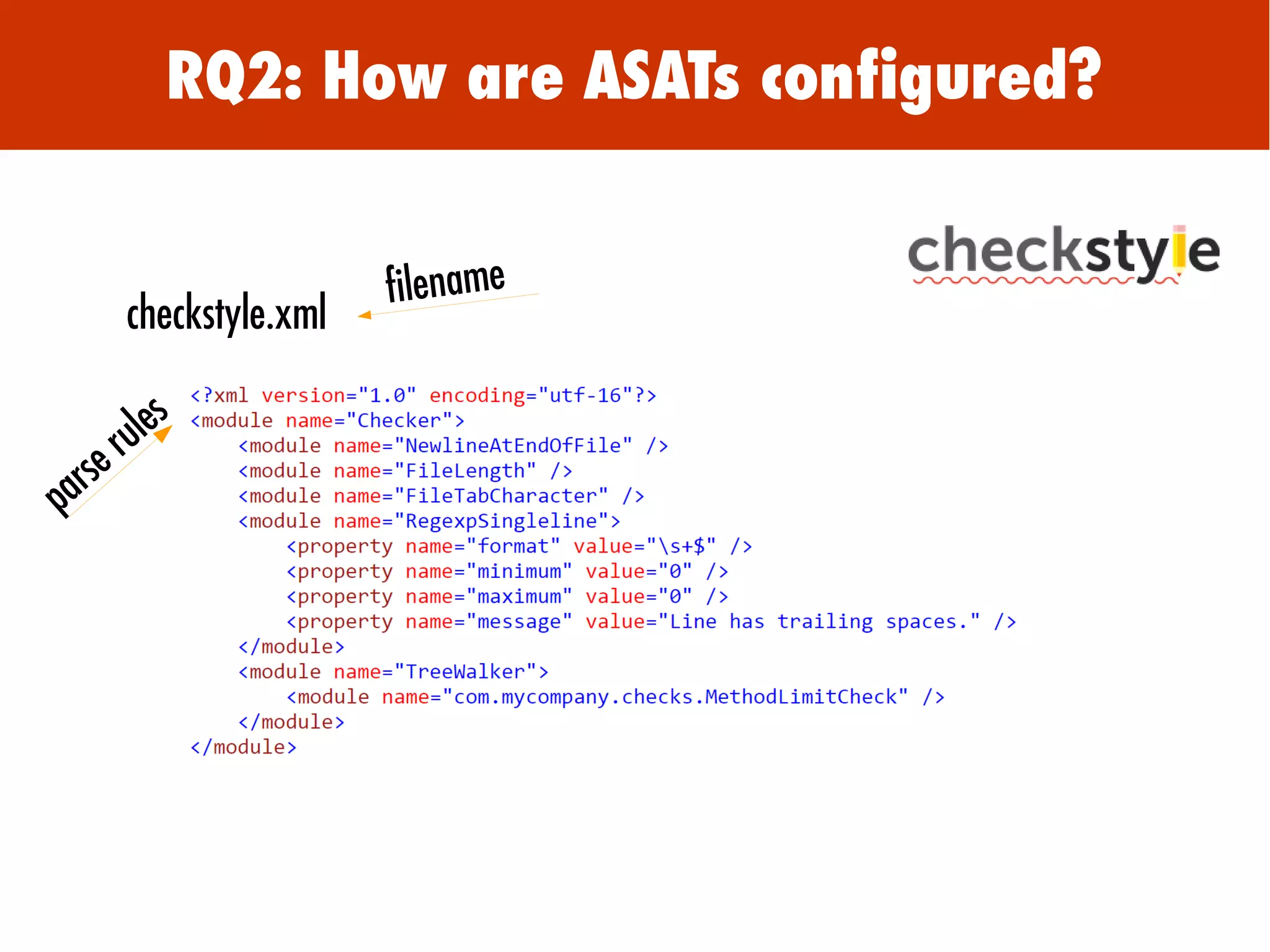

35. RQ2: How are ASATs configured?
filename
checkstyle.xml
parse rules

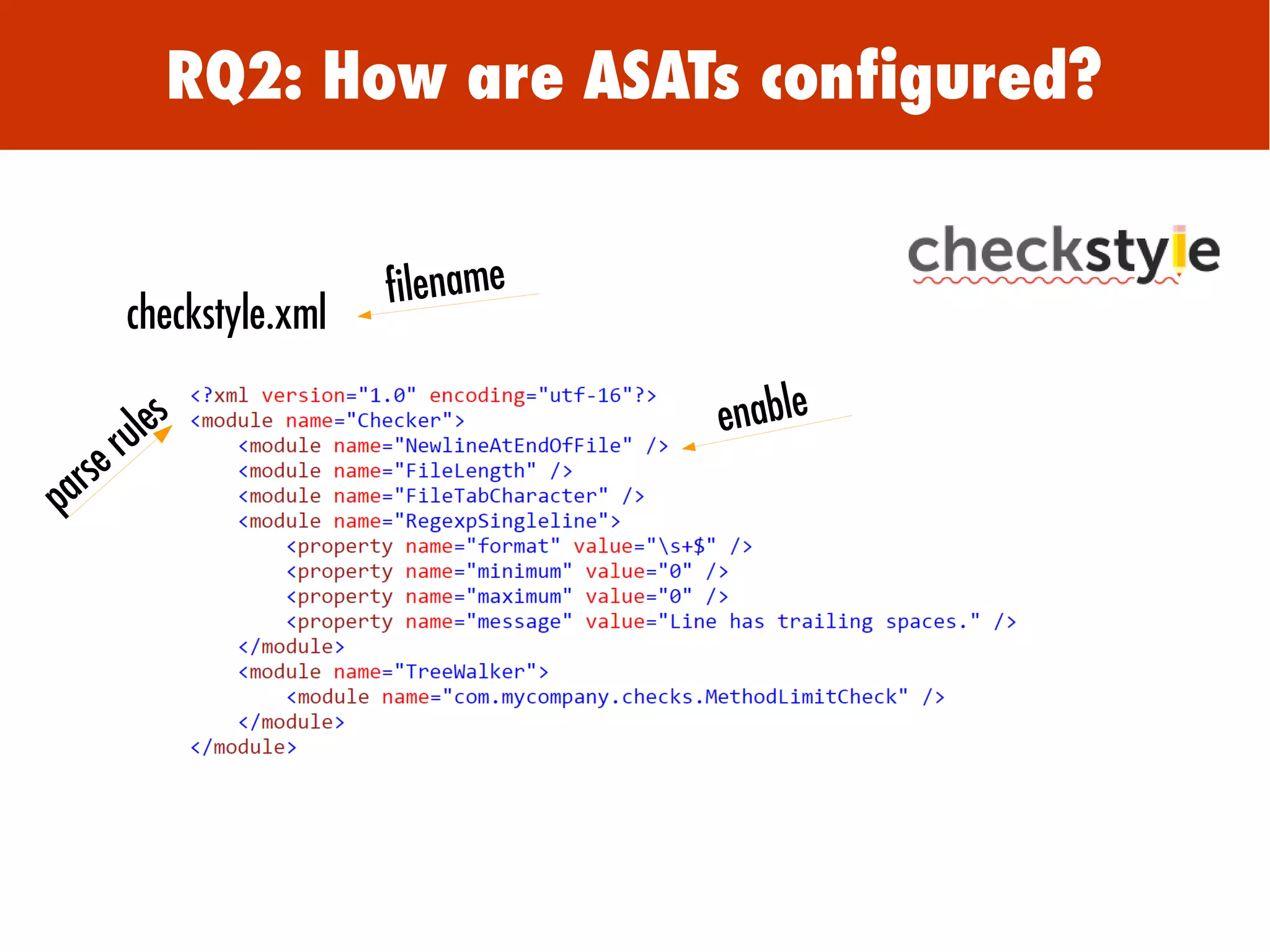

36. RQ2: How are ASATs configured?
filename
checkstyle.xml
enable
parse rules

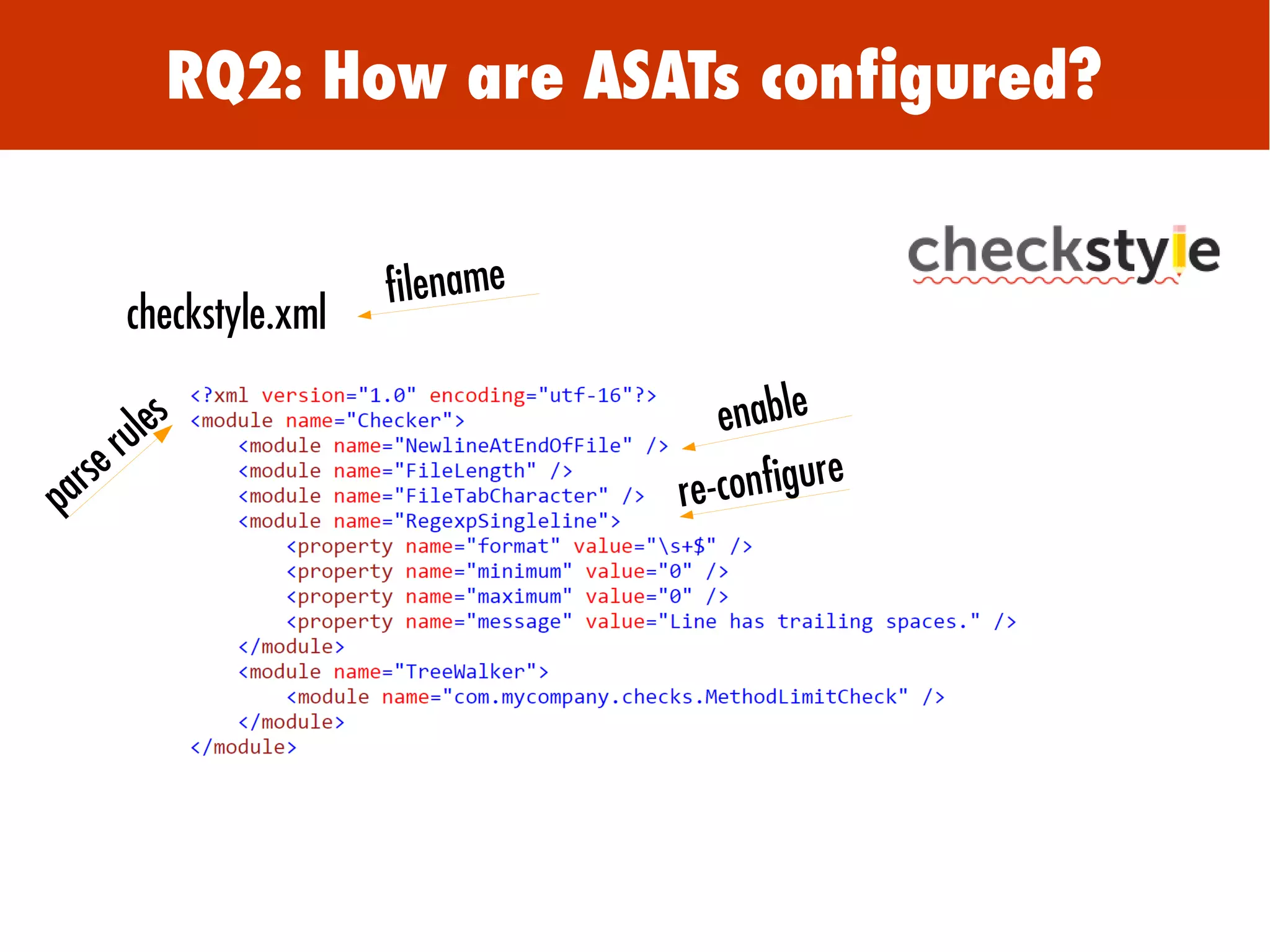

37. RQ2: How are ASATs configured?
filename
checkstyle.xml
enable
re-configure
parse rules

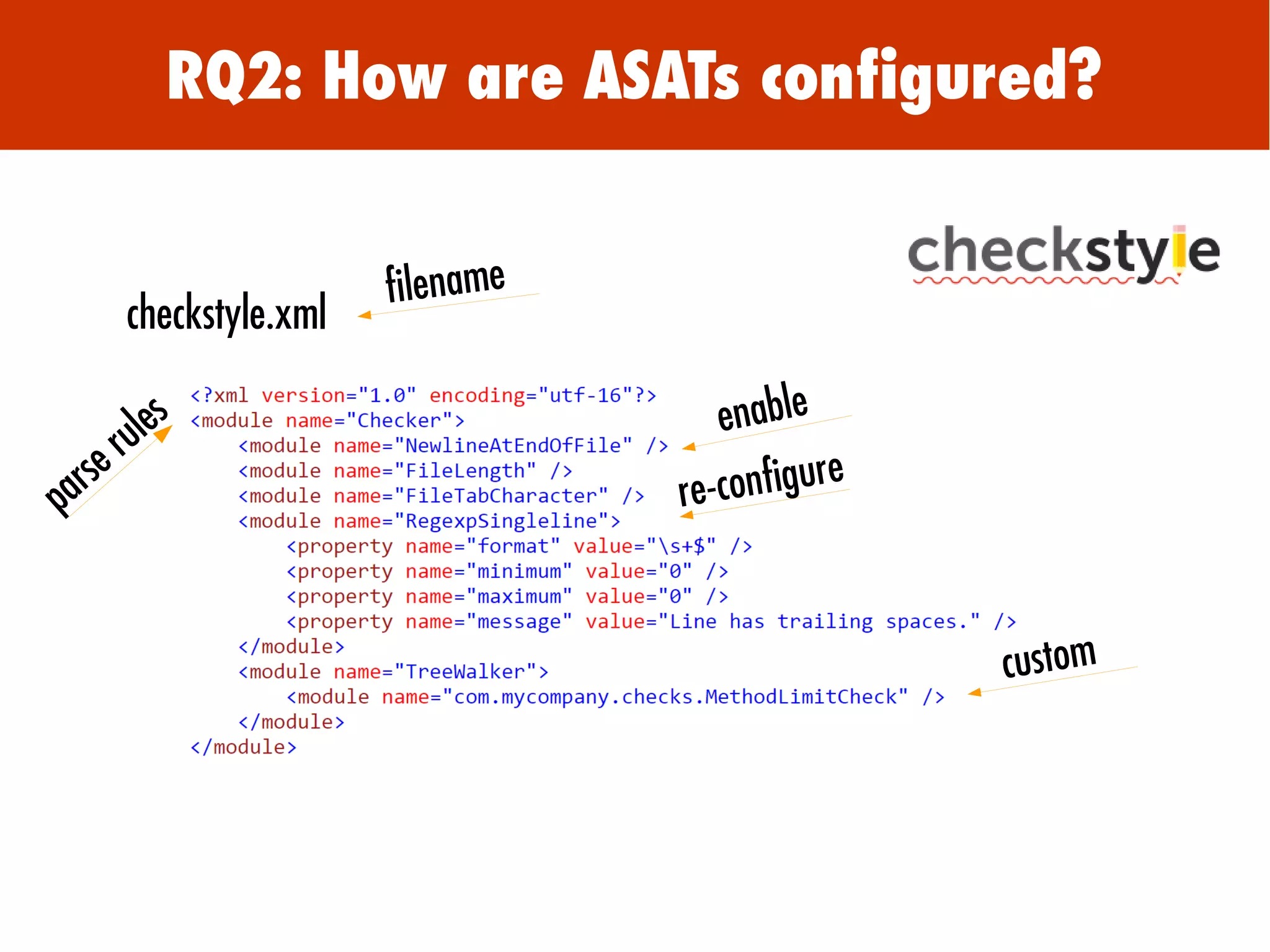

38. RQ2: How are ASATs configured?
filename
checkstyle.xml
enable
re-configure
parse rules
custom

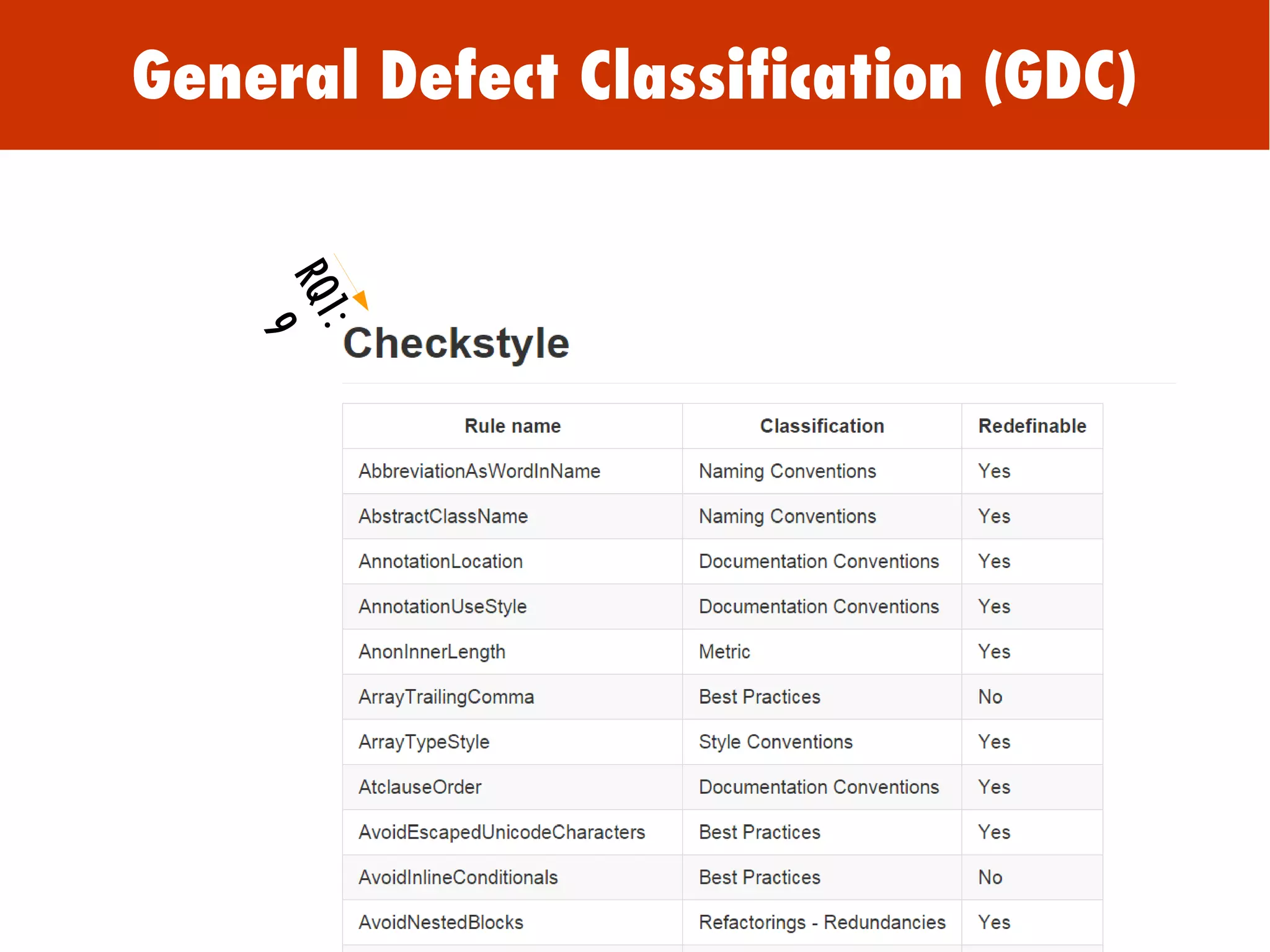

39. General Defect Classification (GDC)

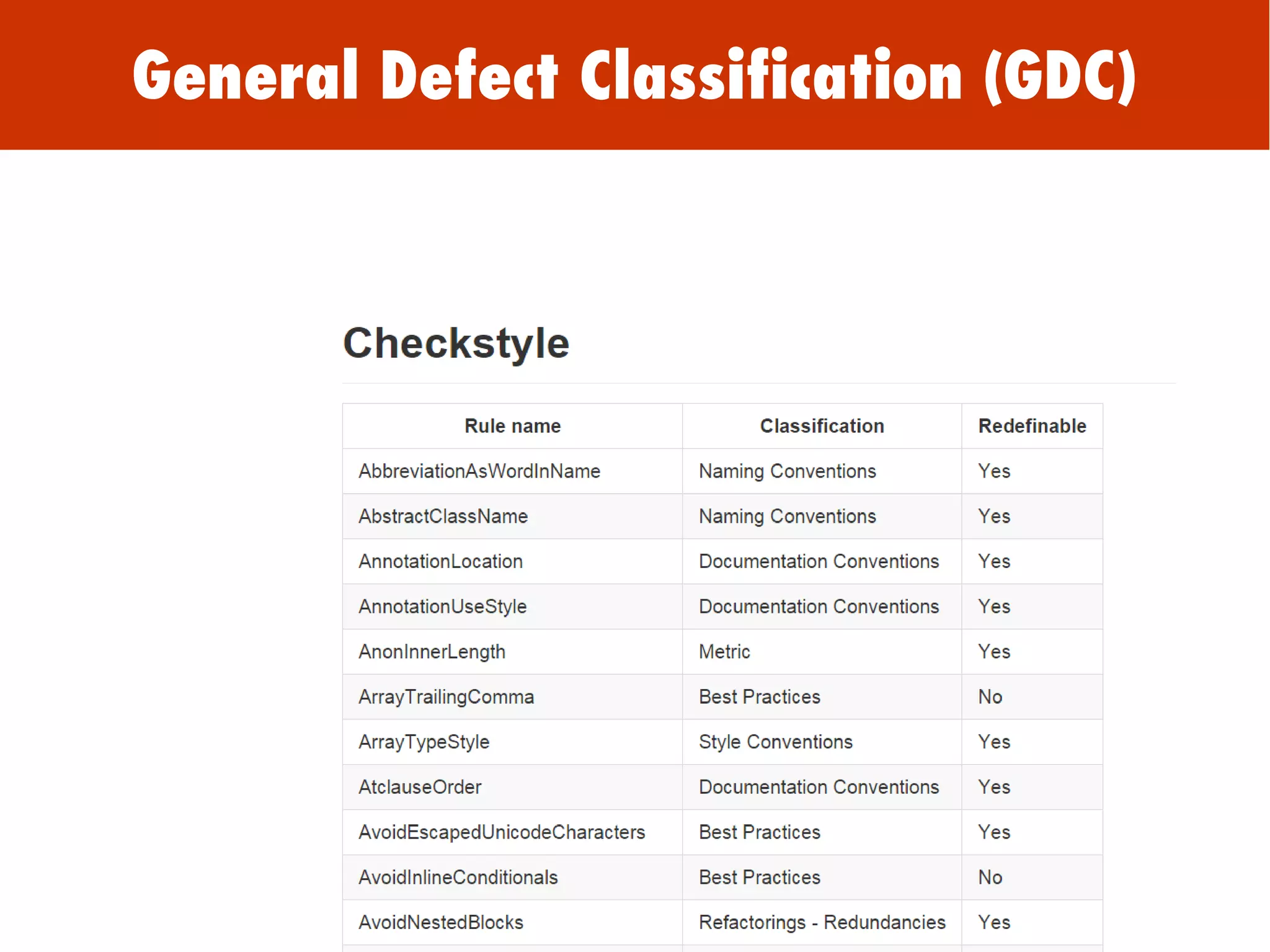

40. General Defect Classification (GDC)

41. General Defect Classification (GDC)
RQ1:
9

42. General Defect Classification (GDC)
RQ1:
9
Checkstyle, FindBugs, PMD, ESLint, JSCS, JSHint, JSL, PYLint, RuboCop

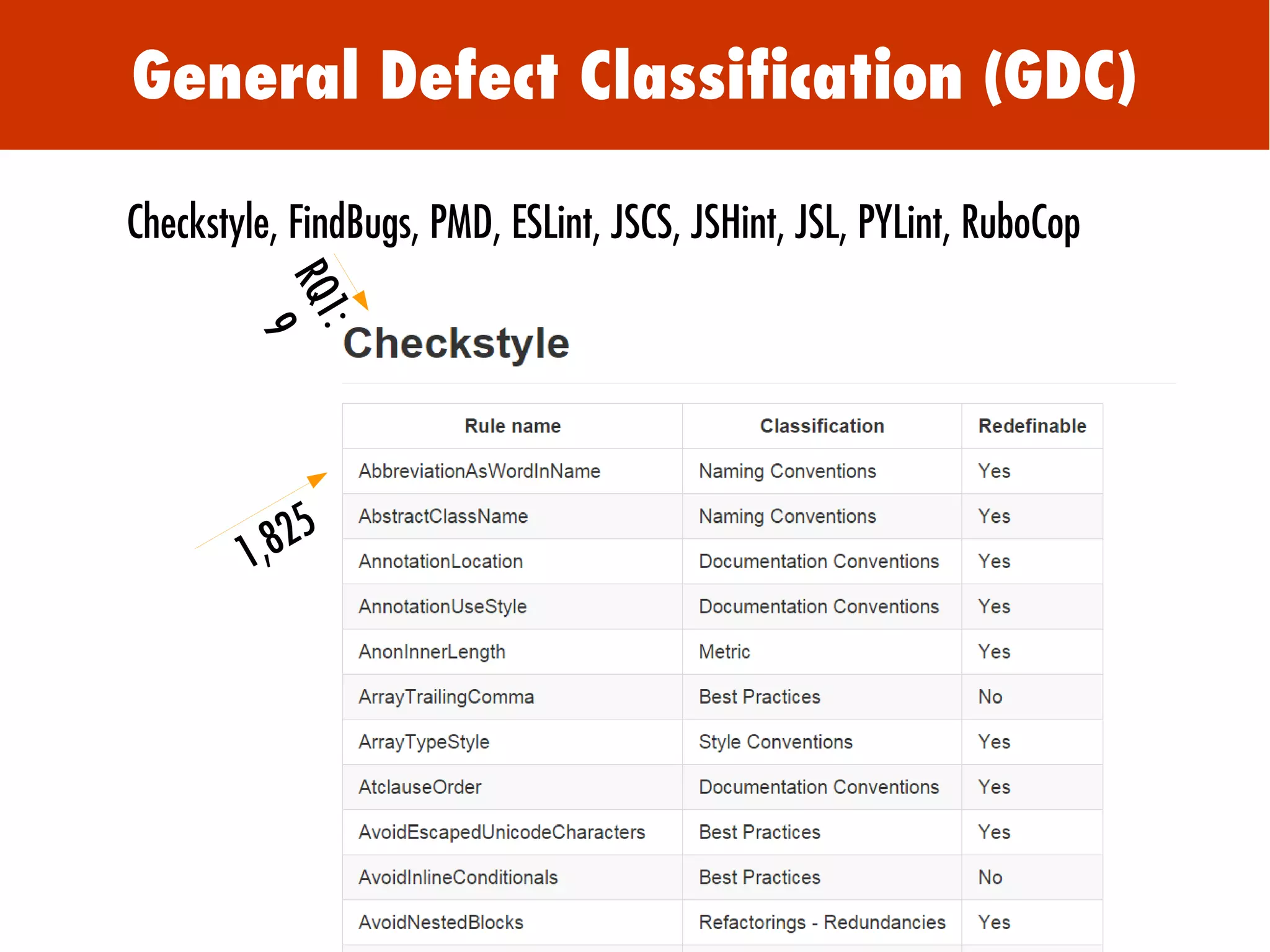

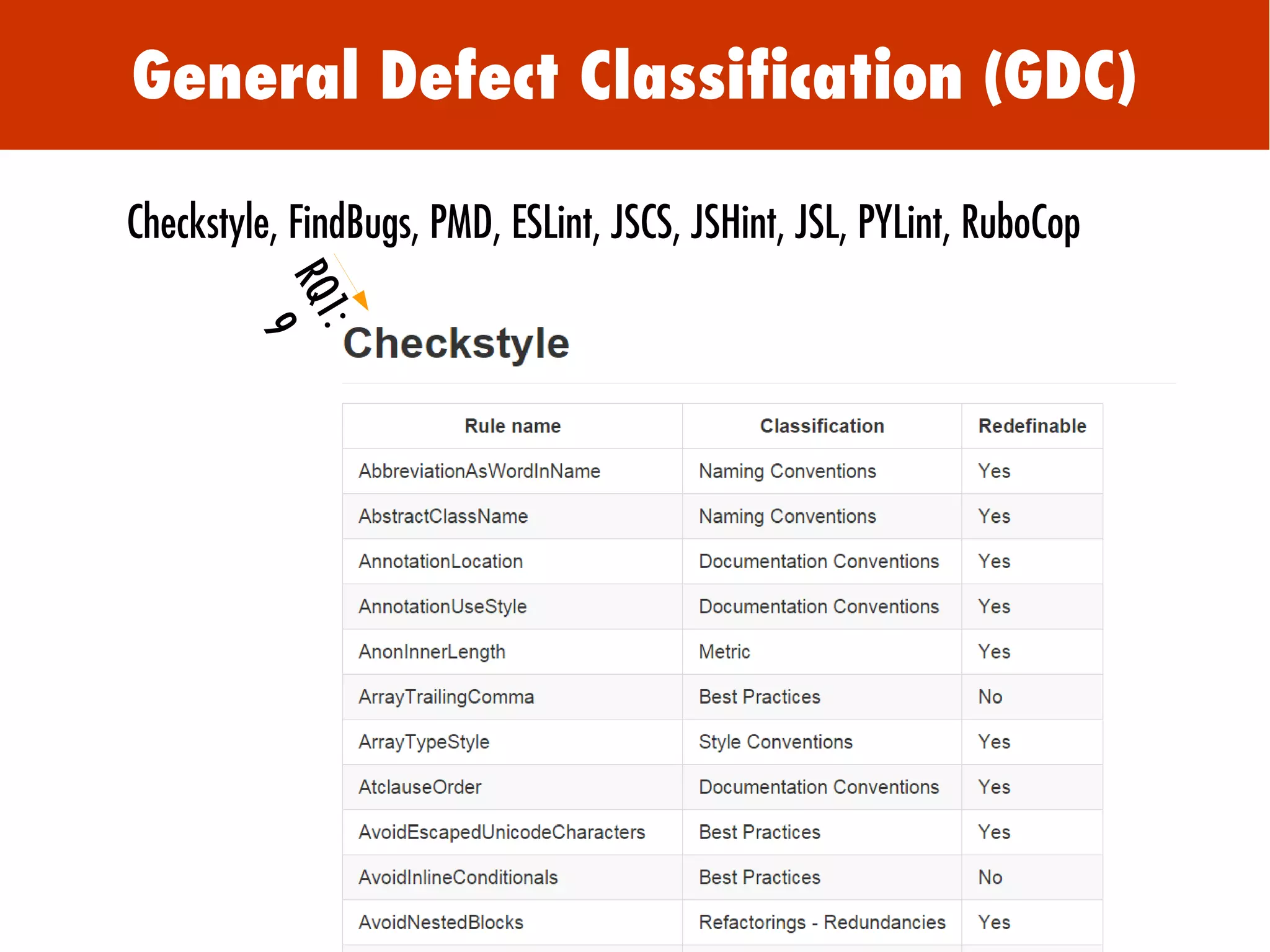

43. General Defect Classification (GDC)
1,825
RQ1:
9
Checkstyle, FindBugs, PMD, ESLint, JSCS, JSHint, JSL, PYLint, RuboCop

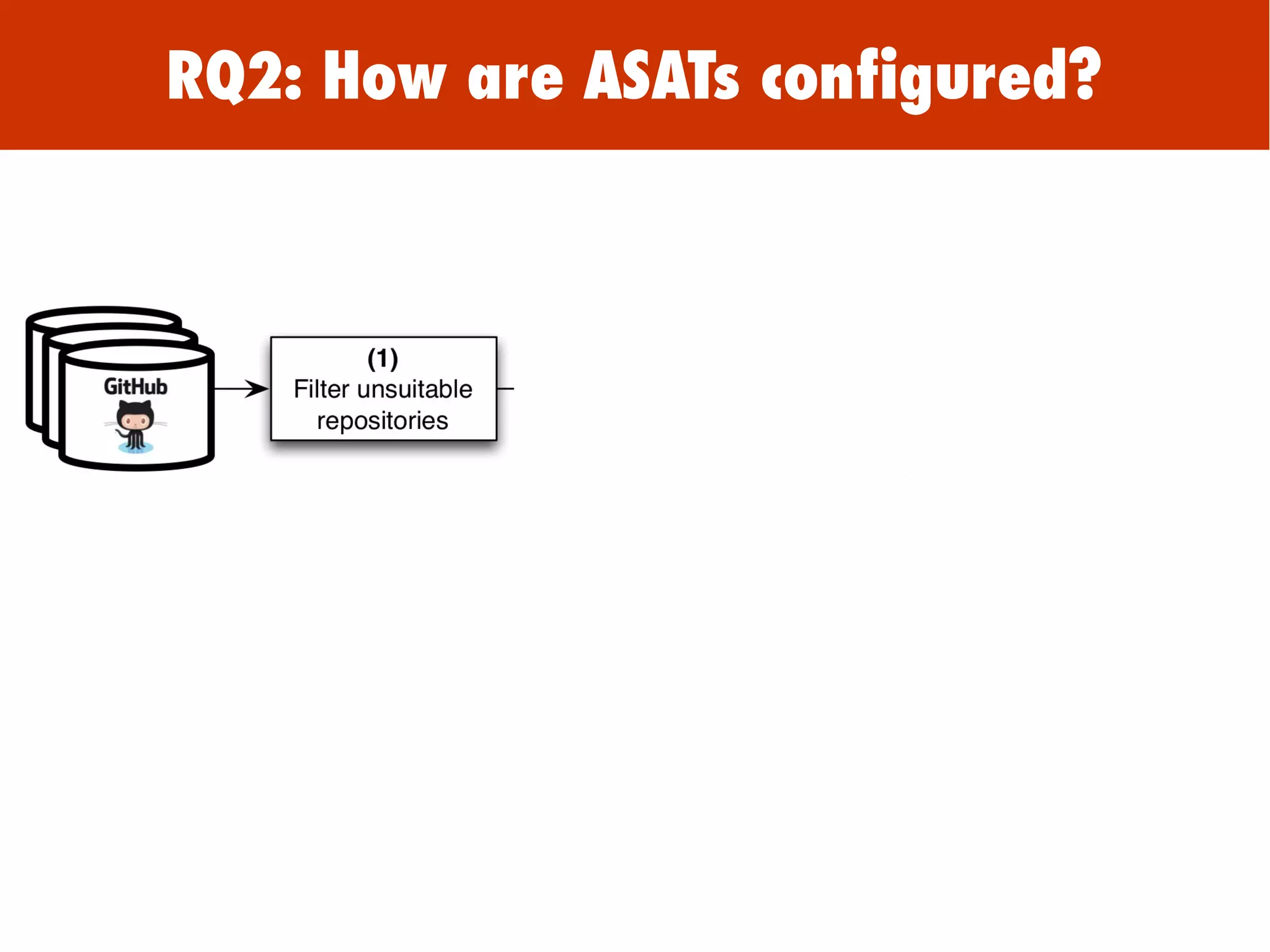

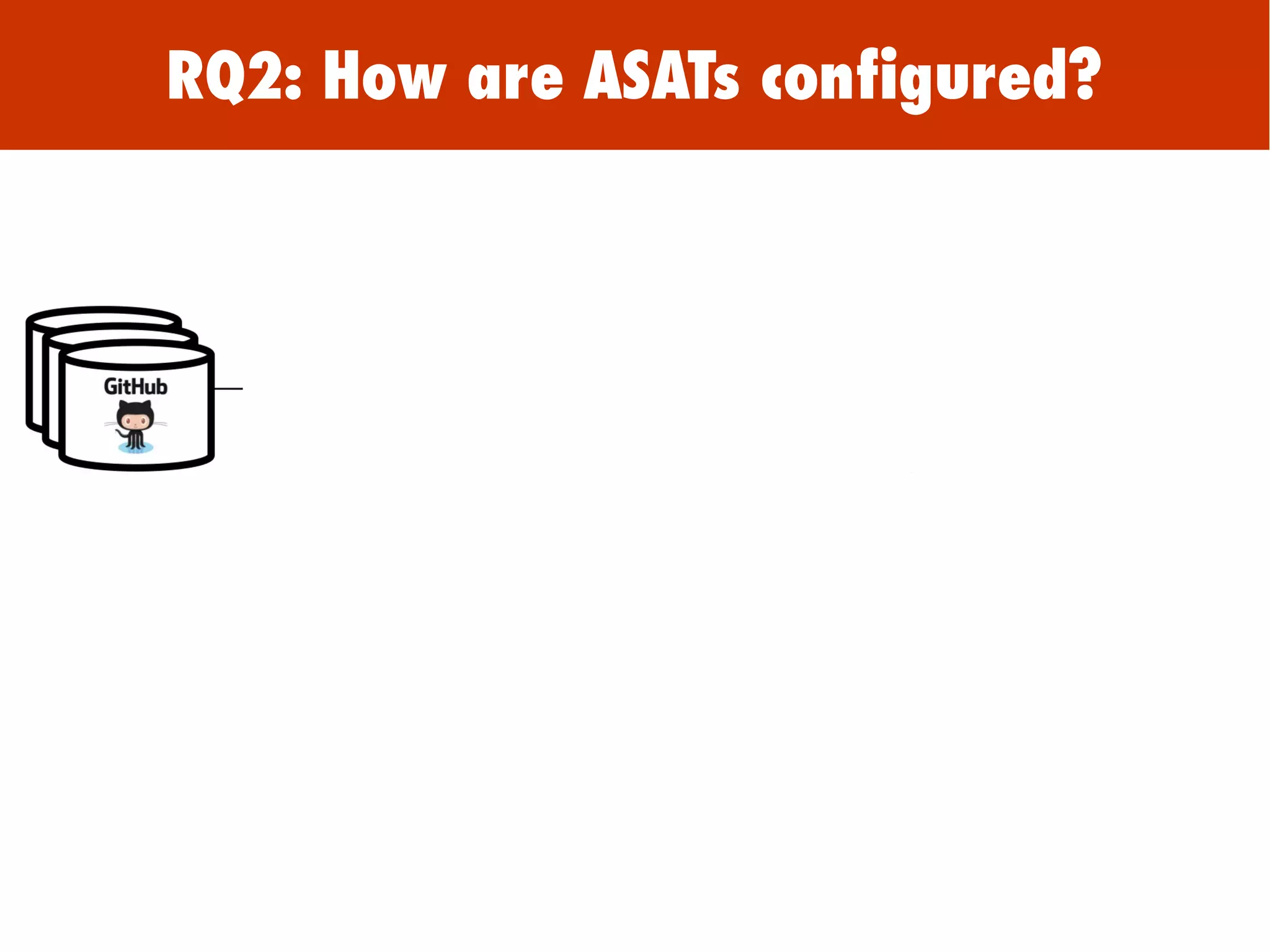

44. RQ2: How are ASATs configured?

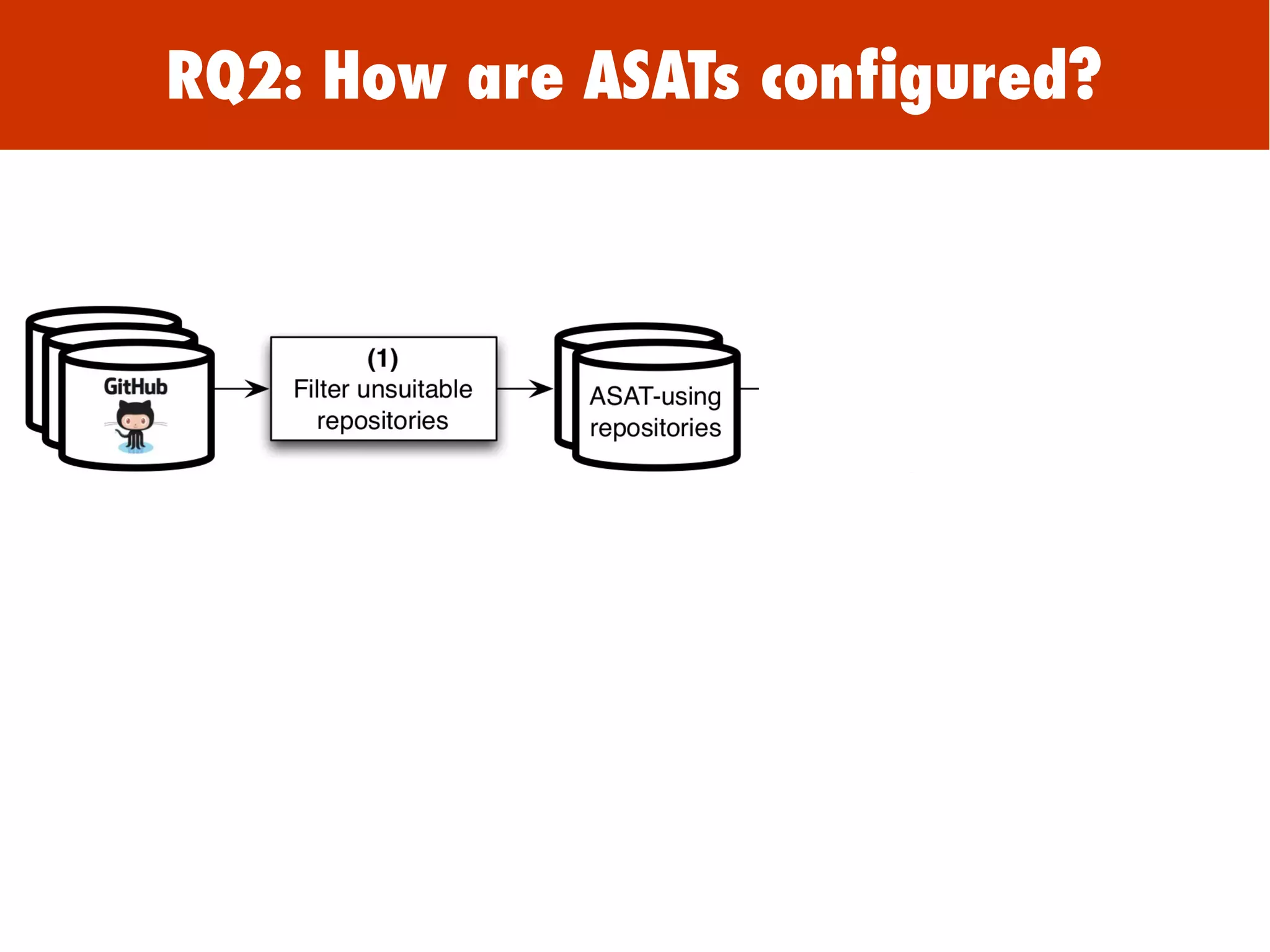

45. RQ2: How are ASATs configured?

46. RQ2: How are ASATs configured?

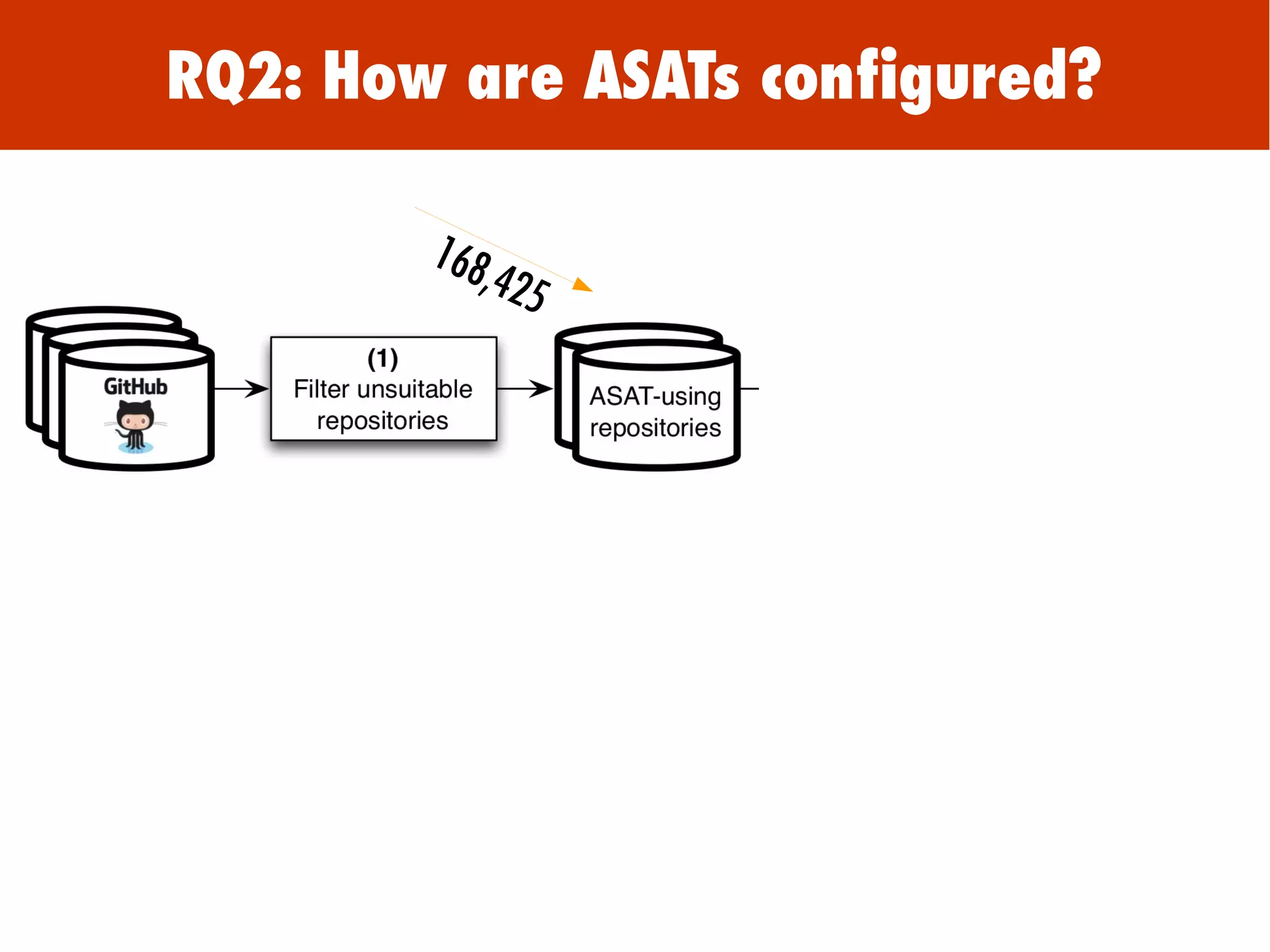

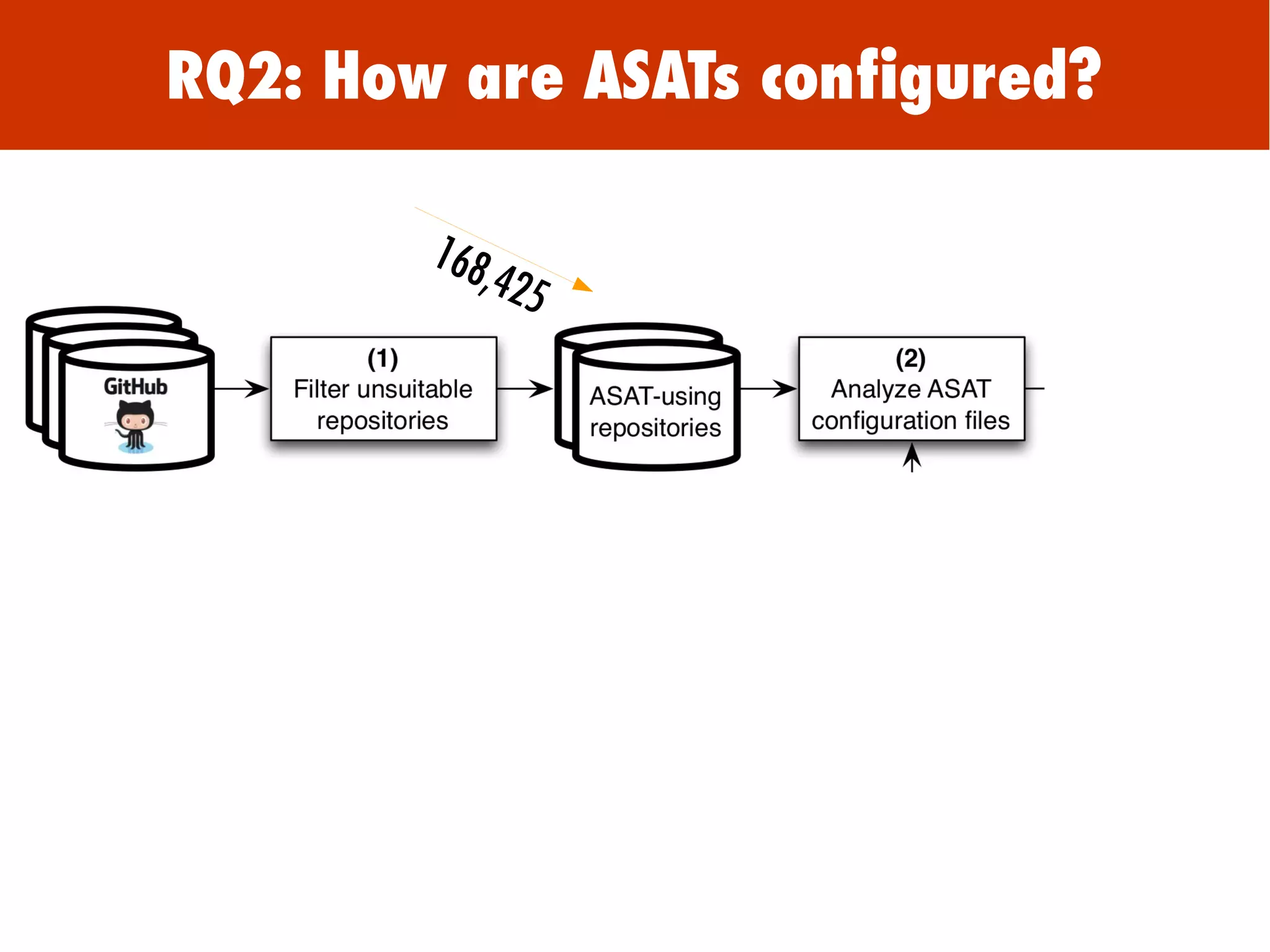

47. 168,425
RQ2: How are ASATs configured?

48. 168,425
RQ2: How are ASATs configured?

49. 168,425
RQ2: How are ASATs configured?

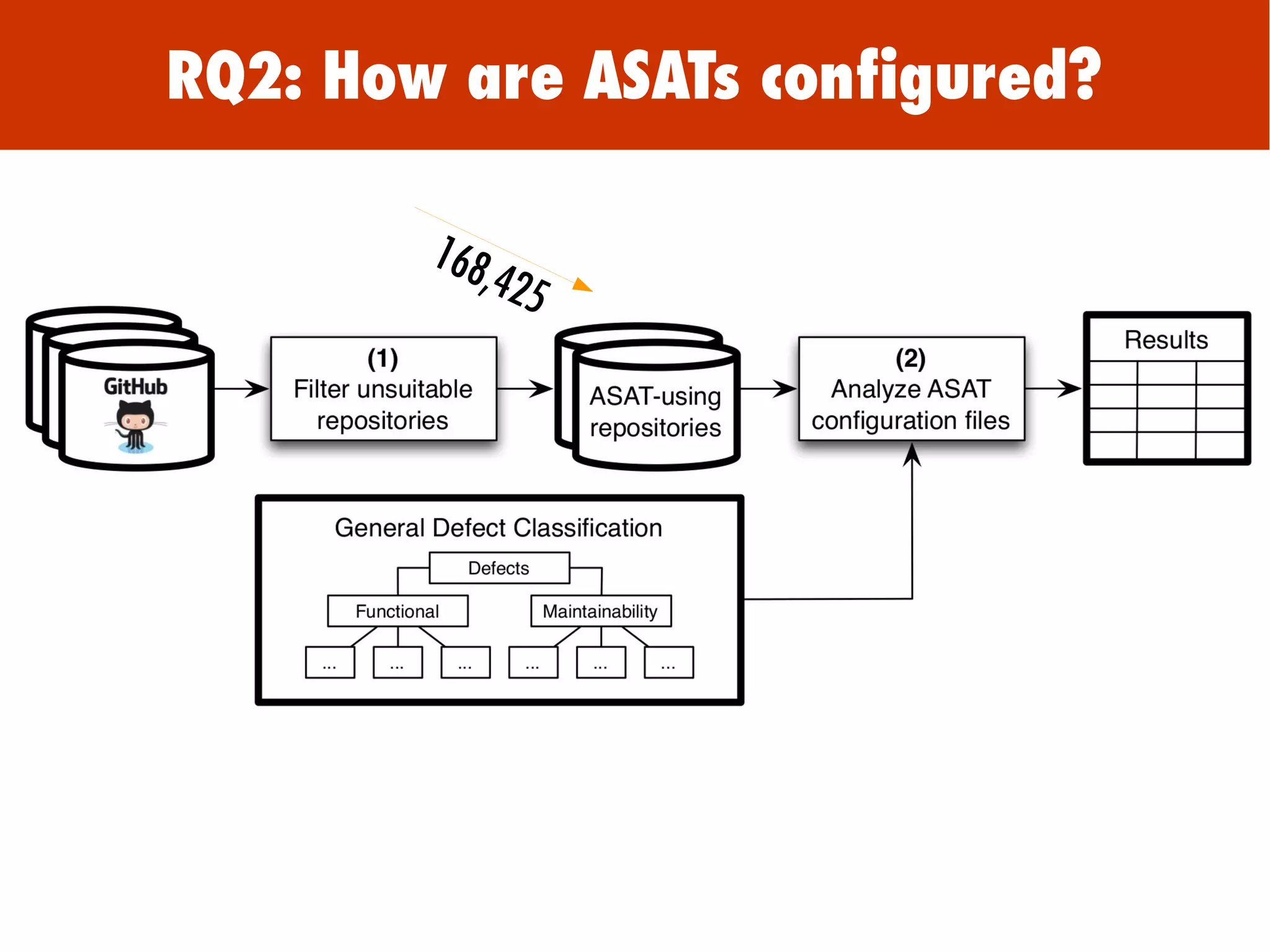

50. 168,425
RQ2: How are ASATs configured?

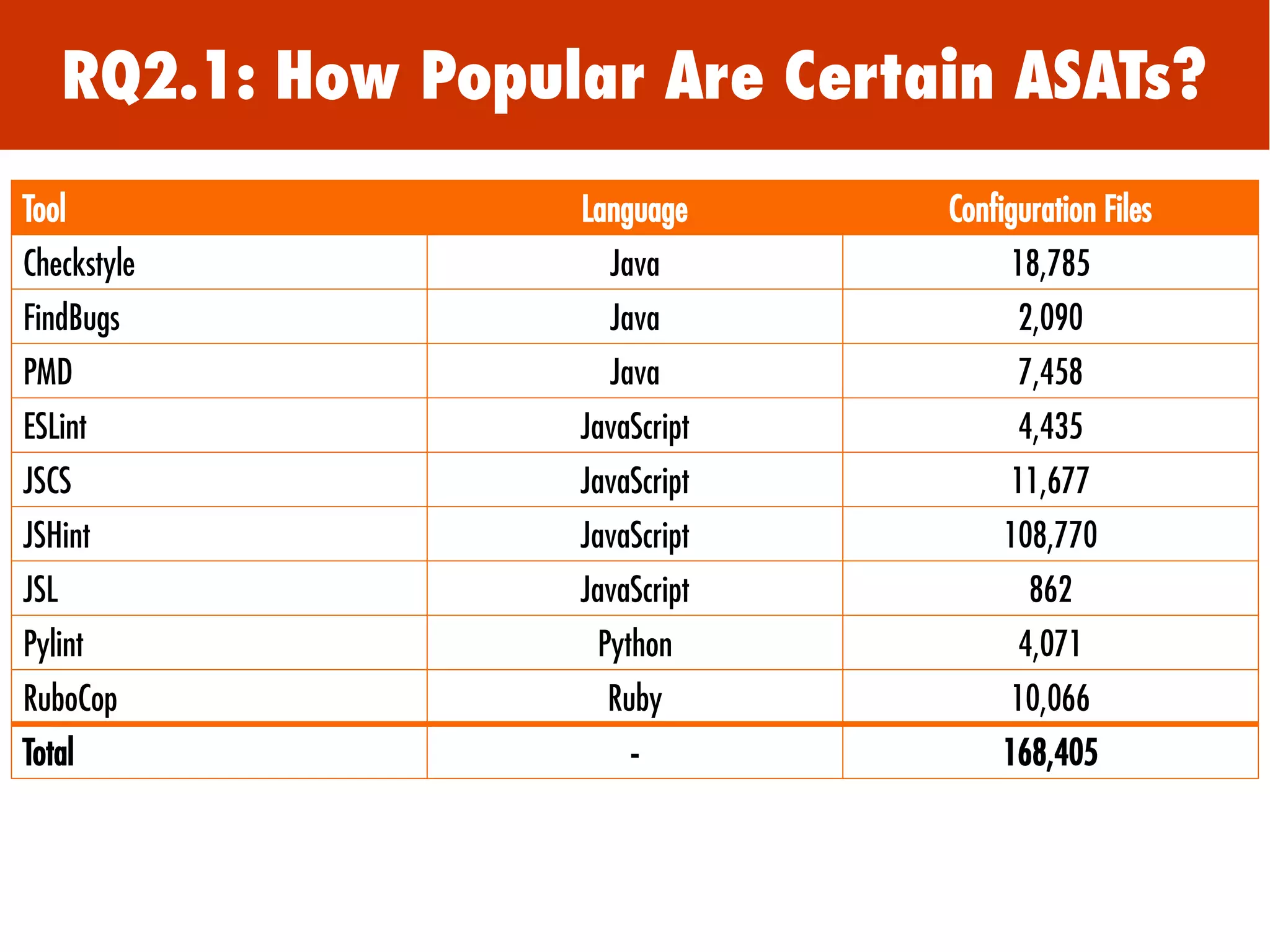

51. RQ2.1: How Popular Are Certain ASATs?
Tool Language Configuration Files
Checkstyle Java 18,785
FindBugs Java 2,090
PMD Java 7,458
ESLint JavaScript 4,435
JSCS JavaScript 11,677
JSHint JavaScript 108,770
JSL JavaScript 862
Pylint Python 4,071
RuboCop Ruby 10,066
Total - 168,405

52. RQ2.1: How Popular Are Certain ASATs?
Tool Language Configuration Files
Checkstyle Java 18,785
FindBugs Java 2,090
PMD Java 7,458
ESLint JavaScript 4,435
JSCS JavaScript 11,677
JSHint JavaScript 108,770
JSL JavaScript 862
Pylint Python 4,071
RuboCop Ruby 10,066
Total - 168,405

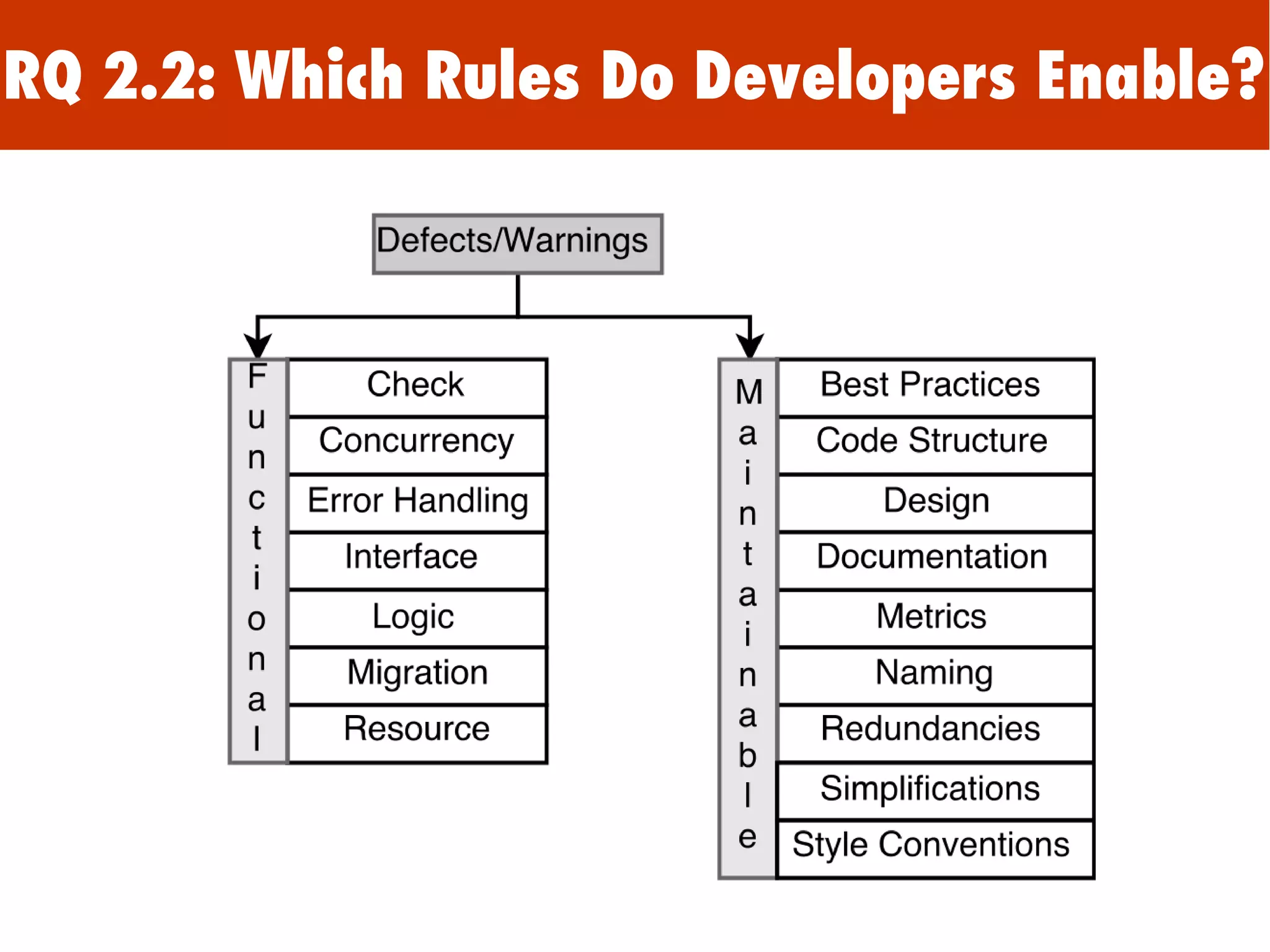

53. RQ 2.2: Which Rules Do Developers Enable?

54. RQ 2.2: Which Rules Do Developers Enable?

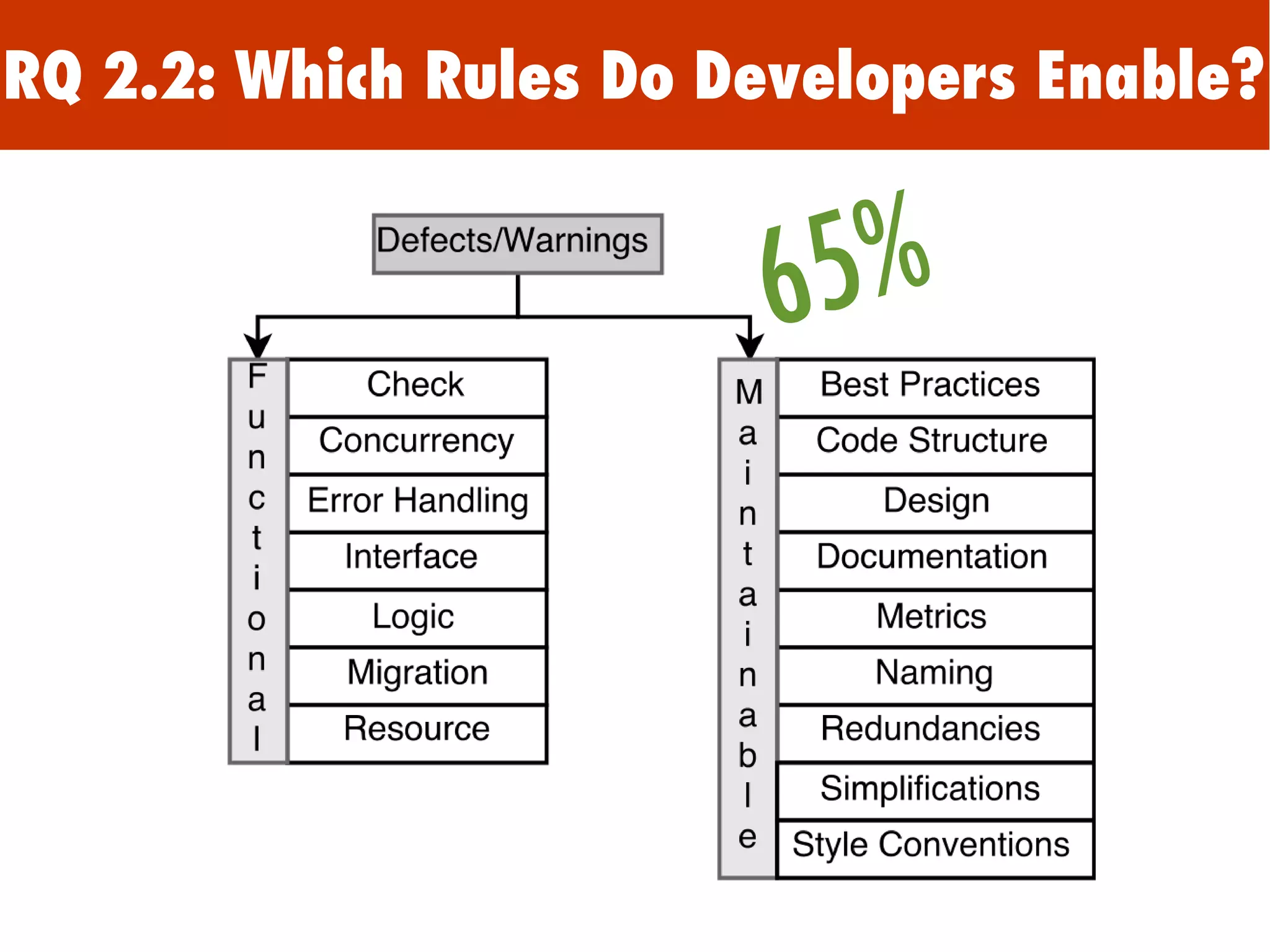

55. 65%
RQ 2.2: Which Rules Do Developers Enable?

56. 35% 65%
RQ 2.2: Which Rules Do Developers Enable?

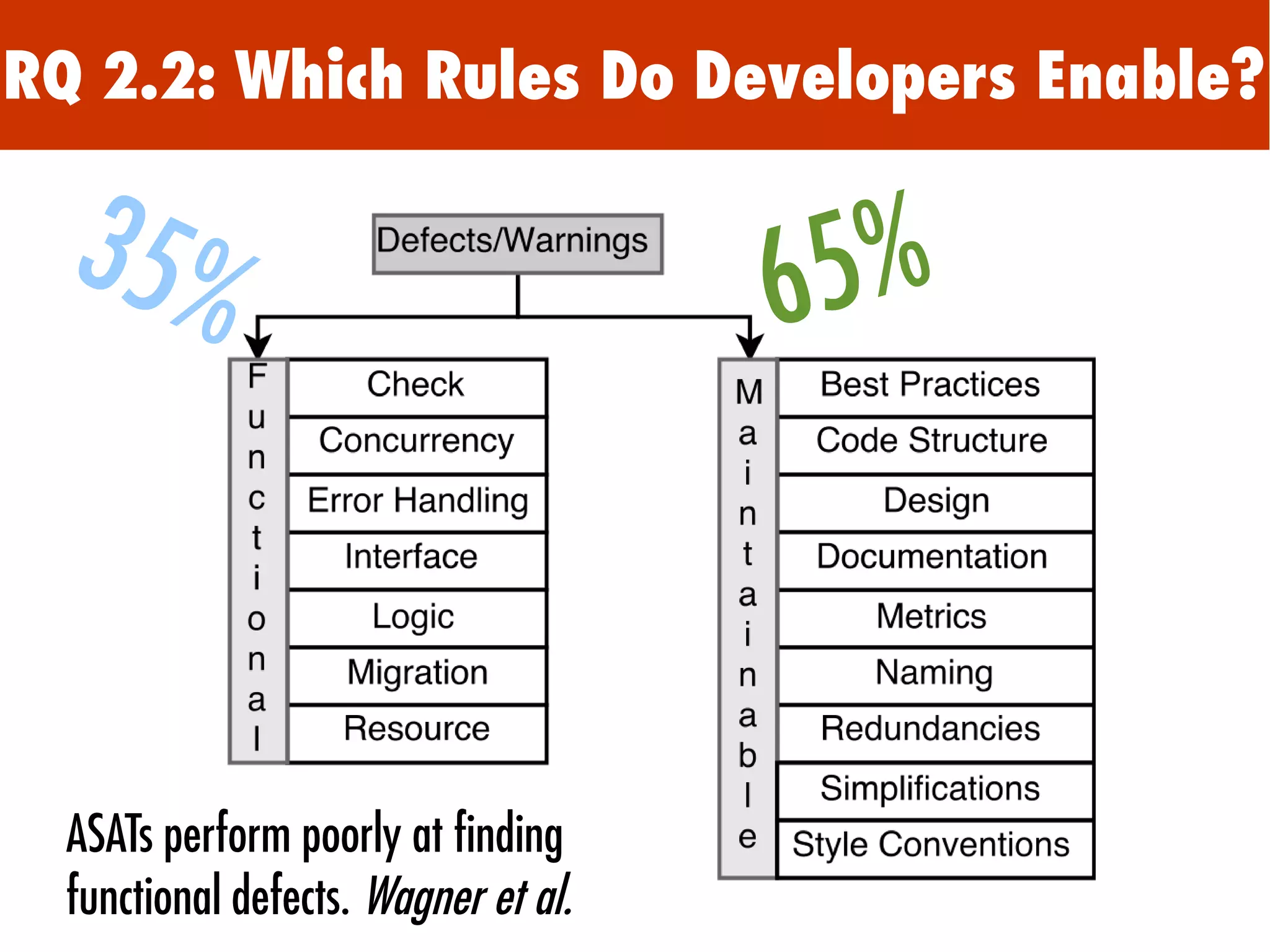

57. 35% 65%
ASATs perform poorly at finding
functional defects. Wagner et al.
RQ 2.2: Which Rules Do Developers Enable?

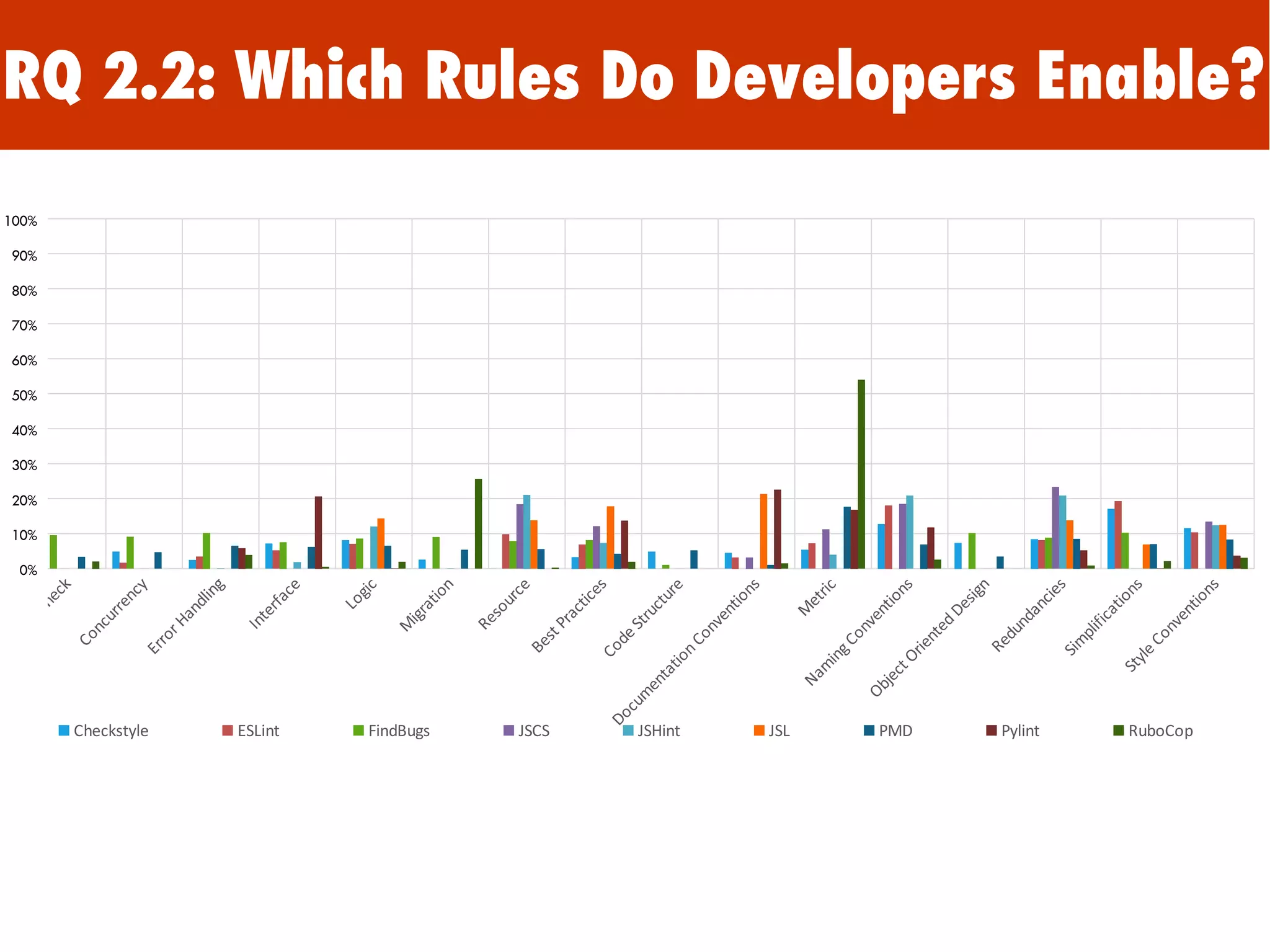

58. RQ 2.2: Which Rules Do Developers Enable?
0%
00%
00%
00%
00%
00%
00%
00%
00%
00%
00%
Checkstyle ESLint FindBugs JSCS JSHint JSL PMD Pylint RuboCop
100%
90%
80%
70%
60%
50%
40%
30%
20%
10%
0%

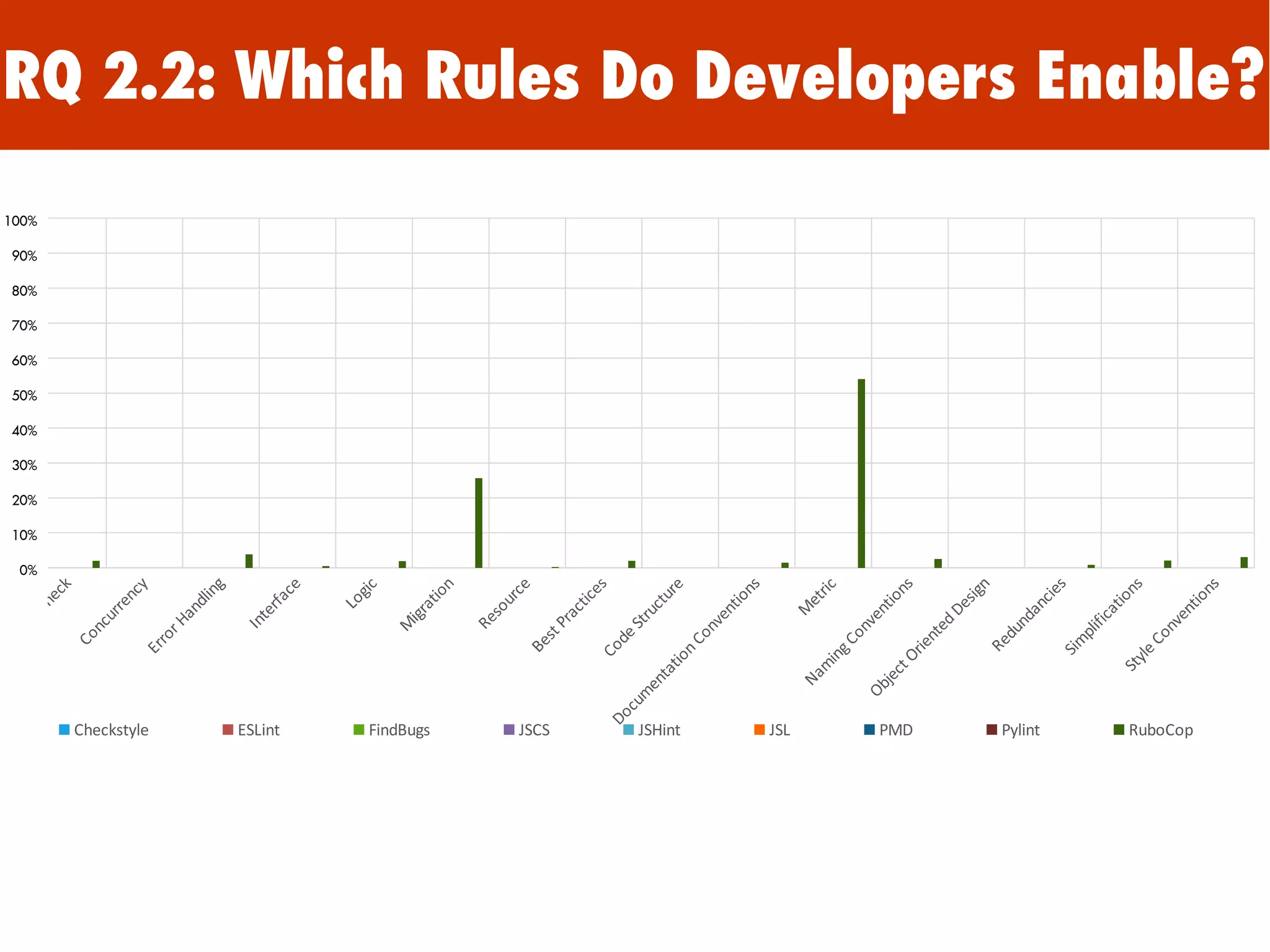

59. 0%
00%
00%
00%
00%
00%
00%
00%
00%
00%
00%
Checkstyle ESLint FindBugs JSCS JSHint JSL PMD Pylint RuboCop
RQ 2.2: Which Rules Do Developers Enable?
100%
90%
80%
70%
60%
50%
40%
30%
20%
10%
0%

60. RQ 2.2: Which Rules Do Developers Enable?
We: This is great!
Image: Phil Skipper, The Potentialist,http://i2.wp.com/thepotentiality.com/assets/media/Kurt-Enthusiasm.jpg

61. RQ 2.2: Which Rules Do Developers Enable?
We: This is great!
Image: Phil Skipper, The Potentialist,http://i2.wp.com/thepotentiality.com/assets/media/Kurt-Enthusiasm.jpg

62. RQ 2.2: Which Rules Do Developers Enable?
ASAT Developers*: Don't care.
Image: NiBiS, http://bidab.nibis.de/PICT/traurig.jpg

63. RQ 2.2: Which Rules Do Developers Enable?
ASAT Developers*: Don't care.
Image: NiBiS, http://bidab.nibis.de/PICT/traurig.jpg

64. RQ 2.3: How Good Is The Default?

65. RQ 2.3: How Good Is The Default?
Most ASAT configurations
deviate from the default.

66. RQ 2.3: How Good Is The Default?
Most ASAT configurations
deviate from the default.

67. RQ 2.3: How Good Is The Default?
Most ASAT configurations
deviate from the default.

68. RQ 2.3: How Good Is The Default?
But, typically only have one
change from the default …
Most ASAT configurations
deviate from the default.

69. RQ 2.3: How Good Is The Default?
But, typically only have one change from the
default …
●
- Addition
Most ASAT configurations
deviate from the default.

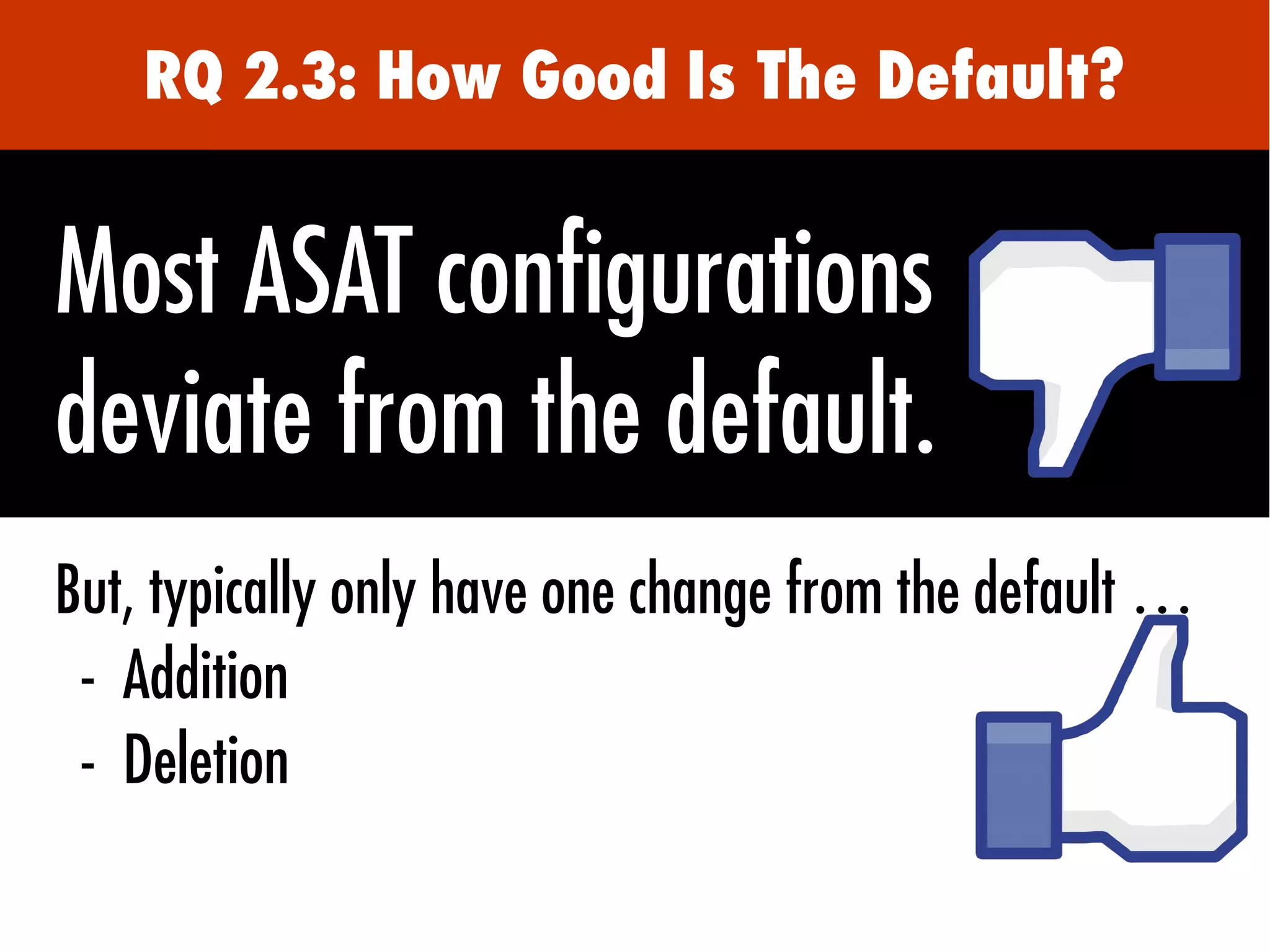

70. RQ 2.3: How Good Is The Default?
But, typically only have one change from the default …
●
- Addition
●
- Deletion
Most ASAT configurations
deviate from the default.

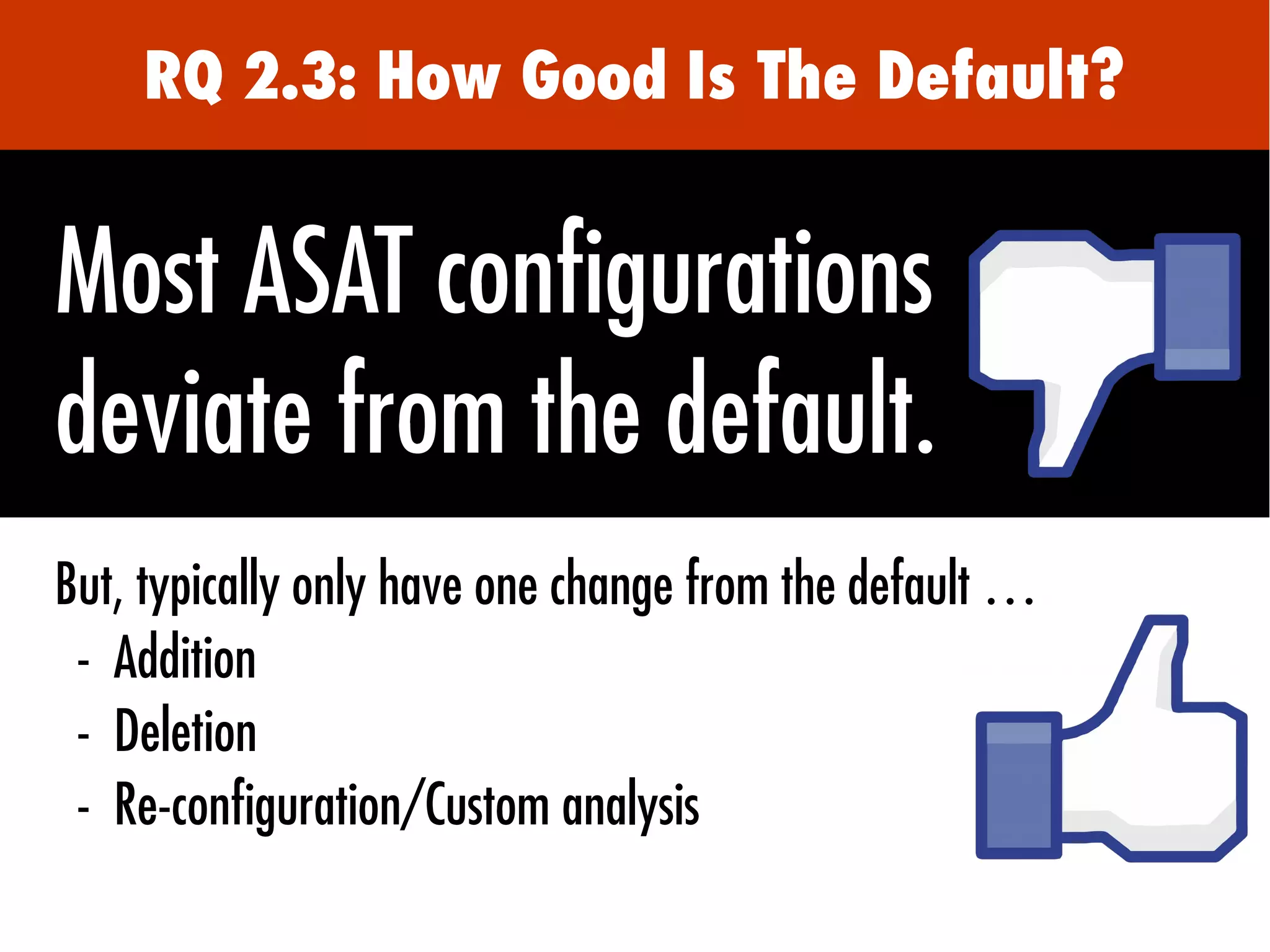

71. RQ 2.3: How Good Is The Default?
But, typically only have one change from the default …
●
- Addition
●
- Deletion
●
- Re-configuration/Custom analysis
Most ASAT configurations
deviate from the default.

72. RQ2: Open Questions

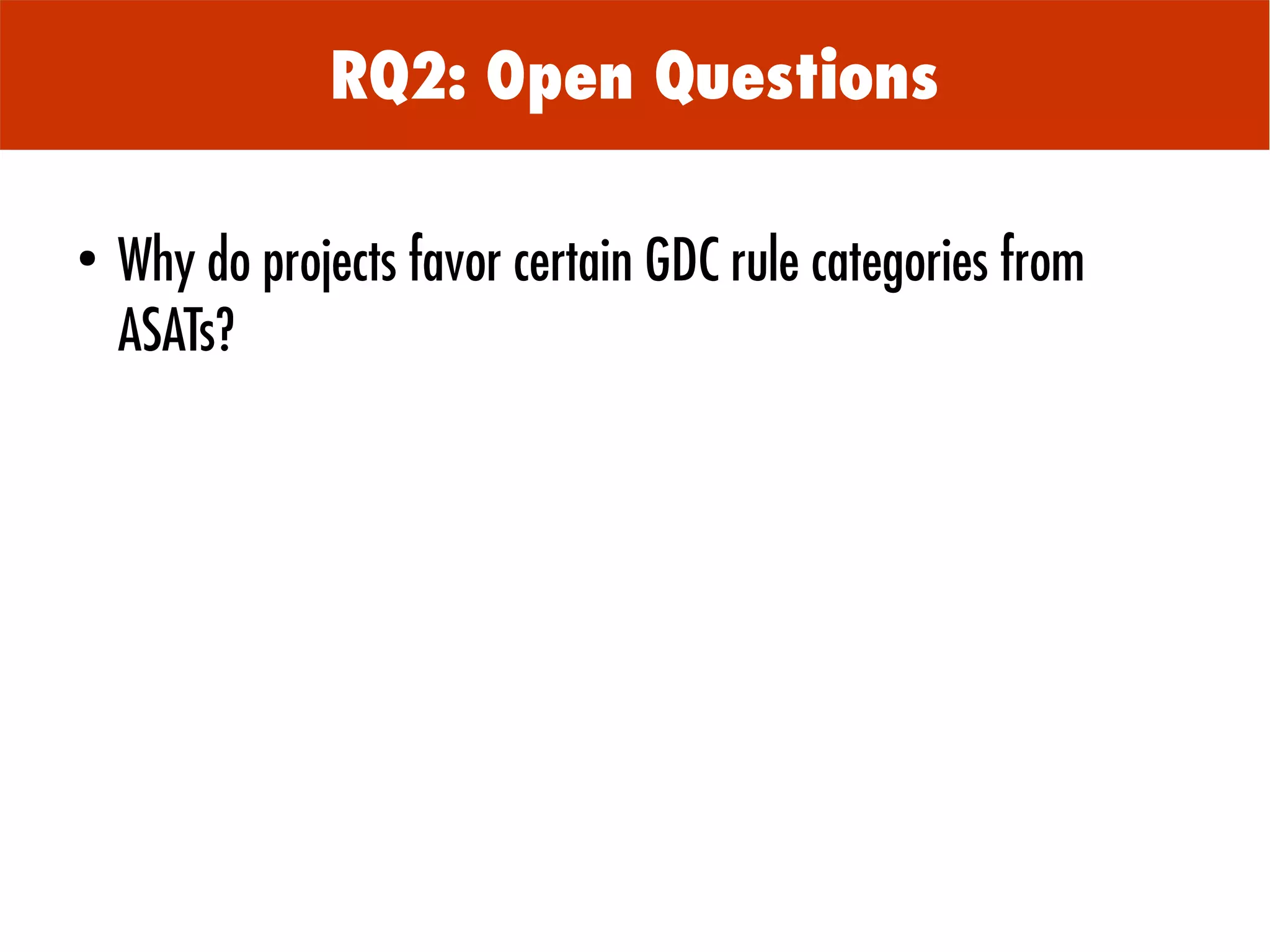

73. ●
Why do projects favor certain GDC rule categories from
ASATs?
RQ2: Open Questions

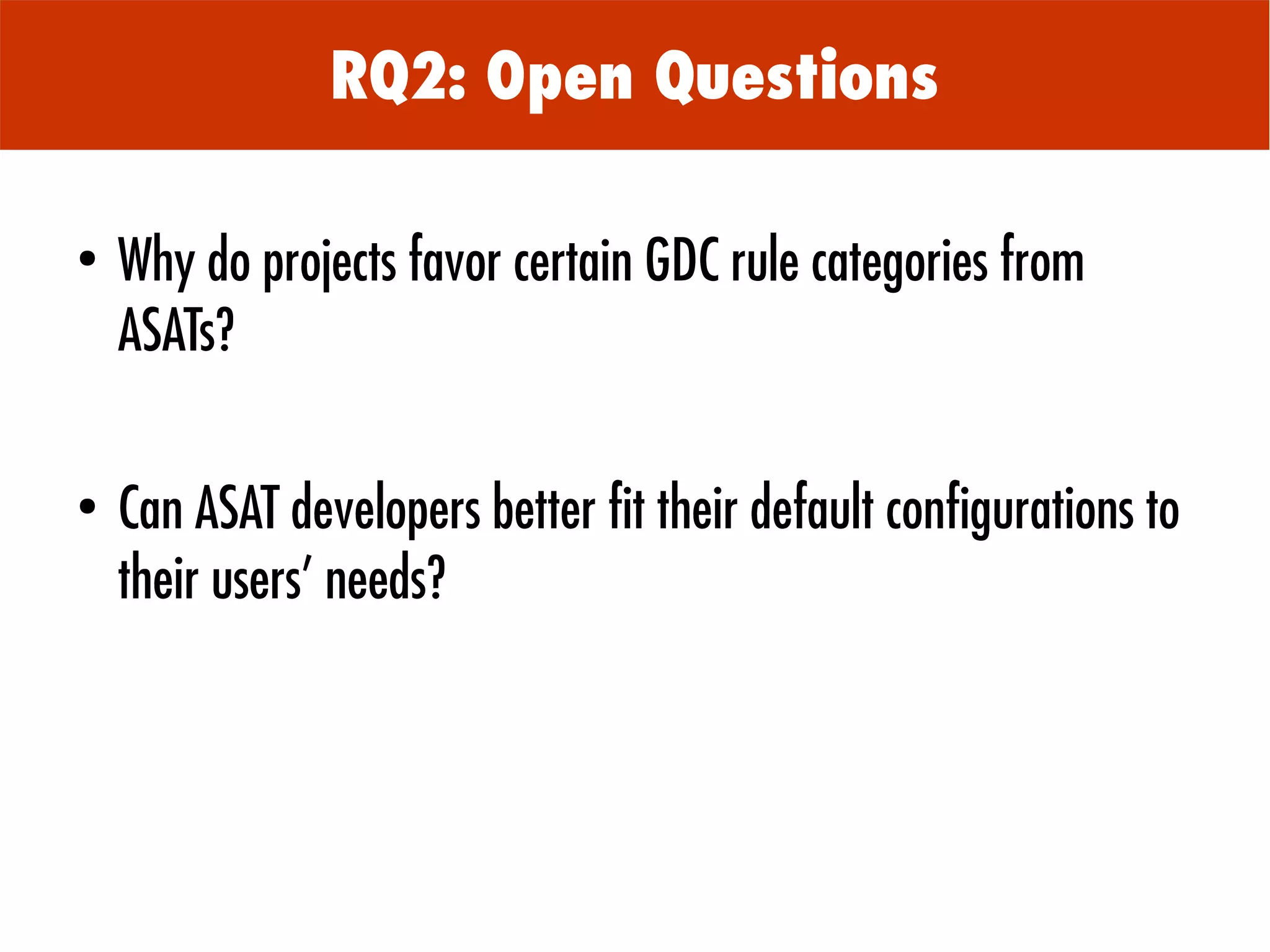

74. ●
Why do projects favor certain GDC rule categories from
ASATs?
●
Can ASAT developers better fit their default configurations to
their users' needs?
RQ2: Open Questions

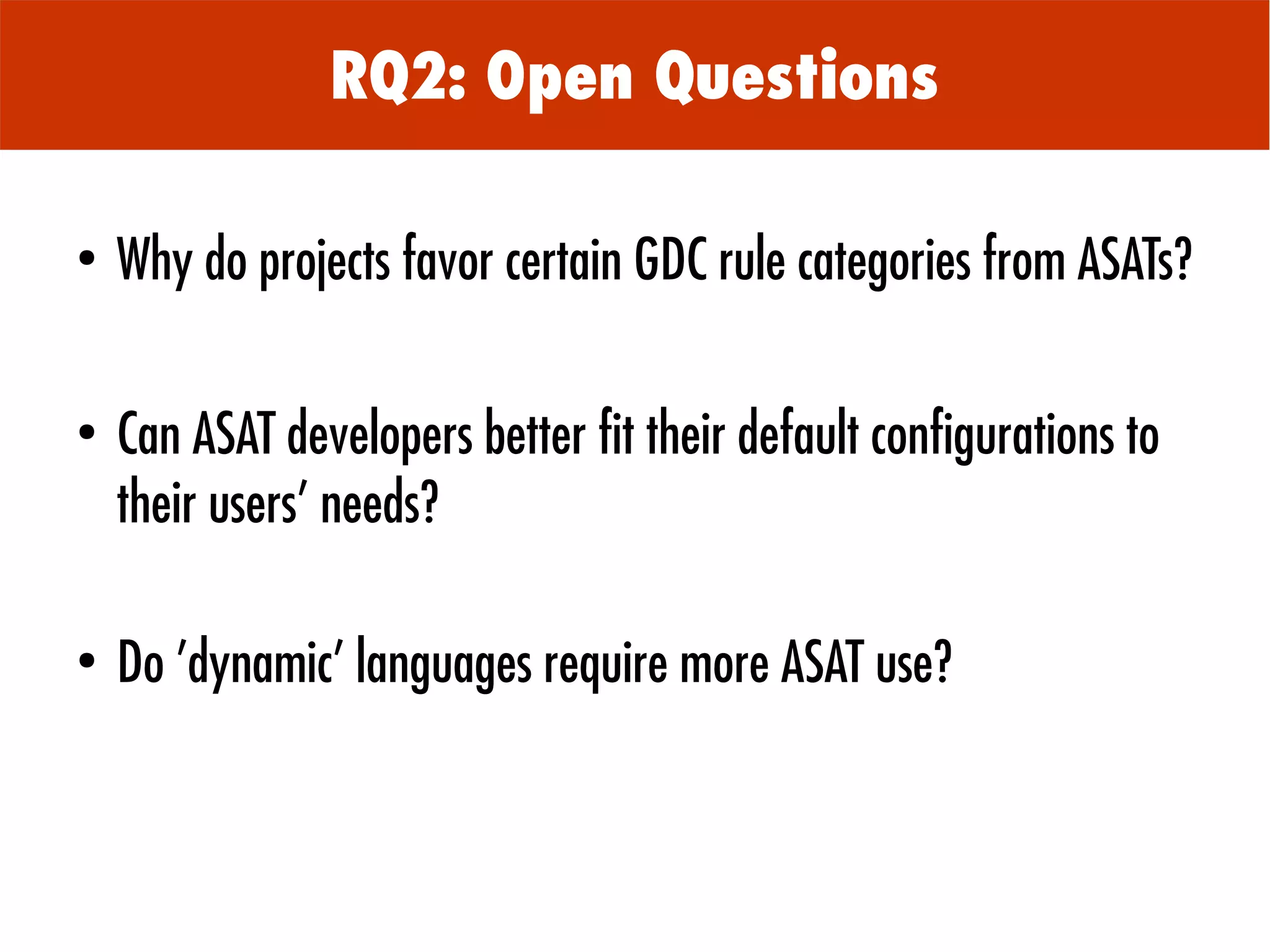

75. ●
Why do projects favor certain GDC rule categories from ASATs?
●
Can ASAT developers better fit their default configurations to
their users' needs?
●
Do 'dynamic' languages require more ASAT use?
RQ2: Open Questions

76. ●
Why do projects favor certain GDC rule categories from ASATs?
●
Can ASAT developers better fit their default configurations to
their users' needs?
●
Do 'dynamic' languages require more ASAT use?
RQ2: Open Questions

77. RQ3: How Do ASAT Configurations Evolve?
Image: Daimler AG, http://5komma6.mercedes-benz-passion.com/wp-content/uploads/2013/06/s-class-lineup.jpg

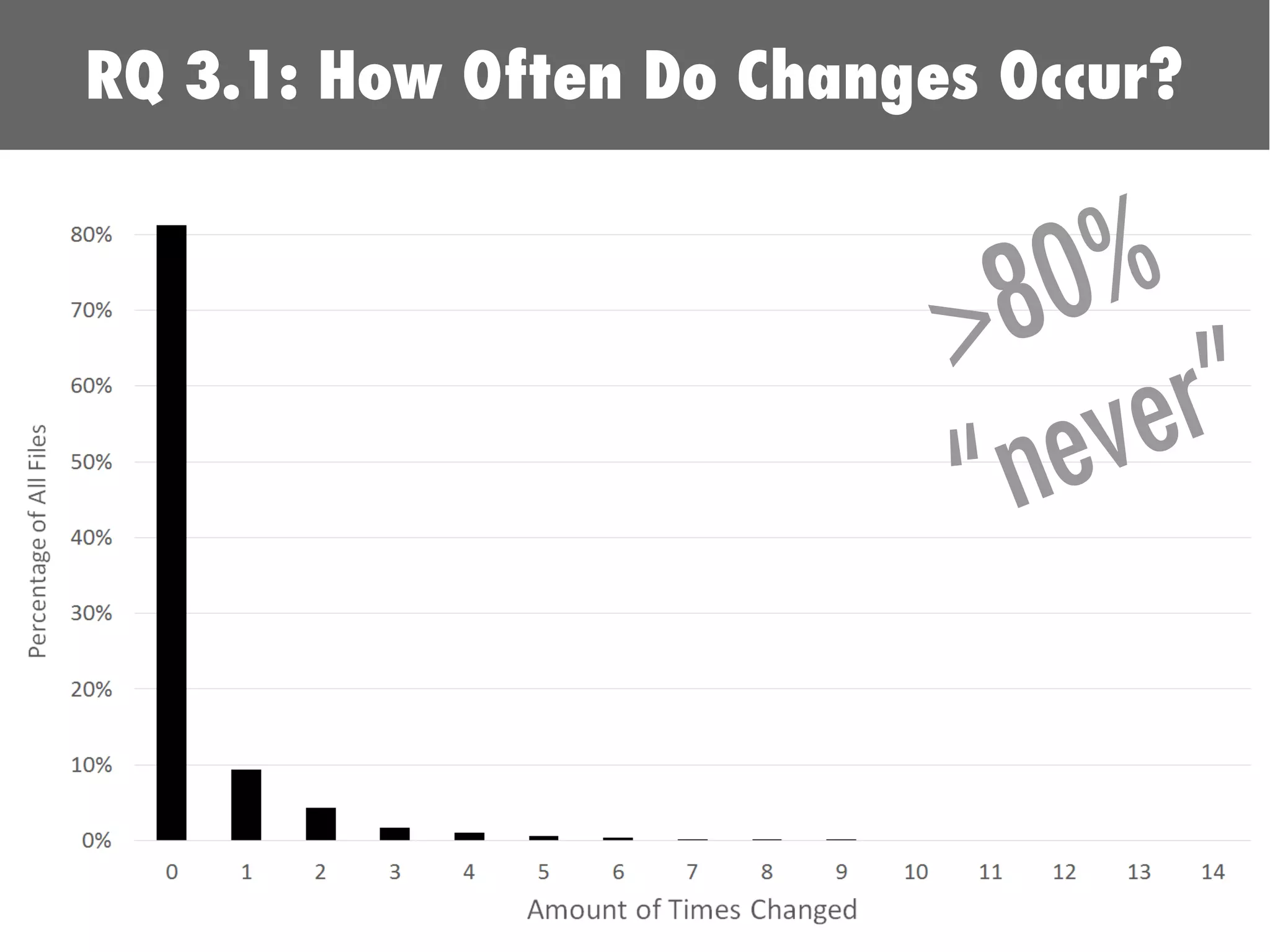

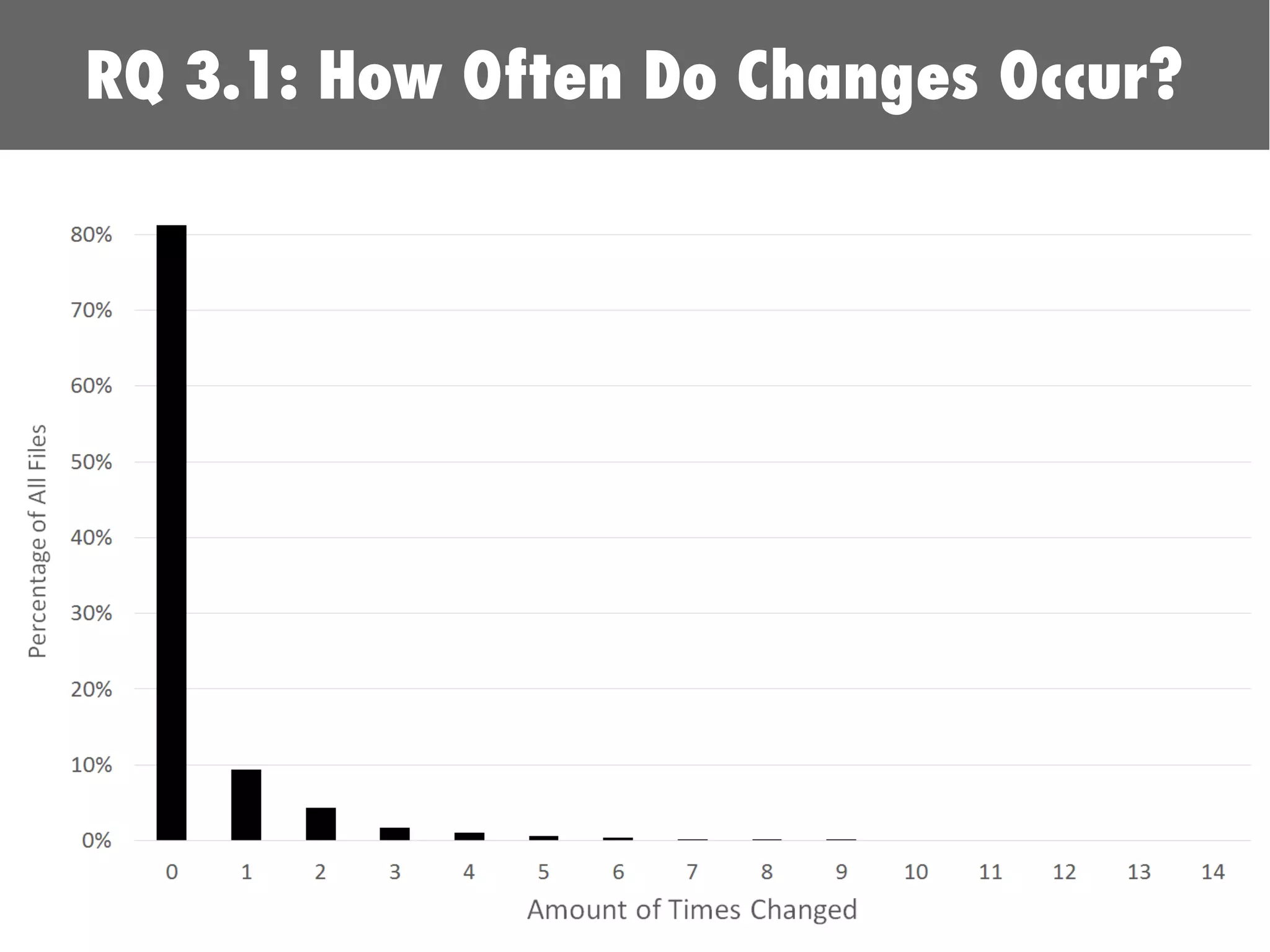

78. RQ 3.1: How Often Do Changes Occur?

79. RQ 3.1: How Often Do Changes Occur?

80. RQ 3.1: How Often Do Changes Occur?
>80%
“never”

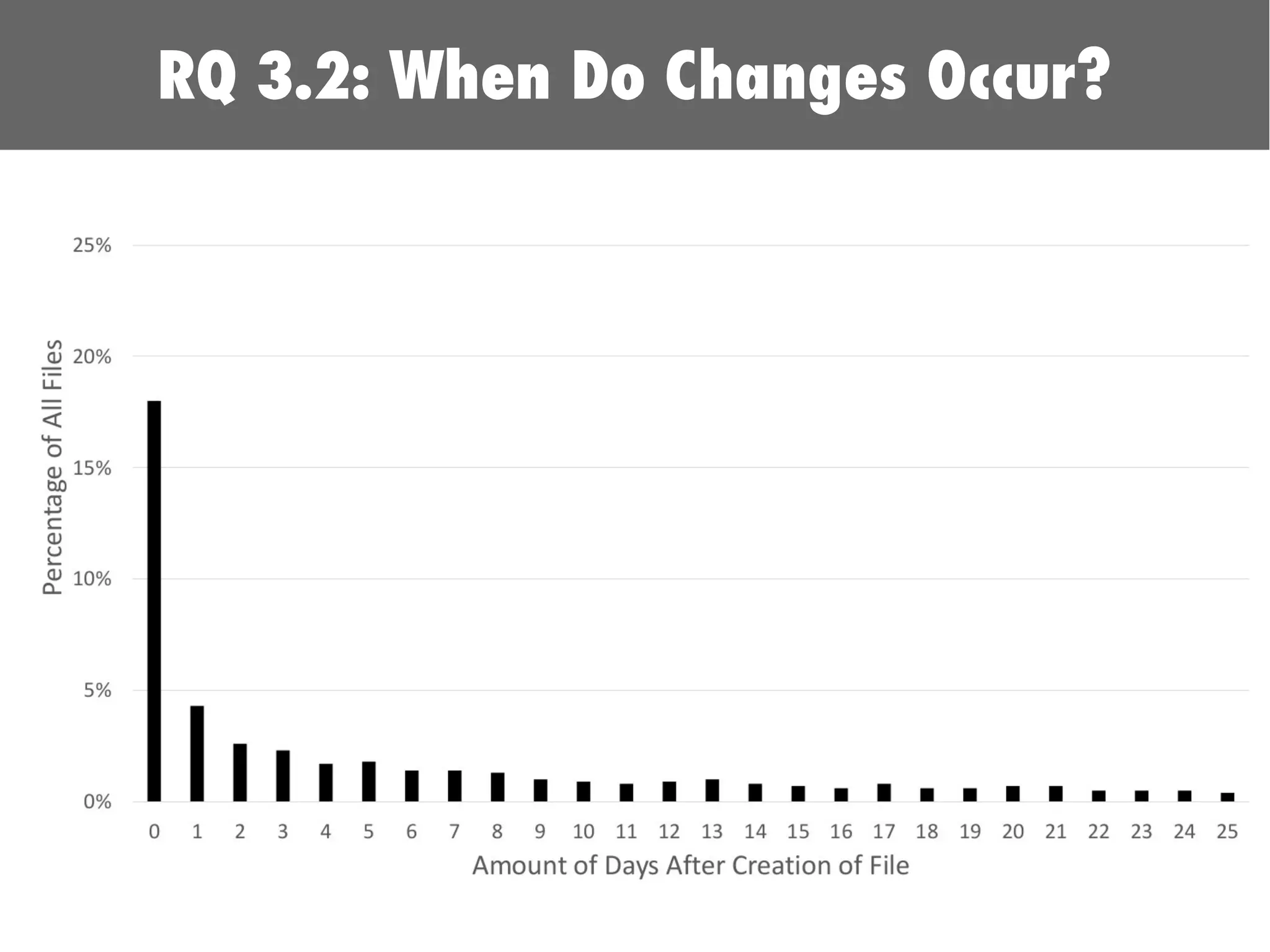

81. RQ 3.2: When Do Changes Occur?

82. RQ 3.2: When Do Changes Occur?

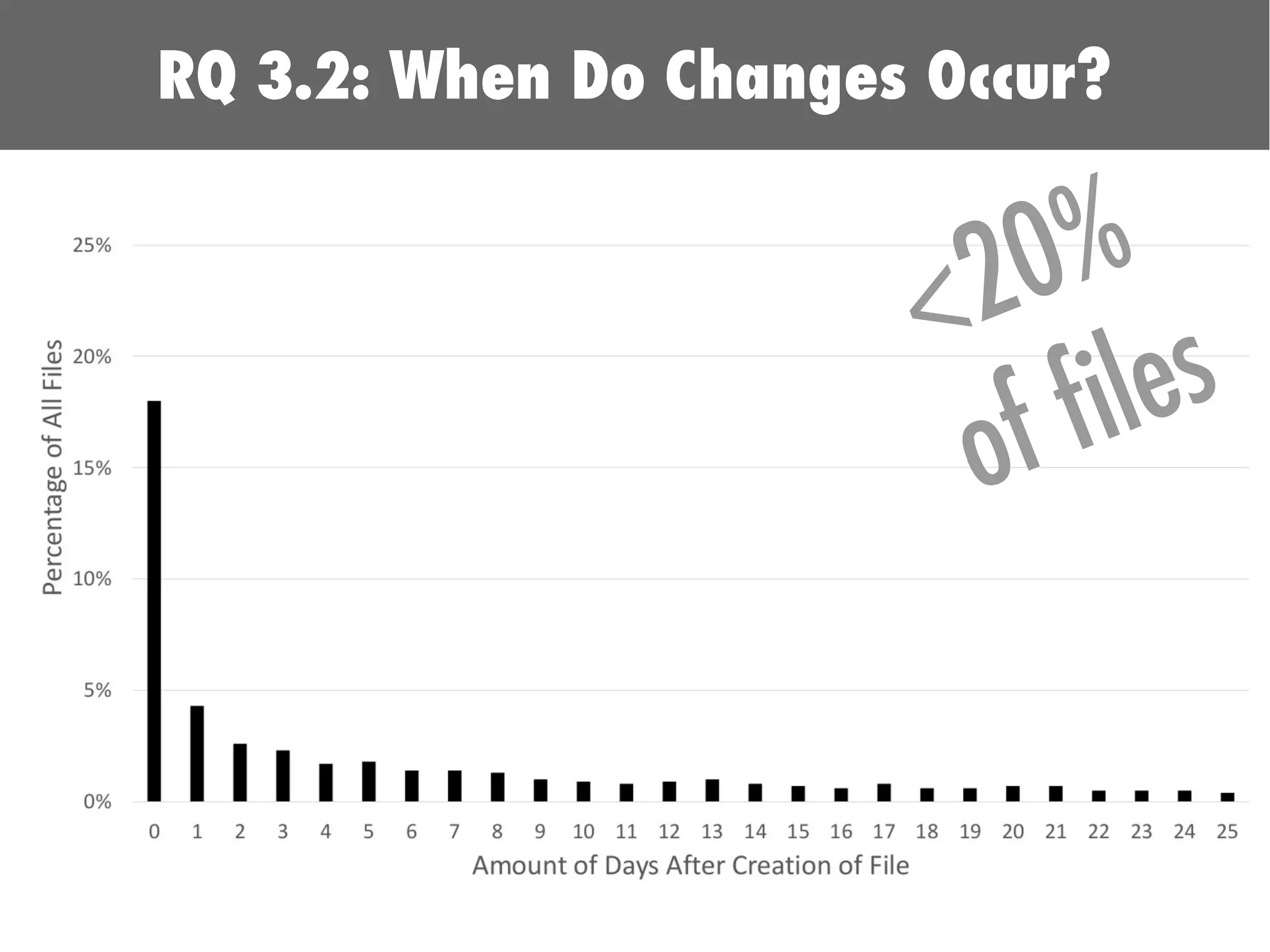

83. RQ 3.2: When Do Changes Occur?
<20%
of files

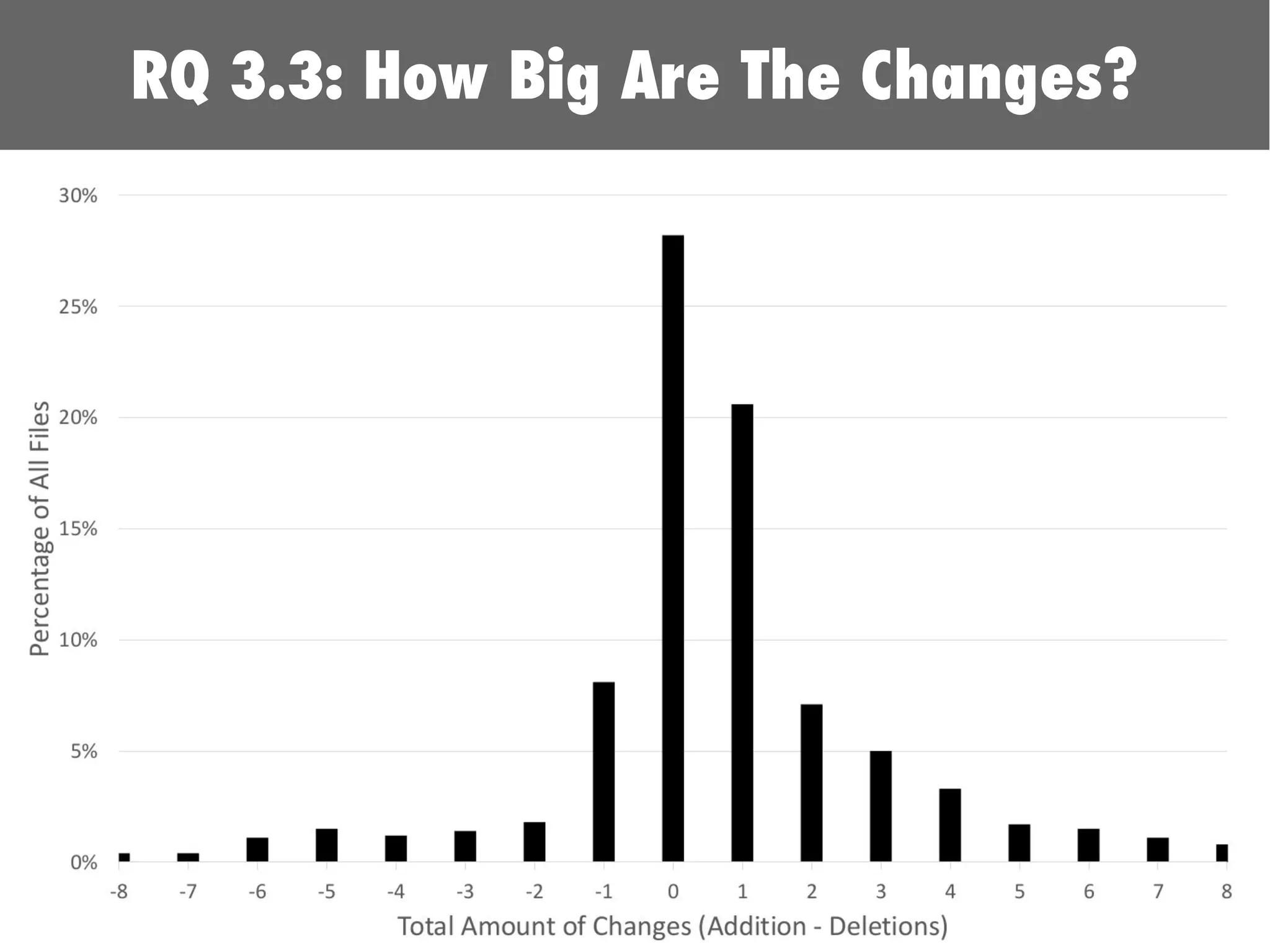

84. RQ 3.3: How Big Are The Changes?

85. RQ 3: Open Questions

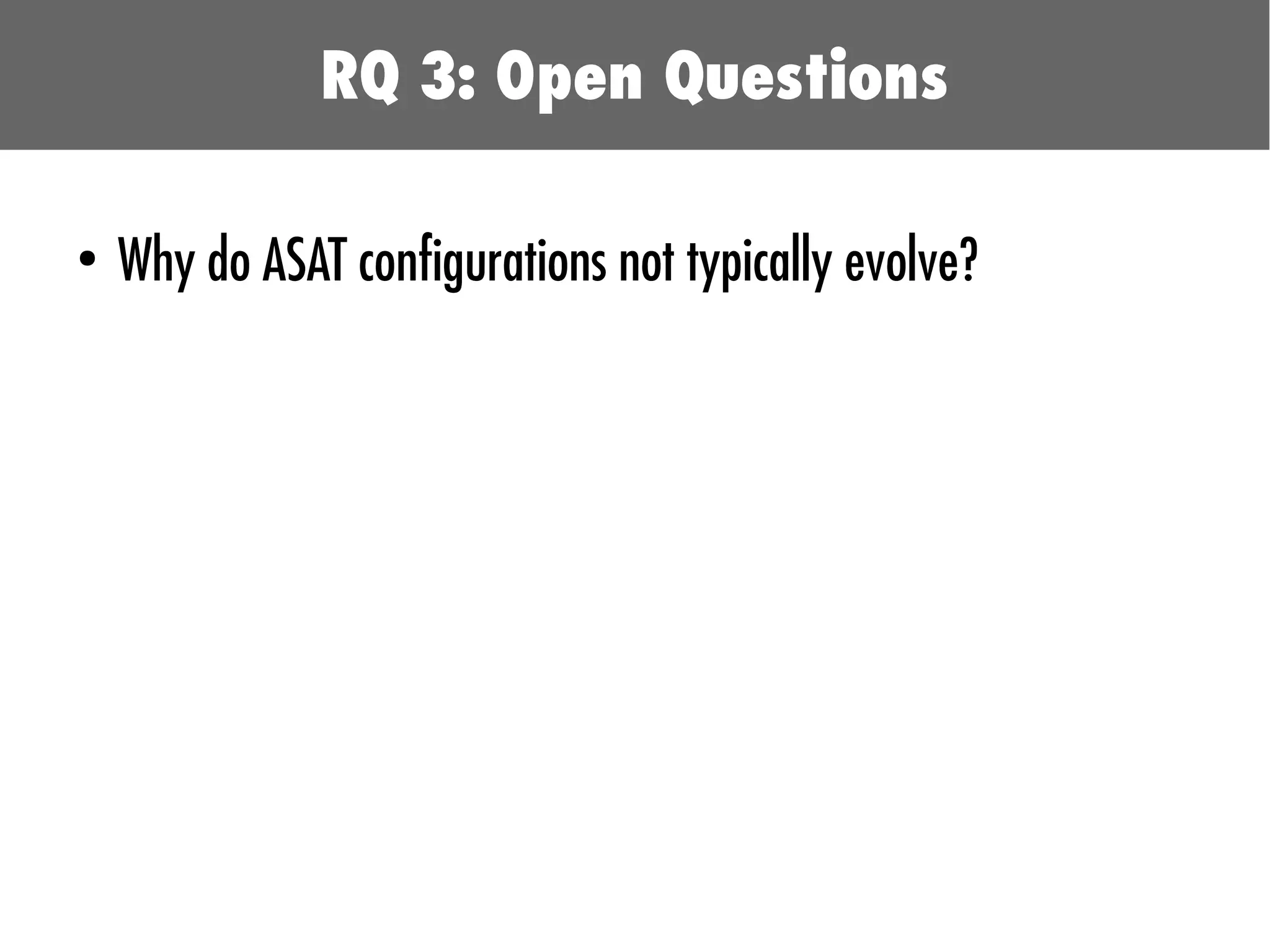

86. ●
Why do ASAT configurations not typically evolve?
RQ 3: Open Questions

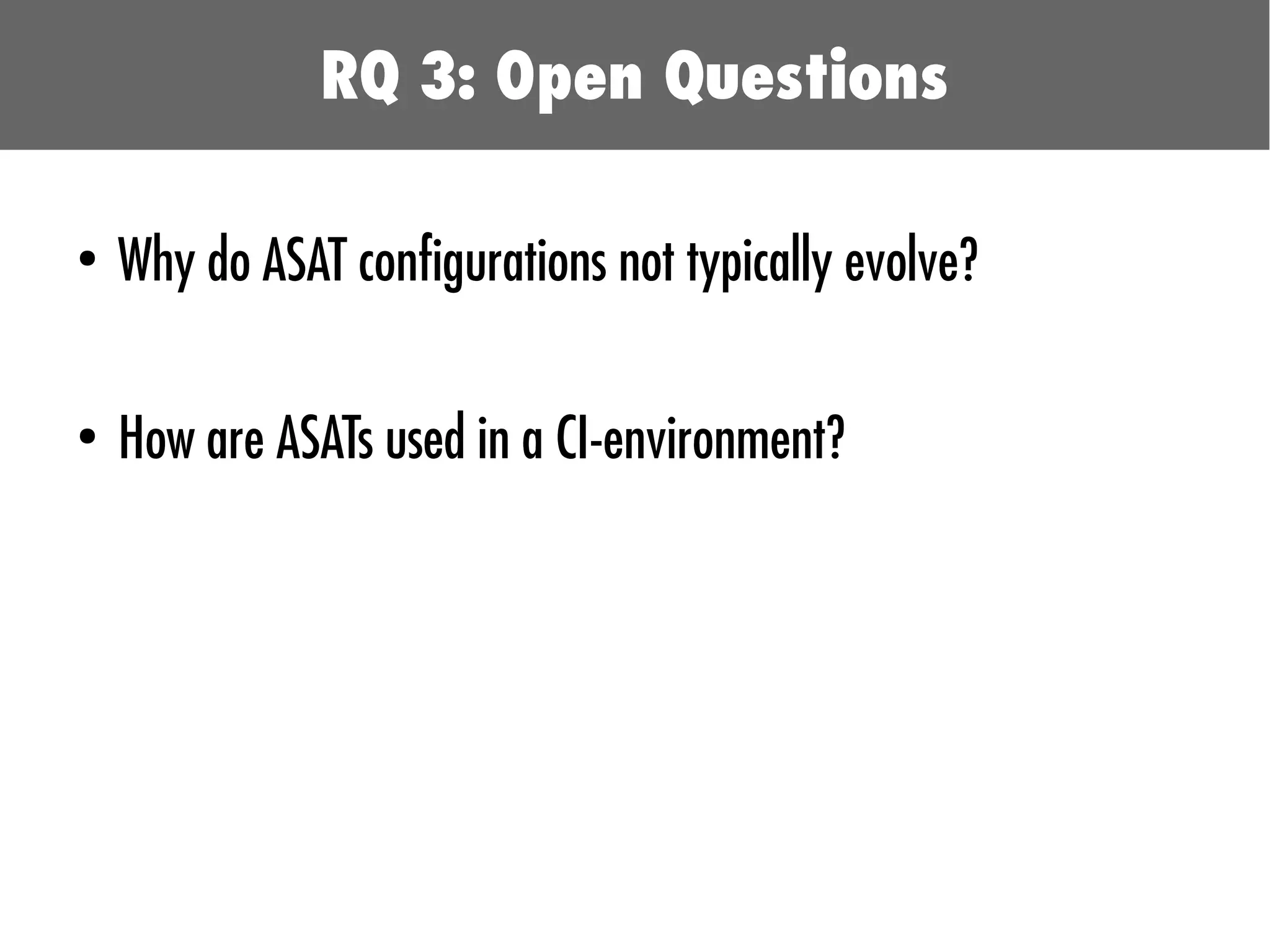

87. ●
Why do ASAT configurations not typically evolve?
●
How are ASATs used in a CI-environment?
RQ 3: Open Questions

88. Moritz Beller
@Inventitech
Analyzing the State of Static Analysis:
A Large-Scale Evaluation
in Open Source Software

89. Moritz Beller
@Inventitech
Analyzing the State of Static Analysis:
A Large-Scale Evaluation
in Open Source Software

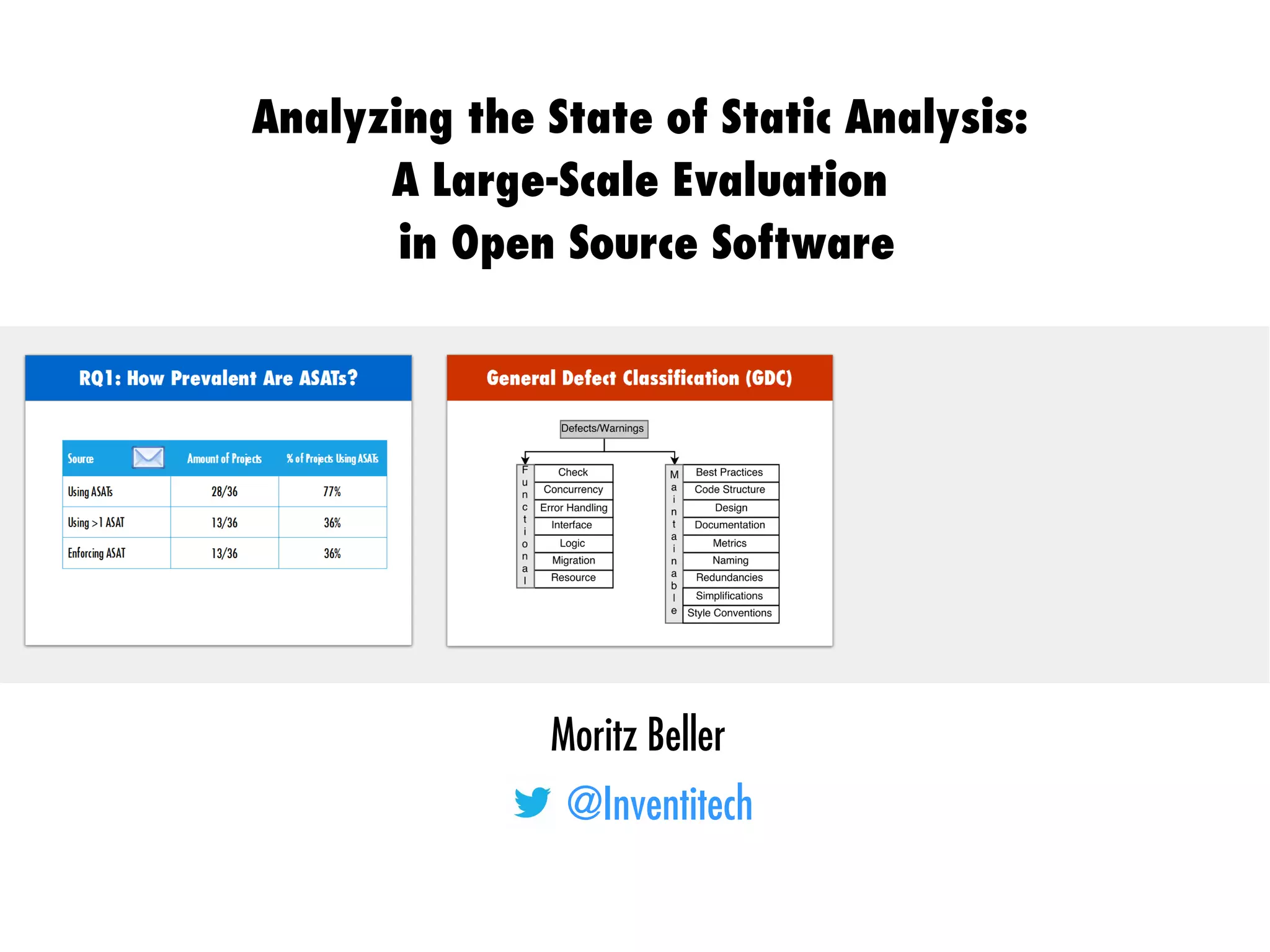

90. Moritz Beller
@Inventitech
Analyzing the State of Static Analysis:
A Large-Scale Evaluation
in Open Source Software

91. Moritz Beller
@Inventitech
Analyzing the State of Static Analysis:
A Large-Scale Evaluation
in Open Source Software
