AN INTRUSION DETECTION MECHANISM FOR MANETS BASED ON DEEP LEARNING ARTIFICIAL NEURAL NETWORKS (ANNS)

International Journal of Computer Networks & Communications (IJCNC) Vol.15, No.1, January 2023
DOI: 10.5121/ijcnc.2023.15101 1
AN INTRUSION DETECTION MECHANISM FOR
MANETS BASED ON DEEP LEARNING ARTIFICIAL
NEURAL NETWORKS (ANNS)
Mohamad T Sultan1,2
, Hesham El Sayed1,2
and Manzoor Ahmed Khan3
1
College of Information Technology United Arab Emirates University, Abu Dhabi, UAE
2
Emirates Center for Mobility Research (ECMR), United Arab Emirates University,
United Arab Emirates
3
College of Information Technology United Arab Emirates University, Abu Dhabi, UAE
ABSTRACT
Mobile Ad-hoc Network (MANET) is a distributed, decentralized network of wireless portable nodes
connecting directly without any fixed communication base station or centralized administration. Nodes in
MANET move continuously in random directions and follow an arbitrary manner, which presents
numerous challenges to these networks and make them more susceptible to different security threats. Due
to this decentralized nature of their overall architecture, combined with the limitation of hardware
resources, those infrastructure-less networks are more susceptible to different security attacks such as
black hole attack, network partition, node selfishness, and Denial of Service (DoS) attacks. This work aims
to present, investigate, and design an intrusion detection predictive technique for Mobile Ad hoc networks
using deep learning artificial neural networks (ANNs). A simulation-based evaluation and a deep ANNs
modelling for detecting and isolating a Denial of Service (DoS) attack are presented to improve the overall
security level of Mobile ad hoc networks.
KEYWORDS
Network Protocols, deep learning, ANN, intrusion detection
1. INTRODUCTION
Recently, the significant advances in wireless networking systems have recently made
them among the most innovative topics in computer technologies. Users can access a
wide range of information and services through mobile wireless networks. Latest
technology developments in wireless data communication devices have led to cheaper prices and
larger data rates. Compared to the conventional wired networking, the wireless networking
provides a great deal of flexibility, efficiency and cost effectiveness that make them a good
alternative in providing an efficient network connectivity. The development of Mobile Ad hoc
networks (MANETs) [1][2] presented a reliable, cost-effective and efficient techniques exploit
the availability and presence of mobile hosts during the lack of a fixed communication
infrastructure. In MANET, the mobile nodes are independent and can effortlessly initiate a direct
communication channel with each other as they are freely moving around the infrastructure-less
network in different directions and at different velocity speeds. The Ad hoc network functions in
a very specific way and nodes cooperation is its main element for forwarding the communication
related information from main data sources to the planned destination mobile nodes. Nodes in
MANET relies entirely in its operation on batteries as means of energy to move arbitrarily with
no restrictions. The mobile nodes could leave or join the dynamic network at any specific time

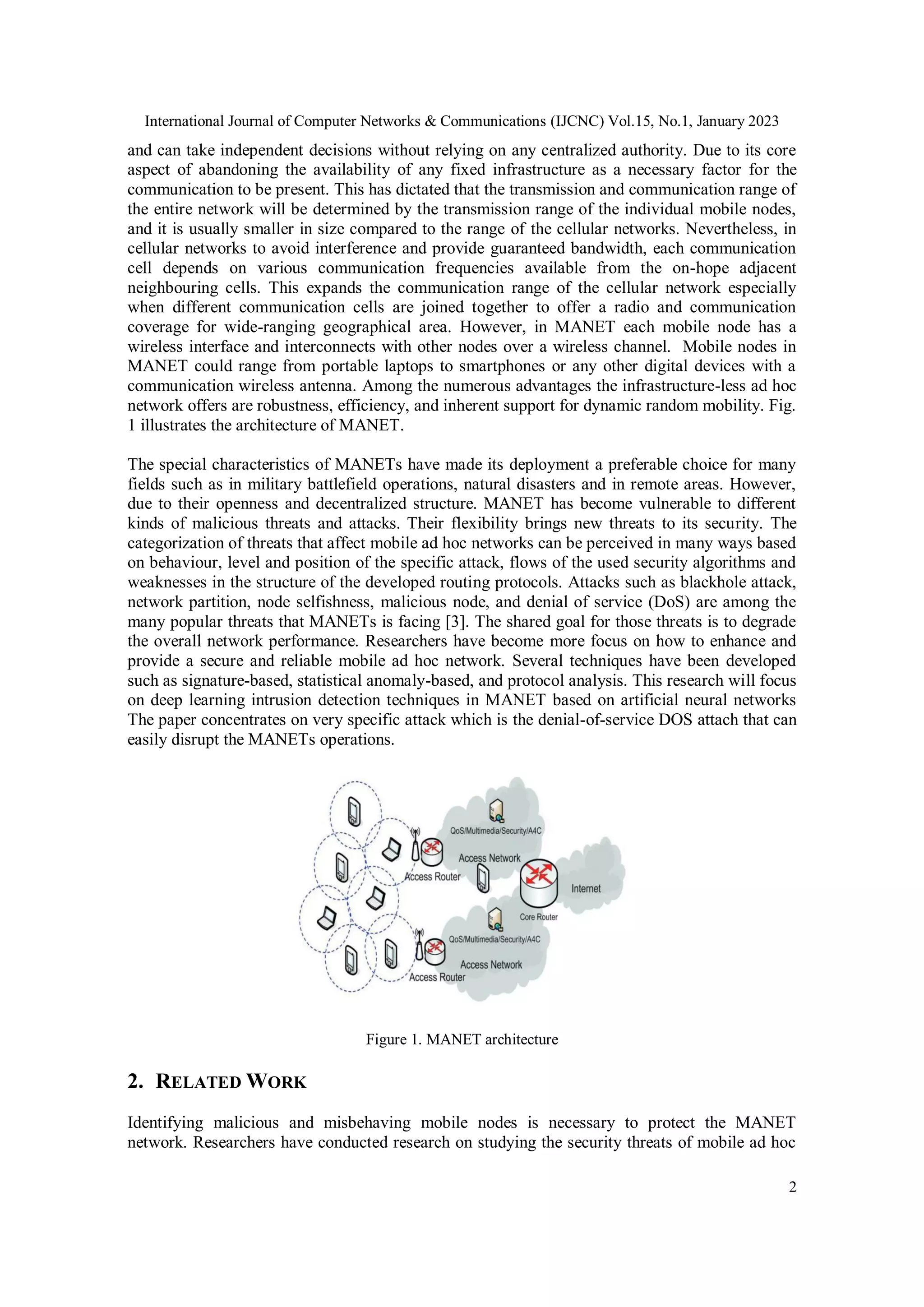

2
and can take independent decisions without relying on any centralized authority. Due to its core
aspect of abandoning the availability of any fixed infrastructure as a necessary factor for the
communication to be present. This has dictated that the transmission and communication range of
the entire network will be determined by the transmission range of the individual mobile nodes,
and it is usually smaller in size compared to the range of the cellular networks. Nevertheless, in
cellular networks to avoid interference and provide guaranteed bandwidth, each communication
cell depends on various communication frequencies available from the on-hope adjacent
neighbouring cells. This expands the communication range of the cellular network especially
when different communication cells are joined together to offer a radio and communication
coverage for wide-ranging geographical area. However, in MANET each mobile node has a
wireless interface and interconnects with other nodes over a wireless channel. Mobile nodes in
MANET could range from portable laptops to smartphones or any other digital devices with a
communication wireless antenna. Among the numerous advantages the infrastructure-less ad hoc
network offers are robustness, efficiency, and inherent support for dynamic random mobility. Fig.
1 illustrates the architecture of MANET.
The special characteristics of MANETs have made its deployment a preferable choice for many
fields such as in military battlefield operations, natural disasters and in remote areas. However,
due to their openness and decentralized structure. MANET has become vulnerable to different
kinds of malicious threats and attacks. Their flexibility brings new threats to its security. The
categorization of threats that affect mobile ad hoc networks can be perceived in many ways based
on behaviour, level and position of the specific attack, flows of the used security algorithms and
weaknesses in the structure of the developed routing protocols. Attacks such as blackhole attack,
network partition, node selfishness, malicious node, and denial of service (DoS) are among the
many popular threats that MANETs is facing [3]. The shared goal for those threats is to degrade
the overall network performance. Researchers have become more focus on how to enhance and
provide a secure and reliable mobile ad hoc network. Several techniques have been developed
such as signature-based, statistical anomaly-based, and protocol analysis. This research will focus
on deep learning intrusion detection techniques in MANET based on artificial neural networks
The paper concentrates on very specific attack which is the denial-of-service DOS attach that can
easily disrupt the MANETs operations.
Figure 1. MANET architecture
2. RELATED WORK
Identifying malicious and misbehaving mobile nodes is necessary to protect the MANET
network. Researchers have conducted research on studying the security threats of mobile ad hoc

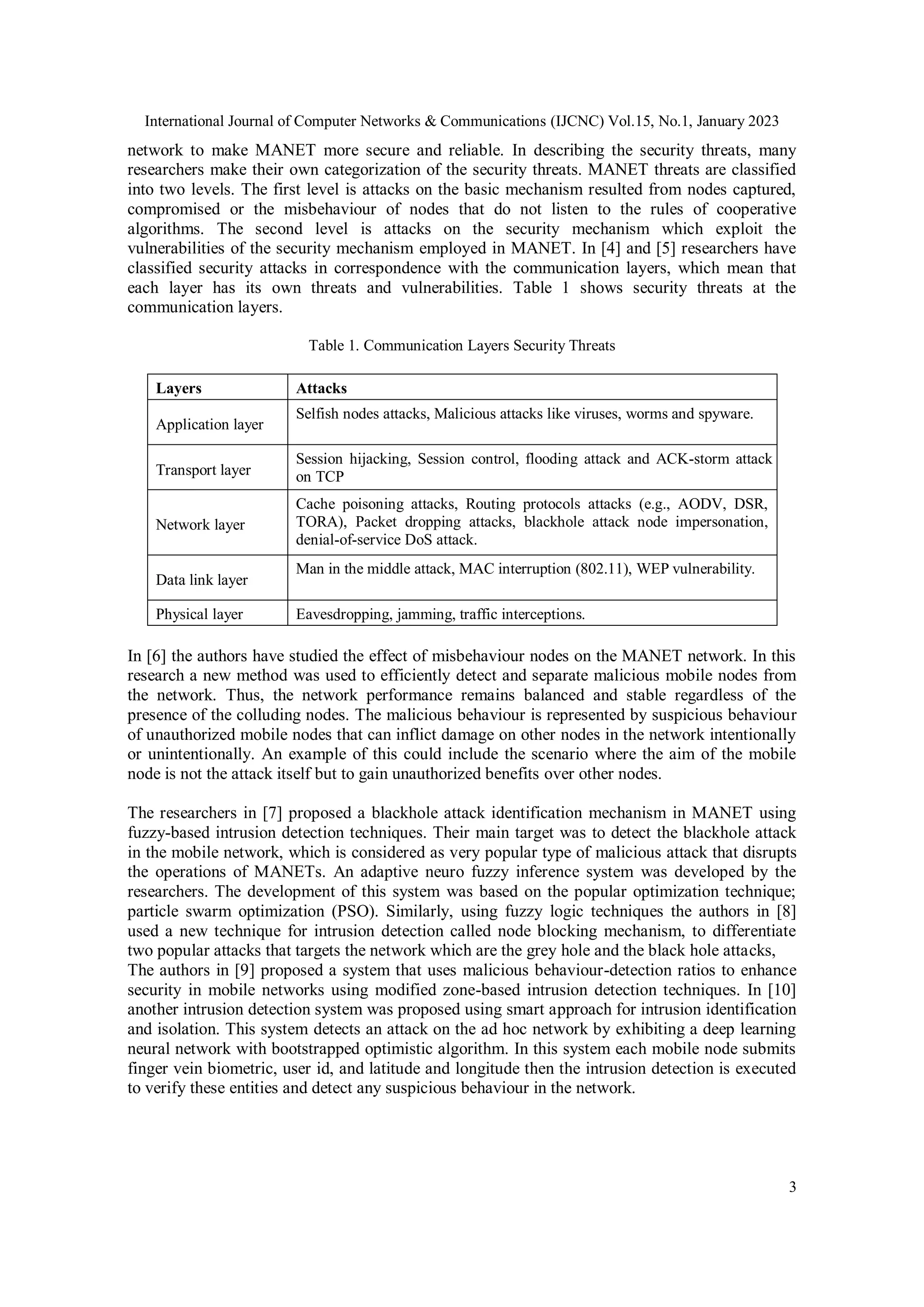

3
network to make MANET more secure and reliable. In describing the security threats, many
researchers make their own categorization of the security threats. MANET threats are classified
into two levels. The first level is attacks on the basic mechanism resulted from nodes captured,
compromised or the misbehaviour of nodes that do not listen to the rules of cooperative
algorithms. The second level is attacks on the security mechanism which exploit the
vulnerabilities of the security mechanism employed in MANET. In [4] and [5] researchers have
classified security attacks in correspondence with the communication layers, which mean that
each layer has its own threats and vulnerabilities. Table 1 shows security threats at the
communication layers.
Table 1. Communication Layers Security Threats
Layers Attacks
Application layer
Selfish nodes attacks, Malicious attacks like viruses, worms and spyware.
Transport layer
Session hijacking, Session control, flooding attack and ACK-storm attack
on TCP
Network layer
Cache poisoning attacks, Routing protocols attacks (e.g., AODV, DSR,
TORA), Packet dropping attacks, blackhole attack node impersonation,
denial-of-service DoS attack.
Data link layer
Man in the middle attack, MAC interruption (802.11), WEP vulnerability.
Physical layer Eavesdropping, jamming, traffic interceptions.
In [6] the authors have studied the effect of misbehaviour nodes on the MANET network. In this
research a new method was used to efficiently detect and separate malicious mobile nodes from
the network. Thus, the network performance remains balanced and stable regardless of the
presence of the colluding nodes. The malicious behaviour is represented by suspicious behaviour
of unauthorized mobile nodes that can inflict damage on other nodes in the network intentionally
or unintentionally. An example of this could include the scenario where the aim of the mobile
node is not the attack itself but to gain unauthorized benefits over other nodes.
The researchers in [7] proposed a blackhole attack identification mechanism in MANET using
fuzzy-based intrusion detection techniques. Their main target was to detect the blackhole attack
in the mobile network, which is considered as very popular type of malicious attack that disrupts
the operations of MANETs. An adaptive neuro fuzzy inference system was developed by the
researchers. The development of this system was based on the popular optimization technique;
particle swarm optimization (PSO). Similarly, using fuzzy logic techniques the authors in [8]
used a new technique for intrusion detection called node blocking mechanism, to differentiate
two popular attacks that targets the network which are the grey hole and the black hole attacks,
The authors in [9] proposed a system that uses malicious behaviour-detection ratios to enhance
security in mobile networks using modified zone-based intrusion detection techniques. In [10]
another intrusion detection system was proposed using smart approach for intrusion identification
and isolation. This system detects an attack on the ad hoc network by exhibiting a deep learning
neural network with bootstrapped optimistic algorithm. In this system each mobile node submits
finger vein biometric, user id, and latitude and longitude then the intrusion detection is executed
to verify these entities and detect any suspicious behaviour in the network.

4

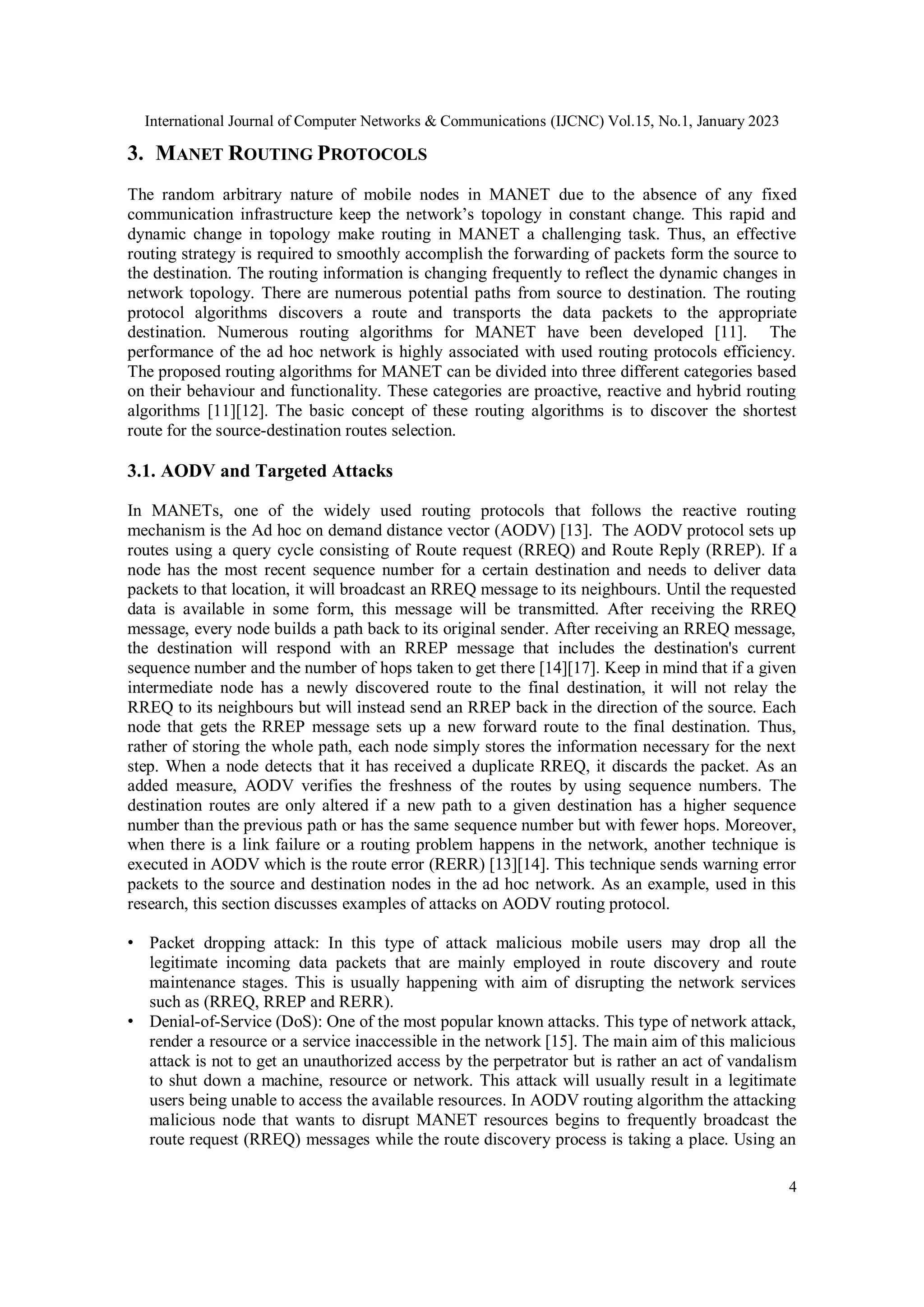

3. MANET ROUTING PROTOCOLS
The random arbitrary nature of mobile nodes in MANET due to the absence of any fixed
communication infrastructure keep the network’s topology in constant change. This rapid and
dynamic change in topology make routing in MANET a challenging task. Thus, an effective
routing strategy is required to smoothly accomplish the forwarding of packets form the source to
the destination. The routing information is changing frequently to reflect the dynamic changes in
network topology. There are numerous potential paths from source to destination. The routing
protocol algorithms discovers a route and transports the data packets to the appropriate
destination. Numerous routing algorithms for MANET have been developed [11]. The
performance of the ad hoc network is highly associated with used routing protocols efficiency.
The proposed routing algorithms for MANET can be divided into three different categories based
on their behaviour and functionality. These categories are proactive, reactive and hybrid routing
algorithms [11][12]. The basic concept of these routing algorithms is to discover the shortest
route for the source-destination routes selection.
3.1. AODV and Targeted Attacks
In MANETs, one of the widely used routing protocols that follows the reactive routing
mechanism is the Ad hoc on demand distance vector (AODV) [13]. The AODV protocol sets up
routes using a query cycle consisting of Route request (RREQ) and Route Reply (RREP). If a
node has the most recent sequence number for a certain destination and needs to deliver data
packets to that location, it will broadcast an RREQ message to its neighbours. Until the requested
data is available in some form, this message will be transmitted. After receiving the RREQ
message, every node builds a path back to its original sender. After receiving an RREQ message,
the destination will respond with an RREP message that includes the destination's current
sequence number and the number of hops taken to get there [14][17]. Keep in mind that if a given
intermediate node has a newly discovered route to the final destination, it will not relay the
RREQ to its neighbours but will instead send an RREP back in the direction of the source. Each
node that gets the RREP message sets up a new forward route to the final destination. Thus,
rather of storing the whole path, each node simply stores the information necessary for the next
step. When a node detects that it has received a duplicate RREQ, it discards the packet. As an
added measure, AODV verifies the freshness of the routes by using sequence numbers. The
destination routes are only altered if a new path to a given destination has a higher sequence
number than the previous path or has the same sequence number but with fewer hops. Moreover,
when there is a link failure or a routing problem happens in the network, another technique is
executed in AODV which is the route error (RERR) [13][14]. This technique sends warning error
packets to the source and destination nodes in the ad hoc network. As an example, used in this
research, this section discusses examples of attacks on AODV routing protocol.
• Packet dropping attack: In this type of attack malicious mobile users may drop all the
legitimate incoming data packets that are mainly employed in route discovery and route
maintenance stages. This is usually happening with aim of disrupting the network services
such as (RREQ, RREP and RERR).
• Denial-of-Service (DoS): One of the most popular known attacks. This type of network attack,
render a resource or a service inaccessible in the network [15]. The main aim of this malicious
attack is not to get an unauthorized access by the perpetrator but is rather an act of vandalism
to shut down a machine, resource or network. This attack will usually result in a legitimate
users being unable to access the available resources. In AODV routing algorithm the attacking
malicious node that wants to disrupt MANET resources begins to frequently broadcast the
route request (RREQ) messages while the route discovery process is taking a place. Using an

5

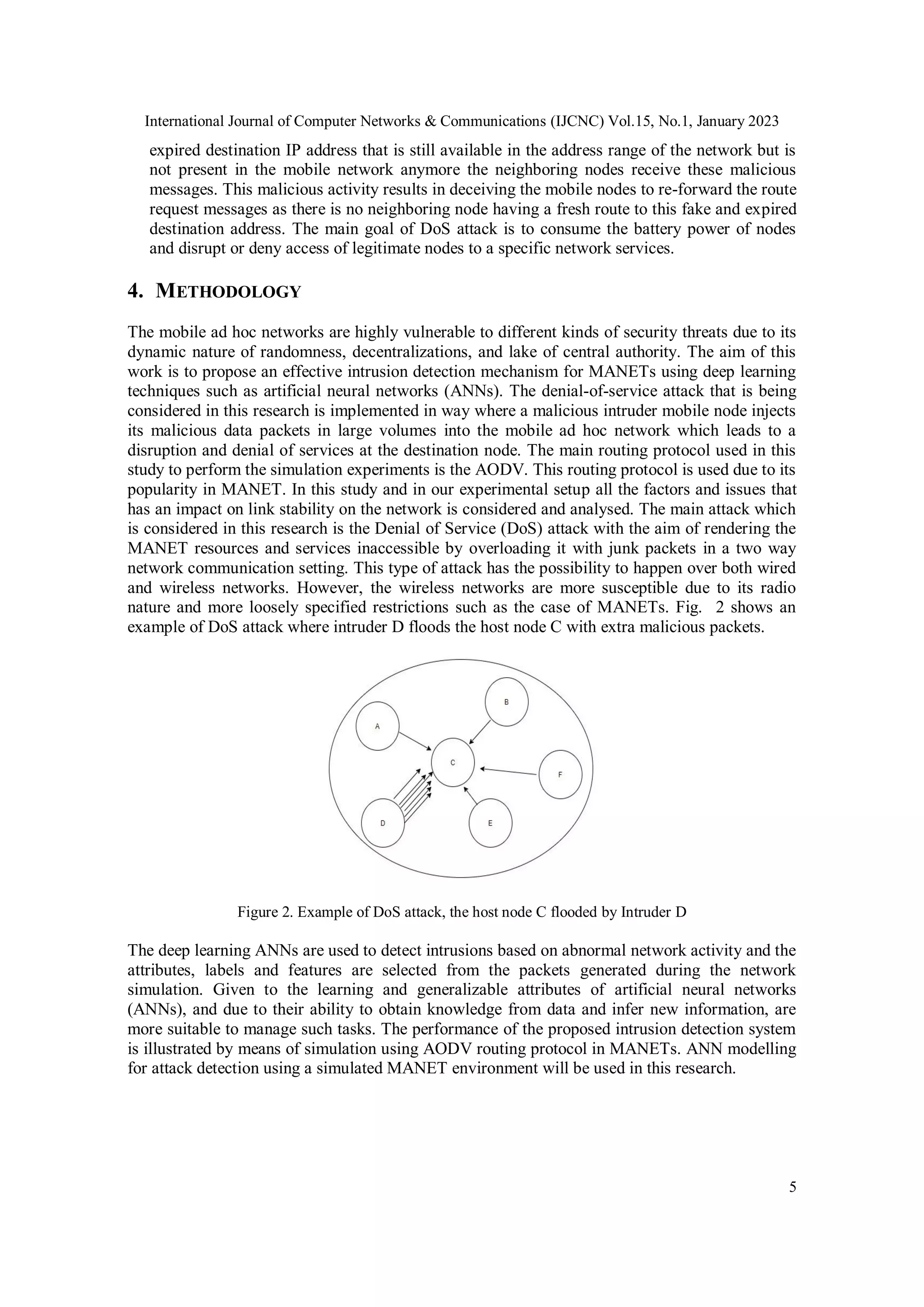

expired destination IP address that is still available in the address range of the network but is
not present in the mobile network anymore the neighboring nodes receive these malicious
messages. This malicious activity results in deceiving the mobile nodes to re-forward the route
request messages as there is no neighboring node having a fresh route to this fake and expired
destination address. The main goal of DoS attack is to consume the battery power of nodes
and disrupt or deny access of legitimate nodes to a specific network services.
4. METHODOLOGY
The mobile ad hoc networks are highly vulnerable to different kinds of security threats due to its
dynamic nature of randomness, decentralizations, and lake of central authority. The aim of this
work is to propose an effective intrusion detection mechanism for MANETs using deep learning
techniques such as artificial neural networks (ANNs). The denial-of-service attack that is being
considered in this research is implemented in way where a malicious intruder mobile node injects
its malicious data packets in large volumes into the mobile ad hoc network which leads to a
disruption and denial of services at the destination node. The main routing protocol used in this
study to perform the simulation experiments is the AODV. This routing protocol is used due to its
popularity in MANET. In this study and in our experimental setup all the factors and issues that
has an impact on link stability on the network is considered and analysed. The main attack which
is considered in this research is the Denial of Service (DoS) attack with the aim of rendering the
MANET resources and services inaccessible by overloading it with junk packets in a two way
network communication setting. This type of attack has the possibility to happen over both wired
and wireless networks. However, the wireless networks are more susceptible due to its radio
nature and more loosely specified restrictions such as the case of MANETs. Fig. 2 shows an
example of DoS attack where intruder D floods the host node C with extra malicious packets.
Figure 2. Example of DoS attack, the host node C flooded by Intruder D
The deep learning ANNs are used to detect intrusions based on abnormal network activity and the
attributes, labels and features are selected from the packets generated during the network
simulation. Given to the learning and generalizable attributes of artificial neural networks
(ANNs), and due to their ability to obtain knowledge from data and infer new information, are
more suitable to manage such tasks. The performance of the proposed intrusion detection system
is illustrated by means of simulation using AODV routing protocol in MANETs. ANN modelling
for attack detection using a simulated MANET environment will be used in this research.

6

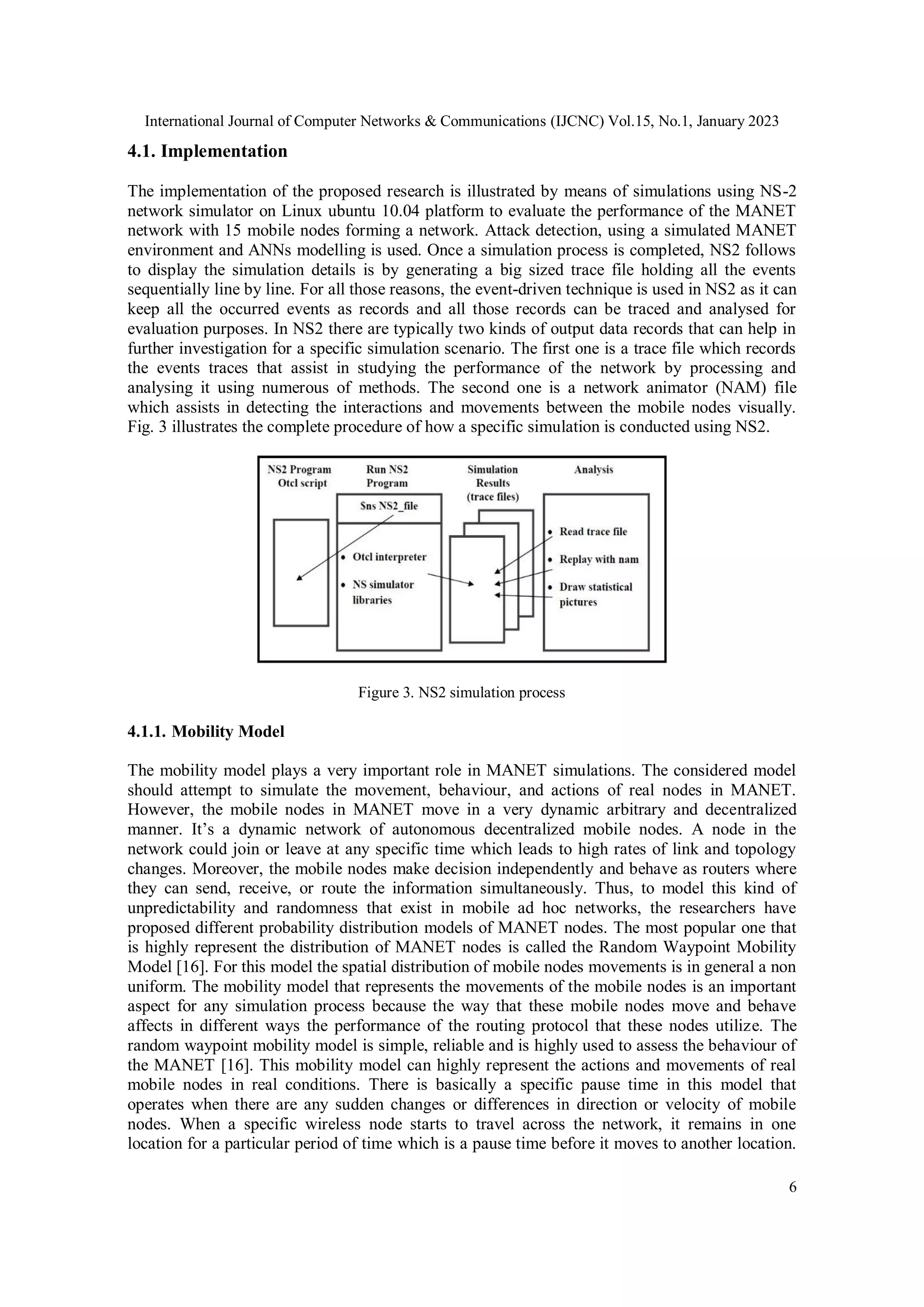

4.1. Implementation
The implementation of the proposed research is illustrated by means of simulations using NS-2
network simulator on Linux ubuntu 10.04 platform to evaluate the performance of the MANET
network with 15 mobile nodes forming a network. Attack detection, using a simulated MANET
environment and ANNs modelling is used. Once a simulation process is completed, NS2 follows
to display the simulation details is by generating a big sized trace file holding all the events
sequentially line by line. For all those reasons, the event-driven technique is used in NS2 as it can
keep all the occurred events as records and all those records can be traced and analysed for
evaluation purposes. In NS2 there are typically two kinds of output data records that can help in
further investigation for a specific simulation scenario. The first one is a trace file which records
the events traces that assist in studying the performance of the network by processing and
analysing it using numerous of methods. The second one is a network animator (NAM) file
which assists in detecting the interactions and movements between the mobile nodes visually.
Fig. 3 illustrates the complete procedure of how a specific simulation is conducted using NS2.
Figure 3. NS2 simulation process
4.1.1. Mobility Model
The mobility model plays a very important role in MANET simulations. The considered model
should attempt to simulate the movement, behaviour, and actions of real nodes in MANET.
However, the mobile nodes in MANET move in a very dynamic arbitrary and decentralized
manner. It’s a dynamic network of autonomous decentralized mobile nodes. A node in the
network could join or leave at any specific time which leads to high rates of link and topology
changes. Moreover, the mobile nodes make decision independently and behave as routers where
they can send, receive, or route the information simultaneously. Thus, to model this kind of
unpredictability and randomness that exist in mobile ad hoc networks, the researchers have
proposed different probability distribution models of MANET nodes. The most popular one that
is highly represent the distribution of MANET nodes is called the Random Waypoint Mobility
Model [16]. For this model the spatial distribution of mobile nodes movements is in general a non
uniform. The mobility model that represents the movements of the mobile nodes is an important
aspect for any simulation process because the way that these mobile nodes move and behave
affects in different ways the performance of the routing protocol that these nodes utilize. The
random waypoint mobility model is simple, reliable and is highly used to assess the behaviour of
the MANET [16]. This mobility model can highly represent the actions and movements of real
mobile nodes in real conditions. There is basically a specific pause time in this model that
operates when there are any sudden changes or differences in direction or velocity of mobile
nodes. When a specific wireless node starts to travel across the network, it remains in one
location for a particular period of time which is a pause time before it moves to another location.

7
The node chooses the subsequent destination randomly in the simulation region once that
specified pause time has expired. These mobile nodes also select a speed that is generally
specified between the minimum and maximum speed (0, Maxspeed) during simulation process.
Then it travels to the newly chosen point at that selected speed. When the mobile node reaches at
targeted place, it starts waiting again for a certain period of time, seconds before selecting another
new way point and another speed. Then it initiates the same procedure all over again. Numerous
researchers have adopted and implemented this mobility model in their studies. The Movement of
individuals in a cafeteria or shopping mall, and movement of nodes in a conference are some of

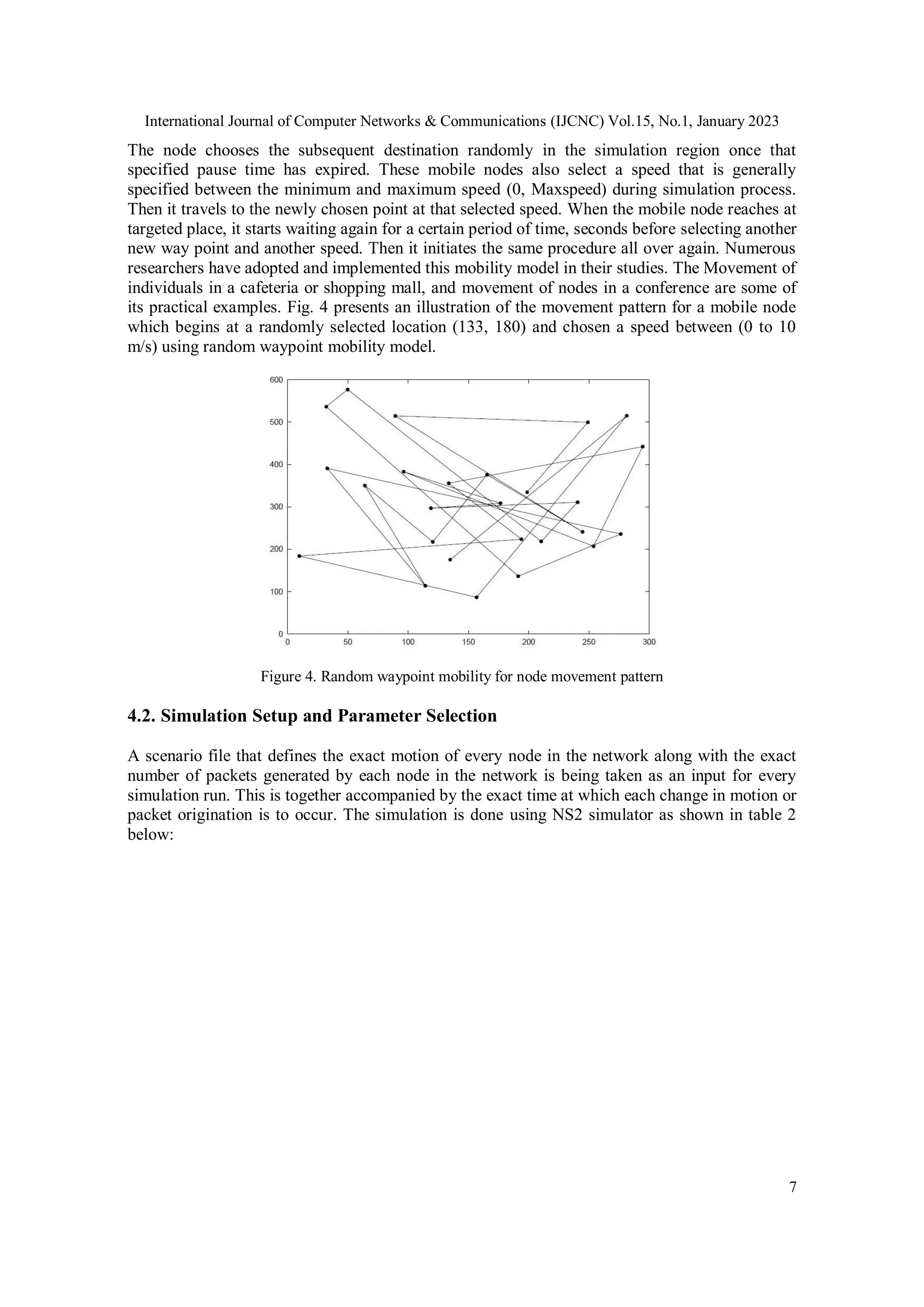

its practical examples. Fig. 4 presents an illustration of the movement pattern for a mobile node
which begins at a randomly selected location (133, 180) and chosen a speed between (0 to 10
m/s) using random waypoint mobility model.
Figure 4. Random waypoint mobility for node movement pattern
4.2. Simulation Setup and Parameter Selection
A scenario file that defines the exact motion of every node in the network along with the exact
number of packets generated by each node in the network is being taken as an input for every
simulation run. This is together accompanied by the exact time at which each change in motion or
packet origination is to occur. The simulation is done using NS2 simulator as shown in table 2
below:

8

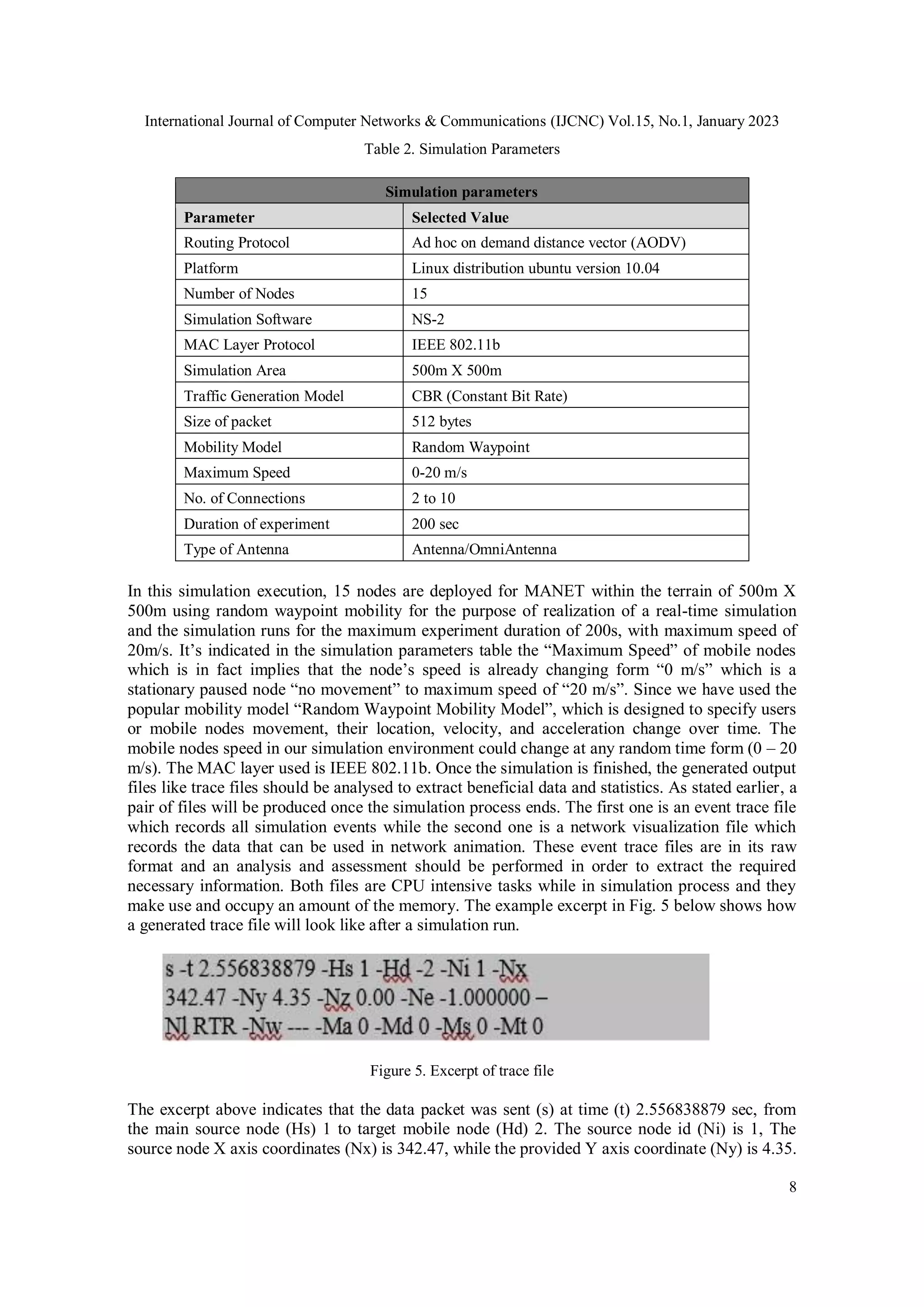

Table 2. Simulation Parameters
Simulation parameters
Parameter Selected Value
Routing Protocol Ad hoc on demand distance vector (AODV)
Platform Linux distribution ubuntu version 10.04
Number of Nodes 15
Simulation Software NS-2
MAC Layer Protocol IEEE 802.11b
Simulation Area 500m X 500m
Traffic Generation Model CBR (Constant Bit Rate)
Size of packet 512 bytes
Mobility Model Random Waypoint
Maximum Speed 0-20 m/s
No. of Connections 2 to 10
Duration of experiment 200 sec
Type of Antenna Antenna/OmniAntenna
In this simulation execution, 15 nodes are deployed for MANET within the terrain of 500m X
500m using random waypoint mobility for the purpose of realization of a real-time simulation
and the simulation runs for the maximum experiment duration of 200s, with maximum speed of
20m/s. It’s indicated in the simulation parameters table the “Maximum Speed” of mobile nodes
which is in fact implies that the node’s speed is already changing form “0 m/s” which is a
stationary paused node “no movement” to maximum speed of “20 m/s”. Since we have used the
popular mobility model “Random Waypoint Mobility Model”, which is designed to specify users
or mobile nodes movement, their location, velocity, and acceleration change over time. The
mobile nodes speed in our simulation environment could change at any random time form (0 – 20
m/s). The MAC layer used is IEEE 802.11b. Once the simulation is finished, the generated output
files like trace files should be analysed to extract beneficial data and statistics. As stated earlier, a
pair of files will be produced once the simulation process ends. The first one is an event trace file
which records all simulation events while the second one is a network visualization file which
records the data that can be used in network animation. These event trace files are in its raw
format and an analysis and assessment should be performed in order to extract the required
necessary information. Both files are CPU intensive tasks while in simulation process and they
make use and occupy an amount of the memory. The example excerpt in Fig. 5 below shows how
a generated trace file will look like after a simulation run.
Figure 5. Excerpt of trace file
The excerpt above indicates that the data packet was sent (s) at time (t) 2.556838879 sec, from
the main source node (Hs) 1 to target mobile node (Hd) 2. The source node id (Ni) is 1, The
source node X axis coordinates (Nx) is 342.47, while the provided Y axis coordinate (Ny) is 4.35.

9
Moreover, its Z coordinate (Nz) is 0.00. The available level of energy (Ne) is 1.000000, while the
type of trace format for this mobile node for routing (Nl) is RTR and the event of the node (Nw)
is blank. Moreover, (Ma) 0, is the specification of MAC level information while the address of
the destination Ethernet (Md) 0, the address of the source Ethernet (Ms) is 0 and Ethernet kind
(Mt) is 0. The features extracted from the logged details can then be used in ANN for attack
detection. The analysis process of these trace files can be done using different tools such as using
the AWK language command and Perl scripts. Different parameter selection for data extraction
can be considered for analysis which merely depends on the nature of the network and the
specific attack. The following parameters will be considered: Packet Loss PL, Packet sent (PS),
Packet received (PR), Energy consumption (EC). Using analysis log files of simulation run, the
parameters were extracted. The data is split for training and testing where 65% of data including
15 mobile nodes in 200 seconds were selected randomly for training and 35% for the purpose of
testing and validation process.
4.3. Designing Artificial Neural Network
An intrusion detection system using neural network (NN) is proposed to secure the MANET.
Neural Network model is trained by applying the simulation data as inputs to the ANN. Feed
Forward Back Propagation (FFBP) in the Neural network toolbox is used and the artificial neural
network is implemented with four inputs, one output layer including two middle hidden layers.
The network training in this setup is conducted using back propagation (BP) learning process,
The (TRAINLM) training function of Levenberg-Marquardt backpropagation is used in addition
to LEARNGDM as an adaptive learning function. Different transfer functions are available like
Purelin, Log-Sigmoid, and Tan-Sigmoid. The main aim of the transfer function is to be used for
estimating the output of a specific network layer from its initial net input. LogSigmoid, and Tan-
Sigmoid are used in this study. Fig. 6 below shows an example of different transfer functions.
Figure 6. Example of different transfer functions

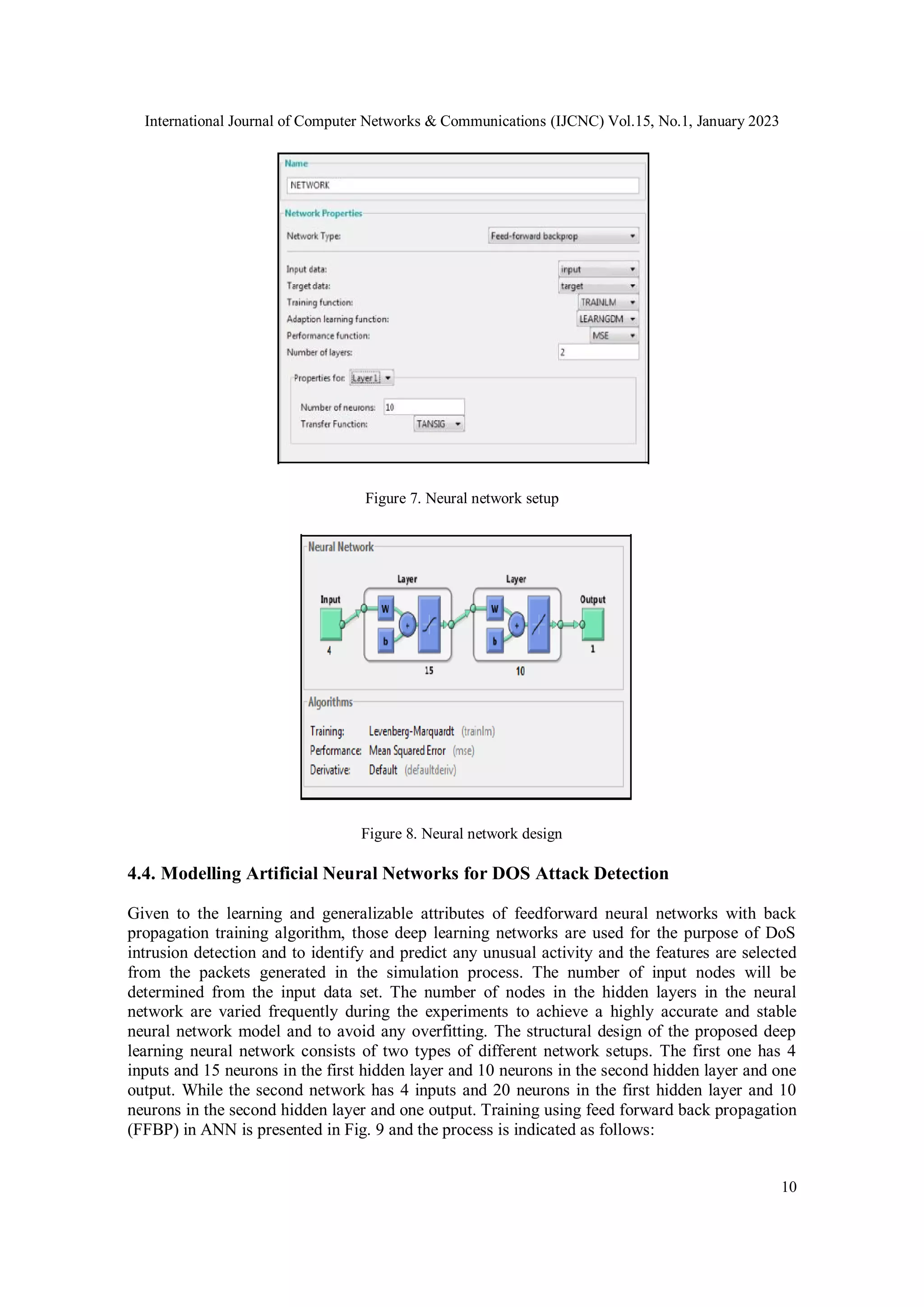

A screenshot of how the artificial neural network setup and design is presented in Fig 7 and Fig. 8
respectively. All the setup parameters must be specified before running the artificial neural
network.

10
Figure 7. Neural network setup
Figure 8. Neural network design
4.4. Modelling Artificial Neural Networks for DOS Attack Detection
Given to the learning and generalizable attributes of feedforward neural networks with back
propagation training algorithm, those deep learning networks are used for the purpose of DoS
intrusion detection and to identify and predict any unusual activity and the features are selected
from the packets generated in the simulation process. The number of input nodes will be
determined from the input data set. The number of nodes in the hidden layers in the neural
network are varied frequently during the experiments to achieve a highly accurate and stable
neural network model and to avoid any overfitting. The structural design of the proposed deep
learning neural network consists of two types of different network setups. The first one has 4
inputs and 15 neurons in the first hidden layer and 10 neurons in the second hidden layer and one
output. While the second network has 4 inputs and 20 neurons in the first hidden layer and 10
neurons in the second hidden layer and one output. Training using feed forward back propagation
(FFBP) in ANN is presented in Fig. 9 and the process is indicated as follows:

11
• The model selects training epoch from the training set and initialize weights and biases.
• The model the calculates the output of the network.
• Then, the error between the network output and the desired output is calculated.
• The model modifies the weights of the network in a way that minimizes the error.
• The model repeats the steps for each input in the training set until the error for the entire
set is acceptable low.
Figure 9. Training process
5. PERFORMANCE RESULTS
The deep learning technique which is used to design the ANN uses the backpropagation training
algorithm to predicts a specific output. Then, this output is compared with actual known class
label to measure the difference in error between the predicted and actual outputs. The obtained
error is sent back to the neurons for adjustments. FFBP measures the variance of the residuals in
a repeated process. The root mean squared error is just one way to calculate this error. The
method of squaring the sum of the error is used to prevent the cancel out the positives and
negatives values during the sum of the error of all the nodes. We used the root mean squared
error instead of the mean absolute error (MAE) to measure the standard deviation of errors as the
gradient descent requires the derivative of that loss function to be calculated to minimize the loss
function and generate better outputs. The results are presented in table 3 below. The performance
results of the designed deep learning model are shown in the table based on the training data. The
selection process of the best performing model is based on results obtained.

12

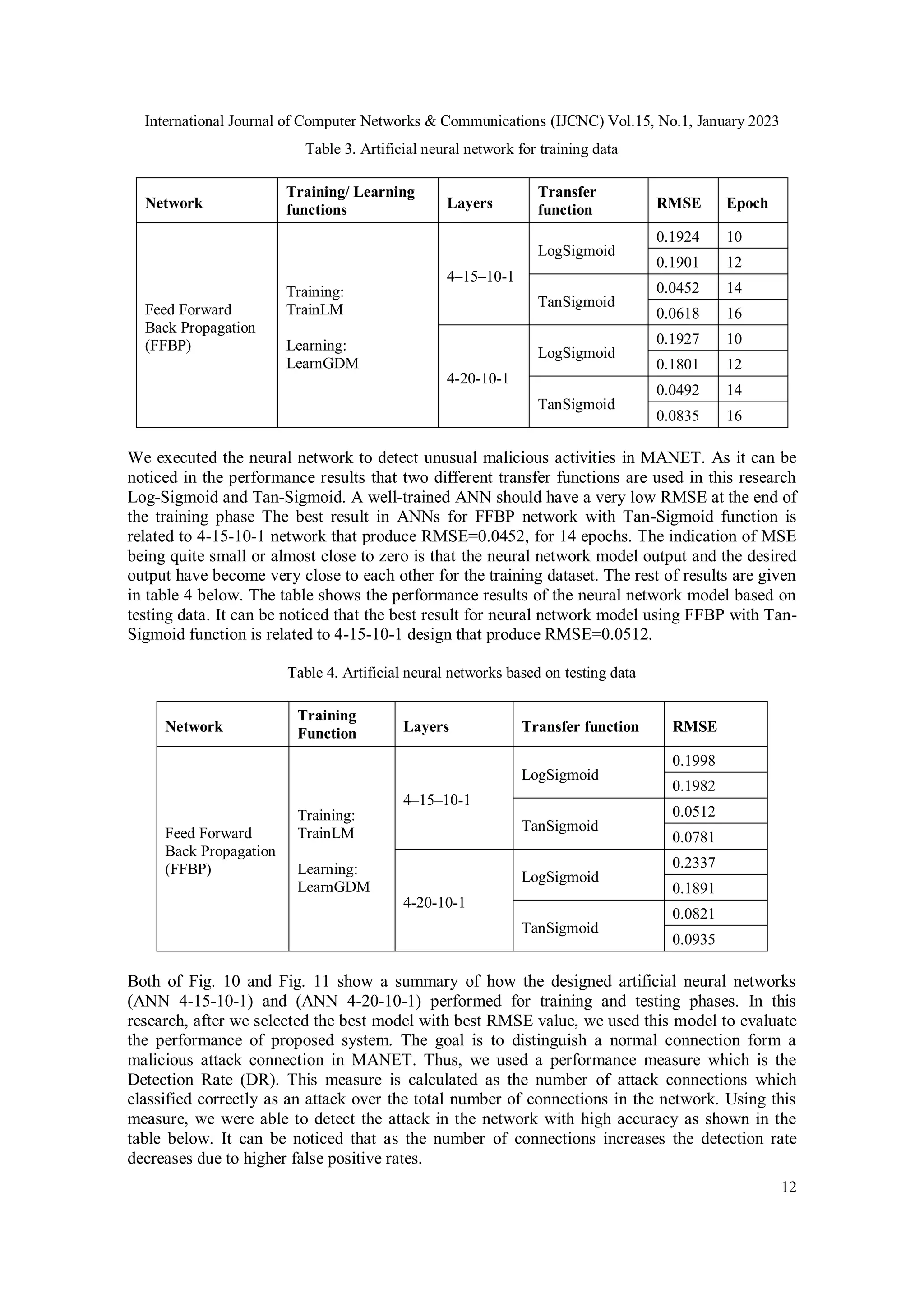

Table 3. Artificial neural network for training data
Network
Training/ Learning
functions Layers
Transfer
function RMSE Epoch
Feed Forward
Back Propagation
(FFBP)
Training:
TrainLM
Learning:
LearnGDM
4–15–10-1
LogSigmoid
0.1924 10
0.1901 12
TanSigmoid
0.0452 14
0.0618 16
4-20-10-1
LogSigmoid
0.1927 10
0.1801 12
TanSigmoid
0.0492 14
0.0835 16
We executed the neural network to detect unusual malicious activities in MANET. As it can be
noticed in the performance results that two different transfer functions are used in this research
Log-Sigmoid and Tan-Sigmoid. A well-trained ANN should have a very low RMSE at the end of
the training phase The best result in ANNs for FFBP network with Tan-Sigmoid function is
related to 4-15-10-1 network that produce RMSE=0.0452, for 14 epochs. The indication of MSE
being quite small or almost close to zero is that the neural network model output and the desired
output have become very close to each other for the training dataset. The rest of results are given
in table 4 below. The table shows the performance results of the neural network model based on
testing data. It can be noticed that the best result for neural network model using FFBP with Tan-
Sigmoid function is related to 4-15-10-1 design that produce RMSE=0.0512.
Table 4. Artificial neural networks based on testing data
Network
Training
Function Layers Transfer function RMSE
Feed Forward
Back Propagation
(FFBP)
Training:
TrainLM
Learning:
LearnGDM
4–15–10-1
LogSigmoid
0.1998
0.1982
TanSigmoid
0.0512
0.0781
4-20-10-1
LogSigmoid
0.2337
0.1891
TanSigmoid
0.0821
0.0935
Both of Fig. 10 and Fig. 11 show a summary of how the designed artificial neural networks
(ANN 4-15-10-1) and (ANN 4-20-10-1) performed for training and testing phases. In this
research, after we selected the best model with best RMSE value, we used this model to evaluate
the performance of proposed system. The goal is to distinguish a normal connection form a
malicious attack connection in MANET. Thus, we used a performance measure which is the
Detection Rate (DR). This measure is calculated as the number of attack connections which
classified correctly as an attack over the total number of connections in the network. Using this
measure, we were able to detect the attack in the network with high accuracy as shown in the
table below. It can be noticed that as the number of connections increases the detection rate
decreases due to higher false positive rates.

13
Table 5. Detection Rate
No. of connections Detection Rate
2 95.3%
5 94.2%
10 91.73%
Figure 10. RMSE for Training and Testing (ANN 4-15-10-1)
Figure 11. RMSE for Training and Testing (ANN 4-20-10-1)
6. CONCLUSIONS
This research paper is mainly focused on modelling and investigating the use of artificial neural
networks ANNs as a mean for intrusion detection in mobile ad hoc networks (MANETs). The
main objective of this work was to analyse, simulate and evaluate the use of feedforward neural
networks with back propagation (FFBP) in MANETs. An extracted dataset generated using the
means of simulations for mobile ad hoc networks is used to calculate the input parameters of this
approach and the RMSR is employed as metric to evaluate the performance of the proposed deep
learning artificial neural network modelling. The proposed modelling can be utilized for detecting

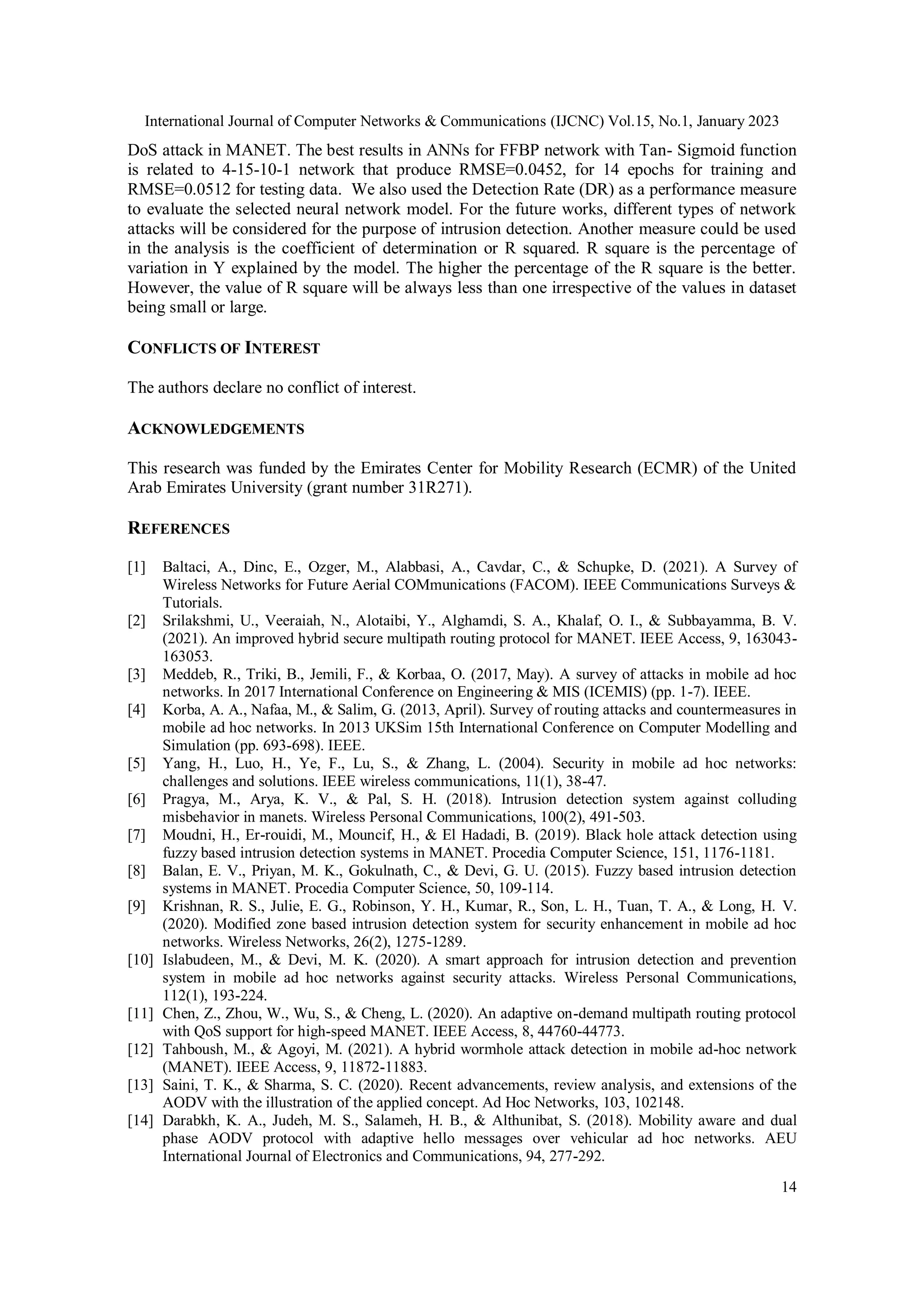

14
DoS attack in MANET. The best results in ANNs for FFBP network with Tan- Sigmoid function
is related to 4-15-10-1 network that produce RMSE=0.0452, for 14 epochs for training and
RMSE=0.0512 for testing data. We also used the Detection Rate (DR) as a performance measure
to evaluate the selected neural network model. For the future works, different types of network
attacks will be considered for the purpose of intrusion detection. Another measure could be used
in the analysis is the coefficient of determination or R squared. R square is the percentage of
variation in Y explained by the model. The higher the percentage of the R square is the better.
However, the value of R square will be always less than one irrespective of the values in dataset
being small or large.
CONFLICTS OF INTEREST
The authors declare no conflict of interest.
ACKNOWLEDGEMENTS
This research was funded by the Emirates Center for Mobility Research (ECMR) of the United
Arab Emirates University (grant number 31R271).
REFERENCES
[1] Baltaci, A., Dinc, E., Ozger, M., Alabbasi, A., Cavdar, C., & Schupke, D. (2021). A Survey of
Wireless Networks for Future Aerial COMmunications (FACOM). IEEE Communications Surveys &
Tutorials.
[2] Srilakshmi, U., Veeraiah, N., Alotaibi, Y., Alghamdi, S. A., Khalaf, O. I., & Subbayamma, B. V.
(2021). An improved hybrid secure multipath routing protocol for MANET. IEEE Access, 9, 163043-
163053.
[3] Meddeb, R., Triki, B., Jemili, F., & Korbaa, O. (2017, May). A survey of attacks in mobile ad hoc
networks. In 2017 International Conference on Engineering & MIS (ICEMIS) (pp. 1-7). IEEE.
[4] Korba, A. A., Nafaa, M., & Salim, G. (2013, April). Survey of routing attacks and countermeasures in
mobile ad hoc networks. In 2013 UKSim 15th International Conference on Computer Modelling and
Simulation (pp. 693-698). IEEE.
[5] Yang, H., Luo, H., Ye, F., Lu, S., & Zhang, L. (2004). Security in mobile ad hoc networks:
challenges and solutions. IEEE wireless communications, 11(1), 38-47.
[6] Pragya, M., Arya, K. V., & Pal, S. H. (2018). Intrusion detection system against colluding
misbehavior in manets. Wireless Personal Communications, 100(2), 491-503.
[7] Moudni, H., Er-rouidi, M., Mouncif, H., & El Hadadi, B. (2019). Black hole attack detection using
fuzzy based intrusion detection systems in MANET. Procedia Computer Science, 151, 1176-1181.
[8] Balan, E. V., Priyan, M. K., Gokulnath, C., & Devi, G. U. (2015). Fuzzy based intrusion detection
systems in MANET. Procedia Computer Science, 50, 109-114.
[9] Krishnan, R. S., Julie, E. G., Robinson, Y. H., Kumar, R., Son, L. H., Tuan, T. A., & Long, H. V.
(2020). Modified zone based intrusion detection system for security enhancement in mobile ad hoc
networks. Wireless Networks, 26(2), 1275-1289.
[10] Islabudeen, M., & Devi, M. K. (2020). A smart approach for intrusion detection and prevention
system in mobile ad hoc networks against security attacks. Wireless Personal Communications,
112(1), 193-224.
[11] Chen, Z., Zhou, W., Wu, S., & Cheng, L. (2020). An adaptive on-demand multipath routing protocol
with QoS support for high-speed MANET. IEEE Access, 8, 44760-44773.
[12] Tahboush, M., & Agoyi, M. (2021). A hybrid wormhole attack detection in mobile ad-hoc network
(MANET). IEEE Access, 9, 11872-11883.
[13] Saini, T. K., & Sharma, S. C. (2020). Recent advancements, review analysis, and extensions of the
AODV with the illustration of the applied concept. Ad Hoc Networks, 103, 102148.
[14] Darabkh, K. A., Judeh, M. S., Salameh, H. B., & Althunibat, S. (2018). Mobility aware and dual
phase AODV protocol with adaptive hello messages over vehicular ad hoc networks. AEU
International Journal of Electronics and Communications, 94, 277-292.

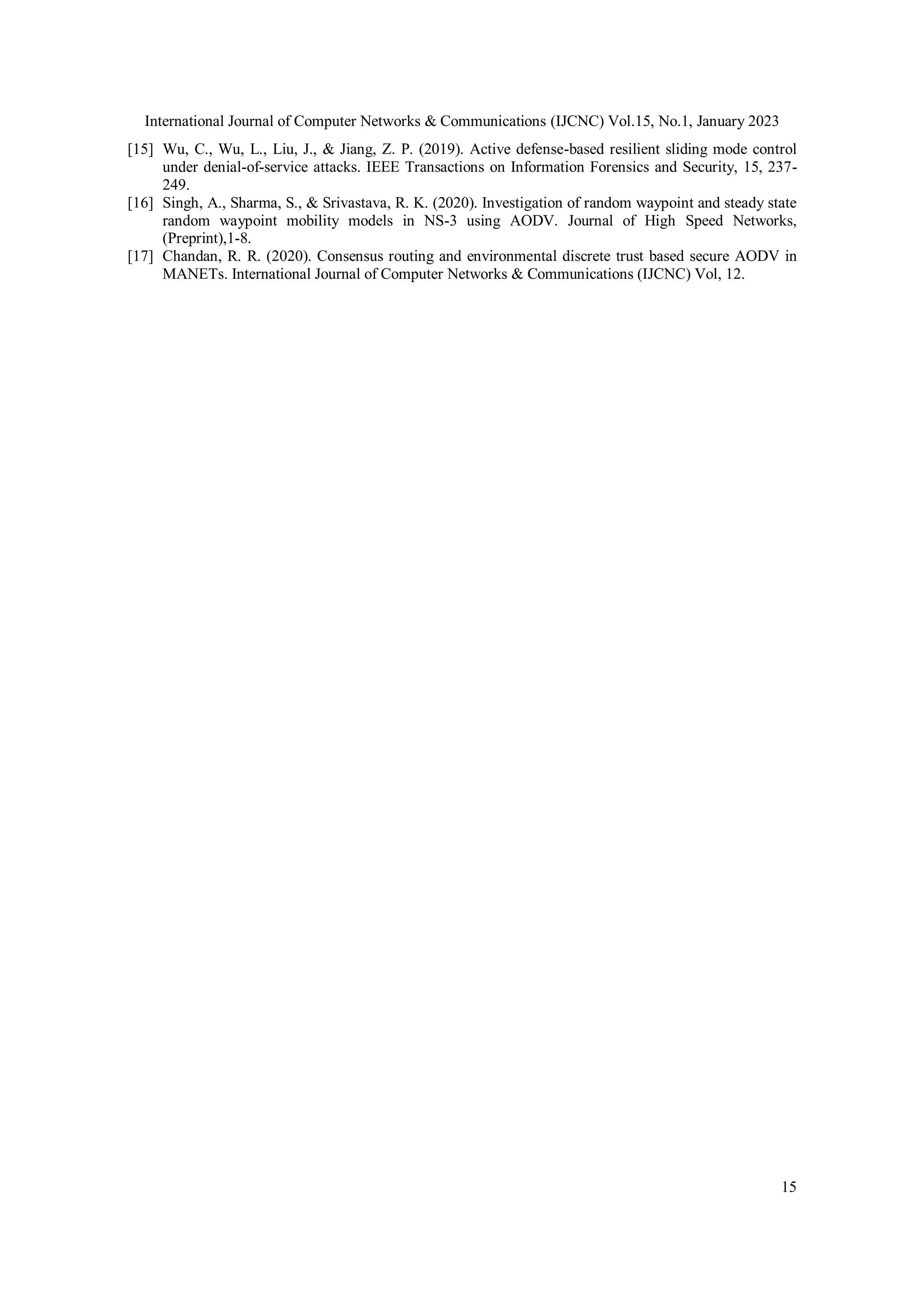

15
[15] Wu, C., Wu, L., Liu, J., & Jiang, Z. P. (2019). Active defense-based resilient sliding mode control
under denial-of-service attacks. IEEE Transactions on Information Forensics and Security, 15, 237-
249.
[16] Singh, A., Sharma, S., & Srivastava, R. K. (2020). Investigation of random waypoint and steady state
random waypoint mobility models in NS-3 using AODV. Journal of High Speed Networks,
(Preprint),1-8.
[17] Chandan, R. R. (2020). Consensus routing and environmental discrete trust based secure AODV in
MANETs. International Journal of Computer Networks & Communications (IJCNC) Vol, 12.

AN INTRUSION DETECTION MECHANISM FOR MANETS BASED ON DEEP LEARNING ARTIFICIAL NEURAL NETWORKS (ANNS)

More Related Content

Similar to AN INTRUSION DETECTION MECHANISM FOR MANETS BASED ON DEEP LEARNING ARTIFICIAL NEURAL NETWORKS (ANNS)

More from IJCNCJournal

Recently uploaded

AN INTRUSION DETECTION MECHANISM FOR MANETS BASED ON DEEP LEARNING ARTIFICIAL NEURAL NETWORKS (ANNS)
