1. Neo4j is a graph database that allows for modeling and querying of graph-like data structures. 2. The document demonstrates how to create a graph using Neo4j by adding nodes and relationships between them in a transaction. 3. Neo4j also supports indexing of node properties to enable efficient querying and retrieval of nodes by their properties. Different types of indexes like Lucene are supported.

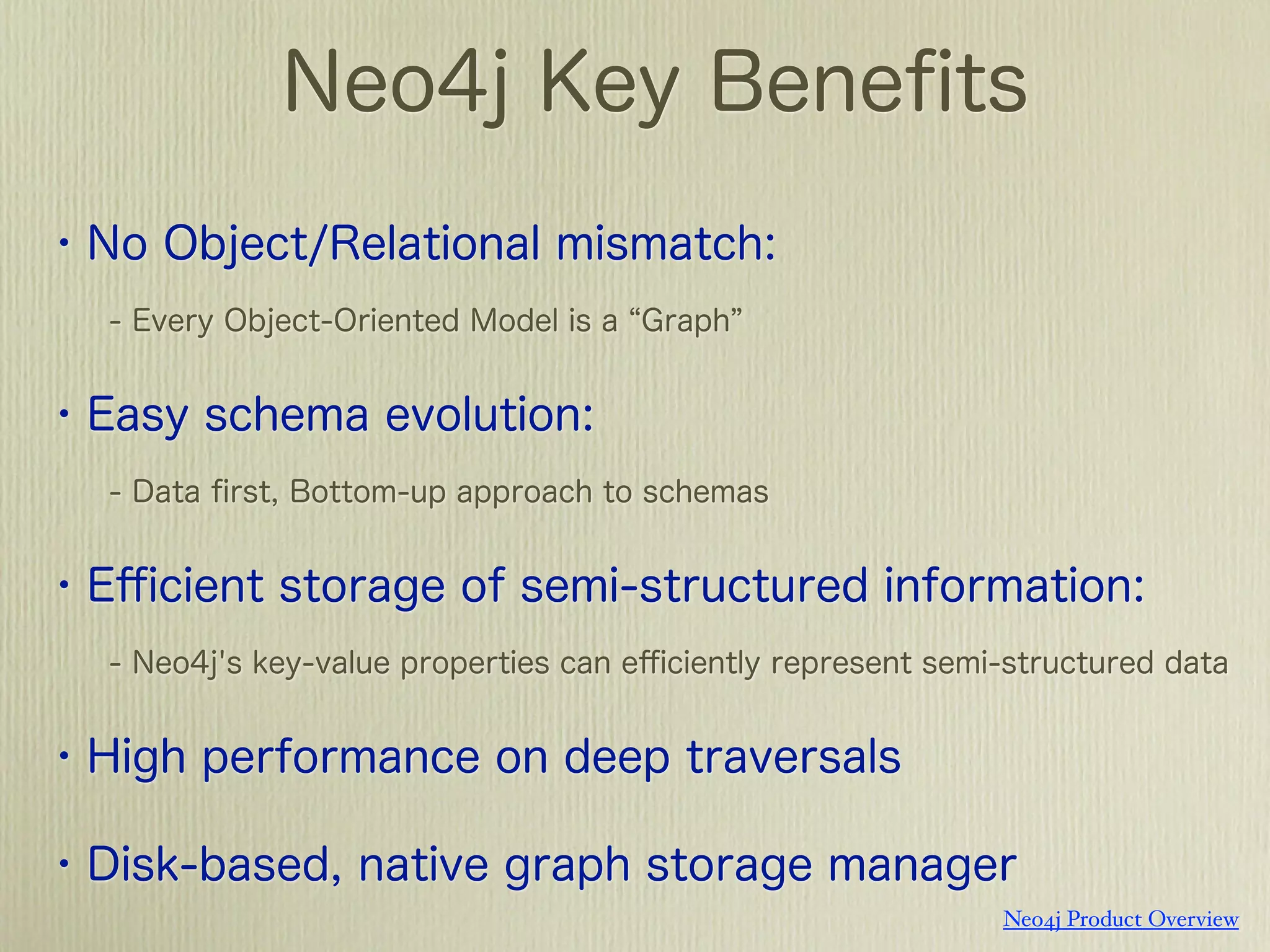

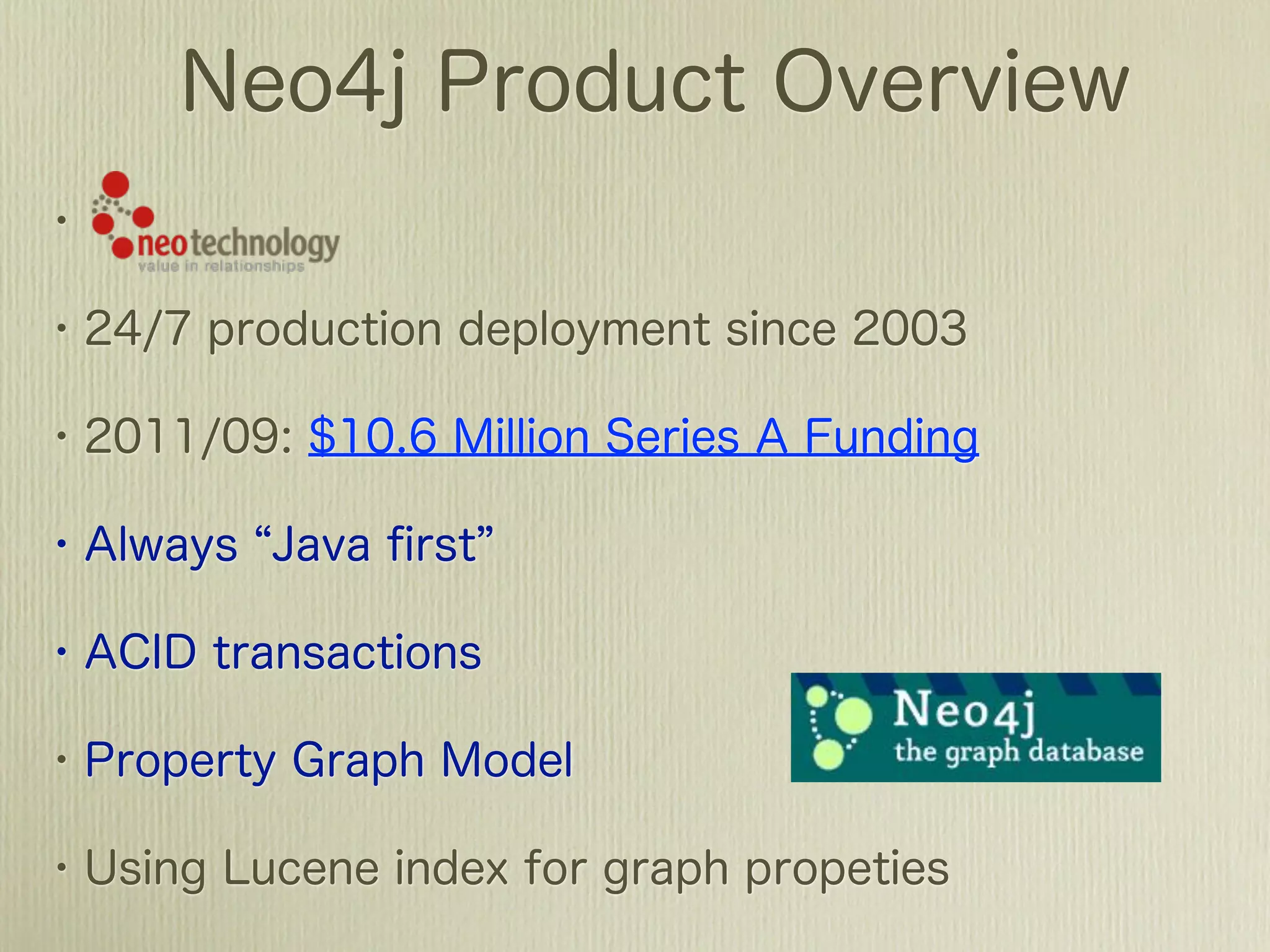

6. Neo4j Product Overview

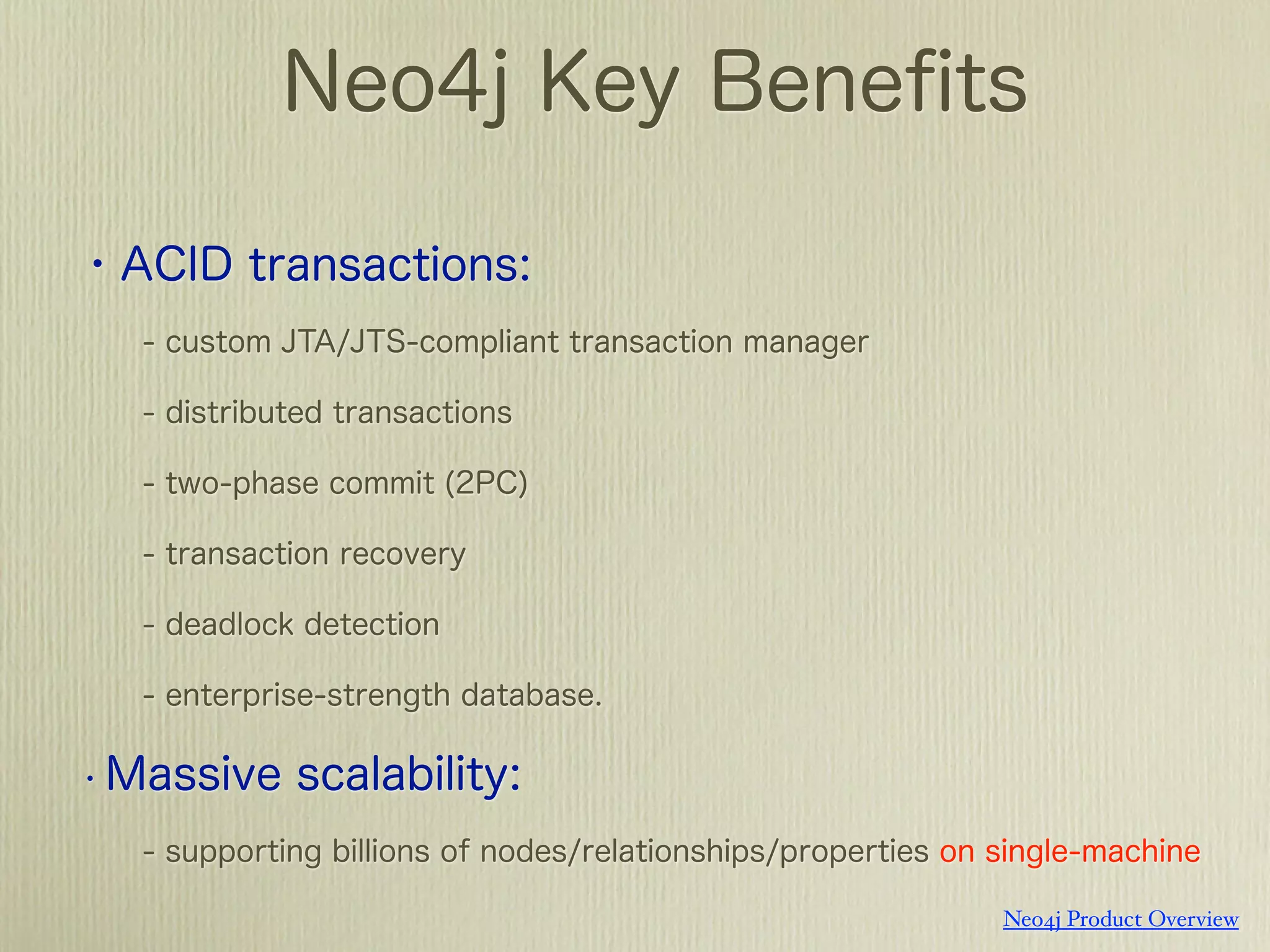

7. Neo4j Product Overview

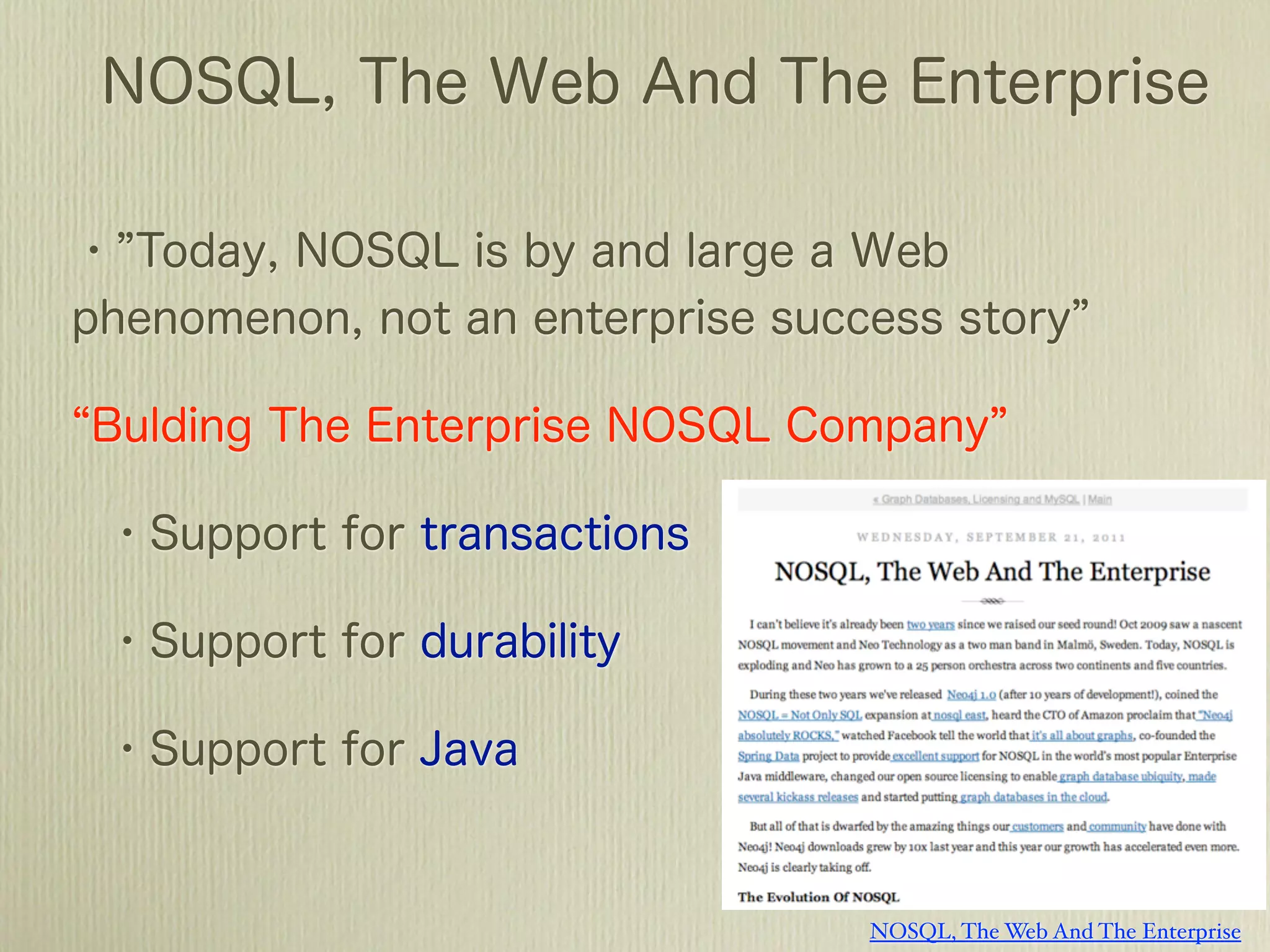

8. NOSQL, The Web And The Enterprise

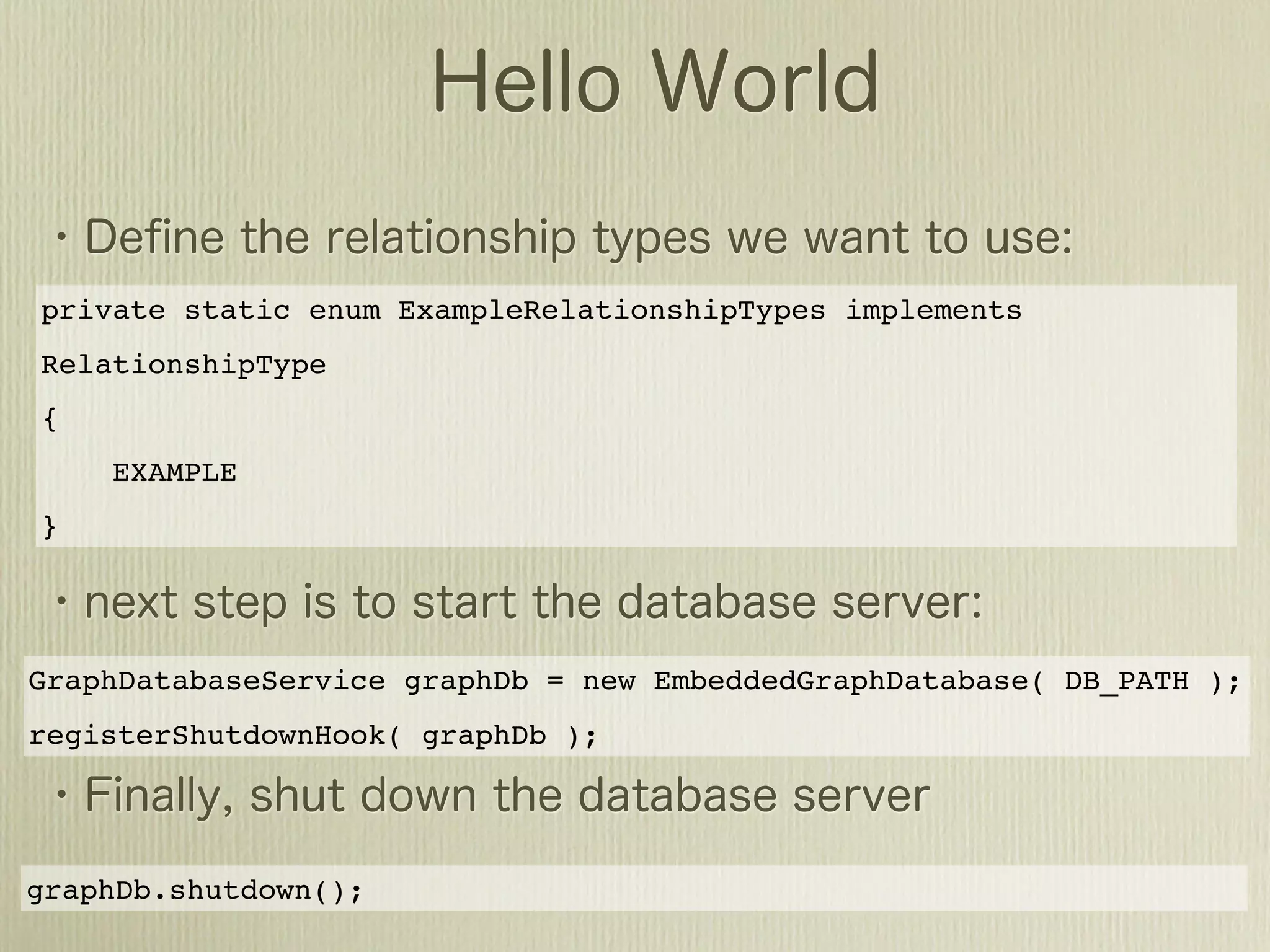

11. private static enum ExampleRelationshipTypes implements
RelationshipType
{
EXAMPLE
}
GraphDatabaseService graphDb = new EmbeddedGraphDatabase( DB_PATH );
registerShutdownHook( graphDb );
graphDb.shutdown();

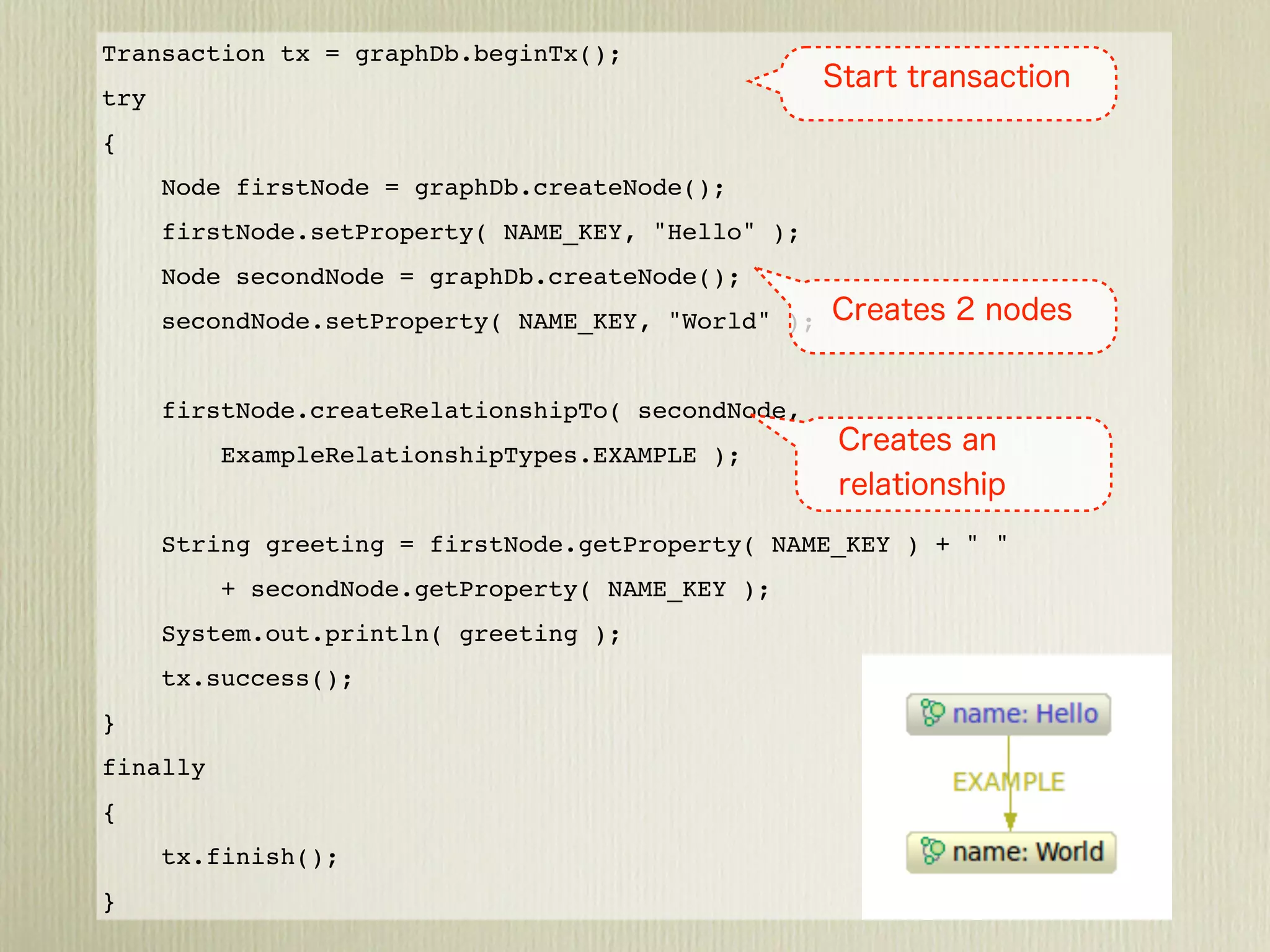

12. Transaction tx = graphDb.beginTx();
try
{
Node firstNode = graphDb.createNode();
firstNode.setProperty( NAME_KEY, "Hello" );
Node secondNode = graphDb.createNode();
secondNode.setProperty( NAME_KEY, "World" );
firstNode.createRelationshipTo( secondNode,
ExampleRelationshipTypes.EXAMPLE );
String greeting = firstNode.getProperty( NAME_KEY ) + " "
+ secondNode.getProperty( NAME_KEY );
System.out.println( greeting );
tx.success();
}
finally
{
tx.finish();
}

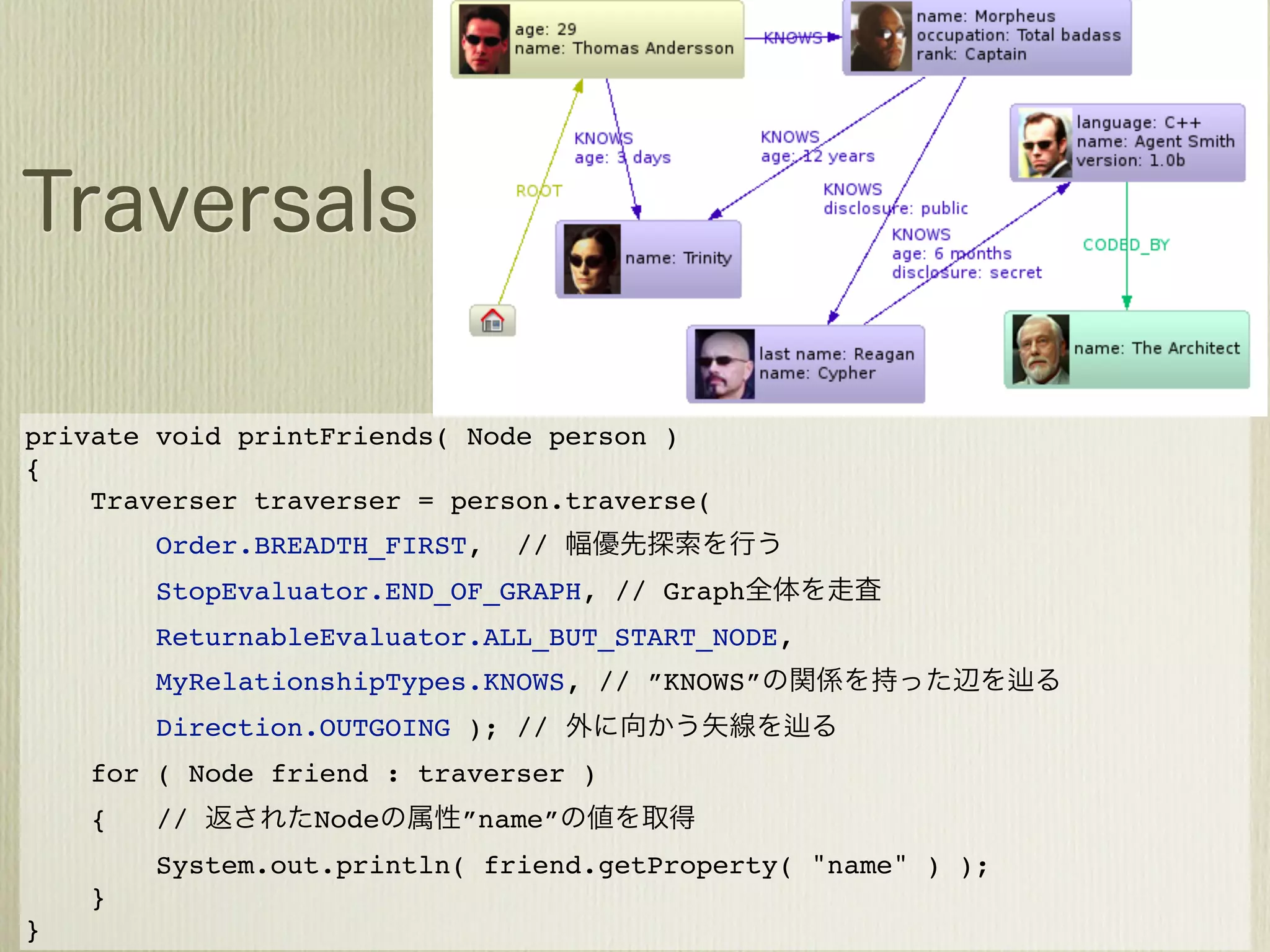

17. private void printFriends( Node person )
{
Traverser traverser = person.traverse(
Order.BREADTH_FIRST, //
StopEvaluator.END_OF_GRAPH, // Graph
ReturnableEvaluator.ALL_BUT_START_NODE,
MyRelationshipTypes.KNOWS, // ”KNOWS”
Direction.OUTGOING ); //
for ( Node friend : traverser )
{ // Node ”name”
System.out.println( friend.getProperty( "name" ) );
}
}

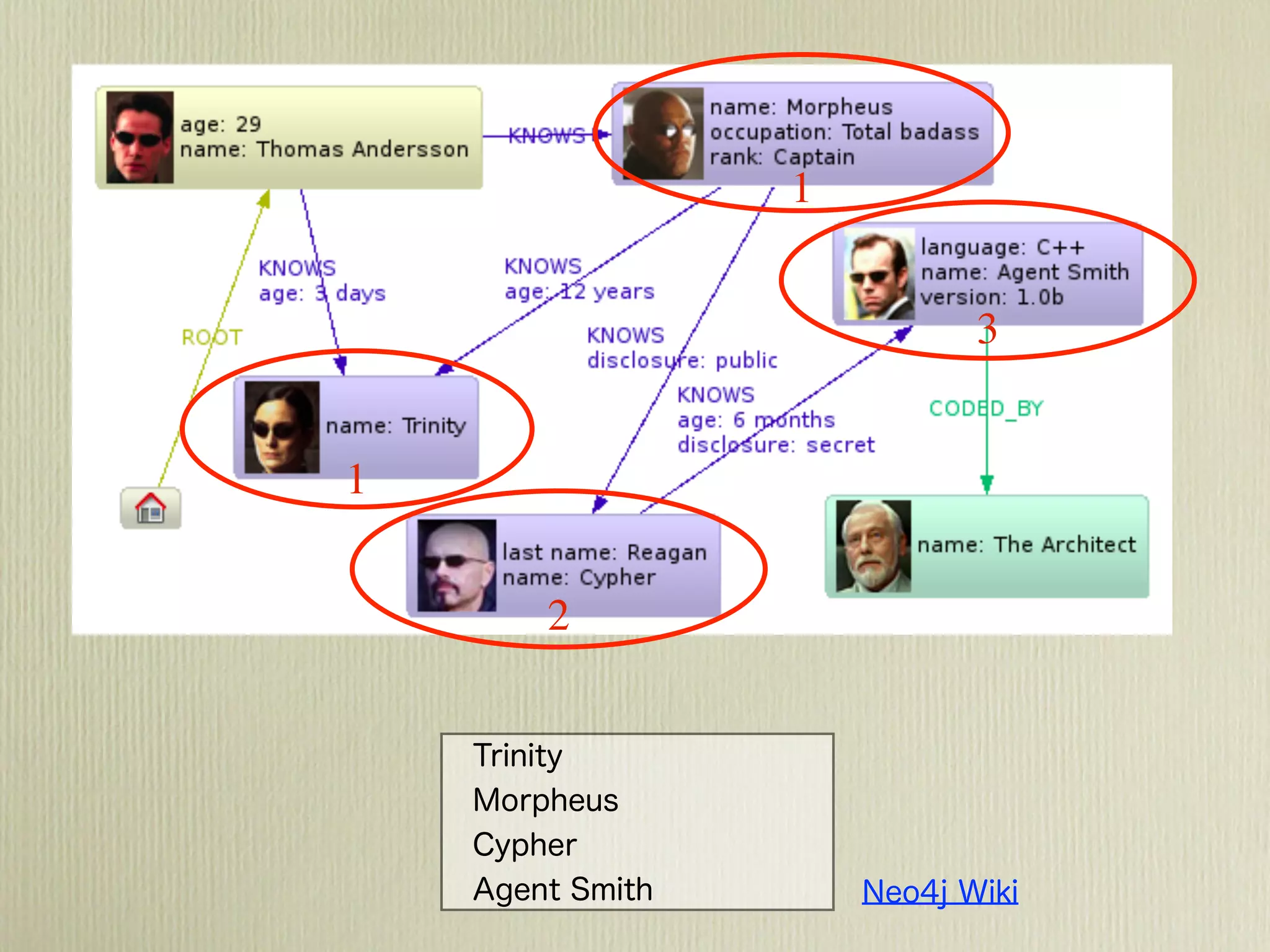

18. 1
3
1
2

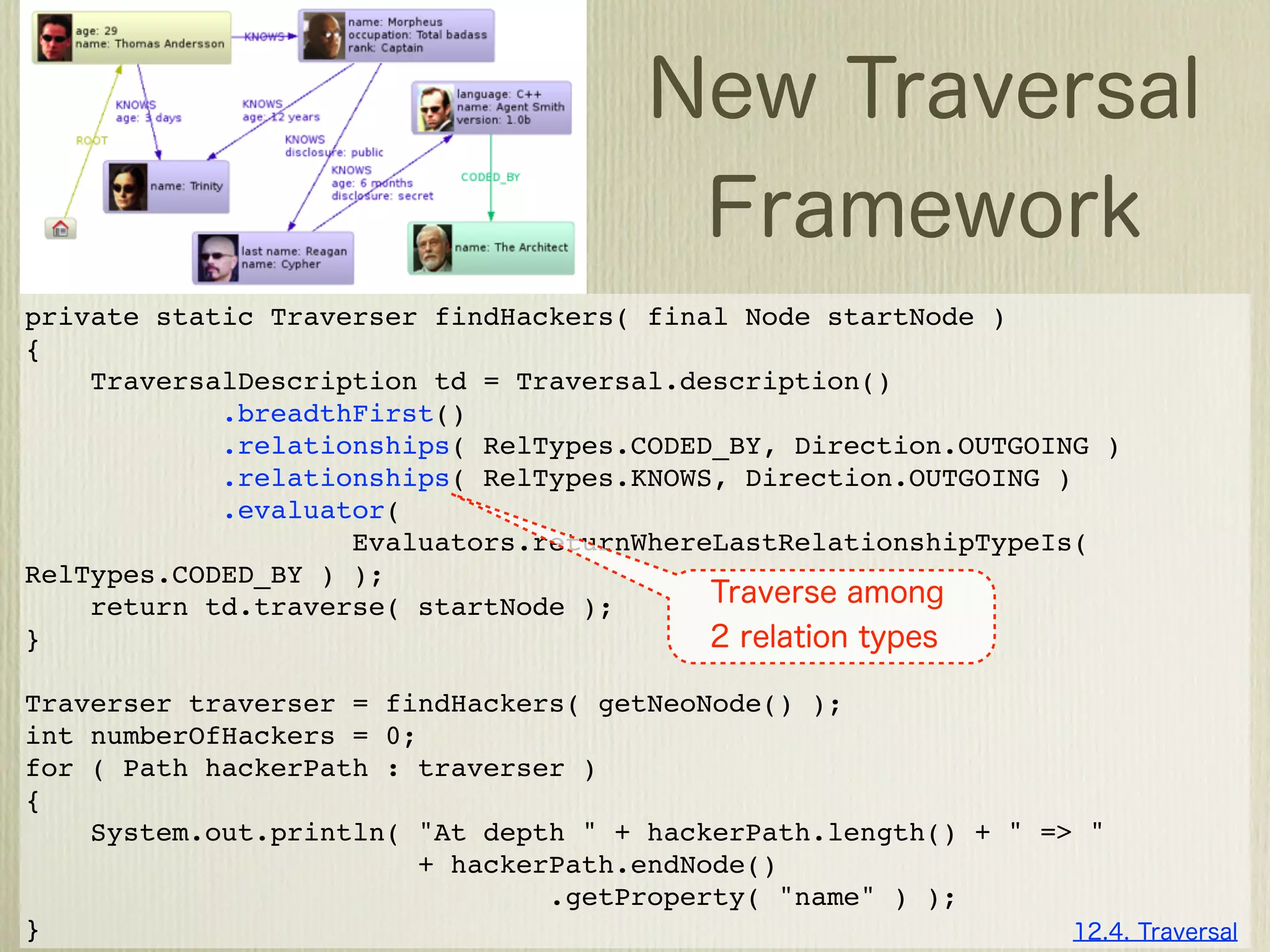

20. private static Traverser findHackers( final Node startNode )
{
TraversalDescription td = Traversal.description()
.breadthFirst()
.relationships( RelTypes.CODED_BY, Direction.OUTGOING )
.relationships( RelTypes.KNOWS, Direction.OUTGOING )
.evaluator(
Evaluators.returnWhereLastRelationshipTypeIs(
RelTypes.CODED_BY ) );
return td.traverse( startNode );
}
Traverser traverser = findHackers( getNeoNode() );
int numberOfHackers = 0;
for ( Path hackerPath : traverser )
{
System.out.println( "At depth " + hackerPath.length() + " => "
+ hackerPath.endNode()
.getProperty( "name" ) );
}

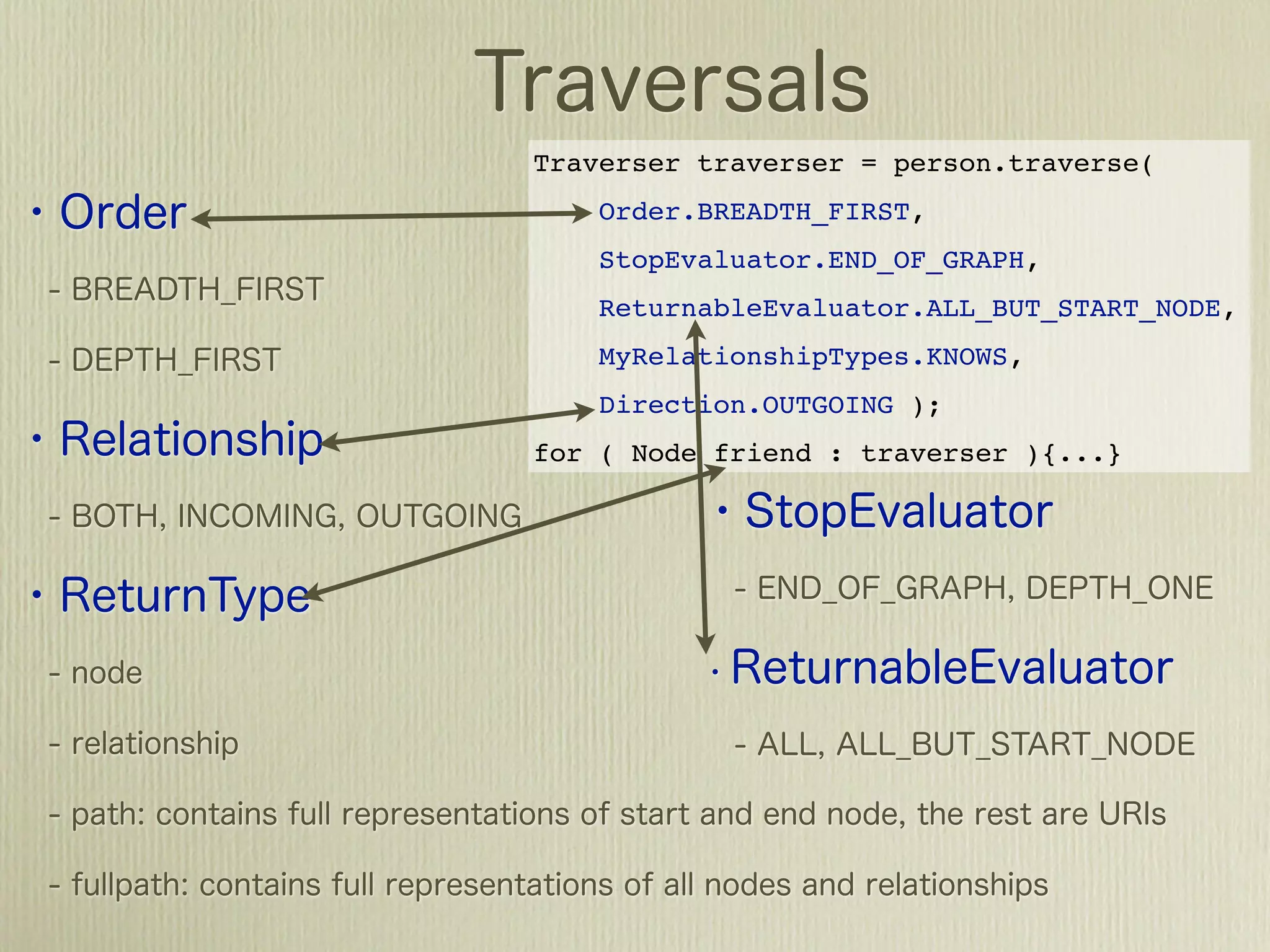

21. Traverser traverser = person.traverse(
Order.BREADTH_FIRST,
StopEvaluator.END_OF_GRAPH,
ReturnableEvaluator.ALL_BUT_START_NODE,
MyRelationshipTypes.KNOWS,
Direction.OUTGOING );
for ( Node friend : traverser ){...}

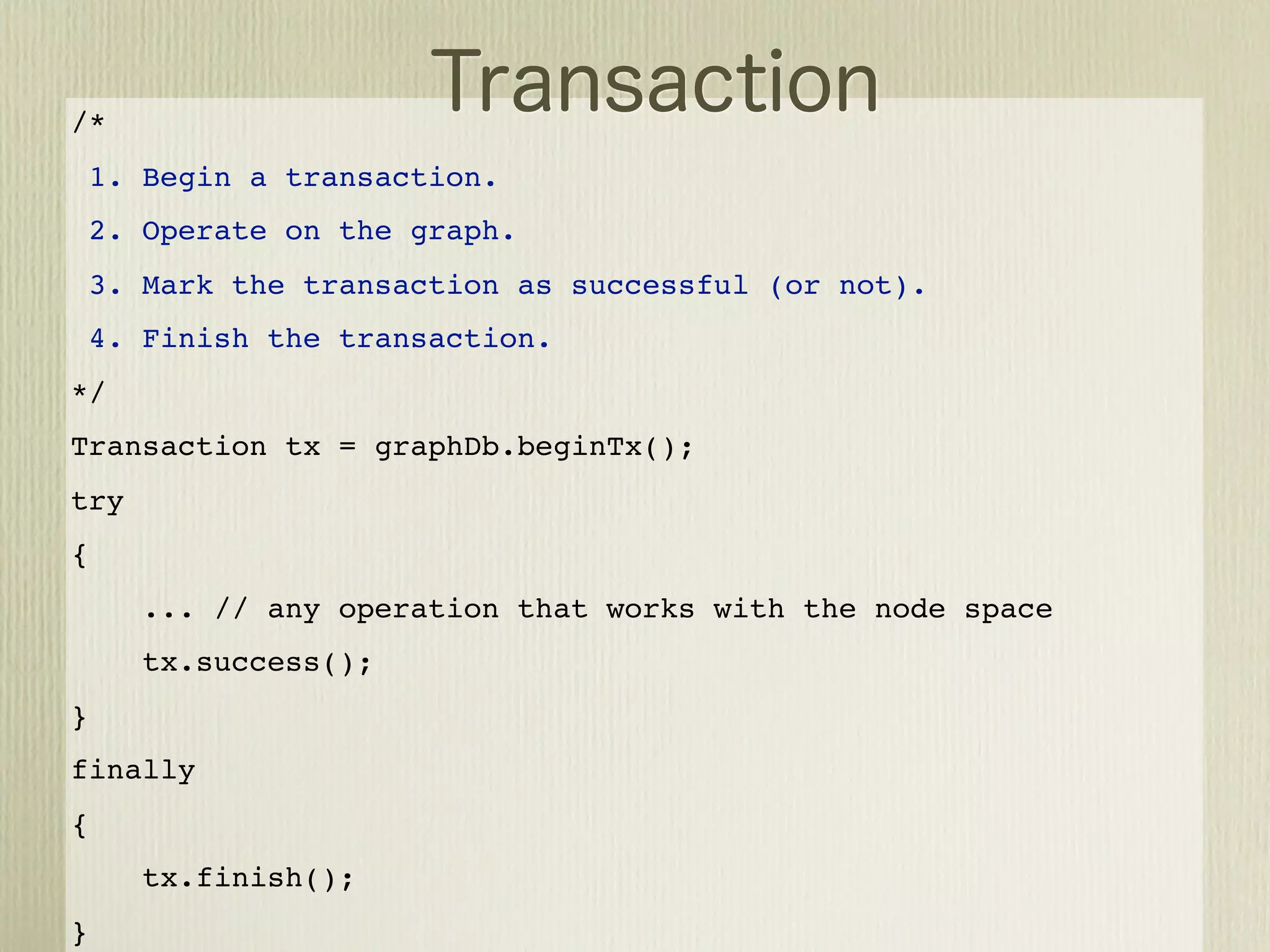

22. /*
1. Begin a transaction.
2. Operate on the graph.
3. Mark the transaction as successful (or not).
4. Finish the transaction.
*/
Transaction tx = graphDb.beginTx();
try
{
... // any operation that works with the node space
tx.success();
}
finally
{
tx.finish();
}

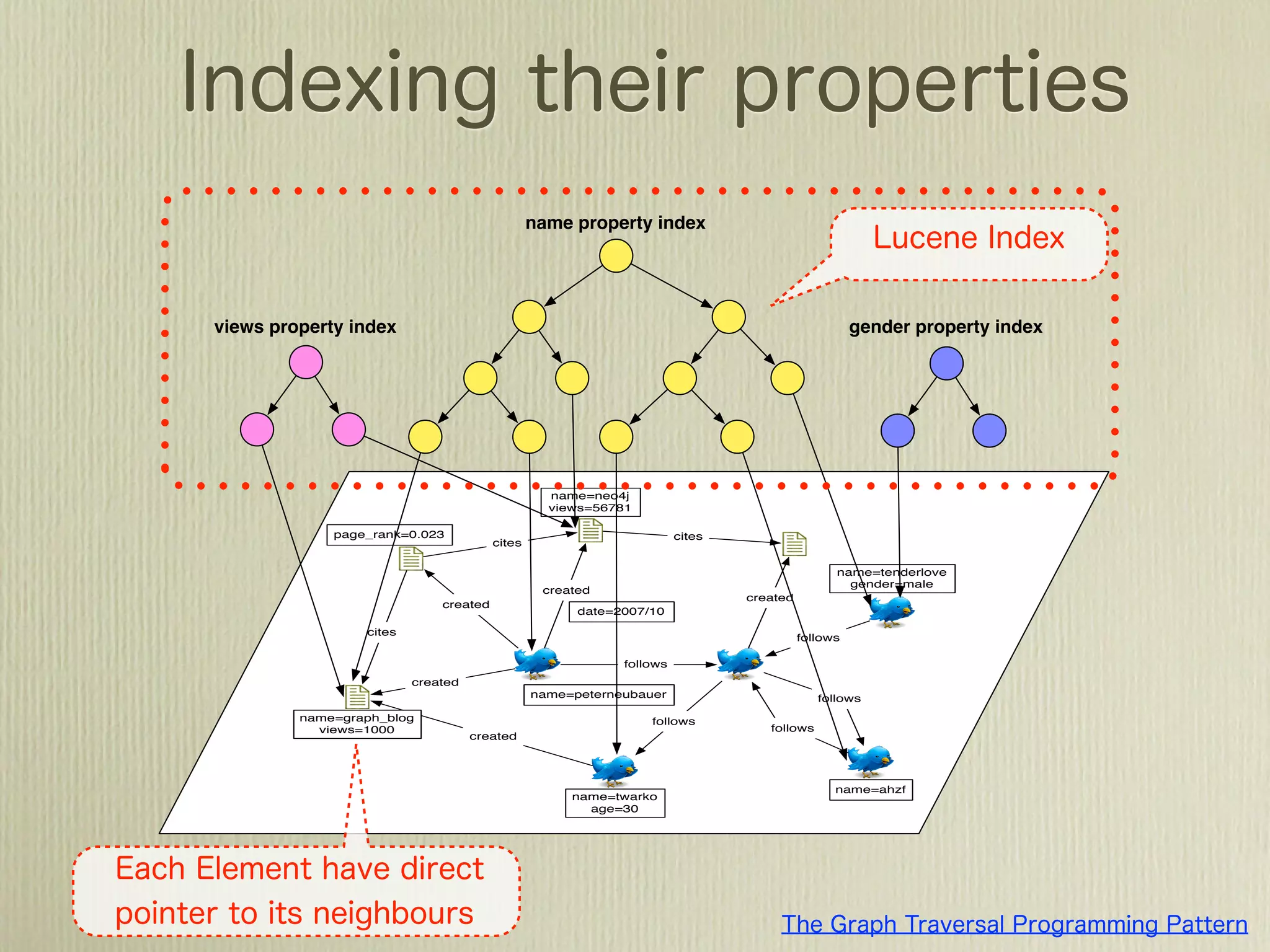

24. Graph Databases and Endogenous Indices
name property index
views property index gender property index
name=neo4j
views=56781
page_rank=0.023 cites
cites
name=tenderlove
gender=male
created
created
created
date=2007/10
cites
follows
follows
created
name=peterneubauer follows
name=graph_blog follows
views=1000 follows
created
name=ahzf
name=twarko
age=30

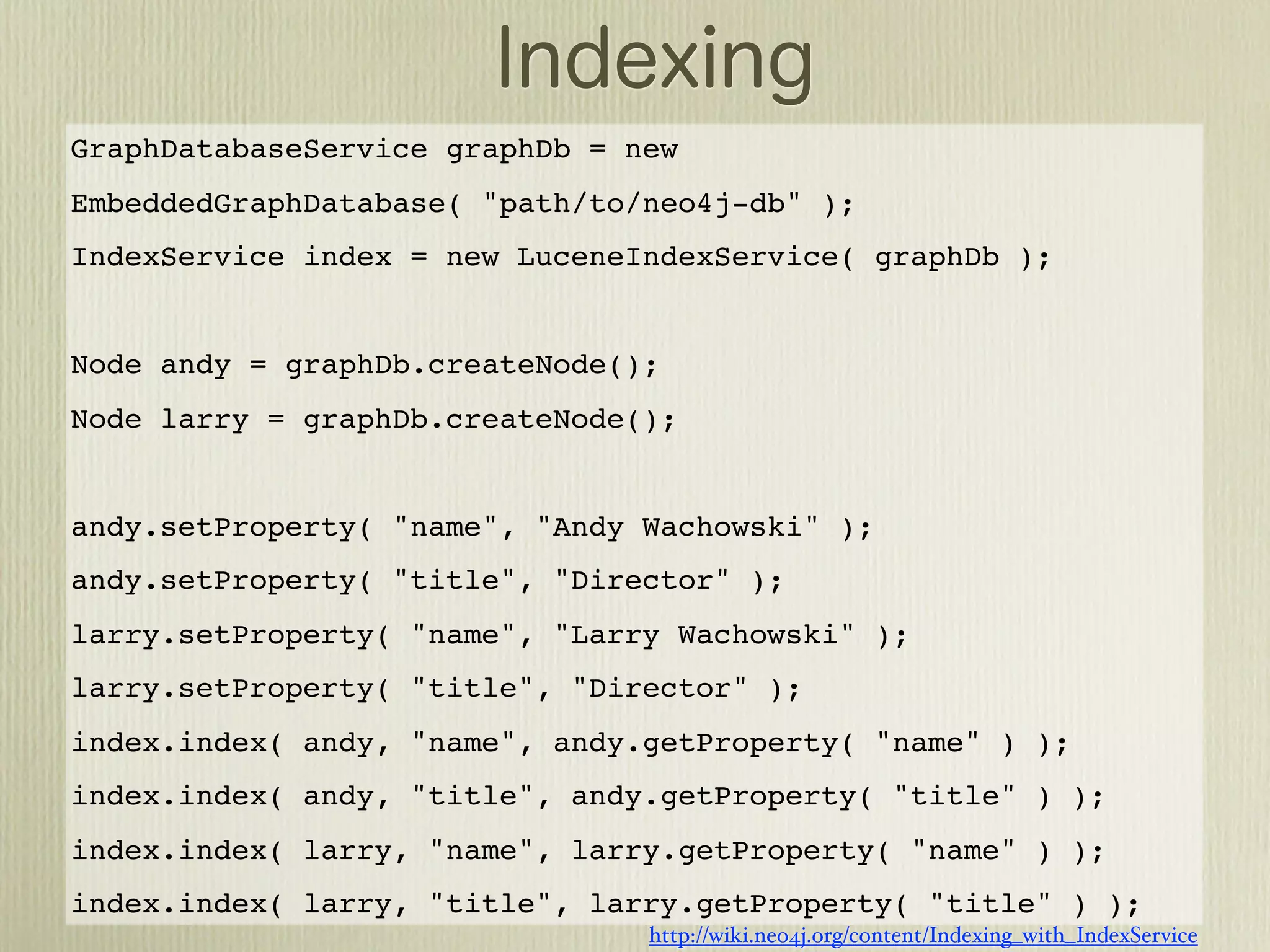

25. GraphDatabaseService graphDb = new
EmbeddedGraphDatabase( "path/to/neo4j-db" );
IndexService index = new LuceneIndexService( graphDb );
Node andy = graphDb.createNode();
Node larry = graphDb.createNode();
andy.setProperty( "name", "Andy Wachowski" );
andy.setProperty( "title", "Director" );
larry.setProperty( "name", "Larry Wachowski" );
larry.setProperty( "title", "Director" );
index.index( andy, "name", andy.getProperty( "name" ) );
index.index( andy, "title", andy.getProperty( "title" ) );
index.index( larry, "name", larry.getProperty( "name" ) );
index.index( larry, "title", larry.getProperty( "title" ) );
http://wiki.neo4j.org/content/Indexing_with_IndexService

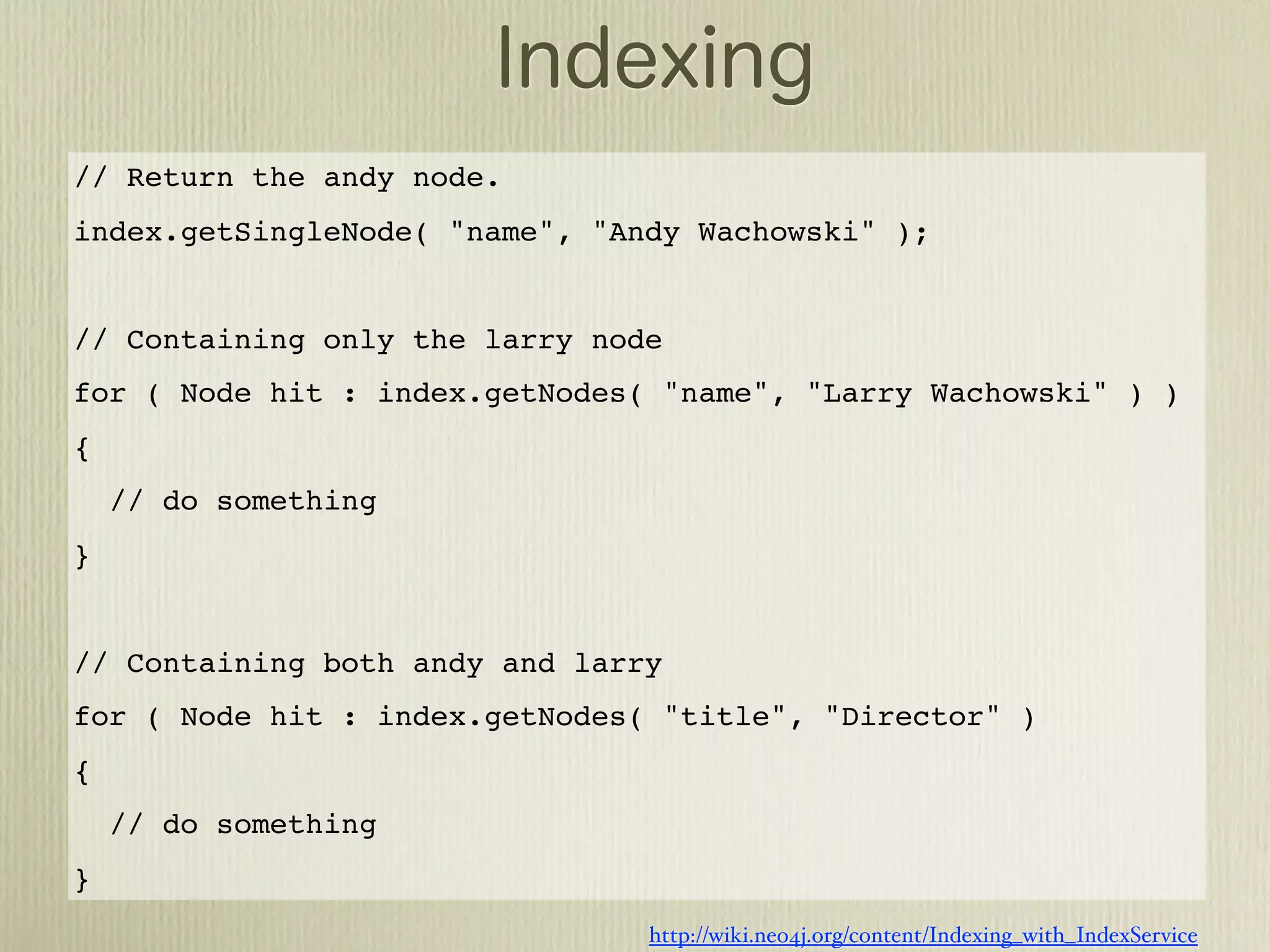

26. // Return the andy node.
index.getSingleNode( "name", "Andy Wachowski" );
// Containing only the larry node
for ( Node hit : index.getNodes( "name", "Larry Wachowski" ) )
{
// do something
}
// Containing both andy and larry
for ( Node hit : index.getNodes( "title", "Director" )
{
// do something
}
http://wiki.neo4j.org/content/Indexing_with_IndexService

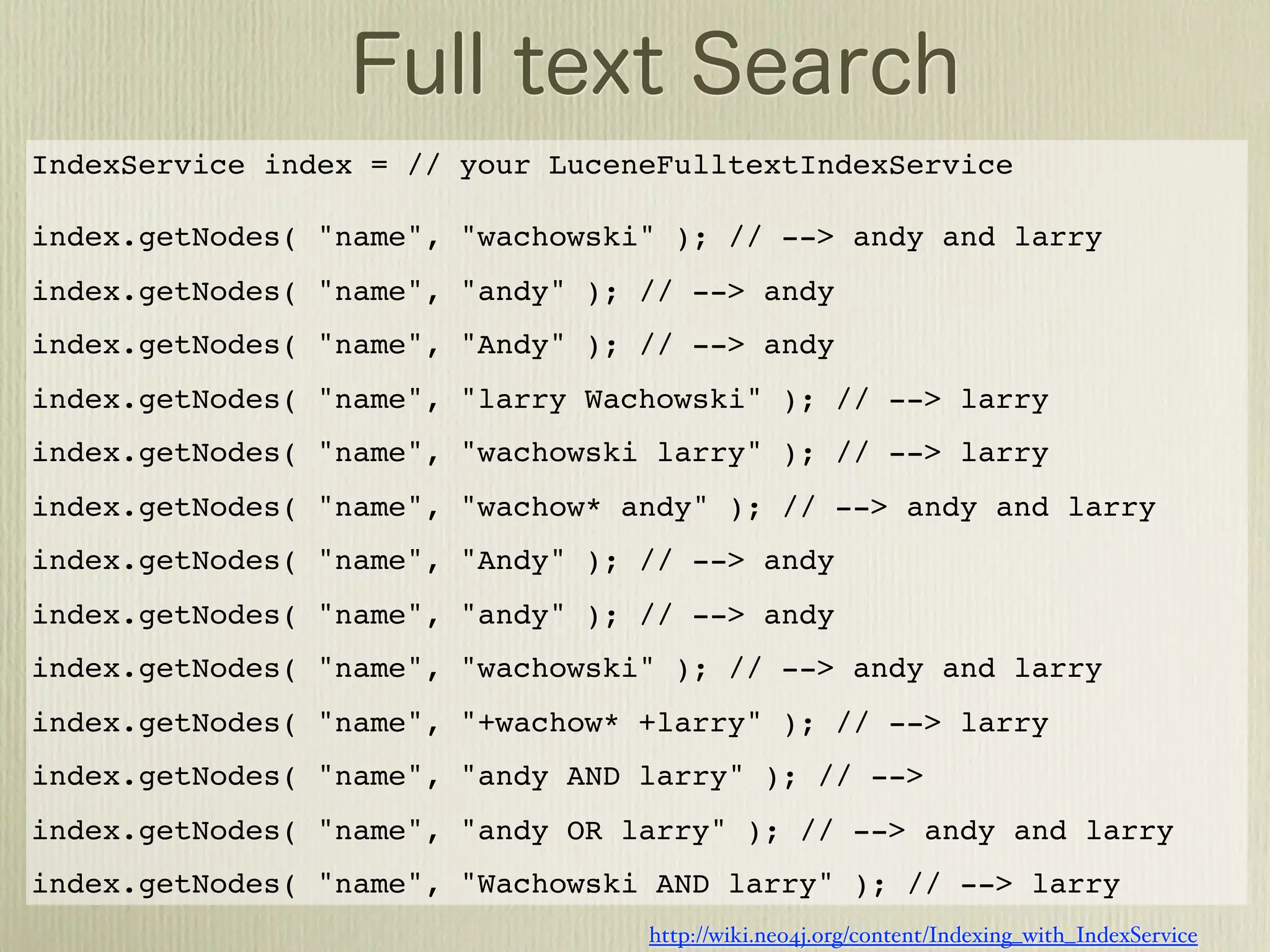

27. IndexService index = // your LuceneFulltextIndexService
index.getNodes( "name", "wachowski" ); // --> andy and larry
index.getNodes( "name", "andy" ); // --> andy
index.getNodes( "name", "Andy" ); // --> andy
index.getNodes( "name", "larry Wachowski" ); // --> larry
index.getNodes( "name", "wachowski larry" ); // --> larry
index.getNodes( "name", "wachow* andy" ); // --> andy and larry
index.getNodes( "name", "Andy" ); // --> andy
index.getNodes( "name", "andy" ); // --> andy
index.getNodes( "name", "wachowski" ); // --> andy and larry
index.getNodes( "name", "+wachow* +larry" ); // --> larry
index.getNodes( "name", "andy AND larry" ); // -->
index.getNodes( "name", "andy OR larry" ); // --> andy and larry
index.getNodes( "name", "Wachowski AND larry" ); // --> larry
http://wiki.neo4j.org/content/Indexing_with_IndexService

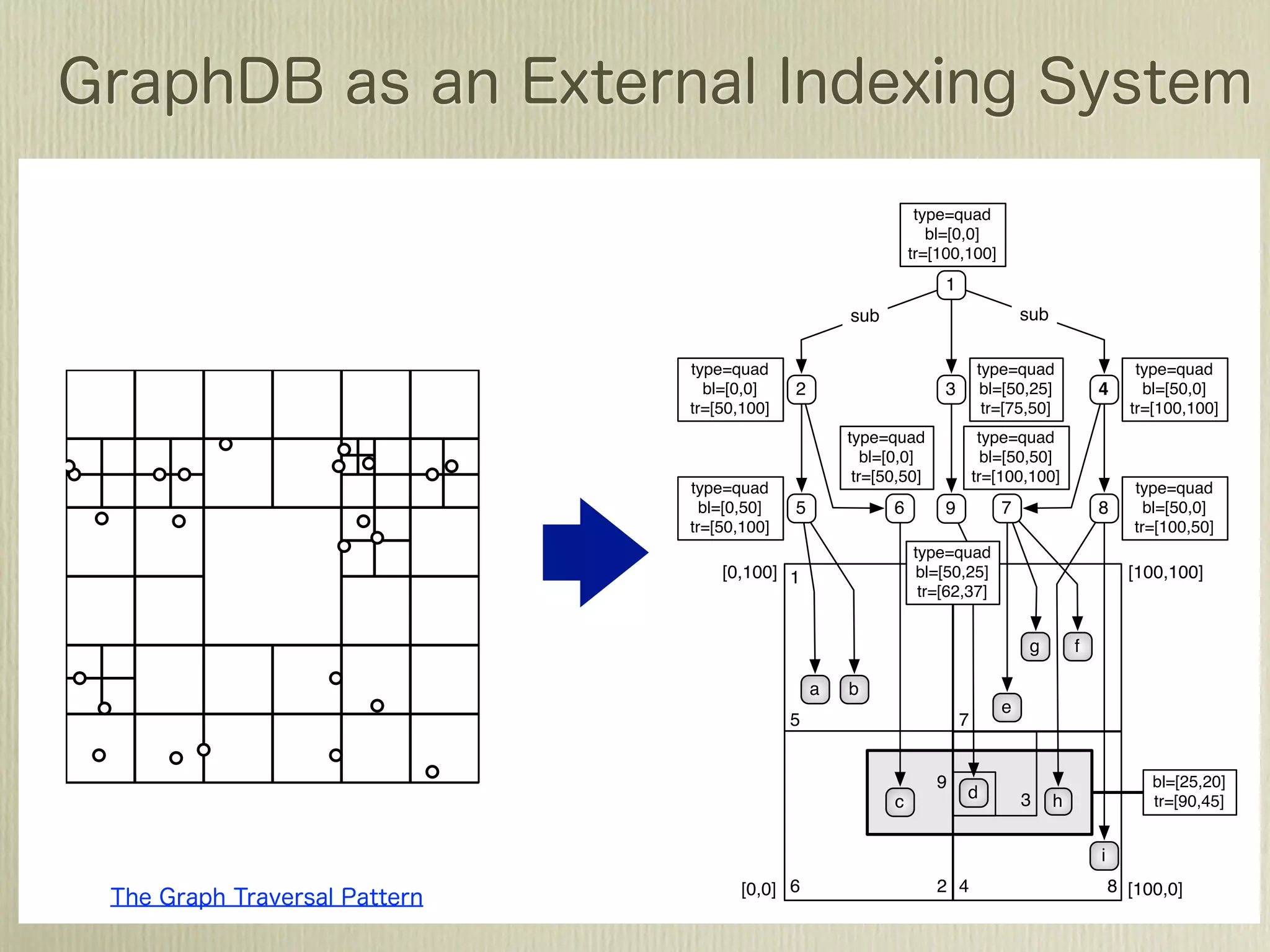

28. of a spatial, 2D-index that is explicitly14 Marko A.within a Peter Neubauer
modeled Rodriguez and 1 2
In order to demonstrate how a quadtree index can be represented an
patial analysis makes use of advanced indexing structuresis represents a quadtreeset is diagrammed i
versed, a toy graph data set presented. This data
ure 8. The top half of Figure 8 index (vertices 1-9)
[4, 17]. Quadtrees partition a two-dimensional plane into
sed upon the spatial density of the points being indexed. type=quad
ow space is partitioned as the density of points increases bl=[0,0]
tr=[100,100]
e index. 1
sub sub
type=quad type=quad type=quad
bl=[0,0] 2 3 bl=[50,25] 4 bl=[50,0]
tr=[50,100] tr=[75,50] tr=[100,100]
type=quad type=quad
bl=[0,0] bl=[50,50]
tr=[50,50] tr=[100,100]
type=quad type=quad
bl=[0,50] 5 6 9 7 8 bl=[50,0]
tr=[50,100] tr=[100,50]
type=quad
[0,100] 1 bl=[50,25] [100,100]
tr=[62,37]
g f
a b
e
5 7
9 bl=[25,20]
d 3 h
c tr=[90,45]
artition of a plane. This figure is an adaptation of a public
i
d courtesy of David Eppstein. 6 2 4 8 [100,0]
[0,0]
motivations behind this article is to stress the A quadtree index ofof space that contains points of interest. The in
Fig. 8. importance a

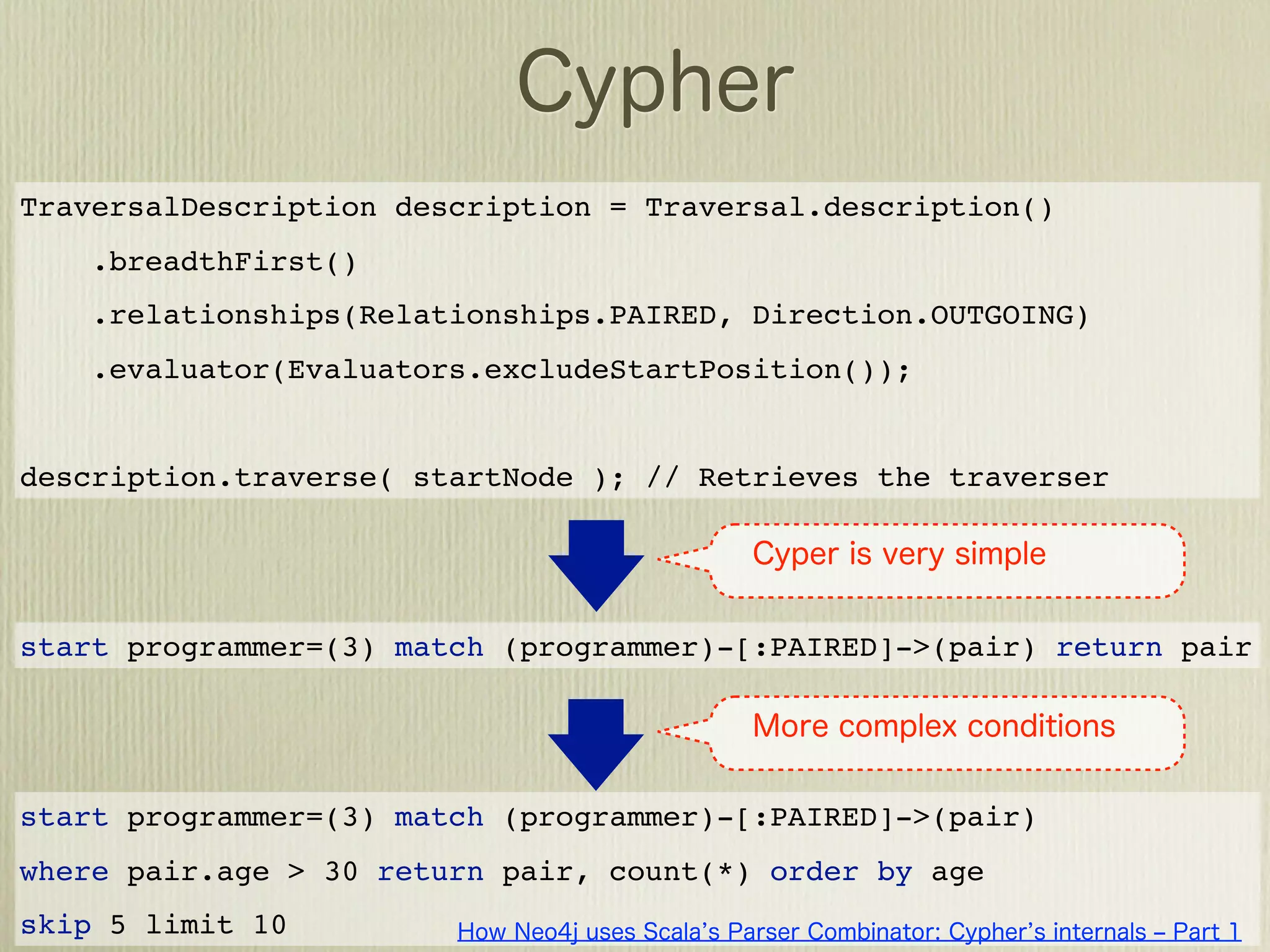

31. TraversalDescription description = Traversal.description()
.breadthFirst()
.relationships(Relationships.PAIRED, Direction.OUTGOING)
.evaluator(Evaluators.excludeStartPosition());
description.traverse( startNode ); // Retrieves the traverser
start programmer=(3) match (programmer)-[:PAIRED]->(pair) return pair
start programmer=(3) match (programmer)-[:PAIRED]->(pair)
where pair.age > 30 return pair, count(*) order by age
skip 5 limit 10

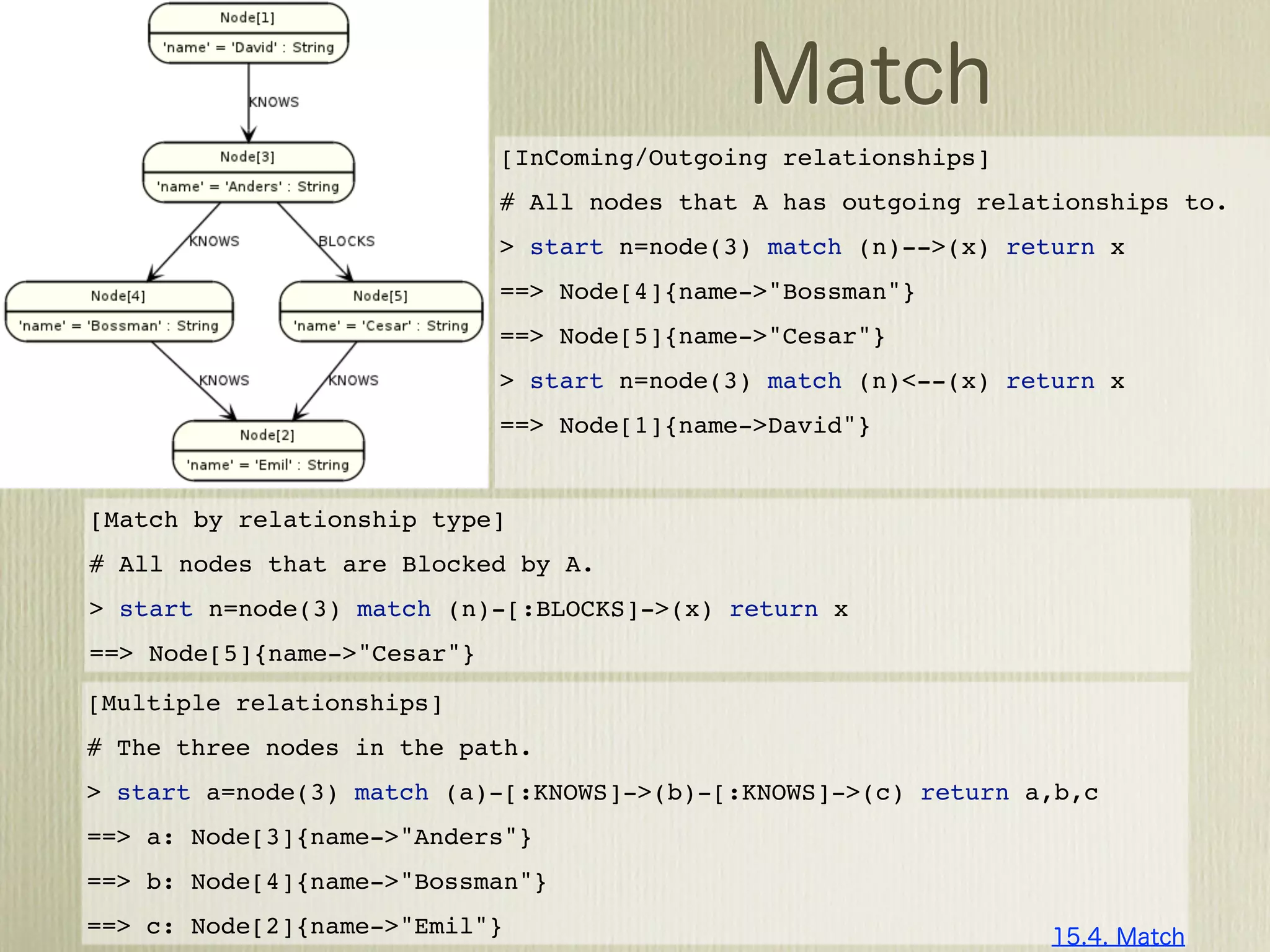

32. [InComing/Outgoing relationships]
# All nodes that A has outgoing relationships to.
> start n=node(3) match (n)-->(x) return x
==> Node[4]{name->"Bossman"}
==> Node[5]{name->"Cesar"}
> start n=node(3) match (n)<--(x) return x
==> Node[1]{name->David"}
[Match by relationship type]
# All nodes that are Blocked by A.
> start n=node(3) match (n)-[:BLOCKS]->(x) return x
==> Node[5]{name->"Cesar"}
[Multiple relationships]
# The three nodes in the path.
> start a=node(3) match (a)-[:KNOWS]->(b)-[:KNOWS]->(c) return a,b,c
==> a: Node[3]{name->"Anders"}
==> b: Node[4]{name->"Bossman"}
==> c: Node[2]{name->"Emil"}

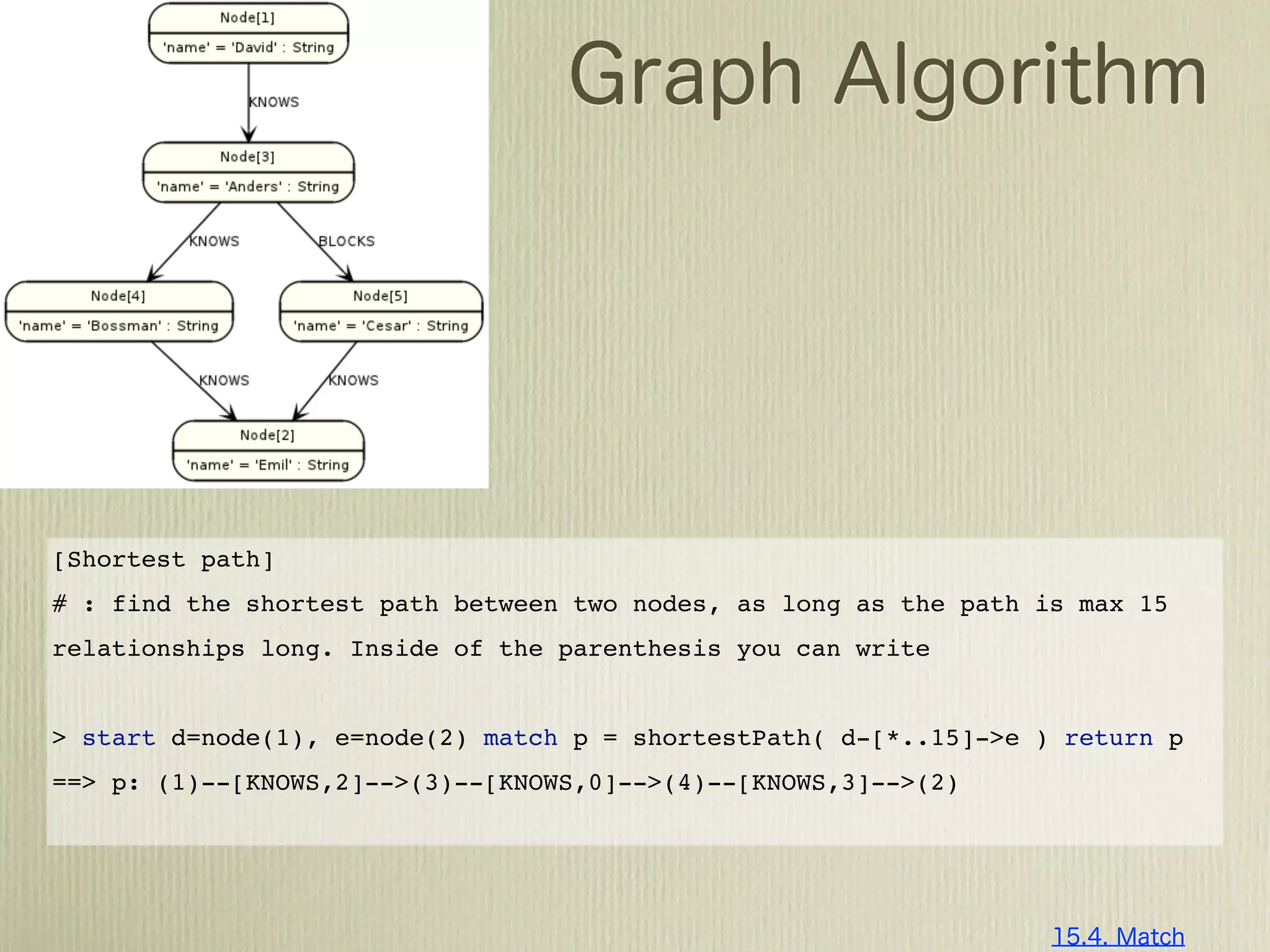

33. [Shortest path]
# : find the shortest path between two nodes, as long as the path is max 15
relationships long. Inside of the parenthesis you can write
> start d=node(1), e=node(2) match p = shortestPath( d-[*..15]->e ) return p
==> p: (1)--[KNOWS,2]-->(3)--[KNOWS,0]-->(4)--[KNOWS,3]-->(2)

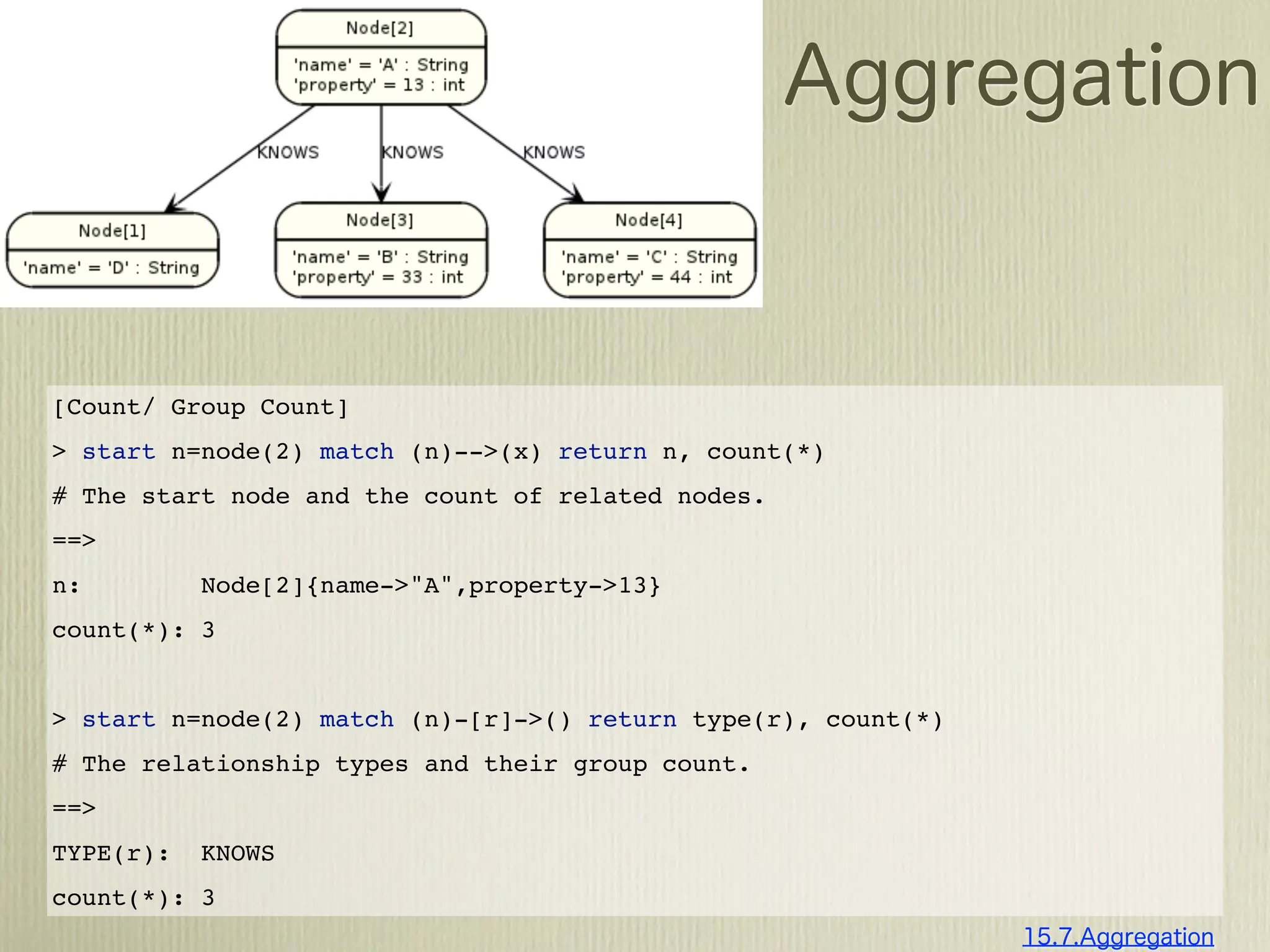

34. [Count/ Group Count]
> start n=node(2) match (n)-->(x) return n, count(*)
# The start node and the count of related nodes.
==>
n: Node[2]{name->"A",property->13}
count(*): 3
> start n=node(2) match (n)-[r]->() return type(r), count(*)
# The relationship types and their group count.
==>
TYPE(r): KNOWS
count(*): 3

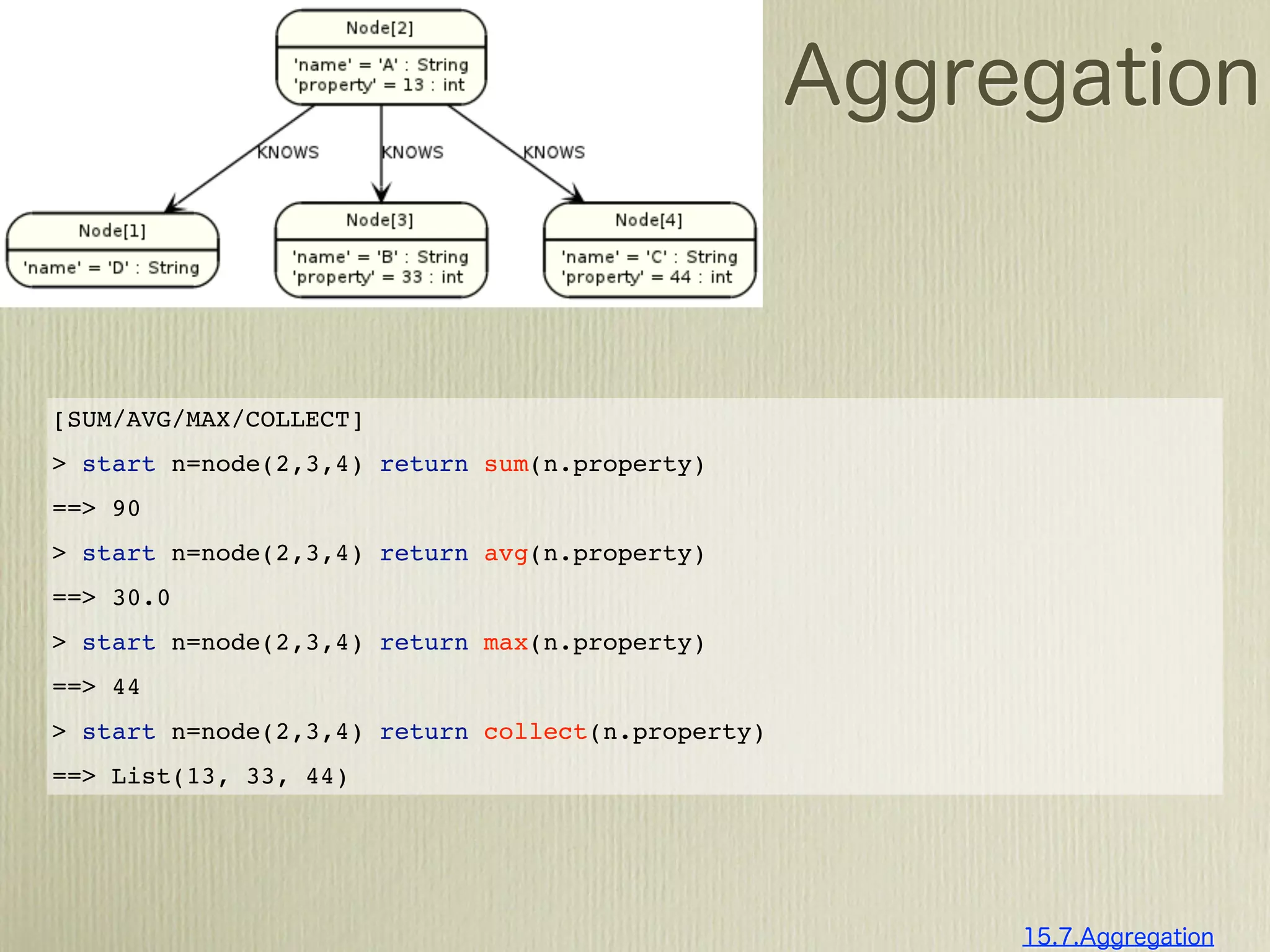

35. [SUM/AVG/MAX/COLLECT]
> start n=node(2,3,4) return sum(n.property)
==> 90
> start n=node(2,3,4) return avg(n.property)
==> 30.0
> start n=node(2,3,4) return max(n.property)
==> 44
> start n=node(2,3,4) return collect(n.property)
==> List(13, 33, 44)
