Alternative-Forms-of-Pull-Up from CMOS VLSI

1. Alternative Forms of Pull-Up

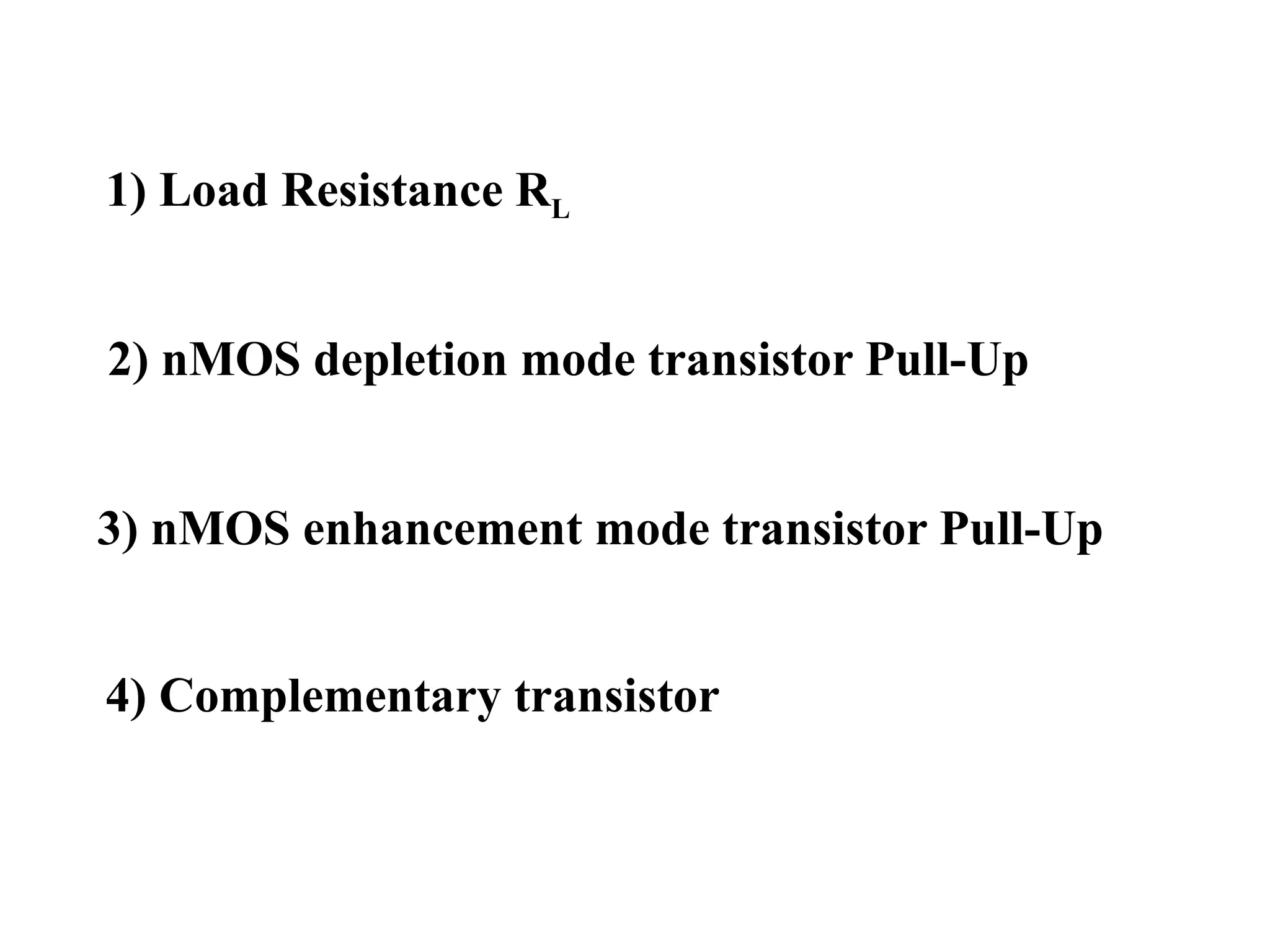

2. 1) Load Resistance RL
2) nMOS depletion mode transistor Pull-Up
3) nMOS enhancement mode transistor Pull-Up
4) Complementary transistor

3. 1) Load Resistance RL
O

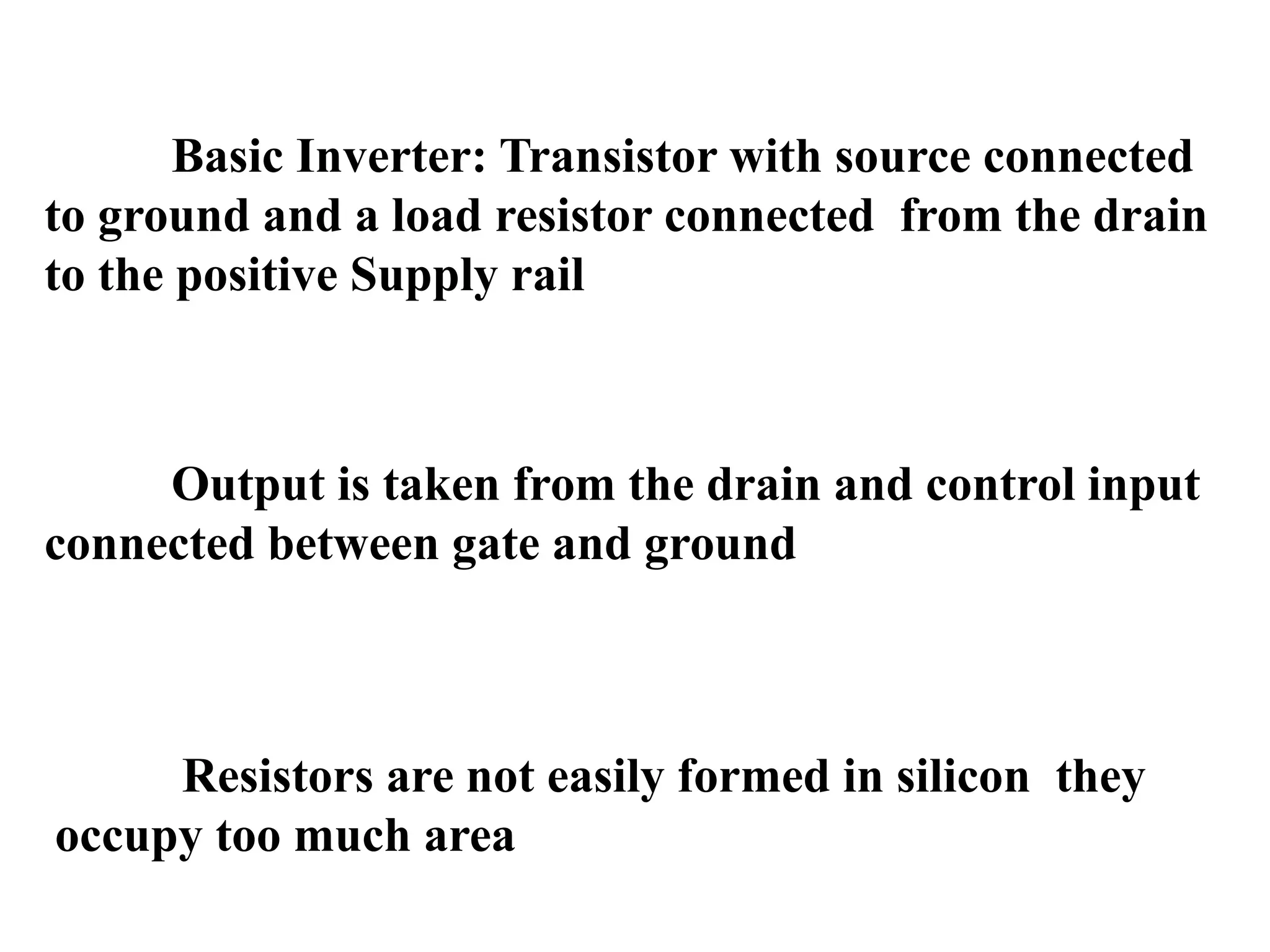

4. Basic Inverter: Transistor with source connected
to ground and a load resistor connected from the drain
to the positive Supply rail
Output is taken from the drain and control input
connected between gate and ground
Resistors are not easily formed in silicon they
occupy too much area

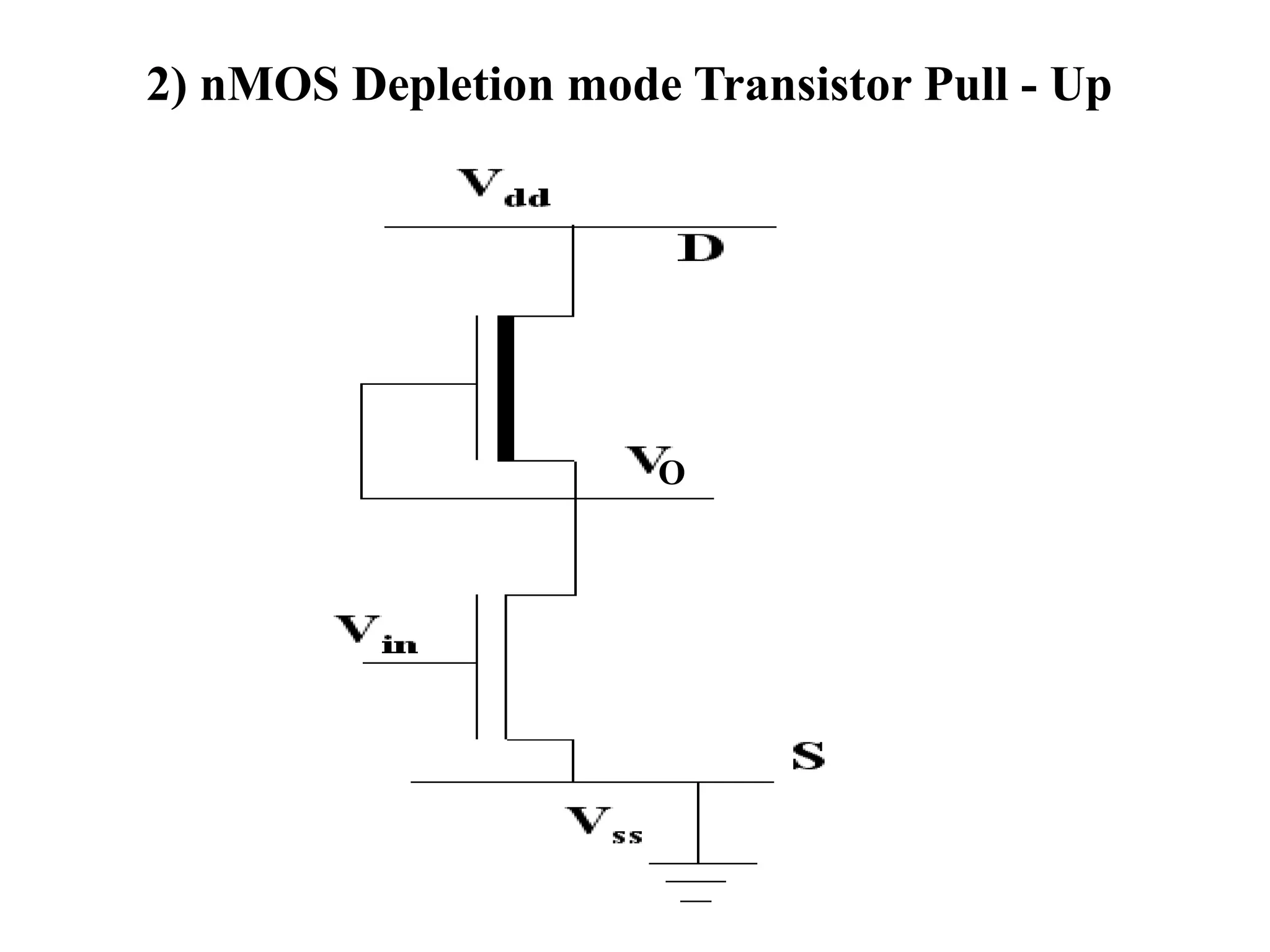

5. 2) nMOS Depletion mode Transistor Pull - Up
O

6. • Pull-Up is always on , Vgs = 0; in depletion
• Pull-Down turns on when Vin > Vt
• With no current drawn from outputs, Ids for both
transistors is equal
No
current
Current
flow

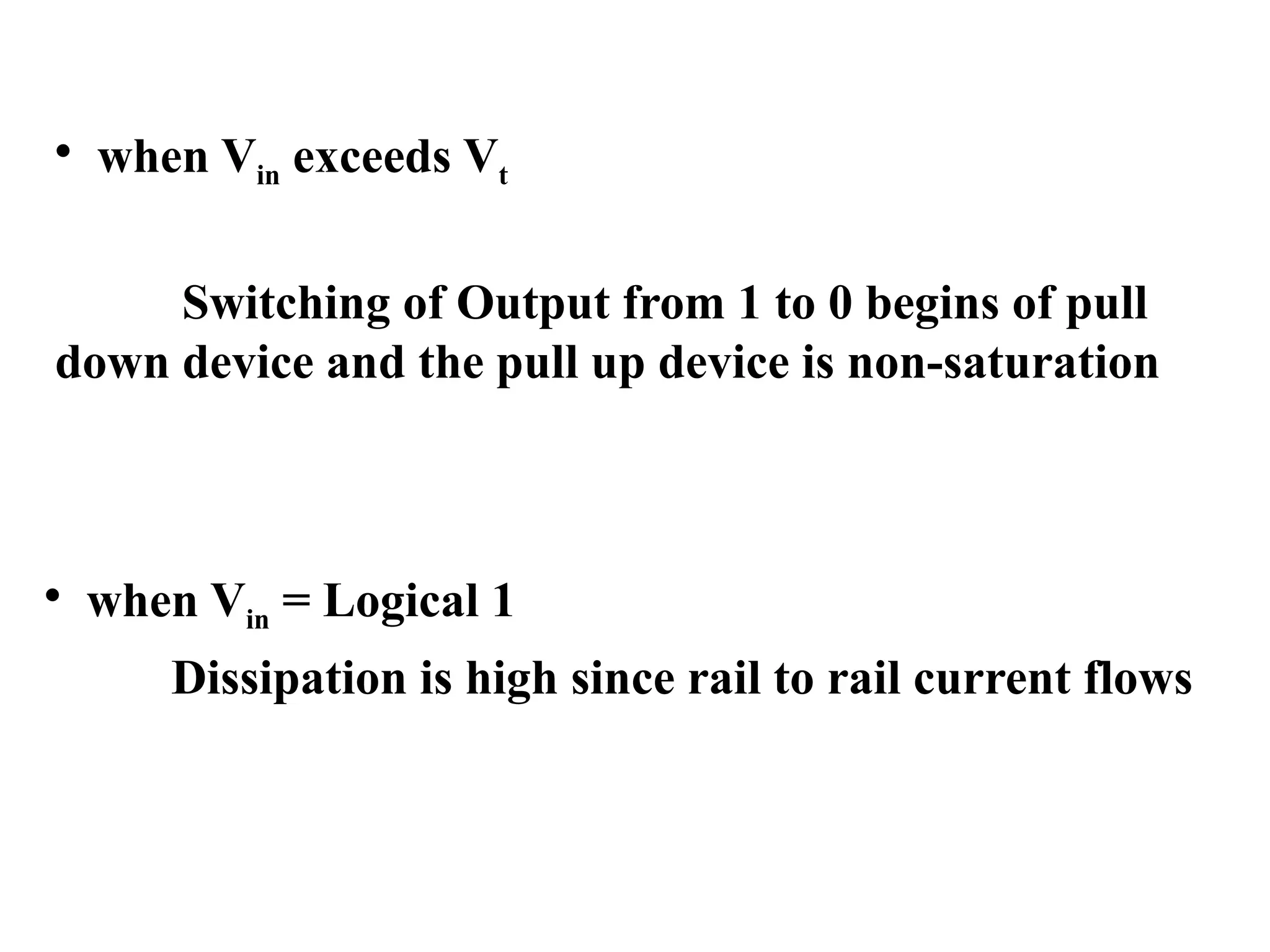

7. • when Vin = Logical 1
Dissipation is high since rail to rail current flows
• when Vin exceeds Vt
Switching of Output from 1 to 0 begins of pull
down device and the pull up device is non-saturation

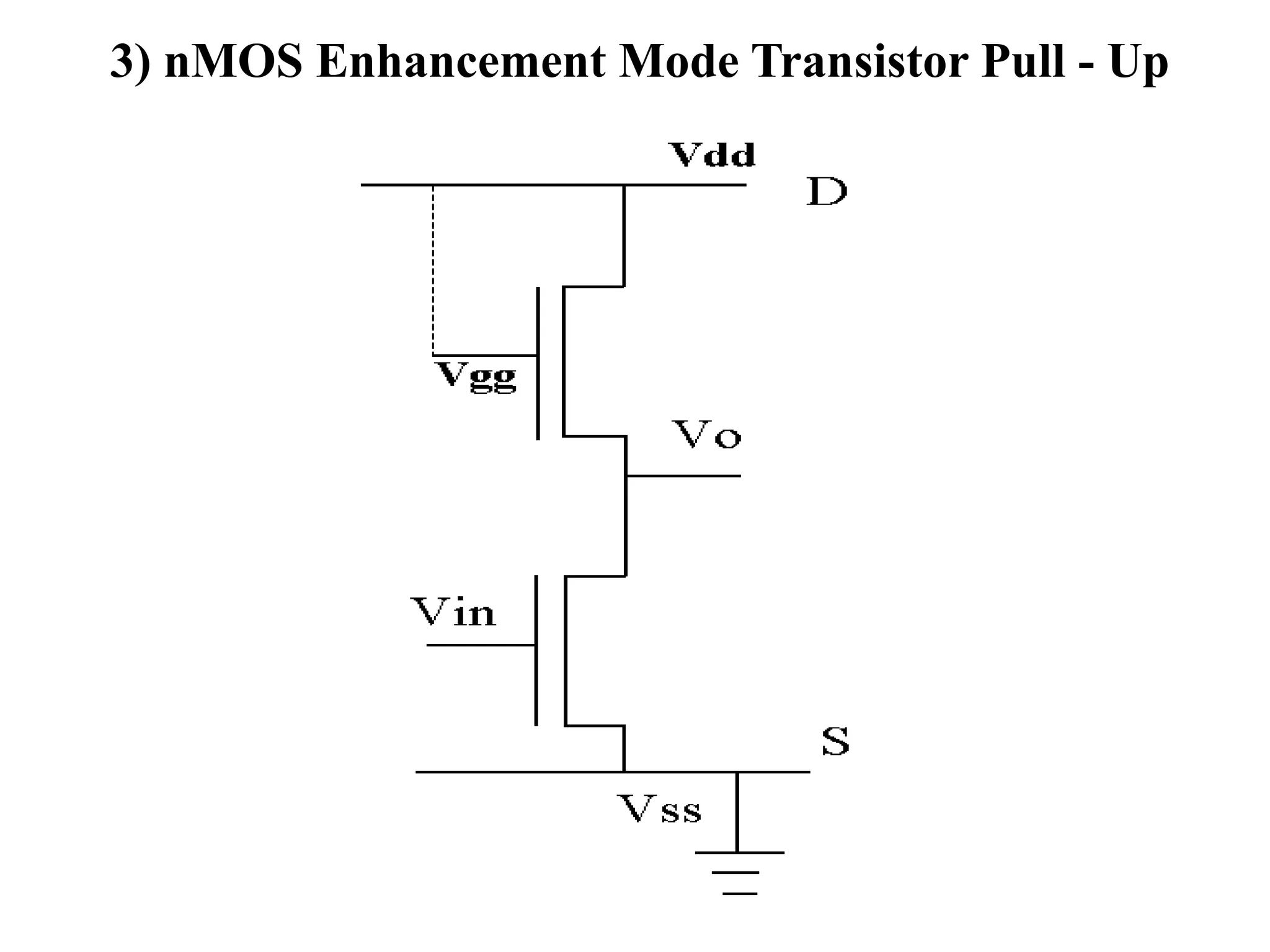

8. 3) nMOS Enhancement Mode Transistor Pull - Up

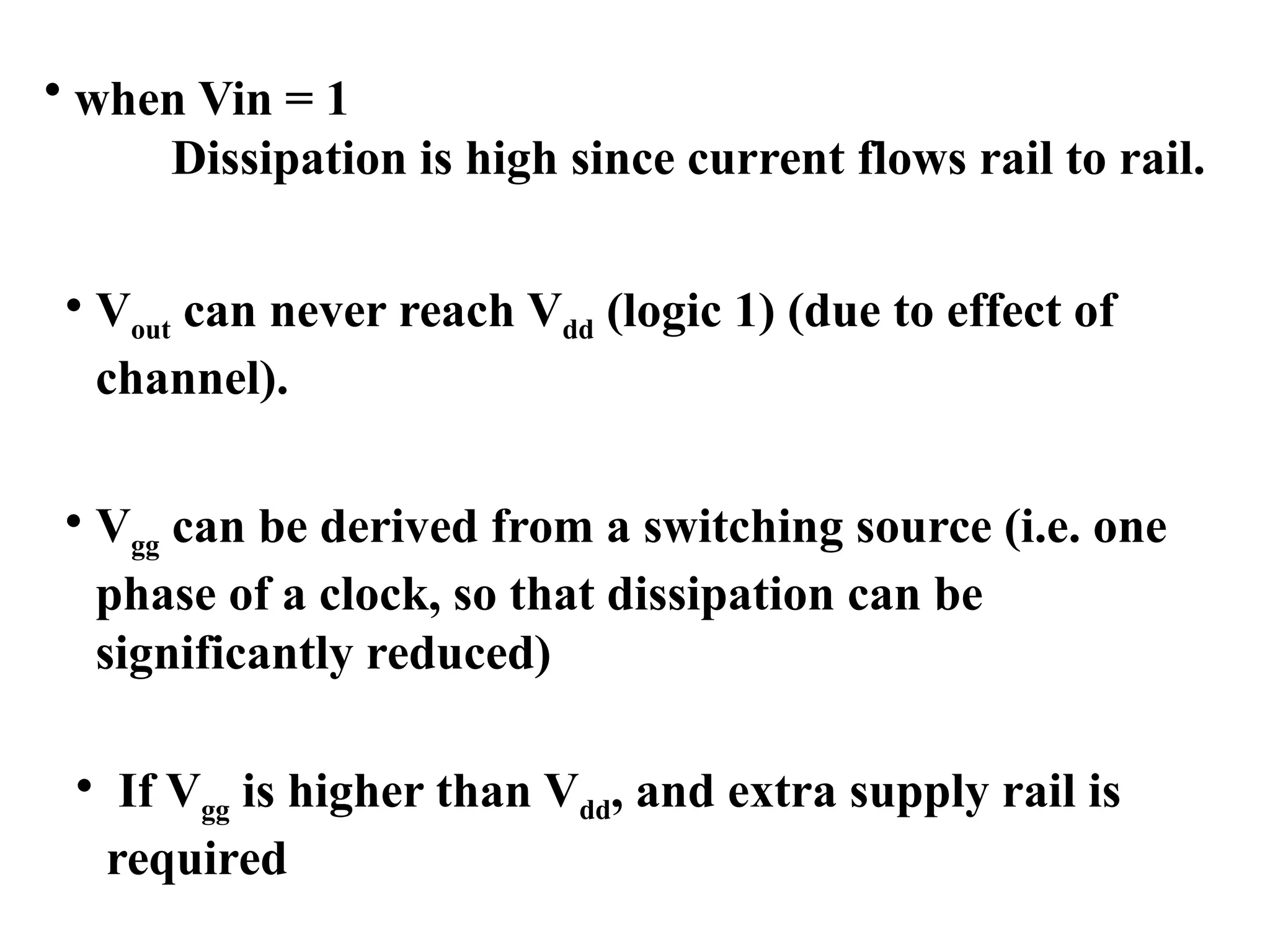

9. • when Vin = 1
Dissipation is high since current flows rail to rail.
• Vout can never reach Vdd (logic 1) (due to effect of
channel).
• Vgg can be derived from a switching source (i.e. one
phase of a clock, so that dissipation can be
significantly reduced)
• If Vgg is higher than Vdd, and extra supply rail is
required

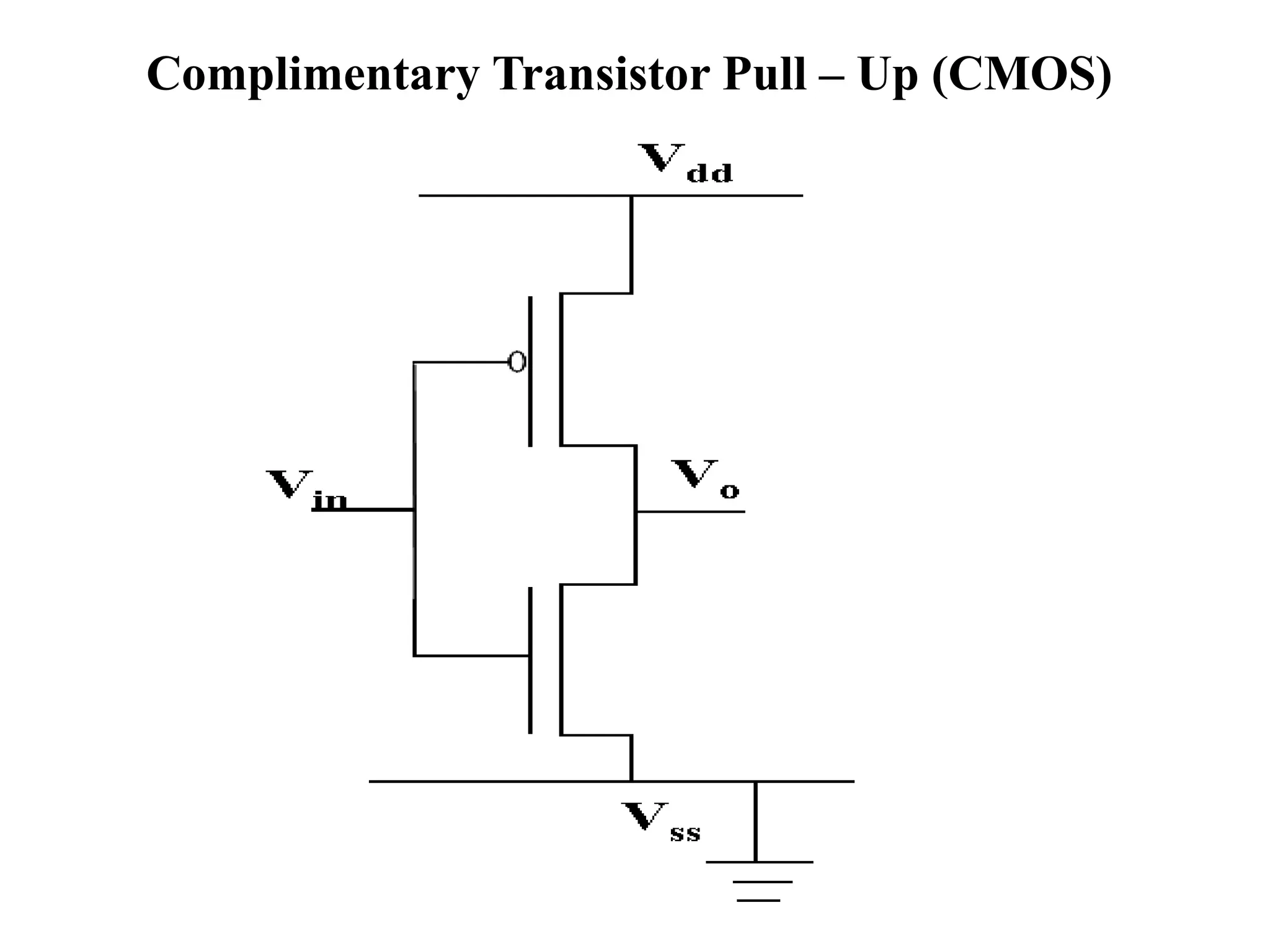

11. Complimentary Transistor Pull – Up (CMOS)

12. • No current flow for either logical 1 or logical 0
inputs
• Full logical 1 and 0 levels are presented at the
output
• For devices of similar dimensions the p – channel is
slower than the n – channel device

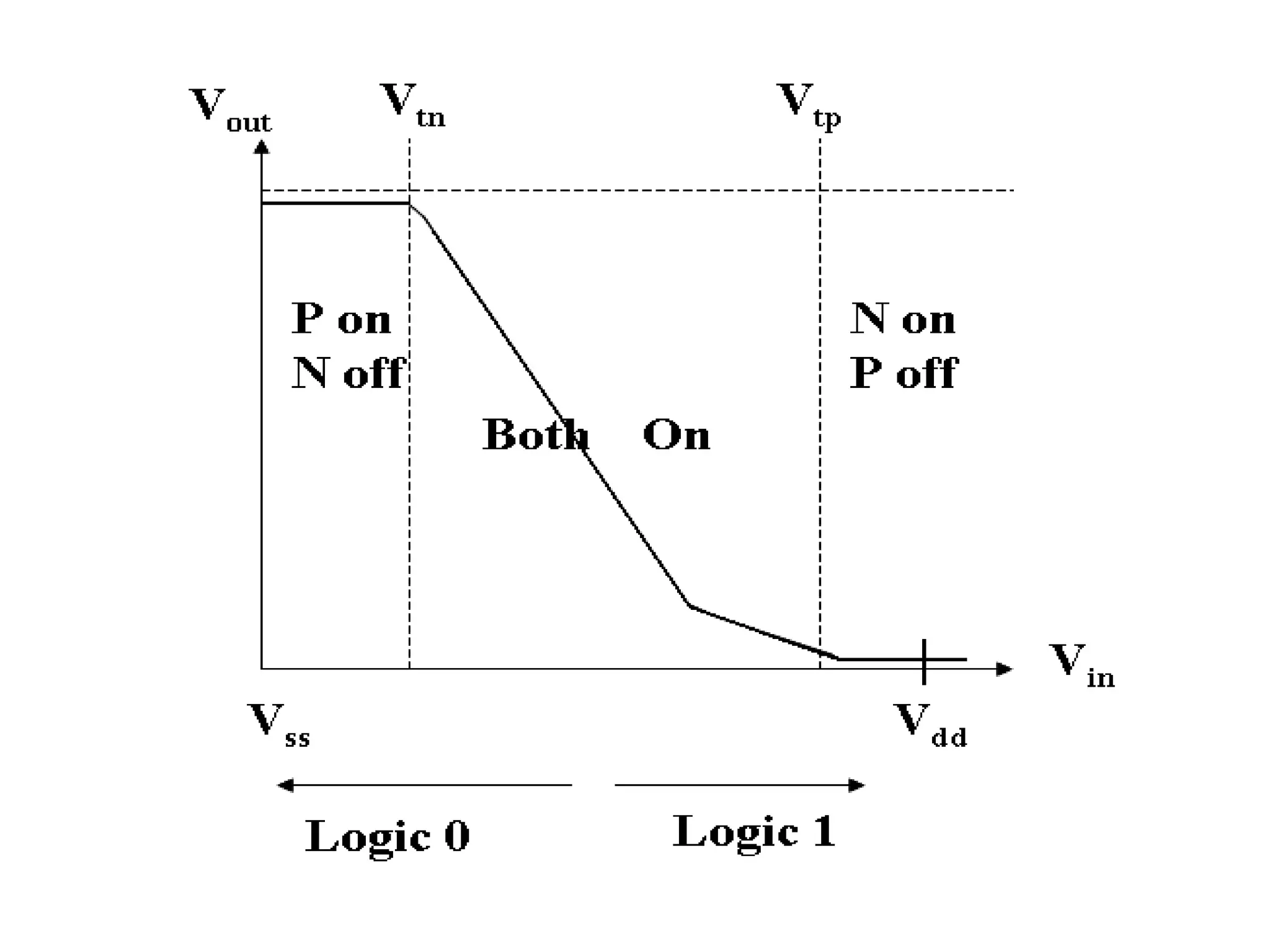

15. Region 1: Logic 0 , p on ; n off
Region 5: Logic 1 , p off ; n on
Region 2: Vin > Vtn :
Vdsn large – n in saturation ; Vdsp small – p in resistive
Small current from Vdd to Vss
Region 4: same as 2 except reversed p and n
Region 3: Both transistors are in saturation Large
instantaneous current flows
