William Ribarsky
(modified by Amos Johnson)
1

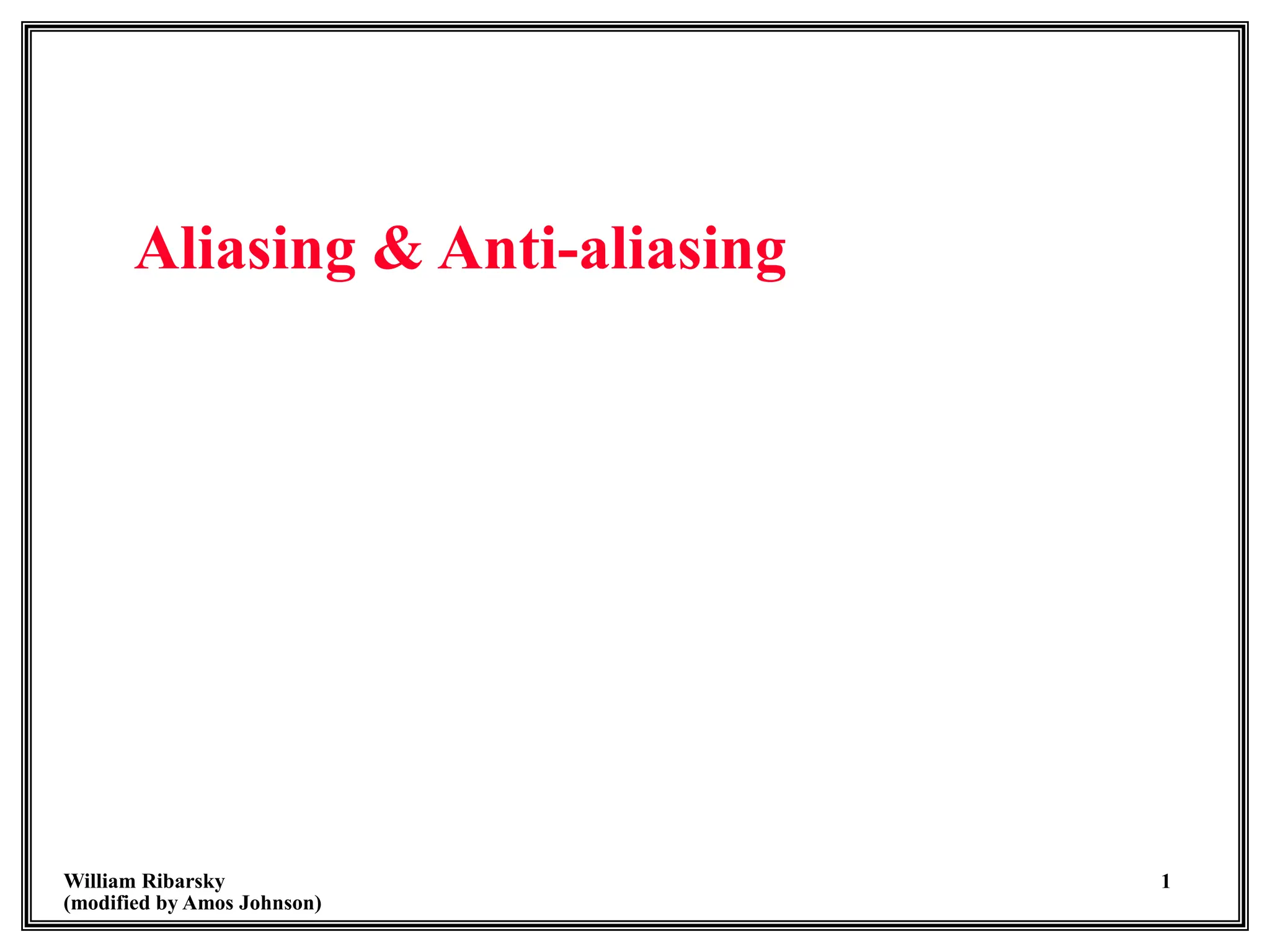

Aliasing & Anti-aliasing
William Ribarsky
(modified by Amos Johnson)
2
Aliasing
Aliasing is cause by the discrete nature of pixels (Sampling Error).
Approximation of lines and circles with discrete points often gives a staircase
appearance or "Jaggies".
Desired line
Aliased rendering of the line
William Ribarsky
(modified by Amos Johnson)
3
Anti-aliasing - Solutions
Aliasing can be smoothed out by using higher addressability.
If addressability is fixed but intensity is variable, use the intensity to control the
address of a "virtual pixel". Two adjacent pixels can be be used to give the
impression of a point part way between them. The perceived location of the
point is dependent upon the ratio of the intensities used at each. The
impression of a pixel located halfway between two addressable points can be
given by having two adjacent pixels at half intensity.
An antialiased line has a series of virtual pixels each located at the proper address.
William Ribarsky
(modified by Amos Johnson)
4
Anti-aliased Line Algorithm
Line drawing algorithms can easily be modified to implement virtual pixels. We use the
distance ( e ) value to determine pixel intensities.
Two possible cases which may occur for simple anti-aliased line algorithm:
B
C
D
e
A = max(e+0.5,1) - 1
B = 1 - abs(e-0.5)
C = 1 - min(e+0.5,1)
D = 0
0 <= e <=1.5 0 > e >= -1.5
A
B
C
D
e
A = 0
B = 1 + max(e-0.5, -1)
C = 1 - abs(e+0.5)
D = -min(e-0.5, -1) - 1
A
When color is used
rather than a grey
scale, the red, green
and blue components
are interpolated
separately to
determine each one's
proper intensity.
William Ribarsky
(modified by Amos Johnson)
5
Anti-aliased Circle Algorithm
Circle drawing algorithms can also be easily modified to implement virtual pixels.
Once again, we use the distance ( e ) value to determine pixel intensities.
Two possible cases which may occur for simple anti-aliased circle algorithm:
B
e
B = 1 - abs(e-0.5)
A = 1 - min(e+0.5,1)
0 <= e <= 1/2 0 > e >= -1/2
A
A = 1 - abs(e+0.5)
B = 1 + max(e-0.5, -1)
When color is used
rather than a grey
scale, the red, green
and blue components
are interpolated
separately to
determine each one's
proper intensity.
B
e
A
