Airfield Signs & Markings Explained | ICAO Airport Signage Guide | Runway & Taxiway Signs | Airfield Ground Lighting (AGL)

Airfield Signs and Markings are essential visual guidance systems that help pilots navigate airports safely during taxiing, takeoff, landing, and low-visibility operations. Working alongside Airfield Ground Lighting (AGL), these signs and pavement markings reduce runway incursions, improve situational awareness, and ensure compliance with ICAO Annex 14 standards. This presentation by Rahul Sharma – Airfield Ground Lighting (AGL) Specialist provides a comprehensive guide to airport signs, runway markings, taxiway signage, holding positions, color coding, and integrated lighting systems used at modern international airports. Topics Covered Introduction to Airfield Signs & Markings ICAO Annex 14 Airport Signage Standards Airfield Guidance Signs Mandatory Instruction Signs Direction Signs Location Signs Destination Signs Information Signs ICAO Sign Color Coding Runway Holding Position Signs ILS Critical Area Signs No Entry Signs Runway Designation Signs Taxiway Guidance Signs Runway Holding Position Markings Runway Guard Lights (RGL) Stop Bars CAT I, CAT II & CAT III Holding Positions Taxi Route Guidance Airfield Sign Integration with Lighting Systems This presentation explains how mandatory signs, location signs, direction signs, and destination signs help pilots navigate complex airport layouts while preventing runway incursions. It also covers ICAO sign color coding, runway holding positions, ILS critical areas, stop bars, runway guard lights, and the integration of airfield signage with lighting systems to create a safe and efficient airport movement environment. The presentation further explores taxi route guidance, signage placement principles, and best practices for complex airport operations. This presentation is ideal for: Airfield Ground Lighting (AGL) Engineers Airport Electrical Engineers Airport Operations Teams Aviation Professionals Airport Consultants Civil Aviation Students Electrical Engineering Students ICAO & DGCA Exam Aspirants Airport Infrastructure Professionals Aviation Enthusiasts Whether you're studying airport lighting systems, preparing for aviation exams, or working in airport infrastructure, this presentation provides a practical and technically accurate understanding of Airfield Signs & Markings, helping improve airport safety, pilot navigation, and operational efficiency. Author: Rahul Sharma Airfield Ground Lighting (AGL) Specialist

Engineering◦
Downloaded 13 times
SECTION - 9 AIRFIELD SIGNS & MARKINGS OVERVIEW Rahul Sharma | Airfield Ground Lighting (AGL) Specialist © Rahul Sharma INTRODUCTION TO AIRFIELD GROUND LIGHTING (AGL) By Rahul Sharma Airfield Ground Lighting (AGL) Specialist This presentation is intended for introductory and educational purposes only. It does not constitute engineering specifications or regulatory guidance.

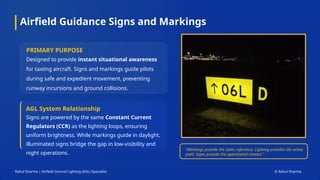

Airfield Guidance Signs and Markings Rahul Sharma | Airfield Ground Lighting (AGL) Specialist © Rahul Sharma PRIMARY PURPOSE Designed to provide instant situational awareness for taxiing aircraft. Signs and markings guide pilots during safe and expedient movement, preventing runway incursions and ground collisions. AGL System Relationship Signs are powered by the same Constant Current Regulators (CCR) as the lighting loops, ensuring uniform brightness. While markings guide in daylight, illuminated signs bridge the gap in low-visibility and night operations. "Markings provide the static reference; Lighting provides the active path; Signs provide the operational context."

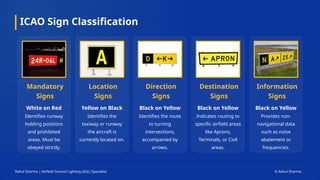

ICAO Sign Classification Rahul Sharma | Airfield Ground Lighting (AGL) Specialist © Rahul Sharma Mandatory Signs White on Red Identifies runway holding positions and prohibited areas. Must be obeyed strictly. Location Signs Yellow on Black Identifies the taxiway or runway the aircraft is currently located on. Direction Signs Black on Yellow Identifies the route to turning intersections, accompanied by arrows. Destination Signs Black on Yellow Indicates routing to specific airfield areas like Aprons, Terminals, or Civil areas. Information Signs Black on Yellow Provides non- navigational data such as noise abatement or frequencies.

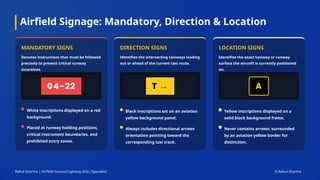

Airfield Signage: Mandatory, Direction & Location MANDATORY SIGNS Denotes instructions that must be followed precisely to prevent critical runway incursions. White inscriptions displayed on a red background. Placed at runway holding positions, critical instrument boundaries, and prohibited entry zones. DIRECTION SIGNS Identifies the intersecting taxiways leading out or ahead of the current taxi route. Black inscriptions set on an aviation yellow background panel. Always includes directional arrows orientation pointing toward the corresponding taxi track. LOCATION SIGNS Identifies the exact taxiway or runway surface the aircraft is currently positioned on. Yellow inscriptions displayed on a solid black background frame. Never contains arrows; surrounded by an aviation yellow border for distinction. Rahul Sharma | Airfield Ground Lighting (AGL) Specialist © Rahul Sharma

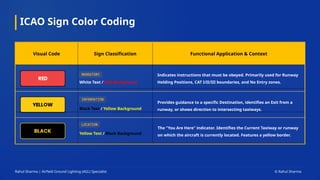

ICAO Sign Color Coding Visual Code Sign Classification Functional Application & Context White Text / Red Background Black Text / Yellow Background Yellow Text / Black Background Indicates instructions that must be obeyed. Primarily used for Runway Holding Positions, CAT I/II/III boundaries, and No Entry zones. Provides guidance to a specific Destination, identifies an Exit from a runway, or shows direction to intersecting taxiways. The "You Are Here" indicator. Identifies the Current Taxiway or runway on which the aircraft is currently located. Features a yellow border. Rahul Sharma | Airfield Ground Lighting (AGL) Specialist © Rahul Sharma

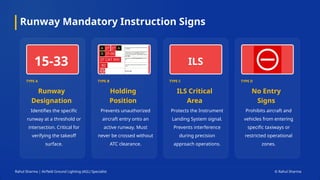

Runway Mandatory Instruction Signs Rahul Sharma | Airfield Ground Lighting (AGL) Specialist © Rahul Sharma TYPE A Runway Designation Identifies the specific runway at a threshold or intersection. Critical for verifying the takeoff surface. TYPE B Holding Position Prevents unauthorized aircraft entry onto an active runway. Must never be crossed without ATC clearance. TYPE C ILS Critical Area Protects the Instrument Landing System signal. Prevents interference during precision approach operations. TYPE D No Entry Signs Prohibits aircraft and vehicles from entering specific taxiways or restricted operational zones. 15-33 ILS

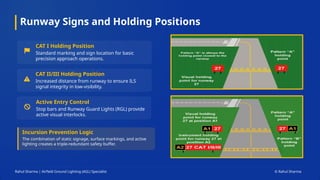

Runway Signs and Holding Positions Rahul Sharma | Airfield Ground Lighting (AGL) Specialist © Rahul Sharma Incursion Prevention Logic The combination of static signage, surface markings, and active lighting creates a triple-redundant safety buffer. CAT I Holding Position Standard marking and sign location for basic precision approach operations. CAT II/III Holding Position Increased distance from runway to ensure ILS signal integrity in low-visibility. Active Entry Control Stop bars and Runway Guard Lights (RGL) provide active visual interlocks.

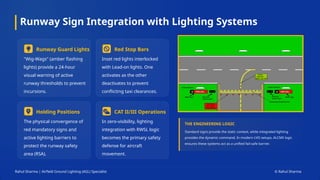

Runway Sign Integration with Lighting Systems Rahul Sharma | Airfield Ground Lighting (AGL) Specialist © Rahul Sharma Runway Guard Lights "Wig-Wags" (amber flashing lights) provide a 24-hour visual warning of active runway thresholds to prevent incursions. Red Stop Bars Inset red lights interlocked with Lead-on lights. One activates as the other deactivates to prevent conflicting taxi clearances. Holding Positions The physical convergence of red mandatory signs and active lighting barriers to protect the runway safety area (RSA). CAT II/III Operations In zero-visibility, lighting integration with RWSL logic becomes the primary safety defense for aircraft movement. THE ENGINEERING LOGIC Standard signs provide the static context, while integrated lighting provides the dynamic command. In modern LVO setups, ALCMS logic ensures these systems act as a unified fail-safe barrier.

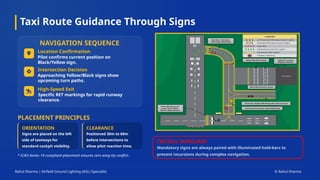

Taxi Route Guidance Through Signs Rahul Sharma | Airfield Ground Lighting (AGL) Specialist © Rahul Sharma NAVIGATION SEQUENCE PLACEMENT PRINCIPLES * ICAO Annex 14 compliant placement ensures zero wing-tip conflict. CRITICAL SAFEGUARD Mandatory signs are always paired with illuminated hold-bars to prevent incursions during complex navigation. Location Confirmation Intersection Decision High-Speed Exit ORIENTATION Signs are placed on the left side of taxiways for standard cockpit visibility. CLEARANCE Positioned 30m to 60m before intersections to allow pilot reaction time. Pilot confirms current position on Black/Yellow sign. Approaching Yellow/Black signs show upcoming turn paths. Specific RET markings for rapid runway clearance.

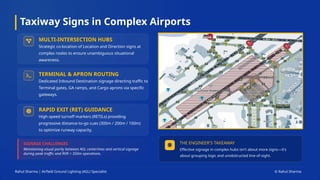

Taxiway Signs in Complex Airports Rahul Sharma | Airfield Ground Lighting (AGL) Specialist © Rahul Sharma SIGNAGE CHALLENGES Maintaining visual parity between AGL centerlines and vertical signage during peak traffic and RVR < 350m operations. MULTI-INTERSECTION HUBS Strategic co-location of Location and Direction signs at complex nodes to ensure unambiguous situational awareness. TERMINAL & APRON ROUTING Dedicated Inbound Destination signage directing traffic to Terminal gates, GA ramps, and Cargo aprons via specific gateways. RAPID EXIT (RET) GUIDANCE High-speed turnoff markers (RETILs) providing progressive distance-to-go cues (300m / 200m / 100m) to optimize runway capacity. THE ENGINEER'S TAKEAWAY Effective signage in complex hubs isn't about more signs—it's about grouping logic and unobstructed line-of-sight.
