Airfield Ground Lighting (AGL) System Architecture & Electrical Systems | CCR, Isolating Transformers & ALCMS | ICAO Guide

Airfield Ground Lighting (AGL) System Architecture forms the backbone of every airport lighting installation, ensuring reliable power distribution, uniform light intensity, redundancy, and fail-safe operation during normal and low-visibility conditions. This presentation by Rahul Sharma – Airfield Ground Lighting (AGL) Specialist provides a comprehensive technical guide to AGL electrical systems, including Constant Current Regulators (CCR), series circuits, isolating transformers, L-823 connectors, ALCMS, lightning protection, and emergency power systems. Designed for airport electrical engineers, AGL specialists, aviation professionals, students, and airport operators, this presentation explains how modern airfield lighting systems are powered, monitored, protected, and maintained in accordance with ICAO Annex 14 and international airport engineering standards. Topics Covered Complete AGL System Architecture Constant Current Regulators (CCR) 6.6A Series Circuit Design Electrical Redundancy Interleaved Dual-Loop Architecture Airfield Lighting Control and Monitoring System (ALCMS) Individual Lamp Control and Monitoring System (ILCMS) Isolating Transformers (FAA L-830/L-831) Uniform Current Distribution Brightness Control & 5-Step Intensity Regulation CCR Functional Block Diagram Common CCR Failure Modes Airfield Lighting Power Supply System Primary and Secondary AGL Cables FAA L-823 Connectors Cable Jointing and Insulation Resistance Lightning & Surge Protection Counterpoise Systems Emergency Power & UPS Systems ICAO Changeover Time Requirements This presentation explains the engineering logic behind constant current series circuits, how CCR systems maintain identical lamp intensity, how isolating transformers preserve circuit continuity, and how ALCMS enables real-time control and fault monitoring across the airfield. It also covers L-823 connectors, 5kV primary cables, lightning protection layers, and emergency power systems required for CAT I, CAT II, and CAT III airport operations. This presentation is ideal for: Airfield Ground Lighting (AGL) Engineers Airport Electrical Engineers Airport Operations Teams Aviation Professionals Airport Consultants Civil Aviation Students Electrical Engineering Students ICAO & DGCA Exam Aspirants Airport Infrastructure Professionals Aviation Enthusiasts Whether you're learning airport electrical systems or designing and maintaining operational airfield lighting networks, this presentation provides a practical and technically accurate understanding of AGL System Architecture and Electrical Systems, helping improve reliability, safety, and regulatory compliance. Author: Rahul Sharma - Airfield Ground Lighting (AGL) Specialist

Engineering◦
Downloaded 11 times
SECTION - 11 SYSTEM ARCHITECTURE & ELECTRICAL SYSTEMS Rahul Sharma | Airfield Ground Lighting (AGL) Specialist © Rahul Sharma INTRODUCTION TO AIRFIELD GROUND LIGHTING (AGL) By Rahul Sharma Airfield Ground Lighting (AGL) Specialist This presentation is intended for introductory and educational purposes only. It does not constitute engineering specifications or regulatory guidance.
COMPLETE AGL SYSTEM ARCHITECTURE CONSTANT CURRENT REGULATOR CCR Substation [6.6A] SERIES CIRCUIT LOOP High-Voltage Primary Cable ISOLATING TRANSFORMER L-830 Secondary Match AIRFIELD FIXTURE LED/Halogen Photometrics Tower Integration & ALCMS The Airfield Lighting Control and Monitoring System bridges the Air Traffic Control (ATC) touchscreens and the vault substations, executing routing and intensity changes instantly. Redundancy Concept Features interleaved dual-loop architecture. Alternating runway fixtures are split across entirely separate CCR loops to maintain 50% spacing and uniformity during a primary failure event. Real-Time Monitoring Tracks active circuit current, isolation degradation, and open loops. Incorporates individual lamp control and monitoring systems (ILCMS) for pinpointing field faults instantly. Rahul Sharma | Airfield Ground Lighting (AGL) Specialist © Rahul Sharma
Electrical Architecture & Redundancy Rahul Sharma | Airfield Ground Lighting (AGL) Specialist © Rahul Sharma Constant Current: AGL uses series loops to ensure every lamp receives identical current. Isolation: Transformers allow the loop to stay closed even if a lamp fails. Fail-Safe Design: Prevents localized dark zones on the runway. Operational Safety: Maintains a standard pattern even during partial system failure. Circuit Comparison SERIES (AGL) VS. STANDARD PARALLEL Interleaved Architecture DUAL-LOOP REDUNDANCY STRATEGY Circuit A (Even) Series: Uniform Current (6.6A) = Uniform Intensity Parallel: Voltage Drop = Inconsistent Brightness Circuit B (Odd) CCR

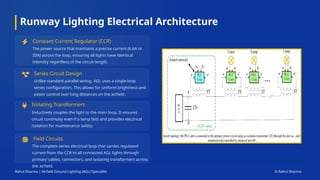

Runway Lighting Electrical Architecture Constant Current Regulator (CCR) The power source that maintains a precise current (6.6A or 20A) across the loop, ensuring all lights have identical intensity regardless of the circuit length. Series Circuit Design Unlike standard parallel wiring, AGL uses a single-loop series configuration. This allows for uniform brightness and easier control over long distances on the airfield. Isolating Transformers Inductively couples the light to the main loop. It ensures circuit continuity even if a lamp fails and provides electrical isolation for maintenance safety. Field Circuits The complete series electrical loop that carries regulated current from the CCR to all connected AGL lights through primary cables, connectors, and isolating transformers across the airfield. Rahul Sharma | Airfield Ground Lighting (AGL) Specialist © Rahul Sharma
Intensity Control & Brightness Steps STANDARD STANDARDIZED ICAO 5-STEP REGULATION PROFILE Day/Night Adaptation Runway brightness thresholds alter dynamically based on ambient background luminance. High percentages counteract glare in bright daylight, while attenuated lower steps avoid blinding pilots at night. Visibility Adaptation ATC modulates scaling constraints actively alongside changing weather factors. Thick fog conditions (CAT II/III operations) necessitate continuous maximum step activation to preserve spatial orientation. CCR Current Regulation Constant Current Regulators execute precision switching between distinct step steps via discrete output currents (e.g., 4.8A to 6.6A), matching targeted photometric parameters perfectly. B 1 1% Intensity B2 3% Intensity B3 10% Intensity B4 30% Intensity B5 100% Intensity Rahul Sharma | Airfield Ground Lighting (AGL) Specialist © Rahul Sharma

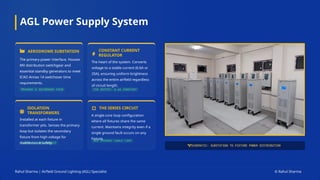

AGL Power Supply System The primary power interface. Houses MV distribution switchgear and essential standby generators to meet ICAO Annex 14 switchover time requirements. The heart of the system. Converts voltage to a stable current (6.6A or 20A), ensuring uniform brightness across the entire airfield regardless of circuit length. Installed at each fixture in transformer pits. Senses the primary loop but isolates the secondary fixture from high voltage for maintenance safety. A single-core loop configuration where all fixtures share the same current. Maintains integrity even if a single ground fault occurs on any Fixture. AERODROME SUBSTATION CONSTANT CURRENT REGULATOR ISOLATION TRANSFORMERS THE SERIES CIRCUIT Rahul Sharma | Airfield Ground Lighting (AGL) Specialist © Rahul Sharma
Constant Current Regulator (CCR) Why Constant Current? Ensures every lamp in the series loop has identical intensity. It eliminates voltage drop issues over long airfield circuits, maintaining uniform photometric performance. Brightness Control ATC manages light intensity by commanding the CCR to adjust output current. This allows for safe operations ranging from full daylight to extreme low-visibility night conditions. Typical Current Steps Operates on a standard 5-step brightness scale: Step 1 (2.8A), Step 2 (3.4A), Step 3 (4.1A), Step 4 (5.2A), and Step 5 (6.6A) for peak intensity. Rahul Sharma | Airfield Ground Lighting (AGL) Specialist © Rahul Sharma
Functional Block Diagram Of CCR Hall Rahul Sharma | Airfield Ground Lighting (AGL) Specialist © Rahul Sharma MAIN LV PANEL 415V AC Input from Substations / DG Sets with Auto Changeover CCR UNITS Constant Current Regulator: Converts Variable Voltage to 6.6A Constant Current CIRCUIT SELECTOR Multi-circuit Management & Individual Loop Monitoring AIRFIELD LOAD Series Isolation Transformers & Runway/Taxiway Light Fixtures ALCMS INTERFACE Remote Control & Monitoring via PLC-based redundant network fiber links. PROTECTION LAYER Includes Open Circuit, Over-current, and Earth Leakage protection systems.

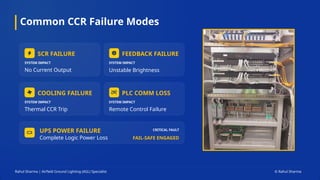

Common CCR Failure Modes Rahul Sharma | Airfield Ground Lighting (AGL) Specialist © Rahul Sharma SCR FAILURE SYSTEM IMPACT No Current Output FEEDBACK FAILURE SYSTEM IMPACT Unstable Brightness COOLING FAILURE SYSTEM IMPACT Thermal CCR Trip PLC COMM LOSS SYSTEM IMPACT Remote Control Failure CRITICAL FAULT FAIL-SAFE ENGAGED UPS POWER FAILURE Complete Logic Power Loss
Isolating Transformers FAA L-830 Standard Designed per FAA L-830 (60Hz) or L-831 (50Hz) specifications. These rubber-molded units are rated for wattage (15W to 300W) to match specific fixture requirements. Isolation Principle Uses electromagnetic induction to transfer power. It keeps the high-voltage primary series loop intact even if an individual lamp fails or the secondary circuit is shorted. Series-to-Parallel Conversion Acts as the critical interface that converts the primary series circuit energy to a safe, isolated secondary output for individual airfield lighting fixtures. Rahul Sharma | Airfield Ground Lighting (AGL) Specialist © Rahul Sharma

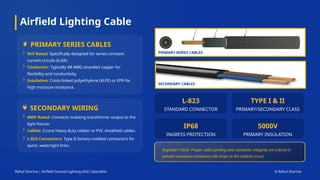

Airfield Lighting Cable Rahul Sharma | Airfield Ground Lighting (AGL) Specialist © Rahul Sharma PRIMARY SERIES CABLES SECONDARY WIRING 5kV Rated: Specifically designed for series constant current circuits (6.6A). Conductor: Typically #8 AWG stranded copper for flexibility and conductivity. Insulation: Cross-linked polyethylene (XLPE) or EPR for high moisture resistance. 600V Rated: Connects isolating transformer output to the light fixture. Cables: 2-core heavy-duty rubber or PVC sheathed cables. L-823 Connectors: Type II factory-molded connectors for quick, watertight links. L-823 STANDARD CONNECTOR TYPE I & II PRIMARY/SECONDARY CLASS IP68 INGRESS PROTECTION 5000V PRIMARY INSULATION Engineer's Note: Proper cable jointing and connector integrity are critical to prevent insulation resistance (IR) drops in the airfield circuit. PRIMARY SERIES CABLES SECONDARY CABLES

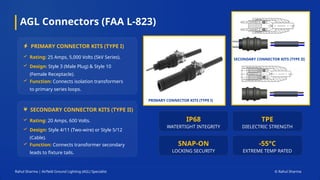

AGL Connectors (FAA L-823) Rahul Sharma | Airfield Ground Lighting (AGL) Specialist © Rahul Sharma PRIMARY CONNECTOR KITS (TYPE I) SECONDARY CONNECTOR KITS (TYPE II) Rating: 25 Amps, 5,000 Volts (5kV Series). Design: Style 3 (Male Plug) & Style 10 (Female Receptacle). Function: Connects isolation transformers to primary series loops. Rating: 20 Amps, 600 Volts. Design: Style 4/11 (Two-wire) or Style 5/12 (Cable). Function: Connects transformer secondary leads to fixture tails. IP68 WATERTIGHT INTEGRITY TPE DIELECTRIC STRENGTH SNAP-ON LOCKING SECURITY -55°C EXTREME TEMP RATED PRIMARY CONNECTOR KITS (TYPE I) SECONDARY CONNECTOR KITS (TYPE II)

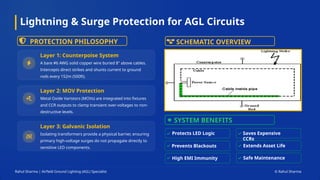

Rahul Sharma | Airfield Ground Lighting (AGL) Specialist © Rahul Sharma Lightning & Surge Protection for AGL Circuits PROTECTION PHILOSOPHY SCHEMATIC OVERVIEW SYSTEM BENEFITS Layer 1: Counterpoise System A bare #6 AWG solid copper wire buried 8" above cables. Intercepts direct strikes and shunts current to ground rods every 152m (500ft). Layer 2: MOV Protection Metal Oxide Varistors (MOVs) are integrated into fixtures and CCR outputs to clamp transient over-voltages to non- destructive levels. Layer 3: Galvanic Isolation Isolating transformers provide a physical barrier, ensuring primary high-voltage surges do not propagate directly to sensitive LED components. Protects LED Logic Prevents Blackouts High EMI Immunity Safe Maintenance Extends Asset Life Saves Expensive CCRs

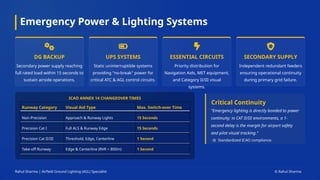

Emergency Power & Lighting Systems Rahul Sharma | Airfield Ground Lighting (AGL) Specialist © Rahul Sharma DG BACKUP Secondary power supply reaching full rated load within 15 seconds to sustain airside operations. UPS SYSTEMS Static uninterruptible systems providing "no-break" power for critical ATC & AGL control circuits. ESSENTIAL CIRCUITS Priority distribution for Navigation Aids, MET equipment, and Category II/III visual systems. SECONDARY SUPPLY Independent redundant feeders ensuring operational continuity during primary grid failure. ICAO ANNEX 14 CHANGEOVER TIMES Runway Category Visual Aid Type Max. Switch-over Time Non-Precision Approach & Runway Lights 15 Seconds Precision Cat I Full ALS & Runway Edge 15 Seconds Precision Cat II/III Threshold, Edge, Centerline 1 Second Take-off Runway Edge & Centerline (RVR < 800m) 1 Second Critical Continuity "Emergency lighting is directly bonded to power continuity; in CAT II/III environments, a 1- second delay is the margin for airport safety and pilot visual tracking." Standardized ICAO compliance.
