Fire Safety in Apartment Complex: Fire Operations and Evacuation Drills

Fire safety in Apartment Complexes are very important. While the chances of a fire starting in an apartment are about the same as in a private home, its more risky to have a fire in apartments as, apartment fires have the potential to spread fire, heat and smoke throughout the building affecting the safety of all occupants. There are special areas of concern when it comes to fire safety in apartment buildings. Families in apartment buildings live close together; affecting each other’s risks associated with fire. ApartmentADDA Institute of MDU Management (AIMM) conducted a Fire Operations and Evacuation Drill workshop in Bangalore. Some other interesting facts highlighted at the workshop were: • Every 3 hours, 6 individuals die because of a fire accident • Every year about 24,576 deaths are caused due to fire. • The fire department gets 20 to 35 fire breakout calls each day Check the complete details on some aspects covered at the workshop here: http://apartmentadda.com/blog/blog/2015/03/31/aimm-conducts-fire-operation-drill-workshop-in-bangalore/

Real Estate◦
Related topics:
Fire Safety Overview•

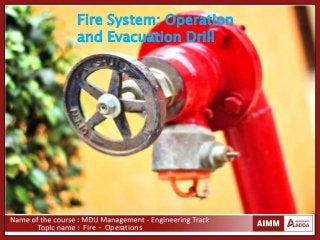

Fire - Operations Fire System: Operation and Evacuation Drill
Fire - Operations Fire System: Operation and Evacuation Drill

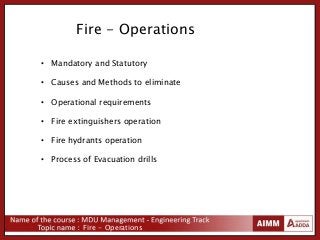

Fire - Operations • Mandatory and Statutory • Causes and Methods to eliminate • Operational requirements • Fire extinguishers operation • Fire hydrants operation • Process of Evacuation drills Fire - Operations

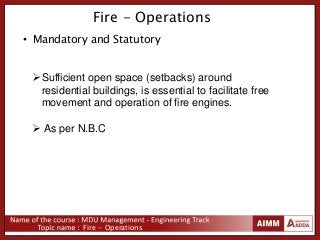

Fire - Operations Fire - Operations • Mandatory and Statutory Sufficient open space (setbacks) around residential buildings, is essential to facilitate free movement and operation of fire engines.  As per N.B.C

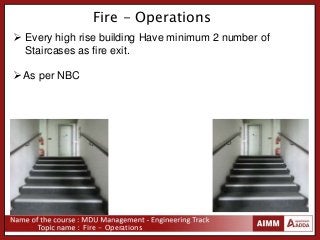

Fire - Operations Fire - Operations  Every high rise building Have minimum 2 number of Staircases as fire exit. As per NBC

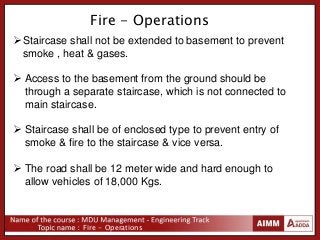

Fire - Operations Fire - Operations Staircase shall not be extended to basement to prevent smoke , heat & gases.  Access to the basement from the ground should be through a separate staircase, which is not connected to main staircase.  Staircase shall be of enclosed type to prevent entry of smoke & fire to the staircase & vice versa.  The road shall be 12 meter wide and hard enough to allow vehicles of 18,000 Kgs.

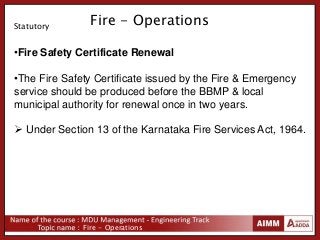

Fire - Operations Fire - Operations •Fire Safety Certificate Renewal •The Fire Safety Certificate issued by the Fire & Emergency service should be produced before the BBMP & local municipal authority for renewal once in two years.  Under Section 13 of the Karnataka Fire Services Act, 1964. Statutory

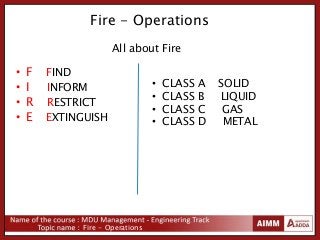

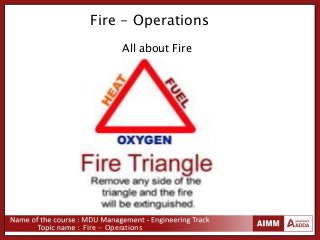

Fire - Operations Fire - Operations • F FIND • I INFORM • R RESTRICT • E EXTINGUISH • CLASS A SOLID • CLASS B LIQUID • CLASS C GAS • CLASS D METAL All about Fire
Fire - Operations Fire - Operations All about Fire
Fire - Operations Fire - Operations Common Causes

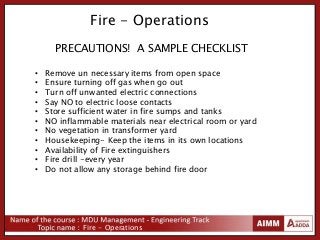

Fire - Operations Fire - Operations PRECAUTIONS! A SAMPLE CHECKLIST • Remove un necessary items from open space • Ensure turning off gas when go out • Turn off unwanted electric connections • Say NO to electric loose contacts • Store sufficient water in fire sumps and tanks • NO inflammable materials near electrical room or yard • No vegetation in transformer yard • Housekeeping- Keep the items in its own locations • Availability of Fire extinguishers • Fire drill -every year • Do not allow any storage behind fire door

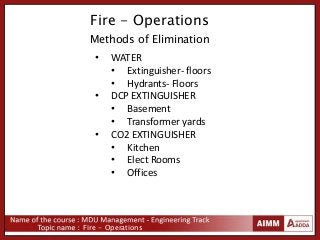

Fire - Operations Fire - Operations Methods of Elimination • WATER • Extinguisher- floors • Hydrants- Floors • DCP EXTINGUISHER • Basement • Transformer yards • CO2 EXTINGUISHER • Kitchen • Elect Rooms • Offices

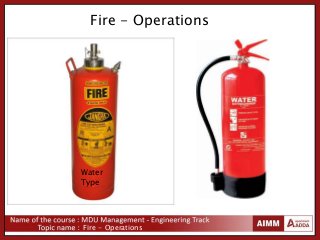

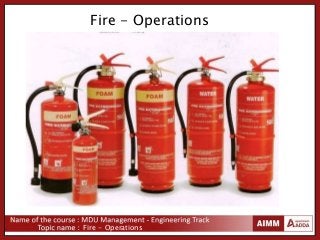

Fire - Operations Fire - Operations Water Type

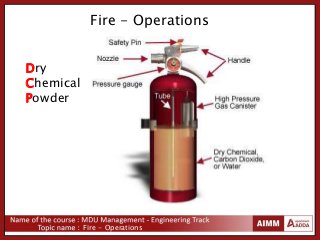

Fire - Operations Fire - Operations Dry Chemical Powder
Fire - Operations Fire - Operations
Fire - Operations Fire - Operations

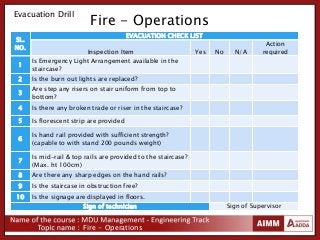

Fire - Operations Fire - Operations SL. NO. EVACUATION CHECK LIST Inspection Item Yes No N/A Action required 1 Is Emergency Light Arrangement available in the staircase? 2 Is the burn out lights are replaced? 3 Are step any risers on stair uniform from top to bottom? 4 Is there any broken trade or riser in the staircase? 5 Is florescent strip are provided 6 Is hand rail provided with sufficient strength? (capable to with stand 200 pounds weight) 7 Is mid-rail & top rails are provided to the staircase? (Max. ht 100cm) 8 Are there any sharp edges on the hand rails? 9 Is the staircase in obstruction free? 10 Is the signage are displayed in floors. Sign of technician Sign of Supervisor Evacuation Drill

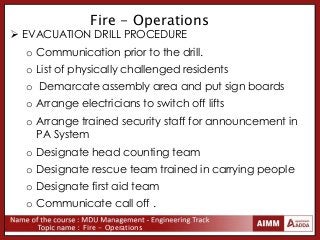

Fire - Operations Fire - Operations  EVACUATION DRILL PROCEDURE o Communication prior to the drill. o List of physically challenged residents o Demarcate assembly area and put sign boards o Arrange electricians to switch off lifts o Arrange trained security staff for announcement in PA System o Designate head counting team o Designate rescue team trained in carrying people o Designate first aid team o Communicate call off .

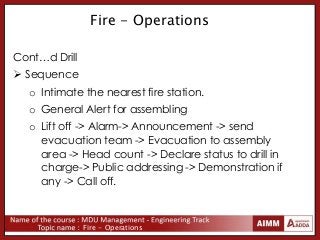

Fire - Operations Fire - Operations Cont…d Drill  Sequence o Intimate the nearest fire station. o General Alert for assembling o Lift off -> Alarm-> Announcement -> send evacuation team -> Evacuation to assembly area -> Head count -> Declare status to drill in charge-> Public addressing -> Demonstration if any -> Call off.

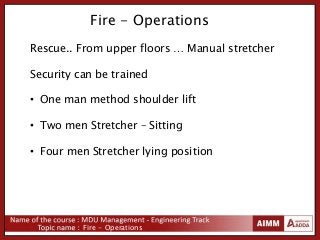

Fire - Operations Fire - Operations Rescue.. From upper floors … Manual stretcher Security can be trained • One man method shoulder lift • Two men Stretcher – Sitting • Four men Stretcher lying position
Fire - Operations Fire - Operations
Fire - Operations Fire - Operations

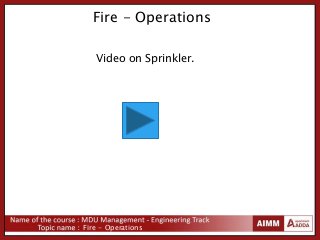

Fire - Operations Fire - Operations Video on Sprinkler.

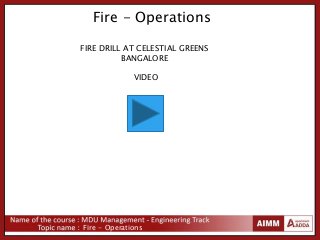

Fire - Operations Fire - Operations FIRE DRILL AT CELESTIAL GREENS BANGALORE VIDEO

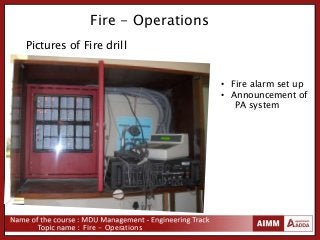

Fire - Operations Fire - Operations Pictures of Fire drill • Fire alarm set up • Announcement of PA system

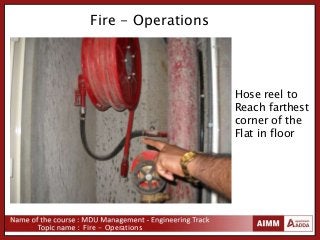

Fire - Operations Fire - Operations Hose reel to Reach farthest corner of the Flat in floor

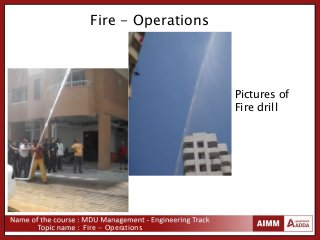

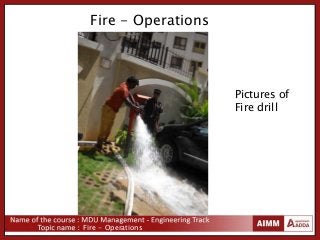

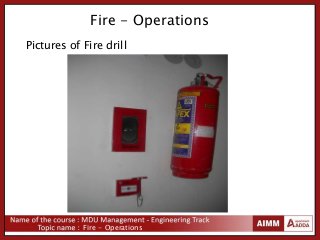

Fire - Operations Fire - Operations Pictures of Fire drill
Fire - Operations Fire - Operations Pictures of Fire drill

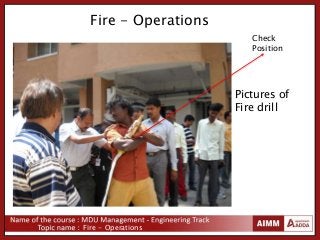

Fire - Operations Fire - Operations Pictures of Fire drill Check Position
Fire - Operations Fire - Operations Pictures of Fire drill

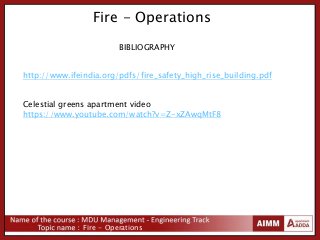

Fire - Operations Fire - Operations http://www.ifeindia.org/pdfs/fire_safety_high_rise_building.pdf Celestial greens apartment video https://www.youtube.com/watch?v=Z-xZAwqMtF8 BIBLIOGRAPHY
