Agile & Secure SDLC
The document discusses the Software Development Life Cycle (SDLC) focusing on both Agile and Secure methodologies, emphasizing the importance of managing project constraints and enhancing security throughout the development process. It highlights the high failure rates of traditional SDLC projects, the advantages of Agile methodologies, and the necessity of incorporating security practices to mitigate vulnerabilities. Additionally, it provides insights on various frameworks and standards, such as OWASP, and outlines best practices for integrating security into SDLC.
More Related Content
Agile & Secure SDLC
- 1. SDLC – Agile& Secure SDLC /Paul 20160511

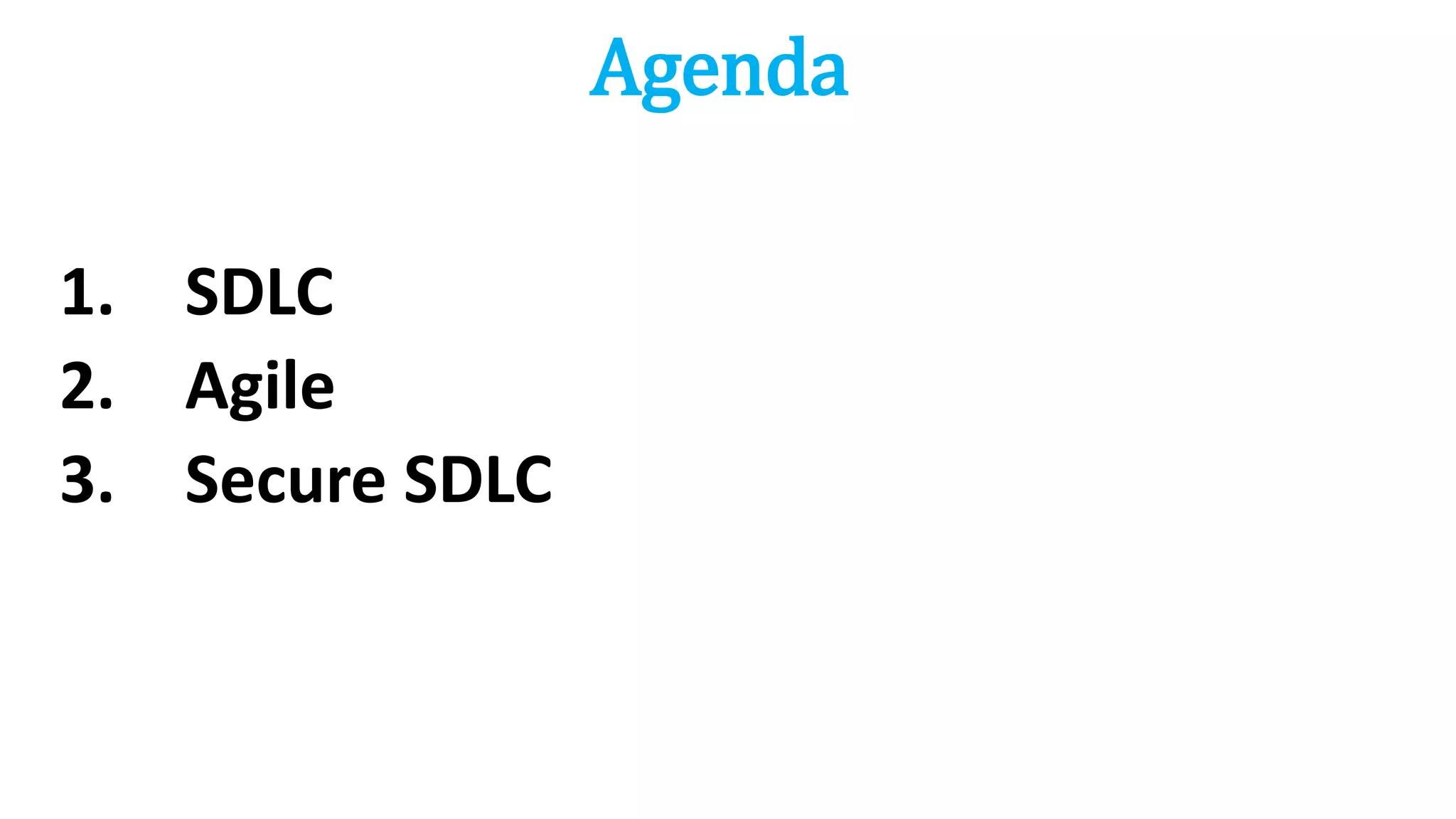

- 2. Agenda 1. SDLC 2. Agile 3.Secure SDLC
- 3.
- 4. I want tobuild a swing
- 5. I believe folkswill help me to build that
- 6. But it turnsout or even worse
- 7. That’s what Iwant Though I explained it at first

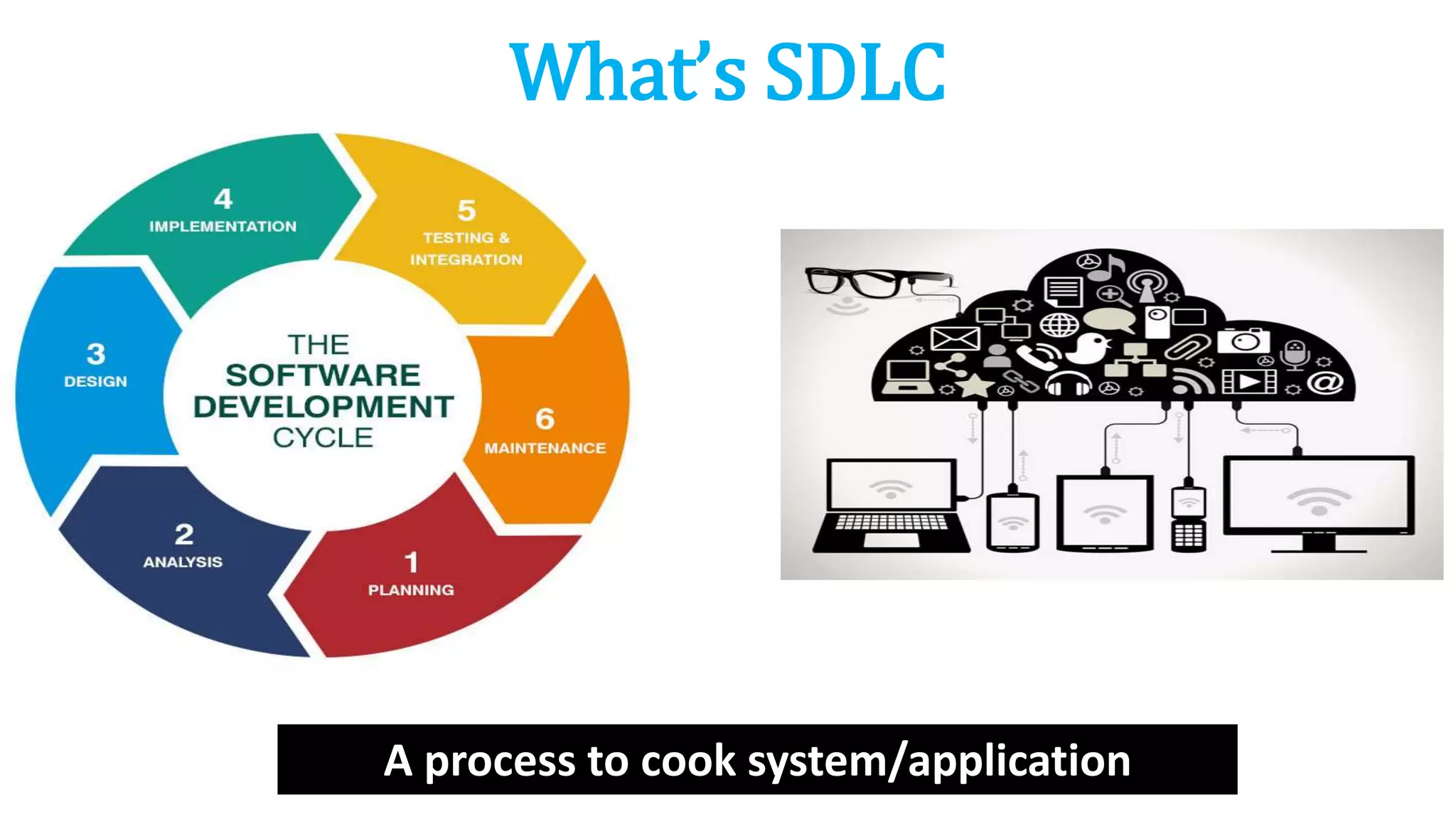

- 8. What’s SDLC A processto cook system/application

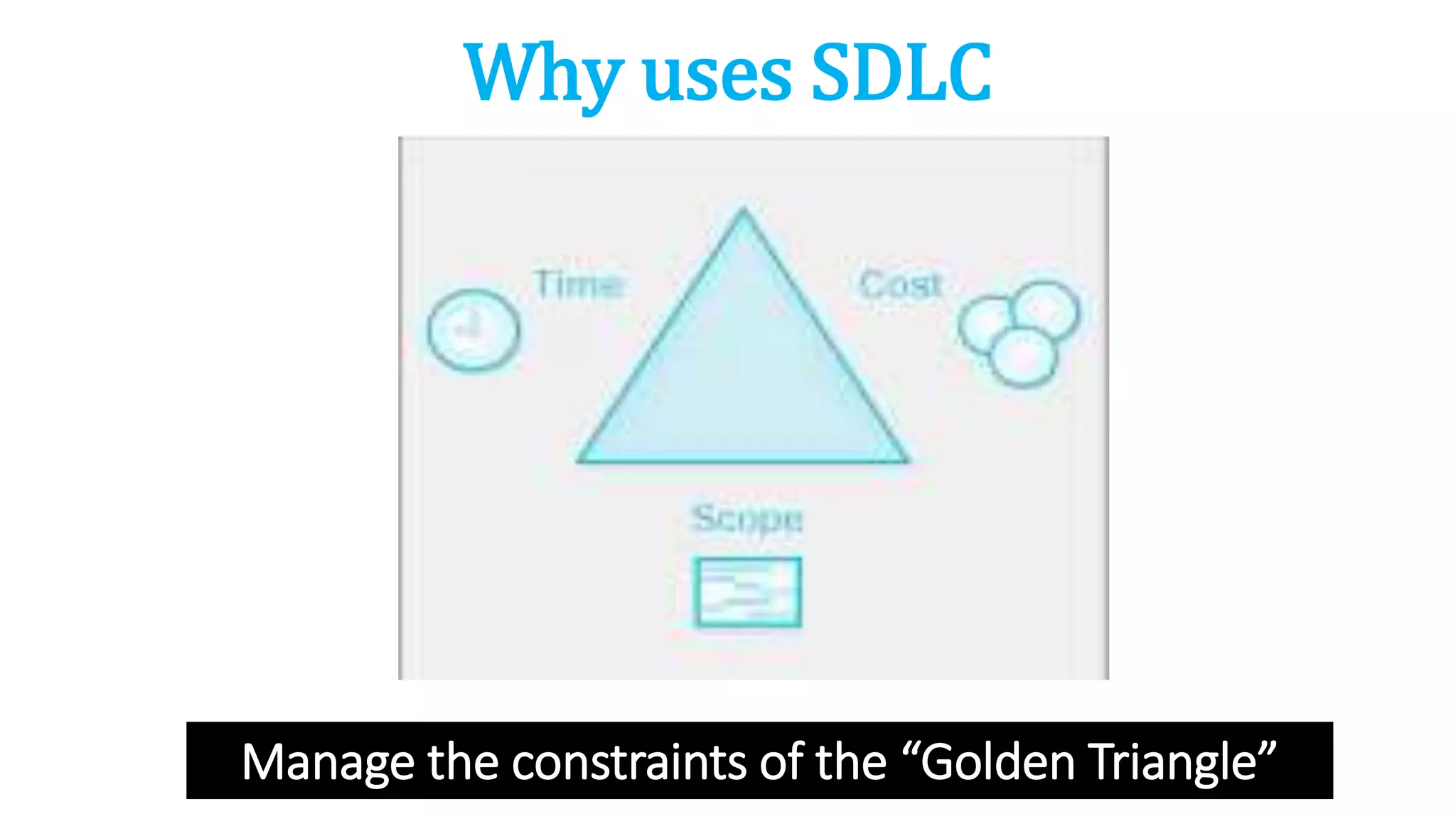

- 9. Why uses SDLC Managethe constraints of the “Golden Triangle”

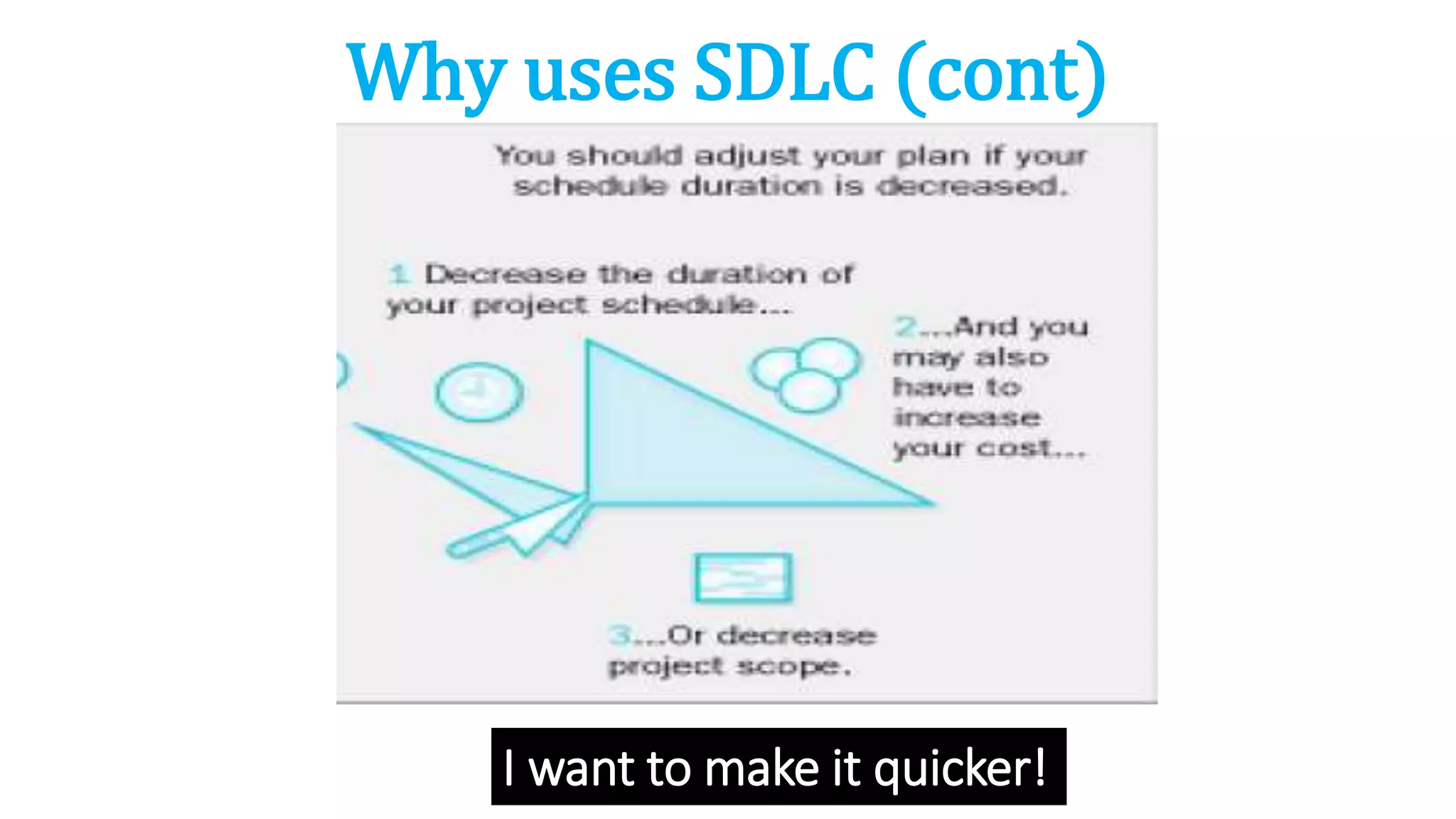

- 10. Why uses SDLC(cont) I want to make it quicker!

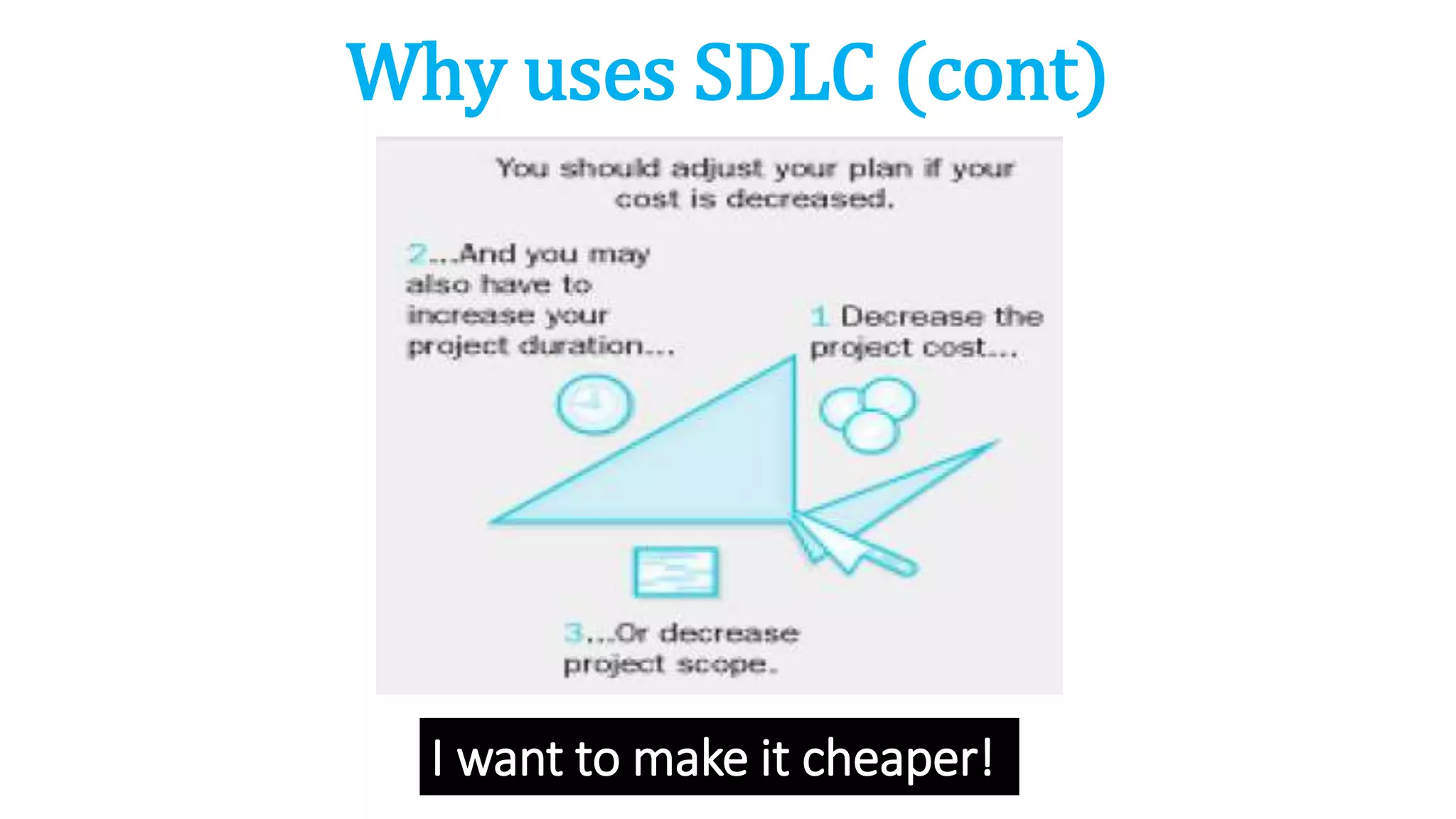

- 11. Why uses SDLC(cont) I want to make it cheaper!
- 12. Why uses SDLC(cont) I want to make it bigger!

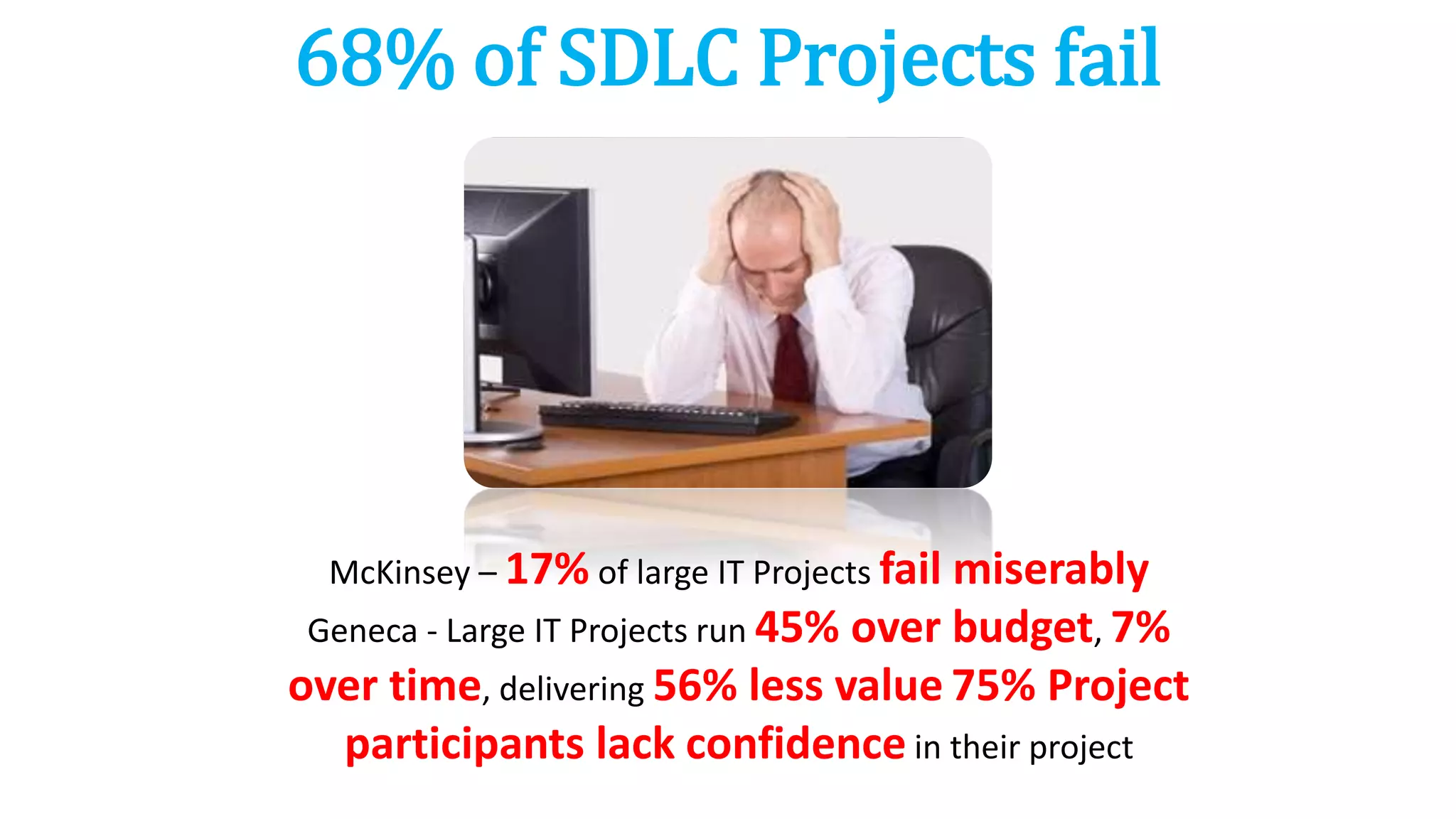

- 13. 68% of SDLCProjects fail McKinsey – 17% of large IT Projects fail miserably Geneca - Large IT Projects run 45% over budget, 7% over time, delivering 56% less value 75% Project participants lack confidence in their project

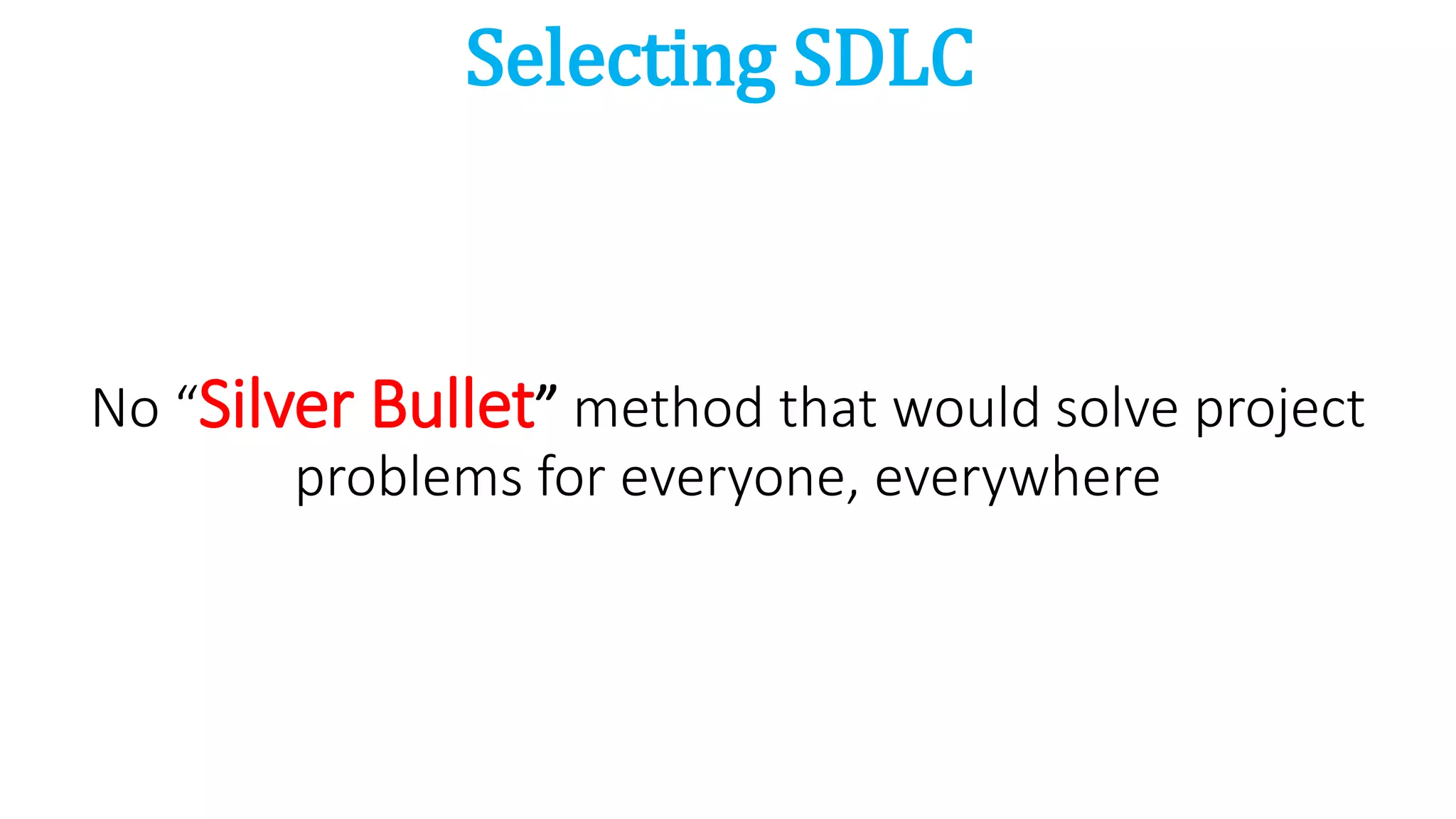

- 14. No “Silver Bullet”method that would solve project problems for everyone, everywhere Selecting SDLC

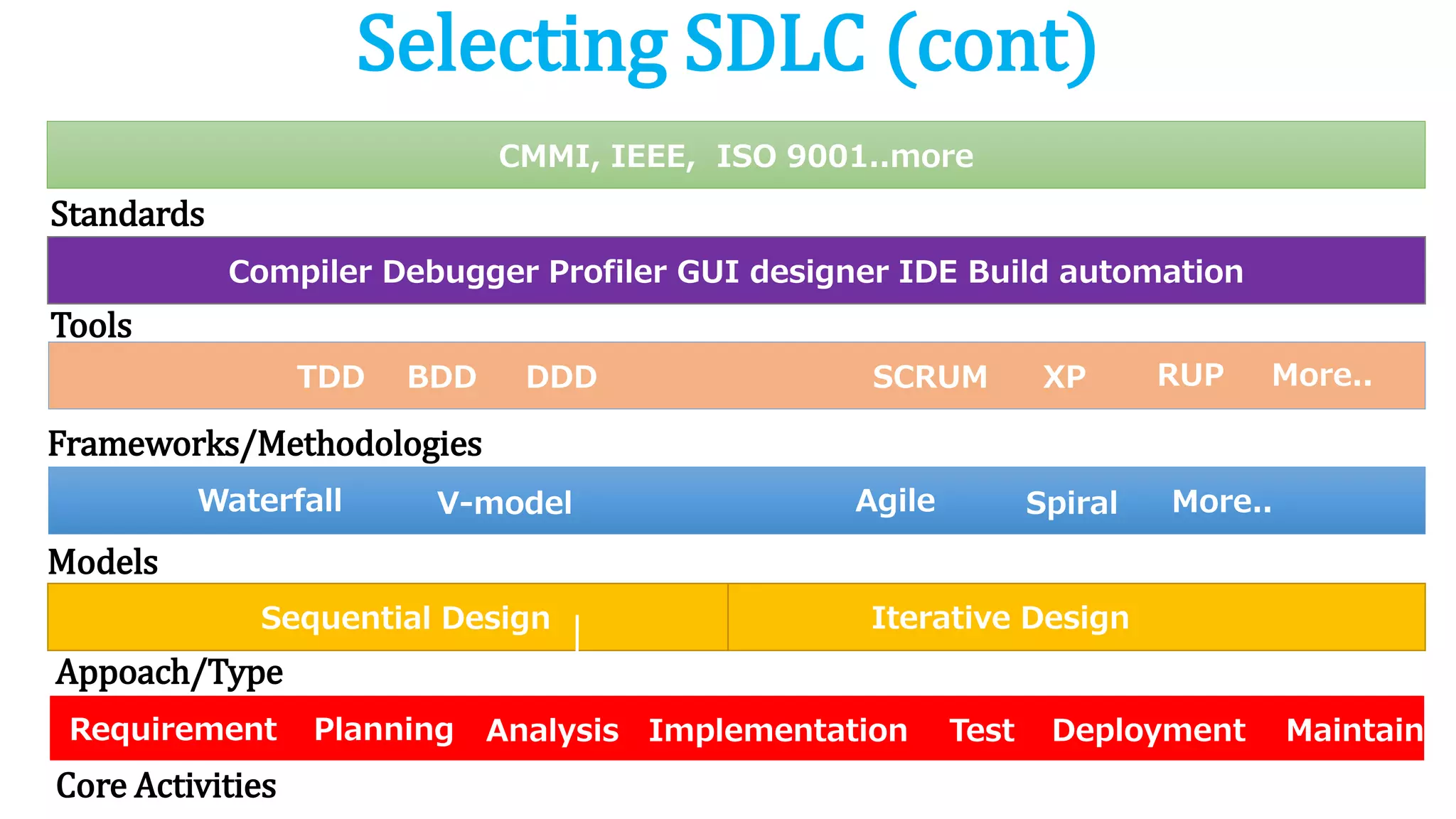

- 15. Selecting SDLC (cont) CoreActivities AnalysisPlanning Implementation Test DeploymentRequirement Maintain Appoach/Type Sequential Design Iterative Design Models AgileWaterfall SpiralV-model More.. Frameworks/Methodologies SCRUM XPTDD BDD Compiler Debugger Profiler GUI designer IDE Build automation DDD RUP Tools CMMI, IEEE, ISO 9001..more Standards More..

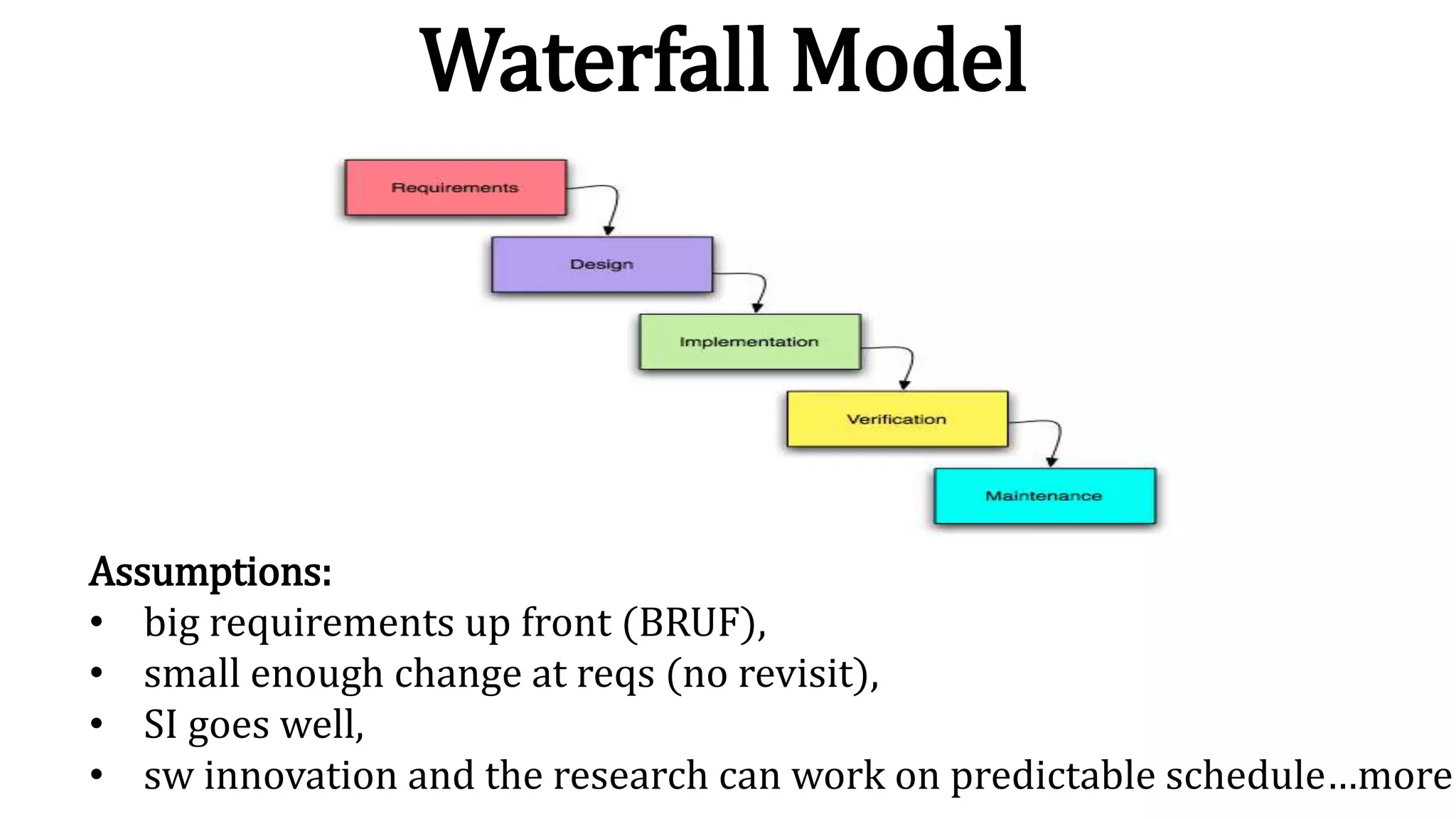

- 16. Waterfall Model Assumptions: • bigrequirements up front (BRUF), • small enough change at reqs (no revisit), • SI goes well, • sw innovation and the research can work on predictable schedule…more
- 17. Issues With WaterfallMethod it is difficult to react to changes Iterations are expensive
- 18. Iterative ways totackle

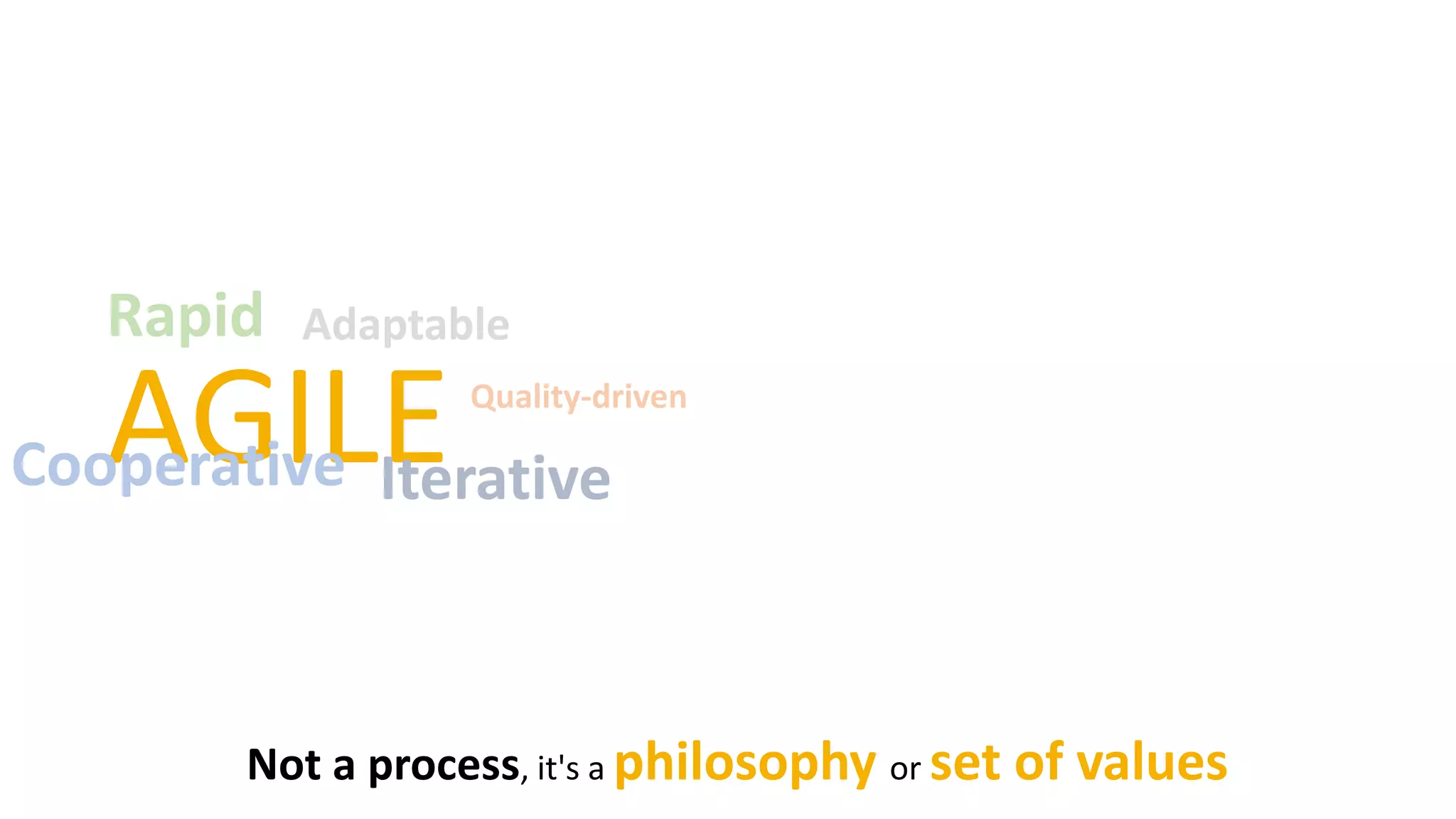

- 19. AGILEIterative AdaptableRapid Cooperative Quality-driven Not a process,it's a philosophy or set of values
- 20.

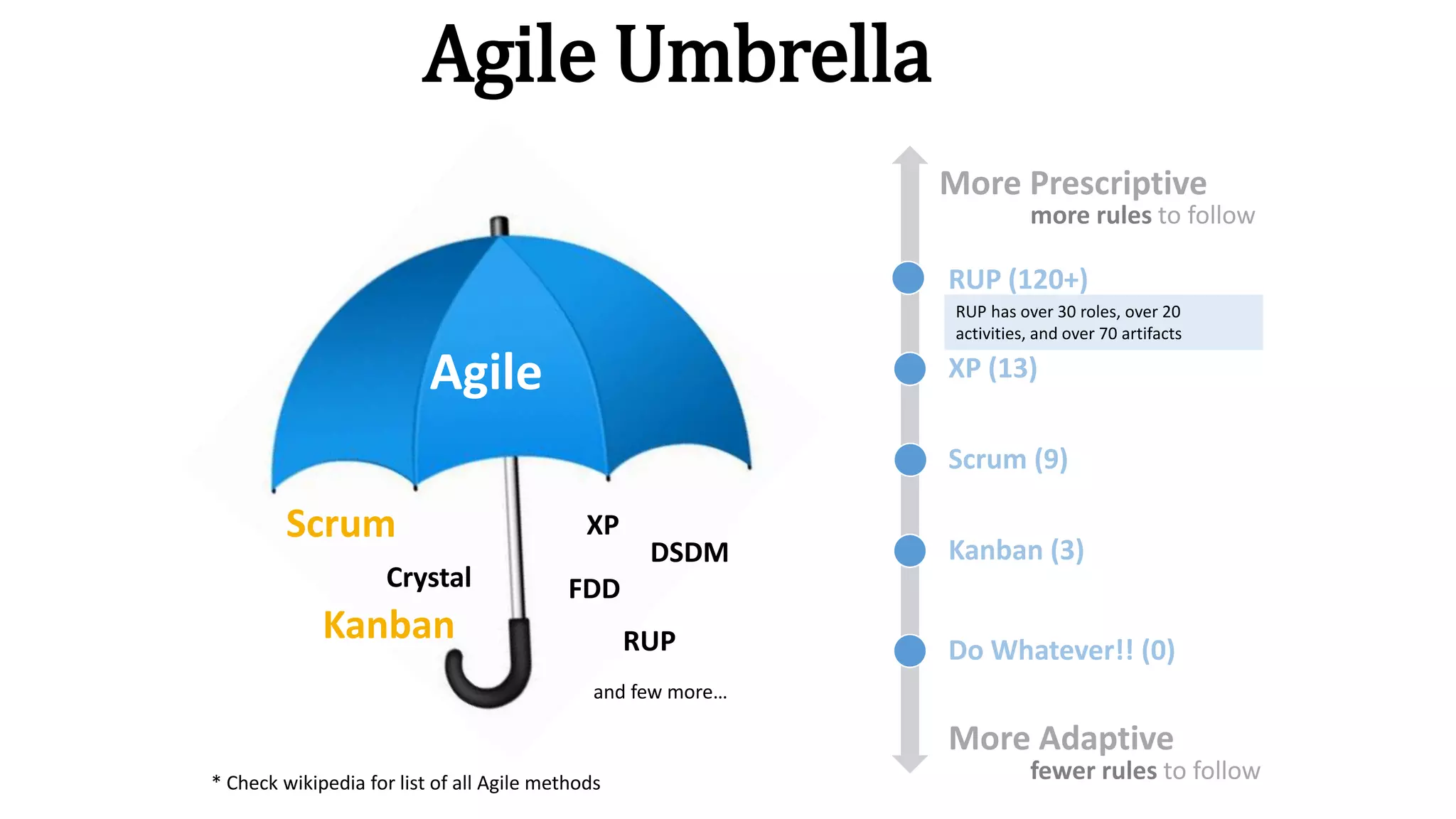

- 21. Agile Umbrella Agile Crystal XPScrum DSDM FDD Kanban RUP RUP(120+) XP (13) Scrum (9) Kanban (3) Do Whatever!! (0) More Prescriptive More Adaptive and few more… * Check wikipedia for list of all Agile methods RUP has over 30 roles, over 20 activities, and over 70 artifacts more rules to follow fewer rules to follow

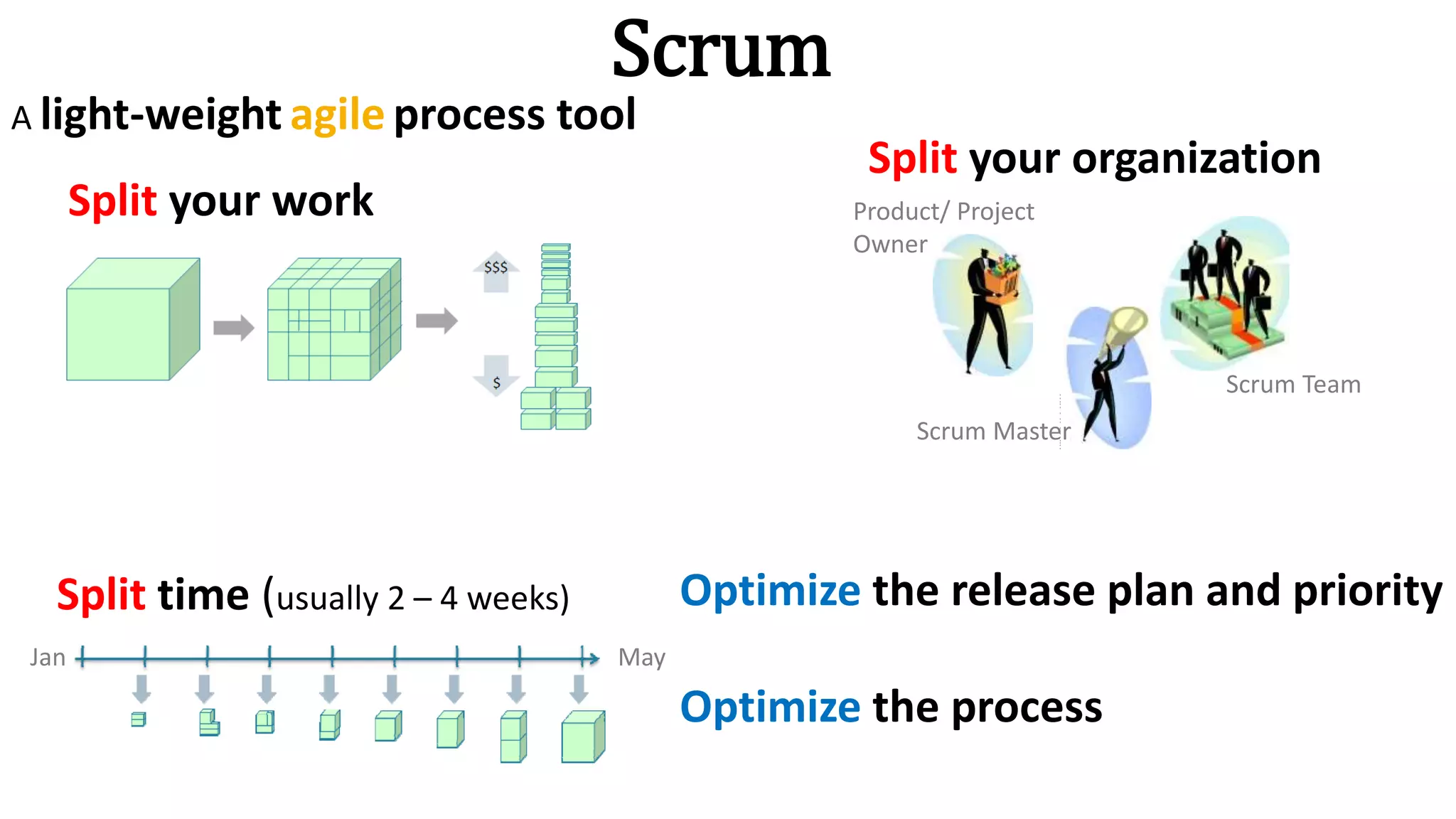

- 22. Scrum A light-weight agileprocess tool Split your work Split your organization Scrum Team Scrum Master Product/ Project Owner Split time (usually 2 – 4 weeks) Jan May Optimize the release plan and priority Optimize the process

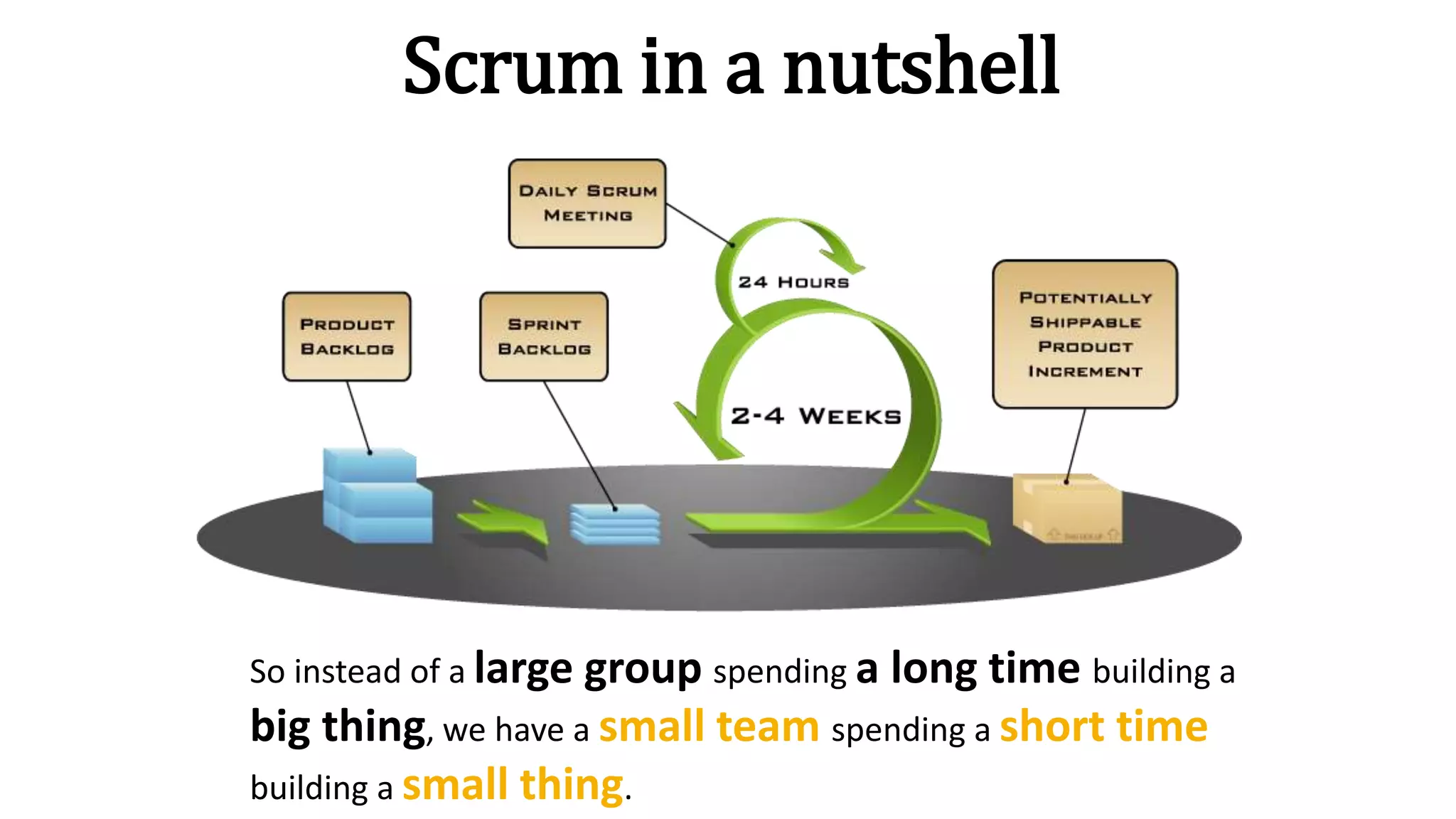

- 23. Scrum in anutshell So instead of a large group spending a long time building a big thing, we have a small team spending a short time building a small thing.
- 24. “Better-Than-Not-Doing-It” Results • 88%of respondents to the VersionOne State of Agile Development Survey 2013 said that their organizations were practicing agile development. 92% of the respondents reported year-over-year improvements in all areas measured by the survey, with the leading categories being the ability to manage changing priorities (92%), increased productivity (87%), improved project visibility (86%), improved team morale (86%), and enhanced software quality (82%).

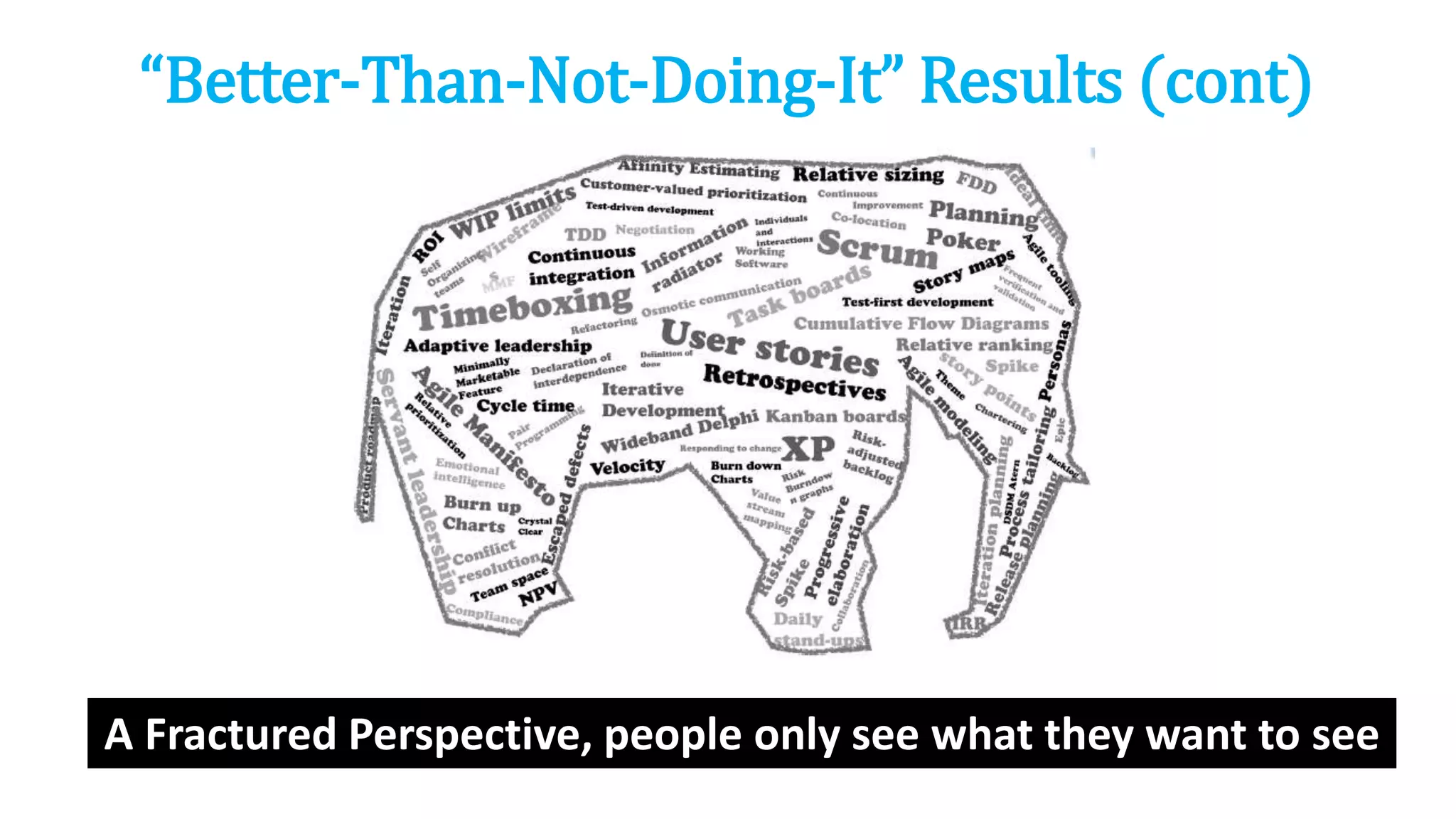

- 25. “Better-Than-Not-Doing-It” Results (cont) AFractured Perspective, people only see what they want to see
- 26. How Scrum reallyworks collective commitment and self-organization
- 27.
- 28. Security is aMUST-DO for your SW

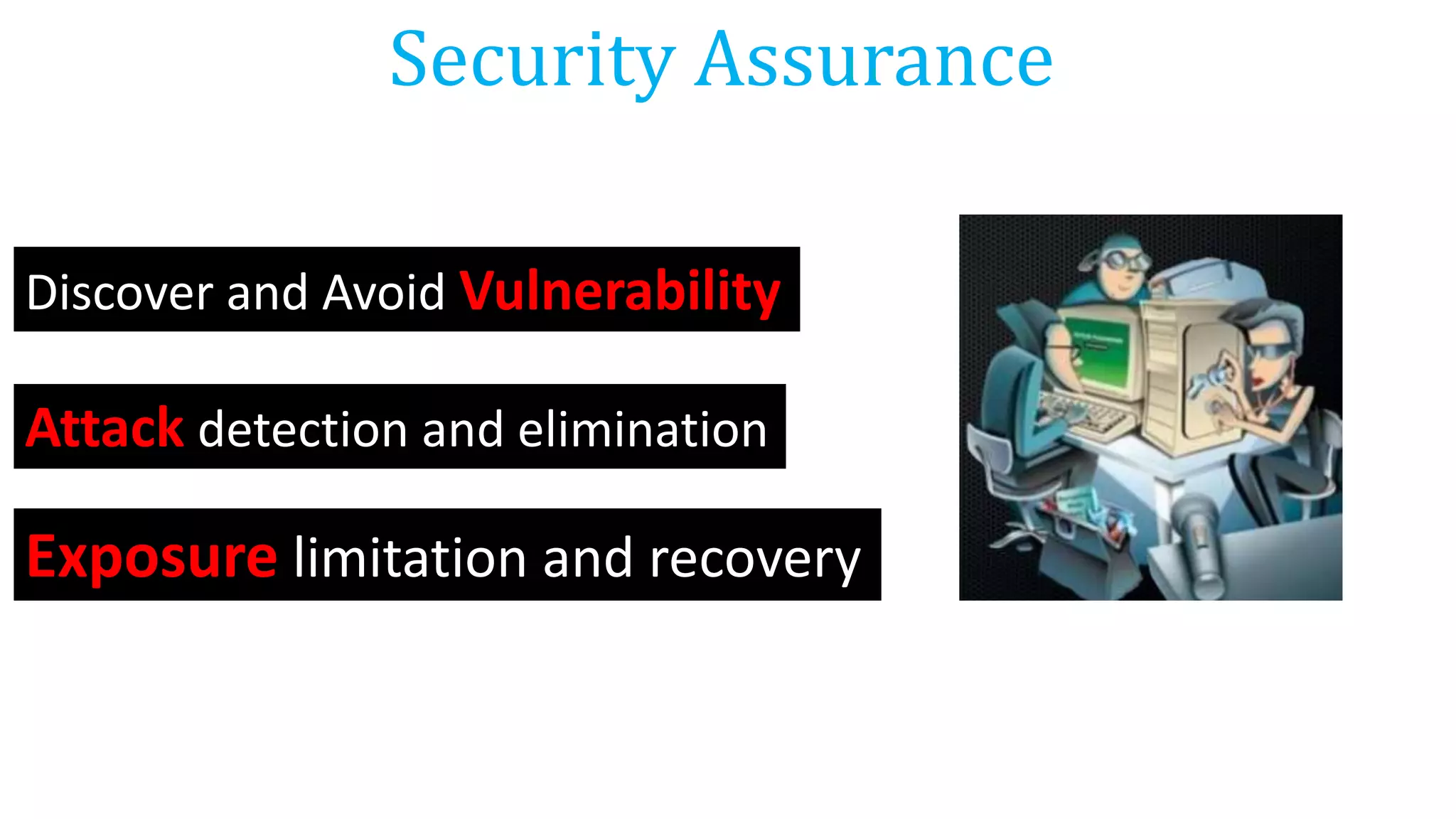

- 30. Security Assurance Discover andAvoid Vulnerability Attack detection and elimination Exposure limitation and recovery

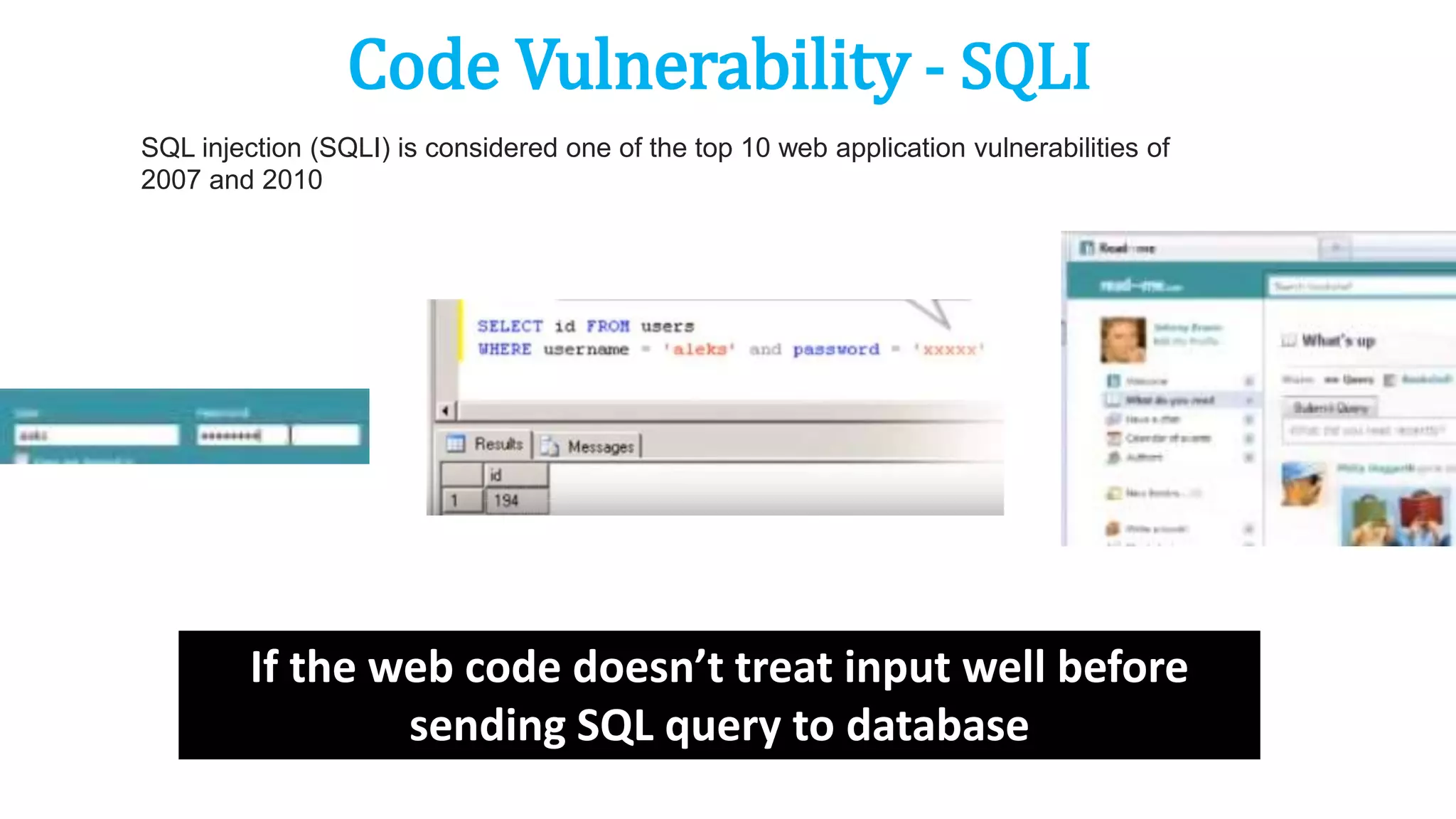

- 31. Code Vulnerability -SQLI SQL injection (SQLI) is considered one of the top 10 web application vulnerabilities of 2007 and 2010 If the web code doesn’t treat input well before sending SQL query to database
- 32. SQL Injection Basedon 1=1 or ""="" Attacker can smuggle to change app behaviour For example, bypass login authentication Code Vulnerability – SQLI (cont)

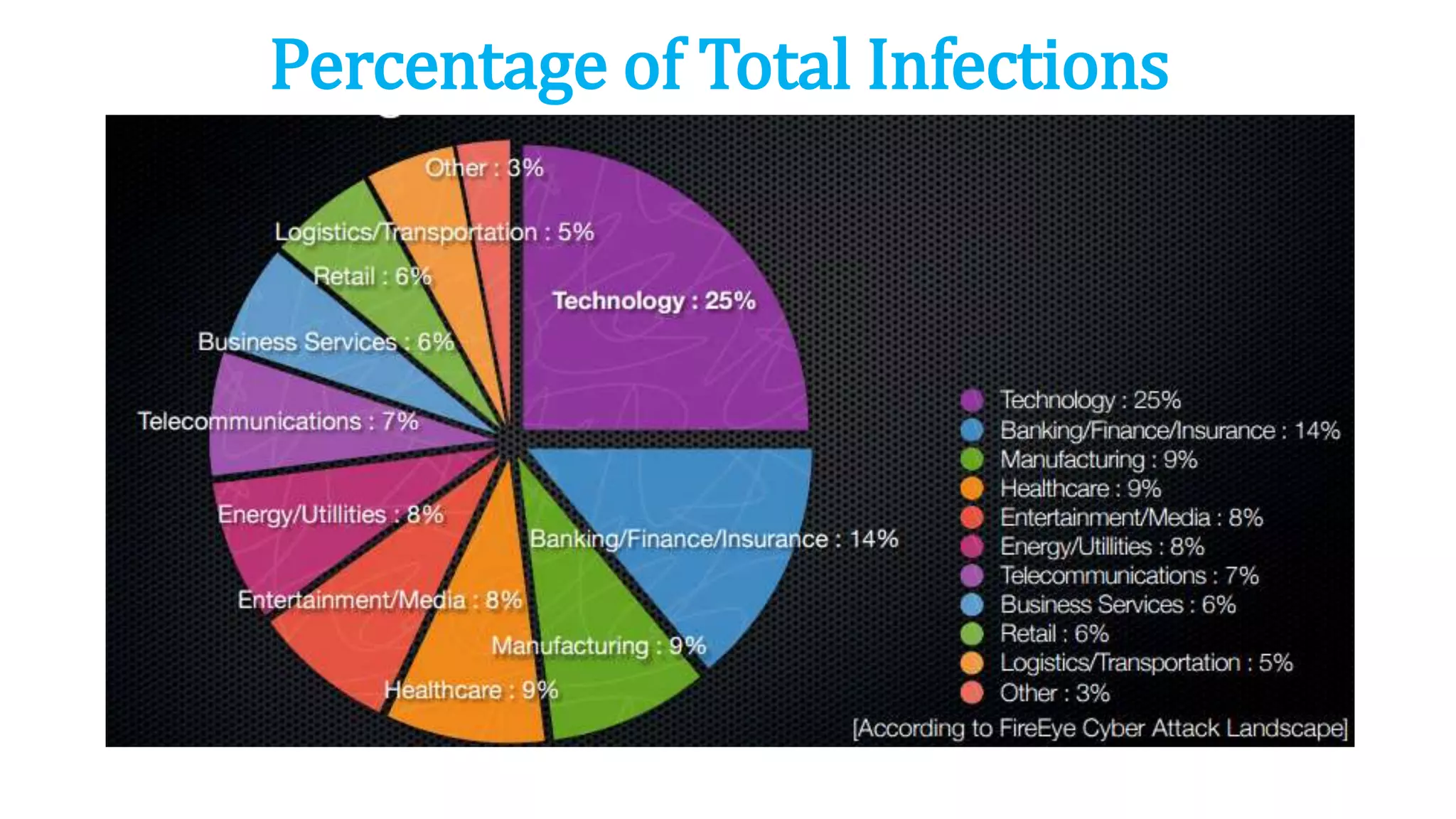

- 33. Percentage of TotalInfections

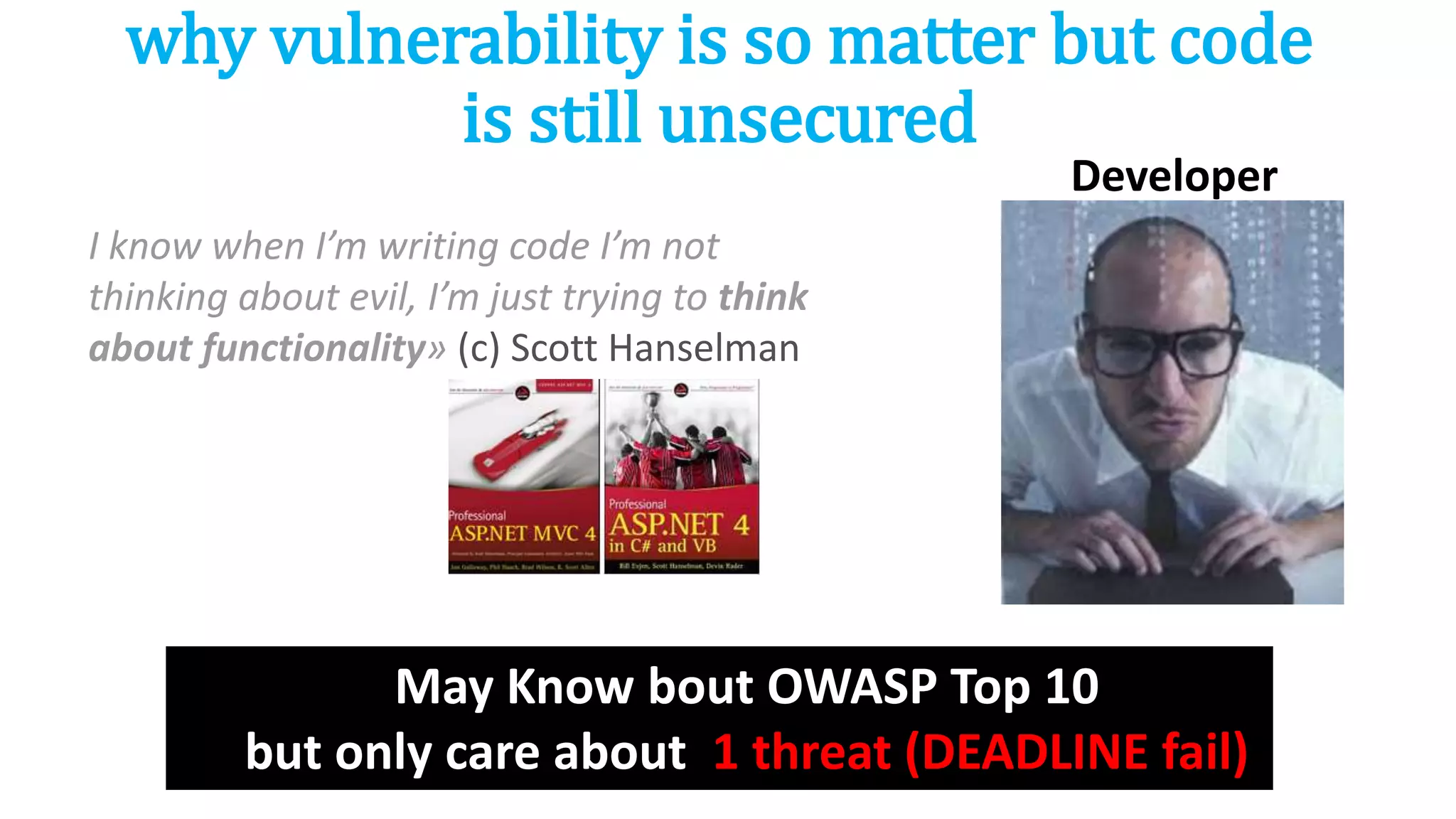

- 34. why vulnerability isso matter but code is still unsecured I know when I’m writing code I’m not thinking about evil, I’m just trying to think about functionality» (с) Scott Hanselman Developer May Know bout OWASP Top 10 but only care about 1 threat (DEADLINE fail)
- 35. Risks are formanagers, not developers

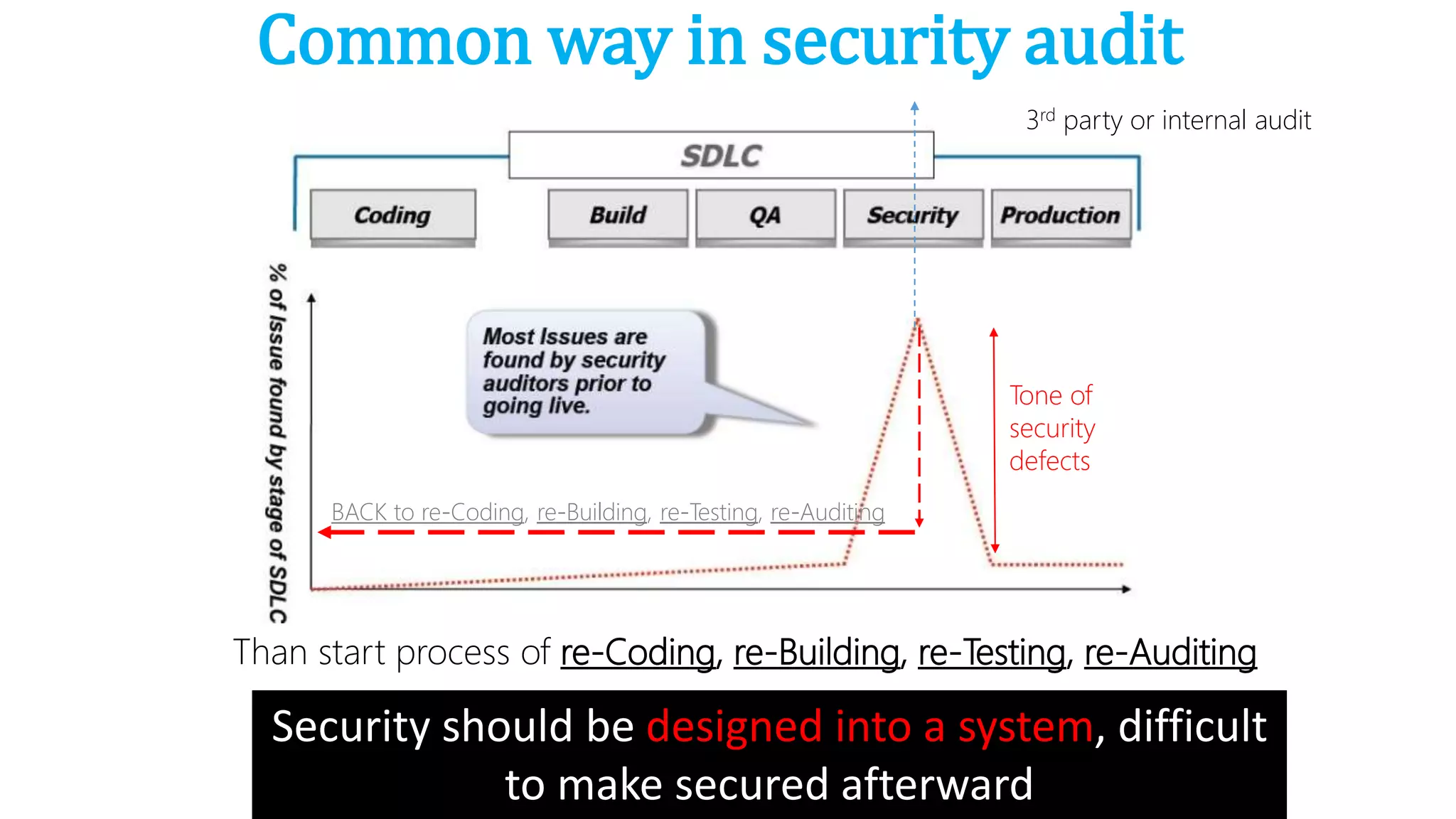

- 36. Common way insecurity audit Than start process of re-Coding, re-Building, re-Testing, re-Auditing 3rd party or internal audit Tone of security defects BACK to re-Coding, re-Building, re-Testing, re-Auditing Security should be designed into a system, difficult to make secured afterward

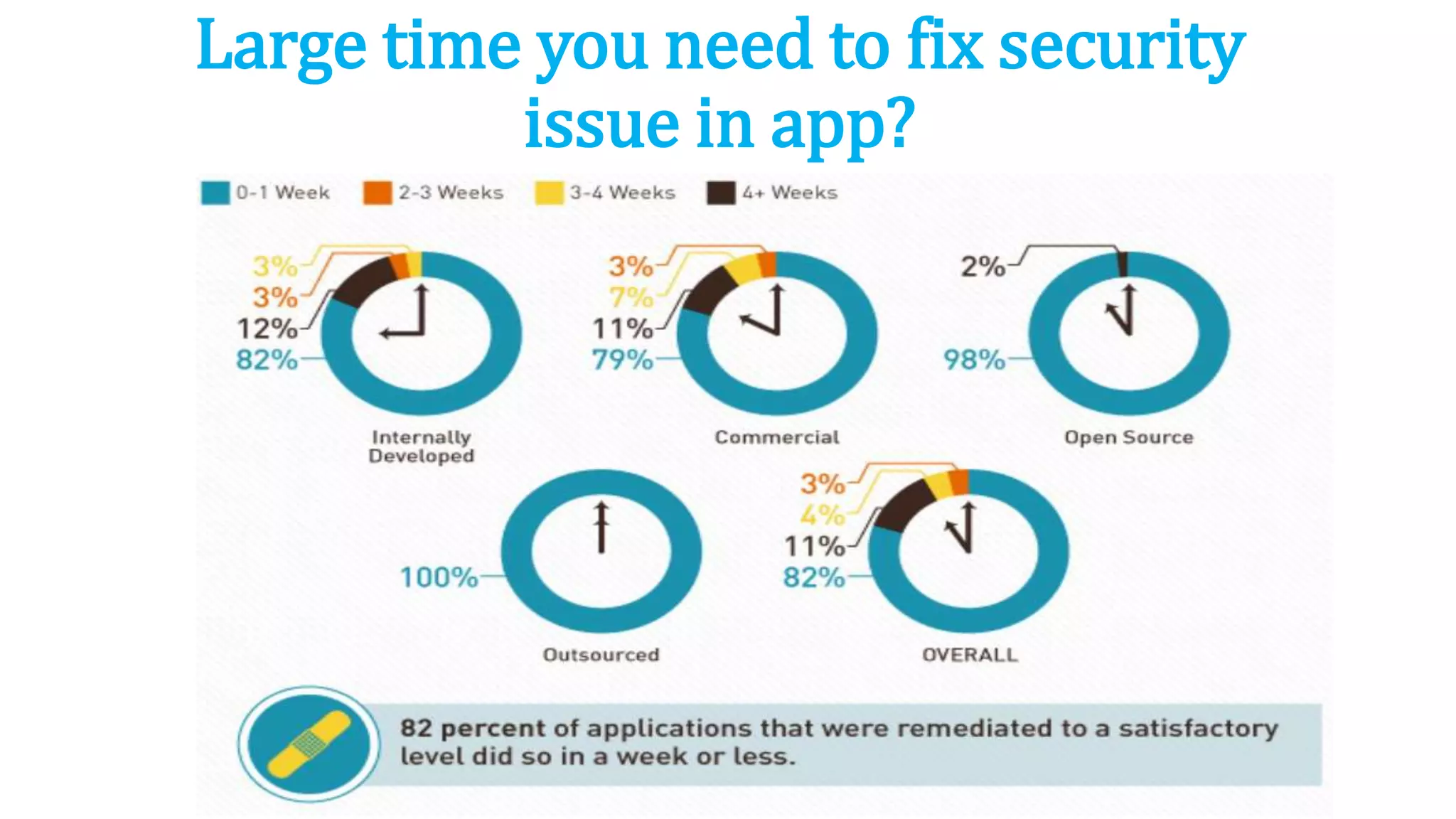

- 37. Large time youneed to fix security issue in app?
- 38. How it shouldlook – secure SDLC Automated security Tests CI integrated Manual security Tests OWASP methodology Secure Coding trainings Regular Vulnerability Scans security defects should decrease from phase to phase

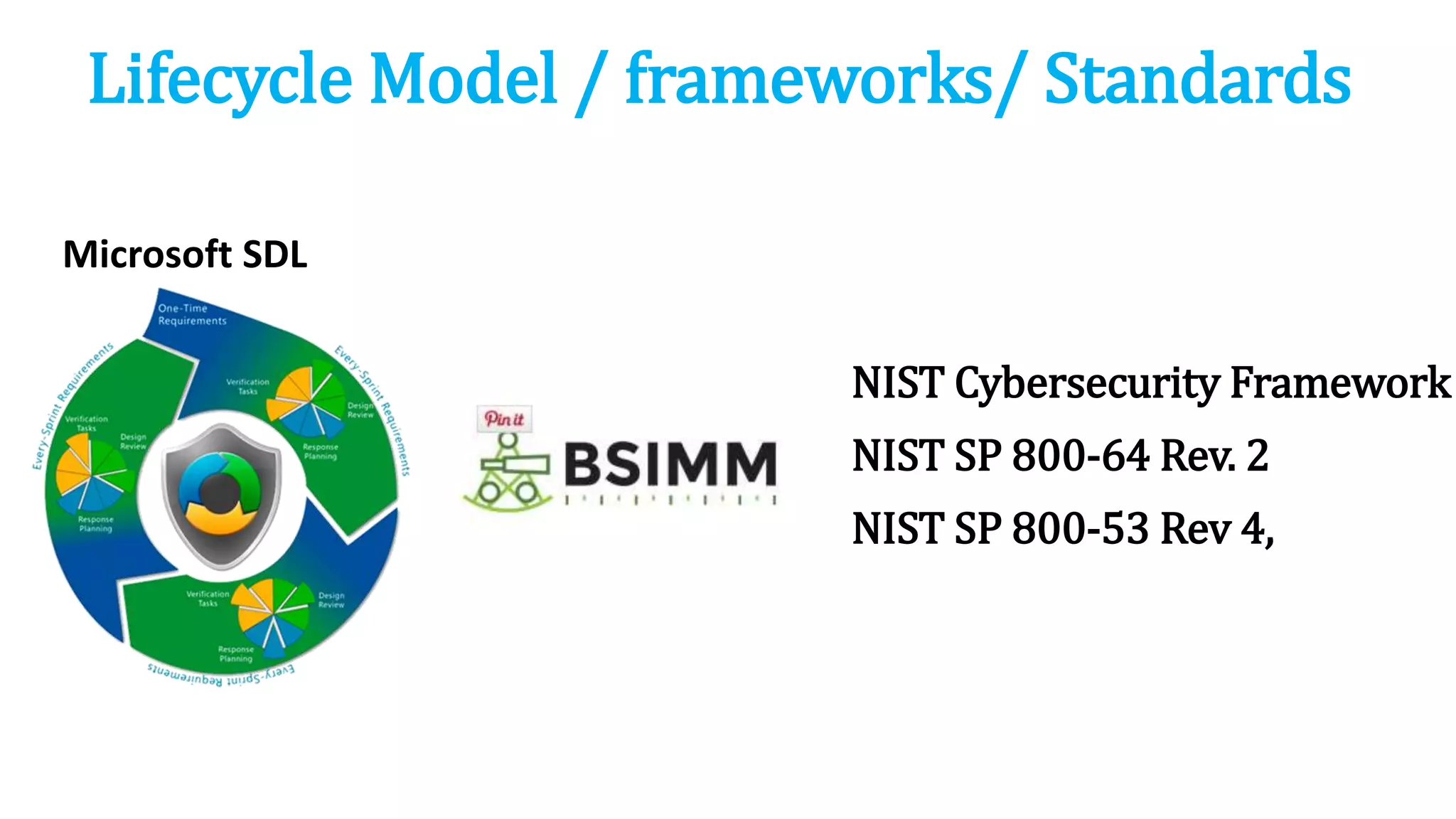

- 39. Microsoft SDL Lifecycle Model/ frameworks/ Standards NIST SP 800-64 Rev. 2 NIST SP 800-53 Rev 4, NIST Cybersecurity Framework

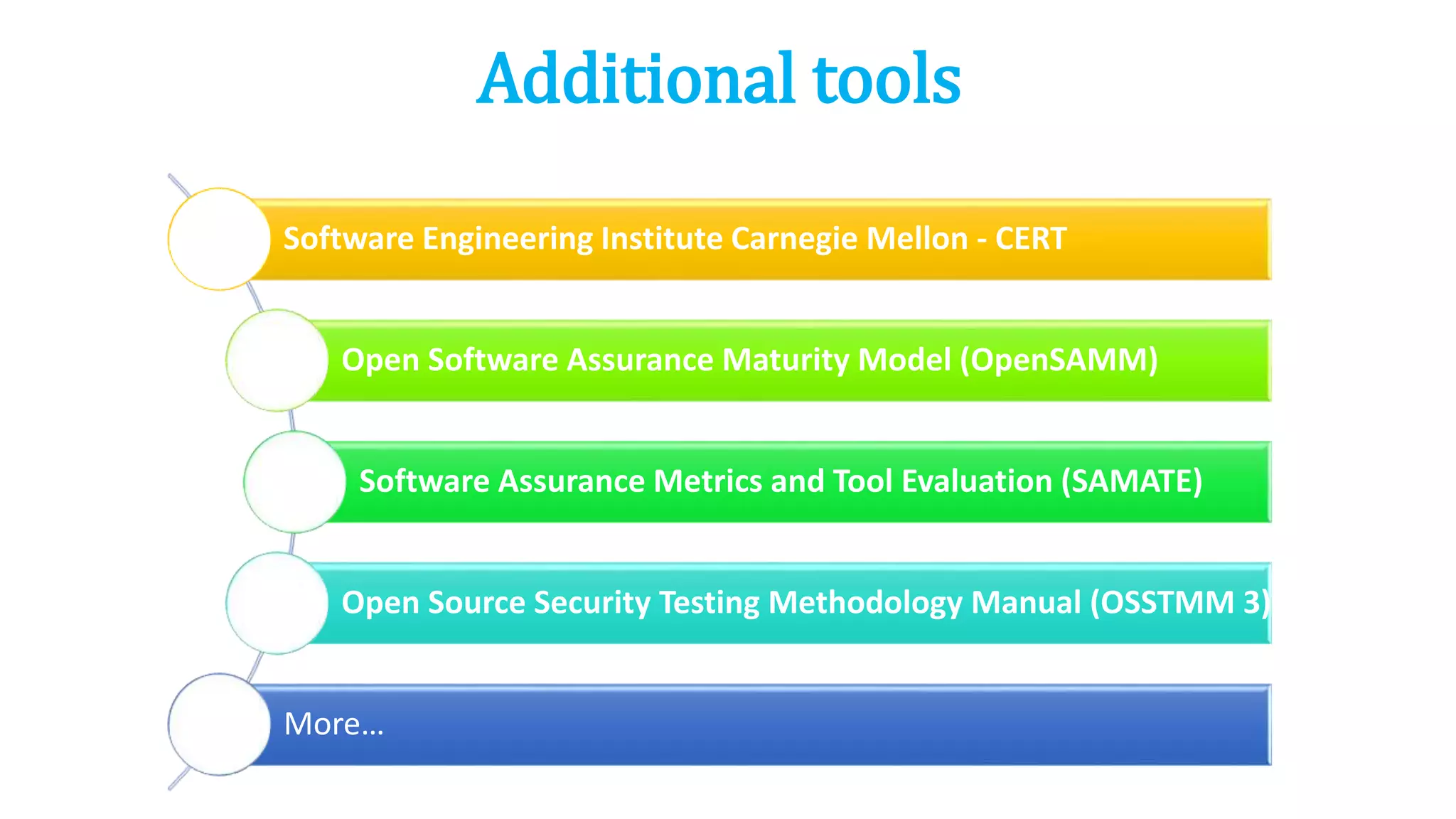

- 40. Additional tools Software EngineeringInstitute Carnegie Mellon - CERT Open Software Assurance Maturity Model (OpenSAMM) Software Assurance Metrics and Tool Evaluation (SAMATE) Open Source Security Testing Methodology Manual (OSSTMM 3) More…
- 41.
- 42.
- 43.

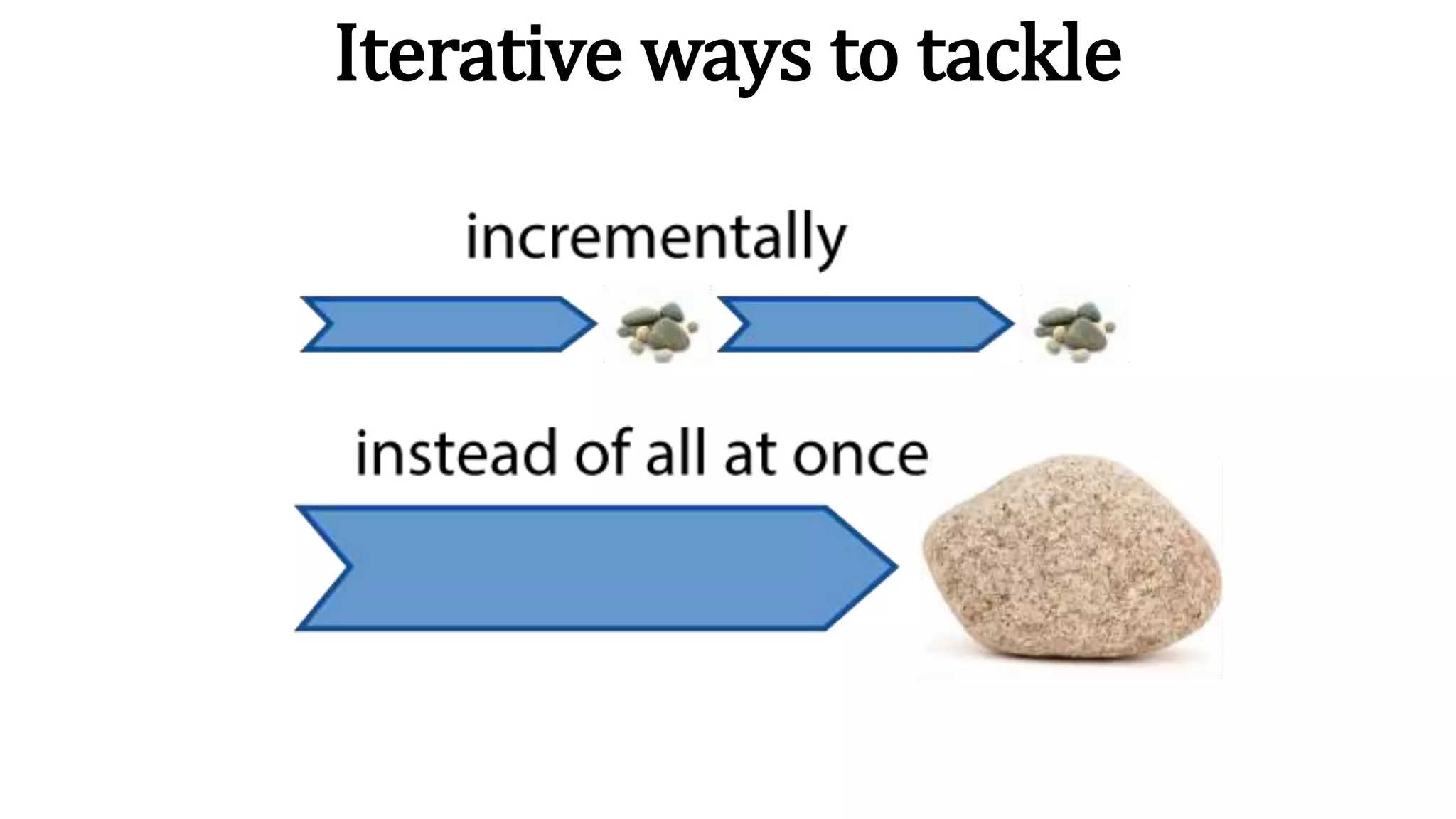

- 44. Iterative ways totackle

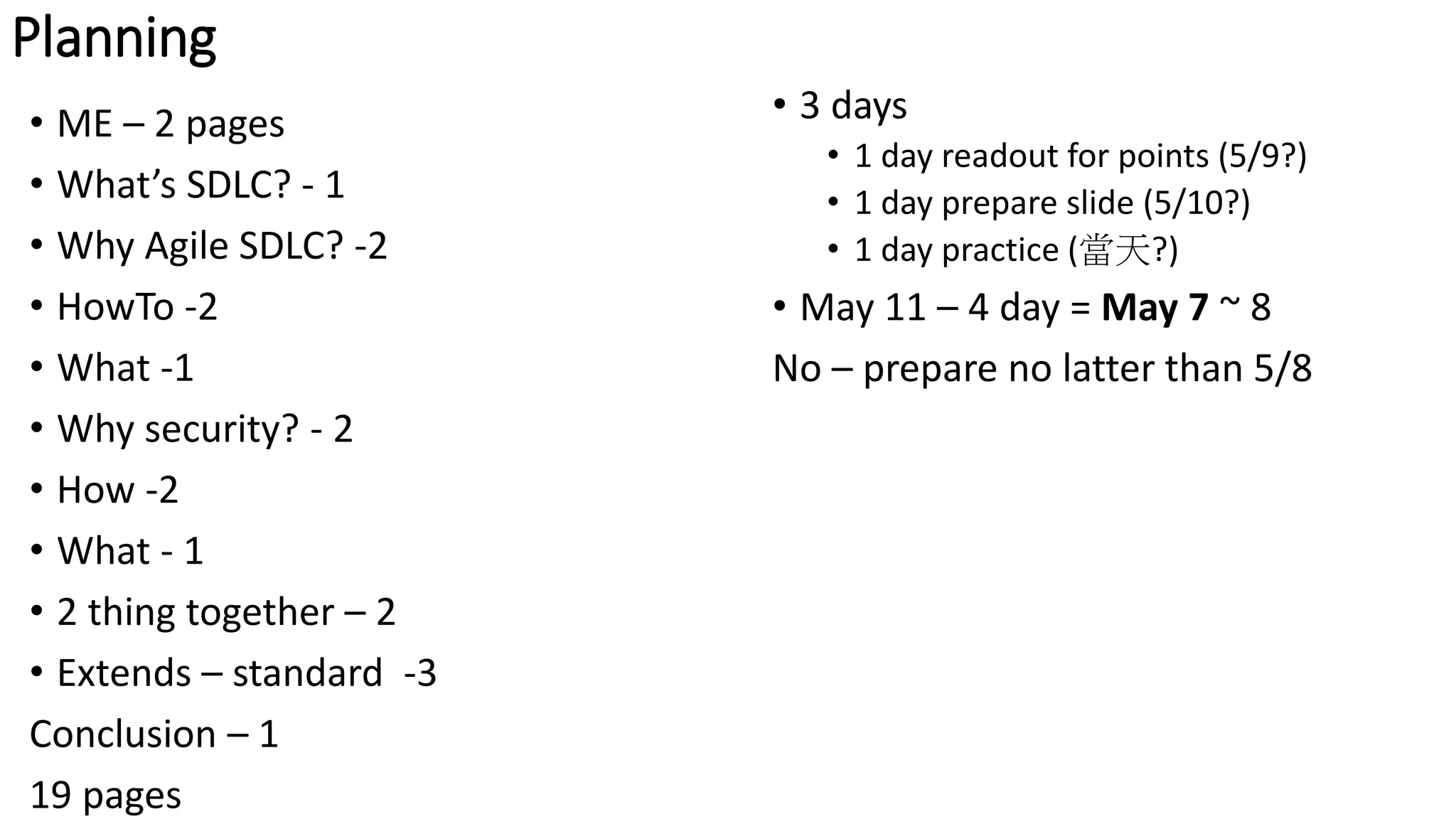

- 45. Planning • 3 days •1 day readout for points (5/9?) • 1 day prepare slide (5/10?) • 1 day practice (當天?) • May 11 – 4 day = May 7 ~ 8 No – prepare no latter than 5/8 • ME – 2 pages • What’s SDLC? - 1 • Why Agile SDLC? -2 • HowTo -2 • What -1 • Why security? - 2 • How -2 • What - 1 • 2 thing together – 2 • Extends – standard -3 Conclusion – 1 19 pages
- 46. Outline • SDLC • What’s– core activities/people • Why’s that • How – sequence/interative, incremental / doc driven (Waterfall, RUP, Sprial, Agileze…more ) • for comparision, must mention waterfall • Explain what/how • However, the problems it create • Problem -> Impacts • Agile way • Benefits problems but there’s also problem there • Expalin how it fix • Problem 有座跟沒做好一點? • Why: 重形不重義 • What SCRUM really is – sefl org / • Why each • 只是 why Agile coach doesn’t tell – time and also is caused by betacuy issue • Conclusion Agile coach actually changes DNA of company - self-org / collective commitment

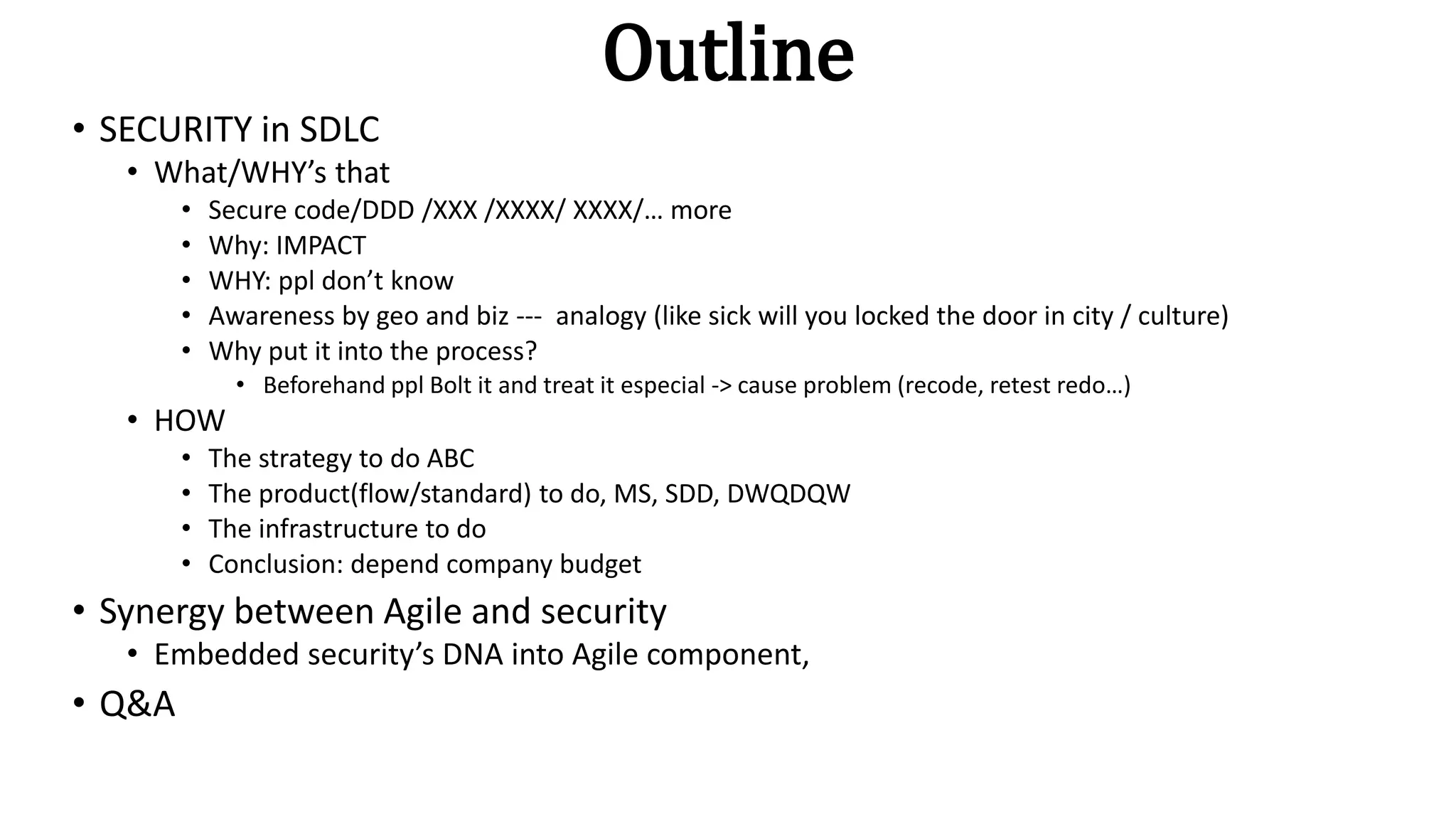

- 47. Outline • SECURITY inSDLC • What/WHY’s that • Secure code/DDD /XXX /XXXX/ XXXX/… more • Why: IMPACT • WHY: ppl don’t know • Awareness by geo and biz --- analogy (like sick will you locked the door in city / culture) • Why put it into the process? • Beforehand ppl Bolt it and treat it especial -> cause problem (recode, retest redo…) • HOW • The strategy to do ABC • The product(flow/standard) to do, MS, SDD, DWQDQW • The infrastructure to do • Conclusion: depend company budget • Synergy between Agile and security • Embedded security’s DNA into Agile component, • Q&A

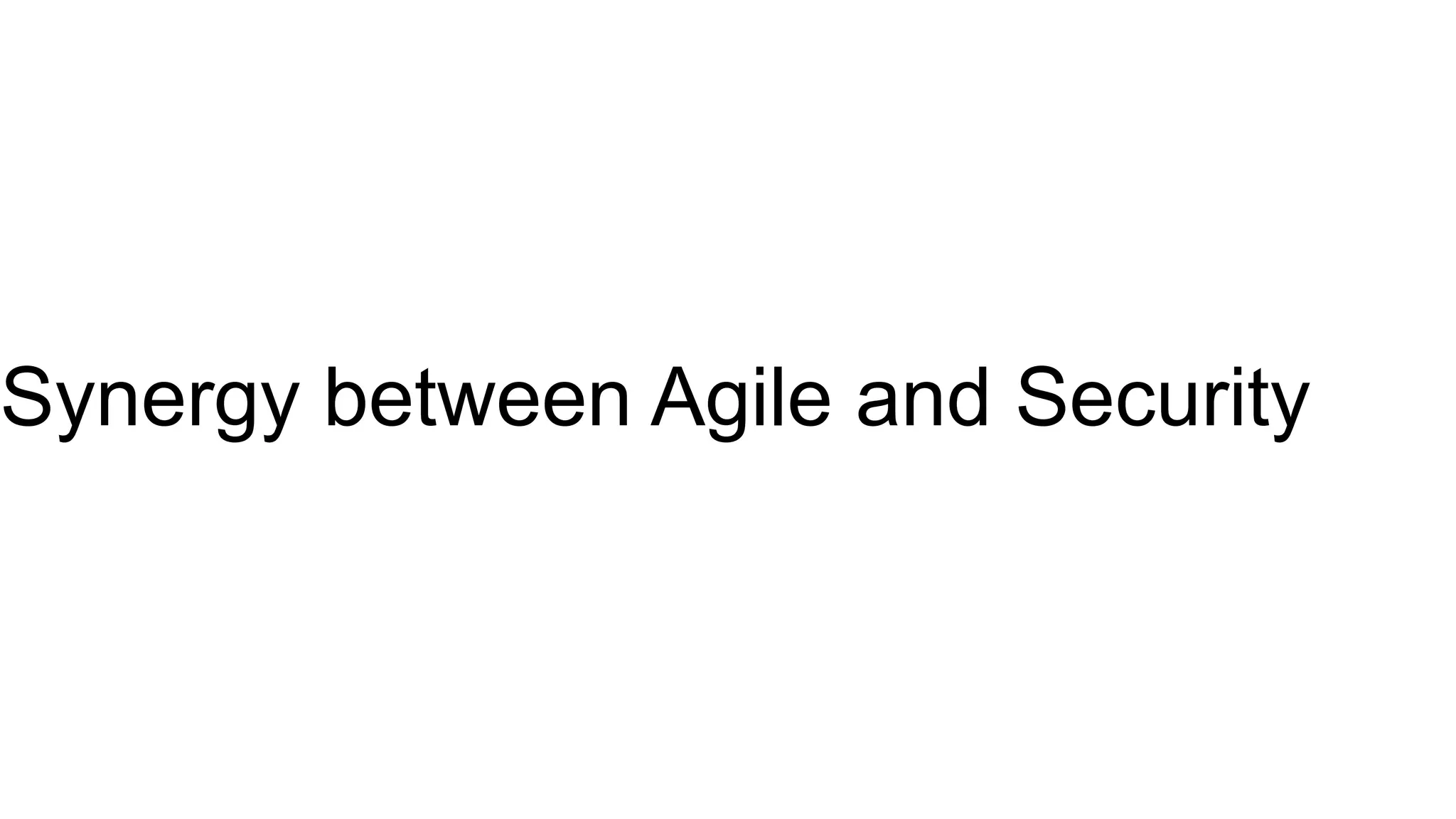

- 48. Synergy between Agileand Security

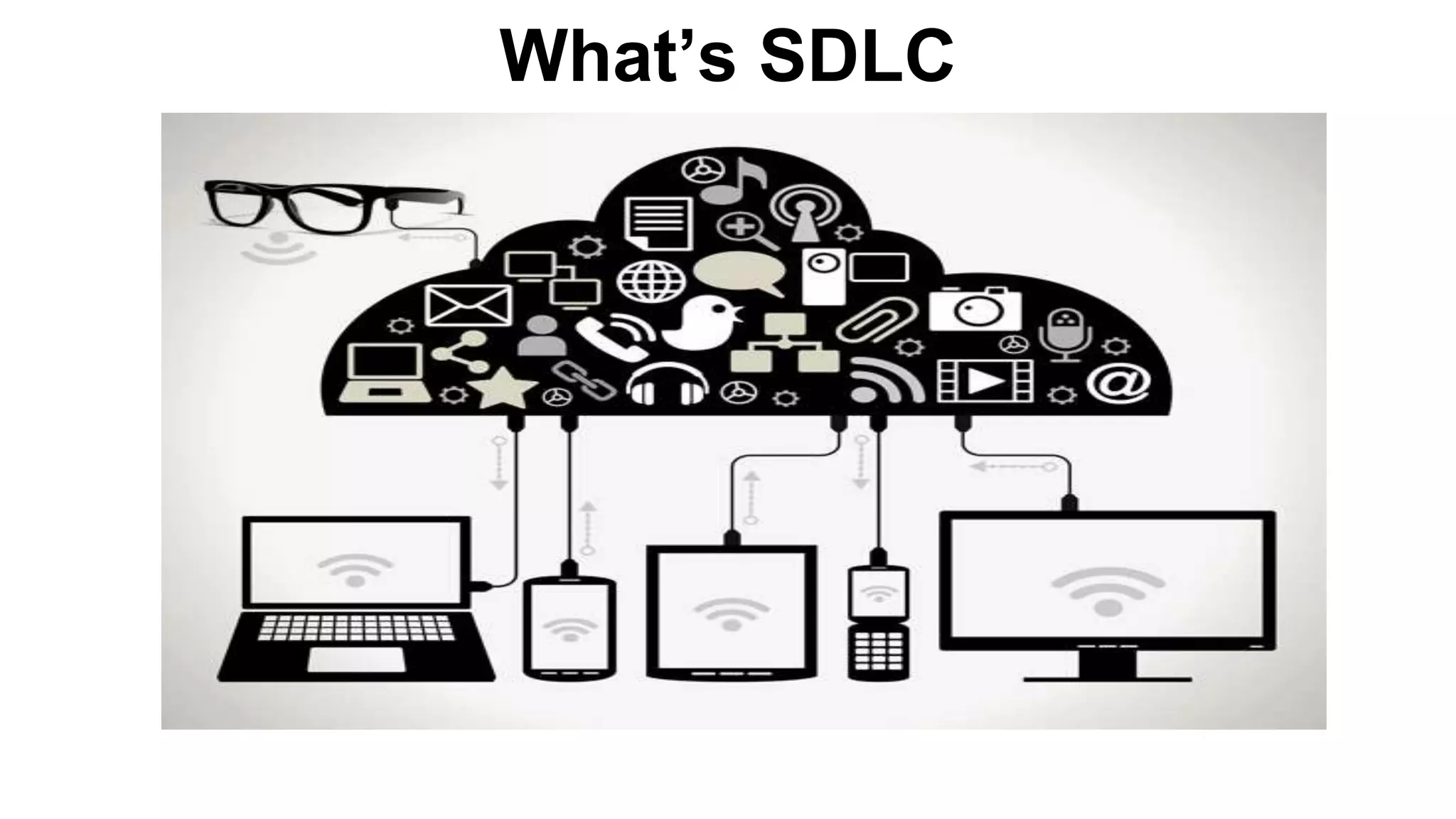

- 50. What’s SDLC Process tocreate SW/SYS stuffs
- 51.
- 52.

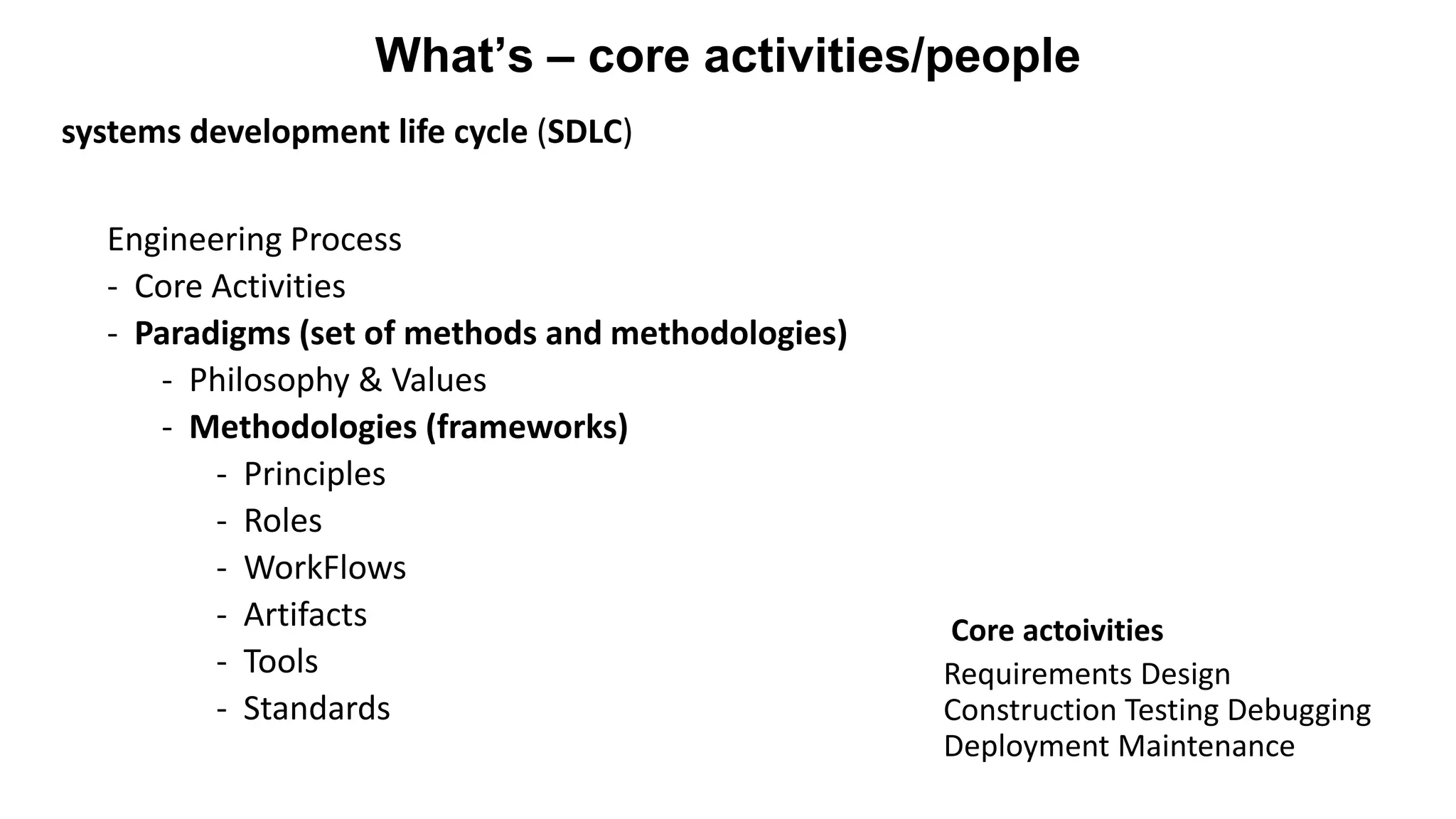

- 53. What’s – coreactivities/people systems development life cycle (SDLC) Core actoivities Requirements Design Construction Testing Debugging Deployment Maintenance Engineering Process - Core Activities - Paradigms (set of methods and methodologies) - Philosophy & Values - Methodologies (frameworks) - Principles - Roles - WorkFlows - Artifacts - Tools - Standards

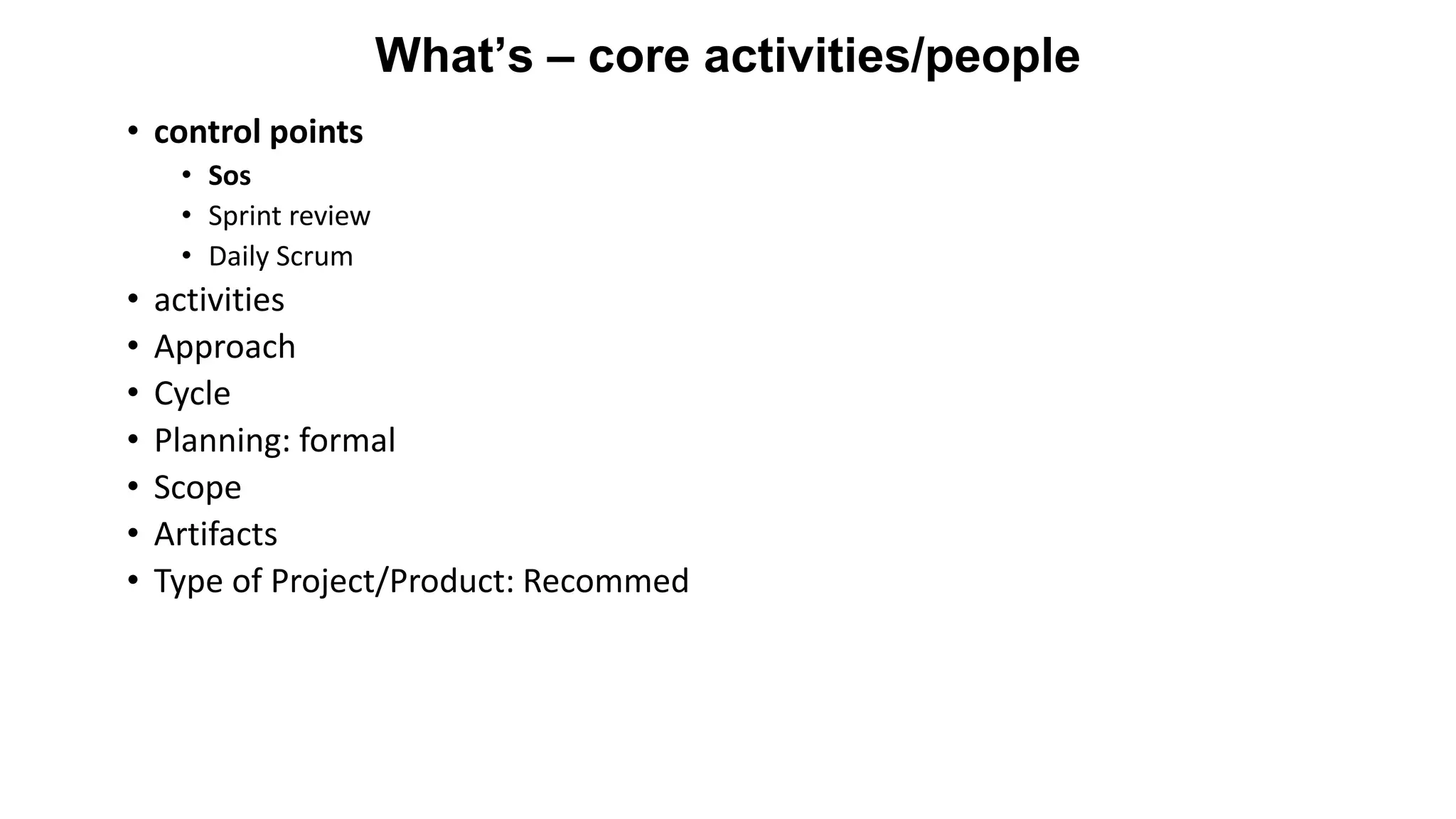

- 54. What’s – coreactivities/people • control points • Sos • Sprint review • Daily Scrum • activities • Approach • Cycle • Planning: formal • Scope • Artifacts • Type of Project/Product: Recommed

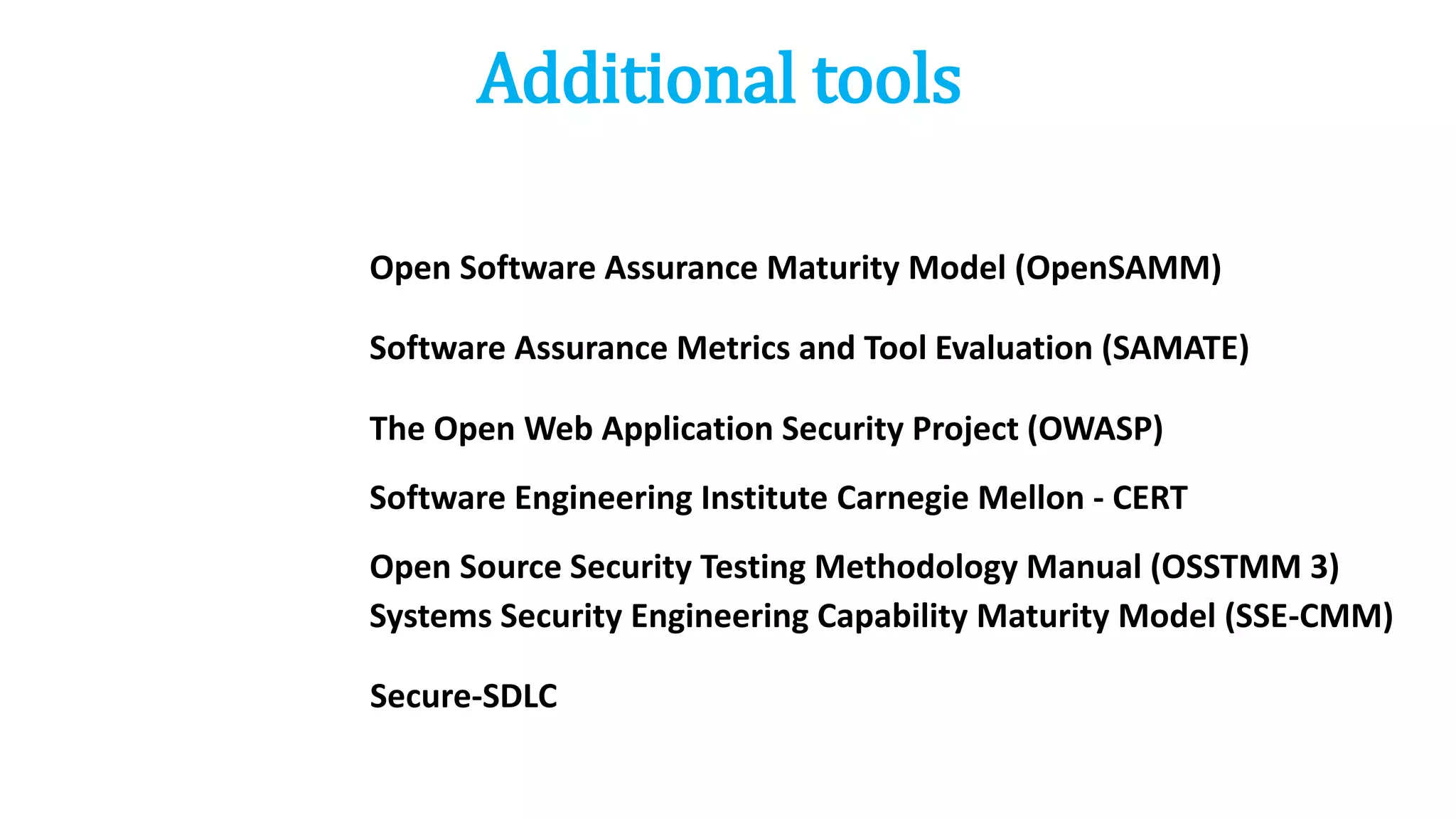

- 55. Additional tools Open SoftwareAssurance Maturity Model (OpenSAMM) Open Source Security Testing Methodology Manual (OSSTMM 3) The Open Web Application Security Project (OWASP) Secure-SDLC Software Assurance Metrics and Tool Evaluation (SAMATE) Software Engineering Institute Carnegie Mellon - CERT Systems Security Engineering Capability Maturity Model (SSE-CMM)
- 56.
- 57.
- 58.

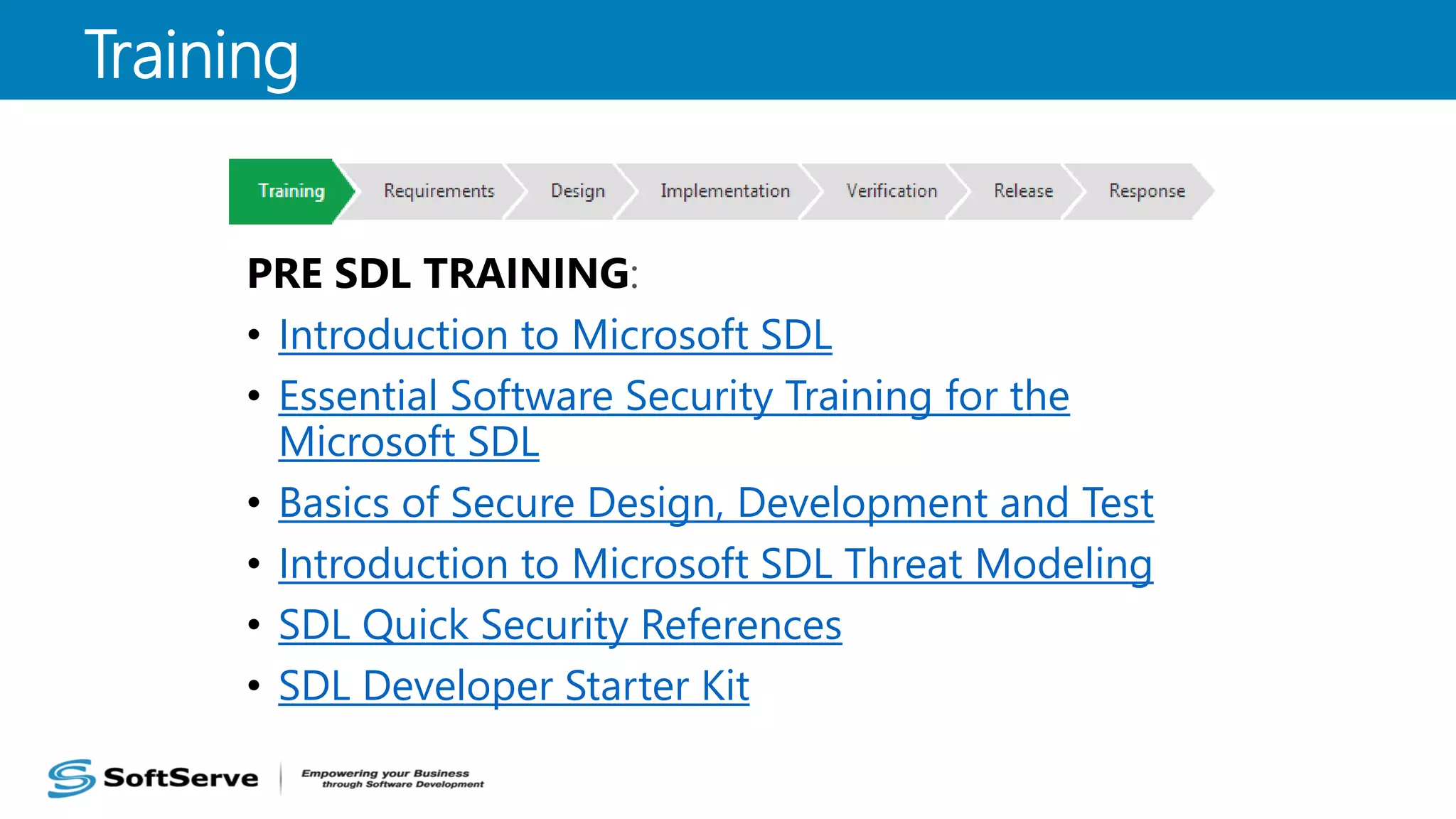

- 59. PRE SDL TRAINING: •Introduction to Microsoft SDL • Essential Software Security Training for the Microsoft SDL • Basics of Secure Design, Development and Test • Introduction to Microsoft SDL Threat Modeling • SDL Quick Security References • SDL Developer Starter Kit Training

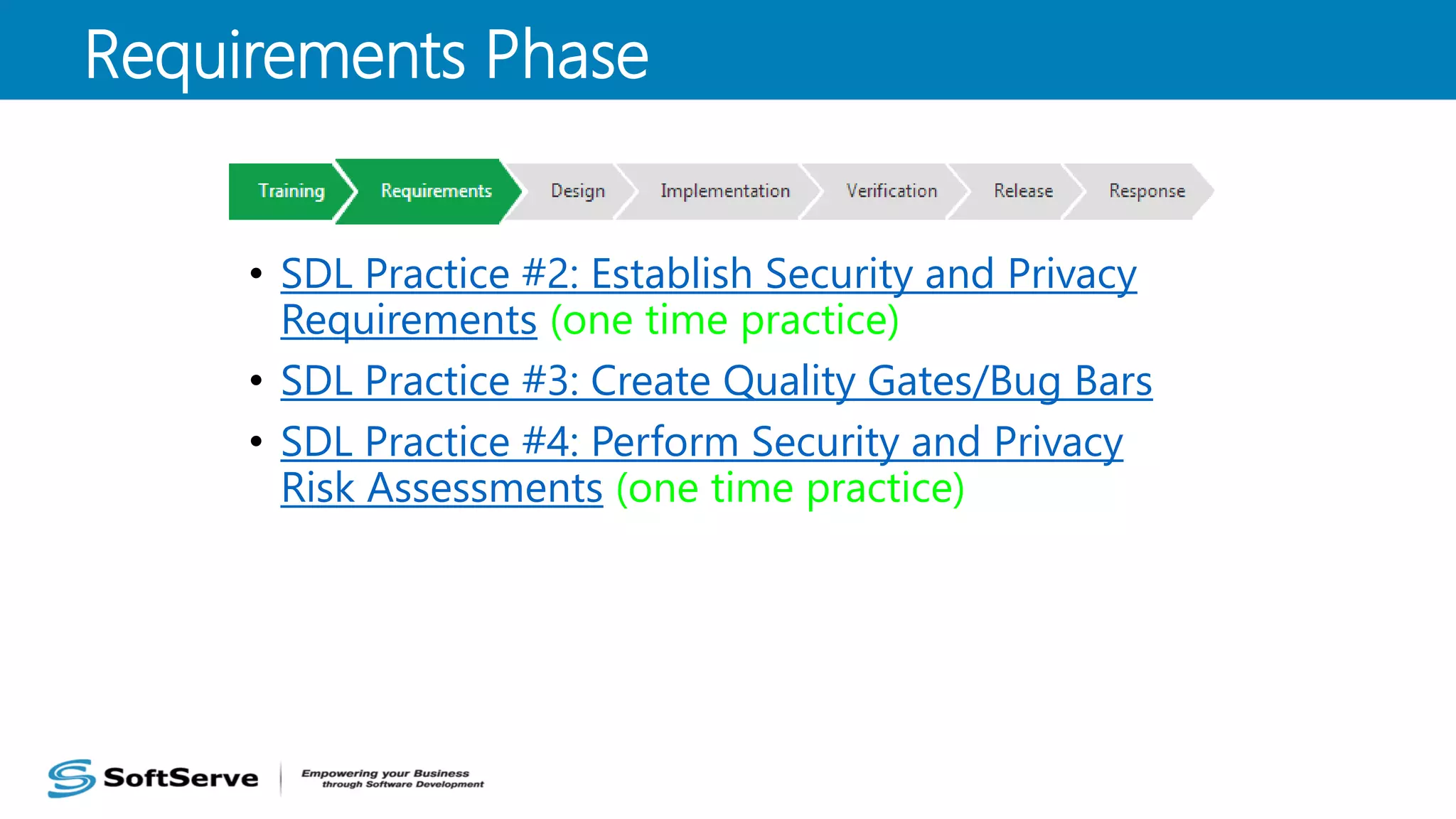

- 60. • SDL Practice#2: Establish Security and Privacy Requirements (one time practice) • SDL Practice #3: Create Quality Gates/Bug Bars • SDL Practice #4: Perform Security and Privacy Risk Assessments (one time practice) Requirements Phase

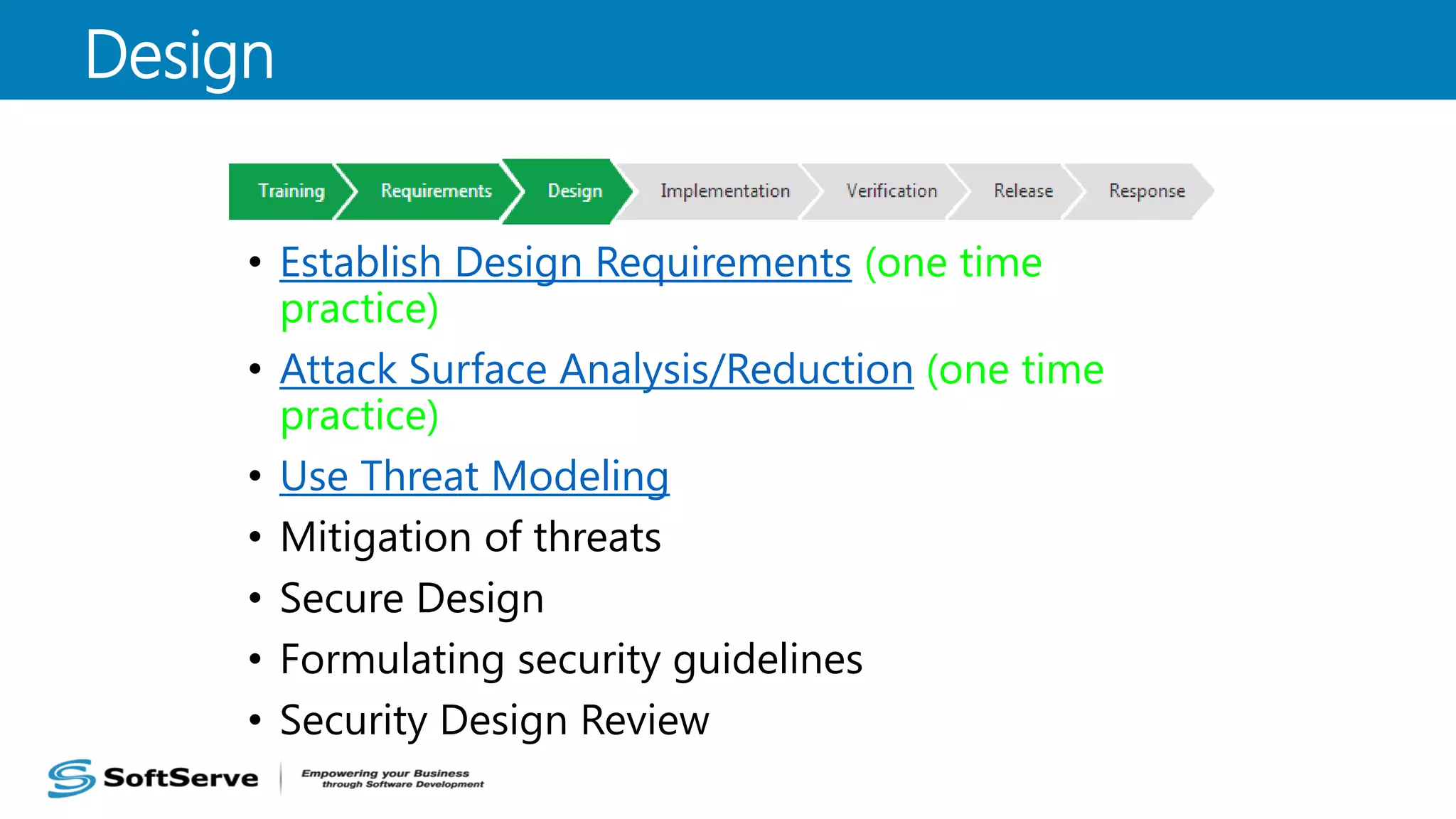

- 61. • Establish DesignRequirements (one time practice) • Attack Surface Analysis/Reduction (one time practice) • Use Threat Modeling • Mitigation of threats • Secure Design • Formulating security guidelines • Security Design Review Design

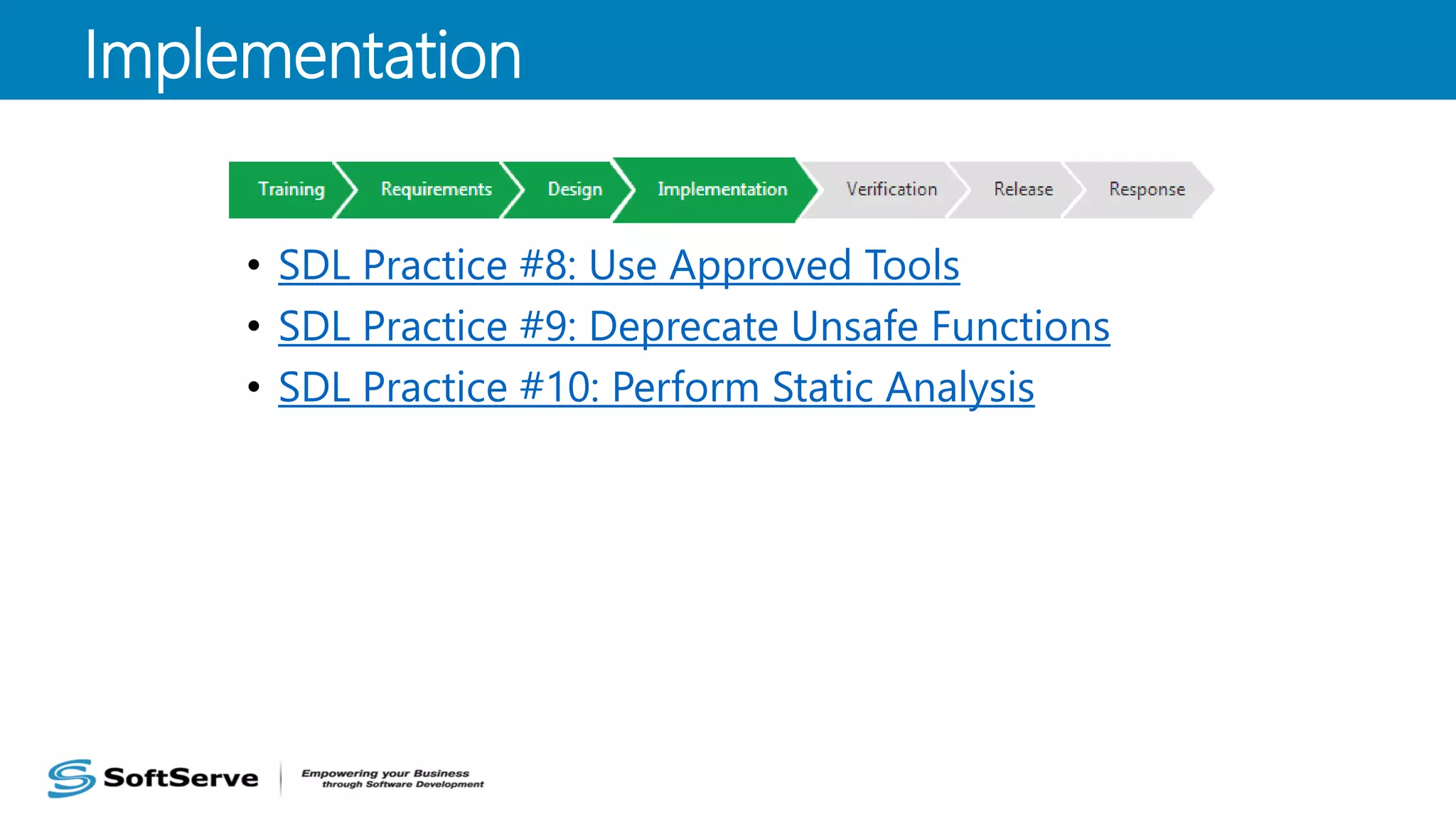

- 62. • SDL Practice#8: Use Approved Tools • SDL Practice #9: Deprecate Unsafe Functions • SDL Practice #10: Perform Static Analysis Implementation

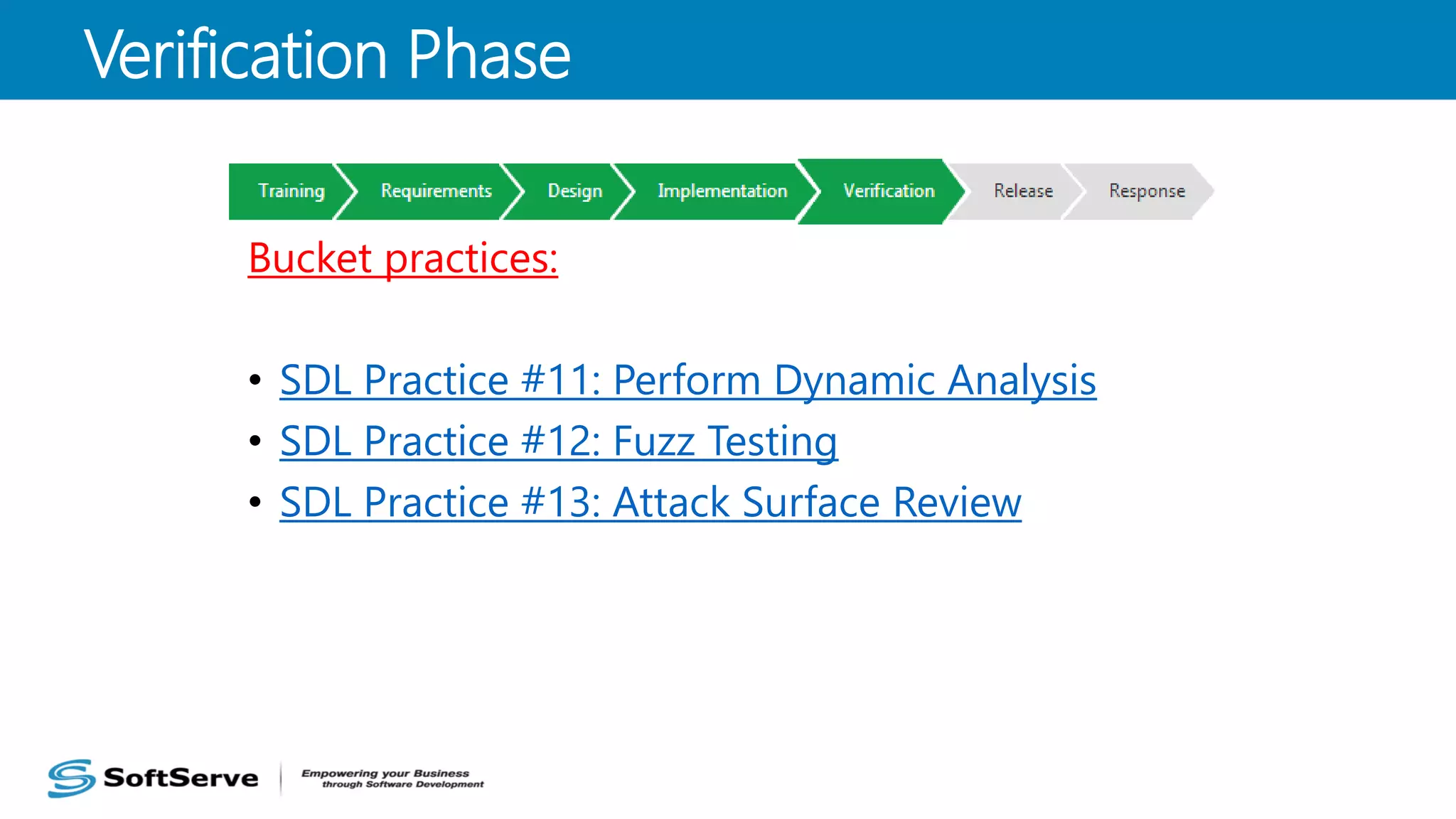

- 63. Bucket practices: • SDLPractice #11: Perform Dynamic Analysis • SDL Practice #12: Fuzz Testing • SDL Practice #13: Attack Surface Review Verification Phase

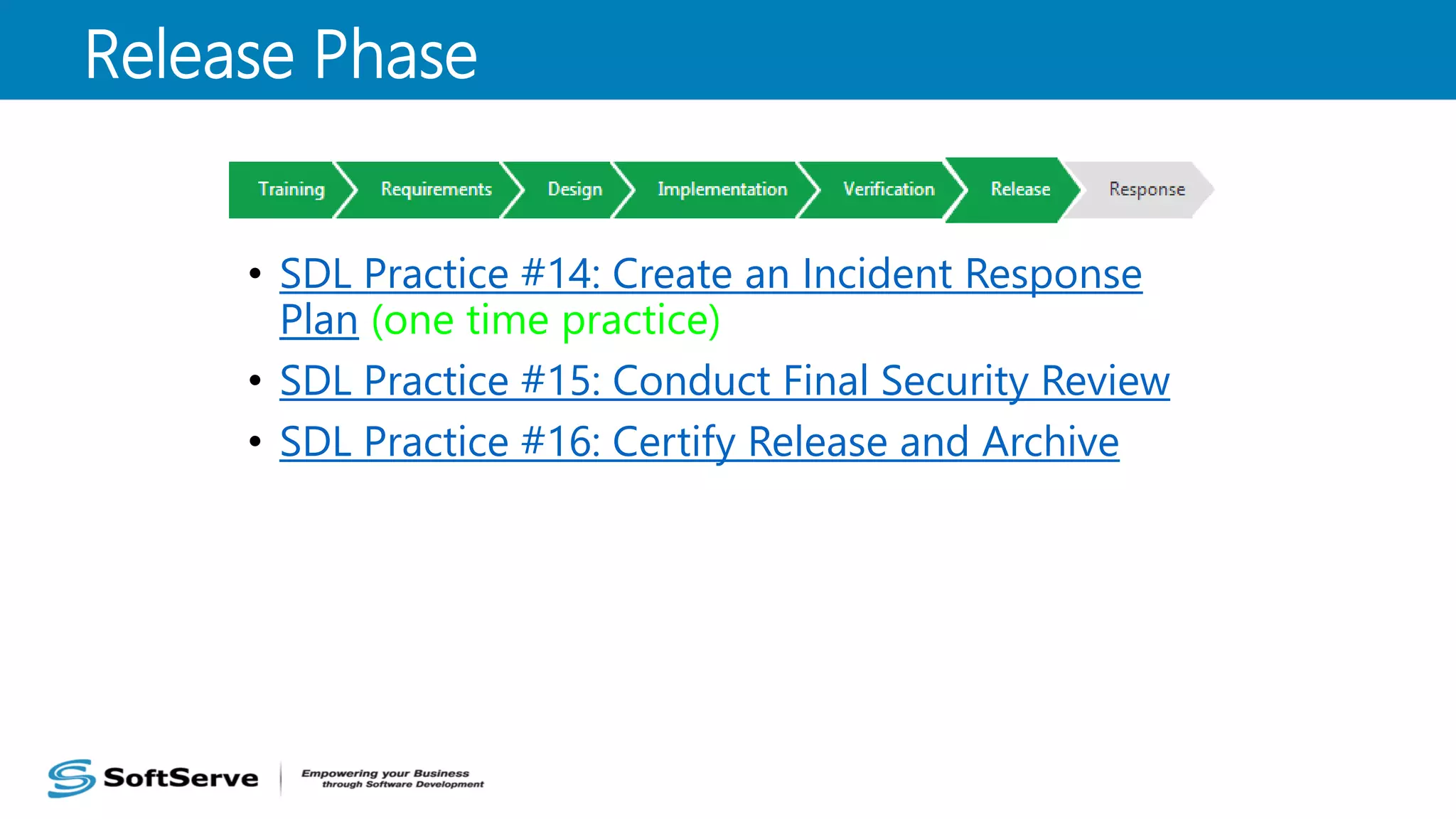

- 64. • SDL Practice#14: Create an Incident Response Plan (one time practice) • SDL Practice #15: Conduct Final Security Review • SDL Practice #16: Certify Release and Archive Release Phase

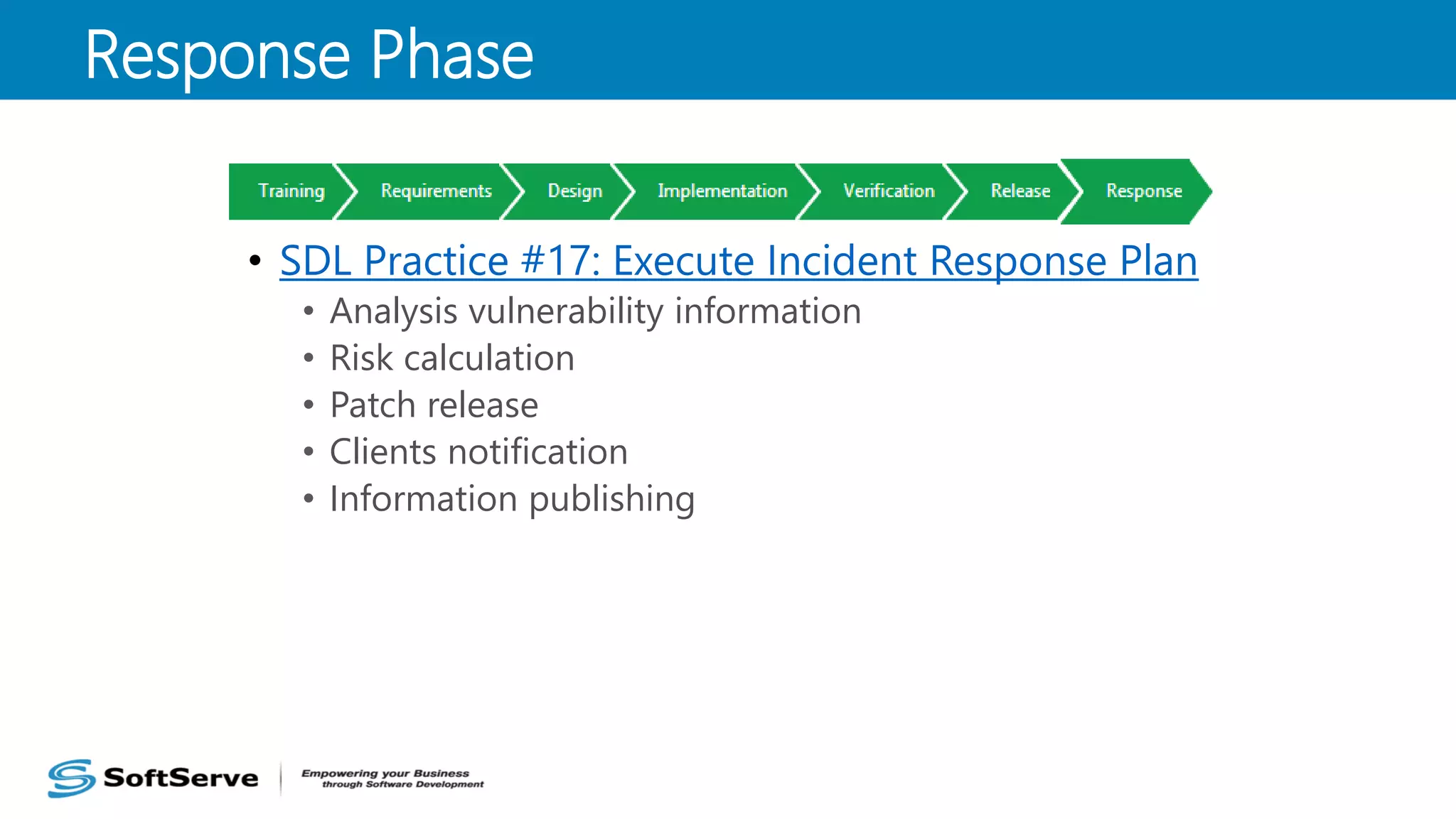

- 65. • SDL Practice#17: Execute Incident Response Plan • Analysis vulnerability information • Risk calculation • Patch release • Clients notification • Information publishing Response Phase
