Distributed Deep Learning on
MapR Converged Data Platform
Dong Meng - dmeng@mapr.com
Data Scientist, MapR Technologies

2. © 2017 MapR TechnologiesMapR Confidential 2
Roadmaps
• Enterprise Big data Journey
• Distributed Deep Learning
• Apply Container Technology and NVIDIA GPUs
• Demos

3. © 2017 MapR TechnologiesMapR Confidential 3
Enterprise Big data
Journey

4. © 2017 MapR TechnologiesMapR Confidential 4
Great buildings have
great foundations

5. © 2017 MapR TechnologiesMapR Confidential 5

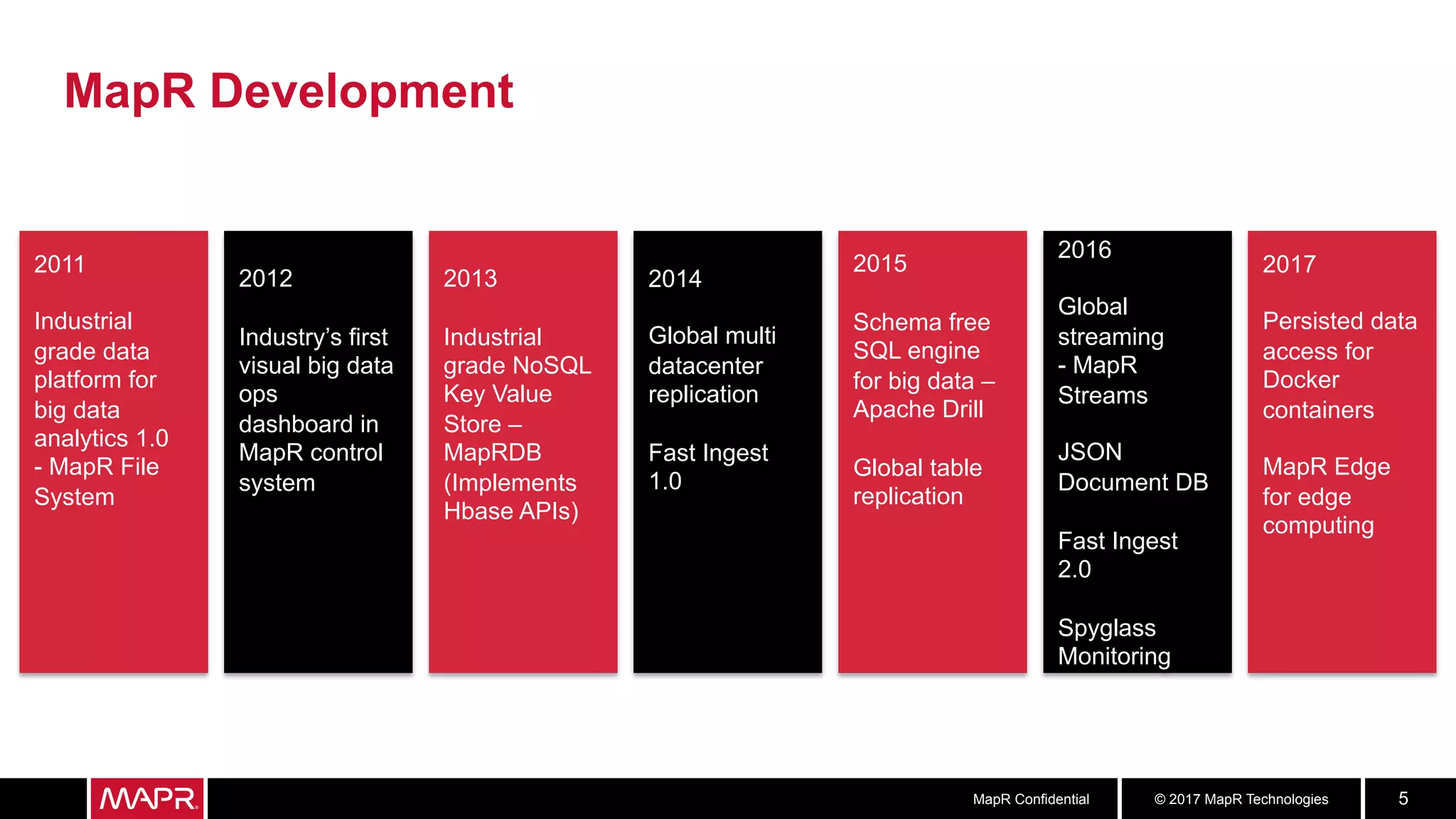

MapR Development
2011
Industrial
grade data
platform for
big data
analytics 1.0
- MapR File
System
2013
Industrial
grade NoSQL
Key Value
Store –
MapRDB
(Implements
Hbase APIs)
2012
Industry’s first
visual big data
ops
dashboard in
MapR control
system
2014
Global multi
datacenter
replication
Fast Ingest
1.0
2016
Global
streaming
- MapR
Streams
JSON
Document DB
Fast Ingest
2.0
Spyglass
Monitoring
2015
Schema free
SQL engine
for big data –
Apache Drill
Global table
replication
2017
Persisted data
access for
Docker
containers
MapR Edge
for edge
computing

6. © 2017 MapR TechnologiesMapR Confidential 6

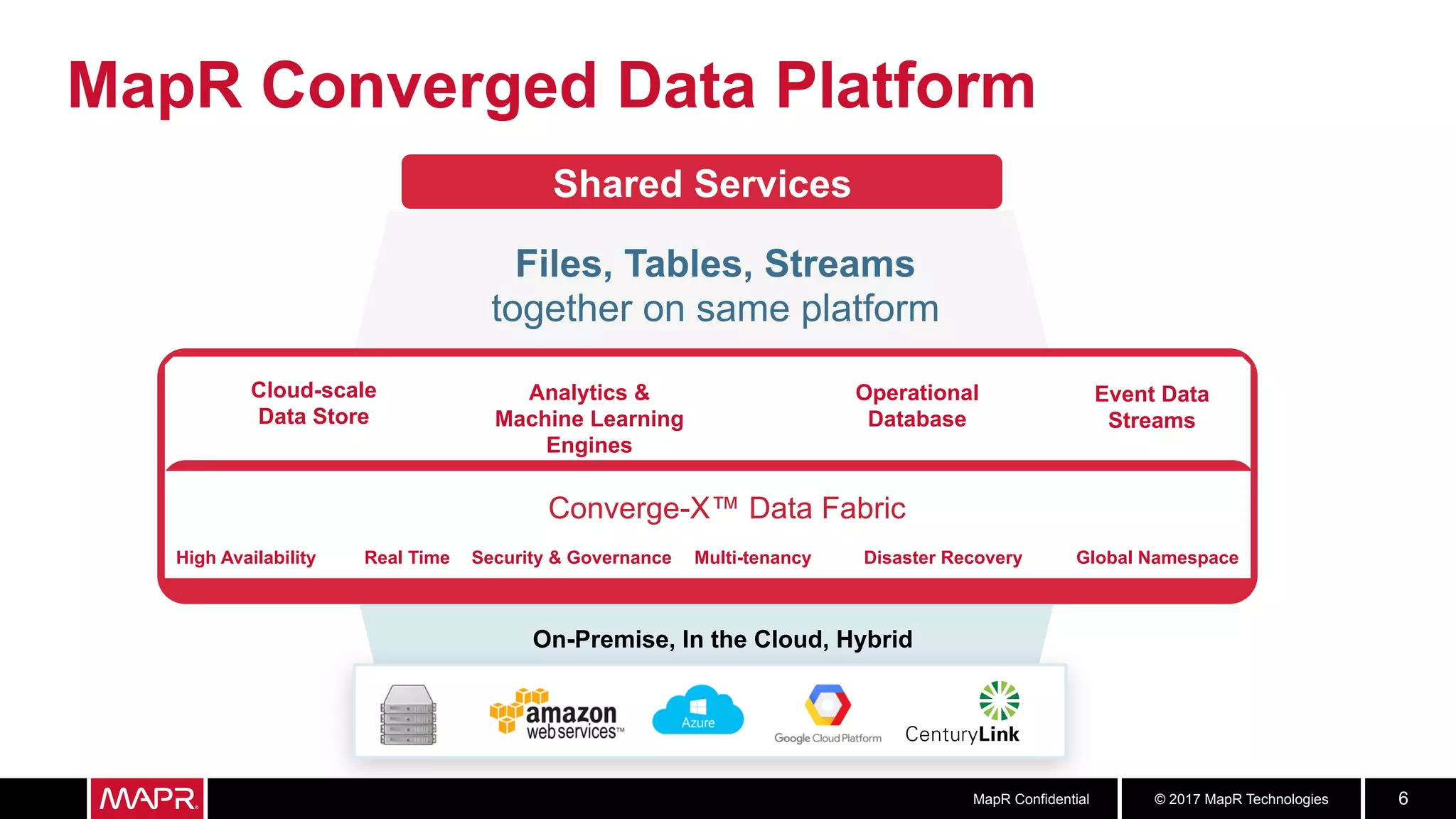

MapR Converged Data Platform
Files, Tables, Streams
together on same platform
Shared Services
On-Premise, In the Cloud, Hybrid
High Availability Real Time Security & Governance Multi-tenancy Disaster Recovery Global Namespace
Converge-X™ Data Fabric
Event Data
Streams
Analytics &
Machine Learning
Engines
Operational
Database
Cloud-scale
Data Store

7. © 2017 MapR TechnologiesMapR Confidential 7
High Availability Real Time Security & Governance Multi-tenancy Disaster Recovery Global Namespace
Converge-X™ Data Fabric
On-Premise, In the Cloud, Hybrid
HDFS APIPOSIX, NFS HBase API JSON API Kafka API

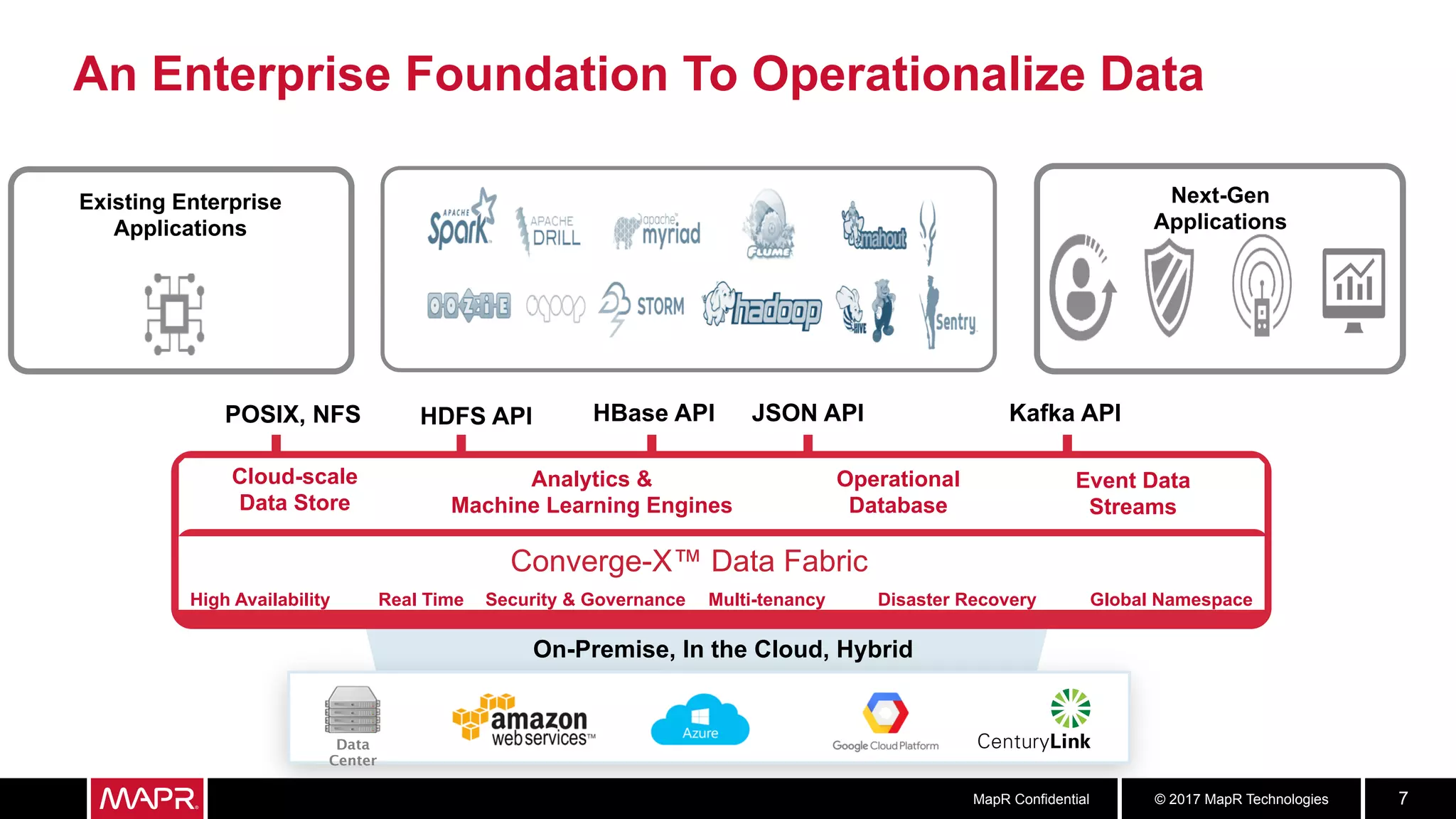

An Enterprise Foundation To Operationalize Data
Data
Center
Next-Gen
Applications
Event Data
Streams
Analytics &
Machine Learning Engines
Operational
Database
Cloud-scale
Data Store
Existing Enterprise
Applications

8. © 2017 MapR TechnologiesMapR Confidential 8

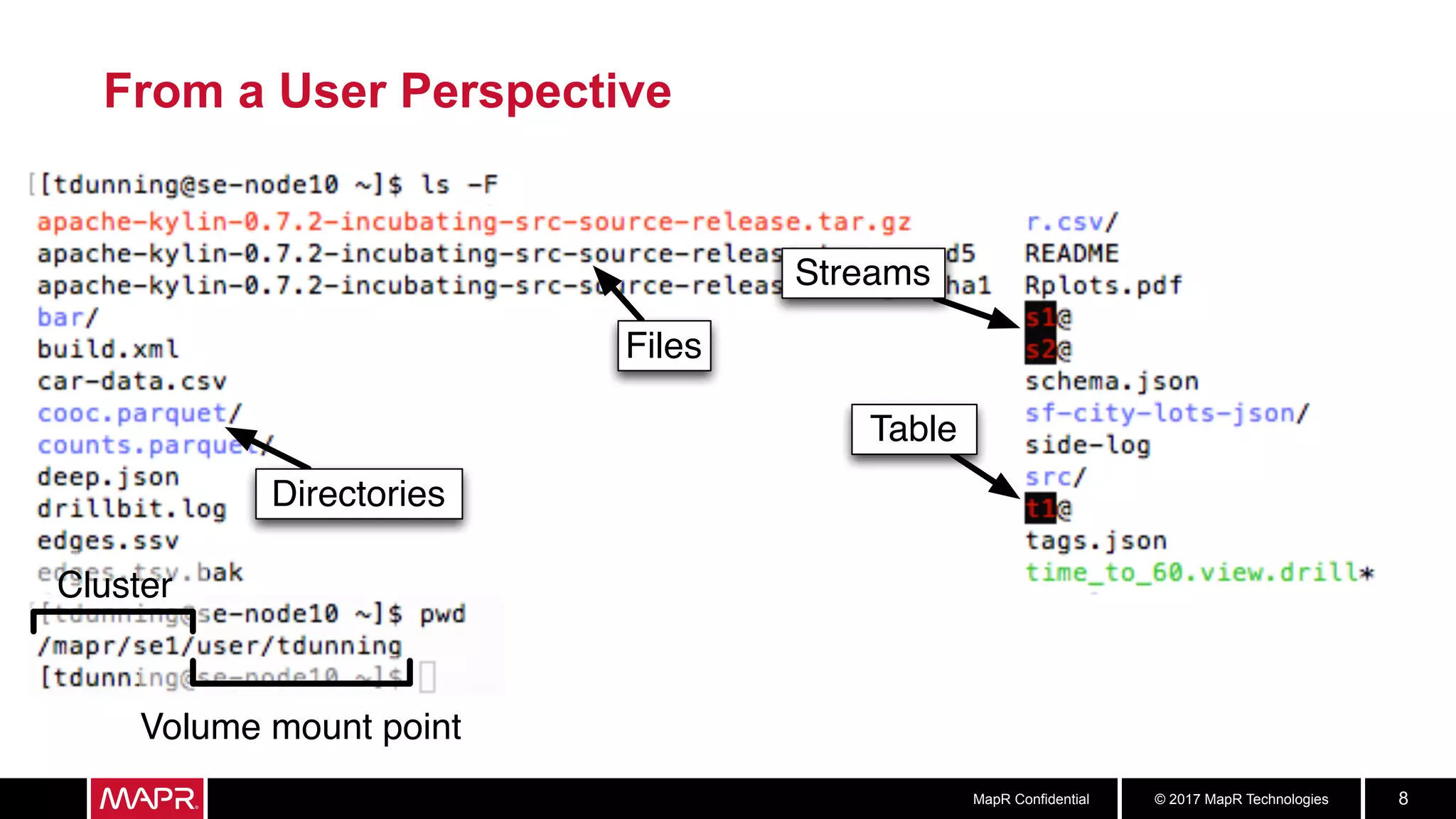

From a User Perspective
Files
Table
Streams
Directories
Cluster
Volume mount point

9. © 2017 MapR TechnologiesMapR Confidential 9
Distributed Deep Learning

10. © 2017 MapR TechnologiesMapR Confidential 10
More
DATA
The Unreasonable Effectiveness of Data,
published by Google
beats complex
algorithms

11. © 2017 MapR TechnologiesMapR Confidential 11

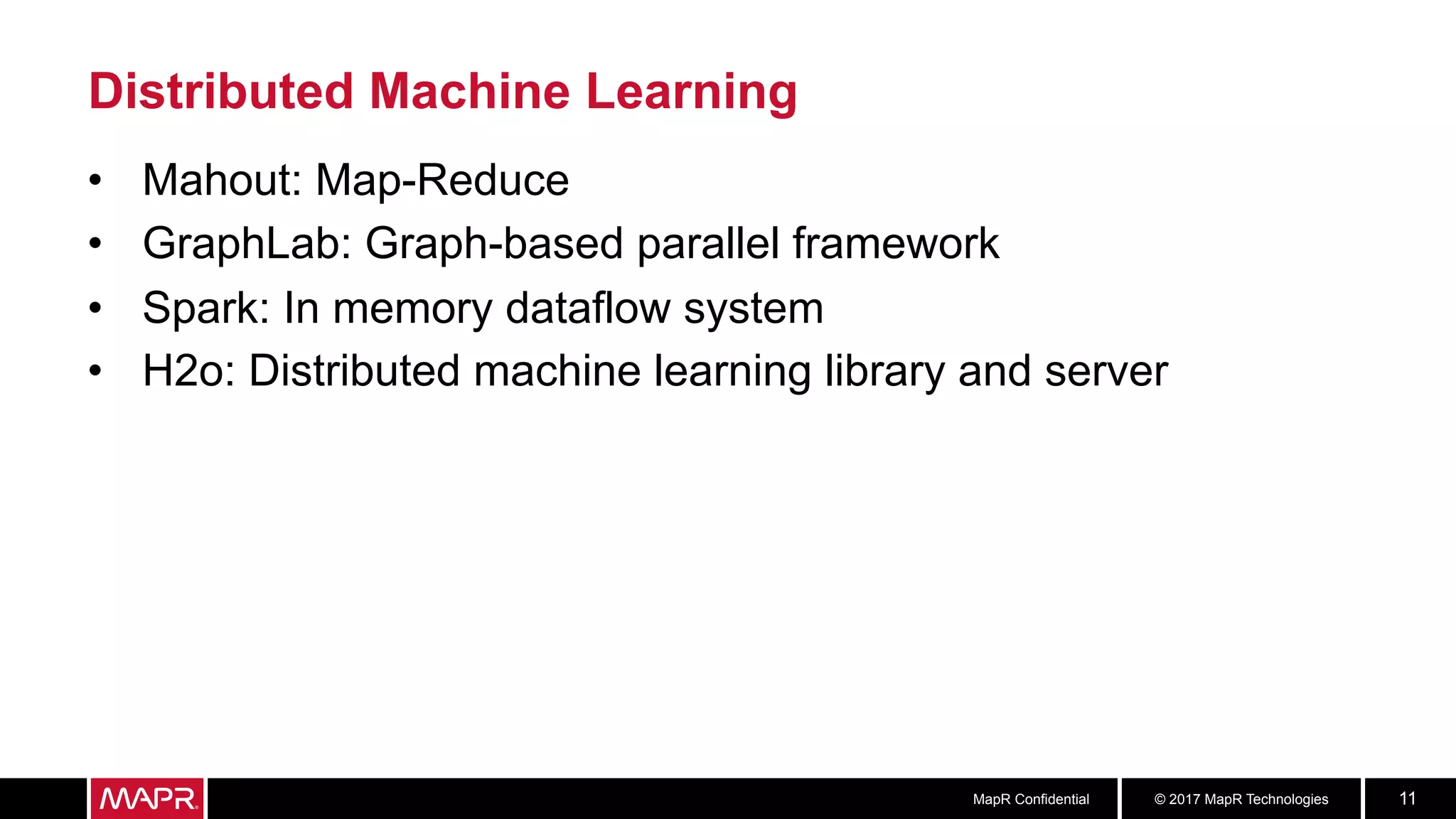

Distributed Machine Learning
• Mahout: Map-Reduce
• GraphLab: Graph-based parallel framework
• Spark: In memory dataflow system
• H2o: Distributed machine learning library and server

12. © 2017 MapR TechnologiesMapR Confidential 12

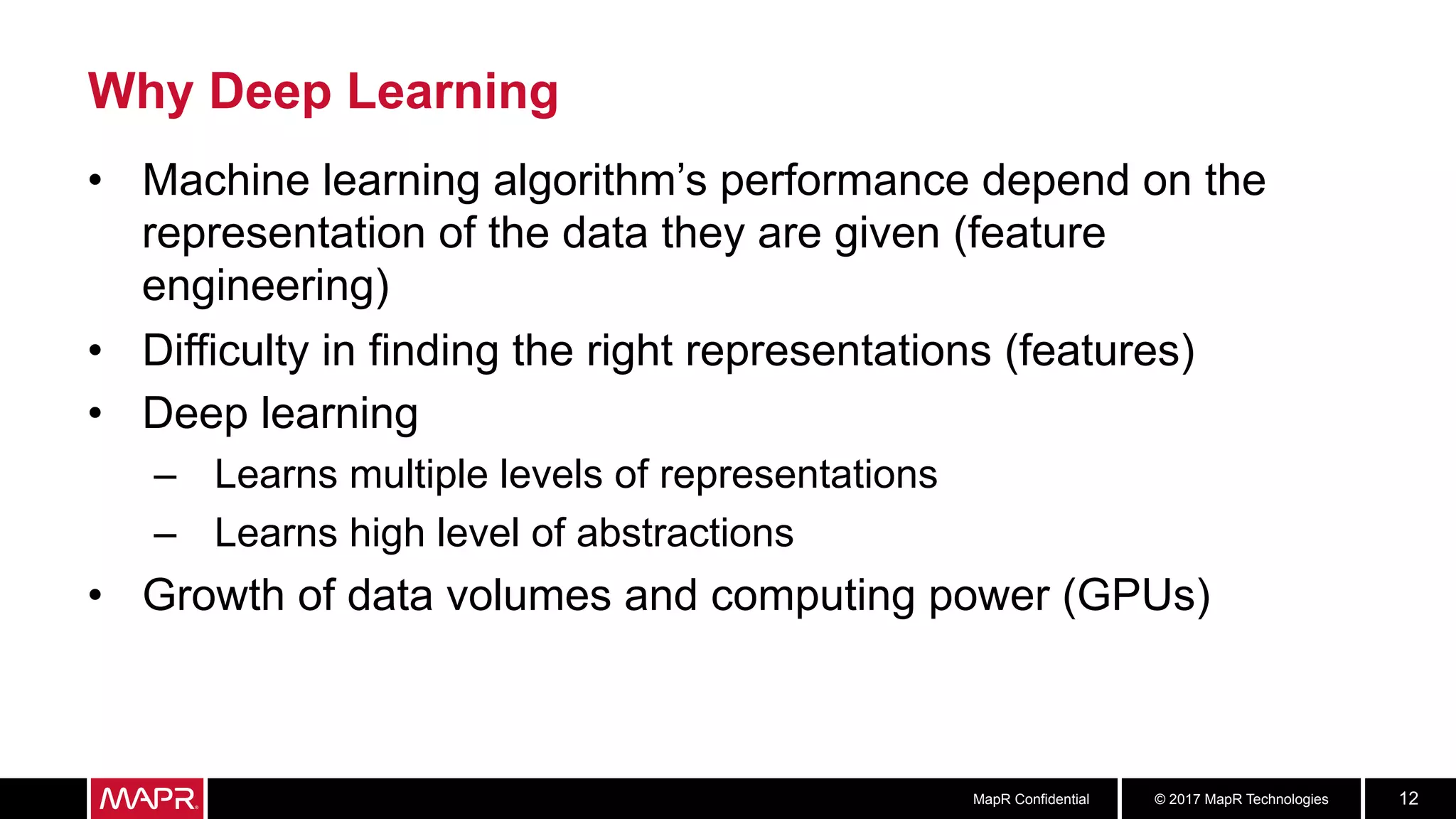

Why Deep Learning
• Machine learning algorithm’s performance depend on the
representation of the data they are given (feature
engineering)
• Difficulty in finding the right representations (features)
• Deep learning
– Learns multiple levels of representations
– Learns high level of abstractions
• Growth of data volumes and computing power (GPUs)

13. © 2017 MapR TechnologiesMapR Confidential 13

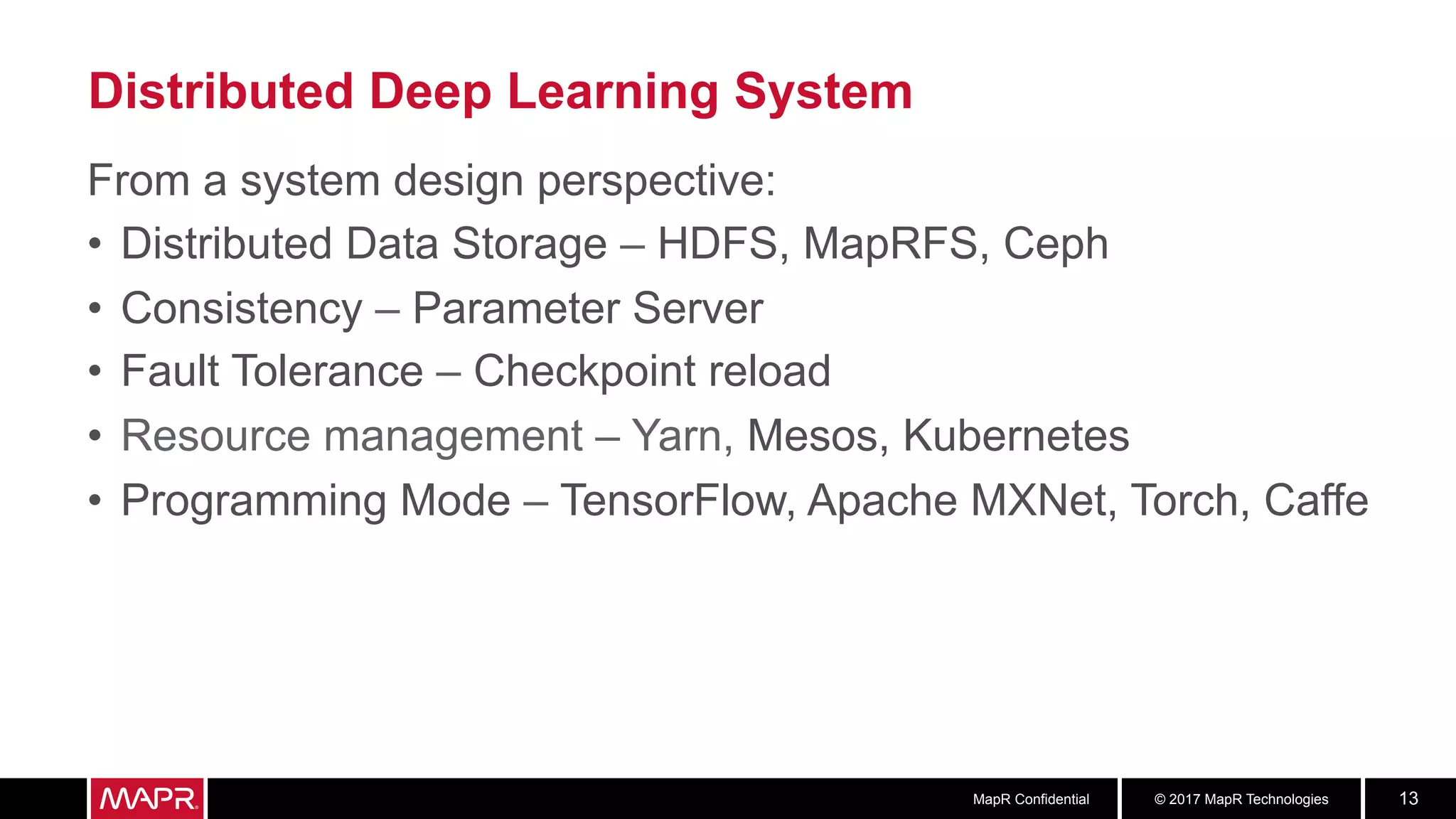

Distributed Deep Learning System
From a system design perspective:
• Distributed Data Storage – HDFS, MapRFS, Ceph
• Consistency – Parameter Server
• Fault Tolerance – Checkpoint reload
• Resource management – Yarn, Mesos, Kubernetes
• Programming Mode – TensorFlow, Apache MXNet, Torch, Caffe

14. © 2017 MapR TechnologiesMapR Confidential 14

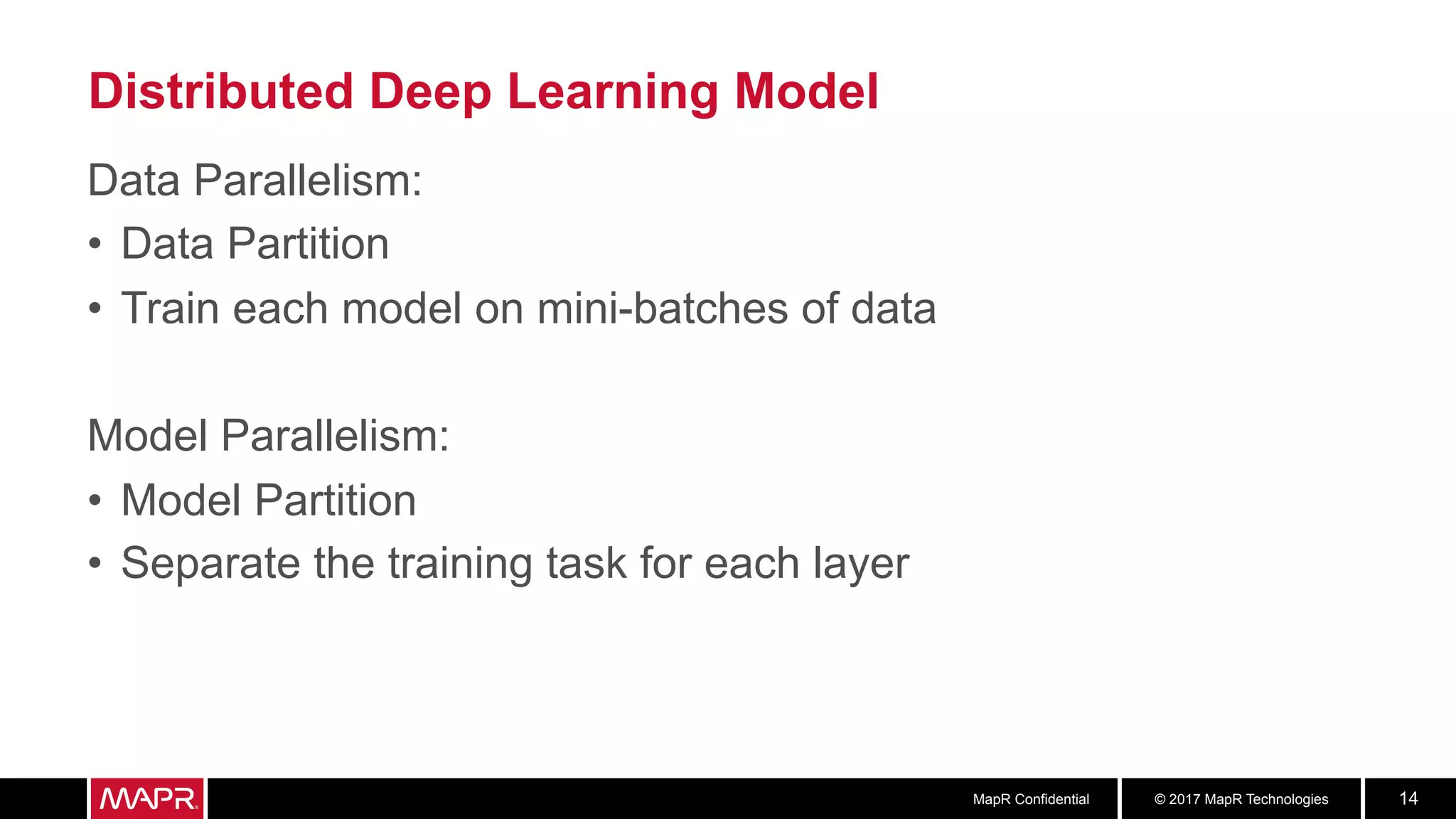

Distributed Deep Learning Model
Data Parallelism:
• Data Partition
• Train each model on mini-batches of data
Model Parallelism:
• Model Partition
• Separate the training task for each layer

15. © 2017 MapR TechnologiesMapR Confidential 15

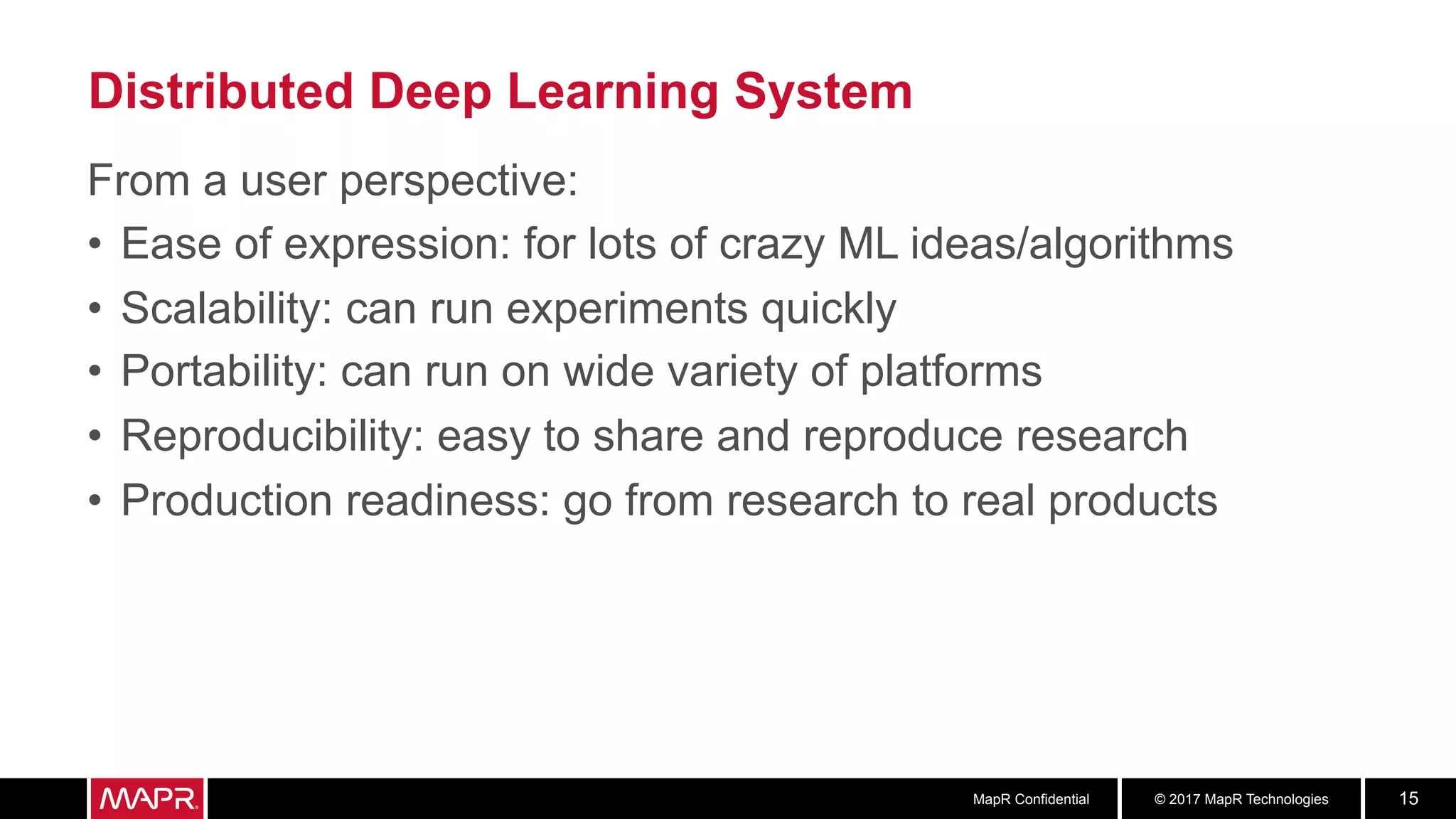

Distributed Deep Learning System
From a user perspective:
• Ease of expression: for lots of crazy ML ideas/algorithms
• Scalability: can run experiments quickly
• Portability: can run on wide variety of platforms
• Reproducibility: easy to share and reproduce research
• Production readiness: go from research to real products

16. © 2017 MapR TechnologiesMapR Confidential 16
Apply Container Technology and
NVIDIA GPUs

17. © 2017 MapR TechnologiesMapR Confidential 17

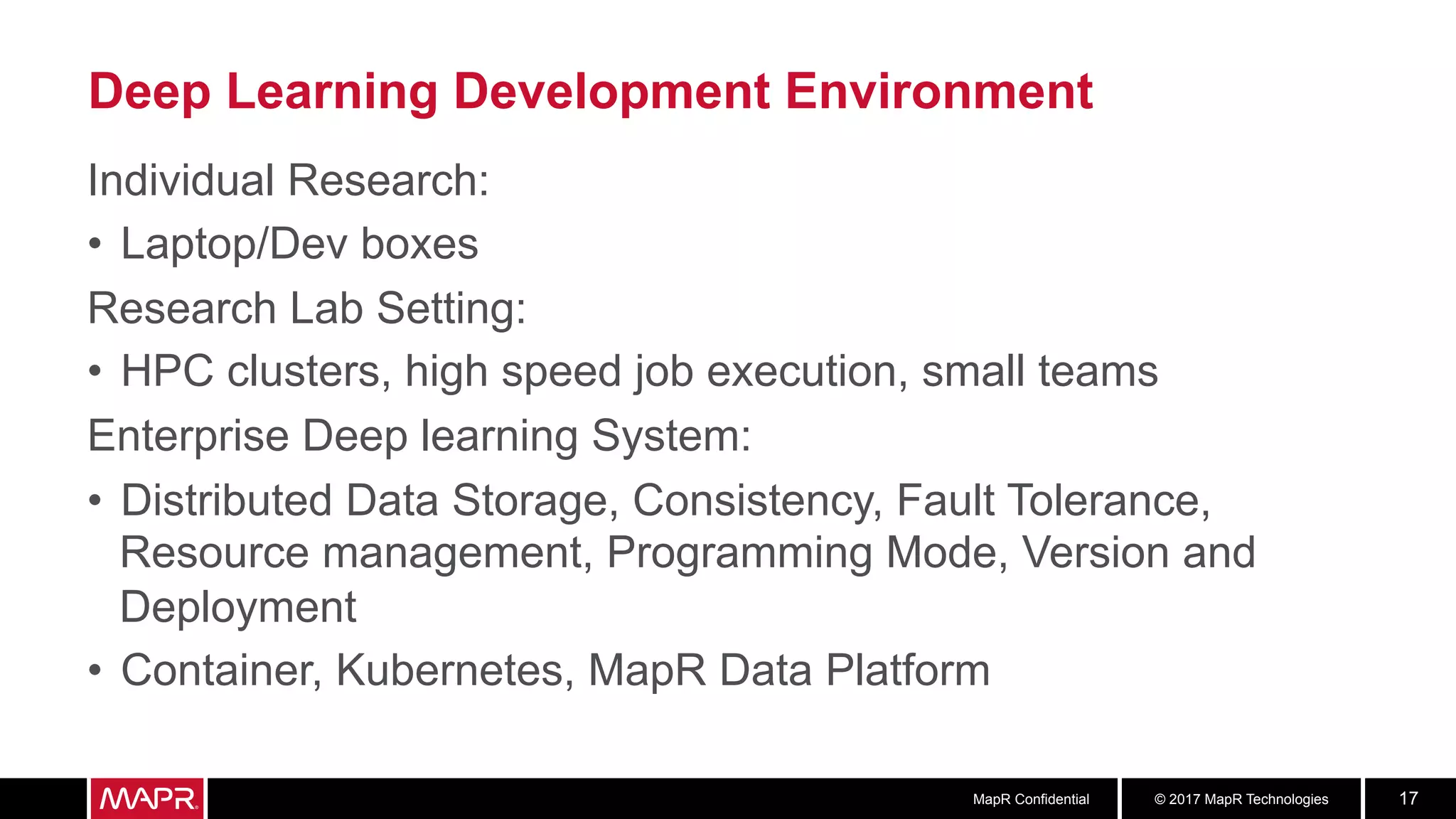

Deep Learning Development Environment
Individual Research:
• Laptop/Dev boxes
Research Lab Setting:
• HPC clusters, high speed job execution, small teams
Enterprise Deep learning System:
• Distributed Data Storage, Consistency, Fault Tolerance,
Resource management, Programming Mode, Version and
Deployment
• Container, Kubernetes, MapR Data Platform

18. © 2017 MapR TechnologiesMapR Confidential 18

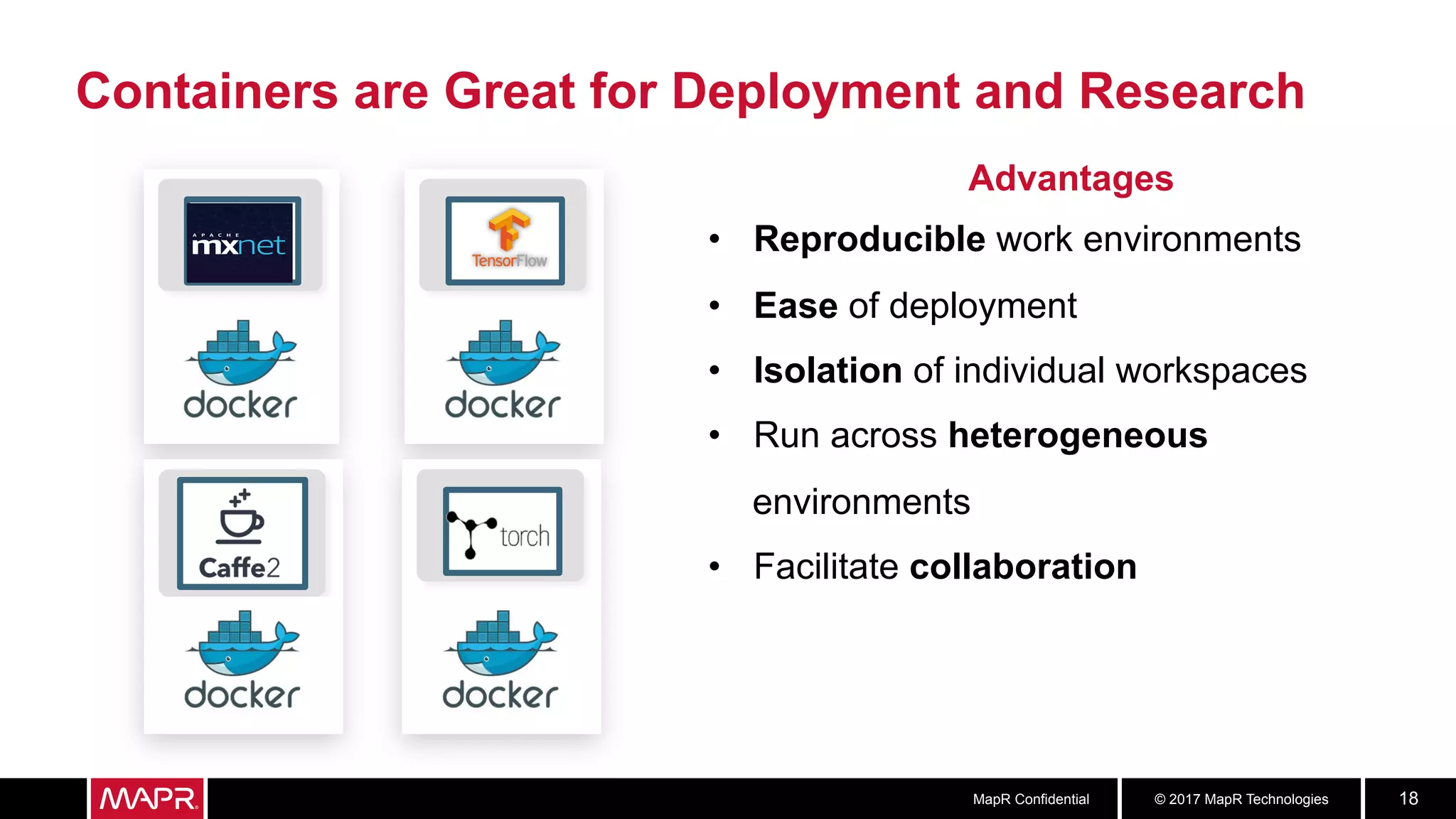

Containers are Great for Deployment and Research
Advantages
• Reproducible work environments
• Ease of deployment
• Isolation of individual workspaces
• Run across heterogeneous
environments
• Facilitate collaboration

19. © 2017 MapR TechnologiesMapR Confidential 19

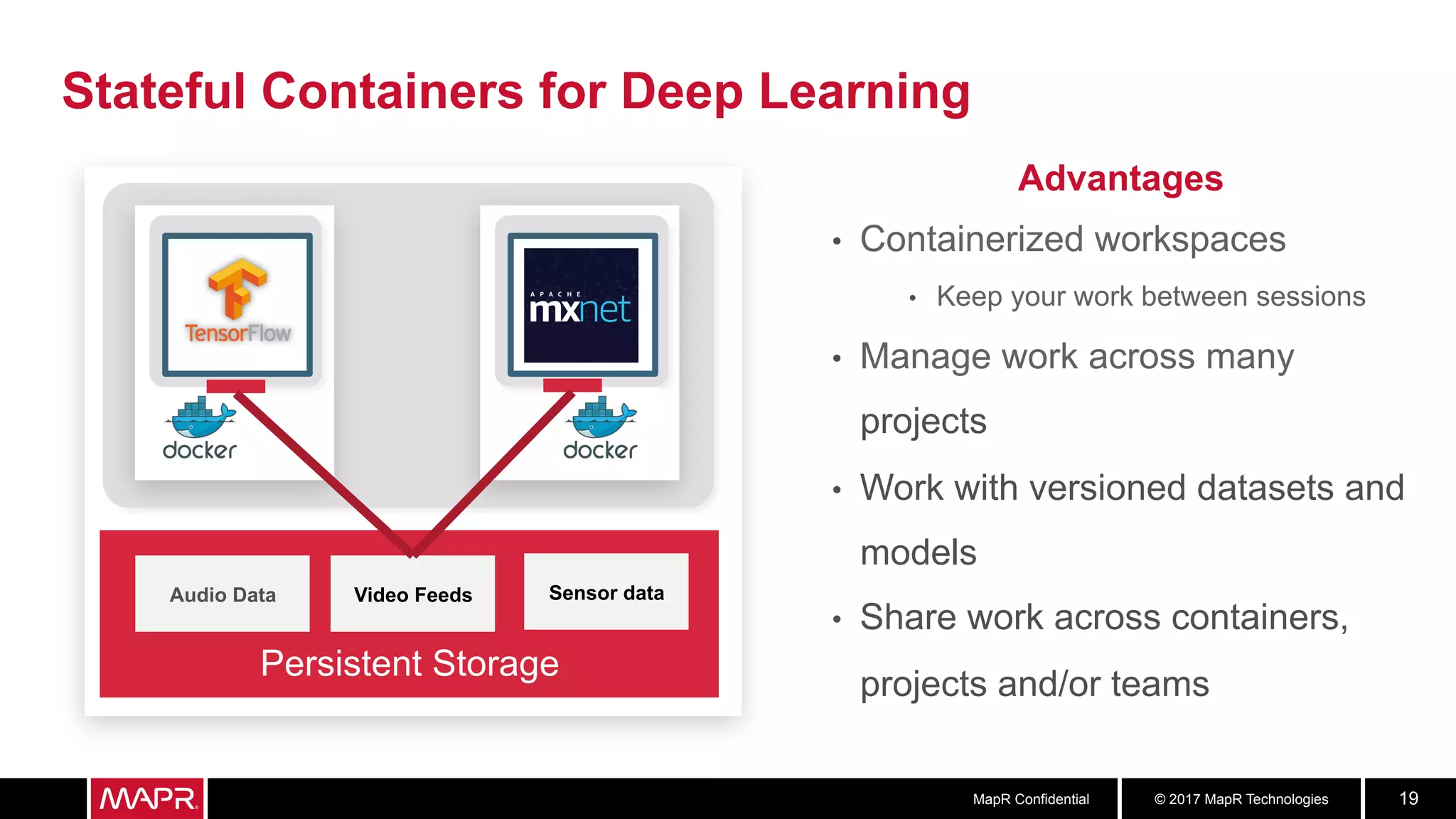

Stateful Containers for Deep Learning
Persistent Storage
Audio Data Video Feeds
Advantages
• Containerized workspaces
• Keep your work between sessions
• Manage work across many
projects
• Work with versioned datasets and
models
• Share work across containers,
projects and/or teams
Sensor data

20. © 2017 MapR TechnologiesMapR Confidential 20

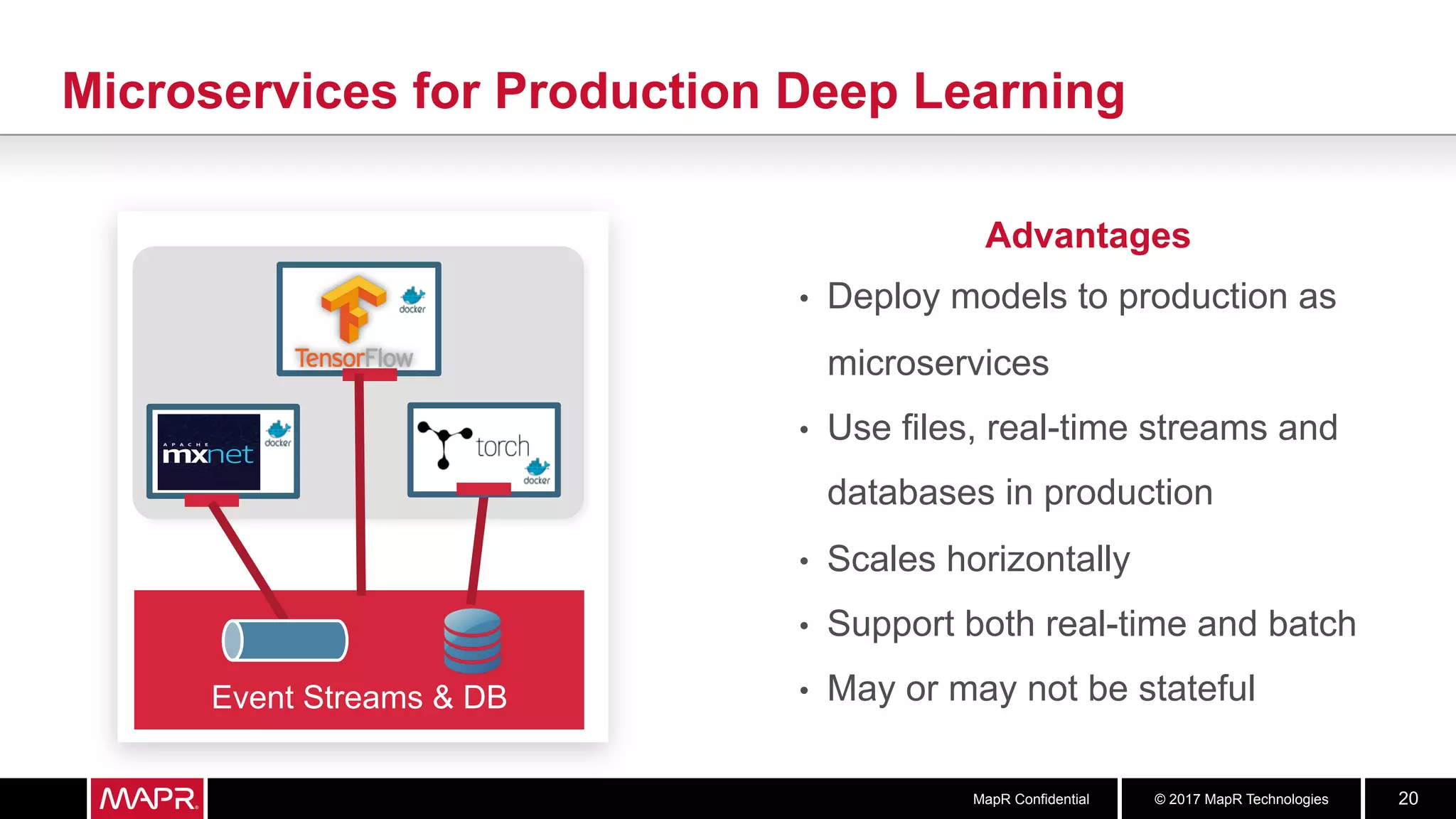

Microservices for Production Deep Learning
Event Streams & DB
Advantages
• Deploy models to production as
microservices
• Use files, real-time streams and
databases in production
• Scales horizontally
• Support both real-time and batch
• May or may not be stateful

21. © 2017 MapR TechnologiesMapR Confidential 21

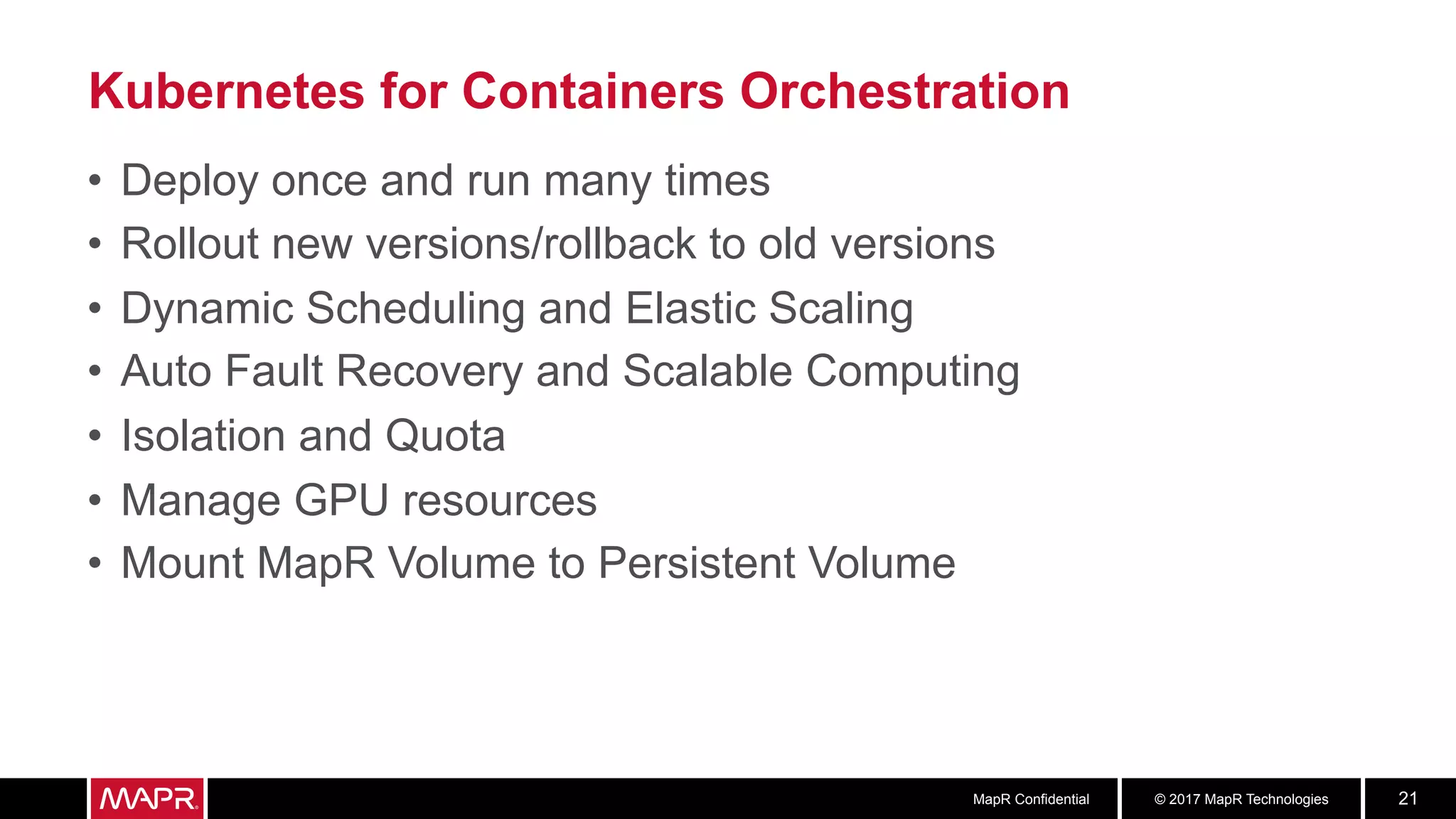

Kubernetes for Containers Orchestration
• Deploy once and run many times
• Rollout new versions/rollback to old versions
• Dynamic Scheduling and Elastic Scaling
• Auto Fault Recovery and Scalable Computing
• Isolation and Quota
• Manage GPU resources
• Mount MapR Volume to Persistent Volume

22. © 2017 MapR TechnologiesMapR Confidential 22

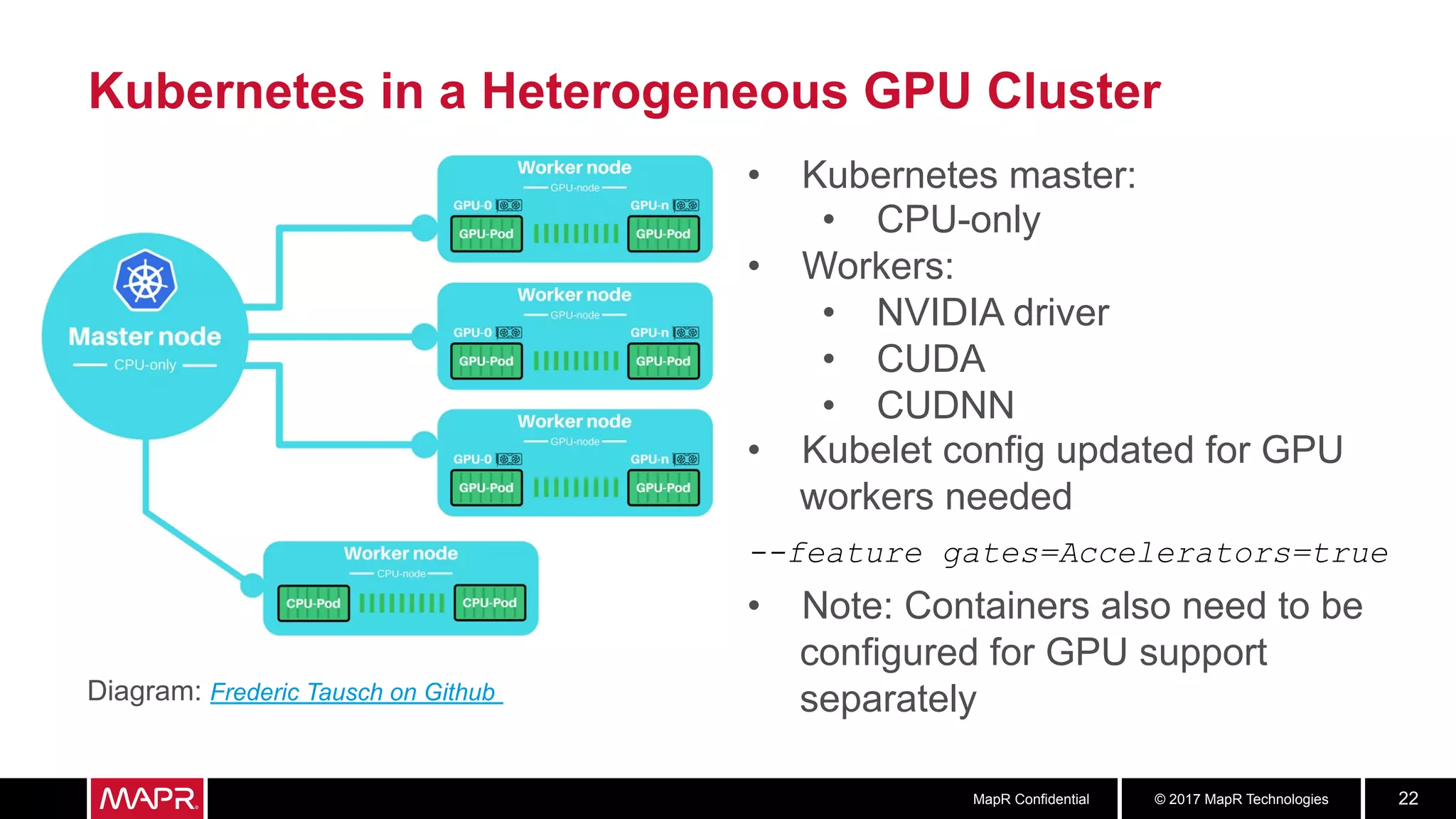

Kubernetes in a Heterogeneous GPU Cluster
• Kubernetes master:
• CPU-only
• Workers:
• NVIDIA driver
• CUDA
• CUDNN
• Kubelet config updated for GPU
workers needed
--feature gates=Accelerators=true
• Note: Containers also need to be
configured for GPU support
separatelyDiagram: Frederic Tausch on Github

23. © 2017 MapR TechnologiesMapR Confidential 23

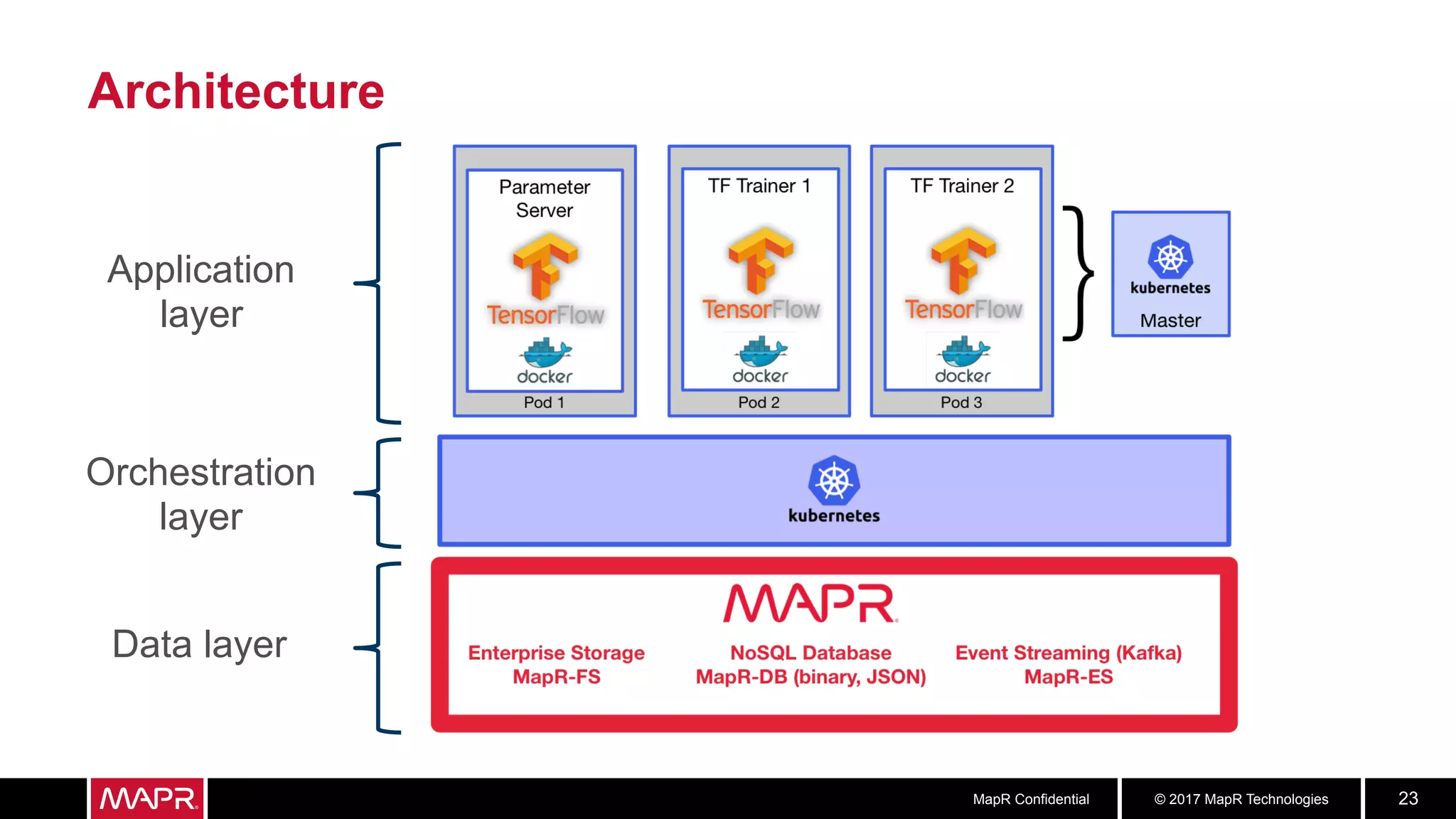

Architecture
Data layer
Orchestration
layer
Application
layer

24. © 2017 MapR TechnologiesMapR Confidential 24

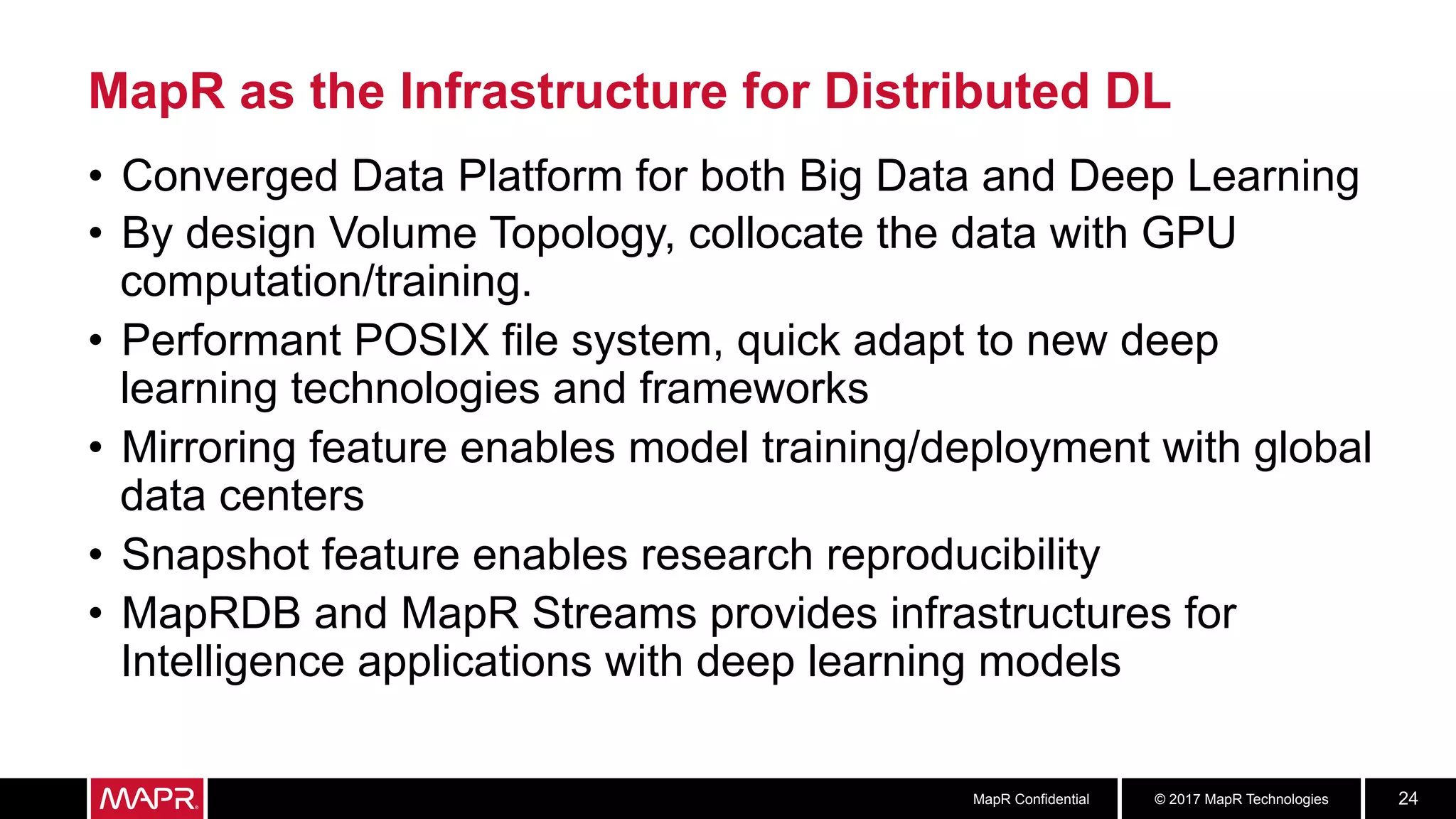

• Converged Data Platform for both Big Data and Deep Learning
• By design Volume Topology, collocate the data with GPU
computation/training.
• Performant POSIX file system, quick adapt to new deep
learning technologies and frameworks
• Mirroring feature enables model training/deployment with global
data centers
• Snapshot feature enables research reproducibility
• MapRDB and MapR Streams provides infrastructures for
Intelligence applications with deep learning models
MapR as the Infrastructure for Distributed DL

25. © 2017 MapR TechnologiesMapR Confidential 25

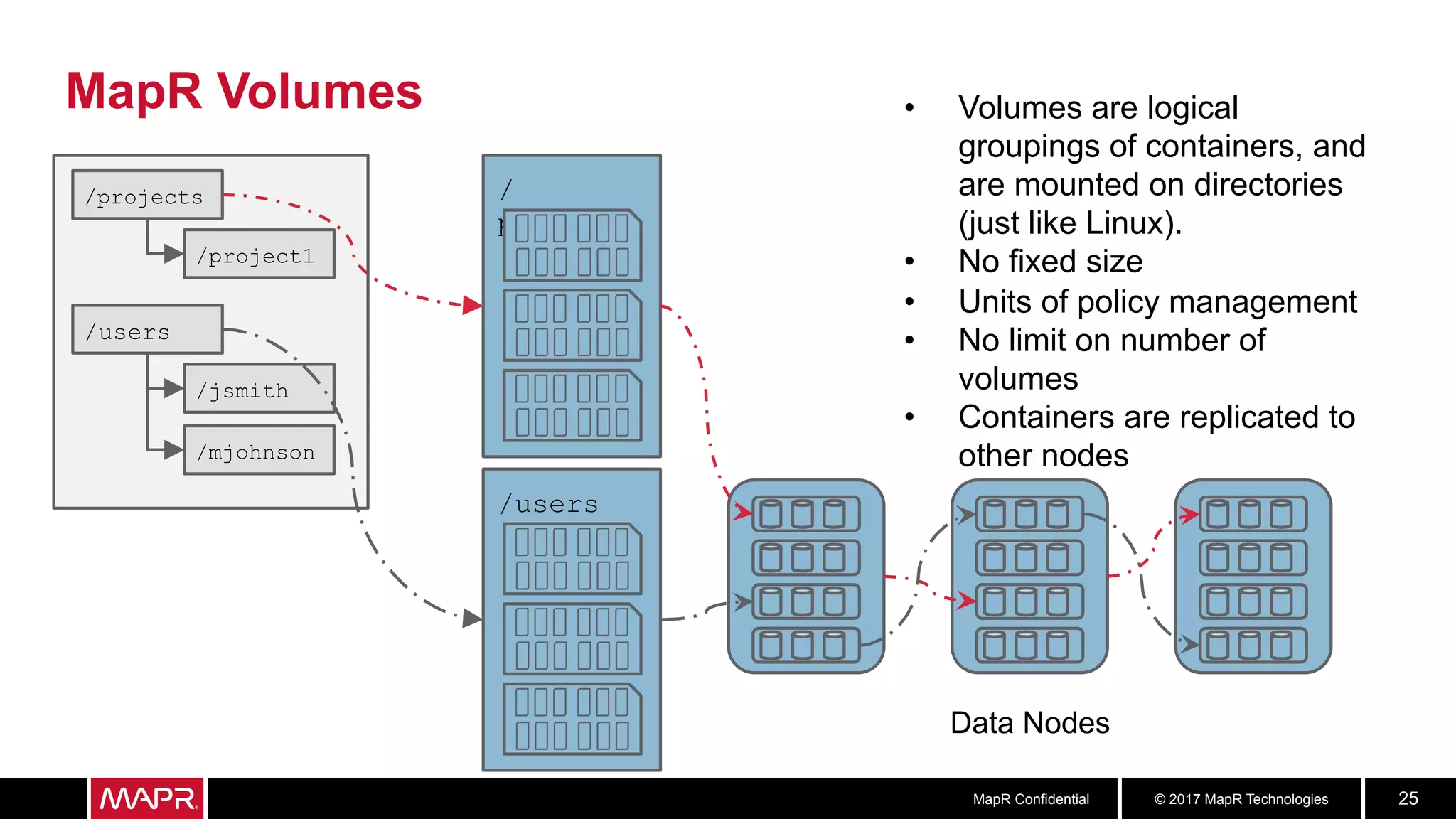

MapR Volumes • Volumes are logical
groupings of containers, and
are mounted on directories
(just like Linux).
• No fixed size
• Units of policy management
• No limit on number of
volumes
• Containers are replicated to
other nodes
/projects
/project1
/users
/jsmith
/mjohnson
/
projects
/users
Data Nodes

26. © 2017 MapR TechnologiesMapR Confidential 26

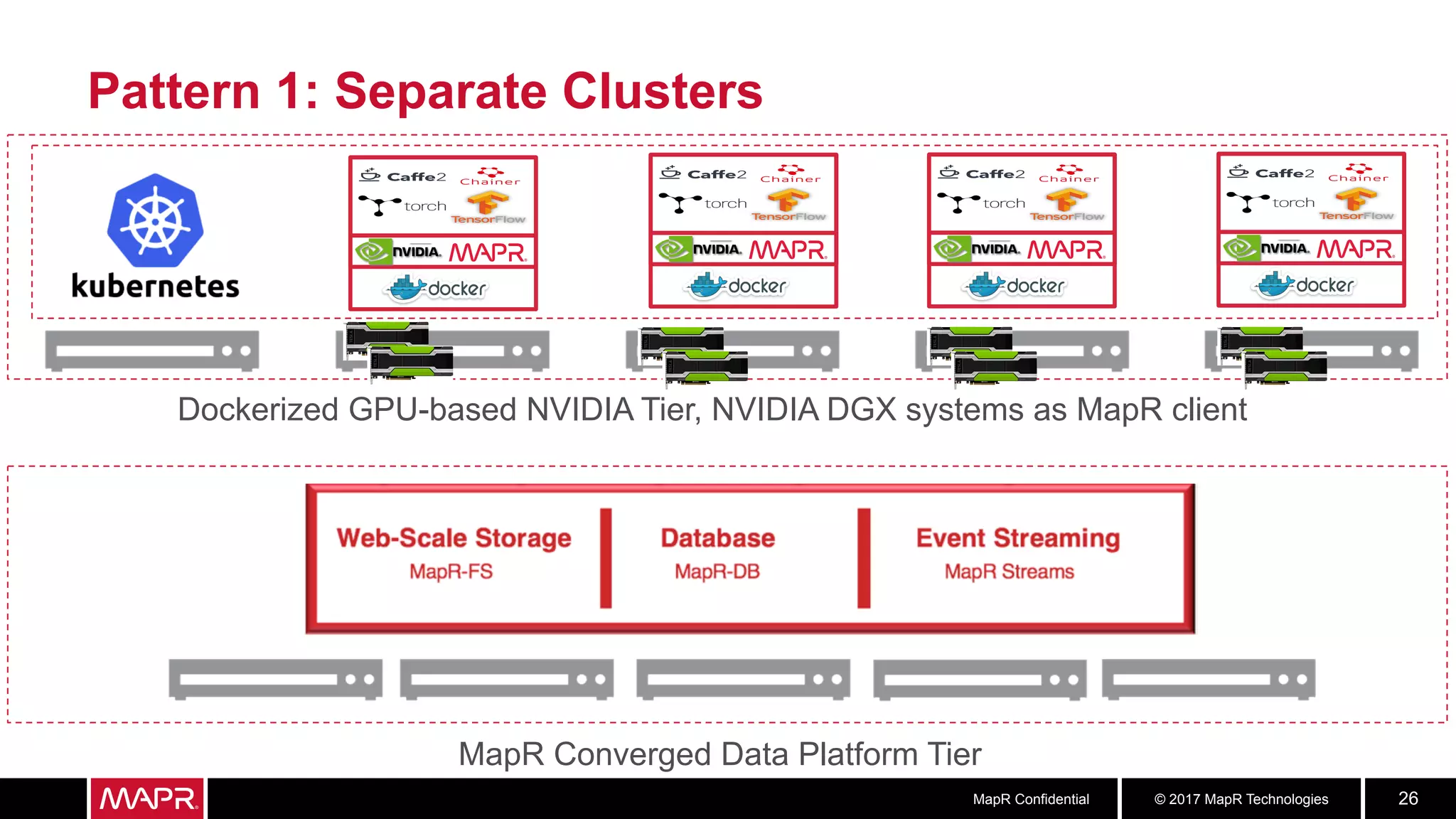

Pattern 1: Separate Clusters
MapR Converged Data Platform Tier
Dockerized GPU-based NVIDIA Tier, NVIDIA DGX systems as MapR client

27. © 2017 MapR TechnologiesMapR Confidential 27

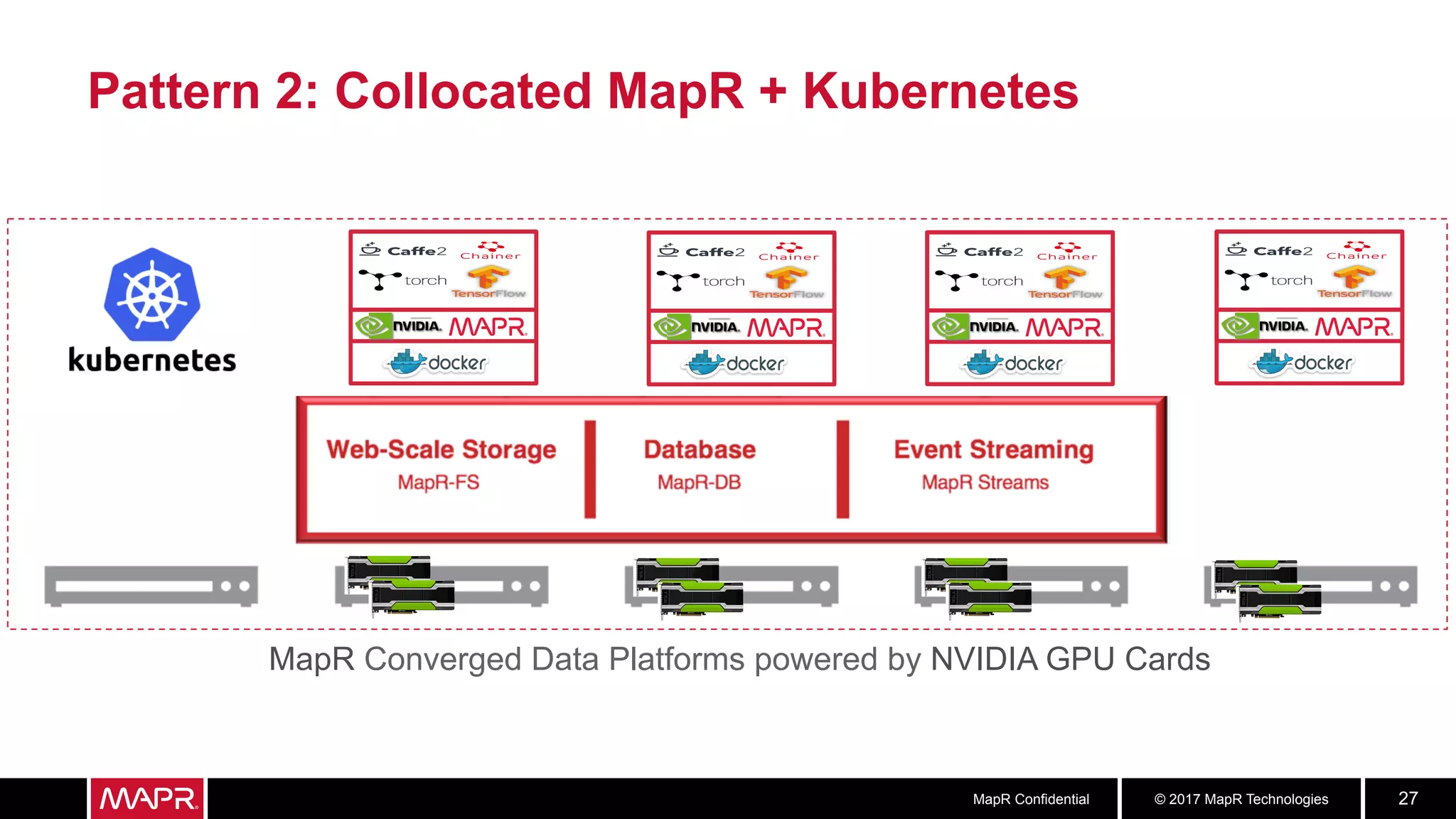

Pattern 2: Collocated MapR + Kubernetes
MapR Converged Data Platforms powered by NVIDIA GPU Cards

28. © 2017 MapR TechnologiesMapR Confidential 28
Demos

29. © 2017 MapR TechnologiesMapR Confidential 29

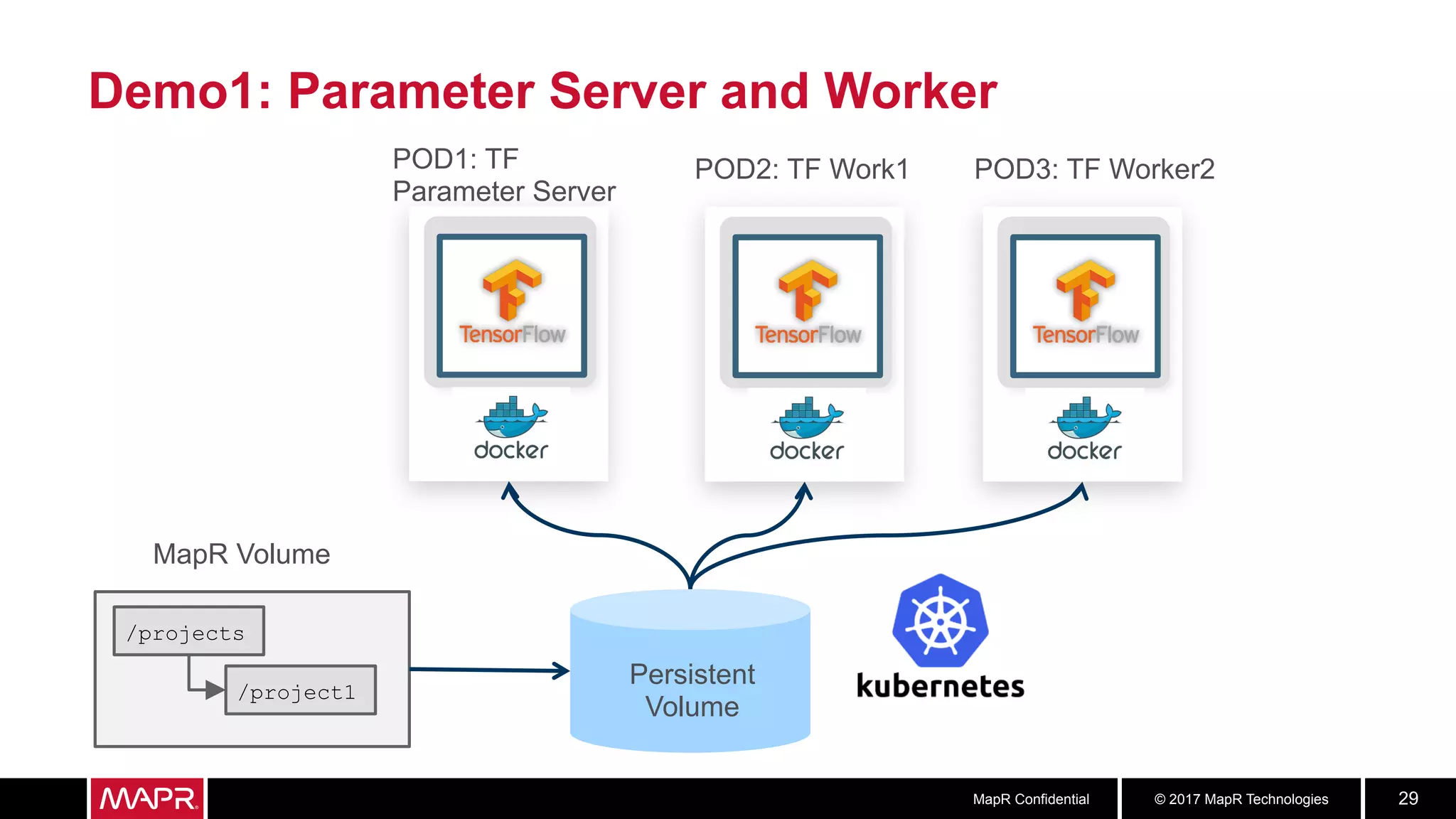

Demo1: Parameter Server and Worker
POD1: TF
Parameter Server
POD3: TF Worker2POD2: TF Work1
/projects
/project1
Persistent
Volume
MapR Volume

30. © 2017 MapR TechnologiesMapR Confidential 30

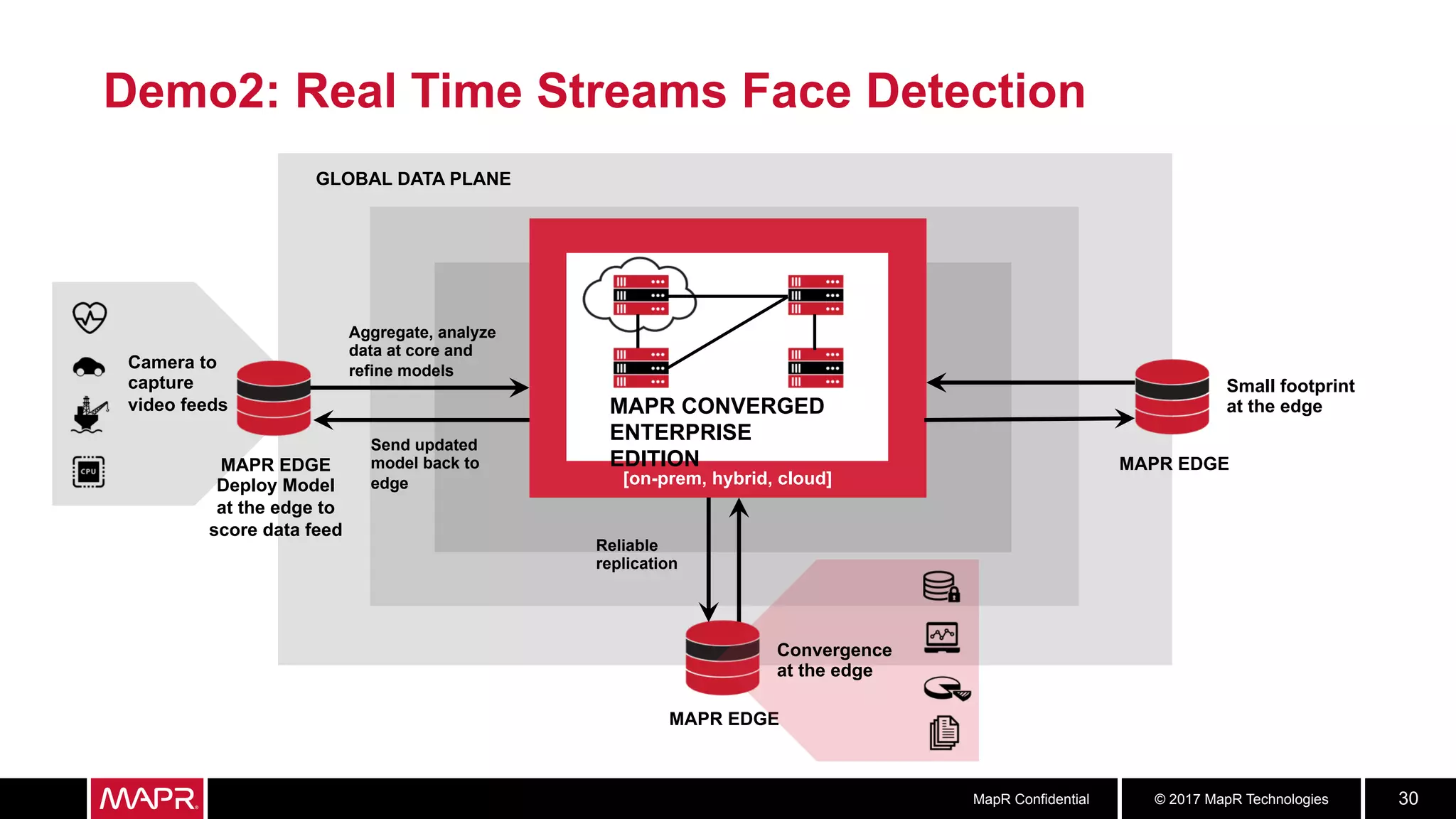

Demo2: Real Time Streams Face Detection
GLOBAL DATA PLANE
MAPR EDGE
Small footprint
at the edgeMAPR CONVERGED
ENTERPRISE
EDITION
Send updated
model back to
edge
Aggregate, analyze
data at core and
refine models
Reliable
replication
MAPR EDGE
Camera to
capture
video feeds
Convergence
at the edge
MAPR EDGE
Deploy Model
at the edge to
score data feed
[on-prem, hybrid, cloud]

31. © 2017 MapR TechnologiesMapR Confidential 31

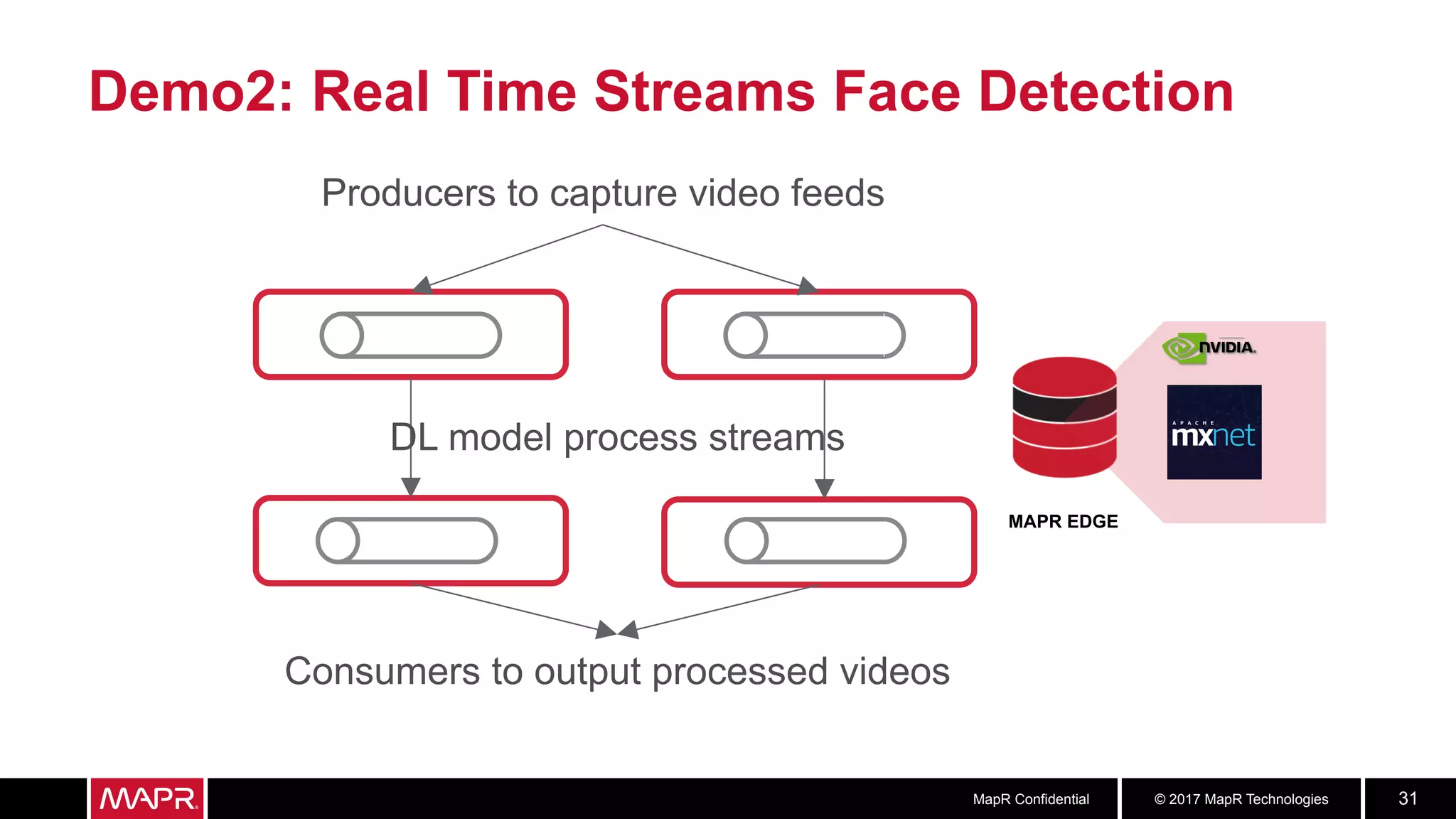

Demo2: Real Time Streams Face Detection
Producers to capture video feeds
Consumers to output processed videos
DL model process streams
MAPR EDGE

32. © 2017 MapR TechnologiesMapR Confidential 32
Q&A
ENGAGE WITH US
孟东
dmeng@mapr.com
