  Presentedby: Name: Nupur Thakur RollNo.: 21011 Sem X B.Arch 2025-26 Sub: Advanced Theories ADVANCED ARCHITECTURAL THEORIES & CASE STUDY: PATWON KI HAVELI, JAISALMER ADVANCED ARCHITECTURAL THEORIES & CASE STUDY: PATWON KI HAVELI, JAISALMER
• 2.

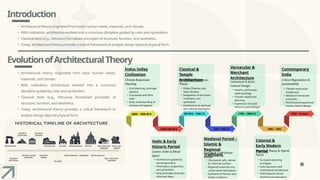

  Introduction EvolutionofArchitecturalTheory 2600 - 1900BCE 1500-300 BCE 1700 – 1900 CE 1900 – 1950 300 BCE - 1200 CE 1200 -1700 CE 1950 – Present Indus Valley Civilization Vedic & Early Historic Period Climate-Responsive Planning Cosmic Order & Ritual Space • Grid planning, drainage systems • Courtyards and thick walls • Early understanding of climate and hygiene • Architecture guided by sacred geometry • Orientation, proportion, and symbolism • Early principles that later informed Vastu Classical & Temple Architecture Formalized Indigenous Theory • Shilpa Shastras and Vastu Shastra • Integration of structure, ornament, and symbolism • Architecture as spiritual and cultural expression Vernacular & Merchant Architecture Contextual & Socio- Cultural Design • Havelis, pol houses, wada typology • Climate-responsive planning • Expression of social hierarchy and lifestyle Contemporary India Critical Regionalism & Sustainability • Climate-responsive modernism • Revival of vernacular principles • Performance-based and human-centric design Medieval Period – Islamic & Regional Traditions Climate & Craft-Driven Design • Courtyards, jalis, domes for thermal comfort • Regional materials and construction techniques • Synthesis of Persian and Indian traditions Colonial & Early Modern Period Imported Theory & Hybrid Forms • European planning principles • Indo-Saracenic and institutional architecture • Shift towards formal architectural education • Architectural theory originated from basic human needs, materials, and climate. • With civilization, architecture evolved into a conscious discipline guided by rules and symbolism. • Classical texts (e.g., Vitruvius) formalized principles of structure, function, and aesthetics. • Today, architectural theory provides a critical framework to analyze design beyond physical form. • Architectural theory originated from basic human needs, materials, and climate. • With civilization, architecture evolved into a conscious discipline guided by rules and symbolism. • Classical texts (e.g., Vitruvius) formalized principles of structure, function, and aesthetics. • Today, architectural theory provides a critical framework to analyze design beyond physical form.
• 3.
  Theories Core Architectural Theories Vernacular ArchitectureTheory Critical Regionalism Phenomenology in Architecture Modernism Environmental & Performance-Based Theories Climate-Responsive / Bioclimatic Theory Sustainable Architecture Theory Socio-Cultural & Ethical Theories Social & Participatory Architecture Gandhian / Ethical Architecture Vastu-Based Architectural Theory “These theories are later examined through the vernacular case study of Patwon ki Haveli, Jaisalmer.”
• 4.
  WhenTheoryBecomesArchitecture Patwon ki Havelidemonstrates how advanced architectural theories are intuitively embedded in traditional Indian architecture. Patwon ki Haveli, Jaisalmer
• 5.

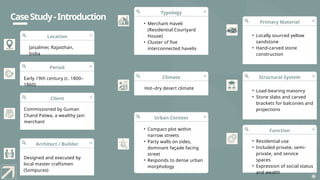

  Architect / Builder UrbanContext CaseStudy-Introduction Location Client Period Typology Climate Primary Material Structural System Function Jaisalmer, Rajasthan, India • Compact plot within narrow streets • Party walls on sides, dominant façade facing street • Responds to dense urban morphology Commissioned by Guman Chand Patwa, a wealthy Jain merchant Designed and executed by local master craftsmen (Sompuras) Early 19th century (c. 1800– 1860) • Merchant Haveli (Residential Courtyard House) • Cluster of five interconnected havelis Hot–dry desert climate • Locally sourced yellow sandstone • Hand-carved stone construction • Load-bearing masonry • Stone slabs and carved brackets for balconies and projections • Residential use • Included private, semi- private, and service spaces • Expression of social status and wealth
• 6.

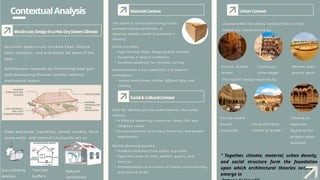

  ContextualAnalysis BioclimaticDesigninaHot–DryDesertClimate Deep balconies, jharokhas,carved screens, thick stone walls, and internal courtyards act as: Sun-shading devices Natural ventilation Thermal buffers MaterialContext Social&CulturalContext UrbanContext Narrow, shaded streets Minimal open ground space Continuous street edges Turning inward around courtyards Creating an elaborate façade as the primary urban interface Using verticality instead of sprawl Jaisalmer experiences extreme heat, intense solar radiation, and arid winds for most of the year. Architecture responds by minimizing heat gain and maximizing thermal comfort without mechanical means. The haveli is constructed using locally available yellow sandstone, a material deeply rooted in Jaisalmer’s identity. Stone provides: • High thermal mass, delaying heat transfer • Durability in desert conditions • Excellent potential for intricate carving Ornamentation is not superficial; it is material intelligence— • carved stone allows airflow, diffused light, and shading. Built for affluent Jain merchant families, the haveli reflects: • A lifestyle balancing commerce, family life, and religious values • Strong emphasis on privacy, hierarchy, and gender segregation Located within the dense, compact fabric of the walled city, characterized by: Spatial planning ensures: • Gradual transition from public to private • Separate zones for men, women, guests, and services • Ornamentation as a marker of status, craftsmanship, and cultural pride The haveli’s design responds by: “ Together, climate, material, urban density, and social structure form the foundation upon which architectural theories naturally emerge in
• 7.

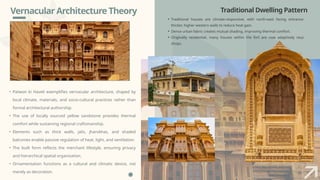

  Vernacular Architecture Theory •Patwon ki Haveli exemplifies vernacular architecture, shaped by local climate, materials, and socio-cultural practices rather than formal architectural authorship. • The use of locally sourced yellow sandstone provides thermal comfort while sustaining regional craftsmanship. • Elements such as thick walls, jalis, jharokhas, and shaded balconies enable passive regulation of heat, light, and ventilation. • The built form reflects the merchant lifestyle, ensuring privacy and hierarchical spatial organization. • Ornamentation functions as a cultural and climatic device, not merely as decoration. Traditional Dwelling Pattern • Traditional houses are climate-responsive, with north-east facing entrances and thicker, higher western walls to reduce heat gain. • Dense urban fabric creates mutual shading, improving thermal comfort. • Originally residential, many houses within the fort are now adaptively reused as shops.
• 8.
  SmallHouses • Single-storey units •One room, verandah, and courtyard • Peripheral location • Owned by economically weaker sections Middle-IncomeHouses • Two to three storeys • Additional rooms at upper levels • Projecting balconies facing narrow streets • Typical urban dwelling of Jaisalmer Havelis • Four to five storeys • One or two internal courtyards • Rooms and verandahs on all sides • Underground rooms for thermal comfort • Terraces with wind pavilions and parapet walls Traditional House Typologies : Jaisalmer
• 9.
  Passive Climate Strategies Thickyellow sandstone walls absorb heat during the day and release it at night, reducing indoor temperature fluctuations. Deep balconies, carved jharokhas, and projecting cornices shade walls and openings, minimizing direct solar gain. Internal courtyards act as thermal regulators, enabling stack ventilation and cooling through air circulation Lower floors and underground chambers are used during extreme heat, while upper terraces and pavilions are occupied during cooler periods. • Patwon ki Haveli is situated in a hot–arid desert climate with extreme heat and intense solar radiation. • The absence of mechanical cooling necessitated passive climate-responsive design for thermal comfort. • Its large scale and extended family use required year-round habitability. How Passive Bioclimatic Strategies Are Applied ? Thermal Mass Solar Control Ventilation & Air Movement Spatial Zoning The Haveli functions as a passive climatic system.
• 10.

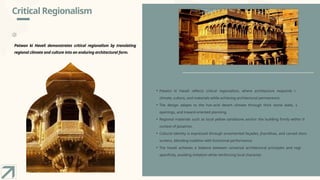

  Critical Regionalism Patwon kiHaveli demonstrates critical regionalism by translating regional climate and culture into an enduring architectural form. • Patwon ki Haveli reflects critical regionalism, where architecture responds to local climate, culture, and materials while achieving architectural permanence. • The design adapts to the hot–arid desert climate through thick stone walls, shaded openings, and inward-oriented planning. • Regional materials such as local yellow sandstone anchor the building firmly within the context of Jaisalmer. • Cultural identity is expressed through ornamented façades, jharokhas, and carved stone screens, blending tradition with functional performance. • The haveli achieves a balance between universal architectural principles and regional specificity, avoiding imitation while reinforcing local character.
• 11.
  Phenomenology in Architecture Light&Shadow •Filtered daylight through jalis and carved balconies creates dynamic patterns of light and shadow. • Changing illumination enhances the perception of time and space. SpatialSequence • Movement through the haveli follows a gradual transition from public to private spaces. • Courtyards, corridors, and staircases create a layered spatial experience. Material&Sensory Experience • Hand-carved sandstone surfaces provide tactile richness and human scale. • Material texture strengthens sensory engagement and emotional connection with space.
• 12.

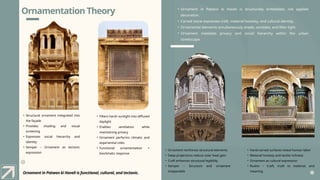

  Ornamentation Theory Ornament inPatwon ki Haveli is functional, cultural, and tectonic. • Ornament in Patwon ki Haveli is structurally embedded, not applied decoration. • Carved stone expresses craft, material honesty, and cultural identity. • Ornamental elements simultaneously shade, ventilate, and filter light. • Ornament mediates privacy and social hierarchy within the urban streetscape. • Structural ornament integrated into the façade • Provides shading and visual screening • Expresses social hierarchy and identity • Semper – Ornament as tectonic expression • Filters harsh sunlight into diffused daylight • Enables ventilation while maintaining privacy • Ornament performs climatic and experiential roles • Functional ornamentation + bioclimatic response • Ornament reinforces structural elements • Deep projections reduce solar heat gain • Craft enhances structural legibility • Semper – Structure and ornament inseparable • Hand-carved surfaces reveal human labor • Material honesty and tactile richness • Ornament as cultural expression • Ruskin – Craft, truth to material, and meaning
• 13.

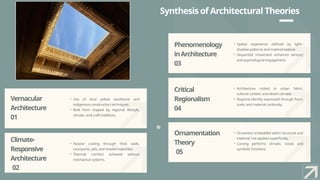

  Synthesis of ArchitecturalTheories Critical Regionalism 04 • Architecture rooted in urban fabric, cultural context, and desert climate. • Regional identity expressed through form, scale, and material continuity. Phenomenology inArchitecture 03 • Spatial experience defined by light– shadow patterns and material texture. • Sequential movement enhances sensory and psychological engagement. Ornamentation Theory 05 • Ornament embedded within structure and material, not applied superficially. • Carving performs climatic, social, and symbolic functions. Vernacular Architecture 01 • Use of local yellow sandstone and indigenous construction techniques. • Built form shaped by regional lifestyle, climate, and craft traditions. Climate- Responsive Architecture 02 • Passive cooling through thick walls, courtyards, jalis, and shaded balconies. • Thermal comfort achieved without mechanical systems.
• 14.

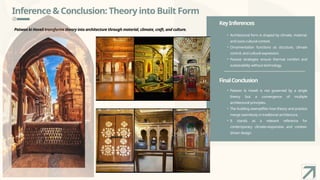

  Inference & Conclusion:Theory into Built Form Patwon ki Haveli transforms theory into architecture through material, climate, craft, and culture. KeyInferences FinalConclusion • Architectural form is shaped by climate, material, and socio-cultural context. • Ornamentation functions as structure, climate control, and cultural expression. • Passive strategies ensure thermal comfort and sustainability without technology. • Patwon ki Haveli is not governed by a single theory but a convergence of multiple architectural principles. • The building exemplifies how theory and practice merge seamlessly in traditional architecture. • It stands as a relevant reference for contemporary climate-responsive and context- driven design.
