Adobe AEM - From Eventing to Job Processing

The document discusses the transition from eventing to job processing within Adobe's technology stack, focusing on the use of OSGi Event Admin for event publishing and job management. It outlines the architecture for job distribution, highlighting the components involved and the handling of job consumers and jobs in both clustered and non-clustered setups. It also introduces new features in version 5.6.1, such as job offloading and the integration of workflows for better resource management.

Embed presentation

Download as PDF, PPTX
FROM EVENTING TO JOB PROCESSING Carsten Ziegeler | Adobe Research Switzerland 1

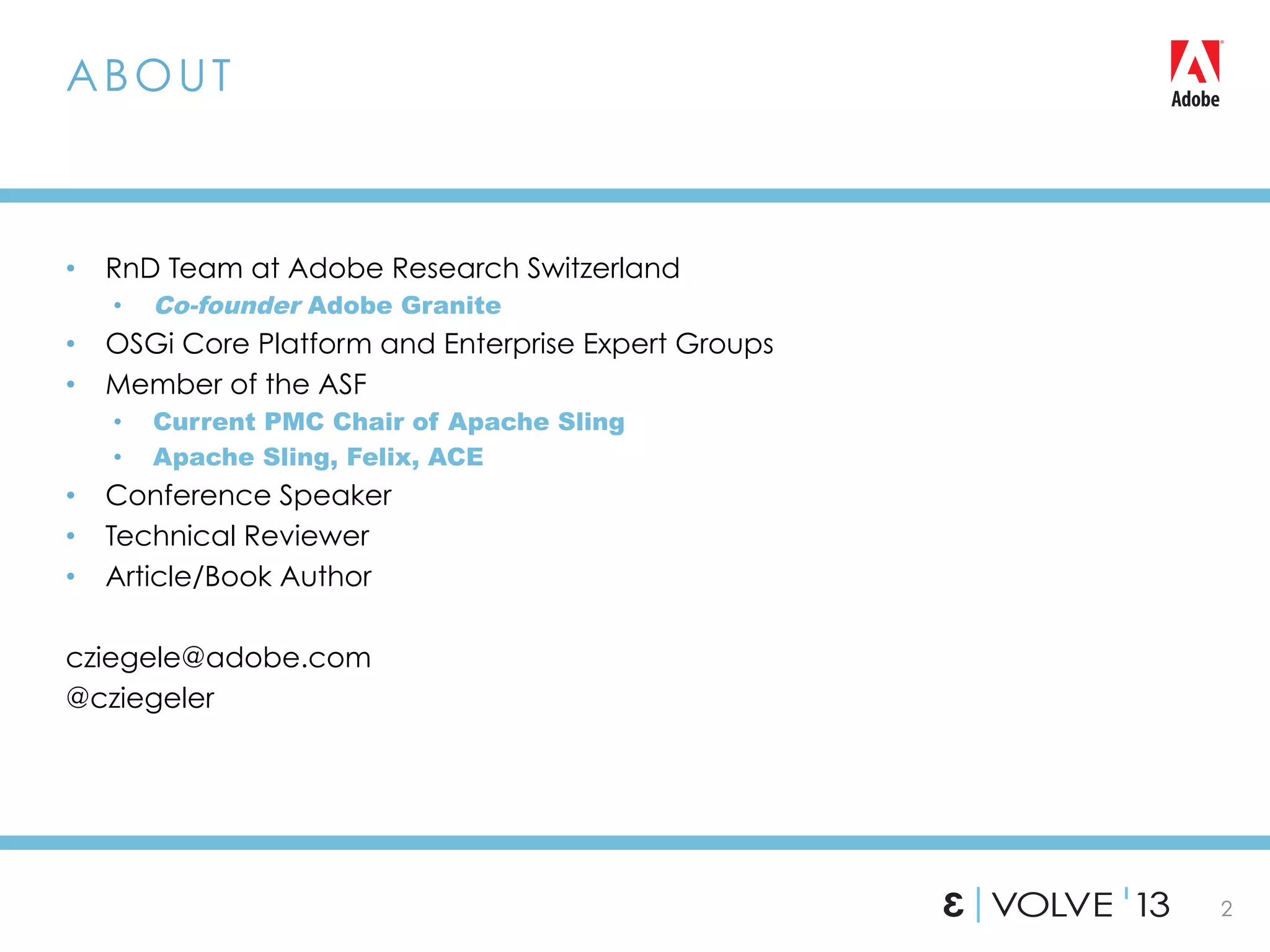

2 •  RnD Team at Adobe Research Switzerland •  Co-founder Adobe Granite •  OSGi Core Platform and Enterprise Expert Groups •  Member of the ASF •  Current PMC Chair of Apache Sling •  Apache Sling, Felix, ACE •  Conference Speaker •  Technical Reviewer •  Article/Book Author cziegele@adobe.com @cziegeler ABOUT

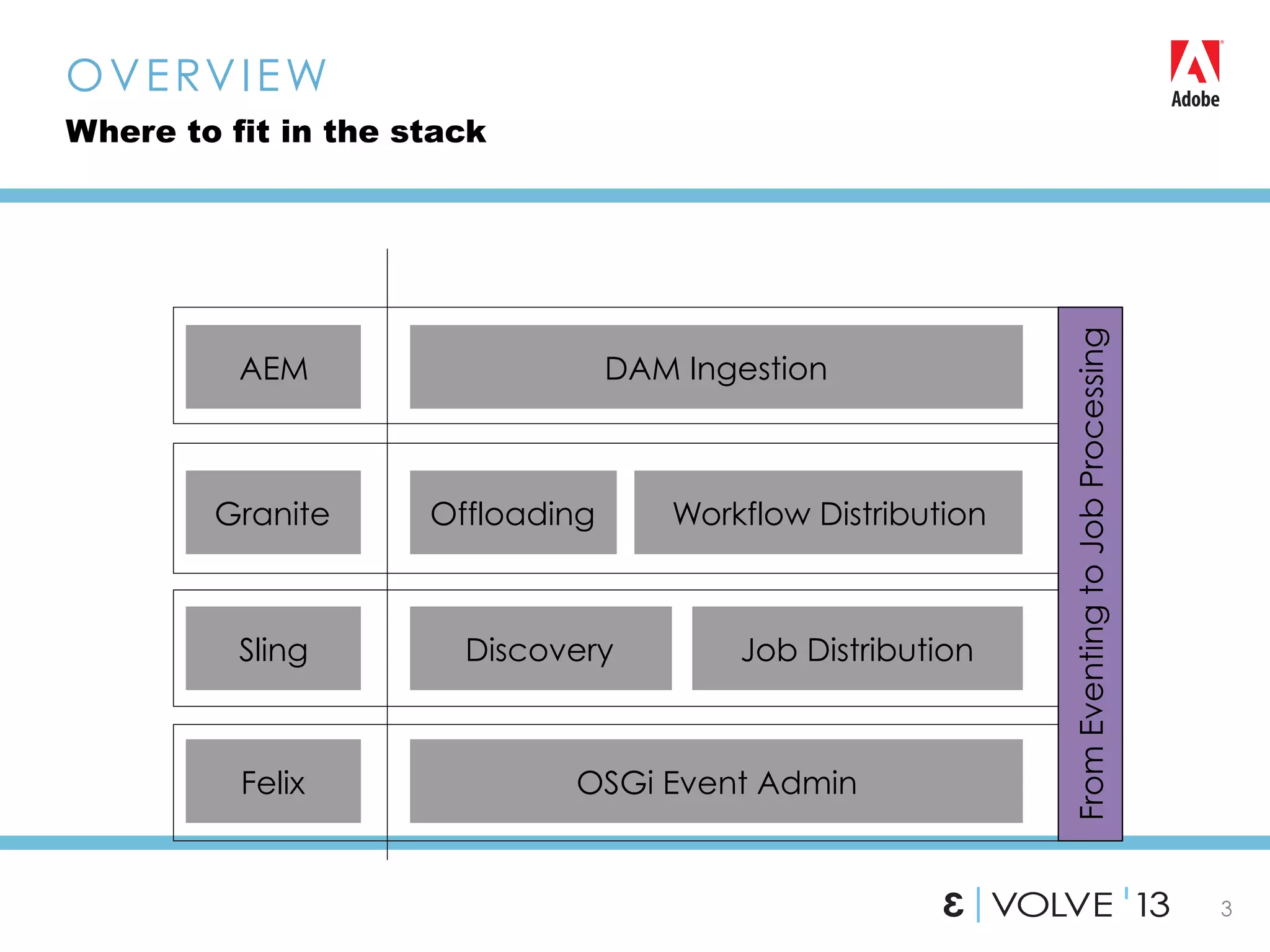

3 OVERVIEW Where to fit in the stack Discovery Offloading Workflow Distribution DAM Ingestion Sling Granite AEM Job Distribution Felix OSGi Event Admin FromEventingtoJobProcessing

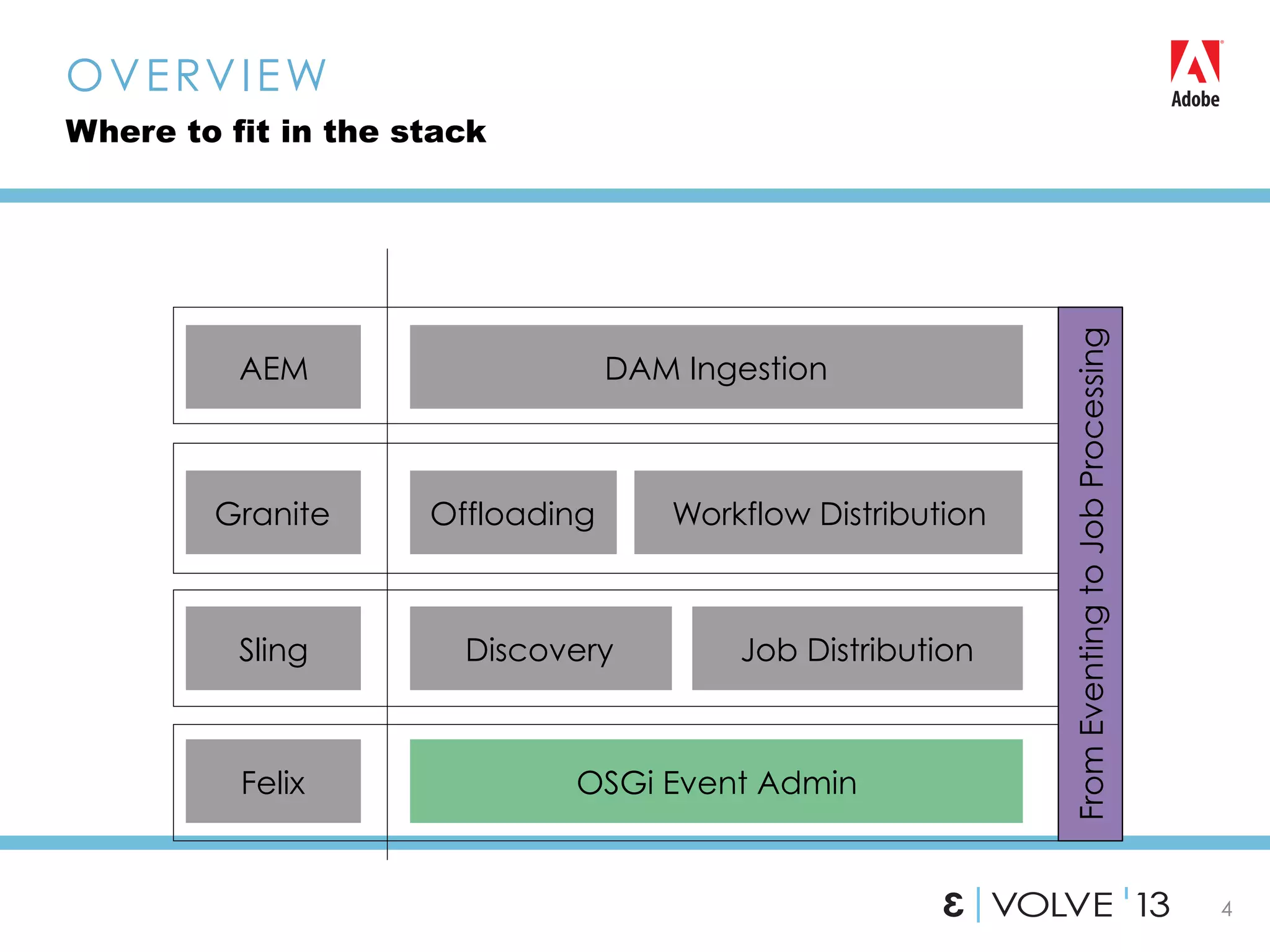

4 OVERVIEW Where to fit in the stack Discovery Offloading Workflow Distribution DAM Ingestion Sling Granite AEM Job Distribution Felix OSGi Event Admin FromEventingtoJobProcessing

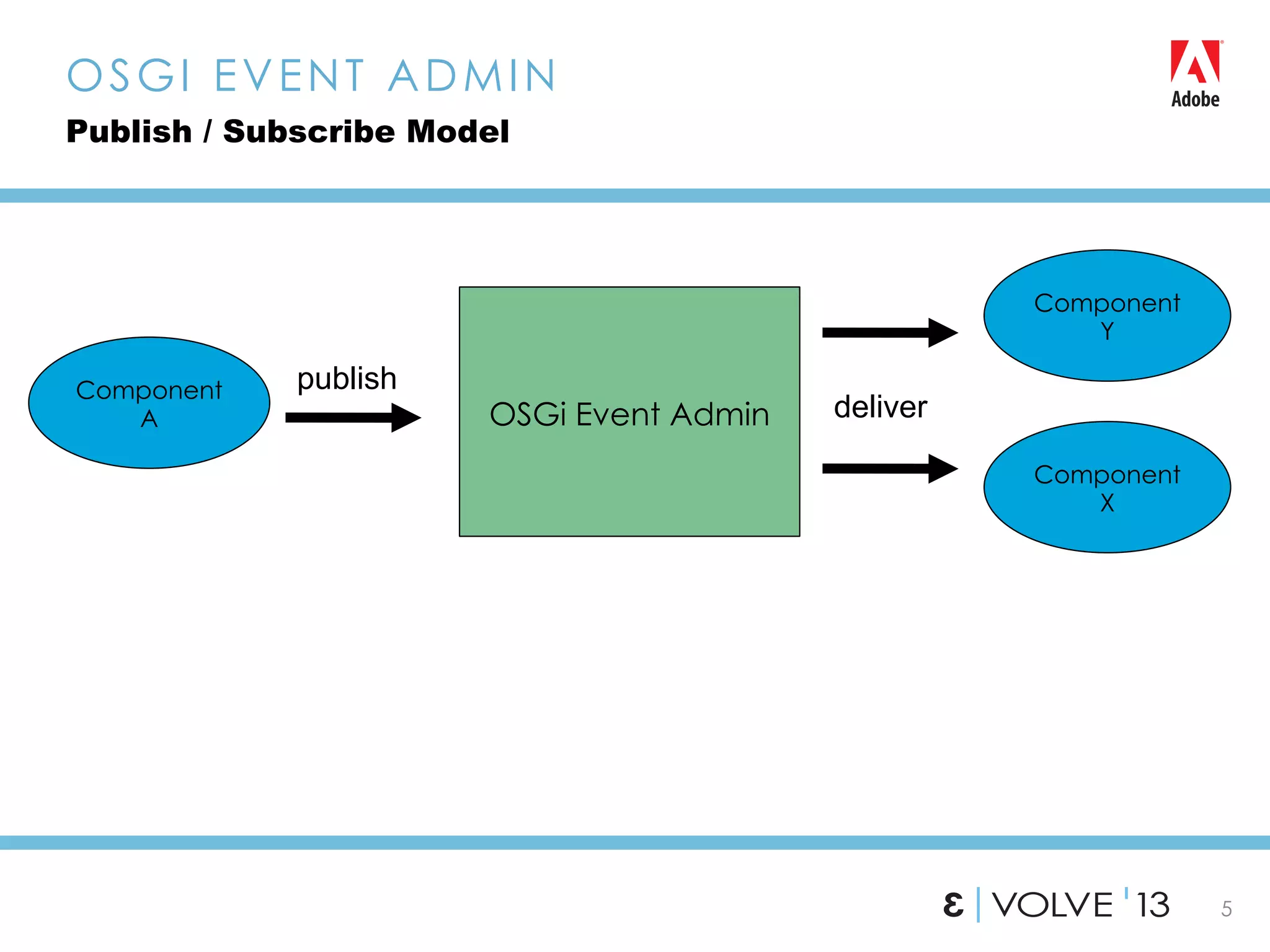

5 OSGI EVENT ADMIN Publish / Subscribe Model OSGi Event Admin Component A publish deliver Component X Component Y

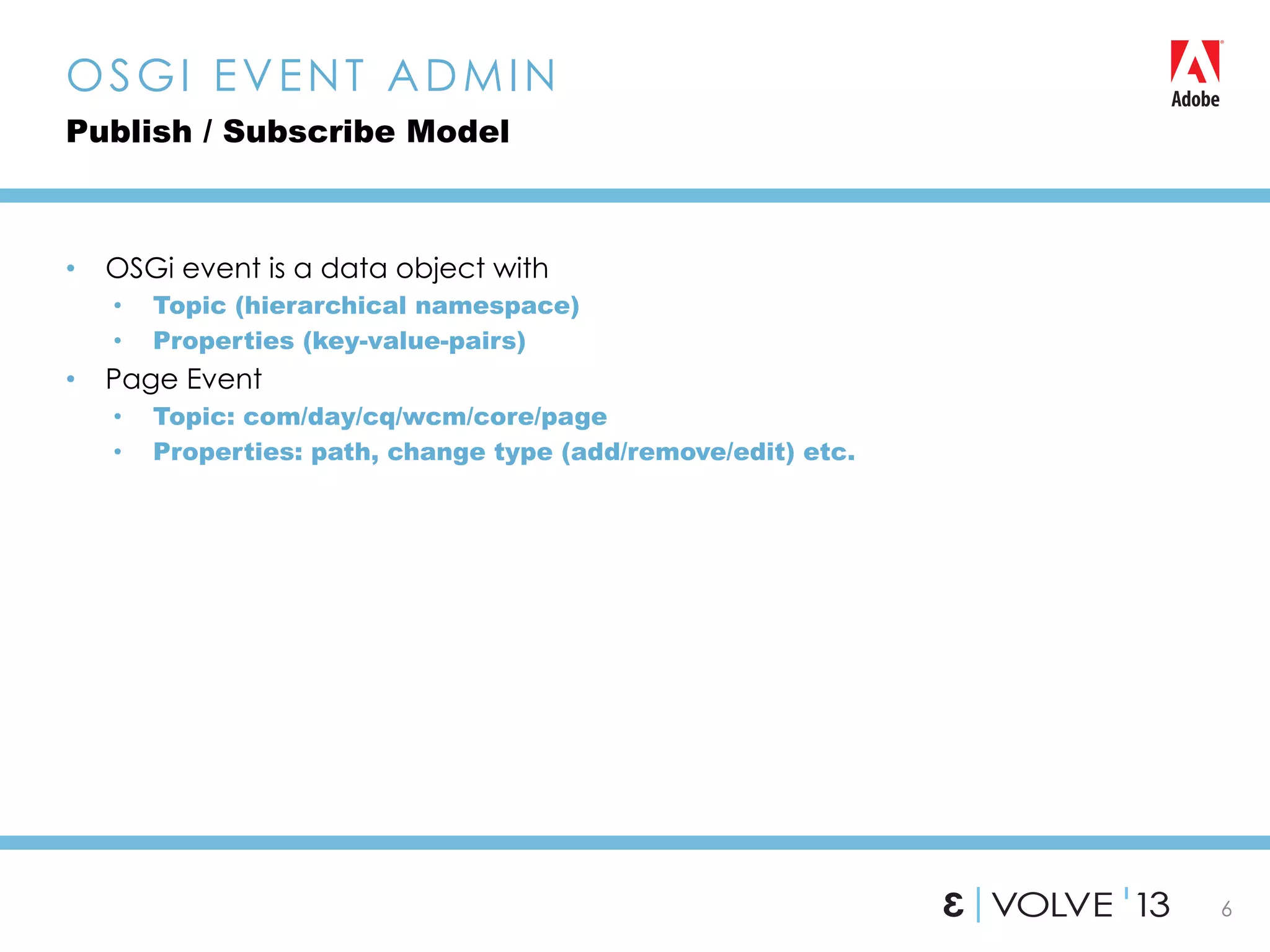

6 •  OSGi event is a data object with •  Topic (hierarchical namespace) •  Properties (key-value-pairs) •  Page Event •  Topic: com/day/cq/wcm/core/page •  Properties: path, change type (add/remove/edit) etc. OSGI EVENT ADMIN Publish / Subscribe Model

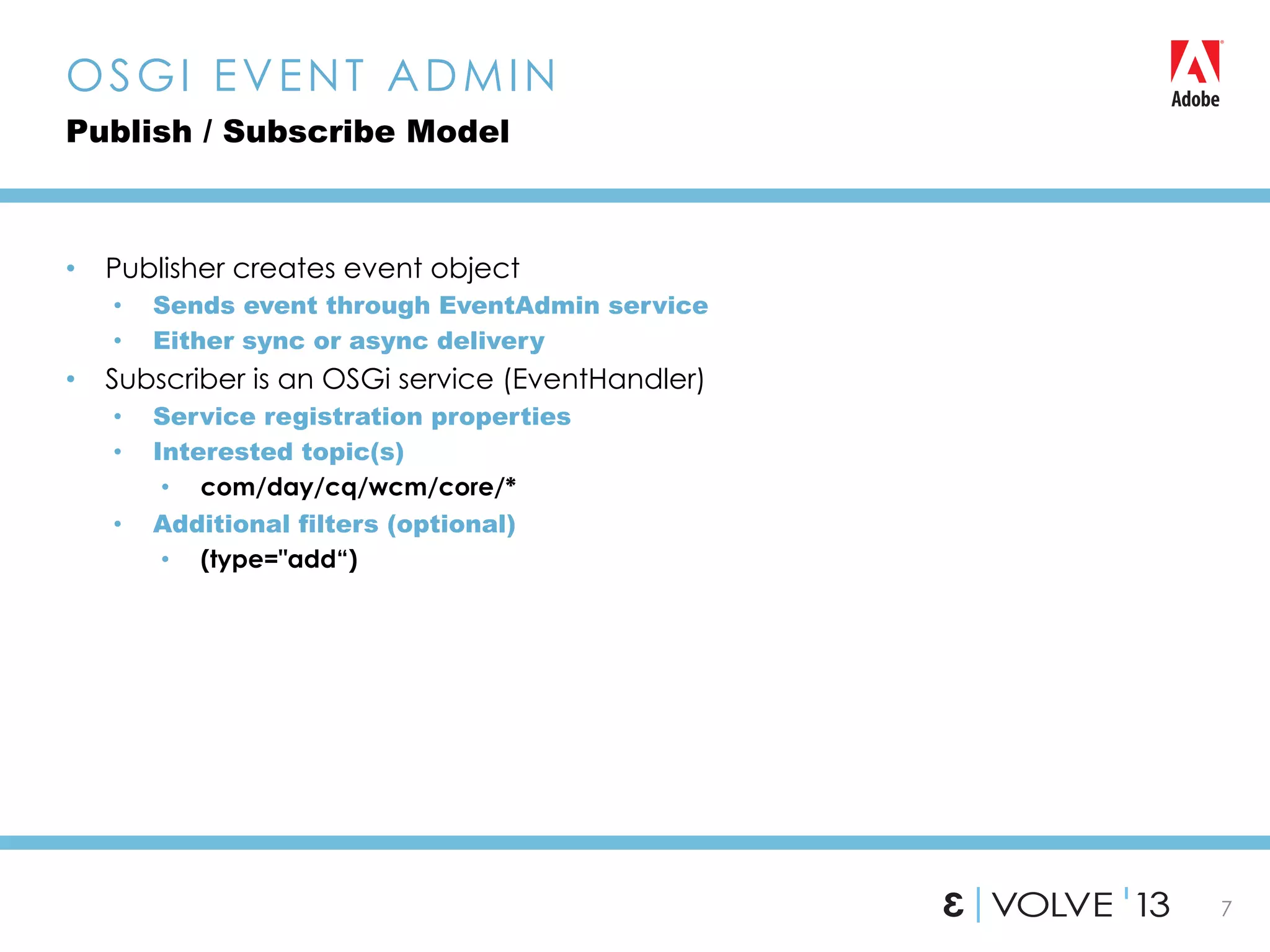

7 •  Publisher creates event object •  Sends event through EventAdmin service •  Either sync or async delivery •  Subscriber is an OSGi service (EventHandler) •  Service registration properties •  Interested topic(s) •  com/day/cq/wcm/core/* •  Additional filters (optional) •  (type="add“) OSGI EVENT ADMIN Publish / Subscribe Model

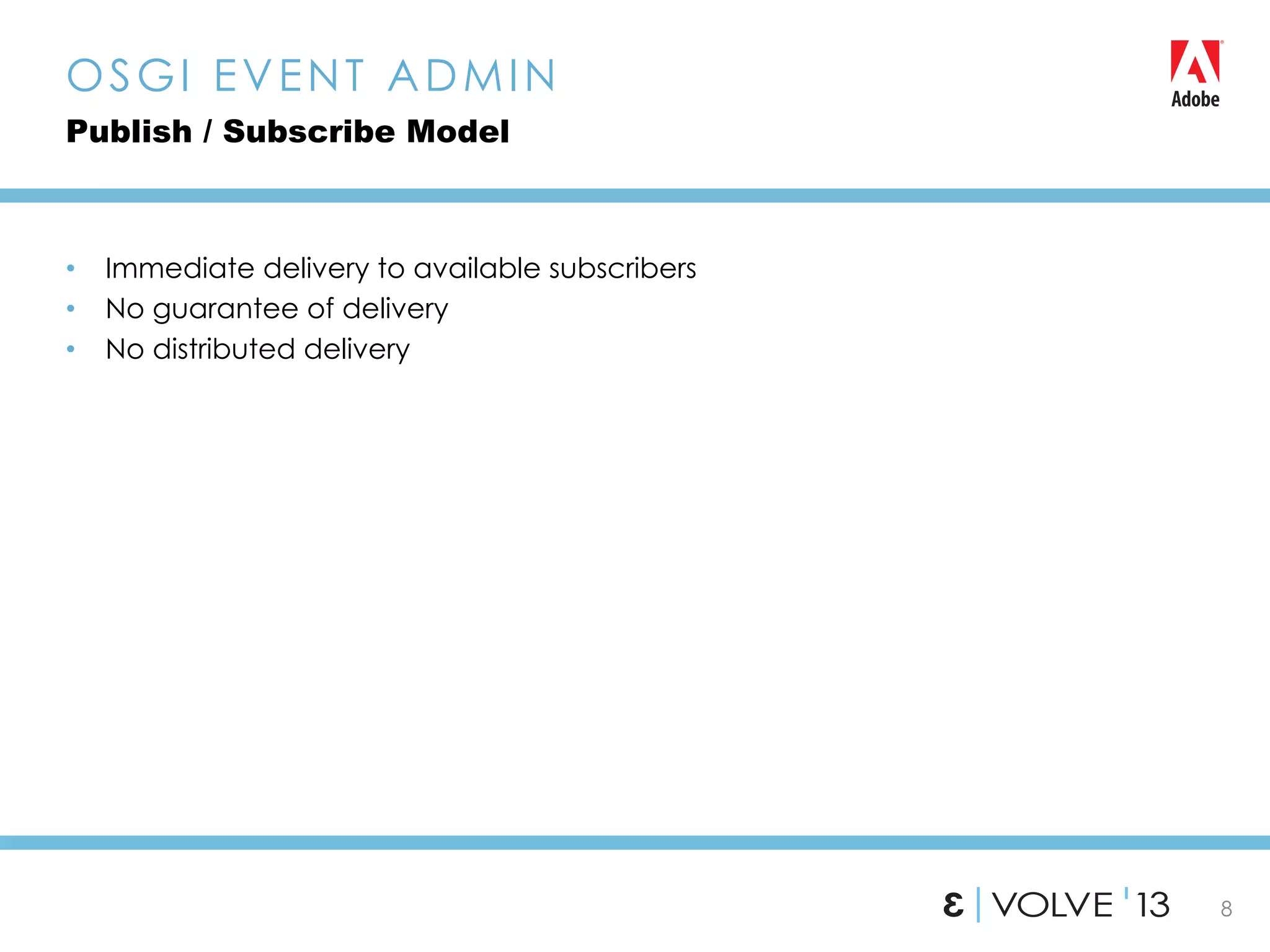

8 •  Immediate delivery to available subscribers •  No guarantee of delivery •  No distributed delivery OSGI EVENT ADMIN Publish / Subscribe Model

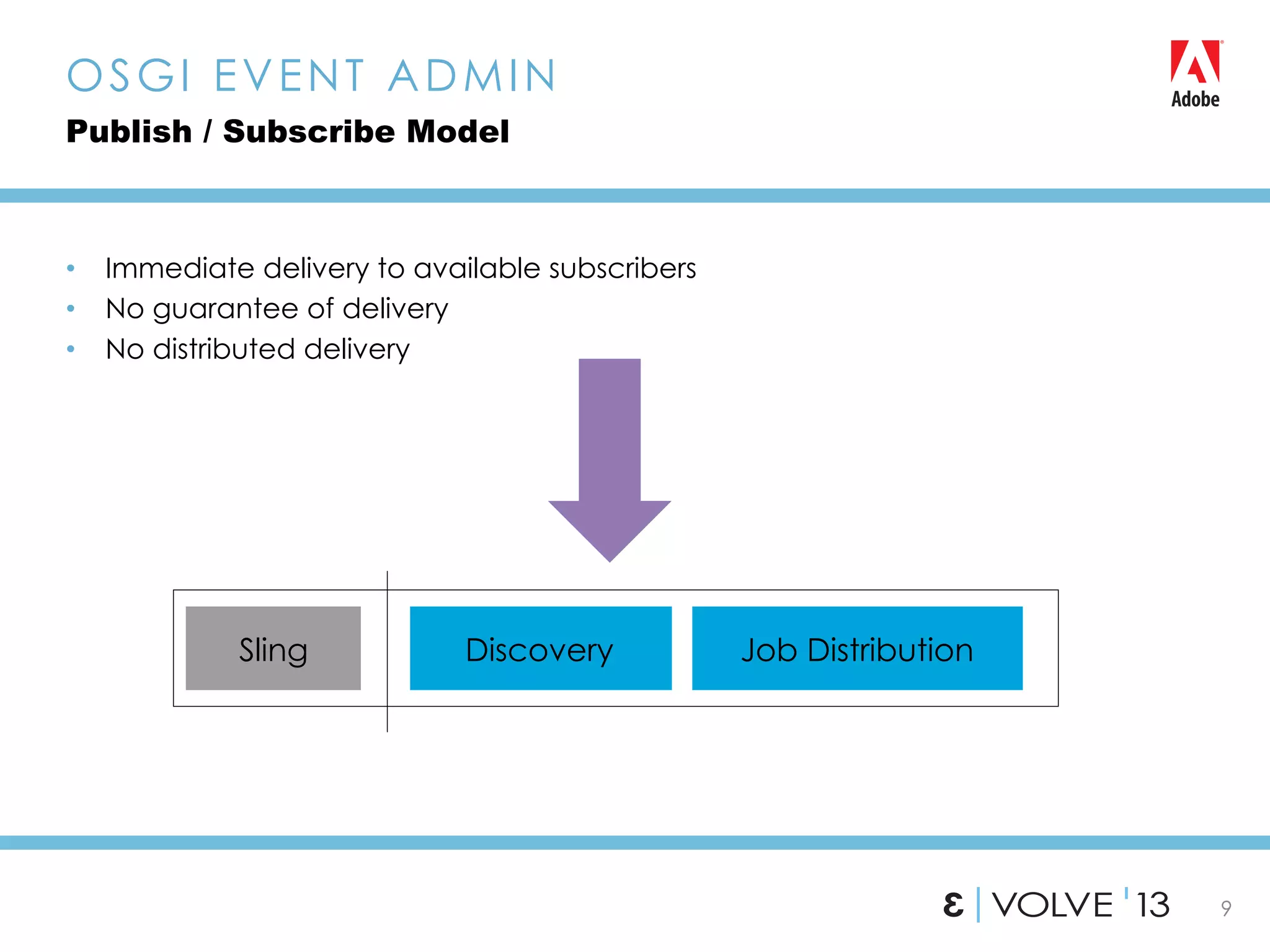

9 •  Immediate delivery to available subscribers •  No guarantee of delivery •  No distributed delivery OSGI EVENT ADMIN Publish / Subscribe Model DiscoverySling Job Distribution

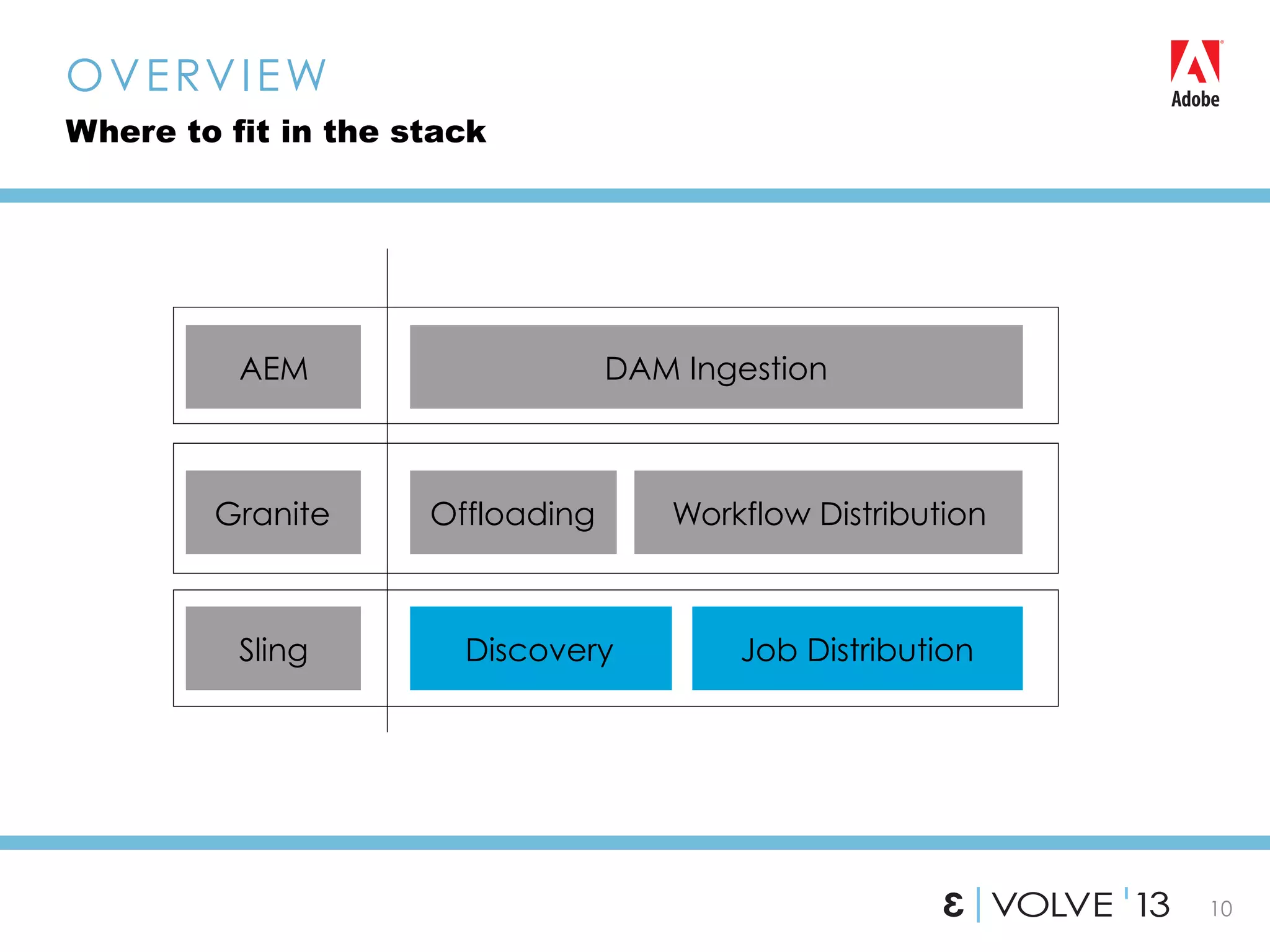

10 OVERVIEW Where to fit in the stack Discovery Offloading Workflow Distribution DAM Ingestion Sling Granite AEM Job Distribution

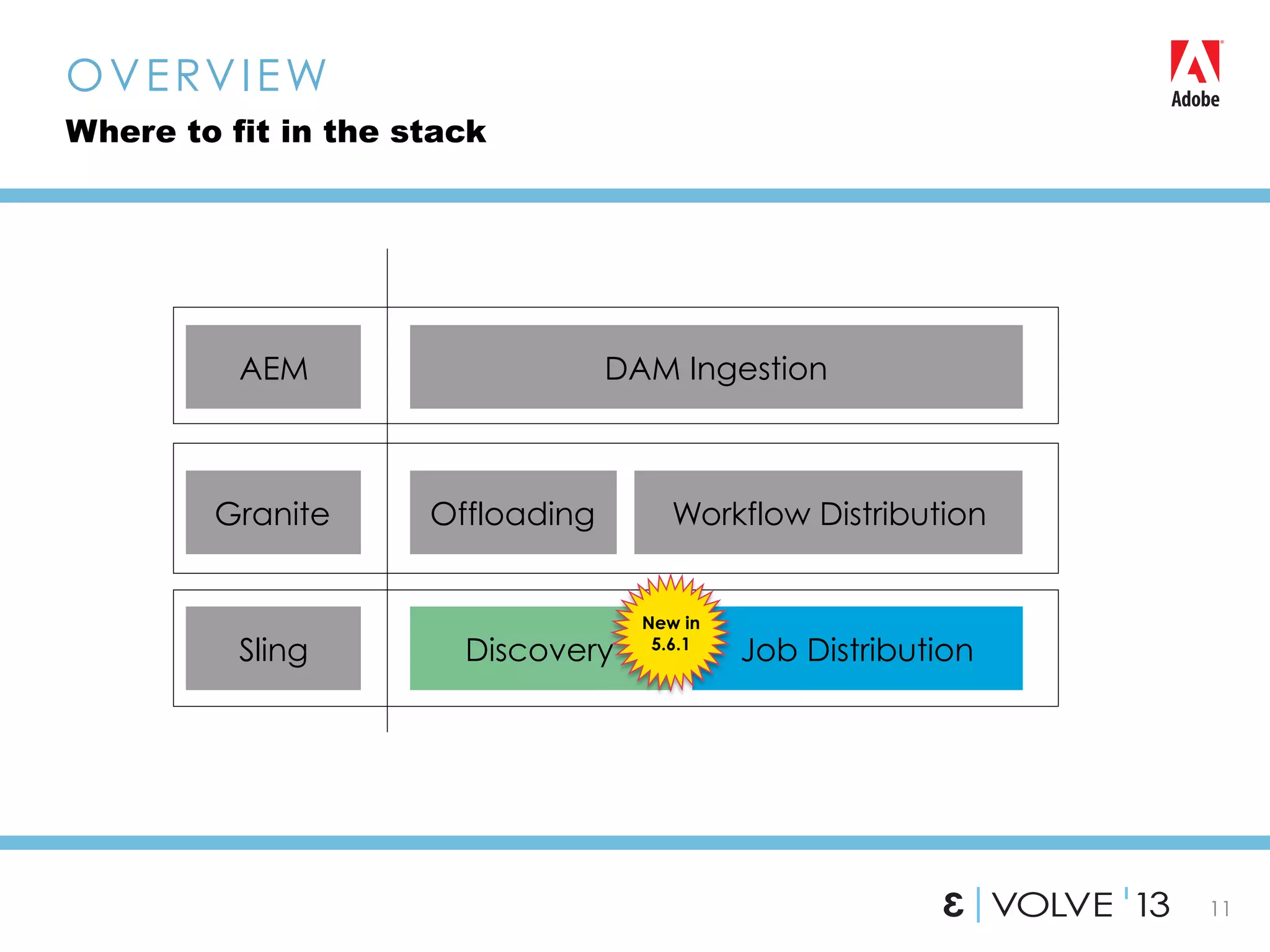

11 OVERVIEW Where to fit in the stack Discovery Offloading Workflow Distribution DAM Ingestion Sling Granite AEM Job Distribution New in 5.6.1

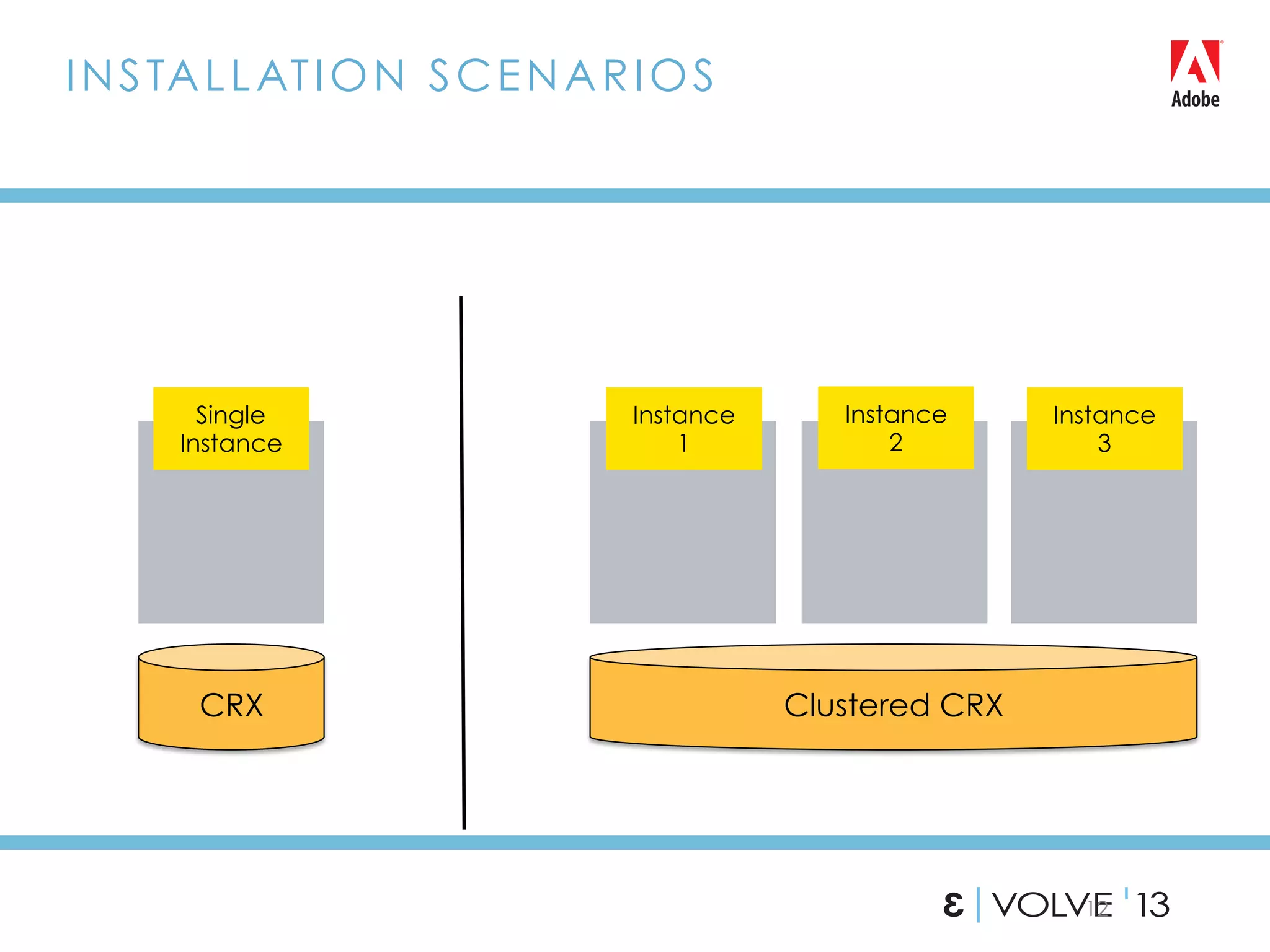

12 INSTALLATION SCENARIOS Clustered CRX Single Instance CRX Instance 1 Instance 2 Instance 3

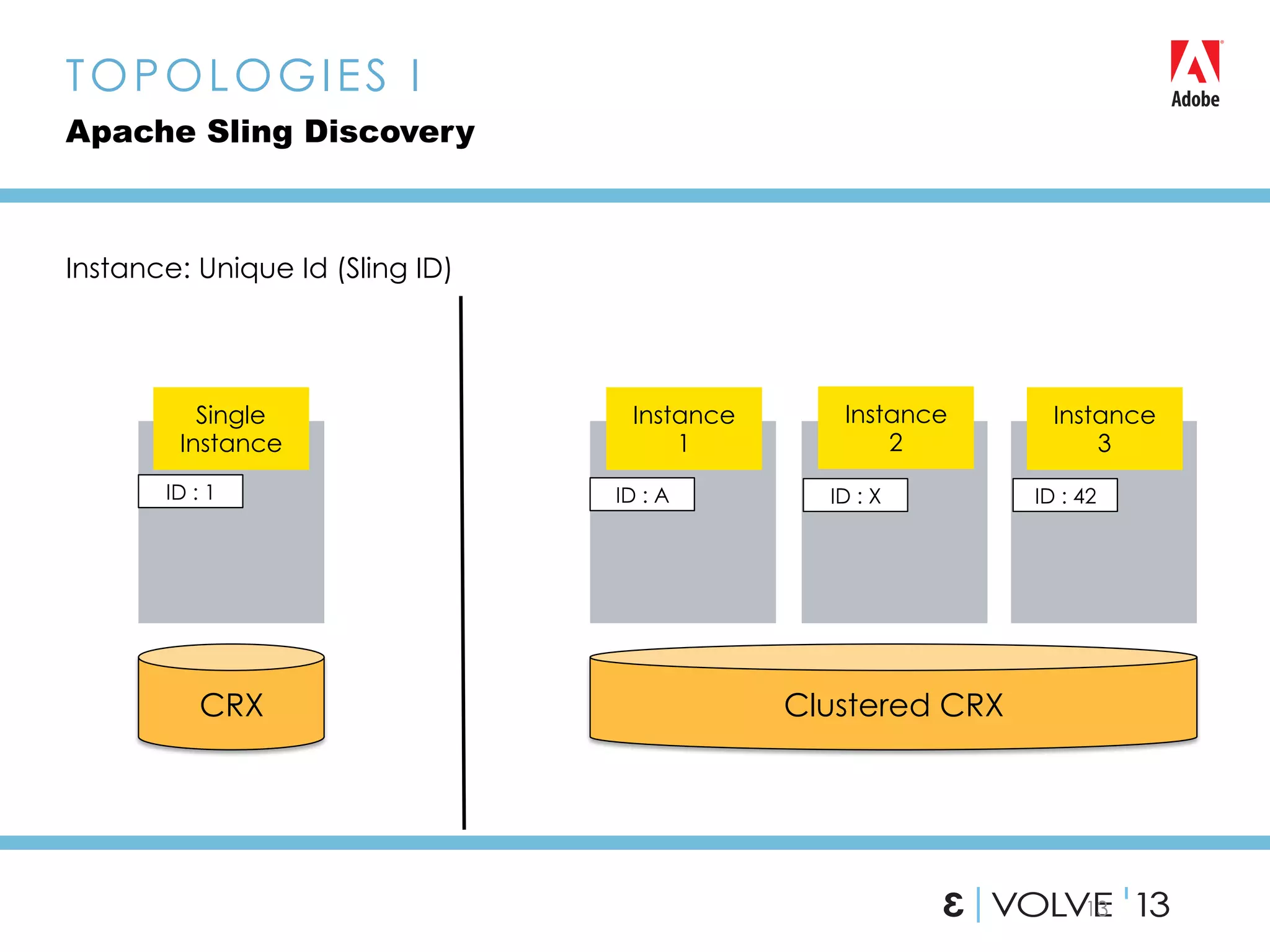

13 Instance: Unique Id (Sling ID) TOPOLOGIES I Apache Sling Discovery Clustered CRXCRX ID : A ID : X ID : 42ID : 1 Single Instance Instance 1 Instance 2 Instance 3

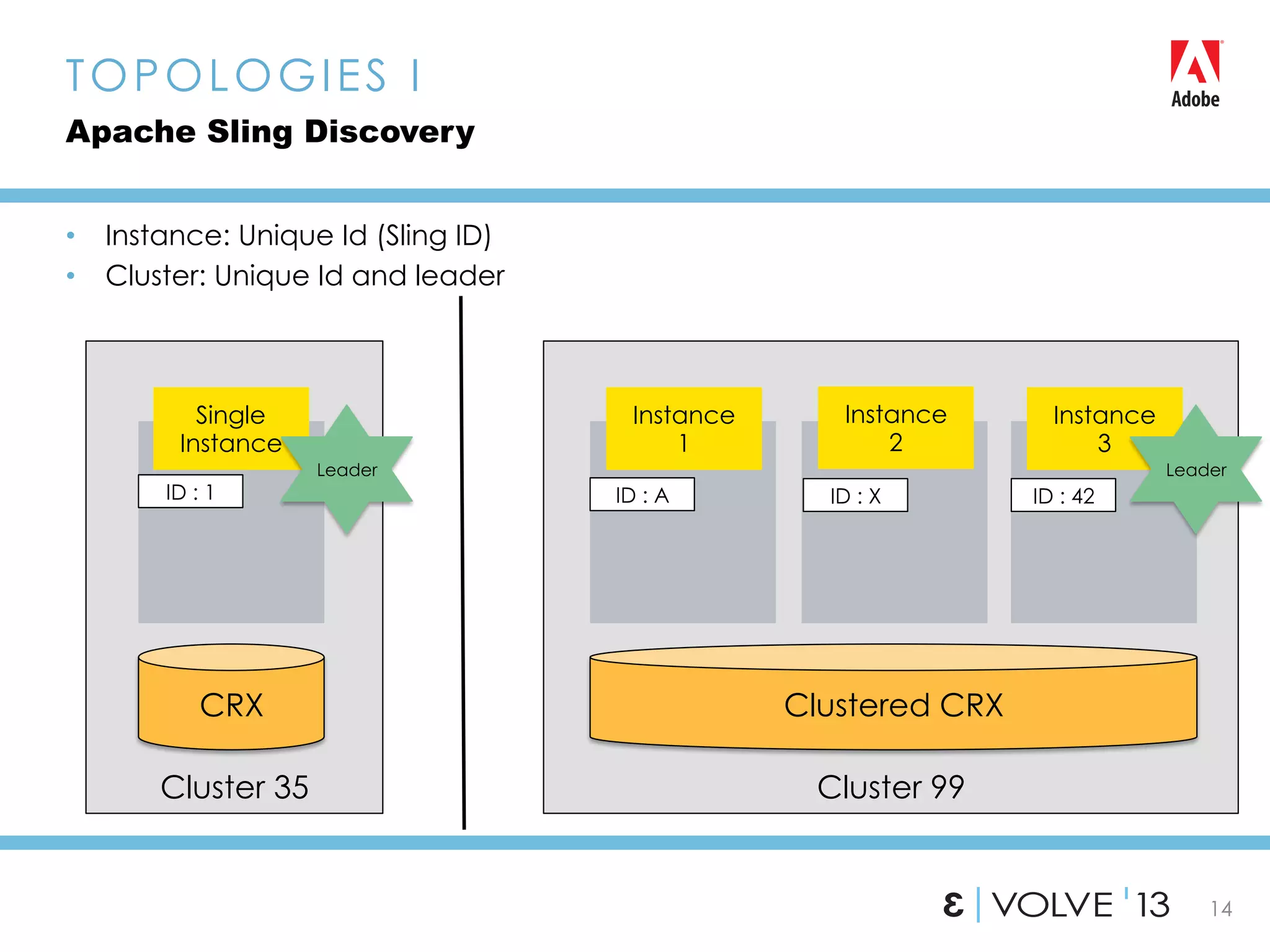

14 •  Instance: Unique Id (Sling ID) •  Cluster: Unique Id and leader TOPOLOGIES I Apache Sling Discovery Cluster 99Cluster 35 Clustered CRXCRX ID : A ID : X ID : 42ID : 1 Single Instance Instance 1 Instance 2 Instance 3 Leader Leader

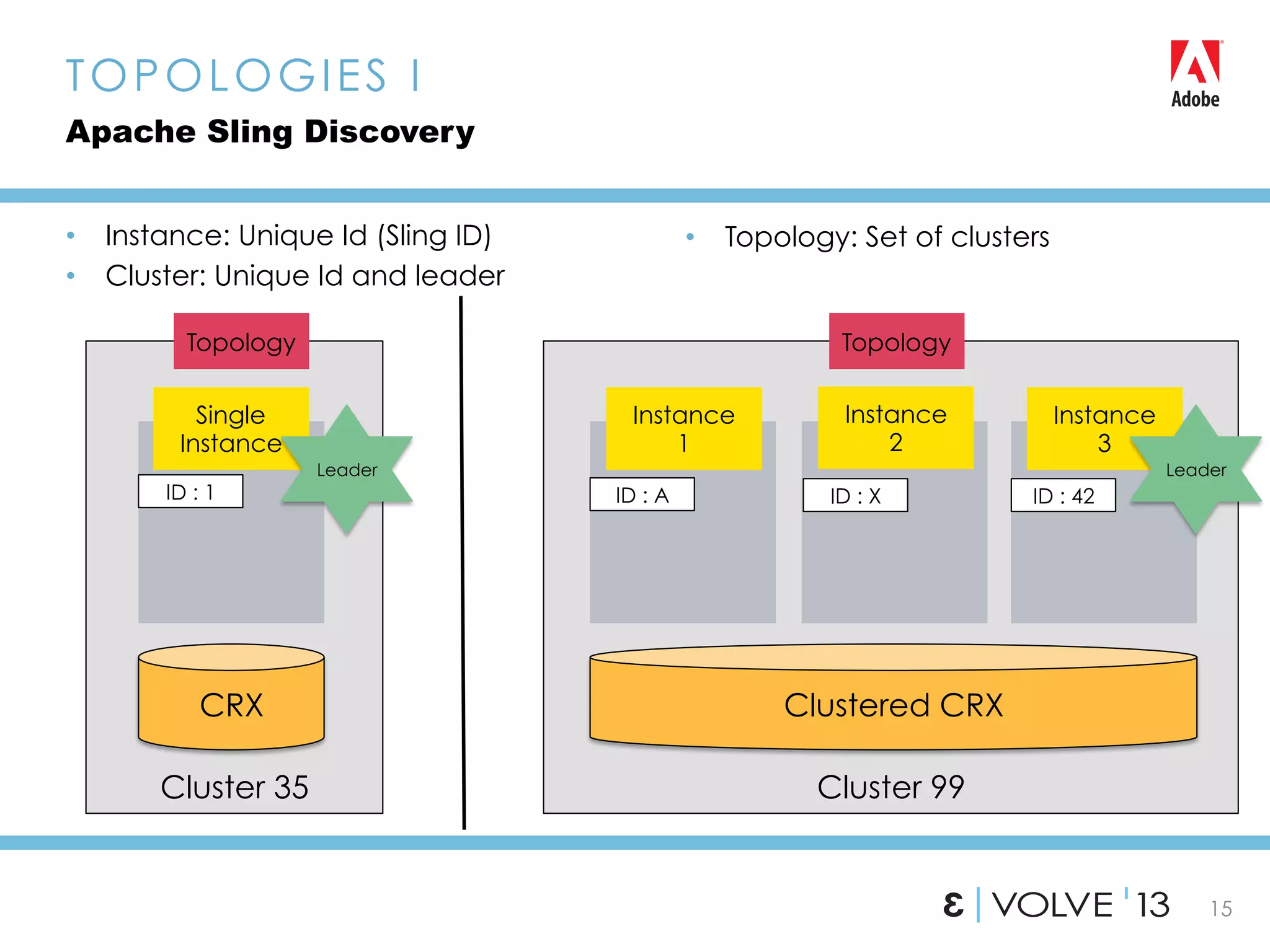

15 •  Topology: Set of clusters TOPOLOGIES I Apache Sling Discovery Cluster 99Cluster 35 Clustered CRXCRX ID : A ID : X ID : 42ID : 1 Single Instance Instance 1 Instance 2 Instance 3 Leader Leader TopologyTopology •  Instance: Unique Id (Sling ID) •  Cluster: Unique Id and leader

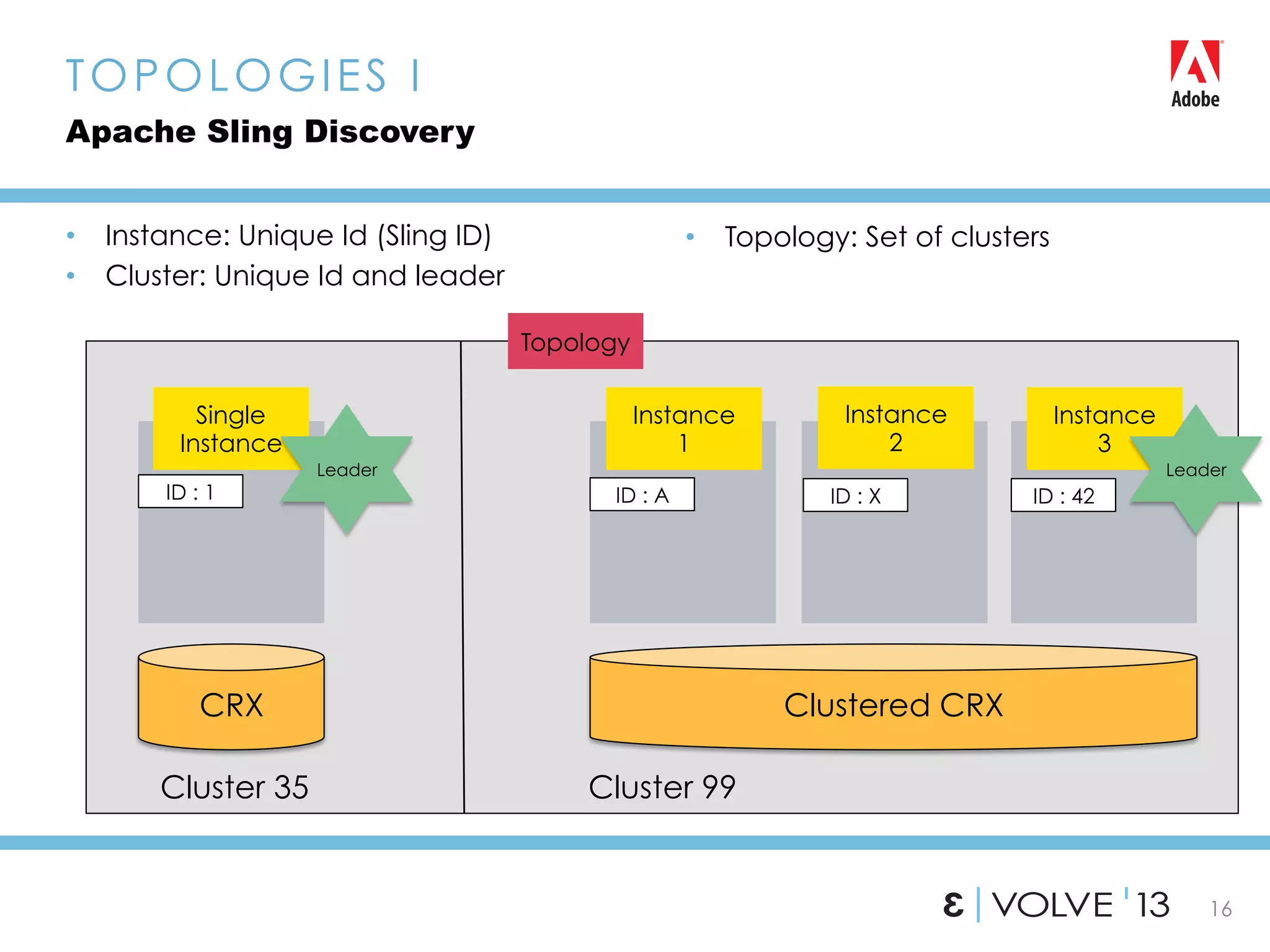

16 TOPOLOGIES I Apache Sling Discovery •  Instance: Unique Id (Sling ID) •  Cluster: Unique Id and leader •  Topology: Set of clusters Cluster 99 Clustered CRXCRX ID : A ID : X ID : 42ID : 1 Single Instance Instance 1 Instance 2 Instance 3 Leader Topology Cluster 35 Leader

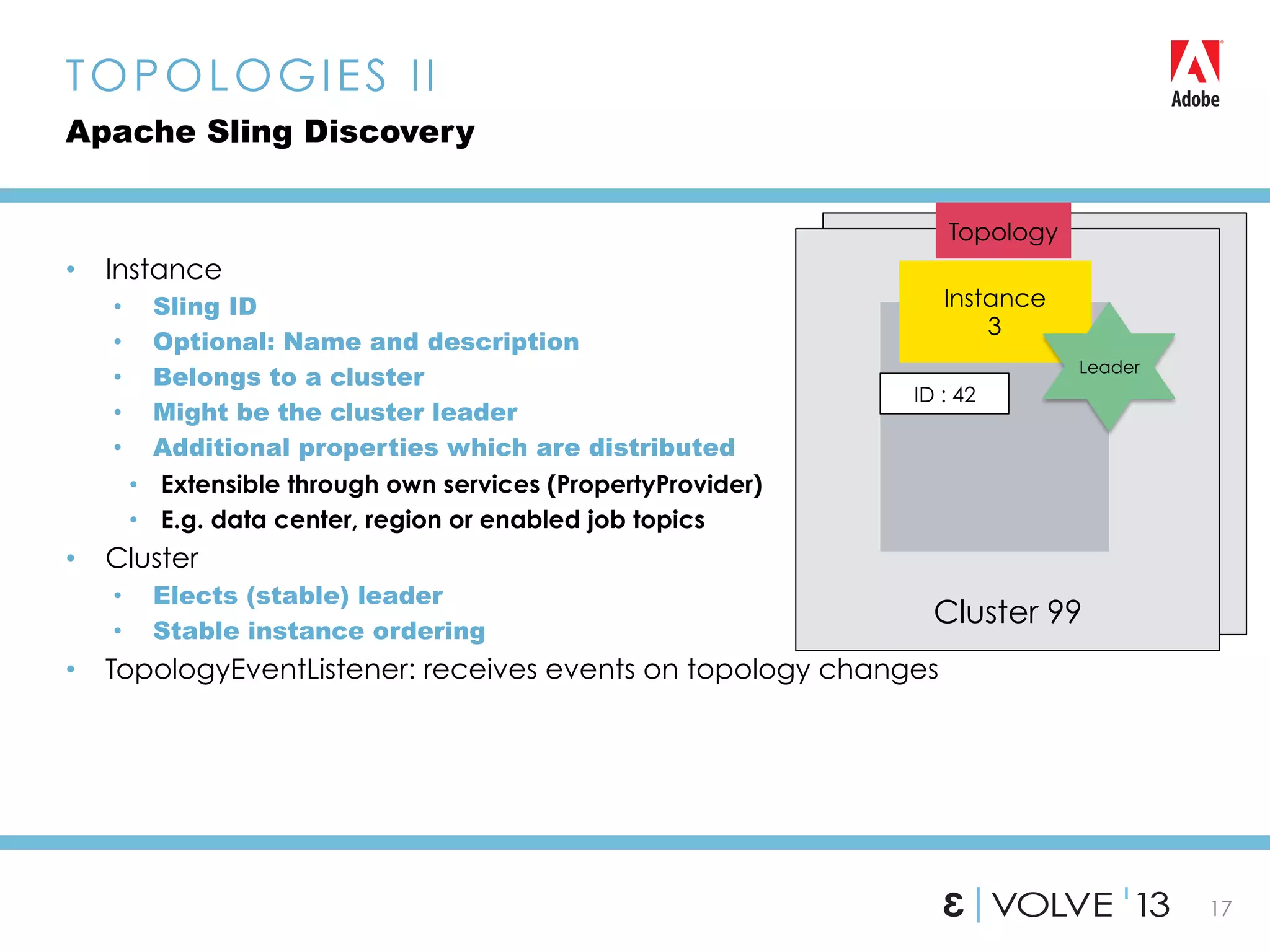

Cluster 99 17 •  Instance •  Sling ID •  Optional: Name and description •  Belongs to a cluster •  Might be the cluster leader •  Additional properties which are distributed •  Extensible through own services (PropertyProvider) •  E.g. data center, region or enabled job topics •  Cluster •  Elects (stable) leader •  Stable instance ordering •  TopologyEventListener: receives events on topology changes TOPOLOGIES II Apache Sling Discovery ID : 42 Instance 3 Topology Leader

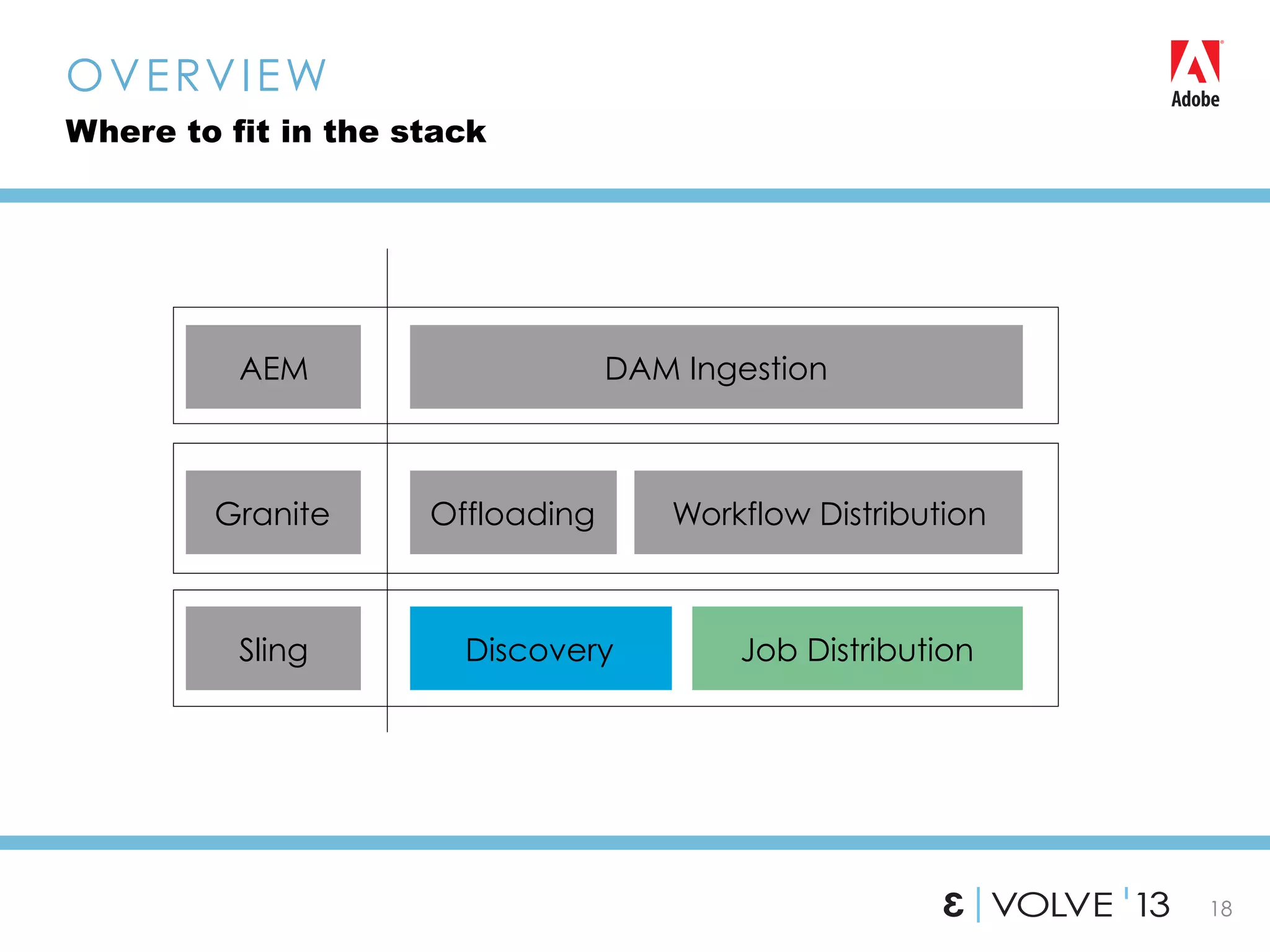

18 OVERVIEW Where to fit in the stack Discovery Offloading Workflow Distribution DAM Ingestion Sling Granite AEM Job Distribution

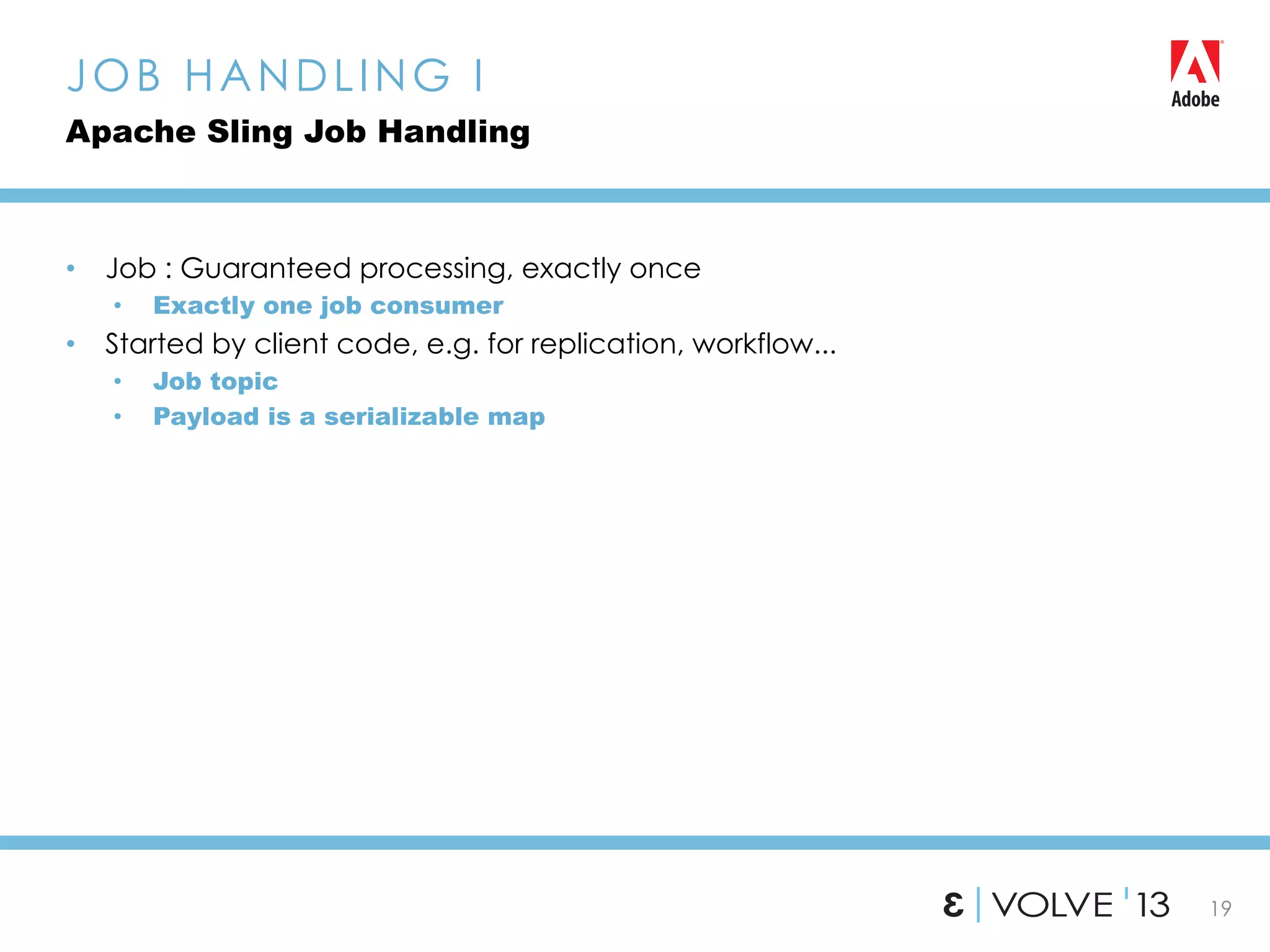

19 •  Job : Guaranteed processing, exactly once •  Exactly one job consumer •  Started by client code, e.g. for replication, workflow... •  Job topic •  Payload is a serializable map JOB HANDLING I Apache Sling Job Handling

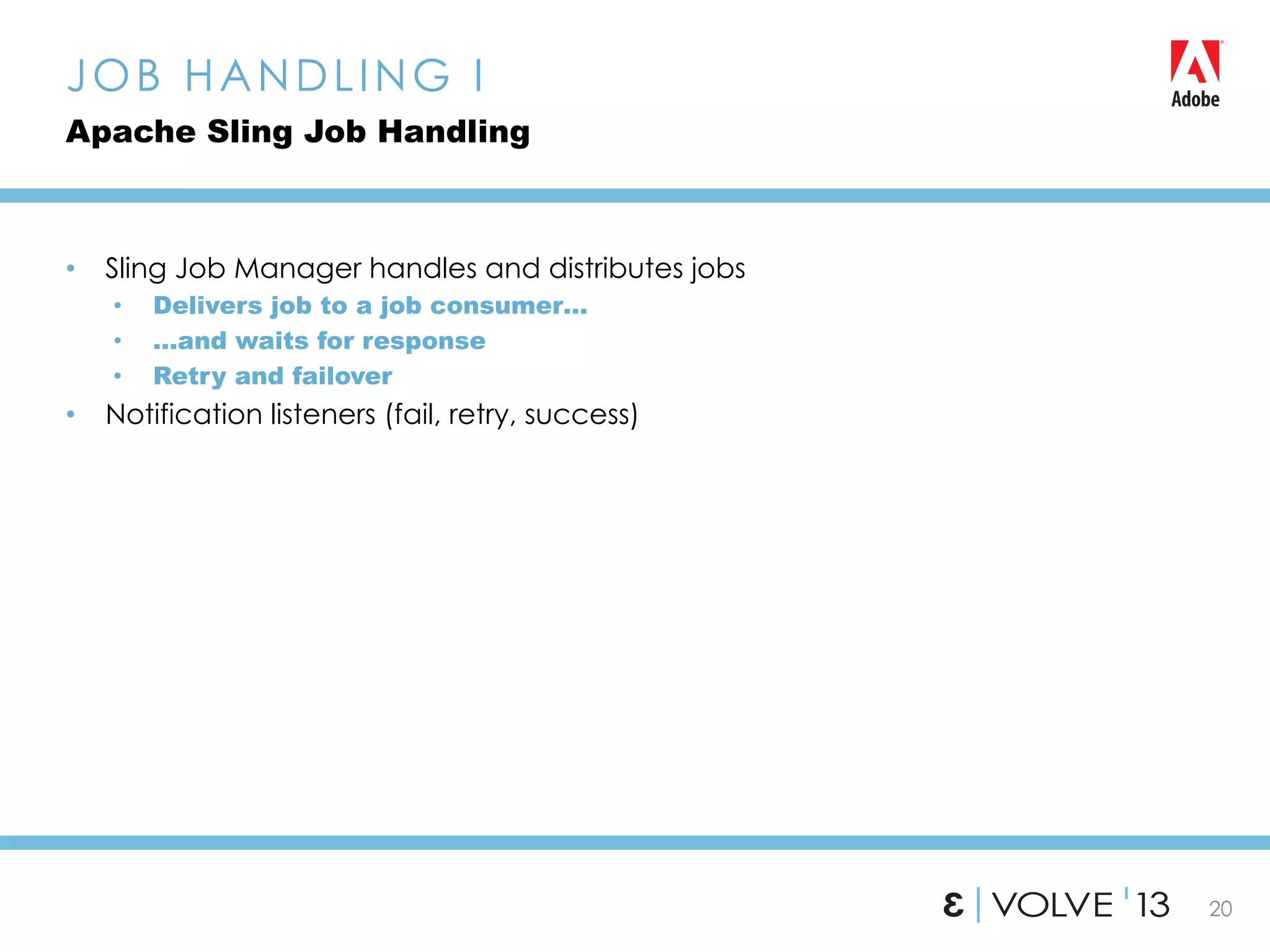

20 •  Sling Job Manager handles and distributes jobs •  Delivers job to a job consumer… •  …and waits for response •  Retry and failover •  Notification listeners (fail, retry, success) JOB HANDLING I Apache Sling Job Handling

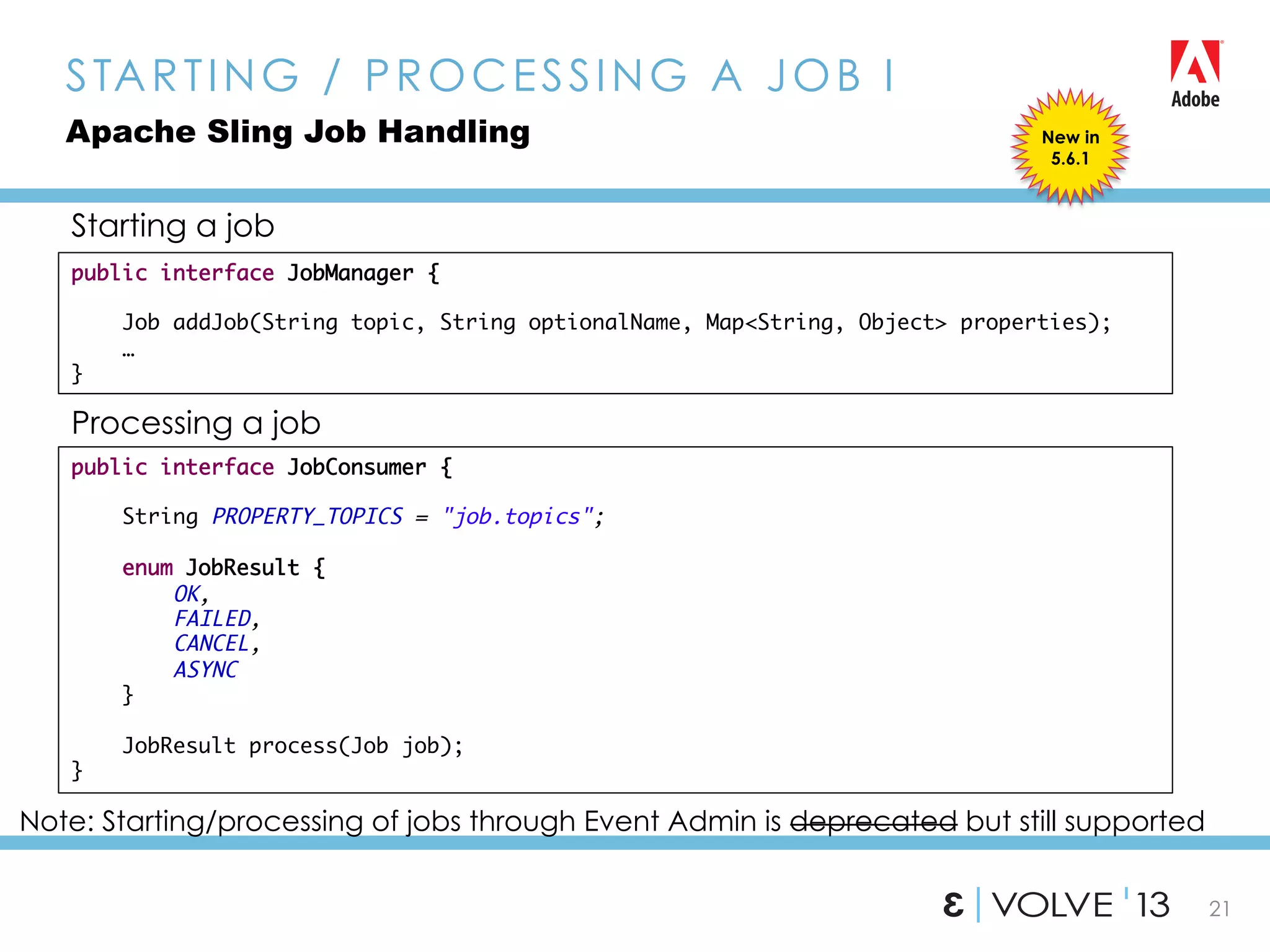

21 STARTING / PROCESSING A JOB I Apache Sling Job Handling public interface JobConsumer { String PROPERTY_TOPICS = "job.topics"; enum JobResult { OK, FAILED, CANCEL, ASYNC } JobResult process(Job job); } public interface JobManager { Job addJob(String topic, String optionalName, Map<String, Object> properties); … } Starting a job Processing a job Note: Starting/processing of jobs through Event Admin is deprecated but still supported New in 5.6.1
22 @Component @Service(value={JobConsumer.class}) @Property(name=JobConsumer.PROPERTY_TOPICS, value="org/apache/sling/jobs/backup") public class BackupJobConsumer implements JobConsumer { @Override public JobResult process(final Job job) { // do backup return JobResult.OK; } } STARTING / PROCESSING A JOB II Apache Sling Job Handling New in 5.6.1

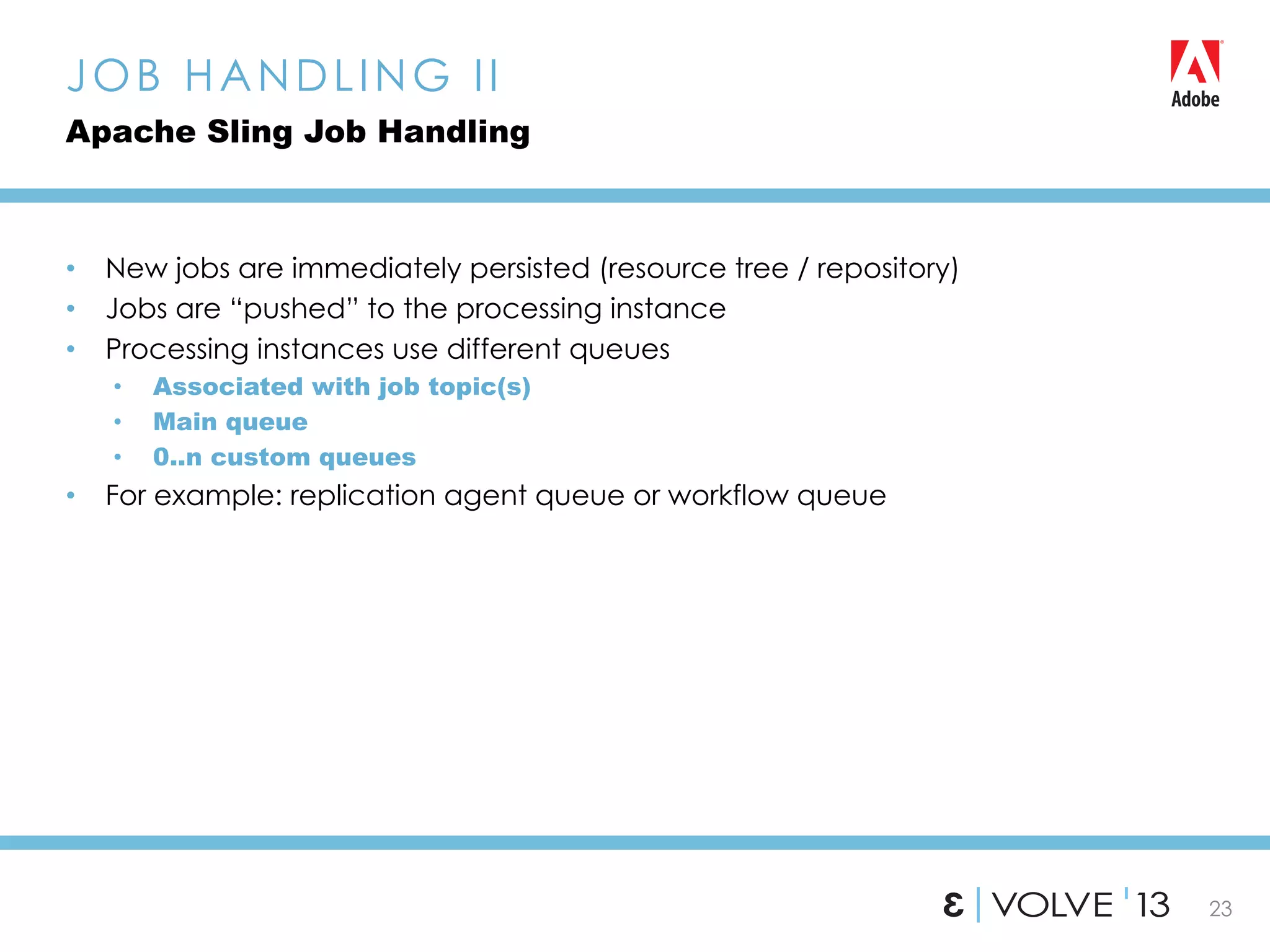

23 •  New jobs are immediately persisted (resource tree / repository) •  Jobs are “pushed” to the processing instance •  Processing instances use different queues •  Associated with job topic(s) •  Main queue •  0..n custom queues •  For example: replication agent queue or workflow queue JOB HANDLING II Apache Sling Job Handling

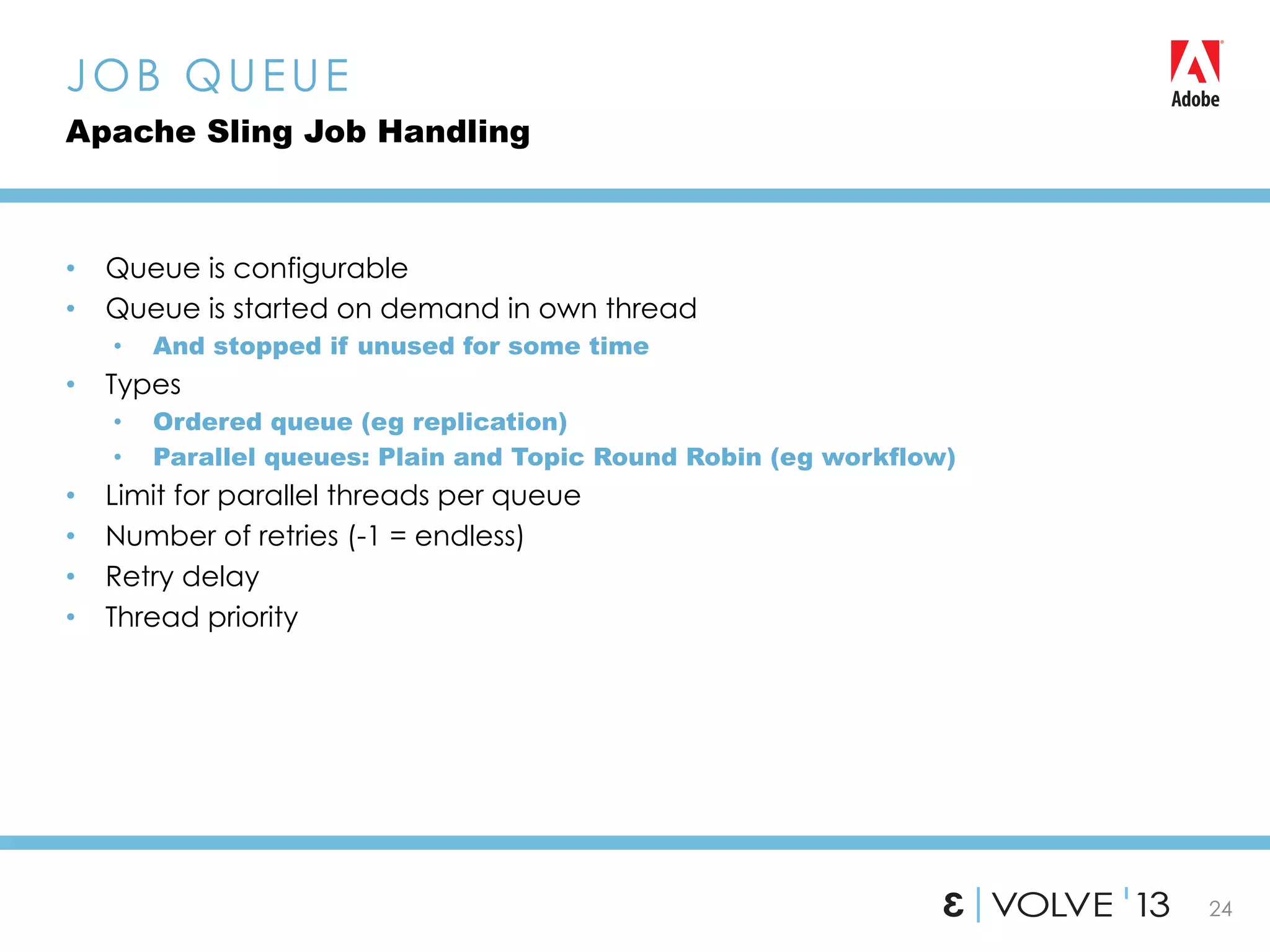

24 •  Queue is configurable •  Queue is started on demand in own thread •  And stopped if unused for some time •  Types •  Ordered queue (eg replication) •  Parallel queues: Plain and Topic Round Robin (eg workflow) •  Limit for parallel threads per queue •  Number of retries (-1 = endless) •  Retry delay •  Thread priority JOB QUEUE Apache Sling Job Handling

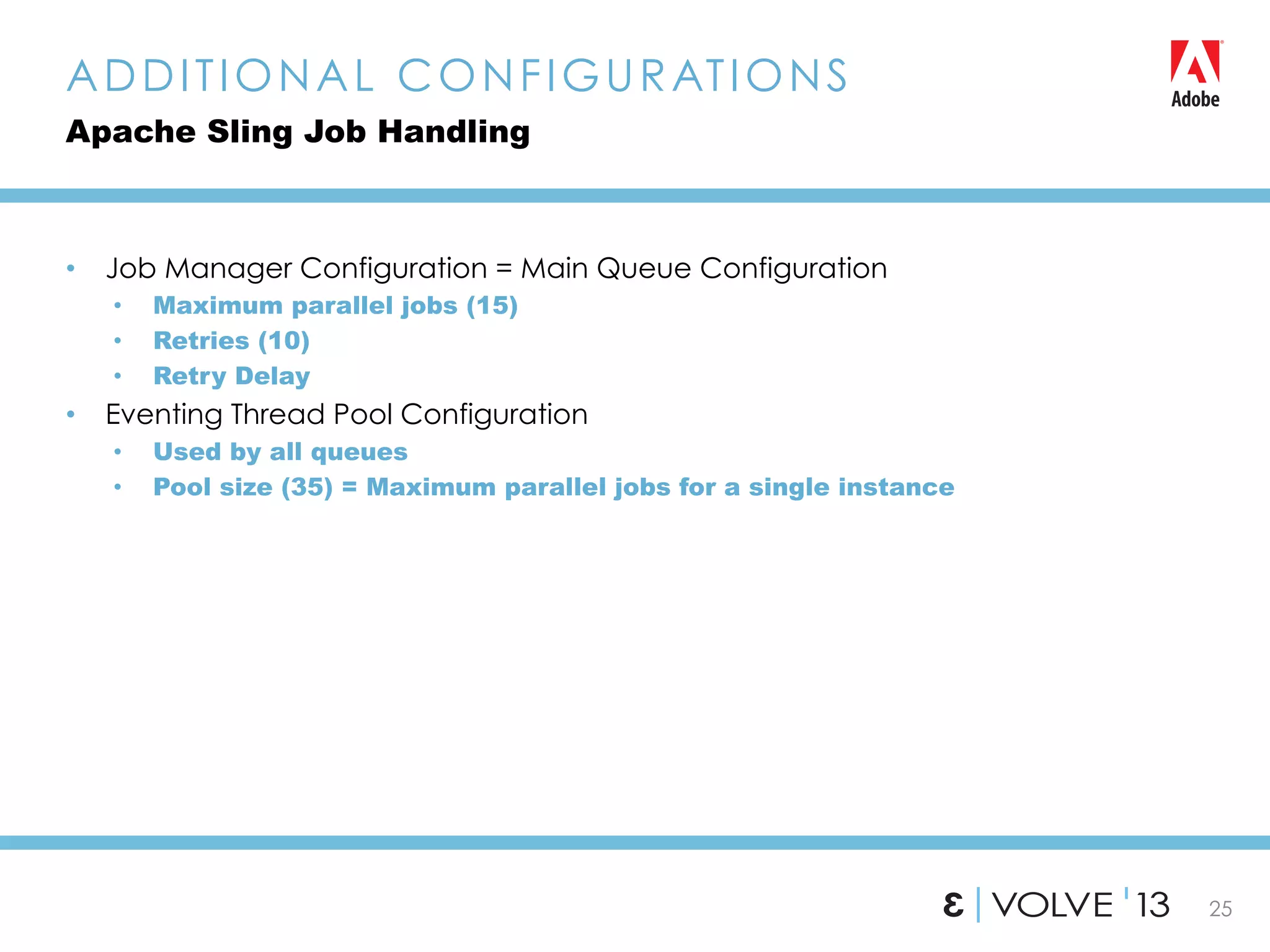

25 •  Job Manager Configuration = Main Queue Configuration •  Maximum parallel jobs (15) •  Retries (10) •  Retry Delay •  Eventing Thread Pool Configuration •  Used by all queues •  Pool size (35) = Maximum parallel jobs for a single instance ADDITIONAL CONFIGURATIONS Apache Sling Job Handling

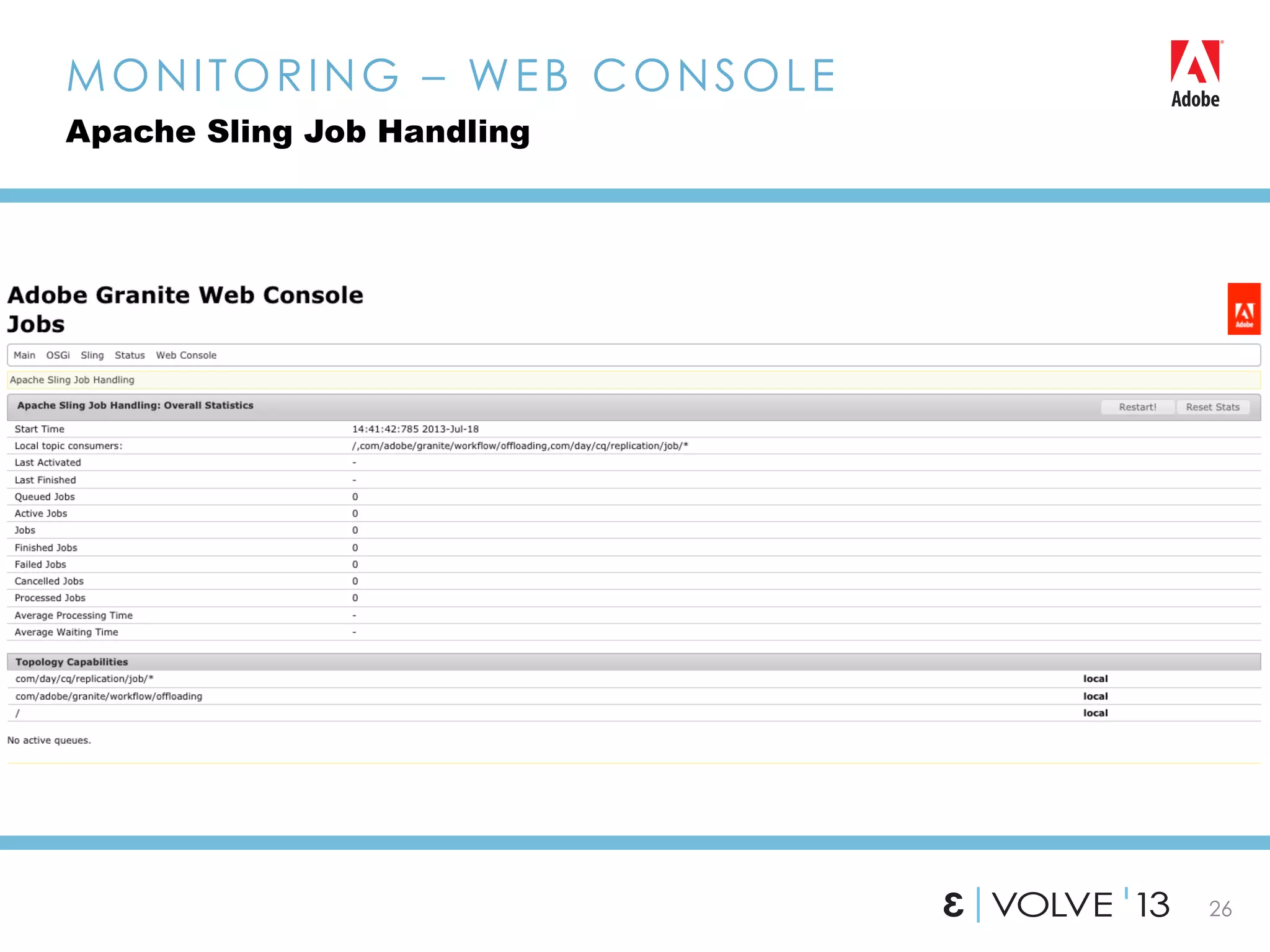

26 MONITORING – WEB CONSOLE Apache Sling Job Handling

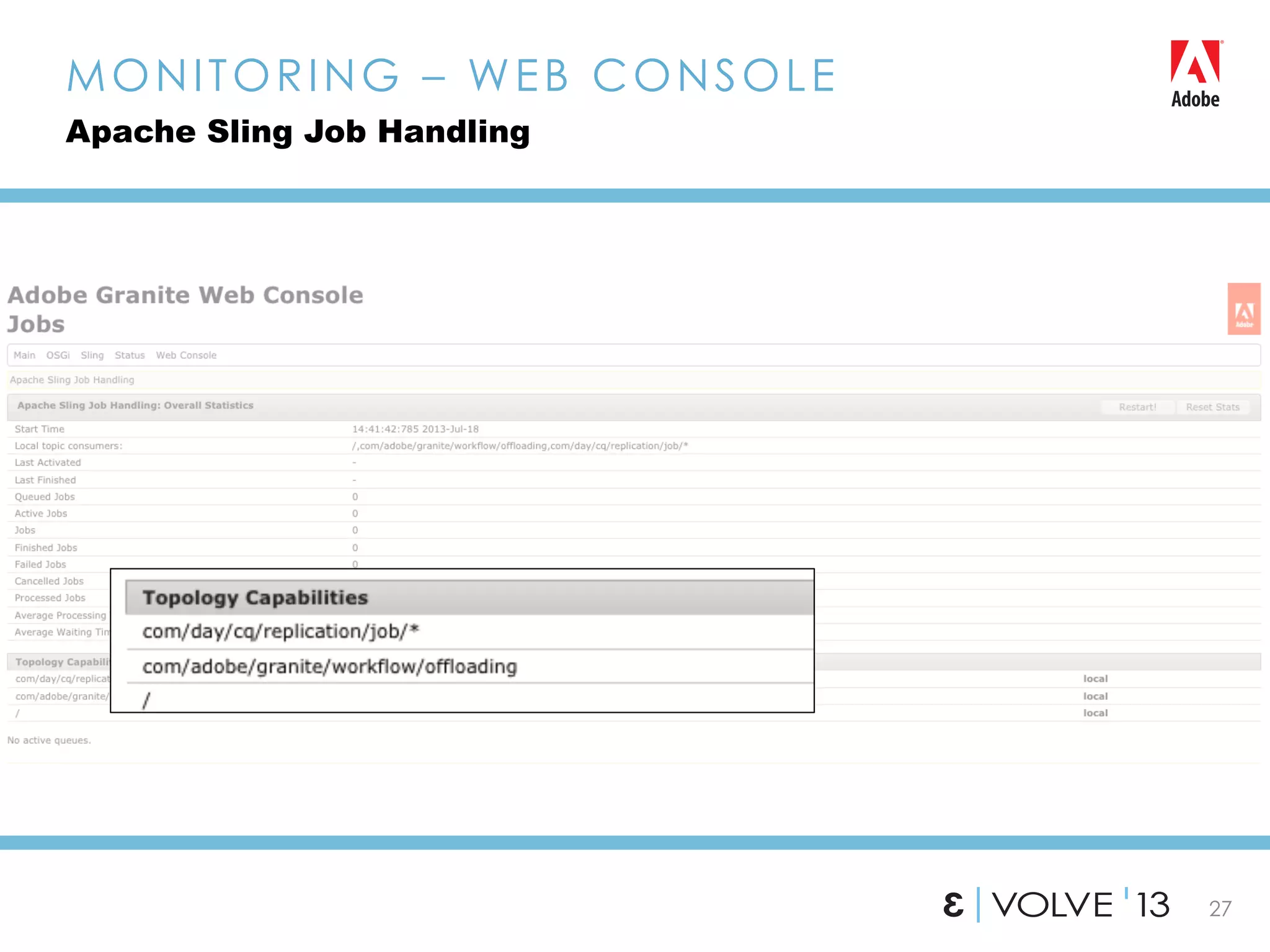

27 MONITORING – WEB CONSOLE Apache Sling Job Handling

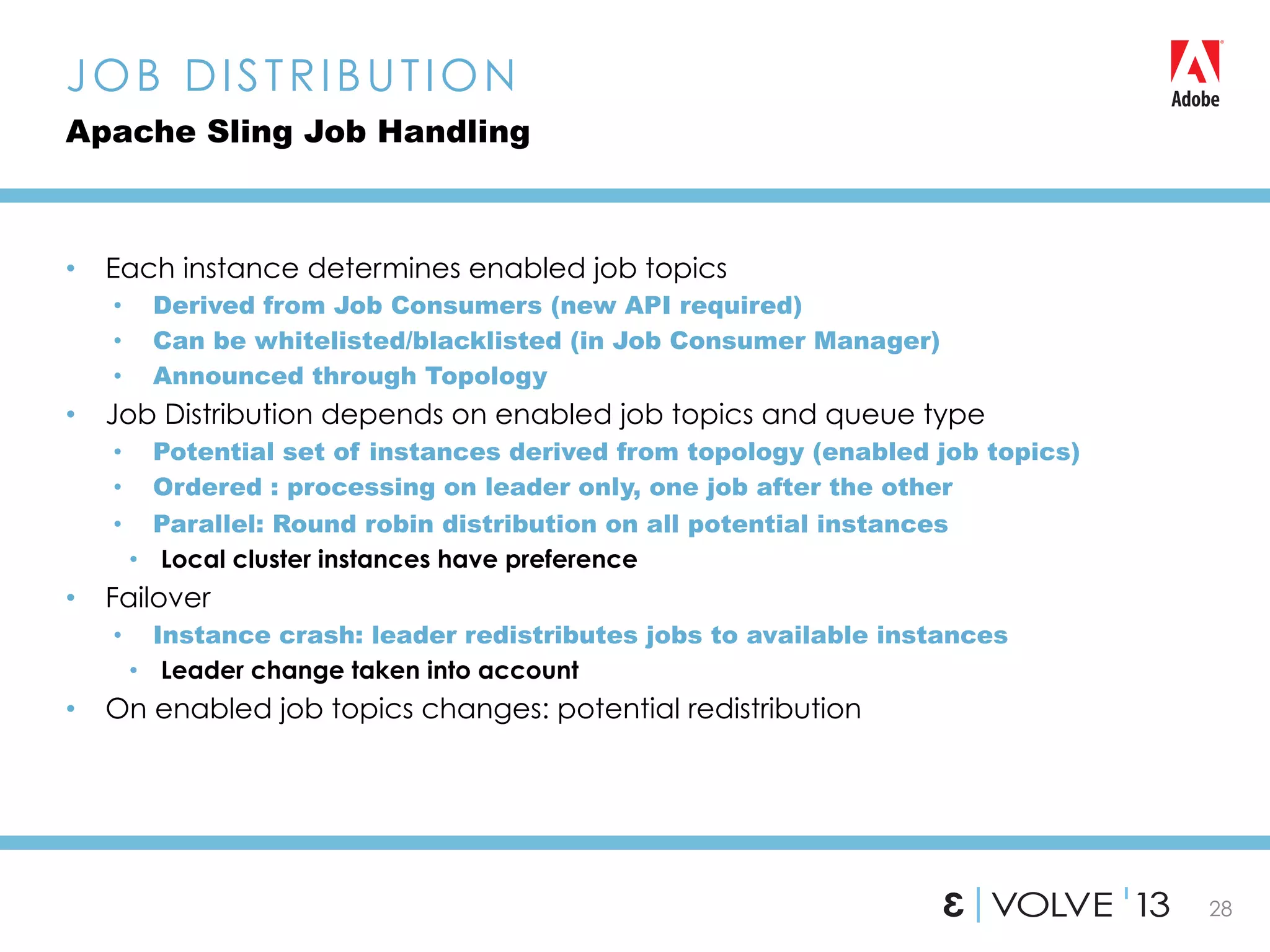

28 •  Each instance determines enabled job topics •  Derived from Job Consumers (new API required) •  Can be whitelisted/blacklisted (in Job Consumer Manager) •  Announced through Topology •  Job Distribution depends on enabled job topics and queue type •  Potential set of instances derived from topology (enabled job topics) •  Ordered : processing on leader only, one job after the other •  Parallel: Round robin distribution on all potential instances •  Local cluster instances have preference •  Failover •  Instance crash: leader redistributes jobs to available instances •  Leader change taken into account •  On enabled job topics changes: potential redistribution JOB DISTRIBUTION Apache Sling Job Handling

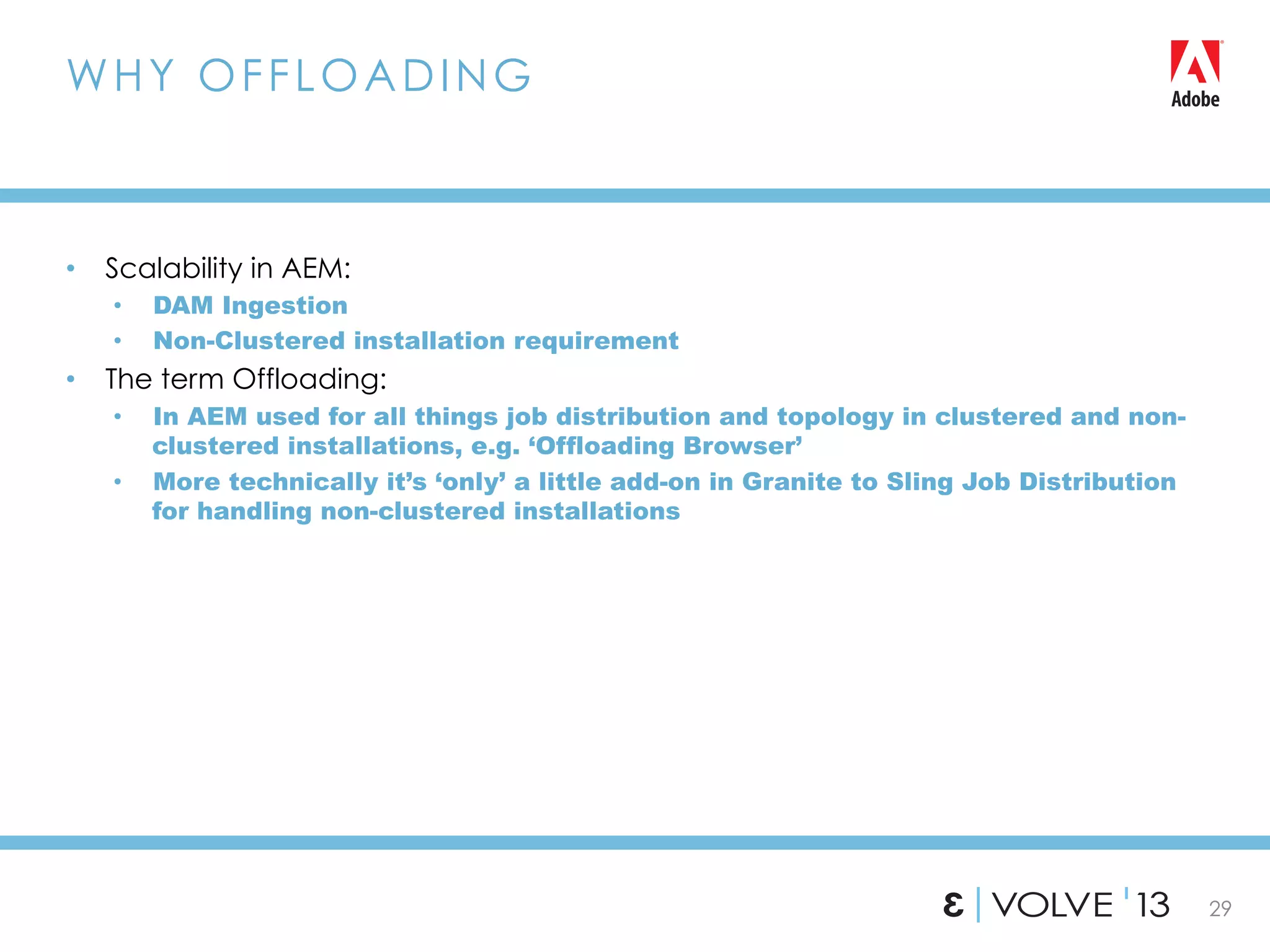

29 •  Scalability in AEM: •  DAM Ingestion •  Non-Clustered installation requirement •  The term Offloading: •  In AEM used for all things job distribution and topology in clustered and non- clustered installations, e.g. ‘Offloading Browser’ •  More technically it’s ‘only’ a little add-on in Granite to Sling Job Distribution for handling non-clustered installations WHY OFFLOADING

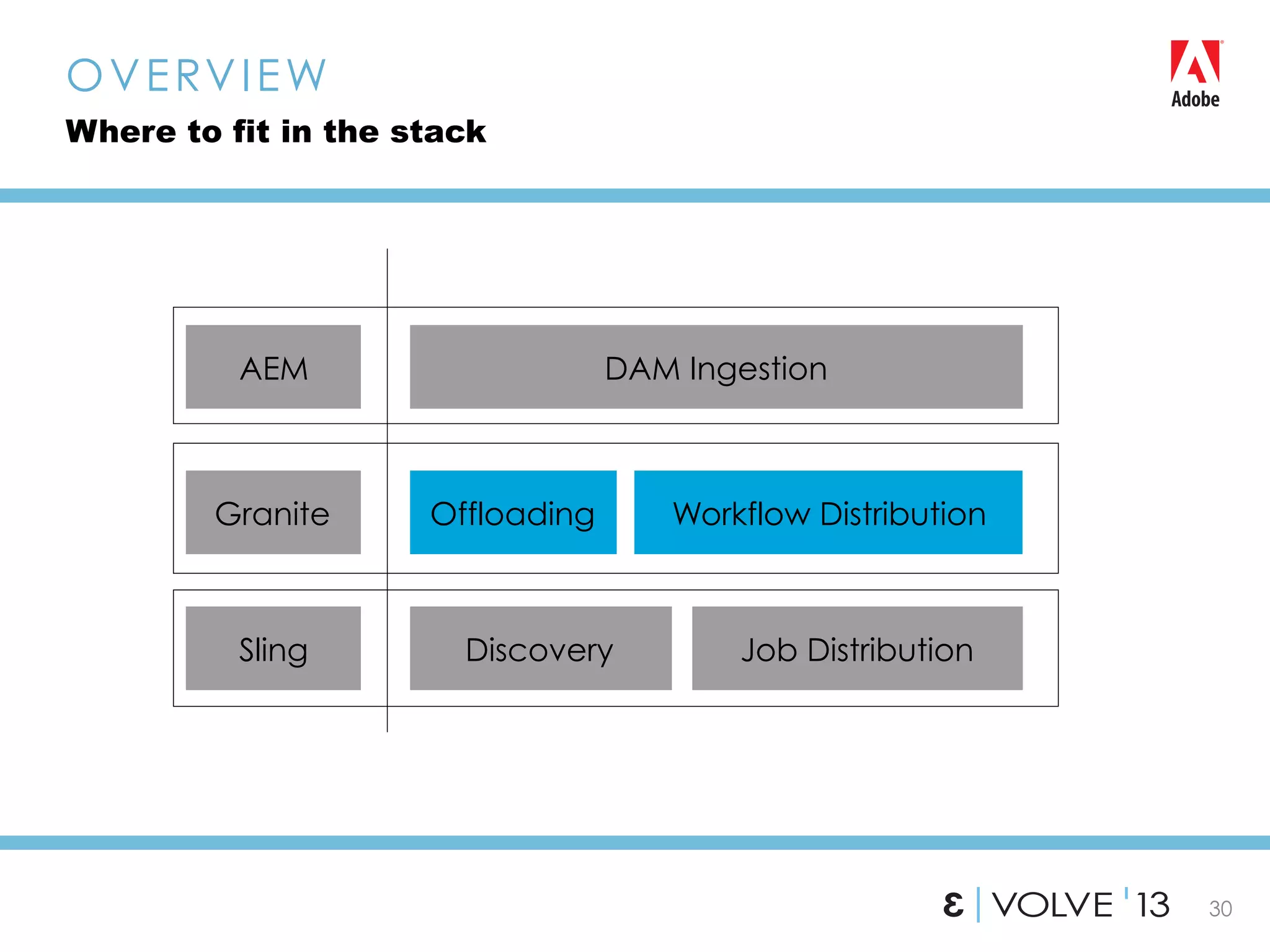

30 OVERVIEW Where to fit in the stack Discovery Offloading Workflow Distribution DAM Ingestion Sling Granite AEM Job Distribution

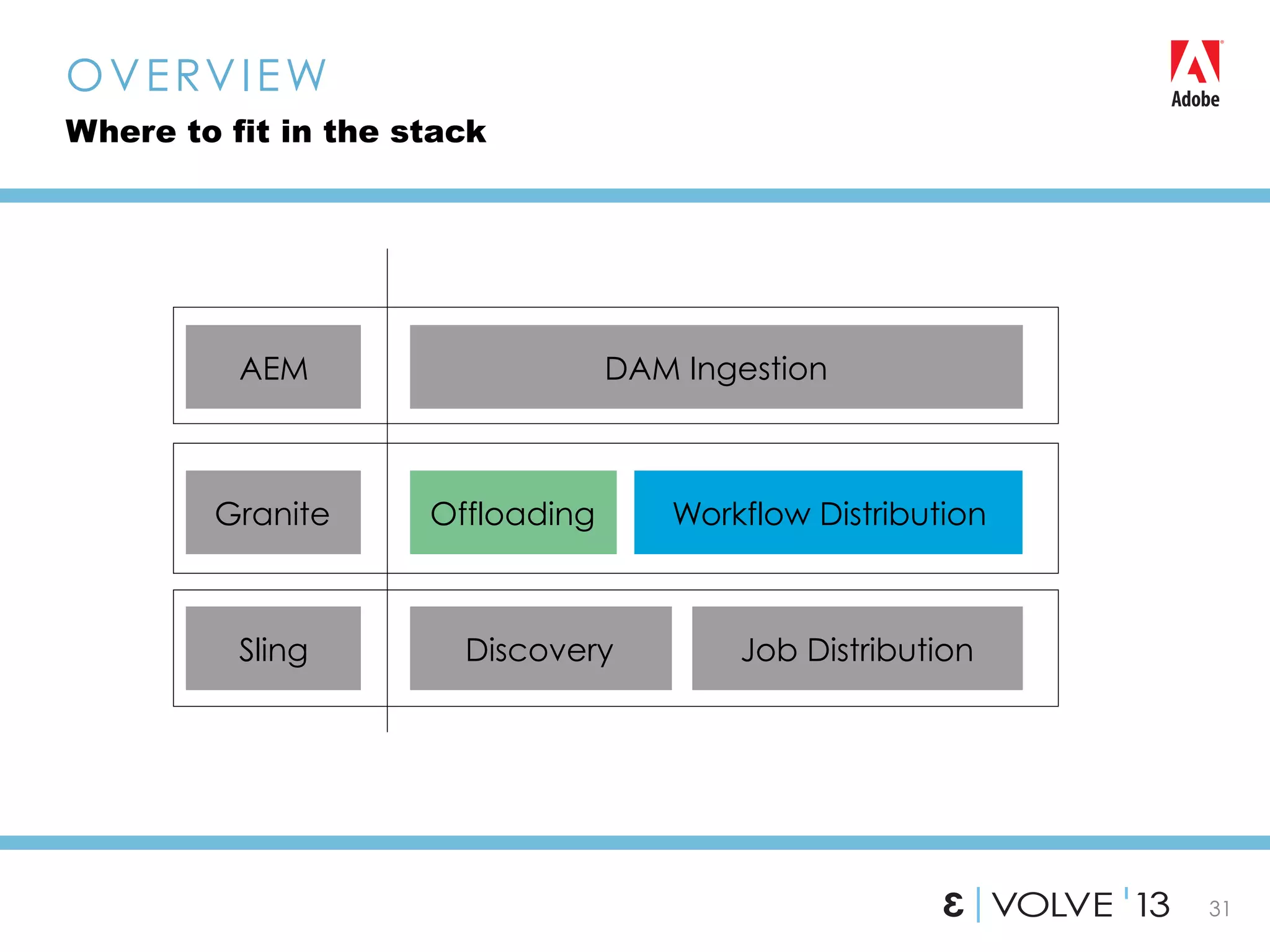

31 OVERVIEW Where to fit in the stack Discovery Offloading Workflow Distribution DAM Ingestion Sling Granite AEM Job Distribution

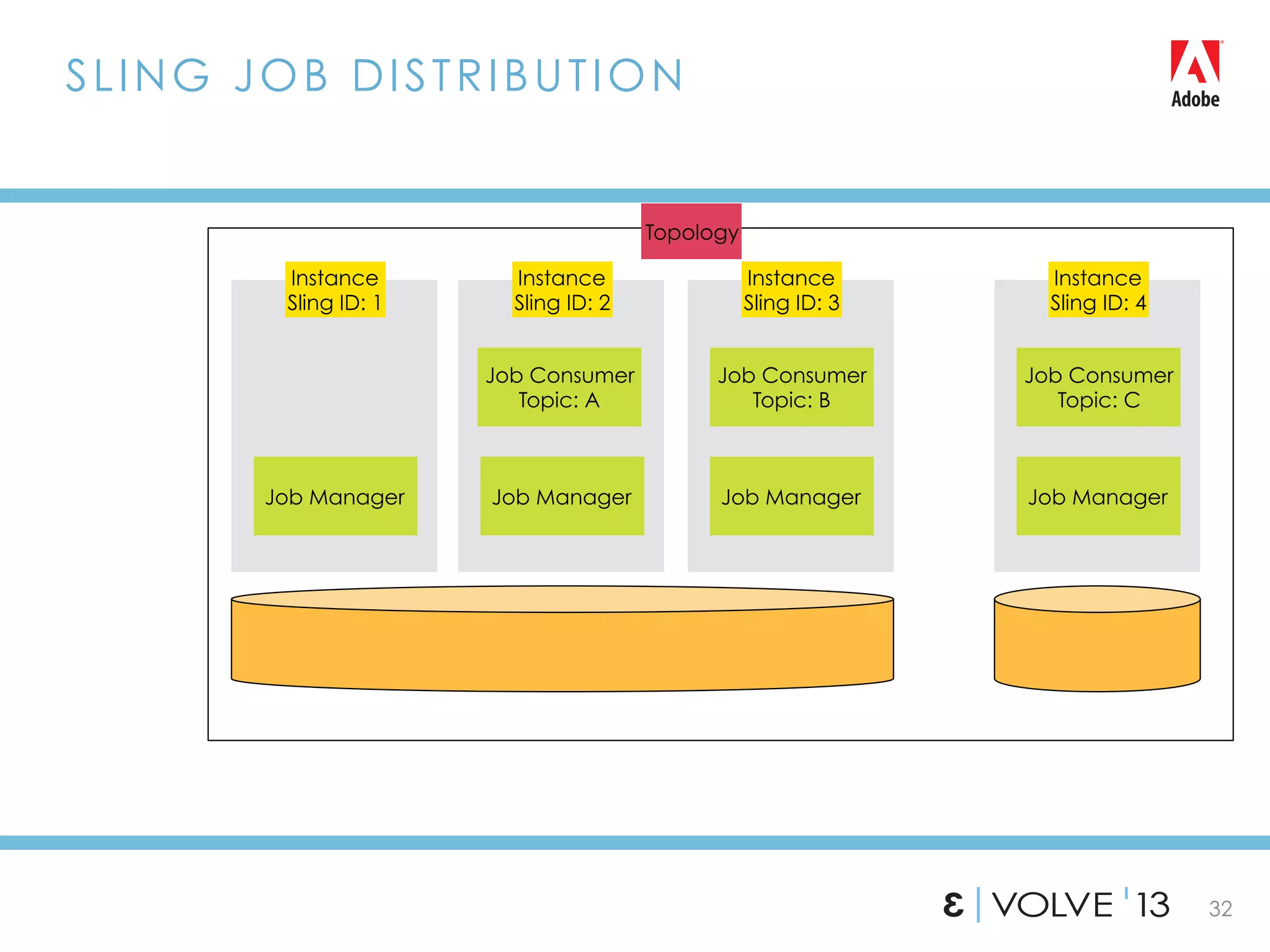

32 SLING JOB DISTRIBUTION Topology Instance Sling ID: 1 Job Manager Instance Sling ID: 2 Job Manager Instance Sling ID: 3 Job Manager Instance Sling ID: 4 Job Manager Job Consumer Topic: A Job Consumer Topic: B Job Consumer Topic: C

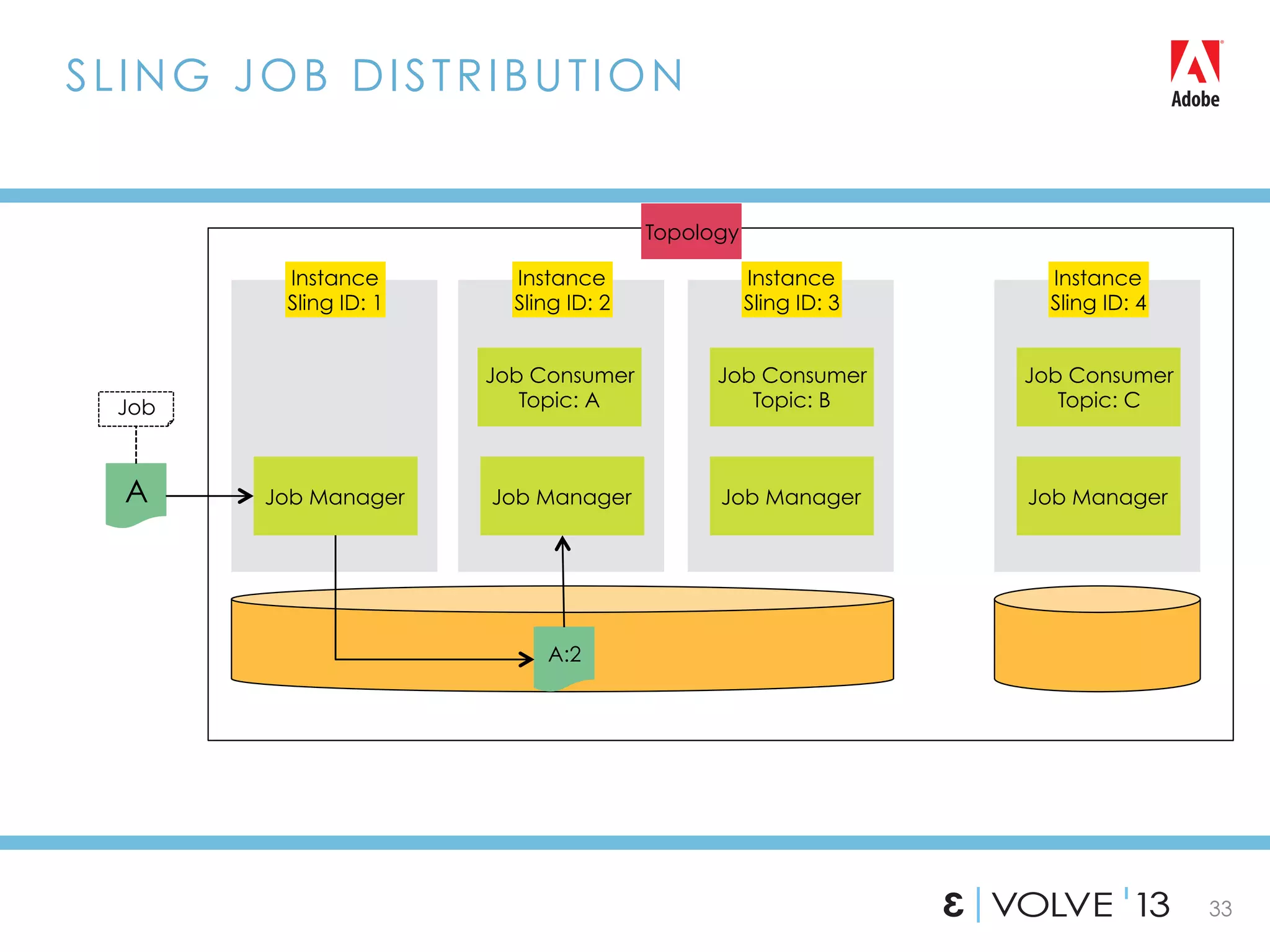

33 SLING JOB DISTRIBUTION Instance Sling ID: 1 Job Manager Instance Sling ID: 2 Job Manager Instance Sling ID: 3 Job Manager Instance Sling ID: 4 Job ManagerA Job Consumer Topic: A Job Consumer Topic: B A:2 Job Consumer Topic: CJob Topology
34 SLING JOB DISTRIBUTION Instance Sling ID: 1 Job Manager Instance Sling ID: 2 Job Manager Instance Sling ID: 3 Job Manager Instance Sling ID: 4 Job ManagerB Job Consumer Topic: A Job Consumer Topic: B B:3 Job Consumer Topic: CJob Topology
35 SLING JOB DISTRIBUTION Instance Sling ID: 1 Job Manager Instance Sling ID: 2 Job Manager Instance Sling ID: 3 Job Manager Instance Sling ID: 4 Job ManagerC Job Consumer Topic: A Job Consumer Topic: B C:4 Job Consumer Topic: CJob ? Topology
36 SLING JOB DISTRIBUTION Instance Sling ID: 1 Job Manager Instance Sling ID: 2 Job Manager Instance Sling ID: 3 Job Manager Instance Sling ID: 4 Job ManagerC Job Consumer Topic: A Job Consumer Topic: B C:4 Job Consumer Topic: CJob Offloading Framework Topology

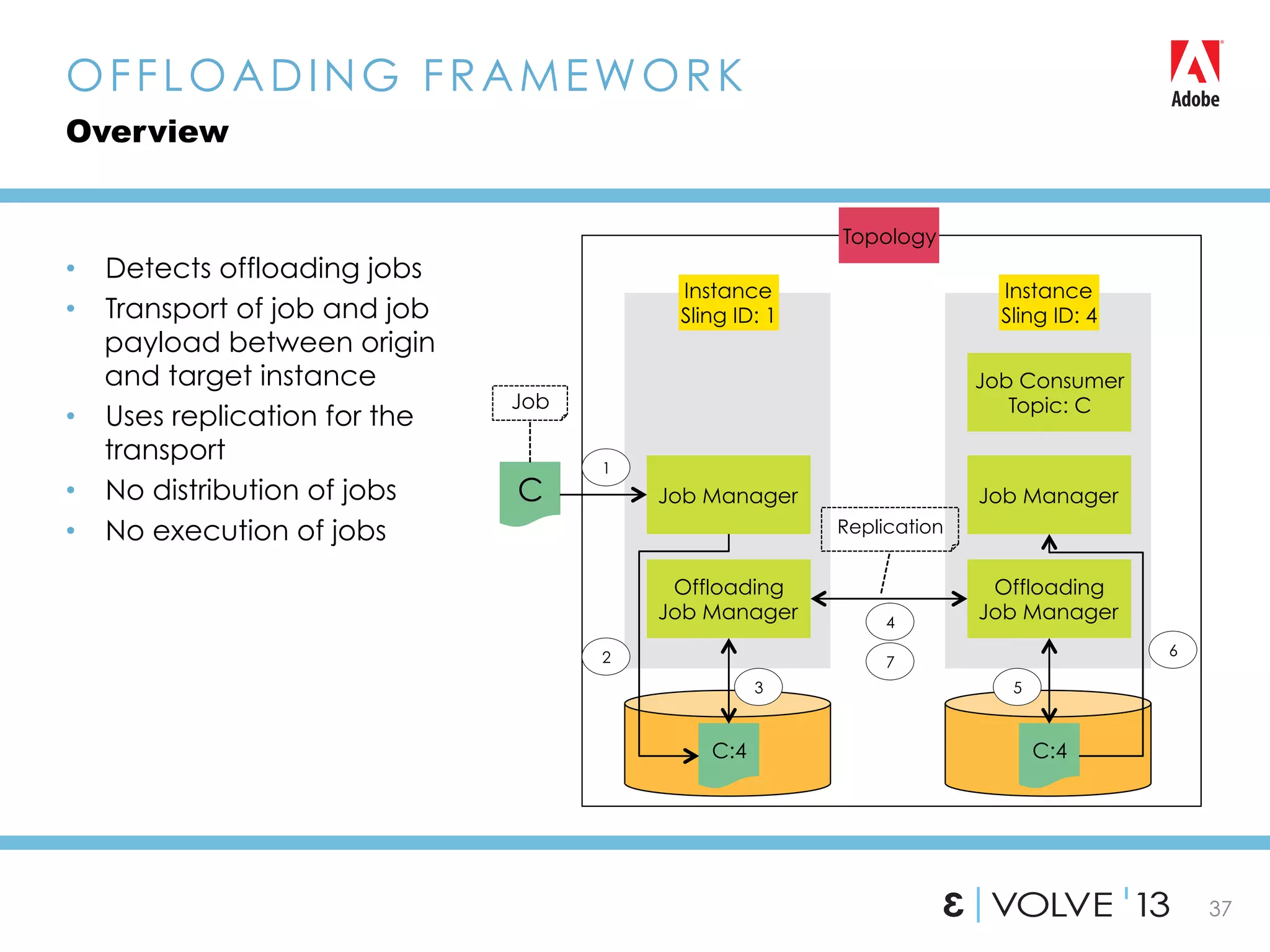

37 •  Detects offloading jobs •  Transport of job and job payload between origin and target instance •  Uses replication for the transport •  No distribution of jobs •  No execution of jobs OFFLOADING FRAMEWORK Overview Instance Sling ID: 1 Job Manager Offloading Job Manager C:4 Instance Sling ID: 4 Job Manager Job Consumer Topic: C Offloading Job Manager C:4 C Job Replication 1 2 3 5 4 6 7 Topology

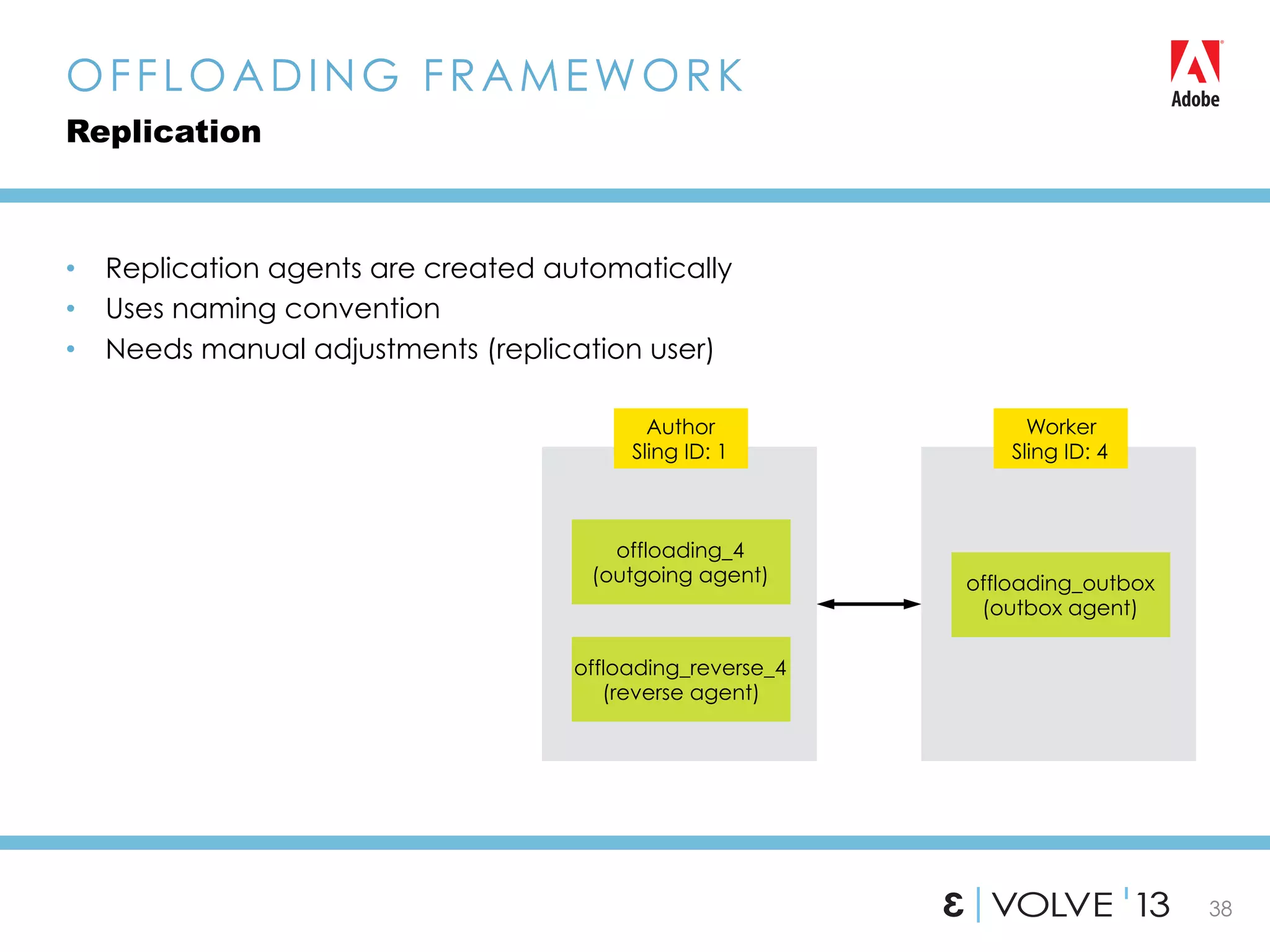

38 •  Replication agents are created automatically •  Uses naming convention •  Needs manual adjustments (replication user) OFFLOADING FRAMEWORK Replication Worker Sling ID: 4 Author Sling ID: 1 offloading_4 (outgoing agent) offloading_reverse_4 (reverse agent) offloading_outbox (outbox agent)

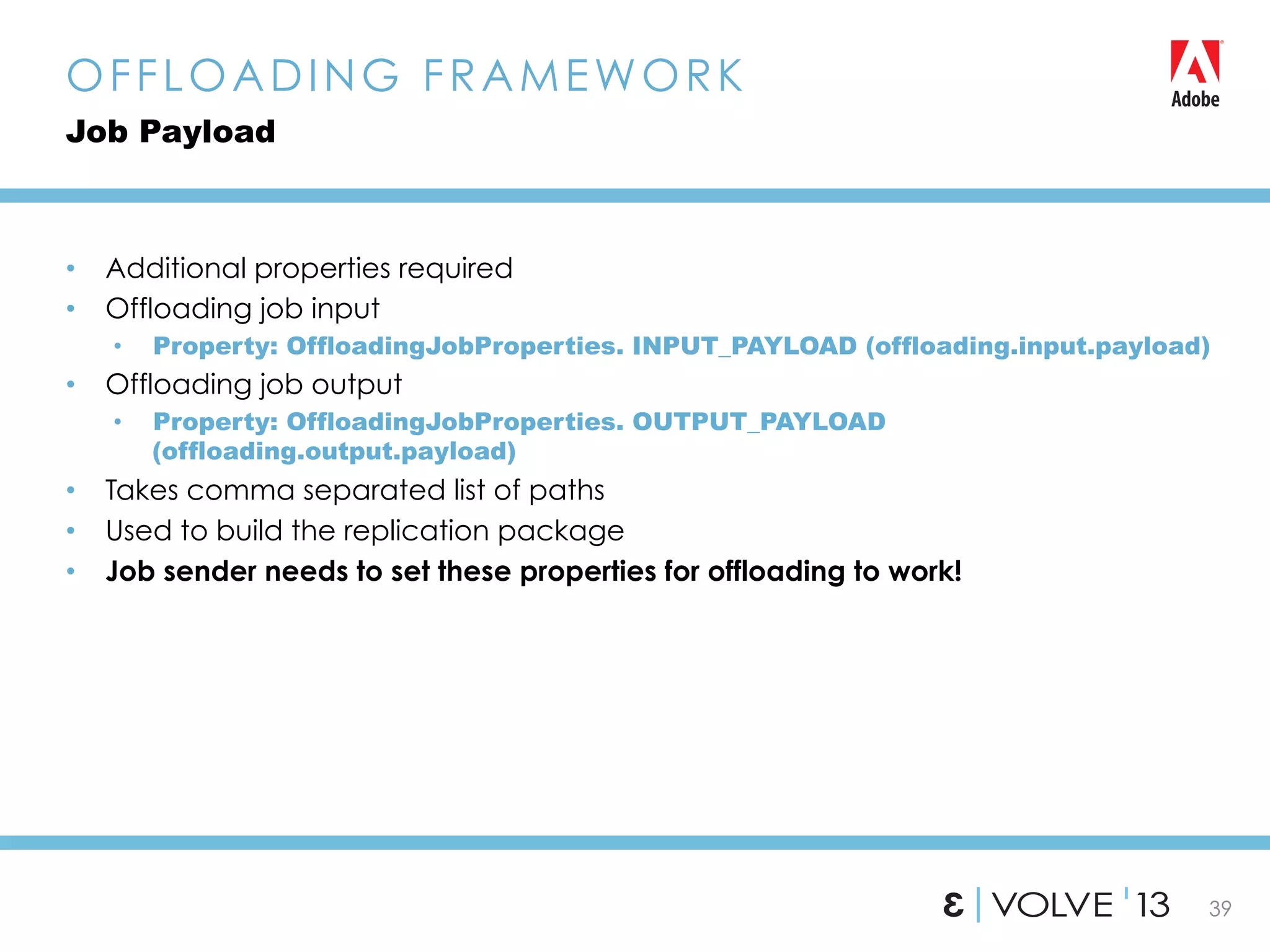

39 •  Additional properties required •  Offloading job input •  Property: OffloadingJobProperties. INPUT_PAYLOAD (offloading.input.payload) •  Offloading job output •  Property: OffloadingJobProperties. OUTPUT_PAYLOAD (offloading.output.payload) •  Takes comma separated list of paths •  Used to build the replication package •  Job sender needs to set these properties for offloading to work! OFFLOADING FRAMEWORK Job Payload

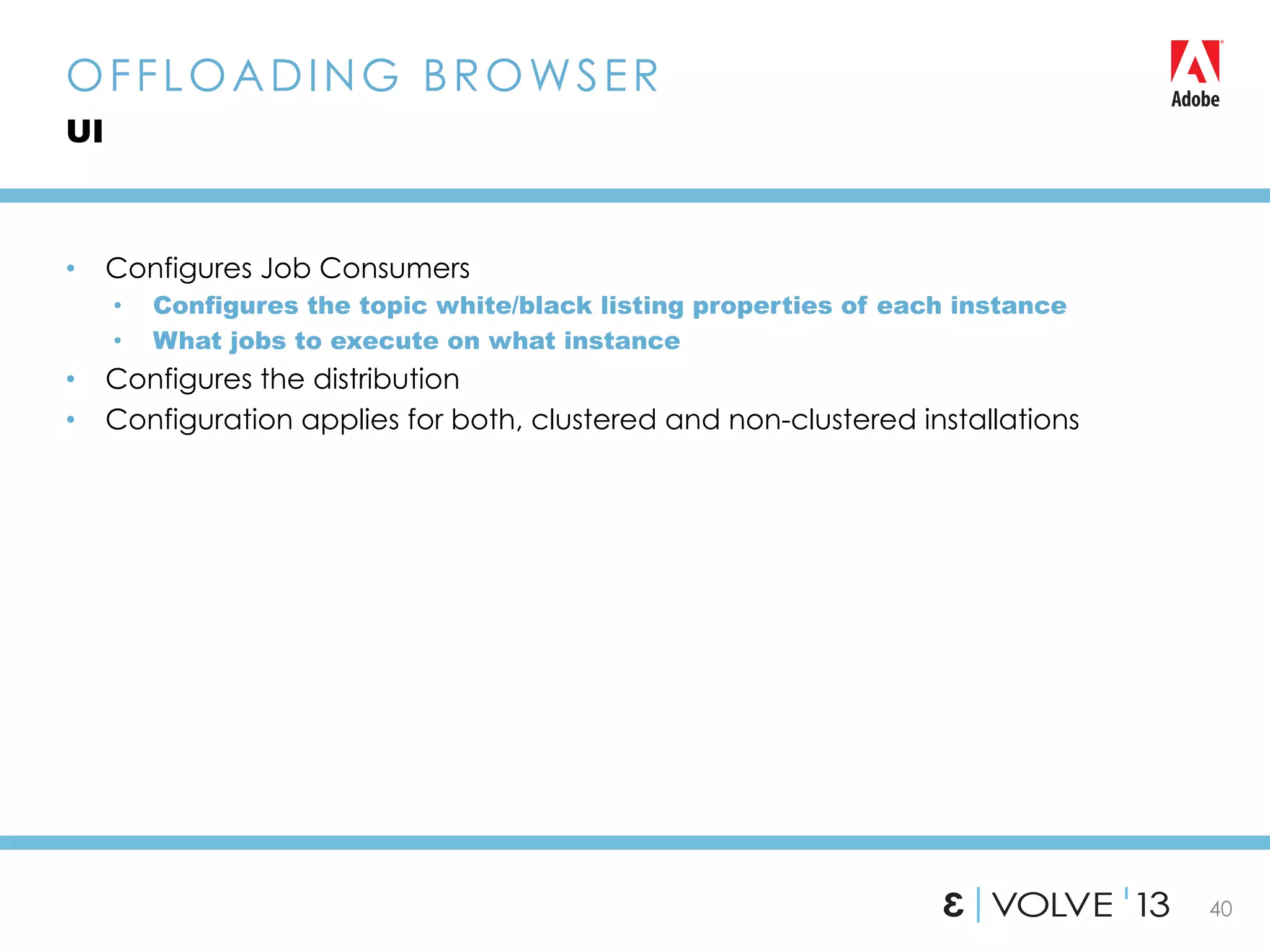

40 •  Configures Job Consumers •  Configures the topic white/black listing properties of each instance •  What jobs to execute on what instance •  Configures the distribution •  Configuration applies for both, clustered and non-clustered installations OFFLOADING BROWSER UI

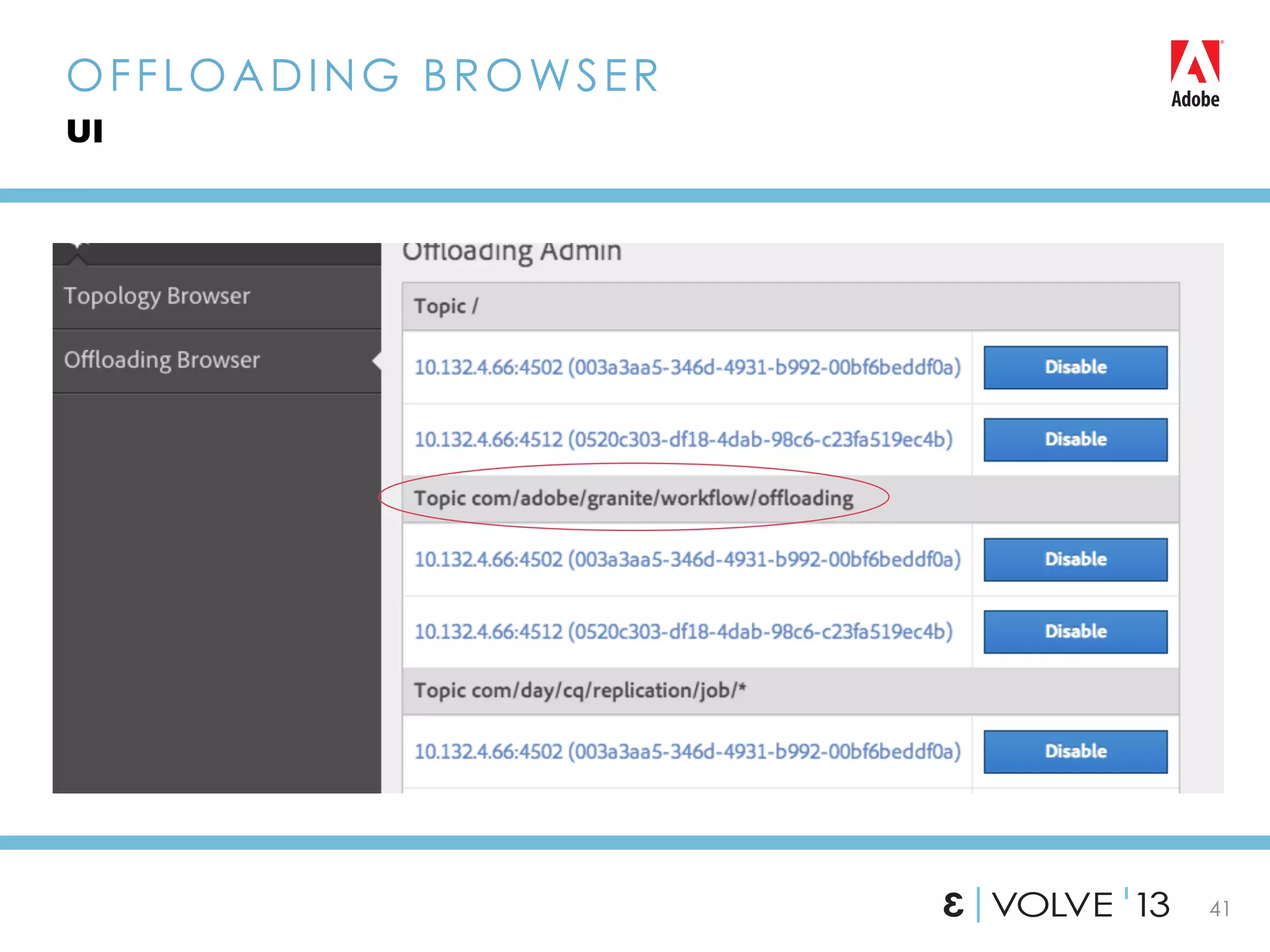

41 OFFLOADING BROWSER UI

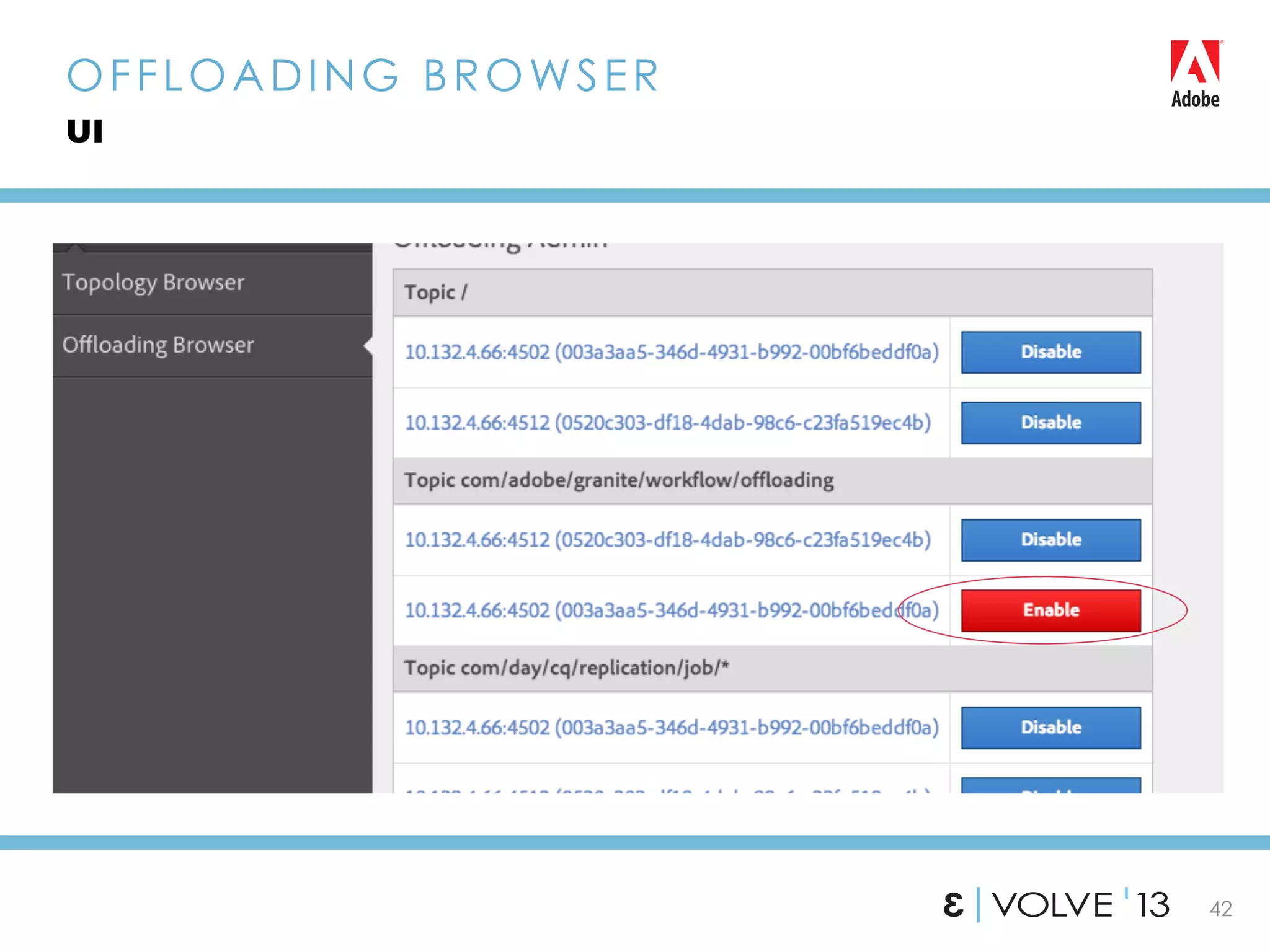

42 OFFLOADING BROWSER UI

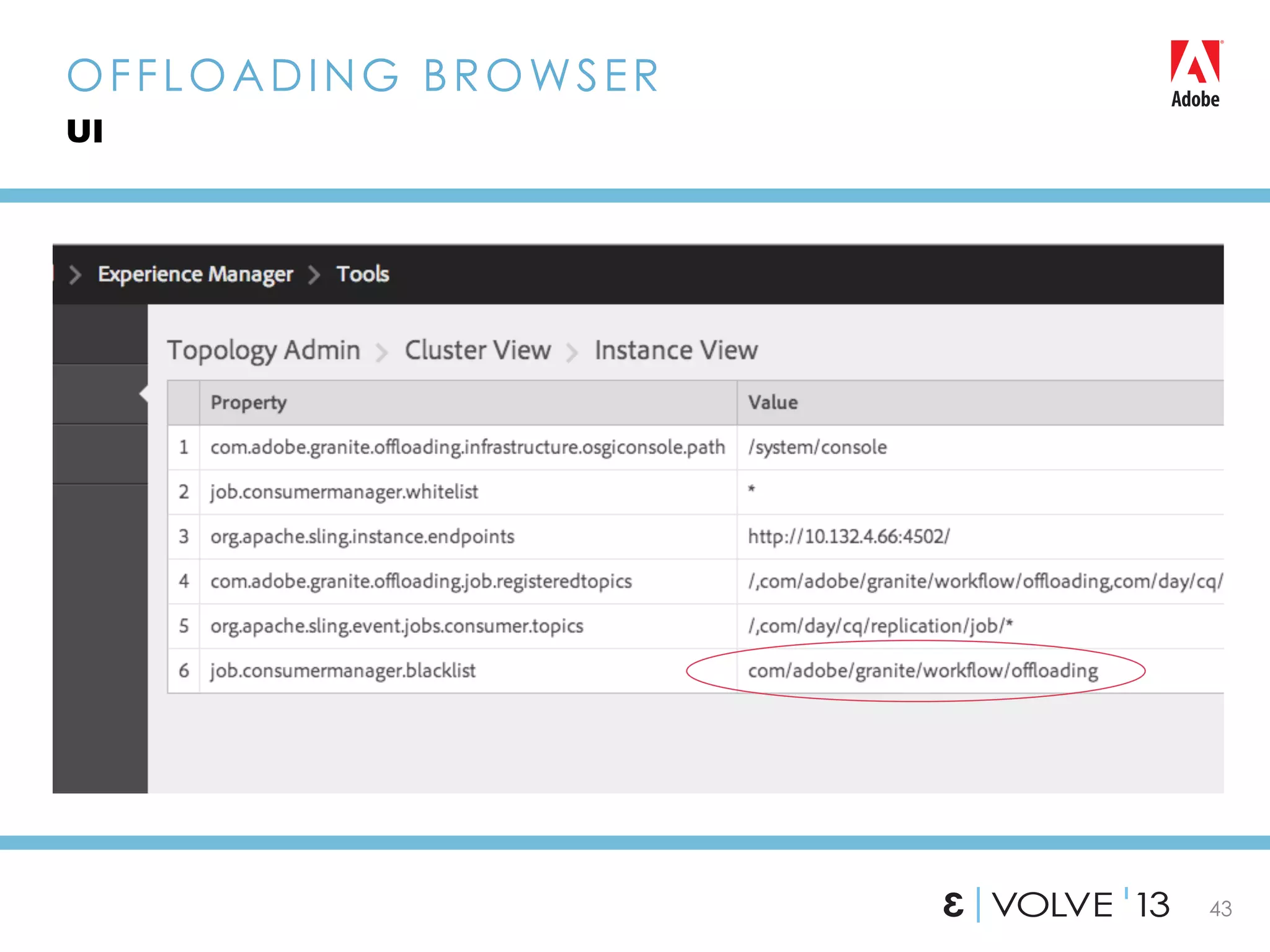

43 OFFLOADING BROWSER UI

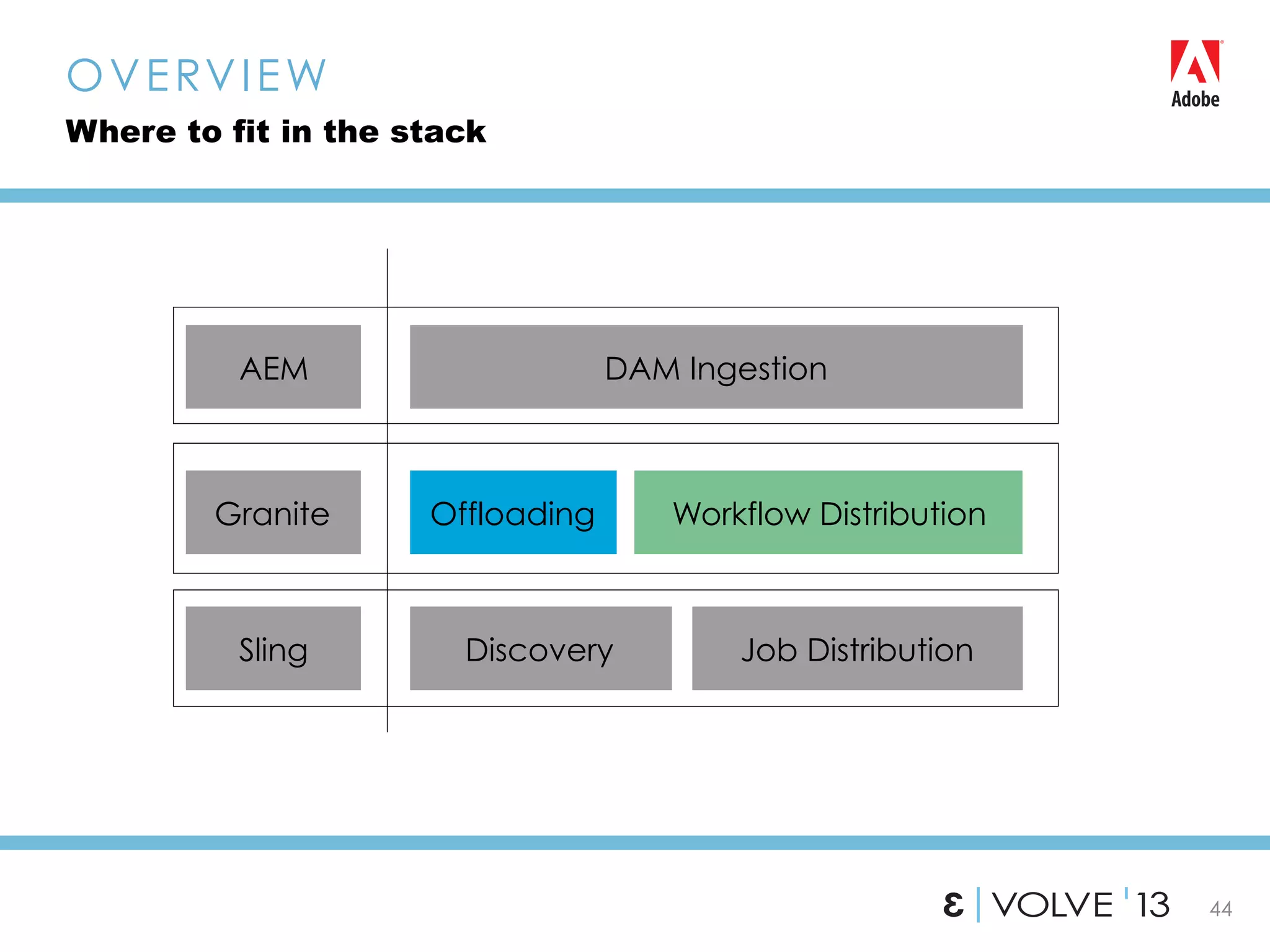

44 OVERVIEW Where to fit in the stack Discovery Offloading Workflow Distribution DAM Ingestion Sling Granite AEM Job Distribution

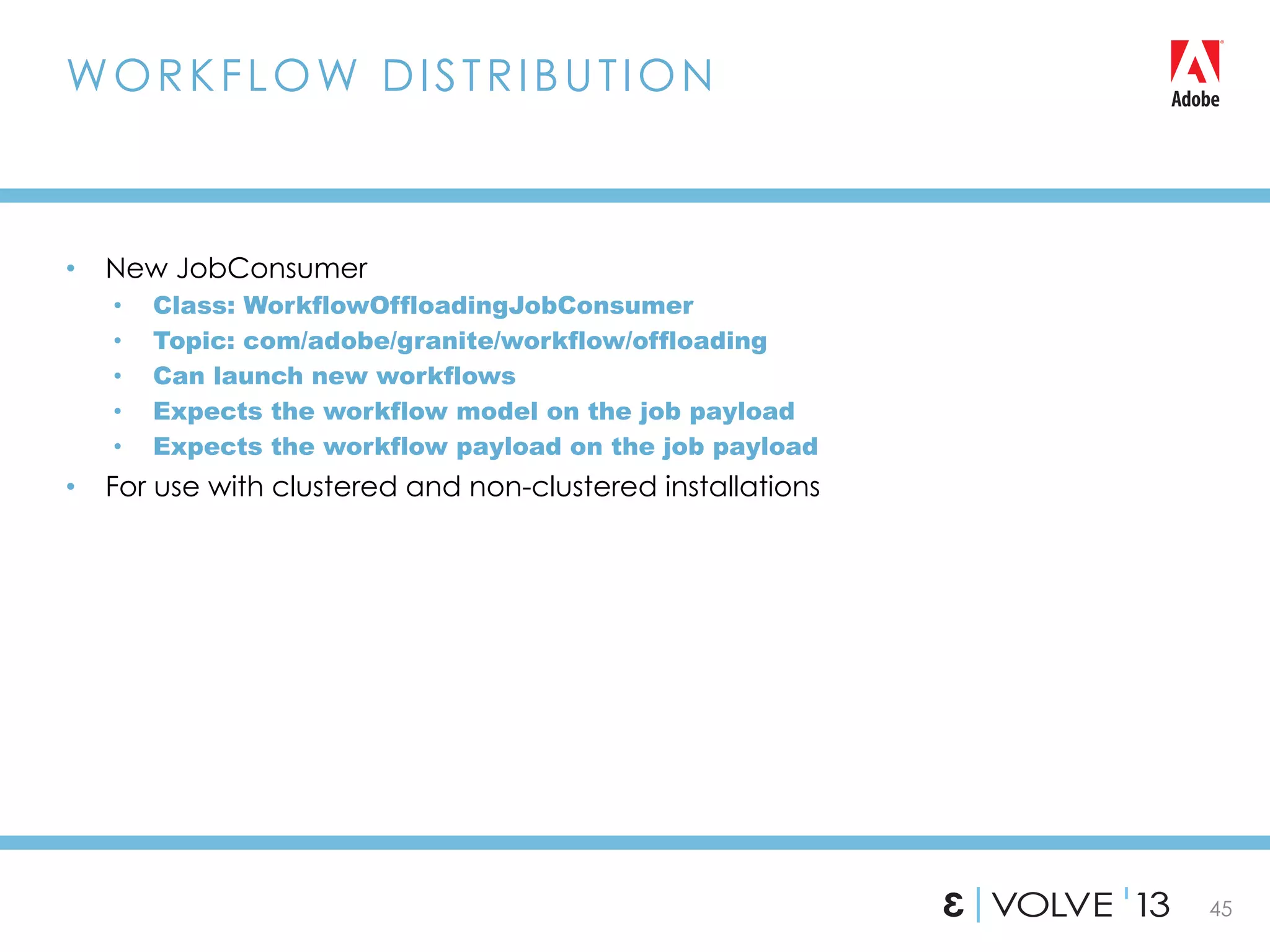

45 •  New JobConsumer •  Class: WorkflowOffloadingJobConsumer •  Topic: com/adobe/granite/workflow/offloading •  Can launch new workflows •  Expects the workflow model on the job payload •  Expects the workflow payload on the job payload •  For use with clustered and non-clustered installations WORKFLOW DISTRIBUTION

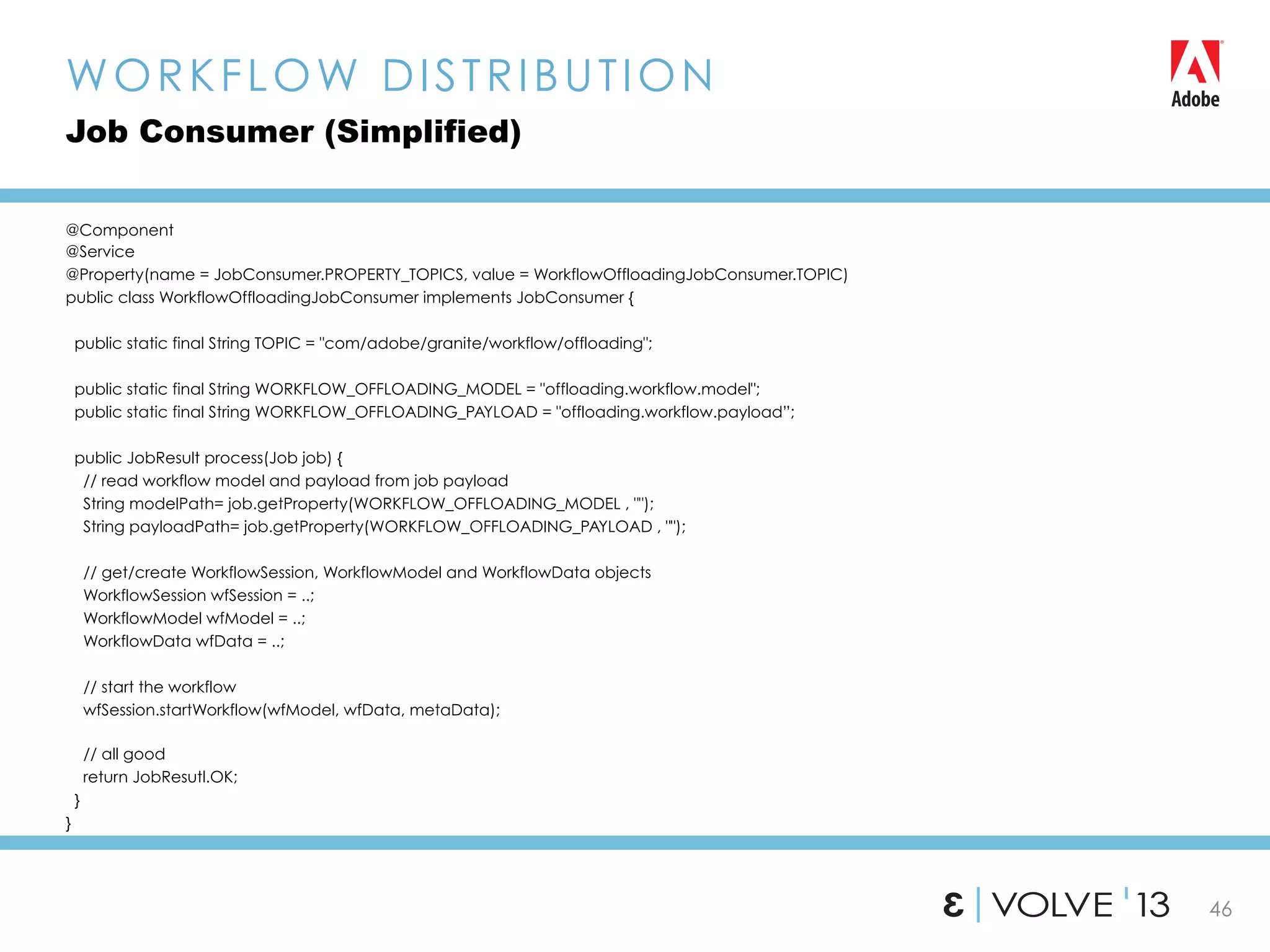

46 @Component @Service @Property(name = JobConsumer.PROPERTY_TOPICS, value = WorkflowOffloadingJobConsumer.TOPIC) public class WorkflowOffloadingJobConsumer implements JobConsumer { public static final String TOPIC = "com/adobe/granite/workflow/offloading"; public static final String WORKFLOW_OFFLOADING_MODEL = "offloading.workflow.model"; public static final String WORKFLOW_OFFLOADING_PAYLOAD = "offloading.workflow.payload”; public JobResult process(Job job) { // read workflow model and payload from job payload String modelPath= job.getProperty(WORKFLOW_OFFLOADING_MODEL , ""); String payloadPath= job.getProperty(WORKFLOW_OFFLOADING_PAYLOAD , ""); // get/create WorkflowSession, WorkflowModel and WorkflowData objects WorkflowSession wfSession = ..; WorkflowModel wfModel = ..; WorkflowData wfData = ..; // start the workflow wfSession.startWorkflow(wfModel, wfData, metaData); // all good return JobResutl.OK; } } WORKFLOW DISTRIBUTION Job Consumer (Simplified)

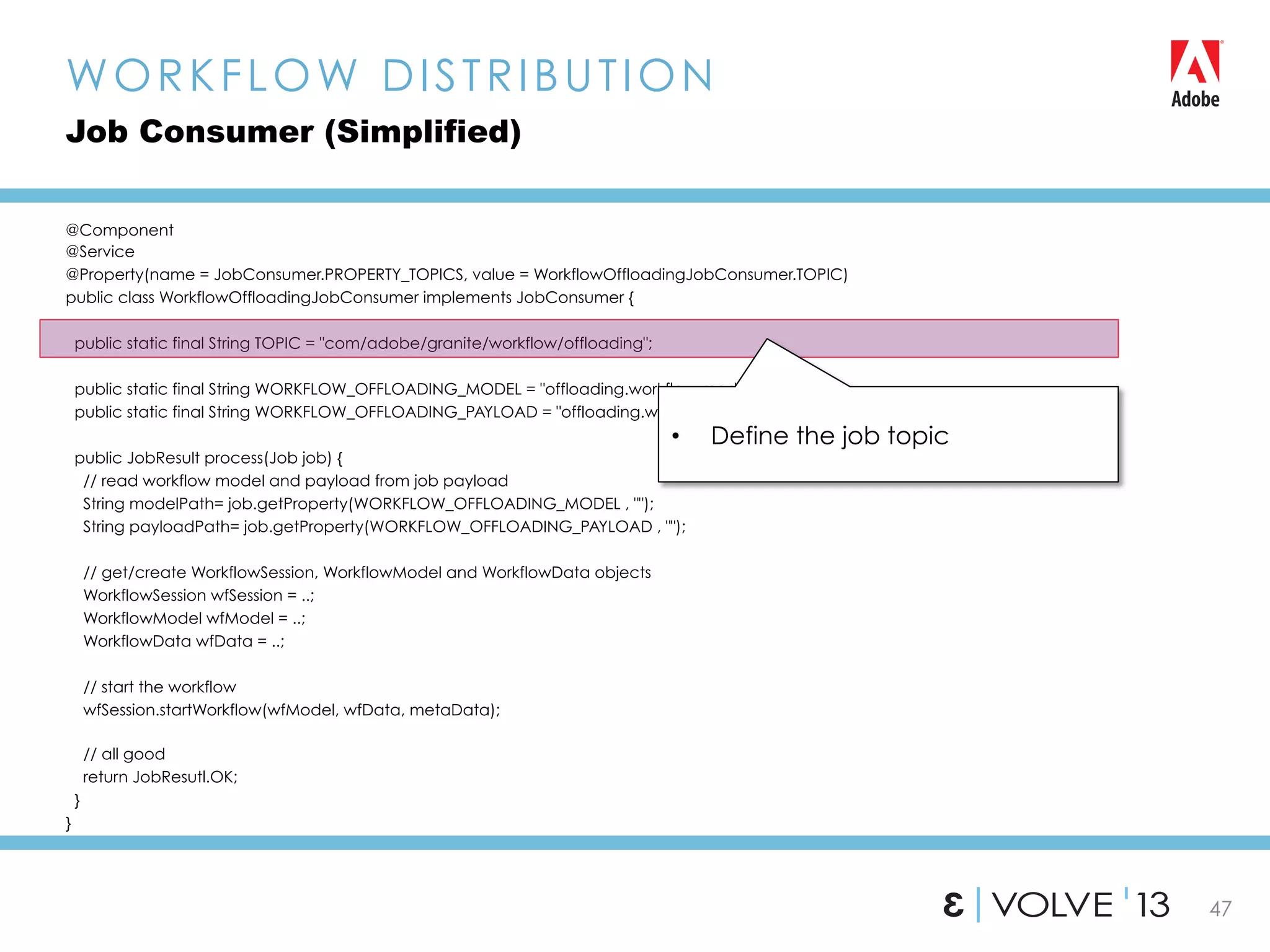

47 @Component @Service @Property(name = JobConsumer.PROPERTY_TOPICS, value = WorkflowOffloadingJobConsumer.TOPIC) public class WorkflowOffloadingJobConsumer implements JobConsumer { public static final String TOPIC = "com/adobe/granite/workflow/offloading"; public static final String WORKFLOW_OFFLOADING_MODEL = "offloading.workflow.model"; public static final String WORKFLOW_OFFLOADING_PAYLOAD = "offloading.workflow.payload”; public JobResult process(Job job) { // read workflow model and payload from job payload String modelPath= job.getProperty(WORKFLOW_OFFLOADING_MODEL , ""); String payloadPath= job.getProperty(WORKFLOW_OFFLOADING_PAYLOAD , ""); // get/create WorkflowSession, WorkflowModel and WorkflowData objects WorkflowSession wfSession = ..; WorkflowModel wfModel = ..; WorkflowData wfData = ..; // start the workflow wfSession.startWorkflow(wfModel, wfData, metaData); // all good return JobResutl.OK; } } WORKFLOW DISTRIBUTION Job Consumer (Simplified) •  Define the job topic

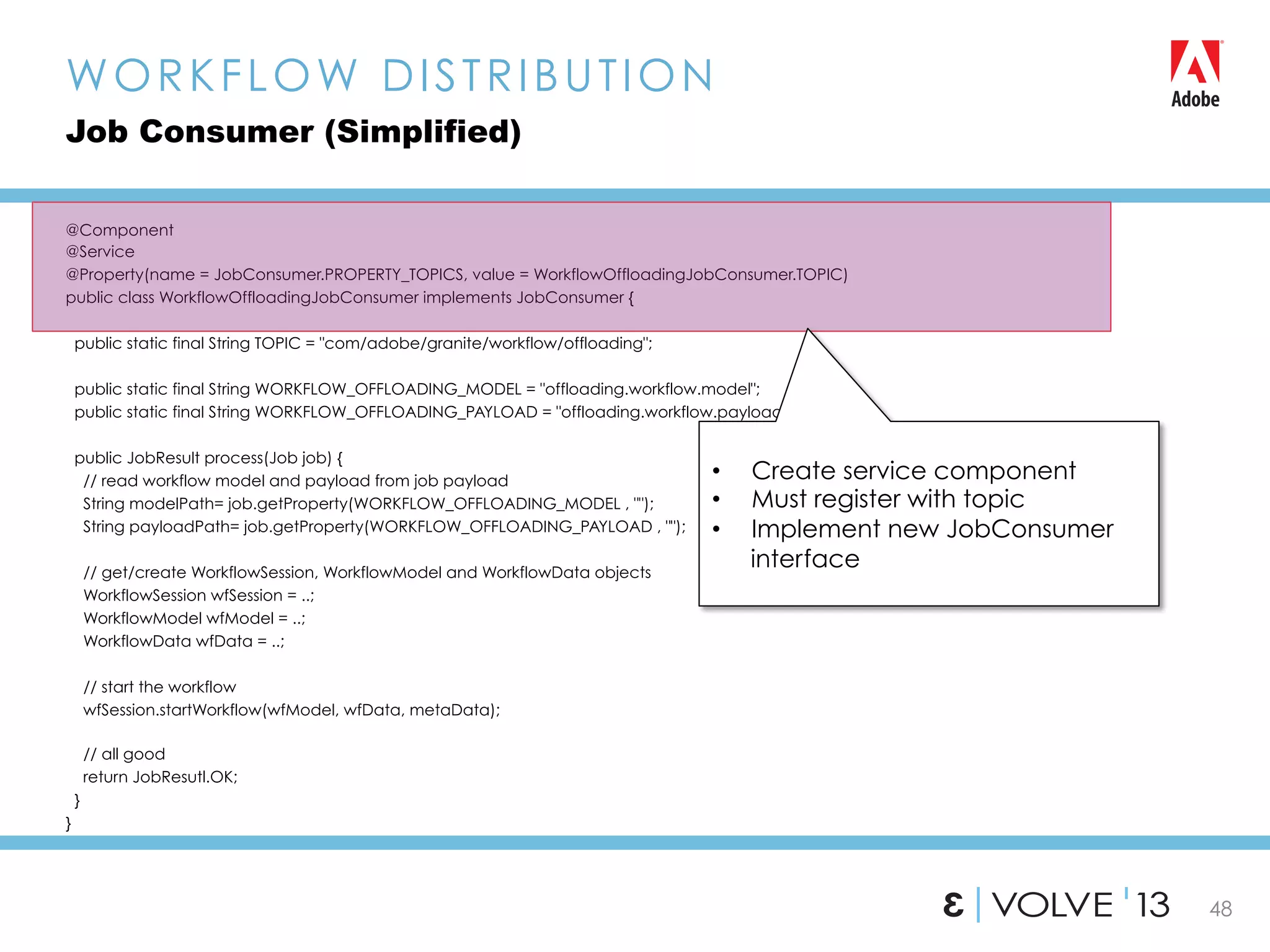

48 @Component @Service @Property(name = JobConsumer.PROPERTY_TOPICS, value = WorkflowOffloadingJobConsumer.TOPIC) public class WorkflowOffloadingJobConsumer implements JobConsumer { public static final String TOPIC = "com/adobe/granite/workflow/offloading"; public static final String WORKFLOW_OFFLOADING_MODEL = "offloading.workflow.model"; public static final String WORKFLOW_OFFLOADING_PAYLOAD = "offloading.workflow.payload”; public JobResult process(Job job) { // read workflow model and payload from job payload String modelPath= job.getProperty(WORKFLOW_OFFLOADING_MODEL , ""); String payloadPath= job.getProperty(WORKFLOW_OFFLOADING_PAYLOAD , ""); // get/create WorkflowSession, WorkflowModel and WorkflowData objects WorkflowSession wfSession = ..; WorkflowModel wfModel = ..; WorkflowData wfData = ..; // start the workflow wfSession.startWorkflow(wfModel, wfData, metaData); // all good return JobResutl.OK; } } WORKFLOW DISTRIBUTION Job Consumer (Simplified) •  Create service component •  Must register with topic •  Implement new JobConsumer interface

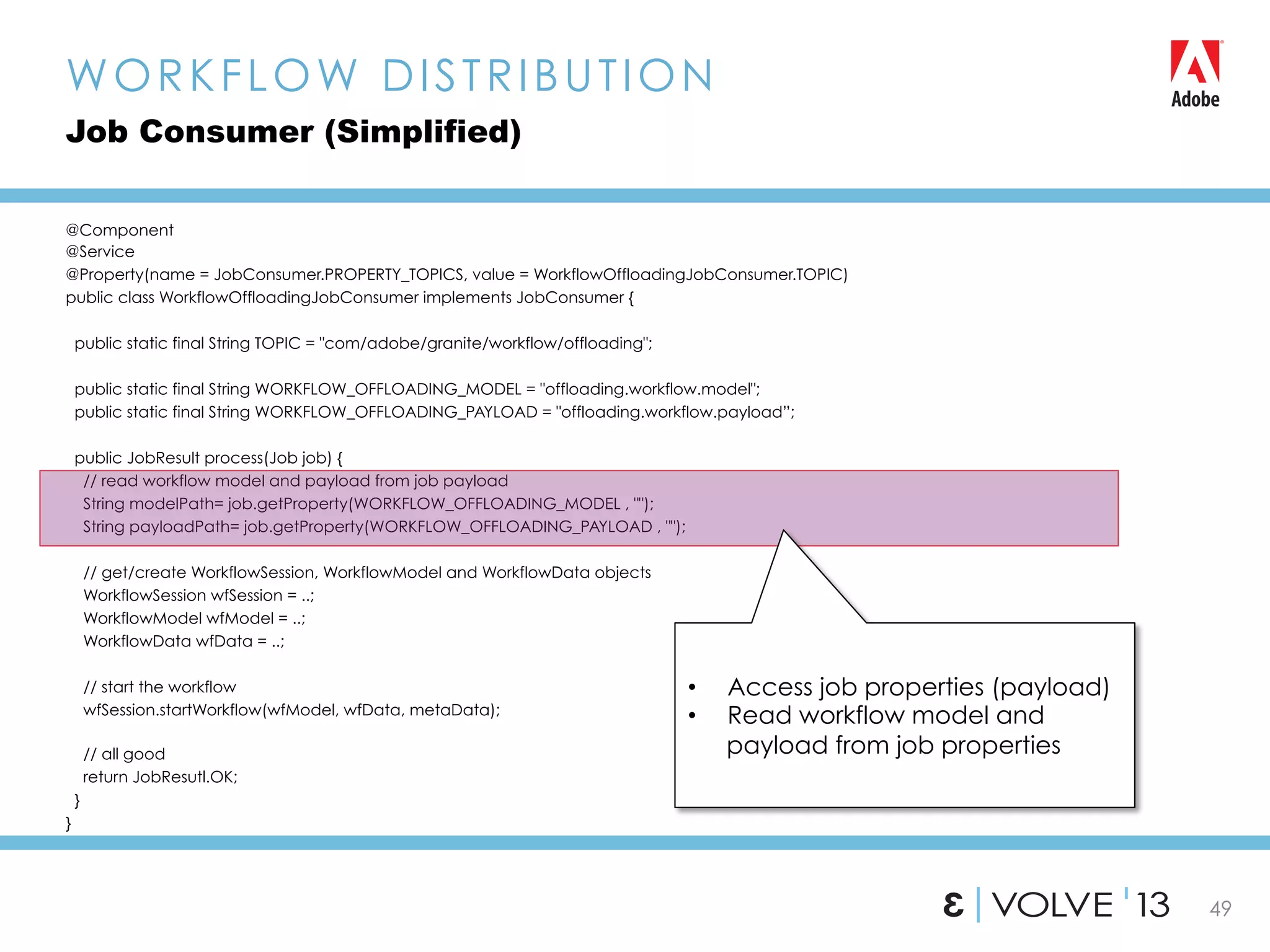

49 @Component @Service @Property(name = JobConsumer.PROPERTY_TOPICS, value = WorkflowOffloadingJobConsumer.TOPIC) public class WorkflowOffloadingJobConsumer implements JobConsumer { public static final String TOPIC = "com/adobe/granite/workflow/offloading"; public static final String WORKFLOW_OFFLOADING_MODEL = "offloading.workflow.model"; public static final String WORKFLOW_OFFLOADING_PAYLOAD = "offloading.workflow.payload”; public JobResult process(Job job) { // read workflow model and payload from job payload String modelPath= job.getProperty(WORKFLOW_OFFLOADING_MODEL , ""); String payloadPath= job.getProperty(WORKFLOW_OFFLOADING_PAYLOAD , ""); // get/create WorkflowSession, WorkflowModel and WorkflowData objects WorkflowSession wfSession = ..; WorkflowModel wfModel = ..; WorkflowData wfData = ..; // start the workflow wfSession.startWorkflow(wfModel, wfData, metaData); // all good return JobResutl.OK; } } WORKFLOW DISTRIBUTION Job Consumer (Simplified) •  Access job properties (payload) •  Read workflow model and payload from job properties

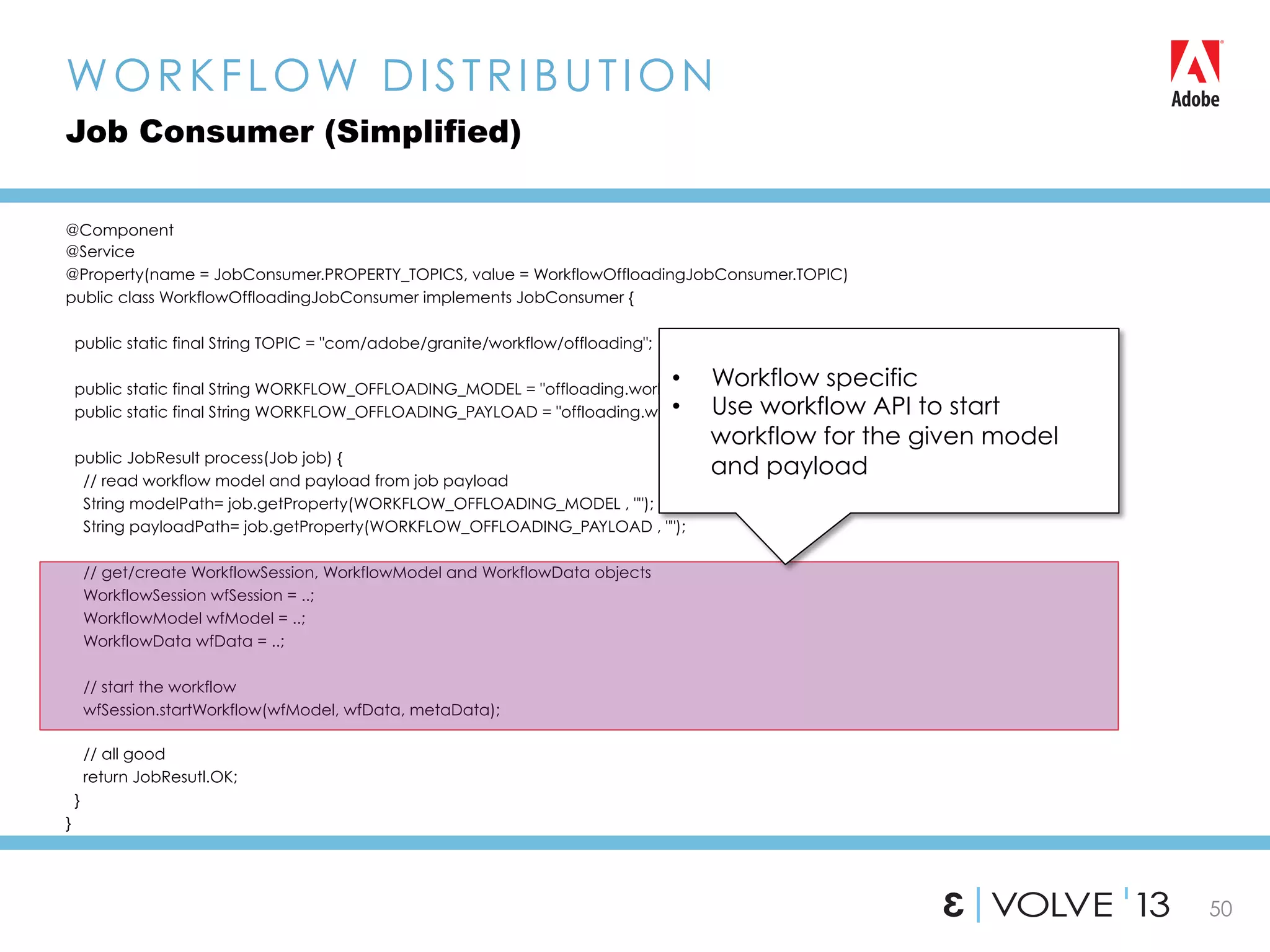

50 @Component @Service @Property(name = JobConsumer.PROPERTY_TOPICS, value = WorkflowOffloadingJobConsumer.TOPIC) public class WorkflowOffloadingJobConsumer implements JobConsumer { public static final String TOPIC = "com/adobe/granite/workflow/offloading"; public static final String WORKFLOW_OFFLOADING_MODEL = "offloading.workflow.model"; public static final String WORKFLOW_OFFLOADING_PAYLOAD = "offloading.workflow.payload”; public JobResult process(Job job) { // read workflow model and payload from job payload String modelPath= job.getProperty(WORKFLOW_OFFLOADING_MODEL , ""); String payloadPath= job.getProperty(WORKFLOW_OFFLOADING_PAYLOAD , ""); // get/create WorkflowSession, WorkflowModel and WorkflowData objects WorkflowSession wfSession = ..; WorkflowModel wfModel = ..; WorkflowData wfData = ..; // start the workflow wfSession.startWorkflow(wfModel, wfData, metaData); // all good return JobResutl.OK; } } WORKFLOW DISTRIBUTION Job Consumer (Simplified) •  Workflow specific •  Use workflow API to start workflow for the given model and payload

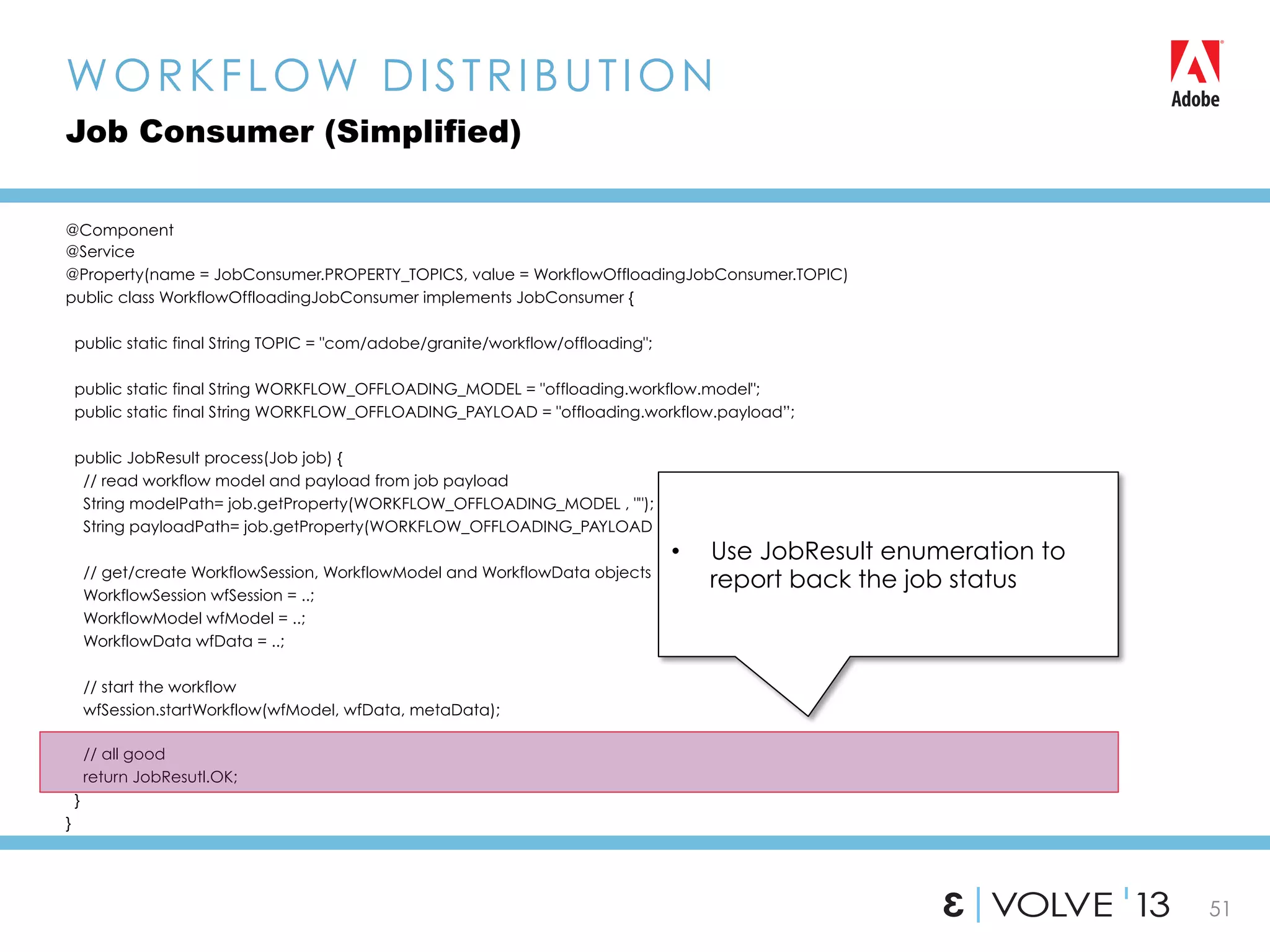

51 @Component @Service @Property(name = JobConsumer.PROPERTY_TOPICS, value = WorkflowOffloadingJobConsumer.TOPIC) public class WorkflowOffloadingJobConsumer implements JobConsumer { public static final String TOPIC = "com/adobe/granite/workflow/offloading"; public static final String WORKFLOW_OFFLOADING_MODEL = "offloading.workflow.model"; public static final String WORKFLOW_OFFLOADING_PAYLOAD = "offloading.workflow.payload”; public JobResult process(Job job) { // read workflow model and payload from job payload String modelPath= job.getProperty(WORKFLOW_OFFLOADING_MODEL , ""); String payloadPath= job.getProperty(WORKFLOW_OFFLOADING_PAYLOAD , ""); // get/create WorkflowSession, WorkflowModel and WorkflowData objects WorkflowSession wfSession = ..; WorkflowModel wfModel = ..; WorkflowData wfData = ..; // start the workflow wfSession.startWorkflow(wfModel, wfData, metaData); // all good return JobResutl.OK; } } WORKFLOW DISTRIBUTION Job Consumer (Simplified) •  Use JobResult enumeration to report back the job status

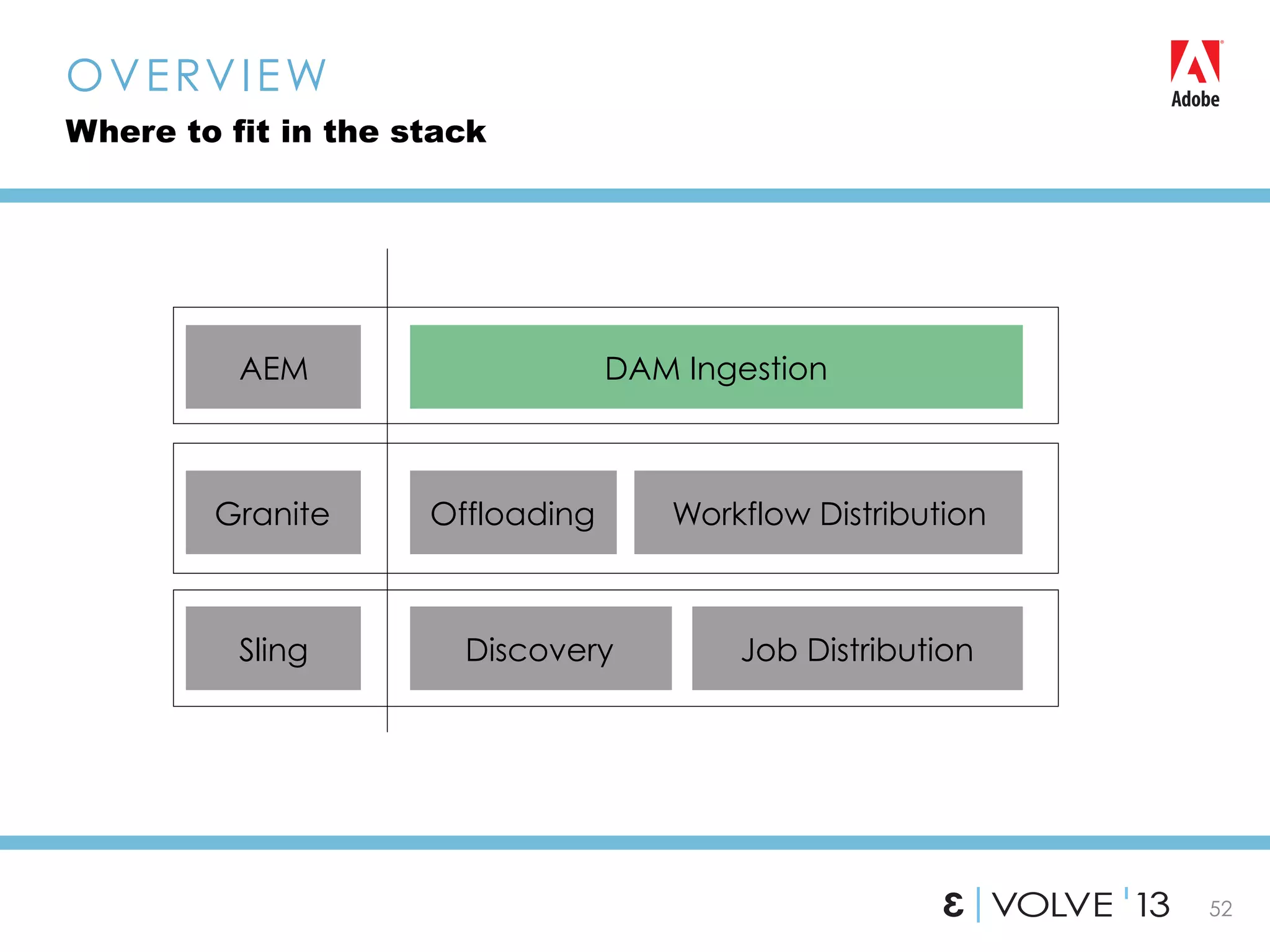

52 OVERVIEW Where to fit in the stack Discovery Offloading Workflow Distribution DAM Ingestion Sling Granite AEM Job Distribution

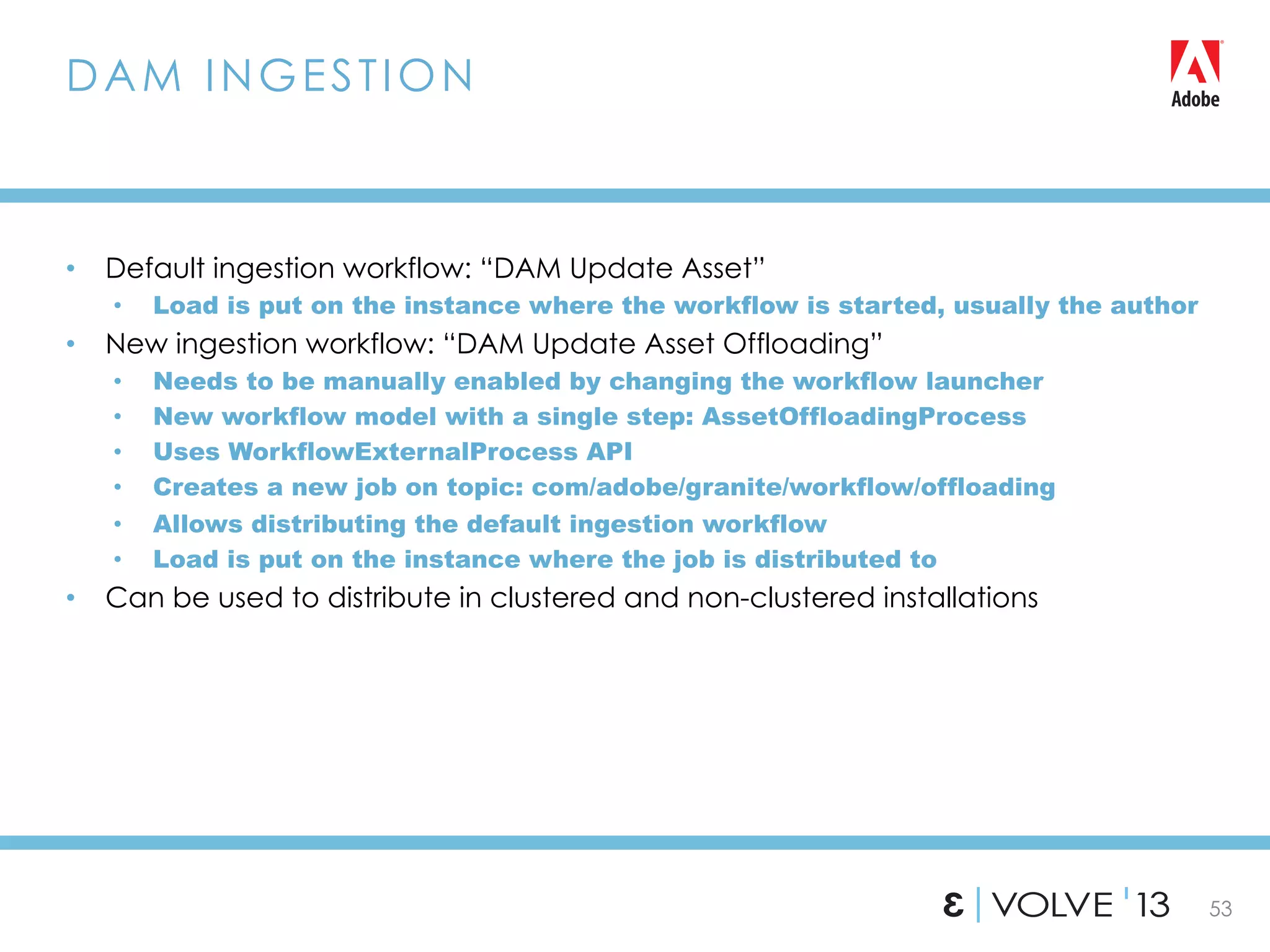

53 •  Default ingestion workflow: “DAM Update Asset” •  Load is put on the instance where the workflow is started, usually the author •  New ingestion workflow: “DAM Update Asset Offloading” •  Needs to be manually enabled by changing the workflow launcher •  New workflow model with a single step: AssetOffloadingProcess •  Uses WorkflowExternalProcess API •  Creates a new job on topic: com/adobe/granite/workflow/offloading •  Allows distributing the default ingestion workflow •  Load is put on the instance where the job is distributed to •  Can be used to distribute in clustered and non-clustered installations DAM INGESTION

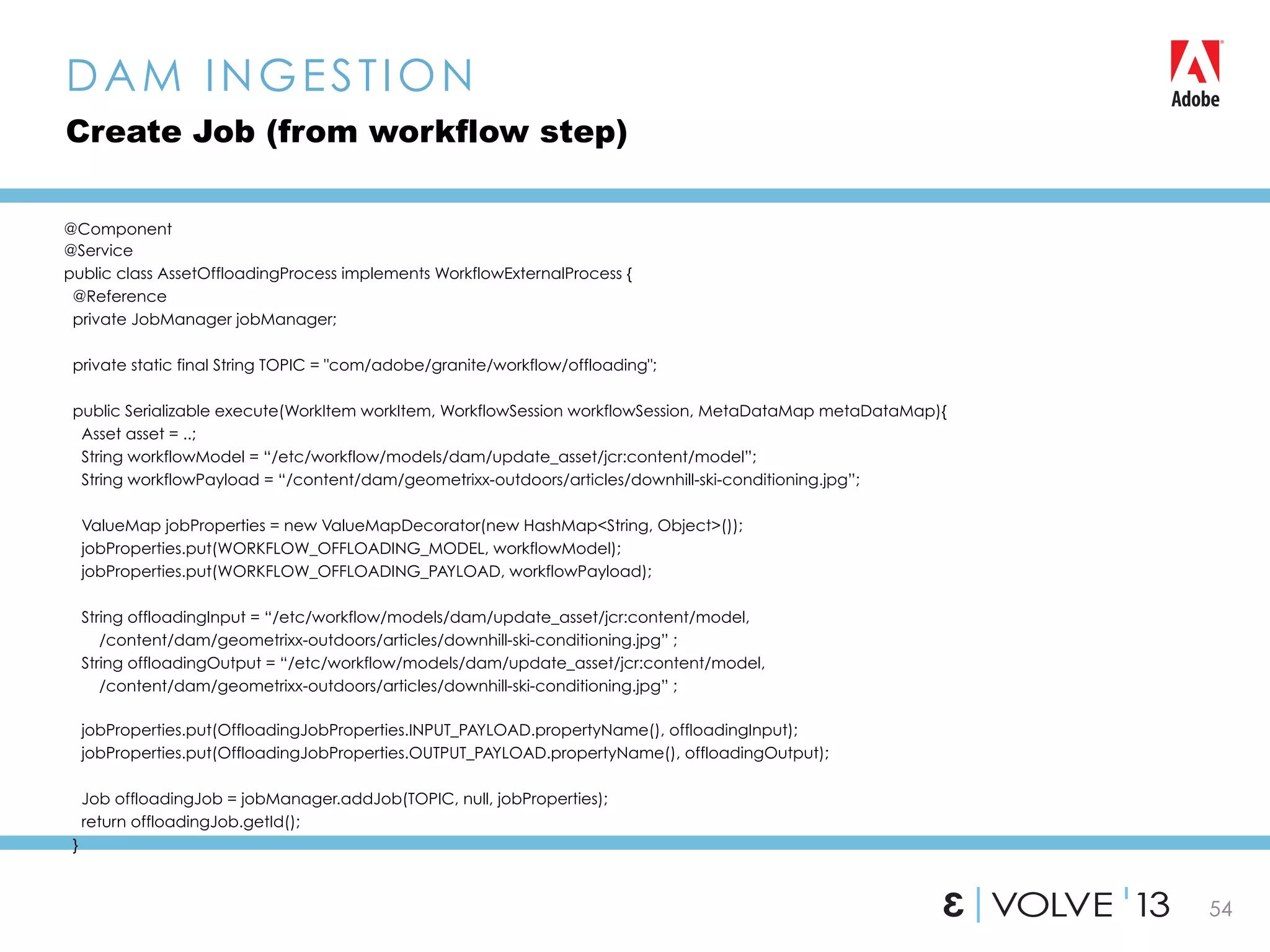

54 @Component @Service public class AssetOffloadingProcess implements WorkflowExternalProcess { @Reference private JobManager jobManager; private static final String TOPIC = "com/adobe/granite/workflow/offloading"; public Serializable execute(WorkItem workItem, WorkflowSession workflowSession, MetaDataMap metaDataMap){ Asset asset = ..; String workflowModel = “/etc/workflow/models/dam/update_asset/jcr:content/model”; String workflowPayload = “/content/dam/geometrixx-outdoors/articles/downhill-ski-conditioning.jpg”; ValueMap jobProperties = new ValueMapDecorator(new HashMap<String, Object>()); jobProperties.put(WORKFLOW_OFFLOADING_MODEL, workflowModel); jobProperties.put(WORKFLOW_OFFLOADING_PAYLOAD, workflowPayload); String offloadingInput = “/etc/workflow/models/dam/update_asset/jcr:content/model, /content/dam/geometrixx-outdoors/articles/downhill-ski-conditioning.jpg” ; String offloadingOutput = “/etc/workflow/models/dam/update_asset/jcr:content/model, /content/dam/geometrixx-outdoors/articles/downhill-ski-conditioning.jpg” ; jobProperties.put(OffloadingJobProperties.INPUT_PAYLOAD.propertyName(), offloadingInput); jobProperties.put(OffloadingJobProperties.OUTPUT_PAYLOAD.propertyName(), offloadingOutput); Job offloadingJob = jobManager.addJob(TOPIC, null, jobProperties); return offloadingJob.getId(); } DAM INGESTION Create Job (from workflow step)

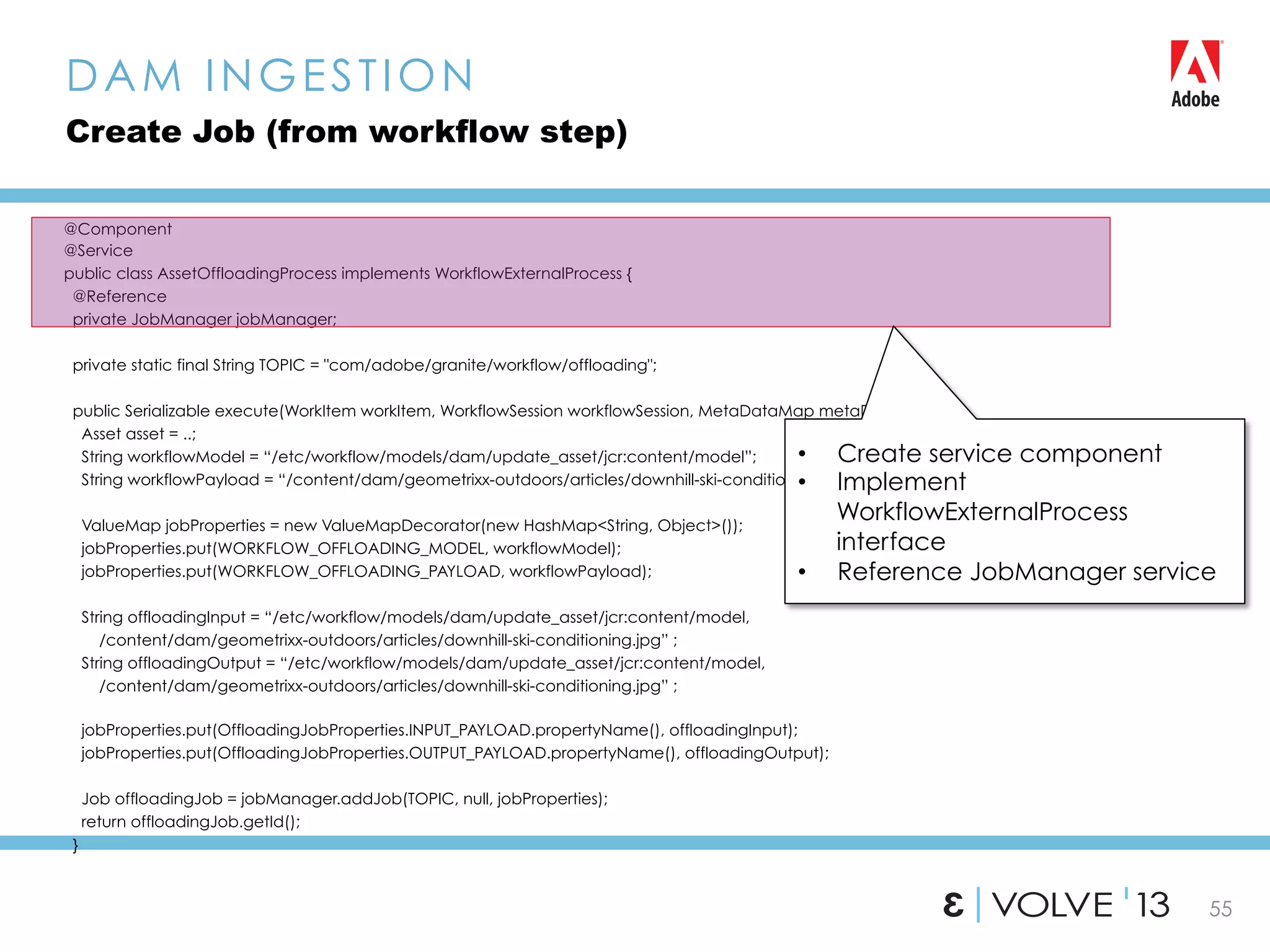

55 @Component @Service public class AssetOffloadingProcess implements WorkflowExternalProcess { @Reference private JobManager jobManager; private static final String TOPIC = "com/adobe/granite/workflow/offloading"; public Serializable execute(WorkItem workItem, WorkflowSession workflowSession, MetaDataMap metaDataMap){ Asset asset = ..; String workflowModel = “/etc/workflow/models/dam/update_asset/jcr:content/model”; String workflowPayload = “/content/dam/geometrixx-outdoors/articles/downhill-ski-conditioning.jpg”; ValueMap jobProperties = new ValueMapDecorator(new HashMap<String, Object>()); jobProperties.put(WORKFLOW_OFFLOADING_MODEL, workflowModel); jobProperties.put(WORKFLOW_OFFLOADING_PAYLOAD, workflowPayload); String offloadingInput = “/etc/workflow/models/dam/update_asset/jcr:content/model, /content/dam/geometrixx-outdoors/articles/downhill-ski-conditioning.jpg” ; String offloadingOutput = “/etc/workflow/models/dam/update_asset/jcr:content/model, /content/dam/geometrixx-outdoors/articles/downhill-ski-conditioning.jpg” ; jobProperties.put(OffloadingJobProperties.INPUT_PAYLOAD.propertyName(), offloadingInput); jobProperties.put(OffloadingJobProperties.OUTPUT_PAYLOAD.propertyName(), offloadingOutput); Job offloadingJob = jobManager.addJob(TOPIC, null, jobProperties); return offloadingJob.getId(); } DAM INGESTION Create Job (from workflow step) •  Create service component •  Implement WorkflowExternalProcess interface •  Reference JobManager service

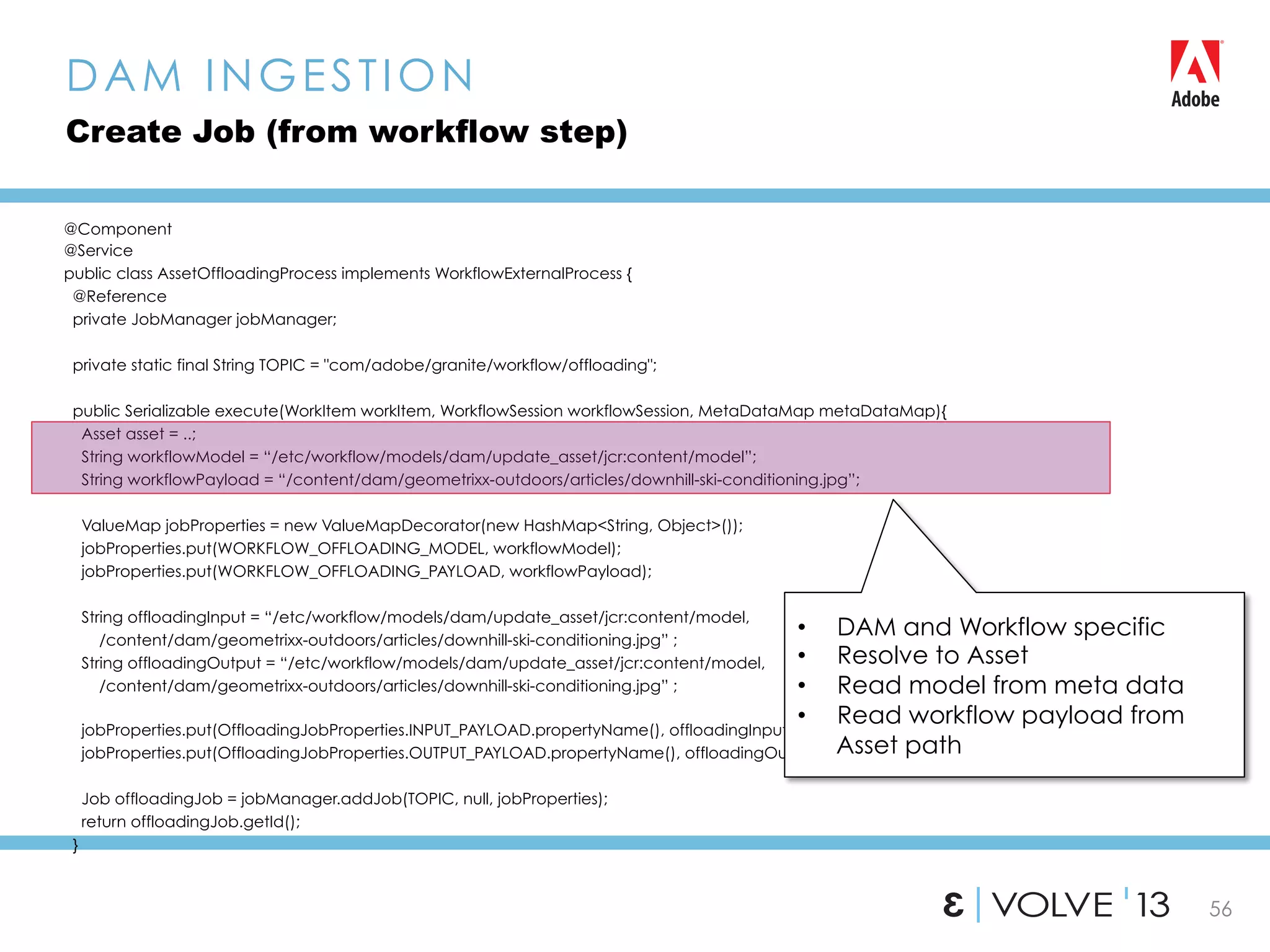

56 @Component @Service public class AssetOffloadingProcess implements WorkflowExternalProcess { @Reference private JobManager jobManager; private static final String TOPIC = "com/adobe/granite/workflow/offloading"; public Serializable execute(WorkItem workItem, WorkflowSession workflowSession, MetaDataMap metaDataMap){ Asset asset = ..; String workflowModel = “/etc/workflow/models/dam/update_asset/jcr:content/model”; String workflowPayload = “/content/dam/geometrixx-outdoors/articles/downhill-ski-conditioning.jpg”; ValueMap jobProperties = new ValueMapDecorator(new HashMap<String, Object>()); jobProperties.put(WORKFLOW_OFFLOADING_MODEL, workflowModel); jobProperties.put(WORKFLOW_OFFLOADING_PAYLOAD, workflowPayload); String offloadingInput = “/etc/workflow/models/dam/update_asset/jcr:content/model, /content/dam/geometrixx-outdoors/articles/downhill-ski-conditioning.jpg” ; String offloadingOutput = “/etc/workflow/models/dam/update_asset/jcr:content/model, /content/dam/geometrixx-outdoors/articles/downhill-ski-conditioning.jpg” ; jobProperties.put(OffloadingJobProperties.INPUT_PAYLOAD.propertyName(), offloadingInput); jobProperties.put(OffloadingJobProperties.OUTPUT_PAYLOAD.propertyName(), offloadingOutput); Job offloadingJob = jobManager.addJob(TOPIC, null, jobProperties); return offloadingJob.getId(); } DAM INGESTION Create Job (from workflow step) •  DAM and Workflow specific •  Resolve to Asset •  Read model from meta data •  Read workflow payload from Asset path

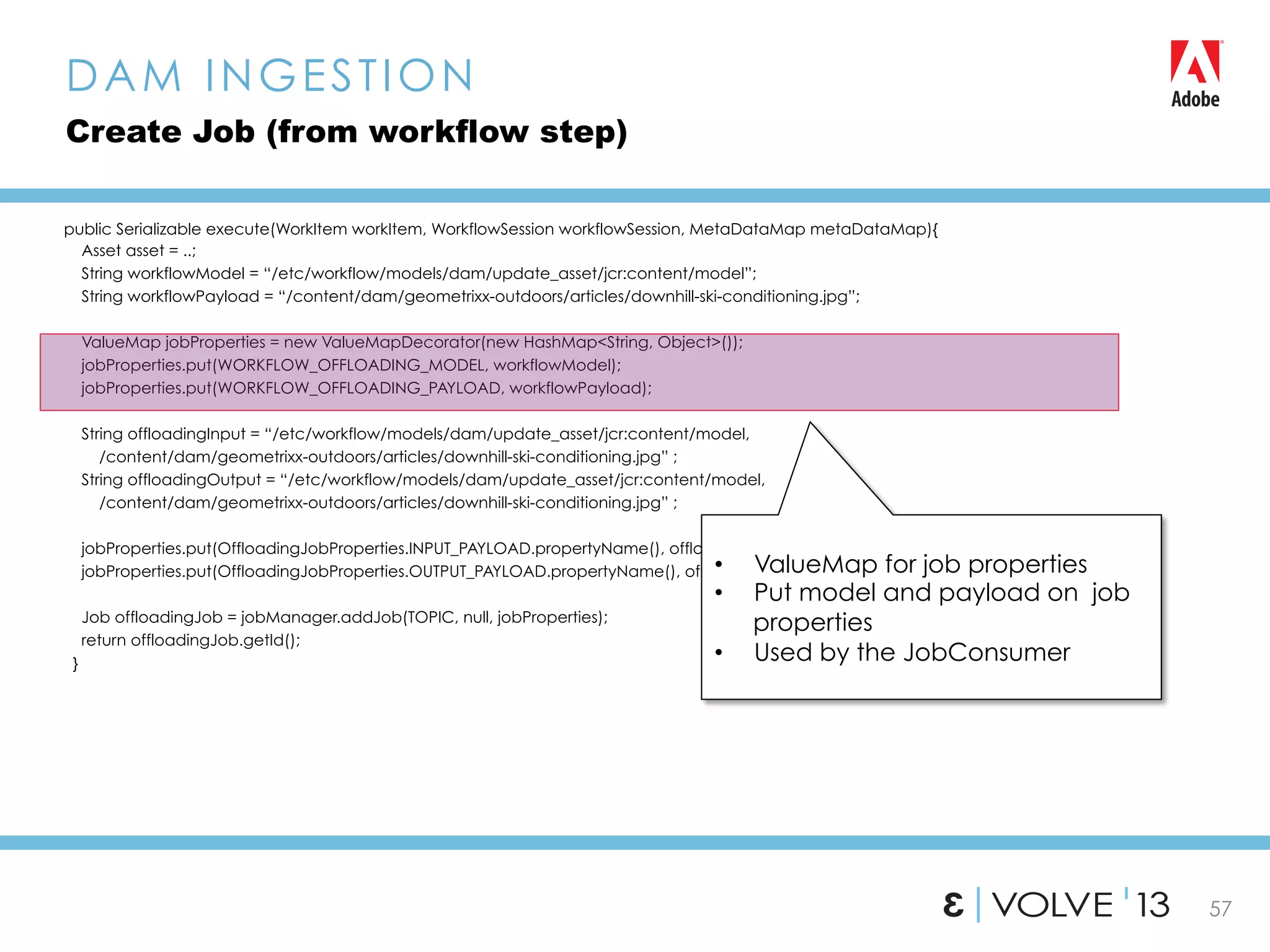

57 public Serializable execute(WorkItem workItem, WorkflowSession workflowSession, MetaDataMap metaDataMap){ Asset asset = ..; String workflowModel = “/etc/workflow/models/dam/update_asset/jcr:content/model”; String workflowPayload = “/content/dam/geometrixx-outdoors/articles/downhill-ski-conditioning.jpg”; ValueMap jobProperties = new ValueMapDecorator(new HashMap<String, Object>()); jobProperties.put(WORKFLOW_OFFLOADING_MODEL, workflowModel); jobProperties.put(WORKFLOW_OFFLOADING_PAYLOAD, workflowPayload); String offloadingInput = “/etc/workflow/models/dam/update_asset/jcr:content/model, /content/dam/geometrixx-outdoors/articles/downhill-ski-conditioning.jpg” ; String offloadingOutput = “/etc/workflow/models/dam/update_asset/jcr:content/model, /content/dam/geometrixx-outdoors/articles/downhill-ski-conditioning.jpg” ; jobProperties.put(OffloadingJobProperties.INPUT_PAYLOAD.propertyName(), offloadingInput); jobProperties.put(OffloadingJobProperties.OUTPUT_PAYLOAD.propertyName(), offloadingOutput); Job offloadingJob = jobManager.addJob(TOPIC, null, jobProperties); return offloadingJob.getId(); } DAM INGESTION Create Job (from workflow step) •  ValueMap for job properties •  Put model and payload on job properties •  Used by the JobConsumer

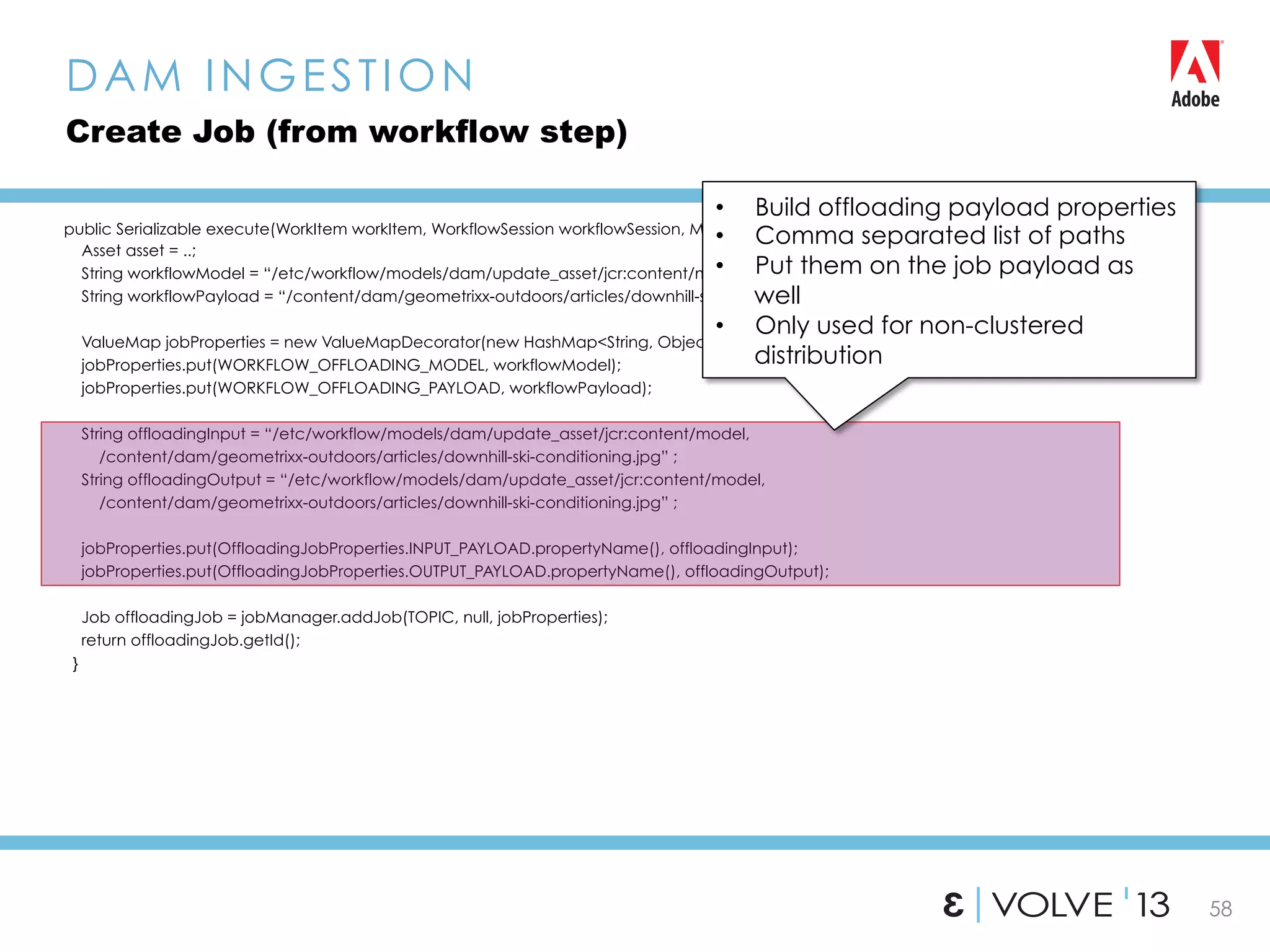

58 public Serializable execute(WorkItem workItem, WorkflowSession workflowSession, MetaDataMap metaDataMap){ Asset asset = ..; String workflowModel = “/etc/workflow/models/dam/update_asset/jcr:content/model”; String workflowPayload = “/content/dam/geometrixx-outdoors/articles/downhill-ski-conditioning.jpg”; ValueMap jobProperties = new ValueMapDecorator(new HashMap<String, Object>()); jobProperties.put(WORKFLOW_OFFLOADING_MODEL, workflowModel); jobProperties.put(WORKFLOW_OFFLOADING_PAYLOAD, workflowPayload); String offloadingInput = “/etc/workflow/models/dam/update_asset/jcr:content/model, /content/dam/geometrixx-outdoors/articles/downhill-ski-conditioning.jpg” ; String offloadingOutput = “/etc/workflow/models/dam/update_asset/jcr:content/model, /content/dam/geometrixx-outdoors/articles/downhill-ski-conditioning.jpg” ; jobProperties.put(OffloadingJobProperties.INPUT_PAYLOAD.propertyName(), offloadingInput); jobProperties.put(OffloadingJobProperties.OUTPUT_PAYLOAD.propertyName(), offloadingOutput); Job offloadingJob = jobManager.addJob(TOPIC, null, jobProperties); return offloadingJob.getId(); } DAM INGESTION Create Job (from workflow step) •  Build offloading payload properties •  Comma separated list of paths •  Put them on the job payload as well •  Only used for non-clustered distribution

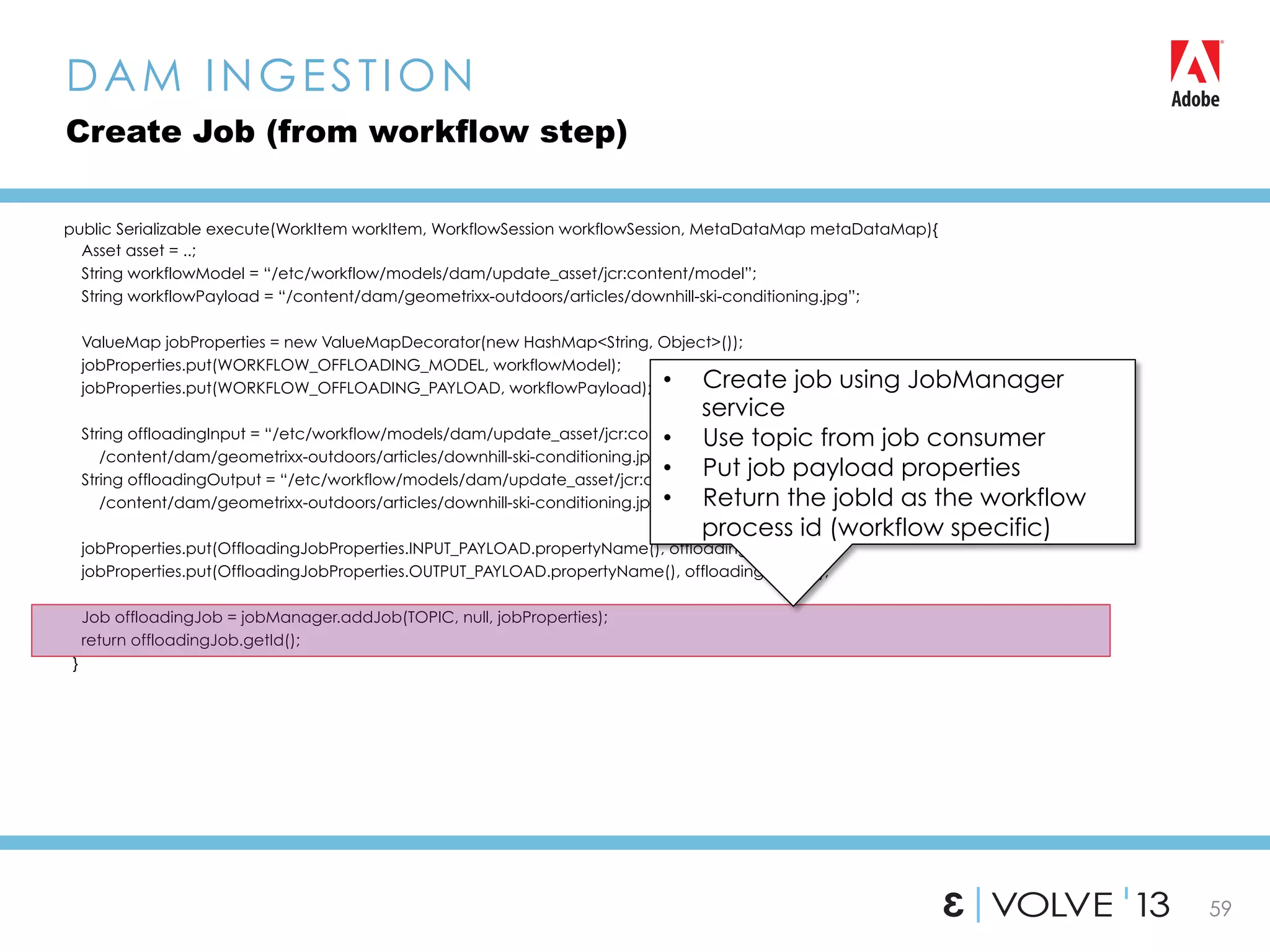

59 public Serializable execute(WorkItem workItem, WorkflowSession workflowSession, MetaDataMap metaDataMap){ Asset asset = ..; String workflowModel = “/etc/workflow/models/dam/update_asset/jcr:content/model”; String workflowPayload = “/content/dam/geometrixx-outdoors/articles/downhill-ski-conditioning.jpg”; ValueMap jobProperties = new ValueMapDecorator(new HashMap<String, Object>()); jobProperties.put(WORKFLOW_OFFLOADING_MODEL, workflowModel); jobProperties.put(WORKFLOW_OFFLOADING_PAYLOAD, workflowPayload); String offloadingInput = “/etc/workflow/models/dam/update_asset/jcr:content/model, /content/dam/geometrixx-outdoors/articles/downhill-ski-conditioning.jpg” ; String offloadingOutput = “/etc/workflow/models/dam/update_asset/jcr:content/model, /content/dam/geometrixx-outdoors/articles/downhill-ski-conditioning.jpg” ; jobProperties.put(OffloadingJobProperties.INPUT_PAYLOAD.propertyName(), offloadingInput); jobProperties.put(OffloadingJobProperties.OUTPUT_PAYLOAD.propertyName(), offloadingOutput); Job offloadingJob = jobManager.addJob(TOPIC, null, jobProperties); return offloadingJob.getId(); } DAM INGESTION Create Job (from workflow step) •  Create job using JobManager service •  Use topic from job consumer •  Put job payload properties •  Return the jobId as the workflow process id (workflow specific)

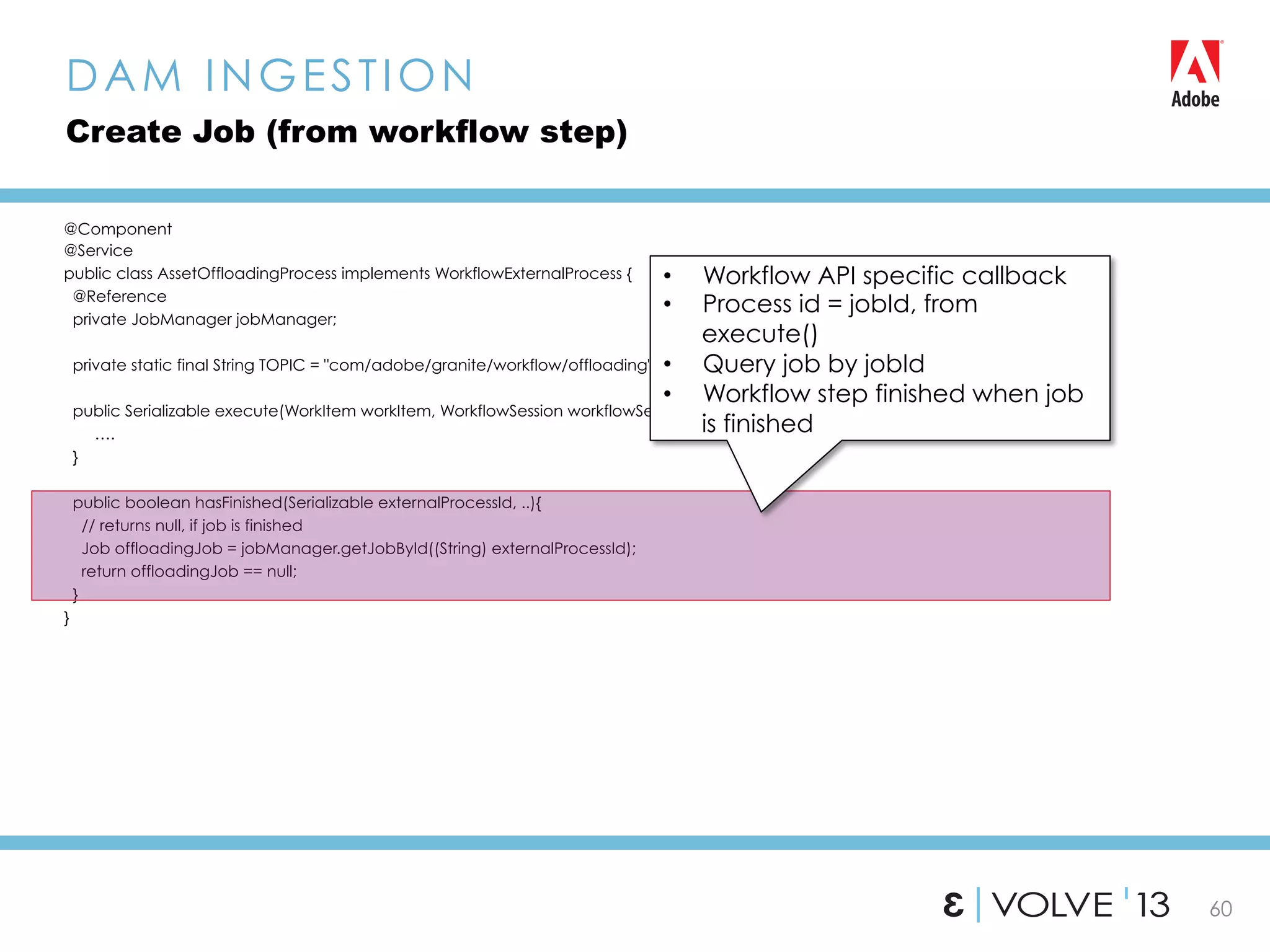

60 @Component @Service public class AssetOffloadingProcess implements WorkflowExternalProcess { @Reference private JobManager jobManager; private static final String TOPIC = "com/adobe/granite/workflow/offloading"; public Serializable execute(WorkItem workItem, WorkflowSession workflowSession, MetaDataMap metaDataMap){ …. } public boolean hasFinished(Serializable externalProcessId, ..){ // returns null, if job is finished Job offloadingJob = jobManager.getJobById((String) externalProcessId); return offloadingJob == null; } } DAM INGESTION Create Job (from workflow step) •  Workflow API specific callback •  Process id = jobId, from execute() •  Query job by jobId •  Workflow step finished when job is finished

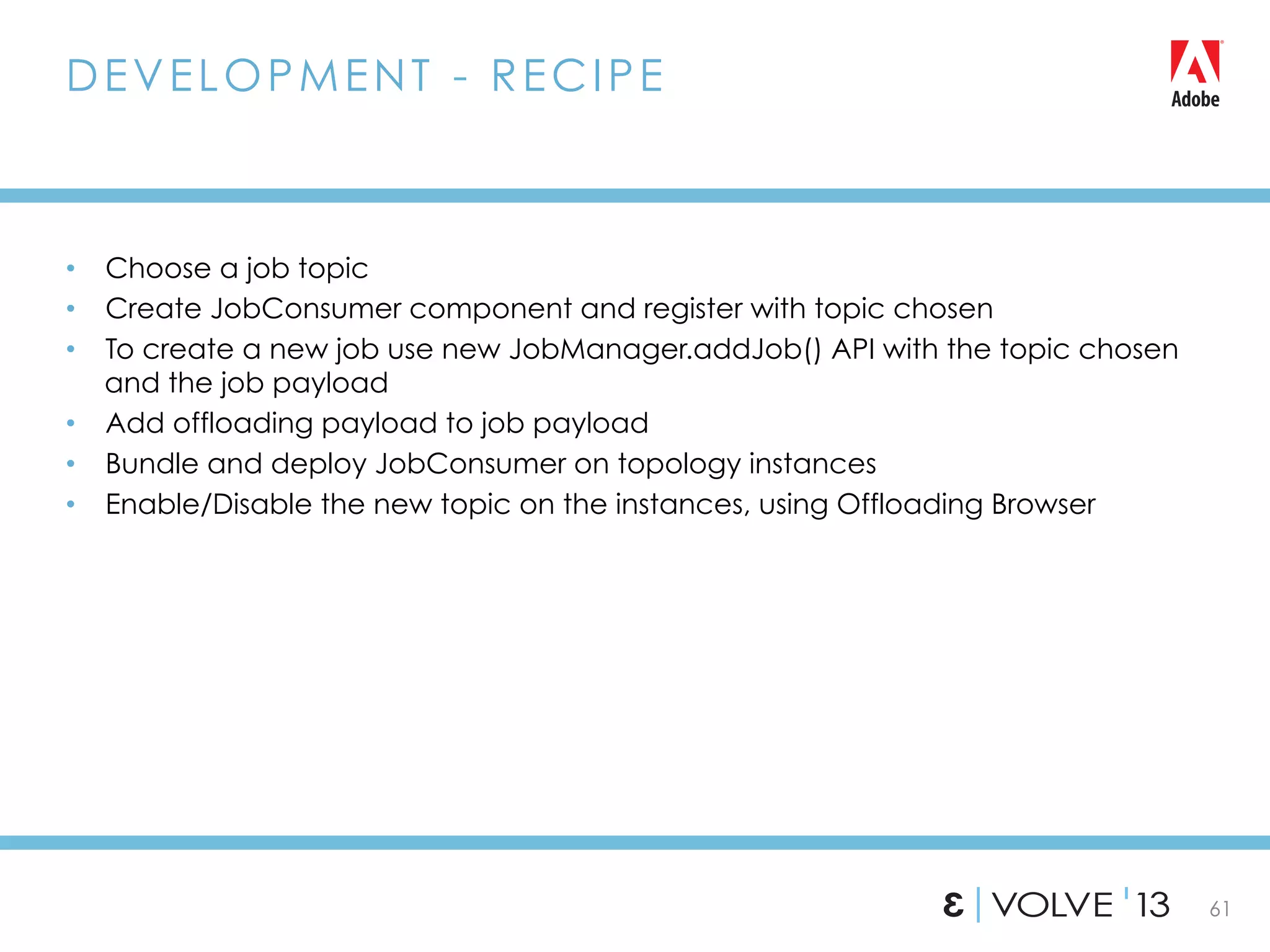

61 •  Choose a job topic •  Create JobConsumer component and register with topic chosen •  To create a new job use new JobManager.addJob() API with the topic chosen and the job payload •  Add offloading payload to job payload •  Bundle and deploy JobConsumer on topology instances •  Enable/Disable the new topic on the instances, using Offloading Browser DEVELOPMENT - RECIPE
62 TAKE AWAY Discovery Offloading Workflow Distribution DAM Ingestion Sling Granite AEM Job Distribution
63 TAKE AWAY Discovery Offloading Workflow Distribution DAM Ingestion Sling Granite AEM Job Distribution org.apache.sling.discovery.api •  Discovers topology •  Cross-Cluster detection •  Foundation for job distribution

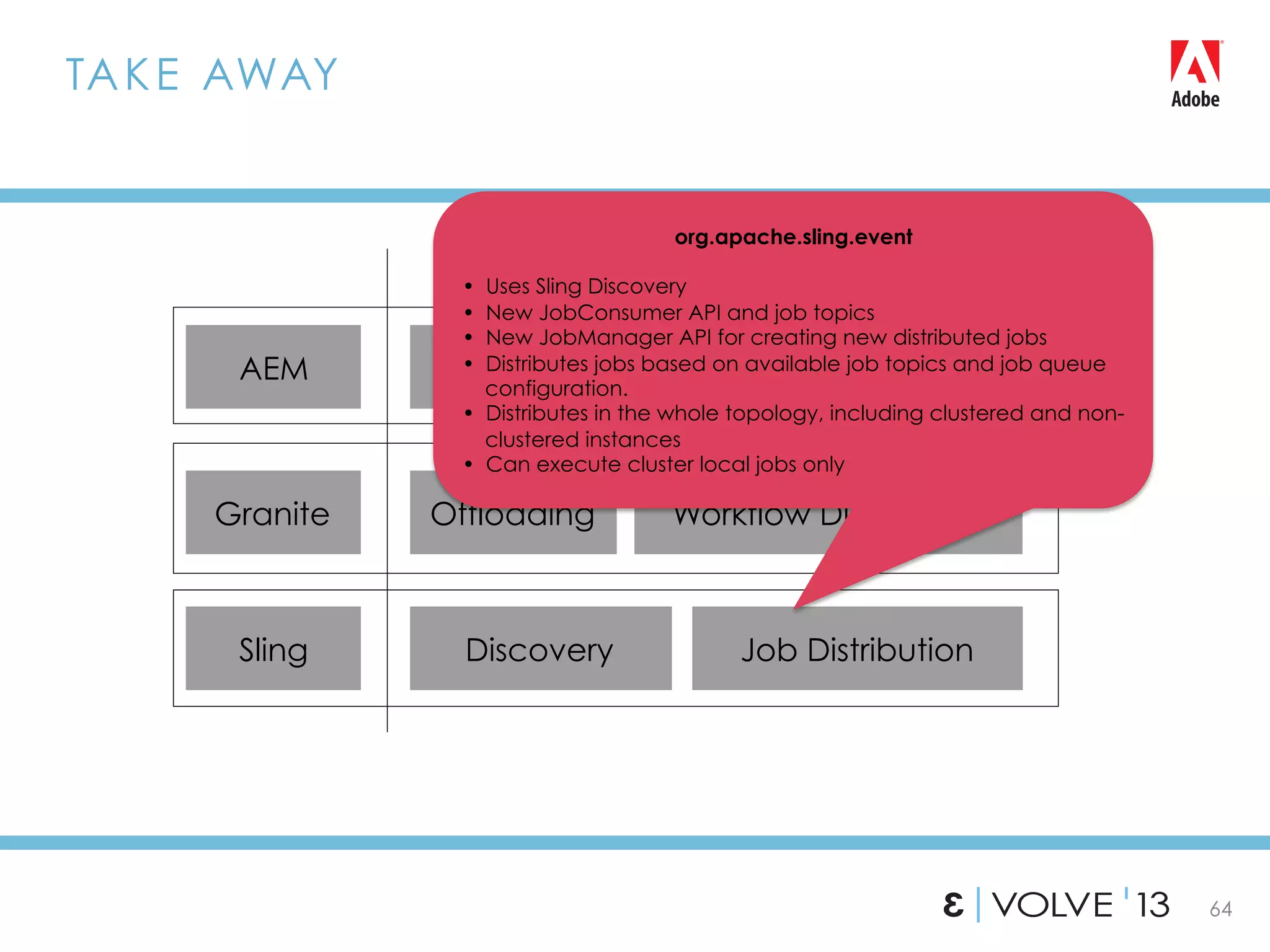

64 TAKE AWAY Discovery Offloading Workflow Distribution DAM Ingestion Sling Granite AEM Job Distribution org.apache.sling.event •  Uses Sling Discovery •  New JobConsumer API and job topics •  New JobManager API for creating new distributed jobs •  Distributes jobs based on available job topics and job queue configuration. •  Distributes in the whole topology, including clustered and non- clustered instances •  Can execute cluster local jobs only

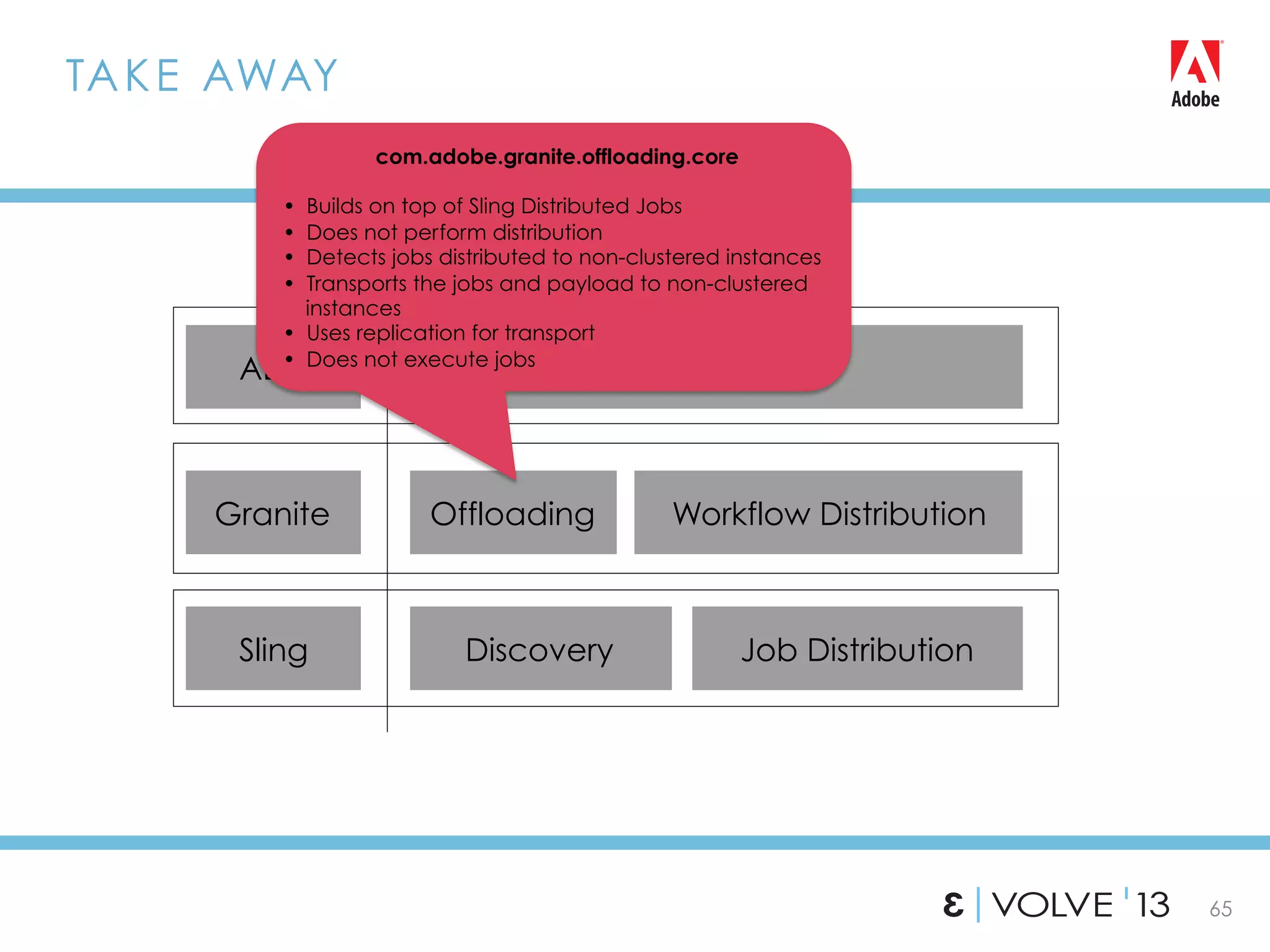

65 TAKE AWAY Discovery Offloading Workflow Distribution DAM Ingestion Sling Granite AEM Job Distribution com.adobe.granite.offloading.core •  Builds on top of Sling Distributed Jobs •  Does not perform distribution •  Detects jobs distributed to non-clustered instances •  Transports the jobs and payload to non-clustered instances •  Uses replication for transport •  Does not execute jobs

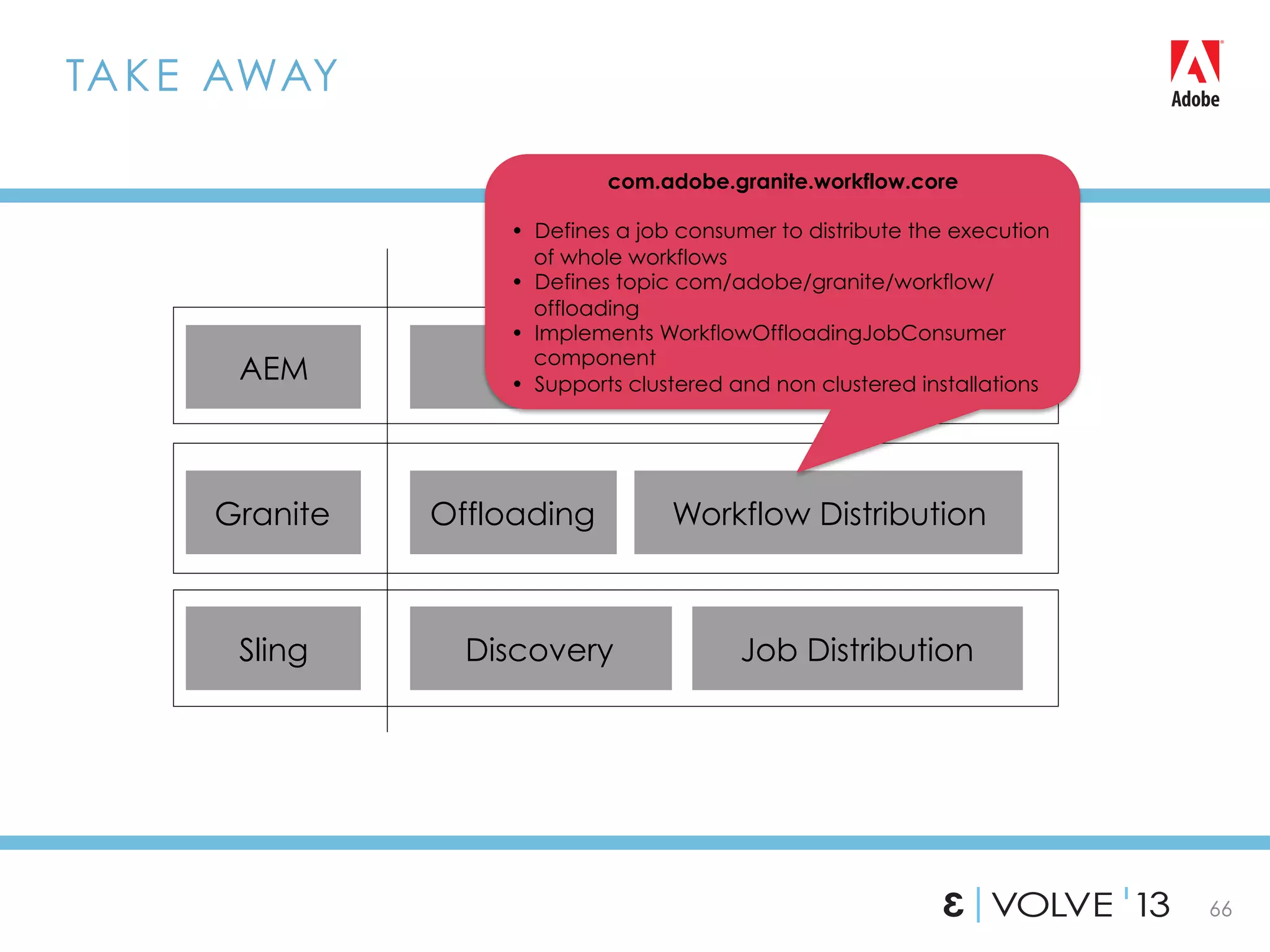

66 TAKE AWAY Discovery Offloading Workflow Distribution DAM Ingestion Sling Granite AEM Job Distribution com.adobe.granite.workflow.core •  Defines a job consumer to distribute the execution of whole workflows •  Defines topic com/adobe/granite/workflow/ offloading •  Implements WorkflowOffloadingJobConsumer component •  Supports clustered and non clustered installations

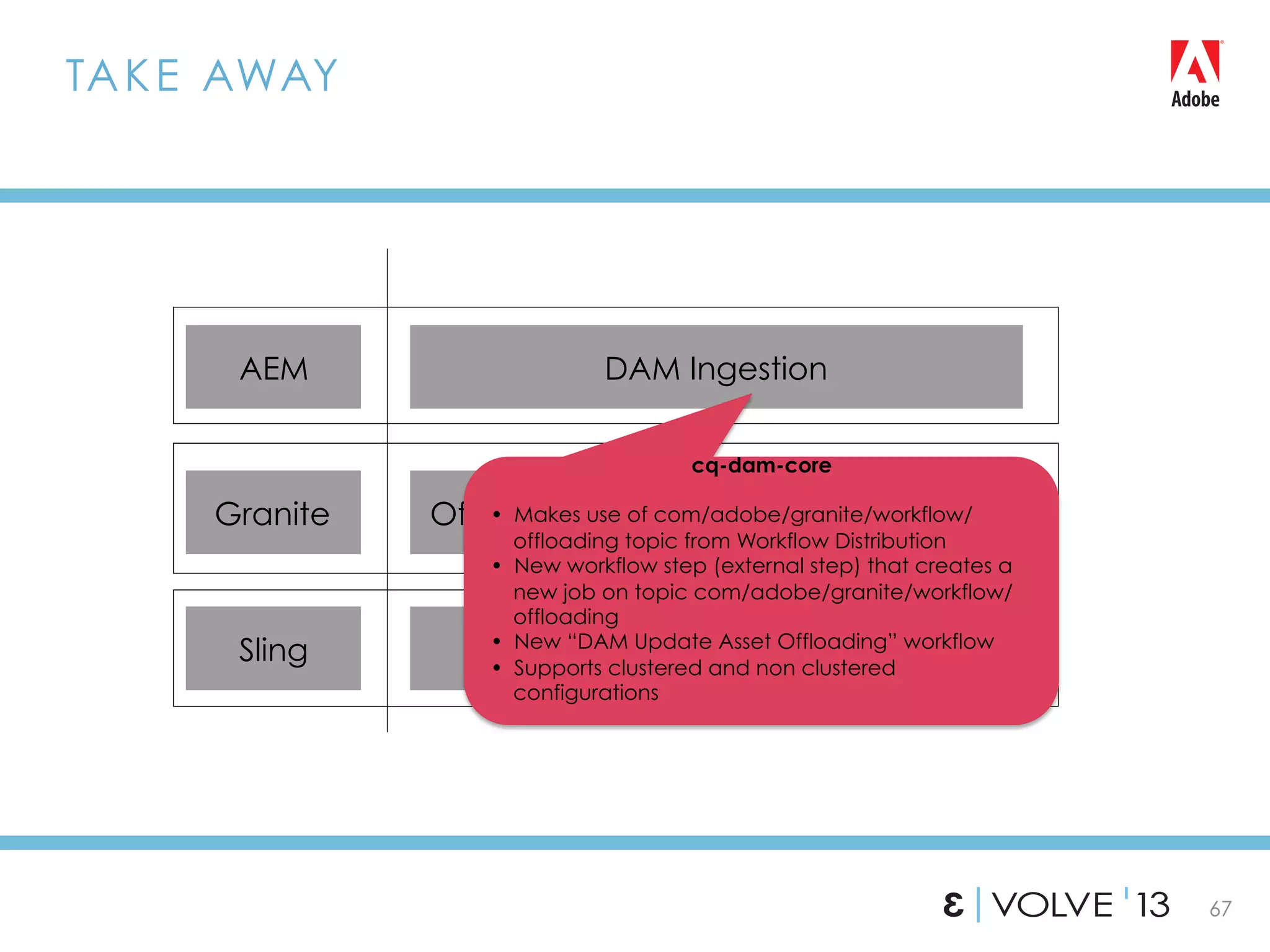

67 TAKE AWAY Discovery Offloading Workflow Distribution DAM Ingestion Sling Granite AEM Job Distribution cq-dam-core •  Makes use of com/adobe/granite/workflow/ offloading topic from Workflow Distribution •  New workflow step (external step) that creates a new job on topic com/adobe/granite/workflow/ offloading •  New “DAM Update Asset Offloading” workflow •  Supports clustered and non clustered configurations
68 TAKE AWAY Potential Future Discovery Offloading Workflow Distribution DAM Ingestion Sling Granite AEM Job Distribution Felix OSGi Event Admin FromEventingtoJobProcessing

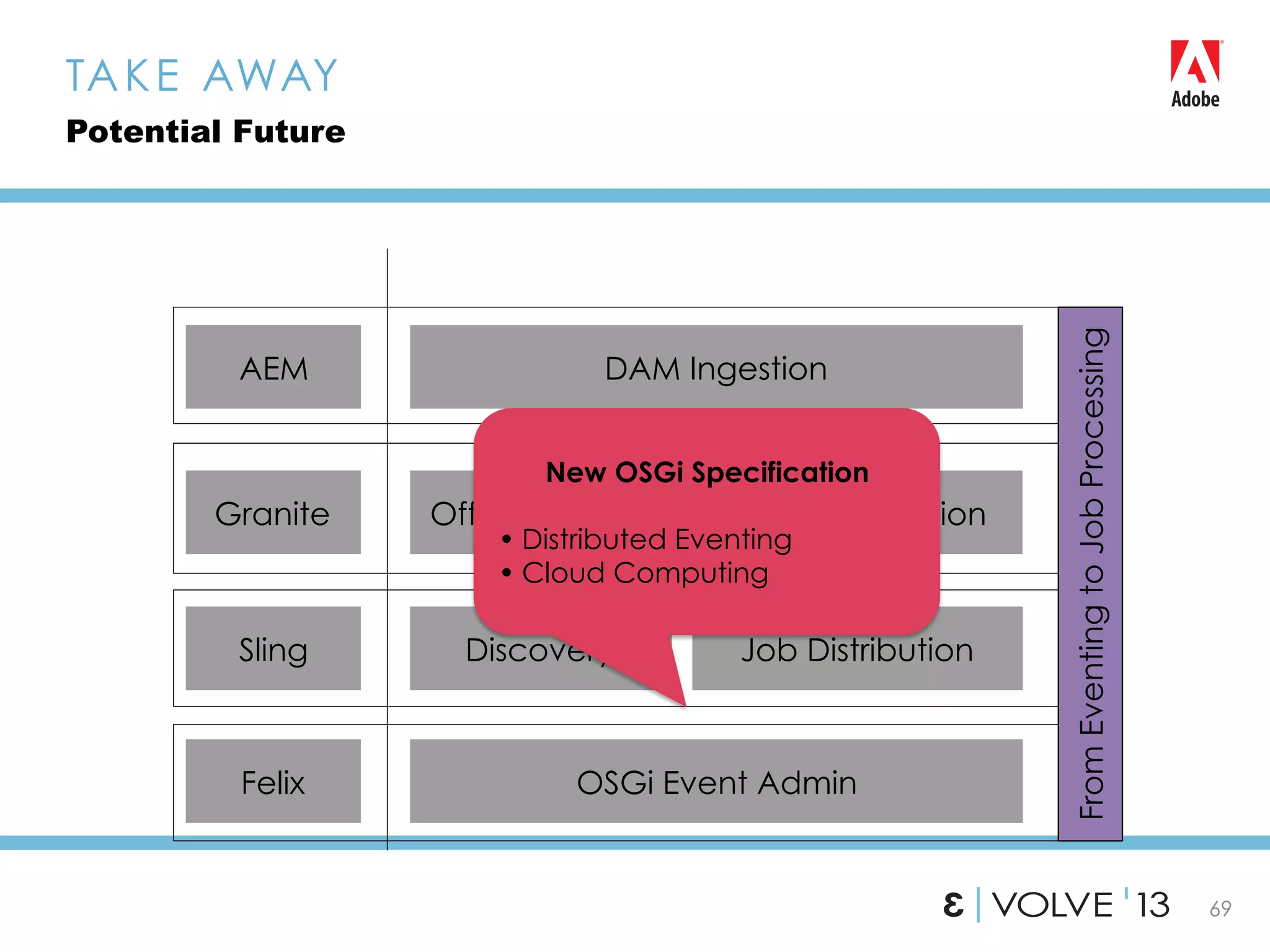

69 TAKE AWAY Potential Future Discovery Offloading Workflow Distribution DAM Ingestion Sling Granite AEM Job Distribution Felix OSGi Event Admin FromEventingtoJobProcessing New OSGi Specification • Distributed Eventing • Cloud Computing

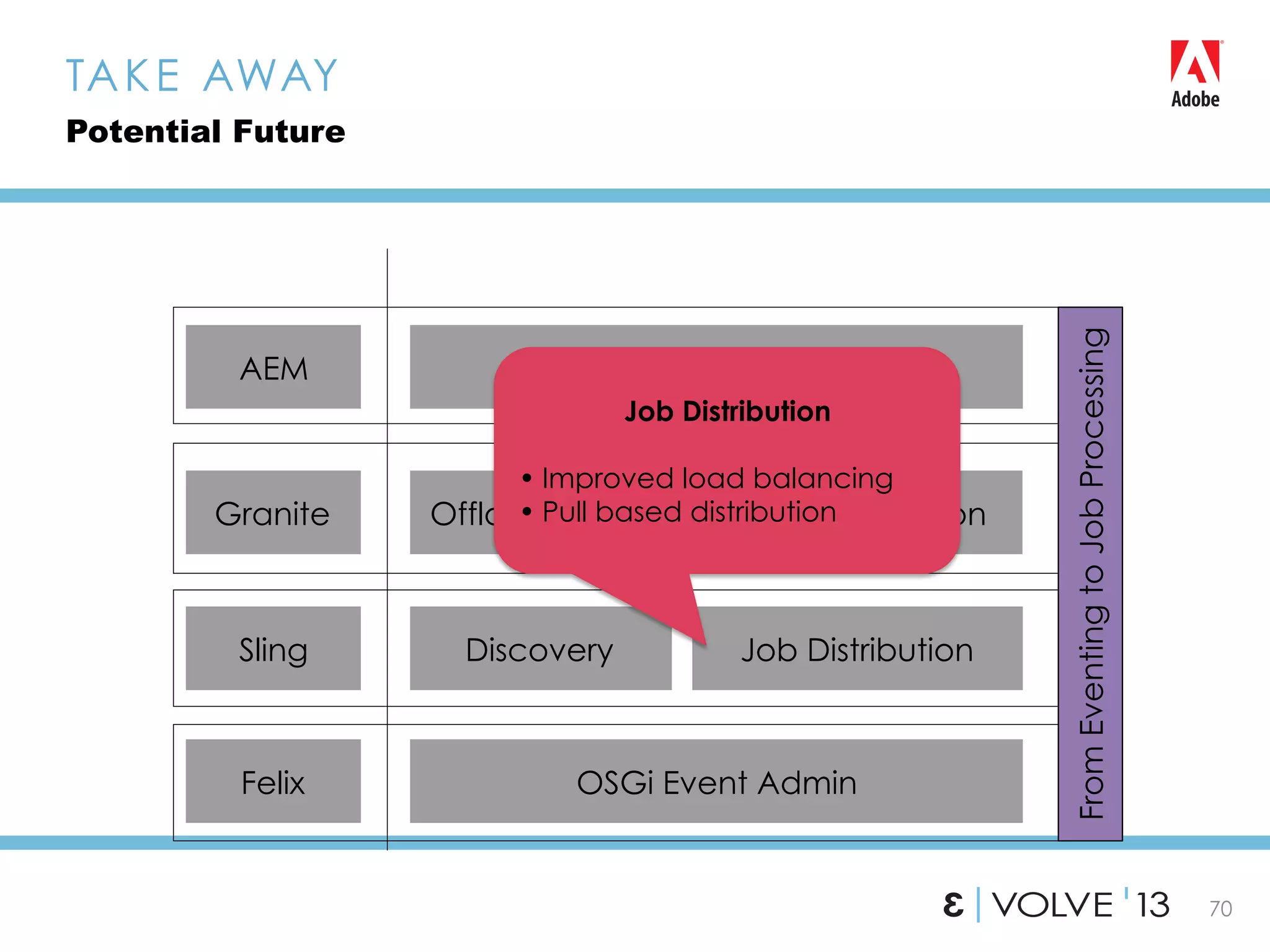

70 TAKE AWAY Potential Future Discovery Offloading Workflow Distribution DAM Ingestion Sling Granite AEM Job Distribution Felix OSGi Event Admin FromEventingtoJobProcessing Job Distribution • Improved load balancing • Pull based distribution

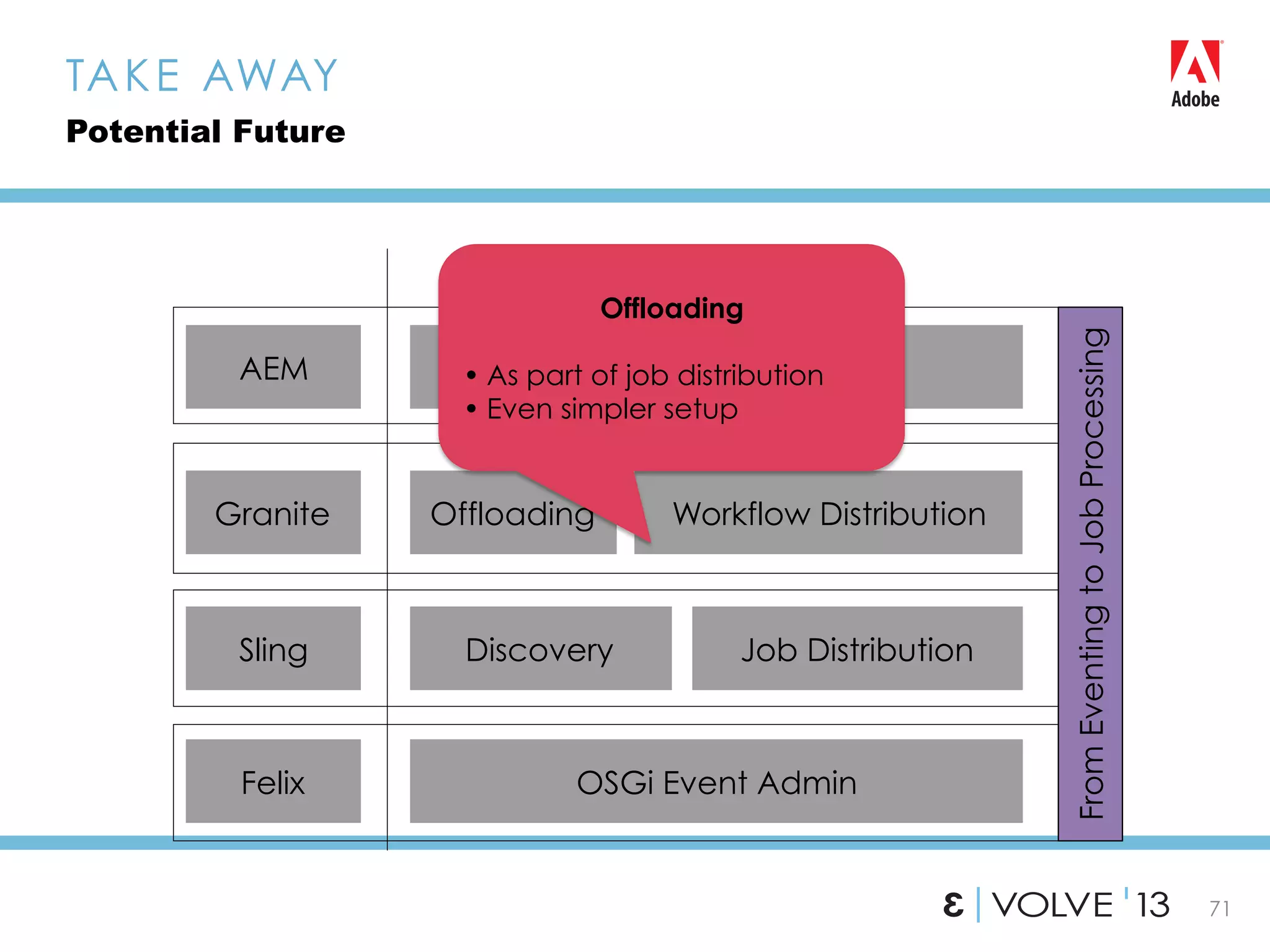

71 TAKE AWAY Potential Future Discovery Offloading Workflow Distribution DAM Ingestion Sling Granite AEM Job Distribution Felix OSGi Event Admin FromEventingtoJobProcessing Offloading • As part of job distribution • Even simpler setup

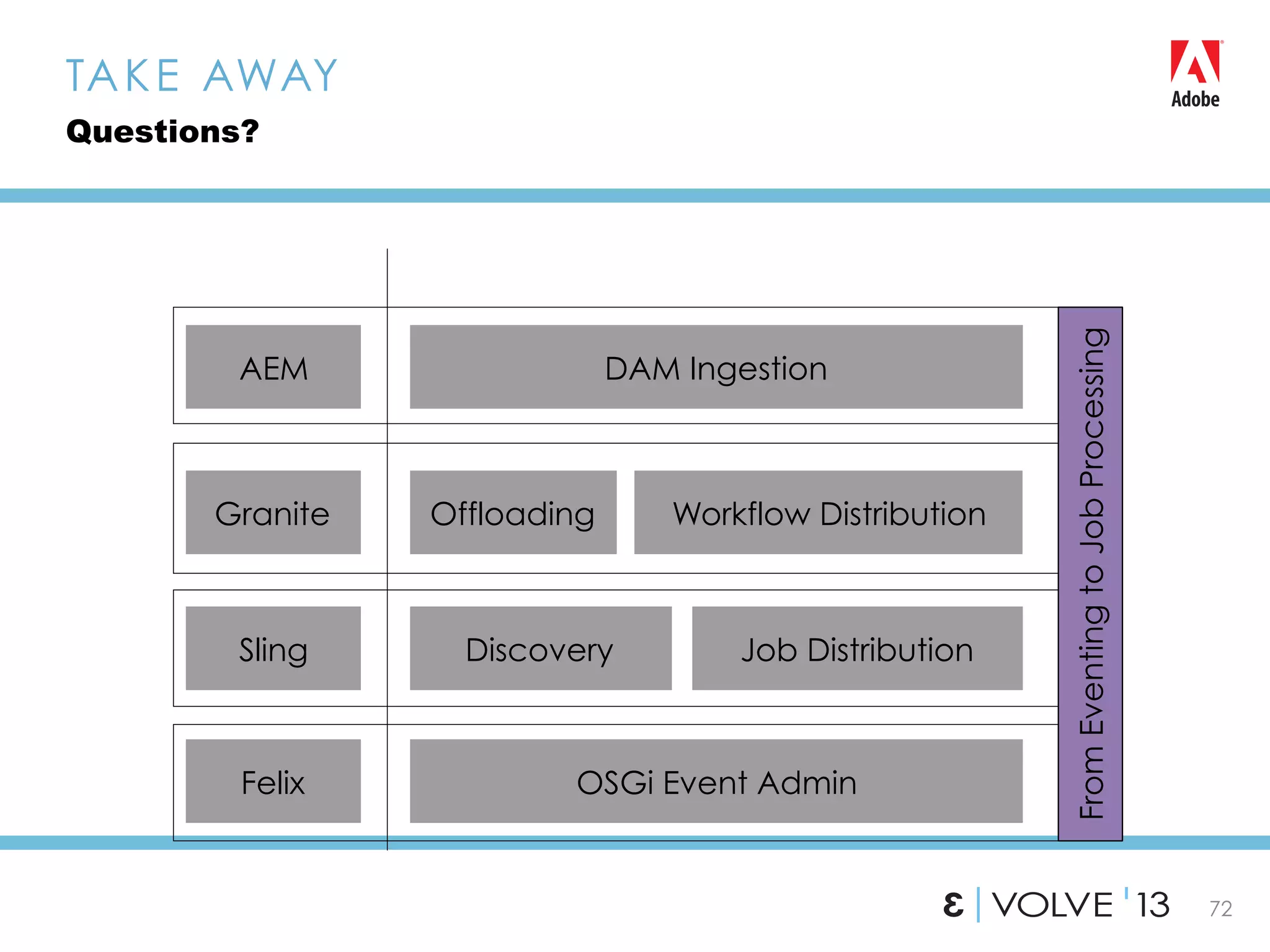

72 TAKE AWAY Questions? Discovery Offloading Workflow Distribution DAM Ingestion Sling Granite AEM Job Distribution Felix OSGi Event Admin FromEventingtoJobProcessing
