Indexes in Postgres
(the long story or crocodiles going to the dentist)
Louise Grandjonc
1
About me
Solutions Engineer at Citus Data
Previously lead python developer
Postgres enthusiast
@louisemeta on twitter
www.louisemeta.com
louise@citusdata.com
!2

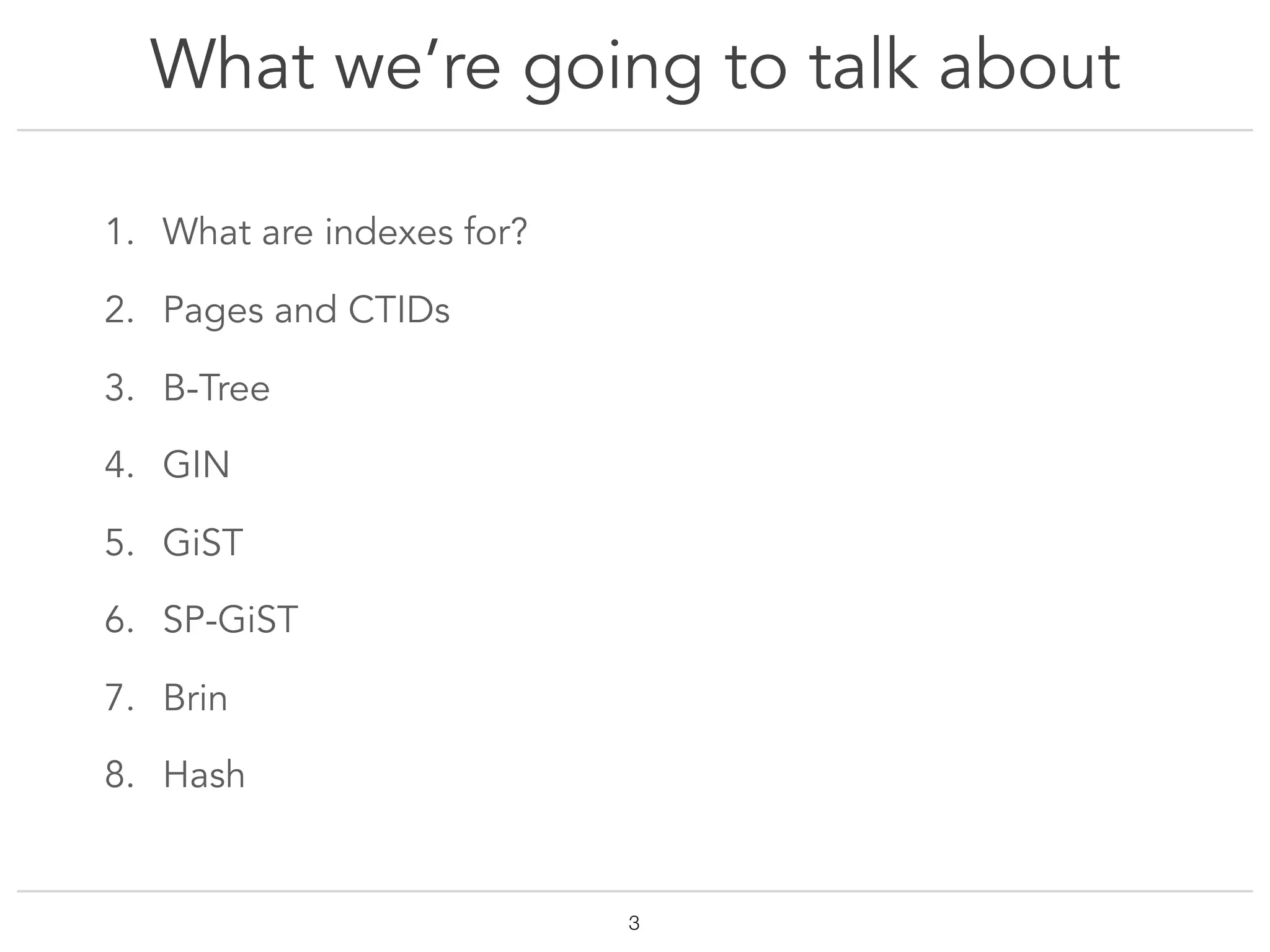

What we’re going to talk about
1. What are indexes for?
2. Pages and CTIDs
3. B-Tree
4. GIN
5. GiST
6. SP-GiST
7. Brin
8. Hash
!3

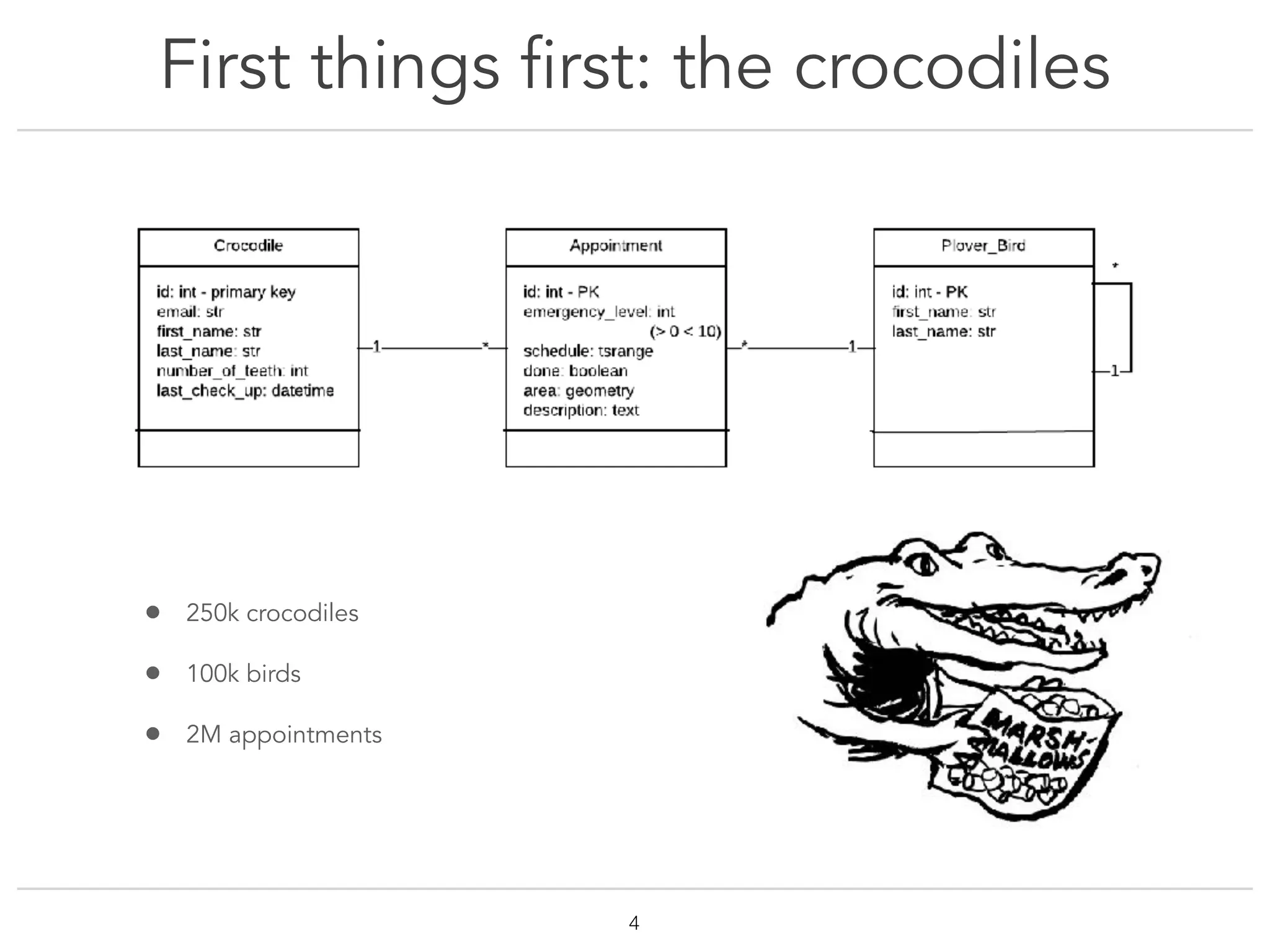

First things first: the crocodiles
!4
• 250k crocodiles
• 100k birds
• 2M appointments
5
What are indexes for?

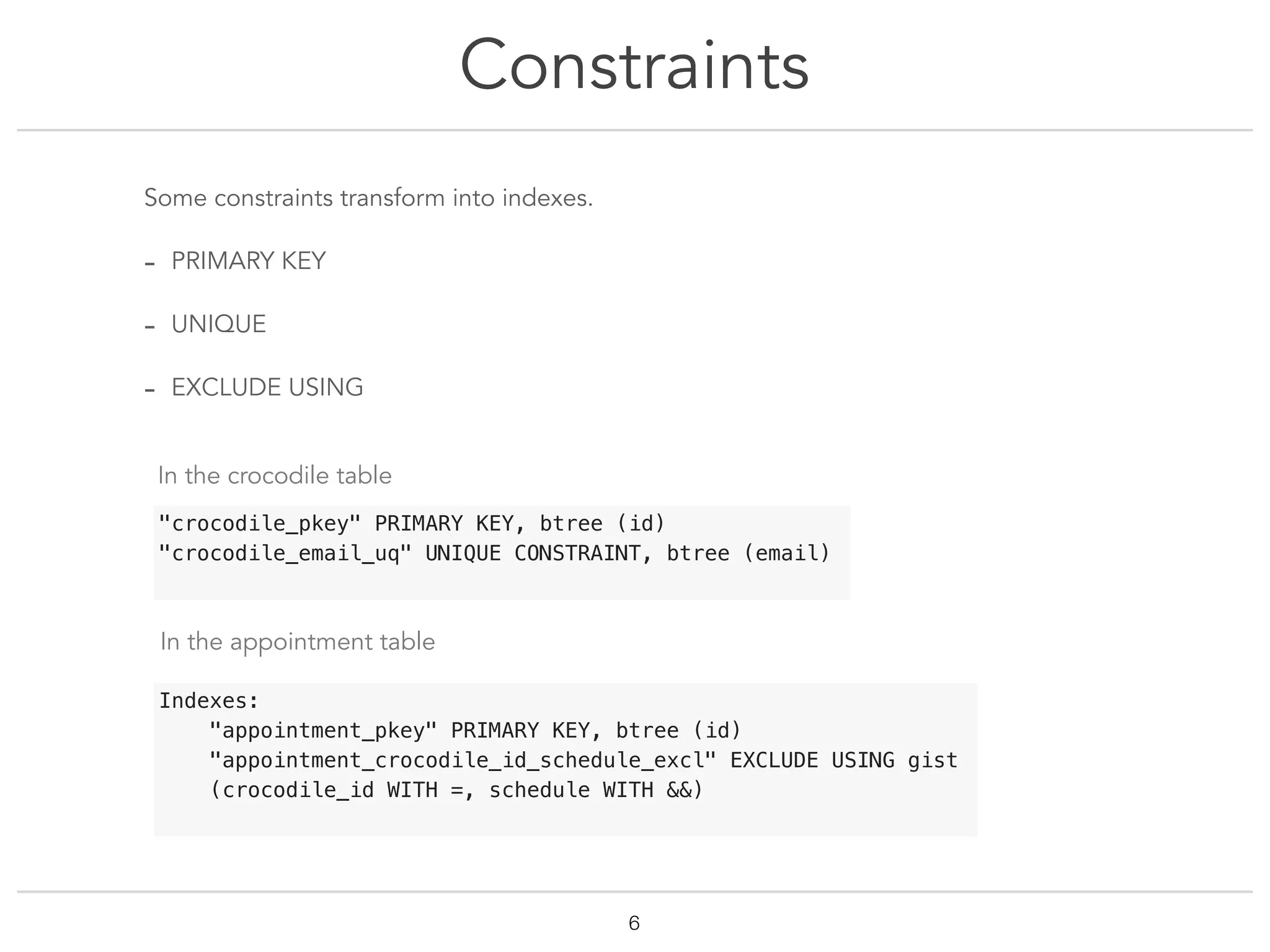

Constraints
!6
Some constraints transform into indexes.
- PRIMARY KEY
- UNIQUE
- EXCLUDE USING
"crocodile_pkey" PRIMARY KEY, btree (id)
"crocodile_email_uq" UNIQUE CONSTRAINT, btree (email)
Indexes:
"appointment_pkey" PRIMARY KEY, btree (id)
"appointment_crocodile_id_schedule_excl" EXCLUDE USING gist
(crocodile_id WITH =, schedule WITH &&)
In the crocodile table
In the appointment table

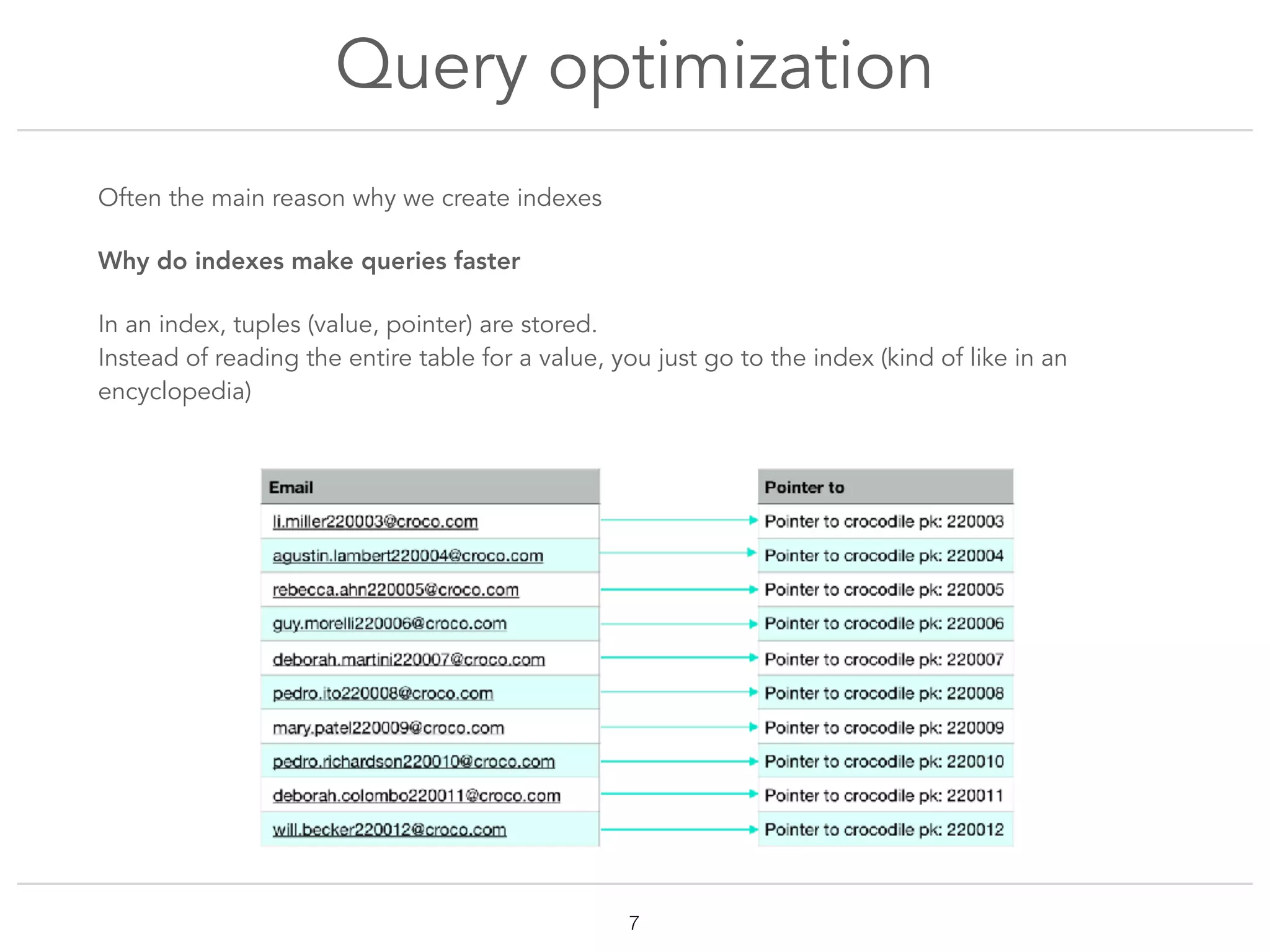

Query optimization
!7
Often the main reason why we create indexes
Why do indexes make queries faster
In an index, tuples (value, pointer) are stored.
Instead of reading the entire table for a value, you just go to the index (kind of like in an
encyclopedia)
8
Pages, heaps and their
pointers

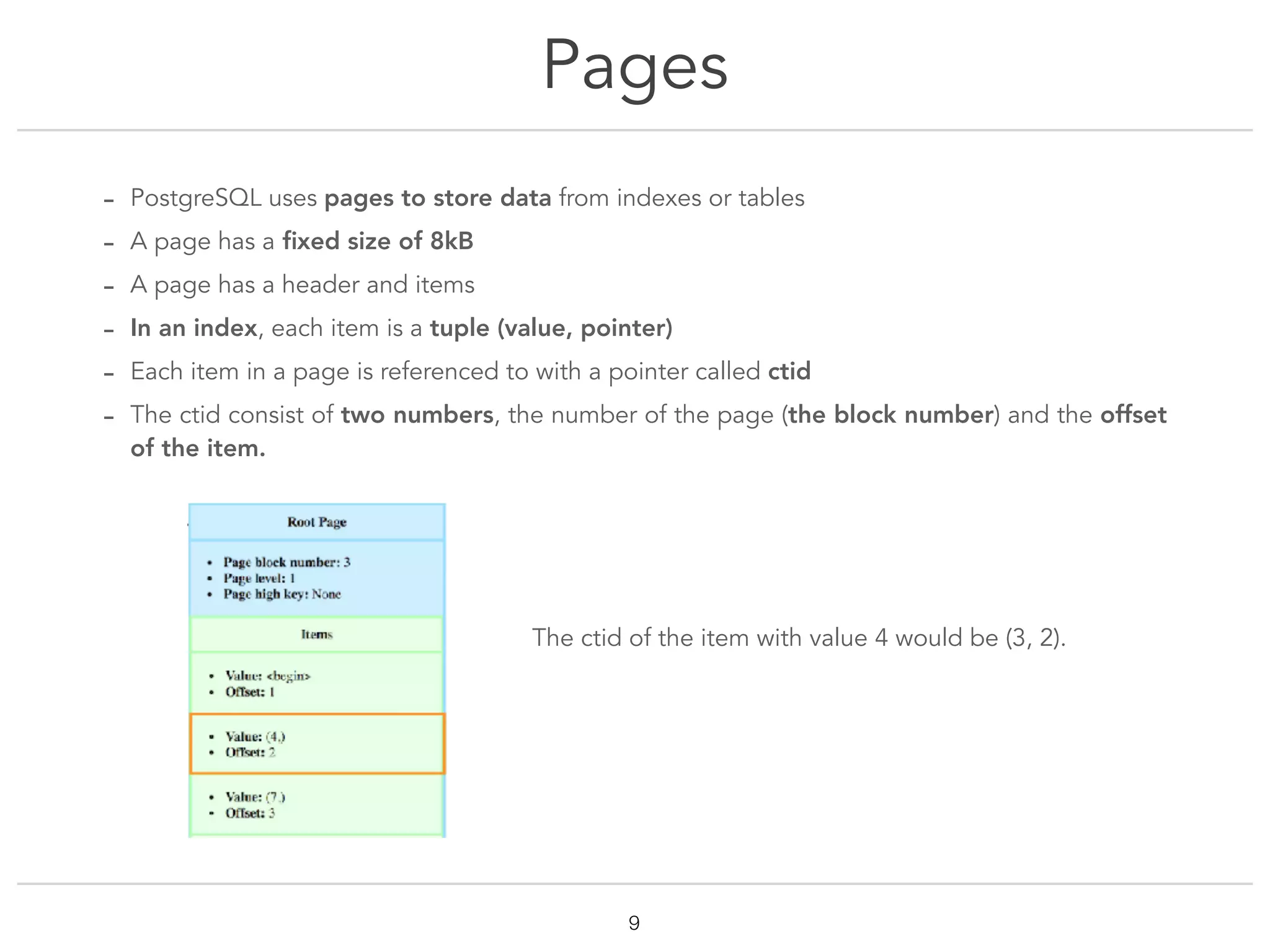

Pages
!9
- PostgreSQL uses pages to store data from indexes or tables
- A page has a fixed size of 8kB
- A page has a header and items
- In an index, each item is a tuple (value, pointer)
- Each item in a page is referenced to with a pointer called ctid
- The ctid consist of two numbers, the number of the page (the block number) and the offset
of the item.
The ctid of the item with value 4 would be (3, 2).
10

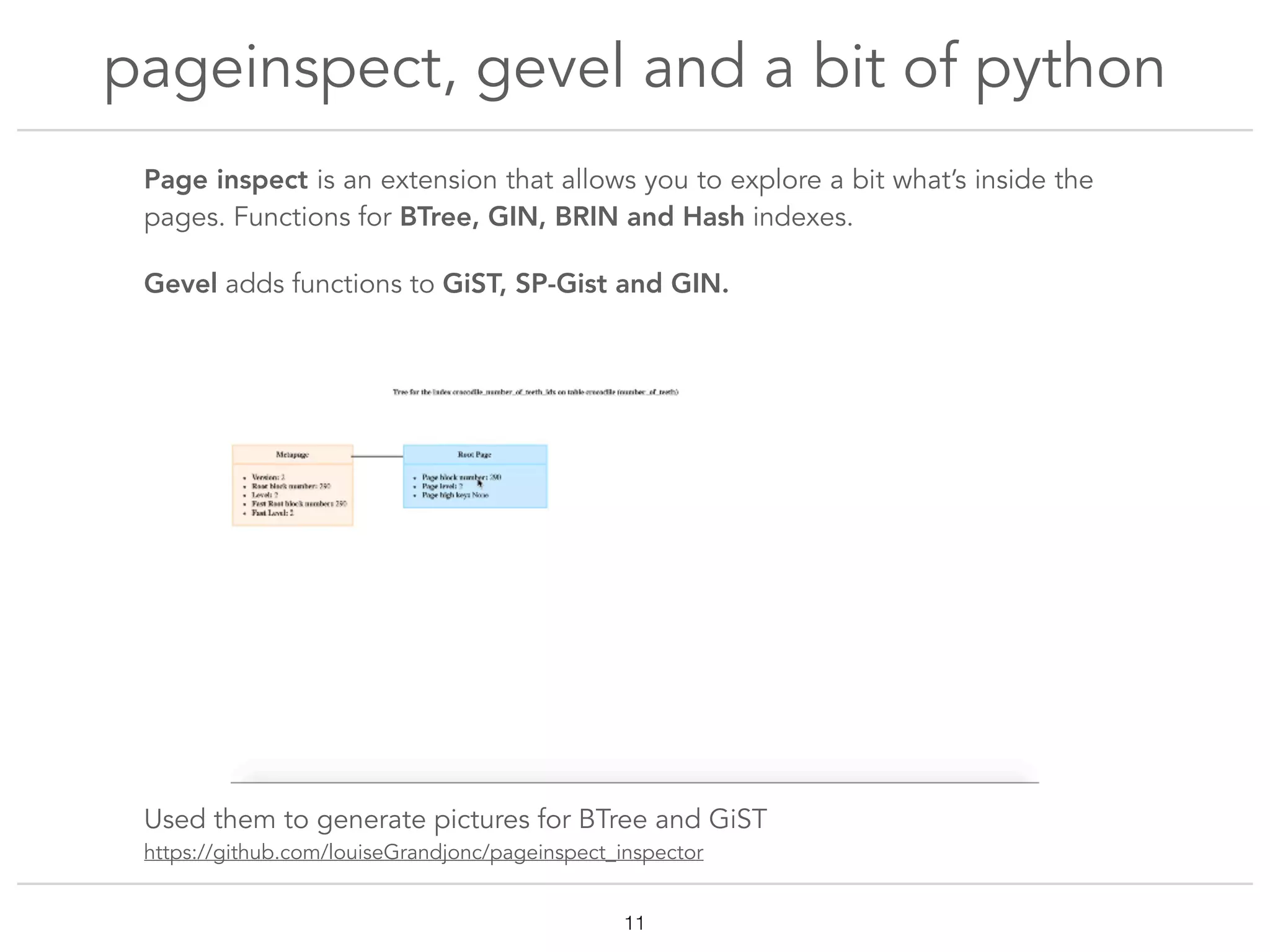

pageinspect and gevel
Extensions to look into your index pages
Page inspect is an extension that allows you to explore a bit what’s inside the
pages. Functions for BTree, GIN, BRIN and Hash indexes.
Gevel adds functions to GiST, SP-Gist and GIN.
Used them to generate pictures for BTree and GiST
https://github.com/louiseGrandjonc/pageinspect_inspector
pageinspect, gevel and a bit of python
!11
12
B-Trees

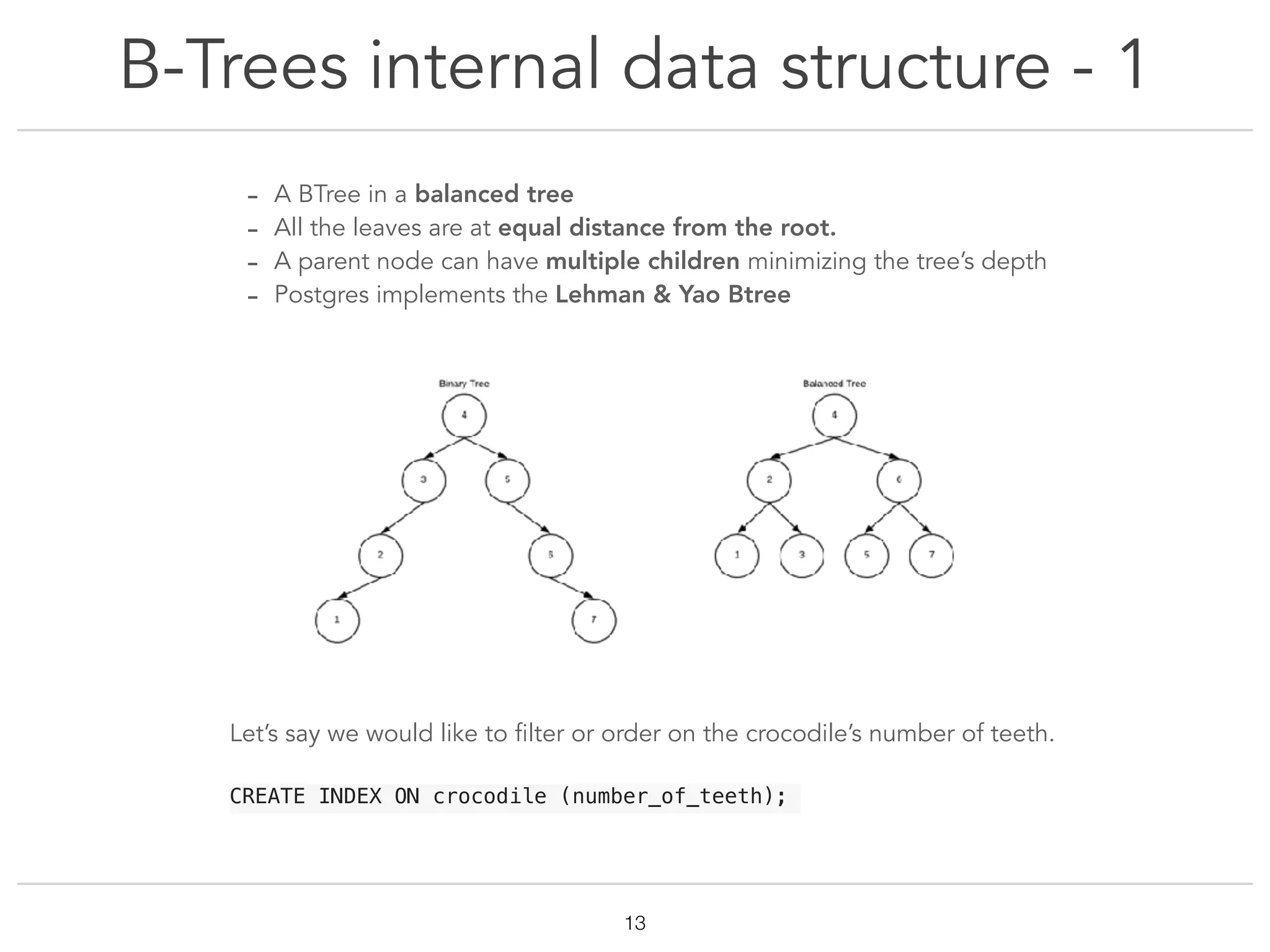

B-Trees internal data structure - 1
!13
- A BTree in a balanced tree
- All the leaves are at equal distance from the root.
- A parent node can have multiple children minimizing the tree’s depth
- Postgres implements the Lehman & Yao Btree
Let’s say we would like to filter or order on the crocodile’s number of teeth.
CREATE INDEX ON crocodile (number_of_teeth);

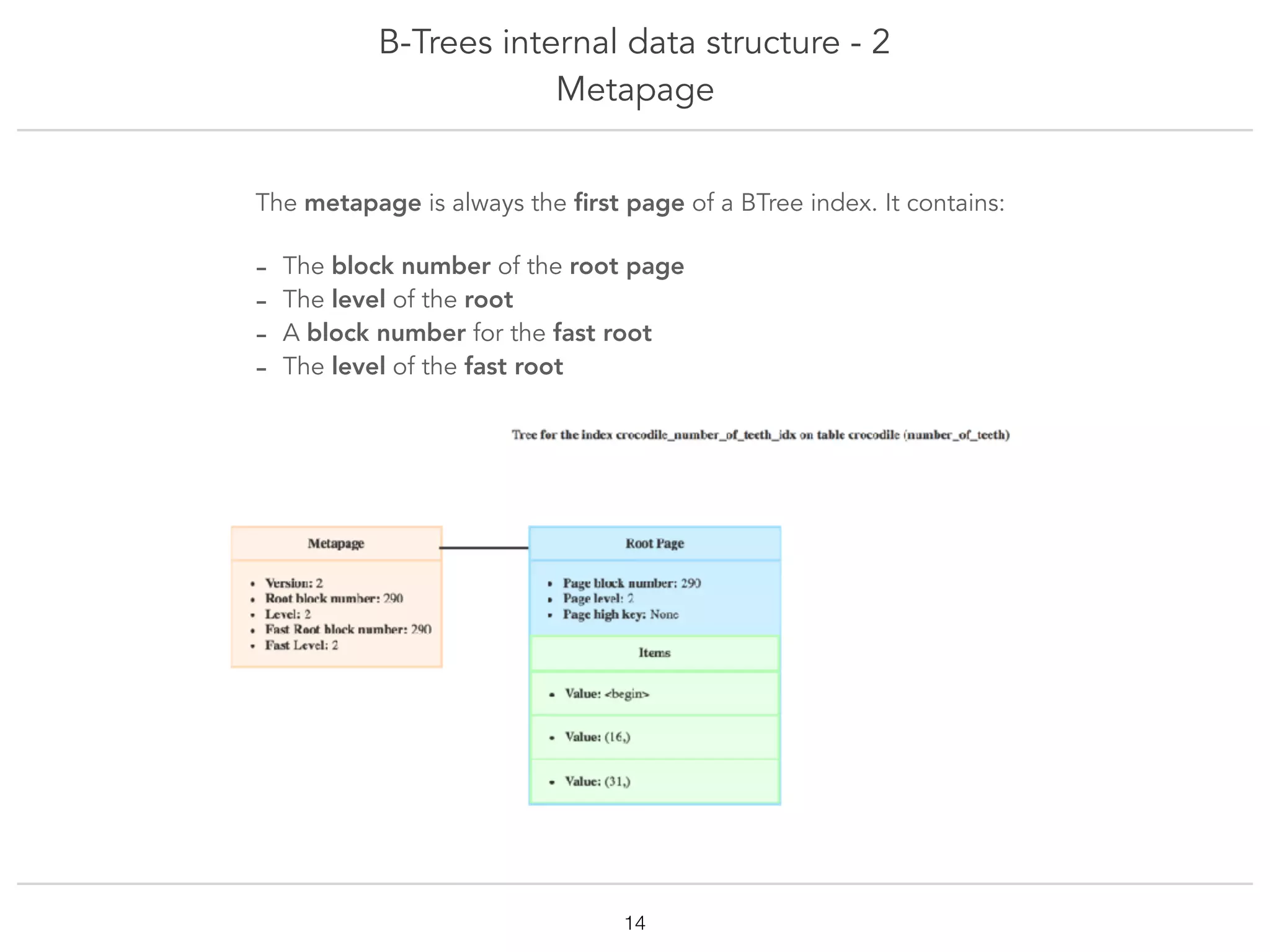

B-Trees internal data structure - 2
Metapage
!14
The metapage is always the first page of a BTree index. It contains:
- The block number of the root page
- The level of the root
- A block number for the fast root
- The level of the fast root

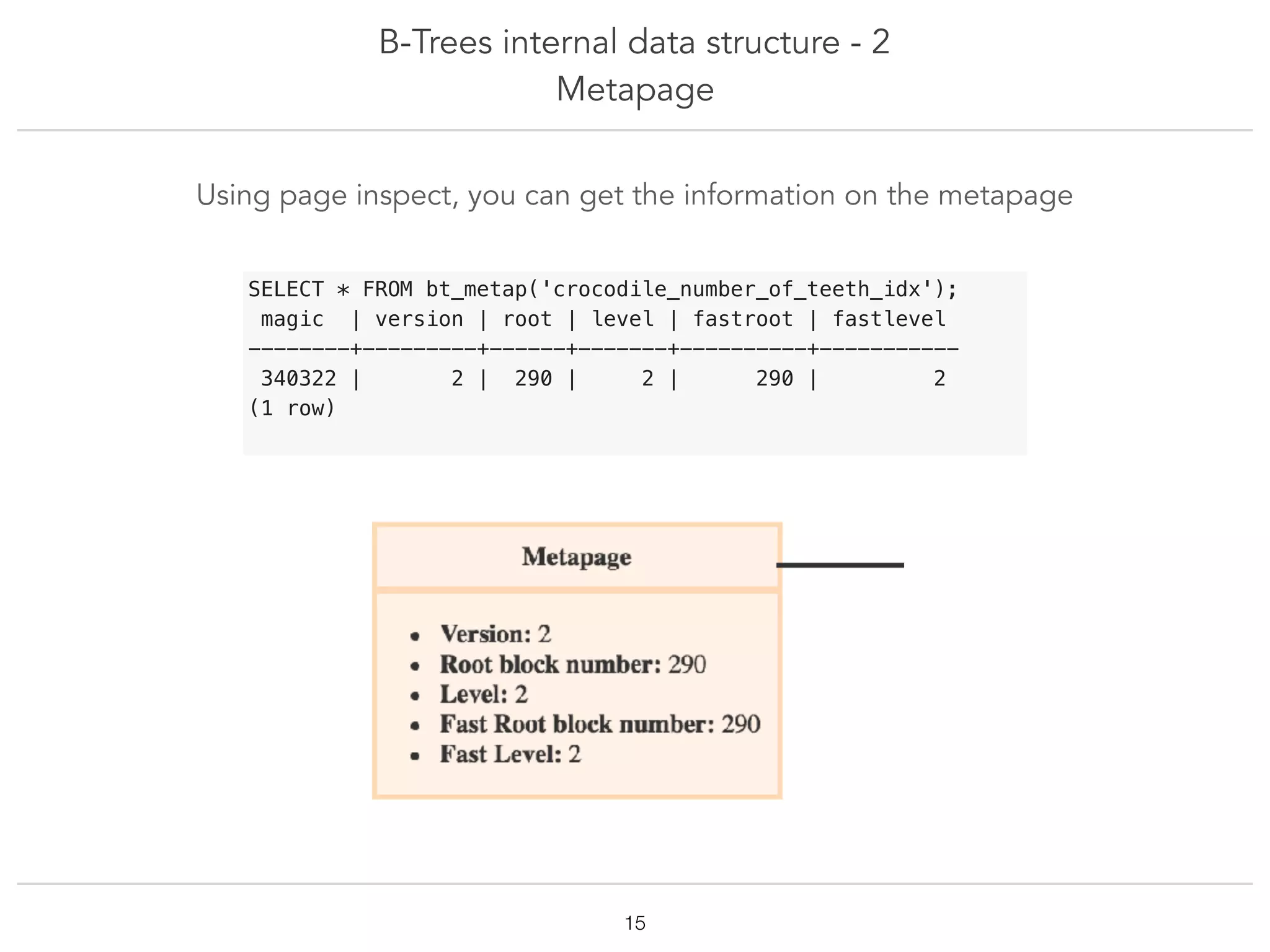

B-Trees internal data structure - 2
Metapage
!15
SELECT * FROM bt_metap('crocodile_number_of_teeth_idx');
magic | version | root | level | fastroot | fastlevel
--------+---------+------+-------+----------+-----------
340322 | 2 | 290 | 2 | 290 | 2
(1 row)
Using page inspect, you can get the information on the metapage

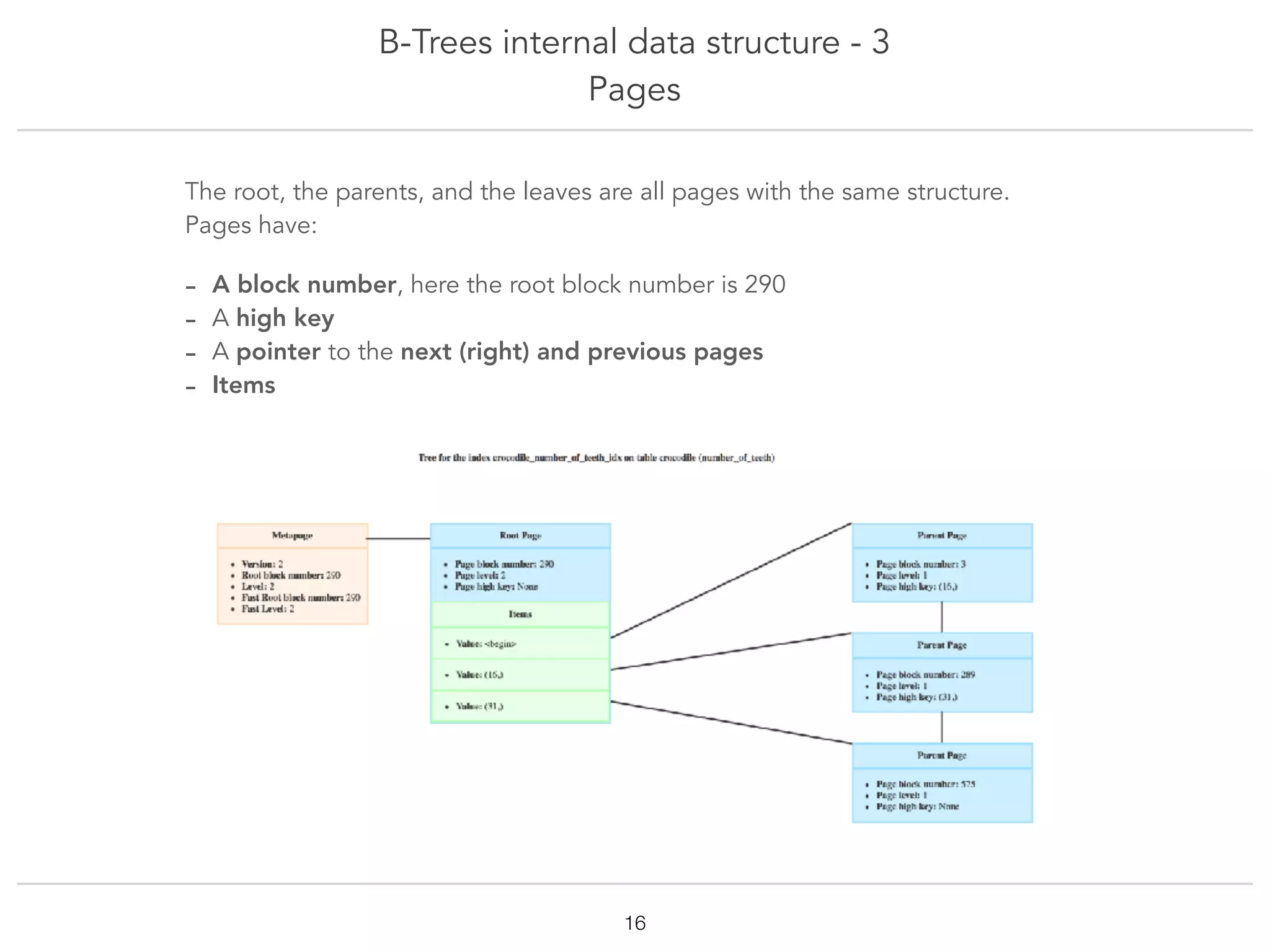

B-Trees internal data structure - 3
Pages
!16
The root, the parents, and the leaves are all pages with the same structure.
Pages have:
- A block number, here the root block number is 290
- A high key
- A pointer to the next (right) and previous pages
- Items

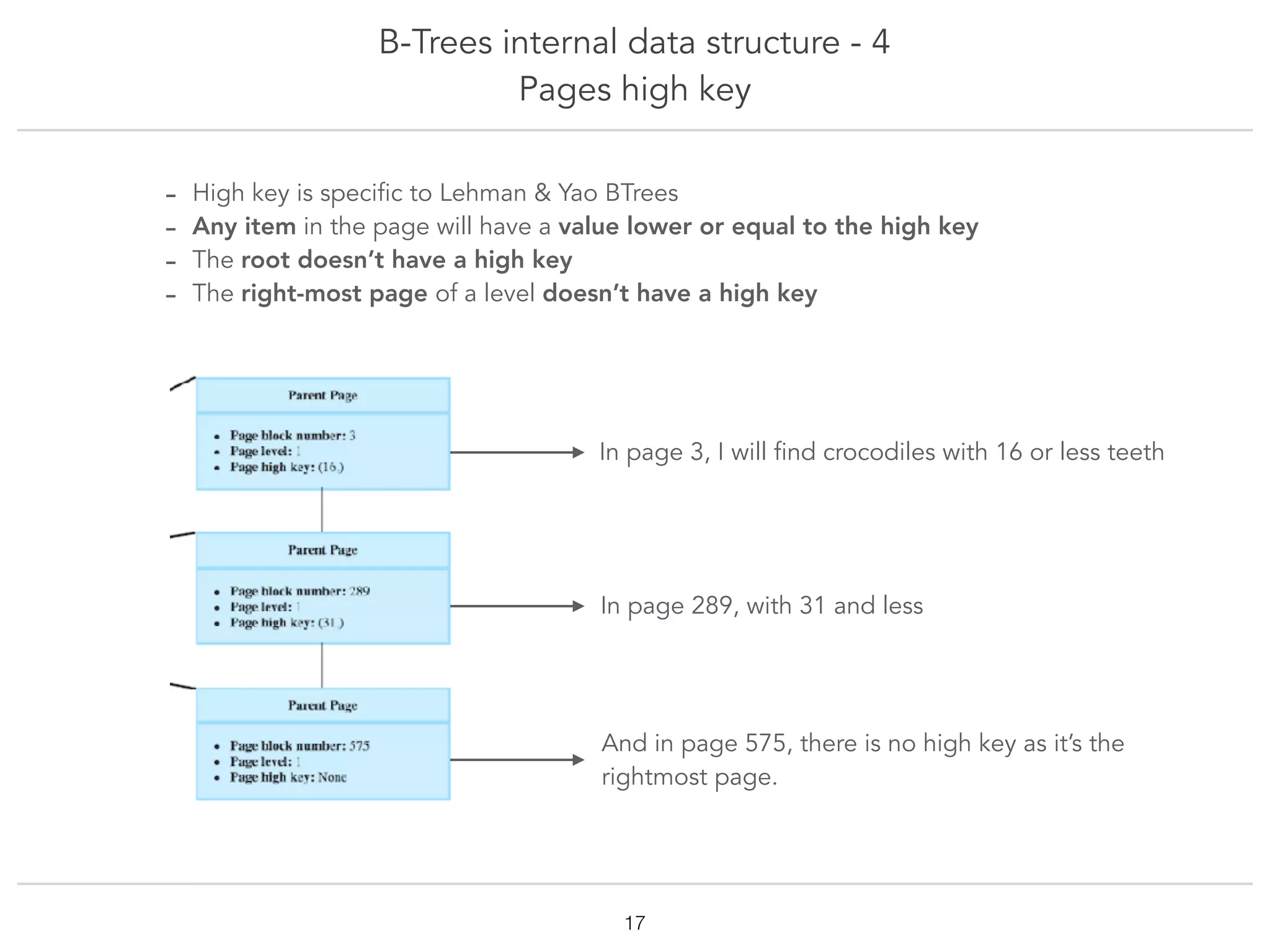

B-Trees internal data structure - 4
Pages high key
!17
- High key is specific to Lehman & Yao BTrees
- Any item in the page will have a value lower or equal to the high key
- The root doesn’t have a high key
- The right-most page of a level doesn’t have a high key
And in page 575, there is no high key as it’s the
rightmost page.
In page 3, I will find crocodiles with 16 or less teeth
In page 289, with 31 and less

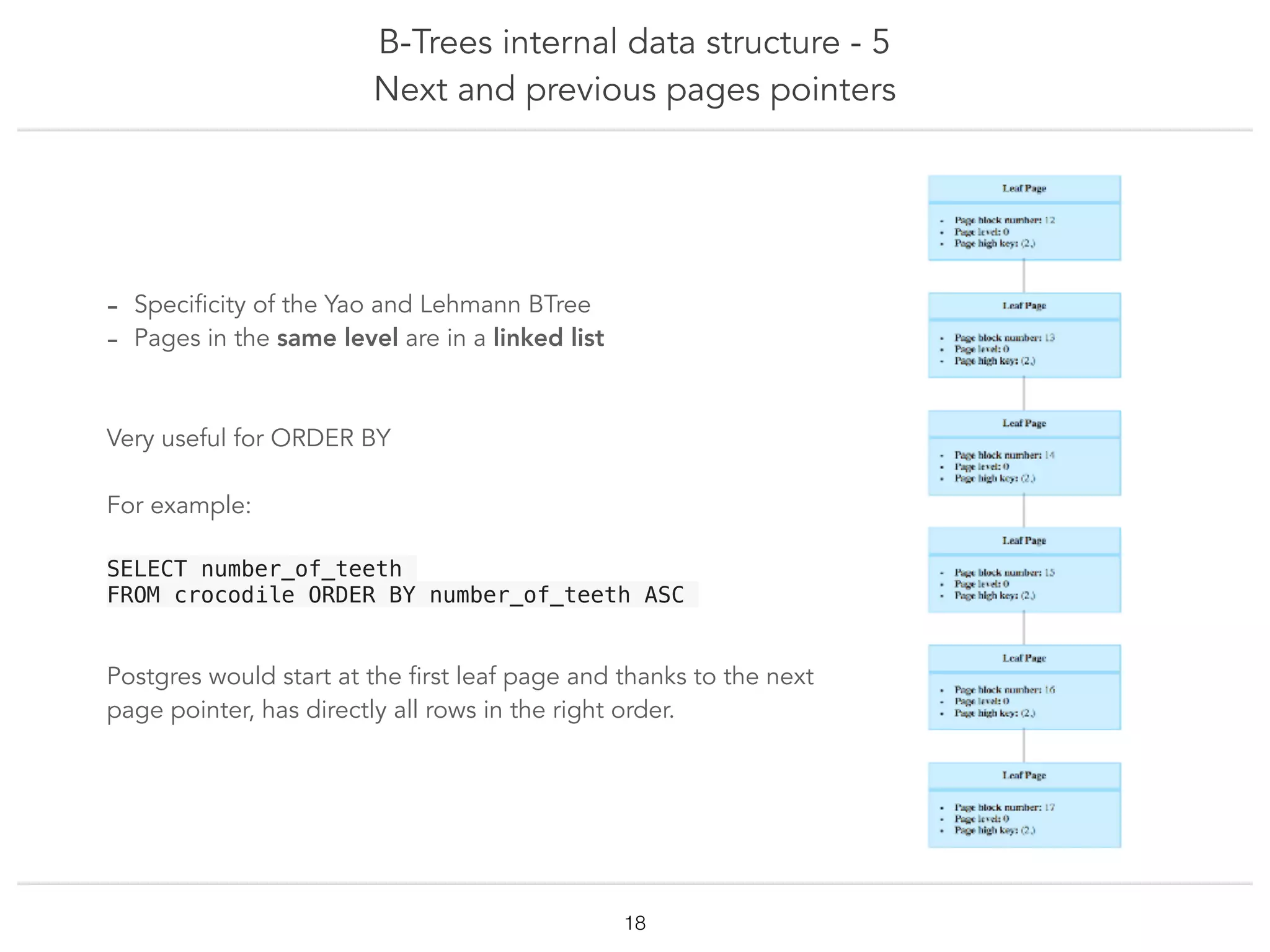

B-Trees internal data structure - 5
Next and previous pages pointers
!18
- Specificity of the Yao and Lehmann BTree
- Pages in the same level are in a linked list
Very useful for ORDER BY
For example:
SELECT number_of_teeth
FROM crocodile ORDER BY number_of_teeth ASC
Postgres would start at the first leaf page and thanks to the next
page pointer, has directly all rows in the right order.

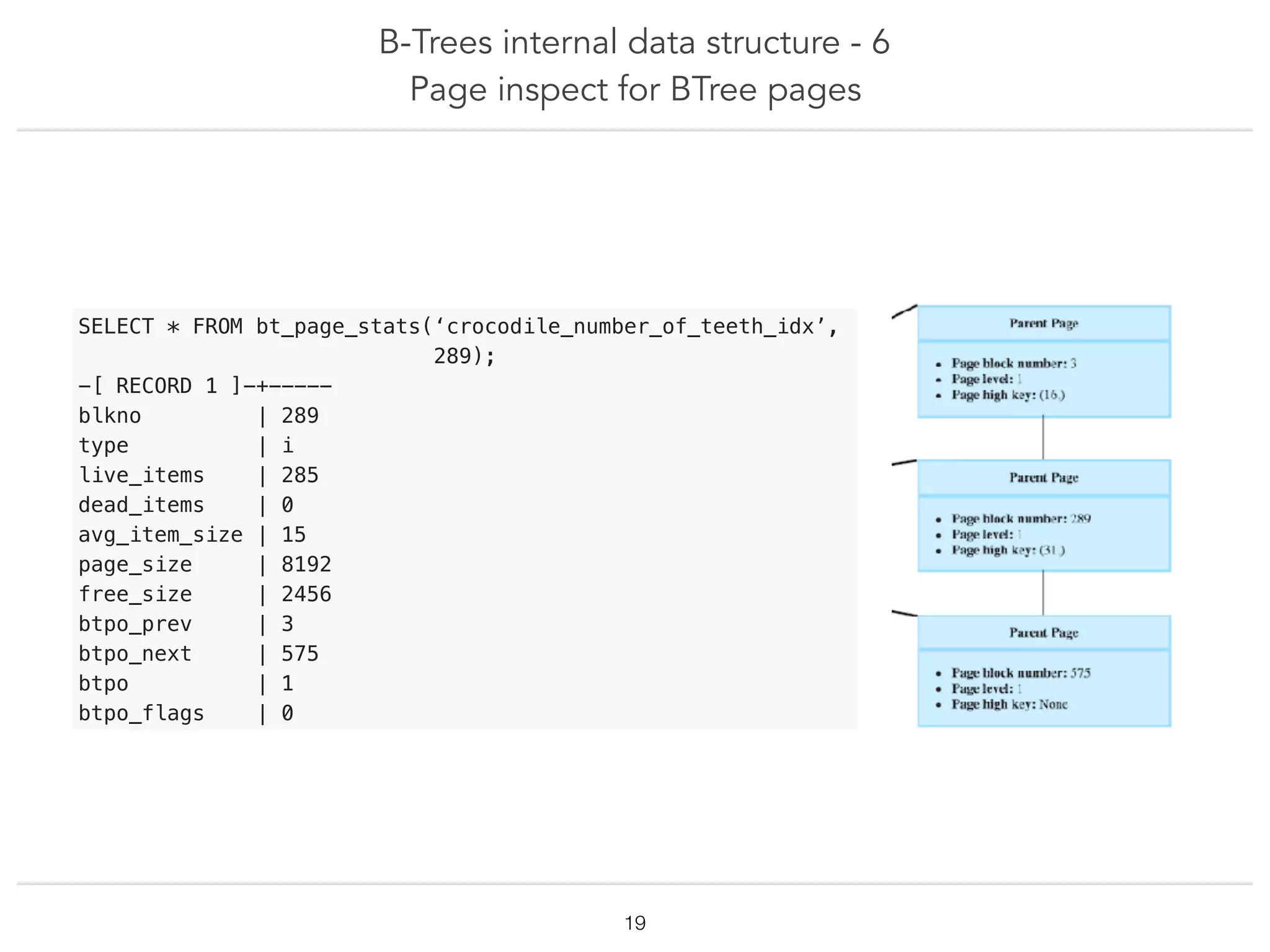

B-Trees internal data structure - 6
Page inspect for BTree pages
!19
SELECT * FROM bt_page_stats(‘crocodile_number_of_teeth_idx’,
289);
-[ RECORD 1 ]-+-----
blkno | 289
type | i
live_items | 285
dead_items | 0
avg_item_size | 15
page_size | 8192
free_size | 2456
btpo_prev | 3
btpo_next | 575
btpo | 1
btpo_flags | 0

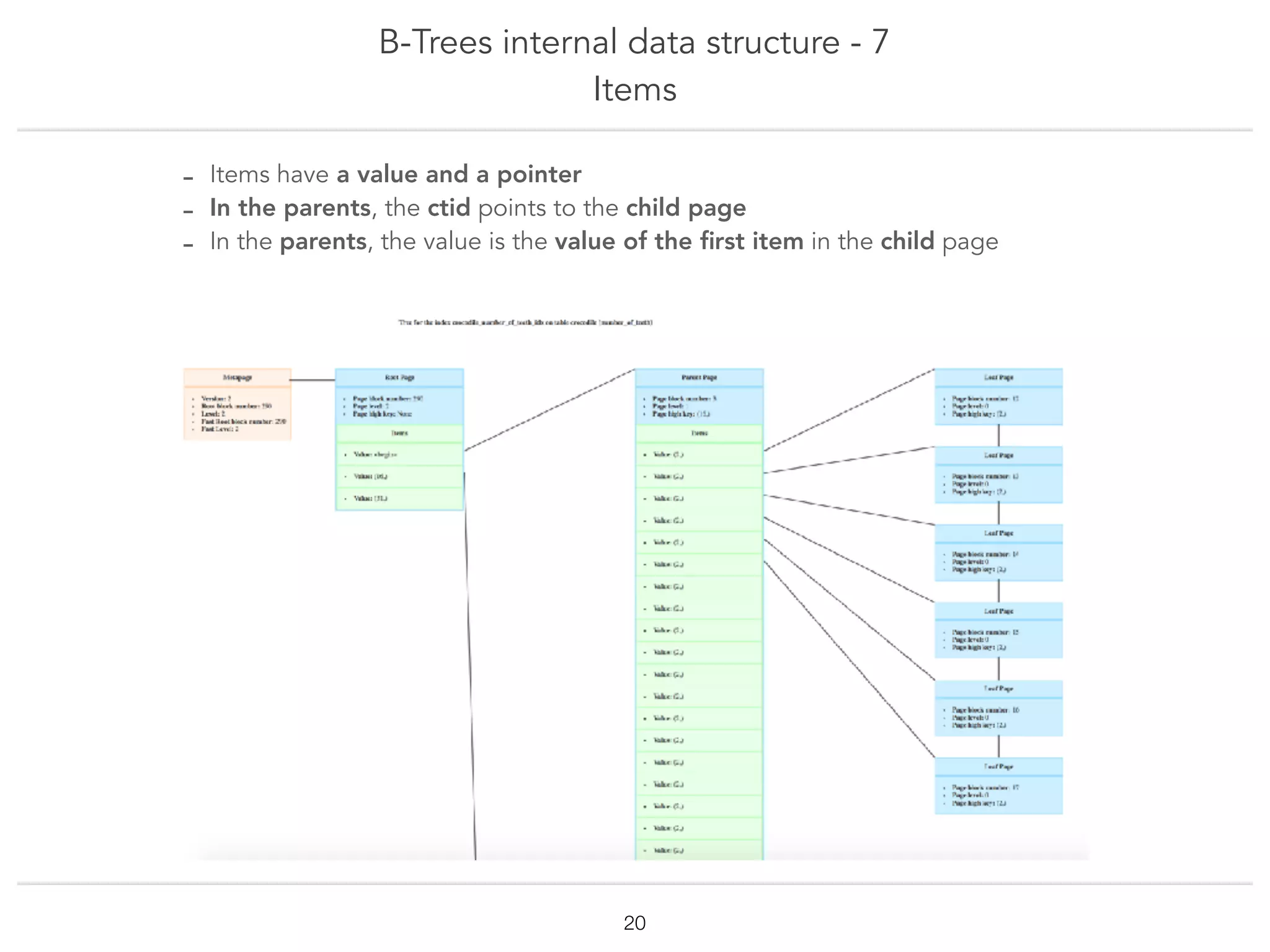

B-Trees internal data structure - 7
Items
!20
- Items have a value and a pointer
- In the parents, the ctid points to the child page
- In the parents, the value is the value of the first item in the child page

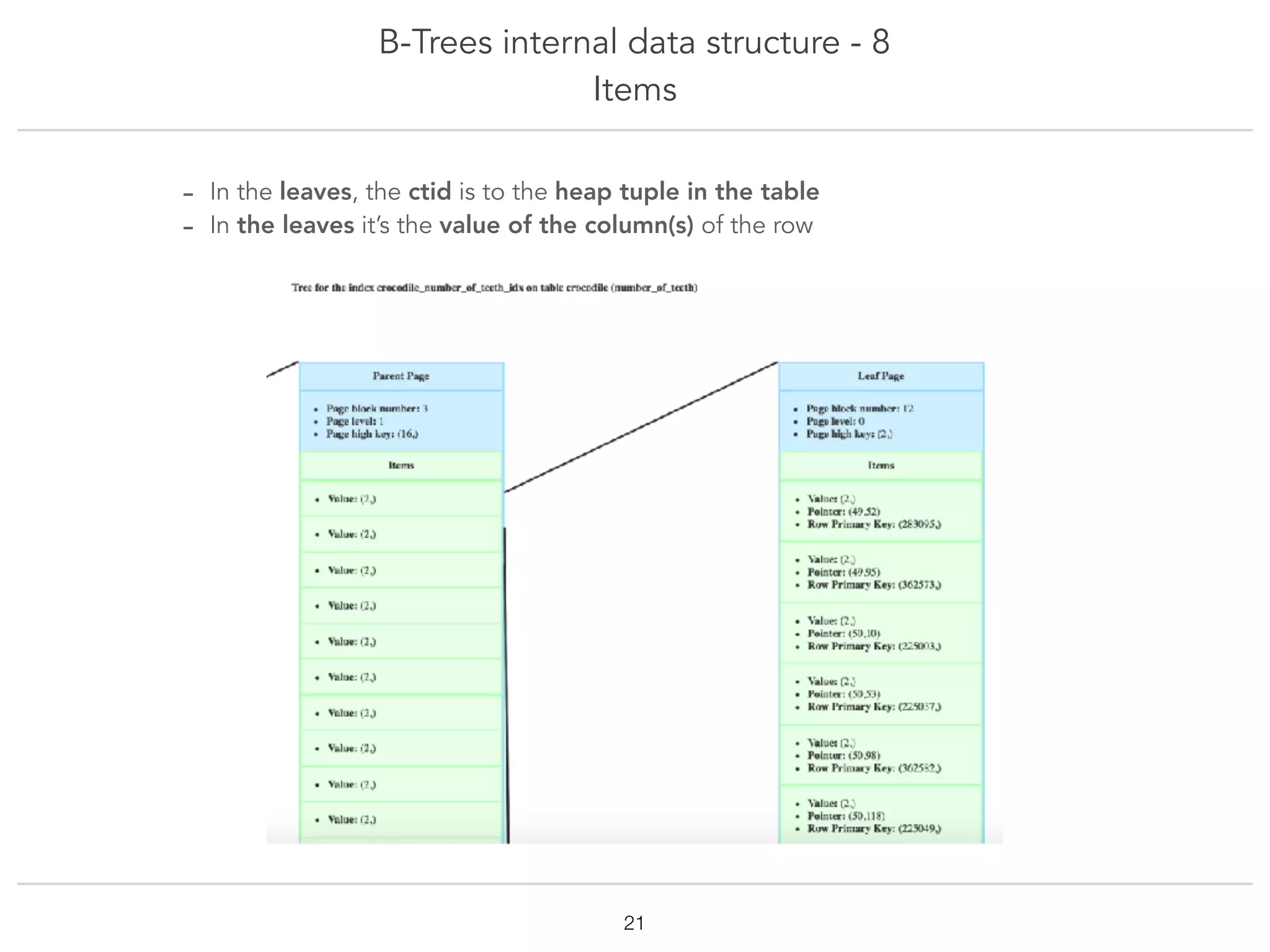

B-Trees internal data structure - 8
Items
!21
- In the leaves, the ctid is to the heap tuple in the table
- In the leaves it’s the value of the column(s) of the row

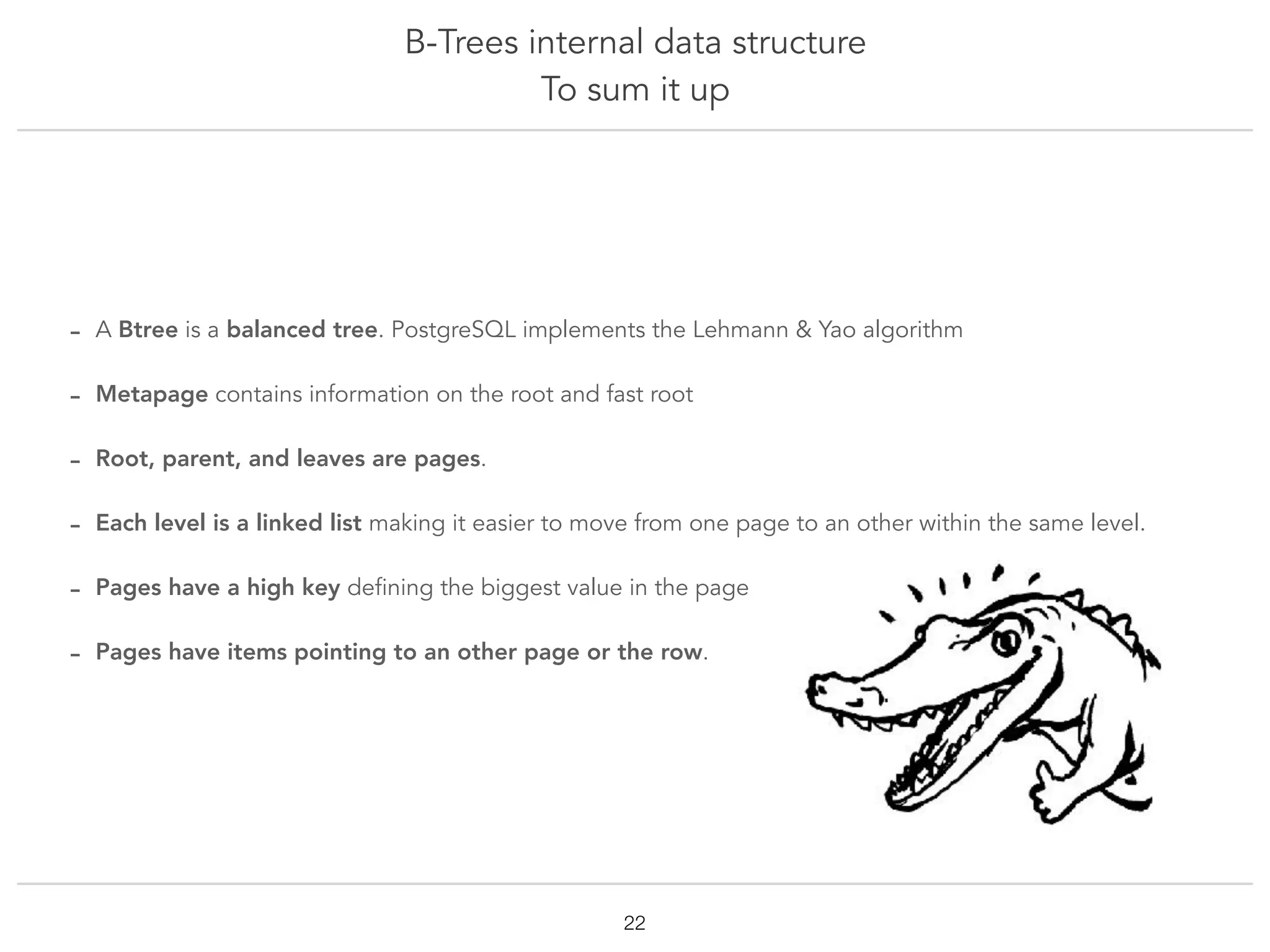

B-Trees internal data structure
To sum it up
!22
- A Btree is a balanced tree. PostgreSQL implements the Lehmann & Yao algorithm
- Metapage contains information on the root and fast root
- Root, parent, and leaves are pages.
- Each level is a linked list making it easier to move from one page to an other within the same level.
- Pages have a high key defining the biggest value in the page
- Pages have items pointing to an other page or the row.

B-Trees - Searching in a BTree
!23
1. Scan keys are created
2. Starting from the root until a leaf page
• Is moving to the right page necessary?
• If the page is a leaf, return the first item with a value
higher or equal to the scan key
• Binary search to find the right path to follow
• Descend to the child page and lock it
SELECT email FROM crocodile WHERE number_of_teeth >= 20;

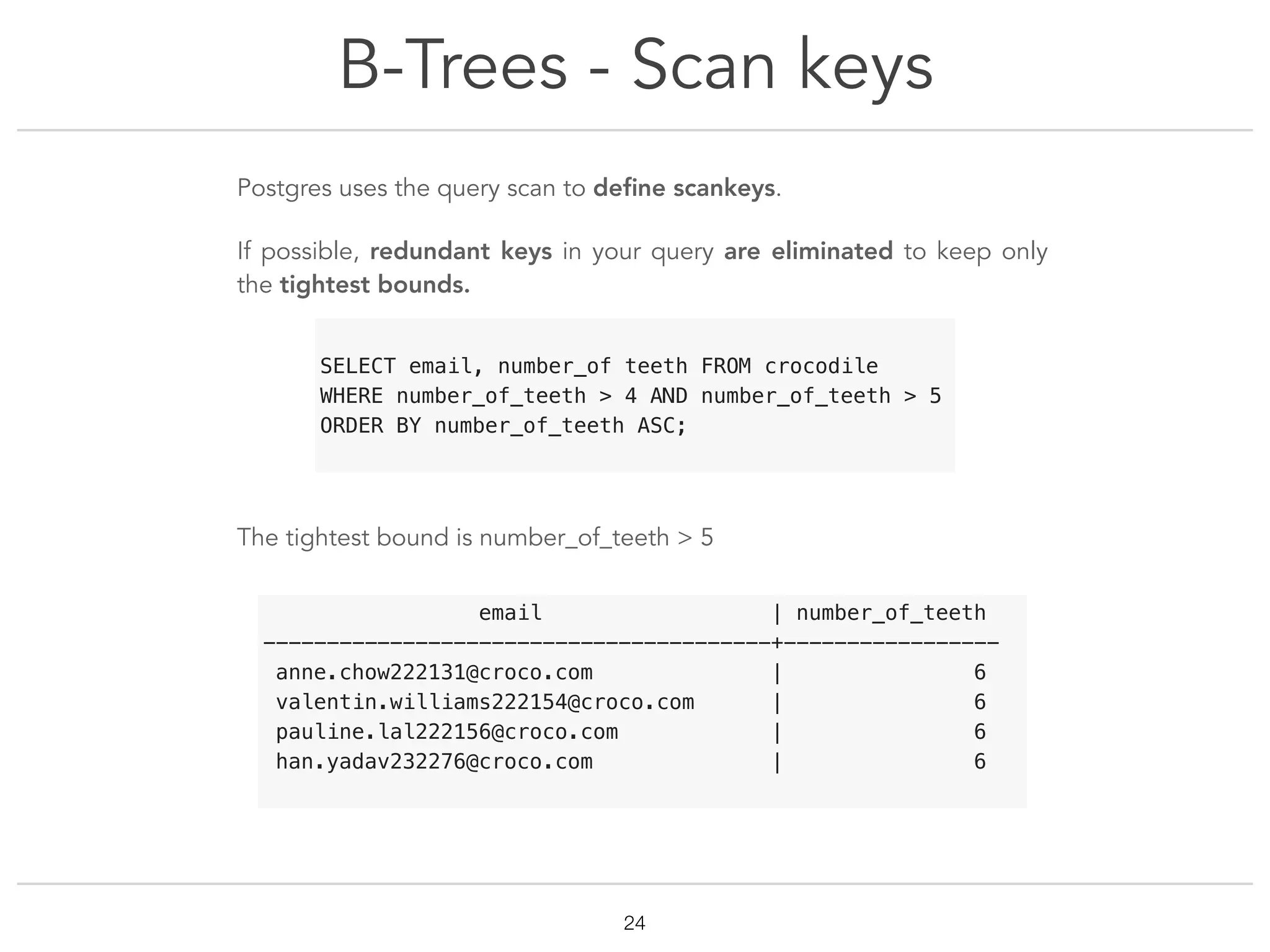

B-Trees - Scan keys
!24
Postgres uses the query scan to define scankeys.
If possible, redundant keys in your query are eliminated to keep only
the tightest bounds.
The tightest bound is number_of_teeth > 5
SELECT email, number_of teeth FROM crocodile
WHERE number_of_teeth > 4 AND number_of_teeth > 5
ORDER BY number_of_teeth ASC;
email | number_of_teeth
----------------------------------------+-----------------
anne.chow222131@croco.com | 6
valentin.williams222154@croco.com | 6
pauline.lal222156@croco.com | 6
han.yadav232276@croco.com | 6

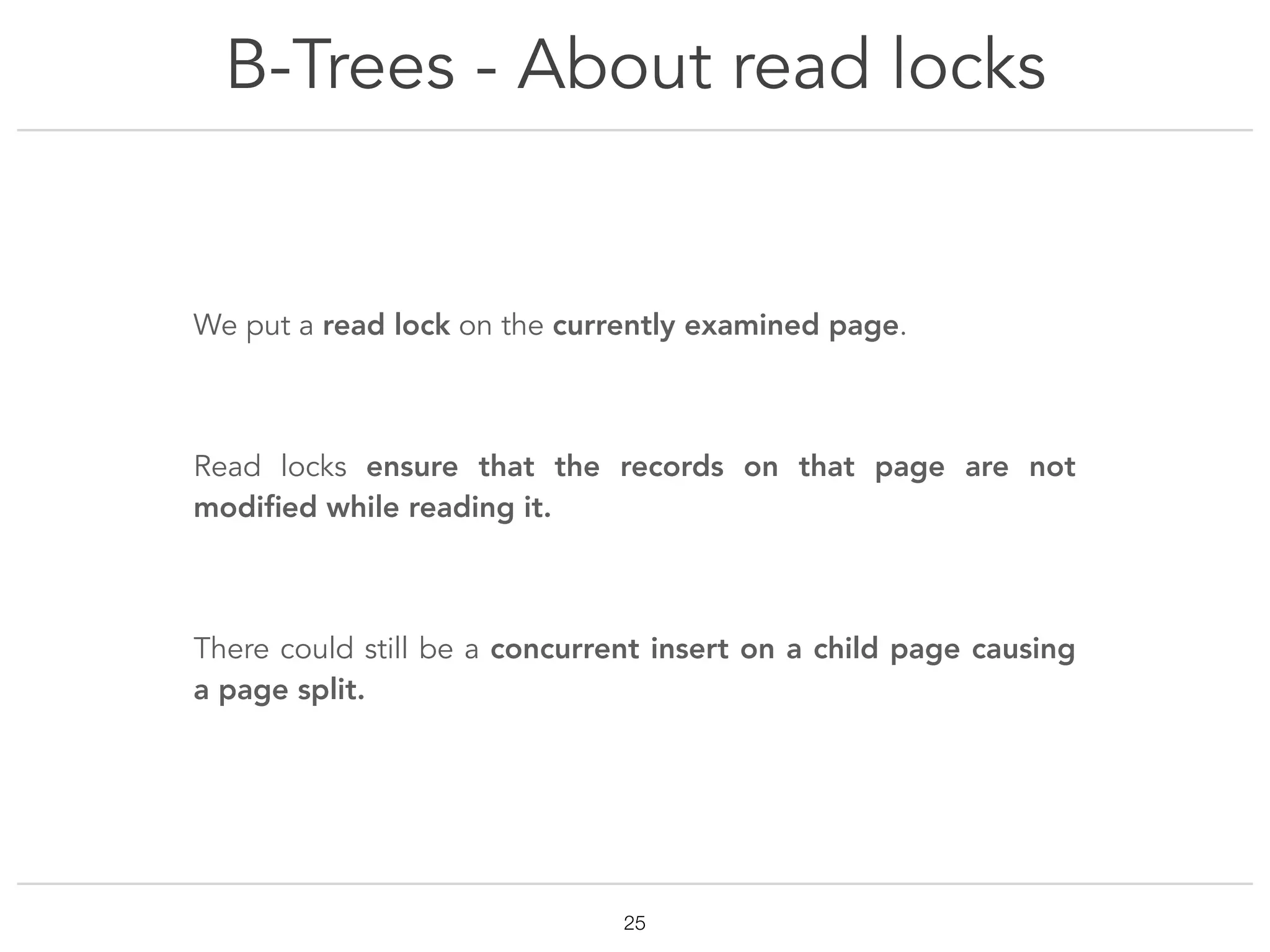

B-Trees - About read locks
!25
We put a read lock on the currently examined page.
Read locks  ensure that the  records on that page are not
modified while reading it.
There could still be a concurrent insert on a child page causing
a page split.

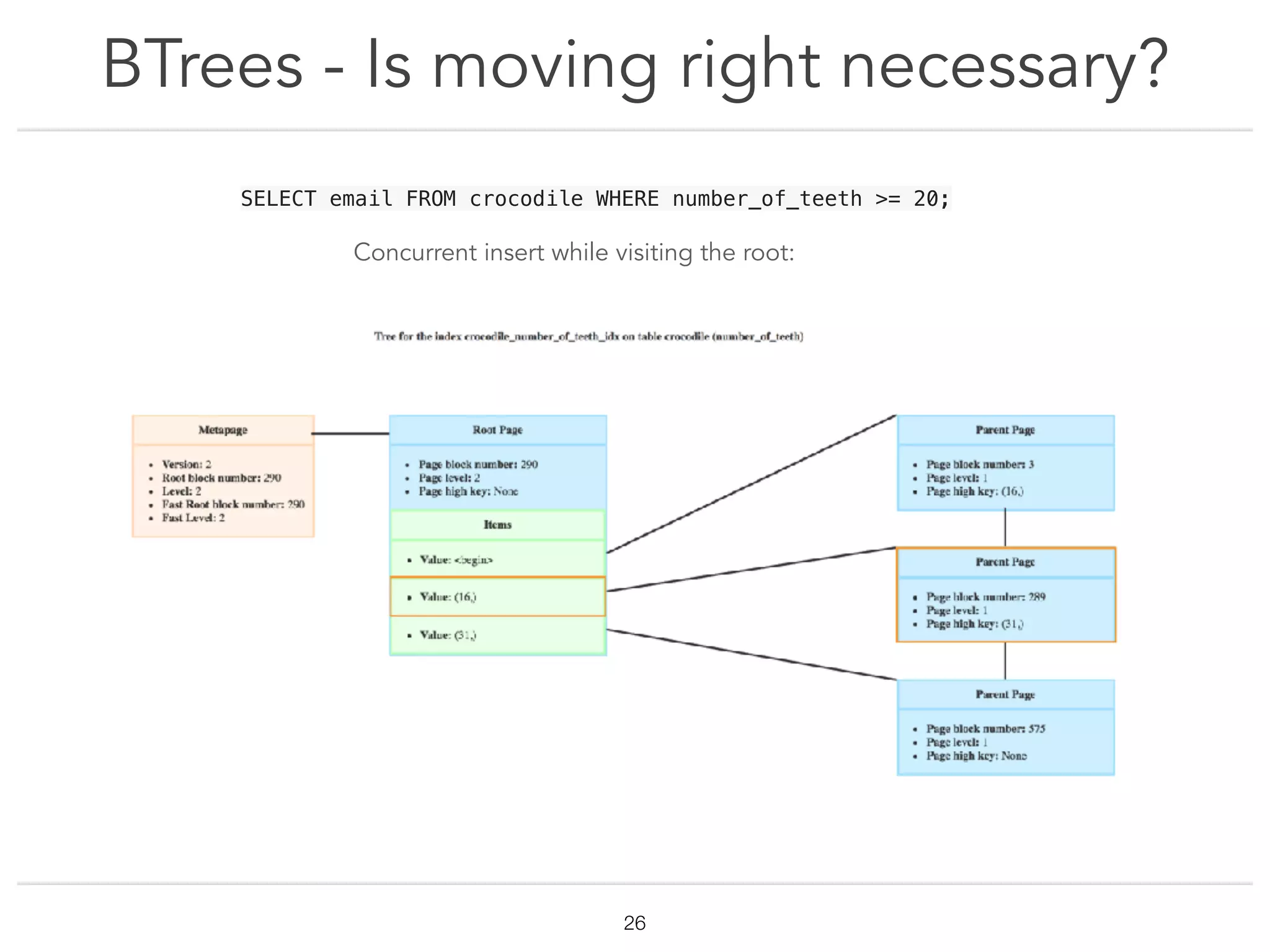

BTrees - Is moving right necessary?
!26
Concurrent insert while visiting the root:
SELECT email FROM crocodile WHERE number_of_teeth >= 20;

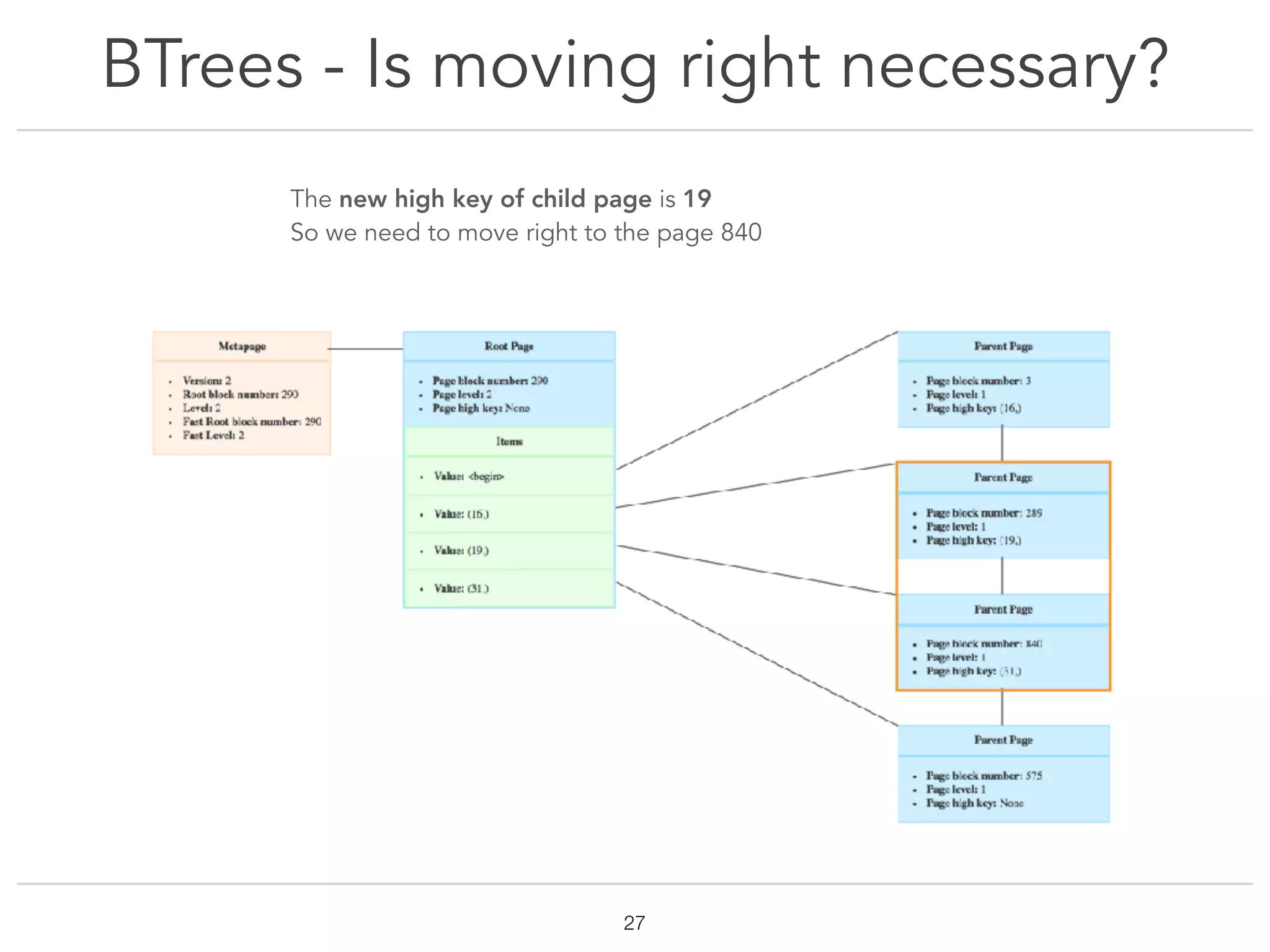

BTrees - Is moving right necessary?
!27
The new high key of child page is 19
So we need to move right to the page 840

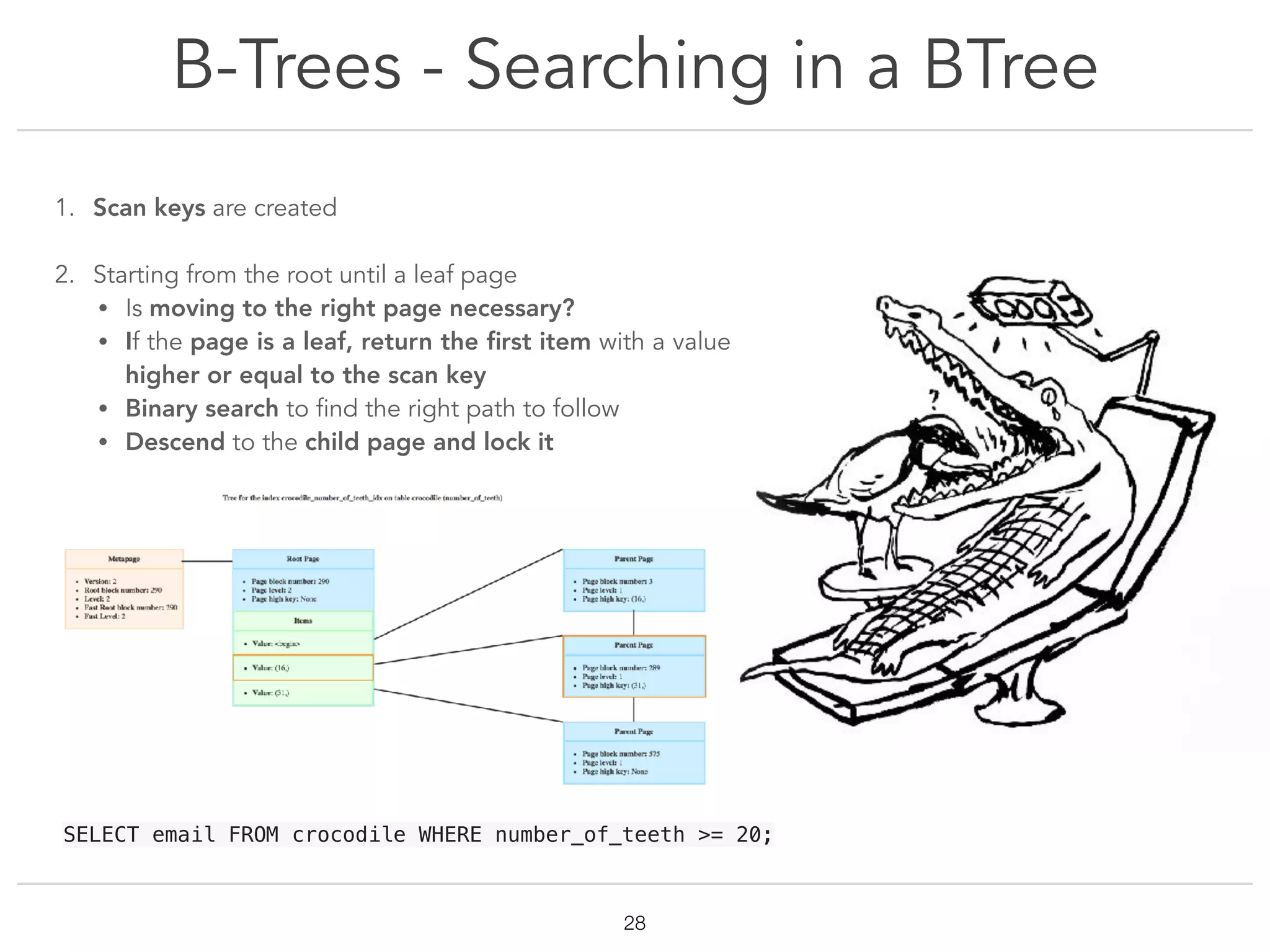

B-Trees - Searching in a BTree
!28
1. Scan keys are created
2. Starting from the root until a leaf page
• Is moving to the right page necessary?
• If the page is a leaf, return the first item with a value
higher or equal to the scan key
• Binary search to find the right path to follow
• Descend to the child page and lock it
SELECT email FROM crocodile WHERE number_of_teeth >= 20;

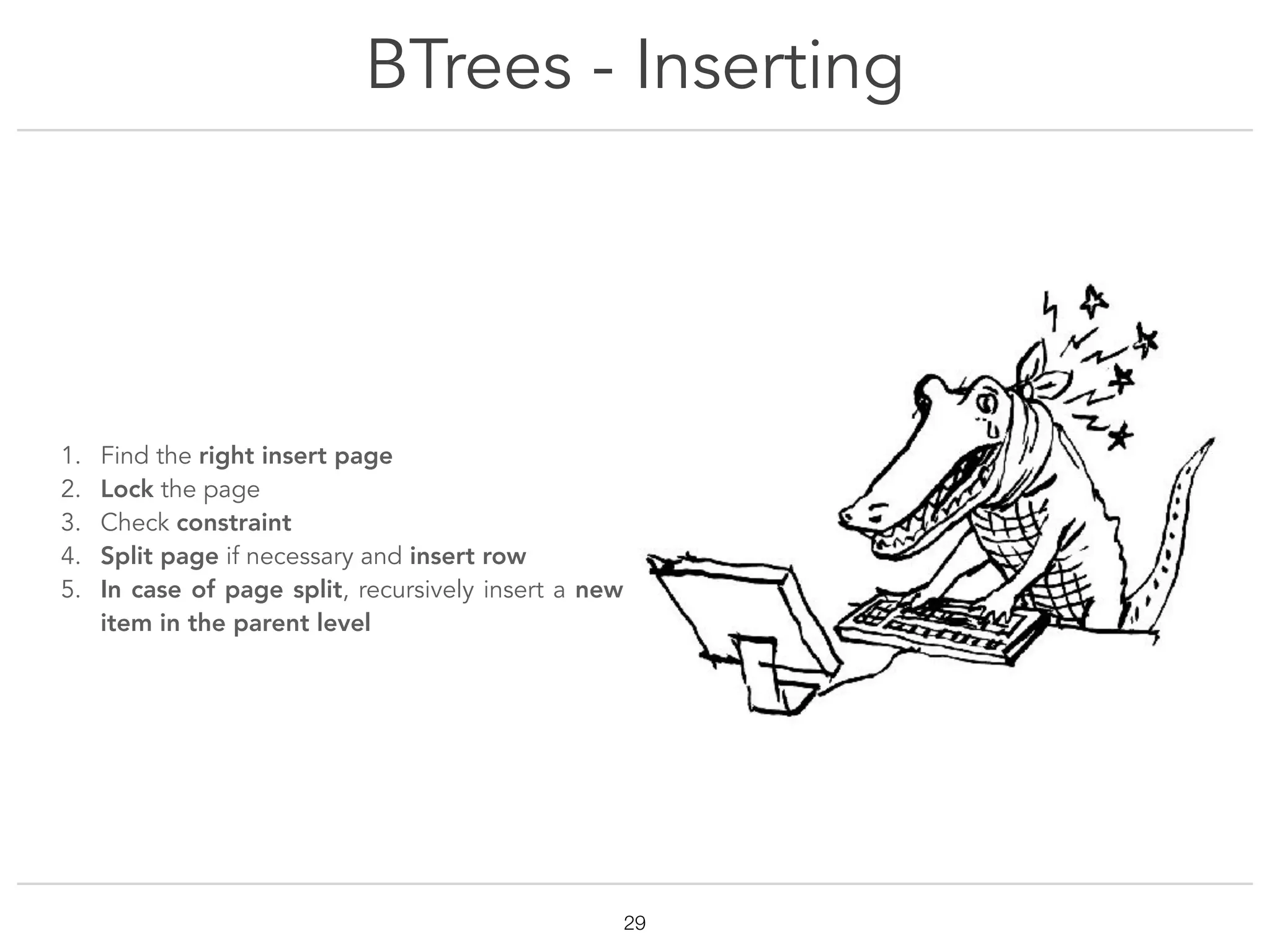

BTrees - Inserting
!29
1. Find the right insert page
2. Lock the page
3. Check constraint
4. Split page if necessary and insert row
5. In case of page split, recursively insert a new
item in the parent level

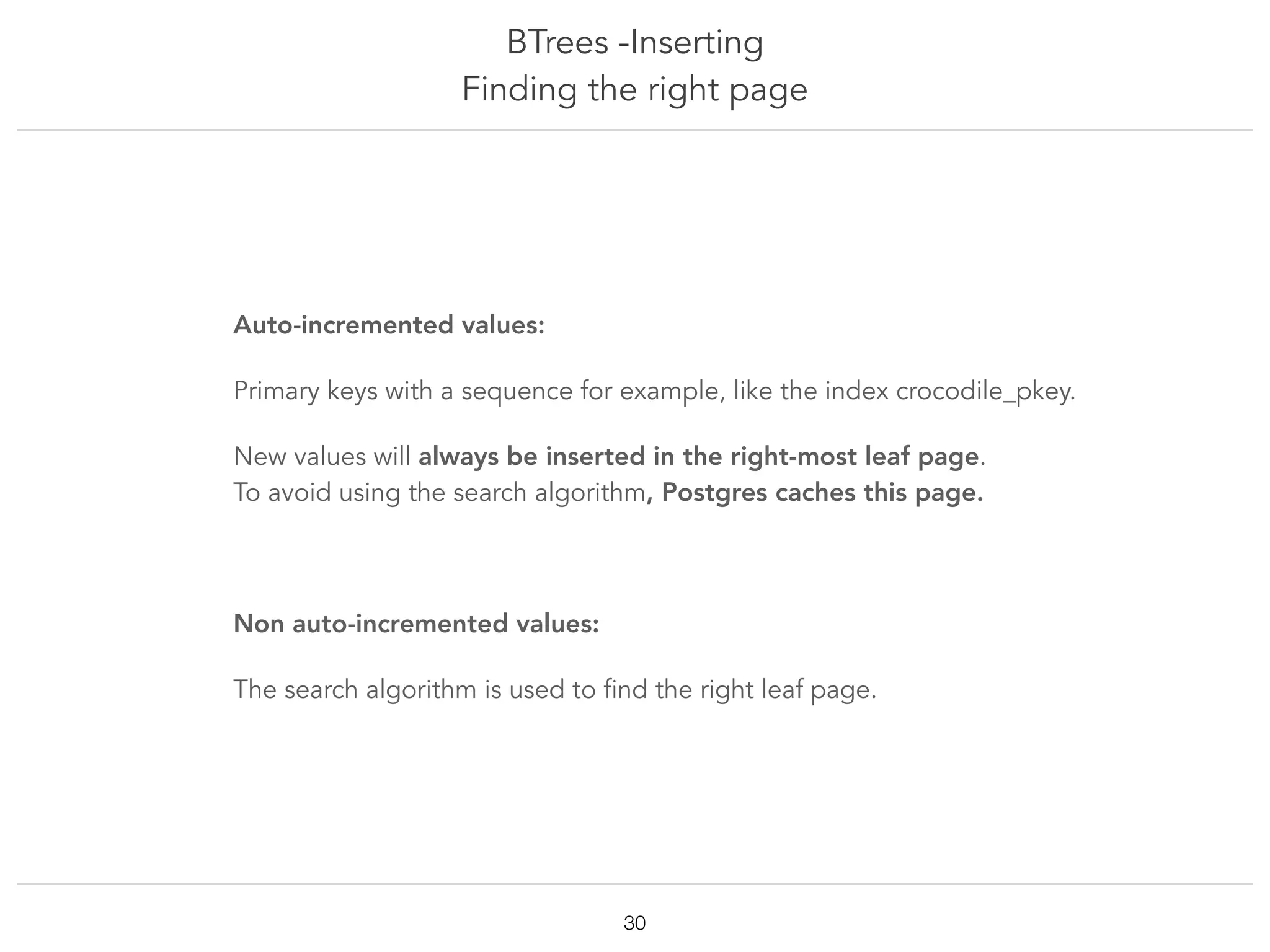

BTrees -Inserting
Finding the right page
!30
Auto-incremented values:
Primary keys with a sequence for example, like the index crocodile_pkey.
New values will always be inserted in the right-most leaf page.
To avoid using the search algorithm, Postgres caches this page.
Non auto-incremented values:
The search algorithm is used to find the right leaf page.

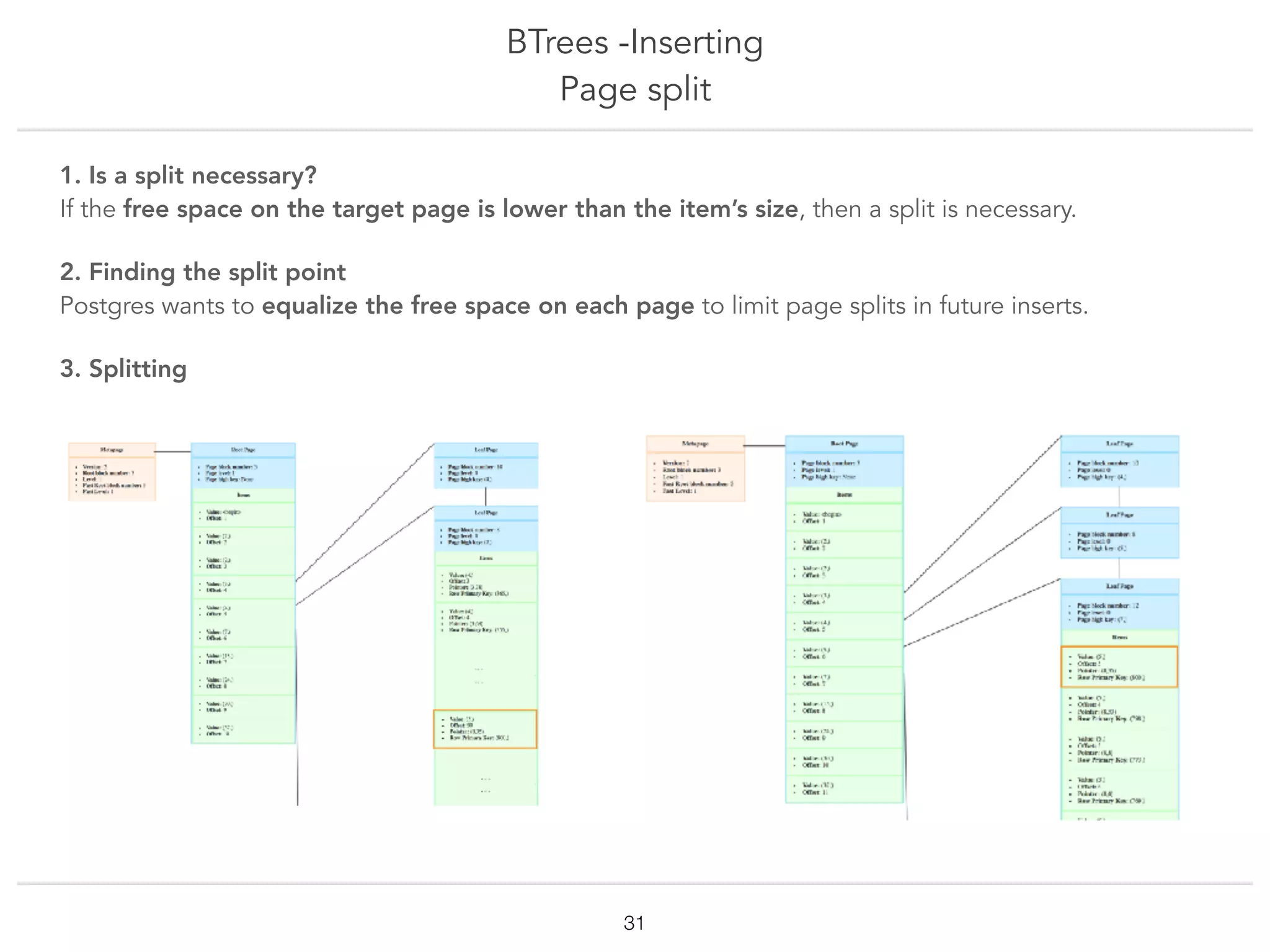

BTrees -Inserting
Page split
!31
1. Is a split necessary?
If the free space on the target page is lower than the item’s size, then a split is necessary.
2. Finding the split point
Postgres wants to equalize the free space on each page to limit page splits in future inserts.
3. Splitting

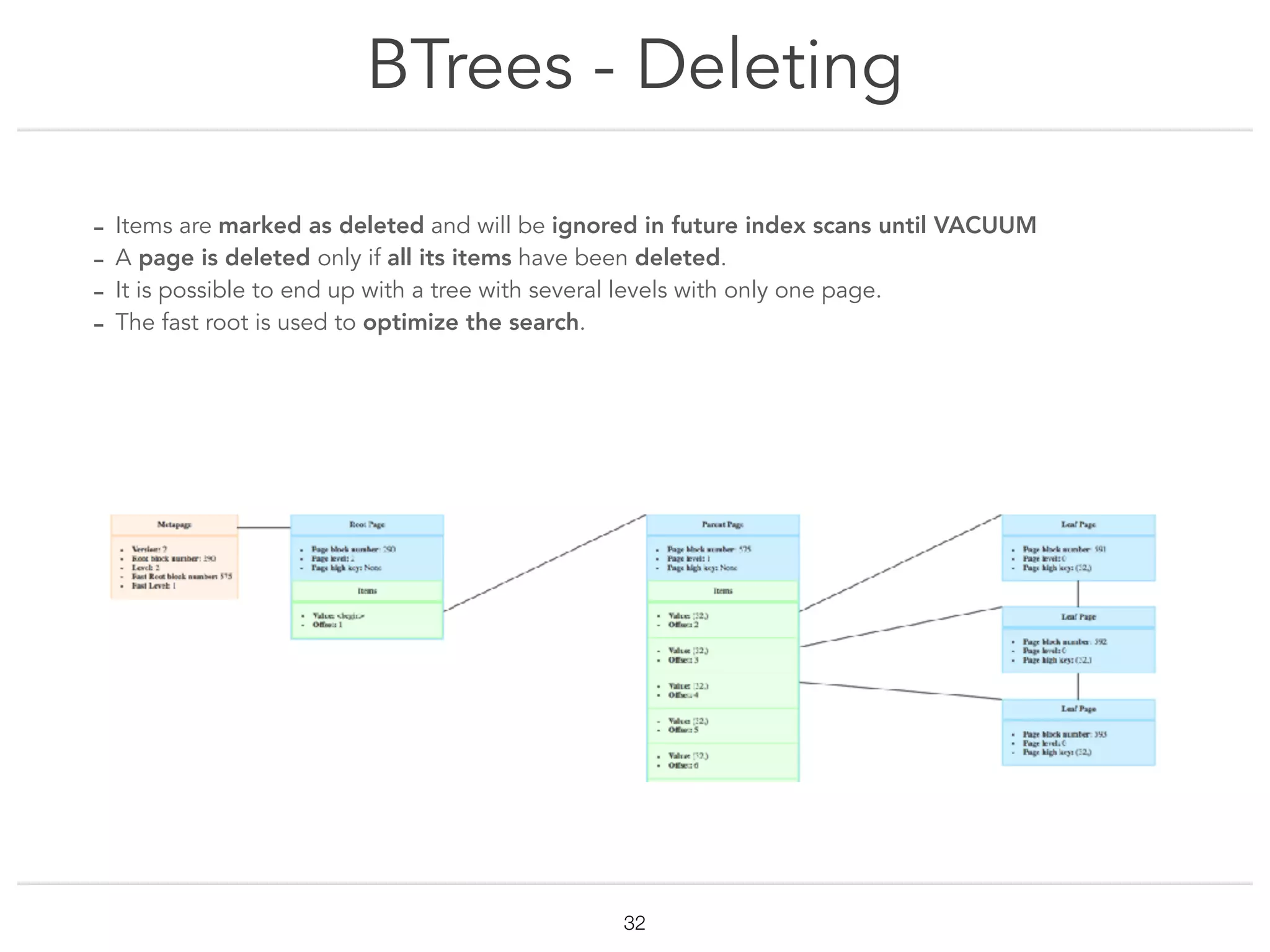

BTrees - Deleting
!32
- Items are marked as deleted and will be ignored in future index scans until VACUUM
- A page is deleted only if all its items have been deleted.
- It is possible to end up with a tree with several levels with only one page.
- The fast root is used to optimize the search.
33
GIN

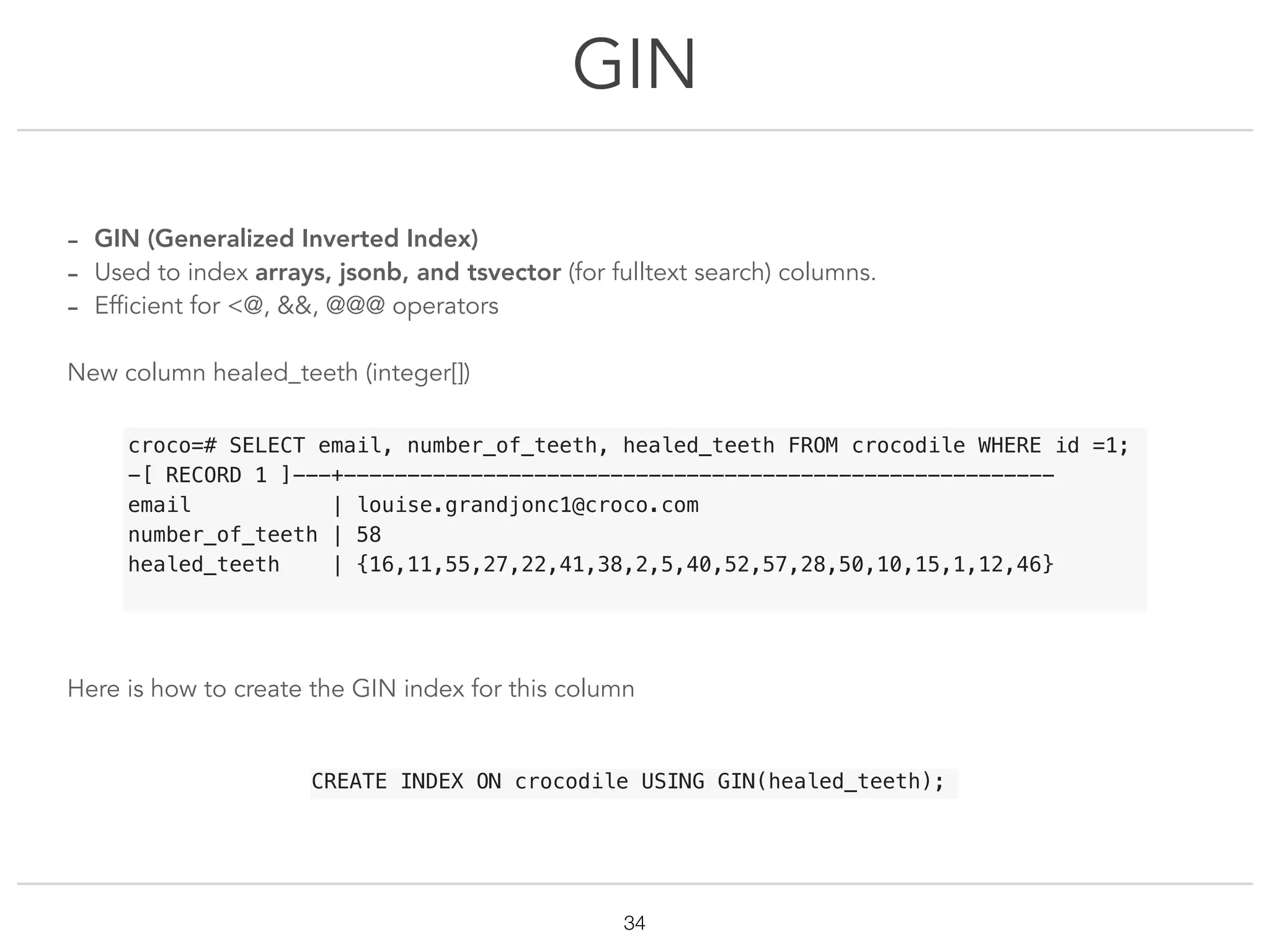

GIN
!34
- GIN (Generalized Inverted Index)
- Used to index arrays, jsonb, and tsvector (for fulltext search) columns.
- Efficient for <@, &&, @@@ operators
New column healed_teeth (integer[])

Here is how to create the GIN index for this column
croco=# SELECT email, number_of_teeth, healed_teeth FROM crocodile WHERE id =1;
-[ RECORD 1 ]---+--------------------------------------------------------
email | louise.grandjonc1@croco.com
number_of_teeth | 58
healed_teeth | {16,11,55,27,22,41,38,2,5,40,52,57,28,50,10,15,1,12,46}
CREATE INDEX ON crocodile USING GIN(healed_teeth);

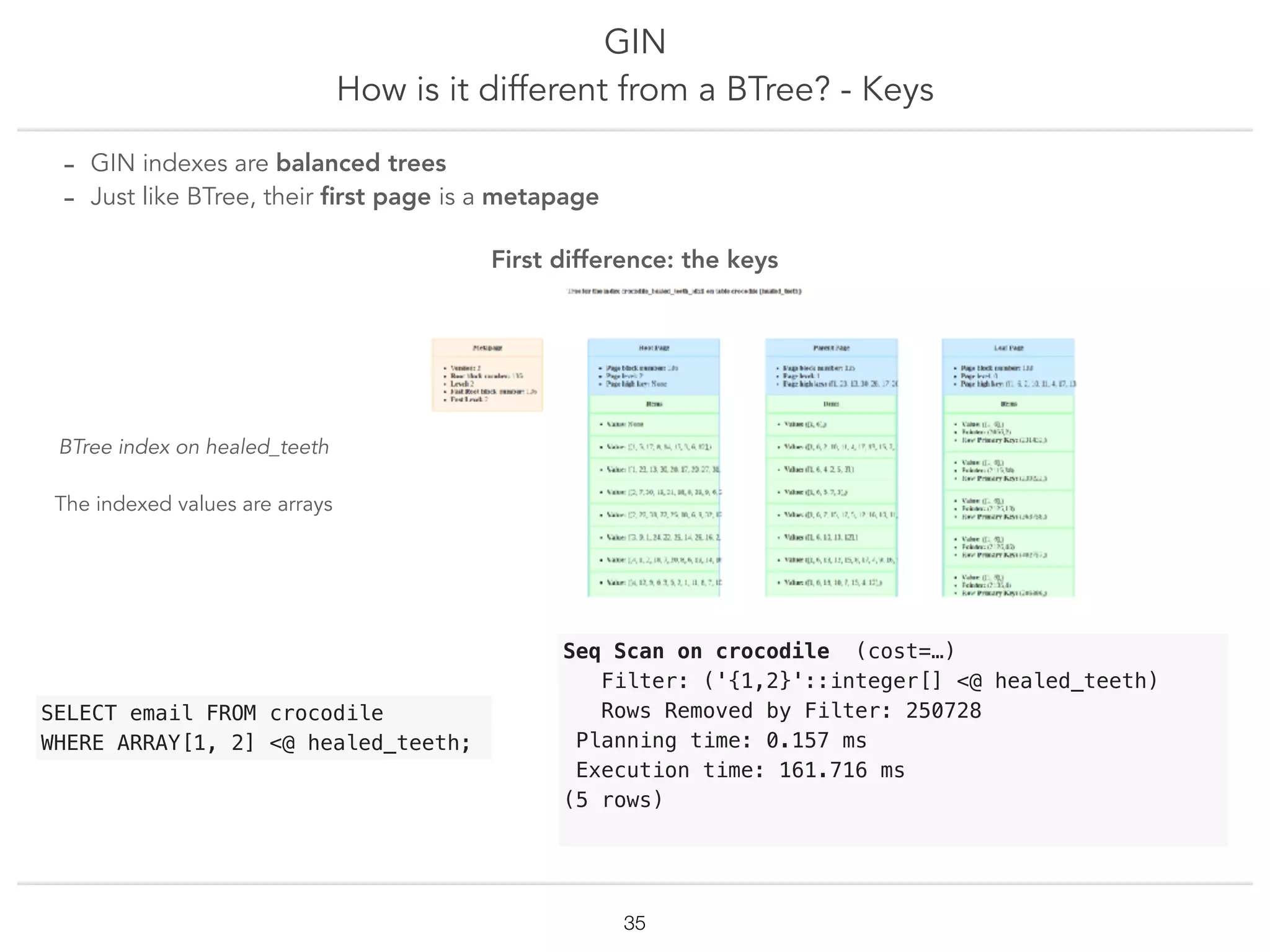

GIN
How is it different from a BTree? - Keys
!35
- GIN indexes are balanced trees
- Just like BTree, their first page is a metapage
First difference: the keys
BTree index on healed_teeth
The indexed values are arrays
Seq Scan on crocodile (cost=…)
Filter: ('{1,2}'::integer[] <@ healed_teeth)
Rows Removed by Filter: 250728
Planning time: 0.157 ms
Execution time: 161.716 ms
(5 rows)
SELECT email FROM crocodile
WHERE ARRAY[1, 2] <@ healed_teeth;

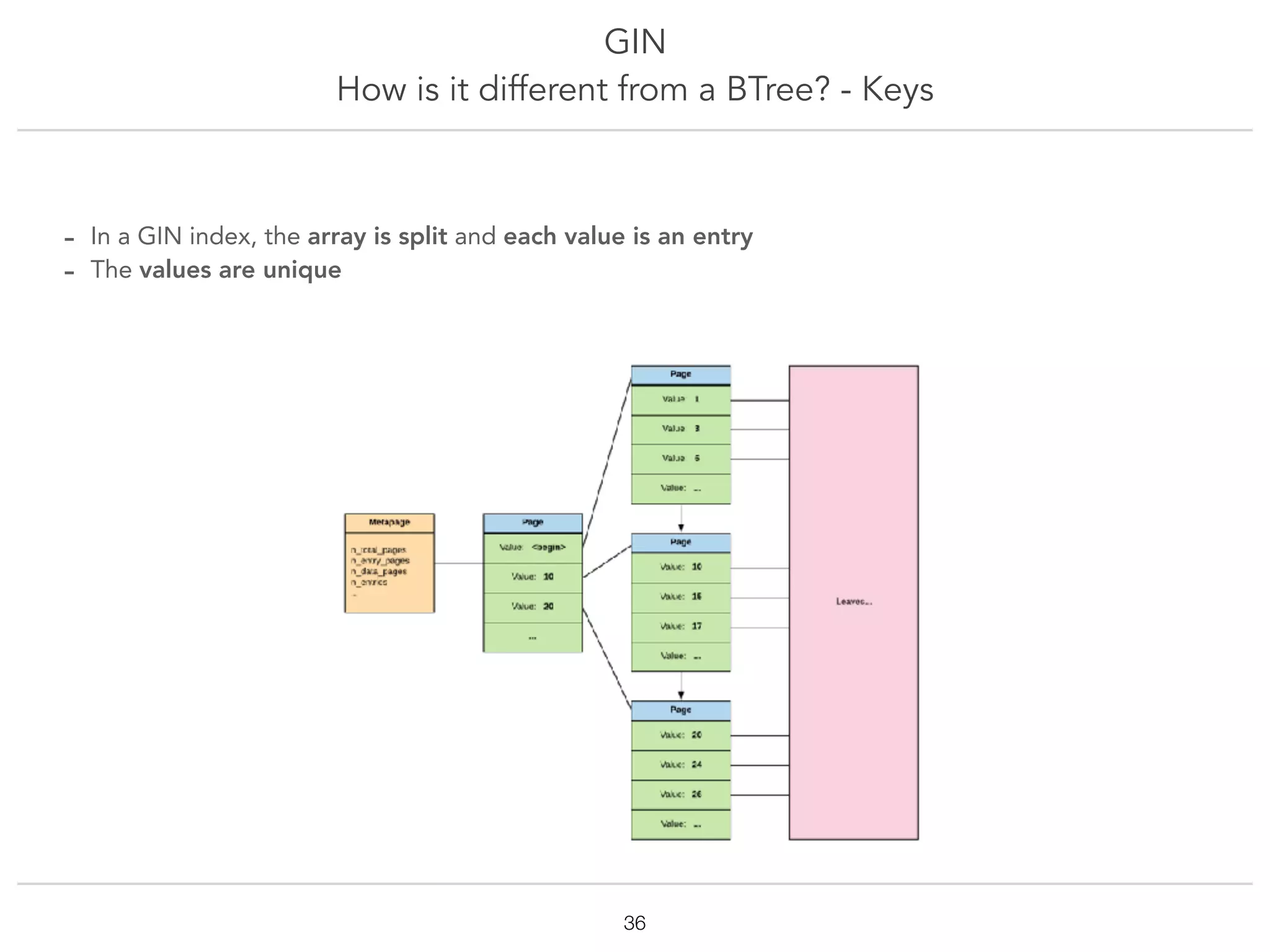

GIN
How is it different from a BTree? - Keys
!36
- In a GIN index, the array is split and each value is an entry
- The values are unique

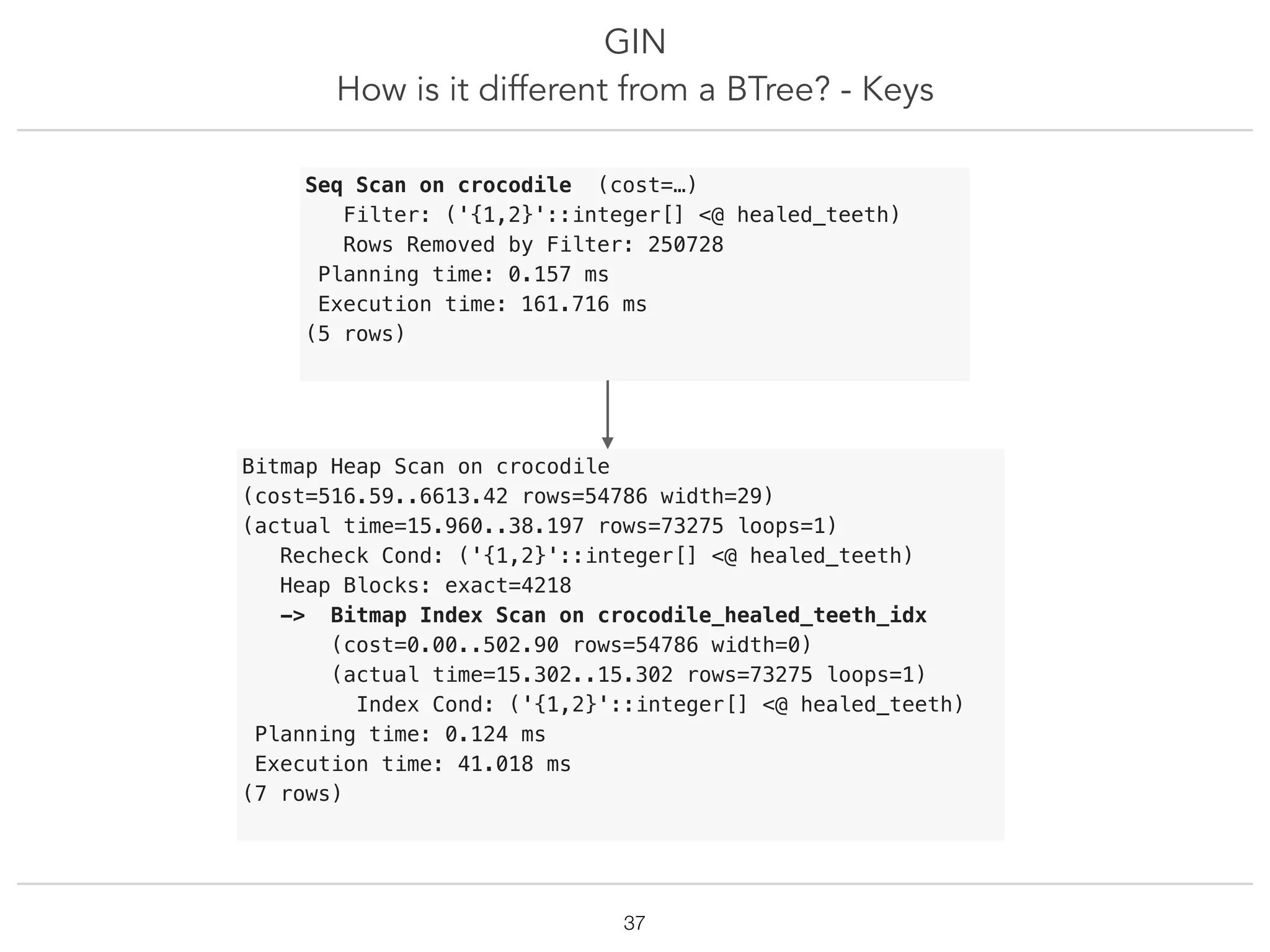

GIN
How is it different from a BTree? - Keys
!37
Bitmap Heap Scan on crocodile
(cost=516.59..6613.42 rows=54786 width=29)
(actual time=15.960..38.197 rows=73275 loops=1)
Recheck Cond: ('{1,2}'::integer[] <@ healed_teeth)
Heap Blocks: exact=4218
-> Bitmap Index Scan on crocodile_healed_teeth_idx
(cost=0.00..502.90 rows=54786 width=0)
(actual time=15.302..15.302 rows=73275 loops=1)
Index Cond: ('{1,2}'::integer[] <@ healed_teeth)
Planning time: 0.124 ms
Execution time: 41.018 ms
(7 rows)
Seq Scan on crocodile (cost=…)
Filter: ('{1,2}'::integer[] <@ healed_teeth)
Rows Removed by Filter: 250728
Planning time: 0.157 ms
Execution time: 161.716 ms
(5 rows)
GIN

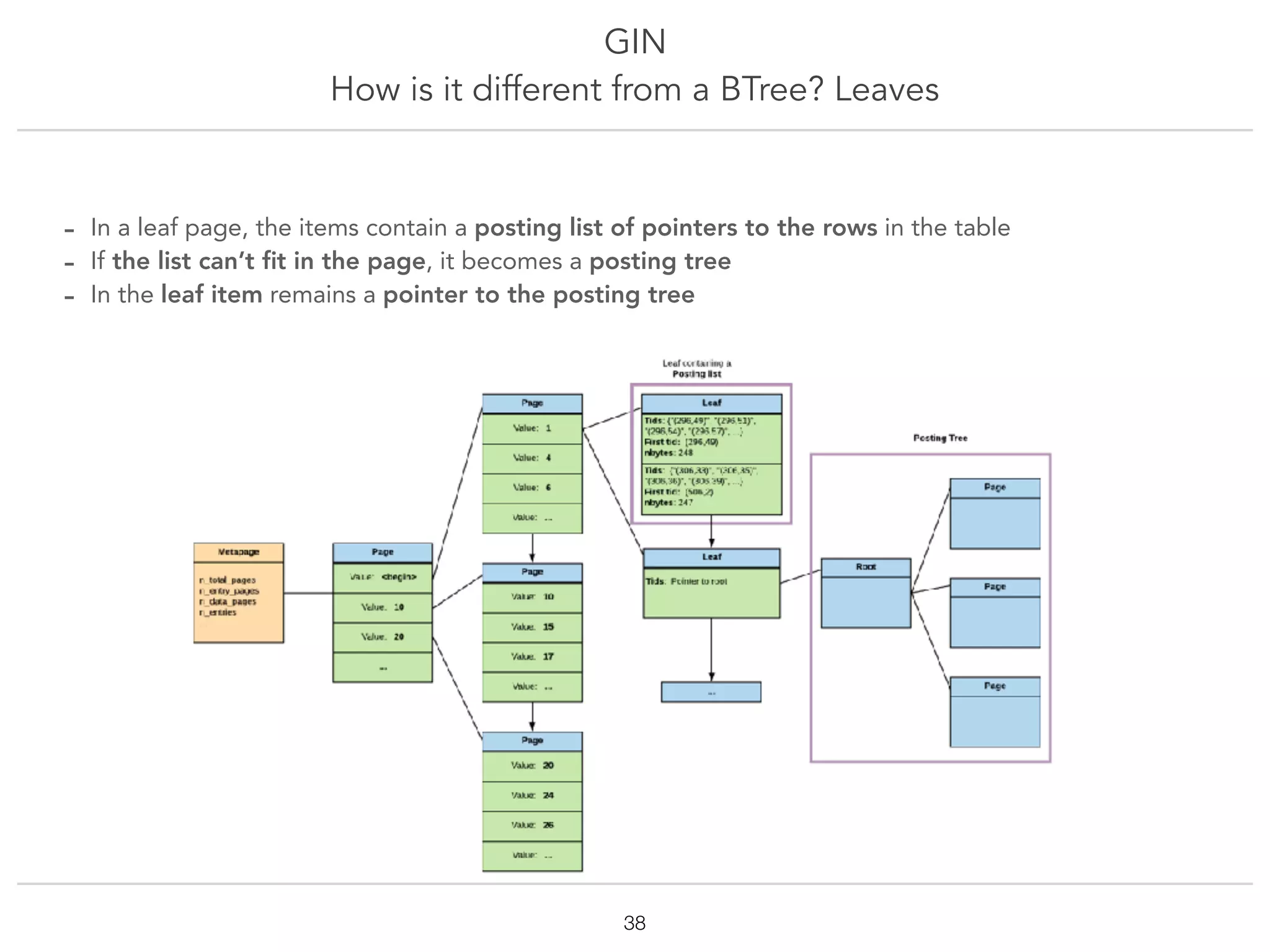

How is it different from a BTree? Leaves
!38
- In a leaf page, the items contain a posting list of pointers to the rows in the table
- If the list can’t fit in the page, it becomes a posting tree
- In the leaf item remains a pointer to the posting tree
GIN

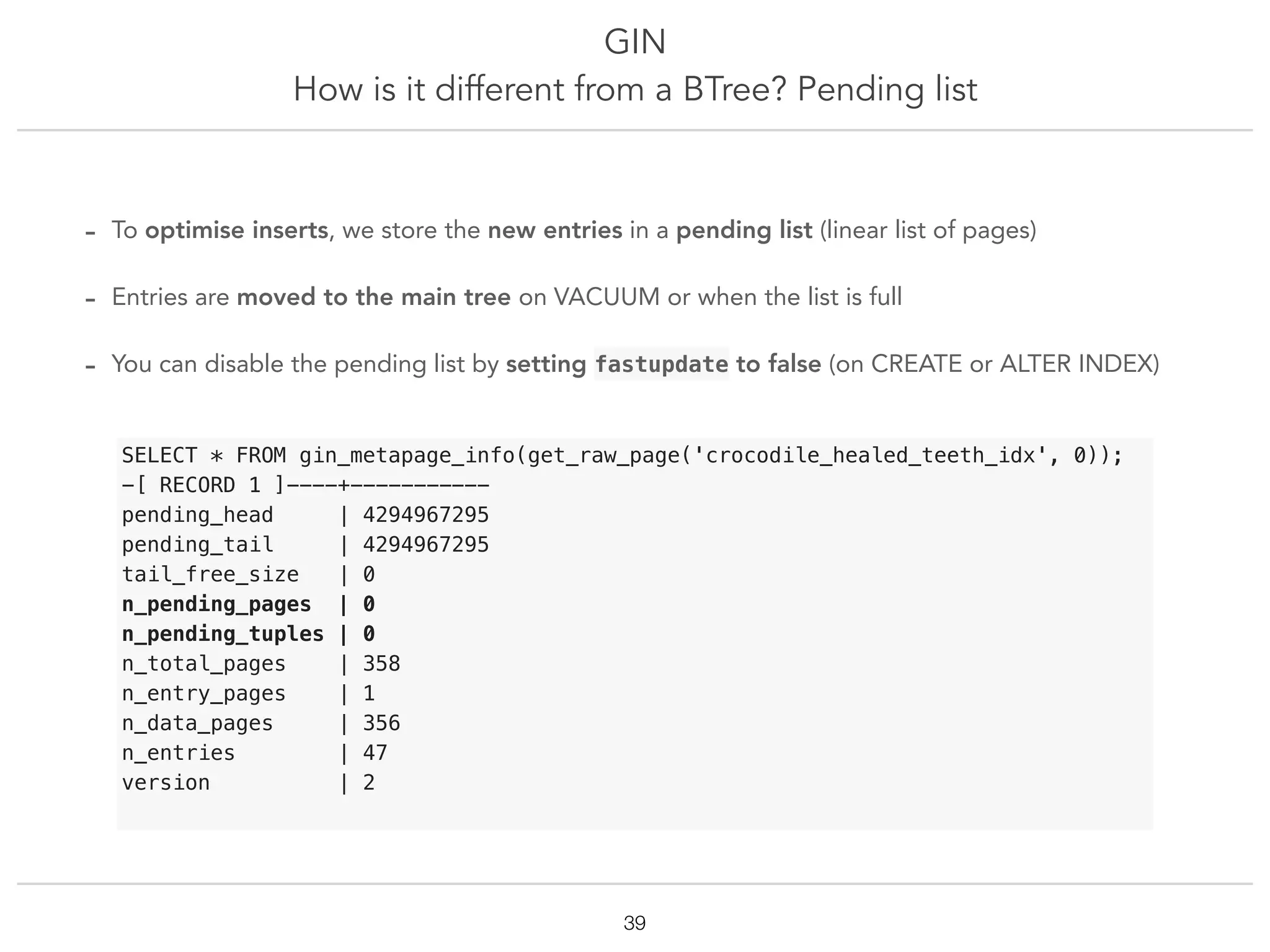

How is it different from a BTree? Pending list
!39
- To optimise inserts, we store the new entries in a pending list (linear list of pages)
- Entries are moved to the main tree on VACUUM or when the list is full
- You can disable the pending list by setting fastupdate to false (on CREATE or ALTER INDEX)
SELECT * FROM gin_metapage_info(get_raw_page('crocodile_healed_teeth_idx', 0));
-[ RECORD 1 ]----+-----------
pending_head | 4294967295
pending_tail | 4294967295
tail_free_size | 0
n_pending_pages | 0
n_pending_tuples | 0
n_total_pages | 358
n_entry_pages | 1
n_data_pages | 356
n_entries | 47
version | 2

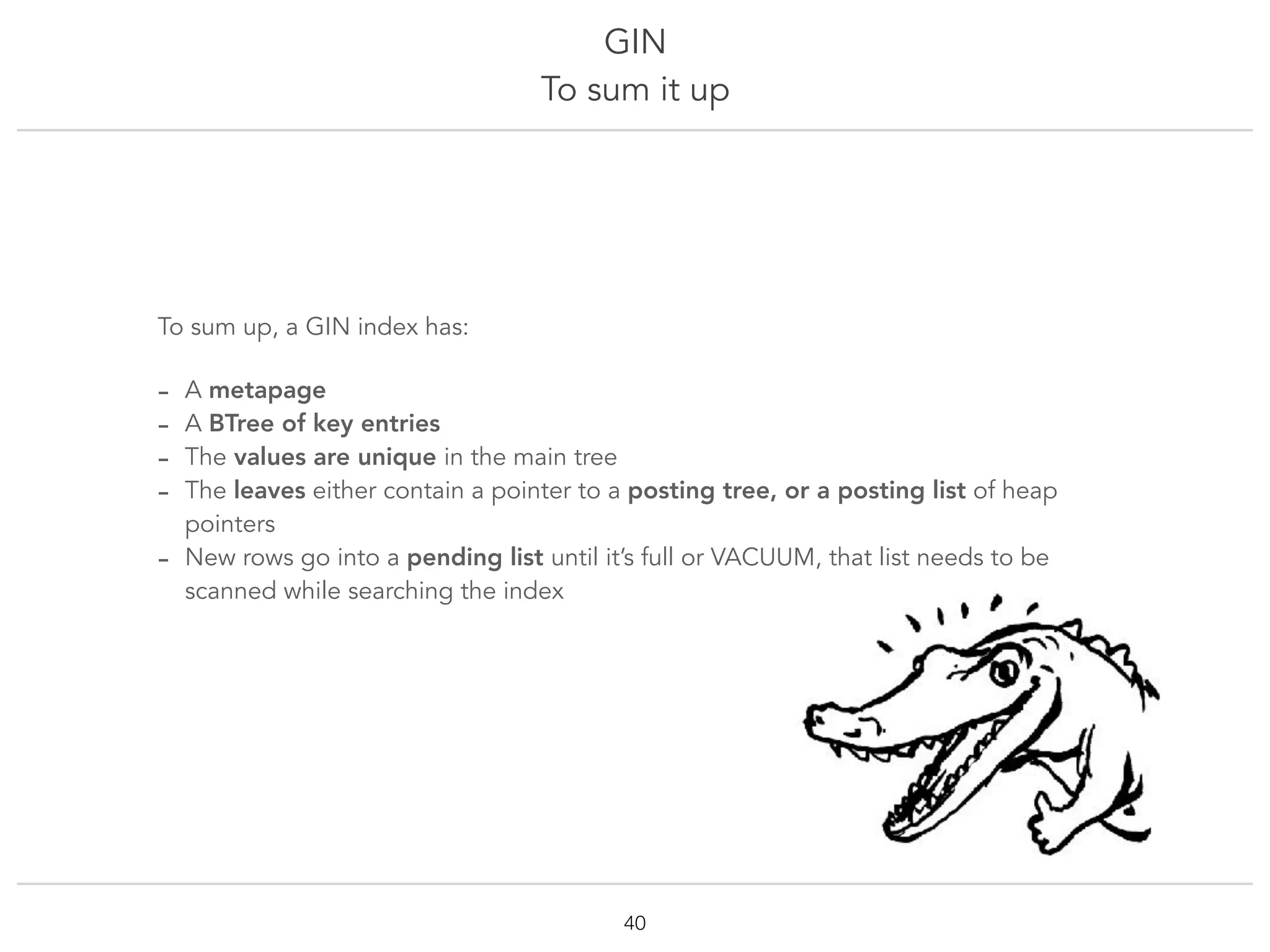

GIN
To sum it up
!40
To sum up, a GIN index has:
- A metapage
- A BTree of key entries
- The values are unique in the main tree
- The leaves either contain a pointer to a posting tree, or a posting list of heap
pointers
- New rows go into a pending list until it’s full or VACUUM, that list needs to be
scanned while searching the index
41
GIST

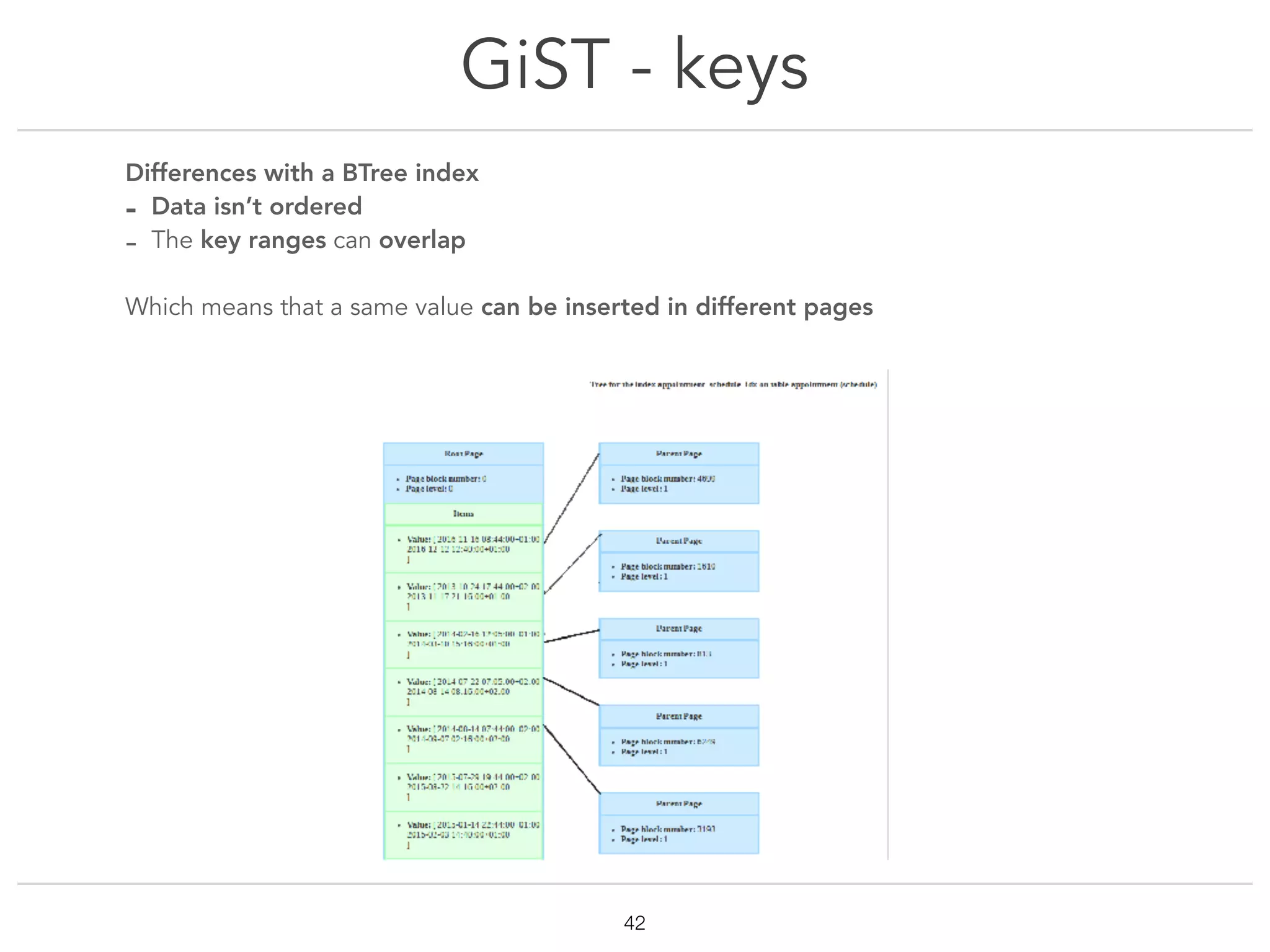

GiST - keys
!42
Differences with a BTree index
- Data isn’t ordered
- The key ranges can overlap
Which means that a same value can be inserted in different pages

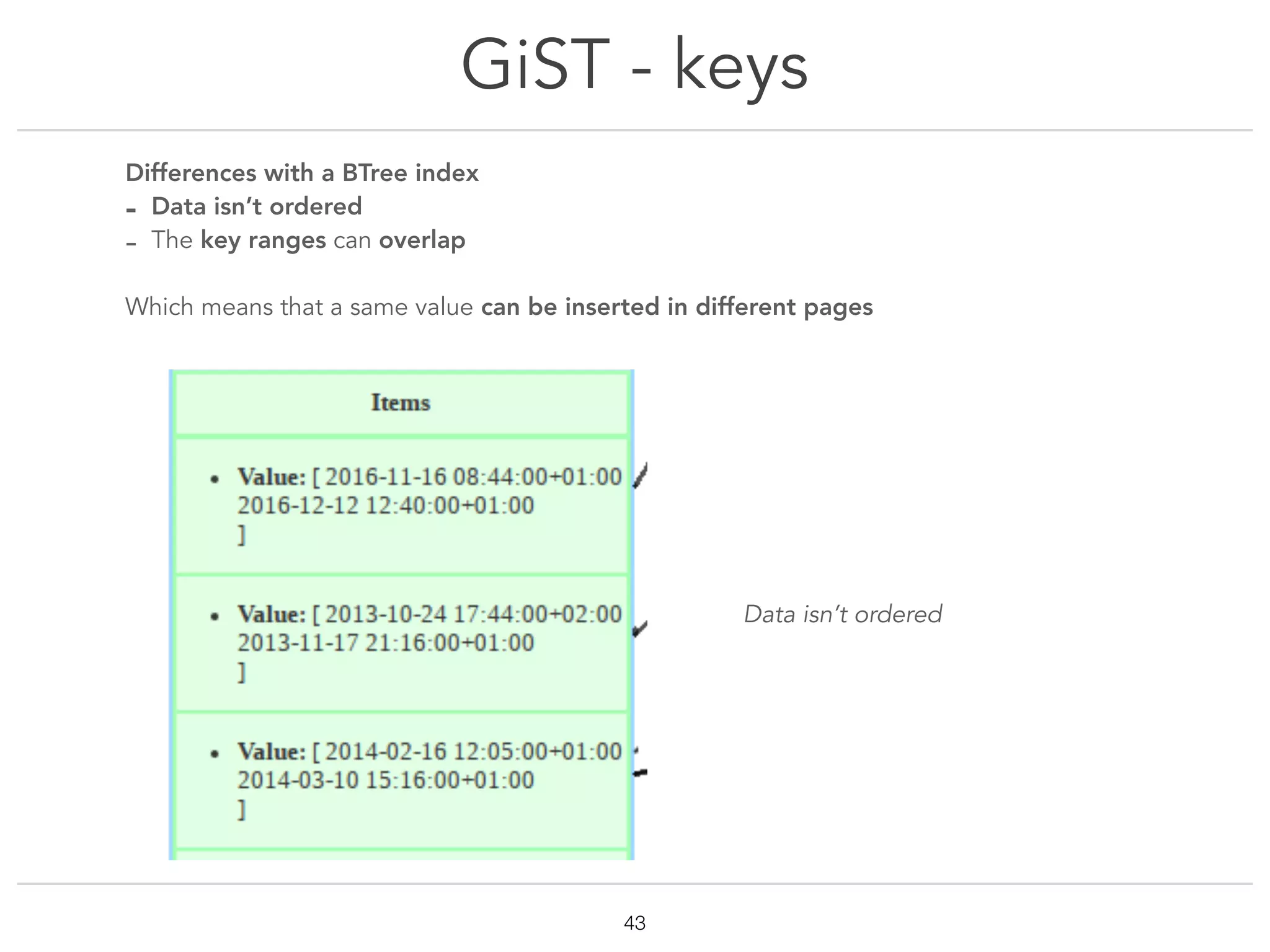

GiST - keys
!43
Differences with a BTree index
- Data isn’t ordered
- The key ranges can overlap
Which means that a same value can be inserted in different pages
Data isn’t ordered

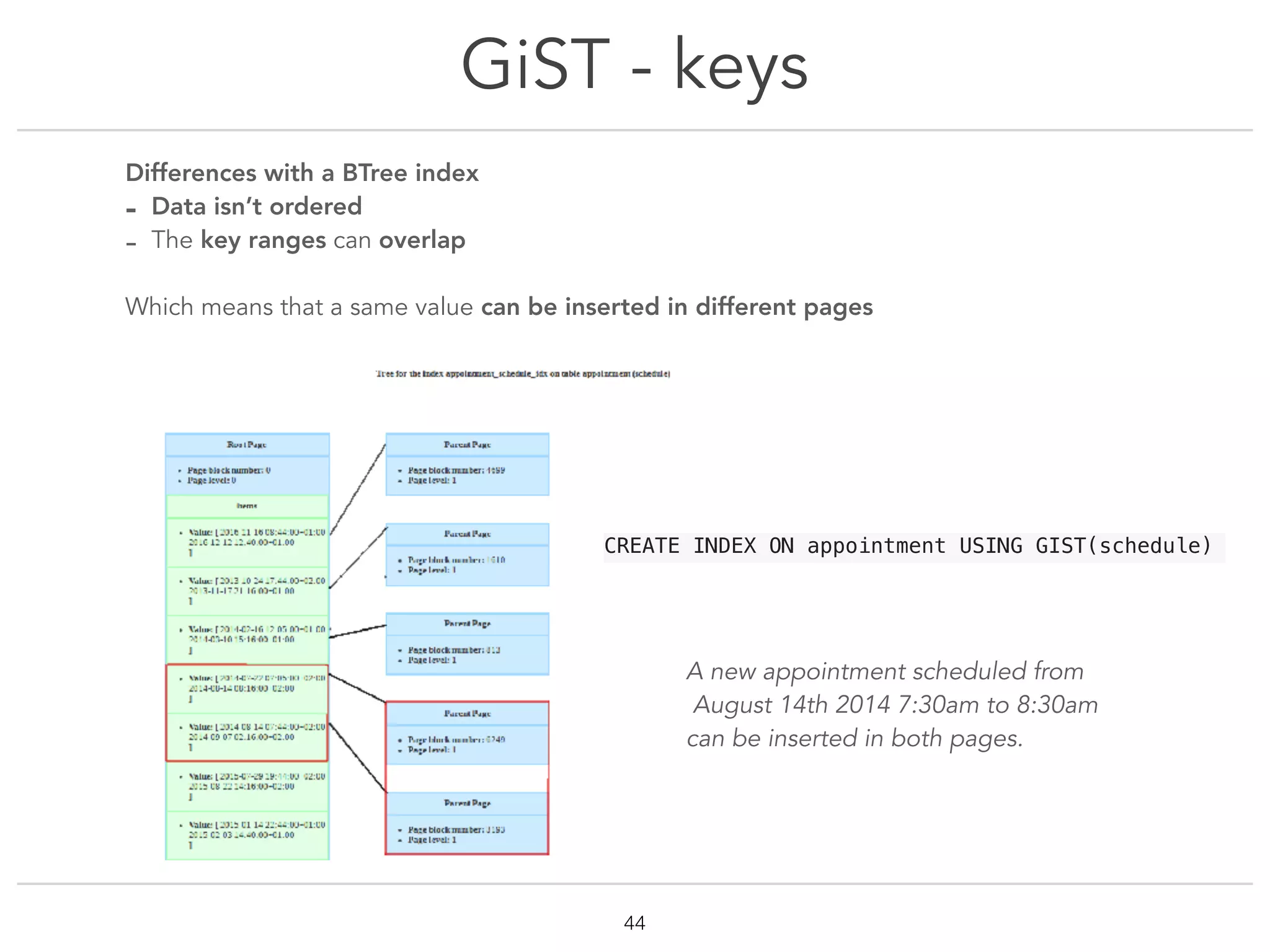

GiST - keys
!44
A new appointment scheduled from
 August 14th 2014 7:30am to 8:30am
can be inserted in both pages.
CREATE INDEX ON appointment USING GIST(schedule)
Differences with a BTree index
- Data isn’t ordered
- The key ranges can overlap
Which means that a same value can be inserted in different pages

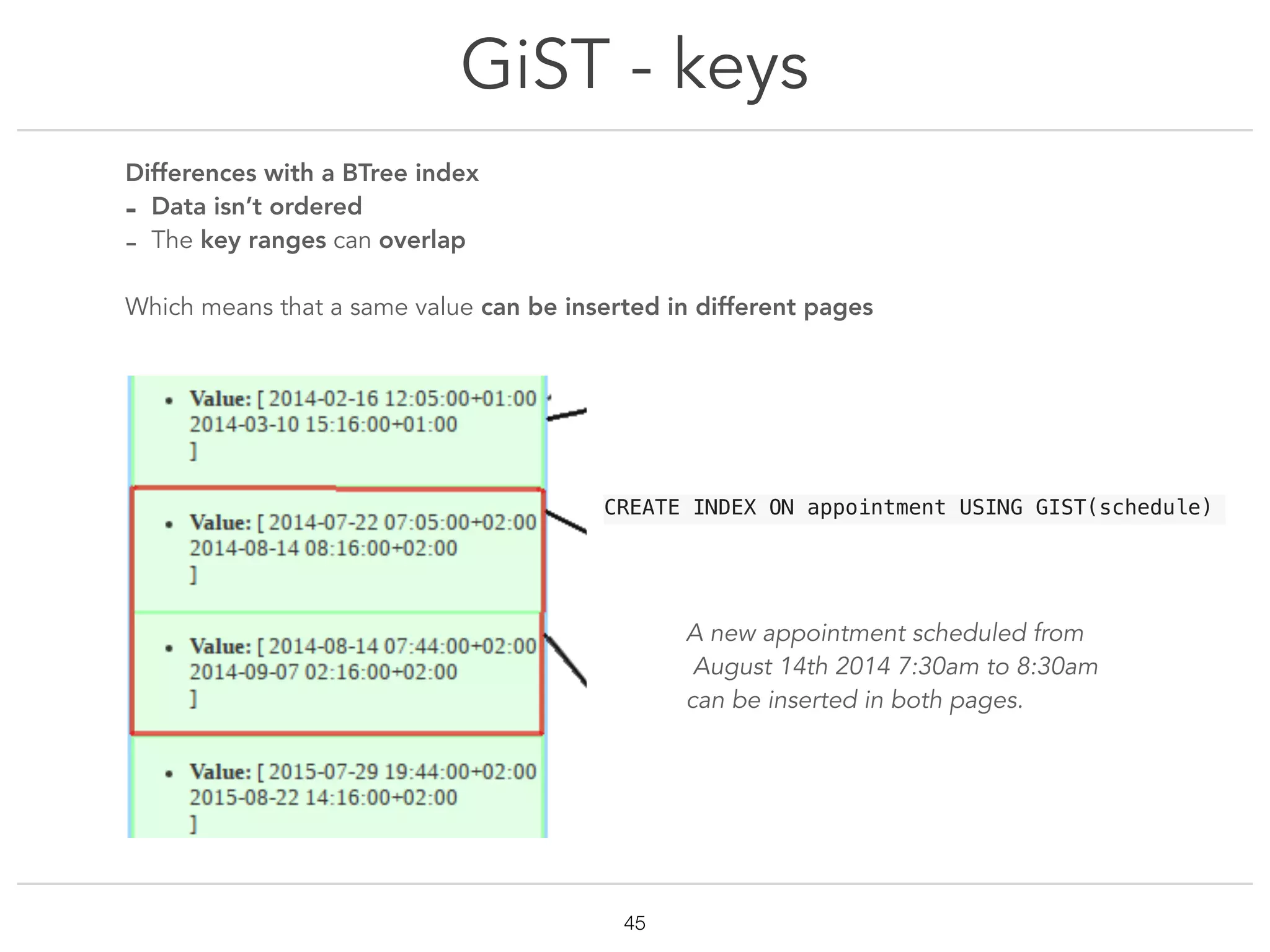

GiST - keys
!45
Differences with a BTree index
- Data isn’t ordered
- The key ranges can overlap
Which means that a same value can be inserted in different pages
A new appointment scheduled from
 August 14th 2014 7:30am to 8:30am
can be inserted in both pages.
CREATE INDEX ON appointment USING GIST(schedule)

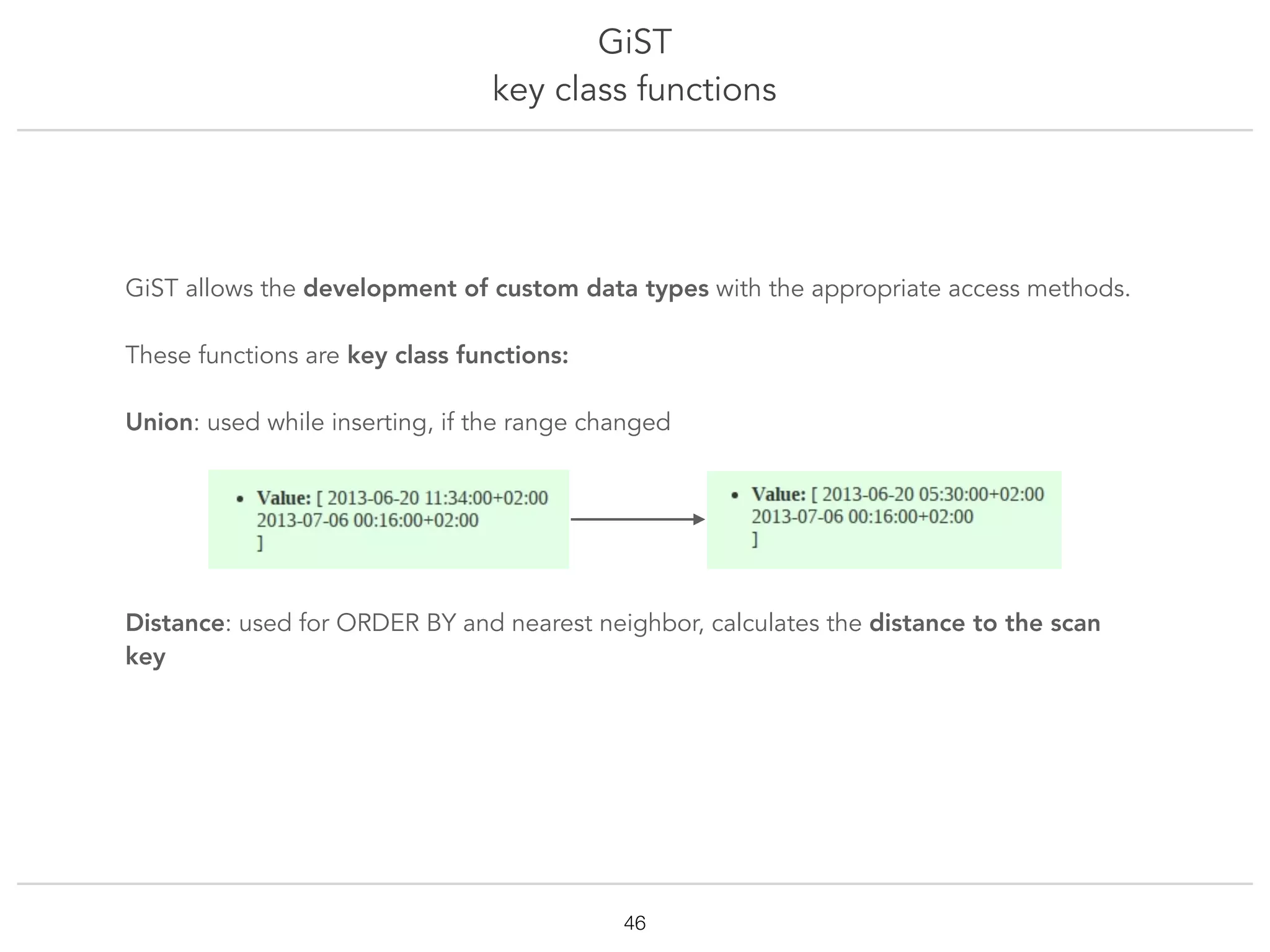

GiST
key class functions
!46
GiST allows the development of custom data types with the appropriate access methods.
These functions are key class functions:
Union: used while inserting, if the range changed
Distance: used for ORDER BY and nearest neighbor, calculates the distance to the scan
key

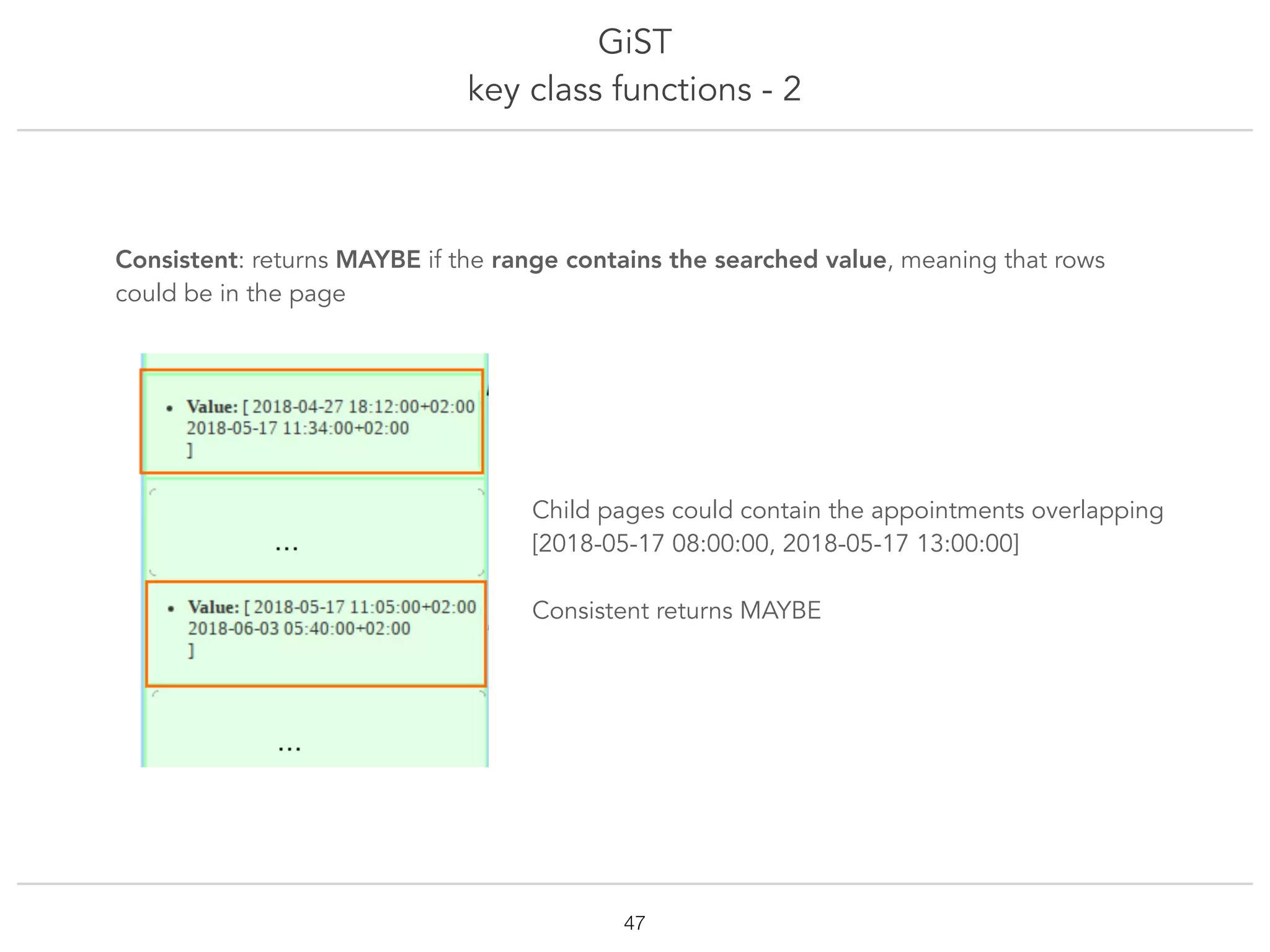

GiST
key class functions - 2
!47
Consistent: returns MAYBE if the range contains the searched value, meaning that rows
could be in the page
Child pages could contain the appointments overlapping
[2018-05-17 08:00:00, 2018-05-17 13:00:00]
Consistent returns MAYBE

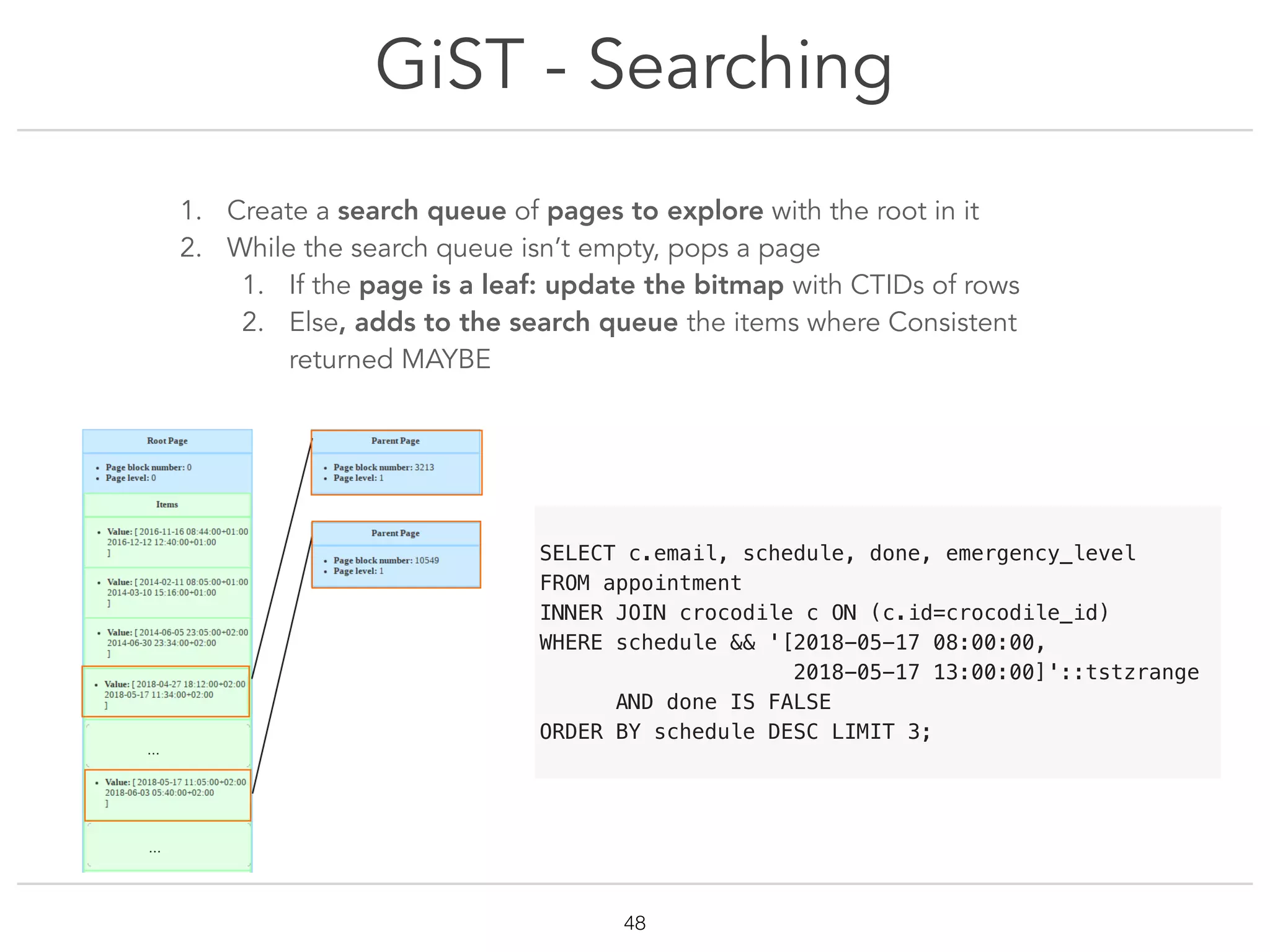

GiST - Searching
!48
SELECT c.email, schedule, done, emergency_level
FROM appointment
INNER JOIN crocodile c ON (c.id=crocodile_id)
WHERE schedule && '[2018-05-17 08:00:00,
2018-05-17 13:00:00]'::tstzrange
AND done IS FALSE
ORDER BY schedule DESC LIMIT 3;
1. Create a search queue of pages to explore with the root in it
2. While the search queue isn’t empty, pops a page
1. If the page is a leaf: update the bitmap with CTIDs of rows
2. Else, adds to the search queue the items where Consistent
returned MAYBE

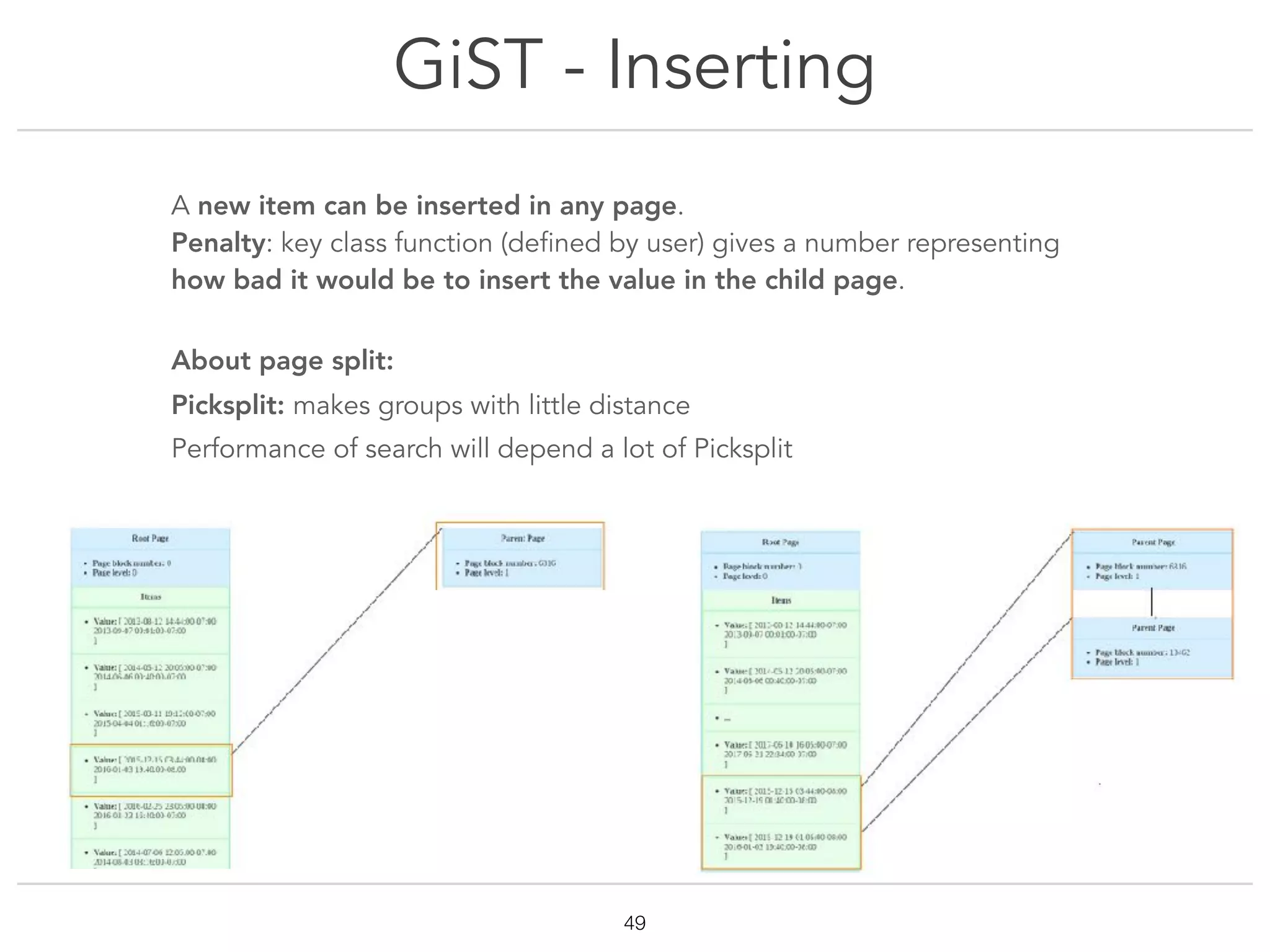

GiST - Inserting
!49
A new item can be inserted in any page.
Penalty: key class function (defined by user) gives a number representing
how bad it would be to insert the value in the child page.
About page split:
Picksplit: makes groups with little distance
Performance of search will depend a lot of Picksplit

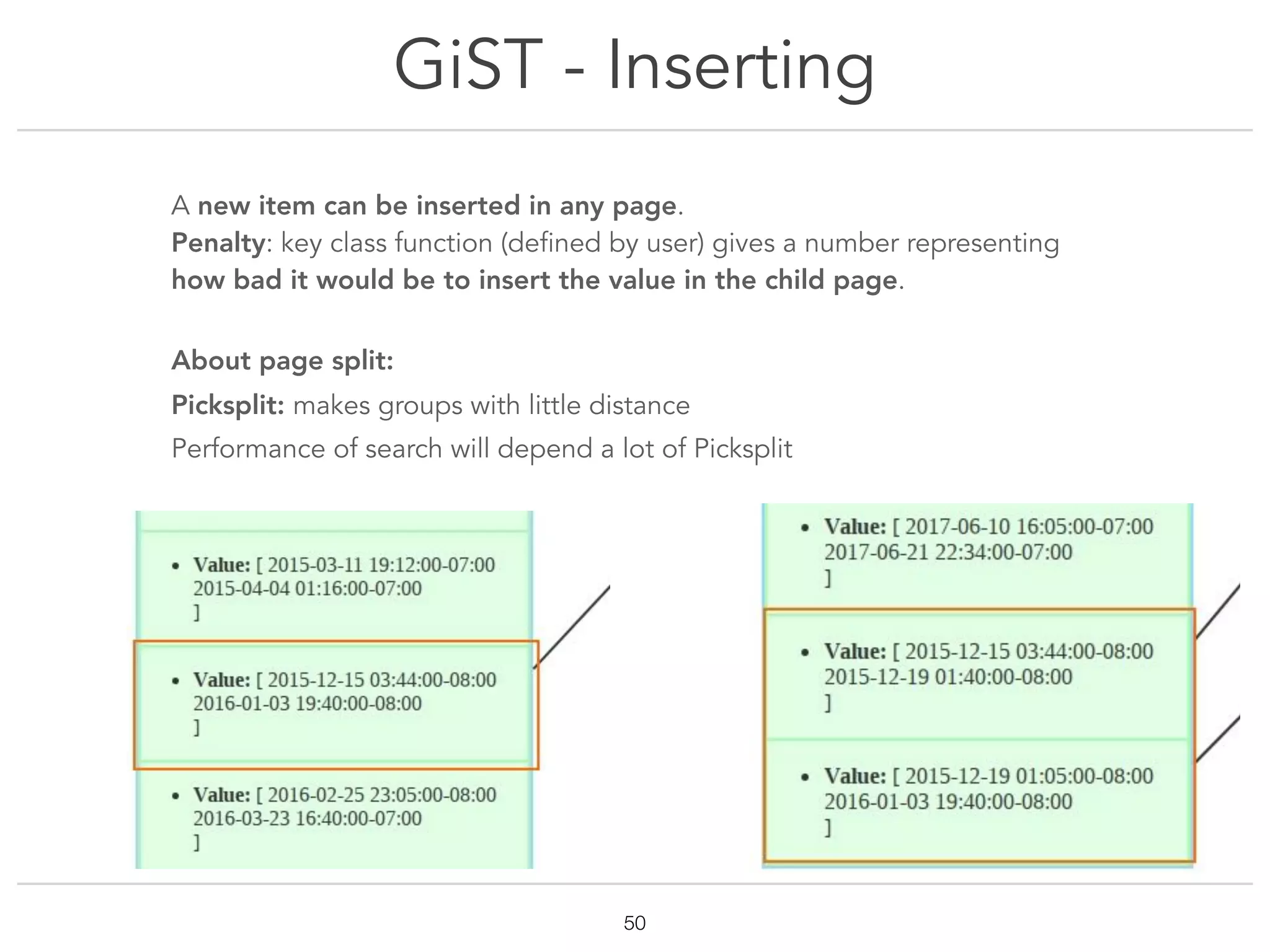

GiST - Inserting
!50
A new item can be inserted in any page.
Penalty: key class function (defined by user) gives a number representing
how bad it would be to insert the value in the child page.
About page split:
Picksplit: makes groups with little distance
Performance of search will depend a lot of Picksplit

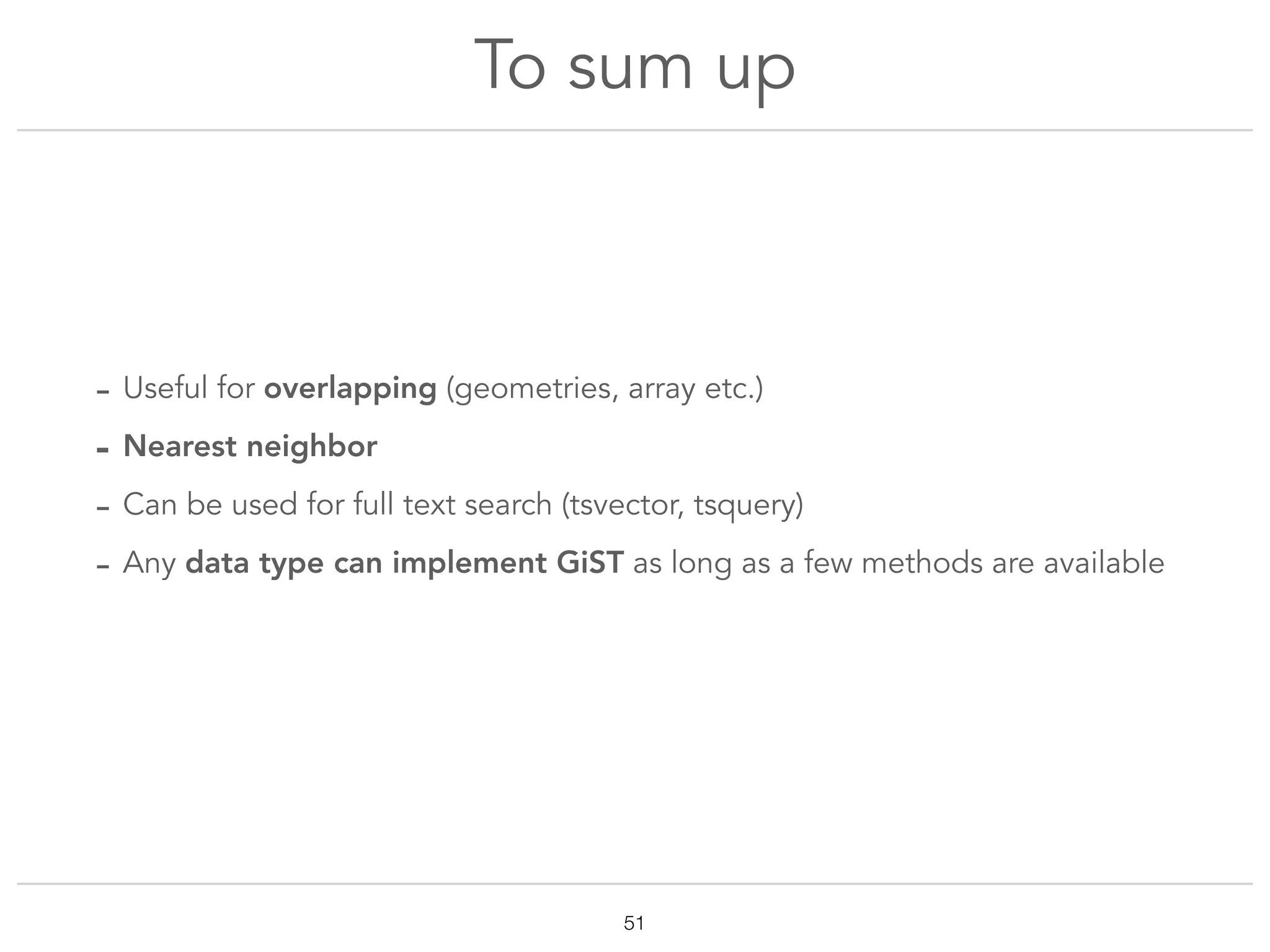

To sum up
!51
- Useful for overlapping (geometries, array etc.)
- Nearest neighbor
- Can be used for full text search (tsvector, tsquery)
- Any data type can implement GiST as long as a few methods are available

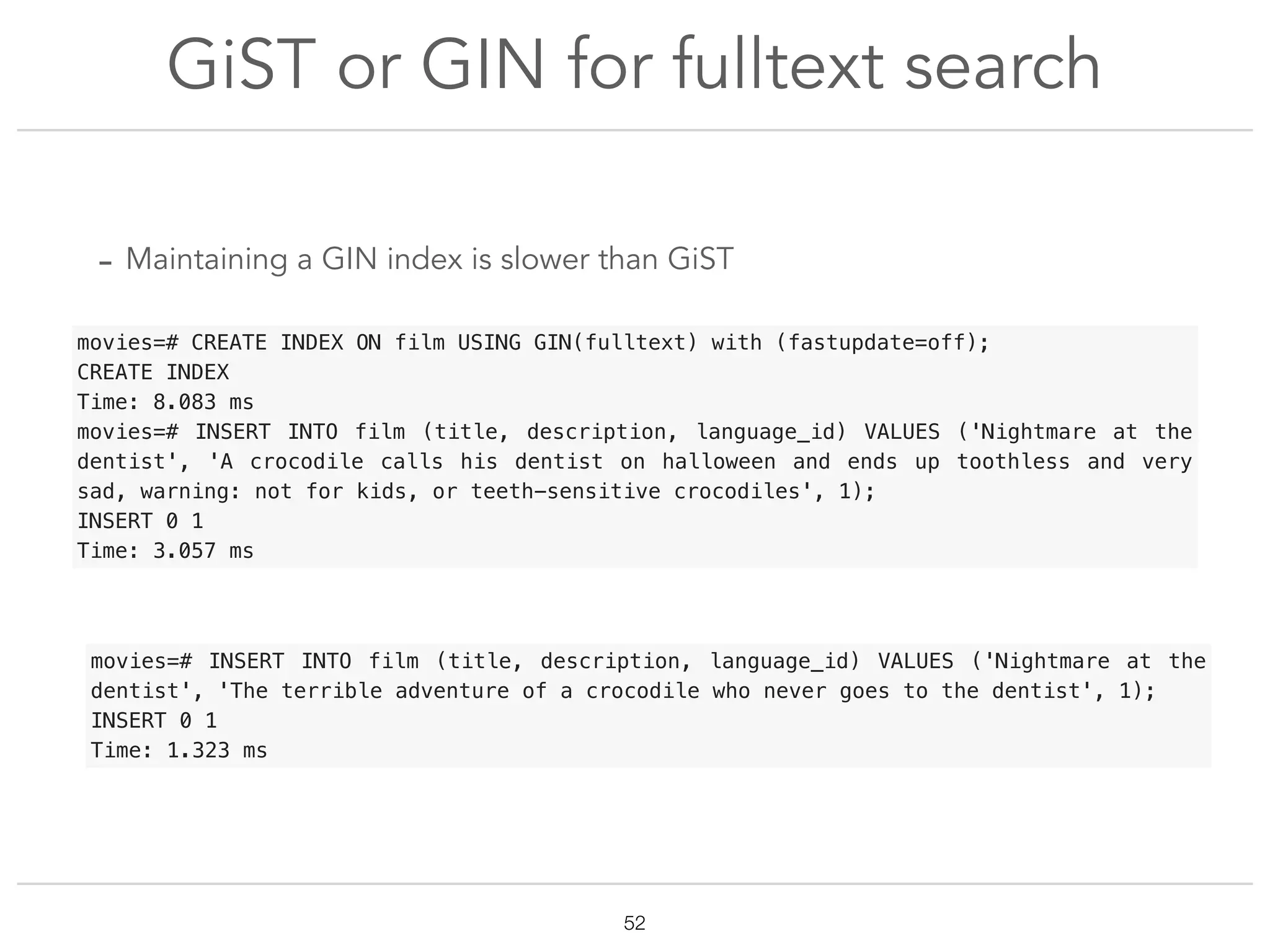

GiST or GIN for fulltext search
!52
movies=# CREATE INDEX ON film USING GIN(fulltext) with (fastupdate=off);
CREATE INDEX
Time: 8.083 ms
movies=# INSERT INTO film (title, description, language_id) VALUES ('Nightmare at the
dentist', 'A crocodile calls his dentist on halloween and ends up toothless and very
sad, warning: not for kids, or teeth-sensitive crocodiles', 1);
INSERT 0 1
Time: 3.057 ms
movies=# INSERT INTO film (title, description, language_id) VALUES ('Nightmare at the
dentist', 'The terrible adventure of a crocodile who never goes to the dentist', 1);
INSERT 0 1
Time: 1.323 ms
- Maintaining a GIN index is slower than GiST

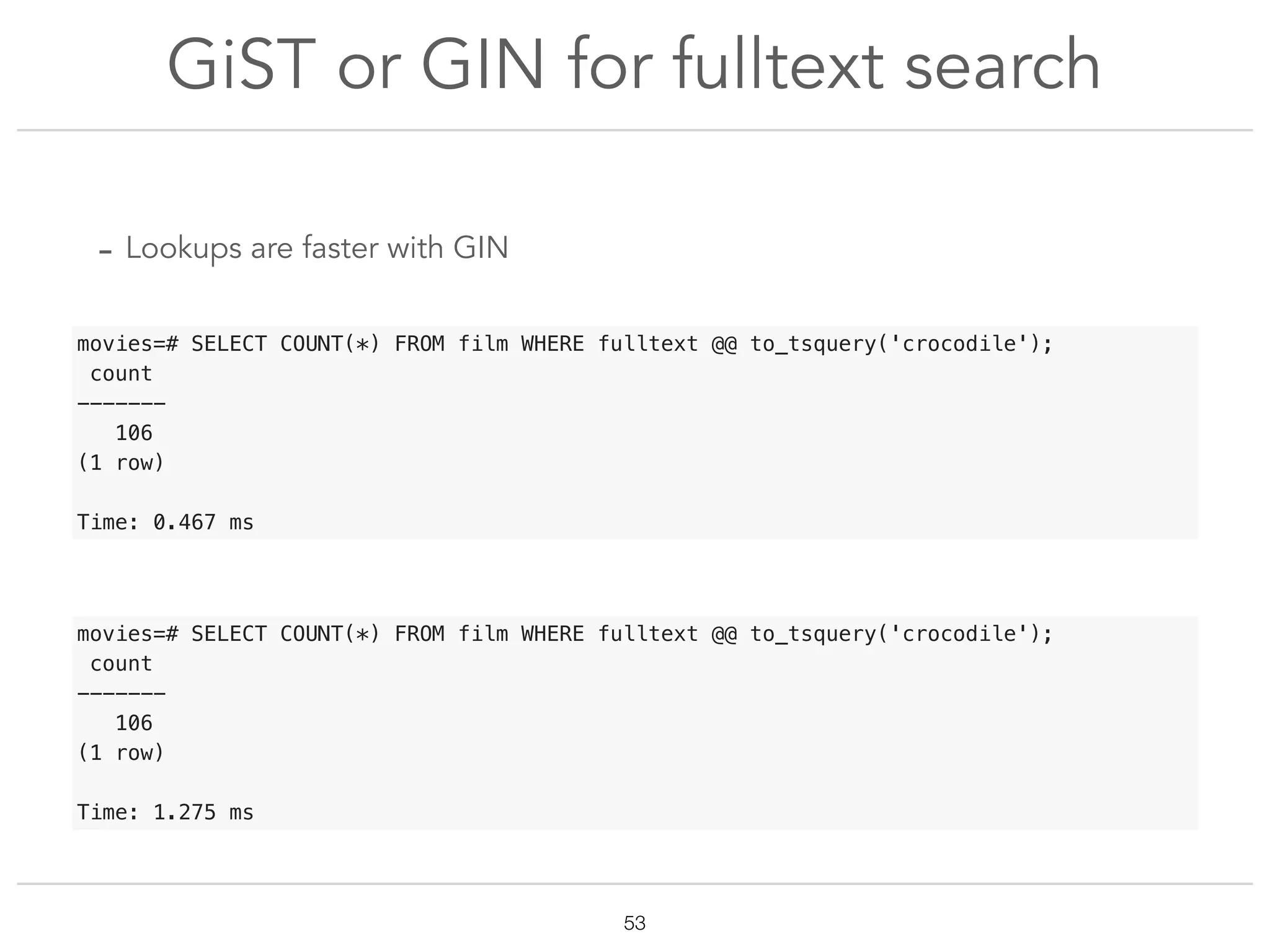

GiST or GIN for fulltext search
!53
- Lookups are faster with GIN
movies=# SELECT COUNT(*) FROM film WHERE fulltext @@ to_tsquery('crocodile');
count
-------
106
(1 row)
Time: 1.275 ms
movies=# SELECT COUNT(*) FROM film WHERE fulltext @@ to_tsquery('crocodile');
count
-------
106
(1 row)
Time: 0.467 ms

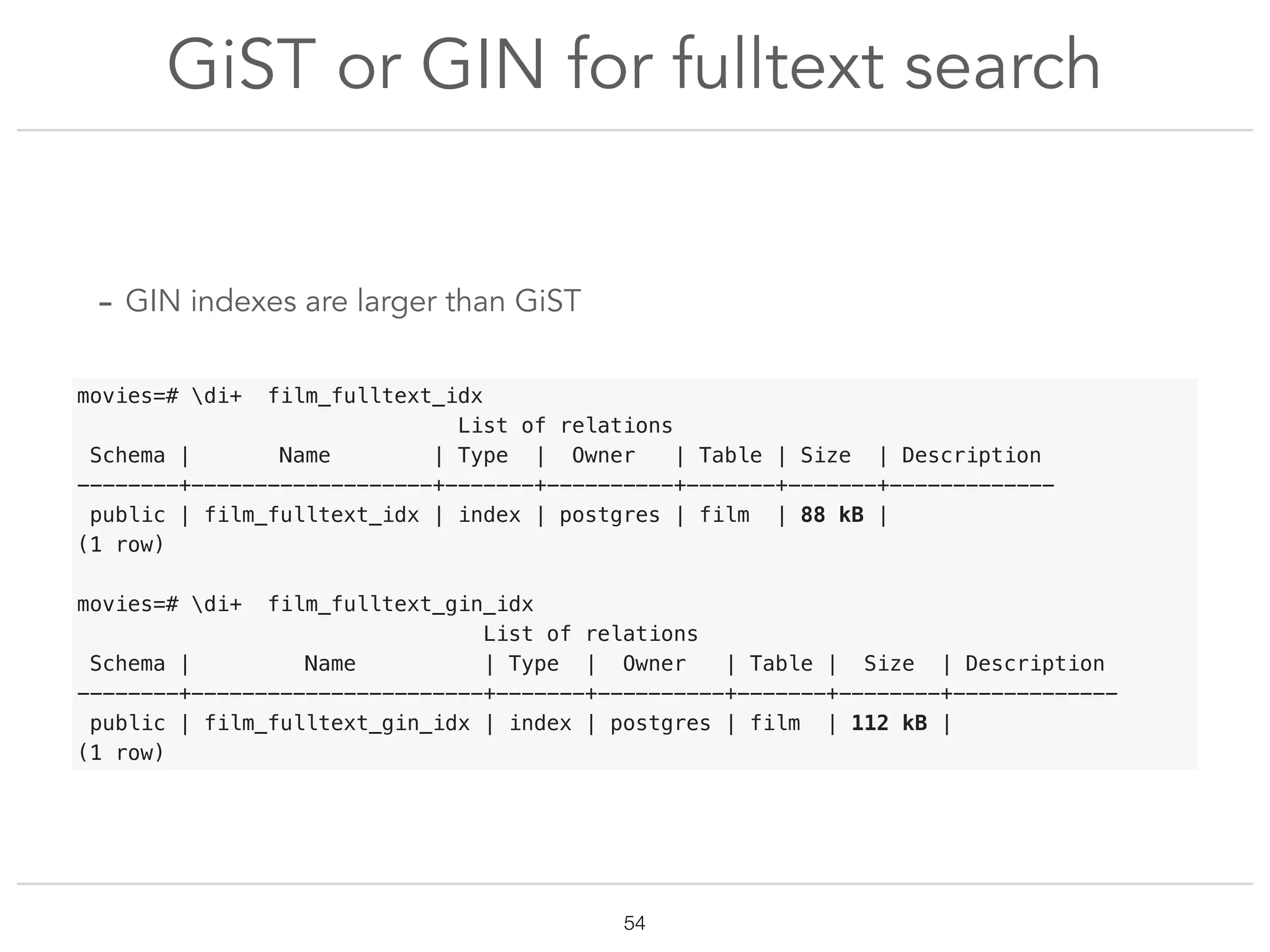

GiST or GIN for fulltext search
!54
- GIN indexes are larger than GiST
movies=# di+ film_fulltext_idx
List of relations
Schema | Name | Type | Owner | Table | Size | Description
--------+-------------------+-------+----------+-------+-------+-------------
public | film_fulltext_idx | index | postgres | film | 88 kB |
(1 row)
movies=# di+ film_fulltext_gin_idx
List of relations
Schema | Name | Type | Owner | Table | Size | Description
--------+-----------------------+-------+----------+-------+--------+-------------
public | film_fulltext_gin_idx | index | postgres | film | 112 kB |
(1 row)
55

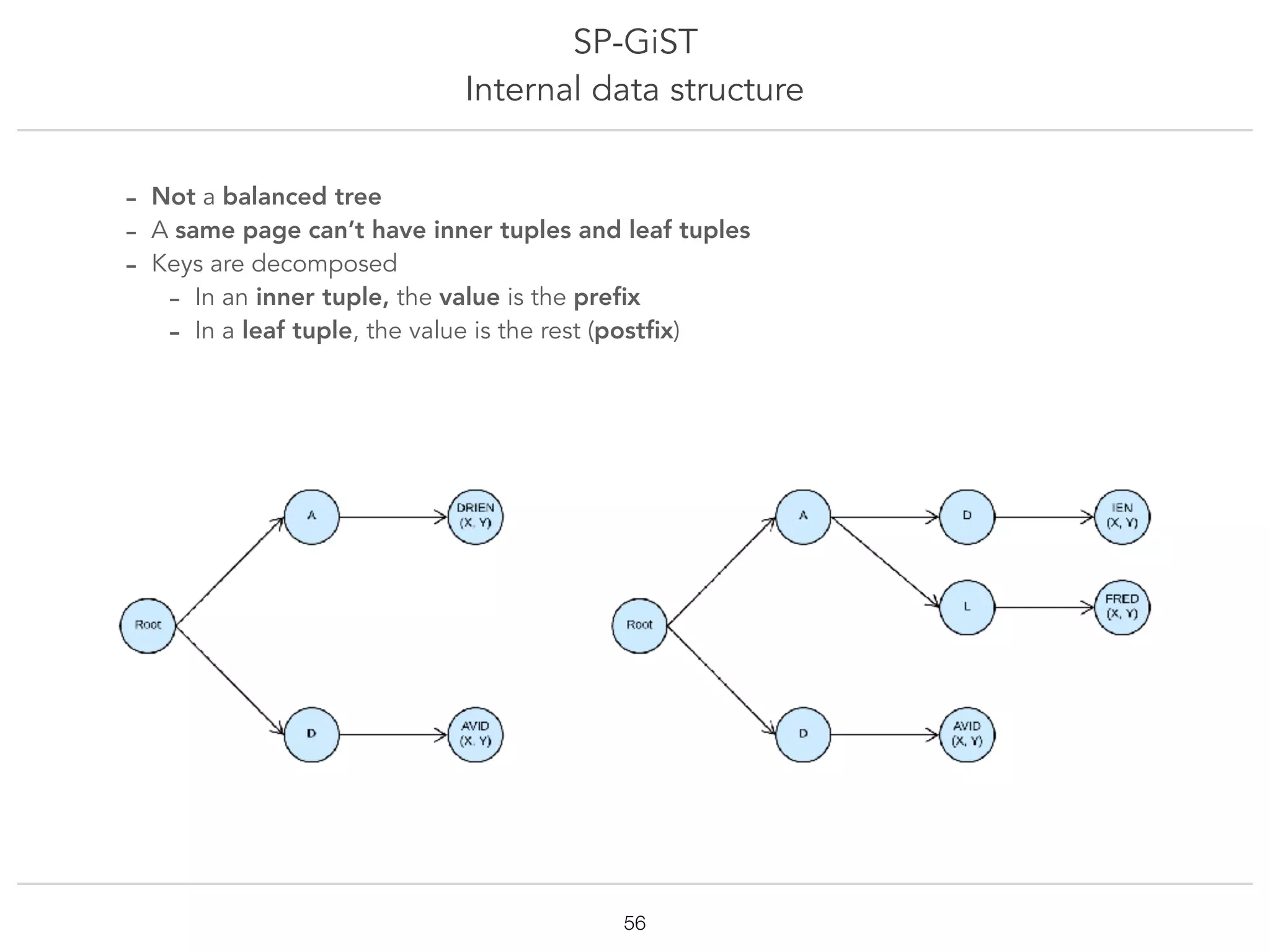

SP-GiST
SP-GiST
Internal data structure
!56
- Not a balanced tree
- A same page can’t have inner tuples and leaf tuples
- Keys are decomposed
- In an inner tuple, the value is the prefix
- In a leaf tuple, the value is the rest (postfix)
P
L
A
Page blkno: 1
ABLO
UISE
RIAN
O
D
Page blkno: 8 Page blkno: 4

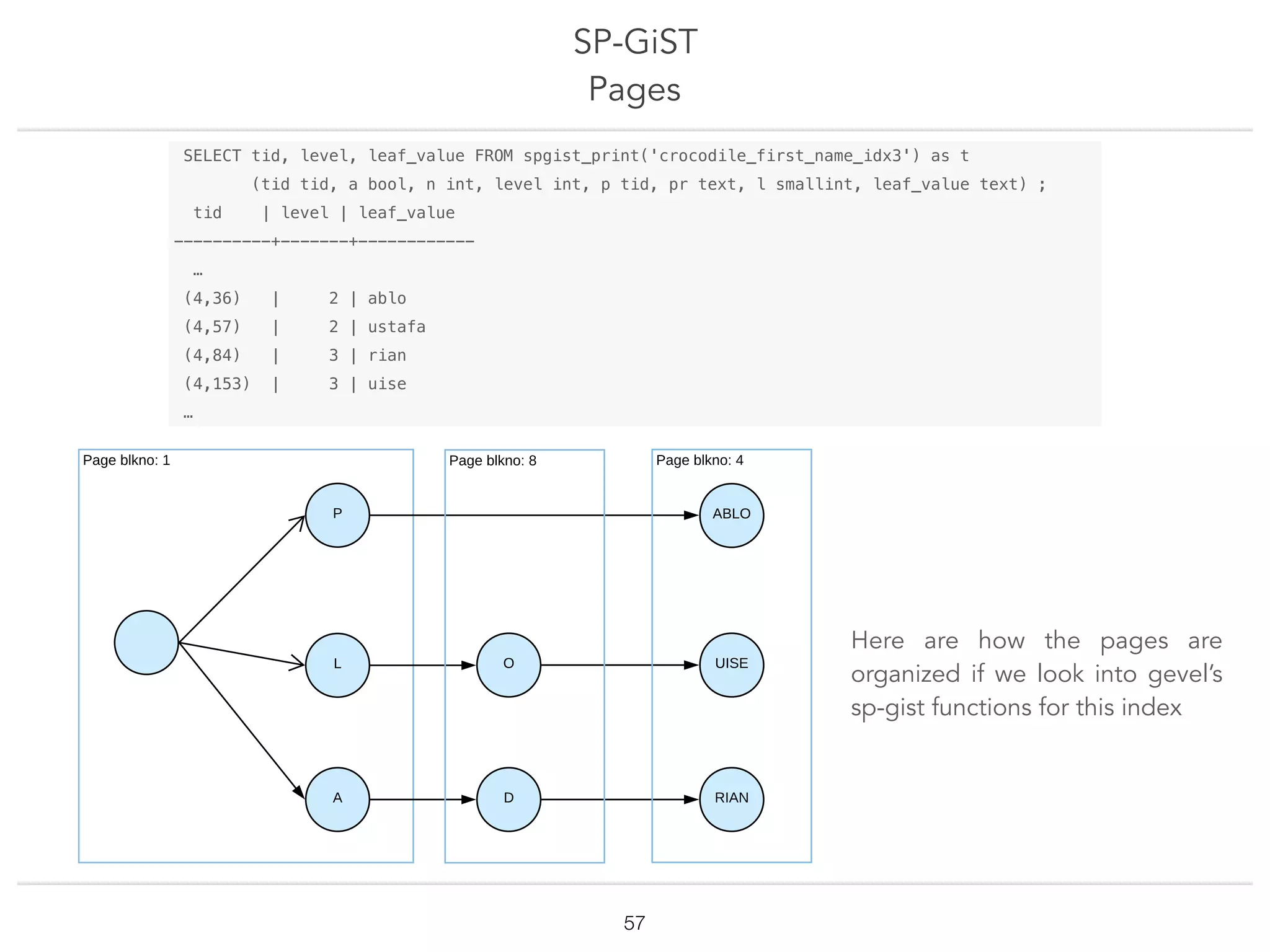

SP-GiST
Pages
!57
SELECT tid, level, leaf_value FROM spgist_print('crocodile_first_name_idx3') as t
(tid tid, a bool, n int, level int, p tid, pr text, l smallint, leaf_value text) ;
tid | level | leaf_value
----------+-------+------------
…
(4,36) | 2 | ablo
(4,57) | 2 | ustafa
(4,84) | 3 | rian
(4,153) | 3 | uise
…
Here are how the pages are
organized if we look into gevel’s
sp-gist functions for this index
Root

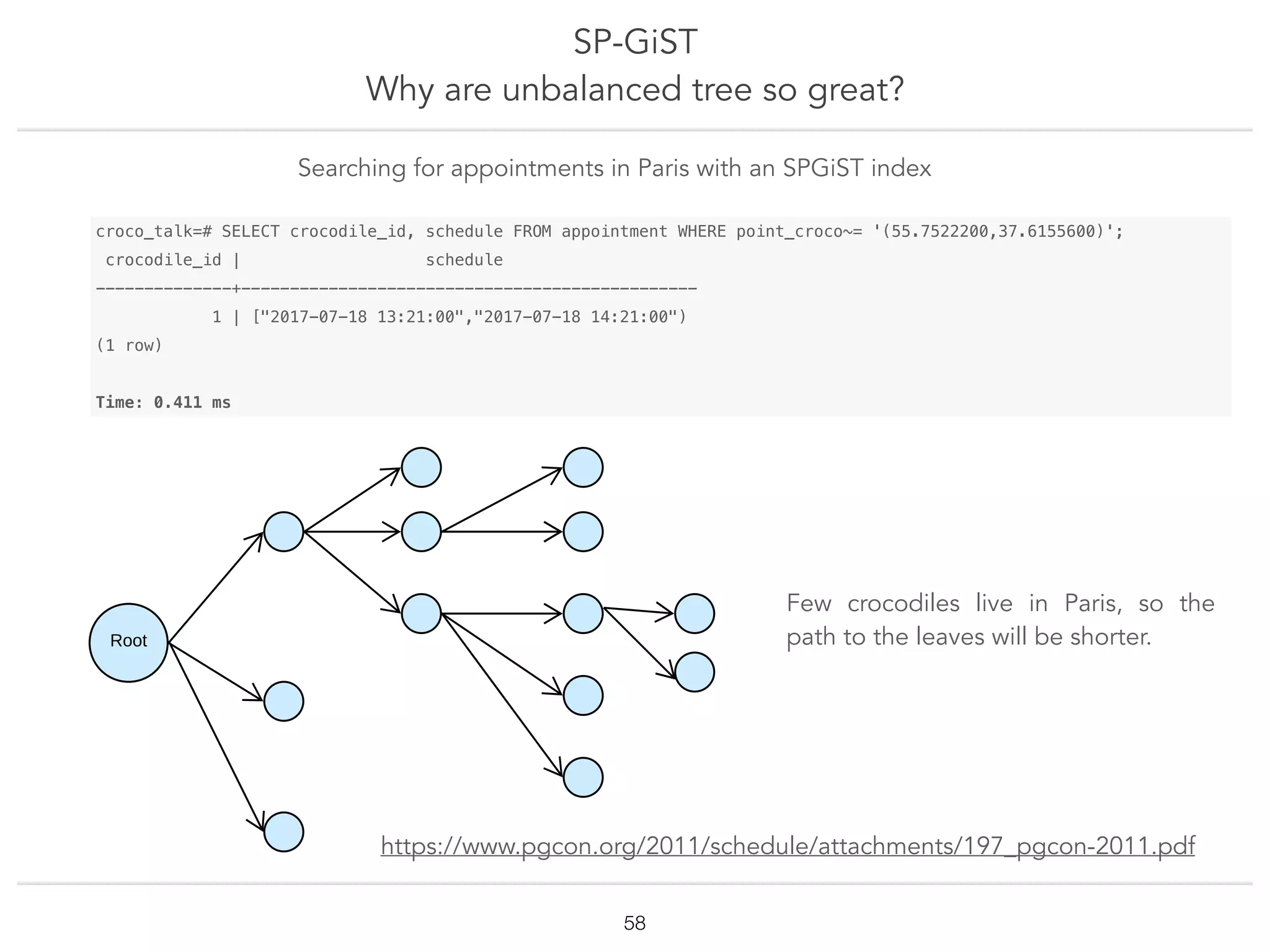

SP-GiST
Why are unbalanced tree so great?
!58
Searching for appointments in Paris with an SPGiST index
croco_talk=# SELECT crocodile_id, schedule FROM appointment WHERE point_croco~= '(55.7522200,37.6155600)';
crocodile_id | schedule
--------------+-----------------------------------------------
1 | ["2017-07-18 13:21:00","2017-07-18 14:21:00")
(1 row)
Time: 0.411 ms
Few crocodiles live in Paris, so the
path to the leaves will be shorter.
https://www.pgcon.org/2011/schedule/attachments/197_pgcon-2011.pdf

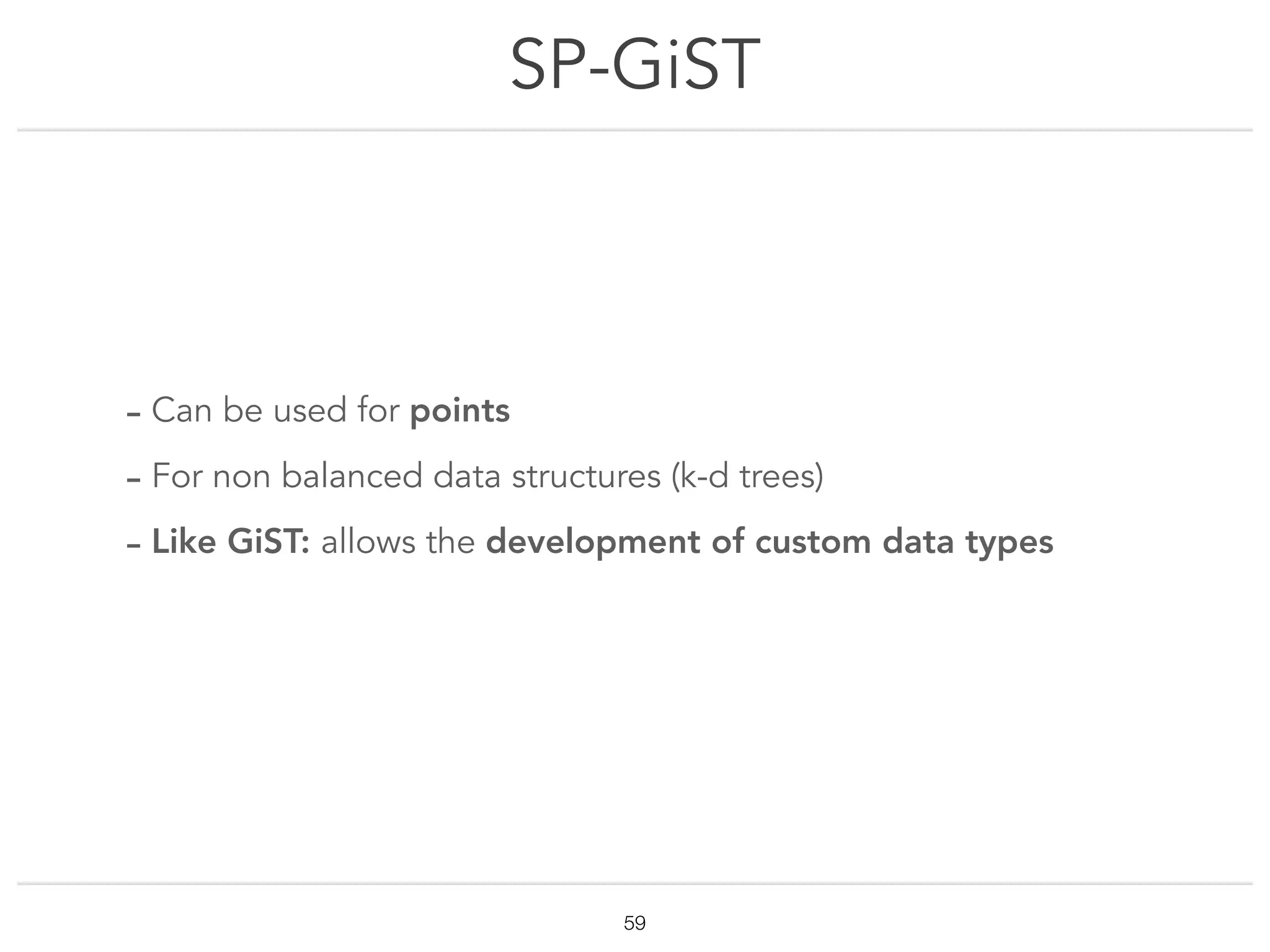

SP-GiST
!59
- Can be used for points
- For non balanced data structures (k-d trees)
- Like GiST: allows the development of custom data types
60
BRIN

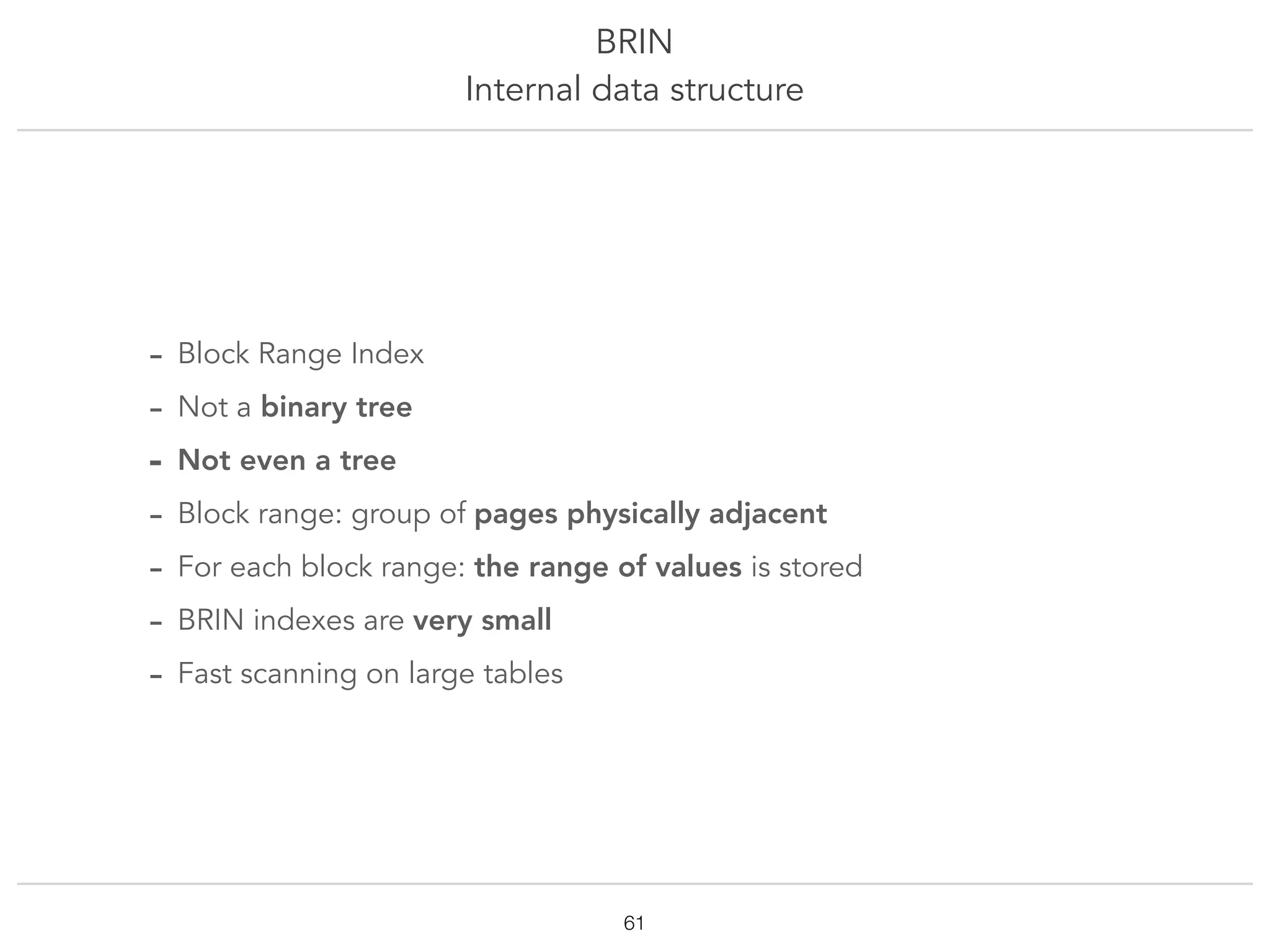

BRIN
Internal data structure
!61
- Block Range Index
- Not a binary tree
- Not even a tree
- Block range: group of pages physically adjacent
- For each block range: the range of values is stored
- BRIN indexes are very small
- Fast scanning on large tables

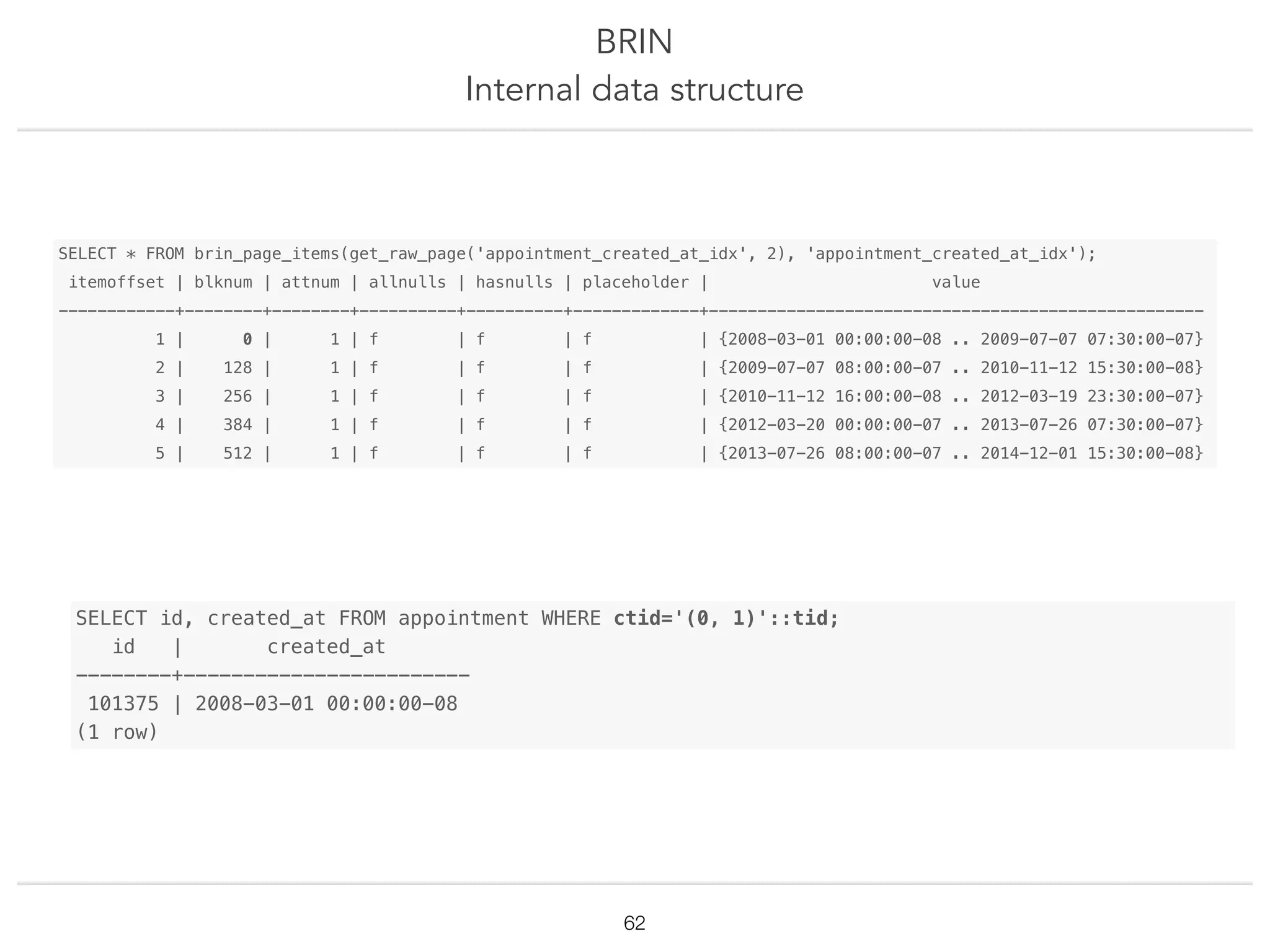

BRIN
Internal data structure
!62
SELECT * FROM brin_page_items(get_raw_page('appointment_created_at_idx', 2), 'appointment_created_at_idx');
itemoffset | blknum | attnum | allnulls | hasnulls | placeholder | value
------------+--------+--------+----------+----------+-------------+---------------------------------------------------
1 | 0 | 1 | f | f | f | {2008-03-01 00:00:00-08 .. 2009-07-07 07:30:00-07}
2 | 128 | 1 | f | f | f | {2009-07-07 08:00:00-07 .. 2010-11-12 15:30:00-08}
3 | 256 | 1 | f | f | f | {2010-11-12 16:00:00-08 .. 2012-03-19 23:30:00-07}
4 | 384 | 1 | f | f | f | {2012-03-20 00:00:00-07 .. 2013-07-26 07:30:00-07}
5 | 512 | 1 | f | f | f | {2013-07-26 08:00:00-07 .. 2014-12-01 15:30:00-08}
SELECT id, created_at FROM appointment WHERE ctid='(0, 1)'::tid;
id | created_at
--------+------------------------
101375 | 2008-03-01 00:00:00-08
(1 row)

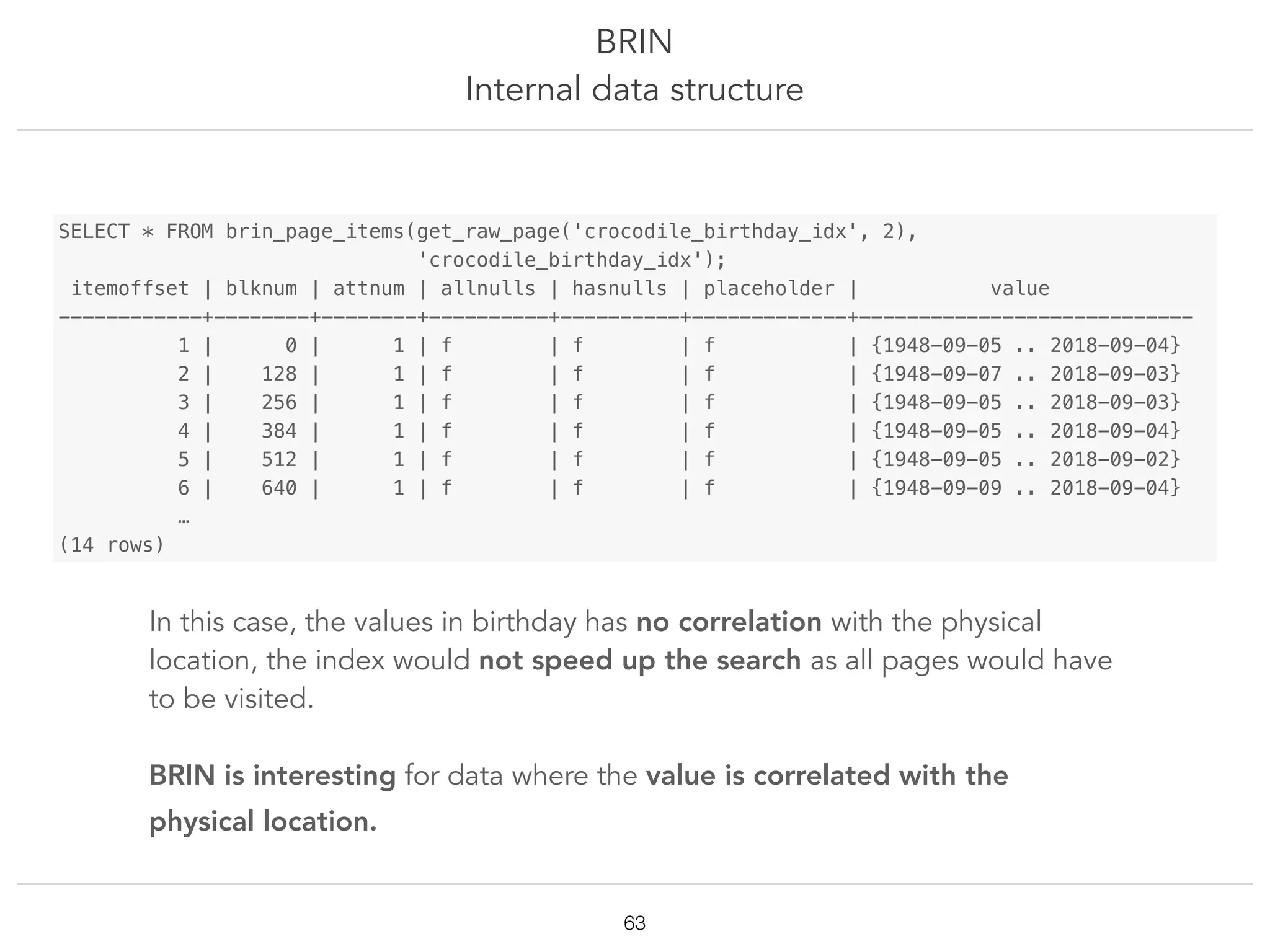

BRIN
Internal data structure
!63
SELECT * FROM brin_page_items(get_raw_page('crocodile_birthday_idx', 2),
'crocodile_birthday_idx');
itemoffset | blknum | attnum | allnulls | hasnulls | placeholder | value
------------+--------+--------+----------+----------+-------------+----------------------------
1 | 0 | 1 | f | f | f | {1948-09-05 .. 2018-09-04}
2 | 128 | 1 | f | f | f | {1948-09-07 .. 2018-09-03}
3 | 256 | 1 | f | f | f | {1948-09-05 .. 2018-09-03}
4 | 384 | 1 | f | f | f | {1948-09-05 .. 2018-09-04}
5 | 512 | 1 | f | f | f | {1948-09-05 .. 2018-09-02}
6 | 640 | 1 | f | f | f | {1948-09-09 .. 2018-09-04}
…
(14 rows)
In this case, the values in birthday has no correlation with the physical
location, the index would not speed up the search as all pages would have
to be visited.
BRIN is interesting for data where the value is correlated with the
physical location.

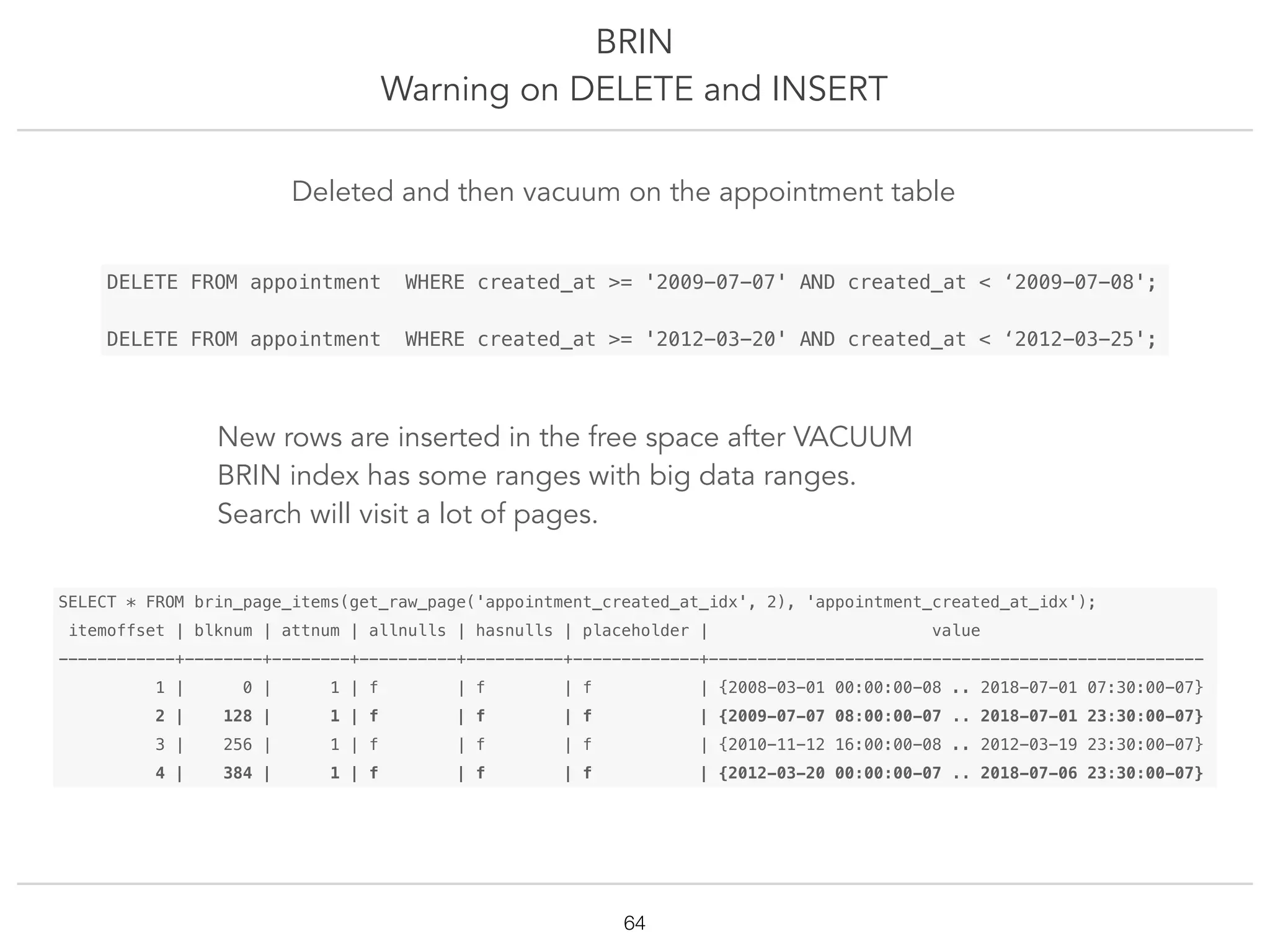

BRIN
Warning on DELETE and INSERT
!64
SELECT * FROM brin_page_items(get_raw_page('appointment_created_at_idx', 2), 'appointment_created_at_idx');
itemoffset | blknum | attnum | allnulls | hasnulls | placeholder | value
------------+--------+--------+----------+----------+-------------+---------------------------------------------------
1 | 0 | 1 | f | f | f | {2008-03-01 00:00:00-08 .. 2018-07-01 07:30:00-07}
2 | 128 | 1 | f | f | f | {2009-07-07 08:00:00-07 .. 2018-07-01 23:30:00-07}
3 | 256 | 1 | f | f | f | {2010-11-12 16:00:00-08 .. 2012-03-19 23:30:00-07}
4 | 384 | 1 | f | f | f | {2012-03-20 00:00:00-07 .. 2018-07-06 23:30:00-07}
DELETE FROM appointment WHERE created_at >= '2009-07-07' AND created_at < ‘2009-07-08';
DELETE FROM appointment WHERE created_at >= '2012-03-20' AND created_at < ‘2012-03-25';
Deleted and then vacuum on the appointment table
New rows are inserted in the free space after VACUUM
BRIN index has some ranges with big data ranges.
Search will visit a lot of pages.
65
HASH
Hash
Internal data structure
!66
- Only useful if you have a data not fitting
into a page
- Only operator is =
- If you use a PG version < 10, it’s just awful

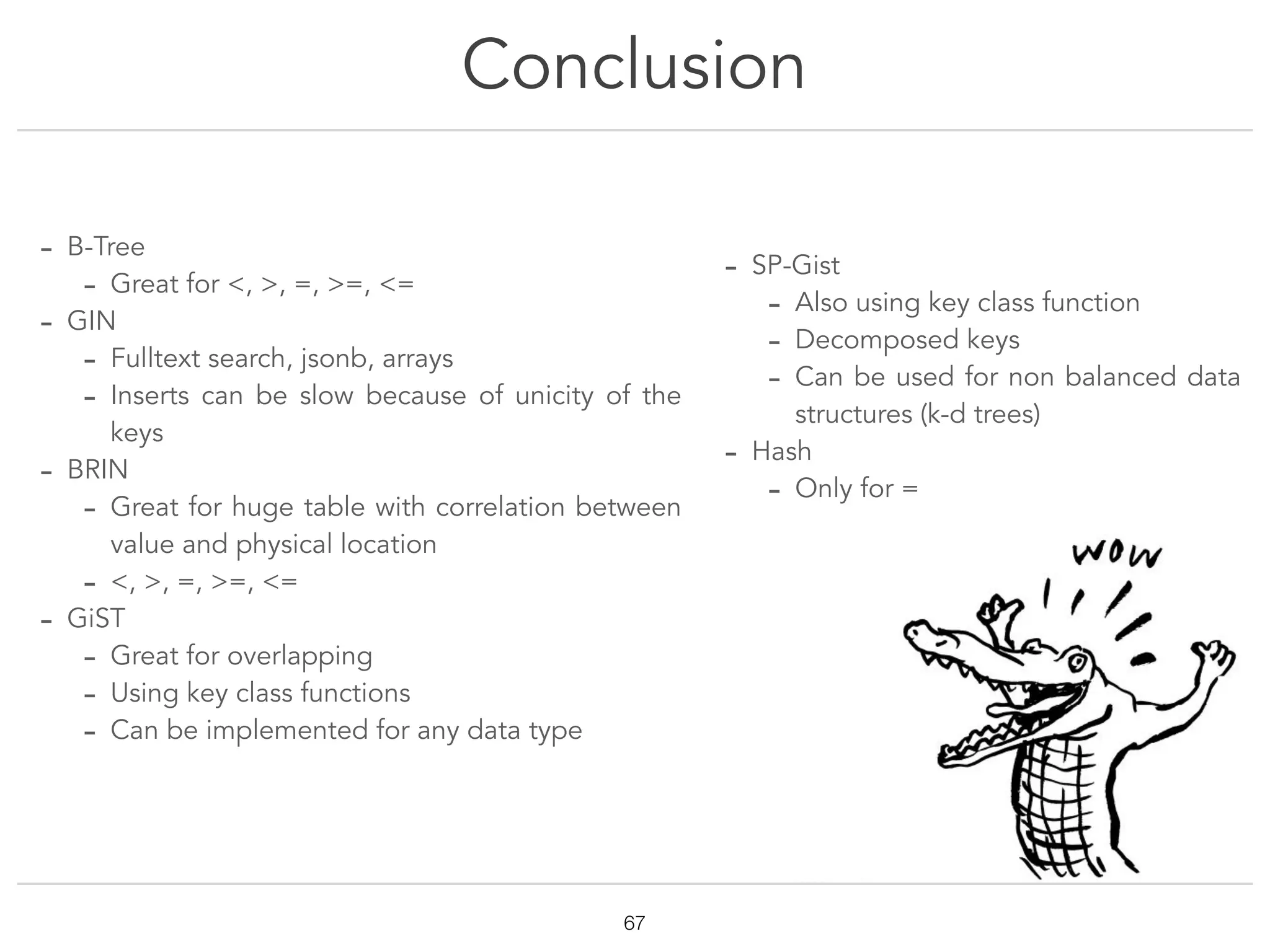

Conclusion
!67
- B-Tree
- Great for <, >, =, >=, <=
- GIN
- Fulltext search, jsonb, arrays
- Inserts can be slow because of unicity of the
keys
- BRIN
- Great for huge table with correlation between
value and physical location
- <, >, =, >=, <=
- GiST
- Great for overlapping
- Using key class functions
- Can be implemented for any data type
- SP-Gist
- Also using key class function
- Decomposed keys
- Can be used for non balanced data
structures (k-d trees)
- Hash
- Only for =
Questions
!68
Thanks for your attention
Go read the articles www.louisemeta.com
Now only the ones on BTrees are published,
but I’ll announce the rest on twitter
@louisemeta
Come talk to me at the Citus booth
Crocodiles by https://www.instagram.com/zimmoriarty/?hl=en

More Related Content

Similar to A story on Postgres index types | PostgresLondon 2019 | Louise Grandjonc

"MySQL Boosting - DB Best Practices & Optimization" by José Luis Martínez - C...
"MySQL Boosting - DB Best Practices & Optimization" by José Luis Martínez - C..."MySQL Boosting - DB Best Practices & Optimization" by José Luis Martínez - C...
"MySQL Boosting - DB Best Practices & Optimization" by José Luis Martínez - C...
CAPSiDE

Boosting MySQL (for starters)
Boosting MySQL (for starters)Boosting MySQL (for starters)
Boosting MySQL (for starters)
Jose Luis Martínez

MySQL Indexing - Best practices for MySQL 5.6
MySQL Indexing - Best practices for MySQL 5.6MySQL Indexing - Best practices for MySQL 5.6
MySQL Indexing - Best practices for MySQL 5.6
MYXPLAIN

Introduction to Search Systems - ScaleConf Colombia 2017
Introduction to Search Systems - ScaleConf Colombia 2017Introduction to Search Systems - ScaleConf Colombia 2017
Introduction to Search Systems - ScaleConf Colombia 2017
Toria Gibbs

Optimal Binary Search tree ppt seminar.pptx
Optimal Binary Search tree ppt seminar.pptxOptimal Binary Search tree ppt seminar.pptx
Optimal Binary Search tree ppt seminar.pptx
ssusered44c8

It's Not You. It's Your Data Model.
It's Not You. It's Your Data Model.It's Not You. It's Your Data Model.
It's Not You. It's Your Data Model.
Alex Powers

Esoteric Data structures
Esoteric Data structures Esoteric Data structures
Esoteric Data structures
Mugisha Moses

MySQL Indexing
MySQL IndexingMySQL Indexing
MySQL Indexing
BADR

A look inside pandas design and development
A look inside pandas design and developmentA look inside pandas design and development
A look inside pandas design and development
Wes McKinney

Basics in algorithms and data structure
Basics in algorithms and data structure Basics in algorithms and data structure
Basics in algorithms and data structure
Eman magdy

Analytics: The Final Data Frontier (or, Why Users Need Your Data and How Pino...
Analytics: The Final Data Frontier (or, Why Users Need Your Data and How Pino...Analytics: The Final Data Frontier (or, Why Users Need Your Data and How Pino...
Analytics: The Final Data Frontier (or, Why Users Need Your Data and How Pino...
HostedbyConfluent

Week 8 (trees)
Week 8 (trees)Week 8 (trees)
Week 8 (trees)
amna izzat

B+ tree.pptx
B+ tree.pptxB+ tree.pptx
B+ tree.pptx
Maitri Shah

Binary Search Tree for design and analysis
Binary Search Tree for design and analysisBinary Search Tree for design and analysis
Binary Search Tree for design and analysis
JavedKhan524377

Btree. Explore the heart of PostgreSQL.
Btree. Explore the heart of PostgreSQL. Btree. Explore the heart of PostgreSQL.
Btree. Explore the heart of PostgreSQL.
Anastasia Lubennikova

B TREE ( a to z concept ) in data structure or DBMS
B TREE ( a to z concept ) in data structure  or DBMSB TREE ( a to z concept ) in data structure  or DBMS
B TREE ( a to z concept ) in data structure or DBMS
MathkeBhoot

Index management in shallow depth
Index management in shallow depthIndex management in shallow depth
Index management in shallow depth
Andrea Giuliano

Introducing Core Role Designer - Michael Marks Product Manager - Identity, Co...
Introducing Core Role Designer - Michael Marks Product Manager - Identity, Co...Introducing Core Role Designer - Michael Marks Product Manager - Identity, Co...
Introducing Core Role Designer - Michael Marks Product Manager - Identity, Co...
Core Security

Binary Search Tree
Binary Search TreeBinary Search Tree
Binary Search Tree
INAM352782

DAA PPT.pptx
DAA PPT.pptxDAA PPT.pptx
DAA PPT.pptx
INAM352782


Similar to A story on Postgres index types | PostgresLondon 2019 | Louise Grandjonc (20)

"MySQL Boosting - DB Best Practices & Optimization" by José Luis Martínez - C...
"MySQL Boosting - DB Best Practices & Optimization" by José Luis Martínez - C..."MySQL Boosting - DB Best Practices & Optimization" by José Luis Martínez - C...
"MySQL Boosting - DB Best Practices & Optimization" by José Luis Martínez - C...

Boosting MySQL (for starters)
Boosting MySQL (for starters)Boosting MySQL (for starters)
Boosting MySQL (for starters)

MySQL Indexing - Best practices for MySQL 5.6
MySQL Indexing - Best practices for MySQL 5.6MySQL Indexing - Best practices for MySQL 5.6
MySQL Indexing - Best practices for MySQL 5.6

Introduction to Search Systems - ScaleConf Colombia 2017
Introduction to Search Systems - ScaleConf Colombia 2017Introduction to Search Systems - ScaleConf Colombia 2017
Introduction to Search Systems - ScaleConf Colombia 2017

Optimal Binary Search tree ppt seminar.pptx
Optimal Binary Search tree ppt seminar.pptxOptimal Binary Search tree ppt seminar.pptx
Optimal Binary Search tree ppt seminar.pptx

It's Not You. It's Your Data Model.
It's Not You. It's Your Data Model.It's Not You. It's Your Data Model.
It's Not You. It's Your Data Model.

Esoteric Data structures
Esoteric Data structures Esoteric Data structures
Esoteric Data structures

MySQL Indexing
MySQL IndexingMySQL Indexing
MySQL Indexing

A look inside pandas design and development
A look inside pandas design and developmentA look inside pandas design and development
A look inside pandas design and development

Basics in algorithms and data structure
Basics in algorithms and data structure Basics in algorithms and data structure
Basics in algorithms and data structure

Analytics: The Final Data Frontier (or, Why Users Need Your Data and How Pino...
Analytics: The Final Data Frontier (or, Why Users Need Your Data and How Pino...Analytics: The Final Data Frontier (or, Why Users Need Your Data and How Pino...
Analytics: The Final Data Frontier (or, Why Users Need Your Data and How Pino...

Week 8 (trees)
Week 8 (trees)Week 8 (trees)
Week 8 (trees)

B+ tree.pptx
B+ tree.pptxB+ tree.pptx
B+ tree.pptx

Binary Search Tree for design and analysis
Binary Search Tree for design and analysisBinary Search Tree for design and analysis
Binary Search Tree for design and analysis

Btree. Explore the heart of PostgreSQL.
Btree. Explore the heart of PostgreSQL. Btree. Explore the heart of PostgreSQL.
Btree. Explore the heart of PostgreSQL.

B TREE ( a to z concept ) in data structure or DBMS
B TREE ( a to z concept ) in data structure  or DBMSB TREE ( a to z concept ) in data structure  or DBMS
B TREE ( a to z concept ) in data structure or DBMS

Index management in shallow depth
Index management in shallow depthIndex management in shallow depth
Index management in shallow depth

Introducing Core Role Designer - Michael Marks Product Manager - Identity, Co...
Introducing Core Role Designer - Michael Marks Product Manager - Identity, Co...Introducing Core Role Designer - Michael Marks Product Manager - Identity, Co...
Introducing Core Role Designer - Michael Marks Product Manager - Identity, Co...

Binary Search Tree
Binary Search TreeBinary Search Tree
Binary Search Tree

DAA PPT.pptx
DAA PPT.pptxDAA PPT.pptx
DAA PPT.pptx


More from Citus Data

Architecting peta-byte-scale analytics by scaling out Postgres on Azure with ...
Architecting peta-byte-scale analytics by scaling out Postgres on Azure with ...Architecting peta-byte-scale analytics by scaling out Postgres on Azure with ...
Architecting peta-byte-scale analytics by scaling out Postgres on Azure with ...
Citus Data

Data Modeling, Normalization, and De-Normalization | PostgresOpen 2019 | Dimi...
Data Modeling, Normalization, and De-Normalization | PostgresOpen 2019 | Dimi...Data Modeling, Normalization, and De-Normalization | PostgresOpen 2019 | Dimi...
Data Modeling, Normalization, and De-Normalization | PostgresOpen 2019 | Dimi...
Citus Data

JSONB Tricks: Operators, Indexes, and When (Not) to Use It | PostgresOpen 201...
JSONB Tricks: Operators, Indexes, and When (Not) to Use It | PostgresOpen 201...JSONB Tricks: Operators, Indexes, and When (Not) to Use It | PostgresOpen 201...
JSONB Tricks: Operators, Indexes, and When (Not) to Use It | PostgresOpen 201...
Citus Data

Tutorial: Implementing your first Postgres extension | PGConf EU 2019 | Burak...
Tutorial: Implementing your first Postgres extension | PGConf EU 2019 | Burak...Tutorial: Implementing your first Postgres extension | PGConf EU 2019 | Burak...
Tutorial: Implementing your first Postgres extension | PGConf EU 2019 | Burak...
Citus Data

Whats wrong with postgres | PGConf EU 2019 | Craig Kerstiens
Whats wrong with postgres | PGConf EU 2019 | Craig KerstiensWhats wrong with postgres | PGConf EU 2019 | Craig Kerstiens
Whats wrong with postgres | PGConf EU 2019 | Craig Kerstiens
Citus Data

When it all goes wrong | PGConf EU 2019 | Will Leinweber
When it all goes wrong | PGConf EU 2019 | Will LeinweberWhen it all goes wrong | PGConf EU 2019 | Will Leinweber
When it all goes wrong | PGConf EU 2019 | Will Leinweber
Citus Data

Amazing SQL your ORM can (or can't) do | PGConf EU 2019 | Louise Grandjonc
Amazing SQL your ORM can (or can't) do | PGConf EU 2019 | Louise GrandjoncAmazing SQL your ORM can (or can't) do | PGConf EU 2019 | Louise Grandjonc
Amazing SQL your ORM can (or can't) do | PGConf EU 2019 | Louise Grandjonc
Citus Data

What Microsoft is doing with Postgres & the Citus Data acquisition | PGConf E...
What Microsoft is doing with Postgres & the Citus Data acquisition | PGConf E...What Microsoft is doing with Postgres & the Citus Data acquisition | PGConf E...
What Microsoft is doing with Postgres & the Citus Data acquisition | PGConf E...
Citus Data

Deep Postgres Extensions in Rust | PGCon 2019 | Jeff Davis
Deep Postgres Extensions in Rust | PGCon 2019 | Jeff DavisDeep Postgres Extensions in Rust | PGCon 2019 | Jeff Davis
Deep Postgres Extensions in Rust | PGCon 2019 | Jeff Davis
Citus Data

Why Postgres Why This Database Why Now | SF Bay Area Postgres Meetup | Claire...
Why Postgres Why This Database Why Now | SF Bay Area Postgres Meetup | Claire...Why Postgres Why This Database Why Now | SF Bay Area Postgres Meetup | Claire...
Why Postgres Why This Database Why Now | SF Bay Area Postgres Meetup | Claire...
Citus Data

Why developers need marketing now more than ever | GlueCon 2019 | Claire Gior...
Why developers need marketing now more than ever | GlueCon 2019 | Claire Gior...Why developers need marketing now more than ever | GlueCon 2019 | Claire Gior...
Why developers need marketing now more than ever | GlueCon 2019 | Claire Gior...
Citus Data

The Art of PostgreSQL | PostgreSQL Ukraine | Dimitri Fontaine
The Art of PostgreSQL | PostgreSQL Ukraine | Dimitri FontaineThe Art of PostgreSQL | PostgreSQL Ukraine | Dimitri Fontaine
The Art of PostgreSQL | PostgreSQL Ukraine | Dimitri Fontaine
Citus Data

Optimizing your app by understanding your Postgres | RailsConf 2019 | Samay S...
Optimizing your app by understanding your Postgres | RailsConf 2019 | Samay S...Optimizing your app by understanding your Postgres | RailsConf 2019 | Samay S...
Optimizing your app by understanding your Postgres | RailsConf 2019 | Samay S...
Citus Data

When it all goes wrong (with Postgres) | RailsConf 2019 | Will Leinweber
When it all goes wrong (with Postgres) | RailsConf 2019 | Will LeinweberWhen it all goes wrong (with Postgres) | RailsConf 2019 | Will Leinweber
When it all goes wrong (with Postgres) | RailsConf 2019 | Will Leinweber
Citus Data

The Art of PostgreSQL | PostgreSQL Ukraine Meetup | Dimitri Fontaine
The Art of PostgreSQL | PostgreSQL Ukraine Meetup | Dimitri FontaineThe Art of PostgreSQL | PostgreSQL Ukraine Meetup | Dimitri Fontaine
The Art of PostgreSQL | PostgreSQL Ukraine Meetup | Dimitri Fontaine
Citus Data

Using Postgres and Citus for Lightning Fast Analytics, also ft. Rollups | Liv...
Using Postgres and Citus for Lightning Fast Analytics, also ft. Rollups | Liv...Using Postgres and Citus for Lightning Fast Analytics, also ft. Rollups | Liv...
Using Postgres and Citus for Lightning Fast Analytics, also ft. Rollups | Liv...
Citus Data

How to write SQL queries | pgDay Paris 2019 | Dimitri Fontaine
How to write SQL queries | pgDay Paris 2019 | Dimitri FontaineHow to write SQL queries | pgDay Paris 2019 | Dimitri Fontaine
How to write SQL queries | pgDay Paris 2019 | Dimitri Fontaine
Citus Data

When it all Goes Wrong |Nordic PGDay 2019 | Will Leinweber
When it all Goes Wrong |Nordic PGDay 2019 | Will LeinweberWhen it all Goes Wrong |Nordic PGDay 2019 | Will Leinweber
When it all Goes Wrong |Nordic PGDay 2019 | Will Leinweber
Citus Data

Why PostgreSQL Why This Database Why Now | Nordic PGDay 2019 | Claire Giordano
Why PostgreSQL Why This Database Why Now | Nordic PGDay 2019 | Claire GiordanoWhy PostgreSQL Why This Database Why Now | Nordic PGDay 2019 | Claire Giordano
Why PostgreSQL Why This Database Why Now | Nordic PGDay 2019 | Claire Giordano
Citus Data

Scaling Multi-Tenant Applications Using the Django ORM & Postgres | PyCaribbe...
Scaling Multi-Tenant Applications Using the Django ORM & Postgres | PyCaribbe...Scaling Multi-Tenant Applications Using the Django ORM & Postgres | PyCaribbe...
Scaling Multi-Tenant Applications Using the Django ORM & Postgres | PyCaribbe...
Citus Data


More from Citus Data (20)

Architecting peta-byte-scale analytics by scaling out Postgres on Azure with ...
Architecting peta-byte-scale analytics by scaling out Postgres on Azure with ...Architecting peta-byte-scale analytics by scaling out Postgres on Azure with ...
Architecting peta-byte-scale analytics by scaling out Postgres on Azure with ...

Data Modeling, Normalization, and De-Normalization | PostgresOpen 2019 | Dimi...
Data Modeling, Normalization, and De-Normalization | PostgresOpen 2019 | Dimi...Data Modeling, Normalization, and De-Normalization | PostgresOpen 2019 | Dimi...
Data Modeling, Normalization, and De-Normalization | PostgresOpen 2019 | Dimi...

JSONB Tricks: Operators, Indexes, and When (Not) to Use It | PostgresOpen 201...
JSONB Tricks: Operators, Indexes, and When (Not) to Use It | PostgresOpen 201...JSONB Tricks: Operators, Indexes, and When (Not) to Use It | PostgresOpen 201...
JSONB Tricks: Operators, Indexes, and When (Not) to Use It | PostgresOpen 201...

Tutorial: Implementing your first Postgres extension | PGConf EU 2019 | Burak...
Tutorial: Implementing your first Postgres extension | PGConf EU 2019 | Burak...Tutorial: Implementing your first Postgres extension | PGConf EU 2019 | Burak...
Tutorial: Implementing your first Postgres extension | PGConf EU 2019 | Burak...

Whats wrong with postgres | PGConf EU 2019 | Craig Kerstiens
Whats wrong with postgres | PGConf EU 2019 | Craig KerstiensWhats wrong with postgres | PGConf EU 2019 | Craig Kerstiens
Whats wrong with postgres | PGConf EU 2019 | Craig Kerstiens

When it all goes wrong | PGConf EU 2019 | Will Leinweber
When it all goes wrong | PGConf EU 2019 | Will LeinweberWhen it all goes wrong | PGConf EU 2019 | Will Leinweber
When it all goes wrong | PGConf EU 2019 | Will Leinweber

Amazing SQL your ORM can (or can't) do | PGConf EU 2019 | Louise Grandjonc
Amazing SQL your ORM can (or can't) do | PGConf EU 2019 | Louise GrandjoncAmazing SQL your ORM can (or can't) do | PGConf EU 2019 | Louise Grandjonc
Amazing SQL your ORM can (or can't) do | PGConf EU 2019 | Louise Grandjonc

What Microsoft is doing with Postgres & the Citus Data acquisition | PGConf E...
What Microsoft is doing with Postgres & the Citus Data acquisition | PGConf E...What Microsoft is doing with Postgres & the Citus Data acquisition | PGConf E...
What Microsoft is doing with Postgres & the Citus Data acquisition | PGConf E...

Deep Postgres Extensions in Rust | PGCon 2019 | Jeff Davis
Deep Postgres Extensions in Rust | PGCon 2019 | Jeff DavisDeep Postgres Extensions in Rust | PGCon 2019 | Jeff Davis
Deep Postgres Extensions in Rust | PGCon 2019 | Jeff Davis

Why Postgres Why This Database Why Now | SF Bay Area Postgres Meetup | Claire...
Why Postgres Why This Database Why Now | SF Bay Area Postgres Meetup | Claire...Why Postgres Why This Database Why Now | SF Bay Area Postgres Meetup | Claire...
Why Postgres Why This Database Why Now | SF Bay Area Postgres Meetup | Claire...

Why developers need marketing now more than ever | GlueCon 2019 | Claire Gior...
Why developers need marketing now more than ever | GlueCon 2019 | Claire Gior...Why developers need marketing now more than ever | GlueCon 2019 | Claire Gior...
Why developers need marketing now more than ever | GlueCon 2019 | Claire Gior...

The Art of PostgreSQL | PostgreSQL Ukraine | Dimitri Fontaine
The Art of PostgreSQL | PostgreSQL Ukraine | Dimitri FontaineThe Art of PostgreSQL | PostgreSQL Ukraine | Dimitri Fontaine
The Art of PostgreSQL | PostgreSQL Ukraine | Dimitri Fontaine

Optimizing your app by understanding your Postgres | RailsConf 2019 | Samay S...
Optimizing your app by understanding your Postgres | RailsConf 2019 | Samay S...Optimizing your app by understanding your Postgres | RailsConf 2019 | Samay S...
Optimizing your app by understanding your Postgres | RailsConf 2019 | Samay S...

When it all goes wrong (with Postgres) | RailsConf 2019 | Will Leinweber
When it all goes wrong (with Postgres) | RailsConf 2019 | Will LeinweberWhen it all goes wrong (with Postgres) | RailsConf 2019 | Will Leinweber
When it all goes wrong (with Postgres) | RailsConf 2019 | Will Leinweber

The Art of PostgreSQL | PostgreSQL Ukraine Meetup | Dimitri Fontaine
The Art of PostgreSQL | PostgreSQL Ukraine Meetup | Dimitri FontaineThe Art of PostgreSQL | PostgreSQL Ukraine Meetup | Dimitri Fontaine
The Art of PostgreSQL | PostgreSQL Ukraine Meetup | Dimitri Fontaine

Using Postgres and Citus for Lightning Fast Analytics, also ft. Rollups | Liv...
Using Postgres and Citus for Lightning Fast Analytics, also ft. Rollups | Liv...Using Postgres and Citus for Lightning Fast Analytics, also ft. Rollups | Liv...
Using Postgres and Citus for Lightning Fast Analytics, also ft. Rollups | Liv...

How to write SQL queries | pgDay Paris 2019 | Dimitri Fontaine
How to write SQL queries | pgDay Paris 2019 | Dimitri FontaineHow to write SQL queries | pgDay Paris 2019 | Dimitri Fontaine
How to write SQL queries | pgDay Paris 2019 | Dimitri Fontaine

When it all Goes Wrong |Nordic PGDay 2019 | Will Leinweber
When it all Goes Wrong |Nordic PGDay 2019 | Will LeinweberWhen it all Goes Wrong |Nordic PGDay 2019 | Will Leinweber
When it all Goes Wrong |Nordic PGDay 2019 | Will Leinweber

Why PostgreSQL Why This Database Why Now | Nordic PGDay 2019 | Claire Giordano
Why PostgreSQL Why This Database Why Now | Nordic PGDay 2019 | Claire GiordanoWhy PostgreSQL Why This Database Why Now | Nordic PGDay 2019 | Claire Giordano
Why PostgreSQL Why This Database Why Now | Nordic PGDay 2019 | Claire Giordano

Scaling Multi-Tenant Applications Using the Django ORM & Postgres | PyCaribbe...
Scaling Multi-Tenant Applications Using the Django ORM & Postgres | PyCaribbe...Scaling Multi-Tenant Applications Using the Django ORM & Postgres | PyCaribbe...
Scaling Multi-Tenant Applications Using the Django ORM & Postgres | PyCaribbe...


Recently uploaded

From Natural Language to Structured Solr Queries using LLMs
From Natural Language to Structured Solr Queries using LLMsFrom Natural Language to Structured Solr Queries using LLMs
From Natural Language to Structured Solr Queries using LLMs
Sease

Must Know Postgres Extension for DBA and Developer during Migration
Must Know Postgres Extension for DBA and Developer during MigrationMust Know Postgres Extension for DBA and Developer during Migration
Must Know Postgres Extension for DBA and Developer during Migration
Mydbops

Leveraging the Graph for Clinical Trials and Standards
Leveraging the Graph for Clinical Trials and StandardsLeveraging the Graph for Clinical Trials and Standards
Leveraging the Graph for Clinical Trials and Standards
Neo4j

Session 1 - Intro to Robotic Process Automation.pdf
Session 1 - Intro to Robotic Process Automation.pdfSession 1 - Intro to Robotic Process Automation.pdf
Session 1 - Intro to Robotic Process Automation.pdf
UiPathCommunity

Freshworks Rethinks NoSQL for Rapid Scaling & Cost-Efficiency
Freshworks Rethinks NoSQL for Rapid Scaling & Cost-EfficiencyFreshworks Rethinks NoSQL for Rapid Scaling & Cost-Efficiency
Freshworks Rethinks NoSQL for Rapid Scaling & Cost-Efficiency
ScyllaDB

“Temporal Event Neural Networks: A More Efficient Alternative to the Transfor...
“Temporal Event Neural Networks: A More Efficient Alternative to the Transfor...“Temporal Event Neural Networks: A More Efficient Alternative to the Transfor...
“Temporal Event Neural Networks: A More Efficient Alternative to the Transfor...
Edge AI and Vision Alliance

What is an RPA CoE? Session 1 – CoE Vision
What is an RPA CoE?  Session 1 – CoE VisionWhat is an RPA CoE?  Session 1 – CoE Vision
What is an RPA CoE? Session 1 – CoE Vision
DianaGray10

Mutation Testing for Task-Oriented Chatbots
Mutation Testing for Task-Oriented ChatbotsMutation Testing for Task-Oriented Chatbots
Mutation Testing for Task-Oriented Chatbots
Pablo Gómez Abajo

How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf
How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdfHow to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf
How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf
Chart Kalyan

Harnessing the Power of NLP and Knowledge Graphs for Opioid Research
Harnessing the Power of NLP and Knowledge Graphs for Opioid ResearchHarnessing the Power of NLP and Knowledge Graphs for Opioid Research
Harnessing the Power of NLP and Knowledge Graphs for Opioid Research
Neo4j

Poznań ACE event - 19.06.2024 Team 24 Wrapup slidedeck
Poznań ACE event - 19.06.2024 Team 24 Wrapup slidedeckPoznań ACE event - 19.06.2024 Team 24 Wrapup slidedeck
Poznań ACE event - 19.06.2024 Team 24 Wrapup slidedeck
FilipTomaszewski5

Christine's Product Research Presentation.pptx
Christine's Product Research Presentation.pptxChristine's Product Research Presentation.pptx
Christine's Product Research Presentation.pptx
christinelarrosa

zkStudyClub - LatticeFold: A Lattice-based Folding Scheme and its Application...
zkStudyClub - LatticeFold: A Lattice-based Folding Scheme and its Application...zkStudyClub - LatticeFold: A Lattice-based Folding Scheme and its Application...
zkStudyClub - LatticeFold: A Lattice-based Folding Scheme and its Application...
Alex Pruden

QA or the Highway - Component Testing: Bridging the gap between frontend appl...
QA or the Highway - Component Testing: Bridging the gap between frontend appl...QA or the Highway - Component Testing: Bridging the gap between frontend appl...
QA or the Highway - Component Testing: Bridging the gap between frontend appl...
zjhamm304

Day 2 - Intro to UiPath Studio Fundamentals
Day 2 - Intro to UiPath Studio FundamentalsDay 2 - Intro to UiPath Studio Fundamentals
Day 2 - Intro to UiPath Studio Fundamentals
UiPathCommunity

Principle of conventional tomography-Bibash Shahi ppt..pptx
Principle of conventional tomography-Bibash Shahi ppt..pptxPrinciple of conventional tomography-Bibash Shahi ppt..pptx
Principle of conventional tomography-Bibash Shahi ppt..pptx
BibashShahi

Apps Break Data
Apps Break DataApps Break Data
Apps Break Data
Ivo Velitchkov

inQuba Webinar Mastering Customer Journey Management with Dr Graham Hill
inQuba Webinar Mastering Customer Journey Management with Dr Graham HillinQuba Webinar Mastering Customer Journey Management with Dr Graham Hill
inQuba Webinar Mastering Customer Journey Management with Dr Graham Hill
LizaNolte

Northern Engraving | Nameplate Manufacturing Process - 2024
Northern Engraving | Nameplate Manufacturing Process - 2024Northern Engraving | Nameplate Manufacturing Process - 2024
Northern Engraving | Nameplate Manufacturing Process - 2024
Northern Engraving

Essentials of Automations: Exploring Attributes & Automation Parameters
Essentials of Automations: Exploring Attributes & Automation ParametersEssentials of Automations: Exploring Attributes & Automation Parameters
Essentials of Automations: Exploring Attributes & Automation Parameters
Safe Software


Recently uploaded (20)

From Natural Language to Structured Solr Queries using LLMs
From Natural Language to Structured Solr Queries using LLMsFrom Natural Language to Structured Solr Queries using LLMs
From Natural Language to Structured Solr Queries using LLMs

Must Know Postgres Extension for DBA and Developer during Migration
Must Know Postgres Extension for DBA and Developer during MigrationMust Know Postgres Extension for DBA and Developer during Migration
Must Know Postgres Extension for DBA and Developer during Migration

Leveraging the Graph for Clinical Trials and Standards
Leveraging the Graph for Clinical Trials and StandardsLeveraging the Graph for Clinical Trials and Standards
Leveraging the Graph for Clinical Trials and Standards

Session 1 - Intro to Robotic Process Automation.pdf
Session 1 - Intro to Robotic Process Automation.pdfSession 1 - Intro to Robotic Process Automation.pdf
Session 1 - Intro to Robotic Process Automation.pdf

Freshworks Rethinks NoSQL for Rapid Scaling & Cost-Efficiency
Freshworks Rethinks NoSQL for Rapid Scaling & Cost-EfficiencyFreshworks Rethinks NoSQL for Rapid Scaling & Cost-Efficiency
Freshworks Rethinks NoSQL for Rapid Scaling & Cost-Efficiency

“Temporal Event Neural Networks: A More Efficient Alternative to the Transfor...
“Temporal Event Neural Networks: A More Efficient Alternative to the Transfor...“Temporal Event Neural Networks: A More Efficient Alternative to the Transfor...
“Temporal Event Neural Networks: A More Efficient Alternative to the Transfor...

What is an RPA CoE? Session 1 – CoE Vision
What is an RPA CoE?  Session 1 – CoE VisionWhat is an RPA CoE?  Session 1 – CoE Vision
What is an RPA CoE? Session 1 – CoE Vision

Mutation Testing for Task-Oriented Chatbots
Mutation Testing for Task-Oriented ChatbotsMutation Testing for Task-Oriented Chatbots
Mutation Testing for Task-Oriented Chatbots

How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf
How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdfHow to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf
How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf

Harnessing the Power of NLP and Knowledge Graphs for Opioid Research
Harnessing the Power of NLP and Knowledge Graphs for Opioid ResearchHarnessing the Power of NLP and Knowledge Graphs for Opioid Research
Harnessing the Power of NLP and Knowledge Graphs for Opioid Research

Poznań ACE event - 19.06.2024 Team 24 Wrapup slidedeck
Poznań ACE event - 19.06.2024 Team 24 Wrapup slidedeckPoznań ACE event - 19.06.2024 Team 24 Wrapup slidedeck
Poznań ACE event - 19.06.2024 Team 24 Wrapup slidedeck

Christine's Product Research Presentation.pptx
Christine's Product Research Presentation.pptxChristine's Product Research Presentation.pptx
Christine's Product Research Presentation.pptx

zkStudyClub - LatticeFold: A Lattice-based Folding Scheme and its Application...
zkStudyClub - LatticeFold: A Lattice-based Folding Scheme and its Application...zkStudyClub - LatticeFold: A Lattice-based Folding Scheme and its Application...
zkStudyClub - LatticeFold: A Lattice-based Folding Scheme and its Application...

QA or the Highway - Component Testing: Bridging the gap between frontend appl...
QA or the Highway - Component Testing: Bridging the gap between frontend appl...QA or the Highway - Component Testing: Bridging the gap between frontend appl...
QA or the Highway - Component Testing: Bridging the gap between frontend appl...

Day 2 - Intro to UiPath Studio Fundamentals
Day 2 - Intro to UiPath Studio FundamentalsDay 2 - Intro to UiPath Studio Fundamentals
Day 2 - Intro to UiPath Studio Fundamentals

Principle of conventional tomography-Bibash Shahi ppt..pptx
Principle of conventional tomography-Bibash Shahi ppt..pptxPrinciple of conventional tomography-Bibash Shahi ppt..pptx
Principle of conventional tomography-Bibash Shahi ppt..pptx

Apps Break Data
Apps Break DataApps Break Data
Apps Break Data

inQuba Webinar Mastering Customer Journey Management with Dr Graham Hill
inQuba Webinar Mastering Customer Journey Management with Dr Graham HillinQuba Webinar Mastering Customer Journey Management with Dr Graham Hill
inQuba Webinar Mastering Customer Journey Management with Dr Graham Hill

Northern Engraving | Nameplate Manufacturing Process - 2024
Northern Engraving | Nameplate Manufacturing Process - 2024Northern Engraving | Nameplate Manufacturing Process - 2024
Northern Engraving | Nameplate Manufacturing Process - 2024

Essentials of Automations: Exploring Attributes & Automation Parameters
Essentials of Automations: Exploring Attributes & Automation ParametersEssentials of Automations: Exploring Attributes & Automation Parameters
Essentials of Automations: Exploring Attributes & Automation Parameters


A story on Postgres index types | PostgresLondon 2019 | Louise Grandjonc

  • 1. Indexes in Postgres (the long story or crocodiles going to the dentist) Louise Grandjonc 1
  • 2. About me Solutions Engineer at Citus Data Previously lead python developer Postgres enthusiast @louisemeta on twitter www.louisemeta.com louise@citusdata.com !2
  • 3. What we’re going to talk about 1. What are indexes for? 2. Pages and CTIDs 3. B-Tree 4. GIN 5. GiST 6. SP-GiST 7. Brin 8. Hash !3
  • 4. First things first: the crocodiles !4 • 250k crocodiles • 100k birds • 2M appointments
  • 6. Constraints !6 Some constraints transform into indexes. - PRIMARY KEY - UNIQUE - EXCLUDE USING "crocodile_pkey" PRIMARY KEY, btree (id) "crocodile_email_uq" UNIQUE CONSTRAINT, btree (email) Indexes: "appointment_pkey" PRIMARY KEY, btree (id) "appointment_crocodile_id_schedule_excl" EXCLUDE USING gist (crocodile_id WITH =, schedule WITH &&) In the crocodile table In the appointment table
  • 7. Query optimization !7 Often the main reason why we create indexes Why do indexes make queries faster In an index, tuples (value, pointer) are stored. Instead of reading the entire table for a value, you just go to the index (kind of like in an encyclopedia)
  • 8. 8 Pages, heaps and their pointers
  • 9. Pages !9 - PostgreSQL uses pages to store data from indexes or tables - A page has a fixed size of 8kB - A page has a header and items - In an index, each item is a tuple (value, pointer) - Each item in a page is referenced to with a pointer called ctid - The ctid consist of two numbers, the number of the page (the block number) and the offset of the item. The ctid of the item with value 4 would be (3, 2).
  • 10. 10 pageinspect and gevel Extensions to look into your index pages
  • 11. Page inspect is an extension that allows you to explore a bit what’s inside the pages. Functions for BTree, GIN, BRIN and Hash indexes. Gevel adds functions to GiST, SP-Gist and GIN. Used them to generate pictures for BTree and GiST https://github.com/louiseGrandjonc/pageinspect_inspector pageinspect, gevel and a bit of python !11
  • 13. B-Trees internal data structure - 1 !13 - A BTree in a balanced tree - All the leaves are at equal distance from the root. - A parent node can have multiple children minimizing the tree’s depth - Postgres implements the Lehman & Yao Btree Let’s say we would like to filter or order on the crocodile’s number of teeth. CREATE INDEX ON crocodile (number_of_teeth);
  • 14. B-Trees internal data structure - 2 Metapage !14 The metapage is always the first page of a BTree index. It contains: - The block number of the root page - The level of the root - A block number for the fast root - The level of the fast root
  • 15. B-Trees internal data structure - 2 Metapage !15 SELECT * FROM bt_metap('crocodile_number_of_teeth_idx'); magic | version | root | level | fastroot | fastlevel --------+---------+------+-------+----------+----------- 340322 | 2 | 290 | 2 | 290 | 2 (1 row) Using page inspect, you can get the information on the metapage
  • 16. B-Trees internal data structure - 3 Pages !16 The root, the parents, and the leaves are all pages with the same structure. Pages have: - A block number, here the root block number is 290 - A high key - A pointer to the next (right) and previous pages - Items
  • 17. B-Trees internal data structure - 4 Pages high key !17 - High key is specific to Lehman & Yao BTrees - Any item in the page will have a value lower or equal to the high key - The root doesn’t have a high key - The right-most page of a level doesn’t have a high key And in page 575, there is no high key as it’s the rightmost page. In page 3, I will find crocodiles with 16 or less teeth In page 289, with 31 and less
  • 18. B-Trees internal data structure - 5 Next and previous pages pointers !18 - Specificity of the Yao and Lehmann BTree - Pages in the same level are in a linked list Very useful for ORDER BY For example: SELECT number_of_teeth FROM crocodile ORDER BY number_of_teeth ASC Postgres would start at the first leaf page and thanks to the next page pointer, has directly all rows in the right order.
  • 19. B-Trees internal data structure - 6 Page inspect for BTree pages !19 SELECT * FROM bt_page_stats(‘crocodile_number_of_teeth_idx’, 289); -[ RECORD 1 ]-+----- blkno | 289 type | i live_items | 285 dead_items | 0 avg_item_size | 15 page_size | 8192 free_size | 2456 btpo_prev | 3 btpo_next | 575 btpo | 1 btpo_flags | 0
  • 20. B-Trees internal data structure - 7 Items !20 - Items have a value and a pointer - In the parents, the ctid points to the child page - In the parents, the value is the value of the first item in the child page
  • 21. B-Trees internal data structure - 8 Items !21 - In the leaves, the ctid is to the heap tuple in the table - In the leaves it’s the value of the column(s) of the row
  • 22. B-Trees internal data structure To sum it up !22 - A Btree is a balanced tree. PostgreSQL implements the Lehmann & Yao algorithm - Metapage contains information on the root and fast root - Root, parent, and leaves are pages. - Each level is a linked list making it easier to move from one page to an other within the same level. - Pages have a high key defining the biggest value in the page - Pages have items pointing to an other page or the row.

  • 23. B-Trees - Searching in a BTree !23 1. Scan keys are created 2. Starting from the root until a leaf page • Is moving to the right page necessary? • If the page is a leaf, return the first item with a value higher or equal to the scan key • Binary search to find the right path to follow • Descend to the child page and lock it SELECT email FROM crocodile WHERE number_of_teeth >= 20;
  • 24. B-Trees - Scan keys !24 Postgres uses the query scan to define scankeys. If possible, redundant keys in your query are eliminated to keep only the tightest bounds. The tightest bound is number_of_teeth > 5 SELECT email, number_of teeth FROM crocodile WHERE number_of_teeth > 4 AND number_of_teeth > 5 ORDER BY number_of_teeth ASC; email | number_of_teeth ----------------------------------------+----------------- anne.chow222131@croco.com | 6 valentin.williams222154@croco.com | 6 pauline.lal222156@croco.com | 6 han.yadav232276@croco.com | 6
  • 25. B-Trees - About read locks !25 We put a read lock on the currently examined page. Read locks  ensure that the  records on that page are not modified while reading it. There could still be a concurrent insert on a child page causing a page split.
  • 26. BTrees - Is moving right necessary? !26 Concurrent insert while visiting the root: SELECT email FROM crocodile WHERE number_of_teeth >= 20;
  • 27. BTrees - Is moving right necessary? !27 The new high key of child page is 19 So we need to move right to the page 840
  • 28. B-Trees - Searching in a BTree !28 1. Scan keys are created 2. Starting from the root until a leaf page • Is moving to the right page necessary? • If the page is a leaf, return the first item with a value higher or equal to the scan key • Binary search to find the right path to follow • Descend to the child page and lock it SELECT email FROM crocodile WHERE number_of_teeth >= 20;
  • 29. BTrees - Inserting !29 1. Find the right insert page 2. Lock the page 3. Check constraint 4. Split page if necessary and insert row 5. In case of page split, recursively insert a new item in the parent level
  • 30. BTrees -Inserting Finding the right page !30 Auto-incremented values: Primary keys with a sequence for example, like the index crocodile_pkey. New values will always be inserted in the right-most leaf page. To avoid using the search algorithm, Postgres caches this page. Non auto-incremented values: The search algorithm is used to find the right leaf page.
  • 31. BTrees -Inserting Page split !31 1. Is a split necessary? If the free space on the target page is lower than the item’s size, then a split is necessary. 2. Finding the split point Postgres wants to equalize the free space on each page to limit page splits in future inserts. 3. Splitting
  • 32. BTrees - Deleting !32 - Items are marked as deleted and will be ignored in future index scans until VACUUM - A page is deleted only if all its items have been deleted. - It is possible to end up with a tree with several levels with only one page. - The fast root is used to optimize the search.
  • 34. GIN !34 - GIN (Generalized Inverted Index)  - Used to index arrays, jsonb, and tsvector (for fulltext search) columns. - Efficient for <@, &&, @@@ operators New column healed_teeth (integer[])   Here is how to create the GIN index for this column croco=# SELECT email, number_of_teeth, healed_teeth FROM crocodile WHERE id =1; -[ RECORD 1 ]---+-------------------------------------------------------- email | louise.grandjonc1@croco.com number_of_teeth | 58 healed_teeth | {16,11,55,27,22,41,38,2,5,40,52,57,28,50,10,15,1,12,46} CREATE INDEX ON crocodile USING GIN(healed_teeth);
  • 35. GIN How is it different from a BTree? - Keys !35 - GIN indexes are balanced trees - Just like BTree, their first page is a metapage First difference: the keys BTree index on healed_teeth The indexed values are arrays Seq Scan on crocodile (cost=…) Filter: ('{1,2}'::integer[] <@ healed_teeth) Rows Removed by Filter: 250728 Planning time: 0.157 ms Execution time: 161.716 ms (5 rows) SELECT email FROM crocodile WHERE ARRAY[1, 2] <@ healed_teeth;
  • 36. GIN How is it different from a BTree? - Keys !36 - In a GIN index, the array is split and each value is an entry - The values are unique
  • 37. GIN How is it different from a BTree? - Keys !37 Bitmap Heap Scan on crocodile (cost=516.59..6613.42 rows=54786 width=29) (actual time=15.960..38.197 rows=73275 loops=1) Recheck Cond: ('{1,2}'::integer[] <@ healed_teeth) Heap Blocks: exact=4218 -> Bitmap Index Scan on crocodile_healed_teeth_idx (cost=0.00..502.90 rows=54786 width=0) (actual time=15.302..15.302 rows=73275 loops=1) Index Cond: ('{1,2}'::integer[] <@ healed_teeth) Planning time: 0.124 ms Execution time: 41.018 ms (7 rows) Seq Scan on crocodile (cost=…) Filter: ('{1,2}'::integer[] <@ healed_teeth) Rows Removed by Filter: 250728 Planning time: 0.157 ms Execution time: 161.716 ms (5 rows)
  • 38. GIN How is it different from a BTree? Leaves !38 - In a leaf page, the items contain a posting list of pointers to the rows in the table - If the list can’t fit in the page, it becomes a posting tree - In the leaf item remains a pointer to the posting tree
  • 39. GIN How is it different from a BTree? Pending list !39 - To optimise inserts, we store the new entries in a pending list (linear list of pages) - Entries are moved to the main tree on VACUUM or when the list is full - You can disable the pending list by setting fastupdate to false (on CREATE or ALTER INDEX) SELECT * FROM gin_metapage_info(get_raw_page('crocodile_healed_teeth_idx', 0)); -[ RECORD 1 ]----+----------- pending_head | 4294967295 pending_tail | 4294967295 tail_free_size | 0 n_pending_pages | 0 n_pending_tuples | 0 n_total_pages | 358 n_entry_pages | 1 n_data_pages | 356 n_entries | 47 version | 2
  • 40. GIN To sum it up !40 To sum up, a GIN index has: - A metapage - A BTree of key entries - The values are unique in the main tree - The leaves either contain a pointer to a posting tree, or a posting list of heap pointers - New rows go into a pending list until it’s full or VACUUM, that list needs to be scanned while searching the index
  • 42. GiST - keys !42 Differences with a BTree index - Data isn’t ordered - The key ranges can overlap Which means that a same value can be inserted in different pages
  • 43. GiST - keys !43 Differences with a BTree index - Data isn’t ordered - The key ranges can overlap Which means that a same value can be inserted in different pages Data isn’t ordered
  • 44. GiST - keys !44 A new appointment scheduled from  August 14th 2014 7:30am to 8:30am can be inserted in both pages. CREATE INDEX ON appointment USING GIST(schedule) Differences with a BTree index - Data isn’t ordered - The key ranges can overlap Which means that a same value can be inserted in different pages
  • 45. GiST - keys !45 Differences with a BTree index - Data isn’t ordered - The key ranges can overlap Which means that a same value can be inserted in different pages A new appointment scheduled from  August 14th 2014 7:30am to 8:30am can be inserted in both pages. CREATE INDEX ON appointment USING GIST(schedule)
  • 46. GiST key class functions !46 GiST allows the development of custom data types with the appropriate access methods. These functions are key class functions: Union: used while inserting, if the range changed Distance: used for ORDER BY and nearest neighbor, calculates the distance to the scan key
  • 47. GiST key class functions - 2 !47 Consistent: returns MAYBE if the range contains the searched value, meaning that rows could be in the page Child pages could contain the appointments overlapping [2018-05-17 08:00:00, 2018-05-17 13:00:00] Consistent returns MAYBE
  • 48. GiST - Searching !48 SELECT c.email, schedule, done, emergency_level FROM appointment INNER JOIN crocodile c ON (c.id=crocodile_id) WHERE schedule && '[2018-05-17 08:00:00, 2018-05-17 13:00:00]'::tstzrange AND done IS FALSE ORDER BY schedule DESC LIMIT 3; 1. Create a search queue of pages to explore with the root in it 2. While the search queue isn’t empty, pops a page 1. If the page is a leaf: update the bitmap with CTIDs of rows 2. Else, adds to the search queue the items where Consistent returned MAYBE
  • 49. GiST - Inserting !49 A new item can be inserted in any page. Penalty: key class function (defined by user) gives a number representing how bad it would be to insert the value in the child page. About page split: Picksplit: makes groups with little distance Performance of search will depend a lot of Picksplit
  • 50. GiST - Inserting !50 A new item can be inserted in any page. Penalty: key class function (defined by user) gives a number representing how bad it would be to insert the value in the child page. About page split: Picksplit: makes groups with little distance Performance of search will depend a lot of Picksplit
  • 51. To sum up !51 - Useful for overlapping (geometries, array etc.) - Nearest neighbor - Can be used for full text search (tsvector, tsquery) - Any data type can implement GiST as long as a few methods are available
  • 52. GiST or GIN for fulltext search !52 movies=# CREATE INDEX ON film USING GIN(fulltext) with (fastupdate=off); CREATE INDEX Time: 8.083 ms movies=# INSERT INTO film (title, description, language_id) VALUES ('Nightmare at the dentist', 'A crocodile calls his dentist on halloween and ends up toothless and very sad, warning: not for kids, or teeth-sensitive crocodiles', 1); INSERT 0 1 Time: 3.057 ms movies=# INSERT INTO film (title, description, language_id) VALUES ('Nightmare at the dentist', 'The terrible adventure of a crocodile who never goes to the dentist', 1); INSERT 0 1 Time: 1.323 ms - Maintaining a GIN index is slower than GiST
  • 53. GiST or GIN for fulltext search !53 - Lookups are faster with GIN movies=# SELECT COUNT(*) FROM film WHERE fulltext @@ to_tsquery('crocodile'); count ------- 106 (1 row) Time: 1.275 ms movies=# SELECT COUNT(*) FROM film WHERE fulltext @@ to_tsquery('crocodile'); count ------- 106 (1 row) Time: 0.467 ms
  • 54. GiST or GIN for fulltext search !54 - GIN indexes are larger than GiST movies=# di+ film_fulltext_idx List of relations Schema | Name | Type | Owner | Table | Size | Description --------+-------------------+-------+----------+-------+-------+------------- public | film_fulltext_idx | index | postgres | film | 88 kB | (1 row) movies=# di+ film_fulltext_gin_idx List of relations Schema | Name | Type | Owner | Table | Size | Description --------+-----------------------+-------+----------+-------+--------+------------- public | film_fulltext_gin_idx | index | postgres | film | 112 kB | (1 row)
  • 56. SP-GiST Internal data structure !56 - Not a balanced tree - A same page can’t have inner tuples and leaf tuples - Keys are decomposed - In an inner tuple, the value is the prefix - In a leaf tuple, the value is the rest (postfix)
  • 57. P L A Page blkno: 1 ABLO UISE RIAN O D Page blkno: 8 Page blkno: 4 SP-GiST Pages !57 SELECT tid, level, leaf_value FROM spgist_print('crocodile_first_name_idx3') as t (tid tid, a bool, n int, level int, p tid, pr text, l smallint, leaf_value text) ; tid | level | leaf_value ----------+-------+------------ … (4,36) | 2 | ablo (4,57) | 2 | ustafa (4,84) | 3 | rian (4,153) | 3 | uise … Here are how the pages are organized if we look into gevel’s sp-gist functions for this index
  • 58. Root SP-GiST Why are unbalanced tree so great? !58 Searching for appointments in Paris with an SPGiST index croco_talk=# SELECT crocodile_id, schedule FROM appointment WHERE point_croco~= '(55.7522200,37.6155600)'; crocodile_id | schedule --------------+----------------------------------------------- 1 | ["2017-07-18 13:21:00","2017-07-18 14:21:00") (1 row) Time: 0.411 ms Few crocodiles live in Paris, so the path to the leaves will be shorter. https://www.pgcon.org/2011/schedule/attachments/197_pgcon-2011.pdf
  • 59. SP-GiST !59 - Can be used for points - For non balanced data structures (k-d trees) - Like GiST: allows the development of custom data types
  • 61. BRIN Internal data structure !61 - Block Range Index - Not a binary tree - Not even a tree - Block range: group of pages physically adjacent - For each block range: the range of values is stored - BRIN indexes are very small - Fast scanning on large tables
  • 62. BRIN Internal data structure !62 SELECT * FROM brin_page_items(get_raw_page('appointment_created_at_idx', 2), 'appointment_created_at_idx'); itemoffset | blknum | attnum | allnulls | hasnulls | placeholder | value ------------+--------+--------+----------+----------+-------------+--------------------------------------------------- 1 | 0 | 1 | f | f | f | {2008-03-01 00:00:00-08 .. 2009-07-07 07:30:00-07} 2 | 128 | 1 | f | f | f | {2009-07-07 08:00:00-07 .. 2010-11-12 15:30:00-08} 3 | 256 | 1 | f | f | f | {2010-11-12 16:00:00-08 .. 2012-03-19 23:30:00-07} 4 | 384 | 1 | f | f | f | {2012-03-20 00:00:00-07 .. 2013-07-26 07:30:00-07} 5 | 512 | 1 | f | f | f | {2013-07-26 08:00:00-07 .. 2014-12-01 15:30:00-08} SELECT id, created_at FROM appointment WHERE ctid='(0, 1)'::tid; id | created_at --------+------------------------ 101375 | 2008-03-01 00:00:00-08 (1 row)
  • 63. BRIN Internal data structure !63 SELECT * FROM brin_page_items(get_raw_page('crocodile_birthday_idx', 2), 'crocodile_birthday_idx'); itemoffset | blknum | attnum | allnulls | hasnulls | placeholder | value ------------+--------+--------+----------+----------+-------------+---------------------------- 1 | 0 | 1 | f | f | f | {1948-09-05 .. 2018-09-04} 2 | 128 | 1 | f | f | f | {1948-09-07 .. 2018-09-03} 3 | 256 | 1 | f | f | f | {1948-09-05 .. 2018-09-03} 4 | 384 | 1 | f | f | f | {1948-09-05 .. 2018-09-04} 5 | 512 | 1 | f | f | f | {1948-09-05 .. 2018-09-02} 6 | 640 | 1 | f | f | f | {1948-09-09 .. 2018-09-04} … (14 rows) In this case, the values in birthday has no correlation with the physical location, the index would not speed up the search as all pages would have to be visited. BRIN is interesting for data where the value is correlated with the physical location.
  • 64. BRIN Warning on DELETE and INSERT !64 SELECT * FROM brin_page_items(get_raw_page('appointment_created_at_idx', 2), 'appointment_created_at_idx'); itemoffset | blknum | attnum | allnulls | hasnulls | placeholder | value ------------+--------+--------+----------+----------+-------------+--------------------------------------------------- 1 | 0 | 1 | f | f | f | {2008-03-01 00:00:00-08 .. 2018-07-01 07:30:00-07} 2 | 128 | 1 | f | f | f | {2009-07-07 08:00:00-07 .. 2018-07-01 23:30:00-07} 3 | 256 | 1 | f | f | f | {2010-11-12 16:00:00-08 .. 2012-03-19 23:30:00-07} 4 | 384 | 1 | f | f | f | {2012-03-20 00:00:00-07 .. 2018-07-06 23:30:00-07} DELETE FROM appointment WHERE created_at >= '2009-07-07' AND created_at < ‘2009-07-08'; DELETE FROM appointment WHERE created_at >= '2012-03-20' AND created_at < ‘2012-03-25'; Deleted and then vacuum on the appointment table New rows are inserted in the free space after VACUUM BRIN index has some ranges with big data ranges. Search will visit a lot of pages.
  • 66. Hash Internal data structure !66 - Only useful if you have a data not fitting into a page - Only operator is = - If you use a PG version < 10, it’s just awful
  • 67. Conclusion !67 - B-Tree - Great for <, >, =, >=, <= - GIN - Fulltext search, jsonb, arrays - Inserts can be slow because of unicity of the keys - BRIN - Great for huge table with correlation between value and physical location - <, >, =, >=, <= - GiST - Great for overlapping - Using key class functions - Can be implemented for any data type - SP-Gist - Also using key class function - Decomposed keys - Can be used for non balanced data structures (k-d trees) - Hash - Only for =
  • 68. Questions !68 Thanks for your attention Go read the articles www.louisemeta.com Now only the ones on BTrees are published, but I’ll announce the rest on twitter @louisemeta Come talk to me at the Citus booth Crocodiles by https://www.instagram.com/zimmoriarty/?hl=en
