The document presents a novel approach for segmenting regional patterns in diffuse interstitial lung disease (DILD) HRCT images using pixel-to-pixel segmentation with CNNs and Perlin noise, addressing the challenge of limited datasets and lack of human-labeled masks. It details the architecture involving U-Net with skip connections and a mask generation method that does not require radiologist involvement. The study showcases improved accuracy and efficiency in segmentation compared to traditional superpixel methods.

1. A pixel-to-pixel segmentation of DILD
without masks
using CNN and Perlin noise
2016.11 njkim@jamonglab.com

2. Objectives

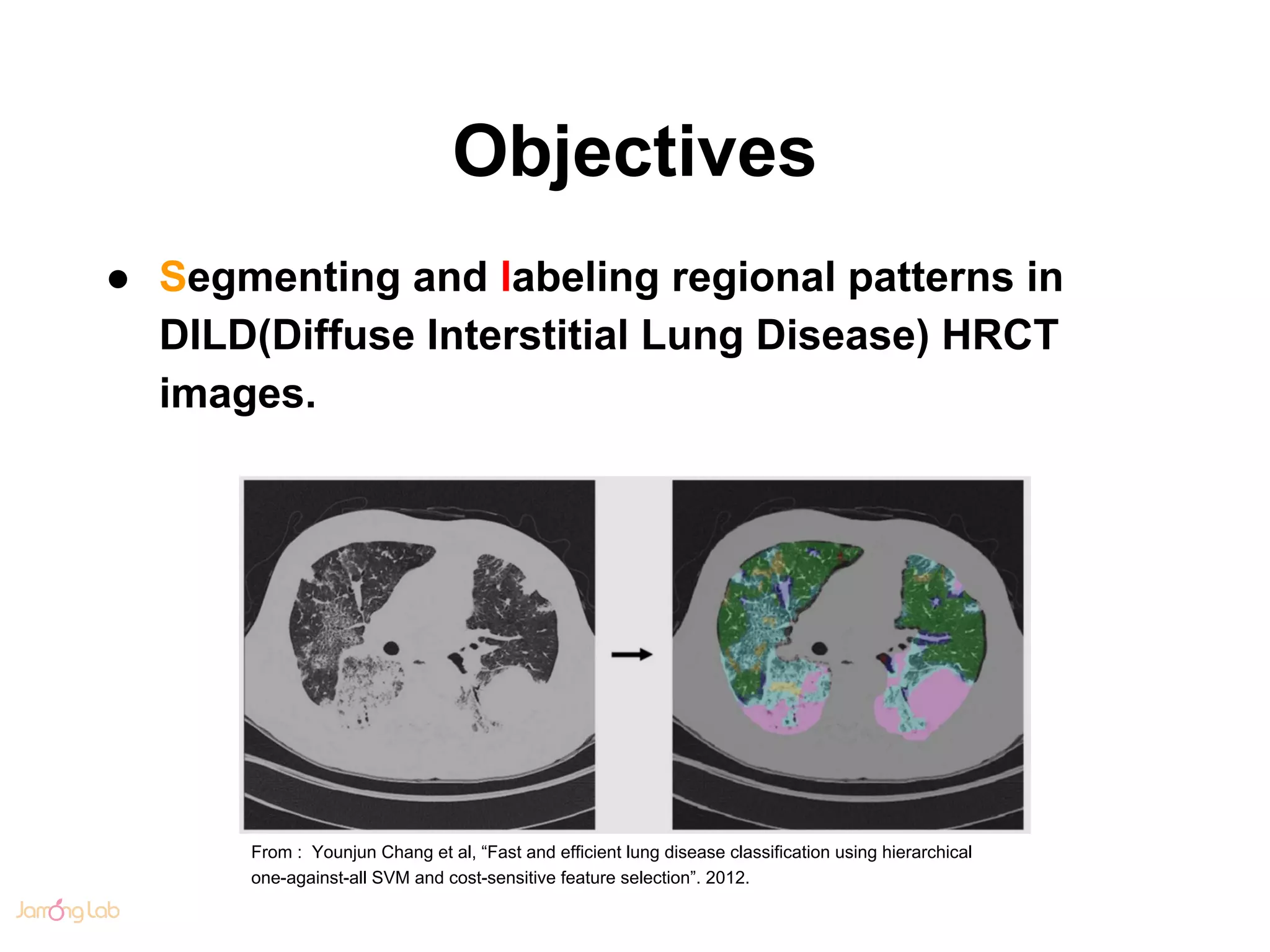

● Segmenting and labeling regional patterns in
DILD(Diffuse Interstitial Lung Disease) HRCT
images.
From : Younjun Chang et al, “Fast and efficient lung disease classification using hierarchical
one-against-all SVM and cost-sensitive feature selection”. 2012.

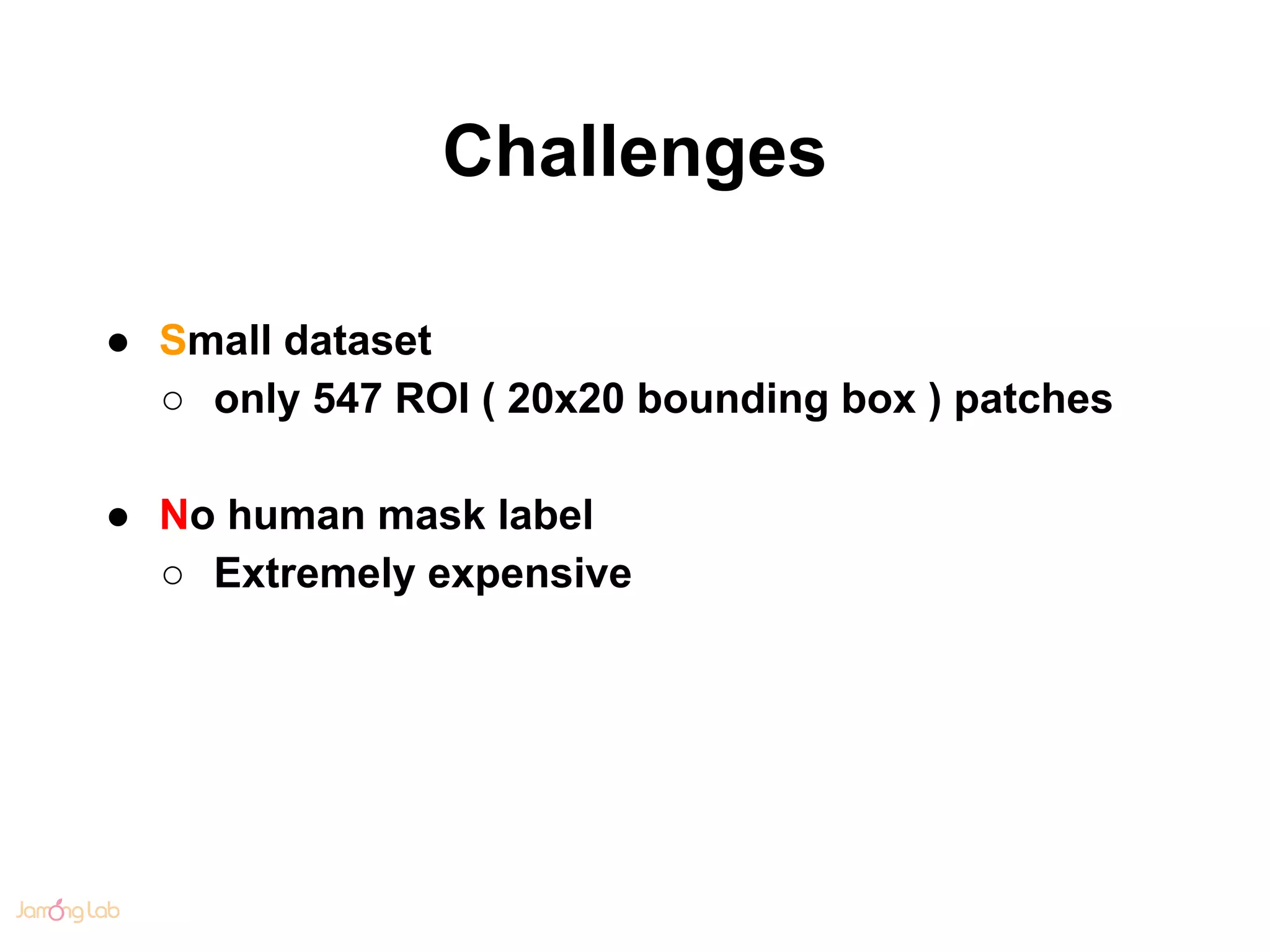

3. Challenges
● Small dataset
○ only 547 ROI ( 20x20 bounding box ) patches
● No human mask label
○ Extremely expensive

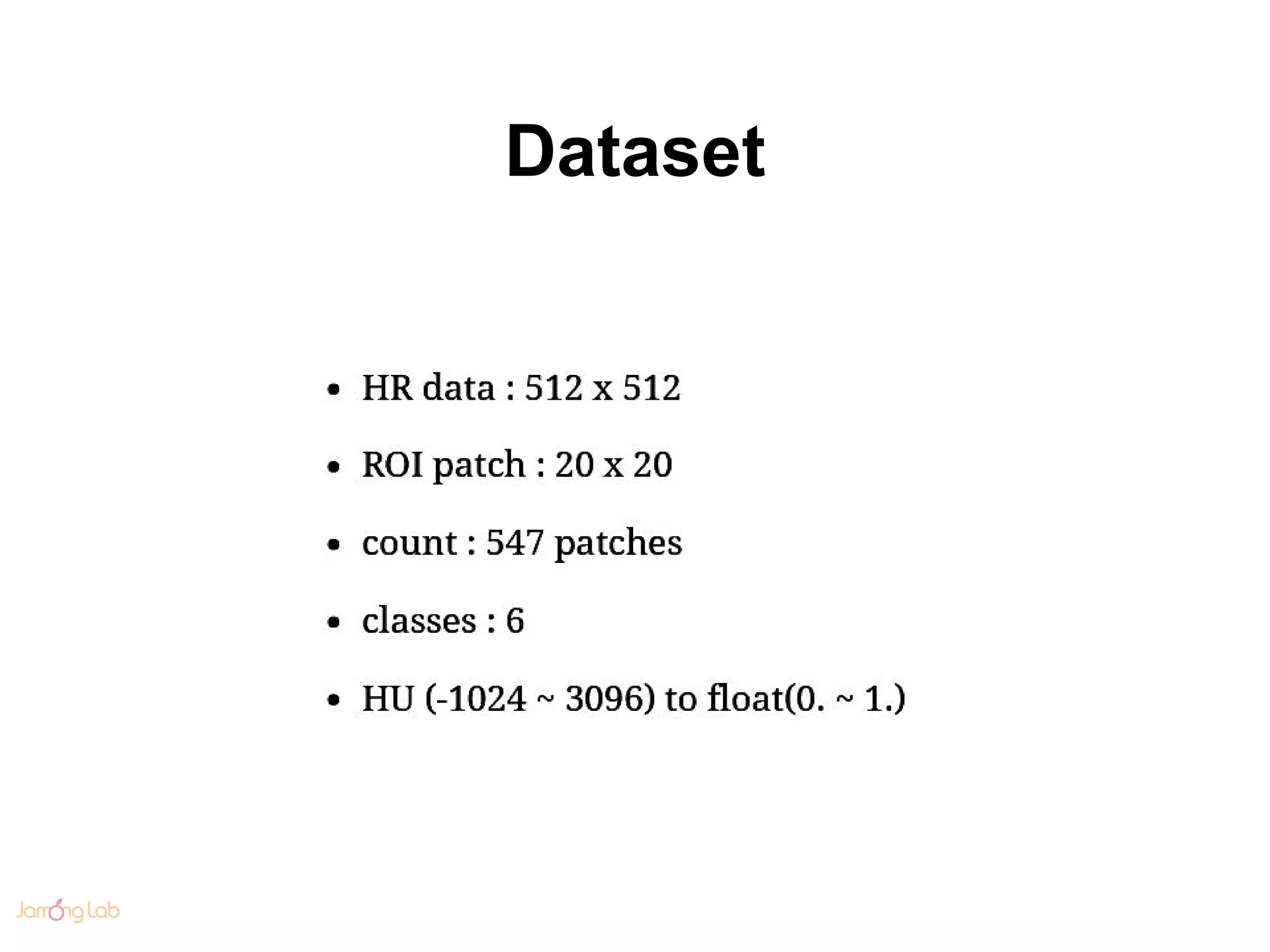

4. Dataset

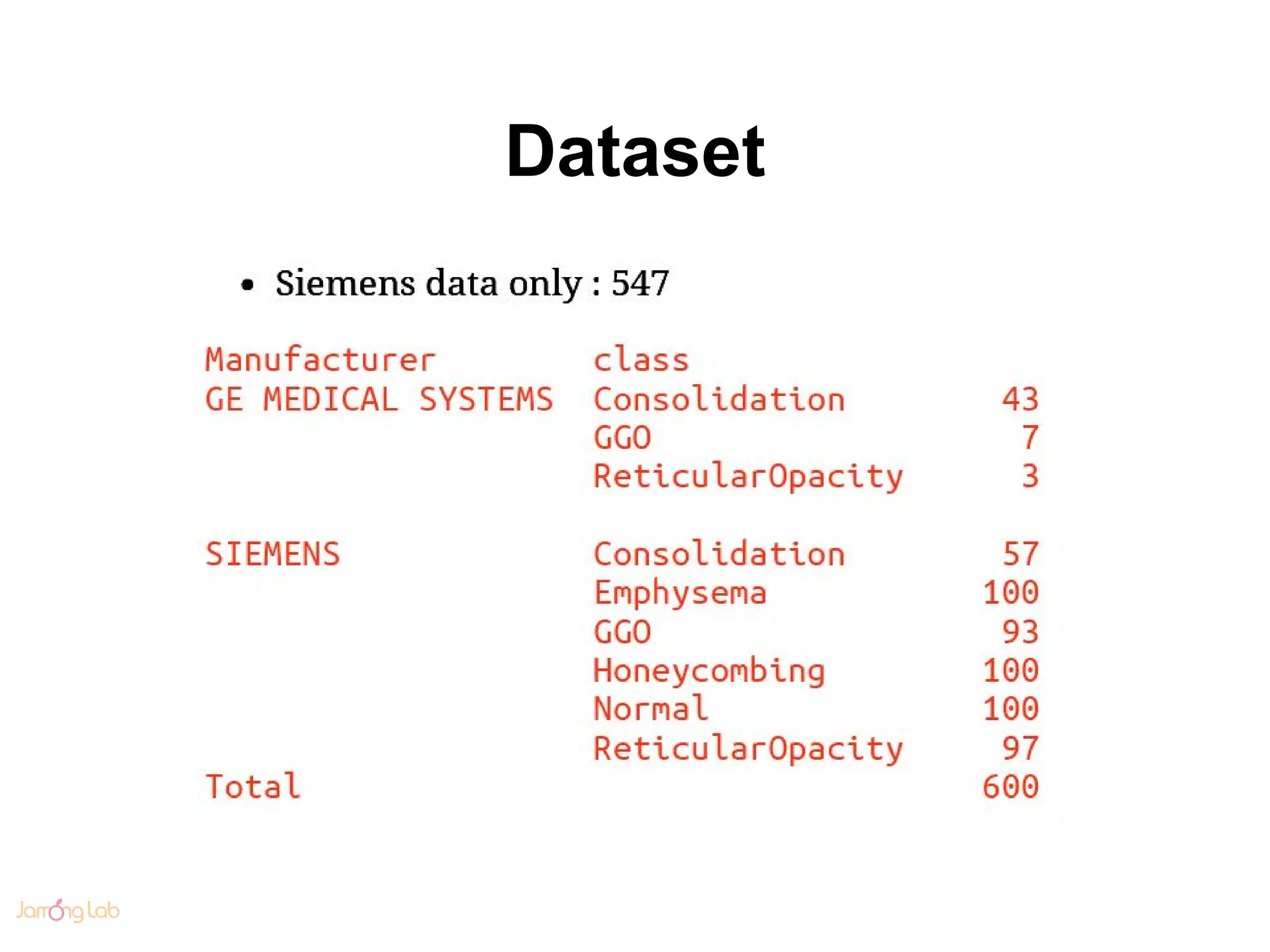

5. Dataset

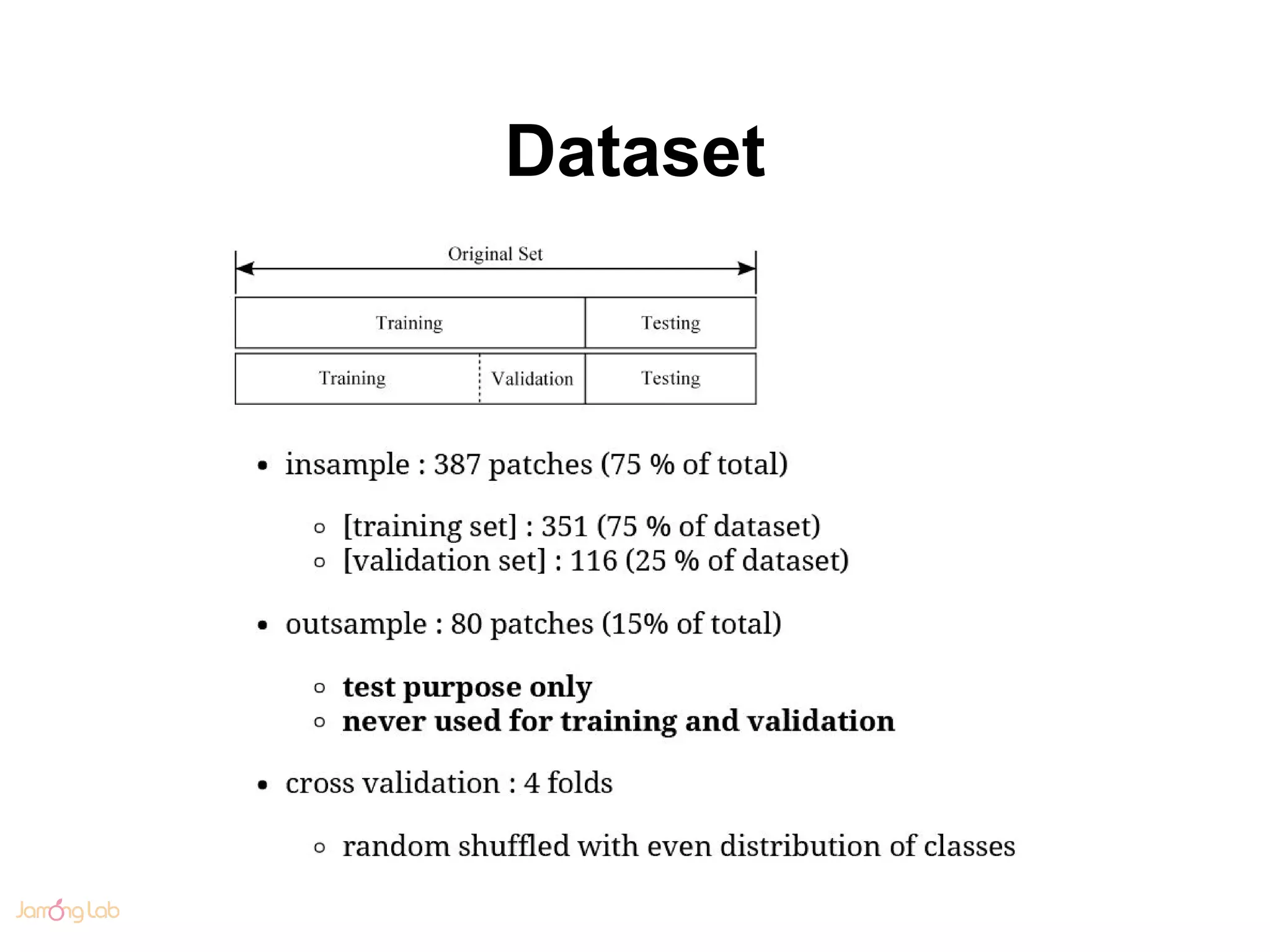

6. Dataset

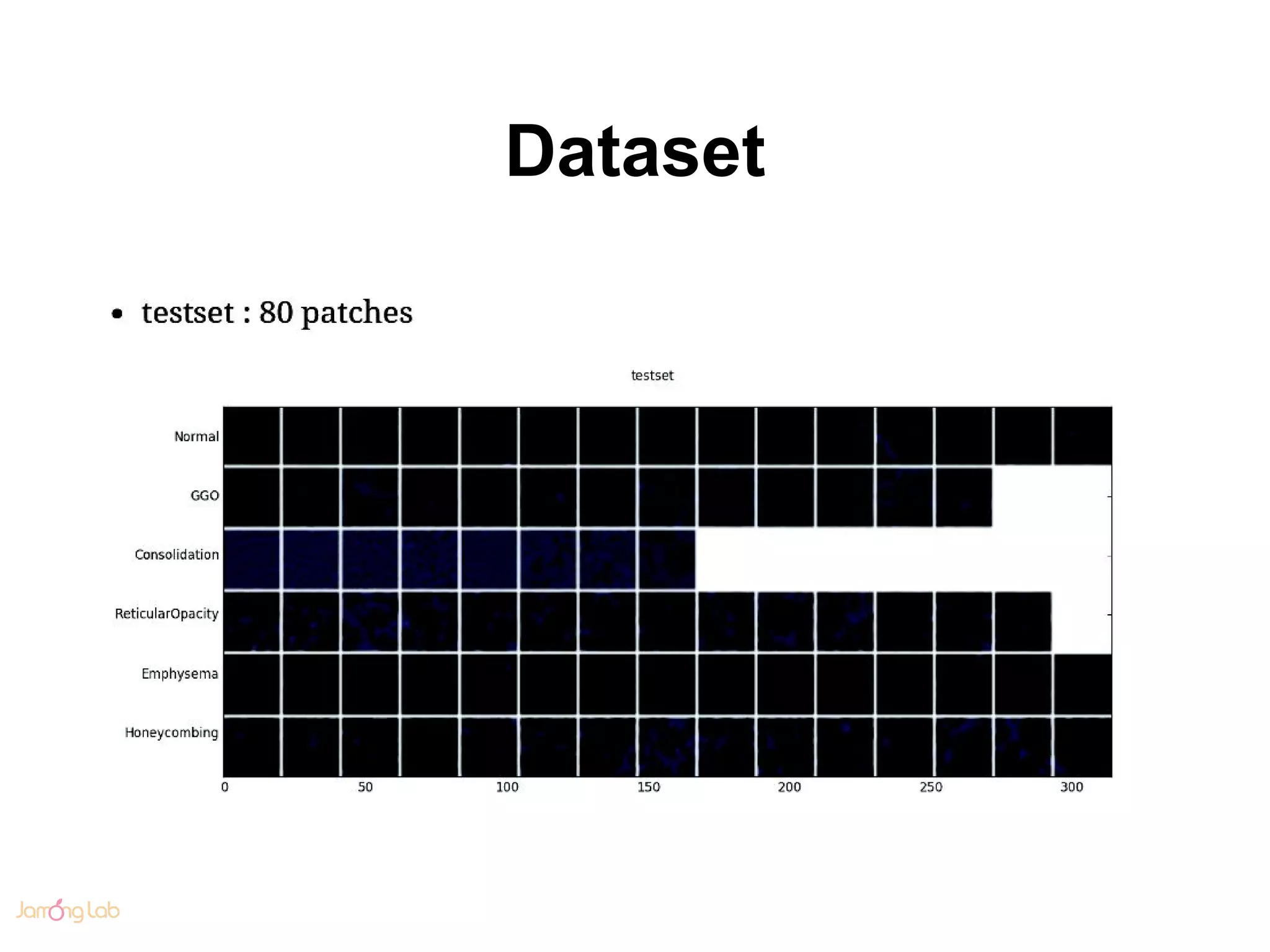

7. Dataset

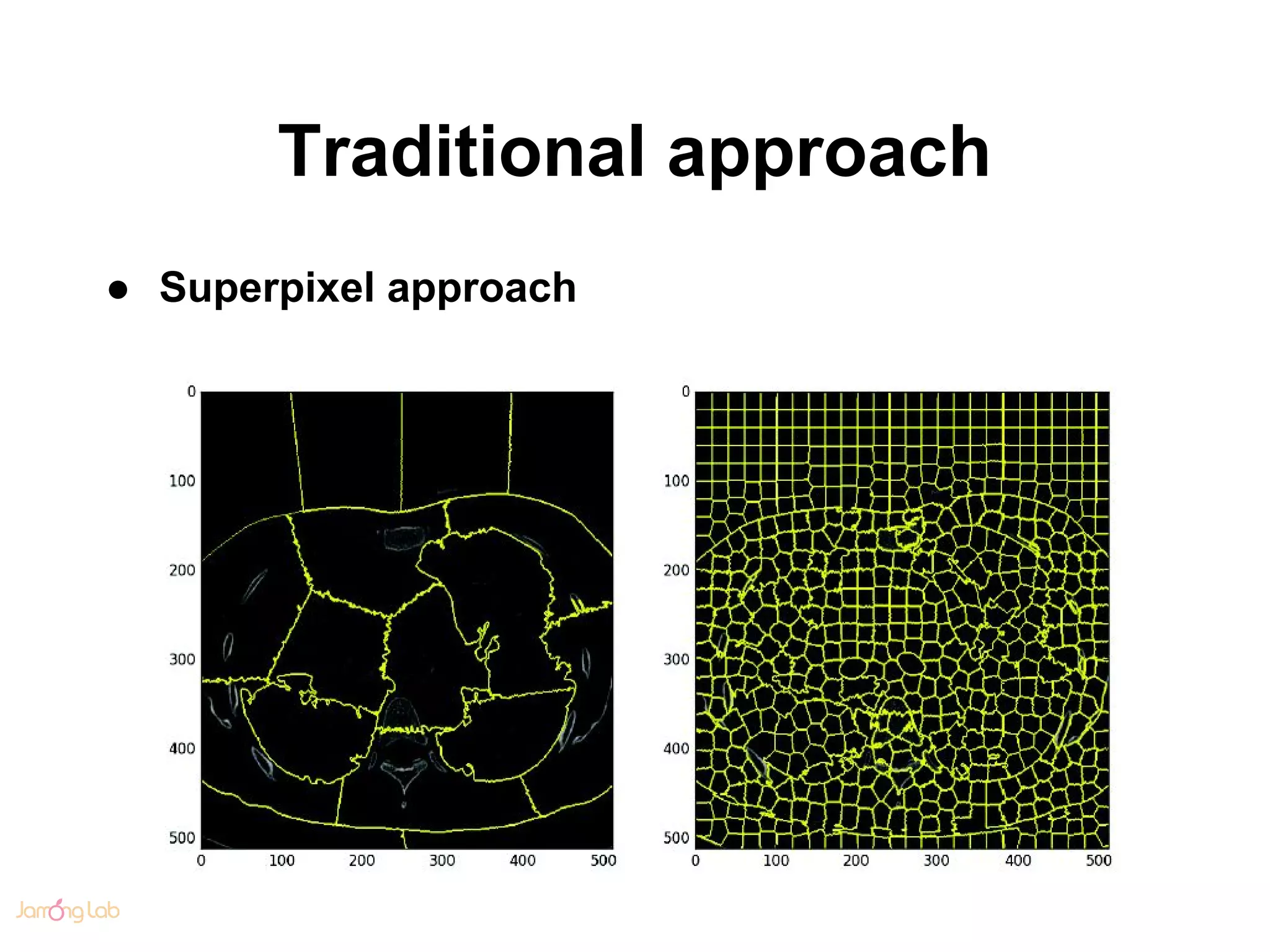

8. Traditional approach
● Superpixel approach

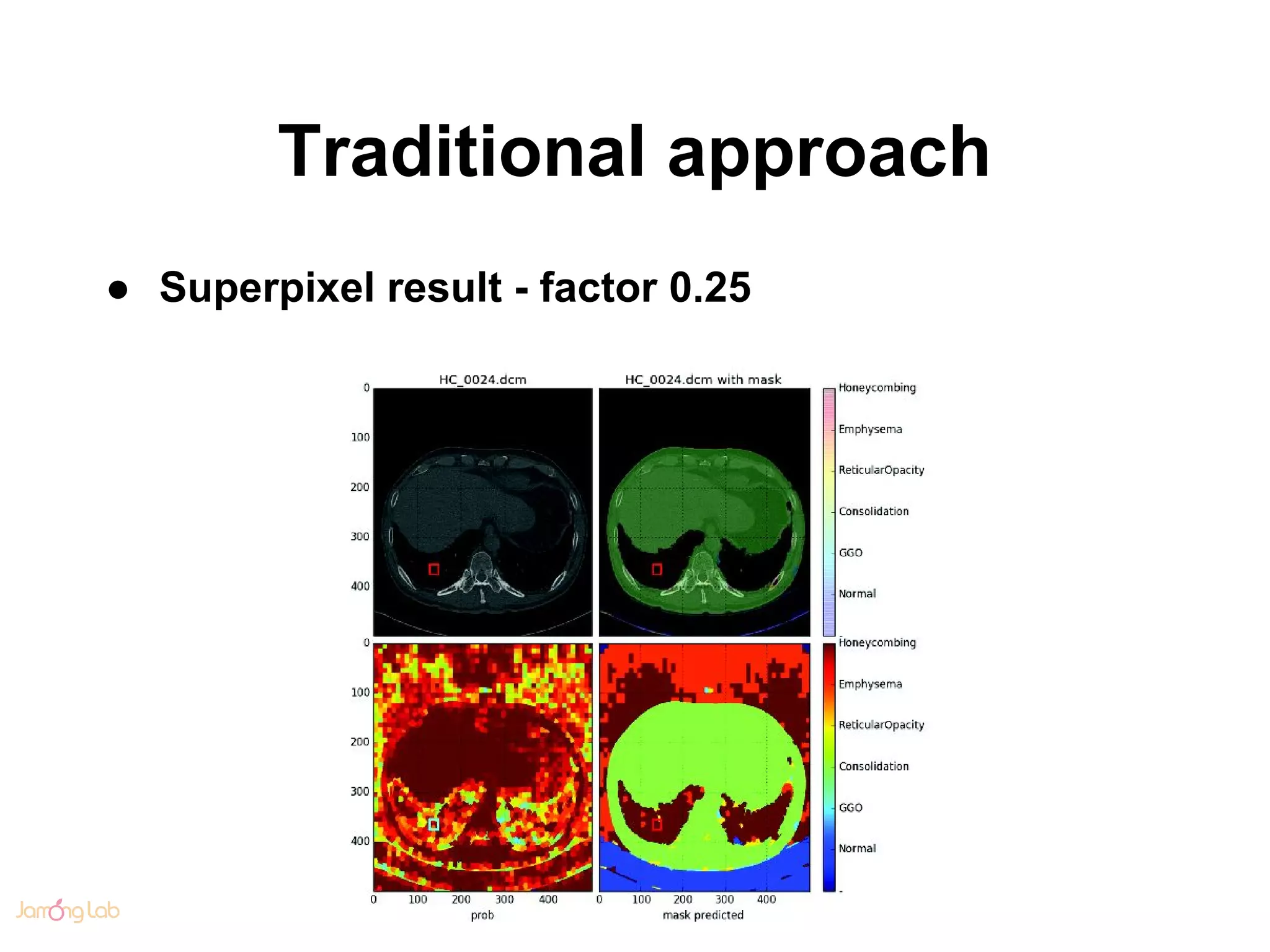

9. Traditional approach
● Superpixel result - factor 0.25

10. Traditional approach

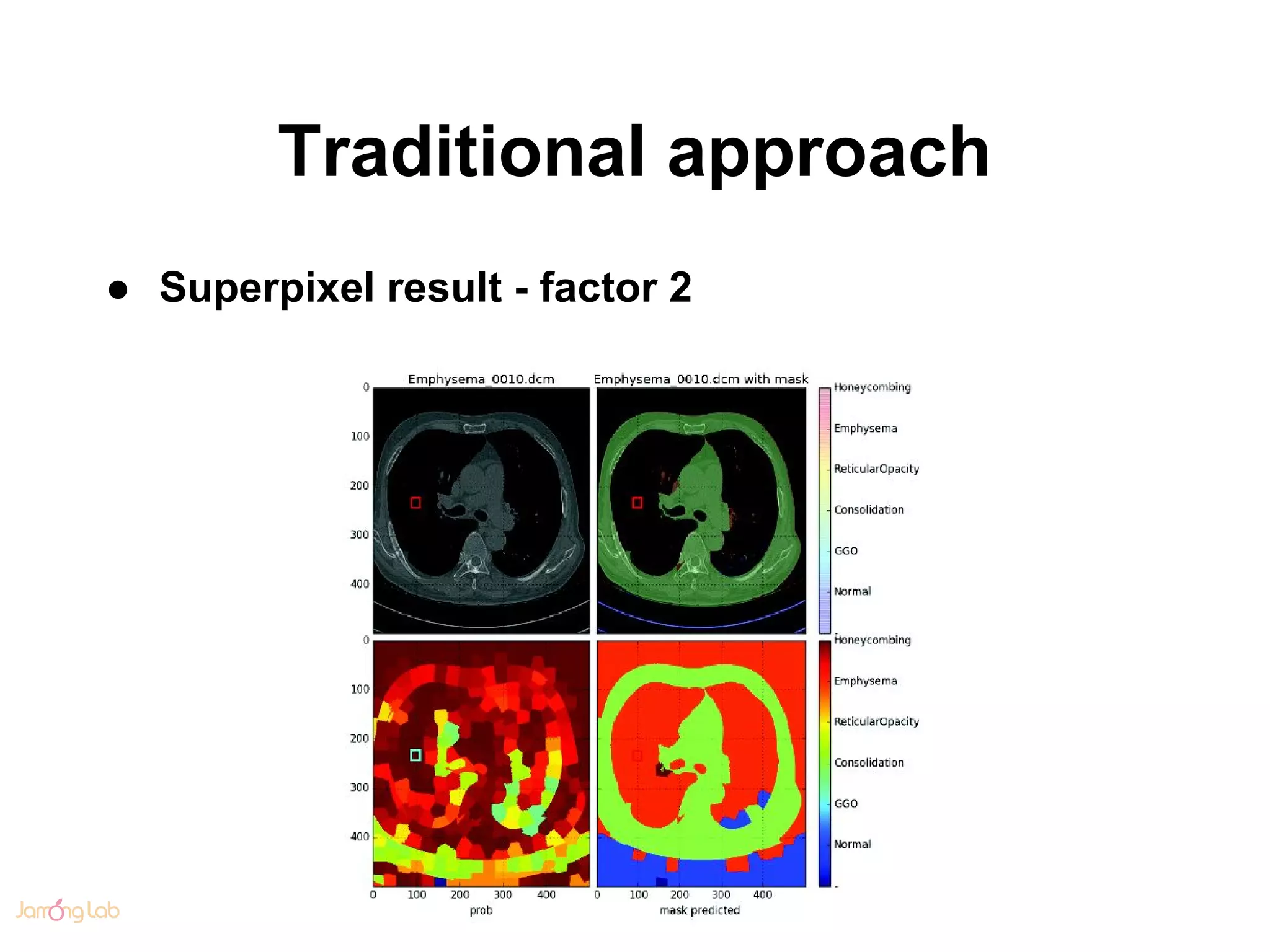

● Superpixel result - factor 2

11. Traditional approach

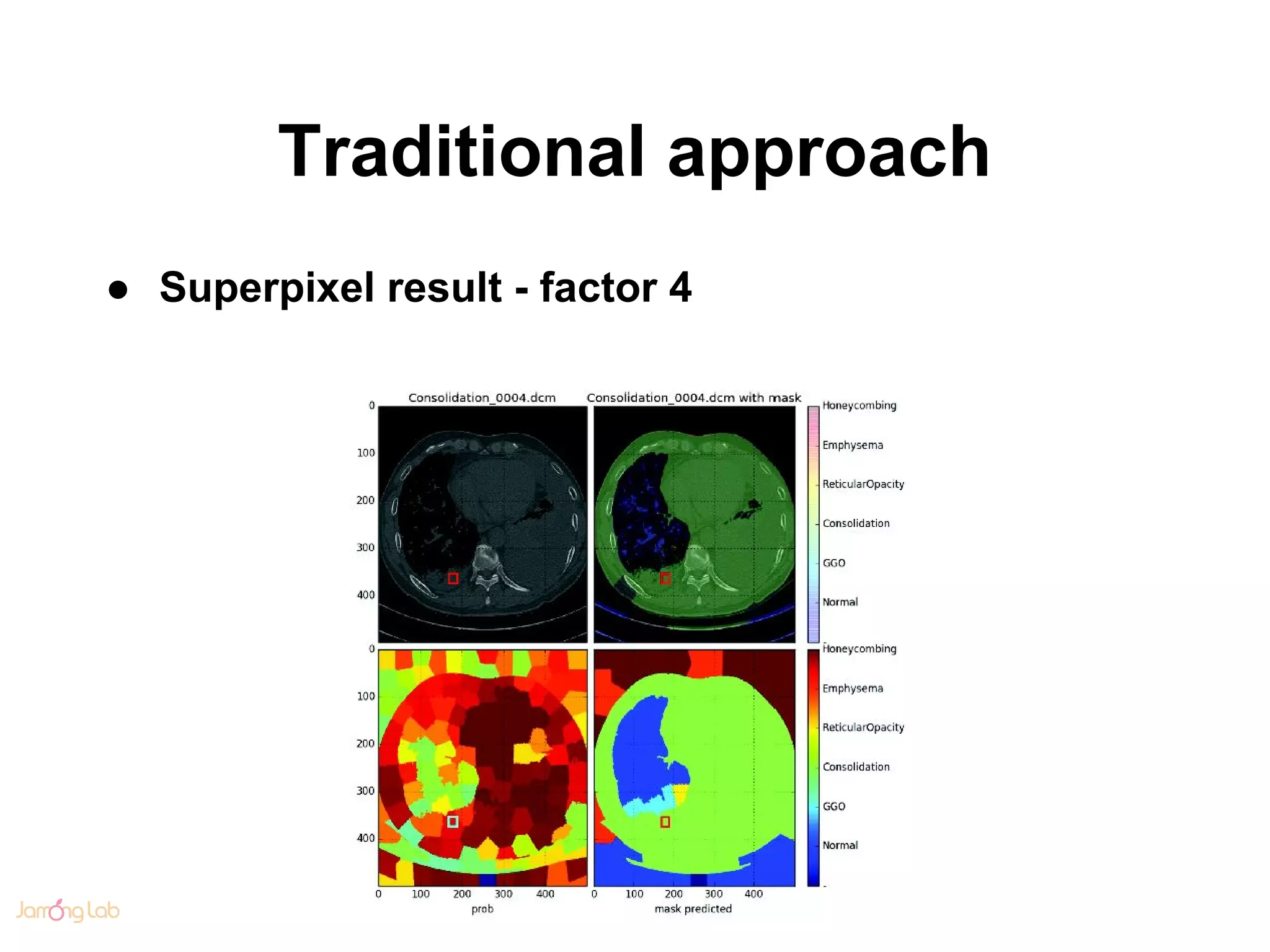

● Superpixel result - factor 4

12. Traditional approach

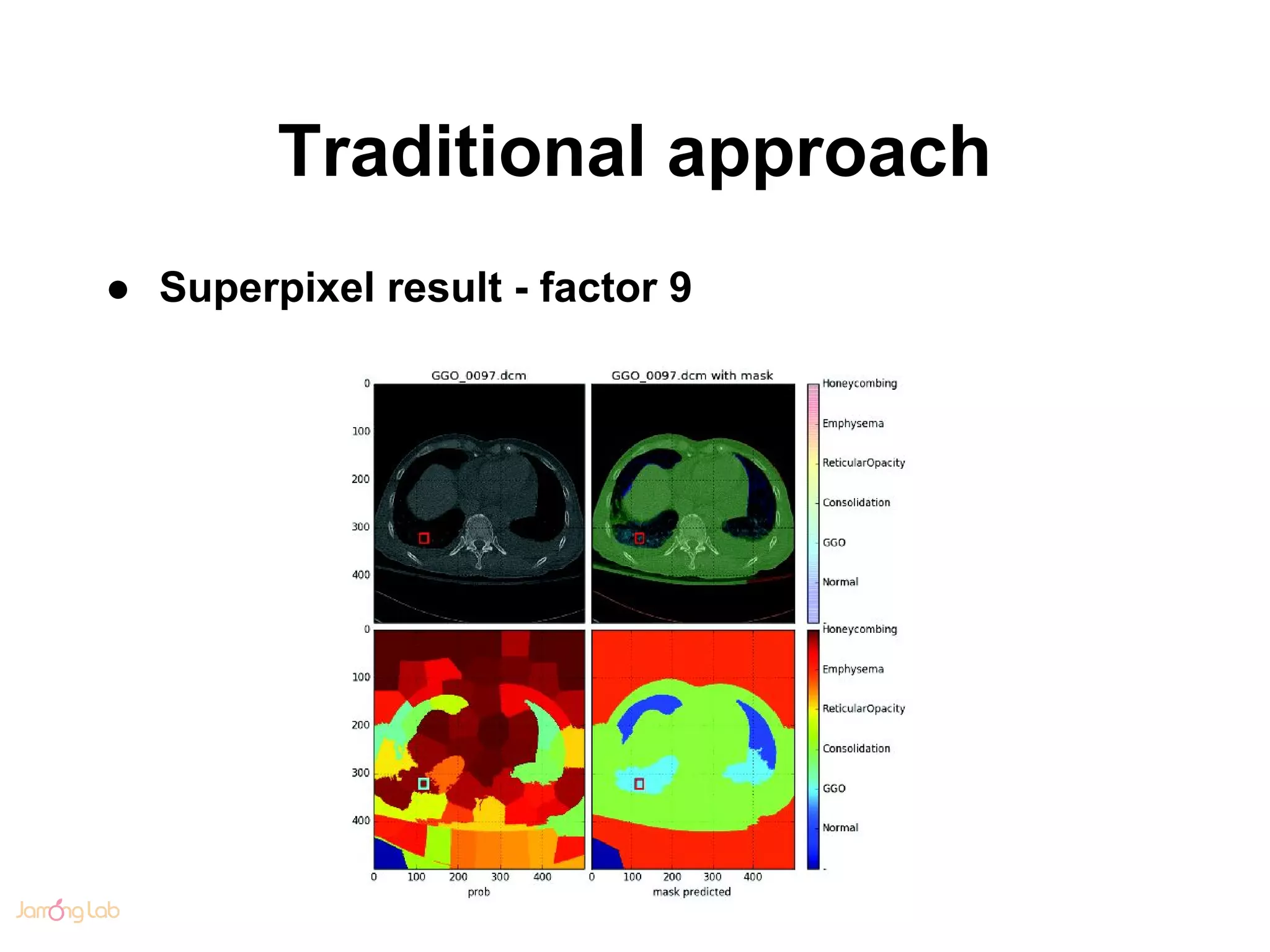

● Superpixel result - factor 9

13. Traditional approach

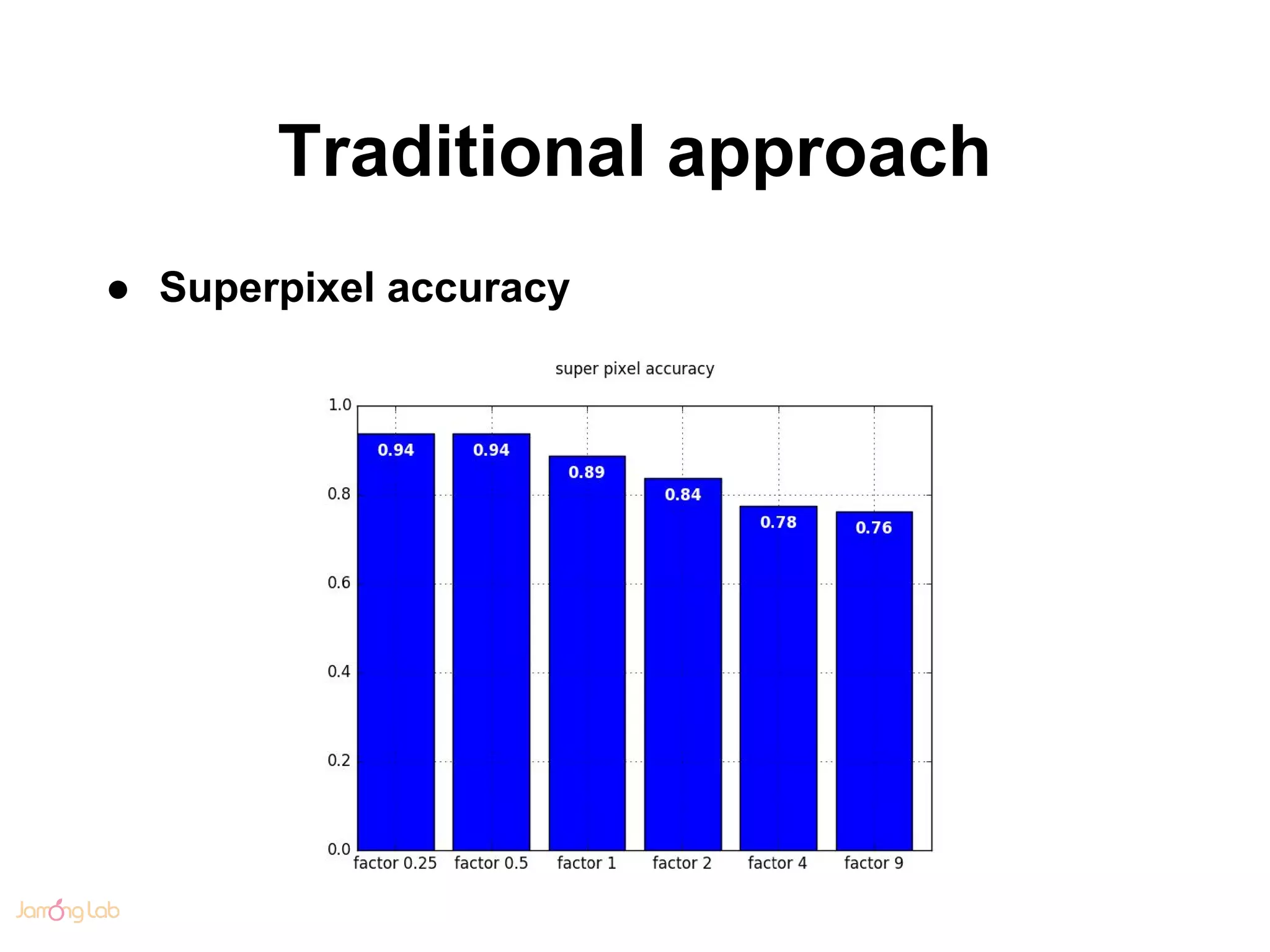

● Superpixel accuracy

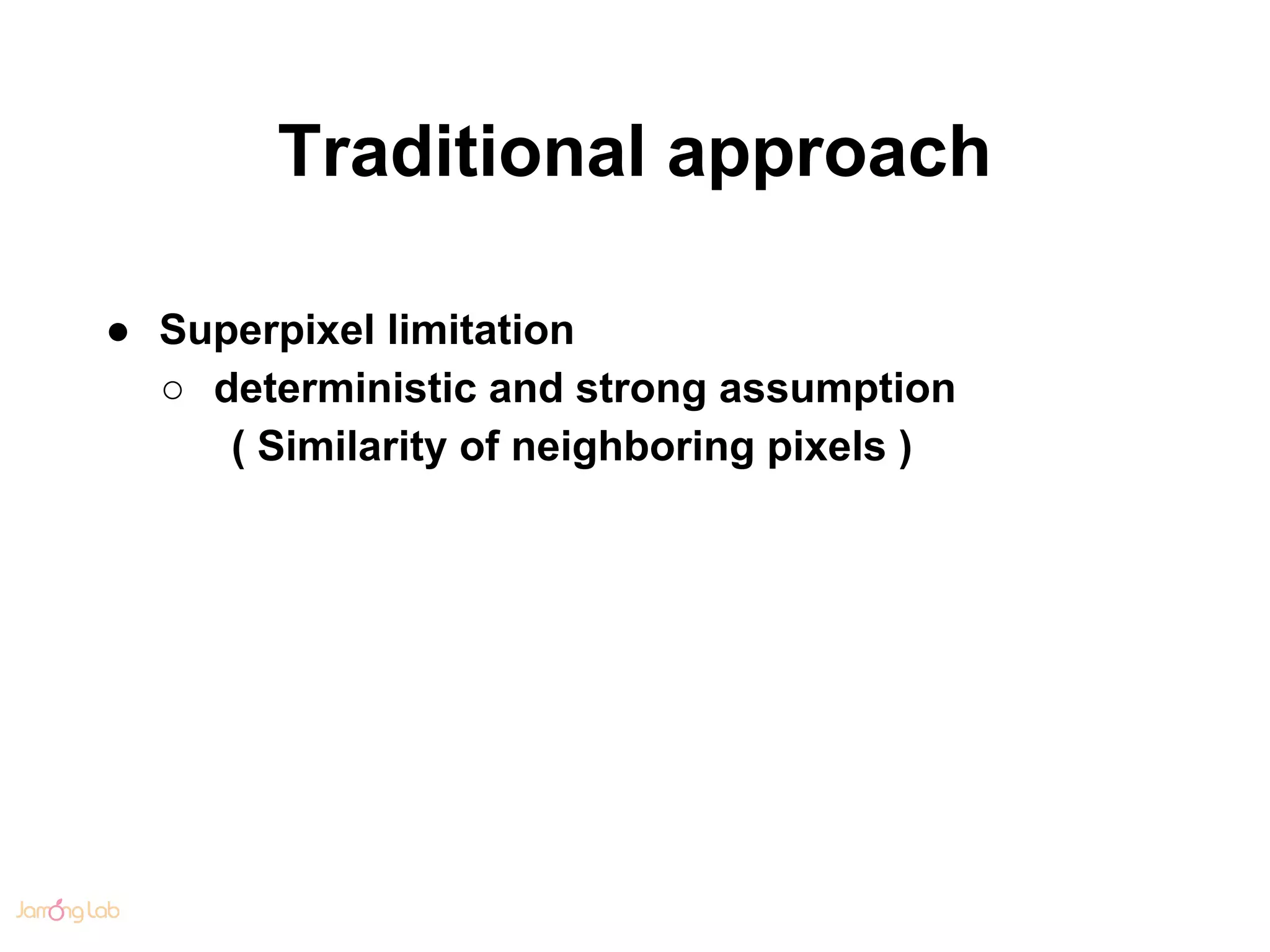

14. Traditional approach
● Superpixel limitation
○ deterministic and strong assumption
( Similarity of neighboring pixels )

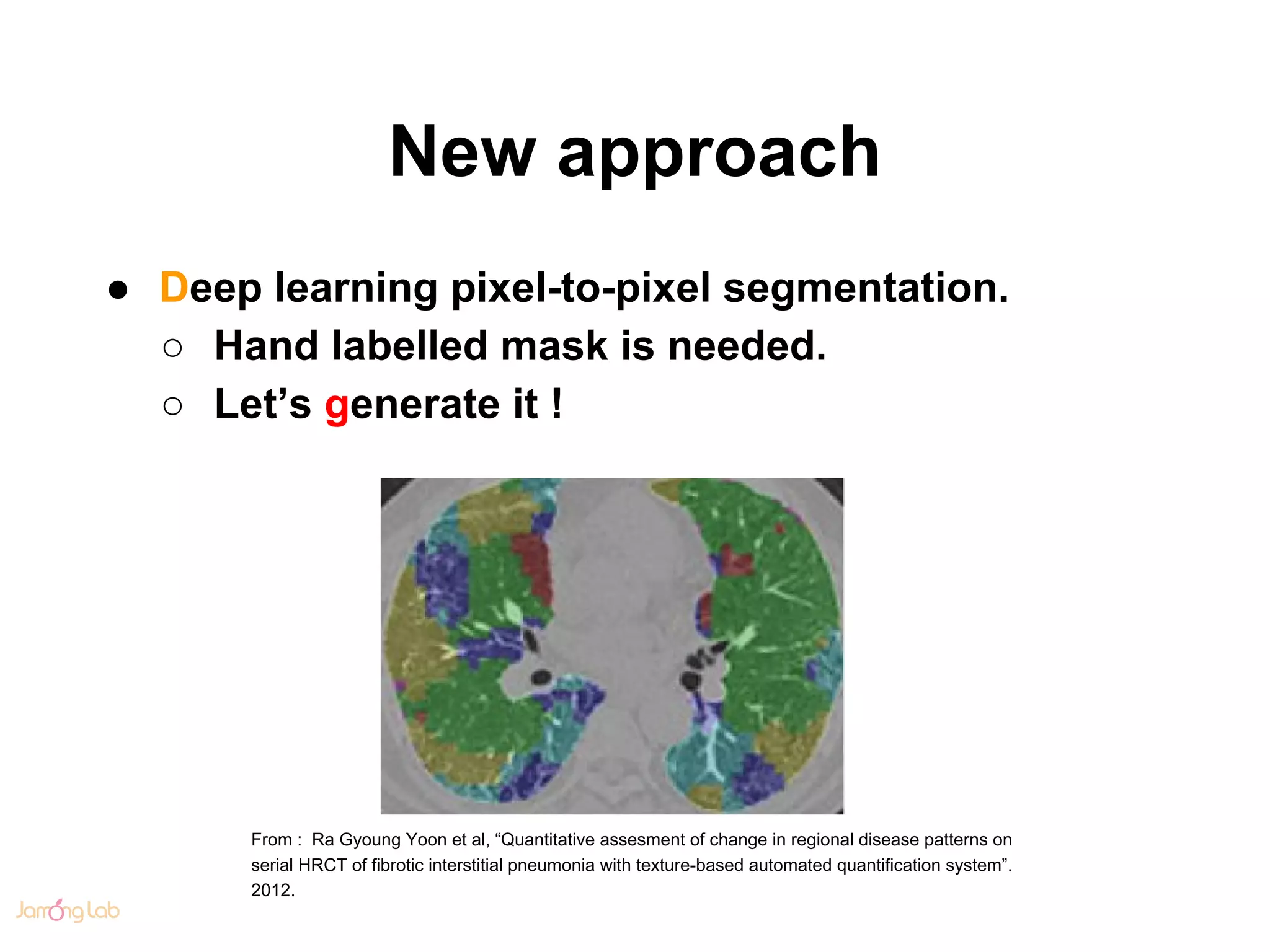

15. New approach
● Deep learning pixel-to-pixel segmentation.
○ Hand labelled mask is needed.
○ Let’s generate it !
From : Ra Gyoung Yoon et al, “Quantitative assesment of change in regional disease patterns on
serial HRCT of fibrotic interstitial pneumonia with texture-based automated quantification system”.
2012.

16. Mask generation
● A naive approach → Failed.

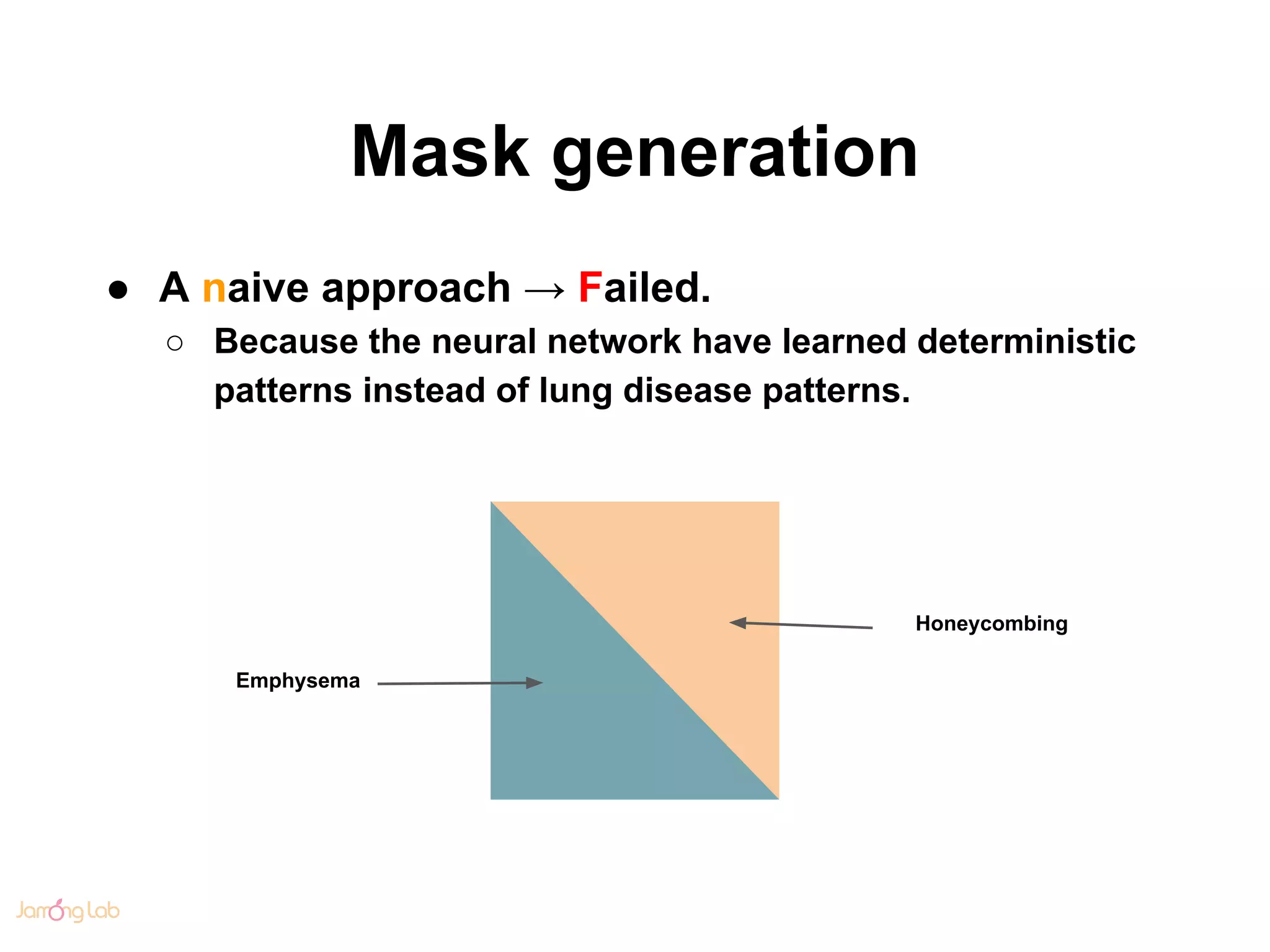

○ Because the neural network have learned deterministic
patterns instead of lung disease patterns.
Honeycombing
Emphysema

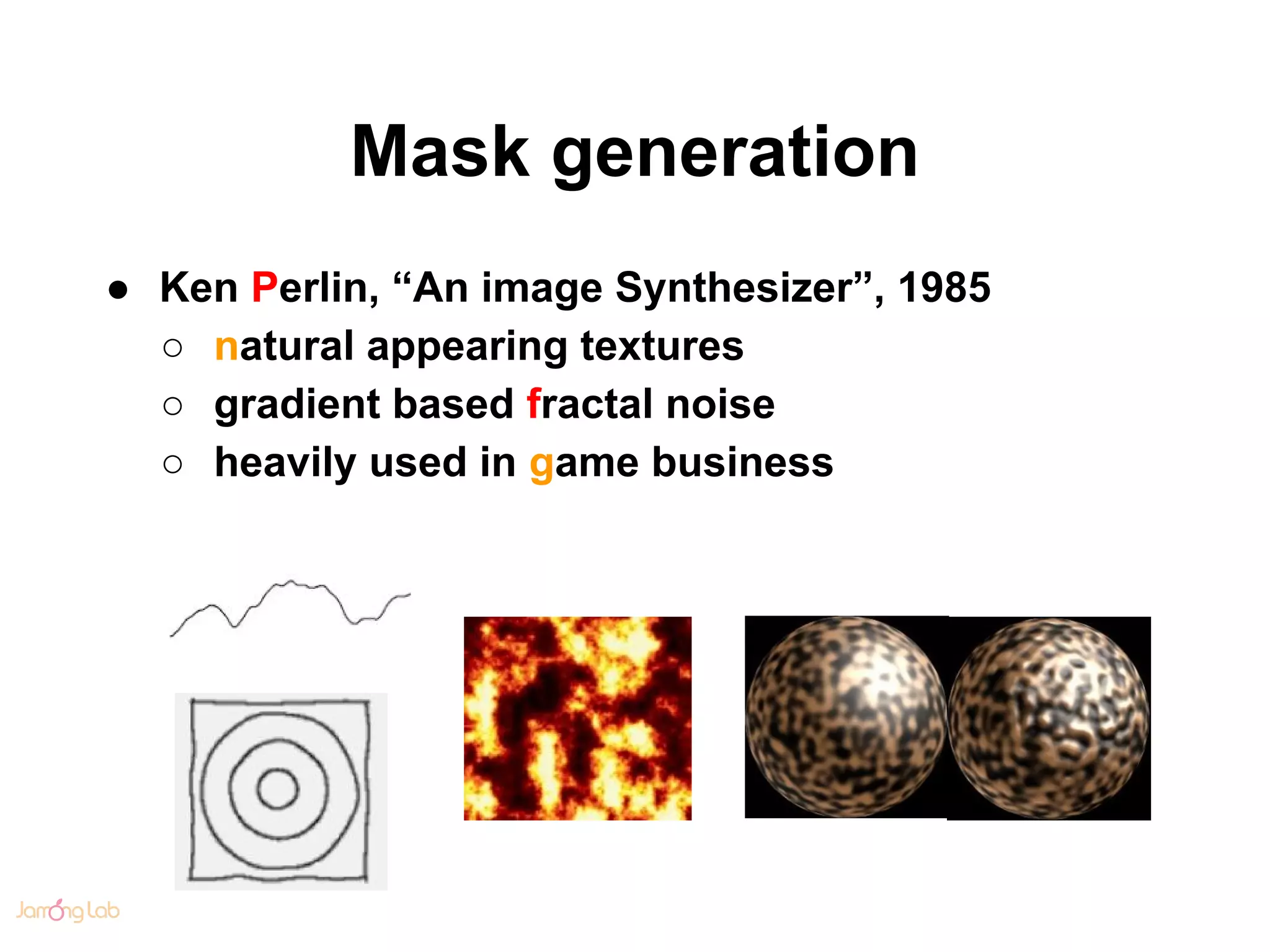

17. Mask generation
● Ken Perlin, “An image Synthesizer”, 1985
○ natural appearing textures
○ gradient based fractal noise
○ heavily used in game business

18. Mask generation

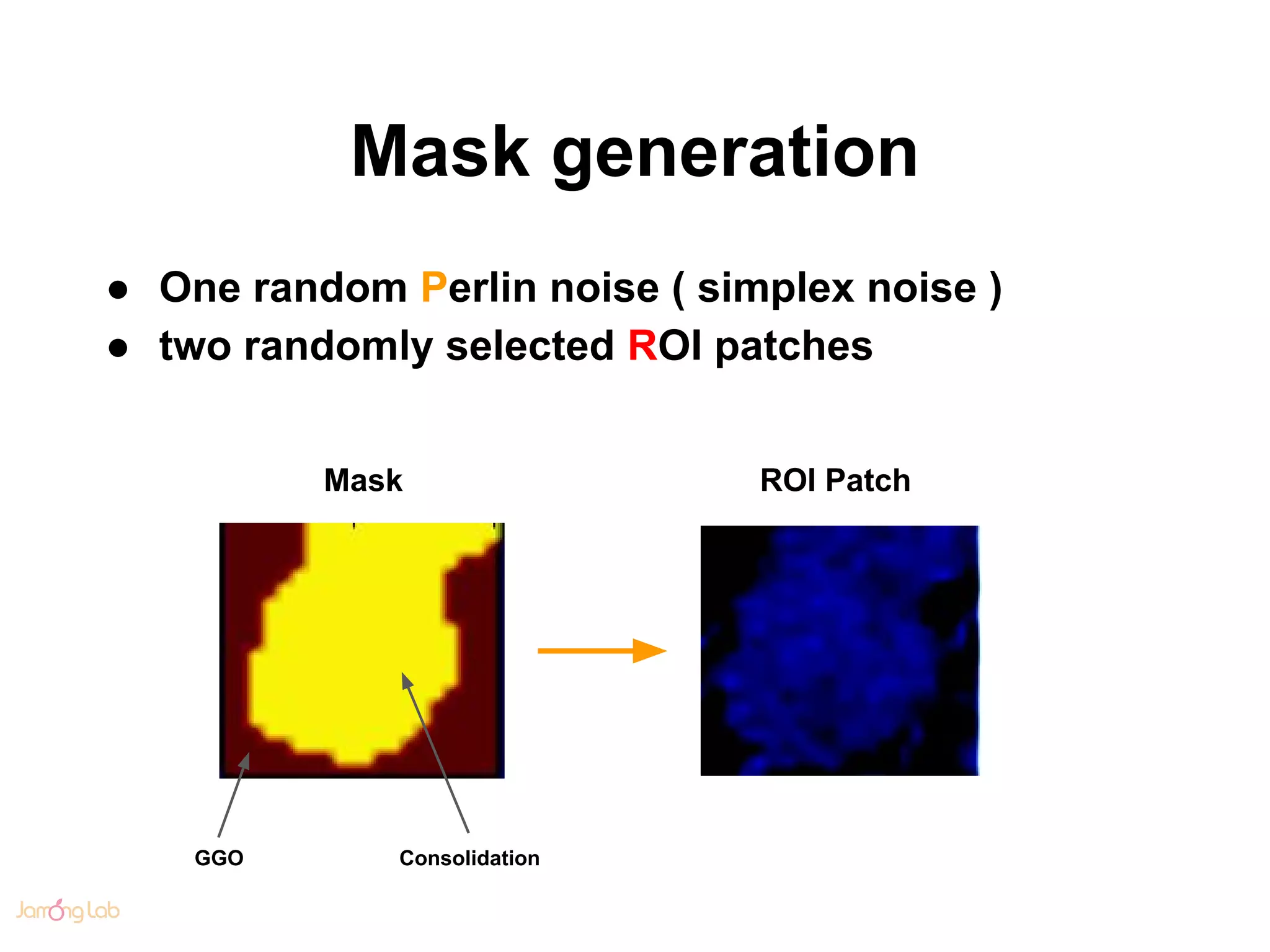

● One random Perlin noise ( simplex noise )
● two randomly selected ROI patches
ConsolidationGGO
Mask ROI Patch

19. Mask generation

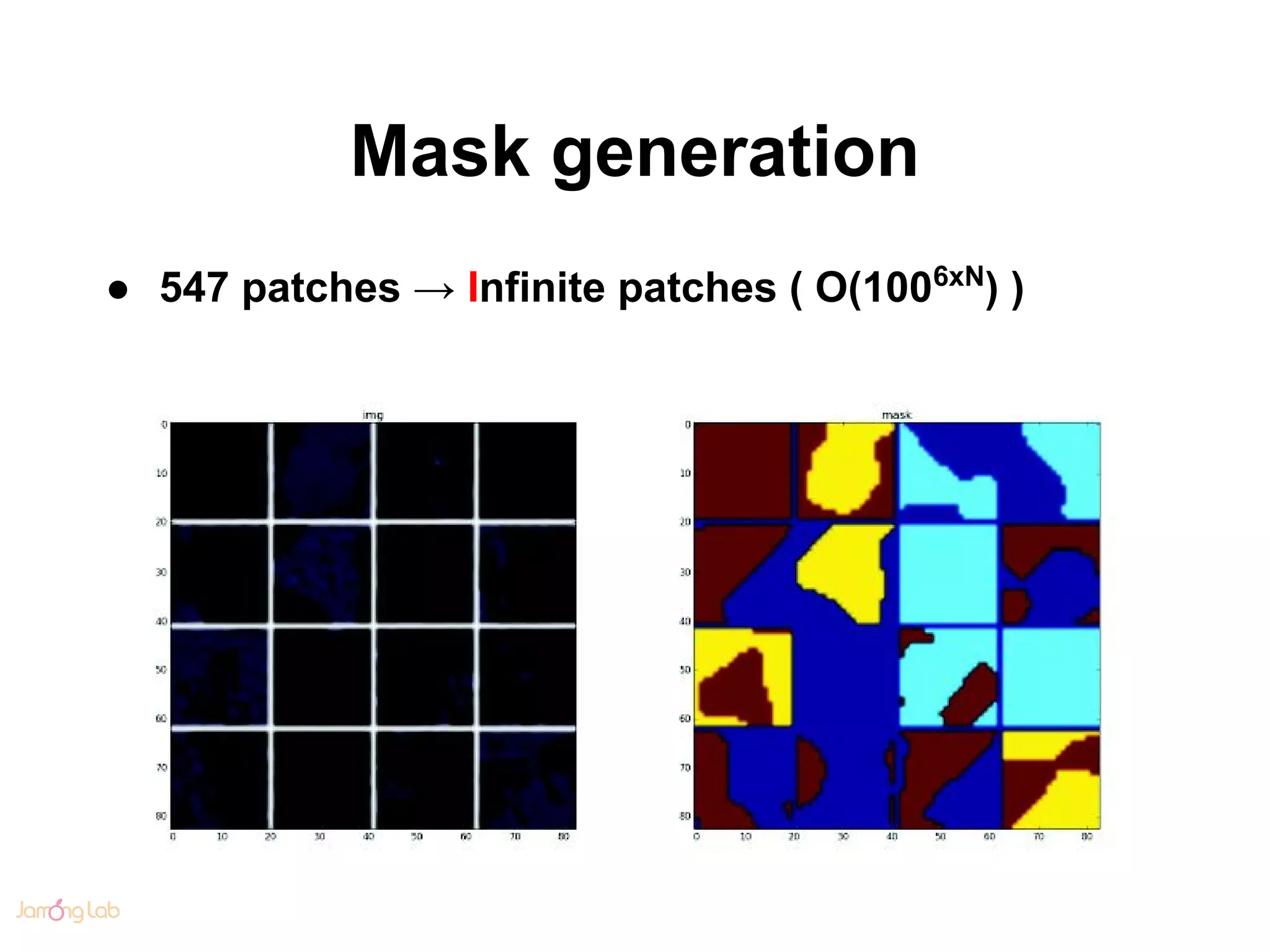

● 547 patches → Infinite patches ( O(1006xN
) )

20. Model architecture

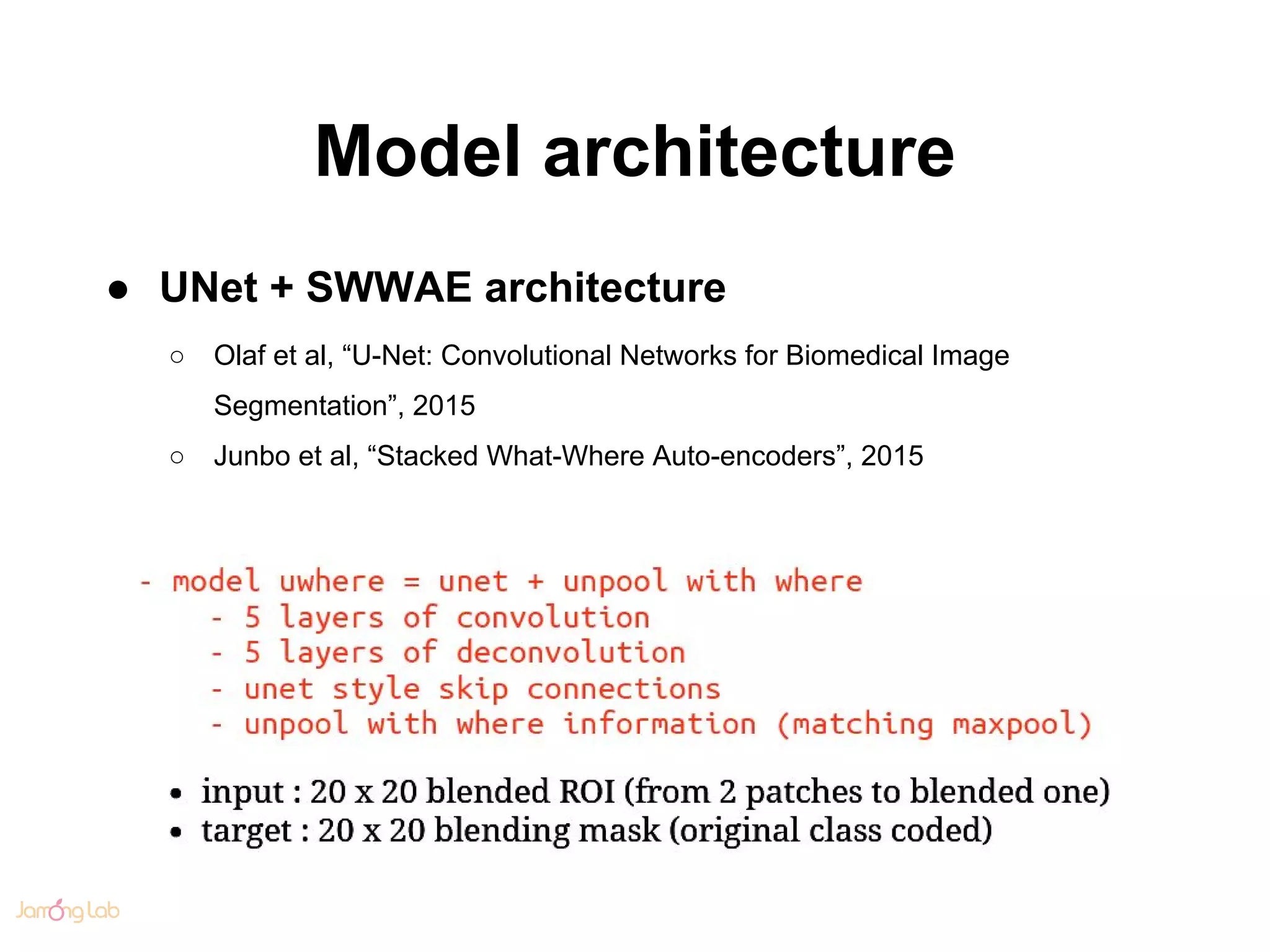

● UNet + SWWAE architecture
○ Olaf et al, “U-Net: Convolutional Networks for Biomedical Image
Segmentation”, 2015
○ Junbo et al, “Stacked What-Where Auto-encoders”, 2015

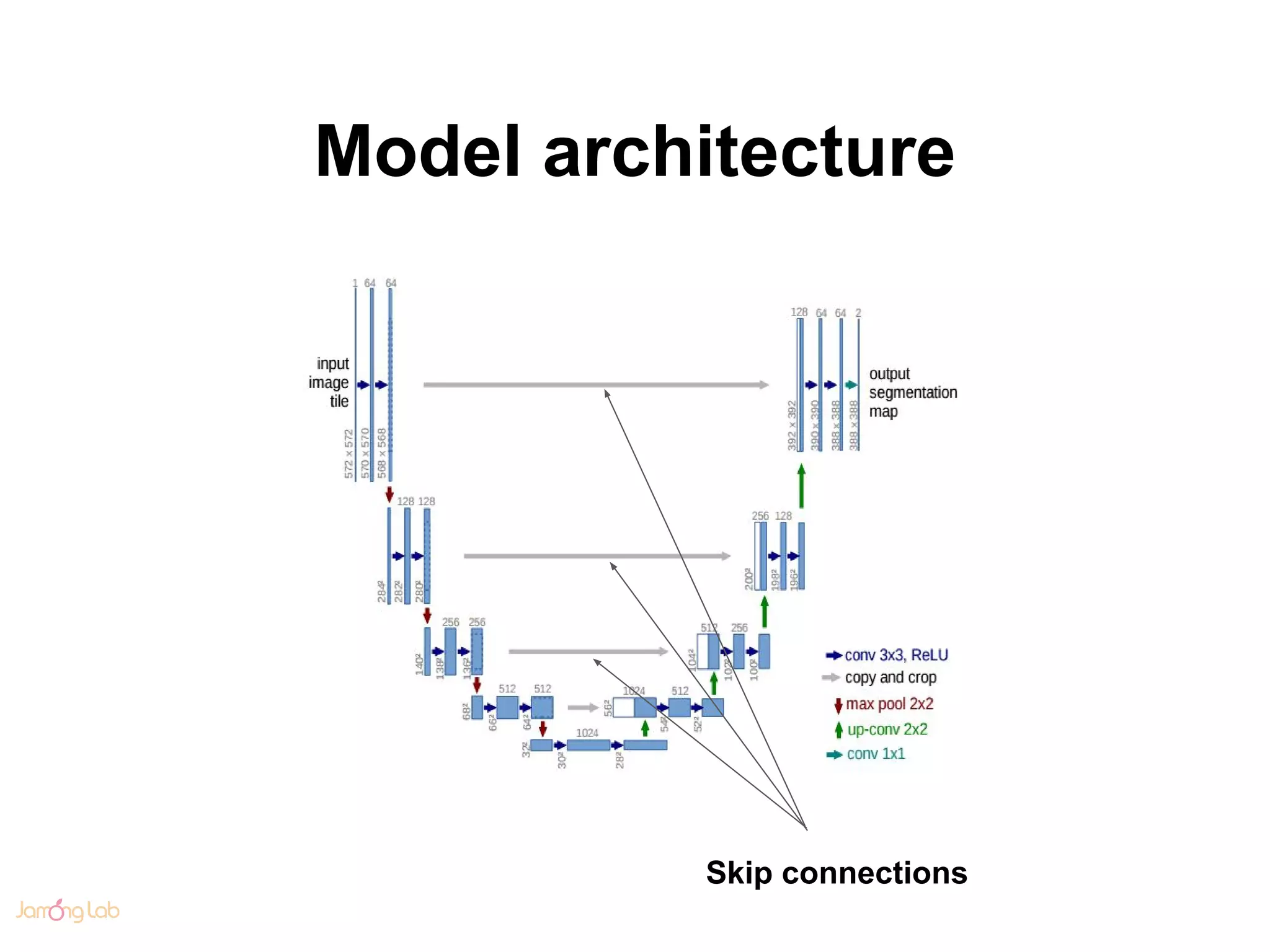

21. Model architecture
Skip connections

22. Deep learning approach

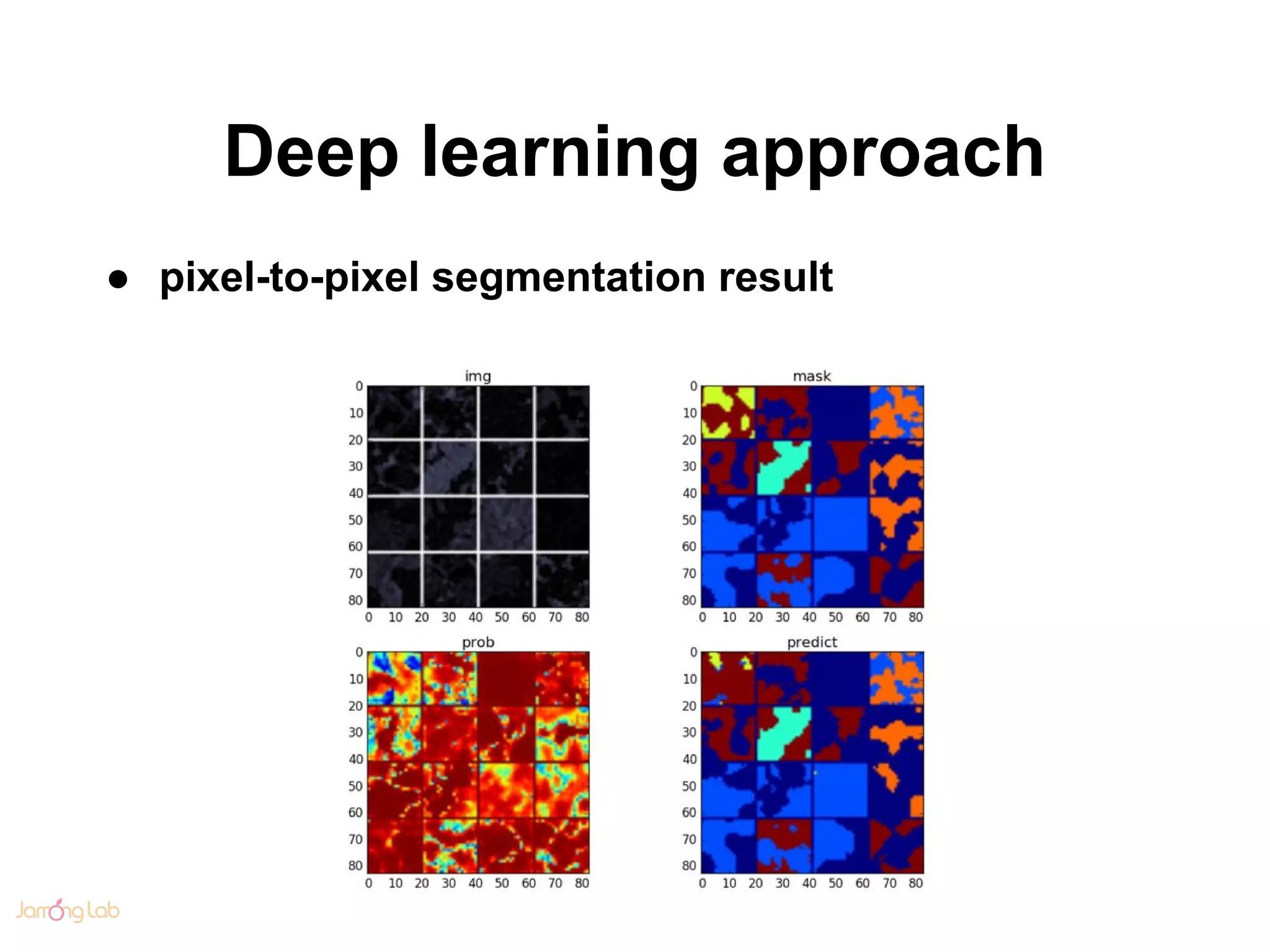

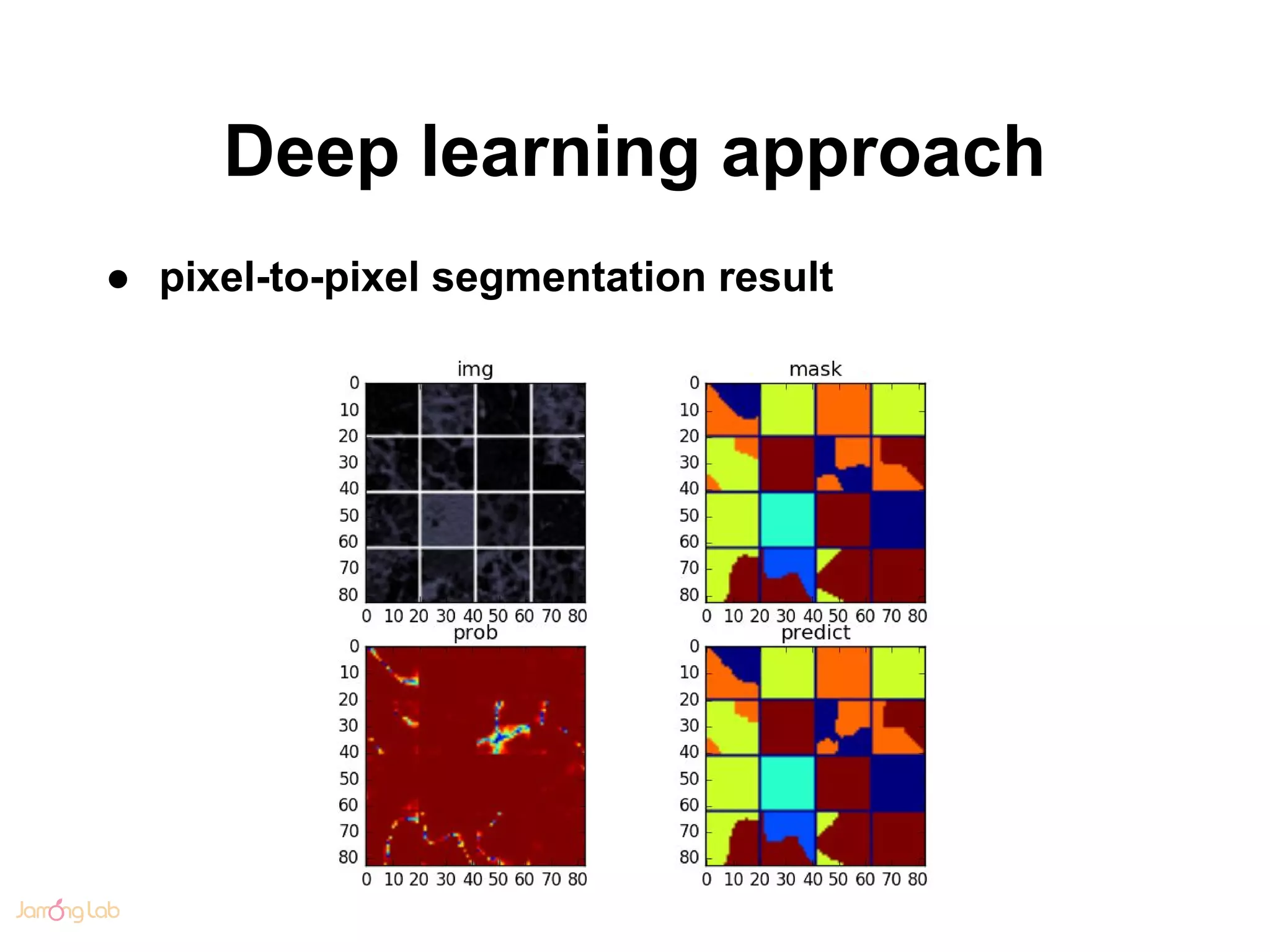

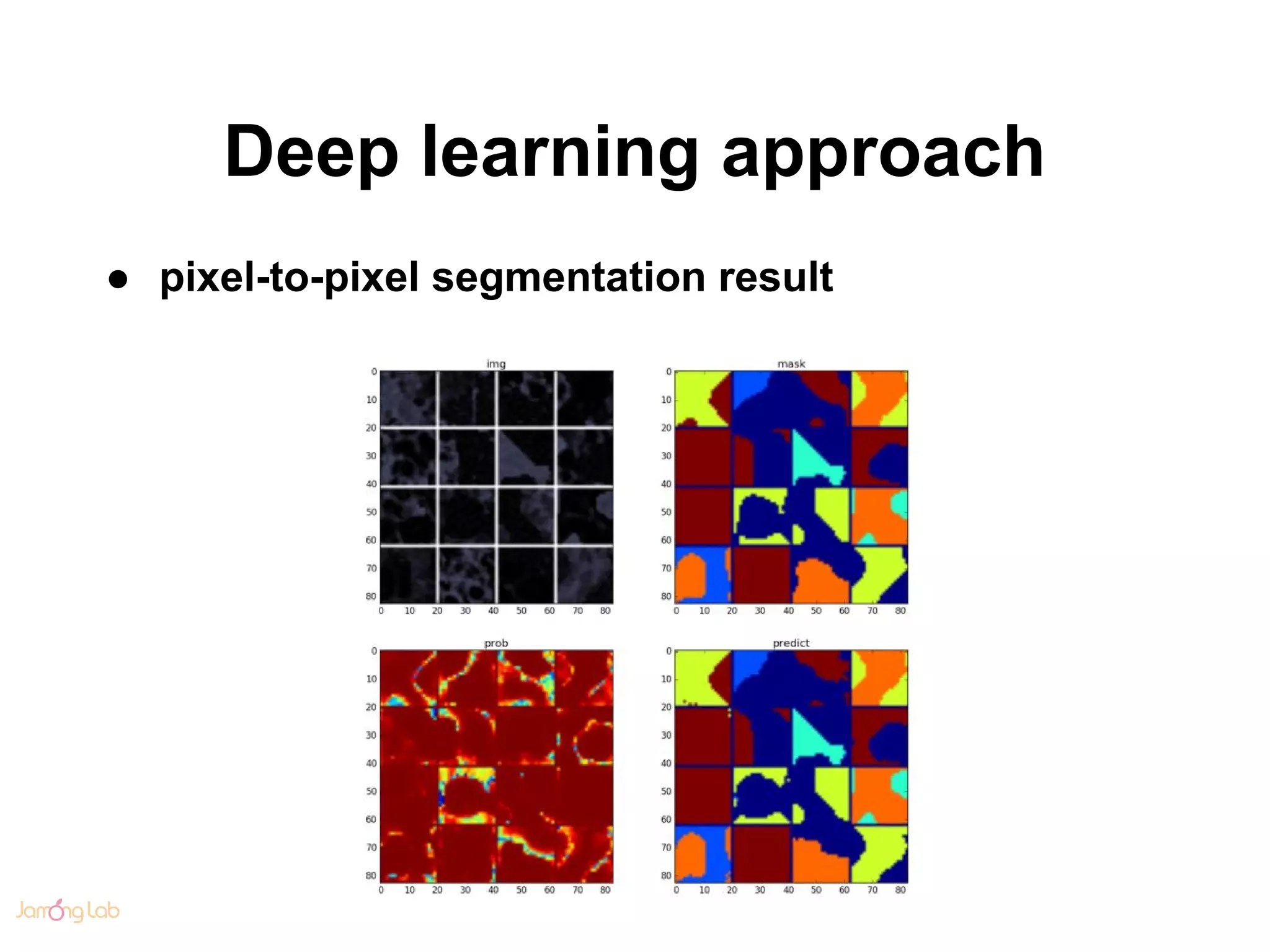

● pixel-to-pixel segmentation result

23. Deep learning approach
● pixel-to-pixel segmentation result

24. Deep learning approach
● pixel-to-pixel segmentation result

25. Deep learning approach

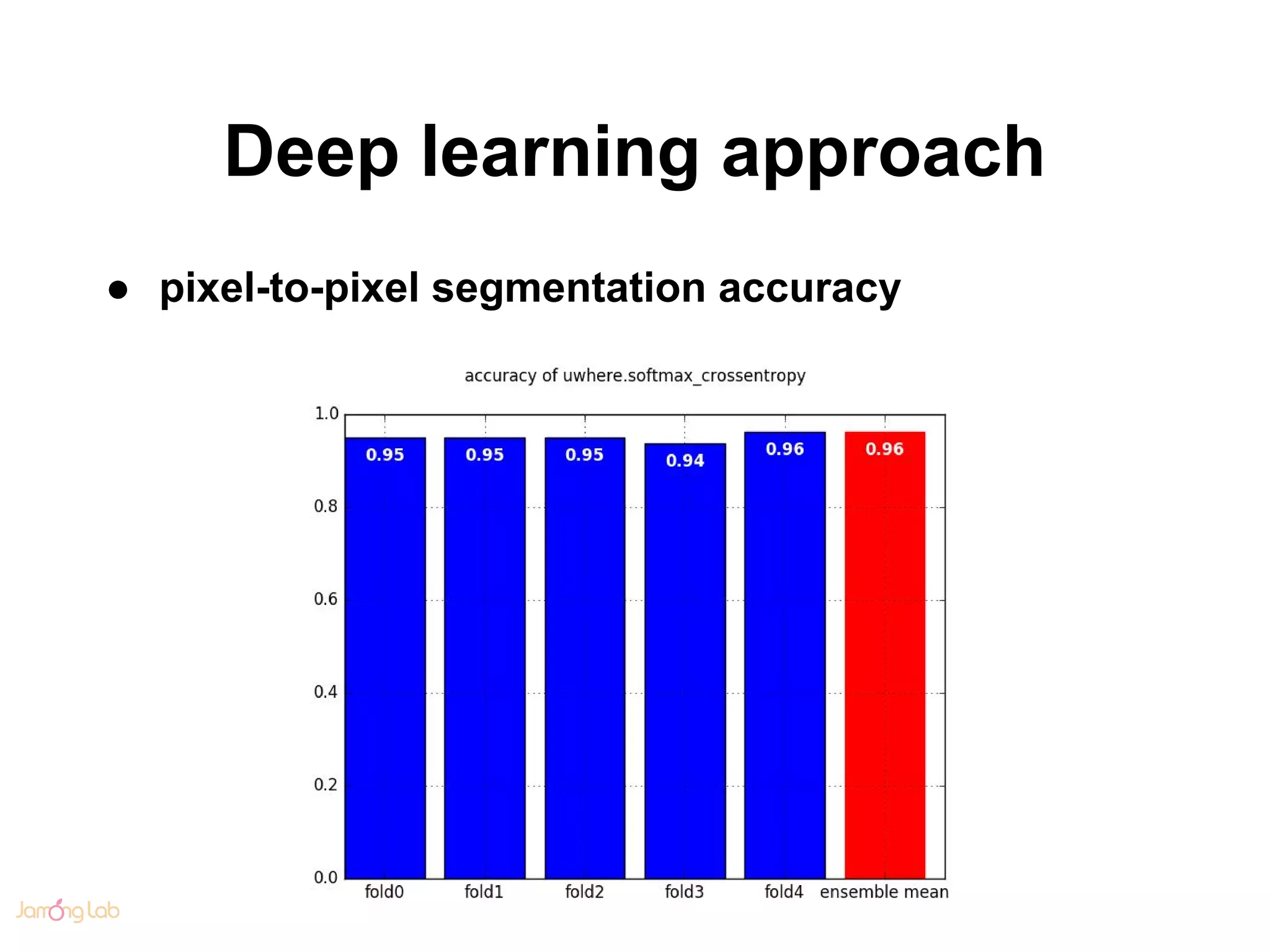

● pixel-to-pixel segmentation accuracy

26. High resolution segmentation

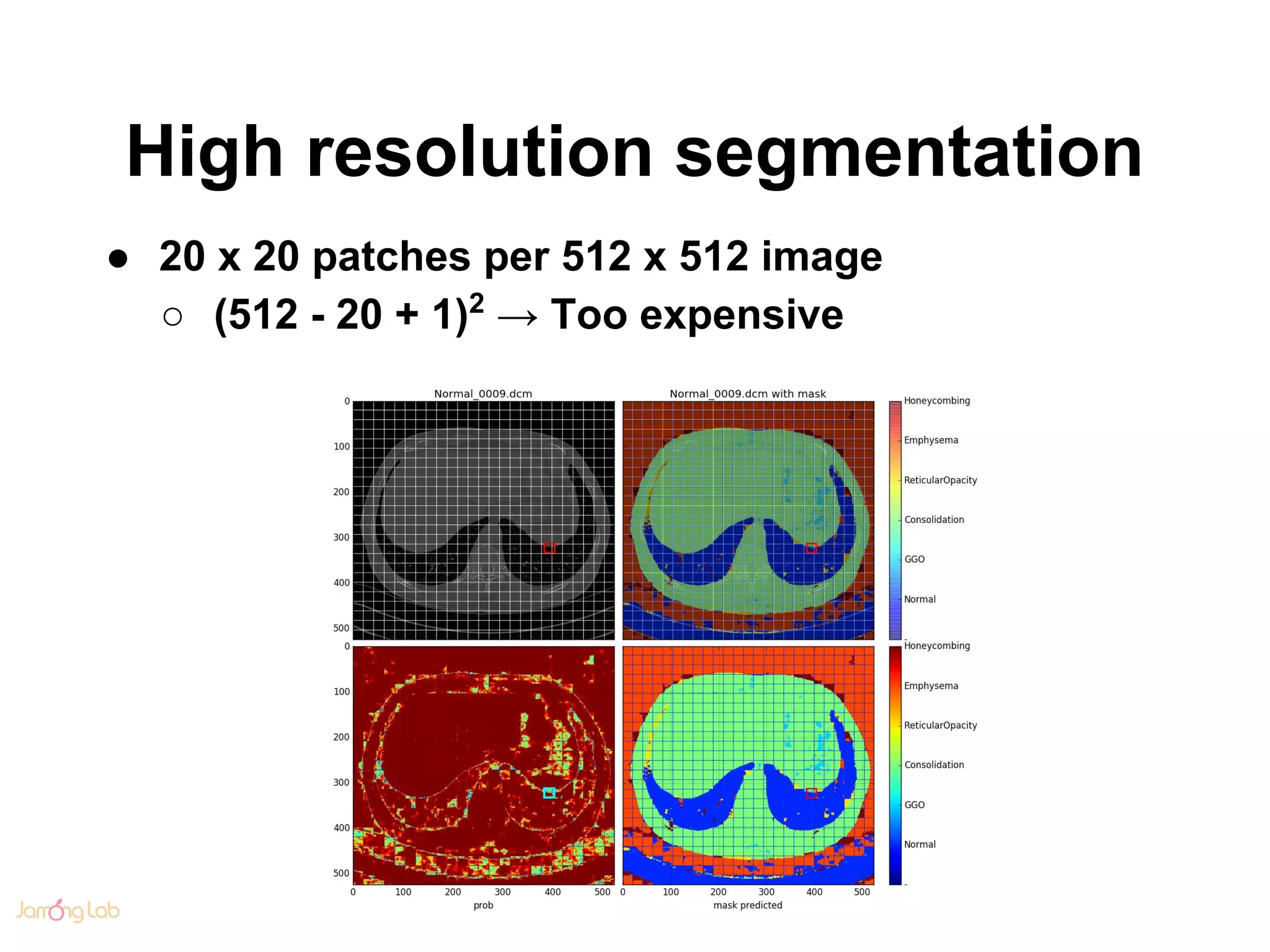

● 20 x 20 patches per 512 x 512 image
○ (512 - 20 + 1)2
→ Too expensive

27. High resolution segmentation

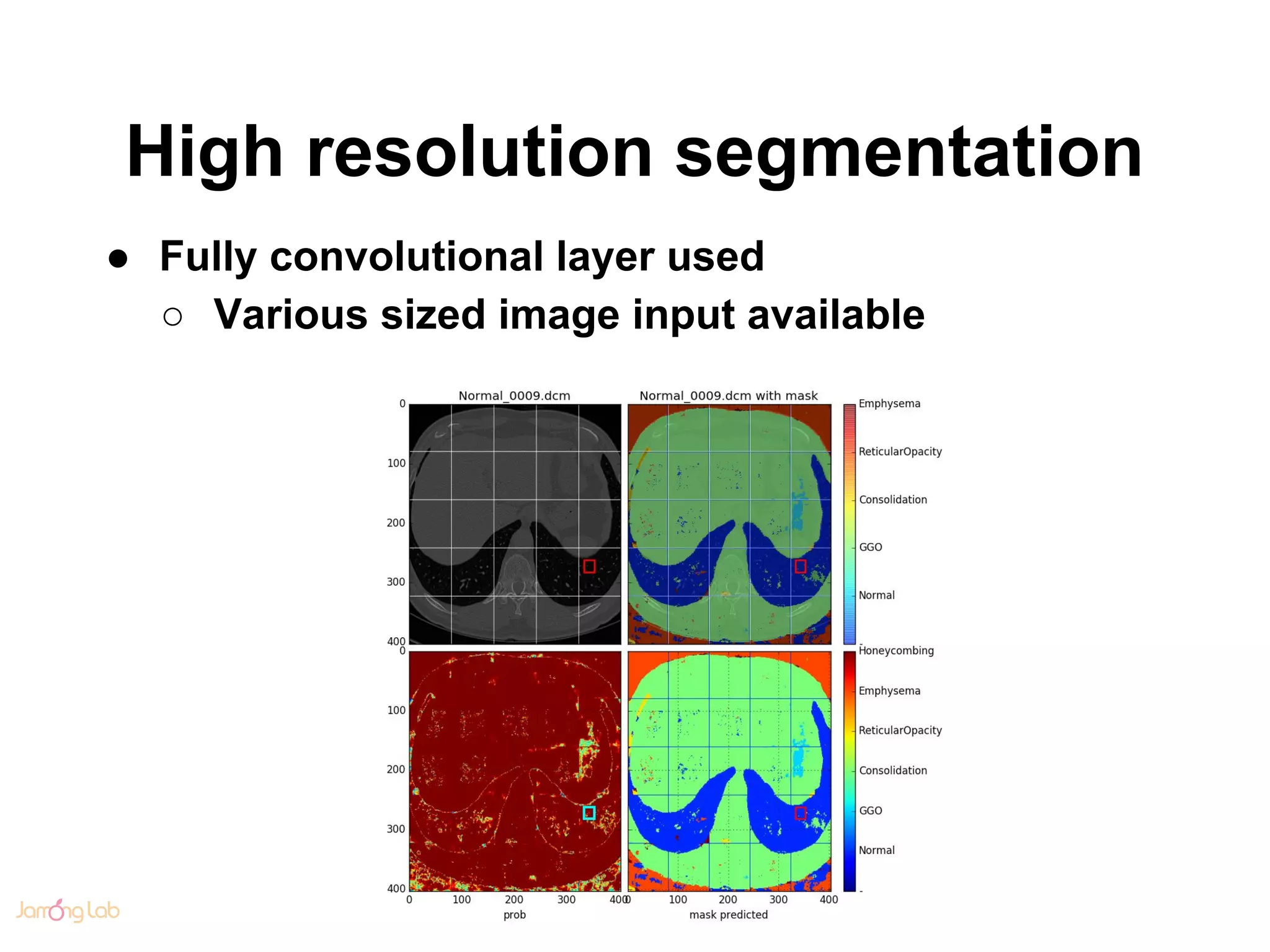

● Fully convolutional layer used
○ Various sized image input available

28. High resolution segmentation
● 200 x 80 grids

29. High resolution segmentation

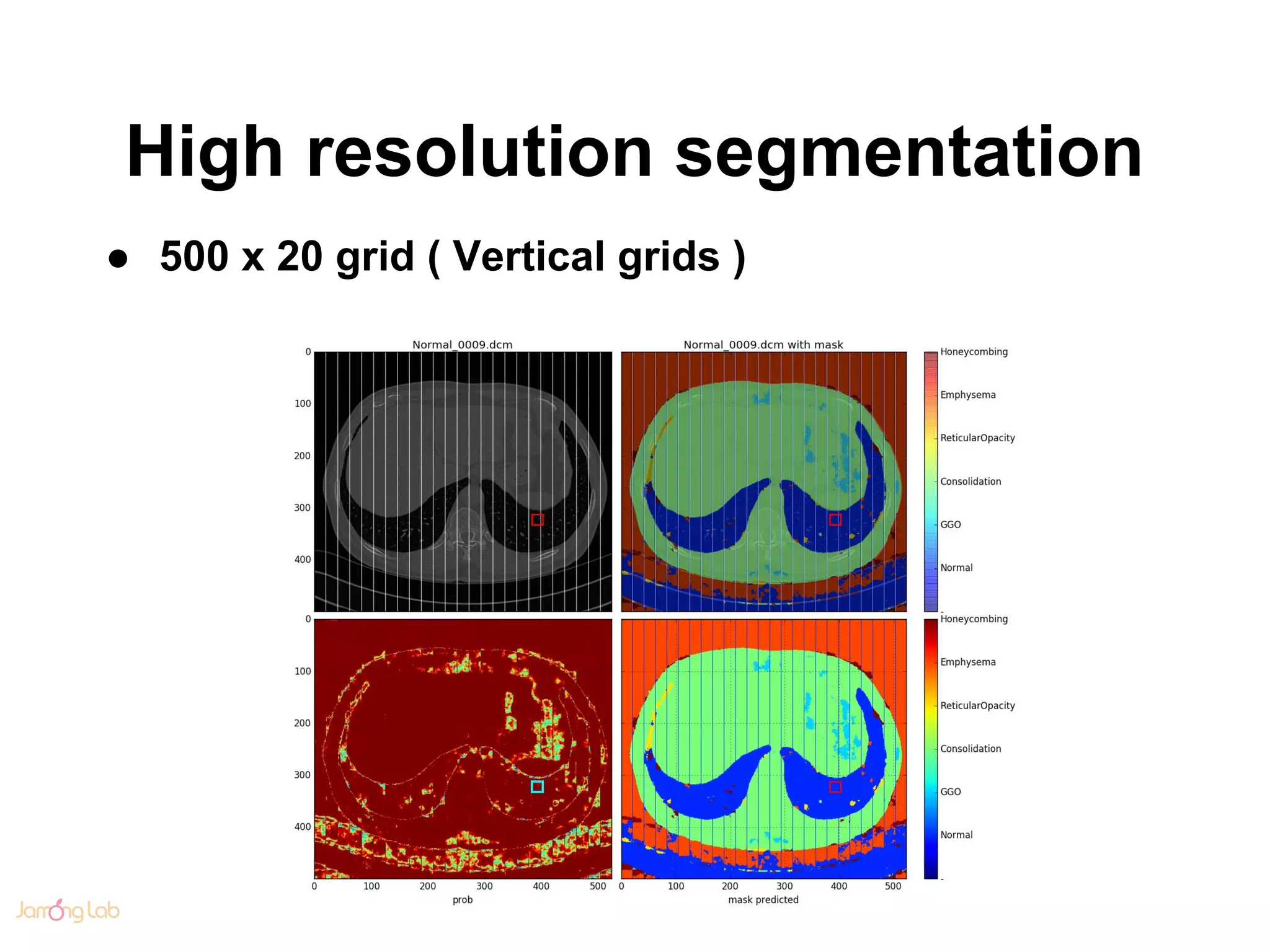

● 500 x 20 grid ( Vertical grids )

30. High resolution segmentation

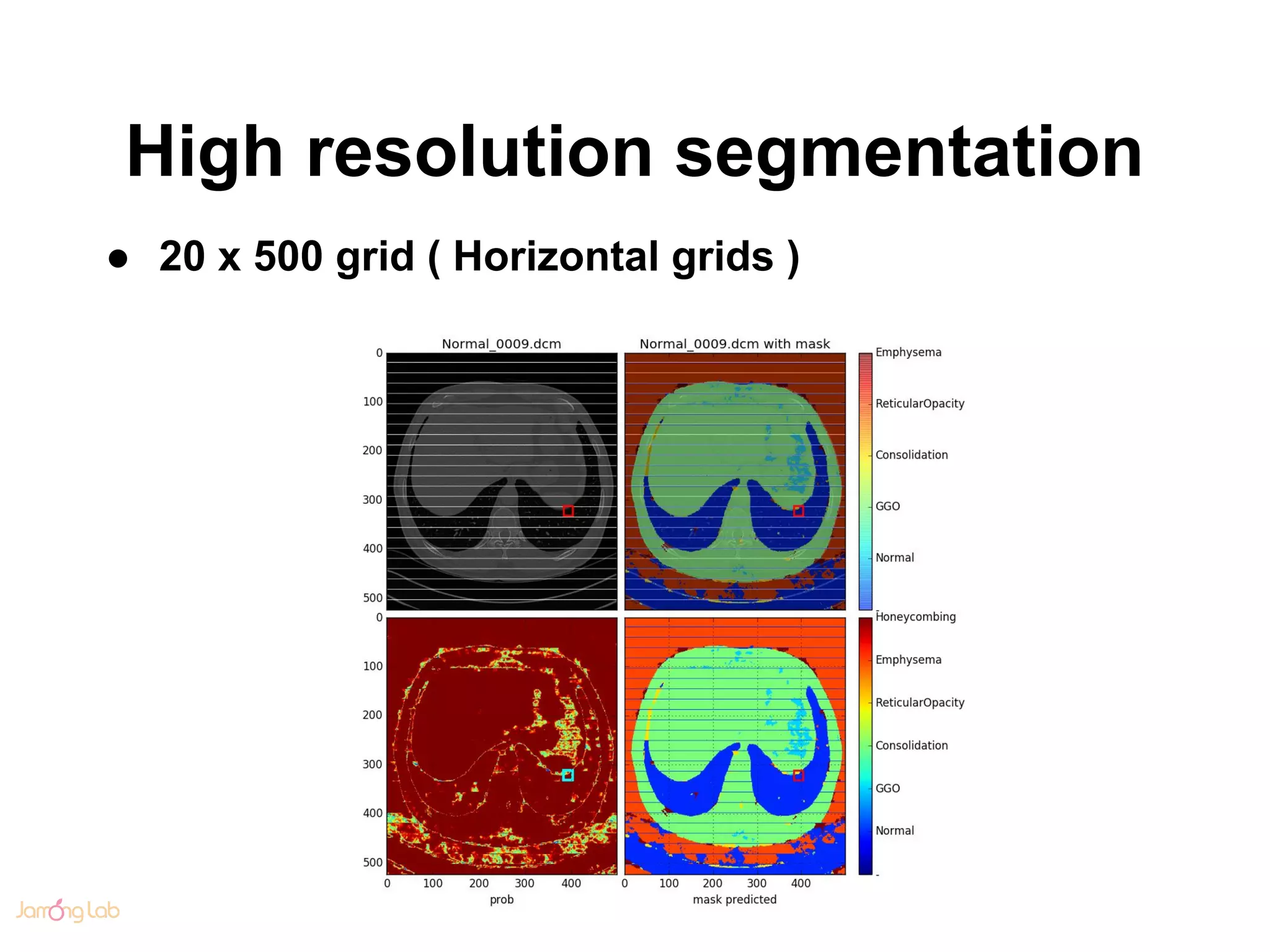

● 20 x 500 grid ( Horizontal grids )

31. High resolution segmentation

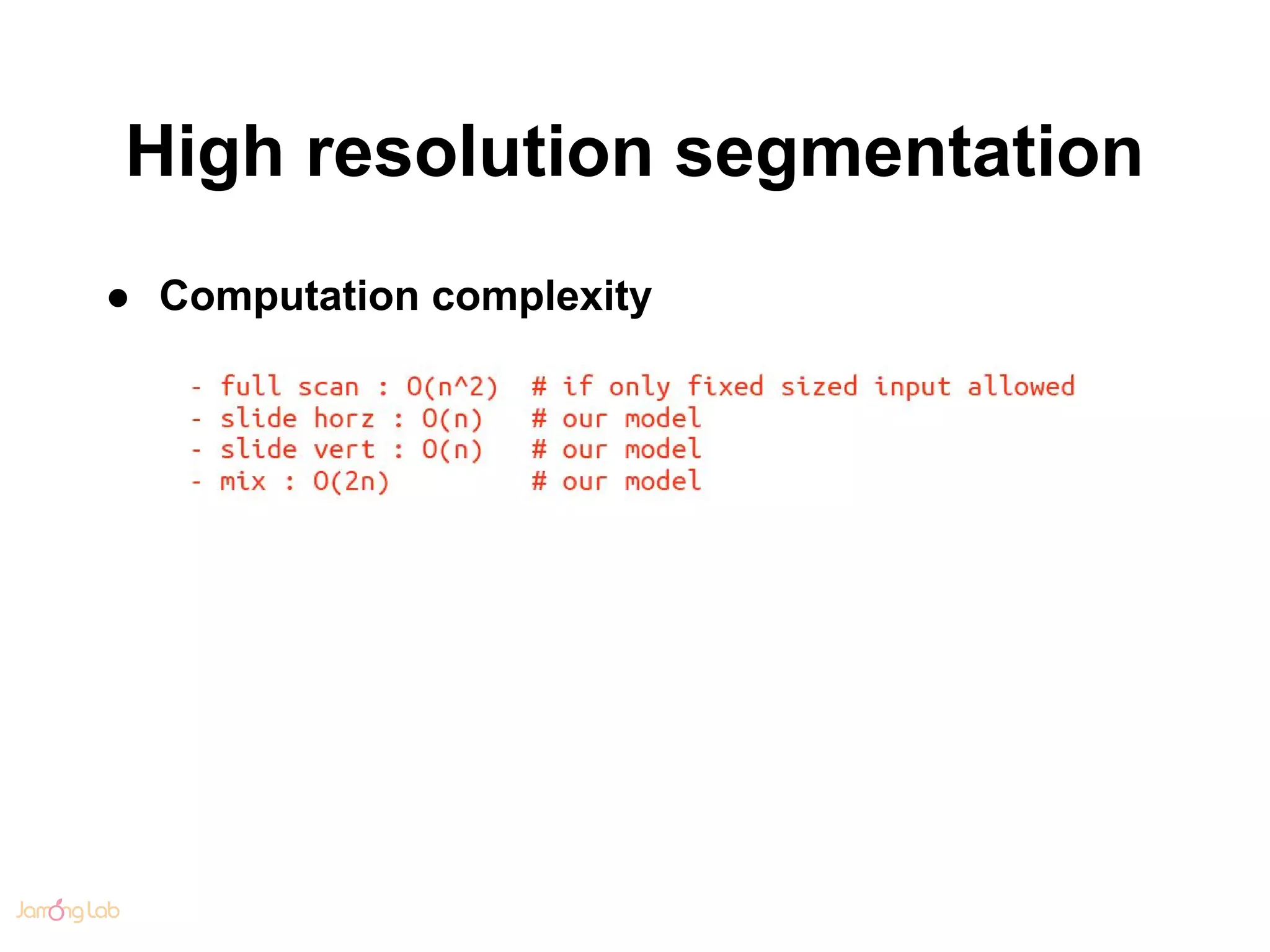

● Computation complexity

32. High resolution segmentation

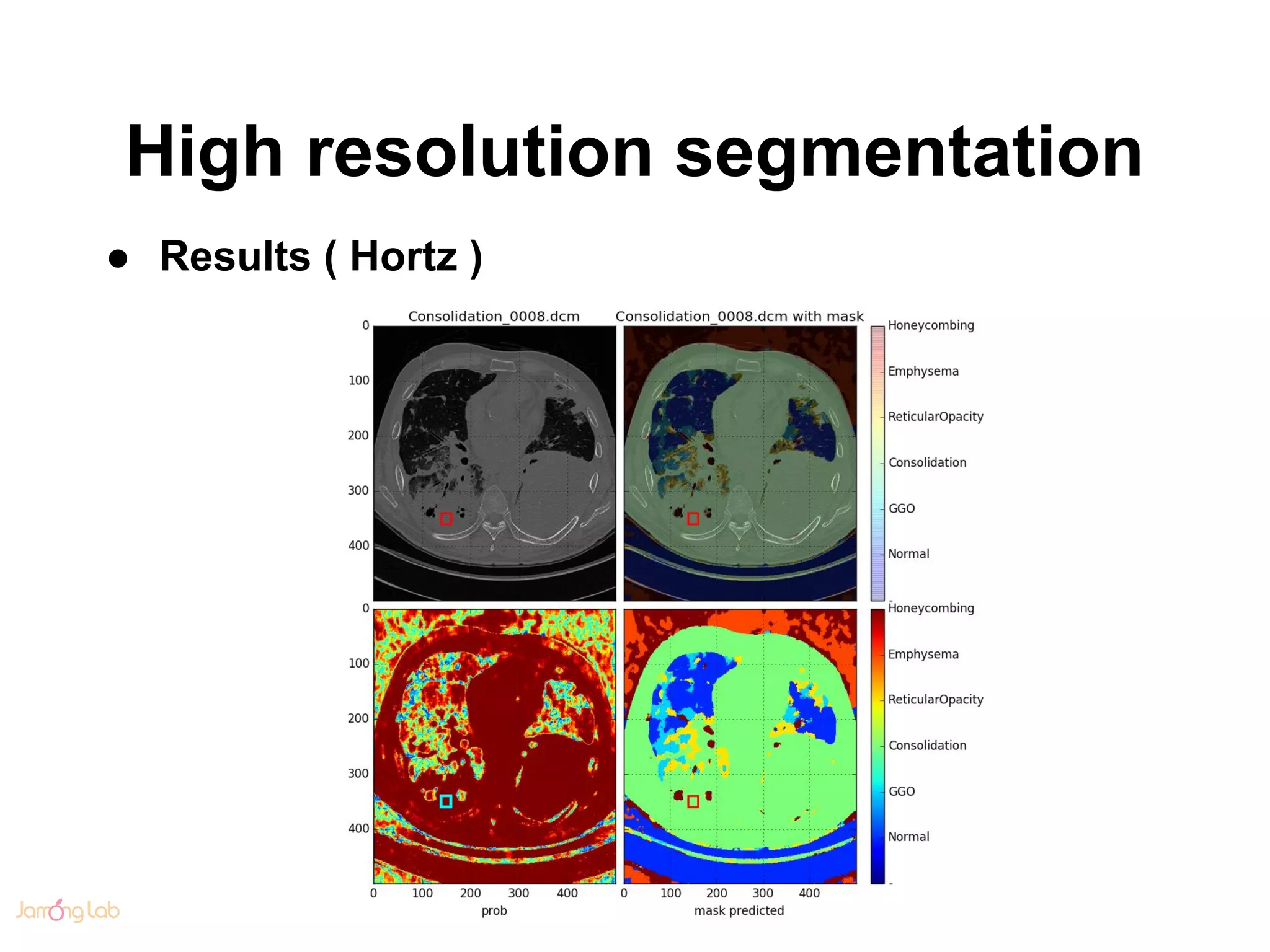

● Results ( Hortz )

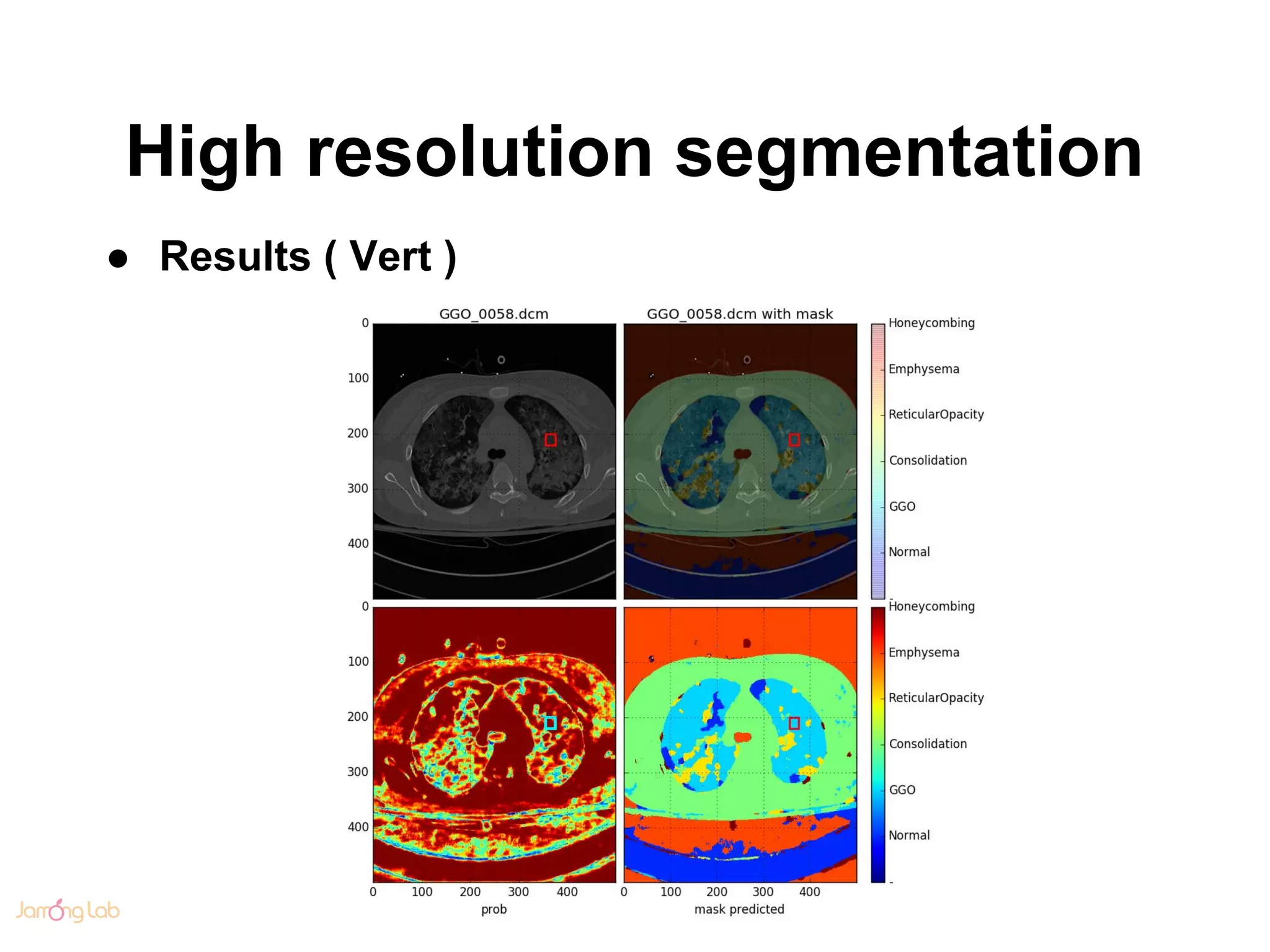

33. High resolution segmentation
● Results ( Vert )

34. High resolution segmentation

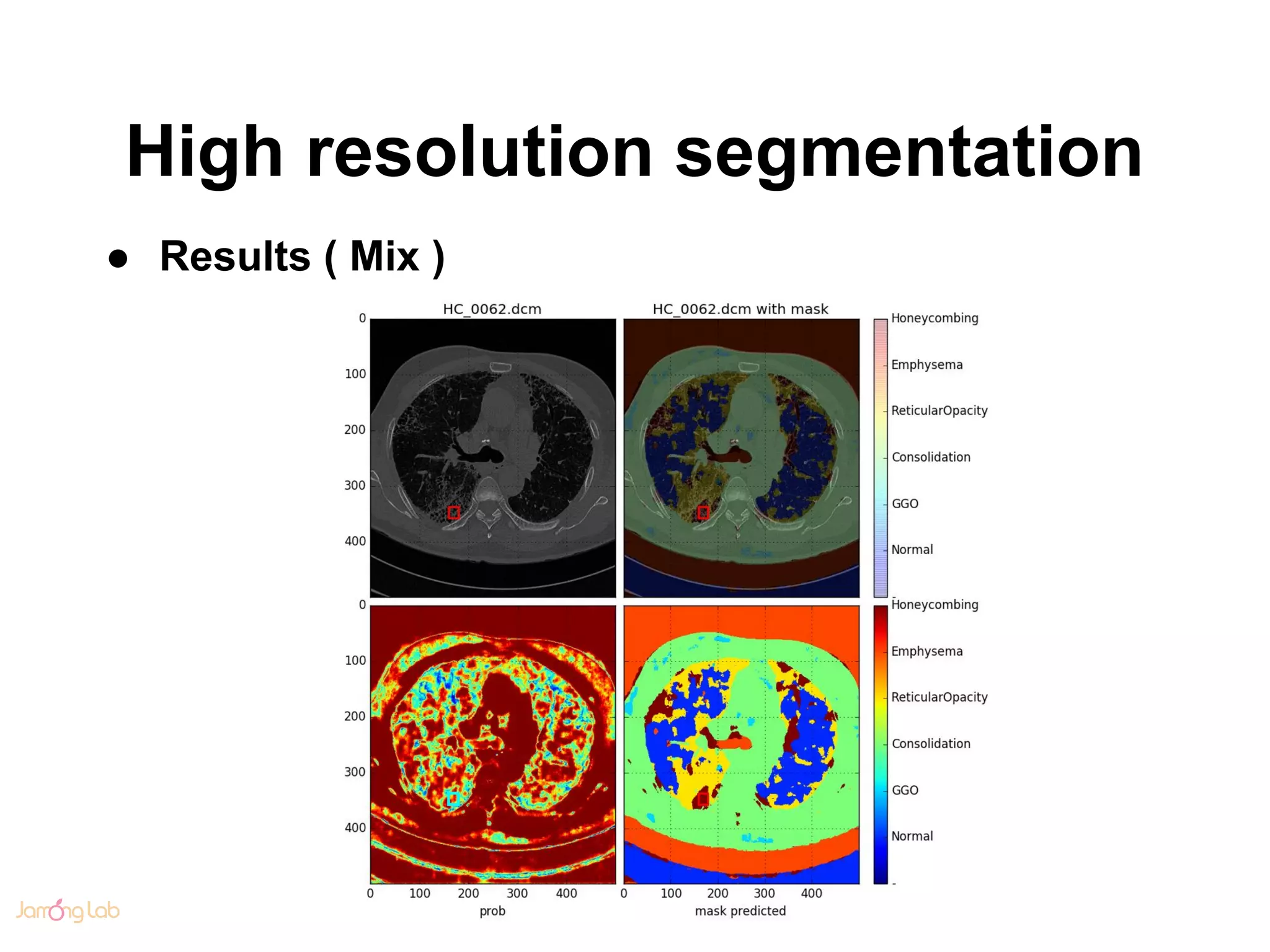

● Results ( Mix )

35. High resolution segmentation

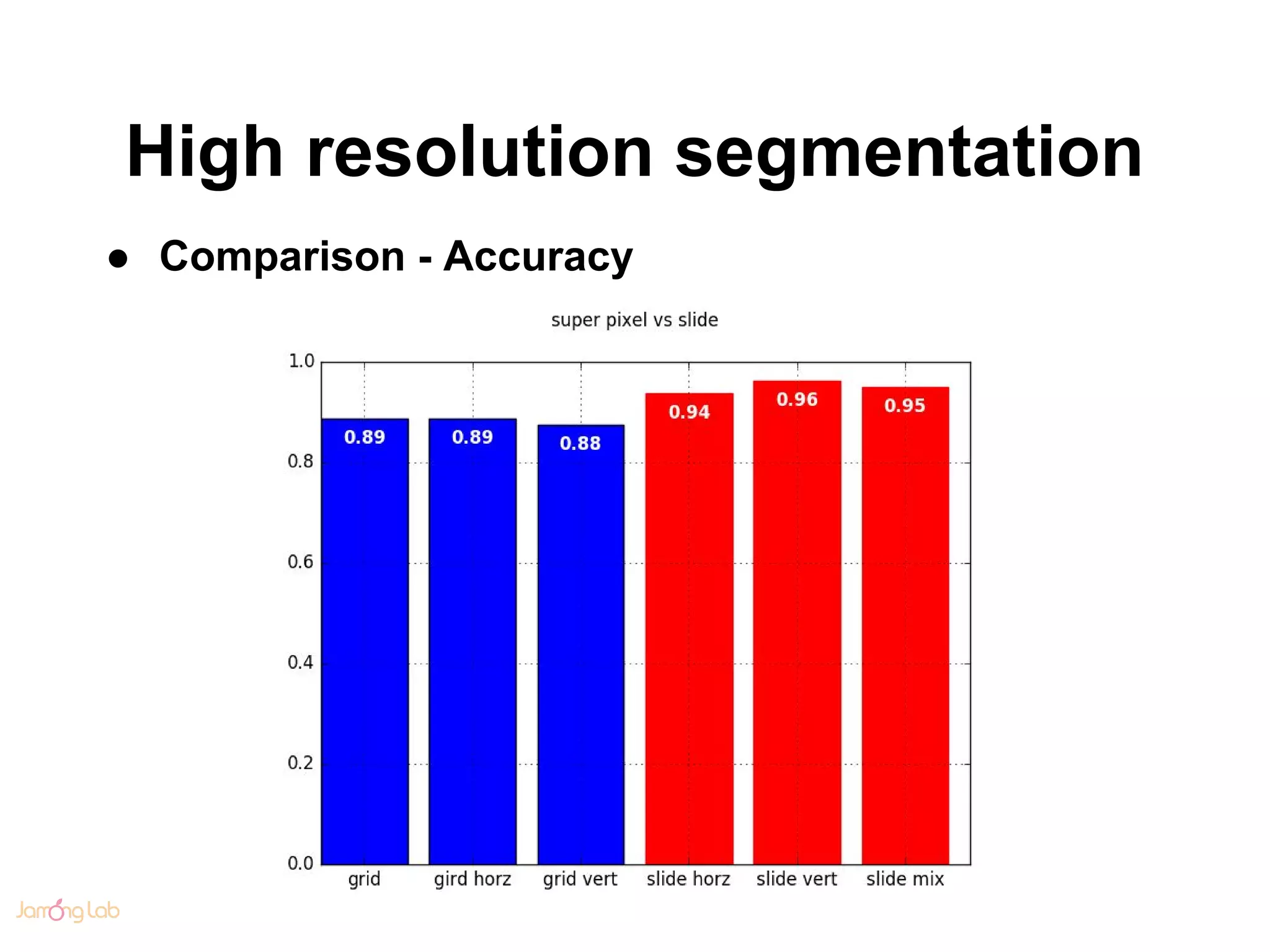

● Comparison - Accuracy

36. High resolution segmentation

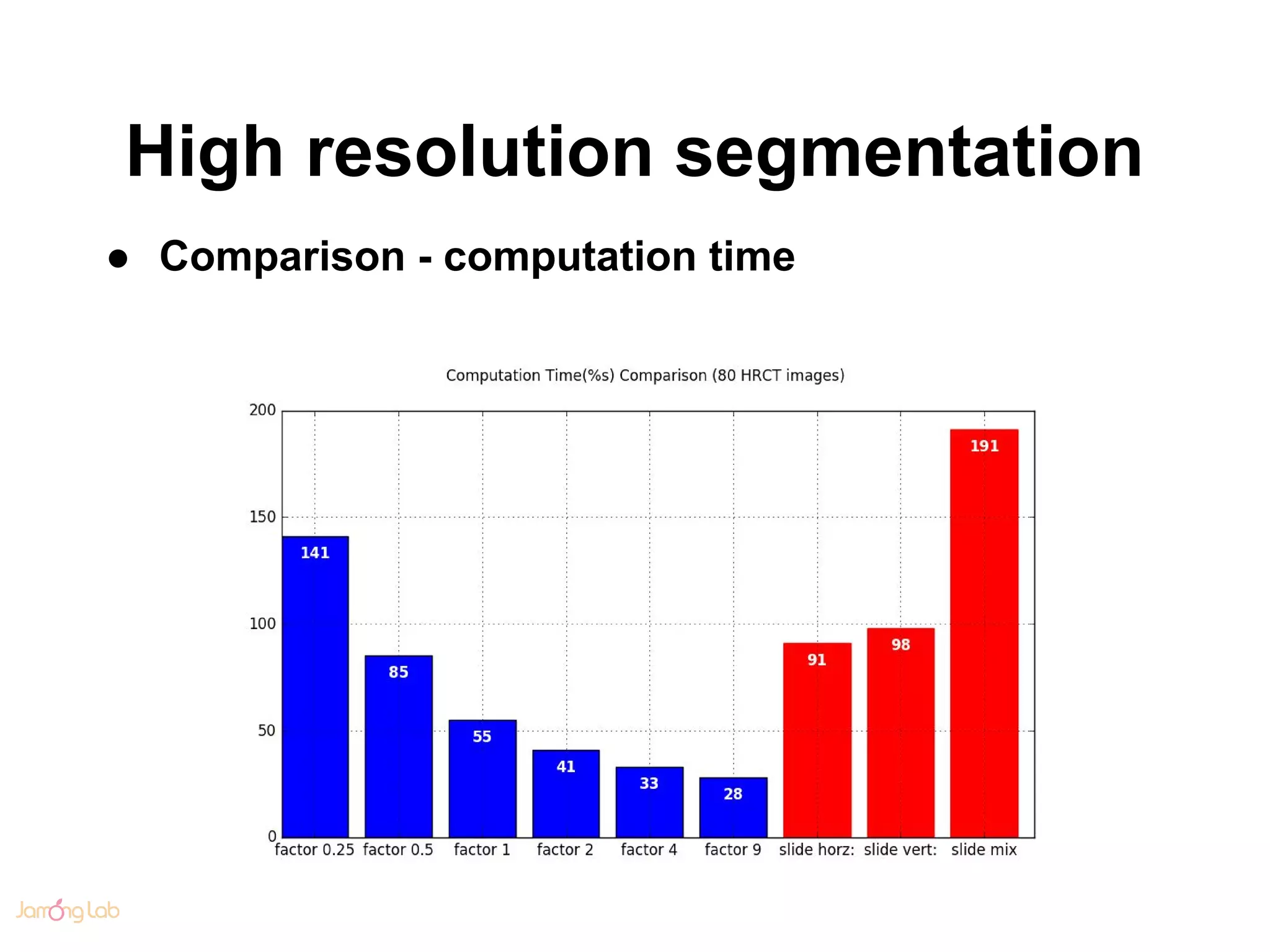

● Comparison - computation time

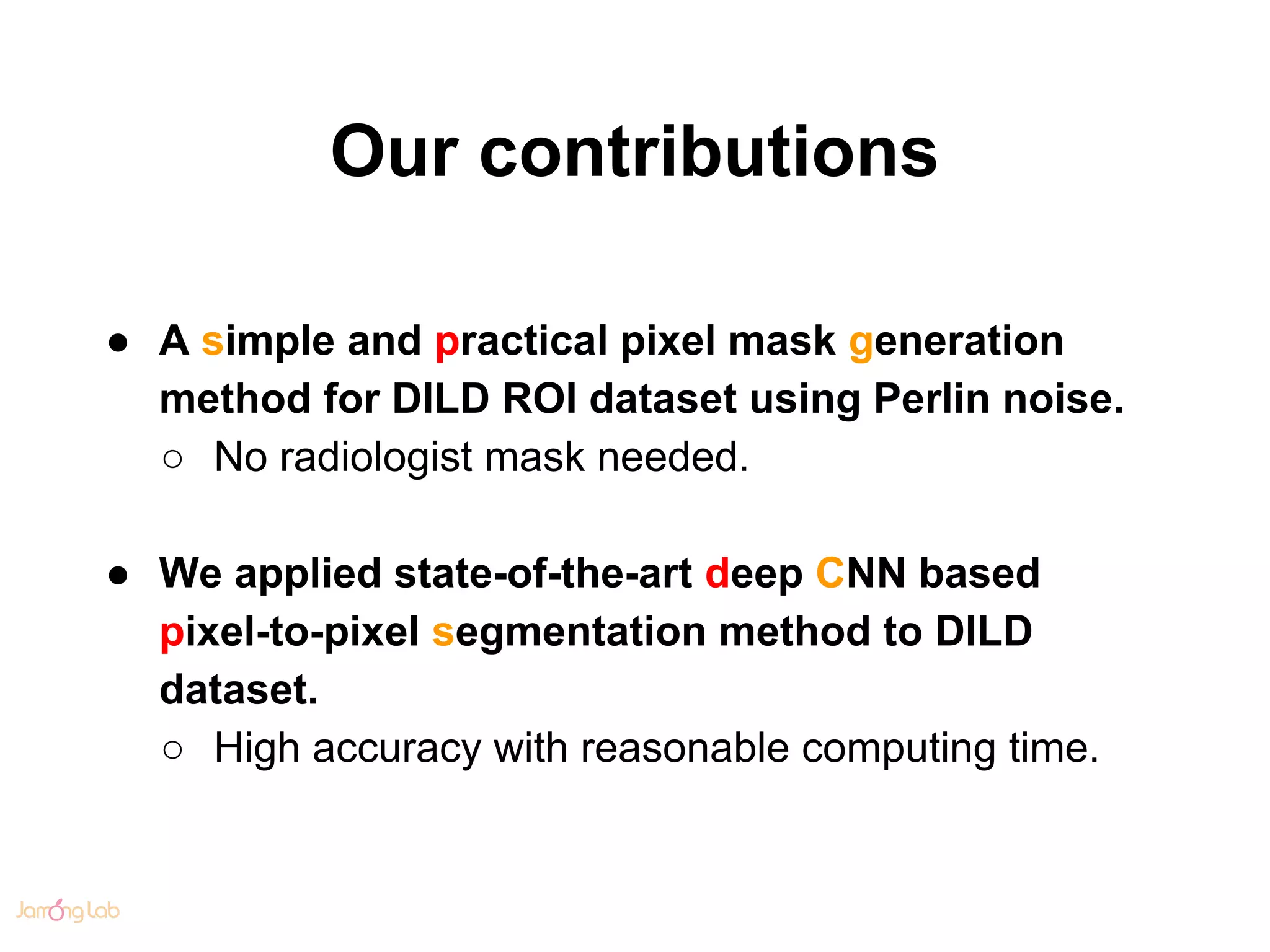

37. Our contributions
● A simple and practical pixel mask generation
method for DILD ROI dataset using Perlin noise.
○ No radiologist mask needed.
● We applied state-of-the-art deep CNN based
pixel-to-pixel segmentation method to DILD
dataset.
○ High accuracy with reasonable computing time.

38. Thank you !!!
