A new software tool for large-scale
analysis of citation networks
Nees Jan van Eck
Centre for Science and Technology Studies (CWTS), Leiden University
Workshop “Measuring the Diversity of Research”, Berlin
September 2, 2013

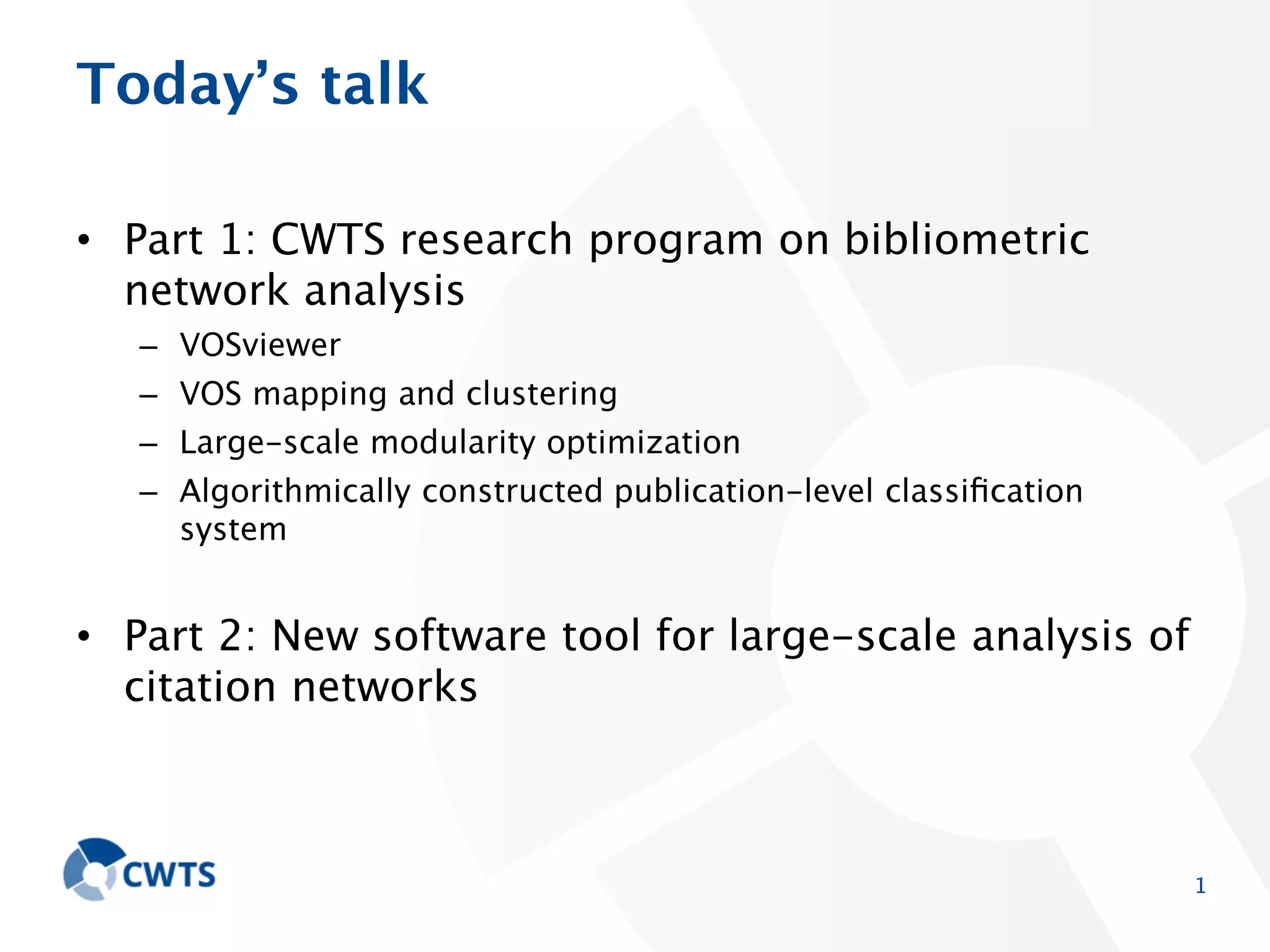

Today’s talk
• Part 1: CWTS research program on bibliometric network
analysis
– VOSviewer
– VOS mapping and clustering
– Large-scale modularity optimization
– Algorithmically constructed publication-level classification system

• Part 2: New software tool for large-scale analysis of
citation networks

1
Part 1

CWTS research
program on
bibliometric
network analysis

2

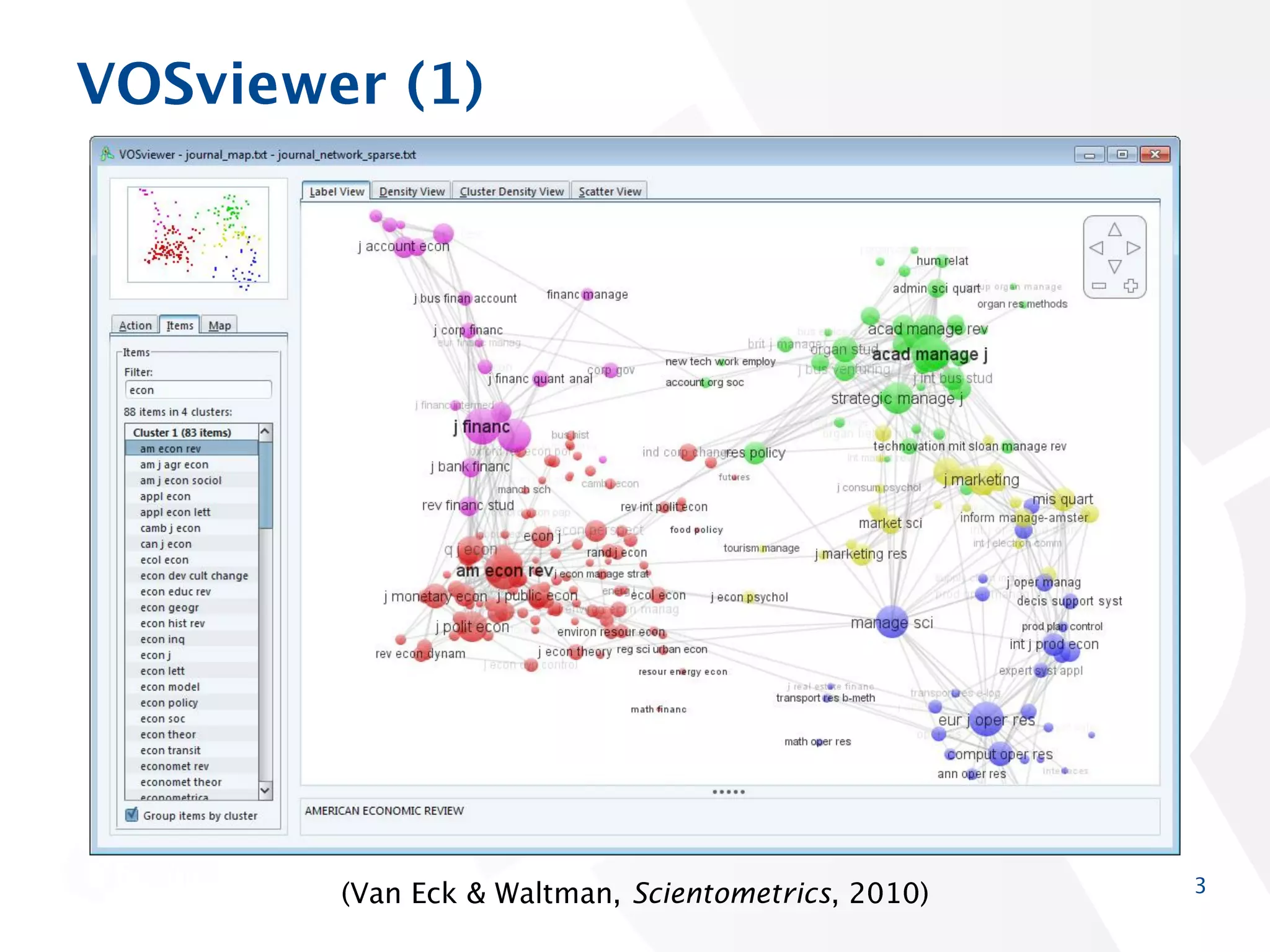

VOSviewer (1)

(Van Eck & Waltman, Scientometrics, 2010)

3

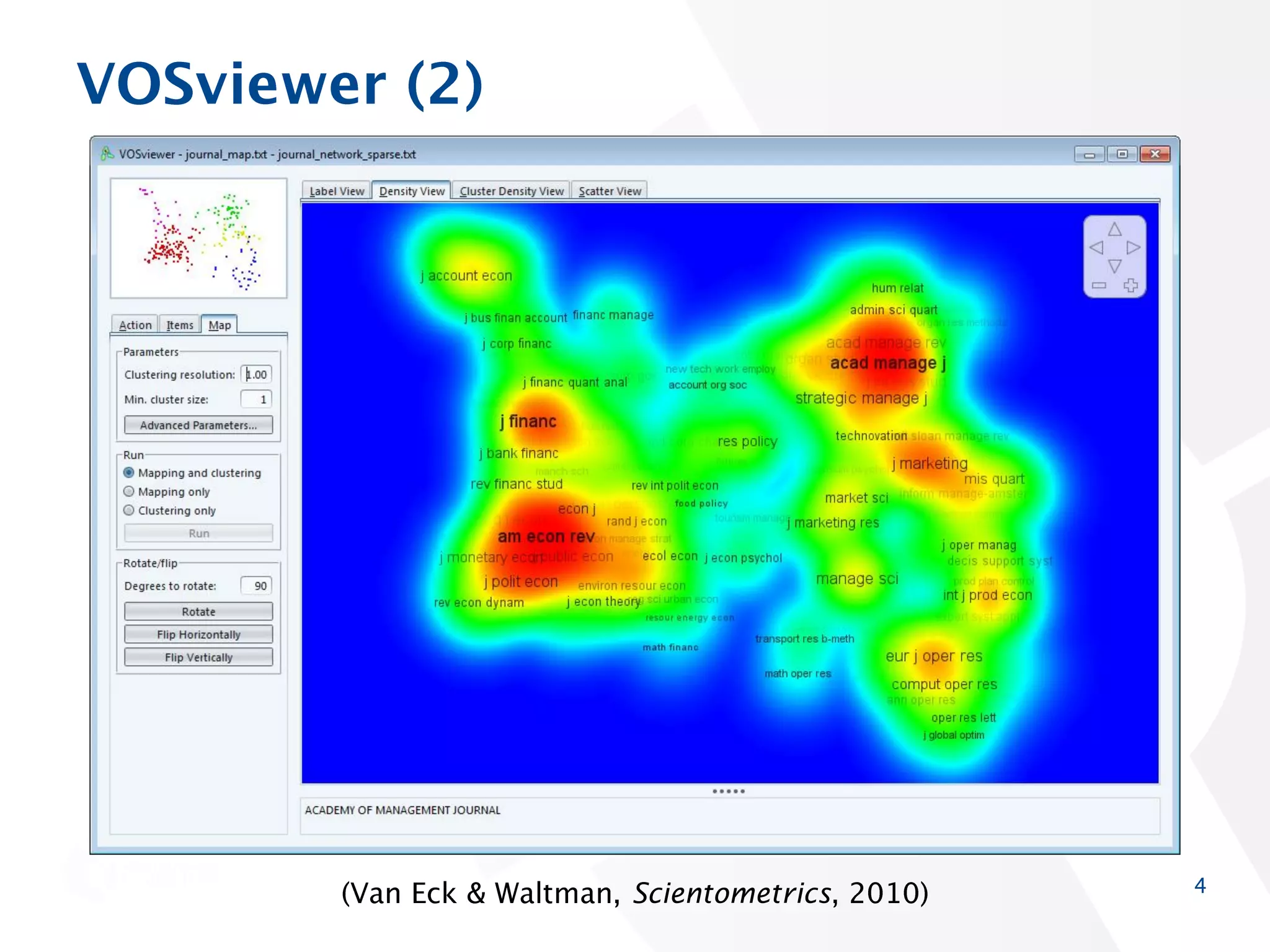

VOSviewer (2)

(Van Eck & Waltman, Scientometrics, 2010)

4

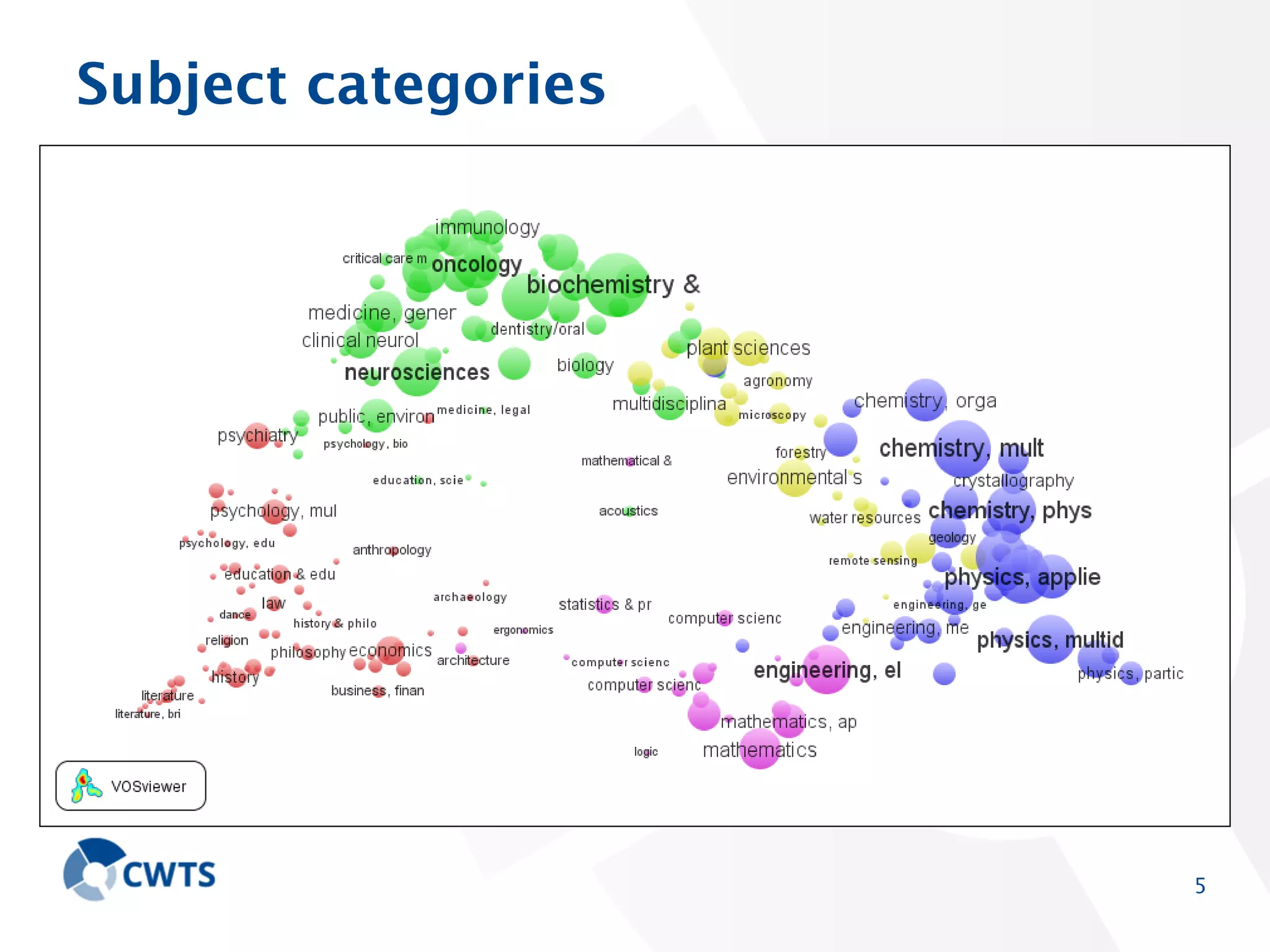

Subject categories

5

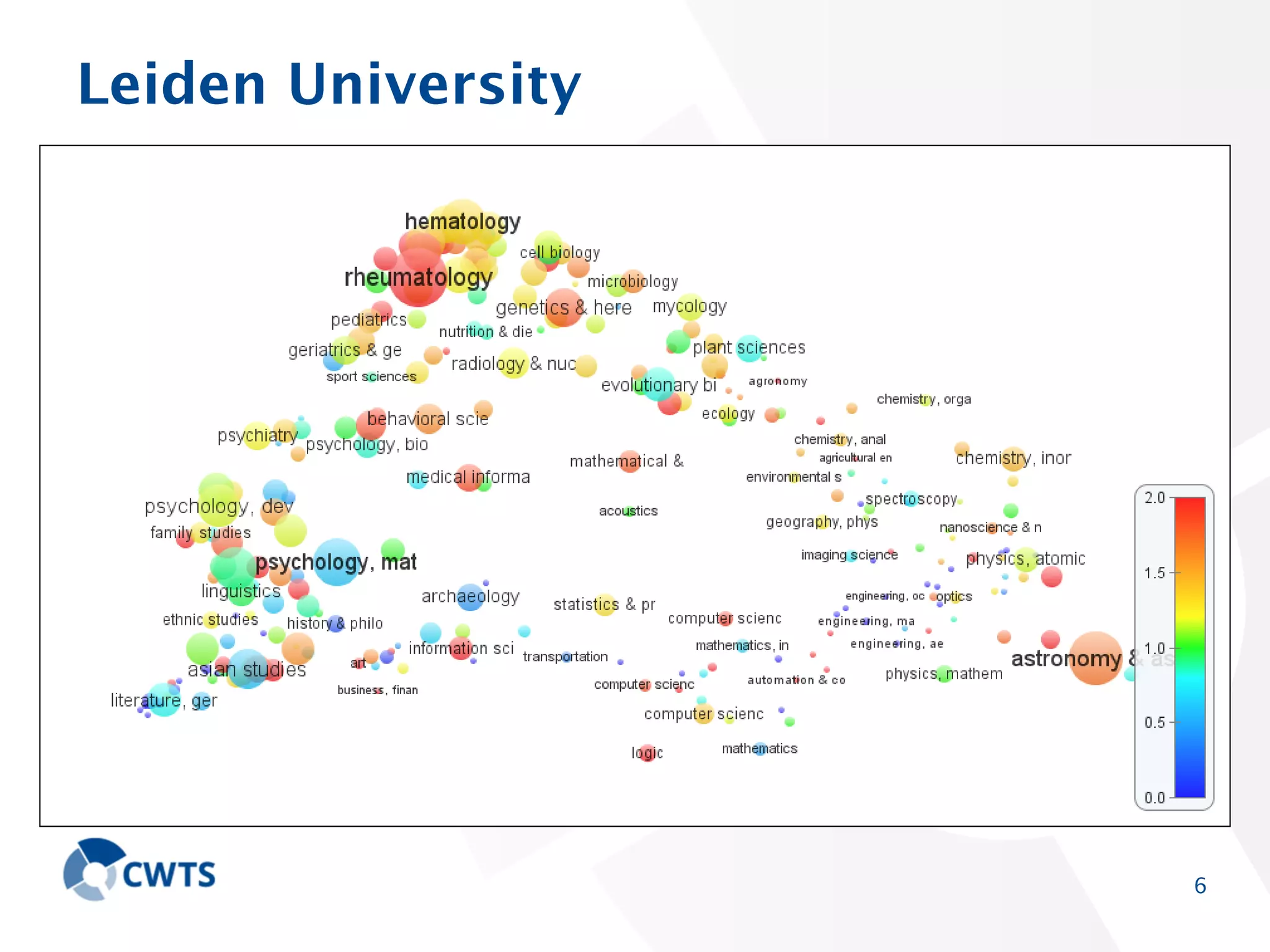

Leiden University

6

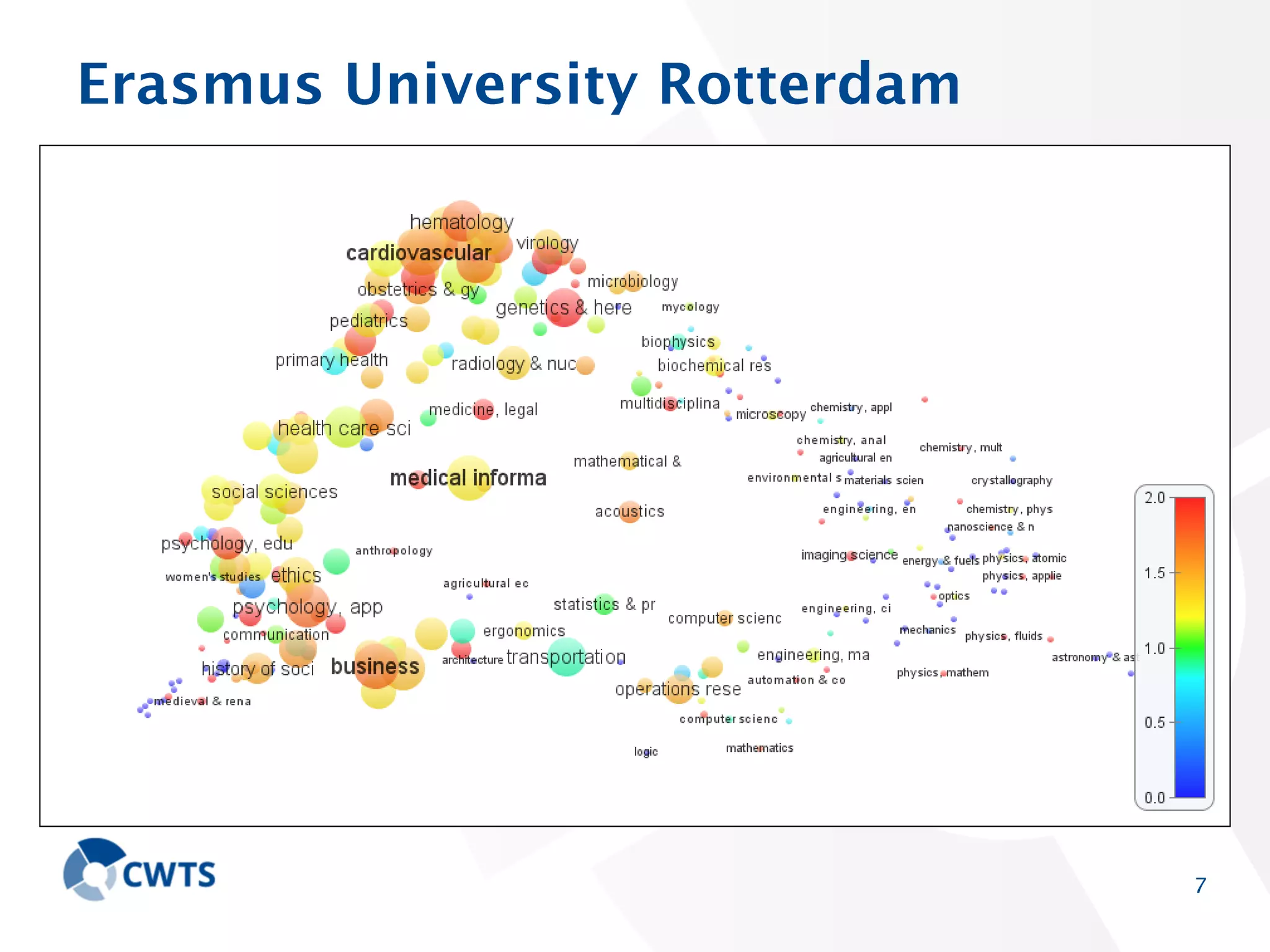

Erasmus University Rotterdam

7

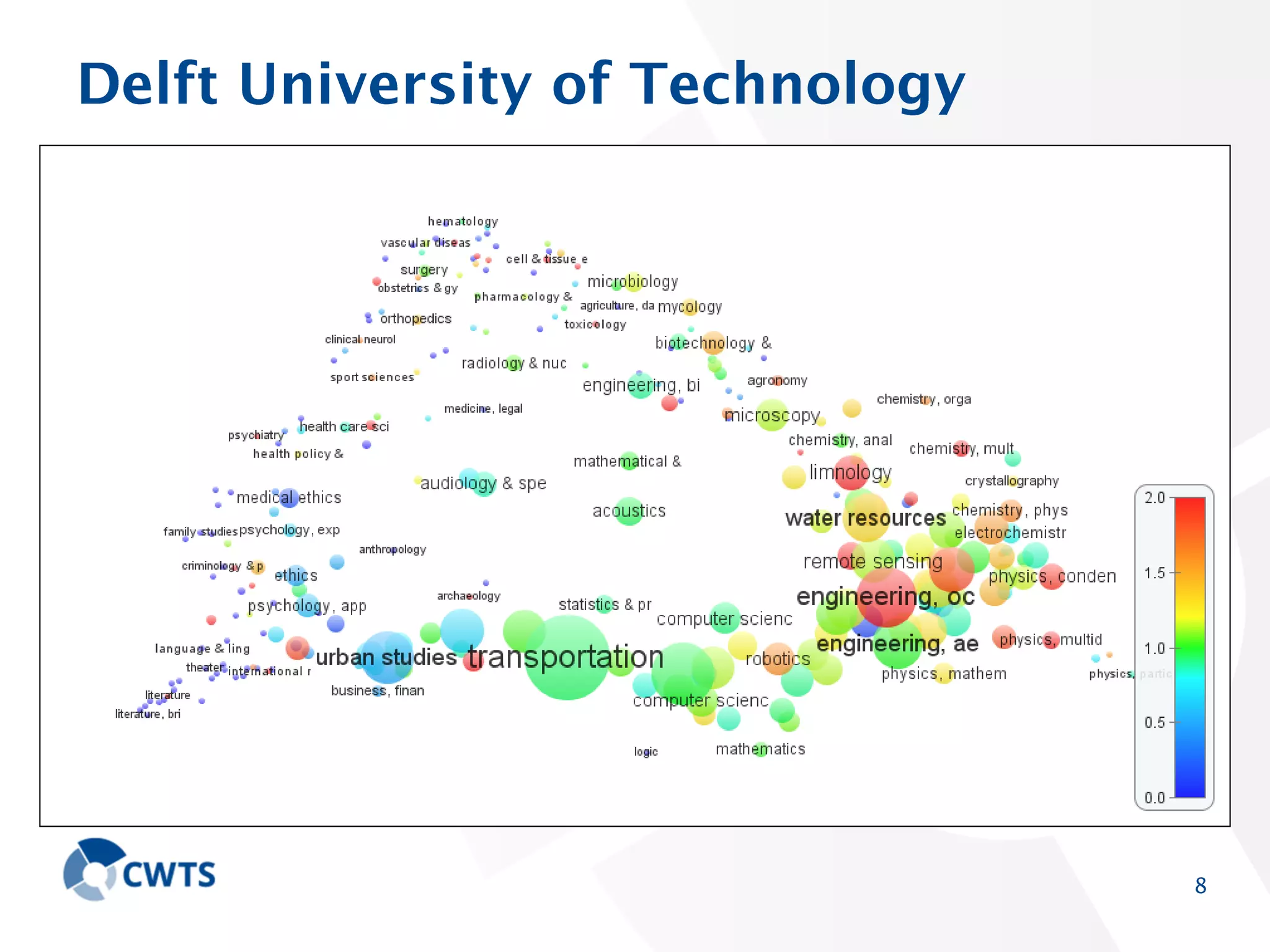

Delft University of Technology

8

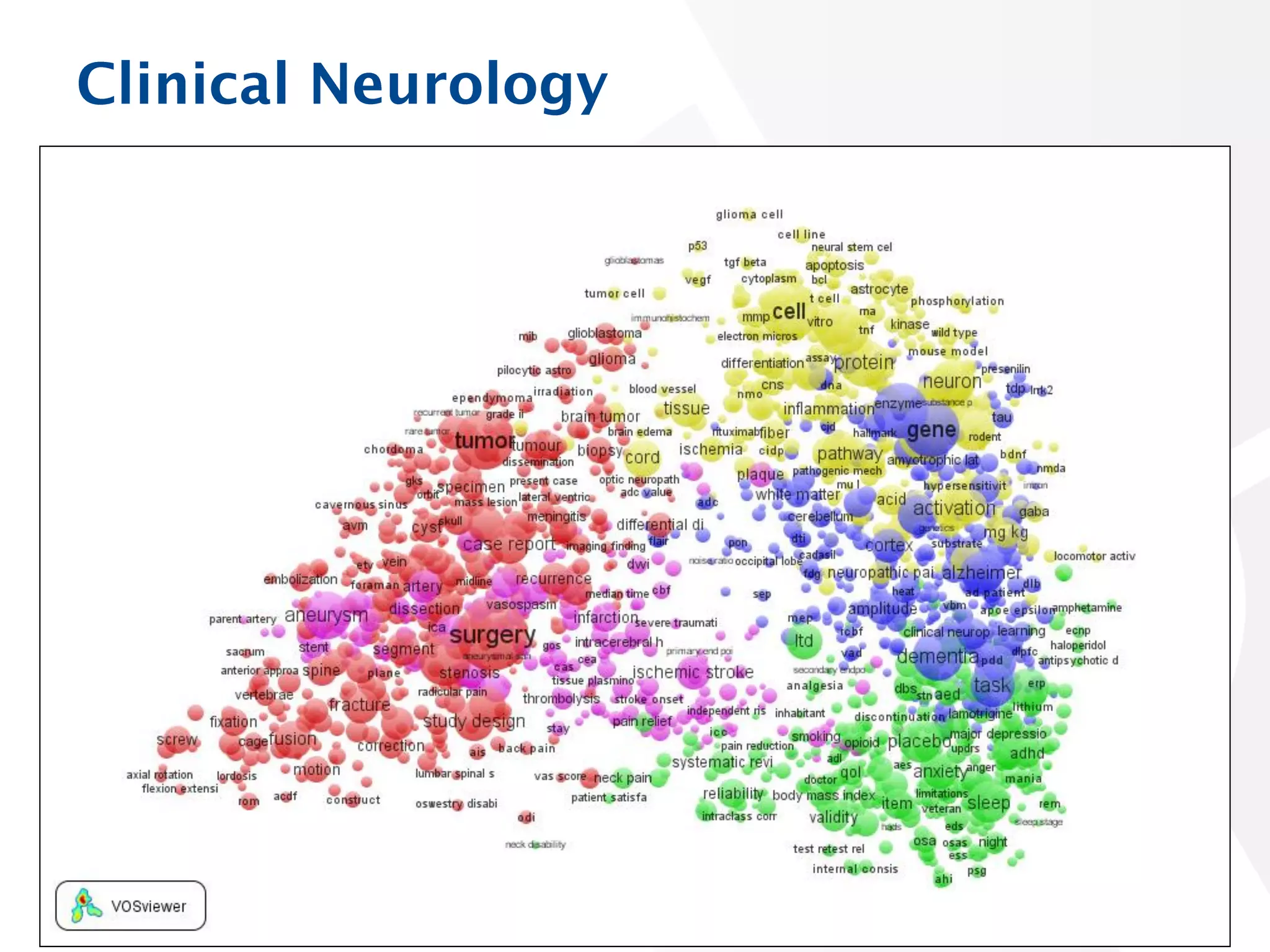

Clinical Neurology

9

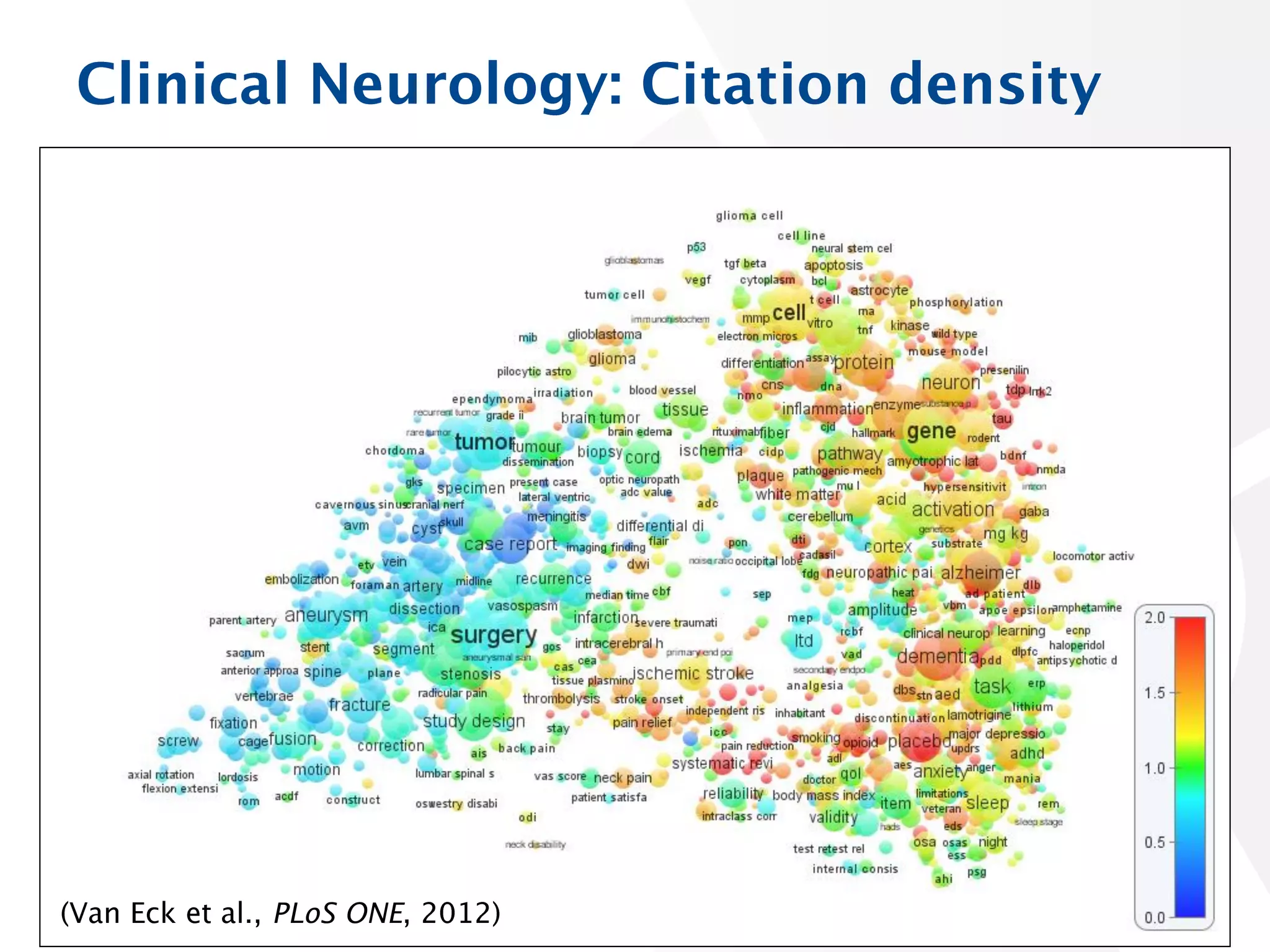

Clinical Neurology: Citation density

10

(Van Eck et al., PLoS ONE, 2012)

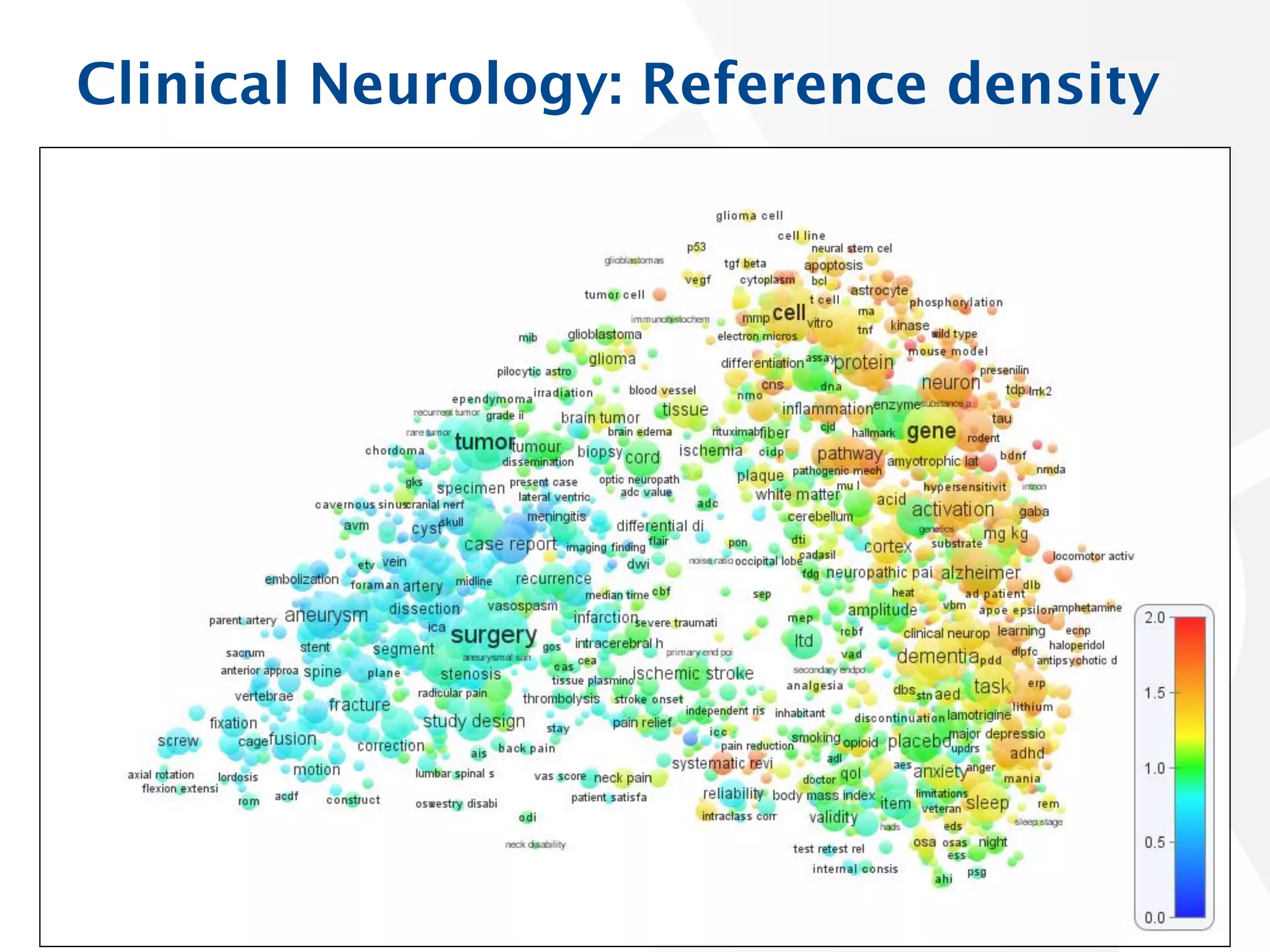

Clinical Neurology: Reference density

11

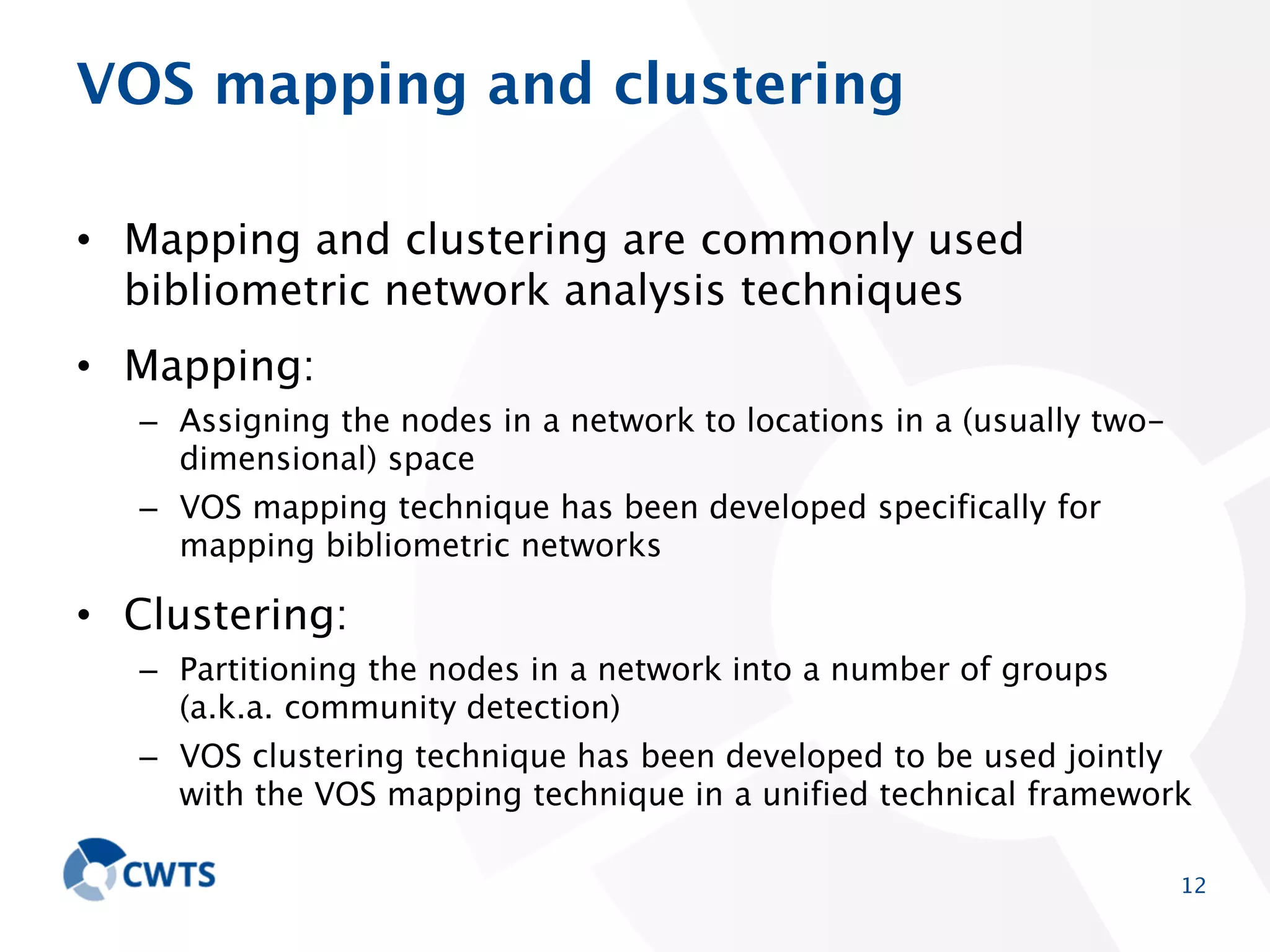

VOS mapping and clustering
• Mapping and clustering are commonly used bibliometric
network analysis techniques
• Mapping:
– Assigning the nodes in a network to locations in a (usually twodimensional) space
– VOS mapping technique has been developed specifically for mapping
bibliometric networks

• Clustering:
– Partitioning the nodes in a network into a number of groups (a.k.a.
community detection)
– VOS clustering technique has been developed to be used jointly with
the VOS mapping technique in a unified technical framework
12

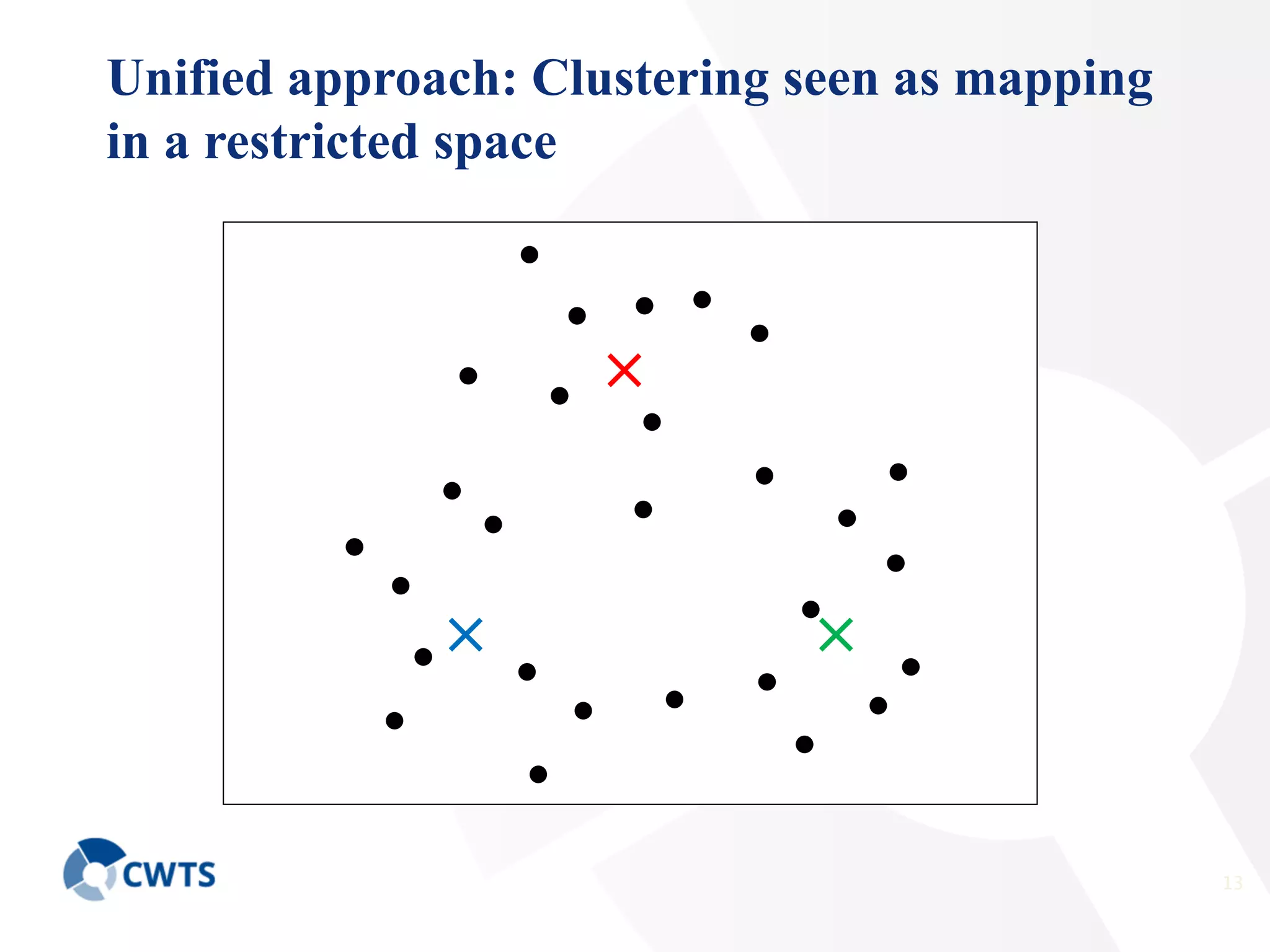

Unified approach: Clustering seen as mapping
in a restricted space

13

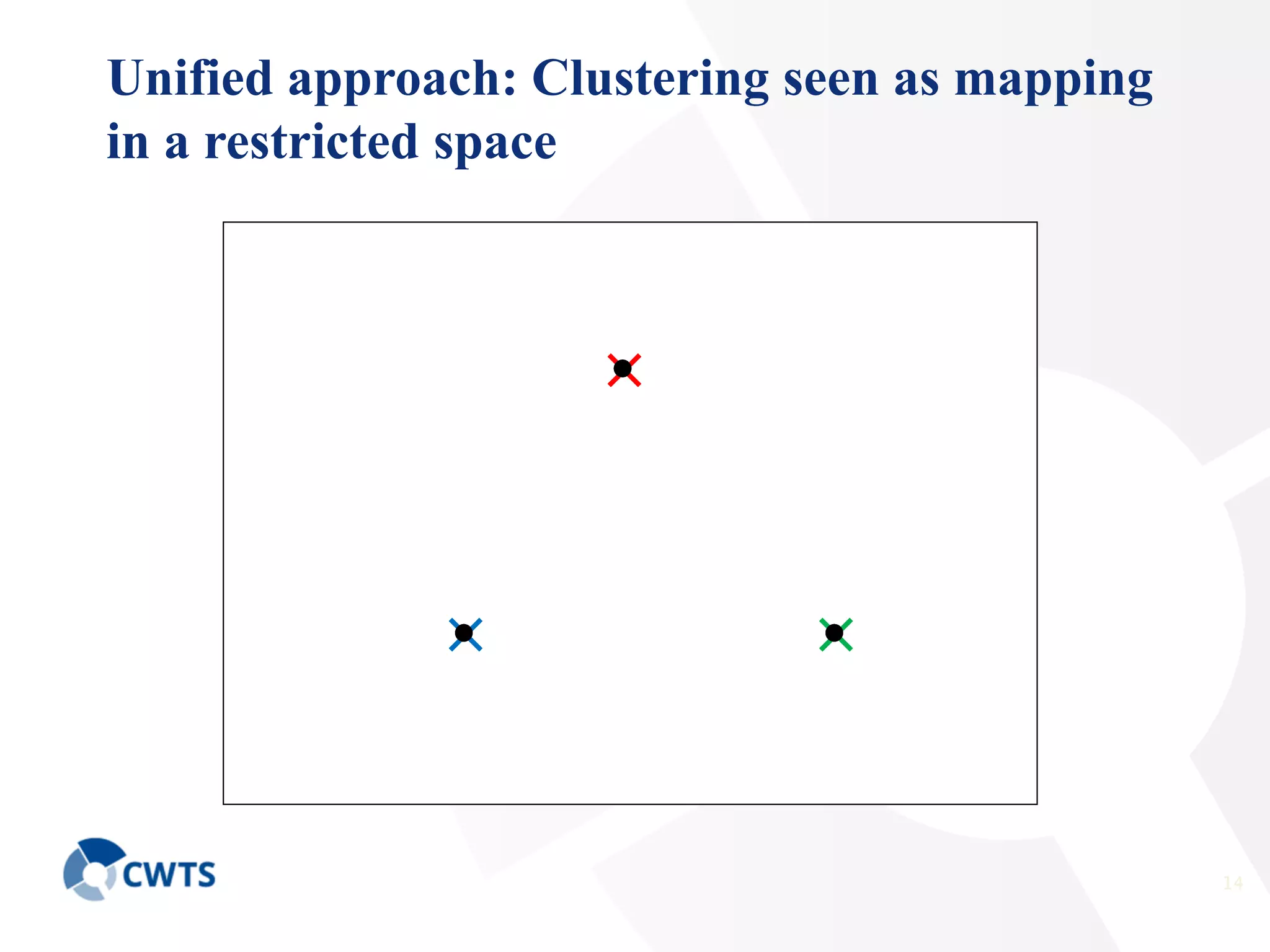

Unified approach: Clustering seen as mapping
in a restricted space

14

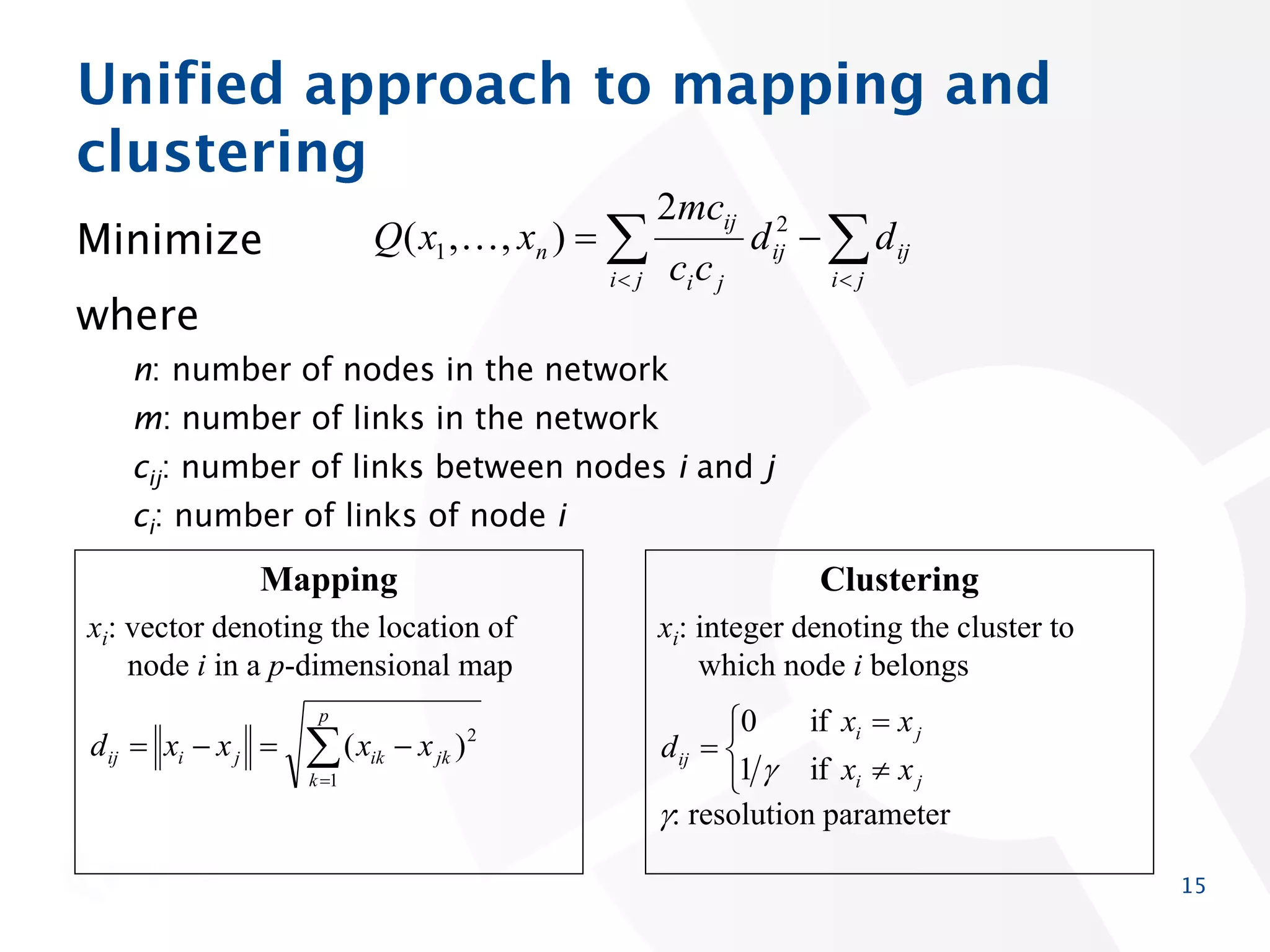

Unified approach to mapping and
clustering
2mcij

Q( x1 ,, xn )

Minimize

i j

ci c j

2
dij

dij
i j

where
n: number of nodes in the network
m: number of links in the network

cij: number of links between nodes i and j
ci: number of links of node i

Mapping

Clustering

xi: vector denoting the location of
node i in a p-dimensional map

xi: integer denoting the cluster to
which node i belongs

p

dij

xi

xj

( xik
k 1

x jk )

2

dij

0

if xi

xj

1
if xi x j
: resolution parameter
15

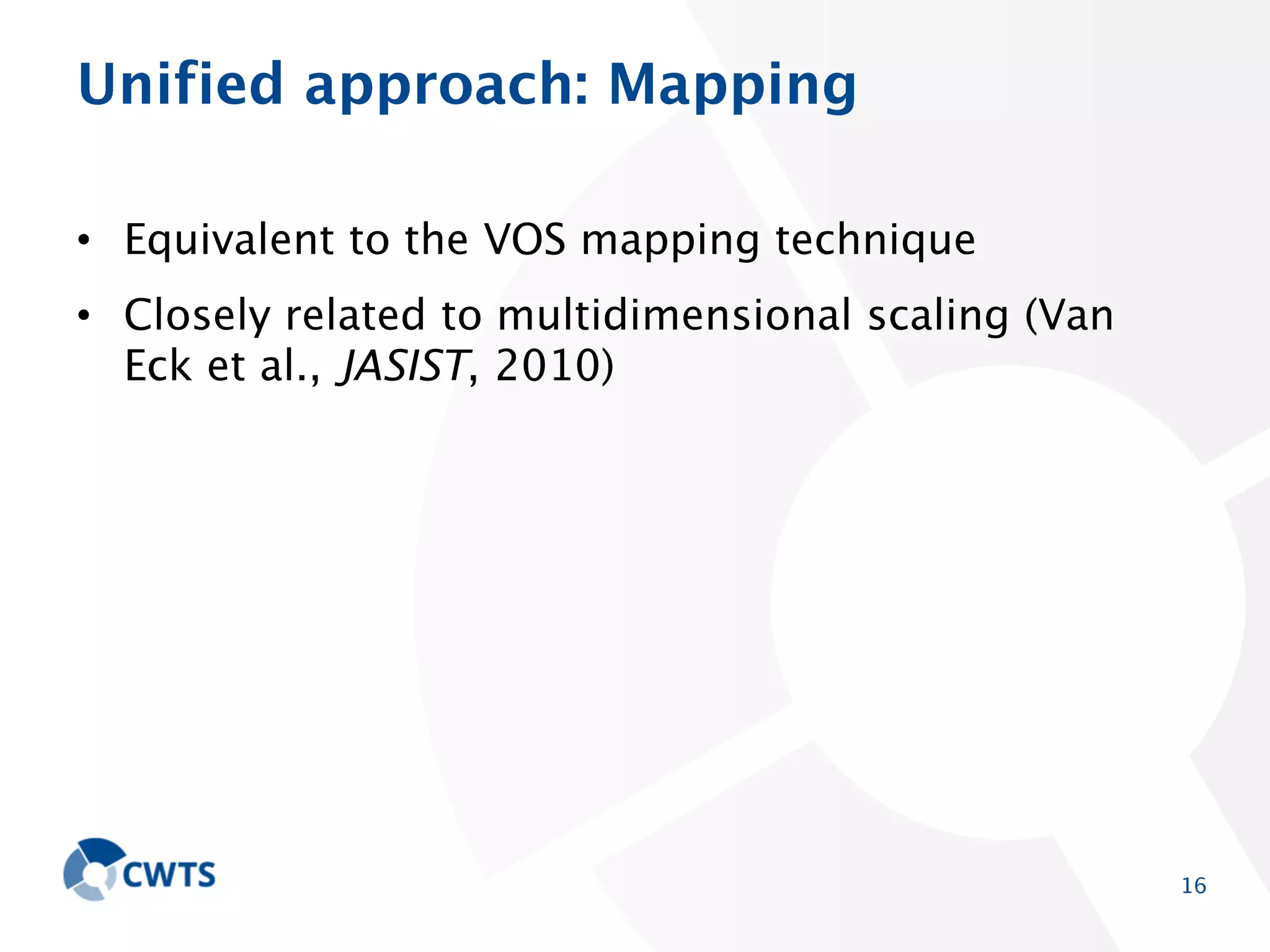

Unified approach: Mapping
• Equivalent to the VOS mapping technique
• Closely related to multidimensional scaling (Van Eck et
al., JASIST, 2010)

16

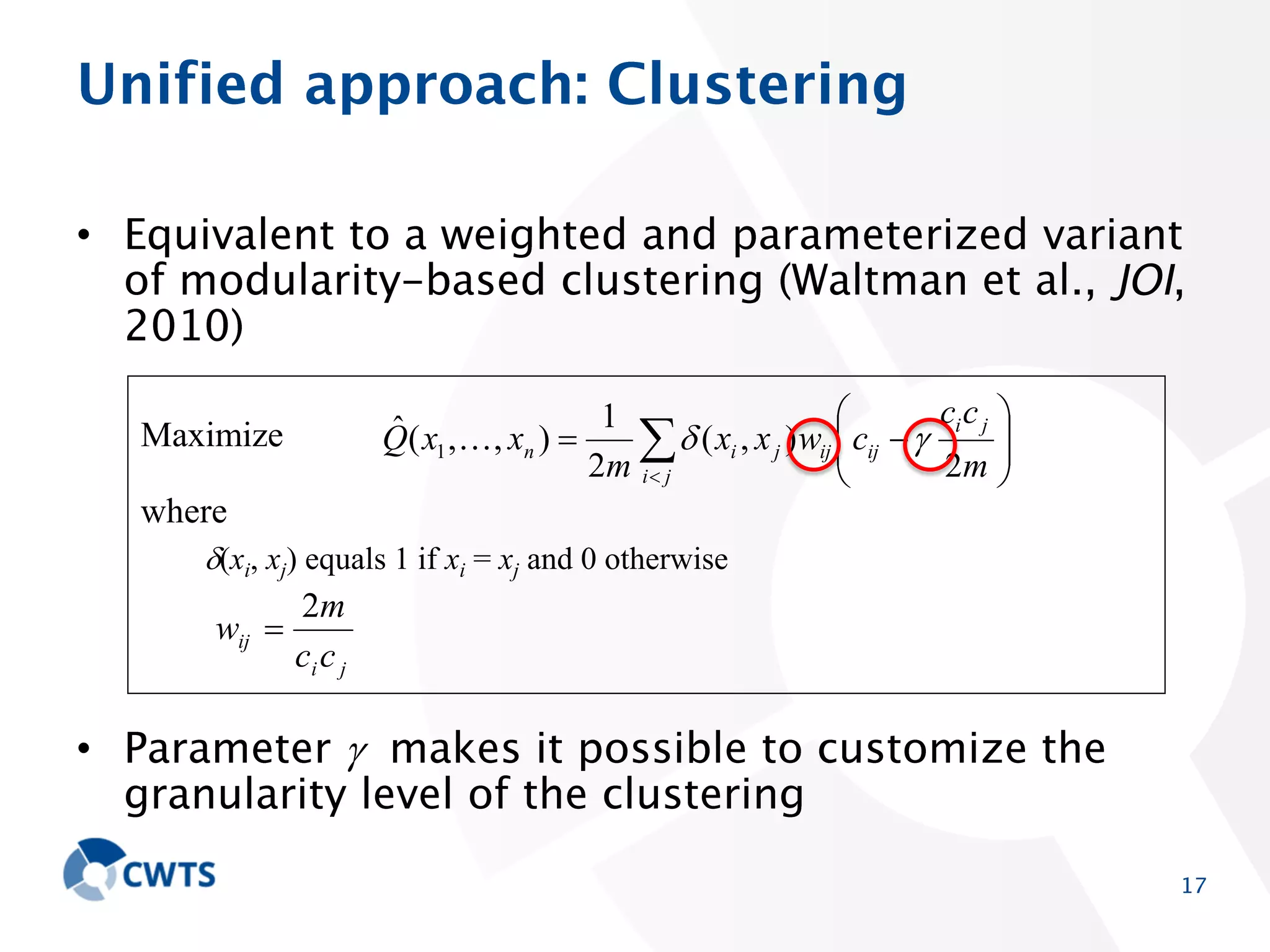

Unified approach: Clustering
• Equivalent to a weighted and parameterized variant of
modularity-based clustering (Waltman et al., JOI, 2010)
ˆ
Q( x1 ,, xn )

Maximize

1
2m i

( xi , x j ) wij cij
j

ci c j
2m

where
(xi, xj) equals 1 if xi = xj and 0 otherwise

wij

2m
ci c j

• Parameter makes it possible to customize the
granularity level of the clustering

17

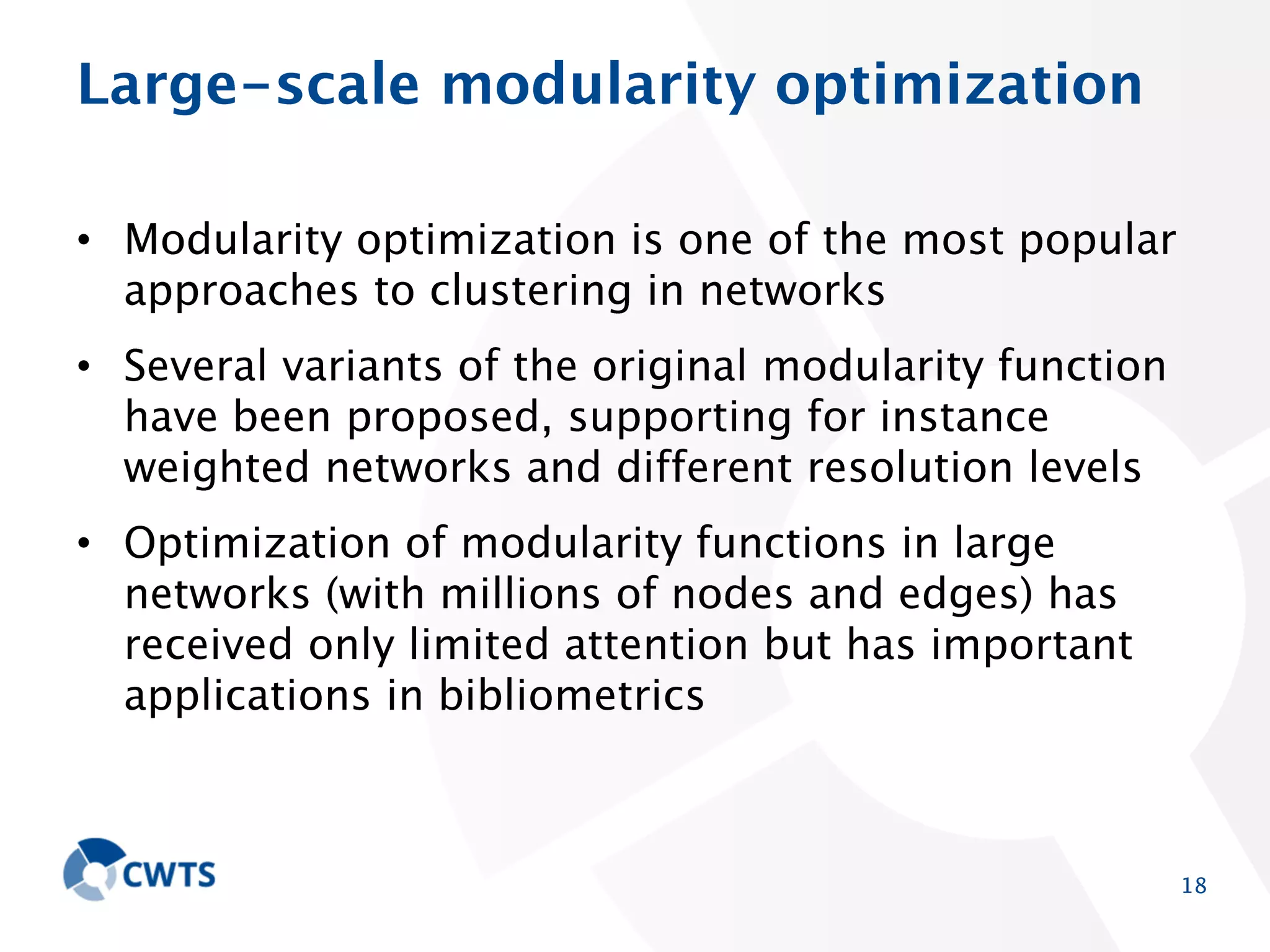

Large-scale modularity optimization
• Modularity optimization is one of the most popular
approaches to clustering in networks
• Several variants of the original modularity function have
been proposed, supporting for instance weighted
networks and different resolution levels
• Optimization of modularity functions in large networks
(with millions of nodes and edges) has received only
limited attention but has important applications in
bibliometrics

18

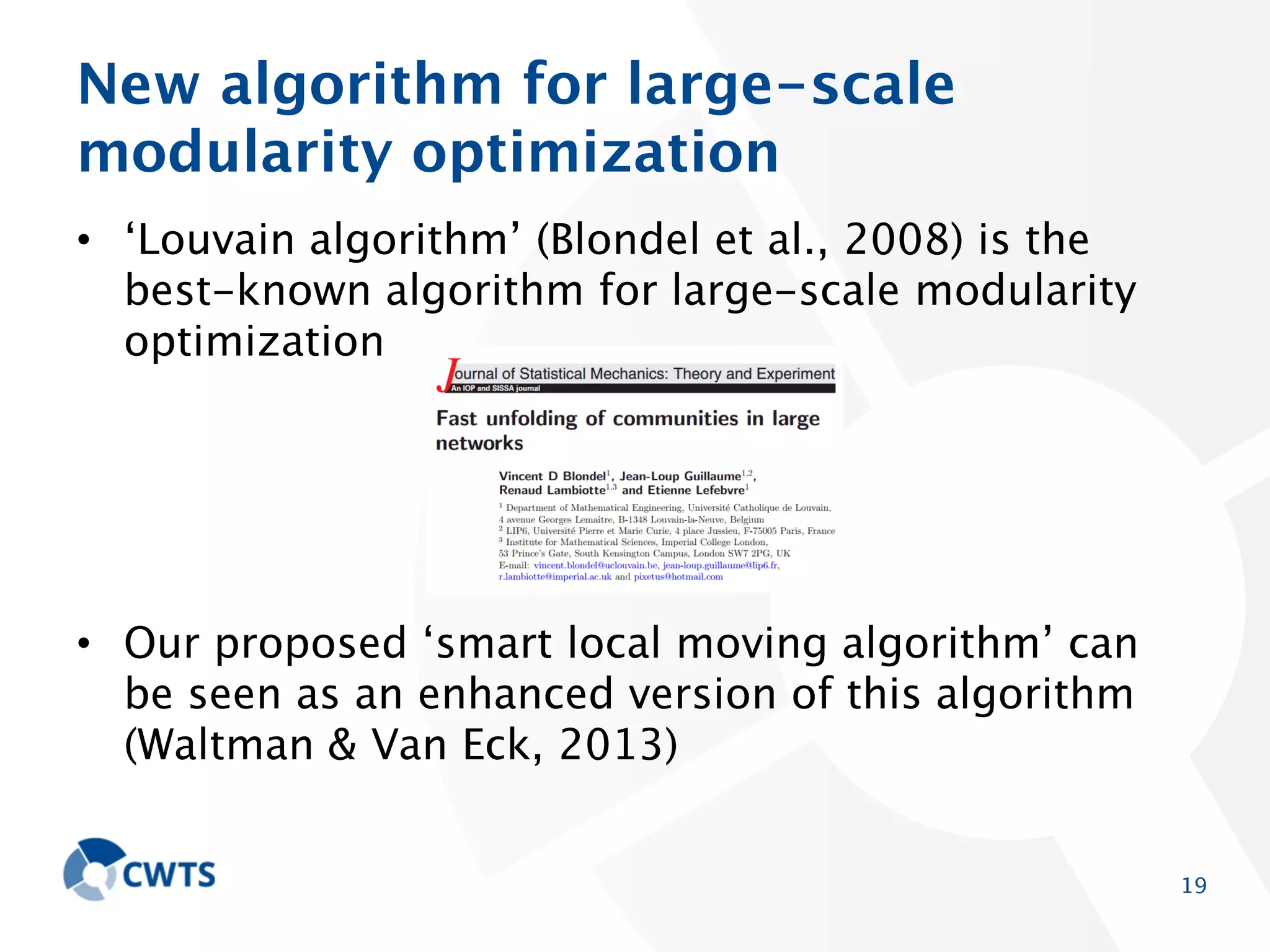

New algorithm for large-scale modularity
optimization
• ‘Louvain algorithm’ (Blondel et al., 2008) is the bestknown algorithm for large-scale modularity optimization

• Our proposed ‘smart local moving algorithm’ can be
seen as an enhanced version of this algorithm (Waltman
& Van Eck, 2013)

19

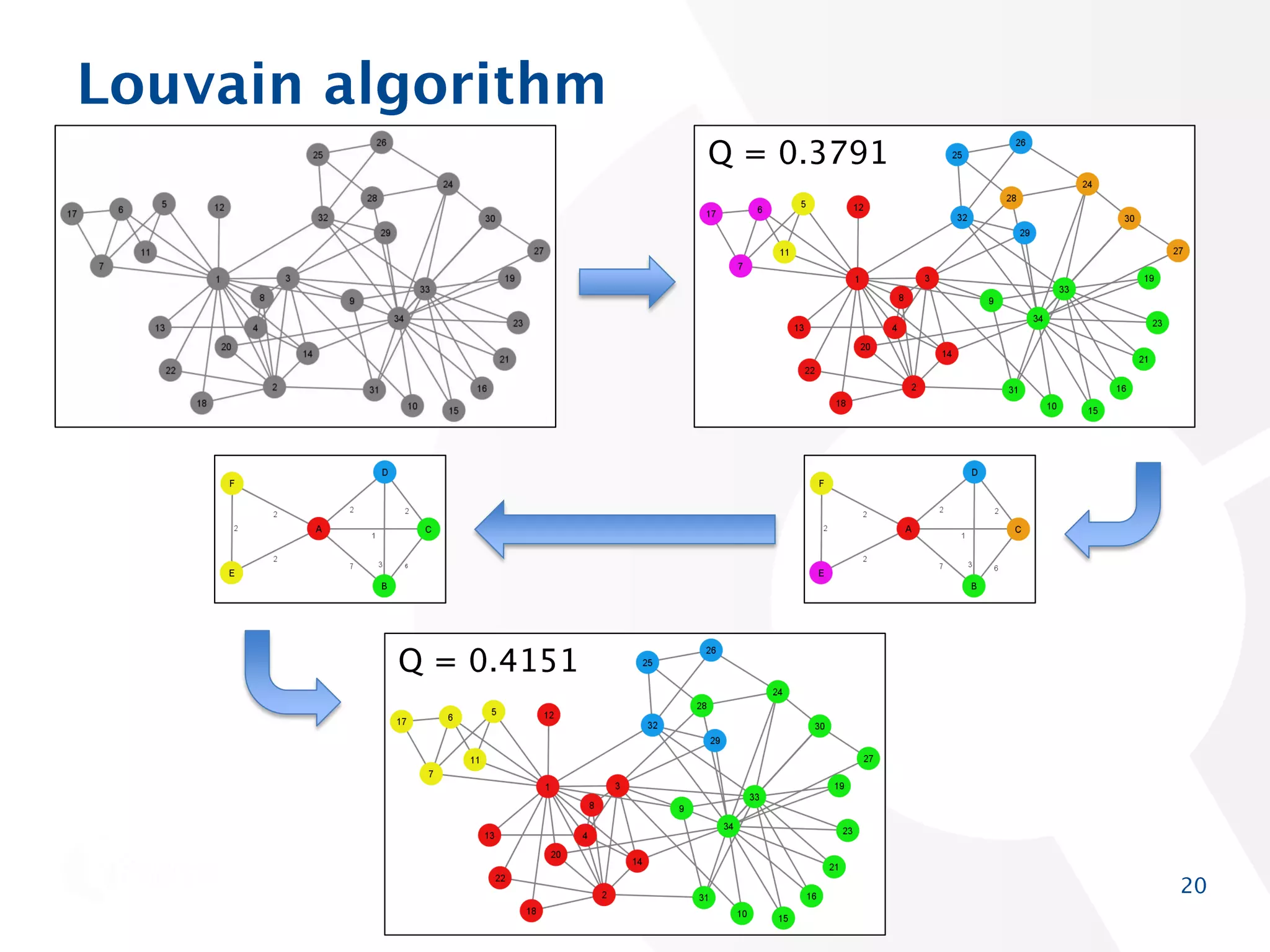

Louvain algorithm
Q = 0.3791

Q = 0.4151

20

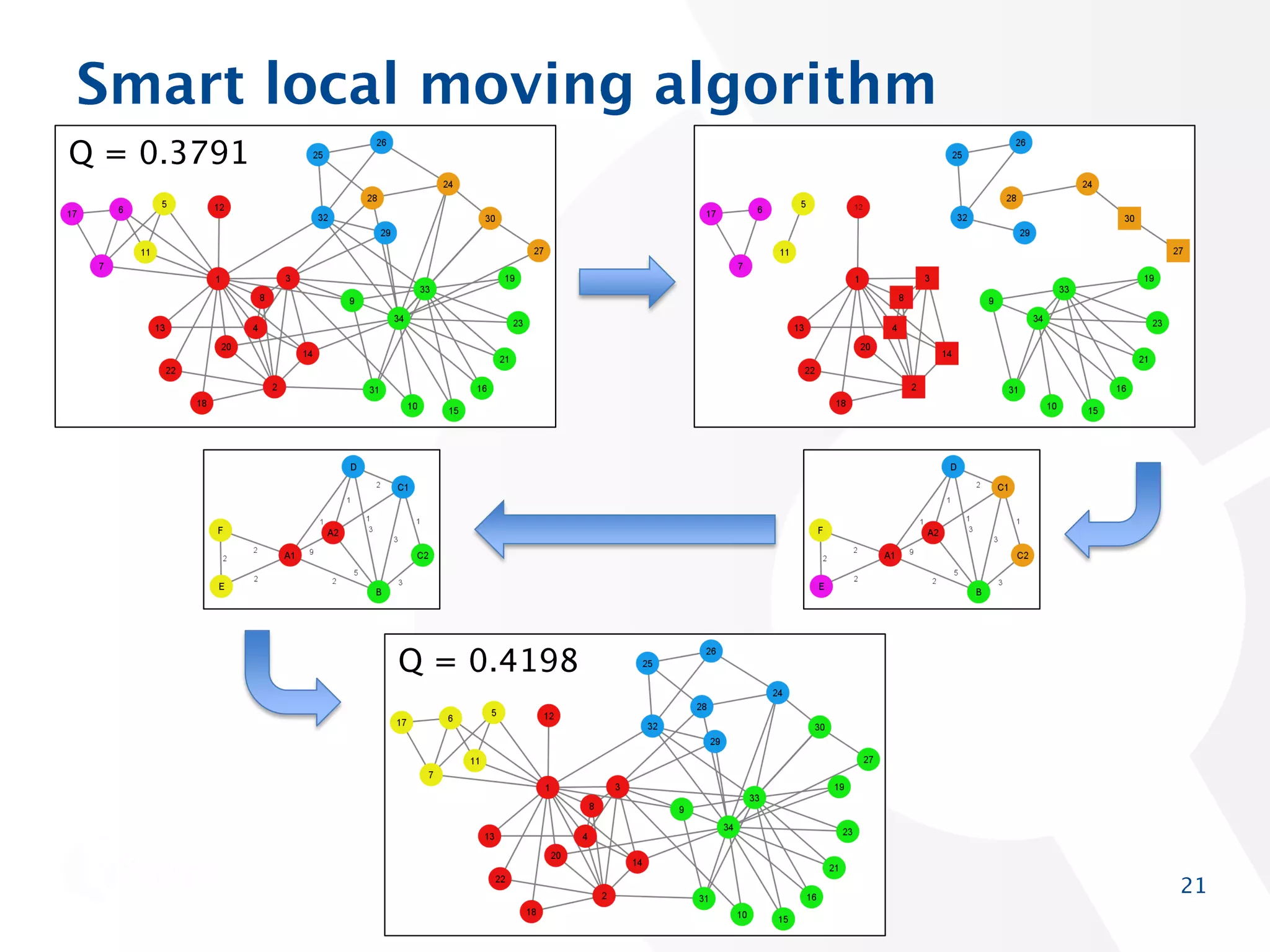

Smart local moving algorithm
Q = 0.3791

Q = 0.4198

21

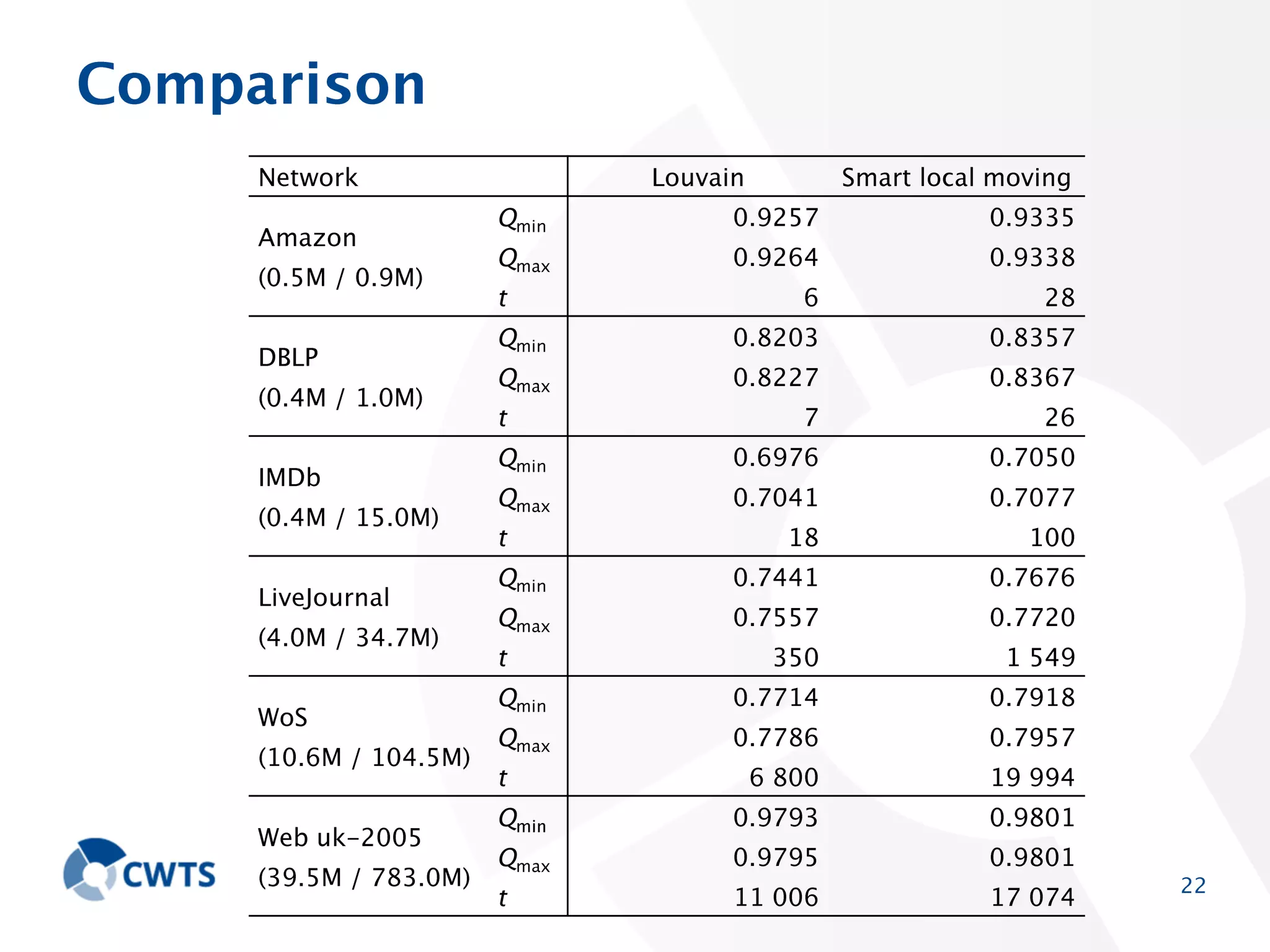

Comparison
Network
Amazon
(0.5M / 0.9M)
DBLP
(0.4M / 1.0M)

IMDb
(0.4M / 15.0M)
LiveJournal
(4.0M / 34.7M)
WoS
(10.6M / 104.5M)
Web uk-2005
(39.5M / 783.0M)

Louvain

Smart local moving

Qmin

0.9257

0.9335

Qmax

0.9264

0.9338

6

28

Qmin

0.8203

0.8357

Qmax

0.8227

0.8367

7

26

Qmin

0.6976

0.7050

Qmax

0.7041

0.7077

18

100

Qmin

0.7441

0.7676

Qmax

0.7557

0.7720

350

1 549

Qmin

0.7714

0.7918

Qmax

0.7786

0.7957

6 800

19 994

Qmin

0.9793

0.9801

Qmax

0.9795

0.9801

t

11 006

17 074

t

t

t

t

t

22

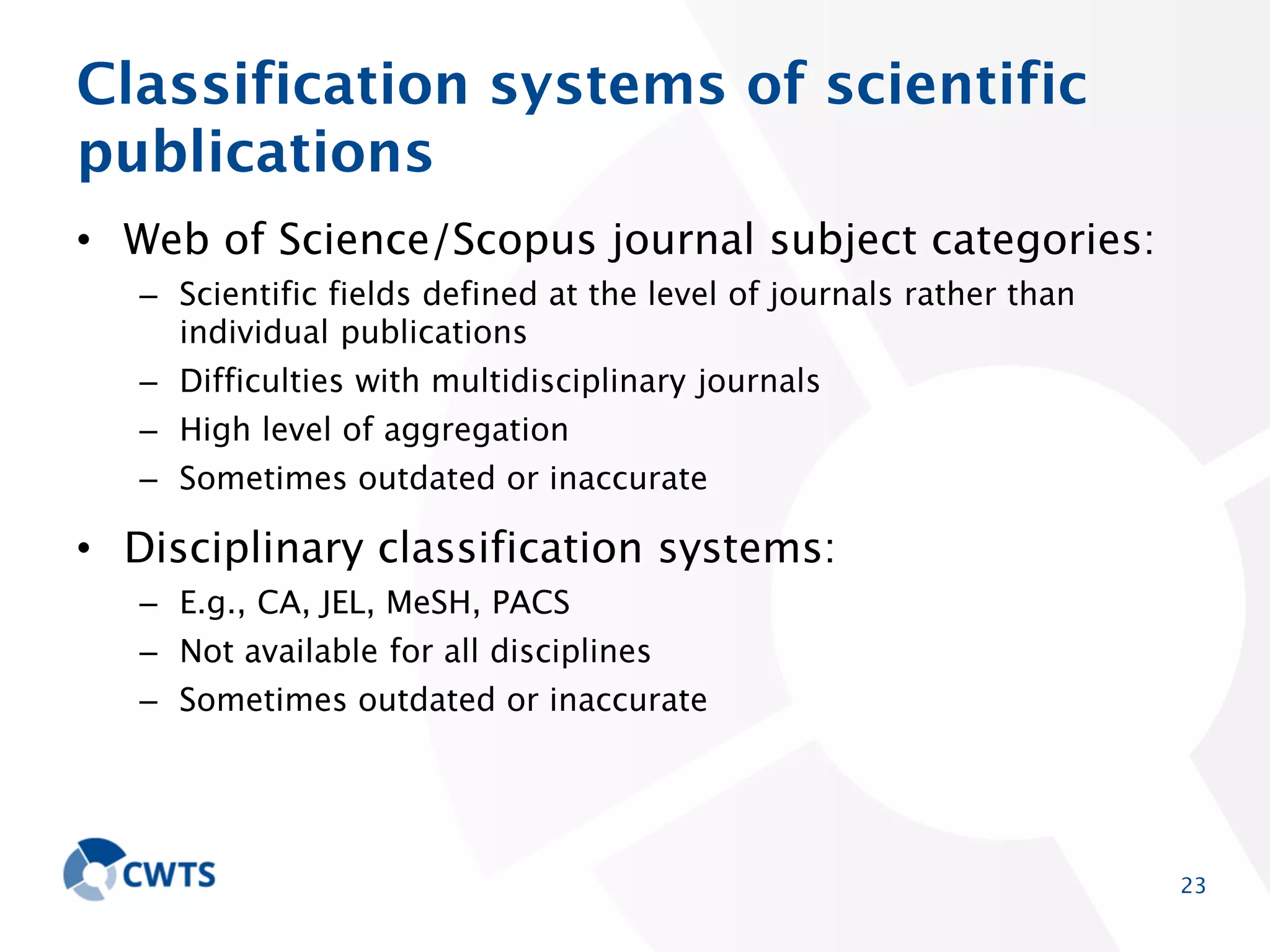

Classification systems of scientific
publications
• Web of Science/Scopus journal subject categories:
– Scientific fields defined at the level of journals rather than individual
publications
– Difficulties with multidisciplinary journals
– High level of aggregation

– Sometimes outdated or inaccurate

• Disciplinary classification systems:
– E.g., CA, JEL, MeSH, PACS
– Not available for all disciplines

– Sometimes outdated or inaccurate

23

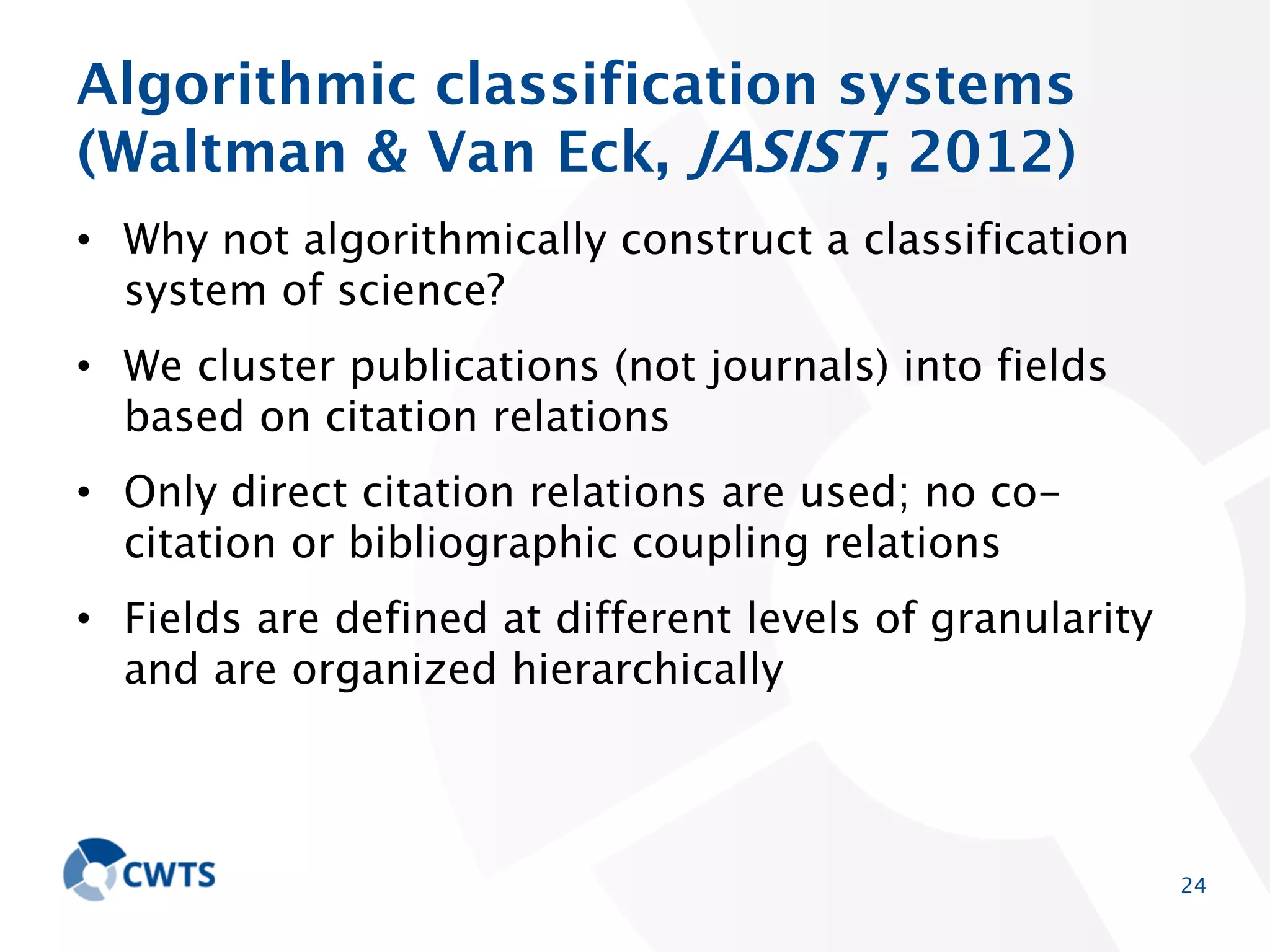

Algorithmic classification systems
(Waltman & Van Eck, JASIST, 2012)
• Why not algorithmically construct a classification system
of science?
• We cluster publications (not journals) into fields based
on citation relations

• Only direct citation relations are used; no co-citation or
bibliographic coupling relations
• Fields are defined at different levels of granularity and
are organized hierarchically

24

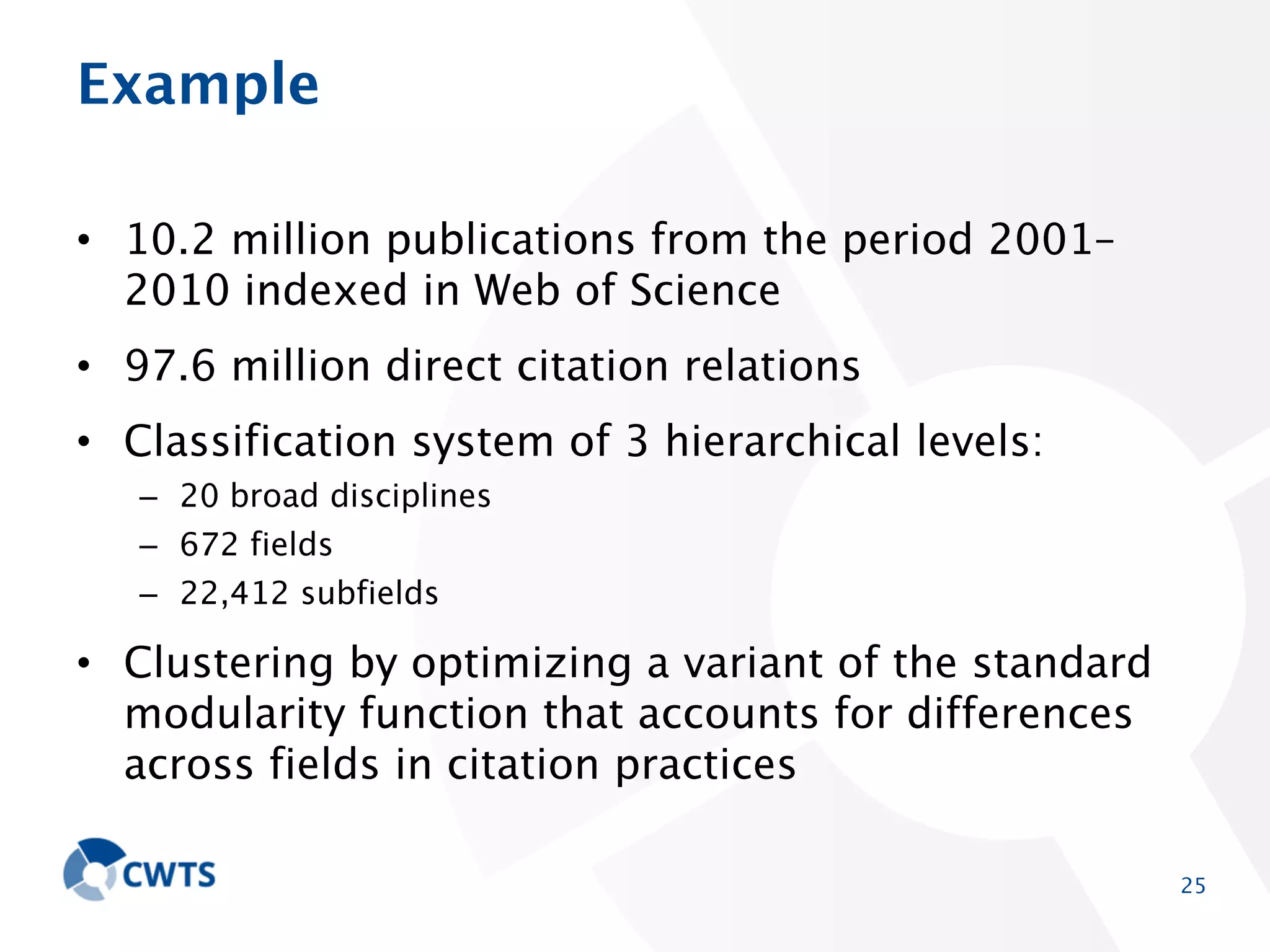

Example
• 10.2 million publications from the period 2001–2010
indexed in Web of Science
• 97.6 million direct citation relations
• Classification system of 3 hierarchical levels:
– 20 broad disciplines
– 672 fields
– 22,412 subfields

• Clustering by optimizing a variant of the standard
modularity function that accounts for differences across
fields in citation practices
25

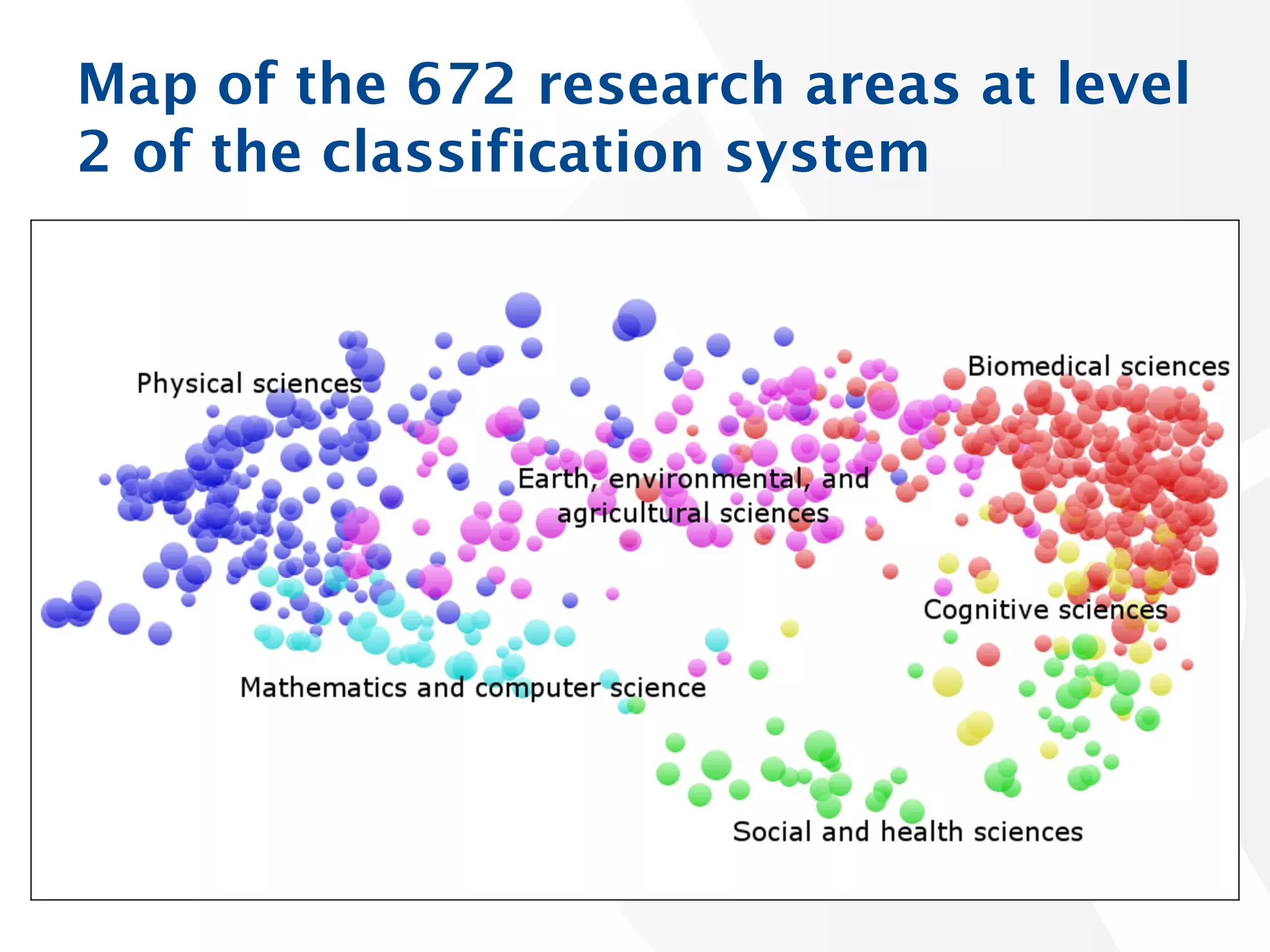

Map of the 672 research areas at level 2
of the classification system

26

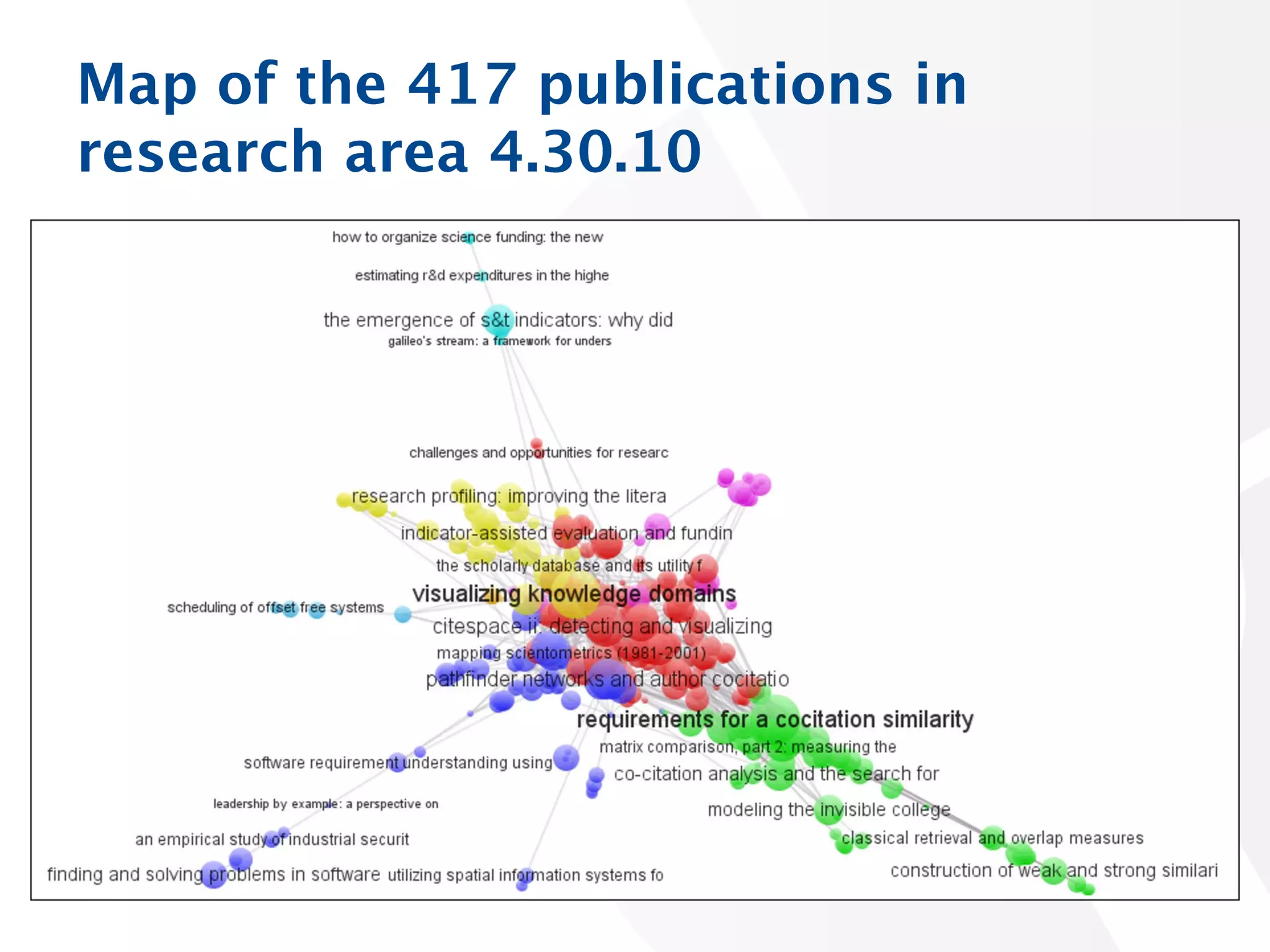

Map of the 417 publications in research
area 4.30.10

27
Part 2

New software
tool for
exploring largescale citation
networks

28

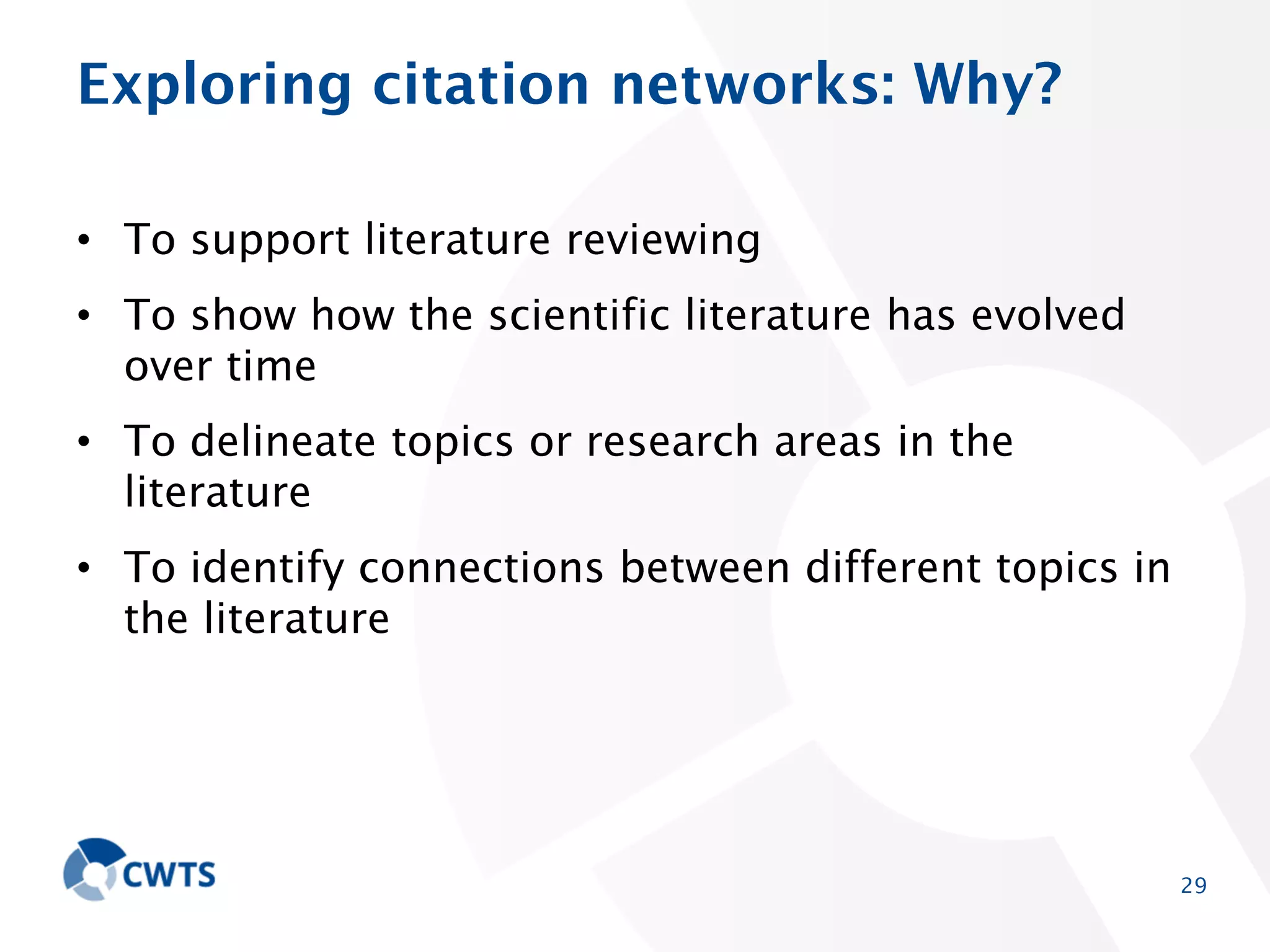

Exploring citation networks: Why?
• To support literature reviewing
• To show how the scientific literature has evolved over
time
• To delineate topics or research areas in the literature
• To identify connections between different topics in the
literature

29

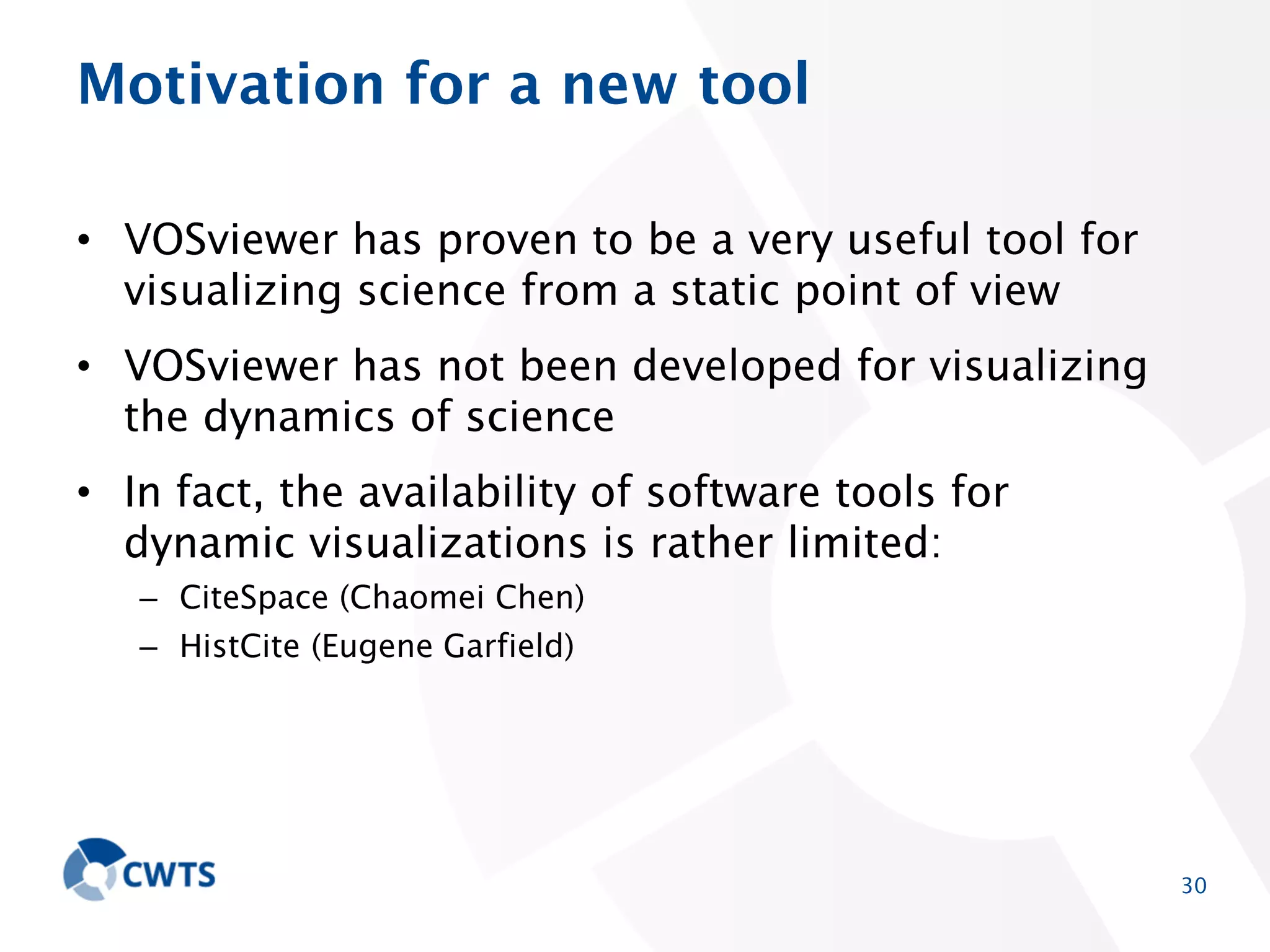

Motivation for a new tool
• VOSviewer has proven to be a very useful tool for
visualizing science from a static point of view
• VOSviewer has not been developed for visualizing the
dynamics of science

• In fact, the availability of software tools for dynamic
visualizations is rather limited:
– CiteSpace (Chaomei Chen)
– HistCite (Eugene Garfield)

30

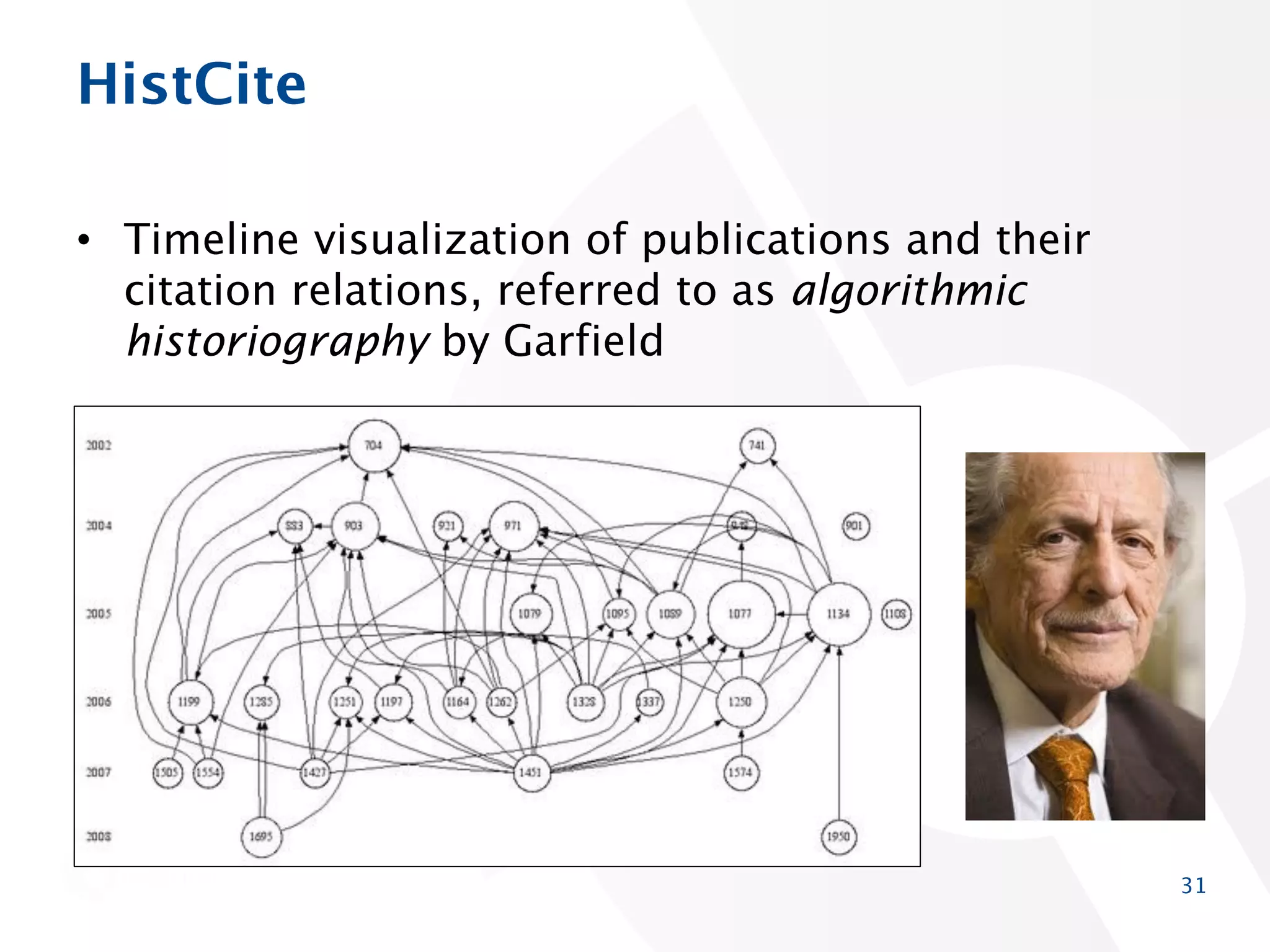

HistCite
• Timeline visualization of publications and their citation
relations, referred to as algorithmic historiography by
Garfield

31

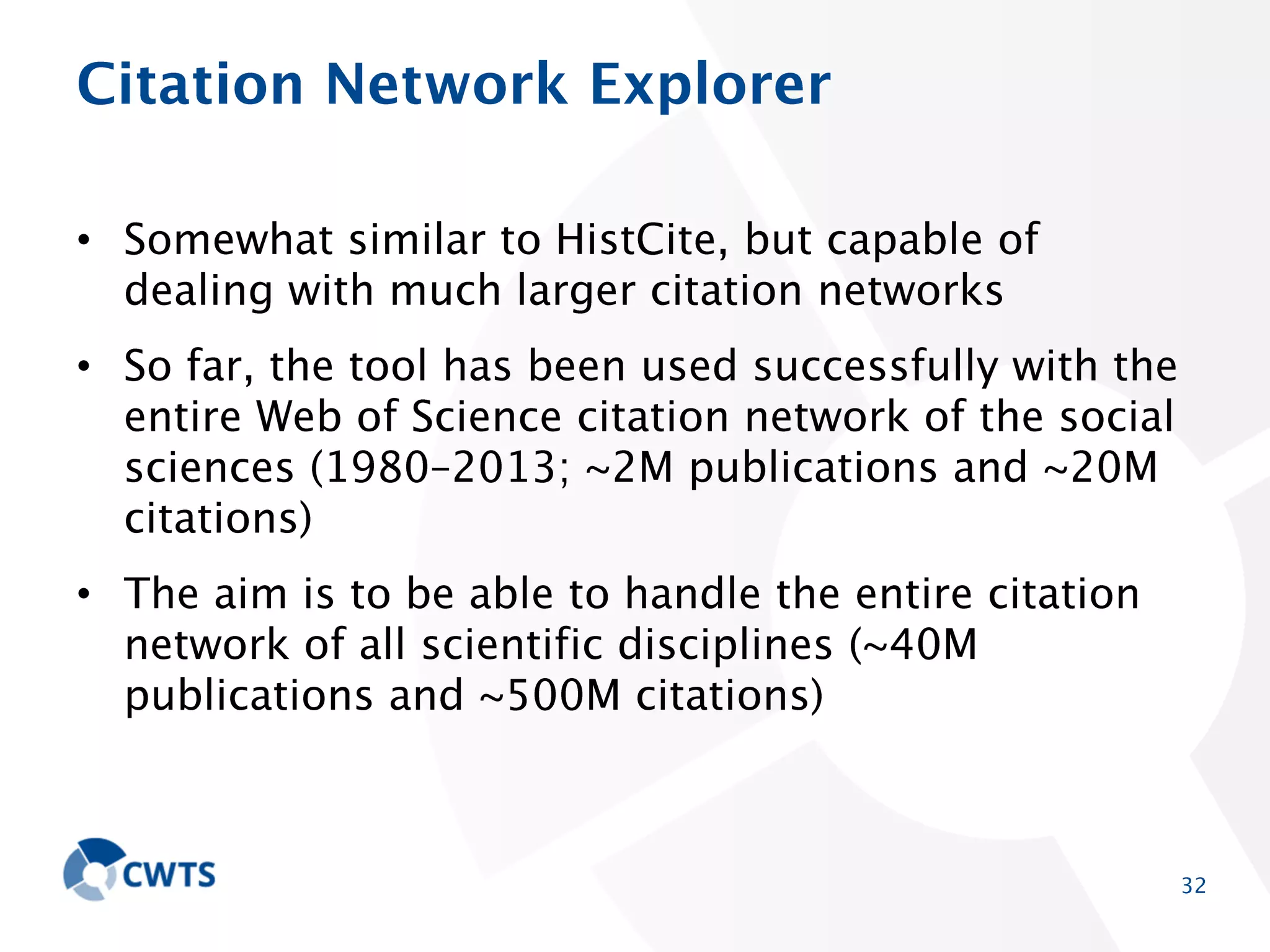

Citation Network Explorer
• Somewhat similar to HistCite, but capable of dealing with
much larger citation networks
• So far, the tool has been used successfully with the
entire Web of Science citation network of the social
sciences (1980–2013; ~2M publications and ~20M
citations)
• The aim is to be able to handle the entire citation
network of all scientific disciplines (~40M publications
and ~500M citations)

32

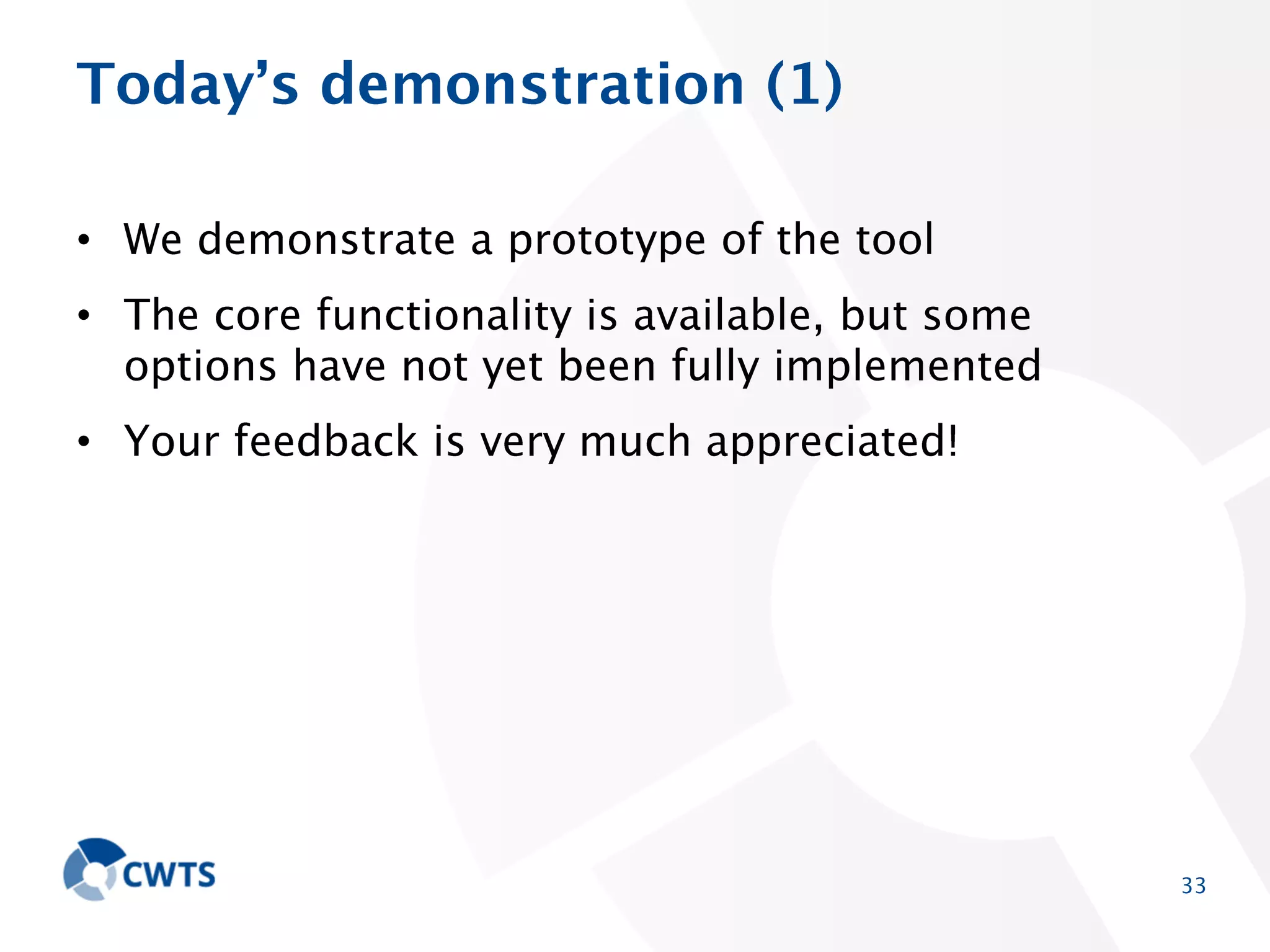

Today’s demonstration (1)
• We demonstrate a prototype of the tool
• The core functionality is available, but some options
have not yet been fully implemented
• Your feedback is very much appreciated!

33

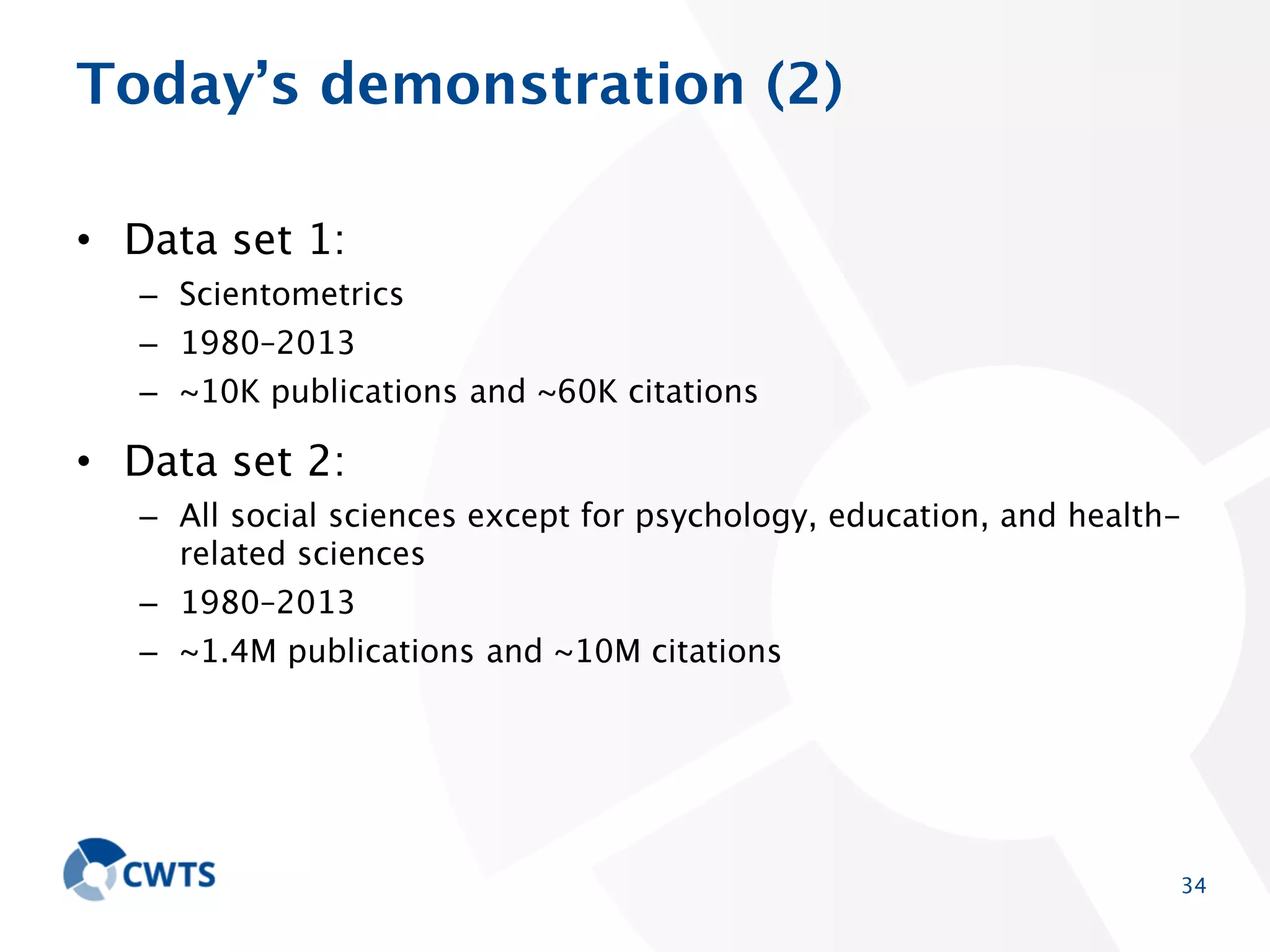

Today’s demonstration (2)
• Data set 1:
– Scientometrics
– 1980–2013
– ~10K publications and ~60K citations

• Data set 2:
– All social sciences except for psychology, education, and health-related
sciences
– 1980–2013
– ~1.4M publications and ~10M citations

34

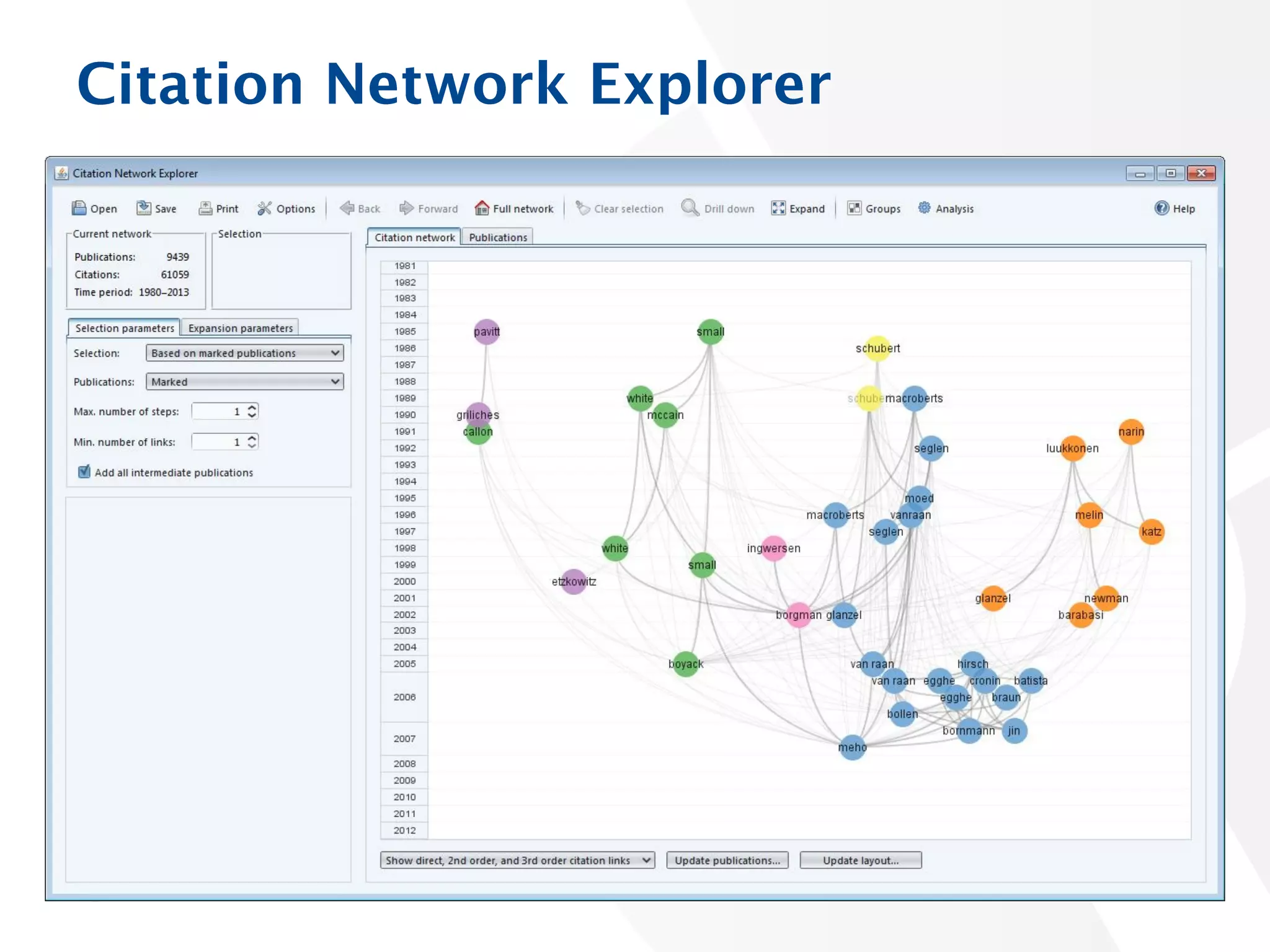

Citation Network Explorer

35

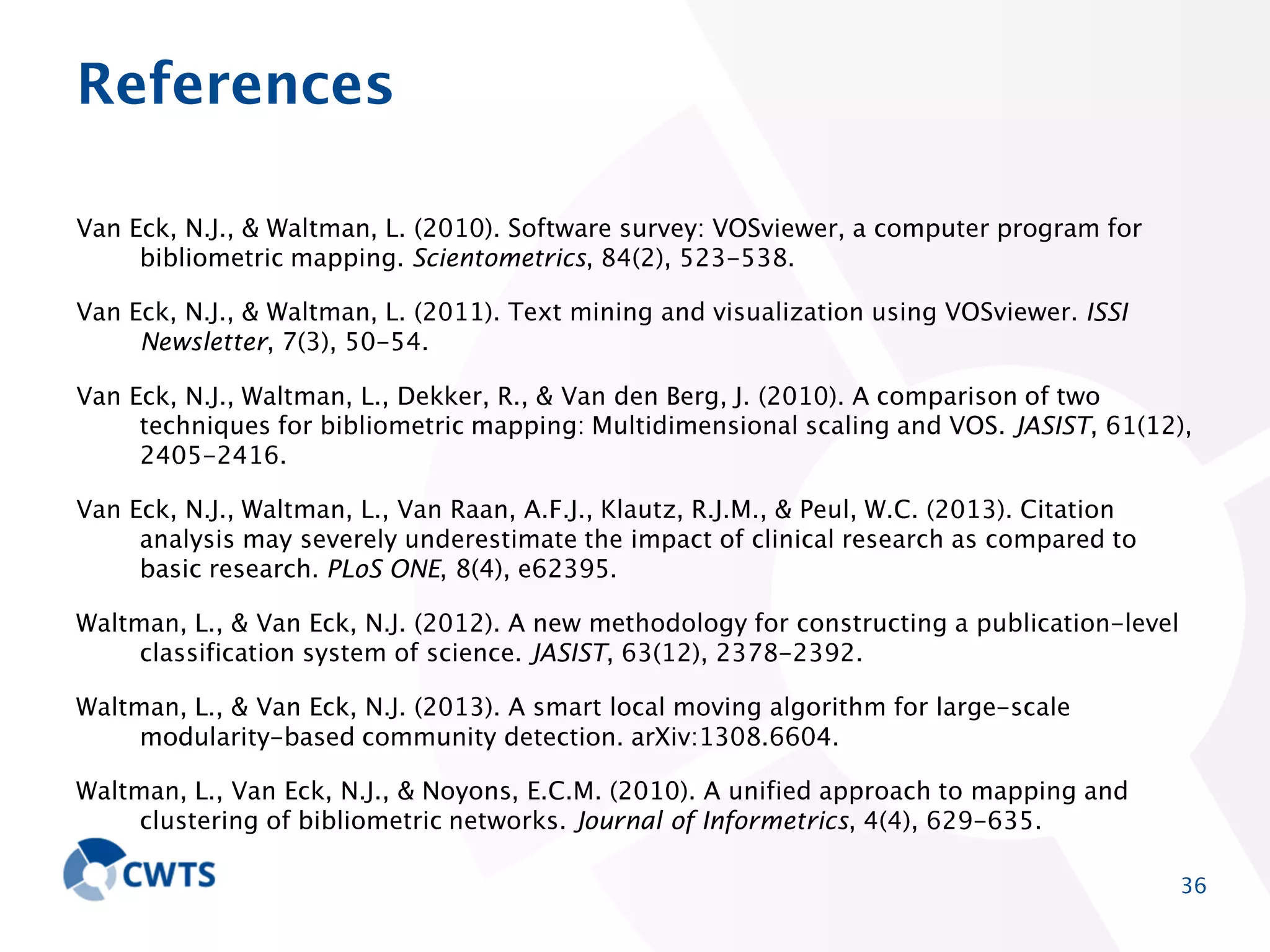

References
Van Eck, N.J., & Waltman, L. (2010). Software survey: VOSviewer, a computer program for
bibliometric mapping. Scientometrics, 84(2), 523-538.
Van Eck, N.J., & Waltman, L. (2011). Text mining and visualization using VOSviewer. ISSI Newsletter,
7(3), 50-54.
Van Eck, N.J., Waltman, L., Dekker, R., & Van den Berg, J. (2010). A comparison of two techniques for
bibliometric mapping: Multidimensional scaling and VOS. JASIST, 61(12), 2405-2416.
Van Eck, N.J., Waltman, L., Van Raan, A.F.J., Klautz, R.J.M., & Peul, W.C. (2013). Citation analysis
may severely underestimate the impact of clinical research as compared to basic research.
PLoS ONE, 8(4), e62395.
Waltman, L., & Van Eck, N.J. (2012). A new methodology for constructing a publication-level
classification system of science. JASIST, 63(12), 2378-2392.
Waltman, L., & Van Eck, N.J. (2013). A smart local moving algorithm for large-scale modularity-based
community detection. arXiv:1308.6604.
Waltman, L., Van Eck, N.J., & Noyons, E.C.M. (2010). A unified approach to mapping and clustering of
bibliometric networks. Journal of Informetrics, 4(4), 629-635.

36

More Related Content

What's hot

Cluster stability
Cluster stabilityCluster stability
Cluster stability
Nees Jan van Eck

Getting started with CitNetExplorer
Getting started with CitNetExplorerGetting started with CitNetExplorer
Getting started with CitNetExplorer
Nees Jan van Eck

On cluster stability
On cluster stabilityOn cluster stability
On cluster stability
Nees Jan van Eck

Visual exploration of scientific literature using VOSviewer and CitNetExplorer
Visual exploration of scientific literature using VOSviewer and CitNetExplorerVisual exploration of scientific literature using VOSviewer and CitNetExplorer
Visual exploration of scientific literature using VOSviewer and CitNetExplorer
Nees Jan van Eck

Network visualization: Fine-tuning layout techniques for different types of n...
Network visualization: Fine-tuning layout techniques for different types of n...Network visualization: Fine-tuning layout techniques for different types of n...
Network visualization: Fine-tuning layout techniques for different types of n...
Nees Jan van Eck

Large-scale visualization of science: Methods, tools, and applications
Large-scale visualization of science: Methods, tools, and applicationsLarge-scale visualization of science: Methods, tools, and applications
Large-scale visualization of science: Methods, tools, and applications
Ludo Waltman

Bibliometric visualization using VOSviewer
Bibliometric visualization using VOSviewerBibliometric visualization using VOSviewer
Bibliometric visualization using VOSviewer
Ludo Waltman

Large-scale visualization of science
Large-scale visualization of scienceLarge-scale visualization of science
Large-scale visualization of science
Nees Jan van Eck

Intermediacy of publications
Intermediacy of publicationsIntermediacy of publications
Intermediacy of publications
Nees Jan van Eck

Using full-text data to create improved term maps
Using full-text data to create improved term mapsUsing full-text data to create improved term maps
Using full-text data to create improved term maps
Nees Jan van Eck

The landscape of research on research
The landscape of research on researchThe landscape of research on research
The landscape of research on research
Ludo Waltman

Web of Science, Scopus, Dimensions, and beyond: The evolving landscape of bib...
Web of Science, Scopus, Dimensions, and beyond: The evolving landscape of bib...Web of Science, Scopus, Dimensions, and beyond: The evolving landscape of bib...
Web of Science, Scopus, Dimensions, and beyond: The evolving landscape of bib...
Ludo Waltman

Crossref as a source of open bibliographic metadata
Crossref as a source of open bibliographic metadataCrossref as a source of open bibliographic metadata
Crossref as a source of open bibliographic metadata
Nees Jan van Eck

Toward open citations: Why, how, and when?
Toward open citations: Why, how, and when?Toward open citations: Why, how, and when?
Toward open citations: Why, how, and when?
Ludo Waltman

Open science: Implications for bibliometrics and scientometrics
Open science: Implications for bibliometrics and scientometricsOpen science: Implications for bibliometrics and scientometrics
Open science: Implications for bibliometrics and scientometrics
Ludo Waltman

Comparing bibliographic data sources
Comparing bibliographic data sourcesComparing bibliographic data sources
Comparing bibliographic data sources
Ludo Waltman

Scientometrics for research assessment
Scientometrics for research assessmentScientometrics for research assessment
Scientometrics for research assessment
Ludo Waltman

Comparing scientific performance across disciplines: Methodological and conce...
Comparing scientific performance across disciplines: Methodological and conce...Comparing scientific performance across disciplines: Methodological and conce...
Comparing scientific performance across disciplines: Methodological and conce...
Ludo Waltman

Open citations: Next steps
Open citations: Next stepsOpen citations: Next steps
Open citations: Next steps
Ludo Waltman

Ranking universities responsibly
Ranking universities responsiblyRanking universities responsibly
Ranking universities responsibly
Ludo Waltman


What's hot (20)

Cluster stability
Cluster stabilityCluster stability
Cluster stability

Getting started with CitNetExplorer
Getting started with CitNetExplorerGetting started with CitNetExplorer
Getting started with CitNetExplorer

On cluster stability
On cluster stabilityOn cluster stability
On cluster stability

Visual exploration of scientific literature using VOSviewer and CitNetExplorer
Visual exploration of scientific literature using VOSviewer and CitNetExplorerVisual exploration of scientific literature using VOSviewer and CitNetExplorer
Visual exploration of scientific literature using VOSviewer and CitNetExplorer

Network visualization: Fine-tuning layout techniques for different types of n...
Network visualization: Fine-tuning layout techniques for different types of n...Network visualization: Fine-tuning layout techniques for different types of n...
Network visualization: Fine-tuning layout techniques for different types of n...

Large-scale visualization of science: Methods, tools, and applications
Large-scale visualization of science: Methods, tools, and applicationsLarge-scale visualization of science: Methods, tools, and applications
Large-scale visualization of science: Methods, tools, and applications

Bibliometric visualization using VOSviewer
Bibliometric visualization using VOSviewerBibliometric visualization using VOSviewer
Bibliometric visualization using VOSviewer

Large-scale visualization of science
Large-scale visualization of scienceLarge-scale visualization of science
Large-scale visualization of science

Intermediacy of publications
Intermediacy of publicationsIntermediacy of publications
Intermediacy of publications

Using full-text data to create improved term maps
Using full-text data to create improved term mapsUsing full-text data to create improved term maps
Using full-text data to create improved term maps

The landscape of research on research
The landscape of research on researchThe landscape of research on research
The landscape of research on research

Web of Science, Scopus, Dimensions, and beyond: The evolving landscape of bib...
Web of Science, Scopus, Dimensions, and beyond: The evolving landscape of bib...Web of Science, Scopus, Dimensions, and beyond: The evolving landscape of bib...
Web of Science, Scopus, Dimensions, and beyond: The evolving landscape of bib...

Crossref as a source of open bibliographic metadata
Crossref as a source of open bibliographic metadataCrossref as a source of open bibliographic metadata
Crossref as a source of open bibliographic metadata

Toward open citations: Why, how, and when?
Toward open citations: Why, how, and when?Toward open citations: Why, how, and when?
Toward open citations: Why, how, and when?

Open science: Implications for bibliometrics and scientometrics
Open science: Implications for bibliometrics and scientometricsOpen science: Implications for bibliometrics and scientometrics
Open science: Implications for bibliometrics and scientometrics

Comparing bibliographic data sources
Comparing bibliographic data sourcesComparing bibliographic data sources
Comparing bibliographic data sources

Scientometrics for research assessment
Scientometrics for research assessmentScientometrics for research assessment
Scientometrics for research assessment

Comparing scientific performance across disciplines: Methodological and conce...
Comparing scientific performance across disciplines: Methodological and conce...Comparing scientific performance across disciplines: Methodological and conce...
Comparing scientific performance across disciplines: Methodological and conce...

Open citations: Next steps
Open citations: Next stepsOpen citations: Next steps
Open citations: Next steps

Ranking universities responsibly
Ranking universities responsiblyRanking universities responsibly
Ranking universities responsibly


Viewers also liked

VOSviewer and CitNetExplorer Tutorial
VOSviewer and CitNetExplorer TutorialVOSviewer and CitNetExplorer Tutorial
VOSviewer and CitNetExplorer Tutorial
Nees Jan van Eck

Mining Communities in Networks: A Solution for Consistency and Its Evaluation
Mining Communities in Networks: A Solution for Consistency and Its EvaluationMining Communities in Networks: A Solution for Consistency and Its Evaluation
Mining Communities in Networks: A Solution for Consistency and Its Evaluation
Haewoon Kwak

Challenges in the Design of a Graph Database Benchmark
Challenges in the Design of a Graph Database Benchmark Challenges in the Design of a Graph Database Benchmark
Challenges in the Design of a Graph Database Benchmark
graphdevroom

State of the art literature review on
State of the art literature review onState of the art literature review on
State of the art literature review on
Jose Dutra

2013 NodeXL Social Media Network Analysis
2013 NodeXL Social Media Network Analysis2013 NodeXL Social Media Network Analysis
2013 NodeXL Social Media Network Analysis
Marc Smith

Apache Giraph: start analyzing graph relationships in your bigdata in 45 minu...
Apache Giraph: start analyzing graph relationships in your bigdata in 45 minu...Apache Giraph: start analyzing graph relationships in your bigdata in 45 minu...
Apache Giraph: start analyzing graph relationships in your bigdata in 45 minu...
rhatr

VOSviewer and CitNetExplorer: Software tools for bibliometric analysis of s...
VOSviewer and CitNetExplorer: Software tools for bibliometric analysis of s...VOSviewer and CitNetExplorer: Software tools for bibliometric analysis of s...
VOSviewer and CitNetExplorer: Software tools for bibliometric analysis of s...
Nees Jan van Eck

HW09 Social network analysis with Hadoop
HW09 Social network analysis with HadoopHW09 Social network analysis with Hadoop
HW09 Social network analysis with Hadoop
Cloudera, Inc.

Small Scale Mining in the Philippines: Towards Genuine National Development
Small Scale Mining in the Philippines: Towards Genuine National DevelopmentSmall Scale Mining in the Philippines: Towards Genuine National Development
Small Scale Mining in the Philippines: Towards Genuine National Development
AGHAM - Advocates of Science and Technology for the People

An Introduction to Graph Databases
An Introduction to Graph DatabasesAn Introduction to Graph Databases
An Introduction to Graph Databases
InfiniteGraph

Hadoop or Spark: is it an either-or proposition? By Slim Baltagi
Hadoop or Spark: is it an either-or proposition? By Slim BaltagiHadoop or Spark: is it an either-or proposition? By Slim Baltagi
Hadoop or Spark: is it an either-or proposition? By Slim Baltagi
Slim Baltagi

Introduction to Text Analysis
Introduction to Text AnalysisIntroduction to Text Analysis
Introduction to Text Analysis
Lauren Klein

Introduction to Graph Databases
Introduction to Graph DatabasesIntroduction to Graph Databases
Introduction to Graph Databases
Max De Marzi

The analysis of the text
The analysis of the textThe analysis of the text
The analysis of the text
Libardo Enrique Ospino Pinedo

Neo4j - 5 cool graph examples
Neo4j - 5 cool graph examplesNeo4j - 5 cool graph examples
Neo4j - 5 cool graph examples
Peter Neubauer

Hadoop and Graph Databases (Neo4j): Winning Combination for Bioanalytics - Jo...
Hadoop and Graph Databases (Neo4j): Winning Combination for Bioanalytics - Jo...Hadoop and Graph Databases (Neo4j): Winning Combination for Bioanalytics - Jo...
Hadoop and Graph Databases (Neo4j): Winning Combination for Bioanalytics - Jo...
Neo4j

Facebook Network Analysis using Gephi
Facebook Network Analysis using GephiFacebook Network Analysis using Gephi
Facebook Network Analysis using Gephi
Sarah Joy Murray

Text analysis presentation ppt
Text analysis presentation pptText analysis presentation ppt
Text analysis presentation ppt
Ms A


Viewers also liked (18)

VOSviewer and CitNetExplorer Tutorial
VOSviewer and CitNetExplorer TutorialVOSviewer and CitNetExplorer Tutorial
VOSviewer and CitNetExplorer Tutorial

Mining Communities in Networks: A Solution for Consistency and Its Evaluation
Mining Communities in Networks: A Solution for Consistency and Its EvaluationMining Communities in Networks: A Solution for Consistency and Its Evaluation
Mining Communities in Networks: A Solution for Consistency and Its Evaluation

Challenges in the Design of a Graph Database Benchmark
Challenges in the Design of a Graph Database Benchmark Challenges in the Design of a Graph Database Benchmark
Challenges in the Design of a Graph Database Benchmark

State of the art literature review on
State of the art literature review onState of the art literature review on
State of the art literature review on

2013 NodeXL Social Media Network Analysis
2013 NodeXL Social Media Network Analysis2013 NodeXL Social Media Network Analysis
2013 NodeXL Social Media Network Analysis

Apache Giraph: start analyzing graph relationships in your bigdata in 45 minu...
Apache Giraph: start analyzing graph relationships in your bigdata in 45 minu...Apache Giraph: start analyzing graph relationships in your bigdata in 45 minu...
Apache Giraph: start analyzing graph relationships in your bigdata in 45 minu...

VOSviewer and CitNetExplorer: Software tools for bibliometric analysis of s...
VOSviewer and CitNetExplorer: Software tools for bibliometric analysis of s...VOSviewer and CitNetExplorer: Software tools for bibliometric analysis of s...
VOSviewer and CitNetExplorer: Software tools for bibliometric analysis of s...

HW09 Social network analysis with Hadoop
HW09 Social network analysis with HadoopHW09 Social network analysis with Hadoop
HW09 Social network analysis with Hadoop

Small Scale Mining in the Philippines: Towards Genuine National Development
Small Scale Mining in the Philippines: Towards Genuine National DevelopmentSmall Scale Mining in the Philippines: Towards Genuine National Development
Small Scale Mining in the Philippines: Towards Genuine National Development

An Introduction to Graph Databases
An Introduction to Graph DatabasesAn Introduction to Graph Databases
An Introduction to Graph Databases

Hadoop or Spark: is it an either-or proposition? By Slim Baltagi
Hadoop or Spark: is it an either-or proposition? By Slim BaltagiHadoop or Spark: is it an either-or proposition? By Slim Baltagi
Hadoop or Spark: is it an either-or proposition? By Slim Baltagi

Introduction to Text Analysis
Introduction to Text AnalysisIntroduction to Text Analysis
Introduction to Text Analysis

Introduction to Graph Databases
Introduction to Graph DatabasesIntroduction to Graph Databases
Introduction to Graph Databases

The analysis of the text
The analysis of the textThe analysis of the text
The analysis of the text

Neo4j - 5 cool graph examples
Neo4j - 5 cool graph examplesNeo4j - 5 cool graph examples
Neo4j - 5 cool graph examples

Hadoop and Graph Databases (Neo4j): Winning Combination for Bioanalytics - Jo...
Hadoop and Graph Databases (Neo4j): Winning Combination for Bioanalytics - Jo...Hadoop and Graph Databases (Neo4j): Winning Combination for Bioanalytics - Jo...
Hadoop and Graph Databases (Neo4j): Winning Combination for Bioanalytics - Jo...

Facebook Network Analysis using Gephi
Facebook Network Analysis using GephiFacebook Network Analysis using Gephi
Facebook Network Analysis using Gephi

Text analysis presentation ppt
Text analysis presentation pptText analysis presentation ppt
Text analysis presentation ppt


Similar to A new software tool for large-scale analysis of citation networks

Large-scale analysis of bibliometric networks
Large-scale analysis of bibliometric networksLarge-scale analysis of bibliometric networks
Large-scale analysis of bibliometric networks
Nees Jan van Eck

NDEx Overview - 080713
NDEx Overview - 080713NDEx Overview - 080713
NDEx Overview - 080713
Dexter Pratt

Exploring Social Media with NodeXL
Exploring Social Media with NodeXL Exploring Social Media with NodeXL
Exploring Social Media with NodeXL
Shalin Hai-Jew

N0176195102
N0176195102N0176195102
N0176195102
IOSR Journals

A Proposed Method to Develop Shared Papers for Researchers at Conference
A Proposed Method to Develop Shared Papers for Researchers at ConferenceA Proposed Method to Develop Shared Papers for Researchers at Conference
A Proposed Method to Develop Shared Papers for Researchers at Conference
iosrjce

2015 03 19 (EDUCON2015) eMadrid UPM Towards a Learning Analytics Approach for...
2015 03 19 (EDUCON2015) eMadrid UPM Towards a Learning Analytics Approach for...2015 03 19 (EDUCON2015) eMadrid UPM Towards a Learning Analytics Approach for...
2015 03 19 (EDUCON2015) eMadrid UPM Towards a Learning Analytics Approach for...
eMadrid network

Large-scale analysis of bibliometric data sources
Large-scale analysis of bibliometric data sourcesLarge-scale analysis of bibliometric data sources
Large-scale analysis of bibliometric data sources
Nees Jan van Eck

Mining the Social Web - Lecture 2 - T61.6020
Mining the Social Web - Lecture 2 - T61.6020Mining the Social Web - Lecture 2 - T61.6020
Mining the Social Web - Lecture 2 - T61.6020
Michael Mathioudakis

MESUR: Making sense and use of usage data
MESUR: Making sense and use of usage dataMESUR: Making sense and use of usage data
MESUR: Making sense and use of usage data
Herbert Van de Sompel

Using Open Source Tools for Visualization and Semantic Mapping in a Large Sca...
Using Open Source Tools for Visualization and Semantic Mapping in a Large Sca...Using Open Source Tools for Visualization and Semantic Mapping in a Large Sca...
Using Open Source Tools for Visualization and Semantic Mapping in a Large Sca...
Glen Newton

network mining and representation learning
network mining and representation learningnetwork mining and representation learning
network mining and representation learning
sun peiyuan

Scientometric approaches to classification
Scientometric approaches to classificationScientometric approaches to classification
Scientometric approaches to classification
Nees Jan van Eck

Bibliometrische visualisaties voor het bijhouden van wetenschappelijke litera...
Bibliometrische visualisaties voor het bijhouden van wetenschappelijke litera...Bibliometrische visualisaties voor het bijhouden van wetenschappelijke litera...
Bibliometrische visualisaties voor het bijhouden van wetenschappelijke litera...
Nees Jan van Eck

Research in Intelligent Systems and Data Science at the Knowledge Media Insti...
Research in Intelligent Systems and Data Science at the Knowledge Media Insti...Research in Intelligent Systems and Data Science at the Knowledge Media Insti...
Research in Intelligent Systems and Data Science at the Knowledge Media Insti...
Enrico Motta

Network Science: Theory, Modeling and Applications
Network Science: Theory, Modeling and ApplicationsNetwork Science: Theory, Modeling and Applications
Network Science: Theory, Modeling and Applications
Biocomplexity Institute of Virginia Tech

Medical 3D data retrieval
Medical 3D data retrievalMedical 3D data retrieval
AHM 2014: Governance and Cyberinfrastructure in the Earth System Sciences
AHM 2014: Governance and Cyberinfrastructure in the Earth System SciencesAHM 2014: Governance and Cyberinfrastructure in the Earth System Sciences
AHM 2014: Governance and Cyberinfrastructure in the Earth System Sciences
EarthCube

Managing 'Big Data' in the social sciences: the contribution of an analytico-...
Managing 'Big Data' in the social sciences: the contribution of an analytico-...Managing 'Big Data' in the social sciences: the contribution of an analytico-...
Managing 'Big Data' in the social sciences: the contribution of an analytico-...
CILIP MDG

Linked Open Data Visualization
Linked Open Data VisualizationLinked Open Data Visualization
Linked Open Data Visualization
Laura Po

Visualizing Networked Collaboration
Visualizing Networked CollaborationVisualizing Networked Collaboration
Visualizing Networked Collaboration
Ahmet Soylu


Similar to A new software tool for large-scale analysis of citation networks (20)

Large-scale analysis of bibliometric networks
Large-scale analysis of bibliometric networksLarge-scale analysis of bibliometric networks
Large-scale analysis of bibliometric networks

NDEx Overview - 080713
NDEx Overview - 080713NDEx Overview - 080713
NDEx Overview - 080713

Exploring Social Media with NodeXL
Exploring Social Media with NodeXL Exploring Social Media with NodeXL
Exploring Social Media with NodeXL

N0176195102
N0176195102N0176195102
N0176195102

A Proposed Method to Develop Shared Papers for Researchers at Conference
A Proposed Method to Develop Shared Papers for Researchers at ConferenceA Proposed Method to Develop Shared Papers for Researchers at Conference
A Proposed Method to Develop Shared Papers for Researchers at Conference

2015 03 19 (EDUCON2015) eMadrid UPM Towards a Learning Analytics Approach for...
2015 03 19 (EDUCON2015) eMadrid UPM Towards a Learning Analytics Approach for...2015 03 19 (EDUCON2015) eMadrid UPM Towards a Learning Analytics Approach for...
2015 03 19 (EDUCON2015) eMadrid UPM Towards a Learning Analytics Approach for...

Large-scale analysis of bibliometric data sources
Large-scale analysis of bibliometric data sourcesLarge-scale analysis of bibliometric data sources
Large-scale analysis of bibliometric data sources

Mining the Social Web - Lecture 2 - T61.6020
Mining the Social Web - Lecture 2 - T61.6020Mining the Social Web - Lecture 2 - T61.6020
Mining the Social Web - Lecture 2 - T61.6020

MESUR: Making sense and use of usage data
MESUR: Making sense and use of usage dataMESUR: Making sense and use of usage data
MESUR: Making sense and use of usage data

Using Open Source Tools for Visualization and Semantic Mapping in a Large Sca...
Using Open Source Tools for Visualization and Semantic Mapping in a Large Sca...Using Open Source Tools for Visualization and Semantic Mapping in a Large Sca...
Using Open Source Tools for Visualization and Semantic Mapping in a Large Sca...

network mining and representation learning
network mining and representation learningnetwork mining and representation learning
network mining and representation learning

Scientometric approaches to classification
Scientometric approaches to classificationScientometric approaches to classification
Scientometric approaches to classification

Bibliometrische visualisaties voor het bijhouden van wetenschappelijke litera...
Bibliometrische visualisaties voor het bijhouden van wetenschappelijke litera...Bibliometrische visualisaties voor het bijhouden van wetenschappelijke litera...
Bibliometrische visualisaties voor het bijhouden van wetenschappelijke litera...

Research in Intelligent Systems and Data Science at the Knowledge Media Insti...
Research in Intelligent Systems and Data Science at the Knowledge Media Insti...Research in Intelligent Systems and Data Science at the Knowledge Media Insti...
Research in Intelligent Systems and Data Science at the Knowledge Media Insti...

Network Science: Theory, Modeling and Applications
Network Science: Theory, Modeling and ApplicationsNetwork Science: Theory, Modeling and Applications
Network Science: Theory, Modeling and Applications

Medical 3D data retrieval
Medical 3D data retrievalMedical 3D data retrieval
Medical 3D data retrieval

AHM 2014: Governance and Cyberinfrastructure in the Earth System Sciences
AHM 2014: Governance and Cyberinfrastructure in the Earth System SciencesAHM 2014: Governance and Cyberinfrastructure in the Earth System Sciences
AHM 2014: Governance and Cyberinfrastructure in the Earth System Sciences

Managing 'Big Data' in the social sciences: the contribution of an analytico-...
Managing 'Big Data' in the social sciences: the contribution of an analytico-...Managing 'Big Data' in the social sciences: the contribution of an analytico-...
Managing 'Big Data' in the social sciences: the contribution of an analytico-...

Linked Open Data Visualization
Linked Open Data VisualizationLinked Open Data Visualization
Linked Open Data Visualization

Visualizing Networked Collaboration
Visualizing Networked CollaborationVisualizing Networked Collaboration
Visualizing Networked Collaboration


More from Nees Jan van Eck

Community detection using citation relations and textual similarities in a la...
Community detection using citation relations and textual similarities in a la...Community detection using citation relations and textual similarities in a la...
Community detection using citation relations and textual similarities in a la...
Nees Jan van Eck

Visualizing science using VOSviewer based on Crossref, Microsoft Academic, an...
Visualizing science using VOSviewer based on Crossref, Microsoft Academic, an...Visualizing science using VOSviewer based on Crossref, Microsoft Academic, an...
Visualizing science using VOSviewer based on Crossref, Microsoft Academic, an...
Nees Jan van Eck

Open data sources in VOSviewer
Open data sources in VOSviewerOpen data sources in VOSviewer
Open data sources in VOSviewer
Nees Jan van Eck

A scientometric perspective on university ranking
A scientometric perspective on university rankingA scientometric perspective on university ranking
A scientometric perspective on university ranking
Nees Jan van Eck

Open data sources in VOSviewer
Open data sources in VOSviewerOpen data sources in VOSviewer
Open data sources in VOSviewer
Nees Jan van Eck

A scientometric perspective on university ranking
A scientometric perspective on university rankingA scientometric perspective on university ranking
A scientometric perspective on university ranking
Nees Jan van Eck

CWTS Leiden Ranking: An advanced bibliometric approach to university ranking
CWTS Leiden Ranking: An advanced bibliometric approach to university rankingCWTS Leiden Ranking: An advanced bibliometric approach to university ranking
CWTS Leiden Ranking: An advanced bibliometric approach to university ranking
Nees Jan van Eck

Open data sources in VOSviewer
Open data sources in VOSviewerOpen data sources in VOSviewer
Open data sources in VOSviewer
Nees Jan van Eck

Visualizing science based on open data sources
Visualizing science based on open data sourcesVisualizing science based on open data sources
Visualizing science based on open data sources
Nees Jan van Eck

Accuracy of citation data in Web of Science and Scopus
Accuracy of citation data in Web of Science and ScopusAccuracy of citation data in Web of Science and Scopus
Accuracy of citation data in Web of Science and Scopus
Nees Jan van Eck

VOSviewer: A software tool for analyzing and visualizing scientific literature
VOSviewer: A software tool for analyzing and visualizing scientific literatureVOSviewer: A software tool for analyzing and visualizing scientific literature
VOSviewer: A software tool for analyzing and visualizing scientific literature
Nees Jan van Eck

How to design a ranking system: Criteria and opportunities for a comparison
How to design a ranking system: Criteria and opportunities for a comparisonHow to design a ranking system: Criteria and opportunities for a comparison
How to design a ranking system: Criteria and opportunities for a comparison
Nees Jan van Eck


More from Nees Jan van Eck (12)

Community detection using citation relations and textual similarities in a la...
Community detection using citation relations and textual similarities in a la...Community detection using citation relations and textual similarities in a la...
Community detection using citation relations and textual similarities in a la...

Visualizing science using VOSviewer based on Crossref, Microsoft Academic, an...
Visualizing science using VOSviewer based on Crossref, Microsoft Academic, an...Visualizing science using VOSviewer based on Crossref, Microsoft Academic, an...
Visualizing science using VOSviewer based on Crossref, Microsoft Academic, an...

Open data sources in VOSviewer
Open data sources in VOSviewerOpen data sources in VOSviewer
Open data sources in VOSviewer

A scientometric perspective on university ranking
A scientometric perspective on university rankingA scientometric perspective on university ranking
A scientometric perspective on university ranking

Open data sources in VOSviewer
Open data sources in VOSviewerOpen data sources in VOSviewer
Open data sources in VOSviewer

A scientometric perspective on university ranking
A scientometric perspective on university rankingA scientometric perspective on university ranking
A scientometric perspective on university ranking

CWTS Leiden Ranking: An advanced bibliometric approach to university ranking
CWTS Leiden Ranking: An advanced bibliometric approach to university rankingCWTS Leiden Ranking: An advanced bibliometric approach to university ranking
CWTS Leiden Ranking: An advanced bibliometric approach to university ranking

Open data sources in VOSviewer
Open data sources in VOSviewerOpen data sources in VOSviewer
Open data sources in VOSviewer

Visualizing science based on open data sources
Visualizing science based on open data sourcesVisualizing science based on open data sources
Visualizing science based on open data sources

Accuracy of citation data in Web of Science and Scopus
Accuracy of citation data in Web of Science and ScopusAccuracy of citation data in Web of Science and Scopus
Accuracy of citation data in Web of Science and Scopus

VOSviewer: A software tool for analyzing and visualizing scientific literature
VOSviewer: A software tool for analyzing and visualizing scientific literatureVOSviewer: A software tool for analyzing and visualizing scientific literature
VOSviewer: A software tool for analyzing and visualizing scientific literature

How to design a ranking system: Criteria and opportunities for a comparison
How to design a ranking system: Criteria and opportunities for a comparisonHow to design a ranking system: Criteria and opportunities for a comparison
How to design a ranking system: Criteria and opportunities for a comparison


Recently uploaded

MDP on air pollution of class 8 year 2024-2025
MDP on air pollution of class 8 year 2024-2025MDP on air pollution of class 8 year 2024-2025
MDP on air pollution of class 8 year 2024-2025
khuleseema60

Leveraging Generative AI to Drive Nonprofit Innovation
Leveraging Generative AI to Drive Nonprofit InnovationLeveraging Generative AI to Drive Nonprofit Innovation
Leveraging Generative AI to Drive Nonprofit Innovation
TechSoup

CHUYÊN ĐỀ ÔN TẬP VÀ PHÁT TRIỂN CÂU HỎI TRONG ĐỀ MINH HỌA THI TỐT NGHIỆP THPT ...
CHUYÊN ĐỀ ÔN TẬP VÀ PHÁT TRIỂN CÂU HỎI TRONG ĐỀ MINH HỌA THI TỐT NGHIỆP THPT ...CHUYÊN ĐỀ ÔN TẬP VÀ PHÁT TRIỂN CÂU HỎI TRONG ĐỀ MINH HỌA THI TỐT NGHIỆP THPT ...
CHUYÊN ĐỀ ÔN TẬP VÀ PHÁT TRIỂN CÂU HỎI TRONG ĐỀ MINH HỌA THI TỐT NGHIỆP THPT ...
Nguyen Thanh Tu Collection

Elevate Your Nonprofit's Online Presence_ A Guide to Effective SEO Strategies...
Elevate Your Nonprofit's Online Presence_ A Guide to Effective SEO Strategies...Elevate Your Nonprofit's Online Presence_ A Guide to Effective SEO Strategies...
Elevate Your Nonprofit's Online Presence_ A Guide to Effective SEO Strategies...
TechSoup

Andreas Schleicher presents PISA 2022 Volume III - Creative Thinking - 18 Jun...
Andreas Schleicher presents PISA 2022 Volume III - Creative Thinking - 18 Jun...Andreas Schleicher presents PISA 2022 Volume III - Creative Thinking - 18 Jun...
Andreas Schleicher presents PISA 2022 Volume III - Creative Thinking - 18 Jun...
EduSkills OECD

Benner "Expanding Pathways to Publishing Careers"
Benner "Expanding Pathways to Publishing Careers"Benner "Expanding Pathways to Publishing Careers"
Benner "Expanding Pathways to Publishing Careers"
National Information Standards Organization (NISO)

Temple of Asclepius in Thrace. Excavation results
Temple of Asclepius in Thrace. Excavation resultsTemple of Asclepius in Thrace. Excavation results
Temple of Asclepius in Thrace. Excavation results
Krassimira Luka

RESULTS OF THE EVALUATION QUESTIONNAIRE.pptx
RESULTS OF THE EVALUATION QUESTIONNAIRE.pptxRESULTS OF THE EVALUATION QUESTIONNAIRE.pptx
RESULTS OF THE EVALUATION QUESTIONNAIRE.pptx
zuzanka

Juneteenth Freedom Day 2024 David Douglas School District
Juneteenth Freedom Day 2024 David Douglas School DistrictJuneteenth Freedom Day 2024 David Douglas School District
Juneteenth Freedom Day 2024 David Douglas School District
David Douglas School District

How to Manage Reception Report in Odoo 17
How to Manage Reception Report in Odoo 17How to Manage Reception Report in Odoo 17
How to Manage Reception Report in Odoo 17
Celine George

Haunted Houses by H W Longfellow for class 10
Haunted Houses by H W Longfellow for class 10Haunted Houses by H W Longfellow for class 10
Haunted Houses by H W Longfellow for class 10
nitinpv4ai

How Barcodes Can Be Leveraged Within Odoo 17
How Barcodes Can Be Leveraged Within Odoo 17How Barcodes Can Be Leveraged Within Odoo 17
How Barcodes Can Be Leveraged Within Odoo 17
Celine George

spot a liar (Haiqa 146).pptx Technical writhing and presentation skills
spot a liar (Haiqa 146).pptx Technical writhing and presentation skillsspot a liar (Haiqa 146).pptx Technical writhing and presentation skills
spot a liar (Haiqa 146).pptx Technical writhing and presentation skills
haiqairshad

BIOLOGY NATIONAL EXAMINATION COUNCIL (NECO) 2024 PRACTICAL MANUAL.pptx
BIOLOGY NATIONAL EXAMINATION COUNCIL (NECO) 2024 PRACTICAL MANUAL.pptxBIOLOGY NATIONAL EXAMINATION COUNCIL (NECO) 2024 PRACTICAL MANUAL.pptx
BIOLOGY NATIONAL EXAMINATION COUNCIL (NECO) 2024 PRACTICAL MANUAL.pptx
RidwanHassanYusuf

Bonku-Babus-Friend by Sathyajith Ray (9)
Bonku-Babus-Friend by Sathyajith Ray  (9)Bonku-Babus-Friend by Sathyajith Ray  (9)
Bonku-Babus-Friend by Sathyajith Ray (9)
nitinpv4ai

CapTechTalks Webinar Slides June 2024 Donovan Wright.pptx
CapTechTalks Webinar Slides June 2024 Donovan Wright.pptxCapTechTalks Webinar Slides June 2024 Donovan Wright.pptx
CapTechTalks Webinar Slides June 2024 Donovan Wright.pptx
CapitolTechU

skeleton System.pdf (skeleton system wow)
skeleton System.pdf (skeleton system wow)skeleton System.pdf (skeleton system wow)
skeleton System.pdf (skeleton system wow)
Mohammad Al-Dhahabi

CIS 4200-02 Group 1 Final Project Report (1).pdf
CIS 4200-02 Group 1 Final Project Report (1).pdfCIS 4200-02 Group 1 Final Project Report (1).pdf
CIS 4200-02 Group 1 Final Project Report (1).pdf
blueshagoo1

Jemison, MacLaughlin, and Majumder "Broadening Pathways for Editors and Authors"
Jemison, MacLaughlin, and Majumder "Broadening Pathways for Editors and Authors"Jemison, MacLaughlin, and Majumder "Broadening Pathways for Editors and Authors"
Jemison, MacLaughlin, and Majumder "Broadening Pathways for Editors and Authors"
National Information Standards Organization (NISO)

THE SACRIFICE HOW PRO-PALESTINE PROTESTS STUDENTS ARE SACRIFICING TO CHANGE T...
THE SACRIFICE HOW PRO-PALESTINE PROTESTS STUDENTS ARE SACRIFICING TO CHANGE T...THE SACRIFICE HOW PRO-PALESTINE PROTESTS STUDENTS ARE SACRIFICING TO CHANGE T...
THE SACRIFICE HOW PRO-PALESTINE PROTESTS STUDENTS ARE SACRIFICING TO CHANGE T...
indexPub


Recently uploaded (20)

MDP on air pollution of class 8 year 2024-2025
MDP on air pollution of class 8 year 2024-2025MDP on air pollution of class 8 year 2024-2025
MDP on air pollution of class 8 year 2024-2025

Leveraging Generative AI to Drive Nonprofit Innovation
Leveraging Generative AI to Drive Nonprofit InnovationLeveraging Generative AI to Drive Nonprofit Innovation
Leveraging Generative AI to Drive Nonprofit Innovation

CHUYÊN ĐỀ ÔN TẬP VÀ PHÁT TRIỂN CÂU HỎI TRONG ĐỀ MINH HỌA THI TỐT NGHIỆP THPT ...
CHUYÊN ĐỀ ÔN TẬP VÀ PHÁT TRIỂN CÂU HỎI TRONG ĐỀ MINH HỌA THI TỐT NGHIỆP THPT ...CHUYÊN ĐỀ ÔN TẬP VÀ PHÁT TRIỂN CÂU HỎI TRONG ĐỀ MINH HỌA THI TỐT NGHIỆP THPT ...
CHUYÊN ĐỀ ÔN TẬP VÀ PHÁT TRIỂN CÂU HỎI TRONG ĐỀ MINH HỌA THI TỐT NGHIỆP THPT ...

Elevate Your Nonprofit's Online Presence_ A Guide to Effective SEO Strategies...
Elevate Your Nonprofit's Online Presence_ A Guide to Effective SEO Strategies...Elevate Your Nonprofit's Online Presence_ A Guide to Effective SEO Strategies...
Elevate Your Nonprofit's Online Presence_ A Guide to Effective SEO Strategies...

Andreas Schleicher presents PISA 2022 Volume III - Creative Thinking - 18 Jun...
Andreas Schleicher presents PISA 2022 Volume III - Creative Thinking - 18 Jun...Andreas Schleicher presents PISA 2022 Volume III - Creative Thinking - 18 Jun...
Andreas Schleicher presents PISA 2022 Volume III - Creative Thinking - 18 Jun...

Benner "Expanding Pathways to Publishing Careers"
Benner "Expanding Pathways to Publishing Careers"Benner "Expanding Pathways to Publishing Careers"
Benner "Expanding Pathways to Publishing Careers"

Temple of Asclepius in Thrace. Excavation results
Temple of Asclepius in Thrace. Excavation resultsTemple of Asclepius in Thrace. Excavation results
Temple of Asclepius in Thrace. Excavation results

RESULTS OF THE EVALUATION QUESTIONNAIRE.pptx
RESULTS OF THE EVALUATION QUESTIONNAIRE.pptxRESULTS OF THE EVALUATION QUESTIONNAIRE.pptx
RESULTS OF THE EVALUATION QUESTIONNAIRE.pptx

Juneteenth Freedom Day 2024 David Douglas School District
Juneteenth Freedom Day 2024 David Douglas School DistrictJuneteenth Freedom Day 2024 David Douglas School District
Juneteenth Freedom Day 2024 David Douglas School District

How to Manage Reception Report in Odoo 17
How to Manage Reception Report in Odoo 17How to Manage Reception Report in Odoo 17
How to Manage Reception Report in Odoo 17

Haunted Houses by H W Longfellow for class 10
Haunted Houses by H W Longfellow for class 10Haunted Houses by H W Longfellow for class 10
Haunted Houses by H W Longfellow for class 10

How Barcodes Can Be Leveraged Within Odoo 17
How Barcodes Can Be Leveraged Within Odoo 17How Barcodes Can Be Leveraged Within Odoo 17
How Barcodes Can Be Leveraged Within Odoo 17

spot a liar (Haiqa 146).pptx Technical writhing and presentation skills
spot a liar (Haiqa 146).pptx Technical writhing and presentation skillsspot a liar (Haiqa 146).pptx Technical writhing and presentation skills
spot a liar (Haiqa 146).pptx Technical writhing and presentation skills

BIOLOGY NATIONAL EXAMINATION COUNCIL (NECO) 2024 PRACTICAL MANUAL.pptx
BIOLOGY NATIONAL EXAMINATION COUNCIL (NECO) 2024 PRACTICAL MANUAL.pptxBIOLOGY NATIONAL EXAMINATION COUNCIL (NECO) 2024 PRACTICAL MANUAL.pptx
BIOLOGY NATIONAL EXAMINATION COUNCIL (NECO) 2024 PRACTICAL MANUAL.pptx

Bonku-Babus-Friend by Sathyajith Ray (9)
Bonku-Babus-Friend by Sathyajith Ray  (9)Bonku-Babus-Friend by Sathyajith Ray  (9)
Bonku-Babus-Friend by Sathyajith Ray (9)

CapTechTalks Webinar Slides June 2024 Donovan Wright.pptx
CapTechTalks Webinar Slides June 2024 Donovan Wright.pptxCapTechTalks Webinar Slides June 2024 Donovan Wright.pptx
CapTechTalks Webinar Slides June 2024 Donovan Wright.pptx

skeleton System.pdf (skeleton system wow)
skeleton System.pdf (skeleton system wow)skeleton System.pdf (skeleton system wow)
skeleton System.pdf (skeleton system wow)

CIS 4200-02 Group 1 Final Project Report (1).pdf
CIS 4200-02 Group 1 Final Project Report (1).pdfCIS 4200-02 Group 1 Final Project Report (1).pdf
CIS 4200-02 Group 1 Final Project Report (1).pdf

Jemison, MacLaughlin, and Majumder "Broadening Pathways for Editors and Authors"
Jemison, MacLaughlin, and Majumder "Broadening Pathways for Editors and Authors"Jemison, MacLaughlin, and Majumder "Broadening Pathways for Editors and Authors"
Jemison, MacLaughlin, and Majumder "Broadening Pathways for Editors and Authors"

THE SACRIFICE HOW PRO-PALESTINE PROTESTS STUDENTS ARE SACRIFICING TO CHANGE T...
THE SACRIFICE HOW PRO-PALESTINE PROTESTS STUDENTS ARE SACRIFICING TO CHANGE T...THE SACRIFICE HOW PRO-PALESTINE PROTESTS STUDENTS ARE SACRIFICING TO CHANGE T...
THE SACRIFICE HOW PRO-PALESTINE PROTESTS STUDENTS ARE SACRIFICING TO CHANGE T...


A new software tool for large-scale analysis of citation networks

  • 1. A new software tool for large-scale analysis of citation networks Nees Jan van Eck Centre for Science and Technology Studies (CWTS), Leiden University Workshop “Measuring the Diversity of Research”, Berlin September 2, 2013
  • 2. Today’s talk • Part 1: CWTS research program on bibliometric network analysis – VOSviewer – VOS mapping and clustering – Large-scale modularity optimization – Algorithmically constructed publication-level classification system • Part 2: New software tool for large-scale analysis of citation networks 1
  • 3. Part 1 CWTS research program on bibliometric network analysis 2
  • 4. VOSviewer (1) (Van Eck & Waltman, Scientometrics, 2010) 3
  • 5. VOSviewer (2) (Van Eck & Waltman, Scientometrics, 2010) 4
  • 9. Delft University of Technology 8
  • 11. Clinical Neurology: Citation density 10 (Van Eck et al., PLoS ONE, 2012)
  • 13. VOS mapping and clustering • Mapping and clustering are commonly used bibliometric network analysis techniques • Mapping: – Assigning the nodes in a network to locations in a (usually twodimensional) space – VOS mapping technique has been developed specifically for mapping bibliometric networks • Clustering: – Partitioning the nodes in a network into a number of groups (a.k.a. community detection) – VOS clustering technique has been developed to be used jointly with the VOS mapping technique in a unified technical framework 12
  • 14. Unified approach: Clustering seen as mapping in a restricted space 13
  • 15. Unified approach: Clustering seen as mapping in a restricted space 14
  • 16. Unified approach to mapping and clustering 2mcij Q( x1 ,, xn ) Minimize i j ci c j 2 dij dij i j where n: number of nodes in the network m: number of links in the network cij: number of links between nodes i and j ci: number of links of node i Mapping Clustering xi: vector denoting the location of node i in a p-dimensional map xi: integer denoting the cluster to which node i belongs p dij xi xj ( xik k 1 x jk ) 2 dij 0 if xi xj 1 if xi x j : resolution parameter 15
  • 17. Unified approach: Mapping • Equivalent to the VOS mapping technique • Closely related to multidimensional scaling (Van Eck et al., JASIST, 2010) 16
  • 18. Unified approach: Clustering • Equivalent to a weighted and parameterized variant of modularity-based clustering (Waltman et al., JOI, 2010) ˆ Q( x1 ,, xn ) Maximize 1 2m i ( xi , x j ) wij cij j ci c j 2m where (xi, xj) equals 1 if xi = xj and 0 otherwise wij 2m ci c j • Parameter makes it possible to customize the granularity level of the clustering 17
  • 19. Large-scale modularity optimization • Modularity optimization is one of the most popular approaches to clustering in networks • Several variants of the original modularity function have been proposed, supporting for instance weighted networks and different resolution levels • Optimization of modularity functions in large networks (with millions of nodes and edges) has received only limited attention but has important applications in bibliometrics 18
  • 20. New algorithm for large-scale modularity optimization • ‘Louvain algorithm’ (Blondel et al., 2008) is the bestknown algorithm for large-scale modularity optimization • Our proposed ‘smart local moving algorithm’ can be seen as an enhanced version of this algorithm (Waltman & Van Eck, 2013) 19
  • 21. Louvain algorithm Q = 0.3791 Q = 0.4151 20
  • 22. Smart local moving algorithm Q = 0.3791 Q = 0.4198 21
  • 23. Comparison Network Amazon (0.5M / 0.9M) DBLP (0.4M / 1.0M) IMDb (0.4M / 15.0M) LiveJournal (4.0M / 34.7M) WoS (10.6M / 104.5M) Web uk-2005 (39.5M / 783.0M) Louvain Smart local moving Qmin 0.9257 0.9335 Qmax 0.9264 0.9338 6 28 Qmin 0.8203 0.8357 Qmax 0.8227 0.8367 7 26 Qmin 0.6976 0.7050 Qmax 0.7041 0.7077 18 100 Qmin 0.7441 0.7676 Qmax 0.7557 0.7720 350 1 549 Qmin 0.7714 0.7918 Qmax 0.7786 0.7957 6 800 19 994 Qmin 0.9793 0.9801 Qmax 0.9795 0.9801 t 11 006 17 074 t t t t t 22
  • 24. Classification systems of scientific publications • Web of Science/Scopus journal subject categories: – Scientific fields defined at the level of journals rather than individual publications – Difficulties with multidisciplinary journals – High level of aggregation – Sometimes outdated or inaccurate • Disciplinary classification systems: – E.g., CA, JEL, MeSH, PACS – Not available for all disciplines – Sometimes outdated or inaccurate 23
  • 25. Algorithmic classification systems (Waltman & Van Eck, JASIST, 2012) • Why not algorithmically construct a classification system of science? • We cluster publications (not journals) into fields based on citation relations • Only direct citation relations are used; no co-citation or bibliographic coupling relations • Fields are defined at different levels of granularity and are organized hierarchically 24
  • 26. Example • 10.2 million publications from the period 2001–2010 indexed in Web of Science • 97.6 million direct citation relations • Classification system of 3 hierarchical levels: – 20 broad disciplines – 672 fields – 22,412 subfields • Clustering by optimizing a variant of the standard modularity function that accounts for differences across fields in citation practices 25
  • 27. Map of the 672 research areas at level 2 of the classification system 26
  • 28. Map of the 417 publications in research area 4.30.10 27
  • 29. Part 2 New software tool for exploring largescale citation networks 28
  • 30. Exploring citation networks: Why? • To support literature reviewing • To show how the scientific literature has evolved over time • To delineate topics or research areas in the literature • To identify connections between different topics in the literature 29
  • 31. Motivation for a new tool • VOSviewer has proven to be a very useful tool for visualizing science from a static point of view • VOSviewer has not been developed for visualizing the dynamics of science • In fact, the availability of software tools for dynamic visualizations is rather limited: – CiteSpace (Chaomei Chen) – HistCite (Eugene Garfield) 30
  • 32. HistCite • Timeline visualization of publications and their citation relations, referred to as algorithmic historiography by Garfield 31
  • 33. Citation Network Explorer • Somewhat similar to HistCite, but capable of dealing with much larger citation networks • So far, the tool has been used successfully with the entire Web of Science citation network of the social sciences (1980–2013; ~2M publications and ~20M citations) • The aim is to be able to handle the entire citation network of all scientific disciplines (~40M publications and ~500M citations) 32
  • 34. Today’s demonstration (1) • We demonstrate a prototype of the tool • The core functionality is available, but some options have not yet been fully implemented • Your feedback is very much appreciated! 33
  • 35. Today’s demonstration (2) • Data set 1: – Scientometrics – 1980–2013 – ~10K publications and ~60K citations • Data set 2: – All social sciences except for psychology, education, and health-related sciences – 1980–2013 – ~1.4M publications and ~10M citations 34
  • 37. References Van Eck, N.J., & Waltman, L. (2010). Software survey: VOSviewer, a computer program for bibliometric mapping. Scientometrics, 84(2), 523-538. Van Eck, N.J., & Waltman, L. (2011). Text mining and visualization using VOSviewer. ISSI Newsletter, 7(3), 50-54. Van Eck, N.J., Waltman, L., Dekker, R., & Van den Berg, J. (2010). A comparison of two techniques for bibliometric mapping: Multidimensional scaling and VOS. JASIST, 61(12), 2405-2416. Van Eck, N.J., Waltman, L., Van Raan, A.F.J., Klautz, R.J.M., & Peul, W.C. (2013). Citation analysis may severely underestimate the impact of clinical research as compared to basic research. PLoS ONE, 8(4), e62395. Waltman, L., & Van Eck, N.J. (2012). A new methodology for constructing a publication-level classification system of science. JASIST, 63(12), 2378-2392. Waltman, L., & Van Eck, N.J. (2013). A smart local moving algorithm for large-scale modularity-based community detection. arXiv:1308.6604. Waltman, L., Van Eck, N.J., & Noyons, E.C.M. (2010). A unified approach to mapping and clustering of bibliometric networks. Journal of Informetrics, 4(4), 629-635. 36
