A Framework For Dynamic Hand Gesture
Recognition Using Key Frames Extraction
Bhumika Pathak
GLA University
Mathura, India
Presented by:
Neeraj Baghel
M.Tech 1st Year
1
Subhash Chand
Agrawal
GLA Univesity
Mathura, India
Anand Singh Jalal
GLA University,
Mathura, India
Charul Bhatnagar
GLA Univesity
Mathura, India
2015 Fifth National Conference OF IEEE IN Patna, INDIA

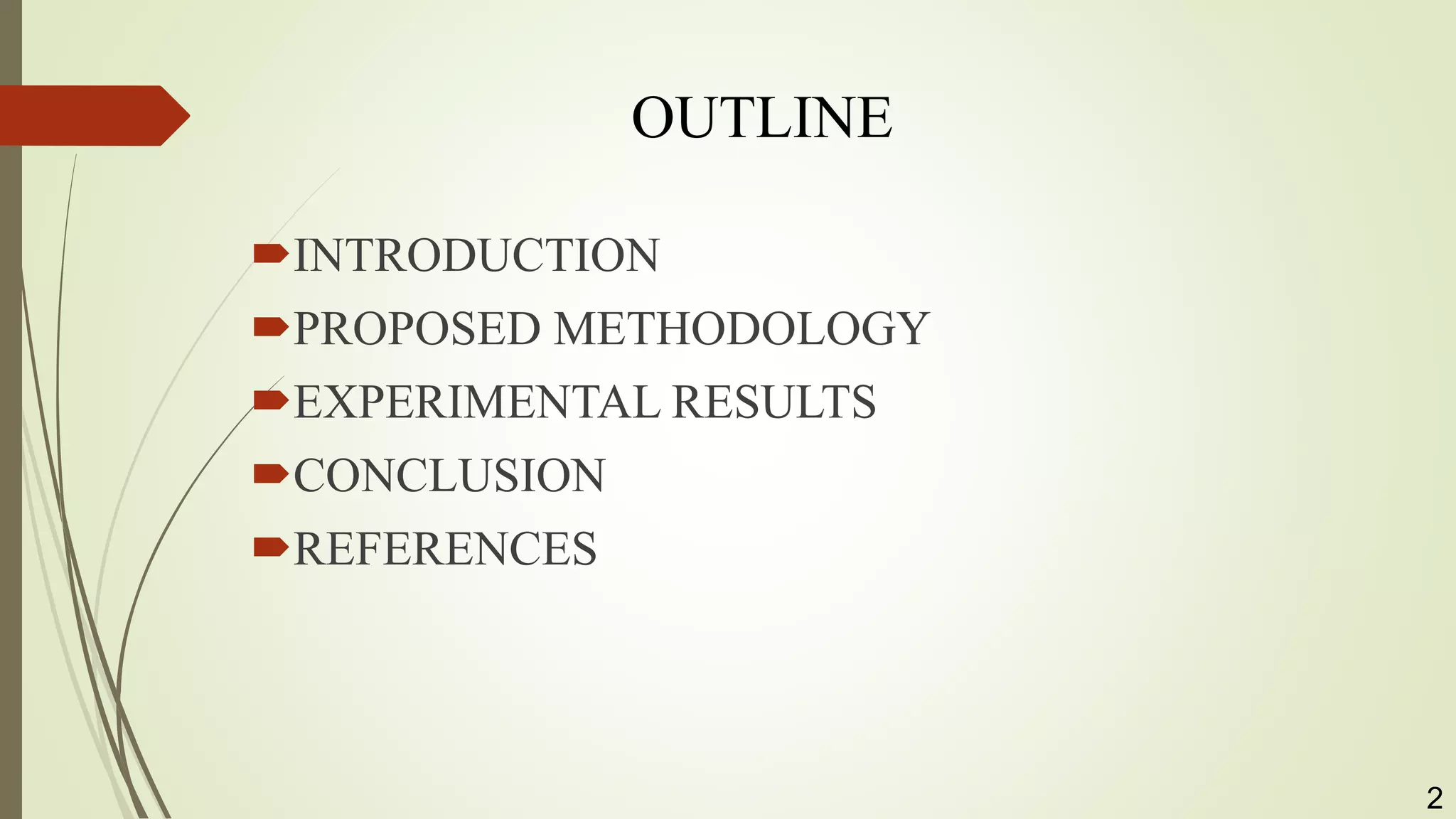

OUTLINE
INTRODUCTION
PROPOSED METHODOLOGY
EXPERIMENTAL RESULTS
CONCLUSION
REFERENCES
2

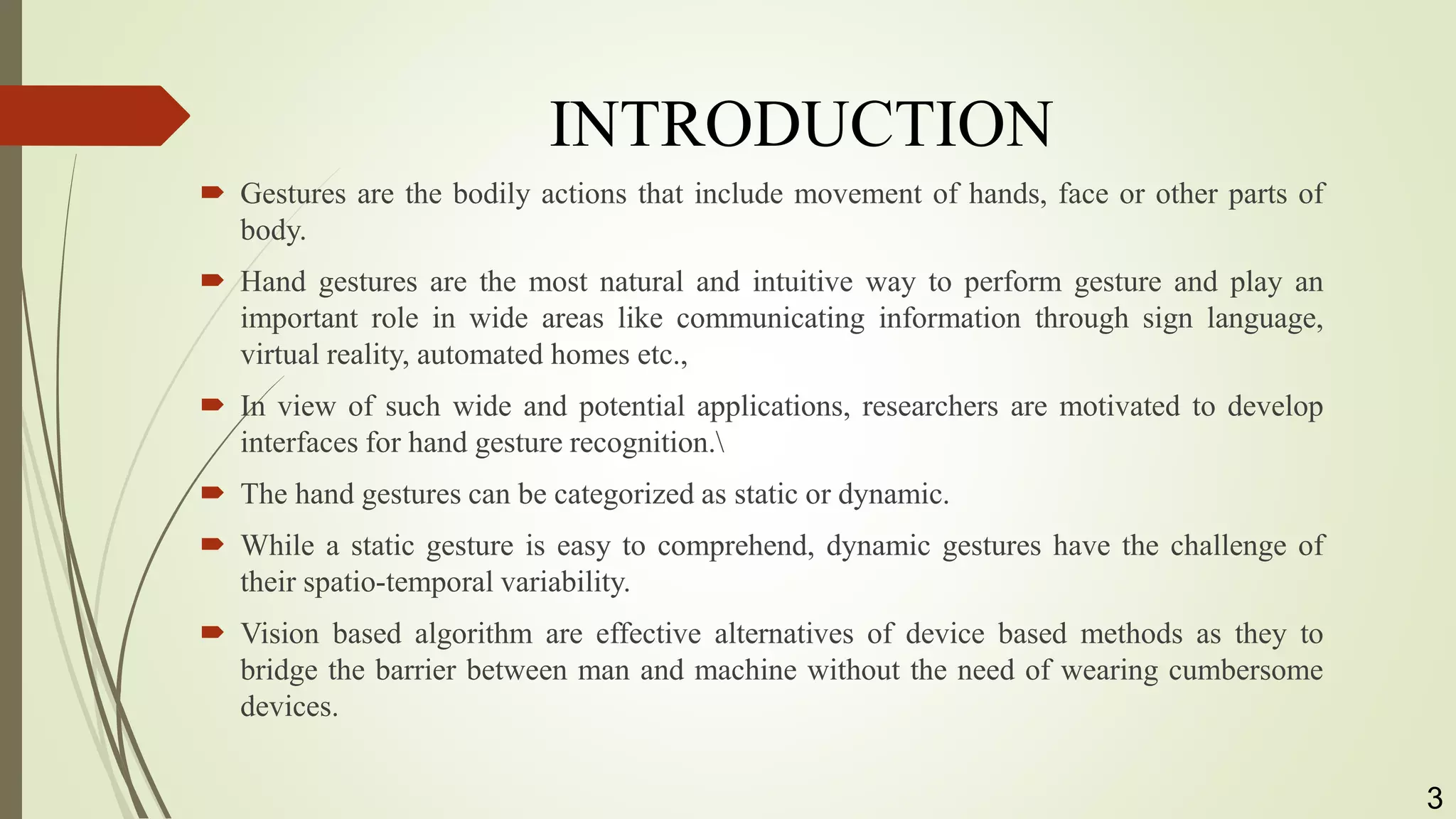

INTRODUCTION
 Gestures are the bodily actions that include movement of hands, face or other parts of
body.
 Hand gestures are the most natural and intuitive way to perform gesture and play an
important role in wide areas like communicating information through sign language,
virtual reality, automated homes etc.,
 In view of such wide and potential applications, researchers are motivated to develop
interfaces for hand gesture recognition.
 The hand gestures can be categorized as static or dynamic.
 While a static gesture is easy to comprehend, dynamic gestures have the challenge of
their spatio-temporal variability.
 Vision based algorithm are effective alternatives of device based methods as they to
bridge the barrier between man and machine without the need of wearing cumbersome
devices.
3
INTRODUCTION CONT…
 Unlike device based techniques, which find hand shape, motion by
the sensors attached to the devices,
 vision based techniques rely on image features like shape, color,
texture, etc.
 Given an image or video sequence, a vision based hand gesture
recognition system aims to develop algorithms which can correctly
identify the meaning of the gestures.
4
PROPOSED METHODOLOGY
5

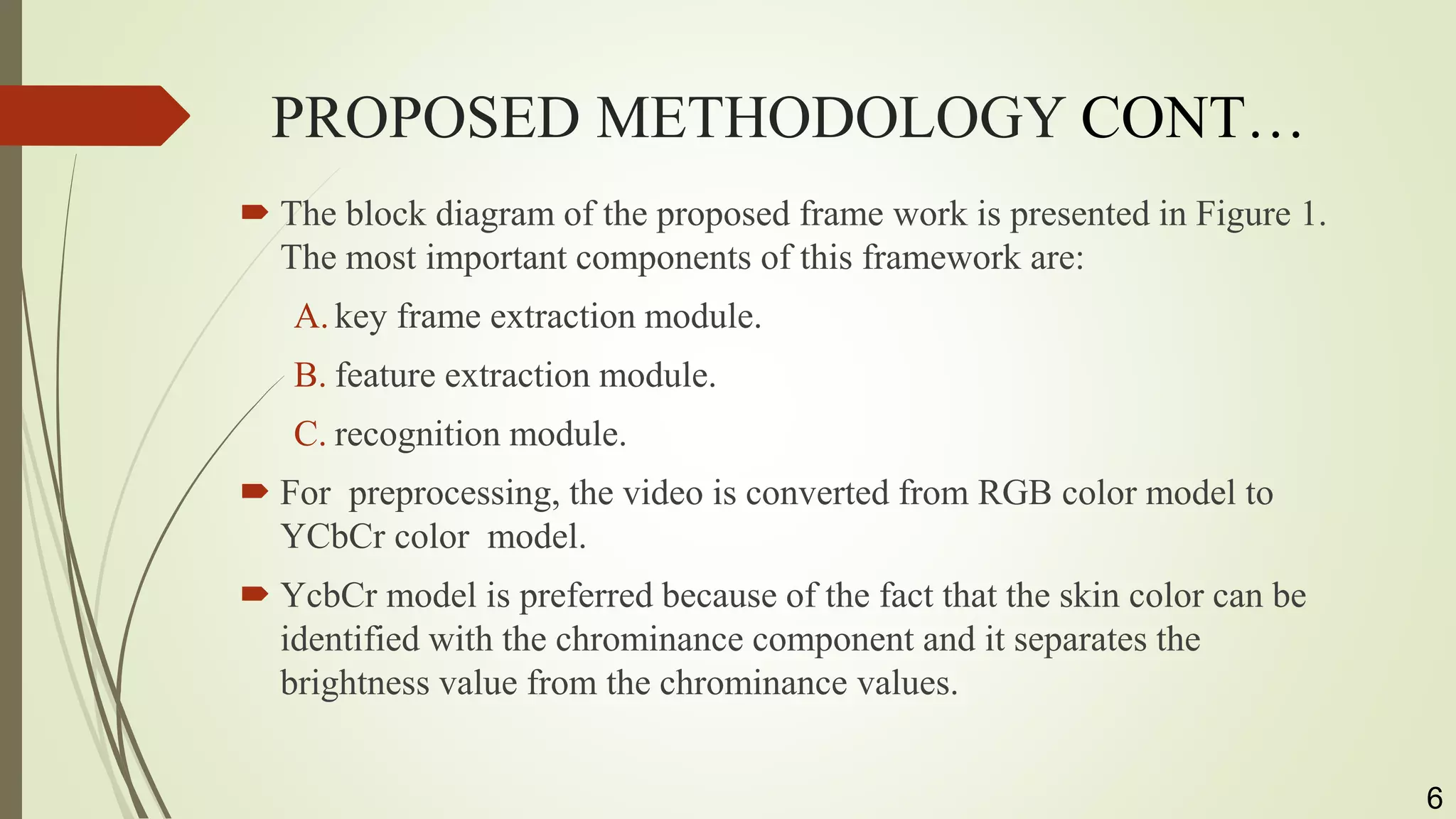

PROPOSED METHODOLOGY CONT…
 The block diagram of the proposed frame work is presented in Figure 1.
The most important components of this framework are:
A. key frame extraction module.
B. feature extraction module.
C. recognition module.
 For preprocessing, the video is converted from RGB color model to
YCbCr color model.
 YcbCr model is preferred because of the fact that the skin color can be
identified with the chrominance component and it separates the
brightness value from the chrominance values.
6

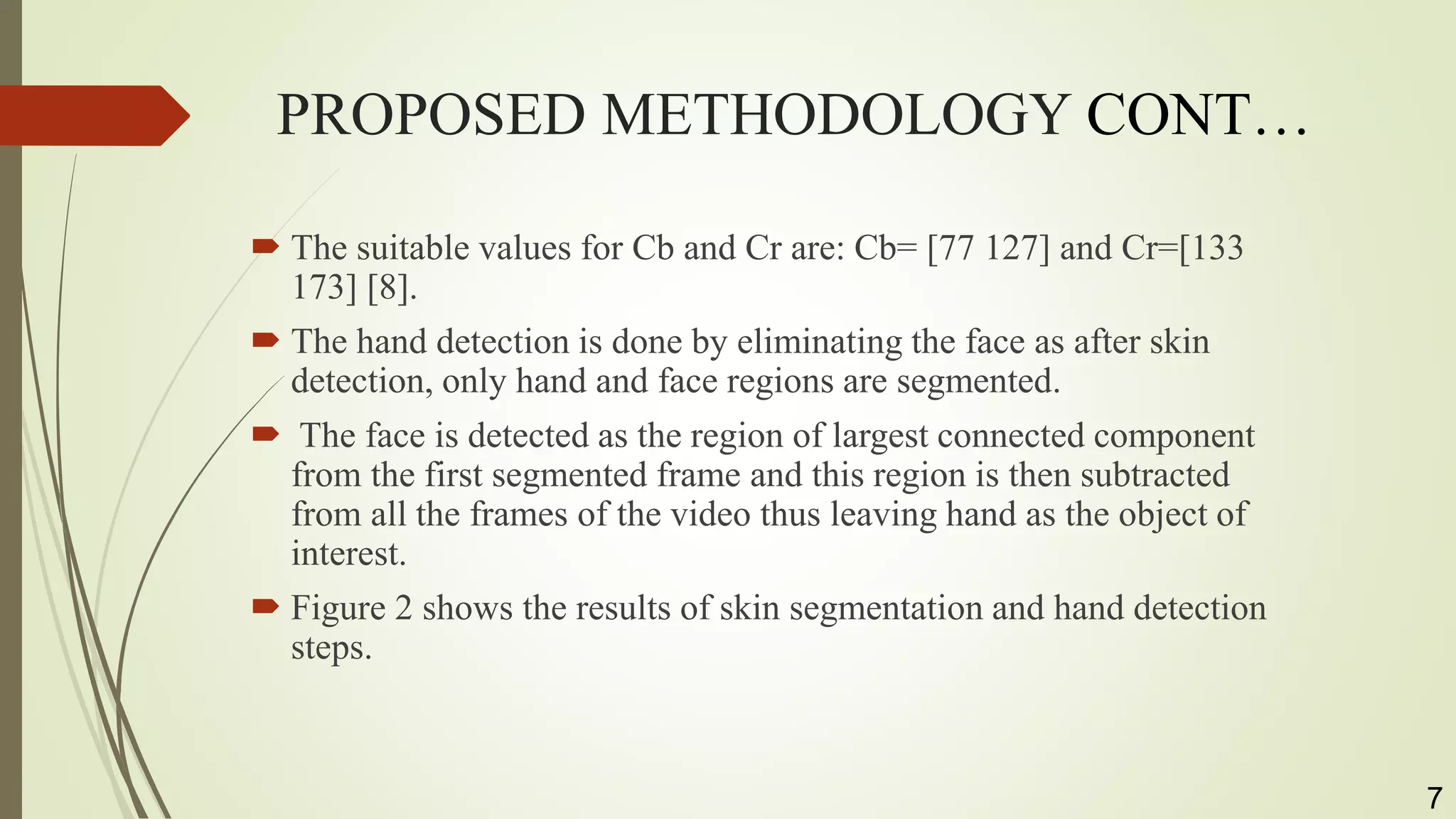

PROPOSED METHODOLOGY CONT…
 The suitable values for Cb and Cr are: Cb= [77 127] and Cr=[133
173] [8].
 The hand detection is done by eliminating the face as after skin
detection, only hand and face regions are segmented.
 The face is detected as the region of largest connected component
from the first segmented frame and this region is then subtracted
from all the frames of the video thus leaving hand as the object of
interest.
 Figure 2 shows the results of skin segmentation and hand detection
steps.
7
PROPOSED METHODOLOGY CONT…
8
Key frames extraction
 The video sequence of the dynamic signs consists of large number
of frames.
 All of these frames are not needed to be processed essentially in
order to determine the meaning of the performed sign, rather, only
few important frames from the video are sufficient.
 These most important and thus distinguishing frames are known as
key frames.
 In this paper, Author have devised an algorithm for finding the key
frames from the video.
9

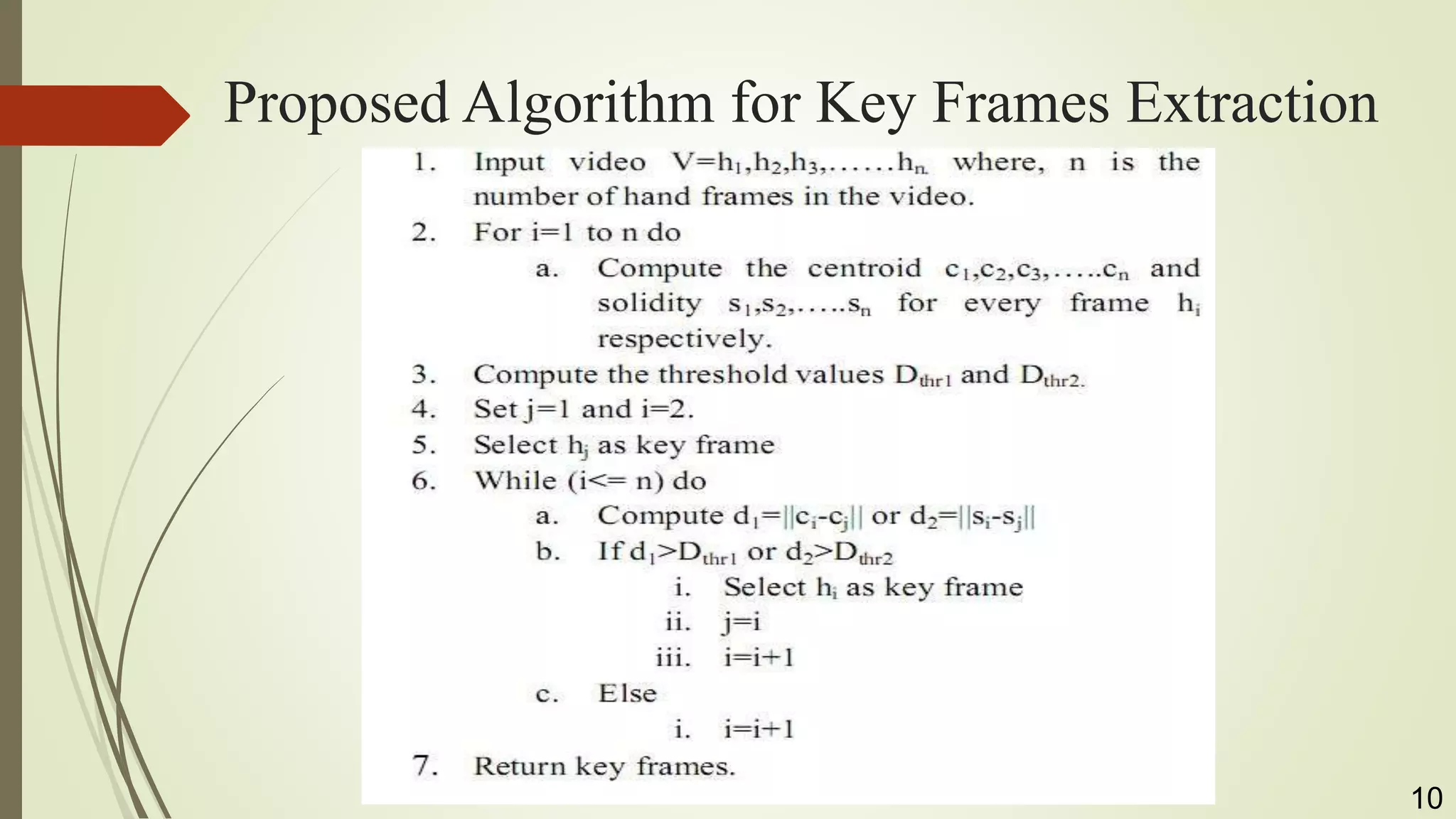

Proposed Algorithm for Key Frames Extraction
10

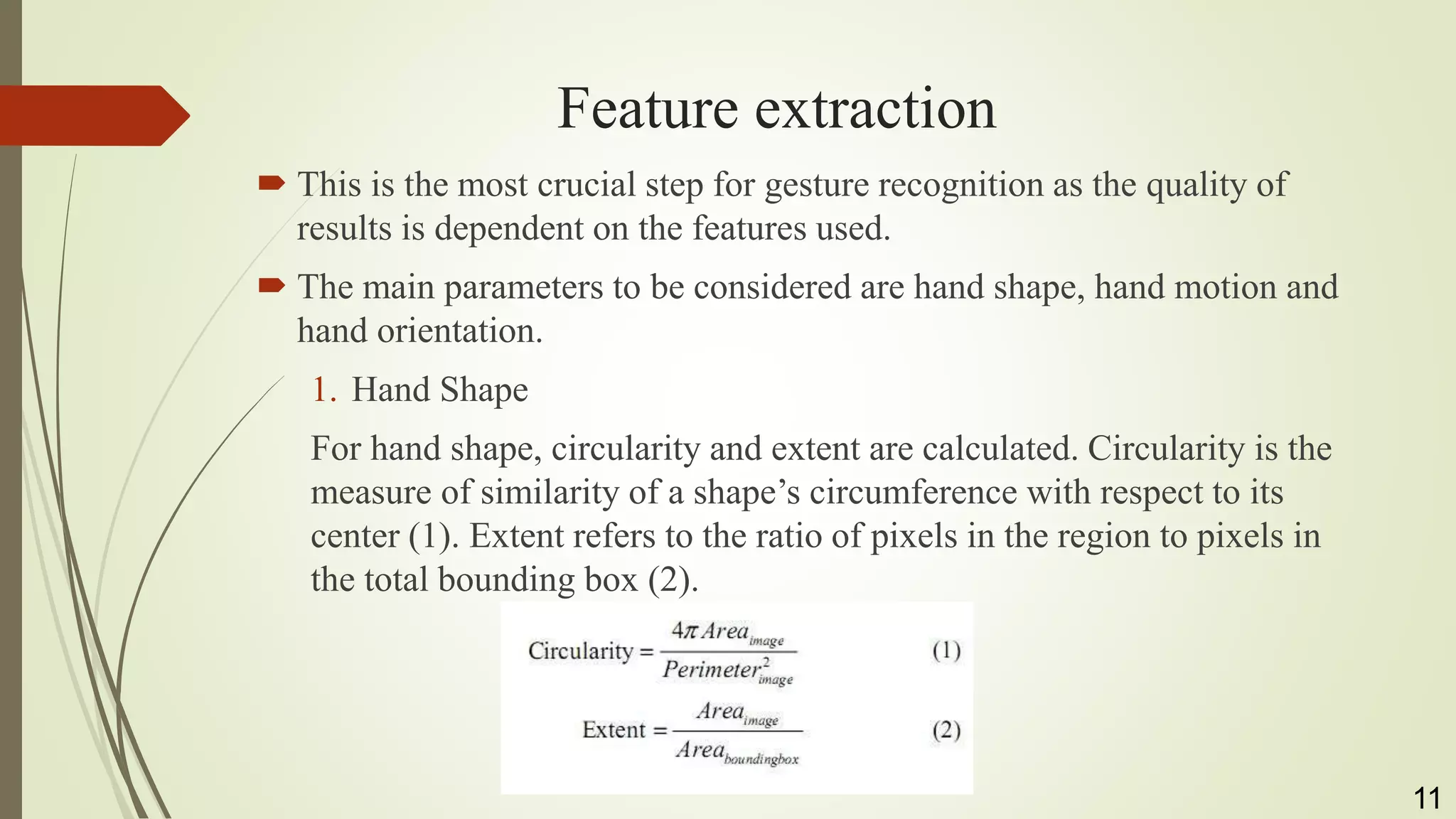

Feature extraction
 This is the most crucial step for gesture recognition as the quality of
results is dependent on the features used.
 The main parameters to be considered are hand shape, hand motion and
hand orientation.
1. Hand Shape
For hand shape, circularity and extent are calculated. Circularity is the
measure of similarity of a shape’s circumference with respect to its
center (1). Extent refers to the ratio of pixels in the region to pixels in
the total bounding box (2).
11

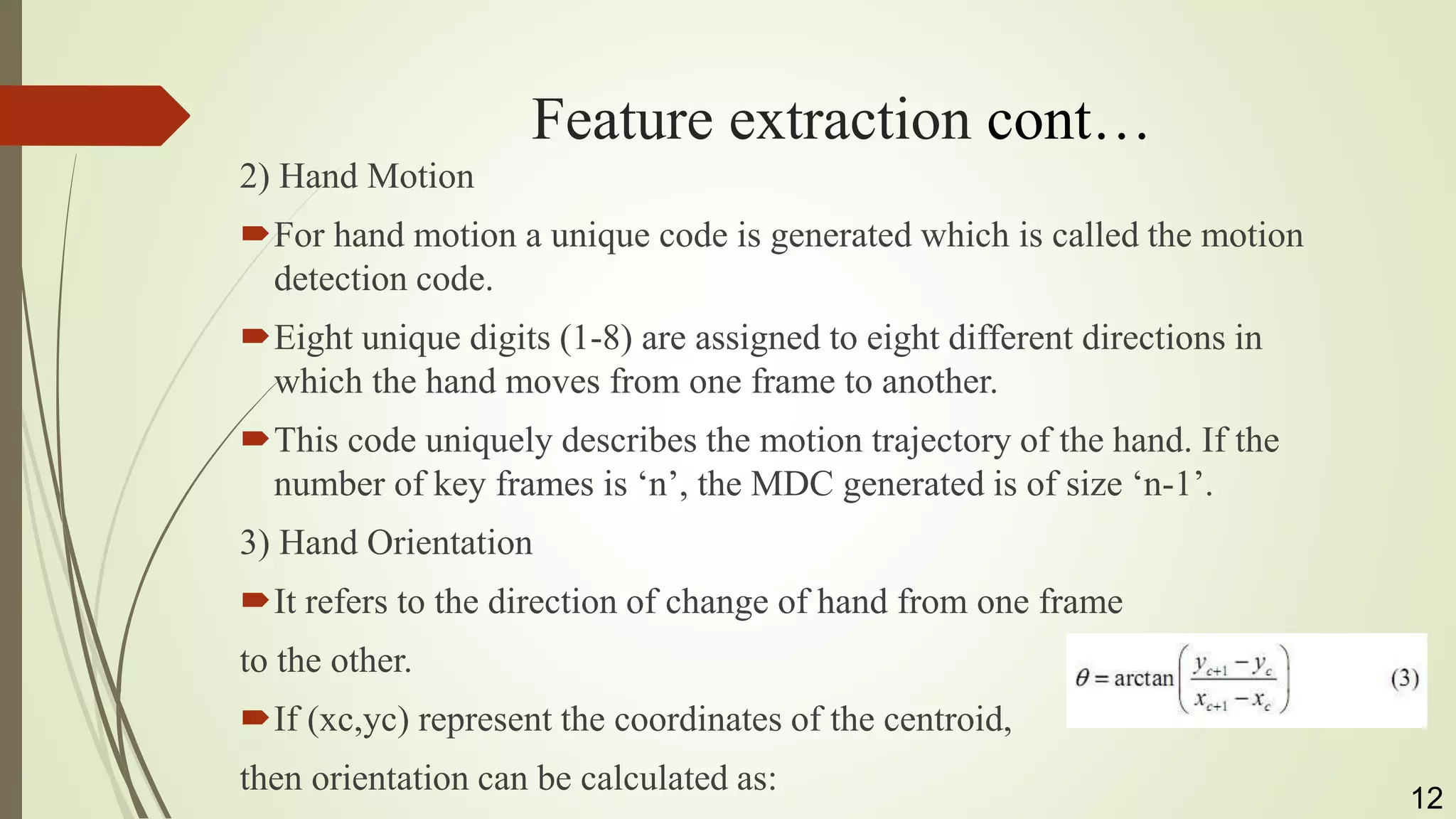

Feature extraction cont…
2) Hand Motion
For hand motion a unique code is generated which is called the motion
detection code.
Eight unique digits (1-8) are assigned to eight different directions in
which the hand moves from one frame to another.
This code uniquely describes the motion trajectory of the hand. If the
number of key frames is ‘n’, the MDC generated is of size ‘n-1’.
3) Hand Orientation
It refers to the direction of change of hand from one frame
to the other.
If (xc,yc) represent the coordinates of the centroid,
then orientation can be calculated as:
12
Classification using SVM
 The Support Vector Machine (SVM) is a machine learning algorithm which
is used for binary classification [9].
 The main concept of SVM is to find a hyperplane that distinguishes the
positive and negative class with the objective to maximize the width of the
hyperplane between the classes.
 For classifying multiple hand gestures, SVM needs to be extended to solve
the classification problems involving multiple classes.
 In the proposed work, Author have utilized one-against-one approach [10].
In this approach, the ijth binary classifier uses the pattern of class i (+1) as
positive examples and the patterns of class j (-1) as negative examples, and
thus forming a feature vector for every class. To find the result, the distance
between the vectors of the test sample is calculated with all the trained
samples.
13

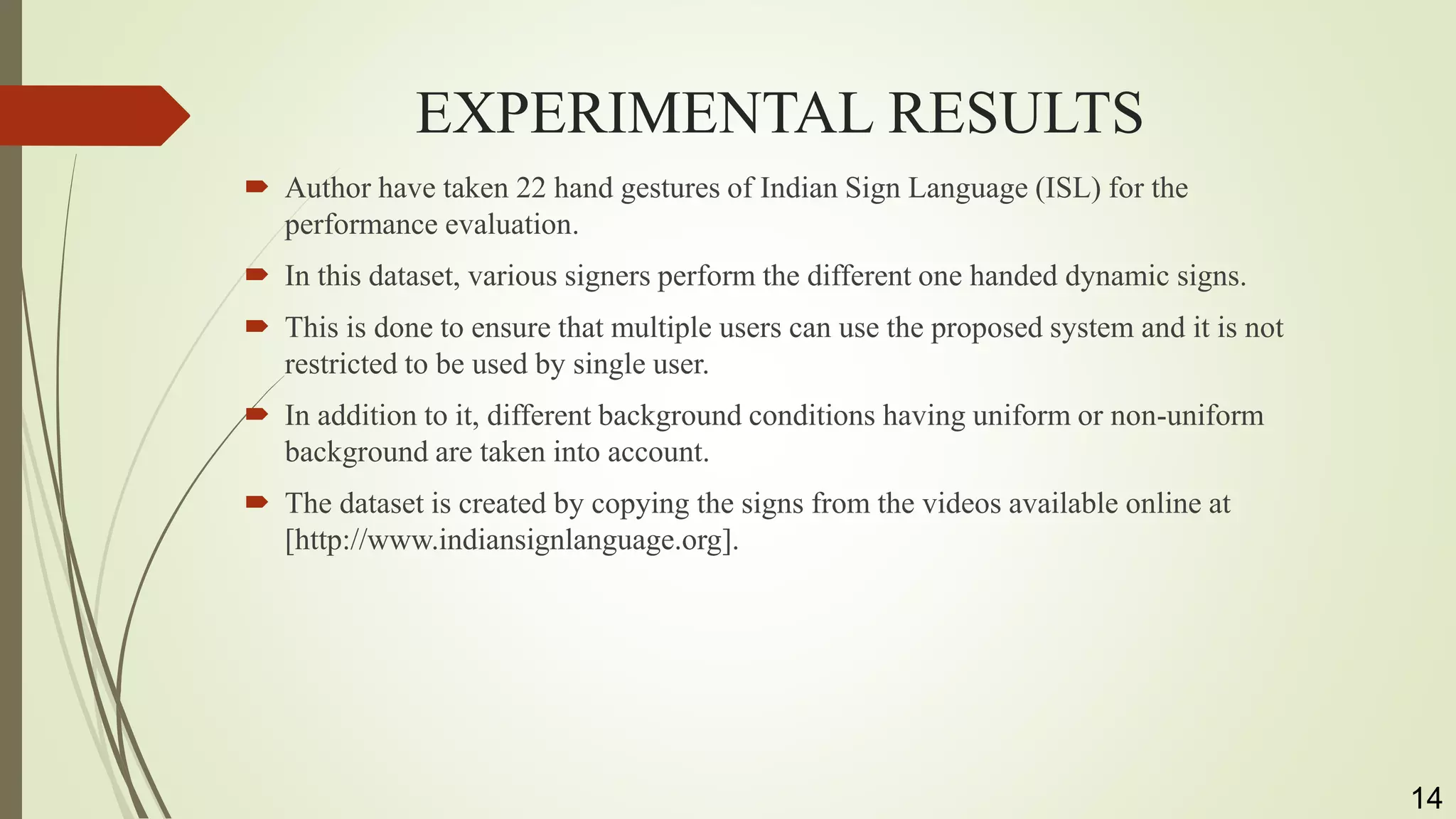

EXPERIMENTAL RESULTS
 Author have taken 22 hand gestures of Indian Sign Language (ISL) for the
performance evaluation.
 In this dataset, various signers perform the different one handed dynamic signs.
 This is done to ensure that multiple users can use the proposed system and it is not
restricted to be used by single user.
 In addition to it, different background conditions having uniform or non-uniform
background are taken into account.
 The dataset is created by copying the signs from the videos available online at
[http://www.indiansignlanguage.org].
14

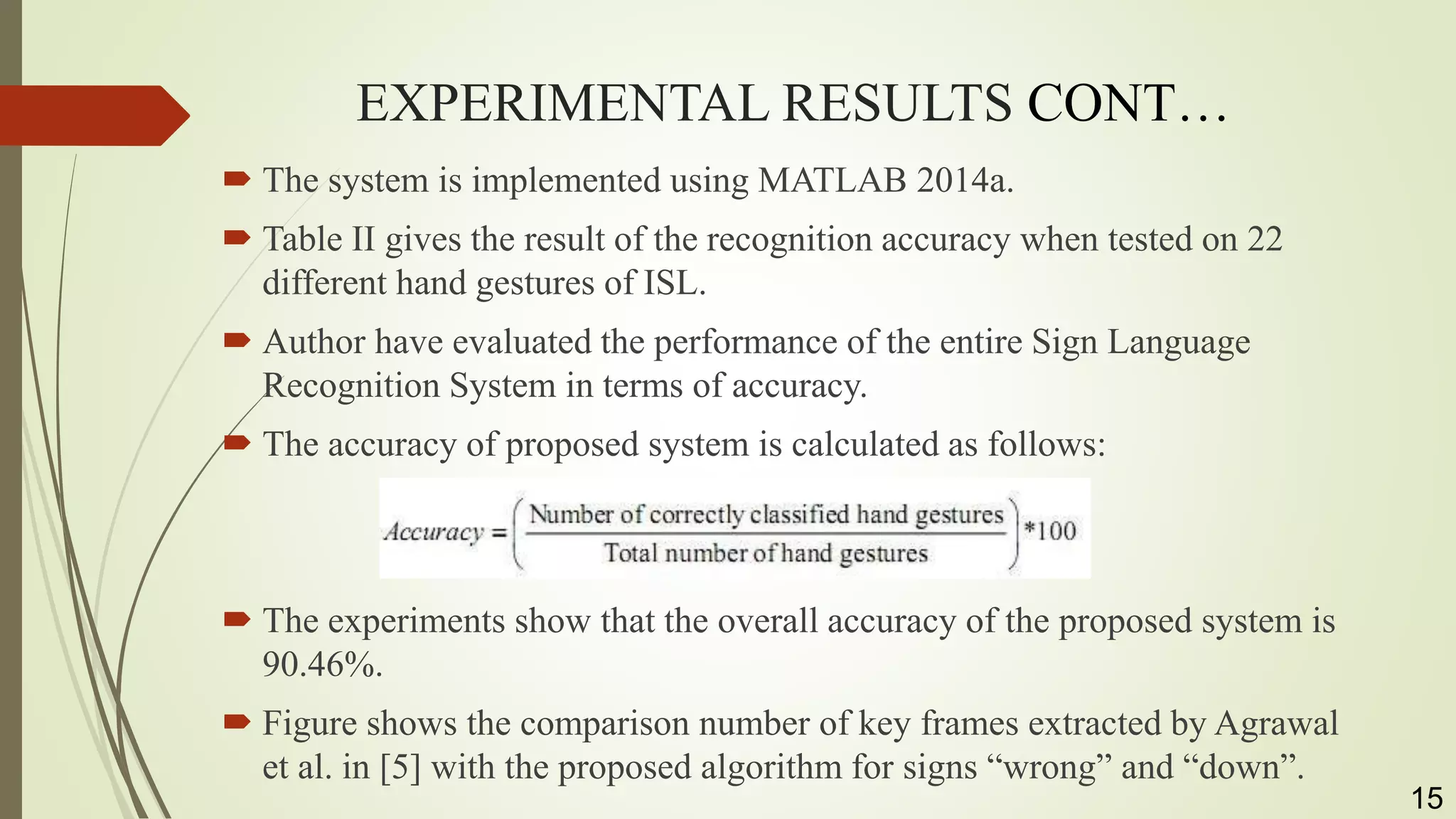

EXPERIMENTAL RESULTS CONT…
 The system is implemented using MATLAB 2014a.
 Table II gives the result of the recognition accuracy when tested on 22
different hand gestures of ISL.
 Author have evaluated the performance of the entire Sign Language
Recognition System in terms of accuracy.
 The accuracy of proposed system is calculated as follows:
 The experiments show that the overall accuracy of the proposed system is
90.46%.
 Figure shows the comparison number of key frames extracted by Agrawal
et al. in [5] with the proposed algorithm for signs “wrong” and “down”.
15
EXPERIMENTAL RESULTS CONT…
16
EXPERIMENTAL RESULTS CONT…
17
EXPERIMENTAL RESULTS CONT…
18
CONCLUSION
 In this paper, author have proposed a vision based method for recognition of
dynamic hand gestures skin color segmentation
key frames extraction
using multiple features for hand description
multiclass SVM classifier.
 The proposed novel key frame extraction algorithm speeds up the system by
figuring out the most important frames for feature selection.
 The outcomes show that the system is able to recognize varied one handed
dynamic signs of Indian sign language efficiently.
 Author have also compared the performance of the proposed system with the
other approaches and the experiments show the effectiveness of the proposed
algorithm to find key frames while maintaining the recognition rate.
19

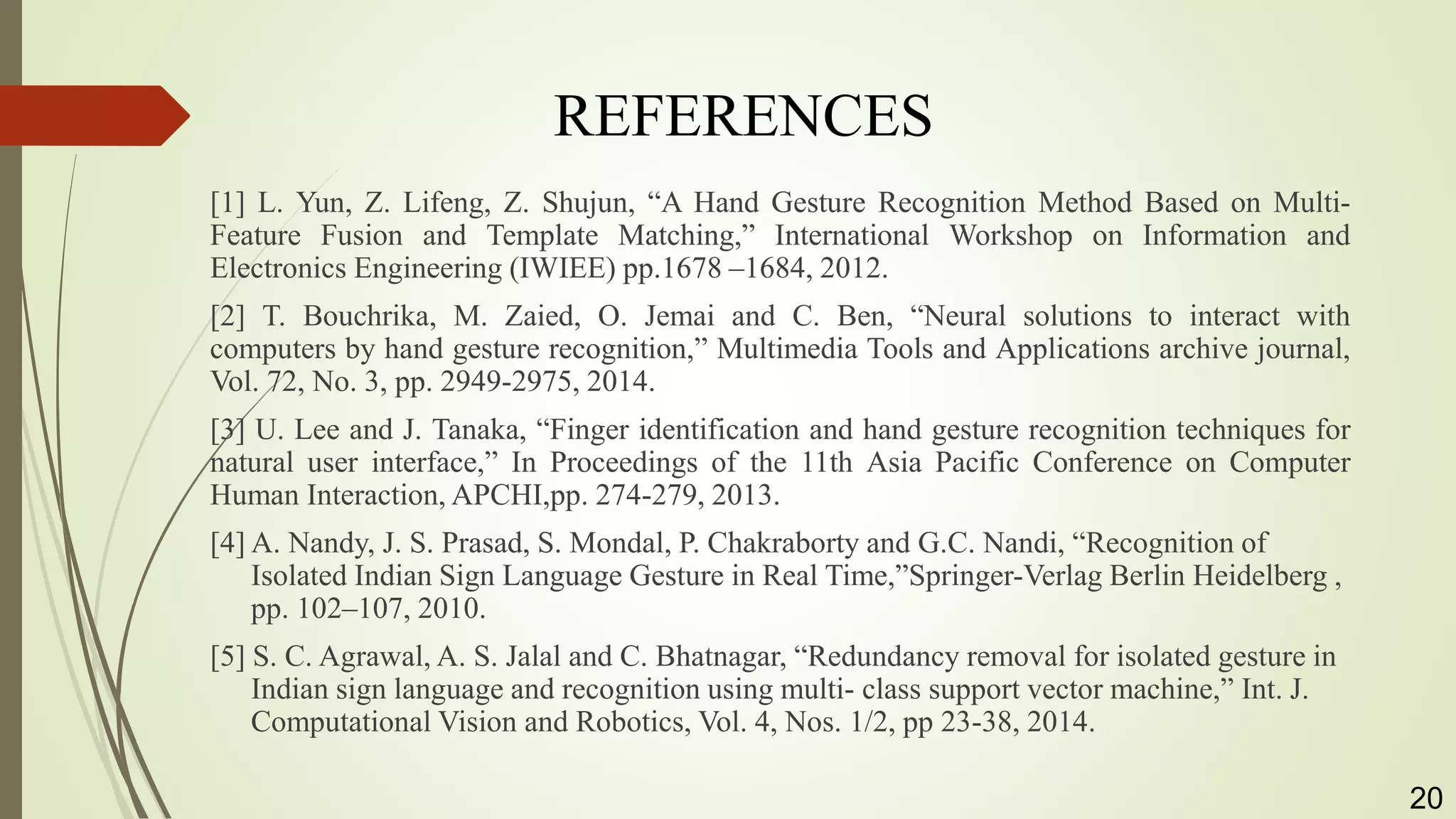

REFERENCES
[1] L. Yun, Z. Lifeng, Z. Shujun, “A Hand Gesture Recognition Method Based on Multi-
Feature Fusion and Template Matching,” International Workshop on Information and
Electronics Engineering (IWIEE) pp.1678 –1684, 2012.
[2] T. Bouchrika, M. Zaied, O. Jemai and C. Ben, “Neural solutions to interact with
computers by hand gesture recognition,” Multimedia Tools and Applications archive journal,
Vol. 72, No. 3, pp. 2949-2975, 2014.
[3] U. Lee and J. Tanaka, “Finger identification and hand gesture recognition techniques for
natural user interface,” In Proceedings of the 11th Asia Pacific Conference on Computer
Human Interaction, APCHI,pp. 274-279, 2013.
[4] A. Nandy, J. S. Prasad, S. Mondal, P. Chakraborty and G.C. Nandi, “Recognition of
Isolated Indian Sign Language Gesture in Real Time,”Springer-Verlag Berlin Heidelberg ,
pp. 102–107, 2010.
[5] S. C. Agrawal, A. S. Jalal and C. Bhatnagar, “Redundancy removal for isolated gesture in
Indian sign language and recognition using multi- class support vector machine,” Int. J.
Computational Vision and Robotics, Vol. 4, Nos. 1/2, pp 23-38, 2014.
20
[6] D. Doye and M. Kokare, “Hand Gesture Recognition Using Object Based Key Frame
Selection,”, In Proceedings of International Conference onDigital Image Processing, pp.
288-291, 2009.
[7] M. K. Bhuyan, “FSM-based recognition of dynamic hand gestures via gesture
summarization using key video object planes,” International Journal of Computer and
Communication Engineering, Vol. 1, No.6, pp.248-259. 2012.
[8] D. Chai and K. N. Ngan, “Face segmentation using skin-color map in videophone
applications,” IEEE Trans. Circuits Syst. Video Technol.,vol. 9, pp. 551–564, 1999.
[9] H. Byun and S. W. Lee, “Applications of Support Vector Machines for Pattern Recognition:
A Survey,” in SVM 2002, Vol. LNCS 2388, Springer, pp. 213-236, 2002.
[10] Y. Liu and Y. F. Zheng, “One-against-all multi-class SVM classification using reliability
measures,” Neural Networks, IJCNN '05,Proceedings in IEEE International Joint
Conference, Vol.2, pp. 849-854, 2005.
21
REFERENCES
THANK YOU
