A first look at the integration of machine learning models in complex autonomous driving systems
This document summarizes a case study on Apollo, an open source self-driving car system. The study examined how machine learning models are used and integrated within Apollo's codebase. It found that Apollo relies on multiple ML models from different frameworks as inputs to other models, making integration complex. The models are configurable and interconnected, with code providing safety checks on outputs. While ML-related code executes frequently, test coverage for this code in Apollo could be improved according to the study.
More Related Content
Similar to A first look at the integration of machine learning models in complex autonomous driving systems
A first look at the integration of machine learning models in complex autonomous driving systems
- 1. A First Lookat the Integration of Machine Learning Models in Complex Autonomous Driving Systems A Case Study on Apollo Tse-Hsun (Peter) Chen Lei MaJinqiu YangZi Peng
- 2. Health careSelf-driving carSocial media Finance AI-powered systems are everywhere

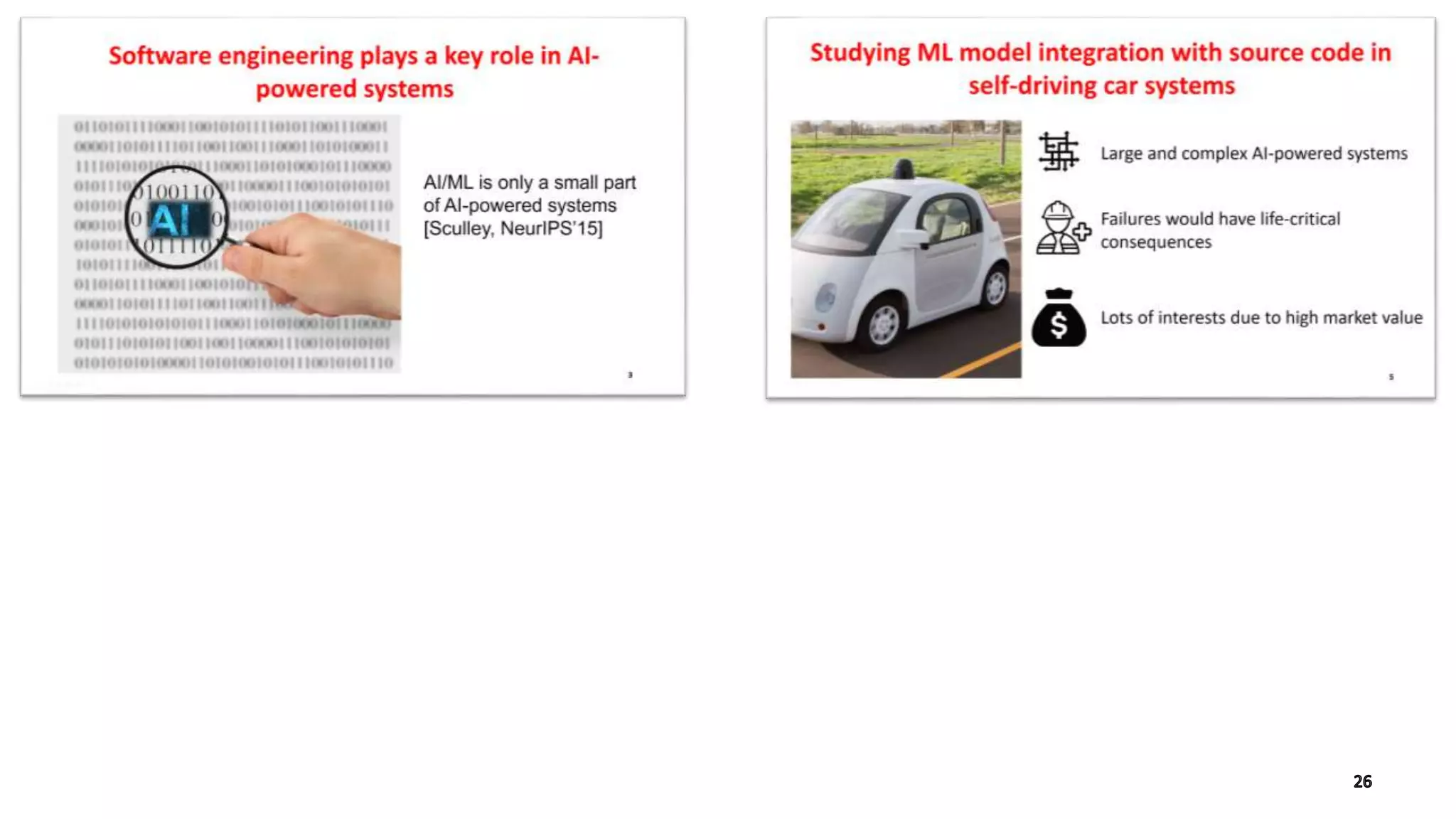

- 3. Software engineering playsa key role in AI- powered systems AI/ML is only a small part of AI-powered systems [Sculley, NeurIPS’15]
- 4. Software engineering iscrucial to ensure the functionality and quality of AI-powered systems Software engineering researcher AI-powered systems

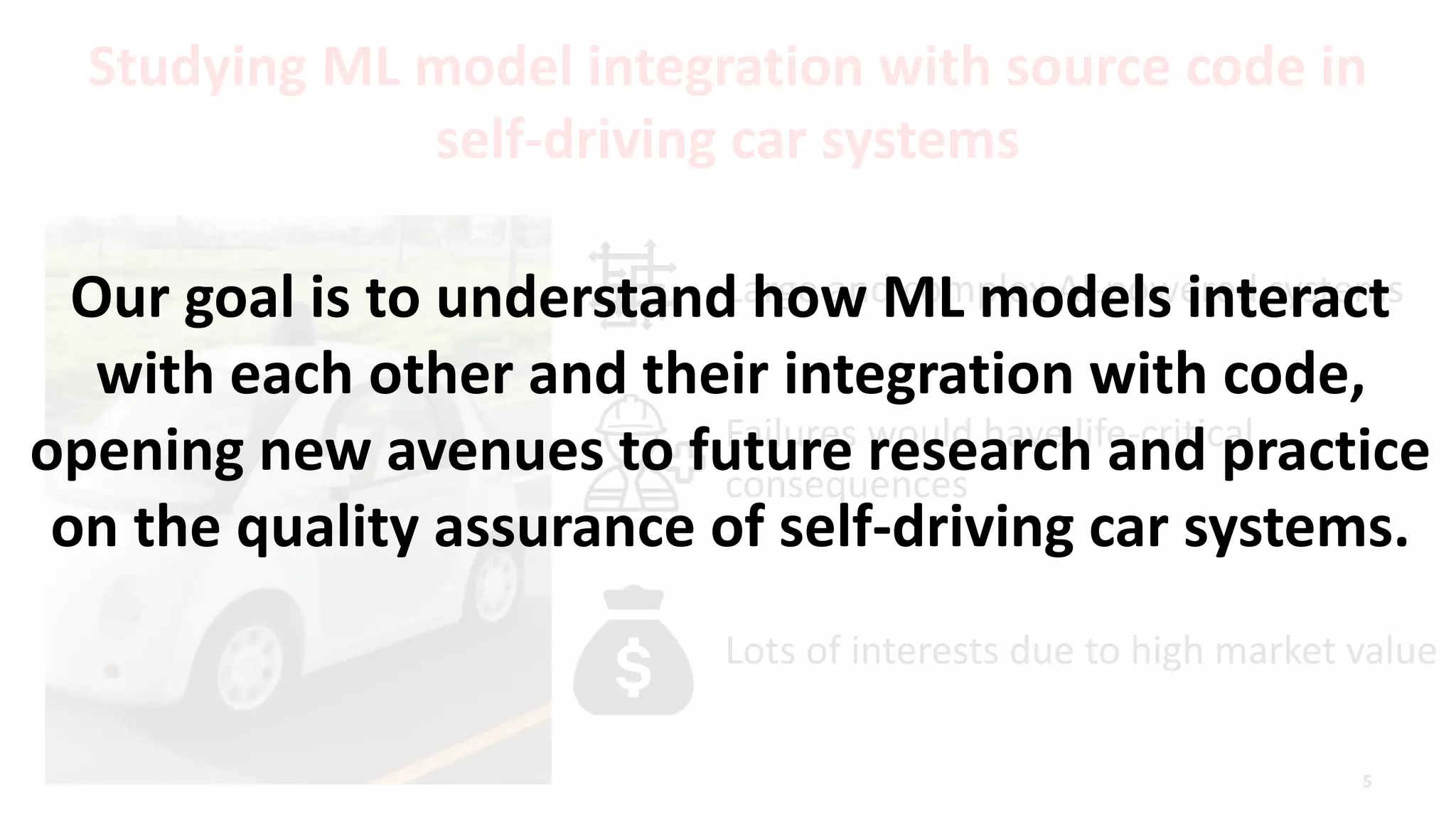

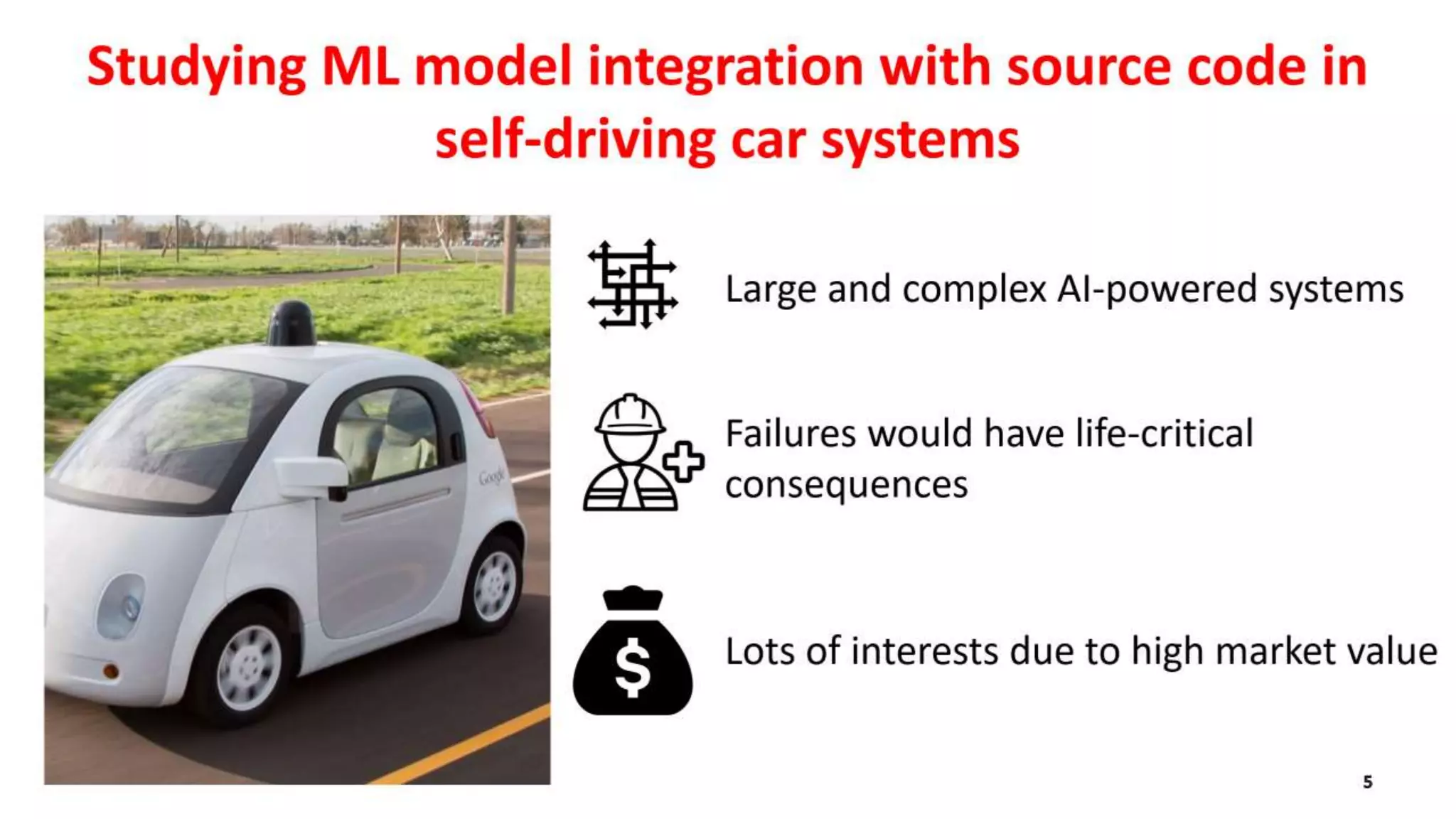

- 5. Studying ML modelintegration with source code in self-driving car systems Large and complex AI-powered systems Failures would have life-critical consequences Lots of interests due to high market value Our goal is to understand how ML models interact with each other and their integration with code, opening new avenues to future research and practice on the quality assurance of self-driving car systems.

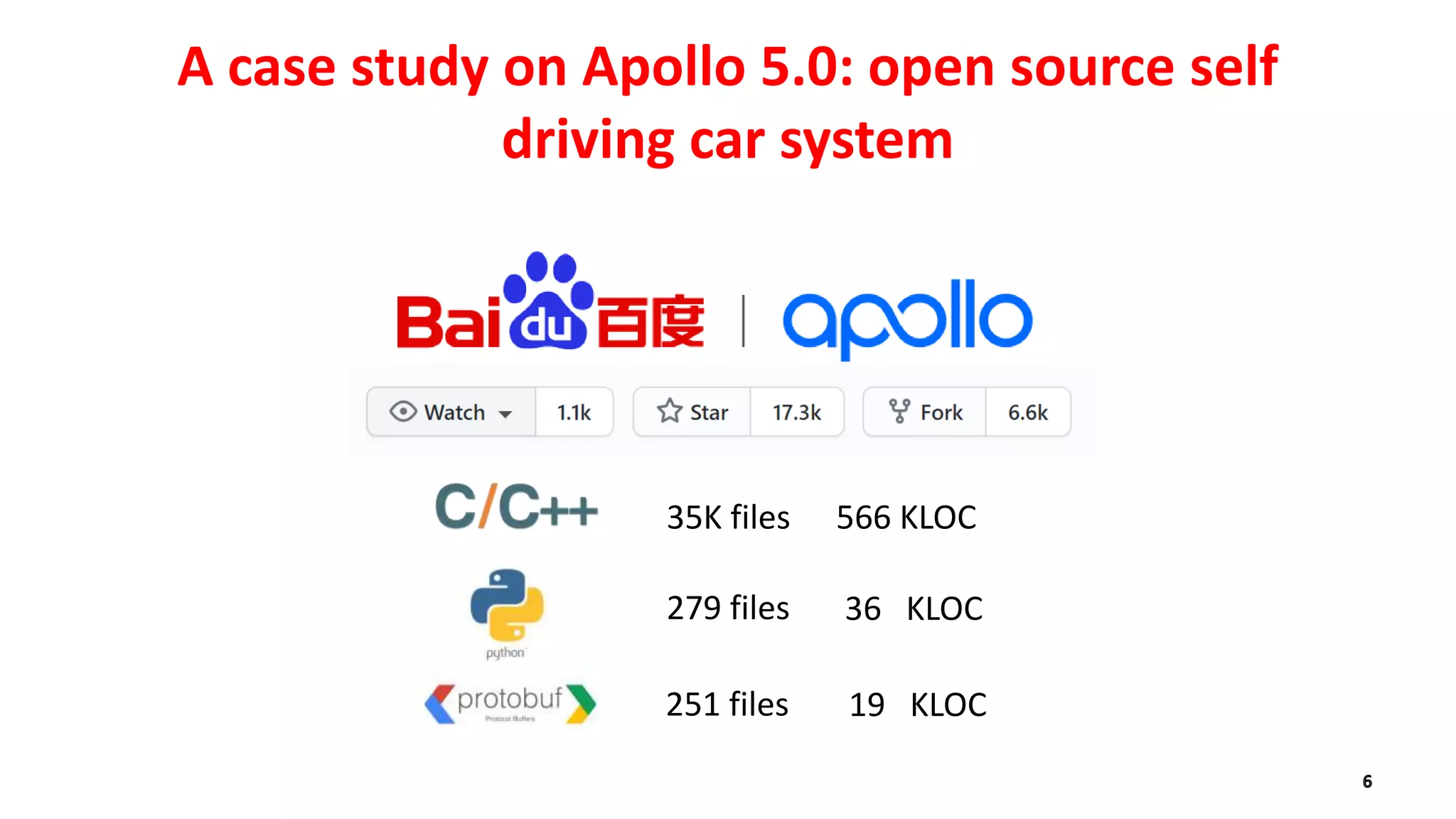

- 6. A case studyon Apollo 5.0: open source self driving car system 35K files 566 KLOC 279 files 36 KLOC 251 filesProto Buffer 19 KLOC

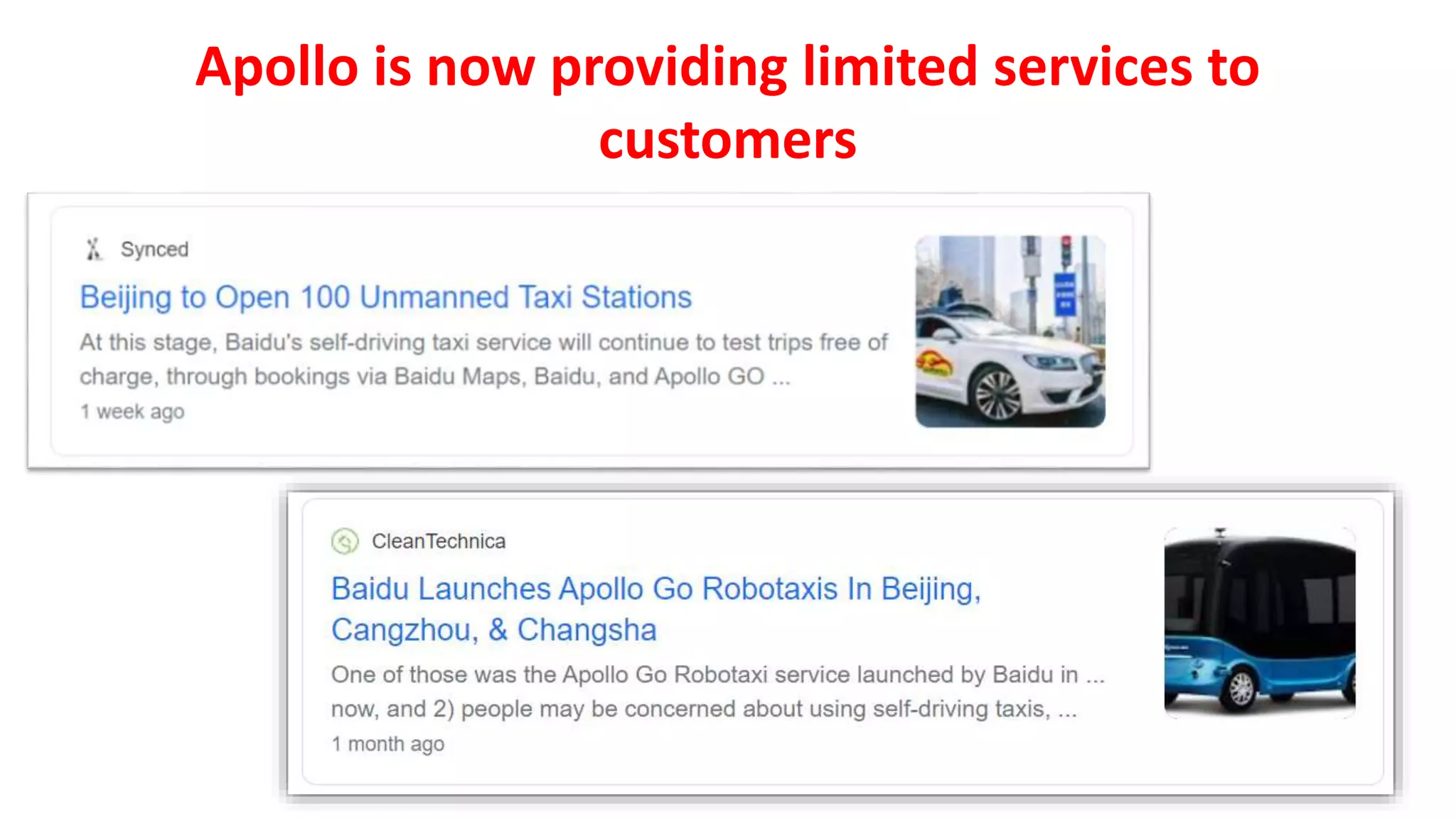

- 7. Apollo is nowproviding limited services to customers
- 8. How are MLmodels used and integrated with code? Studying usage and integration of ML models in the code How well tested is ML- related code?

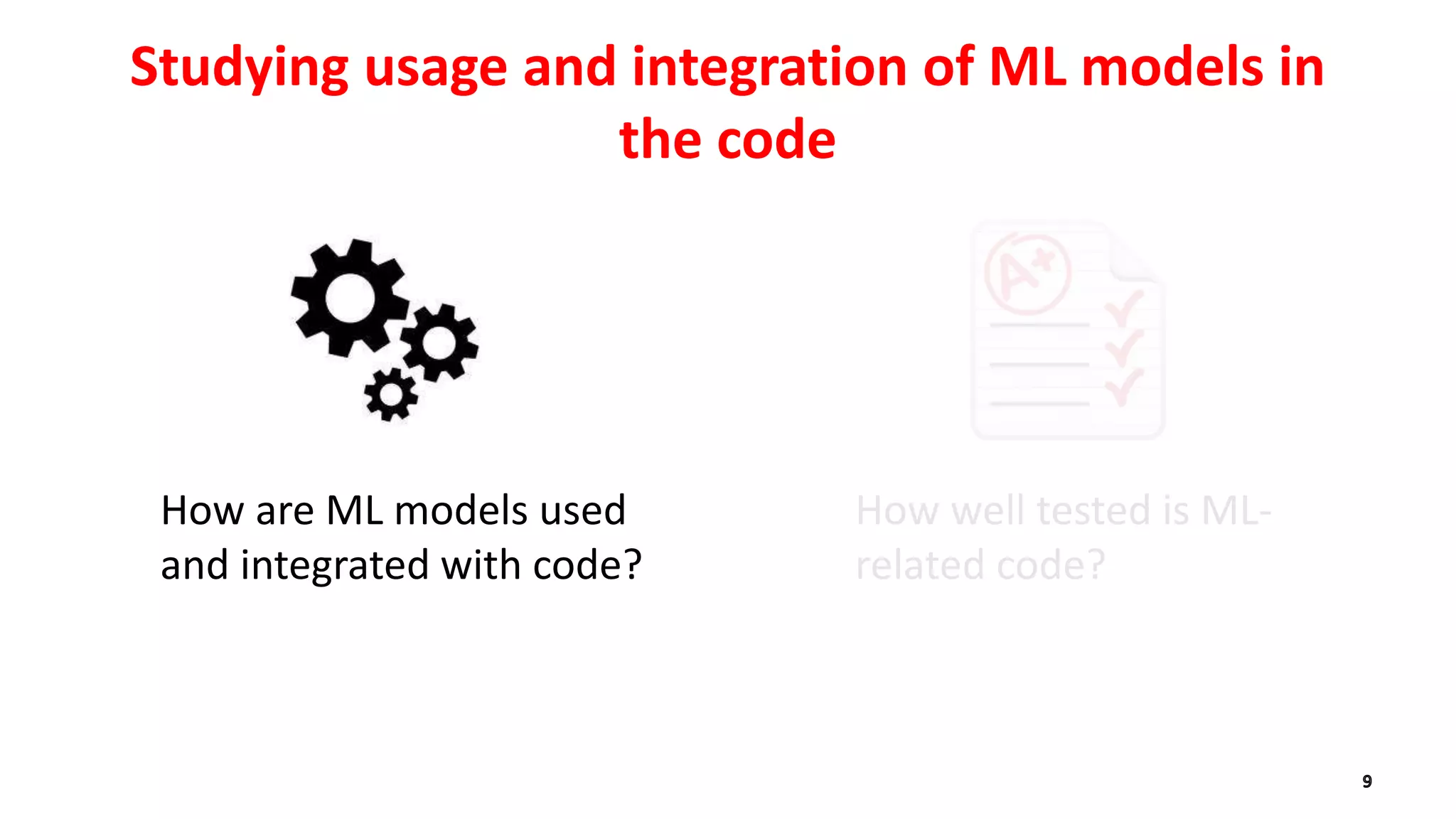

- 9. How are MLmodels used and integrated with code? Studying usage and integration of ML models in the code How well tested is ML- related code?

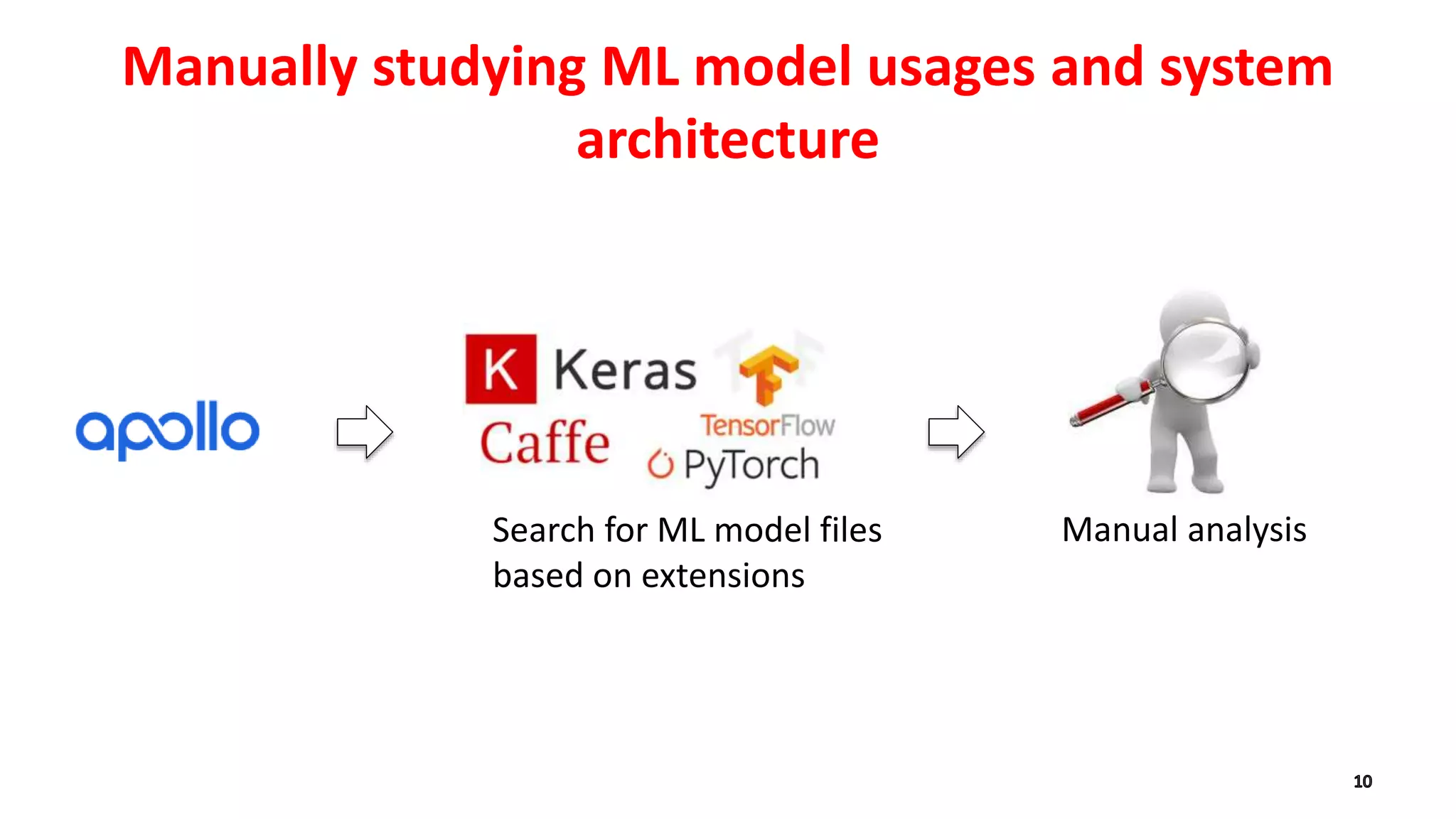

- 10. Manually studying MLmodel usages and system architecture Manual analysisSearch for ML model files based on extensions

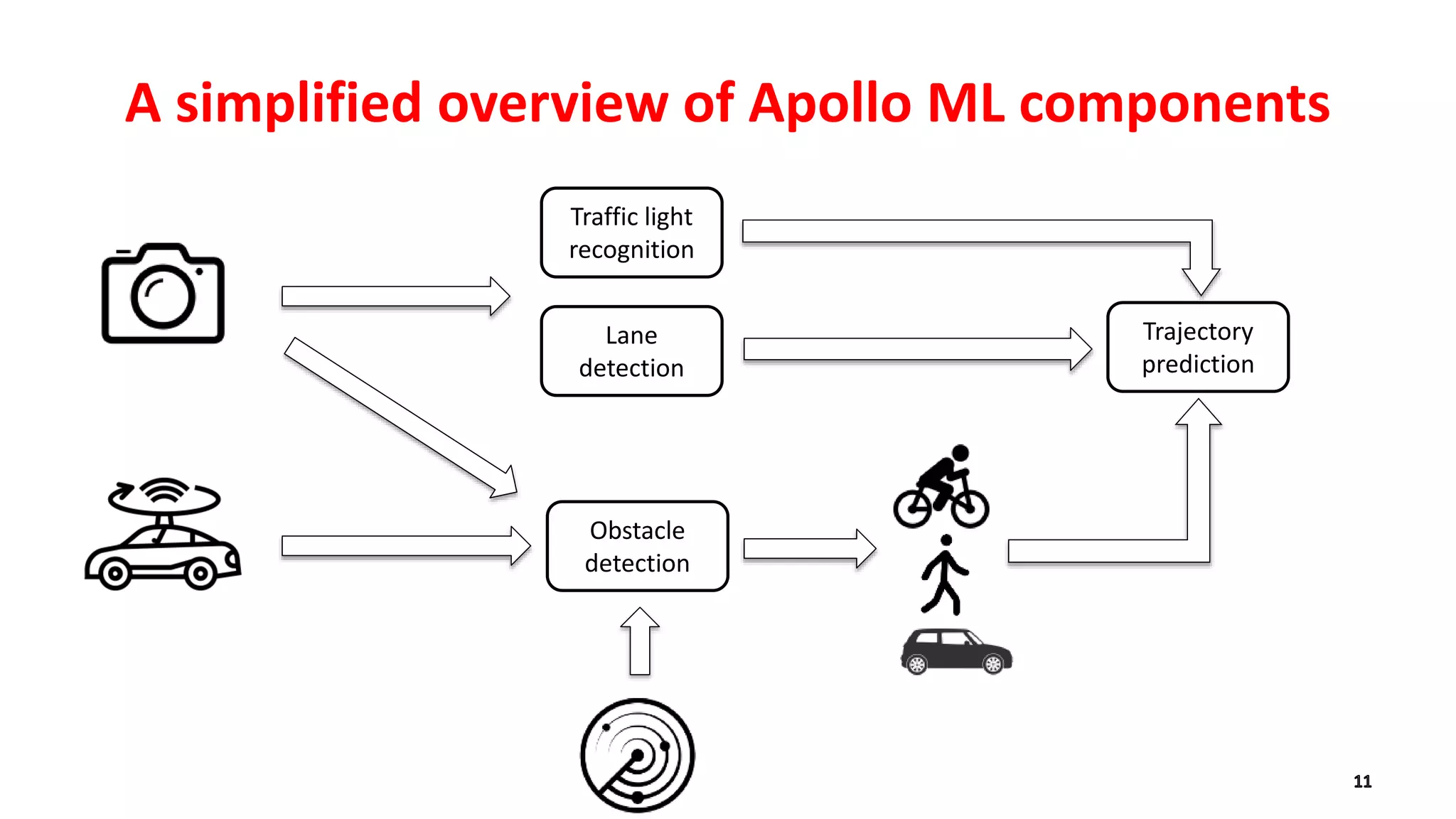

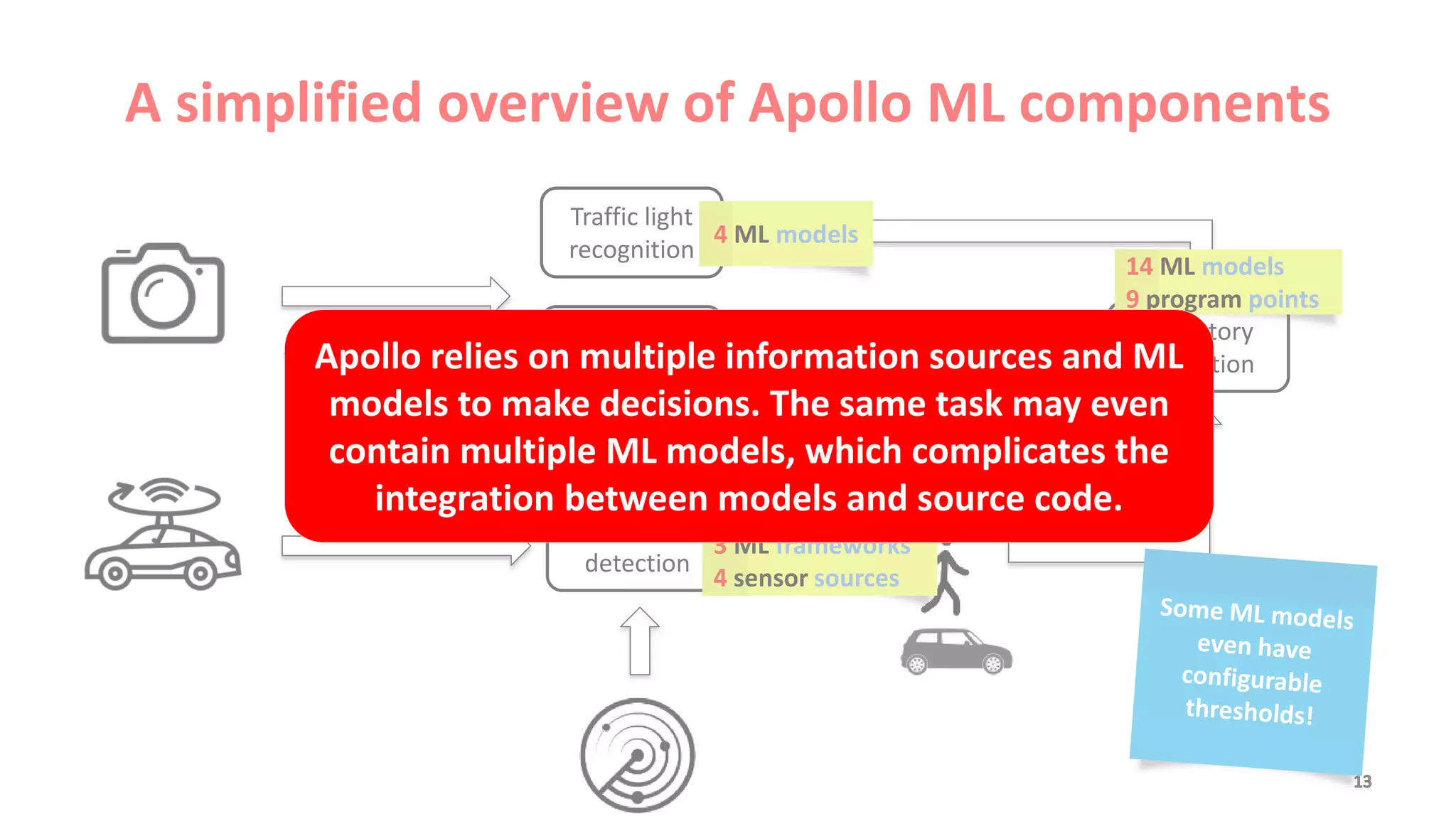

- 11. A simplified overviewof Apollo ML components Traffic light recognition Lane detection Obstacle detection Trajectory prediction

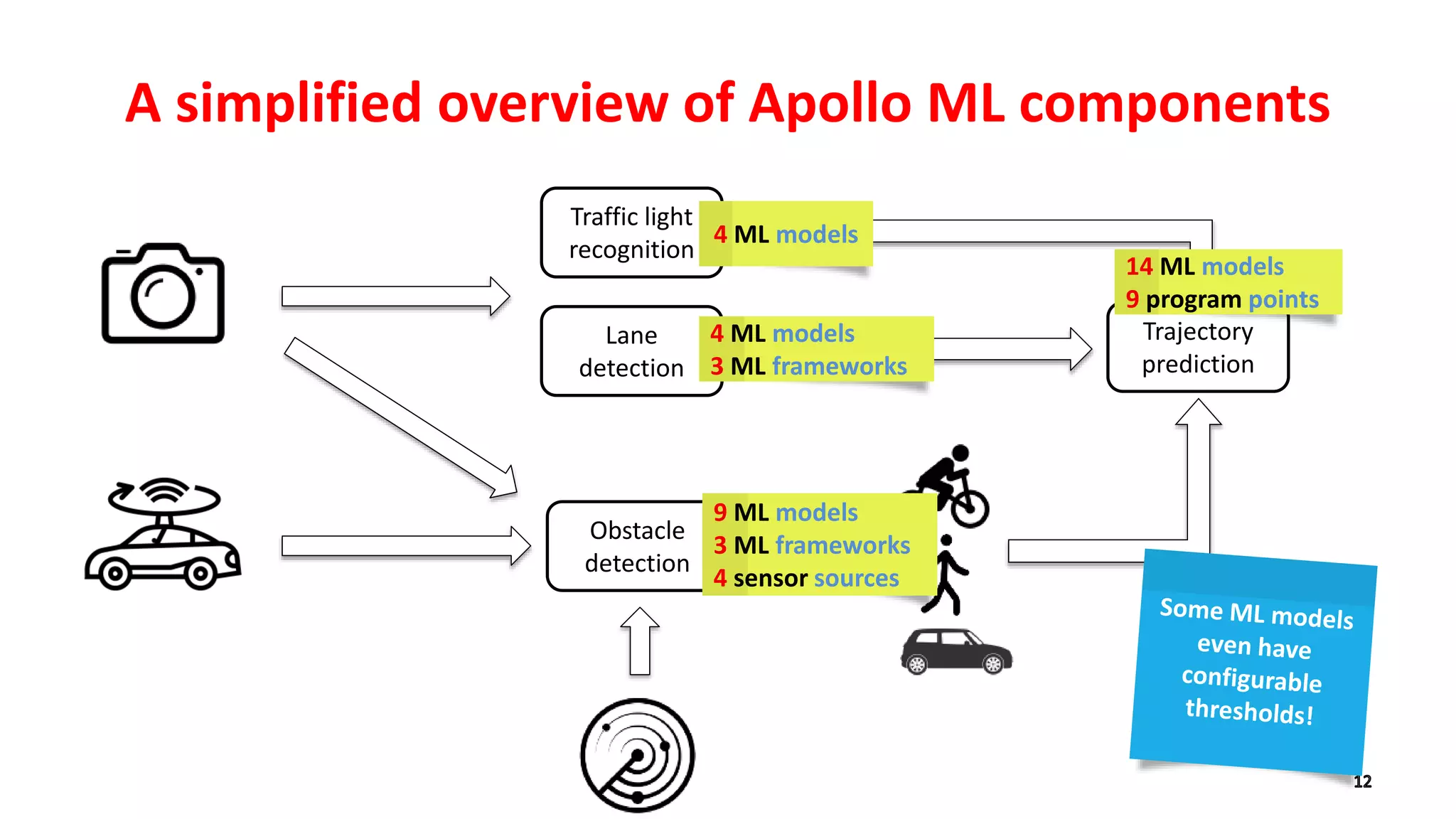

- 12. A simplified overviewof Apollo ML components Traffic light recognition Lane detection Obstacle detection Trajectory prediction 4 ML models 4 ML models 3 ML frameworks 9 ML models 3 ML frameworks 4 sensor sources 14 ML models 9 program points
- 13. A simplified overviewof Apollo ML components Traffic light recognition Lane detection Obstacle detection Trajectory prediction 4 ML models 4 ML models 3 ML frameworks 9 ML models 3 ML frameworks 4 sensor sources 14 ML models 9 program points Apollo relies on multiple information sources and ML models to make decisions. The same task may even contain multiple ML models, which complicates the integration between models and source code.
- 14. ML models areinterconnected in Apollo The outputs from the ML models are used as inputs for another ML model. ML model outputs are used to post- process or combine with outputs from other ML models. ML models are chosen based on the current scenario.
- 15. Developers provides somesafety nets to ML model outputs • Filtering out invalid outputs based on heuristics – E.g., The area of the detected traffic light is negative. • Using algorithms to correct ML model – E.g., Consider time-sensitive constraints to revise detected traffic light color.
- 16. Developers provides somesafety nets to ML model outputs • Filtering out invalid outputs based on heuristics – E.g., The area of the detected traffic light is negative • Using algorithms to correct ML model – E.g., Consider time-sensitive constraints to revise detected traffic light color Most existing research only focuses on unit testing individual ML model. More research is needed for testing and quality assurance of model integration.
- 17. How are MLmodels used and integrated with code? Studying usage and integration of ML models in the code How well tested is ML- related code? The ML models are configurable, interconnected, and safeguarded by code logic.

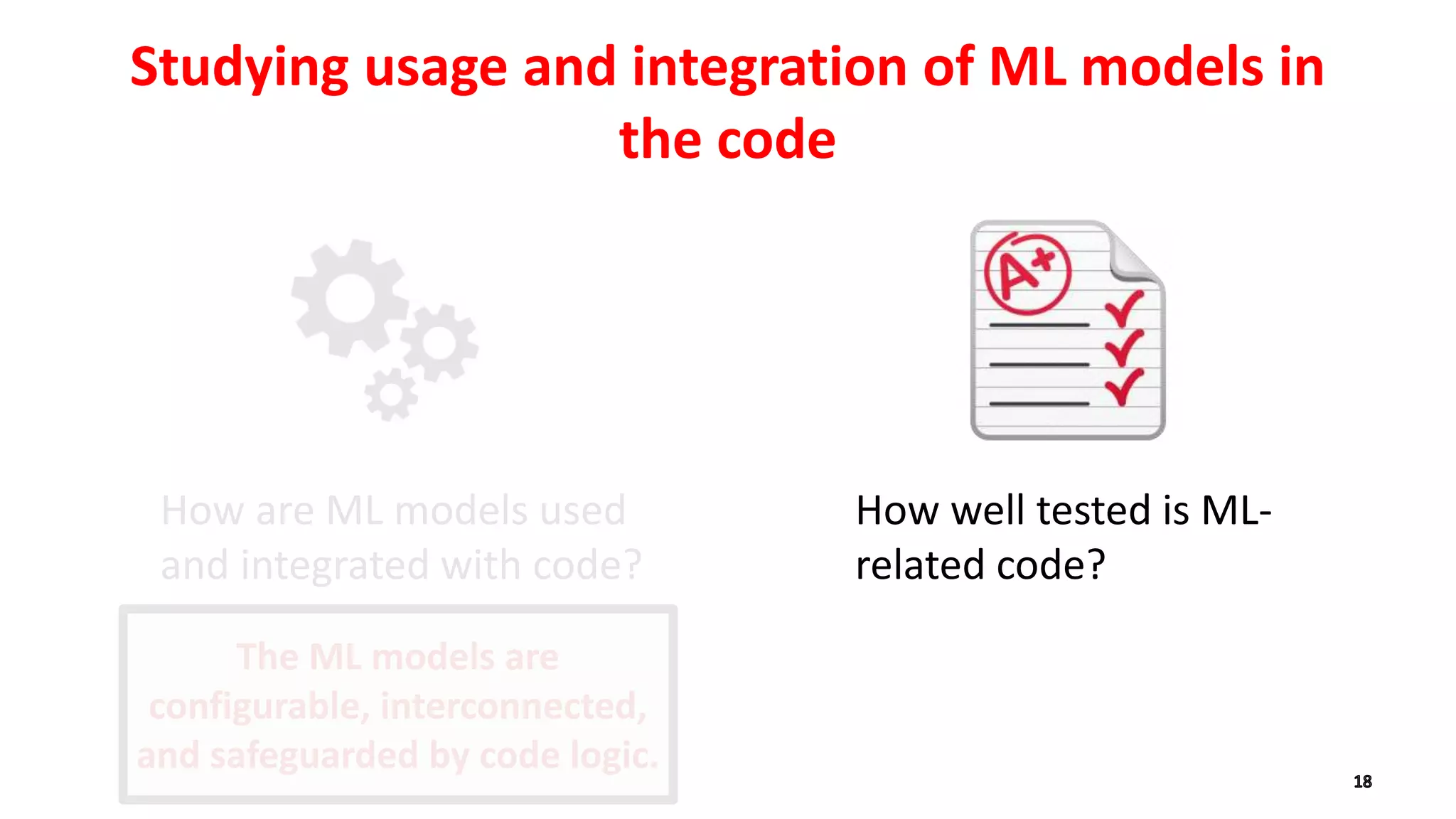

- 18. How are MLmodels used and integrated with code? Studying usage and integration of ML models in the code How well tested is ML- related code? The ML models are configurable, interconnected, and safeguarded by code logic.

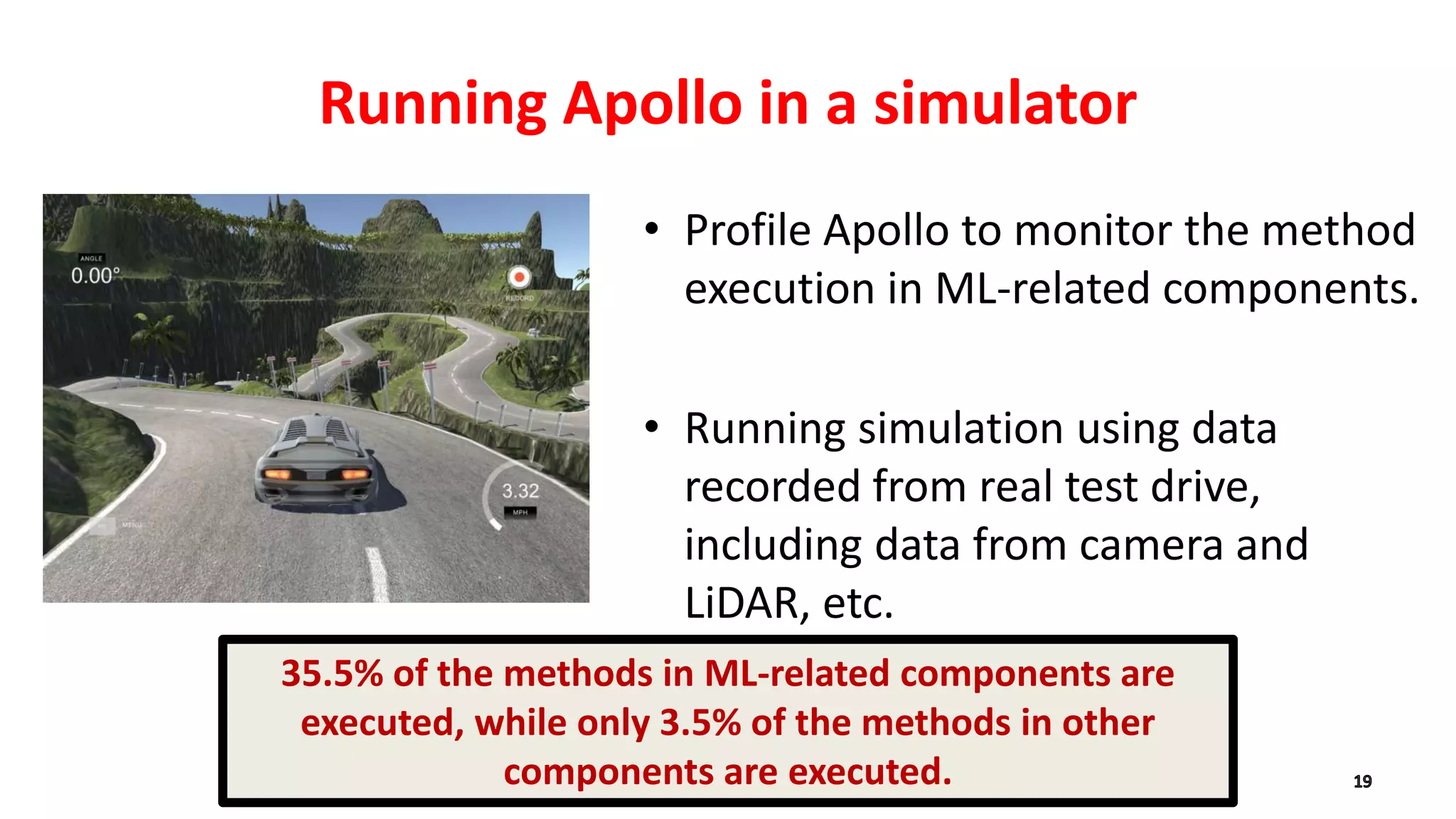

- 19. Running Apollo ina simulator • Profile Apollo to monitor the method execution in ML-related components. • Running simulation using data recorded from real test drive, including data from camera and LiDAR, etc. 35.5% of the methods in ML-related components are executed, while only 3.5% of the methods in other components are executed.

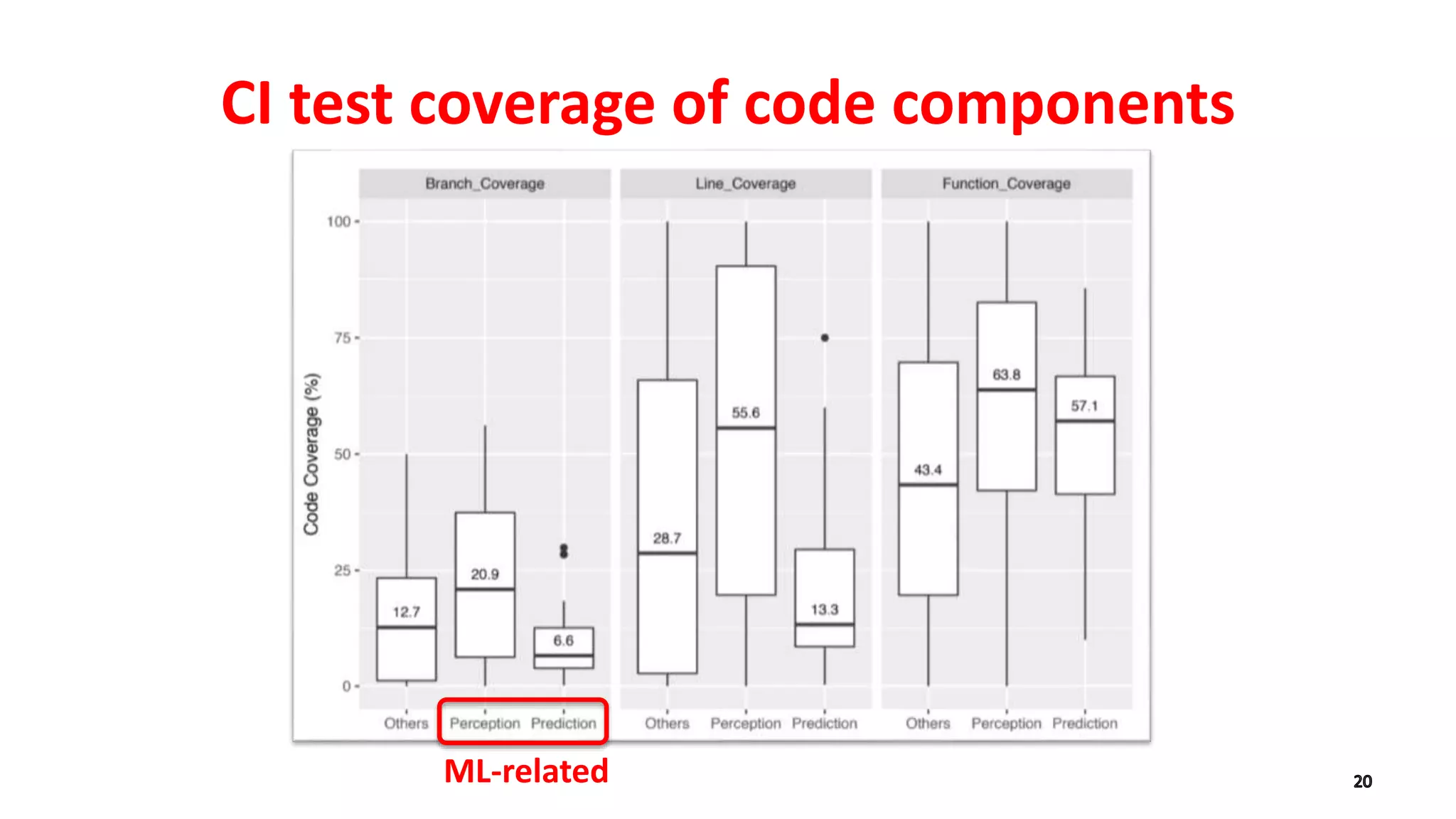

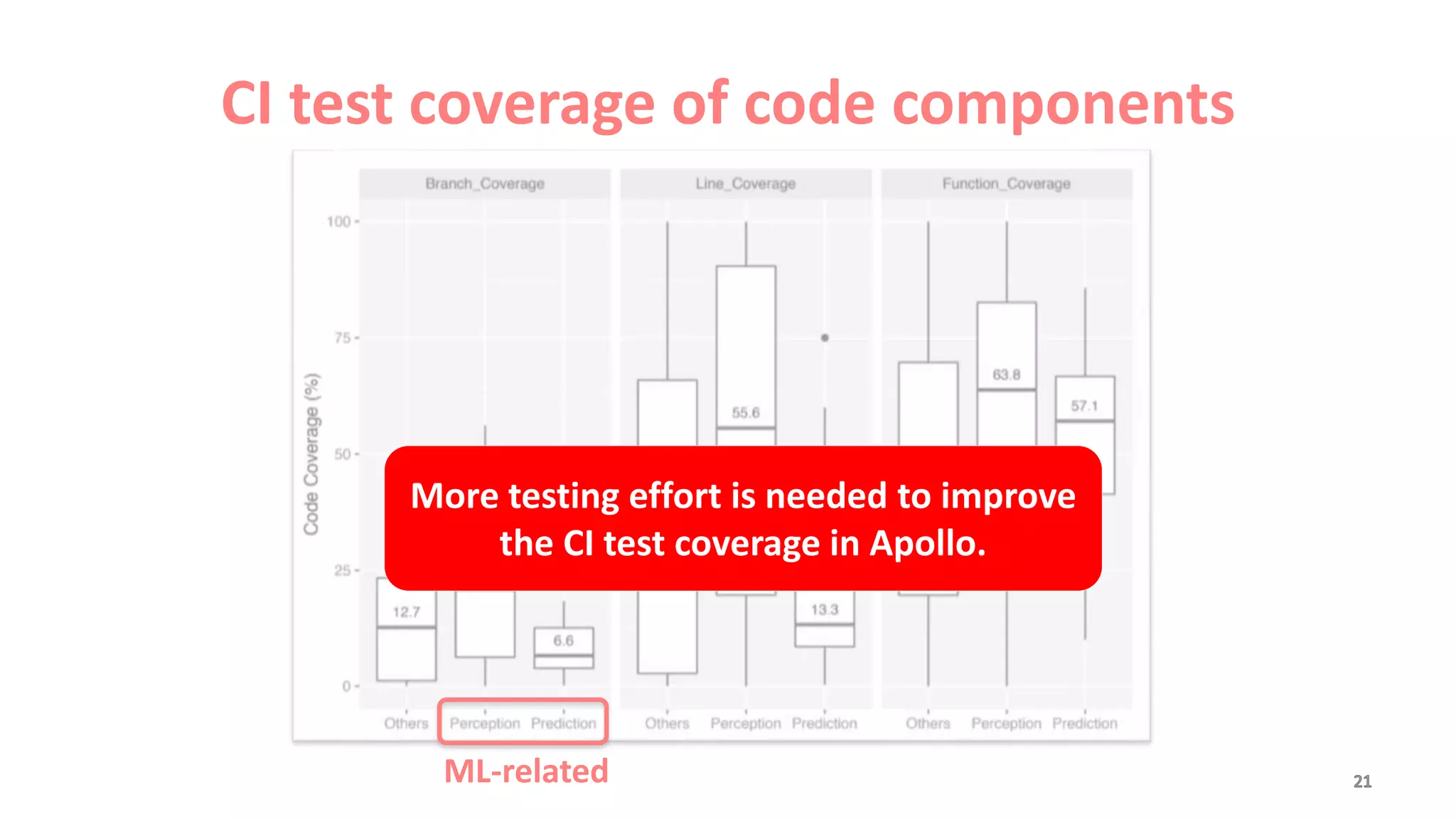

- 20. CI test coverageof code components ML-related

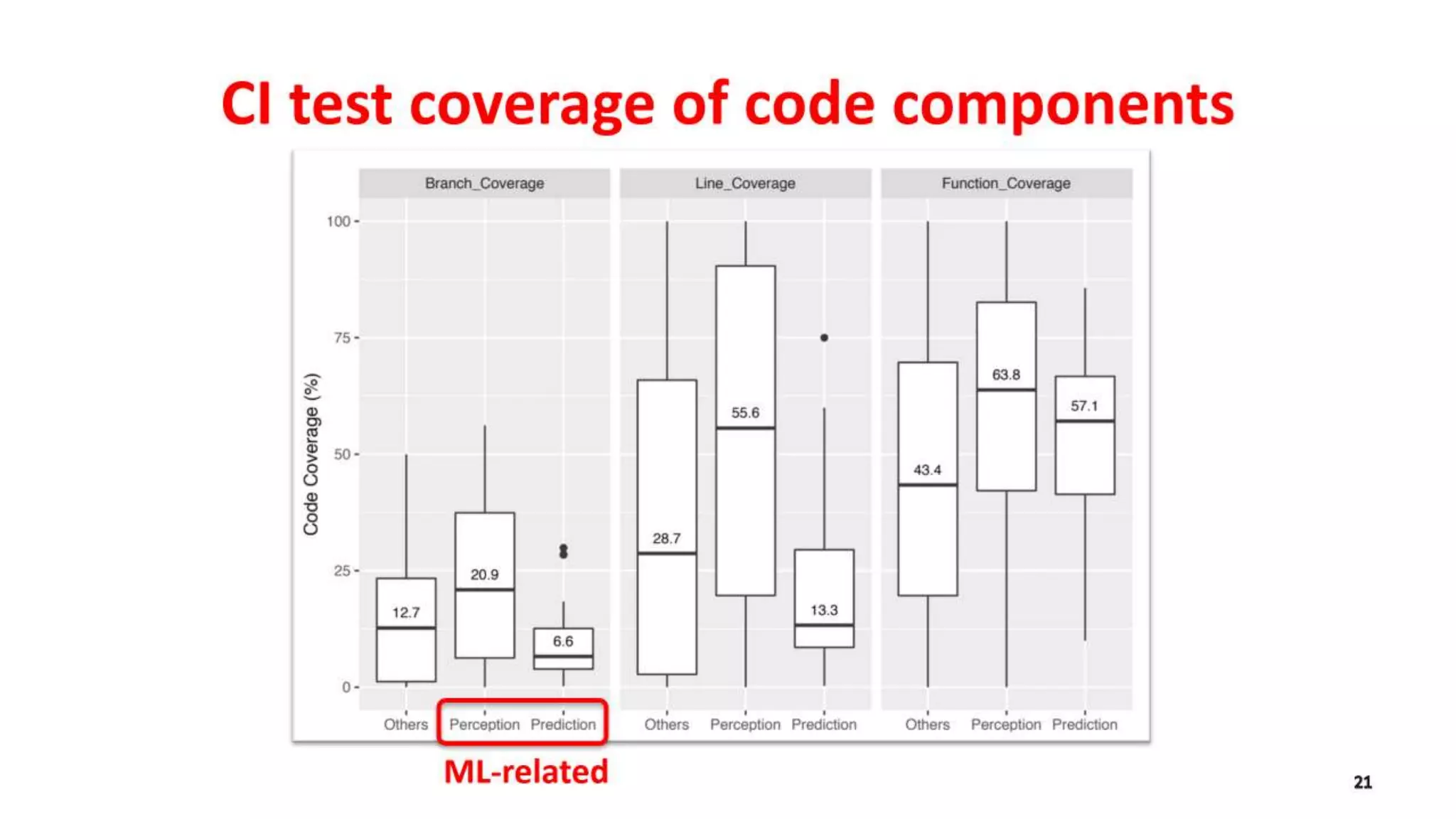

- 21. CI test coverageof code components ML-related More testing effort is needed to improve the CI test coverage in Apollo.

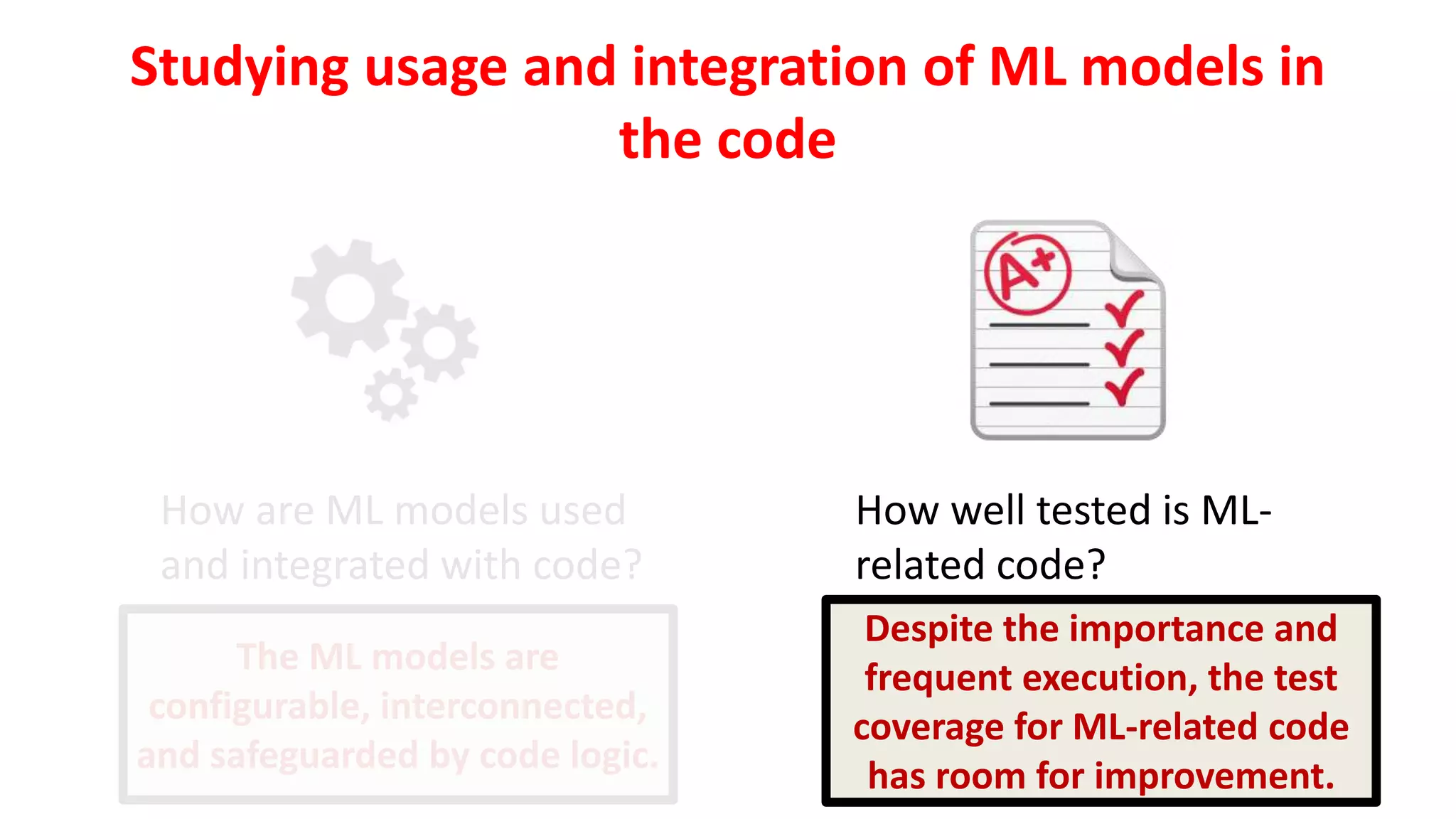

- 22. How are MLmodels used and integrated with code? Studying usage and integration of ML models in the code How well tested is ML- related code? The ML models are configurable, interconnected, and safeguarded by code logic. Despite the importance and frequent execution, the test coverage for ML-related code has room for improvement.
