Introduction to RDF and RDFS Mark Birbeck http://webBackplane.com/mark-birbeck
RDF...a four letter word

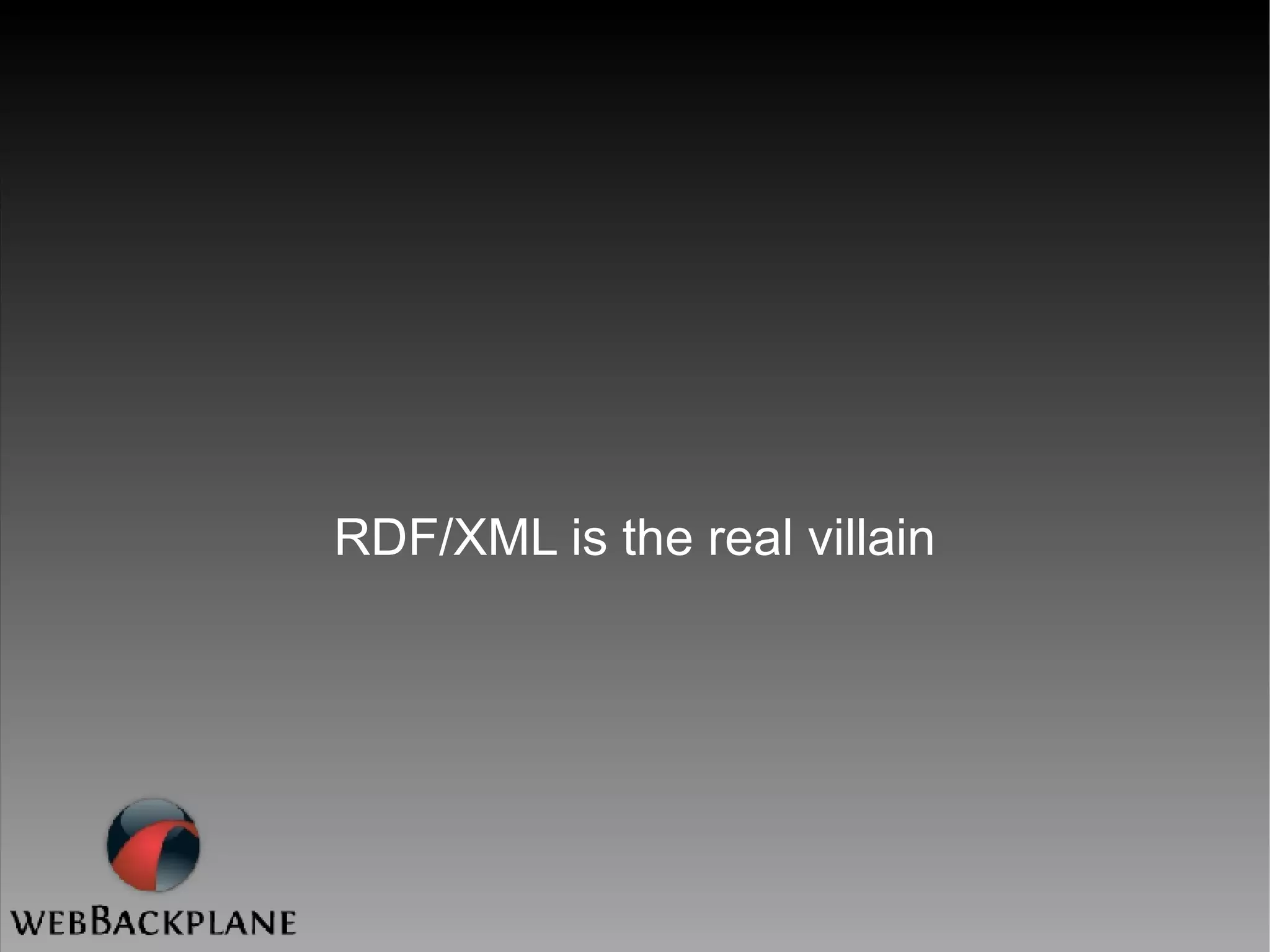

RDF/XML is the real villain
The promise of XML
RDF Documents Primer Concepts Syntax Semantics Vocabulary Test cases

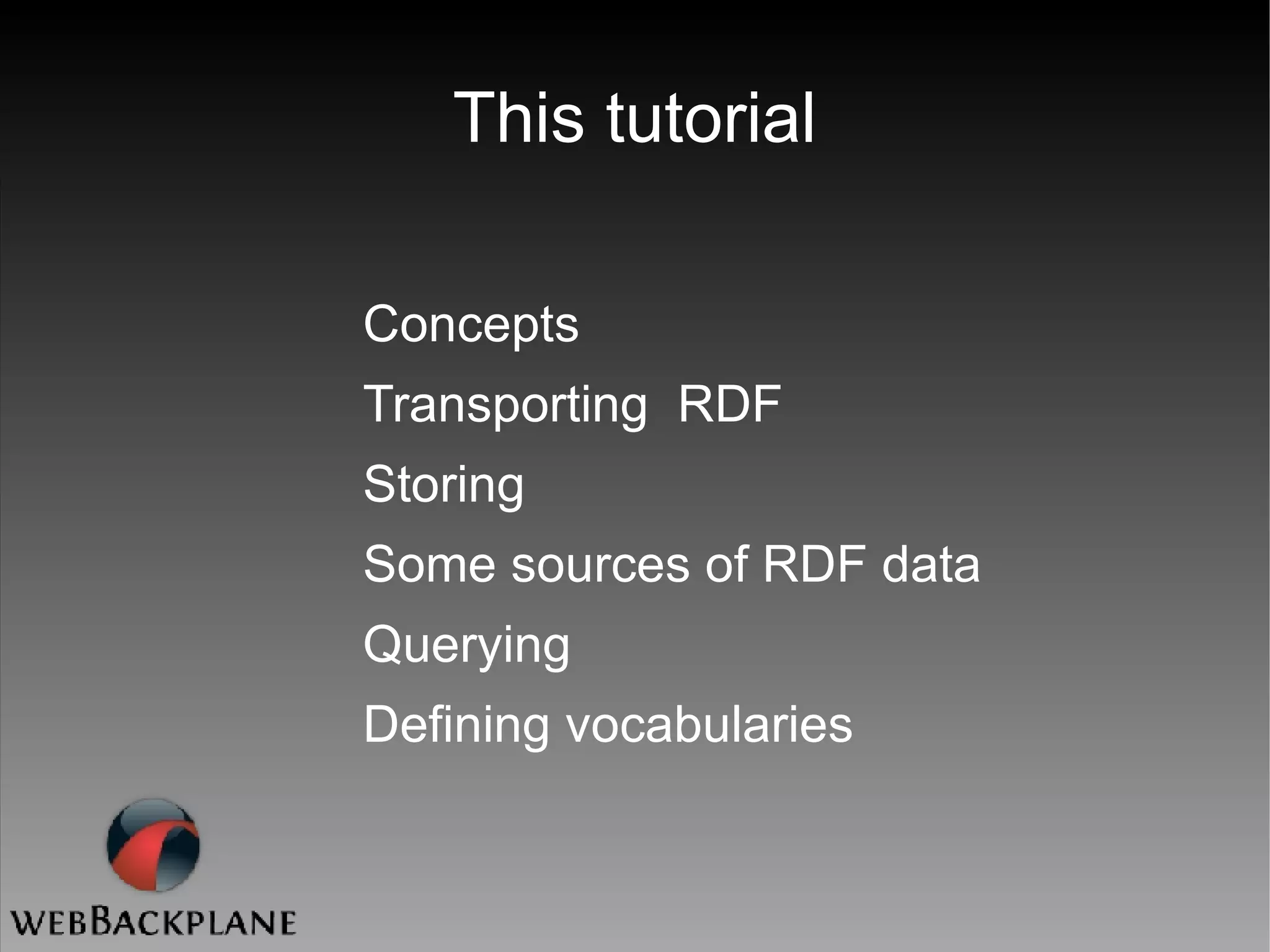

This tutorial Concepts Transporting  RDF Storing Some sources of RDF data Querying Defining vocabularies
Metadata: data about data

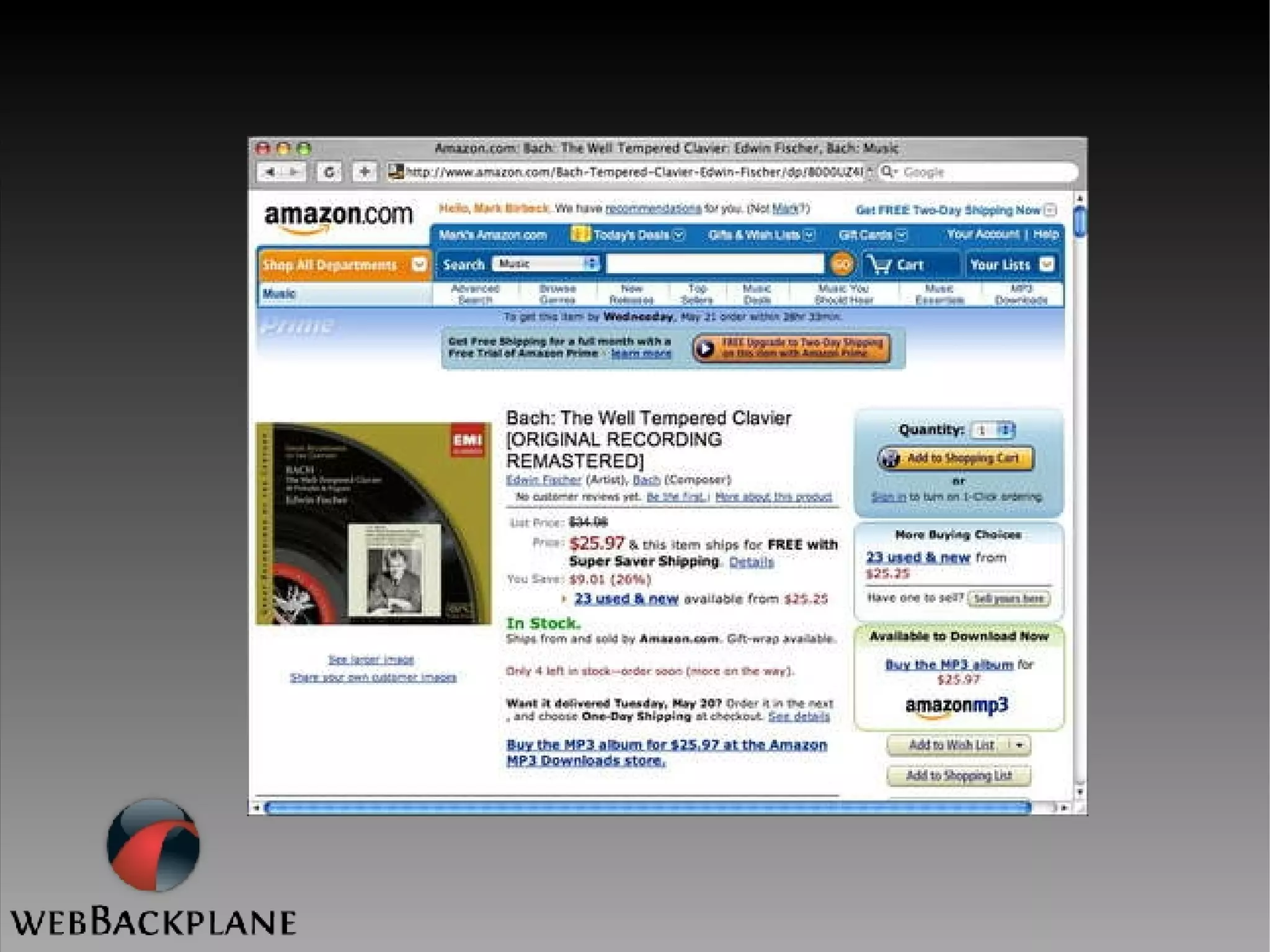

Getting data from the web is easy...getting metadata is hard

XML was supposed to give us this information

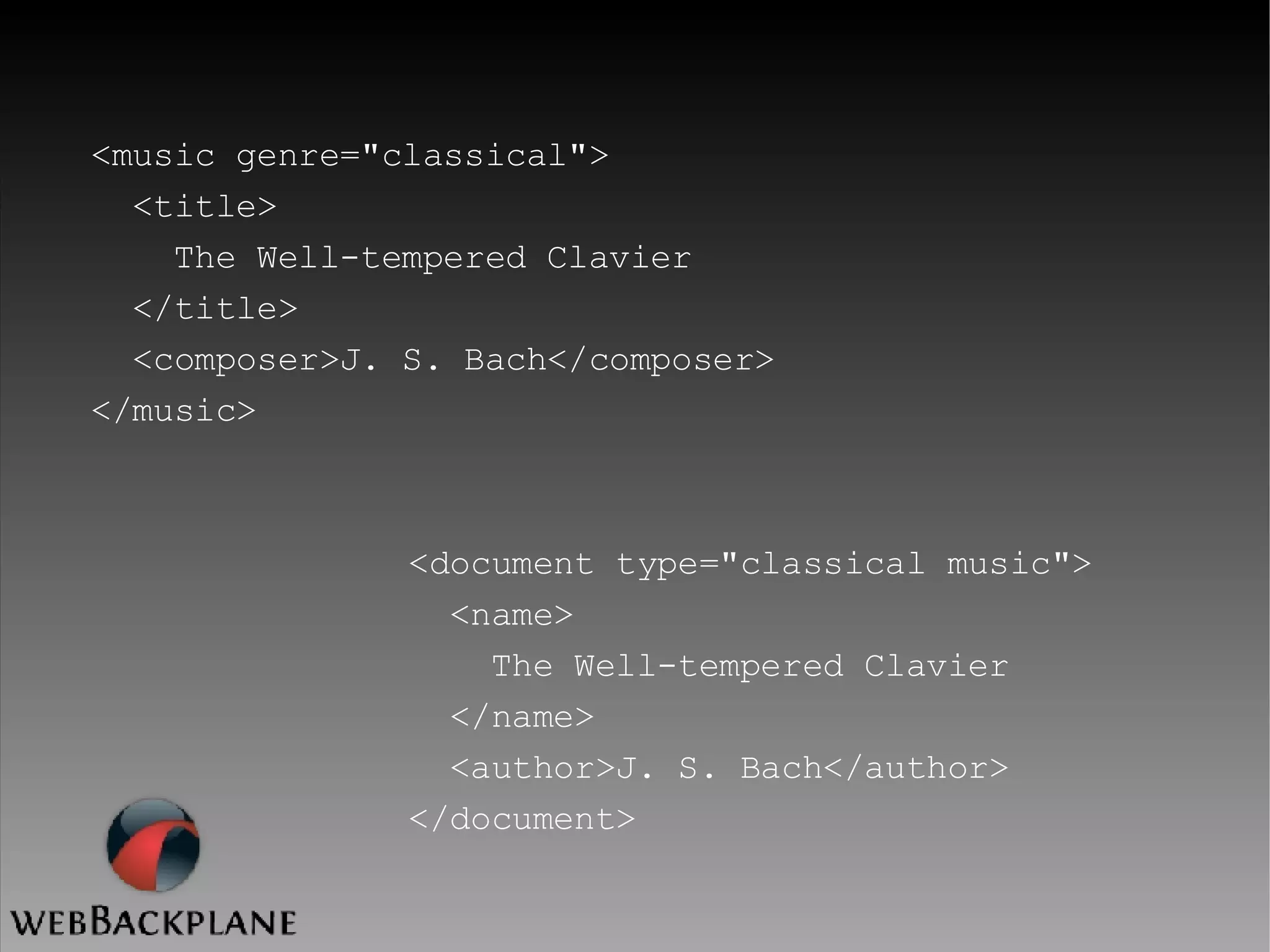

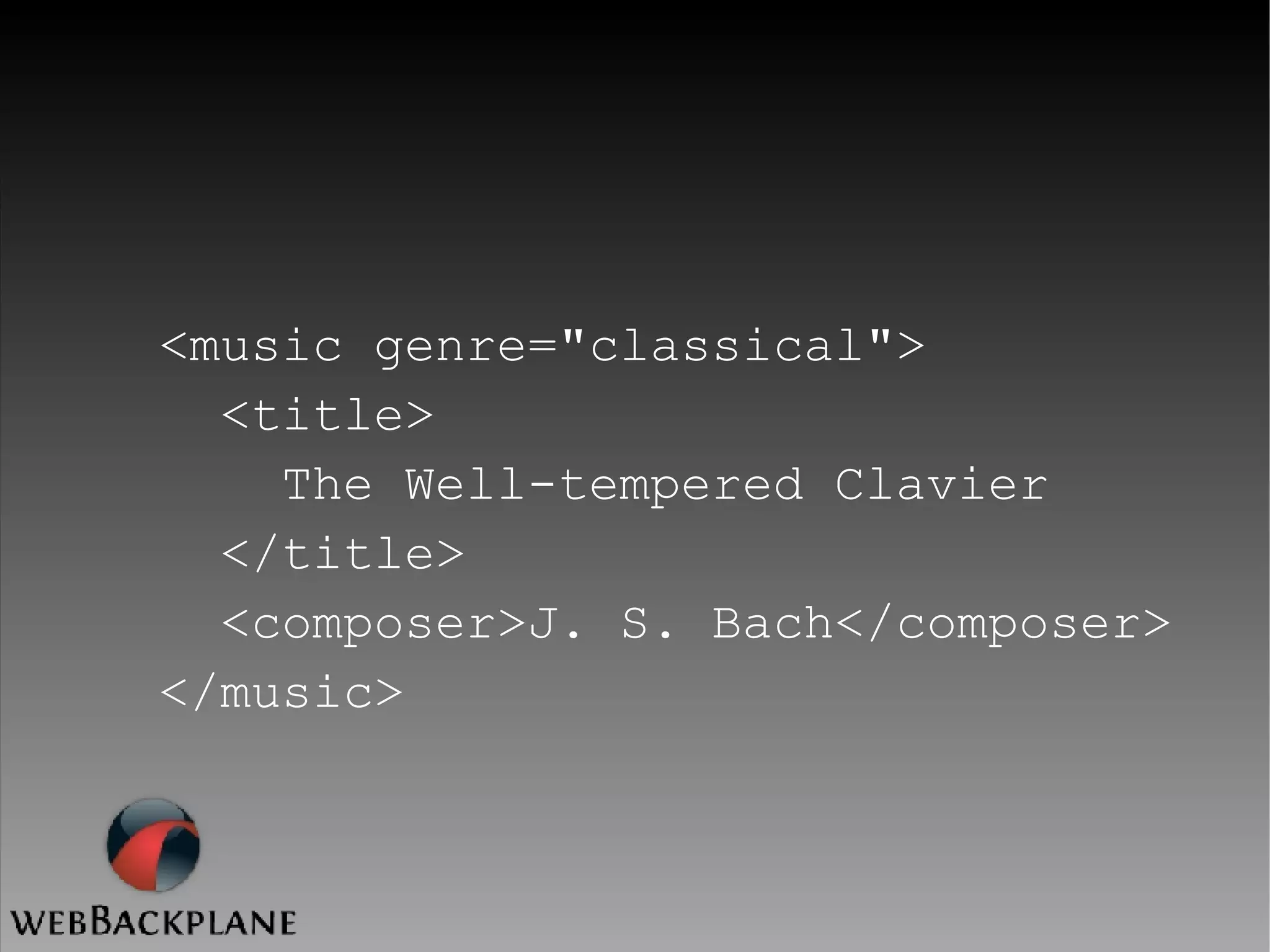

<music genre=&quot;classical&quot;> <title> The Well-tempered Clavier </title> <composer>J. S. Bach</composer> </music>
Why has XML not delivered?

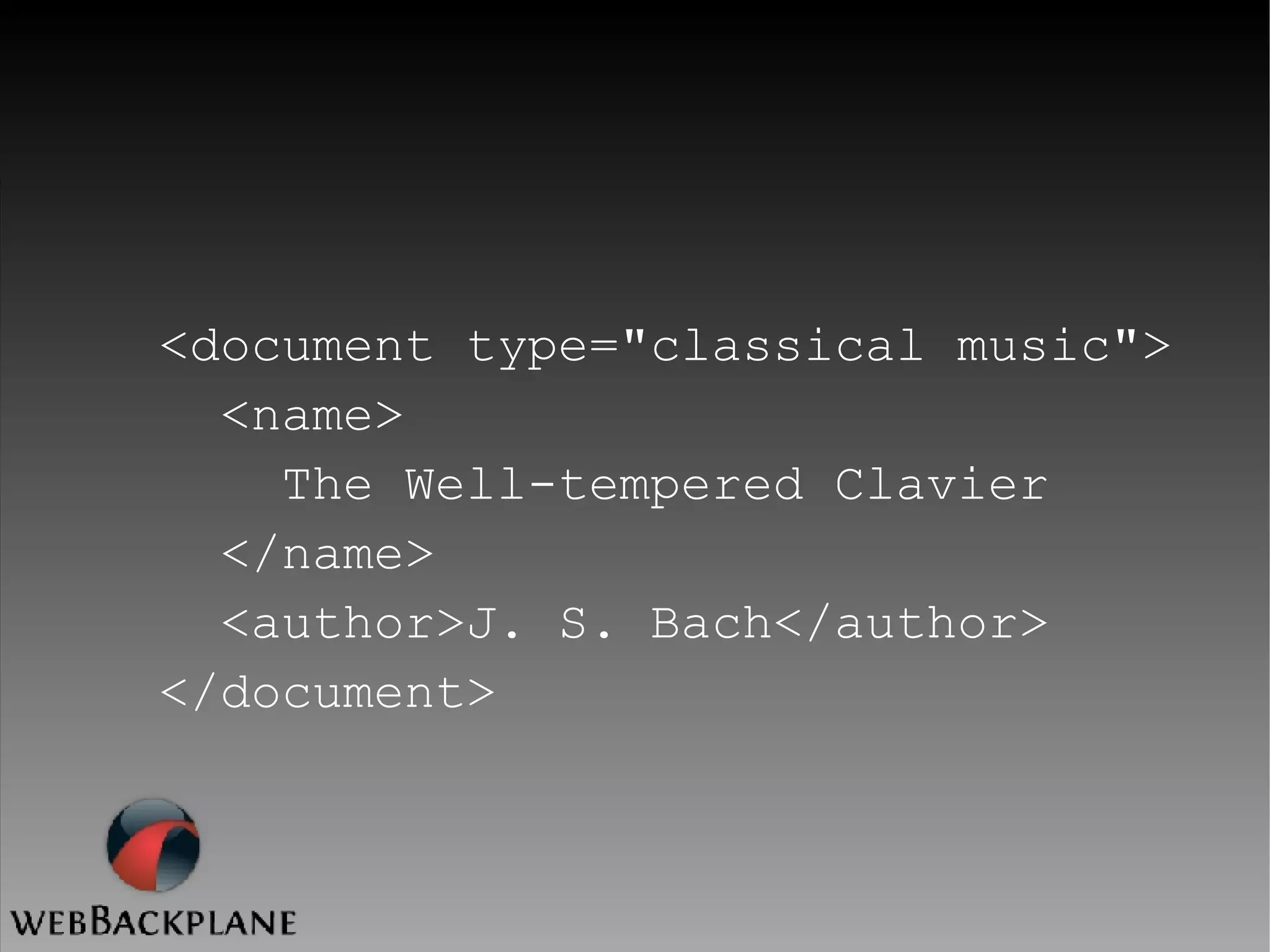

<document type=&quot;classical music&quot;> <name> The Well-tempered Clavier </name> <author>J. S. Bach</author> </document>
We want to say: &quot;give me everything   created by   J. S. Bach&quot;
To achieve that we need to agree how to  say ' created by ' in any  document

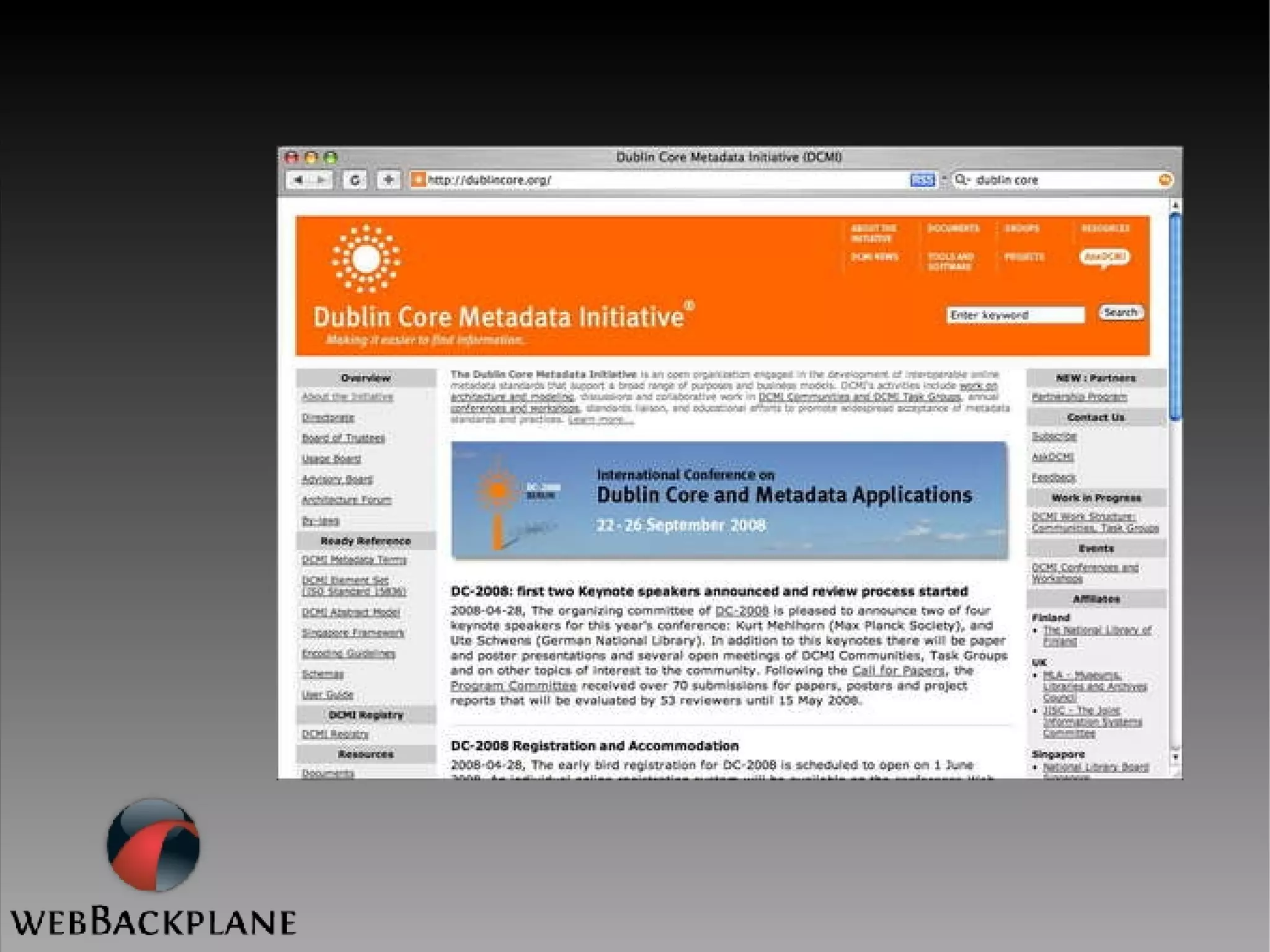

Dublin, Ohio Photo by Sleestak66: http://www.flickr.com/people/kesselring/

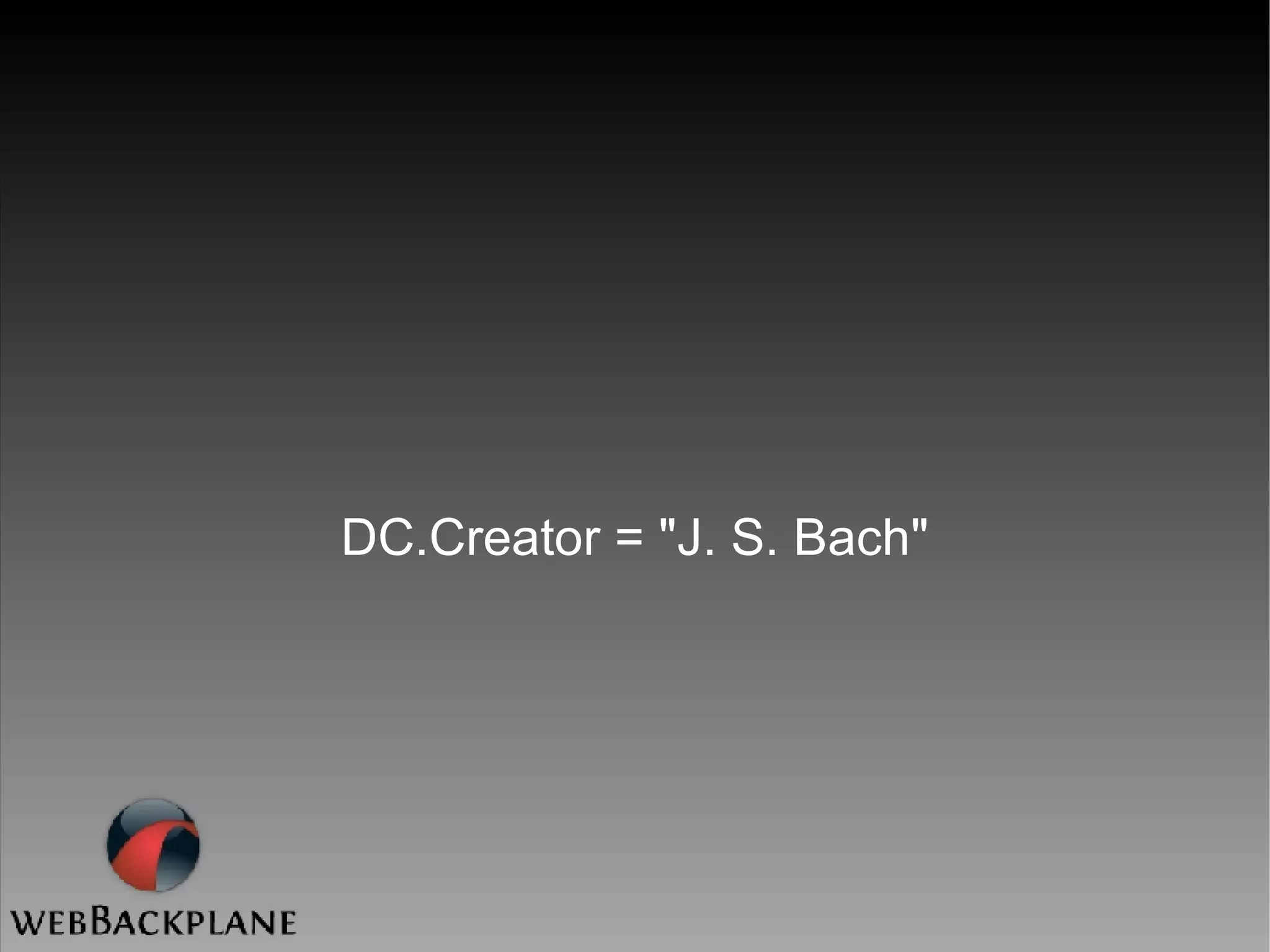

DC.Creator = &quot;J. S. Bach&quot;

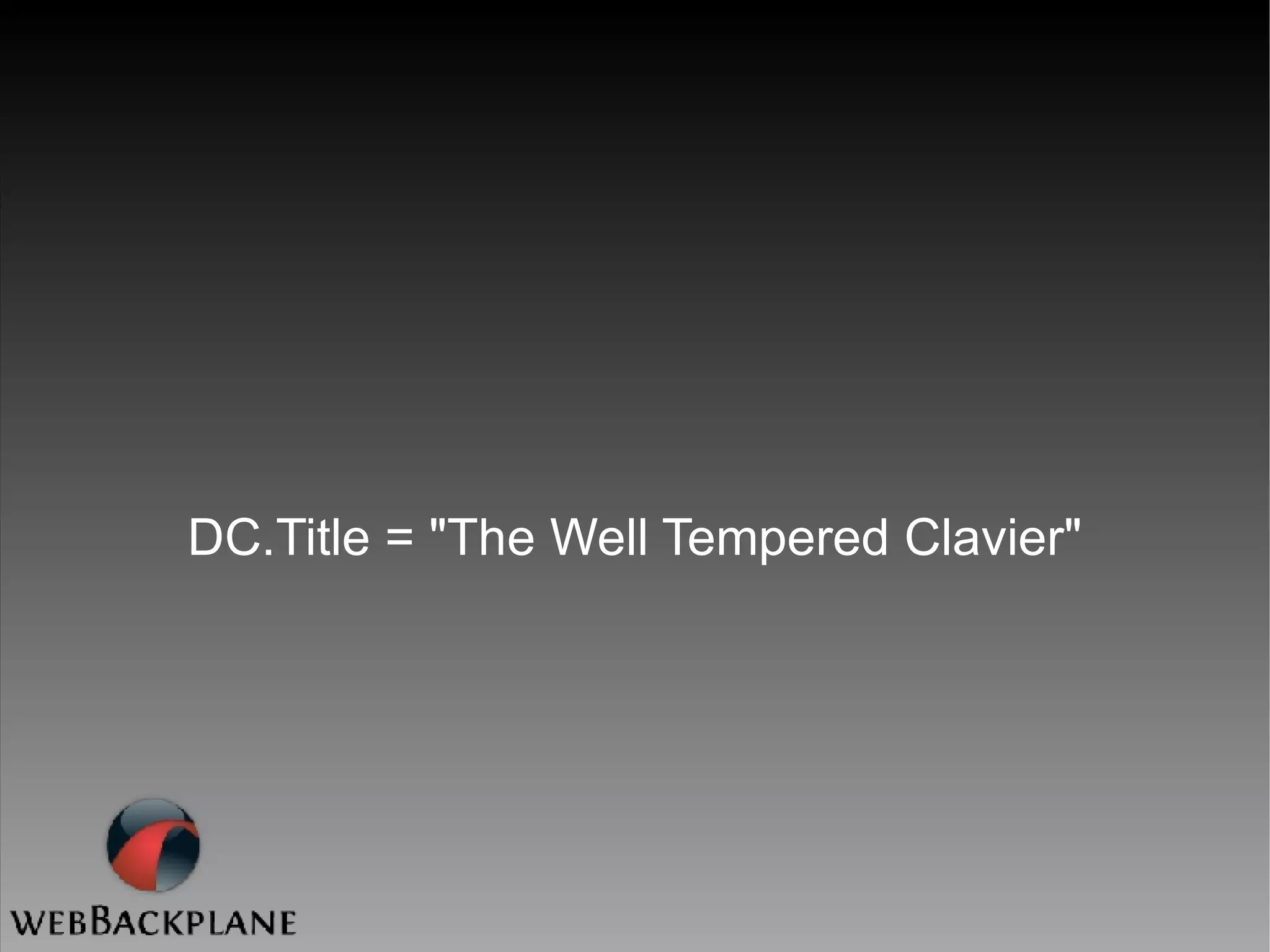

DC.Title = &quot;The Well Tempered Clavier&quot;

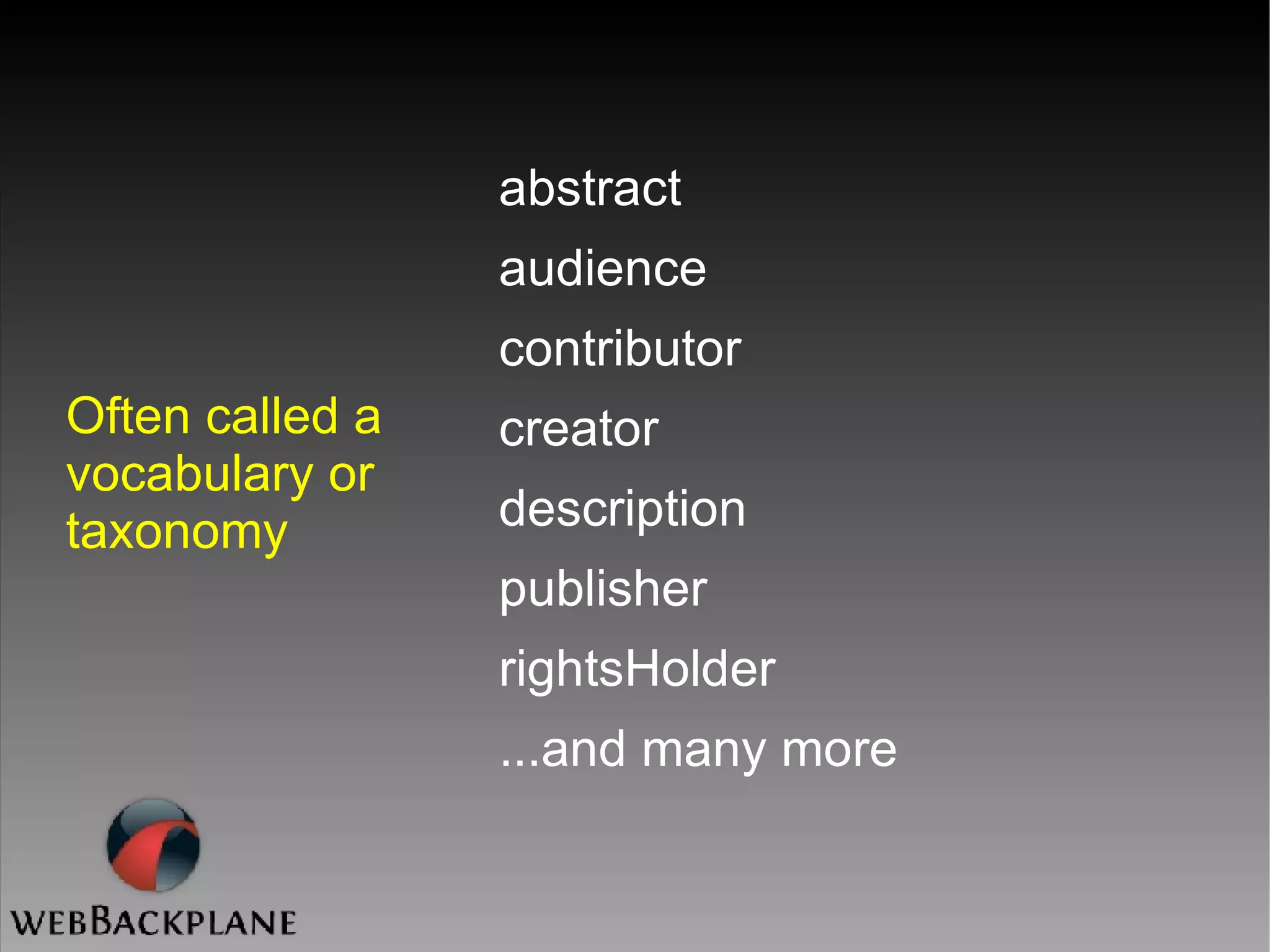

abstract audience contributor creator description publisher rightsHolder ...and many more Often called a vocabulary or taxonomy

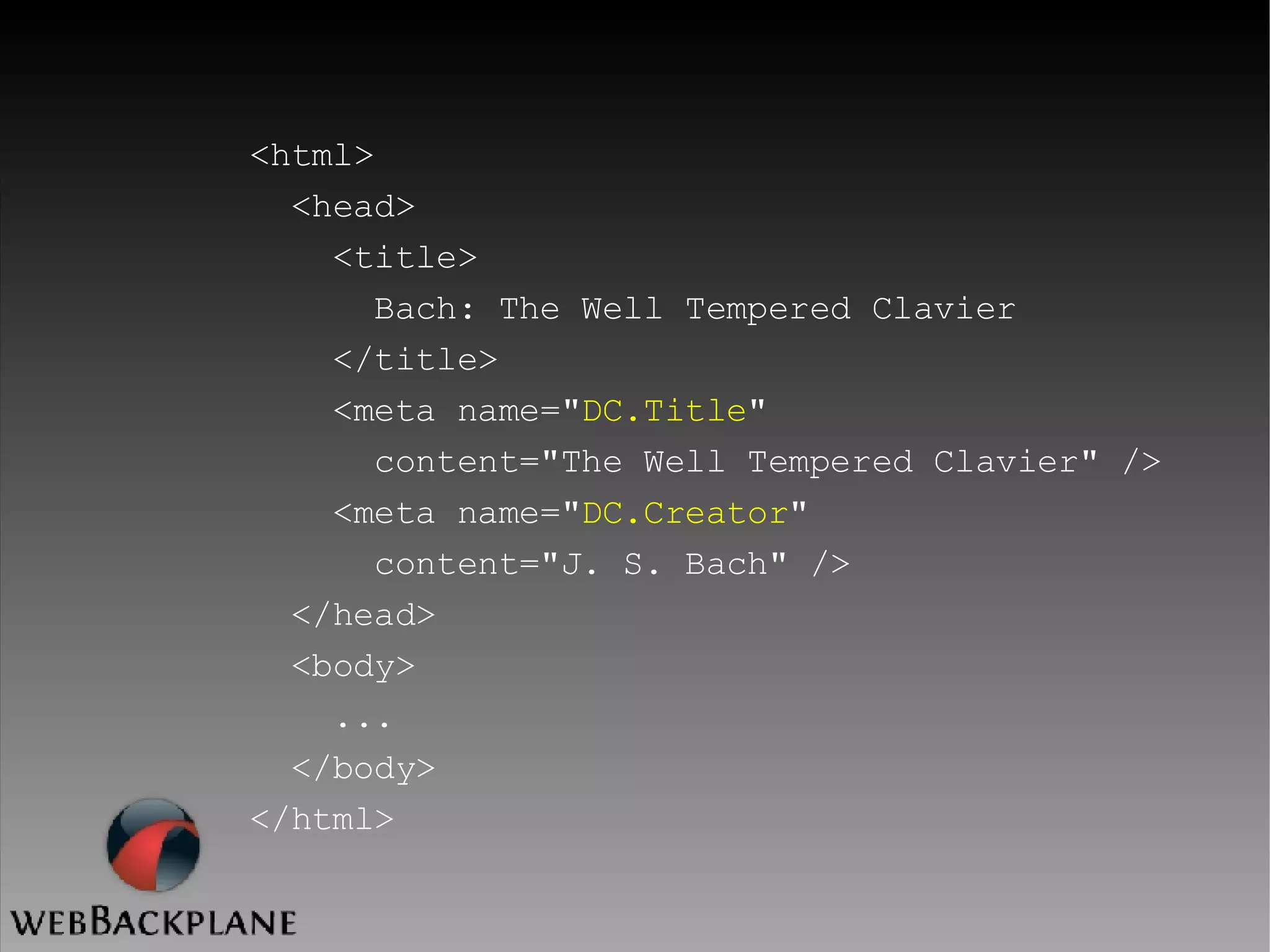

<html> <head> <title> Bach: The Well Tempered Clavier </title> <meta name=&quot; DC.Title &quot; content=&quot;The Well Tempered Clavier&quot; /> <meta name=&quot; DC.Creator &quot; content=&quot;J. S. Bach&quot; /> </head> <body> ... </body> </html>

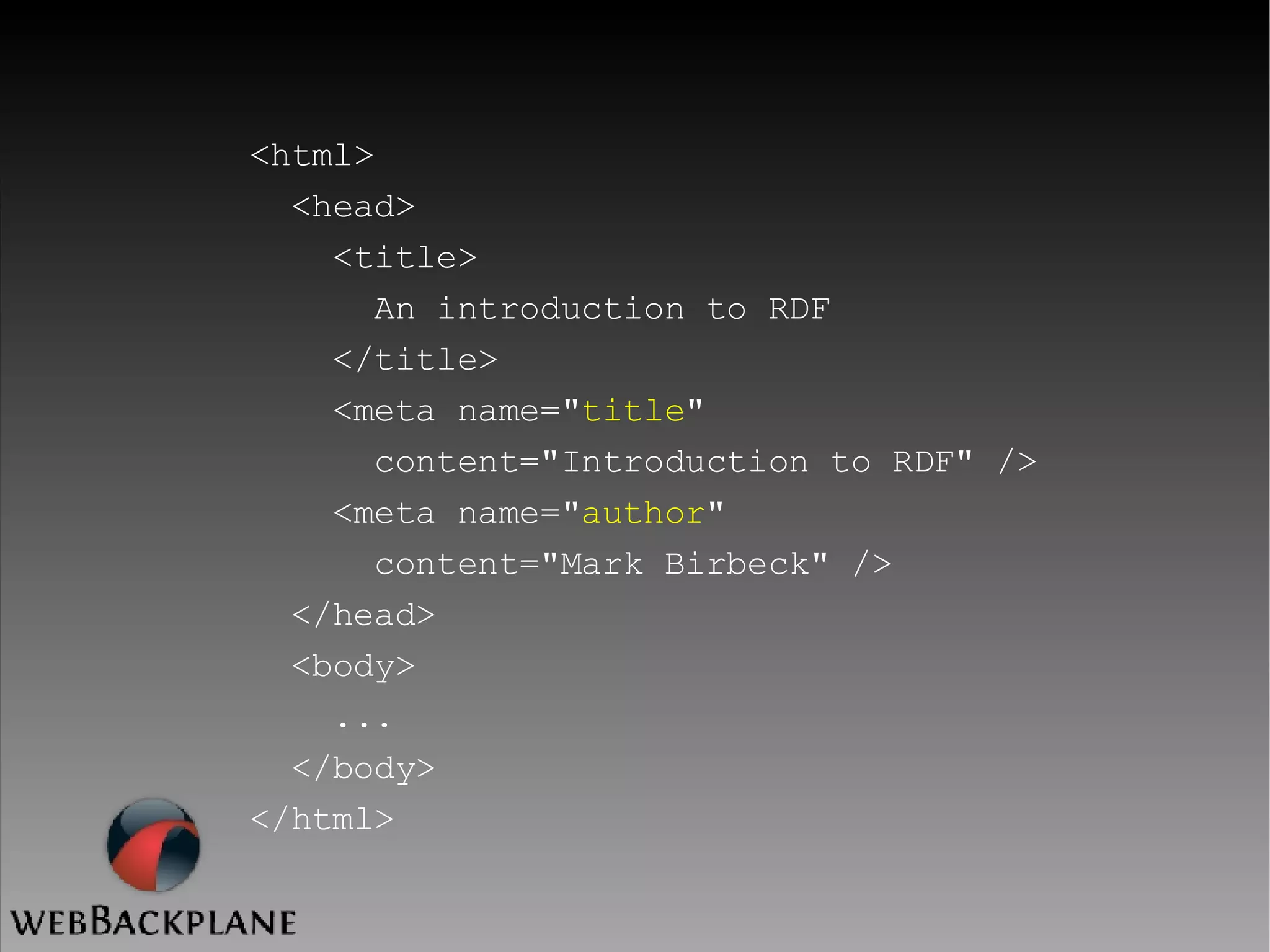

<html> <head> <title> An introduction to RDF </title> <meta name=&quot; title &quot; content=&quot;Introduction to RDF&quot; /> <meta name=&quot; author &quot; content=&quot;Mark Birbeck&quot; /> </head> <body> ... </body> </html>
<html> <head> <title> An introduction to RDF </title> <meta name=&quot; DC.Title &quot; content=&quot;Introduction to RDF&quot; /> <meta name=&quot; DC.Creator &quot; content=&quot;Mark Birbeck&quot; /> </head> <body> ... </body> </html>
<music genre=&quot;classical&quot;> <title> The Well-tempered Clavier </title> <composer>J. S. Bach</composer> </music> <document type=&quot;classical music&quot;> <name> The Well-tempered Clavier </name> <author>J. S. Bach</author> </document>
<music genre=&quot;classical&quot;> <title> The Well-tempered Clavier </title> < dc:creator >J. S. Bach</ dc:creator > </music> <document type=&quot;classical music&quot;> <name> The Well-tempered Clavier </name> < dc:creator >J. S. Bach</ dc:creator > </document>

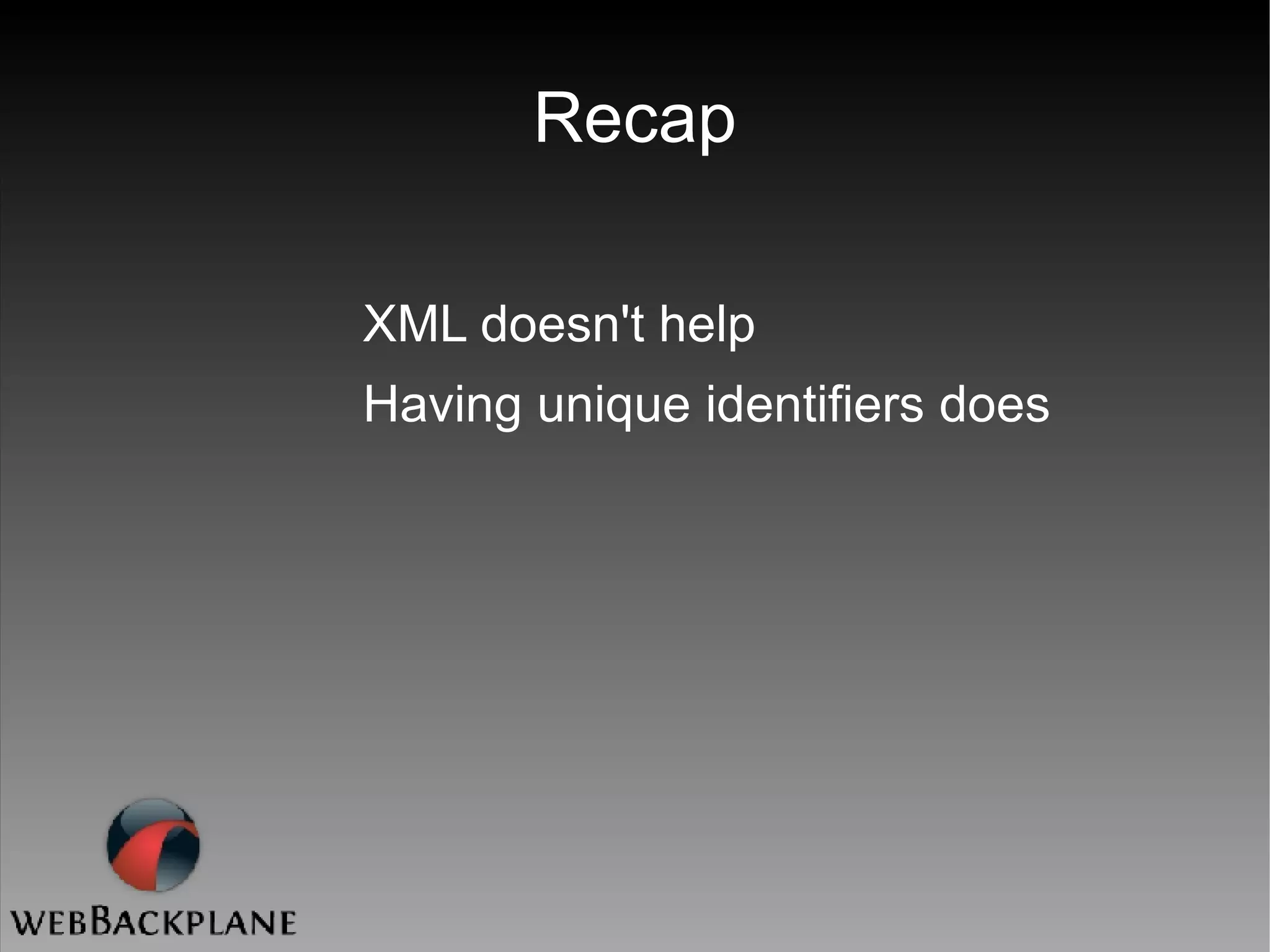

Recap XML doesn't help Having unique identifiers does

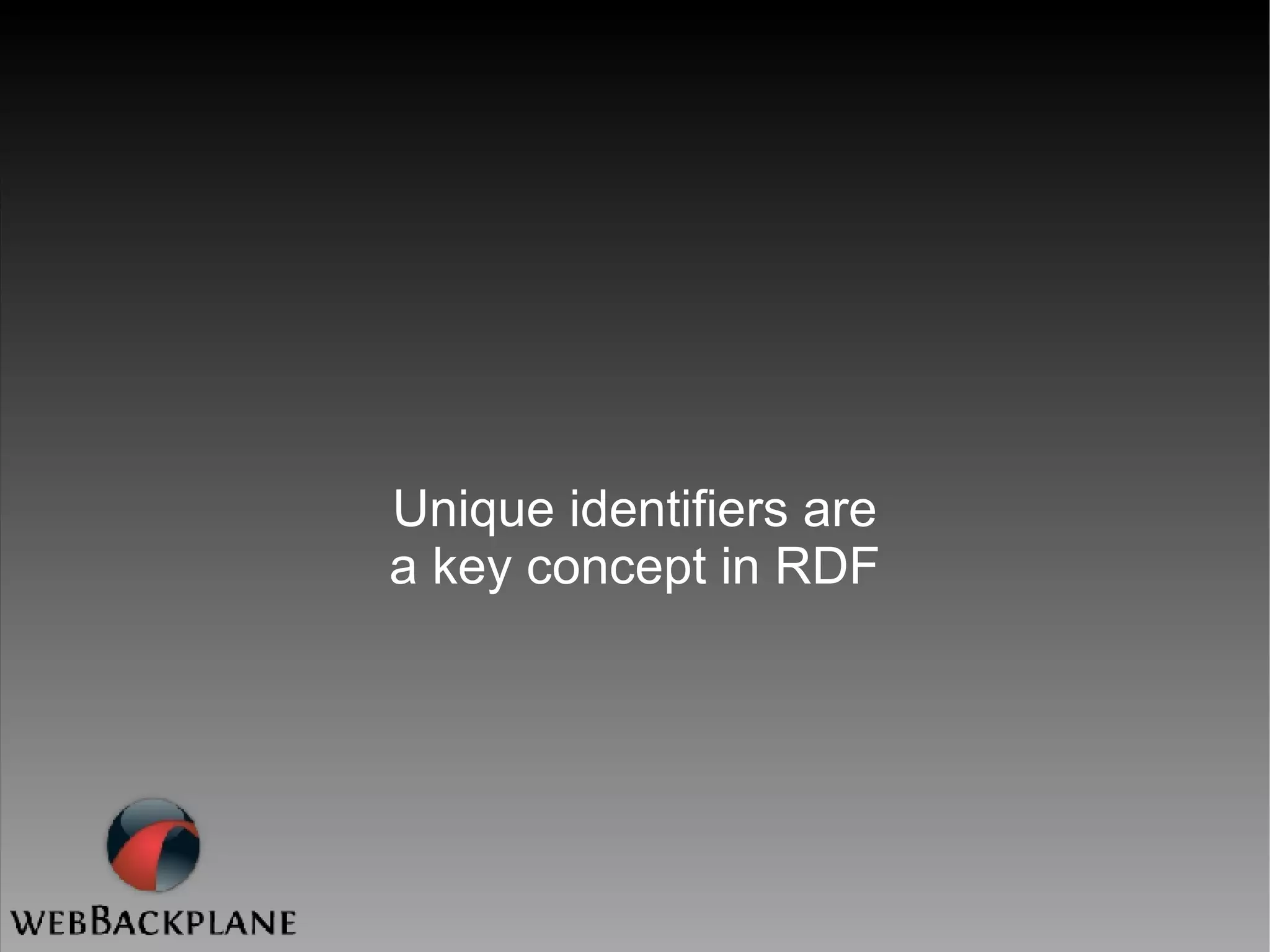

Unique identifiers are a key concept in RDF

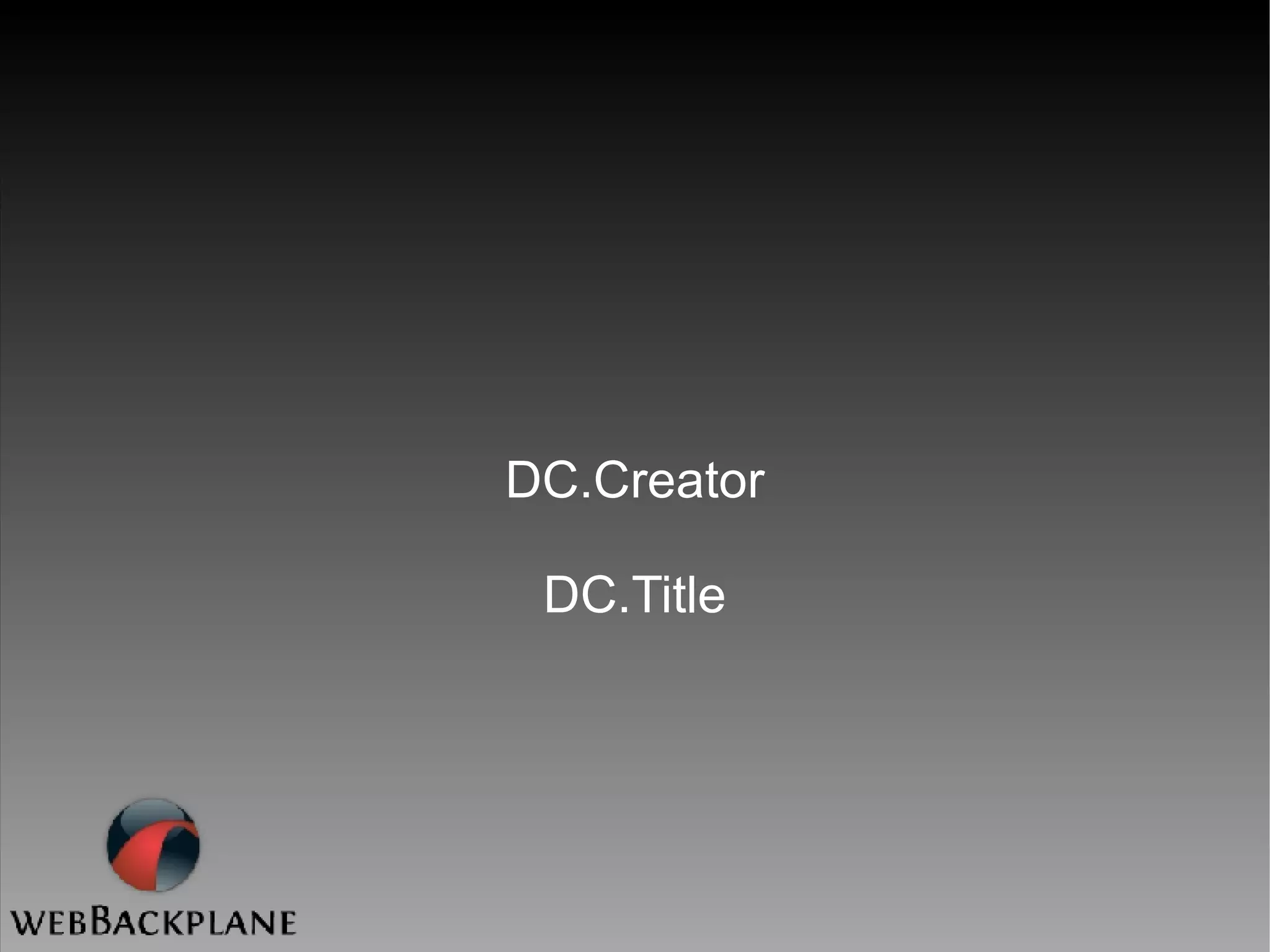

DC.Creator DC.Title

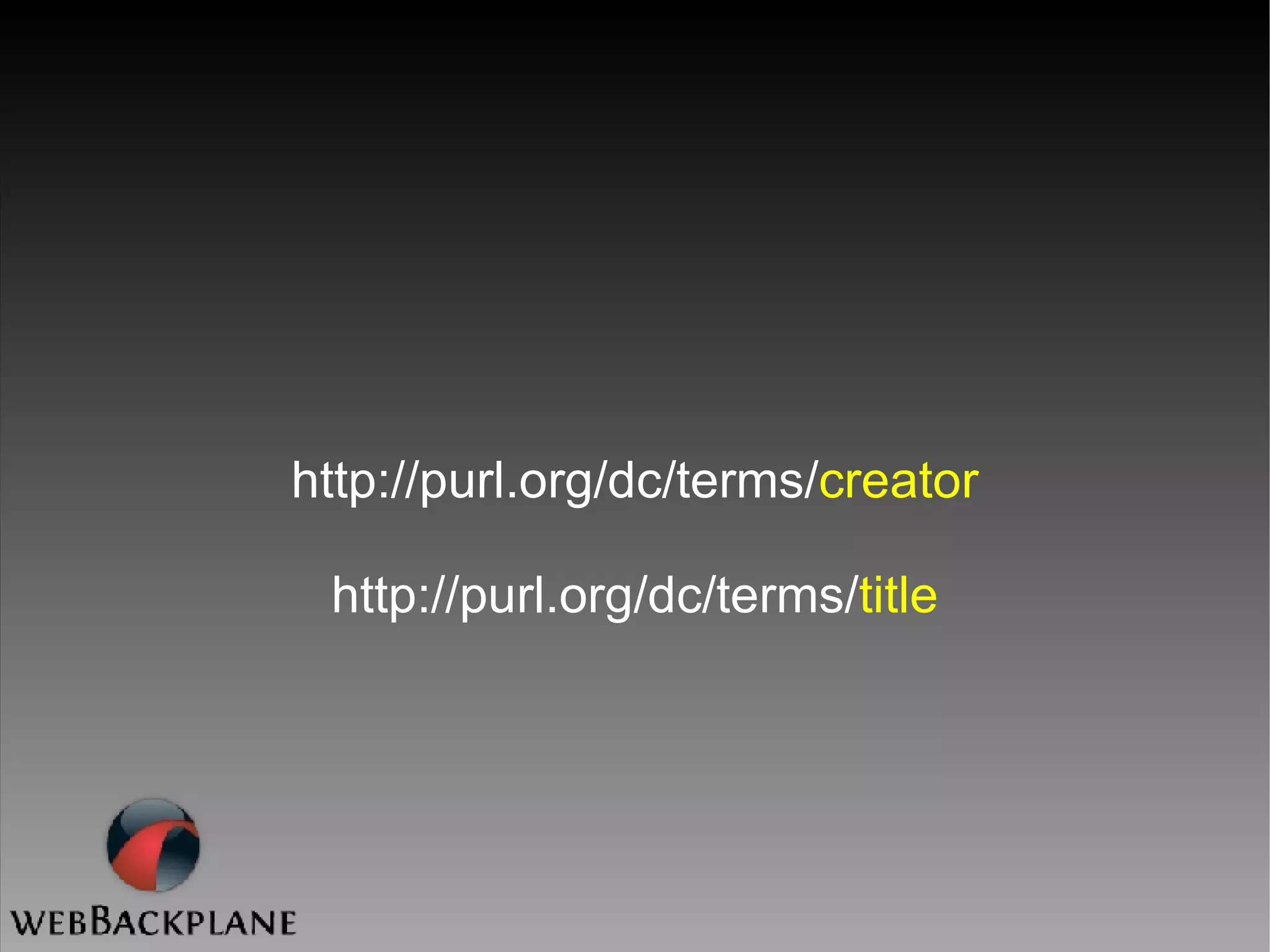

http://purl.org/dc/terms/ creator http://purl.org/dc/terms/ title

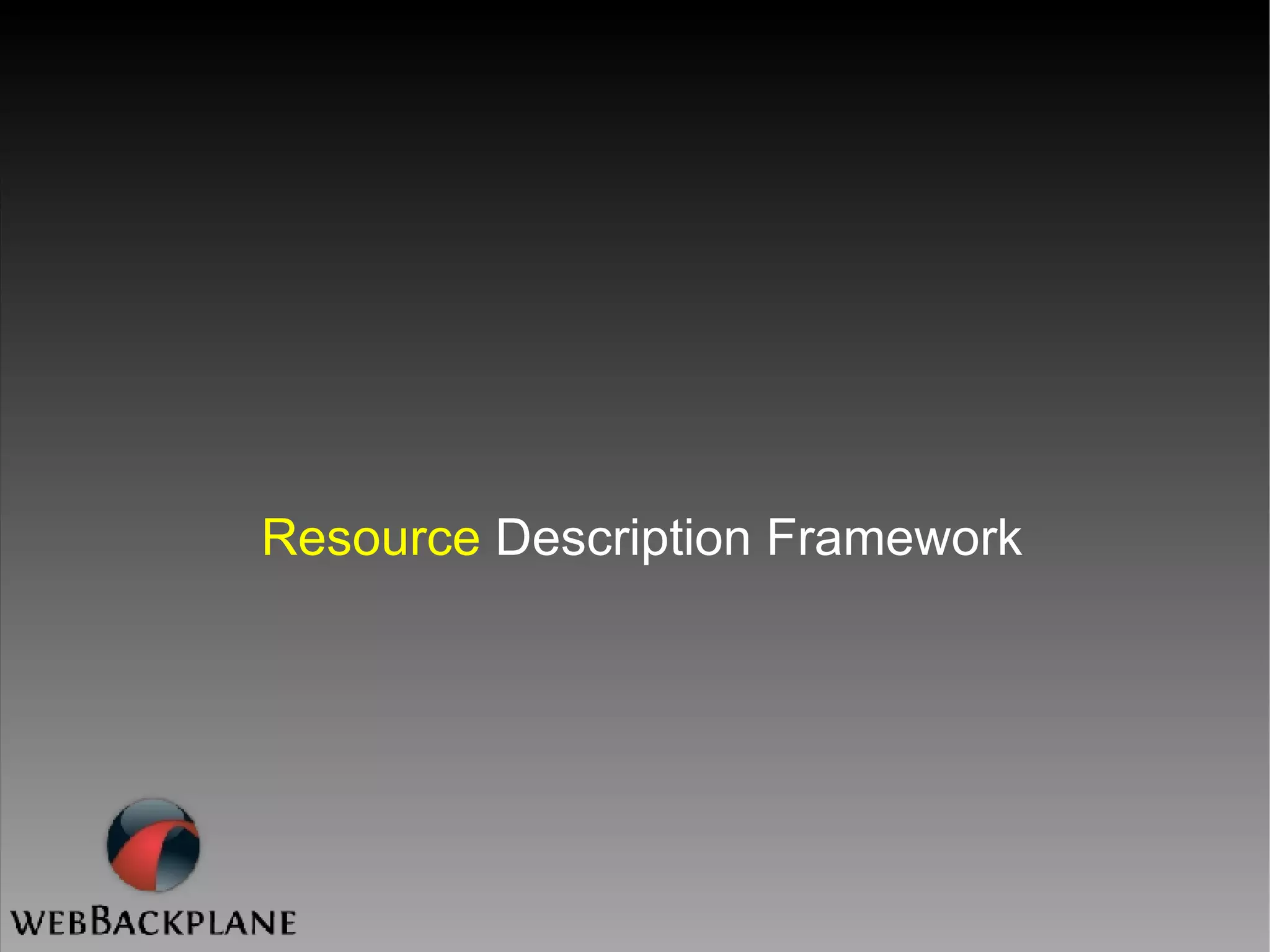

Resource  Description Framework
http://purl.org/dc/terms/ creator http://purl.org/dc/terms/ title

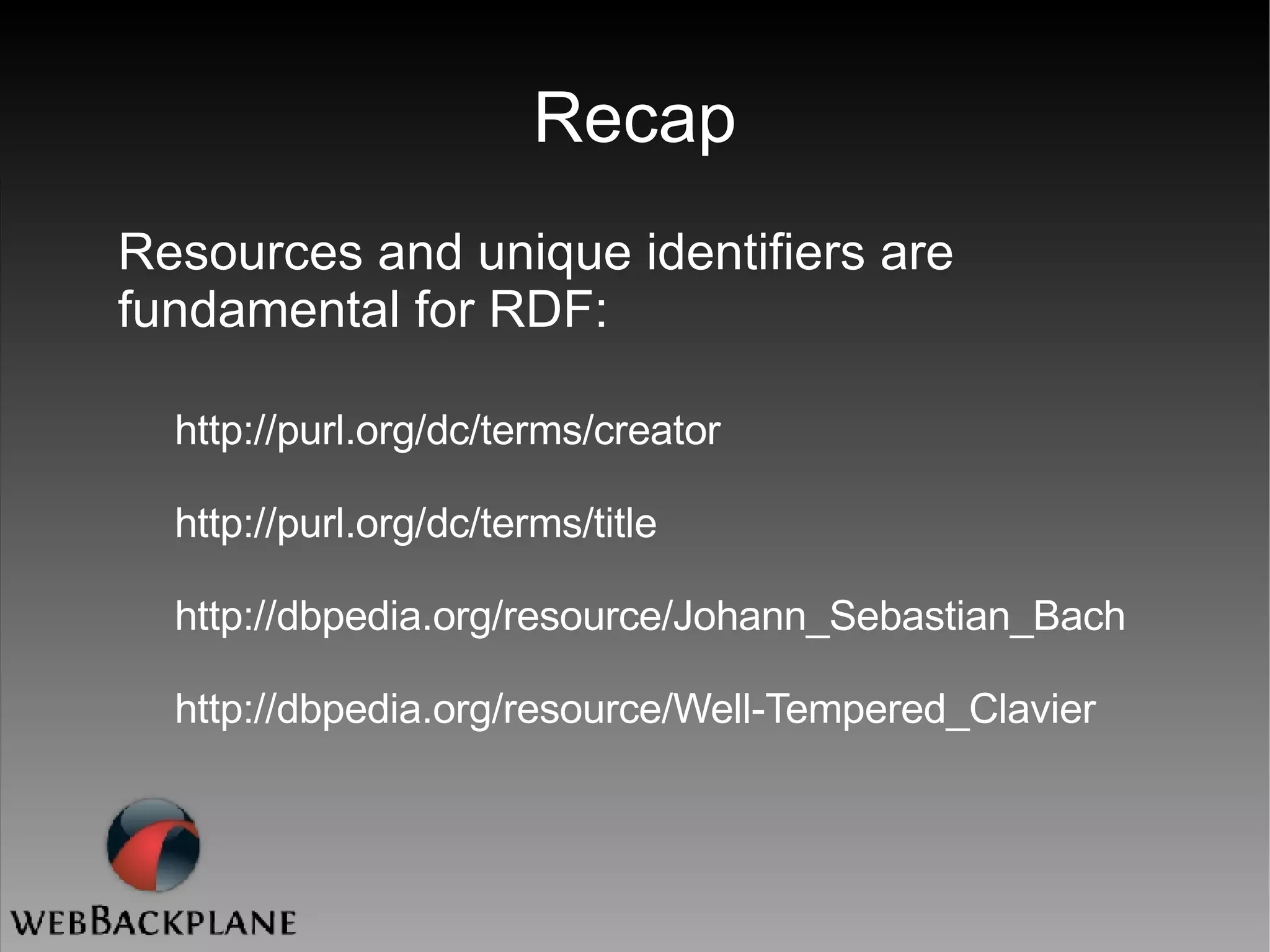

Recap Resources and unique identifiers are fundamental for RDF: http://purl.org/dc/terms/creator http://purl.org/dc/terms/title http://dbpedia.org/resource/Johann_Sebastian_Bach http://dbpedia.org/resource/Well-Tempered_Clavier
Triples
<html> <head> <title> Bach: The Well Tempered Clavier </title> <meta name=&quot; DC.Title &quot; content=&quot;The Well Tempered Clavier&quot; /> <meta name=&quot; DC.Creator &quot; content=&quot;J. S. Bach&quot; /> </head> <body> ... </body> </html>

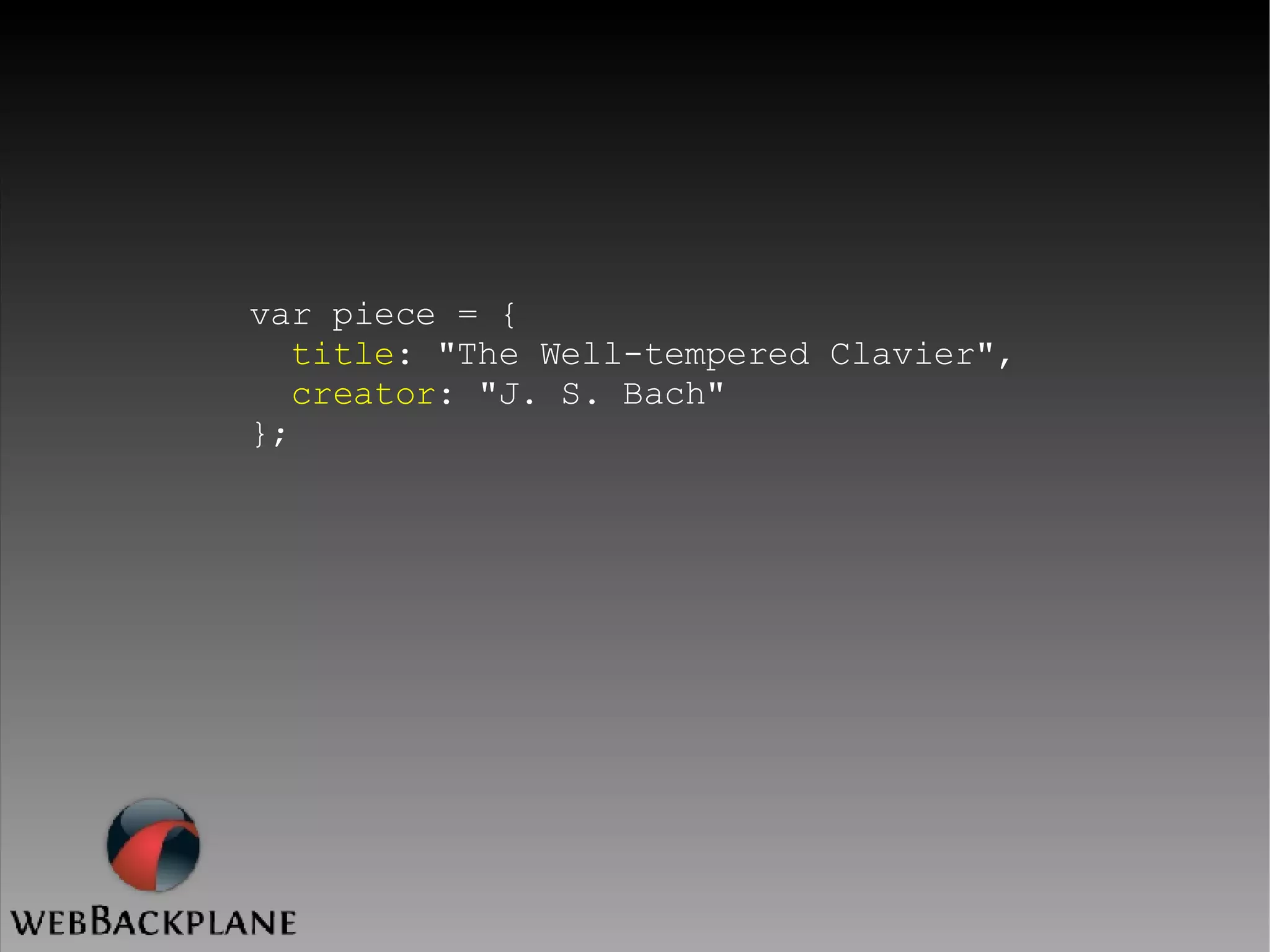

var piece = {   title : &quot;The Well-tempered Clavier&quot;,   creator : &quot;J. S. Bach&quot; };

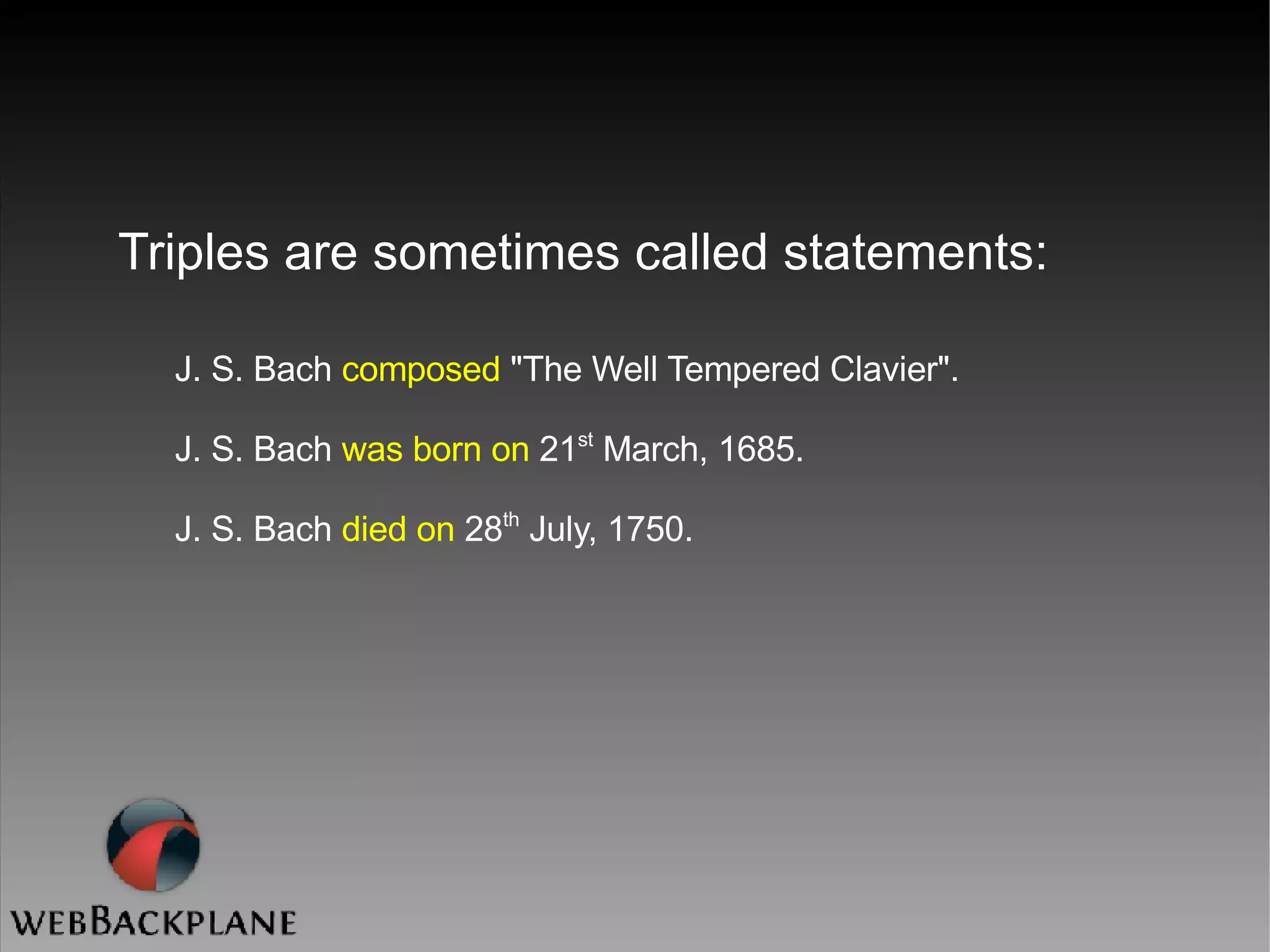

Triples are sometimes called statements: J. S. Bach  composed  &quot;The Well Tempered Clavier&quot;. J. S. Bach  was born on  21 st  March, 1685. J. S. Bach  died on  28 th  July, 1750.

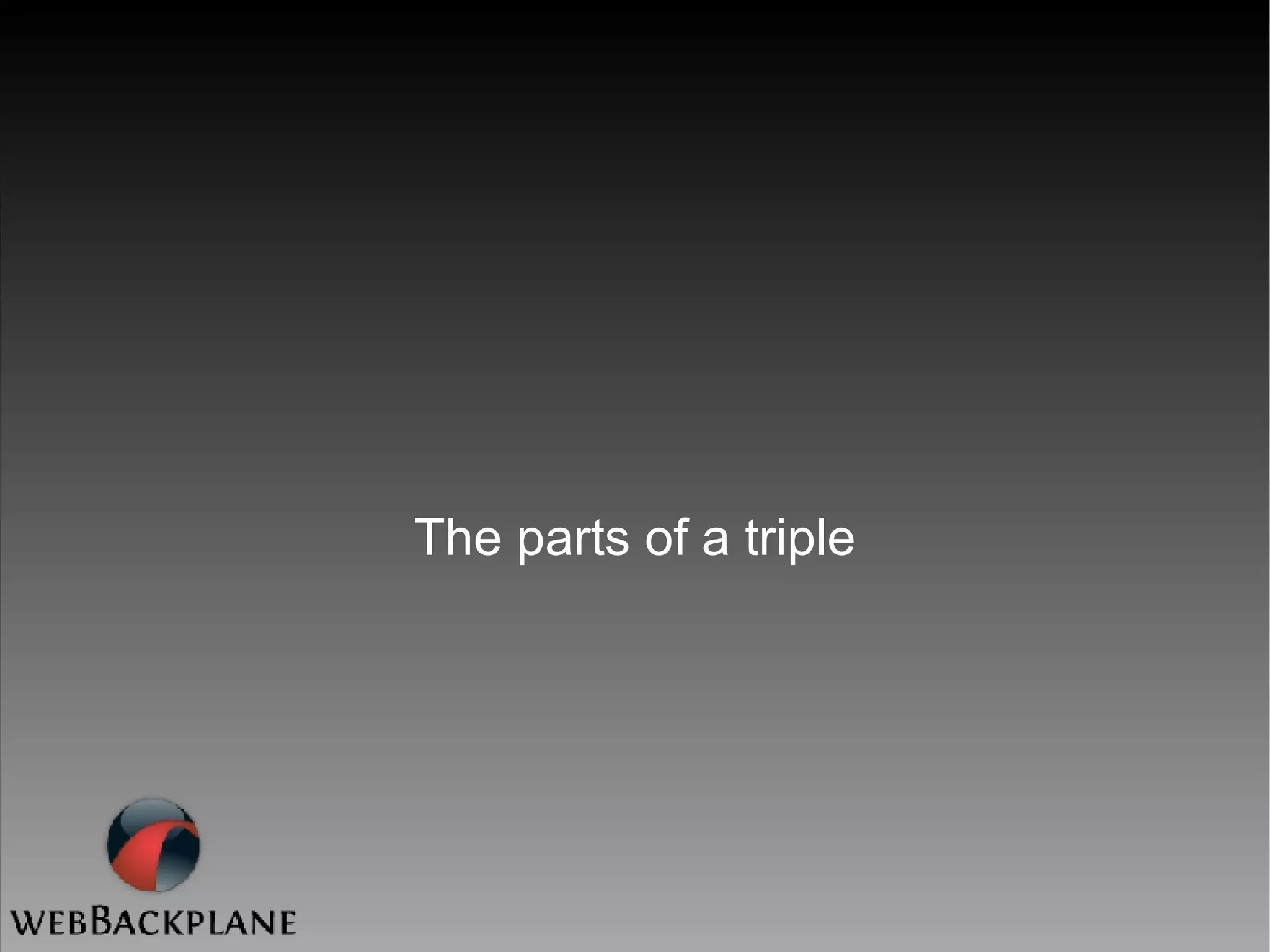

The parts of a triple

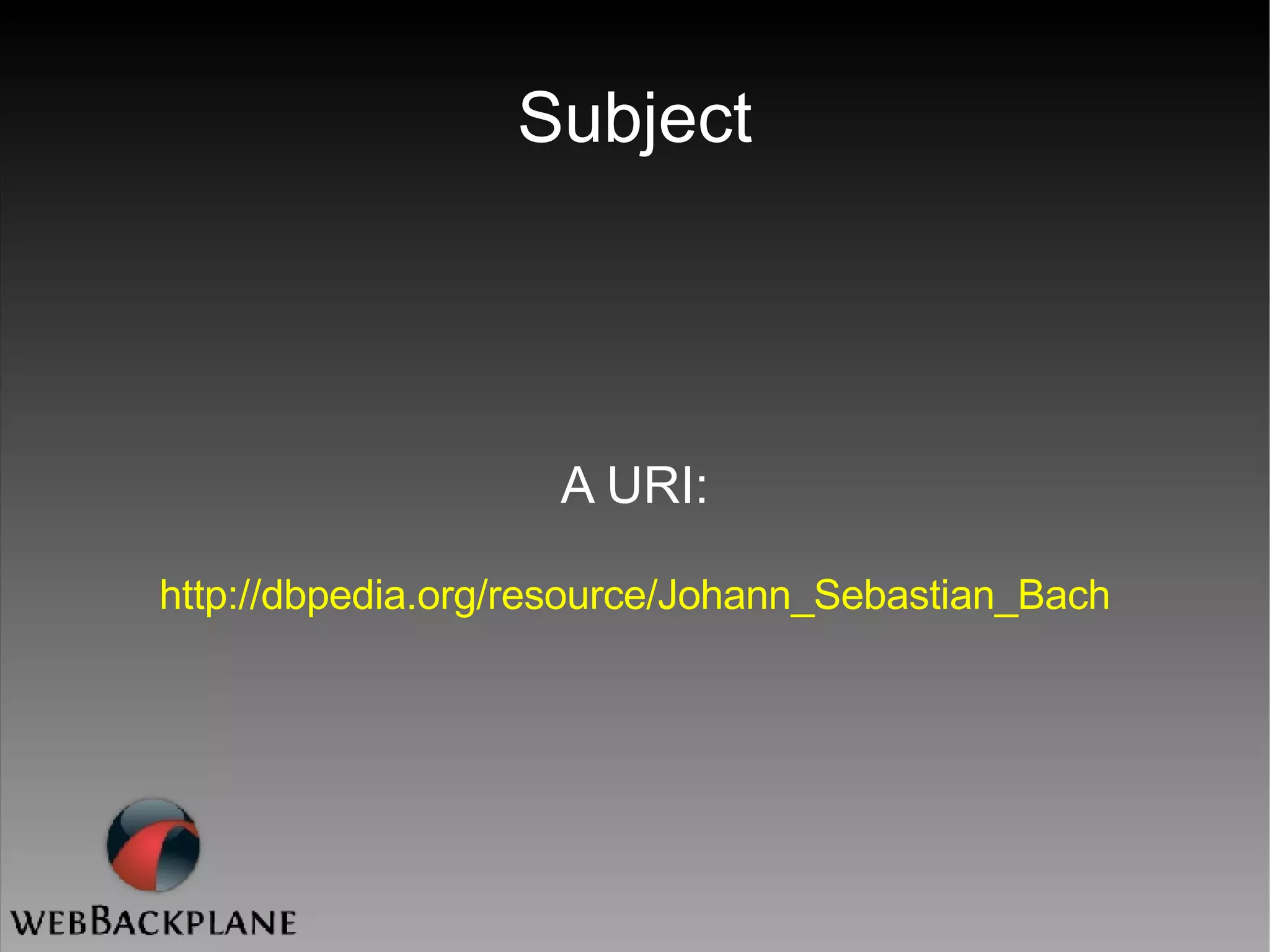

Subject A URI: http://dbpedia.org/resource/Johann_Sebastian_Bach

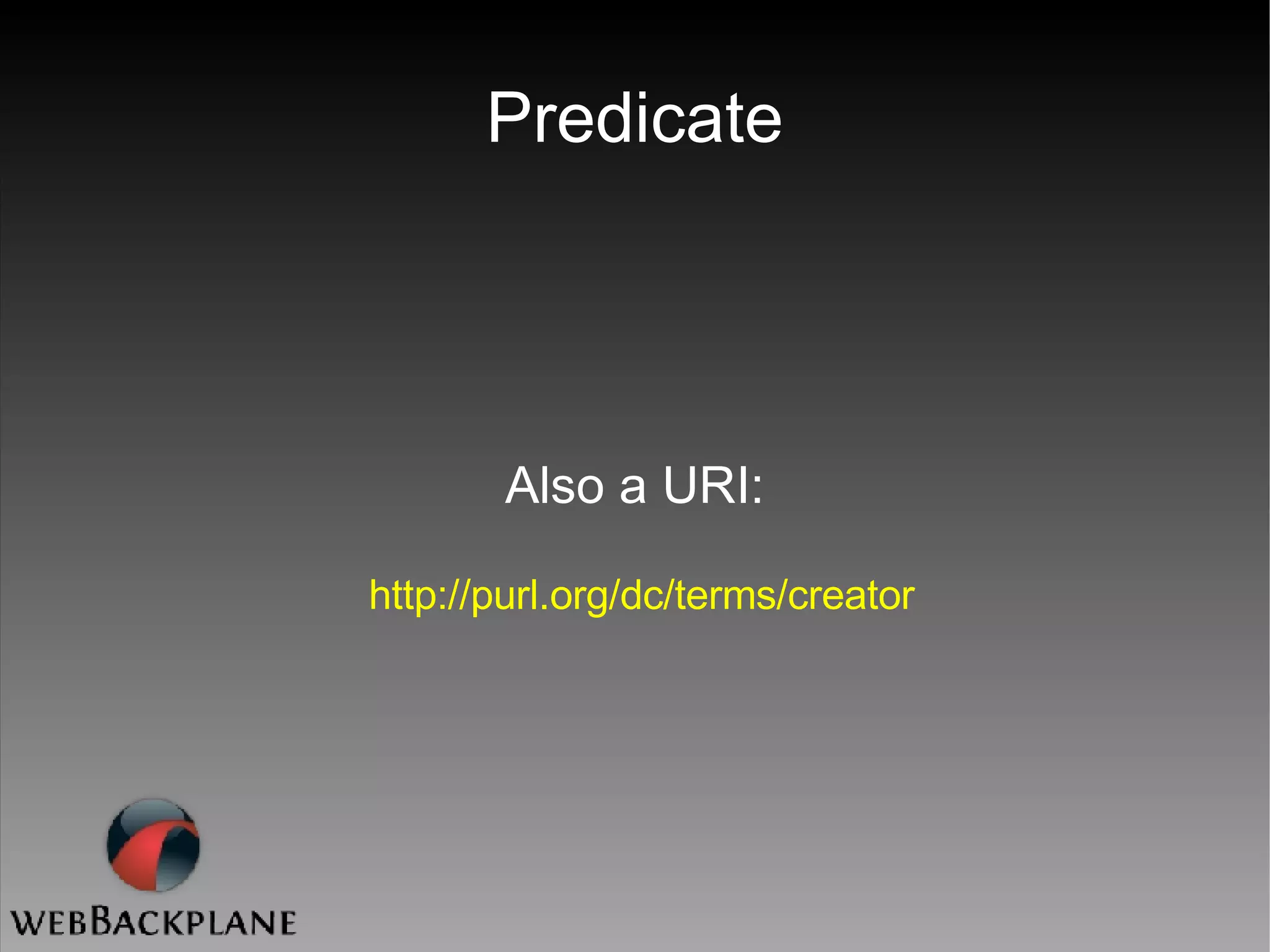

Predicate Also a URI: http://purl.org/dc/terms/creator

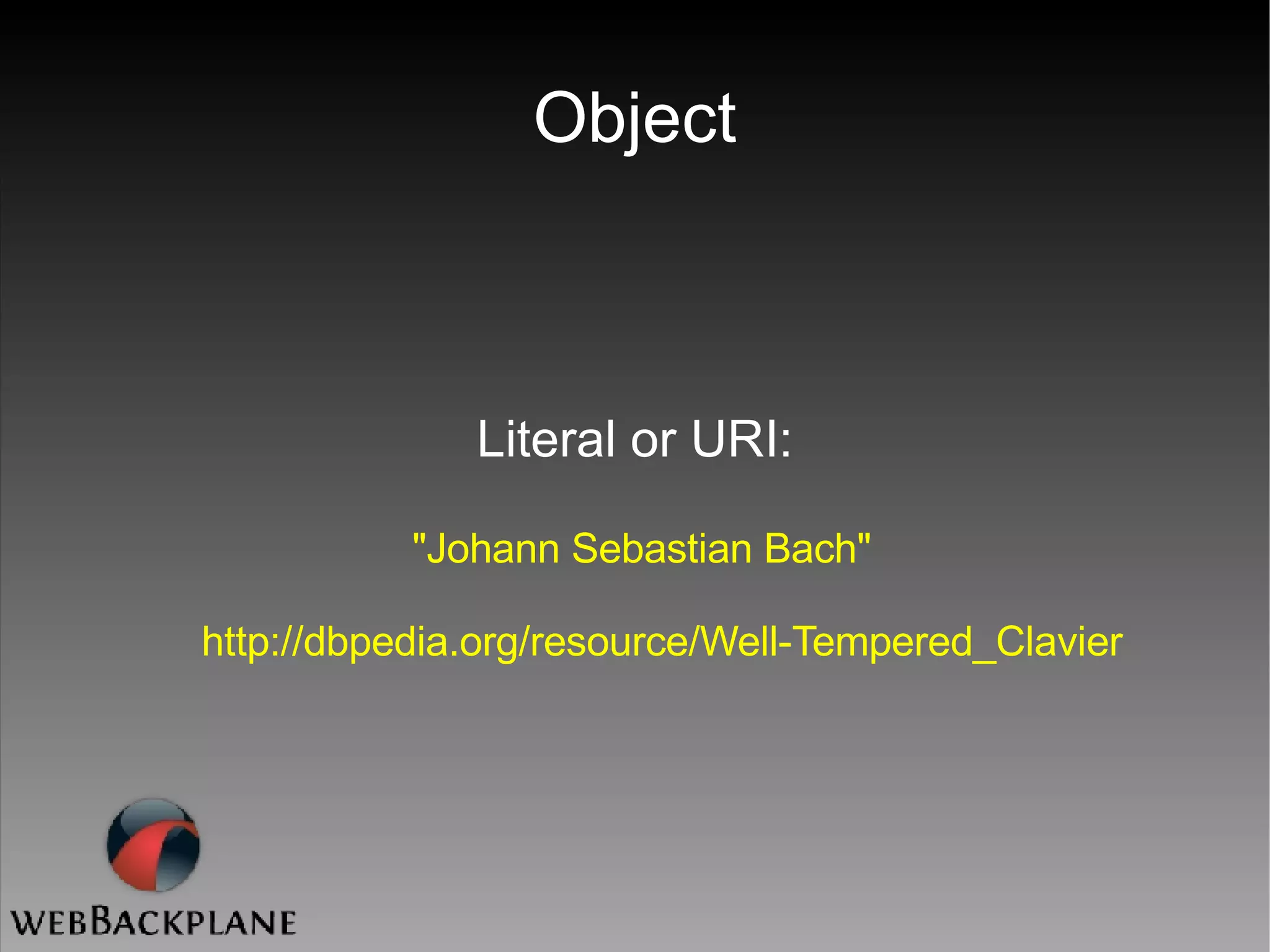

Object Literal or URI: &quot;Johann Sebastian Bach&quot; http://dbpedia.org/resource/Well-Tempered_Clavier

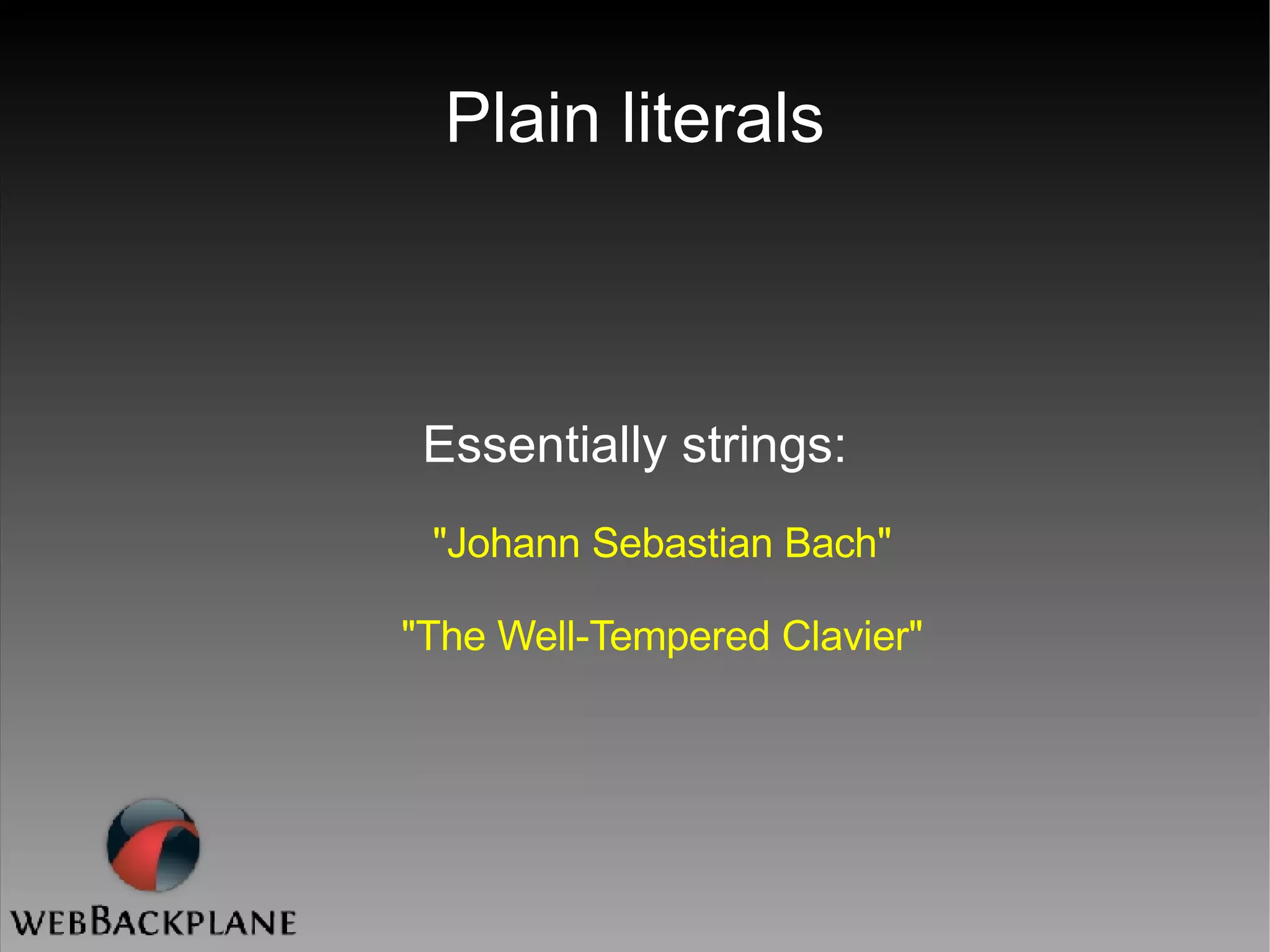

Plain literals Essentially strings: &quot;Johann Sebastian Bach&quot; &quot;The Well-Tempered Clavier&quot;

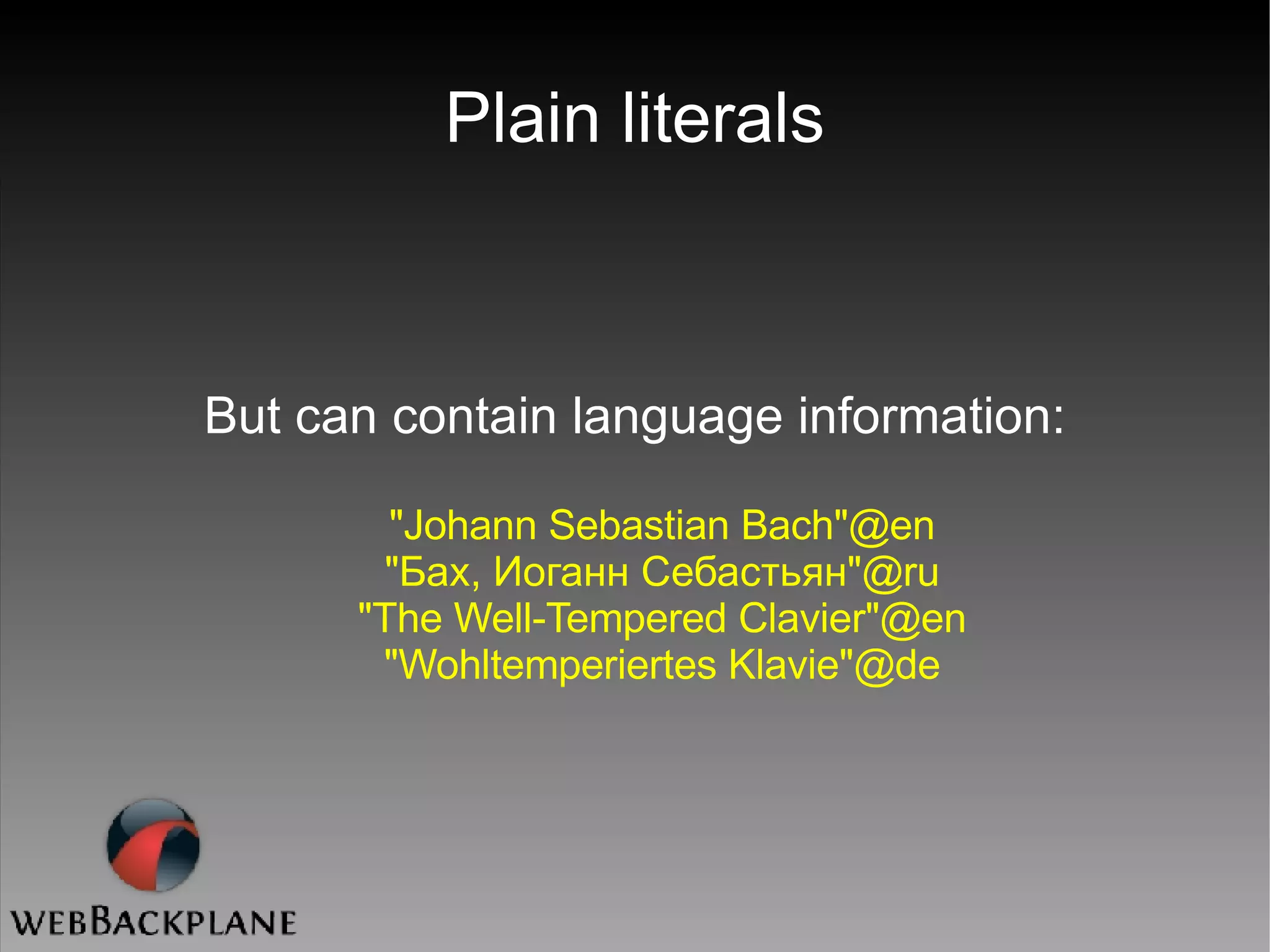

Plain literals But can contain language information: &quot;Johann Sebastian Bach&quot;@en &quot;Бах, Иоганн Себастьян&quot;@ru &quot;The Well-Tempered Clavier&quot;@en &quot;Wohltemperiertes Klavie&quot;@de

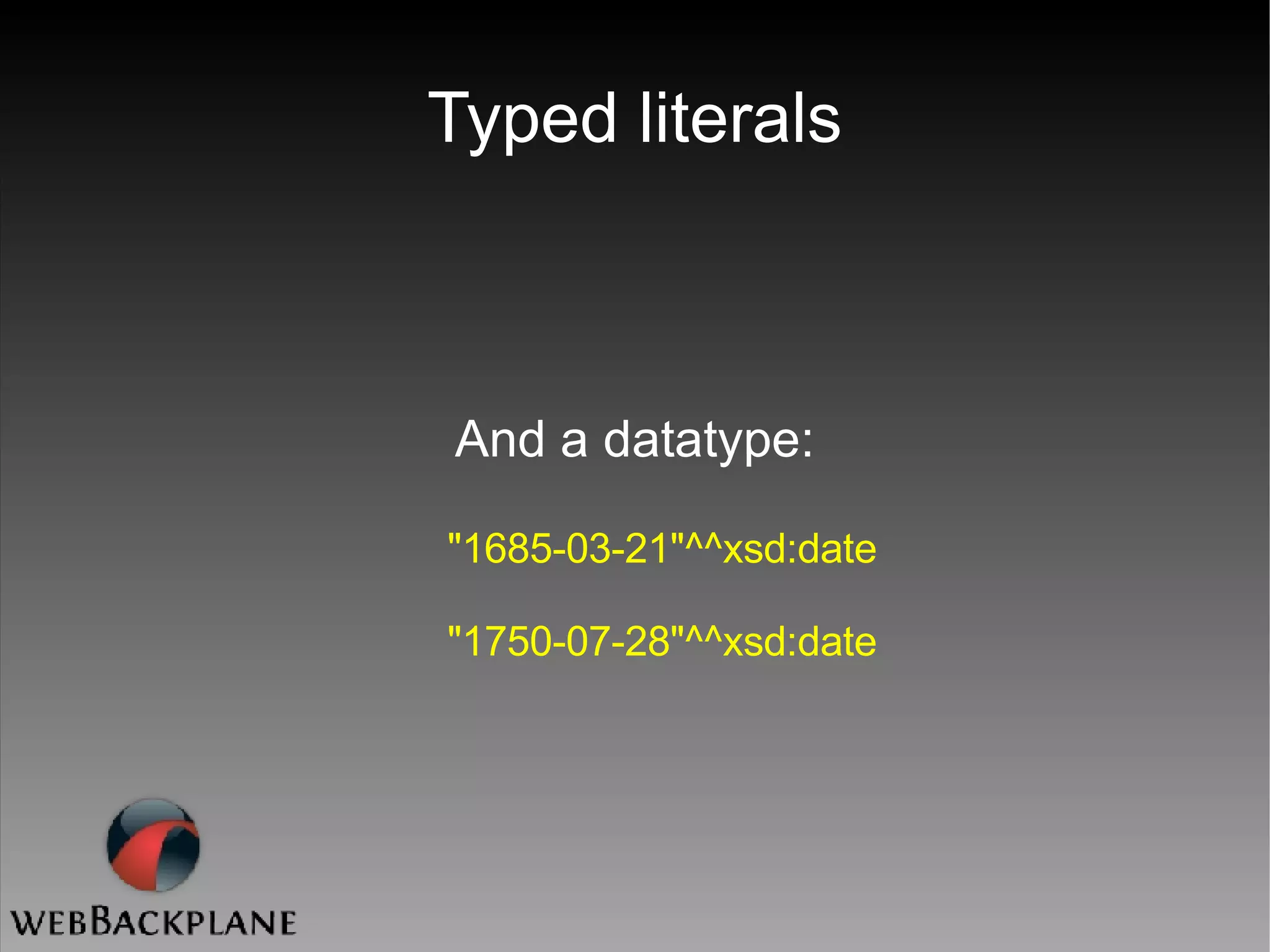

Typed literals And a datatype: &quot;1685-03-21&quot;^^xsd:date &quot;1750-07-28&quot;^^xsd:date

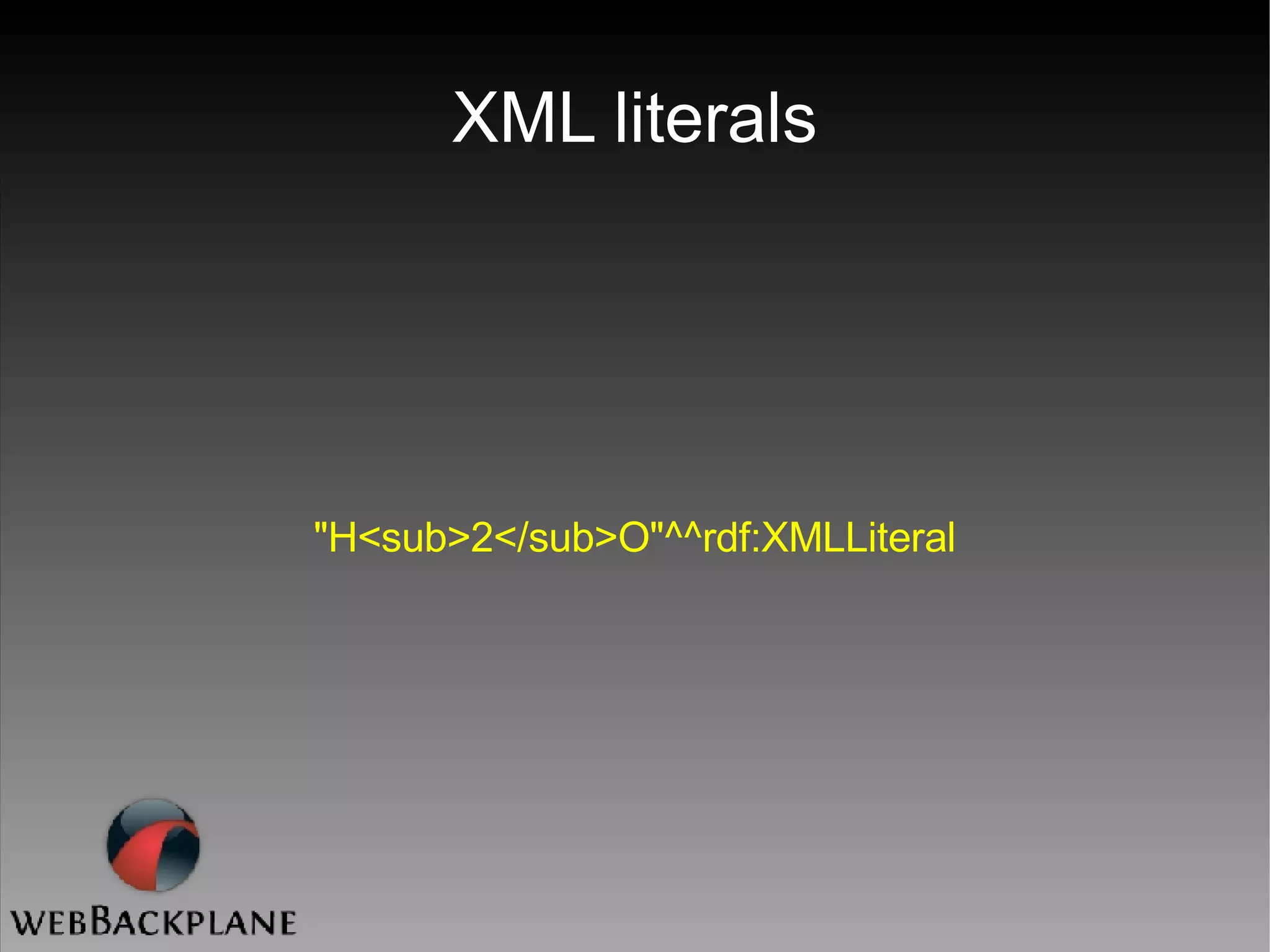

XML literals &quot;H<sub>2</sub>O&quot;^^rdf:XMLLiteral

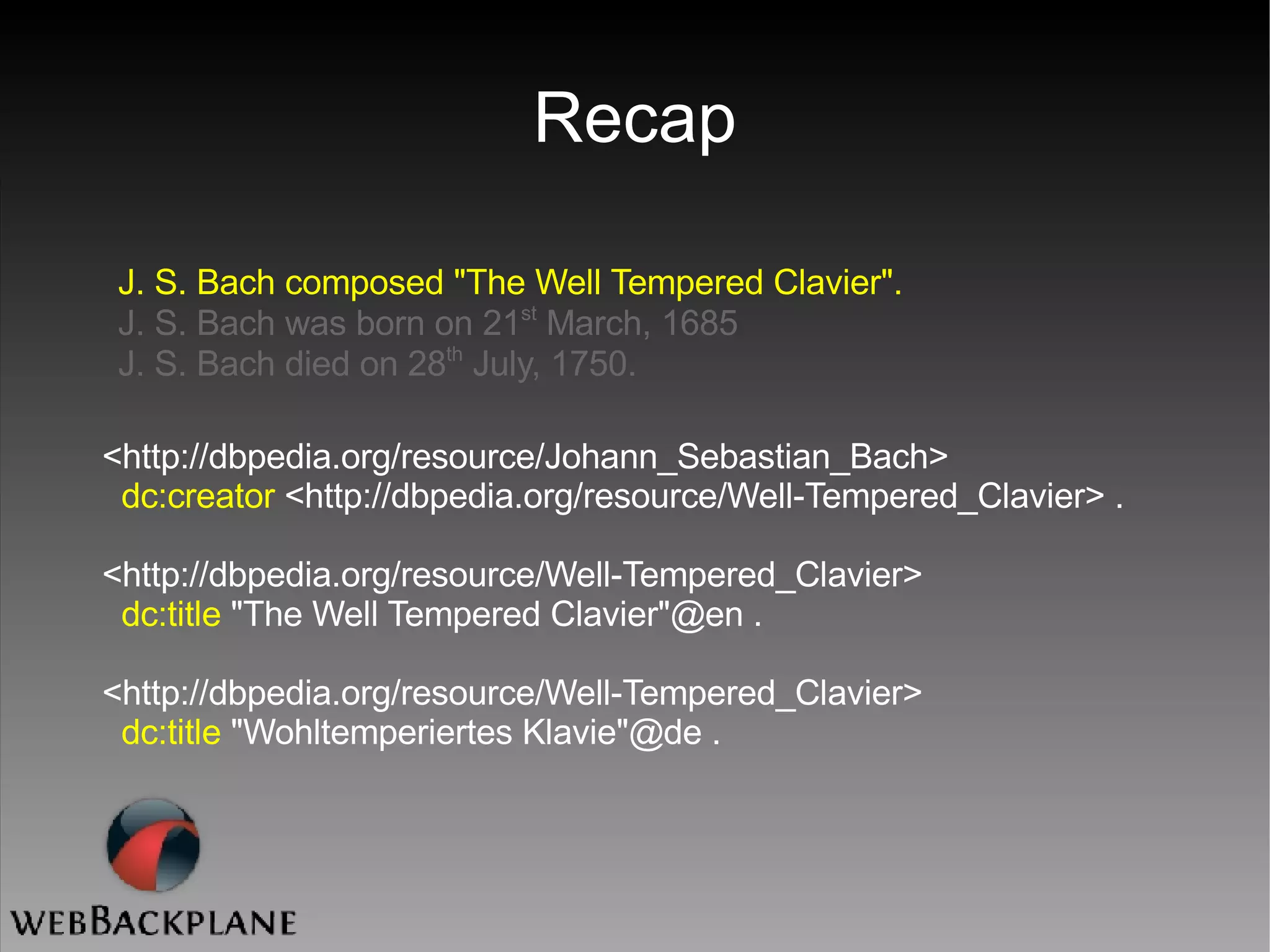

Recap J. S. Bach  composed  &quot;The Well Tempered Clavier&quot;. J. S. Bach  was born on  21 st  March, 1685 J. S. Bach  died on  28 th  July, 1750.

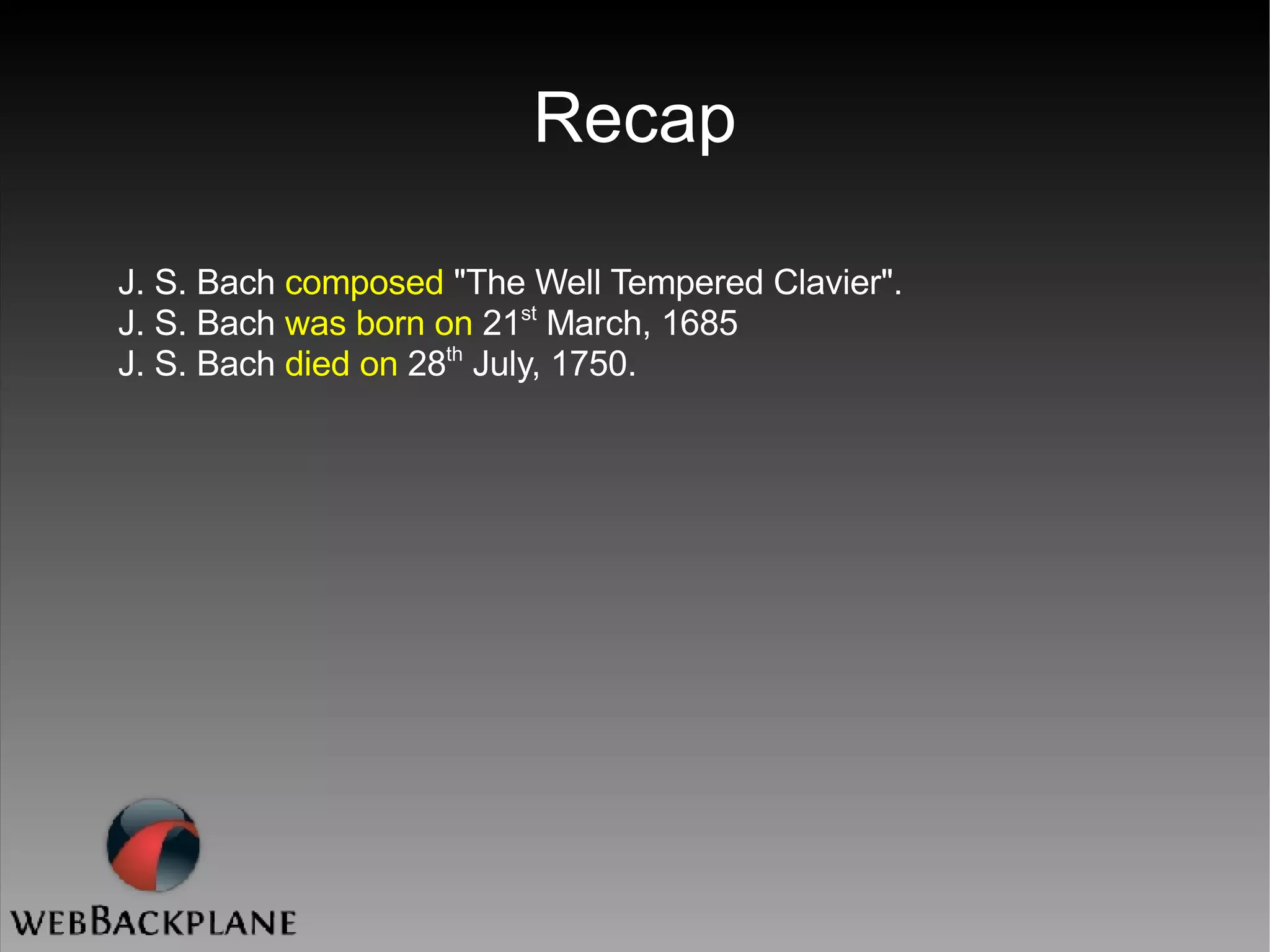

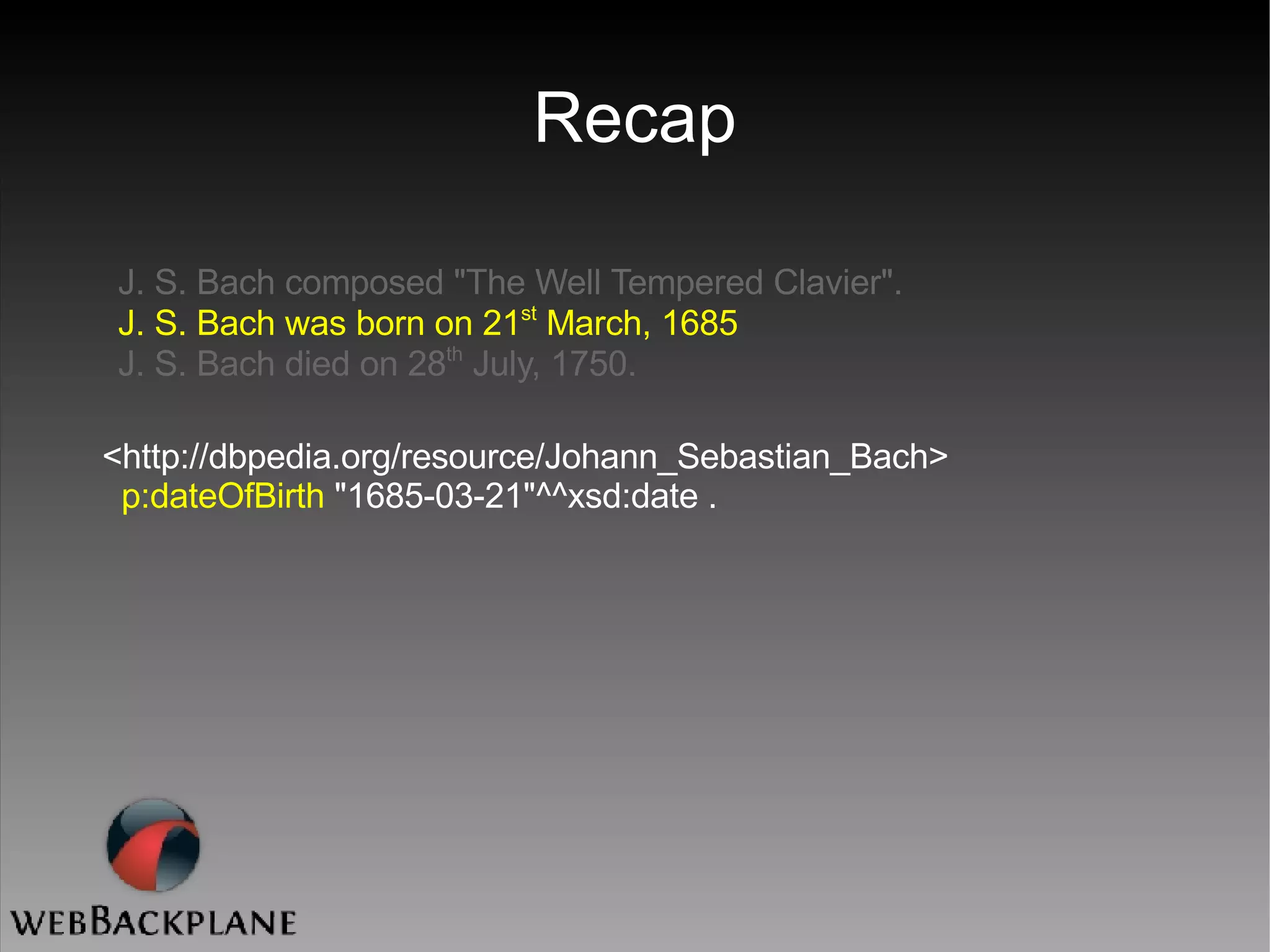

Recap J. S. Bach composed &quot;The Well Tempered Clavier&quot;. J. S. Bach was born on 21 st  March, 1685 J. S. Bach died on 28 th  July, 1750. <http://dbpedia.org/resource/Johann_Sebastian_Bach> dc:creator  <http://dbpedia.org/resource/Well-Tempered_Clavier> . <http://dbpedia.org/resource/Well-Tempered_Clavier>   dc:title  &quot;The Well Tempered Clavier&quot;@en . <http://dbpedia.org/resource/Well-Tempered_Clavier>   dc:title  &quot;Wohltemperiertes Klavie&quot;@de .
Recap J. S. Bach composed &quot;The Well Tempered Clavier&quot;. J. S. Bach was born on 21 st  March, 1685 J. S. Bach died on 28 th  July, 1750. <http://dbpedia.org/resource/Johann_Sebastian_Bach>   p:dateOfBirth  &quot;1685-03-21&quot;^^xsd:date .

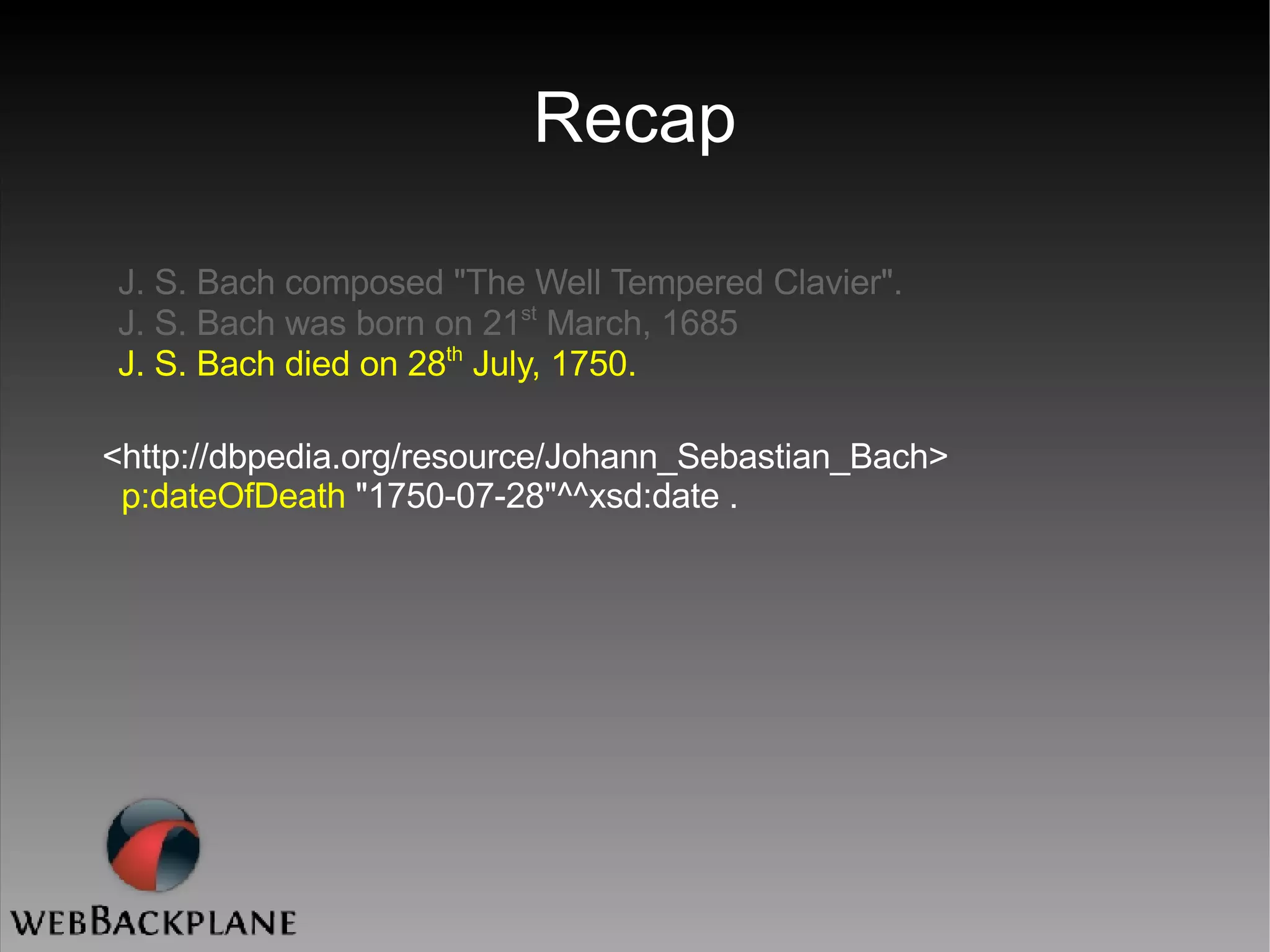

Recap J. S. Bach composed &quot;The Well Tempered Clavier&quot;. J. S. Bach was born on 21 st  March, 1685 J. S. Bach died on 28 th  July, 1750. <http://dbpedia.org/resource/Johann_Sebastian_Bach>   p:dateOfDeath  &quot;1750-07-28&quot;^^xsd:date .
Graphs
The Well Tempered Clavier Wohltemperiertes Klavie dc:title dc:title 1685-03-21 1750-07-28 p:dateOfBirth p:dateOfDeath dc:creator
rdf:type

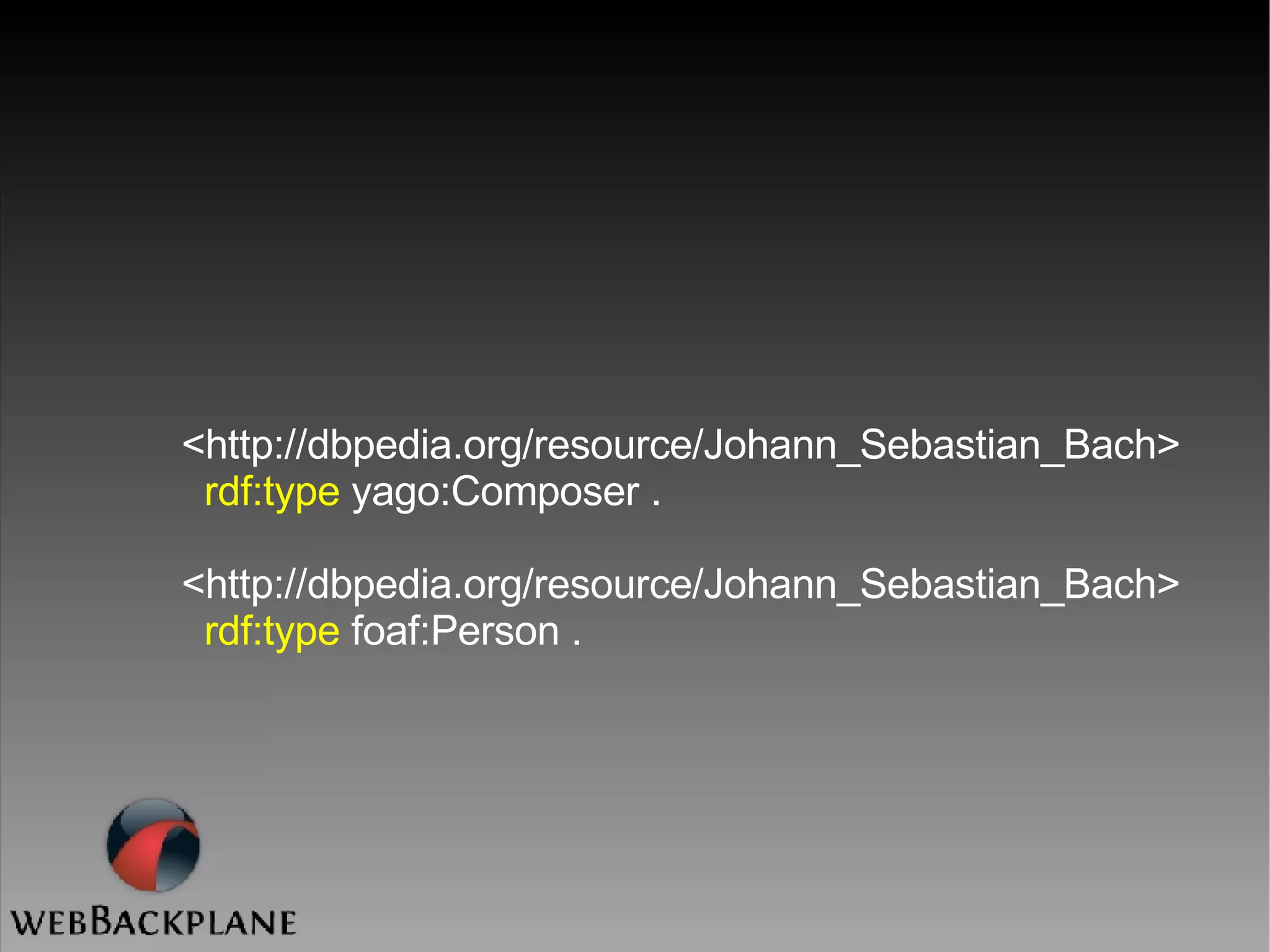

<http://dbpedia.org/resource/Johann_Sebastian_Bach>   rdf:type  yago:Composer . <http://dbpedia.org/resource/Johann_Sebastian_Bach>   rdf:type  foaf:Person .

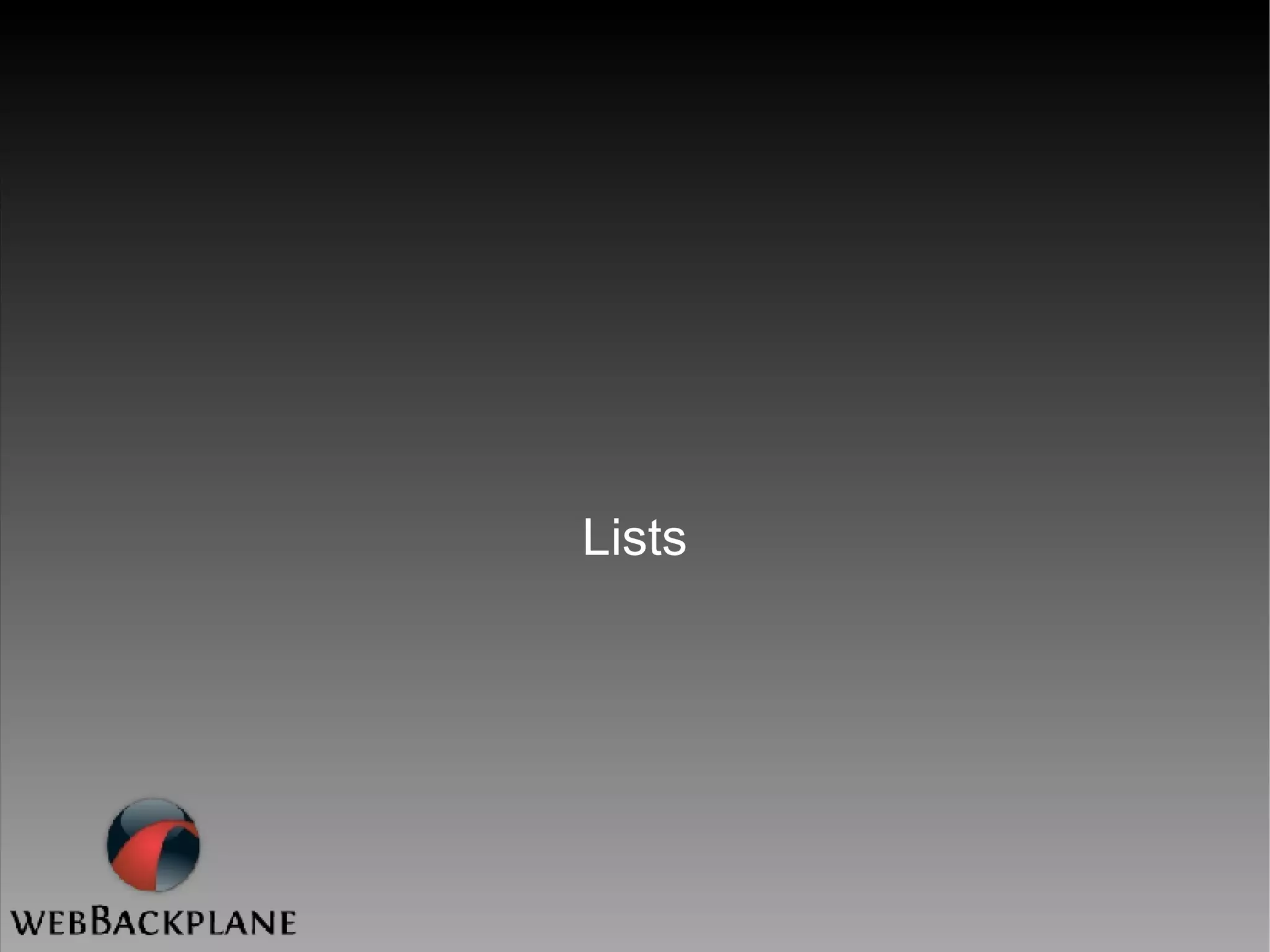

Lists
Performed by Performed by dc:creator Performed by dc:creator rdf:Bag rdf:type
Blank nodes

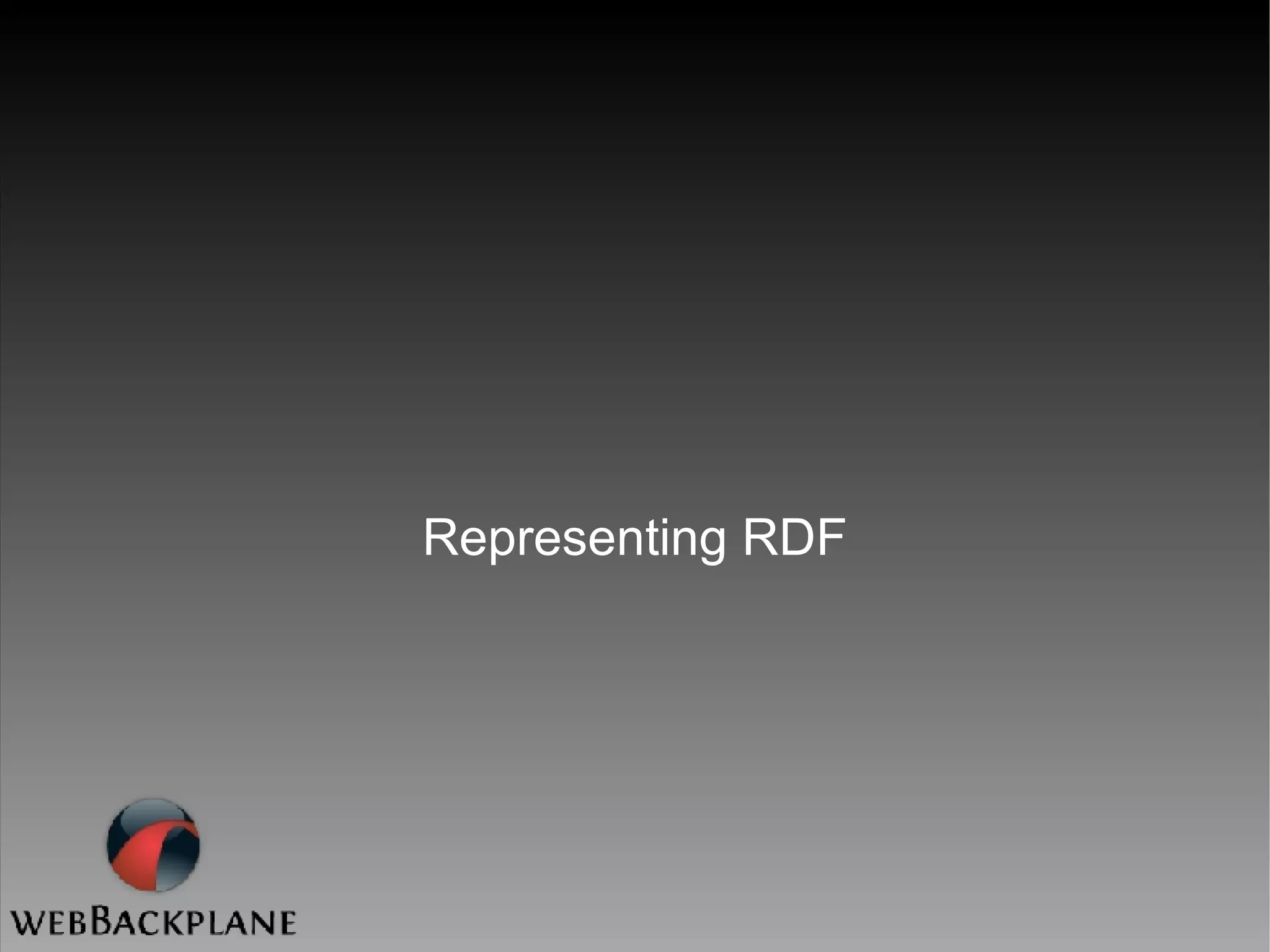

Representing RDF

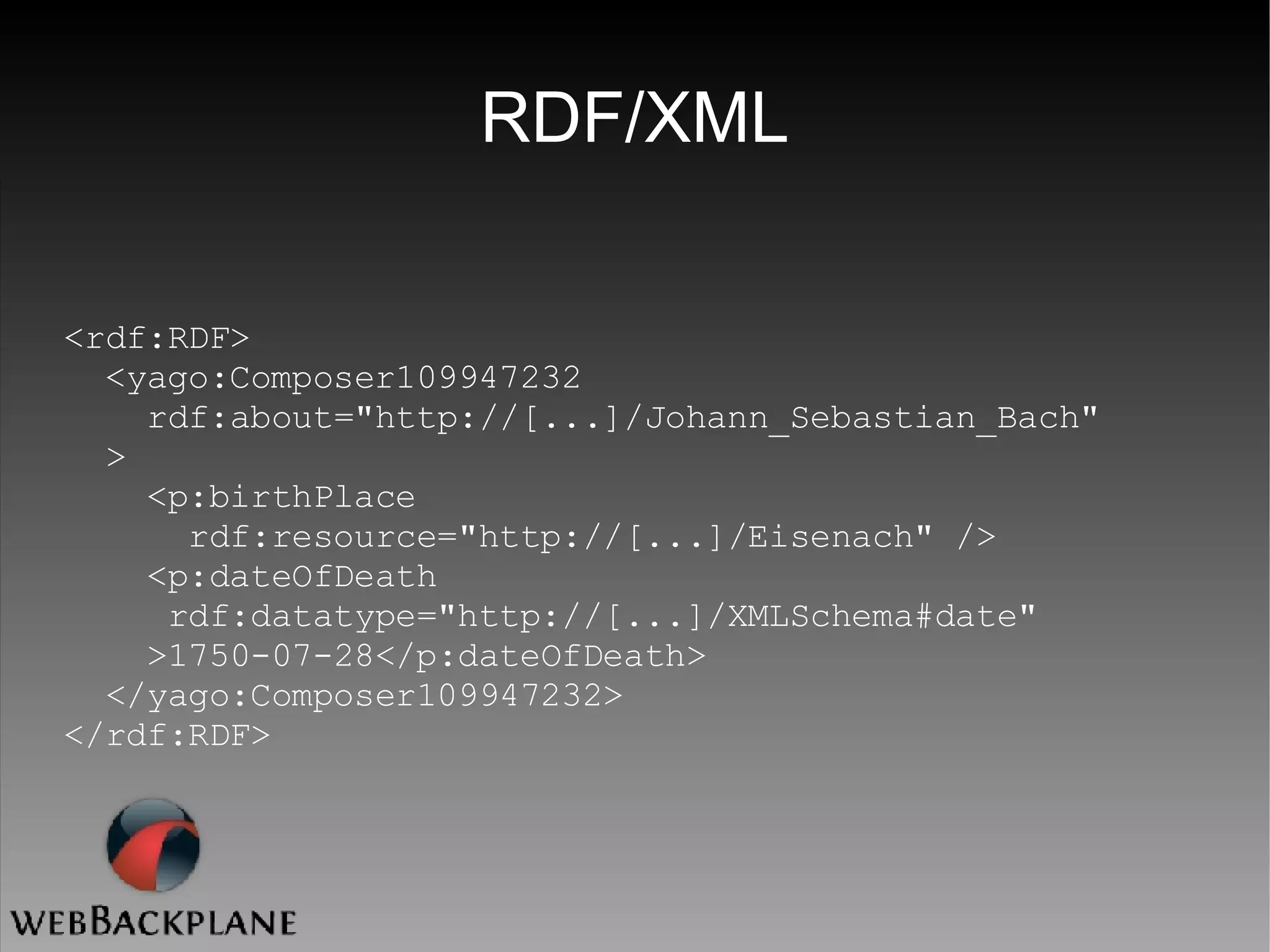

RDF/XML <rdf:RDF> <yago:Composer109947232 rdf:about=&quot;http://[...]/Johann_Sebastian_Bach&quot;   >   <p:birthPlace   rdf:resource=&quot;http://[...]/Eisenach&quot; />   <p:dateOfDeath   rdf:datatype=&quot;http://[...]/XMLSchema#date&quot; >1750-07-28</p:dateOfDeath>   </yago:Composer109947232> </rdf:RDF>

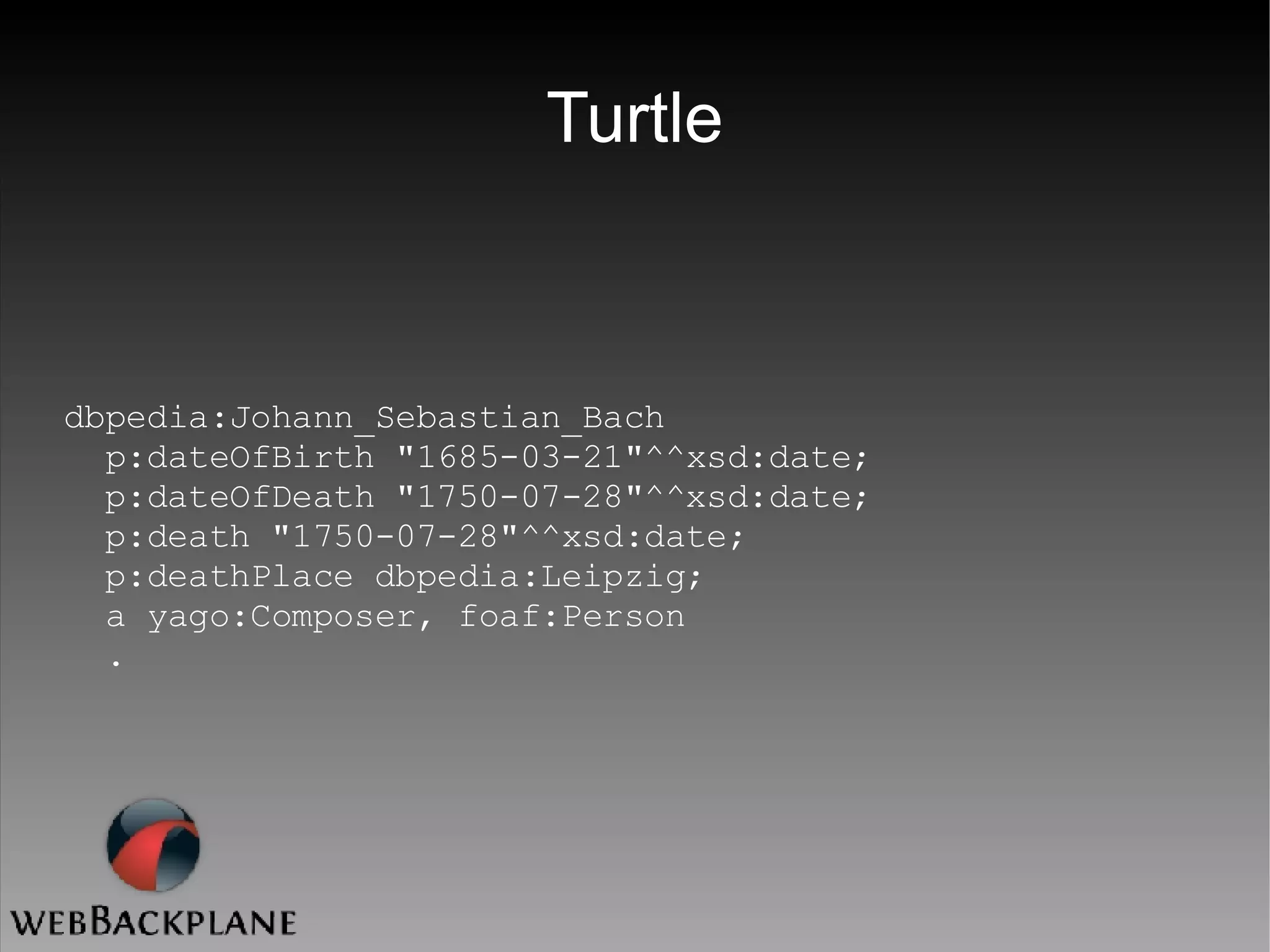

Turtle dbpedia:Johann_Sebastian_Bach   p:dateOfBirth &quot;1685-03-21&quot;^^xsd:date; p:dateOfDeath &quot;1750-07-28&quot;^^xsd:date; p:death &quot;1750-07-28&quot;^^xsd:date; p:deathPlace dbpedia:Leipzig;   a yago:Composer, foaf:Person   .

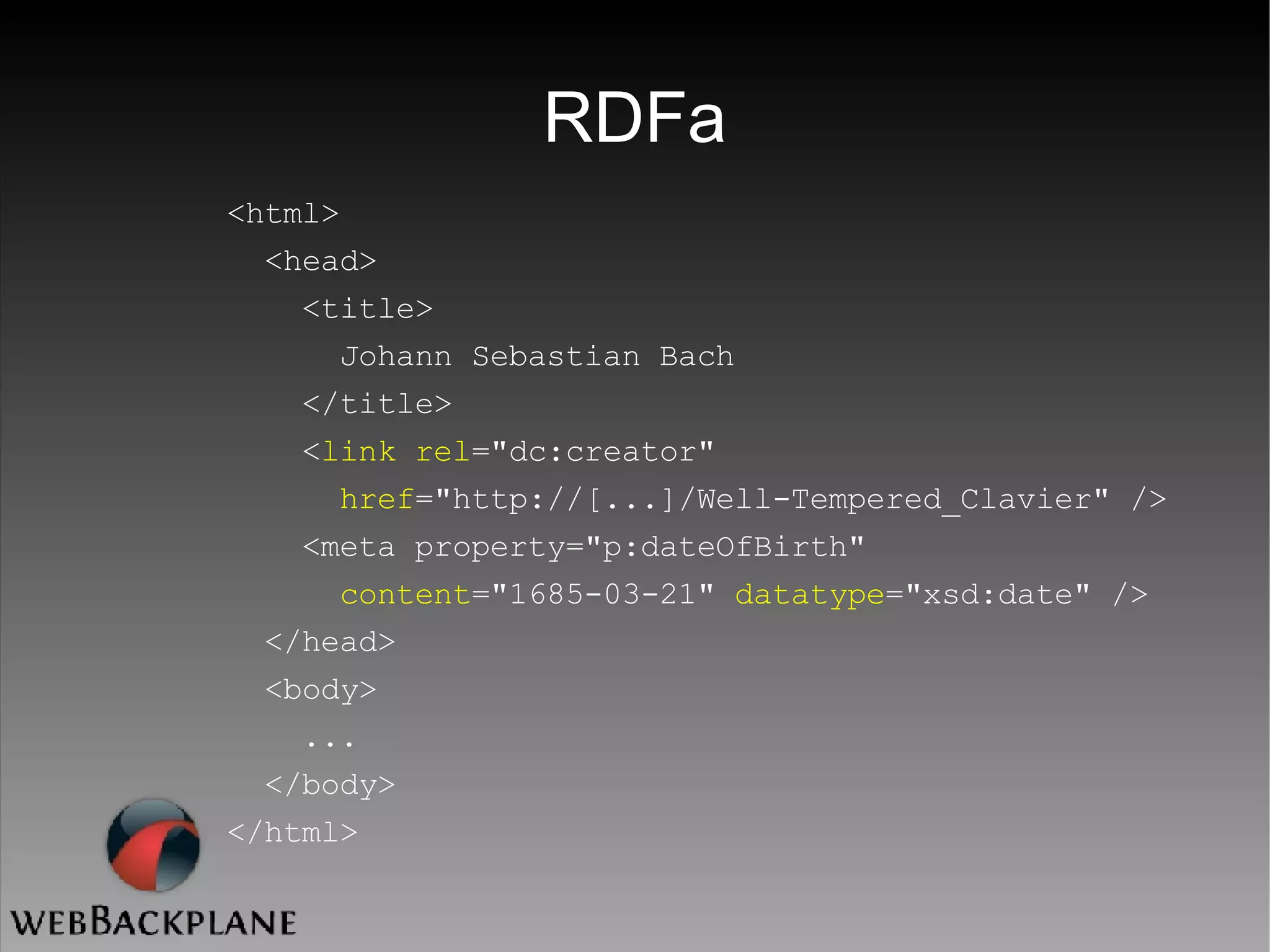

RDFa <html> <head> <title> Johann Sebastian Bach </title> < link   rel =&quot;dc:creator&quot; href =&quot;http://[...]/Well-Tempered_Clavier&quot; /> <meta property=&quot;p:dateOfBirth&quot; content =&quot;1685-03-21&quot;  datatype =&quot;xsd:date&quot; /> </head> <body> ... </body> </html>

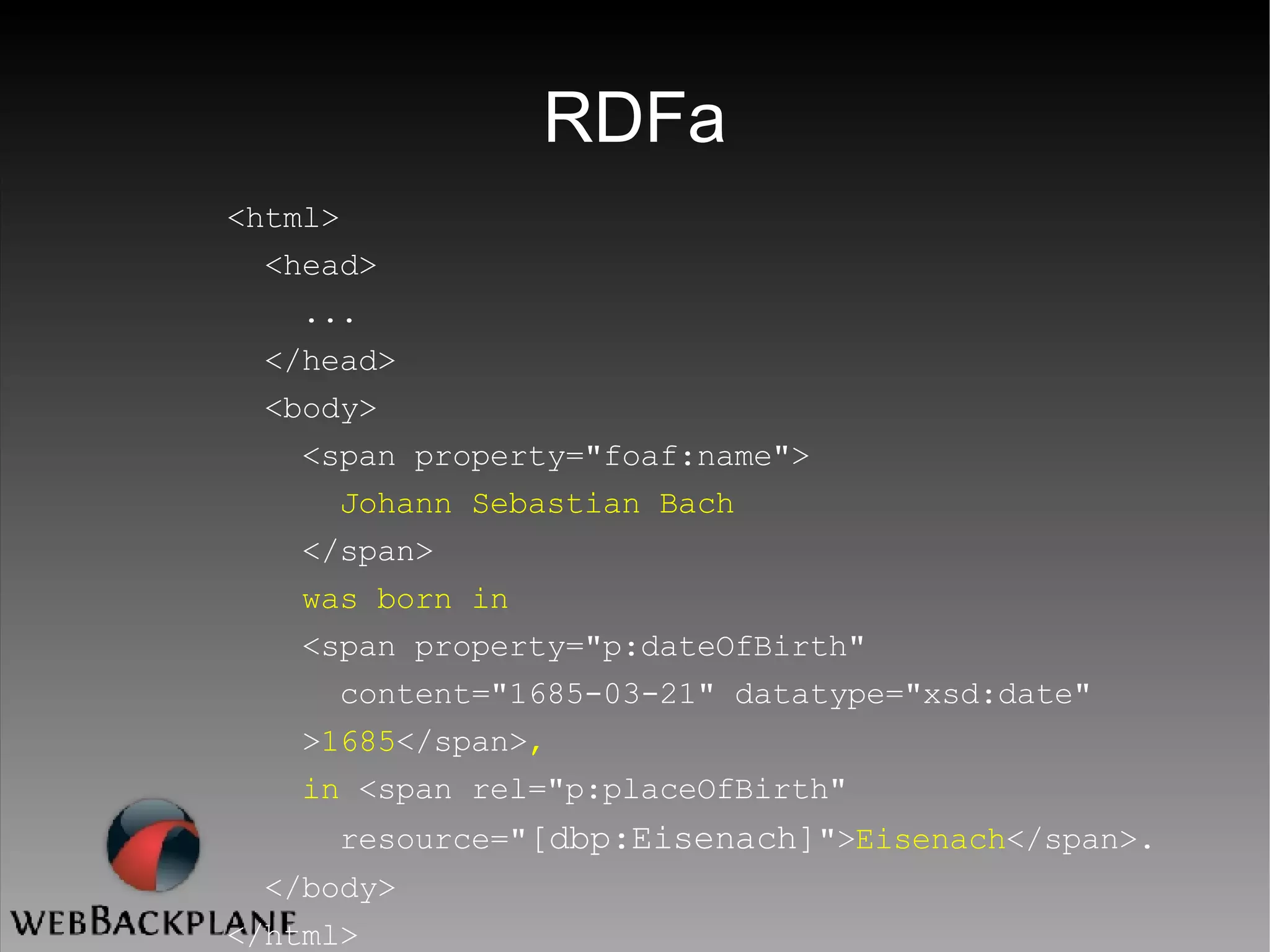

RDFa <html> <head> ... </head> <body> <span property=&quot;foaf:name&quot;> Johann Sebastian Bach </span> was born in <span property=&quot;p:dateOfBirth&quot; content=&quot;1685-03-21&quot; datatype=&quot;xsd:date&quot; > 1685 </span> , in  <span rel=&quot;p:placeOfBirth&quot; resource=&quot; [dbp:Eisenach] &quot;> Eisenach </span>.  </body> </html>

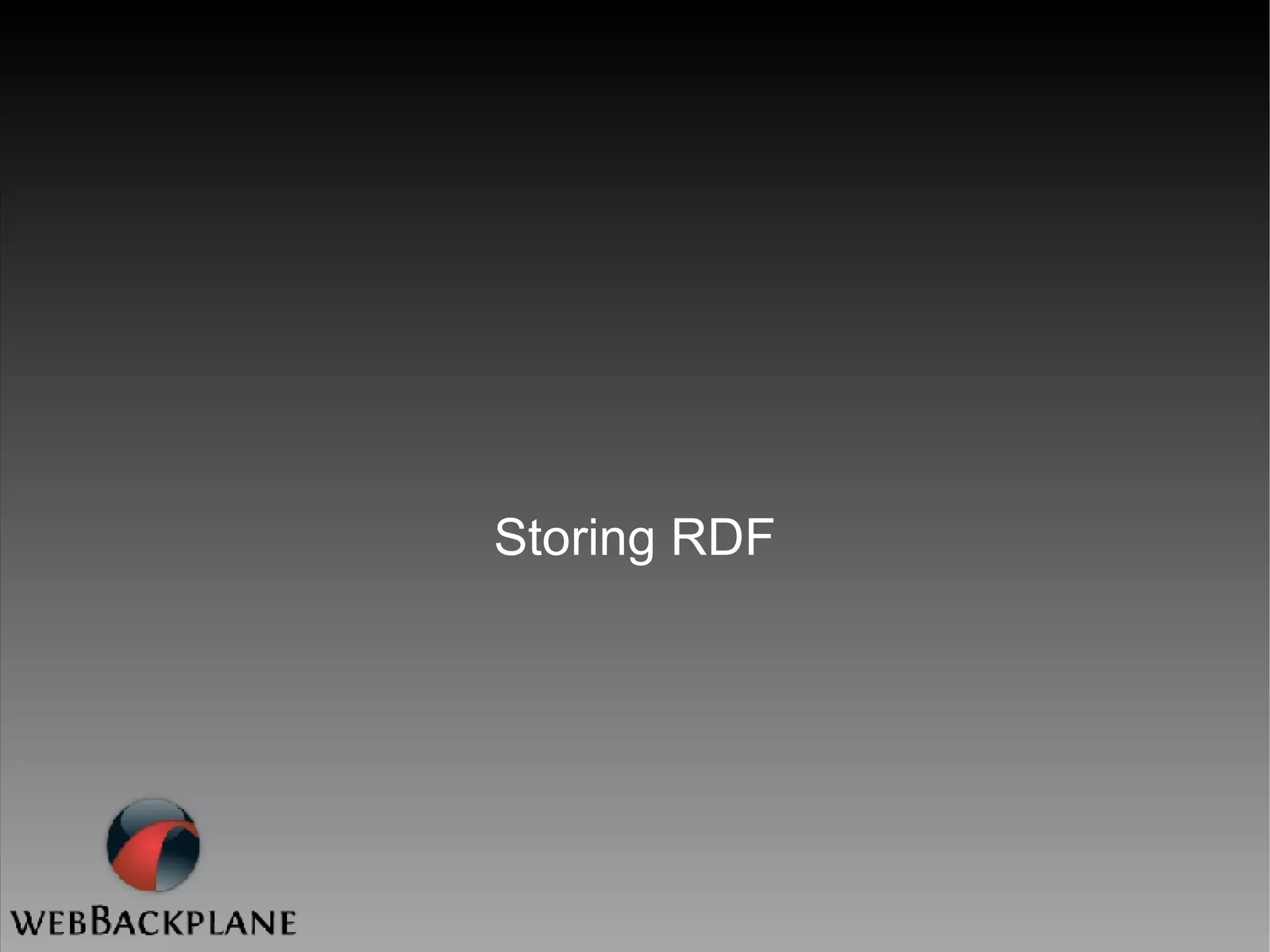

Storing RDF
Sources of RDF
Querying RDF

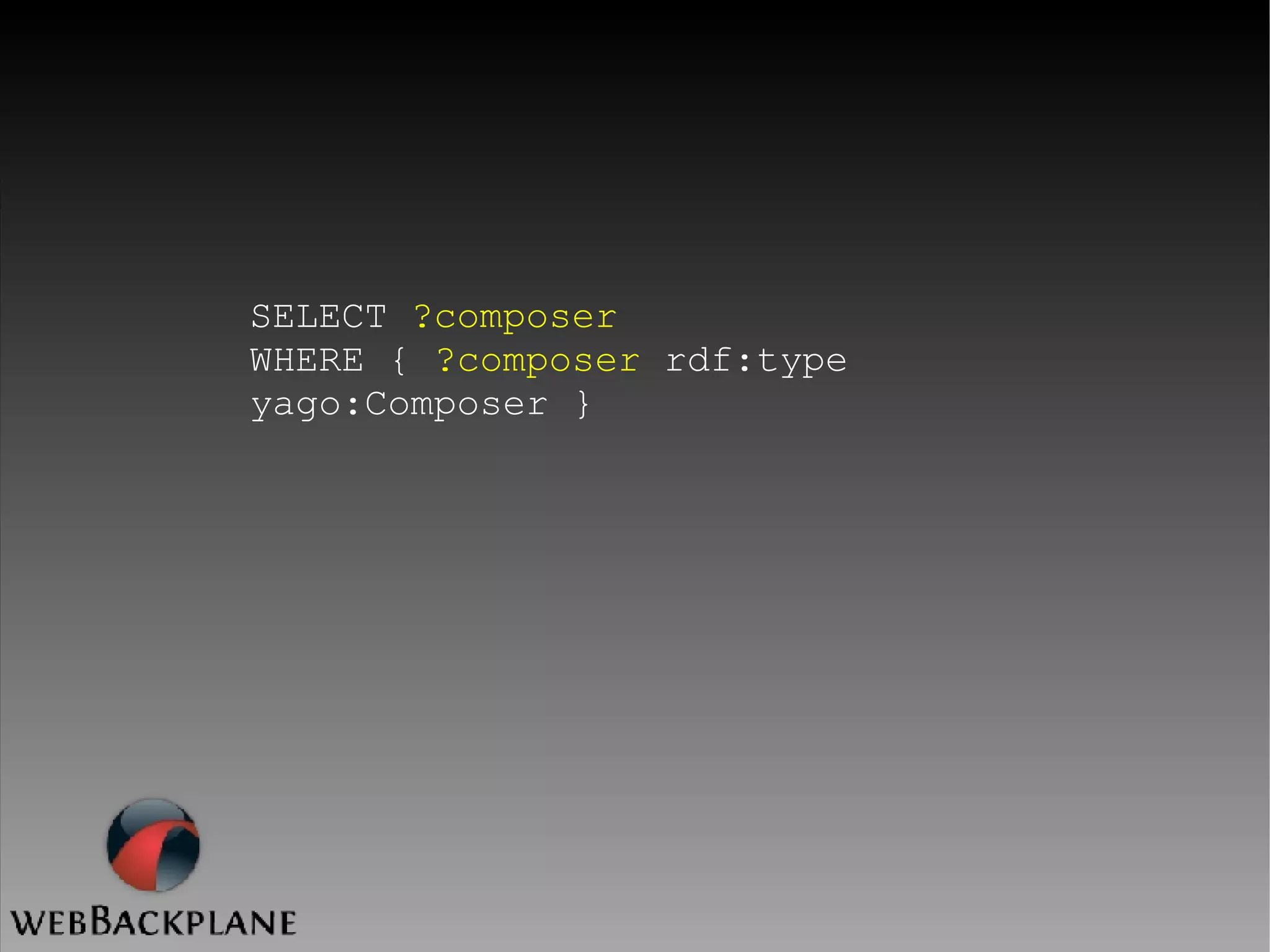

SELECT  ?composer WHERE {  ?composer  rdf:type yago:Composer }

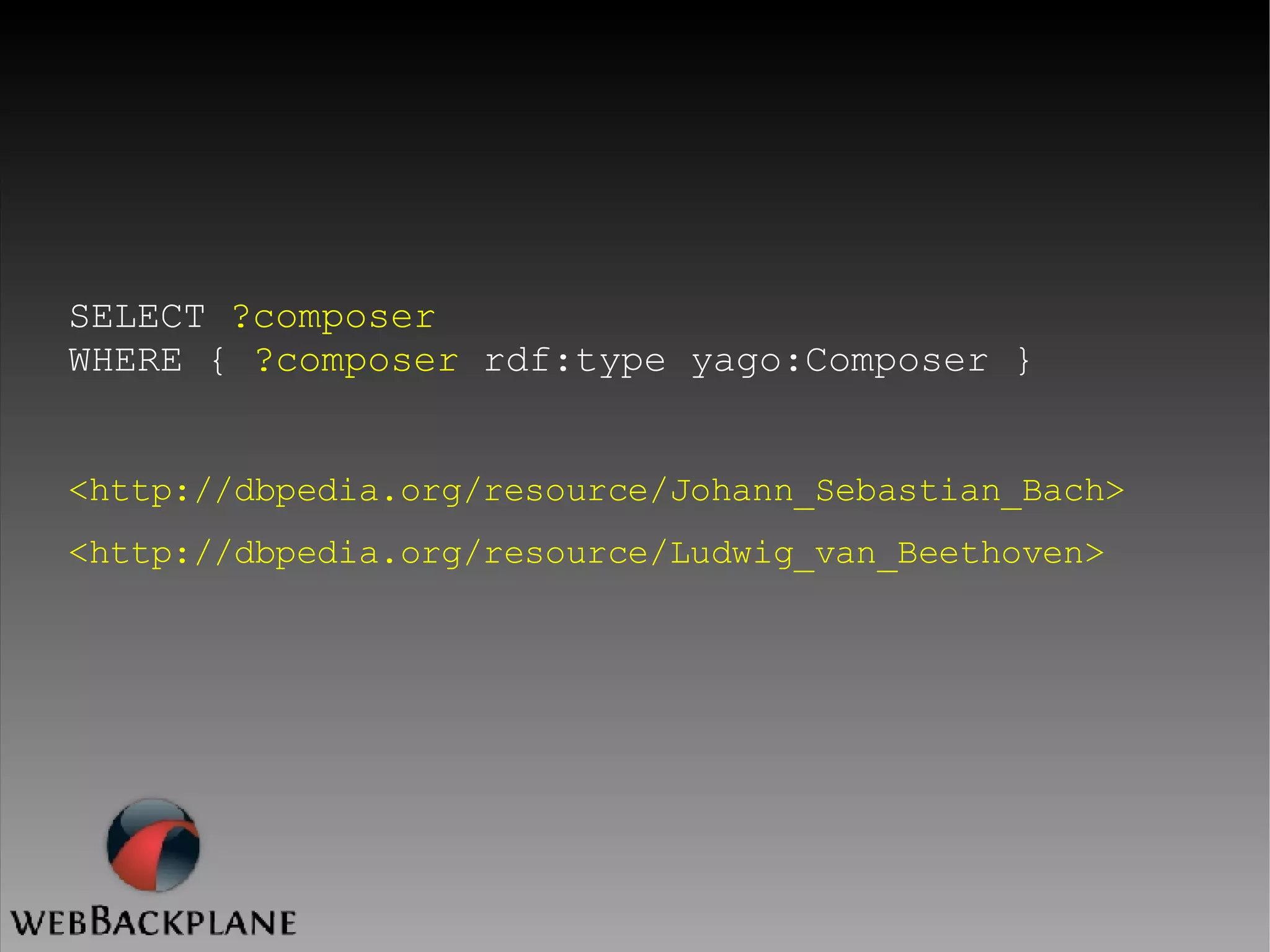

SELECT ?composer WHERE { ?composer rdf:type yago:Composer } <http://dbpedia.org/resource/Johann_Sebastian_Bach> <http://dbpedia.org/resource/Ludwig_van_Beethoven>

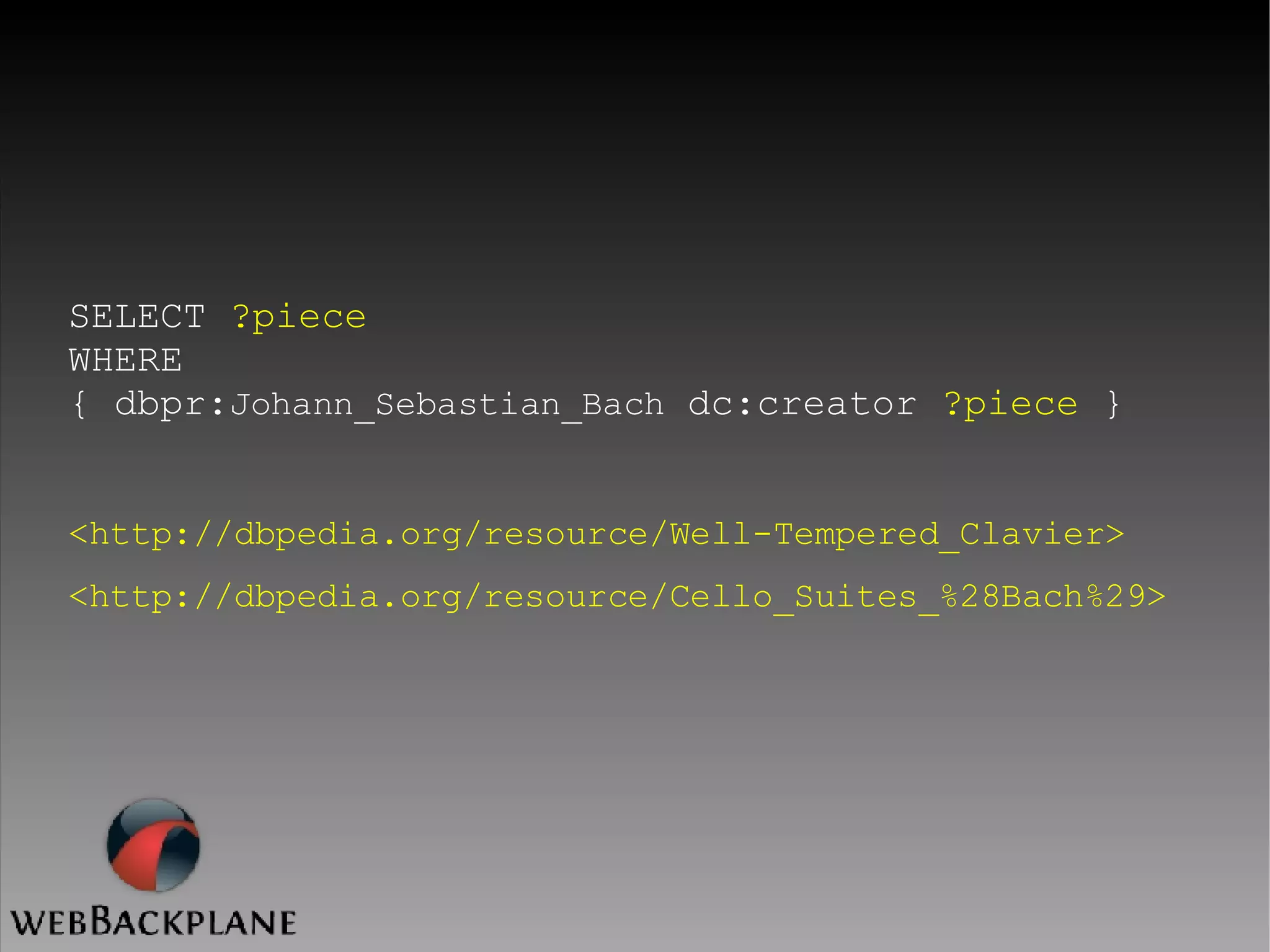

SELECT  ?piece WHERE { dbpr: Johann_Sebastian_Bach  dc:creator  ?piece  } <http://dbpedia.org/resource/Well-Tempered_Clavier> <http://dbpedia.org/resource/Cello_Suites_%28Bach%29>

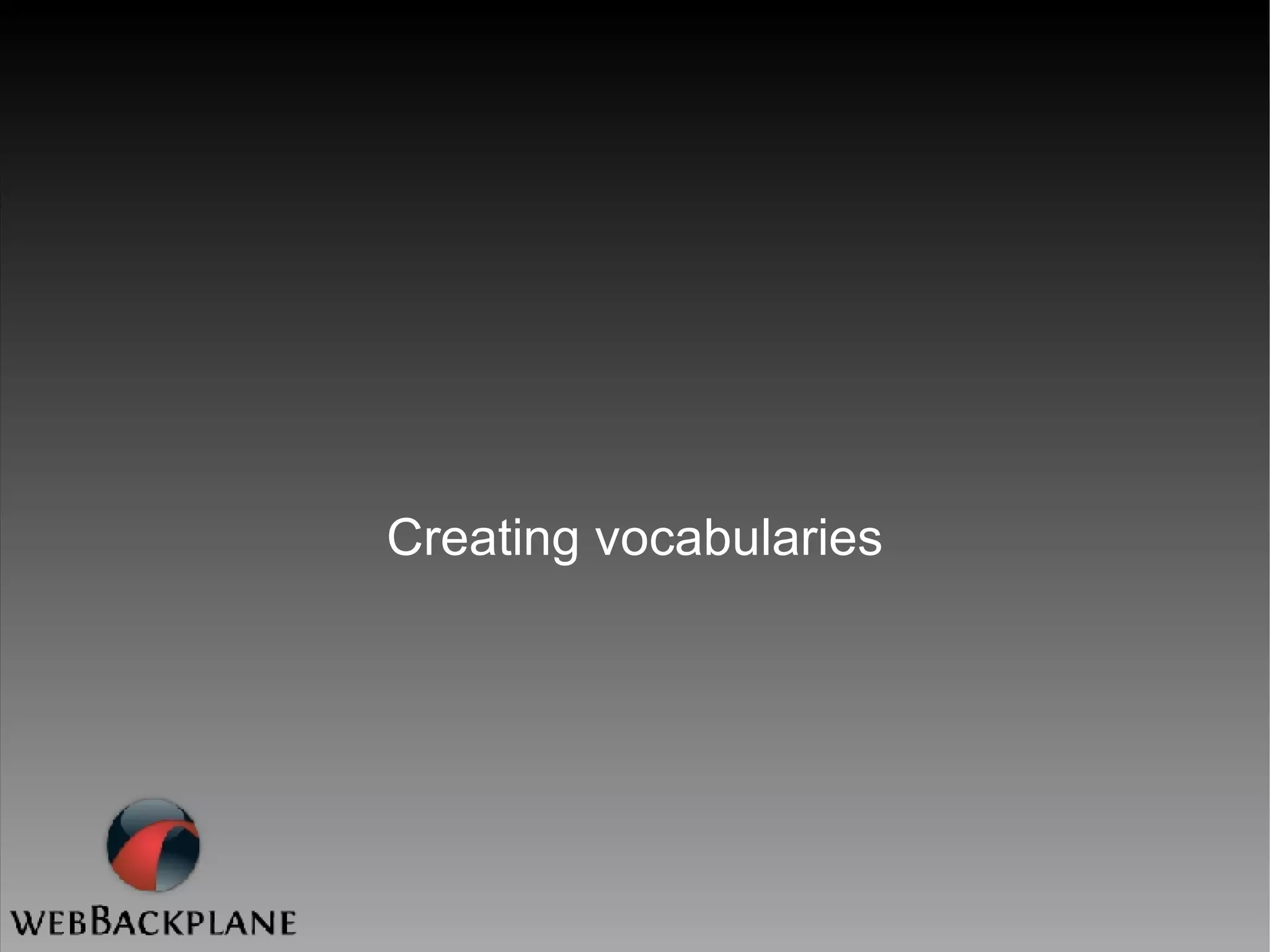

Creating vocabularies
Classes

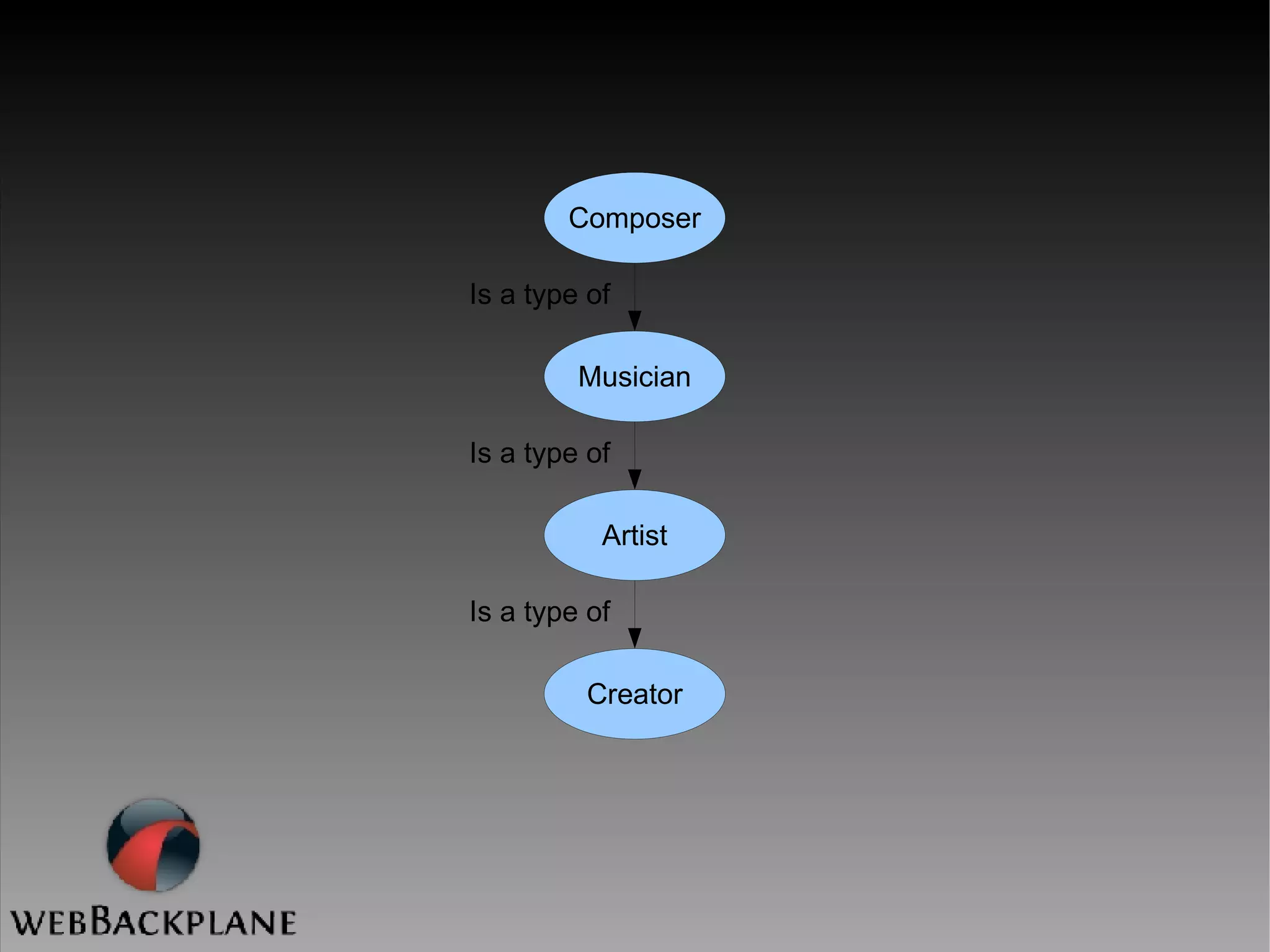

Composer Musician Is a type of Artist Is a type of Creator Is a type of

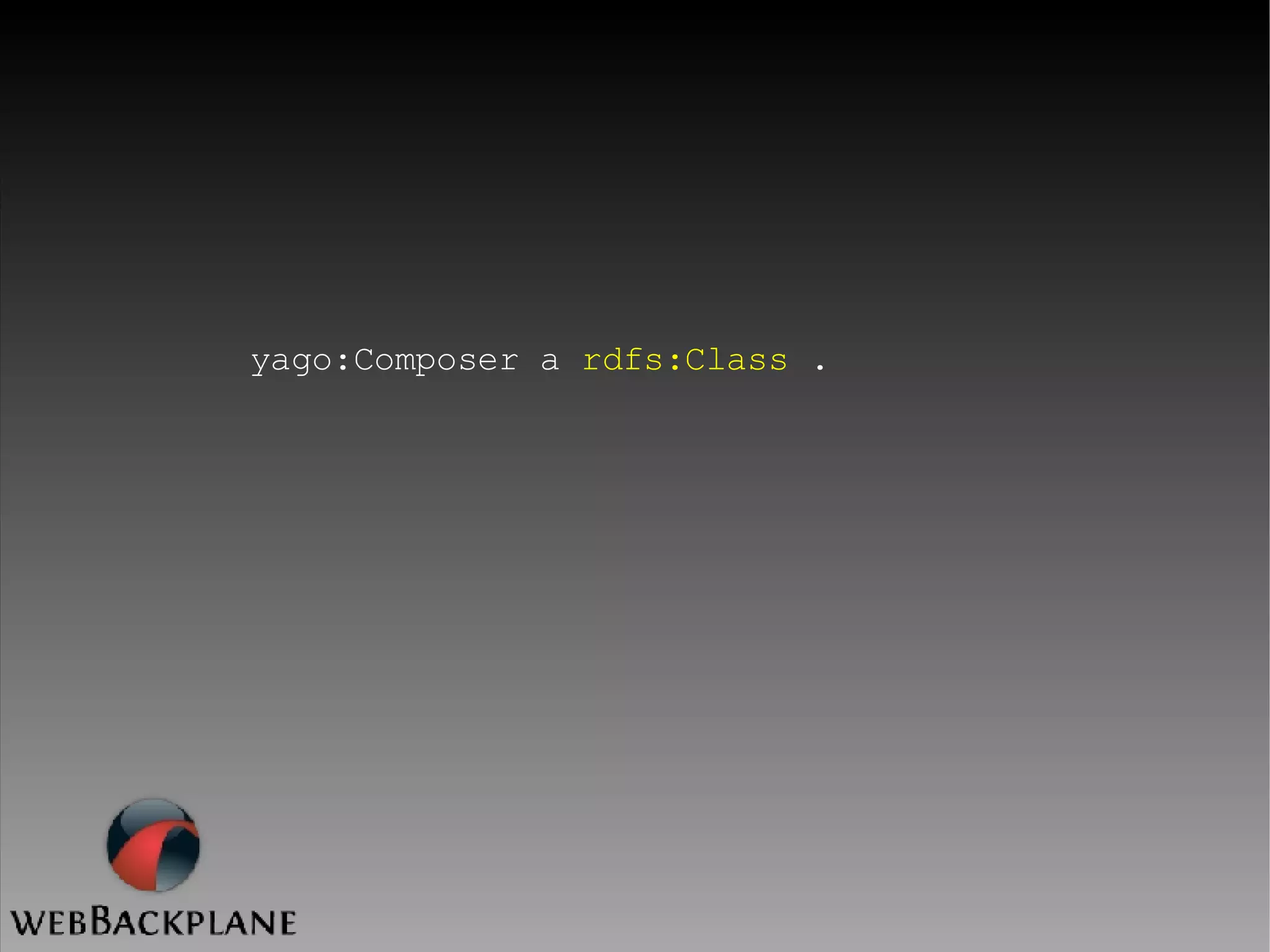

yago:Composer a  rdfs:Class  .

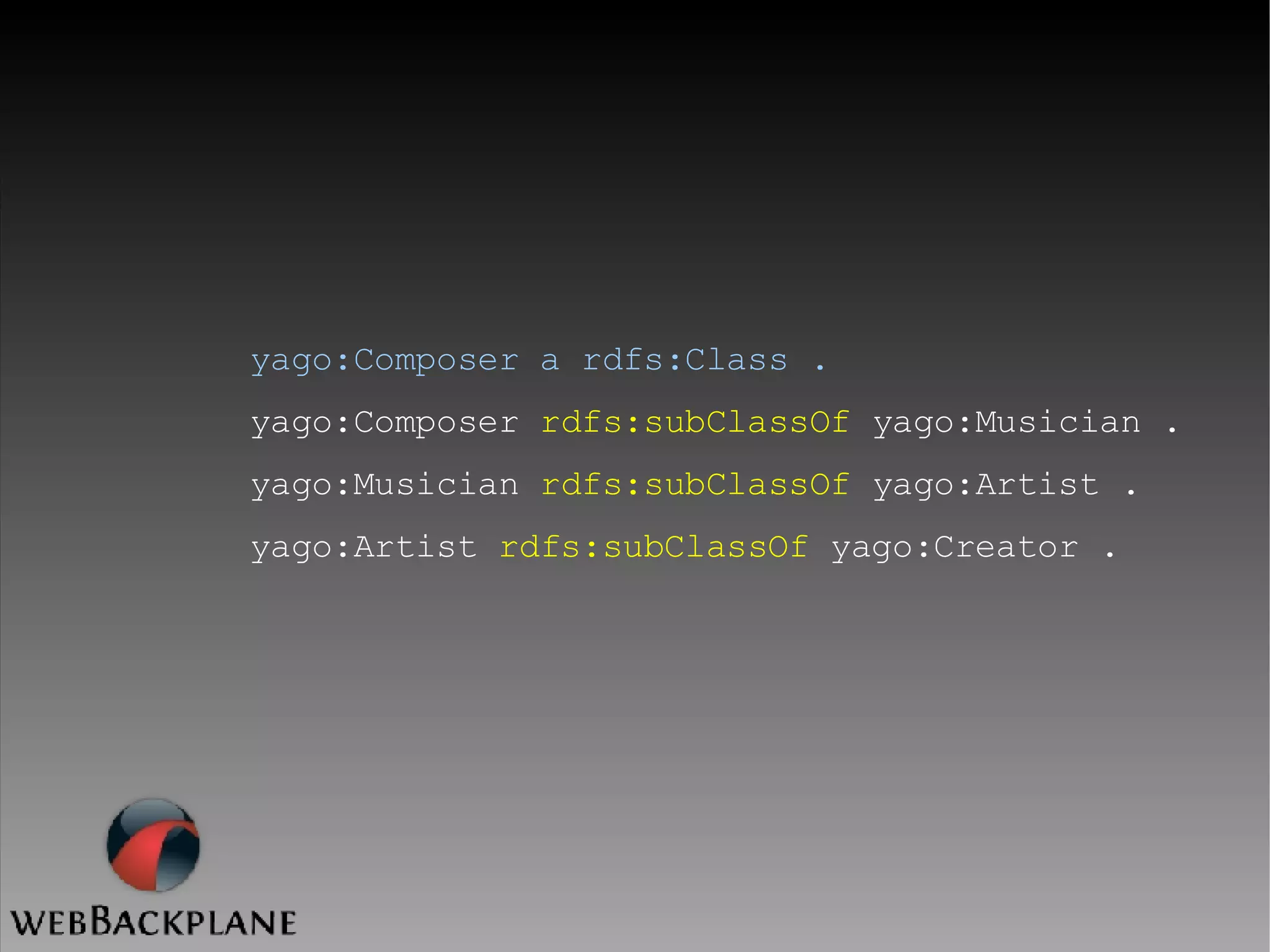

yago:Composer a rdfs:Class . yago:Composer  rdfs:subClassOf  yago:Musician . yago:Musician  rdfs:subClassOf  yago:Artist . yago:Artist  rdfs:subClassOf  yago:Creator .

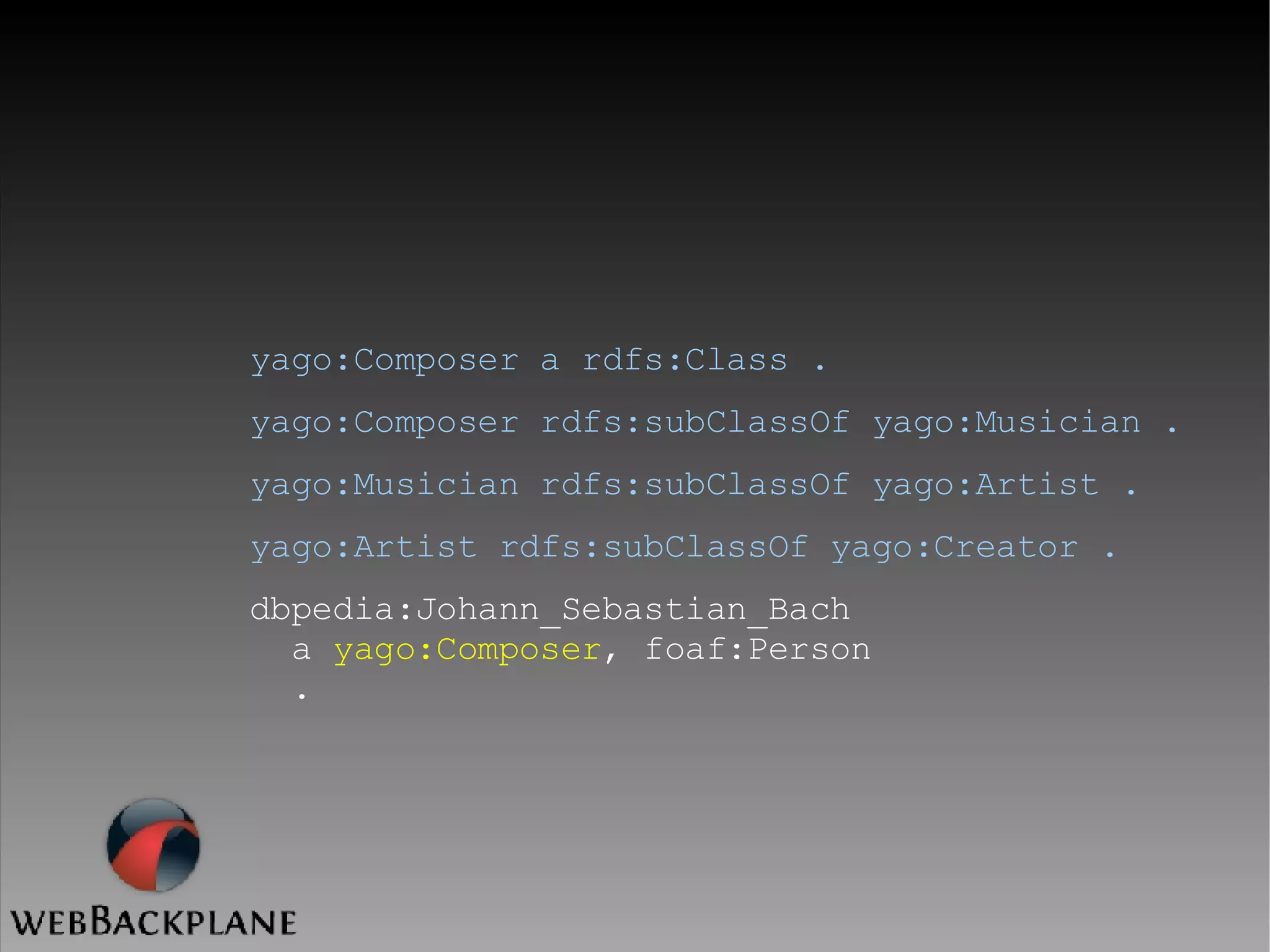

yago:Composer a rdfs:Class . yago:Composer rdfs:subClassOf yago:Musician . yago:Musician rdfs:subClassOf yago:Artist . yago:Artist rdfs:subClassOf yago:Creator . dbpedia:Johann_Sebastian_Bach   a  yago:Composer , foaf:Person   .

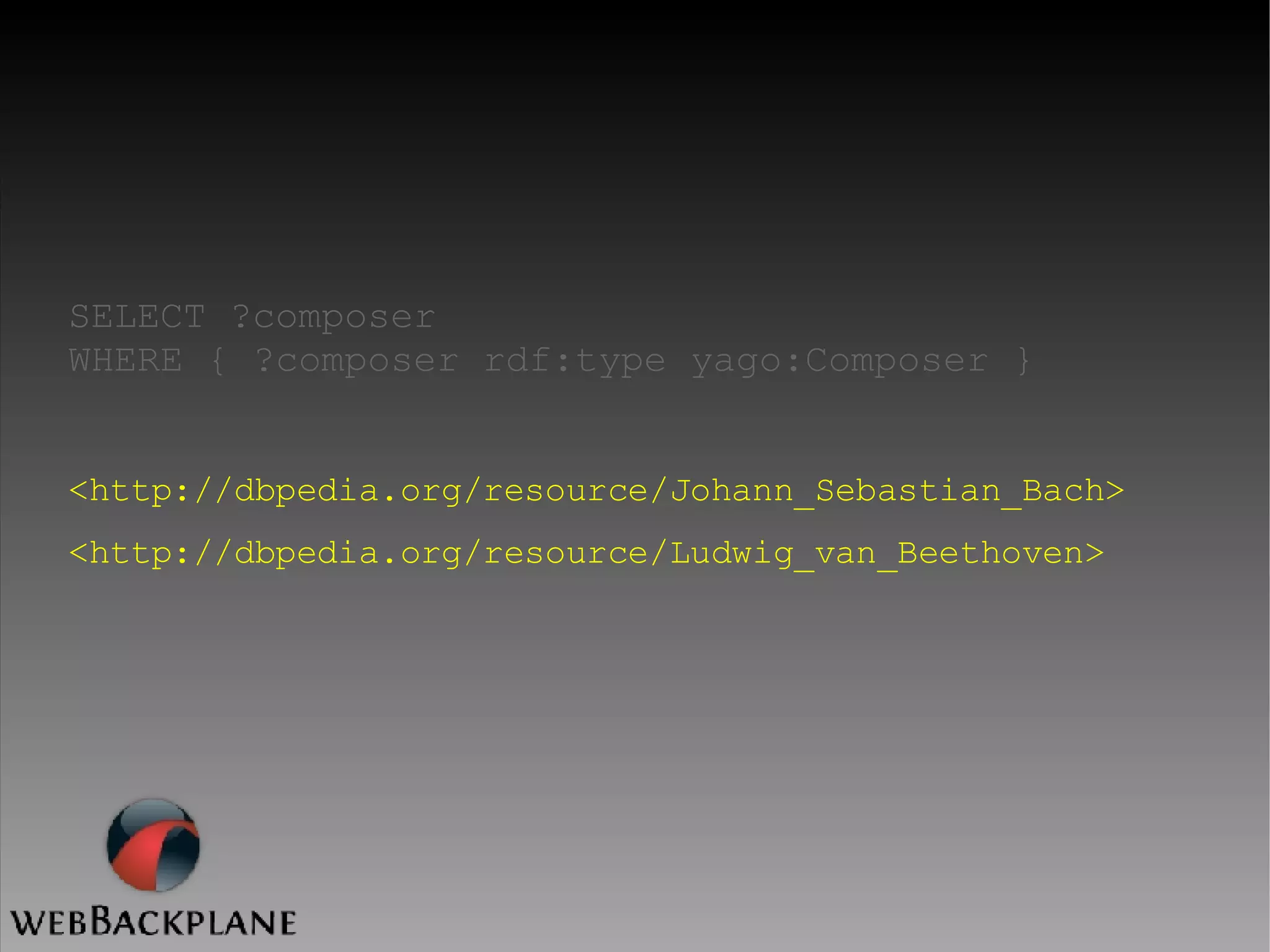

SELECT  ?composer WHERE {  ?composer  rdf:type yago:Composer } <http://dbpedia.org/resource/Johann_Sebastian_Bach> <http://dbpedia.org/resource/Ludwig_van_Beethoven>

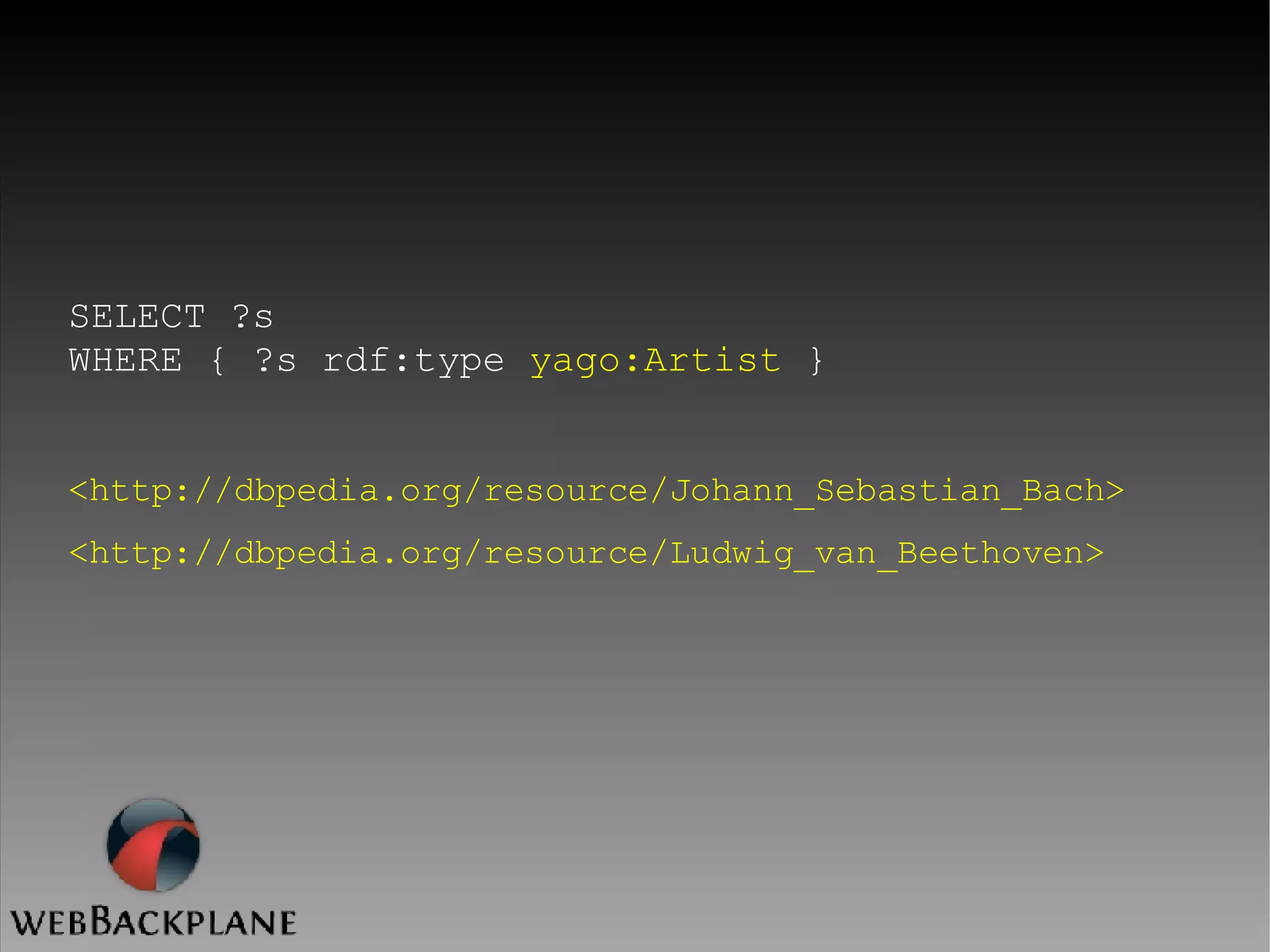

SELECT ?s WHERE { ?s rdf:type  yago:Artist  } <http://dbpedia.org/resource/Johann_Sebastian_Bach> <http://dbpedia.org/resource/Ludwig_van_Beethoven>
Properties

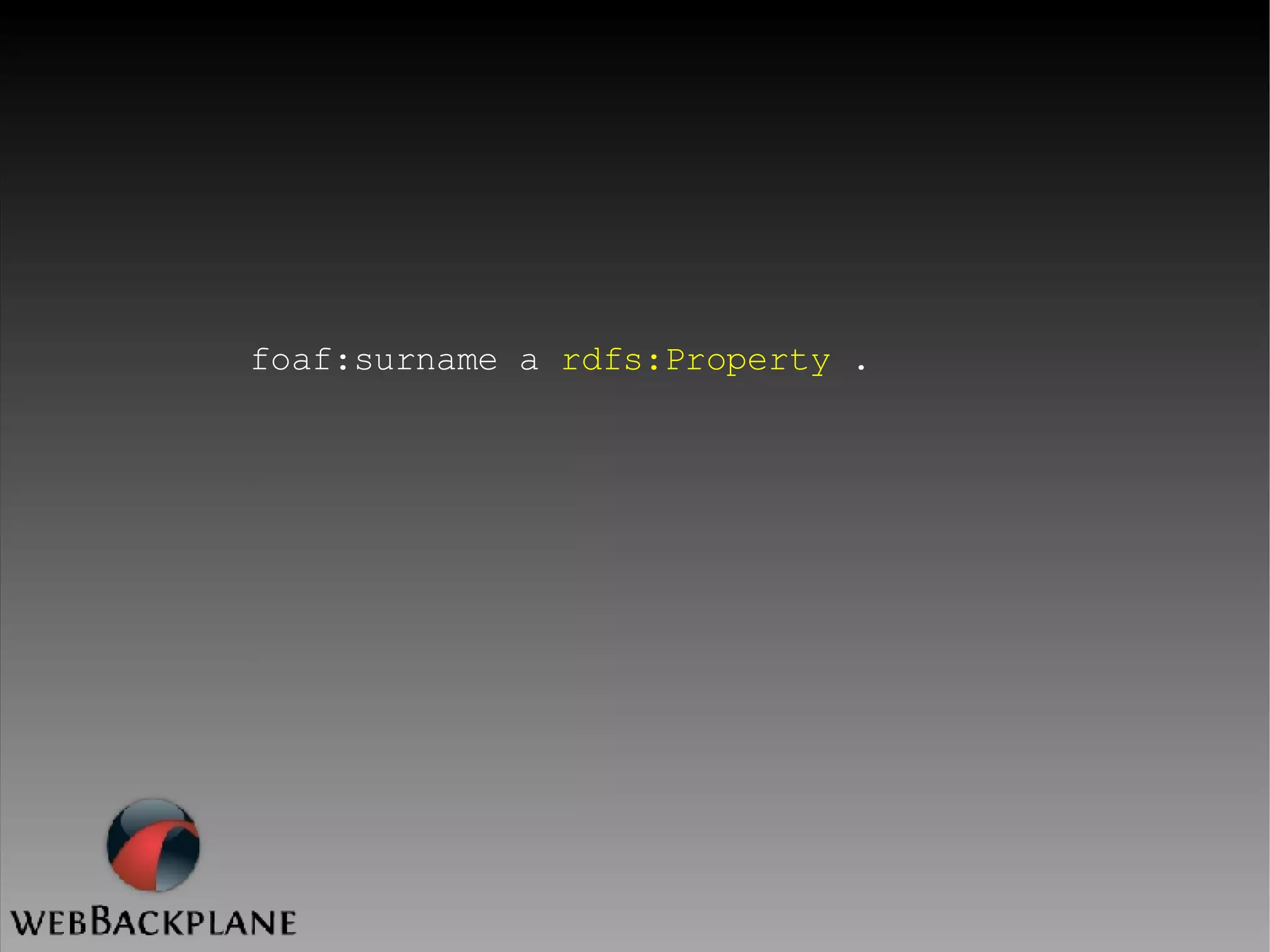

foaf:surname a  rdfs:Property  .

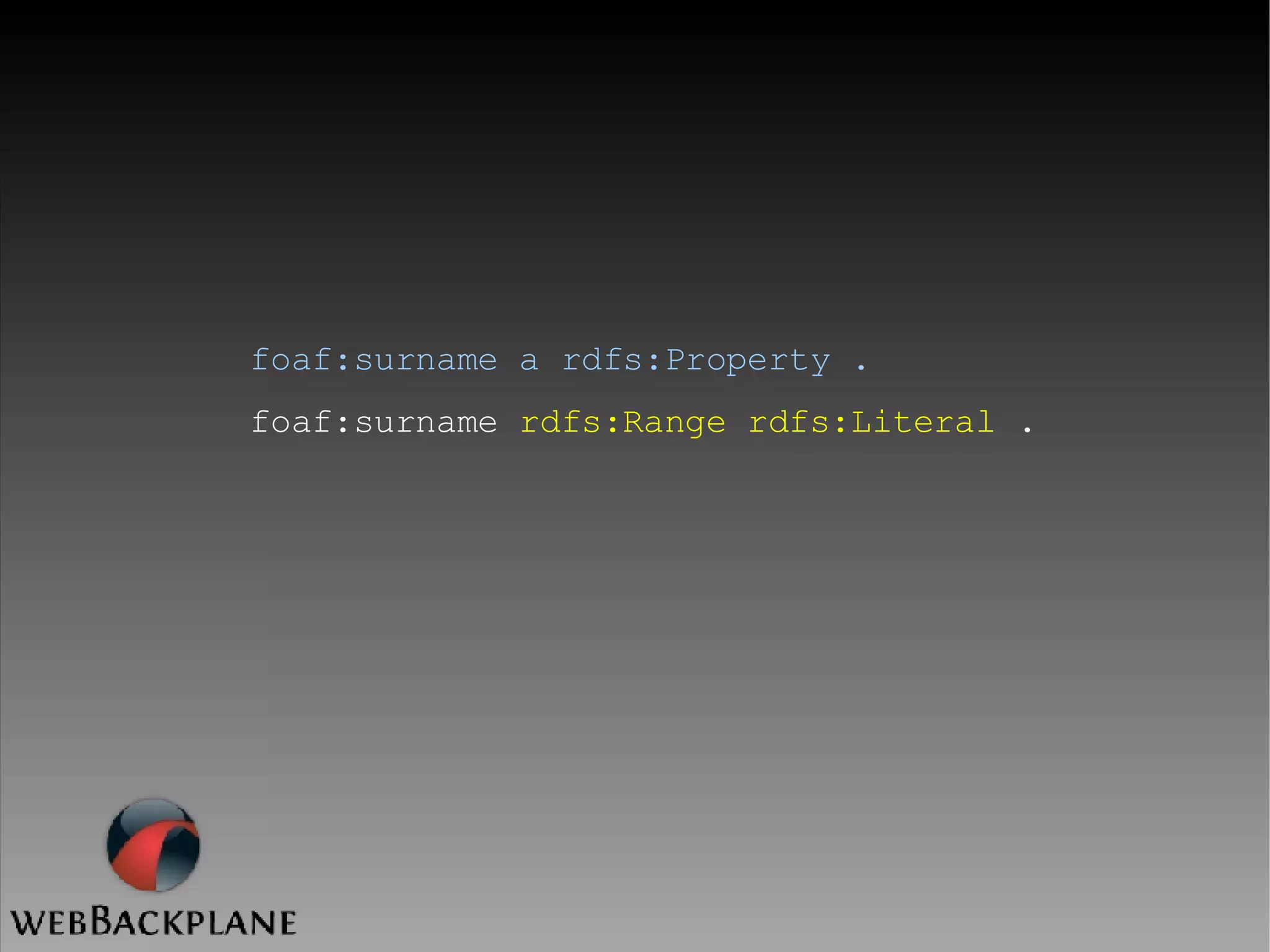

foaf:surname a rdfs:Property . foaf:surname  rdfs:Range rdfs:Literal  .

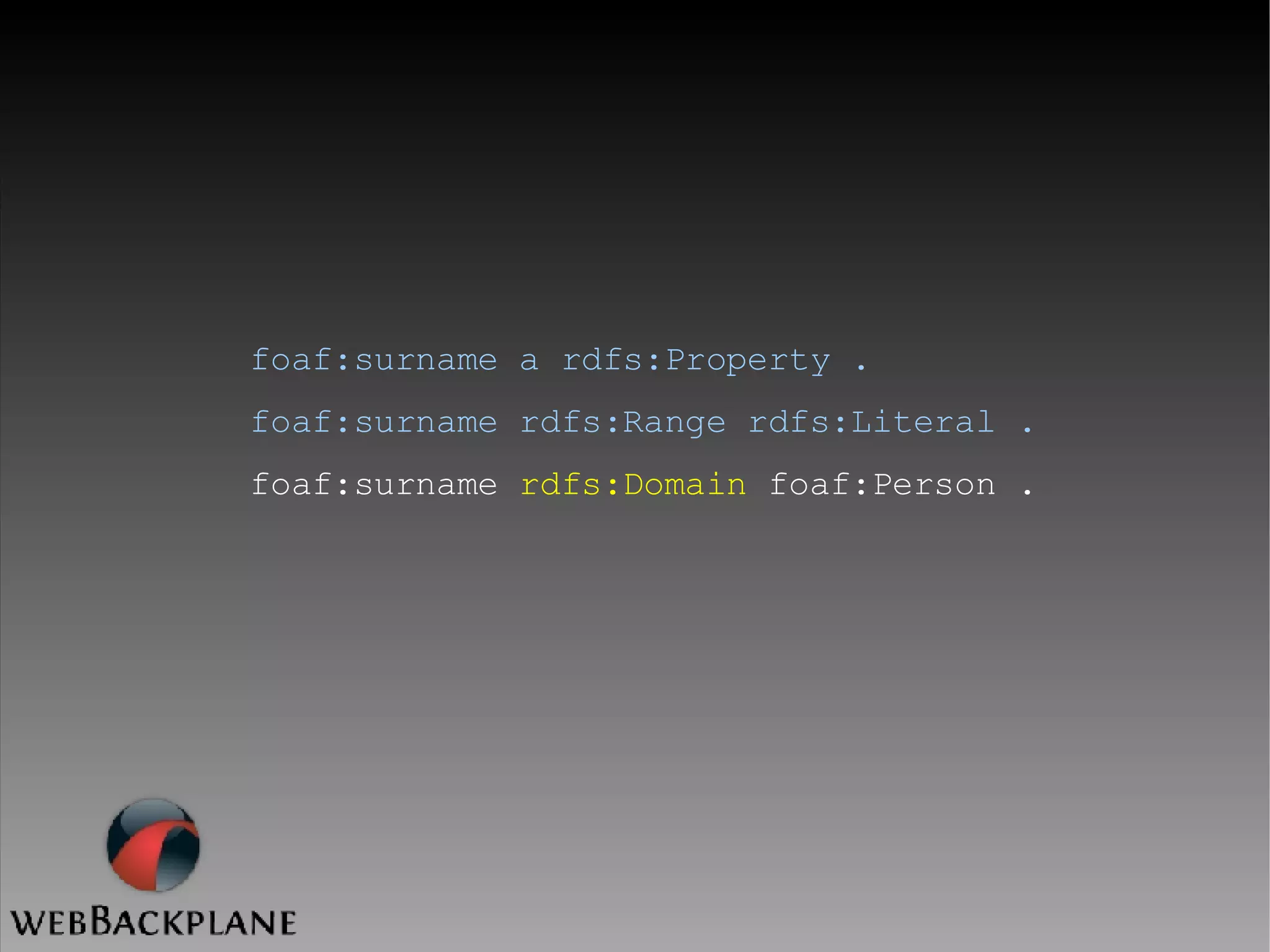

foaf:surname a rdfs:Property . foaf:surname rdfs:Range rdfs:Literal . foaf:surname  rdfs:Domain  foaf:Person .

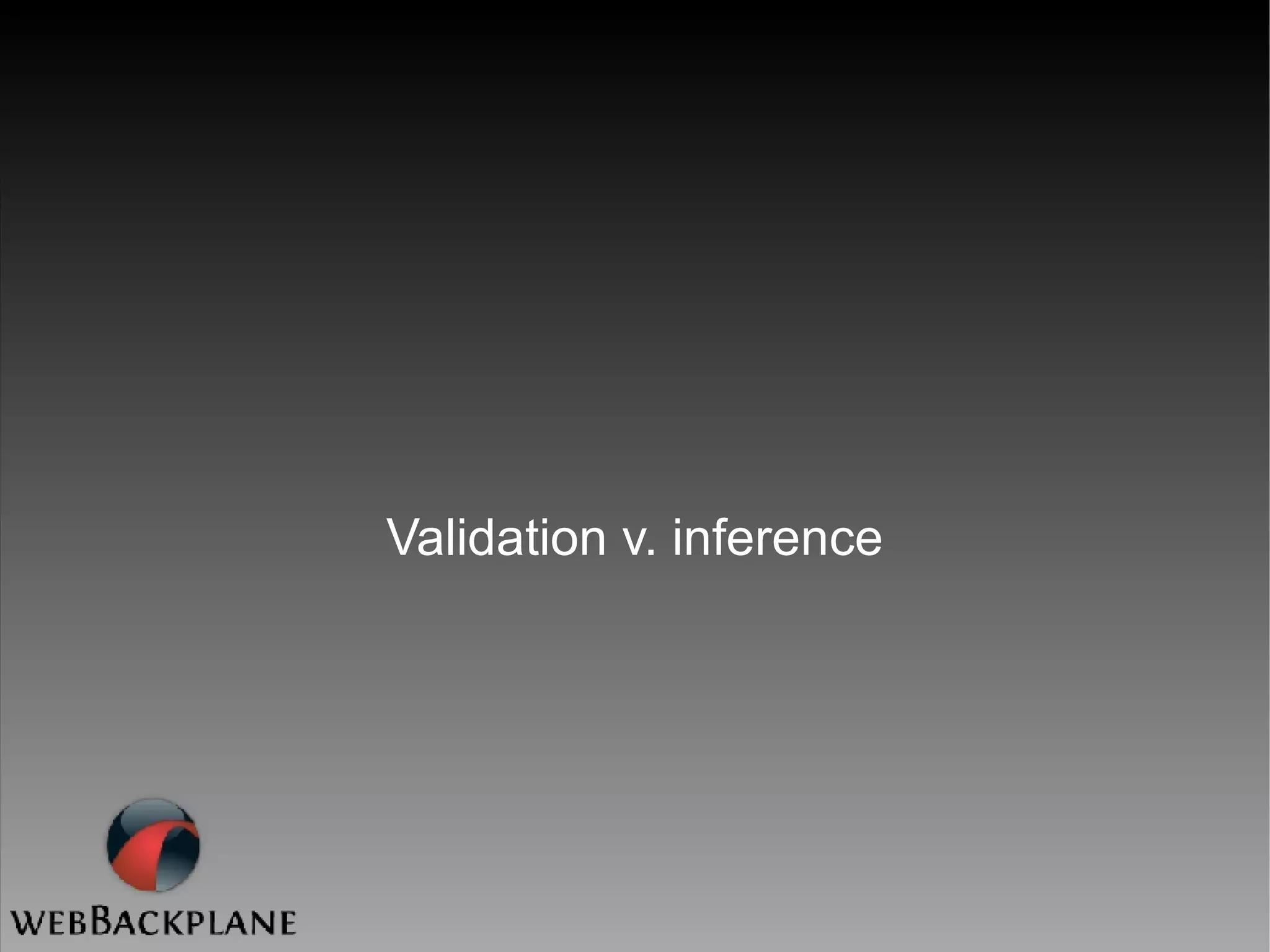

Validation v. inference

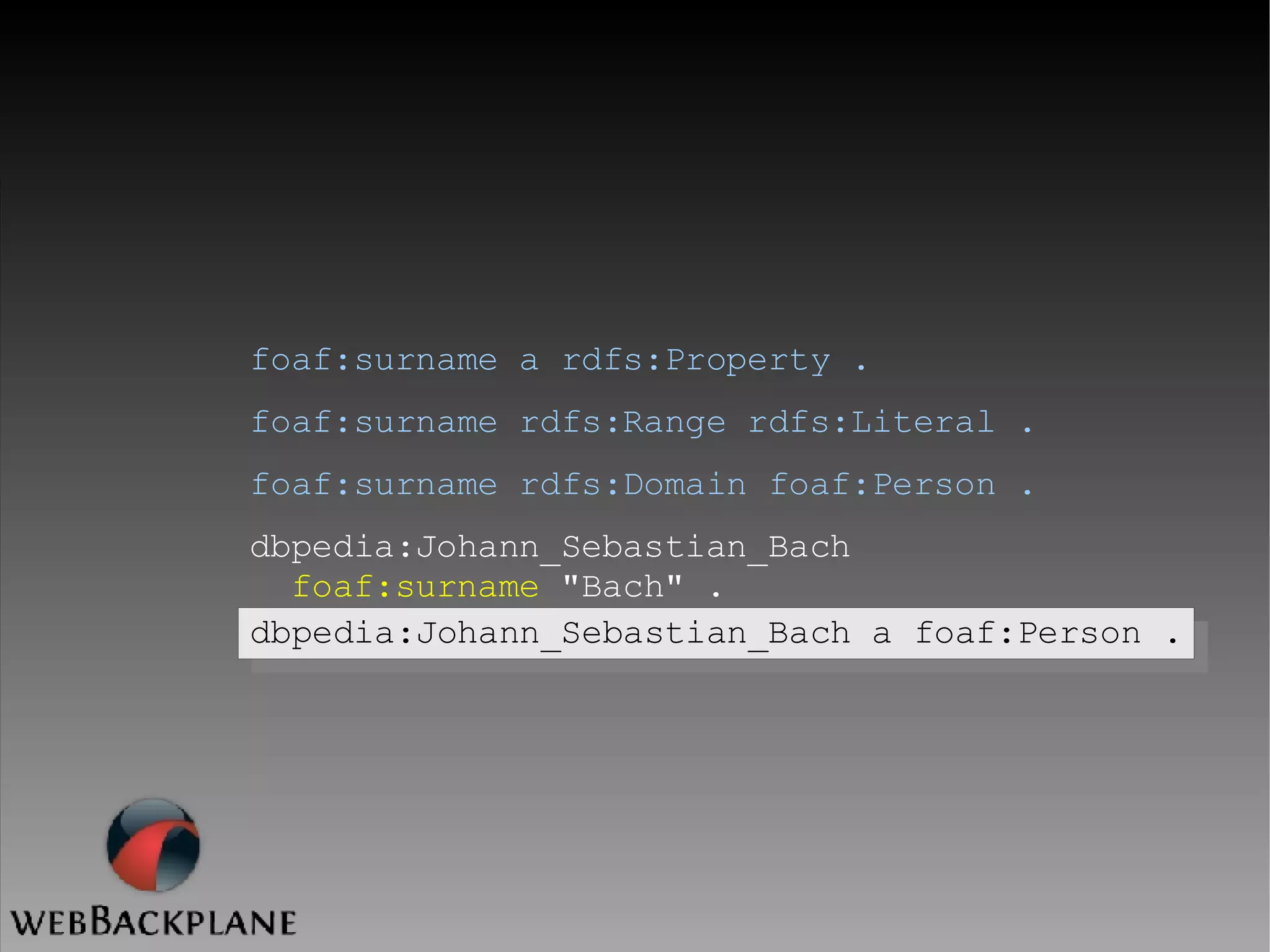

foaf:surname a rdfs:Property . foaf:surname rdfs:Range rdfs:Literal . foaf:surname rdfs:Domain foaf:Person . dbpedia:Johann_Sebastian_Bach   foaf:surname  &quot;Bach&quot; . dbpedia:Johann_Sebastian_Bach a foaf:Person .

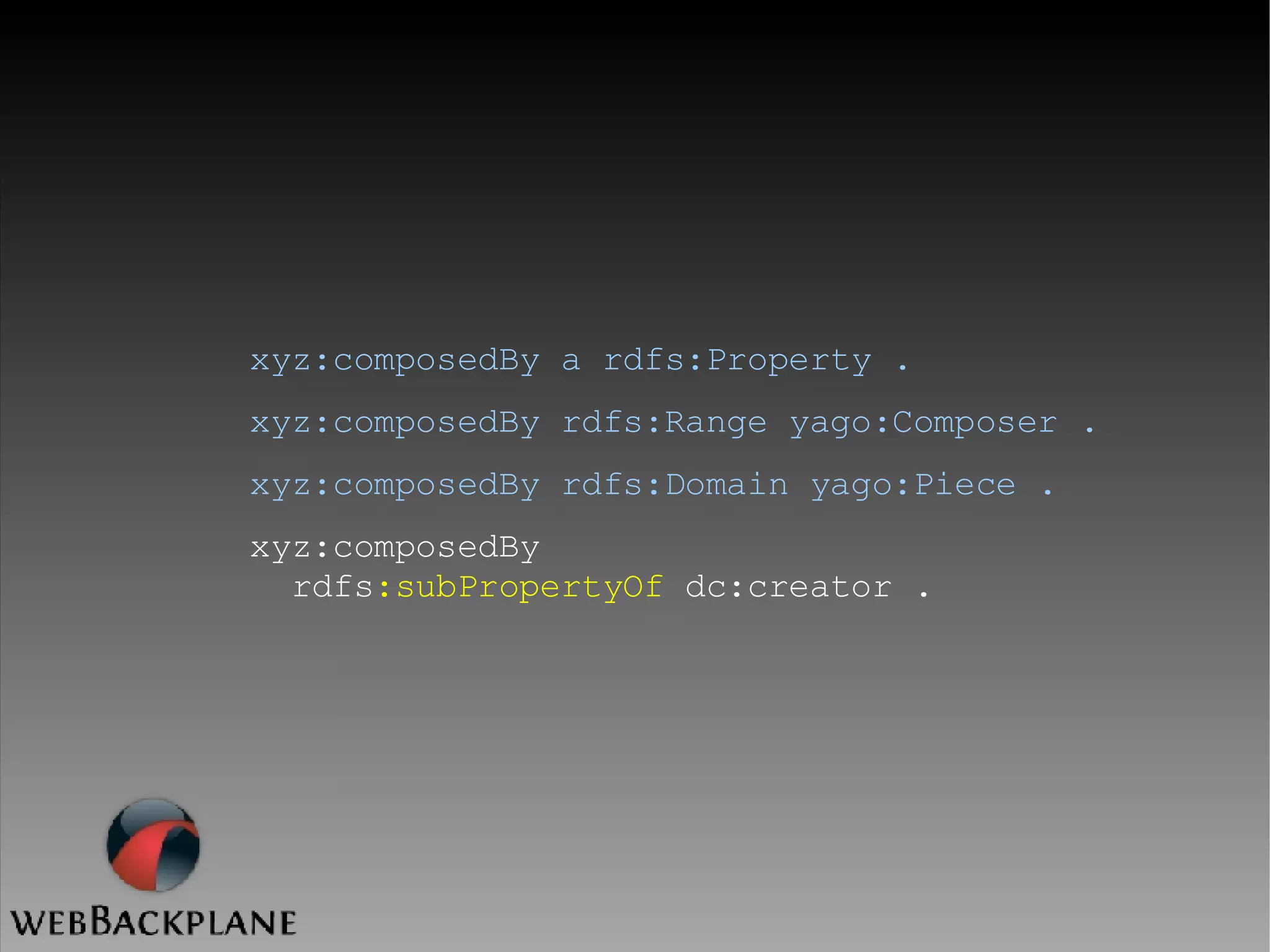

xyz:composedBy a rdfs:Property . xyz:composedBy rdfs:Range yago:Composer . xyz:composedBy rdfs:Domain yago:Piece . dbp:Cello_Suites_%28Bach%29   xyz:composedBy  dbp:Johann_Sebastian_Bach . dbp:Johann_Sebastian_Bach a yago:Composer .

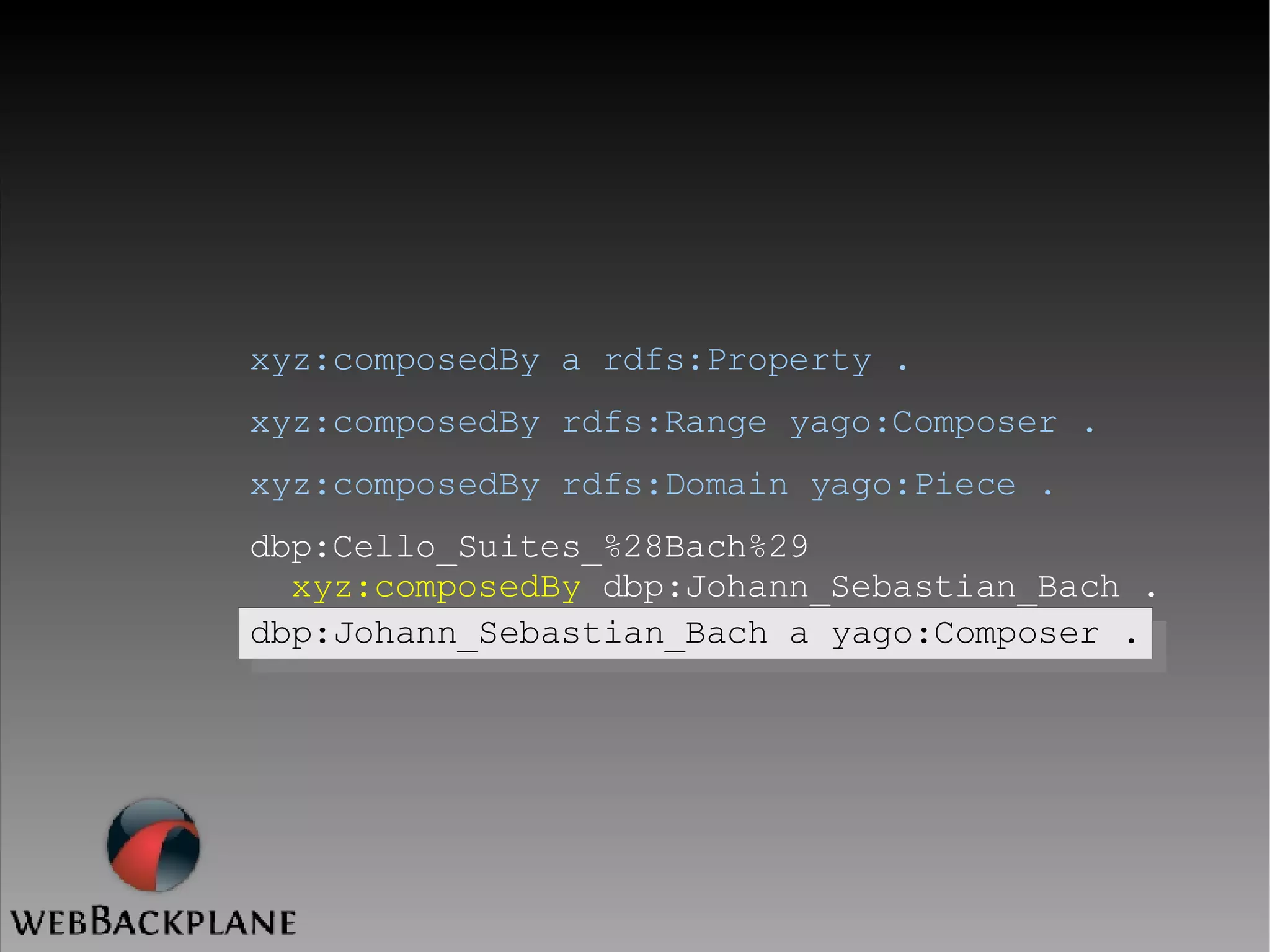

xyz:composedBy a rdfs:Property . xyz:composedBy rdfs:Range yago:Composer . xyz:composedBy rdfs:Domain yago:Piece . xyz:composedBy   rdfs :subPropertyOf  dc:creator .
OWL
Conclusion

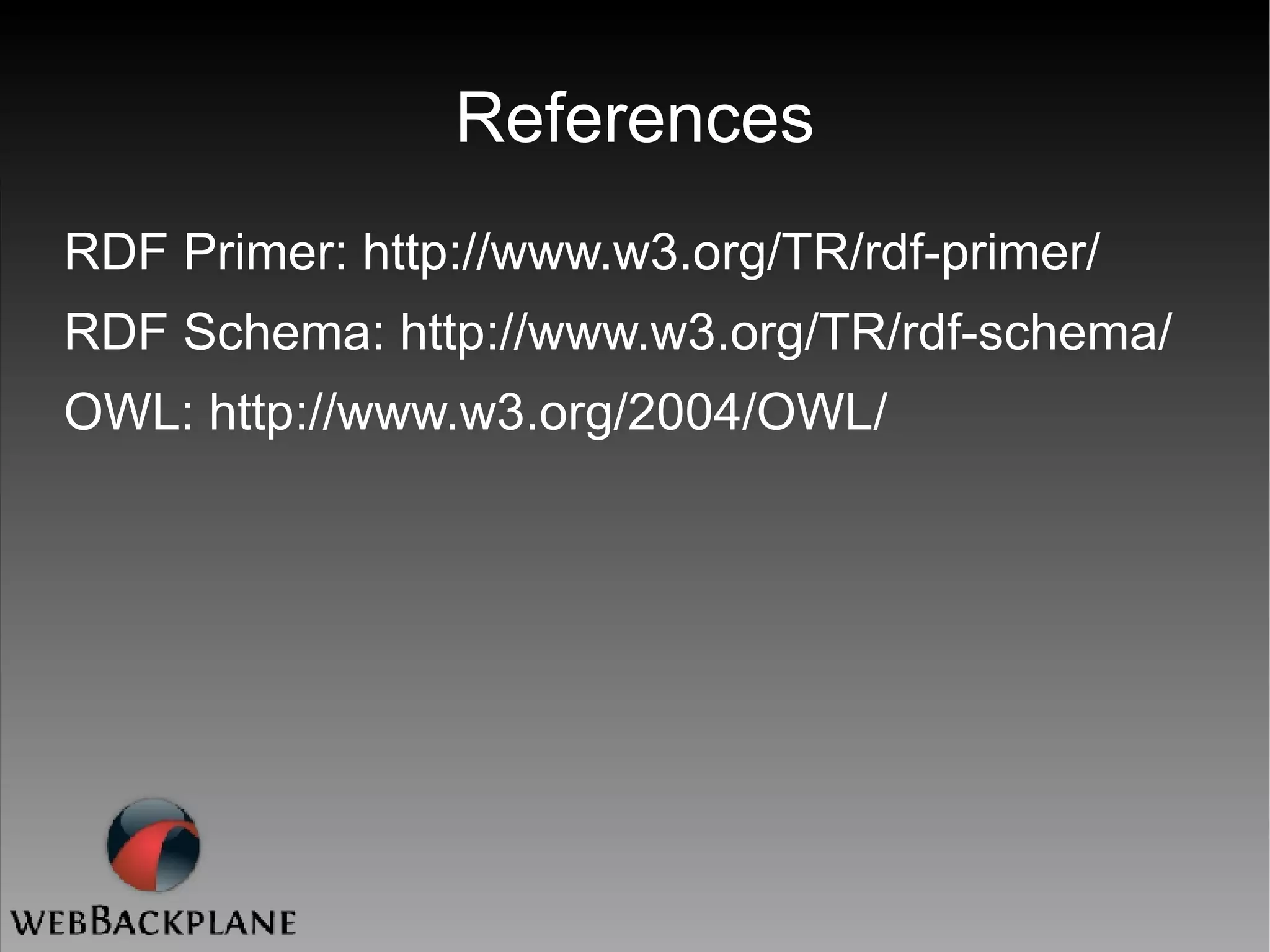

References RDF Primer: http://www.w3.org/TR/rdf-primer/ RDF Schema: http://www.w3.org/TR/rdf-schema/ OWL: http://www.w3.org/2004/OWL/

More Related Content

More from Mark Birbeck

RDFa and Government Data
RDFa and Government DataRDFa and Government Data
RDFa and Government Data
Mark Birbeck

RDFa: What happens when web-pages get smart?
RDFa: What happens when web-pages get smart?RDFa: What happens when web-pages get smart?
RDFa: What happens when web-pages get smart?
Mark Birbeck

The possibilities of RDFa and the Semantic Web
The possibilities of RDFa and the Semantic WebThe possibilities of RDFa and the Semantic Web
The possibilities of RDFa and the Semantic Web
Mark Birbeck

RDFa: The Semantic Web's Missing Link
RDFa: The Semantic Web's Missing LinkRDFa: The Semantic Web's Missing Link
RDFa: The Semantic Web's Missing Link
Mark Birbeck

Openness and Innovation
Openness and InnovationOpenness and Innovation
Openness and Innovation
Mark Birbeck

Future Of Web Languages
Future Of Web LanguagesFuture Of Web Languages
Future Of Web Languages
Mark Birbeck

The 5 minute guide to RDFa...in only 6 minutes 40 seconds
The 5 minute guide to RDFa...in only 6 minutes 40 secondsThe 5 minute guide to RDFa...in only 6 minutes 40 seconds
The 5 minute guide to RDFa...in only 6 minutes 40 seconds
Mark Birbeck


More from Mark Birbeck (7)

RDFa and Government Data
RDFa and Government DataRDFa and Government Data
RDFa and Government Data

RDFa: What happens when web-pages get smart?
RDFa: What happens when web-pages get smart?RDFa: What happens when web-pages get smart?
RDFa: What happens when web-pages get smart?

The possibilities of RDFa and the Semantic Web
The possibilities of RDFa and the Semantic WebThe possibilities of RDFa and the Semantic Web
The possibilities of RDFa and the Semantic Web

RDFa: The Semantic Web's Missing Link
RDFa: The Semantic Web's Missing LinkRDFa: The Semantic Web's Missing Link
RDFa: The Semantic Web's Missing Link

Openness and Innovation
Openness and InnovationOpenness and Innovation
Openness and Innovation

Future Of Web Languages
Future Of Web LanguagesFuture Of Web Languages
Future Of Web Languages

The 5 minute guide to RDFa...in only 6 minutes 40 seconds
The 5 minute guide to RDFa...in only 6 minutes 40 secondsThe 5 minute guide to RDFa...in only 6 minutes 40 seconds
The 5 minute guide to RDFa...in only 6 minutes 40 seconds


Recently uploaded

Gym business MODEL .pdf .
Gym business MODEL .pdf                 .Gym business MODEL .pdf                 .
Gym business MODEL .pdf .
Divyanshu56740

TALENT ACQUISITION AND MANAGEMENT LECTURE 5
TALENT ACQUISITION AND MANAGEMENT LECTURE 5TALENT ACQUISITION AND MANAGEMENT LECTURE 5
TALENT ACQUISITION AND MANAGEMENT LECTURE 5
projectseasy

Girls Call Kharghar 9910780858 Provide Best And Top Girl Service And No1 in City
Girls Call Kharghar 9910780858 Provide Best And Top Girl Service And No1 in CityGirls Call Kharghar 9910780858 Provide Best And Top Girl Service And No1 in City
Girls Call Kharghar 9910780858 Provide Best And Top Girl Service And No1 in City
maigasapphire

Test Bank For Principles Of Cost Accounting, 17th Edition Edward J. Vander...
Test Bank For Principles Of Cost Accounting, 	  17th Edition Edward J. Vander...Test Bank For Principles Of Cost Accounting, 	  17th Edition Edward J. Vander...
Test Bank For Principles Of Cost Accounting, 17th Edition Edward J. Vander...
kevinkariuki227

You Get Me! Leveraging Communication Styles in Virtual Trainingpptx
You Get Me! Leveraging Communication Styles in Virtual TrainingpptxYou Get Me! Leveraging Communication Styles in Virtual Trainingpptx
You Get Me! Leveraging Communication Styles in Virtual Trainingpptx
Cynthia Clay

The-Three-Pillars-of-Doctoral-Research-What-Why-and-How (1).pptx
The-Three-Pillars-of-Doctoral-Research-What-Why-and-How (1).pptxThe-Three-Pillars-of-Doctoral-Research-What-Why-and-How (1).pptx
The-Three-Pillars-of-Doctoral-Research-What-Why-and-How (1).pptx
Jindal Global University, Sonipat Haryana 131001

Green Minimalist Aesthetic Project Proposal Presentation.pdf
Green Minimalist Aesthetic Project Proposal Presentation.pdfGreen Minimalist Aesthetic Project Proposal Presentation.pdf
Green Minimalist Aesthetic Project Proposal Presentation.pdf
shivamkush646

AR Akermon Rossenfeld Co. Shares Key Steps to Avoid Debt Traps.pptx
AR Akermon Rossenfeld Co. Shares Key Steps to Avoid Debt Traps.pptxAR Akermon Rossenfeld Co. Shares Key Steps to Avoid Debt Traps.pptx
AR Akermon Rossenfeld Co. Shares Key Steps to Avoid Debt Traps.pptx
Akermon Rossenfeld

WAM Corporate Presentation July 2024.pdf
WAM Corporate Presentation July 2024.pdfWAM Corporate Presentation July 2024.pdf
WAM Corporate Presentation July 2024.pdf
Western Alaska Minerals Corp.

Data Analytics and AI Strategy Toolkit, Playbook and Templates
Data Analytics and AI Strategy Toolkit, Playbook and TemplatesData Analytics and AI Strategy Toolkit, Playbook and Templates
Data Analytics and AI Strategy Toolkit, Playbook and Templates
Aurelien Domont, MBA

Retail Store Scavenger Hunt powerpoint slides
Retail Store Scavenger Hunt powerpoint slidesRetail Store Scavenger Hunt powerpoint slides
Retail Store Scavenger Hunt powerpoint slides
JairSemexant

Restaurant Chiraz Sindbad Hotel Hammamet
Restaurant Chiraz Sindbad Hotel HammametRestaurant Chiraz Sindbad Hotel Hammamet
Restaurant Chiraz Sindbad Hotel Hammamet
rihabkorbi24

حبوب %77 الميفيبريستون 200 ملغ في دبي الامارات العين ابوظبي عجمان واتس - 0096...
حبوب %77 الميفيبريستون 200 ملغ في دبي الامارات العين ابوظبي عجمان واتس - 0096...حبوب %77 الميفيبريستون 200 ملغ في دبي الامارات العين ابوظبي عجمان واتس - 0096...
حبوب %77 الميفيبريستون 200 ملغ في دبي الامارات العين ابوظبي عجمان واتس - 0096...
حبوب الاجهاض سايتوتك للبيع في الامارات cytotec واتس 00966583759617

High Profile Girls Call Bhubaneswar 🎈🔥000XX00000 🔥💋🎈 Provide Best And Top Gir...
High Profile Girls Call Bhubaneswar 🎈🔥000XX00000 🔥💋🎈 Provide Best And Top Gir...High Profile Girls Call Bhubaneswar 🎈🔥000XX00000 🔥💋🎈 Provide Best And Top Gir...
High Profile Girls Call Bhubaneswar 🎈🔥000XX00000 🔥💋🎈 Provide Best And Top Gir...
dimplekumaridk322

Business Model Canvas for Successful Business
Business Model Canvas for Successful BusinessBusiness Model Canvas for Successful Business
Business Model Canvas for Successful Business
SuganthiPrakash1

Millionaire track government application
Millionaire track government applicationMillionaire track government application
Millionaire track government application
pragyasharma659549

Connected Small Boat Protection Solution | July 2024
Connected Small Boat Protection Solution | July  2024Connected Small Boat Protection Solution | July  2024
Connected Small Boat Protection Solution | July 2024
Hector Del Castillo, CPM, CPMM

9 Lessons From Jeff Bezos’ ONLY Podcast Appearance
9 Lessons From Jeff Bezos’ ONLY Podcast Appearance9 Lessons From Jeff Bezos’ ONLY Podcast Appearance
9 Lessons From Jeff Bezos’ ONLY Podcast Appearance
Levership

Module 4 Business Strategy competitive advantages
Module 4 Business Strategy competitive advantagesModule 4 Business Strategy competitive advantages
Module 4 Business Strategy competitive advantages
Seta Wicaksana

Don’t Get Left Behind: Leveraging Modern Product Management Across the Organi...
Don’t Get Left Behind: Leveraging Modern Product Management Across the Organi...Don’t Get Left Behind: Leveraging Modern Product Management Across the Organi...
Don’t Get Left Behind: Leveraging Modern Product Management Across the Organi...
Aggregage


Recently uploaded (20)

Gym business MODEL .pdf .
Gym business MODEL .pdf                 .Gym business MODEL .pdf                 .
Gym business MODEL .pdf .

TALENT ACQUISITION AND MANAGEMENT LECTURE 5
TALENT ACQUISITION AND MANAGEMENT LECTURE 5TALENT ACQUISITION AND MANAGEMENT LECTURE 5
TALENT ACQUISITION AND MANAGEMENT LECTURE 5

Girls Call Kharghar 9910780858 Provide Best And Top Girl Service And No1 in City
Girls Call Kharghar 9910780858 Provide Best And Top Girl Service And No1 in CityGirls Call Kharghar 9910780858 Provide Best And Top Girl Service And No1 in City
Girls Call Kharghar 9910780858 Provide Best And Top Girl Service And No1 in City

Test Bank For Principles Of Cost Accounting, 17th Edition Edward J. Vander...
Test Bank For Principles Of Cost Accounting, 	  17th Edition Edward J. Vander...Test Bank For Principles Of Cost Accounting, 	  17th Edition Edward J. Vander...
Test Bank For Principles Of Cost Accounting, 17th Edition Edward J. Vander...

You Get Me! Leveraging Communication Styles in Virtual Trainingpptx
You Get Me! Leveraging Communication Styles in Virtual TrainingpptxYou Get Me! Leveraging Communication Styles in Virtual Trainingpptx
You Get Me! Leveraging Communication Styles in Virtual Trainingpptx

The-Three-Pillars-of-Doctoral-Research-What-Why-and-How (1).pptx
The-Three-Pillars-of-Doctoral-Research-What-Why-and-How (1).pptxThe-Three-Pillars-of-Doctoral-Research-What-Why-and-How (1).pptx
The-Three-Pillars-of-Doctoral-Research-What-Why-and-How (1).pptx

Green Minimalist Aesthetic Project Proposal Presentation.pdf
Green Minimalist Aesthetic Project Proposal Presentation.pdfGreen Minimalist Aesthetic Project Proposal Presentation.pdf
Green Minimalist Aesthetic Project Proposal Presentation.pdf

AR Akermon Rossenfeld Co. Shares Key Steps to Avoid Debt Traps.pptx
AR Akermon Rossenfeld Co. Shares Key Steps to Avoid Debt Traps.pptxAR Akermon Rossenfeld Co. Shares Key Steps to Avoid Debt Traps.pptx
AR Akermon Rossenfeld Co. Shares Key Steps to Avoid Debt Traps.pptx

WAM Corporate Presentation July 2024.pdf
WAM Corporate Presentation July 2024.pdfWAM Corporate Presentation July 2024.pdf
WAM Corporate Presentation July 2024.pdf

Data Analytics and AI Strategy Toolkit, Playbook and Templates
Data Analytics and AI Strategy Toolkit, Playbook and TemplatesData Analytics and AI Strategy Toolkit, Playbook and Templates
Data Analytics and AI Strategy Toolkit, Playbook and Templates

Retail Store Scavenger Hunt powerpoint slides
Retail Store Scavenger Hunt powerpoint slidesRetail Store Scavenger Hunt powerpoint slides
Retail Store Scavenger Hunt powerpoint slides

Restaurant Chiraz Sindbad Hotel Hammamet
Restaurant Chiraz Sindbad Hotel HammametRestaurant Chiraz Sindbad Hotel Hammamet
Restaurant Chiraz Sindbad Hotel Hammamet

حبوب %77 الميفيبريستون 200 ملغ في دبي الامارات العين ابوظبي عجمان واتس - 0096...
حبوب %77 الميفيبريستون 200 ملغ في دبي الامارات العين ابوظبي عجمان واتس - 0096...حبوب %77 الميفيبريستون 200 ملغ في دبي الامارات العين ابوظبي عجمان واتس - 0096...
حبوب %77 الميفيبريستون 200 ملغ في دبي الامارات العين ابوظبي عجمان واتس - 0096...

High Profile Girls Call Bhubaneswar 🎈🔥000XX00000 🔥💋🎈 Provide Best And Top Gir...
High Profile Girls Call Bhubaneswar 🎈🔥000XX00000 🔥💋🎈 Provide Best And Top Gir...High Profile Girls Call Bhubaneswar 🎈🔥000XX00000 🔥💋🎈 Provide Best And Top Gir...
High Profile Girls Call Bhubaneswar 🎈🔥000XX00000 🔥💋🎈 Provide Best And Top Gir...

Business Model Canvas for Successful Business
Business Model Canvas for Successful BusinessBusiness Model Canvas for Successful Business
Business Model Canvas for Successful Business

Millionaire track government application
Millionaire track government applicationMillionaire track government application
Millionaire track government application

Connected Small Boat Protection Solution | July 2024
Connected Small Boat Protection Solution | July  2024Connected Small Boat Protection Solution | July  2024
Connected Small Boat Protection Solution | July 2024

9 Lessons From Jeff Bezos’ ONLY Podcast Appearance
9 Lessons From Jeff Bezos’ ONLY Podcast Appearance9 Lessons From Jeff Bezos’ ONLY Podcast Appearance
9 Lessons From Jeff Bezos’ ONLY Podcast Appearance

Module 4 Business Strategy competitive advantages
Module 4 Business Strategy competitive advantagesModule 4 Business Strategy competitive advantages
Module 4 Business Strategy competitive advantages

Don’t Get Left Behind: Leveraging Modern Product Management Across the Organi...
Don’t Get Left Behind: Leveraging Modern Product Management Across the Organi...Don’t Get Left Behind: Leveraging Modern Product Management Across the Organi...
Don’t Get Left Behind: Leveraging Modern Product Management Across the Organi...


A First Course in RDF and RDFS (Resource Description Framework and Resource Description Framework Schema)

  • 1. Introduction to RDF and RDFS Mark Birbeck http://webBackplane.com/mark-birbeck
  • 3. RDF/XML is the real villain
  • 5. RDF Documents Primer Concepts Syntax Semantics Vocabulary Test cases
  • 6. This tutorial Concepts Transporting RDF Storing Some sources of RDF data Querying Defining vocabularies
  • 8. Getting data from the web is easy...getting metadata is hard
  • 9.
  • 10. XML was supposed to give us this information
  • 11. <music genre=&quot;classical&quot;> <title> The Well-tempered Clavier </title> <composer>J. S. Bach</composer> </music>
  • 12. Why has XML not delivered?
  • 13. <document type=&quot;classical music&quot;> <name> The Well-tempered Clavier </name> <author>J. S. Bach</author> </document>
  • 14. We want to say: &quot;give me everything created by J. S. Bach&quot;
  • 15. To achieve that we need to agree how to say ' created by ' in any document
  • 16. Dublin, Ohio Photo by Sleestak66: http://www.flickr.com/people/kesselring/
  • 17.
  • 18. DC.Creator = &quot;J. S. Bach&quot;
  • 19. DC.Title = &quot;The Well Tempered Clavier&quot;
  • 20. abstract audience contributor creator description publisher rightsHolder ...and many more Often called a vocabulary or taxonomy
  • 21. <html> <head> <title> Bach: The Well Tempered Clavier </title> <meta name=&quot; DC.Title &quot; content=&quot;The Well Tempered Clavier&quot; /> <meta name=&quot; DC.Creator &quot; content=&quot;J. S. Bach&quot; /> </head> <body> ... </body> </html>
  • 22. <html> <head> <title> An introduction to RDF </title> <meta name=&quot; title &quot; content=&quot;Introduction to RDF&quot; /> <meta name=&quot; author &quot; content=&quot;Mark Birbeck&quot; /> </head> <body> ... </body> </html>
  • 23. <html> <head> <title> An introduction to RDF </title> <meta name=&quot; DC.Title &quot; content=&quot;Introduction to RDF&quot; /> <meta name=&quot; DC.Creator &quot; content=&quot;Mark Birbeck&quot; /> </head> <body> ... </body> </html>
  • 24. <music genre=&quot;classical&quot;> <title> The Well-tempered Clavier </title> <composer>J. S. Bach</composer> </music> <document type=&quot;classical music&quot;> <name> The Well-tempered Clavier </name> <author>J. S. Bach</author> </document>
  • 25. <music genre=&quot;classical&quot;> <title> The Well-tempered Clavier </title> < dc:creator >J. S. Bach</ dc:creator > </music> <document type=&quot;classical music&quot;> <name> The Well-tempered Clavier </name> < dc:creator >J. S. Bach</ dc:creator > </document>
  • 26. Recap XML doesn't help Having unique identifiers does
  • 27. Unique identifiers are a key concept in RDF
  • 30. Resource Description Framework

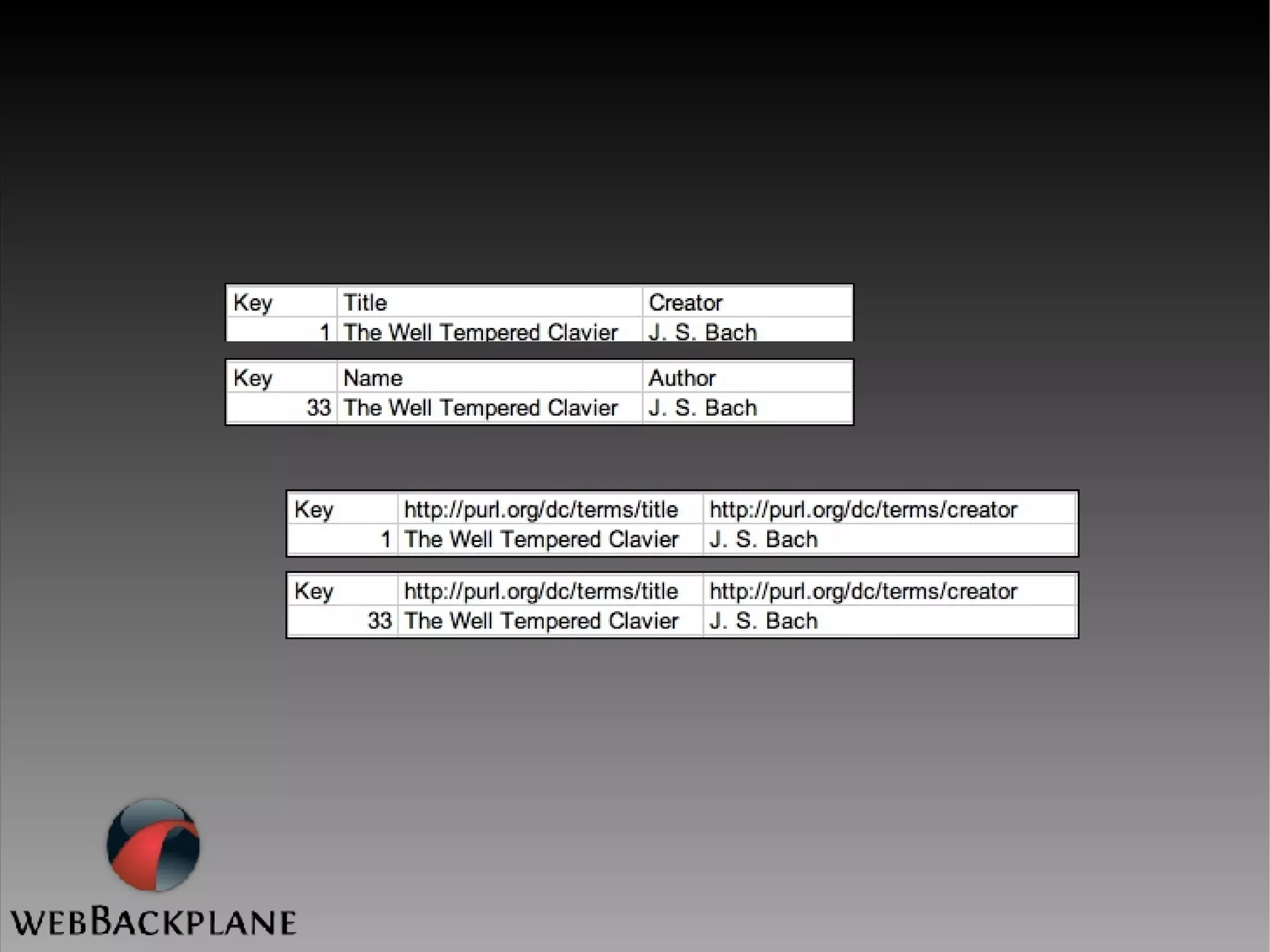

  • 32.

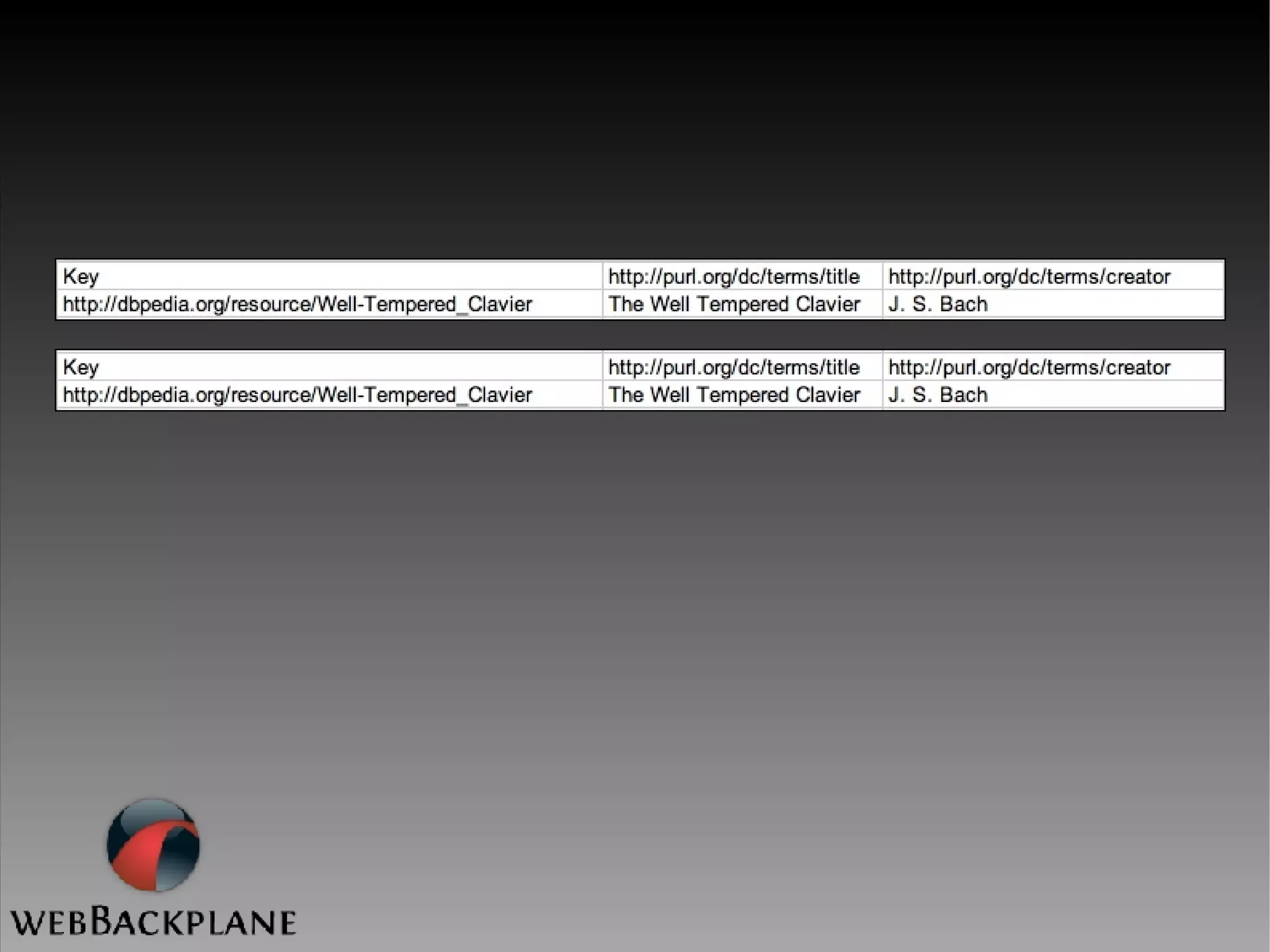

  • 33.

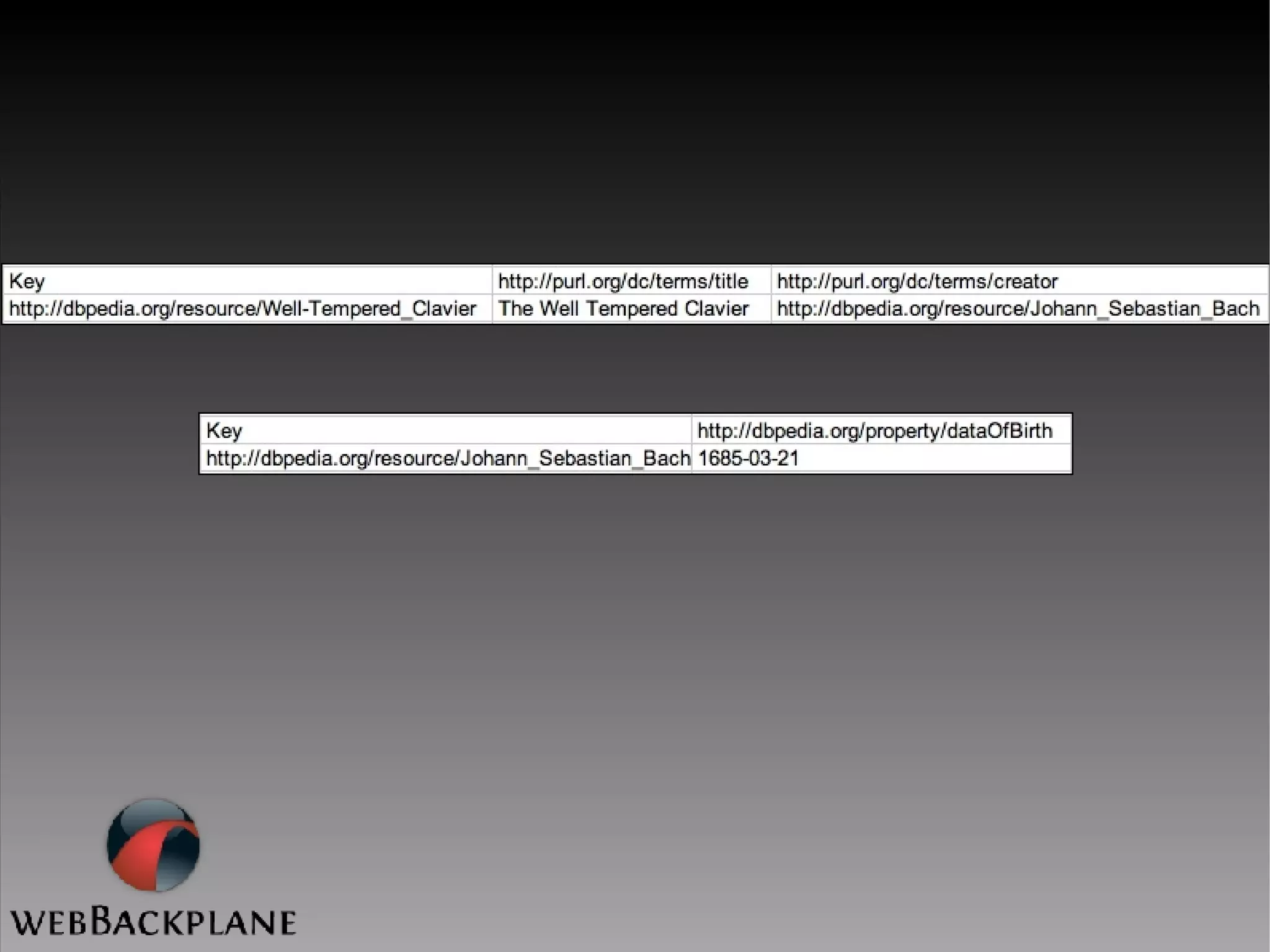

  • 34.
  • 35. Recap Resources and unique identifiers are fundamental for RDF: http://purl.org/dc/terms/creator http://purl.org/dc/terms/title http://dbpedia.org/resource/Johann_Sebastian_Bach http://dbpedia.org/resource/Well-Tempered_Clavier
  • 37. <html> <head> <title> Bach: The Well Tempered Clavier </title> <meta name=&quot; DC.Title &quot; content=&quot;The Well Tempered Clavier&quot; /> <meta name=&quot; DC.Creator &quot; content=&quot;J. S. Bach&quot; /> </head> <body> ... </body> </html>

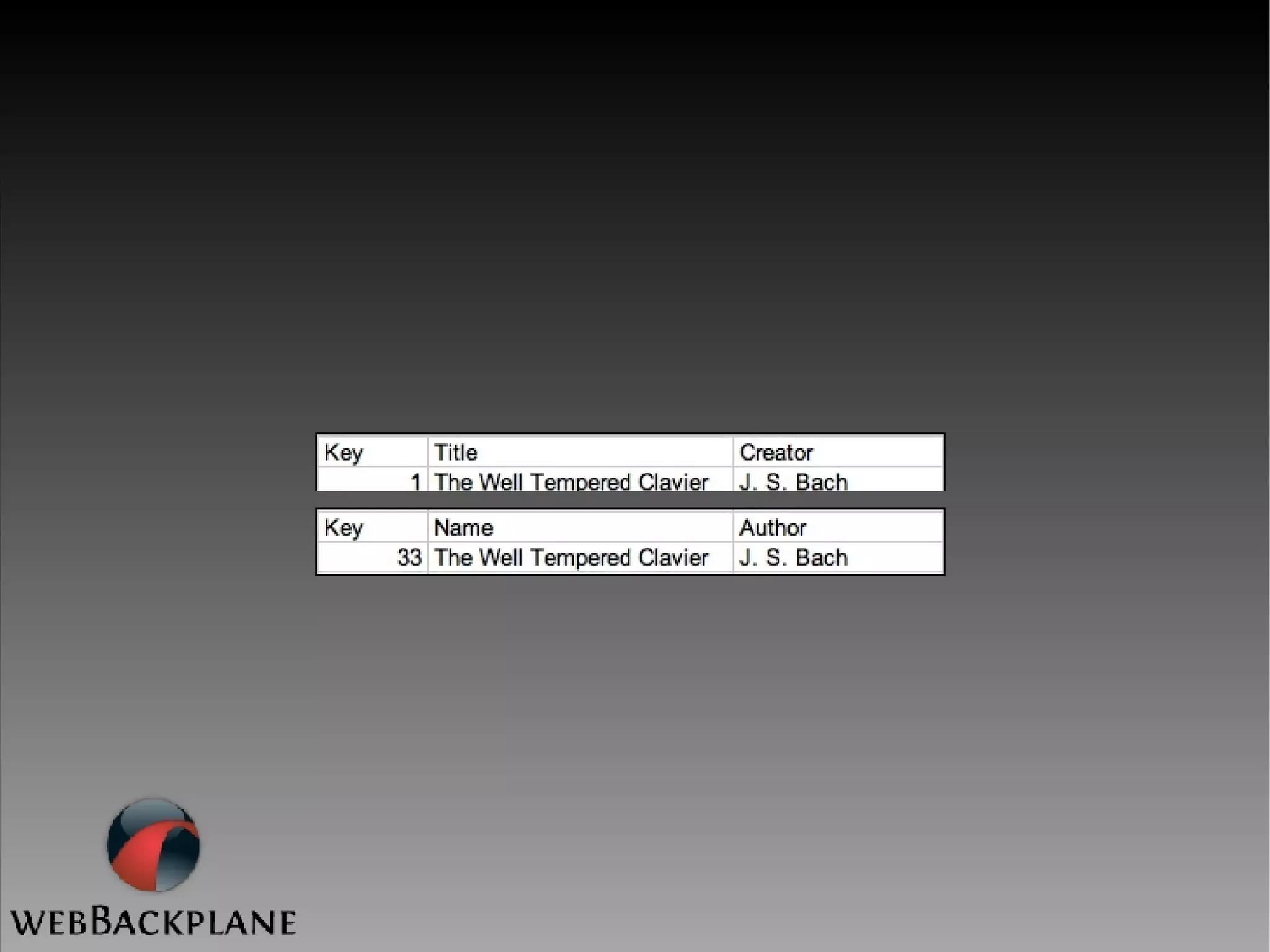

  • 38.
  • 39. var piece = { title : &quot;The Well-tempered Clavier&quot;, creator : &quot;J. S. Bach&quot; };
  • 40. Triples are sometimes called statements: J. S. Bach composed &quot;The Well Tempered Clavier&quot;. J. S. Bach was born on 21 st March, 1685. J. S. Bach died on 28 th July, 1750.
  • 41. The parts of a triple
  • 42. Subject A URI: http://dbpedia.org/resource/Johann_Sebastian_Bach
  • 43. Predicate Also a URI: http://purl.org/dc/terms/creator
  • 44. Object Literal or URI: &quot;Johann Sebastian Bach&quot; http://dbpedia.org/resource/Well-Tempered_Clavier
  • 45. Plain literals Essentially strings: &quot;Johann Sebastian Bach&quot; &quot;The Well-Tempered Clavier&quot;
  • 46. Plain literals But can contain language information: &quot;Johann Sebastian Bach&quot;@en &quot;Бах, Иоганн Себастьян&quot;@ru &quot;The Well-Tempered Clavier&quot;@en &quot;Wohltemperiertes Klavie&quot;@de
  • 47. Typed literals And a datatype: &quot;1685-03-21&quot;^^xsd:date &quot;1750-07-28&quot;^^xsd:date
  • 49. Recap J. S. Bach composed &quot;The Well Tempered Clavier&quot;. J. S. Bach was born on 21 st March, 1685 J. S. Bach died on 28 th July, 1750.
  • 50. Recap J. S. Bach composed &quot;The Well Tempered Clavier&quot;. J. S. Bach was born on 21 st March, 1685 J. S. Bach died on 28 th July, 1750. <http://dbpedia.org/resource/Johann_Sebastian_Bach> dc:creator <http://dbpedia.org/resource/Well-Tempered_Clavier> . <http://dbpedia.org/resource/Well-Tempered_Clavier> dc:title &quot;The Well Tempered Clavier&quot;@en . <http://dbpedia.org/resource/Well-Tempered_Clavier> dc:title &quot;Wohltemperiertes Klavie&quot;@de .
  • 51. Recap J. S. Bach composed &quot;The Well Tempered Clavier&quot;. J. S. Bach was born on 21 st March, 1685 J. S. Bach died on 28 th July, 1750. <http://dbpedia.org/resource/Johann_Sebastian_Bach> p:dateOfBirth &quot;1685-03-21&quot;^^xsd:date .
  • 52. Recap J. S. Bach composed &quot;The Well Tempered Clavier&quot;. J. S. Bach was born on 21 st March, 1685 J. S. Bach died on 28 th July, 1750. <http://dbpedia.org/resource/Johann_Sebastian_Bach> p:dateOfDeath &quot;1750-07-28&quot;^^xsd:date .
  • 54. The Well Tempered Clavier Wohltemperiertes Klavie dc:title dc:title 1685-03-21 1750-07-28 p:dateOfBirth p:dateOfDeath dc:creator
  • 56. <http://dbpedia.org/resource/Johann_Sebastian_Bach> rdf:type yago:Composer . <http://dbpedia.org/resource/Johann_Sebastian_Bach> rdf:type foaf:Person .
  • 57. Lists
  • 58. Performed by Performed by dc:creator Performed by dc:creator rdf:Bag rdf:type
  • 61. RDF/XML <rdf:RDF> <yago:Composer109947232 rdf:about=&quot;http://[...]/Johann_Sebastian_Bach&quot; > <p:birthPlace rdf:resource=&quot;http://[...]/Eisenach&quot; /> <p:dateOfDeath rdf:datatype=&quot;http://[...]/XMLSchema#date&quot; >1750-07-28</p:dateOfDeath> </yago:Composer109947232> </rdf:RDF>
  • 62. Turtle dbpedia:Johann_Sebastian_Bach p:dateOfBirth &quot;1685-03-21&quot;^^xsd:date; p:dateOfDeath &quot;1750-07-28&quot;^^xsd:date; p:death &quot;1750-07-28&quot;^^xsd:date; p:deathPlace dbpedia:Leipzig; a yago:Composer, foaf:Person .
  • 63. RDFa <html> <head> <title> Johann Sebastian Bach </title> < link rel =&quot;dc:creator&quot; href =&quot;http://[...]/Well-Tempered_Clavier&quot; /> <meta property=&quot;p:dateOfBirth&quot; content =&quot;1685-03-21&quot; datatype =&quot;xsd:date&quot; /> </head> <body> ... </body> </html>
  • 64. RDFa <html> <head> ... </head> <body> <span property=&quot;foaf:name&quot;> Johann Sebastian Bach </span> was born in <span property=&quot;p:dateOfBirth&quot; content=&quot;1685-03-21&quot; datatype=&quot;xsd:date&quot; > 1685 </span> , in <span rel=&quot;p:placeOfBirth&quot; resource=&quot; [dbp:Eisenach] &quot;> Eisenach </span>. </body> </html>
  • 68. SELECT ?composer WHERE { ?composer rdf:type yago:Composer }
  • 69. SELECT ?composer WHERE { ?composer rdf:type yago:Composer } <http://dbpedia.org/resource/Johann_Sebastian_Bach> <http://dbpedia.org/resource/Ludwig_van_Beethoven>
  • 70. SELECT ?piece WHERE { dbpr: Johann_Sebastian_Bach dc:creator ?piece } <http://dbpedia.org/resource/Well-Tempered_Clavier> <http://dbpedia.org/resource/Cello_Suites_%28Bach%29>
  • 73. Composer Musician Is a type of Artist Is a type of Creator Is a type of
  • 74. yago:Composer a rdfs:Class .
  • 75. yago:Composer a rdfs:Class . yago:Composer rdfs:subClassOf yago:Musician . yago:Musician rdfs:subClassOf yago:Artist . yago:Artist rdfs:subClassOf yago:Creator .
  • 76. yago:Composer a rdfs:Class . yago:Composer rdfs:subClassOf yago:Musician . yago:Musician rdfs:subClassOf yago:Artist . yago:Artist rdfs:subClassOf yago:Creator . dbpedia:Johann_Sebastian_Bach a yago:Composer , foaf:Person .
  • 77. SELECT ?composer WHERE { ?composer rdf:type yago:Composer } <http://dbpedia.org/resource/Johann_Sebastian_Bach> <http://dbpedia.org/resource/Ludwig_van_Beethoven>
  • 78. SELECT ?s WHERE { ?s rdf:type yago:Artist } <http://dbpedia.org/resource/Johann_Sebastian_Bach> <http://dbpedia.org/resource/Ludwig_van_Beethoven>
  • 80. foaf:surname a rdfs:Property .
  • 81. foaf:surname a rdfs:Property . foaf:surname rdfs:Range rdfs:Literal .
  • 82. foaf:surname a rdfs:Property . foaf:surname rdfs:Range rdfs:Literal . foaf:surname rdfs:Domain foaf:Person .
  • 84. foaf:surname a rdfs:Property . foaf:surname rdfs:Range rdfs:Literal . foaf:surname rdfs:Domain foaf:Person . dbpedia:Johann_Sebastian_Bach foaf:surname &quot;Bach&quot; . dbpedia:Johann_Sebastian_Bach a foaf:Person .
  • 85. xyz:composedBy a rdfs:Property . xyz:composedBy rdfs:Range yago:Composer . xyz:composedBy rdfs:Domain yago:Piece . dbp:Cello_Suites_%28Bach%29 xyz:composedBy dbp:Johann_Sebastian_Bach . dbp:Johann_Sebastian_Bach a yago:Composer .
  • 86. xyz:composedBy a rdfs:Property . xyz:composedBy rdfs:Range yago:Composer . xyz:composedBy rdfs:Domain yago:Piece . xyz:composedBy rdfs :subPropertyOf dc:creator .
  • 87. OWL
  • 89. References RDF Primer: http://www.w3.org/TR/rdf-primer/ RDF Schema: http://www.w3.org/TR/rdf-schema/ OWL: http://www.w3.org/2004/OWL/
