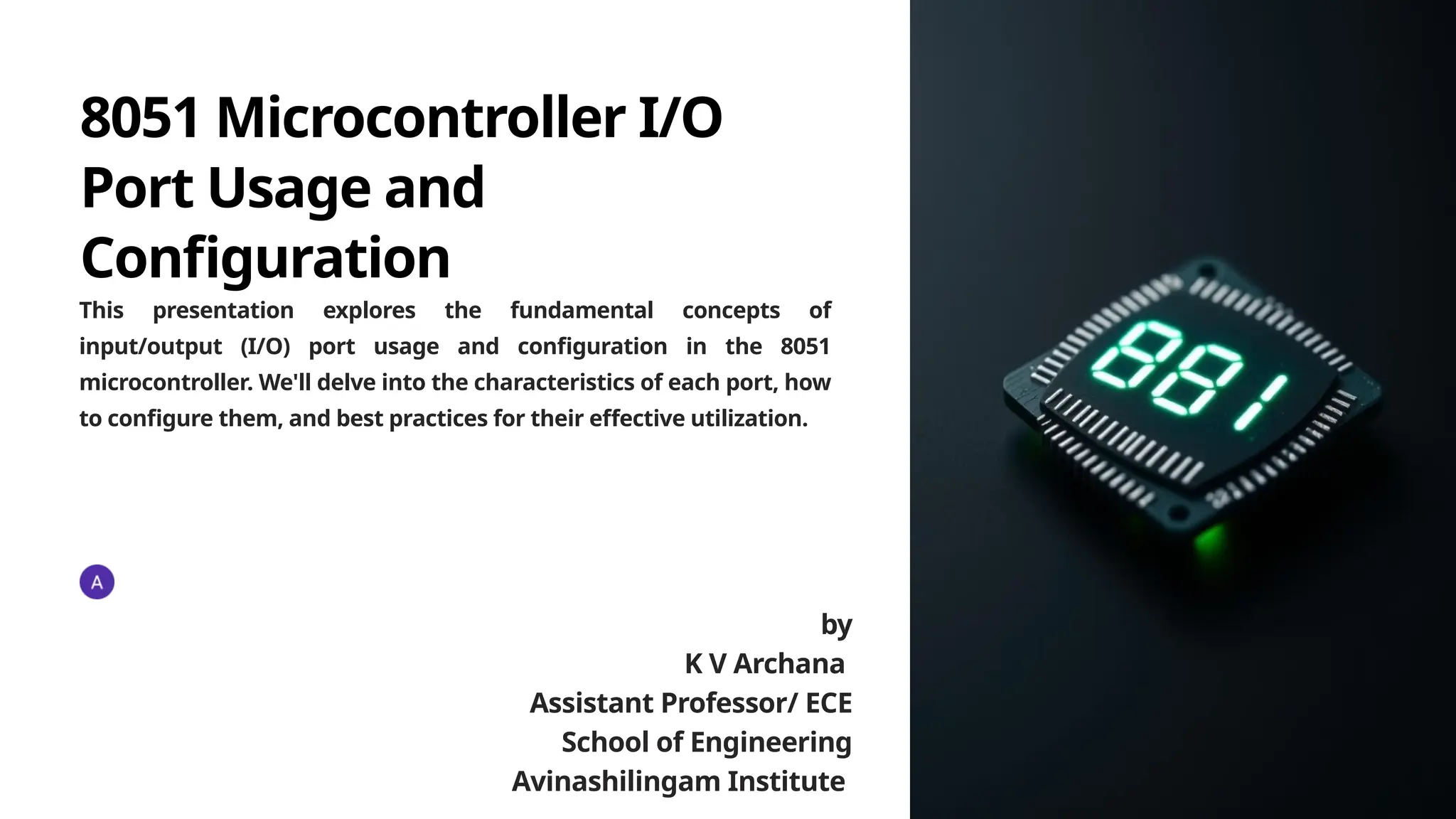

8051 Microcontroller I/O
Port Usage and
Configuration
This presentation explores the fundamental concepts of
input/output (I/O) port usage and configuration in the 8051
microcontroller. We'll delve into the characteristics of each port, how
to configure them, and best practices for their effective utilization.
by
K V Archana
Assistant Professor/ ECE
School of Engineering
Avinashilingam Institute

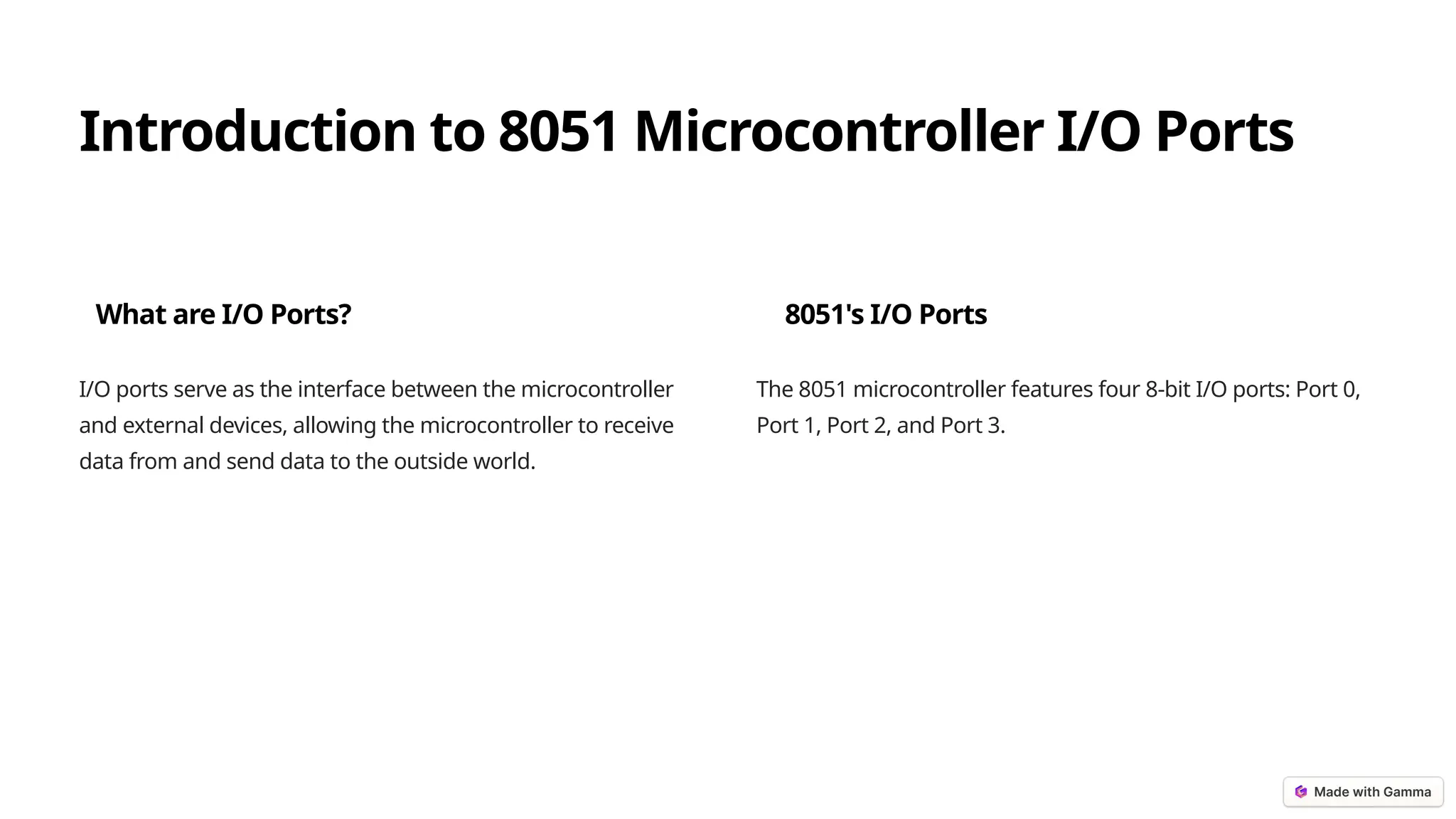

Introduction to 8051 Microcontroller I/O Ports
What are I/O Ports?
I/O ports serve as the interface between the microcontroller
and external devices, allowing the microcontroller to receive
data from and send data to the outside world.
8051's I/O Ports
The 8051 microcontroller features four 8-bit I/O ports: Port 0,
Port 1, Port 2, and Port 3.

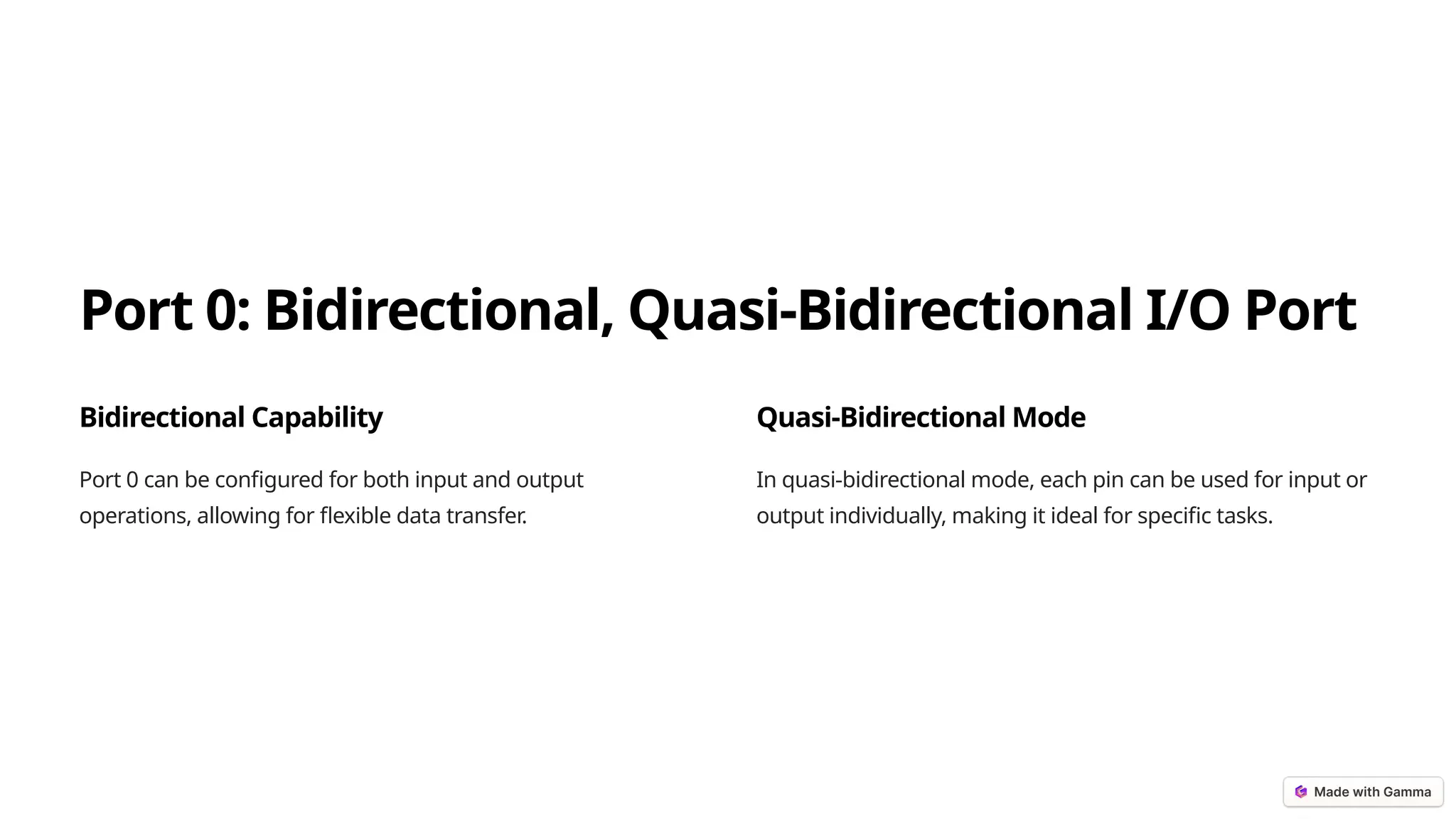

Port 0: Bidirectional, Quasi-Bidirectional I/O Port
Bidirectional Capability
Port 0 can be configured for both input and output
operations, allowing for flexible data transfer.
Quasi-Bidirectional Mode
In quasi-bidirectional mode, each pin can be used for input or
output individually, making it ideal for specific tasks.

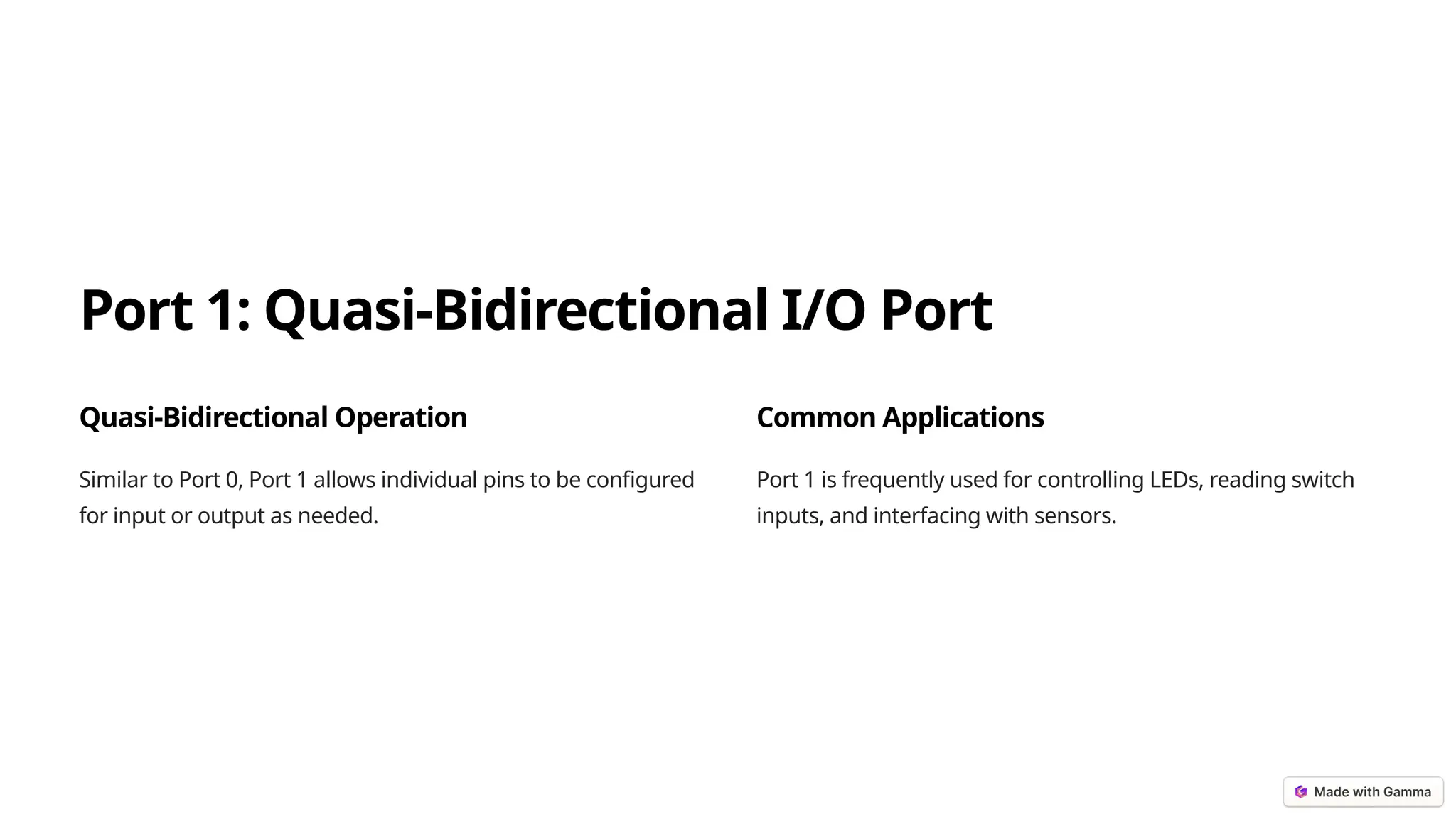

Port 1: Quasi-Bidirectional I/O Port
Quasi-Bidirectional Operation
Similar to Port 0, Port 1 allows individual pins to be configured
for input or output as needed.
Common Applications
Port 1 is frequently used for controlling LEDs, reading switch
inputs, and interfacing with sensors.

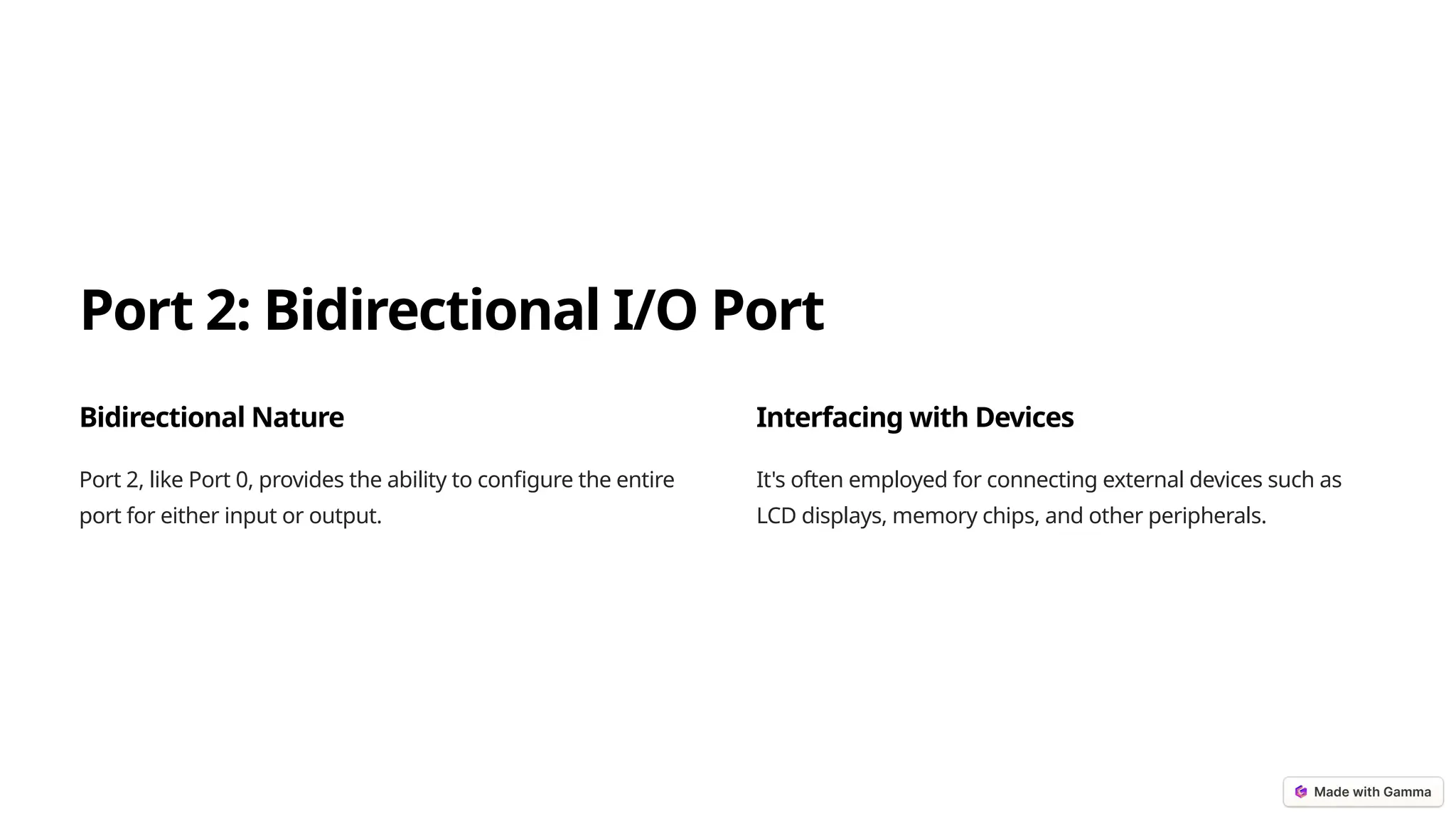

Port 2: Bidirectional I/O Port
Bidirectional Nature
Port 2, like Port 0, provides the ability to configure the entire
port for either input or output.
Interfacing with Devices
It's often employed for connecting external devices such as
LCD displays, memory chips, and other peripherals.

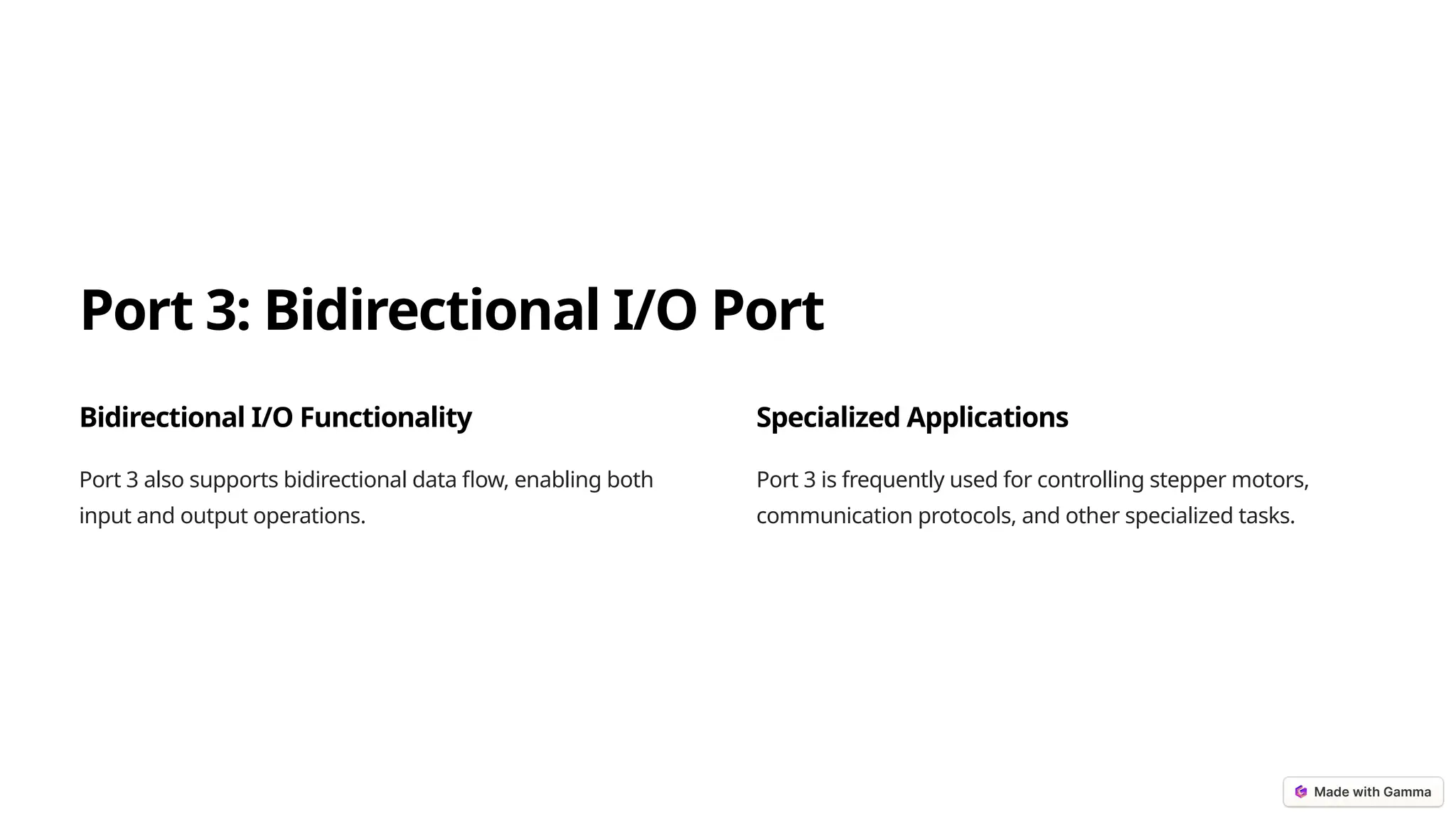

Port 3: Bidirectional I/O Port
Bidirectional I/O Functionality
Port 3 also supports bidirectional data flow, enabling both
input and output operations.
Specialized Applications
Port 3 is frequently used for controlling stepper motors,
communication protocols, and other specialized tasks.

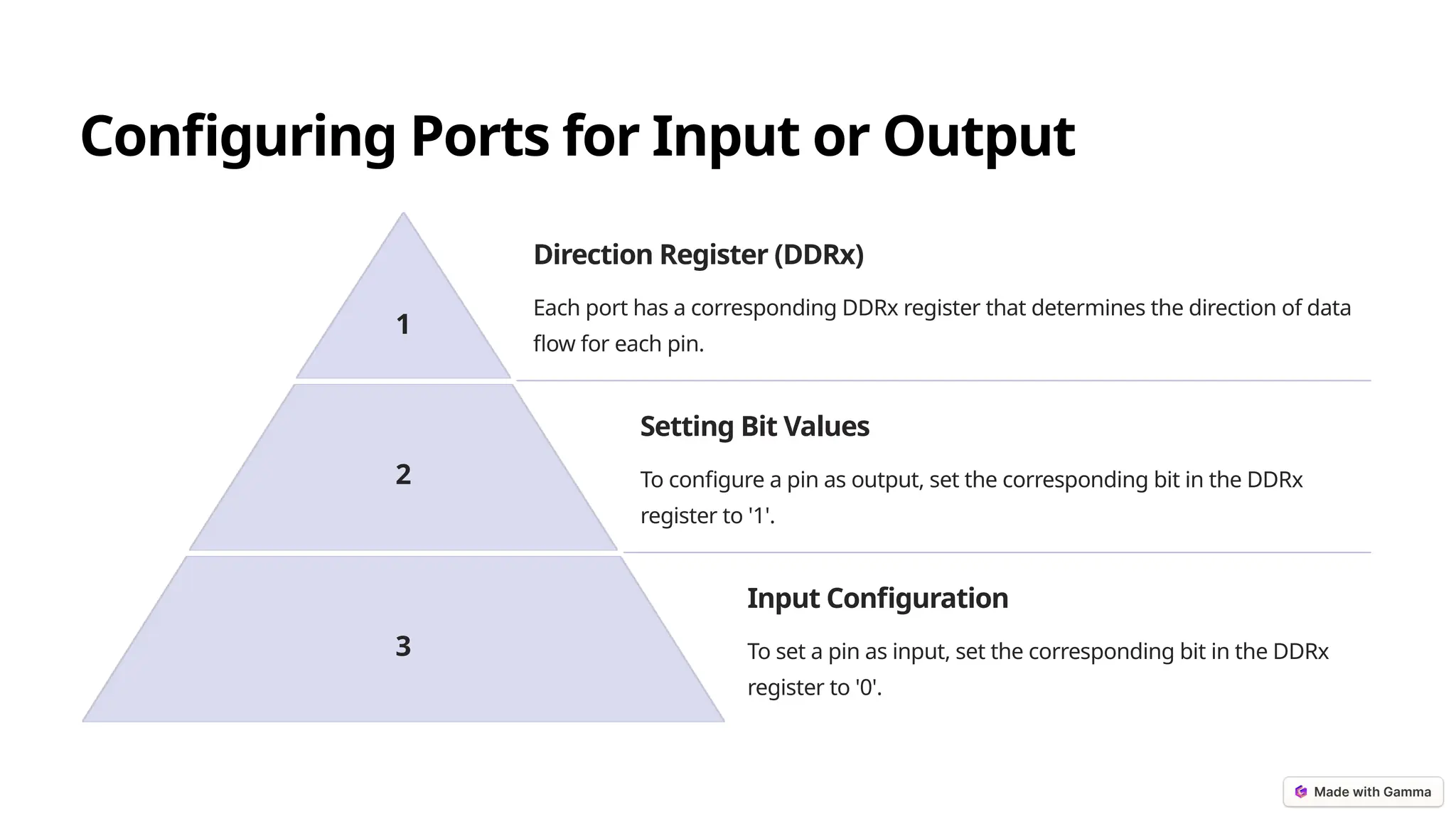

Configuring Ports for Input or Output
1
Direction Register (DDRx)
Each port has a corresponding DDRx register that determines the direction of data
flow for each pin.
2
Setting Bit Values
To configure a pin as output, set the corresponding bit in the DDRx
register to '1'.
3
Input Configuration
To set a pin as input, set the corresponding bit in the DDRx
register to '0'.

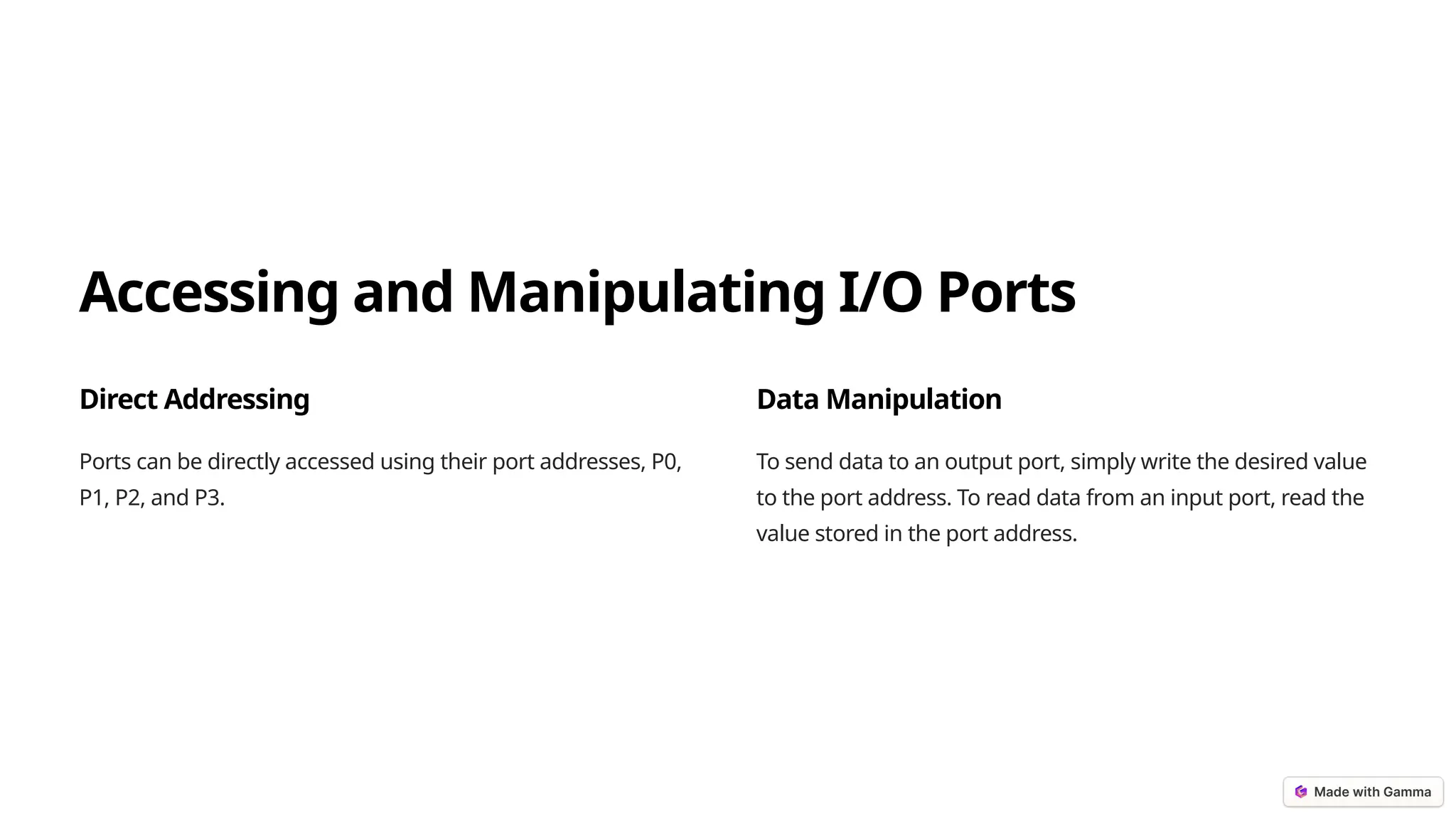

Accessing and Manipulating I/O Ports
Direct Addressing
Ports can be directly accessed using their port addresses, P0,
P1, P2, and P3.
Data Manipulation
To send data to an output port, simply write the desired value
to the port address. To read data from an input port, read the
value stored in the port address.

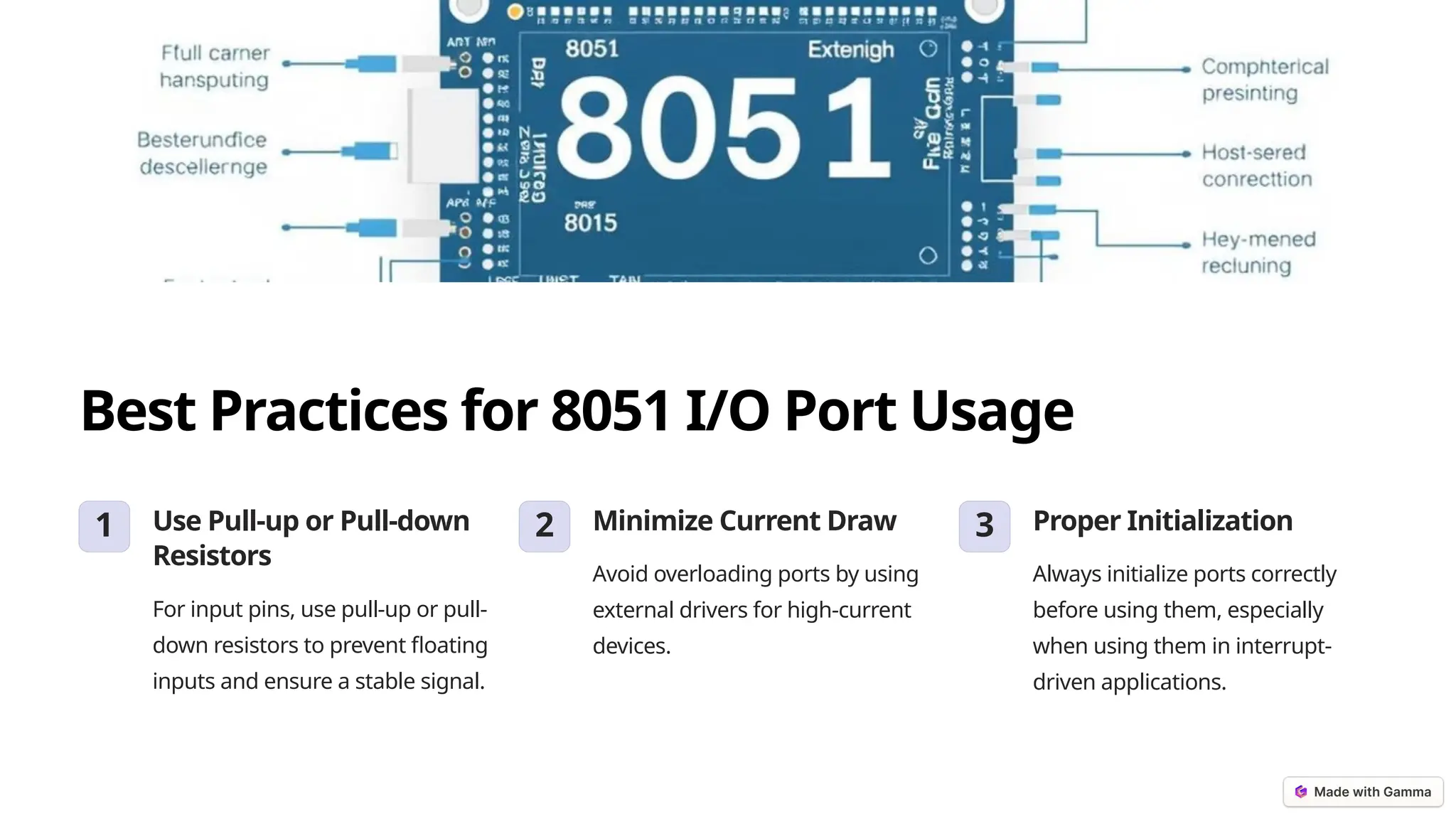

Best Practices for 8051 I/O Port Usage
1 Use Pull-up or Pull-down
Resistors
For input pins, use pull-up or pull-
down resistors to prevent floating
inputs and ensure a stable signal.
2 Minimize Current Draw
Avoid overloading ports by using
external drivers for high-current
devices.
3 Proper Initialization
Always initialize ports correctly
before using them, especially
when using them in interrupt-
driven applications.

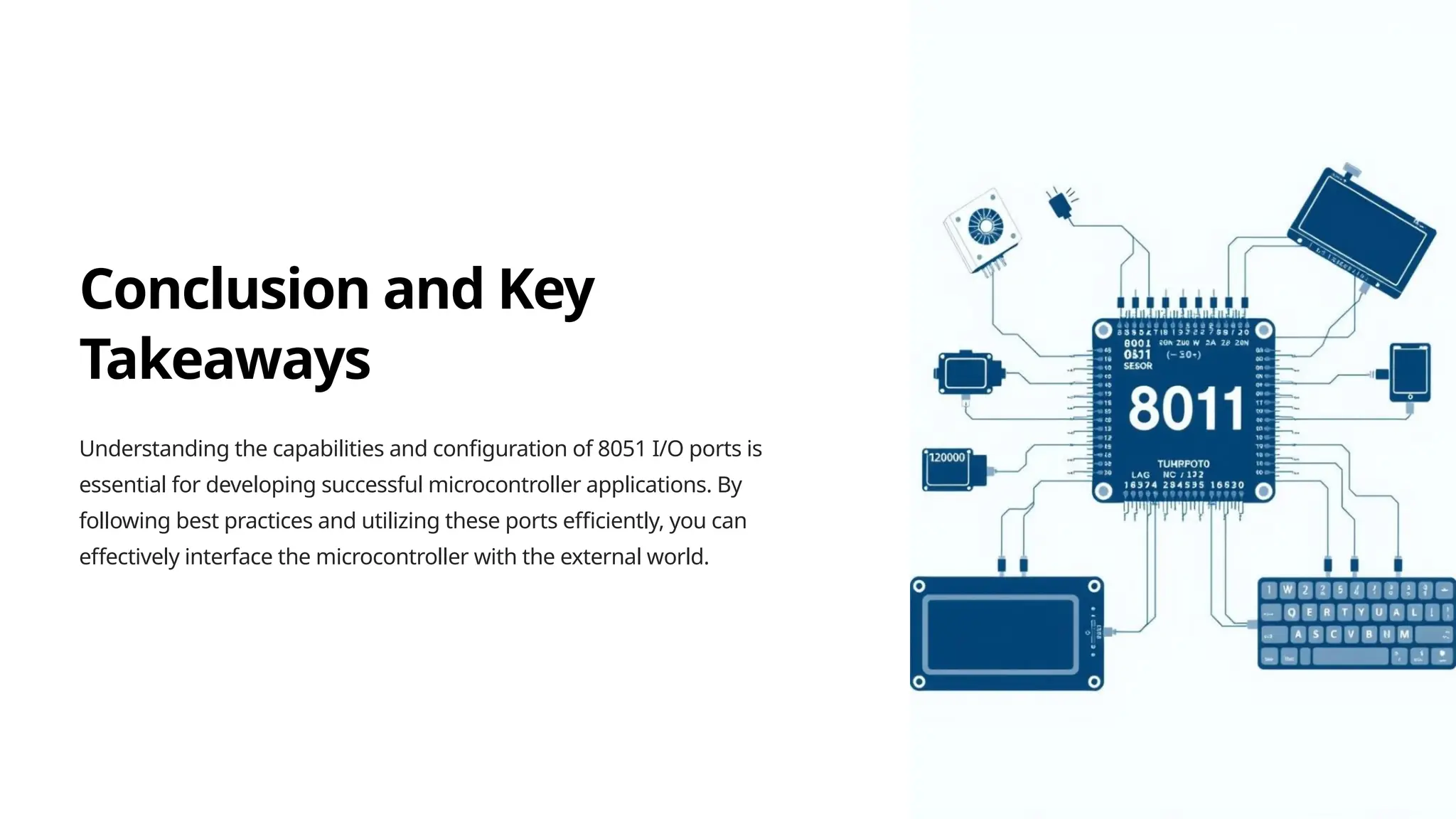

Conclusion and Key
Takeaways
Understanding the capabilities and configuration of 8051 I/O ports is
essential for developing successful microcontroller applications. By
following best practices and utilizing these ports efficiently, you can
effectively interface the microcontroller with the external world.
